DT8035 DUAL TEC® Motion Sensor - Installation Instructions
QUICK LINKS
Mounting Location Guidelines
Open the Sensor
Mount the Sensor

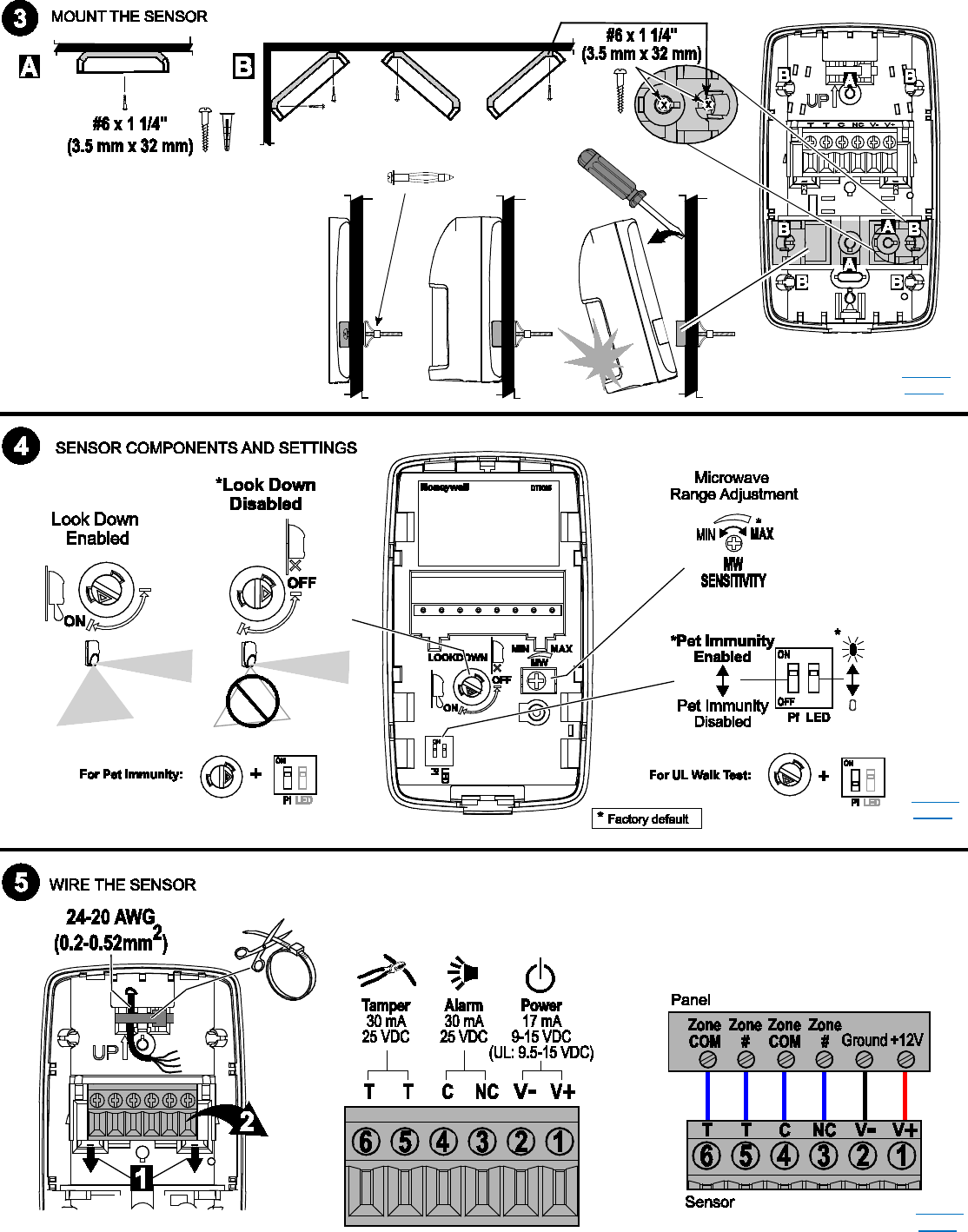

Sensor Components and Settings
Wire the Sensor
Walk Test the Sensor
Detection Patterns
Relay Operation
Troubleshooting
Sensor Specifications
Accessories
Approval / Listings

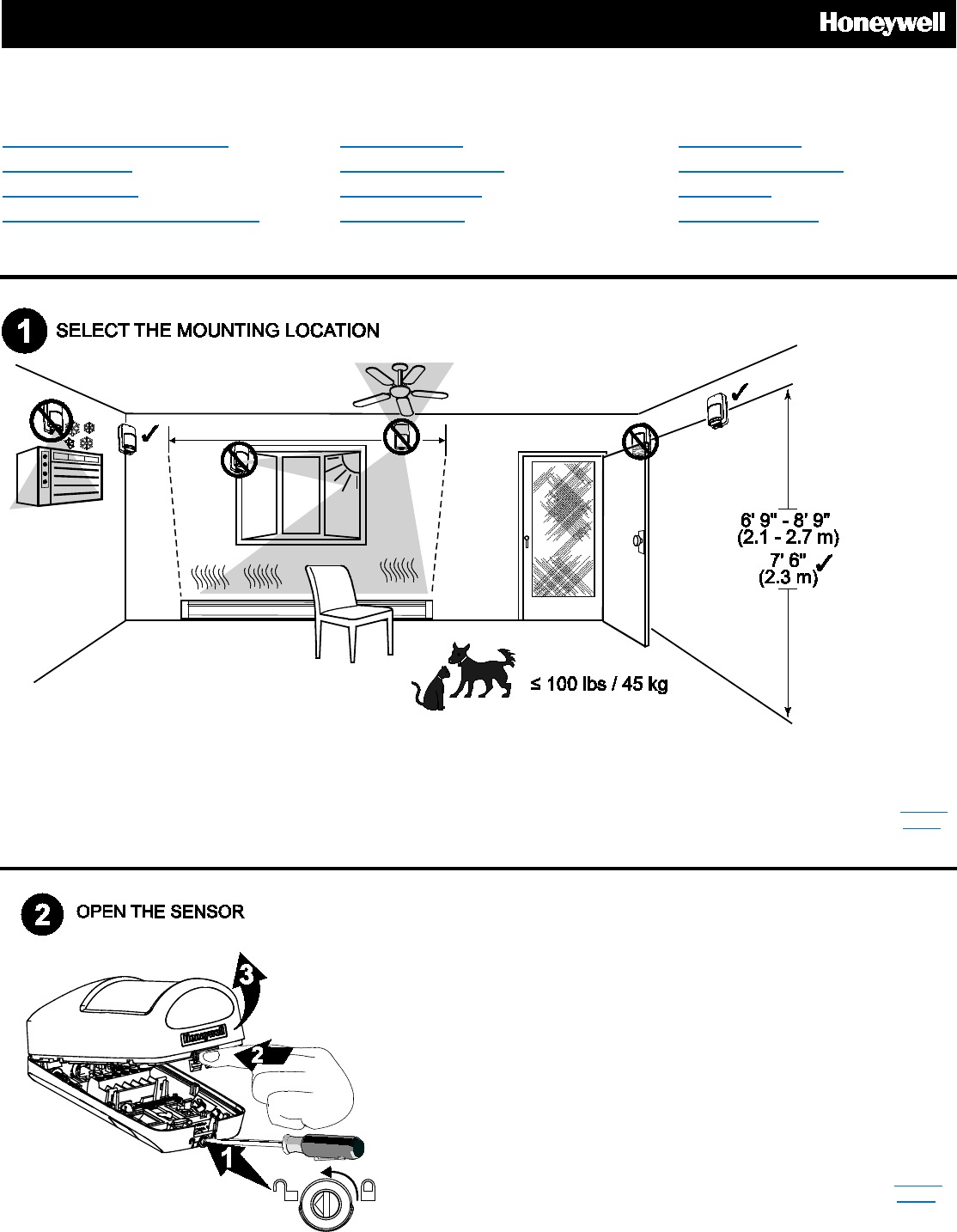

Mounting location guidelines:
• The optimal range is obtained at a
mounting height of 7’ 6” (2.3 m).
• Allow a clear line-of-sight to all areas to protect.
• Do not directly face windows.
• Avoid close proximity to moving machinery, fluorescent lights, and heating/cooling sources.
• For use in applications with pets up to 100 pounds.
1. Turn the arrow to point to the Unlock symbol.
2. Press firmly on housing latch.
3. Gently separate the front and rear housing.
↑ Top
↑ Top
DRAFT - INSTALLATION INSTRUCTIONS - English (for Website) - 01/07/14
- 3 -
LED
Power
Up Walk Test Normal Trouble
Red
Slow
Blink
ON
Alarm
ON
Alarm
Fast
Blink
Yellow OFF
ON
Microwave
ON
Microwave
OFF
Green OFF
ON
PIR
ON
PIR OFF
Zones
A
2
Look-down
B
18
Lower
C
46
Intermediate
D
36
Long

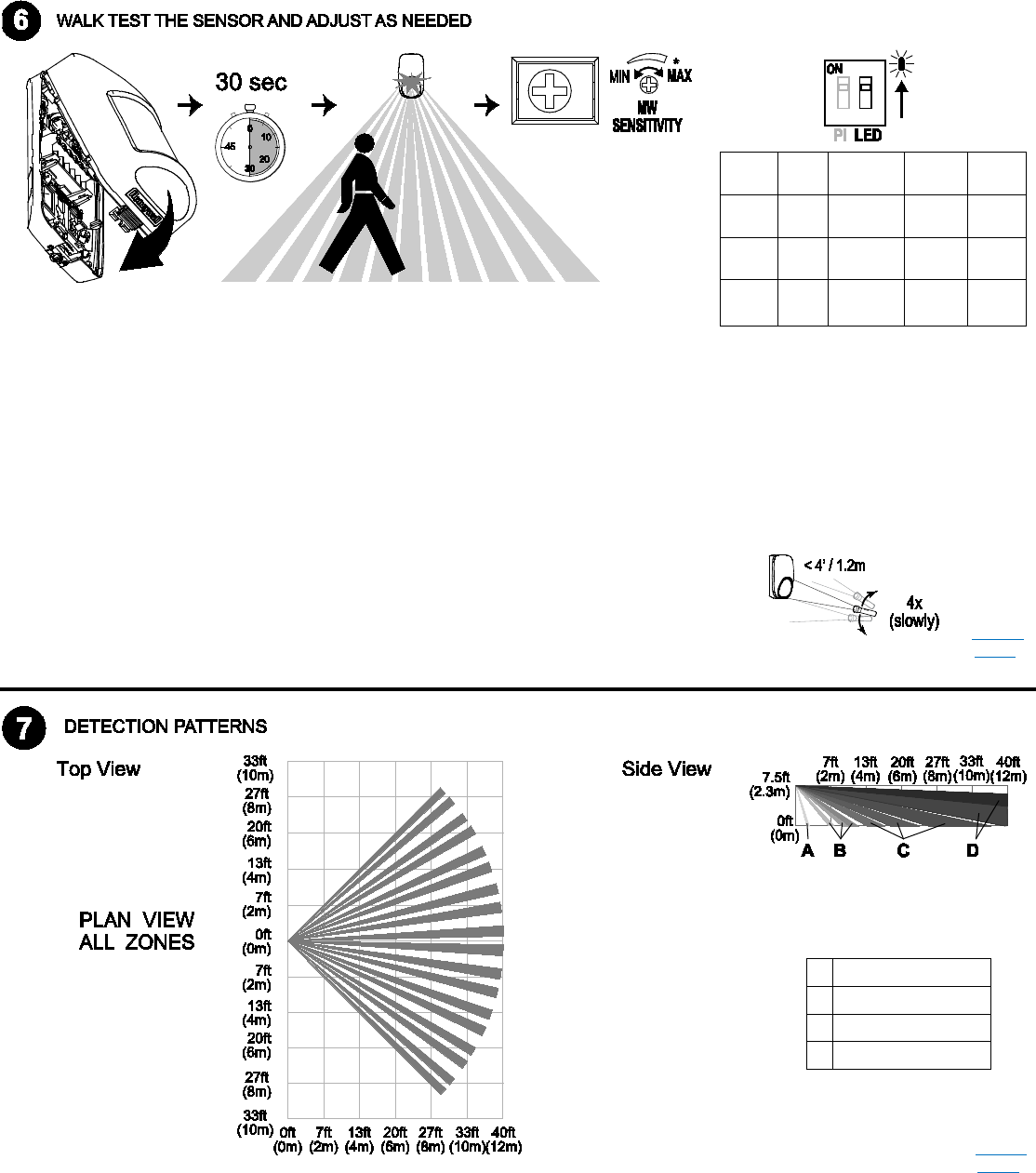

1. Close the sensor and apply power to the sensor. Initialization is complete when the LED stops flashing slowly
(about 30 seconds).
2. Walk through the detection area and observe the LED.
3. Adjust the microwave range as necessary to meet installation requirements.
Walk test mode is active for 10 minutes, then automatically exits test mode, disables the LED and enters normal
operation mode. For an additional 10 minute walk test, enable Walk Test mode again with the Flashlight feature:
Note: In Walk Test mode the LED is active regardless of the LED Enable/Disable Dip switch setting.
Flashlight Feature:
1. Use a flashlight with a bright light beam, and stand within 4’ (1.2 m) of the sensor.
2. Swing past the light beam across the sensor IR window 3-5 times, holding the beam
on the window for 0.5 second each pass.
The flashlight feature is only available for the first 24 hours after installation.
↑ Top
↑ Top
- 4 -
RELAY OPERATION
SENSOR STATUS
Normal
Intrusion
Trouble1
Alarm Relay
Closed
Open
Open
1 For information on Trouble conditions, see the Troubleshooting section.
TROUBLESHOOTING
TROUBLE*
NORMAL
Self-Test Failure1
Alarm Relay
Closed
Closed
Red LED
Off
Flashing
*TROUBLE CONDITIONS:
1 Self-Test Failure conditions:
• Microwave supervision failure: The sensor is operating in PIR mode only.
• PIR self-test failure: The sensor is disabled.
• Temperature compensation failure: The temperature compensation is
disabled.
Depending on the Trouble condition, take the following corrective actions:
• Verify the power supply is sufficient (at least 9V at the sensor).
• Cycle power to the sensor.
• Walk test the sensor.
If the Trouble condition does not clear, replace the sensor.
SPECIFICATIONS
Range: 40’ x 60’ / 12 m x 20 m
Power: 9.0 - 15 VDC; 15 mA typical, 17 mA maximum, 12 VDC;
AC Ripple: 3 V peak-to-peak at nominal 12 VDC
Alarm Relay: Energized Form A; 30 mA, 25 VDC, 22 Ohms resistance
maximum. Alarm Relay Duration: 3 seconds
Tampers: Cover & Wall; (NC with cover installed) Form A;
30 mA, 25 VDC
Microwave Frequencies: 10.525 GHz
RFI Immunity: 20V/m 10-1000MHz, 15V/m 1000-2700MHz
PIR White Light Immunity: 6,500 Lux typical
Fluorescent light filter: 50 Hz / 60 Hz.
Operating Temperature: 14° to 131° F / -10° to 55° C
Relative Humidity: 5 to 95%; non-condensing
Temperature Compensation: Advanced Dual Slope
Dimensions: 4.57” H x 2.76” W x 1.69” D /
9.8 cm H x 5.7 cm W x 4.35 cm D
Weight: 3.6 oz / 102 g (net weight)
ACCESSORIES
SMB-10
(P/N 0-000-110-01) Swivel Mount Bracket
SMB-10C
(P/N 0-000-111-01) Swivel Mount Ceiling Bracket
SMB-10T
(P/N 0-000-155-01) Swivel Mount Bracket w/Tamper
DT8-G2 Lens Kit
(P/N DT8G2LENS5PK)
Replacement Fresnel Lens Kit – 5
Pack
APPROVAL / LISTINGS:
• FCC part 15, Class B verified
• IC ICES-003, Class B verified
• UL 639
• ULC S306-03
• SIA-PIR-01 Passive Infrared detector standard features for
false alarm immunity.
Product must be tested at least once each year.
For appropriate wiring methods, refer to the National Electrical
Code NFPA 70 and the Canadian Electrical Code (where
applicable).
Power must be provided by a power-limited UL603 Listed
burglar alarm power supply with minimum 4 hours of standby
power capability, or from a power-limited output of a UL Listed
burglar alarm control unit with minimum 4 hours of standby
power capability.
Accessories not evaluated by UL. For UL applications, enable
look down and disable pet immunity.
For the latest documentation and online support information, please go to:
http://www.security.honeywell.com/hsc/resources/MyWebTech/
For the latest U.S. warranty information, please go to: www.honeywell.com/security/hsc/resources/wa or
Please contact your local authorized Honeywell representative for product warranty information.
2013 Honeywell International Inc. Honeywell and DUAL TEC are registered trademarks of Honeywell International Inc.
All other trademarks are the properties of their respective owners. All rights reserved. Made in China.
P/N 800-16553 12/13 Rev A
