Users Manual
![](/img.php?id=2866716&img=bg1.png)
Quick Start
EchoLife HG8245Q GPON Terminal
![](/img.php?id=2866716&img=bg2.png)
1
Safety Precautions
To use the device properly and safely, read the safety precautions carefully before using the device
and strictly observe these precautions when using the device.
Do not look directly into the optical port without eye protection.
Keep the device out of the reach of children as the components or accessories may be
swallowed.
The power supply voltage of the device must meet the requirements on the input voltage of the
device.
Do not use any power adapters that are not in the standard conguration. Otherwise, the
device may be abnormal or unsafe.
If the power adapter is damaged and its internal circuit is exposed due to man-made factors,
do not touch the exposed circuit, which may bring safety risks.
Prevent objects, such as metal, from entering the device through the heat dissipation hole.
Dry your hands before connecting or disconnecting cables. Stop the device and switch off the
power before connecting or disconnecting cables.
Switch off the power and disconnect all cables, including the power cable, optical ber, and
network cable, during periods of lightning activities. The socket-outlet shall be installed near
the power adapter and shall be easily accessible. Before use the power adapter, please check
no damage on the adapter.
Do not lead the strength member of the optical ber or other metal parts indoors. Do not install
telephone lines, network cables, power adapters or power adapter cables outdoors. Adopting
these measures will help prevent device damage and bodily injuries which are especially prone
during thunderstorms.
Install the device according to the requirements of the manufacturer. To be specic, reserve
at least 10 cm for heat dissipation at the top and four sides of the device, keep the device
away from ammable objects, highly magnetic or electric devices, such as microwave ovens,
refrigerators, and mobile phones.
Do not place any object on the device, so that the device will not be damaged due to
overheating or deformation.
If an abnormality occurs, for example, liquid entering the device, smoke, unusual sound,
and smell, stop the device immediately, switch off the power, disconnect all cables (such as
the power cable, optical cable, and network cable) to the device, and contact the authorized
service center.
Do not disassemble the device without permission. In the case of a device fault, contact the
authorized service center.
Dispose of the packing materials, expired batteries, and old or abandoned devices in
accordance to local laws and regulations (recycling them is strongly recommended).
Do not change the structure, safety design, or performance design of the device without prior
authorization.
Safety precautions:
Fireproof precautions:
Keep the device away from large heat source equipment, bare ames, and high-power devices,
such as electric heaters, candles, and blow drier, to eliminate safety risks.
If there are aged cables or power socket facilities on the power supply line to or near the
device, replace them in time to eliminate safety risks. The power supply voltage of the device
must meet the input voltage requirement.
![](/img.php?id=2866716&img=bg3.png)

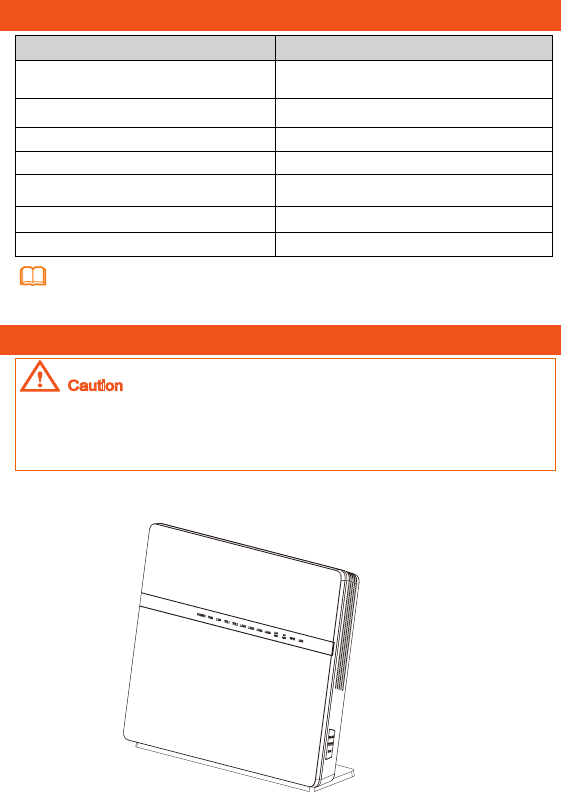

Technical Specications
Item Specications
Dimensions (L x W x H) 230 mm x 190 mm x 30 mm(excluding the
support)
Weight (including the power adapter) About 500g
Power supply See the nameplate on the device.
Power adapter input 100-240 V AC, 50-60 Hz
Maximum power consumption ≤18.5 W
Ambient temperature 0ºC - +40ºC
Ambient humidity 5% RH -95% RH (non-condensing)
Installing the GPON Terminal
Caution
1. Do not install the GPON terminal outdoors or on the outdoor cabinet.
2. Do not install GPON terminal in other modes, such as the ceiling.
3.The terminal cannot be connected to other devices such as GPON
terminals, switch and router.
HG8245Q is equipped with a support by default. The following figure shows
a vertically-placed HG8245Q.
NOTE
The appearance shown in this document may be different from the actual appearance of the product.
The actual product provided by the carrier prevails.
2
![](/img.php?id=2866716&img=bg4.png)

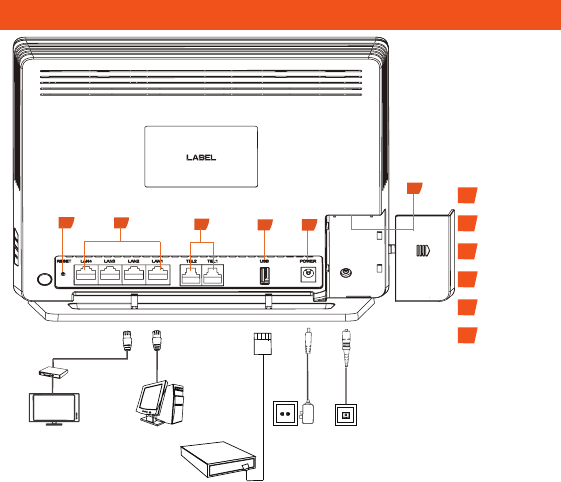

1Reset
2Ethernet port
3POTS port
4USB port
5Power port
6Optical port
Connecting Cables
3
2
1
5
4
Optical port
PC Power socket
USB storage device
3
6
IP STB
TV set
![](/img.php?id=2866716&img=bg5.png)
4

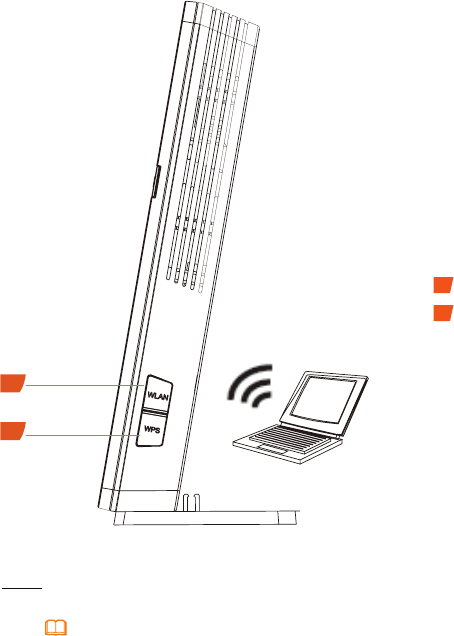

7 WLAN switch
8 WPS switch
Step 1 Use an optical fiber to connect the OPTICAL port on the GPON terminal to the
optical port in the wall.
NOTE
1.The type of the optical connector connected to the optical port in the wall is determined by
practical conditions.
2.To ensure normal use of bers, make sure that the ber bend radius is larger than 30 mm.
8
7
Wi-Fi terminal
![](/img.php?id=2866716&img=bg6.png)
5
Step 3 Use a phone line to connect the TEL port to a phone or fax machine.
Step 4 Use a USB data cable to connect the USB port to the USB storage device.
Step 5Use a power adapter to connect the POWER port to the power socket.
Step 6 Press the WLAN switch to enable the Wi-Fi access function. By default, this
function is enabled.
Step 7 Press the WPS switch to enable the WPS encryption function.
NOTE
- If you do not perform any operations after logging in to the system for ve minutes, you will
exit the system and the system automatically returns to the login interface.
- The system will be locked if you input incorrect user name and password three consecutive
times. One minute later, it will be unlocked.
- Change the initial password after logging in to the web page.
Step 2 Use a network cable to connect the LAN port to a PC or the Ethernet port on
the IP STB.
NOTE
Before enabling the WPS encryption function of a GPON terminal, ensure that the function is
set in the system software in advance. After successful setting, press the WPS switch for the
settings to take effect.
Logging in to the Web Conguration Window
Step 1 Set the IP address of the PC in the same subnet as the management IP address
of the GPON terminal.
Step 2 Enter the management IP address of the PON terminal in the address bar of
Internet Explorer and press Enter.
The login window is displayed.
Step 3 In the login window, select your preferred language, enter the user name and
password ( printed on the nameplate of the device.), and click Login. After the
password is authenticated, the Web configu indow is displayed.
NOTE
You can nd the default management IP address on the nameplate of the
device.
![](/img.php?id=2866716&img=bg7.png)
HG8245Q supporting Wi-Fi, a wireless network coverage is subject to the number,
thickness, and positions of walls, materials, ceilings, or other objects that radio
signals traverse. Besides, metarial type and background radio frenquency (RF) noise
also affect the coverage of a wireless network. You can maximize the coverage of a
wireless network using the following methods:
1. Decrease the number of walls and ceilings between HG8245Q and other
network devices.
Each wall or ceiling reduces the coverage of a wireless network by one to 30
meters. Install HG8245Q at a proper place to avoid walls or ceilings whenever
possible.
2. Observe the straight line rule when installing network devices.
The distance for which signals have to traverse at a 45° corner of two 0.5 meter-
thick walls reaches approximately one meter. To better receive signals, devices
should be installed at places where signals can directly traverse walls or ceilings.
3. Note the impact of building materials on the wireless network coverage.
A metal door or aluminum wall may limit the coverage of a wireless network.
Install access points, wireless routers, and computers, so signals can traverse
walls or open passageways. Materials and objects such as FRP products, metal
products, insulative walls, filing cabinets, bricks, and concrete weaken radio
signals.
4. When connecting ONT (such as HG8245Q) to a wireless network, keep it far
from the following devices:
- Electronic devices or components that produce RF noises (keep a distance of
more than 2 meters between such a device and HG8245Q.)
- 2.4 GHz wireless mobile phones or X-10 devices (such as microwave ovens,
home security systems, blue-tooth devices, and refrigerators) that greatly weaken
or even eliminate radio signals. Even if a 2.4 GHz wireless mobile phone is not
connected to a wireless network, the phone base still sends signals that interfere
the wireless network.
NOTE
Conguring Wi-Fi Parameters
Step 1 Choose the WLAN tab and choose WLAN Basic Configuration.
Step 2 In the pane, select the Enable WLAN option box. In the dialog box that is
displayed, set the basic Wi-Fi parameters, including the SSID, authentication
mode, and encryption mode.
Step 3 Click Apply.
-SSID Name: See the nameplate on the device.
-WPA PreSharedKey: See the nameplate on the device.
SSID indicates the name of a wireless network searched by the Wi-Fi terminal; WPA
indicates the authentication password for the Wi-Fi terminal to access a wireless network.
6
![](/img.php?id=2866716&img=bg8.png)
7
FCC Statement
FCC Statement
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
FCC Radiation Exposure Statement
This device complies with FCC radiation exposure limits set forth for an uncontrolled
environment and it also complies with Part 15 of the FCC RF Rules. This equipment
must be installed and operated in accordance with provided instructions and the
antenna(s) used for this transmitter must be installed to provide a separation
distance of at least 20 cm from all persons and must not be co-located or operating
in conjunction with any other antenna or transmitter. End-users and installers must
be provided with antenna installation instructions and consider removing the no-
collocation statement.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
Caution!
Any changes or modications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
![](/img.php?id=2866716&img=bg9.png)
8
Indicator Description
Table 1 Indicator status description 1
Indicator Status Description
USB
Steady on The USB port is connected and is working in the host
mode, but no data is transmitted.
Blinks twice a
second Data is being transmitted on the USB port.
Off The system is not powered on or the USB port is not
connected.
WPS
Steady on The WPS function is enabled.
Blinking A Wi-Fi terminal is accessing the system.
Off The WPS function is disabled.
WLAN
Steady on The WLAN function is enabled.
Blinking Data is being transmitted on the WLAN port.
Off The WLAN function is disabled.
LAN1–
LAN4
Steady on The Ethernet connection is in the normal state.
Blinking Data is being transmitted on the Ethernet port.
Off The Ethernet connection is not set up.
TEL1–
TEL2
Steady on The terminal is registered with the softswitch but no
service ows are transmitted.
Blinking Service ows are transmitted.
Off The terminal is not powered on or fails to be registered
to the softswitch.
LOS/PON See Table 2.
POWER
Steady green The terminal is powered on.
Off The power supply is cut off.
![](/img.php?id=2866716&img=bga.png)
The LOS indicator blinks.
If the LOS indicator blinks once two seconds, check whether the
pigtail fiber is properly connected and the connector is clean.
If the GPON terminal blinks twice a second, contact the service
provider for help.
The PON indicator is off.
Check whether the OPTICAL port and optical fiber is properly
connected.
The GPON terminal fails to register with the upper-layer device.
Contact the service provider for help.
How to reset the GPON terminal?
Press RESET by using a needle-type object.
How can I restore factory defaults?
Press RESET by using a needle-type object for longer than 10s
to restore factory defaults and reset the GPON terminal. If the
indicator is off and then is lit, the system restarts successfully.
FAQs
9
Table 2 Indicator status description 2
Status
No.
Status Description
PON LOS
1Off Off
The GPON terminal is prohibited by the upper-
layer device, contact the service provider for
help.
2Blinks twice
a second Off The GPON terminal attempts to set up a
connection with its upper-layer device.
3 Steady on Off A connection is set up between the GPON
terminal and its upper-layer device.
4Off Blinks once
two seconds
The GPON terminal is not connected to optical
bers or does not receive optical signals.
5Blinks twice
a second
Blinks twice
a second
The GPON terminal is a rogue terminal,
contact the service provider for help.
6Blinks twice
a second
Blinks once
two seconds
The Rx optical power of the GPON terminal
does not within the range (–27 dBm to –8
dBm) of the Rx sensitivity.
7Blinks once
two seconds
Blinks once
two seconds The hardware is faulty.
![](/img.php?id=2866716&img=bgb.png)
Warranty Card
User Information
Personal or
company's full name:__________________________________________________
Address/Postal Code:_________________________________________________
Telephone:__________________________________________________________
Email:______________________________________________________________
Product Type:________________________________________________________
Product Serial Number:________________________________________________
Purchase Date:______________________________________________________
Invoice Number:______________________________________________________
Dealer's Name:______________________________________________________
Dealer's Address:_____________________________________________________
Dealer's Telephone:___________________________________________________
Thank you for choosing Huawei Technologies Co., Ltd. To get better services,
please read this warranty card carefully, ll in the required information, and
preserve this card in good condition.
Preserve well. No reissue.
Dealer's Seal
![](/img.php?id=2866716&img=bgc.png)
Limited Warranty
Subject to the exclusions contained below, Huawei Technologies Co., Ltd. (Huawei
for short) warrants its access terminals ("Products") to be free from defects in
materials and workmanship under normal consumer usage for one year from
the date of purchase of the product ("Warranty period"). During the warranty
period, a Huawei authorized service partner shall remedy defects in materials and
workmanship free of charge.
Special Notice:
1. The warranty card shall be applicable only after being stamped by the dealer.
2. The warranty card must be preserved in good condition and free of any scratch or
alteration.
3. To claim such service for defects that are not included in the following exclusion
terms, the warranty card and the invoice that records that product serial number
shall be presented to a Huawei authorized service partner.
Special Notice:
1. The warranty card shall be applicable only after being stamped by the dealer.
2. The warranty card must be preserved in good condition and free of any scratch or
alteration.
3. To claim such service for defects that are not included in the following exclusion
terms, the warranty card and the invoice that records that product serial number
shall be presented to a Huawei authorized service partner.
Exclusions:
In any of the following cases, the warranty card becomes unenforceable or
inapplicable without prior notice:
1. The defects are caused by improper handling in transportation and assembly.
2. The defects are caused by the fact that the product is dismantled or altered by
anyone that is not from a Huawei authorized service partner.
3. The defects are caused by the fact that the product is used in a harsh environment
that is not suitable for the operation of the product.
4. The defects are caused by any force majeure including but not limited to re,
earthquake, lightning, and tsunami.
5. The defects are caused by the fact that the product is used or handled incorrectly,
roughly or not as instructed in the applicable User Guide.
6. The normal wear and tear, including but not limited to the normal wear and tear of
the shell and the power module, shall not be covered by the limited warranty.
7. The warranty card is altered or illegible, or the product serial number recorded on
the warranty card is inconsistent with the actual one imprinted or labeled on the
product.
In any case that is not covered by this limited warranty or should the warranty expire,
Huawei shall charge for the service(s) claimed for the products if the product is still
remediable. Huawei reserves all rights to interpret this limited warranty.
Huawei Technologies Co., Ltd.
Address: Huawei Industrial Base
Bantian, Longgang
Shenzhen 518129
People's Republic of China
Website: http://www.huawei.com
![](/img.php?id=2866716&img=bgd.png)
Qualication Card
PASS
Copyright © Huawei Technologies Co., Ltd. 2015 All rights reserved.
No part of this document may be reproduced or transmitted in any form or by any
means without prior written consent of Huawei Technologies Co., Ltd.
Trademarks and Permissions
and other Huawei trademarks are trademarks of Huawei Technologies Co., Ltd.
All other trademarks and trade names mentioned in this document are the property of
their respective holders.
Notice
The information in this document is subject to change without notice. Unless
otherwise stated, this guide serves only as a guide. All statements, information, and
recommendations in this document do not constitute a warranty of any kind, expressed
or implied.
