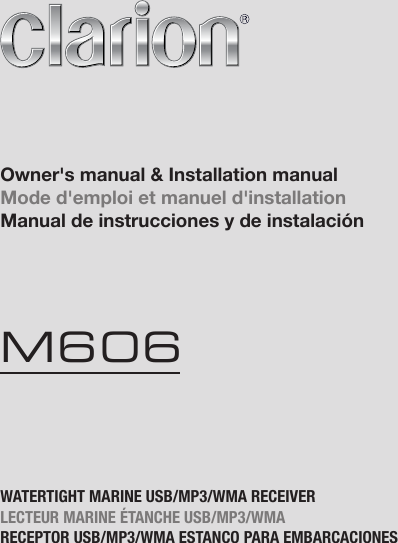

WATERTIGHT MARINE USB/MP3/WMA RECEIVERLECTEUR MARINE ÉTANCHE USB/MP3/WMARECEPTOR USB/MP3/WMA ESTANCO PARA EMBARCACIONESOwner's manual & Installation manualMode d'emploi et manuel d'installationManual de instrucciones y de instalaciónM606

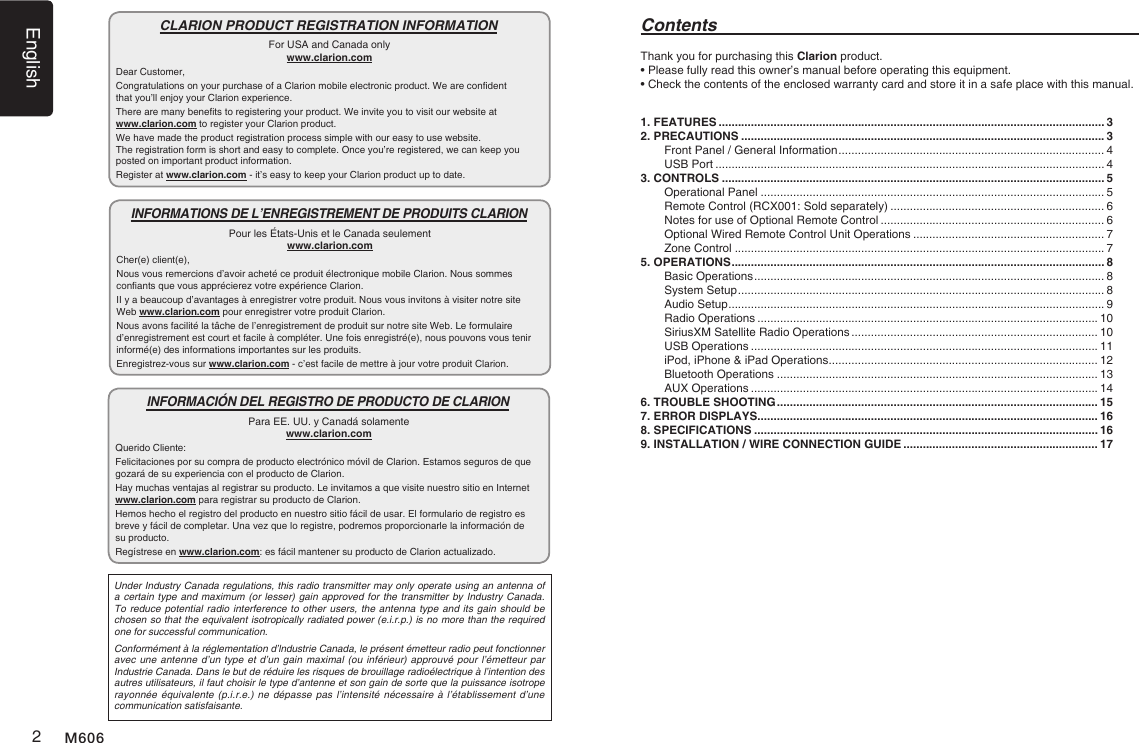

English2M606Thank you for purchasing this Clarion product.• Please fully read this owner’s manual before operating this equipment.• Check the contents of the enclosed warranty card and store it in a safe place with this manual.Contents1. FEATURES ....................................................................................................................... 32. PRECAUTIONS ................................................................................................................ 3Front Panel / General Information .................................................................................. 4USB Port ........................................................................................................................ 43. CONTROLS ...................................................................................................................... 5Operational Panel .......................................................................................................... 5Remote Control (RCX001: Sold separately) .................................................................. 6Notes for use of Optional Remote Control ..................................................................... 6Optional Wired Remote Control Unit Operations ........................................................... 7Zone Control .................................................................................................................. 75. OPERATIONS ................................................................................................................... 8Basic Operations ............................................................................................................ 8System Setup ................................................................................................................. 8Audio Setup .................................................................................................................... 9Radio Operations ......................................................................................................... 10SiriusXM Satellite Radio Operations ............................................................................ 10USB Operations ........................................................................................................... 11iPod, iPhone & iPad Operations ................................................................................... 12Bluetooth Operations ................................................................................................... 13AUX Operations ........................................................................................................... 146. TROUBLE SHOOTING ................................................................................................... 157. ERROR DISPLAYS......................................................................................................... 168. SPECIFICATIONS .......................................................................................................... 169. INSTALLATION / WIRE CONNECTION GUIDE ............................................................ 17CLARION PRODUCT REGISTRATION INFORMATIONFor USA and Canada onlywww.clarion.comDear Customer,Congratulations on your purchase of a Clarion mobile electronic product. We are condent  that you’ll enjoy your Clarion experience.There are many benets to registering your product. We invite you to visit our website at  www.clarion.com to register your Clarion product.We have made the product registration process simple with our easy to use website.  The registration form is short and easy to complete. Once you’re registered, we can keep you posted on important product information.Register at www.clarion.com - it’s easy to keep your Clarion product up to date.INFORMATIONS DE L’ENREGISTREMENT DE PRODUITS CLARIONPour les États-Unis et le Canada seulementwww.clarion.comCher(e) client(e),Nous vous remercions d’avoir acheté ce produit électronique mobile Clarion. Nous sommes conants que vous apprécierez votre expérience Clarion.II y a beaucoup d’avantages à enregistrer votre produit. Nous vous invitons à visiter notre site  Web www.clarion.com pour enregistrer votre produit Clarion.Nous avons facilité la tâche de l’enregistrement de produit sur notre site Web. Le formulaire d’enregistrement est court et facile à compléter. Une fois enregistré(e), nous pouvons vous tenir informé(e) des informations importantes sur les produits.Enregistrez-vous sur www.clarion.com - c’est facile de mettre à jour votre produit Clarion.INFORMACIÓN DEL REGISTRO DE PRODUCTO DE CLARIONPara EE. UU. y Canadá solamentewww.clarion.comQuerido Cliente:Felicitaciones por su compra de producto electrónico móvil de Clarion. Estamos seguros de que gozará de su experiencia con el producto de Clarion.Hay muchas ventajas al registrar su producto. Le invitamos a que visite nuestro sitio en Internet www.clarion.com para registrar su producto de Clarion.Hemos hecho el registro del producto en nuestro sitio fácil de usar. El formulario de registro es breve y fácil de completar. Una vez que lo registre, podremos proporcionarle la información de su producto.Regístrese en www.clarion.com: es fácil mantener su producto de Clarion actualizado.Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a certain type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be chosen so that the equivalent isotropically radiated power (e.i.r.p.) is no more than the required one for successful communication.Conformément à la réglementation d’lndustrie Canada, le présent émetteur radio peut fonctionner avec une antenne d’un type et d’un gain maximal (ou inférieur) approuvé pour l’émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à l’intention des autres utilisateurs, il faut choisir le type d’antenne et son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l’intensité nécessaire à l’établissement d’une communication satisfaisante.

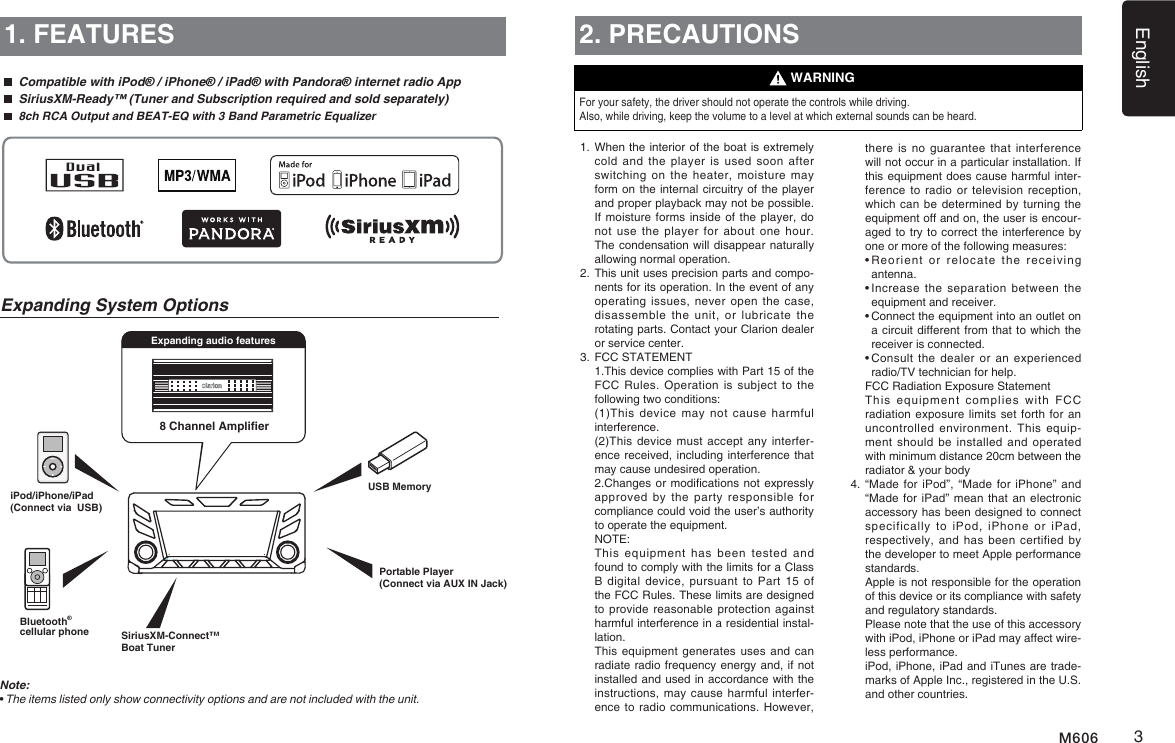

English3M6068 Channel AmplieriPod/iPhone/iPad(Connect via  USB)Expanding audio features1. FEATURES  Compatible with iPod® / iPhone® / iPad® with Pandora® internet radio App  SiriusXM-Ready™ (Tuner and Subscription required and sold separately) 8ch RCA Output and BEAT-EQ with 3 Band Parametric EqualizerNote:•  The items listed only show connectivity options and are not included with the unit.Expanding System Options2. PRECAUTIONSFor your safety, the driver should not operate the controls while driving. Also, while driving, keep the volume to a level at which external sounds can be heard.1.   When the interior of the boat is extremely cold and the player  is  used  soon  after switching on the heater,  moisture  may form on the internal circuitry of the player and proper playback may not be pos sible. If moisture forms inside of the player, do not use the player for  about  one  hour. The condensation will disappear naturally allowing normal operation. 2.  This unit uses precision parts and compo-nents for its operation. In the event of any operating issues,  never  open  the  case, disassemble  the  unit,  or lubricate  the rotating parts. Contact your Clarion dealer or service center.3.  FCC STATEMENT   1.This device complies with Part 15 of the FCC Rules.  Operation  is  subject to the following two conditions:   (1)This device  may  not  cause  harmful interference.   (2)This device must accept  any interfer-ence received, including interference that may cause undesired operation.   2.Changes or modications not expressly approved by  the  party  responsible for compliance could void the user’s authority to operate the equipment.  NOTE:    This  equipment  has  been  tested and found to comply with the limits for a Class B digital  device,  pursuant  to  Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential instal-lation.   This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interfer-ence to radio communications. However, WARNINGthere is  no  guarantee that interference will not occur in a particular installation. If this equipment does cause harmful inter-ference to radio or  television reception, which can be determined by  turning the equipment off and on, the user is encour-aged to try to correct the interference by one or more of the following measures:  •  Reorient  or  relocate  the  receiving antenna.  •  Increase the separation  between  the equipment and receiver.  •  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  •  Consult the dealer  or  an  experienced radio/TV technician for help.   FCC Radiation Exposure Statement   This  equipment  complies  with  FCC radiation exposure limits set forth  for an uncontrolled environment. This equip-ment should  be  installed  and operated with minimum distance 20cm between the radiator & your body4.  “Made for  iPod”, “Made  for iPhone”  and “Made for iPad” mean that an electronic accessory has been designed to connect specifically  to  iPod,  iPhone  or  iPad, respectively, and  has  been certified by the developer to meet Apple performance standards.    Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.    Please note that the use of this accessory with iPod, iPhone or iPad may affect wire-less performance.   iPod, iPhone, iPad and iTunes are trade-marks of Apple Inc., registered in the U.S. and other countries.SiriusXM-Connect™ Boat TunerUSB MemoryPortable Player(Connect via AUX IN Jack)Bluetooth®cellular phone

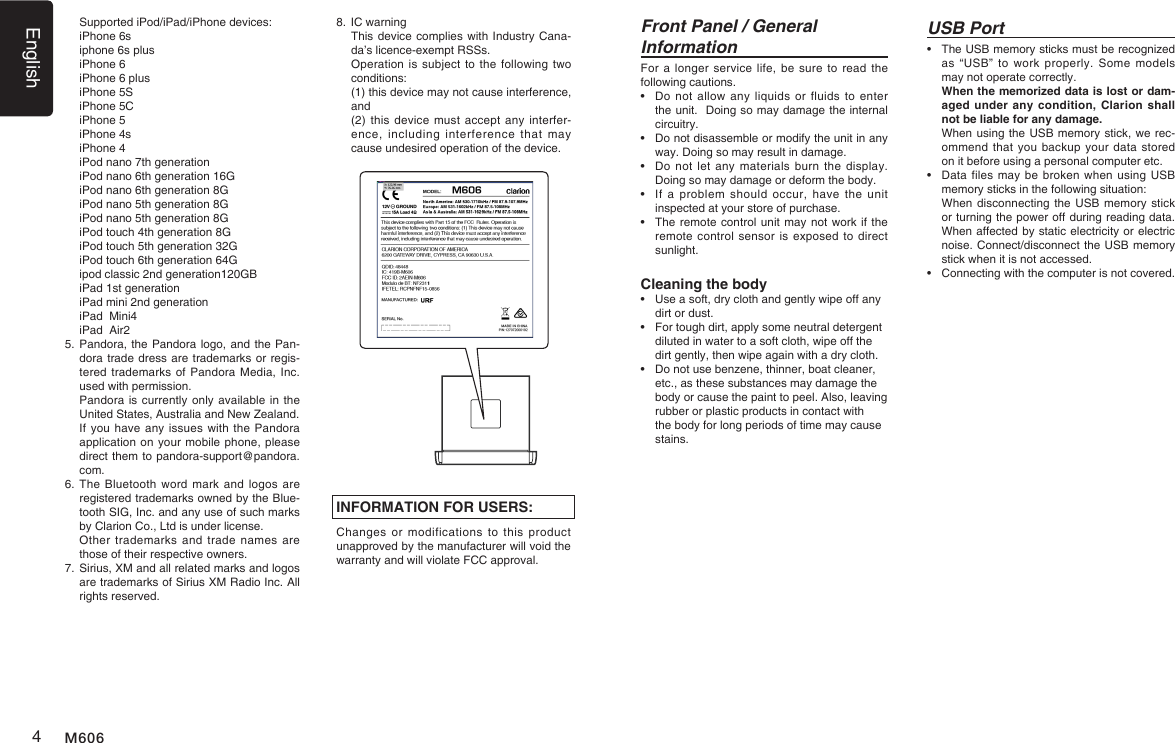

English4M606USB Port•   The USB memory sticks must be recognized as “USB”  to  work  properly.  Some  models may not operate correctly.   When the memorized data is lost or dam-aged under any condition, Clarion shall not be liable for any damage.   When using the USB memory stick, we rec-ommend that you backup  your data stored on it before using a personal computer etc.•   Data files may be broken when  using USB memory sticks in the following situation:    When disconnecting the USB memory stick or turning the power off during reading data. When affected by static electricity or electric noise. Connect/disconnect the USB memory stick when it is not accessed.•    Connecting with the computer is not covered.INFORMATION FOR USERS:Changes or  modifications  to  this  product unapproved by the manufacturer will void the warranty and will violate FCC approval.Front Panel / General InformationFor a  longer service life,  be sure to  read the following cautions.•   Do not allow any  liquids  or  fluids to enter the unit.  Doing so may damage the internal circuitry.•   Do not disassemble or modify the unit in any way. Doing so may result in damage.•   Do not let any  materials  burn the display. Doing so may damage or deform the body.•   If  a  problem should  occur, have  the  unit inspected at your store of purchase.•   The remote control unit may not work if the remote control sensor is  exposed to direct sunlight.Cleaning the body•  Use a soft, dry cloth and gently wipe off any dirt or dust. •  For tough dirt, apply some neutral detergent diluted in water to a soft cloth, wipe off the dirt gently, then wipe again with a dry cloth. •  Do not use benzene, thinner, boat cleaner, etc., as these substances may damage the body or cause the paint to peel. Also, leaving rubber or plastic products in contact with the body for long periods of time may cause stains.  Supported iPod/iPad/iPhone devices:  iPhone 6s  iphone 6s plus  iPhone 6  iPhone 6 plus  iPhone 5S  iPhone 5C  iPhone 5  iPhone 4s  iPhone 4  iPod nano 7th generation  iPod nano 6th generation 16G  iPod nano 6th generation 8G  iPod nano 5th generation 8G  iPod nano 5th generation 8G  iPod touch 4th generation 8G  iPod touch 5th generation 32G  iPod touch 6th generation 64G  ipod classic 2nd generation120GB  iPad 1st generation  iPad mini 2nd generation  iPad  Mini4  iPad  Air25.  Pandora, the Pandora logo, and the Pan-dora trade dress are trademarks or regis-tered trademarks of Pandora Media, Inc. used with permission.   Pandora is currently only available in the United States, Australia and New Zealand.   If you have any issues with the Pandora application on your mobile phone, please direct them to pandora-support@pandora.com.6.   The  Bluetooth word mark  and logos are registered trademarks owned by the Blue-tooth SIG, Inc. and any use of such marks by Clarion Co., Ltd is under license.   Other trademarks  and  trade  names  are those of their respective owners.7.  Sirius, XM and all related marks and logos are trademarks of Sirius XM Radio Inc. All rights reserved.8. IC warning   This device complies with Industry Cana-da’s licence-exempt RSSs.   Operation is subject to the  following two conditions:   (1) this device may not cause interference, and   (2) this device  must accept any interfer-ence,  including  interference that  may cause undesired operation of the device.

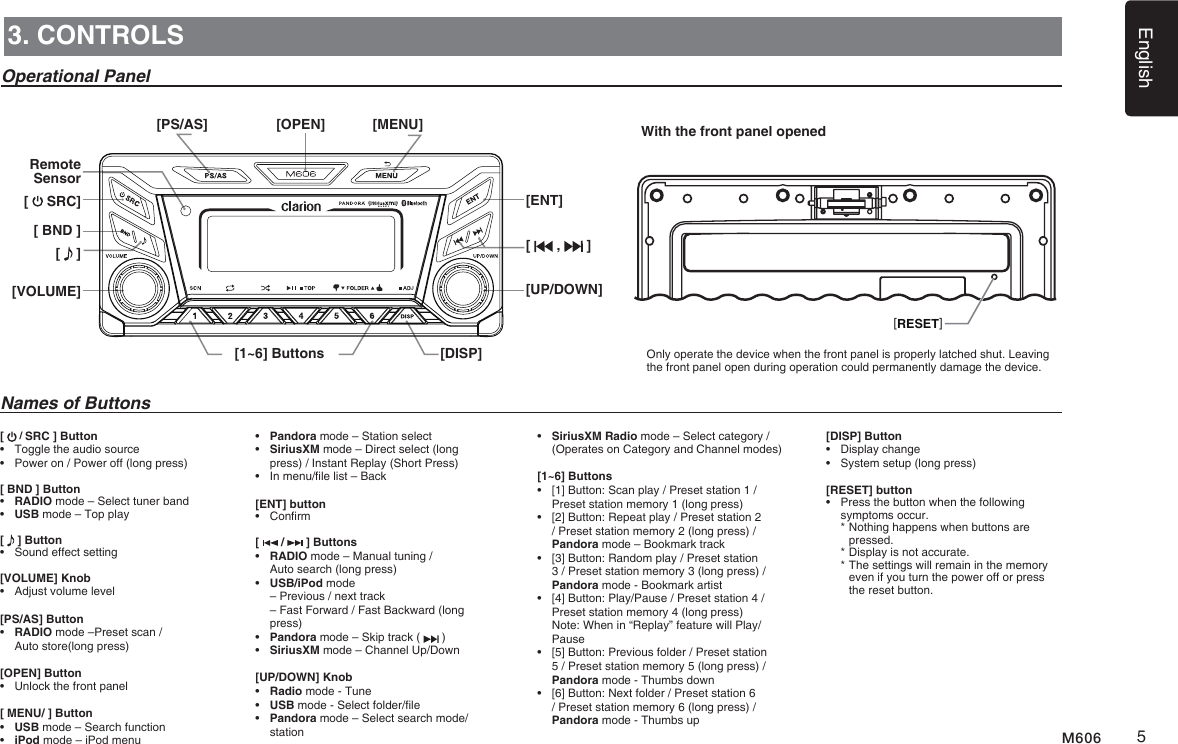

English5M6063. CONTROLSOperational PanelWith the front panel opened[PS/AS]Remote Sensor[   SRC][ BND ][   ][VOLUME][1~6] Buttons [DISP][OPEN] [MENU][ENT][   ,   ][UP/DOWN]Names of Buttons[   / SRC ] Button•  Toggle the audio source•  Power on / Power off (long press)[ BND ] Button•  RADIO mode – Select tuner band•  USB mode – Top play[   ] Button•  Sound effect setting[VOLUME] Knob•  Adjust volume level[PS/AS] Button•   RADIO mode –Preset scan /  Auto store(long press)[OPEN] Button•   Unlock the front panel[ MENU/ ] Button•  USB mode – Search function•  iPod mode – iPod menu•  Pandora mode – Station select•   SiriusXM mode – Direct select (long press) / Instant Replay (Short Press)•   In menu/le list – Back  [ENT] button•  Conrm[   /   ] Buttons•   RADIO mode – Manual tuning /  Auto search (long press)•     USB/iPod mode   – Previous / next track   – Fast Forward / Fast Backward (long press)•     Pandora mode – Skip track (   )•   SiriusXM mode – Channel Up/Down[UP/DOWN] Knob•  Radio mode - Tune•  USB mode - Select folder/le•   Pandora mode – Select search mode/station[RESET]•   SiriusXM Radio mode – Select category / (Operates on Category and Channel modes)[1~6] Buttons •   [1] Button: Scan play / Preset station 1 / Preset station memory 1 (long press)  •   [2] Button: Repeat play / Preset station 2 / Preset station memory 2 (long press) / Pandora mode – Bookmark track •   [3] Button: Random play / Preset station 3 / Preset station memory 3 (long press) / Pandora mode - Bookmark artist •   [4] Button: Play/Pause / Preset station 4 / Preset station memory 4 (long press)   Note: When in “Replay” feature will Play/Pause •   [5] Button: Previous folder / Preset station 5 / Preset station memory 5 (long press) / Pandora mode - Thumbs down •   [6] Button: Next folder / Preset station 6 / Preset station memory 6 (long press) / Pandora mode - Thumbs up[DISP] Button•  Display change •  System setup (long press)[RESET] button•   Press the button when the following symptoms occur.  *  Nothing happens when buttons are pressed.  *  Display is not accurate.  *  The settings will remain in the memory even if you turn the power off or press the reset button.Only operate the device when the front panel is properly latched shut. Leaving the front panel open during operation could permanently damage the device.

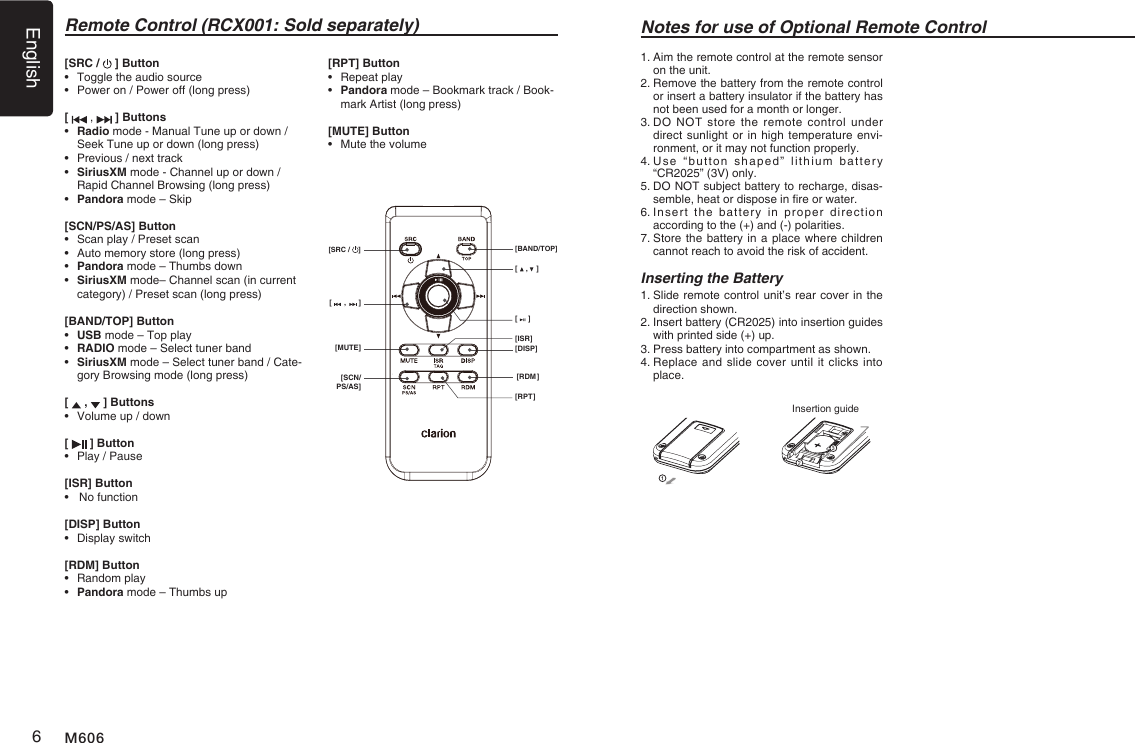

English6M606Remote Control (RCX001: Sold separately)[    ,    ][     ][DISP][ISR][RDM][RPT][      ,      ][MUTE][SCN/PS/AS][SRC /  ] [BAND/TOP]Notes for use of Optional Remote Control1.  Aim the remote control at the remote sensor on the unit.2.  Remove the battery from the remote control or insert a battery insulator if the battery has not been used for a month or longer.3.  DO  NOT  store  the  remote control  under direct sunlight or in high temperature envi-ronment, or it may not function properly.4.  Use  “button  shaped”  lithium  battery “CR2025” (3V) only.5.  DO NOT subject battery to recharge, disas-semble, heat or dispose in re or water.6.  Insert  the  battery  in  proper  direction according to the (+) and (-) polarities.7.  Store the battery in a place where children cannot reach to avoid the risk of accident.Inserting the Battery1.  Slide remote control unit’s rear cover in the direction shown.2.  Insert battery (CR2025) into insertion guides with printed side (+) up.3.  Press battery into compartment as shown.4.  Replace and slide cover until it  clicks into place.Insertion guide[SRC /   ] Button•  Toggle the audio source•   Power on / Power off (long press)[   ,   ] Buttons•   Radio mode - Manual Tune up or down / Seek Tune up or down (long press)•  Previous / next track•   SiriusXM mode - Channel up or down / Rapid Channel Browsing (long press)•   Pandora mode – Skip[SCN/PS/AS] Button•   Scan play / Preset scan•   Auto memory store (long press)•   Pandora mode – Thumbs down•   SiriusXM mode– Channel scan (in current category) / Preset scan (long press)[BAND/TOP] Button•   USB mode – Top play•   RADIO mode – Select tuner band•   SiriusXM mode – Select tuner band / Cate-gory Browsing mode (long press)[   ,   ] Buttons•  Volume up / down[   ] Button•  Play / Pause[ISR] Button•   No function[DISP] Button•  Display switch[RDM] Button•  Random play•  Pandora mode – Thumbs up[RPT] Button•  Repeat play•   Pandora mode – Bookmark track / Book-mark Artist (long press)[MUTE] Button•  Mute the volume

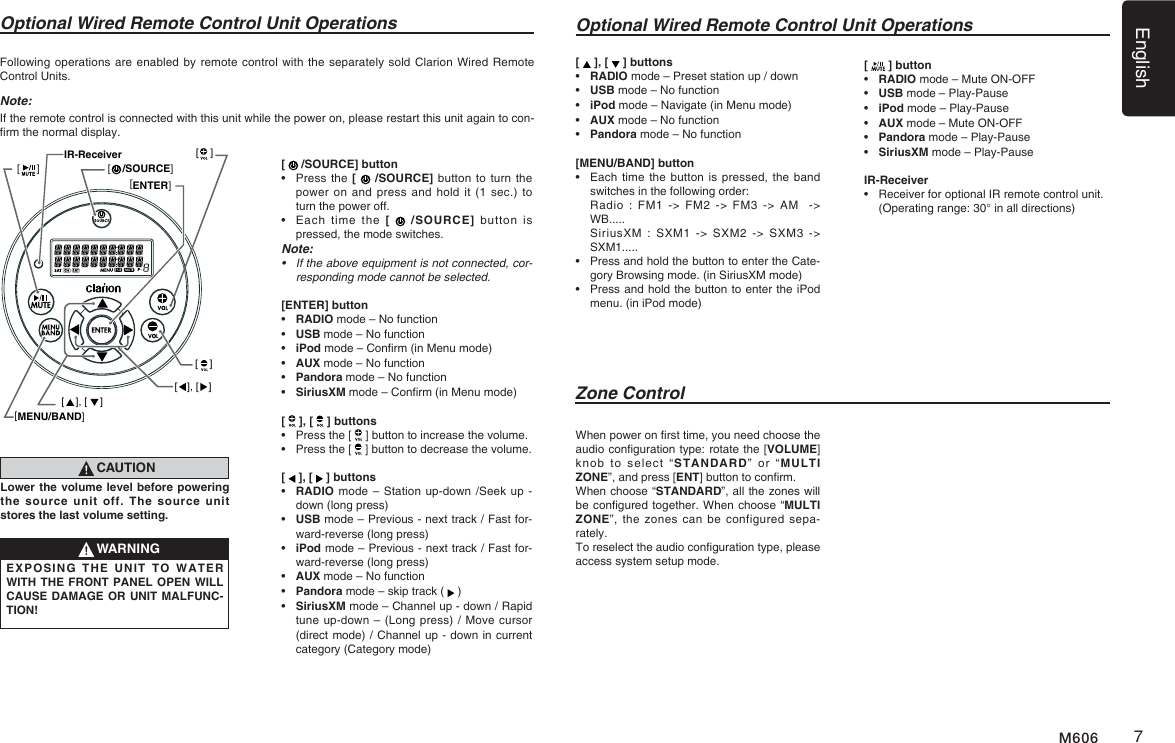

English7M606Optional Wired Remote Control Unit OperationsZone ControlFollowing operations are enabled by remote control with  the separately sold Clarion Wired Remote Control Units.Note:If the remote control is connected with this unit while the power on, please restart this unit again to con-rm the normal display.[   /SOURCE] button•   Press the [   /SOURCE] button to  turn the power on  and press and  hold  it (1 sec.)  to turn the power off.•   Each  time  the  [   /SOURCE] button  is pressed, the mode switches.Note:• Iftheaboveequipmentisnotconnected,cor-responding mode cannot be selected.[ENTER] button•   RADIO mode – No function•   USB mode – No function•   iPod mode – Conrm (in Menu mode)•   AUX mode – No function•   Pandora  mode – No function•   SiriusXM mode – Conrm (in Menu mode)[   ], [   ] buttons•   Press the [   ] button to increase the volume.•   Press the [   ] button to decrease the volume.[   ], [   ] buttons•   RADIO mode –  Station up-down /Seek up - down (long press)•   USB mode – Previous - next track / Fast for-ward-reverse (long press) •   iPod mode – Previous - next track / Fast for-ward-reverse (long press) •   AUX mode – No function•    Pandora mode – skip track (   )•   SiriusXM mode – Channel up - down / Rapid tune up-down – (Long press) / Move cursor  (direct mode) / Channel up - down in current category (Category mode)CAUTIONLower the volume level before powering the source unit off. The source unit stores the last volume setting.WARNINGEXPOSING THE UNIT TO WATER WITH THE FRONT PANEL OPEN WILL CAUSE DAMAGE OR UNIT MALFUNC-TION!Optional Wired Remote Control Unit Operations[   ], [   ] buttons•   RADIO mode – Preset station up / down•   USB mode – No function•   iPod  mode – Navigate (in Menu mode)•   AUX mode – No function•    Pandora mode – No function  [MENU/BAND] button•   Each time the button is pressed, the band switches in the following order:   Radio : FM1 -> FM2 -> FM3 -> AM  -> WB.....   SiriusXM  :  SXM1 -> SXM2 -> SXM3 -> SXM1.....•   Press and hold the button to enter the Cate-gory Browsing mode. (in SiriusXM mode)•   Press and hold the button to enter the iPod menu. (in iPod mode)When power on rst time, you need choose the audio conguration type: rotate the [VOLUME] knob  to  select  “STANDARD”  or  “MULTI ZONE”, and press [ENT] button to conrm. When choose “STANDARD”, all the zones will be congured together. When choose “MULTI ZONE”, the  zones  can  be  configured  sepa-rately. To reselect the audio conguration type, please access system setup mode.[   ] button•   RADIO mode – Mute ON-OFF•   USB mode – Play-Pause•   iPod mode – Play-Pause•   AUX mode – Mute ON-OFF•    Pandora mode – Play-Pause•    SiriusXM mode – Play-PauseIR-Receiver•   Receiver for optional IR remote control unit.  (Operating range: 30° in all directions)[MENU/BAND][ENTER][    [     /SOURCE]][ ], [ ][    ][    ][ ], [ ]IR-Receiver

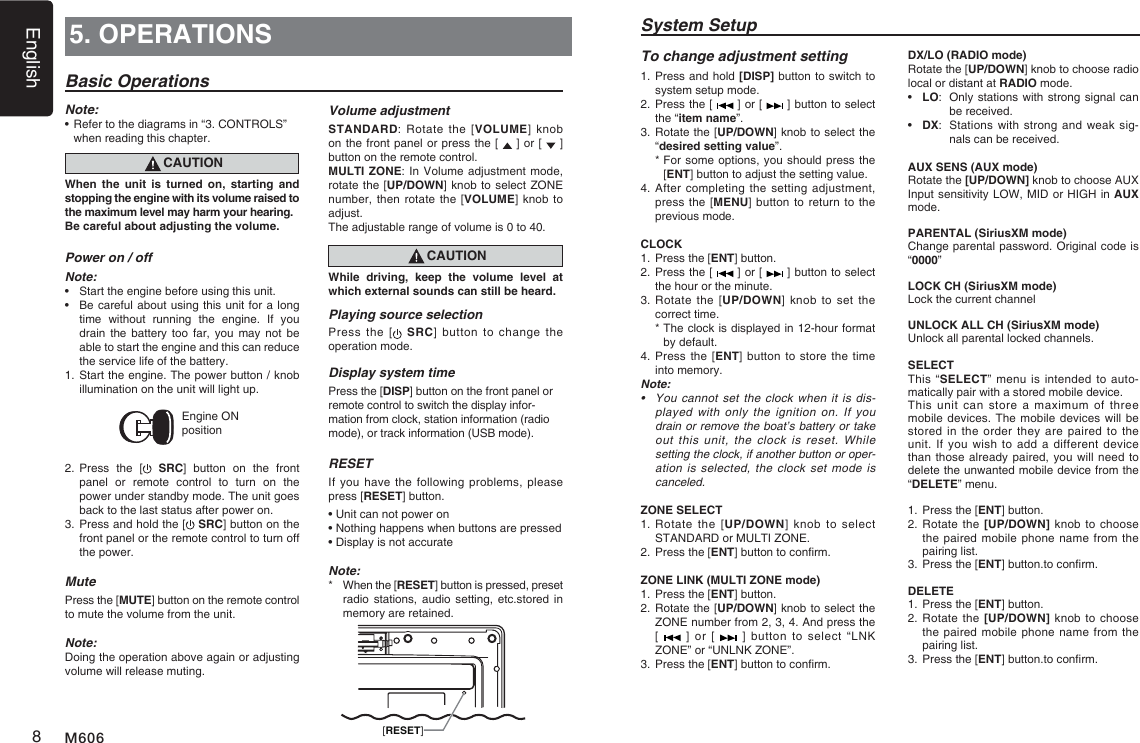

English8M6065. OPERATIONSBasic OperationsNote:•  Refer to the diagrams in “3. CONTROLS” when reading this chapter.CAUTIONWhen the unit is turned on, starting and stopping the engine with its volume raised to the maximum level may harm your hearing. Be careful about adjusting the volume.Power on / offNote:•  Start the engine before using this unit.•  Be careful about using this unit for a long time  without  running  the  engine.  If  you drain the  battery  too  far, you  may not be able to start the engine and this can reduce the service life of the battery.1. Start the engine. The power button / knob illumination on the unit will light up.Engine ON position2. Press  the  [  SRC]  button  on  the  front panel  or  remote  control  to  turn  on  the power under standby mode. The unit goes back to the last status after power on.3. Press and hold the [  SRC] button on the front panel or the remote control to turn off the power.MutePress the [MUTE] button on the remote control to mute the volume from the unit.Note:Doing the operation above again or adjusting volume will release muting.Volume adjustmentSTANDARD: Rotate the [VOLUME] knob on the front panel or press the [   ] or [   ] button on the remote control.MULTI ZONE: In Volume adjustment mode, rotate the [UP/DOWN] knob to select ZONE number, then rotate  the [VOLUME] knob to adjust.The adjustable range of volume is 0 to 40.CAUTIONWhile driving, keep the volume level at which external sounds can still be heard.Playing source selectionPress the  [   SRC] button  to  change  the operation mode. Display system timePress the [DISP] button on the front panel or remote control to switch the display infor-mation from clock, station information (radio mode), or track information (USB mode).RESETIf you  have the following  problems, please press [RESET] button.• Unit can not power on• Nothing happens when buttons are pressed• Display is not accurateNote:*   When the [RESET] button is pressed, preset radio stations,  audio  setting,  etc.stored  in memory are retained.  [RESET]System SetupDX/LO (RADIO mode)Rotate the [UP/DOWN] knob to choose radio local or distant at RADIO mode.•  LO:  Only stations with strong signal can be received.•  DX:  Stations with  strong and weak sig-nals can be received.AUX SENS (AUX mode)Rotate the [UP/DOWN] knob to choose AUX Input sensitivity LOW, MID or HIGH in AUX mode.PARENTAL (SiriusXM mode)Change parental password. Original code is “0000”LOCK CH (SiriusXM mode)Lock the current channelUNLOCK ALL CH (SiriusXM mode)Unlock all parental locked channels.SELECTThis “SELECT” menu  is intended to  auto-matically pair with a stored mobile device. This unit  can  store  a maximum of  three mobile devices. The mobile devices will be stored in  the  order they are paired  to  the unit. If  you  wish to add a  different  device than those already paired, you will need to delete the unwanted mobile device from the “DELETE” menu. 1.   Press the [ENT] button.2.  Rotate the  [UP/DOWN] knob  to choose the paired mobile phone name from the pairing list.3.   Press the [ENT] button.to conrm.DELETE 1.   Press the [ENT] button.2.   Rotate the [UP/DOWN]  knob to  choose the paired mobile phone name from the pairing list.3.   Press the [ENT] button.to conrm.To change adjustment setting1.  Press and hold [DISP] button to switch to system setup mode.2.  Press the [   ] or [   ] button to select the “item name”.3.  Rotate the [UP/DOWN] knob to select the “desired setting value”.  *  For some options, you should press the [ENT] button to adjust the setting value.4.   After  completing the setting  adjustment, press the [MENU] button to return to the previous mode.CLOCK1. Press the [ENT] button.2.  Press the [   ] or [   ] button to select the hour or the minute.3.  Rotate the [UP/DOWN] knob to set  the correct time.  *  The clock is displayed in 12-hour format by default.4.  Press the  [ENT] button  to store the time into memory.Note:• You cannot settheclockwhen it isdis-played with only the ignition on. If you drainorremovetheboat’sbatteryortakeoutthisunit,theclockis reset. Whilesettingtheclock,ifanotherbuttonoroper-ationisselected,theclock set modeiscanceled.ZONE SELECT1.  Rotate  the  [UP/DOWN] knob  to  select  STANDARD or MULTI ZONE.2. Press the [ENT] button to conrm.ZONE LINK (MULTI ZONE mode)1. Press the [ENT] button.2.  Rotate the [UP/DOWN] knob to select the ZONE number from 2, 3, 4. And press the  [   ] or [   ]  button  to  select “LNK ZONE” or “UNLNK ZONE”.3. Press the [ENT] button to conrm.

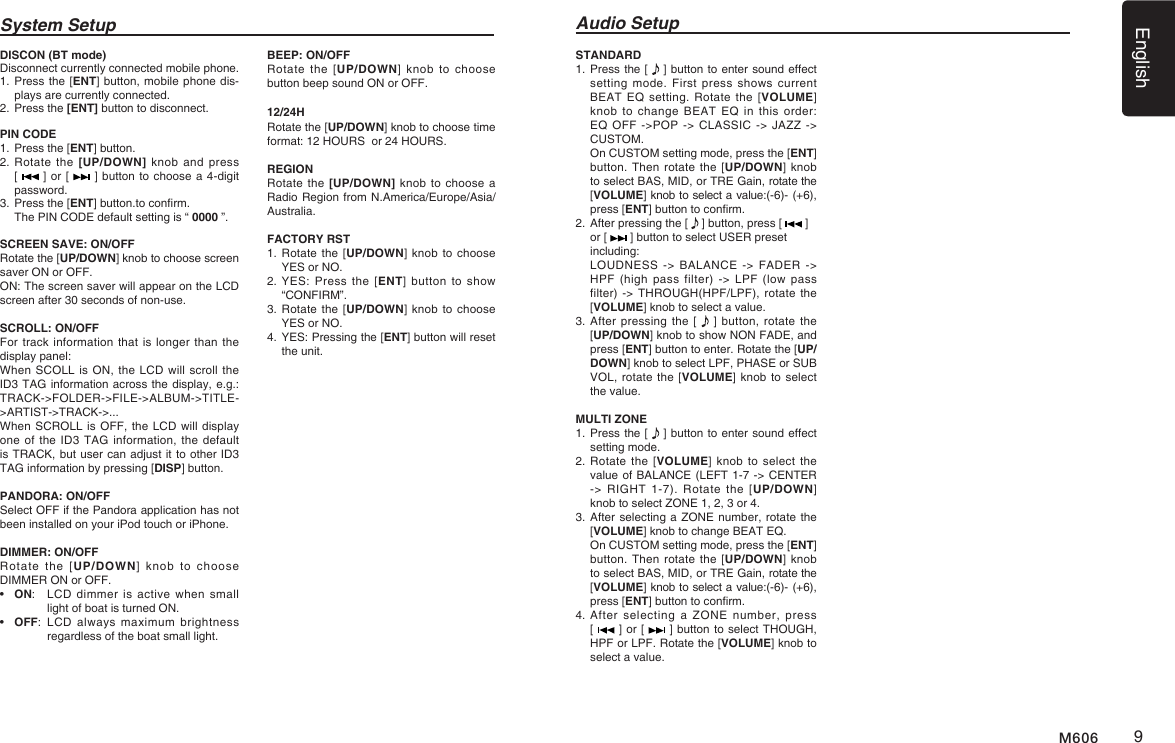

English9M606System Setup Audio SetupDISCON (BT mode)Disconnect currently connected mobile phone.1.   Press the [ENT] button, mobile phone dis-plays are currently connected.2.   Press the [ENT] button to disconnect.PIN CODE 1.   Press the [ENT] button.2.  Rotate the [UP/DOWN] knob and press [   ] or [   ] button to choose a 4-digit password. 3.   Press the [ENT] button.to conrm.  The PIN CODE default setting is “ 0000 ”.SCREEN SAVE: ON/OFFRotate the [UP/DOWN] knob to choose screen saver ON or OFF.ON: The screen saver will appear on the LCD screen after 30 seconds of non-use.SCROLL: ON/OFFFor track information that is longer  than the display panel:When SCOLL is ON, the LCD will scroll the ID3 TAG information across the display, e.g.: TRACK->FOLDER->FILE->ALBUM->TITLE->ARTIST->TRACK->...When SCROLL is OFF, the LCD  will display one of the ID3  TAG information, the default is TRACK, but user can adjust it to other ID3 TAG information by pressing [DISP] button.PANDORA: ON/OFFSelect OFF if the Pandora application has not been installed on your iPod touch or iPhone.DIMMER: ON/OFFRotate  the [UP/DOWN]  knob  to  choose DIMMER ON or OFF.•  ON:   LCD dimmer  is  active when  small light of boat is turned ON.•  OFF:   LCD  always  maximum  brightness regardless of the boat small light.BEEP: ON/OFFRotate the  [UP/DOWN]  knob  to choose button beep sound ON or OFF.12/24HRotate the [UP/DOWN] knob to choose time format: 12 HOURS  or 24 HOURS.REGION Rotate the [UP/DOWN] knob  to choose a Radio Region from N.America/Europe/Asia/Australia.FACTORY RST1.  Rotate the  [UP/DOWN] knob  to choose YES or NO. 2.  YES:  Press the  [ENT]  button  to  show “CONFIRM”. 3.  Rotate the  [UP/DOWN] knob  to choose YES or NO. 4.  YES: Pressing the [ENT] button will reset the unit.STANDARD 1.  Press the [   ] button to enter sound effect setting mode. First press shows current BEAT EQ  setting.  Rotate  the  [VOLUME] knob to change  BEAT  EQ  in  this  order: EQ OFF ->POP -> CLASSIC -> JAZZ ->  CUSTOM.   On CUSTOM setting mode, press the [ENT] button. Then rotate the  [UP/DOWN] knob to select BAS, MID, or TRE Gain, rotate the [VOLUME] knob to select a value:(-6)- (+6), press [ENT] button to conrm.2.  After pressing the [   ] button, press [   ]  or [   ] button to select USER preset including:   LOUDNESS -> BALANCE ->  FADER  -> HPF (high pass filter) -> LPF (low pass filter) -> THROUGH(HPF/LPF), rotate the [VOLUME] knob to select a value.3.   After  pressing the [   ] button, rotate the [UP/DOWN] knob to show NON FADE, and press [ENT] button to enter. Rotate the [UP/DOWN] knob to select LPF, PHASE or SUB VOL, rotate the [VOLUME] knob to select the value.MULTI ZONE1.  Press the [   ] button to enter sound effect setting mode. 2.   Rotate the [VOLUME] knob  to  select the value of BALANCE (LEFT 1-7 -> CENTER -> RIGHT 1-7). Rotate the [UP/DOWN] knob to select ZONE 1, 2, 3 or 4. 3.  After selecting a ZONE number, rotate the [VOLUME] knob to change BEAT EQ.    On CUSTOM setting mode, press the [ENT] button. Then rotate the  [UP/DOWN] knob to select BAS, MID, or TRE Gain, rotate the [VOLUME] knob to select a value:(-6)- (+6), press [ENT] button to conrm.4.  After  selecting  a ZONE  number,  press  [   ] or [   ] button to select THOUGH, HPF or LPF. Rotate the [VOLUME] knob to select a value.

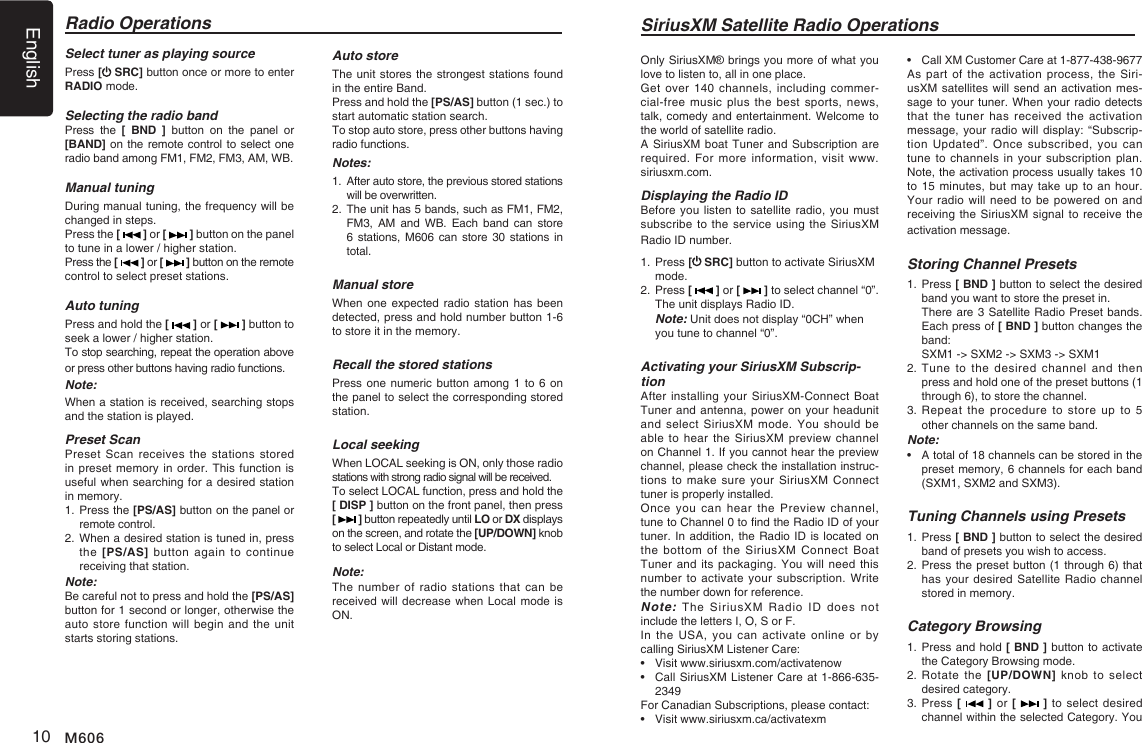

English10 M606Select tuner as playing sourcePress [ SRC] button once or more to enter RADIO mode.Selecting the radio bandPress  the  [  BND  ]  button  on  the  panel  or [BAND] on the remote control to select one radio band among FM1, FM2, FM3, AM, WB.Manual tuningDuring manual tuning, the frequency will be changed in steps.Press the [   ] or [   ] button on the panel to tune in a lower / higher station.Press the [   ] or [   ] button on the remote control to select preset stations.Auto tuningPress and hold the [   ] or [   ] button to seek a lower / higher station.To stop searching, repeat the operation above or press other buttons having radio functions.Note:When a station is received, searching stops and the station is played.Preset ScanPreset Scan  receives  the  stations  stored in preset memory in order. This function is useful when searching for a desired station in memory.1.  Press the [PS/AS] button on the panel or remote control.2.  When a desired station is tuned in, press the [PS/AS]  button  again  to  continue receiving that station.Note: Be careful not to press and hold the [PS/AS] button for 1 second or longer, otherwise the auto store function will  begin and the  unit starts storing stations.Radio OperationsAuto storeThe unit stores the strongest stations found in the entire Band.Press and hold the [PS/AS] button (1 sec.) to start automatic station search.To stop auto store, press other buttons having radio functions.Notes:1.   After auto store, the previous stored stations will be overwritten.2.   The unit has 5 bands, such as FM1, FM2, FM3,  AM  and  WB.  Each  band  can  store 6 stations,  M606  can  store  30 stations in total.Manual storeWhen one expected radio station has been detected, press and hold number button 1-6 to store it in the memory.Recall the stored stationsPress one numeric button  among 1 to 6 on the panel to select the corresponding stored station.Local seekingWhen LOCAL seeking is ON, only those radio stations with strong radio signal will be received.To select LOCAL function, press and hold the [ DISP ] button on the front panel, then press [   ] button repeatedly until LO or DX displays on the screen, and rotate the [UP/DOWN] knob to select Local or Distant mode.Note:The number  of  radio  stations that can be received will decrease when Local mode is ON.SiriusXM Satellite Radio OperationsOnly SiriusXM® brings you more of what you love to listen to, all in one place. Get over  140  channels,  including commer-cial-free music  plus  the  best sports, news, talk, comedy and entertainment. Welcome to the world of satellite radio. A SiriusXM boat Tuner and Subscription are required. For  more  information,  visit  www.siriusxm.com. Displaying the Radio IDBefore you listen to satellite radio, you must subscribe to the service using the  SiriusXM Radio ID number. 1.   Press [ SRC] button to activate SiriusXM mode.2.   Press [   ] or [   ] to select channel “0”.  The unit displays Radio ID. Note: Unit does not display “0CH” when you tune to channel “0”.Activating your SiriusXM Subscrip-tionAfter installing your SiriusXM-Connect  Boat Tuner and antenna, power on your headunit and select  SiriusXM  mode.  You  should  be able to  hear  the SiriusXM preview channel on Channel 1. If you cannot hear the preview channel, please check the installation instruc-tions to  make  sure  your  SiriusXM Connect tuner is properly installed.Once you  can  hear  the Preview  channel, tune to Channel 0 to nd the Radio ID of your tuner. In addition, the Radio ID is located on the bottom  of  the  SiriusXM  Connect  Boat Tuner and its packaging. You will  need this number to  activate your subscription.  Write the number down for reference. Note: The  SiriusXM  Radio  ID  does  not include the letters I, O, S or F.In the USA, you can activate  online  or  by calling SiriusXM Listener Care:•  Visit www.siriusxm.com/activatenow  •   Call SiriusXM Listener Care at 1-866-635-2349For Canadian Subscriptions, please contact:  •  Visit www.siriusxm.ca/activatexm  •   Call XM Customer Care at 1-877-438-9677  As part  of  the  activation process, the Siri-usXM satellites will send an activation mes-sage to your tuner. When your radio detects that the tuner has received the activation message, your radio will display: “Subscrip-tion Updated”. Once subscribed, you  can tune to  channels in your  subscription plan. Note, the activation process usually takes 10 to 15 minutes, but may take up to an hour. Your radio will need to be  powered on and receiving the SiriusXM signal to receive the activation message.Storing Channel Presets1.   Press [ BND ] button to select the desired band you want to store the preset in.   There are 3 Satellite Radio Preset bands.   Each press of [ BND ] button changes the band:   SXM1 -> SXM2 -> SXM3 -> SXM12.  Tune  to  the desired  channel and then press and hold one of the preset buttons (1 through 6), to store the channel. 3.  Repeat  the  procedure to  store up  to  5 other channels on the same band.Note:•    A total of 18 channels can be stored in the preset memory, 6 channels for each band (SXM1, SXM2 and SXM3).Tuning Channels using Presets1.   Press [ BND ] button to select the desired band of presets you wish to access.2.  Press the preset button (1 through 6) that has your desired  Satellite Radio  channel stored in memory.Category Browsing1.   Press and hold [ BND ] button to activate the Category Browsing mode.2.  Rotate  the  [UP/DOWN] knob  to  select desired category.3.  Press [   ] or [   ] to select desired channel within the selected Category. You

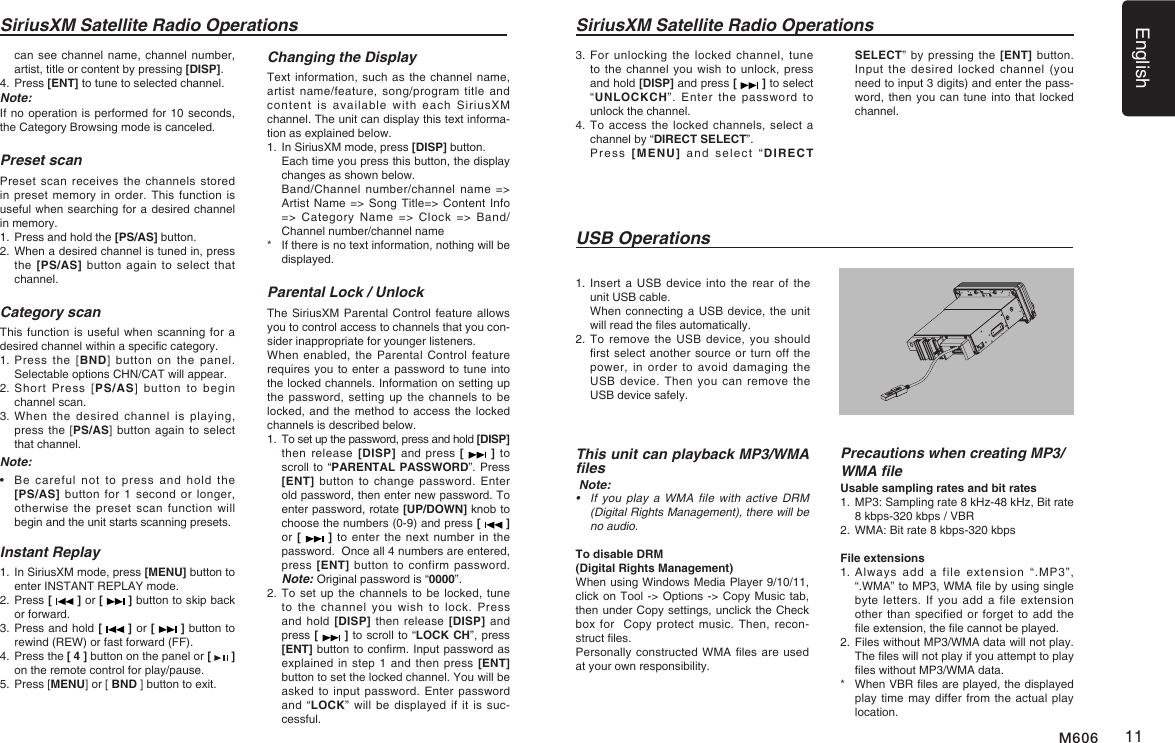

English11M606SiriusXM Satellite Radio Operations3.   For unlocking  the  locked  channel, tune to the channel you  wish to unlock, press and hold [DISP] and press [   ] to select “UNLOCKCH”.  Enter  the password  to unlock the channel.4.   To access the  locked channels, select a channel by “DIRECT SELECT”.   Press  [MENU]  and  select  “DIRECT SELECT” by pressing the  [ENT] button. Input the  desired  locked  channel  (you need to input 3 digits) and enter the pass-word, then you can tune into that locked channel.This unit can playback MP3/WMA les Note:• If you playaWMAfile with activeDRM(DigitalRightsManagement),therewillbeno audio.To disable DRM (Digital Rights Management) When using Windows Media Player 9/10/11, click on Tool -> Options -> Copy Music tab, then under Copy settings, unclick the Check box for   Copy protect  music. Then, recon-struct les.Personally constructed WMA les are used at your own responsibility.Precautions when creating MP3/WMA leUsable sampling rates and bit rates1.  MP3: Sampling rate 8 kHz-48 kHz, Bit rate 8 kbps-320 kbps / VBR 2.  WMA: Bit rate 8 kbps-320 kbpsFile extensions1.  Always  add  a  file  extension  “.MP3”, “.WMA” to MP3, WMA le by using single byte letters. If you add  a  file  extension other than specified or forget to add the le extension, the le cannot be played.2.  Files without MP3/WMA data will not play. The les will not play if you attempt to play les without MP3/WMA data.*    When VBR les are played, the displayed play time may differ from the actual play location.1.   Insert  a USB device  into the rear  of the unit USB cable.   When connecting a USB device, the unit will read the les automatically.2.   To remove the USB  device,  you should rst select another source or turn off the power, in order to  avoid  damaging  the USB device.  Then  you  can  remove  the USB device safely.USB OperationsSiriusXM Satellite Radio Operationscan see channel name, channel number, artist, title or content by pressing [DISP].4.  Press [ENT] to tune to selected channel.Note:If no operation is performed for 10 seconds, the Category Browsing mode is canceled.Preset scanPreset scan receives  the  channels  stored in preset memory in  order. This function  is useful when searching for a desired channel in memory.1.  Press and hold the [PS/AS] button.2.  When a desired channel is tuned in, press the [PS/AS] button again to select that channel.Category scanThis function is useful when scanning for a desired channel within a specic category.1.  Press  the  [BND] button  on  the  panel. Selectable options CHN/CAT will appear.2.  Short  Press  [PS/AS]  button  to  begin channel scan.3.  When  the  desired channel  is  playing, press the [PS/AS] button  again to  select that channel.Note:•   Be  careful  not  to  press  and  hold  the [PS/AS] button  for  1  second  or  longer, otherwise the preset scan  function  will begin and the unit starts scanning presets.Instant Replay1.  In SiriusXM mode, press [MENU] button to enter INSTANT REPLAY mode.2.  Press [   ] or [   ] button to skip back or forward.3.  Press and hold [   ] or [   ] button to rewind (REW) or fast forward (FF).4.  Press the [ 4 ] button on the panel or [   ] on the remote control for play/pause.5. Press [MENU] or [ BND ] button to exit.Changing the DisplayText information, such as the  channel name, artist name/feature, song/program title and content  is  available  with  each  SiriusXM channel. The unit can display this text informa-tion as explained below.1.  In SiriusXM mode, press [DISP] button.   Each time you press this button, the display changes as shown below.   Band/Channel number/channel name => Artist Name => Song Title=> Content Info => Category Name => Clock => Band/Channel number/channel name*    If there is no text information, nothing will be displayed.Parental Lock / UnlockThe SiriusXM Parental Control feature allows you to control access to channels that you con-sider inappropriate for younger listeners.When enabled,  the Parental Control feature requires you to enter a password to tune into the locked channels. Information on setting up the password, setting up  the channels to  be locked, and the method to access the locked channels is described below.1.   To set up the password, press and hold [DISP] then release  [DISP]  and press [   ] to scroll to “PARENTAL PASSWORD”. Press [ENT] button  to  change  password.  Enter old password, then enter new password. To enter password, rotate [UP/DOWN] knob to choose the numbers (0-9) and press [   ]  or [   ] to enter  the next number  in the password.  Once all 4 numbers are entered, press [ENT]  button  to  confirm password. Note: Original password is “0000”.2.   To set up the channels to be locked, tune to  the  channel  you  wish  to  lock.  Press and hold  [DISP] then release  [DISP] and press [   ] to scroll to “LOCK CH”, press [ENT] button to conrm. Input password as explained in step 1  and then  press [ENT] button to set the locked channel. You will be asked to  input password. Enter password and “LOCK” will  be  displayed if it  is  suc-cessful.

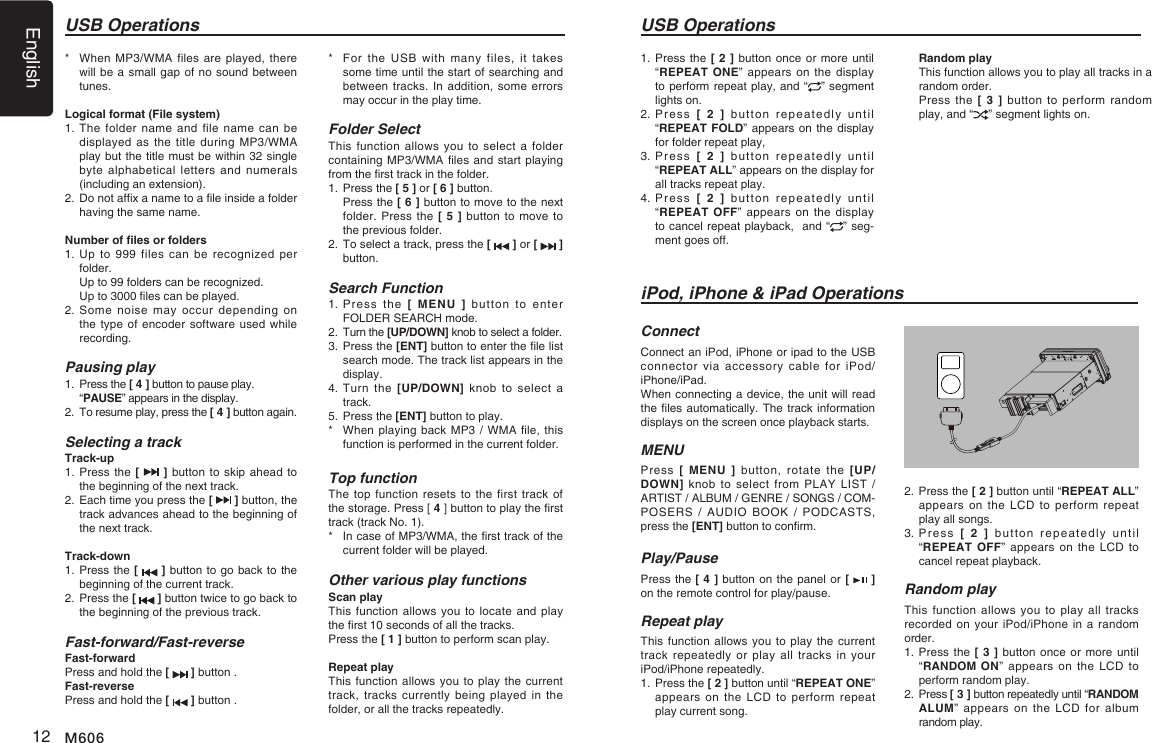

English12 M606*    When MP3/WMA files are  played, there will be a small gap of no sound between tunes.Logical format (File system)1.   The folder  name  and  file  name  can  be displayed as  the  title during MP3/WMA play but the title must be within 32 single byte alphabetical letters and numerals (including an extension).2.   Do not afx a name to a le inside a folder having the same name.Number of les or folders1.   Up to  999  files  can  be recognized  per folder.  Up to 99 folders can be recognized.  Up to 3000 les can be played.2.  Some  noise  may occur  depending on the type of  encoder software  used while recording.Pausing play1.  Press the [ 4 ] button to pause play. “PAUSE” appears in the display.2.   To resume play, press the [ 4 ] button again.Selecting a trackTrack-up1.  Press the  [   ] button to skip ahead to the beginning of the next track.2.  Each time you press the [   ] button, the track advances ahead to the beginning of the next track.Track-down1.  Press the [   ] button to go back to the beginning of the current track.2.  Press the [   ] button twice to go back to the beginning of the previous track.Fast-forward/Fast-reverseFast-forwardPress and hold the [   ] button .Fast-reversePress and hold the [   ] button .USB Operations USB Operations*   For the  USB  with many  files,  it takes some time until the start of searching and between tracks. In addition, some errors may occur in the play time.Folder SelectThis function  allows  you  to select a folder containing MP3/WMA les and start playing from the rst track in the folder.1. Press the [ 5 ] or [ 6 ] button.   Press the [ 6 ] button to move to the next folder. Press the [ 5 ] button to move to the previous folder.2.  To select a track, press the [   ] or [   ] button.Search Function1.  Press  the  [ MENU ]  button  to  enter FOLDER SEARCH mode. 2. Turn the [UP/DOWN] knob to select a folder.3.  Press the [ENT] button to enter the le list search mode. The track list appears in the display.4.  Turn  the  [UP/DOWN]  knob to  select a track.5. Press the [ENT] button to play.*    When playing back MP3 / WMA le, this function is performed in the current folder.Top functionThe top  function resets to  the first track  of the storage. Press [ 4 ] button to play the rst track (track No. 1).*   In case of MP3/WMA, the rst track of the current folder will be played.Other various play functionsScan playThis function allows you to locate and play the rst 10 seconds of all the tracks.Press the [ 1 ] button to perform scan play.Repeat playThis function allows  you to  play the current track, tracks  currently  being  played  in  the folder, or all the tracks repeatedly.iPod, iPhone & iPad OperationsConnectConnect an iPod, iPhone or ipad to the USB connector  via  accessory  cable  for  iPod/iPhone/iPad.When connecting a device, the unit will read the les automatically. The track information displays on the screen once playback starts.MENUPress  [ MENU ]  button, rotate  the  [UP/DOWN] knob to select from PLAY LIST  / ARTIST / ALBUM / GENRE / SONGS / COM-POSERS  /  AUDIO  BOOK /  PODCASTS, press the [ENT] button to conrm.  Play/PausePress the [ 4 ] button on the panel or [   ] on the remote control for play/pause.Repeat playThis function allows  you to  play the current track repeatedly or play all tracks in your iPod/iPhone repeatedly.1.  Press the [ 2 ] button until “REPEAT ONE” appears on the LCD to perform  repeat play current song.2.  Press the [ 2 ] button until “REPEAT ALL” appears on the LCD to perform repeat play all songs.3.  Press  [ 2 ]  button  repeatedly  until  “REPEAT OFF” appears  on  the LCD to cancel repeat playback. Random playThis function allows you to play all tracks recorded on your iPod/iPhone  in a random order.1.  Press the [ 3 ] button once or more until “RANDOM ON” appears on the LCD to perform random play.2.  Press [ 3 ] button repeatedly until “RANDOM ALUM” appears on  the  LCD  for  album random play.1.  Press the [ 2 ] button once or more until “REPEAT ONE” appears  on the display to perform repeat play, and “ ” segment lights on. 2.  Press  [ 2 ]  button  repeatedly  until  “REPEAT FOLD” appears on the display for folder repeat play, 3.  Press  [ 2 ]  button  repeatedly  until  “REPEAT ALL” appears on the display for all tracks repeat play.4.  Press  [ 2 ]  button  repeatedly  until  “REPEAT OFF” appears  on  the display to cancel repeat playback,  and “ ” seg-ment goes off. Random playThis function allows you to play all tracks in a random order.Press the [ 3 ] button to perform random play, and “ ” segment lights on.

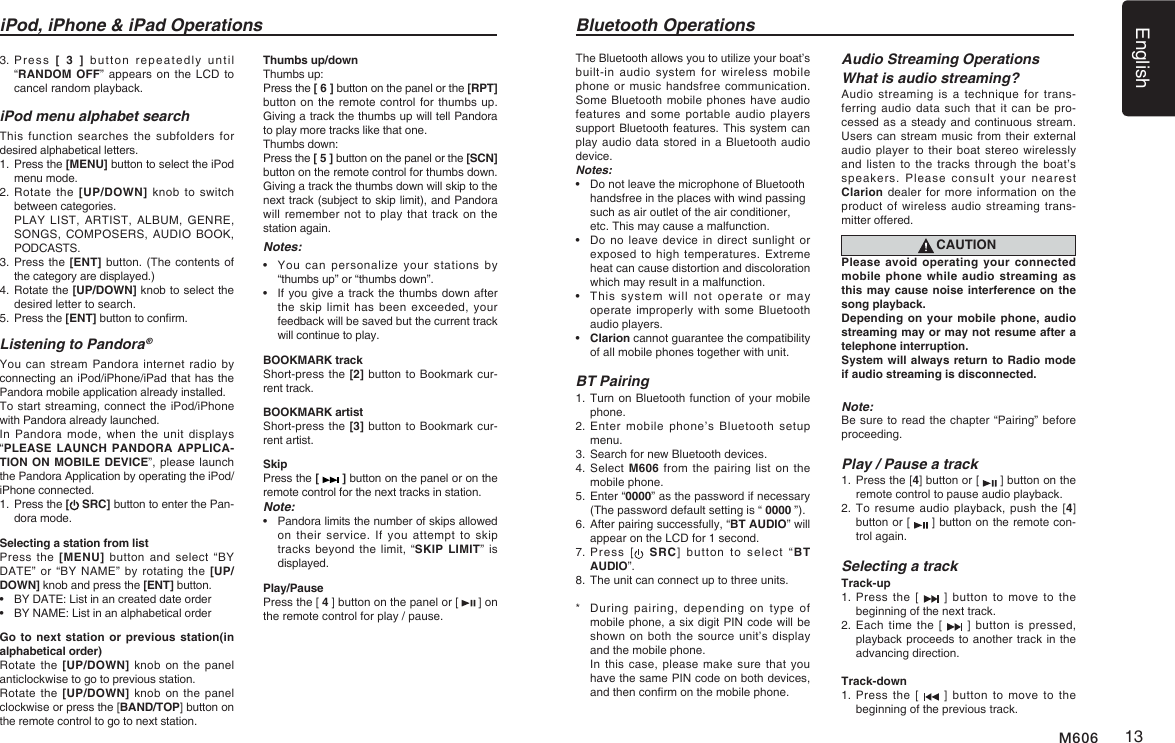

English13M606The Bluetooth allows you to utilize your boat’s built-in audio  system  for  wireless mobile phone or  music handsfree communication. Some Bluetooth mobile phones have audio features and  some  portable  audio  players support Bluetooth features. This system can play audio data  stored in a Bluetooth audio device. Notes:•   Do not leave the microphone of Bluetooth  handsfree in the places with wind passing  such as air outlet of the air conditioner,  etc. This may cause a malfunction.•   Do no leave  device  in direct sunlight or exposed to  high  temperatures. Extreme heat can cause distortion and discoloration which may result in a malfunction. •   This  system  will  not  operate  or  may operate improperly  with some Bluetooth audio players.•   Clarion cannot guarantee the compatibility of all mobile phones together with unit.BT Pairing1.  Turn on Bluetooth function of your mobile phone.2.  Enter  mobile  phone’s Bluetooth  setup menu.3. Search for new Bluetooth devices.4.   Select M606 from the pairing  list on the mobile phone.5.  Enter “0000” as the password if necessary (The password default setting is “ 0000 ”).6.  After pairing successfully, “BT AUDIO” will appear on the LCD for 1 second. 7.  Press  [   SRC]  button  to  select  “BT AUDIO”.8. The unit can connect up to three units.*   During pairing,  depending  on  type  of mobile phone, a six digit PIN code will be shown on  both the source  unit’s display and the mobile phone.    In this  case, please make  sure that you have the same PIN code on both devices, and then conrm on the mobile phone. Bluetooth OperationsAudio Streaming OperationsWhat is audio streaming?Audio streaming is a technique for  trans-ferring audio  data  such that it  can  be pro-cessed as a steady and continuous stream. Users can stream  music from their external audio player to their  boat stereo wirelessly and listen  to  the tracks through  the  boat’s speakers.  Please consult  your nearest Clarion dealer for more  information on  the product of  wireless audio streaming  trans-mitter offered.CAUTIONPlease avoid operating your connected mobile phone while audio streaming as this may cause noise interference on the song playback.Depending on your mobile phone, audio streaming may or may not resume after a telephone interruption. System will always return to Radio mode if audio streaming is disconnected.Note:Be sure to read the chapter “Pairing” before proceeding.Play / Pause a track1.   Press the [4] button or [   ] button on the remote control to pause audio playback.2.  To resume  audio playback, push  the [4] button or [   ] button on the remote con-trol again.Selecting a trackTrack-up1.  Press  the  [    ]  button  to  move  to  the beginning of the next track.2.  Each time the [   ] button is  pressed, playback proceeds to another track in the advancing direction.Track-down1.  Press  the  [    ]  button  to  move  to  the beginning of the previous track. 3.  Press  [ 3 ]  button  repeatedly  until  “RANDOM OFF” appears on the LCD to cancel random playback. iPod menu alphabet searchThis function searches the subfolders  for desired alphabetical letters.1.   Press the [MENU] button to select the iPod menu mode.2.  Rotate the  [UP/DOWN]  knob to  switch between categories.   PLAY LIST,  ARTIST,  ALBUM,  GENRE, SONGS, COMPOSERS,  AUDIO BOOK, PODCASTS.3.  Press the [ENT] button. (The contents of the category are displayed.)4.  Rotate the [UP/DOWN] knob to select the desired letter to search.5.   Press the [ENT] button to conrm.Listening to Pandora ®You can  stream Pandora internet radio  by connecting an iPod/iPhone/iPad that has the Pandora mobile application already installed.To start streaming, connect the iPod/iPhone with Pandora already launched.In Pandora mode, when the unit displays “PLEASE LAUNCH PANDORA APPLICA-TION ON MOBILE DEVICE”, please launch the Pandora Application by operating the iPod/iPhone connected.1.  Press the [ SRC] button to enter the Pan-dora mode.Selecting a station from listPress the [MENU] button and select “BY DATE” or  “BY NAME” by  rotating  the  [UP/DOWN] knob and press the [ENT] button.•  BY DATE: List in an created date order•  BY NAME: List in an alphabetical orderGo to next station or previous station(in alphabetical order)Rotate the  [UP/DOWN]  knob  on the  panel anticlockwise to go to previous station.Rotate the  [UP/DOWN]  knob  on the  panel clockwise or press the [BAND/TOP] button on the remote control to go to next station.Thumbs up/downThumbs up: Press the [ 6 ] button on the panel or the [RPT] button on the remote control for thumbs up. Giving a track the thumbs up will tell Pandora to play more tracks like that one. Thumbs down: Press the [ 5 ] button on the panel or the [SCN] button on the remote control for thumbs down. Giving a track the thumbs down will skip to the next track (subject to skip limit), and Pandora will remember not to  play that track on the station again.Notes:•     You  can  personalize  your  stations  by “thumbs up” or “thumbs down”.•   If you give a track the thumbs down after the skip  limit  has  been  exceeded,  your feedback will be saved but the current track will continue to play.BOOKMARK trackShort-press the [2] button to Bookmark cur-rent track.   BOOKMARK artistShort-press the [3] button to Bookmark cur-rent artist.   SkipPress the [   ] button on the panel or on the remote control for the next tracks in station.Note:•     Pandora limits the number of skips allowed on their service. If  you  attempt  to  skip tracks beyond the limit,  “SKIP LIMIT” is displayed.Play/PausePress the [ 4 ] button on the panel or [   ] on the remote control for play / pause.iPod, iPhone & iPad Operations

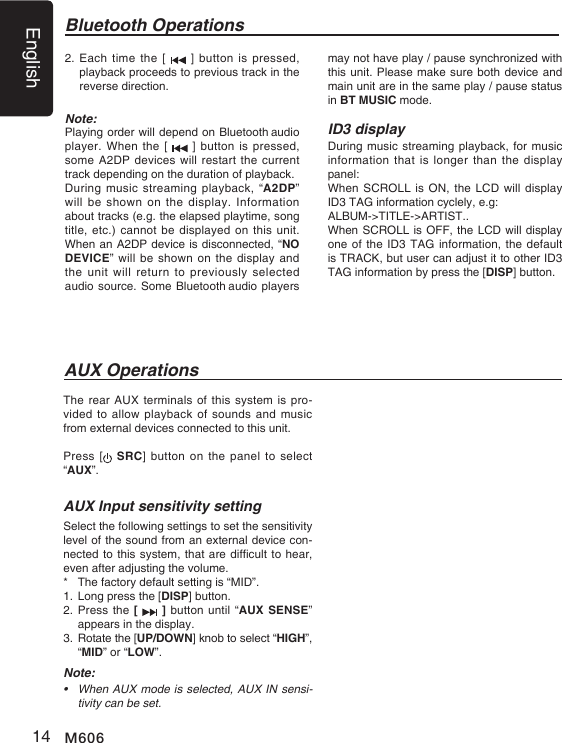

English14 M606The rear AUX terminals of this system is  pro-vided to  allow playback of  sounds and music from external devices connected to this unit.Press [   SRC]  button on the panel  to  select “AUX”.AUX Input sensitivity settingSelect the following settings to set the sensitivity level of the sound from an external device con-nected to this system, that are difcult to hear, even after adjusting the volume. *  The factory default setting is “MID”.1. Long press the [DISP] button.2.  Press the  [   ] button until “AUX SENSE” appears in the display.3.   Rotate the [UP/DOWN] knob to select “HIGH”, “MID” or “LOW”.Note:• WhenAUXmodeisselected,AUXINsensi-tivity can be set.AUX OperationsBluetooth Operations2.  Each time the [   ] button is  pressed, playback proceeds to previous track in the reverse direction.Note:Playing order will depend on Bluetooth audio player. When  the [   ] button is  pressed, some A2DP devices will restart the current track depending on the duration of playback.During music  streaming  playback, “A2DP”  will be shown on the display.  Information about tracks (e.g. the elapsed playtime, song title, etc.) cannot be  displayed on  this unit. When an A2DP device is disconnected, “NO DEVICE” will be shown  on the display  and the unit will  return  to  previously  selected audio source. Some Bluetooth audio players may not have play / pause synchronized with this unit. Please make sure both device and main unit are in the same play / pause status in BT MUSIC mode.ID3 displayDuring music streaming playback, for music information that  is  longer  than the display panel:When SCROLL is  ON, the  LCD will display ID3 TAG information cyclely, e.g: ALBUM->TITLE->ARTIST..When SCROLL is OFF, the LCD will display one of the ID3 TAG information, the default is TRACK, but user can adjust it to other ID3 TAG information by press the [DISP] button.

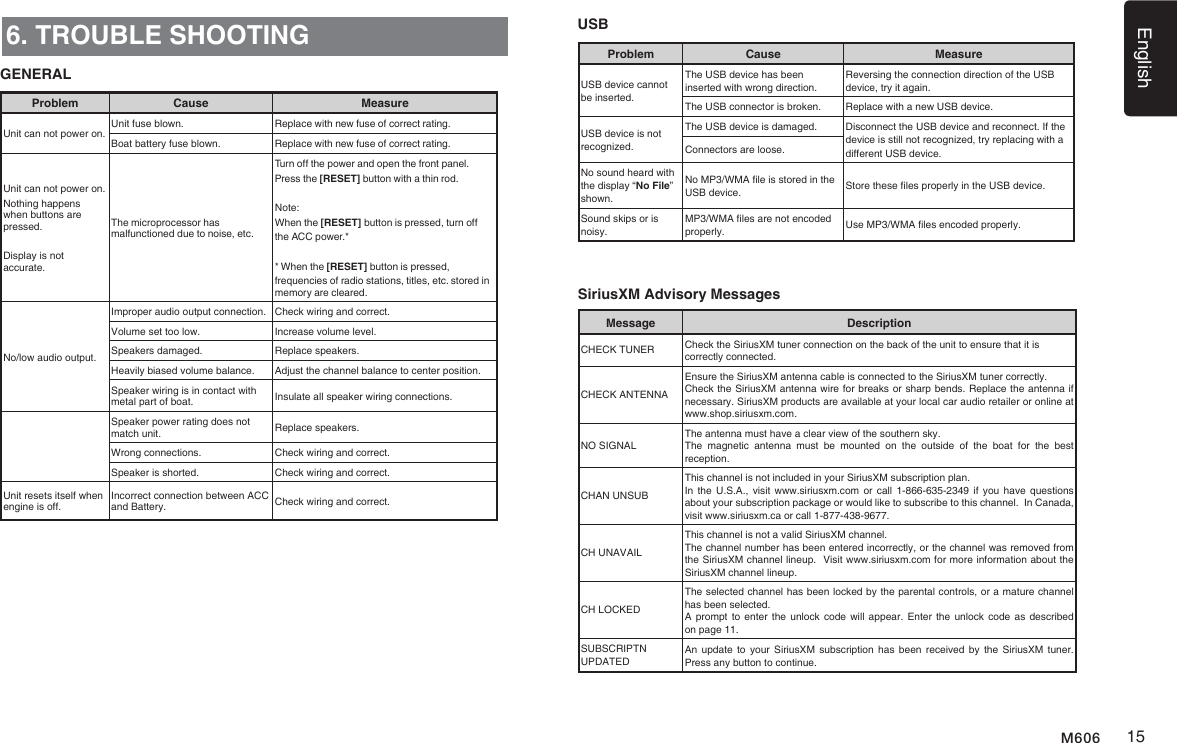

English15M6066. TROUBLE SHOOTINGGENERALProblem Cause MeasureUnit can not power on. Unit fuse blown. Replace with new fuse of correct rating.Boat battery fuse blown. Replace with new fuse of correct rating.Unit can not power on.Nothing happens when buttons are pressed.Display is not accurate.The microprocessor has malfunctioned due to noise, etc.Turn o the power and open the front panel.Press the [RESET] button with a thin rod.Note:When the [RESET] button is pressed, turn othe ACC power.** When the [RESET] button is pressed,frequencies of radio stations, titles, etc. stored in memory are cleared.No/low audio output.Improper audio output connection. Check wiring and correct.Volume set too low. Increase volume level.Speakers damaged. Replace speakers.Heavily biased volume balance. Adjust the channel balance to center position.Speaker wiring is in contact with metal part of boat. Insulate all speaker wiring connections.Speaker power rating does not match unit. Replace speakers.Wrong connections. Check wiring and correct.Speaker is shorted. Check wiring and correct.Unit resets itself when engine is off. Incorrect connection between ACC and Battery. Check wiring and correct.USBProblem Cause MeasureUSB device cannot be inserted.The USB device has been inserted with wrong direction.Reversing the connection direction of the USB device, try it again.The USB connector is broken. Replace with a new USB device.USB device is not recognized.The USB device is damaged. Disconnect the USB device and reconnect. If the device is still not recognized, try replacing with a different USB device.Connectors are loose.No sound heard with the display “No File” shown.No MP3/WMA le is stored in the USB device. Store these les properly in the USB device.Sound skips or is noisy.MP3/WMA les are not encoded properly. Use MP3/WMA les encoded properly.SiriusXM Advisory Messages Message  Description CHECK TUNER Check the SiriusXM tuner connection on the back of the unit to ensure that it is correctly connected. CHECK ANTENNAEnsure the SiriusXM antenna cable is connected to the SiriusXM tuner correctly. Check the SiriusXM antenna wire for breaks or sharp bends. Replace the antenna if necessary. SiriusXM products are available at your local car audio retailer or online at www.shop.siriusxm.com.NO SIGNALThe antenna must have a clear view of the southern sky.The  magnetic  antenna  must  be  mounted  on  the  outside  of  the  boat  for  the  best reception.CHAN UNSUBThis channel is not included in your SiriusXM subscription plan. In  the  U.S.A.,  visit  www.siriusxm.com  or  call  1-866-635-2349  if  you  have  questions about your subscription package or would like to subscribe to this channel.  In Canada, visit www.siriusxm.ca or call 1-877-438-9677.     CH UNAVAILThis channel is not a valid SiriusXM channel.The channel number has been entered incorrectly, or the channel was removed from the SiriusXM channel lineup.  Visit www.siriusxm.com for more information about the SiriusXM channel lineup.CH LOCKEDThe selected channel has been locked by the parental controls, or a mature channel has been selected. A prompt  to  enter  the  unlock  code  will appear.  Enter  the  unlock code  as  described on page 11. SUBSCRIPTN UPDATEDAn  update  to  your  SiriusXM  subscription  has  been  received  by  the  SiriusXM  tuner.  Press any button to continue.

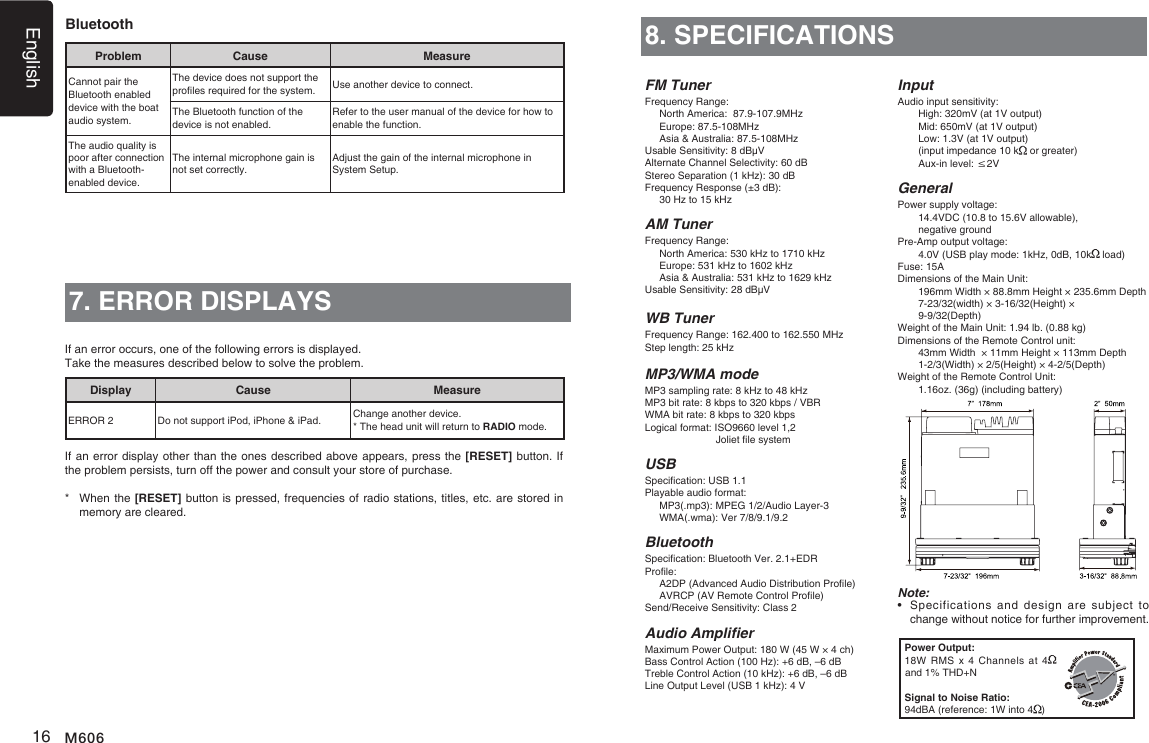

English16 M6068. SPECIFICATIONSFM TunerFrequency Range:  North America:  87.9-107.9MHz  Europe: 87.5-108MHz  Asia & Australia: 87.5-108MHzUsable Sensitivity: 8 dBμVAlternate Channel Selectivity: 60 dBStereo Separation (1 kHz): 30 dBFrequency Response (±3 dB):   30 Hz to 15 kHzAM TunerFrequency Range:  North America: 530 kHz to 1710 kHz  Europe: 531 kHz to 1602 kHz  Asia & Australia: 531 kHz to 1629 kHzUsable Sensitivity: 28 dBμVWB TunerFrequency Range: 162.400 to 162.550 MHzStep length: 25 kHzMP3/WMA modeMP3 sampling rate: 8 kHz to 48 kHzMP3 bit rate: 8 kbps to 320 kbps / VBRWMA bit rate: 8 kbps to 320 kbpsLogical format: ISO9660 level 1,2                          Joliet le systemUSBSpecication: USB 1.1Playable audio format:   MP3(.mp3): MPEG 1/2/Audio Layer-3   WMA(.wma): Ver 7/8/9.1/9.2BluetoothSpecication: Bluetooth Ver. 2.1+EDRProle:     A2DP (Advanced Audio Distribution Prole)   AVRCP (AV Remote Control Prole)Send/Receive Sensitivity: Class 2Audio AmplierMaximum Power Output: 180 W (45 W × 4 ch)Bass Control Action (100 Hz): +6 dB, –6 dBTreble Control Action (10 kHz): +6 dB, –6 dBLine Output Level (USB 1 kHz): 4 VInputAudio input sensitivity:   High: 320mV (at 1V output)   Mid: 650mV (at 1V output)   Low: 1.3V (at 1V output)   (input impedance 10 k  or greater)   Aux-in level: ≤2VGeneralPower supply voltage:    14.4VDC (10.8 to 15.6V allowable),    negative groundPre-Amp output voltage:    4.0V (USB play mode: 1kHz, 0dB, 10k  load) Fuse: 15ADimensions of the Main Unit:     196mm Width × 88.8mm Height × 235.6mm Depth    7-23/32(width) × 3-16/32(Height) ×      9-9/32(Depth)Weight of the Main Unit: 1.94 lb. (0.88 kg)Dimensions of the Remote Control unit:    43mm Width  × 11mm Height × 113mm Depth   1-2/3(Width) × 2/5(Height) × 4-2/5(Depth)Weight of the Remote Control Unit:   1.16oz. (36g) (including battery)Note:•    Specifications  and  design  are  subject to change without notice for further improvement.Power Output:18W RMS  x 4  Channels  at 4  and 1% THD+NSignal to Noise Ratio:94dBA (reference: 1W into 4 )7. ERROR DISPLAYSDisplay Cause MeasureERROR 2 Do not support iPod, iPhone & iPad. Change another device.* The head unit will return to RADIO mode.If an error occurs, one of the following errors is displayed. Take the measures described below to solve the problem.If an error display other than the ones described above appears, press the [RESET] button. If the problem persists, turn off the power and consult your store of purchase.*   When the [RESET] button is pressed, frequencies of radio stations, titles, etc. are stored in memory are cleared.BluetoothProblem Cause MeasureCannot pair the  Bluetooth enabled device with the boat audio system.The device does not support the proles required for the system. Use another device to connect.The Bluetooth function of the device is not enabled.Refer to the user manual of the device for how to enable the function.The audio quality is poor after connection with a Bluetooth-enabled device.The internal microphone gain is not set correctly.Adjust the gain of the internal microphone in System Setup.

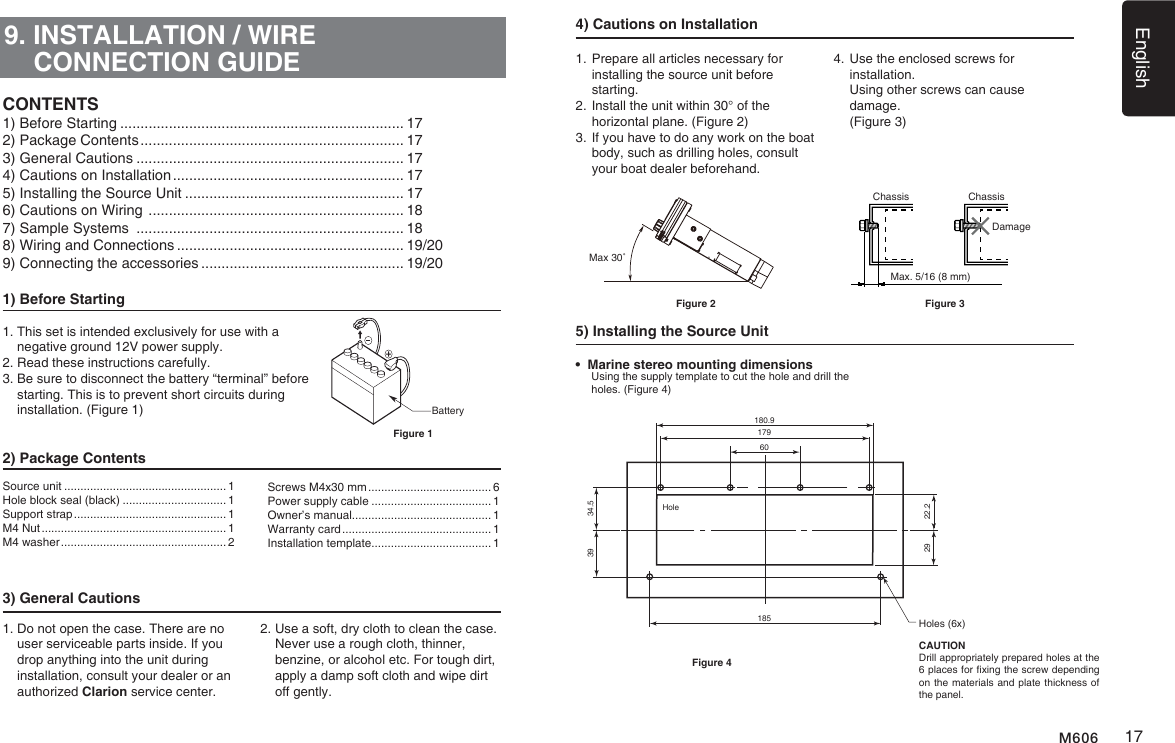

English17M6069. INSTALLATION / WIRE CONNECTION GUIDE1) Before Starting1.  This set is intended exclusively for use with a negative ground 12V power supply.2. Read these instructions carefully.3.  Be sure to disconnect the battery “terminal” before starting. This is to prevent short circuits during installation. (Figure 1)2) Package Contents3) General Cautions1.  Do not open the case. There are no user serviceable parts inside. If you drop anything into the unit during    installation, consult your dealer or an authorized Clarion service center.2.  Use a soft, dry cloth to clean the case.  Never use a rough cloth, thinner, benzine, or alcohol etc. For tough dirt,  apply a damp soft cloth and wipe dirt  off gently.CONTENTSBatteryFigure 1Source unit .................................................. 1Hole block seal (black) ................................ 1Support strap ............................................... 1M4 Nut ......................................................... 1M4 washer ................................................... 2Screws M4x30 mm ...................................... 6Power supply cable ..................................... 1Owner’s manual........................................... 1Warranty card .............................................. 1Installation template..................................... 14) Cautions on Installation1.  Prepare all articles necessary for installing the source unit before starting.2.  Install the unit within 30° of the horizontal plane. (Figure 2)3.  If you have to do any work on the boat body, such as drilling holes, consult your boat dealer beforehand.4.  Use the enclosed screws for installation.    Using other screws can cause damage.   (Figure 3)5) Installing the Source UnitMax 30˚Figure 2•  Marine stereo mounting dimensions    Using the supply template to cut the hole and drill the holes. (Figure 4)HoleHoles (6x)CAUTIONDrill appropriately prepared holes at the 6 places for xing the screw depending on the materials and plate thickness of the panel.180.934.522.2392918517960Figure 41) Before Starting ...................................................................... 172) Package Contents ................................................................. 173) General Cautions .................................................................. 174) Cautions on Installation ......................................................... 175) Installing the Source Unit ...................................................... 176) Cautions on Wiring  ............................................................... 187) Sample Systems  .................................................................. 188) Wiring and Connections ........................................................ 19/209) Connecting the accessories .................................................. 19/20Chassis ChassisDamageMax. 5/16 (8 mm)Figure 3

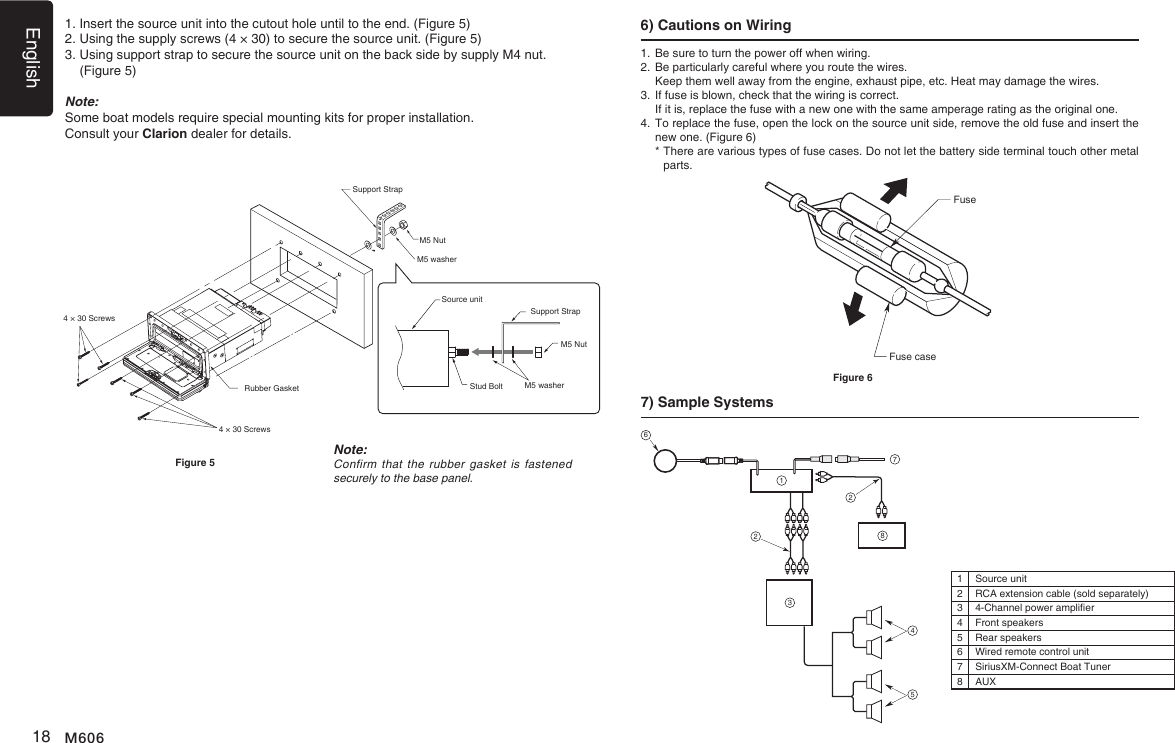

English18 M6061.  Be sure to turn the power off when wiring.2.  Be particularly careful where you route the wires.   Keep them well away from the engine, exhaust pipe, etc. Heat may damage the wires.3.  If fuse is blown, check that the wiring is correct.   If it is, replace the fuse with a new one with the same amperage rating as the original one.4.  To replace the fuse, open the lock on the source unit side, remove the old fuse and insert the new one. (Figure 6)  *  There are various types of fuse cases. Do not let the battery side terminal touch other metal parts.7) Sample Systems 6) Cautions on Wiring FuseFuse caseFigure 61223456781 Source unit2RCA extension cable (sold separately)3 4-Channel power amplier4Front speakers5Rear speakers6Wired remote control unit7SiriusXM-Connect Boat Tuner8AUX1.  Insert the source unit into the cutout hole until to the end. (Figure 5)2.  Using the supply screws (4 × 30) to secure the source unit. (Figure 5) 3.  Using support strap to secure the source unit on the back side by supply M4 nut. (Figure 5)Note: Some boat models require special mounting kits for proper installation. Consult your Clarion dealer for details.Support StrapM5 NutM5 washerM5 washer4 × 30 ScrewsRubber Gasket Source unitSupport Strap M5 NutStud Bolt4 × 30 ScrewsNote:Confirmthattherubber gasket isfastenedsecurely to the base panel.Figure 5

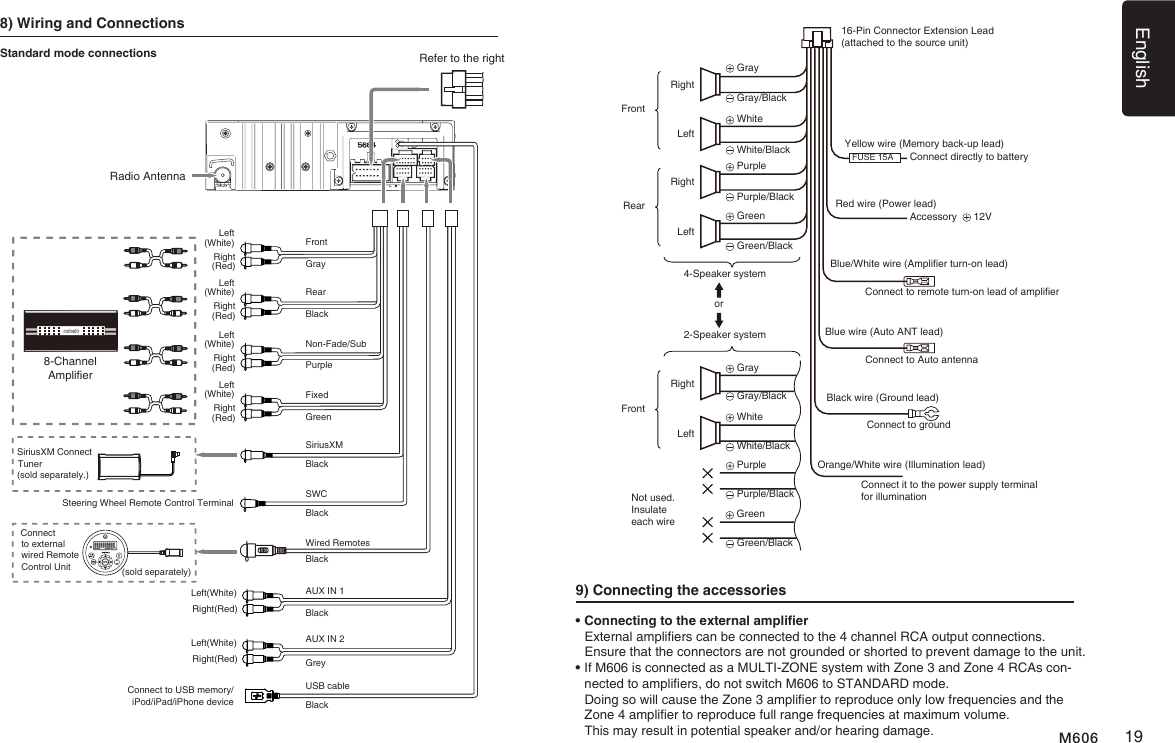

English19M606Standard mode connections8) Wiring and Connections• Connecting to the external amplier  External ampliers can be connected to the 4 channel RCA output connections.     Ensure that the connectors are not grounded or shorted to prevent damage to the unit.•  If M606 is connected as a MULTI-ZONE system with Zone 3 and Zone 4 RCAs con-nected to ampliers, do not switch M606 to STANDARD mode.    Doing so will cause the Zone 3 amplier to reproduce only low frequencies and the Zone 4 amplier to reproduce full range frequencies at maximum volume.   This may result in potential speaker and/or hearing damage. 9) Connecting the accessories16-Pin Connector Extension Lead(attached to the source unit)Yellow wire (Memory back-up lead)Red wire (Power lead)Blue/White wire (Amplier turn-on lead)Blue wire (Auto ANT lead)Black wire (Ground lead)Orange/White wire (Illumination lead)Connect to remote turn-on lead of amplierConnect to Auto antennaConnect to groundConnect it to the power supply terminal for illuminationConnect directly to batteryAccessory    12VRightRightFrontFrontRear Gray Gray White White Purple Purple Green Green Gray/Black Gray/Black White/Black White/Black Purple/Black Purple/Black Green/Black Green/Black4-Speaker system2-Speaker systemorRightLeftNot used.Insulate each wireLeftLeft FUSE 15ARadio AntennaRefer to the rightAUX IN 1Wired RemotesSWCAUX IN 2Connect to USB memory/iPod/iPad/iPhone deviceSiriusXMSteering Wheel Remote Control Terminal8-Channel AmplierSiriusXM Connect Tuner(sold separately.)Connect to external wired Remote Control Unit (sold separately)Right(Red)Right(Red)Right(Red)Right(Red)Right(Red)Right(Red)FrontRearNon-Fade/SubFixedGrayBlackBlackBlackBlackBlackBlackUSB cablePurpleGreyGreenLeft(White)Left(White)Left(White)Left(White)Left(White)Left(White)

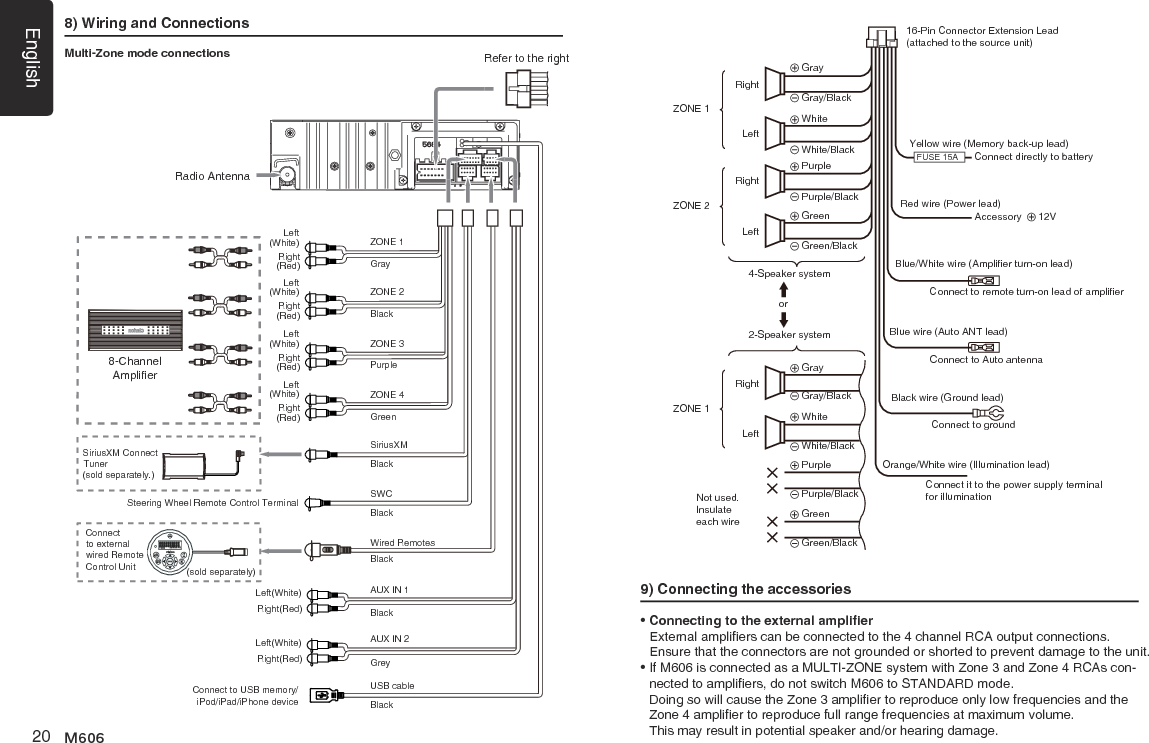

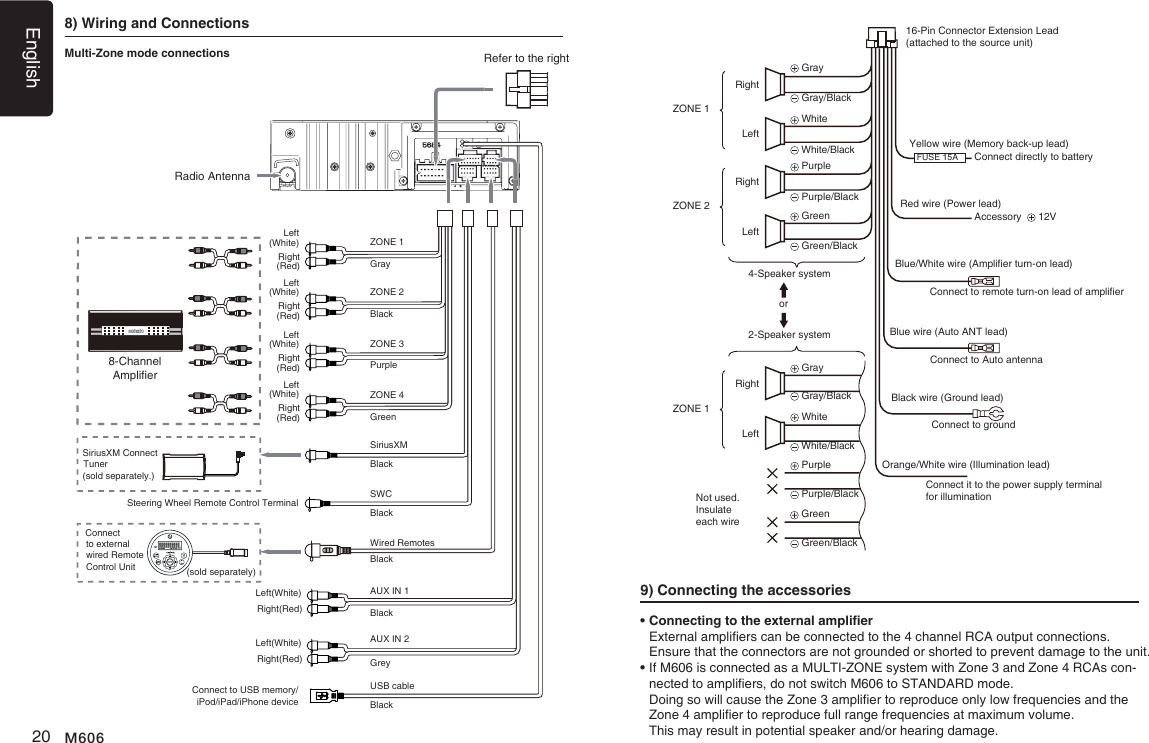

English20 M606Multi-Zone mode connections8) Wiring and Connections• Connecting to the external amplier  External ampliers can be connected to the 4 channel RCA output connections.     Ensure that the connectors are not grounded or shorted to prevent damage to the unit.•  If M606 is connected as a MULTI-ZONE system with Zone 3 and Zone 4 RCAs con-nected to ampliers, do not switch M606 to STANDARD mode.    Doing so will cause the Zone 3 amplier to reproduce only low frequencies and the Zone 4 amplier to reproduce full range frequencies at maximum volume.   This may result in potential speaker and/or hearing damage. 9) Connecting the accessories16-Pin Connector Extension Lead(attached to the source unit)Yellow wire (Memory back-up lead)Red wire (Power lead)Blue/White wire (Amplier turn-on lead)Blue wire (Auto ANT lead)Black wire (Ground lead)Orange/White wire (Illumination lead)Connect to remote turn-on lead of amplierConnect to Auto antennaConnect to groundConnect it to the power supply terminal for illuminationConnect directly to batteryAccessory    12VRightRightZONE 1ZONE 1ZONE 2 Gray Gray White White Purple Purple Green Green Gray/Black Gray/Black White/Black White/Black Purple/Black Purple/Black Green/Black Green/Black4-Speaker system2-Speaker systemorRightLeftNot used.Insulate each wireLeftLeft FUSE 15ARadio AntennaRefer to the rightAUX IN 1Wired RemotesSWCAUX IN 2Connect to USB memory/iPod/iPad/iPhone deviceSiriusXMSteering Wheel Remote Control Terminal8-Channel AmplierSiriusXM Connect Tuner(sold separately.)Connect to external wired Remote Control Unit (sold separately)Right(Red)Right(Red)Right(Red)Right(Red)Right(Red)Right(Red)ZONE 1ZONE 2ZONE 3ZONE 4GrayBlackBlackBlackBlackBlackBlackUSB cablePurpleGreyGreenLeft(White)Left(White)Left(White)Left(White)Left(White)Left(White)
