1. Scope
This document describes the operation guidelines of xpress reader for EMC test. This document
answered four questions as below shows.
1) How to install Xpress Reder.
2) How to use Xpress Reader for EMC test
How to install Xpress Reader

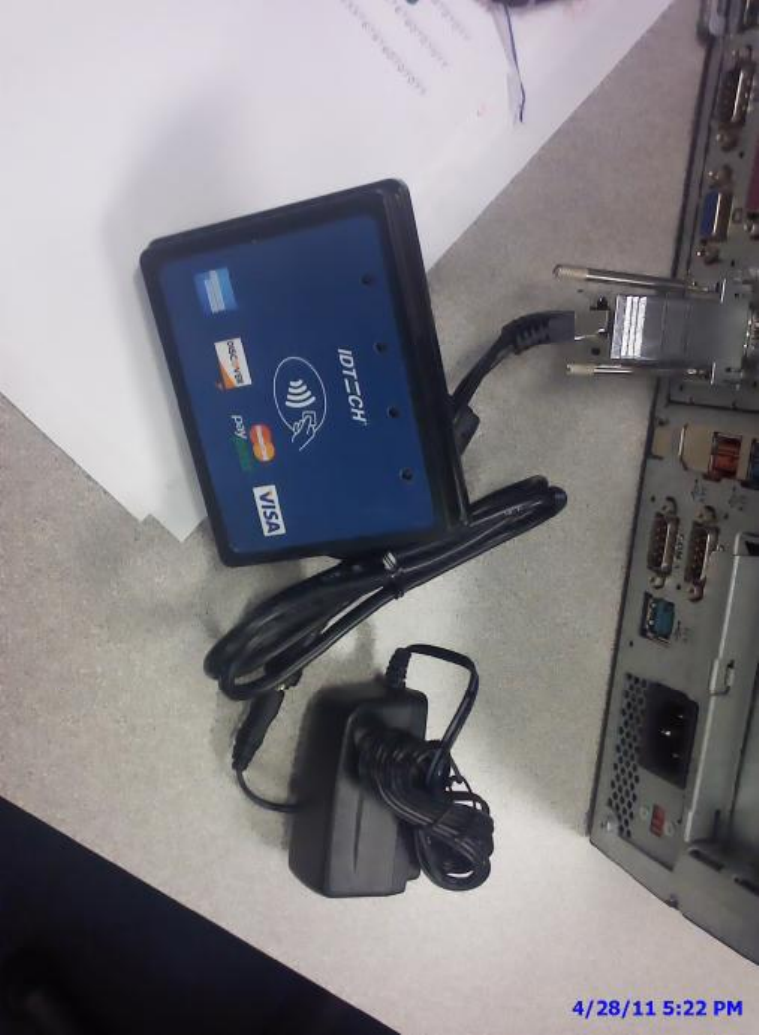

please install the reader as these steps:

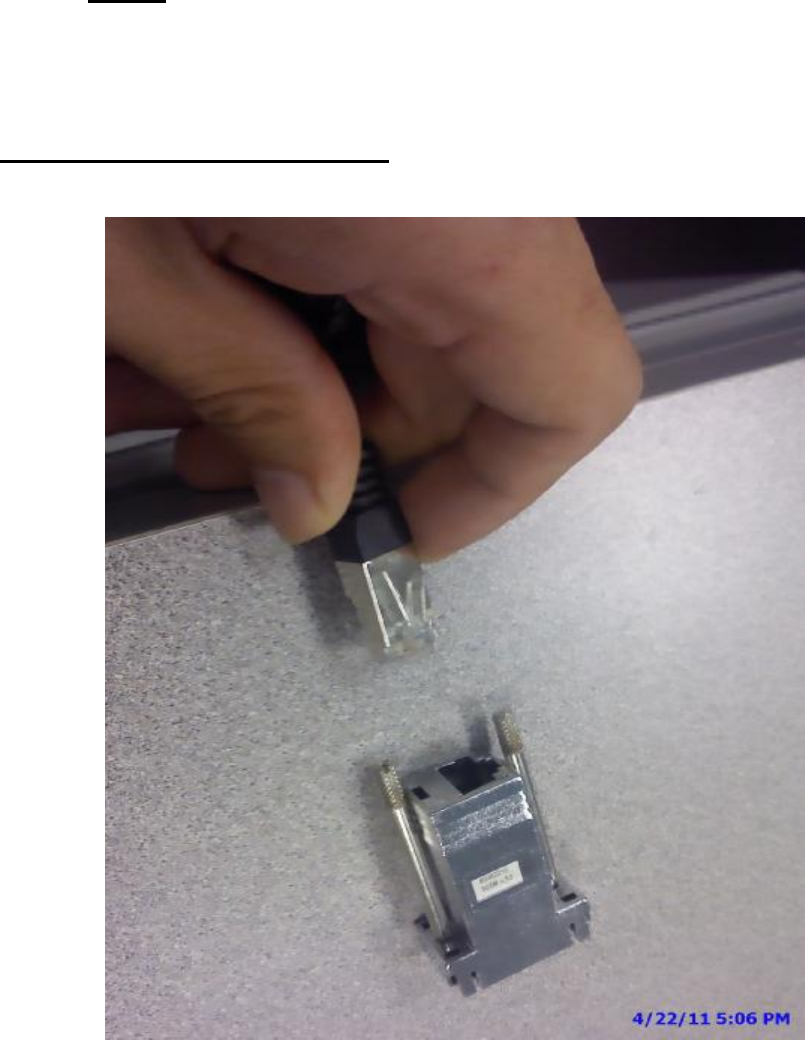

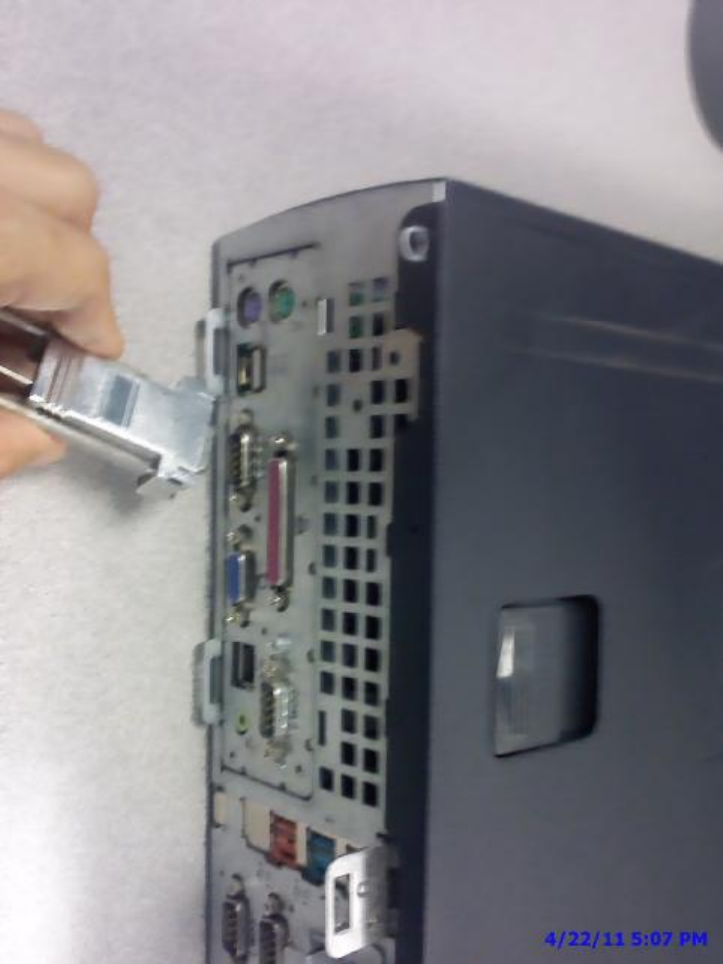

1. Plug Cable Connector to PC. Like picture 1A show.
2.
3
3. Plug Power connector (C) to RS232 Cable power connector(e),
4
4. Plug the AC-Adapter nto AC100~240V ,then Xpress reader can work.
5
2. How to use Xpress Reader
After power on Xpress Reader and reader was connect with PC, then user could read any
Paypass Magstripe card or Visa MSD Card. The operate steps:
Now the Card in box is demo card which can be used for test.

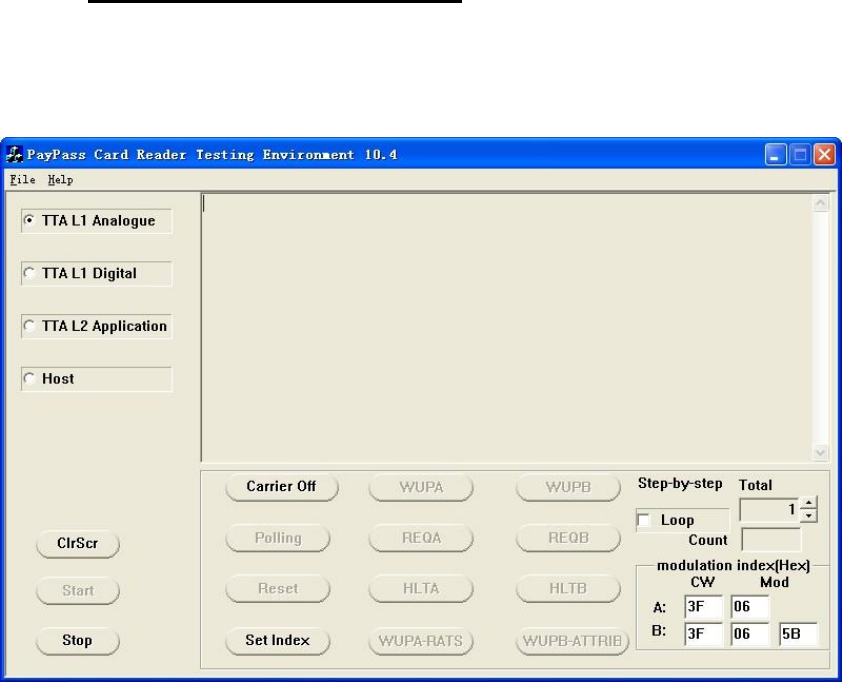

1. opern the PayPass Reader 10.4.exe
6

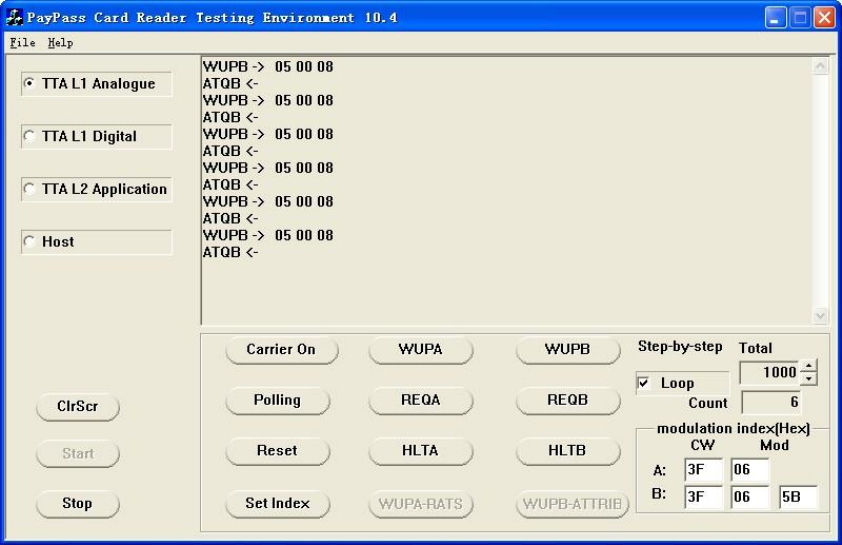

2.click the “Carrier ON ”,then the demo card can be tested.Put the card on Xpress
reader.
Change the “loop” number to 1000,then click the “WUPA” ,Data windows will show
“04 00”
If want to stop running ,you can click the “stop ”,if want to run continue ,then click
The “start”buttom
7
