6 Scope
CAS GPS User Manual
This user manual covers the following variants of the CAS GPS system (defined by the IVU features):
•
PROD0841-x LAN CAS In Vehicle Unit (IVU)
•
PROD0842-x WIFI/LAN CAS In Vehicle Unit (IVU)
•
PROD0843-x GSM/LAN CAS In Vehicle Unit (IVU)
•
PROD0847-x GSM/WIFI/LAN CAS In Vehicle Unit (IVU)
6.1 Abbreviations
Abbreviation
Meaning
IVU
In Vehicle Unit
GPS
Global Positioning System
CAS
Collision Avoidance System
LAN
Local Area Network
Wi-Fi
Wireless Communication Medium
GSM
Global System for Mobile Communications
OEM
Original Equipment Manufacture
6.2 Definitions
Term
Definition
“system”
Refers to the assembled and installed operational elements which together perform
the desired functionality.
“system components”
Refers to the individual single elements which when assembled together at the
point of installation form the “system”. Each of these elements has a unique
part number.
7 Transport
All possible precautions are taken to protect the equipment against damage or losses during shipment, however
before accepting delivery, check all items against the packing list or Bill of Lading. If there are shortages or
evidence of physical damage, notify GE Mining immediately.
Notify GE Mining within 7 days (maximum) in case of shortages or discrepancies, according to the packing list.
This action will help ensure a speedy resolution to any perceived problems. Keep a record of all claims and
correspondence. Photographs are recommended.
Where practicable do not remove protective covers prior to installation unless there are indications of damage.
Boxes opened for inspection and inventory should be carefully repacked to ensure protection of the contents
or else the parts should be packaged and stored in a safe place. Examine all packing boxes, wrappings and
covers for items attached to them, especially if the wrappings are to be discarded.
8 Storage
Where the equipment is not to be installed immediately, proper storage is important to ensure protection of
equipment and validity of warranty.
All equipment should be stored indoors protected from the elements in a cool dry area. If storing on the
ground, ensure that the storage area is not an area where water will collect.
9 Unpacking of Equipment
The method of packing used will depend on the size and quantity of equipment.
Take care when unpacking the equipment to avoid damage.
10 Installation
Installation should be in accordance with the installation procedures defined by GE Mining and only performed
by authorized and qualified installers.
11 Test & Commission
At installation the system will be tested to ensure that electrically and functionally the system is correctly
installed
After passing its final installation test, the system is then ready for use after which inbuilt self- diagnostic
testing combined with daily user monitoring ensures that any faults can be acted upon
CAS GPS User Manual.docx
Revision: E1
Page 5 of 30
CAS GPS User
Manual
12 Operation
12.1 Principle of Operation

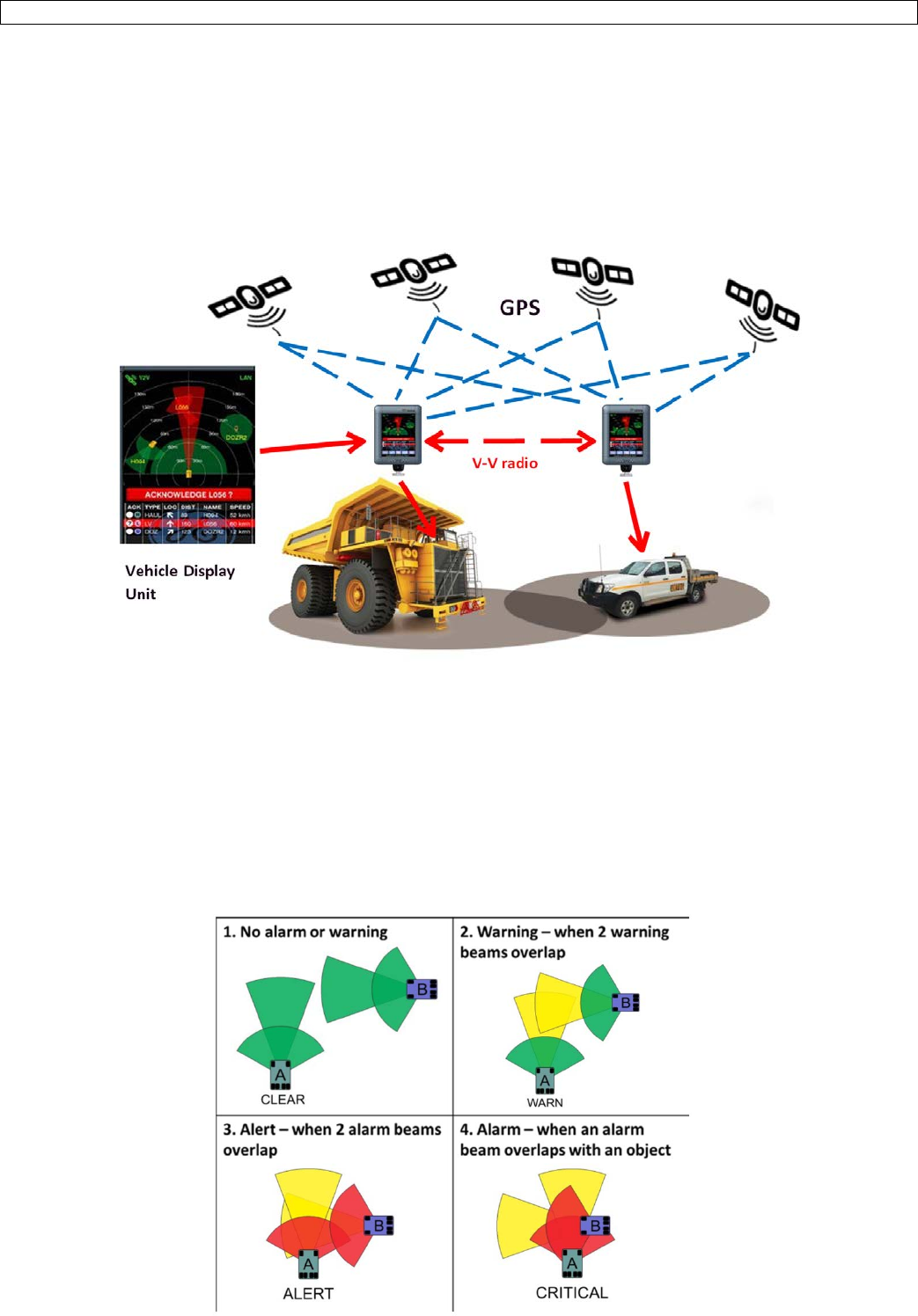

The CAS GPS product is designed to offer a situational awareness driver aid utilising GPS proximity detection
of vehicles/objects and data logging.
Each vehicle broadcasts its current position and relevant parameters which are used to detect warnings of
possible intersections with other vehicles that receive the broadcast. The position of other vehicles, together with
any warnings is shown graphically on the Display Unit.
The system aids the driver with a continuous view of other objects that are moving, stationary, over the
horizon, just behind the vehicle or simply out of sight due to bad visibility when operating their vehicle. The
system is designed to avoid distracting the driver from driving, but provides the driver with an awareness tool to
notify and visualise other objects surrounding the vehicle on take-off and during operation.
The CAS-GPS system notifies the driver with progressive audible and graphic alerts as shown in the table below.
The system continually broadcasts its location and receives broadcasts of other vehicles in radio
communications for up to 500 meters using the in-built proprietary radio link. Vehicle interactions are projected
based on the trajectories of the vehicles; an alert is triggered and depending on the configuration, an
acknowledgement by the driver on the touch screen may be required (only when the vehicle is stationary).
CAS GPS User Manual.docx
Revision: E1
Page 6 of 30
CAS GPS User
Manual
Positional Tracking
The system uses the latest precision point GPS technology which gives accurate location-based tracking. The
accuracy of the GPS is backed up by an advanced array of tracking aiding multidimensional G-Force and
Gyro digital sensors. The tracking aiding digital sensors assist the GPS position fix when the GPS signal
is inhibited resulting in accurate positions even with no view of the sky.
Data Logging
The IVU continuously logs all parameters and objects in view to a local database every
second (black box technology). The IVU retains 30 days of the 1 second logs. The
database captures every 1 second the engine parameters, the vehicle dynamics and other
vehicles in view. The local IVU database allows the site manager to retrieve all of the
events in a desired date range to gain access to more detail of a specific event.
Connectivity
The IVU has the ability to upload event logs from its internal database in real-time or upload all data from within
a selected date range including the detailed 1 second system-wide logs. The event logs can be
transmitted to the central server’s database via the following connections.
•
Wi-Fi
•
Ethernet,
•
GPRS GSM, 3G, HSDPA and in future models the 4G LTE network.
The event logs can be retrieved manually from the removable flash card if there is no connectivity available
from the IVU. The data can then be transferred into the central server’s database for reporting and analysis.
CAS GPS User Manual.docx
Revision: E1
Page 7 of 30
CAS GPS User
Manual
12.2 Object Types

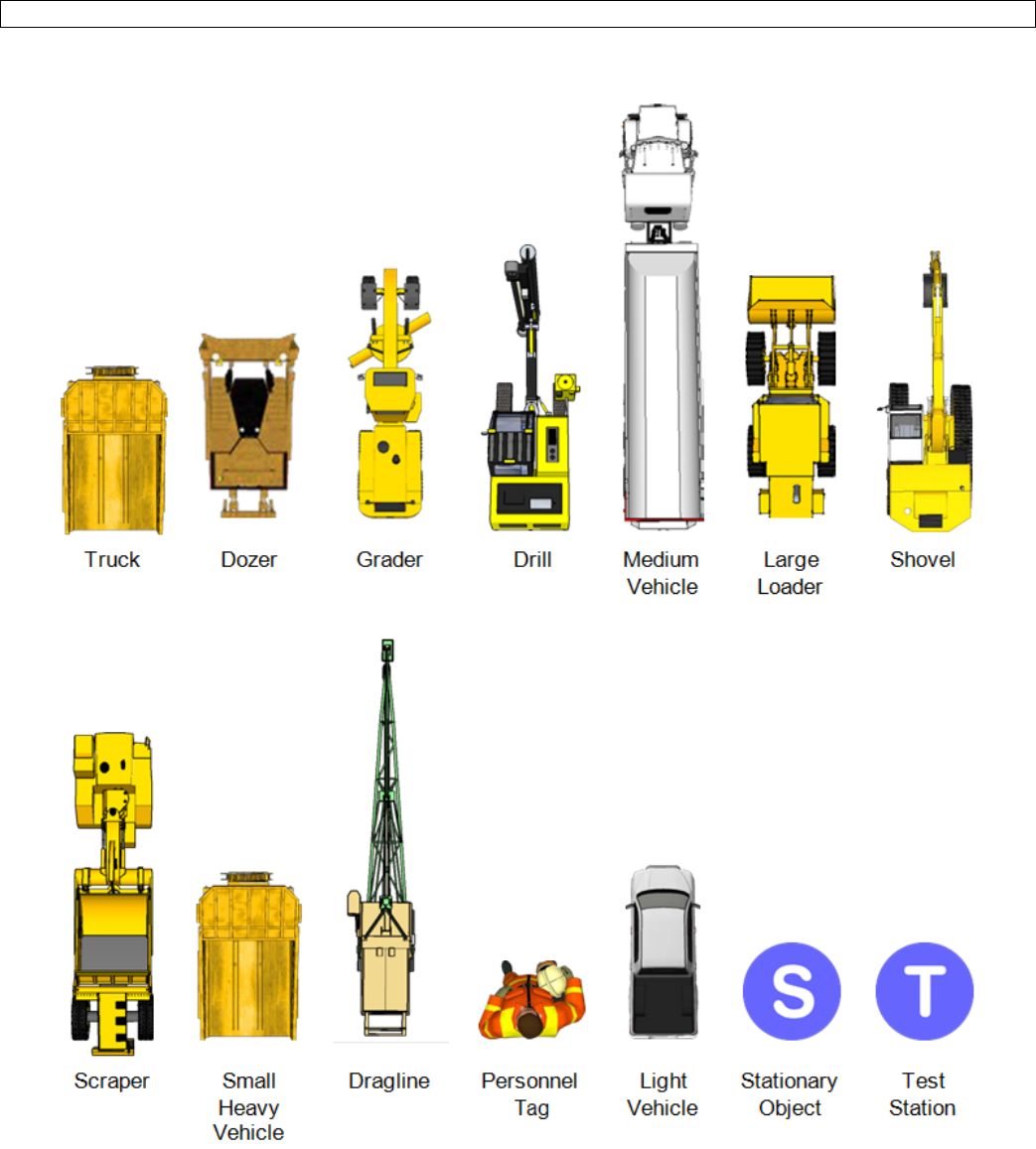

These icons are used on the display to represent the various vehicle types:
CAS GPS User Manual.docx
Revision: E1
Page 8 of 30
CAS GPS User
Manual
12.3 Key Components

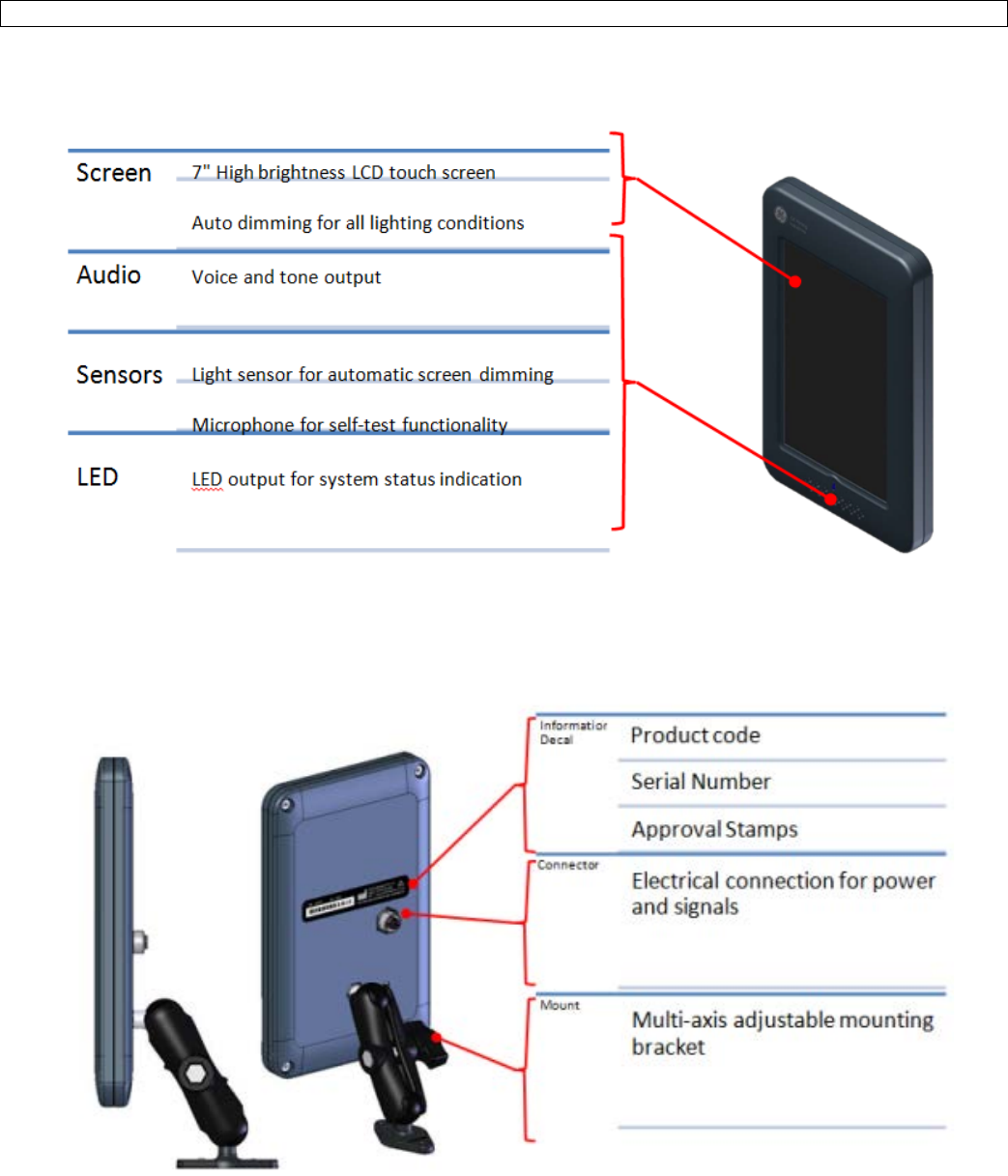

12.3.1 Display Unit
CAS GPS User Manual.docx
Revision: E1
Page 9 of 30
CAS GPS User
Manual

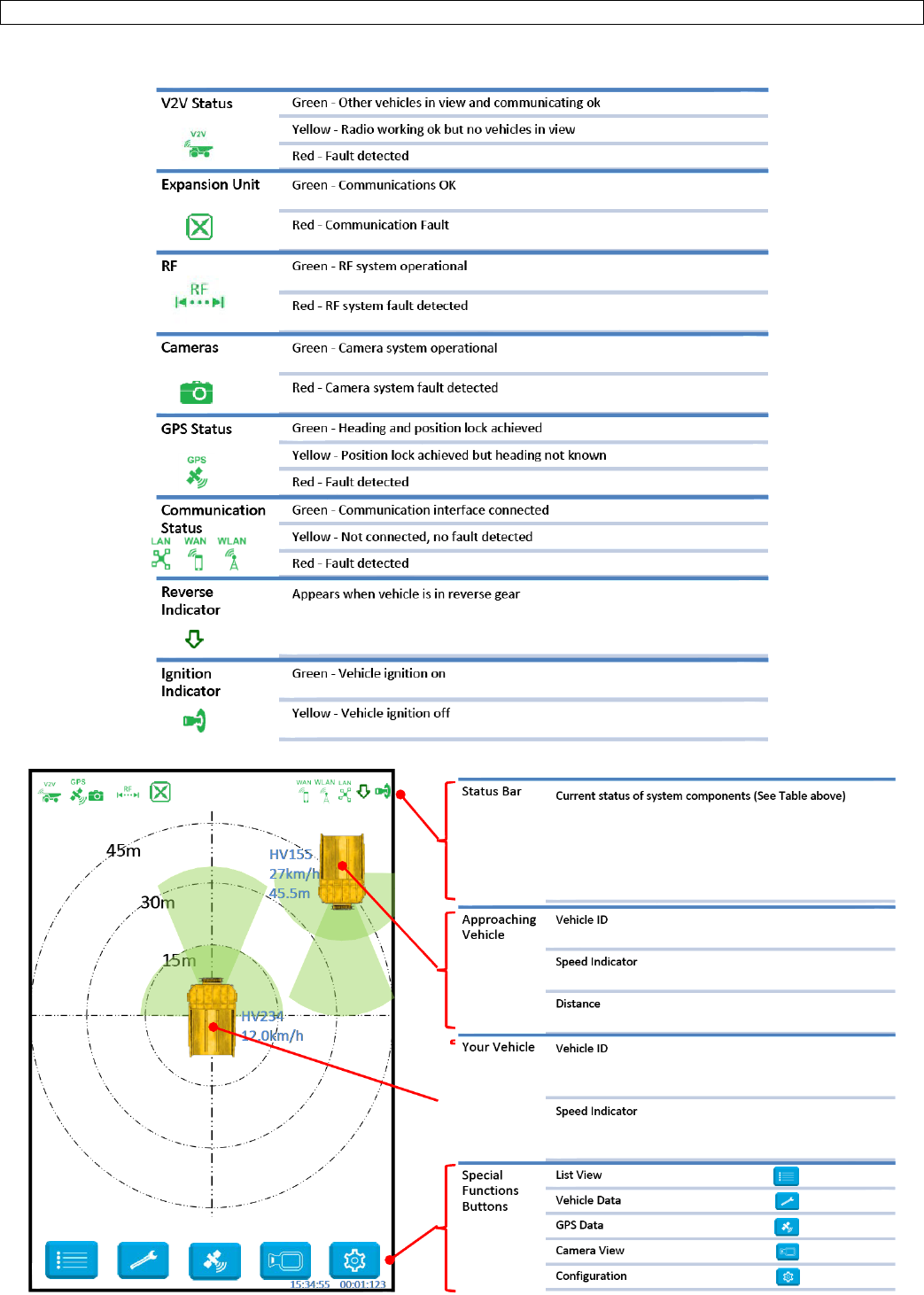

12.3.1.1 Screen Elements
CAS GPS User Manual.docx
Revision: E1
Page 10 of 30
CAS GPS User
Manual
12.3.1.2 List View

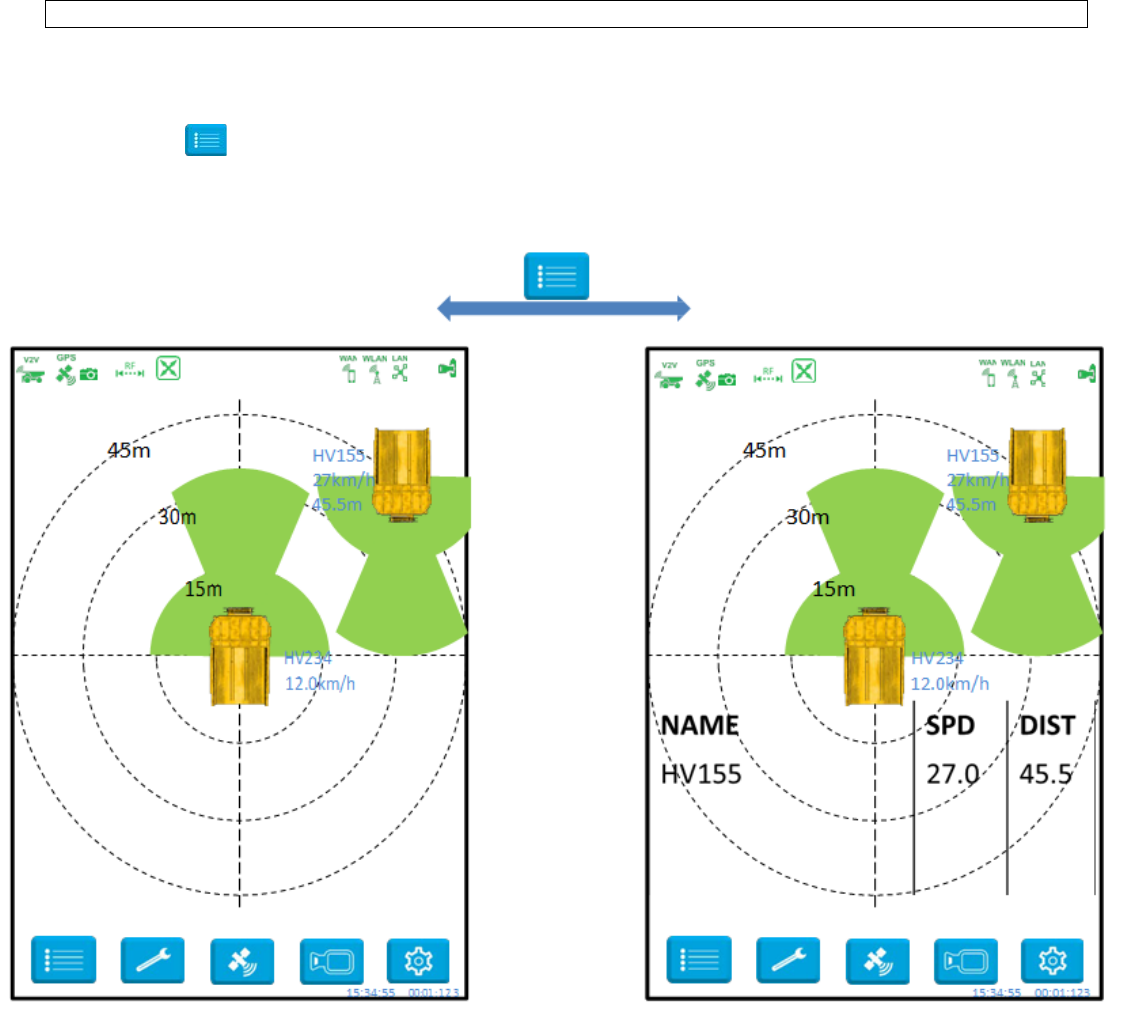

Pressing the button toggles the object list view on or off
CAS GPS User Manual.docx
Revision: E1
Page 11 of 30
CAS GPS User
Manual
12.3.1.3 GPS Status view
Pressing the button will present the operator with the GPS status screen. The GPS Status screen
holds all of the crucial data that is currently available from the GPS in real time.
Pressing the GPS button again will turn off this screen and if the heading is not valid, the list view will be
presented otherwise the screen will have the GPS status screen removed.
CAS GPS User Manual.docx
Revision: E1
Page 12 of 30
CAS GPS User
Manual
12.3.1.4 User Settings View

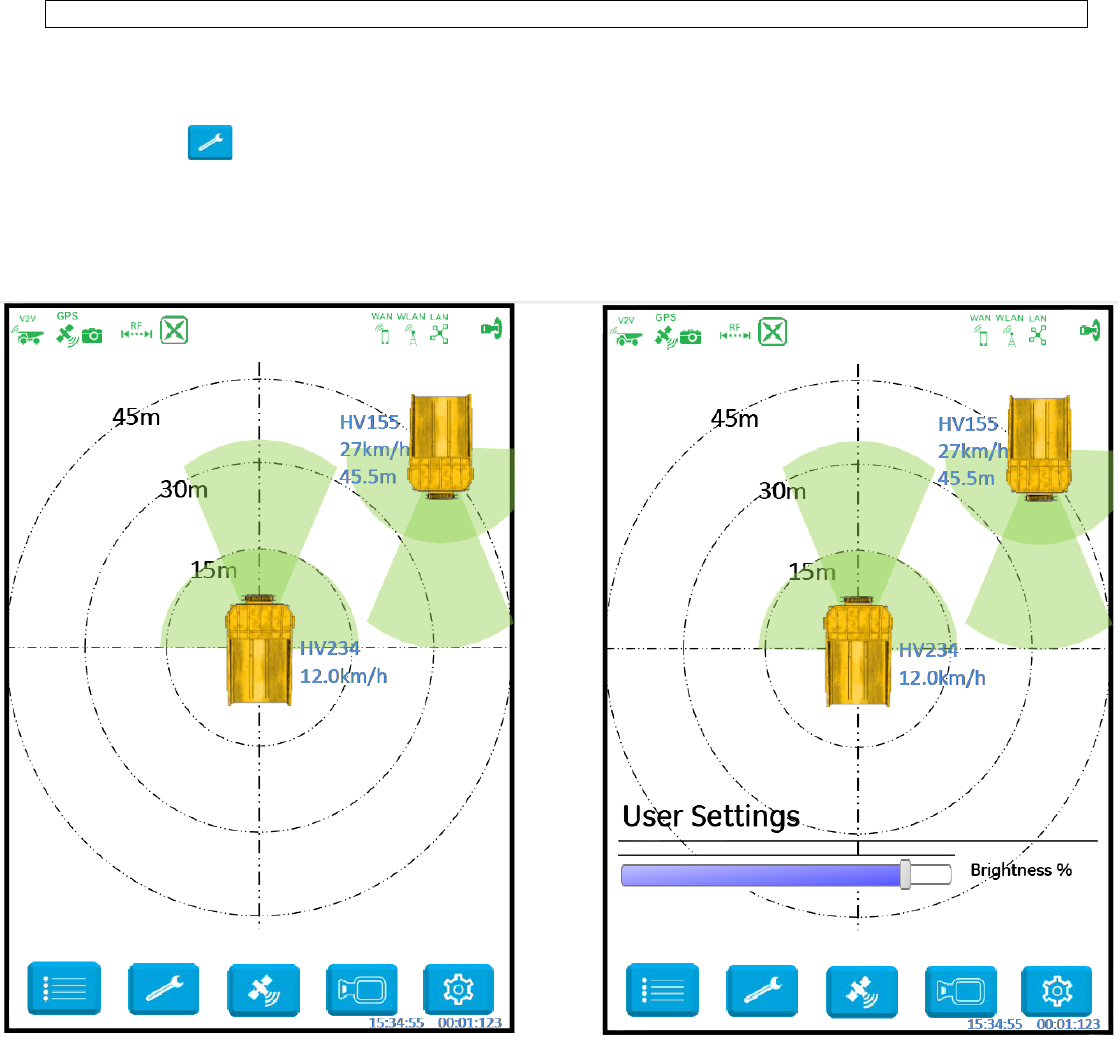

Pressing the button turns the user settings screen on. The user settings screen allows the operator to
adjust the brightness of the screen from minimum to maximum settings using the slide bar.
On automatic change of day and night mode, the brightness is changed to the default day and night values
and the operator selected brightness will be overridden. Also on a restart of the system, the brightness will
default back to the default day and night settings. The operator can change the current brightness settings at
any time.
CAS GPS User Manual.docx
Revision: E1
Page 13 of 30
CAS GPS User
Manual

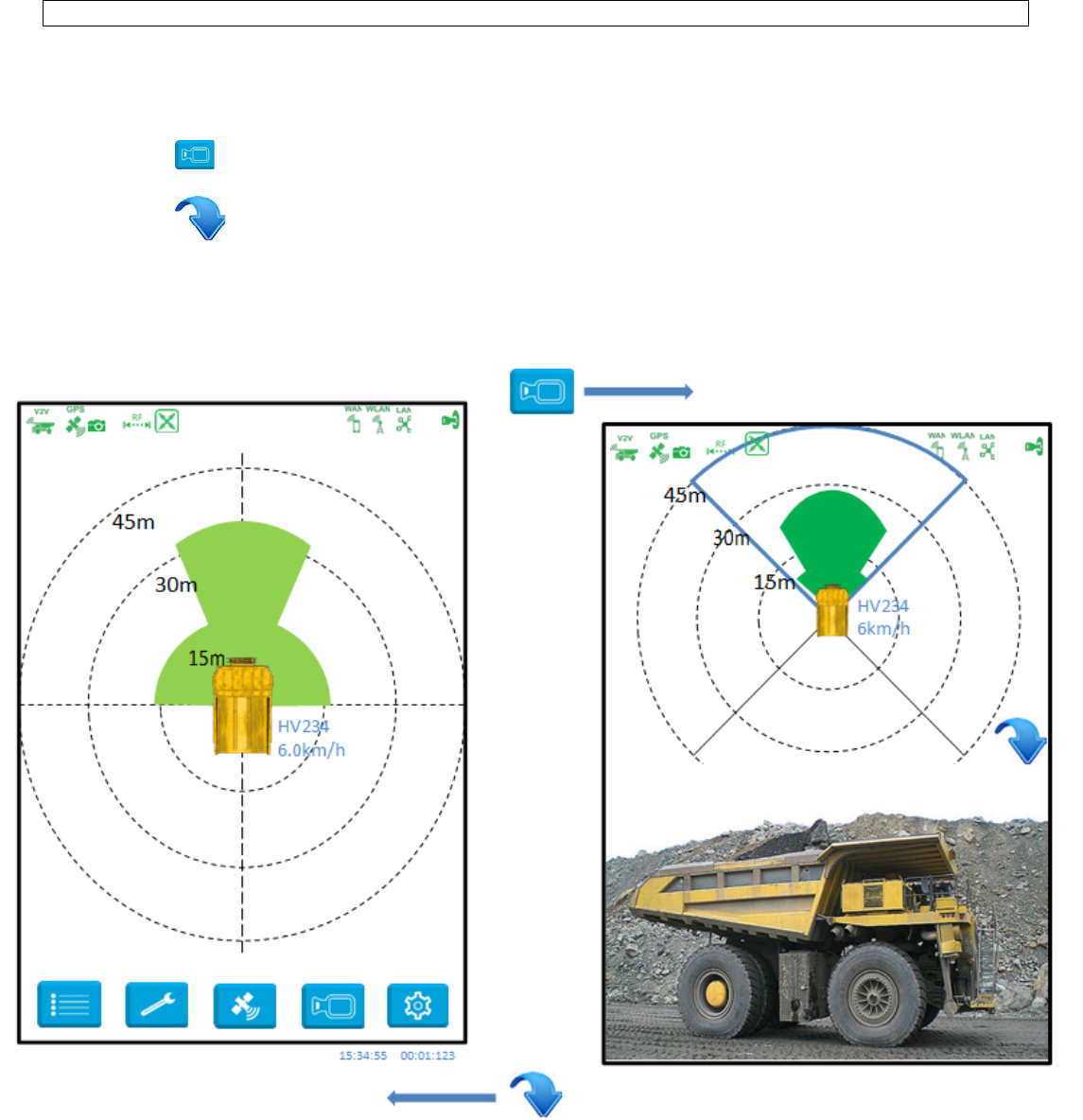

12.3.1.5 Camera View
Pressing the button turns on the camera view.
Pressing the button closes the camera view
The camera view will automatically close when the vehicle travels faster than the preconfigured camera off
speed (default 10km/h).
CAS GPS User Manual.docx
Revision: E1
Page 14 of 30
CAS GPS User
Manual
12.3.1.6 Camera Selection

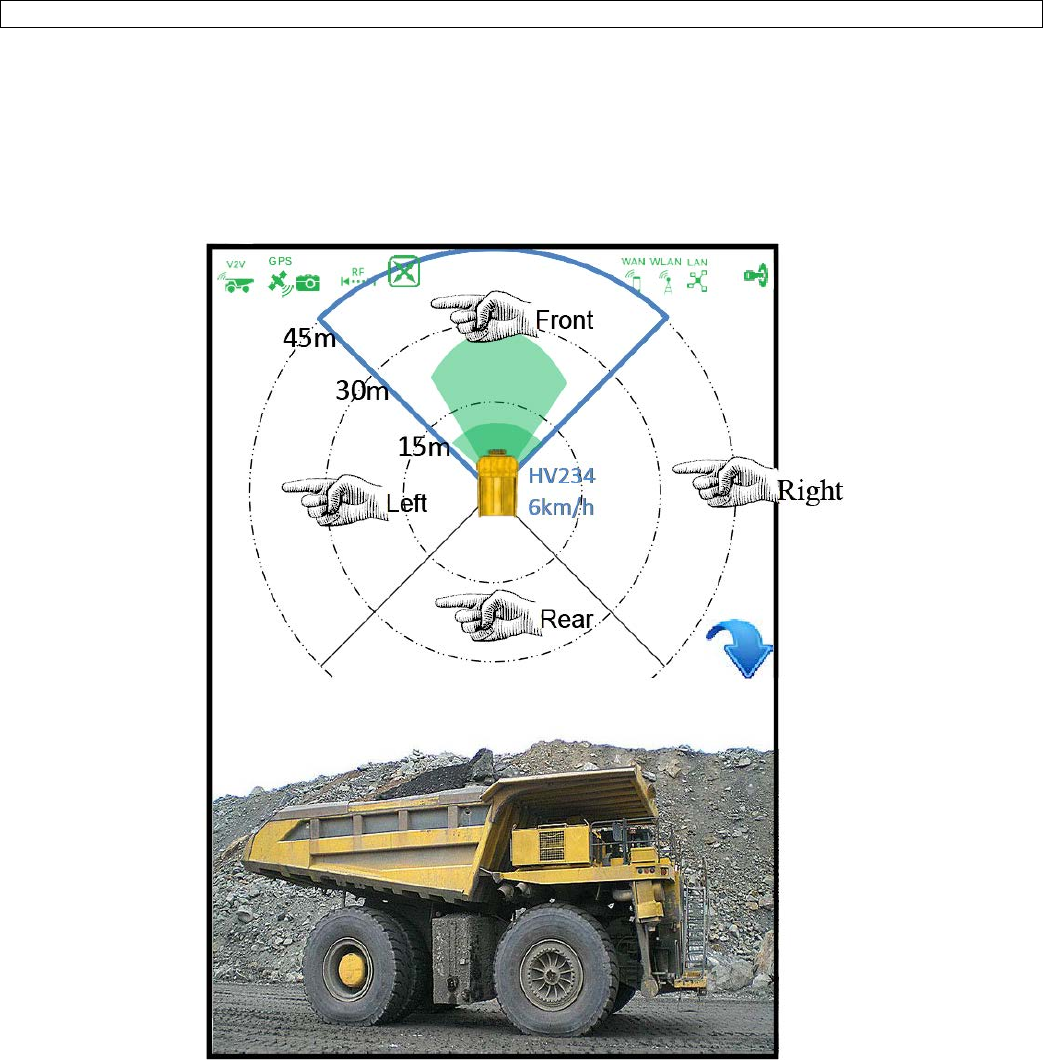

Once the camera view has been enabled cameras may be selected by pressing anywhere in the relevant
quadrant as shown in the diagram below:
CAS GPS User Manual.docx
Revision: E1
Page 15 of 30
CAS GPS User
Manual
12.3.1.7 RF Detections
The CAS GPS system can optionally be fitted with additional RF proximity detection unit(s). This may be the
case if the site wants additional redundancy in the system or commonly when sites update their existing
CAS-CAM/RF systems.

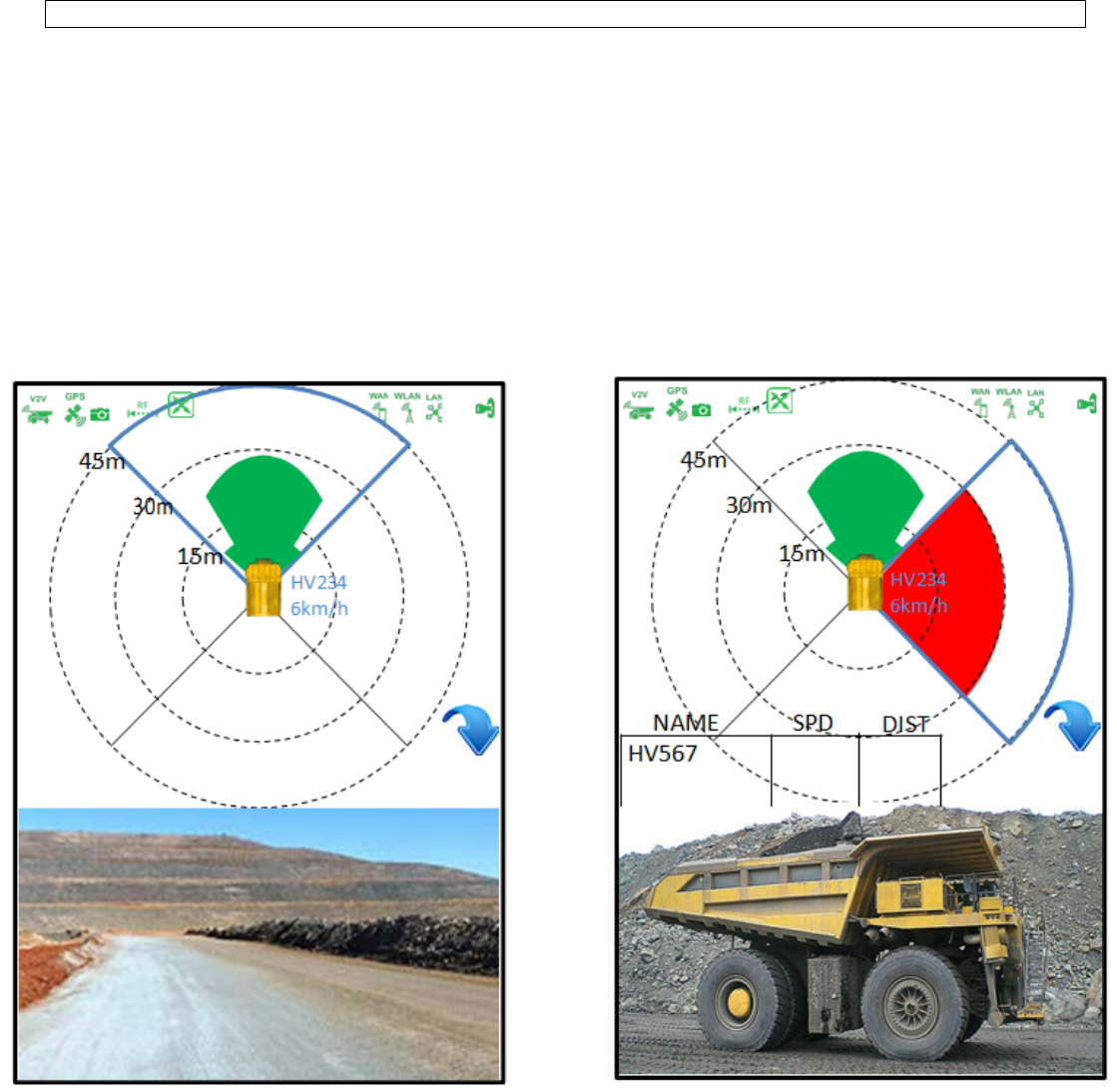

The following example shows a truck travelling forward at 6km/h with the Front camera selected. As a
vehicle fitted with RF detectors (only) approaches from the RHS the Right camera will automatically be
selected and the quadrant highlighted to indicate a vehicle is within the preconfigured distance (30m in this
example). Note no icon is presented on the screen but the vehicles ID appears in the table (no speed or
distance is displayed).
CAS GPS User Manual.docx
Revision: E1
Page 16 of 30
CAS GPS User
Manual
12.3.1.8 Using the Display
On Vehicle Start-up
Immediately after starting the vehicle and before putting it into motion; perform a quick check of the Display’s
status bar. Check that none of the icons are Red, if so your CAS GPS system is not functioning correctly and
its operation cannot be assured!
Before engaging gear (and in addition to your normal safety procedures), use the Display to gain further
awareness of other nearby CAS GPS equipped vehicles. These vehicles will be displayed as icons on your
screen each representing their type of vehicle, vehicle ID, speed, distance and direction of travel.
If a nearby vehicle’s beams are overlapping your vehicles beam an audible alarm will be sounded. Only
when your vehicle is stationary may you silence the alarm by touching anywhere on the screen.
Vehicle in Motion
When your vehicle is moving you can operate using your normal safe operating procedures. The Display will
sound an alarm to gain your attention if there is another vehicle that is getting too close. A quick glance at the
display will show the location, type, ID, heading and speed of other vehicles. You cannot silence the alarm
while your vehicle is moving!
Night Operations
A light sensor in the Display will put the screen into Night Mode when the ambient light level drops below a
preconfigured level. In night mode the screen will change from a white to a black background, this keeps the
brightness down so that the screen will not become a distraction during night operations.
Daytime Operations
A light sensor in the Display will put the screen into Daytime Mode when the ambient light level rises above a
preconfigured level. In Daytime mode the screen will change from a black to a white background, this makes the
information displayed on the screen easy to read in high ambient light levels.
CAS GPS User Manual.docx
Revision: E1
Page 17 of 30
CAS GPS User
Manual

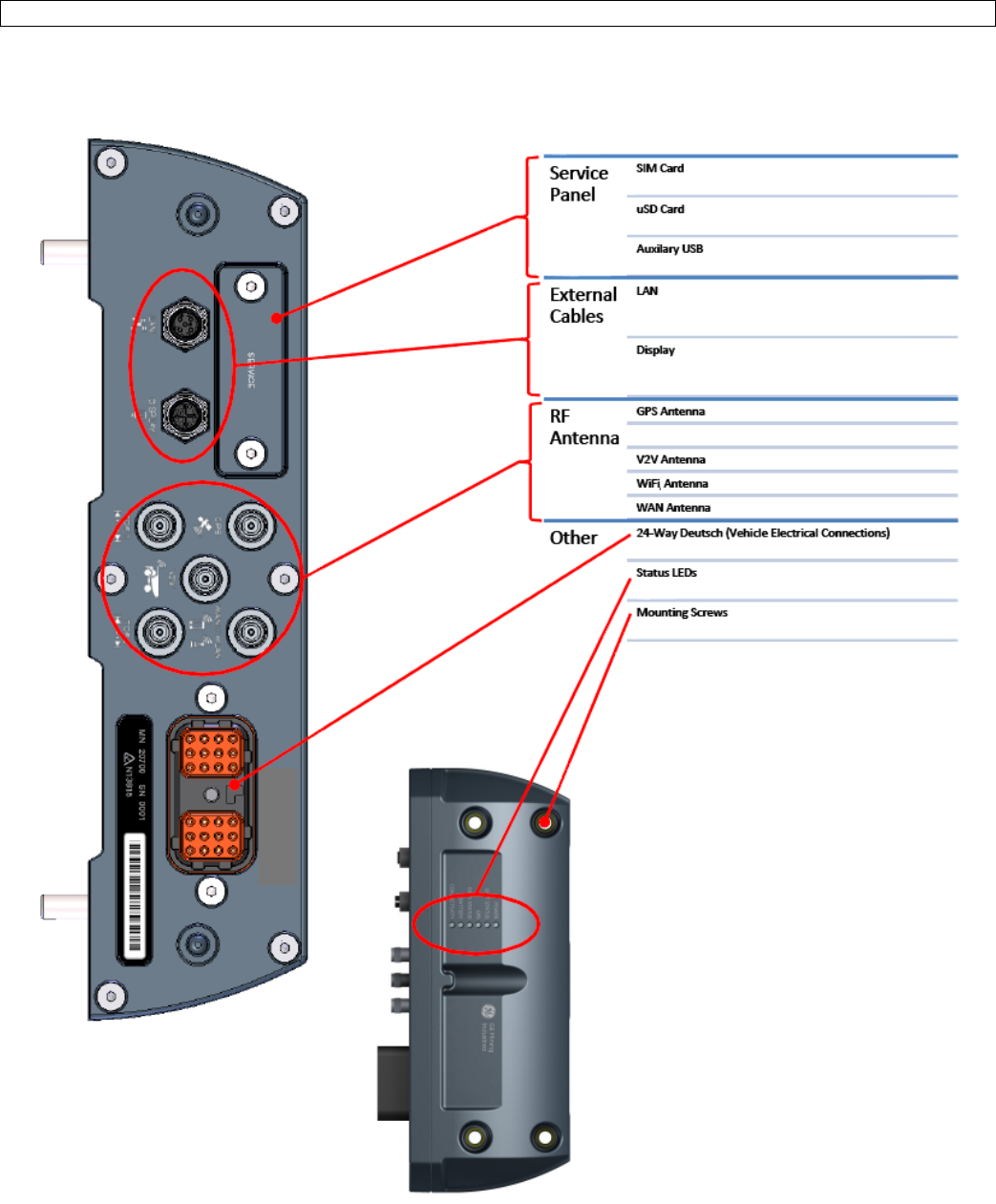

12.3.2 In Vehicle Unit (IVU)
CAS GPS User Manual.docx
Revision: E1
Page 18 of 30
CAS GPS User
Manual
12.4 System Interconnections

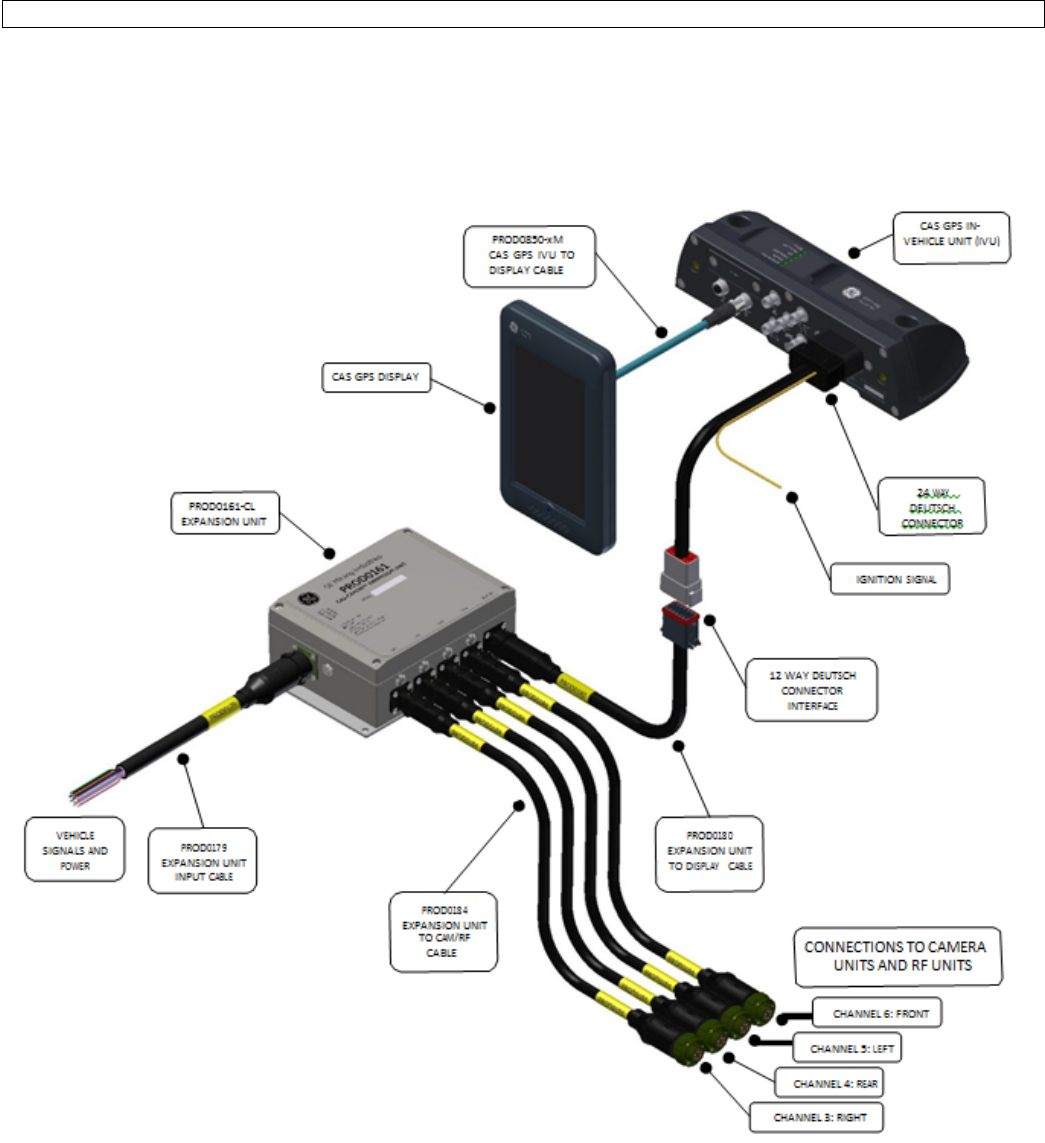

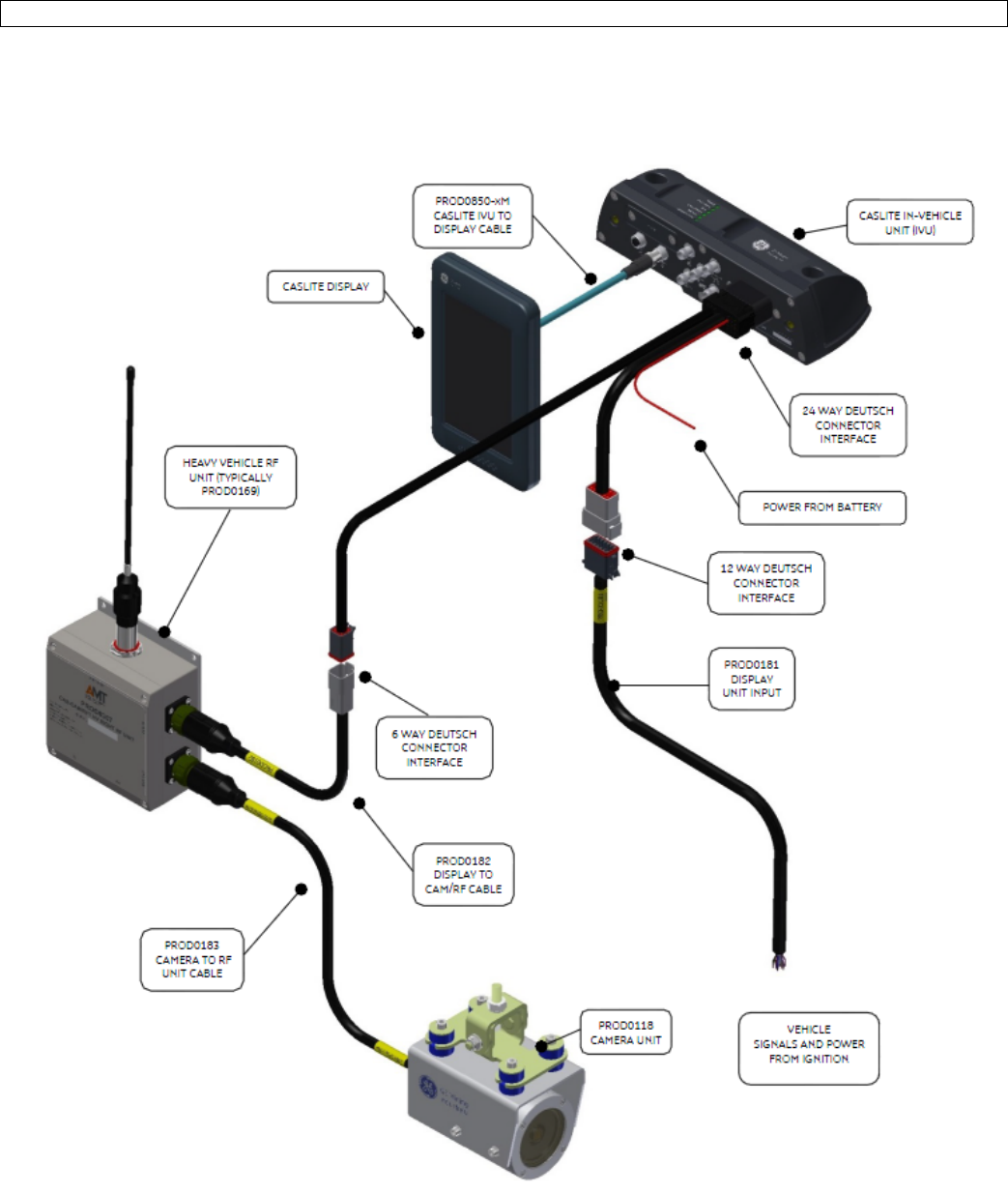

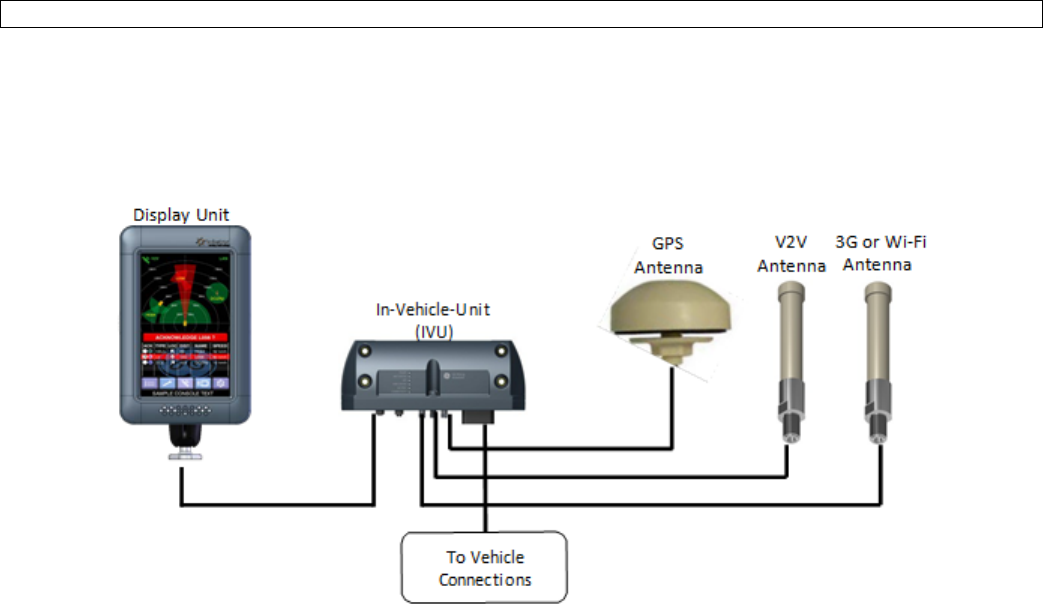

The main system components and their connections are shown below:
CAS GPS User Manual.docx
Revision: E1
Page 19 of 30
CAS GPS User
Manual
12.4.1.1 CAS-CAM/RF interconnections (1CAM/1RF)
CAS GPS User Manual.docx
Revision: E1
Page 20 of 30
CAS GPS User
Manual
12.4.1.2 CAS-CAM/RF interconnections (4CAM/4RF)
CAS GPS User Manual.docx
Revision: E1
Page 21 of 30
CAS GPS User
Manual
13 Service, Maintenance & Disposal
13.1 Equipment Service
13.1.1 Display Unit
•
Clean screen surface with a clean dry soft cloth - Do not use solvents or cleaners on the screen
surface!
•
Check for physical damage to screen surface
•
Check the cable connector is securely connected at the rear of the screen – finger tighten only if
loose
•
Check the mounting bracket is secure – finger tighten only if loose
13.1.2 System
•
Check visually that all antennas are in good condition and the antenna cables are connected
•
Check visually that no cables are loose or damaged
•
Verify that the system is working correctly prior to starting the vehicle and during operations
13.1.3 Scheduled System Servicing
It is recommended that the system undergo preventative scheduled maintenance and inspections. These
should be carried out by trained and authorized personnel every 6 month or 1500hrs (whichever occurs first).
13.1.4 Software Updates
Software updates are automatically pushed out to all IVUs connected to the CAS server.
13.2 Equipment Maintenance
If the system is not functioning as expected, refer to section 14 Troubleshooting. If a fault cannot be
resolved, please contact your nearest authorized representative.
It is essential that no attempt be made to repair the equipment (other than replacement of individual
components). Opening equipment enclosures should never be attempted and will void any warranty and
could compromise the safe operation of the system.
CAS GPS User Manual.docx
Revision: E1
Page 22 of 30
CAS GPS User
Manual
14 Troubleshooting
14.1 No power / blank screen

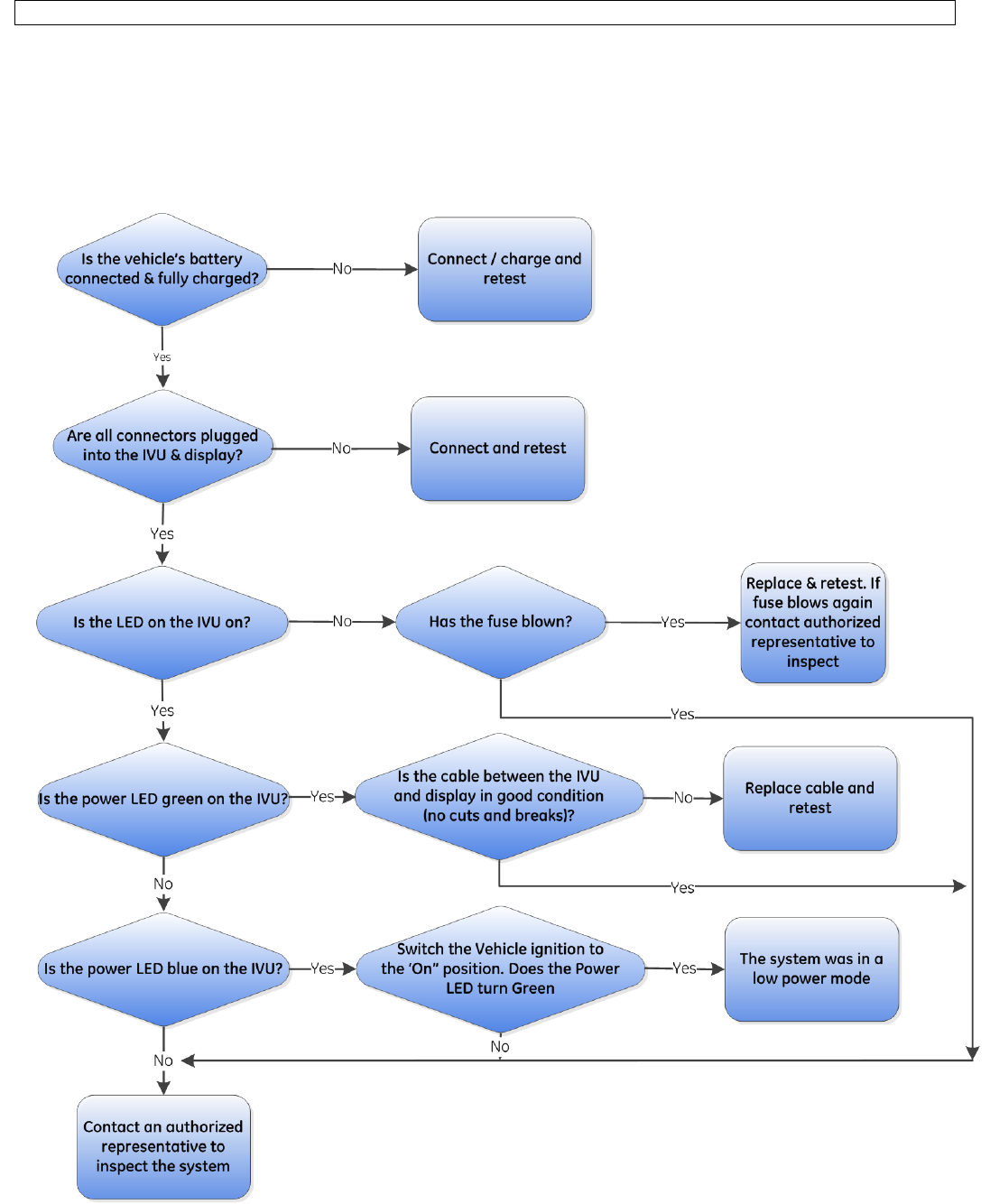

Use this flow diagram to troubleshoot an apparent loss of power or blank screen:
CAS GPS User Manual.docx
Revision: E1
Page 23 of 30
CAS GPS User
Manual

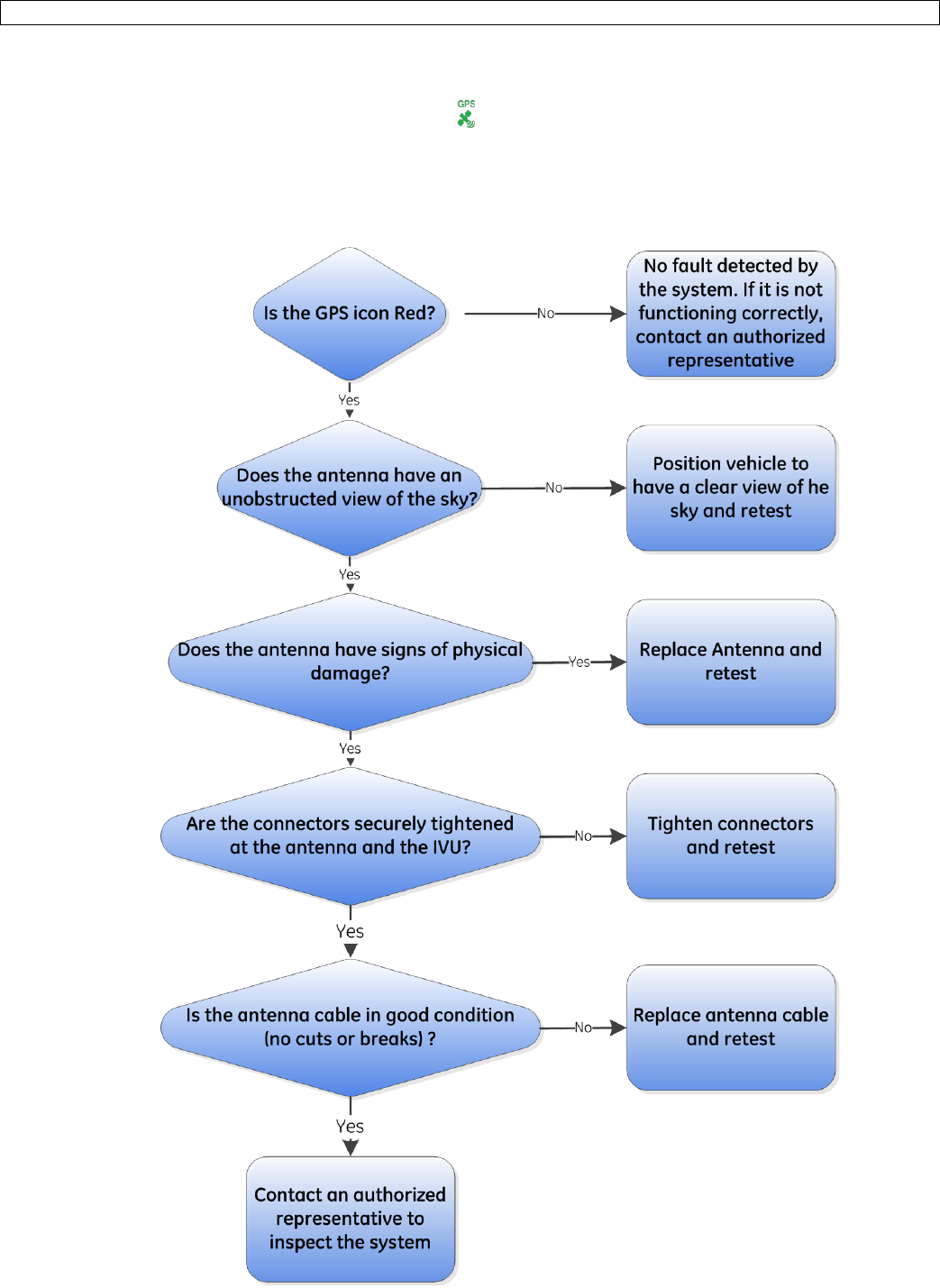

14.2 GPS Problems
The GPS signal status is indicated by the colour of the icon at the top of the display.
•
Green – Position and Heading fix – no faults
•
Yellow – Position fix but no heading – no faults
•
Red – No GPS signal or GPS error – fault or no signal detected
CAS GPS User Manual.docx
Revision: E1
Page 24 of 30
CAS GPS User
Manual

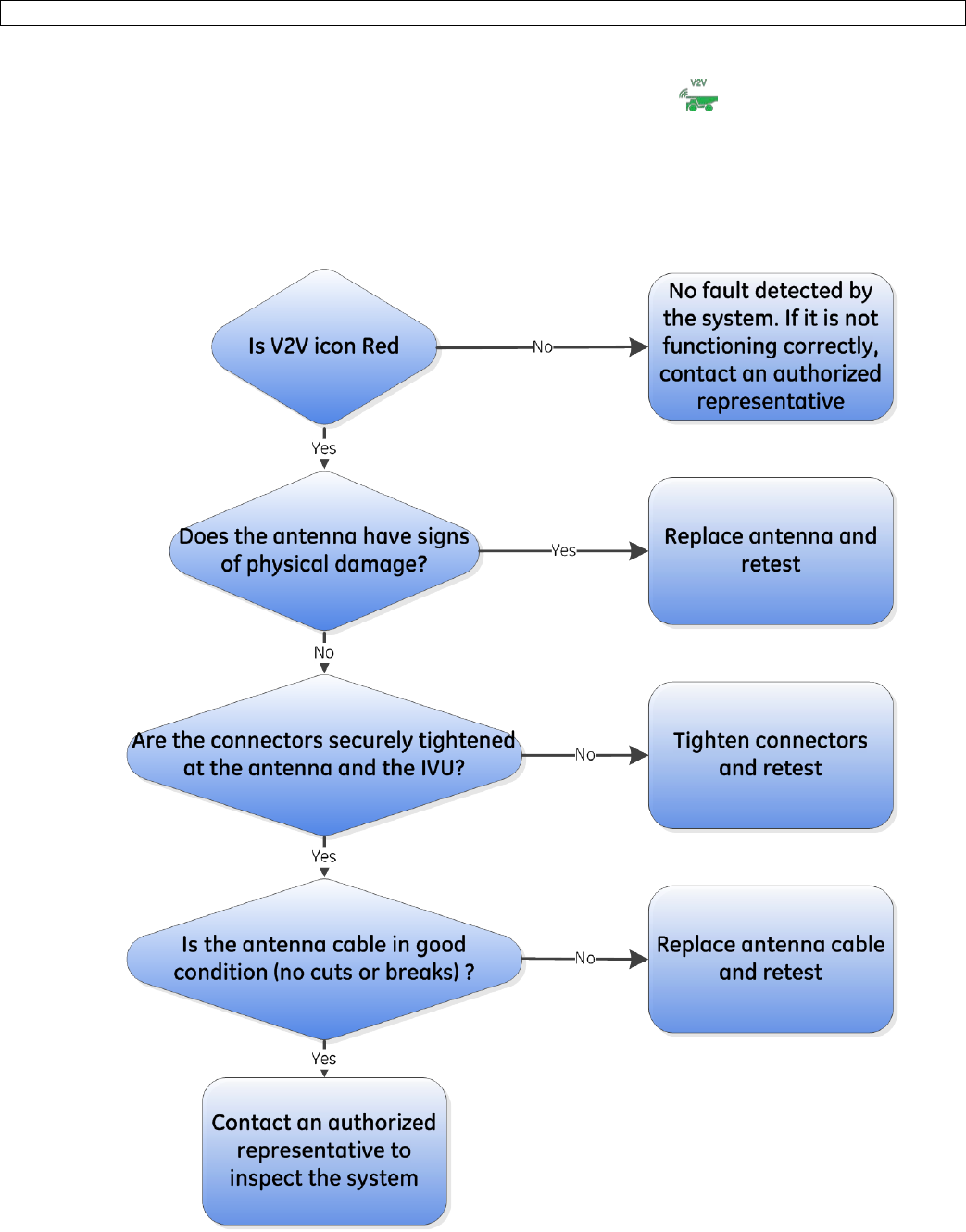

14.3 V2V Problems
The Vehicle to Vehicle communication status is indicated by the colour of the icon at the top of the
display.
•
Green – Communicating with other vehicles – no faults
•
Yellow – No other vehicles in range – no faults
•
Red – Radio error – fault or error detected
CAS GPS User Manual.docx
Revision: E1
Page 25 of 30
CAS GPS User
Manual

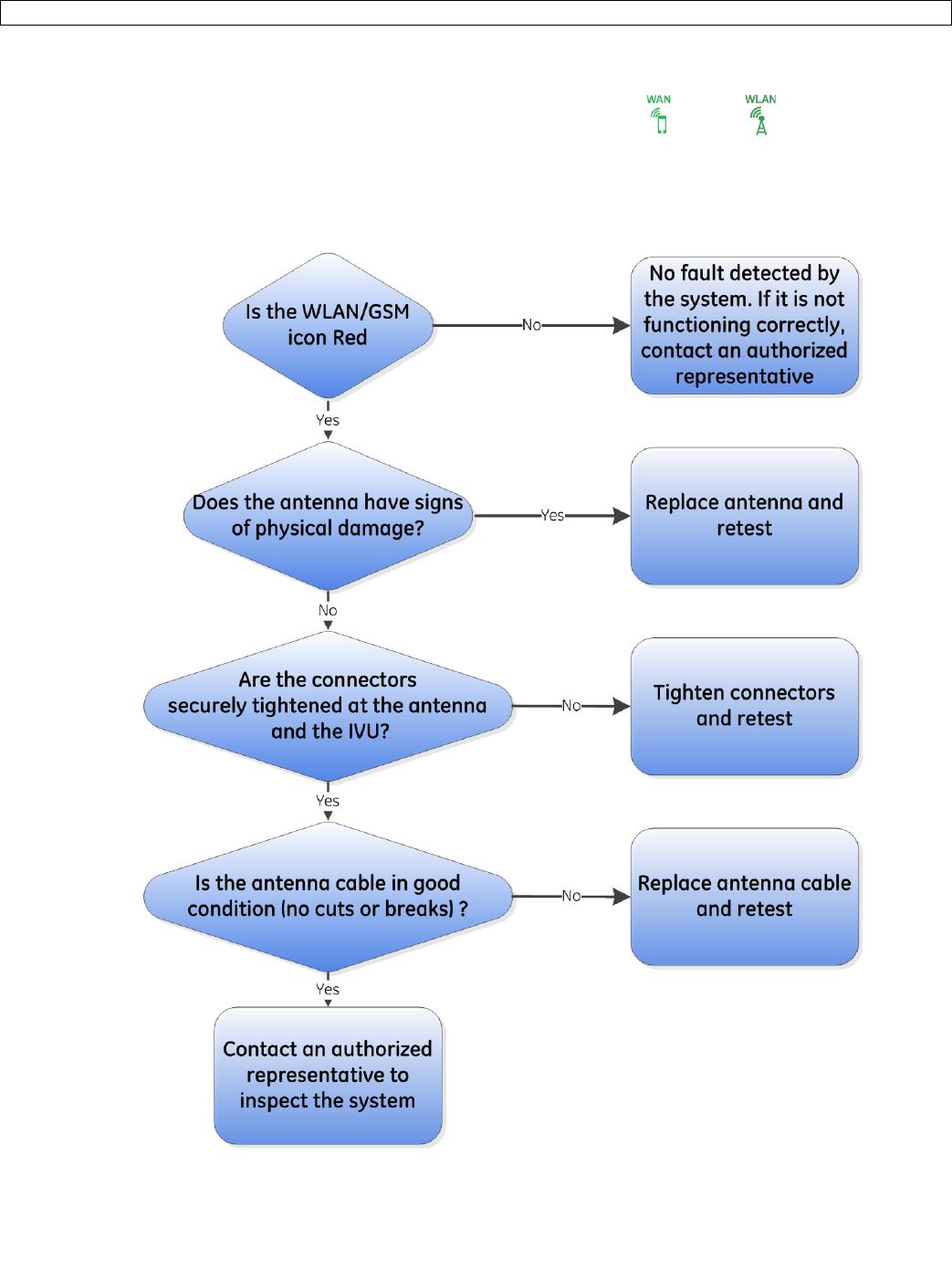

14.4 WiFi/GSM Problems
The Wi-Fi or GSM communication status is indicated by the colour of the or icons at the top
of the display.
•
Green – Connected to the network – no fault
•
Red – No signal or fault/error detected
CAS GPS User Manual.docx
Revision: E1
Page 26 of 30
CAS GPS User
Manual
15 Decommission
•
Removal of the system should only be performed if authorized by the owner of the vehicle
•
Removal should be performed by a qualified Auto Electrician
•
All system components and wiring should be removed
•
All vehicle wiring should be restored back to original condition
•
Dispose or store removed system in accordance with this manual
16 Disposal
The electronic equipment discussed in this manual must not be treated as general waste. By ensuring that this
product is disposed of correctly, you will be helping to prevent potentially negative consequences for the
environment and human health which could otherwise be caused by incorrect waste handling of this product.
The system should be disposed of in accordance with local regulations. The electronics of CAS GPS are ROHS
compliant.
The system contains a Lithium Ion Battery and should be disposed of in accordance with local
regulations.
CAS GPS User Manual.docx
Revision: E1
Page 27 of 30
CAS GPS User
Manual
17 Specifications
International Approvals
Australia
ACMA RCM
(PROD0841-2)
(PROD0842-2) + WiFi
(PROD0843-2) + GSM
(PROD0847-2) + WiFi & GSM
North America
FCC
(PROD0841-2) FCC ID: YIY-PROD08422
(PROD0842-2) FCC ID: YIY-PROD08422
(PROD0843-2) FCC ID: YIY-PROD08472
(PROD0847-2) FCC ID: YIY-PROD08472
Brazil
ANATEL 3973-13-1486
(PROD0841-2)
(PROD0842-2)
Indonesia
POSTEL 34481/SDPPI/2014
PLG ID: 3944
(PROD0841-2)
(PROD0842-2)
Canada
INDUSTRY CANADA
(PROD0841-2) IC: 8903A-PROD08422
(PROD0842-2) IC: 8903A-PROD08422
(PROD0843-2) IC: 8903A-PROD08472
(PROD0847-2)
IC: 8903A-PROD08472
South Africa
ICASA TA-2015/074
(PROD0841-1)
(PROD0842-1)
(PROD0843-1)
(PROD0847-1)
Environmental Performance
Storage Temp. -30°C to +85°C
Vibration Withstands 3.5mm at 5-18.7Hz, 5g at 18.7-150Hz
Shock Withstands 15g ½ sine 10ms on each axis, bi-
directional on all 3 axes
Power Requirements
Input Voltage 9-36VDC
Typical power
consumption for
24/12V input.
0.01A for IVU standby & V2V powered by
internal battery
0.5/1.0A for IVU & display
0.8/1.6A for IVU & display & 1 camera & 2 TOF
1.2/2.4A for IVU & display & 4 camera & 4 TOF (+
0.2/0.4A when charging backup battery)
Display Unit
Type Capacitive touchscreen
Dimensions 133 wide x 223 high x 25mm deep (basic)
57mm deep (with ball)
Weight 810g
IP Rating IP52
Operating Temp. -10°C to +60°C
Mounting 1” Ball (RAM Mount)
Power From IVU
Screen size 7”
Screen Resolution 1024 x 600 WSVGA
Inputs From IVU via M12 connector
Microphone yes
Buzzer 78dB at 50cm
Speakers 2x1W, programmable up to 81dB at 50cm
In Vehicle Unit (IVU)
Dimensions 290 wide x 72 high x 130mm deep (basic)
Weight 2060g
IP Rating IP66
Operating Temp. -15°C to +60°C
Mounting holes Footprint 215x48mm (suits 4 x M8 SHCS)
Typical battery
backup
14hrs standby operation (GPS+V2V active).
3hrs charge time
Battery type LiFePO4, 3.7V, 3200mAh, UN38.3 Certification
Main CPU Standby
CPU
ARM 32-bit Cortex™ A8, 800MHz
ARM 32-bit Cortex™ M3
Memory Card Micro SD
RAM 1Gb DDR3
Sensors
3-axis gyroscope
3-axis accelerometer
3-axis magnetometer
Altimeter -500m to 9000m
Main interface Deutsch DRC series 24-pin connector
12V DC Output 1 x 12VDC @ 1.2A Max
Digital Output 2 x SPST (wet contact) Vin @ 250mA Max
Digital Inputs 2 x dry 2.5kV isolated
2 x wet Common Ground (60Vdc Tolerant @30mA)
CAN interface J1939 support
USB interface 2 x USB2.0
LAN interface 1 x 10BASE-T / 100BASE-TX
Other interface 2 x RS232/485 configurable
Video input 1 x differential
RF connectors TNC
V2V Radio
PROD084x-2
965 kHz 6dB RF bandwidth.
920 MHz Digital radio.
100 mW transmit power.
1000 kbps data rate. (500 kHz symbol rate, 2 bits/
symbol), Single channel, 4GFSK Modulation (4
Gaussian Frequency Shift Keying, 125 kHz inner
deviation).
960 bits per packet (490 symbols). 980 μs packet
duration. 320 ms packet repetition period. Duty
cycle < 1%. (0.3%).
Range up to 500m
3 dBi nominal antenna gain (< 6dBi). Pre-
terminated cable to dedicated antenna mount.
GPS
Multi-GNSS. GPS, GLONASS, Galileo and QZSS
compatible.
Horizontal accuracy ± 2.5m *
* (CEP, 50%, 24 hours static, -130 dBm, > 6 SVs)
Mobile
communications
(optional)
UMTS WCDMA/HSDPA/HSUPA/HSPA+.
800 MHz, 850 MHz, 900 MHz, 1800 MHz, 1900MHz,
2100 MHz
GSM, GPRS, EDGE.
WIFI (optional) IEEE 802.11 b/g/n
TOF proximity
ranging (optional)
2.4GHz IEEE 802.15.4a
0-250m, ±2m accuracy
CAS GPS User Manual.docx
Revision: E1
Page 28 of 30
CAS GPS User
Manual
Reference Standards
IEC 60529 Degrees of protection provided by enclosures (IP Code) ETSI EN 300 220 RF Performance Characteristics (V2V)
IEC 60068-2-6 Vibration ETSI EN 300 328 RF Performance Characteristics (Wi-Fi)
IEC 60068-2-27 Shock ETSI EN 300 440 RF Performance Characteristics (GPS)
IEC 61000-4-2 Electrostatic Discharge ETSI EN 301 511 RF Performance Characteristics (GSM)
EN 61000-4-3 Immunity to Radiated Electromagnetic Field ETSI EN 301 908 RF Performance Characteristics (3G)
IEC 61000-4-4 Electrical Fast Transient / Burst (EFT) EN 60950 -1 Electrical Safety
IEC 61000-4-5 Surge Immunity AS/NZS 4268 Radio-Communications Limits (RSE)
EN 61000-4-6 Immunity to Conducted Disturbances FCC 47 PART 15A&B Electromagnetic Compatibility Class B (EMC)
ISO 7637-2 Automotive Electrical Disturbances FCC 47 PART 15C Radio-Communications Limits (RSE)
ETSI EN 301 489 Electromagnetic Compatibility (EMC / EMI) (Parts 1, 3, 7, 17, 24) ICES-003 Electromagnetic Compatibility Class B (EMC)
EN 55022 (CISPR22) Electromagnetic Compatibility Class B (EMC) RSS-247 Radio-Communications Limits (RSE)
RSS-102 Electromagnetic Radiation
18 Authorized Representatives
18.1 - Brazil
18.2 - South Africa
Avenida Portugal 4511/Bairro Itapoa Belo Horizonte,
M.G. 31710-400, Brazil
P: +55 31 3311 7200
F: +55 31 3311 7205
Email: brasil@joyglobal.com
www.joyglobal.com
Probe CAMS
245 Albert Amon Road
Meadowdale
Germiston 1614
P: +27 11 453 0924
F: +27 11 453 2141
www.probebattery.co.za
18.3 - Indonesia
18.4 – Canada
PT Intecs Teknikatama Industri
Jl. Ciputat Raya No. 18D Kebayoran Lama Selatan
Jakarta 12240 .
P: +62 21 729 3351
F: +62 21 729 3352
www.intecs.co.id
General Electric Canada
2300 Meadowvale Blvd,
Mississauga, ON, L5N 5P9
P: 1-800-561-3344
P: +1 905-858-5100
www.ge.com
18.5 – North America
18.6 – Australia
General Electric Company, Mining
2901 East Lake Road, Erie,
Pennsylvania, 16531, US
P: 480 264-2063
F: 480 264-6402
www.getransportation.com
GE Mining, Industrea Mining Technology
3 Co-Wyn Close, Fountaindale,
NSW, 2258, Australia
P: +612 4336 1800
F: +612 4389 2355
www.getransportation.com
CAS GPS User Manual.docx
Revision: E1
Page 29 of 30
CAS GPS User
Manual
19 Warranty Terms
Equipment and Parts:
15 months from delivery, or 12 months from when system is placed in service (whichever occurs first). Modifications
to this product without written consent from the manufacturer or its designated authorised representatives will void
all warranty obligations.
20 Regulatory Information
Compliance markings of the CAS-GPS are available via the service Information menu of the system display.
FEDERAL COMMUNICATIONS COMMISSION Part 15 Compliant
CAUTION: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could void the user's
authority to operate the equipment.
FCC Interference Statement for Class B devices.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
WARNING: A shielded type Ethernet cord is required to meet FCC Class B emission limits and also prevent
interference to the nearby radio and television reception.
This device and its antenna(s) must not be co-located or operate in conjunction with any other antenna or
transmitter.
The antenna is considered an integral system component. Use of any antenna other than those specified in the
installation manual or supplied with the product may void the product’s compliance.
Federal Communication Commission (FCC) - Radiation Exposure Statement
To comply with FCC RF exposure limits for general population / uncontrolled exposure, the antennas used for this
transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-
located or operating in conjunction with any other antenna or transmitter.
INDUSTRY CANADA Compliant
This Class B digital apparatus complies with Canadian ICES-003. Changes or modifications not expressly approved
by the party responsible for compliance could void the user’s authority to operate the equipment.
Concerning Radio Transmitters
This device complies with Industry Canada’s licence-exempt RSSs.
Operation is subject to the following two conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference, including that may cause undesired operation of the device.
Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum
(or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other
users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is
not more than that necessary for successful communication
Detachable Antennas
This radio transmitter has been approved by Industry Canada to operate with the antenna types listed in the
installation manual with the maximum permissible gain and required antenna impedance for each antenna type
indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for that
type, are strictly prohibited for use with this device.
CAS GPS User Manual.docx
Revision: E1
Page 30 of 30
CAS GPS User
Manual
Industry Canada - Radiation Exposure Statement
To comply with Industry Canada RF exposure limits for general population / uncontrolled exposure, the antennas
used for this transmitter must be installed to provide a separation distance of at least 25 cm for GSM product variants
or 20cm for non GSM product variants from all persons and must not be co-located or operating in conjunction with
any other antenna or transmitter.
Industrie Canada – Déclaration sur l’exposition aux radiations
Afin de respecter les limites d’exposition pour l’ensemble de la population/l’exposition non contrôlée de la FCC/IC
RF, les antennes utilisées pour cet émetteur doivent être installées de manière à offrir une distance de séparation
minimum de 25 cm pour les variantes de produits GSM ou de 20 cm pour les variantes de produits non GSM de
toutes les personnes et ne doivent pas être utilisées en conjonction avec d’autres antennes ou émetteurs.
Conforme aux normes d’INDUSTRIE CANADA
Cet appareil numérique de classe B est conforme à la norme canadienne ICES-003. Les changements ou les
modifications non approuvés expressément par la partie responsable de la conformité pourraient annuler
l’autorisation de l’utilisateur de faire fonctionner l’équipement.
Au sujet des émetteurs radio
Cet appareil respecte les systèmes de satellite de radiodiffusion d’Industrie Canada. Son fonctionnement est soumis
aux deux conditions suivantes :
(1) Cet appareil ne peut pas causer de l’interférence; et
(2) Cet appareil doit accepter toute interférence, y compris celle qui provoque un fonctionnement non souhaité
de l’appareil.
Conformément aux règlements d’Industrie Canada, cet émetteur radio peut fonctionner uniquement au moyen
d’une antenne de type et avec un gain maximal (ou plus petit) approuvés pour l’émetteur par Industrie Canada.
Afin de réduire la possible interférence radio avec les autres utilisateurs, le type d’antenne et son gain devraient
être choisis de manière à ce que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne soit pas plus grande que
nécessaire pour une communication réussie.
Antennes détachables
Cet émetteur radio a été approuvé par Industrie Canada pour fonctionner avec les types d’antennes inscrites dans
le manuel d’installation avec le gain maximum permis et l’impédance d’antenne requise pour chaque type
d’antenne indiqué. Les types d’antennes non compris dans la liste, qui ont un gain supérieur au gain maximum
indiqué pour le type en question, sont strictement interdits.
Australian Radio Communications Equipment - Radiation Exposure Statement
The equipment complies with the Radiocommunications (Electromagnetic Radiation – Human Exposure) Standard
2014 for General Public Exposure, Non-Aware User, for a Compliance Level 2 Radiocommunications Equipment,
when the minimum safety distance of 36cm is adhered to, and shall bear the RCM.
Anatel Resolution 506 Statement
This equipment operates in a secondary manner, that is, does not have the right of protection against prejudicial
interference, even from stations of the same type, and nor can they cause interference to systems operating in a
primary manner.

Navigation menu
