InFocus Corporation

In the Americas:

27700B SW Parkway Avenue

Wilsonville, Oregon 97070-9215

1-800-294-6400 •503-685-8888

Fax: 503-685-8887

http://www.infocus.com

In Europe:

InFocus International B.V.

Strawinskylaan 585

1077 XX Amsterdam

The Netherlands

Phone: +31 20 579 2000

Fax: +31 20 579 2999

In Asia:

InFocus Systems Asia Pte Ltd.

238A Thomson Road

#18-01/04 Novena Square

Singapore 307684

Telephone: (65) 6334-9005

Fax: (65) 6333-4525

TOCOM 16408370

010-0562-00

User’s Guide

ScreenPlay®61md10/ScreenPlay® 50md10

High-definition, ultra thin microdisplay television

ScreenPlay®61md10/ScreenPlay® 50md10

High-definition, ultra thin microdisplay television

MTV_UG_E_V2.qxd 9/17/04 8:06 AM Page 2

This symbol indicates "dangerous

voltage" inside the product that

presents a risk of electric shock or

personal injury.

WARNING

To reduce the risk of fire or

electric shock, do not expose

this product to rain or

moisture. The apparatus shall

not be exposed to dripping or

splashing and no objects

filled with liquids, such as

vases, shall be placed on the

apparatus.

Caution: To reduce the risk of electric shock, do

not remove cover (or back). No user serviceable

parts inside. Refer servicing to qualified service

personnel.

This symbol indicates

important instructions

accompanying the product.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

Product Registration

incentives.

Product Information

Keep your sales receipt to obtain warranty parts and service and for proof of purchase. Attach it here and record

the serial and model numbers in case you need them. These numbers are located on the product.

Model No. ______________________________________________________________________________________________

Serial No ._______________________________________________________________________________________________

Purchase Date: __________________________________________________________________________________________

Dealer/Address/Phone: ___________________________________________________________________________________

Important Information

Refer to the identification/rating label located on the back panel of your product for its proper operating voltage.

FCC Regulations state that unauthorized changes or modifications to this equipment may void the user’s authority

to operate it.

Cable TV Installer: This reminder is provided to call your attention to Article 820-40 of the National Electrical

Code (Section 54 of the Canadian Electrical Code, Part 1) which provides guidelines for proper grounding and, in

particular, specifies that the cable ground shall be connected to the grounding system of the building as close to

the point of cable entry as practical.

Important: This television is a table model and is designed to sit on a firm, flat, surface. Don't place the TV on soft

carpeting or similar surface because the ventilation slots on the bottom of the unit will be blocked resulting in

reduced lifetime from overheating. To assure adequate ventilation for this product, maintain a spacing of 4 inches

from the top and sides of the TV receiver and 2 inches from the rear of the TV receiver and other surfaces. If used

with the optional wall mount, adequate ventilation must also be maintained to allow unrestrained exhaust and

intake of room temperature air. Also, make sure the stand or base you use is of adequate size and strength to

prevent the TV from being accidentally tipped over, pushed off, or pulled off. This could cause personal injury and/

or damage the TV. Refer to the Important Safety Instructions packed separately.

This symbol indicates that the lamp in the HDTV contains mercury.

Disposal of these materials may be regulated due to environmental

considerations. For disposal or recycling information, please contact

your local authorities or the Electronic Industries Alliance:

www.eiae.org.

WARNING: The power cord and cables associated with this product contain lead, a chemical known to the state of

California to cause birth defects or other reproductive harm. Wash hands after handling.

IF YOU NEED ASSISTANCE....

call InFocus Customer Service directly at

1-800-799-9911 or go to our website.

SUPPORT IS FREE

between 5 a.m. and 5 p.m.* PST,

Monday through Friday. Support is

available in North America after

hours and weekends for a fee at

1-888-592-6800

Or, send us an e-mail at

techsupport@infocus.com.

Many resources are available

on our website at www.infocus.com.

Here's a sample:

•Frequently Asked Questions about general

usage and technical issues

•E-mail support

•On-line product registration

•Product data sheets

•Optional Accessories

•Technical specifications, connector pin outs,

command line interface (CLI) and a glossary

at www.infocus.com/service

* Hours subject to change.

16408370.00 CVR 9/22/04, 1:22 PM1

Introduction

Thank you for choosing InFocus® ScreenPlay®

Congratulations on purchasing this InFocus ScreenPlay High Definition Television (HDTV)

featuring Digital Light Processing™ (DLP™) technology—a true viewing experience. Your purchase

decision represents an investment in a new generation of technology—DLP and HDTV. Even

though this is a technologically advanced HDTV, it is the most user-friendly of its kind—with

comprehensive on-screen instructions that guide you through all of the TV’s features.

This introduction has three parts that describe why an InFocus ScreenPlay HDTV featuring DLP

technology is an excellent choice:

Part 1: DLP—brilliance in color, design, and technology

Part 2: Why InFocus ScreenPlay is better

Part 3: Other Key Features of owning an InFocus ScreenPlay HDTV

Part 1: DLP— brilliance, in color, design, and technology

InFocus ScreenPlay brings you brilliant pictures with Digital Light Processing (DLP) system — a

brilliantly choreographed, engineering marvel that combines microscopic mirrors, light, and color

to bring you the best and brightest pictures possible.

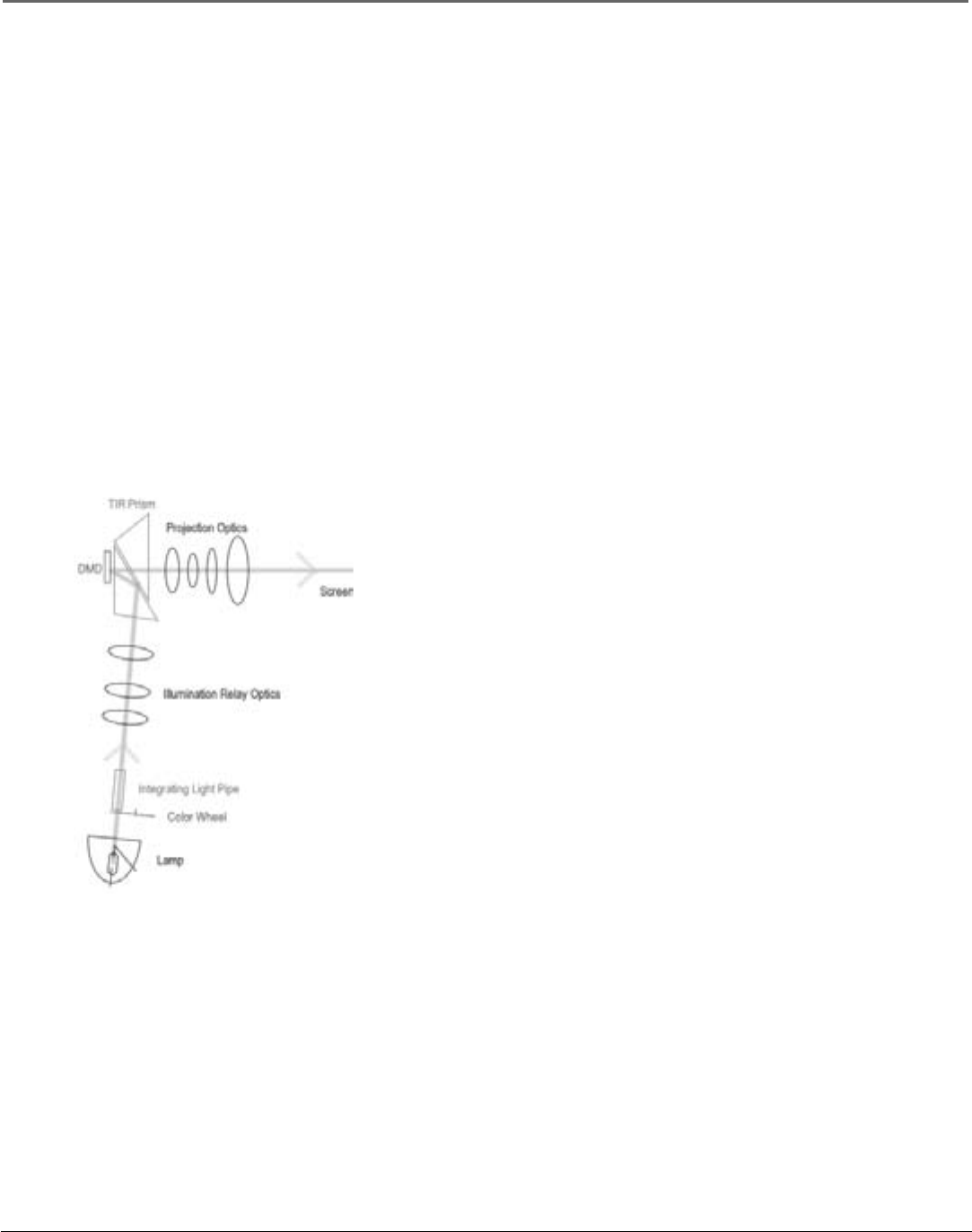

How DLP Works

In general, DLP combines microscopic mirrors, a specially

designed semiconductor, and a color wheel to adjust light to

display the most brilliant, accurate images! Your DLP HDTV

doesn’t use red, green, and blue phosphors like Plasma or

Cathode Ray Tubes (CRTs), which means you don’t have to

worry about screen burn (fixed video images burning onto the

screen permanently) or convergence (realigning the CRTs). The

diagram on the left illustrates the complex system.

Thin and Light

The efficiency of DLP technology enabled our design team to

create a high-performance HDTV that is about 7 inches thin and

weighs approximately 125-140 pounds (depending on model).

Digital Light Processing, DLP and DLP Cinema are trademarks of Texas Instruments. All other products and names may or may not be

trademarks or registered trademarks of their respective companies.

Model No.____________________________________

Lamp Part No.________________________________

Date_________________________________________

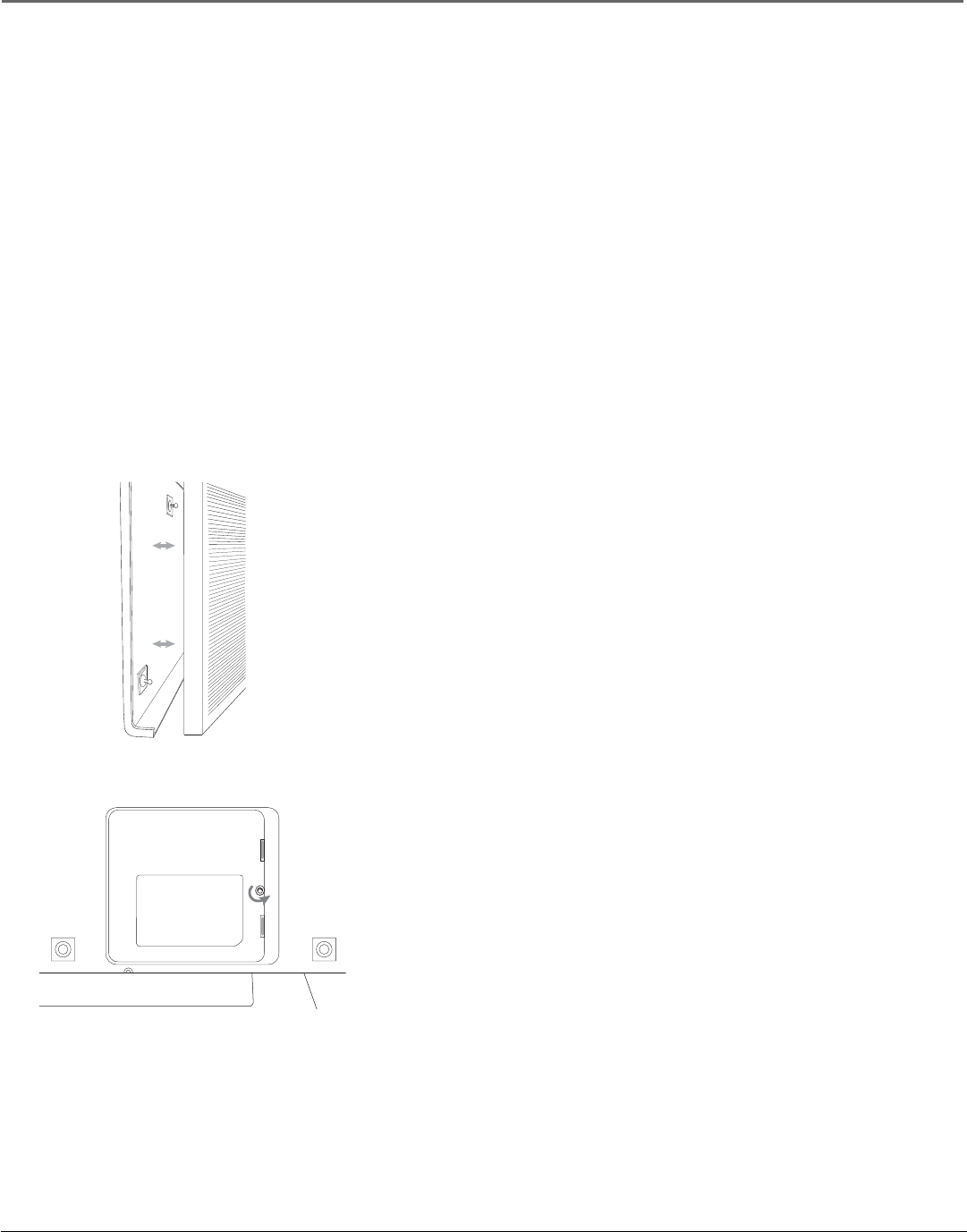

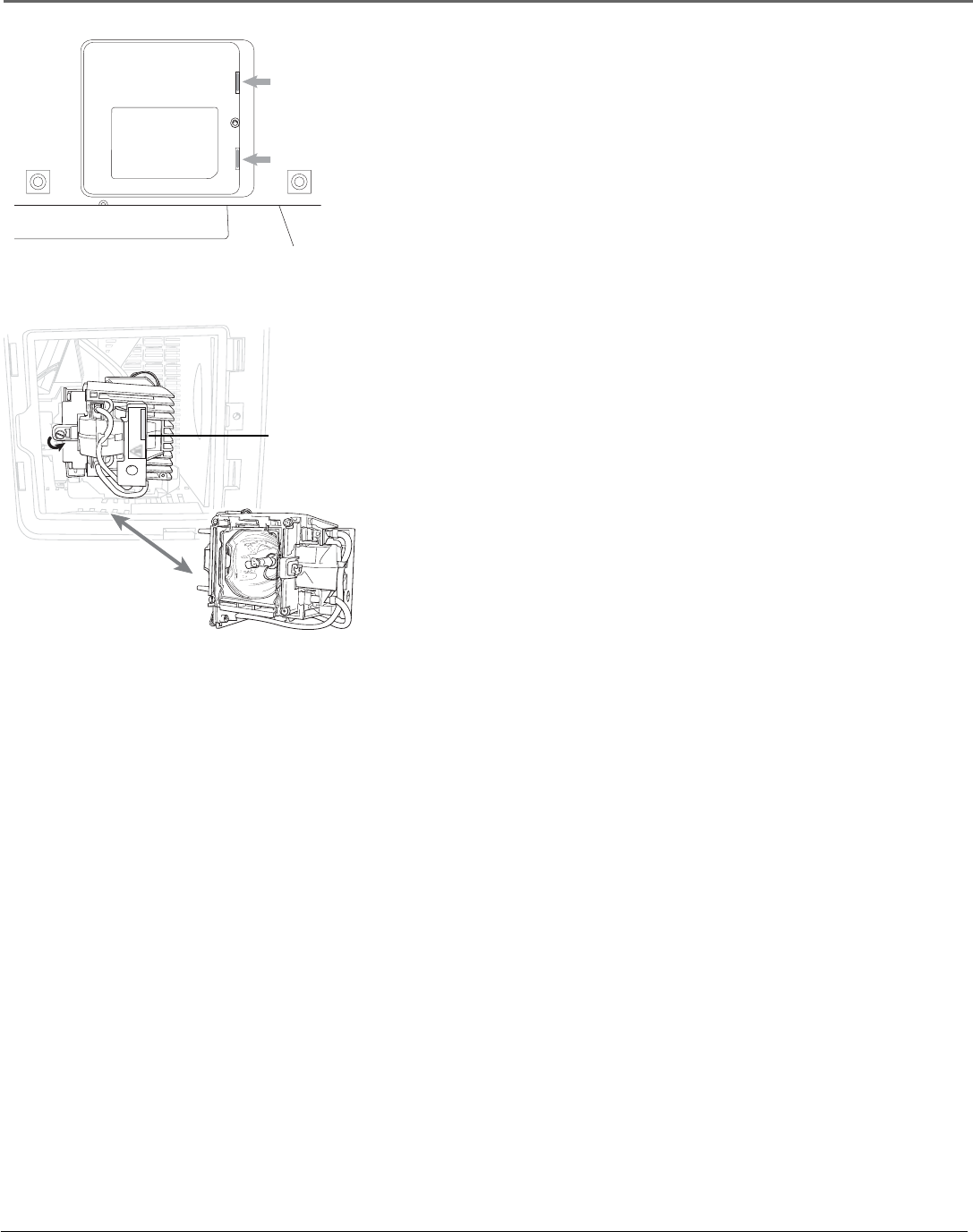

Lamp Replacement

DLP technology uses a special lamp. Eventually, you’ll need to

replace this lamp, which you can do yourself by following the

replacement instructions on page 76. To order the correct lamp,

you’ll need to know your TV’s model number, serial number,

and lamp part number. The TV’s model number is located under

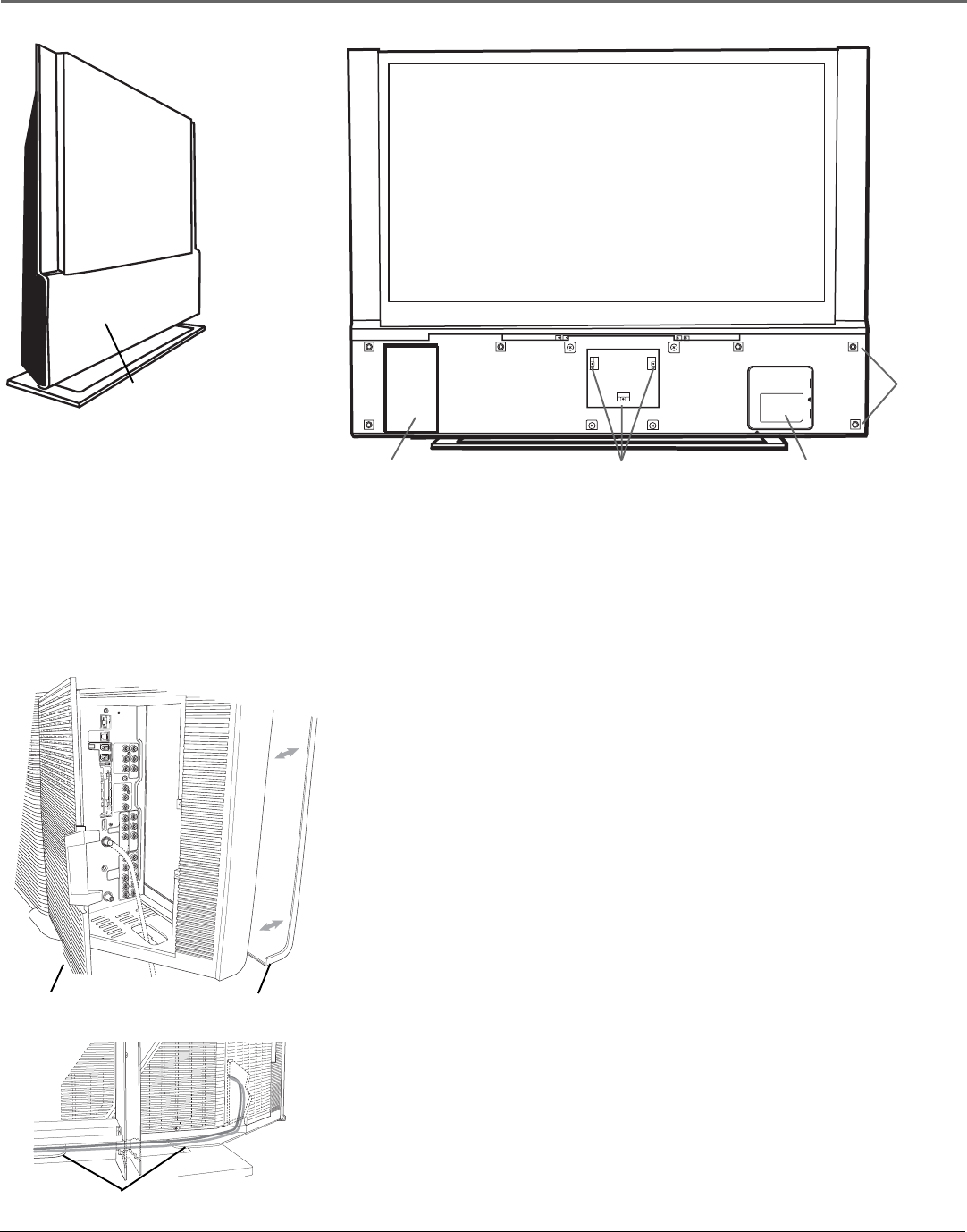

the front panel piece towards the bottom left corner. Go to page

10 for information on removing the front panel piece. The serial

and lamp part numbers are listed on the Service Model Number

sticker. The sticker is located on the lamp handle (see page 78).

For future reference, write down the information in the space

provided at the left.

InFocus and ScreenPlay are registered trademarks of InFocus Corporation.

Introduction

Part 2: Why InFocus ScreenPlay is better

You have chosen to embark on the next generation of TV viewing— HDTV. There are many technological advancements

that make HDTV better than analog TV, but there are basically three things about HDTV that bring you a superior viewing

experience: (1) resolution, (2) aspect ratio, and (3) digital signal and sound.

Resolution (it’s math...that works for you)

The crisp, lifelike picture that people rave about when experiencing true HDTV is due to the resolution this technology

provides. The resolution is measured by calculating the number of active lines of pixels. A pixel (which stands for picture

element) is a small dot. The picture you see on your TV is composed of these dots.

A regular, analog television only has a resolution of about 200,000 pixels (480 vertical pixels x 440 horizontal pixels =

211,200 pixels). The HDTV format is capable of more than 2 million pixels (1,920 x 1,080 = 2,073,600).

More pixels equal more detail. In summary, HDTV is capable of resolution that is up to 10 times the resolution of the

picture on a regular, analog TV!

Aspect Ratio

Aspect ratio is simply the width and height of the picture. Regular TVs

use a 4:3 aspect ratio, which means the picture is a little wider than it is

tall (a screen that is 20 inches wide is about 15 inches tall).

When the standards were being developed for television broadcasting in

1941 by the NTSC (the National Television Standards Committee), it made

sense to adopt the 4:3 aspect ratio the film industry was using at that

time.

As TVs dropped in price and people prospered in the 1950s, the movie

industry had to find a way to get people out of their living rooms and

back to the movie theatres. That’s when they created the 16:9 aspect ratio

(also called widescreen format). When the standards for HDTV were

being developed by the ATSC (Advanced Television Standards

Committee), the 16:9 aspect ratio was chosen as the format for HDTV.

This widescreen format makes sense because it’s much closer to the way

we see. Our field of vision is actually much wider than tall because of

our peripheral vision. Not only is it closer to the way we see, but the

pictures are crisper and cleaner with more detail in the close-up and

panoramic views.

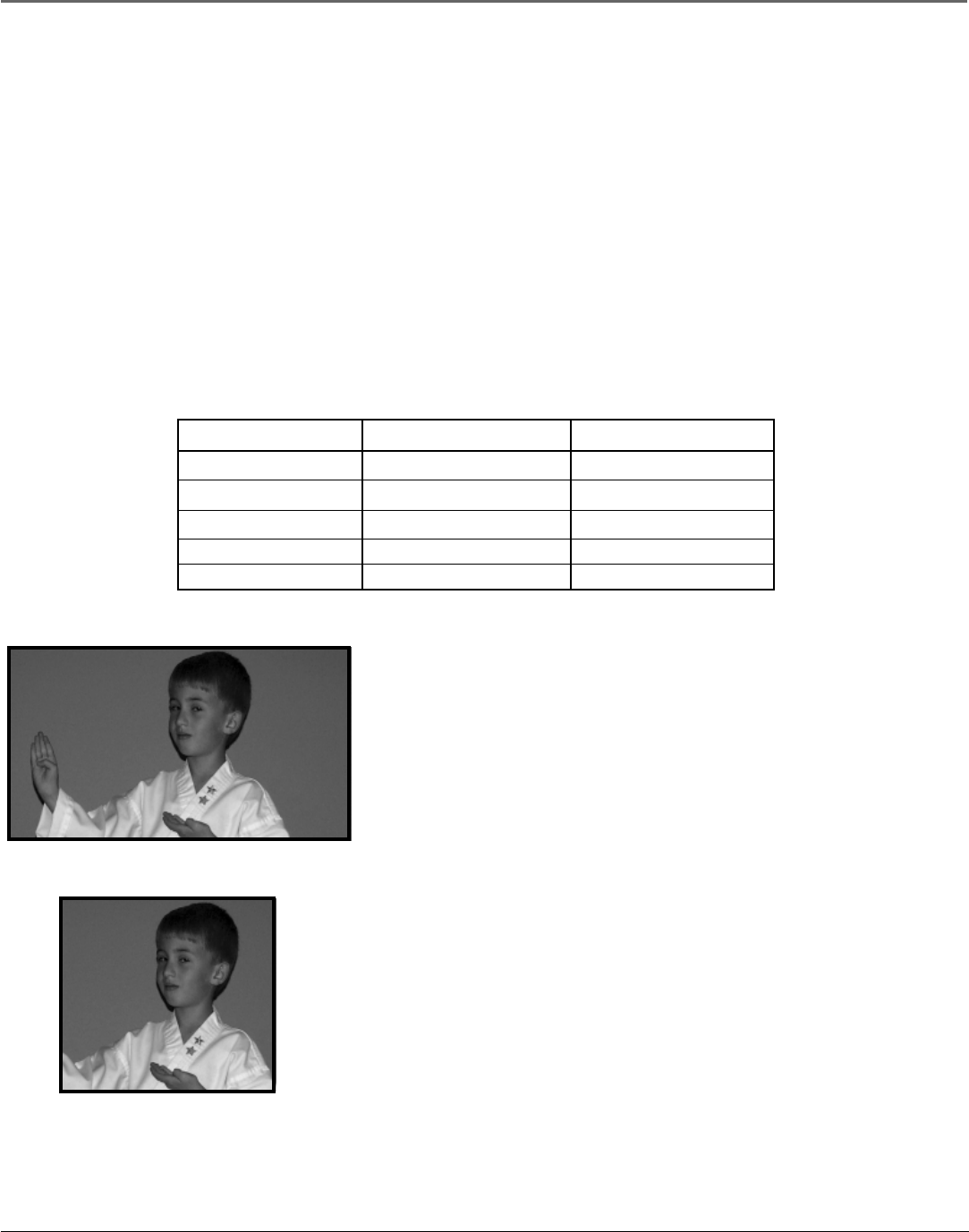

16:9 Aspect Ratio

4:3 Aspect Ratio

Feature Analog (NTSC) HD Digital (ATSC)

Total Scan Lines 525 1125

Effective Scan Lines 480 1080

Aspect Ratio 4:3 16:9 (Widescreen)

Max Resolution 720 x 480 1920 x 1080

Sound 2-ch Stereo 5.1 ch Surround

Introduction

Digital Signal and Sound

The analog television broadcast system that has been used in the United States for the past 50 years transmits signals as

electronic waves. These waves can suffer degradation as the signal travels to your home. Additionally, the analog waves are

susceptible to interference from planes passing overhead, weather, and household appliances.

Digital signals, in contrast to analog signals, can be reproduced precisely because the images are transmitted and received

using the computer language of 1s and 0s. Such precision yields a signal that is capable of displaying studio-quality picture

and Dolby Digital 5.1 channel sound.

Part 3: Other Key Features of Owning an InFocus ScreenPlay HDTV

Your InFocus ScreenPlay HDTV is equipped with many features that will enhance your viewing experience. The following

section highlights some of your TV’s most unique features. For details about many of the TV’s features, go to Chapter 3.

Integrated HDTV Tuner with Digital Cable Ready QAM

Your HDTV’s tuner is digital cable ready (no need for a cable box to view unscrambled digital cable programming). The

CableCARD™ slot on your HDTV allows you to use a digital cable card to access digital cable. The tuner is able to decode

all 35 formats of digital television broadcasts, and it can interpret unscrambled digital cable signals because it includes QAM

(Quadrature Amplitude Modulation).

Note: A digital cable card may be necessary to view scrambled (encrypted) channels. Contact your cable provider for

more information. Go to page 20 for more information.

TruScan Digital Reality

The intelligent signal processing of TruScan Digital Reality recognizes incoming video signals and progressively converts

them to achieve optimum digital picture performance. It also recognizes when original film sources have been modified and

can automatically convert the analog frame rate back to its original format to bring out the detail--a process commonly

referred to as reverse 3:2 pulldown.

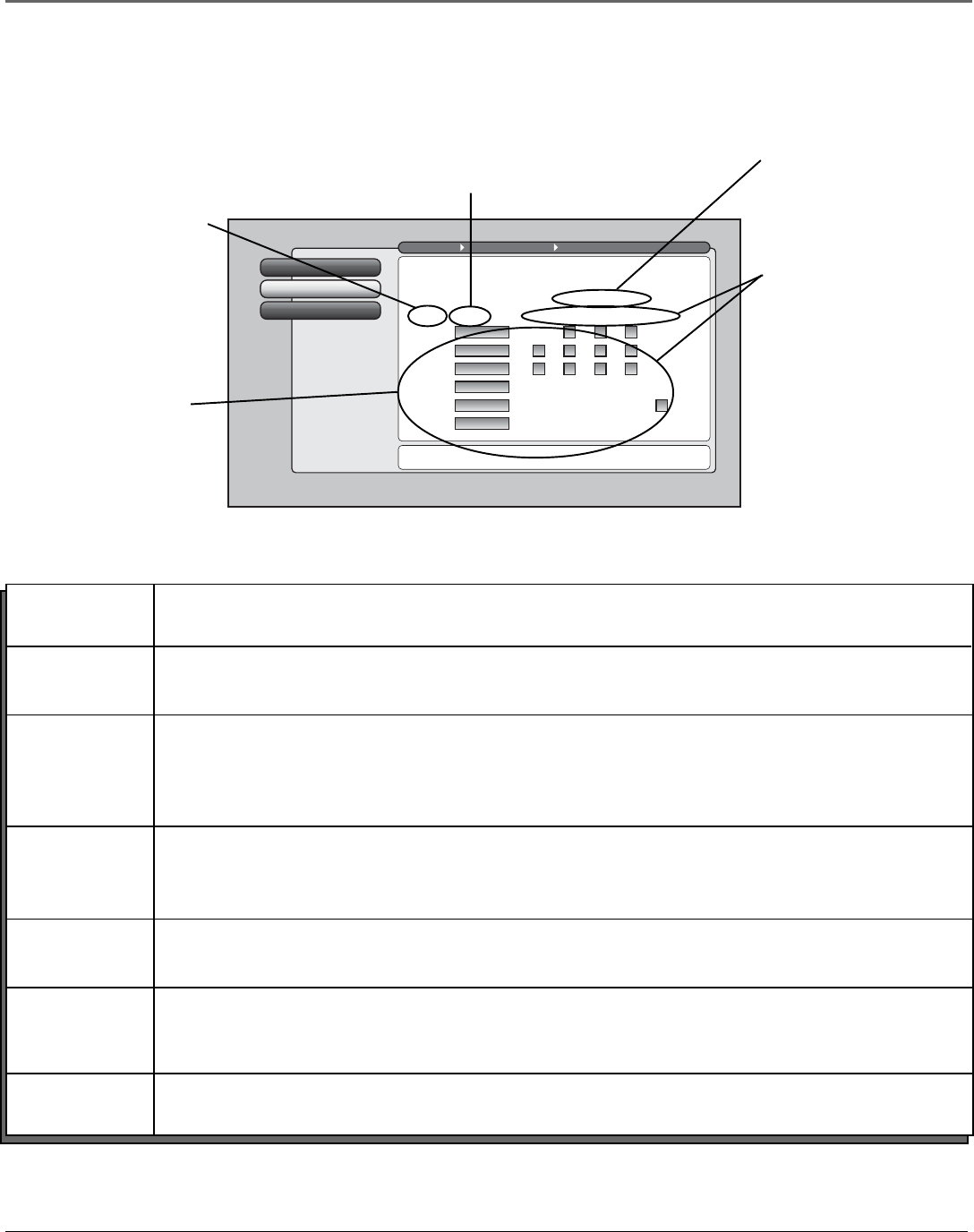

User-friendly Features Help You Personalize Your TV

• You can customize your TV to fit your viewing taste and match the

lighting where you watch TV by using Personal Presets and/or the

automatic picture quality settings: Vibrant (Day), Natural, Cinematic

(Night), Videogame, Professional. You can adjust each input jack to a

different setting and the TV will automatically adjust the picture when

you change inputs.

• Help Text: The elaborate, on-screen help text describes your TV’s

features and explains how to use them.

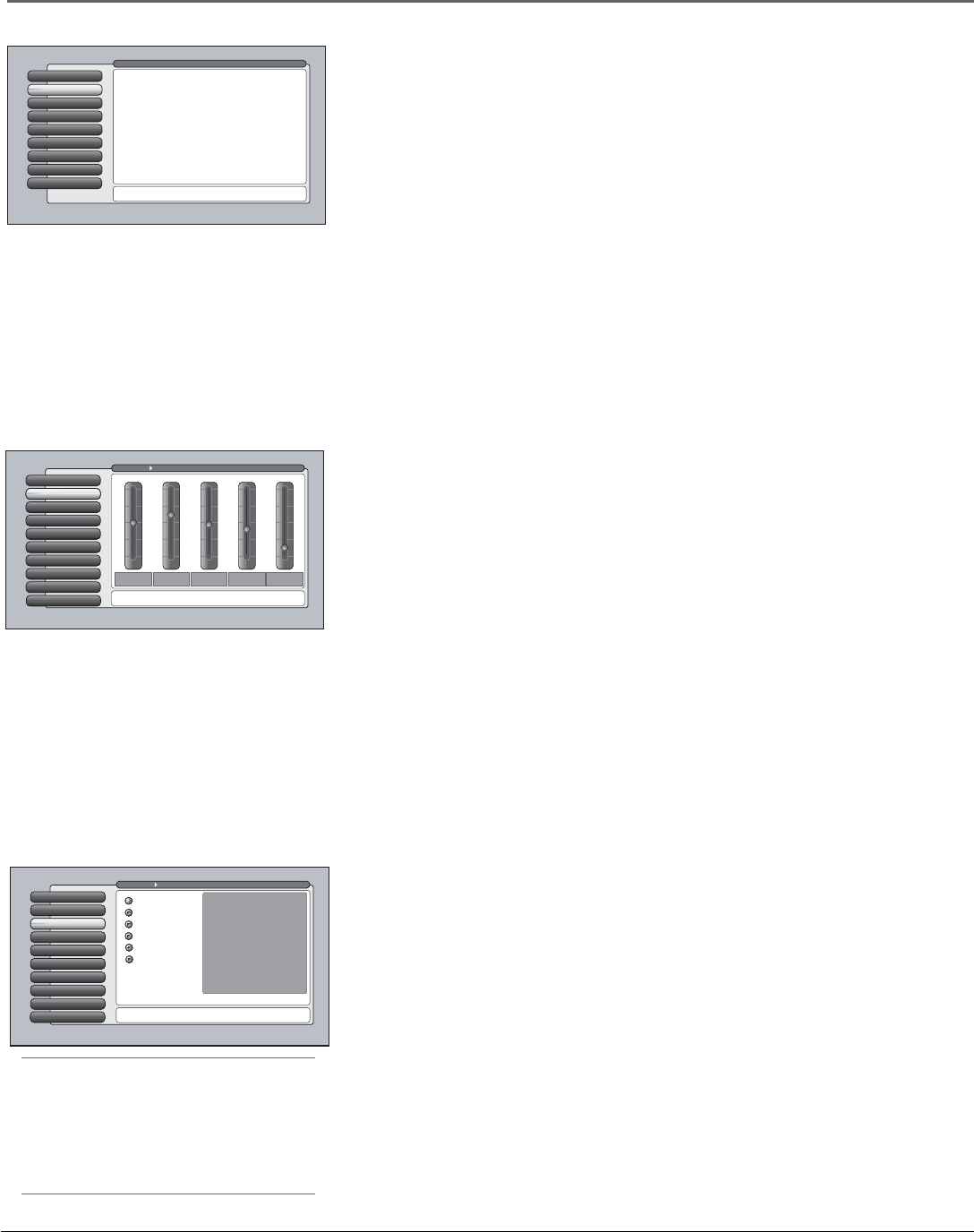

Contrast

Color

Tint

Black Level

Sharpness

Auto Color

Color Warmth

Noise Reduction

Green Stretch

Edge Enhancement

Contrast Expand

65%

70%

55%

60%

55%

Cool

Frame Comb

High

Low

High

Contrast Expand

Advanced Settings

Edge Enhancement

Green Stretch

Noise Reduction

Color Warmth

Auto Color

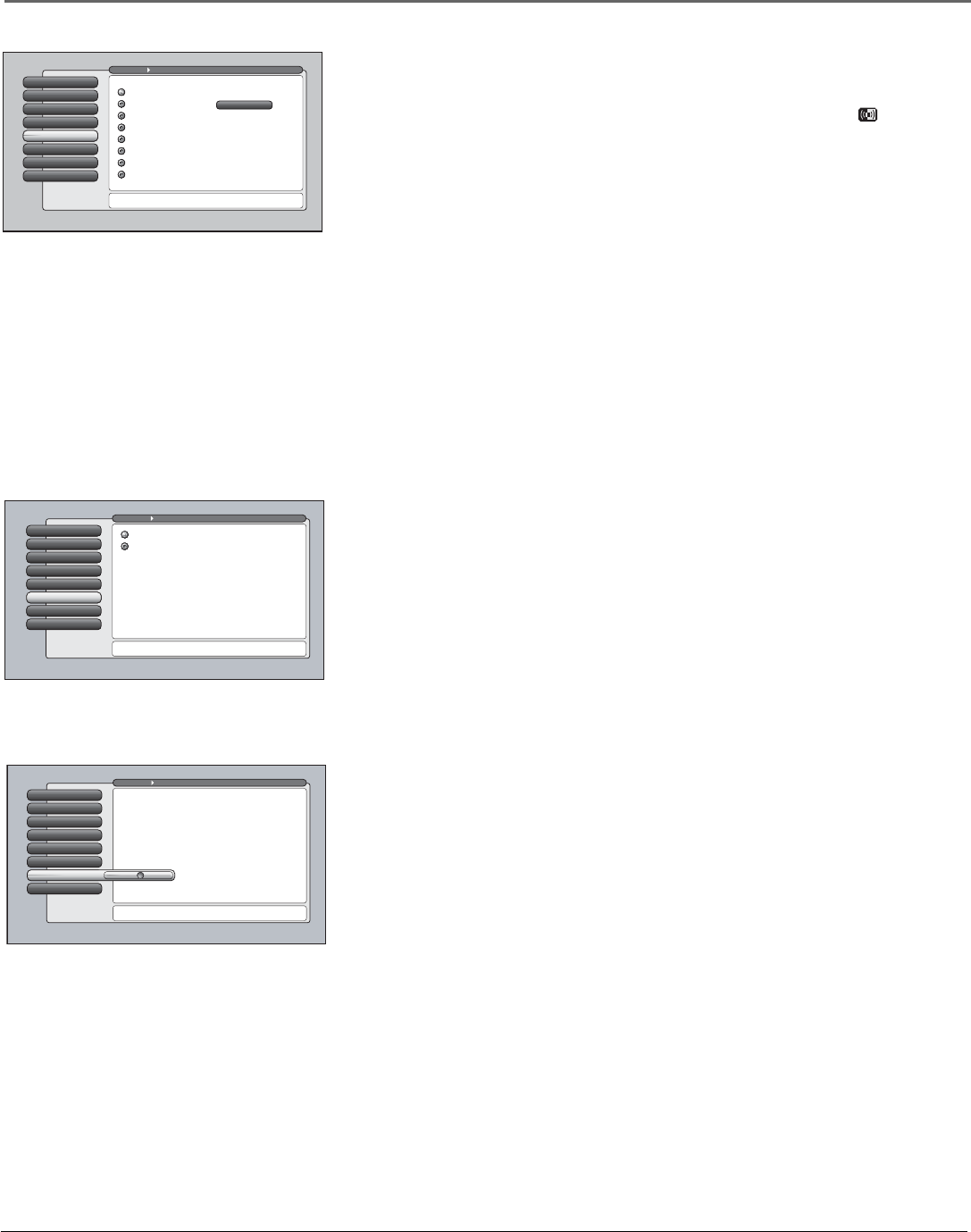

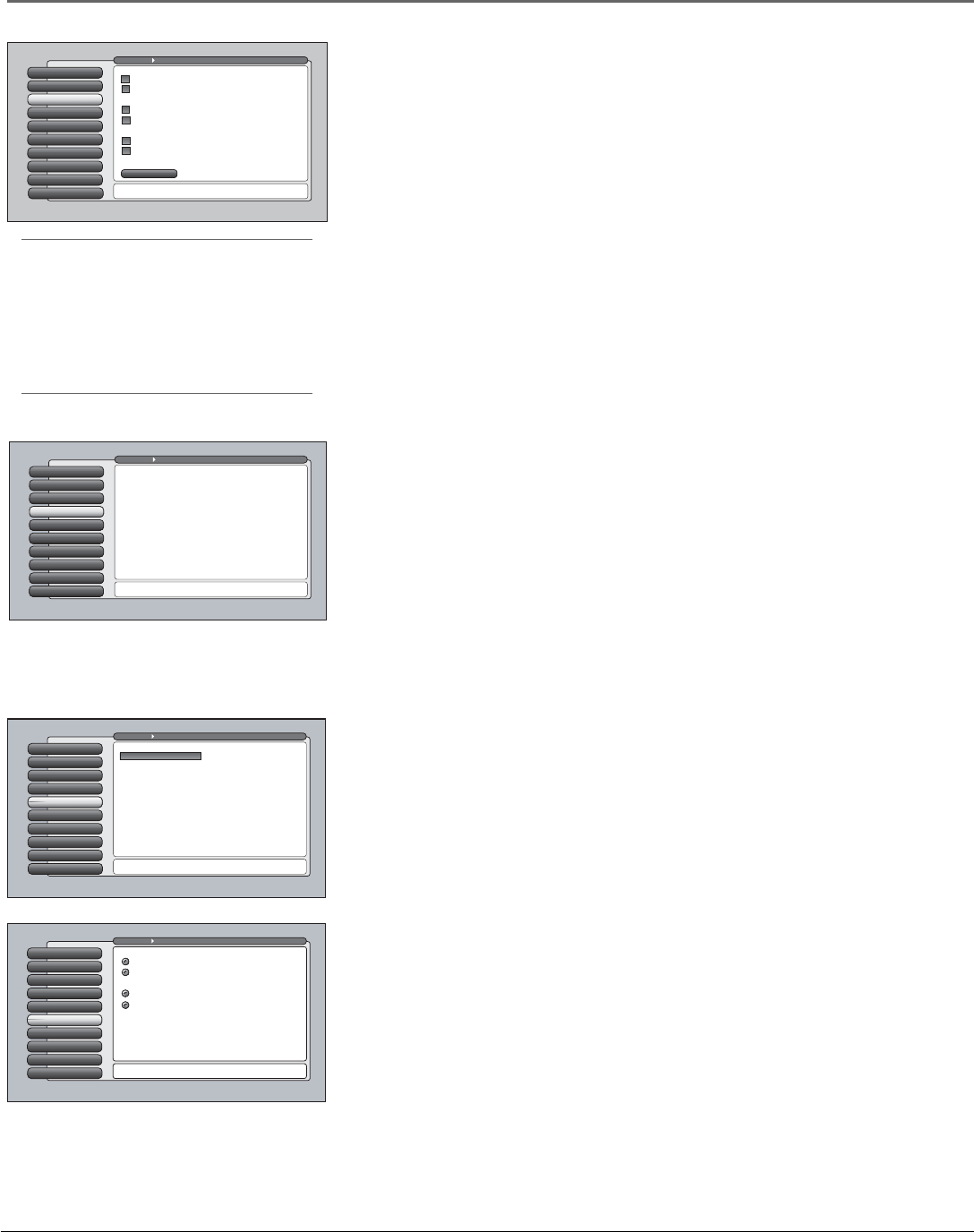

Picture PresetsPicture Presets

Picture Settings

Go Back

Main Menu Picture Quality

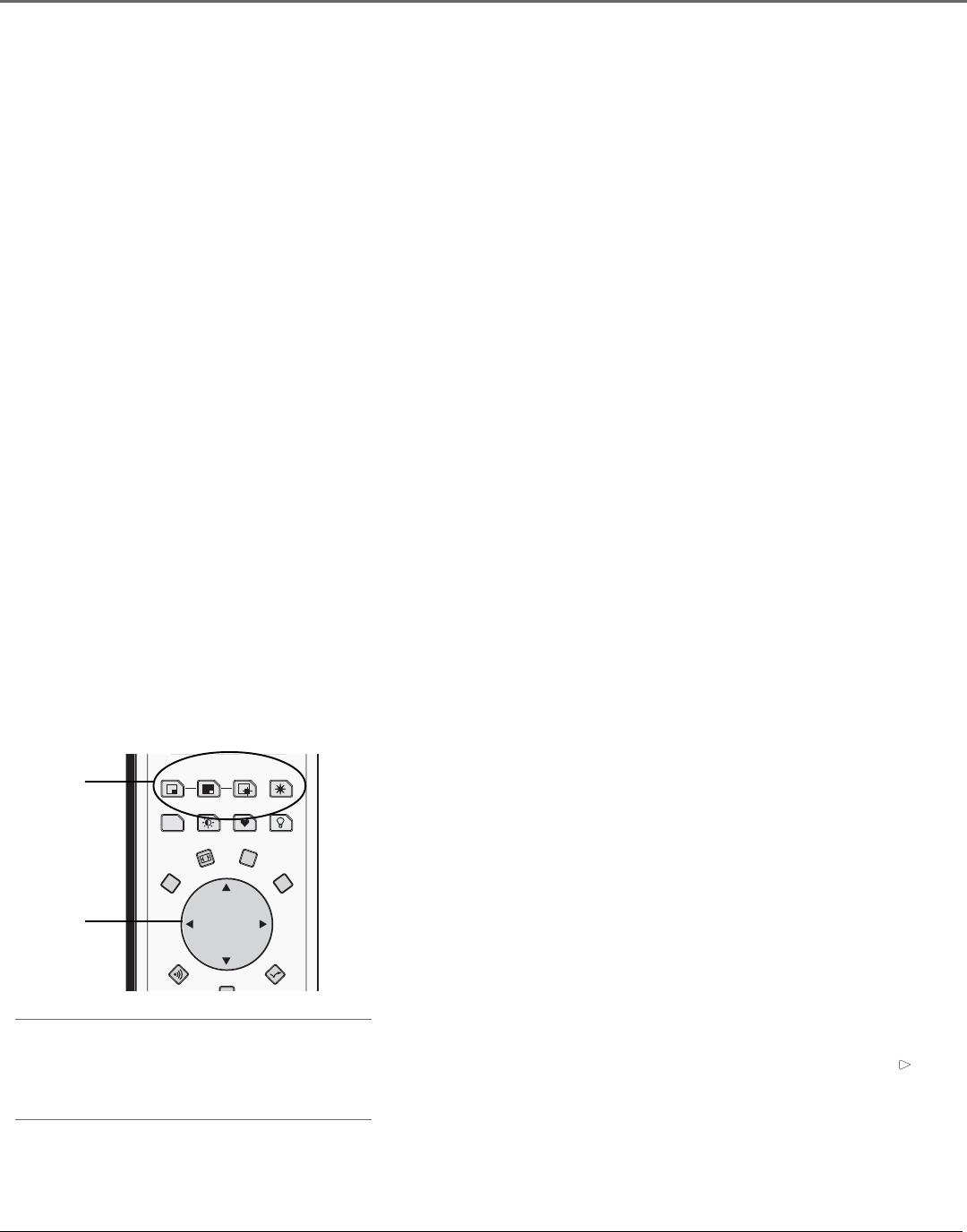

Press  or  to point to an option, then press OK to select it.

Press to return to the menu.

A change in this screen is applied to Input 3.

Videogame

Cinematic (Night)

Natural

Vibrant (Day)

Professional

Personal

Help text

CableCARD is a registered trademark of Cable Television Laboratories, Inc.

Introduction

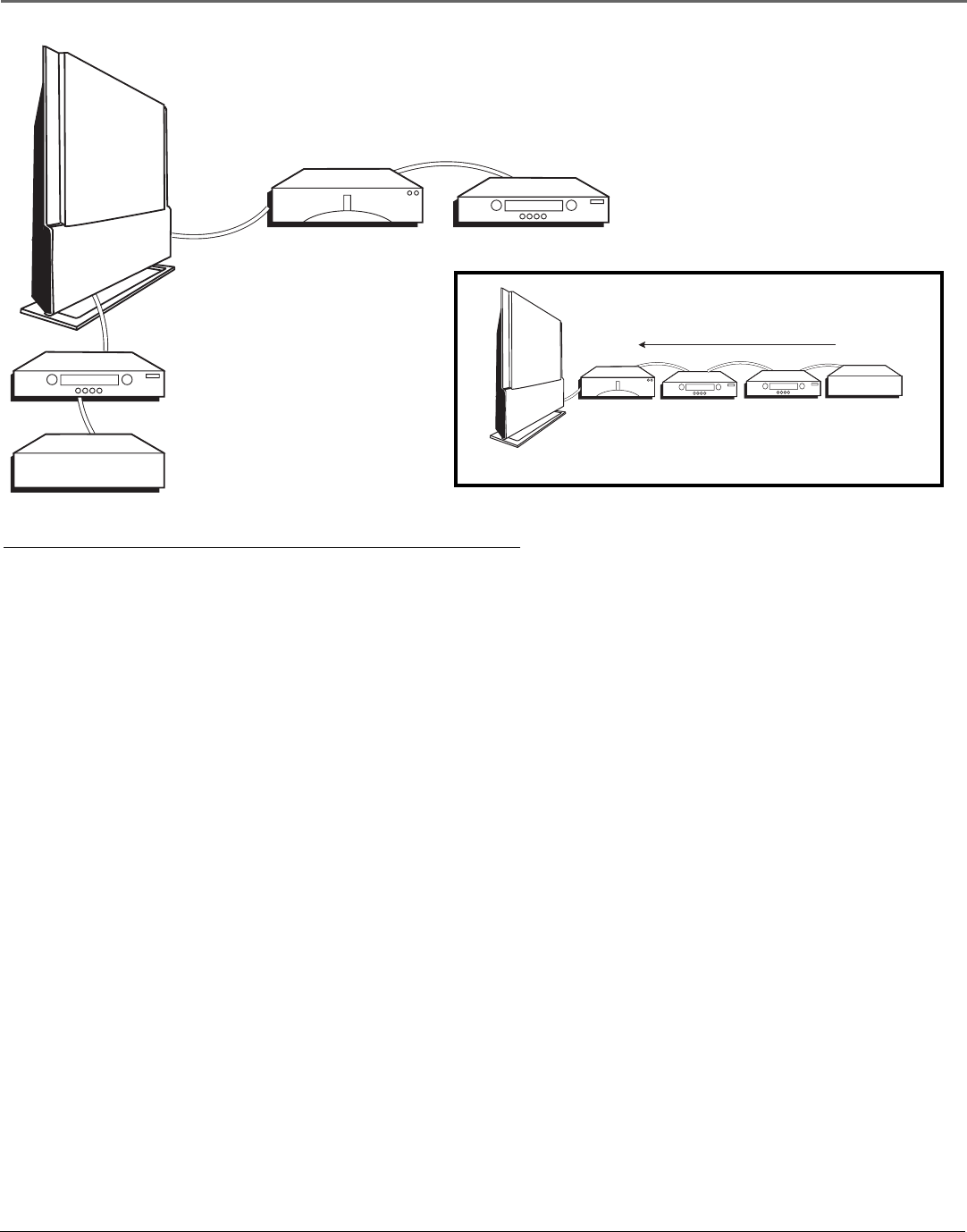

FireWire® with Two-Way DTVLink®

Control your DTVLink components via your HDTV! Just link them together via the 2-way DTVLink jacks and you can

network your compatible DTVLink digital components. The two-way jacks allow the audio and video signals to flow into

and out from DTVLink components.

Compatible with the Optional Audio Video Hard Disk Drive — Pause Live Digital TV and Record

Digital Programs

Use an Audio Video Hard Disk Drive with DTVLink to pause live TV, record shows, and play them back (it records digital

broadcasts only--ATSC and QAM signals).

NetConnect

With an Ethernet connection and a web browser built into your TV, you can

access the Internet from your TV*. To use the web browser, you’ll need a

high-speed connection, such as a DSL (Digital Subscriber Line) unit or cable

modem and a subscription to an ISP (Internet Service Provider). DSL, cable

modem, and ISP subscription sold separately.

*The browser can’t interpret all types of files, such as streaming audio and

video.

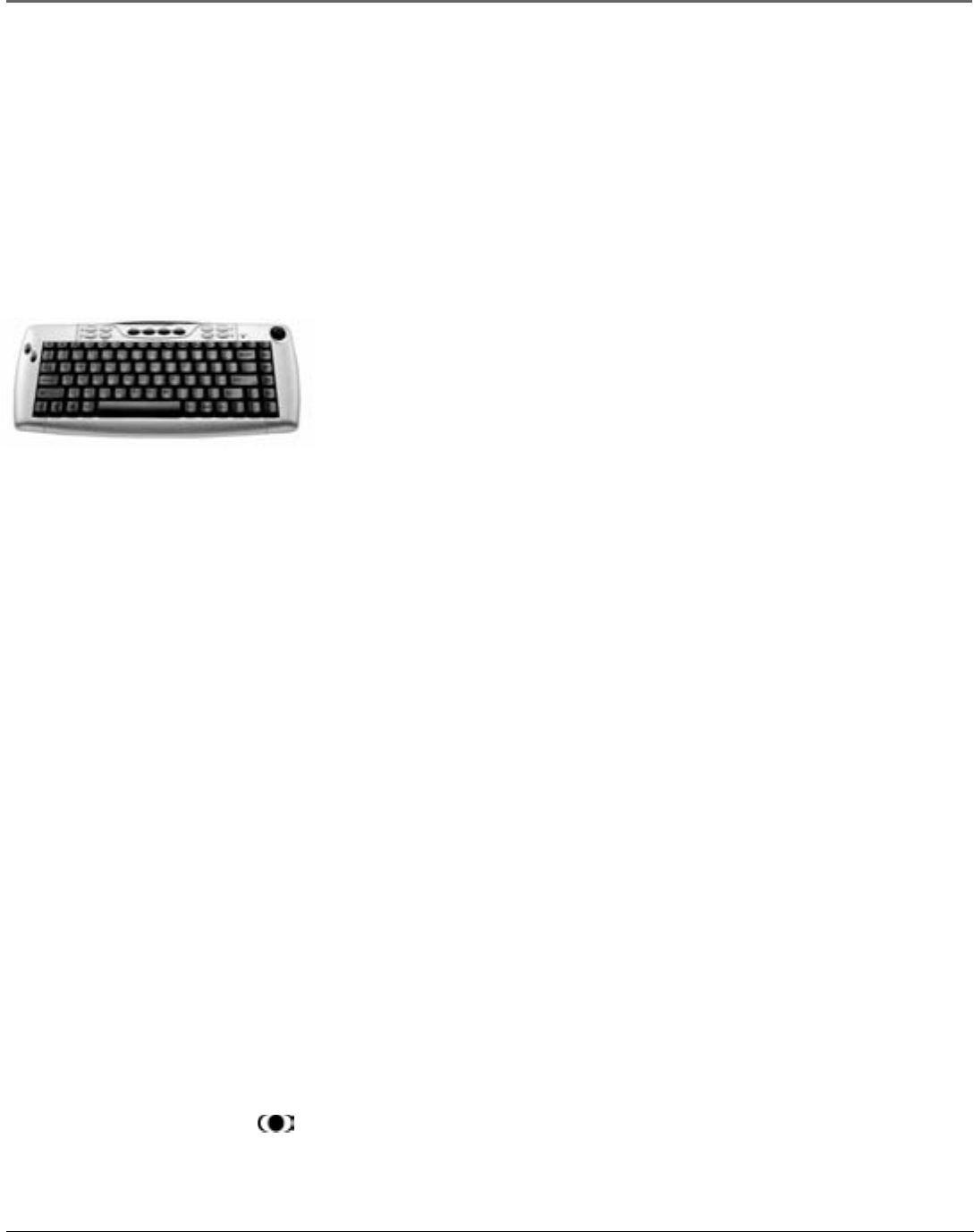

To get the most out of your HDTV’s web

browser, use the supplied keyboard

designed specifically for your TV.

Audio System

Enjoy the great sound system in your HDTV with 60 watts total power. A 7-band on-screen graphic equalizer allows

customization of the sound quality. TruSurround XT™ solves the problem of playing 5.1 multichannel content over two

speakers. It delivers a compelling, virtual surround sound experience through the internal television speakers.

You can take advantage of the 6-Channel direct Audio Outputs (Matrix Surround, Subwoofer, etc.) if you have an amplifier

you want to connect to your HDTV. Then choose to control the volume from the TV or the amplifier in the Fixed/Variable

Output option in the Audio Connections menu. If you own an amplifier with digital audio, connect to the DIGITAL AUDIO

OUTPUT instead.

Audio/Video Output Jacks

Because the VCRs in most households are analog and can’t receive or record digital TV signals, recording HDTV broadcasts

wasn’t possible without purchasing additional equipment. Having the AUDIO/VIDEO OUTPUT jacks allow you to record

both analog and digital programs. InFocus understands how you watch TV and what’s necessary to make the transition to

HDTV seamless.

TruSurround XT, SRS and the symbol are trademarks or registered trademarks of SRS Labs, Inc.

DTVLink® Certification Logo is a U.S. registered mark of CEA.

FireWire® is a trademark of Apple Computer, Inc., registered in the U.S. and other countries.

Table of Contents

Introduction ..............................................................................................1

Chapter 1: Connections & Setup

Things to Consider Before You Connect ........................................................................................ 8

Protect Against Power Surges.................................................................................................. 8

Protect Components from Overheating.................................................................................. 8

Position Cables Properly to Avoid Audio Interference........................................................... 8

Use Indirect Light...................................................................................................................... 8

Using a Stand ............................................................................................................................ 8

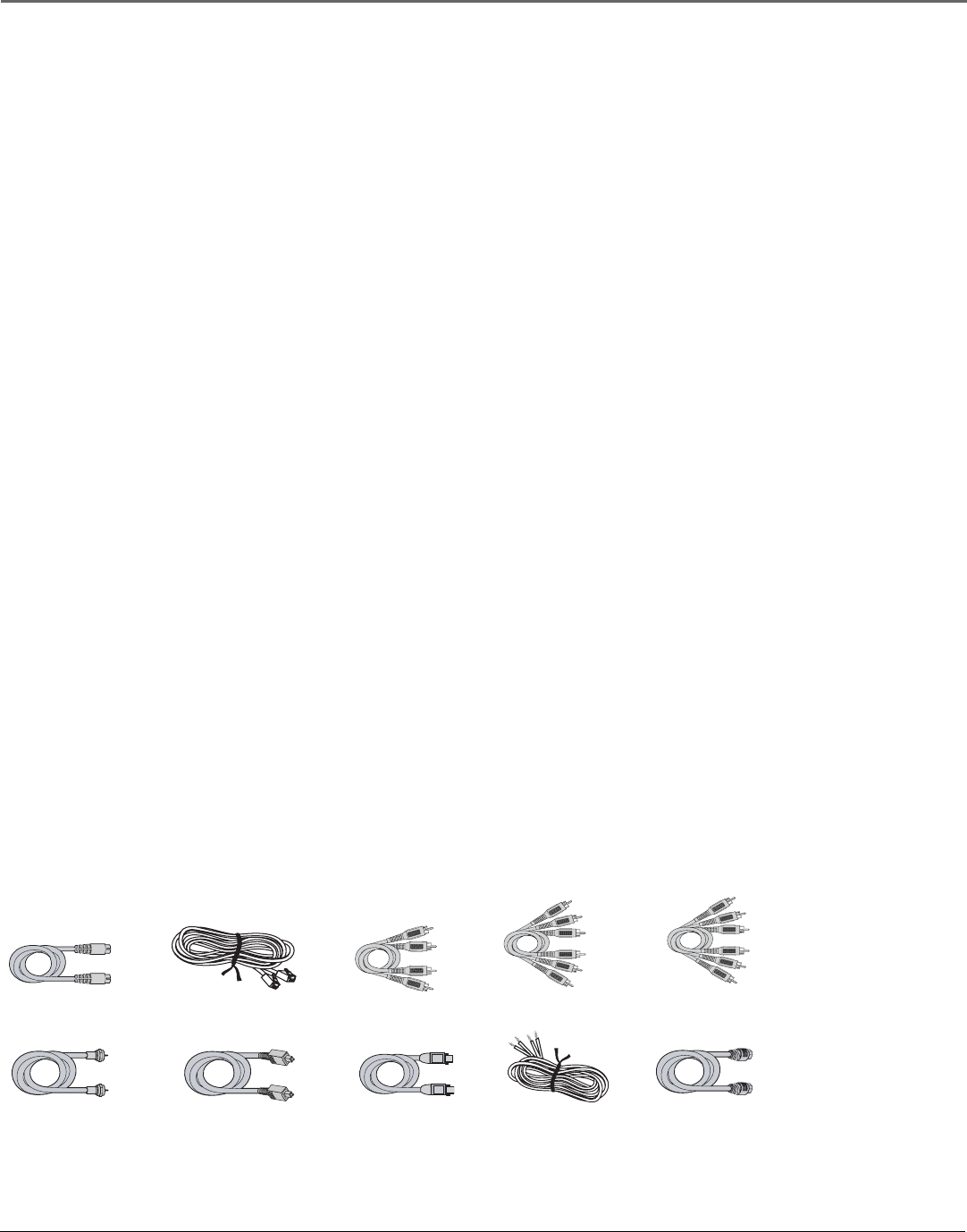

Cables You May Need to Connect Components to Your TV .................................................. 8

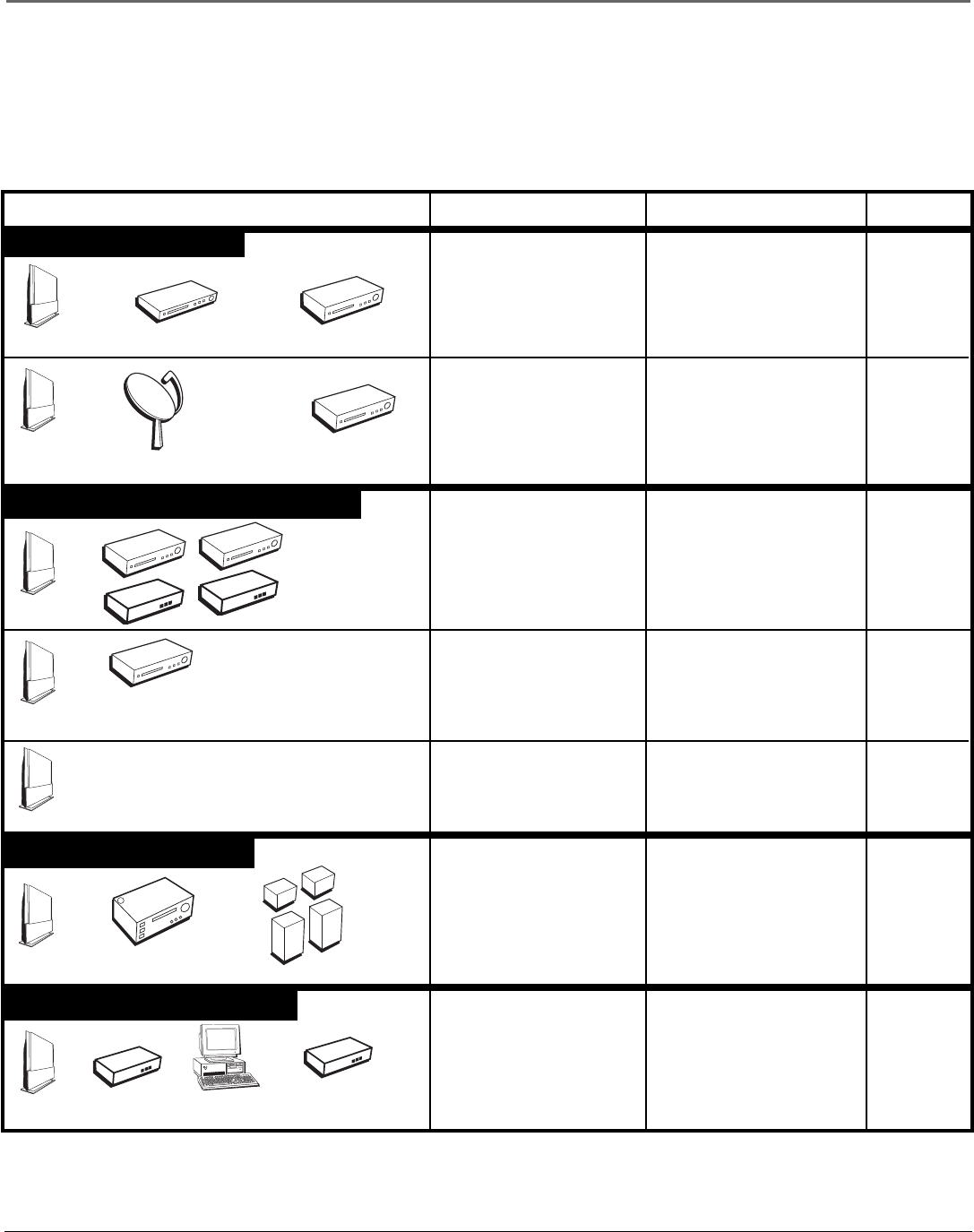

Choose Your Connection................................................................................................................. 9

Removing the Front Panel Piece................................................................................................... 10

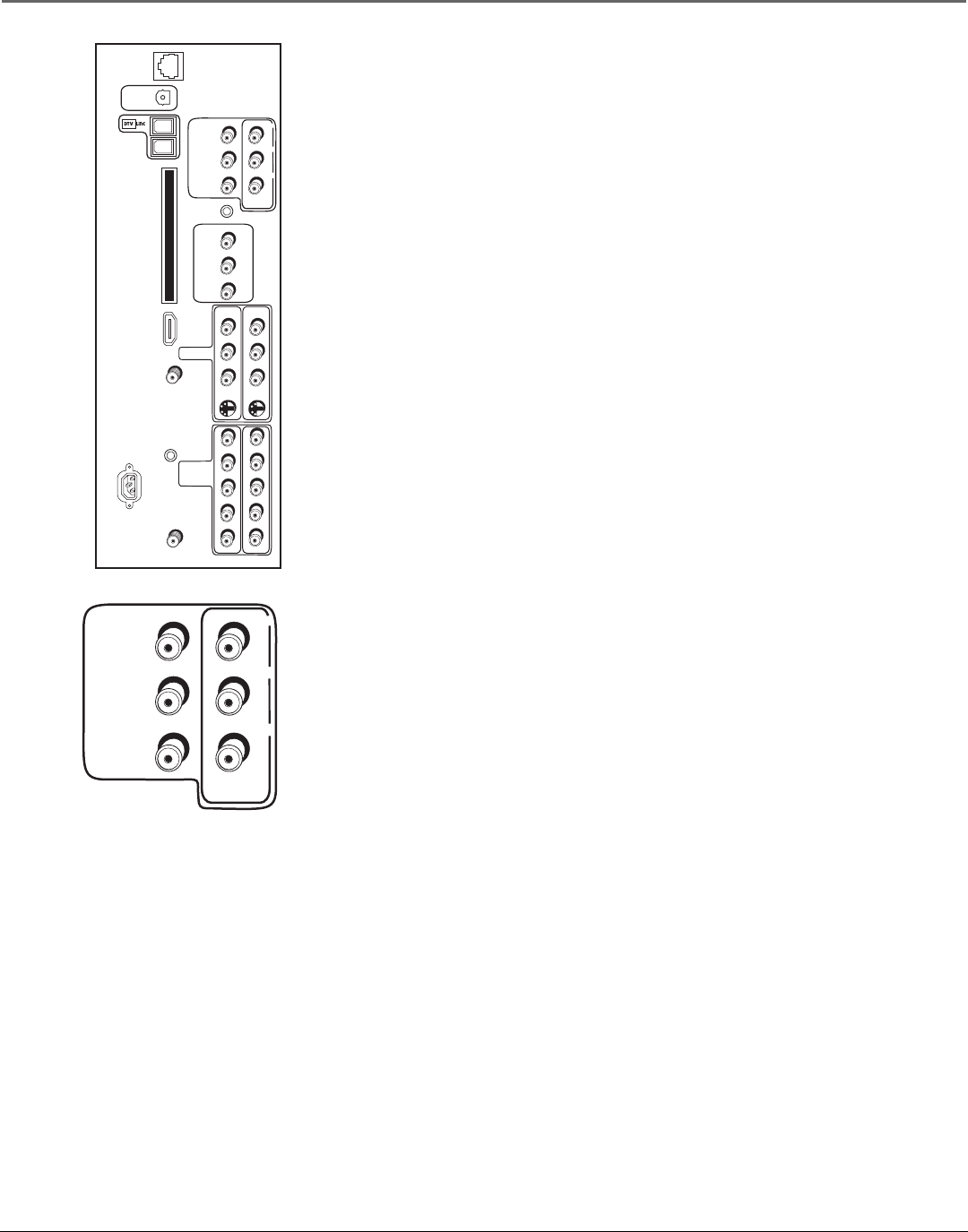

Accessing the Jack Panel ............................................................................................................... 10

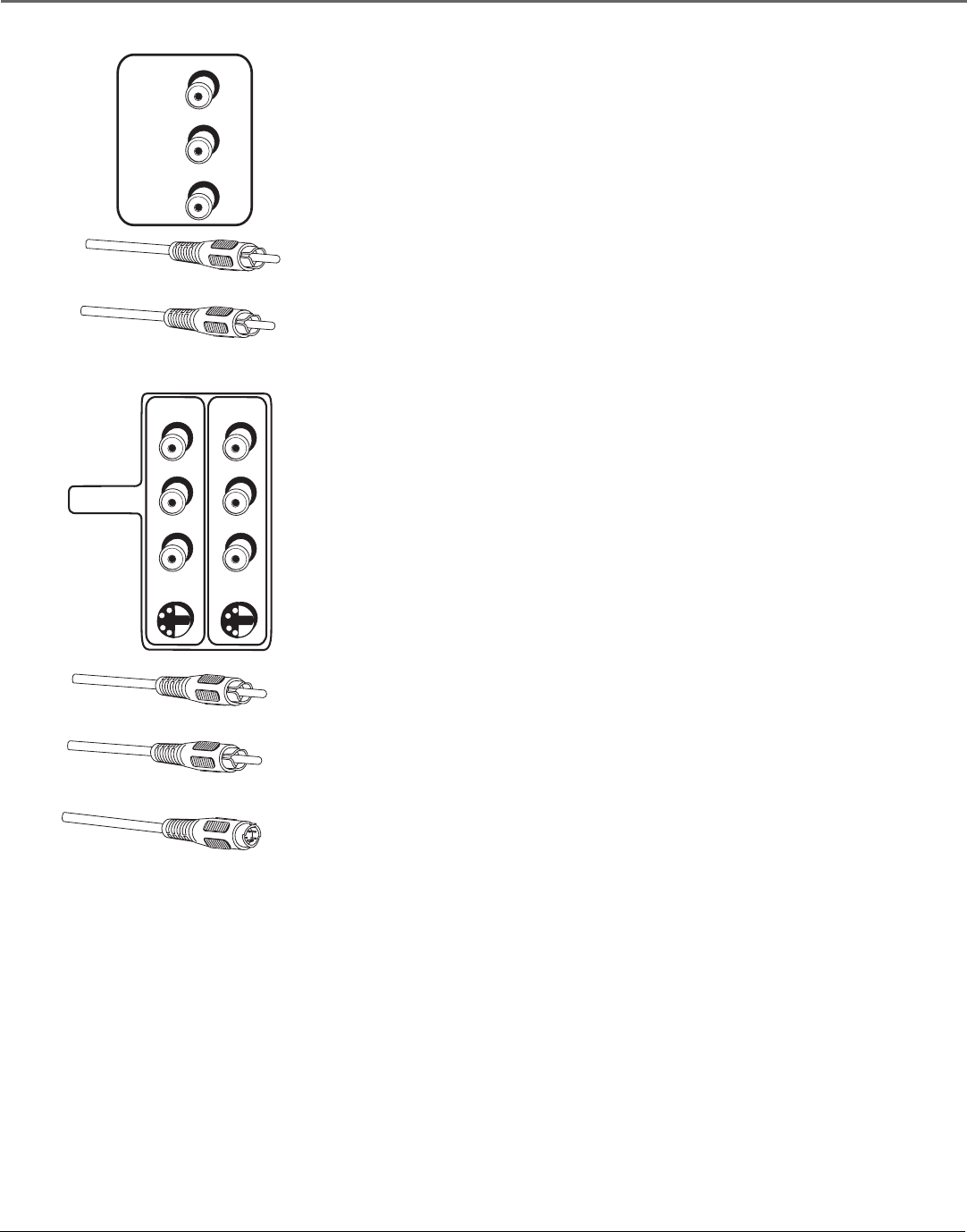

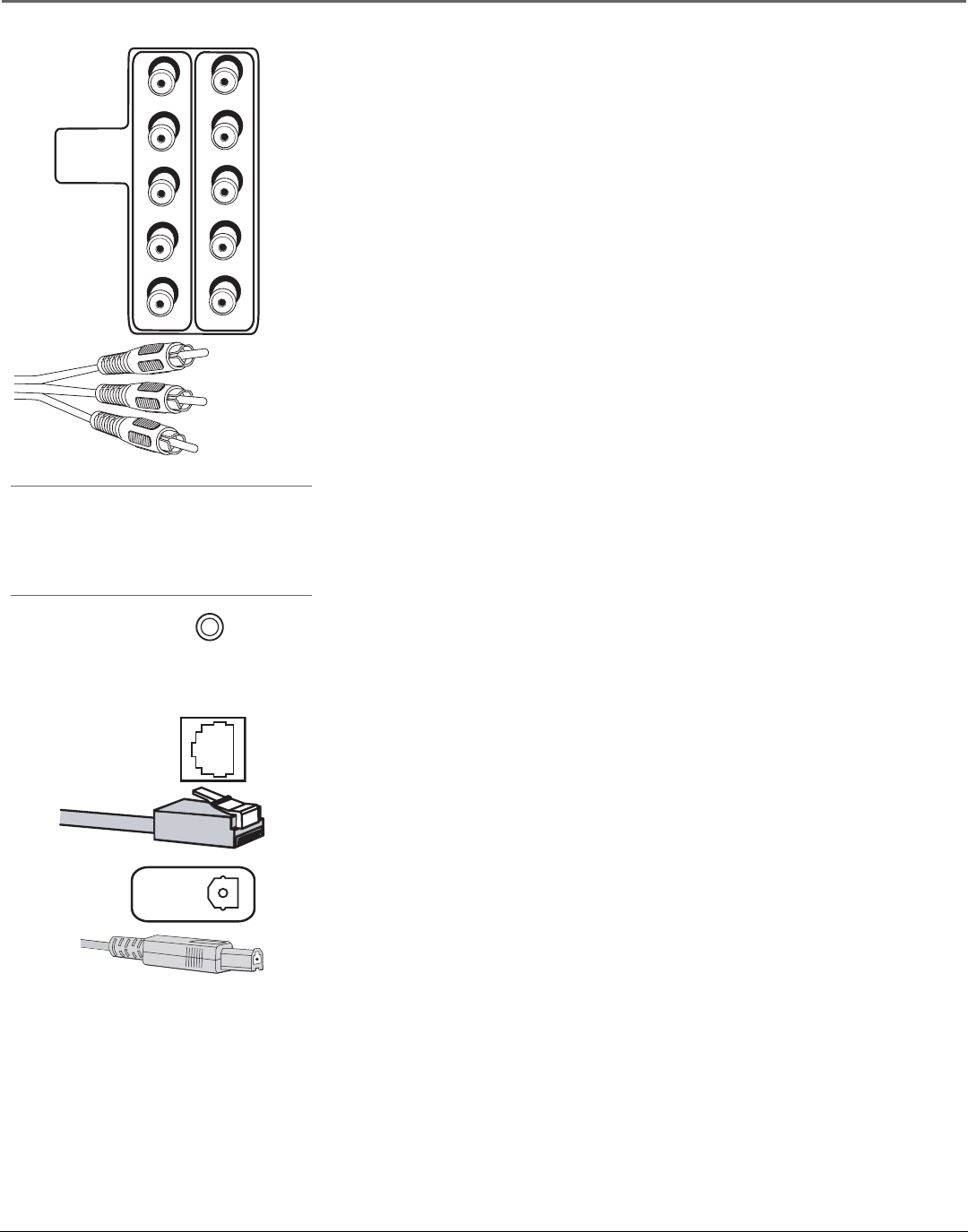

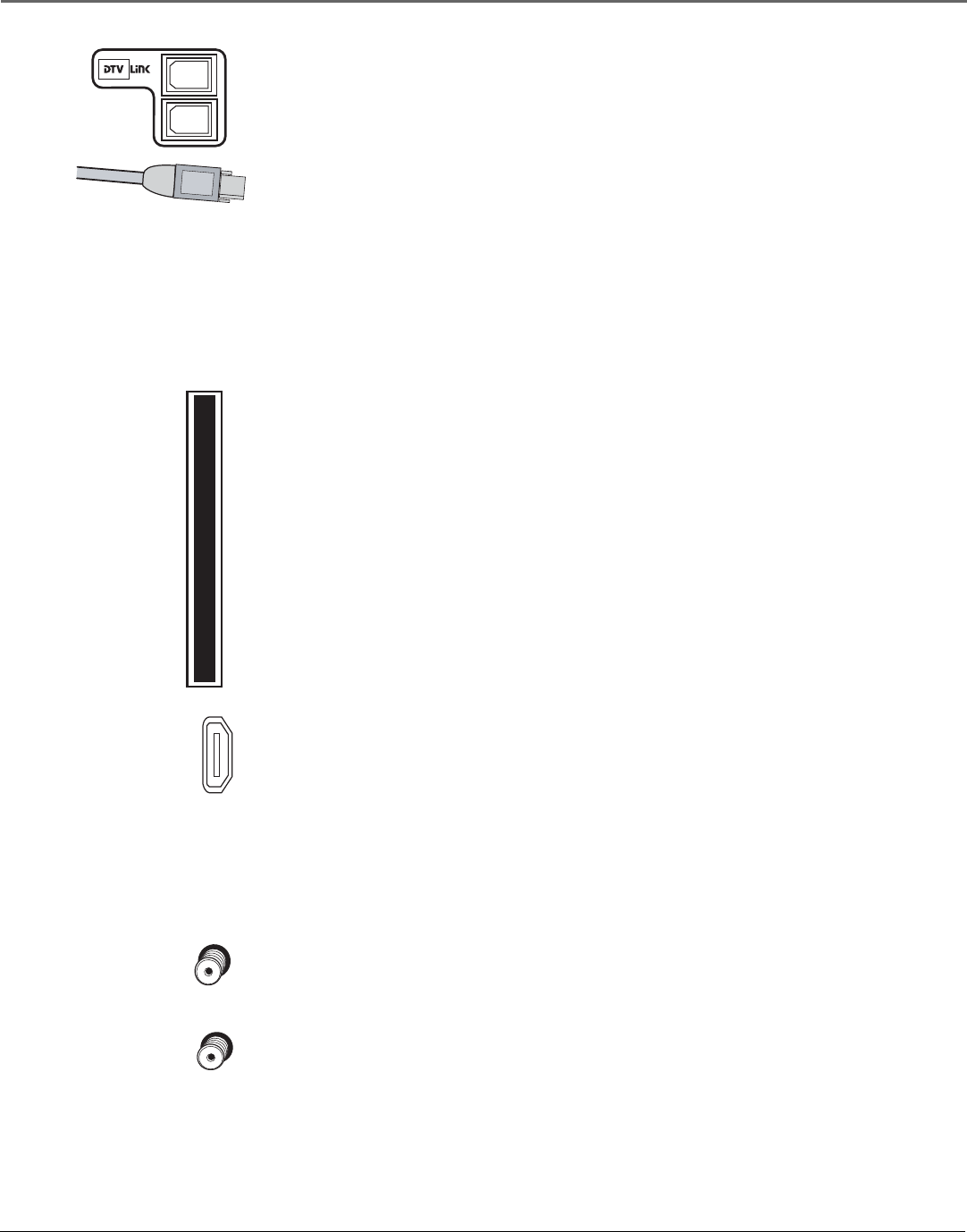

Explanation of Jacks and Cables .................................................................................................. 11

The Front of Your TV ..................................................................................................................... 15

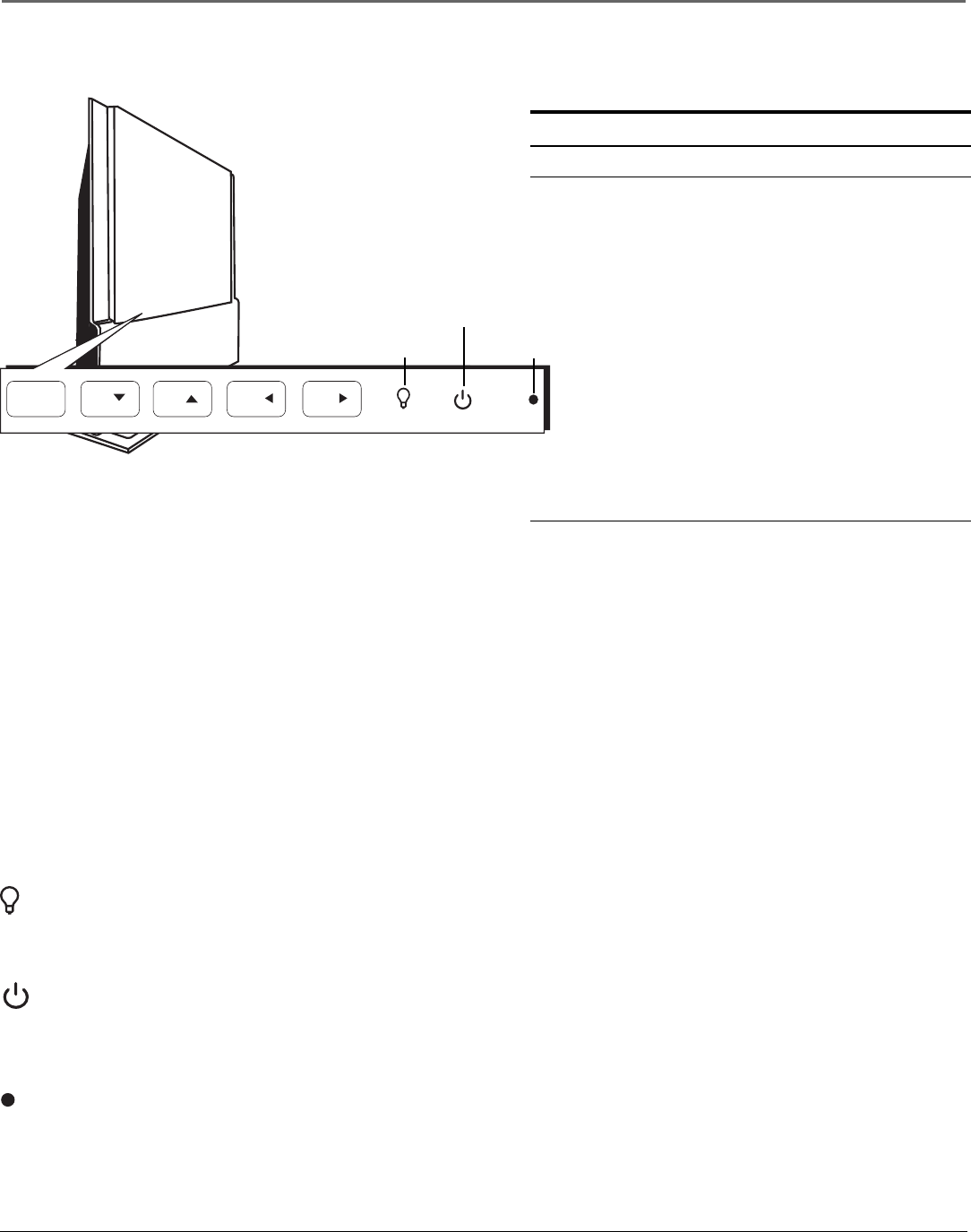

Front Panel Buttons................................................................................................................ 15

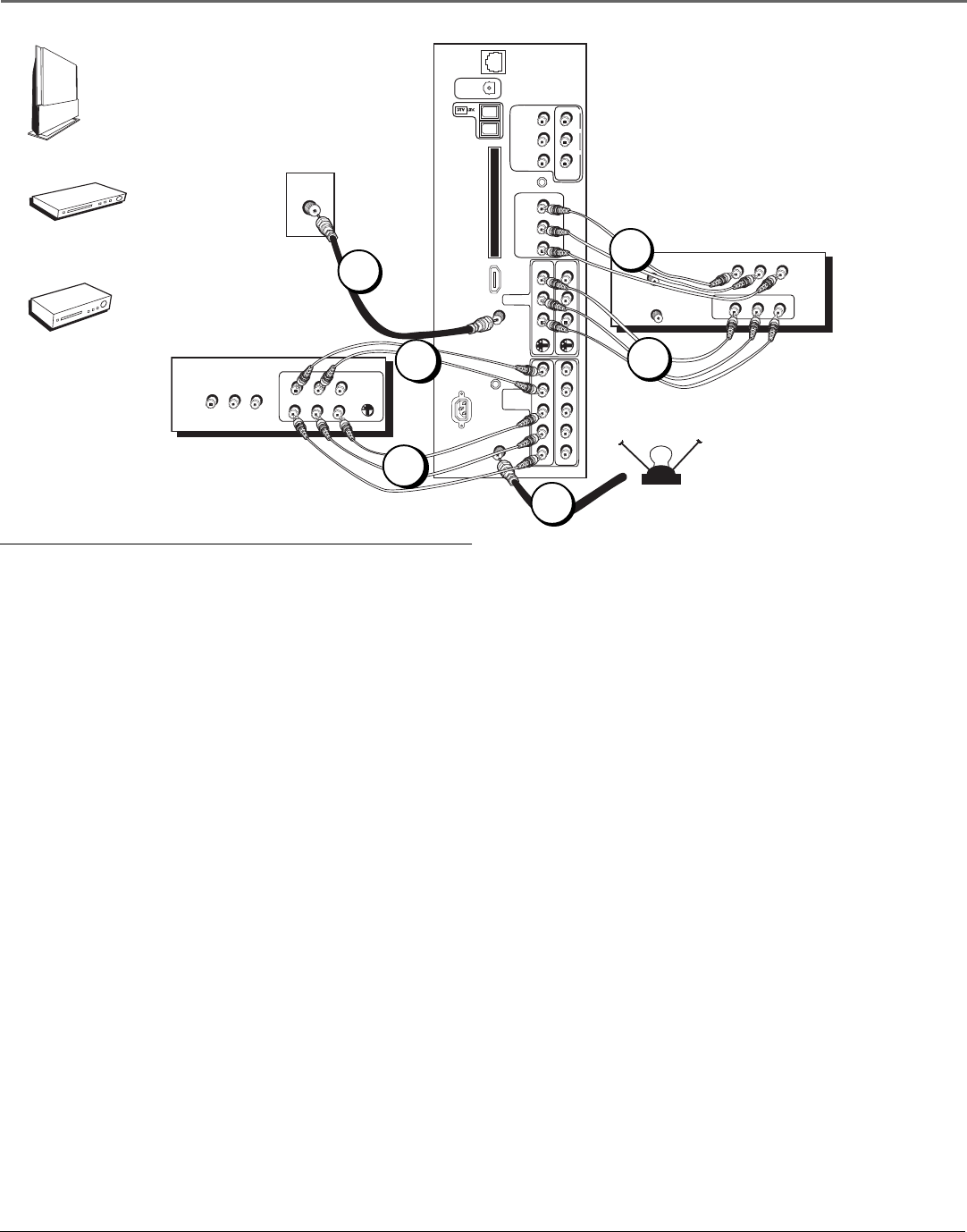

How to Connect: TV + VCR + DVD Player ............................................................................. 16

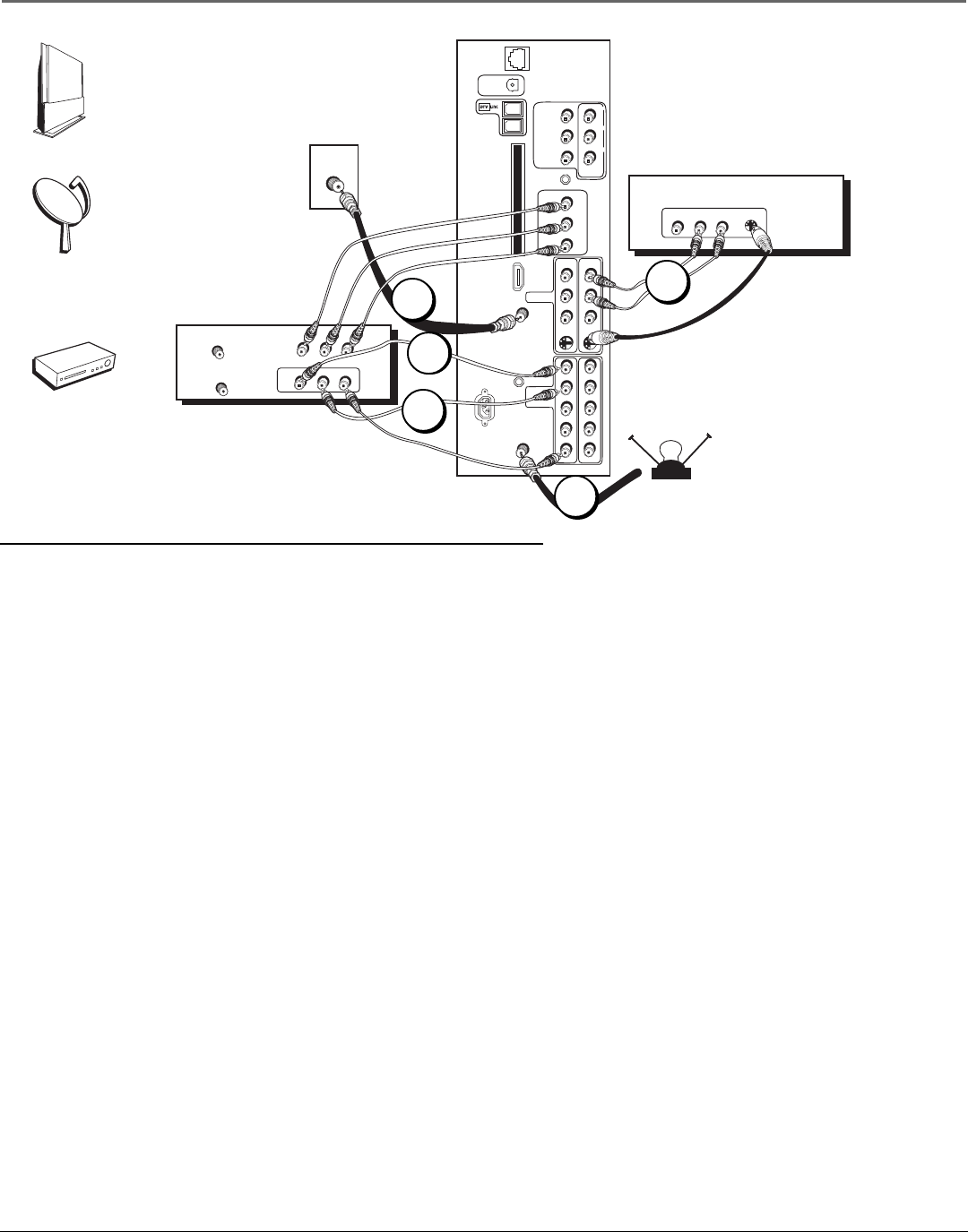

How to Connect: TV + Satellite Receiver + VCR.................................................................... 17

How to Connect: TV + DTVLink Components ....................................................................... 18

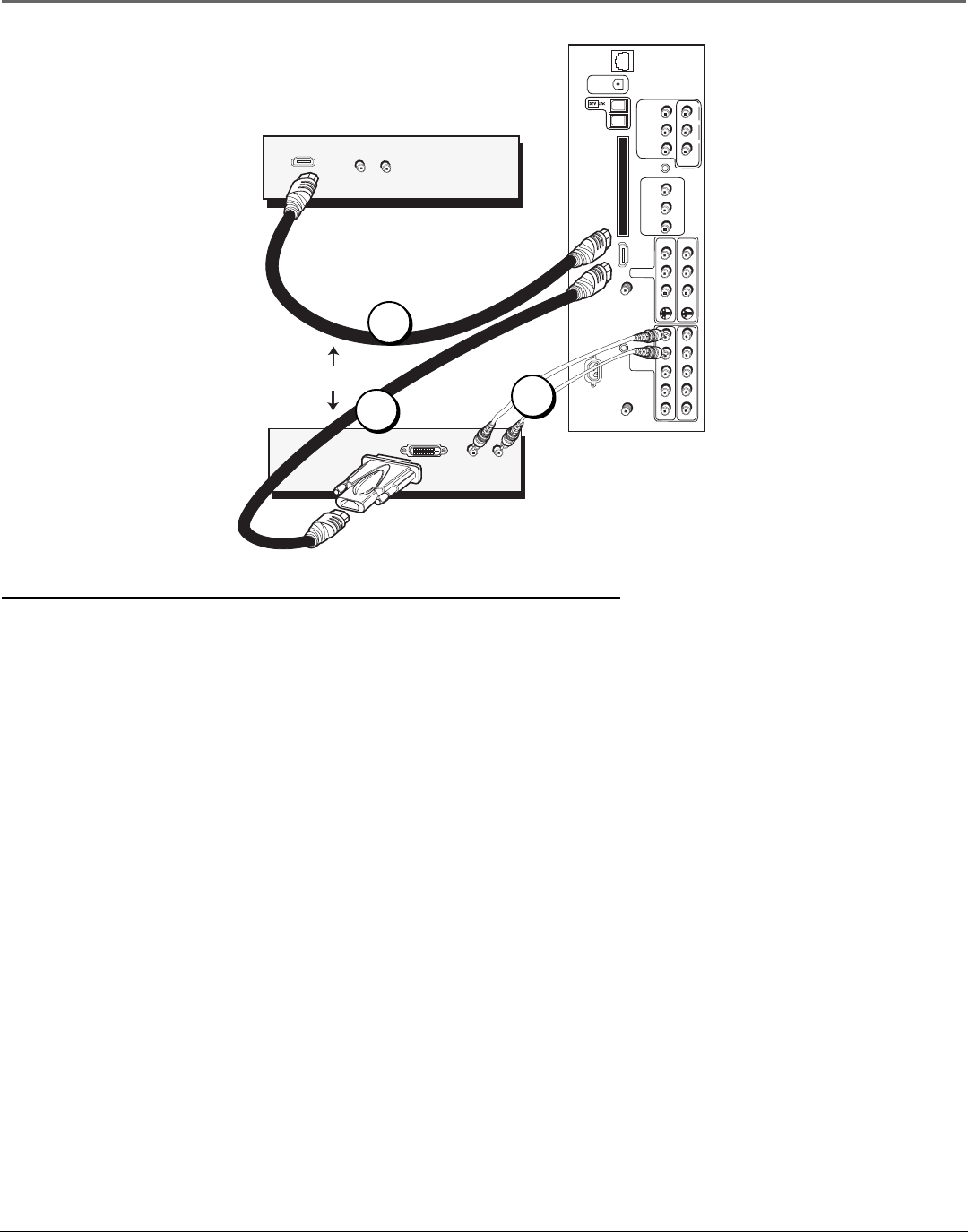

How to Connect: TV + Component with DVI or HDMI......................................................... 19

How to Connect: TV + CableCARD ........................................................................................ 20

Setting Up Digital Cable Television Service........................................................................... 20

Audio Connections ................................................................................................................. 21

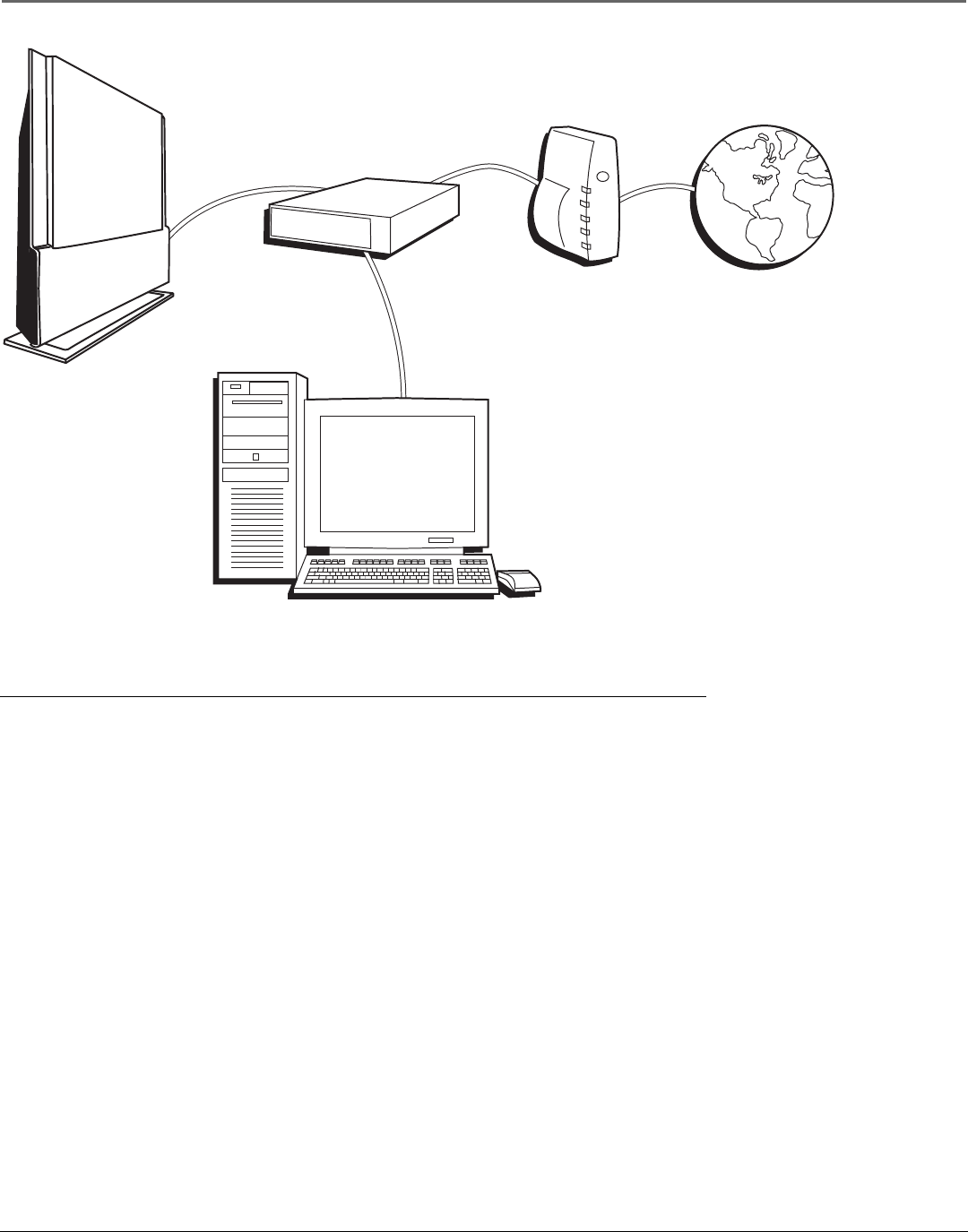

How to Connect: TV + Router via the HDTV’s ETHERNET Jack ............................................ 23

Plug in the TV................................................................................................................................. 24

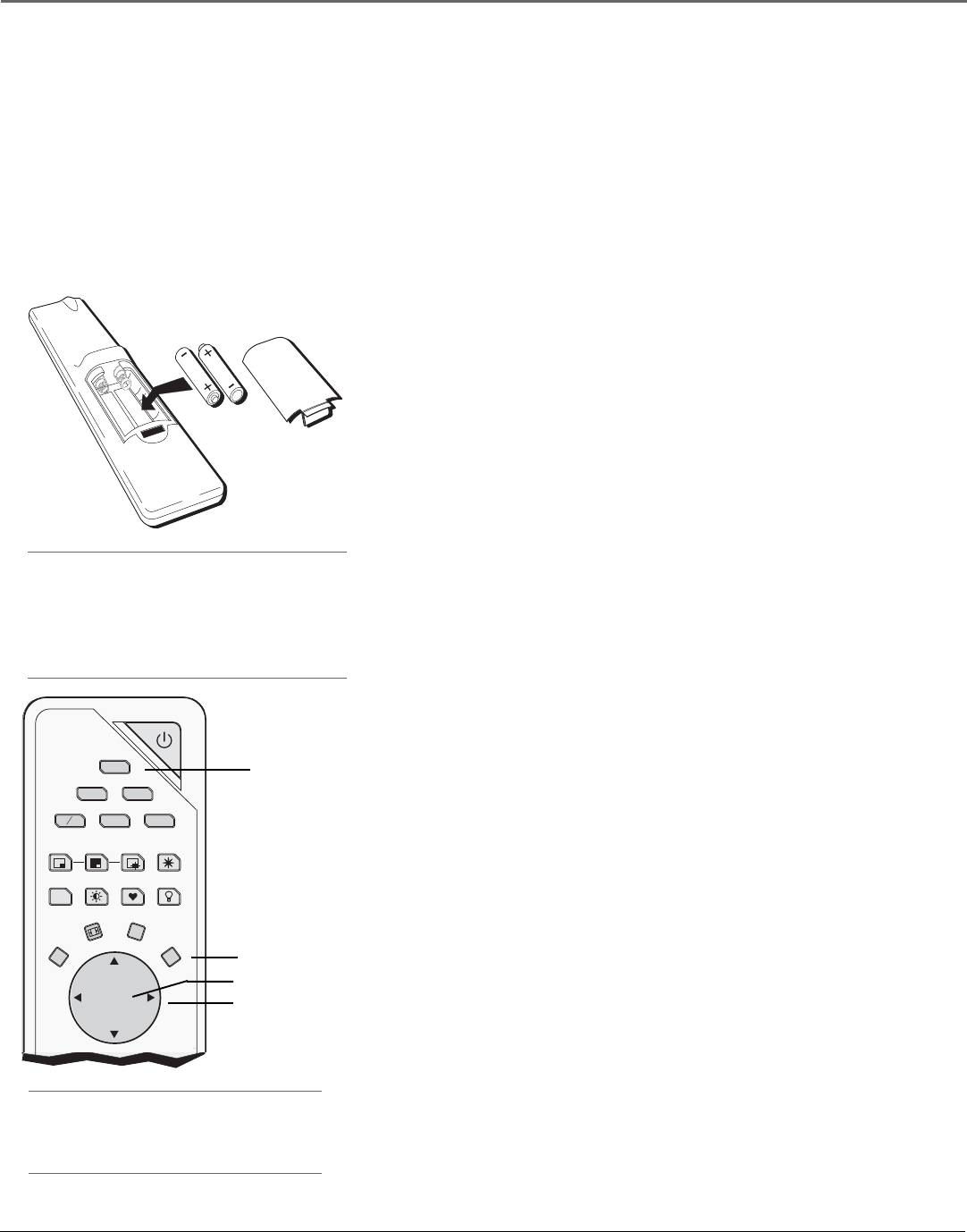

Put Batteries in the Remote.......................................................................................................... 24

Turn on the TV ............................................................................................................................... 24

Use the Remote Control to Complete the Assisted Setup.......................................................... 24

Complete the Assisted Setup........................................................................................................ 25

Set the Menu Language......................................................................................................... 25

Complete Channel Search ...................................................................................................... 25

Chapter 2: Using the Remote Control

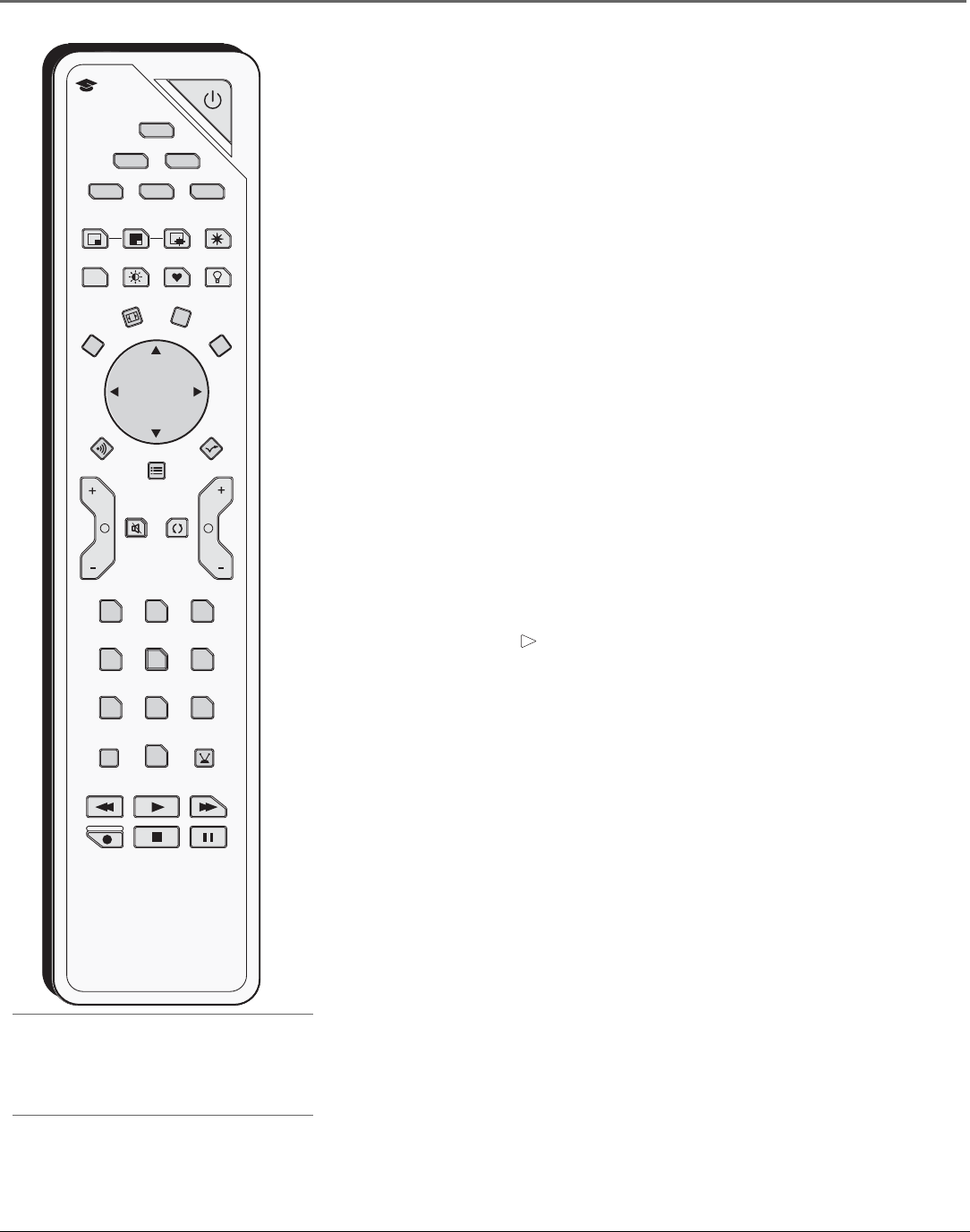

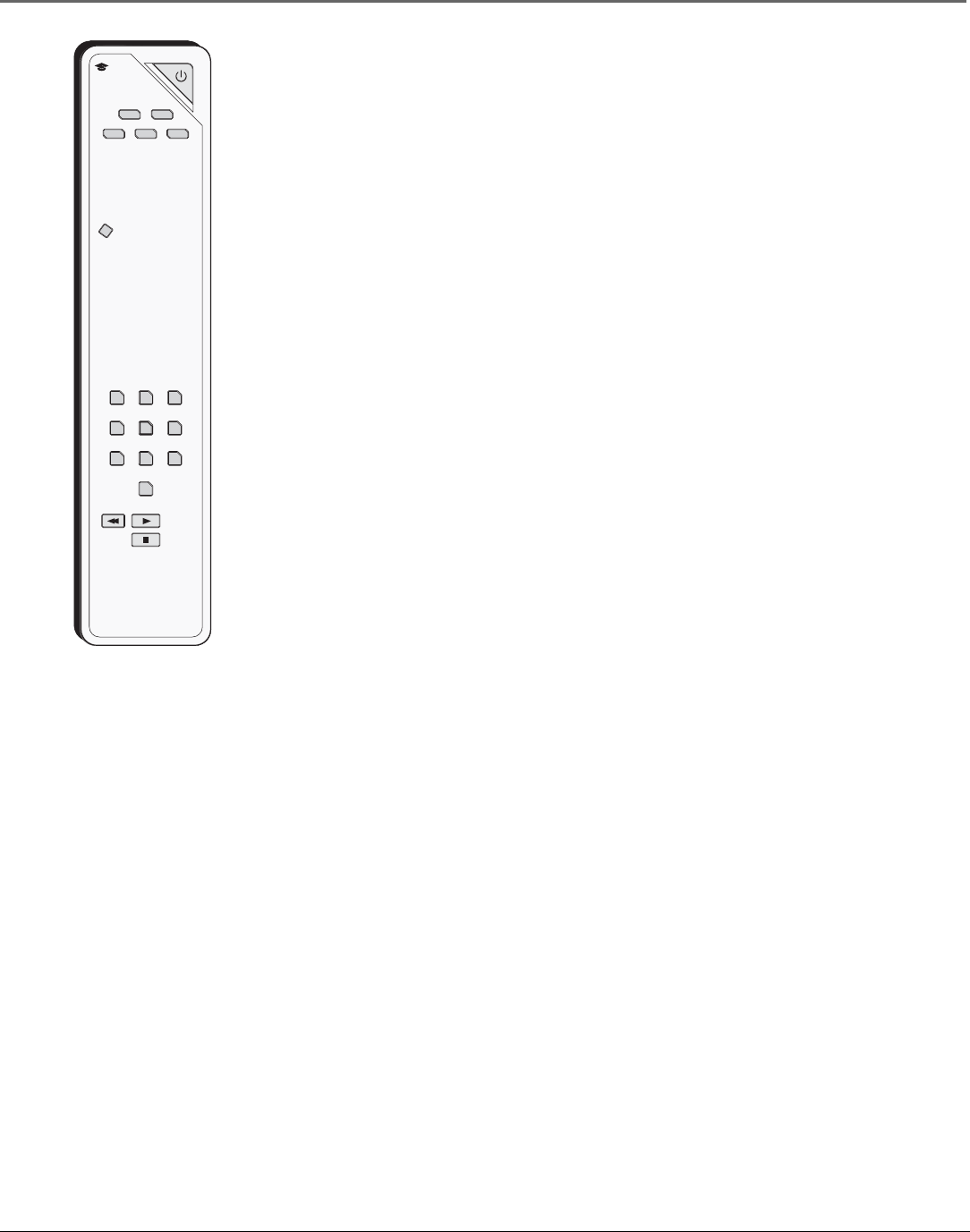

The Buttons on the Remote Control ............................................................................................ 28

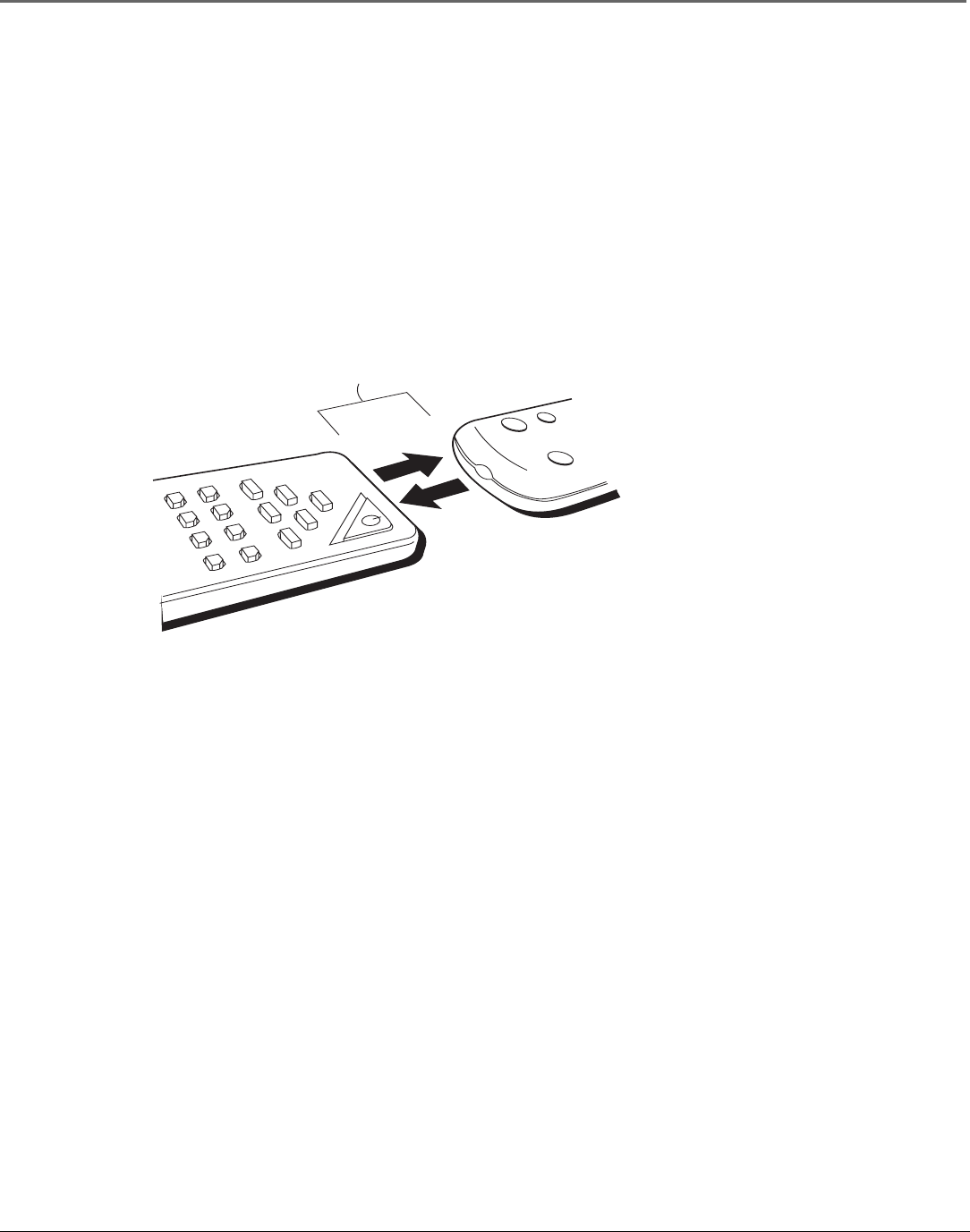

Programming the Remote to Operate Other Components ........................................................ 30

Find Out If You Need to Program the Remote ..................................................................... 30

Programming the Remote ..................................................................................................... 30

How to Use the Remote After You’ve Programmed It ............................................................... 31

The Learning Feature .................................................................................................................... 32

Adding a Learned Function ................................................................................................... 32

Clearing a Learned Function.................................................................................................. 33

Deleting ALL Learned Functions............................................................................................ 33

Volume Punchthrough Feature.....................................................................................................34

Deleting ALL Volume Punchthrough Commands................................................................. 34

Using the INPUT Button ................................................................................................................ 35

Remote Code List........................................................................................................................... 35

Chapter 3: Using the TV’s Features

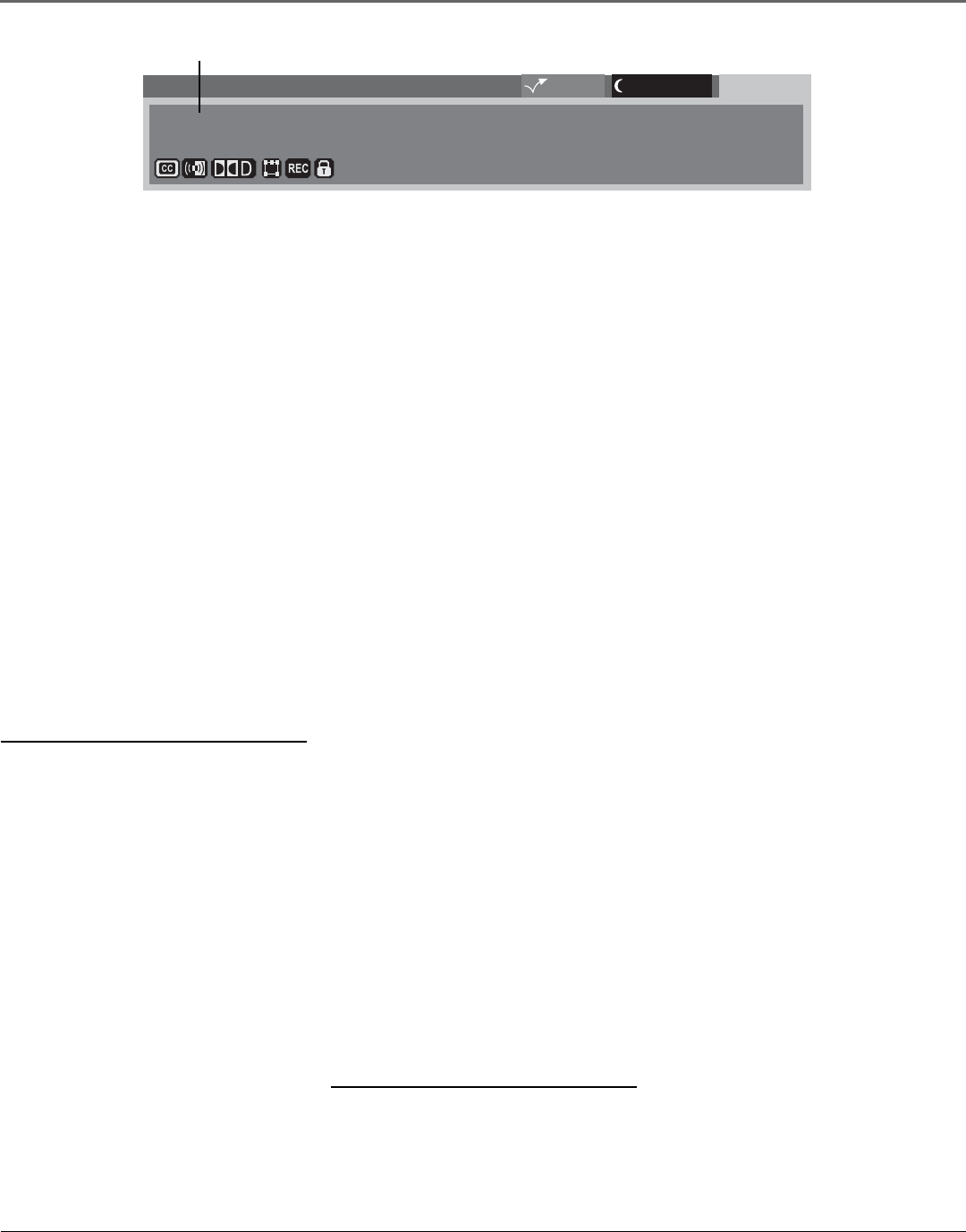

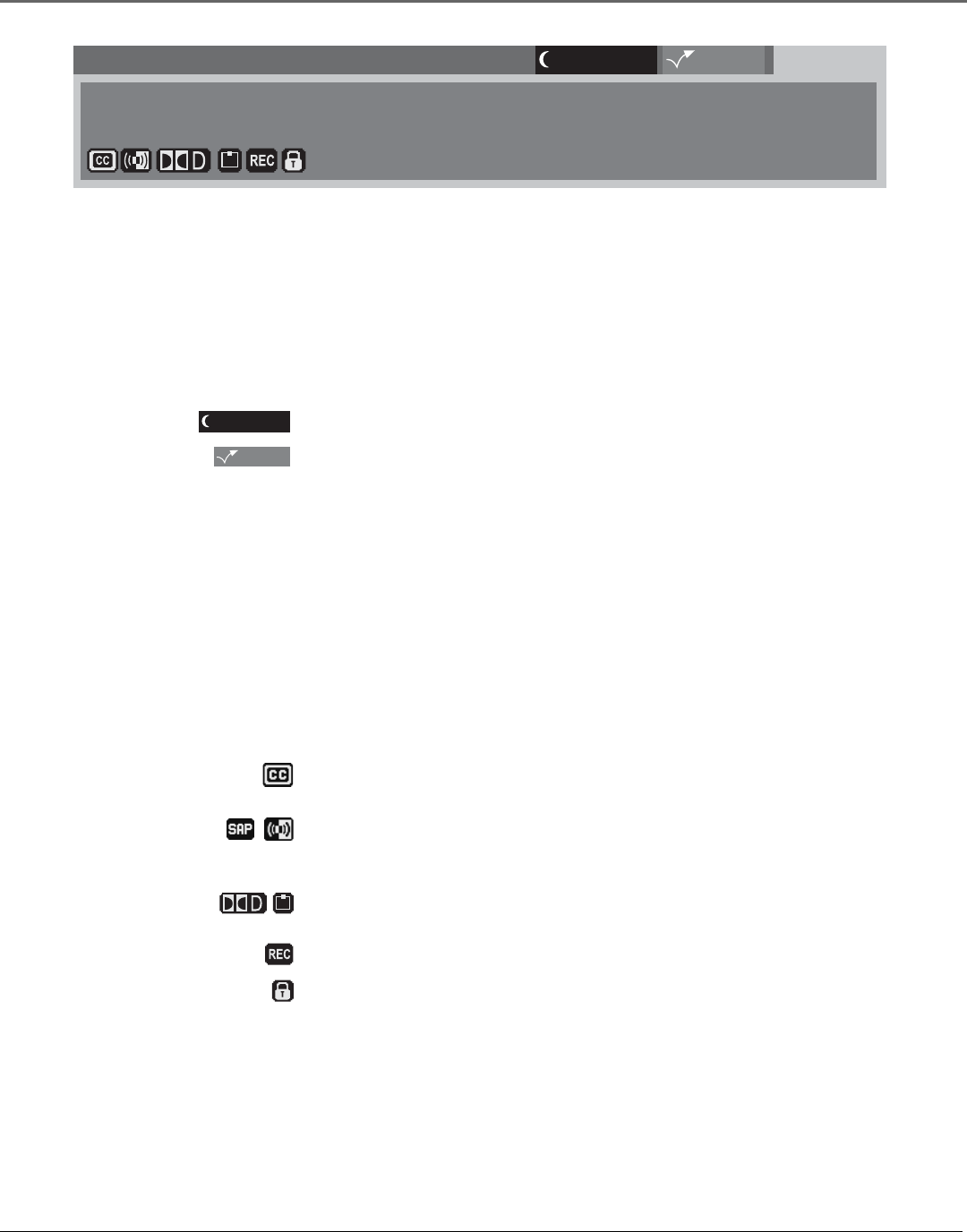

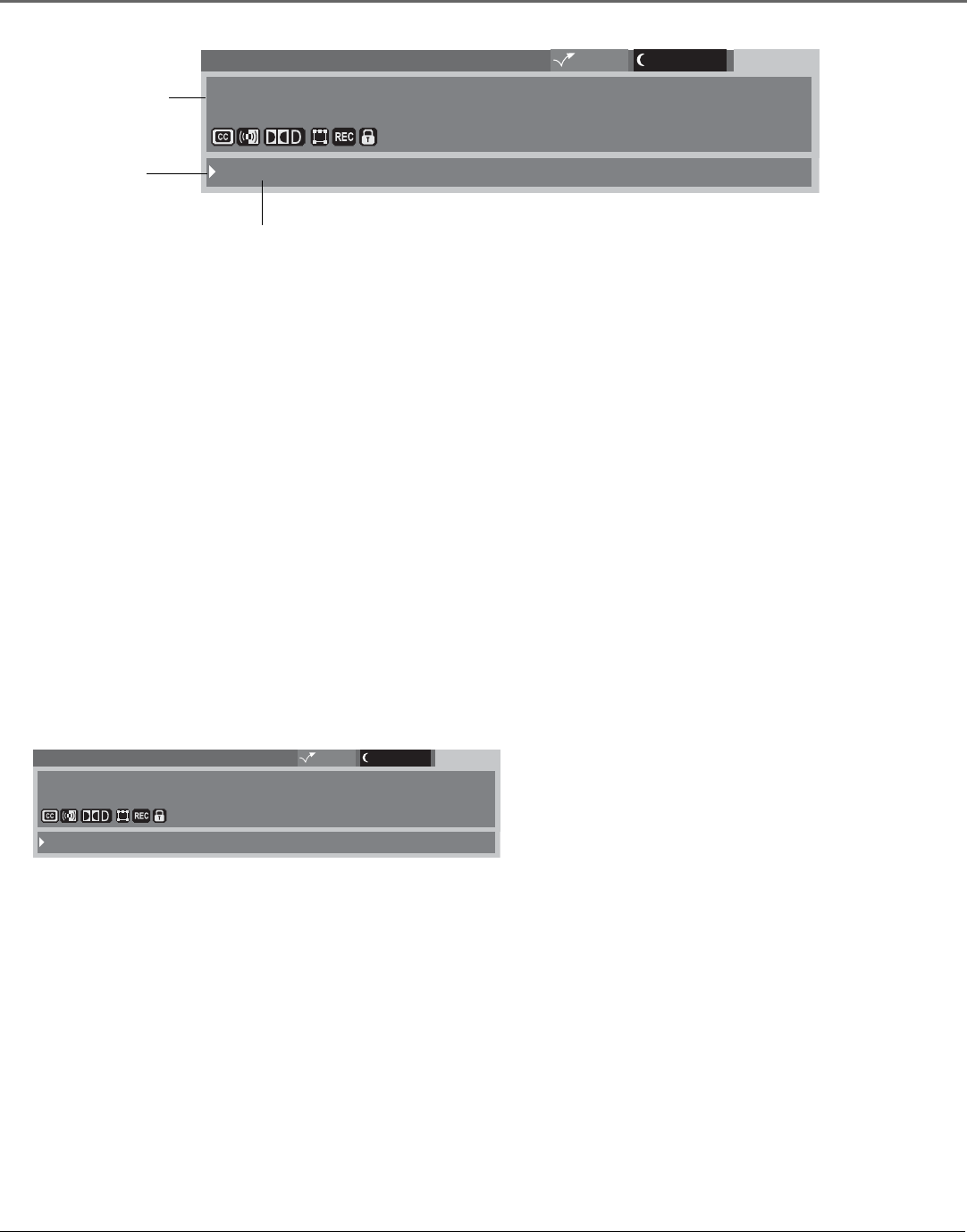

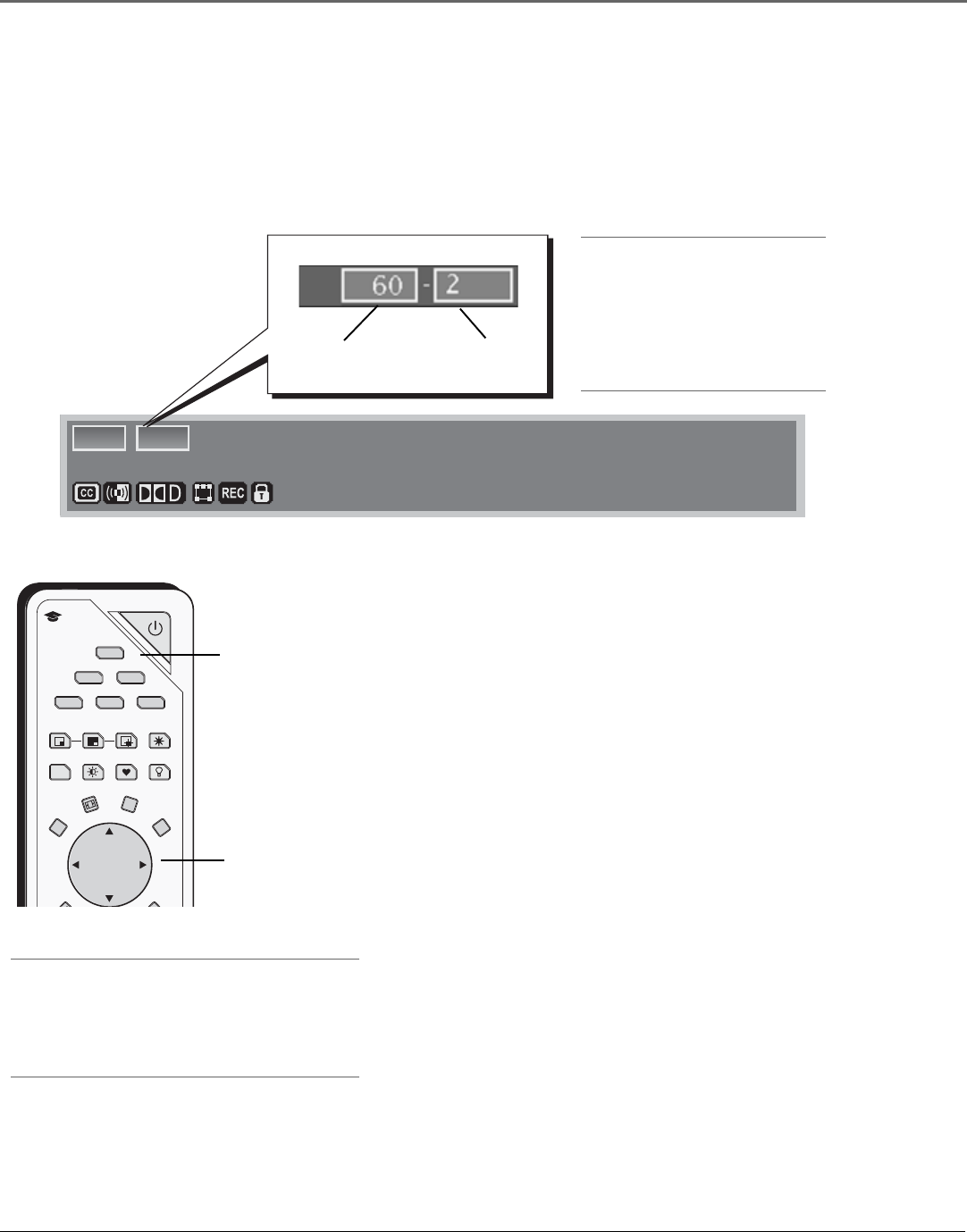

About the Channel Banner ........................................................................................................... 38

Digital or Analog TV Channels ..................................................................................................... 39

Direct Tuning to a Channel .................................................................................................... 39

Parental Controls ........................................................................................................................... 40

Lock/Unlock TV ....................................................................................................................... 40

Channel Lists (Video Input List, Cable Channel List, Antenna Ch. List) ............................... 40

How V-Chip Works for the USA and Canada............................................................................... 41

USA V-Chip TV Ratings ...........................................................................................................41

Canada V-Chip ........................................................................................................................ 45

Auto Tuning Feature...................................................................................................................... 47

Table of Contents

PIP (Picture-in-Picture) Operation ................................................................................................. 48

Using the Web Browser ................................................................................................................ 50

Saving Your Favorite Web Address........................................................................................ 50

Controlling the Web Browser ................................................................................................ 51

DTVLink Recording ........................................................................................................................ 51

Set up DTVLink Recording Preferences ................................................................................. 52

Emergency Alert System (EAS) ..................................................................................................... 52

Chapter 4: Using the TV’s Menu System

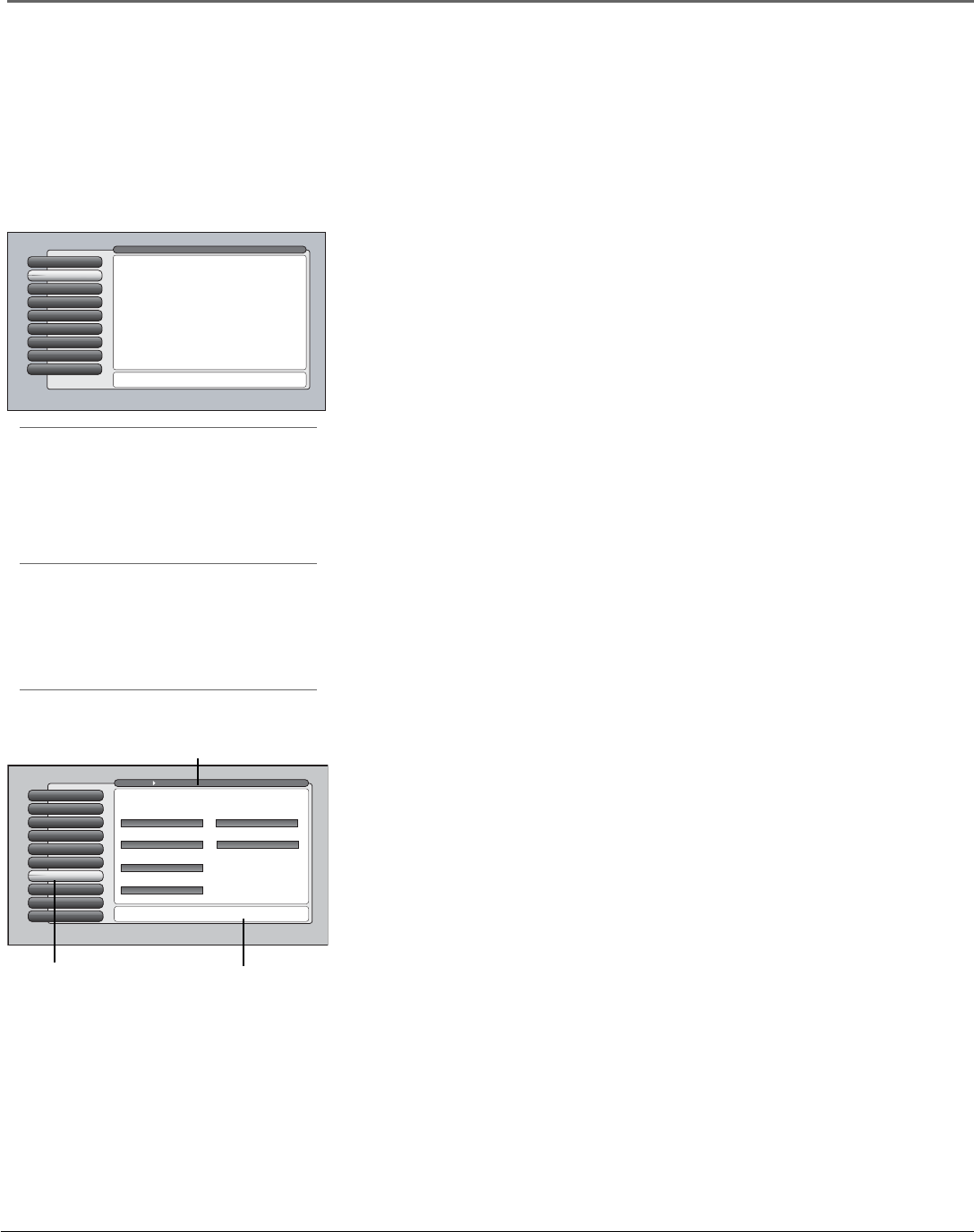

Menus, On-screen Help, and Control Panels ............................................................................... 54

Picture Quality Menu .................................................................................................................... 56

Picture Settings ....................................................................................................................... 56

Picture Presets......................................................................................................................... 56

Auto Color............................................................................................................................... 57

Color Warmth ......................................................................................................................... 57

Noise Reduction...................................................................................................................... 57

Green Stretch .......................................................................................................................... 57

Edge Enhancement................................................................................................................. 57

Contrast Expand ..................................................................................................................... 58

Advanced Settings .................................................................................................................. 58

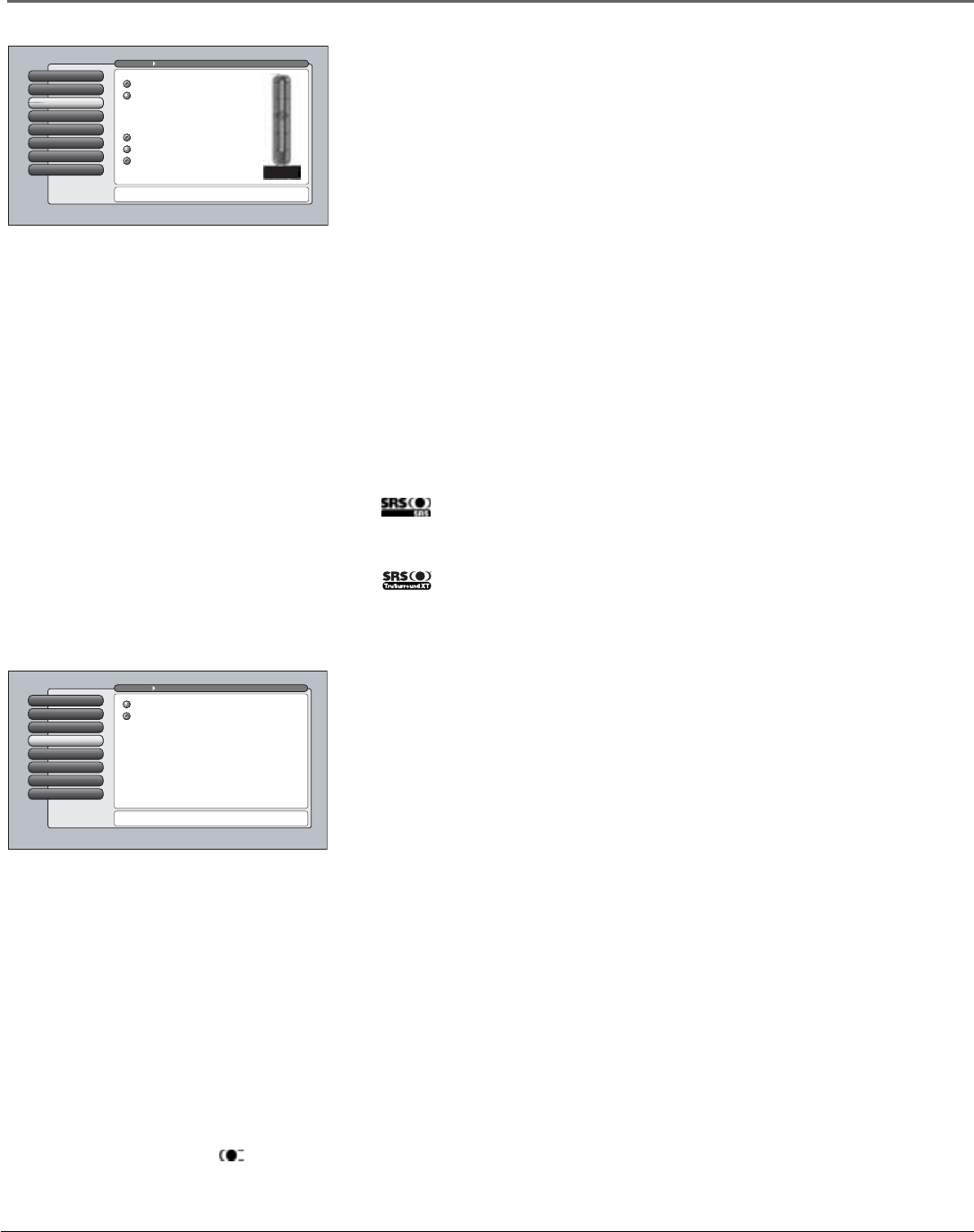

Audio Menu ................................................................................................................................... 59

Equalizer Presets..................................................................................................................... 59

Audio Processor ...................................................................................................................... 60

Sound Logic............................................................................................................................. 60

Audio Mode ............................................................................................................................ 61

SAP (Second Audio Program)................................................................................................. 61

Balance .................................................................................................................................... 61

Audio Connections ................................................................................................................. 62

Recordings Menu........................................................................................................................... 63

Connections Menu......................................................................................................................... 63

Signal Strength ....................................................................................................................... 63

Channel Search ....................................................................................................................... 64

Software Upgrade .................................................................................................................. 64

Signal Source........................................................................................................................... 64

Video Input Setup................................................................................................................... 64

Auto Tuning ............................................................................................................................ 65

DTVLink Setup ........................................................................................................................ 65

Special Features ...................................................................................................................... 65

Ethernet Setup........................................................................................................................ 66

Preferences Menu .......................................................................................................................... 67

Closed Captioning .................................................................................................................. 67

Screen Format ......................................................................................................................... 69

Time Menu .............................................................................................................................. 69

Color Scheme .......................................................................................................................... 70

Translucency............................................................................................................................ 70

Menu Language...................................................................................................................... 70

Power Indicator ...................................................................................................................... 70

Lamp Power ............................................................................................................................ 70

Chapter 5: Troubleshooting

Troubleshooting............................................................................................................................. 72

Lamp Replacement Instructions ...................................................................................................76

HDTV Specifications ...................................................................................................................... 80

Accessory Information .................................................................................................................. 82

Limited Warranty........................................................................................................................... 83

Care and Cleaning ......................................................................................................................... 85

FCC Information............................................................................................................................. 85

Graphics contained within this publication are for representation only. 7

Chapter 1

Connections & Setup

Chapter Overview:

• Things to Consider Before You Connect

• Choose Your Connection

• Removing the Front Panel Piece

• Accessing the Jack Panel

• Explanation of Jacks and Cables

• The Front of Your TV

• How To Connect

• Plug in the TV

• Put Batteries in the Remote

• Turn on the TV

• Use the Remote Control to Complete

the Assisted Setup

• Complete the Assisted Setup

Connections & Setup

8Chapter 1

Things to Consider Before You Connect

Protect Against Power Surges

• Connect all components before you plug any of their power cords into the wall outlet or

power strip. NEVER plug your TV into an outlet that is controlled by a wall switch.

• Turn off the TV and/or component(s) before you connect or disconnect any cables.

• Make sure all antennas and cables are properly grounded. Refer to the Important Safety

Instructions packed with your TV.

Protect Components from Overheating

• Don’t block ventilation holes on any of the components. Arrange the components so that air

can circulate freely.

• Don’t stack components.

• If you place components in a stand, make sure you allow adequate ventilation.

• If you connect an audio receiver or amplifier, place it on the top shelf so the heated air from it

won’t flow around other components.

Position Cables Properly to Avoid Audio Interference

• Insert each cable firmly into the designated jack.

Use Indirect Light

Don’t place the TV where sunlight or room lighting will be directed toward the screen. Use soft or

indirect lighting.

Using a Stand

If a stand, base, or cabinet is used, insure that it is of adequate size and strength to prevent the TV

from being accidentally tipped over, pushed off, or pulled off. This could cause personal injury

and/or damage the TV. Refer to Important Information on the inside front cover and the Important

Safety Instructions packed with your TV.

Cables You May Need to Connect Components to Your TV

The pictures below show the cables (not supplied) you may need for the connections represented

in this book.

S-Video cable CAT5 (Ethernet) Cable

Digital Optical Cable

Composite Video

Audio/ Video cable

Coaxial cable

Component Video

(Y, Pb, Pr) cable

Speaker Wire

Audio Cables

DTVLink Cable HDMI™ cable (or DVI

cable and HDMI/DVI

adapter)

HDMI and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

Connections & Setup

Chapter 1 9

Choose Your Connection

There are several ways to connect your HDTV, depending on the components you want to connect and the quality of the

signal you want to achieve. Please use the following chart to determine which connection is best for you. Proceed to the

appropriate page and connect your TV. For more information about the relationship between the cables, jacks, and the

quality of the signal you see on your TV, go to following page.

VCR

Components Cables Needed Connection Title Go to...

Coaxial

Audio

Component

Composite

TV + VCR + DVD

Player page 16

TV + Satellite

Receiver + VCR page 17

DVD

Satellite Receiver

VCR

Coaxial

Audio

Composite

S-Video

Component with

DVI or HDMI

Router

Cable

Modem

Computer

DTVLink Components

page 18

page 19

Coaxial

CAT5

(Ethernet)

Coaxial

DTVLink

Coaxial

HDMI (or DVI with

HDMI/DVI adapter)

TV + Router via the

HDTV’s ETHERNET

jack

TV + Component

with DVI or HDMI

TV+ DTVLink

Components

A/V Receiver

Coaxial

Optical cable or Audio

cables

Speaker wire

page 23

Digital/Network Connections

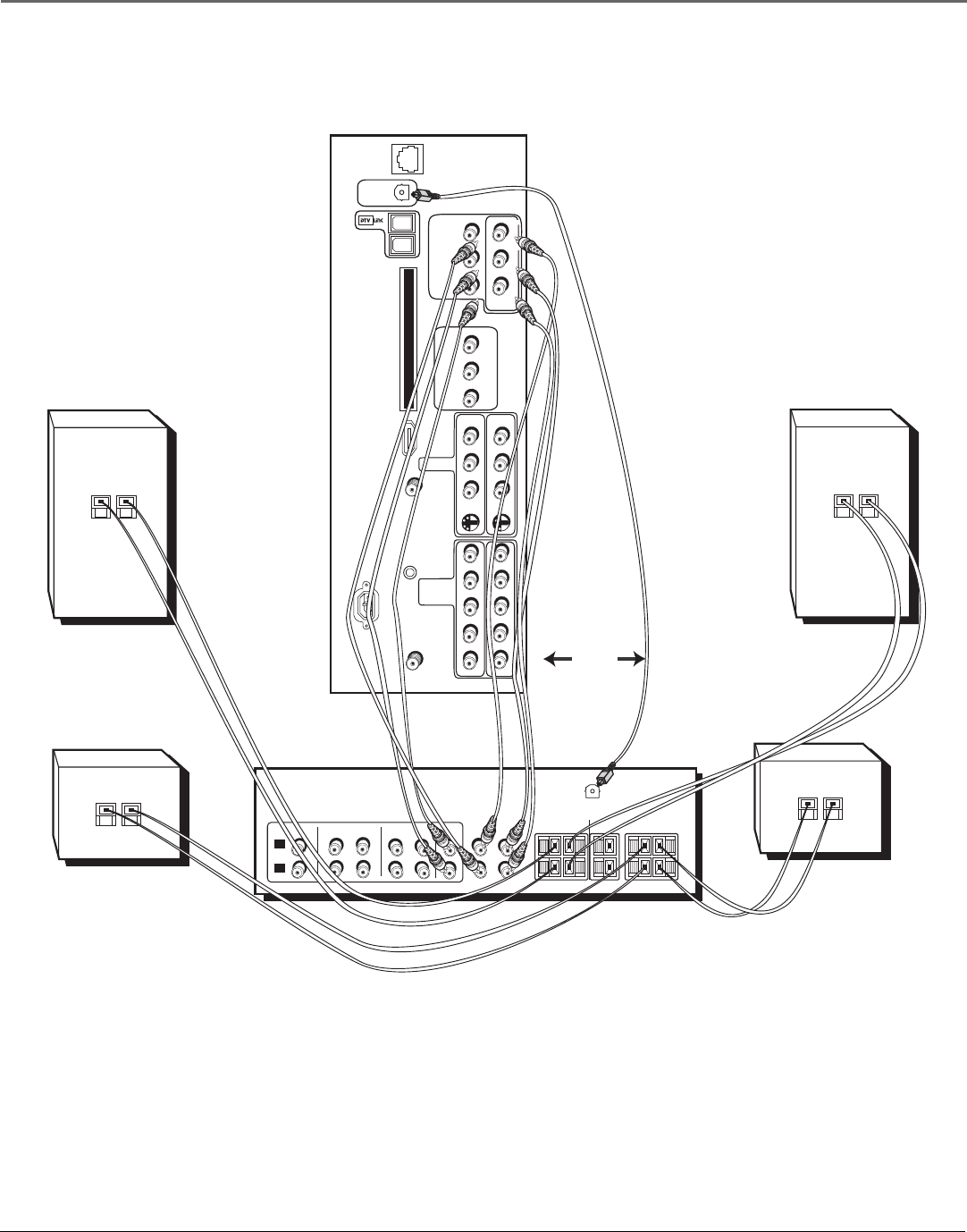

TV + A/V Receiver +

Speakers

TV + Receiver w/

Dolby Digital +

Speakers

Video Connections

pages 21,

CableCARD

Coaxial TV + CableCARD page 20

Advanced Connections

Audio Connections

Connections & Setup

10 Chapter 1

Removing the Front Panel Piece

The front panel piece is removable to allow access to the jack panel, mirror adjustment screws, and lamp door. The mirror

adjustment is discussed on page 59 and the lamp replacement is discussed on page 76. To remove the front panel piece,

grasp one end of the panel and pull out until the tab pops out of the hole. Continue to slide your fingers down the panel as

the tabs pop out of place, until it is unattached. Reattach the front panel piece by lining up the tabs with the holes, starting

at the bottom. Then push the tabs back into place.

Jack panel door Front panel piece

Jack panel shelf

Front panel piece

Accessing the Jack Panel

The jack panel is located towards the back of the TV. You can access these

jacks from the front by removing the front panel piece as described above, or

from the back by removing the jack panel door.

Locate the jack panel door on the back of the TV on the right bottom side. To

remove the door, pull the tab towards the left, and then pull the door open.

Reattach the jack panel door by fitting the tabs on the left into the slots and

then close the door until it snaps into place.

Connect the cables to the jacks by putting the cables through the hole, as

shown to the left. Then the cables can be placed on the shelf at the back of the

TV.

Mirror adjustment screws Lamp door

Tab

holes

Jack panel access

Connections & Setup

Chapter 1 11

AUDIO/VIDEO OUTPUTS

FIXED/VARIABLE AUDIO OUTPUTS

• CENTER Provides center surround sound to an A/V receiver or audio

amplifier.

• R and L REAR Provides right and left rear surround sound.

Note: To turn the TV’s internal speakers on and off, press MENU on the

remote control and choose Audio, then Audio Connections. Then

choose Fixed/Variable Out from the menu and choose an option.

• SUBWOOFER Provides lower bass frequencies out from the TV and to a

subwoofer or audio receiver with a subwoofer jack.

Note: Go to Fixed/Variable Output in the Audio Connections menu to

set option to Yes if an external subwoofer is being used.

• R and L Provides right front and right rear mixed sound, and left front

and left rear mixed sound.

INPUT 1

S-VIDEO

FIXED/

VARIABLE

AUDIO

OUTPUTS

CABLE

INPUT

ETHERNET

For Factory Use Only

DIGITAL

AUDIO

OUTPUT

AUDIO/

VIDEO

OUTPUT

SUBWOOFER CTR

REAR

MATRIX

SURROUND

OUTPUTS

WIRED

CableCARD™

S-VIDEO

INPUT 3

COMPOSITE

INPUTS

INPUT 2

ANTENNA

INPUT

COMPONENT/

COMPOSITE

INPUTS

Use menu for

composite

video.

Y/VIDEO

INPUT 4

Y/VIDEO

HDMI/DVI

INPUT

Use menu for

DVI audio.

POWER

(AC 120V~60Hz)

FIXED/

VARIABLE

AUDIO

OUTPUTS

SUBWOOFER CTR

REAR

MATRIX

SURROUND

OUTPUTS

Explanation of Jacks and Cables

The diagrams that follow illustrate jacks found towards the back of the TV.

When connecting cables, be sure to connect corresponding outputs and inputs

(video input into video out, right audio input into right audio out, etc.).

This section describes the jacks and cables you might use to make connections

(cables may be ordered separately by calling the number on page 82). There

are several ways to connect components to your TV.

Different jacks and cables provide a different level of performance. It’s

important to remember the different degrees of picture quality for comparison.

The HDMI/DVI, DTVLink, and component jacks are considered excellent;

S-Video is very good; composite jacks are good, while connecting components

to the Antenna or Cable Input is fair.

Connections & Setup

12 Chapter 1

AUDIO/VIDEO OUTPUT Connect a VCR or DVD-recorder to record digital

and analog programs from the Cable or Antenna Input (excluding copy-

protected programs and component video formats) while the TV is turned on.

You must leave the TV on the same channel you are recording.

•R Audio provides right audio connection and connector is usually red.

•L Audio provides left audio connection and connector is usually white.

•V (Video) provides composite video connection and connector is usually

yellow.

Notes: When recording from this output, remember to tune to the

channel you want to record.

If an unusual pattern appears when you connect a VCR to these jacks,

playing a tape or switching to the VCR’s tuner removes the pattern.

AUDIO/VIDEO INPUTS

INPUT 1 COMPOSITE INPUT Connect an NTSC (analog) component. These

jacks are used for most audio/video connections between components. The

audio/video jacks are often color coded (yellow for video, red for right audio,

and white for left audio).

•R Audio provides right audio connection and connector is usually red.

•L Audio provides left audio connection and connector is usually white.

•V (Video) provides composite video connection and connector is usually

yellow.

•S-VIDEO lets you connect an S-Video cable for better picture quality to a

component with S-Video capability, such as a VCR or DVD player. When

using S-Video, make sure to connect the two audio cables as well as the

S-Video connector.

The S-Video jack provides better picture quality than the composite video

jacks because the color (chrominance, also called chroma) part of the signal

is separated from the black and white (luminance) part of the picture.

INPUT 3 COMPOSITE INPUT Provides connection to a second NTSC (analog)

video component such as a VCR. The jacks are the same as described above for

INPUT 1.

S-Video Cable

Composite Audio Cable (RCA Type)

Composite Video Cable (RCA Type)

INPUT 1

S-VIDEO

INPUT 3

COMPOSITE

INPUTS

Composite Audio Cable (RCA Type)

Composite Video Cable (RCA Type)

AUDIO/

VIDEO

OUTPUT

Connections & Setup

Chapter 1 13

Component Cables

INPUT 2 COMPONENT/COMPOSITE INPUT Provides connection to a second

NTSC (analog) video component with either composite or component outputs

such as a VCR.

•R Audio provides right audio connection and connector is usually red.

•L Audio provides left audio connection and connector is usually white.

• Y/Video PB PRUnlike a single video input, component (Y PB PR) video

maintains the video signal as three separate parts through these three jacks.

To ensure maximum picture quality, use three video-grade cables for the

Y PB PR connections. Accepts 480i, 480p, 720p, and 1080i signals. If you’re

connecting to a component with a Video jack instead, you can still use the

Y/Video jack. Go to the Connections menu, select Video Input Setup and

choose Composite video as your source. Go to page 64 for more

information.

Notes: Also, remember to connect the left and right audio cables

because the Y, PB, PR cables carry only the picture signal, not the sound.

PIP can only be displayed from component inputs in 480i format.

INPUT 4 COMPONENT/COMPOSITE INPUT Provides connection to a

second optional component video source, such as a DVD player or satellite

receiver. The jacks are the same as described above for INPUT 2.

Y (green)

PR (red)

PB (blue)

Tip

Inputs 2/4 can be used as either a component

video (Y PB PR ) input or a composite video

(Y/Video) input. Go to the Connections menu,

choose Video Input Setup and select which

video input source you are using.

*Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby

Laboratories.

INPUT 2

COMPONENT/

COMPOSITE

INPUTS

Use menu for

composite

video.

Y/VIDEO

INPUT 4

Y/VIDEO

WIRED

ETHERNET

DIGITAL

AUDIO

OUTPUT

WIRED IR This jack is for connecting a wired remote control system, which

is primarily for professional installers. If you’re using the remote that was

included with your TV, don’t plug anything into this jack or the TV won’t

respond to the remote.

ETHERNET Connect a router, cable modem, or Digital Subscriber Line (DSL)

modem to the TV using an Ethernet cable (CAT 5). Do not connect a telephone

cable because of risk of fire or shock. A green light on the jack means that an

active network has been detected. An orange light on the jack means the data is

either being sent or received.

DIGITAL AUDIO OUTPUT Use a digital optical cable (or SPDIF cable) to

connect your TV to a compatible Dolby Digital* and/or PCM receiver and/or

decoder. Dolby Digital offers theatre-quality sound (six audio channels). If you

own a receiver that uses an optical cable input, you can use an optical cable to

connect the TV to that receiver for the best sound quality. Go to the Digital

Audio Out screen in the Audio menu to select Auto Select or PCM as the output

for this jack.

Note: This TV’s optical digital output jack fully complies with the

international standard governing this type of jack (IEC958), and is

designed for connection to a Dolby Digital (AC-3® or PCM) receiver or

decoder. Older equipment, some of which is not fully compliant with

IEC958, may not be compatible with the Dolby Digital bitstream. Such a

connection using anything other than a Dolby Digital (AC-3 or PCM)

receiver or decoder could create a high noise level, causing damage to

headphones or speakers.

Connections & Setup

14 Chapter 1

CableCARD™

HDMI/DVI

INPUT

Use menu for

DVI audio.

CABLE

INPUT

ANTENNA

INPUT

DTVLink DTVLink uses a connection and jack better known to some as IEEE-

1394 or FireWire®. It is a compressed digital video input/output offering an

IEEE 1394-type connection that meets the CEA specifications. This connection is

a high-speed way of interconnecting 1394 compliant consumer electronic

components. If your 1394 component has the DTVLink logo on it, it should

work with this TV. Use either or both connectors to connect compatible

DTVLink components but don’t loop the components together. When

connecting several components, use a hub or component-to-component

method. Be sure to connect the fastest of the DTVLink components closer to

the connection point of the TV and the slower components furthest away.

Details on page 18.

Notes: Audio and video information is carried on a single wire.

The TV outputs audio/video through the DTVLink jack only to a

component that enforces video copy protection.

CableCARD

Allows you to use a digital cable television card to receive digital

cable services, including premium and HDTV cable channels, without the need

for a set-top box. Go to page 20 for information on using the CableCARD slot.

HDMI/DVI INPUT (High-Definition Multimedia Interface/Digital Visual

Interface) Provides an uncompressed digital interface that carries both video

and audio data by way of an integrated mini-plug cable. Since HDMI is based

on Digital Visual Interface (DVI) the jack on the back of your TV is compatible

with DVI components.

Note: If you connect a component with a DVI jack to the HDMI/DVI

input, you’ll need an HDMI to DVI adapter. Also, connect the left and

right audio cables to an input that is not in use. An example is shown on

page 19. Then go to the Audio Connections menu and select DVI Audio

Input to choose the input you’re using to receive audio.

CABLE INPUT Used to connect a coaxial cable to receive the signal from

cable or cable box.

ANTENNA INPUT Used to connect a coaxial cable to receive the signal from

an off-air antenna.

Connections & Setup

Chapter 1 15

Notes: The front panel illustration shows a typical front

panel layout. The exact look may be different from the one

on the front of your TV.

If you use the Front Button Block feature, the front panel no

longer provides access to the menus. The Front Button Block

feature disables all front panel buttons. For more

information, see Chapter 3.

MENU/OK

MENU/OK CHCH CHCH VOLVOL VOLVOL

The Front of Your TV

Backlight

Power

button Power

indicator

Power Indicator Light Status

On TV is on

Off TV is off (standby mode)

Blinks Light blinks 5 times, pauses, and blinks again 5 times:

Lamp is trying to turn on. If the TV doesn’t turn on after

5 minutes and then the light blinks steadily for one

minute, one of the following options is possible:

Lamp door is open. Locate the lamp door on the front

of the TV under the front panel piece and close it (go to

page 10 on instructions on removing the front panel

piece). Turn off the TV and turn back on. The lamp

should turn on.

Lamp is dead. You can replace the lamp yourself

following the instructions on page 76. Go to page 82

for ordering information.

Lamp power supply within TV may need service. Go to

page 83 for warranty information.

Front Panel Buttons

If you cannot locate your remote, you can use the front panel of your TV to operate many of the TV’s features.

MENU/OK Brings up the Main menu. When the menu system is displayed, pressing MENU/OK selects highlighted items.

CH



Scans down through the channel list. In the menu system, it moves the highlight down and adjusts menu controls.

CH



Scans up through the current channel list. In the menu system, it moves the highlight up and adjusts menu controls.

VOL



Decreases the volume. In the menu system, it moves the highlight left to items and adjusts menu controls.

VOL



Increases the volume. In the menu system, it moves the highlight right to items and adjusts menu controls.

(Backlight) Press to activate backlighting for MENU/OK, CH, and VOL buttons. A few seconds after the last button

press, the backlight turns off.

Note: Pressing any front panel button also activates the backlight.

(Power button) Turns the TV on and off. The indicator lights when TV is on. Your HDTV’s lamp has a cooldown

period when the TV is turned off, and a warm up period when the TV is turned on. If you try to turn the TV on during a

cooldown, you will hear audio and then the picture will be displayed after a few moments. This could take up to one

minute.

(Power indicator) See above for different light status of the indicator. The brightness of the light can be controlled in the

Preferences menu. Go to page 70 for more information.

Connections & Setup

16 Chapter 1

How to Connect: TV + VCR + DVD Player

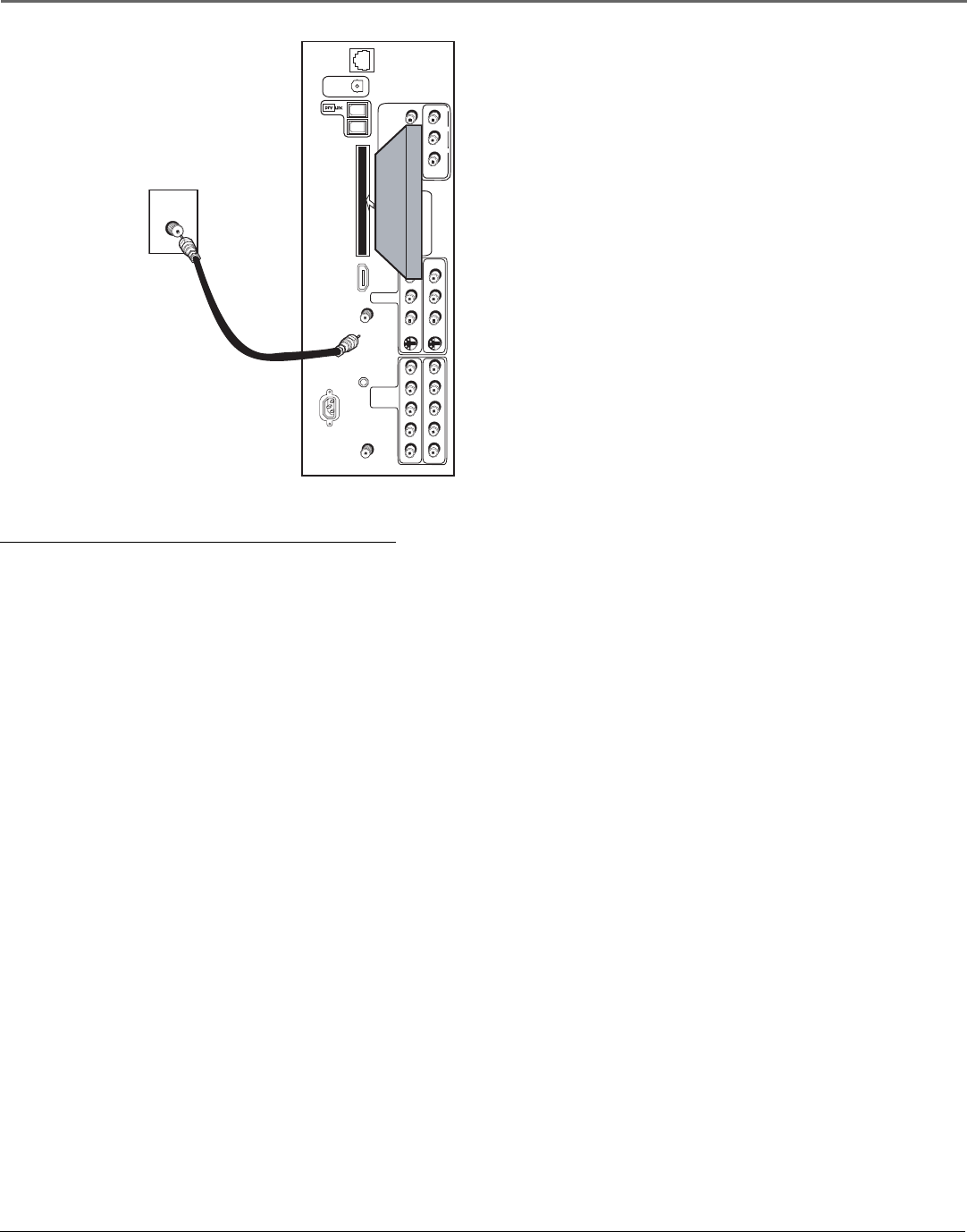

1. Connect your cable and/or off-air antenna.

If you have cable and an off-air antenna, connect the cable signal to CABLE INPUT. Connect the off-air antenna to

ANTENNA INPUT.

2. Connect your DVD Player to your TV.

A. Connect the audio (white and red) cables to the INPUT 2 R and L Audio jacks on the back of the TV and to the

Audio Output jacks on the DVD player.

B. Connect three video grade cables to the INPUT 2 Y/VIDEO PB PR jacks on the back of the TV and to the Y PB PR

outputs on the DVD player. If your DVD player doesn’t have Y PB PR, but has composite video and an S-Video output,

use the INPUT 3 S-VIDEO jack instead of the V (Video) jack for better picture quality.

Notes: If you are using an S-Video cable or component video cables, you must also connect audio cables. The S-Video

cable and component video cables only transfer video information.

If your DVD player has a component video output, we recommend you use the component video input on the TV instead of

the composite video or S-Video connection.

3. Connect your VCR to your TV.

A. Connect the VCR’s audio/video outputs to INPUT 1 (R and L-Audio, and V-Video) on the TV using composite audio/video

cables.

B. Connect the VCR’s audio/video inputs to AUDIO/VIDEO OUTPUT jacks on the TV. This enables recording of digital

and analog programs (except copy protected or component video formats).

Viewing the Components

1. Turn on the TV and the component(s) you want to view.

2. Press the TV button on the remote control.

3. Press the INPUT button on the remote control to scroll through the Video Input Channels.

• View the VCR on the INPUT 1 channel.

• View the DVD player on the INPUT 2 channel.

Note: You can set up the TV to automatically tune to the correct Video Input Channel. This is called Auto Tuning.

(See Chapter 3 for more information.) Go to page 24

VCR

DVD

INPUT 1

S-VIDEO

FIXED/

VARIABLE

AUDIO

OUTPUTS

CABLE

INPUT

ETHERNET

For Factory Use Only

DIGITAL

AUDIO

OUTPUT

AUDIO/

VIDEO

OUTPUT

SUBWOOFER CTR

REAR

MATRIX

SURROUND

OUTPUTS

WIRED

CableCARD™

S-VIDEO

INPUT 3

COMPOSITE

INPUTS

INPUT 2

ANTENNA

INPUT

COMPONENT/

COMPOSITE

INPUTS

Use menu for

composite

video.

Y/VIDEO

INPUT 4

Y/VIDEO

HDMI/DVI

INPUT

Use menu for

DVI audio.

POWER

(AC 120V~60Hz)

CABLE

ANTENNA IN

VIDEOAUDIO L

ANTENNA OUT

OUT

VCR

VIDEOAUDIO LR

DVD

VIDEO

AUDIO L

PRPBYS-VIDEO

VIDEO

AUDIO

OUT

OFF-AIR ANTENNA

2B 1

Connections & Setup

Chapter 1 17

How to Connect: TV + Satellite Receiver + VCR

1. Connect your cable and/or off-air antenna.

If you have cable and an off-air antenna, connect the cable signal to CABLE INPUT. Connect the off-air antenna to

ANTENNA INPUT.

2. Connect your VCR to your TV.

A. Connect the VCR’s audio/video outputs to INPUT 2 (R and L-Audio, and V-Video) on the TV using composite audio/

video cables.

B. Connect the VCR’s audio/video inputs to AUDIO/VIDEO OUTPUT jacks on the TV. This enables recording of digital

and analog programs (except copy protected or component video formats).

3. Connect your Satellite Receiver to your TV.

Connect the satellite receiver’s audio/video output jacks to the INPUT 3 R and L Audio and S-VIDEO jacks on the TV

using audio cables and an S-Video cable. If your satellite receiver doesn’t have an S-Video output, you can make the

video connection by using the V (Video) jack instead. If your satellite receiver has component outputs, then use INPUT

2 or 4.

Note: If you are using an S-Video cable or component video cables, you must also use audio cables. The S-Video

cable and component video cables only transfer video information.

Viewing the Components

1. Turn on the TV and the component(s) you want to view.

2. Press the TV button on the remote control.

3. Press the INPUT button on the remote control to scroll through the Video Input Channels.

• View the VCR on the INPUT 2 channel.

• View the satellite receiver on the INPUT 3 channel.

Note: You can set up the TV to automatically tune to the correct Video Input Channel. This is called Auto Tuning.

(See Chapter 3 for more information.) Go to page 24

Satellite

Receiver

VCR

INPUT 1

S-VIDEO

FIXED/

VARIABLE

AUDIO

OUTPUTS

CABLE

INPUT

ETHERNET

For Factory Use Only

DIGITAL

AUDIO

OUTPUT

AUDIO/

VIDEO

OUTPUT

SUBWOOFER CTR

REAR

MATRIX

SURROUND

OUTPUTS

WIRED

CableCARD™

S-VIDEO

INPUT 3

COMPOSITE

INPUTS

INPUT 2

ANTENNA

INPUT

COMPONENT/

COMPOSITE

INPUTS

Use menu for

composite

video.

Y/VIDEO

INPUT 4

Y/VIDEO

HDMI/DVI

INPUT

Use menu for

DVI audio.

POWER

(AC 120V~60Hz)

CABLE

ANTENNA IN

VIDEO

AUDIO

ANTENNA OUT

OUT

VCR

VIDEO

AUDIO

VIDEO LRS-VIDEO

SATELLITE

RECEIVER

AUDIO

OFF-AIR ANTENNA

Connections & Setup

18 Chapter 1

How to Connect: TV + DTVLink Components

Two connection methods when connecting DTVLink® components are: component-to-component or hub. The

component-to-component method is each component connected in a chain-like fashion, one to the other with the first

component in the chain connected to the DTVLink jack on the TV. The hub method is basically the same but using both

DTVLink jacks with two separate chains of components connected. Your TV is a control center for the connected

compatible components, automatically recognizing each component and placing it in the Input list: press the INPUT button

until you see the component name in the channel banner at the top of the screen.

Note: If you’ve tuned to a DTVLink input, you can control some basic transport functions on the component like

RECORD, STOP, FAST FORWARD, REVERSE, PAUSE, and PLAY when remote is in TV mode.

Three types of 1394 connectors are available on DTVLink components; 4-pin connector (no power); 6-pin connector (with

power) and 6-pin connector (without power supplied). Your DTVLink is a 6-pin connector (without power supplied). Both

the 4-pin and 6-pin connectors are capable of sending digital audio and video, and digital control signals back and forth

between components. If you should have some components with 4-pin connectors, 4-to-6 pin adapter cables are available

from your local electronic stores.

You should know:

• Connect your DTVLink components to either DTVLink jack.

• Only compatible DTVLink components are to be connected to the DTVLink input/output jack.

• Do not loop the DTVLink components back to the TV. That is, each component should have only one connection

point to the TV, or the network might not work.

• Place the slower components at the end of the chain and the faster ones closest to the TV in the chain for faster

communication speed. See component’s manual for 1394 network speed.

• The TV can’t decode DV format of some camcorders, but it can decode/accept MPEG2 format from some camcorders.

• Set your DTVLink component in the DTVLink Setup menu for specific recording options. Go to page 65 for more

information.

Note: The TV sends audio/video through the DTVLink jack only to a component that enforces video copy protection.

Digital Video Recorder Digital VCR

Digital VCR

Other 1394 Component

Hub Connection

Digital Video Recorder Digital VCR Other 1394 Component

Digital VCR

Fastest Slowest

Component-to-Component Connection

DTVLink® Certification Logo is a U.S. registered mark of CEA.

Connections & Setup

Chapter 1 19

How to Connect: TV + Component with DVI or HDMI

High-Definition Multimedia Interface (HDMI) is an uncompressed digital interface that carries both video and audio data by

way of an integrated mini-plug cable. Since HDMI is based on Digital Visual Interface (DVI), the jack on the back of your TV

is compatible with DVI components.

1. To connect your TV to a component with a DVI jack, use an HDMI cable and an HDMI/DVI adapter.

A. Connect the HDMI cable to the HDMI/DVI INPUT jack on the back of the TV. Attach the HDMI/DVI adapter to the

end of the HDMI cable, then connect the adapter to the DVI Out jack on the back of the component.

B. Since you’re using an HDMI/DVI adapter, you need to connect Audio left and right cables to the R and L jacks on the

back of the component and to R and L Audio jacks that aren’t in use on the back of the TV.

C. Go to the DVI Audio Input option in the Audio Connections menu to select which Audio Input you’re using.

2. To connect your TV to a component with an HDMI jack, use an HDMI cable.

Connect the HDMI cable to the HDMI/DVI INPUT jack on the back of the TV and to the HDMI Out jack on the back of

the component.

Viewing the Component

1. Turn on the TV and the component you want to view.

2. Press the TV button on the remote control.

3. Repeatedly press the INPUT button on the remote control until the HDMI Video Input Channel is selected.

Note: You can set up the TV to automatically tune to the correct Video Input Channel. This is called Auto Tuning.

(See Chapter 3 for more information.)

INPUT 1

S-VIDEO

FIXED/

VARIABLE

AUDIO

OUTPUTS

CABLE

INPUT

ETHERNET

For Factory Use Only

DIGITAL

AUDIO

OUTPUT

AUDIO/

VIDEO

OUTPUT

SUBWOOFER CTR

REAR

MATRIX

SURROUND

OUTPUTS

WIRED

CableCARD™

S-VIDEO

INPUT 3

COMPOSITE

INPUTS

INPUT 2

ANTENNA

INPUT

COMPONENT/

COMPOSITE

INPUTS

Use menu for

composite

video.

Y/VIDEO

INPUT 4

Y/VIDEO

HDMI/DVI

INPUT

Use menu for

DVI audio.

POWER

(AC 120V~60Hz)

Component with HDMI

Audio Out

HDMI Out

Component with DVI

Audio Out

DVI Out

Connections & Setup

20 Chapter 1

How to Connect: TV + CableCARD

The CableCARD slot allows you to use a digital cable television card to receive digital cable services, including premium and

HDTV cable channels, without the need for a set-top box. Please contact your local cable company for availability of services

and to obtain a digital cable television card.

When you receive the digital cable card, make sure you connect your coaxial cable to the CABLE INPUT jack. Then, turn on

your TV. Insert the digital cable card into the slot on the back of the TV labeled CableCARD. Push firmly on the card until

almost the entire card is inserted. Wait to receive information on-screen regarding your digital cable television services. See

below for information on setting up digital cable television services for your TV.

You should know:

• Once the digital cable card is authorized for a particular TV, the card can’t be used with any other TV, unless it is re-

authorized to it.

• You won’t receive digital cable channels if you connect your cable to the ANTENNA INPUT. Make sure you connect

your cable to the CABLE INPUT.

• Once inserted, it is not recommended you remove the digital cable card. In the case it needs to be removed, grasp

firmly, and pull the card straight out.

Setting Up Digital Cable Television Service

Once you have connected a digital cable card to the CableCARD slot on the back of the TV (explained above), you are

ready to receive digital cable channels. Wait approximately 30 seconds for the status screen to appear. Write down the

information you see and call your cable company to provide them with the information on-screen.

Notes: If your information screen disappears before you have a chance to write down the information, press MENU

on the remote to access the menu system. Then press 9, 9, 9, and the information screen appears. Go to page 66 for

more information on the CableCARD Tools menu.

You can’t order video-on-demand through your digital cable card. Call your local cable company to place an order.

INPUT 1

S-VIDEO

FIXED/

VARIABLE

AUDIO

OUTPUTS

CABLE

INPUT

ETHERNET

For Factory Use Only

DIGITAL

AUDIO

OUTPUT

AUDIO/

VIDEO

OUTPUT

SUBWOOFER CTR

REAR

MATRIX

SURROUND

OUTPUTS

WIRED

CableCARD™

S-VIDEO

INPUT 3

COMPOSITE

INPUTS

INPUT 2

ANTENNA

INPUT

COMPONENT/

COMPOSITE

INPUTS

Use menu for

composite

video.

Y/VIDEO

INPUT 4

Y/VIDEO

HDMI/DVI

INPUT

Use menu for

DVI audio.

POWER

(AC 120V~60Hz)

CABLE

Digital Cable

Card

FCC Statement: This digital television is capable of

receiving analog basic, digital basic and digital

premium cable television programming by direct

connection to a cable system providing such

programming. A security card provided by your

cable operator is required to view encrypted

digital programming. Certain advanced and

interactive digital cable services such as video-on-

demand, a cable operator’s enhanced program

guide and data-enhanced television services may

require the use of a set-top box. For more

information, call your local cable operator.

Connections & Setup

Chapter 1 21

Audio Connections

With the audio versatility of your HDTV, you can choose various connection options depending on the type and quality of

sound that you want. From good to best sound, choose one of the options or refer to the user’s manual of each component

that you are connecting to get the best results.

• Use your TV’s internal speakers (good sound).

• Connect audio/video receiver (speakers connected to receiver) to your TV (better sound).

• Connect audio/video receiver (speakers connected to receiver) using the digital audio output jack to your TV (best sound).

How to Connect: TV + A/V Receiver + Speakers

1. Connect the FIXED/VARIABLE AUDIO OUTPUTS from the TV to an A/V receiver using audio cables for 6-channel

matrix surround sound.

2. Be sure to go to the Fixed/Variable Out screen in the Audio Connections menu and select whether you want the

FIXED/VARIABLE AUDIO OUTPUT jacks to send fixed volume audio or variable volume audio.

•Fixed Output provides fixed-level audio output from the TV. This audio output is ideal for connecting to an A/V

receiver that has its own volume control.

•Variable Output provides variable-level audio output. Volume levels are controlled by the volume controls on

the TV and TV remote control.

3. If you connect the SUBWOOFER jack, be sure to go to the Fixed/Variable Out screen in the Audio Connections menu

and select Yes for connecting to an external subwoofer.

4. Use speaker wire to connect the Audio/Video receiver to external front and rear speakers. Refer to your audio receiver

manual to complete speaker hookup to the receiver.

How to Connect: TV + Receiver with Dolby Digital + Speakers

If you own a receiver with Dolby Digital and/or PCM (Pulse-Code Modulation) that uses an optical cable-type input, connect

an optical cable for excellent audio quality (shown on opposite page).

1. Connect one end of the optical cable to the DIGITAL AUDIO OUTPUT jack on your TV to the Digital Optical Input jack

on your receiver/amplifier receiver.

• If your receiver can decode Dolby Digital and PCM, go to Audio menu, select Audio Connections, then Digital

Audio Output. Select AutoSelect (recommended) or PCM option.

• If your receiver can decode only PCM, select PCM option.

2. Use speaker wire to connect the Audio/Video receiver to external front and rear speakers. Refer to your audio receiver

manual to complete speaker hookup to the receiver.

Connections & Setup

22 Chapter 1

INPUT 1

S-VIDEO

FIXED/

VARIABLE

AUDIO

OUTPUTS

CABLE

INPUT

ETHERNET

For Factory Use Only

DIGITAL

AUDIO

OUTPUT

AUDIO/

VIDEO

OUTPUT

SUBWOOFER CTR

REAR

MATRIX

SURROUND

OUTPUTS

WIRED

CableCARD™

S-VIDEO

INPUT 3

COMPOSITE

INPUTS

INPUT 2

ANTENNA

INPUT

COMPONENT/

COMPOSITE

INPUTS

Use menu for

composite

video.

Y/VIDEO

INPUT 4

Y/VIDEO

HDMI/DVI

INPUT

Use menu for

DVI audio.

POWER

(AC 120V~60Hz)

IN OUT

A/V AMPLIFIER

VCR

IN OUT

TAPE

LEFT

RIGHT

–

DIGITAL

AUDIO

INPUT

FRONT SPEAKERS

CENTER

LEFT

RIGHT

–

SURROUND SPEAKERS

REAR

–+

Back of Left Front Speaker

Back of Right Front Speaker OR

–+

–

Back of Right Rear Speaker Back of Left Rear Speaker

CENTER

Surround

SUBWOOFER SR

–

Connections & Setup

Chapter 1 23

Router Cable Modem/DSL Internet

Computer

How to Connect: TV + Router via the HDTV’s ETHERNET Jack

The illustration above provides you with a general connection to the TV’s ETHERNET jack so you can maximize your

HDTV’s browser to surf the Internet. You don’t need to connect a computer to surf the Internet. A computer is only needed

if you want to view photos or graphics on your TV that are stored on your computer (then you don’t need cable modem/

DSL or Internet access). An Internet Service Provider subscription is necessary to access the Internet.

You should know:

• Only use the Ethernet connection if you are connecting a router to the TV’s ETHERNET jack.

• It is highly recommended that the router have DHCP capability.

• The keyboard is needed to effectively surf the Internet via your HDTV’s internal web browser and to enter names of

websites.

• A router enables you to network several components, such as a computer, cable modem, or DSL modem. You’ll need to

set up each component that is connected to the router. Use the manuals that accompany your router and other Internet

components for specific instructions.

To connect the router to the TV, use a CAT5 cable (not provided) to connect the ETHERNET Input Jack on the back of your

HDTV to the ETHERNET Output Jack on the router.

The complexity of the setup required to make all of the components and the router work with your HDTV depends upon

your Internet Service Provider (ISP). Most ISPs will automatically fill in the information needed during setup, but if you are

asked for specific information while setting up the router and other components you will need to contact your ISP. Go to

the Ethernet Setup menu on page 66 for more information on the Ethernet setup.

Connections & Setup

24 Chapter 1

Tip

To access the setup menus, press MENU and

choose Assisted Setup.

Plug in the TV

Plug the flat end of the power cable into the power jack on the side of the TV. Go to page 10 for

instructions on removing the jack panel door. Then plug the other end of the power cord into an

appropriate wall outlet. Be sure to insert the plug completely. Do not plug into an outlet

controlled by a light switch.

Note: When you first plug your TV into an outlet, the Power indicator and Backlight on

the front panel will light and blink for approximately 30 seconds and then go off during

the initialization of the TV. The TV can only be turned on after the Power indicator goes

off. This happens every time the TV is unplugged and plugged back in.

Tip

When remote batteries are low, the component

button(s) corresponding to the mode you’re in

flashes when you press a button. Also, a message

might appear on the TV screen and disappear

within a few seconds. Press CLEAR and replace the

batteries to remove the message.

Put Batteries in the Remote

• Remove the battery compartment cover from the back of the remote

by pushing down on the tab and lifting cover.

• Insert 2 fresh “AA” batteries. Make sure the polarities (+ and -) are

aligned correctly with the polarities inside the remote.

• Replace the cover.

Turn on the TV

Press TV on the remote, or press the Power button on the TV’s front

panel.

Note: Pressing the TV button turns on the TV and puts the remote

into TV mode. “TV mode” means that the buttons on the remote

control operate the TV’s functions.

Use the Remote Control to Complete

the Assisted Setup

The technical term is “Navigation” – how you move through the on-screen

menus. The method is the same throughout the menu screens: highlight

your choice and select it.

To highlight a menu item, put the remote into TV mode by pressing the

TV button then MENU. Press the arrow buttons on the remote to highlight

one of the items listed in the menu. Use the up or down arrow button to

move up or down. Use the right or left arrow button to move right or left.

To select the item that you’ve highlighted, press OK.

Note: Highlighted means that the menu item stands out from

other menu items on the list (appears darker, brighter, or a

different color).

ON-OFF

DVD VCR

AUX AUDIO

SAT

CAB

CH. CTRLCH. CTRL FREEZE

PIPPIP SWAPSWAP

CC FAV

PRESETS LIGHTLIGHT

CLEARCLEAR

FORMATFORMAT INFOINFO

MENUMENU

CCCC

CC MM

button

Arrow

buttons

OK button

MENU button

Connections & Setup

Chapter 1 25

Tip

The first Channel Search takes several minutes if

the TV is searching for analog and digital

channels and cable and antenna inputs are

being searched. You may want to leave and

come back later.

Cancel Setup

Closed CaptioningContinue Setup

Go Back

Main Menu Preferences

Press  or  to point to an option, then press OK to

select it. Press to return to the menu.

Highlight with the and  arrows. Select with the OK button.

Resalte con las flechas  y . Seleccione con el botón OK.

Mise en surbrillance avec  et . Sélection avec OK.

Français

Español

English

Continue Setup

Cancel Setup

Go Back

Main Menu Assisted Setup

Pressto make changes to this screen's settings.

Press OK to skip to the next step in the setup routine.

Channel Search

Channel Search finds channels

for you. Check fewer boxes to

make the search faster (but

less complete) and vice versa.

The first time that you do a

Channel Search, put a check in

all the boxes to do a thorough

search for channels.

Input to search:

Cable Input

Antenna Input

Channels to search:

Digital channels

Analog channels

Other search options:

Detect antenna or cable setting

Include previously found channels in search



To add a channel that Channel

Search didn't find, clear all

menus and directly tune to the

channel with the number keys.

Start

Complete the Assisted Setup

Your TV’s menu system allows you to adjust your TV’s features to be configured to work

properly. On-screen information helps you choose settings to match your setup. The first time

you turn on your TV, the Assisted Setup screens appear automatically. Select Begin Setup to start

or select Cancel Setup to exit.

Set the Menu Language

1. Use arrow buttons to highlight your preferred language for the

menu system.

2. Press OK to select that language.

3. Press the left arrow button and the up or down arrow button, if necessary,

to select Continue Setup, then press OK.

Complete Channel Search

Even though this initial channel search can take several minutes, it is important

to complete in order for your TV to display channels and programming. Make

sure you have connected cable and/or off-air antenna to the corresponding

inputs before you start channel search.

1. To do a complete channel search, check each box that pertains to your TV.

For example, if you’re only receiving cable from the CABLE INPUT,

highlight Cable Input and press OK to place a checkmark in the box.

2. Select Start to begin the search.

3. When the channel search is complete, a message screen appears. Select

Continue. Another message screen appears telling you that you’ve

completed the Assisted Setup. Select Continue on the left.

Notes: If you skip Channel Search now, you can access it later through

the Connections menu. See Chapter 4 for more details.

If a cable box is connected to your TV’s CABLE INPUT or a CableCARD

is in use, Channel Search won’t work for Cable Input.

This page intentionally left blank

Chapter 2

Graphics contained within this publication are for representation only. 27

Using the Remote Control

Chapter Overview:

• The Buttons on the Remote Control

• Programming the Remote to Operate Other Components

• How To Use the Remote After You’ve Programmed It

• The Learning Feature

• Volume Punchthrough Feature

• Using the INPUT Button

• Remote Code List

28 Chapter 2

Using the Remote Control

The Buttons on the Remote Control

Arrows (up, down, left, right) Used to move through the on-screen menus.

Also moves the PIP window, see page 48 for more information.

(0-9) Number Buttons Enter channel numbers and time settings.

ANT•CAB Switches between Antenna and Cable Input. In VCR mode,

functions as a TV/VCR button. When tuned to an input, press to go back to the

most recently used tuner (Antenna or Cable Input).

AUDIO Places the remote in audio mode to operate a component (such as a

audio receiver, CD player, or amplifier receiver) that you’ve programmed to

work with this button.

AUX Places the remote in auxiliary mode to operate a component (such as a

cable box, satellite receiver, VCR, DVD, or audio receiver) that you’ve

programmed to work with this button.

CC (Closed Captioning) Toggles closed captioning on and off, if available

for the channel you’re tuned to. When you change channels or inputs, the

default for Caption Display is restored.

CH + or CH – Scrolls up or down through the channel or input list. Press

once to change the channel up or down; press and hold to continue changing

channels.

CH CTRL (Channel control) Toggles the channel control between the main

TV picture and the PIP window. Use channel up, channel down, INPUT,

component buttons, or number buttons to change channels in PIP. CH CTRL is

marked by a triangle ( ) in the banner.

CLEAR Removes on-screen menus and displays. Cancels the commercial skip

timer. Quits the browser.

DVD Places the remote in DVD mode. If Auto Tuning is enabled, pressing the

DVD button turns on the TV and tunes to the correct Video Input Channel.

FAV (Favorite) Press this button and a number button (0-7) to activate a

favorite webpage. See Using the Web Browser for more information.

FORMAT Toggles through the 4:3 video screen formats (Normal, Zoom,

Stretch, Cinerama, and Auto Format) for some 4:3 signals—not applicable to

16:9 signals. In browser mode, toggles through three different modes: full-

screen browser, video window on the left, and video window on the right.

FREEZE Freezes entire screen, including the main picture and PIP window, if

PIP is displayed. When recording from AUDIO/VIDEO OUTPUT, freezes digital,

but not analog channels. Does not affect DTVLink output.

GO BACK Returns you to the previous channel or previous screen in the

menu system. Also, toggles between tuner and input sources.

GUIDE If you’re controlling another component that has a guide, this accesses

the on-screen guide.

INFO Brings up the Channel Banner with channel and viewing information.

Press again to remove the banner.

Tip

Some remote buttons can be used with the

Web Browser and have different functions; see

page 51 for details.

ON-OFF

DVD VCR

AUX AUDIO

SAT

CH. CTRL

SKIP

PIP SWAP

PRESETS FAV

SOUND

CLEAR

FORMAT INFO

GUIDE

MUTEMUTE GO

BACK

VOLVOL CH

INPUTINPUT

7788

PLAYPLAY

FORWARDFORWARDREVERSEREVERSE

STOPSTOP

PAUSEPAUSERECORDRECORD

FREEZE

learning

LIGHT

CAB

ANT•CAB

CCCC

CC MM

ININ

Chapter 2 29

Using the Remote Control

INPUT Toggles through the TV’s available input sources (INPUT 1, INPUT 2,

INPUT 3, INPUT 4, HDMI/DVI, DTVLink and last-active channel). To quickly

access an input, press the INPUT button and the input number, for example,

INPUT + 1 to access INPUT 1.

LIGHT Press to illuminate the remote control’s buttons. To conserve battery

power, the light turns off after several seconds. Backlight won’t activate if

batteries are low, but blinks on and off quickly.

MENU Makes Main Menu appear and disappear.

Tip

The component button corresponding to the

mode you’re in flashes when the remote

batteries are low and you press a button on the

remote. A warning banner may also appear on

the screen when you press a remote button and

your batteries are low.

MUTE Reduces the TV’s volume to its minimum level. Press again to restore volume. The TV’s Audio Output menu

must be set to Variable Level, Speakers On to control the TV’s volume.

OK When a menu item is highlighted, press OK to select the item.

ON•OFF Turns the TV on or off. Your HDTV is equipped with a special lamp system. In order to preserve the life

of the lamp, the TV must warm up and cool down properly when you turn the TV on and off. When you turn the TV

off, the screen turns blue and fades to black. While the screen is blue, you can still turn the TV back on. If the screen

is black when you try to turn it on, the TV’s lamp is in its cool-down cycle. The TV’s audio comes on, then the

picture is displayed after a few moments.

In other modes (VCR, DVD, SAT/CAB, AUX, AUDIO), and if programmed, turns the component on and off.

PIP Makes the PIP window appear and disappear (See Chapter 3 for more information about using PIP.)

PRESETS Toggles through the Picture Presets for the input currently tuned to. The preset is only temporarily

changed and goes back to the original menu setting when you change channels or inputs or turn off the TV.

REVERSE, PLAY, FORWARD, RECORD, STOP, PAUSE If programmed, provides transport control for some remote-

controllable VCRs and CD and DVD players. In TV mode, can control a DTVLink component when tuned to the

DTVLink input.

SAT/CAB (Satellite/Cable) Places the remote in SAT/CAB mode. If Auto Tuning is enabled, turns on the TV and

tunes it to the correct Video Input Channel.

SKIP Press once before changing channels and the TV returns to the original channel after 30 seconds. Press

repeatedly to add more time. Press CLEAR to cancel.

SOUND On digital channels/inputs, toggles the audio mode (if available for that channel). For analog channels,

toggles SAP on or off. If you change channels/inputs, the default for Audio Mode or SAP is restored. Does not affect

default menu settings for SAP or Audio Mode.

SWAP When using PIP, switches the main picture with the PIP window.

TV Places the remote in TV mode. Turns on the TV and tunes to the last-viewed TV channel or input.

VCR Places the remote in VCR mode. If Auto Tuning is enabled, turns on the TV and tunes to the VCR Video Input

Channel.

VOL – or VOL + Decreases or increases the TV’s volume. The TV Audio Output menu must be set to Variable

Level, Speakers On to control the TV’s volume.

30 Chapter 2

Using the Remote Control

You’ll use these buttons when you

program the remote for other

components.

Programming the Remote to Operate

Other Components

The universal remote can be programmed to operate many brands of remote-

controllable VCRs, audio components, DVD players, cable boxes, satellite

receivers and other components.

The AUX button can be programmed to operate most brands of an additional

remote-controllable component: satellite receiver, cable box, DVD, VCR, and

an audio component. A second and third InFocus ScreenPlay TV can be

programmed to any component button, except the TV button. Go to page 66

for more information on programming the remote to another TV.

Note: The TV button can’t be programmed on this remote to control

any component; it controls only this TV.

Find Out If You Need to Program the Remote

To determine whether the universal remote needs to be programmed to

operate one of the components connected to your TV, such as a VCR, do the

following:

1. Turn on the component (in this example, a VCR).

2. Point the remote at the component.

3. Press the corresponding component button (in this example, VCR).

4. Press ON•OFF to see if the VCR responds. If the VCR doesn’t respond,

you need to program the remote to operate it.

Programming the Remote

There are two ways to program the remote control to operate other

components: Automatic Code Search and Direct Entry.

Using Automatic Code Search

Note: The AUX button can only search VCR codes, but can be used for

a non-VCR device by programming it with direct entry method.

The following instructions can be used to program the remote to operate each

of your components. If you want to stop the automatic code search without

programming any of your components, press and hold CLEAR until the

indicator on the remote turns off.

1. Turn on the component you want to operate (VCR, DVD player, etc.)

2. Press and hold the component button you want to program (VCR, DVD,

etc.). While holding the component button, press and hold ON•OFF until

the component button on the remote turns on, then release both buttons.

3. Point the remote at the component.

Important Note: The remote

may not be compatible with all

models of all brands of

components. It also may not

operate all functions of your

component.

ON-OFF

DVD VCR

AUX AUDIO

SAT

CLEAR

7788

PLAYPLAY

REVERSEREVERSE

STOPSTOP

learning

CAB

Chapter 2 31

Using the Remote Control

4. Press and release PLAY, then wait 5 seconds or until the component button stops flashing.

At this point the remote is searching for the correct code to program. If, after 5 seconds, the

component you want to operate does not turn off, press PLAY again to tell the remote to search

the next set of codes.

Continue pressing and releasing PLAY until the component turns off or you have searched

through all of the codes. The component buttons flash when all codes have been searched,

the component button turns off, and remote exits Automatic Code Search.

If the component you want to control does turn off:

1. Press and release REVERSE, then wait 2 seconds. Repeat this step until the component turns

back ON.

2. To finish, press and hold STOP until the component button on the remote turns off.

Using Direct Entry

1. Turn on the component you want to operate (VCR, DVD player, etc.)

2. Look up the brand and code number(s) for the component on the code list in this section.

3. Press and hold the component button you want to program on the remote.

4. Enter the 4-digit code from the remote control code list on the following pages. If the

indicator flashes, you have either entered an invalid code or the button isn’t programmable.

5. Release the component button, point remote at component, and then press ON•OFF to see if

the component responds to the command. If it doesn’t, try pressing the component button

and then ON•OFF again.

• If you get no response, repeat these steps using the next code listed for your brand, until the

component responds to the remote commands.

• If you try all the codes for your component brand and none work, try the automatic code

search method. If automatic code search doesn’t find the code, the remote is not compatible

with your component.

How to Use the Remote After You’ve

Programmed It

Because this universal remote can control several different components (TV, DVD, VCR, satellite

receiver, etc.), it uses operational modes triggered by the component buttons.

1. Press the appropriate component button (DVD, TV, VCR, SAT/CAB, AUDIO, AUX) to set the

remote to control the component.

2. Press ON•OFF to turn the component ON or OFF.

3. Use the remote buttons that apply to that component.

Notes: The remote control may not be compatible with all brands and models of

components.

If you keep pressing buttons and nothing happens, the remote is probably in the wrong

mode. You must press the component button that matches the component you want to

operate (i.e., if you want to operate the VCR, press VCR on the remote control to put the

remote in VCR mode.)

32 Chapter 2

Using the Remote Control

The Learning Feature

Before using the learning feature, make sure this TV’s remote control is programmed to control

other components you have connected to the TV. Programming the remote control erases all

learned commands for that component mode.

After you program the TV’s remote control to operate the other component, the TV’s remote

provides most of the operations you need. However, there may be some functions on the

component’s original remote control that your TV’s remote control doesn’t have. For example, your

DVD remote control might have an ANGLE button that enables you to change the angle of the

picture, but your TV remote doesn’t have that button. The learning feature enables you to record

the functionality of a specific button from the original remote control to one of the TV’s remote

control buttons.

Note: All learned functions for a mode can be erased if you program a different component

to that mode.

Adding a Learned Function

There are several things to consider before you begin the learning process:

• You can’t record a learned function to the following buttons on the TV’s remote control:

component buttons (TV, VCR, DVD, SAT/CAB, AUX, and AUDIO), the CLEAR button, and the

LIGHT button.

• Before adding a Learned Function, you must program this TV’s remote control to operate that

component because programming the remote control erases all learned commands for that

component mode.

• Do the learning process in low light areas because too much natural light or fluorescent light

might cause the learning feature to fail because the remote control functions are recorded

(learned) by sending infrared (IR) signals.

• The TV’s remote and the original remote should be no more than 2 inches apart.

• In order to record (learn) a function from one remote to the other, you must make sure the

Infrared (IR) transmitter of the original remote is facing the IR receiver on the top of the TV’s

remote (see illustration). To accomplish this, you may have to hold a remote in each hand

instead of laying both on the table.

• The learned buttons are mode specific—if you add a button function from your DVD player’s

remote control, you must press the DVD button first before the learned function will work (in

TV mode, the button where you’ve stored the learned function will continue to work as it

always has).

Up to 2 inches apart

Chapter 2 33

Using the Remote Control

1. Press and hold the component button on the TV’s remote that applies to the function you will be

adding (DVD, VCR, SAT/CAB, AUDIO, or AUX). The component button lights.

2. On the TV remote, press and hold the RECORD button.

3. Keep pressing both of the buttons (the component button and the RECORD button) until the

component button light turns off, flashes, and turns off. Release both buttons.

4. On the TV’s remote control, press and release the button where you want to store the new function

(the component button turns off and then back on).

Note: If you press an invalid button on the TV remote, the component button flashes 4 times to alert

you. You’ll have to repeat step 4.

5. With the remote controls facing each other and no more than 2 inches apart, press and hold the

button of the component’s remote control that has the functionality you are recording to the TV’s

remote control. Keep pressing the button until the TV remote’s component button light turns off and

back on (the function has been saved to the TV remote). If all component buttons flash 4 times, the

function wasn’t learned. Try again starting with Step 4.

6. The TV remote control remains in “learning mode” so you can continue adding functions to

different buttons by repeating steps 4 and 5. Or, press CLEAR to exit learning mode.

Notes: If you want a new function on a button, you must record (learn) over it.

The amount of memory each learned function uses in the TV’s remote control varies. If your TV

remote is out of memory, the component button(s) light flashes 4 times and turn off, exiting you

from the Learning mode.

Clearing a Learned Function

To delete a learned button function, use the procedure below.

1. Press and hold the component button (the component button lights). Then press and hold the CLEAR

button for 3 seconds. Continue depressing both buttons (the component mode button flashes—turns

on and off again).

2. Release the component and CLEAR buttons (the component button being programmed turns on).

Remote is now in Clear learned function mode.

3. Press and release the button where learning is to be cleared. The component button blinks off then

back on—the learned function was cleared successfully.

4. Repeat steps 1 through 3 until all buttons’ learned functions have been cleared.

Note: If an invalid button is pressed, the component mode button(s) flashes 4 times and the selected

component button stays on and remote remains in Clear Learned Function mode. Repeat step 3.

5. Press the CLEAR button and your TV remote returns to its original operation mode.

Deleting ALL Learned Functions

This procedure erases all learned functions in every component mode of the remote.

1. Press and hold the CLEAR button (the current component button lights). Then press and hold the

ON•OFF button (component button light turns off for 3 seconds, flashes, turns on and off) while

continuing to hold CLEAR.

2. Release both buttons (current component button turns on).

3. Press any component button to delete all learned functions in all modes. Remote is automatically

exited from this mode.

Note: Pressing the CLEAR button will NOT delete all learned functions, but will exit the Delete mode.

34 Chapter 2

Using the Remote Control

Volume Punchthrough Feature

You may find this feature helpful if you’ve connected your components to an audio/video receiver

(A/V receiver) or amplifier, but you want to use the TV’s remote control to operate the volume for

a component that is connected to the audio/video receiver. An example follows:

Let’s say you’ve connected your DVD player to your audio/video receiver. You’ve also

programmed your TV remote control to operate your DVD player. Since the DVD player gets its

volume through the audio/video receiver, you would have to bounce back and forth between two

remote controls: the A/V receiver’s remote to adjust the volume and the TV’s remote control to

operate the DVD player.

The Volume Punchthrough feature eliminates the need for you to use two remote controls and

saves a button press when you’re using the TV remote to adjust the volume. In effect, you are

telling the TV remote to retrieve and send volume commands from the A/V receiver whenever the

TV remote is in DVD mode.

Therefore, after you’ve successfully set up the Volume Punchthrough feature, whenever the TV

remote is in DVD mode (press the DVD button) and you want to adjust the volume, you only

have to press the VOL + or VOL- buttons. Follow the instructions below to set up Volume

Punchthrough.

1. IMPORTANT: First, you must program the AUDIO button on the TV’s remote control to

operate your audio receiver or amplifier. Go to page 30 for instructions. If you can’t program

this remote to operate your audio receiver, Volume Punchthrough won’t work.

2. While setting up Volume Punchthrough, it’s best to point the remote away from components.

3. Decide which mode the remote will be in when the volume from the audio receiver “punches

through.” The mode will be one of the component buttons (TV, DVD, SAT/CAB, VCR, or

AUX).

4. Press and hold the VOL- button. Keep pressing VOL- while you press and release the

component button you chose in step 3 (TV, DVD, SAT/CAB, or AUX).

5. Press and release the AUDIO button since the sound will be coming from the audio/video

receiver. Release the VOL- button.

6. Now, test it by turning on your audio receiver or amplifier.

7. Turn on the component that is connected to the audio/video receiver or amplifier (a DVD

player, for example).

8. Put the TV’s remote in DVD mode by pressing the DVD button, and play a disc.

9. Press VOL+ or VOL-. The volume from the audio receiver should increase or decrease

accordingly.

Deleting ALL Volume Punchthrough Commands

To delete all programmed Volume Punchthrough settings and return the remote control back to

the factory defaults, press and hold the VOL- button (the component button of the Volume

Punchthrough lights). While holding the VOL- button, enter the code, 000, using the number

buttons. All component buttons turn on for 2 seconds and then turn off. The remote returns to the

factory settings.

Note: If an invalid button is pressed, all component buttons blink 4 times and turn off. At

this point, you must start over.

Chapter 2 35

Using the Remote Control

Using the INPUT Button

1. Repeatedly press the INPUT button to scroll through the available input sources until you find

the input associated with the component (such as VCR or DVD player) you want to view.

2. Once you find the input source you want, stop pressing INPUT.

• If you tune to INPUT 1 and your VCR is connected to that input, you will be able to view

your VCR. To play, stop, or rewind the VCR tape using the remote that came with your TV,

you must first press the VCR or AUX button (whichever one is programmed to the VCR) to

put the remote control in VCR mode.

There are other ways of selecting a Video Input Channel:

• Program the component (VCR, DVD, etc.) buttons on the remote control to automatically tune to

the correct Video Input Channel when pressed. For more details on Auto Tuning, see Chapter 3.

• When viewing an input, press ANT/CAB, GO BACK, or INPUT to go back to viewing channels or

use the number buttons to enter the channel number.

• To quickly access an input, press the INPUT button and the input number, for example, INPUT +

1 to access INPUT 1. Note for professional installers: This is a discrete input code.

Note: Watch the Channel Banner to see the input sources change each time you press the INPUT button.

Input source

Input 1

DVD

4:3 Normal 480i SDListening to English in SRS

MPAA - Not Rated

12:39 PM12:30 AM00:30Acquiring Channel...

Remote Code List

Audio Codes

Programmable for the AUDIO and AUX buttons.

AUX/Dimensia/Lyra Wireless

RCA ............................................................................. 4004

Audio Cassette

GE ............................................................................... 4006

RCA ............................................................................. 4006

CD Players

ADC ........................................................ 4055, 4056, 4066

Aiwa .................................................................. 4039, 4057

Akai ............................................................................. 4058

Denon ......................................................................... 4060

Emerson ...................................................................... 4040

Fisher ...................................................... 4041, 4063, 4064

GE ..................................................................... 4007, 4065

Hitachi ........................................................................ 4042

JVC .............................................................................. 4043

Kenwood ................................................ 4044, 4067, 4068

Luxman ....................................................................... 4069

Marantz ....................................................................... 4046

MCS ............................................................................. 4070

Mitsubishi ......................................................... 4071, 4072

NEC ............................................................................. 4045

Onkyo ......................................................................... 4047

Panasonic ................................................................... 4048

Pioneer ....................................................................... 4049

RCA ......................................................... 4007, 4050, 4062

Sears ........................................................................... 4059

Sony .................................................................. 4051, 4061

Technics ...................................................................... 4052

Toshiba ....................................................................... 4073

Yamaha ............................................................. 4053, 4054

Phono

GE ............................................................................... 4005

RCA ............................................................................. 4005

Receiver/Tuner/AMP

Aiwa ......................... 4008. 4009, 4010, 4011, 4012, 4021

Denon ......................................................................... 4027

GE ............................................................................... 4003

Harman Kardon ......................................................... 4020

JBL .............................................................................. 4020

JVC .............................................................................. 4013

Kenwood .................................................................... 4014

Onkyo ......................................................................... 4022

Optimus ...................................................................... 4028

Panasonic ......................................................... 4023, 4024

RCA ................................................ 4003, 4015, 4029, 4030

Sherwood ................................................................... 4026

Sony ........................................................ 4016, 4017, 4025

Technics ............................................................ 4023, 4024

Yamaha ............................................................. 4018, 4019

Cable Box Codes

Programmable for SAT/CAB and AUX buttons.

ABC ...................................... 5002, 5003, 5004, 5006, 5045

Archer ............................................................... 5008, 5009

Cableview ................................................................... 5007

Contec ........................................................................ 5015

Eastern ........................................................................ 5016

GE ..................................................................... 5002, 5003

Gemini ............................................................... 5017, 5018

General Instruments ................................................... 5003

Hamlin ................................. 5019, 5020, 5021, 5026, 5033

Hitachi ......................................................................... 5003

Jerrold ........................ 5003, 5017, 5022, 5023, 5039, 5045

Magnavox .................................................................... 5024

Memorex ..................................................................... 5026

Movie Time ................................................................. 5025

NEC .............................................................................. 5005

NSC .............................................................................. 5025

Oak .................................................................... 5015, 5027

Panasonic .......................................................... 5041, 5044

Philips ........................................... 5011, 5012, 5013, 5014,

............................................. 5018, 5024, 5028, 5029, 5030

Pioneer .............................................................. 5031, 5032

Proscan .............................................................. 5002, 5003

RCA ................................................ 5007, 5040, 5042, 5044

Realistic ........................................................................ 5009

Samsung ...................................................................... 5032

Scientific Atlanta ............................ 5006, 5034, 5035, 5036

Signature ...................................................................... 5003

Sprucer ........................................................................ 5044

Standard Component ........................................ 5037, 5038

Starcom .............................................................. 5017, 5045

Stargate ........................................................................ 5017

Tocom ................................................................ 5004, 5022

United Cable ............................................................... 5045

Universal .................................................. 5008, 5009, 5010

View Star ................................................. 5015, 5024, 5025

Zenith .......................................................................... 5043

36 Chapter 2

Using the Remote Control

HD Receiver Code

Programmable for AUX button.

RCA ............................................................................. 7000

TV Codes

Programmable for DVD, VCR, SAT/CAB, AUX,

and AUDIO buttons.

TV2 ............................................................................. 1222

TV3 ............................................................................. 1223

DVD codes

Programmable for DVD and AUX buttons.

DVD

Aiwa .................................................................. 3010, 3021

Apex ................................................................. 3023, 3024

Broksonic ......................................................... 3027, 3075

Daewoo ...................................................................... 3028

Denon ..................................................... 3029, 3030, 3031

Emerson .................................................. 3032, 3033, 3076

Funai ........................................................................... 3033

GE ........................................................... 3000, 3034, 3035

Go Video .................................................................... 3077

Hitachi ................................. 3009, 3067, 3068, 3069, 3070

JVC .......................................................... 3003, 3011, 3078

Kenwood .................................................................... 3071

Konka ............................................................... 3012, 3013

Koss ............................................................................ 3085

Lasonic ........................................................................ 3087

Magnavox ......................................................... 3004, 3036

Memorex .................................................................... 3037

Mintek ......................................................................... 3038

Mitsubishi ................................................................... 3005

NAD ............................................................................ 3032

Norcent ............................................................. 3039, 3040

Onkyo ......................................................................... 3041

Oritron ........................................................................ 3047

Panasonic ......................................................... 3014, 3042

Philips ............................................................... 3004, 3020

Pioneer .......................................... 3006, 3043, 3044, 3045

Proscan ............................................................. 3000, 3046

Qwestar ...................................................................... 3047

RCA ...................................... 3000, 3002, 3048, 3079, 3086

Samsung ............................. 3072, 3073. 3074, 3080, 3081,

Sansui ......................................................................... 3049

Sanyo ................................................................ 3015, 3082

Sharp ....................................................... 3050, 3052, 3053

Sony ................. 3007, 3016, 3017, 3054, 3055, 3056, 3083

Sylvania ...................................................................... 3033

Teac ............................................................................ 3057

Technics ...................................................................... 3058

Toshiba ................................ 3008, 3018, 3059, 3060, 3061

Yamaha ................................................... 3062, 3063, 3064

Zenith ..................................................... 3019, 3065, 3084

Portable DVD

Aiwa ............................................................................ 3022

Audiovox .......................................................... 3025, 3026

Panasonic ................................................................... 3030

RCA ............................................................................. 3066

Sharp ........................................................................... 3051

DVD/VCR Combo Codes

DVD and AUX buttons can use DVD codes; VCR

and AUX buttons can use VCR codes

............................................... DVD ........................ VCR

Broksonic .............................. 3075 ........................... 2075

Emerson ................................. 3076 ........................... 2076

Go Video ............................... 3077 ........................... 2077

JVC ......................................... 3078 ........................... 2078

RCA ........................................ 3079 ........................... 2079

Samsung ................................ 3080, 3081 ....... 2080, 2081

Sanyo ..................................... 3082 ........................... 2082

Sony ....................................... 3083 ........................... 2083

Zenith .................................... 3084 ........................... 2084

PVR Codes

Programmable for the VCR and AUX buttons.

PVR

Replay .......................................................................... 2086

Phillips Tivo ................................................................ 2085

Home Theatre in a Box

(DVD Receiver) Codes

AUDIO and AUX buttons can use Audio codes;

DVD and AUX buttons can use DVD codes

......................................... Audio ......................... DVD

JBL ......................................... 4031 ............................ 3088

JVC ......................................... 4032 ............................ 3089

Koss ....................................... 4033 ............................ 3090

Onkyo .................................... 4034 ............................ 3091

Panasonic .............................. 4035 ............................ 3092

Pioneer .................................. 4036 ............................ 3093

RCA ........................................ 4037 ............................ 3094

Venturer ................................. 4038 ............................ 3095

Satellite Receiver Codes

Programmable for SAT/CAB and AUX/HD

buttons.

Alphastar ..................................................................... 5064

Chapparal .......................................................... 5046, 5047

Dishnet ........................................................................ 5063

Drake ................................................................. 5048, 5049

Echostar ....................................................................... 5070

GE ............................................................ 5000, 5001, 5072

General Instruments ............................... 5050, 5051, 5052

Hitachi ............................................................... 5066, 5067

Hughes .............................................................. 5062, 5071

JVC ............................................................................... 5065

Panasonic .................................................................... 5060

Philips .......................................................................... 5068

Primestar ...................................................................... 5061

Proscan .................................................... 5000, 5001, 5072

RCA .......................................................... 5000, 5001, 5072

Realistic ........................................................................ 5053

Sony ............................................................................. 5058

STS1 ............................................................................. 5054

STS3 ............................................................................. 5055

STS4 ............................................................................. 5056

Toshiba .............................................................. 5057, 5059

Uniden ......................................................................... 5069

VCR Codes

Programmable for VCR and AUX buttons.

Admiral ........................................................................ 2068

Aiko ............................................................................. 2023

Aiwa ............................................................................. 2022

Akai ............................ 2002, 2003, 2004, 2057, 2058, 2059

Audiovox ..................................................................... 2010

Bell & Howell ............................................................. 2007

Broksonic ................................................ 2008, 2021, 2075

Calix ............................................................................. 2010

Canon ................................................................ 2017, 2018

Capehart ............................................................ 2016, 2056

Carver .......................................................................... 2037

CCE .................................................................... 2023, 2036

Citizen .... 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2023

Colortyme .................................................................... 2005

Craig .............................................. 2009, 2010, 2019, 2036

Curtis-Mathes .......................................... 2005, 2009, 2012,

................................... 2014, 2017, 2018, 2020, 2060, 2072

Daewoo ........... 2011, 2013, 2015, 2021, 2022, 2023, 2056

Daytron ........................................................................ 2056

Dimensia ..................................................................... 2072

Electrohome ...................................................... 2010, 2024

Emerson .................... 2002, 2008, 2010, 2011, 2017, 2020,

................................. 2021, 2022, 2024, 2025, 2026, 2027,

......................... 2028, 2039, 2059, 2061, 2067, 2069, 2076

Fisher ............................................. 2007, 2019, 2029, 2030

Fuji ........................................................... 2003, 2017, 2062

Funai ............................................................................ 2022

Garrard ........................................................................ 2022

GE ............................. 2000, 2001, 2009, 2017, 2018, 2060,

........................................................................... 2063, 2072

Gradiente ..................................................................... 2022

Harman Kardon .......................................................... 2005

Harwood ..................................................................... 2036

Hitachi ....................... 2033, 2034, 2035, 2053, 2057, 2063

JC Penney ................. 2005, 2006, 2007, 2008, 2009, 2010,

............... 2017, 2018, 2030, 2033, 2034, 2036, 2037, 2053

Jensen ...................................................... 2033, 2034, 2057

JVC ................... 2005, 2006, 2007, 2014, 2057, 2064, 2078

Kenwood .................. 2005, 2006, 2007, 2012, 2014, 2057,

..................................................................................... 2064

KLH .............................................................................. 2036

Kodak ................................................................ 2010, 2017

LG ................................................................................ 2010

Logik ............................................................................ 2036

LXI ............................................................................... 2010

Magnavox ................. 2017, 2018, 2037, 2038, 2052, 2054,

..................................................................................... 2065

Marantz ............ 2005, 2006, 2007, 2012, 2014, 2017, 2037

Matsushita .................................................................... 2017

Memorex .................. 2007, 2009, 2010, 2017, 2019, 2022,

........................................................................... 2052, 2068

MGA ......................................................... 2024, 2039, 2059

Minolta ..................................................... 2033, 2034, 2053

Mitsubishi ..................................... 2024, 2033, 2034, 2039,

....................................................... 2040, 2041, 2059, 2064

Montgomery Ward ...................................................... 2068

Motorola ............................................................ 2017, 2068

MTC ............................................................................. 2009

Multitech .............................. 2009, 2012, 2022, 2031, 2036

NEC ................... 2005, 2006, 2007,2012, 2014, 2057, 2064

Nikko ........................................................................... 2010

Noblex ......................................................................... 2009

Olympus ...................................................................... 2017

Optimus ............................................................. 2010, 2068

Optonica ...................................................................... 2047

Panasonic ...................................... 2017, 2018, 2055, 2066

Pentax .................................. 2012, 2033, 2034, 2053, 2063

Pentex Research .......................................................... 2014

Philco ............................................. 2017, 2018, 2037, 2038

Philips ............................................ 2017, 2037, 2047, 2065

Pioneer .......................................... 2006, 2033, 2042, 2064

Portland ......................................... 2012, 2013, 2015, 2056

Proscan .................................................... 2000, 2001, 2072

Quasar ..................................................... 2017, 2018, 2066

RCA ..................................... 2000, 2001, 2002, 2009, 2017,

.................................. 2033, 2034, 2043, 2044, 2045, 2053,

......................... 2060, 2063, 2066, 2070, 2072, 2073, 2079

Radio Shack ............................................. 2010, 2047, 2068

Radioshack/Realistic .................... 2007, 2009, 2010, 2017,

................................... 2018, 2019, 2022, 2024, 2029, 2047

Realistic ............................... 2007, 2009, 2010, 2011, 2017,

......................... 2018, 2019, 2022, 2024, 2029, 2047, 2068

Radix ............................................................................ 2010

Ricoh ............................................................................ 2071

Runco .......................................................................... 2052

Samsung ....................................................... 2004,

2009, 2011, 2027, 2031, 2058,

........................................................................... 2080, 2081

Sansui ............................................ 2006, 2046, 2057, 2064

Sanyo ............................................. 2007, 2009, 2019, 2082

Scott ................. 2008, 2011, 2021, 2026, 2028, 2039, 2061

Sears ............................................. 2007, 2010, 2017, 2019,

............................................. 2029, 2030, 2033, 2034, 2053

Sharp .................................... 2013, 2024, 2047, 2048, 2068

Shintom ......................................... 2003, 2034, 2036, 2049

Signature ...................................................................... 2068

Singer ....................................................... 2017, 2036, 2071

Sony ..................................... 2003, 2049, 2050, 2062, 2083

STS ..................................................................... 2017, 2053

Sylvania ........... 2017, 2018, 2022, 2037, 2038, 2039, 2065

Symphonic ................................................................... 2022

Tandy ........................................................................... 2007

Tashiko ........................................................................ 2010

Tatung .......................................................................... 2057

TEAC .................................................................. 2022, 2057

Technics ............................................................. 2017, 2055

Teknika .......................................... 2010, 2017, 2022, 2051

Toshiba ...................... 2011, 2029, 2030, 2033, 2039, 2059

Totevsion ........................................................... 2009, 2010

Unitech ........................................................................ 2009

Vector Research ............................. 2005, 2006, 2011, 2012

Video Concepts ................... 2005, 2006, 2011, 2012, 2059

Wards .............. 2009, 2010, 2011, 2017, 2019, 2022, 2024,

............... 2033, 2034, 2036, 2047, 2053, 2061, 2068, 2070

XR-1000 ................................................... 2017, 2022, 2036

Yamaha ................................ 2005, 2006, 2007, 2014, 2057

Zenith ........................ 2003, 2049, 2052, 2062, 2071, 2084

Graphics contained within this publication are for representation only. 37

Chapter 3

Using the TV’s Features

Chapter Overview:

• About the Channel Banner

• Digital or Analog TV Channels

• Parental Controls

• How V-Chip Works for the USA and Canada

• Auto Tuning Feature

• PIP (Picture-In-Picture) Operation

• Using the Web Browser

• DTVLink Recording

• Emergency Alert System (EAS)

Using the TV’s Features

38 Chapter 3

About the Channel Banner

The Channel Banner appears when you press the INFO button on the remote. If an icon in the channel banner is grayed

out (dim), the feature is not available. The following list describes the items on the Channel Banner screen (left to right and

top to bottom). Other displays that are not described here are self-explanatory. When you change channels, the Channel

Banner appears as a smaller version than what’s shown above.

The icons change appearance to show the item’s status or availability.

Program Title/Acquiring Channel Title of program (if available) or Acquiring Channel appears when tuning a channel.

The time when the TV shuts off if the Sleep Timer is activated in the Time menu.

Displays the time remaining before the TV tunes back to the channel where

Commercial Skip was activated.

12:39 PM Current time if the Time feature is set in Time menu.

Ch 8-1 WLPJ Current channel, subchannel (for digital channels) and the station call letters, if

available.

Antenna/Cable/Auto Tuning Displays type of signal (Antenna or Cable) you’re viewing or the Auto Tuning

component you’re viewing.

Listening to Displays when SAP is playing for analog channel. For a digital channel, displays

the currently playing audio language. Also displays the audio processor in use.

SAP or Audio Mode changes with SOUND button.

16:9 Normal 1080i HD Aspect ratio (4:3 or 16:9); original resolution of the broadcast, not the resolution of the TV;

HD or SD. For more information about aspect ratio and broadcast resolution, go to page 2.

Displays when Closed Captioning is available on the current channel and matches

the format selected in the Caption Priority menu.

SAP or Audio language icon appears when the current analog channel is

broadcasting SAP (Second Audio Program) information or when current digital

channel is broadcasting an alternate audio mode, respectively.

Sound mode icons (mono, stereo, Dolby surround, four-channel surround, 4.1-

channel surround, five-channel surround), etc.

Appears when a program can be recorded; otherwise, it is grayed out.

Parental Control icon is displayed red when the TV is locked, green when the TV is

unlocked, and yellow when the TV is temporarily unlocked.

MPAA - Not Rated V-chip program rating (not the TV’s rating set up in Parental Control menu).

Ch 8-1 WLPJ

Antenna Input

16:9 Normal 1080i HD

Listening to English in SRS

MPAA - Not Rated

12:39 PM

12:30 AM 00:30Program Title/Acquiring Channel

12:30 AM

00:30

Using the TV’s Features

Chapter 3 39

Ch 88 -888 WLPJ

Cable Input

4:3 Normal 480i SDListening to English in SRS

MPAA - Not Rated

6060 -2

Digital or Analog TV Channels

A single off-air antenna can pick up both analog and digital channels. Digital channels can be

made up of primary channels and subchannels.

Note: Subchannels (sometimes called minor channels) are channels associated with the

primary channel (sometimes called the major channel). A primary channel may have just

one subchannel or multiple subchannels.

Direct Tuning to a Channel

1. Make sure the remote is in TV mode by pressing TV on the remote

control.

2. Enter the primary channel number. This number appears in the

primary channel entry box. Press OK or wait a few seconds. If you

don’t enter a subchannel, the TV tunes to the lowest digital

subchannel.

3. If the primary channel number has six or fewer digits (for cable), or

two digits (for antenna) and you want to enter subchannel numbers,

press the right arrow button to advance to the subchannel entry box.

4. Enter the number of the subchannel. This number appears in the

subchannel entry box.

5. Press OK to tune to the channel or wait a few seconds and the TV

tunes to the channel.

Notes: You can always use the channel up and down buttons on

the remote control to change channels within the TV mode.

If you wait too long before entering the subchannel, the TV tunes

to the lowest digital subchannel.

Tip

If a digital and analog channel have the same primary

channel number, tune to the analog channel by

entering the analog channel number or entering the

analog channel number and then a subchannel of “0.”

Primary

Channel Subchannel

(if necessary)

ON-OFF

DVD VCR

AUX AUDIO

SAT

CH. CTRL

SKIP

PIP SWAP

PRESETS FAV

SOUND

CLEAR

FORMAT INFO

FREEZE

learning

LIGHT

CAB

CCCC

CC MM

TV Button

Right Arrow

Tip:

Use the channel banner to determine

whether a channel is digital or analog.

A digital (ATSC or QAM) channel has a

dash and second number after it (e.g.,

21-1); an analog channel (NTSC) doesn’t

(e.g., Ch 21).

Using the TV’s Features

40 Chapter 3

Parental Controls

The Parental Controls menu allows you to program your TV so that

children cannot see certain programs, channels, browser, or use the

buttons on the front of the TV. The Parental Controls menu controls the

software inside your TV (referred to as V-Chip) which lets you program

your TV so it won’t display certain programs and movies based on

violence, sex, or other content you may believe children should not view.

Once you block programs, you or other adults can unblock programs by

entering a password to unlock video or enter the password to edit the

features in the Parental Controls menu. By default, the software inside

your TV is t

urned “off,” so if you don’t want to use this feature, you can

just ignore it.

The options of the Parental Controls menu are Lock/Unlock TV, Video

Input List, Cable Channel List, Antenna Channel List, USA V-Chip, Canada

V-Chip, V-Chip Unrated, Front Button Block, and Web Browser Block.

Lock/Unlock TV

Selecting this option lets you lock and unlock the parental controls and the TV

using a password. It locks or unlocks channel lists. If the TV is unlocked

when watching TV, you only see the channels that have a check mark in the

Unlocked List (see Channel Lists below). If the TV is locked when watching

TV, you only see the channels that are marked as Viewable in the Locked List.

If the TV is locked, all channels can still be accessed by using the number

buttons on the remote control but may not be viewed if they are blocked

(enter password to see program).

Notes: When locking the TV, you’ll be asked to enter a password and

then to re-enter the password a second time to re-confirm your

password choice.

If you do not lock the TV, none of the settings for V-Chip, channel

block, front panel block, and web browser block take effect.

If you forget your password, simultaneously press and hold the MENU/

OK button on the front panel and VOL- button on the remote for three

seconds. This resets the password only and unlocks the TV; all other

settings in Parental Controls are not changed.

Front Button Block

V-Chip Unrated

Canada V-Chip

USA V-Chip

Antenna Ch. List

Cable Channel List

Video Input List

Unlock TV

Go Back

Main Menu Parental Controls

Warning: Unlocking the TV turns off the rating limits, the

Locked List, and blocking features. Press OK to continue.

Unlocking the TV turns off the rating limits, the Locked List,

and blocking features. The Unlocked List will be used instead

of the Locked List.

Do you want to unlock the TV?

Point to "Yes" and press OK to unlock the TV.

Point to "No" and press OK to cancel.

Web Browser Block

NoYes

Front Button Block

Web Browser Block

V-Chip Unrated

Canada V-Chip

USA V-Chip

Antenna Ch. List

Cable Channel List

Video Input List

Lock TV

Go Back

Main Menu Parental Controls

Locking the TV puts into effect the rating limits, the Locked

List, and blocking features. Press OK to continue.

Locking the TV puts into effect all of the rating limits, the

Locked List, and blocking features that you have set up in

the Parental Controls menu.

In order to lock the TV, enter the four-digit password you

would like to use.

****

Confirm new password:

****

Enter new password:

Tip

You must lock the TV for the Parental Controls settings

to be enforced.

Web Browser

Assisted Setup

Preferences

Connections

Parental Controls

Audio

Picture Quality

Recordings

Go Back

Main Menu

Press OK or  to access the Parental Control menu.

•Lock TV/Unlock TV: Choose to either lock or unlock the TV.

•Video Input List: Choose the inputs to be seen or hidden.

•Cable Channel List: Choose channels for the Cable Input.

•Antenna Channel List: Choose channels for the Antenna Input.

•USA V-Chip: Set rating limits for USA-rated shows.

•Canada V-Chip: Set rating limits for Canada-rated shows.

•V-Chip Unrated: Unrated and Exempt shows can be blocked.

•Front Button Block: Choose if buttons are accessible or not.

•Web Browser Block: You can block access to the Internet.

The Parental Controls menu lets you set up the Locked and

Unlocked channel lists, ratings, and blocking features:

Channel Lists (Video Input List, Cable Channel

List, Antenna Ch. List)

The channel lists contain the following information: major channel

number (with subchannel number only if a digital channel), channel call

letters (when channel is tuned), Locked List, and Unlocked List. The

major channels listed in Cable Channel List and Antenna Ch. List for off-

air or cable sources are based on the channel search results. If a major

channel is not found by Channel Search, then it is not listed.

Front Button Block

V-Chip Unrated

Canada V-Chip

USA V-Chip

Antenna Ch. List

Video Input List

Cable Channel List

Lock TV

Go Back

Main Menu Parental Controls

Press OK to edit the video input List. Each input can be

added or deleted in the list and made blocked or viewable.

Viewable

All Video Inputs

Input 1

Input 2

Input 3

Input 4

HDMI

DTVLink

Unlocked

List

Locked

List

Web Browser Block

Using the TV’s Features

Chapter 3 41

Editing Channels in the Channel Lists

The Antenna and Cable Channel lists are only editable through the Unlocked List and Locked List in the Parental Controls

menu. You can remove or “hide” a channel from the Unlocked List by removing the checkmark in the checkbox. Also, you

can remove or “hide” a channel from the Locked List by selecting Blocked in the Locked List. When you press the channel

buttons, that channel will be skipped. When the TV is locked, you can still access the channel directly by using the

number buttons on the remote control but may not be able to see the video until a valid password is entered.

To save time, you can also add ALL or delete ALL channels in a list by changing the checkbox or choice field in the line

that says All Video Inputs or All Channels but be very careful because you could erase all of your selections.

Note: If a cable box is connected to the CABLE INPUT, the channel list can be edited for Cable Channel in the

Parental Controls menu. If a cable box is connected via INPUT1, the channel list cannot be edited- you can only use

channel up/down or use the number buttons.

How V-Chip Works for the USA and Canada

The V-Chip software reads a code that most broadcasters send with programs. That code tells the TV software the

program’s age-based rating (TV-MA, TV-14, etc.) and content themes [(Violence (V), Adult Language (L), etc.)]. If you have

blocked the rating and/or content themes that the program contains and the TV is locked and you tune to a program

whose rating exceeds the rating limit you set, you will receive a message telling you that the program is not approved for

viewing.

Broadcasters are not required to provide content themes, so programs received with no content themes will only be blocked if

you block their age-based rating and the TV is locked. With the V-Chip Unrated menu, you can also block out programs that

have been given a rating of “Not Rated,” or “Exempt” and programs that are considered “unrated”. The TV age-based ratings

and content themes you can block are in the table on the next page.

V-Chip Movie Rating

V-Chip TV Rating

Go Back

Main Menu Parental Controls USA V-Chip

Press OK to set the age-based TV rating limit and content

theme limit.

The V-Chip TV rating limits are set with this screen.

The TV must be locked for the rating limits to be enforced.

Blocked

Viewable

Blocked

Rating Content

Rating Status D L S V FV

"TV-MA"

"TV-14"

"TV-PG"

"TV-G"

"TV-Y7"

"TV-Y"

USA V-Chip TV Ratings

The USA V-Chip TV Rating lets you decide which TV programs can and

cannot be viewed. To set TV programming limits:

1. Choose Parental Controls from the Main menu. If Parental Controls

have previously been locked, you must enter your password.

2. Highlight and select USA V-Chip.

3. Highlight and select V-Chip TV Rating.

4. Once you get to the V-Chip TV Rating screen, use the arrow buttons

and OK on your remote to change the status of a TV program rating

or content theme from Viewable to Blocked.

Proceed to the next sections for more details about how to change the

status of TV program limits.

Using the TV’s Features

42 Chapter 3

V-Chip Movie Rating

V-Chip TV Rating

Go Back

Main Menu Parental Controls USA V-Chip

Press OK to set the age-based TV rating limit and content

theme limit.

The V-Chip TV rating limits are set with this screen.

The TV must be locked for the rating limits to be enforced.

Blocked

Viewable

Blocked

Rating Content

Rating Status D L S V FV

"TV-MA"

"TV-14"

"TV-PG"

"TV-G"

"TV-Y7"

"TV-Y"

Mature Audience Only. Specifically designed to be viewed by adults and may be unsuitable for children

under 17. It contains one or more of the following content themes: crude indecent language (L), explicit

sexual activity (S), or graphic violence (V).

Parents Strongly Cautioned. Contains some material that many parents would find unsuitable for children

under 14. Parents are strongly urged to exercise greater care in monitoring this program and are cautioned

against letting children under the age of 14 watch unattended. This program contains one or more of the

following content themes: intensely suggestive dialogue (D), strong coarse language (L), intense sexual

situations (S), or intense violence (V).

Parental Guidance Suggested. Contains material that parents may find unsuitable for younger children. Many

parents may want to watch it with their younger children. The program contains one or more of the following

content themes: some suggestive dialogue (D), infrequent coarse language (L), some sexual situations (S), or

moderate violence (V).

General Audience. Most parents would find this program suitable for all ages. It contains little or no sexual

dialogue (D) or situations (S), no strong language (L), and little or no violence (V).

Directed to Children 7 years and older. Designed for children ages 7 and above. It may be more

appropriate for children who have acquired the developmental skills needed to distinguish between make-

believe and reality. Themes and elements in this program may include mild fantasy violence (FV) or comedic

violence, or may frighten children under the age of 7.

All Children. Themes and elements in this program are designed for a young audience, including children

from ages 2-6. It is not expected to frighten younger children.

TV-Y

Age-Based

Rating USA Description and Content Themes for Age-Based Ratings

TV-MA

TV-14

TV-PG

TV-G

TV-Y7

USA V-Chip Rating Limit Screen

The following is an example of where items are located within the V-Chip TV Rating screen below the USA V-Chip menu.

Rating Settings

Area

Lets you see the current

block/view state of age-

based ratings and

associated content. The

Viewable (V) settings are

coded in green, and the

Blocked (B) settings are

coded in red.

Rating Field

Lets you select from a

list of age-based ratings

you can block or view.

Rating Status Field

Lets you select whether the status of the age-based

rating limit to the left is Viewable or Blocked.

Content Themes

Lists the content themes you

can block or view.

Content Status Fields

Lets you select which

content themes to view for

the selected rating, and

whether the status of the

content theme is currently

Viewable (V) or Blocked (B).

Using the TV’s Features

Chapter 3 43

Viewing Age-Based Ratings

After you block age-based ratings, you have the option of changing some

of the ratings back to Viewable (V).

1. Determine which blocked rating you want to view.

2. Use the up and down arrow buttons to highlight the rating with a

status of Blocked.

3. Press the OK button to select Viewable.

Notes: The content status fields corresponding to the unblocked

rating become Viewable as well. They and the age-based rating

status are the only fields that automatically change back to

Viewable when you complete this process.

You must remember to lock the TV for rating limits to take effect.

Blocking Age-Based Ratings

You can automatically block all program ratings above a specified age-based rating level. For example, if

you only want your child to watch programs that have a TV-G rating and lower (in other words, you want

the child to watch TV-G, TV-Y7, and TV-Y), then you need to block out higher ratings.

To block programs with higher ratings:

1. First, determine the lowest level rating you don’t want the child to watch (see chart of age-based

ratings on previous page).

2. Highlight the lowest rating you do not want the child to watch. In the example discussed above, you

would highlight TV-PG, since the highest rating you want the child to watch is TV-G.

3. Press the OK button to toggle between Viewable and Blocked. The status for the rating listed to the

right and all higher ratings automatically change to Blocked (and B).

4. Select Lock TV from the Parental Controls menu. Enter a password and re-enter password a second

time to confirm the password.

Blocking Specific Content Themes

You can block programs based on their content. When you block a content theme for a particular

rating, you automatically block that content theme for higher rated programs as well.

For example, if you do not want your child to watch programs that have adult language (L) rated

TV-PG or higher, then you could block out all programming TV-PG and above containing adult

language.

To block program content:

1. Determine the lowest level of content you don’t want the child to watch.

2. Use the up and down arrow buttons on the remote to highlight the age-based ratings that

correspond with the lowest content you do not want the child to watch. (In the example

above, you would highlight TV-PG.)

3. Press the OK button to change content status from (V) Viewable to (B) Blocked. All higher

ratings’ content themes change to Blocked.

Notes: Broadcasters are not required to provide content themes or age-based ratings.

You must remember to lock the TV for rating limits to take effect.

Hierarchy of Age-Based Ratings

TV-MA Mature Audience Only

TV-14 Parents Strongly Cautioned

TV-PG Parental Guidance Suggested

TV-G General Audience

TV-Y7 Directed to Children 7 years

and older

TV-Y All Children

Using the TV’s Features

44 Chapter 3

Viewing Specific Content Themes

If you block specific content themes, you have the option of going back and changing some of the

content themes back to (V) Viewable:

V-Chip Movie Rating

V-Chip TV Rating

Go Back

Main Menu Parental Controls USA V-Chip

Press OK to set the movie rating limits which are enforced

when the TV is locked.

The V-Chip MPAA movie rating limits are set in this screen.

The TV must be locked for the rating limits to be enforced.

Blocked

Viewable

Rating Status

NC-17

PG-13

Not Rated

Movies

Blocked

D Sexually explicit dialogue

L Adult language

S Sexual situations

V Violence

FV Fantasy Violence

Content Themes 1. Determine the content themes you want to change to (V) Viewable.

2. Use the up and down arrow buttons to highlight the age-based rating

whose content theme you want to change to Viewable.

3. Press the OK button to change its status back to V. Your child would

then be able to watch programs with TV-14 adult language content,

but not programs with TV-PG or TV-MA language content.

Note: Only the content theme status corresponding to TV-14

(L) language changes to (V) View. Higher rated content themes,

such as that for TV-MA language, do not change.

V-Chip Movie Rating Limit

You set movie (MPAA) rating limits by blocking movies rated above a

specified rating. How to block movie ratings and view movie ratings is

explained in the next two sections.

To access the V-Chip Movie Rating menu:

1. Press MENU on the remote control (the Main Menu appears).

2. Select Parental Controls.

3. Select USA V-Chip.

4. Select V-Chip Movie Rating.

Blocking Movie Ratings

If you only want your child to watch movies that have a PG rating and lower (in other words, movies rated PG and G),

then you could automatically block out all other movies with higher ratings.

To block movies:

1. Highlight the rating that is the lowest rating you don’t want the child to watch. (In the example above, you would

highlight the rating status button corresponding to PG-13, since the highest rating you want the child to watch is

PG.)

2. Press the OK button to change the button from Viewable to Blocked. All higher ratings automatically change to

Blocked.

3. If the TV is not locked, you must lock it so the movie rating limits will take effect.

Note: Some movies may be given a Not Rated (NR) rating. After blocking movie ratings, you must set NR to

Viewable separately to view NR movies.

Viewing Movie Ratings

After you block movie ratings, you have the option of changing some of the rating status buttons back to Viewable:

1. Highlight the rating you want to view.

2. Press the OK button to change the button from Blocked to Viewable.

For example, if movies with a rating of PG-13 and higher are blocked, you can change the rating status

corresponding with NC-17. Your child would then be able to watch all movies with a G, PG, and NC-17 Rating.

3. Exit the screen, and be sure the TV is locked.

Using the TV’s Features

Chapter 3 45

Canada V-Chip

Canadian TV V-Chip supports two different Canadian rating systems: English and French.

Adults. Programming intended for adults 18 and older. It may contain elements of violence,

language, and sexual content which could make it unsuitable for viewers under 18. Violence

guidelines: may contain violence integral to the development of the plot, character or theme,

intended for adult audiences. Other content guidelines: may contain graphic language and explicit

portrayals of nudity and/or sex.

Viewers 14 and over. Programming contains themes or content which may not be suitable for

viewers under the age of 14. Parents are strongly cautioned to exercise discretion in permitting

viewing by pre-teens and early teens. Violence guidelines: may contain intense scenes of violence.

Could deal with mature themes and societal issues in a realistic fashion. Other content guidelines:

may contain scenes of nudity and/or sexual activity. There could be frequent use of profanity.

Parental Guidance. Programming intended for a general audience but which may not be suitable

for younger children (under the age of 8). Parents may consider some content inappropriate for

unsupervised viewing by children aged 8-13. Violence guidelines: depictions of conflict and/or

aggression will be limited and moderate; may include physical, fantasy, or supernatural violence.

Other content guidelines: may contain infrequent mild profanity, or mildly suggestive language.

Could also contain brief scenes of nudity.

General Audience. Programming considered acceptable for all ages groups. While not designed

specifically for children, it is understood younger viewers may be part of the audience. Violence

guidelines: will contain very little violence, either physical or verbal or emotional. Will be sensitive

to themes which could frighten a younger child, will not depict realistic scenes of violence which

minimize or gloss over the effects of violent acts. Other content guidelines: there may be some

inoffensive slang, no profanity and no nudity.

Children 8 and Older. Programming generally considered acceptable for children 8 years and over

to watch on their own. Violence guidelines: violence will not be portrayed as the preferred,

acceptable, or only way to resolve conflict or encourage children to imitate dangerous acts which

they may see on television. Any realistic depictions of violence will be infrequent, discreet, of low

intensity and will show the consequences of the acts. Other content guidelines: there will be no

profanity, nudity or sexual content.

C (Children) Programming intended for children under age 8. Violence guidelines: careful attention

is paid to themes which could threaten children’s sense of security and well being. There will be no

realistic scenes of violence. Depictions of aggressive behavior will be infrequent and limited to

portrayals that are clearly imaginary, comedic or unrealistic in nature. Other content guidelines:

there will be no offensive language, nudity or sexual content.

C8+

Age-Based

Rating Canada V-Chip English Rating System

18+

14+

Using the TV’s Features

46 Chapter 3

Canada V-Chip

The English or French Canada V-Chip TV Rating lets you decide which

TV programs can and cannot be viewed. To set TV programming limits:

1. Choose Parental Controls from the Main menu. If Parental Controls

(TV) have previously been locked, you must enter your password.

2. Highlight Canada V-Chip and select either Canada’s English Ratings

or French Ratings.

3. Once you get to the English or French Ratings screen, use the arrow

buttons and OK on your remote to change the status of a TV

program rating or content theme from Viewable to Blocked.

V-Chip Unrated Program Block

Selecting this option lets you decide if programs that the V-Chip

recognizes as “Unrated” (USA) and “Exempt” (Canada) can be viewed.

Note that “Unrated” and “Exempt” TV programs may include news, sports,

political, religious, local and weather programs, emergency bulletins,

public announcements, and programs without ratings, the movie rating

“N/A,” and the TV rating “None” and the Canadian rating of “Exempt.”

Block Unrated and Exempt Programs All unrated and exempt

programs are available.

View Unrated and Exempt Programs All unrated and exempt

programs are not available.

Note: You must remember to lock the TV for rating limits to take

effect.

Front Button Block

V-Chip Unrated

Canada V-Chip

USA V-Chip

Antenna Ch. List

Cable Channel List

Video Input List

Lock TV

Go Back

Main Menu Parental Controls

Unrated programming can either be blocked or viewable when

the TV is locked. Press OK to continue.

Note: "Unrated" and "Exempt" TV programs may include

news, sports, political, religious, local and weather

programs, emergency bulletins, public announcements,

programs without ratings, the Movie rating "N/A",

the USA TV rating "None", and the Canadian rating of

"Exempt" (E).

The TV must be locked for the V-Chip Unrated feature to be

enforced.

Web Browser Block

View Unrated and Exempt Programs

Block Unrated and Exempt Programs

Adults. Programming is for adults only. This program contains sustained violence or extremely

violent scenes.

Viewers 16 and over. Programming is not suitable for those under age 16. This program contains

frequent scenes of violence or intensely violent scenes.

13+ (Viewers 13 and over) Programming may not be suitable for children under the age of 13. This

program either contains several violent scenes or one or more scenes that are violent enough to

affect them. Viewing in the company of an adult is therefore strongly recommended for children

under the age of 13.

8+ (Viewers 8 and over) Not recommended for young children. This program is suitable for most

audiences, but it contains mild or occasional violence that could upset young children. Viewing in the

company of an adult is therefore recommended for young children (under the age of 8) who do not

distinguish between reality and imagination.

G (General Audience) This program is suitable for audiences of all ages. It contains no violence, or

any violence that it does contain is either minimal or is presented in a humorous manner, as a

caricature, or in an unrealistic way.

Age-Based

Rating Canada V-Chip French Rating System

18+

16+

13+

French Ratings

English RatingsEnglish Ratings

Go Back

Main Menu Parental Controls Canada V-Chip

Press OK to block or view programs with this rating and

corresponding themes. Pressto return to the menu.

You may not need to set the options on this screen unless

you live in or near Canada.

The TV must be locked for the rating limits to be enforced.

Blocked

Viewable

Rating Status

"18+"

"14+"

"PG"

"G"

"C8+"

"C"

Not Rated

Movies

Blocked

Using the TV’s Features

Chapter 3 47

Front Button Block

Selecting this option lets you block (disable) or unblock (enable) the TV’s

front buttons. The remote still tunes to any channel. Front Panel Block can:

• Keep children from watching TV when the parent is not present.

• Keep young children from playing with the buttons on the TV.

(When using this as a Parental Control method, you should remove

access to any remote that is capable of operating the television.)

Don’t forget to lock the TV after you select Blocked. If you do not, the

front panel block will not take effect.

Note: If power to the TV is lost for an extended period, the buttons

become unblocked.

Web Browser Block

Selecting this option lets you decide if the web browser can be accessed.

Block Web Browser Need a password to view web content when

TV is locked.

View Web Browser Web browser is accessible without a

password when TV is locked.

Make sure the TV is locked. If you do not, Web Browser Block will not

block browser access even if you set Block Web Browser.

Front Button Block

V-Chip Unrated

Canada V-Chip

USA V-Chip

Antenna Ch. List

Cable Channel List

Video Input List

Lock TV

Web Browser Block

Go Back

Main Menu Parental Controls

Press OK to block (disable) the buttons on the front of the TV.

Only the remote or keyboard will control the TV.

When the buttons on the TV are blocked and the TV is

locked, only the remote or keyboard will control the TV.

This keeps children from playing with the buttons. It also

keeps children from watching TV when a guardian is not

present (you must hide the remote for this to be effective.)

Note: If power to the TV is lost for a prolonged time (e.g.,

due to a power outage) the buttons become unblocked.

Front Buttons Unblocked

Front Buttons Blocked

Web Browser Block

Front Button Block

V-Chip Unrated

Canada V-Chip

USA V-Chip

Antenna Ch. List

Cable Channel List

Video Input List

Lock TV

Go Back

Main Menu Parental Controls

Access to the web browser can be blocked to require a

password when the TV is locked. Press OK to continue.

This television has an Ethernet connection and a built-in web

browser for accessing the Internet with a cable modem or

DSL unit. If you want access to the web browser to require

a password, select "Block Web Browser" and lock the TV.

View Web Browser

Block Web Browser

Auto Tuning Feature

The way you set up the Auto Tuning feature in the TV’s menu

corresponds to the component buttons on the remote and the way you

have each component connected to your TV. When you set auto tuning,

you’re telling the TV what channel or input to tune to when you press

the VCR, DVD, AUDIO, or SAT/CAB button on the remote control. This

is especially useful for going directly to an input like DTVLink.

Note: If you need to reprogram the AUX button, or instead want to

program the VCR button, use the 2001 code. Then use the VCR2 option in

the auto tuning menu to set auto tuning.

1. Press MENU (the MAIN MENU appears)

2. Highlight Connections and press OK.

3. Highlight Auto Tuning and press OK

4. Highlight the component button field and continually press OK to

scroll through the selection of inputs.

The choices and a brief explanation follow:

Special Features

Ethernet Setup

DTVLink Setup

Auto Tuning

Video Input Setup

Signal Source

Software Upgrade

Channel Search

Signal Strength

Go Back

Main Menu Connections

Press OK to select the channel or input that is tuned when

the VCR key is pressed on the remote.

Select which input or channel should be automatically tuned

when a button listed below is pressed on the remote control.

RCA SAT2

Not Connected

SAT-CABLE (Satellite or Cable Box)

Input 3

DVD

Input 2

VCR2 (AUX default)

Not Connected

VCR

Input 1

AUDIO (Audio Receiver/Amp)

Not Connected

With the Auto Tuning feature, you can set up

the TV to tune to the channel or input you want

to watch by pressing that component’s button.

Auto Tuning for the TV button cannot be set.

DVD VCR

AUX AUDIO

SAT

CAB

Using the TV’s Features

48 Chapter 3

Not Connected Choose this if you don’t have this particular component connected to the TV, or if you don’t

want the TV to automatically tune to the correct channel when you press one of the component buttons on the

remote.

Channel 2, 3 or 4 Cable Input Component is connected to the CABLE INPUT jack on the back of the TV,

and you want the TV to tune to channel 2, 3, or 4 when you press the corresponding button on the remote.

Reminder: make sure the component’s Channel 2/3 or 3/4 switch is set to match the channel you choose in

Auto Tuning.

Channel 2, 3 or 4 Antenna Input Component is connected to the ANTENNA INPUT jack on the back of the

TV, and you want the TV to tune to channel 2, 3, or 4 when you press the corresponding button on the remote.

Reminder: make sure the component’s Channel 2/3 or 3/4 switch is set to match the channel you choose in

Auto Tuning.

Input 1, Input 3 Component is connected to the Input 1 or 3 Video (V) or S-VIDEO jack on the back of the TV

and you want the TV to tune to the Video Input Channel when you press the corresponding button.

Input 2, Input 4 Compatible video source, such as a DVD player or satellite receiver, is connected to the

Input 2 or 4 COMPONENT/COMPOSITE INPUT jacks (Y/Video•Pb•Pr) on the back of the TV and you want the

TV to tune to the composite/component video input when you press the corresponding button.

HDMI Component is connected to the HDMI/DVI jack on the back of the TV and you want the TV to tune to

this input when you press the corresponding button.

DTVLink DTVLink components connected to the DTVLink jacks on the back of the TV can also be autotuned.

PIP (Picture-in-Picture) Operation

The PIP (Picture-In-Picture) feature lets you display a second, smaller analog (NTSC format) picture on top of

the main analog picture. You will only be able to use the PIP window and main picture with analog channels

and inputs; PIP doesn’t support digital signals. The main and PIP channels must be from different tuners or

inputs; for example, main is from INPUT 1 and PIP is from ANTENNA INPUT. If you are only using tuners for

PIP and main, you must have the main picture from CABLE INPUT and the PIP picture from ANTENNA INPUT,

or vice-versa.

PIP Buttons

There are certain remote buttons that control the way the PIP window

works:

PIP Brings up the PIP window. Press PIP again to remove the window.

Arrows Let you move the PIP window to different areas of the screen.

SWAP Switches the video from the PIP window to the main picture.

FREEZE Freezes entire screen, including the main picture and PIP

window, if PIP is displayed.

CH CTRL (Channel Control) Lets you switch channel control between

the PIP window and the main picture. To determine whether you are

controlling the PIP or the main picture, look at the channel banner as you

change channels or press INFO button. The triangular indicator ( ) beside

the channel number lets you know which picture you’re controlling with

channel up/down, number buttons, etc.

Tip

If you want to go directly to an input or channel in PIP

(or main), set up auto tuning and press the component

button (VCR, DVD, etc.).

Arrow

buttons

PIP

buttons

CH. CTRL

SKIP

PIP SWAP

PRESETS FAV

SOUND

CLEAR

FORMAT INFO

FREEZE

LIGHT

CCCC

CC MM

Using the TV’s Features

Chapter 3 49

Using the PIP Feature

The PIP feature is only available for analog (NTSC) channels; PIP won’t work when tuned to a

digital (ATSC) channel. Use the channel banner to determine whether a channel is digital or

analog. A digital (ATSC) channel has a dash and second number after it (e.g., 21-2); an analog

channel doesn’t (e.g., Ch 21). While you may use PIP in different ways, this basic PIP scenario

should get you started. When watching an analog channel, follow these steps.

1. Press the PIP button on the remote control. The PIP window appears on the screen and

Channel Control is automatically set to the PIP window.

2. To change the PIP channel, use the channel up and down, INPUT, ANT/CAB, number buttons,

or component buttons that have been auto tuned.

3. To change the program in the main picture window, press CH CTRL. Then use any of the

above mentioned buttons. To go back and forth between controlling the PIP window and the

main picture, press the CH CTRL button.

PIP Problems?

• If you are channel surfing in the main window and PIP disappears, you may have tuned to a

digital channel. To view PIP and the main picture, make sure that both the main and PIP

channels are analog inputs, or signals. Continue changing the channel until you find an analog

(NTSC format) channel. The PIP window will reappear.

• If you press PIP and the PIP window is gray, you may have activated the Parental Control

feature and the program exceeds the rating limits you set. For information on removing limits,

see the section “Parental Controls.”

• You cannot view closed captioning in the PIP window.

• PIP channel skips all digital (ATSC) TV channels and tunes to analog channels.

• PIP can only be displayed in analog signals from CABLE, ANTENNA, composite, S-VIDEO and

component (Y, Pb, Pr) inputs in 480i format.

PIP Ch 8 Unrated Cable Input

Ch 8-1 WLPJ

Antenna Input

4:3 Normal 480i SDListening to English in SRS

MPAA - Not Rated

12:39 PM12:30 AM00:30Program Title/Acquiring Channel

PIP channel number

Main picture

channel

number

Channel

control

indicator

The message “PIP Not Viewable” in the channel banner lets you know that PIP is not

available on this channel and you should tune to another channel.

PIP Not Viewable Cable Input

Ch 8-1WLPJ

Antenna Input

4:3 Normal 480i SDListening to English in SRS

MPAA - Not Rated

12:39 PM12:30 AM00:30Program Title/Acquiring Channel

Using the TV’s Features

50 Chapter 3

Using the Web Browser

Important: To use the TV’s browser, you must have your TV

connected to the Internet (e.g., cable modem or DSL) and subscribe to

an Internet Service Provider (ISP).

You can start the browser on your TV by selecting it from the main

menu. The TV front panel and remote control provide basic navigation

without a keyboard. If you launch the browser from the main menu, a

message pops up to suggest that you use the keyboard with this TV to

connect to the Internet. The supplied keyboard allows you to get

optimum use of the web browser features.

Web Browser

Assisted Setup

Preferences

Connections

Parental Controls

Recordings

Audio

Picture Quality

Go Back

Main Menu

This television has a built-in web browser for linking to the

Internet. To fully operate the web browser, you will need

the right keyboard, a connection to the Internet via the

Ethernet jack, and an Internet service provider.

Some remote keys will allow limited pointing (arrow keys),

selection (OK key), and BACK and FORWARD web page

navigation (REVERSE and FORWARD keys). To quit the

browser from the remote, press CLEAR. To open the

web browser now, press OK.

Press OK orto launch the web browser and connect to the

Internet.

Tips

If you use the video window in the browser and you

press channel up/down and the video window seems to

disappear, this means you’ve either tuned to a channel

which is blocked or has a weak signal. Use the channel

up/down to go to another channel.

Sometimes the browser locks onto an incompatible

website and it won’t open. Exiting the browser will not

correct this condition. When the browser is restarted,

the browser returns to the last-used website. To correct

this condition, either press a FAV button to go to a

known good website or press “Address” and type in a

good website.

You can use channel up/down, ANT/CAB, INPUT, or

component buttons you’ve set with auto tuning to

tune to a different channel in the video window.

Number keys cannot be used to tune channels in the

video window.

When you start the browser for the first time, it goes to an InFocus website. All FAV keyboard buttons are also

initially programmed to that site. The FAV SEARCH and FAV HOME buttons on the keyboard default to a search

site but you can reprogram them.

The FORMAT button on your remote (or keyboard) allows you to cycle through various combinations of a less

than full screen browser and some TV video. Just press the button again to use a different format.

To close the browser entirely, press CLEAR on the remote.

You may discover that other browser windows are open. This may be the result of a pop-up window being

delivered from the site you were viewing. Press “Close Window” button to close it or click the “Close Window

icon” on the window.

Note: The browser won’t display streaming video or audio, and some animated graphics.

Saving Your Favorite Web Address

Program any favorite (FAV) key, including HOME and SEARCH, to any

website address (URL). After you’ve browsed to a favorite web address,

just press the desired key and hold it until a message appears. That site’s

address will be assigned to the key you pressed and saved in the TV.

The next time you press the key briefly, the browser will automatically

go to the site you saved. Access programmed favorite websites using

your remote by pressing FAV + number button. To view FAV HOME,

press FAV + 0; to view FAV SEARCH, press FAV + 7.

You can store 32 additional website addresses by using the following

buttons together: SHIFT and FAV, CTRL and FAV, ALT and FAV.

If you have the optional keyboard, previously visited sites are also

available as a drop-down listing from the address bar. The list can hold

only a certain number of addresses, so at some point a new address will

replace the oldest one.

Using the TV’s Features

Chapter 3 51

Controlling the Web Browser

As stated previously, the remote control and front panel buttons support only basic browser

functions. However, the keyboard makes browser navigation much easier and is the only way to

enter a web address. Below is a table that shows which remote buttons work what function.

Special Features

Ethernet Setup

DTVLink Setup

Auto Tuning

Video Input Setup

Signal Source

Software Upgrade

Channel Search

Signal Strength

Go Back

Main Menu Connections

Two lines of help text will appear in this area to explain the

feature and instruct the user on how to use it.

The DTVLink Setup menu has screens for setting up DTVLink

devices to work with the TV.

•DTVLink Connect: Set an analog input for a DTVLink device.

•Recording Device: Select a default digital recording device.

DTVLink Recording

The 2-way DTVLink jacks enable you to connect a compatible Audio/

Video Hard Disk Drive (AVHDD) and/or a Digital VCR (DVCR) so you

can record and play digital content.

Web Browser Button Interaction

Remote: Front Panel: Browser Function:

MENU MENU/OK Closes browser and opens main menu; press OK to select weblink

CLEAR Quits the browser

SWAP Displays the previous browser window, if multiple windows are displayed

CH CTRL Displays the next browser window, if multiple windows are displayed

STOP Stops loading the current page; STOP

PLAY Reloads the current page; REFRESH

REVERSE Go to the previous page if one exists; BACK equivalent on optional keyboard

FORWARD Go to the next page if one exists; FORWARD equivalent on optional keyboard

FORMAT Toggles between Full-Size browser and browser plus video in multiple layouts

Up/Down/Left/Right Arrow Moves the cursor in the web page

You should know:

• Only digital content can be recorded with the DTVLink jacks. Analog TV programs cannot be recorded

through the TV’s DTVLink jacks.

• You can only record content if the DTVLink component connected enforces copy protection standards

(check your DVCR or AVHDD manual).

• When the TV is tuned to the DTVLink input channel and the remote is in the TV mode, you can use the

remote for some basic transport controls, such as RECORD, STOP, FAST FORWARD, REVERSE, PAUSE, and

PLAY. Some components support advanced functionality with CH+/-, Go BACK, and 0-9 number buttons.

• Don’t change channels when you are recording because recording will stop.

• A message appears when you press the RECORD button to let you know the DTVLink component is

recording the channel that you selected.

• You can record subchannels on a major channel, but only the subchannel selected is recorded.

• The program name, channel, track number, DTVLink-model name, and elapsed time for DTVLink

recordings appear in the channel banner (some information is available only for AVHDD and not for

DVCR). To access the channel banner, press INFO on the remote control. Press the up/down arrow buttons

to scroll through the track numbers (recordings) in the channel banner.

Note: Use the Recordings menu in the Main menu to play and delete recordings.

Using the TV’s Features

52 Chapter 3

For the different subchannels, press CH+ or CH-. In addition, pressing the left arrow button

allows instant replay and pressing the right arrow button skips ahead on an AVHDD.

• To do a DTVLink timer recording, schedule it through the Record/Wake Timer menu (go to page

69). Once the timed recording is set up, the TV automatically makes a timed DTVLink recording

if the channel is digital, no matter what signal source is selected. The recording takes place every

day for the duration that is selected in the Record/Wake menu.

Channel SearchRecording Device

DTVLink Connect

Go Back

Main Menu Connections DTVLink Setup

Select a functionality level for the above device:

Press  or  to point to an option, then press OK to

select it. Press to return to the menu.

Select which digital device should record when RECORD is

pressed while watching a digital program:

Use it as the default recording device.

(Best choice if a DVCR is the default device)

Use it as the default recording device, and autotune the

TV to that device when RECORD is pressed.

DVR2160 RCA

Set up DTVLink Recording Preferences

To successfully record digital content via the DTVLink Input/Output jack, you need to set up the

Recording Device screen.

1. Go to the DTVLink Setup menu in the Connections menu.

2. Highlight Recording Device, and press the OK button (only DTVLink

components that are capable of recording appear). If you have more

than one DTVLink recording component, press OK to pick the

DTVLink default recording component (i.e., the component you want

to record when you press RECORD on the remote or set up a

Record/Wake Timer).

3. Select what you want the recording device to do when you begin recording:

Select Use it as the default recording device if you have a DVCR connected. Recording starts

when you press the RECORD button. The TV doesn’t tune to the DTVLink component’s input

to allow you to view the channel you’re recording.

Select Use it as the default recording device, and autotune the TV to that device when RECORD

is pressed. This goes to the DTVLink component’s input and lets you view what’s being

recorded when you press the RECORD button.

Emergency Alert System (EAS)

The EAS works only if you have a digital cable card connected to the CableCARD slot on the back

of the TV. Your cable company informs you of emergency alert information related to your state or

local-level emergencies, such as Flash Flood Warnings, Severe Thunderstorm Warnings, and

Tornado Watches. When your TV receives a state or local-level emergency, a message is displayed

that lasts approximately 2 minutes, but can be repeated if necessary. During this time, you can’t

clear the information being displayed. In the rare event that there is an national-level emergency,

your TV would tune to a channel broadcasting the emergency information.

Graphics contained within this publication are for representation only. 53

Chapter 4

Using the TV’s

Menu System

Chapter Overview:

• Menus, On-Screen Help, and Control Panels

• Picture Quality Menu

• Audio Menu

• Recordings Menu

• Connections Menu

• Preferences Menu

54 Chapter 4

Using the TV’s Menu System

Tips

A shortcut method to access a menu item is to

press the number button on the remote that

matches the number next to the on-screen

menu. For example, in the Main Menu, press 2

to go straight to the Audio menu.

Feel free to explore the menu system. If you’re

ever unsure where you are in the menu system,

look at the menu path at the top (for example,

Main Menu, Picture Quality) or if you’re just

tired of exploring, press CLEAR to remove the

menus from the screen and start over again.

Menus, On-screen Help, and Control Panels

This section highlights your TV’s on-screen menu system. The menu system has several types of

screens. An overview follows.

Note: The Parental Controls and Web Browser menu items are discussed in the Features

chapter while Assisted Setup is discussed in the Connections and Setup Chapter.

Navigating the Menu System

The first menu you see when you press the MENU button on the remote is

called the Main Menu. To access the Main Menu:

1. Press the MENU button (the Main Menu appears).

2. Use the arrow buttons (left, right, up, down) to move through the menu

and highlight different options.

3. Press the OK button to select a highlighted item.

Note: Press the number button on the remote that matches the number

next to the on-screen menu to select the option.

To exit the Main Menu:

• Press CLEAR. The on-screen displays are cleared from the screen and you

return to TV viewing.

• Press MENU.

• Press 0 (Go Back) or GO BACK on the remote.

Assisted Setup

Preferences

Connections

Parental Controls

Recordings

Audio

Picture Quality

Go Back

Main Menu

Press OK or  to access the Picture Quality menu.

•Picture Settings: Adjust the levels that affect the picture.

•Picture Presets: Choose preset levels of Picture Settings.

•Auto Color: Correct the color from channel to channel.

•Color Warmth: Adjust the color to Cool, Warm, or Normal.

•Noise Reduction: Reduce picture "static" or interference.

•Green Stretch: Intensify and enhance shades of green.

•Edge Enhancement: Make the picture's edges sharper.

•Contrast Expand: Intensify and enhance shades of black.

•Advanced Settings: Fine-tune the picture and its position.

The Picture Quality menu has screens for optimizing the

picture for each of the TV's inputs:

Web Browser

Special Features

Ethernet Setup

DTVLink Setup

Auto Tuning

Video Input Setup

Signal Source

Software Upgrade

Channel Search

Signal Strength

Go Back

Main Menu Connections

Press OK to select the channel or input that is tuned when

the VCR key is pressed on the remote.

Select which input or channel should be automatically tuned

when a button listed below is pressed on the remote control.

RCA SAT2

Not Connected

SAT-CABLE (Satellite or Cable Box)

Input 3

DVD

Input 2

VCR2 (AUX default)

Not Connected

VCR

Input 1

AUDIO (Audio Receiver/Amp)

Not Connected

Menu Path

Help Text

Highlighted

Selection

On-Screen Help

Information appears on most screens to assist you in understanding your menu

selection. To the right of the highlighted menu item is a display area that might

provide text for the item selected along with any submenu items. In addition, a

menu path appears at the top of the screen to let you know where you are in

the menu system. At the bottom of the screen are two lines of help text that

explain the currently highlighted item.

Controls

Controls let you adjust the default settings of your TV. You can choose a setting,

enter a number, or adjust a level such as tint or brightness. There are four types

of controls:

• Sliders

• Choice lists (check boxes, radio buttons)

• Alpha/numeric entries

• Menu (action, choice fields)

Chapter 4 55

Using the TV’s Menu System

Sliders

Sliders are used to select a specific point of a control that has continuous levels.

To make adjustments:

1. Highlight the slider for the feature you want to adjust.

2. Press the up or down arrow button to adjust the indicator on a vertical

slider. Press the left or right arrow to adjust the indicator on a horizontal

slider.

Choice Lists

Check boxes and radio buttons are used to select options from a list. Check

boxes let you select one or more options. A radio button lets you select only

one option.

1. Use the arrow buttons to move left/right/up/down.

2. Press OK to select a radio button; press OK to select or de-select a check

box.

Numeric Entries

Numeric entry fields are used to enter numbers, passwords, and time values.

The number buttons on the remote and the arrow, channel up/down, volume

up/down, MENU and OK buttons on the front panel can be used to enter the

information.

1. Use the left/right arrow button to highlight the field.

2. To enter time values, such as the Record/Wake Timer, highlight the + or -

field and press OK to change the time, or simply use the number buttons.

To enter passwords, you must use the number buttons.

On-screen Menu Items

The on-screen menu items are used to access the information and/or change

the settings of the specific item highlighted. Highlight the item with the up and

down arrow buttons. Then press OK or right arrow button to access the item’s

information. To make a selection in one step, press the number button

corresponding to the item.

Action Buttons

An on-screen button that performs the action labelled on the button. Press the

right arrow button to highlight and press OK to select.

Choice Fields

A choice field cycles through at least two or more choices. Press OK to select

the next entry within the choice field. Moving the highlight to a different choice

field, pressing CLEAR, or exiting the menu saves the selection previously made.

Radio ButtonsCheck Boxes

Software Upgrade

Channel Search

Signal Strength

Go Back

SkipFull SearchContinue

DVD

Input 2

VCR2 (AUX default)

Not Connected

VCR

Input 1

ConnectionsBalance

Turn TV On at: Turn TV Off at:

12:00 1:15

1:15

pm pm

13%45%48%61%51%

100

56 Chapter 4

Using the TV’s Menu System

Picture Quality Menu

The Picture Quality menu contains menus to configure video settings: Picture

Settings, Picture Presets, Auto Color, Color Warmth, Noise Reduction, Green

Stretch, Edge Enhancement, Contrast Expand, and Advanced Settings. Each one

is described below.

Note: When changing an item in the Picture Quality menu, the graphics

become transparent so you can see how your adjustments affect the picture.

To access the Picture Quality menu:

1. Press MENU on the remote control (the Main Menu appears).

2. Highlight Picture Quality and press OK (the Picture Quality options appear).

Each is described below.

Note: When making Picture Quality changes, inputs are all adjusted

independent of each other. Digital cable and antenna channels are

adjusted independent of analog cable and antenna channels.

Picture Settings

The Picture Settings menu displays five slider controls for adjusting the way the

picture looks. Your options under the Picture Settings menu are:

Contrast Difference between the light and dark areas of the picture.

Color The richness of the color.

Tint The balance between the red and green levels.

Black Level The brightness of the picture.

Sharpness The crispness of the edges in the picture.

To create picture settings for the video inputs:

1. Press the INPUT button while in the Picture Settings menu until the correct

Video Input Channel appears in the upper right corner.

2. Press the right and left arrow buttons on the remote control to select the

slider.

3. Press the up and down arrow buttons to operate the slider.

Picture Presets

Picture Presets displays a choice list that lets you select one of the six preset

picture settings: Vibrant (Day), Natural, Cinematic (Night), Videogame,

Professional, and Personal.

Choose your setting based on the degree of lighting in your room. After you

select a preset, the settings listed to the right are adjusted automatically.

If you choose Personal, you can customize each Picture Quality setting to your

desired level, and a message appears to asking if you want to save those settings.

After you’ve saved your personal settings, you can go back into the menu and

select a different picture preset. For example, if you normally use Personal but

want to watch a show in Vibrant (Day) lighting, choose Vibrant (Day), watch

the show, and then afterwards return to your customized settings by choosing

Personal. The PRESETS button on the remote works with Picture Presets. Go to

the Remote chapter for more information.

Assisted Setup

Preferences

Connections

Parental Controls

Recordings

Audio

Picture Quality

Go Back

Main Menu

Press OK or  to access the Picture Quality menu.

•Picture Settings: Adjust the levels that affect the picture.

•Picture Presets: Choose preset levels of Picture Settings.

•Auto Color: Correct the color from channel to channel.

•Color Warmth: Adjust the color to Cool, Warm, or Normal.

•Noise Reduction: Reduce picture "static" or interference.

•Green Stretch: Intensify and enhance shades of green.

•Edge Enhancement: Make the picture's edges sharper.

•Contrast Expand: Intensify and enhance shades of black.

•Advanced Settings: Fine-tune the picture and its position.

The Picture Quality menu has screens for optimizing the

picture for each of the TV's inputs:

Web Browser

Contrast Expand

Advanced Settings

Edge Enhancement

Green Stretch

Noise Reduction

Color Warmth

Auto Color

Picture Presets

GUIDE Plus+ MenuPicture Settings

Go Back

Main Menu Picture Quality

Picture Settings lets you adjust aspects of the picture you

are viewing. Press OK to adjust the picture settings.

Sharpness

13%

Black

Level

45%

Tint

48%

Color

61%

Contrast

51%

100

The Personal picture presets settings are:

Contrast

Color

Tint

Black Level

Sharpness

Auto Color

Color Warmth

Noise Reduction

Green Stretch

Edge Enhancement

Contrast Expand

65%

70%

55%

60%

55%

Cool

Frame Comb

High

Low

High

Contrast Expand

Advanced Settings

Edge Enhancement

Green Stretch

Noise Reduction

Color Warmth

Auto Color

Picture PresetsPicture Presets

Picture Settings

Go Back

Main Menu Picture Quality

Press  or  to point to an option, then press OK to select it.

Press to return to the menu.

A change in this screen is applied to Input 3.

Videogame

Cinematic (Night)

Natural

Vibrant (Day)

Professional

Personal

Tip

To create a temporary personal setting, make

your changes and when the message appears

asking if you want to save the setting, select

No. The preset is saved until you change the

channel or input.

Chapter 4 57

Using the TV’s Menu System

Advanced Settings

Contrast Expand

Edge Enhancement

Noise Reduction

Green Stretch

Color Warmth

Auto ColorAuto Color

Picture Presets

Picture Settings

Go Back

Main Menu Picture Quality

Press  or  to point to an option, then press OK to select

it. Press to return to the menu.

When Auto Color is set to On, it minimizes flesh tone

variations.

A change in this screen is applied to Input 2.

Off

Color Warmth

Color Warmth automatically adjusts the color temperature of the picture. The

feature lets you set one of three automatic color adjustments:

Cool More blue.

Normal Standard picture color.

Warm More red.

Noise Reduction

Noise Reduction displays a list that lets you set one of the three settings that

allows you to reduce picture “static” or any type of interference. A different

Noise Reduction setting can be stored for each input, but only applies to

components connected to composite and NTSC sources. You can set the Noise

Reduction to Frame Comb, Off or Adaptive. The settings are explained in the

on-screen help text.

Contrast Expand

Advanced Settings

Edge Enhancement

Green Stretch

Noise Reduction

Color WarmthColor Warmth

Auto Color

Picture Presets

Picture Settings

Go Back

Main Menu Picture Quality

Press  or  to point to an option, then press OK to select

it. Press to return to the menu.

Color Warmth automatically adjusts the "temperature" of

the picture. Cool gives a more blue pallete of picture colors.

Warm gives a more red pallete of picture colors.

A change in this screen is applied to Input 2.

Warm

Normal

Cool

Edge Enhancement

Contrast Expand

Advanced Settings

Green Stretch

Noise FilterNoise Reduction

Color Warmth

Auto Color

Picture Presets

Picture Settings

Go Back

Main Menu Picture Quality

Press  or  to point to an option, then press OK to select

it. Press to return to the menu.

Noise Reduction reduces the appearance of video noise

on composite video sources, giving a smoother picture.

For other sources of video, the Noise Reduction is not active.

The Frame Comb setting provides a constant level of

improvement. In the Adaptive setting additional filtering

is applied, increasing only as the noise content increases.

A change in this screen is applied to Input 2.

Off

Adaptive

Frame Comb

Edge Enhancement

Contrast Expand

Advanced Settings

Green Stretch

Noise FilterNoise Reduction

Color Warmth

Auto Color

Picture Presets

Picture Settings

Go Back

Main Menu Picture Quality

Press  or  to point to an option, then press OK to select

it. Press to return to the menu.

A change in this screen is applied to Input 2.

High

Low

Off

Advanced Settings

Contrast Expand

ConvergenceEdge Enhancement

Green Stretch

Noise Reduction

Color Warmth

Auto Color

Picture Presets

Picture Settings

Go Back

Main Menu Picture Quality

Edge Enhancement manipulates gradual edge transitions

by making them steeper and sharper. Press OK to continue.

Edge Enhancement "replaces" gradual edge transitions in

the video with steeper edges. This creates a picture with

sharper edges.

A change in this screen is applied to Input 2.

High

Low

Off

Auto Color

Auto Color minimizes the flesh tone variations of the TV picture. Choose On or

Off, depending on your preference.

Green Stretch

Green Stretch makes green “greener” and increases the saturation. For example,

nature shows and sporting events are especially enhanced by this feature. The

options are Off, Low, and High.

Edge Enhancement

Edge Enhancement makes the edges of the video steeper, sharper, and crisper.

There are three options for the edge enhancement: Off, Low, or High. If

artifacts appear in the video, change the setting to Low or Off.

58 Chapter 4

Using the TV’s Menu System

Contrast Expand

Contrast Expand makes the picture appear brighter by deepening the black parts

of the picture. This also helps to maintain a more consistent black level from one

scene to the next. The options are Off, Low, and High.

Advanced Settings

The Advanced Settings option lets you enhance picture performance and adjust

picture position. When you select Advanced Settings, a submenu appears with

options:

Film Mode Automatically detects video sources that were originally

recorded on film and converted to a different format. Film mode modifies

the converted signal so it looks as close as possible to the original, a

process called reverse 3:2 pulldown. Film mode is applied to all inputs.

Options are:

• Advanced The default and recommended setting.

• On Used in circumstances when the TV is to be used solely with

film-based sources.

• Off Use this setting if you think the reverse 3:2 pulldown is causing

distortions in your picture.

Horizontal Position Allows you to adjust the picture left and right. Press

the right arrow button to move the slider right and move the picture to the

right. Press the left arrow button to move the slider left and move the

picture to the left.

Vertical Position Allows you to adjust the picture up and down. Press

the right arrow button to move the slider right and move the picture up.

Press the left arrow button to move the slider left and move the picture

down.

Note: Horizontal and Vertical Position are applied to each input.

Trapezoid- Left If the corners of the left side of the TV appear slanted,

this allows you to adjust the top of the left vertical line of the test pattern.

Press the left or right arrow button to align the test pattern so it is parallel

with the left edge of the screen.

Trapezoid- Right If the corners of the right side of the TV appear

slanted, this allows you to adjust the top of the right vertical line of the test

pattern. Press the left or right arrow button to align the test pattern so it is

parallel with the right edge of the screen.

Note: Trapezoid- Left and Right are applied to all inputs.

Reset ControlsContrast Expand

Edge Enhancement

Green Stretch

Noise Reduction

Color Warmth

Auto Color

Picture Presets

Picture Settings

Go Back

Main Menu Picture Quality

Press OK orto access the Advanced Settings menu.

The Advanced Settings menu has screens that let you

enhance picture performance:

•Film Mode: Improve the quality of movie playback.

•Horizontal Position: Center the picture left/right.

•Vertical Position: Center the picture up/down.

•Trapezoid - Left: Adjust the left edge of the picture.

•Trapezoid - Right: Adjust the right edge of the picture.

•Mirror Adjustment: Adjust all edges of the picture.

•Reset Controls: Sets this input's settings to factory defaults.

Reset ControlsAdvanced Settings

Contrast Expand

Advanced Settings

SVMEdge Enhancement

Green Stretch

Noise Reduction

Color Warmth

Auto Color

Picture Presets

Picture Settings

Go Back

Main Menu Picture Quality

Press  or  to point to an option, then press OK to select

it. Press to return to the menu.

A change in this screen is applied to all inputs.

High

Low

Off

Chapter 4 59

Using the TV’s Menu System

Mirror Adjustment Over time the small mirror inside the TV may shift slightly. You’ll

notice the edges of the picture aren’t symmetrical or parallel, or one of the top corners is

too far in or out. Try adjusting the edges by using Trapezoid- Left and Right. If this doesn’t

help, use the screws behind the front panel piece to adjust the corner edges while watching

the test pattern on screen. Use a 4 mm. Allen wrench or Philips screwdriver to adjust the

screws. Go to page 10 for information on removing the front panel piece and location of

the mirror adjustment screws.

Press OK to select Mirror Adjustment and select Yes to continue. Selecting Yes resets

Trapezoid- Left and Right adjustments you’ve made.

With the test pattern on screen, look at the top corners of the test pattern. Adjust the corner

that is farthest in towards the center of the TV so the top horizontal line is parallel with the

top edge of the TV. For example, if the left corner is farthest in towards the center, turn the

left screw counterclockwise. If you feel a resistance as you turn the screw, stop turning it.

Tightening the screw more could damage it (try turning the opposite screw clockwise).

Now see if the left and right lines are parallel. If they aren’t, use the middle screw to adjust

them until they’re parallel with the edges of the TV. If necessary, use the up and down

arrow buttons on the remote to vertically center the test pattern. To exit the test pattern,

press OK, then use the Trapezoid- Left and Right option to fine tune the picture, if

necessary.

Reset Controls Menu button resets all Picture Quality controls to their original factory

settings (except Personal Picture Preset and Horizontal and Vertical Position) for the

currently tuned input (see on-screen text). To reset the settings, you must:

1. Tune to the input you would like to reset.

2. Press MENU to access the Main Menu.

3. From the Advanced Settings menu, select Reset Controls, and then select Reset to reset

the settings for the currently tuned input.

Videogame Preset Settings

Audio Connections

Balance

SAP

Audio Mode

Sound Logic

Audio Processor

Text hereEqualizer Presets

Go Back

Main Menu Audio

For each input select a different equalizer preset or create a

Personal preset with the equalizer. Press OK to continue.

Personal

Video Camera

Videogame

Voice

Music

Standard

Cinematic

Flat

kHz

7.5

kHz

1.2

kHz

500

200

120

+12

0 dB

-12

Web Browser

Assisted Setup

Preferences

Connections

Parental Controls

Recordings

AudioAudio

Picture Quality

Go Back

Main Menu

Press OK orto access the Audio menu.

•Equalizer Presets: Select a preset or adjust the equalizer.

•Audio Processor: Choose the way for programs to sound.

•Sound Logic: Turn it on to minimize variations in volume.

•Audio Mode: Select default or current audio for digital TV.

•SAP: Turn on SAP to hear different audio for NTSC sources.

•Balance: Shift the audio between the left and right speakers.

•Audio Connections: Set up to match your sound system.

The Audio menu has screens for setting the audio features

and for tweaking the sound:

Audio Menu

The Audio menu lets you adjust audio output. To access the Audio menu, press

MENU on the remote, and then select Audio from the main menu. The following

audio items can be adjusted: Equalizer Presets, Audio Processor, Sound Logic, Audio

Mode, SAP, Balance, and Audio Connections.

Equalizer Presets

You can select one of the seven-band Equalizer Presets or create your own

personal preset. The seven-band graphic equalizer lets you adjust the audio

frequency settings. The equalizer can only be changed if the Fixed/Variable

Audio Output is set to Variable Output, Speakers On. If the Fixed/Variable

Audio Output is set to Fixed Output, you cannot make changes to the equalizer

and the bands are set to 0dB. However, the graphic equalizer levels for

Variable Output, Speakers On are stored in memory in case you switch from

Fixed Output back to Variable Output, Speakers On.

Note: Equalizer Presets are stored for each input. All other audio feature

settings are stored globally across all inputs and not per input.

60 Chapter 4

Using the TV’s Menu System

Audio Connections

Balance

SAP

Audio Mode

Sound LogicSound Logic

Audio Processor

Equalizer Presets

Go Back

Main Menu Audio

Press  or  to point to an option, then press OK to

select it. Press to return to the menu.

Turning Sound Logic on will monitor a program's audio

track and limit volume excursions to a minimum and

maximum volume range from the current volume setting.

Acting like a dynamic range limiter, it compresses the

dynamic range to limit sudden volume increases (for

example, the sudden increase in volume you sometimes hear

when a commercial starts).

A change in this screen is applied to all inputs.

Off

Audio Connections

Balance

SAP

Audio Mode

Sound Logic

Audio ProcessorAudio Processor

Equalizer Presets

Go Back

Main Menu Audio

Press  or  to point to an option, then press OK to

select it. Press to return to the menu.

Select a default for sound expansion:

A change in this screen is applied to all inputs.

SRS

SRS TruSurround XT

Off

Stereo

Mono

Select a default for NTSC (analog) sources:

SRS FOCUS

TruSurround XT, SRS and ( ) symbol are trademarks of SRS Labs, Inc.

TruSurround XT technology is incorporated under license from SRS Labs, Inc.

Audio Processor

The Audio Processor displays a choice list of available audio modes, which

control the way the sound comes through your speakers when TV is set to

using the Variable Output. The selected setting affects all inputs and tuners.

To create the settings:

1. Press the MENU button to access the main menu.

2. Select Audio, and then Audio Processor. The following options appear:

Mono Plays the sound in monophonic audio only. This should only be

used when the stereo signal is weak. The channel banner displays the word

Mono when you have selected Mono and SRS is turned off.

Stereo Splits the incoming stereo audio signal into left and right front

channels. Most TV programs and recorded materials have stereo audio. The

channel banner displays the word Stereo when you have selected Stereo

and SRS is turned off.

The following options are available only if the Fixed/Variable Output is set to

Variable:

Off No SRS processing is applied to the audio.

Adds greater depth and stereo separation to stereo audio signals.

Delivers a panoramic 3D sound stage from stereo material. Use the SRS

FOCUS adjustment on the right to adjust the clarity.

Creates a virtual surround sound from multichannel source material

through any two-speaker playback system. Use the SRS Dialog Clarity

adjustment on the right to adjust the clarity.

Sound Logic

Acting like a dynamic range limiter, it compresses the dynamic range to limit

suggested volume increases (for example, the sudden increase in volume you

sometimes hear when a commercial starts). Choose On or Off, depending on

your preference.

Chapter 4 61

Using the TV’s Menu System

Audio Mode

The Audio Mode menu lets you choose the default audio mode you want to hear

for ATSC or QAM (digital TV) programs. If the Audio Mode icon ( ) in the

banner lights, it means there is more than one audio mode available. The system

automatically sets the audio program to the default audio mode from the menu

when the channel you are viewing is a digital channel and the specified

language is available for that program.

In the Audio Mode menu, highlight the default audio mode you want by

pressing the up and down arrow buttons on your remote control. Press OK to

hear that language by default whenever available on a channel.

Some programs can have audio mode available that can be heard but that

cannot be set as the default. To select and hear those audio modes, navigate to

the “Change Audio” action button and select OK, or use the SOUND button on

remote.

Note: You can change the Audio Mode temporarily by pressing the SOUND

button on the remote control. Changing channels reverts the Audio Mode

back to the Default Audio Mode originally selected in the menu.

SAP (Second Audio Program)

When turned on and available, Second Audio Program plays the analog (NTSC)

program’s audio in a second language. SAP is also used to broadcast a program’s

audio with descriptions of the video for the visually impaired. SAP might also

contain audio which is totally unrelated to the video.

Notes: SAP is broadcast in mono and is only available for analog

programs, not digital programs.

You can activate SAP (if available) temporarily with the SOUND button.

Changing channels or inputs reverts SAP back to the SAP menu setting.

Balance

The Balance setting applies to the internal speakers. Balance is how much audio

(loudness) gets sent to the left and right speakers.

Note: Balance applies if the Fixed/Variable Audio Output is set to

Variable Output, Speakers On. See the following page for more

information.

Audio Connections

Balance

SAPSAP

Audio Mode

Sound Logic

Audio Processor

Equalizer Presets

Go Back

Main Menu Audio

Press  or  to point to an option, then press OK to

select it. Press to return to the menu.

SAP stands for "Second Audio Program". When SAP is

available for a program, the SAP icon in the channel banner

will light up. SAP content can be another language,

descriptions for the visually impaired, or audio not related

to the program (for example, music or news).

If you set "SAP On" and SAP is available for a program, you

will hear SAP for any channel where it is available. SAP is

only available for analog (NTSC) programs.

A change in this screen is applied to all inputs.

Off

Audio Connections

BalanceBalance

SAP

Audio Mode

Sound Logic

Audio Processor

Equalizer Presets

Go Back

Main Menu Audio

Balance allows you to adjust speaker balance output. Slide

the bar left or right to adjust the speaker balance.

Set the balance for the internal and external speakers using

the left and right arrows on the remote control.

A change in this screen is applied to all inputs.

Audio Connections

Balance

SAP

Audio LanguageAudio Mode

Sound Logic

Audio Processor

Equalizer Presets

Go Back

Main Menu Audio

Press OK to change the Currently Playing Audio Language

(if more than one is available).

Default Audio Mode Currently Playing

Audio Mode (1 of 1)

Spanish

The number of Audio Modes available

for the current program is 1.

If the Default Audio Mode is available, then it

will be heard; otherwise, the mode listed

above is heard. Audio Mode is only available

for digital-TV (ATSC) programs.

A change in this screen is applied to all inputs.

Chinese

Korean

Japanese

Italian

German

French

Spanish

English

Change Audio

62 Chapter 4

Using the TV’s Menu System

Audio Connections

The Audio Connections option lets you set up input or outputs associated with

audio. When you select the Audio Connections feature, a submenu appears with

four options: Fixed/Variable Out, Digital Audio Out, and DVI Audio Input.

Digital Audio Out

Fixed/Variable Out

Go Back

Main Menu Audio

Press  or  to point to an option, then press OK to

select it. Press to return to the menu.

Audio Connections

Choosing Auto Select will send a Dolby Digital signal (when

available) out of the DIGITAL AUDIO OUTPUT on the back of

the TV. If Dolby Digital is not available then a PCM signal is

sent out of the DIGITAL AUDIO OUTPUT.

Choosing PCM will always send a PCM signal out of the

DIGITAL AUDIO OUTPUT.

PCM

Auto Select

DVI Audio Input

Fixed/Variable OutAudio Connections

Balance

SAP

Audio Mode

Sound Logic

Audio Processor

Equalizer Presets

Go Back

Main Menu Audio

Press  or  to point to an option, then press OK to

select it. Press to return to the menu.

The Audio Connections menu has screens for setting up

inputs or outputs that are associated with audio:

•Fixed/Variable Out: Choose output for an amp or receiver.

•Digital Audio Out: Choose either Auto Select or PCM output.

•DVI Audio Input: Choose a TV audio input for a DVI device.

Fixed/Variable Out Displays a choice list that lets you turn the TV’s front

internal speakers on or off and set the Fixed/Variable audio output to a

fixed or variable volume output level. The choices are:

• Variable Output, Speakers On Turns the TV’s front speakers On

and allows variable output from the TV’s FIXED/VARIABLE AUDIO

OUTPUT jacks. Use this setting if the TV is not connected to an audio

receiver or amplifier and the volume is controlled by the TV.

• Variable Output, Speakers Off Turns the TV’s front speakers Off

and allows variable output from the TV’s FIXED/VARIABLE AUDIO

OUTPUT jacks. Use this setting if the TV is connected to an audio

receiver or amplifier and the volume is controlled by the TV.

• Fixed Output, Speakers Off Turns the TV’s front speakers Off and

provides fixed output from the TV’s FIXED/VARIABLE AUDIO

OUTPUT jack to a receiver or amplifier. With the Fixed Output, the

TV’s volume control, graphic equalizer, balance, and mute are

disabled. This output is ideal when connecting to an audio receiver

or amplifier that has its own remote control for controlling the

volume.

• Is an external subwoofer connected to the Subwoofer Output?

This option only appears when Variable Output, Speakers On is

selected. Select Yes if you want the low bass frequencies to be

directed from the SUBWOOFER Out jack to the connected external

subwoofer; select No if not.

Digital Audio Out Allows you to receive Dolby Digital surround sound if

transmitted and you’ve connected a six-channel receiver to the TV’s

DIGITAL AUDIO OUTPUT jack with a digital optical cable. Choose the

correct setting in the Digital Audio Out menu:

• Auto Select Your TV automatically chooses between Dolby Digital

and PCM based on the audio signal it is receiving. This is the best

selection if you have a decoder with Dolby Digital and PCM that was

manufactured in the last several years.

• PCM (Pulse Code Modulation) The TV sends all signals through the

Digital Audio Output in PCM.

DVI Audio Input

Digital Audio Out

Fixed/Variable Out

Go Back

Main Menu Audio

Press  or  to point to an option, then press OK to

select it. Press to return to the menu.

Audio Connections

Use Variable Output if volume will be controlled by the TV.

Use Fixed Output when connecting to an audio receiver or

amplifier with its own remote control for volume control.

Is an external subwoofer connected to the Subwoofer Output?

Yes

Note: Answering "Yes" will direct the low-frequency effects signal

to a connected external subwoofer; answering "No" will not.

Select the default for the Fixed/Variable Output:

Fixed Output, Speakers Off

Variable Output, Speakers Off

Variable Output, Speakers On

Chapter 4 63

Using the TV’s Menu System

Ethernet Setup

Special Features

Auto Tuning

DTVLink Setup

Video Input Setup

Signal Source

Software Upgrade

Channel Search

Antenna InfoSignal Strength

Go Back

Main Menu Connections

Press OK to measure the signal strengths of all channels to

help you adjust terrestrial TV antenna(s).

Channel 5 Antenna Input

Digital

Strength: 94

Channel 4 Antenna Input

Analog

Strength: N/A

Channel 3 Antenna Input

Analog

Strength: N/A

Channel 2 Antenna Input

Digital

Strength: 95

Channel 1 Antenna Input

Analog

Strength: N/A

DVI Audio Input Allows you to select the audio input you’re using if

you’ve connected an HDMI/DVI cable adapter to the DVI input. Select from

the inputs listed.

Web Browser

Assisted Setup

Preferences

Connections

Parental Controls

Recordings

AudioAudio

Picture Quality

Go Back

Main Menu DTVLink (DVR10) AVDISC: 11.25 GB available

Press OK orto access the Recordings screen.

Description: Not available

No Title 1 Can 3:00PM 3/1/04

No Title 2 7:00PM 3/2/04

Trip 10:00AM 3/5/04

Summer Vacation 2:00AM 3/6/04

800 GB

Cancel

Play

Delete

Web Browser

Assisted Setup

Preferences

Connections

Parental Controls

Recordings

AudioAudio

Picture Quality

Go Back

Main Menu

Press OK orto access the Audio menu.

•Signal Strength: Check the signal strength of a channel.

•Channel Search: Search for available channels in your area.

•Software Upgrade: Check software version and upgrades.

•Signal Source: Lost remote? This screen changes inputs.

•Video Input Setup: Choose component or composite video.

•Auto Tuning: Create one button access to your devices.

•DTVLink Setup: Configure settings for DTVLink devices.

•Special Features: For advanced users only.

•Ethernet Setup: Configure the Ethernet connection settings.

The Connections menu has screens for specifying and

optimizing the connections (inputs) to the TV:

Recordings Menu

The Recordings Menu allows you to view the list of programs you’ve recorded

to the components connected to your DTVLink jacks. When you highlight and

select a program, the options Cancel, Play, and Delete appear. To play a

program listed, highlight Play and press OK. The program plays in the small

video window. To view the program in full screen, press CLEAR or MENU. You

can see other DTVLink component’s recordings by pressing the INPUT button

with this menu displayed.

Connections Menu

The Connections menu specifies various ways to adjust the inputs to your

television. Items in the Connections menu are: Signal Strength, Channel Search,

Software Upgrade, Signal Source, Video Input Setup, Auto Tuning, DTVLink

Setup, Special Features, and Ethernet Setup.

Digital Audio Out

Fixed/Variable Out

DVI Audio Input

Go Back

Main Menu Audio

Press  or  to point to an option, then press OK to

select it. Press to return to the menu.

Audio Connections

Because an HDMI output carries the audio signal on the same

cable as the video, no setup is needed. However, if you

connect a DVI output to the TV's HDMI input, you need to

connect the separate DVI audio to one of the TV's audio

inputs and select that input in this screen. The TV will use

that audio input for sound when it displays a DVI signal.

Input 2

Input 1

Input 3

Input 4

Select the TV audio input where the DVI audio is connected.

Signal Strength

This screen lists any channel EVER added to the TV. The list shows the channel

number, the station name (only when tuned, e.g. NBC), whether the channel is

digital or analog, which tuner is picking up the channel, and current signal

strength of digital channels.

When you move the highlight to the Signal Strength list, the TV attempts to tune

to that channel. You can then adjust your off-air antenna for maximum signal

strength (largest number) for the selected channel. The signal strength for a

digital channel will be shown as “- -” until the signal is strong enough for use,

then numbers will appear. Analog channels will always have the display,

“N/A”, since analog signal strength is not measured.

Only primary channels appear in the list. Digital subchannels, e.g. 8-1, 8-2, do

not appear.

Note: If you have both Antenna and Cable channels, press the

ANT•CAB button to view your Cable channels, or vice-versa.

64 Chapter 4

Using the TV’s Menu System

Channel Search

Engaging in a channel search tells the TV to search for all the terrestrial TV

channels available through the Antenna and Cable Inputs. When the TV finds an

active channel, it places it in the channel list. Inactive channels (weak stations

or channels with no signal at all) aren’t placed in the channel list.

To do a complete channel search, check each box that pertains to your TV. For

example, if you’re only receiving cable from the CABLE INPUT, highlight Cable

Input and press OK to place a checkmark in the box. Select Start to begin the

search.

Notes: Channel Search with all options selected takes a long time to

complete because all possible analog and digital channels are being

searched.

If a cable box is connected to your TV’s CABLE INPUT or a CableCARD is

in use, Channel Search won’t work for Cable Input.

Software Upgrade

The Software Upgrade screen contains current software information and

indicates if a new upgrade is available. The software information and upgrades

can be accomplished only if you have the TV connected via the Ethernet cable

to the Internet with ISP subscription. Select the Upgrade Now button, if

available, to upgrade your software.

Note: If using a dialup service via a router connected at a dialup speed

of 56K, the Software Upgrade could take several hours or more. If the TV

is unplugged during a Software Upgrade, it could cause the TV to not

operate properly.

Signal Source

The Signal Source menu allows you to choose the source from which you

would like the signal to come: Cable Input, Antenna Input, or Video Inputs. The

same can be accomplished using the component buttons if you’ve set up Auto

Tuning on the remote or by pressing the ANT•CAB or INPUT button. But, if

you misplace the remote, this feature gives you another way to tune to a signal

source.

Special Features

Ethernet Setup

DTVLink Setup

Auto Tuning

Video Input Setup

Signal Source

Software Upgrade

Channel Search

Signal Search

Go Back

Main Menu Connections

Press OK to start a Full Channel Search of both tuners

including automatic detection of Cable or Air antenna.

Channel Search finds channels

for you. Check fewer boxes to

make the search faster (but

less complete) and vice versa.

The first time that you do a

Channel Search, put a check in

all the boxes to do a thorough

search for channels.

Input to search:

Cable Input

Antenna Input

Channels to search:

Digital channels

Analog channels

Other search options:

Detect antenna or cable setting

Include previously found channels in search



To add a channel that Channel

Search didn't find, clear all

menus and directly tune to the

channel with the number keys.

Start

Special Features

Ethernet Setup

DTVLink Setup

Auto Tuning

Video Input Setup

Signal Source

Software UpgradeSoftware Upgrade

Channel Search

Signal Strength

Go Back

Main Menu Connections

You can view your current TV-software version and check

if a new software version is available. Pressto continue.

If you have a connection to the TV's Ethernet jack, your TV

may periodically alert you to the availability of a free

TV-software upgrade which can be downloaded through the

Ethernet jack.

From time to time, your cable company may use the Cable

Input to automatically upgrade the digital-cable software

in the TV. If the TV is on, you'll be notified when it occurs.

Status: A new TV-software upgrade is not available at this time.

If one were available, you would be able to select a button

on this screen to acquire it.

Current TV Software Version and Date: A2.0B/B2.0A

Tip

You can still add a channel that was not found

by Channel Search. Clear any on-screen

menus, and tune to it by using the number

buttons on the remote. If the channel can be

tuned, it will be added to the channel list for

that tuner.

Special Features

Ethernet Setup

DTVLink Setup

Auto Tuning

Signal TypeVideo Input Setup

Signal Source

Software Upgrade

Channel Search

Signal Strength

Go Back

Main Menu Connections

You can select the Air/Cable setting for Antenna A and

Antenna B. Press OK to continue.

Select the Input 4 video source:

The component video (Y PB PR) connectors on the TV can

be changed to accept composite video instead. When using

composite video, connect the yellow RCA cable to the

Y/VIDEO connector on the TV.

Select the Input 2 video source:

Composite Video

Component Video (Y PB PR)

Composite Video

Component Video (Y PB PR)

Special Features

Ethernet Setup

DTVLink Setup

Auto Tuning

Video Input Setup

Signal SourceSignal Source

Software Upgrade

Channel Search

Signal Strength

Go Back

Main Menu Connections

You can select a source from the available signal sources.

Press OK to continue.

Use this screen if you have misplaced your remote control

and need a way to tune to a different antenna or to go to

the video inputs. Use the arrows to highlight the rectangle

then press OK or MENU-OK to scroll to the input you want.

Input 1

Video Input Setup

The Video Input Setup screen lets you choose which type of connection you’re

using for the Input 2 and/or Input 4 jack on the back of the TV. If you decide to

change the connection, you need to go back into the Video Input Setup screen.

Chapter 4 65

Using the TV’s Menu System

Auto Tuning

This menu lets you specify the various components you have connected to your

TV. It lets you program a component button on the remote control (VCR, AUX,

DVD, SAT/CAB, or AUDIO) so that pressing the button automatically turns on

the TV and turns the TV to the correct Video Input Channel (go to Chapter 3 for

detailed information).

Note: If you need to reprogram the AUX button, or instead want to

program the VCR button, use the 2001 code. Then use the VCR2 option in

the auto tuning menu to set auto tuning.

DTVLink Setup

The DTVLink Setup option lets you set items specific to the component(s)

connected to your DTVLink (1394) jack(s).

•DTVLink Connect applies to those DTVLink components that require a

DTVLink and analog connection. Only that type of DTVLink component will

appear. Highlight the choice field under your model, and press OK to

choose the analog input you’re using.

• If you have more than one DTVLink component connected to your TV, the

Recording Device menu allows you to choose which component you want

to use as your default to record when you press the RECORD button on

your remote and component. Go to page 52 for more information on setting

a DTVLink recording and for an explanation of the options in the screen.

Notes: The TV only outputs video and audio to a component which

enforces copy-protection measures.

Some components that don’t support Digital Copy Protection may cause

errors on the DTVLink connection if another source that supports Digital

Copy Protected material is connected to the DTVLink.

Special Features

The special features options are mostly intended for commercial/retail use.

Initial Channel You can select the channel that your TV tunes to each

time the TV is turned on by plugging it back in. Choose a video input or

select Antenna or Cable Input and select a channel.

Initial Volume This feature works only if the Initial Channel feature is set

to On. Select the volume level that you want when the TV is turned on.

Maximum Volume This feature is intended to stop the volume from being

turned up too loudly. Set the volume at the loudest level you would want to

hear.

Initial Volume

Maximum Volume

CableCARD Tools

Remote Setup

Text hereInitial Channel

Go Back

Main Menu Connections Special Features

Press  or  to point to an option, then press OK to

select it. Press to return to the menu.

Select what should occur when power is restored to the TV:

Note: An Initial Channel setting of "On" will be enabled only

when the TV is plugged back in or electricity is otherwise

restored to the TV. Initial Channel is not enabled from the

turning on of the TV with the remote or front buttons.

On: Go to

On: Go to last input or channel selected

Off: Initial Channel is disabled

999Channel Sub-channel 999

Cable Input

Special Features

Ethernet Setup

DTVLink Setup

Auto Tuning

Video Input Setup

Signal Source

Software Upgrade

Channel Search

Signal Strength

Go Back

Main Menu Connections

Press OK to select the channel or input that is tuned when

the VCR key is pressed on the remote.

Select which input or channel should be automatically tuned

when a button listed below is pressed on the remote control.

RCA SAT2

Not Connected

SAT-CABLE (Satellite or Cable Box)

Input 3

DVD

Input 2

VCR2 (AUX default)

Not Connected

VCR

Input 1

AUDIO (Audio Receiver/Amp)

Not Connected

Special Features

Ethernet Setup

DTVLink Setup

Auto Tuning

Video Input Setup

Signal Source

Software Upgrade

Channel Search

Signal Strength

Go Back

Main Menu Connections

Two lines of help text will appear in this area to explain the

feature and instruct the user on how to use it.

The DTVLink Setup menu has screens for setting up DTVLink

devices to work with the TV.

•DTVLink Connect: Set an analog input for a DTVLink device.

•Recording Device: Select a default digital recording device.

66 Chapter 4

Using the TV’s Menu System

CableCARD Tools Displays information available for digital cable TV

services when a CableCARD is inserted in the back of the TV and you have

subscribed to digital cable service. Go to page 20 for more information on

using your CableCARD.

The CableCARD Tools information might vary according to the brand of card

you have inserted into your TV. The graphic to the left is an example of

what you might see. Select an option to view more information.

Some CableCARD Tools screens might have additional information displayed

on more than one page. Use the arrow buttons on the remote to highlight

the blue link at the bottom of the page, for example Continue as the

graphic to the left shows, and simply press the OK button on the remote to

read more text. If more than one link appears, use the arrow buttons to

highlight the one you want. To exit the screen, press CLEAR on the remote.

Use the keyboard or the remote's arrow keys to enter the

host name. This may be the only setup you need to do.

Reset All

Proxy Server

IP Address

Host NameHost Name

Go Back

Main Menu Connections Ethernet Setup

Some Internet Service Providers (phone/cable company)

may require you to provide them with your TV's Ethernet

MAC (Media Access Control) address and assign you with a

device host name to enter below. This is usually NOT

required if connecting to an ISP through an Ethernet

gateway device (e.g. router) supporting NAT/PAT,

sometimes referred to as a DSL/Cable Modem router.

This is your device's MAC address:

00 11 22 33 44 55

If your Ethernet gateway device supports DHCP, the

Domain Name will appear here:

domain.name.here.

If required, enter the device hose name below:

Example status screen for

digital cable television

service.

Example status screen for

digital cable television

service.

Example status screen for

digital cable television

service.

Example status screen for

digital cable television

service.

Example status screen for

digital cable television

service.

Example status screen for

Continue

Initial Volume

Maximum Volume

Remote Setup

CableCARD Tools

Initial Channel

Go Back

Main Menu Connections Special Features

Two lines of help text will apear in this area to explain the

feature and instruct the user on how to use it.

Network Setup

CableCARD™ Status

CableCARD™ Pairing

Conditional Access

Initial Volume

Maximum Volume

CableCARD Tools

Remote Setup

Text hereInitial Channel

Go Back

Main Menu Connections Special Features

Remote Setup can be used to control up to three TV's in the

same location. Press OK to continue.

Select the remote mode that this TV should respond to:

Use this screen if you want to set up this InFocus® TV

to respond to a different InFocus® TV remote mode. By

doing so, you can independently control two InFocus®

TVs that are near each other simply by changing the mode

of the remote. A third InFocus® TV can be added to the

same location and controlled separately if it has this screen

and is set up to respond to a remote mode that is different

than the first two InFocus® TVs.

TV3

TV2

TV (default)

Remote Setup This features allows you to control three different InFocus

TVs. This is helpful if you have two or three InFocus TVs near each other,

and they also have this menu option, but you want to control them

independent of each other. Program a second InFocus TV to the DVD, VCR,

AUX, SAT/CABLE, or AUDIO component button, using the TV2 code 1222.

Select the TV2 option in that TV’s Remote Setup menu. If you have a third

InFocus TV, program a component button using the TV3 code 1223. Select

the TV3 option in that TV’s Remote Setup menu. Go to Chapter 2 for more

information on programming your remote.

Ethernet Setup

If you have a NAT (Network Address Translation)/PAT (Port Address

Translation) component with DHCP capability (router, etc.), no setup is

required. The TV automatically sets itself up for Ethernet use. If you do not

have a NAT/PAT router, you may need to establish some settings in conjunction

with your ISP (Internet Service Provider) before you can connect to the

Internet. See Ethernet connection on page 23 for more information.

If an IP address isn’t assigned for you, contact your network administrator to

access the necessary information.

A Reset All selection is provided for your convenience if you move to another city

and must enter new information, or you enter some incorrect information.

Chapter 4 67

Using the TV’s Menu System

Preferences Menu

The Preferences menu allows you to change some aspects of your TV to fit your

personal preferences. Features in the Preferences menu are: Closed Captioning,

Screen Format, Time Menu, Color Scheme, Translucency, Menu Language,

Power Indicator, and Lamp Power.

Caption Style

Caption Priority

Digital Captions

Analog CaptionsAnalog Captions

Caption Display

Go Back

Main Menu Preferences Closed Captioning

Press  or  to point to an option, then press OK to

select it. Press to return to the menu.

You can select a mode or source of

closed captions for analog-TV

programs.

If the "Caption Priority" feature is set

to "Use the analog captions", then the

analog caption mode you select is

also used for digital-TV programs.

Note: CC1 and Text 1 are the

primary caption and text services.

Text 4

Text 3

Text 2

Text 1

CC4

CC3

CC2

CC1

Caption Style

Caption Priority

Digital Captions

Analog Captions

Text hereCaption Display

Go Back

Main Menu Preferences Closed Captioning

Caption Display lets you select whether closed captioning is

displayed when it is available. Press OK to continue.

You can choose when closed captioning information

should be displayed on the screen.

Note: Not all programs have closed captioning and closed

captioning is not supported on the HDMI input.

On When Muted

Off

Menu Language

Translucency

Color Scheme

Time Menu

Screen Format

Text hereClosed Captioning

Go Back

Main Menu Preferences

The Closed Captioning menu lets you set preferences for how

captions look and act. Press OK to continue.

The Closed Captioning menu has screens for setting closed

captioning features to match your personal preferences:

•Caption Display: Select when captions should appear.

•Analog Captions: Select a default service for analog TV.

•Digital Captions: Select a default service for digital TV.

•Caption Priority: Select digital or analog caption priority.

•Caption Style: Select the appearance of digital captions.

Lamp Power

Power Indicator

Closed Captioning

You may set the type of captioning displayed. Captioning is not available from

the PIP tuner. Choices within the Closed Captioning menu are: Caption Display,

Analog Captions, Digital Captions, Caption Priority, and Caption Style.

Assisted Setup

PreferencesPreferences

Connections

Parental Controls

Recordings

Audio

Picture Quality

Go Back

Main Menu

Press OK orto access the Preferences menu.

•Closed Captioning: Choose the look and type of captions.

•Screen Format: How to format a picture on the 16:9 screen.

•Time Menu: Set up time-related features.

•Color Scheme: Pick a color for the menu system.

•Translucency: Pick a level of translucency for the menus.

•Menu Language: Select from English, Español, and Français.

•Power Indicator: Set the brightness level or turn it off.

•Lamp Power: Set the TV's lamp to a preferred brightness.

The Preferences menu has screens for setting up the TV to

match your personal preferences:

Web Browser

Caption Display

The Caption Display menu displays a choice list that lets you choose when

closed captioning information is shown on the screen. HDMI/DVI input is not

supported by Closed Captioning (CC). Try the HDMI or DVI component’s menu

system for CC options.

On Captioning information is always shown, when it’s available on a

channel or input.

Off No captioning information is displayed.

On When Muted Captioning information is only shown when available

and the TV’s sound is muted. (To mute the sound, press the MUTE button

on the remote control and captioning information will appear on the

screen, if available.)

Notes: Use the CC button on the remote to toggle CC on and off. Go the

remote section for more information.

If you turned off the speakers in the Audio menu (Fixed Output,

Speakers Off), Closed Captioning won’t appear when you press the

MUTE button on the remote even when you choose On when Muted.

Analog Captions

You can select a closed caption mode, which is the mode or source used for

displaying captioning information for analog channels or digital channels, if

available. The content of CC and Text are different; you can select which one

you want to see on the screen.

CC Displays information at any position on the screen. It overlays the text

on top of the picture as it is received.

Text Displays information at one particular position (such as the bottom

third) of the screen. You cannot see the picture underneath the text.

You can choose between eight closed caption modes:

(continued on next page)

68 Chapter 4

Using the TV’s Menu System

• CC1 and Text 1 are the primary caption and text services. The captioning or text is

displayed in the same language as the program’s dialog.

• CC3 and Text 3 serve as the preferred data channels. The captioning or text is often a

secondary language translation, simplified English, or displayed at a slower rate.

• CC2 and CC4 and Text 2 and Text 4 are rarely available and broadcasters use them

only in special conditions, such as when CC1 and CC3 are not available, or Text1 and

Text3 are not available.

Caption Style

Caption PriorityCaption Priority

Digital Captions

Analog Captions

Caption Display

Go Back

Main Menu Preferences Closed Captioning

Press  or  to point to an option, then press OK to

select it. Press to return to the menu.

A digital TV program may include analog-TV captions and

digital-TV captions, either one of the two, or neither of the

two. The setting above will determine which type of

captions the TV will display.

Analog captions will be used more often in the early years

of digital TV broadcasting. Digital captions are more

advanced and have new capabilities.

If a digital TV program has both analog and digital captions:

Use the analog captions at all times.

Use the digital captions if available, otherwise use analog.

Caption StyleCaption Style

Caption Priority

Digital Captions

Analog Captions

Caption Display

Go Back

Main Menu Preferences Closed Captioning

Press OK to select one of the three Caption sizes. Pressto

return to the menu.

When available digital captions can be displayed using:

The caption provider's default settings.

Your custom settings below.

Translucent Caption Opacity

Aa Bb Cc

Transparent Background Opacity

Yellow Background Color

Magenta Caption Color

Font 1 Caption Font

Standard Caption Size

Caption Style

Caption Priority

Digital CaptionsDigital Captions

Analog Captions

Caption Display

Go Back

Main Menu Preferences Closed Captioning

Press  or  to point to an option, then press OK to

select it. Press to return to the menu.

You can select a mode or source of

closed captions for digital-TV

programs.

If the "Caption Priority" feature is set

to "Use the digital captions", then the

digital caption mode you select is

used for digital-TV programs.

Note: Services 1 and 2 usually have

the primary and secondary language

captions for an area, respectively.

Service 6

Service 5

Service 4

Service 3

Service 2

Service 1

Digital Captions

You can select a closed caption, service mode (1-6) for digital channels.

Service 1 and Service 2 are the primary and secondary languages,

respectively.

Service 3 and Service 4, 5, 6 are additional caption sources that may be

available. Specific label names may be displayed (e.g., Spanish) instead of a

generic label (e.g., Service 1), if available.

Caption Priority

You can choose whether the TV uses digital or analog captions for digital TV

programs that have both or either. The captions are displayed if turned on in

Caption Display.

Caption Style

Customize closed captioning for the digital captions by choosing the settings for

the following options:

Caption Size is the font size (Standard, Large, Small) of the text characters.

Caption Font is a complete assortment of letters, numbers, punctuation

marks, etc. of a given font design. You have eight fonts with varying styles of

spacing from which to choose.

Note: A preview graphic of the caption font appears on the right of the screen.

Caption Color allows you to choose the font color: White, Black, Red,

Green, Blue, Yellow, Magenta, and Cyan.

Background Color allows you to choose the background color: White,

Black, Red, Green, Blue, Yellow, Magenta, and Cyan.

Background Opacity allows you to change the see-through background

options: Solid, Transparent, Translucent, and Flashing.

Caption Opacity allows you to change the see-through caption options:

Solid, Transparent, Translucent, and Flashing.

Chapter 4 69

Using the TV’s Menu System

Turn TV On at: Turn TV Off at: Duration

Tip: Use the timer to schedule a daily recording of a digital

channel via DTVLink, or use it as a wake-up timer.

Recording and Wake-up timers always function together.

Channel Sub-Channel 1

Time of Day

Record/Wake TimerRecord/Wake Timer

Sleep Timer

Go Back

Main Menu Time

Use this timer to record a digital-TV program via DTVLink

or use as wake-up timer. Press OK to continue.

The current time is 3:58 PM.

When the timer is on, it will turn the TV on and tune to:

12:00 1:15 1 hour, 15 mintues

1:15

pm pm

Daily Timer Off

Daily Timer On

Antenna Input

Screen Format

The Screen Format feature allows you to change how the image of a 4:3 picture

is displayed on your 16:9 screen. The options are Normal, Cinerama, Zoom or

Stretch. If your TV receives an image with a 4:3 aspect ratio, the image can be

displayed in one of four ways:

Normal The image of a 4:3 video signal is centered with bars on the right

and left sides of the screen.

Cinerama The image of a 4:3 video signal is centered, expanding in the

horizontal direction to fill the display with little distortion.

Stretch The image of a 4:3 video signal is stretched horizontally by

approximately 33% while the vertical size stays the same.

Zoom The image of a 4:3 video signal increases by approximately 33%

and the vertical size increases by approximately 33%. Edges of the image

might be cropped.

Note: When recording from the AUDIO/VIDEO OUTPUT jacks, use

Normal or Stretch to record the video closest to its original format.

Turn on Automatic Format Switching so that as you change channels, the TV

will change formats for you.

Notes: There is no ability provided to change the screen format for a

16:9 video signal since it fills up the entire area of the TV’s screen.

The format of some video cannot be changed even though it appears to

be a 4:3 aspect-ratio picture.

The FORMAT button on the remote lets you change the format with a

one-button press rather than navigating to the Screen Format menu.

Time Menu

The Time menu lets you set up time-related features and a DTVLink timed

recording. Time menu consists of Sleep Timer, Record/Wake Timer, and Time

of Day.

Sleep Timer A one-time event that is used to set the TV to turn off at a

specific time.

Record/Wake Timer Used to turn the TV on and off at a specific time

every day of the week and tune to a specific channel or video input. In

addition, it sets the TV to make a DTVLink recording if a DTVLink

component is connected, set up, and the channel selected is digital. See

page 51 for more information on a DTVLink Recording.

Time of Day Enables you to enter the correct time manually. If you don’t

enter the time, it is acquired from the last tuned digital channel. Make sure

you check that the time acquired is correct.

Note: If you enter the time manually, you must remember to set your

TV’s time when the time changes to Daylight Saving Time. Sleep Timer

and Record/Wake Timer will not function as you expect if you forget to

change the TV’s time.

Menu Language

Lamp Power

Power Indicator

Translucency

Color Scheme

Time Menu

Screen FormatScreen Format

Closed Captioning

Go Back

Main Menu Preferences

Screen format determines the format and size of the

picture on the display screen. Press OK to continue.

Use this screen or the FORMAT

button on the remote to change

how the picture is displayed.

To the left are examples of the

effect of different Screen

Format modes on a 4:3 signal.

Each input can have a different

setting for Screen Format and

Automatic Format Switching

(AFS). Enabling AFS shows

the picture in a suitable format,

otherwise, the default Screen

Format that you selected is used.

Zoom

Stretch

Normal

Cinerama

Use Automatic Format Switching

70 Chapter 4

Using the TV’s Menu System

Menu Language

Power Indicator

Lamp Power

Translucency

Color Scheme

Time Menu

Screen Format

Closed Captioning

Go Back

Main Menu Preferences

Pressorto move the indicator to the desired

translucency level for the on-screen menus.

The translucency level you set is applied to the on-screen

menu system and channel banner for all inputs.

Menu Language

Power Indicator

Lamp Power

Translucency

Record OutputColor Scheme

Time Menu

Screen Format

Closed Captioning

Go Back

Main Menu Preferences

Press  or  to point to an option, then press OK to

select it. Press to return to the menu.

You can select from one of four colors for the menu system

and the channel banner.

Plum

Raspberry

Emerald

Sky Blue

Color Scheme

Select from among four colors (Sky Blue, Emerald, Raspberry, and Plum) to

change the color of the menu system and banner.

Note: The browser colors are unaffected.

TranslucencyMenu Language

Translucency

Power Indicator

Lamp Power

Color Scheme

Time Menu

Screen Format

Closed Captioning

Go Back

Main Menu Preferences

Press  or  to point to an option, then press OK to

select it. Press to return to the menu.

Highlight with the and  arrows. Select with the OK button.

Resalte con las flechas  y . Seleccione con el botón OK.

Mise en surbrillance avec  et . Sélection avec OK.

Français

Español

English

Lamp Power

Power Indicator

Menu Language

Translucency

Color Scheme

Time Menu

Screen Format

Closed Captioning

Go Back

Main Menu Preferences

Pressorto set a brightness level of th power indicator

on the front of the TV. "Off" is at the very left.

You can change the brightness of the lighted power

indicator on the front of the TV by pressingandon the

remote. The setting at the extreme left turns off the light.

The setting at the extreme right is the maximum brightness

setting.

Power Indicator

Lamp Power

Menu Language

Translucency

Color Scheme

Time Menu

Screen Format

Closed Captioning

Go Back

Main Menu Preferences

The lamp that lights the TV picture can be set for a brighter

picture or a longer life (less bright). Press OK to continue.

The TV's lamp can be set to have either:

You can choose the lamp's power setting. The "Longer Life"

setting produces a picture that is less bright, however, it

should extend the life of the lamp as compared to the

"Brighter Picture" setting. Choose a selection that best fits

your viewing environment and intended usage of the TV.

This TV uses Lamp Type __. Please make a note of it for

future reference.

Longer life

Brighter Picture

Translucency

You can change the translucency (see-through) level of the menu screens.

Adjust the slider by using the left and right arrow buttons.

Note: This does not apply to the browser.

Menu Language

The menu language can be changed to one of three languages: English, Spanish

or French. The menu language can also be selected when using the Assisted

Setup menu.

Note: Spanish and French are not available in the browser.

Power Indicator

You can adjust the brightness of the power indicator that illuminates on the

front of the TV when the TV is on. Press the left arrow on the remote to dim the

light or turn it off completely by moving the slider all the way to the left. Press

the right arrow button on the remote to brighten the light.

Lamp Power

Your HDTV is equipped with a special lamp system. Eventually, the lamp (like a

light bulb) will need to be replaced and you’ll need to know your lamp type.

Check the menu for your lamp type and write it down on page 1 for future

reference (the lamp type has the same meaning as the lamp part number

mentioned on page 1). The Lamp Power menu enables you to extend the life of

the lamp (choose Longer Life), or provide the brightest possible picture (choose

Brighter Picture).

Graphics contained within this publication are for representation only. 71

Reference

Chapter Overview:

• Troubleshooting

• Lamp Replacement Instructions

• Specifications

• Accessory Information

• Limited Warranty

• Care and Cleaning

• FCC Information

• Index

Chapter 5

References

72 Chapter 5

Troubleshooting

Most problems you encounter with your TV can be corrected by consulting the following troubleshooting

list.

TV Problems

TV won’t turn on

• Press the TV button or ON/OFF button while remote is in TV mode and there’s a source of power to the outlet

or outlet strip.

• Make sure the TV is plugged in.

• Does the power light on the front of the TV turn on and you hear audio but see no picture? If so, the TV is in its

cool-down cycle. Wait a few moments and the picture will appear.

• Has the power light on the front of the TV been blinking for one minute? If so, the lamp is dead. Go to page 76

for replacement instructions and page 82 for ordering information.

• When you first plug your TV into an outlet, the Power indicator and Backlight on the front panel will light and

blink for approximately 30 seconds and then go off during the initialization of the TV. The TV can only be

turned on after the Power indicator goes off. This happens every time power is reapplied to the TV.

• Check the wall receptacle (or extension cord) to make sure it is “live” by plugging in something else, such as a

lamp.

• Something might be wrong with your remote control. Press the POWER button on the front of the TV. If the TV

turns on, check the remote control solutions on page 75.

•Remote Setup might be set to the wrong option. Press MENU/OK on the front panel. Select Connections, then

Special Features, then Remote Setup. Choose TV (default).

Power indicator is blinking or flashing

If the light blinks 5 times, pauses, and blinks again 5 times, the lamp is trying to turn on. If the TV doesn’t turn on

after 5 minutes and then the light blinks steadily for one minute, one of the following options is possible:

• Lamp door is open. Locate the door on the side of the TV and close it. Turn off the TV and turn back on. The

lamp should turn on.

• Lamp is dead. You can replace the lamp yourself following the instructions on page 76. Go to page 82 for

ordering information.

• Power supply within TV may need service. Go to page 83 for warranty information.

Buttons don’t work

• If you’re using the remote control, press the TV button first to make sure the remote is in TV mode.

• The front panel controls may be locked (disabled). Use the remote control to unlock the front panel controls by

selecting the Front Button Block in the Parental Controls menu and choosing Front Buttons Unblocked.

• Unplug the TV for five minutes and then plug it back in. Turn the TV on and try again.

TV turns off

• Sleep or Record/Wake Timer feature may have been activated. Go to page 69 for instructions.

• Electronic protection circuit may have been activated because of a power surge. Wait 30 seconds and then turn

on again. If this happens frequently, the voltage in your house may be abnormally high or low.

• Unplug. Wait five minutes. Plug in again.

TV turns on unexpectedly

• Record/Wake Timer feature may have been activated. Go to page 69 for instructions.

References

Chapter 5 73

Video and audio are out of sync

• If you’ve connected a component, such as a DVD player, to your TV’s Video jack, and to an audio receiver using

the audio jacks, you may experience a slight delay between the audio heard and the video seen. Connect the

DVD player to the TV’s Audio jacks, then use the TV’s FIXED/VARIABLE AUDIO OUTPUT jacks to connect to an

audio receiver.

If your TV is connected to an audio/video (A/V) receiver or home theatre system via the DIGITAL AUDIO OUT jack,

read the following information.

• If you’ve connected a component to your A/V receiver, such as a DVD player or satellite receiver, you may

experience a slight delay between the audio heard and the video seen. This occurs because the digital audio is

sent directly to the speakers while the video must be processed inside the TV before it is displayed.

• If the component has Component Video (Y, Pb, Pr) jacks, connect these jacks to the TV’s Y, Pb, Pr jacks to

minimize the discrepancy. This works best if the component supports Progressive Scan technology.

• If necessary, you can connect the component directly to the TV using L/R audio jacks and bypassing the A/V

receiver or you can program an audio delay in the A/V receiver so the audio and video match up (not all audio

equipment has the ability to program delays). Check the audio/video Receiver’s manual.

Blank screen

• Make sure you have connected the component to the TV correctly.

• Make sure the component connected to the TV is turned on and tuned to the corresponding Video Input

Channel.

• Try another channel, or press the INPUT or ANT•CAB button.

• When you first turn off your TV, the screen fades from blue to black. Once the screen goes black, the TV’s

internal lamp starts its cool-down cycle. If you try to turn on the TV during the cool-down cycle, the TV turns

back on and you’ll hear audio, but the picture will take a few moments to be displayed.

• If you’re trying to play a 1394 Recording, you may have accessed an “unrecorded” subchannel. Press the CH+ or

CH- buttons to go through the subchannels before you get to the subchannel you recorded. This occurs even

when you’ve selected to record only a specific subchannel because of how digital (ATSC) channels are broadcast

and recorded by your 1394 device—the data for the subchannel is recorded, but not the content.

Unusual sound quality

• Check the Graphic Equalizer, SRS, and Sound Logic settings.

• Check if SAP is turned on.

• Check that the Audio Mode is set to your language.

Humming or buzzing noise

• The TV is in its lamp cool-down cycle. To prolong the life of the TV’s lamp system, the TV must warm up and

cool down properly. You may notice additional noise during these cycles.

• Maybe the speakers are turned off. Check the FIXED/VARIABLE OUT control panel in the Audio Connections

menu.

No picture, sound okay

• If the indicator on the front of the TV is blinking, the lamp inside of your TV may need to be changed. Go to

page 76 for ordering information.

• You might have tried to turn on the TV during lamp cool-down. Wait a few moments and the picture will be

displayed.

No sound, picture okay

• Maybe the sound is muted. Try pressing the volume up button to restore sound.

• Maybe the speakers are turned off in the Audio Connections menu. Check the FIXED/VARIABLE OUT control

panel in the Audio Connections menu.

• If using an S-Video connection, DVI, component video and composite video, remember to also connect the

component’s L and R AUDIO OUT jacks to the TV’s L and R INPUT jacks.

• Check the Maximum and Initial Volume settings in the Special Features menu.

References

74 Chapter 5

Channel search finds few channels

• The cable connected to the CABLE and/or ANTENNA INPUT jack might be loose.

• Your off-air antenna might be getting a weak signal. Move it higher or get a bigger antenna.

• If you have cables connected to the CABLE and ANTENNA jacks, try swapping the cables. Cable needs to be

connected to the CABLE INPUT; off-air antenna needs to be connected to the ANTENNA INPUT.

• If you have a cable box, you can’t connect it to the ANTENNA jack. Connect it to the CABLE INPUT or a Video

Input jack.

• Select all the options in the Channel Search menu, and retry channel search.

Can’t select certain channel

• May be blocked or not approved in the Parental Controls menu.

• If using a VCR, check to make sure the TV/VCR button on the VCR is in the correct mode (press the TV/VCR

or INPUT button on your VCR).

• You can’t change channels when a menu is on the screen (press the CLEAR button).

Noisy stereo reception

• May be a weak station. Use Audio menu to choose Mono sound.

Picture edges aren’t symmetrical or parallel

• The mirror inside the TV is not in the correct position. Use the Mirror Adjustment option in the Advanced

Settings menu to adjust the picture. Go to page 59 for more information.

No picture, no sound but TV is on

• Maybe the cable/antenna option wasn’t chosen in the Channel Search menu. Select Detect antenna or cable

setting in the Channel Search menu and run the search again.

• The channel might be blank — change channels.

• If you’re watching your VCR and it’s connected with coaxial cable to the CABLE/ANTENNA jack, tune the TV

to channel 3 or 4 (whichever channel is selected on the 3/4 switch on the back of your VCR). Also check to

make sure the TV/VCR button on the VCR is in the correct mode (press the TV/VCR button on your VCR).

• If a channel doesn’t exist and you tune to scrambled QAM channel, Unusable Signal appears.

Sound okay, picture poor

• Check antenna and video connections. Make sure all of the cables are firmly connected to the jacks and

they’re not damaged.

• Try adjusting sharpness function to improve weak signals. Go to page 56 for more instructions.

• Press the FORMAT button repeatedly to view the picture in different video formats. Analog channels may look

better when you use the Normal video format (the video format appears on the right side of the channel

banner).

Black box appears on the screen

• Closed-captioning might be on. Check the Caption Display control panel in the Preferences menu. Go to page

67 for more instructions.

References

Chapter 5 75

The Remote Control Doesn’t Work

• Something might be between the remote and the remote sensor on the component. Make sure there is a clear

path.

• Maybe the remote isn’t aimed directly at the component (TV or VCR) that you’re trying to operate.

• Maybe remote is not in TV Mode. Press the TV button so the remote controls the TV.

• Maybe batteries in remote are weak, dead, or installed incorrectly. If batteries are weak, you will not be able to

activate backlighting on the remote; instead, backlight will blink once when activated. Put new batteries in the

remote. (Note, if you remove the batteries, you may have to reprogram the remote to operate other

components.)

• When using the Learning feature, do the learning process in low light areas to prevent natural light and

fluorescent light interfering with the infrared signals.

• For Volume Punchthrough, remember to program the AUDIO button on the TV’s remote control to operate your

audio receiver or amplifier. Go to page 30 for instructions. If you can’t program this remote to operate your

audio receiver, Volume Punchthrough won’t work.

•Remote Setup might be set to the wrong option. Press MENU/OK on the front panel. Select Connections, then

Special Features, then Remote Setup. Choose TV (default).

Problems with V-Chip/Parental Controls

The rating limits don’t work

• You must lock the settings. Go to the MAIN MENU (press MENU on your remote), select Parental Controls, then

select Lock TV.

I don’t remember my password and I want to unlock the TV

• If you forget your password, put the remote in TV mode. Simultaneously press and hold MENU/OK on the

television and VOL down on the remote for 3 seconds. Nothing appears on the screen, Parental Controls simply

unlock and you can re-enter a password via Lock TV.

The V-Chip won’t let me watch a program even though it’s not rated as violent.

• Maybe the movie was given an NR (Not Rated) status. After you block movie ratings, you must set V-Chip

Unrated to View separately in order to view movies with an NR rating.

Problems with DTVLink Recording/Playback

• Make sure the DTVLink components are not looped. See page 18.

• If the network speed seems slow, make sure the DTVLink component that has the fastest speed is first at point

of connection to TV. Check component manual’s for network speed. See page 18 for more information.

• Make sure the program is digital (ATSC or QAM) or no recording will take place.

• If a program is not recorded, it could be the DTVLink component enforces copy protection standards.

• If you cannot find the program you recorded, channel through the subchannels.

References

76 Chapter 5

Lamp Replacement Instructions

Replacing the Lamp Unit

Your TV’s source of light comes from a lamp – similar to lamps used in film or front projectors. Although this lamp is long-

lasting, it may need to be replaced eventually.

When to replace the lamp

You probably need a new lamp if there’s no picture, but you still can hear the audio and the power light on the front of the

TV does the following: blinks 5 times, pauses, blinks 5 times again. If the TV doesn’t turn on after 5 minutes and then the

light blinks steadily for one minute, the lamp is dead. If you have any concerns, please go to

http://www.infocus.com/service or call an authorized servicer in your area.

Note: The same symptoms occur if the lamp unit isn’t seated correctly, lamp access door is ajar, or lamp power supply

needs service. Make sure the lamp access door is completely closed and the lamp unit is seated correctly.

What to do

• If your TV is still covered by the warranty, go to http://www.infocus.com/service.

• If your TV’s warranty has expired, go to http://store.infocus.com to order a new lamp, and you can install it yourself

using the directions that follow.

The lamp has been designed to make installation as easy as possible, but if you don’t follow the directions, there is a risk of

burn injury or electric shock.

IMPORTANT PRECAUTIONS: Before you begin, make sure you read and understand all of the instructions. You must

follow all the instructions step by step. InFocus Corporation cannot be held responsible for failure to adhere to the safety

measures described herein, the safety measures on the back panel of the TV, and any other reasonable safety practices and

precautions.

Note: Lamp contains a small amount of mercury which can be considered hazardous if improperly handled or disposed.

Take proper precautions to ensure that the lamp does not break during handling. Disposal of these materials may be

regulated due to environmental considerations. For disposal or recycling information, please contact your local

authorities or the Electronic Industries Alliance: www.eiae.org.

You Must Wait 1 Hour Before You Replace the Lamp!

The lamp unit’s temperature can reach 200 degrees. Unplug the TV and allow the lamp to cool thoroughly (for at least 1

hour) before you remove the burnt-out lamp.

• Don’t remove the lamp access door or remove the inoperative lamp unit until you have a replacement lamp (this will

reduce the risk that children or pets will come into contact with the hot lamp, and will keep foreign objects and dust

out of the lamp unit.)

• Never allow children or pets to play with the lamp access door at any time.

• Use only a genuine InFocus lamp replacement unit.

• There are no user serviceable parts within the lamp unit itself. Don’t attempt to repair the lamp unit – attempting to do

so may cause injury, and will void your warranty.

What you’ll need to get started:

___ A flashlight

___ A flat-head screwdriver

References

Chapter 5 77

___ The correct lamp replacement unit. To order the correct lamp, you’ll need to know

your TV’s model number, serial number, and lamp type. The TV’s model number is located

under the front panel piece towards the bottom left corner. Go to page 10 for information

on removing the front panel piece. The serial and lamp part numbers are listed on the

Service Model Number sticker. The sticker is located on the lamp handle (see the following

page for sticker location).

___ The box that the lamp replacement unit came in.

1. Read the precautions listed above.

2. Make sure your hands are dry and clean before you begin replacing the lamp.

3. Unplug the TV’s power cord from the wall outlet (or power strip). Unplug the power

cord from the back of the TV.

4. Put the power cord far away from the TV. Taking this precaution will ensure that no

one plugs in the TV if you walk away from it, or when you’re waiting for the lamp unit

to cool, or when you’re installing the new lamp.

5. Wait 1 hour so the lamp can thoroughly cool. If you don’t wait at least 1 hour, you risk

getting injured!

6. After 1 hour, go to the front of the TV set and remove the front panel

piece. Go to page 10 for instructions. Find the lamp-unit access door

(located in the lower right side of the TV). Read the precautions on the

door (you may need a flashlight).

Note: Do not attempt to repair the lamp. Do not open the lamp

assembly unit — leave the lamp in its casing.

7. Loosen the screw on the door (don’t remove the screw, just loosen it).

Note: Don’t use a coin to loosen the screw because the coin could fall

into the TV.

References

78 Chapter 5

8. Press the catch tabs near the screw you just loosened (one tab is above the

screw and one is below), and remove the entire lamp access door. Place

the door to the side (don’t put it on the floor or anywhere someone might

step on it or accidentally break the tabs).

9. Loosen the screw on the lamp unit inside the TV (the screw stays with

the unit so just loosen it, don’t remove it).

CAUTION ! – HOT

PRECAUCIÓN – CALIENTE

ATTENTION – CHAUDE

LAMP PART # - 265109

41030325110090

BAR CODE AREA

10. As you remove the lamp, pay attention to how the lamp fits so that you

can use the proper orientation when you’re installing the new lamp. To

remove the lamp unit:

• grasp the handle and pull straight back to remove the entire lamp

assembly unit from the TV.

• place the old unit out of the way where it won’t get broken or

dropped.

11. Remove the new lamp assembly unit from its packaging. Make sure you do

not touch the glass surface of the lamp.

12. Make sure the lamp unit is oriented in the correct position, and gently slide

it into the lamp access opening as far as it can go (it fits snugly).

13. Tighten the screw on the new lamp unit.

14. Put the old lamp unit into the box in which the new lamp unit was

packaged.

Service Model

Number

Sticker with

Lamp Part

Number

References

Chapter 5 79

15. Replace the lamp access door (the TV won’t turn on unless this door is in place and

properly attached).

a. Insert the catch tabs (also called latches) into the slots on the left side of the lamp

access compartment first. Then put the rest of the door in place by pivoting the

door until it is fully closed and the latches are engaged.

b. Tighten the screw.

16. Plug the power cord into the back of the TV first and then back into the wall outlet

strip.

17. Turn on the TV.

18. After the TV warms up (up to 60 seconds), you should see a picture. If you don’t see a

picture, check the following:

• Make sure TV is plugged in.

• Make sure you’ve tuned the TV to a valid channel.

• Try turning on the TV both ways: with the remote control, and then with the

power button on the front of the TV.

• Make sure the lamp unit access door is properly and completely closed.

• Make sure the screws are completely tightened.

• Unplug the power cord from the TV and from the power outlet. Return to step 7

and make sure the lamp unit is fully seated in the housing.

• If the TV still doesn’t come on, you need to have the unit professionally serviced.

See your warranty.

References

80 Chapter 5

HDTV Specifications

Tuning Capability Channel Tuning .......................................................................NTSC/ATSC/64 QAM - 256 QAM

Digital Cable Compatibility .....................................................1394 (DTVLink), 64 QAM - 256

..................................................................................................QAM, HDMI/DVI, Component,

..................................................................................................CableCARD slot

Video 3:2 Pull Down (Film Mode).....................................................Reverse Diagonal

4:3 Format Control (Screen) ....................................................Normal, Cinerama, Zoom, Stretch,

..................................................................................................Auto Format Switch

Adaptive Video Noise Reduction ............................................Yes

Adjustable Color Warmth.........................................................Yes

Adjustable Picture Control .......................................................Yes

Auto Color Control ..................................................................Yes

Auto Flesh ................................................................................Yes

Comb Filter...............................................................................Digital Frame Comb (3D Y/C)

Contrast Expand .......................................................................Off, Low, High

Optimum Contrast, High-Resolution Screen ..........................Yes

Edge Enhancement ..................................................................Off, Low, High

Green Stretch ...........................................................................Off, Low, High

Horizontal Resolution (Picture Width).................................... 1280

Horizontal Viewing Angle (Alpha H) .....................................80˚

Hybrid Lens System .................................................................Yes

Picture Presets ..........................................................................Vibrant (Day), Natural,

..................................................................................................Cinematic (Night), Videogame,

..................................................................................................Professional, Personal

Light Engine Type ....................................................................DLP Light Engine

Picture Screen Pitch ................................................................. Screen .155mm

Scan Rate Converter .................................................................Yes

Vertical Viewing Angle (Alpha V) ...........................................20˚

Wide Band Video Amplifier ....................................................Yes

Sound Audio Power (Watts) Front Speakers ......................................20 Watts/Channel

Balance Control........................................................................Yes

Broadcast Stereo w/dbx† Noise Reduction .............................Yes

Sound Presets ...........................................................................7 plus Personal

Front Speakers .........................................................................2/Tweeter/Dual-Mid-range

..................................................................................................channels

Fully Enclosed Speaker System ...............................................Yes

Graphic Equalizer .................................................................... 7 band

† dbx is a registered trademark of Carillon Electronics Corporation.

**Specifications are subject to change.

References

Chapter 5 81

Matrix Surround Sound ....................................................... Yes

Second Audio Program (SAP) ............................................. Yes

Sound Logic Audio Leveler ................................................. Yes

SRS Labs TruSurround XT ................................................... Yes

Convenience Web Browser ....................................................................... Yes

Auto Channel Search ........................................................... Yes

Multilingual On-screen Display .......................................... English, French, Spanish

Auto Tuning ......................................................................... Yes

Closed Captioning ............................................................... Analog & Digital

Front Button Block .............................................................. Yes

Commercial Skip.................................................................. Yes

Parental Control with USA & Canada V-Chip .................... Yes

Picture Reset ........................................................................ Yes, in Menu

Picture-in-Picture (PIP) ........................................................ Analog on Analog

Picture Memory Presets for Video Inputs .......................... Yes

(Individual Memory)

Clock (Time), Sleep and Record Wake-up Timers ............ Yes

Front Panel Backlit Touch Sensor Front Panel Buttons......................... Yes

Back Panel Inputs/Outputs Composite A/V Inputs with Autodetect S-Videos .............. 2 sets

Component with composite audio/video inputs ............... 2 - Y,Pr,Pb

.............................................................................................. SYNCROSCAN

Antenna/Cable Inputs ......................................................... 2 - RF

HDMI/DVI Input (with Audio Input menu selection)....... 1

Broadband Connection (Ethernet RJ45) ............................. 1

DTVLink (IEEE 1394) .......................................................... 2

Audio/Video (Record) Output ............................................ 1

Digital Audio Output ........................................................... 1

Fixed or Variable Audio Outputs ........................................ 1 set, menu switchable

CableCARD slot ................................................................... 1

Matrix Surround Outputs .................................................... Left and Right Rear, and

.............................................................................................. Center

References

82 Chapter 5

Accessory Information

Below are accessories available to compliment your product. Prices are subject to change without notice. All accessories are

subject to availability.

A shipping and handling fee will be charged upon ordering, and we are required by law to collect the appropriate sales tax

for each individual state, county and locality to which the merchandise is being sent.

How to Order

Go to http://store.infocus.com to place your order.

Audio Visual Hard Disk Drive

(AVHDD) Connect to your TV’s

DTVLink jack to record and

store digital (ATSC and QAM)

programs.

Replacement Lamp

Your InFocus ScreenPlay TV is

equipped with a special lamp unit.

If you have sound, no picture, and

the light on the front of the TV

blinks, you may need to change

the lamp. The lamp part number is

SP-LAMP-022. To order, go to

http://store.infocus.com.

Custom HDTV Accessories

Keyboard

To purchase an additional keyboard, or

if you lost the one supplied with your

TV, go to http://store.infocus.com.

Stand

Your InFocus ScreenPlay TV can be

placed on a compatible stand for

additional storage of components

connected to your TV. There are two

stand options: a base stand that the TV

is placed on, or a stand with hanging

bracket which the TV’s base comes off

and then attaches to the stand’s

bracket. Visit the website listed above

for more details on purchasing a stand.

Make sure you read cautions about

the stand on page 8.

Wall Mount

You can hang your InFocus

ScreenPlay TV by using a compatible

wall mount accessory. Visit the

website listed above for more details

on purchasing a wall mount.

Remote Control The remote

control that came packed with

your TV can be replaced or

spares can be ordered as

needed.

References

Chapter 5 83

Limited Warranty

Subject to the Limitations, Exclusions and Disclaimers hereof, InFocus Corporation (“InFocus”) warrants that the Rear

Projection Display Device, Lamps and Accessories (hereinafter collectively or individually referred to as “Product” as

appropriate) purchased from InFocus, an InFocus distributor, or an InFocus reseller will conform to InFocus’ specifications

and be free from defects in material or workmanship for the respective Limited Warranty period provided below. InFocus

does not warrant that the Product will meet the specific requirements of the end-user customer.

If the Product while subject to this Limited Warranty, is defective in material or workmanship during the warranty period,

then InFocus, at its option, will REPAIR or REPLACE the Product.

All exchanged parts and Products replaced under this Limited Warranty will become property of InFocus. InFocus' sole

obligation is to supply (or pay for) all labor necessary to repair the Product found to be defective within the Limited

Warranty period and to repair or replace defective parts with new parts or, at the option of InFocus, serviceable used parts

that are equivalent or superior to new parts performance. Limited Warranty periods are as follows:

• Product Limited Warranty Period (Excluding Lamps): one (1) year from date of purchase.

• Lamp Product Limited Warranty Periods: From the date of Product purchase, the original installed lamp shall have

a 90-day or 500 hours usage Limited Warranty Period, whichever comes first.

Replacement Lamps purchased at the time of Product purchase will have a 90-day or 500 hours usage Limited Warranty

Period from the date of installation, whichever comes first.

Replacement lamps purchased after the time of Product purchase shall have a 90-day or 500 hours usage Limited

Warranty Period from the date of replacement lamp purchase, whichever comes first.

• Accessory Product Limited Warranty Period: one (1) year from date of purchase.

WARRANTY LIMITATION AND EXCLUSION

THIS WARRANTY SETS FORTH INFOCUS’ MAXIMUM LIABILITY FOR ITS PRODUCT. THIS WARRANTY EXTENDS ONLY

TO PRODUCTS PURCHASED FROM INFOCUS OR AN INFOCUS AUTHORIZED RESELLER. InFocus shall have no further

obligation under the foregoing Limited Warranty if the Product has been damaged due to abuse, improper ventilation, fire,

water, disaster, mispackaging, shipping, lightning or other acts of nature, misuse, neglect, smoke exposure (cigarette or

otherwise), accident, unusual physical or electrical stress and/or power surges, unauthorized modifications (including use of

an unauthorized mount), tampering, alterations, service other than by InFocus or its authorized agents, or failure caused

other than from ordinary use or failure to properly use the Product in the application for which said Product was intended.

In addition, failure of the end-user to follow maintenance procedures as outlined in the product’s user guide where a

schedule is specified for regular cleaning of certain parts (based on usage and environment) and the end-user has failed to

follow such schedule, will not be covered under the Limited Warranty. Finally, InFocus shall have no further obligation if

the Product was subjected to operating conditions outside of the range specified in the user’s guide or in this warranty.

'Normal operating conditions are defined as use not in excess of 16 hours continuously per day with a minimum 8 hour

period of continuous rest in the powered off state. If a claimed defect cannot be identified or reproduced in service, you

will be held responsible for the costs incurred. This Limited Warranty excludes Product cleaning, removal or installation of

the product, repair, or replacement of plastics or glass due to cosmetic damage and damage as a result of normal wear.

Product repair outside of the terms of the Limited Warranty will be on a time and materials basis. InFocus will not be liable

for any rental costs incurred in the event of a failure. The warranty does not apply to cartons, carrying cases, shipping cases,

external cabinets, accessories used in connection with the product, or cosmetic parts, knobs, or batteries.

The Accessory Product Limited Warranty covers the accessory item only and excludes normal wear. The Lamp Product

Limited Warranty excludes expected lamp degradation.

Remanufactured Products and Software Products are exempt from the foregoing Limited Warranty. Please refer to the

appropriate Remanufactured Product Limited Warranty or Software Product Limited Warranty for applicable Warranty

information.

References

84 Chapter 5

DISCLAIMER OF UNSTATED WARRANTIES

THE WARRANTY PRINTED ABOVE IS THE ONLY WARRANTY APPLICABLE TO THIS PRODUCT. ALL OTHER

WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF

MERCHANTABILITY AND FITNESS FOR PARTICULAR PURPOSE ARE DISCLAIMED. THERE ARE NO WARRANTIES THAT

EXTEND BEYOND THE DESCRIPTION ON THE FACE HEREOF AND THE FOREGOING WARRANTY SHALL NOT BE

EXTENDED, ALTERED OR VARIED EXCEPT BY WRITTEN INSTRUMENT SIGNED BY INFOCUS. SOME JURISDICTIONS DO

NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY MAY LAST, SO SUCH LIMITATIONS MAY NOT

APPLY TO YOU.

Limited Warranty Period

The Limited Warranty periods hereof commence on the date of purchase by the end-user customer. These Limited Warranty

provisions shall apply only to the end-user purchaser (first person or entity that purchased a new Product for personal or

business use and not for the purpose of distribution or resale). SOME JURISDICTIONS MAY GRANT YOU CONSUMER

RIGHTS WITH MINIMUM WARRANTY DURATION THAT DIFFER FROM THE DURATIONS PROVIDED HEREIN, AND

INFOCUS WILL HONOR ALL SUCH CONSUMER RIGHTS.

To Be Eligible For Limited Warranty Coverage

Any person exercising a claim under this Limited Warranty must establish to the satisfaction of InFocus both the date of

purchase and that the Product was purchased new. The sales receipt or invoice, showing the date of purchase of the

Product is the proof of the date of purchase.

To Obtain Warranty Service

During the Limited Warranty period, to exercise this Limited Warranty, the purchaser must first contact 1) InFocus, 2) a

service facility authorized by InFocus or 3) the place of original purchase.

InFocus Customer Service – 1-503-685-8888 or visit www.infocus.com/service

Warranty service will be provided at an InFocus authorized repair facility. The purchaser must either deliver the Product to

an authorized repair facility freight and all fees prepaid, or pay for any travel and/or transportation costs the service center

may charge to and from the purchaser’s location. InFocus or the service facility authorized by InFocus will return the

repaired/replaced Product freight prepaid to the purchaser.

Products returned for Warranty service must be accompanied by a written letter that: (i) explains the problem; (ii) provides

proof of date of purchase; (iii) provides the dealer’s name; and (iv) provides the model and serial number of the Product.

Upon request of InFocus Corporation or an authorized repair center for InFocus, proof of legal import must accompany the

warranty repair Product, otherwise the Product must be returned to the place of original purchase, to the manufacturer

(Purchaser must bear all tax, duty and freight), or the Purchaser must bear charges for the warranty repair.

No repair or replacement of Product or part thereof shall extend the Limited Warranty period as to the entire Product.

Warranty on the repair part and workmanship shall only be effective for a period of ninety (90) days following the repair or

replacement of that part or the remaining period of the Product Limited Warranty whichever is greater.

LIMITATION OF LIABILITY

IT IS UNDERSTOOD AND AGREED THAT INFOCUS’ LIABILITY WHETHER IN CONTRACT, IN TORT, UNDER ANY

WARRANTY, IN NEGLIGENCE OR OTHERWISE SHALL NOT EXCEED THE RETURN OF THE AMOUNT OF THE PURCHASE

PRICE PAID BY PURCHASER AND UNDER NO CIRCUMSTANCES SHALL INFOCUS BE LIABLE FOR SPECIAL, INDIRECT,

INCIDENTAL OR CONSEQUENTIAL DAMAGES OR LOST PROFITS, LOST REVENUES OR LOST SAVINGS. THE PRICE

STATED FOR THE PRODUCTS IS A CONSIDERATION IN LIMITING INFOCUS’ LIABILITY.

Limitation on Bringing Action - No action, regardless of form, arising out of the agreement to purchase the Product may

be brought by purchaser more than one year after the cause of action has accrued.

Governing Law - Any action, regardless of form, arising out of the agreement to purchase the Product is governed by

Oregon law.

References

Chapter 5 85

Care and Cleaning

CAUTION: Turn OFF your TV before cleaning.

You can clean the TV as required, using a soft lint-free cloth. Be sure to occasionally dust the ventilation slots in the cabinet

to help assure adequate ventilation.

The TV’s screen may be cleaned with a soft, lint-free cloth as well. Take care not to scratch or mar the screen. If necessary,

you may use a cloth dampened with warm water.

Never use strong cleaning agents, such as ammonia-based cleaners, or abrasive powder. These types of cleaners will

damage the TV.

While cleaning do not spray liquid directly on the screen, or allow liquid to run down the screen and inside the TV. Also,

avoid placing drinks or vases with water on top of the TV. This could increase the risk of fire or shock hazard or damage to

the TV.

FCC Information

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the

FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee

that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct

the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

This Class B digital apparatus complies with Canadian ICES-003

Mandatory Arbitration – Any action, regardless of form, arising out of the agreement to purchase the Product is subject to

mandatory arbitration.

SOME JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL

DAMAGES SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU. THIS LIMITED WARRANTY GIVES

YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS, DEPENDING ON JURISDICTION.

Index

86 Chapter 5

Symbols

3:2 pulldown 58

Accessories 82

Action buttons 55

Adding a learned function 32

Advanced Settings 58

Age-based rating

Blocking 43

Viewing 43

Age-Based Ratings 42, 45, 47

Analog captions 67

Analog TV channel 39

ANT•CAB button 28

ANTENNA INPUT 14

Antenna type 38

Arrow buttons 28

Aspect ratio 38

Assisted setup 24

AUDIO button 28

Audio Connections 62

Audio menu 59

Audio Connections 62

Audio Mode 61

Audio Processor 60

Balance 61

Equalizer Presets 59

SAP 61

Sound Logic 60

Audio Mode 61

AUDIO OUTPUT

Digital 13

Audio Processor 60

Audio remote codes 35

Audio System 4

AUDIO/VIDEO OUTPUT jacks 12

Authorized service 9, 72

Auto color 57

Auto Tuning 65

Auto tuning 47

Automatic code search 30

AUX button 28

Backlight 15

Balance 61

Batteries, installing 24

Block

Age-Based Ratings 43

Front Panel 47

Movie ratings 44

Specific Content Themes 43

V-Chip Unrated Program 46

Web browser 47

Browser

Web 50

Buttons

ANT•CAB 28

Arrows 28

AUDIO 28

AUX 28

CC 28

CH +/- 28

CH CTRL 28

Channel down 15

Channel up 15

CLEAR 28

Don't work 72

DVD 28

FAV 28

FORMAT 28

FORWARD 29

FREEZE 28

Front panel 15

GO BACK 28

GUIDE 28

INFO 29

INPUT 29

LIGHT 29

MENU 29

MENU/OK 15

MUTE 29

Number 28

OK 29

ON•OFF 29

PAUSE 29

PIP 29, 48

PLAY 29

Power 15

PRESETS 29

RECORD 29

Remote control 28

REVERSE 29, 30

SAT/CAB 29

SKIP 29

SOUND 29

STOP 29

SWAP 29

TV 29

VCR 29

VOL +/- 29

Volume down 15

Volume up 15

Cable box remote codes 35

CABLE INPUT 14

CableCARD 3

connection 20

slot 14

Tools menu 66

Cables

to connect 8

Canada

English ratings 46

French ratings 46

V-Chip unrated program 46

Canada V-Chip 45

Caption display 67

Caption priority 68

Caption style 68

Captions

Analog 67

Background color 68

Background Opacity 68

Color 68

Digital 68

Font 68

Opacity 68

Size 68

Care and Cleaning 85

display 38

CH CTRL button 28

Channel

down button 15

Initial 65

search 25

up button 15

Channel banner 38

Channel information 38

Channel lists 40

Channel search 64

Channels

Digital or Analog 39

Chart, of connections 9

Choice fields 55

Choice lists 55

Choose Your Connection 9

Cleaning and care 85

CLEAR button 28

Clearing a learned function 33

Clock display 38

Closed captioning 67, 68

Color 56

Warmth 57

Color scheme 70

Commercial skip 38

COMPONENT/COMPOSITE INPUT jacks

Components, connecting 9

COMPOSITE INPUT jacks 12

Connections

A/V receiver 21

Internet 23

TV + Receiver w/ Dolby Digital, speakers

TV, CableCARD 20

TV, DTVLink Components 18

TV, HDMI or DVI component 19

TV, Router 23

Index

Chapter 5 87

TV, Satellite Receiver, VCR 17

TV, VCR, DVD player 16

Connections menu 63

Audio Tuning 65

Channel Search 64

DTVLink Setup 65

Ethernet Setup 66

Signal Source 64

Signal Strength 63

Software Upgrade 64

Special Features 65

Video Input Setup 64

Content Themes 42

Blocking 43

Viewing 44

Contrast 56

Contrast Expand 58

Control panels 54

Controls

Menus 54

Parental 40

Reset 59

Deleting ALL learned functions 33

Digital

Cable Ready 3

CableCARD 3

Sound 3

Digital Audio Out 62

DIGITAL AUDIO OUTPUT jack 13

Digital captions 68

Digital TV channel 39

Direct entry programming 31

DSL modem 23

DTVLink

Auto tuning 48

jack 14

Problems 75

recording 51

Recording preferences 52

DTVLink Setup 65

DVD button 28

DVD remote codes 36

DVD/VCR remote codes 36

DVI Audio Input 63

EAS 52

Edge Enhancement 57

Emergency Alert System 52

Equalizer Presets 59

ETHERNET Jack 13

Ethernet setup 66

FAV button 28

FCC Information 85

Film Mode 3, 58

Fixed/Variable Out 62

Format

Screen 69

FORMAT button 28

FORWARD button 29

FREEZE button 28

Front panel

Buttons 15

removing piece 10

Front panel block 47

GO BACK button 28

Green Stretch 57

GUIDE button 28

HDMI

autotuning 48

HDMI/DVI Input 14

HDTV specifications 80

Help text 54

Home Theatre box remote codes 36

Horizontal Position 58

Icons

Channel banner 38

Indicator 15

Indirect light 8

INFO button 29

Initial

channel 65

volume 65

INPUT autotuning 48

INPUT button 29

Internet connection 23

Internet service provider 23

Jack panel

access 10

door 10

Jacks

ANTENNA INPUT 14

AUDIO/VIDEO OUTPUT 12

CABLE INPUT 14

CableCARD 14

CENTER 11

COMPONENT/COMPOSITE INPUT 13

COMPOSITE INPUT 12

DIGITAL AUDIO OUTPUT 13

DTVLink 14

ETHERNET 13

FIXED/VARIABLE OUTPUTS 11

HDMI/DVI 14

S-VIDEO 12

SUBWOOFER 11

WIRED IR 13

Lamp Power 70

Lamp replacement 76

Language

Menu 25, 70

Language display 38

Learning feature 32

Adding a function 32

Clearing a function 33

Deleting ALL functions 33

Light blinking 24

LIGHT button 29

Main Menu 54

Maximum volume 65

MENU button 29

Menu controls 54

Action buttons 55

Choice fields 55

Choice lists 55

Numeric entries 55

Sliders 55

Menu language 25, 70

MENU/OK Button 15

Menus 54

Audio 59

Connections 63

Moving through 54

Picture Quality 56

Preferences 67

Recordings 63

Mercury 76

Mirror Adjustment 59

screws 10

MUTE button 29

Noise reduction 57

Number buttons 28

Numeric entries 55

Index

88 Chapter 5

OK button 29

ON•OFF button 29

On-screen help 54

On-screen help text 54

OUTPUTS

AUDIO/VIDEO 12

FIXED/VARIABLE AUDIO 11

Overheating 8

Parental controls 40

Channel lists 40

Editing channels 41

Lock/unlock 40

Password, V-Chip 75

PAUSE button 29

PCM 62

PCM receiver 21

Picture Presets 56

Picture Quality menu 56

Advanced Settings 58

Auto color 57

Color warmth 57

Contrast Expand 58

Edge Enhancement 57

Green Stretch 57

Noise Reduction 57

Picture presets 56

Picture settings 56

Picture-in-Picture 48

PIP

button 29, 48

operation 48

PIP (Picture in Picture)

Buttons 48

Problems 49

PIP, using 49

PLAY button 29

Power

button 15

Indicator 70

indicator 15

Lamp 70

Power light flashing 72

Power surges 8

Preferences menu 67

Analog captions 67

Caption Display 67

Caption Style 68

Captions Priority 68

Closed captioning 67

Color Scheme 70

Digital captions 68

Lamp Power 70

Menu Language 70

Power Indicator 70

Screen Format 69

Time 69

Translucency 70

PRESETS button 29

Problems

DTVLink Recording 75

Parental controls 75

Remote control 75

TV 72

V-Chip 75

Program title 38

Programming the remote

Automatic code search 30

Direct entry 31

PVR remote codes 36

QAM 3

Rating Limits

movies 44

Ratings

Blocking movie 44

Viewing movie 44

RECORD button 29

Record/Wake Timer 69

Recording

DTVLink 51

Recordings menu 63

Remote

Setup 66

Remote Control

Buttons 28

Code list 35

Installing the Batteries 24

Programming 30

Remote control

Learning feature 32

Reset controls 59

REVERSE button 29

S-Video jack 12

SAP 61

SAP display 38

SAT/CAB

Button 29

Satellite Receiver remote codes 36

Saving Web address 50

Screen Format 69

Automatic code 30

Channels 64

Second audio program 61

Service, authorized 9

Setup

Ethernet 66

Remote 66

Setup, assisted 24

Signal source 64

SKIP button 29

Sleep timer 69

Sliders 55

Software Upgrade 64

SOUND button 29

Sound Logic 60

Special features 65

Specifications 80

SRS 60

Stand 8

Stands 82

STOP button 29

SUBWOOFER jack 11

SWAP button 29

Things to Consider Before You Connect 8

Time display 38

Time of Day 69

Timer

Record/Wake 69

Sleep 69

Tint 56

Translucency 70

Trapezoid

Left 58

Right 58

Troubleshooting 72

TruScan 3

Turn on TV 24

TV button 29

TV, CableCARD connection 20

TV, HDMI or DVI component connection

TV problems 72

TV, Router connection 23

TV, Satellite Receiver, VCR connection 17

TV, VCR, DVD Player connection 16

TV. DTVLink Components connection 18

USA

V-Chip TV ratings 41

V-Chip 40

Age-Based Ratings 41

Blocking age-based 43

Blocking Movies 44

Canada 41, 45

Index

Chapter 5 89

Content Themes 41

display 38

USA 41

USA TV ratings 41

Viewing age-based rating 43

V-Chip rating screen 42

V-Chip unrated program 46

VCR button 29

VCR remote codes 36

Vertical Position 58

VIDEO 12

Video Input Setup 64

Viewing

Movie ratings 44

Specific content themes 44

VOL +/- buttons 29

Volume

Initial 65

Maximum 65

Volume down button 15

Volume Punchthrough 34

Deleting commands 34

Volume up button 15

Wall Mount 82

Warranty 83

Web browser 50

block 47

controlling 51

saving 50

use 50

WIRED IR jack 13

This page intentionally left blank
