User Manual: Integra DTR-6.2 to the manual

Open the PDF directly: View PDF .
Page Count: 64

Contents

Thank you for purchasing the AV Receiver.

Please read this manual thoroughly before making

connections and plugging in the unit. Following the

instructions in this manual will enable you to obtain

optimum performance and listening enjoyment

from your new AV Receiver. Please retain this

manual for future reference.

DTR-6.2

AV Receiver

Instruction Manual

Appendix 61

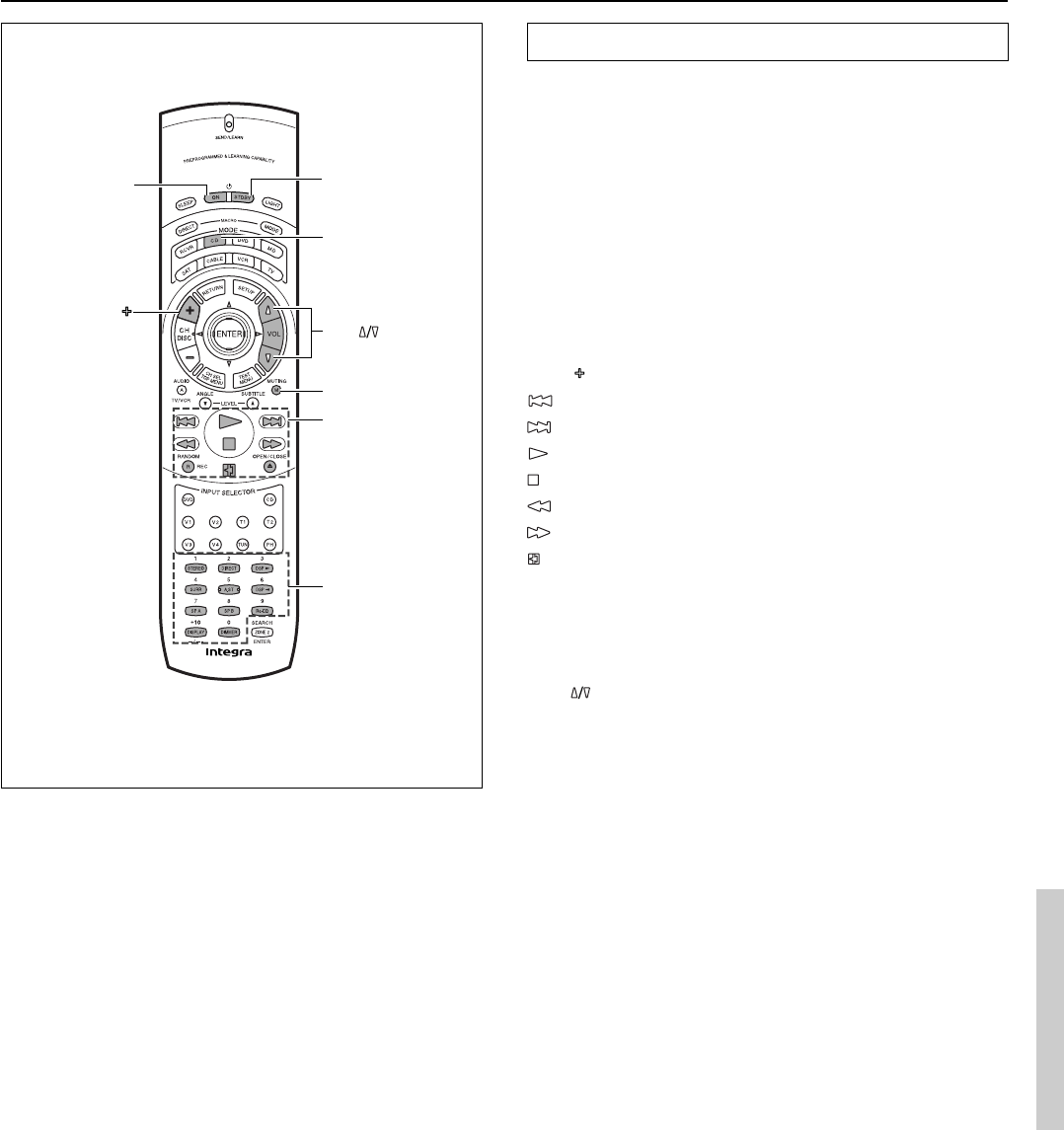

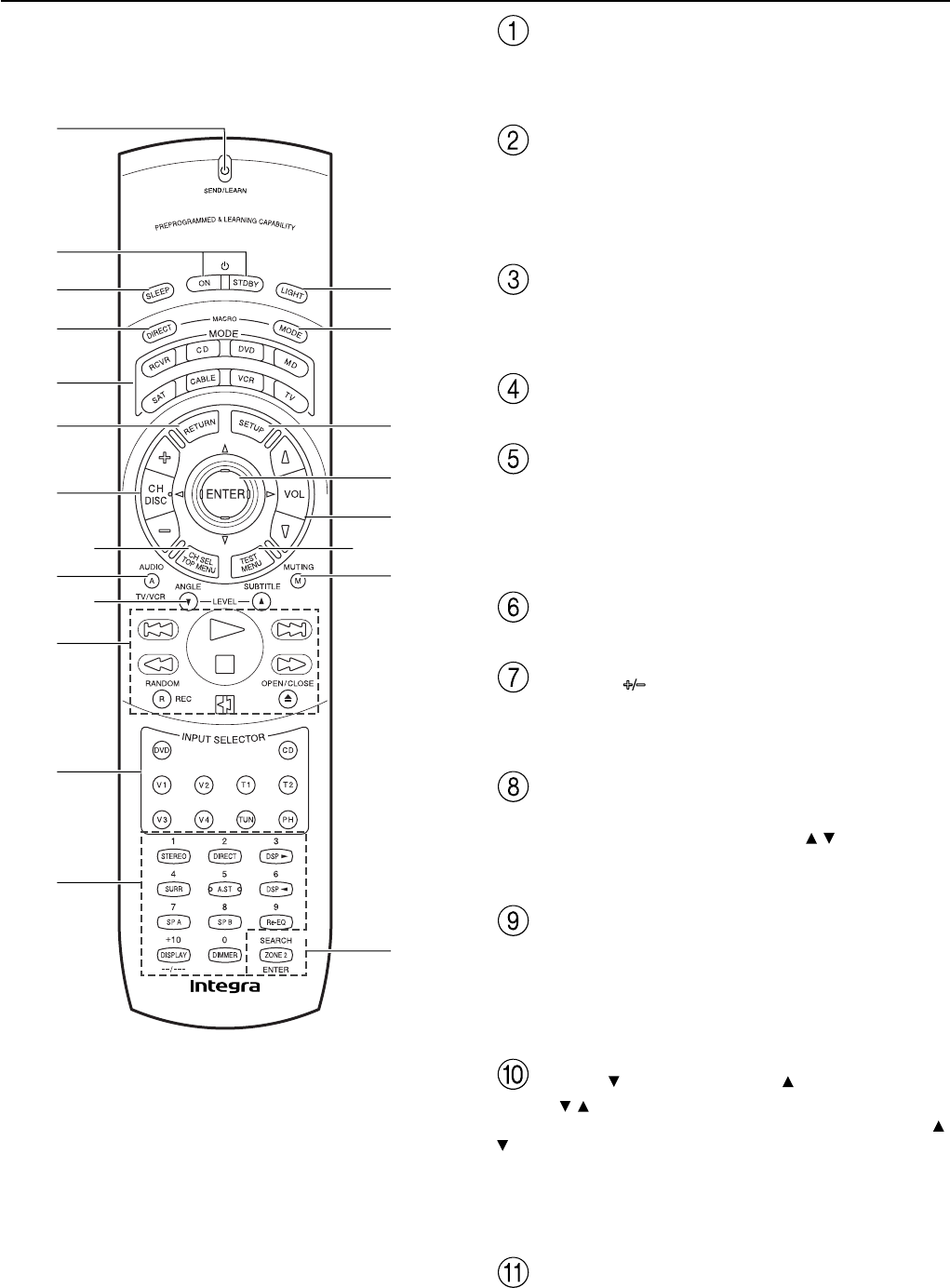

Remote controller 46

Setup and operation 24

Before using 2

Facilities and connections 8

1. Read Instructions – All the safety and operating instructions

should be read before the appliance is operated.

2. Retain Instructions – The safety and operating instructions

should be retained for future reference.

3. Heed Warnings – All warnings on the appliance and in the

operating instructions should be adhered to.

4. Follow Instructions – All operating and use instructions

should be followed.

5. Cleaning – Unplug the appliance from the wall outlet before

cleaning. The appliance should be cleaned only as recom-

mended by the manufacturer.

6. Attachments – Do not use attachments not recommended by

the appliance manufacturer as they may cause hazards.

7. Water and Moisture – Do not use the appliance near water –for

example, near a bath tub, wash bowl, kitchen sink, or laundry

tub; in a wet basement; or near a swimming pool; and the like.

8. Accessories – Do not place the appliance on an unstable cart,

stand, tripod, bracket, or table. The appliance may fall, causing

serious injury to a child or adult, and serious damage to the

appliance. Use only with a cart, stand, tripod, bracket, or table

recommended by the manufacturer, or sold with the appliance.

Any mounting of the appliance should follow the

manufacturer’s instructions,

and should use a mounting ac-

cessory recommended by the

manufacturer.

9. An appliance and cart combina-

tion should be moved with care.

Quick stops, excessive force,

and uneven surfaces may cause

the appliance and cart combina-

tion to overturn.

10. Ventilation – Slots and openings in the cabinet are provided

for ventilation and to ensure reliable operation of the appliance

and to protect it from overheating, and these openings must not

be blocked or covered. The openings should never be blocked

by placing the appliance on a bed, sofa, rug, or other similar

surface. The appliance should not be placed in a built-in instal-

lation such as a bookcase or rack unless proper ventilation is

provided. There should be free space of at least 20 cm (8 in.)

and an opening behind the appliance.

11. Power Sources – The appliance should be operated only from

the type of power source indicated on the marking label. If you

are not sure of the type of power supply to your home, consult

your appliance dealer or local power company.

12. Grounding or Polarization – The appliance may be equipped

with a polarized alternating current line plug (a plug having one

blade wider than the other). This plug will fit into the power

outlet only one way. This is a safety feature. If you are unable to

insert the plug fully into the outlet, try reversing the plug. If the

plug should still fail to fit, contact your electrician to replace

your obsolete outlet. Do not defeat the safety purpose of the

polarized plug.

13. Power-Cord Protection – Power-supply cords should be

routed so that they are not likely to be walked on or pinched by

items placed upon or against them, paying particular attention

to cords at plugs, convenience receptacles, and the point where

they exit from the appliance.

14. Outdoor Antenna Grounding – If an outside antenna or cable

system is connected to the appliance, be sure the antenna or

cable system is grounded so as to provide some protection

against voltage surges and built-up static charges. Article 810

of the National Electrical Code, ANSI/NFPA 70, provides in-

formation with regard to proper grounding of the mast and sup-

porting structure, grounding of the lead-in wire to an antenna-

discharge unit, size of grounding conductors, location of an-

tenna-discharge unit, connection to grounding electrodes, and

requirements for the grounding electrode. See Figure 1.

15. Lightning – For added protection for the appliance during a

lightning storm, or when it is left unattended and unused for

long periods of time, unplug it from the wall outlet and discon-

nect the antenna or cable system. This will prevent damage to

the appliance due to lightning and power-line surges.

16. Power Lines – An outside antenna system should not be lo-

cated in the vicinity of overhead power lines or other electric

light or power circuits, or where it can fall into such power lines

or circuits. When installing an outside antenna system, extreme

care should be taken to keep from touching such power lines or

circuits as contact with them might be fatal.

17. Overloading – Do not overload wall outlets, extension cords,

or integral convenience receptacles as this can result in a risk

of fire or electric shock.

18. Object and Liquid Entry – Never push objects of any kind

into the appliance through openings as they may touch danger-

ous voltage points or short-out parts that could result in a fire or

electric shock. Never spill liquid of any kind on the appliance.

19. Servicing – Do not attempt to service the appliance yourself as

opening or removing covers may expose you to dangerous volt-

age or other hazards. Refer all servicing to qualified service

personnel.

20. Damage Requiring Service – Unplug the appliance form the

wall outlet and refer servicing to qualified service personnel

under the following conditions:

A. When the power-supply cord or plug is damaged,

B. If liquid has been spilled, or objects have fallen into the

appliance,

C. If the appliance has been exposed to rain or water,

D. If the appliance does not operate normally by following the

operating instructions. Adjust only those controls that are

covered by the operating instructions as an improper ad-

justment of other controls may result in damage and will

often require extensive work by a qualified technician to

restore the appliance to its normal operation,

E. If the appliance has been dropped or damaged in any way,

and

F. When the appliance exhibits a distinct change in perfor-

mance – this indicates a need for service.

Important Safeguards

PORTABLE CART WARNING

S3125A

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,

DO NOT EXPOSE THIS APPLIANCE TO RAIN OR

MOISTURE.

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT

REMOVE COVER (OR BACK). NO USER-SERVICEABLE

PARTS INSIDE. REFER SERVICING TO QUALIFIED

SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral

triangle, is intended to alert the user to the presence of uninsulated

“dangerous voltage” within the product’s enclosure that may be of

sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to

alert the user to the presence of important operating and maintenance

(servicing) instructions in the literature accompanying the appliance.

WARNING

RISK OF ELECTRIC SHOCK

DO NOT OPEN RISQUE DE CHOC ELECTRIQUE

NE PAS OUVRIR

AVIS

1. Warranty Claim

You can find the serial number on the rear panel of this unit. In case

of warranty claim, please report this number.

2. Recording Copyright

Recording of copyrighted material for other than personal use is

illegal without permission of the copyright holder.

3. AC Fuse

The fuse is located inside the chassis and is not user-serviceable. If power

does not come on, contact your Integra/Onkyo authorized service station.

4. Care

From time to time you should wipe the front and rear panels and the

cabinet with a soft cloth. For heavier dirt, dampen a soft cloth in a

weak solution of mild detergent and water, wring it out dry, and

wipe off the dirt. Following this, dry immediately with a clean

cloth. Do not use rough material, thinners, alcohol or other chemi-

cal solvents or cloths since these could damage the finish or remove

the panel lettering.

5. Power

WARNING

BEFORE PLUGGING IN THE UNIT FOR THE FIRST TIME,

READ THE FOLLOWING SECTION CAREFULLY.

The voltage of the available power supply differs according to

country or region. Be sure that the power supply voltage of the area

where this unit will be used meets the required voltage (e.g., AC

230 V, 50 Hz or AC 120 V, 60 Hz) written on the rear panel.

Worldwide models are equipped with a voltage selector to conform

to local power supplies. Be sure to set this switch to match the volt-

age of the power supply in your area before plugging in the unit.

Precautions

ANTENNA

DISCHARGE UNIT

(NEC SECTION 810-20)

GROUNDING CONDUCTORS

(NEC SECTION 810-21)

GROUND CLAMPS

POWER SERVICE GROUNDING

ELECTRODE SYSTEM

(NEC ART 250, PART H)

NEC – NATIONAL ELECTRICAL CODE

ELECTRIC

SERVICE

EQUIPMENT

GROUND

CLAMP

ANTENNA

LEAD IN

WIRE

S2898A

21. Replacement Parts – When replacement parts are required, be

sure the service technician has used replacement parts specified

by the manufacturer or have the same characteristics as the

original part. Unauthorized substitutions may result in fire,

electric shock, or other hazards.

22. Safety Check – Upon completion of any service or repairs to the

appliance, ask the service technician to perform safety checks to

determine that the appliance is in proper operation condition.

23. Wall or Ceiling Mounting – The appliance should be mounted

to a wall or ceiling only as recommended by the manufacturer.

24. Heat – The appliance should be situated away from heat

sources such as radiators, heat registers, stoves, or other appli-

ances (including amplifiers) that produce heat.

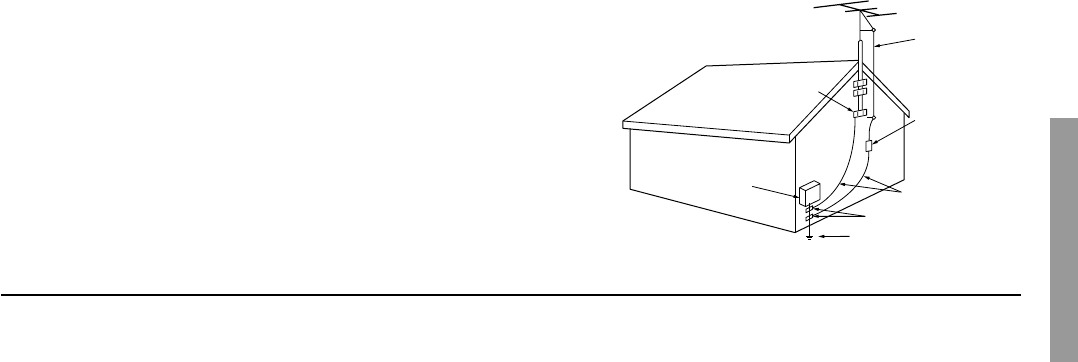

FIGURE 1:

EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL

ELECTRICAL CODE, ANSI/NFPA 70

For U.S. models

Note to CATV system installer:

This reminder is provided to call the CATV system installer’s at-

tention to Section 820-40 of the NEC which provides guidelines for

proper grounding and, in particular, specifies that the cable ground

shall be connected to the grounding system of the building, as close

to the point of cable entry as practical.

FCC Information for User

CAUTION:

The user changes or modifications not expressly approved by the

party responsible for compliance could void the user’s authority to

operate the equipment.

NOTE:

This equipment has been tested and found to comply with the limits

for a Class B digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This equipment

generates, uses and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is

no guarantee that interference will not occur in a particular installa-

tion. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equip-

ment off and on, the user is encouraged to try to correct the interfer-

ence by one or more of the following measures:

•Reorient or relocate the receiving antenna.

•Increase the separation between the equipment and receiver.

•Connect the equipment into an outlet on a circuit different from

that to which the receiver is connected.

•Consult the dealer or an experienced radio/TV technician for

help.

For Canadian models

NOTE:

THIS CLASS B DIGITAL APPARATUS COMPLIES WITH CA-

NADIAN ICES-003.

For models having a power cord with a polarized plug:

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH

WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

Modele pour les Canadien

REMARQUE:

CET APPAREIL NUMÉRIQUE DE LA CLASSE B EST CON-

FORME À LA NORME NMB-003 DU CANADA.

Sur les modèles dont la fiche est polarisée:

ATTENTION: POUR ÉVITER LES CHOCS

ÉLECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE

DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA

PRISE ET POUSSER JUSQU’AU FOND.

Contents

Before using

Important Safeguards......................................... 2

Precautions ......................................................... 3

Contents .............................................................. 4

Features ............................................................... 6

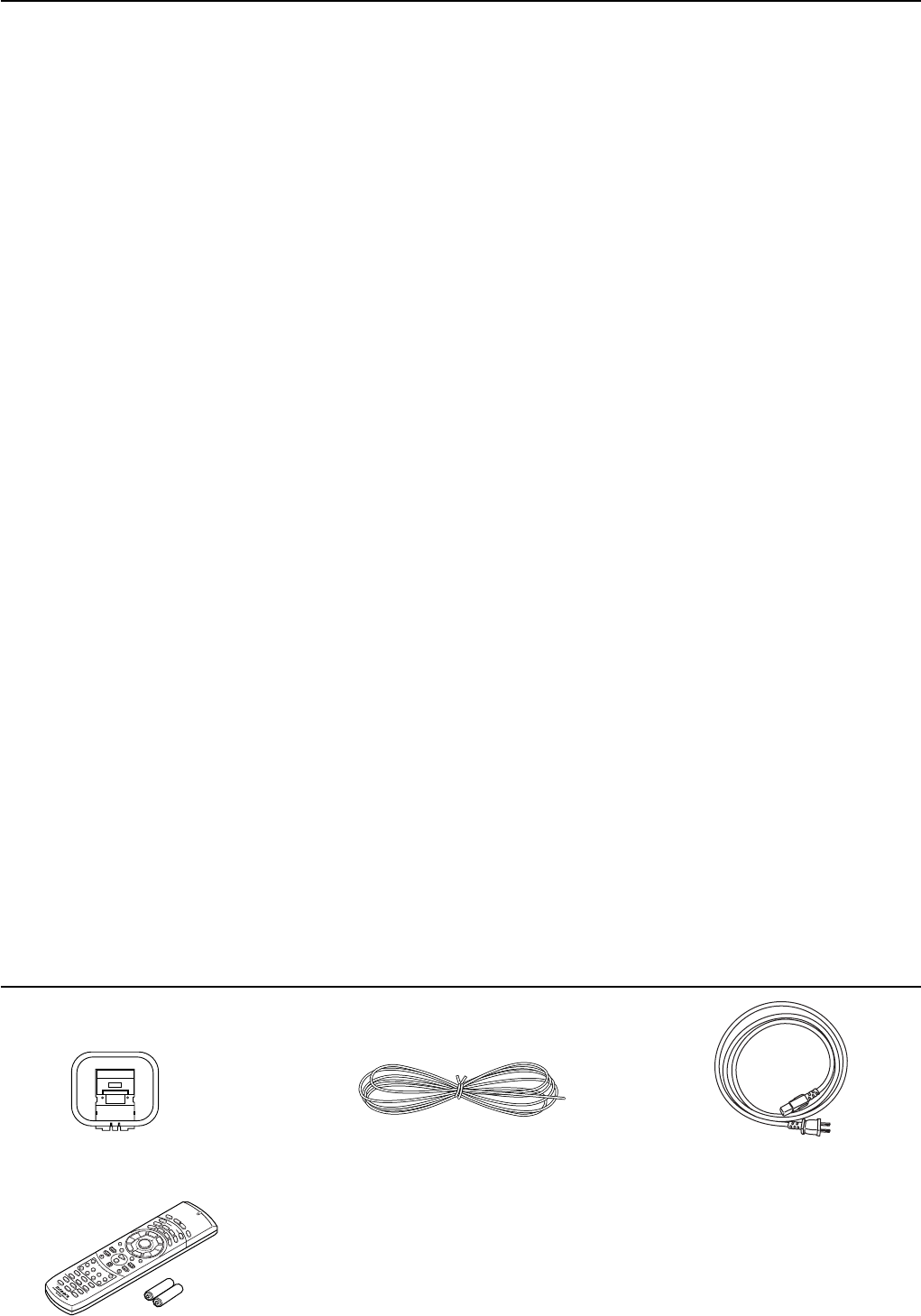

Supplied accessories ......................................... 6

Before using this unit......................................... 7

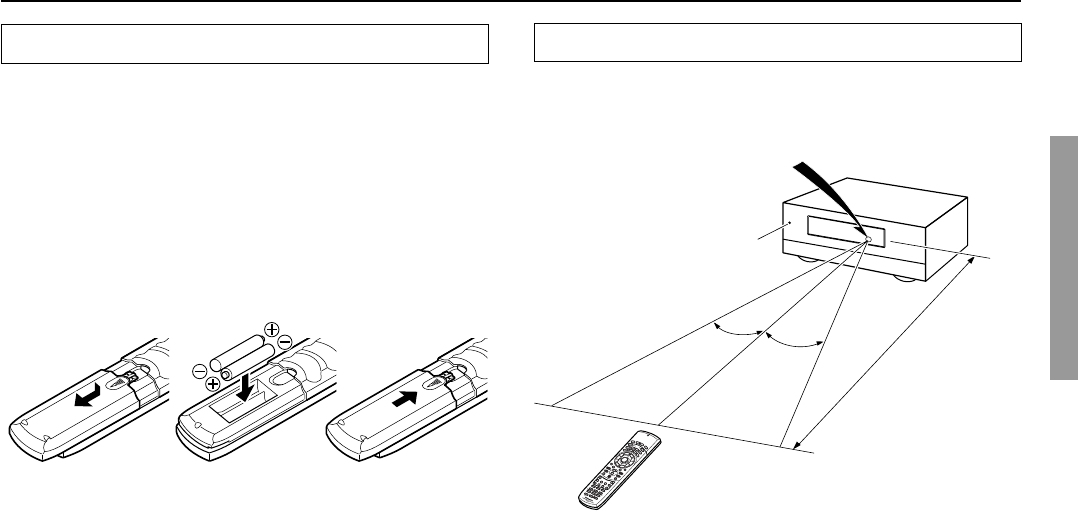

Installing the remote controller batteries ......................... 7

Using the remote controller.............................................. 7

Setup and operation

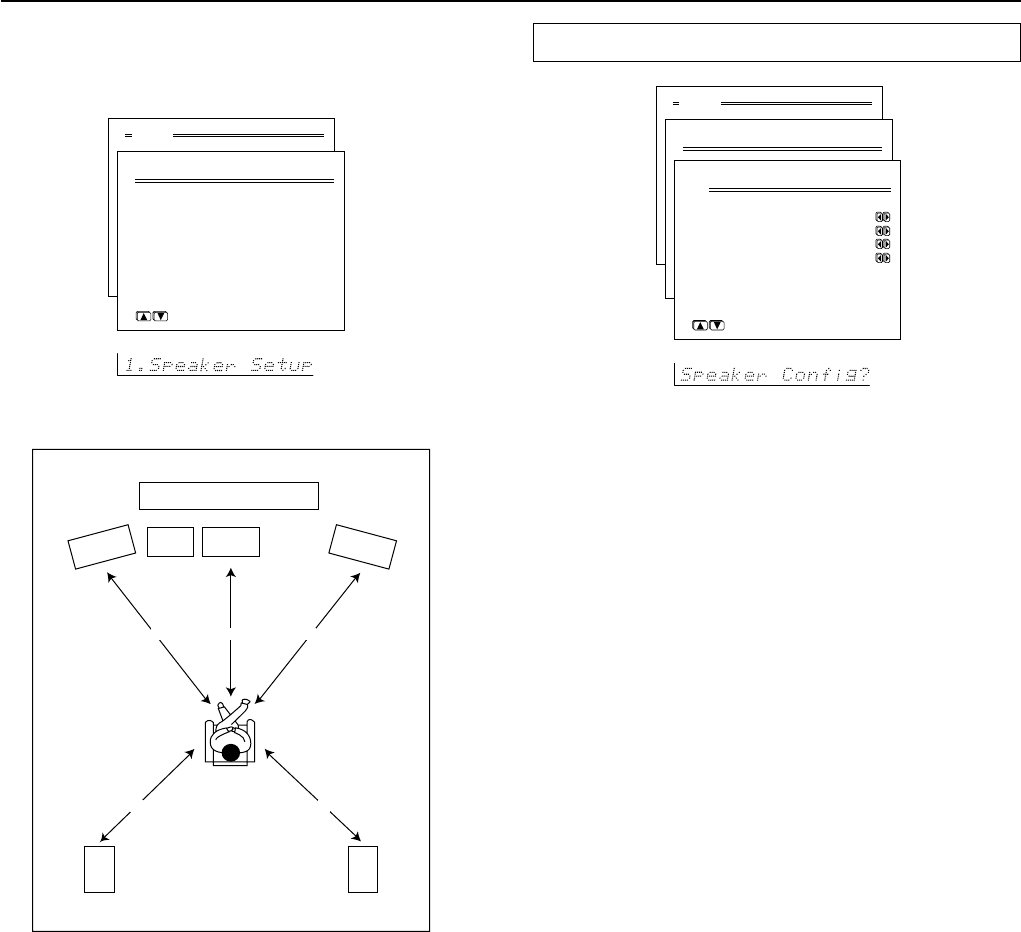

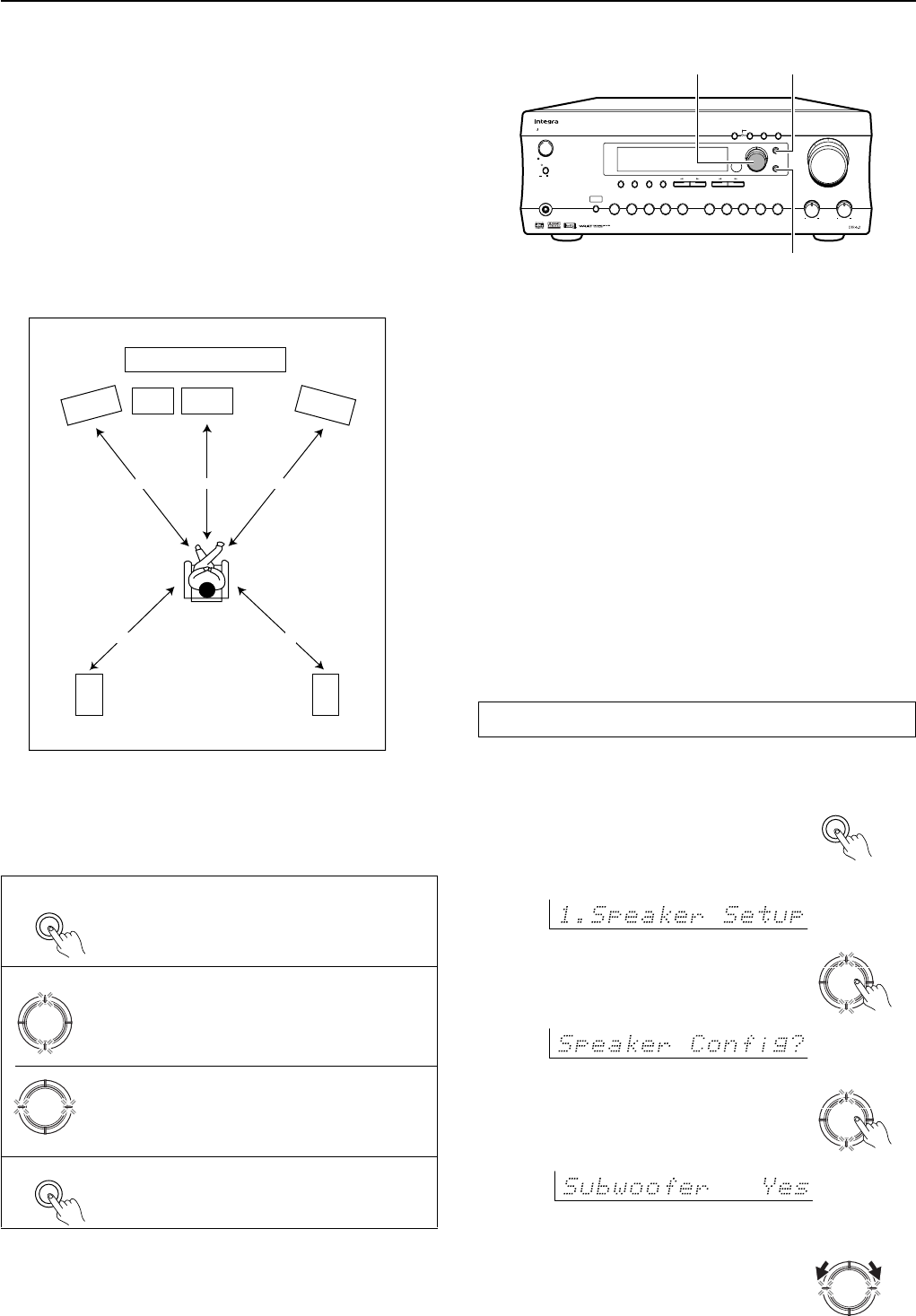

Speaker setup ................................................... 24

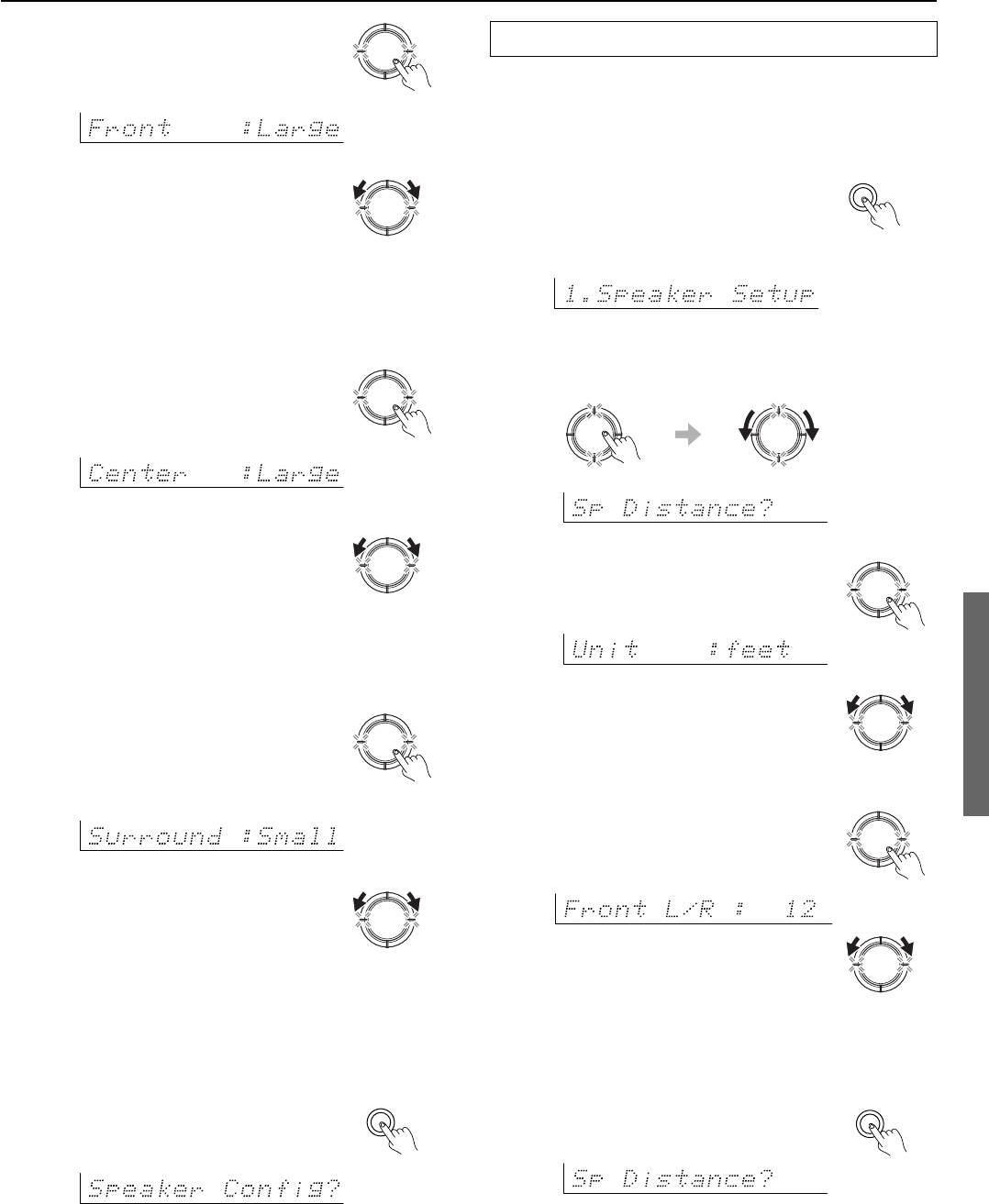

Speaker Configuration submenu .................................... 24

Speaker Distance submenu ............................................ 25

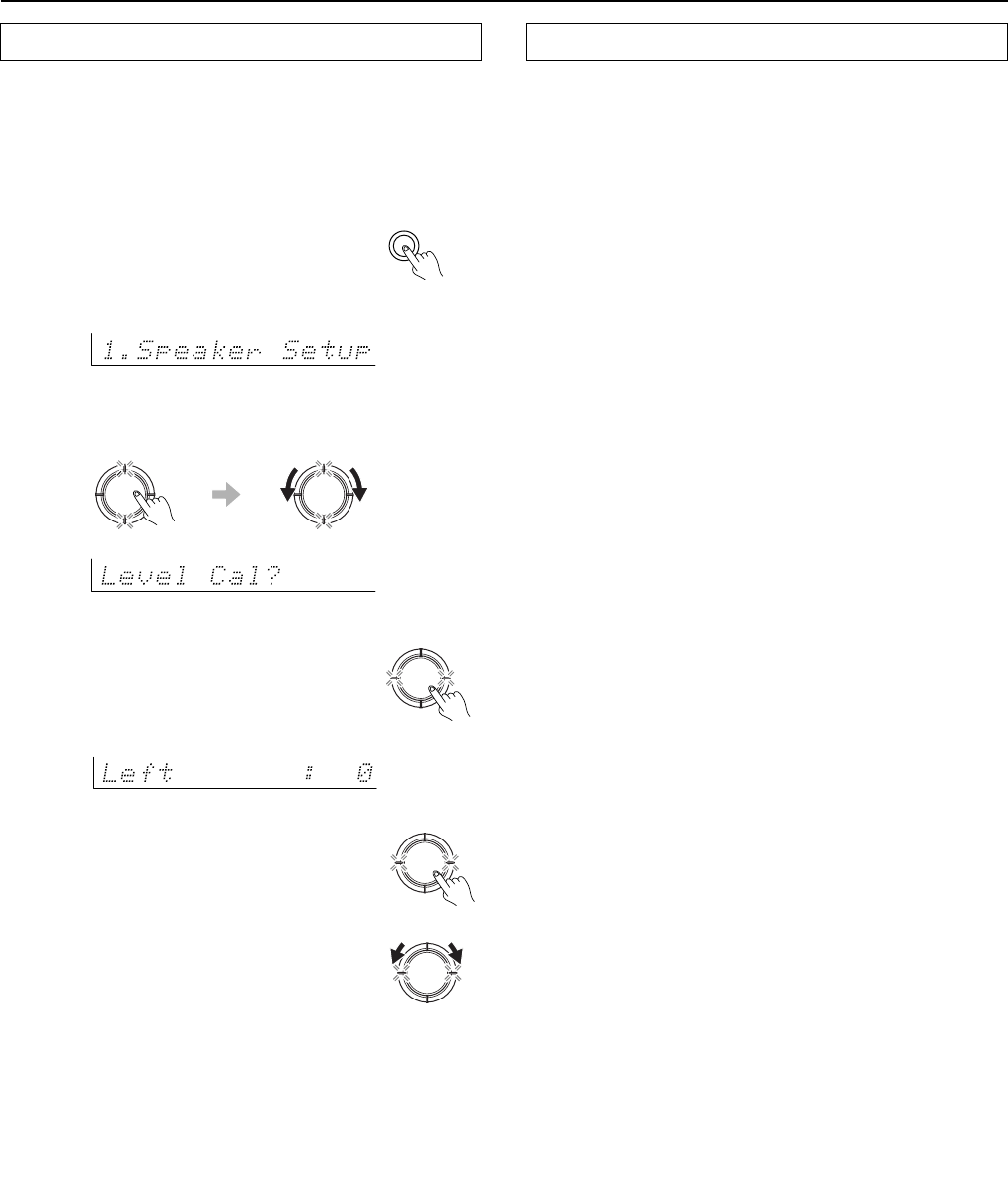

Level Calibration submenu ............................................ 26

About the other settings ................................................. 26

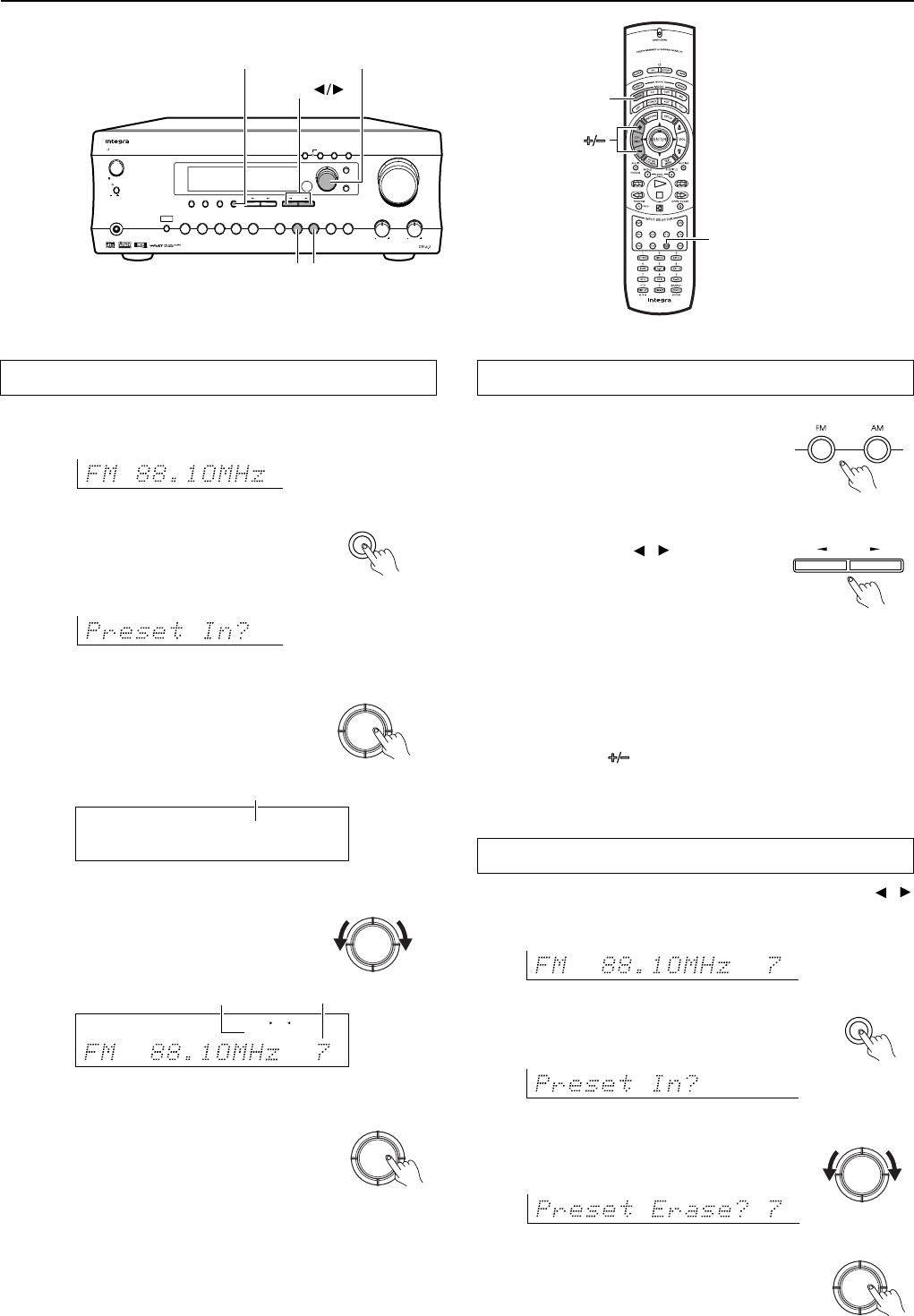

Listening to Radio Broadcasts........................ 27

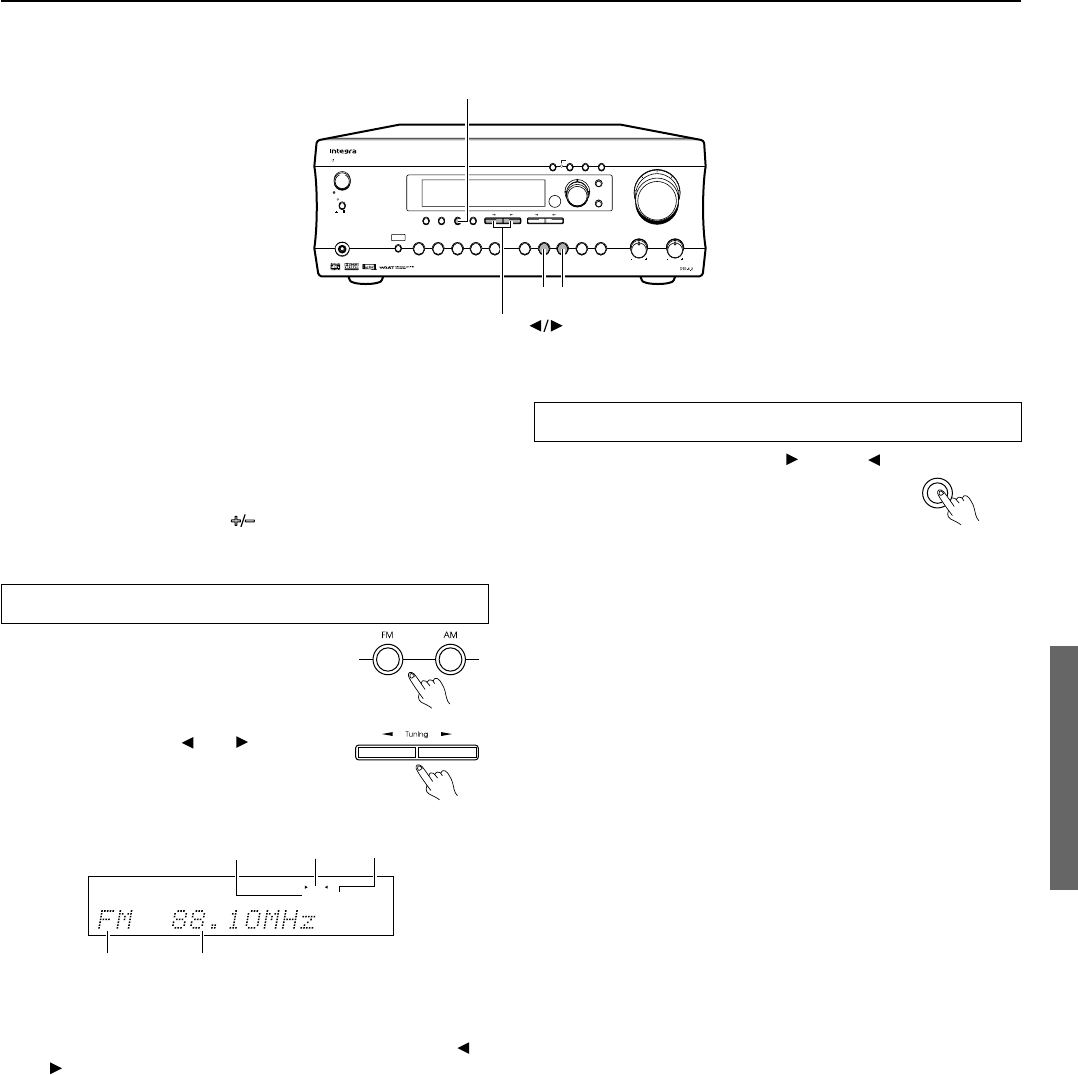

Tuning into a radio station ............................................. 27

Listening to a stereo radio station (FM mode) .............. 27

Presetting a radio station ................................................ 28

Selecting a preset radio station ...................................... 28

Erasing a preset radio station ......................................... 28

Enjoying music or videos with the DTR-6.2 ......

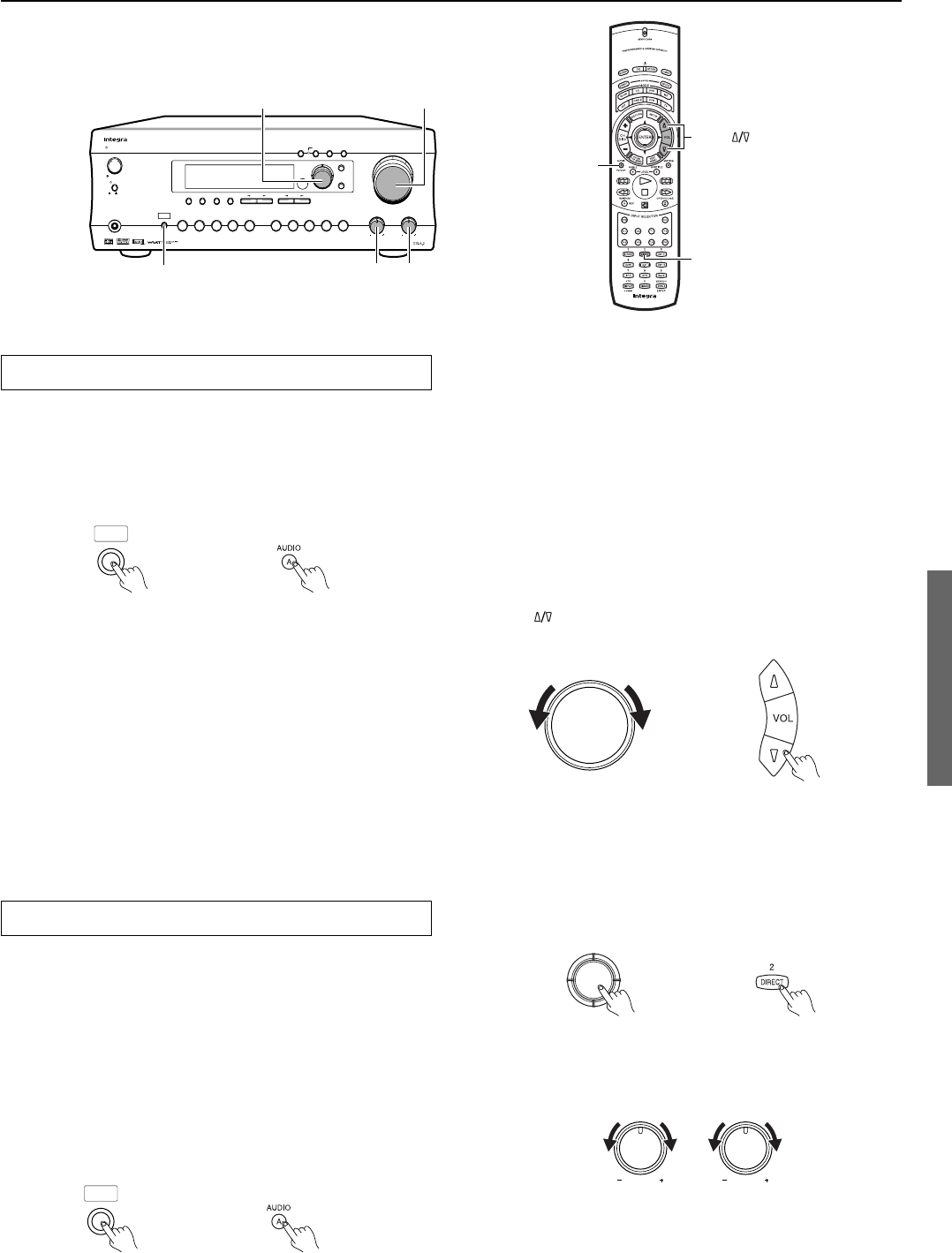

Basic operation ............................................................... 29

Temporarily turning off the sound ..................................... 29

Adjusting the bass and treble ......................................... 29

Listening with headphones............................................. 29

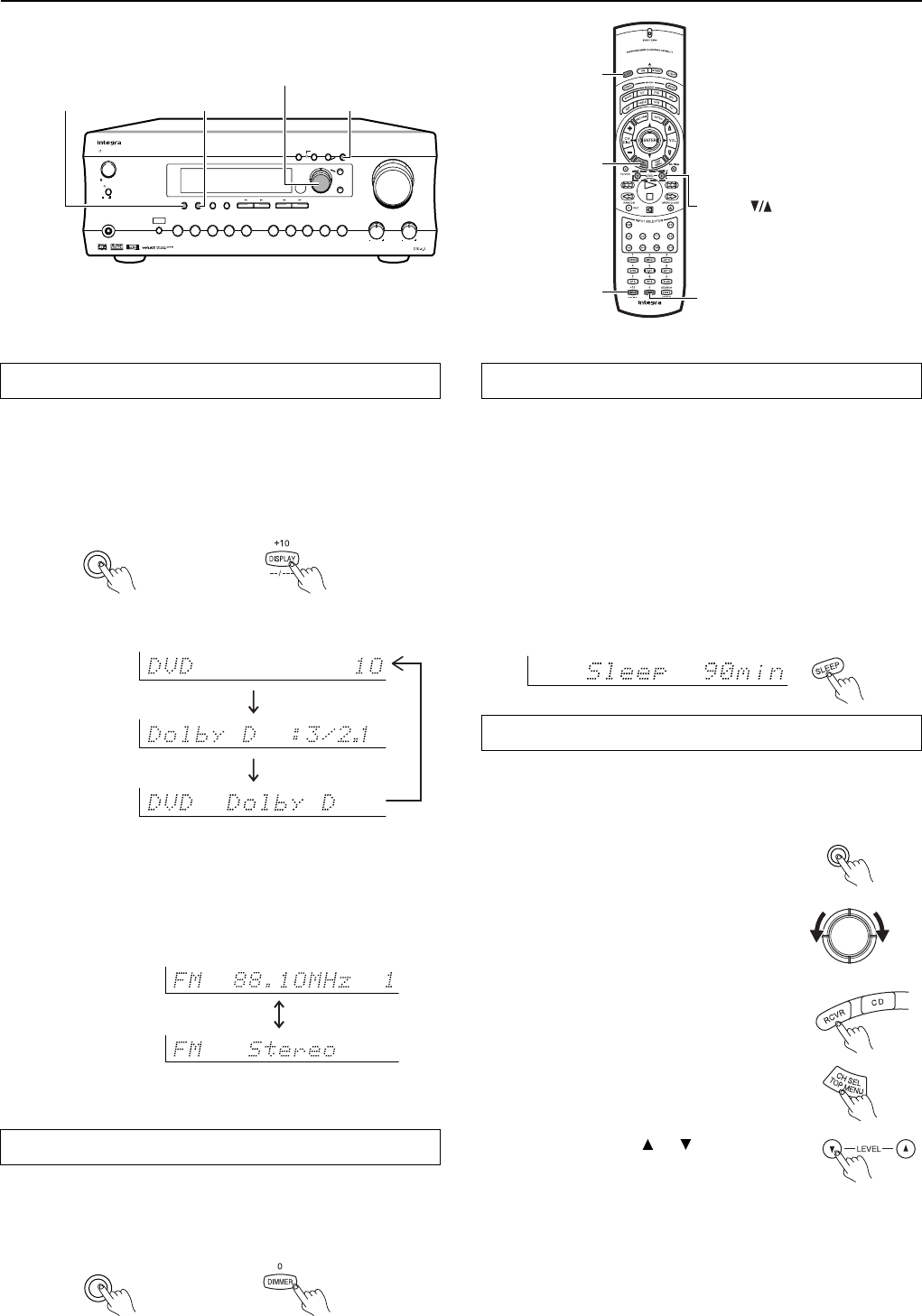

Switching the display ..................................................... 30

Adjusting the brightness of the front display ................ 30

Using the sleep time (remote controller only) ............... 30

Temporarily changing the speaker output levels ........... 30

Changing the audio mode............................................... 31

Enjoying the multichannel output .................................. 31

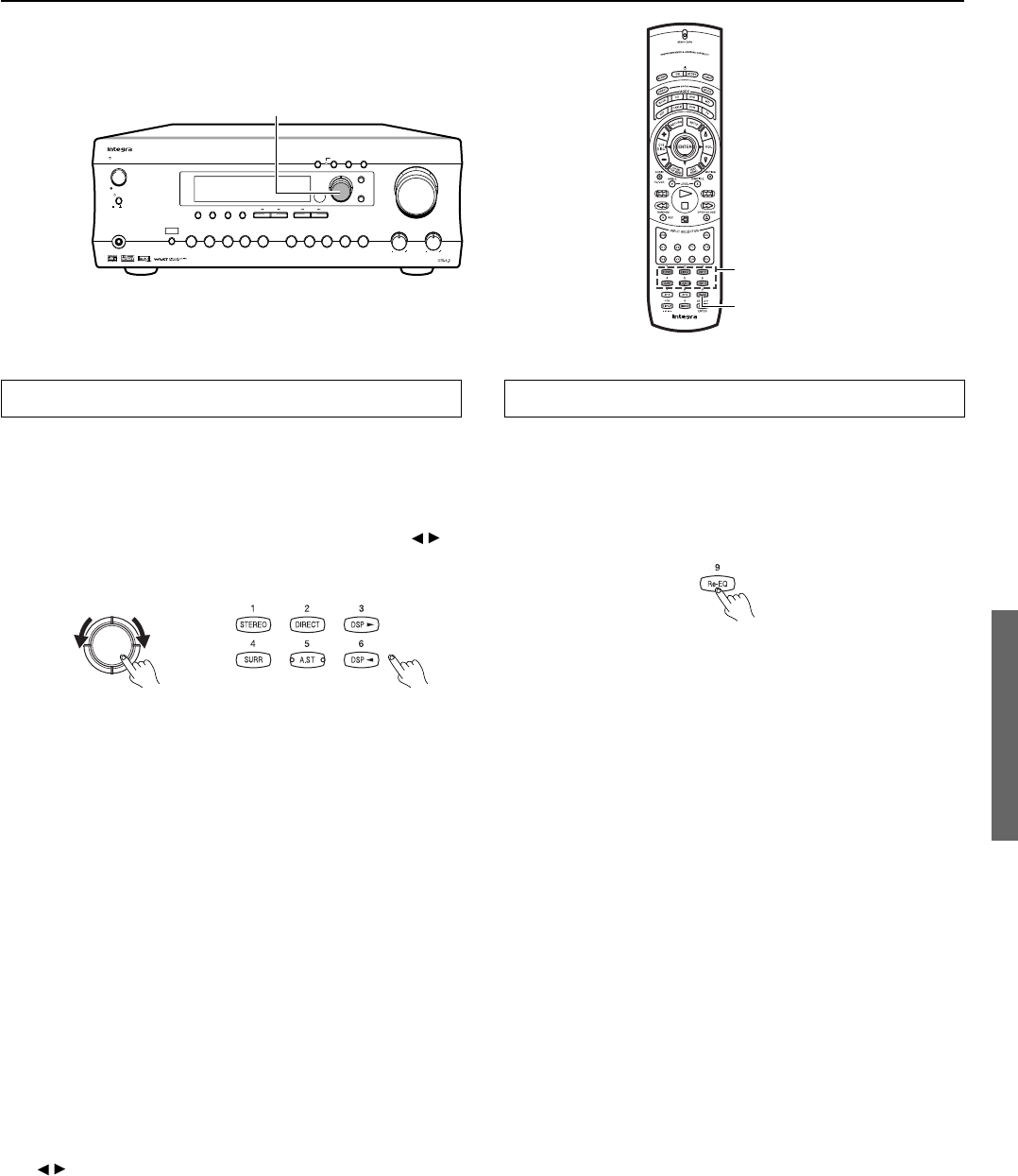

Using listening mode ....................................... 32

Listening modes ............................................................. 32

Changing the listening mode.......................................... 33

Using Cinema Re-Equalization...................................... 33

Setup menus ..................................................... 34

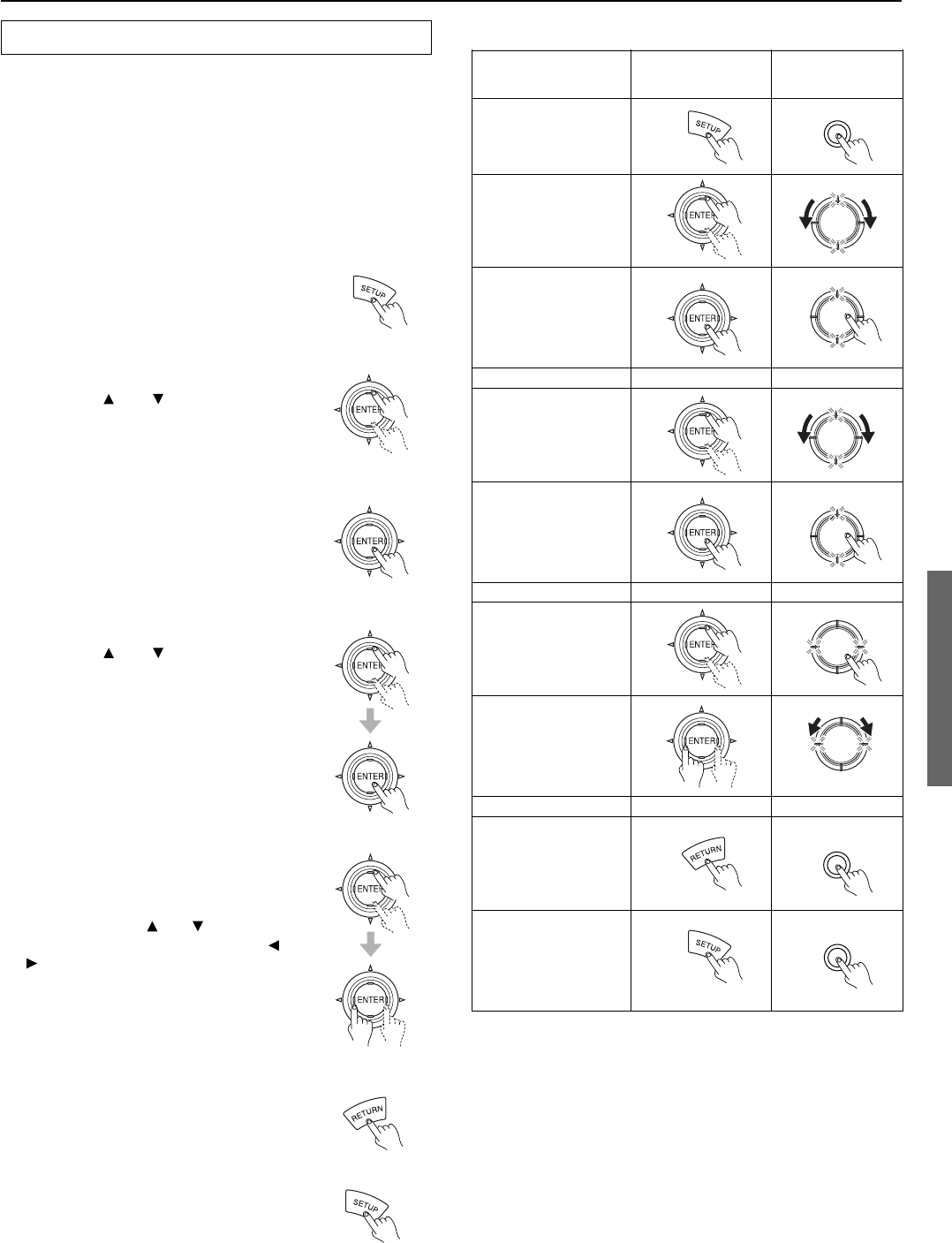

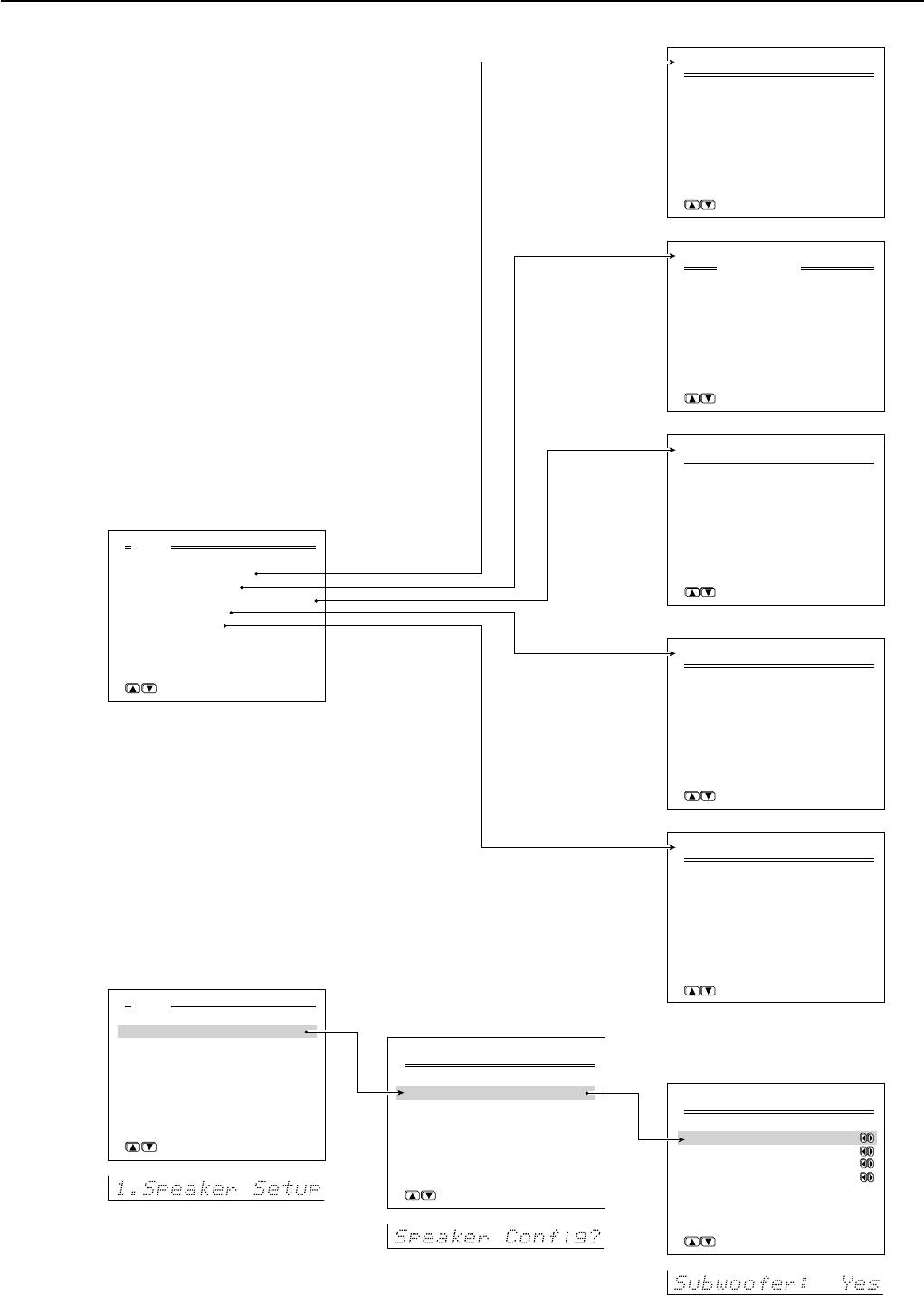

Navigating through the Setup menu .............................. 35

1. Speaker Setup menu................................................. 36

1-1. Speaker Config sub-menu....................................... 36

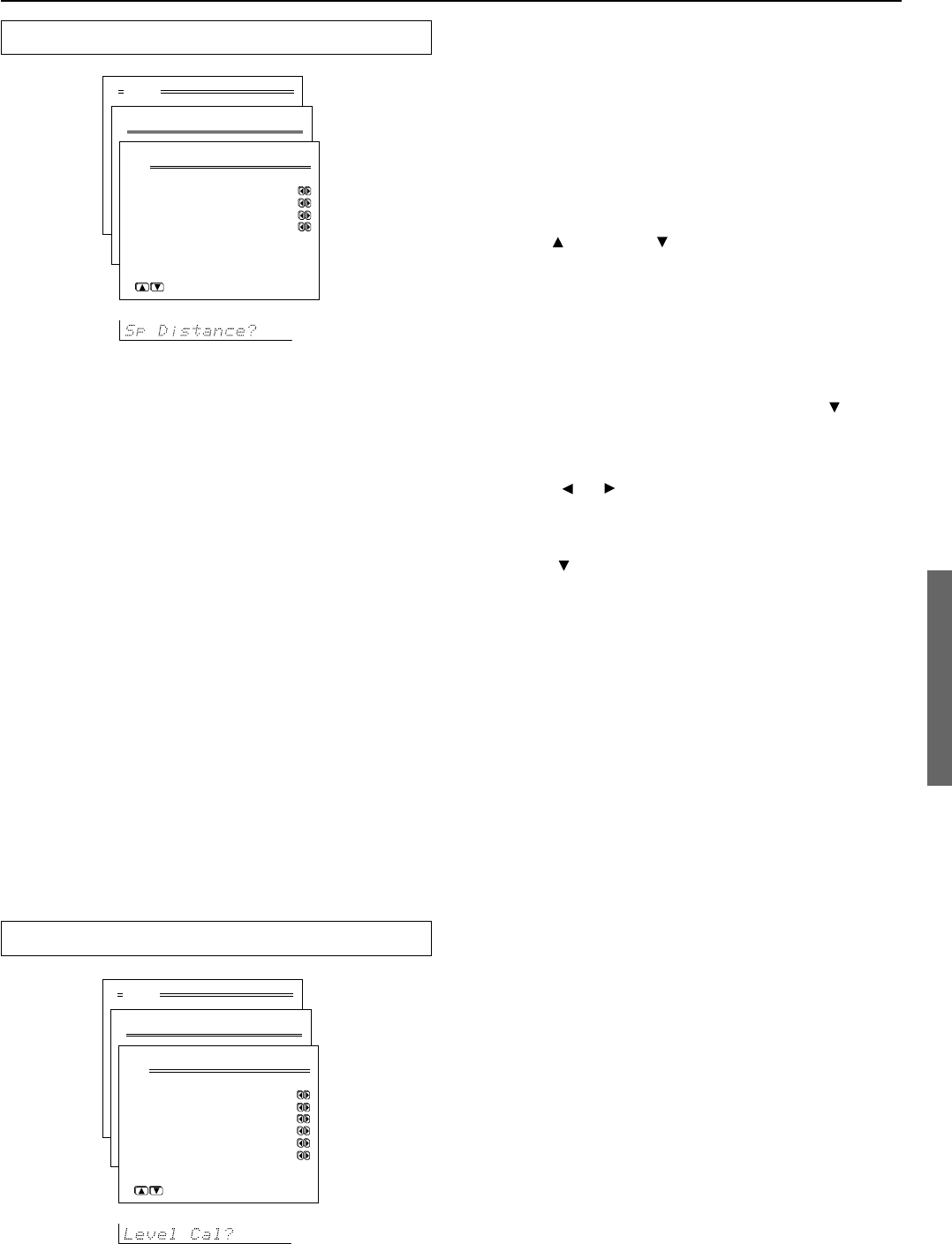

1-2. Speaker Distance sub-menu.................................... 37

1-3. Level Calibration sub-menu ................................... 37

Facilities and connections

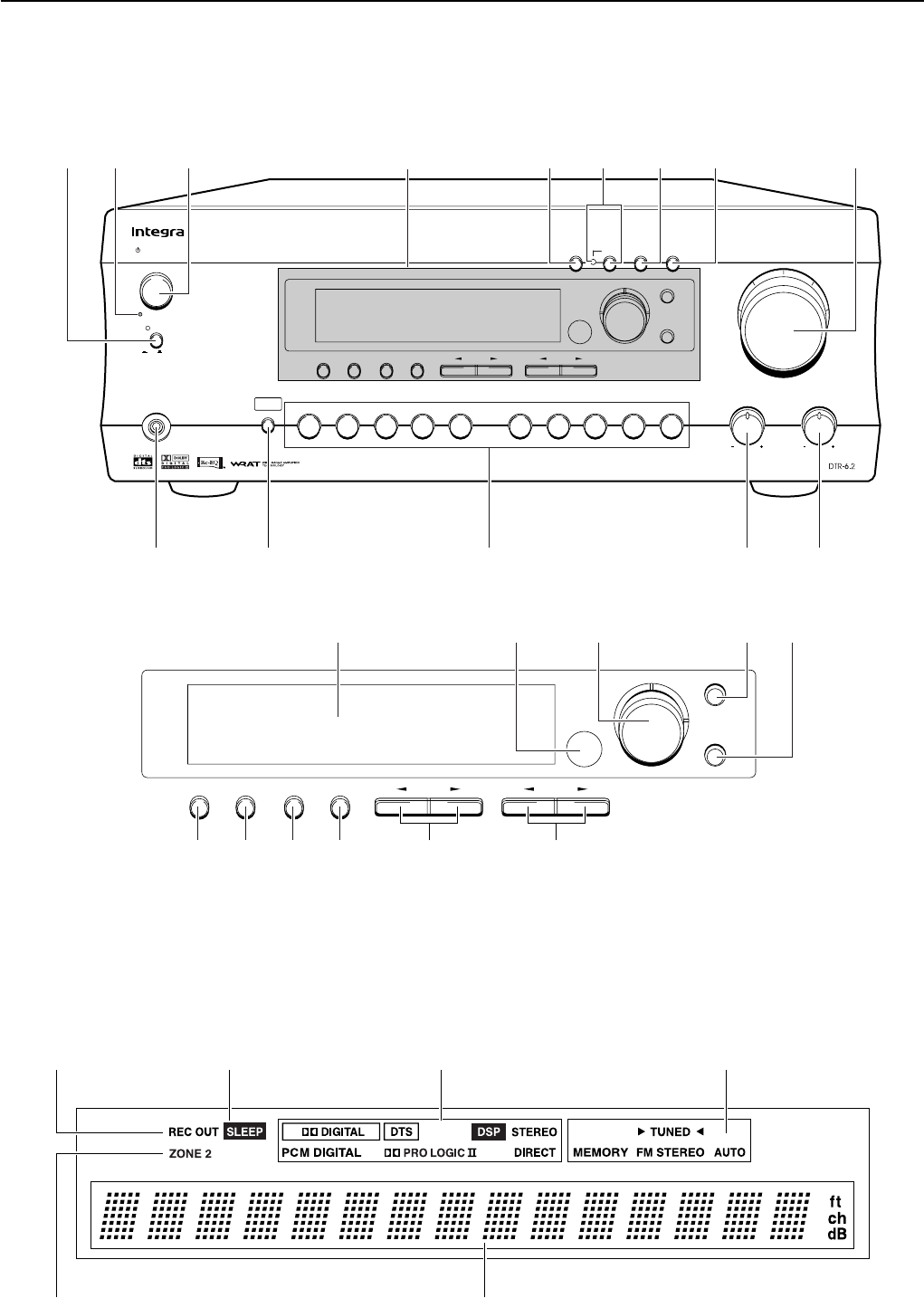

Front panel facilities........................................... 8

Remote controller ............................................. 10

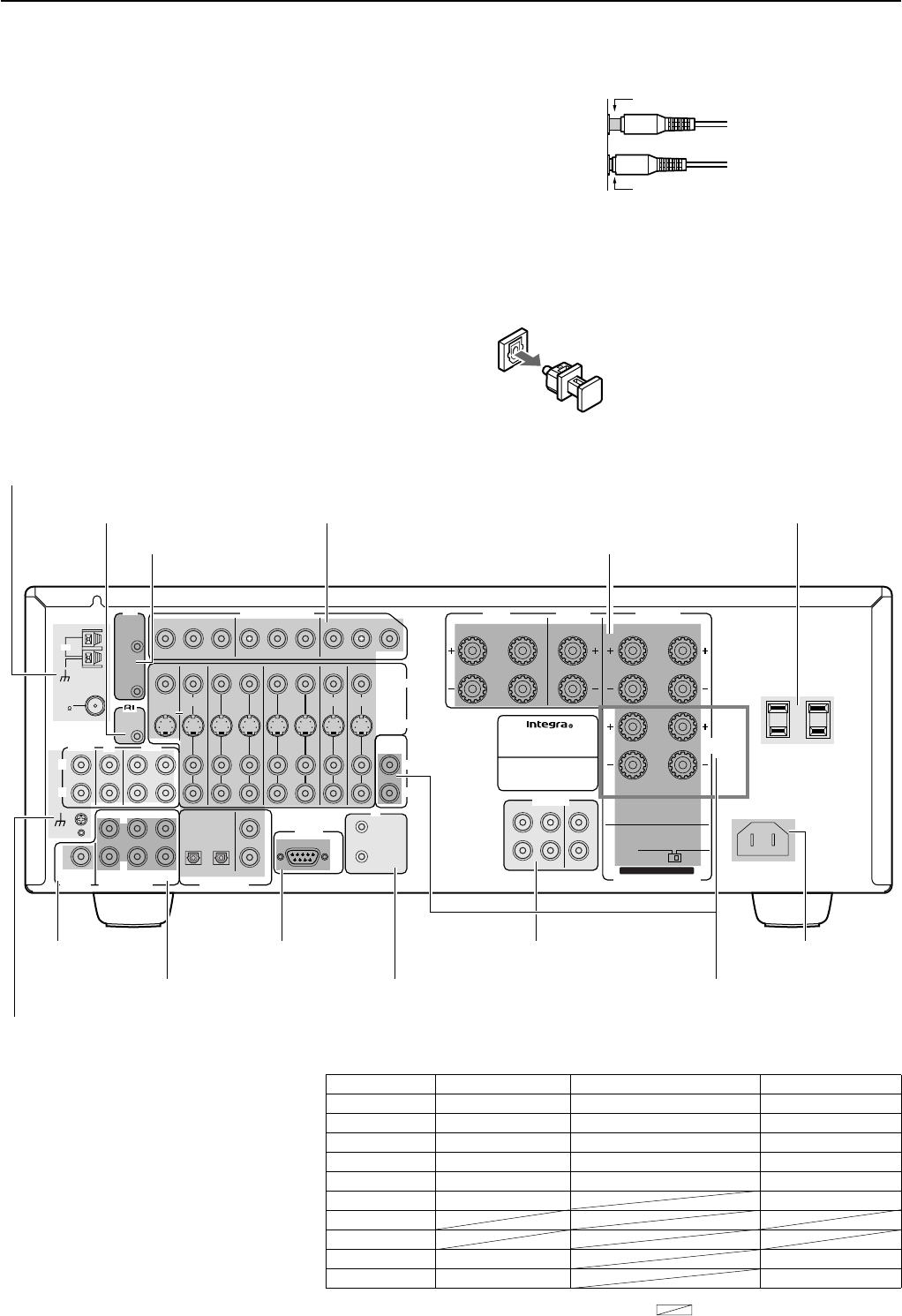

Connections ...................................................... 12

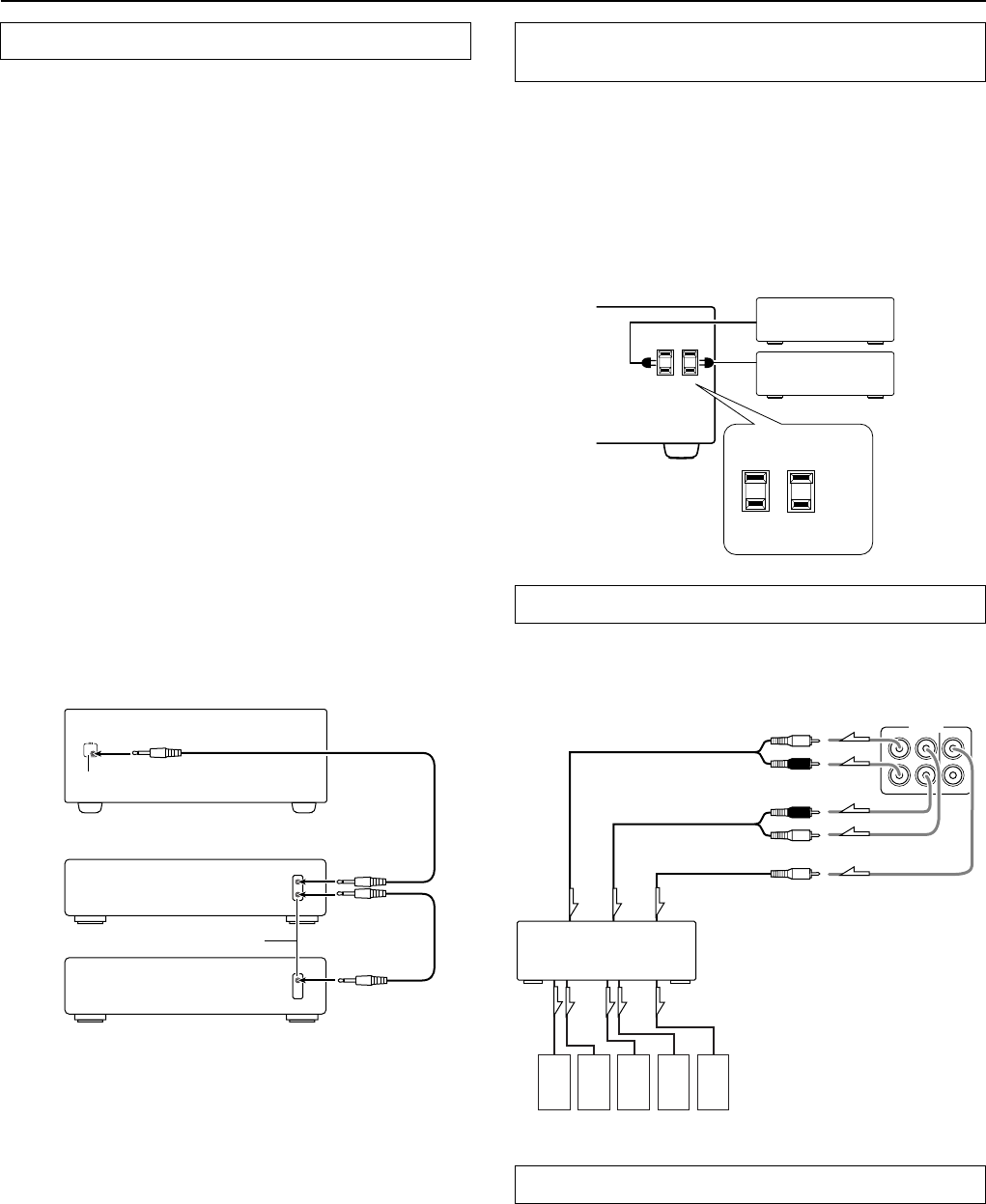

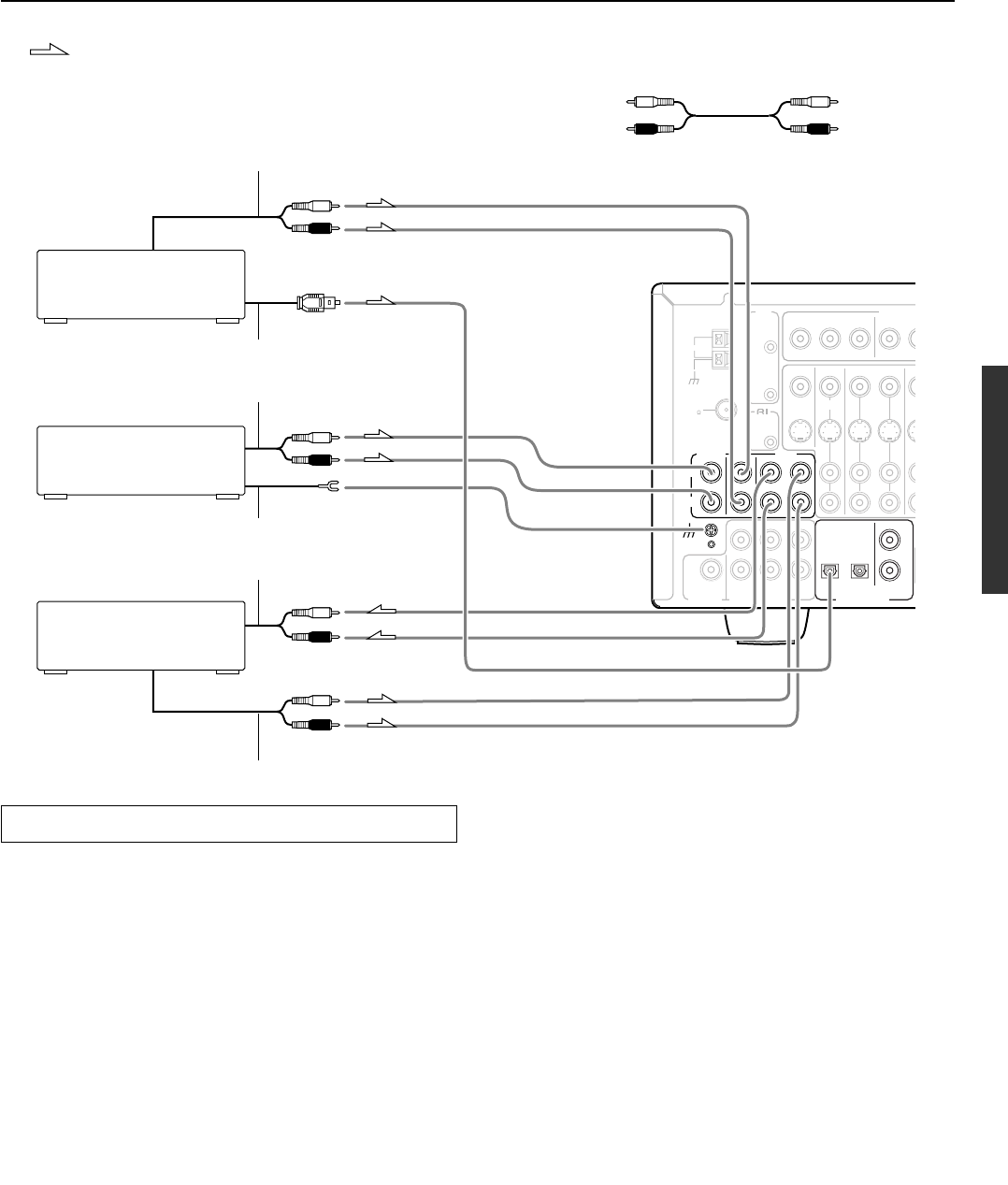

Connecting your audio components .............................. 13

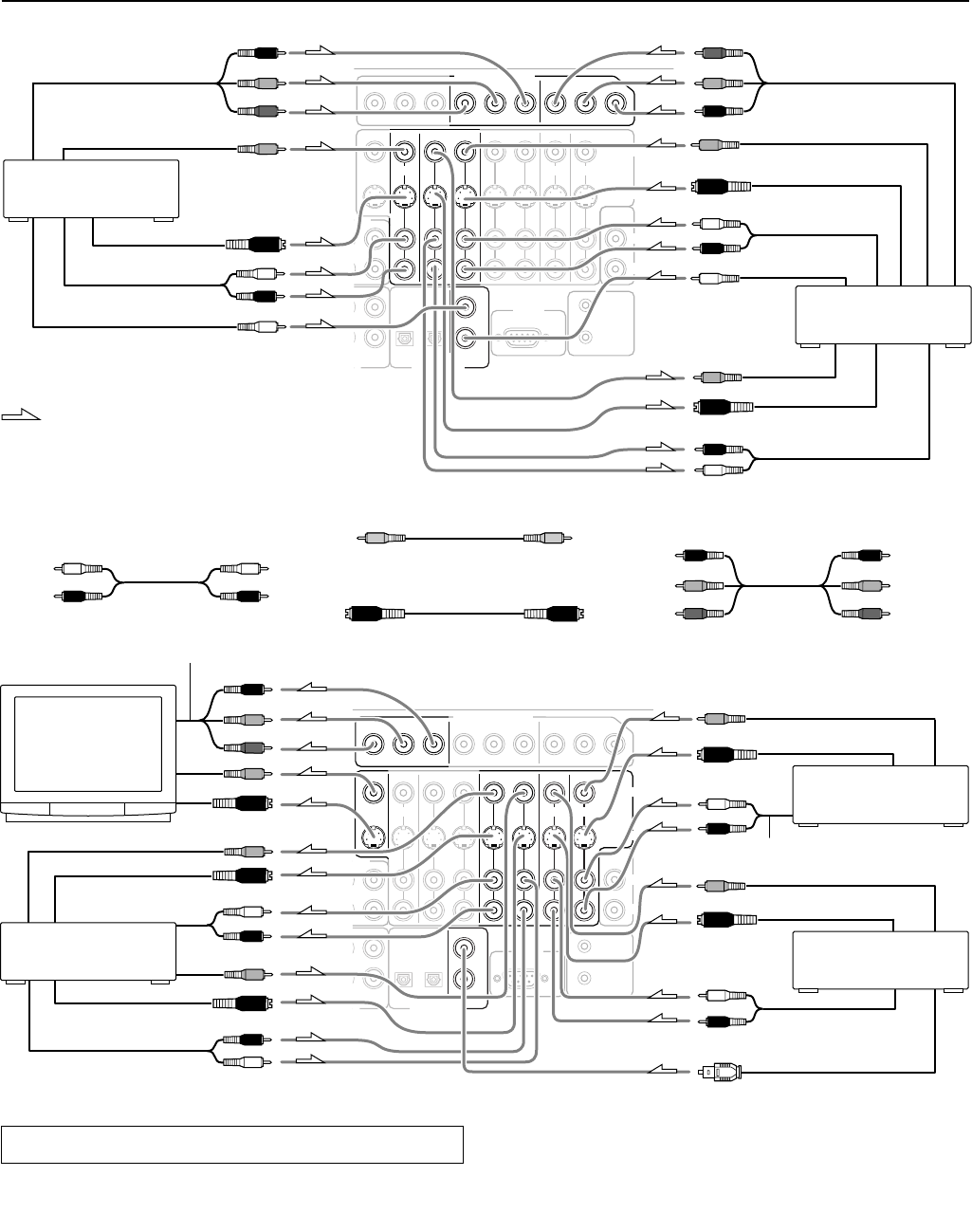

Connecting your video components .............................. 14

Connect to devices with z terminals........................... 16

Cautions regarding the AC OUTLETS connectors ....... 16

Connecting power amplifiers ......................................... 16

12V TRIGGER A, B terminals ...................................... 16

Connect to devices with multichannel output................ 17

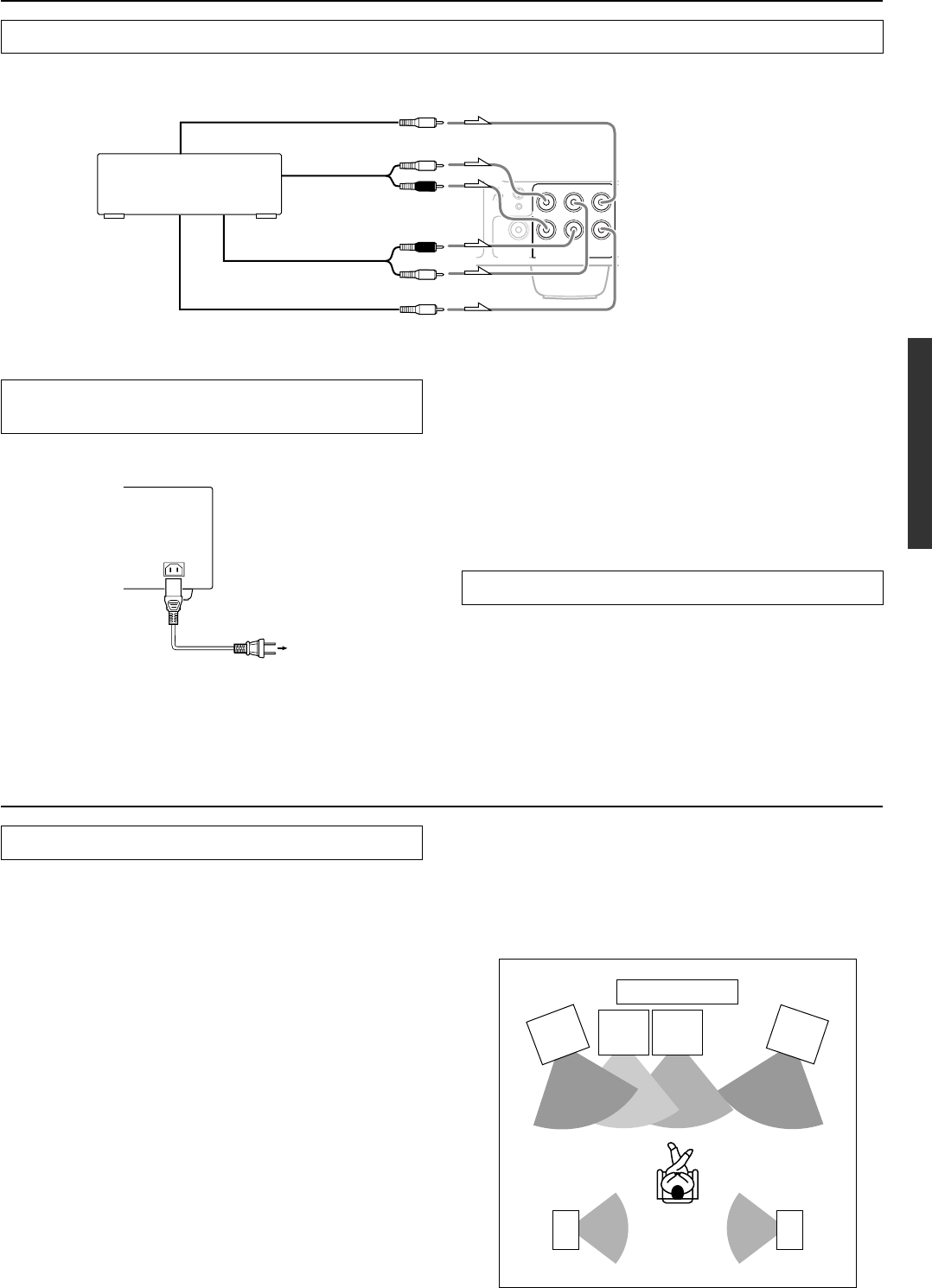

Plugging in the power cord to the AC INLET

receptacle ................................................................ 17

RS 232 port ..................................................................... 17

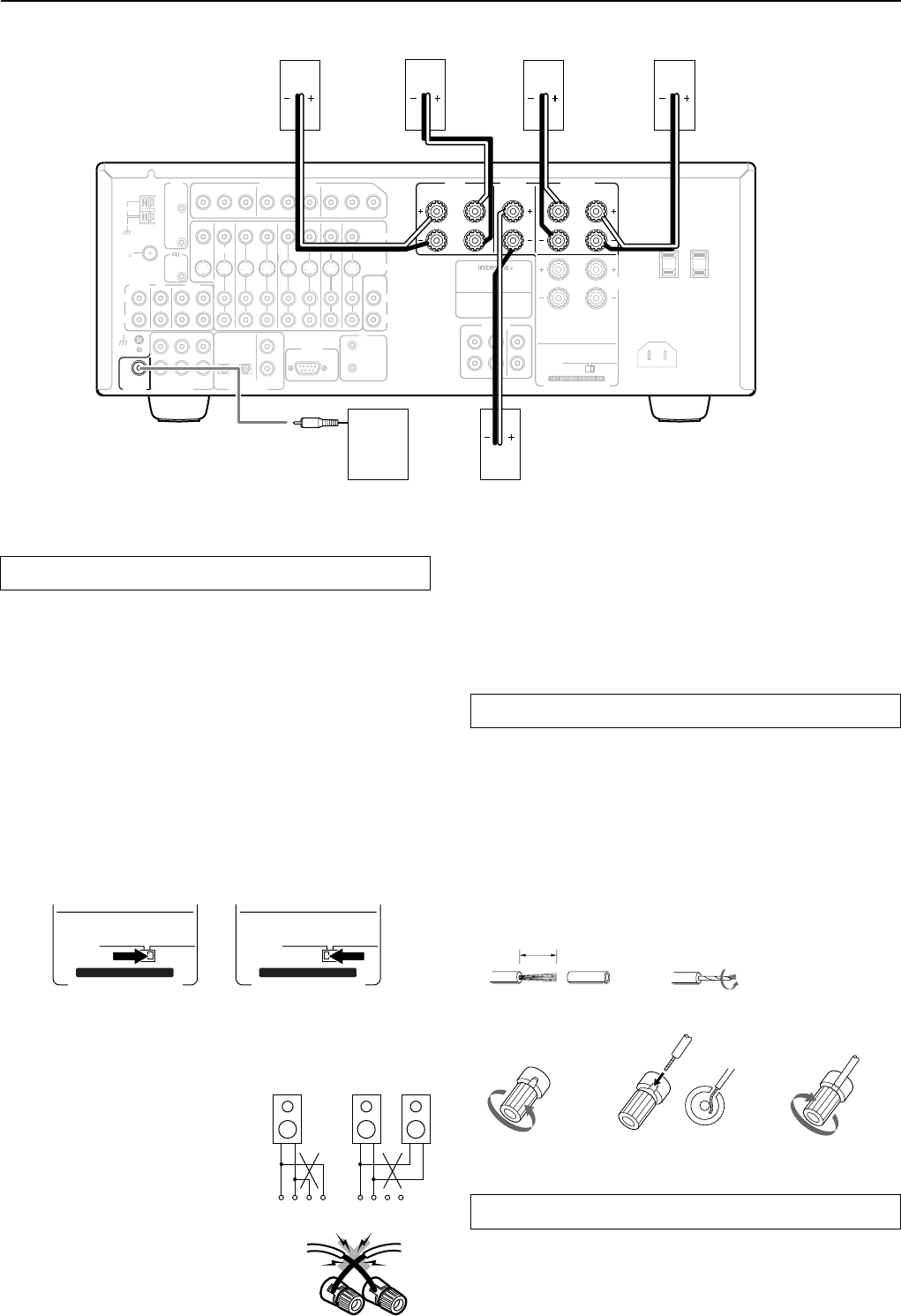

Connecting speakers ....................................... 17

Positioning speakers ....................................................... 17

Connecting speakers ....................................................... 18

Connecting the speaker cable......................................... 18

Connecting a subwoofer ................................................. 18

Listening to music in the remote zone ........... 19

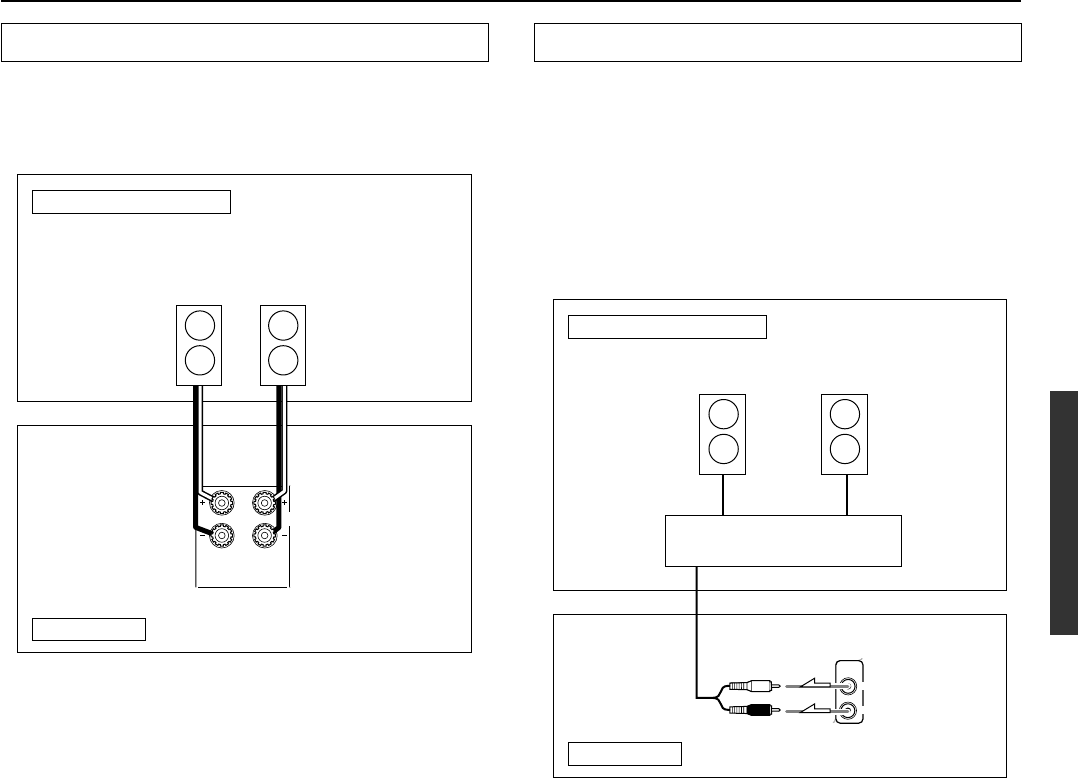

When using the ZONE 2 SPEAKERS terminals........... 19

When using the ZONE 2 OUT terminals ...................... 19

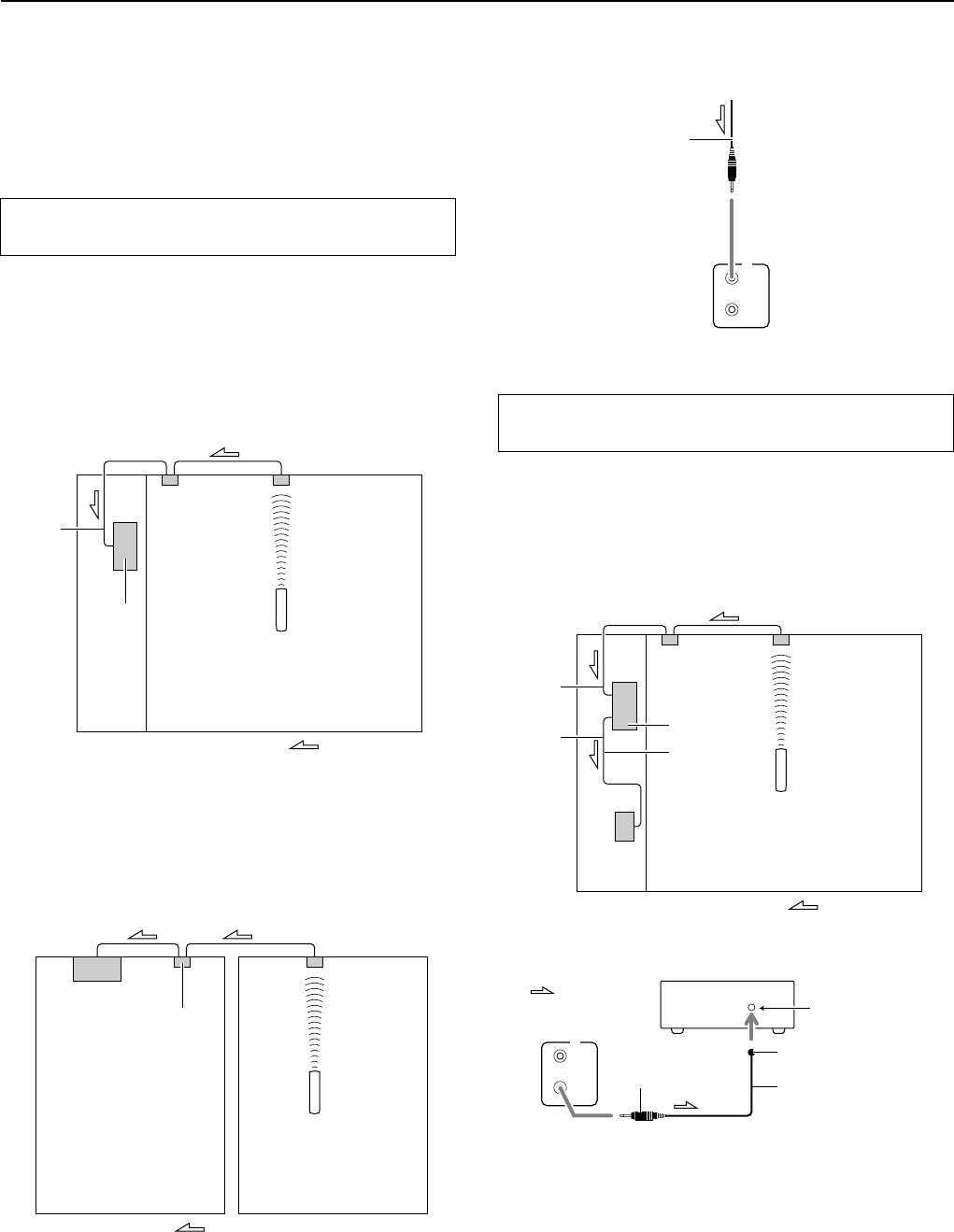

Operating components not reached by the

remote controller signals (IR IN/OUT) ....... 20

If the remote controller signal does not

reach the DTR-6.2 remote sensor ........................... 20

If the remote controller signal does not

reach other components .......................................... 20

Connecting the power ...................................... 21

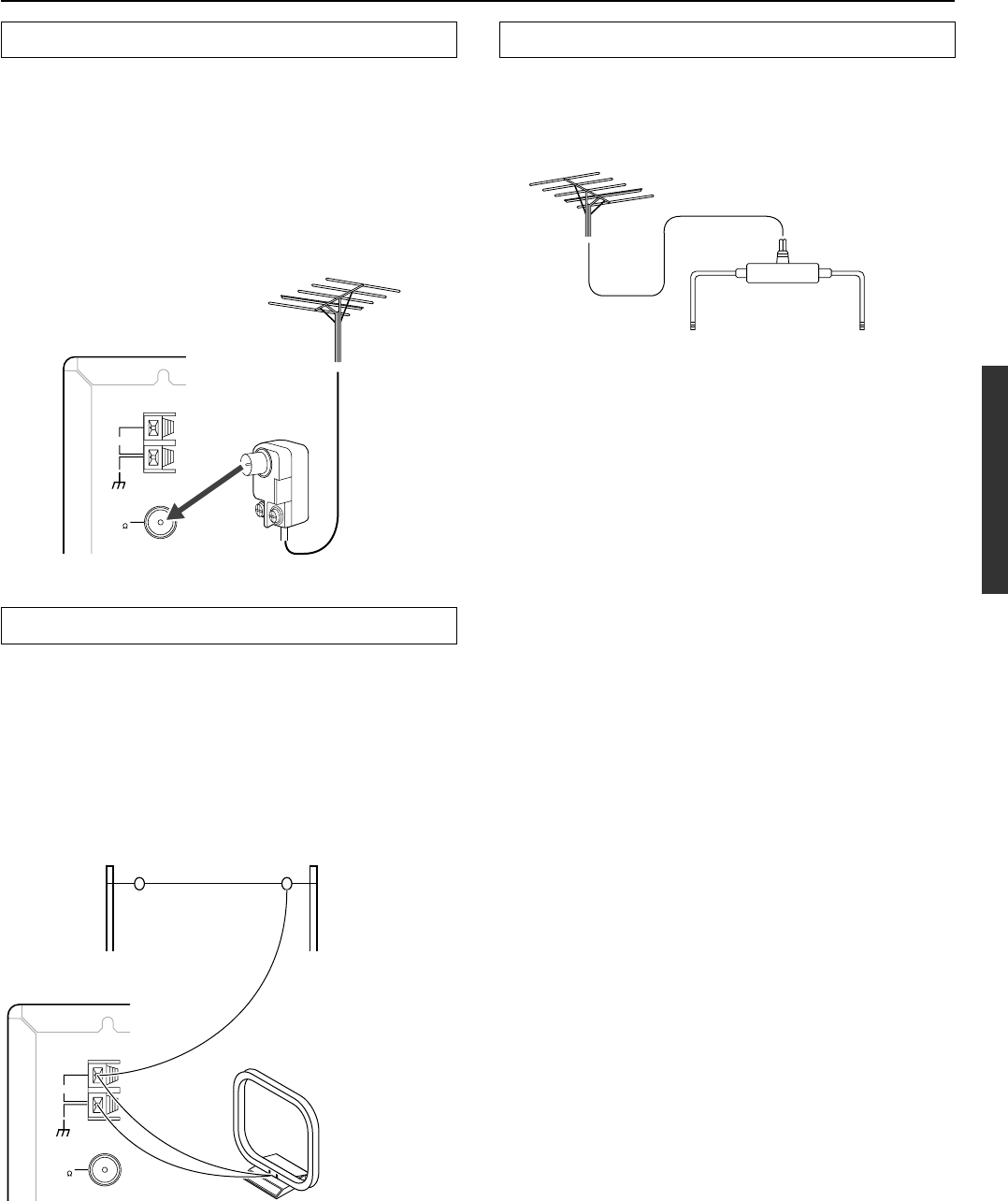

Connecting antennas ....................................... 22

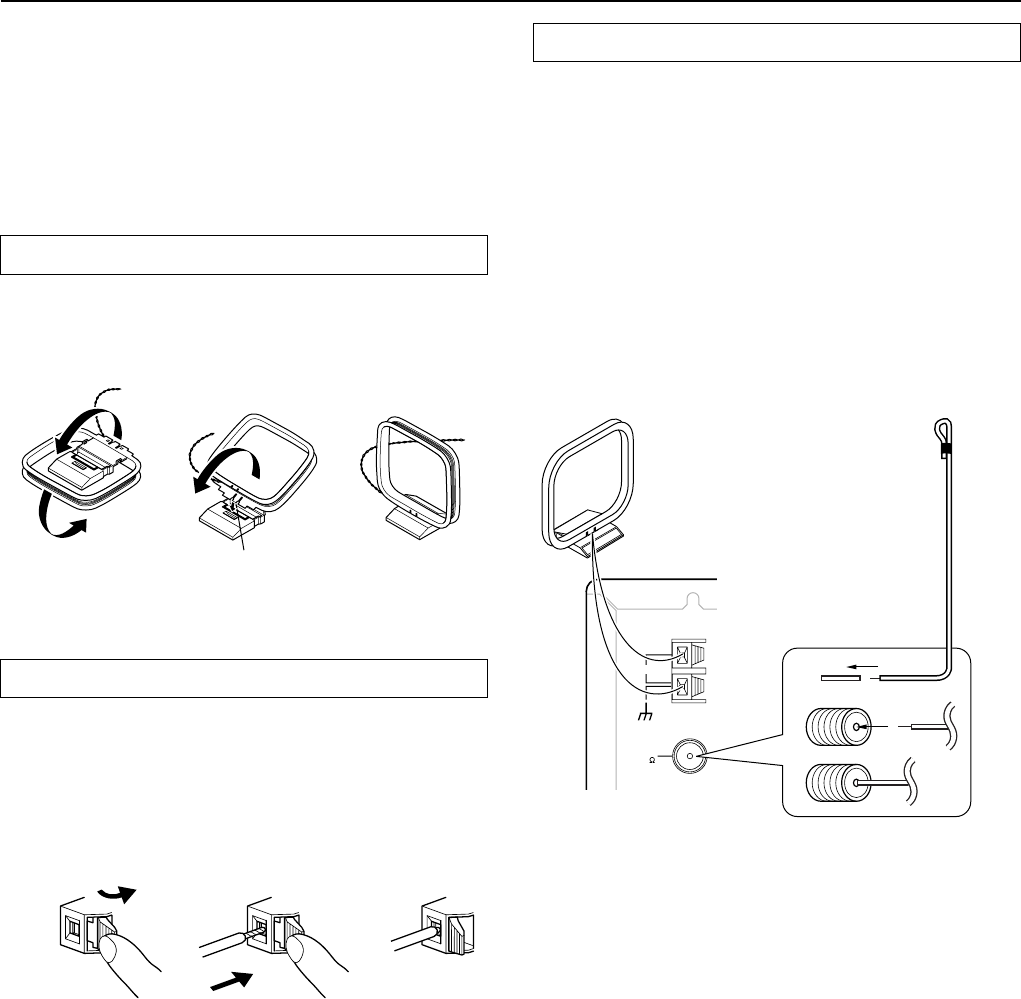

Assembling the AM loop antenna .................................. 22

Connecting the AM antenna cable ................................. 22

Connecting the included antennas ................................. 22

Connecting an FM outdoor antenna............................... 23

Connecting an AM outdoor antenna .............................. 23

Directional linkage ......................................................... 23

Contents

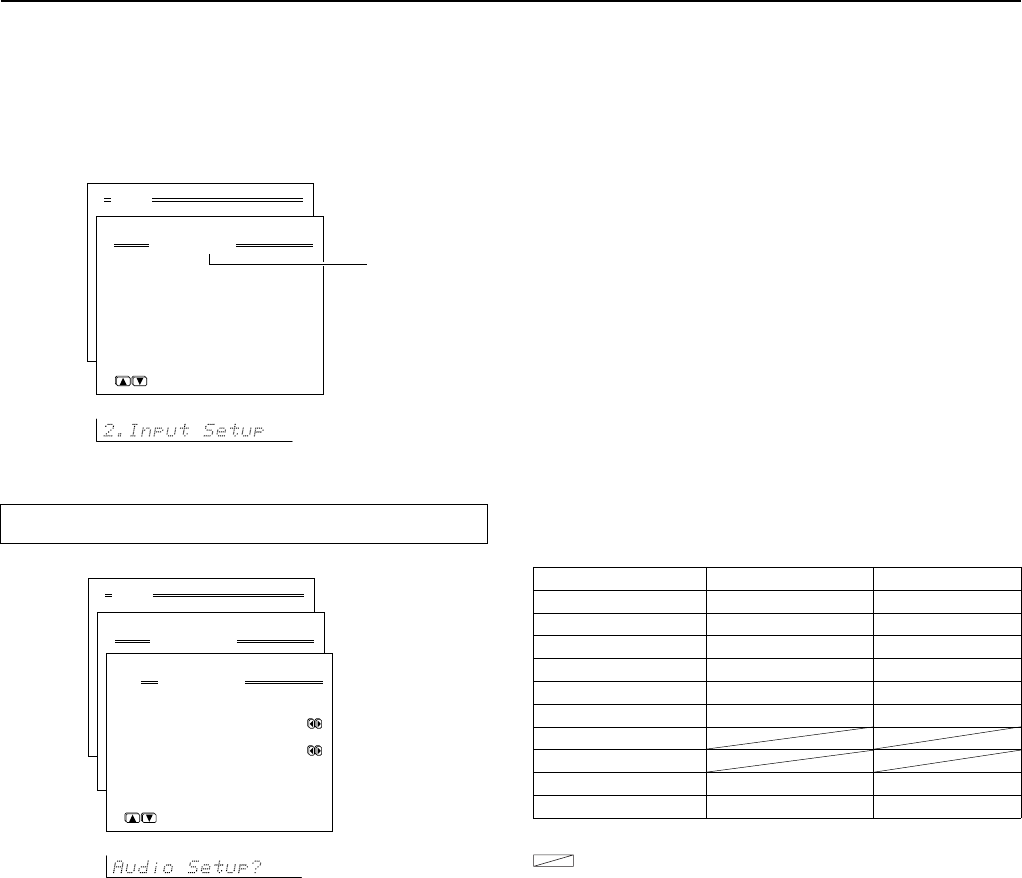

2. Input Setup menu ..................................................... 38

2-1. Audio Setup sub-menu ............................................ 38

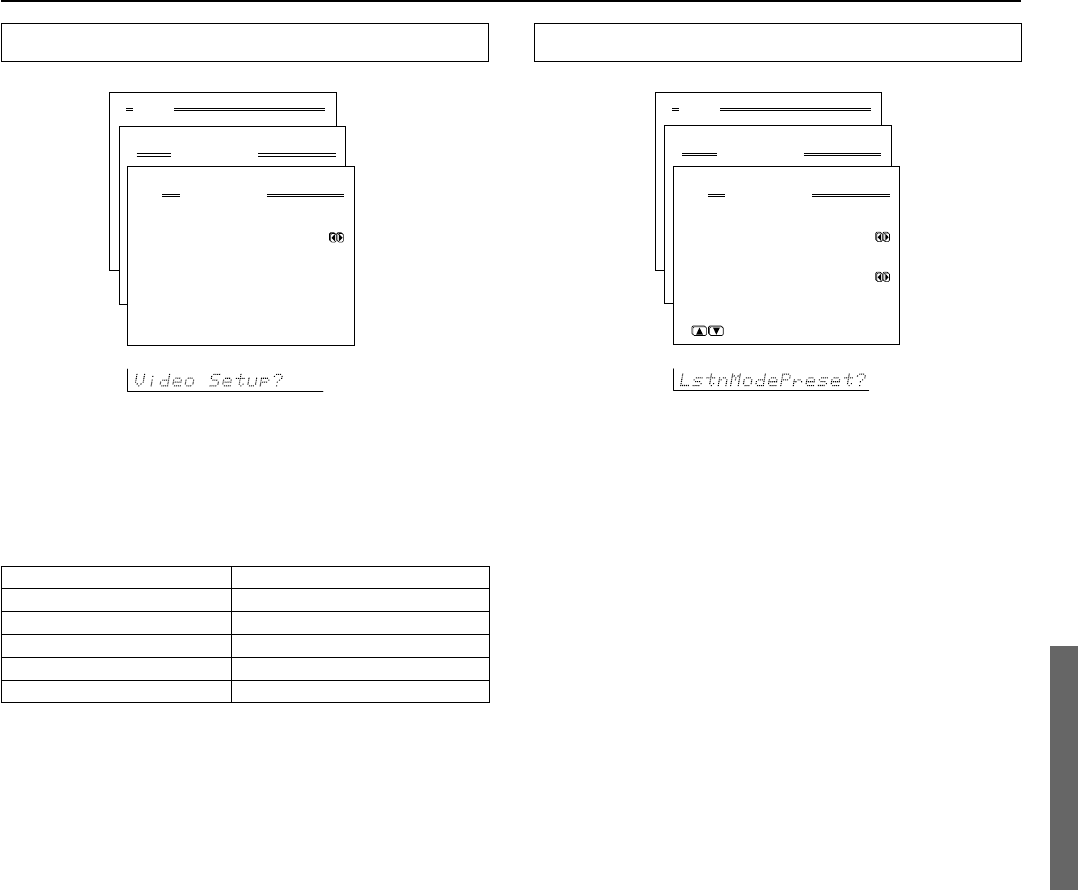

2-2. Video Setup sub-menu ............................................ 39

2-3. Listening Mode Preset sub-menu ........................... 40

2-4. IntelliVolume sub-menu.......................................... 40

2-5. 12V trigger sub-menu ............................................. 40

3. Listening Mode Setup menu ................................... 41

Description listening mode parameters ......................... 41

4. Preference menu ....................................................... 41

4-1. Volume Setup sub-menu ......................................... 41

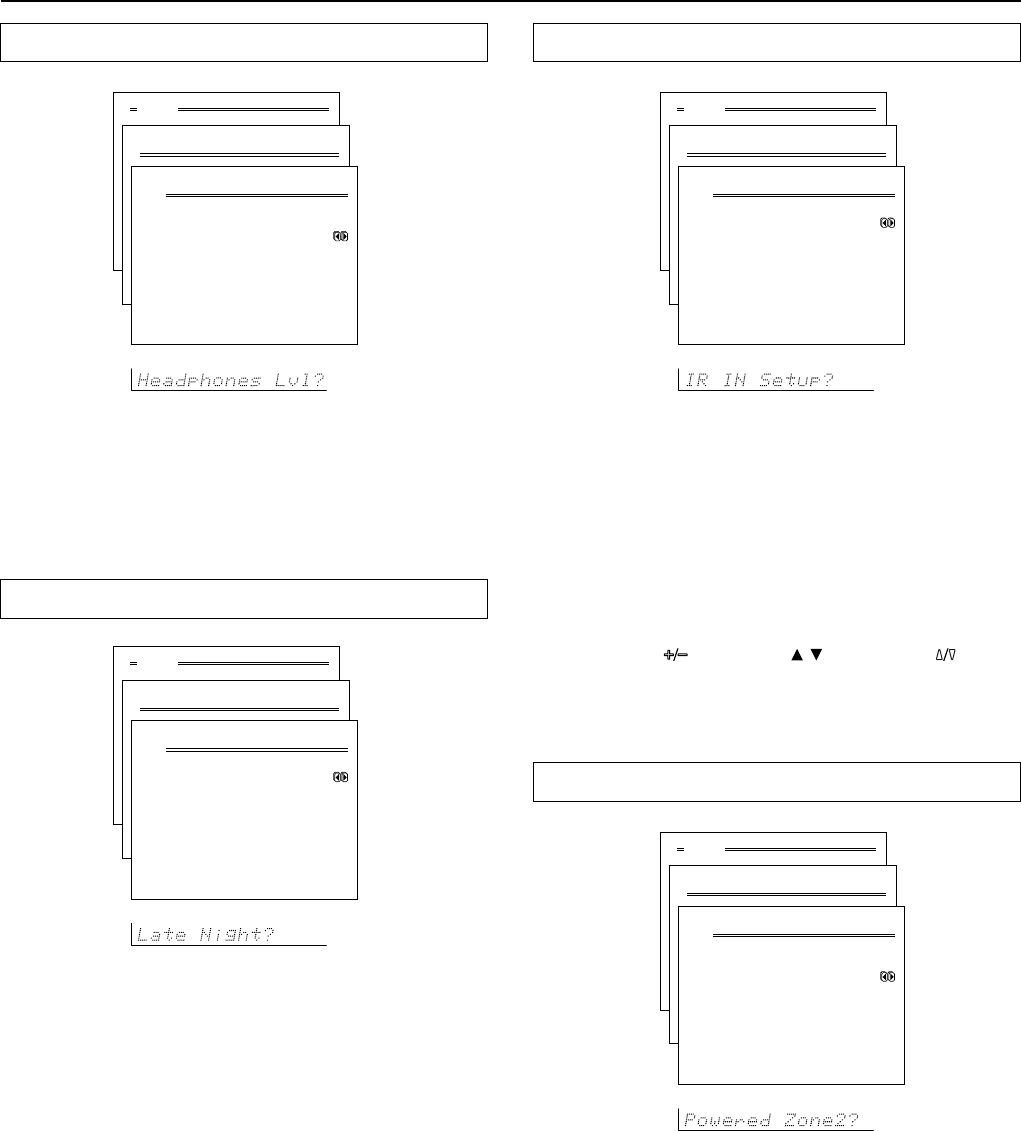

4-2. Headphones Level sub-menu .................................. 42

4-3. Late Night Setup sub-menu .................................... 42

4-4. IR IN Setup sub-menu ............................................ 42

4-5. Powered Zone 2 Setup sub-menu ........................... 42

5. OSD Setup menu ...................................................... 43

5-1. OSD Setup sub-menu.............................................. 43

5-2. OSD Position sub-menu ......................................... 43

Recording .......................................................... 44

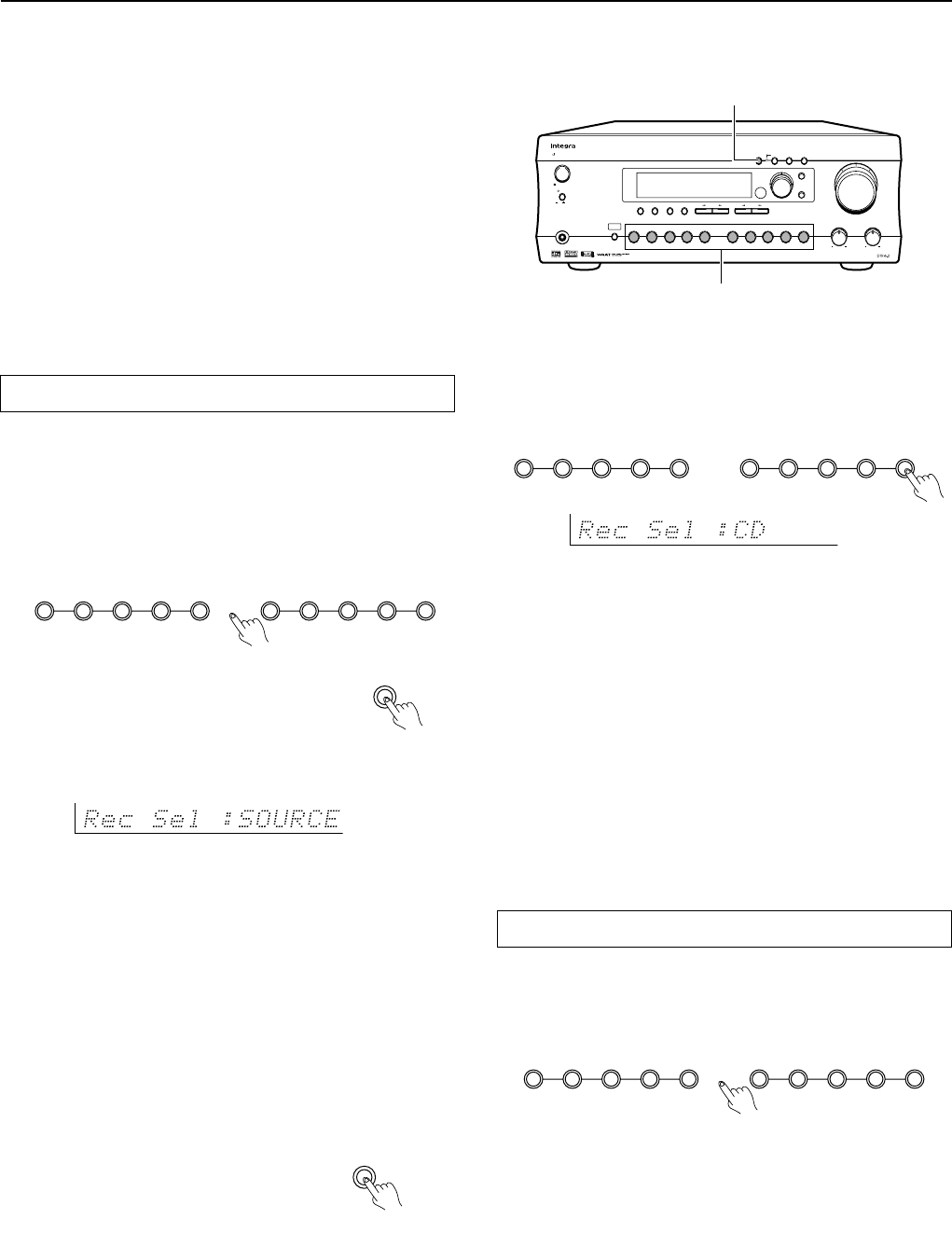

Recording the input source (REC OUT selector) .......... 44

Recording both the audio and video .............................. 44

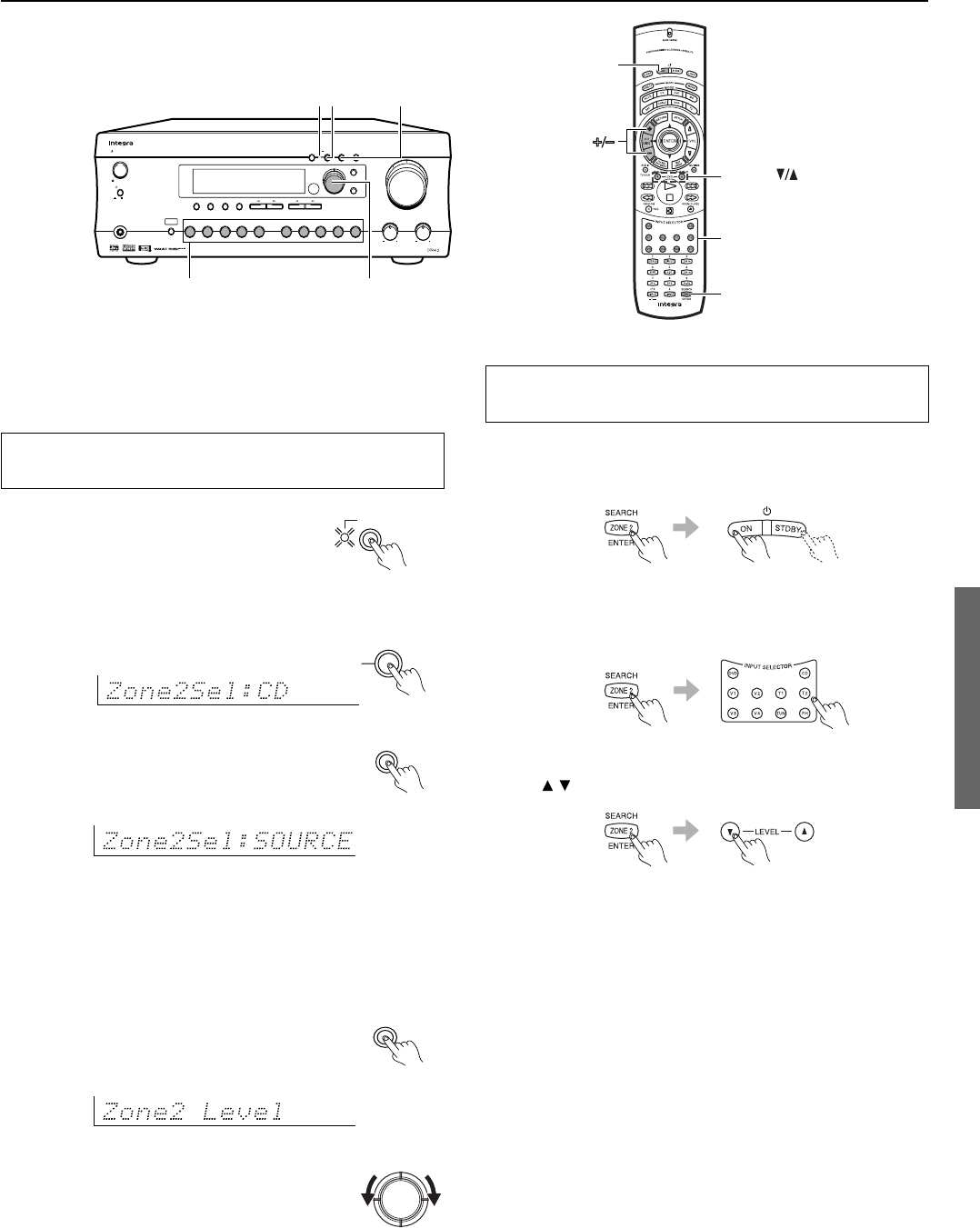

Enjoying music in the remote zone ................ 45

Selecting an input source and adjusting the

volume on the DTR-6.2 .......................................... 45

Selecting an input source and adjusting the

volume using the remote controller ........................ 45

Operationing your programmed remote

controller ...................................................... 52

DVD MODE (DVD Player Mode) ................................ 52

SAT MODE (Satellite Tuner Mode) .............................. 52

CABLE MODE (Cable Mode)....................................... 52

VCR MODE (VCR Mode) ............................................. 53

TV MODE (TV Mode)................................................... 53

Programming the commands of remote

controllers for other devices into the

remote controller ......................................... 54

Programming procedure ................................................. 54

Erasing the programmed command from one button .... 56

Erasing all the commands programmed

under a MODE button............................................. 56

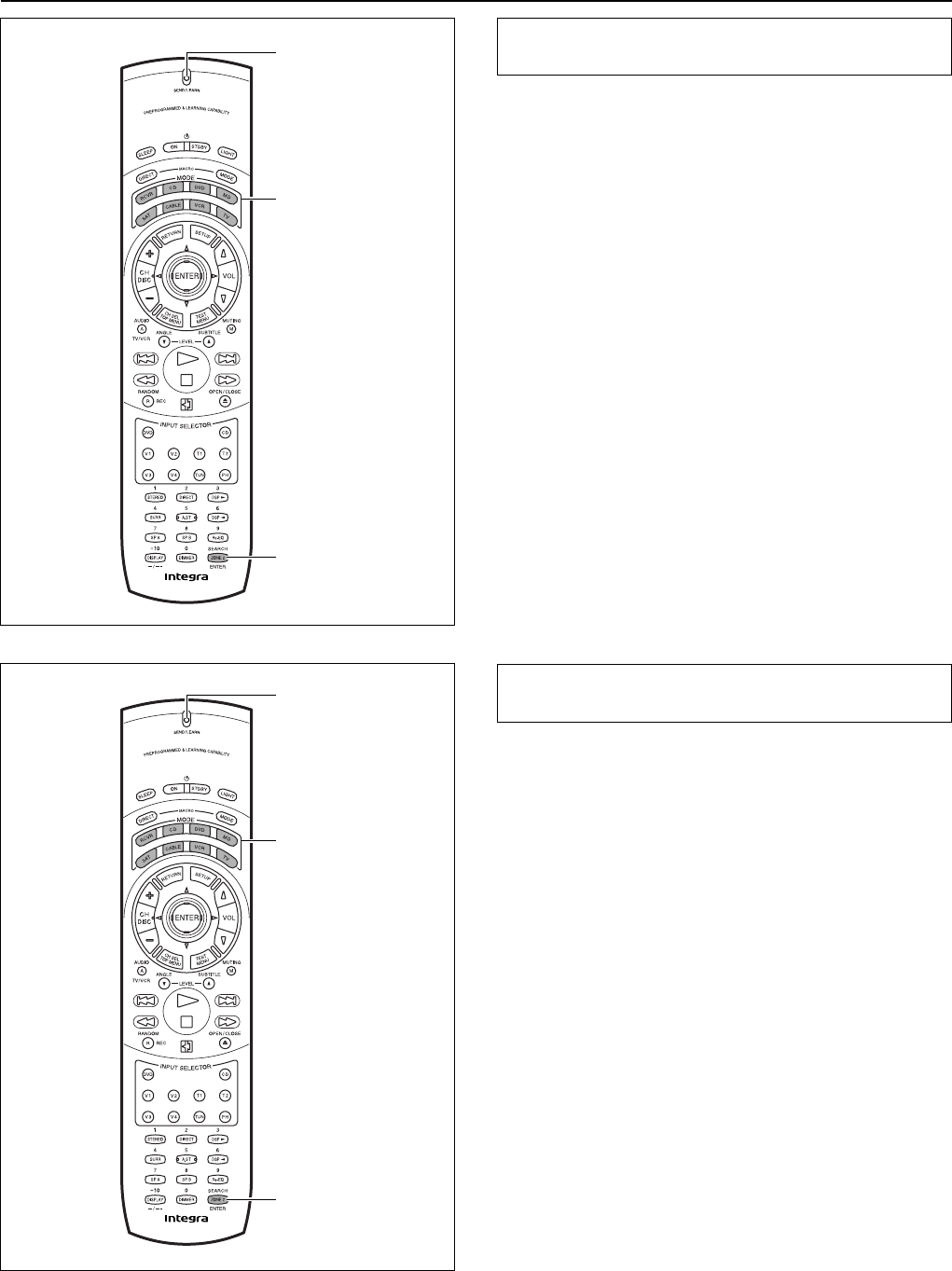

Using a Macro function .................................... 57

What is a Macro function? ............................................. 57

Programming a Macro function ..................................... 57

Running a Macro function ............................................. 57

Programming the Direct Macro function....................... 58

Running a Direct Macro function .................................. 58

Erasing a macro from the MODE MACRO button ....... 59

Erasing a direct macro from the DIRECT MACRO button ......

Erasing all commands and macros that have been

programmed ............................................................ 60

(Macro mode programming memo ............................... 60)

Remote controller

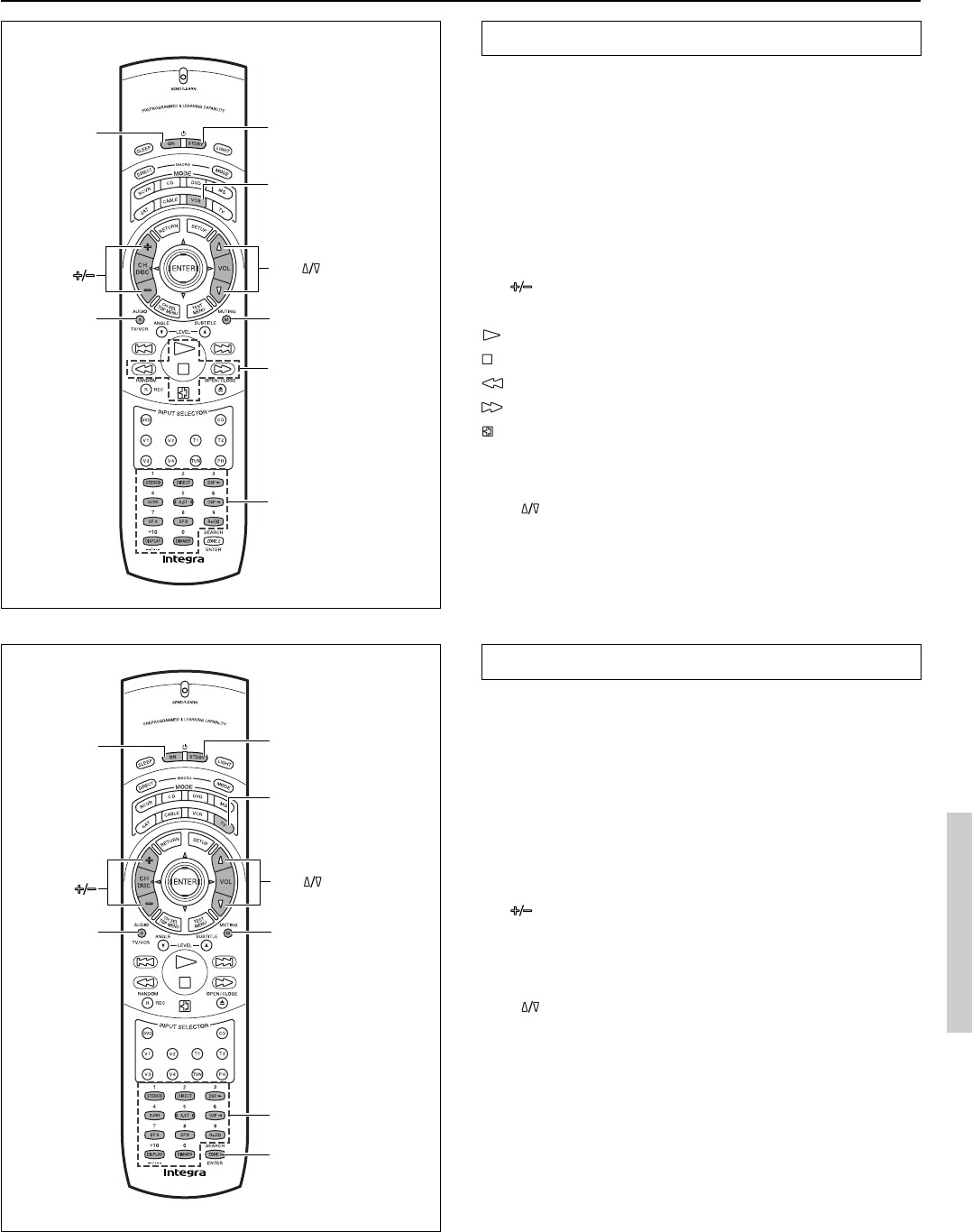

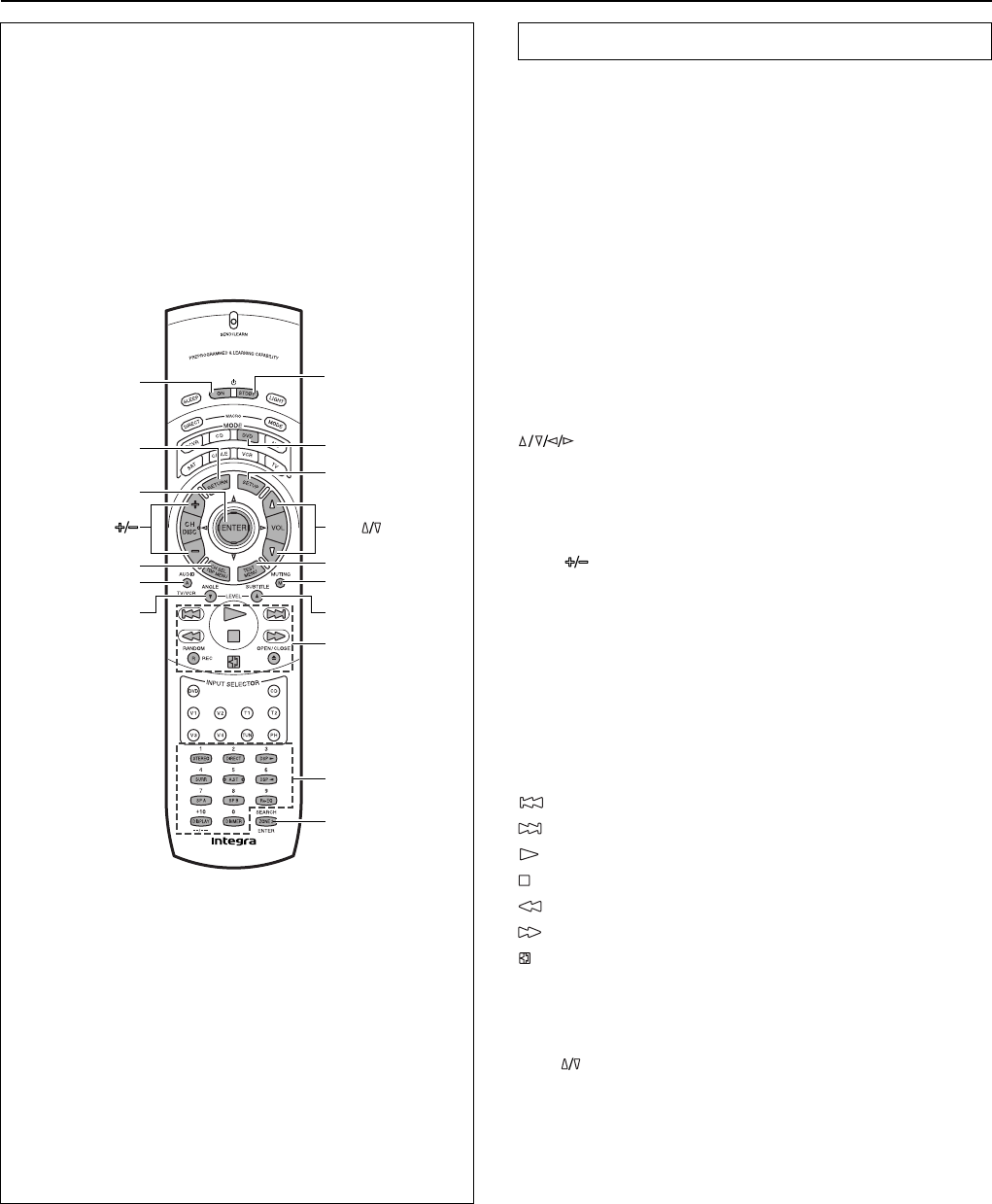

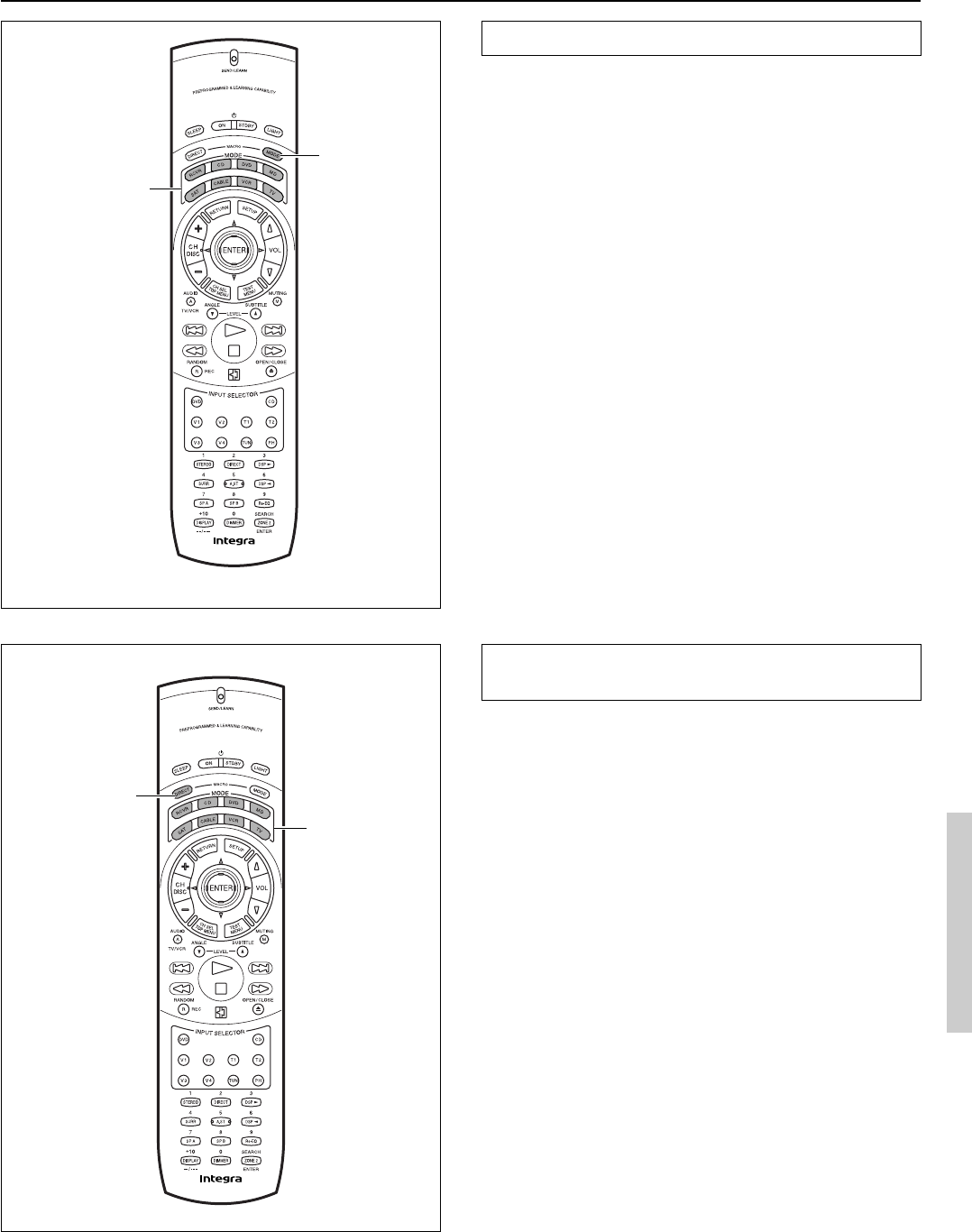

Using remote controller ................................... 46

Overview ........................................................................ 46

Calling up a preset radio station .................................... 46

Controlling an Integra/Onkyo cassette tape deck .......... 46

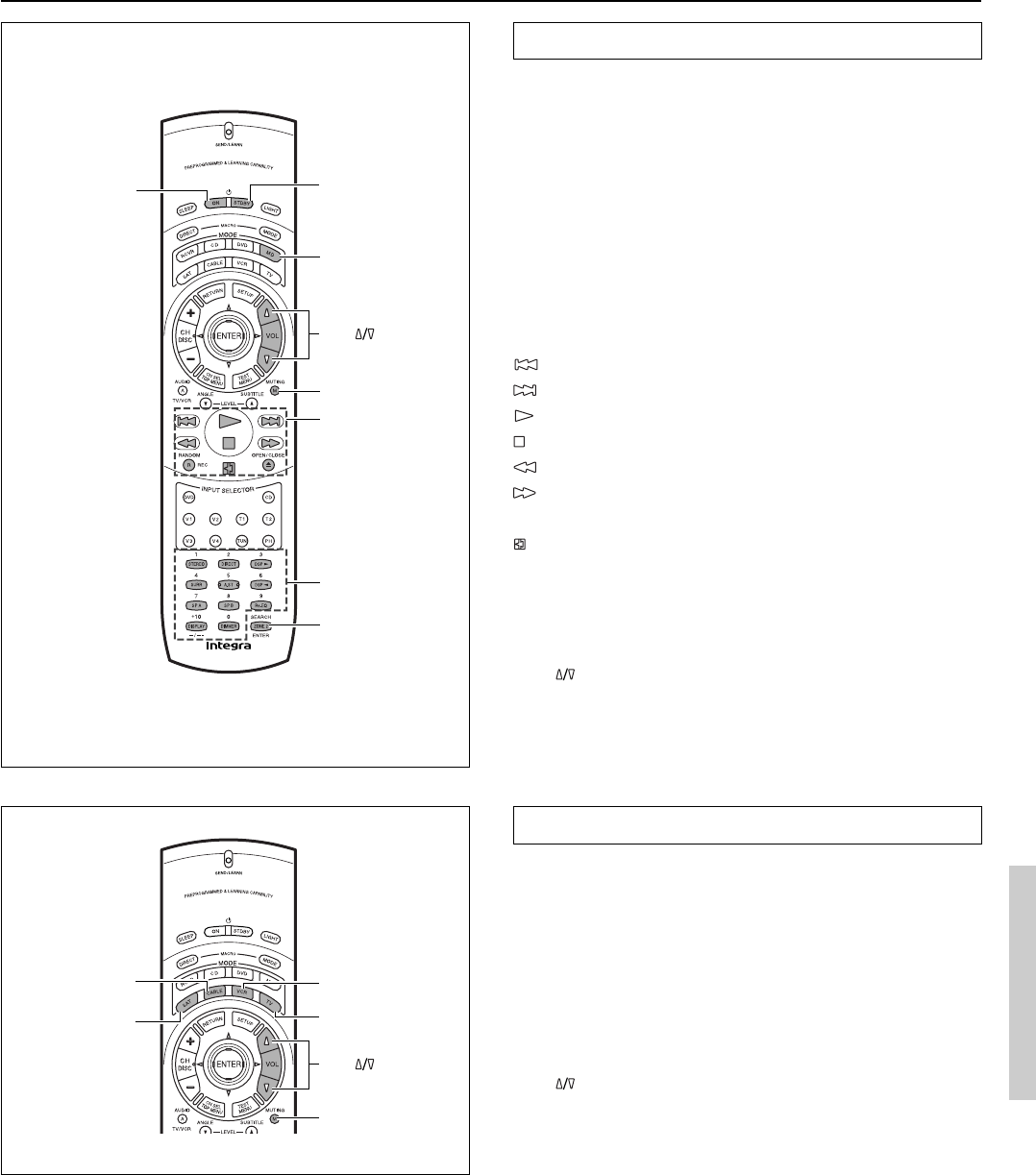

Controlling an Integra/Onkyo CD player ...................... 47

Controlling an Integra/Onkyo DVD player ................... 48

Controlling an Integra/Onkyo MD recorder .................. 49

SAT, CABLE, VCR, and TV MODE buttons ................ 49

Learning a pre-programming code ................. 50

Learning a pre-programming code................................. 50

Pre-programming codes ................................................. 51

Appendix

Specifications ................................................... 61

Troubleshooting guide ..................................... 62

POWER .......................................................................... 62

SPEAKERS .................................................................... 62

FM/AM TUNER............................................................. 62

VIDEO and AUDIO ....................................................... 63

REMOTE CONTROLLER ............................................ 63

OTHER ........................................................................... 63

If one of the messages shown below appears ................ 63

Features

Amplifier Features

■100 Watts minimum of continuous RMS power

to each of the five channels into 8 Ω from 20 Hz

to 20 kHz with no more than 0.08% THD (North

American models, FTC rated)

■130 Watts minimum of continuous RMS power

to each of the five channels into 6 Ω at 1 kHz

(European models, DIN)

■Wide Range Amplifier Technology (WRAT)

■DVD-Audio Capability

■Multiroom/multisource Capability

■Zone-2 Powered Line Out

■State-of-the-art linear PCM 96 kHz/24-bit DACs

for all channels

■Fully discrete output stages for all five channels

■Tone control (bass, treble) for front L/R

speakers

Audio/Video Features

■Dolby®* Digital, DTS®, Dolby Pro Logic II

decoding

■Non-Scaling Configuration

■2 Component-Video Inputs/1 Output

■Y/C Composite signal separation

■Cinema Re-EQTM

■Onscreen graphical displays in 7 colors and a

superimpose mode

■Smart Scan Navigator with LEDs

* Manufactured under license from Dolby Laboratories.

“Dolby”, “Pro Logic” and the double-D symbol are trademarks of Dolby

•Re-Equalization and the “Re-EQ” logo are trademarks of Lucasfilm Ltd.

Manufactured under license of Lucasfilm Ltd.

•Manufactured under license from Digital Theater Systems, Inc. US Pat.

No.5,451,942 and other worldwide patents issues and pending. “DTS”

and “DTS Digital Surround” are trademarks of Digital Theater Systems,

■5.1-Channel input

■4 Assignable digital inputs (2 coaxial, 2 optical)

■5 S-video inputs and 5 A/V inputs

■Rec out selector (sound)

■7 Sets of heavy-duty multiway speaker binding

posts (dual banana-plug compatible)

FM/AM Tuner Features

■40 FM/AM random presets

■FM auto tuning

Other Performance Features

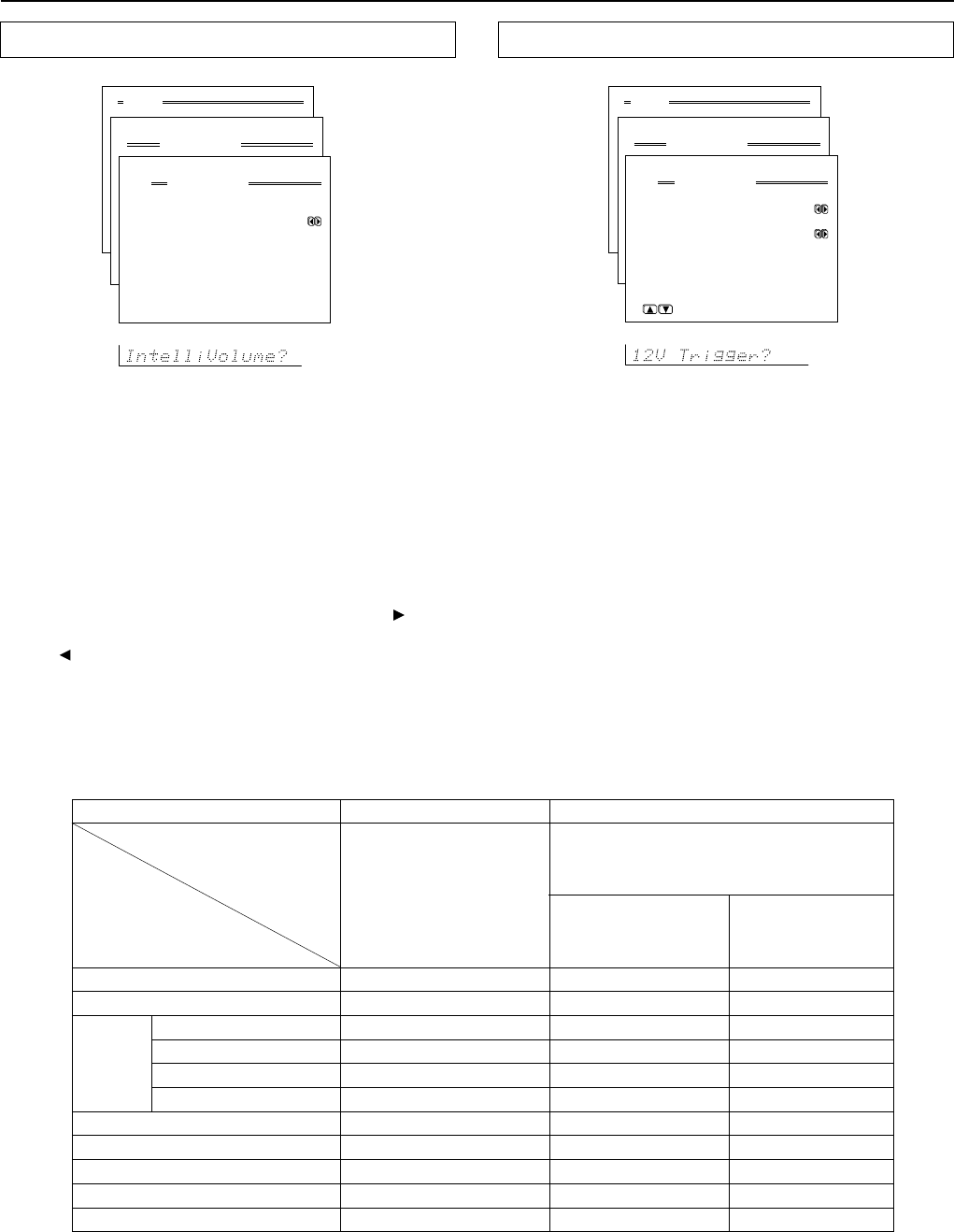

■IntelliVolume

■3-Mode display dimmer

■Battery-free memory backup

■Powerful backlit/ programmed learning remote

with macro and mode-key LEDs

■12 Volt DC Trigger

■IR IN/OUT for custom installer

■RS 232 Control port

Supplied accessories

Check that the following accessories are supplied with the DTR-6.2.

AM loop antenna × 1 FM indoor antenna × 1

(connector will vary depending

on model specifications)

Remote controller × 1

Batteries (AA, R6 or UM-3) × 2

Power cord × 1

Installing the remote controller batteries

1. Remove the battery compartment cover by pressing

and sliding the cover.

2. Insert two AA (R6 or UM-3) batteries into the battery

compartment. Carefully follow the polarity diagram

(positive (+) and negative (–) symbols) inside the

battery compartment.

3. After batteries are installed and seated correctly,

replace the compartment cover.

Before using this unit

Notes:

•Do not mix new batteries with old batteries or different kinds of

batteries.

•To avoid corrosion, remove the batteries if the remote controller

is not to be used for a long time.

•Remove dead batteries immediately to avoid damage from

corrosion. If the remote controller does not operate smoothly,

replace both the batteries at the same time.

•The life of the batteries supplied is about six months but this will

vary depending on usage.

321

30˚30˚

Using the remote controller

Point the remote controller toward the remote control sensor. The

STANDBY indicator lights up when the unit receives a signal from

the remote controller.

Remote control sensor

Standby indicator

DTR-6.2

Approx. 16 feet

Notes:

•Place the unit away from strong light such as direct sunlight or

inverted fluorescent light which can prevent proper operation of

the remote controller.

•Using another remote controller of the same type in the same

room or using the unit near equipment which uses infrared rays

may cause operational interference.

•Do not put objects on the remote controller. Its buttons may be

pressed by mistake and drain the batteries.

•Make sure the audio rack doors do not have colored glass.

Placing the unit behind such doors may prevent proper remote

controller operation.

•If there is any obstacle between the remote controller and the

remote control sensor, the remote controller will not operate.

Standby/On

Standby

Power

On O

Phones

Video 1 Video 3DVD Video 2 Video 4

Audio

Selector

Bass Treble

Master Volume

Smart

Scan

Navigator

Rec Out Zone 2 Zone 2 Level CH Level

DimmerDisplay Tuning

FM Mode Preset Memory Preset

VCR 1 VCR 2

Tape FM AM Phono CD

Push To Enter

DSP/Mode ADJ Setup

Return

12 3 7645

Front panel facilities

See illustration below

Here is an explanation of the controls and displays on the front panel of the DTR-6.2.

Front panel

Front panel display

Smart

Scan

Navigator

DimmerDisplay Tuning

FM Mode Preset Memory Preset

Push To Enter

DSP/Mode ADJ Setup

Return

EDG

J K L N

Rec out indicator Sleep indicator

Listening mode or digital input

format indicators Tuning indicators

Multi fanction displayZone 2 indicator

Front panel facilities

For operational instructions, see page indicated in brackets [ ].

Power switch [21]

Turns on and off the main power supply for the DTR-6.2.

Standby indicator [7, 21]

Lights when the DTR-6.2 is in the standby state and flashes when a

signal is received from the remote controller.

Standby/On button [21]

Press to turn on the DTR-6.2 when in the standby state. Press again

to return the DTR-6.2 to the standby state.

Rec Out button [44]

Press the Rec Out button to output the audio signals to a recording

component for recording purposes.

Zone 2 button [45] and indicator

Press the Zone 2 button to enjoy the output from the DTR-6.2 in a

different room, which is referred to as a remote zone (Zone 2).

ZONE 2 indicator lights when a signal is output to the remote zone

(Zone 2). When the ZONE 2 indicator is off, then either output to the

remote zone is turned off or Rec Out is selected.

Zone 2 Level button [45]

Press to enter the mode for adjusting the volume in the remote zone

(Zone 2).

CH Level button [30]

Press to select the channel whose level is to be adjusted.

Master Volume dial [29, 31]

The Master Volume dial is used to control the volume for the main

zone. The volume for the remote zone (Zone 2) is independent.

Phones jack [29]

This is a standard stereo jack for connecting stereo headphones.

Audio Selector button [31]

This button is used to select the type of audio input signal. Each time

pressed, the setting cycles from “AUTO” → “Multich” → “Analog”

and back.

Input source buttons (DVD, Video 1–4, Tape, FM,

AM, Phono, and CD) [27, 28, 29, 44, 45]

These buttons are used to select the input source for the main zone.

To select the input source for the remote zone (Zone 2) or recording

out (Rec Out), first press the Zone 2 or Rec Out button, and then the

desired input source button.

Bass dial [31]

Boosts or cuts the bass response. Bass adjustment is effective only

for the front L/R speakers and headphones.

Treble dial [31]

Boosts or cuts the treble response. Treble adjustment is effective

only for the front L/R speakers and headphones.

Front display

Remote control sensor [7]

Smart Scan Navigator jog dial and indicators [24-

26, 28, 30, 31, 33, 35, 45]

Used to make settings in the Setup menu, change listening mode

settings, and more.

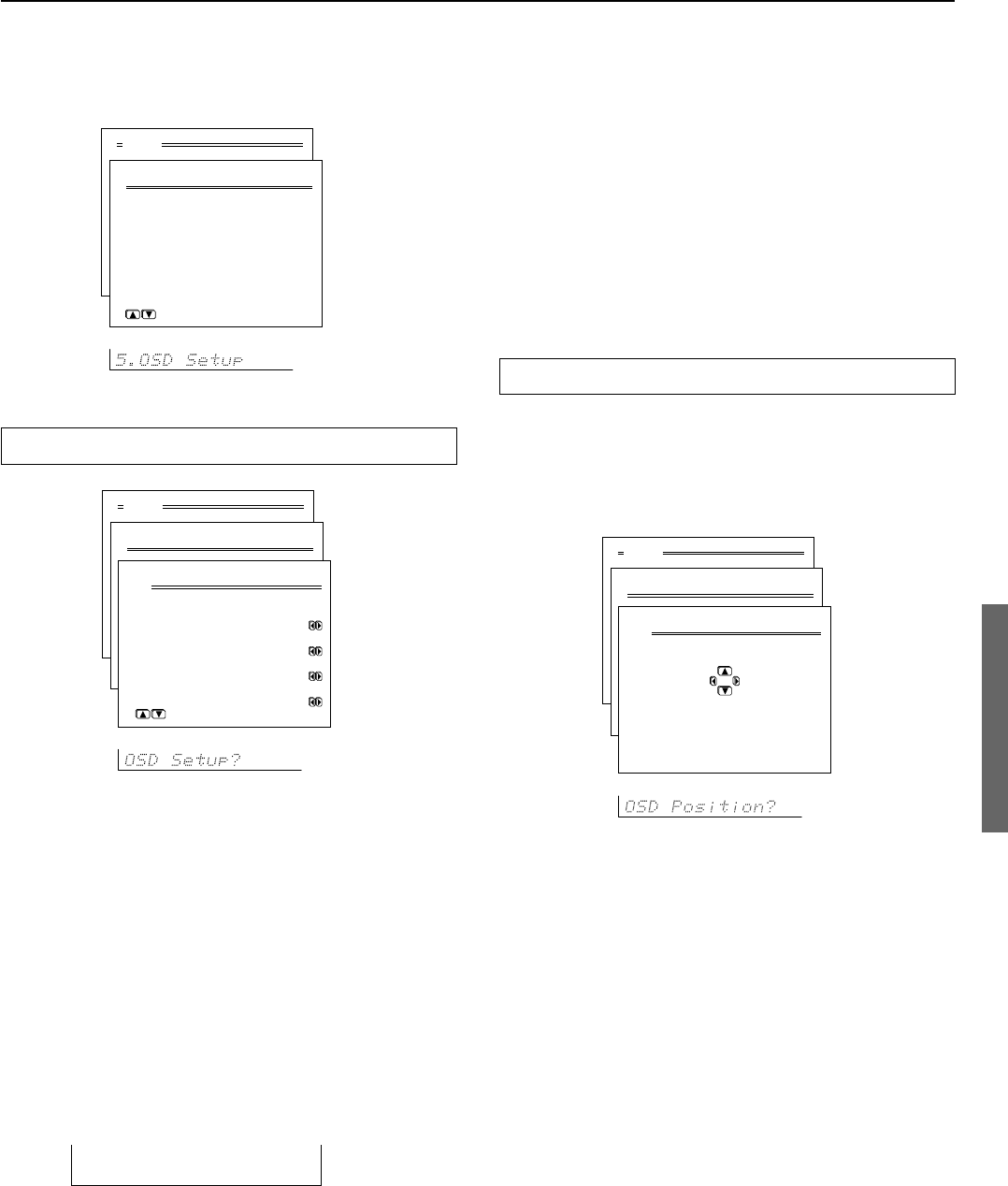

Setup button [24-26, 35]

Press to bring up the Setup menu. The OSD menu will appear on the

TV monitor as well as the front display on the DTR-6.2.

Return button [24-26, 35]

Press to exit the Main menu level or go back one level up.

Display button [30]

The DISPLAY button is used to display information about the

current input source signal. Each time you press the display button,

the screen changes to show you different information concerning the

input signal.

Dimmer button [30]

Press to set the brightness of the front display. There are 3 settings

available: normal, dark, and very dark.

FM Mode button [27]

If you are listening to an FM radio station in stereo and the sound

cuts out or there is a great deal of noise, switch from STEREO to

MONO. Each time this button is pressed, the AUTO indication

flashes and the stereo mode changes from AUTO to MONO and vice

versa. This button also turns on and off the FM MUTE.

Preset Memory button [28]

This button is used to assign the radio station that is currently tuned

in to a preset channel or delete a previously preset station.

Tuning / buttons [27]

Use these buttons to change the tuner frequency. The tuner

frequency is displayed in the front display and it can be changed in

50 kHz increments for FM and 10 kHz increments for AM.

When FM is selected, you can hold down one of the tuning buttons

and then release it to activate the auto-search feature. It will search

for a station in the direction of the button you pressed and stop

when it tunes into one.

Preset / buttons [28]

When AM or FM is selected as the input source, press one of these

buttons to jump to a radio station that you preset using the Preset

Memory button. Pressing the right button moves from the most

recently preset station to older ones, and pressing the left button

moves in the reverse order.

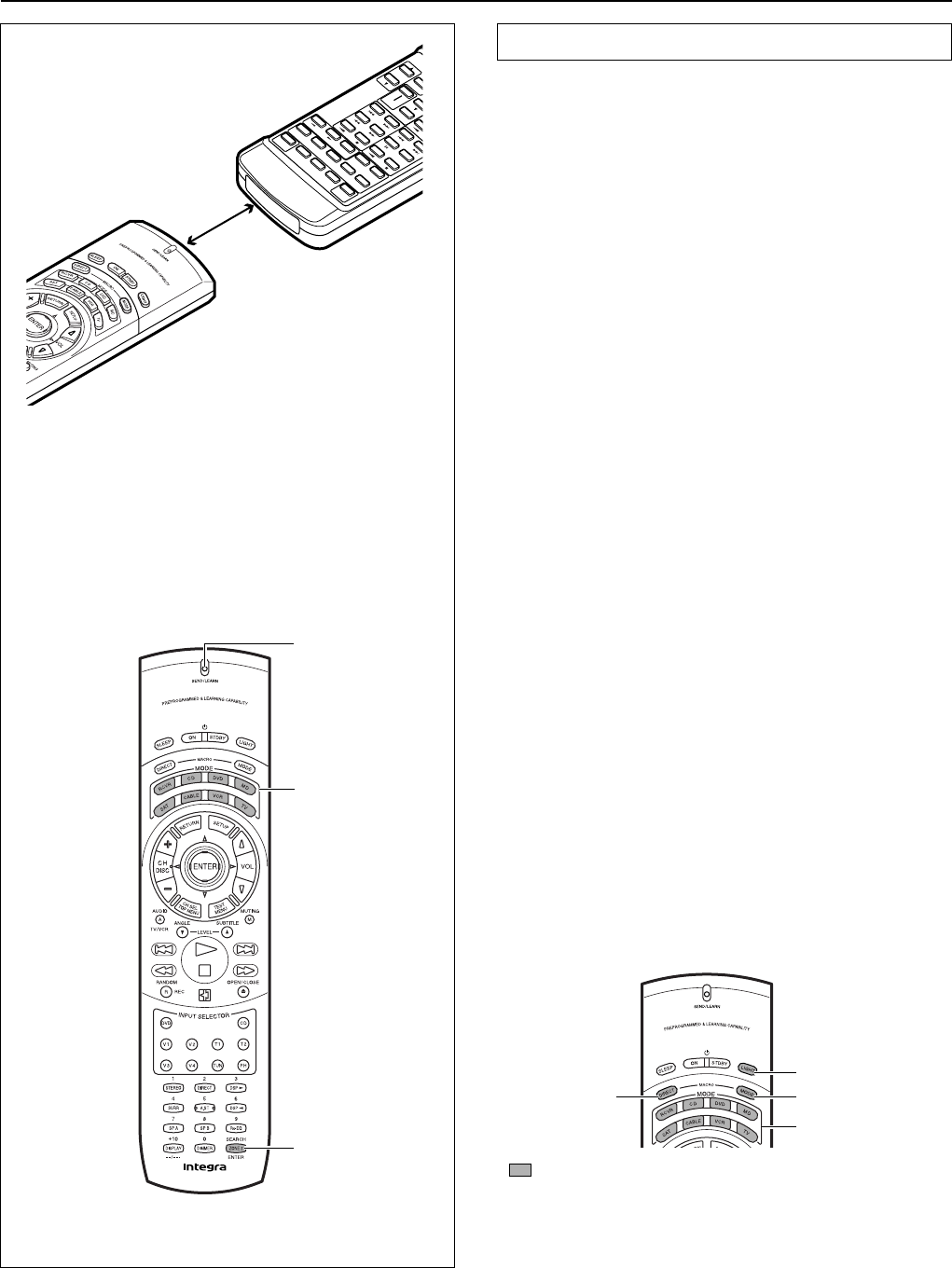

HOME THEATER CONTROLLER

RC-441M

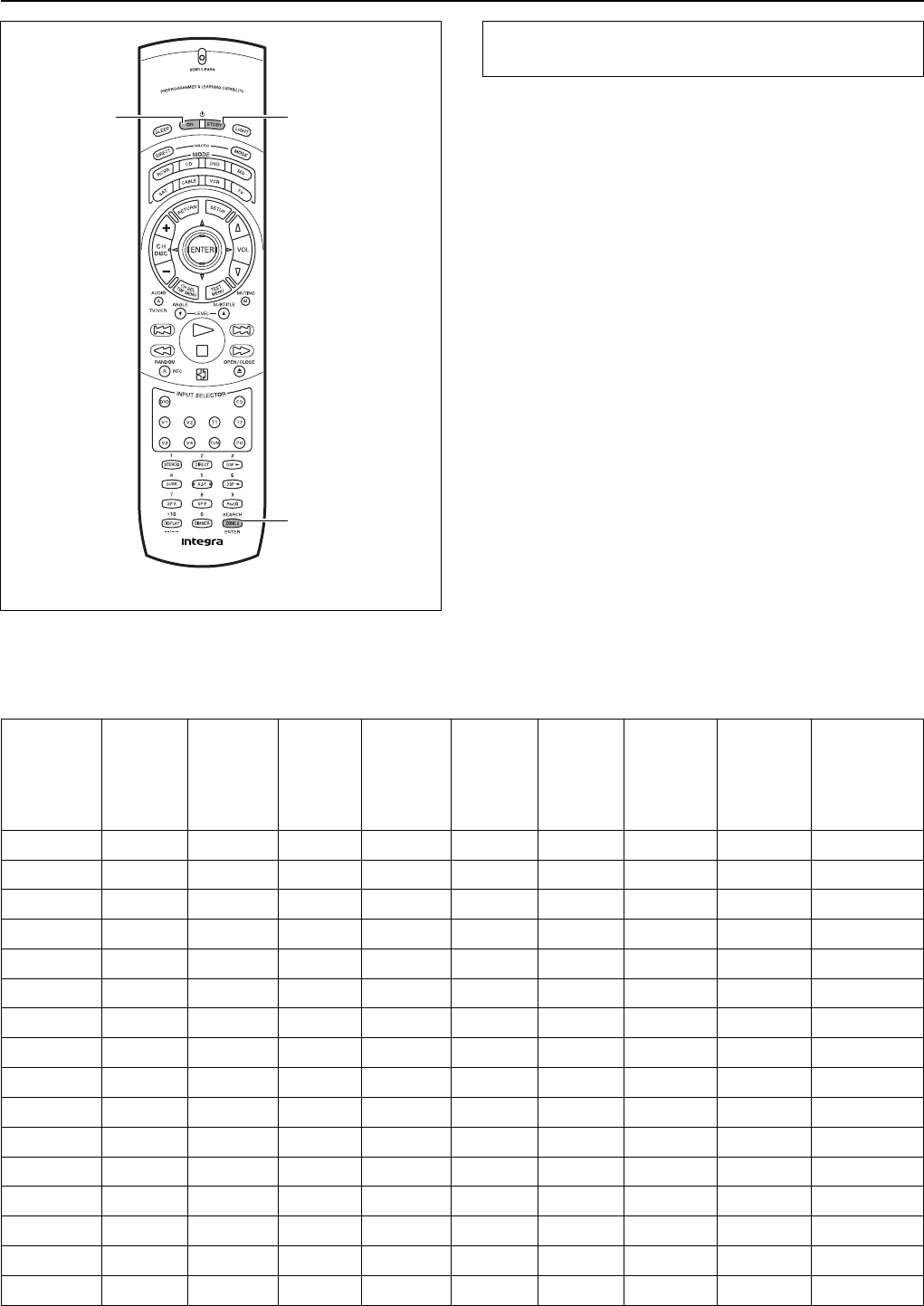

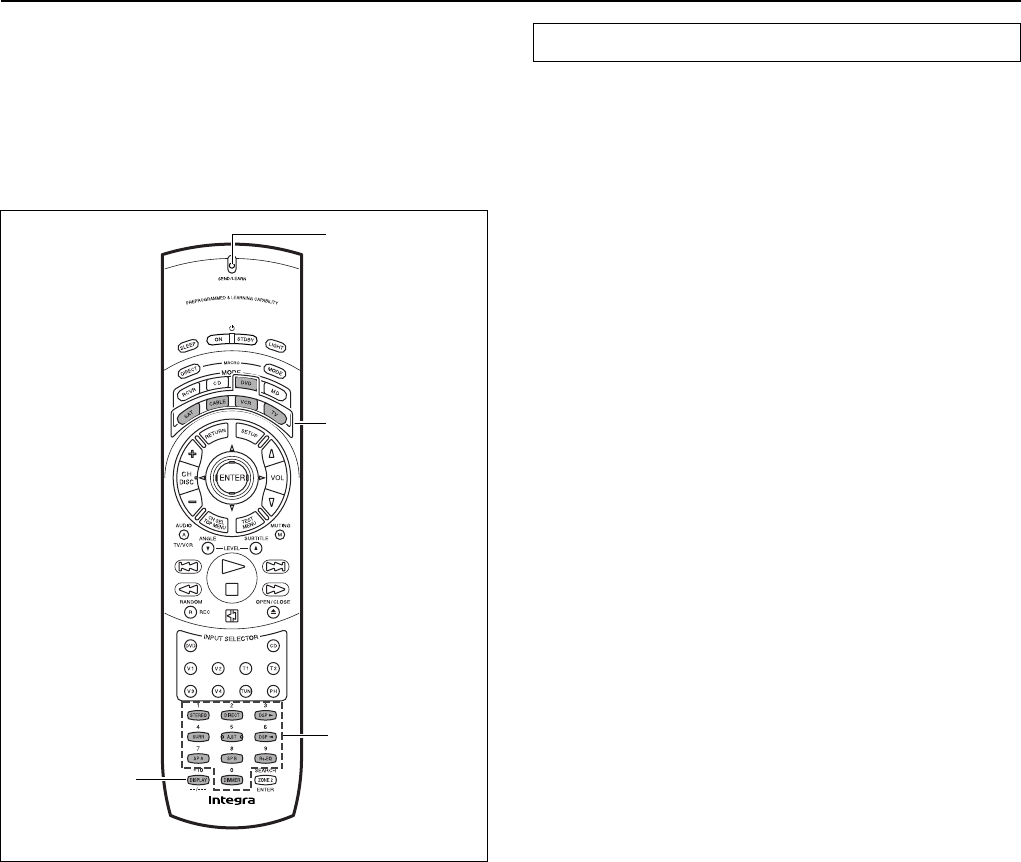

Remote controller

SEND/LEARN indicator [50, 54, 56]

This indicator acts as a guide when commands are programmed into

or sent by the remote controller. It also warns the user when an error

is made or battery power is low.

ON/STDBY button [21, 47-50, 52, 53, 60]

ON: Turns on the DTR-6.2.

STDBY: Places the DTR-6.2 in the standby state.

Be aware that pressing the STDBY button only places the DTR-6.2

in standby and does not turn the power completely off.

SLEEP button [30]

Sets the sleep function.

The SLEEP button enables you to set the DTR-6.2 to turn off

automatically after a specified time period.

DIRECT MACRO button [58, 59]

For executing and programming the Direct Macro function.

MODE buttons and indicators [21, 28, 46-59]

For selecting the component to be operated by the remote controller.

When a MODE button is pressed, it will light green for 8 seconds.

The selected MODE button will also light whenever any other

operation button is pressed to tell you which mode the remote

controller is in.

RETURN button [35, 48]

For entering the selected setting and returning to the previous menu.

CH/DISC button [28, 46-48, 52, 53]

When in the RCVR mode, for selecting a tuner preset channel.

For selecting the disc to be played back for components with disc

changers when in the DVD or CD modes.

CH SEL/TOP MENU button

CH SEL: For selecting the speaker for level adjustment when in the

RCVR mode. Used together with the LEVEL / buttons. [30]

TOP MENU: When in the DVD mode, for displaying the menu

screen(s) recorded on DVD media. [48]

AUDIO/A/TV/VCR button

AUDIO/A: For selecting the audio input signal. The setting changes

from “AUTO” to “Multich” to “Analog” and back each time this

button is pressed. [31, 48]

TV/VCR: Must be preprogrammed for use in the TV and VCR

modes. [53]

LEVEL /ANGLE and LEVEL /SUBTITLE buttons

LEVEL / : Select the speaker whose volume is to be adjusted

using the CH SEL button and adjust the volume using the LEVEL /

buttons in the RCVR mode. [30]

ANGLE: When in the DVD mode, for selecting a camera angle

when a DVD-Video is recorded with multiple angle playback. [48]

SUBTITLE: When in the DVD mode, for selecting one of the

subtitle languages recorded on a DVD-Video. [48]

CD/TAPE/DVD/MD operation buttons [46-48, 53]

For operating Integra/Onkyo components connected to the DTR-6.2.

Remote controller

ZONE 2/SEARCH/ENTER button

ZONE 2: When in the RCVR mode, press this button to perform

operations on the remote zone (Zone 2). [45]

SEARCH: When in the DVD mode, for finding the specific section

on a disc where you want to start playback. [48]

ENTER: When in the MD mode, for confirming the selection. [49,

52-54, 56, 60]

INPUT SELECTOR buttons [28, 29, 45, 46, 49]

Selects an input source.

Same as the input selector buttons on front panel of the DTR-6.2.

The input source for each buttons is given here. DVD:DVD, CD:CD,

V1:Video1, V2:Video2, V3:Video3, V4:Video4, T1:Tape, T2:Not

used with the DTR-6.2, TUN:FM/AM, PH:Phono.

Numeric key/Listening mode selector/SP A, B/

Re-EQ/DISPLAY/DIMMER buttons

1 to 9, +10, --/---, 0: For entering the number of a track. [47-50, 52,

53]

STEREO, DIRECT, DSP /, SURR, A.ST: You can select a

listening mode. [33]

Re-EQ: Depending on the listening mode, you can turn the cinema

re-equalization function on or off. [33]

SP A, SP B: Not used with the DTR-6.2.

DISPLAY: For changing the display in the front display. [30, 50]

DIMMER: Adjusts the display brightness.

There are three settings available: normal, dark and very dark. [30]

LIGHT button

For illuminating the buttons of the remote controller.

This is button is useful when using the remote controller in dark

locations. When pressed, the buttons on the remote controller light

green.

The button for the mode currently selected lights brighter than the

rest.

MODE MACRO button [57, 59]

For executing and programming the Macro function.

SETUP button [35]

For displaying and quitting the Setup menu.

ENTER/cursor button [35, 48]

When selecting items in the Setup menu, press the upper and lower

portions to select item, press the right and left portions to select

parameter values or modes, and press ENTER to select item.

VOL button [29, 31, 46-49, 52, 53]

For adjusting the volume.

TEST/MENU button

TEST: Outputs a test tone for setting speaker levels.

Use this button in conjunction with the LEVEL / and CH SEL

buttons to calibrate the speakers levels without entering the Setup

menu. When TEST button is pressed, the test noise (pink noise) is

output. Use the LEVEL / buttons to increase or decrease the

sound level. Use the CH SEL button to change from speaker to

speaker. For a more detailed explanation of how to calibrate the

speaker levels, see page 26.

MENU: When in the DVD mode, this button displays the DVD

menu. [48, 52]

MUTING/M button [29, 46-49, 52, 53]

Activates the mute function.

Default setting

Input source Digital input Component video Multichannel

DVD COAX 1 INPUT 1 Yes

Video 1 COAX 2 INPUT 2 No

Video 2 ---- INPUT 1 No

Video 3 OPT 2 INPUT 1 No

Video 4 ---- INPUT 1 No

Tape ---- No

Phono ---- No

CD OPT 1 No

OUT

6 OHMS

MIN.

SPEAKER

REMOTE

CONTROL

INPUT 1 INPUT 2OUTPUT

OUTLETS

AC 120

V 60

SWITCHED

TOTAL 120

A MAX.

ANTENNA

GND

COMPONENT

VIDEO

4 OHMS

MIN.

SPEAKER

FRONT

SPEAKERS CENTER

SPEAKER SURROUND

SPEAKERS

ZONE 2

SPEAKERS

FRONT SURR

PRE

OUT

CENTER

VIDEO

1VIDEO

DVD VIDEO

IN OUT IN OUT IN IN IN

MONITOR

OUT

VIDEO

CENTER

SUB

WOOFER

FRONT SURR

SUBWOOFER

OPTICAL COAXIAL

PRE OUT MULTI

CHANNEL INPUT DIGITAL

INPUT

OUT IN

PHONO TAPE

IMPEDANCE SELECTOR

SET BEFORE POWER ON

ZONE 2

PRE OUT

OUT

RS 232

12 V

TRIGGER

AC INLET

AV RECEIVER

MODEL NO. DTR-6.2

CAUTION

SEE INSTRUCTION MANUAL

FOR CORRECT SETTING.

VIDEO

DVD VIDEO

VIDEO

Connections

Here is explanation of how to connect the main components to the

DTR-6.2 in the standard manner. There are many ways that any one

component can be connected, and it is up to you to decide which

method best fits your situation. The directions given here are only

one option and should only be thought of as such. It is best to fully

understand the nature of each connector and terminal as well as each

of your components and their features to ascertain which method of

connection is best.

• Be sure to always refer to the instructions that came with the

component that you are connecting.

• Do not plug in the power cord until all connections have been

made.

• For input jacks, red connectors (marked R) are used for the

right channel, white connectors (marked L) are used for the

left channel, and yellow connectors (marked V) are used for

video connection.

• Do not bind audio/video connection cables with power cords

and speaker cables. Doing so may adversely affect the

picture and sound quality.

• When using the digital inputs, make sure to also connect the

analog connections whenever possible.

• When using one of the optical input jacks, remove the

protective cap and keep it safely. When the jack is not

used, replace the protective cap.

• When using an optical input jack, always use an optical

fiber cable.

Improper connection

Inserted completely

Optical digital input terminal

An optical digital input terminal is equipped

with a protection cap. When connecting,

remove this cap. When not using, put the

cap back on the terminal.

COAX: Coaxial OPT: Optical ----: No setting : Not applicable

Connecting the remote

zone speakers [19]

Connecting power amplifiers [16]

Connect to devices with

multichannel output [17]

Connecting a

subwoofer [18]

Connecting your

audio components

[13]

Connecting antennas [22, 23]

Connect to devices with z

terminals [16]

Connecting your video

components [14, 15]

Connecting speakers [17-19]

Cautions regarding the AC

OUTLETS connectors [16]

• Insert all plugs and connectors securely. Improper

connections can result in noise, poor performance, or

damage to the equipment.

RS232 port [17]

Operating components

not reached by the remote

controller signals [20]

Plugging in the power cord to

the AC INLET receptacle [17]

12V TRIGGER A, B terminals

[17]

REMOTE

CONTROL

OUTPUT

ANTENNA Y

COMPON

VIDEO

1DVD

IN OUT IN

MONITOR

OUT

12 V

TRIGGER

CENTER

SUB

WOOFER

FRONT SURR

SUBWOOFER

OPTICAL COAXIAL

PRE OUT MULTI

CHANNEL INPUT DIGITAL

INPUT

OUT IN

PHONO TAPE

GND

2. CD player

(CD)

1. Turntable

(PHONO)

Analog audio output

Digital audio output (optical)

Ground wire (earth)

L (White)

R (Red)

L (White)

R (Red)

L (White)

R (Red)

L (White)

R (Red)

3. Tape deck, MD recorder,

DAT deck, CD recorder,

(TAPE)

Analog audio input

Analog audio output

Connections

Audio connection cable

L(White)

R(Red)

: Signal flow

Connecting your audio components

Below is an example of how you can connect your audio

components to the DTR-6.2. Refer to the diagram above for the

following connection examples.

1. Connecting a turntable (PHONO)

Using an RCA-type audio connection cable, connect the output

terminal on the turntable to the PHONO input jacks on the DTR-6.2.

Make sure that you properly connect the left channel to the L jack

and the right channel to the R jack.

Note:

The DTR-6.2 is designed for use with moving magnet cartridges.

For proper operation, connect a ground (or earth) wire to the GND

terminal. For some turntables, however, connecting the ground wire

may cause increased noise, and in such a case, a ground wire is not

necessary and should not be connected.

2. Connecting a compact disc player (CD)

Using an RCA-type audio connection cable, connect the output

terminal on the compact disc player to the CD input jacks on the

DTR-6.2. Make sure that you properly connect the left channel to the

L jack and the right channel to the R jack.

If the compact disc player has a digital output jack as well, be sure to

also connect it to either a DIGITAL INPUT (COAXIAL) or

DIGITAL INPUT (OPTICAL) jack on the DTR-6.2 depending on

the type of connector on the compact disc player.

With the initial settings of the DTR-6.2, the CD input source is

set for digital input at the OPTICAL 1 jack.

If the digital connection is made at a different jack, this must be

changed at the Setup menu: Input Setup → Audio Setup → Digital

Input (see pages 26, 38).

3. Connecting a cassette tape deck, MD recorder, DAT

deck, or CD recorder (TAPE)

Using an RCA-type audio connection cable, connect the output

terminals (PLAY) of the device to the TAPE IN jacks on the DTR-

6.2 and the input terminals (REC) to the TAPE OUT jacks. Make

sure that you properly connect the left channel to the L jack and the

right channel to the R jack.

If the device has a digital output jack as well, be sure to also connect

it to either a DIGITAL INPUT (COAXIAL) or DIGITAL INPUT

(OPTICAL) jack on the DTR-6.2 depending on the type of

connector on the device.

With the initial settings of the DTR-6.2, the TAPE input source is set

for no digital input.

If you connect the device to the DIGITAL INPUT terminal, then this

input source must be set for digital input at the Setup menu: Input

Setup → Audio Setup → Digital Input(see pages 26, 38).

PBPR

INPUT 1 INPUT 2OUTPUT

PBPR

YPBPR

COMPONENT

VIDEO

1VIDEO

DVD VIDEO

IN OUT IN OUT IN IN IN

MONITOR

OUT

VIDEO

ZONE 2

PRE OUT

VIDEO

CENTER

SUB

WOOFER

OPTICAL COAXIAL

TDIGITAL

INPUT

APE

232

OUT

8. TV monitor or Projector

(MONITOR OUT)

5. VCR

(VIDEO 2)

Component video input

Video input

Video output

S video input

S video output

Analog audio output

Analog audio input

Analog audio output

L (White)

R (Red)

Video output

S video output

Digital audio output (optical)

L (White)

R (Red)

L (White)

R (Red)

9. Settop box or

Video camera, etc.

(VIDEO 4)

6. Satellite tuner or TV

(VIDEO 3)

PBPR

INPUT 1 INPUT 2OUTPUT

PBPR

YPBPR

COMPONENT

VIDEO

1VIDEO

DVD VIDEO

IN OUT IN OUT IN IN IN

MONITOR

OUT

VIDEO

ZONE 2

PRE OUT

VIDEO

CENTER

SUB

WOOFER

OPTICAL COAXIAL

TDIGITAL

INPUT

APE

RS 232

OUT

4. DVD player

(DVD)

7. DVD recorder or

other digital video

recording device (VIDEO 1)

Component video output Component video output

Video output

S video output

Analog audio output

Video output

Video input

S video output

S video input

Analog audio output

Analog audio input

Digital audio output (Coaxial)

Digital audio output

(Coaxial)

L (White)

R (Red)

L (White)

S video

R (Red)

L (White)

R (Red)

Connections

: Signal flow

Audio connection cable

Left (White)

Right (Red)

Video connection cable

S video connection cable

Component video connection cable

Connecting your video components

Below is an example of how you can connect your video

components to the DTR-6.2. Refer to the diagram above for the

following connection examples.

The flow of the video signals is as follows:

•The signal that comes in from VIDEO IN is sent to VIDEO OUT

and S VIDEO OUT.

•The signal that comes in from S VIDEO IN is sent to S VIDEO

OUT and VIDEO OUT.

•The signal that comes in from COMPONENT VIDEO IN is only

sent to COMPONENT VIDEO OUT.

4. Connecting a DVD player (DVD)

If the device is equipped with an S video output terminal, connect it

to the DVD S VIDEO IN terminal with an S video cable. If it does

not have an S video output terminal, connect its video output

terminal to the DVD VIDEO IN terminal using an RCA-type video

connection cable. You do not need to connect to both the DVD S

VIDEO IN and DVD VIDEO IN terminals. If the device has

component video outputs, connect them to one of the

COMPONENT VIDEO INPUT jacks.

With the initial settings of the DTR-6.2, the DVD input source is

set for the COMPONENT VIDEO INPUT 1 jack.

Connections

7. Connecting a DVD recorder or other digital video

recording device (VIDEO 1)

If the device is equipped with an S video output terminal, connect it

to the S VIDEO 1 IN terminal with an S video cable. If it does not

have an S video output terminal, connect its video output terminal to

the VIDEO 1 IN terminal using an RCA-type video connection

cable. You do not need to connect to both the S VIDEO 1 IN and

VIDEO 1 IN terminals. If the device has component video outputs,

connect them to one of the COMPONENT VIDEO INPUT jacks.

With the initial settings of the DTR-6.2, the VIDEO 1 input

source is set for the COMPONENT VIDEO INPUT 2 jack.

If the video connection is made at COMPONENT VIDEO INPUT 1,

this must be changed at the Setup menu: Input Setup → Video Setup

→ Component Video (see pages 26, 38).

Using an RCA-type audio connection cable, connect the audio

output terminal on the device to the same VIDEO 1 IN audio jacks

on the DTR-6.2 and audio input terminal to the VIDEO 1 OUT audio

jacks. Make sure that you properly connect the left channel to the L

jack and the right channel to the R jack.

If the device has a digital output jack as well, be sure to also connect

it to either a DIGITAL INPUT (COAXIAL) or DIGITAL INPUT

(OPTICAL) jack on the DTR-6.2 depending on the type of

connector on the device.

With the initial settings of the DTR-6.2, the VIDEO 1 input

source is set for digital input at the COAXIAL 2 jack.

If the digital connection is made at a different jack, this must be

changed at the Setup menu: Input Setup → Audio Setup → Digital

Input (see pages 26, 38).

8. Connecting a television monitor or projector

(MONITOR OUT)

The DTR-6.2 is equipped with a simple Y/C separate circuit and

simple Y/C mixed circuit. Since both the signal from the S VIDEO

and VIDEO inputs are output to the MONITOR OUT S VIDEO

output, if the television or projector is equipped with an S video

input, it is unnecessary to connect the video connectors. If it is

equipped with only a video input, connect it to the MONITOR OUT

VIDEO output.

If the monitor or projector is equipped with an S video output

terminal, connect it to the MONITOR OUT S VIDEO terminal with

an S video cable. If it does not have an S video output terminal,

connect its video output terminal to the MONITOR OUT VIDEO

terminal using an RCA-type video connection cable. You do not

need to connect to both the MONITOR OUT S VIDEO and

MONITOR OUT VIDEO terminals. If the device has component

video inputs, connect them to the COMPONENT VIDEO OUTPUT

jacks.

Caution:

Note that the Setup menu will only be displayed on the monitor

connected to MONITOR OUT and not those connected to the

COMPONENT VIDEO OUTPUT jacks.

9. Connecting settop box or video camera, etc.

(VIDEO 4)

If the device is equipped with an S video output terminal, connect it

to the S VIDEO 4 IN terminal with an S video cable. If it does not

have an S video output terminal, connect its video output terminal to

the VIDEO 4 IN terminal using an RCA-type video connection

cable. You do not need to connect to both the S VIDEO 4 IN and

VIDEO 4 IN terminals.

If the video connection is made at COMPONENT VIDEO INPUT 2,

this must be changed at the Setup menu: Input Setup → Video Setup

→ Component Video (see pages 26, 38).

Using an RCA-type audio connection cable, connect the audio

output terminal on the device to the audio DVD IN jacks on the

DTR-6.2. Make sure that you properly connect the left channel to the

L jack and the right channel to the R jack.

If the device has a digital output jack as well, be sure to also connect

it to either a DIGITAL INPUT (COAXIAL) or DIGITAL INPUT

(OPTICAL) jack on the DTR-6.2 depending on the type of

connector on the DVD player.

With the initial settings of the DTR-6.2, the DVD input source is

set for digital input at the COAXIAL 1 jack.

If the digital connection is made at a different jack, this must be

changed at the Setup menu: Input Setup → Audio Setup → Digital

Input (see pages 26, 38).

5. Connecting a video cassette recorder (VIDEO 2)

If the video cassette recorder is equipped with an S video output

terminal, connect it to the S VIDEO 2 IN terminal with an S video

cable. If it does not have an S video output terminal, connect its

video output terminal to the VIDEO 2 IN terminal using an RCA-

type video connection cable. You do not need to connect to both the

S VIDEO 2 IN and VIDEO 2 IN terminals. If the video cassette

recorder has component video outputs, connect them to one of the

COMPONENT VIDEO INPUT jacks.

With the initial settings of the DTR-6.2, the VIDEO 2 input

source is set for the COMPONENT VIDEO INPUT 1 jack.

If the video connection is made at COMPONENT VIDEO INPUT 2,

this must be changed at the Setup menu: Input Setup → Video Setup

→ Component Video (see pages 26, 38).

Using an RCA-type audio connection cable, connect the audio

output terminal on the video cassette recorder to the same VIDEO 2

IN audio jacks on the DTR-6.2 and audio input terminal to the

VIDEO 2 OUT audio jacks. Make sure that you properly connect the

left channel to the L jack and the right channel to the R jack.

6. Connecting a satellite tuner or television (VIDEO 3)

If the satellite tuner or television is equipped with an S video output

terminal, connect it to the S VIDEO 3 IN terminal with an S video

cable. If it does not have an S video output terminal, connect its

video output terminal to the VIDEO 3 IN terminal using an RCA-

type video connection cable. You do not need to connect to both the

S VIDEO 3 IN and VIDEO 3 IN terminals. If the satellite tuner or

television has component video outputs, connect them to one of the

COMPONENT VIDEO INPUT jacks.

With the initial settings of the DTR-6.2, the VIDEO 3 input

source is set for the COMPONENT VIDEO INPUT 1 jack.

If the video connection is made at COMPONENT VIDEO INPUT

2, this must be changed at the Setup menu: Input Setup → Video

Setup → Component Video (see pages 26, 38).

Using an RCA-type audio connection cable, connect the audio

output terminal on the satellite tuner or television to the same

VIDEO 3 IN audio jacks on the DTR-6.2. Make sure that you

properly connect the left channel to the L jack and the right channel

to the R jack.

If the satellite tuner or television has a digital output jack as well, be

sure to also connect it to either a DIGITAL INPUT (COAXIAL) or

DIGITAL INPUT (OPTICAL) jack on the DTR-6.2 depending on

the type of connector on the set top box or television.

With the initial settings of the DTR-6.2, the VIDEO 3 input

source is set for digital input at the OPTICAL 2 jack.

If the digital connection is made at a different jack, this must be

changed at the Setup menu: Input Setup → Audio Setup → Digital

Input (see pages 26, 38).

Connections

OUTLETS

AC 120

V 60

SWITCHED

TOTAL 120

A MAX.

Cautions regarding the AC OUTLETS

connectors

The DTR-6.2 is supplied with AC mains outlets for connecting the

power cords from other devices so that their power is supplied

through the DTR-6.2. By doing this, you can use the Standby/On

button on the DTR-6.2 to turn on and off the connected devices as

well.

Caution:

Make sure that the total capacity of the other components connected

to this unit does not exceed the capacity that is printed on the rear

panel (e.g., 120 watts).

Connect to devices with z terminals

The z terminal on the DTR-6.2 is for connecting other Integra/

Onkyo components equipped with the same z terminal. When a

component are z-connected, you can point the remote controller

supplied with the DTR-6.2 at the sensor on the DTR-6.2 and operate

that component without having to switch remote controllers.

In addition, by connecting components to the z terminal, you can

also perform the system operations given below.

Power on/ready function

When the DTR-6.2 is in the standby state, if an z-connected

component is turned on, then the DTR-6.2 also turns on and the input

source selected at the DTR-6.2 automatically switches to that

component.

If the power cord for an z-connected component is connected to

the AC OUTLET on the DTR-6.2, or if the DTR-6.2 is turned on,

this function will not work. Also, if you are using the DTR-6.2 for

the remote zone (Zone 2), this function will not work.

Direct change function

When the play button is pressed at an z-connected component, the

input source selected at the DTR-6.2 automatically changes to that

component. However, if you are using the DTR-6.2 for the remote

zone (Zone 2), this function will not work.

Power off function

When the DTR-6.2 is placed in the standby state, all z-connected

components are also automatically put into the standby state.

CAUTION

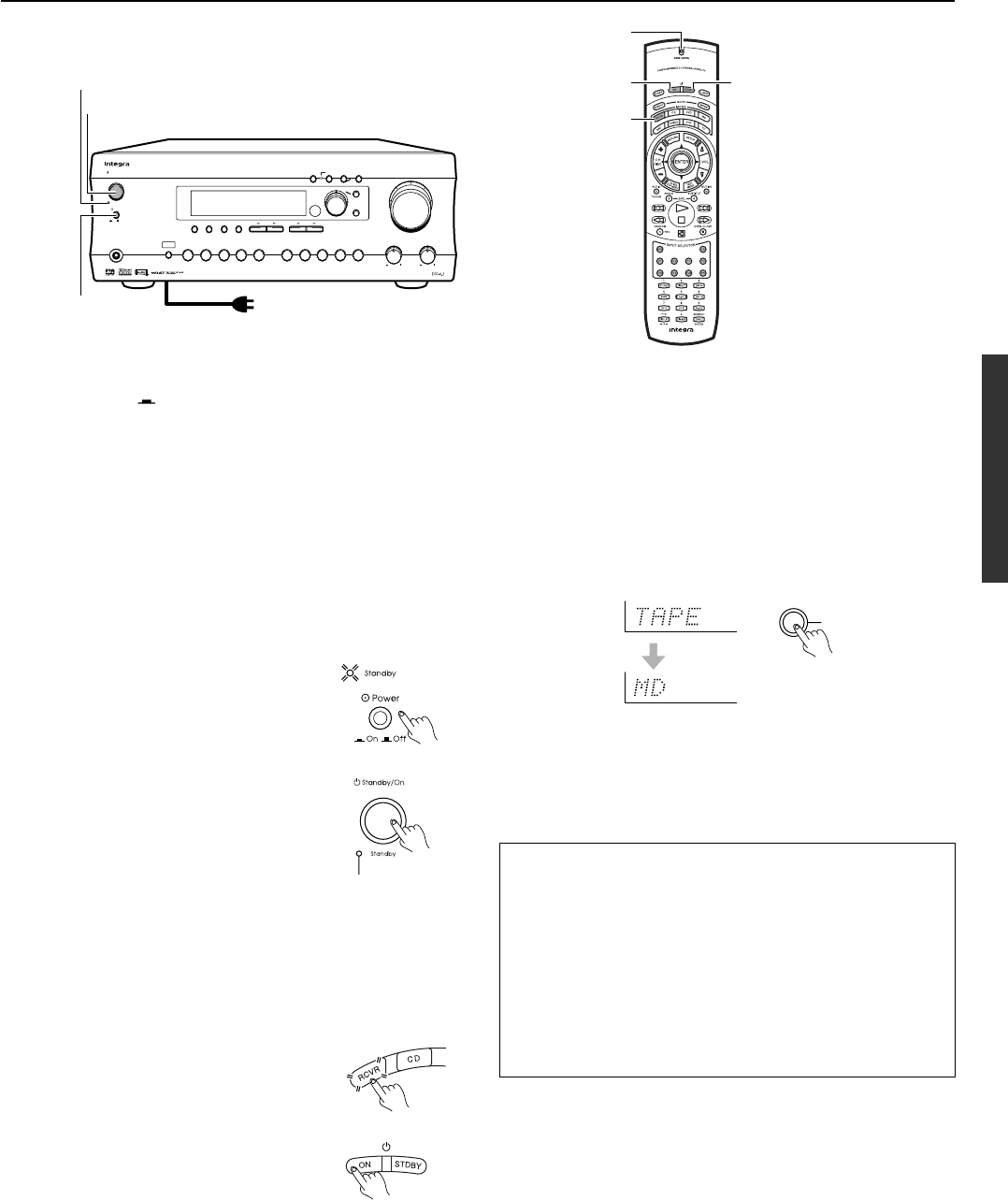

If an MD recorder is connected to the TAPE jack on the DTR-6.2,

switch the Input Selector from Tape to MD (see page 21).

REMOTE

CONTROL

Ex: Integra/Onkyo CD player

Ex: Integra/Onkyo cassette

tape deck

DTR-6.2

z connector

To connect components using the z terminal, simply connect a

remote control cable from this z terminal to the z terminal of the

other component. An z remote control cable with a 1/8-inch (3.5-

mm) miniature two-conductor plug comes with every cassette tape

deck, compact disc player, MD recorder, and DVD player that has an

z terminal.

•For remote control operation, the audio connection cables must

also be connected.

•The RC-441M remote controller does not support turntables.

•If a component has two z terminals, you can use either one to

connect to the DTR-6.2. The other one can be used to daisy chain

with another component.

•With Integra/Onkyo DVD players, you can enter the pre-

program code so that you can operate the DVD player directly

with the remote controller without connecting the z terminals

(see page 50).

FRONT SURR

PRE

OUT

CENTER

54321

L (White)

R (Red)

L (White)

Power amplifier

Center input

Front input

Surround input

Connecting power amplifiers

Using auxiliary power amplifiers allows you to listen at louder

volumes than with the DTR-6.2 alone. If power amplifiers are used,

connect each speaker to the corresponding power amplifier.

1. Front left speaker

2. Front right speaker

3. Surround left speaker

4. Surround right speaker

5. Center speaker

12V TRIGGER A, B terminals

These terminals are provided so that you can use the operation of the

DTR-6.2 control the operation of another externally connected

device. Connect the component to this 1/8-inch mini-jack terminal

and when the set input source is selected, the device will turn on. Set

the 12V TRIGGER terminal using the Setup menu: Input setup →

12V trigger (see page 40).

Connecting speakers

Connections

Connect to devices with multichannel output

By connecting a DVD player, MPEG decoder, or other component that has a multi channel port, you can playback the audio with 5.1 channel

output. So, be sure to prepare a cable that can properly connect the DTR-6.2 to the peripheral device.

CENTER

SUB

WOOFER

FRONT SURR

SUBWOOFER

PRE OUT MULTI

CHANNEL INPUT

GND

DVD Player/MPEG decoder

Center output

Front output

Surround output

Subwoofer output

L (White)

R (Red)

L (White)

Positioning speakers

Speaker placement plays an important role in the reproduction of

Surround sound. The placement of the speakers varies depending on

the size of the room and the wall coverings used in the room. The

illustration shows an example of a layout for standard speaker

placement. Refer to this example when you position the speakers in

order to experience the best of Surround sound.

Standard speaker placement

For ideal Surround effects, all speakers should be installed. If a

center speaker or subwoofer is not connected, the sound from the

unused channel is properly distributed to the connected speakers in

order to produce the best Surround sound possible.

Front: The left, right, and center speakers should face the seated

listener and be placed at ear level. The center speaker produces a

richer sound image by enhancing the perception of the sound’s

source and movement.

Surround: Place the left and right Surround speakers 3 feet (1

meter) above the listener’s ear level and facing toward the sides of

the room, making sure that the listener is within the speakers’ dis-

persion angle. These speakers produce the feel of a moving sound

while creating the sensation of being in the middle of the action.

TV or Screen

Center

speaker

Surround

right

speaker

Surround

left

speaker

Listener

Sub-

woofer

Front

right

speaker

Front

left

speaker

Subwoofer: Install a subwoofer with a built-in power amplifier for

powerful bass sounds. The placement of the subwoofer does not

affect the final quality of the sound image too much, so you can

install it with the room layout in mind.

Refer to the speaker’s instruction manual for more details.

Plugging in the power cord to the AC INLET

receptacle

Plug the supplied power cord into this AC INLET and then into the

power outlet on the wall.

RS 232 port

The RS 232 port is to be used in conjunction with an external

controller to control the operation of the DTR-6.2 by using an

external device.

AC INLET

Power cord

(supplied)

To an AC

wall outlet

•Do not use a power cord other than the one supplied with the

DTR-6.2. The power cord supplied is designed for use with the

DTR-6.2 and should not be used with any other adevice.

•Never have the power cord disconnected from the DTR-6.2

while the other end is plugged into the wall outlet. Doing so may

cause an electric shock. Always connect by plugging into the

wall outlet last and disconnect by unplugging from the wall

outlet first.

Connecting a subwoofer

Use the PRE OUT SUBWOOFER jack to connect a subwoofer with

a built-in power amplifier. If your subwoofer does not have a built-in

amplifier, connect an amplifier to the PRE OUT SUBWOOFER jack

and the subwoofer to the amplifier.

Connecting the speaker cable

1. Strip away 5/8 inch of wire insulation.

2. Twist wire ends very tight.

3. Unscrew

4. Insert wire

5. Screw

5/8"

34 5

Connecting speakers

•Be sure to connect the positive and negative cables for the

speakers properly. If they are mixed up, the left and right signals

will be reversed and the audio will sound unnatural.

•Do not connect more than one speaker cable to one speaker

terminal. Doing so may damage the DTR-6.2.

Connecting speakers

Make the connections while referring to the explanations on the next

page.

1. Check the impedance of the speakers you are

connecting.

The DTR-6.2 requires speakers with an impedance of 4 Ω or

greater. Connecting speakers with an impedance of less than 4 Ω

may damage the DTR-6.2.

2. Set the IMPEDANCE SELECTOR switch according to

the impedance of the speakers being connected.

If all speakers have an impedance of 6 Ω or greater, slide the

IMPEDANCE SELECTOR switch to the left (6 OHMS MIN./

SPEAKER). If one or more speakers have an impedance of less

than 6 Ω, slide the IMPEDANCE SELECTOR switch to the

right (4 OHMS MIN./SPEAKER).

•When you are using only one speaker

or when you wish to listen to

monaural (mono) sound, a single

speaker should never be connected in

parallel to both the right and left-

channel terminals simultaneously.

•To prevent damage to circuitry,

never short-circuit the positive (+)

and negative (–) speaker wire.

Notes:

•The power to the DTR-6.2 must not be turned on when changing

the IMPEDANCE SELECTOR setting.

+––++––+

RL RL

NO!

6 OHMS

MIN.

SPEAKER

4 OHMS

MIN.

SPEAKER

IMPEDANCE SELECTOR

SET BEFORE POWER ON

6 OHMS

MIN.

SPEAKER

4 OHMS

MIN.

SPEAKER

IMPEDANCE SELECTOR

SET BEFORE POWER ON

4 Ω or above/speaker 6 Ω or above/speaker

NO!

OUTLETS

AC 120

V 60

SWITCHED

TOTAL 120

A MAX.

ZONE 2

SPEAKERS

AC INLET

CAUTION

SEE INSTRUCTION MANUAL

FOR CORRECT SETTING.

6 OHMS

MIN.

SPEAKER

4 OHMS

MIN.

SPEAKER

IMPEDANCE SELECTOR

FRONT SURR

PRE

OUT

CENTER

MODEL NO. DTR-6.2

FRONT

SPEAKERS CENTER

SPEAKER SURROUND

SPEAKERS

AV RECEIVER

REMOTE

CONTROL

INPUT 1 INPUT 2OUTPUT

ANTENNA P

COMPONENT

VIDEO

1VIDEO

DVD VIDEO

IN OUT IN OUT IN IN IN

MONITOR

OUT

VIDEO

ZONE 2

PRE OUT

TRIGGER

VIDEO

CENTER

SUB

WOOFER

FRONT SURR

SUBWOOFER

OPTICAL COAXIAL

PRE OUT MULTI

CHANNEL INPUT DIGITAL

INPUT

OUT IN

PHONO TAPE

GND

RS 232

OUT

Front left

speaker

Front right

speaker

Surround left

speaker

Surround right

speaker

Center

speaker

Subwoofer

Listening to music in the remote zone

When using the ZONE 2 OUT terminals

The ZONE 2 OUT terminal is a constant output. Connect to the

LINE input of the amplifier (CD, tape, etc.). Adjust the volume

with the amplifier connected to the ZONE 2 OUT terminal.

1. Connect the DTR-6.2 to the amplifier for the remote

zone.

2. Connect the remote zone speaker cables to the

speaker terminals on the amplifier.

Adjust the volume level at the amplifier.

When using the ZONE 2 SPEAKERS terminals

Connect the speaker cables from the speakres in the remote zone

(Zone 2) speaker terminals on the DTR-6.2.

With this connection, select “Activated” for the Preference →

Powered Zone 2 Setup setting in the Setup menu.

Note:

•It is important to be aware of the speakerimpedance (see

previous page).

•When set to “Activated,” the following limitations will be

applied, so whenever you are not using the remote zone (Zone

2), be sure to return the setting to “Not Activated.”

- You can only use the Stereo and Direct listening modes in the

main room.

- When listening to a multi-channel input source, no sound is

output from the left and right surround speakers.

- You cannot use the Rec Out function.

ZONE 2

SPEAKERS

CAUTION

SEE INSTRUCTION MANUAL

FOR CORRECT SETTING.

Remote Zone (Zone 2)

Main room

DTR-6.2

Zone 2

Right

speaker

Zone 2

Left

speaker

ZONE 2

PRE OUT

Remote Zone (Zone 2)

Main room DTR-6.2

L (White)

R (Red)

Zone 2 amplifier

Zone 2 Left

speaker

Zone 2 Right

speaker

IR IN

DTR-6.2

In the

cobinet

Remote Controller

Connecting

block

IR Receiver

: Signal flow

IR IN

IR OUT

Connecting

block

IR Receiver

DTR-6.2

IR Emitter

Remote Controller

other

component

: Signal flow

OUT

: Signal flow

IR Emitter

Remote control

sensor

other component

DTR-6.2

Mini plug

Emitter

Mini plug cable

Operating components not reached by the

remote controller signals (IR IN/OUT)

If the remote controller signal does not reach the

DTR-6.2 remote sensor

If the DTR-6.2 is located inside a cabinet or other enclosure where

the infrared rays from the remote controller cannnot enter, then

operation with the remote controller will noe be possible. In such a

case, it will be necessary to install a remote sensor at a location

outside of the cabinet for the infrared rays from the controller to

reach.

With this connection, select “Main” for the Preference → IR IN

Setup → Position setting in the Setup menu (see page 42). If the remote controller signal does not reach

other components

In this situation, you will need to use a commercially available IR

emitter. Connect the mini plug of the IR emitter to the IR OUT

terminal on the DTR-6.2 and then place the IR emitter on the remote

sensor of the component or facing it. When the IR emitter is

connected, only the signal input to the IR IN terminal is output to the

IR OUT terminal. The signal input from the remote sensor on the

front of the DTR-6.2 will not be output to the IR OUT terminal.

The following equipment (sold separately) is essential for

operation:

•Onkyo’s Multi-Room System kits (IR Remote Controller

Extension System), or

•Multiroom A/V distribution and control systems from Niles®

and Xantech® to name a few

OUT

Mini plug cable

DTR-6.2

The IR IN input allows you to control the DTR-6.2 from the remote

zone (Zone 2) with the remote controller even though the remote

zone is physically separated. The diagram below shows how to make

the proper connections for the remote zone.

With this connection, select “Zone 2” for the Preference → IR IN

Setup → Position setting in the Setup menu (see page 42).

Connecting

block

DTR-6.2

Main room

: Signal flow

To IR IN

Remote room

IR Receiver

Remote controller

Make connection as shown below. Do not plug the equipment into

the power source until the connection is complete.

from connecting block

•The DTR-6.2 is shipped with the main power (Power) switch in

the on position (

). When the power cord is plugged in for

the first time, the DTR-6.2 will automatically enter the standby

state and the Standby indicator will light (same condition after

step 2 below).

•Before you plug in the DTR-6.2, confirm that all connections

have been made properly.

•Turning on the power may cause a momentary power surge,

which might interfere with other electrical equipment on the

same circuit, such as computers. If this happens, use a wall outlet

on a different circuit.

1. Plug the power cord into an AC wall outlet.

2. Press the ON button to turn on the

DTR-6.2 (take it out of the standby

state).

To return the DTR-6.2 to the standby state,

press the STDBY button.

Turning the power on from the remote controller:

Before you can use the remote controller, you must perform steps 1

and 2 above and place the DTR-6.2 in the standby state.

1. Press the RCVR MODE button.

The RCVR MODE button lights green.

Memory preservation

This unit does not require memory preservation batteries. A built-

in memory power backup system preserves the contents of the

memory during power failures and even when the POWER

switch is set to off. The POWER switch must be set to on in order

to charge the backup system.

The memory preservation period after the unit has been turned off

varies depending on climate and placement of the unit. On the

average, memory contents are protected over a period of a few

weeks after the last time the unit has been turned off. This period

is shorter when the unit is exposed to a highly humid climate.

3. Press the Standby/On button to turn

on the DTR-6.2. The display and four

jog dial indicators will light up and

the Standby indicator will turn off.

If you press the Standby/On button again,

the receiver returns to Standby mode.

2. Press the Power switch to set the

DTR-6.2 to standby state.

The STANDBY indicator will light up.

To change the display of the input source from TAPE to

MD:

If you connected an MD recorder to the TAPE jack on the DTR-6.2,

you can have “MD” appear when the TAPE source button is pressed.

By changing the display, if an Integra/Onkyo MD recorder z-

connected, the z system functions will become enabled.

Changing the display:

Press and hold down the TAPE source button until the display

changes from TAPE to MD (approx. 3 seconds).

To return the display to its original setting, perform the same

procedure. This setting is necessary to allow z system functions

for the connected cassette tape or MD recorder.

MUTING

HOME THEATER CONTROLLER

RC-441M

Standby/On

Standby

Power

On O

Phones

Video 1 Video 3

DVD Video 2 Video 4

Audio

Selector

Bass Treble

Master Volume

Smart

Scan

Navigator

Rec Out Zone 2 Zone 2 Level CH Level

DimmerDisplay Tuning

FM Mode Preset Memory Preset

VCR 1 VCR 2

Tape FM AM Phono CD

Push To Enter

DSP/Mode ADJ Setup

Return

Power

Standby/On

RCVR MODE

STDBY

Connecting the power

Standby indicator

SEND/LEARN

indicator

To wall outlet

TAPE

Turn off

ANTENNA

Strip away the insulation from the end of

the cable, then fully insert the stripped

end of the cable.

(Indoor) AM loop antenna

Connecting antennas

Connecting the AM antenna cable

1. Press down the lever.

2. Insert the wire into the hole.

3. Release the lever.

12 3

Insert into the hole.

FM antenna

Hint:

Either of the split ends of the AM antenna can be connected to either

terminal. Unlike speaker cabling, there is no polarity for AM

broadcast signals.

Connecting the included antennas

Connecting the FM indoor antenna:

The FM indoor antenna is for indoor use only. During use, extend the

antenna and move it in various directions until the clearest signal is

received. Fix it with push pins or similar implements in the position

that will cause the least amount of distortion.

If the reception is not very clear with the attached FM indoor

antenna, the use of an outdoor antenna is recommended.

Connecting the AM loop antenna:

The AM loop antenna is for indoor use only. Set it in the direction

and position where you receive the clearest sound. Put it as far away

as possible from the DTR-6.2, televisions, speaker cables, and power

cords.

When reception is not satisfactory with the attached AM loop

antenna alone, connection of an outdoor antenna is recommended.

To use the tuner of DTR-6.2, it is necessary to prepare the supplied

FM and AM antennas.

•Adjustment and placement of the FM and AM antennas for

better reception must be done while listening to a station

broadcast.

•If better reception cannot be obtained, then placement of an

outside antenna is recommended.

Assembling the AM loop antenna

Assemble the loop antenna as shown in the illustration.

•Refer to “Connecting the AM loop antenna” below for details on

connecting the loop antenna.

ANTENNA

Connecting antennas

Outdoor antenna

(Indoor)

AM loop antenna

To TV (or VCR)To receiver

Connecting an AM outdoor antenna

An outdoor antenna will be more effective if it is stretched

horizontally above a window or outside.

•Do not remove the AM loop antenna.

•To avoid the risk of lightning and electrical shock, grounding is

necessary. Follow item 14 of the “Important Safeguards” on

page 2 when you install the outdoor antenna.

Directional linkage

Do not use the same antenna for both FM and TV (or VCR)

reception since the FM and TV (or VCR) signals can interfere with

each other. If you must use a common FM/TV (or VCR) antenna, use

a directional linkage type splitter.

Connecting an FM outdoor antenna

Please make sure that you follow the considerations:

•Keep the antenna away from noise sources (neon signs, busy

roads, etc.).

•It is dangerous to put the antenna close to power lines. Keep it

well away from power lines, transformers, etc.

•To avoid the risk of lightning and electrical shock, grounding is

necessary. Follow item 14 of the “Important Safeguards” on

page 2 when you install the outdoor antenna.

Speaker setup

After you have installed the DTR-6.2, connected all the components,

and determined the speaker layout, it is now time to perform the

settings in the Speaker Setup menu for the optimum sound acoustics

for your environment and speaker layout.

Before you perform the following settings, it is important that you

first determine the following characteristics:

•The types and sizes of the speakers that are connected.

•The distance from each speaker to your normal listening

position.

Before performing the settings, write down your speaker

settings in the diagram below for future reference.

Setup

Push To Enter

DSP

Mode ADJ

Speaker Configuration submenu

This submenu provides settings that tell the DTR-6.2 which speakers

you have connected and what size they are.

1. Press the Setup button.

If a menu other than “1. Speaker Setup”

appears, turn the jog dial until “1. Speaker

Setup” does appear.

2. Press the jog dial.

Push To Enter

DSP

Mode ADJ

3. Press the jog dial.

4. Turn the jog dial to set whether or

not a subwoofer is connected.

Yes: Select when a subwoofer is connected.

No: Select when a subwoofer is not

connected.

Push To Enter

DSP

Mode ADJ

SL SR

Front

a. meters / feet

b. [ ]m/ft

c. [ ]m/ft

d. [ ]m/ft

Front

SW Center

b c b

Monitor

Your speaker settings:

Buttons to be used

Setup button:

Press to enter the main menu level and put the DTR-

6.2 in the mode for setting the various parameters. If

currently in the setting mode, press to exit.

Jog dial:

If the indicators directly above and below the jog dial

are lit, turning the jog dial selects a submenu and

pushing the jog dial enters the selected submenu (i.e.

takes you one level down).

If the indicators directly to the left and right of the jog

dial are lit, turning the jog dial changes the setting of

the currently selected parameter and pushing the jog

dial displays the next parameter.

Return button:

Press to go back one level up.

Use the buttons on the DTR-6.2 to navigate through the menus and

set the various settings and parameters according to your system

setup and layout.

Setup

Return

Push To Enter

DSP

Mode ADJ

Push To Enter

DSP

Mode ADJ

The normal order for performing the settings for speaker setup in

your DTR-6.2 is to set the speaker configuration settings first, set the

speaker distances second, and then calibrate the speaker levels third.

Below is an explanation of how to perform these settings using the

controls on the DTR-6.2.

You can also perform these settings using the On-Screen Display

(OSD) menu (see page 34).

The settings are in a hierarchical configuration as shown below.

Level 1 Main menu level

The level consisting of the menus contained in the Setup menu.

Level 2 Menu level

The level consisting of the submenus contained in each menu.

Level 3 Submenu level

The level consisting of the parameters contained in each submenu.

Standby/On

Standby

Power

On O

Phones

Video 1 Video 3

DVD Video 2 Video 4

Audio

Selector

Bass Treble

Master Volume

Smart

Scan

Navigator

Rec Out Zone 2 Zone 2 Level CH Level

DimmerDisplay Tuning

FM Mode Preset Memory Preset

VCR 1 VCR 2

Tape FM AM Phono CD

Push To Enter

DSP/Mode ADJ Setup

Return

Setup

Return

Jog dial

Speaker setup

Speaker Distance submenu

This submenu provides settings that tell the DTR-6.2 how far away

your speakers are located from the listening position so that it can

provide the optimum sound space. If you are continuing from setting

the speaker configuration and are still in the setting mode, skip

directly to step 2.

1. Press the Setup button.

If a menu other than “1. Speaker Setup”

appears, turn the jog dial until “1. Speaker

Setup” does appear.

6. Press the Return button.

You return to the “Sp Distance?” display.

4. Press the jog dial and then turn it to

set the distance from the front

speakers to the listening position.

3. Press the jog dial and then turn it to

select the unit of measurement.

2. Press the jog dial and then turn it to display the

“Speaker Distance.”

5. Repeat the procedure in step 4 to set the distance

from the center speaker and the surround speakers

to the listening position.

Notes:

•If you press the Return button again, you go back up one more

level.

•To exit the setting mode immediately, press the Setup button.

Return

Push To Enter

DSP

Mode ADJ

Push To Enter

DSP

Mode ADJ

Push To Enter

DSP

Mode ADJ

Push To Enter

DSP

Mode ADJ

feet: Select if you will enter the distances in

feet.

meters: Select if you will enter the distances

in meters.

Push To Enter

DSP

Mode ADJ

Push To Enter

DSP

Mode ADJ

Setup

8. Press the Return button.

You return to the “Speaker Config?” display.

5. Press the jog once and then turn it

to set the size of your front

speakers.

Push To Enter

DSP

Mode ADJ

•If “No” is selected for the Subwoofer setting, then this

setting is fixed to “Large”.

Large: Select if the front speakers are large

sized.

Small: Select if the front speakers are small

sized.

None: Select if no center speaker is

connected.

Large: Select if the center speaker is large

sized.

Small: Select if the center speaker is small

sized.

•If “small” is selected for the Front setting, then “Large”

cannot be selected for this setting.

6. Press the jog once and then turn it

to set whether or not a center

speaker is connected and, if one is

connected, its size.

Push To Enter

DSP

Mode ADJ

7. Press the jog once and then turn it

to set whether or not surround

speakers are connected and, if they

are connected, their size.

•If “small” is selected for the Front setting, then “Large”

cannot be selected for this setting.

Pressing the jog dial again returns you to the subwoofer setting.

None: Select if no surround left and right

speakers are connected.

Large: Select if the surround left and right

speakers are large sized.

Small: Select if the surround left and right

speakers are small sized.

Push To Enter

DSP

Mode ADJ

Push To Enter

DSP

Mode ADJ

Notes:

•If you press the Return button again, you go back up one more

level.

•To exit the setting mode immediately, press the Setup button.

Return

Push To Enter

DSP

Mode ADJ

Push To Enter

DSP

Mode ADJ

Speaker setup

About the other settings

The factory settings for your DTR-6.2 are given in the table on page

12. If you connect your system in accordance with these factory

settings, there is no need to change them. However, if you do not,

you will need to change the settings that do not match. If you do not,

signals may not be properly received resulting in poor sound or

image quality, no digital output, or no output at all.

Changing a digital input setting:

1. Press the input selector button for the source that

you want to change.

2. Press the Setup button.

3. Turn the jog dial to display “2. Input Setup.”

4. Press the jog dial.

“Audio Setup?” appears.

5. Press the jog dial again.

“D.Input: xxx” appears.

6. Turn the jog dial and select the connector to which

the digital source is connected.

7. Press Return repeatedly or press Setup to exit the

setting mode.

Changing the multichannel setting:

1. Press the input selector button for the source that

you want to change.

2. Press the Setup button.

3. Turn the jog dial to display “2. Input Setup.”

4. Press the jog dial.

“Audio Setup?” appears.

5. Press the jog dial twice.

“Multich: xxx” appears.

6. Turn the jog dial to select “Yes” or “No.”

7. Press Return repeatedly or press Setup to exit the

setting mode.

Changing the Component Video Input setting:

1. Press the input selector button for the source that

you want to change.

2. Press the Setup button.

3. Turn the jog dial to display “2. Input Setup.”

4. Press the jog dial.

“Audio Setup?” appears.

5. Turn the jog dial to display “Video Setup?”

6. Press the jog dial.

“Cmponent: xxx” appears.

7. Turn the jog dial to select the connectors to which

the source is connected (“Input 1” or “Input 2”).

8. Press Return repeatedly or press Setup to exit the

setting mode.

Level Calibration submenu

This submenu allows you to set the volume levels of each speaker

individually so that they all sound at the same level when heard from

the listening position. If you are continuing from setting the speaker

distances and are still in the setting mode, skip directly to step 2.

Note:

This setting cannot be made when Zone 2 is turned on, so be sure to

put Zone 2 in the standby mode.

1. Press the Setup button.

If a menu other than “1. Speaker Setup”

appears, turn the jog dial until “1. Speaker

Setup” does appear.

7. Press the Return button.

You return to the “Level Cal?” display.

Notes:

•If you press the Return button again, you go back up one more

level.

•To exit the setting mode immediately, press the Setup button.

6. Repeat the procedure in step 4 and 5 until the volume

of the test sound from all speakers is the same level.

Each time you press the jog dial, the test sound will be heard

from a different speaker. The speaker order for calibration is

front left → center → front right → surround right → surround

left → subwoofer.

4. Press the jog dial again.

The test sound will now be heard from a

different speaker.

3. Press the jog dial.

A test sound (pink noise) will be heard from

the left front speaker. At this point, it is not

necessary to adjust the volume of the test

sound.

2. Press the jog dial and then turn it to display the

“Level Cal?”

5. Turn the jog dial to adjust the

volume of the test sound from this

speaker to the same level that you

heard from the previous speaker.

Push To Enter

DSP

Mode ADJ

Push To Enter

DSP

Mode ADJ

Push To Enter

DSP

Mode ADJ

Push To Enter

DSP

Mode ADJ

Push To Enter

DSP

Mode ADJ

Setup

Listening to Radio Broadcasts

One of the features of the DTR-6.2 that is most frequently used is its

ability to play FM and AM broadcast radio stations. The DTR-6.2

provides a number of listening modes perfect for listening to the

radio and getting the most out of your audio system. Also, by

presetting radio stations that you listen to frequently, you can select

them easily by pressing the CH button on the remote controller.

Tuning into a radio station

1. Press either the AM or FM input

source button.

2. Using the Tuning and buttons

on the front panel, tune into the

station you desire.

Listening to a stereo radio station (FM mode)

When you tune into a radio station, TUNED

indicator appears in the display. If you tune into

an FM station in stereo, then “FM STEREO”

appears. If the signal is weak, it may be

impossible to tune into the station in stereo. In

such a case, press the FM Mode button on the

front panel. The AUTO indication disappears

and the radio station is output in the monaural

mode. To return to stereo, press the FM Mode

button again. “AUTO” appears. Some inter-

station noise may be heard, but the sound will

not cut in and out as it would if stereo was

selected.

AUTO

TUNED

FM STEREO

Tuned

in stereo

Band Frequency

Auto mode

“FM STEREO”

(Lights red)

•The tuner frequency changes in 50 kHz increments for FM

and 10 kHz increments for AM.

•When tuning into FM stations, you can press the Tuning or

button continuously for more than 0.5 seconds to scan for

an FM station in the direction of the button you pressed (FM

auto tuning mode). After you release the button and a station

is received in stereo, the scanning stops.

FM Mode

AMFM

Tuning

Standby/On

Standby

Power

On O

Phones

Video 1 Video 3

DVD Video 2 Video 4

Audio

Selector

Bass Treble

Master Volume

Smart

Scan

Navigator

Rec Out Zone 2 Zone 2 Level CH Level

DimmerDisplay Tuning

FM Mode Preset Memory Preset

VCR 1 VCR 2

Tape FM AM Phono CD

Push To Enter

DSP/Mode ADJ Setup

Return

Mode

Listening to Radio Broadcasts

Erasing a preset radio station

1. Press the AM or FM button and press the Preset /

button to select the preset radio station that you want

erase (see above).

2. Press the Preset Memory button.

“Preset In?” appears.

4. Press the jog dial.

The selected preset station is erased.

3. Turn the jog dial to display “Preset

Erase?”

AUTO

TUNED

MEMORY

Flash

Presetting a radio station

1. Tune into the radio station you desire (see “Tuning

into a radio station” ).

2. Press the Preset Memory button on

the front panel.

“Preset In?” appears in the front display for

about five seconds.

4. Turning the jog dial, select a preset

number (from 1 to 40) to assign the

station to be preset.

5. Press the jog dial to finalize the

procedure.

This programs the radio station as a preset

radio station.

•Up to 40 stations can be stored in memory

as preset radio stations.

“MEMORY”

(Lights red)

3. Press the jog dial.

The MEMORY indicator lights red.

Preset Memory

Push To Enter

DSP

Mode ADJ

MEMORY

“MEMORY”

(Lights red)

Push To Enter

DSP

Mode ADJ

Push To Enter

DSP

Mode ADJ

Selecting a preset radio station

1. Press either the AM or FM input

source button. The front display

should show the currently selected

frequency.

If it displays the listening mode, press the

Display button to display the frequency.

2. Press the Preset / button and

select the number of the desired

preset station.

Preset

Preset Memory

Push To Enter

DSP

Mode ADJ

MUTING

HOME THEATER CONTROLLER

RC-441M

Standby/On

Standby

Power

On O

Phones

Video 1 Video 3

DVD Video 2 Video 4

Audio

Selector

Bass Treble

Master Volume

Smart

Scan

Navigator

Rec Out Zone 2 Zone 2 Level CH Level

DimmerDisplay Tuning

FM Mode Preset Memory Preset

VCR 1 VCR 2

Tape FM AM Phono CD

Push To Enter

DSP/Mode ADJ Setup

Return

Preset Memory

AMFM

TUN

RCVR

MODE

Preset

Jog dial

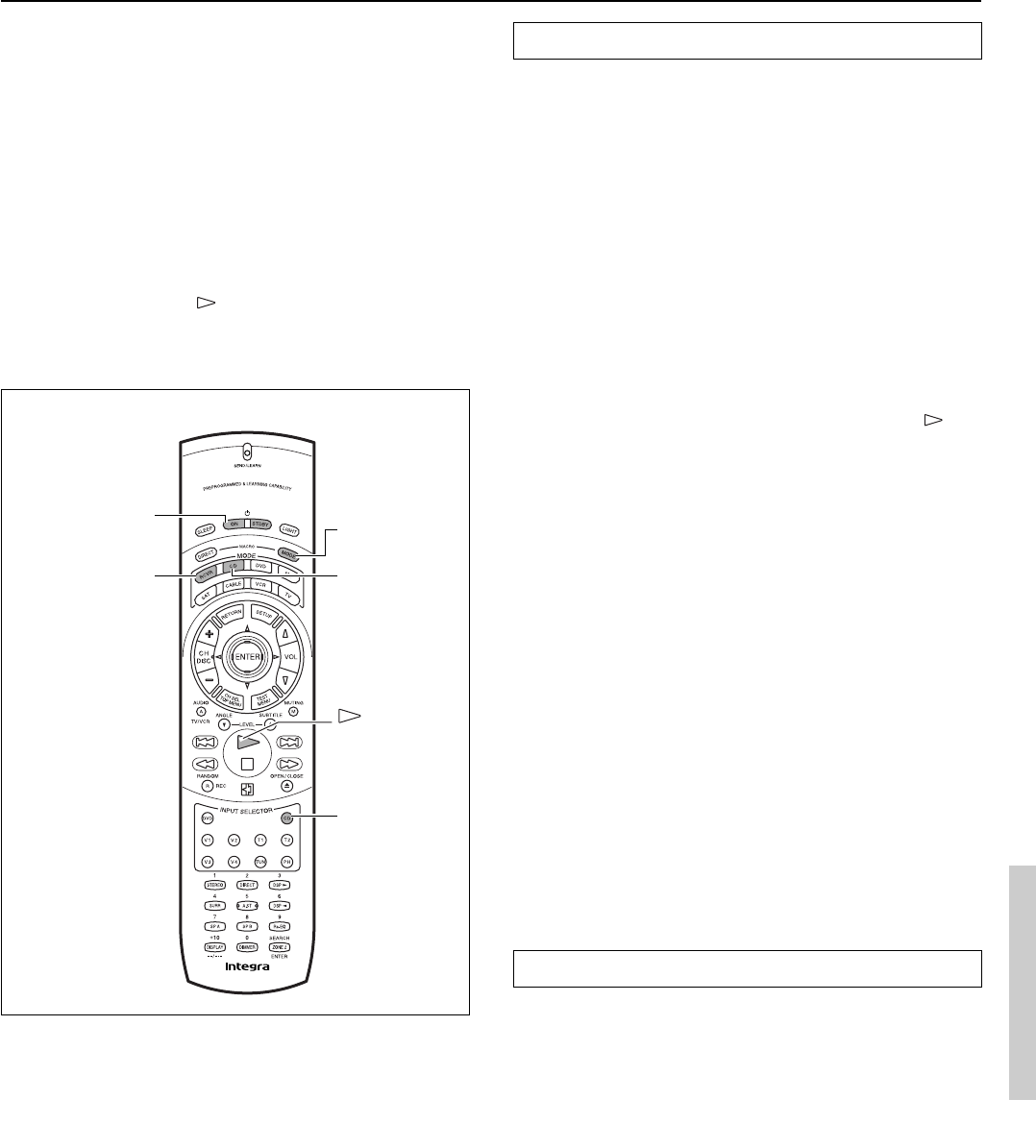

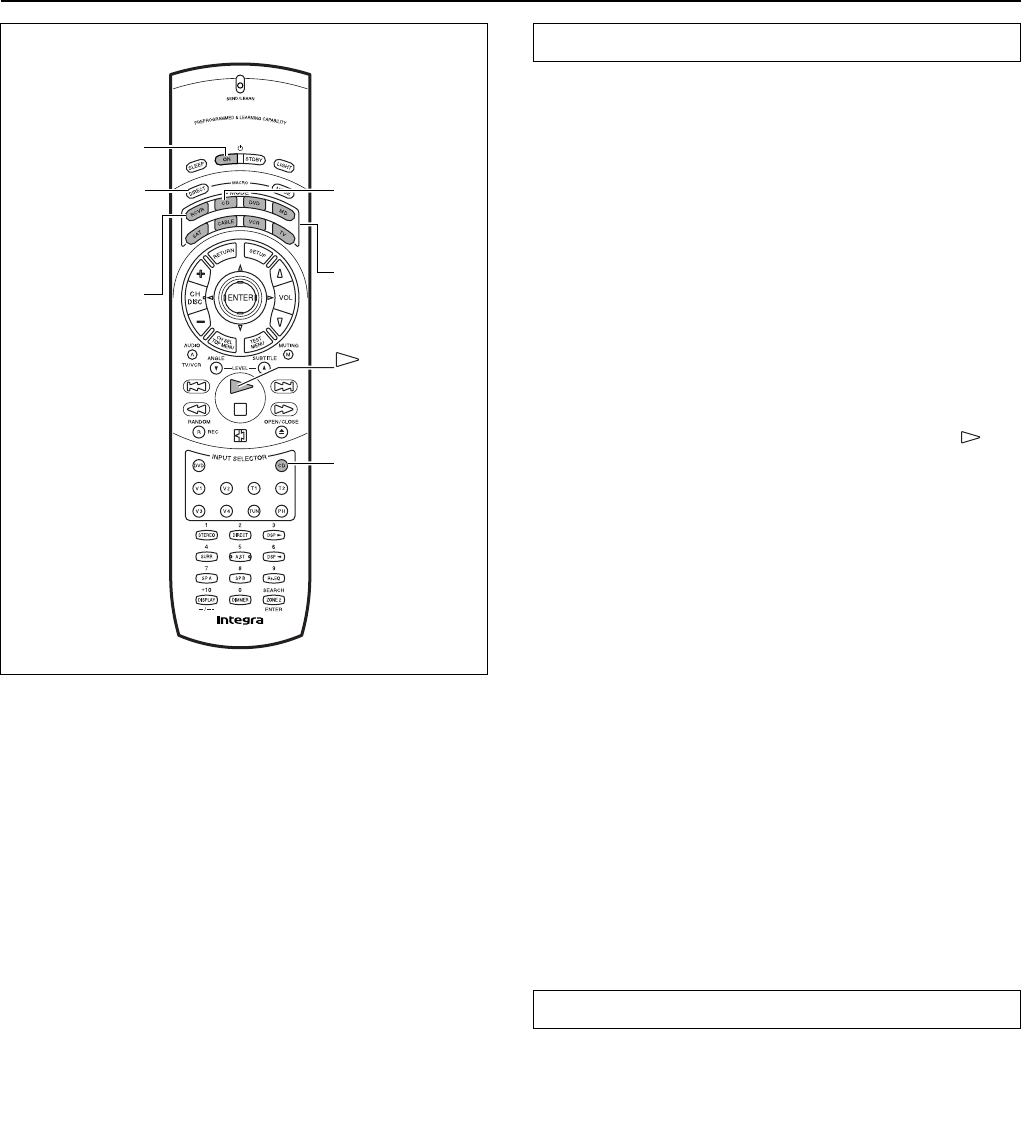

When using the remote controller:

1. Press the RCVR MODE button.

The RCVR MODE button lights green.

2. Press the TUN button.

3. Press the CH button and select the number of the

desired preset station.

Push To Enter

DSP

Mode ADJ

Enjoying music or videos with the DTR-6.2

Though the DTR-6.2 is often used to listen to the radio, it does not

show you its true ability until it is used to play music or watch

videos, DVDs, and the like. The DTR-6.2 has the latest in state-of-

the-art features to play back today’s acoustic technologies with the

utmost in fidelity and power. From a two-speaker system to a five-

speaker system, you are assured a sound space that you can always

enjoy.

Listening with headphones

To listen with headphones, plug a pair headphones with a standard

stereo plug into the Phones jack on the DTR-6.2 front panel.

When you connect headphones, the unit will enter STEREO mode

automatically and no sound will be heard from the speakers.

If you have selected MULTI CH INPUT, you will hear sound only

from the FRONT L and R channels.

The headphone volume level can be adjusted at the Setup menu (see

page 42).

Note that the signal to the remote zone (Zone 2) will not be affected

whether or not headphones are connected.

Adjusting the bass and treble

You can adjust the bass and treble levels using the Bass and Treble

dials. This function only affects the front left and right speakers. For

multichannel sources, these dials will not work if the tone control is

set to “Off.”

Temporarily turning off the sound

To turn off the sound momentarily, such as when interrupted by a

phone call, press the MUTING button on the remote controller.

When pressed, “Muting” is displayed on the DTR-6.2. Press the

MUTING button again to turn the sound back on.

Phones

Bass Treble

HOME THEATER CONTROLLER

RC-441M

Standby/On

Standby

Power

On O

Phones

Video 1 Video 3

DVD Video 2 Video 4

Audio

Selector

Bass Treble

Master Volume

Smart

Scan

Navigator

Rec Out Zone 2 Zone 2 Level CH Level

DimmerDisplay Tuning

FM Mode Preset Memory Preset

VCR 1 VCR 2

Tape FM AM Phono CD

Push To Enter

DSP/Mode ADJ Setup

Return

Master Volume

MUTING

Phones Treble

Bass

VOL

Basic operation

1. Press the input source (or input selector on the

remote controller) button.

Remote controller

2. Turn on the corresponding component and play the

media.

3. Adjust the volume.

FM AM Phono C

DTape

DVD Video 3 Video 4Video 2Video 1

VCR 2VCR 1

DTR-6.2

Remote controller

Adjusting the main volume adjusts the volume level output from

all the speakers connected to the DTR-6.2 together. If

headphones are connected, this also adjusts the volume heard

from the headphone speakers. To adjust the volume, either press

the VOL buttons on the remote controller or turn the Master

Volume dial. To increase the volume, turn the dial clockwise; to

decrease the volume, turn the dial counterclockwise. The

volume can be set to Min, 1 to 79, and Max.

INPUT

SELECTOR

buttons

Input source buttons

DTR-6.2 Remote controller

Master Volume

Enjoying music or videos with the DTR-6.2

Switching the display

While listening to or watching an input source, you can display the

information regarding the type of source and signal being input by

pressing the

button on the DTR-6.2 or the DISPLAY button on the remote

controller.

When an input source other than FM or AM is selected:

* If the input signal does not have a program format, then this will

be skipped.

Input + volume

Program format*

Input +

Listening mode

or Multi Ch

When FM or AM is selected as the input source:

FM/AM frequency +

Preset no.

FM/AM +

Listening mode

Using the sleep time (remote controller only)

The SLEEP button enables you to set the DTR-6.2 to turn off

automatically after a specified time period. If you press it once, the

DTR-6.2 will turn off after 90 minutes. Each time it is pressed

thereafter, the remaining time until the DTR-6.2 turns off decreases

by 10 minutes. While, the sleep function is enabled, you can press

the SLEEP button to see how much time is left. To cancel the sleep

function, press the SLEEP button when the time displayed is less

than 10 minutes.

If you are using the remote zone (Zone 2), it will turn off at the same

time as the main zone. If you want to set the sleep function for Zone

2 only, set the sleep function with main zone turned on and then put

the main zone into the standby state.

Temporarily changing the speaker output levels

To change the individual speaker volumes temporarily, follow the

procedure given below. Each channel can be set between –12 to +12

decibels. Note that the calibration settings will return to the original

settings when the DTR-6.2 is put in standby.

1. Press the CH Level button and select

the desired speaker.

2. Turn the jog dial to adjust the

volume level.

Display

CH Level

Push To Enter

DSP

Mode ADJ

When using the remote controller:

1. Press the RCVR MODE button.

2. Press the CH SEL button and select

the desired speaker.

3. Press the LEVEL or button to

adjust the volume level.

DTR-6.2 Remote controller

MUTING

HOME THEATER CONTROLLER

RC-441M

Standby/On

Standby

Power

On O

Phones

Video 1 Video 3

DVD Video 2 Video 4

Audio

Selector

Bass Treble

Master Volume

Smart

Scan

Navigator

Rec Out Zone 2 Zone 2 Level CH Level

DimmerDisplay Tuning

FM Mode Preset Memory Preset

VCR 1 VCR 2

Tape FM AM Phono CD

Push To Enter

DSP/Mode ADJ Setup

Return

CH LevelDisplay Dimmer

SLEEP

LEVEL

DIMMER

CH SEL

DISPLAY

Jog dial

Adjusting the brightness of the front display

You can adjust the brightness of the front display of the DTR-6.2

with DIMMER button on the remote controller or Dimmer button

on the DTR-6.2 front panel.

Dimmer

Remote controller

DTR-6.2 Remote controller

Notes:

•You cannot select a speaker if the Speaker Config sub-menu of

the Speaker Setup is set to No or None.

•If the speaker level is set to +1 dB or higher, the maximum level

indicated on the display will change if you raise the volume

level.

•When you press the TEST button after you set the level, the

current level will be used as the value set via the test tone.

Changing the audio mode

Press the Audio Selector button on the front panel (or AUDIO button

on the remote controller) to change the audio mode. Each time the

button is pressed, the mode changes from “AUTO” → “Multich” →

“Analog” and back to “AUTO.” The “AUTO” audio mode is

recommended for normal circumstances.

Enjoying music or videos with the DTR-6.2

AUTO (automatic detection): With this setting, the DTR-6.2

automatically detects whether the input signal is digital or analog.

When a digital signal is not input, then the analog signal is played.

Multichannel: Select this setting to play back the input from the

component connected to the MULTI CHANNEL INPUT port. This

setting is effective when the Multichannel setting in the Audio Setup

sub-menu is set to “Yes” (see pages 26, 38).

Analog: Select this setting to play back the input from a source

component connected to an analog audio input jacks. With this

setting, even if a digital signal is input from the same component,

only the analog signal will be output.

Audio

Selector

3. Turn on the connected component and start playing

the desired media.

4. If necessary, adjust the output level of each speaker

as desired (see page 30).

Adjust the speaker output levels so that you can hear the same

sound level from each speaker at the listening position. For the

front right, front left, center, surround right, and surround left

speakers, the output levels can be adjusted between –12 to +12

decibels. The subwoofer can be adjusted between –30 to +12

decibels.

5. Adjust the volume with the Master Volume dial or the

VOL buttons on the remote controller.

Audio

Selector

Using the tone control:

To make the BASS and TREBLE dials work for multichannel

sources, you must first set the tone control to “On.”

1. Turn the tone control on by pressing either the jog

dial on the DTR-6.2 or the DIRECT button on the

remote controller.

Master Volume

DTR-6.2 Remote controller

MUTING

HOME THEATER CONTROLLER

RC-441M

Standby/On

Standby

Power

On O

Phones

Video 1 Video 3

DVD Video 2 Video 4

Audio

Selector

Bass Treble

Master Volume

Smart

Scan

Navigator

Rec Out Zone 2 Zone 2 Level CH Level

DimmerDisplay Tuning

FM Mode Preset Memory Preset

VCR 1 VCR 2

Tape FM AM Phono CD

Push To Enter

DSP/Mode ADJ Setup

Return

Master Volume

VOL

DIRECT

AUDIO

Audio Selector TrebleBass

Enjoying the multichannel output

Before starting operations, first make sure that the multichannel

connection is properly made and that the Multichannel setting of the

Input Setup → Audio Setup submenu is set to “Yes.”

1. Press the input source button for the component with

multichannel output connected to the MULTI

CHANNEL INPUT on the rear of the DTR-6.2.

2. Select “Multich” using the Audio Selector button on

the front panel (AUDIO button on the remote

controller).

Bass Treble

Push To Enter

DSP

Mode ADJ

Jog dial

When pressed only once, the current setting appears, so press

twice to change the setting.

2. Adjust the tone using the Bass and Treble dials.

DTR-6.2 Remote controller

Notes:

•Adjusting the volume level of each speaker for the MULTI CH

INPUT source does not affect the speaker level adjusted by the

listening position.

•If the speaker level is set to +1 dB or higher, the maximum level

indicated on the display will change if you raise the volume

level.

Using listening mode

Listening modes

Stereo

This mode has all input sounds output from the left and right front

speakers.

Direct

This mode delivers pure sound with minimum sound quality

adjustment and filtration. The sound recorded for the right and left

front channels is output to the right and left front speakers only and

not output to the subwoofer.

Surround modes

With this mode, decoding is performed automatically to match the

input signal. This original mode adds no sound processing to the

input signal.

•Dolby D (Dolby Digital)

Digital data with AC-3 compression and a maximum of 5.1-

channel* surround sound. This source signal comes from DVDs

and LDs that have the mark and therefore recorded for

5.1-channel output. This source also comes from digital satellite

broadcasts that support dolby Digital.

•DTS

DTS (Digital Theater System) is compressed digital data with a

maximum 5.1-channel* surround output that allows for an

extremely high-quality sound. This source signal requires a

DVD player that supports DTS output and comes from compact

discs, DVDs, and LDs that have the mark.

Notes on DTS:

•If you play a CD or LD that supports DTS when the “Analog”

setting is selected on the DTR-6.2, the DTS encoded signal

will not be decoded and noise will be output. This noise could

damage the amplifier and speakers. Therefore, be sure to

selected “Auto” and use the digital input jacks (OPTICAL or

COAXIAL) to connect the DTS source.

•The DTS indicator on the DTR-6.2 lights while a DTS source

is played. When playback finishes and the DTS signal

transmission stops, the DTR-6.2 remains in DTS mode and

the DTS indicator remains lit. This prevents noise when you

operate the pause or skip button on the player. Therefore, if

the source is immediately switched from DTS to PCM, the

PCM signal may not be played. In this case, stop the playback

of the source on the player for about three seconds and then

resume playback.

•If you press the pause or skip button on the player while

playing a DTS source, on rare occasions a short noise may be

heard. This is not a malfunction.

•You may not be able to play some DTS source signals from

certain CD players and LD players even if you connect the

player to the DTR-6.2 digitally. This is because the digital

signal has been processed (such as the output level, sampling

frequency, or frequency response) and the DTR-6.2 cannot

recognize the signal as DTS data. Therefore you may hear

noise when you play a DTS source while processing the

signal.

The DTR-6.2’s surround sound enables you to enjoy the presence of

a movie theater or concert hall in your room.

The configuration of the speakers are very important for the

surround sound. Refer to “Connecting speakers” on page 17.

Before using a listening mode, make sure the Speaker Setup

parameters have been set (refer to page 24-26). Once the parameters

have been set, it is not necessary to set them again.

•The outputs for the VIDEO 1 OUT, VIDEO 2 OUT, TAPE

OUT, output analog audio signals. Do not record from CDs or

LDs that support DTS using these outputs. If you do, the

DTS-encoded signal will be recorded as noise.

* The 5.1-channel digital surround format has a variety of versions

including Dolby Digital and DTS. The 5.1- channel digital

surround format enables you to individually record and play five

full-range (20 Hz to 20 kHz) channels (left and right front,

center, and two surround channels) plus an LFE channel (Low

Frequency Effect) for the low-range effect sound. It will create a

realistic sound that can be heard in the theaters and concert halls.

•DOLBY PRO LOGIC II Surround

This mode is a new generation 5-channel surround system that

provides performance between the 4-channel (left front, right

front, center, and monaural surround) Pro Logic Surround and

the 5.1-channel Dolby Digital Surround. This mode can be set to

the Movie mode designed for playing movies and the Music

mode designed for listening to music. In the Movie mode, the

surround channels, which used to provide monaural output over

only a narrow frequency range, now provide complete stereo

output over the full frequency range. The result is movie viewing

with a realistic feel of movement. The Music mode uses the

surround channels to provide a natural sound space that cannot

be provided with normal stereo output.

This mode can be used with VHS and DVD videos with the

mark and certain television programs. The

Music mode can be used with music compact discs and other

stereo sources.

You can press the SURR button on the remote controller to

switch between MOVIE and MUSIC. The initial setting is

MOVIE. This setting can be made for each input source.

If no surround speakers are connected, then the surround sound

is divided and output from the front left and right channels (3

stereo).

Orchestra

This mode is appropriate for classical and opera music. The center

channel is cut and the surround channels are emphasized to widen

the stereo image. It will simulate the natural reverberation that is

created in large halls.

TV Logic

This mode gives realistic acoustics to TV programs that are aired

from TV studios. It enhances the entire surround sound and clarity of

the conversation.

Unplugged

This mode is suitable for acoustical instrumental sounds, vocals, and

jazz music. By emphasizing the front stereo image, it will simulate

the acoustics that you would experience in front of the stage.

Studio-Mix

This mode is for rock and popular music. The lively sounds are

enhanced for a powerful acoustic image that simulates the feeling of

being in a club or rock concert.

All Ch Stereo

This mode is designed for playing background music. The front,

surround, and surround back channels create a stereo image that

encompasses the entire area.

Using listening mode

Changing the listening mode

To change the listening mode during playback, press the listening

mode buttons on the remote controller.

You can also set the listening mode using the jog dial on the DTR-

6.2. Push the jog dial repeatedly to cycle the listening mode from

Direct→Stereo→Surround→All Ch Stereo→Direct. Turn the jog

dial to change the listening mode in the same manner as DSP / on

the remote controller.

DIRECT: Changes the listening mode directly to the Direct

listening mode. If pressed, the listening mode for the selected input

source set in the Listening Mode Preset sub-menu is also changed to

the Direct listening mode.

STEREO: Changes the listening mode directly to the Stereo

listening mode. If pressed, the listening mode for the selected input

source set in the Listening Mode Preset sub-menu is also changed to

the Stereo listening mode.

SURR (Surround): Changes the listening mode to the surround

mode for the current input signal (e.g., Dolby Pro Logic II, Dolby

Digital, or DTS). If pressed, the listening mode for the selected input

source set in the Listening Mode Preset sub-menu is also changed to

the Surround listening mode.

For Dolby Pro Logic II, this button also changes the mode between

Dolby Pro Logic II Movie and Dolby Pro Logic II Music.

A.ST(All Channel Stereo): Changes the listening mode directly to

the Stereo listening mode. If pressed, the listening mode for the

selected input source set in the Listening Mode Preset sub-menu is

also changed to the All Channel Stereo listening mode.

DSP / : Changes the listening mode as shown below.

Direct ↔ Stereo ↔ Surround ↔ Orchestra ↔ Unplugged ↔

Studio-Mix ↔ TV Logic ↔ All Ch Stereo ↔ Direct.

If pressed, the listening mode for the selected input source set in the

Listening Mode Preset sub-menu is also changed.

Note:

If you want to switch between Dolby Pro Logic II Movie and Dolby

Pro Logic II Music at the DTR-6.2, press the jog dial and select

“Surround” for the listening mode.

Push To Enter

DSP

Mode ADJ

DTR-6.2 Remote controller

Using Cinema Re-Equalization

Depending on the listening mode, you can either turn Re-EQ on or

off. Re-EQ (re-equalization) takes the edginess or “brightness” out

of your home cinema sound to compensate for the fact that sound

mixed for theaters may sound too bright when played back through

speakers in the home environment.

Remote cotroller only

On: Select to turn on the re-equalization filter.

Off: Select to turn off the re-equalization filter.

Note:

The Re-EQ function is effective on the Dolby Pro Logic II Movie

and Dolby Digital modes.

MUTING

HOME THEATER CONTROLLER

RC-441M

Standby/On

Standby

Power

On O

Phones

Video 1 Video 3

DVD Video 2 Video 4

Audio

Selector

Bass Treble

Master Volume

Smart

Scan

Navigator

Rec Out Zone 2 Zone 2 Level CH Level

DimmerDisplay Tuning

FM Mode Preset Memory Preset

VCR 1 VCR 2

Tape FM AM Phono CD

Push To Enter

DSP/Mode ADJ Setup

Return

Re-EQ

Listening

mode

buttons

Jog dial

1.Speaker Setup

2.Input Setup

3.Listening Mode Setup

4.Preference

5.OSD Setup

|ENTER|Quit:|SETUP|

1.Speaker Setup

1.Speaker Config

2.Speaker Distance

3.Level Calibration

|ENTER|Quit:|SETUP|

1-1.Speaker Config

a.Subwoofer :Yes

b.Front :Large

c.Center :Large

d.Surround :Large

Quit:|SETUP|

5.OSD Setup

1.OSD Setup

2.OSD Position

|ENTER|Quit:|SETUP|

4.Preference

1.Volume Setup

2.Headphones Level

3.Late Night Setup

4.IR IN Setup

5.Powered Zone2 Setup

|ENTER|Quit:|SETUP|

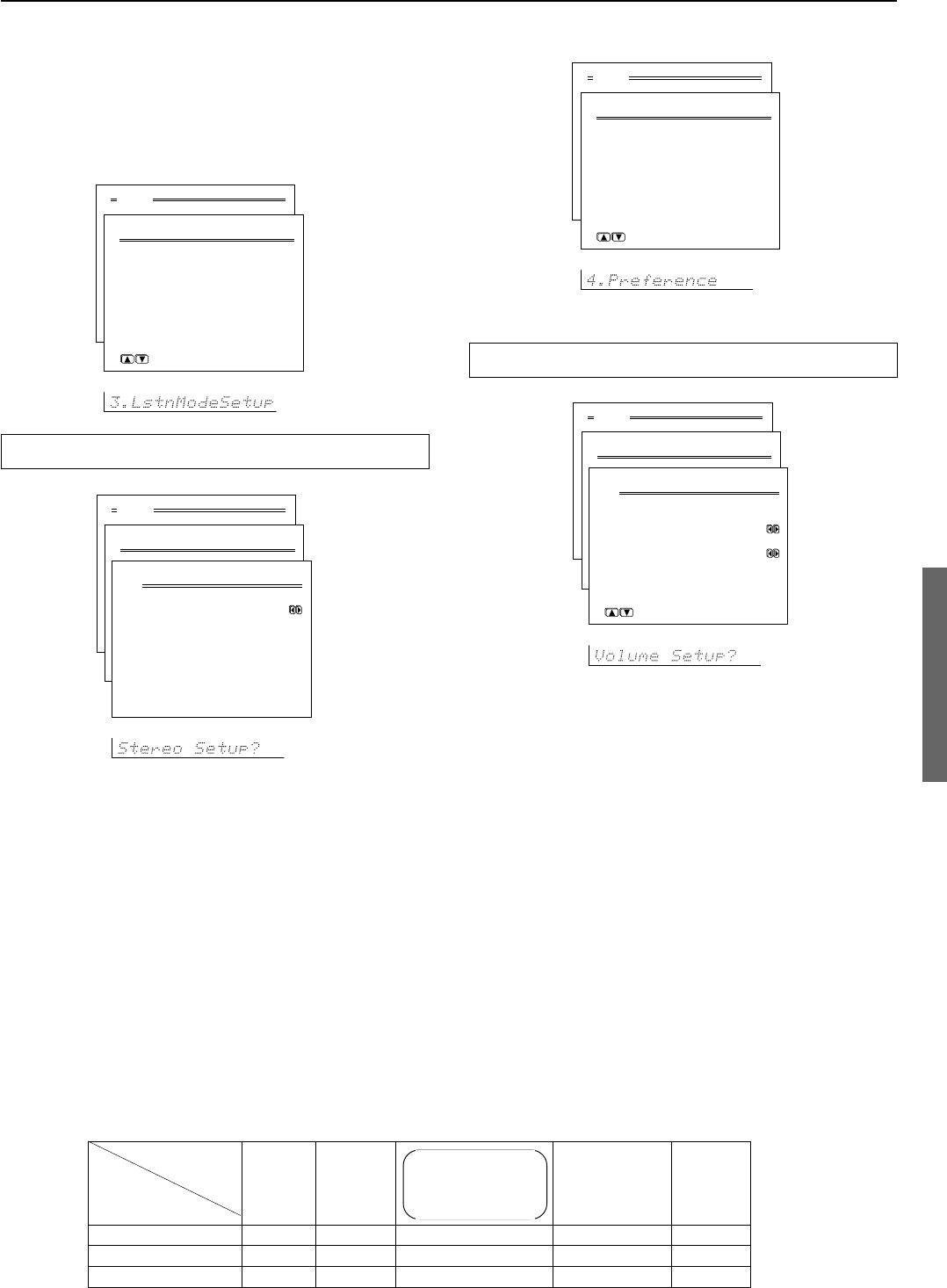

3.Listening Mode Setup

1.Stereo Setup

2.Surround Setup

3.Orchestra Setup

4.Unplugged Setup

5.Studio-Mix Setup

6.TV Logic Setup

7.All Ch Stereo Setup

|ENTER|Quit:|SETUP|

2.Input Setup

Input:DVD

1.Audio Setup

2.Video Setup

3.Listening Mode Preset

4.IntelliVolume

5.12V trigger

|ENTER|Quit:|SETUP|

1.Speaker Setup

1.Speaker Config

2.Speaker Distance

3.Level Calibration

|ENTER|Quit:|SETUP|

1.Speaker Setup

2.Input Setup

3.Listening Mode Setup

4.Preference

5.OSD Setup

|ENTER|Quit:|SETUP|

Setup menus

When making the various settings required to configure your DTR-

6.2 optimally, you can either use the OSD menu that appears on your

television monitor or you can use the display on the front of the

DTR-6.2.

The OSD menu is a settings menu that is displayed on your TV

monitor.

For use as reference when performing the setting procedures, this

manual shows both the OSD menu displayed on your television

monitor and the display on the front of the DTR-6.2.

The Setup menu consists of a main screen that is divided up into 5

menus: Speaker Setup, Input Setup, Listening Mode Setup,

Preference, and OSD Setup. These menus are then divided up into

various sub-menus, and these contain settings for you to optimize

your home theater as you wish.

Main menu

Sub menu

Setting procedures and button operations

Remote controller DTR-6.2

Main menu

Display menu

(display OSD menu)

Select item

Enter selected item

Select item

Enter selected item

Submenu

Select item

Set parameter

Other

Move up one level

Exit OSD menu

1. Press the SETUP button.

The main menu screen of the Setup menu

appears on your television monitor and the

DTR-6.2 enters the setup mode.

Setup menus

Navigating through the Setup menu

The explanations here assume you are using the buttons on the

remote controller when entering the Setup menu. However, you can

use the buttons on the DTR-6.2 as well. When using the buttons on

the DTR-6.2, refer to the table on the right and pages 24 to 26.

In addition to the display of the Setup menu on your television

monitor, the corresponding menu will also be displayed in the front

display on the DTR-6.2.

The buttons on the remote controller correspond to those on the

DTR-6.2 as shown on the right.

Setup

Push To Enter

DSP

Mode ADJ

Push To Enter

DSP

Mode ADJ

Push To Enter

DSP

Mode ADJ

Push To Enter

DSP

Mode ADJ

Push To Enter

DSP

Mode ADJ

Push To Enter

DSP

Mode ADJ

Return

5. Press the RETURN button to return

to the previous menu screen, and

again to return to the main screen.

Note:

Press the SETUP button to exit the Setup menu

immediately.

4. Using the and cursor buttons,

select the sub-menu that you want to

enter, and press the ENTER button.

3. Press the ENTER button to enter the

selected menu.

The screen for that menu appears.

2. Using the and cursor buttons,

select the menu that you want to

enter.

Each sub-menu has different settings that

can be changed as desired, and they are all

explained below. To change a setting, first

select it using the and cursor buttons,

and then change the setting using the and

cursor buttons.

Setup menus

1.Speaker Setup

2.Input Setup

3.Listening Mode Setup

4.Preference

5.OSD Setup

|ENTER| Quit:|OSD|

1.Speaker Setup

1.Speaker Config

2.Speaker Distance

3.Level Calibration

4.Bass Peak Level

1-1.Speaker Config

a.Subwoofer :Yes

b.Front :Large

c.Center :Large

d.Surround :Large

Quit:|SETUP|

1-1. Speaker Config sub-menu

Here you will enter which speakers are connected and the size of

each speaker.

a. Subwoofer

Yes: Select when a subwoofer is connected.

No: Select when a subwoofer is not connected.

b. Front

Large: Select if the front speakers are large sized.

Small: Select if the front speakers are small sized.

•If “No” is selected for the Subwoofer setting, then this setting

is fixed to “Large.”

c. Center

None: Select if no center speaker is connected.

Large: Select if the center speaker is large sized.

Small: Select if the center speaker is small sized.

•If “Small” is selected for the Front setting, then “Large”

cannot be selected for this setting.

d. Surround

None: Select if no surround left and right speakers are

connected.

Large: Select if the surround left and right speakers are large

sized.

Small: Select if the surround left and right speakers are small

sized.

•If “Small” is selected for the Front setting, then “Large”

cannot be selected for this setting.

Your speaker settings:

Tip:

When setting the speaker size in the Speaker Config sub-menu, use

the guidelines given below.

Large: The complete frequency range for the channel you are setting

will be output from the speaker.

Small: Frequencies of the channel you are setting lower than 80 Hz

will be output from the subwoofer. If the front speakers are set to

“Large,” then the sound may be output from both the left and right

speakers.

1.Speaker Setup

2.Input Setup

3.Listening Mode Setup

4.Preference

5.OSD Setup

|ENTER| Quit:|OSD|

1.Speaker Setup

1.Speaker Config

2.Speaker Distance

3.Level Calibration

|ENTER|Quit:|SETUP|

1. Speaker Setup menu

The settings here are also explained on pages 24 to 26. Refer to those

pages for reference.

SL SR

Front

a. meters / feet

b. [ ]m/ft

c. [ ]m/ft

d. [ ]m/ft

Front

SW Center

b c b

Monitor

Setup menus

1-3. Level Calibration sub-menu

1-2. Speaker Distance sub-menu

1.Speaker Setup

2.Input Setup

3.Listening Mode Setup

4.Preference

5.OSD Setup

|ENTER| Quit:|OSD|

1.Speaker Setup

1.Speaker Config

2.Speaker Distance

3.Level Calibration

4.Bass Peak Level

|ENTER| Quit:|OSD|

1-2.Speaker Distance

a.Unit :feet

b.Front L/R :12ft

c.Center :12ft

d.Surround L/R : 7ft

Quit:|SETUP|

Here you will enter the distance from each speaker to your normal

listening position. This is important for the timing of the acoustics to

create the proper sound space that the DTR-6.2 and today’s sound

systems are able to produce.

Note:

Speakers that you selected “No” or “None” for in the Speaker Config

sub-menu will not appear.

a. Unit

feet: Select if you will enter the distances in feet.

meters: Select if you will enter the distances in meters.

b. Front L/R

Set the distance from the front left and right speakers to your normal

listening position between 1 and 30 feet in 1-feet intervals (0.3 to 9

meters in 0.3-meter intervals).

Position the front left and right speakers so that they are the same

distance from the listener. If they are not, you may lose the center

position for stereo sound.

c. Center

Set the distance from the center speaker to your normal listening

position between 1 and 30 feet in 1-feet intervals (0.3 to 9 meters in

0.3-meter intervals).

d. Surround L/R

Set the distance from the surround left and right speakers to your

normal listening position between 1 and 30 feet in 1-feet intervals

(0.3 to 9 meters in 0.3-meter intervals).

1.Speaker Setup

2.Input Setup

3.Listening Mode Setup

4.Preference

5.OSD Setup

|ENTER| Quit:|OSD|

1.Speaker Setup

1.Speaker Config

2.Speaker Distance

3.Level Calibration

4.Bass Peak Level

|ENTER| Quit:|OSD|

1-3.Level Calibration

a.Left : 0dB

b.Center : 0dB

c.Right : 0dB

d.Surr Right : 0dB

e.Surr Left : 0dB

f.Subwoofer : 0dB

Quit:|SETUP|

Here you will set the volume for each speaker so that they are all

heard by the listener at the same level. This is especially important

for speaker layouts where the left and right speakers are at

different distances or in asymmetrical positions due to room

designs and configurations. These settings and the distance

settings performed above are vital to create the proper acoustics

required for the optimum sound space and dynamics.

Notes:

•The speaker level settings here are not effective for multi-

channel input sources. To adjust the speaker levels for multi-

channel input sources, you will need to use the CH SEL,

LEVEL , and LEVEL buttons on the RC-441M remote

controller. See pages 30, 31.

•This setting cannot be made when Zone 2 is turned on, so be

sure to put Zone 2 in the standby mode.

Calibrating the speaker levels

(1) When this sub-menu is entered, the DTR-6.2 will emit a pink

noise from the front left speaker. At this time, the Master

volume automatically increases to the reference level (0dB).

Remember the level of this noise and then press the cursor

button. (Note that this can be adjusted to any level between –

12 and 12 decibels in 1-decibel intervals.) The DTR-6.2 will

now emit the pink noise from the center speaker.

(2) Using the and cursor buttons, adjust the volume level of

the noise from the center speaker so that it is the same level as

the front left speaker. You can jog back and forth between the

speakers to help you compare the volume levels.

(3) Press the cursor button again. The DTR-6.2 will now emit

the pink noise from the front right speaker.

(4) Repeat steps (2) and (3) above for the front right and other

speakers until all speakers are adjusted to the same volume

level.

Note:

•Speakers that you selected “No” or “None” for in the Speaker

Config sub-menu will not appear.

a. Left

Sound comes from the front left speaker. Adjust the sound level

between –12 and 12 decibels in 1-decibel intervals.

b. Center

Sound comes from the center speaker. Adjust the sound level

between –12 and 12 decibels in 1-decibel intervals.

c. Right

Sound comes from the front right speaker. Adjust the sound level

between –12 and 12 decibels in 1-decibel intervals.

d. Surr Right

Sound comes from the surround right speaker. Adjust the sound

level between –12 and 12 decibels in 1-decibel intervals.

e. Surr Left

Sound comes from the surround left speaker. Adjust the sound

level between –12 and 12 decibels in 1-decibel intervals.

f. Subwoofer

Sound comes from the subwoofer. Adjust the sound level

between –12 and 12 decibels in 1-decibel intervals.

Setup menus

1.Speaker Setup

2.Input Setup

3.Listening Mode Setup

4.Preference

5.OSD Setup

|ENTER| Quit:|OSD|

2.Input Setup

Input:DVD

1.Audio Setup

2.Video Setup

3.Listening Mode Preset

4.IntelliVolume

5.12V trigger

|ENTER|Quit:|SETUP|

Current

Input

Source

2. Input Setup menu

This menu allows you to setup the various input sources available

with the DTR-6.2. Each input source may have a great number of

settings that are difficult to keep track of, so we recommend making

a chart to record what you have set and for which component to

prevent confusion later.

2-1. Audio Setup sub-menu

----: Available for digital input but not set in initial settings.

: Not available for digital input.

Initial settings for each input source

Input source Digital input Multichannel

DVD COAX 1 Yes

Video 1 COAX 2 No

Video 2 ---- No

Video 3 OPT2 No

Video 4 ---- No

Tape ---- No

Phono ---- No

CD OPT 1 No

1.Speaker Setup

2.Input Setup

3.Listening Mode Setup

4.Preference

5.OSD Setup

|ENTER| Quit:|OSD|

2.Input Setup

Input:DVD

a.Audio Setup

b.Video Setup

c.Listening Mode Preset

d.Tone Control

e.IntelliVolume

f.12V Trigger

|ENTER| Quit:|OSD|

2-1.Audio Setup

Input:DVD

Audio:Auto(COAX1)

a.Digital Input:COAX1

b.Multichannel :Yes

Quit:|SETUP|

The settings made in this sub-menu are valid for the input source that

is currently selected with the input source buttons at the front panel

and, therefore, these settings are made separately for each digital

input source. This sub-menu will not appear if the selected input

source button is AM or FM. If this setting is incorrectly made, the

digital audio signals may not be properly output, or not heard at all.

a. Digital Input

This setting tells the DTR-6.2 which input source button on the front

panel is connected with which digital input jack on the rear panel. To

perform this setting, you must first select a digital input source at the

front panel and then set the name of the digital input jack it is

connected to here.

For example, if the input source selected at the front panel is CD and

the compact disc player is connected to DIGITAL INPUT

(OPTICAL) 1, then select “OPT1” here. If the input source selected

is not connected to a digital input, then select “----.”

OPT1: Select if connected to DIGITAL INPUT (OPTICAL) 1.

OPT2: Select if connected to DIGITAL INPUT (OPTICAL) 2.

COAX1: Select if connected to DIGITAL INPUT (COAXIAL) 1.

COAX2: Select if connected to DIGITAL INPUT (COAXIAL) 2.

----: Select if the input source is not from a digital input jack.

Note:

Do not assign a digital input to more than one input source. If you are

making a digital connection that requires you to change the default

settings, be sure to always first cancel the current digital input setting

and then assign the new setting.

b. Multichannel

This sub-menu will not appear if AM or FM is selected at the front

panel for the input source. The initial settings are “Yes” for the DVD

input source and “No” for all other input sources. This setting is

normally set to “No,” and only needs to be changed to “Yes” if a

DVD player, MPEG decoder, or other component that has a multi

channel port is connected to the MULTI CHANNEL INPUT port for

5.1-channel audio. For example, if a DVD player is connected to the

MULTI CHANNEL INPUT port, then select DVD at the front panel

as the input source, bring up this sub-menu, and select “Yes” for the

Multichannel setting. You can only select Multichannel with the

Audio Selector button when “Yes” is selected here.

Note:

When playing a device that is actually connected to the MULTI

CHANNEL INPUT terminal, select Multichannel with the Audio

Selector button.

Setup menus

2-2. Video Setup sub-menu

Input source selected Component video input

DVD INPUT 1

Video 1 INPUT 2

Video 2 INPUT 1

Video 3 INPUT 1

Video 4 INPUT 1

a. Component Video

If a component is connected to the one of the COMPONENT

VIDEO inputs (1 or 2), then that input must be set here. This setting

will not appear if AM, FM, Phono, CD or Tape is selected as the

input source.

The default settings are given below.

1.Speaker Setup

2.Input Setup

3.Listening Mode Setup

4.Preference

5.OSD Setup

|ENTER| Quit:|OSD|

2.Input Setup

Input:DVD

a.Audio Setup

b.Video Setup

c.Listening Mode Preset

d.Tone Control

e.IntelliVolume

f.12V Trigger

|ENTER| Quit:|OSD|

2-2.Video Setup

Input:DVD

a.Component Video

:Input1

Quit:|SETUP|

2-2. Video Setup sub-menu 2-3. Listening Mode Preset sub-menu

With the DTR-6.2, you can set a different listening mode for each

different signal type that comes from each input source and also set

the parameters for the listening mode itself. For example, if your

DVD player also plays compact discs and the DVD video signal is

DTS and the compact disc signal is PCM, then you can set a

different listening mode for each.

This is especially convenient if you frequently play the same types

of movies or music.

See the next page for information regarding the relationship

between input sources and listening modes.

Input source signals

a. Analog/PCM Source

Set a listening mode for the input signal from analog sources and

PCM sources.

Note:

For PCM sources recorded at a sampling rate of 96 kHz or greater,

only the Stereo or Direct listening modes can be selected.

However, the set listening mode is stored in memory.

b. Digital Format

Set a listening mode for the input signal from Dolby Digital and

DTS sources.

•The DTR-6.2 will automatically switch to the listening mode

set for the current input signal. For example, even when using

the same DVD player, if a CD is played, the listening mode

automatically becomes “Stereo,” and if a DVD is played

(Dolby Digital 3/2.1), the listening mode automatically

becomes Dolby D.

1.Speaker Setup

2.Input Setup

3.Listening Mode Setup

4.Preference

5.OSD Setup

|ENTER| Quit:|OSD|

2.Input Setup

Input:DVD

a.Audio Setup

b.Video Setup

c.Listening Mode Preset

d.Tone Control

e.IntelliVolume

f.12V Trigger

|ENTER| QuSD|

2-3.ListeningMode Preset

Input:DVD

a.Analog/PCM Source

:Stereo

b.Digital Format

:Surround

Quit:|SETUP|

Setup menus

2-4. IntelliVolume sub-menu

Input source signal (display) Analog/PCM Source Digital Format

Type of media Tape, CD, DVD,

Record, Tuner Digital satellite broadcast,

DVD Video (PCM), LD (PCM) DTS-CD

Digital satellite broadcast Dolby Digital 2ch Source DTS,

All excluding

Listening Mode Dolby Digital 2ch

Direct ●

Stereo ●●●

Surround Pro Logic II (Movie) ●●

Pro Logic II (Music) ●●

Dolby Digital ●

DTS ●

Orchestra ●

Unplugged ●

Studio-Mix ●

TV Logic ●

All Ch Stereo ●

Relationship between input source and listening mode

Notes:

•The listening modes that can be set are different for each input source format.

•You may not be able to select all the listening modes shown here depending on your speaker

configuration or the selected input source.

a. IntelliVolume

When switching input sources, you may find that the output level for

different components or input sources connected to the DTR-6.2 is

different even though the main volume setting is the same. Under

normal circumstances, you would then have to change the volume

setting each time you change the input source. This IntelliVolume

sub-menu allows you to preset a volume level for each input source

separately so that when you do switch from one input source to

another, the DTR-6.2 adjusts the volume accordingly so that the

resulting volume stays the same. To set the IntelliVolume, simply

select an input source at the front panel, and if that source is quieter

than other sources, increase its decibel level with the cursor

button, or if it is louder than other sources, decrease its decibel level

with the cursor button.

The IntelliVolume can be adjusted between –12 and +12 decibels.

1.Speaker Setup

2.Input Setup

3.Listening Mode Setup

4.Preference

5.OSD Setup

|ENTER| Quit:|OSD|

2.Input Setup

Input:DVD

a.Audio Setup

b.Video Setup

c.Listening Mode Preset

d.Tone Control

e.IntelliVolume

f.12V Trigger

|ENTER| Quit:|OSD|

2-4.IntelliVolume

Input:DVD

a.IntelliVolume

: 0dB

Quit:|SETUP|

2-5. 12V trigger sub-menu

1.Speaker Setup

2.Input Setup

3.Listening Mode Setup

4.Preference

5.OSD Setup

|ENTER| Quit:|OSD|

2.Input Setup

Input:DVD

a.Audio Setup

b.Video Setup

c.Listening Mode Preset

d.Tone Control

e.IntelliVolume

f.12V Trigger

|ENTER| QuSD|

2-5.12V Trigger

Input:DVD

a.12V Trigger A :On

b.12V Trigger B :Off

Quit:|SETUP|

This sub-menu allows you to make the required settings to turn on

the output from the 12V TRIGGER terminal to control another

component or device with the DTR-6.2 for each input source.

a. 12V Trigger A

On: Select to activate the device connected to the 12V TRIGGER A

terminal when the input source is selected.

Off: Select when no device is connected to the 12V TRIGGER A

terminal or you do not want the connected device to activate.

b. 12V Trigger B

On: Select to activate the device connected to the 12V TRIGGER B

terminal when the input source is selected.

Off: Select when no device is connected to the 12V TRIGGER B

terminal or you do not want the connected device to activate.

Setup menus

1.Speaker Setup

2.Input Setup

3.Listening Mode Setup

4.Preference

5.OSD Setup

|ENTER| Quit:|OSD|

3.Listening Mode Setup

1.Stereo Setup

2.Surround Setup

3.Orchestra Setup

4.Unplugged Setup

5.Studio-Mix Setup

6.TV Logic Setup

7.All Ch Stereo Setup

|ENTER|Quit:|SETUP|

3. Listening Mode Setup menu

This menu allows you to make adjustments to the various listening

modes. These adjustments are in the form of parameters and each

one is explained below. Note that some parameters cannot be set for

some listening modes and that no sub-menu will have all parameters.

Also, for some input signal formats, changes in the listening mode

parameters may actually result in no change to the resulting output

signal.

1.Speaker Setup

2.Input Setup

3.Listening Mode Setup

4.Preference

5.OSD Setup

|ENTER| Quit:|OSD|

3.Listening Mode Setup

1.Stereo Setup

2.Theater-Dimensional

Setup

3.Surround Setup

4.THX Setup

5.Mono Movie Setup

|ENTER| Quit:|OSD|

3-1.Stereo Setup

a.Subwoofer : On

Quit:|SETUP|

Relationship between listening mode and parameter

The parameters that can be set are different for each listening mode.

Description listening mode parameters

Listening mode Direct Stereo Surround Orchestra All Ch

Dolby Pro Logic II Unplugged Stereo

Dolby Digital Studio-Mix

Parameter DTS TV Logic

Subwoofer Off, On Off, On Off, On Off, On

Front Effect Low, Mid, High

Surround Effect Low, Mid, High

Subwoofer

Set this to “Off” if you are not using a subwoofer (even if one is

connected). If “No” is selected for the Subwoofer setting in the

Speaker Config sub-menu, then this setting will not appear.

Front Effect

You can choose from “Low,” “Middle,” or “High.”

Some live recordings contain acoustic reverberation. When you play

these sources, more reverberation will be applied by the DSP,

creating too much reverb effects and the sound loses frame or

presence. In this case, set this setting to “Low.” No reverberation

from the DSP will be applied to the sound output from the three front

channels, so the sound source is be played as it is without any further

reverberation.

Surround Effect

You can choose from “Low,” “Middle,” or “High.”

This adjusts the reflected and residual noises from the surround left

and right speakers.

1.Speaker Setup

2.Input Setup

3.Listening Mode Setup

4.Preference

5.OSD Setup

|ENTER| Quit:|OSD|

4.Preference

1.Volume Setup

2.Headphones Level

3.DTS LFE Level Setup

4.Powered Zone2 Setup

|ENTER| Quit:|OSD|

4.Preference

1.Volume Setup

2.Headphones Level

3.DTS LFE Level Setup

44.Powered Zone2 Setup

|ENTER| Quit:|OSD|

4.Preference

1.Volume Setup

2.Headphones Level

4.AM Frequency Setup

|ENTER|Quit:|SETUP|

4.Preference

1.Volume Setup

2.Headphones Level

3.Late Night Setup

4.IR IN setup

5.Powered Zone2 Setup

|ENTER|Quit:|SETUP|

4-1. Volume Setup sub-menu

This sub-menu allows you to make various settings concerning the

volume control of the DTR-6.2.

a. Maximum Volume

This setting allows you to set the maximum volume that can be

output with the Master Volume dial to prevent components from

being damaged by excessively loud volumes. The maximum volume

can be set between 30 and 79.

b. Power On Volume

This sets a designated volume setting for the DTR-6.2 to be set every

time that the power is turned on. This prevents the DTR-6.2 from

being turned on while it is set to an extremely high volume and

suddenly output very loud sounds. The power on volume can be set

between min and max. If you do not mind having the DTR-6.2

turned on with its current volume setting, set this to “Last.”

4. Preference menu

1.Speaker Setup

2.Input Setup

3.Listening Mode Setup

4.Preference

5.OSD Setup

|ENTER| Quit:|OSD|

4.Preference

1.Volume Setup

2.Headphones Level

3.DTS LFE Level Setup

4.Powered Zone2 Setup

|ENTER| Quit:|OSD|

4-1.Volume Setup

a.Maximum Volume

:Off

b.Power on Volume

:Last

Quit:|SETUP|

4-4. IR IN Setup sub-menu4-2. Headphones Level sub-menu

Setup menus

1.Speaker Setup

2.Input Setup

3.Listening Mode Setup

4.Preference

5.OSD Setup

|ENTER| Quit:|OSD|

4.Preference

1.Volume Setup

2.Headphones Level

3.DTS LFE Level Setup

4.Powered Zone2 Setup

|ENTER| Quit:|OSD|

4-2.Headphones Level

a.Headphones Level

: 0dB

Quit:|SETUP|

1.Speaker Setup

2.Input Setup

3.Listening Mode Setup

4.Preference

5.OSD Setup

|ENTER| Quit:|OSD|

4.Preference

1.Volume Setup

2.Headphones Level

3.DTS LFE Level Setup

4.Powered Zone2 Setup

|ENTER| Quit:|OSD|

4-3.Late Night Setup

a.Late Night :Off

Quit:|SETUP|

4-3. Late Night Setup sub-menu

a. Headphones Level

You can use this sub-menu to adjust the volume output from the

headphones so that it matches the level output from the speakers.

The headphone volume can be adjusted between –12 and +12

decibels.

a. Late Night

Sets “High,” “Low,” or “Off” for the late night function.

Cinema sound has a vast dynamic range; therefore, to hear the

quieter sounds such as human conversations, they must be played

back at larger volumes. When this parameter is set to “High” or

“Low,” the dynamic range of the sound is narrowed down to allow

you to easily hear minute sounds at low volumes. This function is

especially useful if you wish to play a movie at low volumes during

the nighttime.

Notes:

•The depth of the Late Night effect is determined by Dolby

Digital software. Some sounds may produce no or little effect.

•The Late Night function is effective only on Dolby Digital

encoded software.

This sub-menu allows you to set where you will be using the remote

controller when you are using it in conjunction with the IR IN

terminal (i.e. remote controller signals are input at the IR IN

terminal).

Main: Select this when using the DTR-6.2 in the main room. If

“Main” is selected at this sub-menu, to perform operations in the

remote zone (Zone 2), you will first have to press the ZONE 2 button

on the remote controller.

Zone 2: Select this when using the DTR-6.2 in the remote zone

(Zone 2). When this is selected, the ON/STDBY, INPUT

SELECTOR, CH , and LEVEL / (or VOLUME ) buttons

work without having to press the ZONE 2 button on the remote

controller.

4-5. Powered Zone 2 Setup sub-menu

1.Speaker Setup

2.Input Setup

3.Listening Mode Setup

4.Preference

5.OSD Setup

|ENTER| Quit:|OSD|

4.Preference

1.Volume Setup

2.Headphones Level

3.DTS LFE Level Setup

4.Powered Zone2 Setup

|ENTER| Quit:|OSD|

4-4.IR IN Setup

a.Position :Main

Quit:|SETUP|

Activated: Select when speakers are connected to the ZONE2

SPEAKERS terminals. During playback in the remote zone (Zone

2), the listening mode for the main zone becomes either Stereo or

Direct.

Not Activated: Select when you are connecting an amplifier to the

ZONE 2 OUT terminals and connecting speakers to that amplifier.

1.Speaker Setup

2.Input Setup

3.Listening Mode Setup

4.Preference

5.OSD Setup

|ENTER| Quit:|OSD|

4.Preference

1.Volume Setup

2.Headphones Level

3.DTS LFE Level Setup

4.Powered Zone2 Setup

|ENTER| Quit:|OSD|

4-5.Powered Zone2 Setup

a.Powered Zone2

:Activated

Quit:|SETUP|

5. OSD Setup menu

This menu provides settings for you to customize the on-screen

display (OSD) for the DTR-6.2 by setting different colors or

positions for its display.

Setup menus

1.Speaker Setup

2.Input Setup

3.Listening Mode Setup

4.Preference

5.OSD Setup

|ENTER| Quit:|OSD|

5.OSD Setup

1.OSD Setup

2.OSD Position

|ENTER|Quit:|SETUP|

5-1. OSD Setup sub-menu

VIDEO 1

5-2. OSD Position sub-menu

This sub-menu allows you to adjust the position of the OSD Setup

menu as it is displayed on your screen. Depending on the monitor

used, there may be cases where the OSD Setup menu is not displayed

in the center and parts of the menus are cut off. To adjust the position

of the OSD Setup menu, simply press the cursor buttons to inch the

menu to position you desire.

1.Speaker Setup

2.Input Setup

3.Listening Mode Setup

4.Preference

5.OSD Setup

|ENTER| Quit:|OSD|

5.OSD Setup

1.OSD Config

2.OSD Setup

3.OSD Position

|ENTER| Quit:|OSD|

5-2.OSD Position

Quit:|SETUP|

1.Speaker Setup

2.Input Setup

3.Listening Mode Setup

4.Preference

5.OSD Setup

|ENTER| Quit:|OSD|

5.OSD Setup

1.OSD Config

2.OSD Setup

3.OSD Position

|ENTER| Quit:|OSD|

5-1.OSD Setup

a.Background Color

:Blue1

b.Superimpose Mode

:Normal

c.Immediate Display

:On

d.Display Position

:Bottom

Quit:|SETUP|

c. Immediate Display

On: Select this to have the screen immediately display certain

operations as you perform them. The display will remain for a

few seconds after the operation is completed.

Off: Select this to turn off the immediate display of operations.

Hint:

If this is set to “Off,” the background color will not be displayed

even when there is no video signal input.

d. Display Position

Use this setting to select the position of the immediate display that

appears when certain operations are performed. You can position the

immediate display at any of ten different levels ranging from the top

all the way to the bottom.

This sub-menu allows you to customize the OSD Setup menu to

display in the manner you desire.

a. Background Color

Select either Blue1, Blue2, Green1, Green2, Magenta, Red1, or

Red2 as the background color while the OSD Setup menu is

displayed.

b. Superimpose

Off: Select to have the OSD Setup menu displayed on the

selected background color.

Normal: Select to have the OSD Setup menu superimposed over

the current video if one is displayed or on the selected

background color if there is no video signal.

Black: Select to have the OSD Setup menu displayed on a black

background at all times.

3. Start recording at the recording device connected to

the TAPE OUT jacks.

You can press the Rec Out button to display which input source

is selected for recording. When “Rec Sel : Off” is displayed, no

signal is output for recording.

Notes:

•You cannot use the Rec Out selector to record video signals.

•Be aware that the Zone 2 and Rec Out selectors use the same

circuit and therefore cannot be used at the same time.

•Even if you change the input source that you are listening to, the

input source that is selected for recording will not change.

However, if you have selected FM (or AM) as the source to be

recorded and the AM (or FM) source button is pressed, the

source being recorded will be changed to the AM (or FM) input

signal.

Recording

2. Press the Rec Out button repeatedly

until “Rec Sel : SOURCE” appears in

the front display.

The signal from the currently selected source is also output to the

TAPE OUT jacks.

FM AM Phono C

DTape

DVD Video 3 Video 4Video 2Video 1

VCR 2VCR 1

3. Start recording at the recording device connected to

the TAPE OUT jacks.

Note:

Be aware that if you change the input source that you are watching

(or listening to), the source being recording will also change.

Rec Out

FM AM Phono C

DTape

DVD Video 3 Video 4Video 2Video 1

VCR 2VCR 1

Recording a source different from that you are listening

to:

The DTR-6.2 allows you to listen to one source while recording the

signal from another source. The procedure below uses the example

of recording the audio from a CD player while watching the input

from a DVD player.

1. While playing the DVD, press the

Rec Out button.

Rec Out

Recording the same source that you are listening to:

1. Press the input source button for the source that you

want to record.

Recording the input source (REC OUT selector)

When using the DTR-6.2 to record a source, you must select that

source to be output from the TAPE OUT jacks.

Caution

•Surround and multichannel audio cannot be recorded.

•You cannot perform digital recording with the DTR-6.2. Also,

digital-to-analog signal conversion is not possible, so to record

audio signals from digital sources (e.g. CD players), their analog

connection must be made as well.

Recording both the audio and video

The DTR-6.2 also allows you to record the audio and video signals

output from the VIDEO OUT 1 and 2 jacks.

1. Press the input source button for the source you

want to record.

2. Start recording at the recording device connected to

the VIDEO OUT 1 and 2 jacks.

Note:

Be aware that if you change the input source that you are watching

(or listening to), the source being recording will also change.

Hint

You can also record the video from one source and the audio from

another source together to make your own home movies and the like.

For example, if you want to record the video from a video camera

connected to VIDEO 4 and the audio from a CD player connected to

CD IN, at step 1 above, press the Video 4 source button and then the

CD source button.

FM AM Phono C

DTape

DVD Video 3 Video 4Video 2Video 1

VCR 2VCR 1

2. Within 3 seconds, press the input source button of

the source that you wish to record.

In this example you would press the CD source button. The

signal from the CD player is now output to the TAPE OUT jacks.

Input source buttons

Standby/On

Standby

Power

On O

Phones

Video 1 Video 3

DVD Video 2 Video 4

Audio

Selector

Bass Treble

Master Volume

Smart

Scan

Navigator

Rec Out Zone 2 Zone 2 Level CH Level

DimmerDisplay Tuning

FM Mode Preset Memory Preset

VCR 1 VCR 2

Tape FM AM Phono CD

Push To Enter

DSP/Mode ADJ Setup

Return

Rec Out

Enjoying music in the remote zone

Notes:

•If you wish to use the remote controller from a separate room or other

location where the signals will not reach the DTR-6.2, you will need to

purchase a commercially available remote control sensor and emitter

(see page 20).

•After you press the ZONE 2 button on the remote controller, the

Standby indicator on the DTR-6.2 flashes for five seconds. During this

time, you will not be able to perform operations in the main zone using

the remote controller.

•If the source for the main zone is selected as the source for the remote

zone and the source for the main zone is changed, then the source for the

remote zone will change as well.

•In the remote zone, you can only play the source in the 2-channel mode.

You cannot play the source in the remote zone in the surround mode.

•When you are listening to a source in the remote zone (Zone 2), you can

only play sources in the Stereo or Direct modes in the main zone.

Therefore, when sources playing from the multichannel input in the

main zone, audio from the left and right surround speakers will not be

output.

•The Rec Out and Zone 2 buttons use the same circuit and therefore

cannot be used at same times. If the Rec Out button is pressed in the

main room while someone is using the system in the remote zone, the

Zone 2 function will be deactivated and the source will turn off in the

remote zone.

•The Zone 2 terminal is an analog output. Digital signals are not output.

If no sound is heard from the selected input source, check if the

component is connected to the analog inputs.

To select the same source for the remote

zone that is selected for the main zone,

press the Zone 2 button again until

“Zone2Sel:SOURCE” appears in the

display.

Selecting an input source and adjusting the

volume on the DTR-6.2

1. Press the Zone 2 button on the DTR-

6.2.

2. Select a source.

After pressing the Zone 2 button, you must press an input source

button within 3 seconds. The Zone 2 indicator lights.

Ex.: When the CD button is pressed.

When “Zone2Sel:Off” is displayed, the output to the remote

zone is turned off.

Caution:

If you are not using the system in the remote zone, always

press the Zone 2 button consecutively to turn the ZONE 2

function off.

MUTING

HOME THEATER CONTROLLER

RC-441M

Standby/On

Standby

Power

On O

Phones

Video 1 Video 3

DVD Video 2 Video 4

Audio

Selector

Bass Treble

Master Volume

Smart

Scan

Navigator

Rec Out Zone 2 Zone 2 Level CH Level

DimmerDisplay Tuning

FM Mode Preset Memory Preset

VCR 1 VCR 2

Tape FM AM Phono CD

Push To Enter

DSP/Mode ADJ Setup

Return

Zone 2 LevelZone 2

ZONE 2

LEVEL

4. While “Zone 2 Level” is displayed,

turn the jog dial to adjust the volume

to the desired level.

Zone

Push To Enter

DSP

Mode ADJ

3. Press the Zone 2 Level button.

“Zone2 Level” appears for approximately

three seconds.

Here is an explanation of how to setup speakers in a room separated

from the DTR-6.2 so that you can listen to audio sources remotely. Selecting an input source and adjusting the

volume using the remote controller

Turning on the Zone 2 and putting it in the standby state

when the DTR-6.2 is in the standby state:

After pressing the ZONE 2 button, press the ON/STDBY button

within 5 seconds.

Tip:

When using Zone 2, even if you put the DTR-6.2 in the standby state,

it will not affect Zone 2 and the volume in Zone 2 can still be

adjusted. Moreover, components that have their power supply

connect to the AC OUTLET connector on the DTR-6.2 will not be

turned off.

Selecting an input source:

After pressing the ZONE 2 button, press an input source button

within 5 seconds.

If tuner is selected with the TUN button, the CH +/- button becomes

enabled.

Adjusting the volume:

After pressing the ZONE 2 button, adjust the volume using the

LEVEL / buttons within 5 seconds.

Input source buttons

Zone 2 indicator

INPUT

SELECTOR

buttons

Zone 2 Level

Jog dial

Using remote controller

Overview

The RC-441M remote controller is a useful tool to help you operate

the components of your home theater. To do so, first press the Mode

button that corresponds to the device you wish to control. Then

simply press the desired operation button and the component will

operate accordingly. For example, if you wish to select the CD input

source at the DTR-6.2 with the remote controller, first press the

RCVR MODE button to select the DTR-6.2 and then press the CD

(INPUT SELECTOR) button.

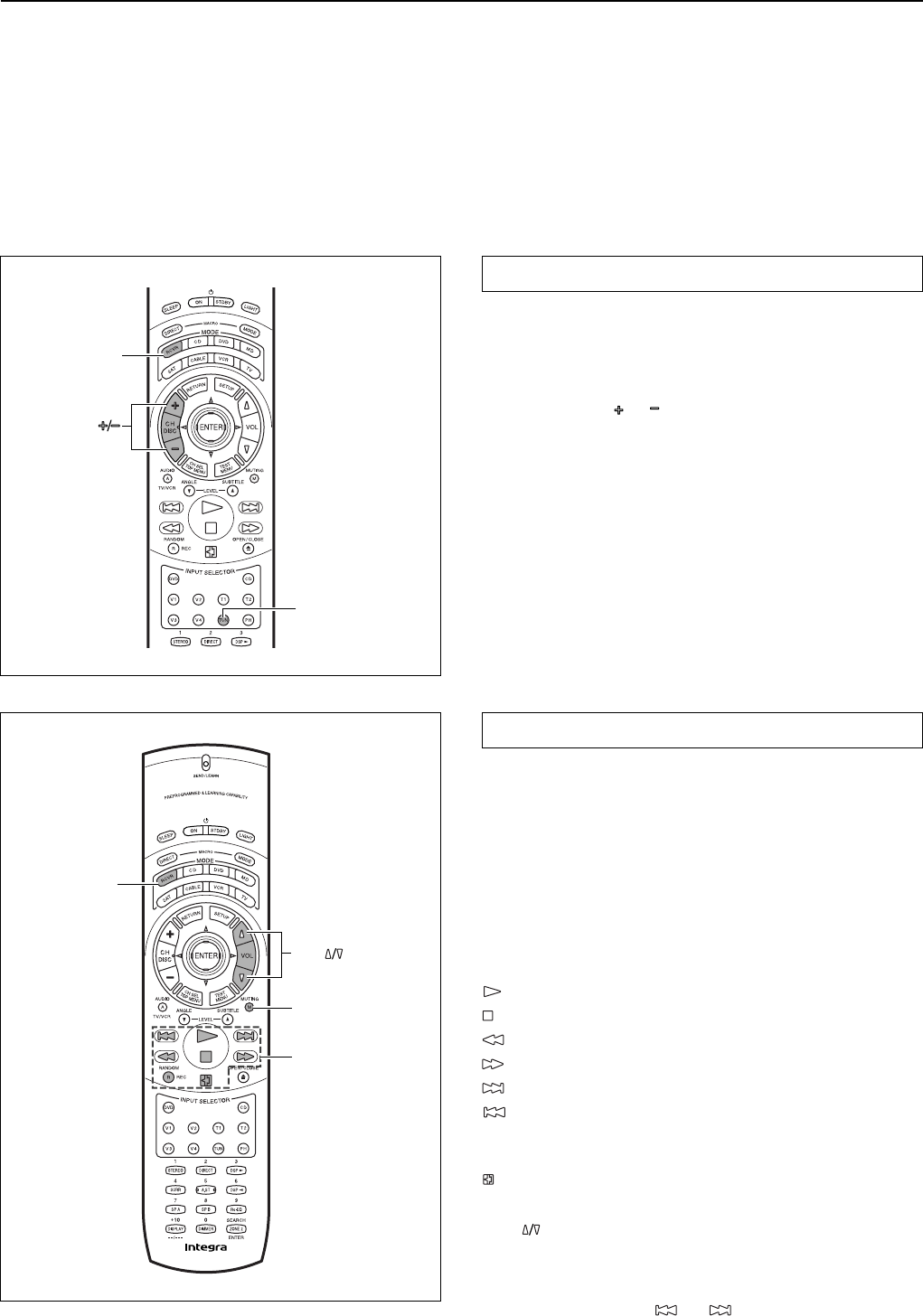

Calling up a preset radio station

1. Press the RCVR MODE button.

The RCVR MODE button lights green.

2. Press the TUN input selector button.

3. Press the CH or button to select the desired

preset station number.

Controlling an Integra/Onkyo cassette tape deck

The z connector of the Integra/Onkyo cassette tape deck must be

connected to the DTR-6.2 (see page 16).

1. Press the RCVR MODE button.

The RCVR MODE button lights green.

2. Press the desired operation button.

The buttons shaded in the figure to the left are the operation

buttons that can be used to control an Integra/Onkyo cassette

tape deck.

Operation buttons:

: Play

: Stop

: Rewind

: Fast forward

: Press during playback to skip to the beginning of the next track.

: Press during playback to skip to the beginning of the current

track.

R (Rec): Record/Pause

: Reverse playback

You may also use the following buttons:

VOL : Adjusts the volume at the DTR-6.2

MUTING: Activates the muting function at the DTR-6.2

Note:

Even for devices with the and buttons, signal discrepancies

may cause them not to work properly.

TAPE

operation

buttons

HOME THEATER CONTROLLER

RC-441M

RCVR MODE

VOL

MUTING

RCVR MODE

TUN

Controlling an Integra/Onkyo CD player

The z connector of the Integra/Onkyo compact disc player must be

connected to the DTR-6.2 (see page 16).

1. Press the CD MODE button.

The CD MODE button lights green.

2. Press the desired operation button.

The buttons shaded in the figure to the left are the operation

buttons that can be used to control an Integra/Onkyo compact

disc player.

Operation buttons:

ON: Turns on and off the compact disc player (same as STDBY

button on the remote controller).

DISC : Selects a disc in the CD changer

: Track down

: Track up

: Play

: Stop

: Fast reverse

: Fast forward

: Pause

OPEN/CLOSE r: Open/close the disc tray

0, 1 to 9, +10: Numeric keys

RANDOM/R: For random playback.

You may also use the following buttons:

VOL : Adjusts the volume at the DTR-6.2

MUTING: Activates the muting function at the DTR-6.2

operation

buttons

Numeric keys

Using remote controller

HOME THEATER CONTROLLER

RC-441M

CD MODE

ON STDBY

DISC

VOL

MUTING

Using remote controller

Controlling an Integra/Onkyo DVD player

The z connector of the Integra/Onkyo DVD player must be

connected to the DTR-6.2 (see page 16).

1. Press the DVD MODE button.

The DVD MODE button lights green.

2. Press the desired operation button.

The buttons shaded in the figure to the left are the operation

buttons that can be used to control an Integra/Onkyo DVD

player.

Operation buttons:

ON: Turns the DVD player on and off

STDBY: Turns the DVD player off. (Some sets may not respond to

this button. In this case, use the ON button to put the DVD player in

the standby state.)

SETUP: Displays the menu

: Moves the cursor

ENTER: Confirms the selection

RETURN: Return button

TOP MENU or MENU: Displays the menu screen(s) recorded on

DVD media.

DISC : Selects a disc in the DVD changer.

AUDIO: Press repeatedly to select an audio and/or language track

recorded on a DVD-Audio/Video.

ANGLE: Press repeatedly to select a camera angle when a DVD-

Video is recorded with multiple angle playback.

SUBTITLE: Press repeatedly to select one of the subtitle languages

recorded on a DVD-Video.

SEARCH: Press to find the specific section on a disc where you

want to start playback.

RANDOM/R: Press to start random playback.

: Chapter/Track down

: Chapter/Track up

: Play

: Stop

: Fast reverse

: Fast forward

: Pause

OPEN/CLOSE r: Open/close the disc tray

0, 1 to 9, +10: Numeric keys

You may also use the following buttons:

VOL : Adjusts the volume at the DTR-6.2

MUTING: Activates the muting function at the DTR-6.2

Note:

When operating an Integra/Onkyo DVD player directly with the

remote controller without connecting the z terminals, pre-

programming is necessary (see page 50).

DVD

operation

buttons

Numeric keys

ENTER/Cursor

button

HOME THEATER CONTROLLER

RC-441M

ON STDBY

AUDIO

ANGLE

DVD MODE

SETUP

MUTING

SUBTITLE

TOP MENU

RETURN

DISC VOL

Controlling an Integra/Onkyo MD recorder

The z connector of the Integra/Onkyo MD recorder must be

connected to the DTR-6.2 (see page 16).

1. Press the MD MODE button.

The MD MODE button lights green.

2. Press the desired operation button.

The buttons shaded in the figure to the left are the operation

buttons that can be used to control an Integra/Onkyo MD

recorder.

Operation buttons:

ON: Turns on and off the MD player (same as STDBY button on the

remote controller).

: Track down

: Track up

: Play

: Stop

: Fast reverse

: Fast forward

R (Rec): Record

: Pause

r: Eject the disc

1 to 9, 0, --/---: Numeric keys

ENTER: Enters the settings

You may also use the following buttons:

VOL : Adjusts the volume at the DTR-6.2

MUTING: Activates the muting function at the DTR-6.2

operation

buttons

Numeric keys

HOME THEATER CONTROLLER

RC-441M

MD MODE

ON STDBY

VOL

MUTING

ENTER

Using remote controller

SAT, CABLE, VCR, and TV MODE buttons

No preset codes are programmed into the SAT, CABLE, VCR, and

TV MODE buttons. You can use these buttons to program the

remote controller signals of other devices.

There are two methods. One method is selecting the name of a

different brand from the table, entering the setting number listed, and

calling up the pre-programming code (see page 50). The other

method is learning the commands from the other brand’s remote

control directly into this remote controller (see page 54).

When in the SAT, CABLE and VCR mode, you may use the

following buttons:

VOL : Adjusts the volume at the DTR-6.2

MUTING: Activates the muting function at the DTR-6.2

CABLE VCR

MUTING

SAT

VOL

Learning a pre-programming code

HOME THEATER CONTROLLER

RC-441M

DISPLAY

SEND/LEARN

indicator

Numeric keys

Buttons that

can be pre-

programmed

Learning a pre-programming code

By learning a pre-programming code, you can make the RC-441M

remote controller able to operate a product from another brand. The

buttons that are used for operation are given on the next page.

1. Find the 3-digit number for the brand name of the

component that you want to operate in the table on

the next page.

2. Turn on the component that you want to operate (i.e.

DVD, satellite tuner, or television).

3. While holding down the MODE button on the RC-

441M that you want to program, press the DISPLAY

button, and then release both buttons.

The SEND/LEARN indicator lights when the MODE button is

pressed and turns off when the DISPLAY button is pressed. Wait

until the indicator turns off before releasing both buttons. Then

the SEND/LEARN indicator lights again.

4. Within 30 seconds, enter the 3-digit code number.

The SEND/LEARN indicator flashes twice slowly. If the SEND/

LEARN indicator quickly flashes three times, then either a

mistaken 3-digit code was entered or an incorrect operation was

performed. If this occurs, return to step 3.

5. Press the button that you programmed and check if

the system operates correctly.

•If the component does not operate properly, return to step 3

and repeat the steps above.

•If it still does not operate properly, then program the

commands one by one to the buttons on the RC-441M remote

controller.

When entering the code of Integra/Onkyo DVD players:

There are three SETTING numbers. Choose the SETTING number

according to how you will be using the DVD player.

No. 601/613: These codes are for operating the Integra/Onkyo DVD

player by pointing the remote controller directly at it, either because

it does not have an z terminal, or it does but you are not using an

z cable and connecting it. First enter 601 and if it does not operate

properly, enter 613.

No. 600: This code is for Integra/Onkyo DVD players that have an

z terminal that you are connecting to the DTR-6.2 with an z

cable. You will then operate the DVD player by pointing the remote

controller at the remote control sensor on the DTR-6.2. You do not

need to enter this code because it is factory preset. However, if the

code has been changed to 601 or 613, then you will need to change it

back to 600.

The remote controller has three learning functions. One is entering

the signal number for a remote controller of another brand that is pre-

programmed. Another is a normal learning function that enables the

remote controller to learn the codes from other remote controllers.

And the last is a macro learning function that enables you to program

a series of operations into the remote controller so that the operations

can all be performed at once by pressing one button.

Caution

With some brand’s components, some buttons may not work

correctly. In this case, program the command separately.

Pre-programmong codes

Learning a pre-programming code

CABLE

BRAND SETTING No.

GENERAL

INSTRUMENTS 500

GEMINI 501

HAMLIN 502, 503, 504, 505

JERROLD 500, 506, 507, 508,

509, 510, 511, 512,

513, 514

MACOM 515, 516, 517

MAGNAVOX 518

OAK 519, 520, 521

PANASONIC 522, 523

PHILIPS 524, 525, 526, 527,

528, 529

PIONEER 530, 531

SCIENTIFIC

ATLANTA 532, 533, 534

SAMSUNG 535

TOCOM 536

ZENITH 537, 538

SAT

BRAND SETTING No.

ECHOSTAR 700

GENERAL

INSTRUMENTS 701

HITACHI 702

HUGHES

NETWORK

SYSTEMS 703

PANASONIC 704

PRIMESTAR 705

PROSCAN 706, 707

RCA 706, 707

SONY 708

TOSHIBA 709

DVD

BRAND SETTING No.

DENON 602, 609

HITACHI 603

JVC 604

KENWOOD 605

MAGNAVOX 606, 613

MARANTZ 607

MITSUBISHI 608, 613

INTEGRA 600, 601, 613

ONKYO 600, 601, 613

PANASONIC 609

PIONEER 610

PROSCAN 611

RCA 611

SONY 612

TOSHIBA 613

YAMAHA 609, 614

ZENITH 613, 615

BRAND SETTING No.

AIWA 100, 101

AKAI 102, 103, 104

AUDIOSONIC 105

BELL & HOWELL 106

BLAUPUNKT 107

BRIONVEGA 108, 109

CENTURION 110

COLTINA 111, 112, 113

CORONAD 114

CROWN 115, 116

DAEWOO 117, 118, 119, 120,

121

DUAL 122

EMERSON 123, 124, 125, 126,

127

FENNER 128, 129

FERGUSON 130, 131

FISHER 132

FUNAI 133, 134, 135

FUJITSU GENERAL 136, 137, 138

GE 139, 140, 141

GOLDSTAR 142, 143

GOODMANS 144

GRUNDIG 145, 146

HITACHI 147, 148, 149, 150

HYPER 151

INNO HIT 152

IRRADIO 103

JVC 153, 154, 155, 156,

157

KENDO 158

KTV 159, 160

LUXOR 161

MAGNAVOX 162, 163

MARANTZ 164

MARK 165

MATSUI 166, 167, 168, 169

MITSUBISHI 170, 171, 172, 173

MIVAR 174, 175

NEC 176, 177

NOKIA 178, 179, 180, 181

OCEANIC 181

NORDMENDE 182, 183

OKANO 152

ORION 184, 185, 186

PANASONIC 187, 188, 189, 190

PHILIPS 152, 162, 191

PIONEER 192, 193

PROSCAN 194

QUASAR 195

RADIO SHACK 196

RCA 110, 141, 197, 198,

199, 200

SABA 182, 183, 201

SAMSUNG 202, 203, 204, 205,

206, 207, 208

SANYO 209, 210, 211, 212

SCHNEIDER 103

SEARS 213

SELECO 214, 215

SHARP 216, 217

SONY 218, 219, 220, 221,

222, 223

SYMPHONIC 224, 225

TELEFUNKEN 201, 226, 227

THOMSON 228

TOSHIBA 213, 229

UNIVERSUM 230

ZENITH 231, 232

VCR

BRAND SETTING No.

AIWA 300, 301, 302

AKAI 303, 304, 305, 306,

307

BAIRD 308

BELL & HOWELL 309

BLAUPUNKT 310

CGM 311, 312, 313

COLTINA 314

DAEWOO 315, 316

DIGITAL 317

EMERSON 318, 319, 320, 321,

322

FENNER 323

FISHER 324, 325, 326, 327

FUJITSU GENERAL 328

FUNAI 329

GE 330, 331

GO VIDEO 332, 336, 337

GOLDSTAR 333, 334

GOODMANS 335

GRUNDIG 338

HITACHI 339, 340, 341

JVC 342, 343, 344, 345,

346, 347, 348, 349,

350

LOEWE 351, 352

MAGNAVOX 353, 354, 355

MITSUBISHI 356, 357, 358, 359,

360, 361, 362, 363,

364

NEC 365, 366, 367

NOKIA 313

NORDMENDE 368, 369, 370

OKANO 371, 372

ORION 319, 373

PANASONIC 374, 375, 376, 377,

378

PHILIPS 353, 379, 380

PHONOLA 311

PIONEER 381

RCA 382

SABA 383

SAMSUNG 384, 385, 386, 387,

388, 389, 390

SANYO 391, 392, 393

SCOTT 394

SELECO 395

SHARP 396, 397, 398, 399

SHINTOM 400

SIEMENS 401

SONY 402, 403, 404, 405,

406, 407, 408, 409,

410, 411, 412, 413

SYMPHONIC 414

TEKNIKA 414, 415

TELEFUNKEN 416, 417

TOSHIBA 418, 419, 420

WHITE

WESTINGHOUSE 333

WATSON 421

ZENITH 422

Note:

If more than one code is given in the table,

try the code one by one until you reach the

code for your component (i.e. if the first

code does not work, then try the next).

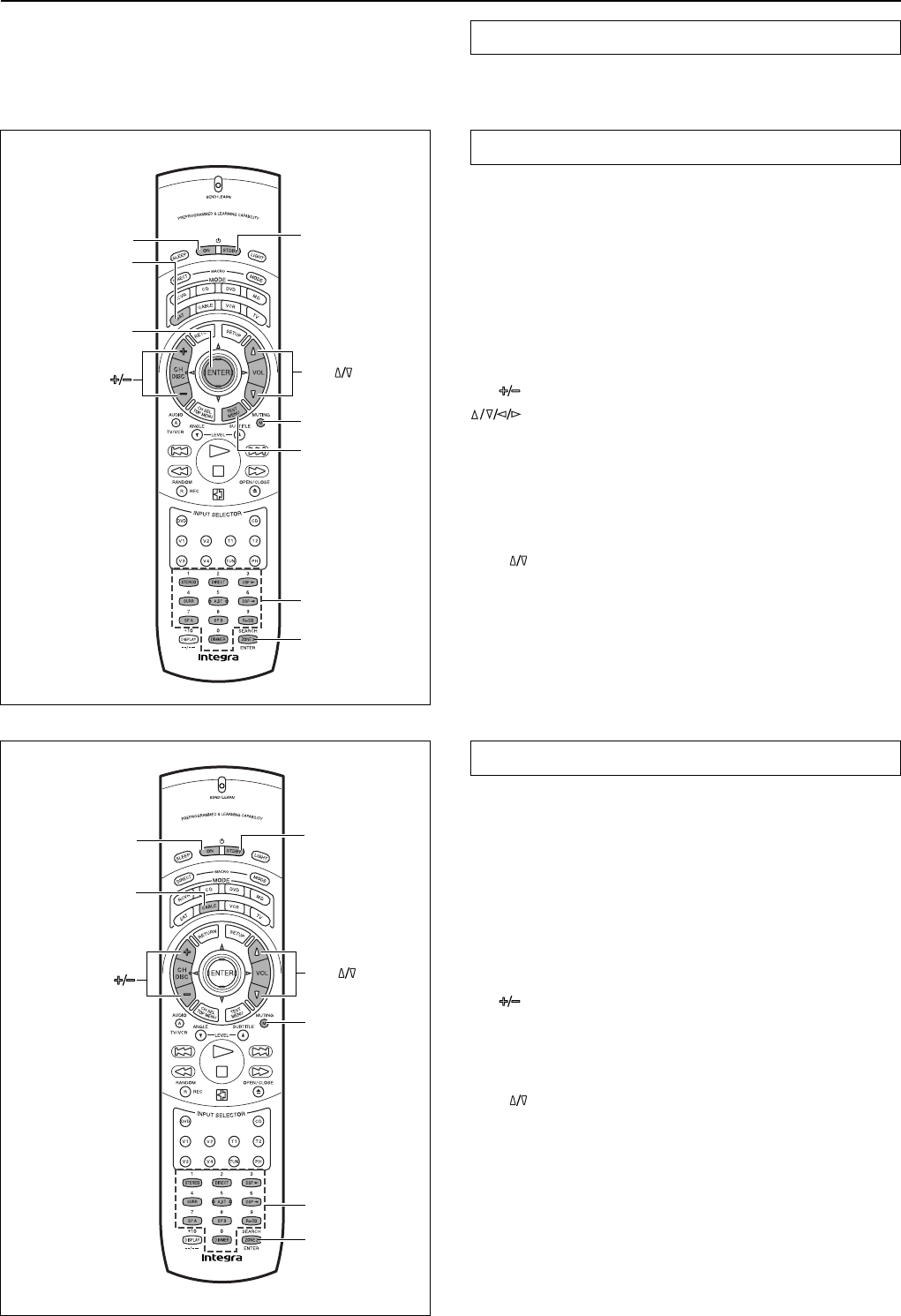

Operating your programmed remote controller

Numeric keys

HOME THEATER CONTROLLER

RC-441M

ON STDBY

ENTER

MUTING

CABLE MODE

CH VOL

CABLE MODE (Cable Mode)

1. Press the CABLE MODE button.

The CABLE button lights green.

2. Press the desired operation button.

The buttons shaded in the figure to the left are the operation

buttons that can be used to control your cable unit.

The buttons given below have operations programmed

into them.

ON: Turns on and off the cable unit (same as STDBY button on the

remote controller)

CH : Moves up and down the preset channel numbers

0,1 to 9: Numeric keys

ENTER: Confirm

You may also use the following buttons:

VOL : Adjusts the volume at the DTR-6.2

MUTING: Activates the muting function at the DTR-6.2

Numeric keys

ENTER/Cursor

button

HOME THEATER CONTROLLER

RC-441M

ON STDBY

ENTER

MUTING

SAT MODE

CH VOL

SAT MODE (Satellite Tuner Mode)

1. Press the SAT MODE button.

The SAT button lights green.

2. Press the desired operation button.

The buttons shaded in the figure to the left are the operation

buttons that can be used to control your satellite tuner unit.

The buttons given below have operations programmed

into them.

ON: Turns on and off the satellite tuner unit (same as STDBY button

on the remote controller)

CH : Moves up and down the preset channel numbers

: Moves the cursor

ENTER: Confirms the selection

MENU: Displays the menu

0,1 to 9: Numeric keys

ENTER: Confirm

You may also use the following buttons:

VOL : Adjusts the volume at the DTR-6.2

MUTING: Activates the muting function at the DTR-6.2

DVD MODE (DVD Player Mode)

Buttons with programmed usage and operations are the same as the

operational buttons on page 48.

After performing the procedure given above, the following

modes become enabled for use.

Operating your programmed remote controller

Numeric keys

Video cassette

recorder

operation

buttons

HOME THEATER CONTROLLER

RC-441M

ON STDBY

TV MODE

ENTER

MUTINGTV/VCR

CH VOL

HOME THEATER CONTROLLER

RC-441M

ON STDBY

VCR MODE

MUTINGTV/VCR

CH VOL

TV MODE (TV Mode)

1. Press the TV MODE button.

The TV button lights green.

2. Press the desired operation button.

The buttons shaded in the figure to the left are the operation

buttons that can be used to control your television.

The buttons given below have operations programmed

into them.

ON: Turns on and off the television (same as STDBY button on the

remote controller)

CH : Moves up and down the television channels

TV/VCR: Switches the TV/VCR input for the television

0,1 to 9, +10: Numeric keys

ENTER: Confirm

VOL : Adjusts the volume at the television

MUTING: Activates the muting function at the television

VCR MODE (VCR Mode)

1. Press the VCR MODE button.

The VCR button lights green.

2. Press the desired operation button.

The buttons shaded in the figure to the left are the operation

buttons that can be used to control your VCR.

The buttons given below have operations programmed

into them.

ON: Turns on and off the VCR (same as STDBY button on the

remote controller)

CH : Moves up and down the preset channel numbers

TV/VCR: Switches the AV input for the VCR

: Play

: Stop

: Rewind

: Fast Forward

: Pause

0,1 to 9, +10: Numeric keys

You may also use the following buttons:

VOL : Adjusts the volume at the DTR-6.2

MUTING: Activates the muting function at the DTR-6.2

Programming the commands of remote controllers

for other devices into the remote controller

5 to 15 cm

(2 to 6 inches)

Buttons that cannot be programmed.

POWER SLEEP DIMMER SUR

MODE

VIDEO-1 VIDEO-2

TAPE

DVD C D

C D DVD

TUNER

PHONO

INPUT SELECTOR

DISC

TAP

VOLUME

CH SEL

PRESET

UTING

TEST

TONE

MULTI-CH

INPUT

GROUP

HOME THEATER CONTROLLER

RC-441M

ENTER

LIGHT

MODE MACROMODE DIRECT

SEND/LEARN

indicator

MODE

buttons

MODE buttons

Programming procedure

When programming the commands of another remote controller to

the RC-441M remote controller, you must first decide under which

MODE button you want the commands to be linked. In general, you

will select the MODE button that corresponds to the component you

are programming. For example, if you are programming the

functions from a remote controller for a compact disc player, you

would choose the CD MODE button. Then, by pressing the CD

MODE button, the buttons on the RC-441M remote controller will

change to the commands you program here to operate the compact

disc player.

After programming which MODE button to use, you will then

transfer the separate commands from the other remote controller

over to the RC-441M remote controller one at a time. Each

command is then programmed to a different button on the RC-441M

remote controller. Any button is programmable for this step except

for the eight MODE buttons (RCVR, CD, DVD, MD, SAT, CABLE,

VCR, and TV), the two MACRO buttons (DIRECT and MODE),

and the LIGHT button.

Even after the commands have been memorized, keep your old

remote controller in a safe place. If for some reason the commands

are lost (e.g., when the batteries run down), it will be necessary to

memorize them once again.

1. Place the remote controller and the remote controller

for the other device facing each other at a distance of

5 to 15 cm (2 to 6 inches) apart.

2. While pressing and holding down the desired MODE

button on the remote controller, press the ENTER

button and then release both buttons.

When you press and hold down the MODE button, the SEND/

LEARN indicator lights. When you press the ENTER button, the

lamp turns off. When you release the buttons, the lamp lights

again.

3. Press and release the button on the remote controller

to which you want to transfer the next command.

You may select any button but the eleven ones indicated in the

figure below. When you press the button, the SEND/LEARN

indicator turns off. When you release the button, the indicator

lights again.

If you press the wrong button by mistake, press that same button

again. The SEND/LEARN indicator flashes twice, and the

remote controller exits the programming mode.

Programming the commands of remote controllers for other devices into the

remote controller

4. Press and hold down the button (that corresponds to

the command you are programming) on the remote

controller of the other device until the SEND/LEARN

lamp on the remote controller flashes twice.

After flashing twice, the SEND/LEARN indicator will light

again.

5. Repeat Steps 3 and 4 to transfer all the commands

you desire from the other remote controller and

program them to buttons on the remote controller

under the same MODE.

Repeat Steps 2 through 4 to program commands to a different

MODE (e.g., when programming from a different remote

controller).

6. Press the MODE button that you pressed in step 2 to

complete the programming.

7. Operate the newly programmed buttons to make sure

the learning function was performed properly.

Notes:

•The remote controller codes for Integra/Onkyo compact disc

players, cassette tape decks, DVD players, and mini disc

recorder have already been programmed into buttons on the

remote controller. You may, however, use these buttons to

program the codes for other remote controllers. If you wish to

restore the Integra/Onkyo preset codes after you program new

codes, you must first erase the new codes (see page 56).

•The remote controller has 408 memory slots (8 modes × 51

buttons). Some remote controllers may have more commands

that can be remembered by the remote controller. In such cases,

it will be necessary for you to determine which commands are

more important than others.

•If no button is pressed for more than 30 seconds during the

programming, or if you perform an invalid operation during

programming, the SEND/LEARN indicator flashes three times

quickly, and the remote controller exits the programming mode.

Resume from Step 2.

•If a failure occurs during programming, the SEND/LEARN

indicator flashes three times quickly, and the remote controller

exits the programming mode. Resume from Step 3.

•If a failure occurs five times in row during programming, the

remote controller exits the programming mode. Resume from

Step 3.

•If you try to program beyond the learning capacity of the remote

controller, the SEND/LEARN indicator flashes six times

quickly, and the remote controller exits the programming mode.

Try programming under a different MODE button.

•When you want to program a command to a button to which you

have already programmed a command, simply follow the same

procedure given and programming for that button will be

overwritten.

•The remote controller uses infrared rays to send its commands,

as do most other remote controllers. Though most remote

controller codes can be memorized by the remote controller, be

aware that some remote controllers use a system that is quite

different from the remote controller and therefore may not be

able to be programmed.

•Some remote controllers have a single button that performs

multiple functions (for example, the function may change each

time the button is pressed). If this is the case, each function must

be programmed to a separate button on the remote controller.

•Once you have transferred the commands from the other remote

controller, refer to the instruction manual that came with that

product for instructions on how to operate that product.

•Make sure both the remote controller and the other remote

controller have new batteries. If either of them has batteries that

are low, you may not be able to program the commands of the

other remote controller properly into the remote controller.

See page 56 for how to erase the memorized commands from all

buttons.

Programming the commands of remote controllers for other devices into the

remote controller

HOME THEATER CONTROLLER

RC-441M

ENTER

HOME THEATER CONTROLLER

RC-441M

ENTER

SEND/LEARN

indicator

MODE

buttons

SEND/LEARN

indicator

MODE

buttons

Erasing the programmed command from one

button

You can only erase memorized commands and not preset ones.

1. Press and hold down the desired MODE button for

the command, press the ENTER button, and then

release both buttons.

When you press the MODE button, the SEND/LEARN indicator

lights. When you press the ENTER button, the lamp turns off.

When you release the buttons, the lamp lights again.

2. Press and release the button for the command you

wish to erase.

When you press the button, the SEND/LEARN indicator turns

off. When you release the button, the lamp lights again.

3. Press and release the same button again.

The SEND/LEARN lamp flashes twice slowly. The memorized

command is erased.

Note:

If no button is pressed for more than 30 seconds during the erasing

procedure, the SEND/LEARN indicator flashes three times quickly,

and the remote controller exits the erasing mode. Resume from Step

Erasing all the commands programmed under a

MODE button

1. Press and hold down the desired MODE button,

press the ENTER button twice, and then release both

buttons.

When you press the MODE button, the SEND/LEARN indicator

lights. When you press the ENTER button, the lamp turns off.

When you release the buttons, the lamp flashes twice slowly and

then lights again.

2. Press and release the same MODE button again.

When you release the button, the SEND/LEARN indicator

flashes twice slowly. This erases all the commands memorized

to the MODE button.

Notes:

•If no button is pressed for more than 30 seconds during the

erasing procedure, the SEND/LEARN indicator flashes three

times quickly and the remote controller exits the erasing mode.

Resume from Step 1.

•If you perform an invalid operation during erasing, the SEND/

LEARN indicator flashes three times quickly, and the remote

controller exits the erasing mode. Resume from Step 1.

•If many commands have been programmed to the MODE

button, then the SEND/LEARN indicator may remain lit for up

to 20 seconds during Step 2. This is not a malfunction.

Using a Macro function

Programming a Macro function

You can program a different macro into the MODE MACRO button

for each of the eight MODE buttons. The macro is then executed by

pressing the appropriate MODE button and then pressing the MODE

MACRO button. For example, to program the macro described

above into the CD MODE button, perform the steps given below.

1. Press and hold down the desired MODE button (in

this case, the CD MODE button), press the MODE

MACRO button, and then release both buttons.

When you press the CD MODE button, the SEND/LEARN

indicator lights and the CD MODE button lights green. When

you press the MODE MACRO button, the indicator turns off.

When you release the buttons, the indicator flashes and lights

again.

2. Press the operation buttons you wish to program in

order (in this case, press RCVR MODE → ON → CD

(INPUT SELECTOR) → CD MODE → playback ( )

button).

When you press each button, the SEND/LEARN indicator turns

off. When you release the button, the indicator lights.

3. Press the MODE MACRO button to complete the

programming.

The SEND/LEARN indicator flashes twice slowly.

4. Run the macro to check to see if the macro has been

properly programmed.

Notes:

•You may program up to 16 button operations into each macro

function. If you try to program a 17th operation, it will be

ignored, and programming is stopped.

•If no button is pressed for more than 30 seconds during the

programming, the SEND/LEARN indicator flashes three times

quickly, and the remote controller exits the programming mode.

Resume from Step 1.

•If you perform an invalid operation during programming, the

SEND/LEARN indicator flashes three times quickly, and the

remote controller exits the programming mode. Resume from

Step 1.

Running a Macro function

Perform the procedure below to run a macro function that you have

programmed into the remote controller. After programming a macro,

you should always run it at least once to make sure that it has been

programmed properly.

1. Point the remote controller at the DTR-6.2 and press

the CD MODE button.

2. Press the MODE MACRO, and verify that the devices

operate properly.

It may take a while for the macro to finish transmitting, so be

sure to continue pointing the remote controller at the device until

the SEND/LEARN indicator turns off.

Tips:

•If you erase or change the command of a button programmed in

a macro, that operation of that button will no longer work in the

macro. In this case, it will be necessary for you to reprogram the

macro in order to avoid incorrect operation.

•The codes programmed into a macro will be transmitted at an

interval of 0.5 seconds. However, some devices may not be able

to complete one operation in 0.5 seconds and may miss the next

code. In this case, after pressing one operation button, you can

press the same MODE button again before pressing the next

operation button to add another 0.5 seconds between the two

operations.

HOME THEATER CONTROLLER

RC-441M

MODE MACRO

CD MODE

RCVR MODE

(CD playback)

(INPUT

SELECTOR)

What is a Macro function?

A Macro function enables you to program a series of button

operations (up to 16) on the remote controller into a single button.

For example, to play a compact disc player connected to the DTR-

6.2 normally, you must perform the following steps:

1. Press the RCVR MODE button.

2. Press the ON button.

3. Press the CD (INPUT SELECTOR) button.

4. Press the CD MODE button.

5. Press the playback ( ) button.

By using the macro function, you can perform the above five

operations by only pressing two buttons.

Using a Macro function

Programming the Direct Macro function

With the direct macro function, you can program a series of button

operations as a macro into the DIRECT MACRO button so the

macro can be executed with just one touch. Note that for the direct

macro function, only one macro can be programmed. For example,

to program the macro described on the previous page for the

DIRECT MACRO button, perform the steps given below.

1. Press and hold down any one of the eight MODE

buttons, press the DIRECT MACRO button, and then

release both buttons.

When you press the MODE button, it lights green and the

SEND/LEARN indicator lights. When you press the DIRECT

MACRO button, the indicator turns off. When you release the

buttons, the indicator flashes briefly and then lights again.

2. Press the operation buttons you wish to program in

order (in this case, press RCVR MODE → ON → CD

(INPUT SELECTOR) → CD MODE → playback ( )

button).

When you press each button, the SEND/LEARN indicator turns

off. When you release the button, the indicator lights.

3. Press the DIRECT MACRO button to complete the

procedure.

The SEND/LEARN indicator flashes twice slowly.

4. Check to see if the macro has been properly

programmed.

Notes:

•You may program up to 16 button operations into the direct

macro function. If you try to program a 17th operation, it will be

ignored, and programming is stopped.

•If no button is pressed for more than 30 seconds during the

programming, the SEND/LEARN indicator flashes three times

quickly, and the remote controller exits the programming mode.

Resume from Step 1.

•If you perform an invalid operation during programming, the

SEND/LEARN indicator flashes three times quickly, and the

remote controller exits the programming mode. Resume from

Step 1.

Running a Direct Macro function

Perform the procedure below to run a direct macro function that you

have programmed into the remote controller. After programming a

direct macro, you should always run it at least once to make sure that

it has been programmed properly.

1. Point the remote controller at the DTR-6.2 and press

the DIRECT MACRO button.

It may take a while for the macro to finish transmitting, so be

sure to continue pointing the remote controller at the device until

the SEND/LEARN indicator turns off.

Tips:

•If you erase or change the command of a button programmed in

the direct macro, that operation of that button will no longer

work in the macro. In this case, it will be necessary for you to

reprogram the direct macro in order to avoid incorrect operation.

•The codes programmed into a direct macro will be transmitted at

an interval of 0.5 seconds. However, some devices may not be

able to complete one operation in 0.5 seconds and may miss the

next code. In this case, after pressing one operation button, you

can press the same MODE button again before pressing the next

operation button to add another 0.5 seconds between the two

operations.

HOME THEATER CONTROLLER

RC-441M

DIRECT MACRO CD MODE

RCVR MODE

(CD playback)

(INPUT

SELECTOR)

MODE buttons

Using a Macro function

Erasing a macro from the MODE MACRO button

1. Press and hold down the desired MODE button,

press the MODE MACRO button, and then release

both buttons.

When you press the MODE button, it lights green and the

SEND/LEARN indicator lights. When you press the MODE

MACRO button, the indicator turns off. When you release the

buttons, the indicator flashes once.

2. Press the MODE MACRO button again.

The SEND/LEARN indicator flashes twice slowly. The macro

programmed to the MODE button pressed in Step 1 above is

erased.

Notes:

•If no button is pressed for more than 30 seconds during the

erasing procedure, the SEND/LEARN indicator flashes three

times quickly, and the remote controller exits the erasing mode.

Resume from Step 1.

•Be aware that if you press a button other than MODE MACRO

button in Step 2, then you will in effect be overwriting the

previous macro with a new macro.

Erasing a direct macro from the DIRECT

MACRO button

1. Press and hold down any one of the eight MODE

buttons, press the DIRECT MACRO button, and then

release both buttons.

When you press the MODE button, it lights green and the

SEND/LEARN indicator lights. When you press the DIRECT

MACRO button, the indicator turns off. When you release the

buttons, the indicator flashes once.

2. Press the DIRECT MACRO button again.

The SEND/LEARN indicator flashes twice slowly. The macro

programmed to the DIRECT MACRO button is erased.

Notes:

•If no button is pressed for more than 30 seconds during the

erasing procedure, the SEND/LEARN indicator flashes three

times quickly, and the remote controller exits the erasing mode.

Resume from Step 1.

•Be aware that if you press a button other than DIRECT MACRO

button in Step 2, then you will in effect be overwriting the

previous direct macro with a new direct macro.

HOME THEATER CONTROLLER

RC-441M

MODE MACRO

HOME THEATER CONTROLLER

RC-441M

DIRECT MACRO

MODE buttons

Using a Macro function

Erasing all commands and macros that have

been programmed

This procedure will erase all the commands and macros that you

have programmed into the remote controller and return it to its

default settings. This operation will not affect the preset settings of

the remote controller.

1. Open the battery cover and remove the batteries from

the remote controller.

2. While pressing and holding down the ON and STDBY

buttons, re-insert the batteries in their correct

orientation, and then release both buttons.

The SEND/LEARN indicator flashes slowly.

3. Press the ENTER button.

The SEND/LEARN indicator lights up for about ten seconds and

then turns off.

All programmed commands and macros are erased and the remote

controller returns to its factory presets.

Notes:

•Proceed to Step 3 immediately after Step 2; otherwise, the

batteries will be consumed quickly.

•If you press any button other than the ENTER button in Step 3,

nothing will be erased. In this case, resume from Step 1.

MACRO MODE MODE MODE MODE MODE MODE MODE MODE DIRECT

MACRO MACRO MACRO MACRO MACRO MACRO MACRO MACRO MACRO

↓↓↓↓↓↓↓ ↓

RCVR CD DVD MD SAT CABLE VCR TV

Operation 1

Operation 2

Operation 3

Operation 4

Operation 5

Operation 6

Operation 7

Operation 8

Operation 9

Operation 10

Operation 11

Operation 12

Operation 13

Operation 14

Operation 15

Operation 16

HOME THEATER CONTROLLER

RC-441M

ON STDBY

ENTER

Macro mode programming memo:

Specifications

AMPLIFIER SECTION

Continuous Average Power output (FTC)

All channels: 100 W per channel min. RMS at 8

Ω, 2 channels driven from 20 Hz

to 20 kHz with no more than

0.08% total harmonic distortion.

125 W min. RMS at 6 Ω, 2

channels driven from 1 kHz with

no more than 0.1% total

harmonic distortion.

Continuous Power output (DIN) 130 W at 6 Ω

Maximum Power output (EIAJ) 160 W at 6 Ω

Dynamic Power Output (Stereo) 2 × 230 W at 3 Ω

2 × 170 W at 4 Ω

2 × 115 W at 8 Ω

Total Harmonic Distortion: 0.08% at rated power

0.08% at 1 W output

IM Distortion: 0.08% at rated power

0.08% at 1 W output

Damping Factor: 60 at 8 Ω

Input Sensitivity and Impedance

PHONO: 2.5 mV, 50 kΩ

LINE (CD, TAPE, DVD,

VIDEO 1-4): 200 mV, 50 kΩ

MULTICHANNEL INPUT

(FRONT L/C/R, SURROUND L/R):

200 mV, 50 kΩ

(SUBWOOFER): 36 mV, 50 kΩ

COAXIAL 1, 2 (DIGITAL): 0.5 Vp-p, 75 Ω

DVD, VIDEO1-4: 1 Vp-p, 75 Ω

1 Vp-p, 75 Ω (Y)

0.28 Vp-p, 75 Ω (C)

COMPONENT VIDEO 1, 2: 1 Vp-p, 75 Ω (Y)

0.7 Vp-p, 75 Ω (CB/CR, PB/PR)

Output Level and Impedance

Rec out (TAPE, VIDEO 1, 2): 200 mV, 2.2 kΩ

Pre out: 1 V, 470 Ω

VIDEO (VIDEO 1, 2, MONITOR OUT):

1 Vp-p, 75 Ω

1 Vp-p, 75 Ω (Y)

0.28 Vp-p, 75 Ω (C)

COMPONENT VIDEO OUT: 1 Vp-p, 75 Ω (Y)

0.7 Vp-p, 75 Ω (CB/CR, PB/PR)

ZONE 2 LINE OUT: 100 mV, 1 kΩ

Phono Overload:

110 mV RMS at 1 kHz, 0.5% T.H.D.

Frequency Response: 5 Hz to 100 kHz: +1 dB, –3 dB

RIAA Deviation: 20 Hz to 20 kHz : ±0.8 dB

Tone Control

Bass: ±10 dB at 50 Hz

Treble: ±10 dB at 20 kHz

Signal-to-Noise Ratio (Stereo)

Phono: 80 dB (IHF A, 5 mV input)

CD/Tape: 100 dB (IHF A, 0.5 V input)

Muting: –50 dB

TUNER SECTION

Tuning Range: 87.5 to 108.0 MHz (50-kHz steps)

Usable Sensitivity

Mono: 11.2 dBf, 1.0 µV (75 Ω IHF)

0.9 µV (75 Ω DIN)

Stereo: 17.2 dBf, 2.0 µV (75 Ω IHF)

23 µV (75 Ω DIN)

50 dB Quieting Sensitivity

Mono: 17.2 dBf, 2.0 µV (75 Ω)

Stereo: 37.2 dBf, 20 µV (75 Ω)

Capture Ratio: 2.0 dB

Image Rejection Ratio: 40 dB

IF Rejection Ratio: 90 dB

Signal-to-Noise Ratio

Mono: 76 dB

Stereo: 70 dB

Alternate Channel Attenuation: 55 dB

Selectivity: 50 dB (DIN)

AM Suppression Ratio: 50 dB

Total Harmonic Distortion

Mono: 0.2%

Stereo: 0.3%

Frequency Response: 30 Hz to 15 kHz, ±1.0 dB

Stereo Separation: 45 dB at 1 kHz

30 dB at 100 Hz to 10 kHz

Tuning Range: 530 to 1,710 kHz (10-kHz steps)

Usable Sensitivity: 30 µV

Image Rejection Ratio: 40 dB

IF Rejection Ratio: 40 dB

Signal-to-Noise Ratio: 40 dB

Total Harmonic Distortion: 0.7%

GENERAL

Power Supply: AC 120 V, 60 Hz

Power Consumption: 5.7 A

Dimensions (W × H × D): 17-1/8" × 6-7/8" × 17"

Weight: 28.0 lbs.

REMOTE CONTROLLER

Transmitter: Infrared

Signal range: Approx. 5 meters, 16 ft.

Power supply: Two “AA” batteries (1.5 V × 2)

Specifications and features are subject to change without notice.

Power supply and voltage vary depending on the area in which the

unit is purchased.

FM/AM TUNER

AM stations cannot be received.

•AM loop antenna is not connected.

➞Connect the included AM loop antenna to the AM antenna

terminals.

Buzzing noise on AM stations (particularly noticeable at

night or with weak stations).

•Noise from electrical apparatus such as fluorescent lamp.

➞Move the AM loop antenna to different position.

➞Set up an outdoor AM antenna.

Noise is heard at high-pitched sounds on AM stations.

•Noise from TV set.

➞Place the AM loop antenna as far as possible from the TV.

➞Move unit away from TV set.

Crackling noise on both AM and FM stations.

•Noise caused by fluorescent lamp being turned on and off.

➞Move antenna as far as possible from the fluorescent lamp.

•Noise from automobile ignition.

➞Install an FM outdoor antenna as far as possible from the

road.

➞Change the position or direction of the outdoor antenna.

The indicators light for stereo reception, but sound is

distorted and stereo separation is bad.

•Station is too strong.

➞Change to FM indoor antenna.

•Multiple reflection of the radio waves because of tall buildings

or mountains.

➞Use antenna that has better directivity and select a point

where distortion is least.

Indicators for stereo reception flicker and hiss is heard

on FM stations.

•Station is too weak.

➞Install an outdoor FM antenna.

•Stereo FM broadcasts cover only about half the distance of an

ordinary broadcast.

➞Change the position or direction of the outdoor antenna.

No preset station is recalled.

•Power cord has been unplugged or the POWER switch has been

turned off for a long time.

➞The memory contents are lost. Store all stations again.

Troubleshooting guide

If a problem occurs while you are using the remote controller, first

try to operate the controls on the front panel of the DTR-6.2 to make

sure that it is not due to a malfunction (or worn out batteries) in the

remote controller.

POWER

Power shuts off immediately after power on.

•Amplifier protection circuitry has been activated.

➞Remove the power cord from outlet immediately. Contact

your Integra/Onkyo authorized service center.

No power.

•Power cord is disconnected.

➞Connect power cord.

•External noise in the affecting the internal microcomputer.

➞Turn the power button off and then on again or remove the

power cord from the outlet and then plug it in again.

•Internal fuse is blown.

➞Contact your Integra/Onkyo authorized Service Center.

Power turns on but no sound.

•“Muting” is displayed.

➞Press the MUTING button on the remote controller to turn it

off.

•Bad connections or wiring.

➞Check connections, speaker cables, etc.

•Amplifier protection circuitry has been activated.

➞Contact your Integra/Onkyo authorized Service Center.

The sound of the playback source is not heard.

•Input selector is not set properly.

➞Set to correct input source.

•Headphones are connected.

➞Lower volume and then disconnect headphones.

SPEAKERS

No sound from the center speaker, or at very low

volume.

•Speaker cable is not connected.

➞Check the connection between the amplifier and the speaker.

•Listening mode is set to Stereo or Direct.

➞Set the Listening mode to any mode other than Stereo or

Direct. The output to the center speaker may differ depending

on the listening mode.

•Center speaker level is set to minimum.

➞Set the Center speaker level to the appropriate volume (page

24, 25).

•The Center setting of the Speaker Config submenu is set to

“None.”

➞Set the Center setting at the Speaker Config submenu to

“Large” or “Small” (see pages 24, 25).

No sound or very low volume from subwoofer.

•Subwoofer is set to “No.”

➞Check the speaker setting (pages 24, 25).

•Subwoofer speakers output level setting is improper.

➞Check the output level of the Subwoofer using the test tone.

Low frequency humming is heard.

•Not properly grounded.

➞Check outer conductor of input plugs.

•Turntable motor is not properly grounded.

➞Check for proper ground connection.

•Audio connection cables on the rear panel are connected

incorrectly.

➞Adjust the placement of the cable to reduce hum.

Howling is heard when the volume is turned up.

•Turntable and speakers are located too close together.

➞Move them farther apart.

Rough or scratchy sound is heard. High range is not

clear.

•The needles of turntable is dirty or worn, or a problem exists

with a connected component.

➞Refer to the instruction of the connected components and

check for problem.

•Treble control is too high.

➞Turn treble down.

Troubleshooting guide

VIDEO and AUDIO

Desired picture does not appear.

•Improper connection.

➞Check the connection again. Insert the plugs and connectors

completely.

No OSD Menu display.

•Improper connection.

➞Check connections.

•OSD Menu is displayed when monitor is connected to VIDEO or

S VIDEO of MONITOR OUT.

➞Confirm connections.

No sound, or sound of the selected source is not heard.

•Audio Setup sub-menu of Input Setup menu settings are

incorrect.

➞Check settings.

No picture appears on the TV screen (or monitor).

•TV (or monitor) is not set to receive the output signals from the

receiver.

➞Set the TV (or monitor) to the receiver input.

•Video cable is not connected securely.

➞Check connections.

•You have connected to the COMPONENT VIDEO connectors

but the DTR-6.2 is not set properly.

➞Check the Video Setup submenu of the Input Setup menu

(page 38).

REMOTE CONTROLLER

Front panel controls function but remote controller

controls do not.

•No batteries in remote controller.

➞Insert batteries.

•Batteries have worn out.

➞Replace batteries.

•Remote controller is not pointed at the remote sensor of the

DTR-6.2.

➞Point the remote controller at the remote sensor of the DTR-

6.2.

•Remote controller is too far from the DTR-6.2.

➞Operate the remote controller within 16 feet.

•Remote controller is functioning in a different mode

➞Press the RCVR MODE button.

OTHER

LATE NIGHT function cannot be used.

•Playback source is not Dolby Digital encoded.

➞Check that the DOLBY DIGITAL indicator lights up on the

display.

Re-EQ function cannot be used.

•Re-EQ is only enabled for Analog/PCM sources and Dolby

Digital surround.

➞See page 33.

Parameter cannot be set for Front Effect etc.

•Parameter may not be able to be set depending on the listening

mode.

➞See table on page 41.

If one of the messages shown below appears

“Not available with headphones use”

The operation is not allowed because headphones are plugged into

the DTR-6.2.

“Not available with Multichannel use”

The operation is not allowed because the selected input source is set

for multichannel input.

“Not available in this Sp Config”

The operation is not allowed by the current speaker configuration.

“Not available in Zone 2 mode”

The operation is not allowed because the Zone 2 mode is turned on.

“Only available with Dolby D”

No setting other than Dolby Digital can be set.

“Not available in this Listening mode”

This operation cannot be performed in this listening mode.

“Not available with this signal”

This operation cannot be performed with this input signal.

“Powered Zone 2 is not activated”

This appears if you try to operate the DTR-6.2 in the remote zone

(Zone 2) even though “Not Activated” is selected for Powered Zone

2 Setup → Powered Zone 2 in the Setup menu. To use the DTR-6.2

in the remote zone, set Powered Zone 2 to “Activated.”

“Zone 2 is Not On”

This appears if you try to operate the DTR-6.2 in the remote zone

(Zone 2) even though the power is not turned on at the remote zone.

Press the ZONE 2 button on the remote controller and then press the

ON button.

Also refer to the respective instruction manuals of the compact disc

player, DVD player, video cassette recorder, TV monitor, etc., that

compose your entertainment system.

The DTR-6.2 contains an internal microcomputer that performs

high-level operations. However, on extremely rare occasions, noise

or interference from an external source or static electricity may cause

faulty operation. If this occurs, unplug the power cord from the wall

outlet, wait five or more seconds, and then plug it back in. This

should correct the situation.

* To reset the surround mode and other settings to the factory

default settings, hold down the Preset Memory button with the

DTR-6.2 turned on and then press the Standby/On button.

“CLEAR” appears in the front display and the DTR-6.2 enters

the standby state.

Multichannel audio is not output.

•To listen to multichannel audio, “Yes” must be selected in the

“Multichannel” in the Audio setup sub-menu of the Input Setup

menu. Also, it is necessary to select Multichannel with the

AUDIO SELECTOR button.

➞Check that the component is connected to the MULTI

CHANNEL INPUT port and check the Setup menu settings.

Components in remote zone (Zone 2) do not operate

properly.

•Components are incorrectly connected.

➞Check connections.

•Objects are interfering with remote controller signals.

➞Move inferring objects away from path of remote controller

signals.

D0104-2
