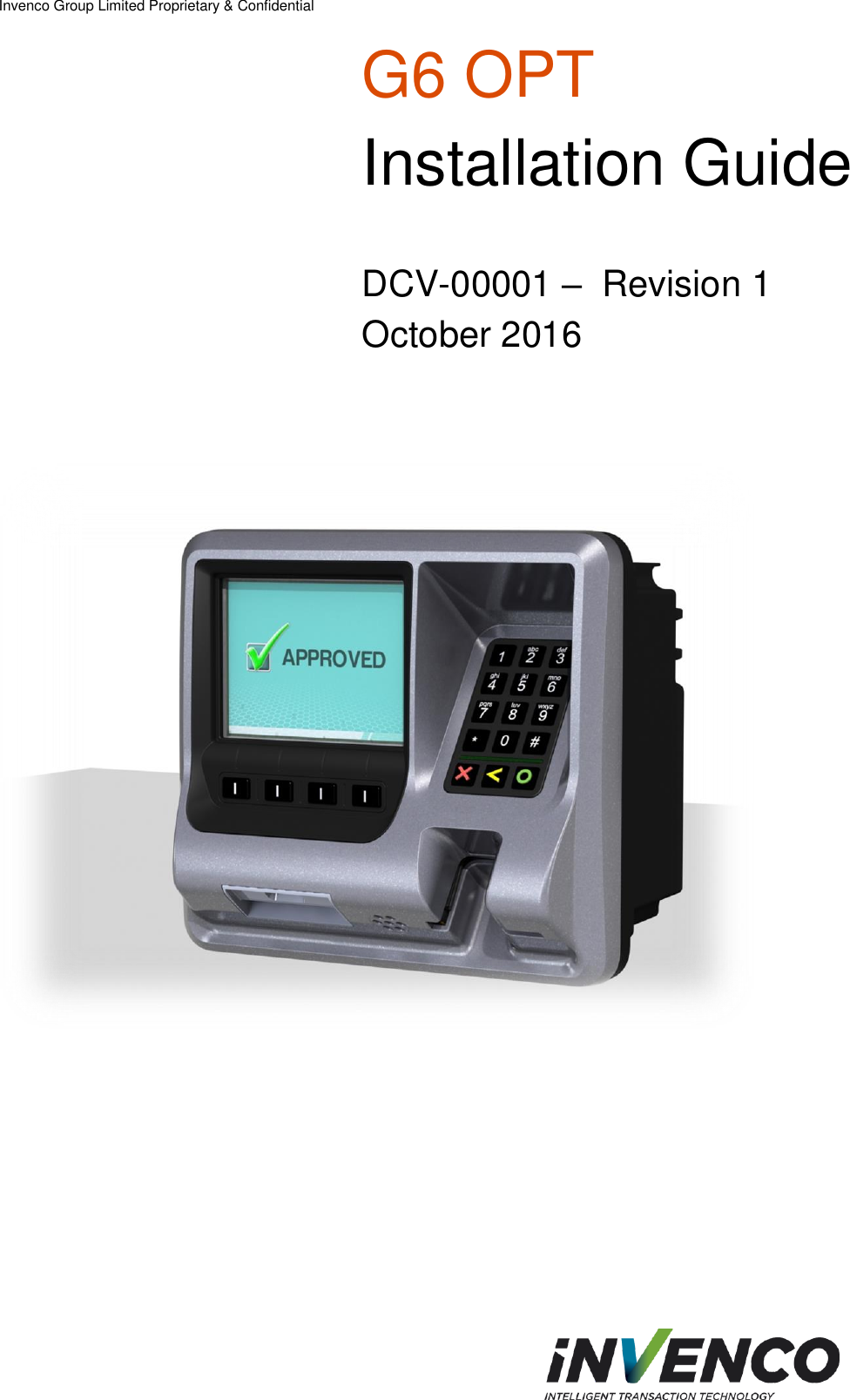

Invenco Group G60PB Payment terminal with RF Card Reader User Manual DCV 00001 Rev 09 S2 G6 OPT Installation Guide

Invenco Group Ltd Payment terminal with RF Card Reader DCV 00001 Rev 09 S2 G6 OPT Installation Guide

User Manuel

Invenco Group Limited Proprietary & Confidential                                   G6 OPT Installation Guide  DCV-00001 –  Revision 1 October 2016

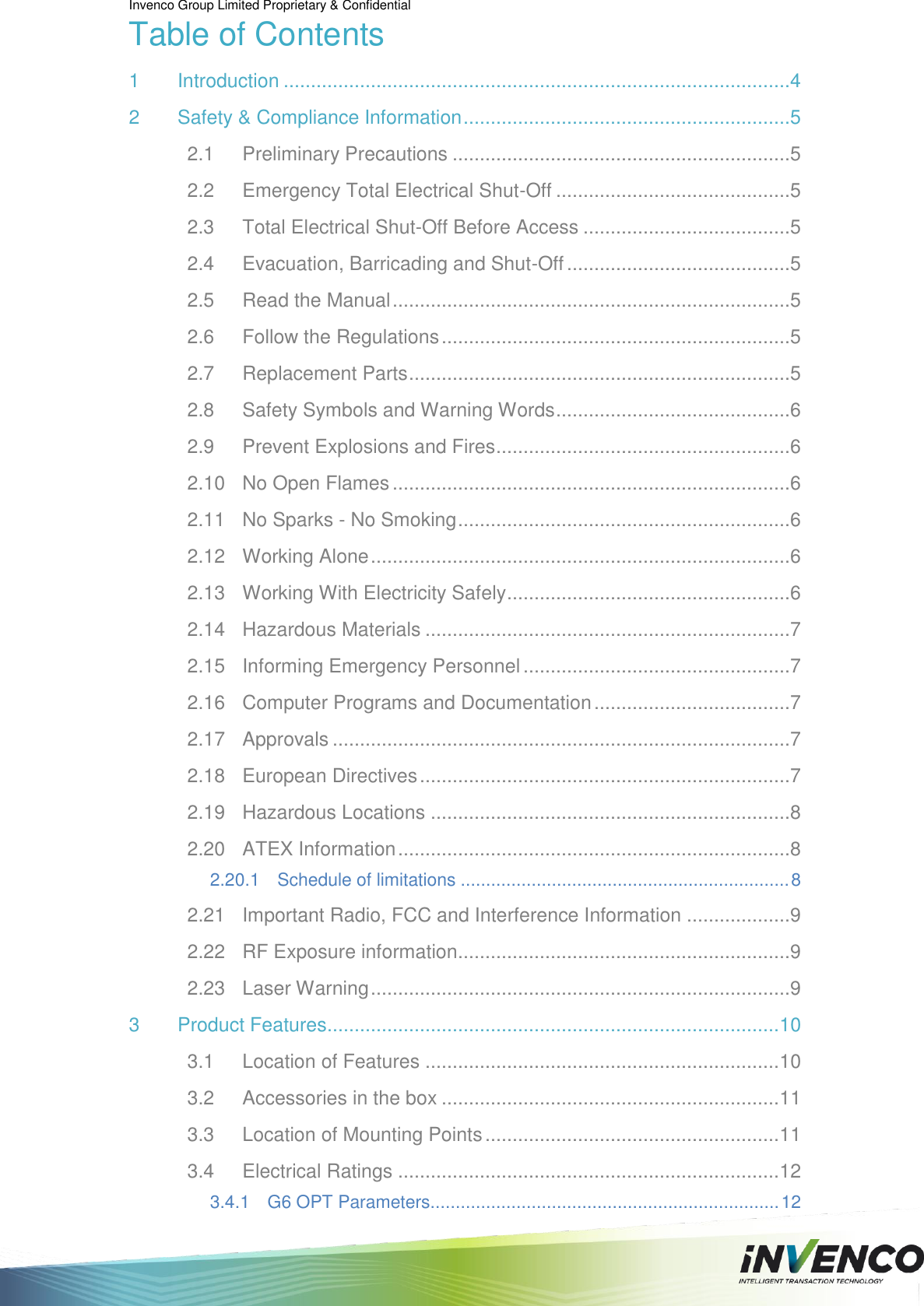

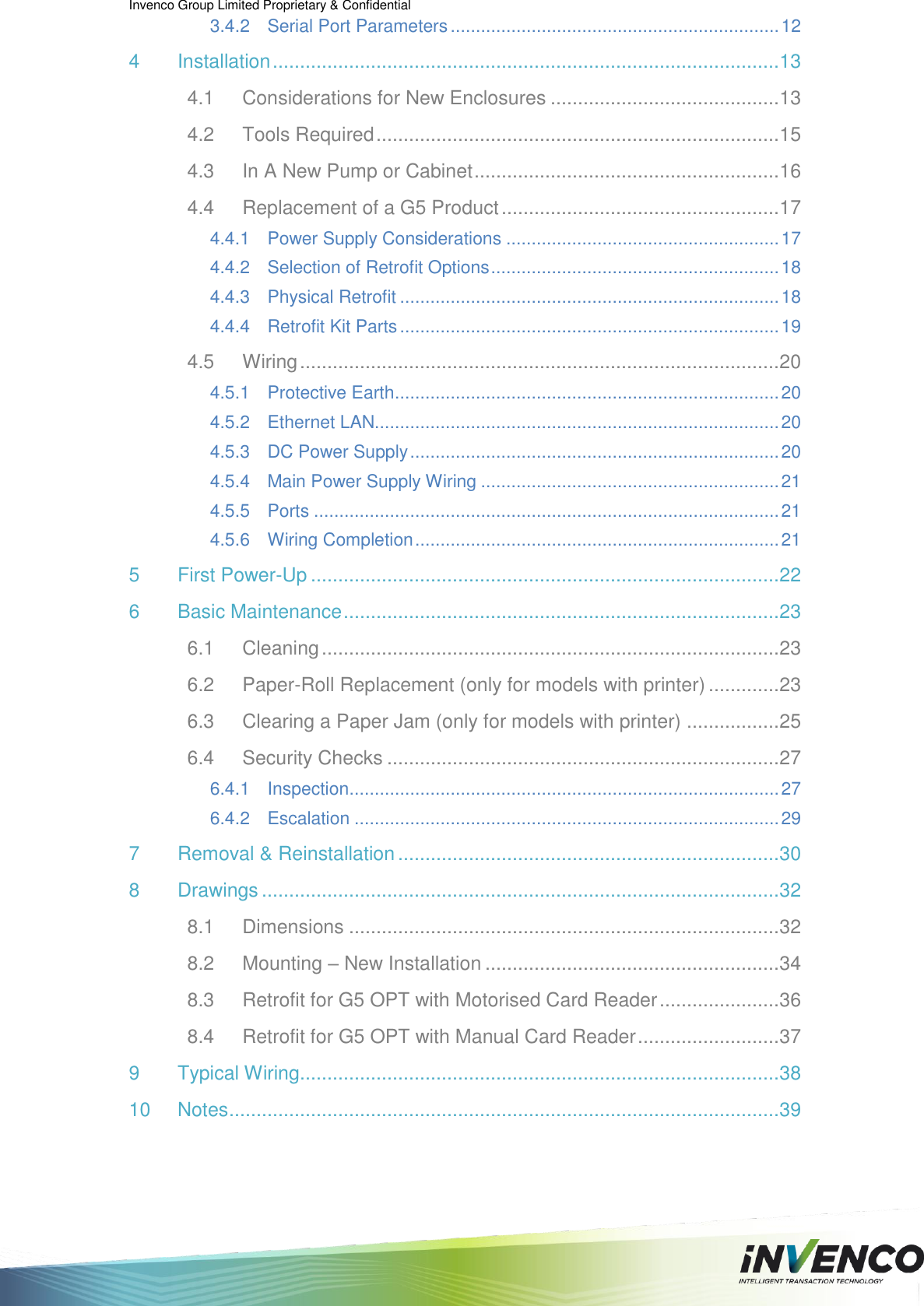

Invenco Group Limited Proprietary & Confidential  Table of Contents 1 Introduction .............................................................................................4 2 Safety & Compliance Information ............................................................5 2.1 Preliminary Precautions ..............................................................5 2.2 Emergency Total Electrical Shut-Off ...........................................5 2.3 Total Electrical Shut-Off Before Access ......................................5 2.4 Evacuation, Barricading and Shut-Off .........................................5 2.5 Read the Manual .........................................................................5 2.6 Follow the Regulations ................................................................5 2.7 Replacement Parts ......................................................................5 2.8 Safety Symbols and Warning Words ...........................................6 2.9 Prevent Explosions and Fires ......................................................6 2.10 No Open Flames .........................................................................6 2.11 No Sparks - No Smoking .............................................................6 2.12 Working Alone .............................................................................6 2.13 Working With Electricity Safely ....................................................6 2.14 Hazardous Materials ...................................................................7 2.15 Informing Emergency Personnel .................................................7 2.16 Computer Programs and Documentation ....................................7 2.17 Approvals ....................................................................................7 2.18 European Directives ....................................................................7 2.19 Hazardous Locations ..................................................................8 2.20 ATEX Information ........................................................................8 2.20.1 Schedule of limitations ................................................................. 8 2.21 Important Radio, FCC and Interference Information ...................9 2.22 RF Exposure information .............................................................9 2.23 Laser Warning .............................................................................9 3 Product Features ................................................................................... 10 3.1 Location of Features ................................................................. 10 3.2 Accessories in the box .............................................................. 11 3.3 Location of Mounting Points ...................................................... 11 3.4 Electrical Ratings ...................................................................... 12 3.4.1 G6 OPT Parameters ..................................................................... 12
Invenco Group Limited Proprietary & Confidential  3.4.2 Serial Port Parameters ................................................................. 12 4 Installation ............................................................................................. 13 4.1 Considerations for New Enclosures .......................................... 13 4.2 Tools Required .......................................................................... 15 4.3 In A New Pump or Cabinet ........................................................ 16 4.4 Replacement of a G5 Product ................................................... 17 4.4.1 Power Supply Considerations ...................................................... 17 4.4.2 Selection of Retrofit Options ......................................................... 18 4.4.3 Physical Retrofit ........................................................................... 18 4.4.4 Retrofit Kit Parts ........................................................................... 19 4.5 Wiring ........................................................................................ 20 4.5.1 Protective Earth ............................................................................ 20 4.5.2 Ethernet LAN................................................................................ 20 4.5.3 DC Power Supply ......................................................................... 20 4.5.4 Main Power Supply Wiring ........................................................... 21 4.5.5 Ports ............................................................................................ 21 4.5.6 Wiring Completion ........................................................................ 21 5 First Power-Up ...................................................................................... 22 6 Basic Maintenance ................................................................................ 23 6.1 Cleaning .................................................................................... 23 6.2 Paper-Roll Replacement (only for models with printer) ............. 23 6.3 Clearing a Paper Jam (only for models with printer) ................. 25 6.4 Security Checks ........................................................................ 27 6.4.1 Inspection ..................................................................................... 27 6.4.2 Escalation .................................................................................... 29 7 Removal & Reinstallation ...................................................................... 30 8 Drawings ............................................................................................... 32 8.1 Dimensions ............................................................................... 32 8.2 Mounting – New Installation ...................................................... 34 8.3 Retrofit for G5 OPT with Motorised Card Reader ...................... 36 8.4 Retrofit for G5 OPT with Manual Card Reader .......................... 37 9 Typical Wiring........................................................................................ 38 10 Notes ..................................................................................................... 39

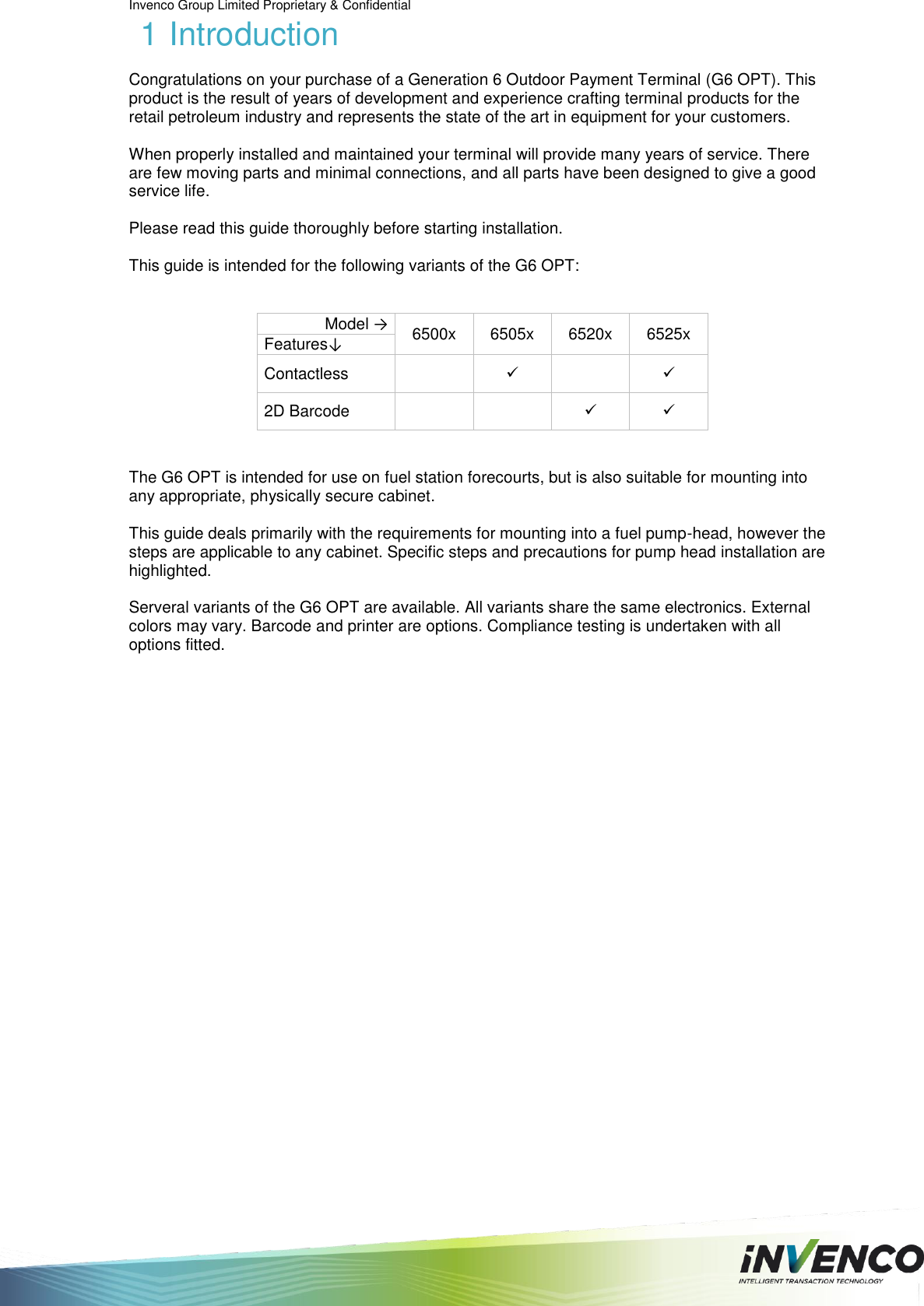

Invenco Group Limited Proprietary & Confidential  1 Introduction Congratulations on your purchase of a Generation 6 Outdoor Payment Terminal (G6 OPT). This product is the result of years of development and experience crafting terminal products for the retail petroleum industry and represents the state of the art in equipment for your customers.  When properly installed and maintained your terminal will provide many years of service. There are few moving parts and minimal connections, and all parts have been designed to give a good service life.  Please read this guide thoroughly before starting installation.  This guide is intended for the following variants of the G6 OPT:  Model → 6500x 6505x 6520x 6525x Features↓ Contactless     2D Barcode       The G6 OPT is intended for use on fuel station forecourts, but is also suitable for mounting into any appropriate, physically secure cabinet.  This guide deals primarily with the requirements for mounting into a fuel pump-head, however the steps are applicable to any cabinet. Specific steps and precautions for pump head installation are highlighted.  Serveral variants of the G6 OPT are available. All variants share the same electronics. External colors may vary. Barcode and printer are options. Compliance testing is undertaken with all options fitted.

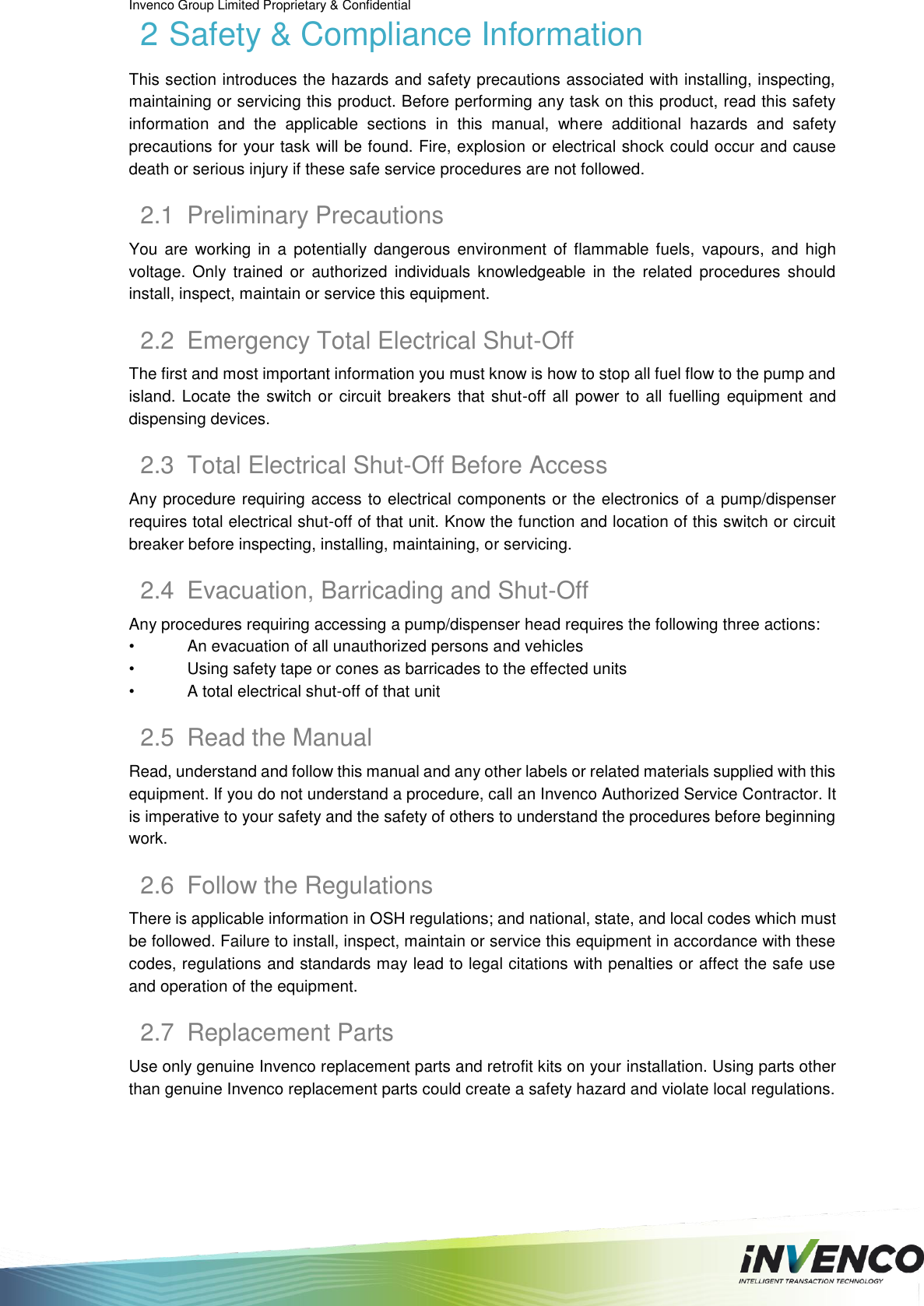

Invenco Group Limited Proprietary & Confidential  2 Safety & Compliance Information This section introduces the hazards and safety precautions associated with installing, inspecting, maintaining or servicing this product. Before performing any task on this product, read this safety information  and  the  applicable  sections  in  this  manual,  where  additional  hazards  and  safety precautions for your task will be found. Fire, explosion or electrical shock could occur and cause death or serious injury if these safe service procedures are not followed. 2.1  Preliminary Precautions You  are  working in  a  potentially dangerous  environment of  flammable  fuels,  vapours,  and high voltage.  Only  trained  or  authorized  individuals  knowledgeable  in  the  related  procedures  should install, inspect, maintain or service this equipment. 2.2  Emergency Total Electrical Shut-Off The first and most important information you must know is how to stop all fuel flow to the pump and island. Locate the switch or circuit breakers that shut-off all power to all fuelling equipment and dispensing devices. 2.3  Total Electrical Shut-Off Before Access Any procedure requiring access to electrical components or the electronics of  a pump/dispenser requires total electrical shut-off of that unit. Know the function and location of this switch or circuit breaker before inspecting, installing, maintaining, or servicing. 2.4  Evacuation, Barricading and Shut-Off Any procedures requiring accessing a pump/dispenser head requires the following three actions: •  An evacuation of all unauthorized persons and vehicles •  Using safety tape or cones as barricades to the effected units •  A total electrical shut-off of that unit 2.5  Read the Manual Read, understand and follow this manual and any other labels or related materials supplied with this equipment. If you do not understand a procedure, call an Invenco Authorized Service Contractor. It is imperative to your safety and the safety of others to understand the procedures before beginning work. 2.6  Follow the Regulations There is applicable information in OSH regulations; and national, state, and local codes which must be followed. Failure to install, inspect, maintain or service this equipment in accordance with these codes, regulations and standards may lead to legal citations with penalties or affect the safe use and operation of the equipment. 2.7  Replacement Parts Use only genuine Invenco replacement parts and retrofit kits on your installation. Using parts other than genuine Invenco replacement parts could create a safety hazard and violate local regulations.

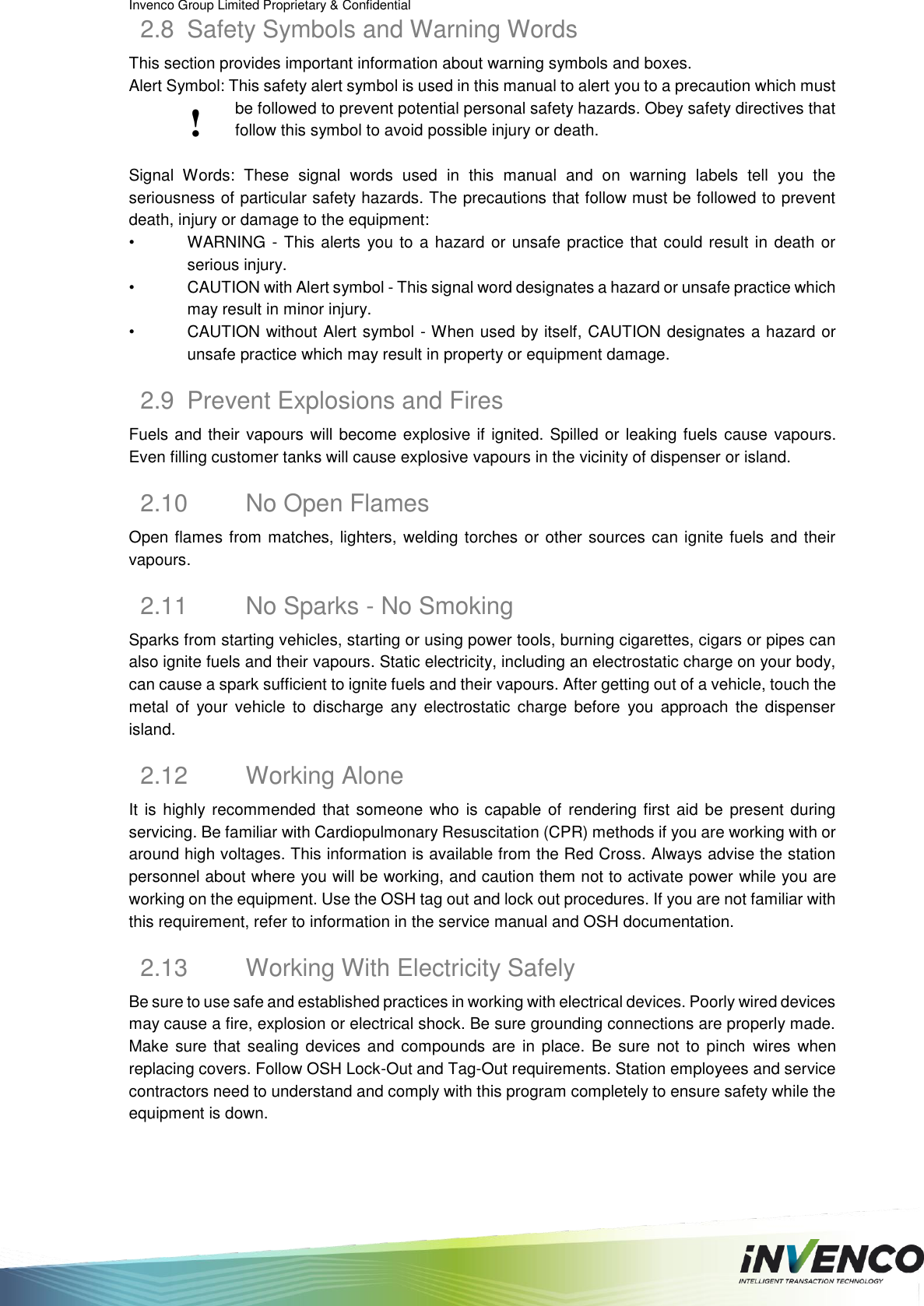

Invenco Group Limited Proprietary & Confidential  2.8  Safety Symbols and Warning Words This section provides important information about warning symbols and boxes. Alert Symbol: This safety alert symbol is used in this manual to alert you to a precaution which must be followed to prevent potential personal safety hazards. Obey safety directives that follow this symbol to avoid possible injury or death.  Signal  Words:  These  signal  words  used  in  this  manual  and  on  warning  labels  tell  you  the seriousness of particular safety hazards. The precautions that follow must be followed to prevent death, injury or damage to the equipment: • WARNING - This alerts you to a hazard or unsafe practice that could result in death or serious injury. •  CAUTION with Alert symbol - This signal word designates a hazard or unsafe practice which may result in minor injury. •  CAUTION without Alert symbol - When used by itself, CAUTION designates a hazard or unsafe practice which may result in property or equipment damage. 2.9  Prevent Explosions and Fires Fuels and their vapours will become explosive if ignited. Spilled or leaking fuels cause  vapours. Even filling customer tanks will cause explosive vapours in the vicinity of dispenser or island. 2.10  No Open Flames Open flames from matches, lighters, welding torches or other sources can ignite fuels and their vapours. 2.11  No Sparks - No Smoking Sparks from starting vehicles, starting or using power tools, burning cigarettes, cigars or pipes can also ignite fuels and their vapours. Static electricity, including an electrostatic charge on your body, can cause a spark sufficient to ignite fuels and their vapours. After getting out of a vehicle, touch the metal  of  your  vehicle  to  discharge  any electrostatic  charge  before  you  approach  the  dispenser island. 2.12  Working Alone It is  highly recommended that someone who  is capable of  rendering first aid  be  present during servicing. Be familiar with Cardiopulmonary Resuscitation (CPR) methods if you are working with or around high voltages. This information is available from the Red Cross. Always advise the station personnel about where you will be working, and caution them not to activate power while you are working on the equipment. Use the OSH tag out and lock out procedures. If you are not familiar with this requirement, refer to information in the service manual and OSH documentation. 2.13  Working With Electricity Safely Be sure to use safe and established practices in working with electrical devices. Poorly wired devices may cause a fire, explosion or electrical shock. Be sure grounding connections are properly made. Make  sure that  sealing  devices  and compounds are  in place. Be sure  not  to pinch  wires when replacing covers. Follow OSH Lock-Out and Tag-Out requirements. Station employees and service contractors need to understand and comply with this program completely to ensure safety while the equipment is down. !

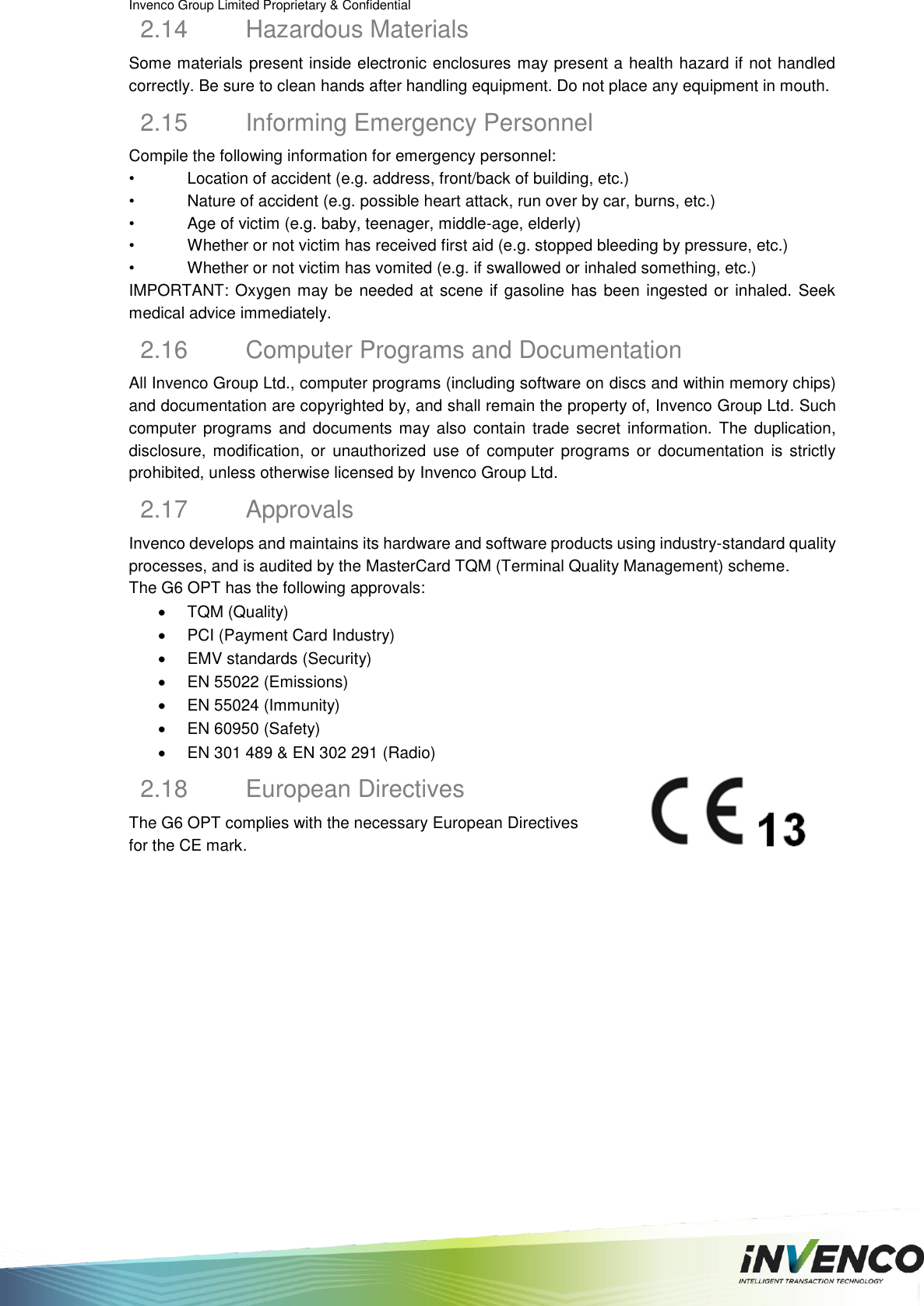

Invenco Group Limited Proprietary & Confidential  2.14  Hazardous Materials Some materials present inside electronic enclosures may present a health hazard if not handled correctly. Be sure to clean hands after handling equipment. Do not place any equipment in mouth. 2.15  Informing Emergency Personnel Compile the following information for emergency personnel: •  Location of accident (e.g. address, front/back of building, etc.) •  Nature of accident (e.g. possible heart attack, run over by car, burns, etc.) •  Age of victim (e.g. baby, teenager, middle-age, elderly) •  Whether or not victim has received first aid (e.g. stopped bleeding by pressure, etc.) •  Whether or not victim has vomited (e.g. if swallowed or inhaled something, etc.) IMPORTANT: Oxygen may be needed at scene if gasoline has been ingested or inhaled. Seek medical advice immediately. 2.16  Computer Programs and Documentation All Invenco Group Ltd., computer programs (including software on discs and within memory chips) and documentation are copyrighted by, and shall remain the property of, Invenco Group Ltd. Such computer  programs  and documents  may also  contain  trade secret  information.  The  duplication, disclosure,  modification,  or  unauthorized  use  of  computer  programs  or  documentation  is  strictly prohibited, unless otherwise licensed by Invenco Group Ltd. 2.17  Approvals Invenco develops and maintains its hardware and software products using industry-standard quality processes, and is audited by the MasterCard TQM (Terminal Quality Management) scheme. The G6 OPT has the following approvals:   TQM (Quality)   PCI (Payment Card Industry)   EMV standards (Security)   EN 55022 (Emissions)  EN 55024 (Immunity)   EN 60950 (Safety)   EN 301 489 & EN 302 291 (Radio) 2.18  European Directives The G6 OPT complies with the necessary European Directives for the CE mark.

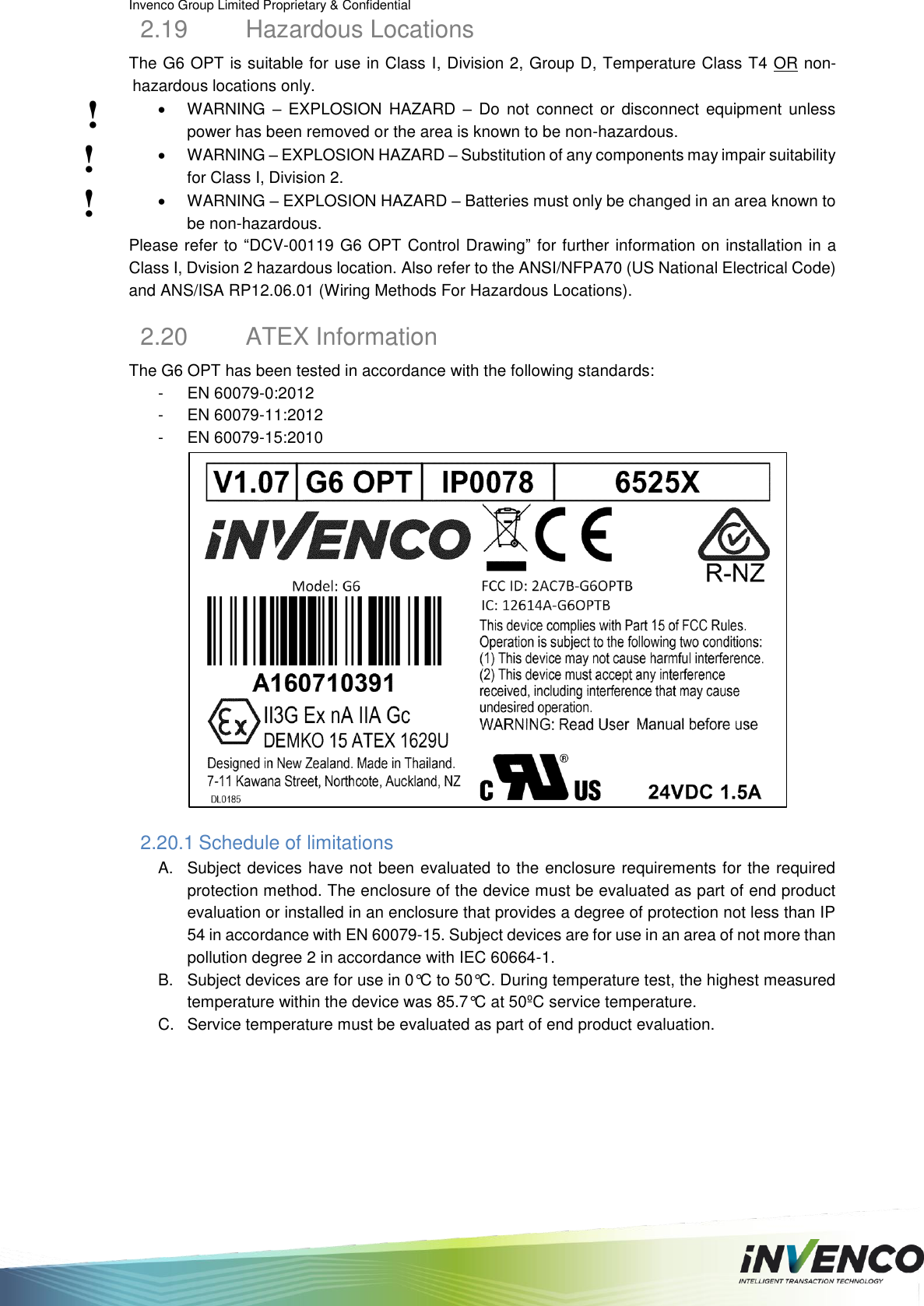

Invenco Group Limited Proprietary & Confidential  2.19  Hazardous Locations The G6 OPT is suitable for use in Class I, Division 2, Group D, Temperature Class T4 OR non-hazardous locations only.   WARNING –  EXPLOSION  HAZARD  –  Do  not  connect  or  disconnect  equipment  unless power has been removed or the area is known to be non-hazardous.   WARNING – EXPLOSION HAZARD – Substitution of any components may impair suitability for Class I, Division 2.   WARNING – EXPLOSION HAZARD – Batteries must only be changed in an area known to be non-hazardous. Please refer to “DCV-00119 G6 OPT Control Drawing” for further information on installation in a Class I, Dvision 2 hazardous location. Also refer to the ANSI/NFPA70 (US National Electrical Code) and ANS/ISA RP12.06.01 (Wiring Methods For Hazardous Locations). 2.20  ATEX Information The G6 OPT has been tested in accordance with the following standards: -  EN 60079-0:2012 -  EN 60079-11:2012 -  EN 60079-15:2010  2.20.1 Schedule of limitations A.  Subject devices have not been evaluated to the enclosure requirements for the required protection method. The enclosure of the device must be evaluated as part of end product evaluation or installed in an enclosure that provides a degree of protection not less than IP 54 in accordance with EN 60079-15. Subject devices are for use in an area of not more than pollution degree 2 in accordance with IEC 60664-1. B.  Subject devices are for use in 0°C to 50°C. During temperature test, the highest measured temperature within the device was 85.7°C at 50ºC service temperature. C.  Service temperature must be evaluated as part of end product evaluation.   ! ! !

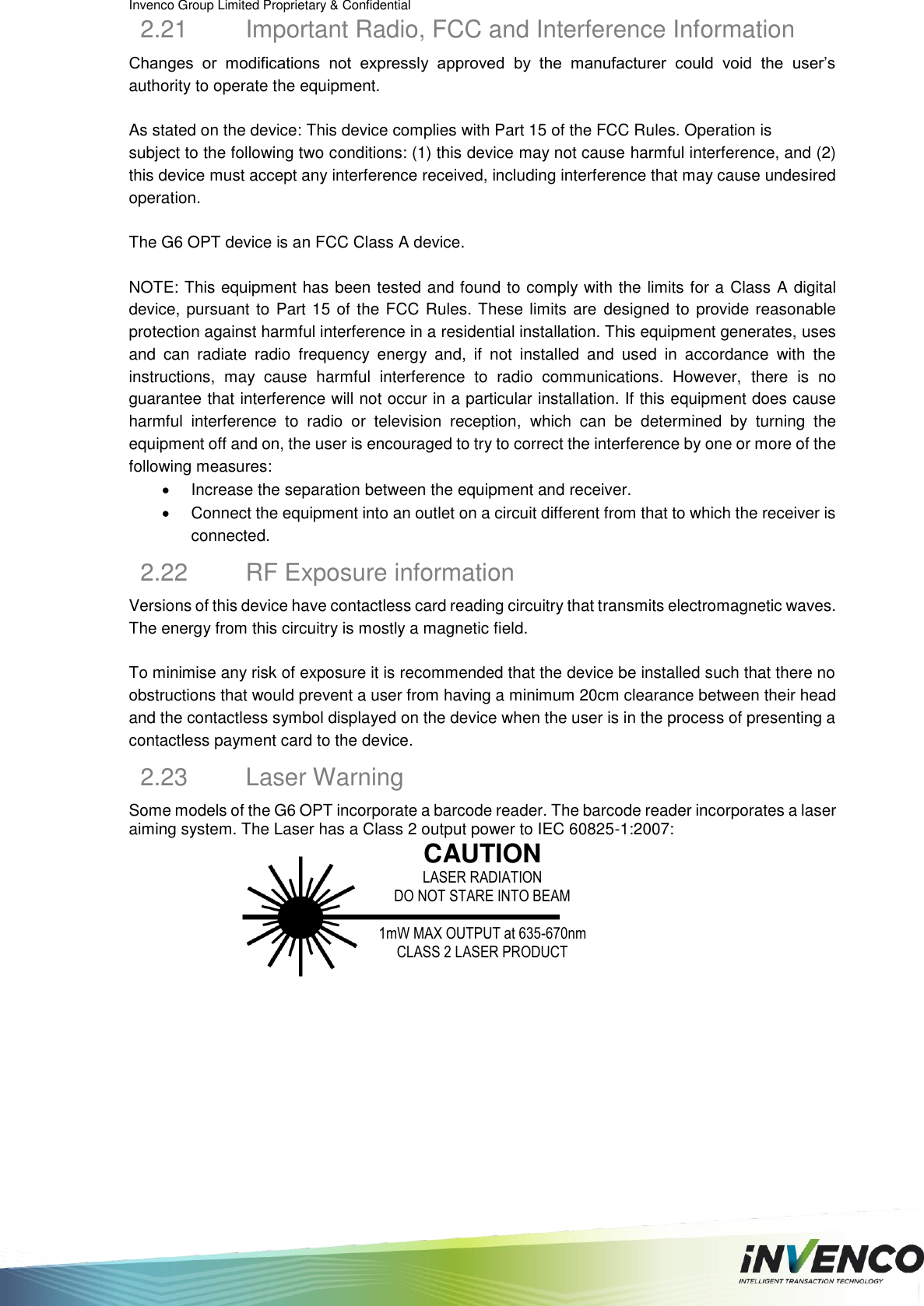

Invenco Group Limited Proprietary & Confidential  2.21  Important Radio, FCC and Interference Information Changes  or  modifications  not  expressly  approved  by  the  manufacturer  could  void  the  user’s authority to operate the equipment.  As stated on the device: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.  The G6 OPT device is an FCC Class A device.  NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and  can  radiate  radio  frequency  energy  and,  if  not  installed  and  used  in  accordance  with  the instructions,  may  cause  harmful  interference  to  radio  communications.  However,  there  is  no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful  interference  to  radio  or  television  reception,  which  can  be  determined  by  turning  the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:   Increase the separation between the equipment and receiver.   Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. 2.22  RF Exposure information Versions of this device have contactless card reading circuitry that transmits electromagnetic waves. The energy from this circuitry is mostly a magnetic field.   To minimise any risk of exposure it is recommended that the device be installed such that there no obstructions that would prevent a user from having a minimum 20cm clearance between their head and the contactless symbol displayed on the device when the user is in the process of presenting a contactless payment card to the device. 2.23  Laser Warning Some models of the G6 OPT incorporate a barcode reader. The barcode reader incorporates a laser aiming system. The Laser has a Class 2 output power to IEC 60825-1:2007:  CAUTION LASER RADIATION DO NOT STARE INTO BEAM  1mW MAX OUTPUT at 635-670nm CLASS 2 LASER PRODUCT

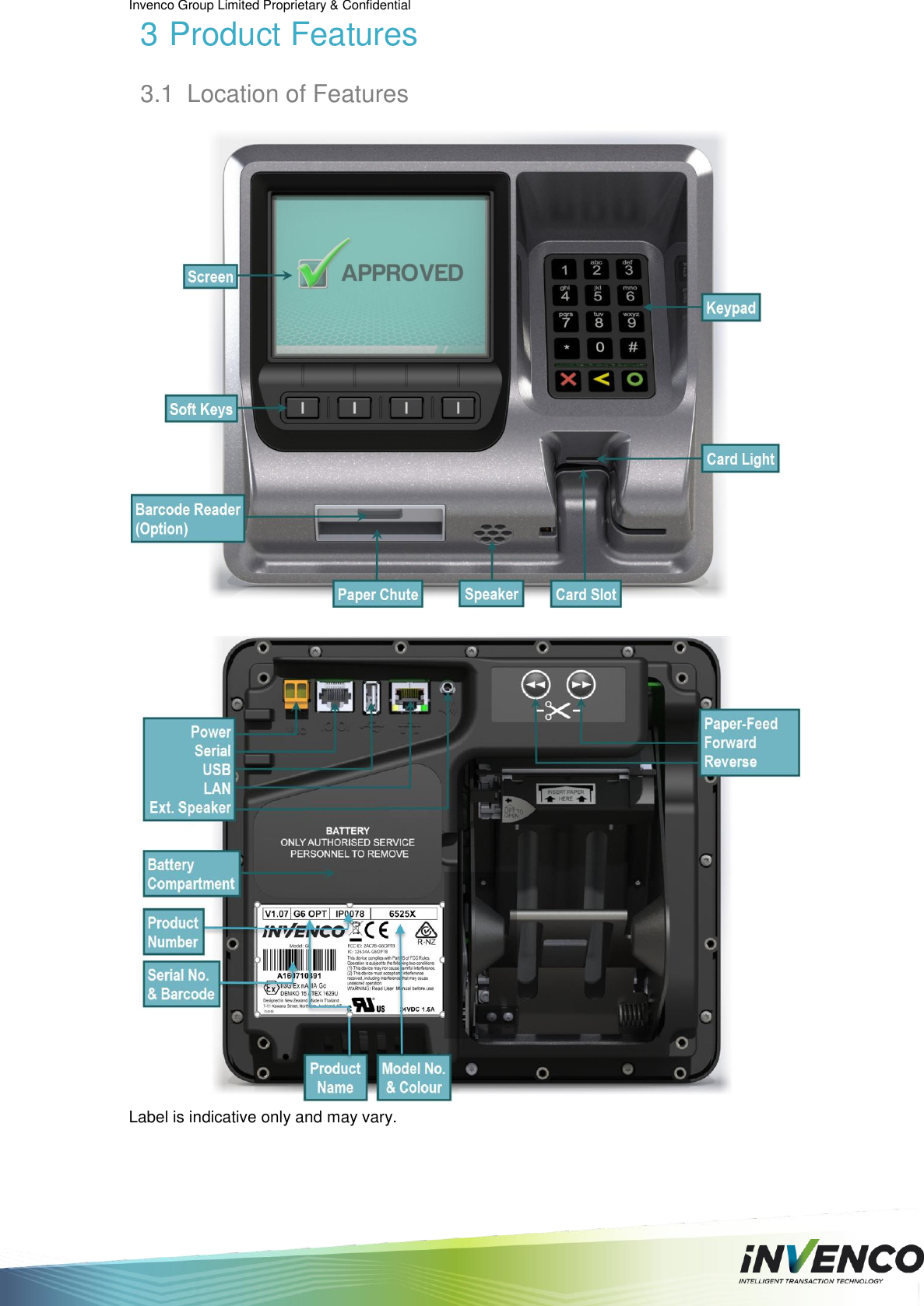

Invenco Group Limited Proprietary & Confidential  3 Product Features 3.1  Location of Features    Label is indicative only and may vary.

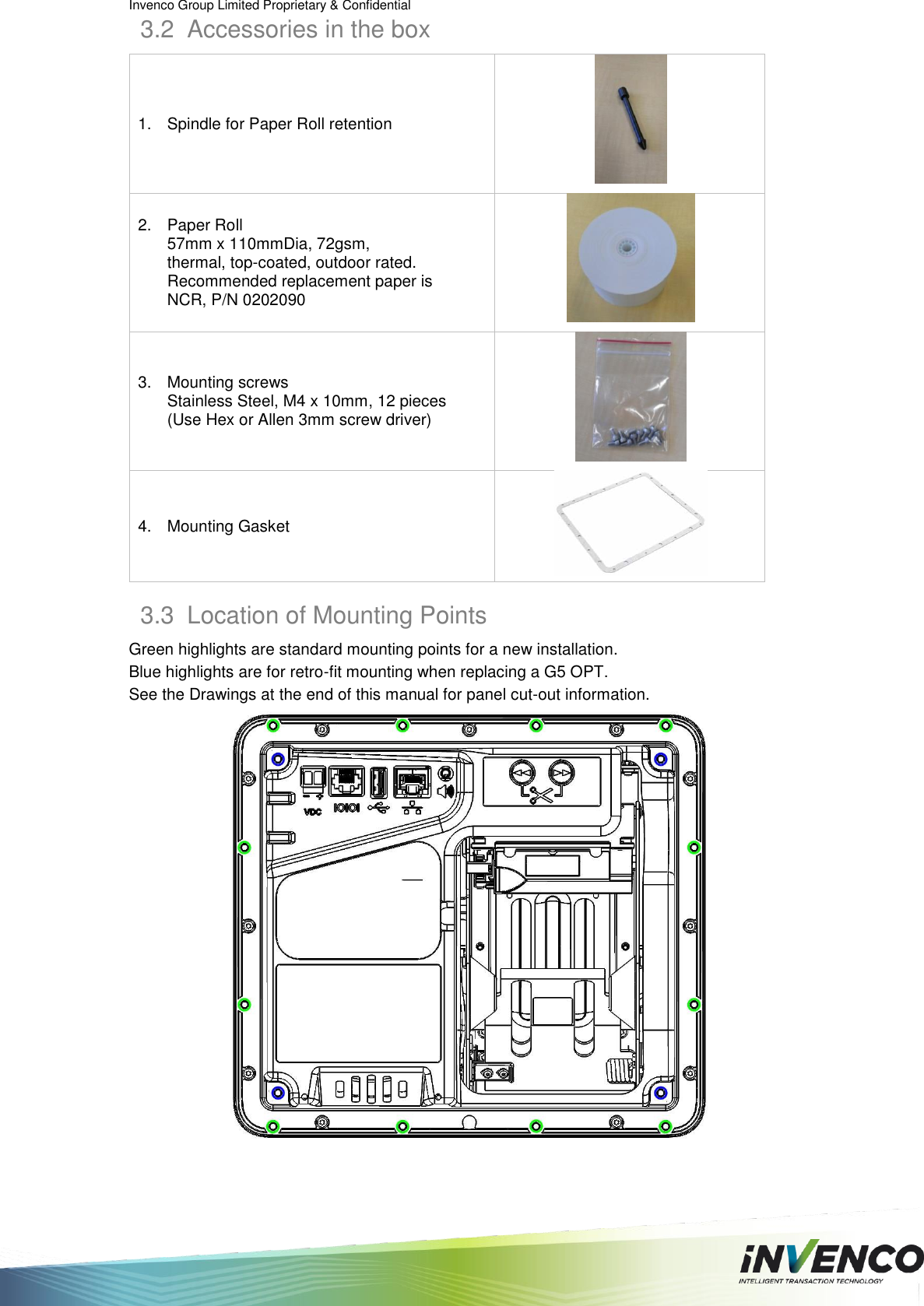

Invenco Group Limited Proprietary & Confidential  3.2  Accessories in the box 1.  Spindle for Paper Roll retention  2.  Paper Roll 57mm x 110mmDia, 72gsm, thermal, top-coated, outdoor rated. Recommended replacement paper is NCR, P/N 0202090  3.  Mounting screws Stainless Steel, M4 x 10mm, 12 pieces (Use Hex or Allen 3mm screw driver)  4.  Mounting Gasket  3.3  Location of Mounting Points Green highlights are standard mounting points for a new installation. Blue highlights are for retro-fit mounting when replacing a G5 OPT. See the Drawings at the end of this manual for panel cut-out information.

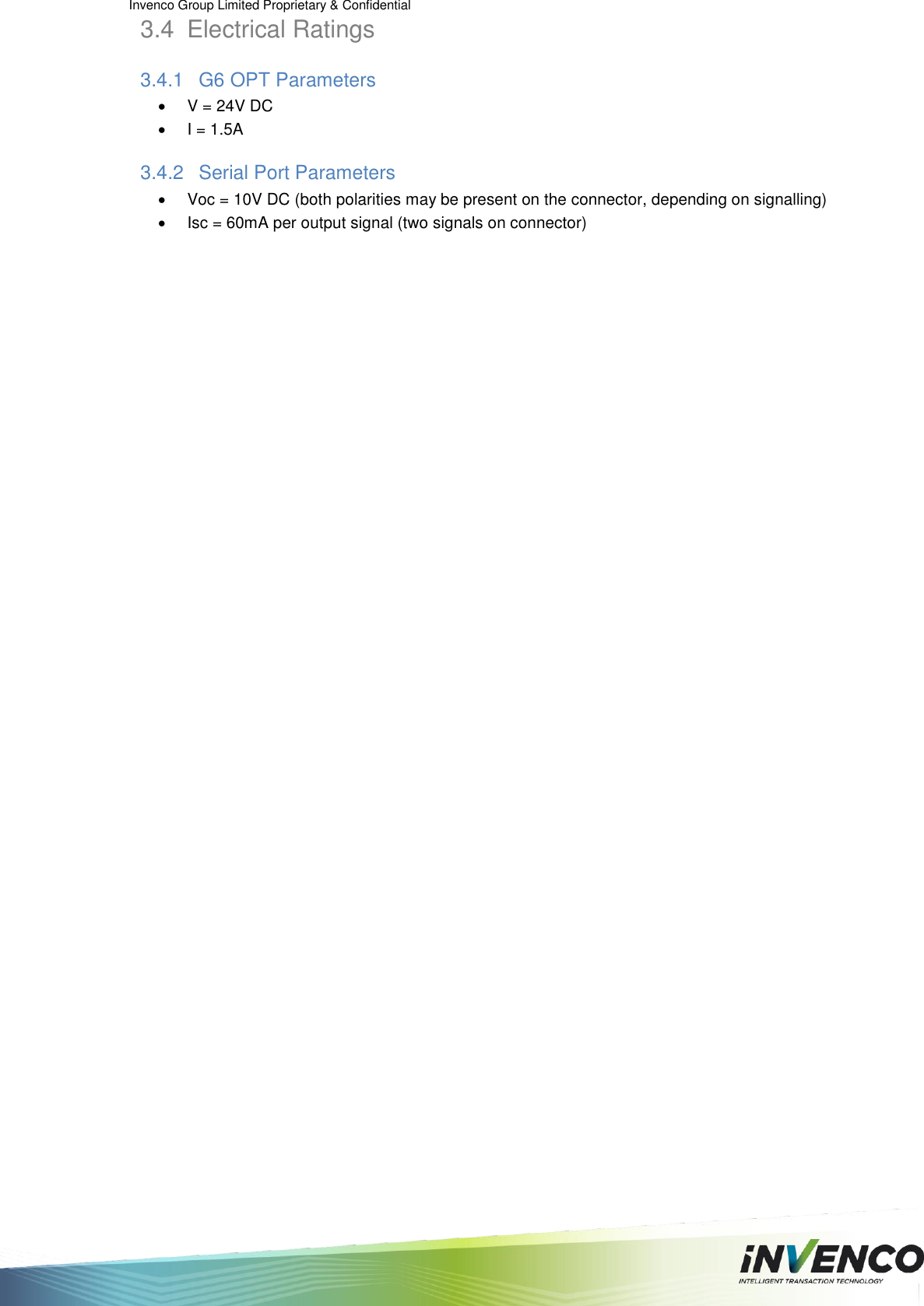

Invenco Group Limited Proprietary & Confidential  3.4  Electrical Ratings 3.4.1  G6 OPT Parameters   V = 24V DC   I = 1.5A 3.4.2  Serial Port Parameters   Voc = 10V DC (both polarities may be present on the connector, depending on signalling)   Isc = 60mA per output signal (two signals on connector)

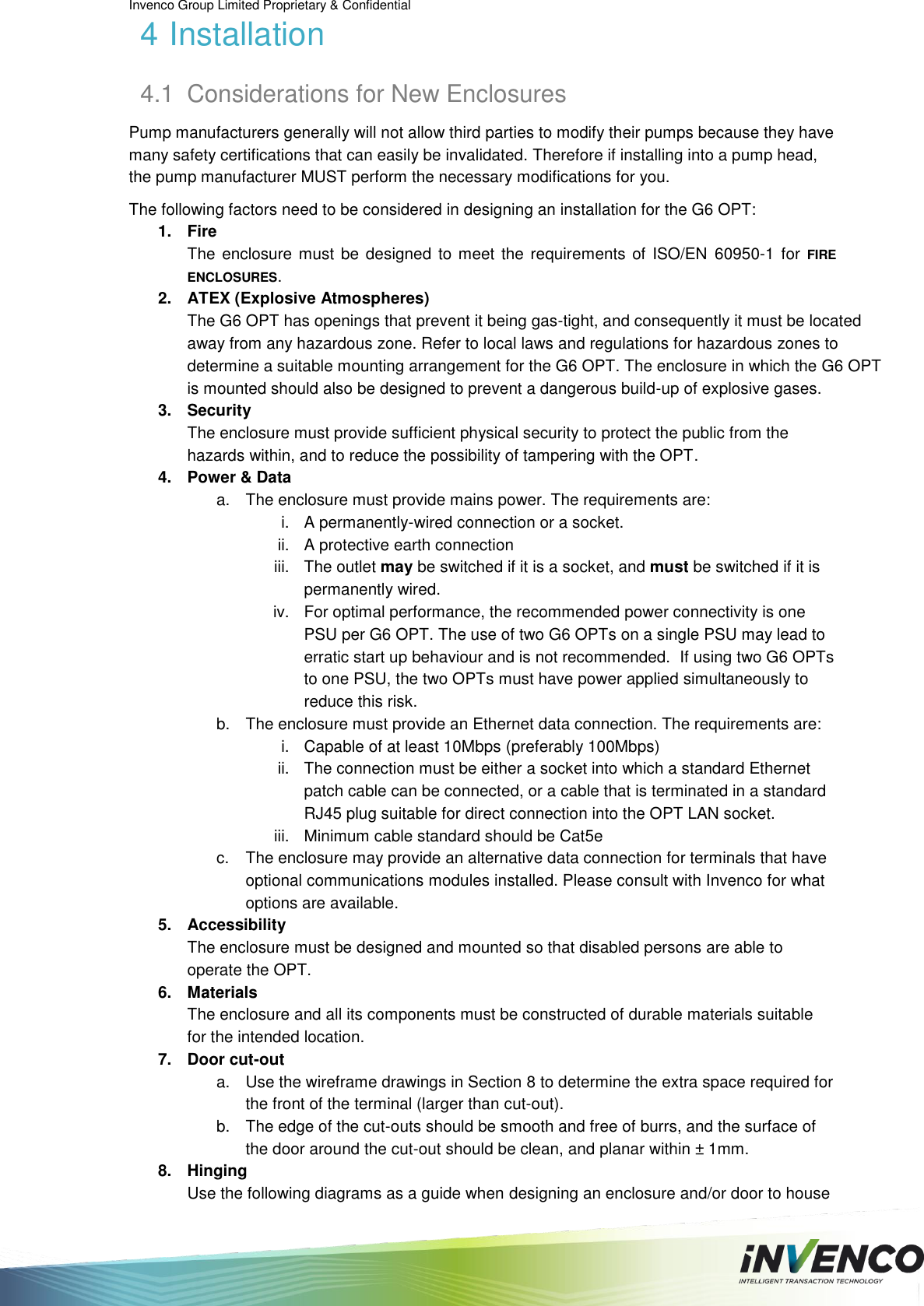

Invenco Group Limited Proprietary & Confidential  4 Installation 4.1  Considerations for New Enclosures Pump manufacturers generally will not allow third parties to modify their pumps because they have many safety certifications that can easily be invalidated. Therefore if installing into a pump head, the pump manufacturer MUST perform the necessary modifications for you. The following factors need to be considered in designing an installation for the G6 OPT: 1.  Fire The  enclosure must be  designed  to meet the requirements  of ISO/EN  60950-1  for  FIRE ENCLOSURES. 2.  ATEX (Explosive Atmospheres)  The G6 OPT has openings that prevent it being gas-tight, and consequently it must be located away from any hazardous zone. Refer to local laws and regulations for hazardous zones to determine a suitable mounting arrangement for the G6 OPT. The enclosure in which the G6 OPT is mounted should also be designed to prevent a dangerous build-up of explosive gases. 3.  Security The enclosure must provide sufficient physical security to protect the public from the hazards within, and to reduce the possibility of tampering with the OPT. 4.  Power & Data a.  The enclosure must provide mains power. The requirements are: i.  A permanently-wired connection or a socket. ii.  A protective earth connection iii.  The outlet may be switched if it is a socket, and must be switched if it is permanently wired. iv.  For optimal performance, the recommended power connectivity is one PSU per G6 OPT. The use of two G6 OPTs on a single PSU may lead to erratic start up behaviour and is not recommended.  If using two G6 OPTs to one PSU, the two OPTs must have power applied simultaneously to reduce this risk.  b.  The enclosure must provide an Ethernet data connection. The requirements are: i.  Capable of at least 10Mbps (preferably 100Mbps) ii.  The connection must be either a socket into which a standard Ethernet patch cable can be connected, or a cable that is terminated in a standard RJ45 plug suitable for direct connection into the OPT LAN socket. iii.  Minimum cable standard should be Cat5e c.  The enclosure may provide an alternative data connection for terminals that have optional communications modules installed. Please consult with Invenco for what options are available. 5.  Accessibility The enclosure must be designed and mounted so that disabled persons are able to operate the OPT. 6.  Materials The enclosure and all its components must be constructed of durable materials suitable for the intended location. 7.  Door cut-out a.  Use the wireframe drawings in Section 8 to determine the extra space required for the front of the terminal (larger than cut-out). b.  The edge of the cut-outs should be smooth and free of burrs, and the surface of the door around the cut-out should be clean, and planar within ± 1mm. 8.  Hinging Use the following diagrams as a guide when designing an enclosure and/or door to house

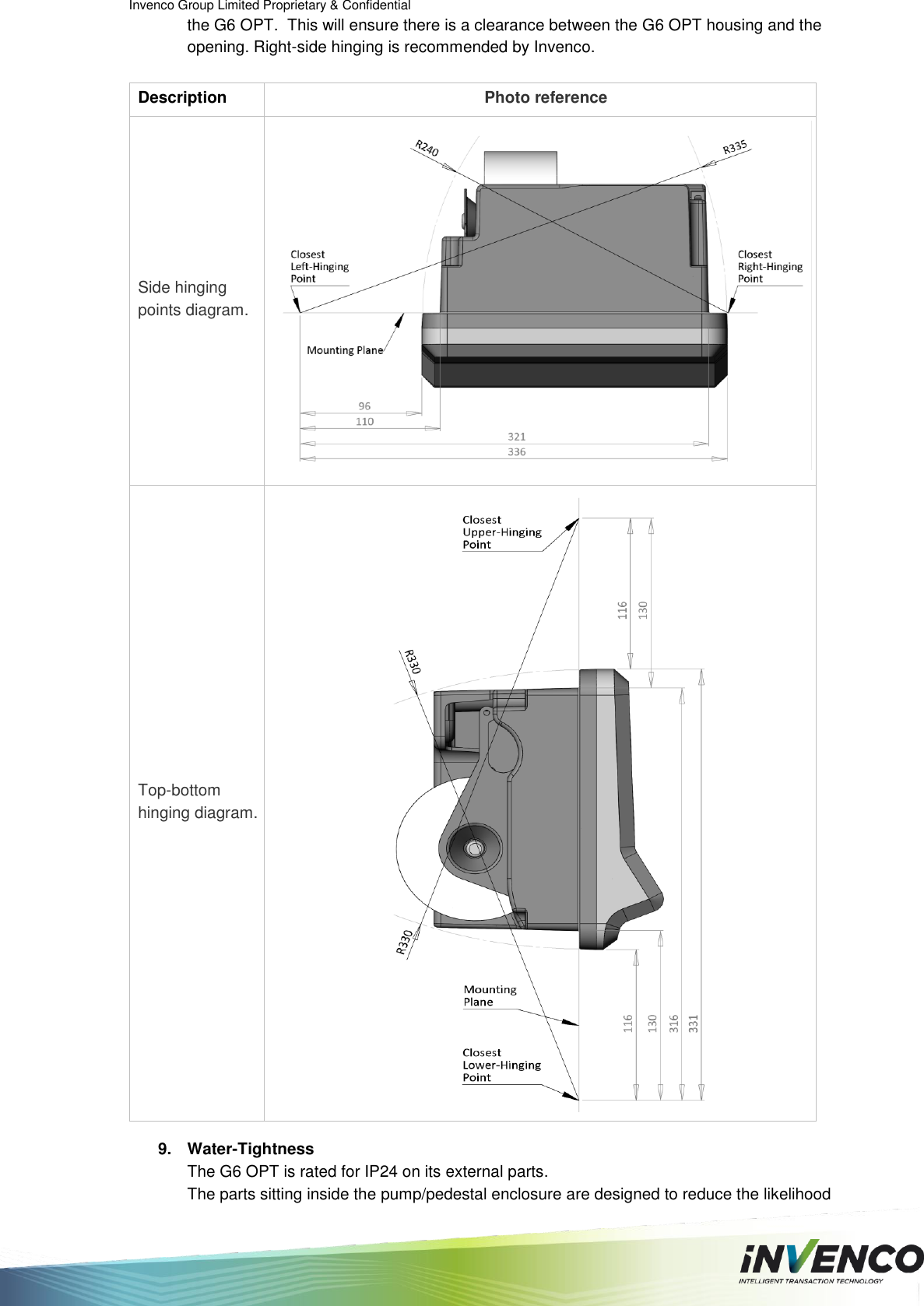

Invenco Group Limited Proprietary & Confidential  the G6 OPT.  This will ensure there is a clearance between the G6 OPT housing and the opening. Right-side hinging is recommended by Invenco.  Description Photo reference Side hinging points diagram.  Top-bottom hinging diagram.   9.  Water-Tightness The G6 OPT is rated for IP24 on its external parts. The parts sitting inside the pump/pedestal enclosure are designed to reduce the likelihood

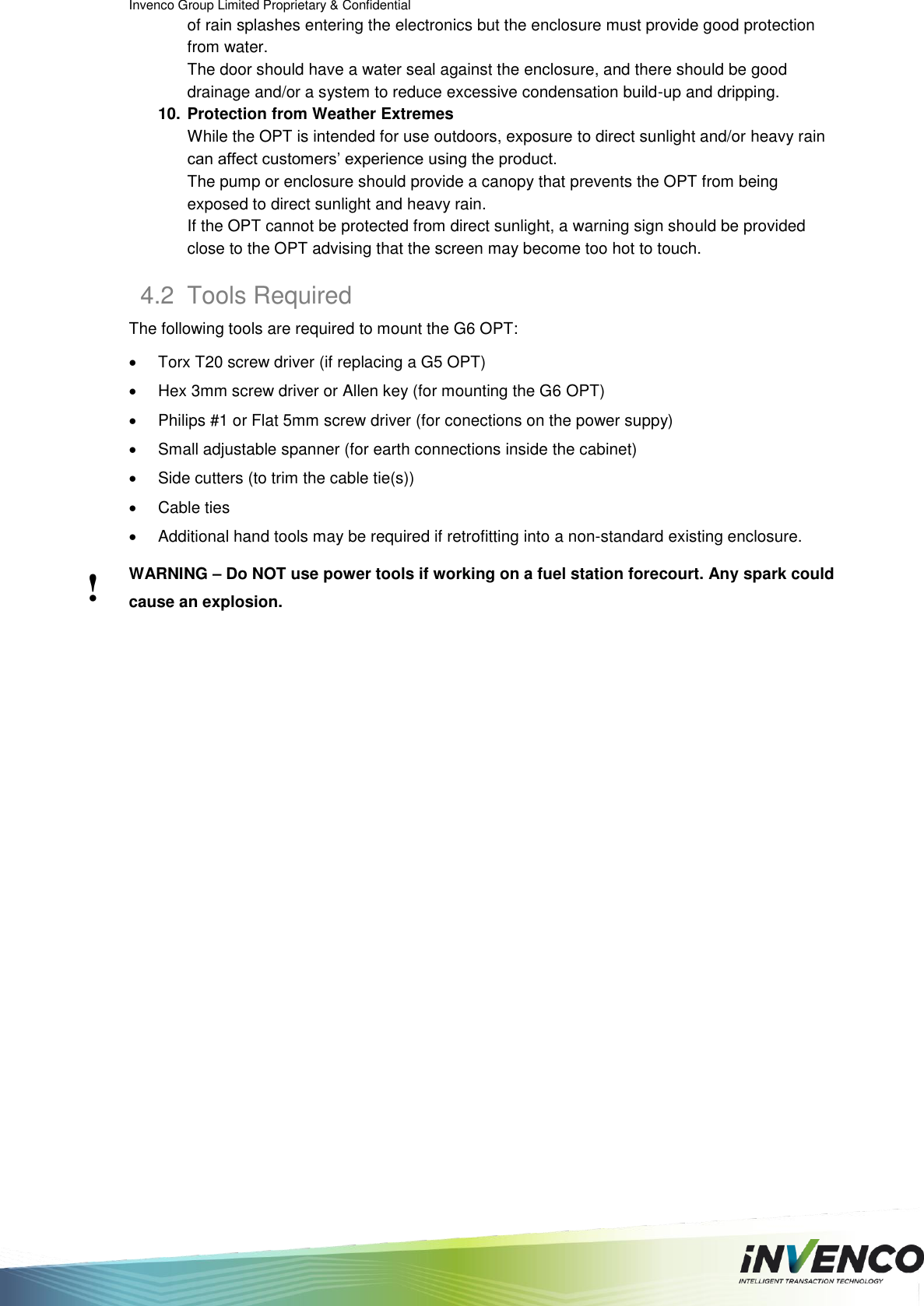

Invenco Group Limited Proprietary & Confidential  of rain splashes entering the electronics but the enclosure must provide good protection from water. The door should have a water seal against the enclosure, and there should be good drainage and/or a system to reduce excessive condensation build-up and dripping. 10. Protection from Weather Extremes While the OPT is intended for use outdoors, exposure to direct sunlight and/or heavy rain can affect customers’ experience using the product. The pump or enclosure should provide a canopy that prevents the OPT from being exposed to direct sunlight and heavy rain. If the OPT cannot be protected from direct sunlight, a warning sign should be provided close to the OPT advising that the screen may become too hot to touch. 4.2  Tools Required The following tools are required to mount the G6 OPT:   Torx T20 screw driver (if replacing a G5 OPT)   Hex 3mm screw driver or Allen key (for mounting the G6 OPT)   Philips #1 or Flat 5mm screw driver (for conections on the power suppy)   Small adjustable spanner (for earth connections inside the cabinet)   Side cutters (to trim the cable tie(s))   Cable ties   Additional hand tools may be required if retrofitting into a non-standard existing enclosure. WARNING – Do NOT use power tools if working on a fuel station forecourt. Any spark could cause an explosion.   !

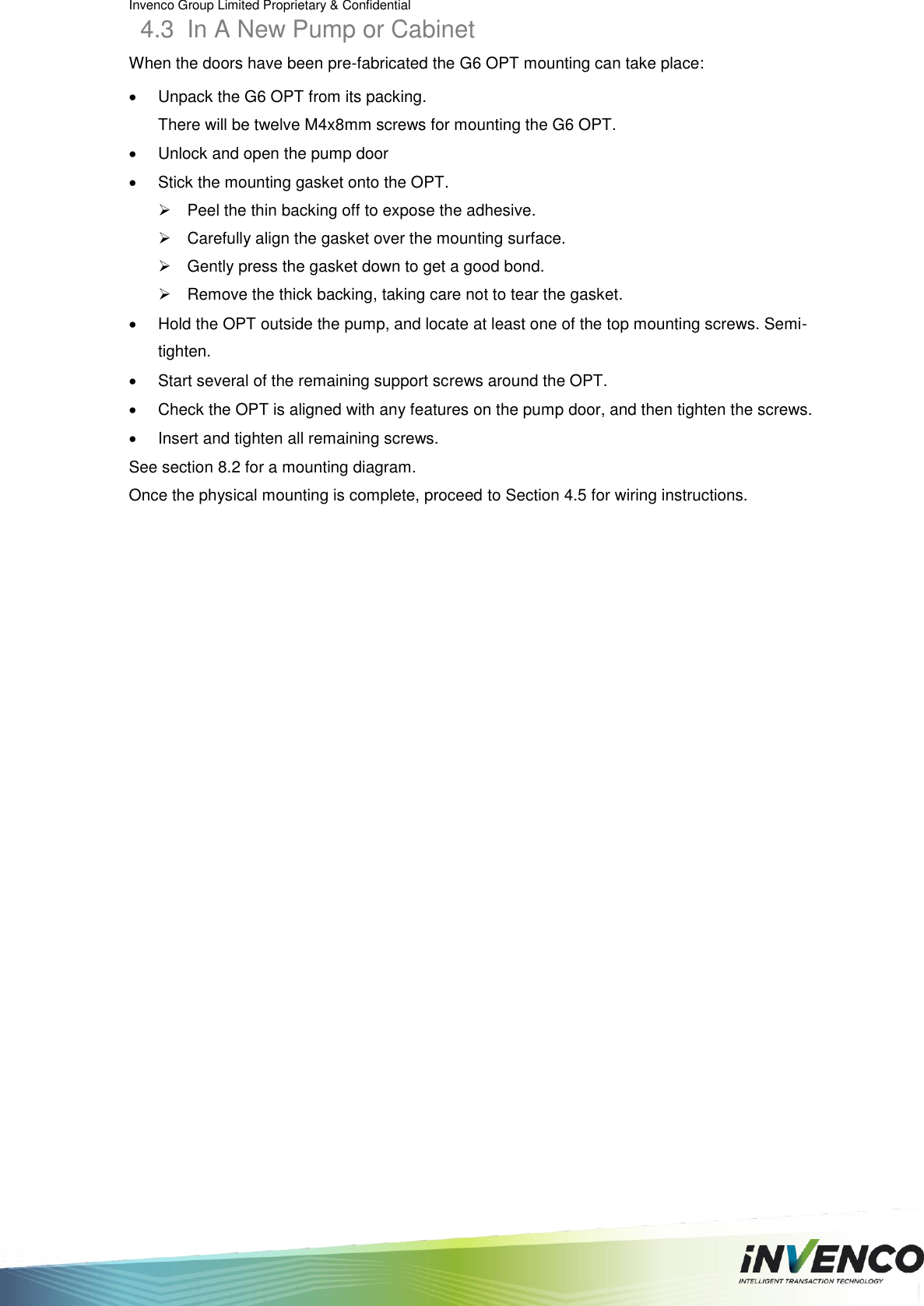

Invenco Group Limited Proprietary & Confidential  4.3  In A New Pump or Cabinet When the doors have been pre-fabricated the G6 OPT mounting can take place:   Unpack the G6 OPT from its packing. There will be twelve M4x8mm screws for mounting the G6 OPT.   Unlock and open the pump door    Stick the mounting gasket onto the OPT.   Peel the thin backing off to expose the adhesive.   Carefully align the gasket over the mounting surface.   Gently press the gasket down to get a good bond.   Remove the thick backing, taking care not to tear the gasket.   Hold the OPT outside the pump, and locate at least one of the top mounting screws. Semi-tighten.   Start several of the remaining support screws around the OPT.   Check the OPT is aligned with any features on the pump door, and then tighten the screws.   Insert and tighten all remaining screws. See section 8.2 for a mounting diagram. Once the physical mounting is complete, proceed to Section 4.5 for wiring instructions.

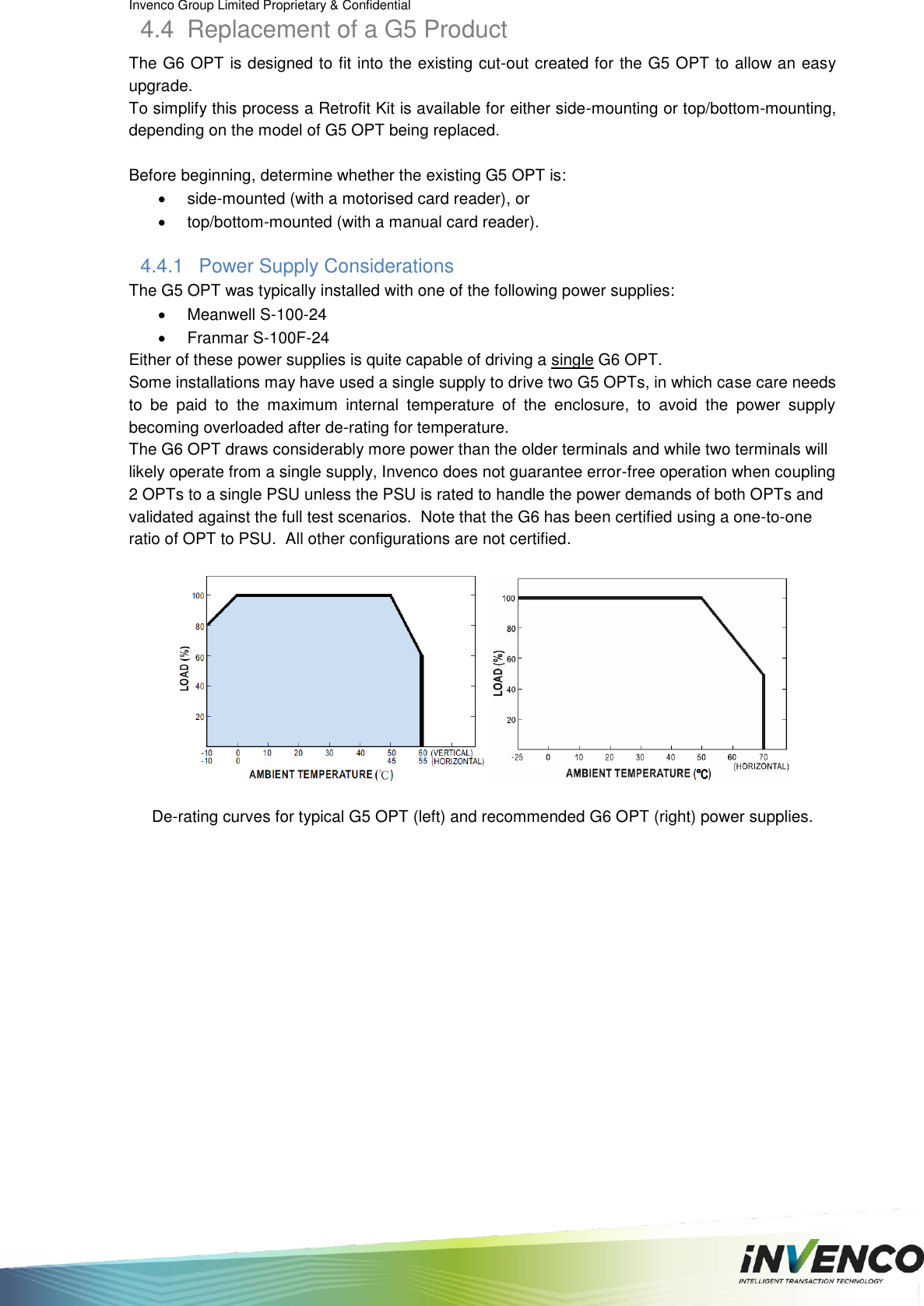

Invenco Group Limited Proprietary & Confidential  4.4  Replacement of a G5 Product The G6 OPT is designed to fit into the existing cut-out created for the G5 OPT to allow an easy upgrade.  To simplify this process a Retrofit Kit is available for either side-mounting or top/bottom-mounting, depending on the model of G5 OPT being replaced.  Before beginning, determine whether the existing G5 OPT is:   side-mounted (with a motorised card reader), or    top/bottom-mounted (with a manual card reader). 4.4.1  Power Supply Considerations The G5 OPT was typically installed with one of the following power supplies:   Meanwell S-100-24   Franmar S-100F-24 Either of these power supplies is quite capable of driving a single G6 OPT. Some installations may have used a single supply to drive two G5 OPTs, in which case care needs to  be  paid  to  the  maximum  internal  temperature  of  the  enclosure,  to  avoid  the  power  supply becoming overloaded after de-rating for temperature. The G6 OPT draws considerably more power than the older terminals and while two terminals will likely operate from a single supply, Invenco does not guarantee error-free operation when coupling 2 OPTs to a single PSU unless the PSU is rated to handle the power demands of both OPTs and validated against the full test scenarios.  Note that the G6 has been certified using a one-to-one ratio of OPT to PSU.  All other configurations are not certified.      De-rating curves for typical G5 OPT (left) and recommended G6 OPT (right) power supplies.

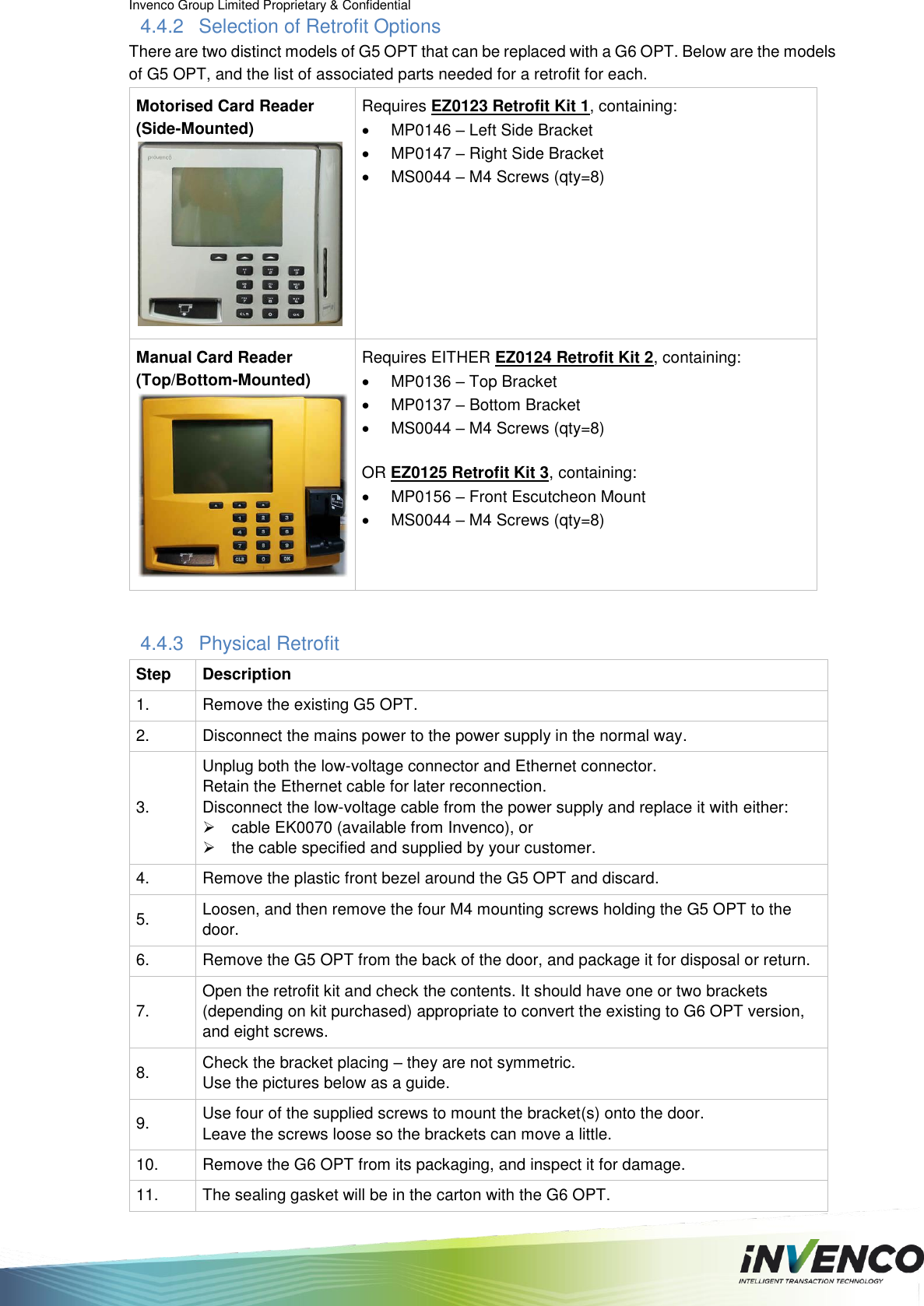

Invenco Group Limited Proprietary & Confidential  4.4.2  Selection of Retrofit Options There are two distinct models of G5 OPT that can be replaced with a G6 OPT. Below are the models of G5 OPT, and the list of associated parts needed for a retrofit for each. Motorised Card Reader (Side-Mounted) Requires EZ0123 Retrofit Kit 1, containing:   MP0146 – Left Side Bracket   MP0147 – Right Side Bracket   MS0044 – M4 Screws (qty=8) Manual Card Reader (Top/Bottom-Mounted) Requires EITHER EZ0124 Retrofit Kit 2, containing:   MP0136 – Top Bracket   MP0137 – Bottom Bracket   MS0044 – M4 Screws (qty=8)  OR EZ0125 Retrofit Kit 3, containing:  MP0156 – Front Escutcheon Mount   MS0044 – M4 Screws (qty=8)  4.4.3  Physical Retrofit Step Description 1. Remove the existing G5 OPT. 2. Disconnect the mains power to the power supply in the normal way. 3. Unplug both the low-voltage connector and Ethernet connector.  Retain the Ethernet cable for later reconnection. Disconnect the low-voltage cable from the power supply and replace it with either:   cable EK0070 (available from Invenco), or   the cable specified and supplied by your customer. 4. Remove the plastic front bezel around the G5 OPT and discard.  5. Loosen, and then remove the four M4 mounting screws holding the G5 OPT to the door. 6. Remove the G5 OPT from the back of the door, and package it for disposal or return. 7. Open the retrofit kit and check the contents. It should have one or two brackets (depending on kit purchased) appropriate to convert the existing to G6 OPT version, and eight screws. 8. Check the bracket placing – they are not symmetric.  Use the pictures below as a guide. 9. Use four of the supplied screws to mount the bracket(s) onto the door.  Leave the screws loose so the brackets can move a little. 10. Remove the G6 OPT from its packaging, and inspect it for damage. 11. The sealing gasket will be in the carton with the G6 OPT.

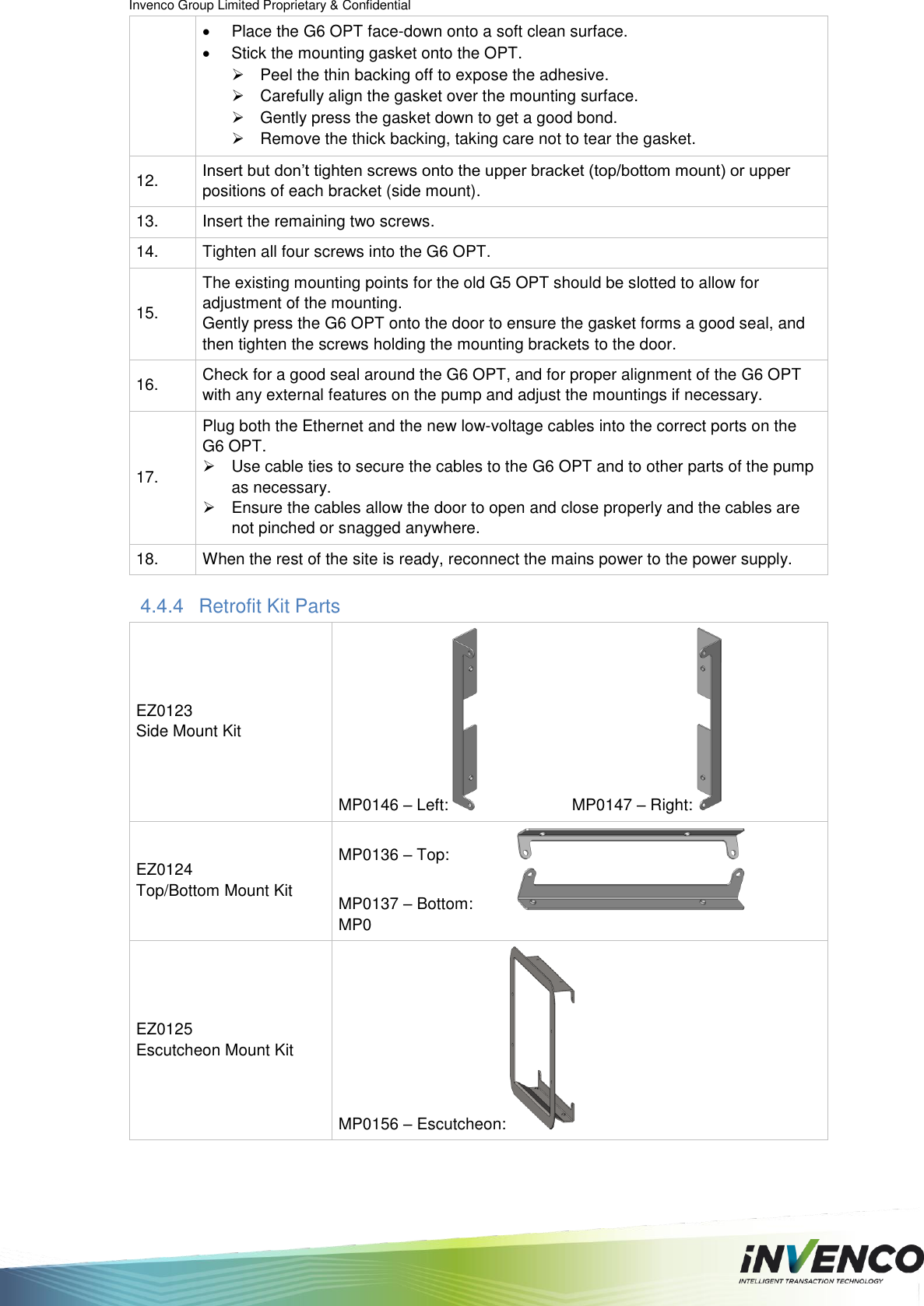

Invenco Group Limited Proprietary & Confidential   Place the G6 OPT face-down onto a soft clean surface.   Stick the mounting gasket onto the OPT.   Peel the thin backing off to expose the adhesive.   Carefully align the gasket over the mounting surface.   Gently press the gasket down to get a good bond.   Remove the thick backing, taking care not to tear the gasket. 12. Insert but don’t tighten screws onto the upper bracket (top/bottom mount) or upper positions of each bracket (side mount). 13. Insert the remaining two screws. 14. Tighten all four screws into the G6 OPT. 15. The existing mounting points for the old G5 OPT should be slotted to allow for adjustment of the mounting.  Gently press the G6 OPT onto the door to ensure the gasket forms a good seal, and then tighten the screws holding the mounting brackets to the door. 16. Check for a good seal around the G6 OPT, and for proper alignment of the G6 OPT with any external features on the pump and adjust the mountings if necessary. 17. Plug both the Ethernet and the new low-voltage cables into the correct ports on the  G6 OPT.    Use cable ties to secure the cables to the G6 OPT and to other parts of the pump as necessary.    Ensure the cables allow the door to open and close properly and the cables are not pinched or snagged anywhere. 18. When the rest of the site is ready, reconnect the mains power to the power supply. 4.4.4  Retrofit Kit Parts EZ0123 Side Mount Kit MP0146 – Left:     MP0147 – Right:  EZ0124 Top/Bottom Mount Kit MP0136 – Top:    MP0137 – Bottom:   MP0 EZ0125 Escutcheon Mount Kit MP0156 – Escutcheon:

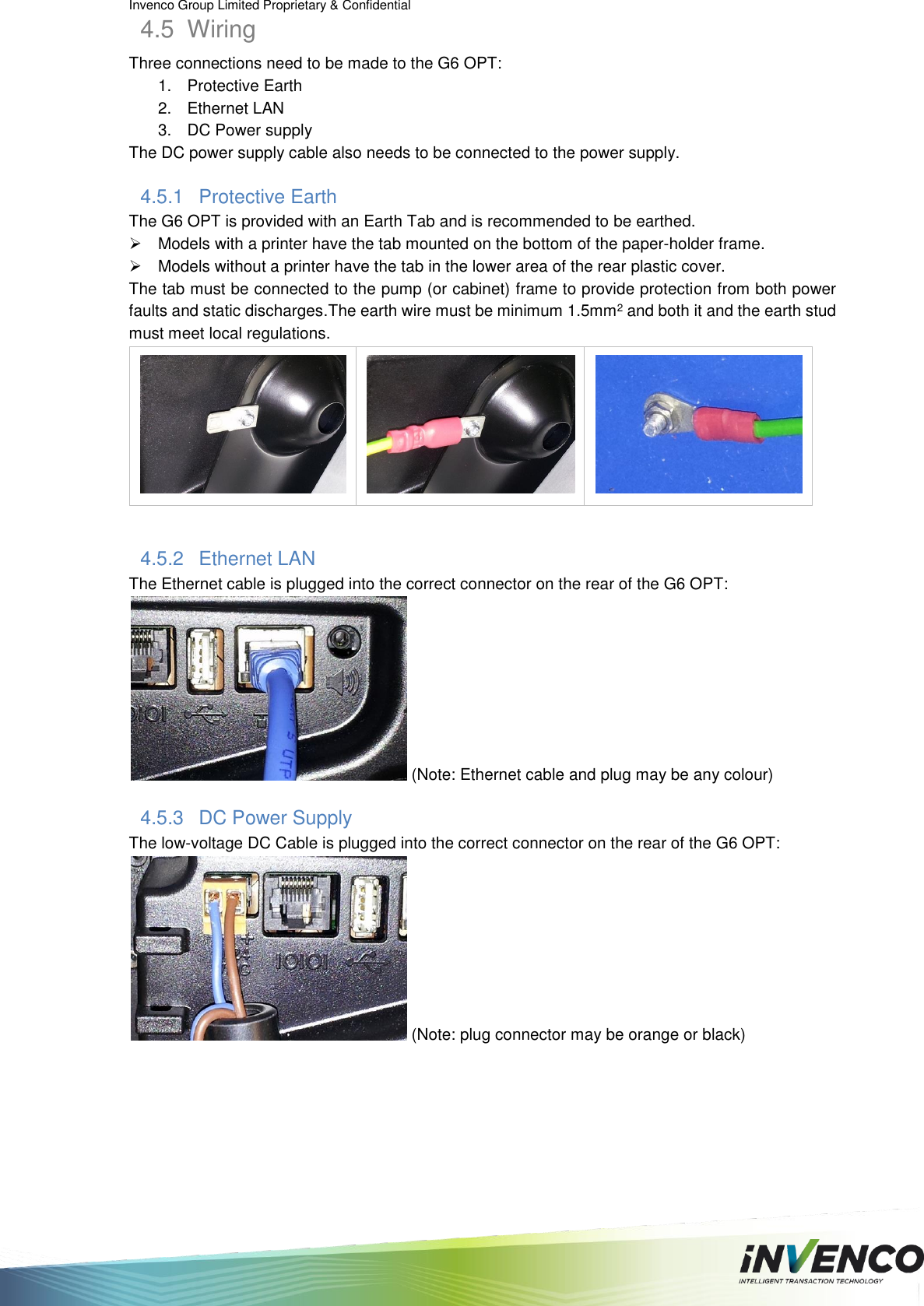

Invenco Group Limited Proprietary & Confidential  4.5  Wiring Three connections need to be made to the G6 OPT: 1.  Protective Earth 2.  Ethernet LAN 3.  DC Power supply The DC power supply cable also needs to be connected to the power supply. 4.5.1  Protective Earth The G6 OPT is provided with an Earth Tab and is recommended to be earthed.   Models with a printer have the tab mounted on the bottom of the paper-holder frame.   Models without a printer have the tab in the lower area of the rear plastic cover. The tab must be connected to the pump (or cabinet) frame to provide protection from both power faults and static discharges.The earth wire must be minimum 1.5mm2 and both it and the earth stud must meet local regulations.     4.5.2  Ethernet LAN The Ethernet cable is plugged into the correct connector on the rear of the G6 OPT:  (Note: Ethernet cable and plug may be any colour) 4.5.3  DC Power Supply The low-voltage DC Cable is plugged into the correct connector on the rear of the G6 OPT:  (Note: plug connector may be orange or black)
Invenco Group Limited Proprietary & Confidential  4.5.4  Main Power Supply Wiring The other end of the low-voltage DC Cable is connected into the AC-DC power supply as below:   Note: If retrofitting in place of a G5 OPT, the power supply may be able to be re-used. In this case the old 24V DC cable that powered the G5 OPT must be disconnected and replaced with the new cable for the G6 OPT.  WARNING – Once all the wiring to the power supply terminals has been completed, install the terminal cover to prevent accidental contact with the live mains connections. 4.5.5  Ports All ports on the rear of the G6 OPT are standard, with the exception of the Serial Port, which is wired as follows: RJ45 Pin # RS232 Signal Direction Pin Numbering 2 RxD OPT ← Eqpt  3 TxD OPT → Eqpt 5 GND OPT ↔ Eqpt 7 RTS OPT → Eqpt 8 CTS OPT ← Eqpt  The Speaker port is a standard stereo 3.5mm jack, however both Left and Right channels are driven from a single Mono source, so both Mono and Stereo plugs will work correctly. 4.5.6  Wiring Completion When all the cables have been installed, use cable ties to provide strain relief. The rear of the G6 OPT has two plastic loops close to the connectors that are intended to assist with this. Also ensure that all cables are tidy and cannot become snagged or pinched when the door of the cabinet is opened and closed. WARNING – Local regulations may also require that the installation is electrically tested and certified BEFORE switch-on.     ! !

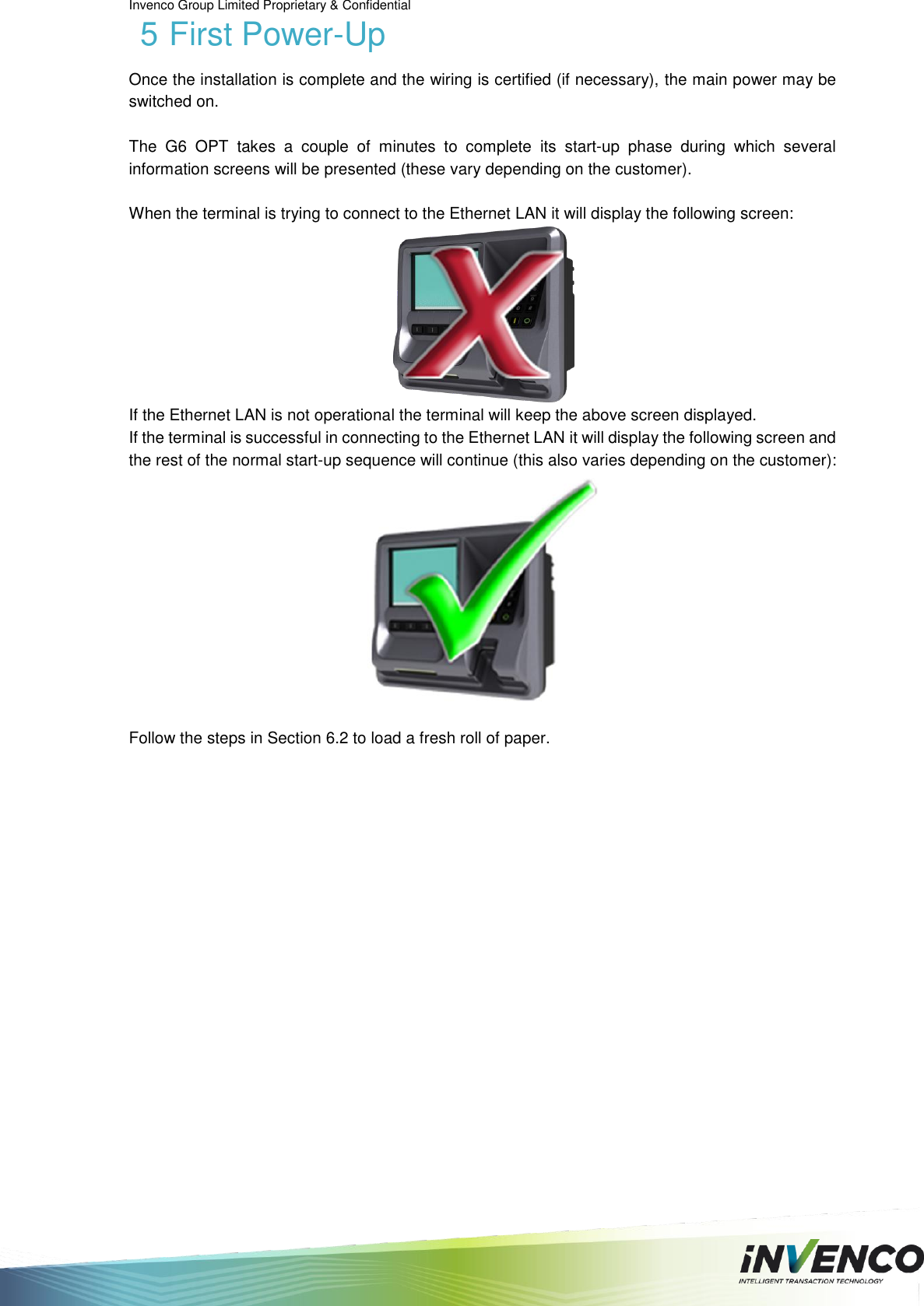

Invenco Group Limited Proprietary & Confidential  5 First Power-Up Once the installation is complete and the wiring is certified (if necessary), the main power may be switched on.  The  G6  OPT  takes  a  couple  of  minutes  to  complete  its  start-up  phase  during  which  several information screens will be presented (these vary depending on the customer).  When the terminal is trying to connect to the Ethernet LAN it will display the following screen:  If the Ethernet LAN is not operational the terminal will keep the above screen displayed. If the terminal is successful in connecting to the Ethernet LAN it will display the following screen and the rest of the normal start-up sequence will continue (this also varies depending on the customer):   Follow the steps in Section 6.2 to load a fresh roll of paper.

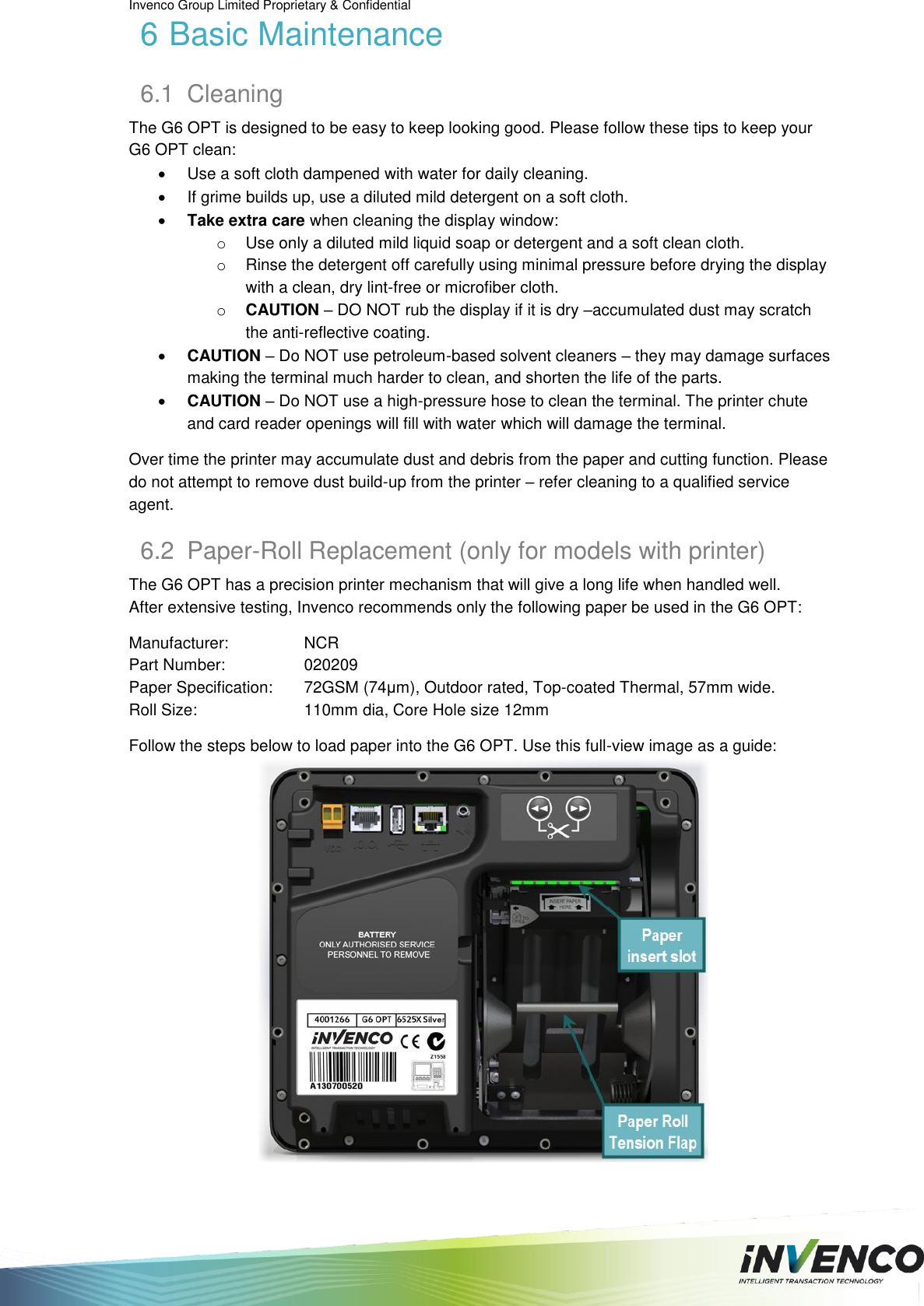

Invenco Group Limited Proprietary & Confidential  6 Basic Maintenance 6.1  Cleaning The G6 OPT is designed to be easy to keep looking good. Please follow these tips to keep your G6 OPT clean:   Use a soft cloth dampened with water for daily cleaning.   If grime builds up, use a diluted mild detergent on a soft cloth.  Take extra care when cleaning the display window:  o  Use only a diluted mild liquid soap or detergent and a soft clean cloth. o  Rinse the detergent off carefully using minimal pressure before drying the display with a clean, dry lint-free or microfiber cloth. o CAUTION – DO NOT rub the display if it is dry –accumulated dust may scratch the anti-reflective coating.  CAUTION – Do NOT use petroleum-based solvent cleaners – they may damage surfaces making the terminal much harder to clean, and shorten the life of the parts.  CAUTION – Do NOT use a high-pressure hose to clean the terminal. The printer chute and card reader openings will fill with water which will damage the terminal.  Over time the printer may accumulate dust and debris from the paper and cutting function. Please do not attempt to remove dust build-up from the printer – refer cleaning to a qualified service agent. 6.2  Paper-Roll Replacement (only for models with printer) The G6 OPT has a precision printer mechanism that will give a long life when handled well. After extensive testing, Invenco recommends only the following paper be used in the G6 OPT:  Manufacturer:    NCR Part Number:    020209 Paper Specification:   72GSM (74μm), Outdoor rated, Top-coated Thermal, 57mm wide. Roll Size:    110mm dia, Core Hole size 12mm  Follow the steps below to load paper into the G6 OPT. Use this full-view image as a guide:

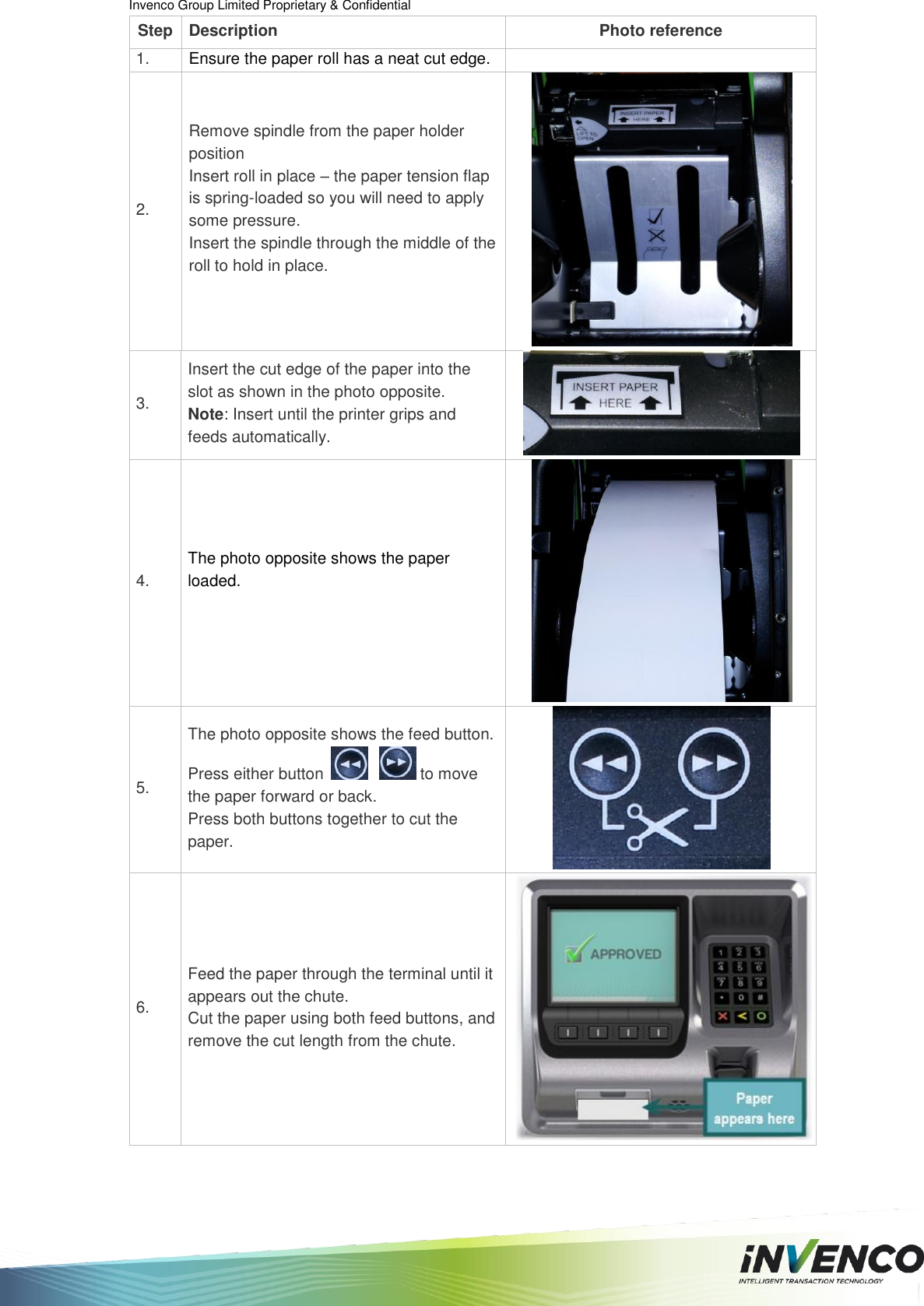

Invenco Group Limited Proprietary & Confidential  Step Description Photo reference 1. Ensure the paper roll has a neat cut edge.  2. Remove spindle from the paper holder position Insert roll in place – the paper tension flap is spring-loaded so you will need to apply some pressure. Insert the spindle through the middle of the roll to hold in place.   3. Insert the cut edge of the paper into the slot as shown in the photo opposite. Note: Insert until the printer grips and feeds automatically.  4. The photo opposite shows the paper loaded.   5. The photo opposite shows the feed button. Press either button      to move the paper forward or back. Press both buttons together to cut the paper.    6. Feed the paper through the terminal until it appears out the chute. Cut the paper using both feed buttons, and remove the cut length from the chute.

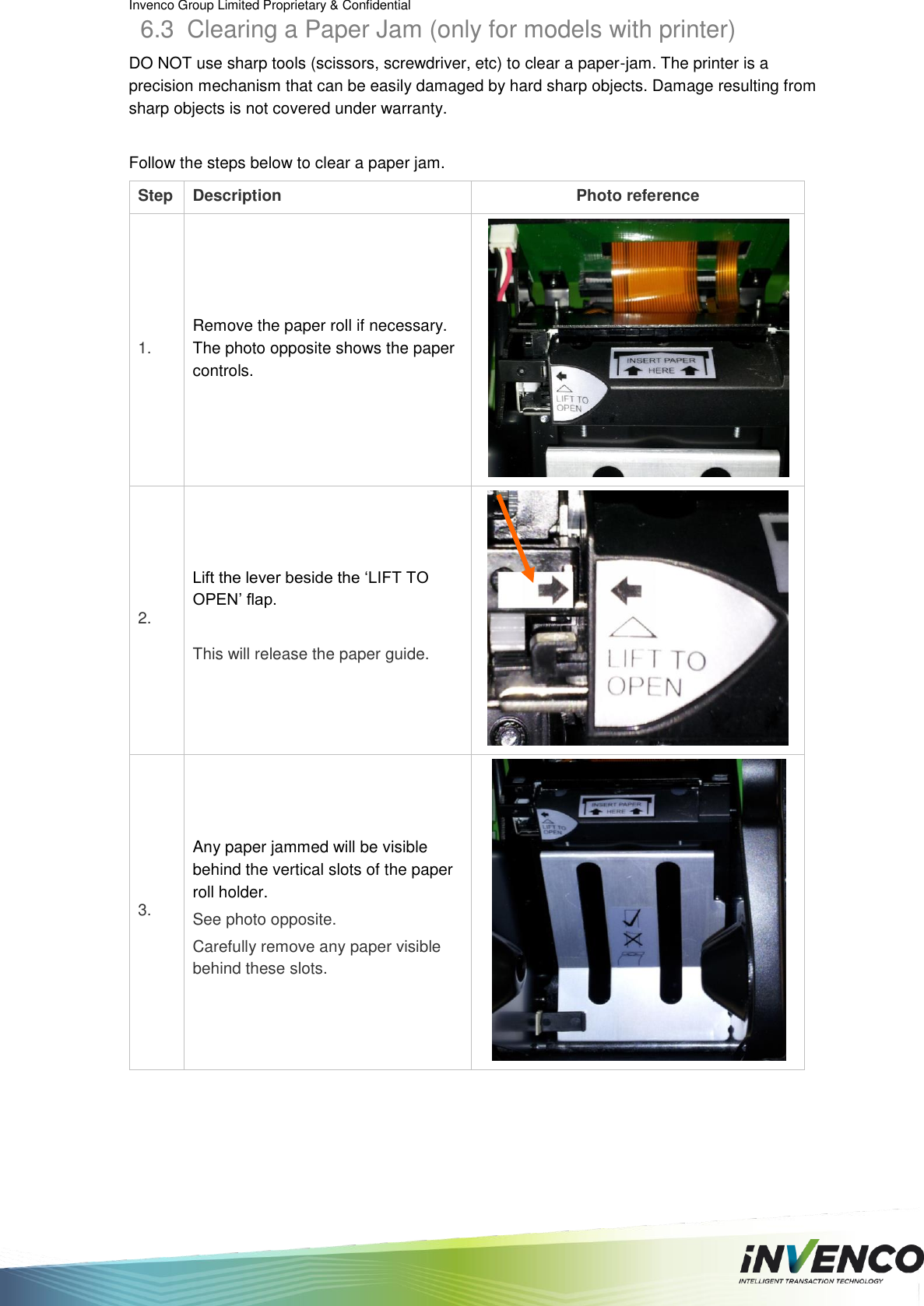

Invenco Group Limited Proprietary & Confidential  6.3  Clearing a Paper Jam (only for models with printer) DO NOT use sharp tools (scissors, screwdriver, etc) to clear a paper-jam. The printer is a precision mechanism that can be easily damaged by hard sharp objects. Damage resulting from sharp objects is not covered under warranty.  Follow the steps below to clear a paper jam. Step Description Photo reference 1. Remove the paper roll if necessary. The photo opposite shows the paper controls.  2. Lift the lever beside the ‘LIFT TO OPEN’ flap.  This will release the paper guide.  3. Any paper jammed will be visible behind the vertical slots of the paper roll holder. See photo opposite. Carefully remove any paper visible behind these slots.

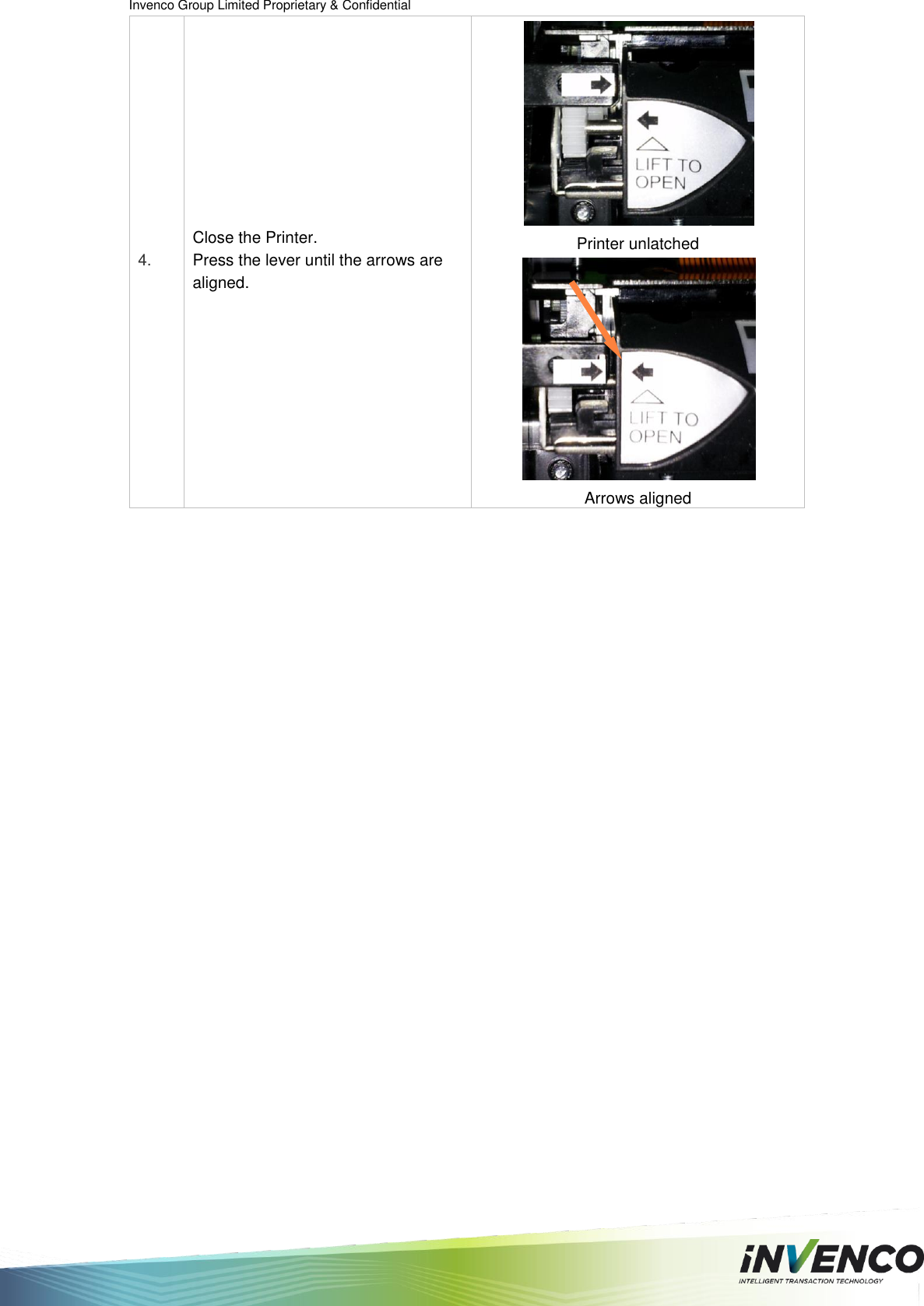

Invenco Group Limited Proprietary & Confidential  4. Close the Printer. Press the lever until the arrows are aligned.   Printer unlatched  Arrows aligned

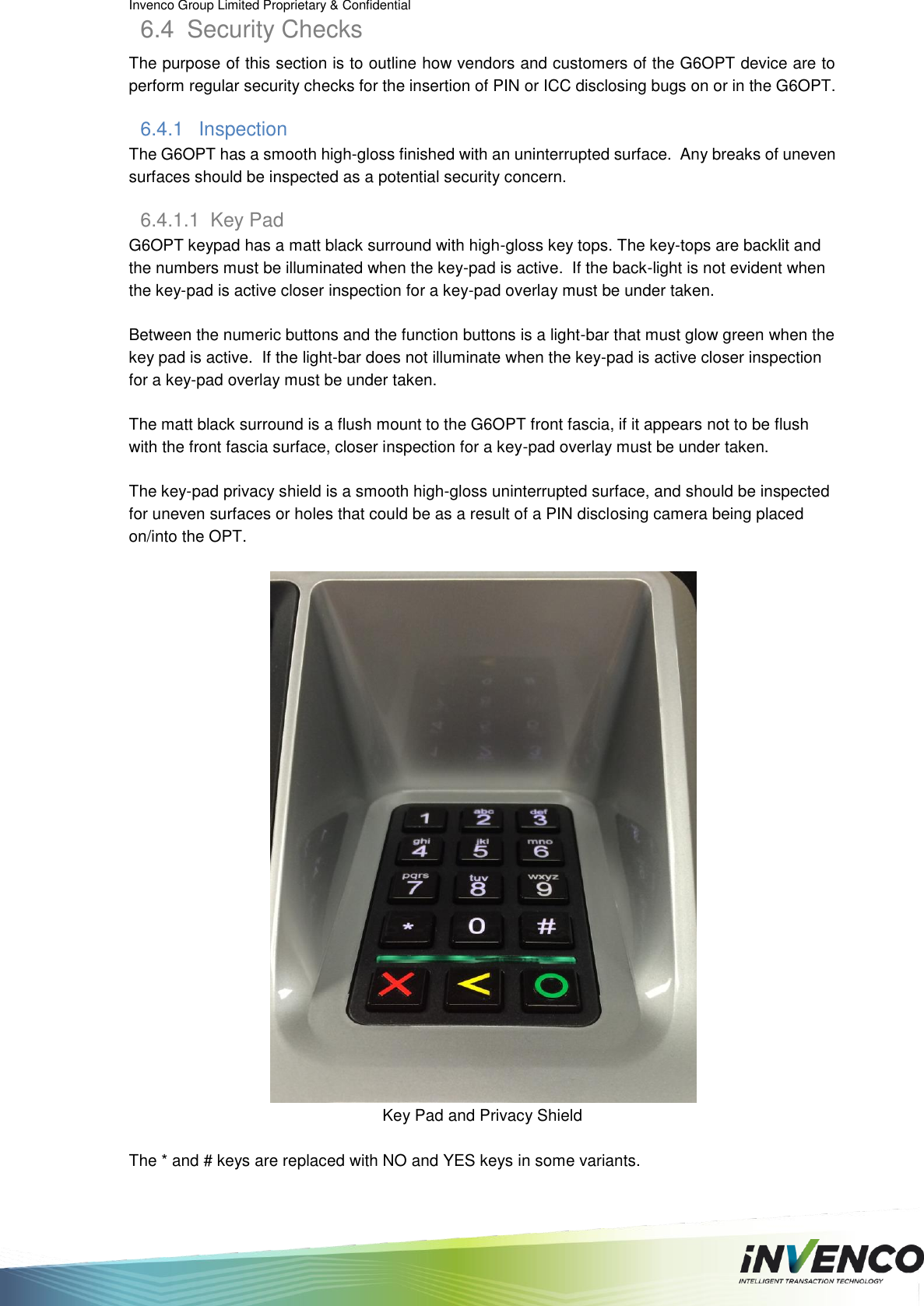

Invenco Group Limited Proprietary & Confidential  6.4  Security Checks The purpose of this section is to outline how vendors and customers of the G6OPT device are to perform regular security checks for the insertion of PIN or ICC disclosing bugs on or in the G6OPT. 6.4.1  Inspection The G6OPT has a smooth high-gloss finished with an uninterrupted surface.  Any breaks of uneven surfaces should be inspected as a potential security concern. 6.4.1.1  Key Pad  G6OPT keypad has a matt black surround with high-gloss key tops. The key-tops are backlit and the numbers must be illuminated when the key-pad is active.  If the back-light is not evident when the key-pad is active closer inspection for a key-pad overlay must be under taken.  Between the numeric buttons and the function buttons is a light-bar that must glow green when the key pad is active.  If the light-bar does not illuminate when the key-pad is active closer inspection for a key-pad overlay must be under taken.  The matt black surround is a flush mount to the G6OPT front fascia, if it appears not to be flush with the front fascia surface, closer inspection for a key-pad overlay must be under taken.  The key-pad privacy shield is a smooth high-gloss uninterrupted surface, and should be inspected for uneven surfaces or holes that could be as a result of a PIN disclosing camera being placed on/into the OPT.   Key Pad and Privacy Shield  The * and # keys are replaced with NO and YES keys in some variants.

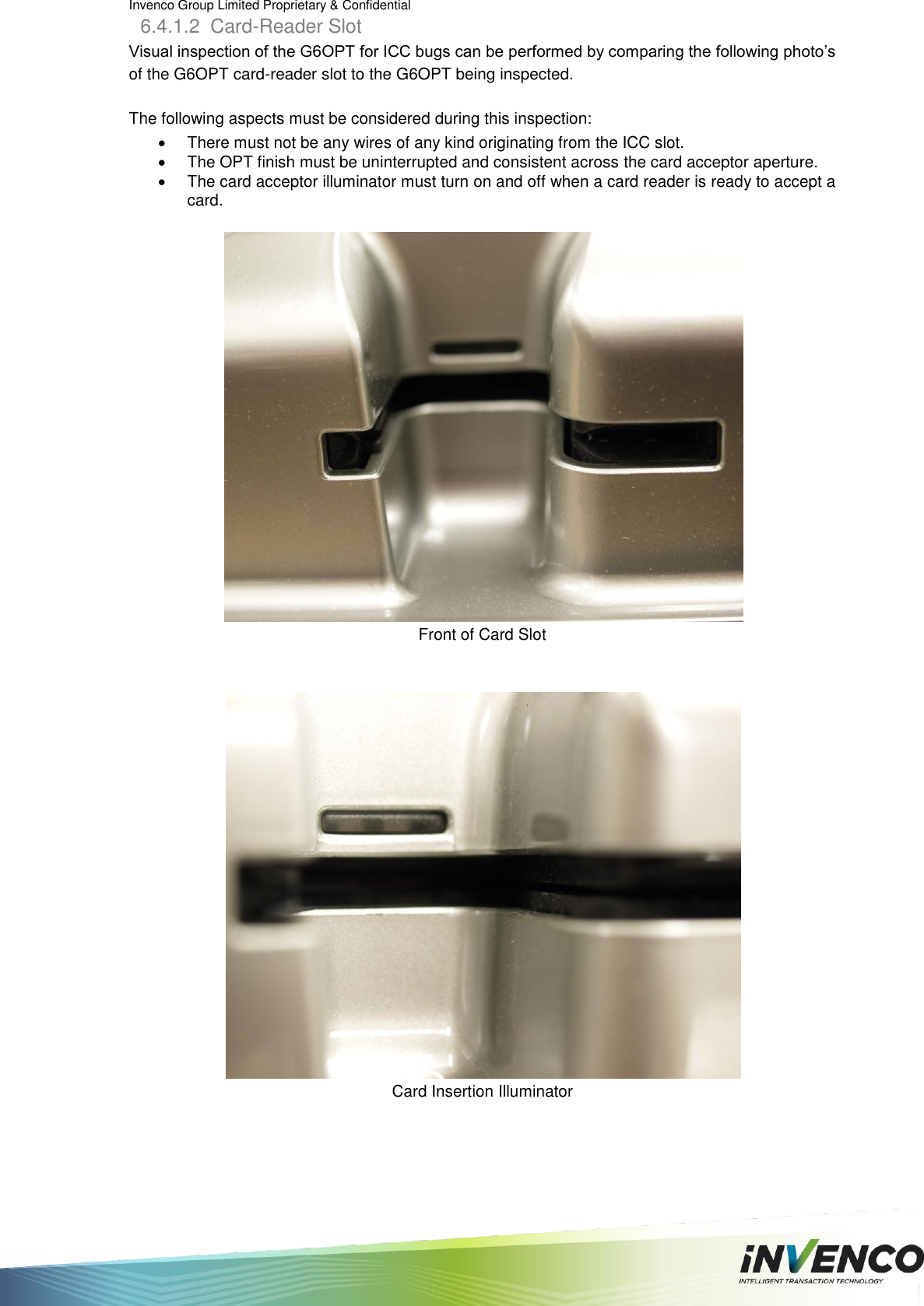

Invenco Group Limited Proprietary & Confidential  6.4.1.2  Card-Reader Slot Visual inspection of the G6OPT for ICC bugs can be performed by comparing the following photo’s of the G6OPT card-reader slot to the G6OPT being inspected.  The following aspects must be considered during this inspection:   There must not be any wires of any kind originating from the ICC slot.    The OPT finish must be uninterrupted and consistent across the card acceptor aperture.   The card acceptor illuminator must turn on and off when a card reader is ready to accept a card.    Front of Card Slot    Card Insertion Illuminator

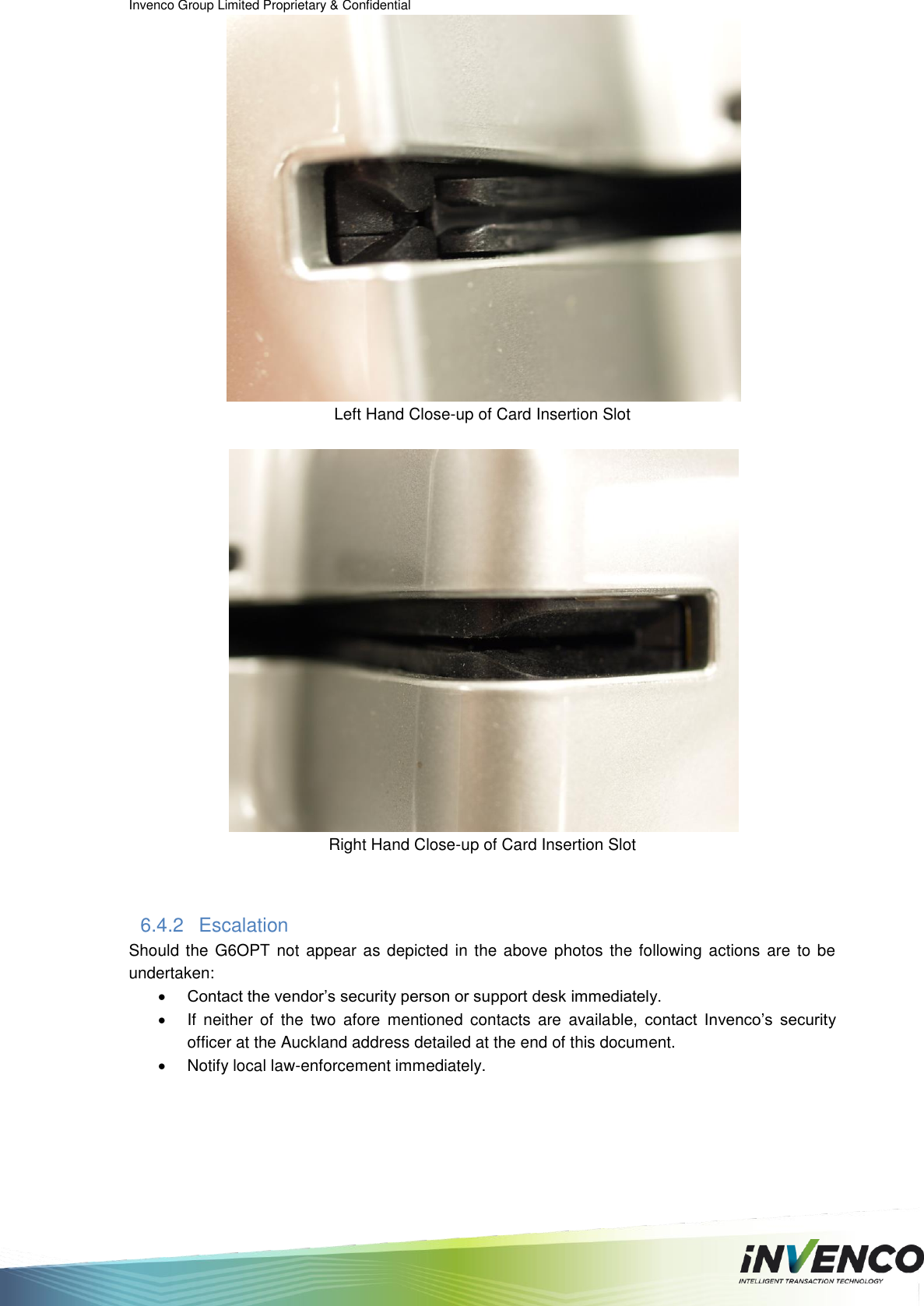

Invenco Group Limited Proprietary & Confidential   Left Hand Close-up of Card Insertion Slot   Right Hand Close-up of Card Insertion Slot  6.4.2  Escalation Should the  G6OPT not  appear  as depicted in the above photos the following actions are  to be undertaken:  Contact the vendor’s security person or support desk immediately.   If  neither  of  the  two  afore  mentioned  contacts  are  available,  contact  Invenco’s  security officer at the Auckland address detailed at the end of this document.   Notify local law-enforcement immediately.

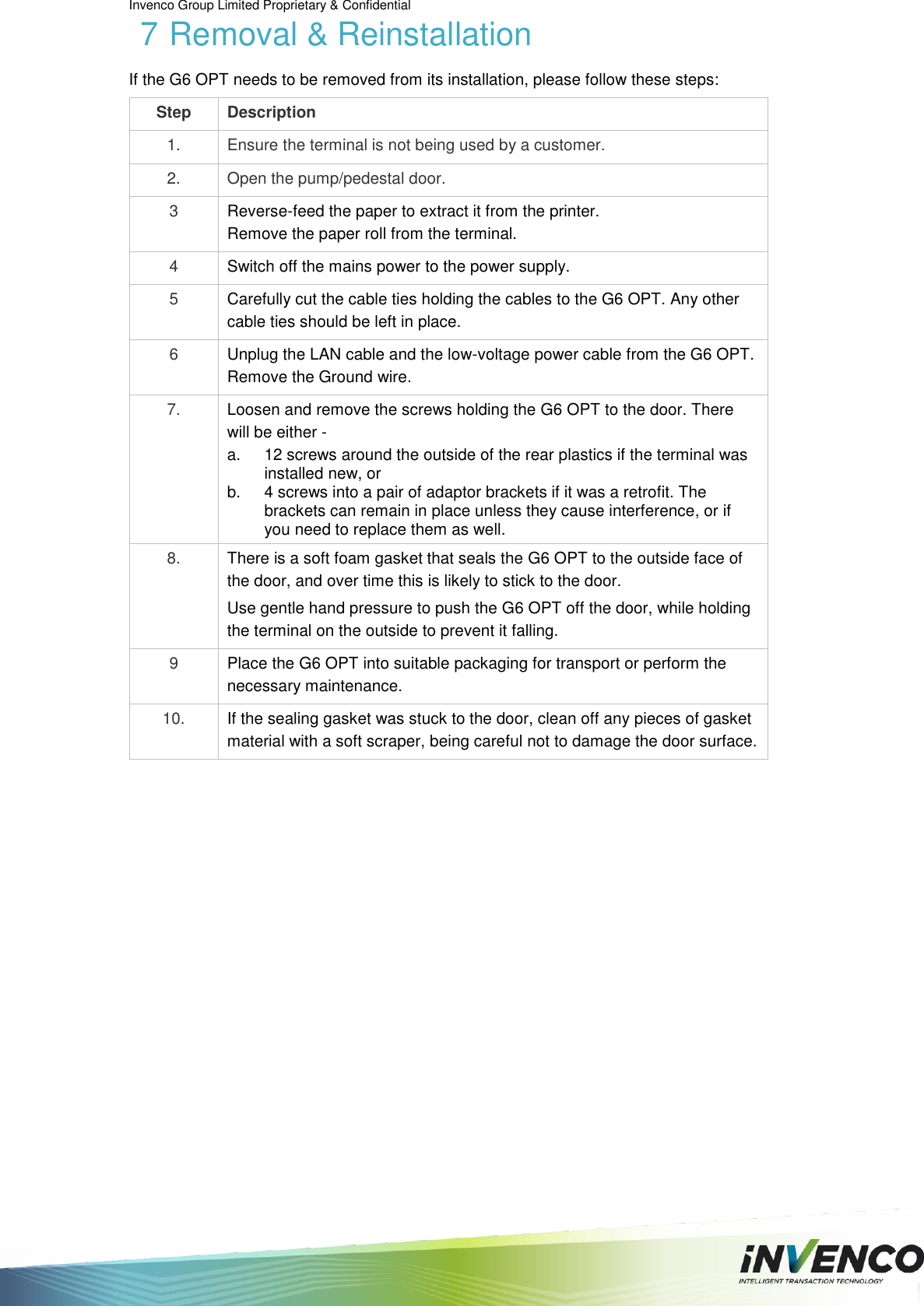

Invenco Group Limited Proprietary & Confidential  7 Removal & Reinstallation If the G6 OPT needs to be removed from its installation, please follow these steps: Step Description 1. Ensure the terminal is not being used by a customer. 2. Open the pump/pedestal door. 3 Reverse-feed the paper to extract it from the printer.  Remove the paper roll from the terminal. 4 Switch off the mains power to the power supply. 5 Carefully cut the cable ties holding the cables to the G6 OPT. Any other cable ties should be left in place. 6 Unplug the LAN cable and the low-voltage power cable from the G6 OPT. Remove the Ground wire. 7. Loosen and remove the screws holding the G6 OPT to the door. There will be either - a.  12 screws around the outside of the rear plastics if the terminal was installed new, or b.  4 screws into a pair of adaptor brackets if it was a retrofit. The brackets can remain in place unless they cause interference, or if you need to replace them as well. 8. There is a soft foam gasket that seals the G6 OPT to the outside face of the door, and over time this is likely to stick to the door.  Use gentle hand pressure to push the G6 OPT off the door, while holding the terminal on the outside to prevent it falling. 9 Place the G6 OPT into suitable packaging for transport or perform the necessary maintenance. 10. If the sealing gasket was stuck to the door, clean off any pieces of gasket material with a soft scraper, being careful not to damage the door surface.

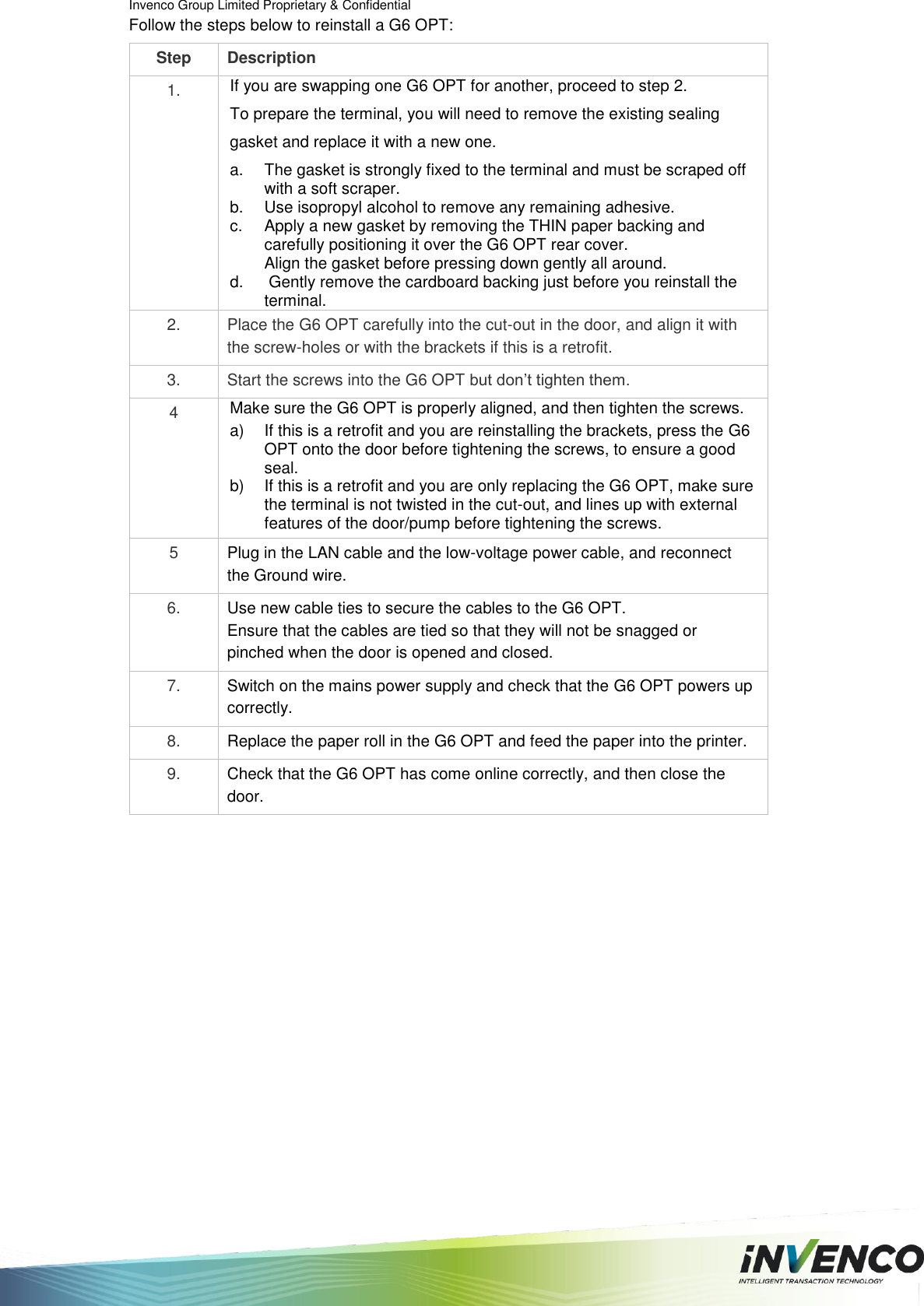

Invenco Group Limited Proprietary & Confidential  Follow the steps below to reinstall a G6 OPT: Step Description 1. If you are swapping one G6 OPT for another, proceed to step 2. To prepare the terminal, you will need to remove the existing sealing gasket and replace it with a new one.  a.  The gasket is strongly fixed to the terminal and must be scraped off with a soft scraper. b.  Use isopropyl alcohol to remove any remaining adhesive. c.  Apply a new gasket by removing the THIN paper backing and carefully positioning it over the G6 OPT rear cover.  Align the gasket before pressing down gently all around. d.   Gently remove the cardboard backing just before you reinstall the terminal. 2. Place the G6 OPT carefully into the cut-out in the door, and align it with the screw-holes or with the brackets if this is a retrofit. 3. Start the screws into the G6 OPT but don’t tighten them. 4 Make sure the G6 OPT is properly aligned, and then tighten the screws. a)  If this is a retrofit and you are reinstalling the brackets, press the G6 OPT onto the door before tightening the screws, to ensure a good seal. b)  If this is a retrofit and you are only replacing the G6 OPT, make sure the terminal is not twisted in the cut-out, and lines up with external features of the door/pump before tightening the screws. 5 Plug in the LAN cable and the low-voltage power cable, and reconnect the Ground wire. 6. Use new cable ties to secure the cables to the G6 OPT.  Ensure that the cables are tied so that they will not be snagged or pinched when the door is opened and closed. 7. Switch on the mains power supply and check that the G6 OPT powers up correctly. 8. Replace the paper roll in the G6 OPT and feed the paper into the printer. 9. Check that the G6 OPT has come online correctly, and then close the door.

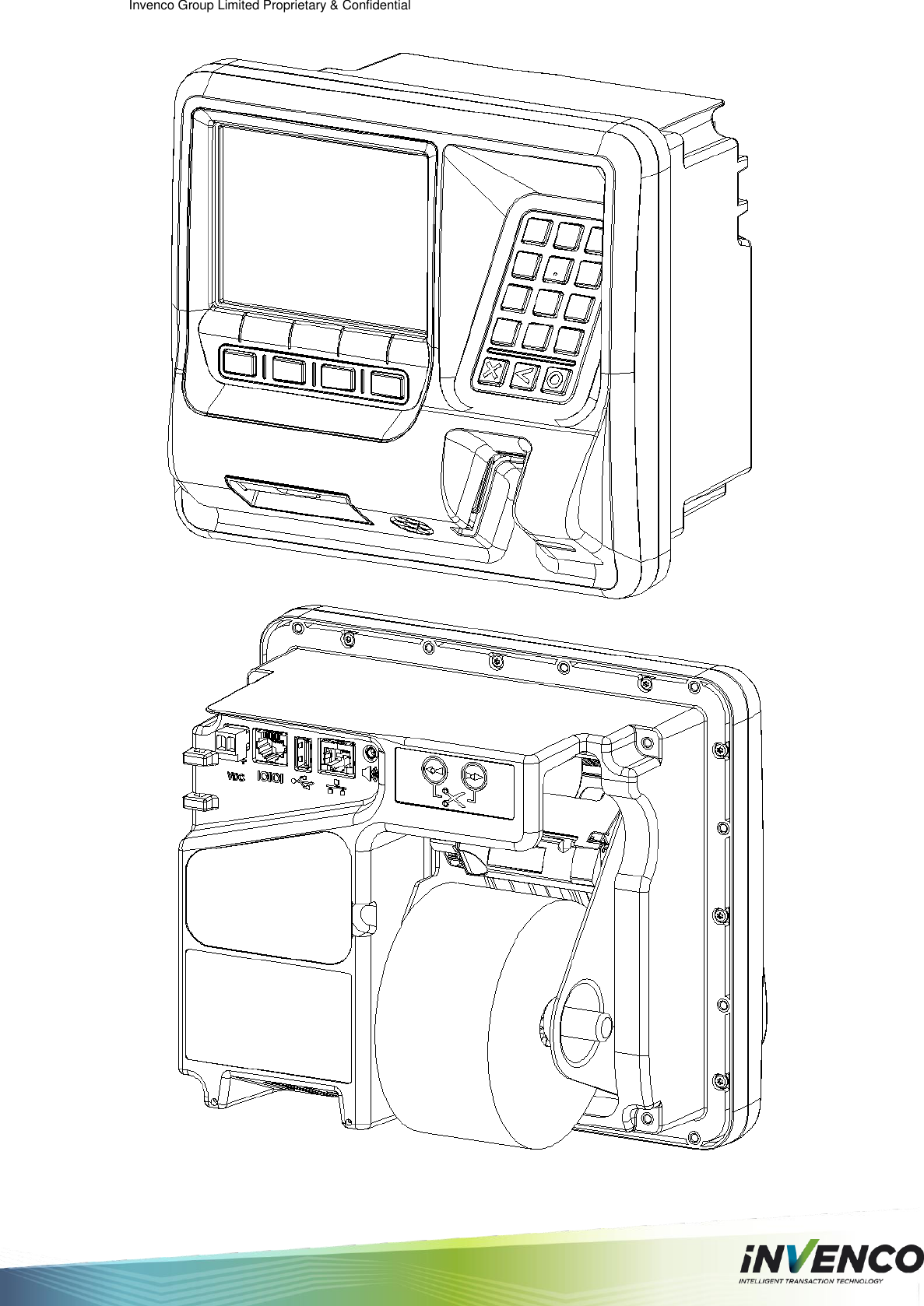

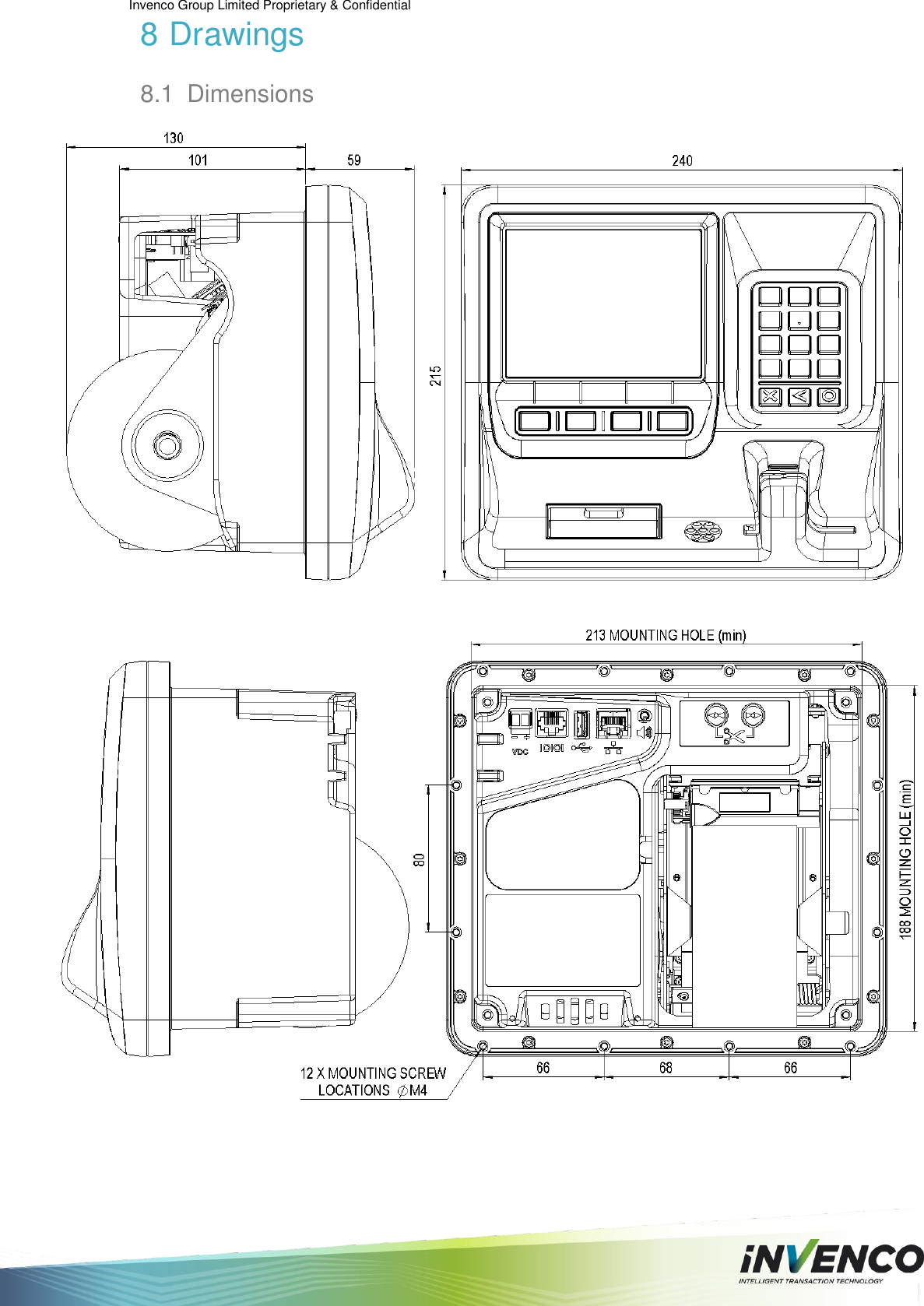

Invenco Group Limited Proprietary & Confidential  8 Drawings 8.1  Dimensions
Invenco Group Limited Proprietary & Confidential

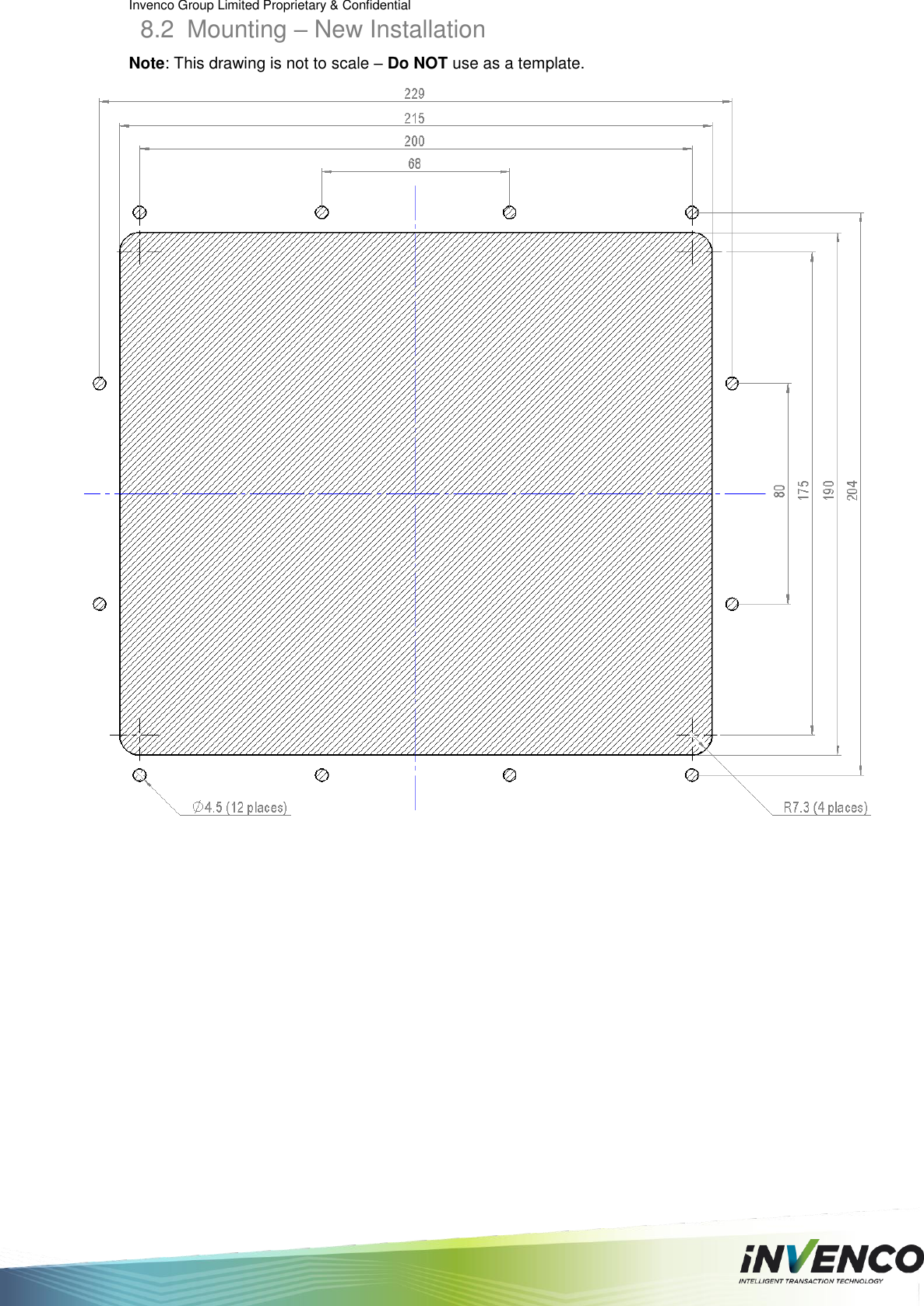

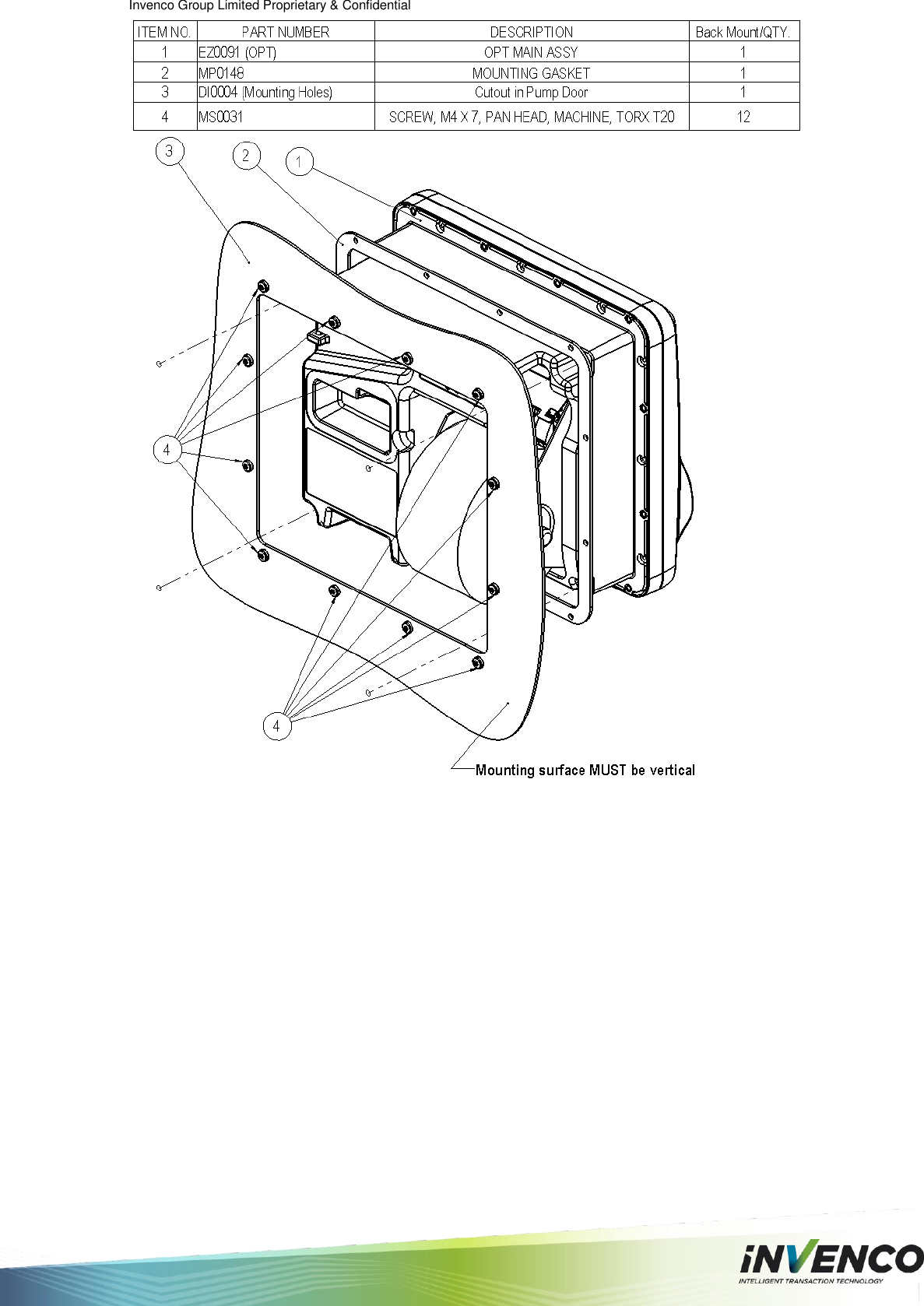

Invenco Group Limited Proprietary & Confidential  8.2  Mounting – New Installation Note: This drawing is not to scale – Do NOT use as a template.
Invenco Group Limited Proprietary & Confidential

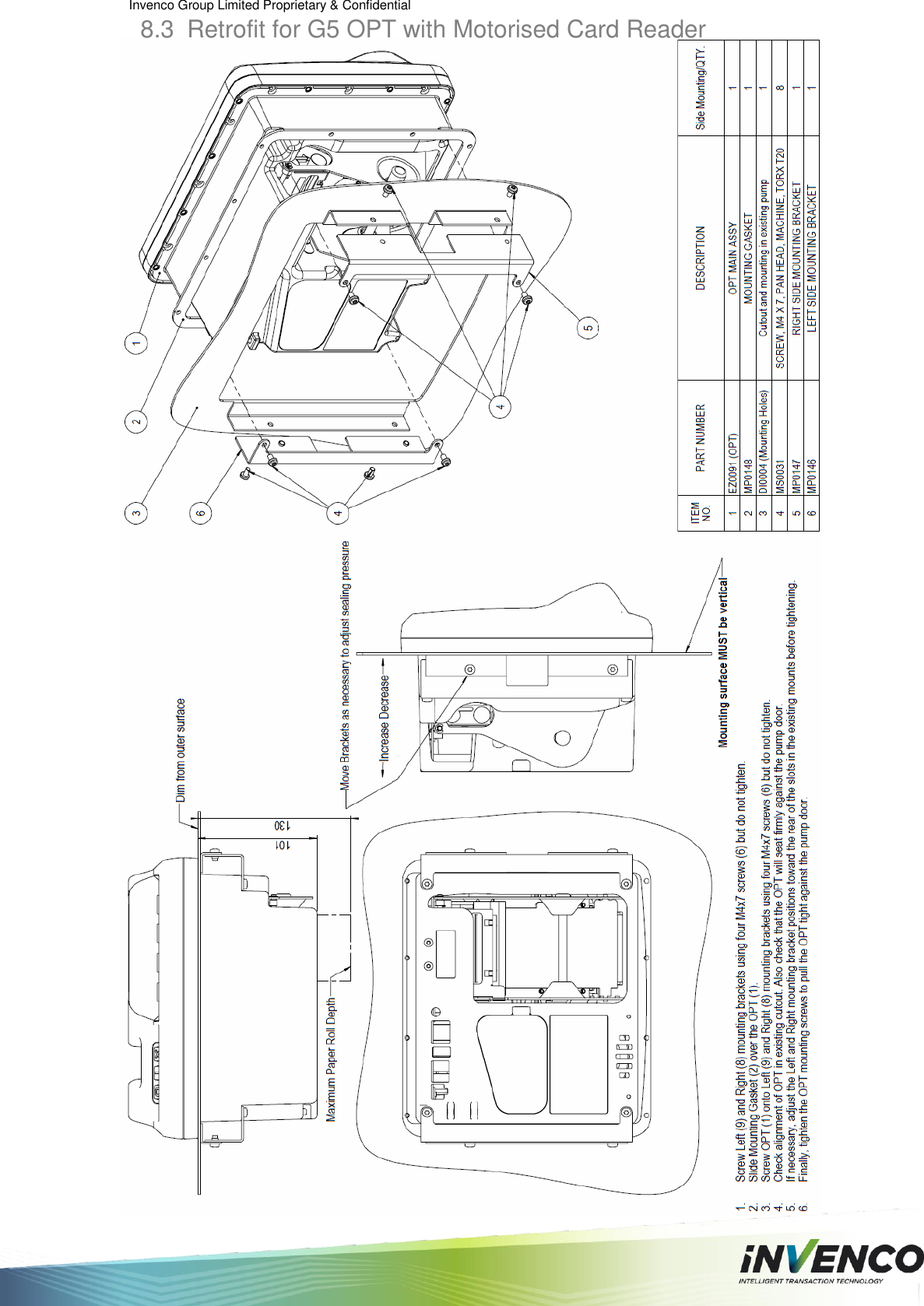

Invenco Group Limited Proprietary & Confidential  8.3  Retrofit for G5 OPT with Motorised Card Reader

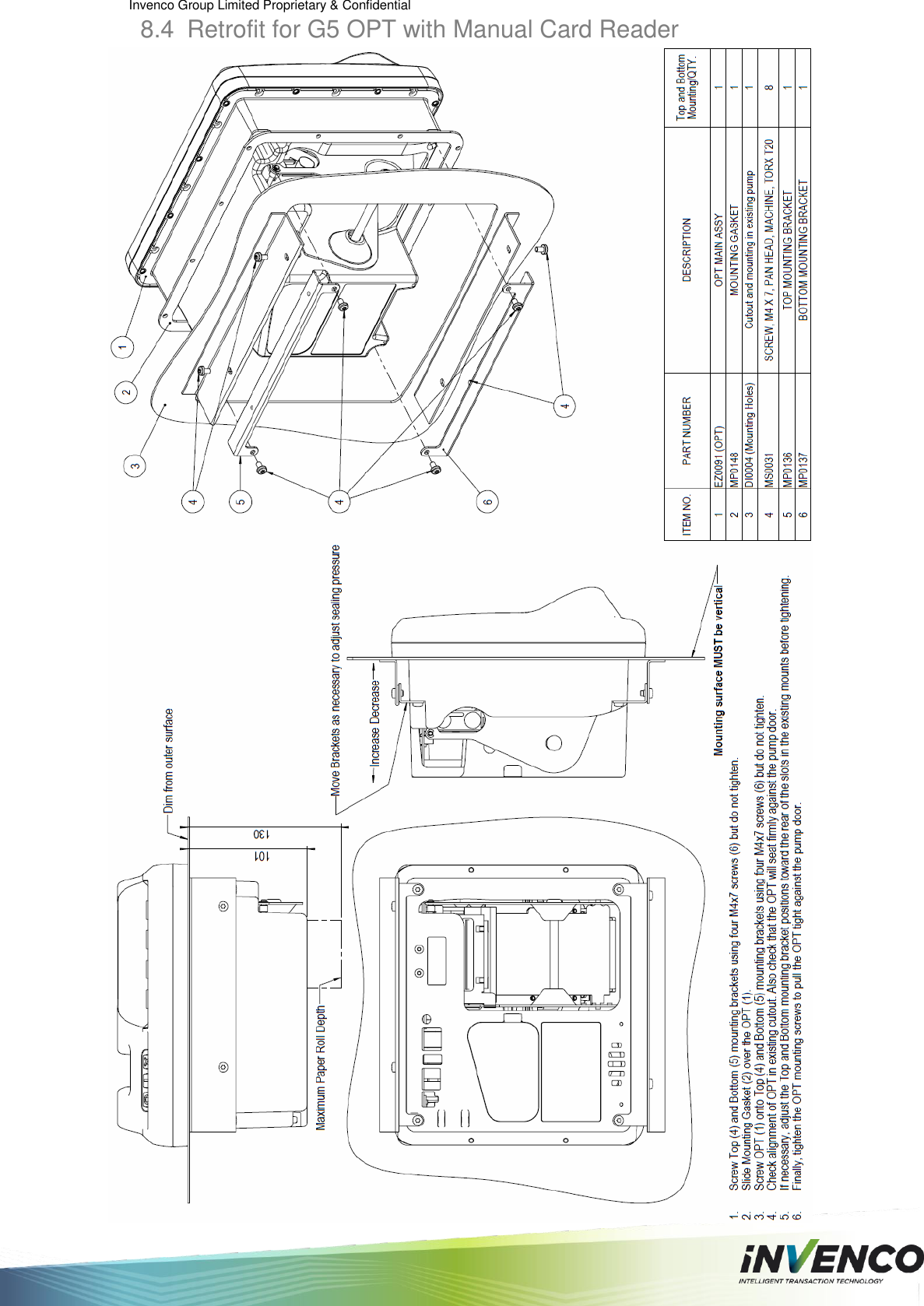

Invenco Group Limited Proprietary & Confidential  8.4  Retrofit for G5 OPT with Manual Card Reader

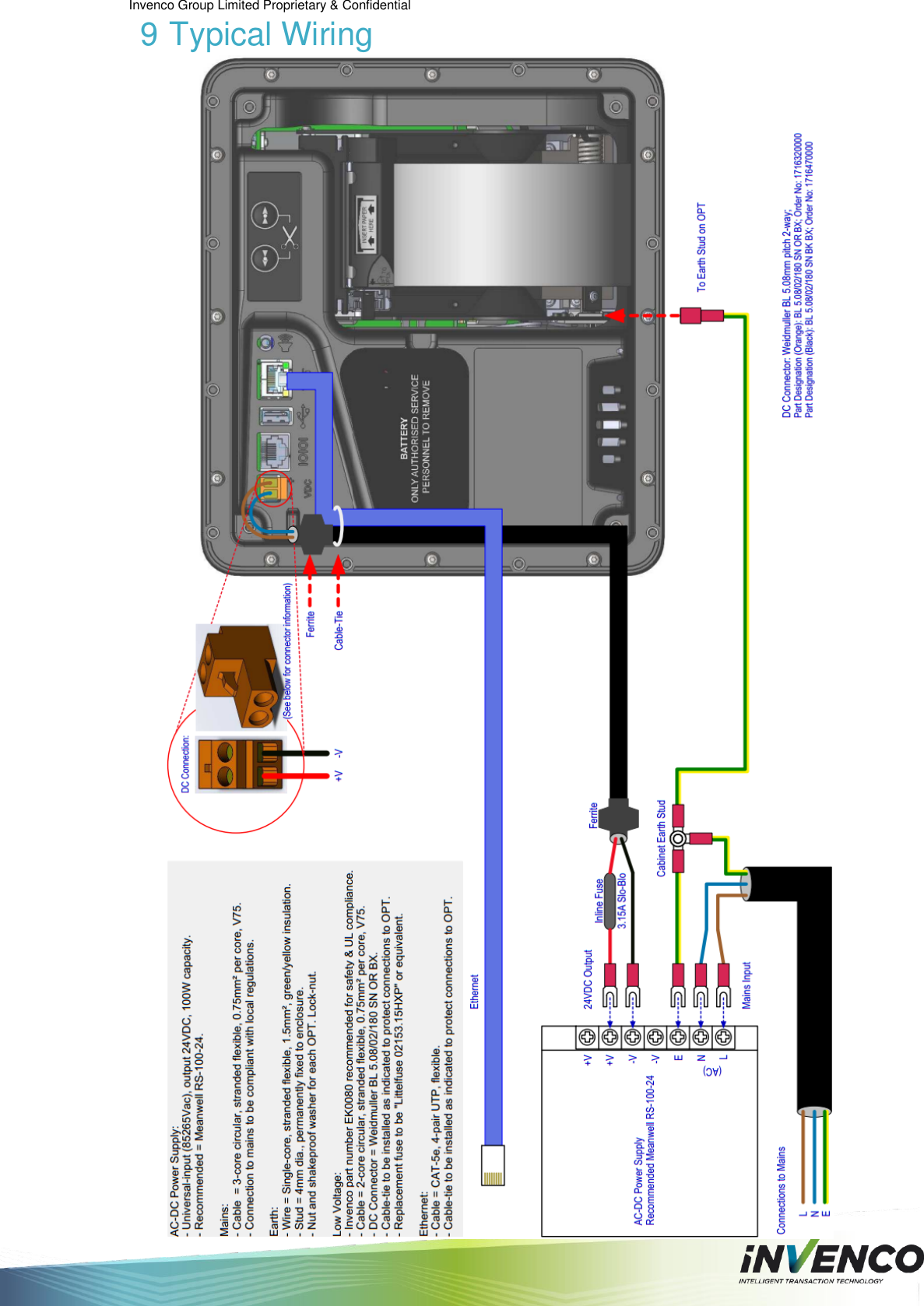

Invenco Group Limited Proprietary & Confidential  9 Typical Wiring

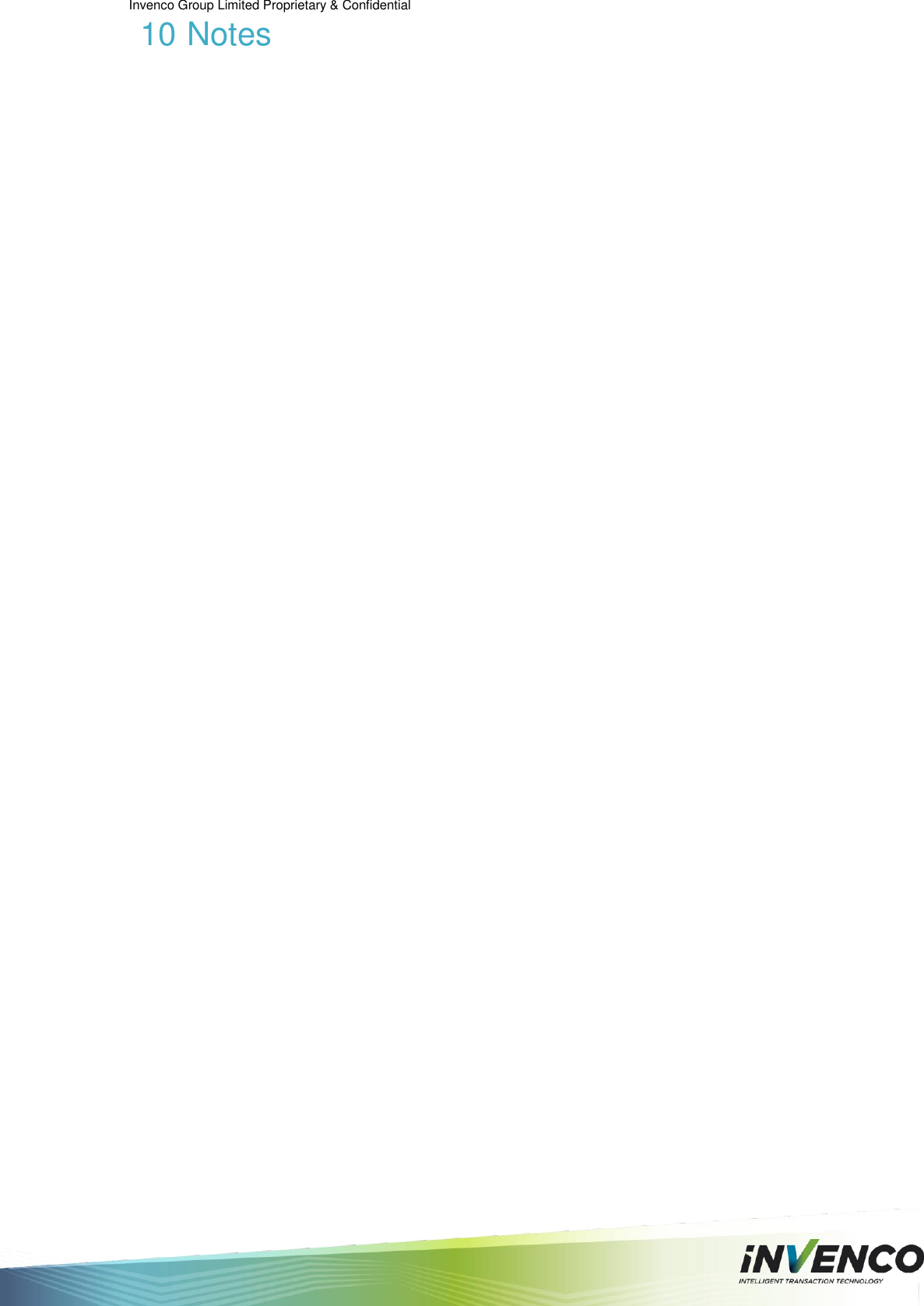

Invenco Group Limited Proprietary & Confidential  10 Notes
  Item 10 - G6 OPT Installation Guide  Version 1.0  Page 40       © 2016  Invenco Group Ltd.  All rights reserved. No part of this document may be copied or reproduced in any form without prior written consent of Invenco Group Ltd. The information in this document is subject to change without notice and should not be construed as a commitment by Invenco Group Ltd. Invenco Group Ltd has taken great effort to verify the accuracy of this document but assumes no responsibility for any technical inaccuracies or typographical errors. Auckland Ph: +64 9 369 2935 Level 2, 7-11 Kawana St, Northcote PO Box 68281, Ponsonby Auckland, 1145  New Zealand   Asia Ph: +60 3 2785 1888 Suite 2B-1-1, Level 1, Block 2B Plaza Sentral Jalan Stesen Sentral 5 50470 Kuala Lumpur Malaysia  www.invenco.com
