manual part 1

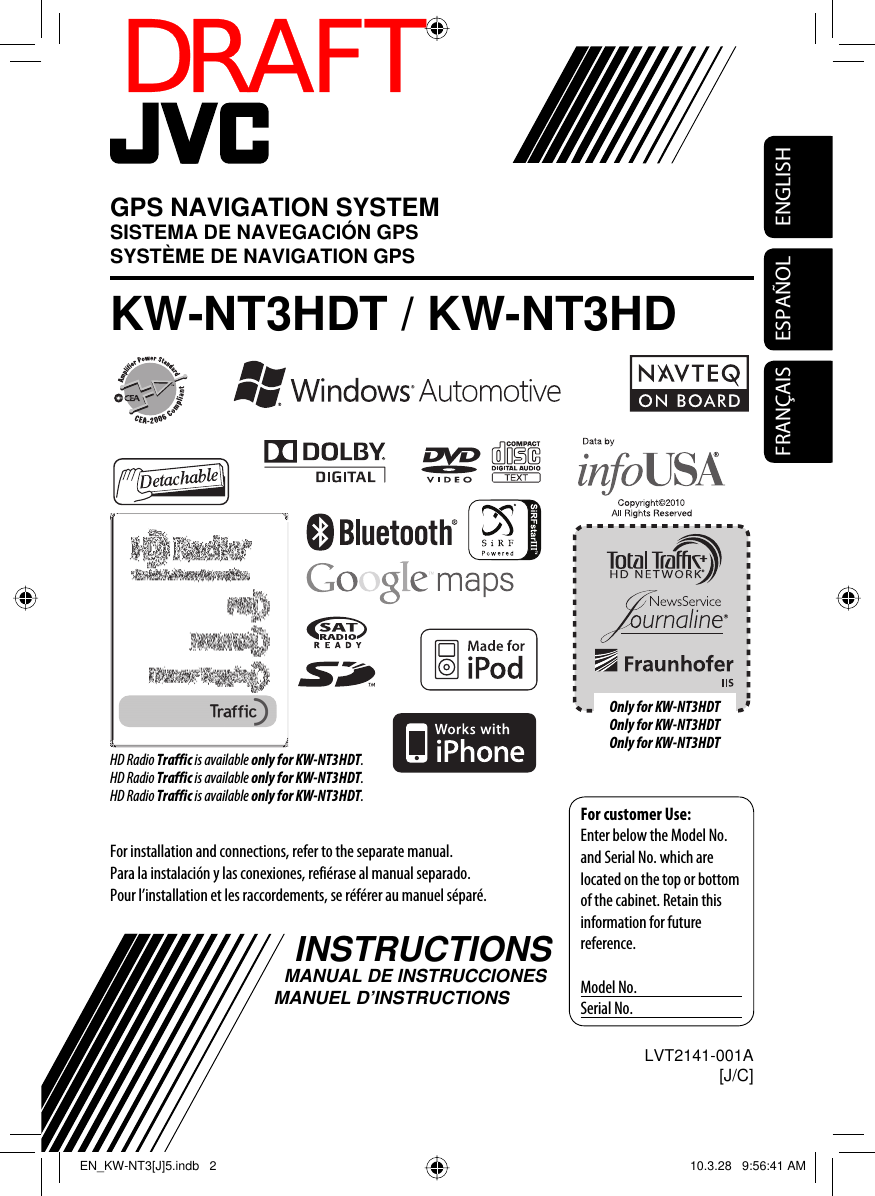

ENGLISHESPAÑOLFRANÇAISESPAÑOLFor installation and connections, refer to the separate manual.Para la instalación y las conexiones, refiérase al manual separado.Pour l’installation et les raccordements, se référer au manuel séparé.INSTRUCTIONSMANUAL DE INSTRUCCIONESMANUEL D’INSTRUCTIONSFor customer Use:Enter below the Model No. and Serial No. which are located on the top or bottom of the cabinet. Retain this information for future reference.Model No.Serial No.LVT2141-001A[J/C]KW-NT3HDT / KW-NT3HDGPS NAVIGATION SYSTEMSISTEMA DE NAVEGACIÓN GPSSYSTÈME DE NAVIGATION GPSHD Radio Traffic is available only for KW-NT3HDT.HD Radio Traffic is available only for KW-NT3HDT.HD Radio Traffic is available only for KW-NT3HDT.Only for KW-NT3HDTOnly for KW-NT3HDTOnly for KW-NT3HDTEN_KW-NT3[J]5.indb 2EN_KW-NT3[J]5.indb 2 10.3.28 9:56:41 AM10.3.28 9:56:41 AM DRAFT

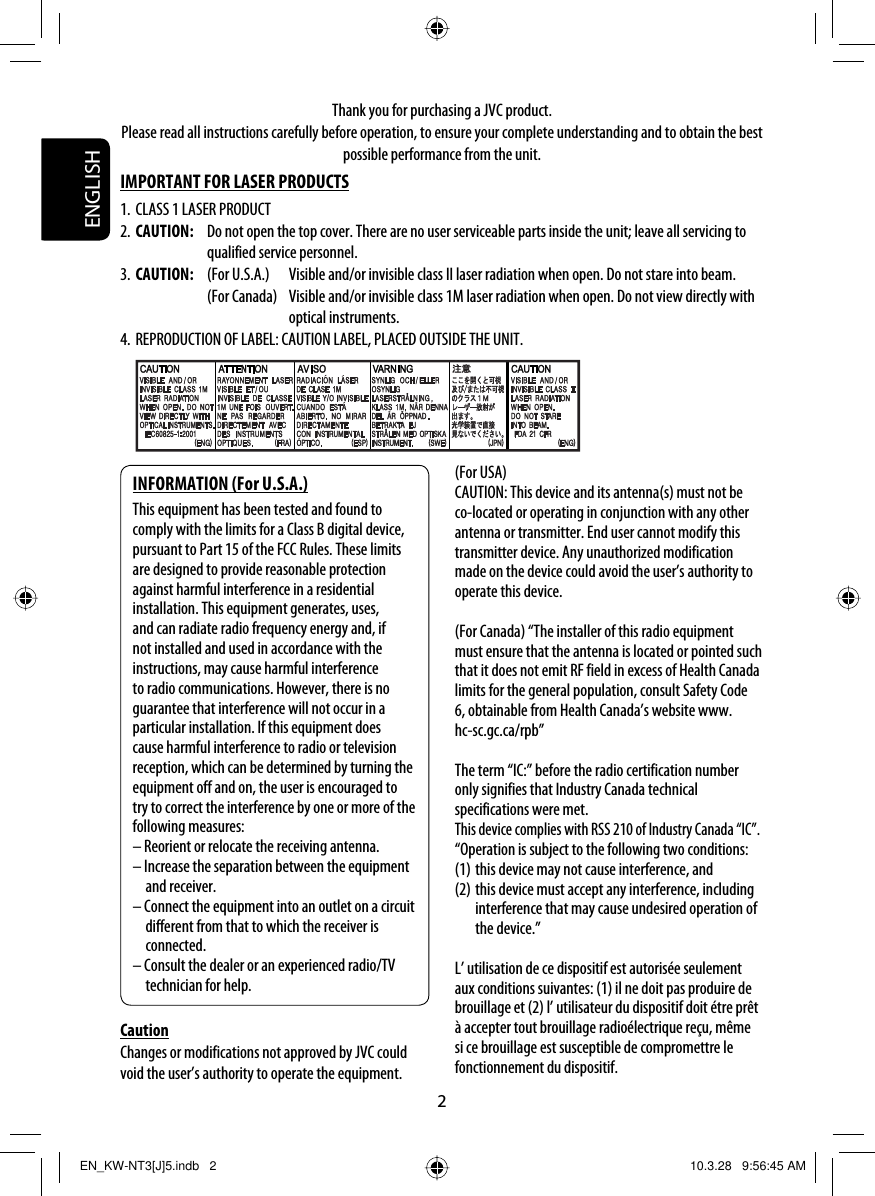

ENGLISH2Thank you for purchasing a JVC product.Please read all instructions carefully before operation, to ensure your complete understanding and to obtain the best possible performance from the unit.IMPORTANT FOR LASER PRODUCTS1. CLASS 1 LASER PRODUCT2. CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit; leave all servicing to qualified service personnel.3. CAUTION: (For U.S.A.) Visible and/or invisible class II laser radiation when open. Do not stare into beam. (For Canada) Visible and/or invisible class 1M laser radiation when open. Do not view directly with optical instruments.4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED OUTSIDE THE UNIT.INFORMATION (For U.S.A.)This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:– Reorient or relocate the receiving antenna.– Increase the separation between the equipment and receiver.– Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.– Consult the dealer or an experienced radio/TV technician for help.CautionChanges or modifications not approved by JVC could void the user’s authority to operate the equipment.(For USA)CAUTION: This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter. End user cannot modify this transmitter device. Any unauthorized modification made on the device could avoid the user’s authority to operate this device.(For Canada) “The installer of this radio equipment must ensure that the antenna is located or pointed such that it does not emit RF field in excess of Health Canada limits for the general population, consult Safety Code 6, obtainable from Health Canada’s website www.hc-sc.gc.ca/rpb”The term “IC:” before the radio certification number only signifies that Industry Canada technical specifications were met.This device complies with RSS 210 of Industry Canada “IC”.“Operation is subject to the following two conditions:(1) this device may not cause interference, and(2) this device must accept any interference, including interference that may cause undesired operation of the device.”L’ utilisation de ce dispositif est autorisée seulement aux conditions suivantes: (1) il ne doit pas produire de brouillage et (2) l’ utilisateur du dispositif doit étre prêt à accepter tout brouillage radioélectrique reçu, même si ce brouillage est susceptible de compromettre le fonctionnement du dispositif.EN_KW-NT3[J]5.indb 2EN_KW-NT3[J]5.indb 2 10.3.28 9:56:45 AM10.3.28 9:56:45 AM

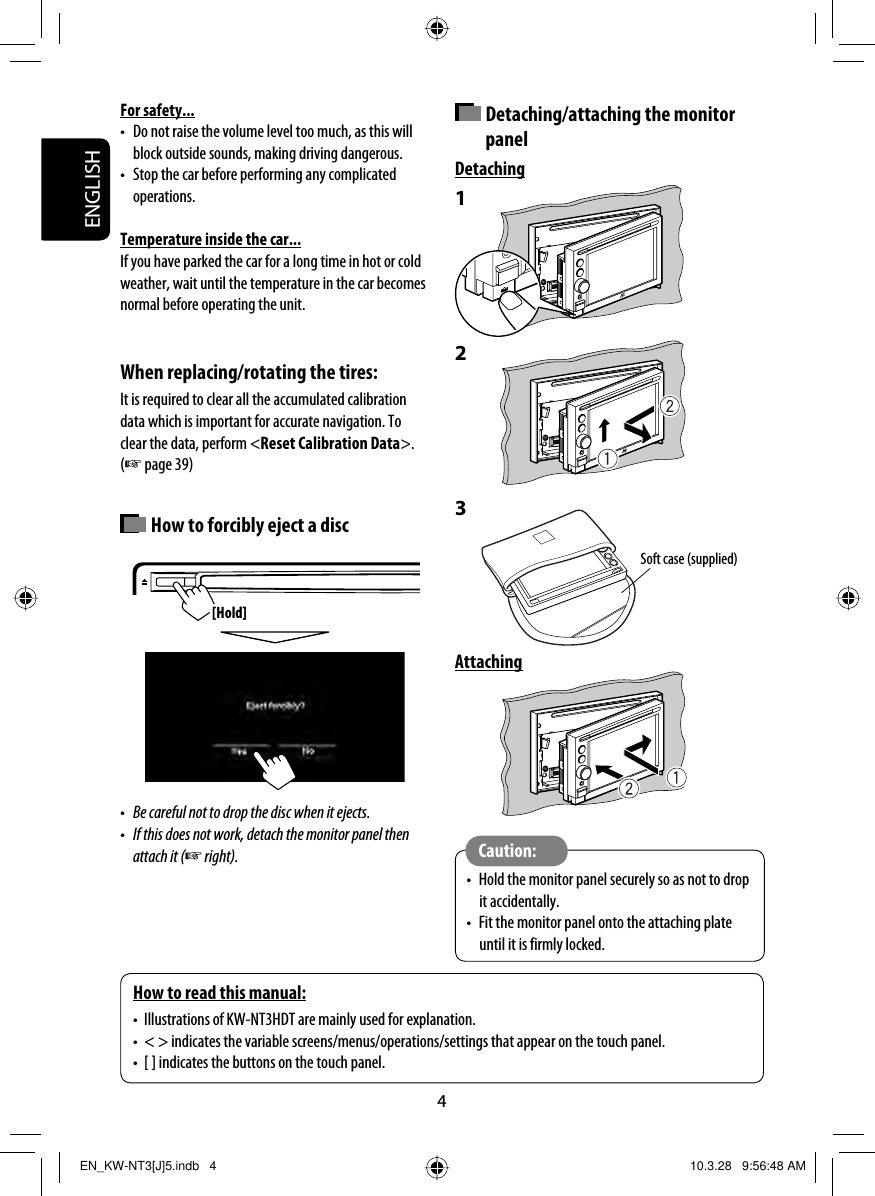

ENGLISH4• Hold the monitor panel securely so as not to drop it accidentally.• Fit the monitor panel onto the attaching plate until it is firmly locked.Soft case (supplied)Caution: Detaching/attaching the monitor panelDetaching1 2 3AttachingFor safety...• Do not raise the volume level too much, as this will block outside sounds, making driving dangerous.• Stop the car before performing any complicated operations.Temperature inside the car...If you have parked the car for a long time in hot or cold weather, wait until the temperature in the car becomes normal before operating the unit.When replacing/rotating the tires:It is required to clear all the accumulated calibration data which is important for accurate navigation. To clear the data, perform <Reset Calibration Data>. (☞ page 39) How to forcibly eject a disc• Be careful not to drop the disc when it ejects.• If this does not work, detach the monitor panel then attach it (☞ right).[Hold]How to read this manual:• Illustrations of KW-NT3HDT are mainly used for explanation.• < > indicates the variable screens/menus/operations/settings that appear on the touch panel.• [ ] indicates the buttons on the touch panel.EN_KW-NT3[J]5.indb 4EN_KW-NT3[J]5.indb 4 10.3.28 9:56:48 AM10.3.28 9:56:48 AM

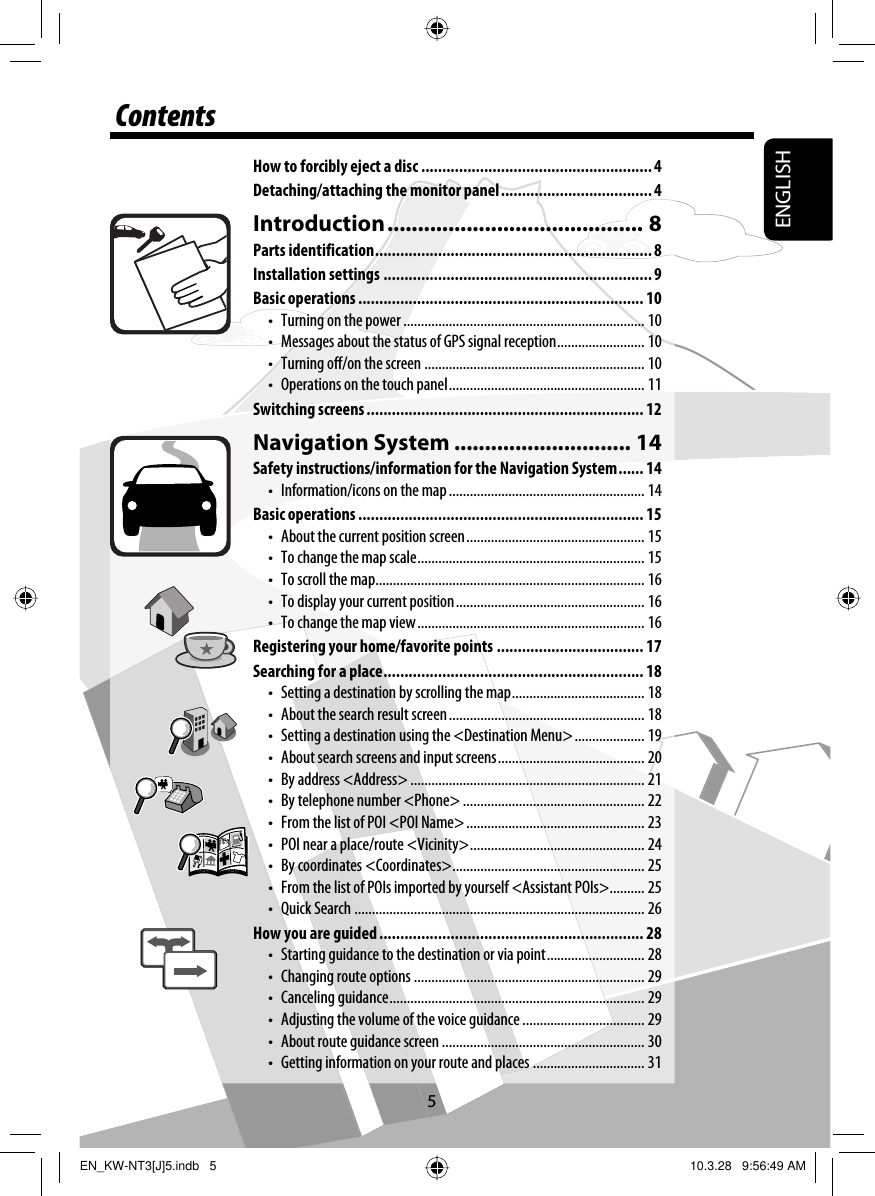

5ENGLISHContentsHow to forcibly eject a disc ....................................................... 4Detaching/attaching the monitor panel .................................... 4Introduction .......................................... 8Parts identification .................................................................. 8Installation settings ................................................................ 9Basic operations .................................................................... 10• Turning on the power ..................................................................... 10• Messages about the status of GPS signal reception ......................... 10• Turning off/on the screen ............................................................... 10• Operations on the touch panel ........................................................ 11Switching screens .................................................................. 12Navigation System ............................. 14Safety instructions/information for the Navigation System ...... 14• Information/icons on the map ........................................................ 14Basic operations .................................................................... 15• About the current position screen ................................................... 15• To change the map scale ................................................................. 15• To scroll the map ............................................................................. 16• To display your current position ...................................................... 16• To change the map view ................................................................. 16Registering your home/favorite points ................................... 17Searching for a place .............................................................. 18• Setting a destination by scrolling the map ...................................... 18• About the search result screen ........................................................ 18• Setting a destination using the <Destination Menu> .................... 19• About search screens and input screens .......................................... 20• By address <Address> ................................................................... 21• By telephone number <Phone> .................................................... 22• From the list of POI <POI Name> ................................................... 23• POI near a place/route <Vicinity> .................................................. 24• By coordinates <Coordinates> ....................................................... 25• From the list of POIs imported by yourself <Assistant POIs> .......... 25• Quick Search ................................................................................... 26How you are guided ............................................................... 28• Starting guidance to the destination or via point ............................ 28• Changing route options .................................................................. 29• Canceling guidance ......................................................................... 29• Adjusting the volume of the voice guidance ................................... 29• About route guidance screen .......................................................... 30• Getting information on your route and places ................................ 31EN_KW-NT3[J]5.indb 5EN_KW-NT3[J]5.indb 5 10.3.28 9:56:49 AM10.3.28 9:56:49 AM

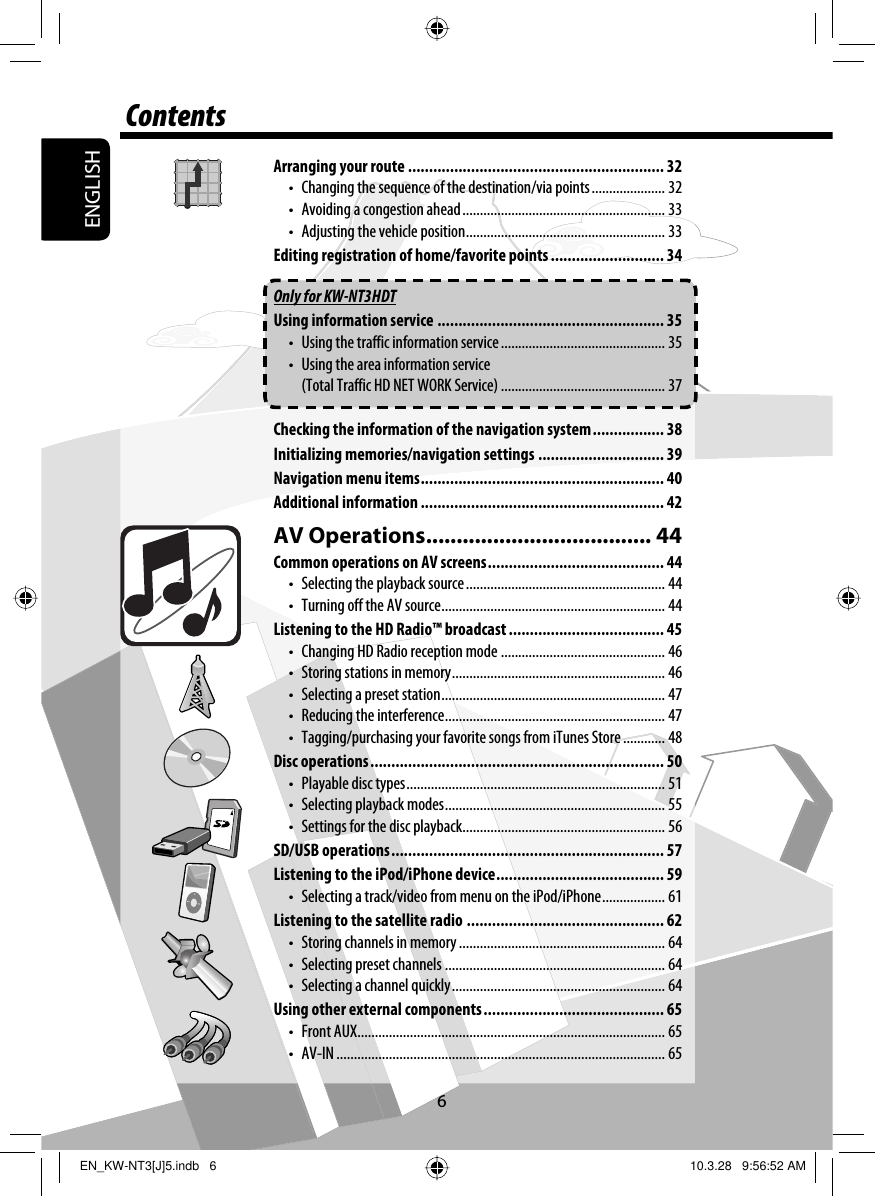

ENGLISH6ContentsArranging your route ............................................................. 32• Changing the sequence of the destination/via points ..................... 32• Avoiding a congestion ahead .......................................................... 33• Adjusting the vehicle position ......................................................... 33Editing registration of home/favorite points ........................... 34Only for KW-NT3HDTUsing information service ...................................................... 35• Using the traffic information service ............................................... 35• Using the area information service (Total Traffic HD NET WORK Service) ............................................... 37Checking the information of the navigation system ................. 38Initializing memories/navigation settings .............................. 39Navigation menu items .......................................................... 40Additional information .......................................................... 42AV Operations ..................................... 44Common operations on AV screens .......................................... 44• Selecting the playback source ......................................................... 44• Turning off the AV source ................................................................ 44Listening to the HD Radio™ broadcast ..................................... 45• Changing HD Radio reception mode ............................................... 46• Storing stations in memory ............................................................. 46• Selecting a preset station ................................................................ 47• Reducing the interference ............................................................... 47• Tagging/purchasing your favorite songs from iTunes Store ............ 48Disc operations ...................................................................... 50• Playable disc types .......................................................................... 51• Selecting playback modes ............................................................... 55• Settings for the disc playback .......................................................... 56SD/USB operations ................................................................. 57Listening to the iPod/iPhone device ........................................ 59• Selecting a track/video from menu on the iPod/iPhone .................. 61Listening to the satellite radio ............................................... 62• Storing channels in memory ........................................................... 64• Selecting preset channels ............................................................... 64• Selecting a channel quickly ............................................................. 64Using other external components ........................................... 65• Front AUX ........................................................................................ 65• AV-IN .............................................................................................. 65EN_KW-NT3[J]5.indb 6EN_KW-NT3[J]5.indb 6 10.3.28 9:56:52 AM10.3.28 9:56:52 AM

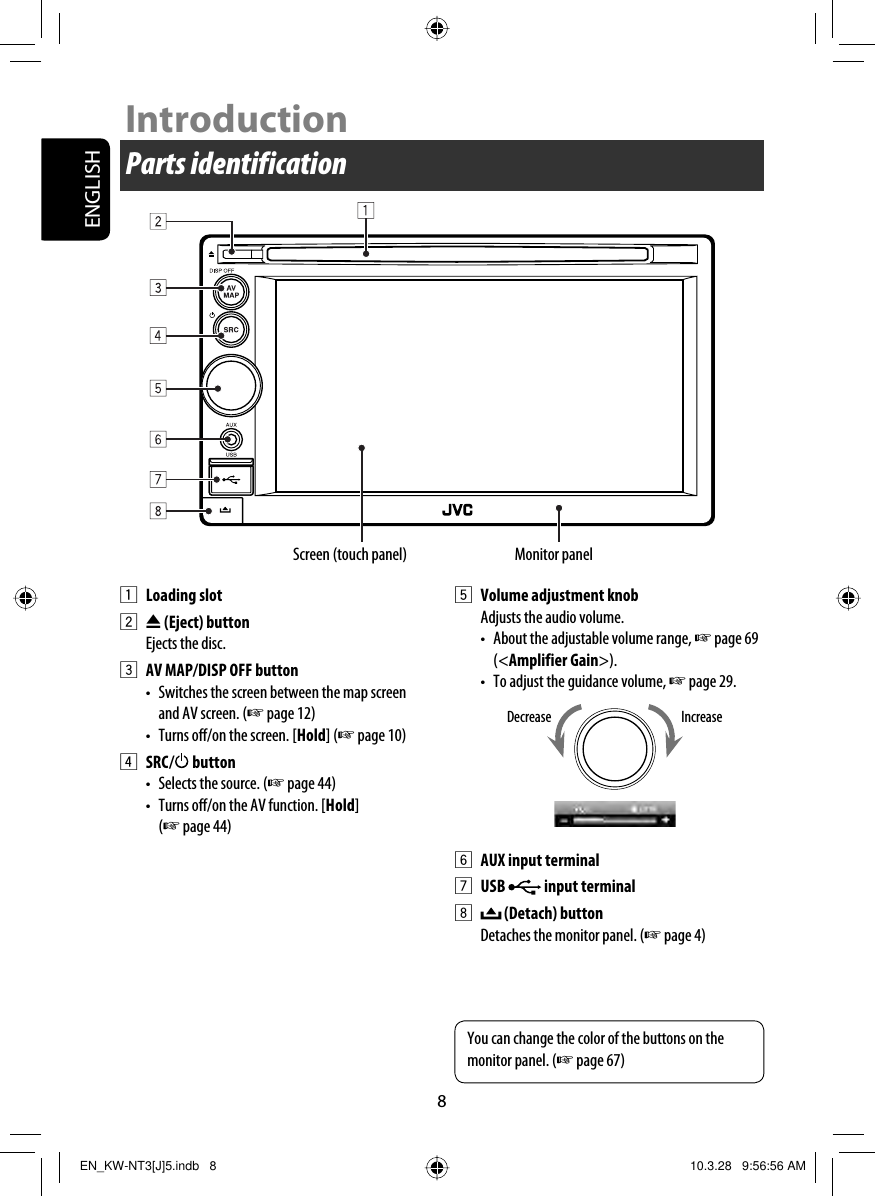

ENGLISH8IntroductionParts identificationScreen (touch panel) Monitor panel1 Loading slot2 0 (Eject) buttonEjects the disc.3 AV MAP/DISP OFF button• Switches the screen between the map screen and AV screen. (☞ page 12)• Turns off/on the screen. [Hold] (☞ page 10)4 SRC / button• Selects the source. (☞ page 44)• Turns off/on the AV function. [Hold] (☞ page 44)5 Volume adjustment knobAdjusts the audio volume.• About the adjustable volume range, ☞ page 69 (<Amplifier Gain>).• To adjust the guidance volume, ☞ page 29.6 AUX input terminal7 USB input terminal8 (Detach) buttonDetaches the monitor panel. (☞ page 4)IncreaseDecreaseYou can change the color of the buttons on the monitor panel. (☞ page 67)EN_KW-NT3[J]5.indb 8EN_KW-NT3[J]5.indb 8 10.3.28 9:56:56 AM10.3.28 9:56:56 AM

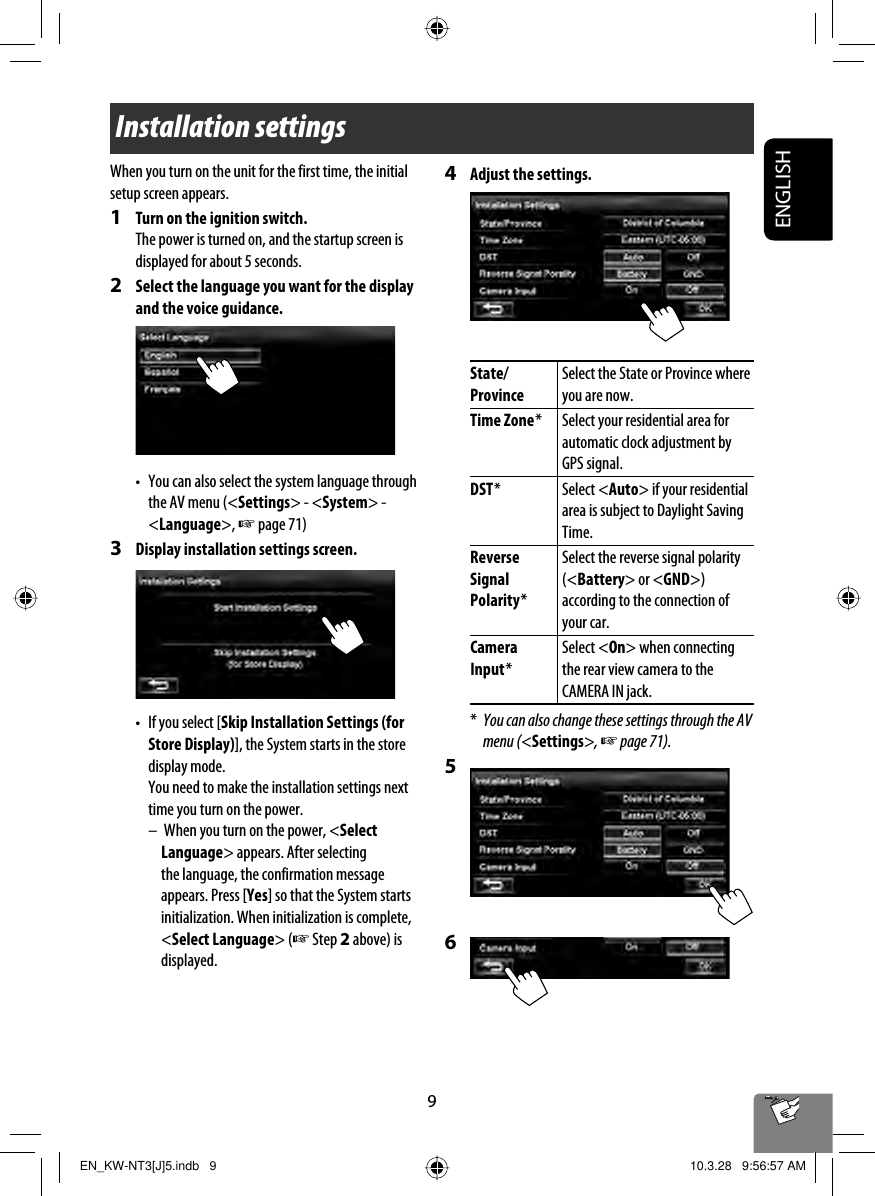

9ENGLISHInstallation settingsWhen you turn on the unit for the first time, the initial setup screen appears.1 Turn on the ignition switch.The power is turned on, and the startup screen is displayed for about 5 seconds.2 Select the language you want for the display and the voice guidance.• You can also select the system language through the AV menu (<Settings> - <System> - <Language>, ☞ page 71)3 Display installation settings screen.• If you select [Skip Installation Settings (for Store Display)], the System starts in the store display mode. You need to make the installation settings next time you turn on the power.– When you turn on the power, <Select Language> appears. After selecting the language, the confirmation message appears. Press [Yes] so that the System starts initialization. When initialization is complete, <Select Language> (☞ Step 2 above) is displayed.4 Adjust the settings. State/ProvinceSelect the State or Province where you are now.Time Zone * Select your residential area for automatic clock adjustment by GPS signal.DST * Select <Auto> if your residential area is subject to Daylight Saving Time.Reverse Signal Polarity *Select the reverse signal polarity (<Battery> or <GND>) according to the connection of your car.Camera Input *Select <On> when connecting the rear view camera to the CAMERA IN jack.* You can also change these settings through the AV menu (<Settings>, ☞ page 71).5 6EN_KW-NT3[J]5.indb 9EN_KW-NT3[J]5.indb 9 10.3.28 9:56:57 AM10.3.28 9:56:57 AM

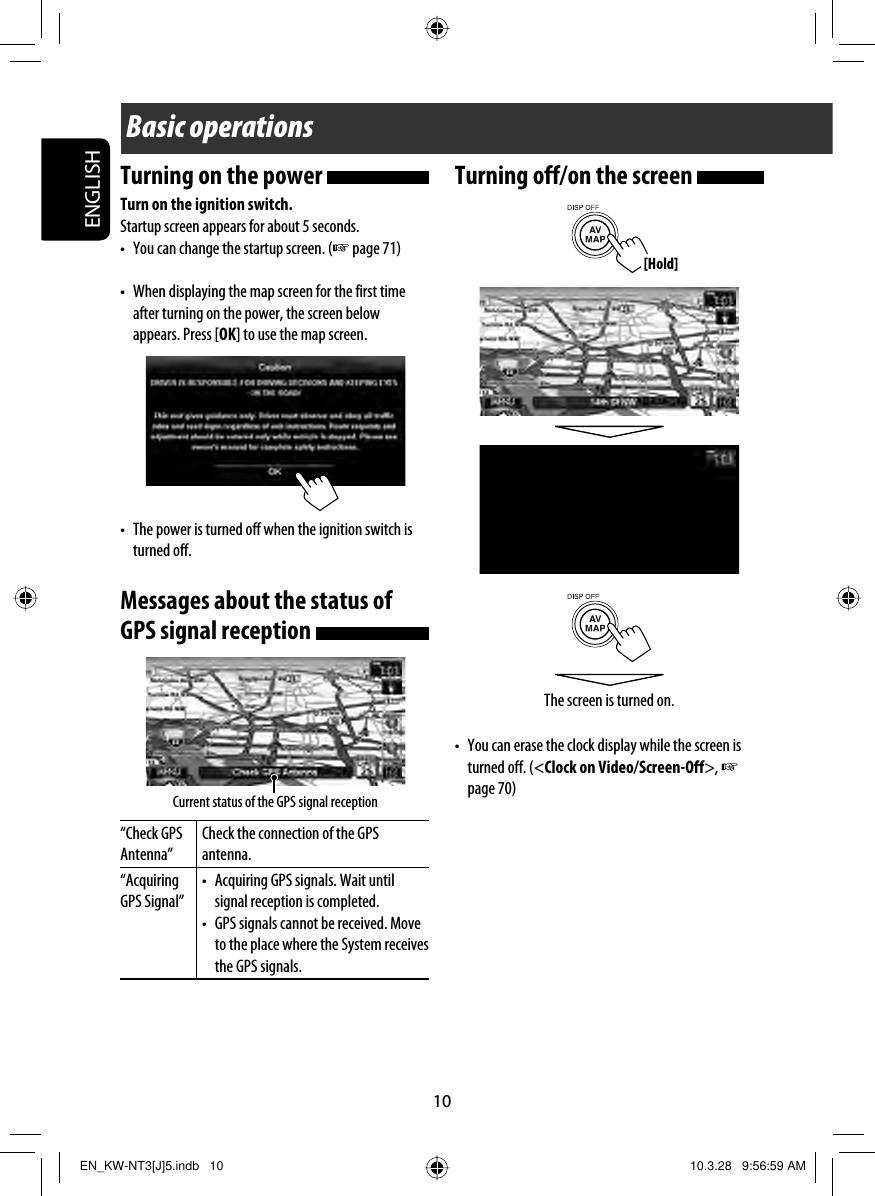

ENGLISH10Basic operationsTurning on the power Turn on the ignition switch.Startup screen appears for about 5 seconds.• You can change the startup screen. (☞ page 71)• When displaying the map screen for the first time after turning on the power, the screen below appears. Press [OK] to use the map screen.• The power is turned off when the ignition switch is turned off.Messages about the status of GPS signal reception “Check GPS Antenna”Check the connection of the GPS antenna.“Acquiring GPS Signal”• Acquiring GPS signals. Wait until signal reception is completed.• GPS signals cannot be received. Move to the place where the System receives the GPS signals.Current status of the GPS signal receptionTurning off/on the screen • You can erase the clock display while the screen is turned off. (<Clock on Video/Screen-Off>, ☞ page 70)The screen is turned on.[Hold]EN_KW-NT3[J]5.indb 10EN_KW-NT3[J]5.indb 10 10.3.28 9:56:59 AM10.3.28 9:56:59 AM

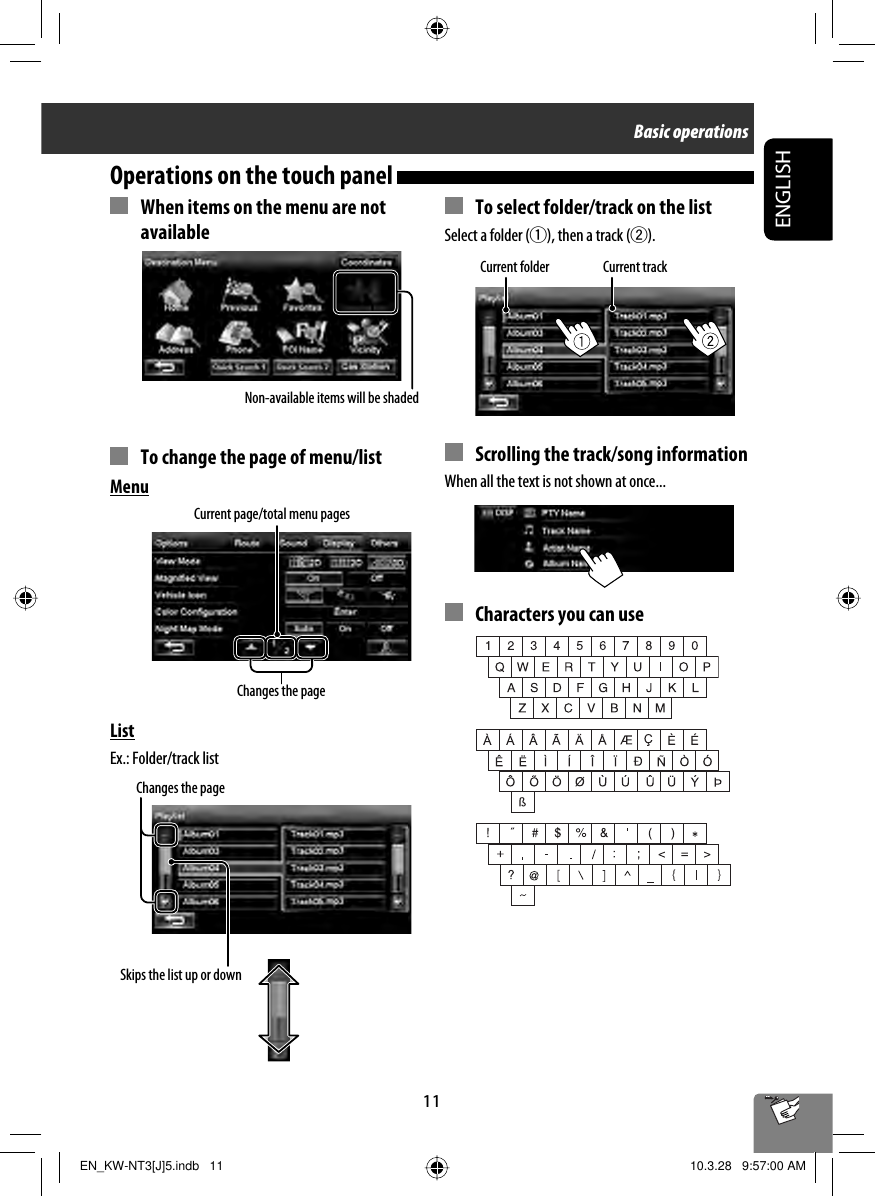

11ENGLISHCurrent page/total menu pagesChanges the pageChanges the pageCurrent folder Current track When items on the menu are not available To change the page of menu/listMenuListEx.: Folder/track list To select folder/track on the listSelect a folder (1), then a track (2). Scrolling the track/song informationWhen all the text is not shown at once... Characters you can useOperations on the touch panel Non-available items will be shadedSkips the list up or downBasic operationsEN_KW-NT3[J]5.indb 11EN_KW-NT3[J]5.indb 11 10.3.28 9:57:00 AM10.3.28 9:57:00 AM

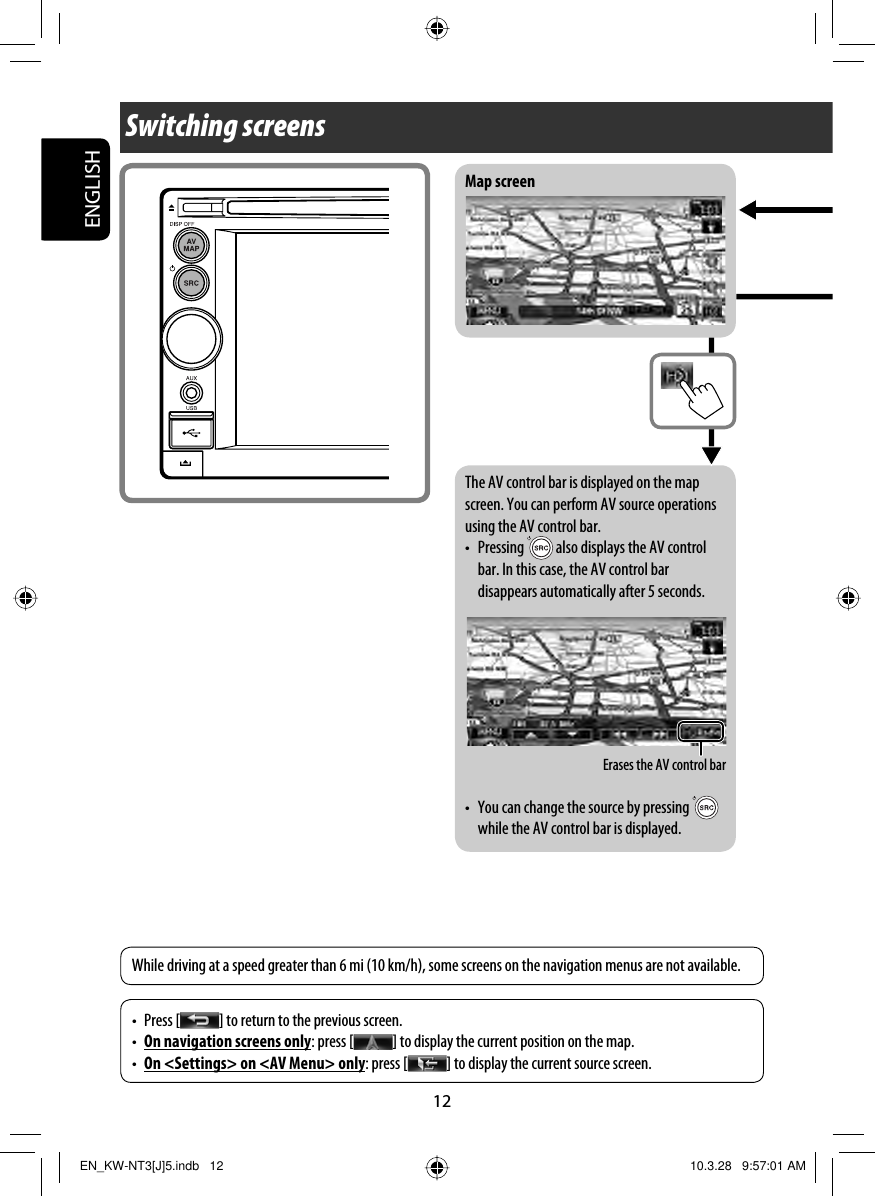

ENGLISH12Switching screensMap screen• Press [ ] to return to the previous screen.• On navigation screens only: press [ ] to display the current position on the map.• On <Settings> on <AV Menu> only: press [ ] to display the current source screen.While driving at a speed greater than 6 mi (10 km/h), some screens on the navigation menus are not available.Erases the AV control barThe AV control bar is displayed on the map screen. You can perform AV source operations using the AV control bar.• Pressing also displays the AV control bar. In this case, the AV control bar disappears automatically after 5 seconds.• You can change the source by pressing while the AV control bar is displayed.EN_KW-NT3[J]5.indb 12EN_KW-NT3[J]5.indb 12 10.3.28 9:57:01 AM10.3.28 9:57:01 AM

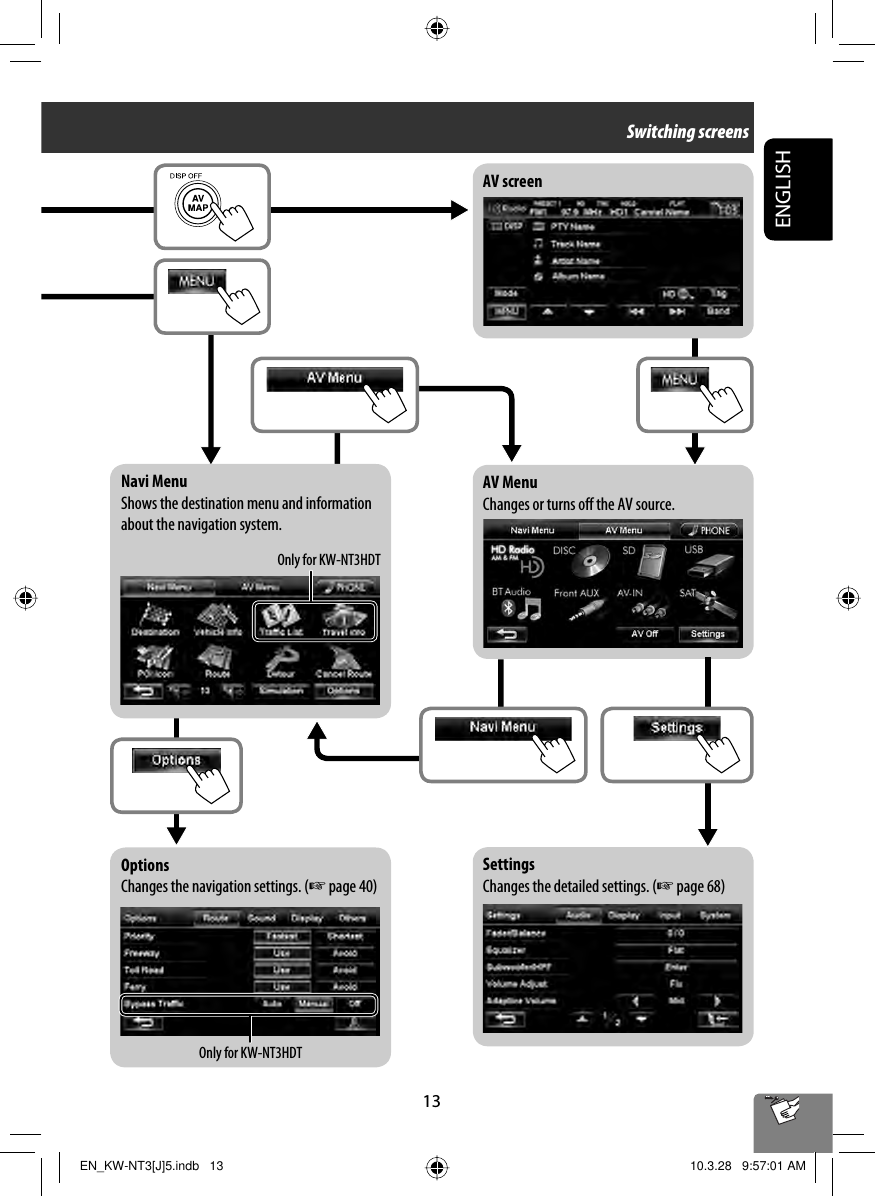

13ENGLISHNavi MenuShows the destination menu and information about the navigation system.OptionsChanges the navigation settings. (☞ page 40)AV MenuChanges or turns off the AV source.SettingsChanges the detailed settings. (☞ page 68)AV screenOnly for KW-NT3HDTOnly for KW-NT3HDTSwitching screensEN_KW-NT3[J]5.indb 13EN_KW-NT3[J]5.indb 13 10.3.28 9:57:01 AM10.3.28 9:57:01 AM

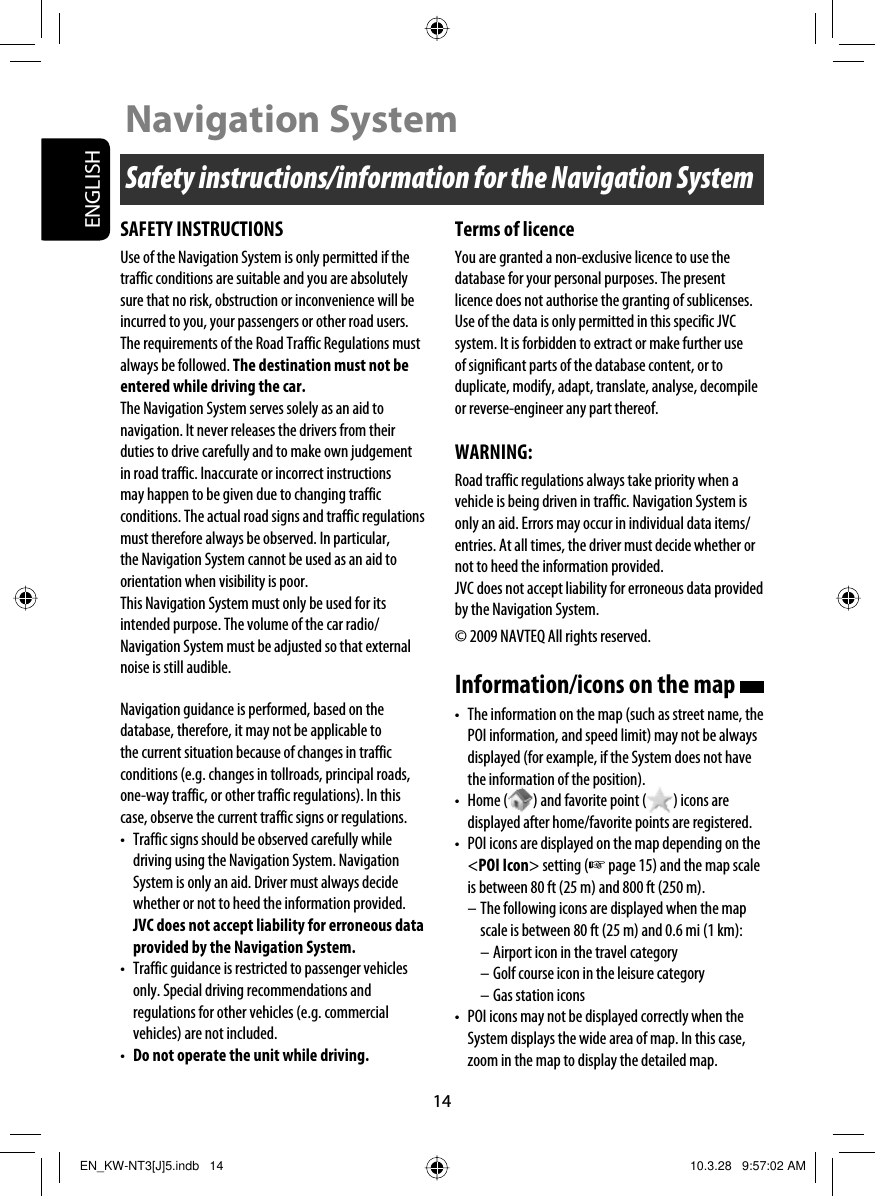

14ENGLISHSafety instructions/information for the Navigation SystemNavigation SystemSAFETY INSTRUCTIONSUse of the Navigation System is only permitted if the traffic conditions are suitable and you are absolutely sure that no risk, obstruction or inconvenience will be incurred to you, your passengers or other road users. The requirements of the Road Traffic Regulations must always be followed. The destination must not be entered while driving the car.The Navigation System serves solely as an aid to navigation. It never releases the drivers from their duties to drive carefully and to make own judgement in road traffic. Inaccurate or incorrect instructions may happen to be given due to changing traffic conditions. The actual road signs and traffic regulations must therefore always be observed. In particular, the Navigation System cannot be used as an aid to orientation when visibility is poor.This Navigation System must only be used for its intended purpose. The volume of the car radio/Navigation System must be adjusted so that external noise is still audible.Navigation guidance is performed, based on the database, therefore, it may not be applicable to the current situation because of changes in traffic conditions (e.g. changes in tollroads, principal roads, one-way traffic, or other traffic regulations). In this case, observe the current traffic signs or regulations.• Traffic signs should be observed carefully while driving using the Navigation System. Navigation System is only an aid. Driver must always decide whether or not to heed the information provided. JVC does not accept liability for erroneous data provided by the Navigation System.• Traffic guidance is restricted to passenger vehicles only. Special driving recommendations and regulations for other vehicles (e.g. commercial vehicles) are not included.• Do not operate the unit while driving.Terms of licenceYou are granted a non-exclusive licence to use the database for your personal purposes. The present licence does not authorise the granting of sublicenses.Use of the data is only permitted in this specific JVC system. It is forbidden to extract or make further use of significant parts of the database content, or to duplicate, modify, adapt, translate, analyse, decompile or reverse-engineer any part thereof.WARNING:Road traffic regulations always take priority when a vehicle is being driven in traffic. Navigation System is only an aid. Errors may occur in individual data items/entries. At all times, the driver must decide whether or not to heed the information provided.JVC does not accept liability for erroneous data provided by the Navigation System.© 2009 NAVTEQ All rights reserved.Information/icons on the map • The information on the map (such as street name, the POI information, and speed limit) may not be always displayed (for example, if the System does not have the information of the position).• Home ( ) and favorite point ( ) icons are displayed after home/favorite points are registered.• POI icons are displayed on the map depending on the <POI Icon> setting (☞ page 15) and the map scale is between 80 ft (25 m) and 800 ft (250 m).– The following icons are displayed when the map scale is between 80 ft (25 m) and 0.6 mi (1 km):– Airport icon in the travel category– Golf course icon in the leisure category– Gas station icons• POI icons may not be displayed correctly when the System displays the wide area of map. In this case, zoom in the map to display the detailed map.EN_KW-NT3[J]5.indb 14EN_KW-NT3[J]5.indb 14 10.3.28 9:57:02 AM10.3.28 9:57:02 AM

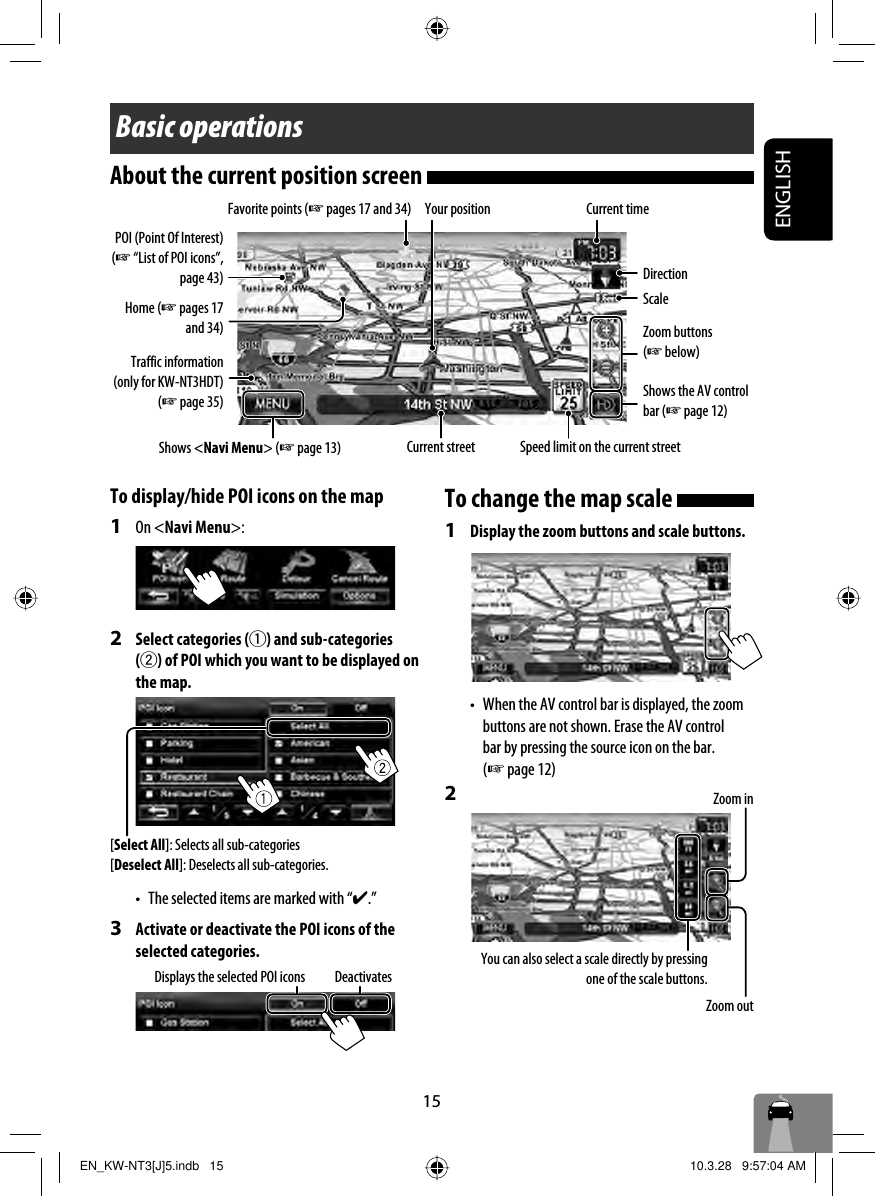

Zoom in15ENGLISHTo change the map scale 1 Display the zoom buttons and scale buttons.• When the AV control bar is displayed, the zoom buttons are not shown. Erase the AV control bar by pressing the source icon on the bar. (☞ page 12)2 Basic operationsYour positionCurrent streetCurrent timeSpeed limit on the current streetScaleDirectionShows <Navi Menu> (☞ page 13)Favorite points (☞ pages 17 and 34)Home (☞ pages 17 and 34)POI (Point Of Interest) (☞ “List of POI icons”, page 43)Zoom buttons (☞ below)Traffic information (only for KW-NT3HDT) (☞ page 35)Zoom outYou can also select a scale directly by pressing one of the scale buttons.Shows the AV control bar (☞ page 12)About the current position screen To display/hide POI icons on the map1 On <Navi Menu>:2 Select categories (1) and sub-categories (2) of POI which you want to be displayed on the map.• The selected items are marked with “✔.”3 Activate or deactivate the POI icons of the selected categories.Displays the selected POI icons Deactivates[Select All]: Selects all sub-categories[Deselect All]: Deselects all sub-categories.EN_KW-NT3[J]5.indb 15EN_KW-NT3[J]5.indb 15 10.3.28 9:57:04 AM10.3.28 9:57:04 AM

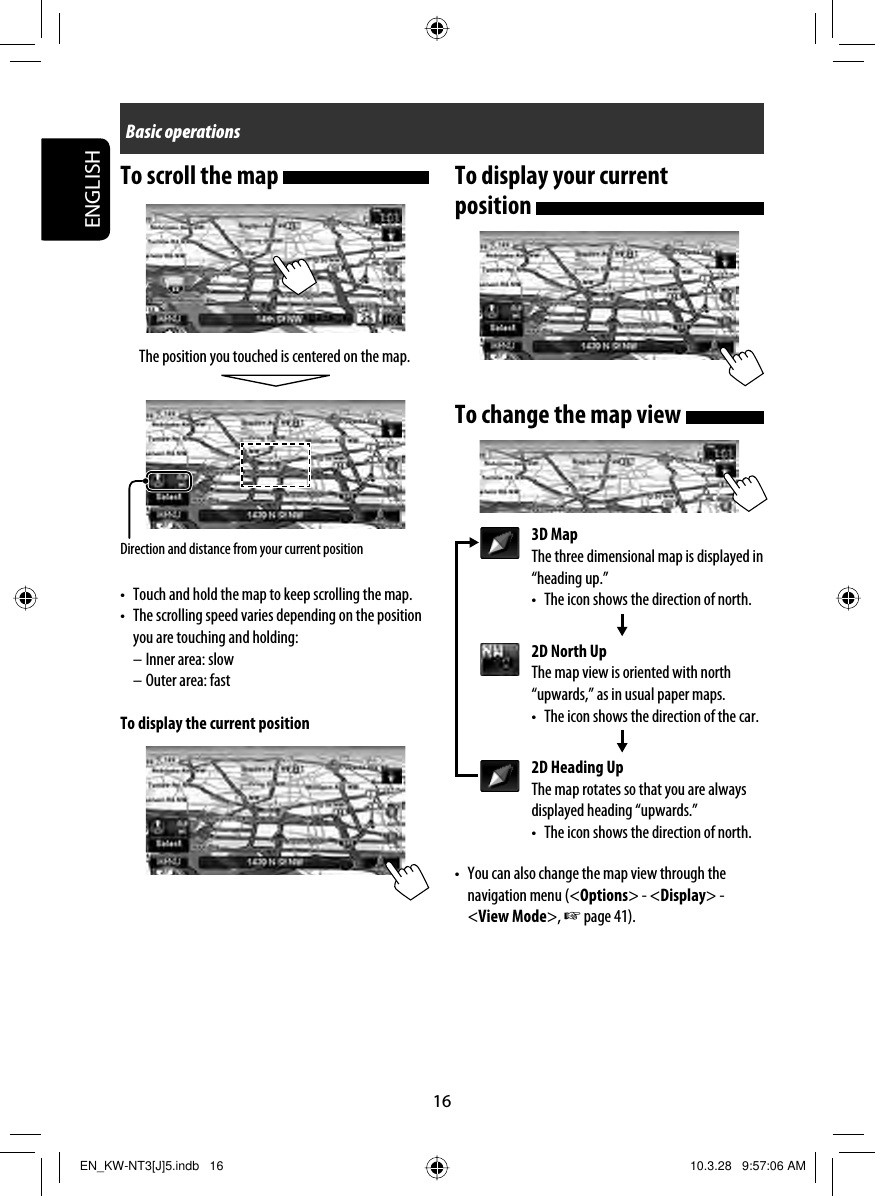

16ENGLISHTo scroll the map The position you touched is centered on the map.• Touch and hold the map to keep scrolling the map.• The scrolling speed varies depending on the position you are touching and holding:– Inner area: slow– Outer area: fastTo display the current positionDirection and distance from your current positionTo display your current position To change the map view 3D MapThe three dimensional map is displayed in “heading up.”• The icon shows the direction of north.2D North UpThe map view is oriented with north “upwards,” as in usual paper maps.• The icon shows the direction of the car.2D Heading UpThe map rotates so that you are always displayed heading “upwards.”• The icon shows the direction of north.• You can also change the map view through the navigation menu (<Options> - <Display> -<View Mode>, ☞ page 41).Basic operationsEN_KW-NT3[J]5.indb 16EN_KW-NT3[J]5.indb 16 10.3.28 9:57:06 AM10.3.28 9:57:06 AM

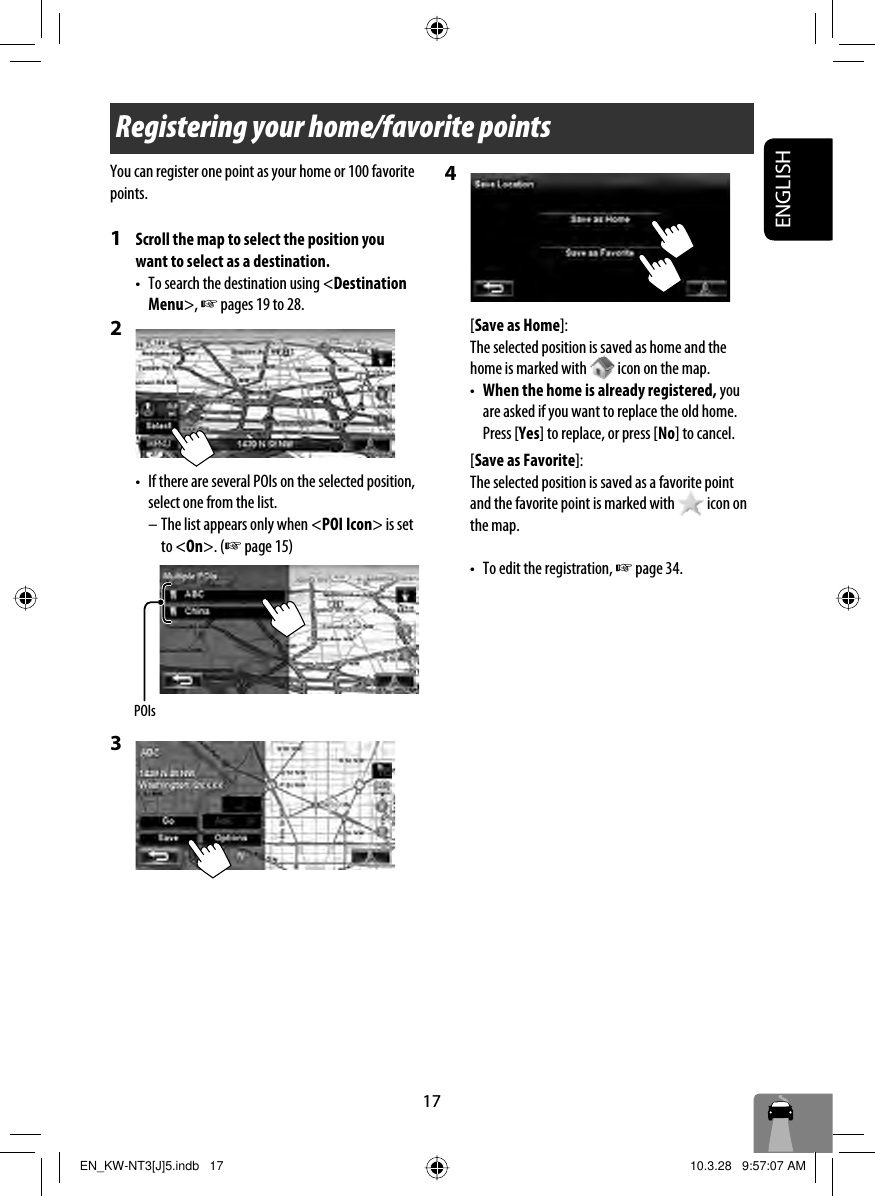

17ENGLISHRegistering your home/favorite pointsYou can register one point as your home or 100 favorite points.1 Scroll the map to select the position you want to select as a destination.• To search the destination using <Destination Menu>, ☞ pages 19 to 28.2 • If there are several POIs on the selected position, select one from the list. – The list appears only when <POI Icon> is set to <On>. (☞ page 15) 3 4 [Save as Home]:The selected position is saved as home and the home is marked with icon on the map.• When the home is already registered, you are asked if you want to replace the old home. Press [Yes] to replace, or press [No] to cancel.[Save as Favorite]:The selected position is saved as a favorite point and the favorite point is marked with icon on the map.• To edit the registration, ☞ page 34.POIsEN_KW-NT3[J]5.indb 17EN_KW-NT3[J]5.indb 17 10.3.28 9:57:07 AM10.3.28 9:57:07 AM

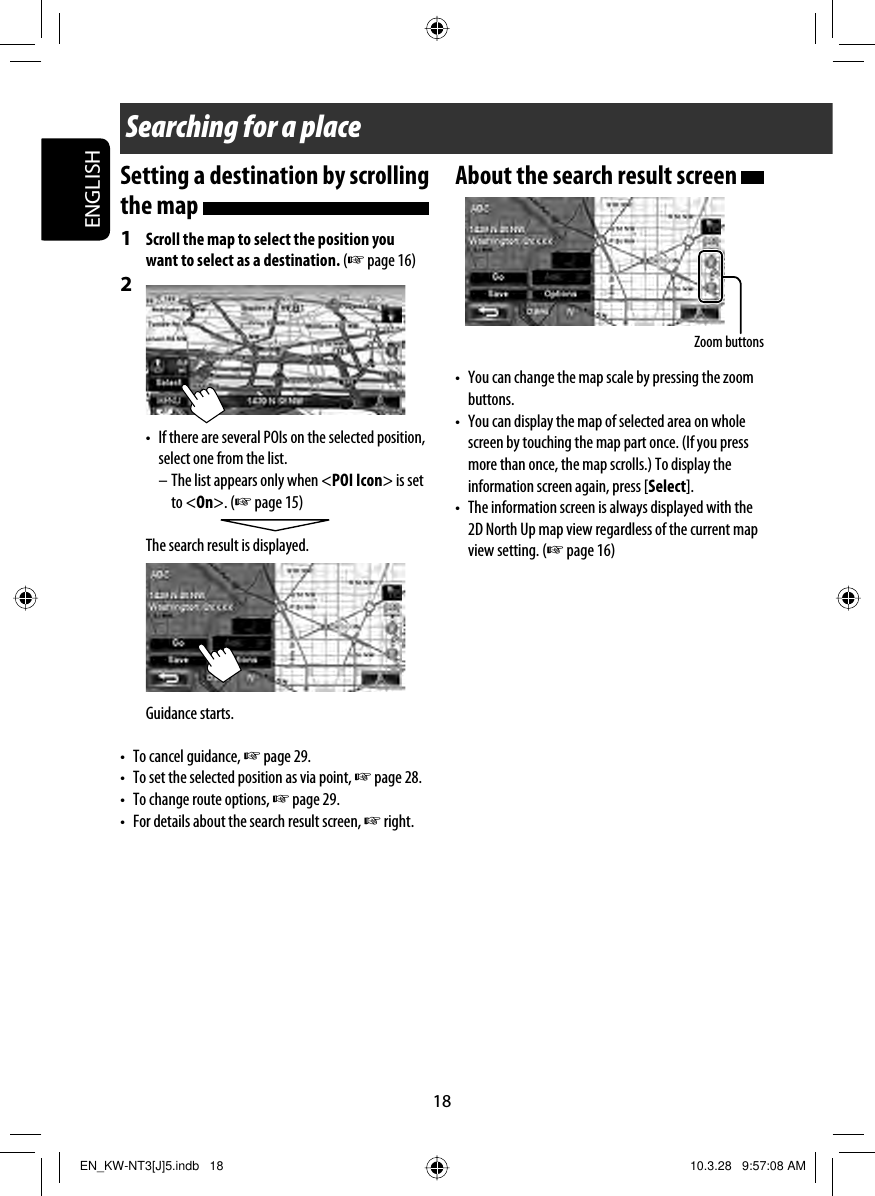

18ENGLISHSearching for a placeSetting a destination by scrolling the map 1 Scroll the map to select the position you want to select as a destination. (☞ page 16)2 • If there are several POIs on the selected position, select one from the list. – The list appears only when <POI Icon> is set to <On>. (☞ page 15) The search result is displayed.Guidance starts.• To cancel guidance, ☞ page 29.• To set the selected position as via point, ☞ page 28. • To change route options, ☞ page 29.• For details about the search result screen, ☞ right.About the search result screen • You can change the map scale by pressing the zoom buttons.• You can display the map of selected area on whole screen by touching the map part once. (If you press more than once, the map scrolls.) To display the information screen again, press [Select].• The information screen is always displayed with the 2D North Up map view regardless of the current map view setting. (☞ page 16)Zoom buttonsEN_KW-NT3[J]5.indb 18EN_KW-NT3[J]5.indb 18 10.3.28 9:57:08 AM10.3.28 9:57:08 AM

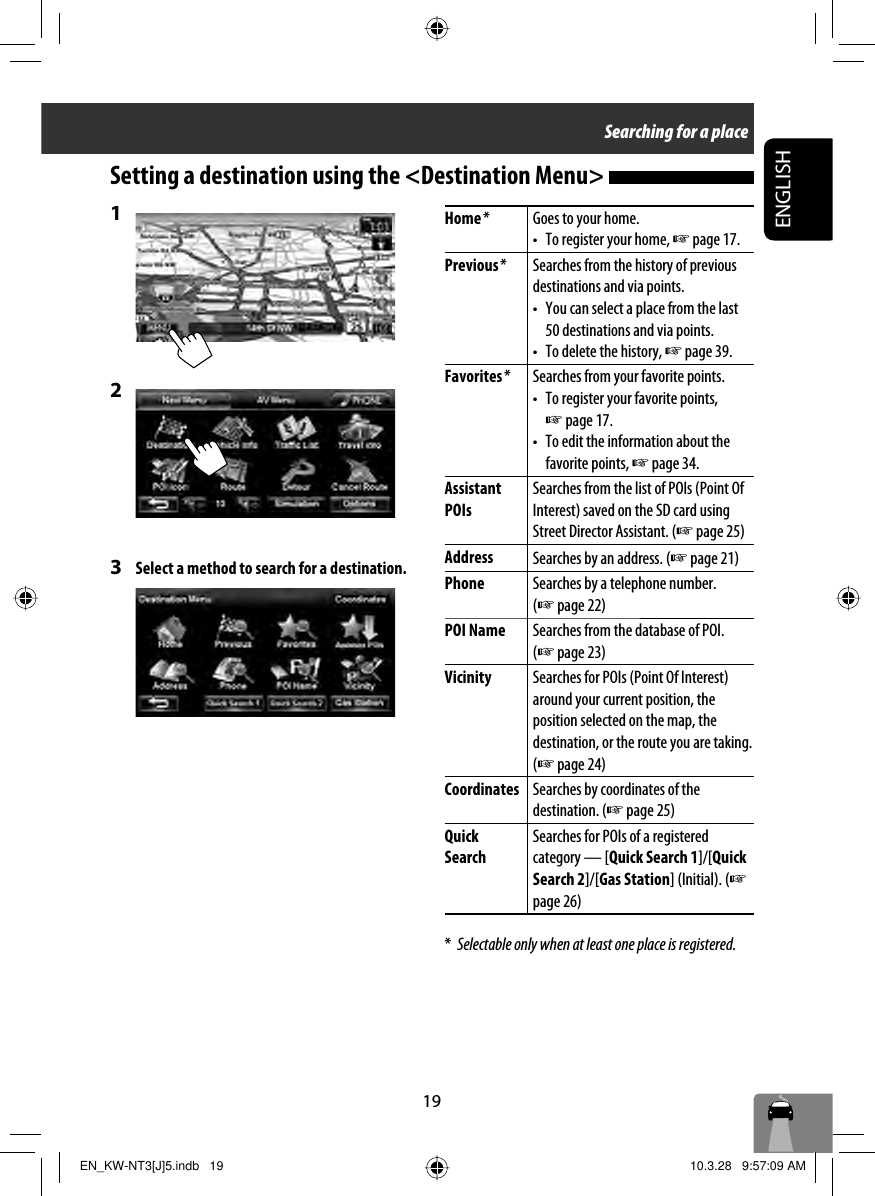

19ENGLISHSearching for a placeHome *Goes to your home.• To register your home, ☞ page 17.Previous *Searches from the history of previous destinations and via points.• You can select a place from the last 50 destinations and via points.• To delete the history, ☞ page 39.Favorites *Searches from your favorite points.• To register your favorite points, ☞ page 17.• To edit the information about the favorite points, ☞ page 34.Assistant POIsSearches from the list of POIs (Point Of Interest) saved on the SD card using Street Director Assistant. (☞ page 25)Address Searches by an address. (☞ page 21)Phone Searches by a telephone number. (☞ page 22)POI Name Searches from the database of POI. (☞ page 23)Vicinity Searches for POIs (Point Of Interest) around your current position, the position selected on the map, the destination, or the route you are taking. (☞ page 24)Coordinates Searches by coordinates of the destination. (☞ page 25)Quick Search Searches for POIs of a registered category — [Quick Search 1]/[Quick Search 2]/[Gas Station] (Initial). (☞ page 26)* Selectable only when at least one place is registered.Setting a destination using the <Destination Menu> 1 2 3 Select a method to search for a destination.EN_KW-NT3[J]5.indb 19EN_KW-NT3[J]5.indb 19 10.3.28 9:57:09 AM10.3.28 9:57:09 AM

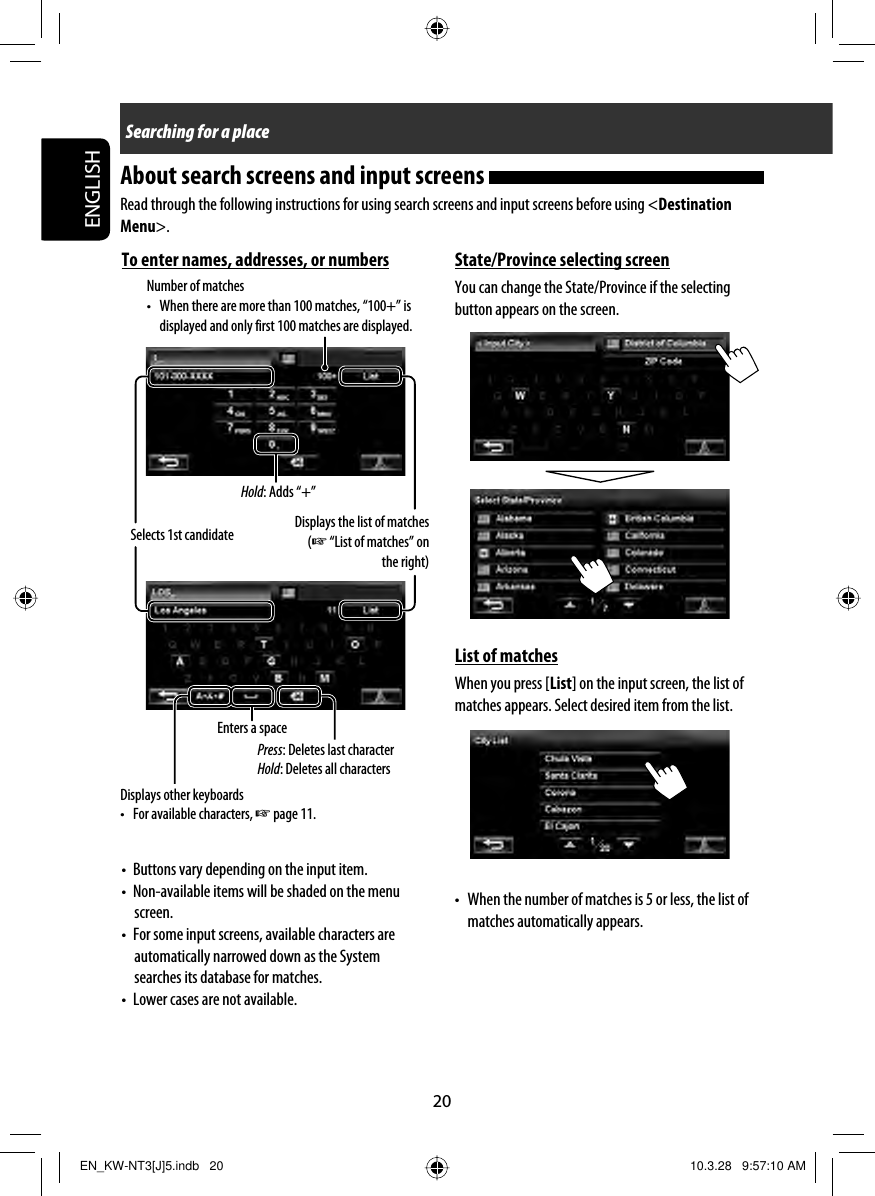

20ENGLISHSearching for a placeDisplays other keyboards • For available characters, ☞ page 11.Enters a spaceSelects 1st candidateNumber of matches • When there are more than 100 matches, “100+” is displayed and only first 100 matches are displayed.Press: Deletes last characterHold: Deletes all charactersDisplays the list of matches (☞ “List of matches” on the right)About search screens and input screens Read through the following instructions for using search screens and input screens before using <Destination Menu>.State/Province selecting screenYou can change the State/Province if the selecting button appears on the screen.List of matchesWhen you press [List] on the input screen, the list of matches appears. Select desired item from the list.• When the number of matches is 5 or less, the list of matches automatically appears.To enter names, addresses, or numbers• Buttons vary depending on the input item.• Non-available items will be shaded on the menu screen.• For some input screens, available characters are automatically narrowed down as the System searches its database for matches.• Lower cases are not available.Hold: Adds “+”EN_KW-NT3[J]5.indb 20EN_KW-NT3[J]5.indb 20 10.3.28 9:57:10 AM10.3.28 9:57:10 AM

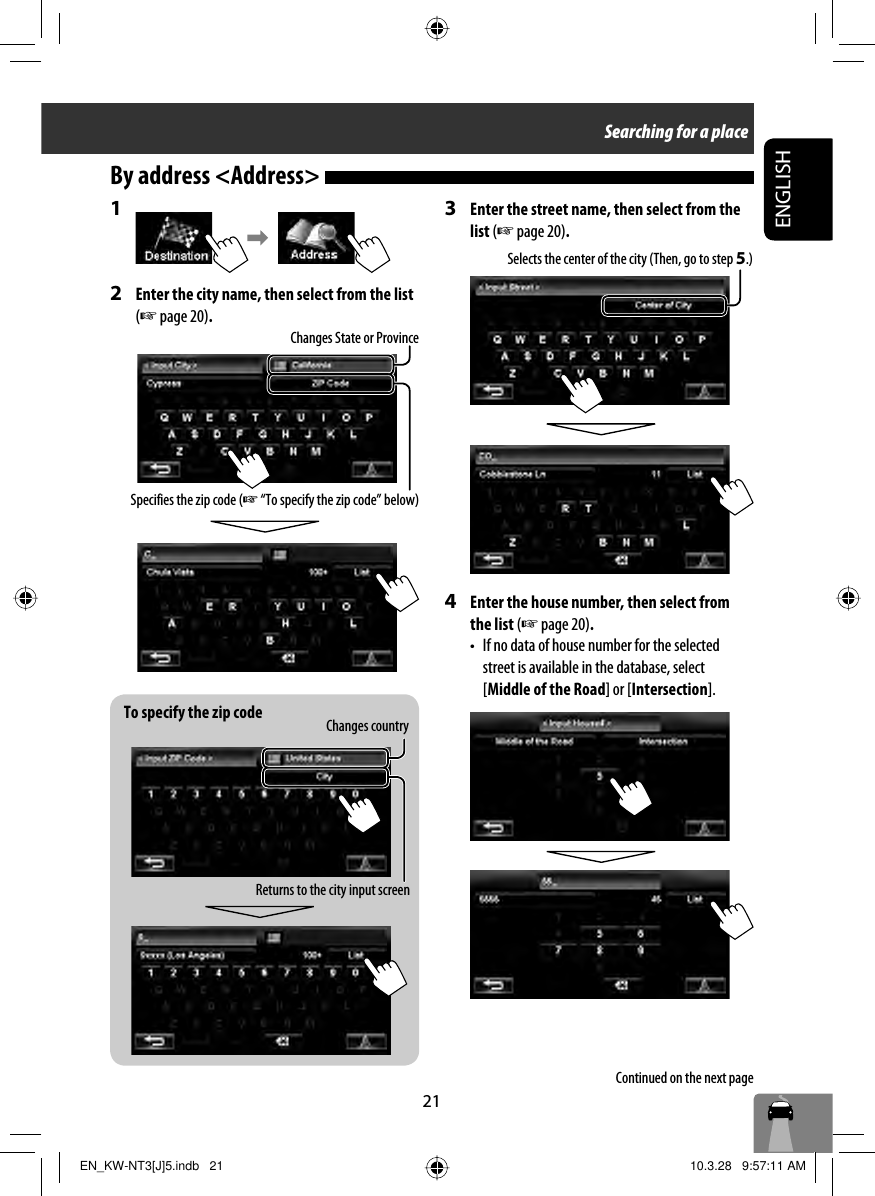

To specify the zip code21ENGLISH1 2 Enter the city name, then select from the list (☞ page 20).Changes State or ProvinceSpecifies the zip code (☞ “To specify the zip code” below)Continued on the next pageReturns to the city input screenChanges countrySearching for a placeBy address <Address> 3 Enter the street name, then select from the list (☞ page 20).4 Enter the house number, then select from the list (☞ page 20).• If no data of house number for the selected street is available in the database, select [Middle of the Road] or [Intersection].Selects the center of the city (Then, go to step 5.)EN_KW-NT3[J]5.indb 21EN_KW-NT3[J]5.indb 21 10.3.28 9:57:11 AM10.3.28 9:57:11 AM

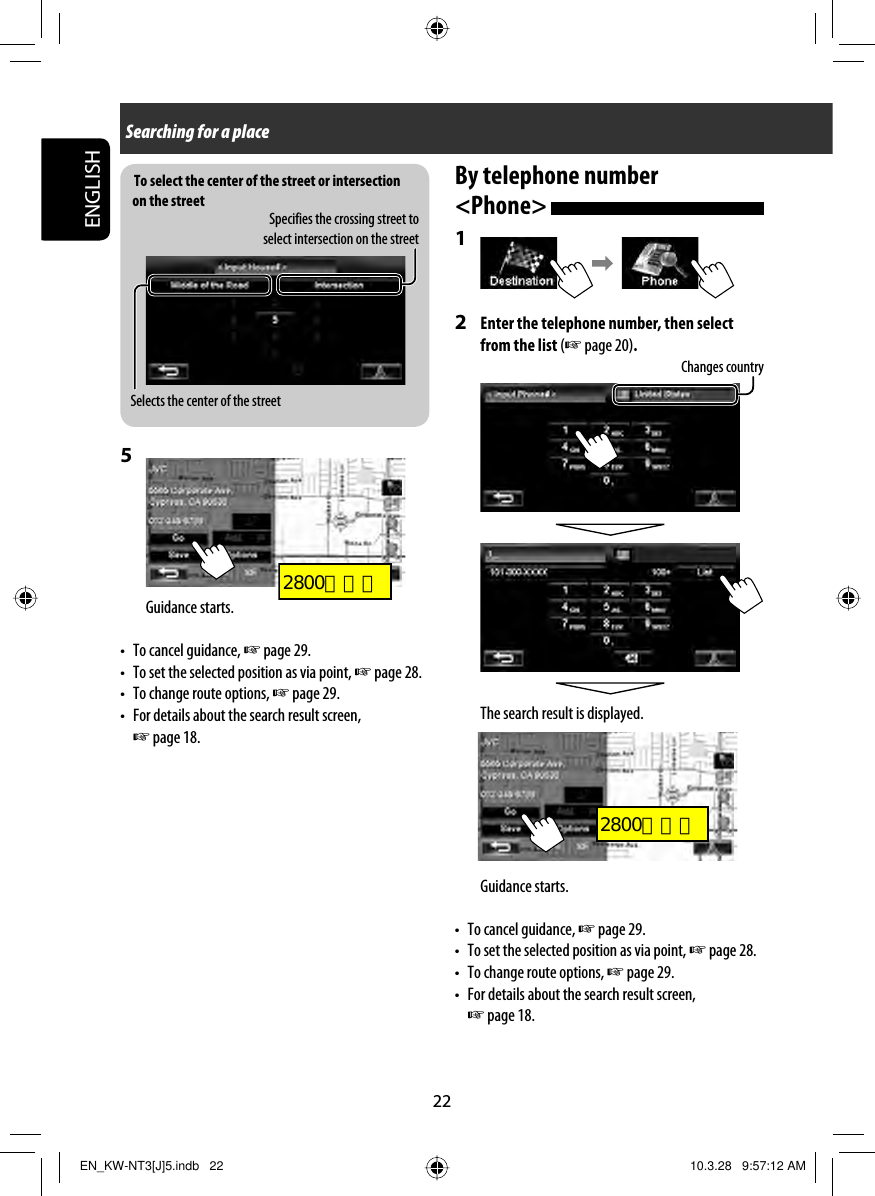

To select the center of the street or intersection on the street22ENGLISH5 Guidance starts.• To cancel guidance, ☞ page 29.• To set the selected position as via point, ☞ page 28. • To change route options, ☞ page 29.• For details about the search result screen, ☞ page 18.Searching for a placeSpecifies the crossing street to select intersection on the streetSelects the center of the streetBy telephone number <Phone> 1 2 Enter the telephone number, then select from the list (☞ page 20).The search result is displayed.Guidance starts.• To cancel guidance, ☞ page 29.• To set the selected position as via point, ☞ page 28. • To change route options, ☞ page 29.• For details about the search result screen, ☞ page 18.Changes countryEN_KW-NT3[J]5.indb 22EN_KW-NT3[J]5.indb 22 10.3.28 9:57:12 AM10.3.28 9:57:12 AM2800とカエ2800とカエ

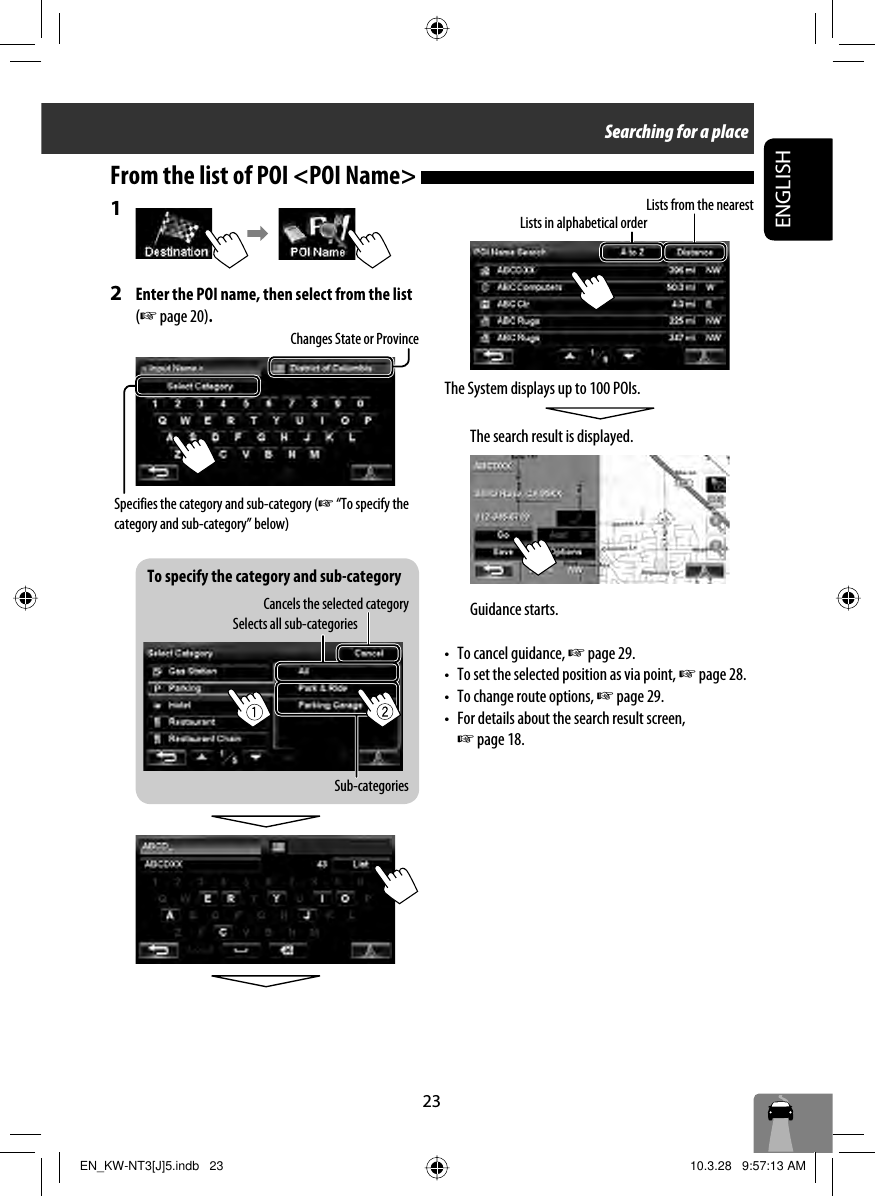

To specify the category and sub-category23ENGLISHSearching for a place1 2 Enter the POI name, then select from the list (☞ page 20).From the list of POI <POI Name> The System displays up to 100 POIs.The search result is displayed.Guidance starts.• To cancel guidance, ☞ page 29.• To set the selected position as via point, ☞ page 28. • To change route options, ☞ page 29.• For details about the search result screen, ☞ page 18.Lists in alphabetical orderLists from the nearestSpecifies the category and sub-category (☞ “To specify the category and sub-category” below)Changes State or ProvinceSelects all sub-categoriesSub-categoriesCancels the selected categoryEN_KW-NT3[J]5.indb 23EN_KW-NT3[J]5.indb 23 10.3.28 9:57:13 AM10.3.28 9:57:13 AM

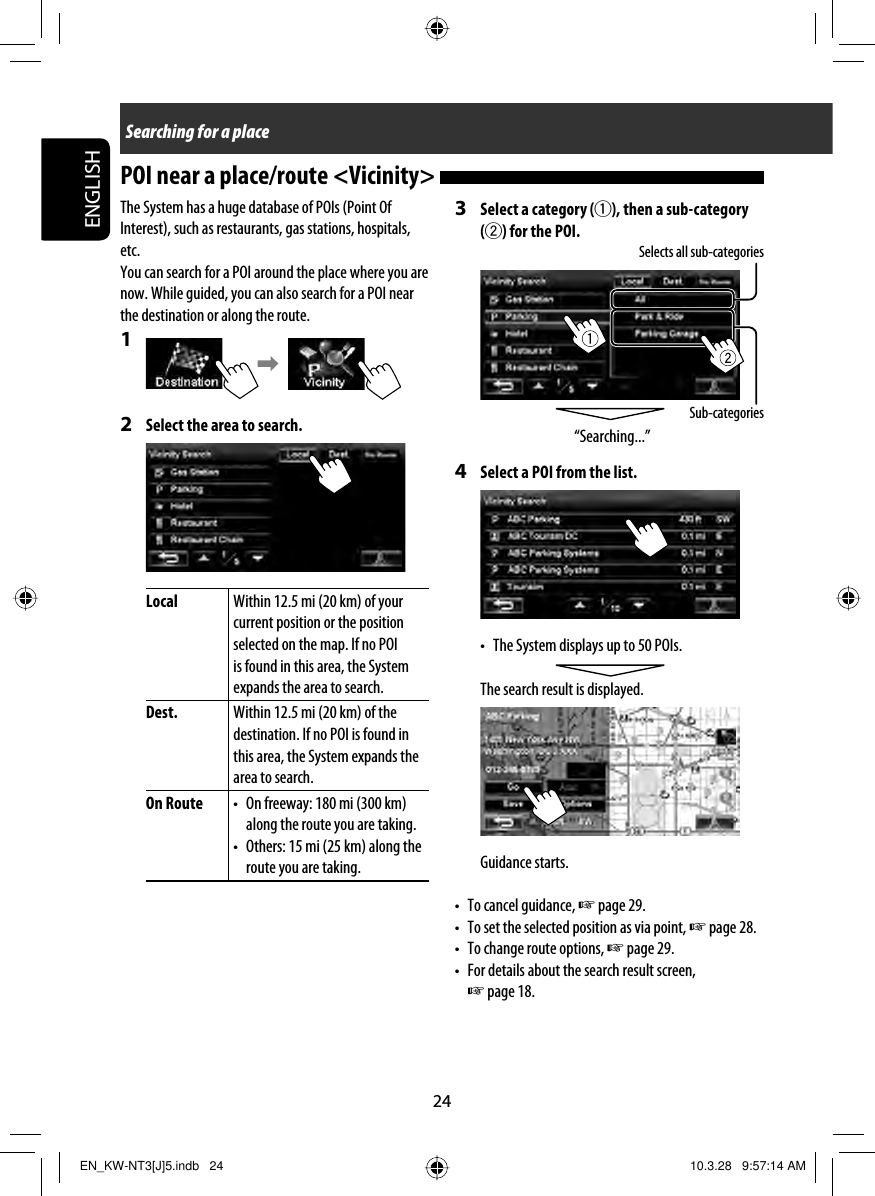

24ENGLISHSearching for a placeSelects all sub-categoriesSub-categories3 Select a category (1), then a sub-category (2) for the POI.4 Select a POI from the list.• The System displays up to 50 POIs.The search result is displayed.Guidance starts.• To cancel guidance, ☞ page 29.• To set the selected position as via point, ☞ page 28. • To change route options, ☞ page 29.• For details about the search result screen, ☞ page 18.The System has a huge database of POIs (Point Of Interest), such as restaurants, gas stations, hospitals, etc.You can search for a POI around the place where you are now. While guided, you can also search for a POI near the destination or along the route.1 2 Select the area to search.Local Within 12.5 mi (20 km) of your current position or the position selected on the map. If no POI is found in this area, the System expands the area to search.Dest. Within 12.5 mi (20 km) of the destination. If no POI is found in this area, the System expands the area to search.On Route • On freeway: 180 mi (300 km) along the route you are taking.• Others: 15 mi (25 km) along the route you are taking.POI near a place/route <Vicinity> “Searching...”EN_KW-NT3[J]5.indb 24EN_KW-NT3[J]5.indb 24 10.3.28 9:57:14 AM10.3.28 9:57:14 AM

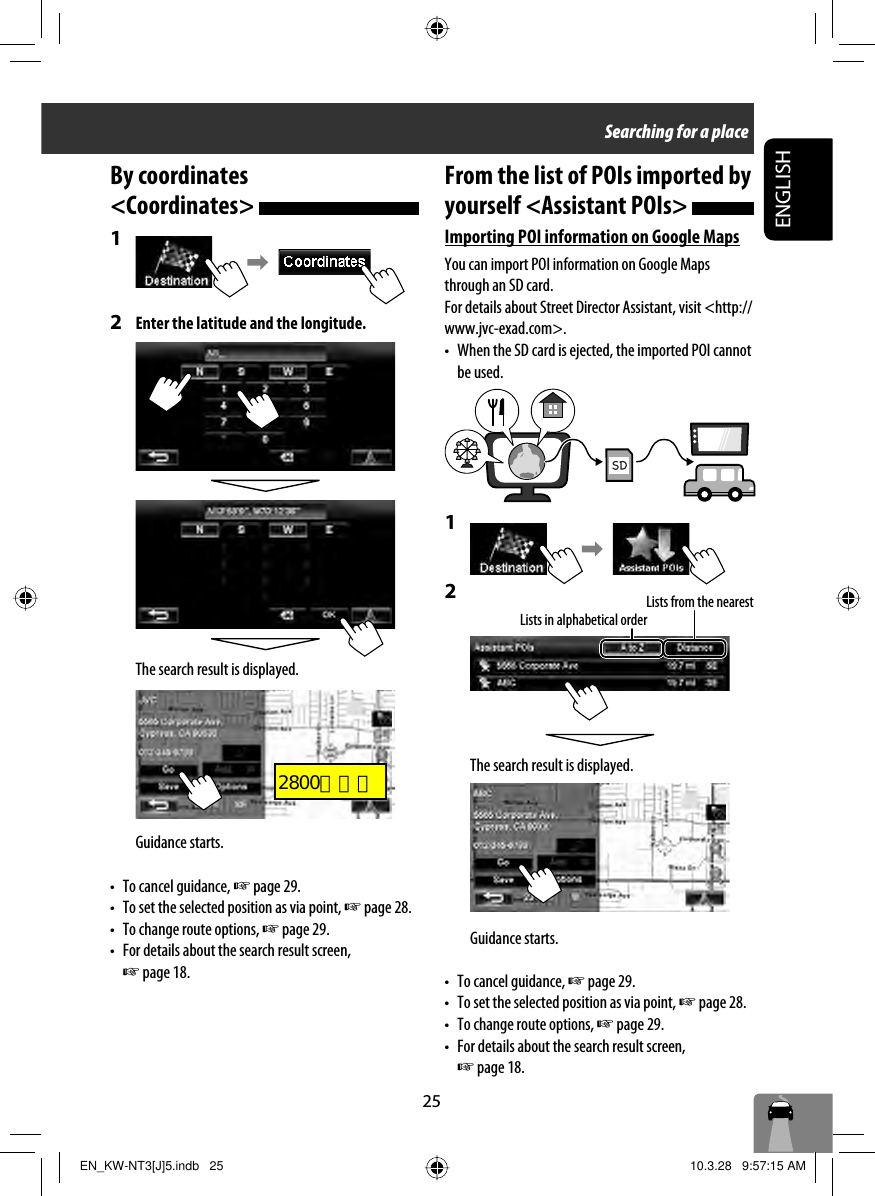

25ENGLISHBy coordinates <Coordinates> 1 2 Enter the latitude and the longitude.The search result is displayed.Guidance starts.• To cancel guidance, ☞ page 29.• To set the selected position as via point, ☞ page 28. • To change route options, ☞ page 29.• For details about the search result screen, ☞ page 18.Searching for a placeFrom the list of POIs imported by yourself <Assistant POIs> Importing POI information on Google MapsYou can import POI information on Google Maps through an SD card.For details about Street Director Assistant, visit <http://www.jvc-exad.com>.• When the SD card is ejected, the imported POI cannot be used.1 2 The search result is displayed.Guidance starts.• To cancel guidance, ☞ page 29.• To set the selected position as via point, ☞ page 28. • To change route options, ☞ page 29.• For details about the search result screen, ☞ page 18.Lists in alphabetical orderLists from the nearestEN_KW-NT3[J]5.indb 25EN_KW-NT3[J]5.indb 25 10.3.28 9:57:15 AM10.3.28 9:57:15 AM2800とカエ

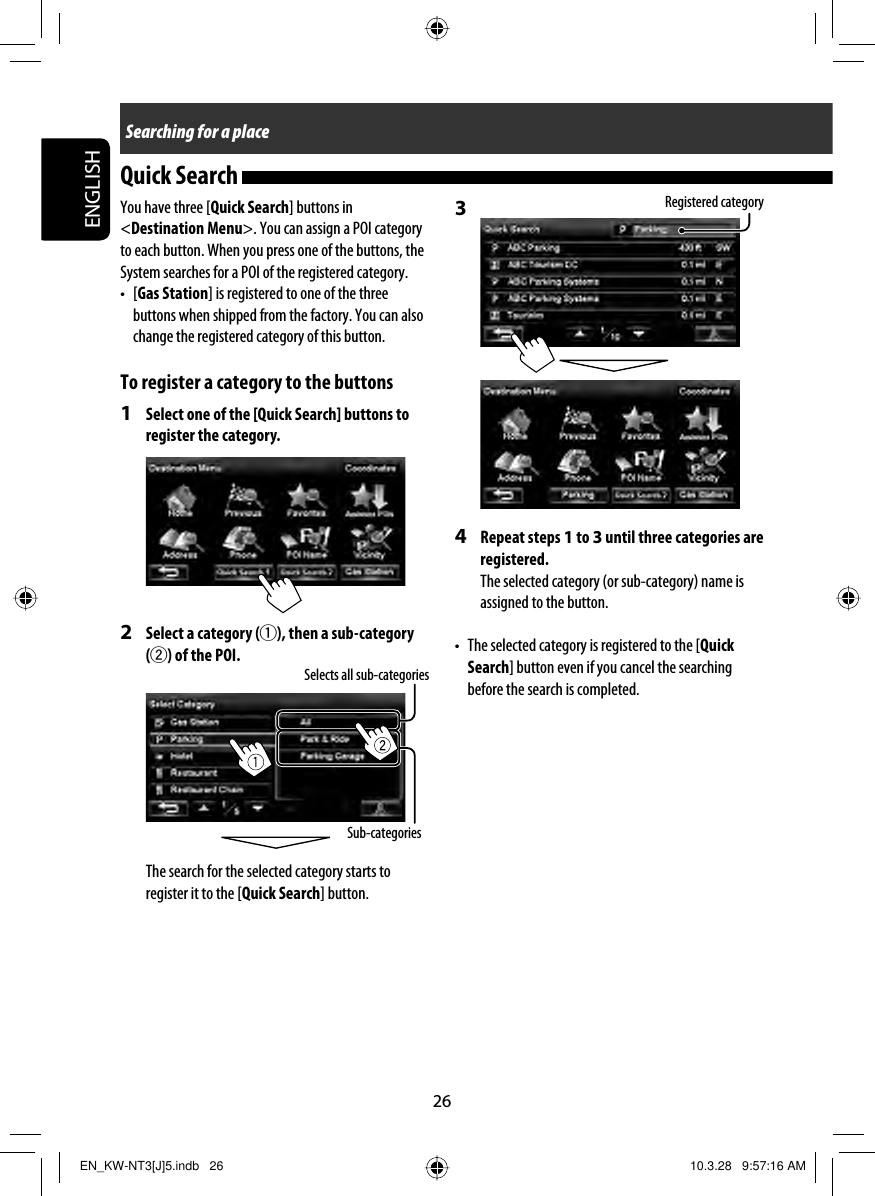

Tentative26ENGLISHSearching for a placeQuick Search You have three [Quick Search] buttons in <Destination Menu>. You can assign a POI category to each button. When you press one of the buttons, the System searches for a POI of the registered category.• [Gas Station] is registered to one of the three buttons when shipped from the factory. You can also change the registered category of this button. To register a category to the buttons1 Select one of the [Quick Search] buttons to register the category.2 Select a category (1), then a sub-category (2) of the POI.The search for the selected category starts to register it to the [Quick Search] button.Selects all sub-categoriesSub-categories3 4 Repeat steps 1 to 3 until three categories are registered.The selected category (or sub-category) name is assigned to the button.• The selected category is registered to the [Quick Search] button even if you cancel the searching before the search is completed.Registered categoryEN_KW-NT3[J]5.indb 26EN_KW-NT3[J]5.indb 26 10.3.28 9:57:16 AM10.3.28 9:57:16 AM

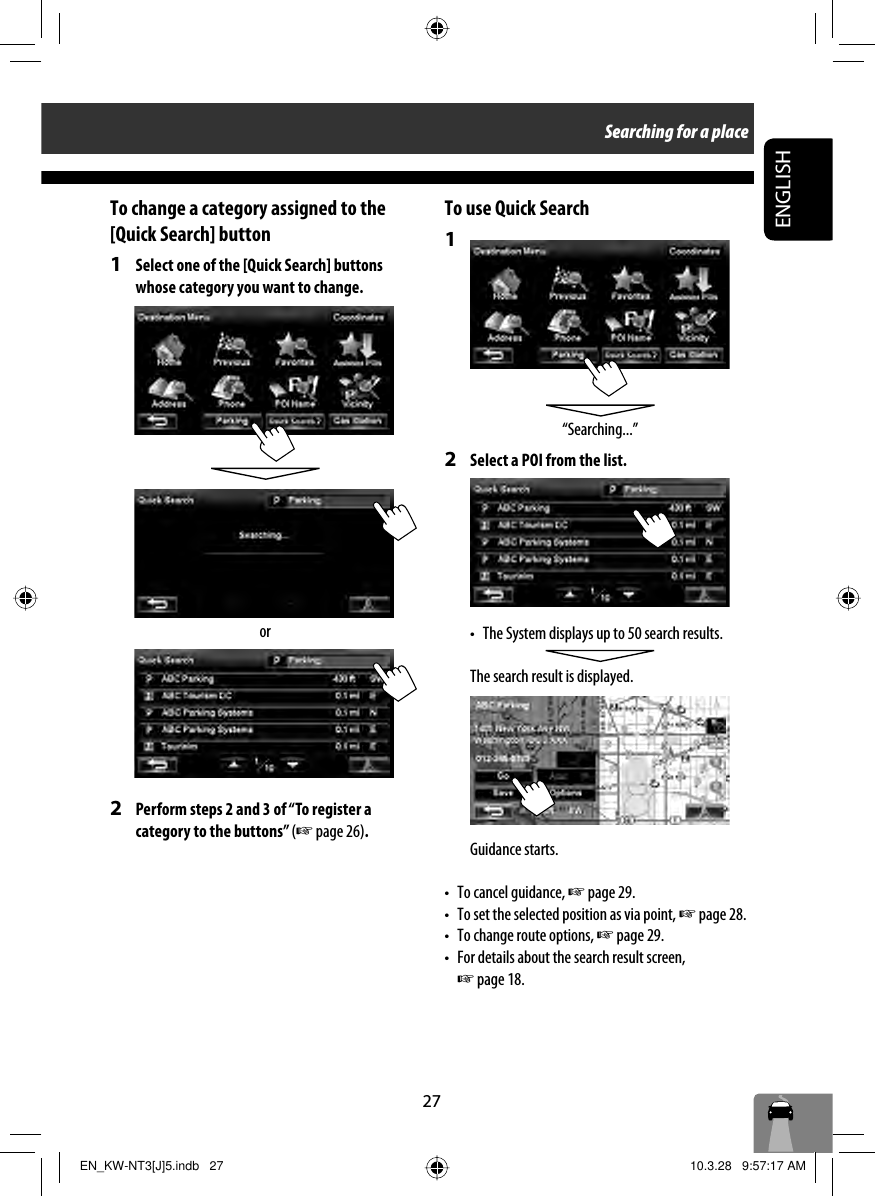

27ENGLISHTo change a category assigned to the [Quick Search] button1 Select one of the [Quick Search] buttons whose category you want to change.2 Perform steps 2 and 3 of “To register a category to the buttons” (☞ page 26).orTo use Quick Search1 2 Select a POI from the list.• The System displays up to 50 search results.The search result is displayed.Guidance starts.• To cancel guidance, ☞ page 29.• To set the selected position as via point, ☞ page 28. • To change route options, ☞ page 29.• For details about the search result screen, ☞ page 18.“Searching...”Searching for a placeEN_KW-NT3[J]5.indb 27EN_KW-NT3[J]5.indb 27 10.3.28 9:57:17 AM10.3.28 9:57:17 AM

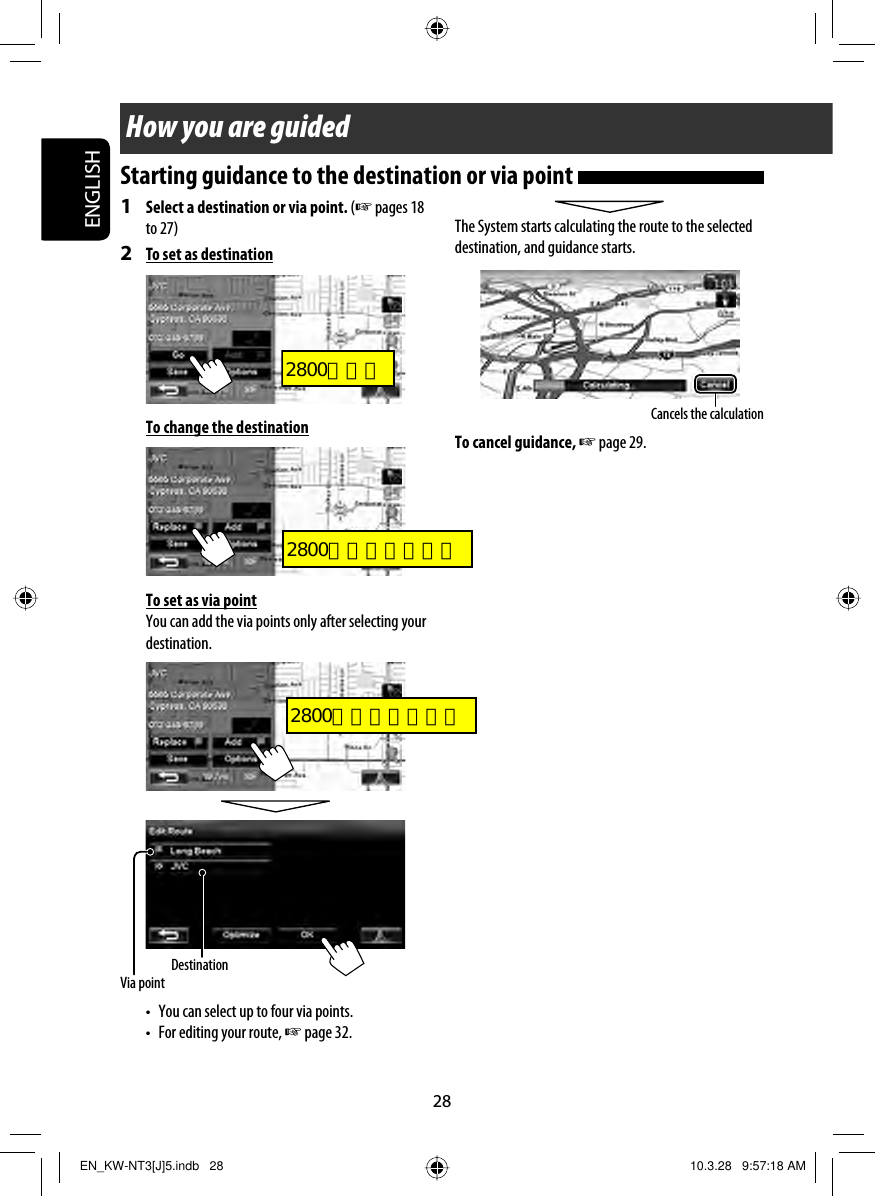

28ENGLISHCancels the calculationHow you are guidedVia pointDestination1 Select a destination or via point. (☞ pages 18 to 27)2 To set as destinationTo change the destinationTo set as via pointYou can add the via points only after selecting your destination.• You can select up to four via points.• For editing your route, ☞ page 32.The System starts calculating the route to the selected destination, and guidance starts.To cancel guidance, ☞ page 29.Starting guidance to the destination or via point EN_KW-NT3[J]5.indb 28EN_KW-NT3[J]5.indb 28 10.3.28 9:57:18 AM10.3.28 9:57:18 AM2800とカエ2800右半分だけカエ2800右半分だけカエ

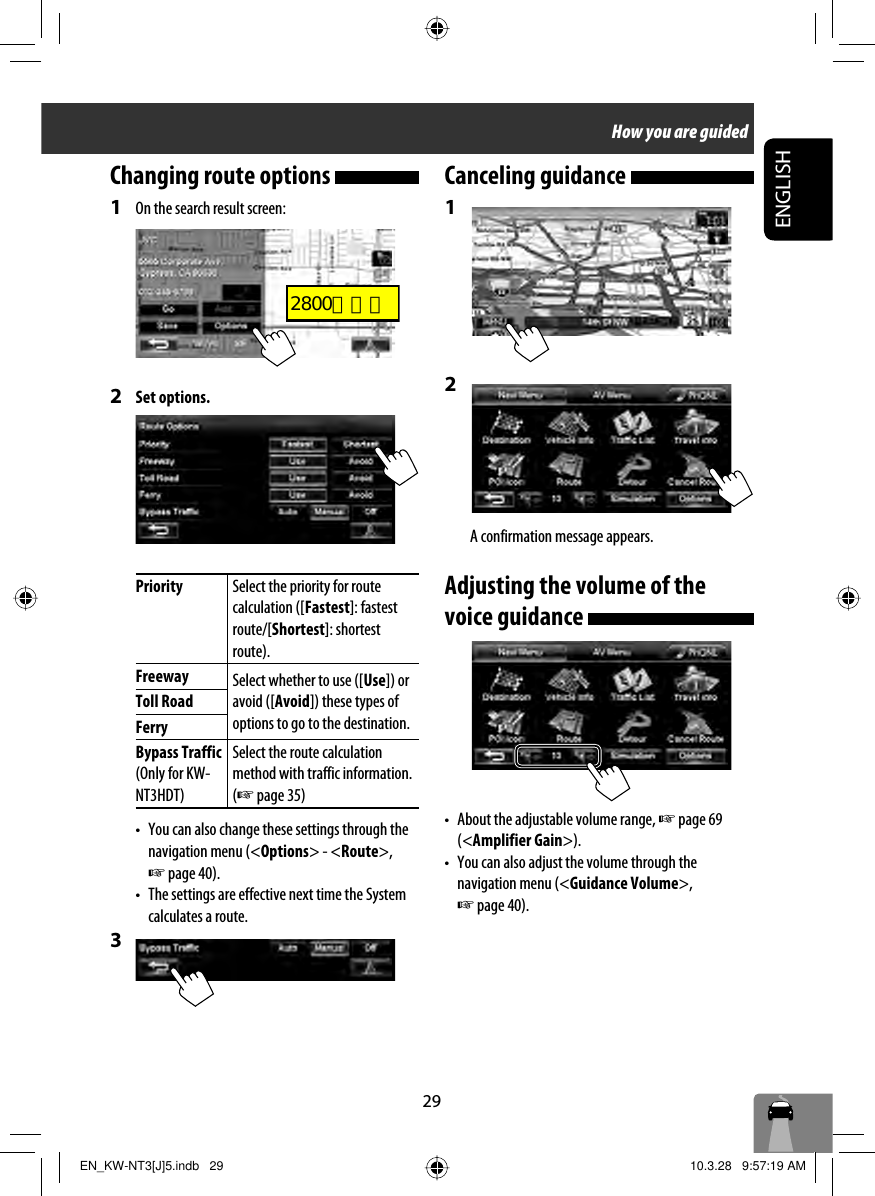

29ENGLISHChanging route options 1 On the search result screen:2 Set options.Priority Select the priority for route calculation ([Fastest]: fastest route/[Shortest]: shortest route).Freeway Select whether to use ([Use]) or avoid ([Avoid]) these types of options to go to the destination.Toll RoadFerryBypass Traffic(Only for KW-NT3HDT)Select the route calculation method with traffic information. (☞ page 35)• You can also change these settings through the navigation menu (<Options> - <Route>, ☞ page 40).• The settings are effective next time the System calculates a route.3 Canceling guidance 1 2 A confirmation message appears.Adjusting the volume of the voice guidance • About the adjustable volume range, ☞ page 69 (<Amplifier Gain>).• You can also adjust the volume through the navigation menu (<Guidance Volume>, ☞ page 40).How you are guidedEN_KW-NT3[J]5.indb 29EN_KW-NT3[J]5.indb 29 10.3.28 9:57:19 AM10.3.28 9:57:19 AM2800とカエ

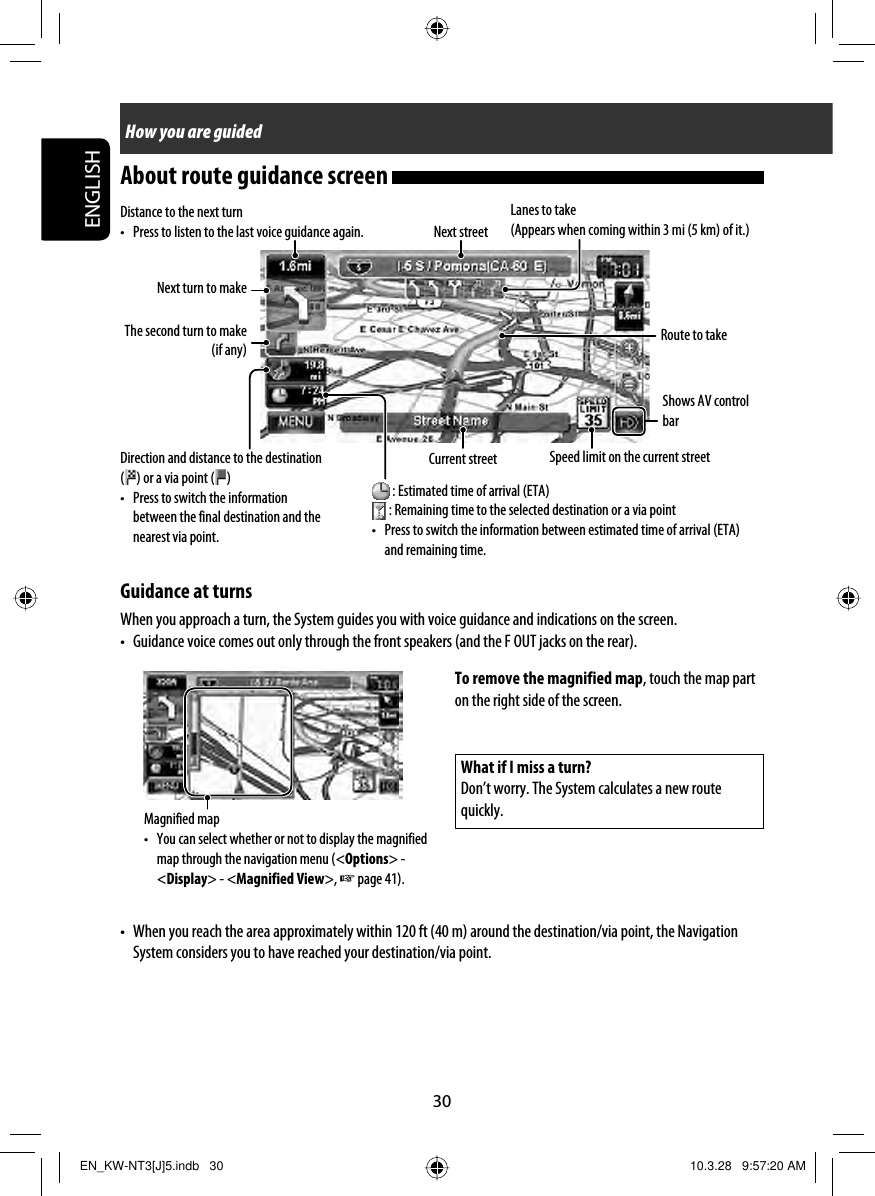

30ENGLISHHow you are guidedDistance to the next turn• Press to listen to the last voice guidance again. Next streetRoute to takeGuidance at turnsWhen you approach a turn, the System guides you with voice guidance and indications on the screen.• Guidance voice comes out only through the front speakers (and the F OUT jacks on the rear).Direction and distance to the destination () or a via point ( )• Press to switch the information between the final destination and the nearest via point.Current streetLanes to take(Appears when coming within 3 mi (5 km) of it.)Next turn to makeThe second turn to make (if any) : Estimated time of arrival (ETA) : Remaining time to the selected destination or a via point• Press to switch the information between estimated time of arrival (ETA) and remaining time.Speed limit on the current streetWhat if I miss a turn?Don’t worry. The System calculates a new route quickly.Magnified map• You can select whether or not to display the magnified map through the navigation menu (<Options> - <Display> - <Magnified View>, ☞ page 41).To remove the magnified map, touch the map part on the right side of the screen.• When you reach the area approximately within 120 ft (40 m) around the destination/via point, the Navigation System considers you to have reached your destination/via point.Shows AV control barAbout route guidance screen EN_KW-NT3[J]5.indb 30EN_KW-NT3[J]5.indb 30 10.3.28 9:57:20 AM10.3.28 9:57:20 AM

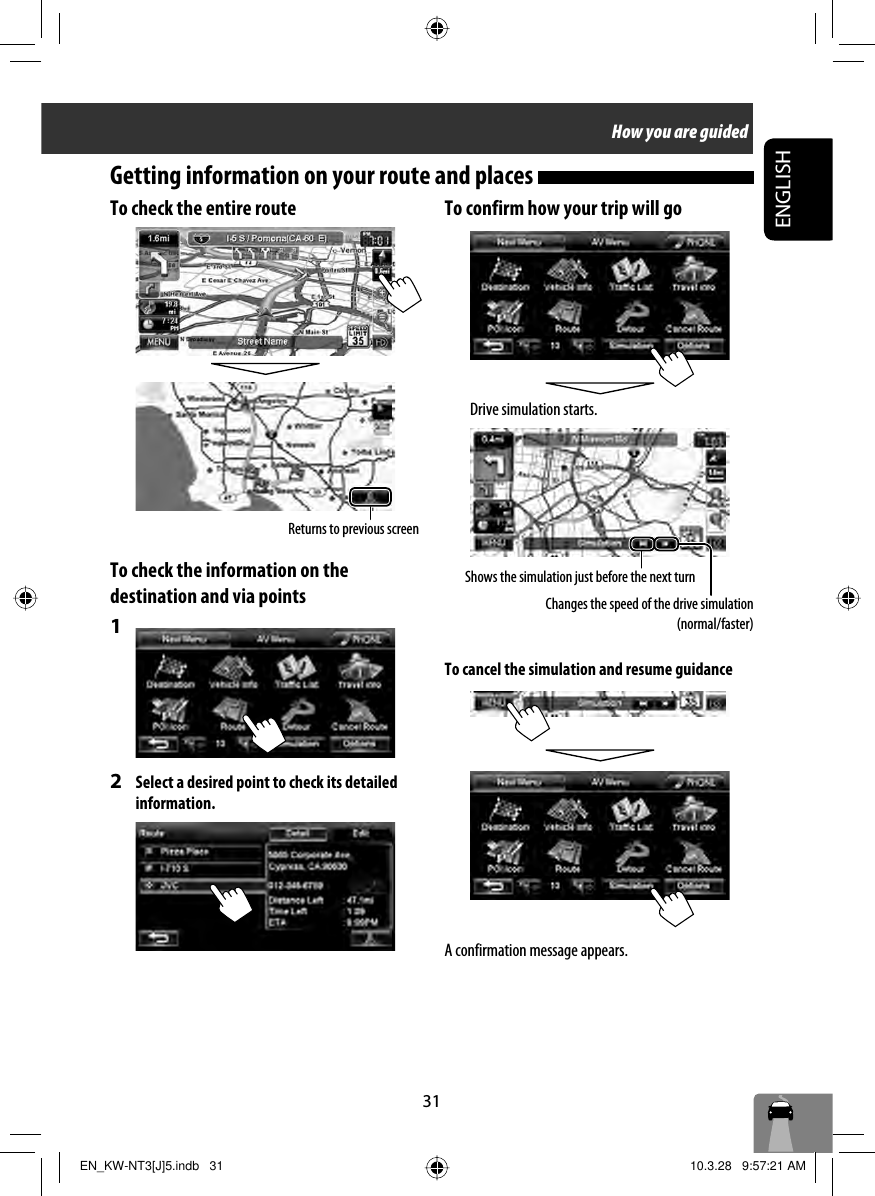

31ENGLISHTo check the entire routeTo check the information on the destination and via points1 2 Select a desired point to check its detailed information.Getting information on your route and places To confirm how your trip will goDrive simulation starts.To cancel the simulation and resume guidanceA confirmation message appears.Shows the simulation just before the next turnChanges the speed of the drive simulation (normal/faster)Returns to previous screenHow you are guidedEN_KW-NT3[J]5.indb 31EN_KW-NT3[J]5.indb 31 10.3.28 9:57:21 AM10.3.28 9:57:21 AM

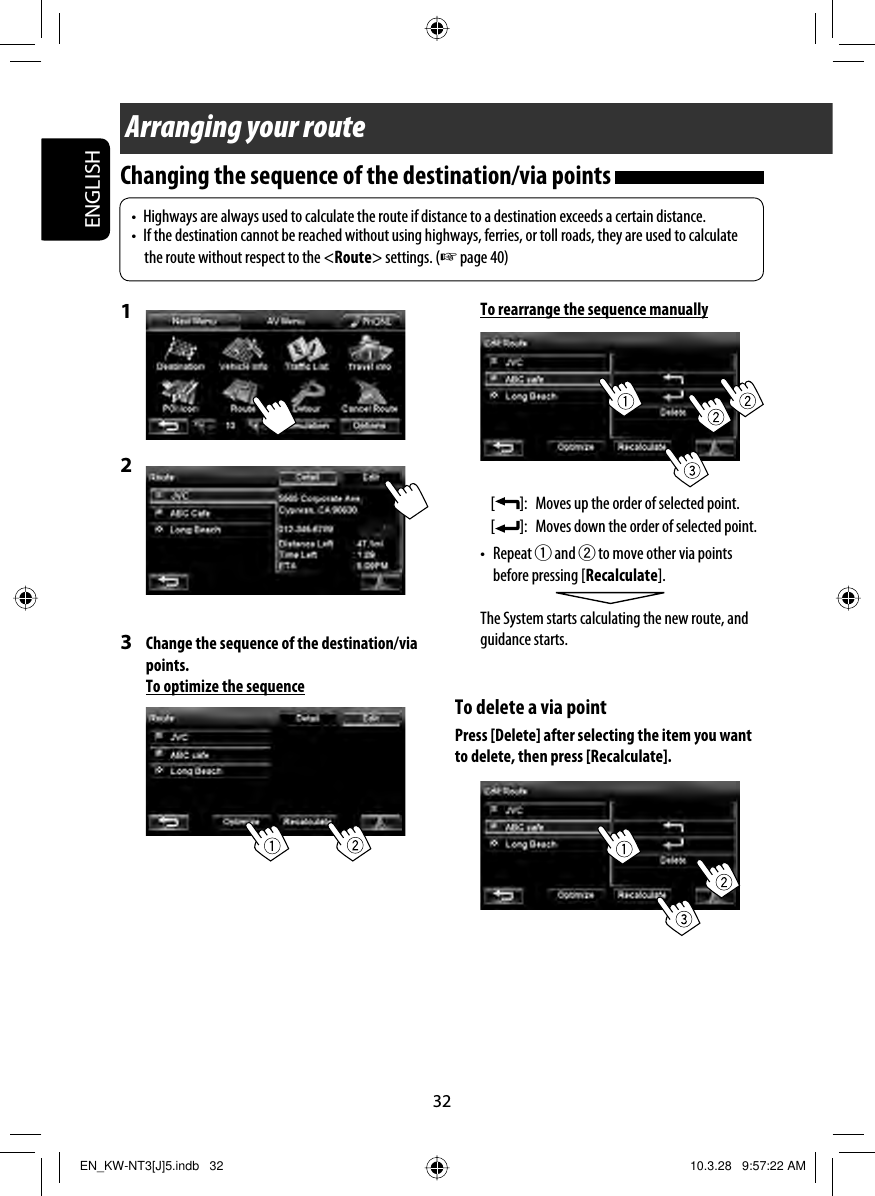

32ENGLISHArranging your route1 2 3 Change the sequence of the destination/via points.To optimize the sequence• Highways are always used to calculate the route if distance to a destination exceeds a certain distance.• If the destination cannot be reached without using highways, ferries, or toll roads, they are used to calculate the route without respect to the <Route> settings. (☞ page 40)To rearrange the sequence manually[ ]: Moves up the order of selected point.[]: Moves down the order of selected point.• Repeat 1 and 2 to move other via points before pressing [Recalculate].The System starts calculating the new route, and guidance starts.To delete a via pointPress [Delete] after selecting the item you want to delete, then press [Recalculate]. Changing the sequence of the destination/via points EN_KW-NT3[J]5.indb 32EN_KW-NT3[J]5.indb 32 10.3.28 9:57:22 AM10.3.28 9:57:22 AM

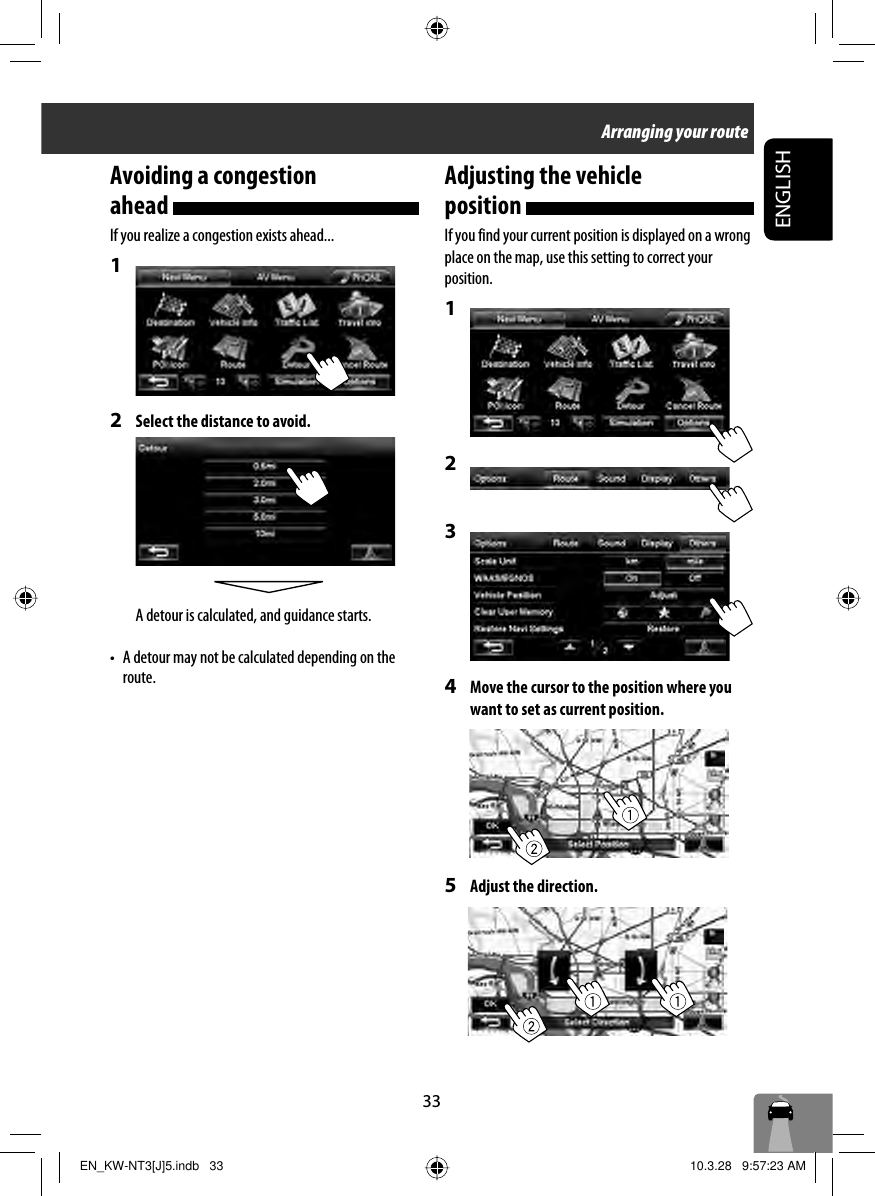

33ENGLISHAvoiding a congestion ahead If you realize a congestion exists ahead...1 2 Select the distance to avoid.A detour is calculated, and guidance starts.• A detour may not be calculated depending on the route.Adjusting the vehicle position If you find your current position is displayed on a wrong place on the map, use this setting to correct your position.1 2 3 4 Move the cursor to the position where you want to set as current position.5 Adjust the direction.Arranging your routeEN_KW-NT3[J]5.indb 33EN_KW-NT3[J]5.indb 33 10.3.28 9:57:23 AM10.3.28 9:57:23 AM

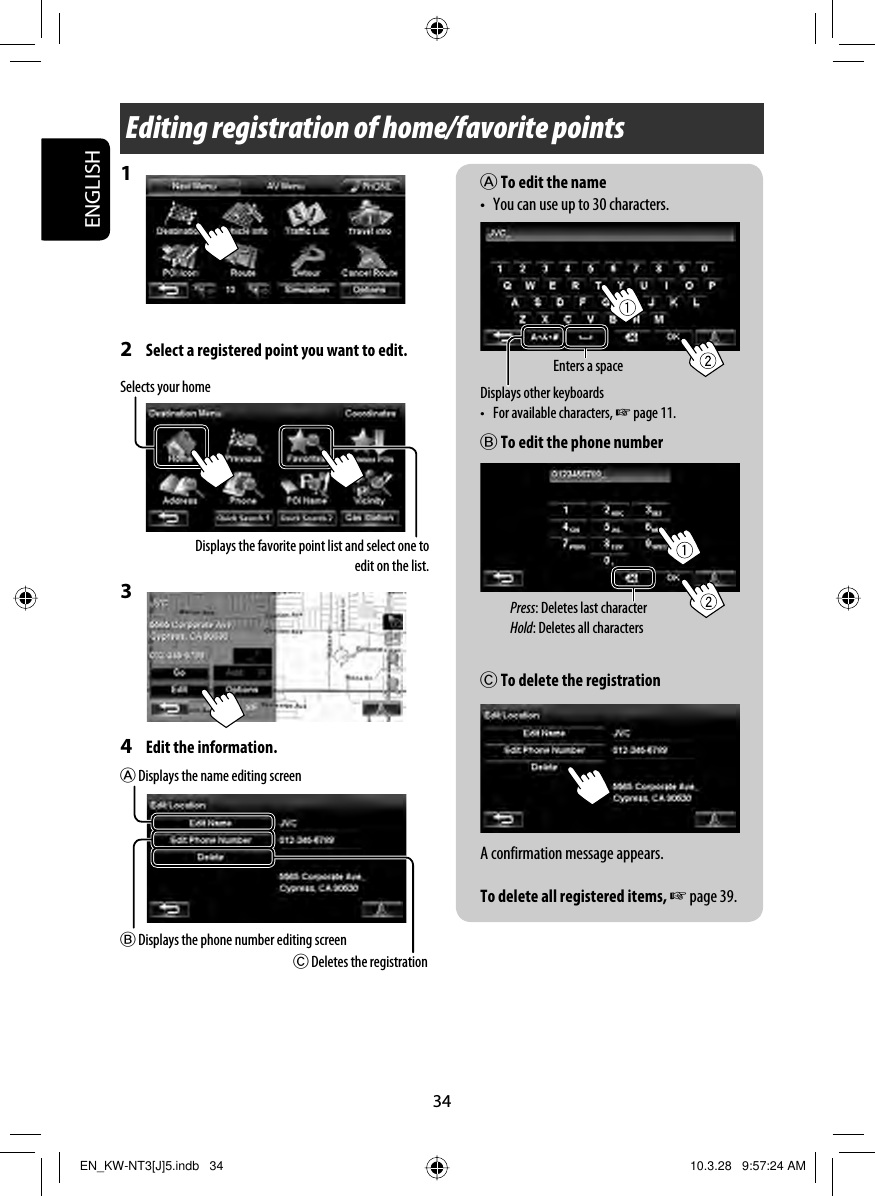

34ENGLISHEditing registration of home/favorite pointsA To edit the name• You can use up to 30 characters.B To edit the phone numberC To delete the registrationA confirmation message appears.To delete all registered items, ☞ page 39.1 2 Select a registered point you want to edit.3 4 Edit the information.B Displays the phone number editing screenA Displays the name editing screenC Deletes the registrationDisplays other keyboards • For available characters, ☞ page 11.Enters a spacePress: Deletes last characterHold: Deletes all charactersSelects your homeDisplays the favorite point list and select one to edit on the list.EN_KW-NT3[J]5.indb 34EN_KW-NT3[J]5.indb 34 10.3.28 9:57:24 AM10.3.28 9:57:24 AM

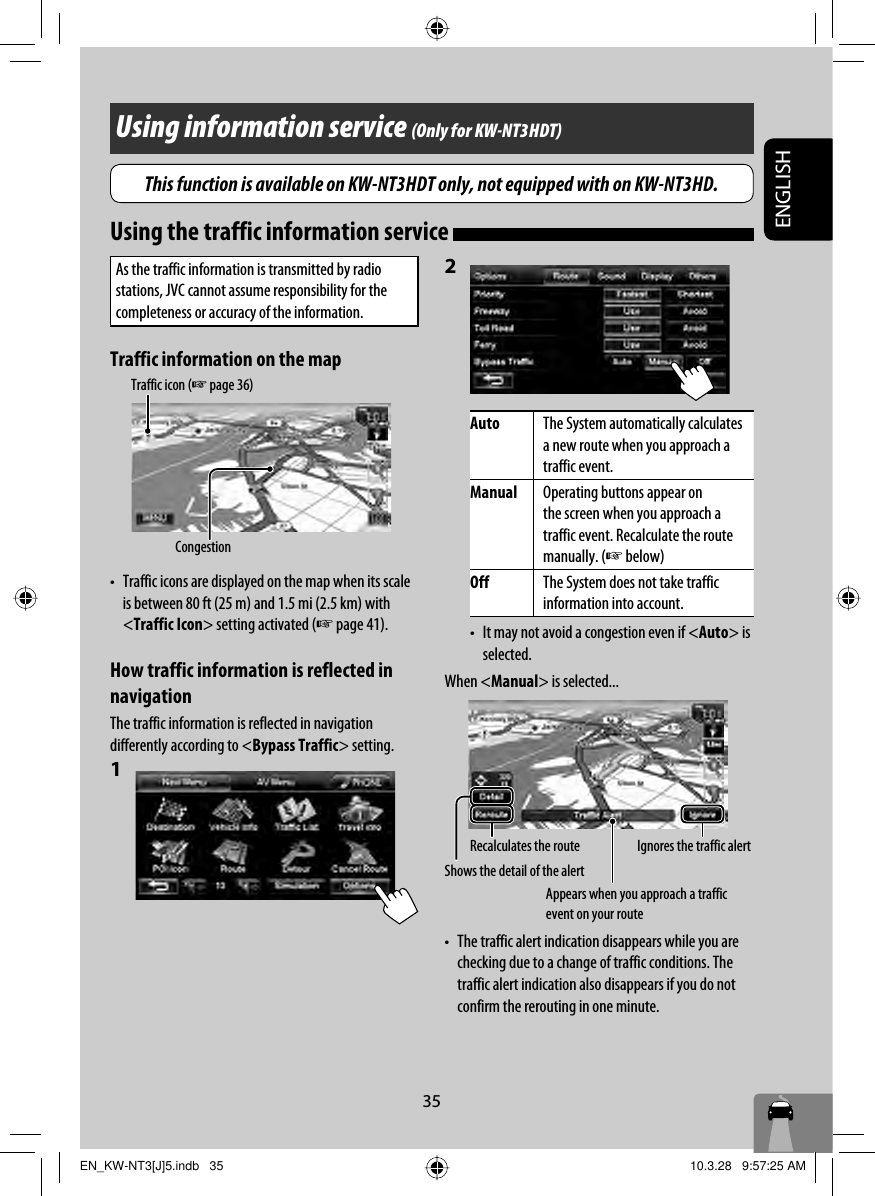

35ENGLISHAs the traffic information is transmitted by radio stations, JVC cannot assume responsibility for the completeness or accuracy of the information.Traffic information on the map• Traffic icons are displayed on the map when its scale is between 80 ft (25 m) and 1.5 mi (2.5 km) with <Traffic Icon> setting activated (☞ page 41).How traffic information is reflected in navigationThe traffic information is reflected in navigation differently according to <Bypass Traffic> setting.1 Traffic icon (☞ page 36)CongestionUsing information service (Only for KW-NT3HDT)2 Auto The System automatically calculates a new route when you approach a traffic event.Manual Operating buttons appear on the screen when you approach a traffic event. Recalculate the route manually. (☞ below)Off The System does not take traffic information into account.• It may not avoid a congestion even if <Auto> is selected.When <Manual> is selected...• The traffic alert indication disappears while you are checking due to a change of traffic conditions. The traffic alert indication also disappears if you do not confirm the rerouting in one minute.Shows the detail of the alertRecalculates the route Ignores the traffic alertAppears when you approach a traffic event on your routeUsing the traffic information service This function is available on KW-NT3HDT only, not equipped with on KW-NT3HD.EN_KW-NT3[J]5.indb 35EN_KW-NT3[J]5.indb 35 10.3.28 9:57:25 AM10.3.28 9:57:25 AM

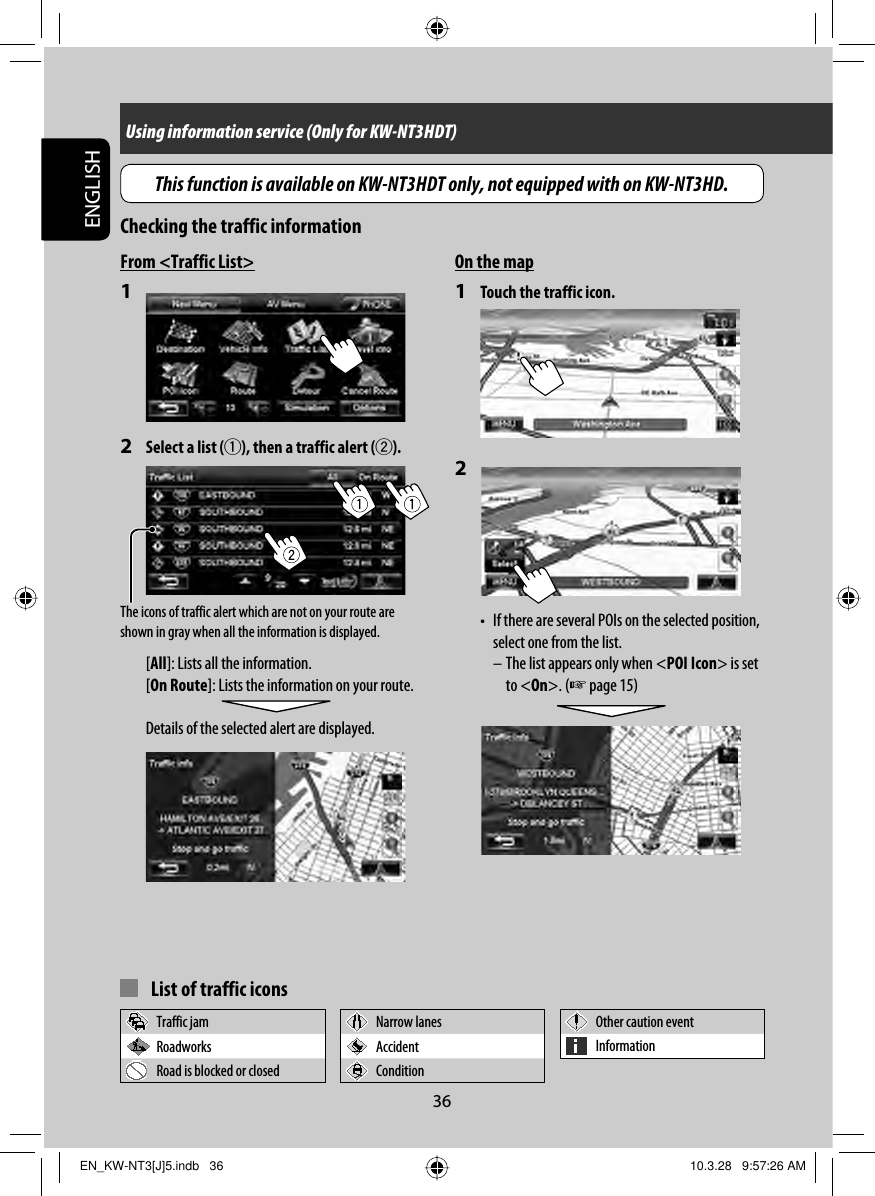

36ENGLISHUsing information service (Only for KW-NT3HDT)On the map1 Touch the traffic icon.2 • If there are several POIs on the selected position, select one from the list. – The list appears only when <POI Icon> is set to <On>. (☞ page 15) The icons of traffic alert which are not on your route are shown in gray when all the information is displayed.From <Traffic List>1 2 Select a list (1), then a traffic alert (2).[All]: Lists all the information.[On Route]: Lists the information on your route.Details of the selected alert are displayed. List of traffic iconsTraffic jam Narrow lanes Other caution eventRoadworks Accident InformationRoad is blocked or closed ConditionChecking the traffic informationThis function is available on KW-NT3HDT only, not equipped with on KW-NT3HD.EN_KW-NT3[J]5.indb 36EN_KW-NT3[J]5.indb 36 10.3.28 9:57:26 AM10.3.28 9:57:26 AM

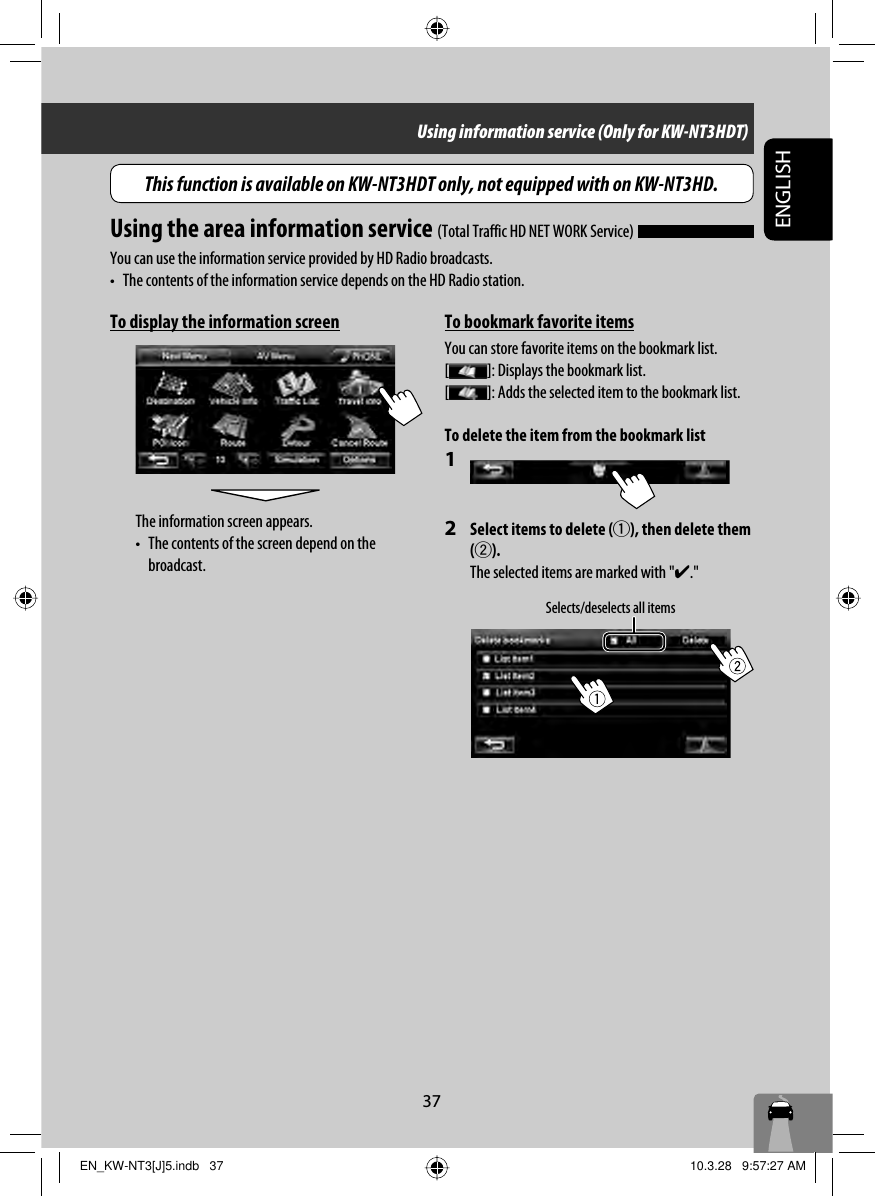

37ENGLISHTo display the information screenThe information screen appears.• The contents of the screen depend on the broadcast.Selects/deselects all itemsUsing information service (Only for KW-NT3HDT)Using the area information service (Total Traffic HD NET WORK Service) You can use the information service provided by HD Radio broadcasts.• The contents of the information service depends on the HD Radio station.To bookmark favorite itemsYou can store favorite items on the bookmark list.[ ]: Displays the bookmark list.[ ]: Adds the selected item to the bookmark list.To delete the item from the bookmark list1 2 Select items to delete (1), then delete them (2).The selected items are marked with "✔."This function is available on KW-NT3HDT only, not equipped with on KW-NT3HD.EN_KW-NT3[J]5.indb 37EN_KW-NT3[J]5.indb 37 10.3.28 9:57:27 AM10.3.28 9:57:27 AM

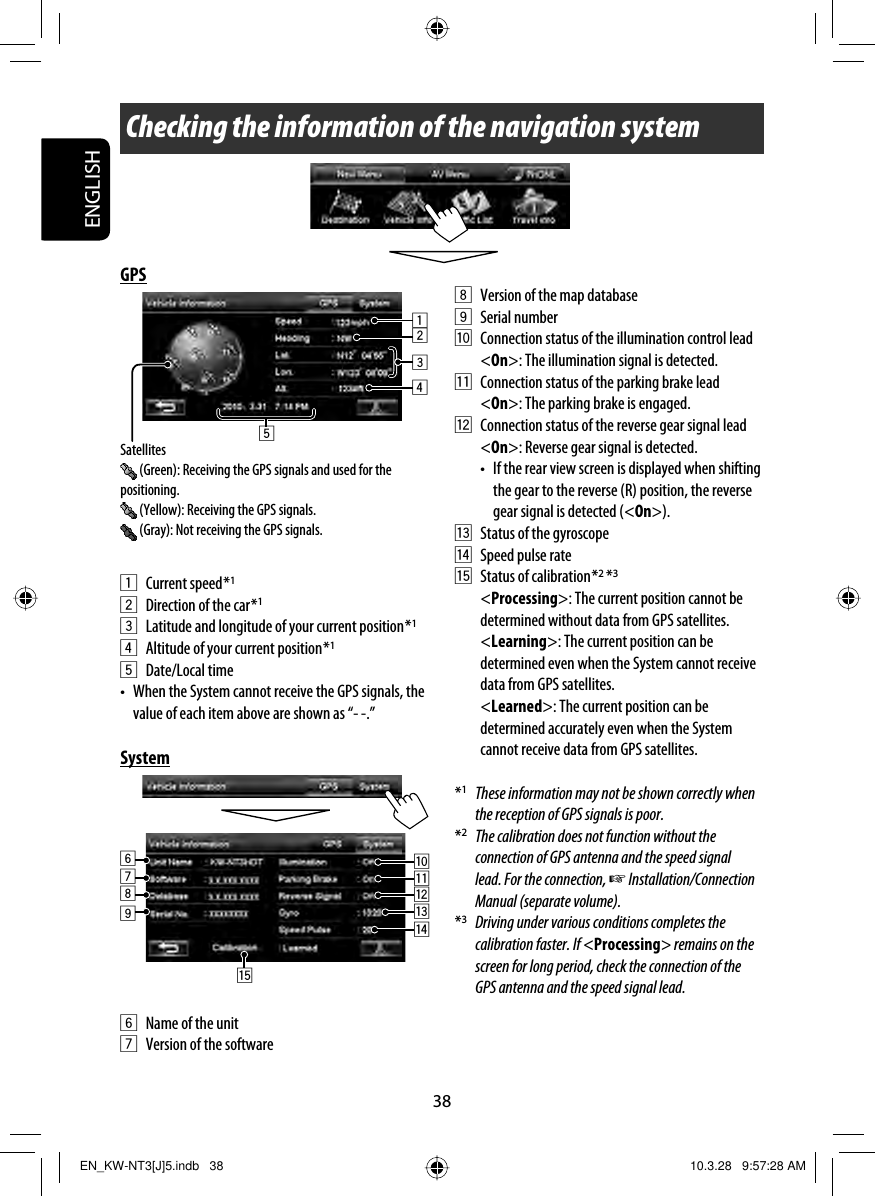

p6789qwert5234138ENGLISHChecking the information of the navigation system8 Version of the map database9 Serial numberp Connection status of the illumination control lead<On>: The illumination signal is detected.q Connection status of the parking brake lead<On>: The parking brake is engaged.w Connection status of the reverse gear signal lead<On>: Reverse gear signal is detected.• If the rear view screen is displayed when shifting the gear to the reverse (R) position, the reverse gear signal is detected (<On>).e Status of the gyroscoper Speed pulse ratet Status of calibration *2 *3<Processing>: The current position cannot be determined without data from GPS satellites.<Learning>: The current position can be determined even when the System cannot receive data from GPS satellites.<Learned>: The current position can be determined accurately even when the System cannot receive data from GPS satellites.*1 These information may not be shown correctly when the reception of GPS signals is poor.*2 The calibration does not function without the connection of GPS antenna and the speed signal lead. For the connection, ☞ Installation/Connection Manual (separate volume).*3 Driving under various conditions completes the calibration faster. If <Processing> remains on the screen for long period, check the connection of the GPS antenna and the speed signal lead.GPS1 Current speed *12 Direction of the car *13 Latitude and longitude of your current position *14 Altitude of your current position *15 Date/Local time• When the System cannot receive the GPS signals, the value of each item above are shown as “- -.”System6 Name of the unit7 Version of the softwareSatellites (Green): Receiving the GPS signals and used for the positioning. (Yellow): Receiving the GPS signals. (Gray): Not receiving the GPS signals.EN_KW-NT3[J]5.indb 38EN_KW-NT3[J]5.indb 38 10.3.28 9:57:28 AM10.3.28 9:57:28 AM

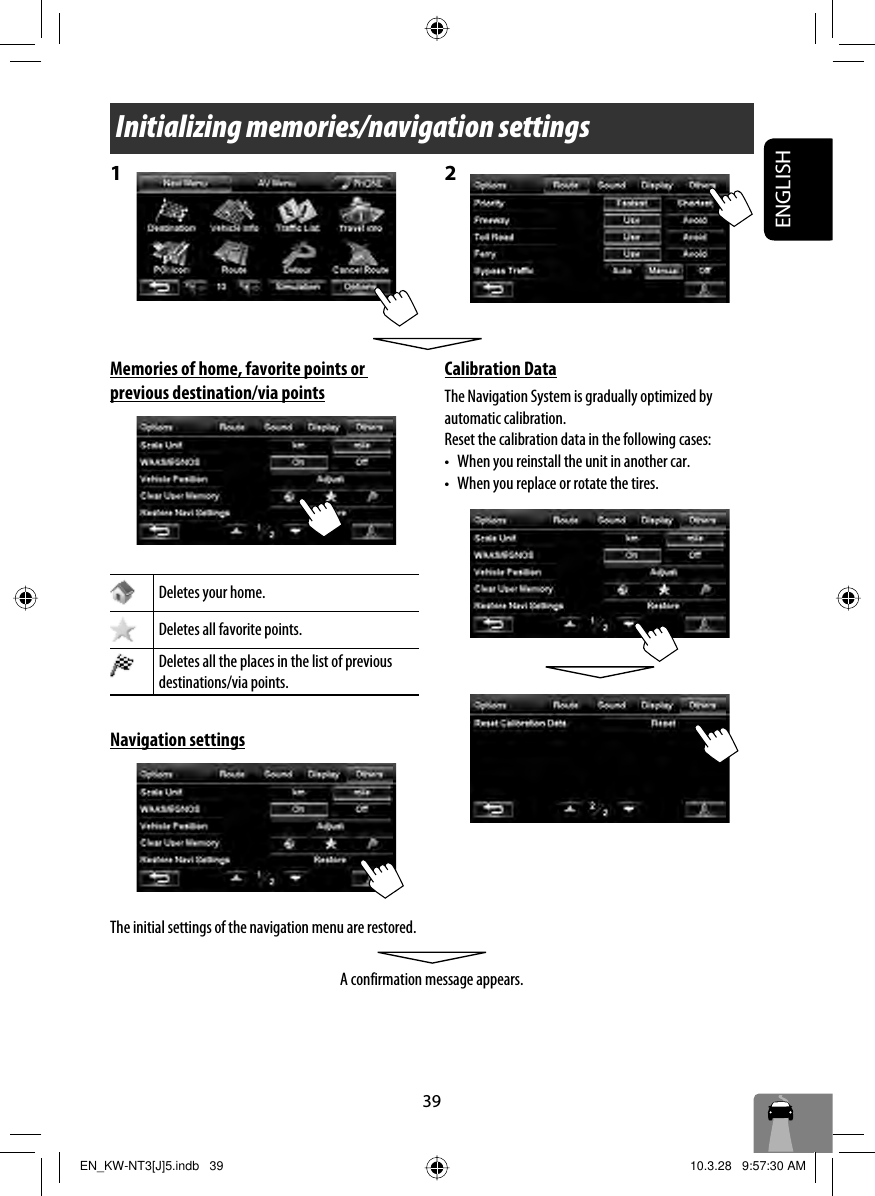

39ENGLISHInitializing memories/navigation settings1 2 Memories of home, favorite points or previous destination/via pointsDeletes your home.Deletes all favorite points.Deletes all the places in the list of previous destinations/via points.Navigation settingsThe initial settings of the navigation menu are restored.A confirmation message appears.Calibration DataThe Navigation System is gradually optimized by automatic calibration.Reset the calibration data in the following cases:• When you reinstall the unit in another car.• When you replace or rotate the tires.EN_KW-NT3[J]5.indb 39EN_KW-NT3[J]5.indb 39 10.3.28 9:57:30 AM10.3.28 9:57:30 AM

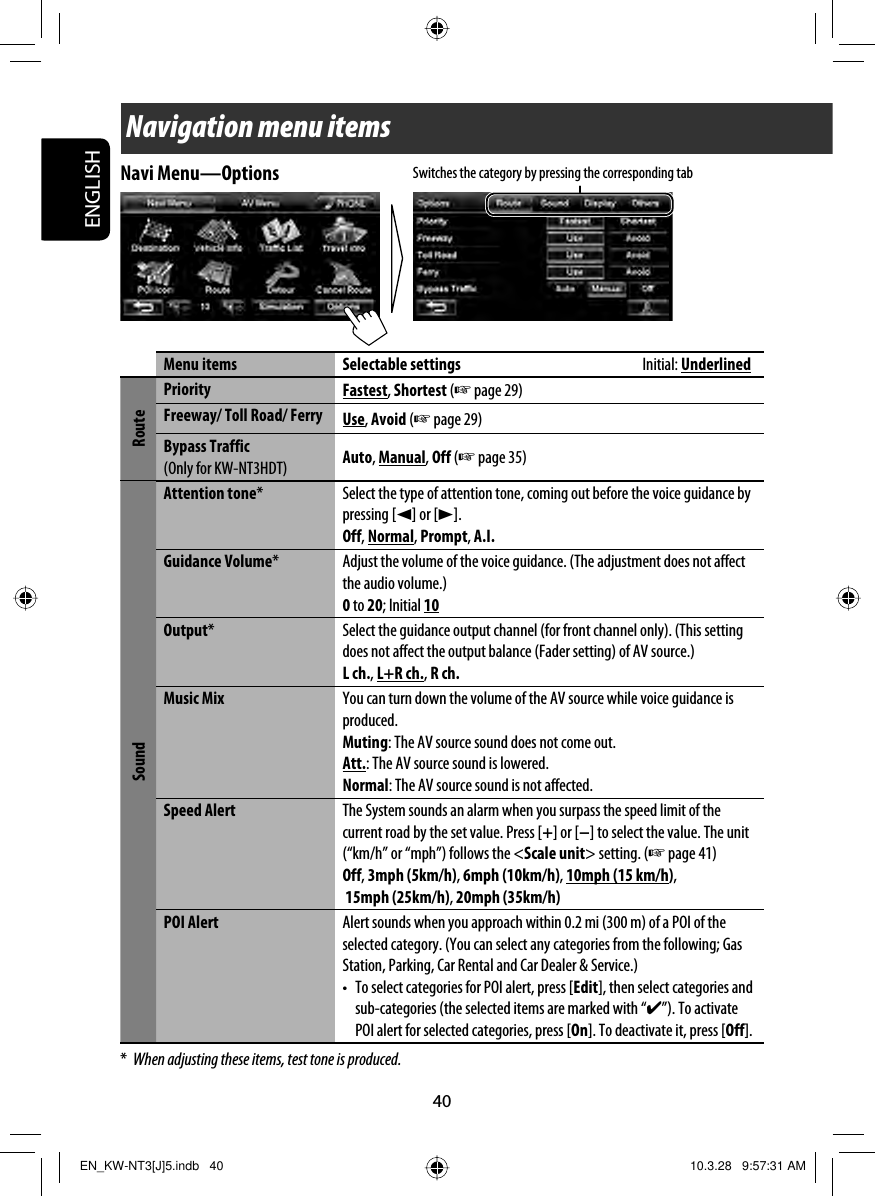

40ENGLISHNavi Menu —OptionsMenu items Selectable settings Initial: UnderlinedRoutePriority Fastest, Shortest (☞ page 29)Freeway/ Toll Road/ Ferry Use, Avoid (☞ page 29)Bypass Traffic (Only for KW-NT3HDT) Auto, Manual, Off (☞ page 35)SoundAttention tone* Select the type of attention tone, coming out before the voice guidance by pressing [2] or [3].Off, Normal, Prompt, A.I. Guidance Volume* Adjust the volume of the voice guidance. (The adjustment does not affect the audio volume.)0 to 20; Initial 10Output* Select the guidance output channel (for front channel only). (This setting does not affect the output balance (Fader setting) of AV source.)L ch., L+R ch., R ch.Music Mix You can turn down the volume of the AV source while voice guidance is produced.Muting: The AV source sound does not come out.Att.: The AV source sound is lowered.Normal: The AV source sound is not affected. Speed Alert The System sounds an alarm when you surpass the speed limit of the current road by the set value. Press [+] or [−] to select the value. The unit (“km/h” or “mph”) follows the <Scale unit> setting. (☞ page 41)Off, 3mph (5km/h), 6mph (10km/h), 10mph (15 km/h), 15mph (25km/h), 20mph (35km/h)POI Alert Alert sounds when you approach within 0.2 mi (300 m) of a POI of the selected category. (You can select any categories from the following; Gas Station, Parking, Car Rental and Car Dealer & Service.)• To select categories for POI alert, press [Edit], then select categories and sub-categories (the selected items are marked with “✔”). To activate POI alert for selected categories, press [On]. To deactivate it, press [Off].* When adjusting these items, test tone is produced.Navigation menu itemsSwitches the category by pressing the corresponding tabEN_KW-NT3[J]5.indb 40EN_KW-NT3[J]5.indb 40 10.3.28 9:57:31 AM10.3.28 9:57:31 AM

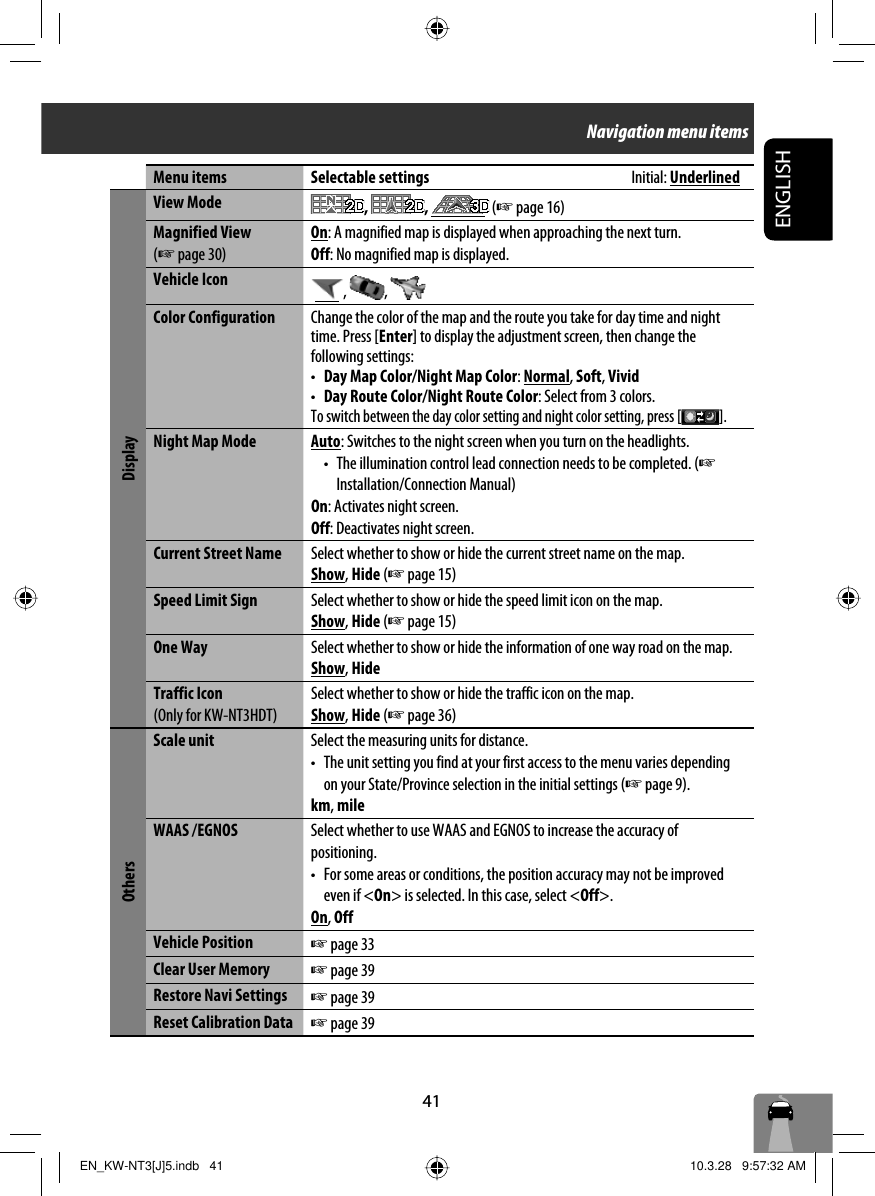

41ENGLISHMenu items Selectable settings Initial: UnderlinedDisplayView Mode , , (☞ page 16)Magnified View(☞ page 30)On: A magnified map is displayed when approaching the next turn.Off: No magnified map is displayed.Vehicle Icon , , Color Configuration Change the color of the map and the route you take for day time and night time. Press [Enter] to display the adjustment screen, then change the following settings:• Day Map Color/Night Map Color: Normal, Soft, Vivid• Day Route Color/Night Route Color: Select from 3 colors.To switch between the day color setting and night color setting, press [ ].Night Map Mode Auto: Switches to the night screen when you turn on the headlights.• The illumination control lead connection needs to be completed. (☞ Installation/Connection Manual)On: Activates night screen.Off: Deactivates night screen.Current Street Name Select whether to show or hide the current street name on the map.Show, Hide (☞ page 15)Speed Limit Sign Select whether to show or hide the speed limit icon on the map.Show, Hide (☞ page 15)One Way Select whether to show or hide the information of one way road on the map.Show, HideTraffic Icon(Only for KW-NT3HDT)Select whether to show or hide the traffic icon on the map.Show, Hide (☞ page 36)OthersScale unit Select the measuring units for distance.• The unit setting you find at your first access to the menu varies depending on your State/Province selection in the initial settings (☞ page 9).km, mileWAAS /EGNOS Select whether to use WAAS and EGNOS to increase the accuracy of positioning.• For some areas or conditions, the position accuracy may not be improved even if <On> is selected. In this case, select <Off>.On, OffVehicle Position ☞ page 33Clear User Memory ☞ page 39Restore Navi Settings ☞ page 39Reset Calibration Data ☞ page 39Navigation menu itemsEN_KW-NT3[J]5.indb 41EN_KW-NT3[J]5.indb 41 10.3.28 9:57:32 AM10.3.28 9:57:32 AM

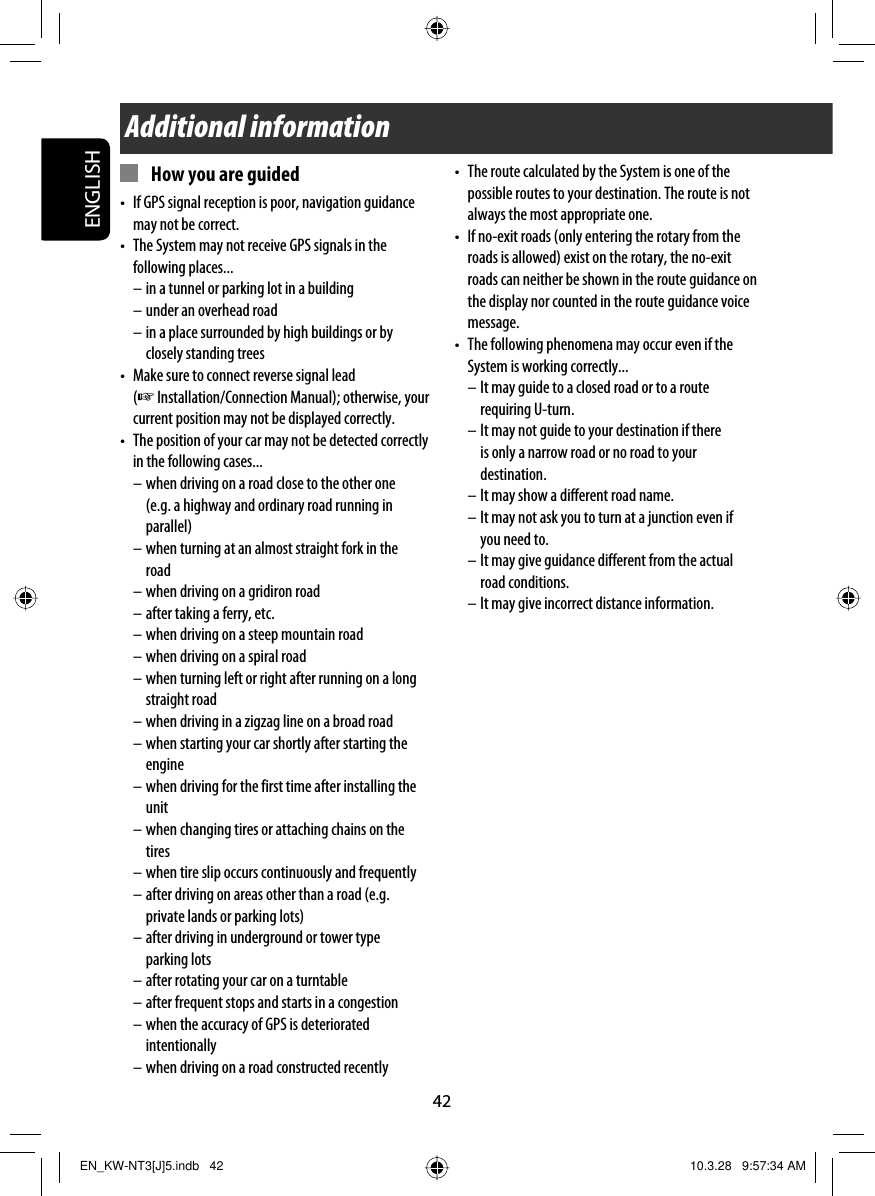

42ENGLISH• The route calculated by the System is one of the possible routes to your destination. The route is not always the most appropriate one.• If no-exit roads (only entering the rotary from the roads is allowed) exist on the rotary, the no-exit roads can neither be shown in the route guidance on the display nor counted in the route guidance voice message.• The following phenomena may occur even if the System is working correctly...– It may guide to a closed road or to a route requiring U-turn.– It may not guide to your destination if there is only a narrow road or no road to your destination.– It may show a different road name.– It may not ask you to turn at a junction even if you need to.– It may give guidance different from the actual road conditions.– It may give incorrect distance information.Additional information How you are guided• If GPS signal reception is poor, navigation guidance may not be correct.• The System may not receive GPS signals in the following places...– in a tunnel or parking lot in a building– under an overhead road– in a place surrounded by high buildings or by closely standing trees• Make sure to connect reverse signal lead (☞ Installation/Connection Manual); otherwise, your current position may not be displayed correctly.• The position of your car may not be detected correctly in the following cases...– when driving on a road close to the other one (e.g. a highway and ordinary road running in parallel)– when turning at an almost straight fork in the road– when driving on a gridiron road– after taking a ferry, etc.– when driving on a steep mountain road– when driving on a spiral road– when turning left or right after running on a long straight road– when driving in a zigzag line on a broad road– when starting your car shortly after starting the engine– when driving for the first time after installing the unit– when changing tires or attaching chains on the tires– when tire slip occurs continuously and frequently– after driving on areas other than a road (e.g. private lands or parking lots)– after driving in underground or tower type parking lots– after rotating your car on a turntable– after frequent stops and starts in a congestion– when the accuracy of GPS is deteriorated intentionally– when driving on a road constructed recentlyEN_KW-NT3[J]5.indb 42EN_KW-NT3[J]5.indb 42 10.3.28 9:57:34 AM10.3.28 9:57:34 AM

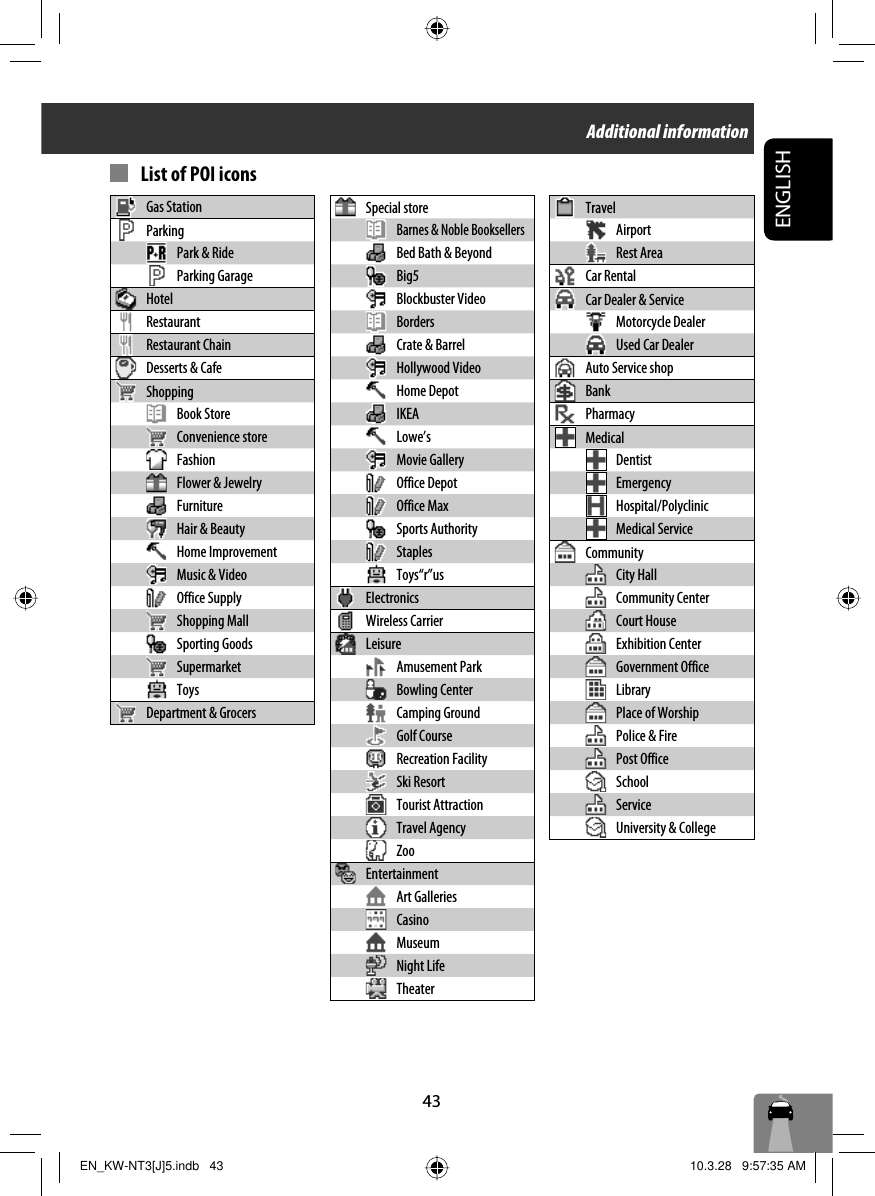

43ENGLISHSpecial storeBarnes & Noble BooksellersBed Bath & BeyondBig5Blockbuster VideoBordersCrate & Barrel Hollywood VideoHome DepotIKEALowe’sMovie GalleryOffice DepotOffice MaxSports AuthorityStaplesToys“r”usElectronicsWireless CarrierLeisureAmusement ParkBowling CenterCamping GroundGolf CourseRecreation FacilitySki ResortTourist AttractionTravel AgencyZooEntertainmentArt GalleriesCasinoMuseumNight LifeTheaterGas StationParkingPark & RideParking GarageHotelRestaurantRestaurant ChainDesserts & CafeShoppingBook StoreConvenience storeFashionFlower & JewelryFurnitureHair & BeautyHome ImprovementMusic & VideoOffice SupplyShopping MallSporting GoodsSupermarketToysDepartment & Grocers List of POI iconsTravelAirportRest AreaCar RentalCar Dealer & ServiceMotorcycle DealerUsed Car DealerAuto Service shopBankPharmacyMedicalDentistEmergencyHospital/PolyclinicMedical ServiceCommunityCity HallCommunity CenterCourt HouseExhibition CenterGovernment OfficeLibraryPlace of WorshipPolice & FirePost OfficeSchoolServiceUniversity & CollegeAdditional informationEN_KW-NT3[J]5.indb 43EN_KW-NT3[J]5.indb 43 10.3.28 9:57:35 AM10.3.28 9:57:35 AM

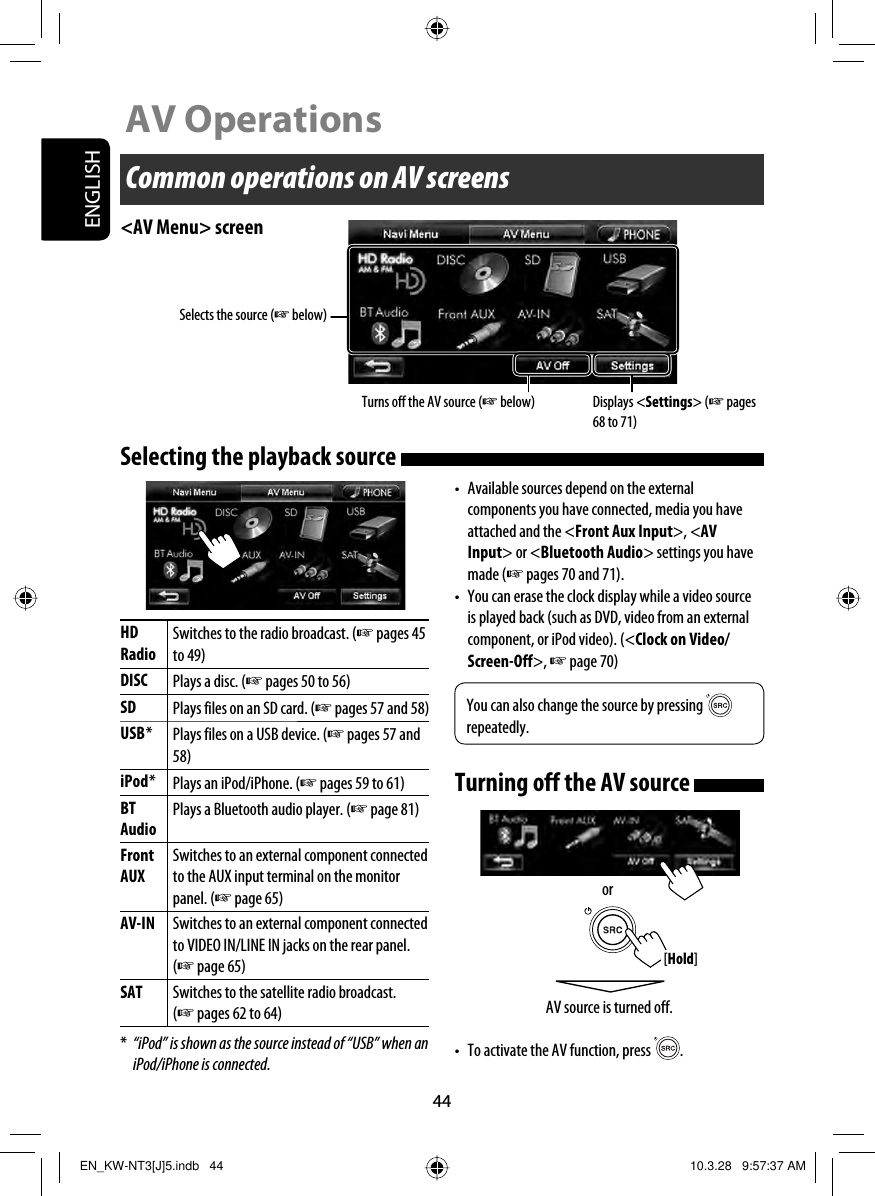

44ENGLISHCommon operations on AV screensHD RadioSwitches to the radio broadcast. (☞ pages 45 to 49)DISC Plays a disc. (☞ pages 50 to 56)SD Plays files on an SD card. (☞ pages 57 and 58)USB *Plays files on a USB device. (☞ pages 57 and 58)iPod *Plays an iPod/iPhone. (☞ pages 59 to 61)BT AudioPlays a Bluetooth audio player. (☞ page 81)Front AUXSwitches to an external component connected to the AUX input terminal on the monitor panel. (☞ page 65)AV-IN Switches to an external component connected to VIDEO IN/LINE IN jacks on the rear panel. (☞ page 65)SAT Switches to the satellite radio broadcast. (☞ pages 62 to 64)* “iPod” is shown as the source instead of “USB” when an iPod/iPhone is connected.or<AV Menu> screenSelects the source (☞ below)Displays <Settings> (☞ pages 68 to 71)Turns off the AV source (☞ below)Turning off the AV source AV source is turned off.• To activate the AV function, press .AV Operations[Hold]Selecting the playback source • Available sources depend on the external components you have connected, media you have attached and the <Front Aux Input>, <AV Input> or <Bluetooth Audio> settings you have made (☞ pages 70 and 71).• You can erase the clock display while a video source is played back (such as DVD, video from an external component, or iPod video). (<Clock on Video/Screen-Off>, ☞ page 70)You can also change the source by pressing repeatedly.EN_KW-NT3[J]5.indb 44EN_KW-NT3[J]5.indb 44 10.3.28 9:57:37 AM10.3.28 9:57:37 AM

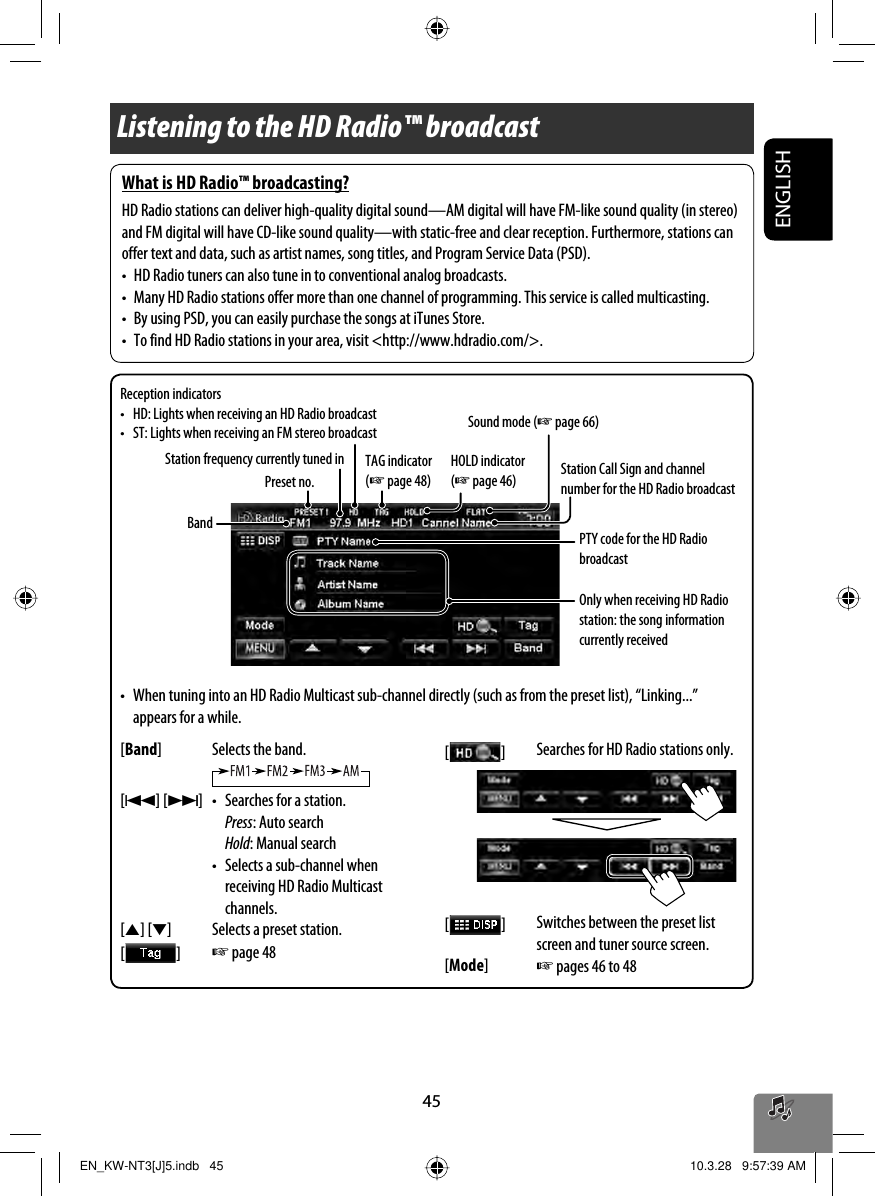

45ENGLISHListening to the HD Radio™ broadcastBandReception indicators• HD: Lights when receiving an HD Radio broadcast• ST: Lights when receiving an FM stereo broadcast Sound mode (☞ page 66)Station frequency currently tuned inPreset no. Station Call Sign and channel number for the HD Radio broadcastOnly when receiving HD Radio station: the song information currently received• When tuning into an HD Radio Multicast sub-channel directly (such as from the preset list), “Linking...” appears for a while.[Band] Selects the band.[4] [¢] • Searches for a station. Press: Auto search Hold: Manual search • Selects a sub-channel when receiving HD Radio Multicast channels.[5] [∞] Selects a preset station.[ ] ☞ page 48[ ] Searches for HD Radio stations only.[ ] Switches between the preset list screen and tuner source screen.[Mode]☞ pages 46 to 48PTY code for the HD Radio broadcastTAG indicator (☞ page 48)HOLD indicator (☞ page 46)What is HD Radio™ broadcasting?HD Radio stations can deliver high-quality digital sound—AM digital will have FM-like sound quality (in stereo) and FM digital will have CD-like sound quality—with static-free and clear reception. Furthermore, stations can offer text and data, such as artist names, song titles, and Program Service Data (PSD).• HD Radio tuners can also tune in to conventional analog broadcasts.• Many HD Radio stations offer more than one channel of programming. This service is called multicasting.• By using PSD, you can easily purchase the songs at iTunes Store.• To find HD Radio stations in your area, visit <http://www.hdradio.com/>.EN_KW-NT3[J]5.indb 45EN_KW-NT3[J]5.indb 45 10.3.28 9:57:39 AM10.3.28 9:57:39 AM

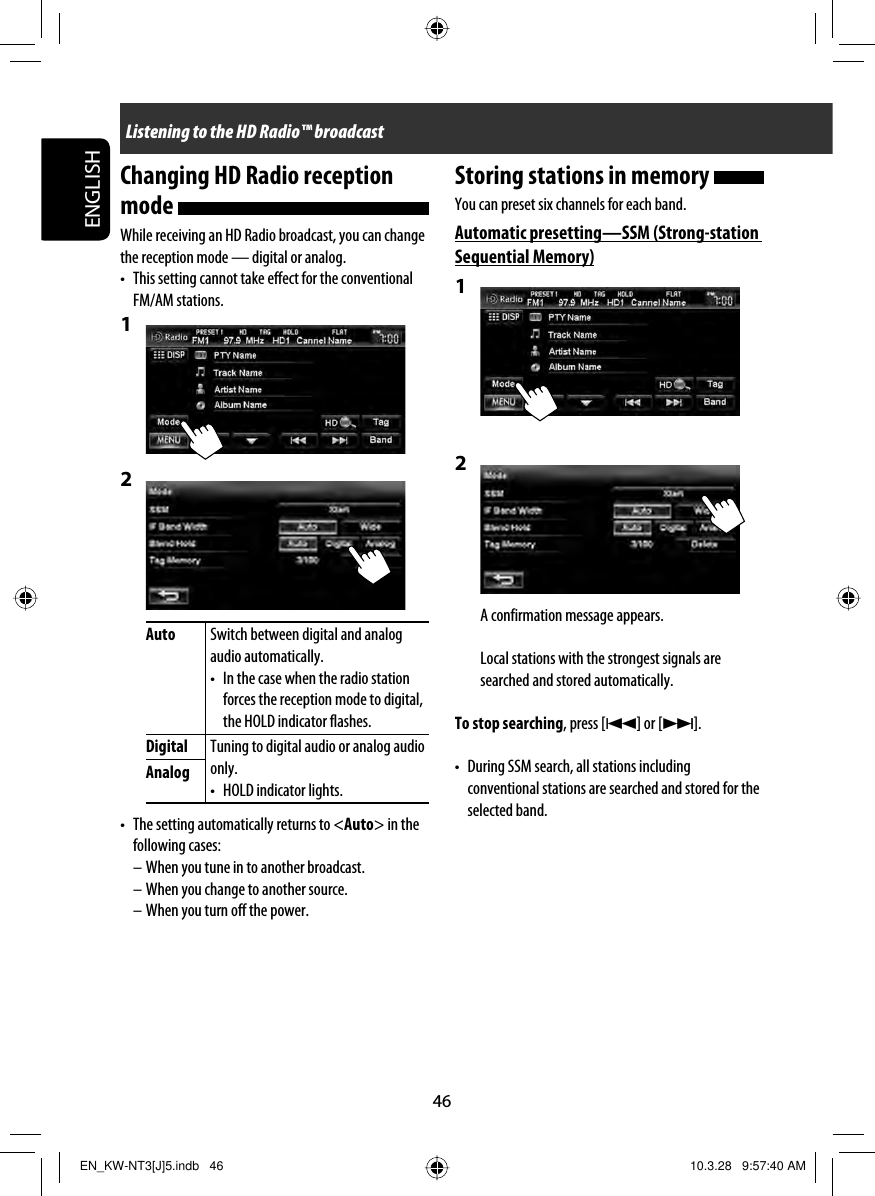

46ENGLISHListening to the HD Radio™ broadcastStoring stations in memory You can preset six channels for each band.Automatic presetting — SSM (Strong-station Sequential Memory)1 2 A confirmation message appears.Local stations with the strongest signals are searched and stored automatically.To stop searching, press [4] or [¢].• During SSM search, all stations including conventional stations are searched and stored for the selected band.Changing HD Radio reception mode While receiving an HD Radio broadcast, you can change the reception mode — digital or analog.• This setting cannot take effect for the conventional FM/AM stations.1 2 Auto Switch between digital and analog audio automatically.• In the case when the radio station forces the reception mode to digital, the HOLD indicator flashes.Digital Tuning to digital audio or analog audio only.• HOLD indicator lights.Analog• The setting automatically returns to <Auto> in the following cases:– When you tune in to another broadcast.– When you change to another source.– When you turn off the power.EN_KW-NT3[J]5.indb 46EN_KW-NT3[J]5.indb 46 10.3.28 9:57:40 AM10.3.28 9:57:40 AM

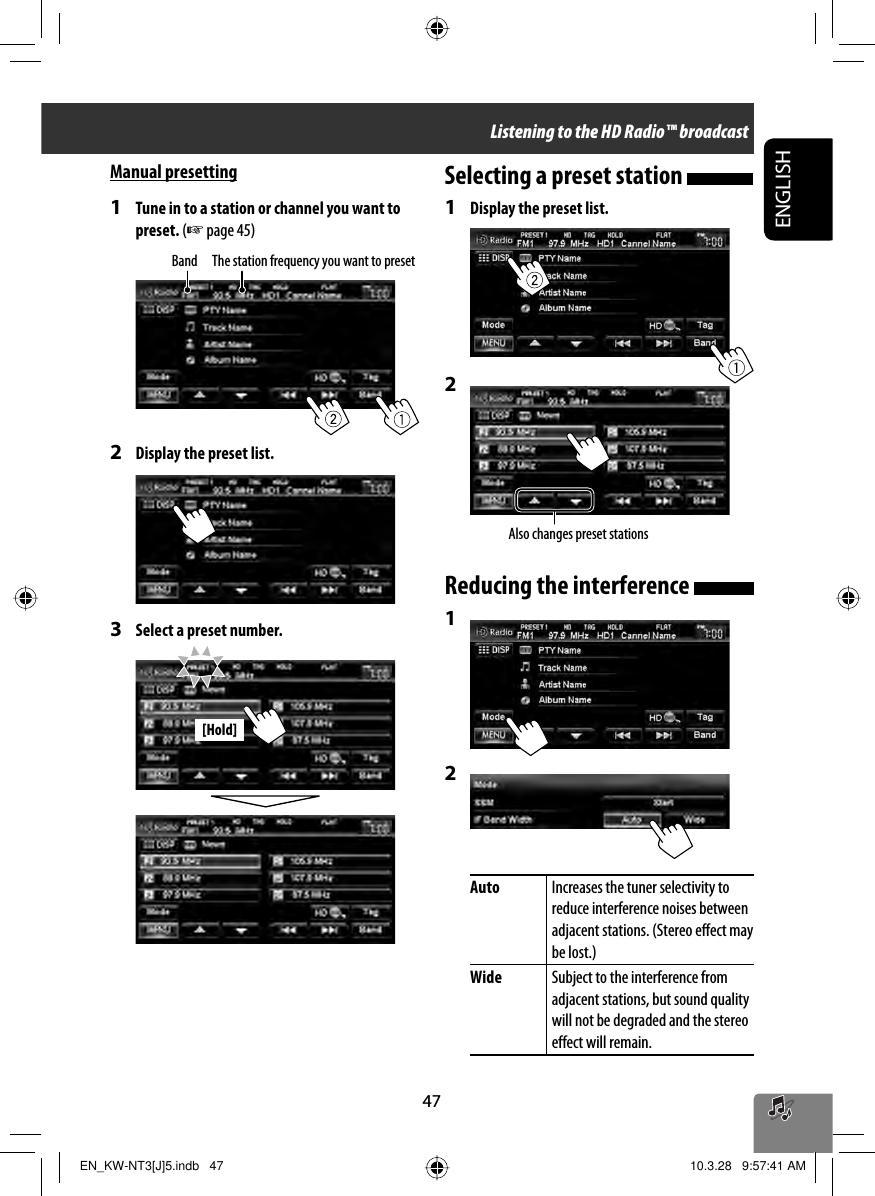

47ENGLISH[Hold]Manual presetting1 Tune in to a station or channel you want to preset. (☞ page 45)2 Display the preset list.3 Select a preset number.Band The station frequency you want to presetAlso changes preset stationsSelecting a preset station 1 Display the preset list.2 Reducing the interference 1 2 Auto Increases the tuner selectivity to reduce interference noises between adjacent stations. (Stereo effect may be lost.)Wide Subject to the interference from adjacent stations, but sound quality will not be degraded and the stereo effect will remain.Listening to the HD Radio™ broadcastEN_KW-NT3[J]5.indb 47EN_KW-NT3[J]5.indb 47 10.3.28 9:57:41 AM10.3.28 9:57:41 AM

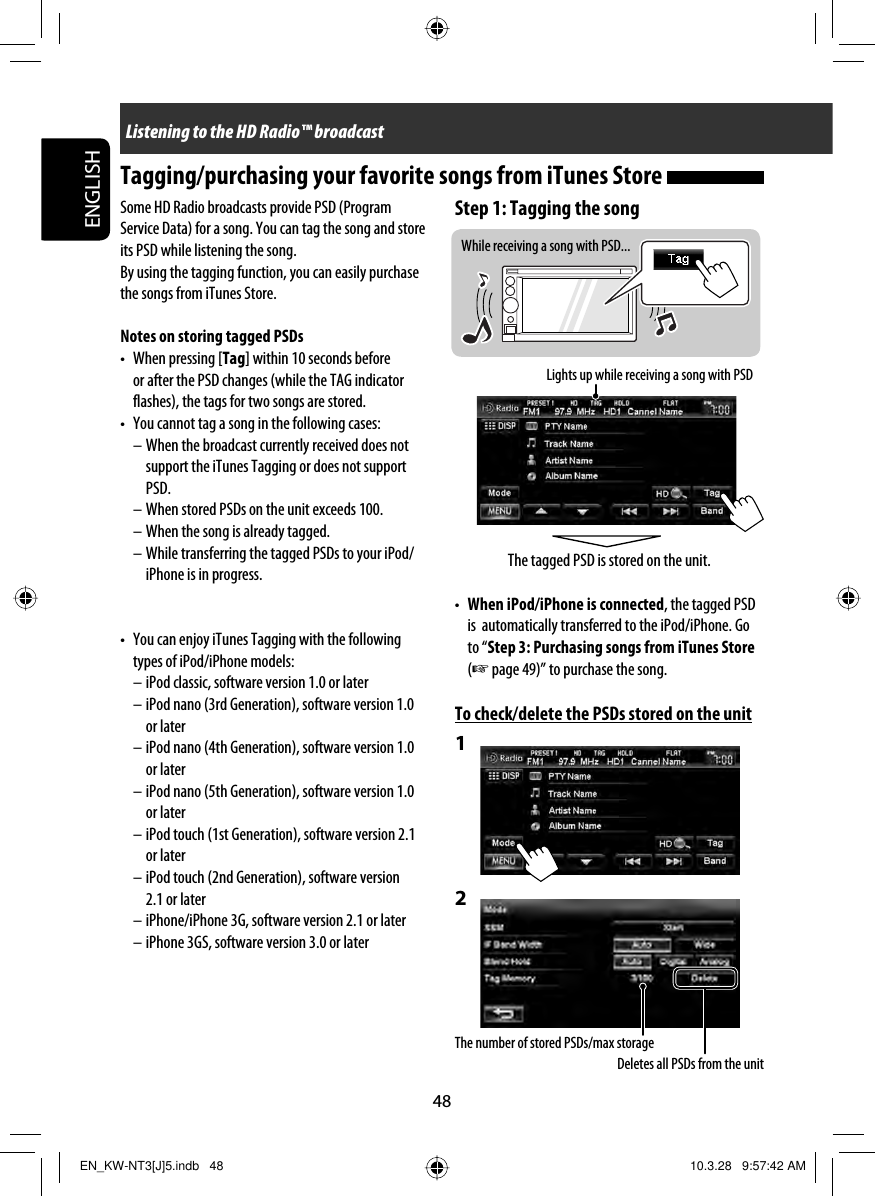

48ENGLISHTagging/purchasing your favorite songs from iTunes Store Lights up while receiving a song with PSDStep 1: Tagging the songThe tagged PSD is stored on the unit.• When iPod/iPhone is connected, the tagged PSD is automatically transferred to the iPod/iPhone. Go to “Step 3: Purchasing songs from iTunes Store (☞ page 49)” to purchase the song.To check/delete the PSDs stored on the unit1 2 The number of stored PSDs/max storageListening to the HD Radio™ broadcastWhile receiving a song with PSD...Some HD Radio broadcasts provide PSD (Program Service Data) for a song. You can tag the song and store its PSD while listening the song.By using the tagging function, you can easily purchase the songs from iTunes Store.Notes on storing tagged PSDs• When pressing [Tag] within 10 seconds before or after the PSD changes (while the TAG indicator flashes), the tags for two songs are stored.• You cannot tag a song in the following cases:– When the broadcast currently received does not support the iTunes Tagging or does not support PSD.– When stored PSDs on the unit exceeds 100.– When the song is already tagged.– While transferring the tagged PSDs to your iPod/iPhone is in progress.• You can enjoy iTunes Tagging with the following types of iPod/iPhone models:– iPod classic, software version 1.0 or later– iPod nano (3rd Generation), software version 1.0 or later– iPod nano (4th Generation), software version 1.0 or later– iPod nano (5th Generation), software version 1.0 or later– iPod touch (1st Generation), software version 2.1 or later– iPod touch (2nd Generation), software version 2.1 or later– iPhone/iPhone 3G, software version 2.1 or later– iPhone 3GS, software version 3.0 or laterDeletes all PSDs from the unitEN_KW-NT3[J]5.indb 48EN_KW-NT3[J]5.indb 48 10.3.28 9:57:42 AM10.3.28 9:57:42 AM

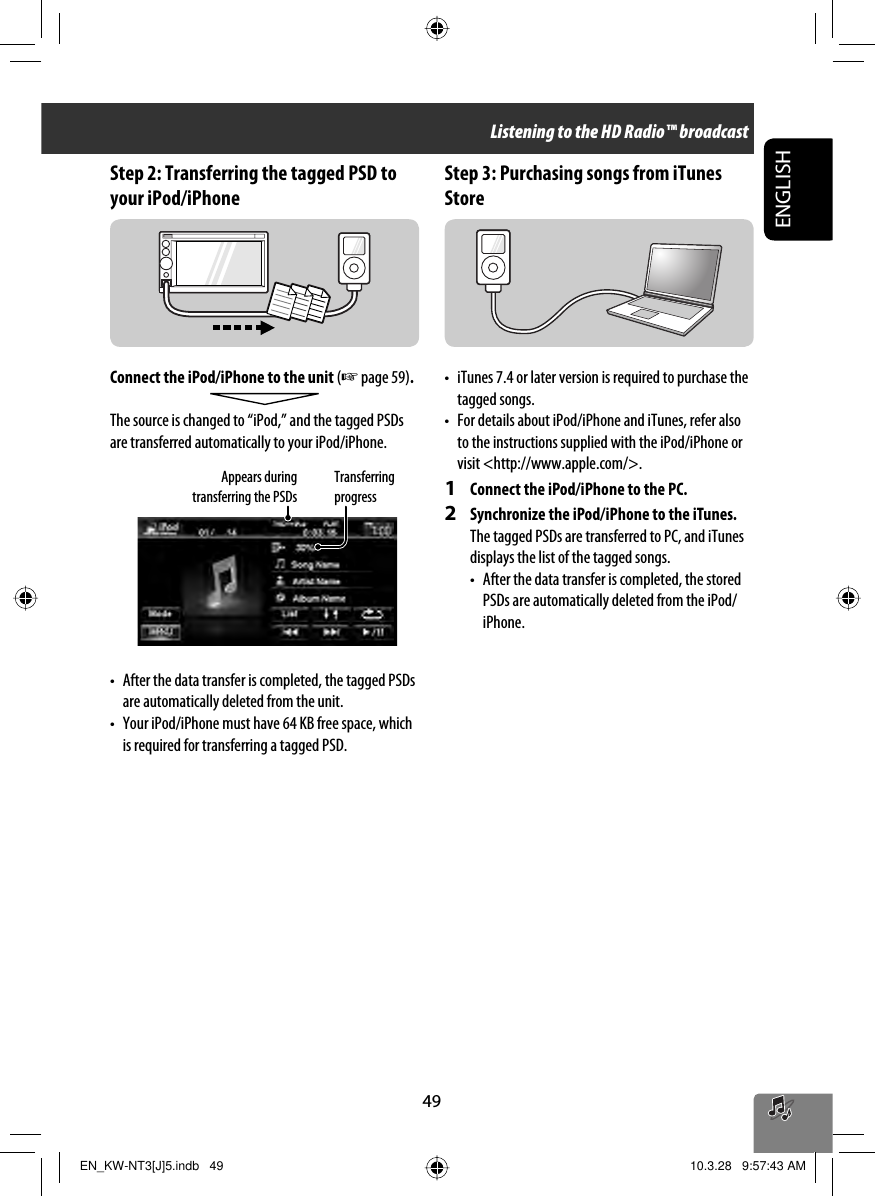

49ENGLISHStep 2: Transferring the tagged PSD to your iPod/iPhoneConnect the iPod/iPhone to the unit (☞ page 59).The source is changed to “iPod,” and the tagged PSDs are transferred automatically to your iPod/iPhone.• After the data transfer is completed, the tagged PSDs are automatically deleted from the unit.• Your iPod/iPhone must have 64 KB free space, which is required for transferring a tagged PSD.Step 3: Purchasing songs from iTunes Store• iTunes 7.4 or later version is required to purchase the tagged songs.• For details about iPod/iPhone and iTunes, refer also to the instructions supplied with the iPod/iPhone or visit <http://www.apple.com/>.1 Connect the iPod/iPhone to the PC.2 Synchronize the iPod/iPhone to the iTunes.The tagged PSDs are transferred to PC, and iTunes displays the list of the tagged songs.• After the data transfer is completed, the stored PSDs are automatically deleted from the iPod/iPhone.Transferring progressAppears during transferring the PSDsListening to the HD Radio™ broadcastEN_KW-NT3[J]5.indb 49EN_KW-NT3[J]5.indb 49 10.3.28 9:57:43 AM10.3.28 9:57:43 AM

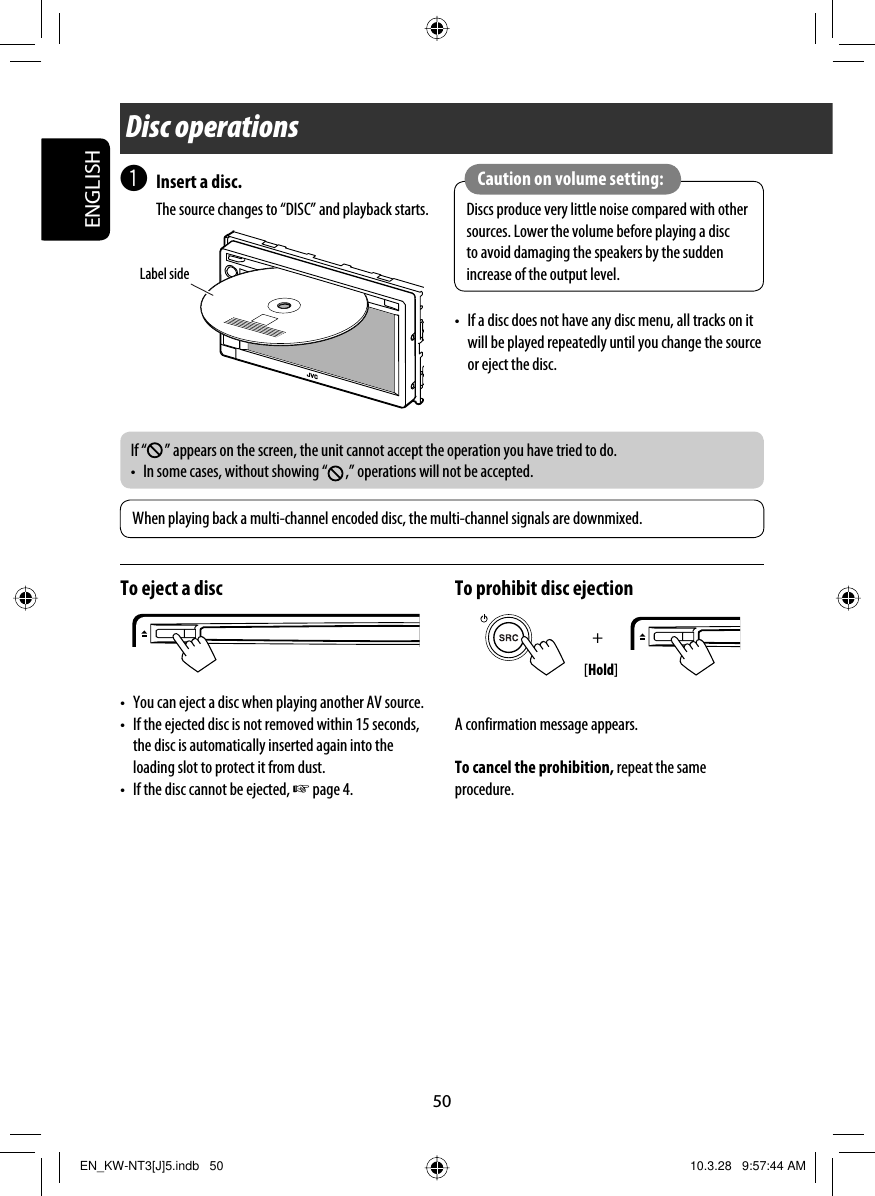

+50ENGLISH~ Insert a disc. The source changes to “DISC” and playback starts.Disc operationsWhen playing back a multi-channel encoded disc, the multi-channel signals are downmixed.Label sideIf “ ” appears on the screen, the unit cannot accept the operation you have tried to do.• In some cases, without showing “ ,” operations will not be accepted.Discs produce very little noise compared with other sources. Lower the volume before playing a disc to avoid damaging the speakers by the sudden increase of the output level.Caution on volume setting:To eject a disc• You can eject a disc when playing another AV source.• If the ejected disc is not removed within 15 seconds, the disc is automatically inserted again into the loading slot to protect it from dust.• If the disc cannot be ejected, ☞ page 4.To prohibit disc ejectionA confirmation message appears.To cancel the prohibition, repeat the same procedure.[Hold]• If a disc does not have any disc menu, all tracks on it will be played repeatedly until you change the source or eject the disc.EN_KW-NT3[J]5.indb 50EN_KW-NT3[J]5.indb 50 10.3.28 9:57:44 AM10.3.28 9:57:44 AM
