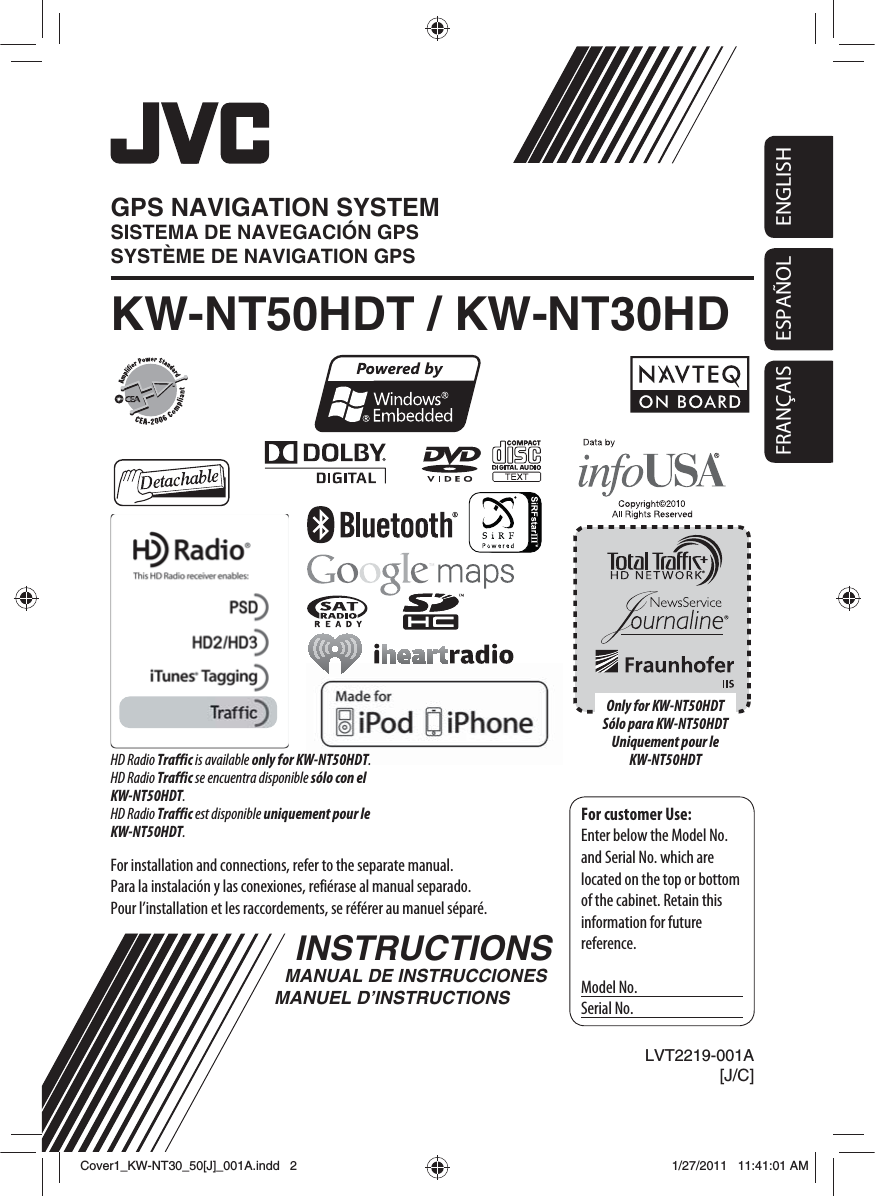

JVC KENWOOD V1B007 GPS Navigation System User Manual EN KW NT30 50 J indb

JVC KENWOOD Corporation GPS Navigation System EN KW NT30 50 J indb

User Manual

ENGLISHESPAÑOLFRANÇAISESPAÑOLFor installation and connections, refer to the separate manual.Para la instalación y las conexiones, refiérase al manual separado.Pour l’installation et les raccordements, se référer au manuel séparé.INSTRUCTIONSMANUAL DE INSTRUCCIONESMANUEL D’INSTRUCTIONSFor customer Use:Enter below the Model No. and Serial No. which are located on the top or bottom of the cabinet. Retain this information for future reference.Model No.Serial No.LVT2219-001A[J/C]KW-NT50HDT / KW-NT30HDGPS NAVIGATION SYSTEMSISTEMA DE NAVEGACIÓN GPSSYSTÈME DE NAVIGATION GPSHD Radio Traffic is available only for KW-NT50HDT.HD Radio Traffic se encuentra disponible sólo con el KW-NT50HDT.HD Radio Traffic est disponible uniquement pour le KW-NT50HDT.Only for KW-NT50HDTSólo para KW-NT50HDTUniquement pour le KW-NT50HDTCover1_KW-NT30_50[J]_001A.indd   2Cover1_KW-NT30_50[J]_001A.indd   21/27/2011   11:41:01 AM1/27/2011   11:41:01 AM

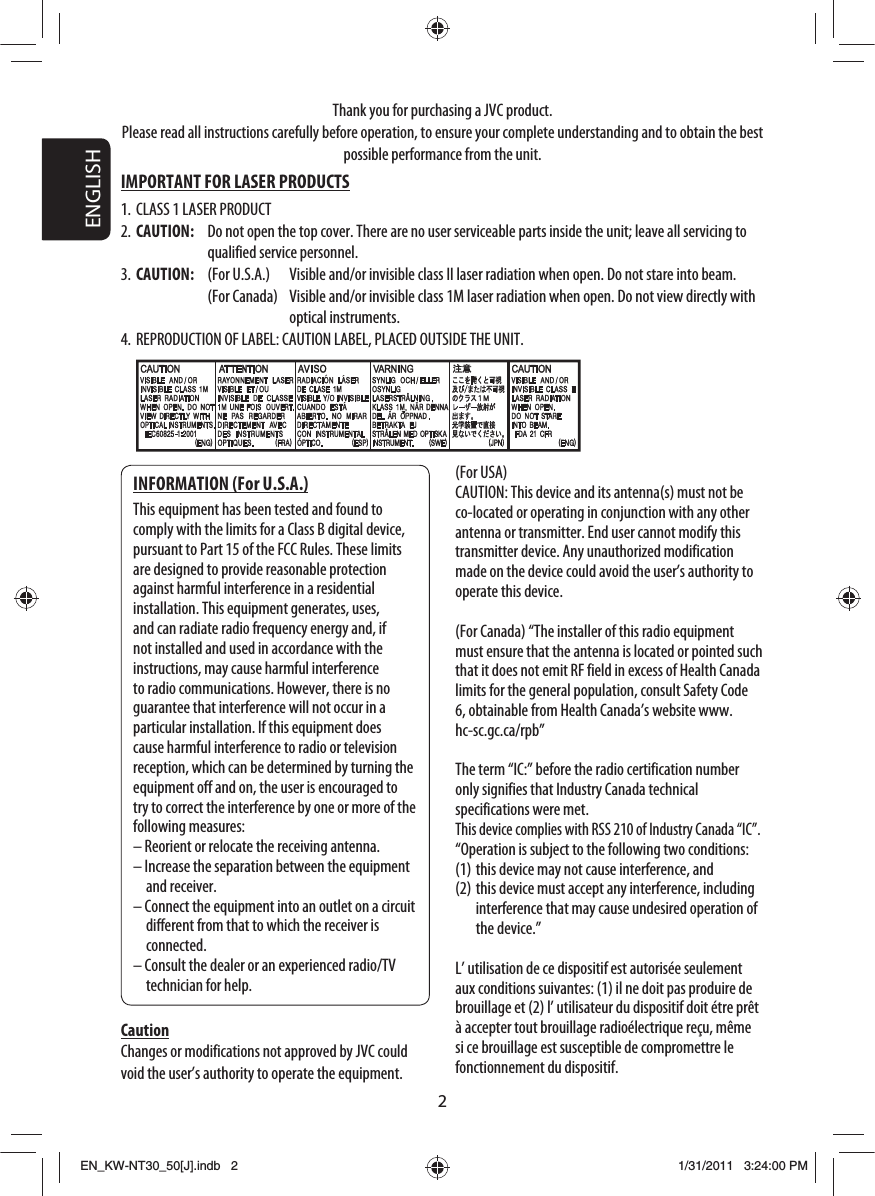

ENGLISH2Thank you for purchasing a JVC product.Please read all instructions carefully before operation, to ensure your complete understanding and to obtain the best possible performance from the unit.IMPORTANT FOR LASER PRODUCTS1.  CLASS 1 LASER PRODUCT2.  CAUTION:  Do not open the top cover. There are no user serviceable parts inside the unit; leave all servicing to qualified service personnel.3.  CAUTION:  (For U.S.A.)  Visible and/or invisible class II laser radiation when open. Do not stare into beam.    (For Canada)  Visible and/or invisible class 1M laser radiation when open. Do not view directly with optical instruments.4.  REPRODUCTION OF LABEL: CAUTION LABEL, PLACED OUTSIDE THE UNIT.INFORMATION (For U.S.A.)This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:– Reorient or relocate the receiving antenna.– Increase the separation between the equipment and receiver.– Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.– Consult the dealer or an experienced radio/TV technician for help.CautionChanges or modifications not approved by JVC could void the user’s authority to operate the equipment.(For USA)CAUTION: This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter. End user cannot modify this transmitter device. Any unauthorized modification made on the device could avoid the user’s authority to operate this device.(For Canada) “The installer of this radio equipment must ensure that the antenna is located or pointed such that it does not emit RF field in excess of Health Canada limits for the general population, consult Safety Code 6, obtainable from Health Canada’s website www.hc-sc.gc.ca/rpb”The term “IC:” before the radio certification number only signifies that Industry Canada technical specifications were met.This device complies with RSS 210 of Industry Canada “IC”.“Operation is subject to the following two conditions:(1) this device may not cause interference, and(2) this device must accept any interference, including interference that may cause undesired operation of the device.”L’ utilisation de ce dispositif est autorisée seulement aux conditions suivantes: (1) il ne doit pas produire de brouillage et (2) l’ utilisateur du dispositif doit étre prêt à accepter tout brouillage radioélectrique reçu, même si ce brouillage est susceptible de compromettre le fonctionnement du dispositif.EN_KW-NT30_50[J].indb   2EN_KW-NT30_50[J].indb   21/31/2011   3:24:00 PM1/31/2011   3:24:00 PM

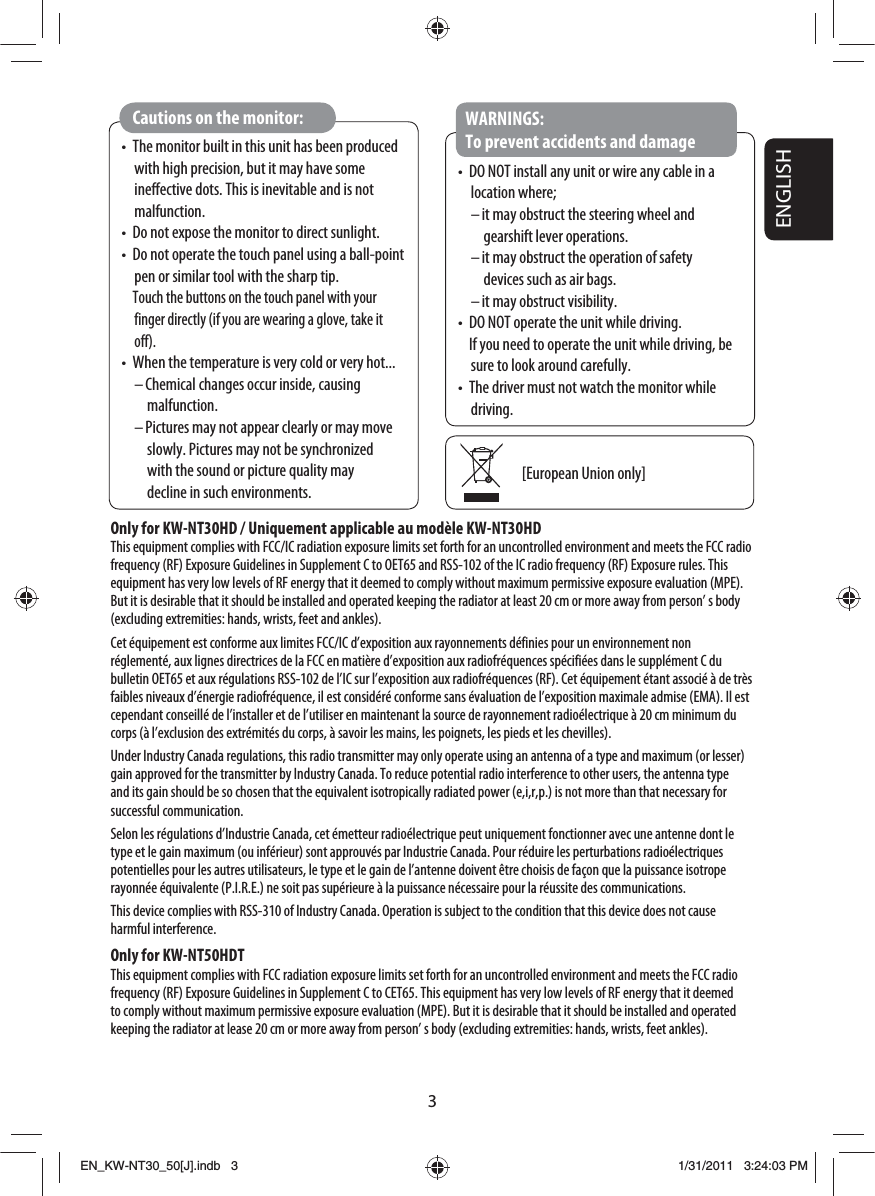

3ENGLISH•  DO NOT install any unit or wire any cable in a location where;– it may obstruct the steering wheel and gearshift lever operations.– it may obstruct the operation of safety devices such as air bags.– it may obstruct visibility.•  DO NOT operate the unit while driving.   If you need to operate the unit while driving, be sure to look around carefully.•  The driver must not watch the monitor while driving.•  The monitor built in this unit has been produced with high precision, but it may have some ineffective dots. This is inevitable and is not malfunction.•  Do not expose the monitor to direct sunlight.•  Do not operate the touch panel using a ball-point pen or similar tool with the sharp tip. Touch the buttons on the touch panel with your finger directly (if you are wearing a glove, take it off).•  When the temperature is very cold or very hot...– Chemical changes occur inside, causing malfunction.– Pictures may not appear clearly or may move slowly. Pictures may not be synchronized with the sound or picture quality may decline in such environments.WARNINGS: To prevent accidents and damageCautions on the monitor:[European Union only]Only for KW-NT30HD / Uniquement applicable au modèle KW-NT30HDThis equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65 and RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment has very low levels of RF energy that it deemed to comply without maximum permissive exposure evaluation (MPE). But it is desirable that it should be installed and operated keeping the radiator at least 20 cm or more away from person’ s body (excluding extremities: hands, wrists, feet and ankles).Cet équipement est conforme aux limites FCC/IC d’exposition aux rayonnements définies pour un environnement non réglementé, aux lignes directrices de la FCC en matière d’exposition aux radiofréquences spécifiées dans le supplément C du bulletin OET65 et aux régulations RSS-102 de l’IC sur l’exposition aux radiofréquences (RF). Cet équipement étant associé à de très faibles niveaux d’énergie radiofréquence, il est considéré conforme sans évaluation de l’exposition maximale admise (EMA). Il est cependant conseillé de l’installer et de l’utiliser en maintenant la source de rayonnement radioélectrique à 20 cm minimum du corps (à l’exclusion des extrémités du corps, à savoir les mains, les poignets, les pieds et les chevilles). Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e,i,r,p.) is not more than that necessary for successful communication.Selon les régulations d’Industrie Canada, cet émetteur radioélectrique peut uniquement fonctionner avec une antenne dont le type et le gain maximum (ou inférieur) sont approuvés par Industrie Canada. Pour réduire les perturbations radioélectriques potentielles pour les autres utilisateurs, le type et le gain de l’antenne doivent être choisis de façon que la puissance isotrope rayonnée équivalente (P.I.R.E.) ne soit pas supérieure à la puissance nécessaire pour la réussite des communications.This device complies with RSS-310 of Industry Canada. Operation is subject to the condition that this device does not cause harmful interference.Only for KW-NT50HDTThis equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to CET65. This equipment has very low levels of RF energy that it deemed to comply without maximum permissive exposure evaluation (MPE). But it is desirable that it should be installed and operated keeping the radiator at lease 20 cm or more away from person’ s body (excluding extremities: hands, wrists, feet ankles).EN_KW-NT30_50[J].indb   3EN_KW-NT30_50[J].indb   31/31/2011   3:24:03 PM1/31/2011   3:24:03 PM

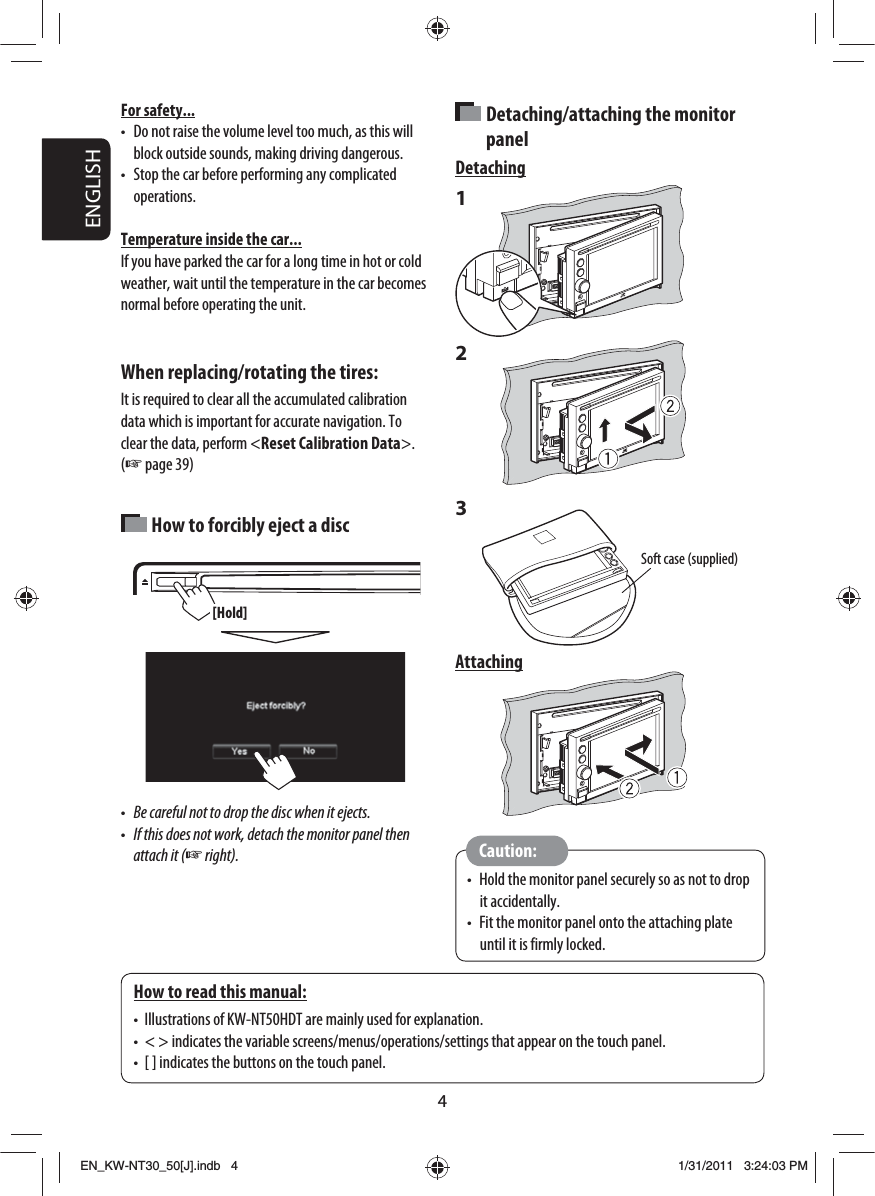

ENGLISH4•  Hold the monitor panel securely so as not to drop it accidentally.•  Fit the monitor panel onto the attaching plate until it is firmly locked.Soft case (supplied)Caution: Detaching/attaching the monitor panelDetaching1 2 3AttachingFor safety...•  Do not raise the volume level too much, as this will block outside sounds, making driving dangerous.•  Stop the car before performing any complicated operations.Temperature inside the car...If you have parked the car for a long time in hot or cold weather, wait until the temperature in the car becomes normal before operating the unit.When replacing/rotating the tires:It is required to clear all the accumulated calibration data which is important for accurate navigation. To clear the data, perform <Reset Calibration Data>. (☞ page 39) How to forcibly eject a disc•  Be careful not to drop the disc when it ejects.•  If this does not work, detach the monitor panel then attach it (☞ right).[Hold]How to read this manual:•  Illustrations of KW-NT50HDT are mainly used for explanation.•  < > indicates the variable screens/menus/operations/settings that appear on the touch panel.•  [ ] indicates the buttons on the touch panel.EN_KW-NT30_50[J].indb   4EN_KW-NT30_50[J].indb   41/31/2011   3:24:03 PM1/31/2011   3:24:03 PM

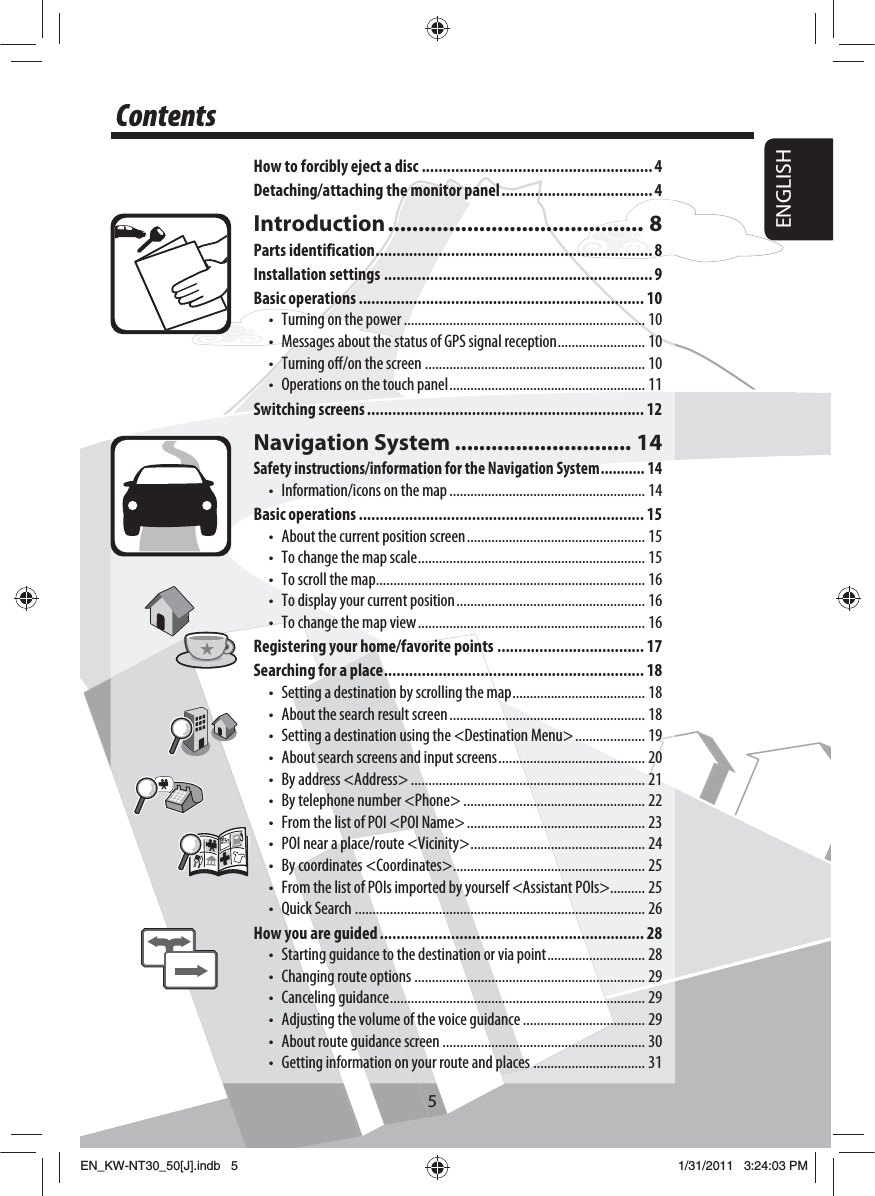

5ENGLISHContentsHow to forcibly eject a disc ....................................................... 4Detaching/attaching the monitor panel .................................... 4Introduction .......................................... 8Parts identification .................................................................. 8Installation settings ................................................................ 9Basic operations .................................................................... 10Turning on the power ..................................................................... 10Messages about the status of GPS signal reception ......................... 10Turning off/on the screen ............................................................... 10Operations on the touch panel ........................................................ 11Switching screens .................................................................. 12Navigation System ............................. 14Safety instructions/information for the Navigation System ........... 14Information/icons on the map ........................................................ 14Basic operations .................................................................... 15About the current position screen ................................................... 15To change the map scale ................................................................. 15To scroll the map ............................................................................. 16To display your current position ...................................................... 16To change the map view ................................................................. 16Registering your home/favorite points ................................... 17Searching for a place .............................................................. 18Setting a destination by scrolling the map ...................................... 18About the search result screen ........................................................ 18Setting a destination using the <Destination Menu> .................... 19About search screens and input screens .......................................... 20By address <Address> ................................................................... 21By telephone number <Phone> .................................................... 22From the list of POI <POI Name> ................................................... 23POI near a place/route <Vicinity> .................................................. 24By coordinates <Coordinates> ....................................................... 25From the list of POIs imported by yourself <Assistant POIs> .......... 25Quick Search ................................................................................... 26How you are guided ............................................................... 28Starting guidance to the destination or via point ............................ 28Changing route options .................................................................. 29Canceling guidance ......................................................................... 29Adjusting the volume of the voice guidance ................................... 29About route guidance screen .......................................................... 30Getting information on your route and places ................................ 31•••••••••••••••••••••••••••EN_KW-NT30_50[J].indb   5EN_KW-NT30_50[J].indb   51/31/2011   3:24:03 PM1/31/2011   3:24:03 PM

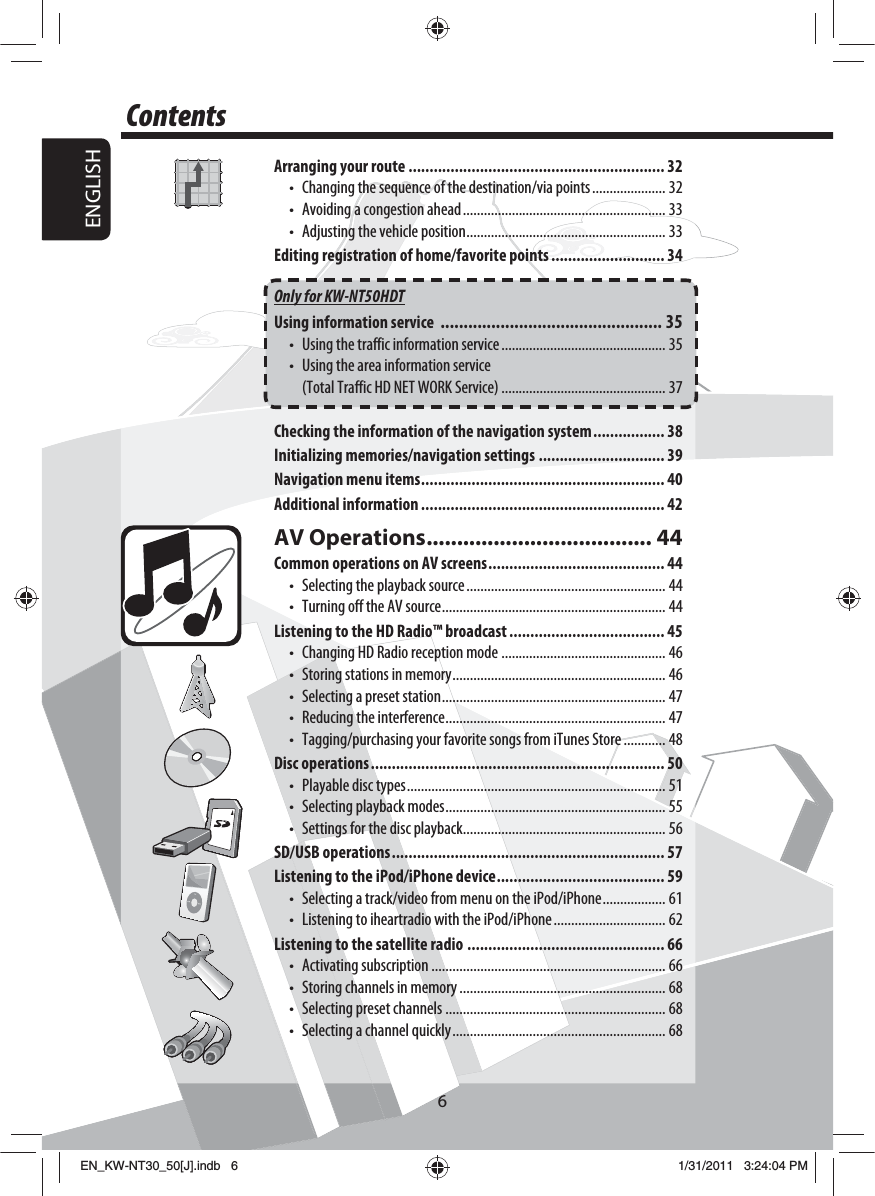

ENGLISH6ContentsArranging your route ............................................................. 32Changing the sequence of the destination/via points ..................... 32Avoiding a congestion ahead .......................................................... 33Adjusting the vehicle position ......................................................... 33Editing registration of home/favorite points ........................... 34Only for KW-NT50HDTUsing information service  ................................................ 35Using the traffic information service ............................................... 35Using the area information service (Total Traffic HD NET WORK Service) ............................................... 37Checking the information of the navigation system ................. 38Initializing memories/navigation settings .............................. 39Navigation menu items .......................................................... 40Additional information .......................................................... 42AV Operations ..................................... 44Common operations on AV screens .......................................... 44Selecting the playback source ......................................................... 44Turning off the AV source ................................................................ 44Listening to the HD Radio™ broadcast ..................................... 45Changing HD Radio reception mode ............................................... 46Storing stations in memory ............................................................. 46Selecting a preset station ................................................................ 47Reducing the interference ............................................................... 47Tagging/purchasing your favorite songs from iTunes Store ............ 48Disc operations ...................................................................... 50Playable disc types .......................................................................... 51Selecting playback modes ............................................................... 55Settings for the disc playback .......................................................... 56SD/USB operations ................................................................. 57Listening to the iPod/iPhone device ........................................ 59Selecting a track/video from menu on the iPod/iPhone .................. 61Listening to iheartradio with the iPod/iPhone ................................ 62Listening to the satellite radio ............................................... 66Activating subscription ................................................................... 66Storing channels in memory ........................................................... 68Selecting preset channels ............................................................... 68Selecting a channel quickly ............................................................. 68•••••••••••••••••••••EN_KW-NT30_50[J].indb   6EN_KW-NT30_50[J].indb   61/31/2011   3:24:04 PM1/31/2011   3:24:04 PM

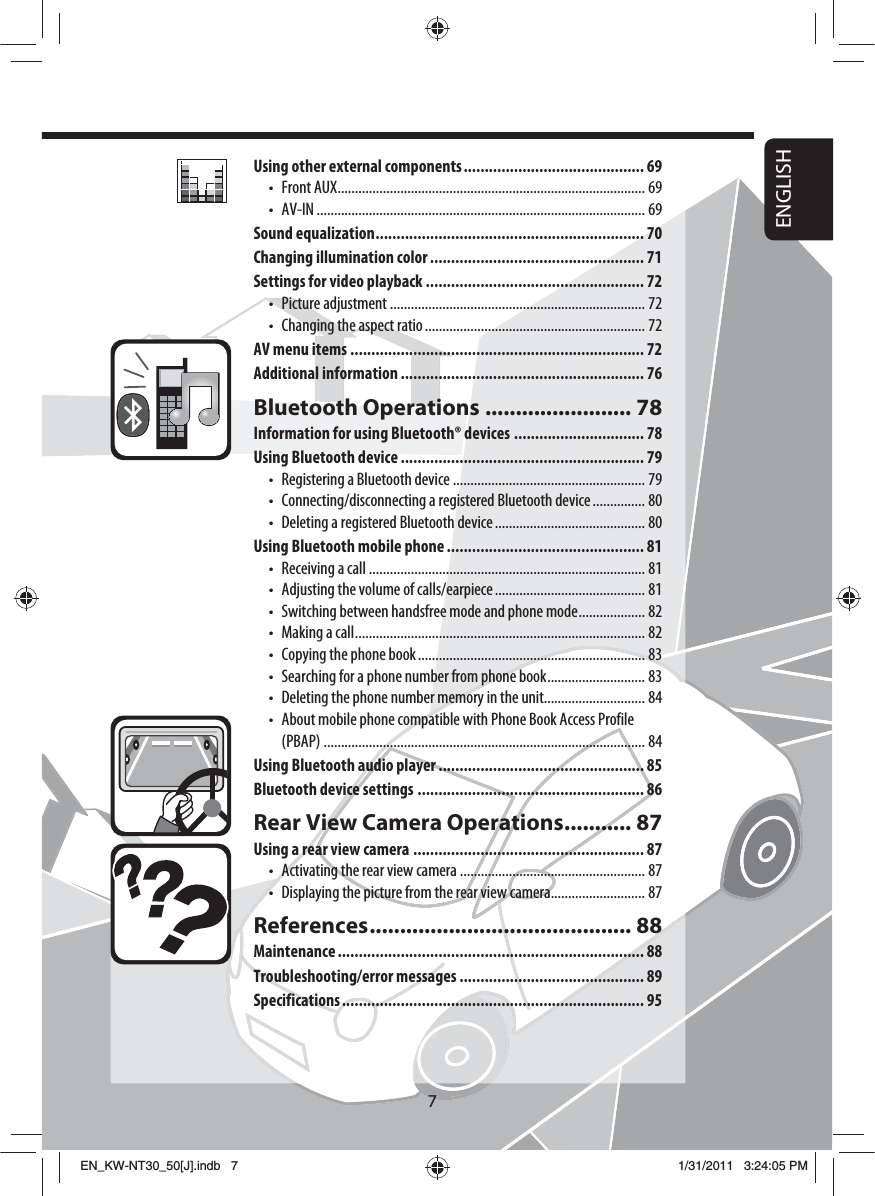

7ENGLISHUsing other external components ........................................... 69Front AUX ........................................................................................ 69AV-IN .............................................................................................. 69Sound equalization ................................................................ 70Changing illumination color ................................................... 71Settings for video playback .................................................... 72Picture adjustment ......................................................................... 72Changing the aspect ratio ............................................................... 72AV menu items ...................................................................... 72Additional information .......................................................... 76Bluetooth Operations ........................ 78Information for using Bluetooth® devices ............................... 78Using Bluetooth device .......................................................... 79Registering a Bluetooth device ....................................................... 79Connecting/disconnecting a registered Bluetooth device ............... 80Deleting a registered Bluetooth device ........................................... 80Using Bluetooth mobile phone ............................................... 81Receiving a call ............................................................................... 81Adjusting the volume of calls/earpiece ........................................... 81Switching between handsfree mode and phone mode ................... 82Making a call ................................................................................... 82Copying the phone book ................................................................. 83Searching for a phone number from phone book ............................ 83Deleting the phone number memory in the unit............................. 84About mobile phone compatible with Phone Book Access Profile (PBAP) ............................................................................................ 84Using Bluetooth audio player ................................................. 85Bluetooth device settings ...................................................... 86Rear View Camera Operations ........... 87Using a rear view camera ....................................................... 87Activating the rear view camera ..................................................... 87Displaying the picture from the rear view camera ........................... 87References ........................................... 88Maintenance ......................................................................... 88Troubleshooting/error messages ............................................ 89Specifications ........................................................................ 95•••••••••••••••••EN_KW-NT30_50[J].indb   7EN_KW-NT30_50[J].indb   71/31/2011   3:24:05 PM1/31/2011   3:24:05 PM

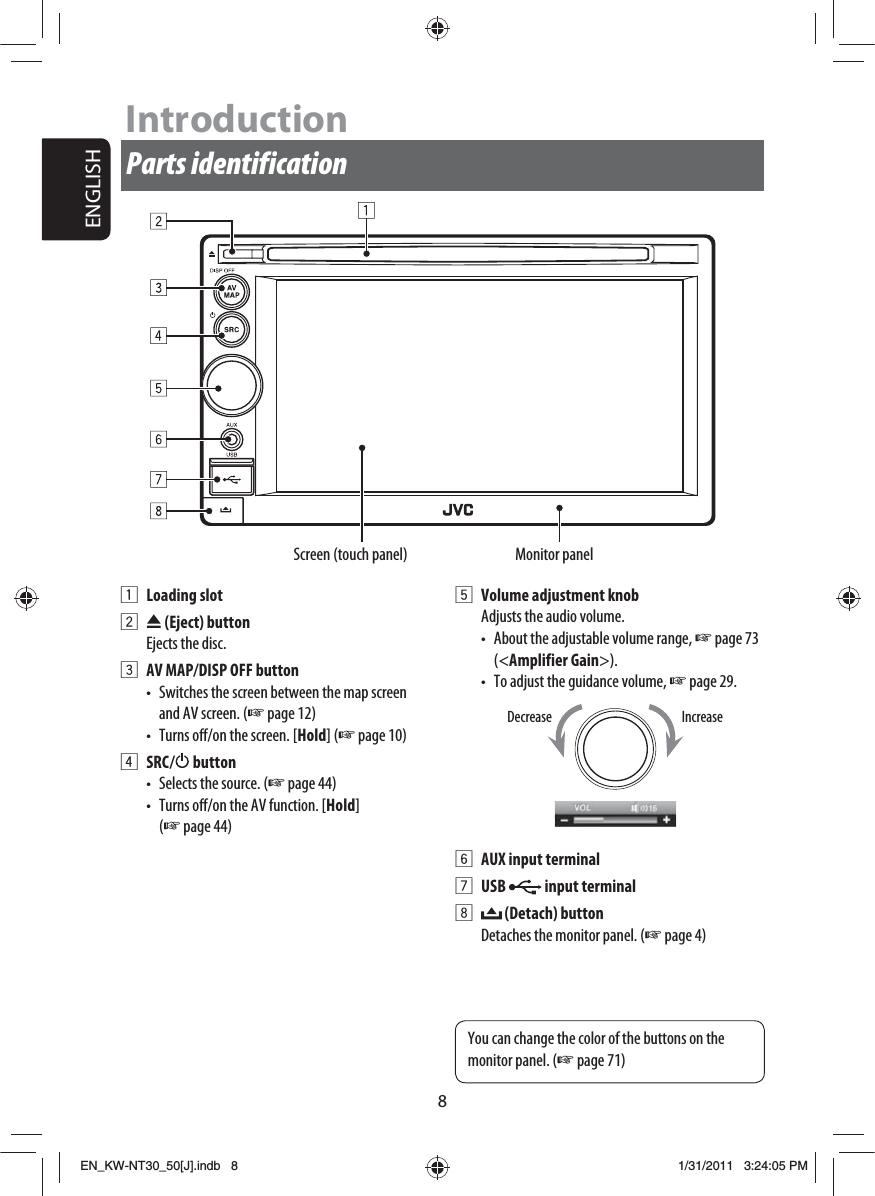

ENGLISH8IntroductionParts identificationScreen (touch panel) Monitor panel1 Loading slot2 0 (Eject) buttonEjects the disc.3  AV MAP/DISP OFF button•  Switches the screen between the map screen and AV screen. (☞ page 12)•  Turns off/on the screen. [Hold] (☞ page 10)4 SRC /   button•  Selects the source. (☞ page 44)•  Turns off/on the AV function. [Hold] (☞ page 44)5  Volume adjustment knobAdjusts the audio volume.•  About the adjustable volume range, ☞ page 73 (<Amplifier Gain>).•  To adjust the guidance volume, ☞ page 29.6  AUX input terminal7 USB   input terminal8  (Detach) buttonDetaches the monitor panel. (☞ page 4)IncreaseDecreaseYou can change the color of the buttons on the monitor panel. (☞ page 71)EN_KW-NT30_50[J].indb   8EN_KW-NT30_50[J].indb   81/31/2011   3:24:05 PM1/31/2011   3:24:05 PM

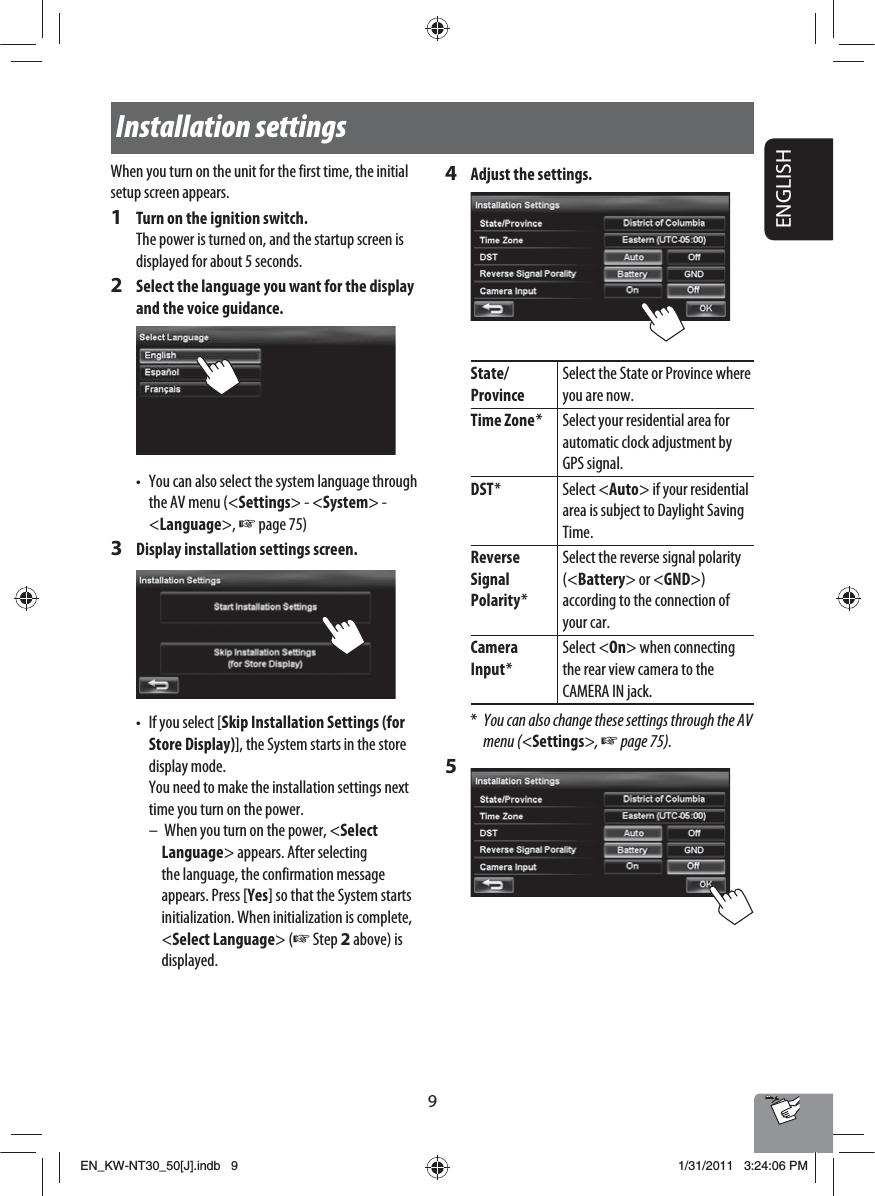

9ENGLISHInstallation settingsWhen you turn on the unit for the first time, the initial setup screen appears.1  Turn on the ignition switch.The power is turned on, and the startup screen is displayed for about 5 seconds.2  Select the language you want for the display and the voice guidance.•  You can also select the system language through the AV menu (<Settings> - <System> - <Language>, ☞ page 75)3  Display installation settings screen.•  If you select [Skip Installation Settings (for Store Display)], the System starts in the store display mode.  You need to make the installation settings next time you turn on the power.–  When you turn on the power, <Select Language> appears. After selecting the language, the confirmation message appears. Press [Yes] so that the System starts initialization. When initialization is complete, <Select Language> (☞ Step 2 above) is displayed.4  Adjust the settings. State/ProvinceSelect the State or Province where you are now.Time Zone * Select your residential area for automatic clock adjustment by GPS signal.DST * Select <Auto> if your residential area is subject to Daylight Saving Time.Reverse Signal Polarity *Select the reverse signal polarity (<Battery> or <GND>) according to the connection of your car.Camera Input *Select <On> when connecting the rear view camera to the CAMERA IN jack.*  You can also change these settings through the AV menu (<Settings>, ☞ page 75).5 EN_KW-NT30_50[J].indb   9EN_KW-NT30_50[J].indb   91/31/2011   3:24:06 PM1/31/2011   3:24:06 PM

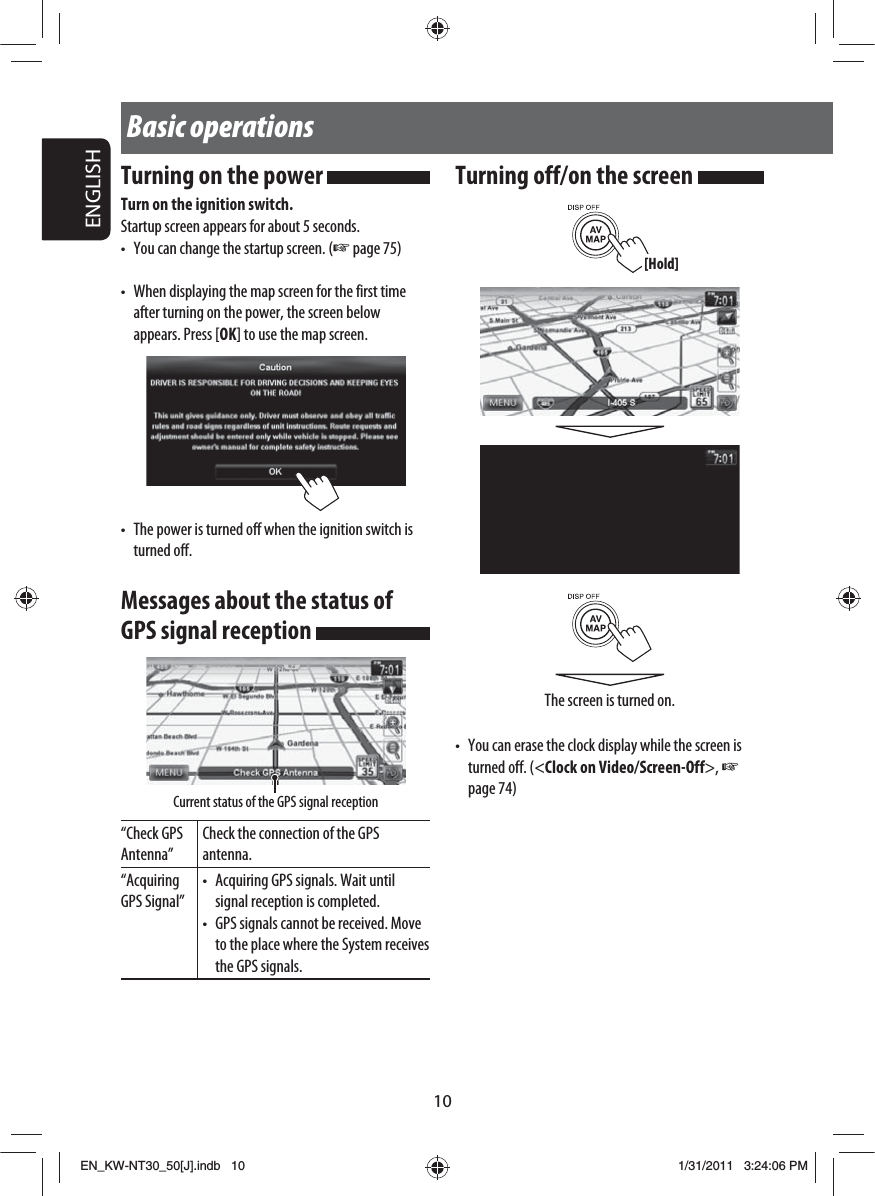

ENGLISH10Basic operationsTurning on the power Turn on the ignition switch.Startup screen appears for about 5 seconds.•  You can change the startup screen. (☞ page 75)•  When displaying the map screen for the first time after turning on the power, the screen below appears. Press [OK] to use the map screen.•  The power is turned off when the ignition switch is turned off.Messages about the status of GPS signal reception “Check GPS Antenna”Check the connection of the GPS antenna.“Acquiring GPS Signal”•  Acquiring GPS signals. Wait until signal reception is completed.•  GPS signals cannot be received. Move to the place where the System receives the GPS signals.Current status of the GPS signal receptionTurning off/on the screen •  You can erase the clock display while the screen is turned off. (<Clock on Video/Screen-Off>, ☞ page 74)The screen is turned on.[Hold]EN_KW-NT30_50[J].indb   10EN_KW-NT30_50[J].indb   101/31/2011   3:24:06 PM1/31/2011   3:24:06 PM

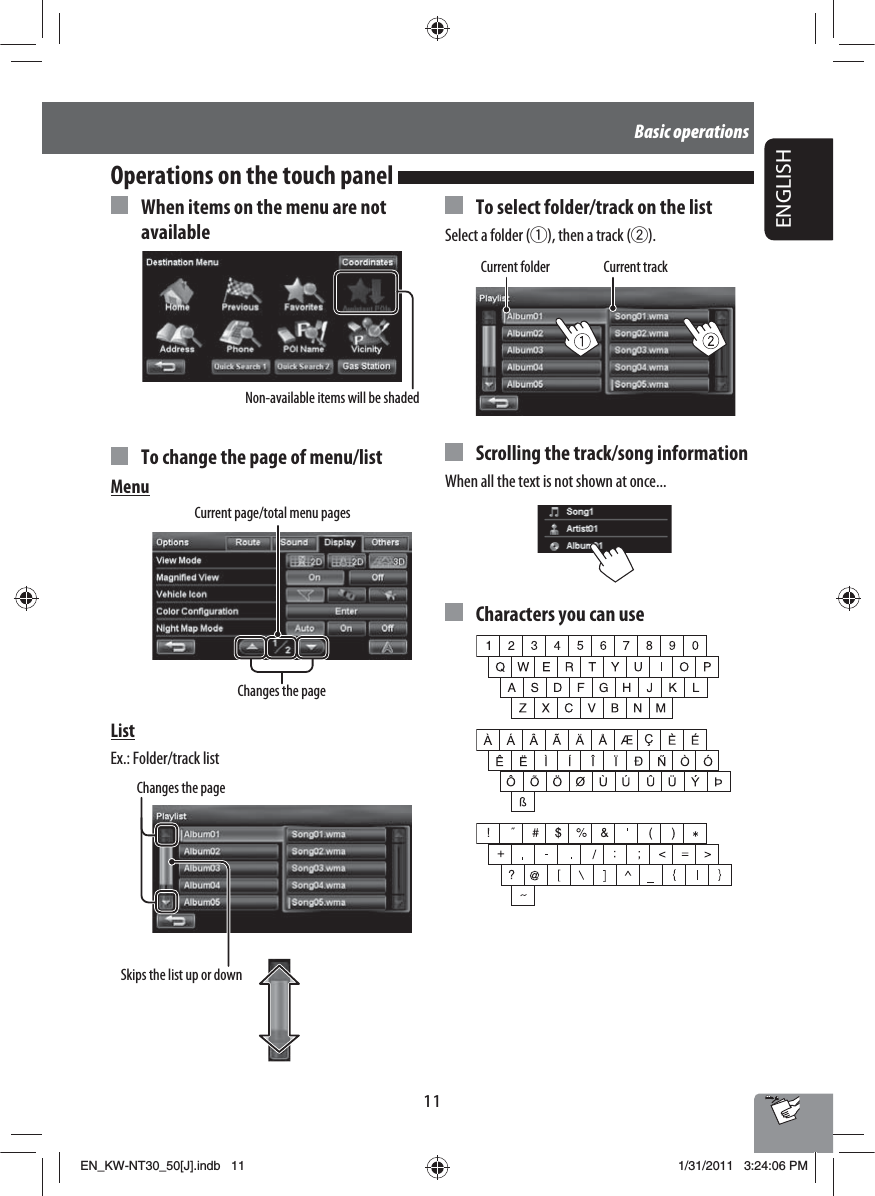

11ENGLISHCurrent page/total menu pagesChanges the pageChanges the pageCurrent folder Current track  When items on the menu are not available  To change the page of menu/listMenuListEx.: Folder/track list  To select folder/track on the listSelect a folder (1), then a track (2).  Scrolling the track/song informationWhen all the text is not shown at once...  Characters you can useOperations on the touch panel Non-available items will be shadedSkips the list up or downBasic operationsEN_KW-NT30_50[J].indb   11EN_KW-NT30_50[J].indb   111/31/2011   3:24:06 PM1/31/2011   3:24:06 PM

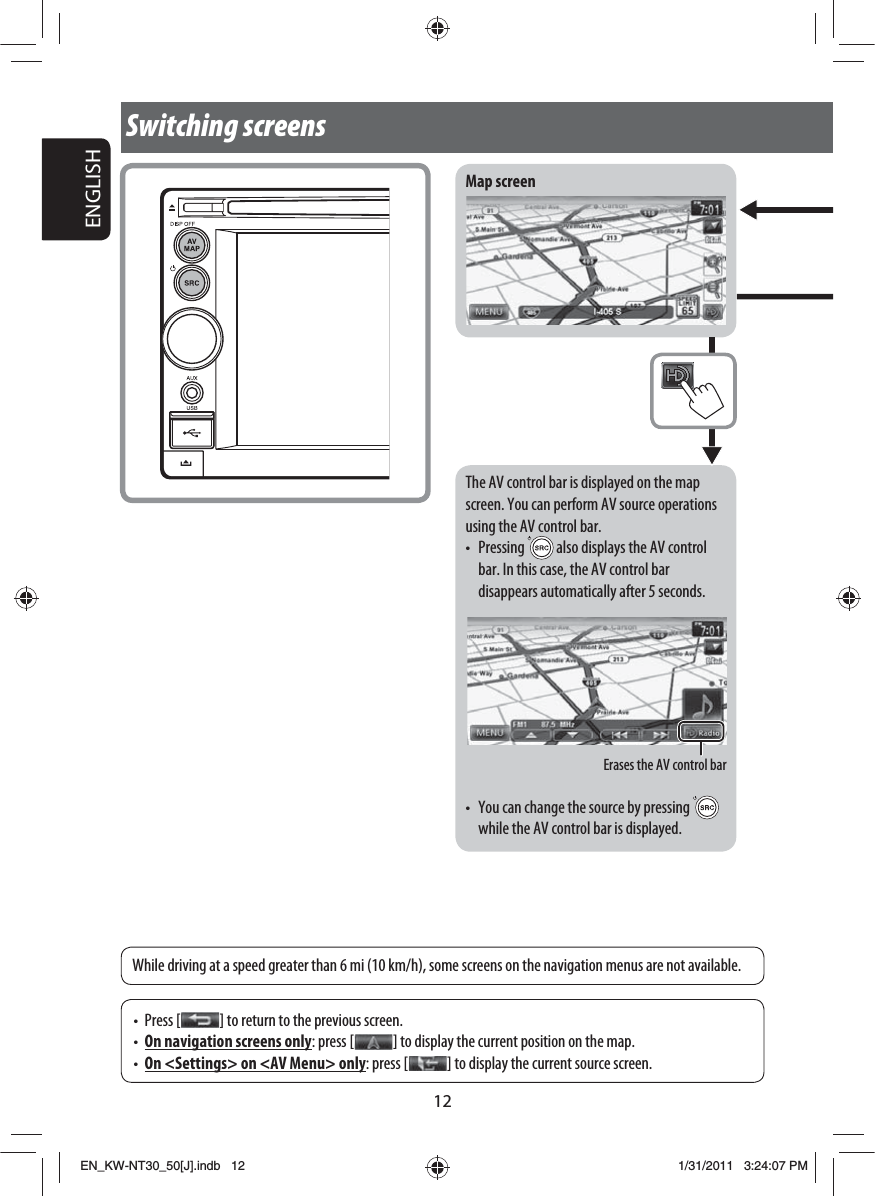

ENGLISH12Switching screensMap screen• Press [ ] to return to the previous screen.•  On navigation screens only: press [ ] to display the current position on the map.•  On <Settings> on <AV Menu> only: press [ ] to display the current source screen.While driving at a speed greater than 6 mi (10 km/h), some screens on the navigation menus are not available.Erases the AV control barThe AV control bar is displayed on the map screen. You can perform AV source operations using the AV control bar.• Pressing   also displays the AV control bar. In this case, the AV control bar disappears automatically after 5 seconds.•  You can change the source by pressing   while the AV control bar is displayed.EN_KW-NT30_50[J].indb   12EN_KW-NT30_50[J].indb   121/31/2011   3:24:07 PM1/31/2011   3:24:07 PM
13ENGLISHNavi MenuShows the destination menu and information about the navigation system.OptionsChanges the navigation settings. (☞ page 40)AV MenuChanges or turns off the AV source.SettingsChanges the detailed settings. (☞ page 72)AV screenOnly for KW-NT50HDTOnly for KW-NT50HDTSwitching screensEN_KW-NT30_50[J].indb   13EN_KW-NT30_50[J].indb   131/31/2011   3:24:07 PM1/31/2011   3:24:07 PM

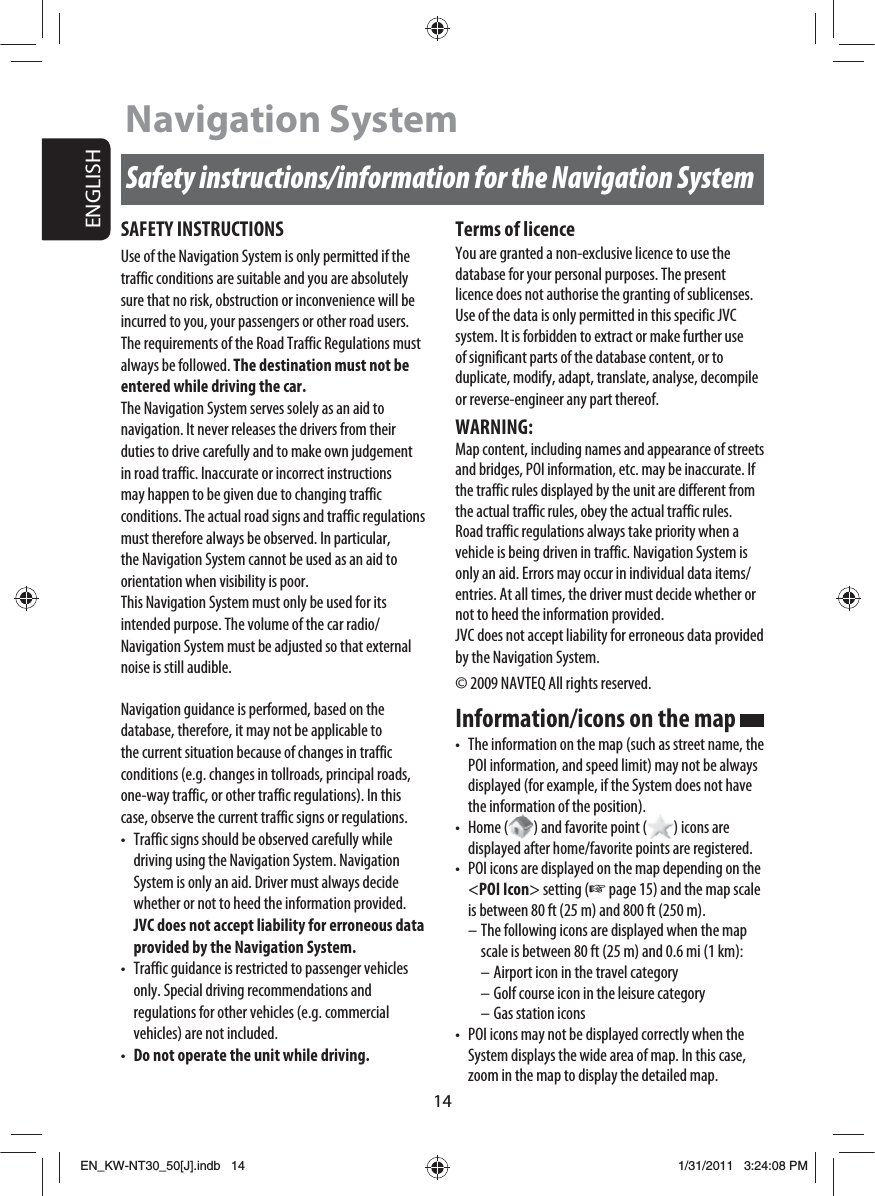

14ENGLISHSafety instructions/information for the Navigation SystemNavigation SystemSAFETY INSTRUCTIONSUse of the Navigation System is only permitted if the traffic conditions are suitable and you are absolutely sure that no risk, obstruction or inconvenience will be incurred to you, your passengers or other road users. The requirements of the Road Traffic Regulations must always be followed. The destination must not be entered while driving the car.The Navigation System serves solely as an aid to navigation. It never releases the drivers from their duties to drive carefully and to make own judgement in road traffic. Inaccurate or incorrect instructions may happen to be given due to changing traffic conditions. The actual road signs and traffic regulations must therefore always be observed. In particular, the Navigation System cannot be used as an aid to orientation when visibility is poor.This Navigation System must only be used for its intended purpose. The volume of the car radio/Navigation System must be adjusted so that external noise is still audible.Navigation guidance is performed, based on the database, therefore, it may not be applicable to the current situation because of changes in traffic conditions (e.g. changes in tollroads, principal roads, one-way traffic, or other traffic regulations). In this case, observe the current traffic signs or regulations.•  Traffic signs should be observed carefully while driving using the Navigation System. Navigation System is only an aid. Driver must always decide whether or not to heed the information provided. JVC does not accept liability for erroneous data provided by the Navigation System.•  Traffic guidance is restricted to passenger vehicles only. Special driving recommendations and regulations for other vehicles (e.g. commercial vehicles) are not included.•  Do not operate the unit while driving.Terms of licenceYou are granted a non-exclusive licence to use the database for your personal purposes. The present licence does not authorise the granting of sublicenses.Use of the data is only permitted in this specific JVC system. It is forbidden to extract or make further use of significant parts of the database content, or to duplicate, modify, adapt, translate, analyse, decompile or reverse-engineer any part thereof.WARNING:Map content, including names and appearance of streets and bridges, POI information, etc. may be inaccurate. If the traffic rules displayed by the unit are different from the actual traffic rules, obey the actual traffic rules.Road traffic regulations always take priority when a vehicle is being driven in traffic. Navigation System is only an aid. Errors may occur in individual data items/entries. At all times, the driver must decide whether or not to heed the information provided.JVC does not accept liability for erroneous data provided by the Navigation System.© 2009 NAVTEQ All rights reserved.Information/icons on the map •  The information on the map (such as street name, the POI information, and speed limit) may not be always displayed (for example, if the System does not have the information of the position).• Home ( ) and favorite point ( ) icons are displayed after home/favorite points are registered.•  POI icons are displayed on the map depending on the <POI Icon> setting (☞ page 15) and the map scale is between 80 ft (25 m) and 800 ft (250 m).– The following icons are displayed when the map scale is between 80 ft (25 m) and 0.6 mi (1 km):– Airport icon in the travel category– Golf course icon in the leisure category– Gas station icons•  POI icons may not be displayed correctly when the System displays the wide area of map. In this case, zoom in the map to display the detailed map.EN_KW-NT30_50[J].indb   14EN_KW-NT30_50[J].indb   141/31/2011   3:24:08 PM1/31/2011   3:24:08 PM

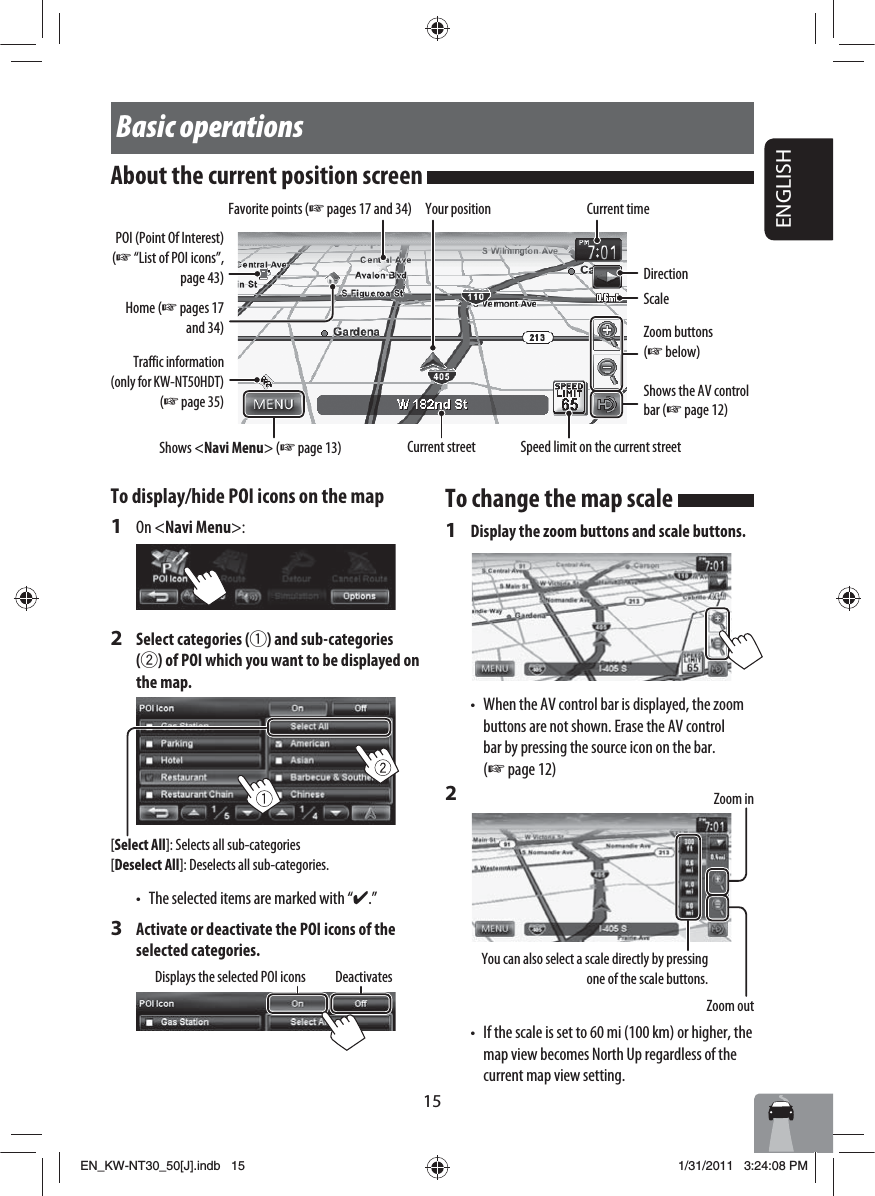

Zoom in15ENGLISHTo change the map scale 1  Display the zoom buttons and scale buttons.•  When the AV control bar is displayed, the zoom buttons are not shown. Erase the AV control bar by pressing the source icon on the bar. (☞ page 12)2 •  If the scale is set to 60 mi (100 km) or higher, the map view becomes North Up regardless of the current map view setting.Basic operationsYour positionCurrent streetCurrent timeSpeed limit on the current streetScaleDirectionShows <Navi Menu> (☞ page 13)Favorite points (☞ pages 17 and 34)Home (☞ pages 17 and 34)POI (Point Of Interest) (☞ “List of POI icons”, page 43)Zoom buttons (☞ below)Traffic information (only for KW-NT50HDT) (☞ page 35)Zoom outYou can also select a scale directly by pressing one of the scale buttons.Shows the AV control bar (☞ page 12)About the current position screen To display/hide POI icons on the map1 On <Navi Menu>:2  Select categories (1) and sub-categories (2) of POI which you want to be displayed on the map.•  The selected items are marked with “✔.”3  Activate or deactivate the POI icons of the selected categories.Displays the selected POI icons Deactivates[Select All]: Selects all sub-categories[Deselect All]: Deselects all sub-categories.EN_KW-NT30_50[J].indb   15EN_KW-NT30_50[J].indb   151/31/2011   3:24:08 PM1/31/2011   3:24:08 PM

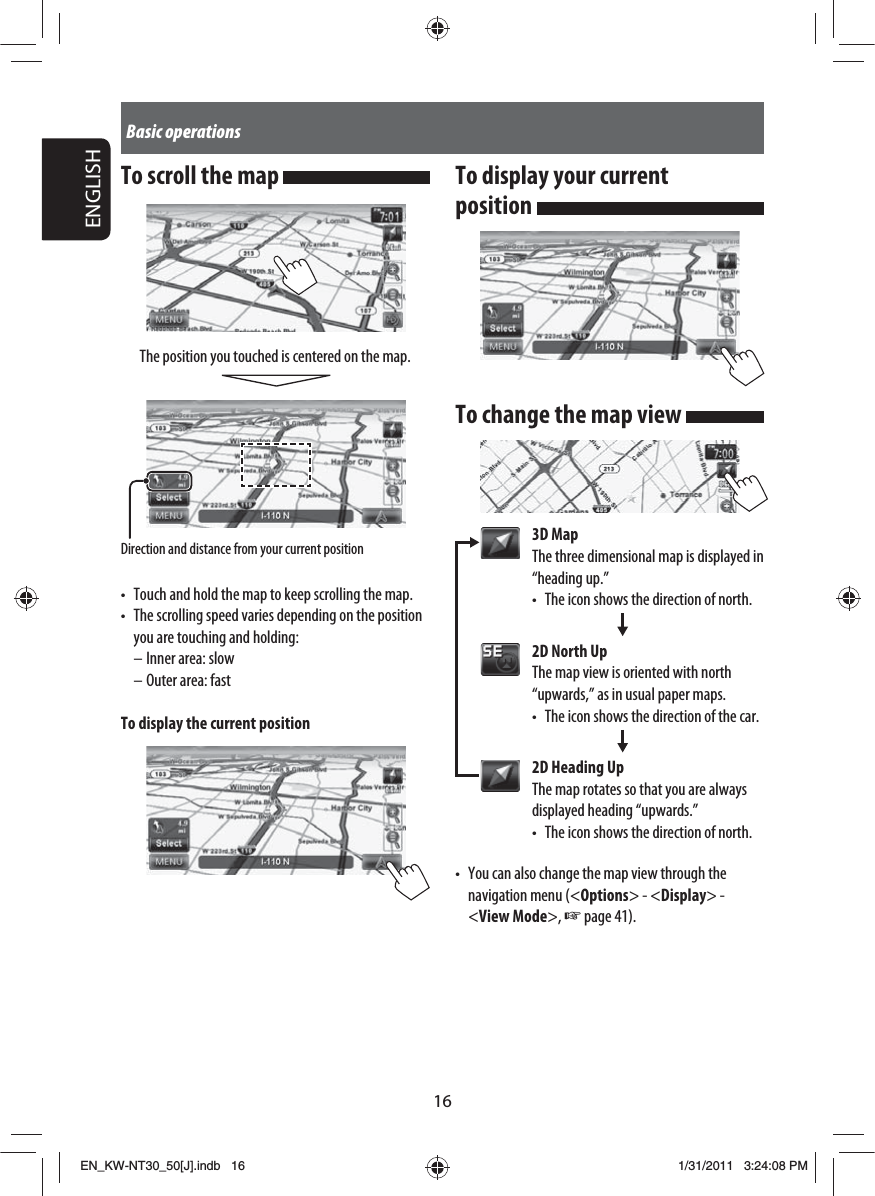

16ENGLISHTo scroll the map The position you touched is centered on the map.•  Touch and hold the map to keep scrolling the map.•  The scrolling speed varies depending on the position you are touching and holding:– Inner area: slow– Outer area: fastTo display the current positionDirection and distance from your current positionTo display your current position To change the map view 3D MapThe three dimensional map is displayed in “heading up.”•  The icon shows the direction of north.2D North UpThe map view is oriented with north “upwards,” as in usual paper maps.•  The icon shows the direction of the car.2D Heading UpThe map rotates so that you are always displayed heading “upwards.”•  The icon shows the direction of north.•  You can also change the map view through the navigation menu (<Options> - <Display> -<View Mode>, ☞ page 41).Basic operationsEN_KW-NT30_50[J].indb   16EN_KW-NT30_50[J].indb   161/31/2011   3:24:08 PM1/31/2011   3:24:08 PM

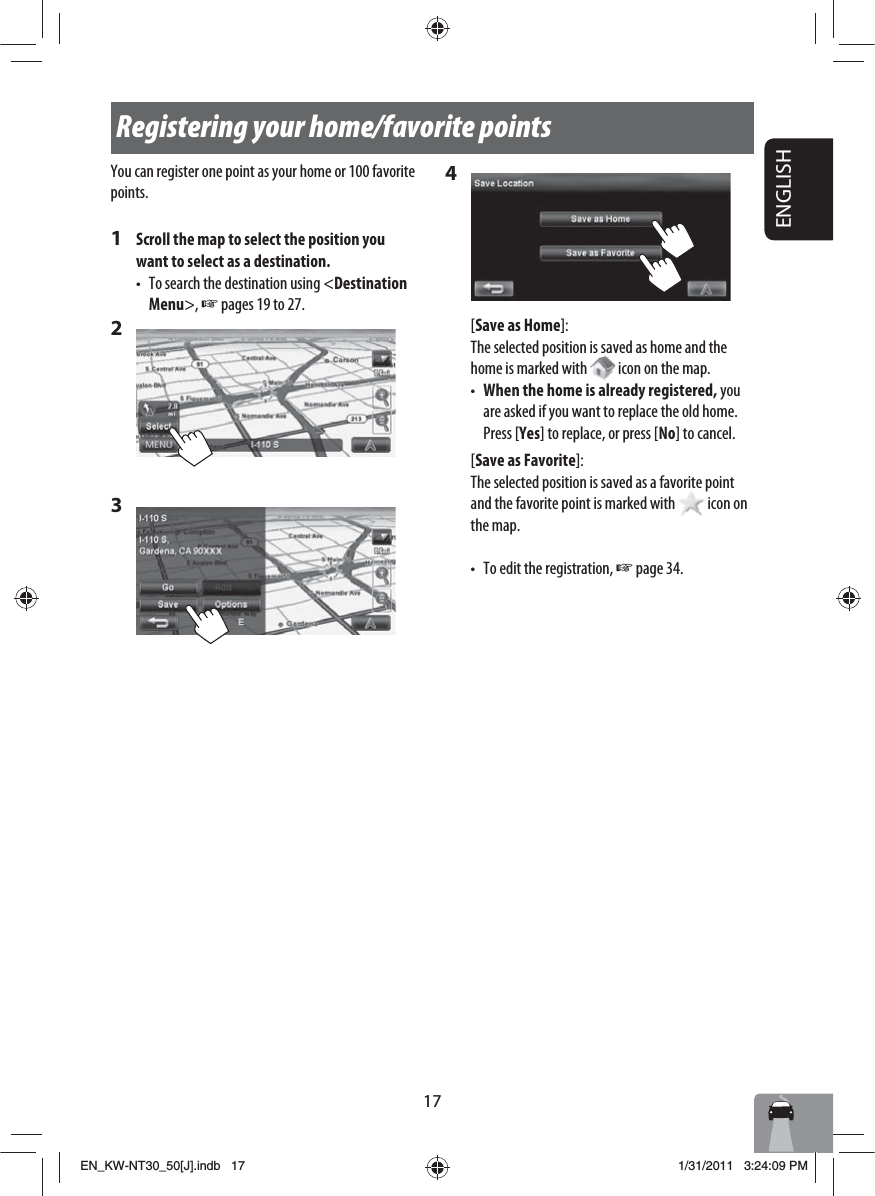

17ENGLISHRegistering your home/favorite pointsYou can register one point as your home or 100 favorite points.1  Scroll the map to select the position you want to select as a destination.•  To search the destination using <Destination Menu>, ☞ pages 19 to 27.2 3 4 [Save as Home]:The selected position is saved as home and the home is marked with   icon on the map.•  When the home is already registered, you are asked if you want to replace the old home. Press [Yes] to replace, or press [No] to cancel.[Save as Favorite]:The selected position is saved as a favorite point and the favorite point is marked with   icon on the map.•  To edit the registration, ☞ page 34.EN_KW-NT30_50[J].indb   17EN_KW-NT30_50[J].indb   171/31/2011   3:24:09 PM1/31/2011   3:24:09 PM

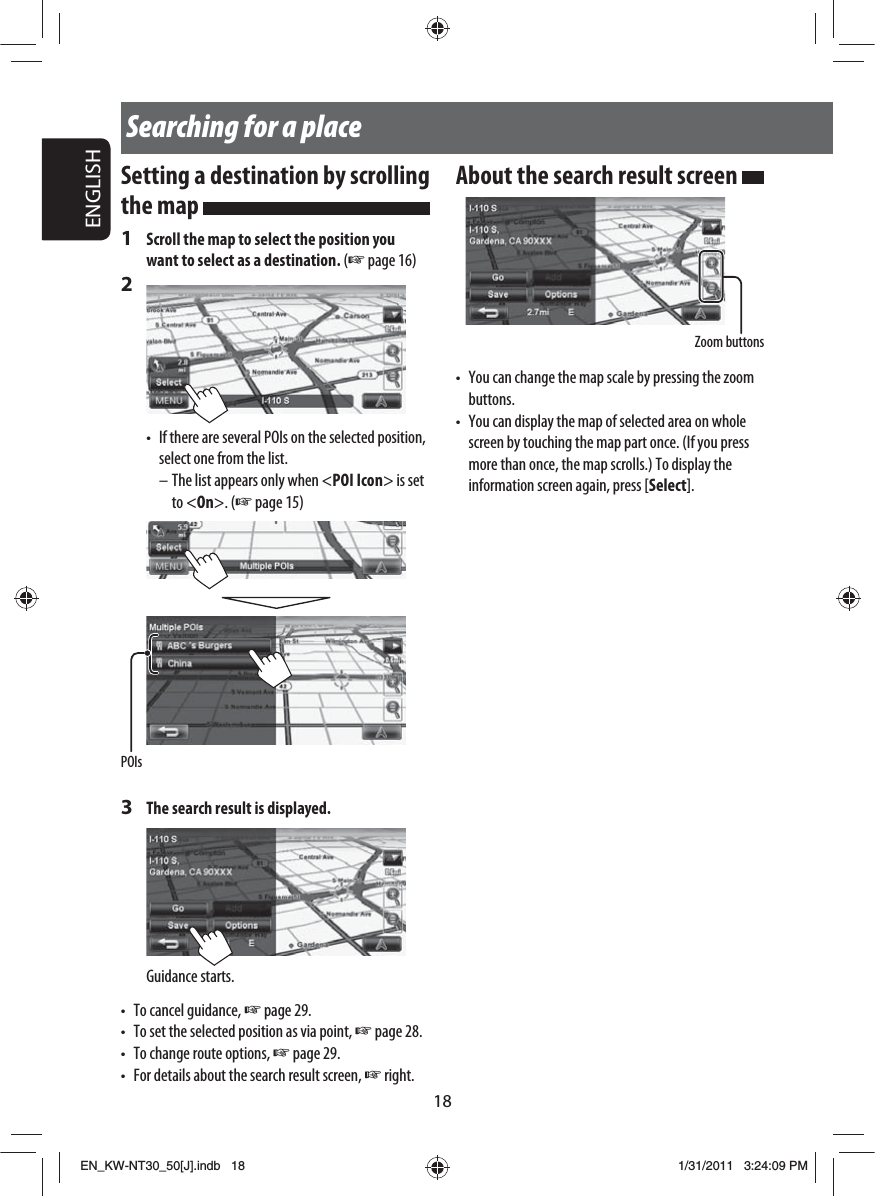

18ENGLISHSearching for a placeSetting a destination by scrolling the map 1  Scroll the map to select the position you want to select as a destination. (☞ page 16)2 •  If there are several POIs on the selected position, select one from the list. – The list appears only when <POI Icon> is set to <On>. (☞ page 15) 3  The search result is displayed.Guidance starts.•  To cancel guidance, ☞ page 29.•  To set the selected position as via point, ☞ page 28. •  To change route options, ☞ page 29.•  For details about the search result screen, ☞ right.About the search result screen •  You can change the map scale by pressing the zoom buttons.•  You can display the map of selected area on whole screen by touching the map part once. (If you press more than once, the map scrolls.) To display the information screen again, press [Select].Zoom buttonsPOIsEN_KW-NT30_50[J].indb   18EN_KW-NT30_50[J].indb   181/31/2011   3:24:09 PM1/31/2011   3:24:09 PM

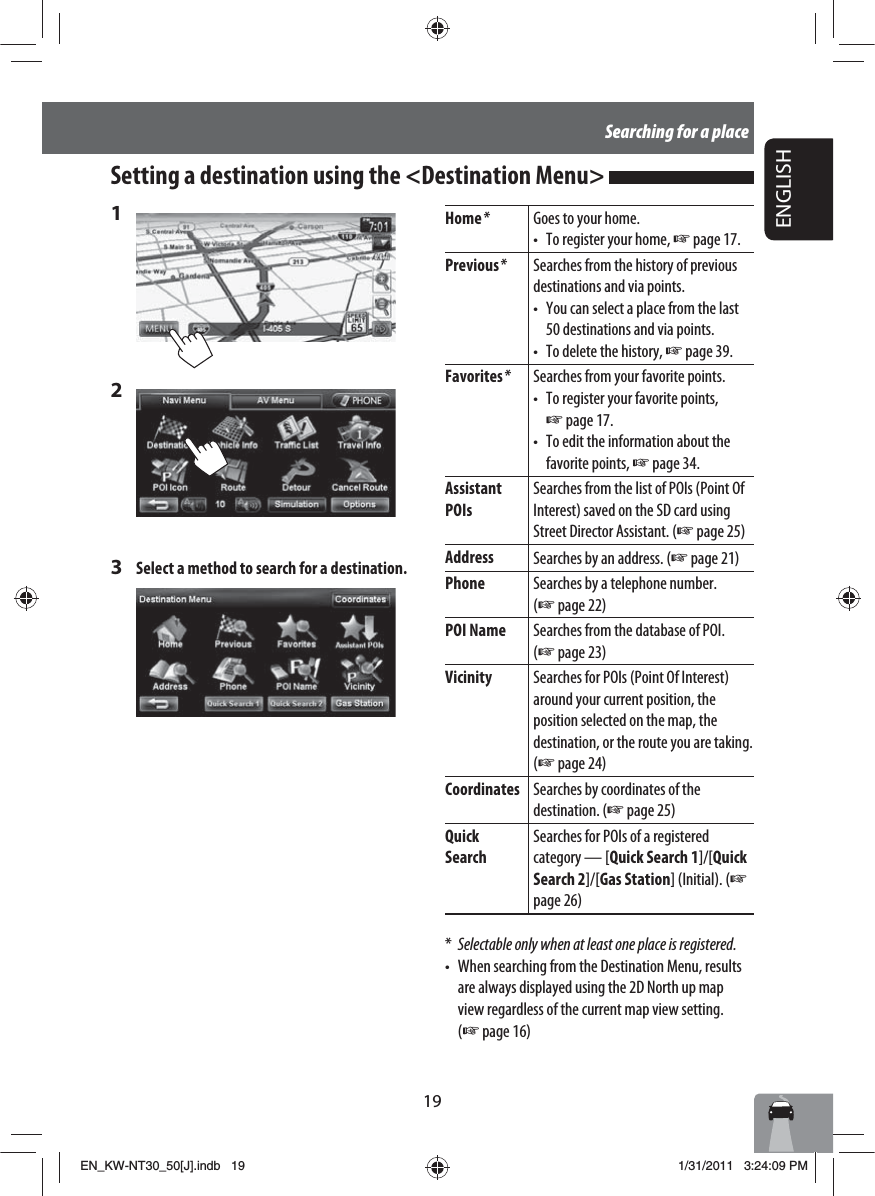

19ENGLISHSearching for a placeHome *Goes to your home.•  To register your home, ☞ page 17.Previous *Searches from the history of previous destinations and via points.•  You can select a place from the last 50 destinations and via points.•  To delete the history, ☞ page 39.Favorites *Searches from your favorite points.•  To register your favorite points, ☞ page 17.•  To edit the information about the favorite points, ☞ page 34.Assistant POIsSearches from the list of POIs (Point Of Interest) saved on the SD card using Street Director Assistant. (☞ page 25)Address Searches by an address. (☞ page 21)Phone Searches by a telephone number. (☞ page 22)POI Name Searches from the database of POI. (☞ page 23)Vicinity Searches for POIs (Point Of Interest) around your current position, the position selected on the map, the destination, or the route you are taking. (☞ page 24)Coordinates Searches by coordinates of the destination. (☞ page 25)Quick Search Searches for POIs of a registered category — [Quick Search 1]/[Quick Search 2]/[Gas Station] (Initial). (☞ page 26)*  Selectable only when at least one place is registered.•  When searching from the Destination Menu, results are always displayed using the 2D North up map view regardless of the current map view setting. (☞ page 16)Setting a destination using the <Destination Menu> 1 2 3  Select a method to search for a destination.EN_KW-NT30_50[J].indb   19EN_KW-NT30_50[J].indb   191/31/2011   3:24:09 PM1/31/2011   3:24:09 PM

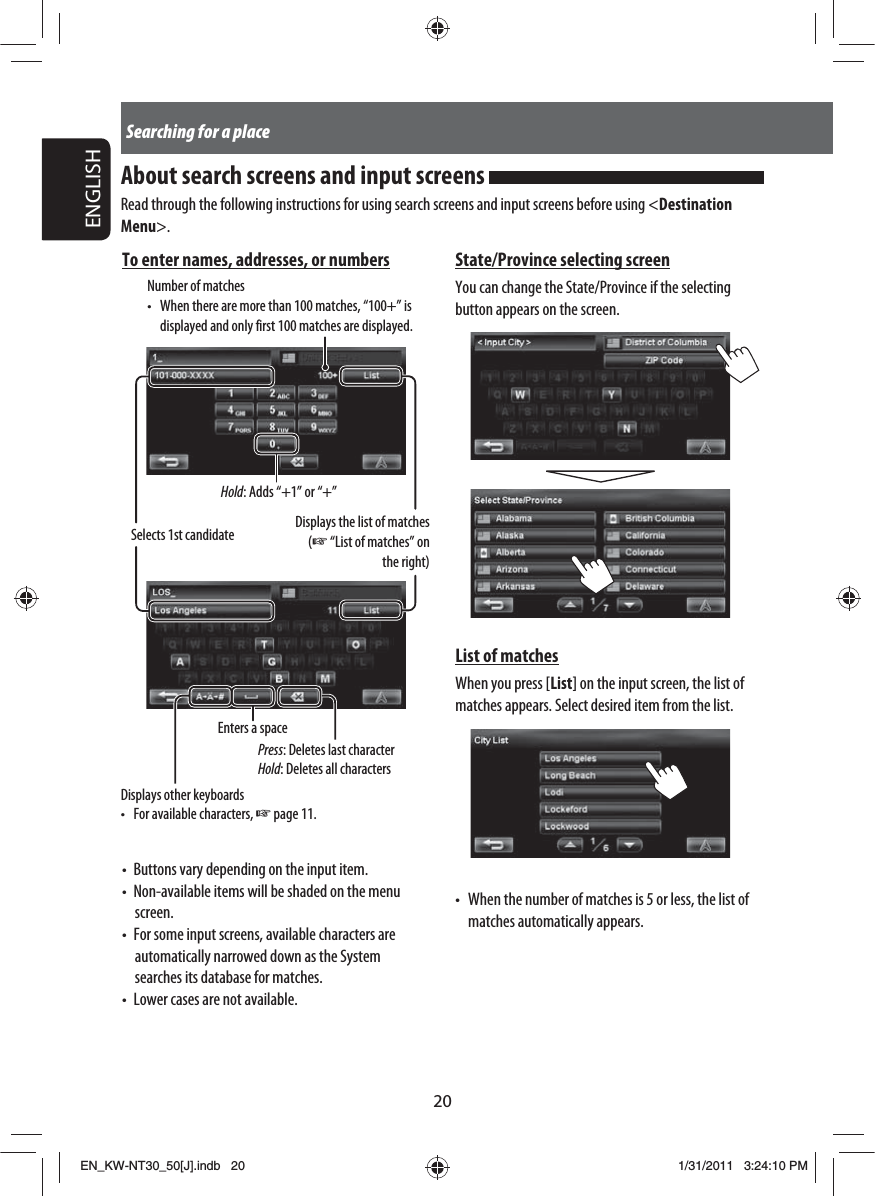

20ENGLISHSearching for a placeDisplays other keyboards •  For available characters, ☞ page 11.Enters a spaceSelects 1st candidateNumber of matches •  When there are more than 100 matches, “100+” is displayed and only first 100 matches are displayed.Press: Deletes last characterHold: Deletes all charactersDisplays the list of matches (☞ “List of matches” on the right)About search screens and input screens Read through the following instructions for using search screens and input screens before using <Destination Menu>.State/Province selecting screenYou can change the State/Province if the selecting button appears on the screen.List of matchesWhen you press [List] on the input screen, the list of matches appears. Select desired item from the list.•  When the number of matches is 5 or less, the list of matches automatically appears.To enter names, addresses, or numbers•  Buttons vary depending on the input item.•  Non-available items will be shaded on the menu screen.•  For some input screens, available characters are automatically narrowed down as the System searches its database for matches.•  Lower cases are not available.Hold: Adds “+1” or “+”EN_KW-NT30_50[J].indb   20EN_KW-NT30_50[J].indb   201/31/2011   3:24:10 PM1/31/2011   3:24:10 PM

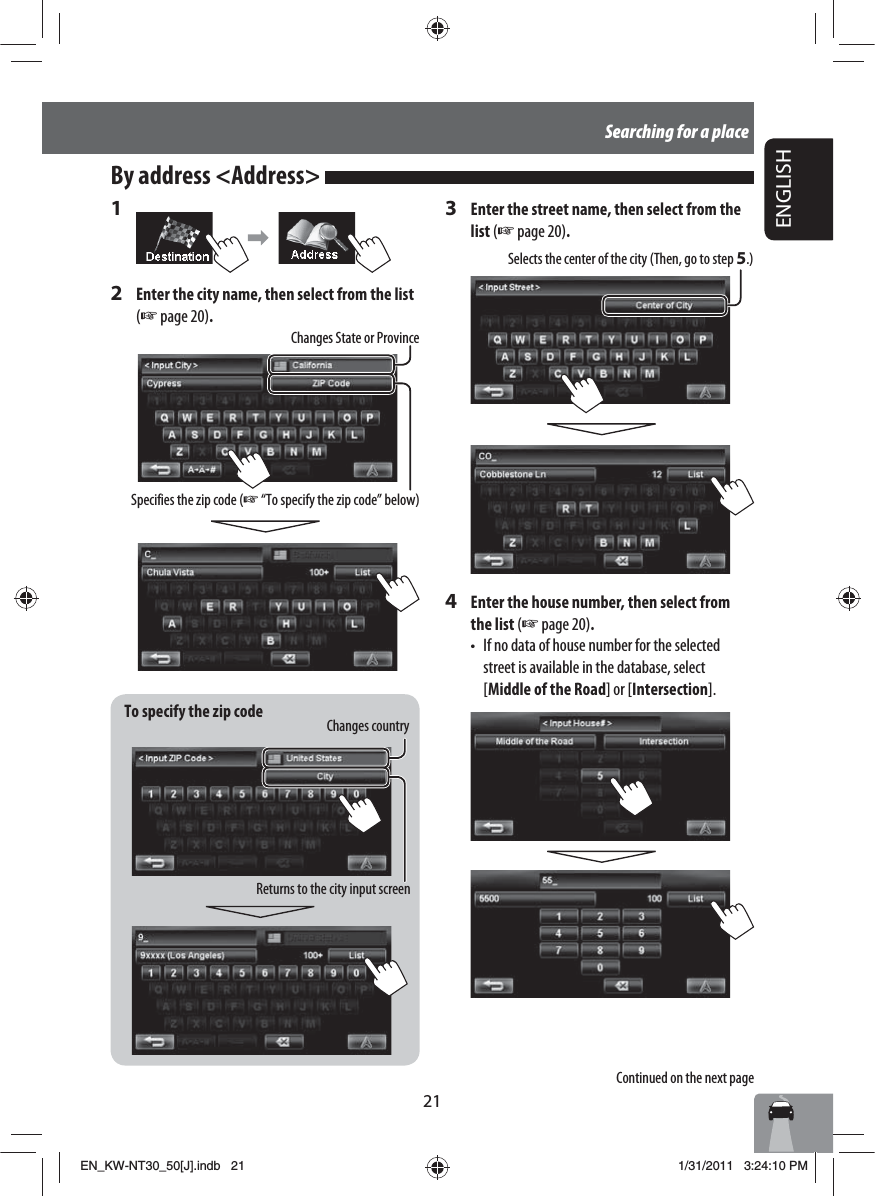

To specify the zip code21ENGLISH1 2  Enter the city name, then select from the list (☞ page 20).Changes State or ProvinceSpecifies the zip code (☞ “To specify the zip code” below)Continued on the next pageReturns to the city input screenChanges countrySearching for a placeBy address <Address> 3  Enter the street name, then select from the list (☞ page 20).4  Enter the house number, then select from the list (☞ page 20).•  If no data of house number for the selected street is available in the database, select [Middle of the Road] or [Intersection].Selects the center of the city (Then, go to step 5.)EN_KW-NT30_50[J].indb   21EN_KW-NT30_50[J].indb   211/31/2011   3:24:10 PM1/31/2011   3:24:10 PM

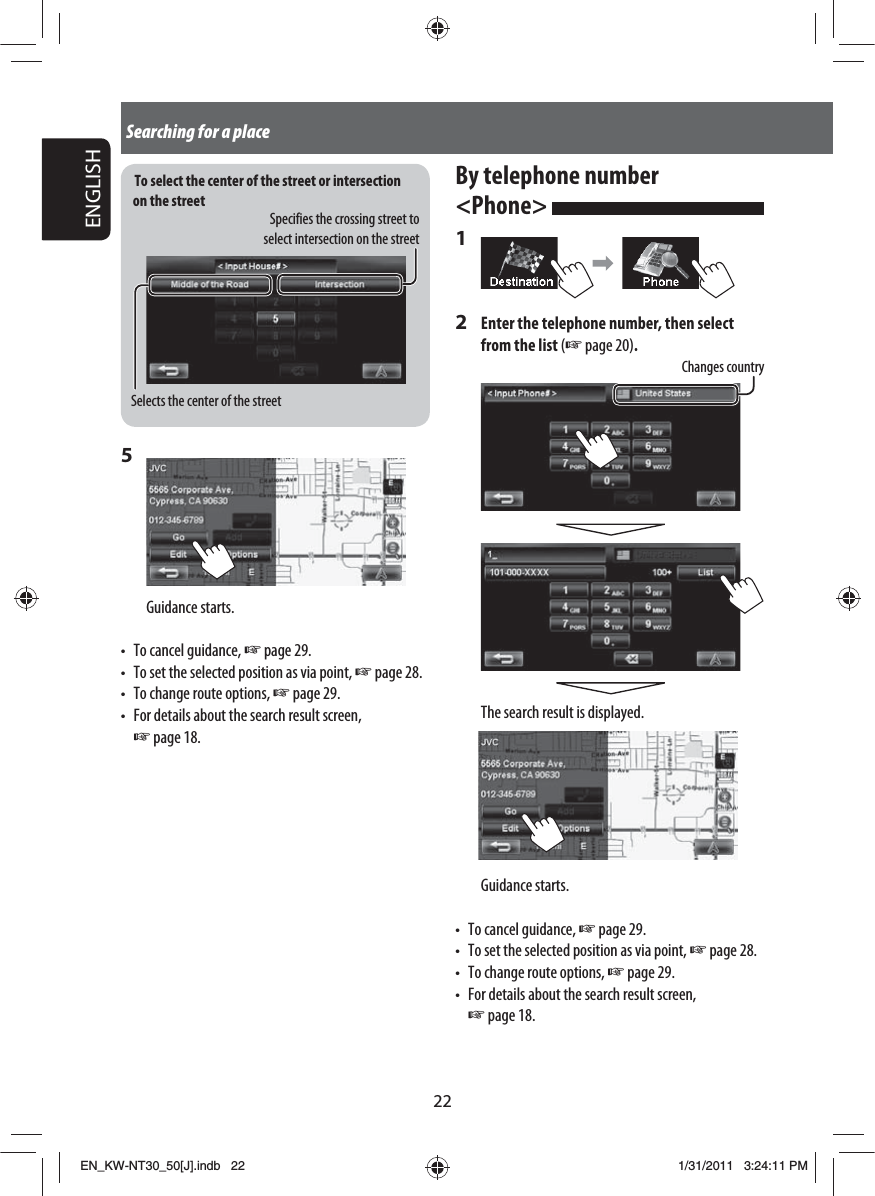

To select the center of the street or intersection on the street22ENGLISH5 Guidance starts.•  To cancel guidance, ☞ page 29.•  To set the selected position as via point, ☞ page 28. •  To change route options, ☞ page 29.•  For details about the search result screen, ☞ page 18.Searching for a placeSpecifies the crossing street to select intersection on the streetSelects the center of the streetBy telephone number <Phone> 1 2  Enter the telephone number, then select from the list (☞ page 20).The search result is displayed.Guidance starts.• To cancel guidance, ☞ page 29.•  To set the selected position as via point, ☞ page 28. •  To change route options, ☞ page 29.•  For details about the search result screen, ☞ page 18.Changes countryEN_KW-NT30_50[J].indb   22EN_KW-NT30_50[J].indb   221/31/2011   3:24:11 PM1/31/2011   3:24:11 PM

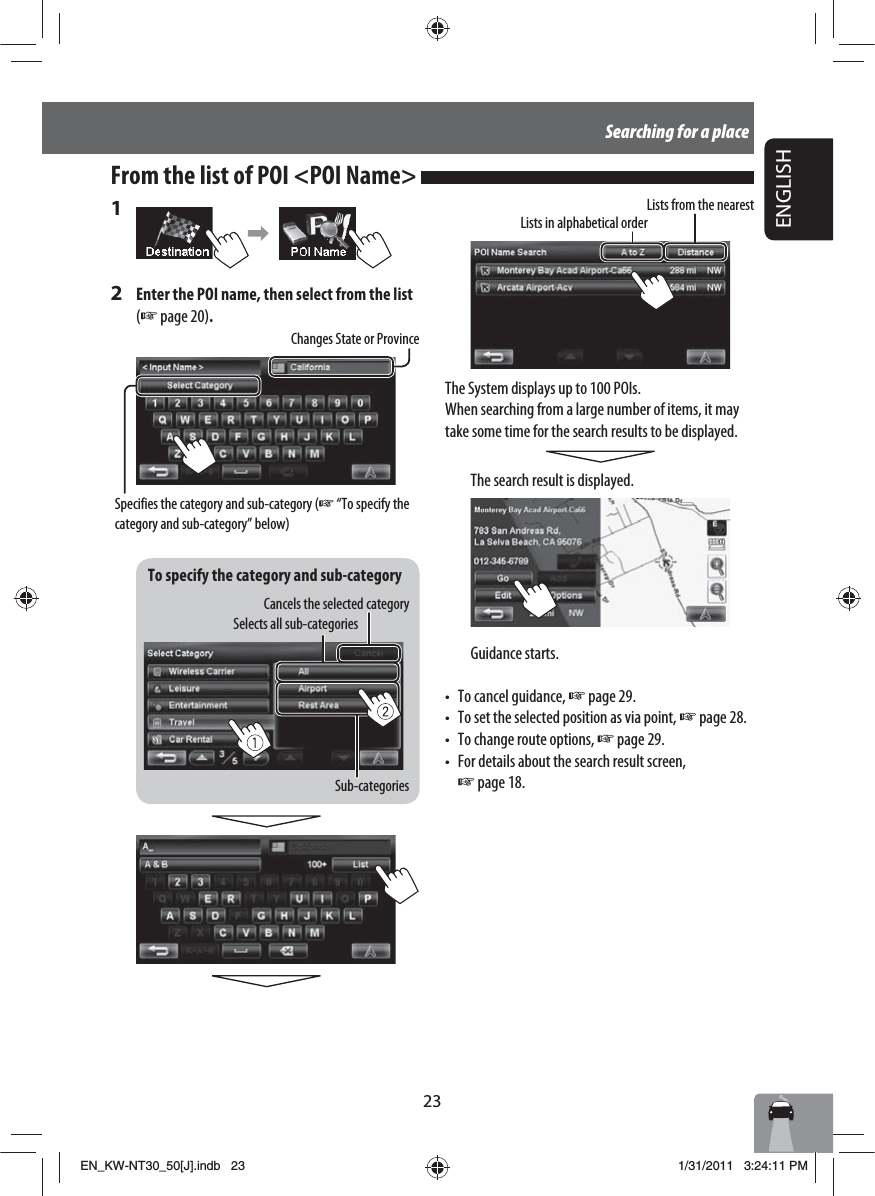

To specify the category and sub-category23ENGLISHSearching for a place1 2  Enter the POI name, then select from the list (☞ page 20).From the list of POI <POI Name> The System displays up to 100 POIs.When searching from a large number of items, it may take some time for the search results to be displayed.The search result is displayed.Guidance starts.• To cancel guidance, ☞ page 29.•  To set the selected position as via point, ☞ page 28. •  To change route options, ☞ page 29.•  For details about the search result screen, ☞ page 18.Lists in alphabetical orderLists from the nearestSpecifies the category and sub-category (☞ “To specify the category and sub-category” below)Changes State or ProvinceSelects all sub-categoriesSub-categoriesCancels the selected categoryEN_KW-NT30_50[J].indb   23EN_KW-NT30_50[J].indb   231/31/2011   3:24:11 PM1/31/2011   3:24:11 PM

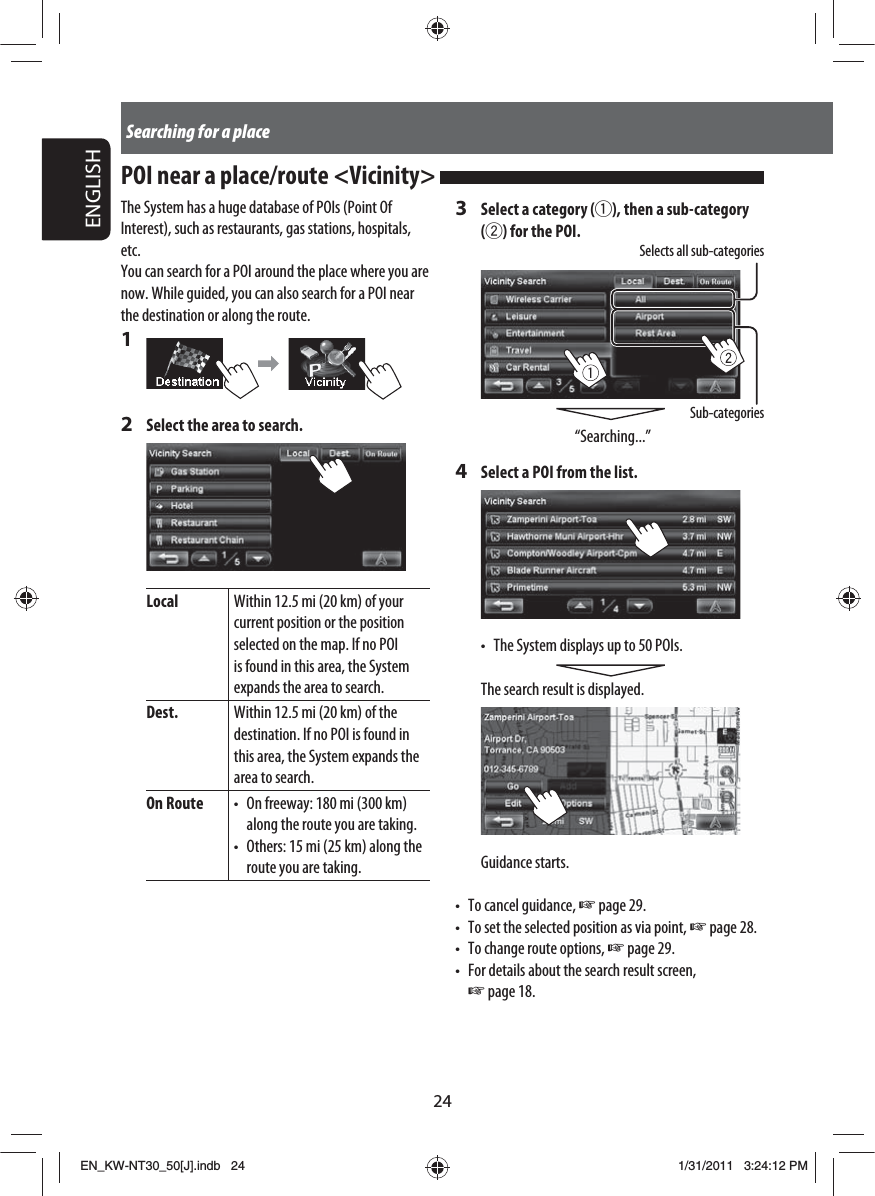

24ENGLISHSearching for a placeSelects all sub-categoriesSub-categories3  Select a category (1), then a sub-category (2) for the POI.4  Select a POI from the list.•  The System displays up to 50 POIs.The search result is displayed.Guidance starts.• To cancel guidance, ☞ page 29.•  To set the selected position as via point, ☞ page 28. •  To change route options, ☞ page 29.•  For details about the search result screen, ☞ page 18.The System has a huge database of POIs (Point Of Interest), such as restaurants, gas stations, hospitals, etc.You can search for a POI around the place where you are now. While guided, you can also search for a POI near the destination or along the route.1 2  Select the area to search.Local Within 12.5 mi (20 km) of your current position or the position selected on the map. If no POI is found in this area, the System expands the area to search.Dest. Within 12.5 mi (20 km) of the destination. If no POI is found in this area, the System expands the area to search.On Route •  On freeway: 180 mi (300 km) along the route you are taking.•  Others: 15 mi (25 km) along the route you are taking.POI near a place/route <Vicinity> “Searching...”EN_KW-NT30_50[J].indb   24EN_KW-NT30_50[J].indb   241/31/2011   3:24:12 PM1/31/2011   3:24:12 PM

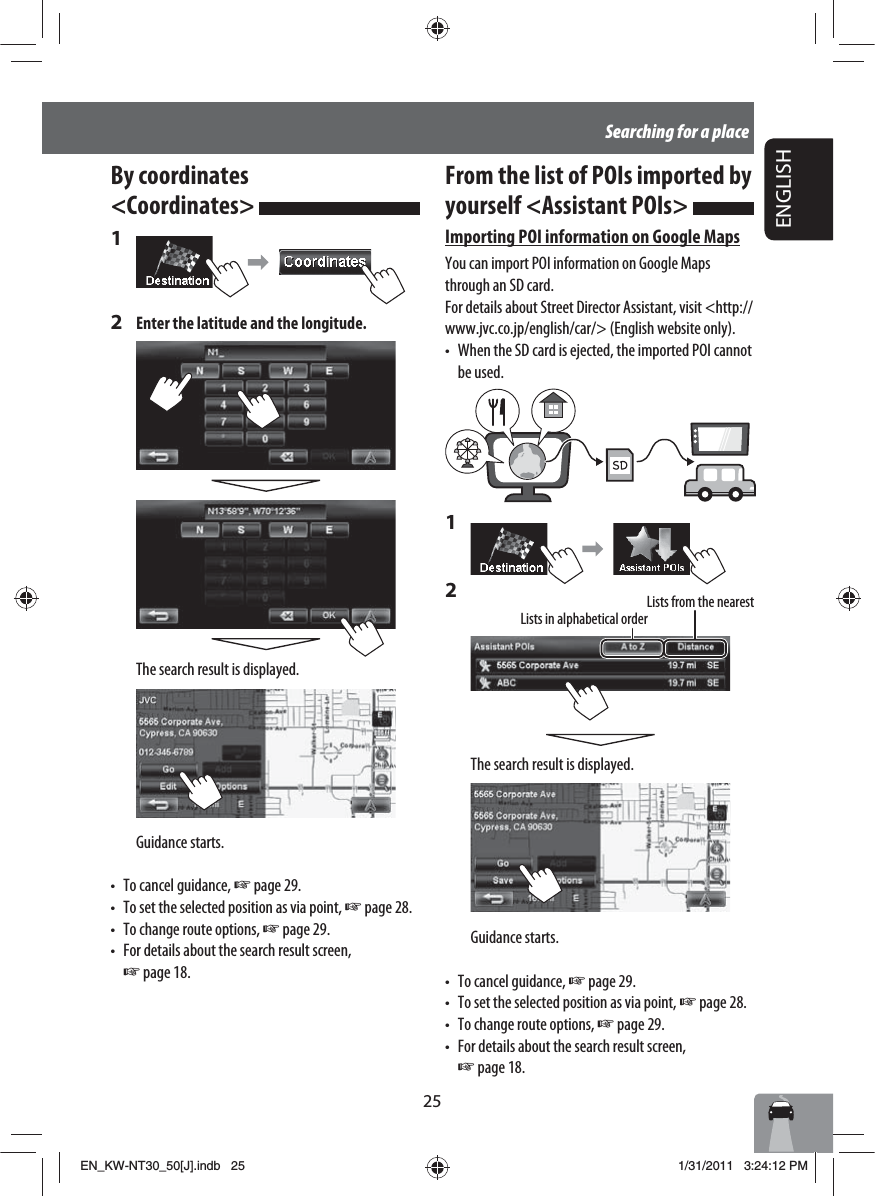

25ENGLISHBy coordinates <Coordinates> 1 2  Enter the latitude and the longitude.The search result is displayed.Guidance starts.•  To cancel guidance, ☞ page 29.•  To set the selected position as via point, ☞ page 28. •  To change route options, ☞ page 29.•  For details about the search result screen, ☞ page 18.Searching for a placeFrom the list of POIs imported by yourself <Assistant POIs> Importing POI information on Google MapsYou can import POI information on Google Maps through an SD card.For details about Street Director Assistant, visit <http://www.jvc.co.jp/english/car/> (English website only).•  When the SD card is ejected, the imported POI cannot be used.1 2 The search result is displayed.Guidance starts.• To cancel guidance, ☞ page 29.•  To set the selected position as via point, ☞ page 28. •  To change route options, ☞ page 29.•  For details about the search result screen, ☞ page 18.Lists in alphabetical orderLists from the nearestEN_KW-NT30_50[J].indb   25EN_KW-NT30_50[J].indb   251/31/2011   3:24:12 PM1/31/2011   3:24:12 PM

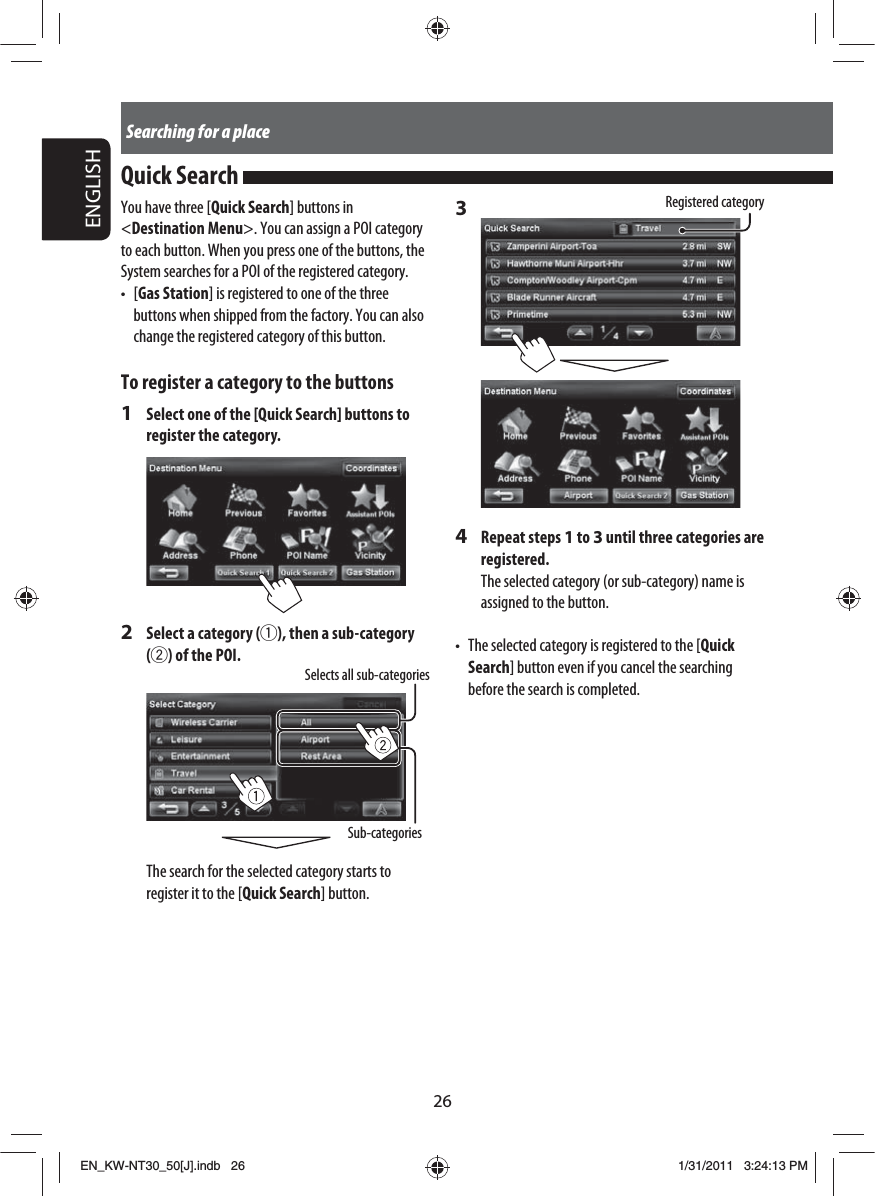

Tentative26ENGLISHSearching for a placeQuick Search You have three [Quick Search] buttons in <Destination Menu>. You can assign a POI category to each button. When you press one of the buttons, the System searches for a POI of the registered category.• [Gas Station] is registered to one of the three buttons when shipped from the factory. You can also change the registered category of this button. To register a category to the buttons1  Select one of the [Quick Search] buttons to register the category.2  Select a category (1), then a sub-category (2) of the POI.The search for the selected category starts to register it to the [Quick Search] button.Selects all sub-categoriesSub-categories3 4 Repeat steps 1 to 3 until three categories are registered.The selected category (or sub-category) name is assigned to the button.•  The selected category is registered to the [Quick Search] button even if you cancel the searching before the search is completed.Registered categoryEN_KW-NT30_50[J].indb   26EN_KW-NT30_50[J].indb   261/31/2011   3:24:13 PM1/31/2011   3:24:13 PM

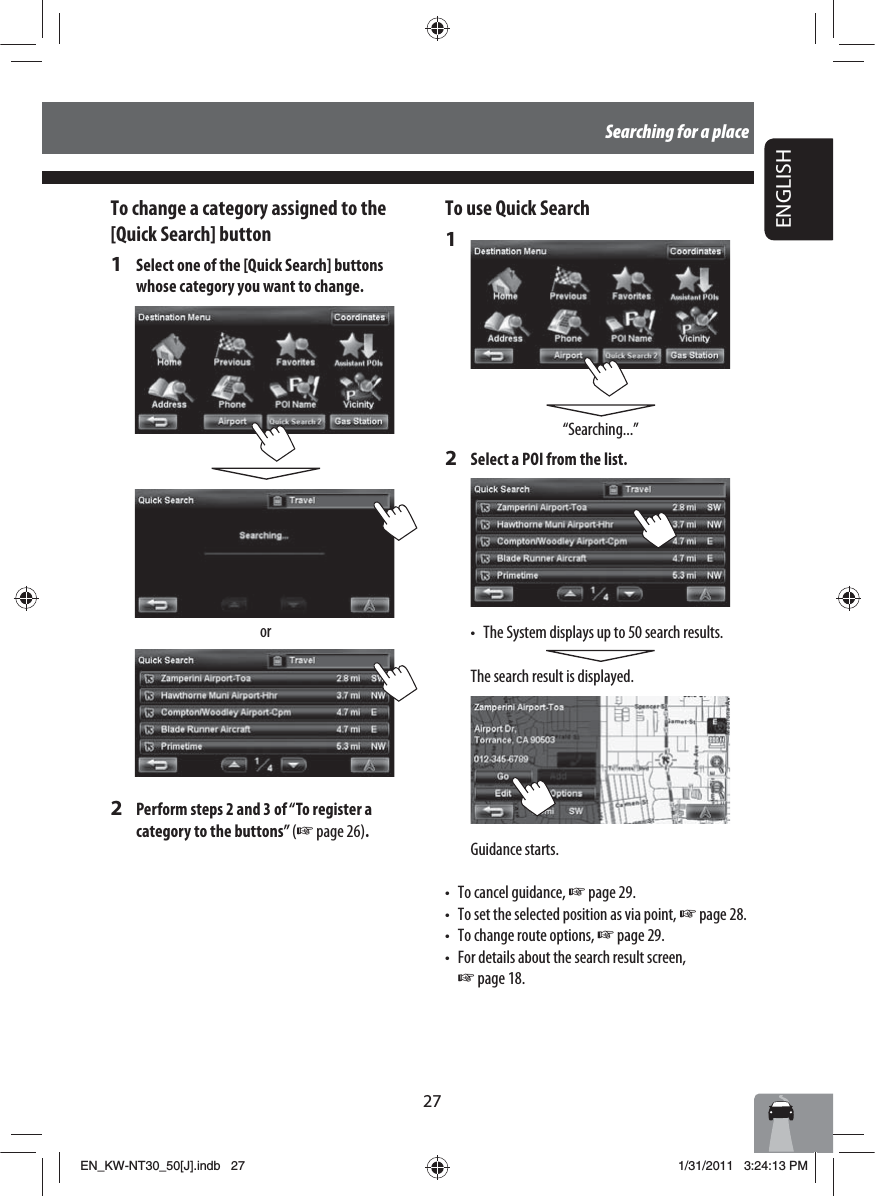

27ENGLISHTo change a category assigned to the [Quick Search] button1  Select one of the [Quick Search] buttons whose category you want to change.2  Perform steps 2 and 3 of “To register a category to the buttons” (☞ page 26).orTo use Quick Search1 2  Select a POI from the list.•  The System displays up to 50 search results.The search result is displayed.Guidance starts.• To cancel guidance, ☞ page 29.•  To set the selected position as via point, ☞ page 28. •  To change route options, ☞ page 29.•  For details about the search result screen, ☞ page 18.“Searching...”Searching for a placeEN_KW-NT30_50[J].indb   27EN_KW-NT30_50[J].indb   271/31/2011   3:24:13 PM1/31/2011   3:24:13 PM

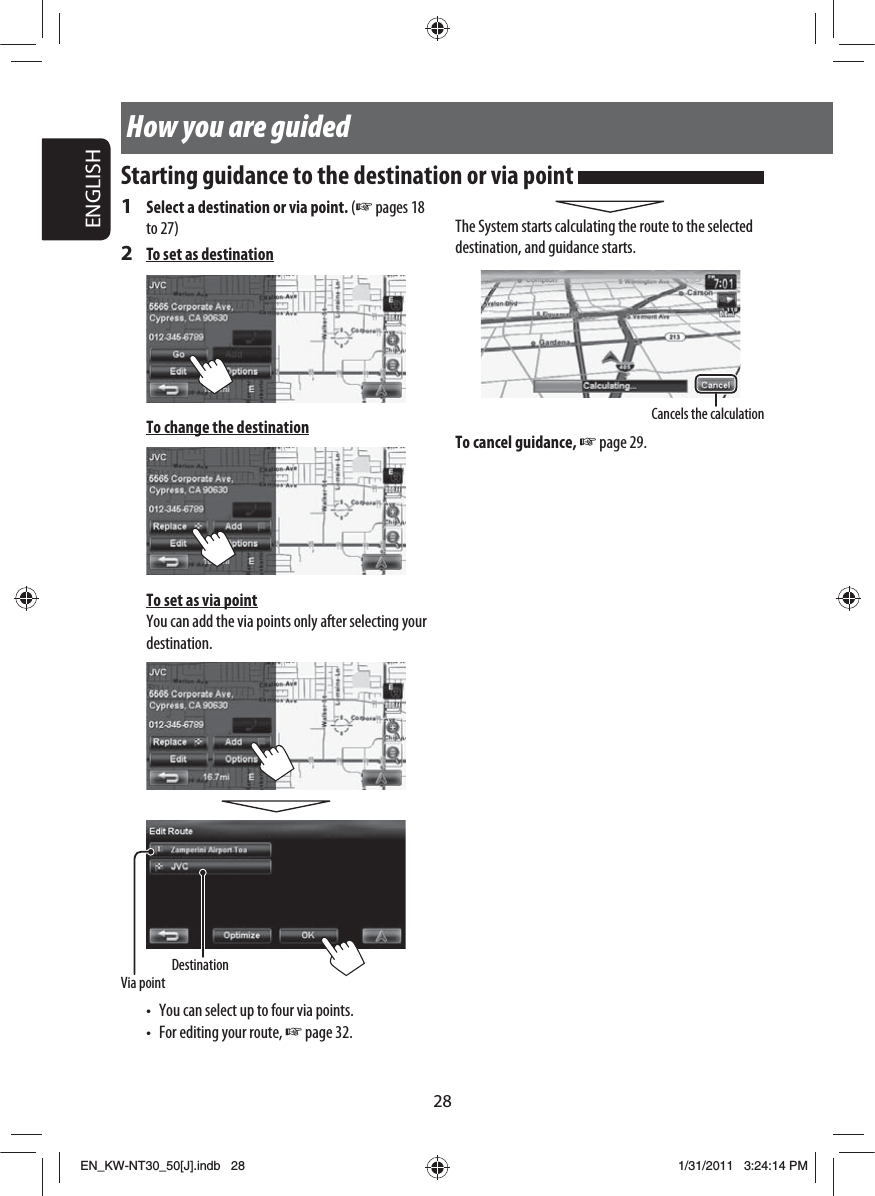

28ENGLISHCancels the calculationHow you are guidedVia pointDestination1  Select a destination or via point. (☞ pages 18 to 27)2  To set as destinationTo change the destinationTo set as via pointYou can add the via points only after selecting your destination.•  You can select up to four via points.•  For editing your route, ☞ page 32.The System starts calculating the route to the selected destination, and guidance starts.To cancel guidance, ☞ page 29.Starting guidance to the destination or via point EN_KW-NT30_50[J].indb   28EN_KW-NT30_50[J].indb   281/31/2011   3:24:14 PM1/31/2011   3:24:14 PM

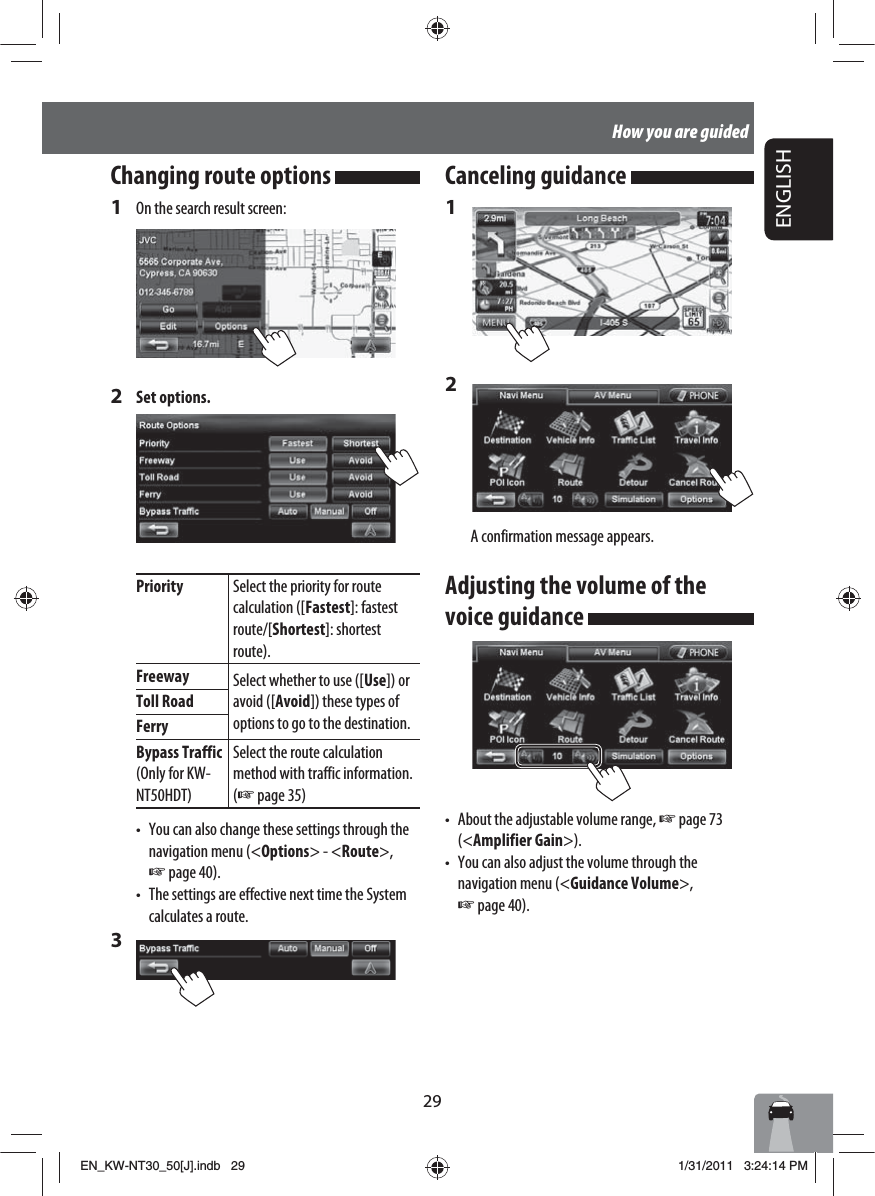

29ENGLISHChanging route options 1 On the search result screen:2 Set options.Priority Select the priority for route calculation ([Fastest]: fastest route/[Shortest]: shortest route).Freeway Select whether to use ([Use]) or avoid ([Avoid]) these types of options to go to the destination.Toll RoadFerryBypass Traffic(Only for KW-NT50HDT)Select the route calculation method with traffic information. (☞ page 35)•  You can also change these settings through the navigation menu (<Options> - <Route>, ☞ page 40).•  The settings are effective next time the System calculates a route.3 Canceling guidance 1 2 A confirmation message appears.Adjusting the volume of the voice guidance •  About the adjustable volume range, ☞ page 73 (<Amplifier Gain>).•  You can also adjust the volume through the navigation menu (<Guidance Volume>, ☞ page 40).How you are guidedEN_KW-NT30_50[J].indb   29EN_KW-NT30_50[J].indb   291/31/2011   3:24:14 PM1/31/2011   3:24:14 PM

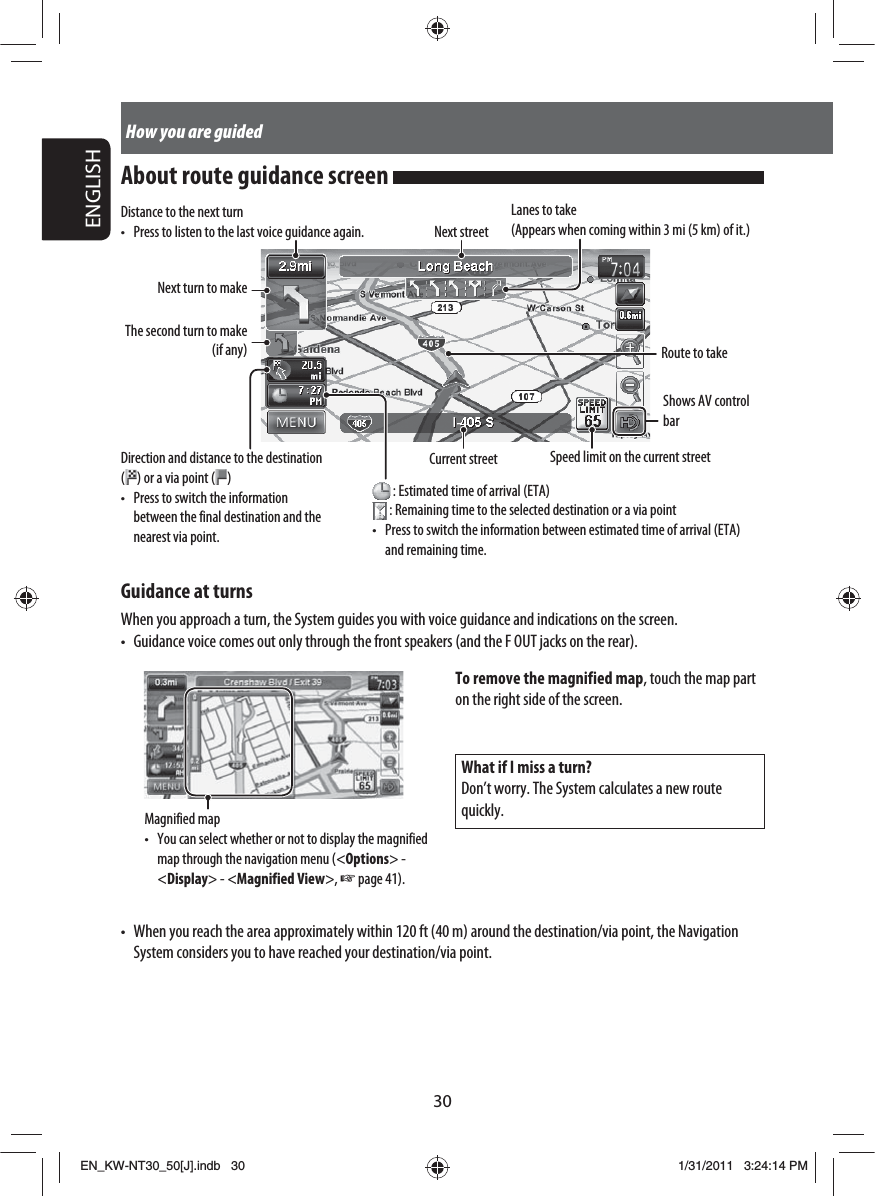

30ENGLISHHow you are guidedDistance to the next turn•  Press to listen to the last voice guidance again. Next streetRoute to takeGuidance at turnsWhen you approach a turn, the System guides you with voice guidance and indications on the screen.•  Guidance voice comes out only through the front speakers (and the F OUT jacks on the rear).Direction and distance to the destination () or a via point ( )•  Press to switch the information between the final destination and the nearest via point.Current streetLanes to take(Appears when coming within 3 mi (5 km) of it.)Next turn to makeThe second turn to make (if any) : Estimated time of arrival (ETA) : Remaining time to the selected destination or a via point•  Press to switch the information between estimated time of arrival (ETA) and remaining time.Speed limit on the current streetWhat if I miss a turn?Don’t worry. The System calculates a new route quickly.Magnified map•  You can select whether or not to display the magnified map through the navigation menu (<Options> - <Display> - <Magnified View>, ☞ page 41).To remove the magnified map, touch the map part on the right side of the screen.•  When you reach the area approximately within 120 ft (40 m) around the destination/via point, the Navigation System considers you to have reached your destination/via point.Shows AV control barAbout route guidance screen EN_KW-NT30_50[J].indb   30EN_KW-NT30_50[J].indb   301/31/2011   3:24:14 PM1/31/2011   3:24:14 PM

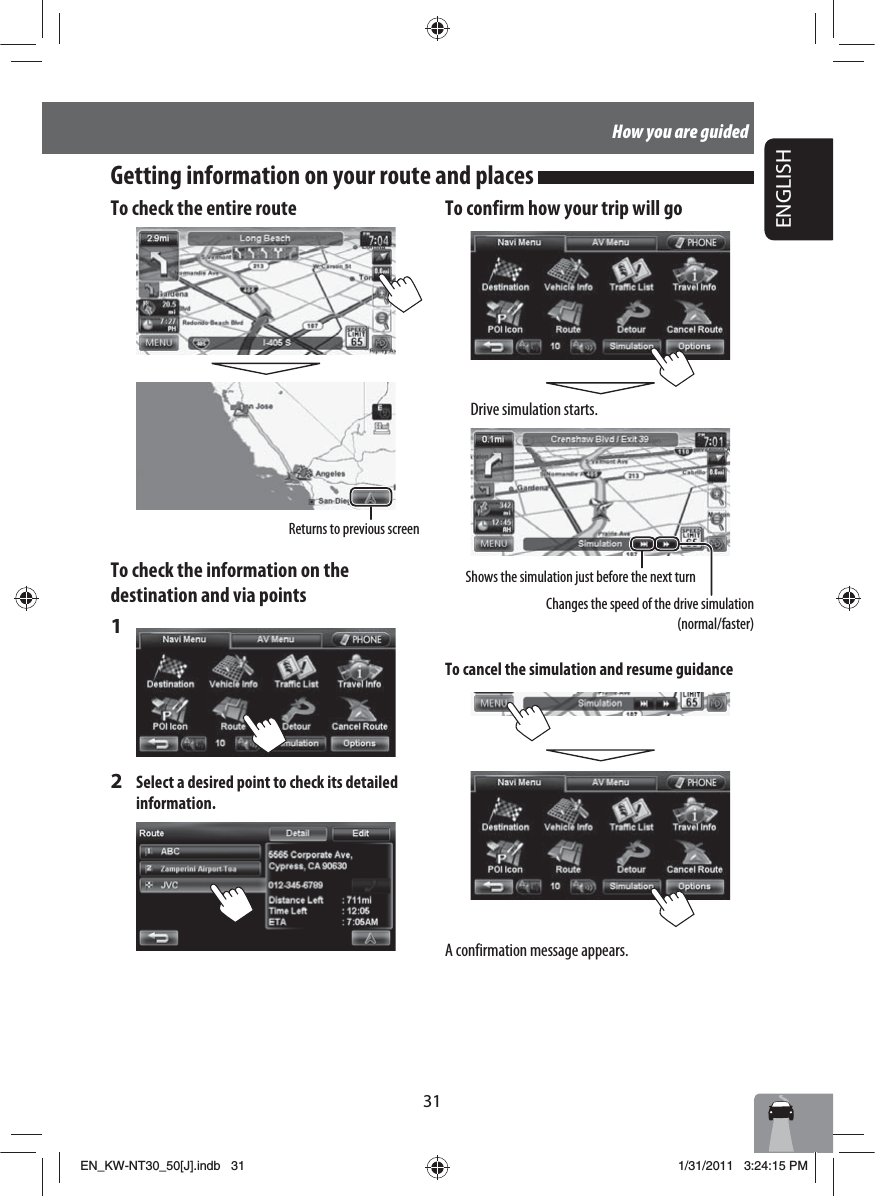

31ENGLISHTo check the entire routeTo check the information on the destination and via points1 2  Select a desired point to check its detailed information.Getting information on your route and places To confirm how your trip will goDrive simulation starts.To cancel the simulation and resume guidanceA confirmation message appears.Shows the simulation just before the next turnChanges the speed of the drive simulation (normal/faster)Returns to previous screenHow you are guidedEN_KW-NT30_50[J].indb   31EN_KW-NT30_50[J].indb   311/31/2011   3:24:15 PM1/31/2011   3:24:15 PM

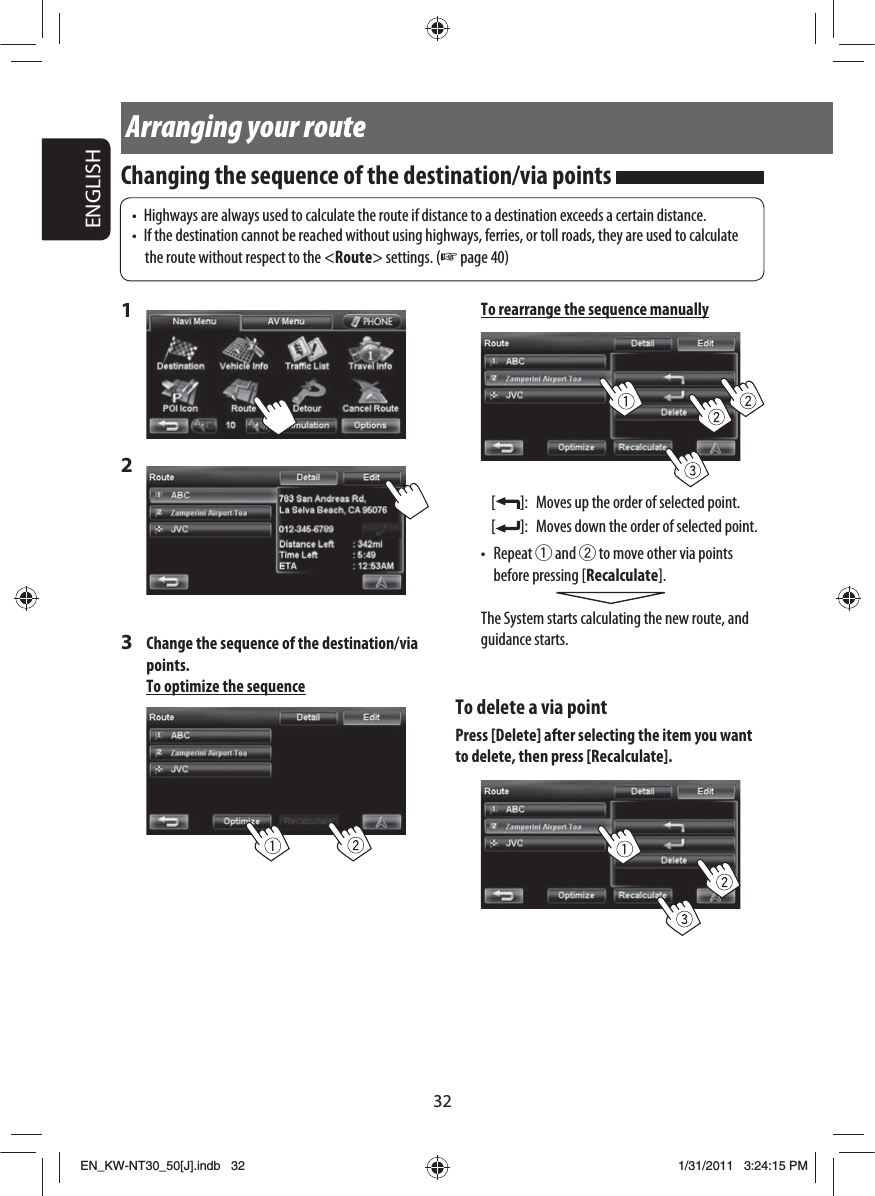

32ENGLISHArranging your route1 2 3  Change the sequence of the destination/via points.To optimize the sequence•  Highways are always used to calculate the route if distance to a destination exceeds a certain distance.•  If the destination cannot be reached without using highways, ferries, or toll roads, they are used to calculate the route without respect to the <Route> settings. (☞ page 40)To rearrange the sequence manually[]:  Moves up the order of selected point.[]:  Moves down the order of selected point.• Repeat 1 and 2 to move other via points before pressing [Recalculate].The System starts calculating the new route, and guidance starts.To delete a via pointPress [Delete] after selecting the item you want to delete, then press [Recalculate]. Changing the sequence of the destination/via points EN_KW-NT30_50[J].indb   32EN_KW-NT30_50[J].indb   321/31/2011   3:24:15 PM1/31/2011   3:24:15 PM

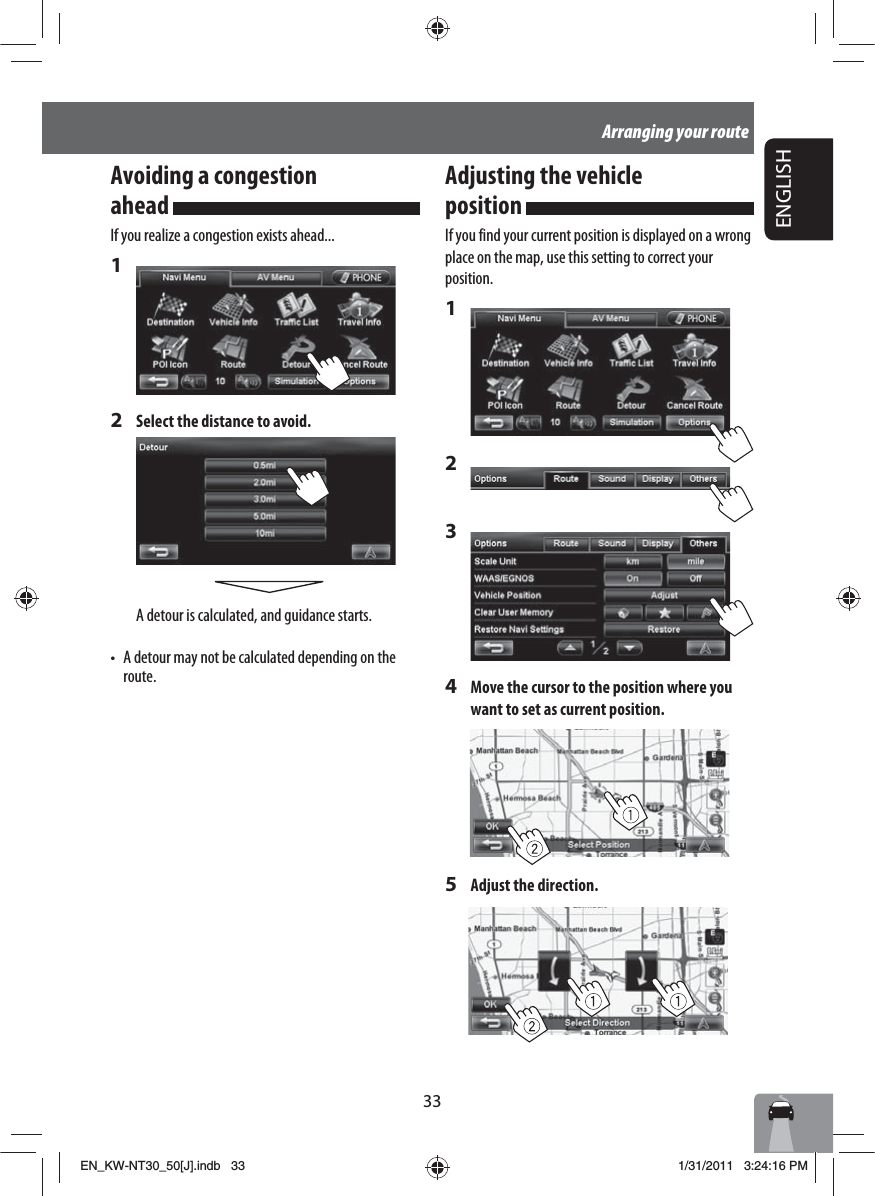

33ENGLISHAvoiding a congestion ahead If you realize a congestion exists ahead...1 2  Select the distance to avoid.A detour is calculated, and guidance starts.•  A detour may not be calculated depending on the route.Adjusting the vehicle position If you find your current position is displayed on a wrong place on the map, use this setting to correct your position.1 2 3 4  Move the cursor to the position where you want to set as current position.5  Adjust the direction.Arranging your routeEN_KW-NT30_50[J].indb   33EN_KW-NT30_50[J].indb   331/31/2011   3:24:16 PM1/31/2011   3:24:16 PM

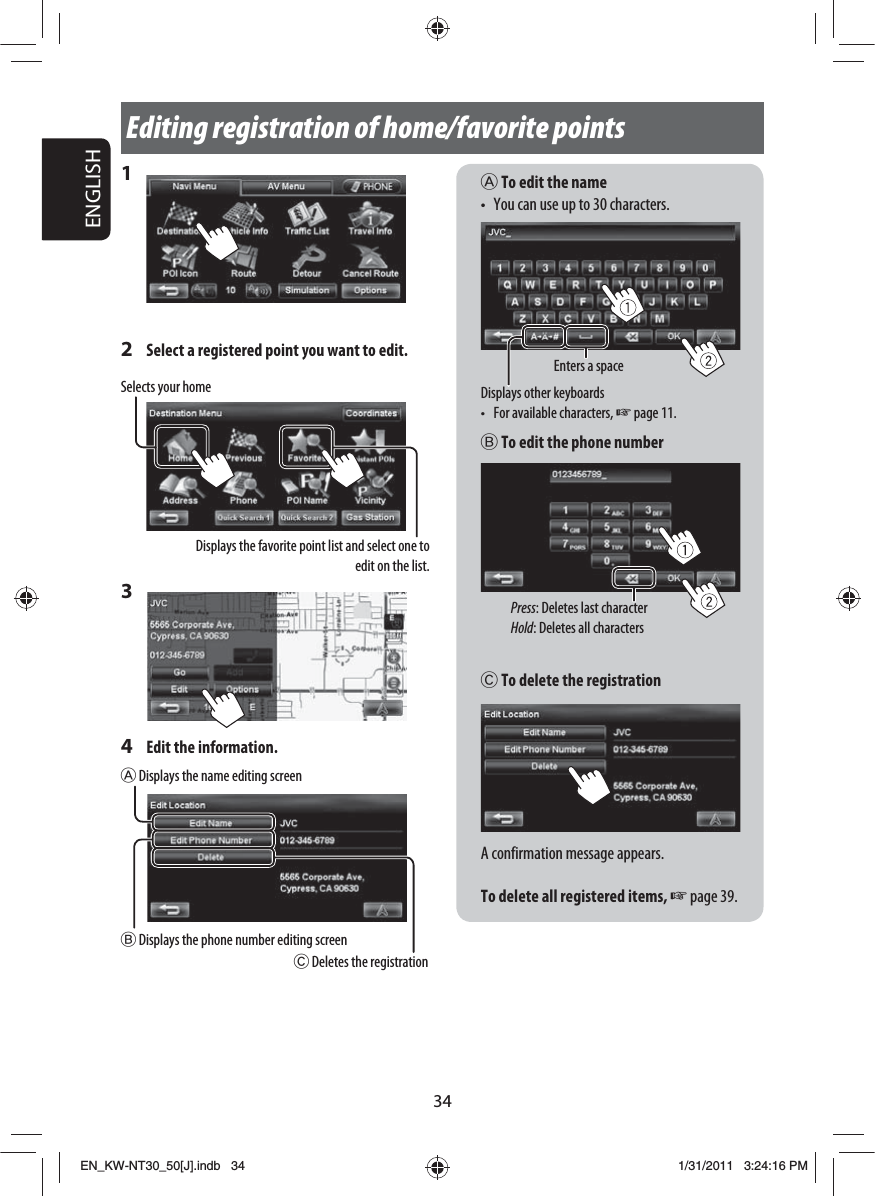

34ENGLISHEditing registration of home/favorite pointsA To edit the name•  You can use up to 30 characters.B To edit the phone numberC To delete the registrationA confirmation message appears.To delete all registered items, ☞ page 39.1 2  Select a registered point you want to edit.3 4  Edit the information.B Displays the phone number editing screenA Displays the name editing screenC Deletes the registrationDisplays other keyboards • For available characters, ☞ page 11.Enters a spacePress: Deletes last characterHold: Deletes all charactersSelects your homeDisplays the favorite point list and select one to edit on the list.EN_KW-NT30_50[J].indb   34EN_KW-NT30_50[J].indb   341/31/2011   3:24:16 PM1/31/2011   3:24:16 PM

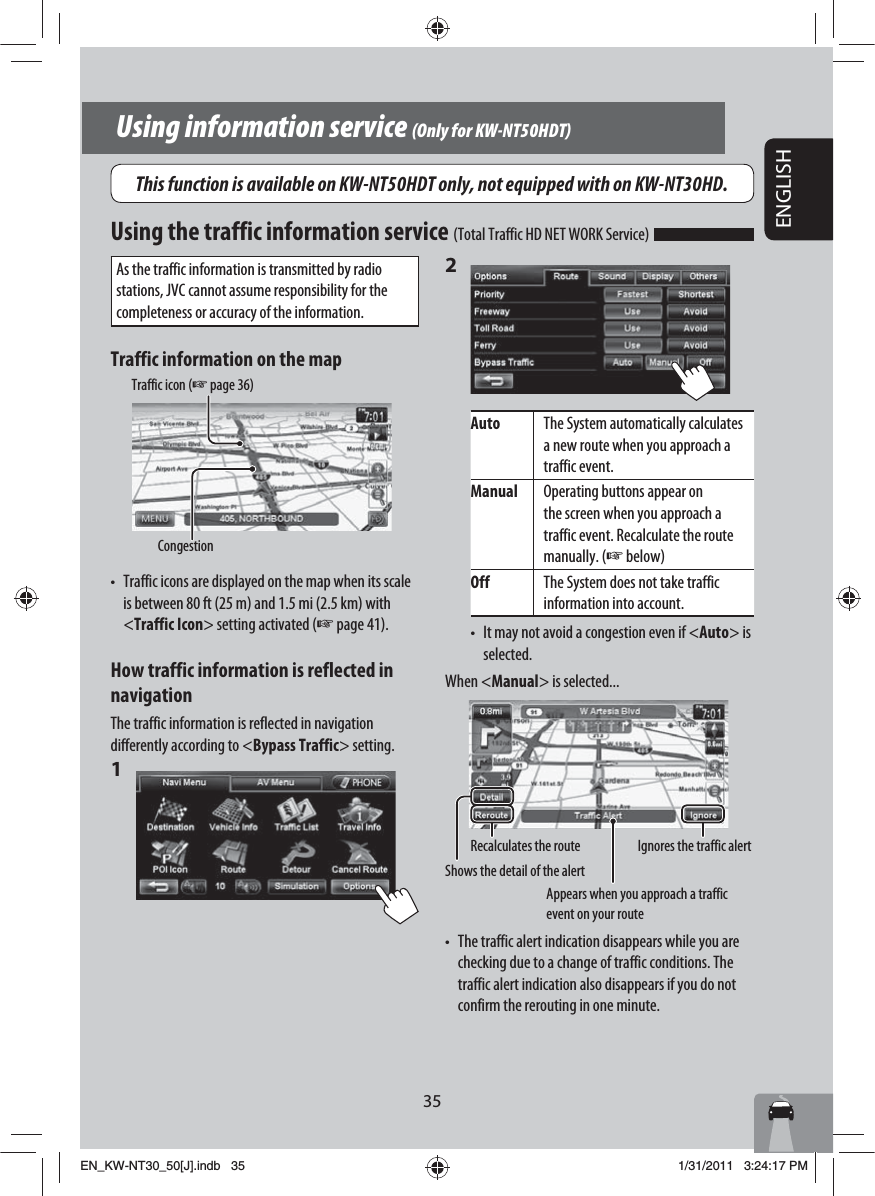

35ENGLISHAs the traffic information is transmitted by radio stations, JVC cannot assume responsibility for the completeness or accuracy of the information.Traffic information on the map•  Traffic icons are displayed on the map when its scale is between 80 ft (25 m) and 1.5 mi (2.5 km) with <Traffic Icon> setting activated (☞ page 41).How traffic information is reflected in navigationThe traffic information is reflected in navigation differently according to <Bypass Traffic> setting.1 Traffic icon (☞ page 36)CongestionUsing information service (Only for KW-NT50HDT)2 Auto The System automatically calculates a new route when you approach a traffic event.Manual Operating buttons appear on the screen when you approach a traffic event. Recalculate the route manually. (☞ below)Off The System does not take traffic information into account.•  It may not avoid a congestion even if <Auto> is selected.When <Manual> is selected...•  The traffic alert indication disappears while you are checking due to a change of traffic conditions. The traffic alert indication also disappears if you do not confirm the rerouting in one minute.Shows the detail of the alertRecalculates the route Ignores the traffic alertAppears when you approach a traffic event on your routeUsing the traffic information service (Total Traffic HD NET WORK Service) This function is available on KW-NT50HDT only, not equipped with on KW-NT30HD.EN_KW-NT30_50[J].indb   35EN_KW-NT30_50[J].indb   351/31/2011   3:24:17 PM1/31/2011   3:24:17 PM

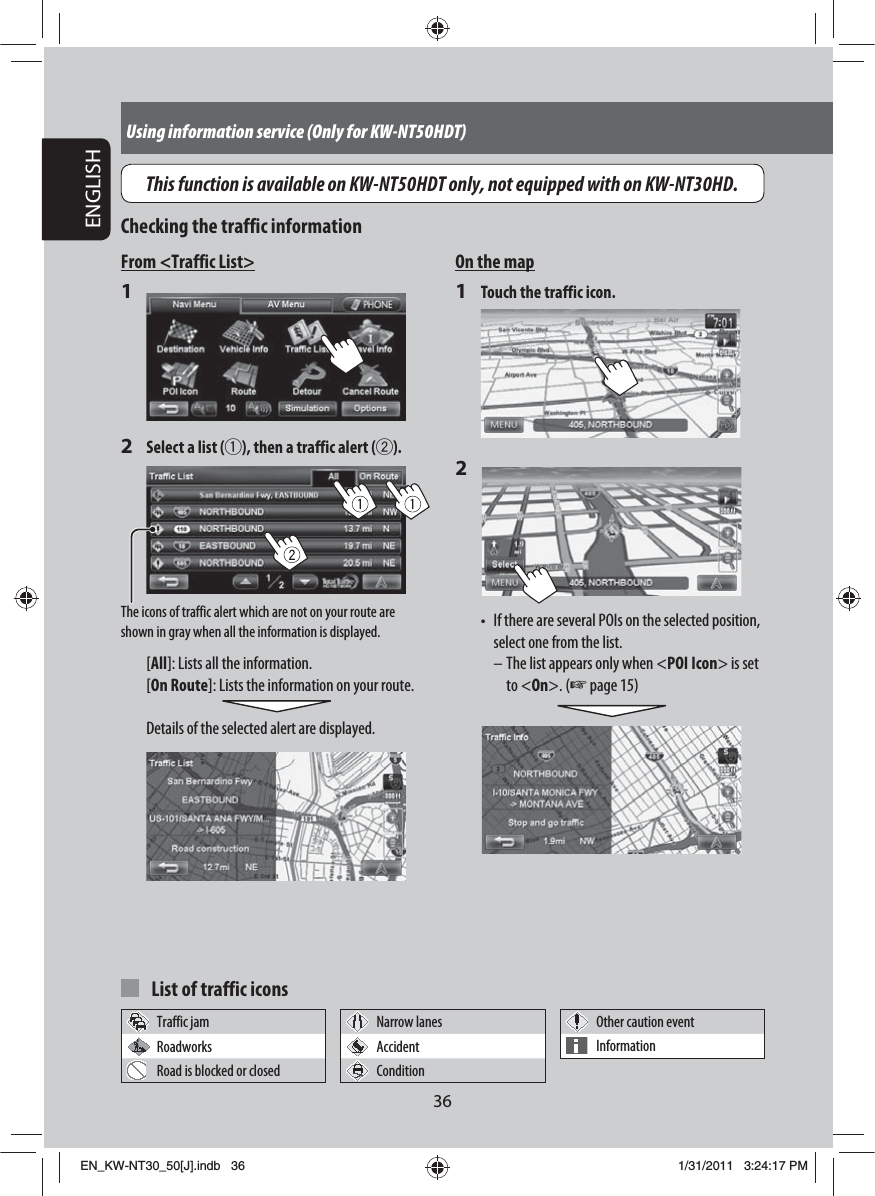

36ENGLISHUsing information service (Only for KW-NT50HDT)On the map1  Touch the traffic icon.2 •  If there are several POIs on the selected position, select one from the list. – The list appears only when <POI Icon> is set to <On>. (☞ page 15) The icons of traffic alert which are not on your route are shown in gray when all the information is displayed.From <Traffic List>1 2  Select a list (1), then a traffic alert (2).[All]: Lists all the information.[On Route]: Lists the information on your route.Details of the selected alert are displayed.  List of traffic iconsTraffic jam Narrow lanes Other caution eventRoadworks Accident InformationRoad is blocked or closed ConditionChecking the traffic informationThis function is available on KW-NT50HDT only, not equipped with on KW-NT30HD.EN_KW-NT30_50[J].indb   36EN_KW-NT30_50[J].indb   361/31/2011   3:24:17 PM1/31/2011   3:24:17 PM

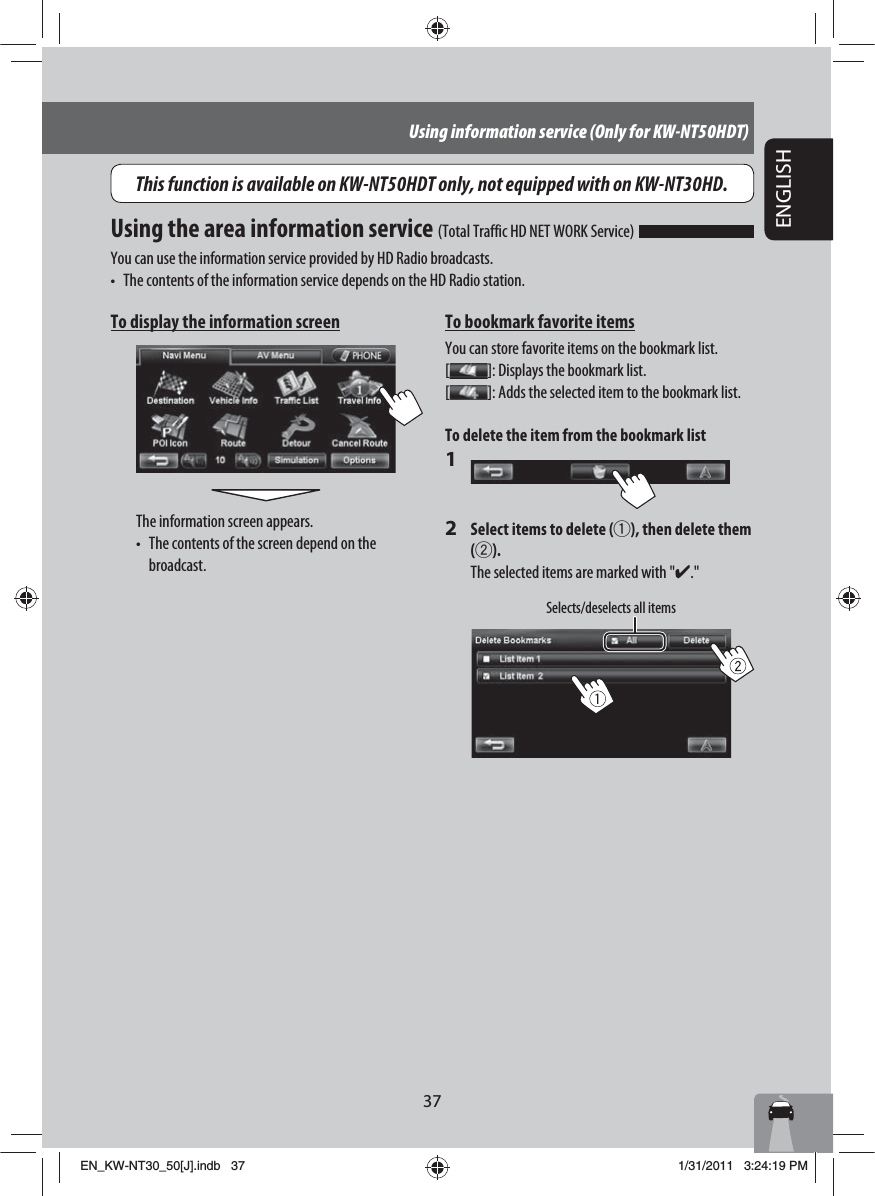

37ENGLISHTo display the information screenThe information screen appears.•  The contents of the screen depend on the  broadcast.Selects/deselects all itemsUsing information service (Only for KW-NT50HDT)Using the area information service (Total Traffic HD NET WORK Service) You can use the information service provided by HD Radio broadcasts.•  The contents of the information service depends on the HD Radio station.To bookmark favorite itemsYou can store favorite items on the bookmark list.[]: Displays the bookmark list.[]: Adds the selected item to the bookmark list.To delete the item from the bookmark list1 2  Select items to delete (1), then delete them (2).The selected items are marked with "✔."This function is available on KW-NT50HDT only, not equipped with on KW-NT30HD.EN_KW-NT30_50[J].indb   37EN_KW-NT30_50[J].indb   371/31/2011   3:24:19 PM1/31/2011   3:24:19 PM

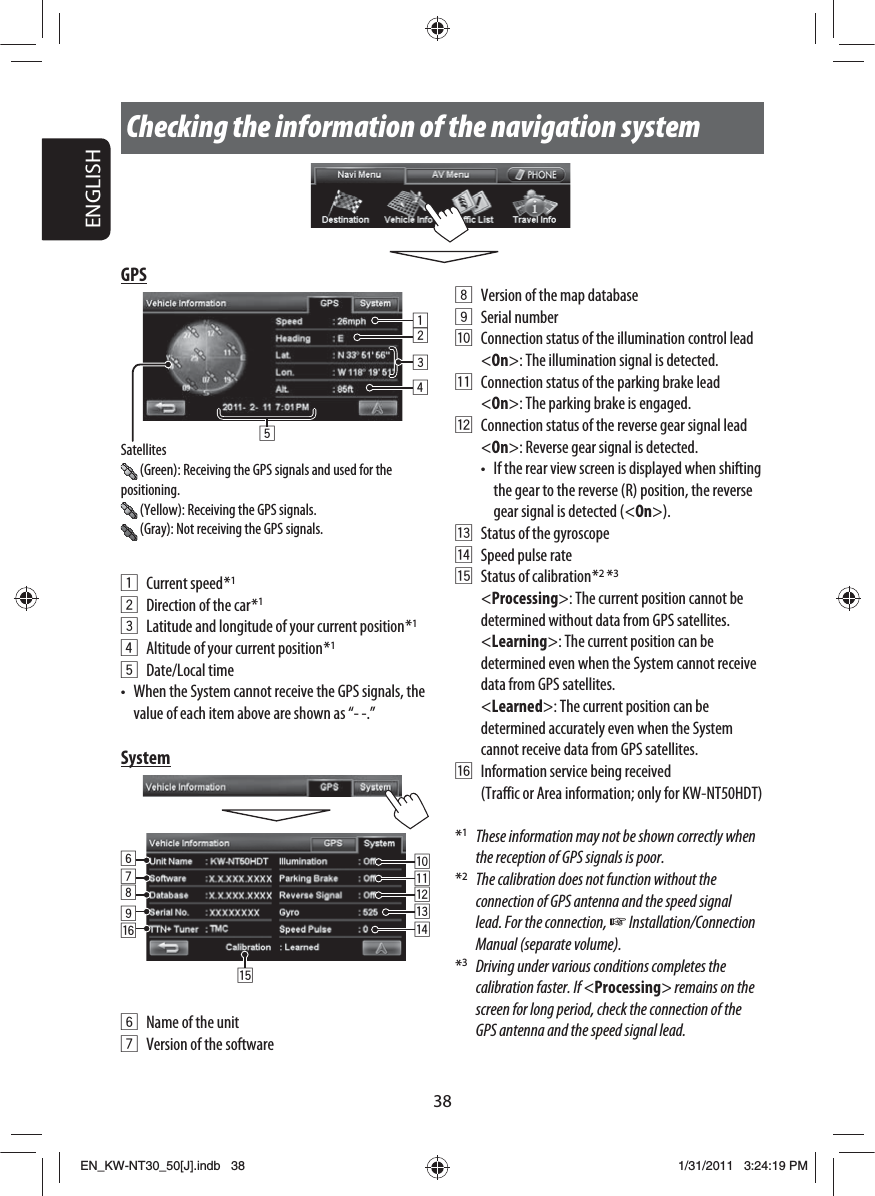

p6789qwert52341y38ENGLISHChecking the information of the navigation system8  Version of the map database9 Serial numberp  Connection status of the illumination control lead<On>: The illumination signal is detected.q  Connection status of the parking brake lead<On>: The parking brake is engaged.w  Connection status of the reverse gear signal lead<On>: Reverse gear signal is detected.•  If the rear view screen is displayed when shifting the gear to the reverse (R) position, the reverse gear signal is detected (<On>).e  Status of the gyroscoper  Speed pulse ratet  Status of calibration *2 *3 <Processing>: The current position cannot be determined without data from GPS satellites.<Learning>: The current position can be determined even when the System cannot receive data from GPS satellites.<Learned>: The current position can be determined accurately even when the System cannot receive data from GPS satellites.y  Information service being received (Traffic or Area information; only for KW-NT50HDT)*1  These information may not be shown correctly when the reception of GPS signals is poor.*2  The calibration does not function without the connection of GPS antenna and the speed signal lead. For the connection, ☞ Installation/Connection Manual (separate volume).*3  Driving under various conditions completes the calibration faster. If <Processing> remains on the screen for long period, check the connection of the GPS antenna and the speed signal lead.GPS1 Current speed *12  Direction of the car *13  Latitude and longitude of your current position *14  Altitude of your current position *15 Date/Local time•  When the System cannot receive the GPS signals, the value of each item above are shown as “- -.”System6  Name of the unit7  Version of the softwareSatellites (Green): Receiving the GPS signals and used for the positioning. (Yellow): Receiving the GPS signals. (Gray): Not receiving the GPS signals.EN_KW-NT30_50[J].indb   38EN_KW-NT30_50[J].indb   381/31/2011   3:24:19 PM1/31/2011   3:24:19 PM

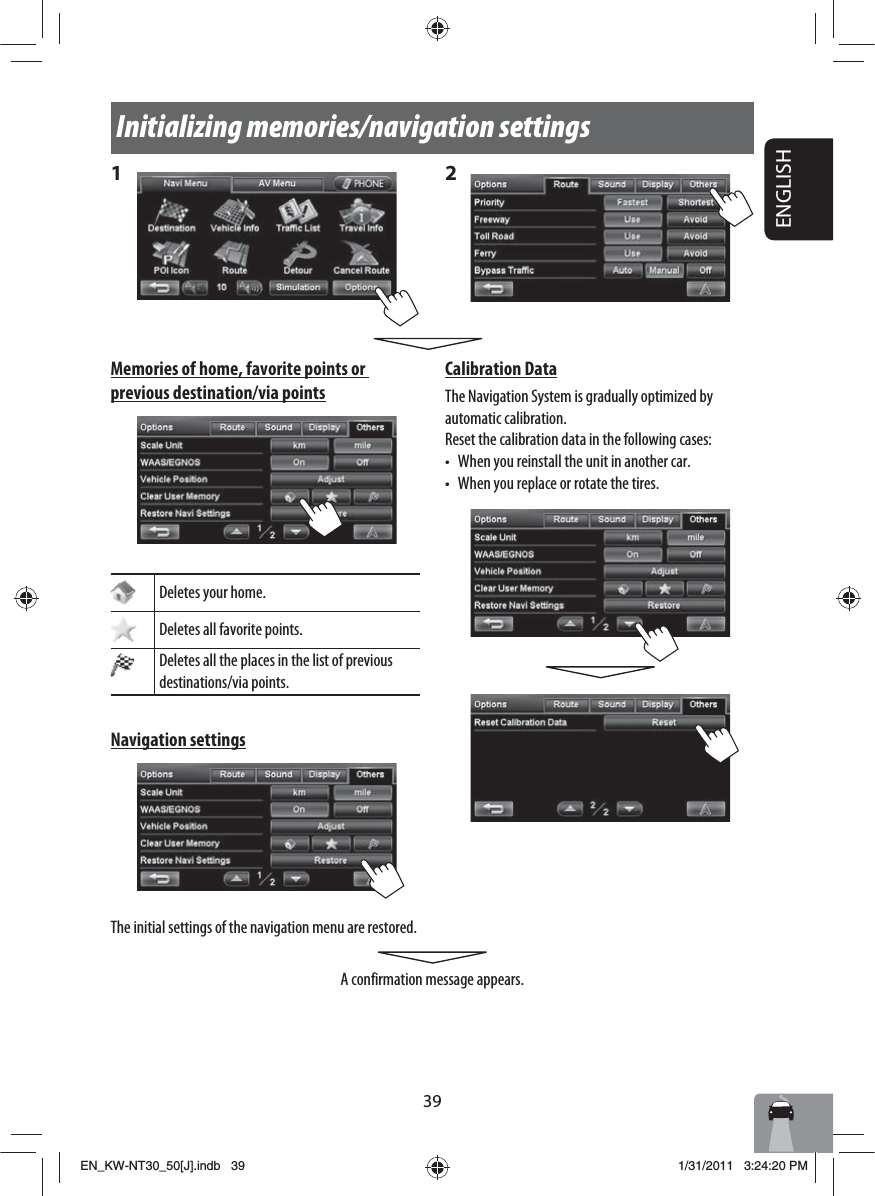

39ENGLISHInitializing memories/navigation settings1 2 Memories of home, favorite points or previous destination/via pointsDeletes your home.Deletes all favorite points.Deletes all the places in the list of previous destinations/via points.Navigation settingsThe initial settings of the navigation menu are restored.A confirmation message appears.Calibration DataThe Navigation System is gradually optimized by automatic calibration.Reset the calibration data in the following cases:•  When you reinstall the unit in another car.•  When you replace or rotate the tires.EN_KW-NT30_50[J].indb   39EN_KW-NT30_50[J].indb   391/31/2011   3:24:20 PM1/31/2011   3:24:20 PM

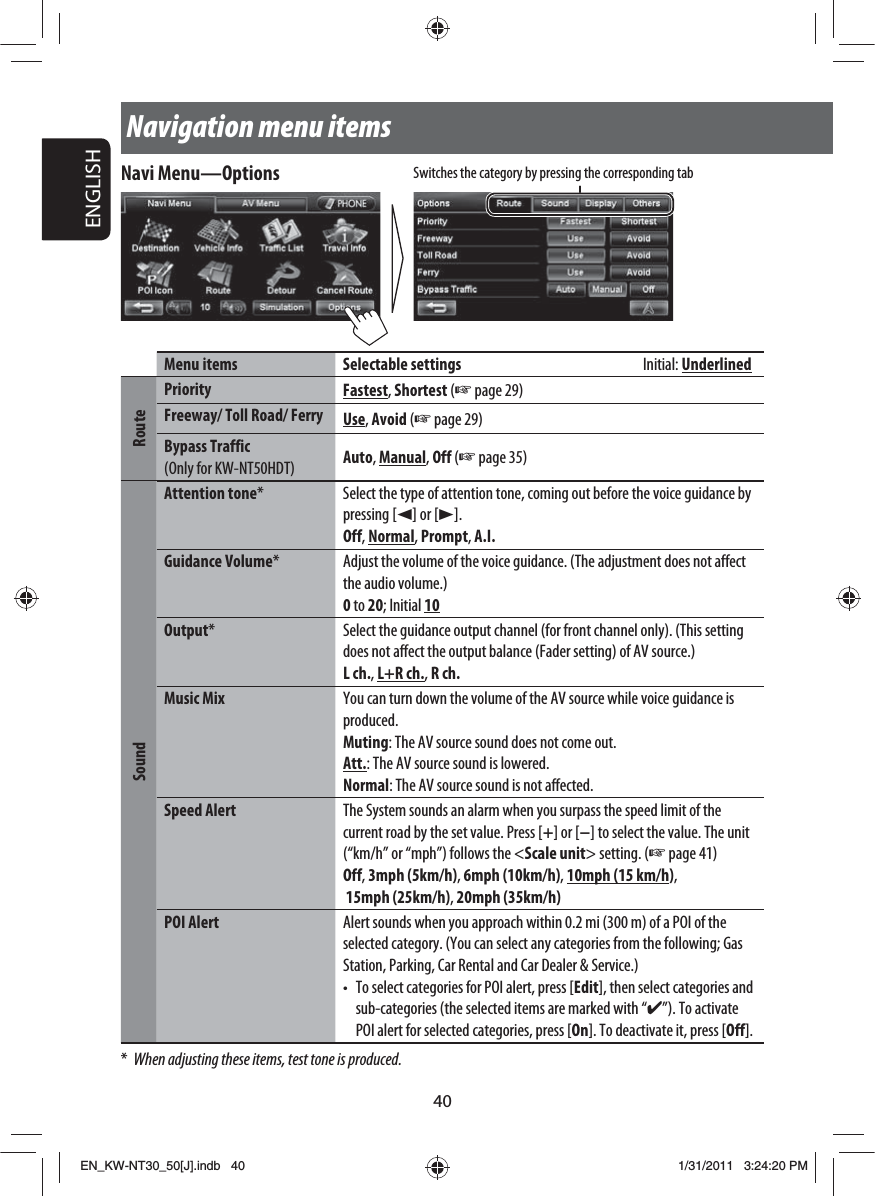

40ENGLISHNavi Menu —OptionsMenu items Selectable settings  Initial: UnderlinedRoutePriority Fastest, Shortest (☞ page 29)Freeway/ Toll Road/ Ferry Use, Avoid (☞ page 29)Bypass Traffic (Only for KW-NT50HDT) Auto, Manual, Off (☞ page 35)SoundAttention tone* Select the type of attention tone, coming out before the voice guidance by pressing [2] or [3].Off, Normal, Prompt, A.I. Guidance Volume* Adjust the volume of the voice guidance. (The adjustment does not affect the audio volume.)0 to 20; Initial 10Output* Select the guidance output channel (for front channel only). (This setting does not affect the output balance (Fader setting) of AV source.)L ch., L+R ch., R ch.Music Mix You can turn down the volume of the AV source while voice guidance is produced.Muting: The AV source sound does not come out.Att.: The AV source sound is lowered.Normal: The AV source sound is not affected. Speed Alert The System sounds an alarm when you surpass the speed limit of the current road by the set value. Press [+] or [−] to select the value. The unit (“km/h” or “mph”) follows the <Scale unit> setting. (☞ page 41)Off, 3mph (5km/h), 6mph (10km/h), 10mph (15 km/h),  15mph (25km/h), 20mph (35km/h)POI Alert Alert sounds when you approach within 0.2 mi (300 m) of a POI of the selected category. (You can select any categories from the following; Gas Station, Parking, Car Rental and Car Dealer & Service.)•  To select categories for POI alert, press [Edit], then select categories and sub-categories (the selected items are marked with “✔”). To activate POI alert for selected categories, press [On]. To deactivate it, press [Off].*  When adjusting these items, test tone is produced.Navigation menu itemsSwitches the category by pressing the corresponding tabEN_KW-NT30_50[J].indb   40EN_KW-NT30_50[J].indb   401/31/2011   3:24:20 PM1/31/2011   3:24:20 PM

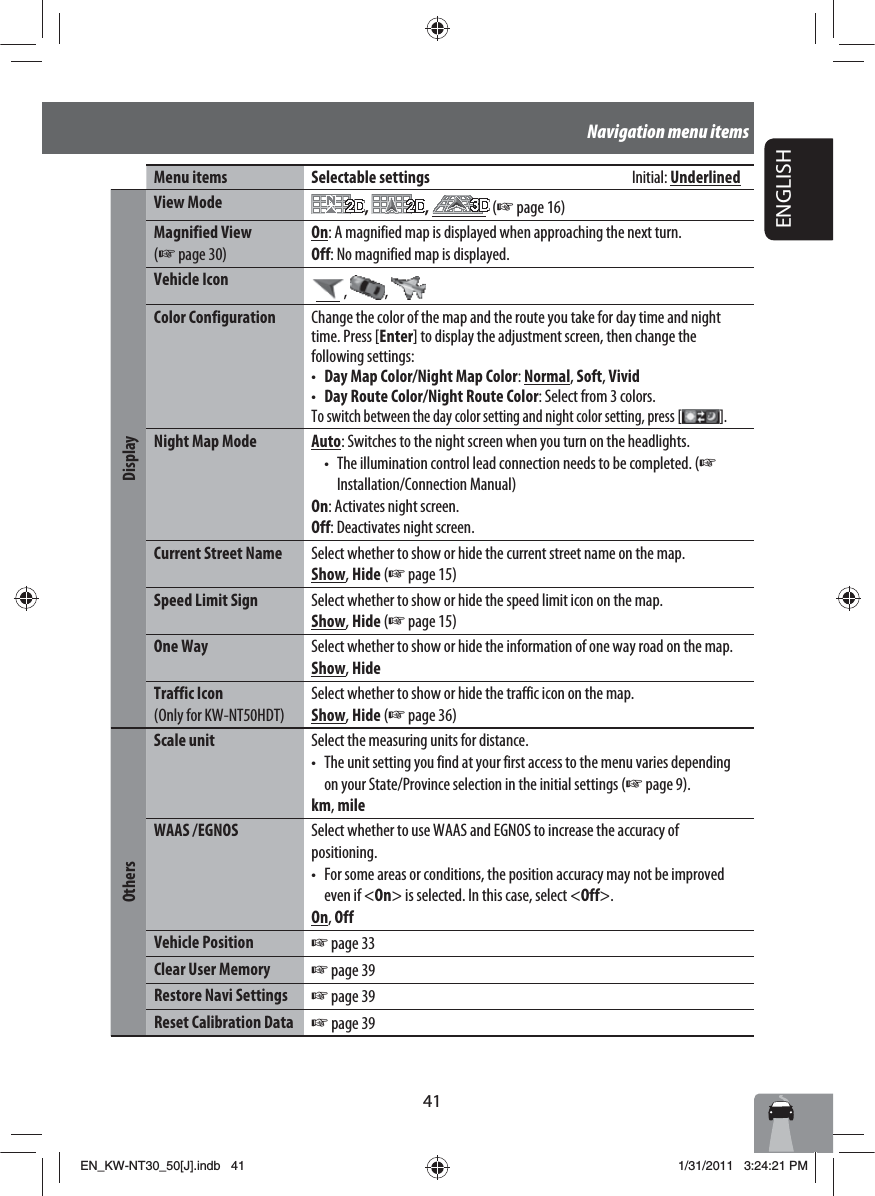

41ENGLISHMenu items Selectable settings  Initial: UnderlinedDisplayView Mode ,  ,   (☞ page 16)Magnified View(☞ page 30)On: A magnified map is displayed when approaching the next turn.Off: No magnified map is displayed.Vehicle Icon ,  , Color Configuration Change the color of the map and the route you take for day time and night time. Press [Enter] to display the adjustment screen, then change the following settings:•  Day Map Color/Night Map Color: Normal, Soft, Vivid•  Day Route Color/Night Route Color: Select from 3 colors.To switch between the day color setting and night color setting, press [ ].Night Map Mode Auto: Switches to the night screen when you turn on the headlights.•  The illumination control lead connection needs to be completed. (☞ Installation/Connection Manual)On: Activates night screen.Off: Deactivates night screen.Current Street Name Select whether to show or hide the current street name on the map.Show, Hide (☞ page 15)Speed Limit Sign Select whether to show or hide the speed limit icon on the map.Show, Hide (☞ page 15)One Way Select whether to show or hide the information of one way road on the map.Show, HideTraffic Icon(Only for KW-NT50HDT)Select whether to show or hide the traffic icon on the map.Show, Hide (☞ page 36)OthersScale unit Select the measuring units for distance.•  The unit setting you find at your first access to the menu varies depending on your State/Province selection in the initial settings (☞ page 9).km, mileWAAS /EGNOS Select whether to use WAAS and EGNOS to increase the accuracy of positioning.•  For some areas or conditions, the position accuracy may not be improved even if <On> is selected. In this case, select <Off>.On, OffVehicle Position ☞ page 33Clear User Memory ☞ page 39Restore Navi Settings ☞ page 39Reset Calibration Data ☞ page 39Navigation menu itemsEN_KW-NT30_50[J].indb   41EN_KW-NT30_50[J].indb   411/31/2011   3:24:21 PM1/31/2011   3:24:21 PM

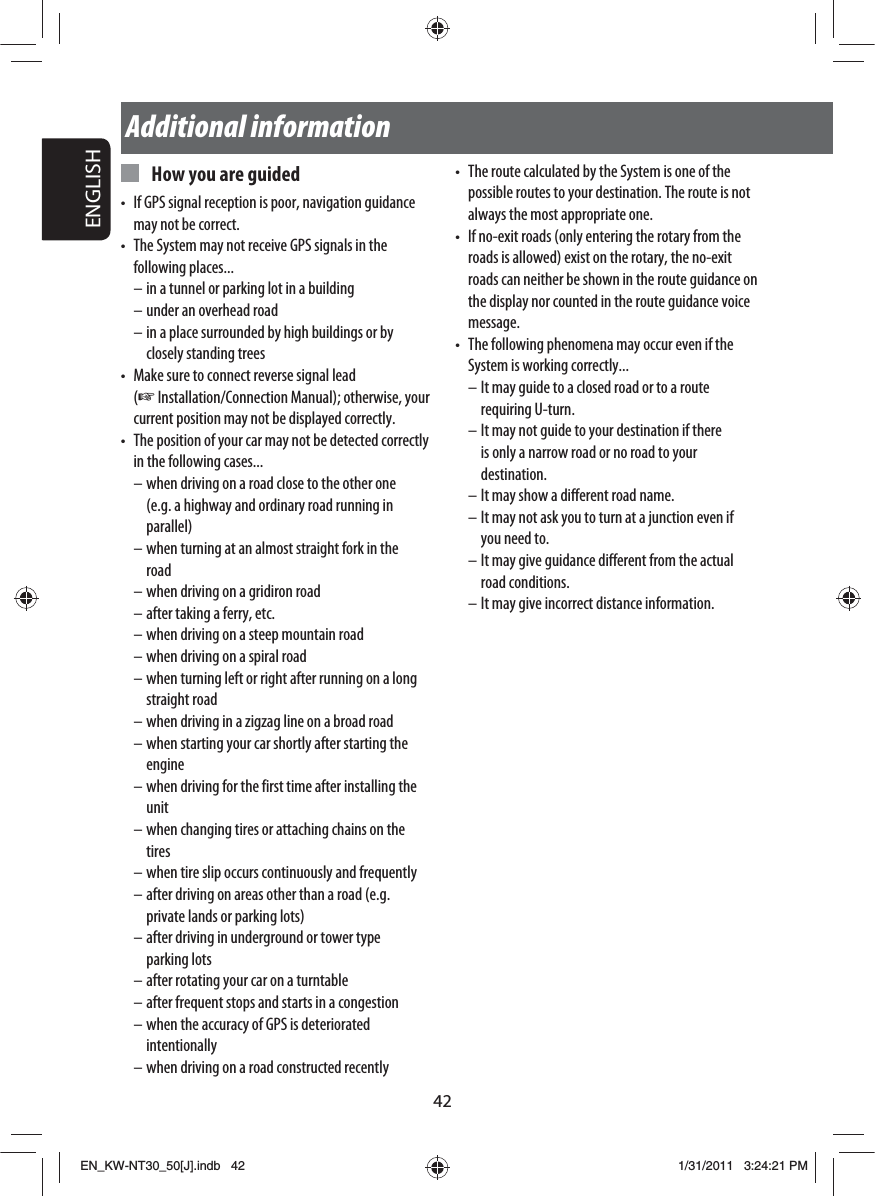

42ENGLISH•  The route calculated by the System is one of the possible routes to your destination. The route is not always the most appropriate one.•  If no-exit roads (only entering the rotary from the roads is allowed) exist on the rotary, the no-exit roads can neither be shown in the route guidance on the display nor counted in the route guidance voice message.•  The following phenomena may occur even if the System is working correctly...– It may guide to a closed road or to a route requiring U-turn.– It may not guide to your destination if there is only a narrow road or no road to your destination.– It may show a different road name.– It may not ask you to turn at a junction even if you need to.– It may give guidance different from the actual road conditions.– It may give incorrect distance information.Additional information  How you are guided•  If GPS signal reception is poor, navigation guidance may not be correct.•  The System may not receive GPS signals in the following places...– in a tunnel or parking lot in a building– under an overhead road– in a place surrounded by high buildings or by closely standing trees•  Make sure to connect reverse signal lead (☞ Installation/Connection Manual); otherwise, your current position may not be displayed correctly.•  The position of your car may not be detected correctly in the following cases...– when driving on a road close to the other one (e.g. a highway and ordinary road running in parallel)– when turning at an almost straight fork in the road– when driving on a gridiron road– after taking a ferry, etc.– when driving on a steep mountain road– when driving on a spiral road– when turning left or right after running on a long straight road– when driving in a zigzag line on a broad road– when starting your car shortly after starting the engine– when driving for the first time after installing the unit– when changing tires or attaching chains on the tires– when tire slip occurs continuously and frequently– after driving on areas other than a road (e.g. private lands or parking lots)– after driving in underground or tower type parking lots– after rotating your car on a turntable– after frequent stops and starts in a congestion– when the accuracy of GPS is deteriorated intentionally– when driving on a road constructed recentlyEN_KW-NT30_50[J].indb   42EN_KW-NT30_50[J].indb   421/31/2011   3:24:21 PM1/31/2011   3:24:21 PM

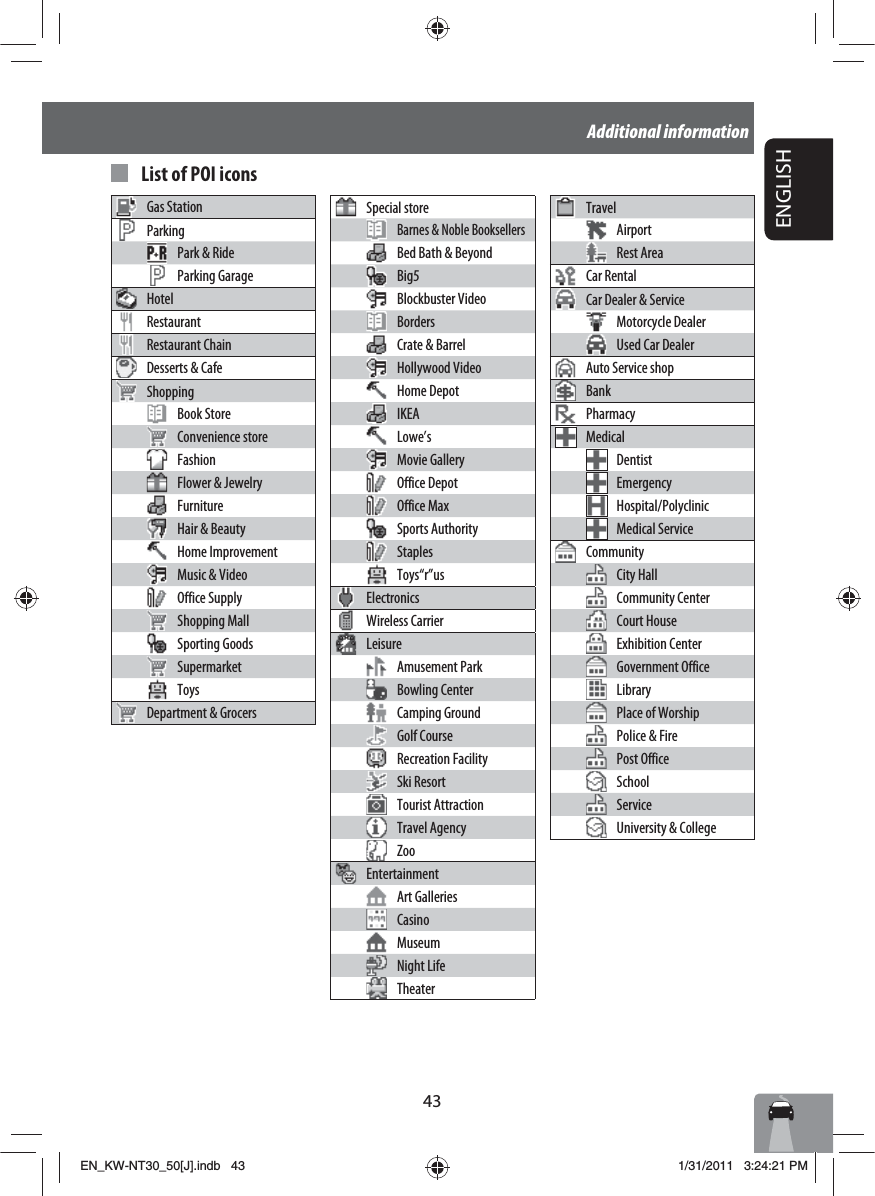

43ENGLISHSpecial storeBarnes & Noble BooksellersBed Bath & BeyondBig5Blockbuster VideoBordersCrate & Barrel Hollywood VideoHome DepotIKEALowe’sMovie GalleryOffice DepotOffice MaxSports AuthorityStaplesToys“r”usElectronicsWireless CarrierLeisureAmusement ParkBowling CenterCamping GroundGolf CourseRecreation FacilitySki ResortTourist AttractionTravel AgencyZooEntertainmentArt GalleriesCasinoMuseumNight LifeTheaterGas StationParkingPark & RideParking GarageHotelRestaurantRestaurant ChainDesserts & CafeShoppingBook StoreConvenience storeFashionFlower & JewelryFurnitureHair & BeautyHome ImprovementMusic & VideoOffice SupplyShopping MallSporting GoodsSupermarketToysDepartment & Grocers  List of POI iconsTravelAirportRest AreaCar RentalCar Dealer & ServiceMotorcycle DealerUsed Car DealerAuto Service shopBankPharmacyMedicalDentistEmergencyHospital/PolyclinicMedical ServiceCommunityCity HallCommunity CenterCourt HouseExhibition CenterGovernment OfficeLibraryPlace of WorshipPolice & FirePost OfficeSchoolServiceUniversity & CollegeAdditional informationEN_KW-NT30_50[J].indb   43EN_KW-NT30_50[J].indb   431/31/2011   3:24:21 PM1/31/2011   3:24:21 PM

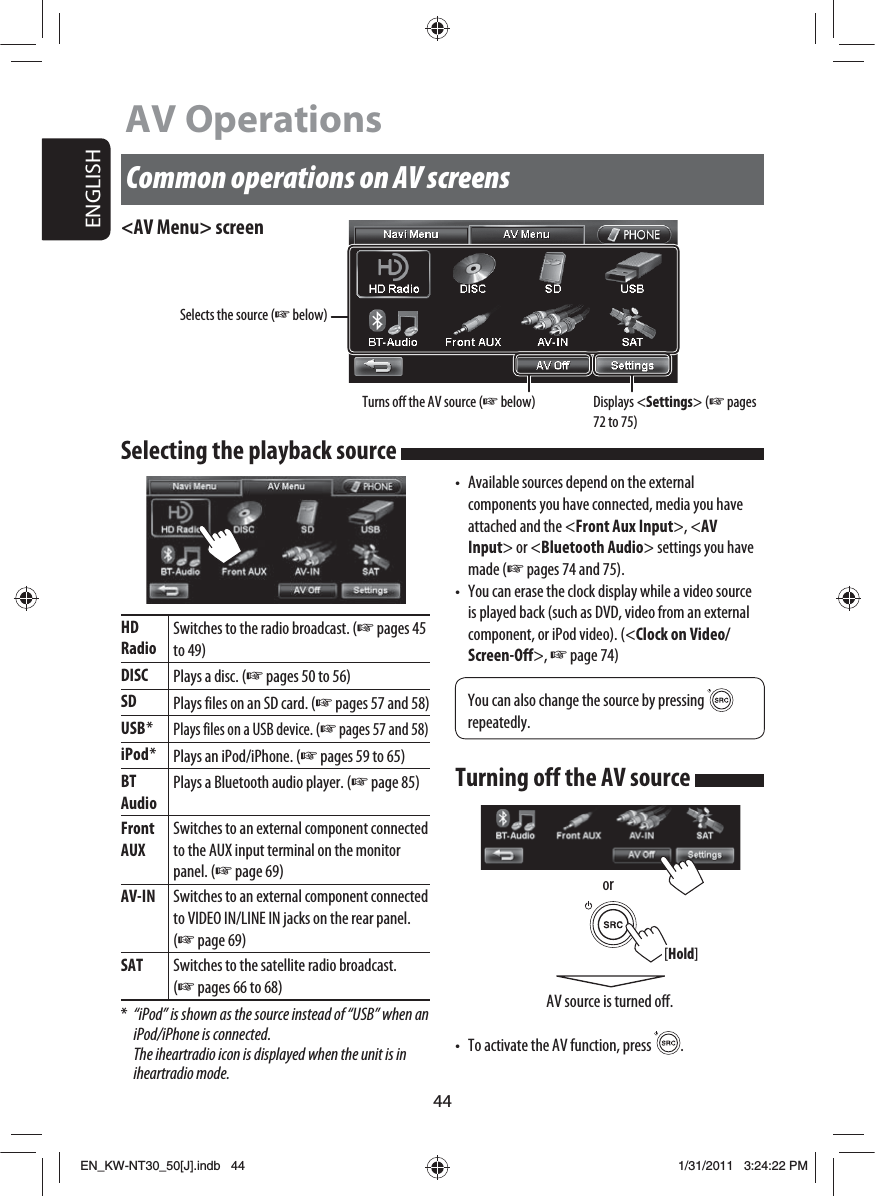

44ENGLISHCommon operations on AV screensHD RadioSwitches to the radio broadcast. (☞ pages 45 to 49)DISC Plays a disc. (☞ pages 50 to 56)SD Plays files on an SD card. (☞ pages 57 and 58)USB *Plays files on a USB device. (☞ pages 57 and 58)iPod *Plays an iPod/iPhone. (☞ pages 59 to 65)BT AudioPlays a Bluetooth audio player. (☞ page 85)Front AUXSwitches to an external component connected to the AUX input terminal on the monitor panel. (☞ page 69)AV-IN Switches to an external component connected to VIDEO IN/LINE IN jacks on the rear panel. (☞ page 69)SAT Switches to the satellite radio broadcast. (☞ pages 66 to 68)*  “iPod” is shown as the source instead of “USB” when an iPod/iPhone is connected. The iheartradio icon is displayed when the unit is in iheartradio mode.or<AV Menu> screenSelects the source (☞ below)Displays <Settings> (☞ pages 72 to 75)Turns off the AV source (☞ below)Turning off the AV source AV source is turned off.•  To activate the AV function, press  .AV Operations[Hold]Selecting the playback source •  Available sources depend on the external components you have connected, media you have attached and the <Front Aux Input>, <AV Input> or <Bluetooth Audio> settings you have made (☞ pages 74 and 75).•  You can erase the clock display while a video source is played back (such as DVD, video from an external component, or iPod video). (<Clock on Video/Screen-Off>, ☞ page 74)You can also change the source by pressing   repeatedly.EN_KW-NT30_50[J].indb   44EN_KW-NT30_50[J].indb   441/31/2011   3:24:22 PM1/31/2011   3:24:22 PM

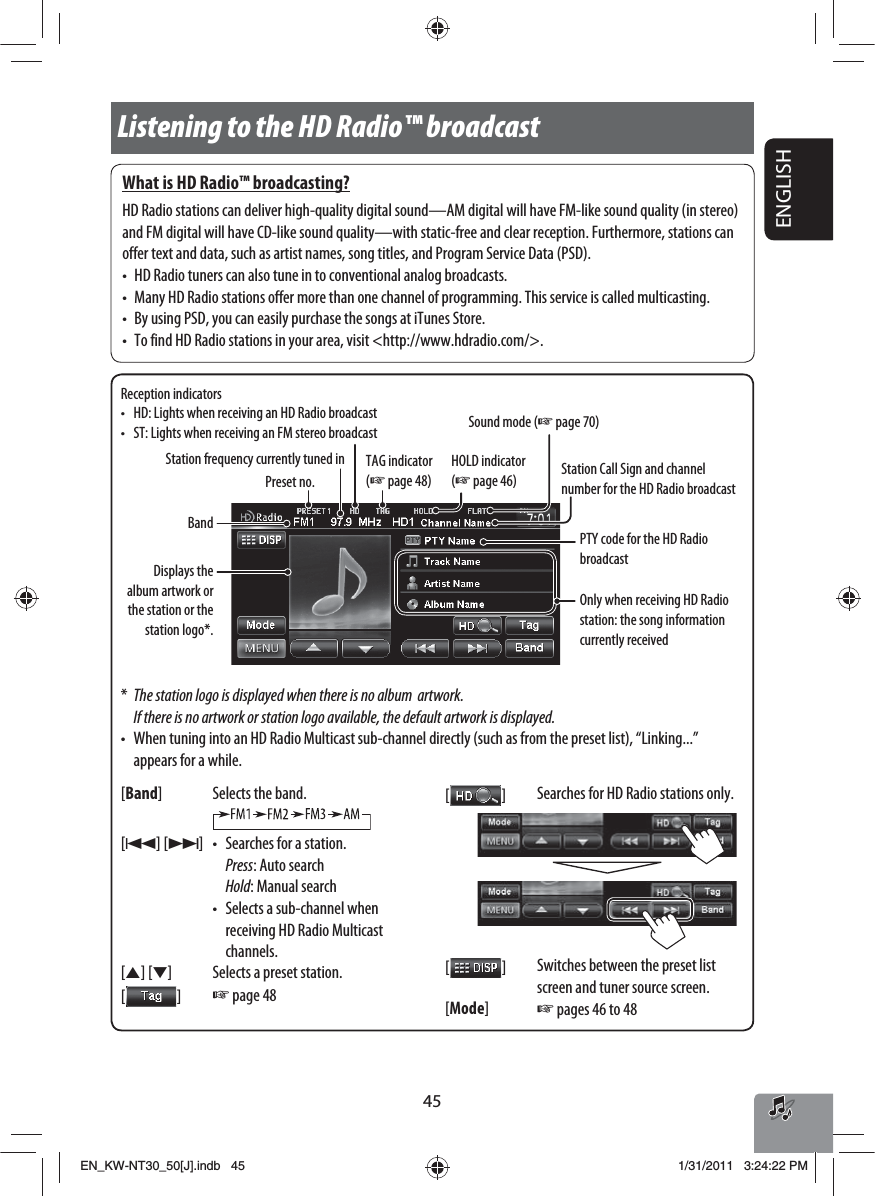

45ENGLISHListening to the HD Radio™ broadcastBandReception indicators•  HD: Lights when receiving an HD Radio broadcast•  ST: Lights when receiving an FM stereo broadcast Sound mode (☞ page 70)Station frequency currently tuned inPreset no. Station Call Sign and channel number for the HD Radio broadcastOnly when receiving HD Radio station: the song information currently received*  The station logo is displayed when there is no album  artwork. If there is no artwork or station logo available, the default artwork is displayed.•  When tuning into an HD Radio Multicast sub-channel directly (such as from the preset list), “Linking...” appears for a while.[Band] Selects the band.[4] [¢] •  Searches for a station. Press: Auto search Hold: Manual search •  Selects a sub-channel when receiving HD Radio Multicast channels.[5] [∞] Selects a preset station.[   ] ☞ page 48[   ] Searches for HD Radio stations only.[   ] Switches between the preset list screen and tuner source screen.[Mode]☞ pages 46 to 48PTY code for the HD Radio broadcastTAG indicator (☞ page 48)HOLD indicator (☞ page 46)What is HD Radio™ broadcasting?HD Radio stations can deliver high-quality digital sound—AM digital will have FM-like sound quality (in stereo) and FM digital will have CD-like sound quality—with static-free and clear reception. Furthermore, stations can offer text and data, such as artist names, song titles, and Program Service Data (PSD).•  HD Radio tuners can also tune in to conventional analog broadcasts.•  Many HD Radio stations offer more than one channel of programming. This service is called multicasting.•  By using PSD, you can easily purchase the songs at iTunes Store.•  To find HD Radio stations in your area, visit <http://www.hdradio.com/>.Displays the album artwork or the station or the station logo*.EN_KW-NT30_50[J].indb   45EN_KW-NT30_50[J].indb   451/31/2011   3:24:22 PM1/31/2011   3:24:22 PM

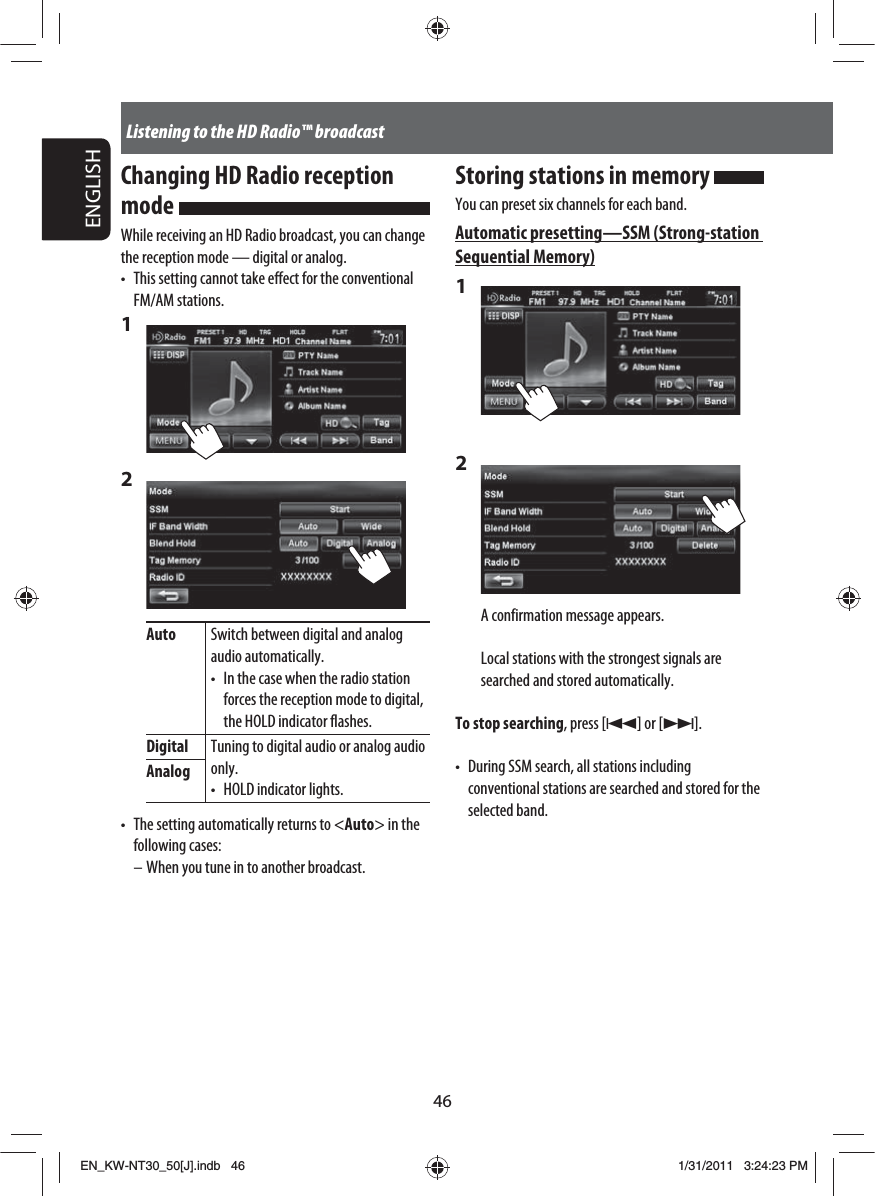

46ENGLISHListening to the HD Radio™ broadcastStoring stations in memory You can preset six channels for each band.Automatic presetting — SSM (Strong-station Sequential Memory)1 2 A confirmation message appears.Local stations with the strongest signals are searched and stored automatically.To stop searching, press [4] or [¢].•  During SSM search, all stations including conventional stations are searched and stored for the selected band.Changing HD Radio reception mode While receiving an HD Radio broadcast, you can change the reception mode — digital or analog.•  This setting cannot take effect for the conventional FM/AM stations.1 2 Auto Switch between digital and analog audio automatically.•  In the case when the radio station forces the reception mode to digital, the HOLD indicator flashes.Digital Tuning to digital audio or analog audio only.•  HOLD indicator lights.Analog•  The setting automatically returns to <Auto> in the following cases:– When you tune in to another broadcast.EN_KW-NT30_50[J].indb   46EN_KW-NT30_50[J].indb   461/31/2011   3:24:23 PM1/31/2011   3:24:23 PM

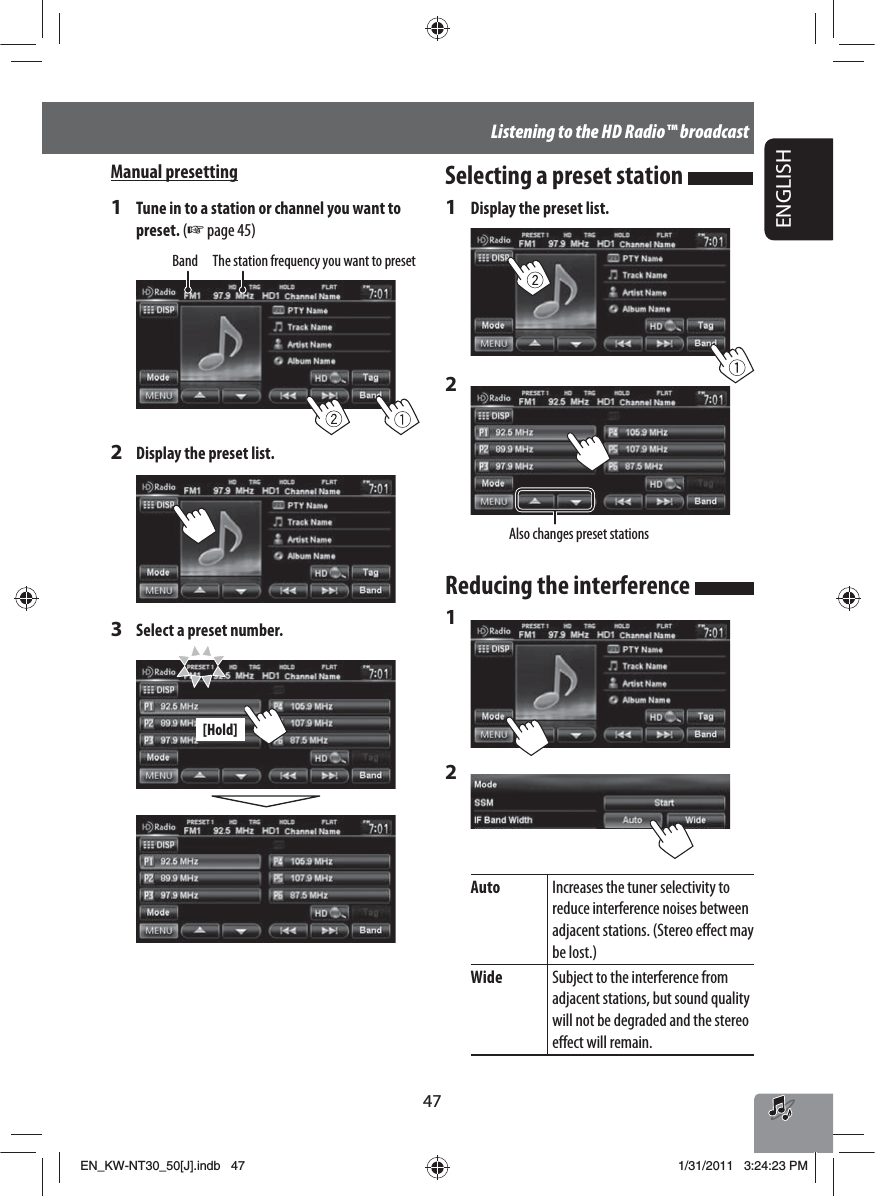

47ENGLISH[Hold]Manual presetting1  Tune in to a station or channel you want to preset. (☞ page 45)2  Display the preset list.3  Select a preset number.Band The station frequency you want to presetAlso changes preset stationsSelecting a preset station 1  Display the preset list.2 Reducing the interference 1 2 Auto Increases the tuner selectivity to reduce interference noises between adjacent stations. (Stereo effect may be lost.)Wide Subject to the interference from adjacent stations, but sound quality will not be degraded and the stereo effect will remain.Listening to the HD Radio™ broadcastEN_KW-NT30_50[J].indb   47EN_KW-NT30_50[J].indb   471/31/2011   3:24:23 PM1/31/2011   3:24:23 PM

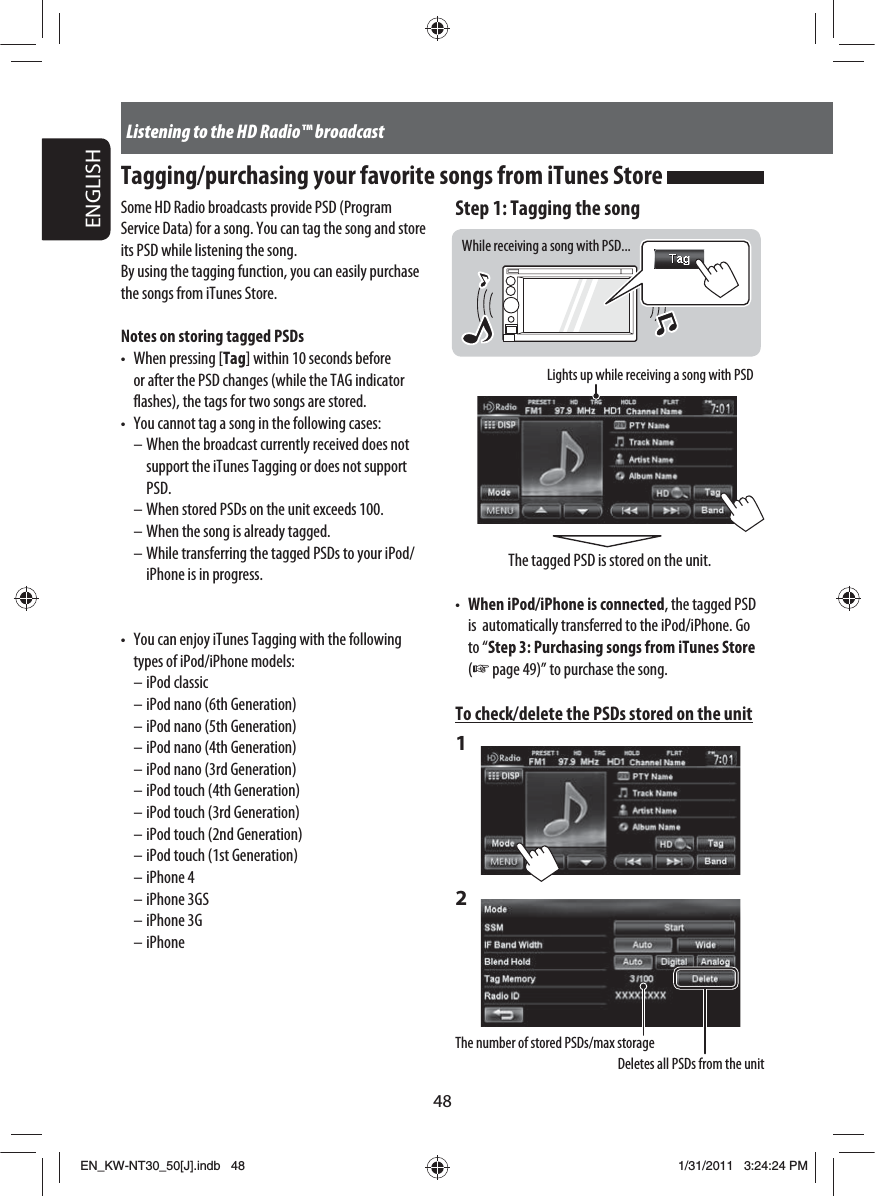

48ENGLISHTagging/purchasing your favorite songs from iTunes Store Lights up while receiving a song with PSDStep 1: Tagging the songThe tagged PSD is stored on the unit.•  When iPod/iPhone is connected, the tagged PSD is  automatically transferred to the iPod/iPhone. Go to “Step 3: Purchasing songs from iTunes Store (☞ page 49)” to purchase the song.To check/delete the PSDs stored on the unit1 2 The number of stored PSDs/max storageListening to the HD Radio™ broadcastWhile receiving a song with PSD...Some HD Radio broadcasts provide PSD (Program Service Data) for a song. You can tag the song and store its PSD while listening the song.By using the tagging function, you can easily purchase the songs from iTunes Store.Notes on storing tagged PSDs•  When pressing [Tag] within 10 seconds before or after the PSD changes (while the TAG indicator flashes), the tags for two songs are stored.•  You cannot tag a song in the following cases:– When the broadcast currently received does not support the iTunes Tagging or does not support PSD.– When stored PSDs on the unit exceeds 100.– When the song is already tagged.– While transferring the tagged PSDs to your iPod/iPhone is in progress.•  You can enjoy iTunes Tagging with the following types of iPod/iPhone models:– iPod classic– iPod nano (6th Generation)– iPod nano (5th Generation)– iPod nano (4th Generation)– iPod nano (3rd Generation)– iPod touch (4th Generation)– iPod touch (3rd Generation)– iPod touch (2nd Generation)– iPod touch (1st Generation)– iPhone 4– iPhone 3GS– iPhone 3G– iPhoneDeletes all PSDs from the unitEN_KW-NT30_50[J].indb   48EN_KW-NT30_50[J].indb   481/31/2011   3:24:24 PM1/31/2011   3:24:24 PM

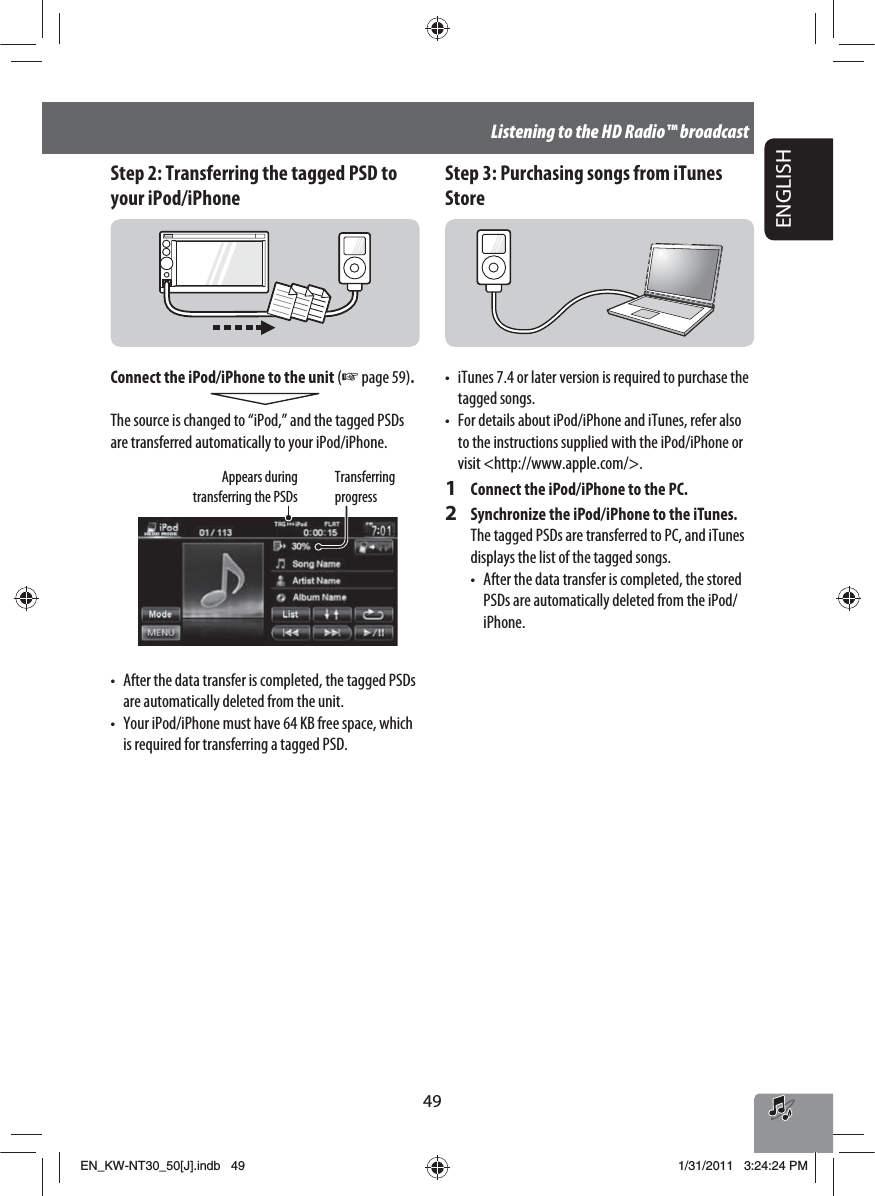

49ENGLISHStep 2: Transferring the tagged PSD to your iPod/iPhoneConnect the iPod/iPhone to the unit (☞ page 59).The source is changed to “iPod,” and the tagged PSDs are transferred automatically to your iPod/iPhone.•  After the data transfer is completed, the tagged PSDs are automatically deleted from the unit.•  Your iPod/iPhone must have 64 KB free space, which is required for transferring a tagged PSD.Step 3: Purchasing songs from iTunes Store•  iTunes 7.4 or later version is required to purchase the tagged songs.•  For details about iPod/iPhone and iTunes, refer also to the instructions supplied with the iPod/iPhone or visit <http://www.apple.com/>.1  Connect the iPod/iPhone to the PC.2  Synchronize the iPod/iPhone to the iTunes.The tagged PSDs are transferred to PC, and iTunes displays the list of the tagged songs.•   After the data transfer is completed, the stored PSDs are automatically deleted from the iPod/iPhone.Transferring progressAppears during transferring the PSDsListening to the HD Radio™ broadcastEN_KW-NT30_50[J].indb   49EN_KW-NT30_50[J].indb   491/31/2011   3:24:24 PM1/31/2011   3:24:24 PM

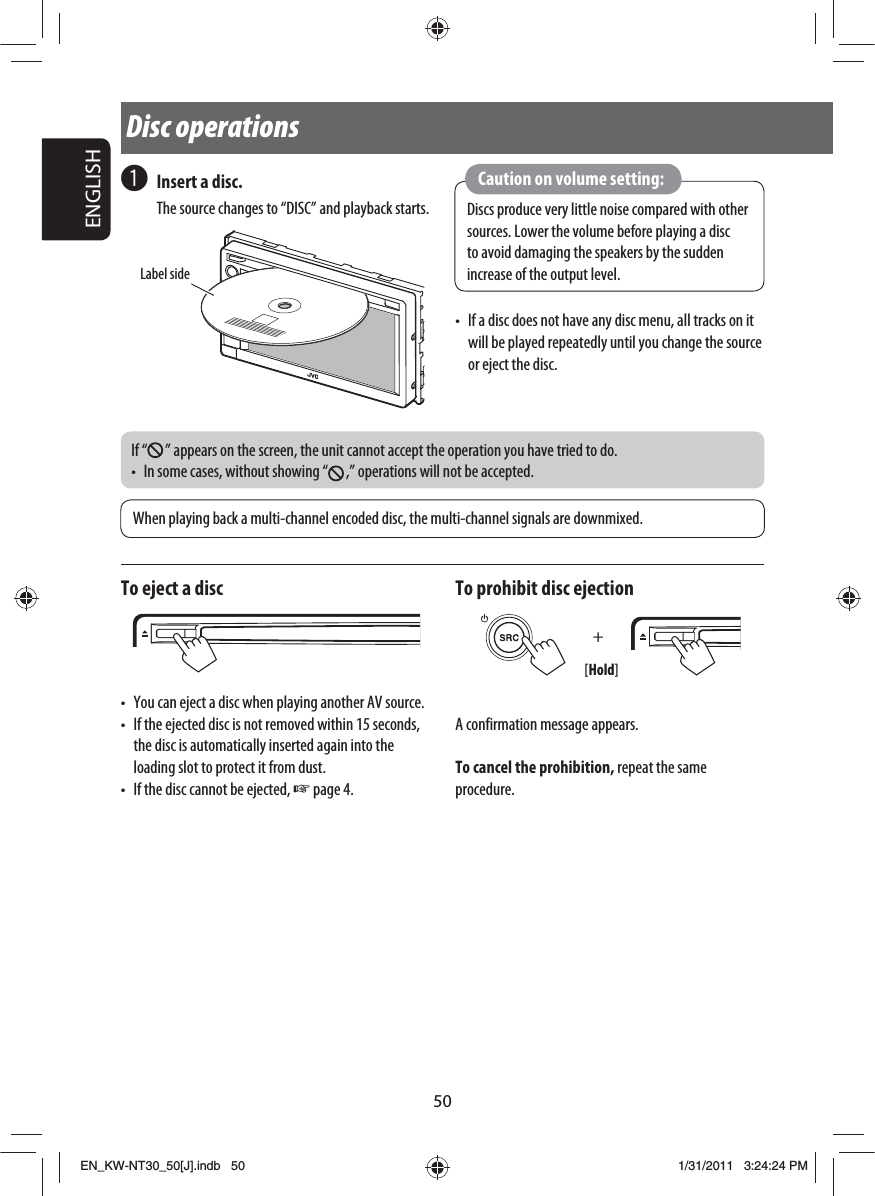

+50ENGLISH~  Insert a disc. The source changes to “DISC” and playback starts.Disc operationsWhen playing back a multi-channel encoded disc, the multi-channel signals are downmixed.Label sideIf “ ” appears on the screen, the unit cannot accept the operation you have tried to do.•  In some cases, without showing “ ,” operations will not be accepted.Discs produce very little noise compared with other sources. Lower the volume before playing a disc to avoid damaging the speakers by the sudden increase of the output level.Caution on volume setting:To eject a disc•  You can eject a disc when playing another AV source.•  If the ejected disc is not removed within 15 seconds, the disc is automatically inserted again into the loading slot to protect it from dust.•  If the disc cannot be ejected, ☞ page 4.To prohibit disc ejectionA confirmation message appears.To cancel the prohibition, repeat the same procedure.[Hold]•  If a disc does not have any disc menu, all tracks on it will be played repeatedly until you change the source or eject the disc.EN_KW-NT30_50[J].indb   50EN_KW-NT30_50[J].indb   501/31/2011   3:24:24 PM1/31/2011   3:24:24 PM

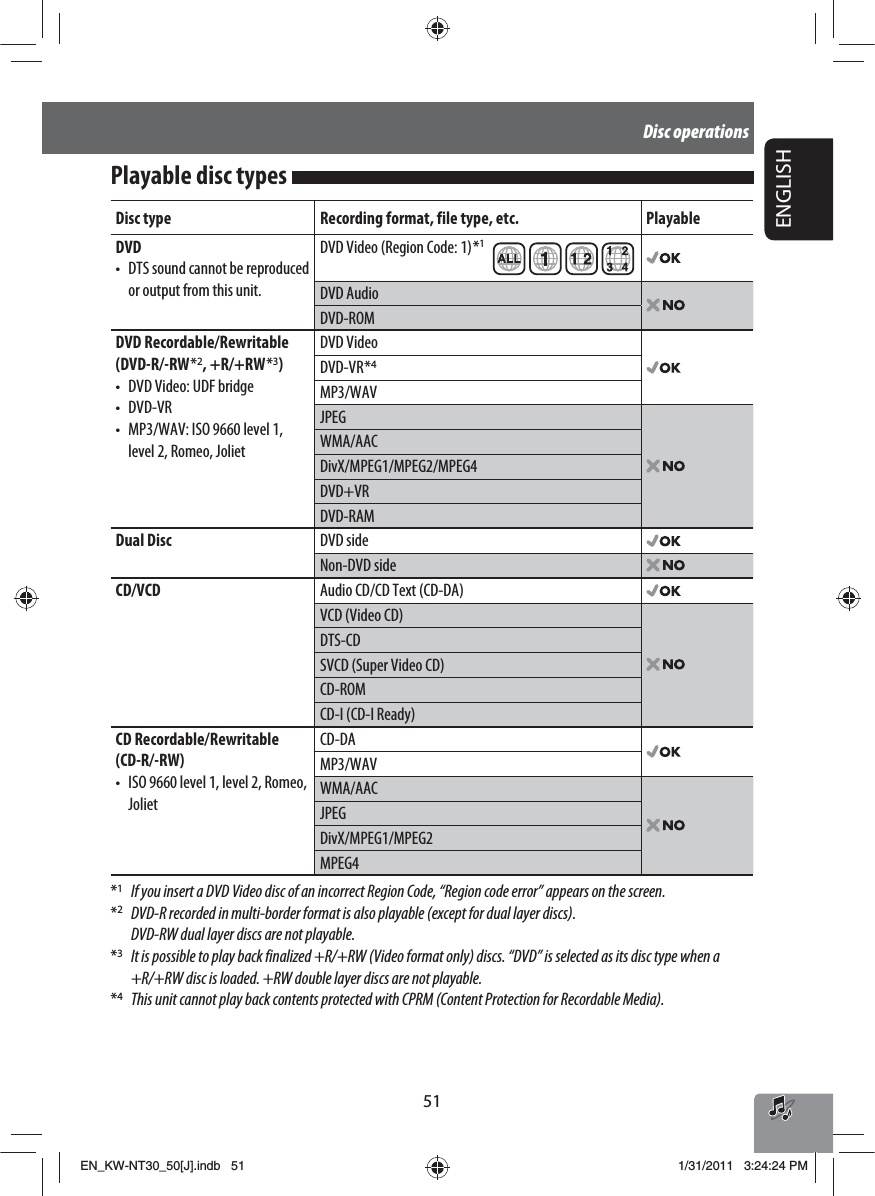

Disc operations51ENGLISHPlayable disc types Disc type Recording format, file type, etc. PlayableDVD•  DTS sound cannot be reproduced or output from this unit.DVD Video (Region Code: 1) *1DVD AudioDVD-ROMDVD Recordable/Rewritable(DVD-R/-RW * 2, +R/+RW * 3)•  DVD Video: UDF bridge• DVD-VR•  MP3/WAV: ISO 9660 level 1, level 2, Romeo, JolietDVD VideoDVD-VR *4MP3/WAVJPEGWMA/AACDivX/MPEG1/MPEG2/MPEG4 DVD+VRDVD-RAMDual Disc DVD sideNon-DVD sideCD/VCD Audio CD/CD Text (CD-DA)VCD (Video CD)DTS-CDSVCD (Super Video CD)CD-ROMCD-I (CD-I Ready)CD Recordable/Rewritable(CD-R/-RW)•  ISO 9660 level 1, level 2, Romeo, JolietCD-DAMP3/WAVWMA/AACJPEGDivX/MPEG1/MPEG2MPEG4*1  If you insert a DVD Video disc of an incorrect Region Code, “Region code error” appears on the screen.*2  DVD-R recorded in multi-border format is also playable (except for dual layer discs). DVD-RW dual layer discs are not playable.*3  It is possible to play back finalized +R/+RW (Video format only) discs. “DVD” is selected as its disc type when a +R/+RW disc is loaded. +RW double layer discs are not playable.*4  This unit cannot play back contents protected with CPRM (Content Protection for Recordable Media).EN_KW-NT30_50[J].indb   51EN_KW-NT30_50[J].indb   511/31/2011   3:24:24 PM1/31/2011   3:24:24 PM

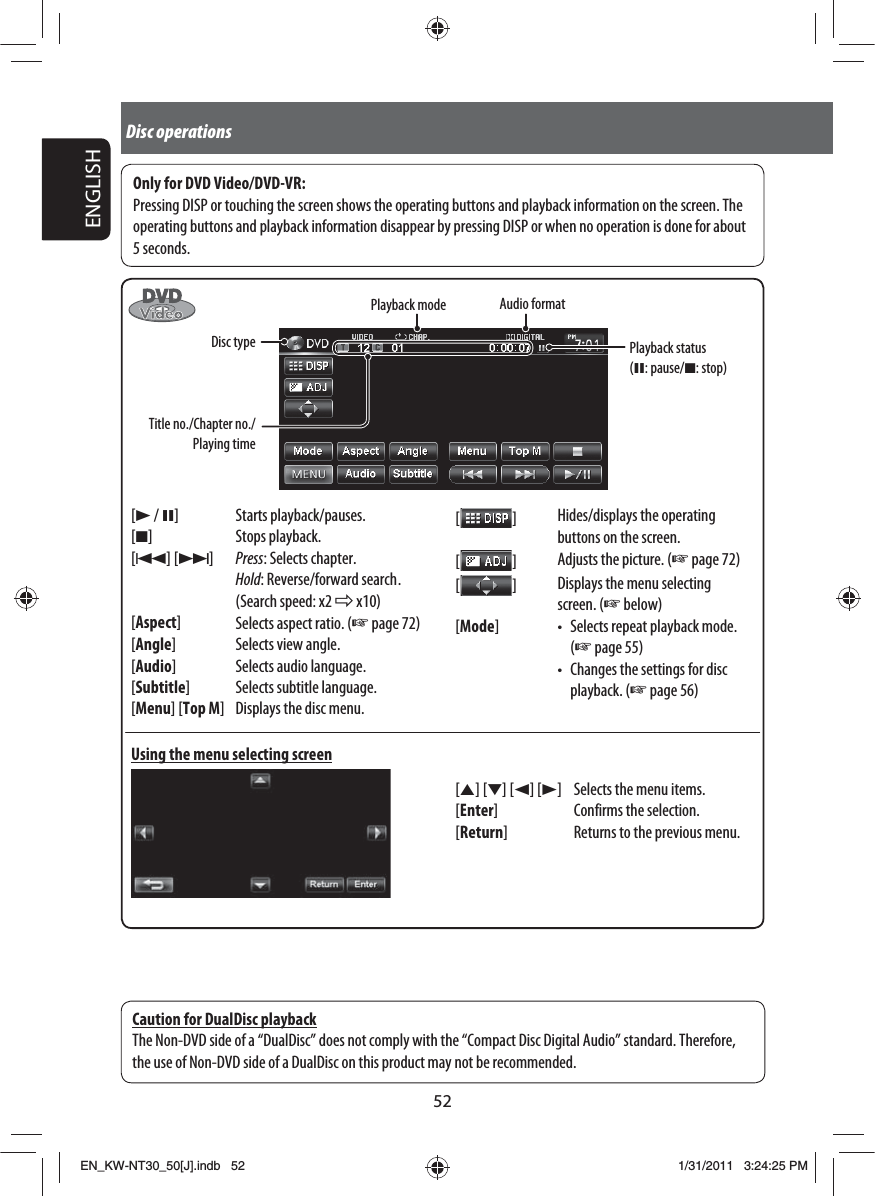

52ENGLISHAudio formatTitle no./Chapter no./Playing time[3 / 8] Starts playback/pauses.[7] Stops playback.[4] [¢]Press: Selects chapter.Hold: Reverse/forward search .(Search speed: x2 ] x10)[Aspect]Selects aspect ratio. (☞ page 72)[Angle] Selects view angle.[Audio] Selects audio language.[Subtitle] Selects subtitle language.[Menu] [Top M] Displays the disc menu.Disc typePlayback modeUsing the menu selecting screenOnly for DVD Video/DVD-VR:Pressing DISP or touching the screen shows the operating buttons and playback information on the screen. The operating buttons and playback information disappear by pressing DISP or when no operation is done for about 5 seconds.[5] [∞] [2] [3] Selects the menu items.[Enter] Confirms the selection.[Return] Returns to the previous menu.[  ]Hides/displays the operating buttons on the screen.[  ]Adjusts the picture. (☞ page 72)[  ]Displays the menu selecting screen. (☞ below)[Mode] •  Selects repeat playback mode. (☞ page 55)•  Changes the settings for disc playback. (☞ page 56)Caution for DualDisc playbackThe Non-DVD side of a “DualDisc” does not comply with the “Compact Disc Digital Audio” standard. Therefore, the use of Non-DVD side of a DualDisc on this product may not be recommended.Disc operationsPlayback status (8: pause/7: stop)EN_KW-NT30_50[J].indb   52EN_KW-NT30_50[J].indb   521/31/2011   3:24:25 PM1/31/2011   3:24:25 PM

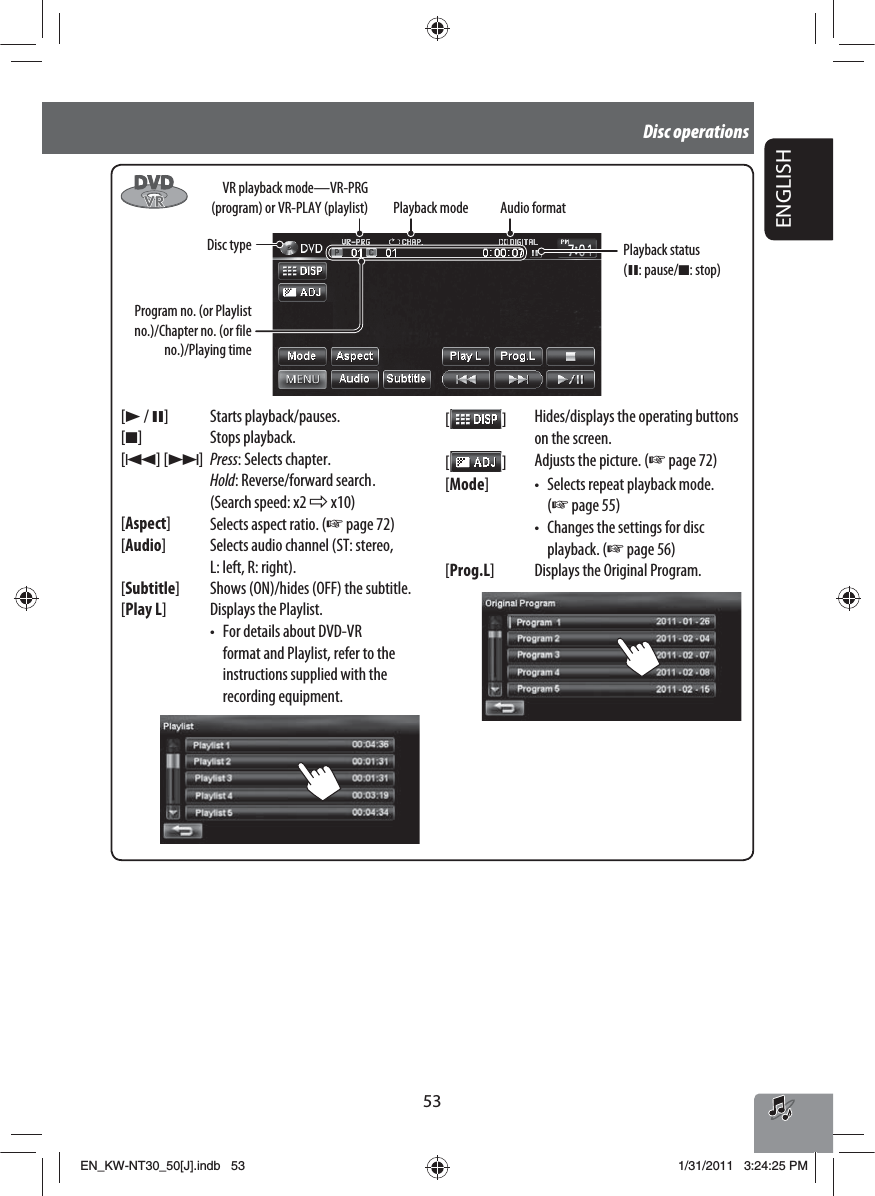

53ENGLISHProgram no. (or Playlist no.)/Chapter no. (or file no.)/Playing time[3 / 8] Starts playback/pauses.[7] Stops playback.[4] [¢]Press: Selects chapter.Hold: Reverse/forward search .(Search speed: x2 ] x10)[Aspect]Selects aspect ratio. (☞ page 72)[Audio] Selects audio channel (ST: stereo, L: left, R: right).[Subtitle] Shows (ON)/hides (OFF) the subtitle.[Play L] Displays the Playlist.•  For details about DVD-VR format and Playlist, refer to the instructions supplied with the recording equipment.[  ]Hides/displays the operating buttons on the screen.[  ]Adjusts the picture. (☞ page 72)[Mode] •  Selects repeat playback mode. (☞ page 55)•  Changes the settings for disc playback. (☞ page 56)[Prog.L] Displays the Original Program. Audio formatPlayback modeDisc type VR playback mode—VR-PRG (program) or VR-PLAY (playlist)Playback status (8: pause/7: stop)Disc operationsEN_KW-NT30_50[J].indb   53EN_KW-NT30_50[J].indb   531/31/2011   3:24:25 PM1/31/2011   3:24:25 PM

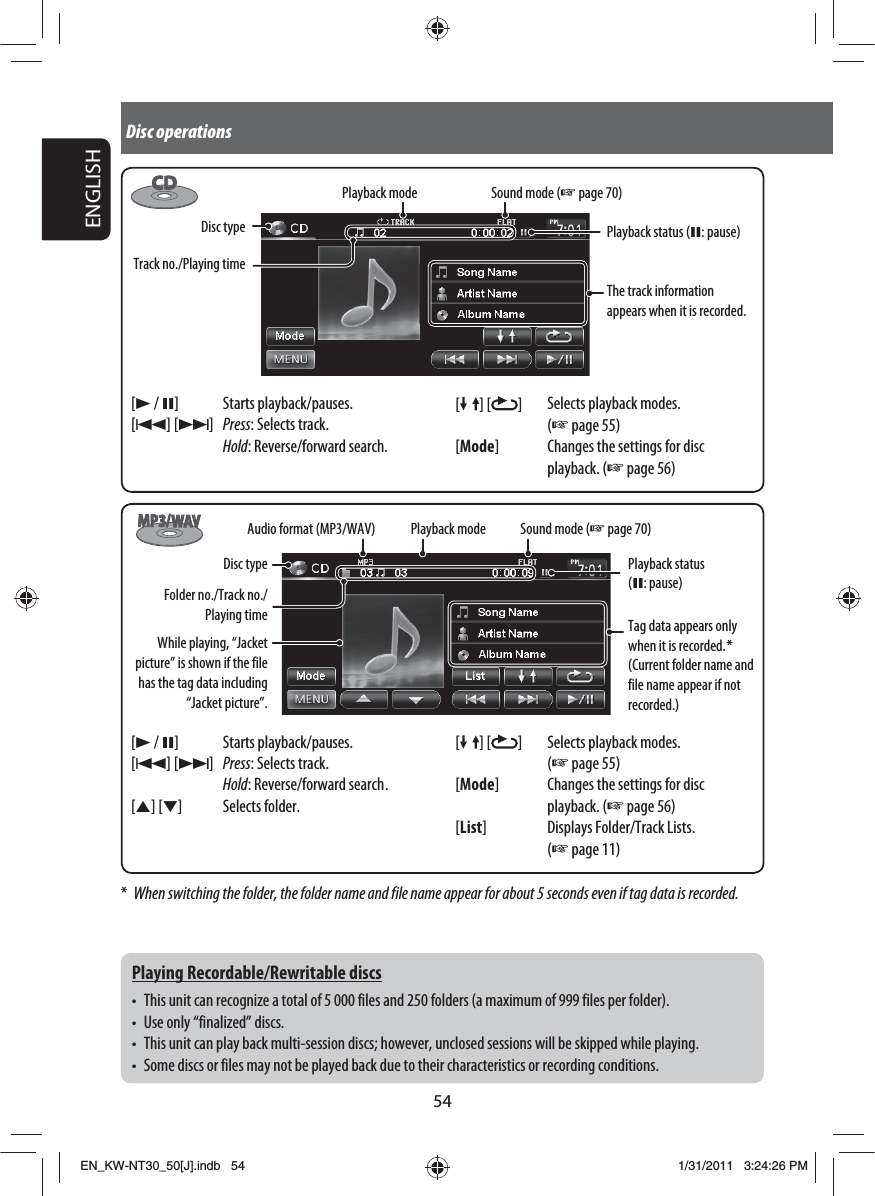

54ENGLISHDisc operations[ ] [ ] Selects playback modes. (☞ page 55)[Mode] Changes the settings for disc playback. (☞ page 56)Track no./Playing timePlayback mode Sound mode (☞ page 70)Disc typeThe track information appears when it is recorded.[3 / 8] Starts playback/pauses.[4] [¢]Press: Selects track.Hold: Reverse/forward search. *  When switching the folder, the folder name and file name appear for about 5 seconds even if tag data is recorded.Audio format (MP3/WAV)While playing, “Jacket picture” is shown if the file has the tag data including “Jacket picture”.[3 / 8] Starts playback/pauses.[4] [¢]Press: Selects track.Hold: Reverse/forward search .[5] [∞] Selects folder.Folder no./Track no./Playing timePlayback mode Sound mode (☞ page 70)Disc typeTag data appears only when it is recorded. *(Current folder name and file name appear if not recorded.)[ ] [ ] Selects playback modes. (☞ page 55)[Mode] Changes the settings for disc playback. (☞ page 56)[List] Displays Folder/Track Lists. (☞ page 11)Playing Recordable/Rewritable discs•  This unit can recognize a total of 5 000 files and 250 folders (a maximum of 999 files per folder).•  Use only “finalized” discs.•  This unit can play back multi-session discs; however, unclosed sessions will be skipped while playing.•  Some discs or files may not be played back due to their characteristics or recording conditions.Playback status (8: pause)Playback status (8: pause)EN_KW-NT30_50[J].indb   54EN_KW-NT30_50[J].indb   541/31/2011   3:24:26 PM1/31/2011   3:24:26 PM

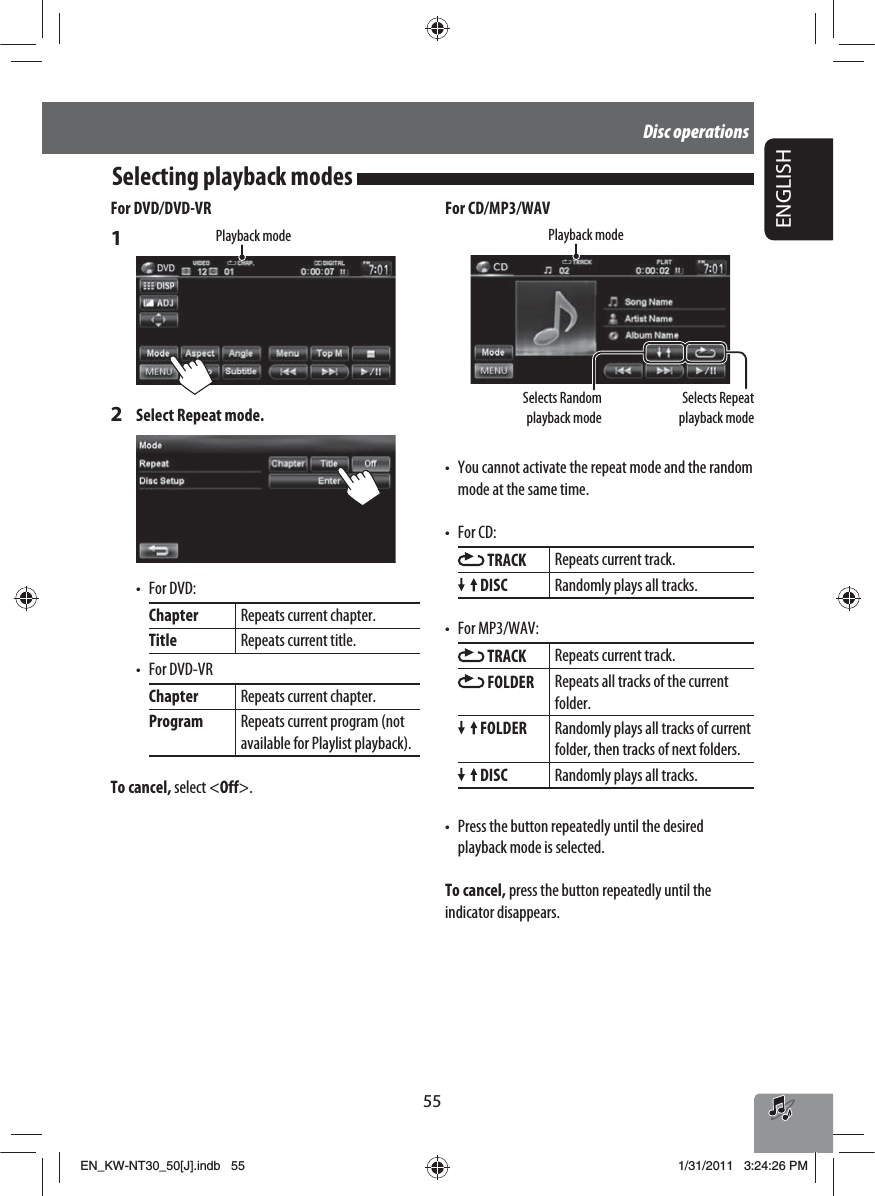

55ENGLISHSelecting playback modes For CD/MP3/WAV•  You cannot activate the repeat mode and the random mode at the same time.• For CD: TRACK Repeats current track. DISC Randomly plays all tracks.• For MP3/WAV: TRACK Repeats current track. FOLDER Repeats all tracks of the current folder. FOLDER Randomly plays all tracks of current folder, then tracks of next folders. DISC Randomly plays all tracks.•  Press the button repeatedly until the desired playback mode is selected. To cancel, press the button repeatedly until the indicator disappears.For DVD/DVD-VR1 2  Select Repeat mode.• For DVD:Chapter Repeats current chapter.Title Repeats current title.• For DVD-VRChapter Repeats current chapter.Program Repeats current program (not available for Playlist playback).To cancel, select <Off>.Selects Repeat playback modeSelects Random playback modePlayback modePlayback modeDisc operationsEN_KW-NT30_50[J].indb   55EN_KW-NT30_50[J].indb   551/31/2011   3:24:26 PM1/31/2011   3:24:26 PM

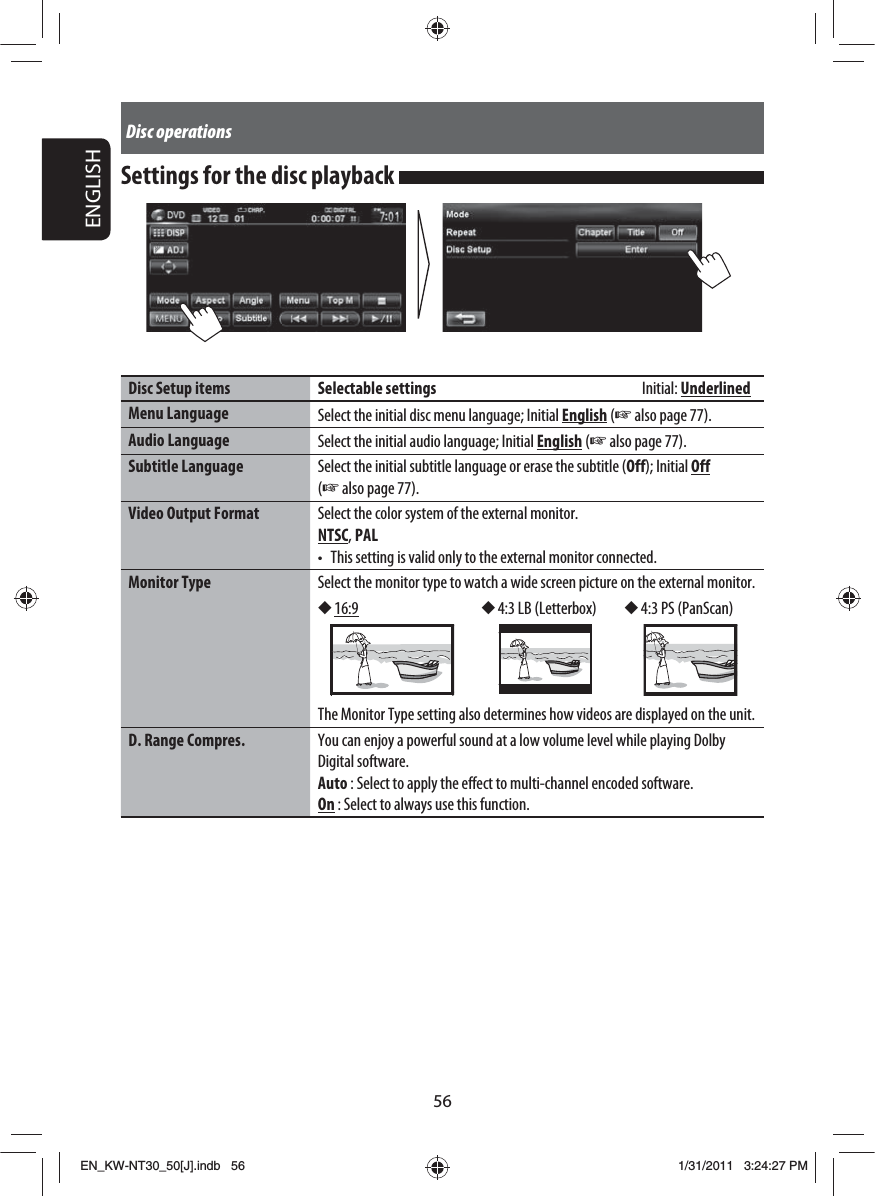

56ENGLISHDisc operationsSettings for the disc playback Disc Setup items Selectable settings        Initial: UnderlinedMenu Language  Select the initial disc menu language; Initial English (☞ also page 77).Audio Language  Select the initial audio language; Initial English (☞ also page 77).Subtitle Language Select the initial subtitle language or erase the subtitle (Off); Initial Off (☞ also page 77).Video Output Format Select the color system of the external monitor.NTSC, PAL•  This setting is valid only to the external monitor connected.Monitor Type Select the monitor type to watch a wide screen picture on the external monitor.◆ 16:9 ◆ 4:3 LB (Letterbox) ◆ 4:3 PS (PanScan)The Monitor Type setting also determines how videos are displayed on the unit.D. Range Compres. You can enjoy a powerful sound at a low volume level while playing Dolby Digital software.Auto : Select to apply the effect to multi-channel encoded software.On : Select to always use this function.EN_KW-NT30_50[J].indb   56EN_KW-NT30_50[J].indb   561/31/2011   3:24:27 PM1/31/2011   3:24:27 PM

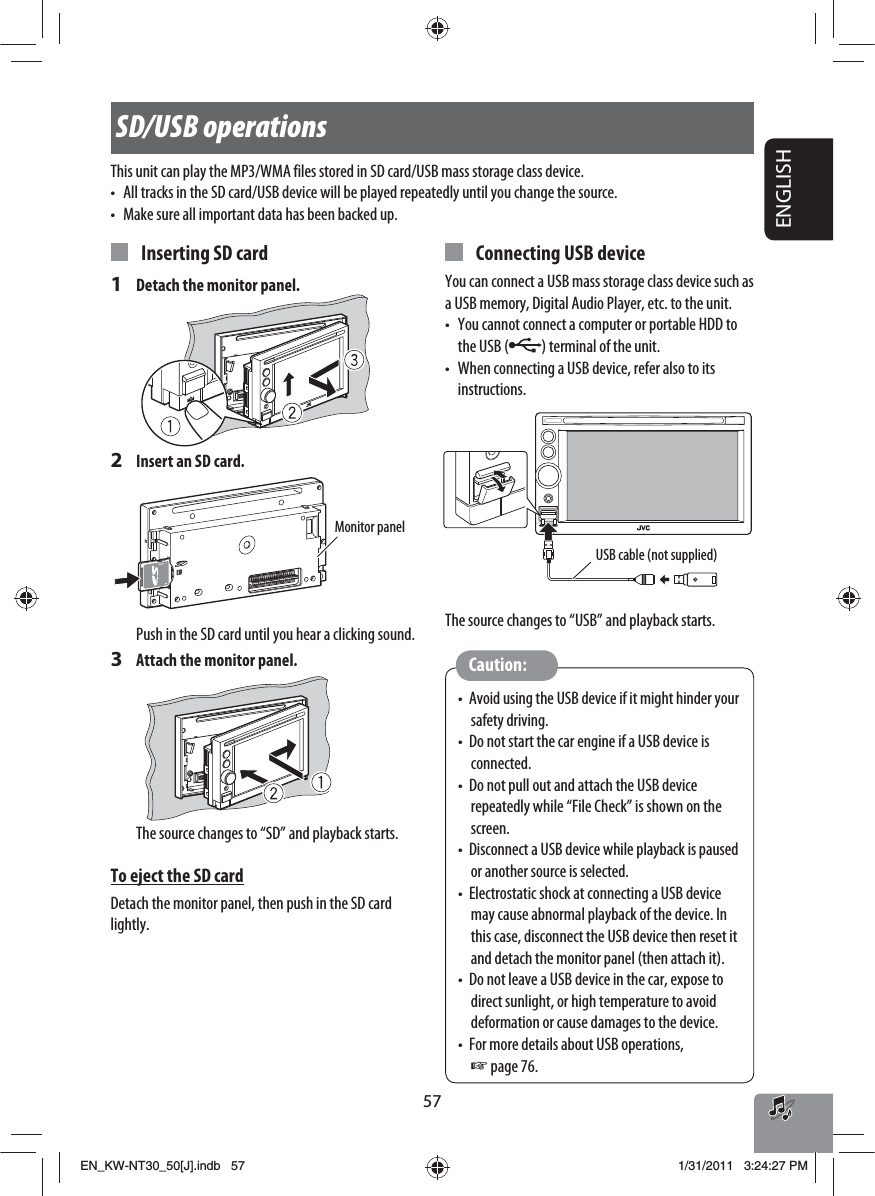

57ENGLISHSD/USB operationsThis unit can play the MP3/WMA files stored in SD card/USB mass storage class device.•  All tracks in the SD card/USB device will be played repeatedly until you change the source.•  Make sure all important data has been backed up.  Inserting SD card1  Detach the monitor panel.2  Insert an SD card.Push in the SD card until you hear a clicking sound.3  Attach the monitor panel.The source changes to “SD” and playback starts.To eject the SD cardDetach the monitor panel, then push in the SD card lightly.Monitor panel  Connecting USB deviceYou can connect a USB mass storage class device such as a USB memory, Digital Audio Player, etc. to the unit.•  You cannot connect a computer or portable HDD to the USB ( ) terminal of the unit.•  When connecting a USB device, refer also to its instructions.The source changes to “USB” and playback starts.•  Avoid using the USB device if it might hinder your safety driving.•  Do not start the car engine if a USB device is connected.•  Do not pull out and attach the USB device repeatedly while “File Check” is shown on the screen.• Disconnect a USB device while playback is paused or another source is selected.•  Electrostatic shock at connecting a USB device may cause abnormal playback of the device. In this case, disconnect the USB device then reset it and detach the monitor panel (then attach it).•  Do not leave a USB device in the car, expose to direct sunlight, or high temperature to avoid deformation or cause damages to the device.•  For more details about USB operations, ☞ page 76.Caution:USB cable (not supplied)EN_KW-NT30_50[J].indb   57EN_KW-NT30_50[J].indb   571/31/2011   3:24:27 PM1/31/2011   3:24:27 PM

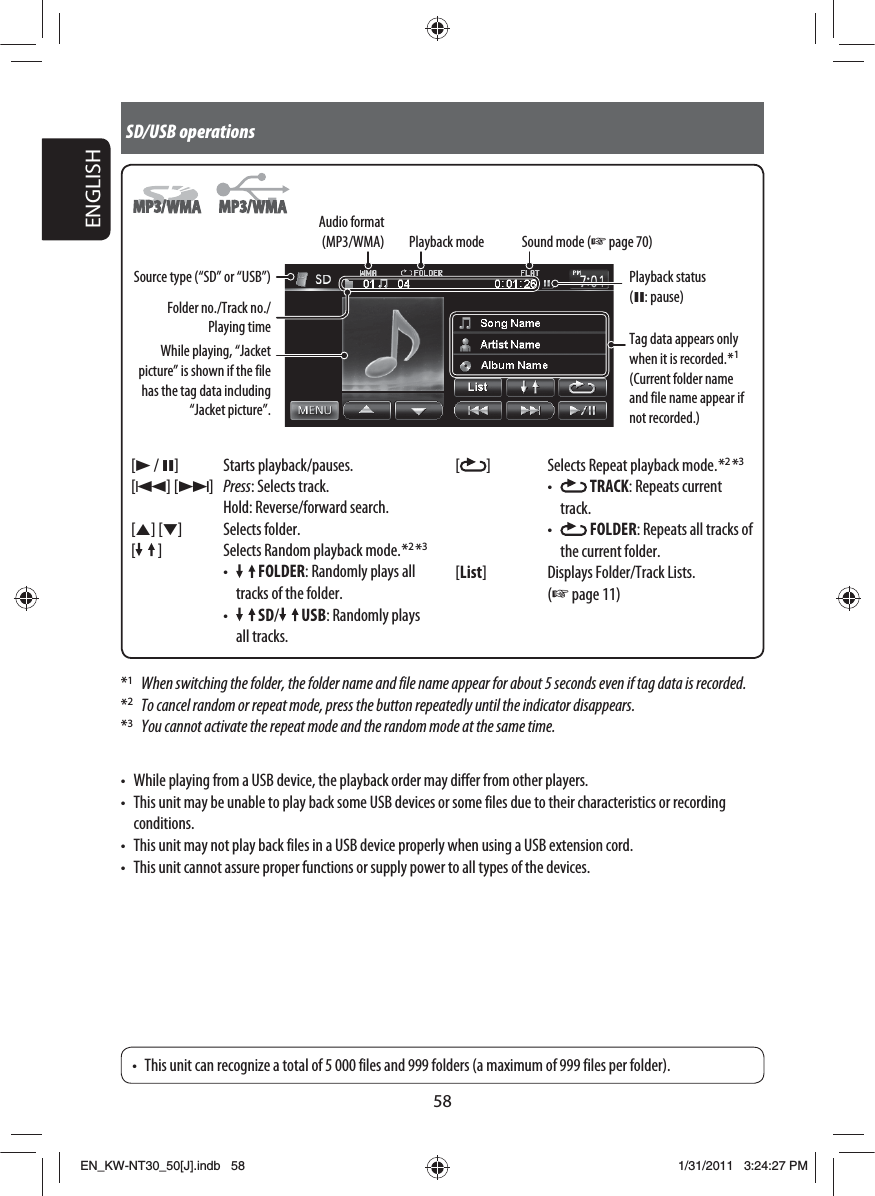

58ENGLISH*1  When switching the folder, the folder name and file name appear for about 5 seconds even if tag data is recorded.*2  To cancel random or repeat mode, press the button repeatedly until the indicator disappears.*3  You cannot activate the repeat mode and the random mode at the same time.Source type (“SD” or “USB”)[ ] Selects Repeat playback mode. *2  * 3•   TRACK: Repeats current track.•   FOLDER: Repeats all tracks of the current folder.[List] Displays Folder/Track Lists. (☞ page 11)Audio format (MP3/WMA)While playing, “Jacket picture” is shown if the file has the tag data including “Jacket picture”.Folder no./Track no./Playing timePlayback mode Sound mode (☞ page 70)[3 / 8] Starts playback/pauses.[4] [¢]Press: Selects track.Hold: Reverse/forward search.[5] [∞] Selects folder. [ ] Selects Random playback mode. *2  *3•   FOLDER: Randomly plays all tracks of the folder.•   SD/ USB: Randomly plays all tracks.•  This unit can recognize a total of 5 000 files and 999 folders (a maximum of 999 files per folder).Tag data appears only when it is recorded. *1(Current folder name and file name appear if not recorded.)Playback status (8: pause)SD/USB operations•  While playing from a USB device, the playback order may differ from other players.•  This unit may be unable to play back some USB devices or some files due to their characteristics or recording conditions.•  This unit may not play back files in a USB device properly when using a USB extension cord.•  This unit cannot assure proper functions or supply power to all types of the devices. EN_KW-NT30_50[J].indb   58EN_KW-NT30_50[J].indb   581/31/2011   3:24:27 PM1/31/2011   3:24:27 PM

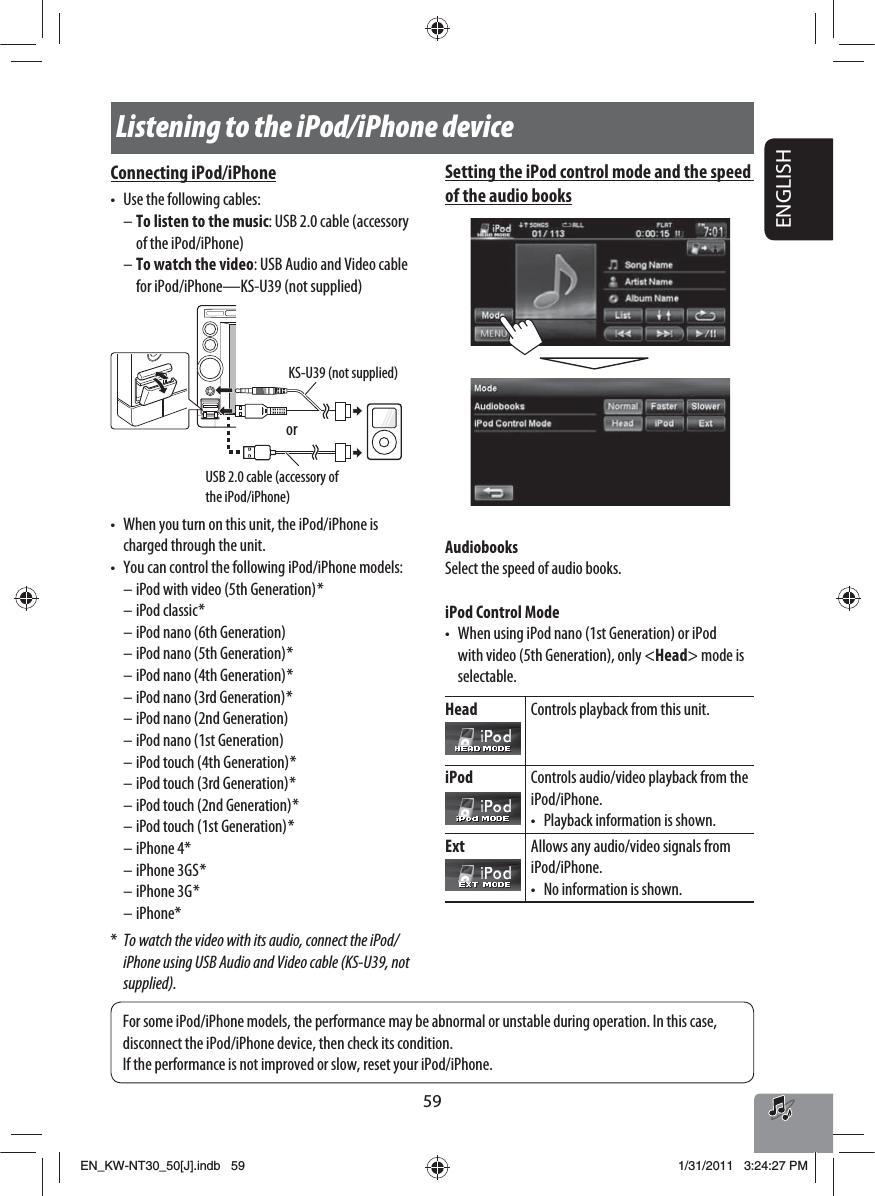

59ENGLISHListening to the iPod/iPhone deviceConnecting iPod/iPhone•  Use the following cables:– To listen to the music: USB 2.0 cable (accessory of the iPod/iPhone)– To watch the video: USB Audio and Video cable for iPod/iPhone—KS-U39 (not supplied)•  When you turn on this unit, the iPod/iPhone is charged through the unit.•  You can control the following iPod/iPhone models:– iPod with video (5th Generation) *– iPod classic *– iPod nano (6th Generation)– iPod nano (5th Generation) *– iPod nano (4th Generation) *– iPod nano (3rd Generation) *– iPod nano (2nd Generation)– iPod nano (1st Generation)– iPod touch (4th Generation) *– iPod touch (3rd Generation) *– iPod touch (2nd Generation) *– iPod touch (1st Generation) *– iPhone 4*– iPhone 3GS *– iPhone 3G *– iPhone**  To watch the video with its audio, connect the iPod/iPhone using USB Audio and Video cable (KS-U39, not supplied).Setting the iPod control mode and the speed of the audio booksAudiobooksSelect the speed of audio books.iPod Control Mode•  When using iPod nano (1st Generation) or iPod with video (5th Generation), only <Head> mode is selectable.Head Controls playback from this unit.iPod Controls audio/video playback from the iPod/iPhone.•  Playback information is shown.Ext Allows any audio/video signals from iPod/iPhone.•  No information is shown.For some iPod/iPhone models, the performance may be abnormal or unstable during operation. In this case, disconnect the iPod/iPhone device, then check its condition.If the performance is not improved or slow, reset your iPod/iPhone.USB 2.0 cable (accessory of the iPod/iPhone)KS-U39 (not supplied)orEN_KW-NT30_50[J].indb   59EN_KW-NT30_50[J].indb   591/31/2011   3:24:27 PM1/31/2011   3:24:27 PM

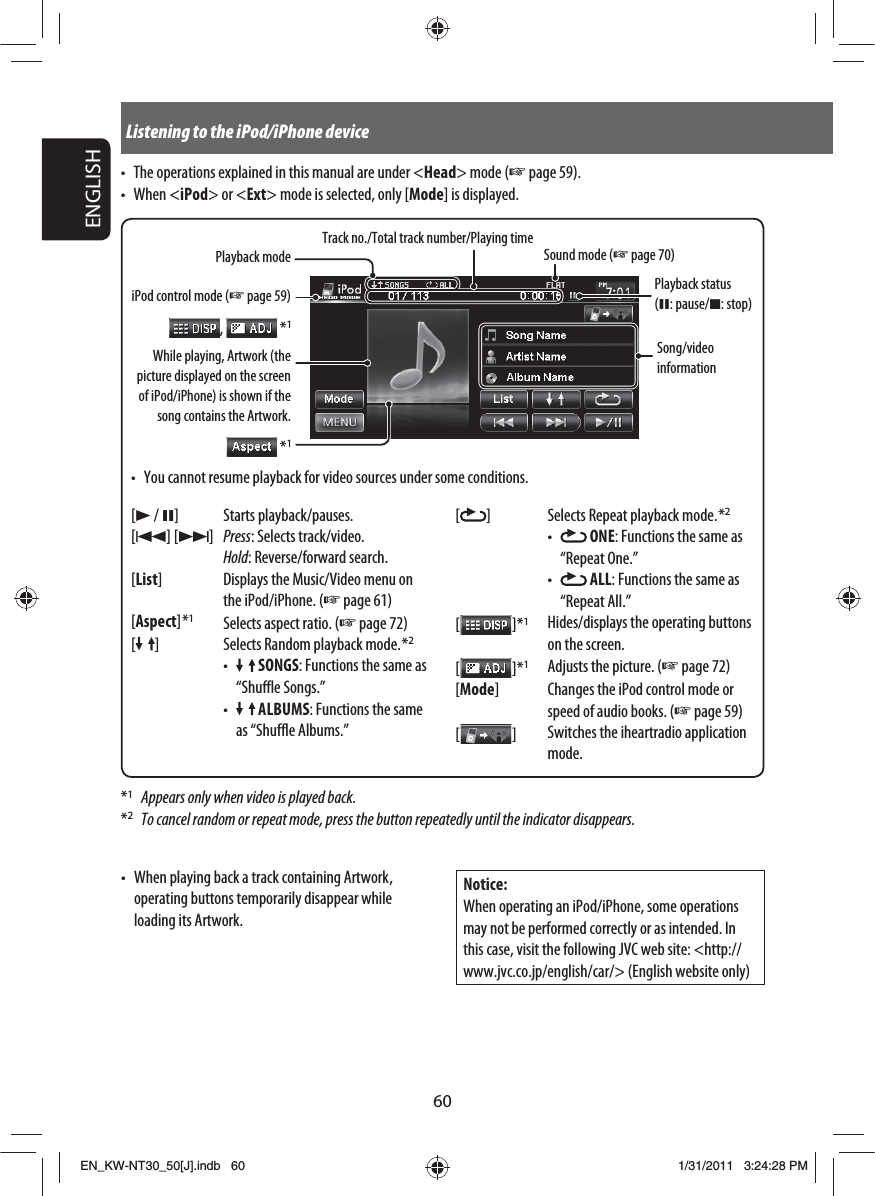

60ENGLISH*1  Appears only when video is played back.*2  To cancel random or repeat mode, press the button repeatedly until the indicator disappears.Track no./Total track number/Playing timeiPod control mode (☞ page 59)Playback mode Sound mode (☞ page 70)While playing, Artwork (the picture displayed on the screen of iPod/iPhone) is shown if the song contains the Artwork.[3 / 8] Starts playback/pauses.[4] [¢]Press: Selects track/video.Hold: Reverse/forward search.[List] Displays the Music/Video menu on the iPod/iPhone. (☞ page 61)[Aspect] *1Selects aspect ratio. (☞ page 72)[] Selects Random playback mode. *2•   SONGS: Functions the same as “Shuffle Songs.”•   ALBUMS: Functions the same as “Shuffle Albums.”[]Selects Repeat playback mode. *2•   ONE: Functions the same as “Repeat One.”•   ALL: Functions the same as “Repeat All.”[  ]*1Hides/displays the operating buttons on the screen.[  ]*1Adjusts the picture. (☞ page 72)[Mode] Changes the iPod control mode or speed of audio books. (☞ page 59)[  ]Switches the iheartradio application mode. *1Playback status (8: pause/7: stop)Song/video information•  You cannot resume playback for video sources under some conditions.•  When playing back a track containing Artwork , operating buttons temporarily disappear while loading its Artwork.Notice:When operating an iPod/iPhone, some operations may not be performed correctly or as intended. In this case, visit the following JVC web site: <http://www.jvc.co.jp/english/car/> (English website only),   *1Listening to the iPod/iPhone device•  The operations explained in this manual are under <Head> mode (☞ page 59).• When <iPod> or <Ext> mode is selected, only [Mode] is displayed.EN_KW-NT30_50[J].indb   60EN_KW-NT30_50[J].indb   601/31/2011   3:24:28 PM1/31/2011   3:24:28 PM

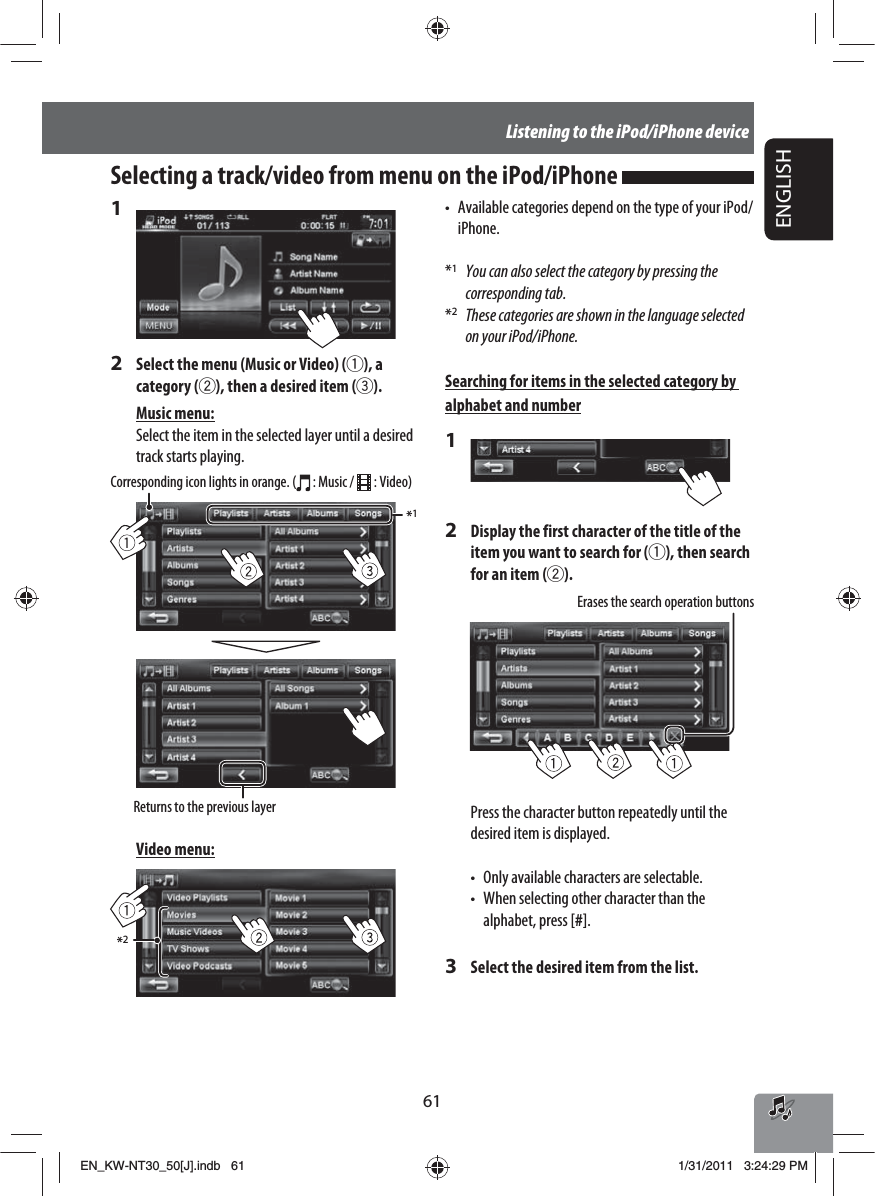

*1*261ENGLISH1 2  Select the menu (Music or Video) (1), a category (2), then a desired item (3).Music menu:Select the item in the selected layer until a desired track starts playing. Video menu:Selecting a track/video from menu on the iPod/iPhone Corresponding icon lights in orange. (  : Music /   : Video)Returns to the previous layerErases the search operation buttonsListening to the iPod/iPhone device•  Available categories depend on the type of your iPod/iPhone.*1  You can also select the category by pressing the corresponding tab.*2  These categories are shown in the language selected on your iPod/iPhone.Searching for items in the selected category by alphabet and number12  Display the first character of the title of the item you want to search for (1), then search for an item (2).Press the character button repeatedly until the desired item is displayed.•  Only available characters are selectable.•  When selecting other character than the alphabet, press [#].3  Select the desired item from the list.EN_KW-NT30_50[J].indb   61EN_KW-NT30_50[J].indb   611/31/2011   3:24:29 PM1/31/2011   3:24:29 PM

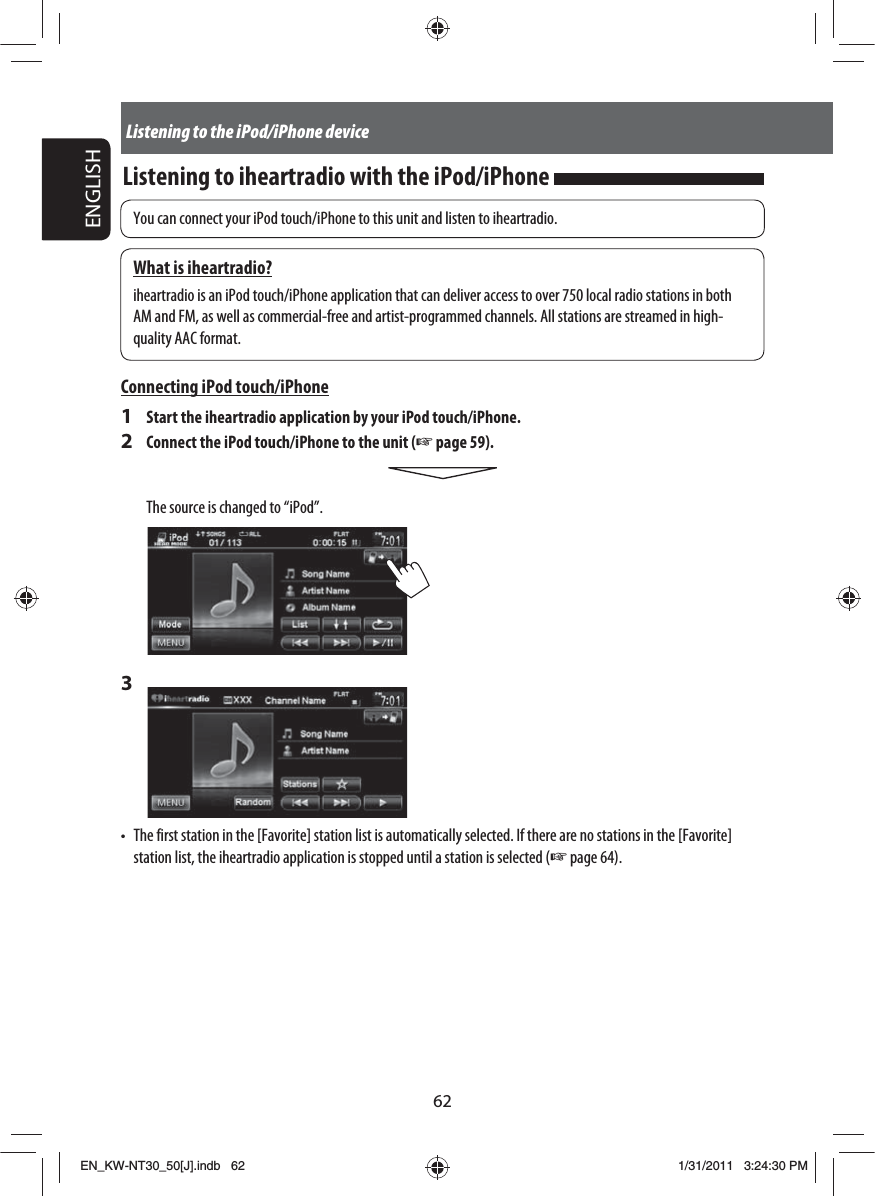

62ENGLISHListening to the iPod/iPhone deviceListening to iheartradio with the iPod/iPhone You can connect your iPod touch/iPhone to this unit and listen to iheartradio.What is iheartradio?iheartradio is an iPod touch/iPhone application that can deliver access to over 750 local radio stations in both AM and FM, as well as commercial-free and artist-programmed channels. All stations are streamed in high-quality AAC format.Connecting iPod touch/iPhone1  Start the iheartradio application by your iPod touch/iPhone.2  Connect the iPod touch/iPhone to the unit (☞ page 59).The source is changed to “iPod”.3 •  The first station in the [Favorite] station list is automatically selected. If there are no stations in the [Favorite] station list, the iheartradio application is stopped until a station is selected (☞ page 64).EN_KW-NT30_50[J].indb   62EN_KW-NT30_50[J].indb   621/31/2011   3:24:30 PM1/31/2011   3:24:30 PM

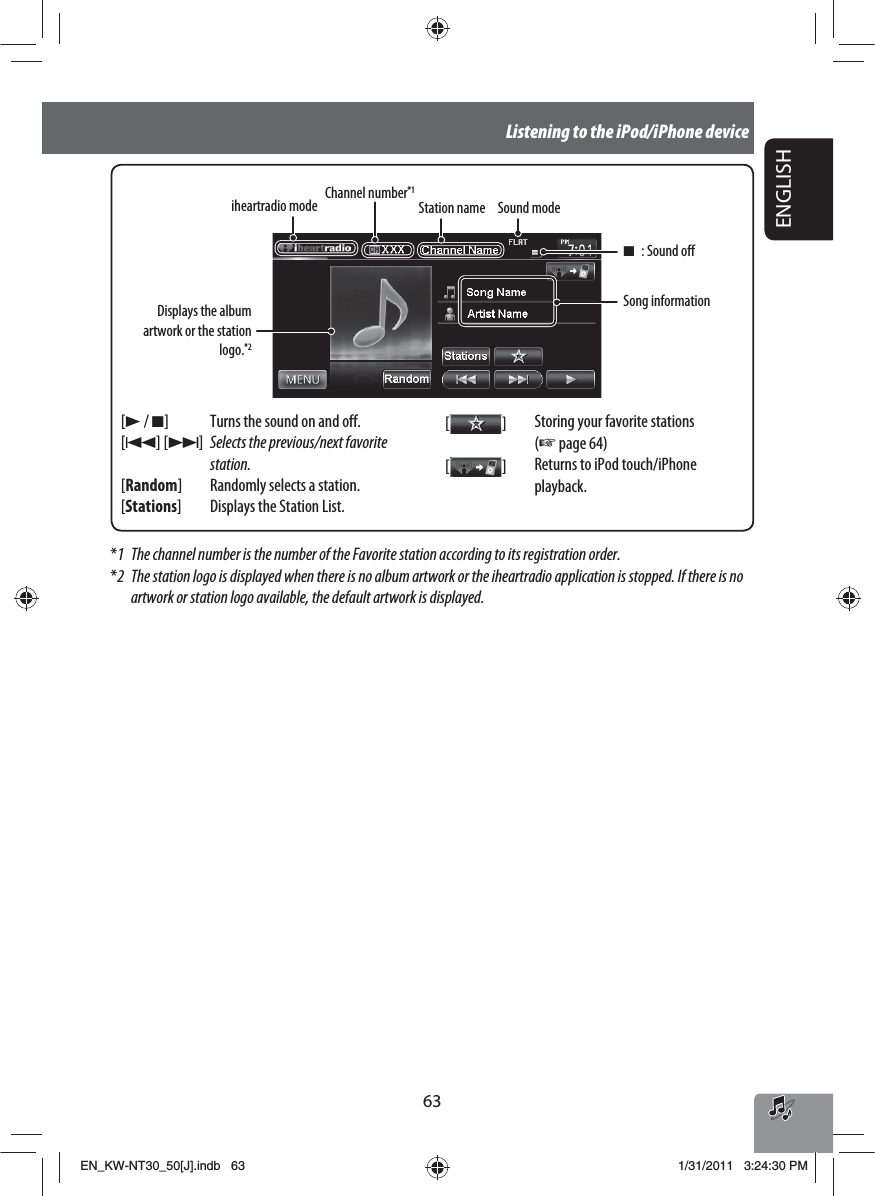

63ENGLISHListening to the iPod/iPhone deviceDisplays the album artwork or the station logo.*2[3 / 7] Turns the sound on and off.[4] [¢]Selects the previous/next favorite station.[Random] Randomly selects a station.[Stations] Displays the Station List.[  ]Storing your favorite stations (☞ page 64)[  ]Returns to iPod touch/iPhone playback.Sound modeSong informationStation nameChannel number*1iheartradio mode*1  The channel number is the number of the Favorite station according to its registration order.*2  The station logo is displayed when there is no album artwork or the iheartradio application is stopped. If there is no artwork or station logo available, the default artwork is displayed.7 : Sound offEN_KW-NT30_50[J].indb   63EN_KW-NT30_50[J].indb   631/31/2011   3:24:30 PM1/31/2011   3:24:30 PM

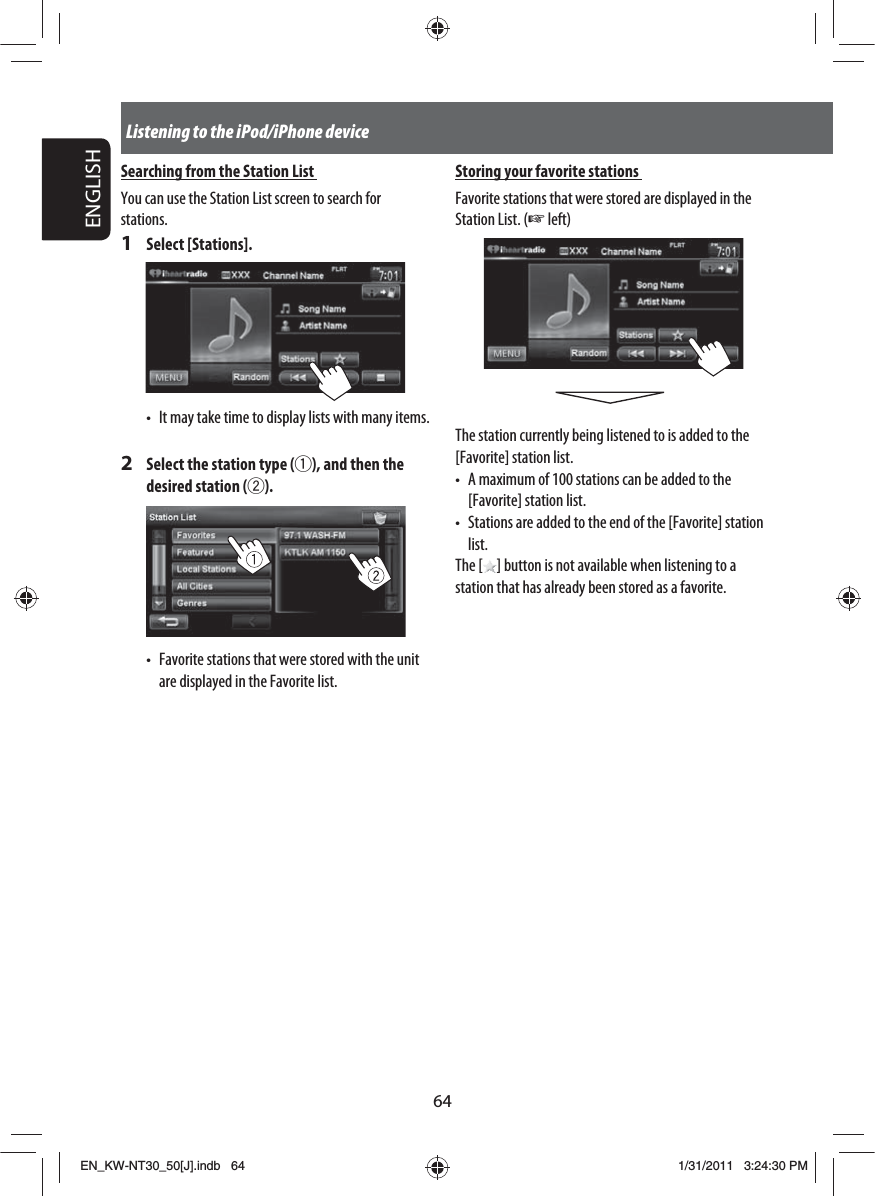

64ENGLISHListening to the iPod/iPhone deviceStoring your favorite stations Favorite stations that were stored are displayed in the Station List. (☞ left)The station currently being listened to is added to the [Favorite] station list.•  A maximum of 100 stations can be added to the [Favorite] station list.•  Stations are added to the end of the [Favorite] station list.The [ ] button is not available when listening to a station that has already been stored as a favorite.Searching from the Station List You can use the Station List screen to search for stations.1 Select [Stations].•  It may take time to display lists with many items.2  Select the station type (1), and then the desired station (2).•  Favorite stations that were stored with the unit are displayed in the Favorite list.EN_KW-NT30_50[J].indb   64EN_KW-NT30_50[J].indb   641/31/2011   3:24:30 PM1/31/2011   3:24:30 PM

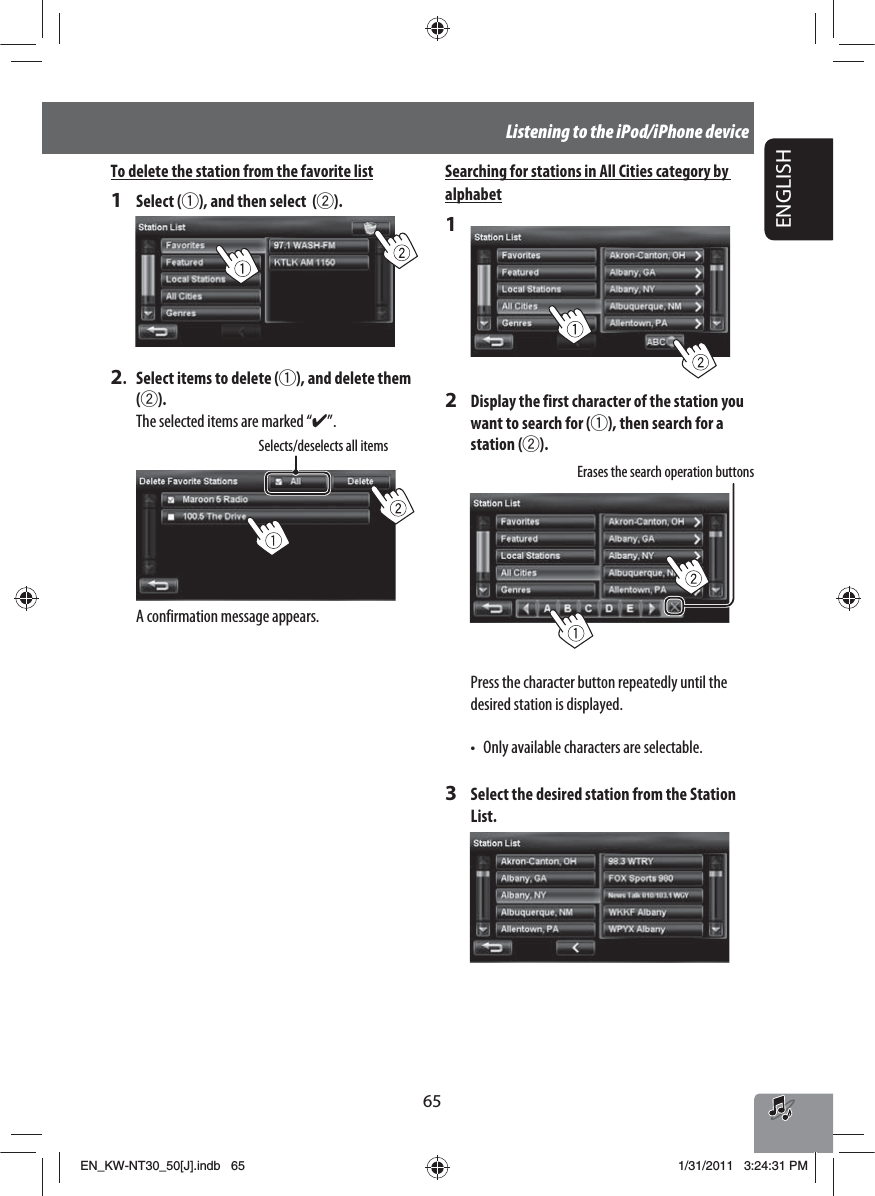

65ENGLISHTo delete the station from the favorite list1 Select (1), and then select  (2).2.  Select items to delete (1), and delete them (2).The selected items are marked “✔”.A confirmation message appears. Searching for stations in All Cities category by alphabet12  Display the first character of the station you want to search for (1), then search for a station (2).Press the character button repeatedly until the desired station is displayed.•  Only available characters are selectable.3  Select the desired station from the Station List.Selects/deselects all itemsListening to the iPod/iPhone deviceErases the search operation buttonsEN_KW-NT30_50[J].indb   65EN_KW-NT30_50[J].indb   651/31/2011   3:24:31 PM1/31/2011   3:24:31 PM

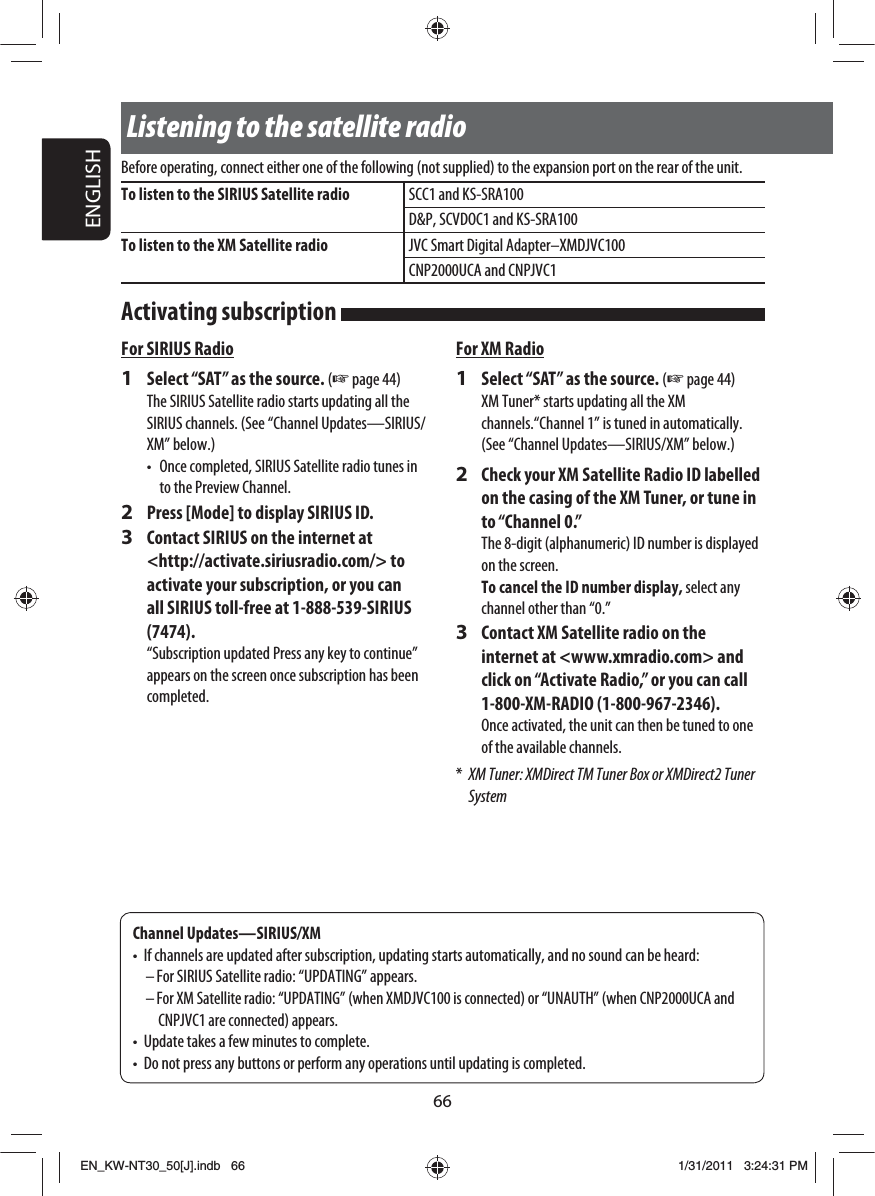

66ENGLISHFor SIRIUS Radio1  Select “SAT” as the source. (☞ page 44)The SIRIUS Satellite radio starts updating all the SIRIUS channels. (See “Channel Updates—SIRIUS/ XM” below.)•  Once completed, SIRIUS Satellite radio tunes in to the Preview Channel.2  Press [Mode] to display SIRIUS ID.3  Contact SIRIUS on the internet at <http://activate.siriusradio.com/> to activate your subscription, or you can all SIRIUS toll-free at 1-888-539-SIRIUS (7474).“Subscription updated Press any key to continue” appears on the screen once subscription has been completed.For XM Radio1  Select “SAT” as the source. (☞ page 44)XM Tuner* starts updating all the XM channels.“Channel 1” is tuned in automatically. (See “Channel Updates—SIRIUS/XM” below.)2  Check your XM Satellite Radio ID labelled on the casing of the XM Tuner, or tune in to “Channel 0.”The 8-digit (alphanumeric) ID number is displayed on the screen.To cancel the ID number display, select any channel other than “0.”3  Contact XM Satellite radio on the internet at <www.xmradio.com> and click on “Activate Radio,” or you can call 1-800-XM-RADIO (1-800-967-2346).Once activated, the unit can then be tuned to one of the available channels.*  XM Tuner: XMDirect TM Tuner Box or XMDirect2 Tuner SystemListening to the satellite radioBefore operating, connect either one of the following (not supplied) to the expansion port on the rear of the unit.To listen to the SIRIUS Satellite radio SCC1 and KS-SRA100D&P, SCVDOC1 and KS-SRA100To listen to the XM Satellite radio JVC Smart Digital Adapter–XMDJVC100CNP2000UCA and CNPJVC1Channel Updates—SIRIUS/XM•  If channels are updated after subscription, updating starts automatically, and no sound can be heard:– For SIRIUS Satellite radio: “UPDATING” appears.– For XM Satellite radio: “UPDATING” (when XMDJVC100 is connected) or “UNAUTH” (when CNP2000UCA and CNPJVC1 are connected) appears.•  Update takes a few minutes to complete.•  Do not press any buttons or perform any operations until updating is completed.Activating subscription EN_KW-NT30_50[J].indb   66EN_KW-NT30_50[J].indb   661/31/2011   3:24:31 PM1/31/2011   3:24:31 PM

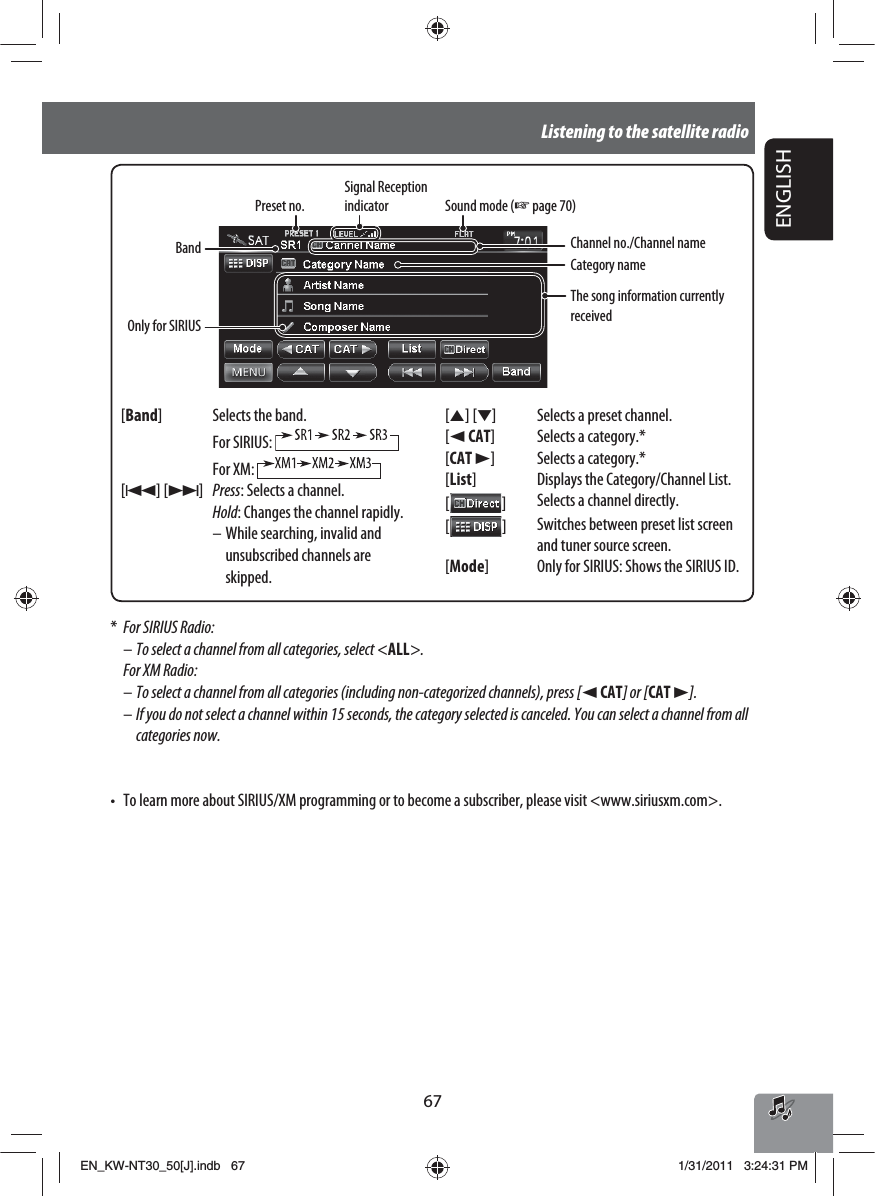

ENGLISH67Signal Reception indicatorChannel no./Channel nameBandSound mode (☞ page 70)Preset no.The song information currently received[Band] Selects the band.For SIRIUS: For XM: [4] [¢]Press: Selects a channel.Hold: Changes the channel rapidly.– While searching, invalid and unsubscribed channels are skipped.[5] [∞] Selects a preset channel.[2 CAT] [CAT 3]Selects a category.*Selects a category.*[List] Displays the Category/Channel List.[  ]Selects a channel directly.[  ]Switches between preset list screen and tuner source screen.[Mode] Only for SIRIUS: Shows the SIRIUS ID.Only for SIRIUS*  For SIRIUS Radio:– To select a channel from all categories, select <ALL>. For XM Radio:– To select a channel from all categories (including non-categorized channels), press [2 CAT] or [CAT 3].– If you do not select a channel within 15 seconds, the category selected is canceled. You can select a channel from all categories now.•  To learn more about SIRIUS/XM programming or to become a subscriber, please visit <www.siriusxm.com>.Listening to the satellite radioCategory nameEN_KW-NT30_50[J].indb   67EN_KW-NT30_50[J].indb   671/31/2011   3:24:31 PM1/31/2011   3:24:31 PM

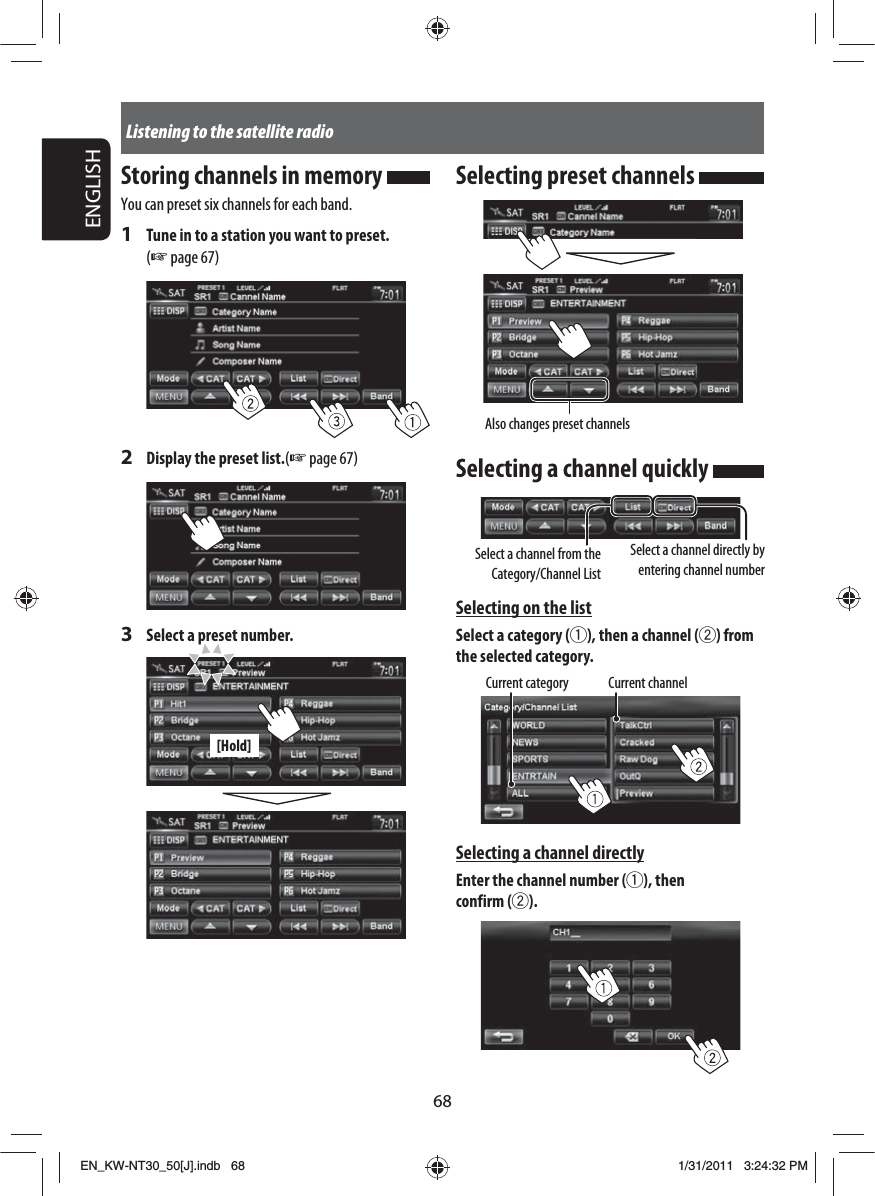

68ENGLISH[Hold]Selecting preset channels Selecting a channel quickly Selecting on the listSelect a category (1), then a channel (2) from the selected category.Selecting a channel directlyEnter the channel number (1), then confirm (2).Storing channels in memory You can preset six channels for each band.1  Tune in to a station you want to preset. (☞ page 67)2  Display the preset list.(☞ page 67)3  Select a preset number.Current category Current channelSelect a channel from the Category/Channel ListSelect a channel directly by entering channel number Listening to the satellite radioAlso changes preset channelsEN_KW-NT30_50[J].indb   68EN_KW-NT30_50[J].indb   681/31/2011   3:24:32 PM1/31/2011   3:24:32 PM

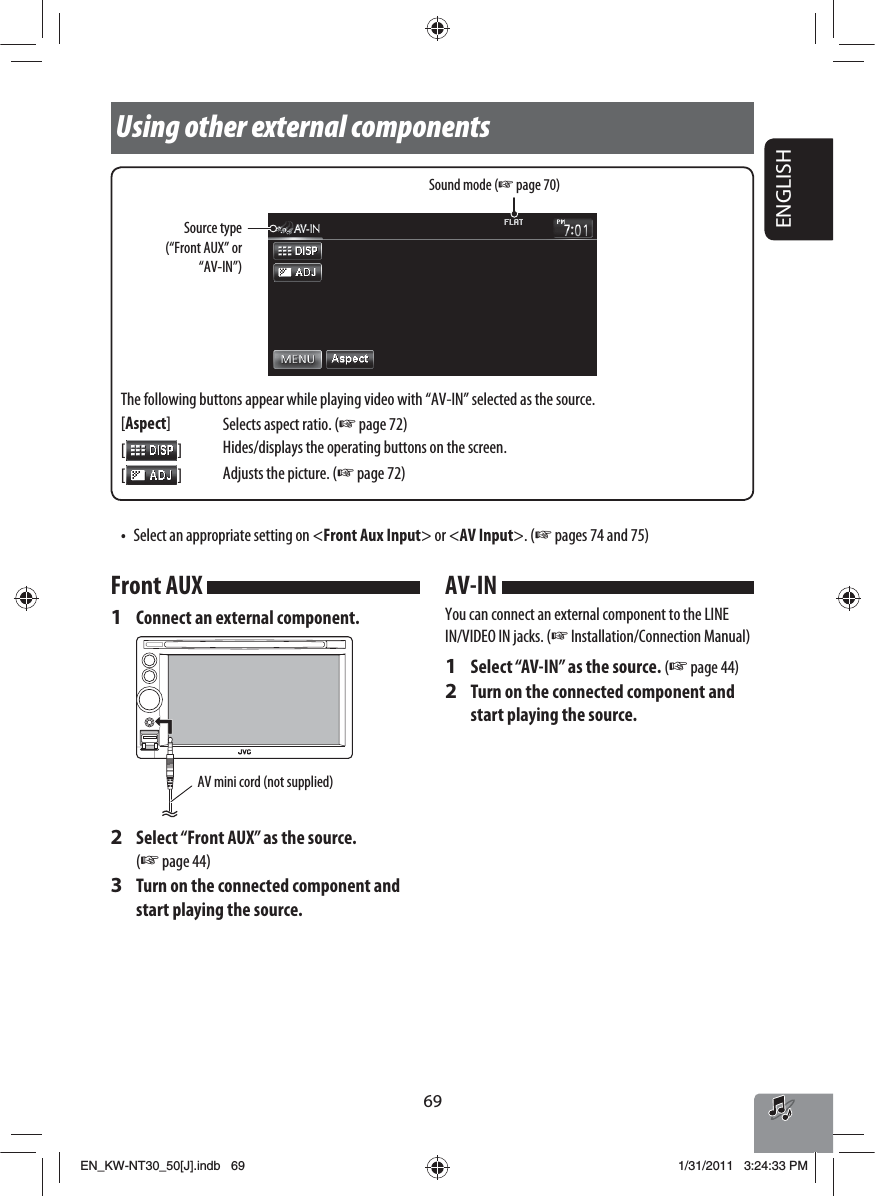

ENGLISH69Using other external componentsSound mode (☞ page 70)Front AUX 1  Connect an external component.2  Select “Front AUX” as the source. (☞ page 44)3  Turn on the connected component and start playing the source.AV mini cord (not supplied)AV-IN You can connect an external component to the LINE IN/VIDEO IN jacks. (☞ Installation/Connection Manual)1  Select “AV-IN” as the source. (☞ page 44)2  Turn on the connected component and start playing the source.Source type (“Front AUX” or “AV-IN”)The following buttons appear while playing video with “AV-IN” selected as the source.[Aspect]Selects aspect ratio. (☞ page 72)[  ]Hides/displays the operating buttons on the screen.[  ]Adjusts the picture. (☞ page 72)•  Select an appropriate setting on <Front Aux Input> or <AV Input>. (☞ pages 74 and 75)EN_KW-NT30_50[J].indb   69EN_KW-NT30_50[J].indb   691/31/2011   3:24:33 PM1/31/2011   3:24:33 PM

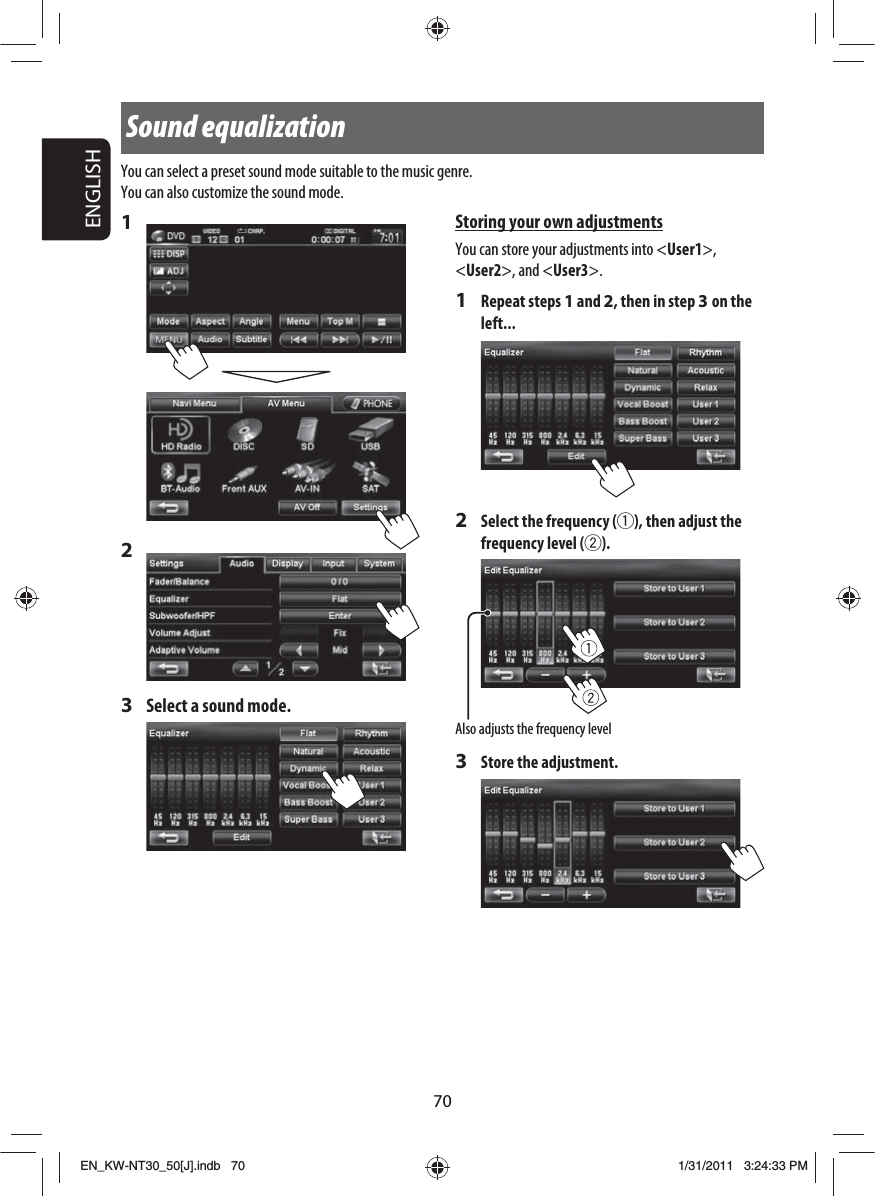

70ENGLISH1 2 3  Select a sound mode.Sound equalizationStoring your own adjustmentsYou can store your adjustments into <User1>, <User2>, and <User3>.1 Repeat steps 1 and 2, then in step 3 on the left...2  Select the frequency (1), then adjust the frequency level (2).3  Store the adjustment.You can select a preset sound mode suitable to the music genre.You can also customize the sound mode.Also adjusts the frequency levelEN_KW-NT30_50[J].indb   70EN_KW-NT30_50[J].indb   701/31/2011   3:24:33 PM1/31/2011   3:24:33 PM

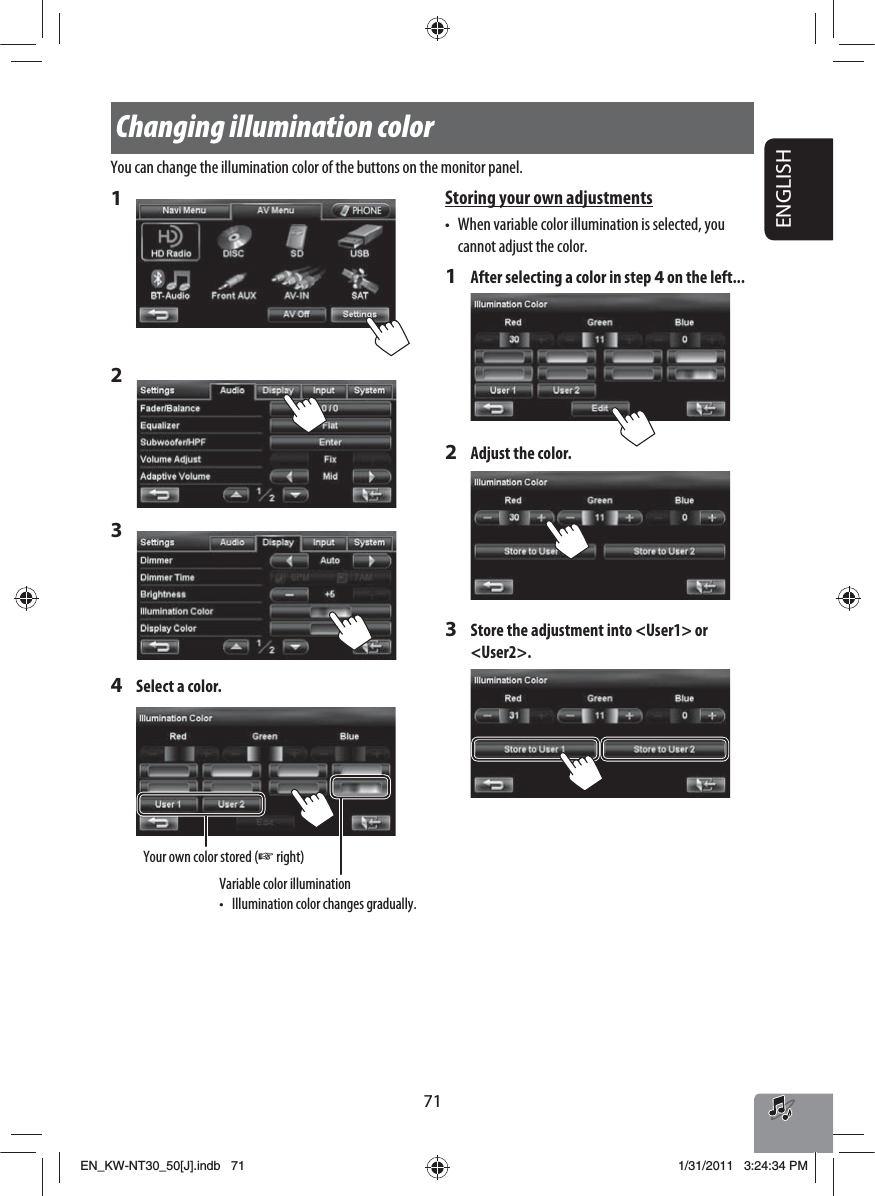

ENGLISH71Changing illumination colorYou can change the illumination color of the buttons on the monitor panel.1 2 3 4  Select a color.Storing your own adjustments•  When variable color illumination is selected, you cannot adjust the color.1  After selecting a color in step 4 on the left...2  Adjust the color.3  Store the adjustment into <User1> or <User2>.Your own color stored (☞ right)Variable color illumination•  Illumination color changes gradually.EN_KW-NT30_50[J].indb   71EN_KW-NT30_50[J].indb   711/31/2011   3:24:34 PM1/31/2011   3:24:34 PM

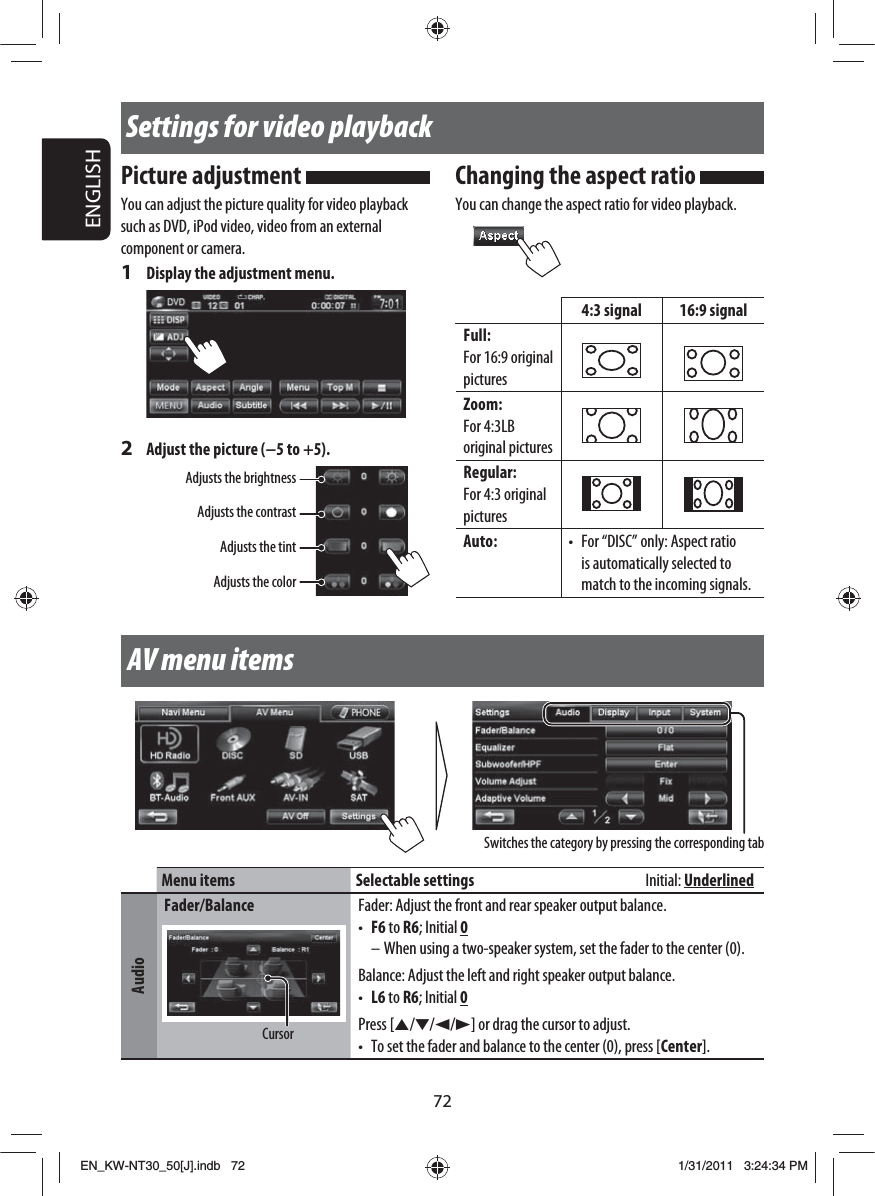

72ENGLISHSwitches the category by pressing the corresponding tabSettings for video playbackPicture adjustment You can adjust the picture quality for video playback such as DVD, iPod video, video from an external component or camera.1  Display the adjustment menu.2  Adjust the picture (−5 to +5). Adjusts the brightnessChanging the aspect ratio You can change the aspect ratio for video playback.4:3 signal 16:9 signalFull:For 16:9 original picturesZoom:For 4:3LB original pictures Regular:For 4:3 original pictures Auto: •  For “DISC” only: Aspect ratio is automatically selected to match to the incoming signals.Adjusts the contrastAdjusts the tintAdjusts the colorAV menu itemsMenu items Selectable settings  Initial: UnderlinedAudioFader/Balance Fader: Adjust the front and rear speaker output balance.•  F6 to R6; Initial 0– When using a two-speaker system, set the fader to the center (0).Balance: Adjust the left and right speaker output balance.•  L6 to R6; Initial 0Press [5/∞/2/3] or drag the cursor to adjust.•  To set the fader and balance to the center (0), press [Center].CursorEN_KW-NT30_50[J].indb   72EN_KW-NT30_50[J].indb   721/31/2011   3:24:34 PM1/31/2011   3:24:34 PM

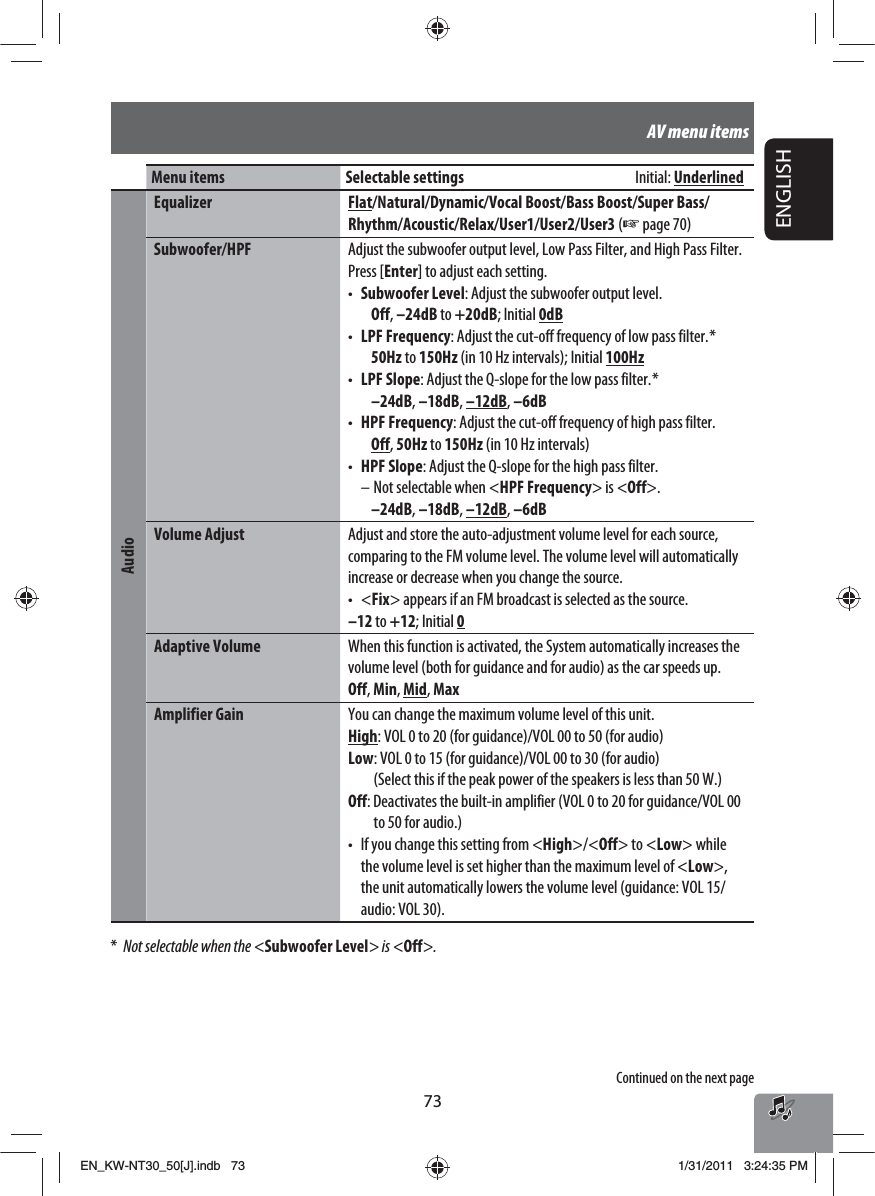

ENGLISH73Menu items Selectable settings  Initial: UnderlinedAudioEqualizer Flat/Natural/Dynamic/Vocal Boost/Bass Boost/Super Bass/Rhythm/Acoustic/Relax/User1/User2/User3 (☞ page 70)Subwoofer/HPF Adjust the subwoofer output level, Low Pass Filter, and High Pass Filter. Press [Enter] to adjust each setting.•  Subwoofer Level: Adjust the subwoofer output level.  Off, –24dB to +20dB; Initial 0dB•  LPF Frequency: Adjust the cut-off frequency of low pass filter. *  50Hz to 150Hz (in 10 Hz intervals); Initial 100Hz•  LPF Slope: Adjust the Q-slope for the low pass filter. *  –24dB, –18dB, –12dB, –6dB•  HPF Frequency: Adjust the cut-off frequency of high pass filter.  Off, 50Hz to 150Hz (in 10 Hz intervals)•  HPF Slope: Adjust the Q-slope for the high pass filter. – Not selectable when <HPF Frequency> is <Off>.  –24dB, –18dB, –12dB, –6dBVolume Adjust Adjust and store the auto-adjustment volume level for each source, comparing to the FM volume level. The volume level will automatically increase or decrease when you change the source.• <Fix> appears if an FM broadcast is selected as the source.–12 to +12; Initial 0Adaptive Volume When this function is activated, the System automatically increases the volume level (both for guidance and for audio) as the car speeds up.Off, Min, Mid, MaxAmplifier Gain You can change the maximum volume level of this unit.High: VOL 0 to 20 (for guidance)/VOL 00 to 50 (for audio)Low: VOL 0 to 15 (for guidance)/VOL 00 to 30 (for audio)  (Select this if the peak power of the speakers is less than 50 W.)Off: Deactivates the built-in amplifier (VOL 0 to 20 for guidance/VOL 00 to 50 for audio.)•  If you change this setting from <High>/<Off> to <Low> while the volume level is set higher than the maximum level of <Low>, the unit automatically lowers the volume level (guidance: VOL 15/audio: VOL 30).*  Not selectable when the <Subwoofer Level> is <Off>.AV menu itemsContinued on the next pageEN_KW-NT30_50[J].indb   73EN_KW-NT30_50[J].indb   731/31/2011   3:24:35 PM1/31/2011   3:24:35 PM

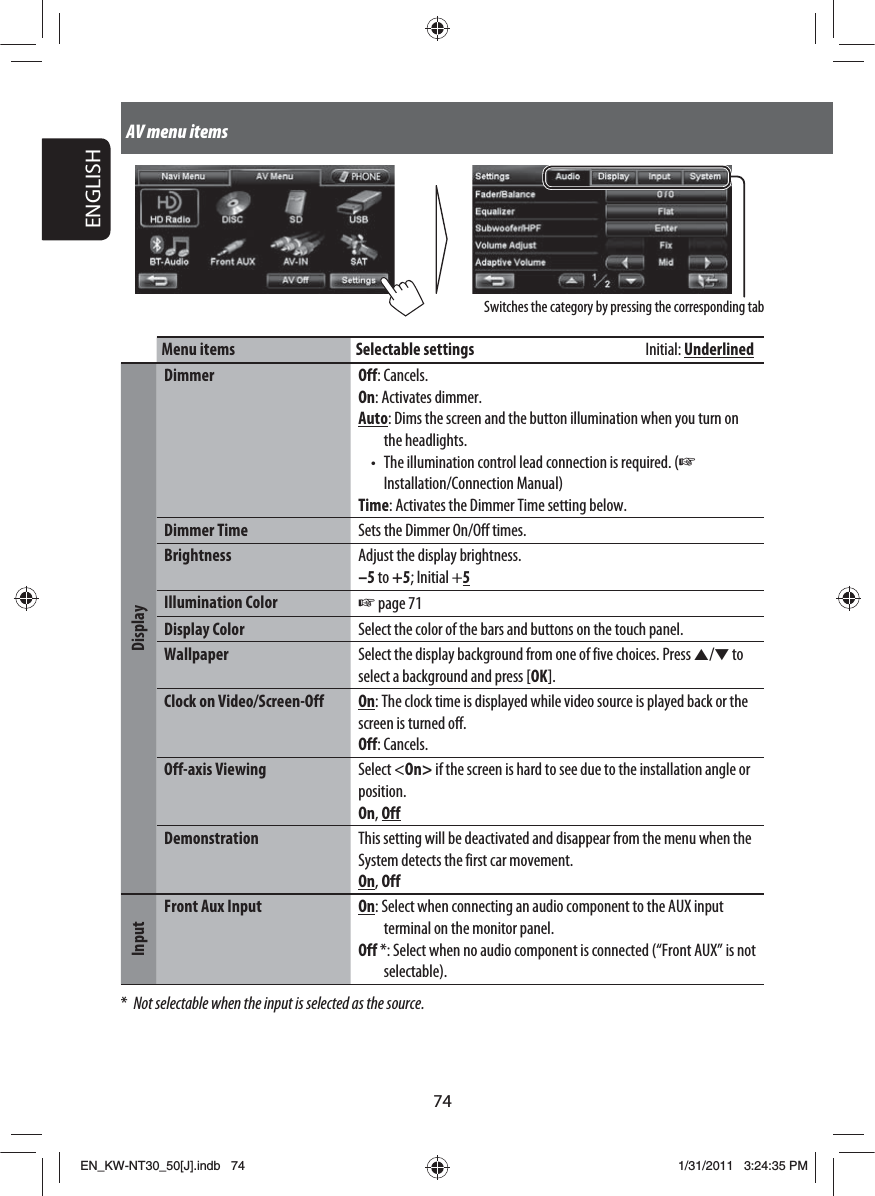

74ENGLISHMenu items Selectable settings  Initial: UnderlinedDisplayDimmer Off: Cancels.On: Activates dimmer.Auto: Dims the screen and the button illumination when you turn on the headlights.•  The illumination control lead connection is required. (☞ Installation/Connection Manual)Time: Activates the Dimmer Time setting below.Dimmer Time Sets the Dimmer On/Off times.Brightness Adjust the display brightness.–5 to +5; Initial +5Illumination Color ☞ page 71Display Color Select the color of the bars and buttons on the touch panel.Wallpaper Select the display background from one of five choices. Press 5/∞ to select a background and press [OK].Clock on Video/Screen-Off On: The clock time is displayed while video source is played back or the screen is turned off.Off: Cancels.Off-axis Viewing Select <On> if the screen is hard to see due to the installation angle or position.On, OffDemonstration This setting will be deactivated and disappear from the menu when the System detects the first car movement.On, OffInputFront Aux Input On: Select when connecting an audio component to the AUX input terminal on the monitor panel.Off *: Select when no audio component is connected (“Front AUX” is not selectable).*  Not selectable when the input is selected as the source.AV menu itemsSwitches the category by pressing the corresponding tabEN_KW-NT30_50[J].indb   74EN_KW-NT30_50[J].indb   741/31/2011   3:24:35 PM1/31/2011   3:24:35 PM

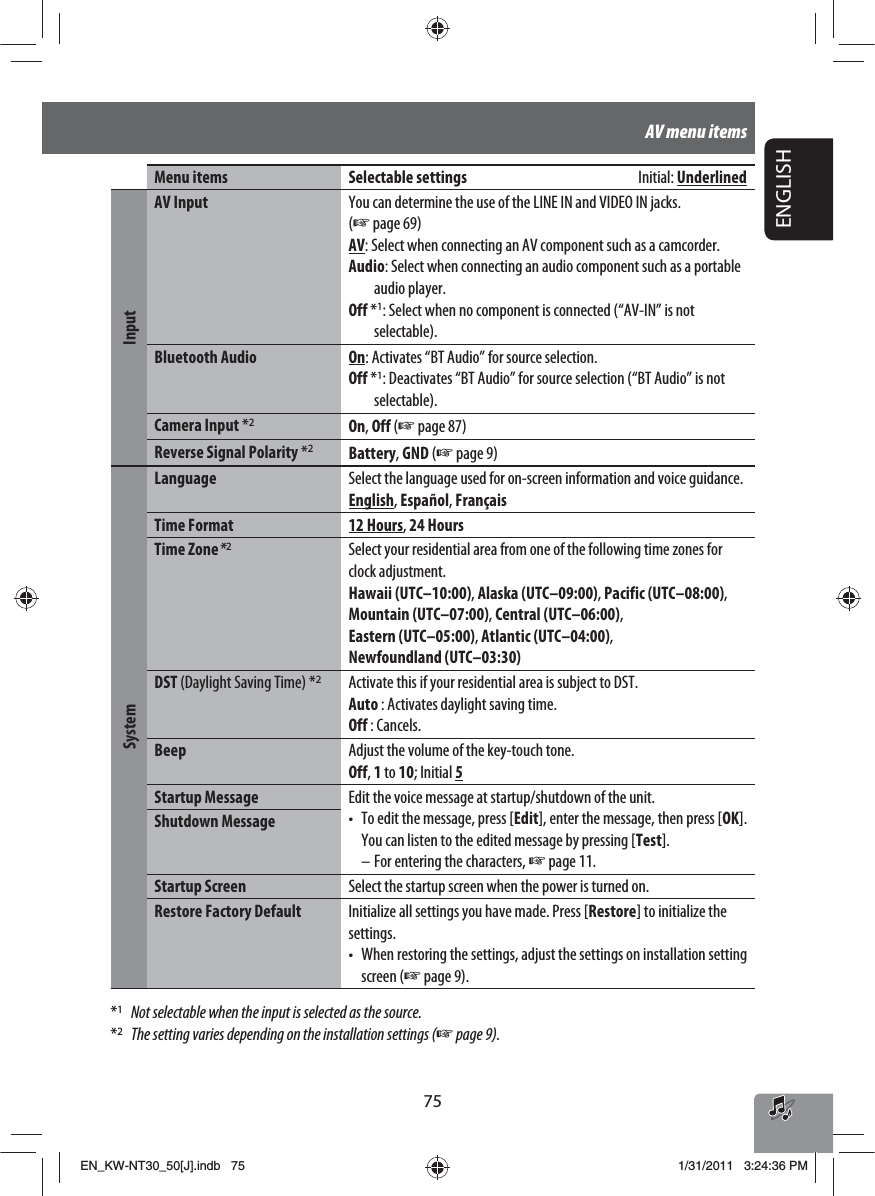

ENGLISH75Menu items Selectable settings  Initial: UnderlinedInputAV Input  You can determine the use of the LINE IN and VIDEO IN jacks. (☞ page 69)AV: Select when connecting an AV component such as a camcorder.Audio: Select when connecting an audio component such as a portable audio player.Off *1: Select when no component is connected (“AV-IN” is not selectable).Bluetooth Audio On: Activates “BT Audio” for source selection.Off *1: Deactivates “BT Audio” for source selection (“BT Audio” is not selectable).Camera Input *2On, Off (☞ page 87)Reverse Signal Polarity *2Battery, GND (☞ page 9)SystemLanguage Select the language used for on-screen information and voice guidance.English, Español, FrançaisTime Format 12 Hours, 24 HoursTime Zone *2Select your residential area from one of the following time zones for clock adjustment.Hawaii (UTC–10:00), Alaska (UTC–09:00), Pacific (UTC–08:00), Mountain (UTC–07:00), Central (UTC–06:00), Eastern (UTC–05:00), Atlantic (UTC–04:00), Newfoundland (UTC–03:30)DST (Daylight Saving Time) *2Activate this if your residential area is subject to DST.Auto : Activates daylight saving time.Off : Cancels.Beep Adjust the volume of the key-touch tone.Off, 1 to 10; Initial 5Startup Message  Edit the voice message at startup/shutdown of the unit.•  To edit the message, press [Edit], enter the message, then press [OK]. You can listen to the edited message by pressing [Test]. – For entering the characters, ☞ page 11.Shutdown Message Startup Screen Select the startup screen when the power is turned on.Restore Factory Default Initialize all settings you have made. Press [Restore] to initialize the settings.•  When restoring the settings, adjust the settings on installation setting screen (☞ page 9).*1  Not selectable when the input is selected as the source.*2  The setting varies depending on the installation settings (☞ page 9).AV menu itemsEN_KW-NT30_50[J].indb   75EN_KW-NT30_50[J].indb   751/31/2011   3:24:36 PM1/31/2011   3:24:36 PM

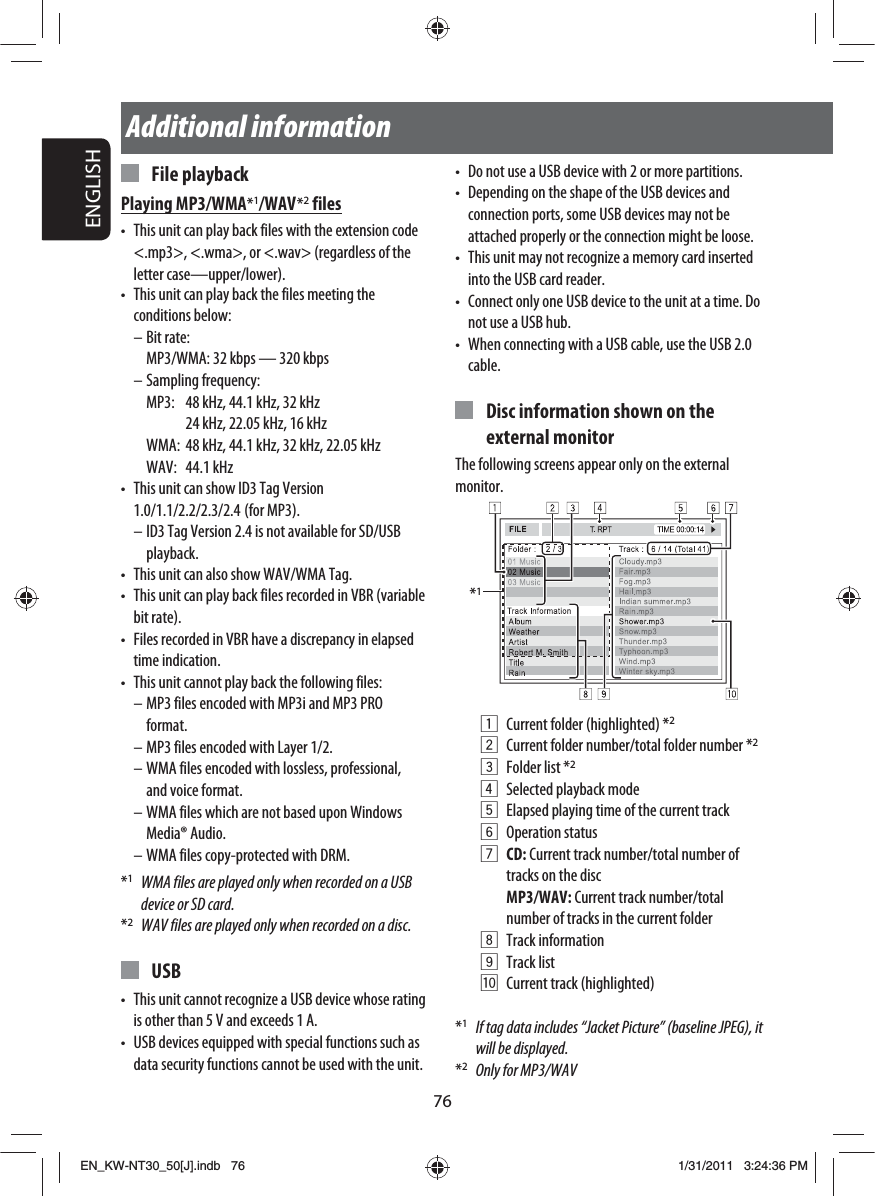

76ENGLISHAdditional information*1•  Do not use a USB device with 2 or more partitions.•  Depending on the shape of the USB devices and connection ports, some USB devices may not be attached properly or the connection might be loose.•  This unit may not recognize a memory card inserted into the USB card reader.•  Connect only one USB device to the unit at a time. Do not use a USB hub.•  When connecting with a USB cable, use the USB 2.0 cable.  Disc information shown on the external monitorThe following screens appear only on the external monitor.1  Current folder (highlighted) *22  Current folder number/total folder number *23  Folder list *24  Selected playback mode5  Elapsed playing time of the current track 6 Operation status7 CD: Current track number/total number of tracks on the disc MP3/WAV: Current track number/total number of tracks in the current folder8 Track information9 Track listp  Current track (highlighted)*1  If tag data includes “Jacket Picture” (baseline JPEG), it will be displayed.*2  Only for MP3/WAV File playbackPlaying MP3/WMA*1/WAV *2 files•  This unit can play back files with the extension code <.mp3>, <.wma>, or <.wav> (regardless of the letter case—upper/lower).•  This unit can play back the files meeting the conditions below:– Bit rate:  MP3/WMA: 32 kbps — 320 kbps– Sampling frequency:  MP3:  48 kHz, 44.1 kHz, 32 kHz    24 kHz, 22.05 kHz, 16 kHz  WMA:  48 kHz, 44.1 kHz, 32 kHz, 22.05 kHz WAV: 44.1 kHz•  This unit can show ID3 Tag Version 1.0/1.1/2.2/2.3/2.4   (for  MP3).– ID3 Tag Version 2.4 is not available for SD/USB playback.•  This unit can also show WAV/WMA Tag.•  This unit can play back files recorded in VBR (variable bit rate).•  Files recorded in VBR have a discrepancy in elapsed time indication.•  This unit cannot play back the following files:– MP3 files encoded with MP3i and MP3 PRO format.– MP3 files encoded with Layer 1/2.– WMA files encoded with lossless, professional, and voice format.– WMA files which are not based upon Windows Media® Audio.– WMA files copy-protected with DRM.*1  WMA files are played only when recorded on a USB device or SD card.*2  WAV files are played only when recorded on a disc. USB•  This unit cannot recognize a USB device whose rating is other than 5 V and exceeds 1 A.•  USB devices equipped with special functions such as data security functions cannot be used with the unit.EN_KW-NT30_50[J].indb   76EN_KW-NT30_50[J].indb   761/31/2011   3:24:36 PM1/31/2011   3:24:36 PM

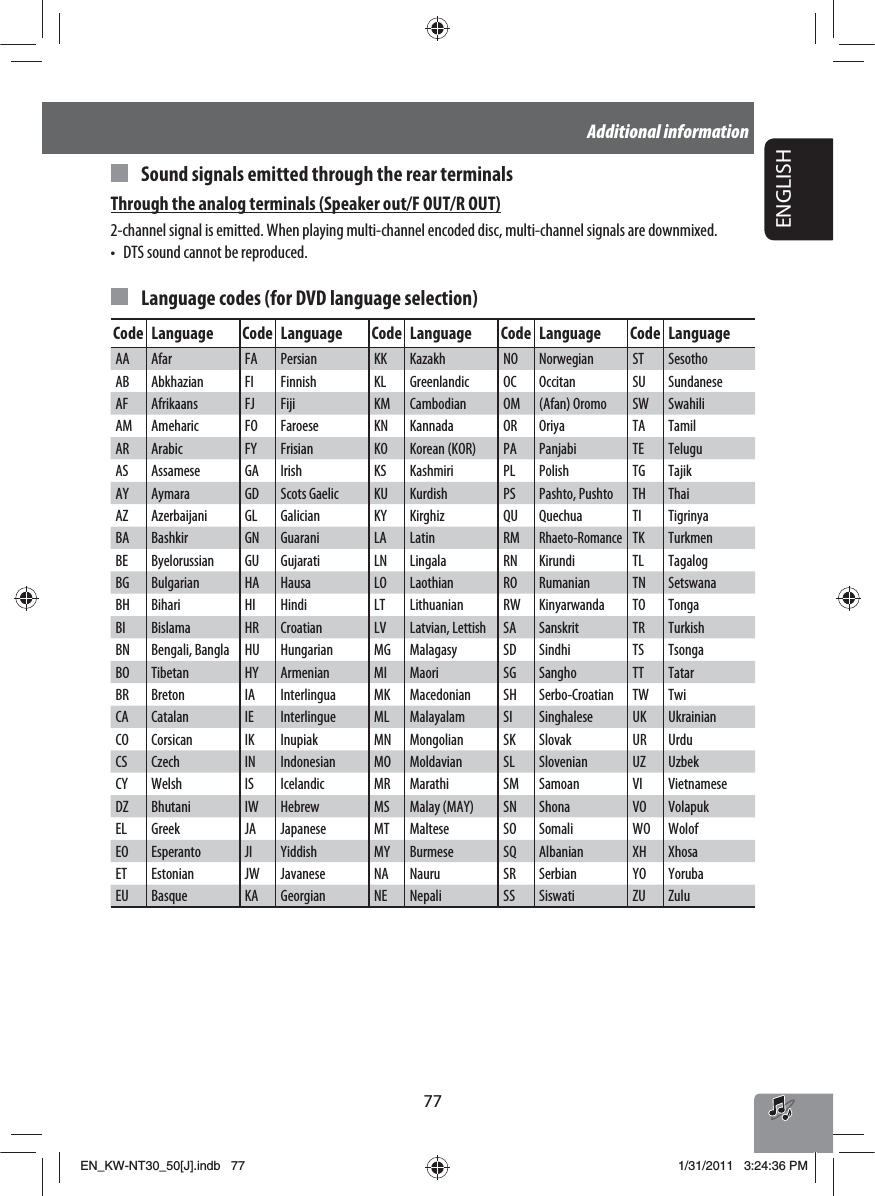

ENGLISH77  Sound signals emitted through the rear terminalsThrough the analog terminals (Speaker out/F OUT/R OUT)2-channel signal is emitted. When playing multi-channel encoded disc, multi-channel signals are downmixed.•  DTS sound cannot be reproduced.  Language codes (for DVD language selection)Code Language Code Language Code Language Code Language Code LanguageAA Afar FA Persian KK Kazakh NO Norwegian ST SesothoAB Abkhazian FI Finnish KL Greenlandic OC Occitan SU SundaneseAF Afrikaans FJ Fiji KM Cambodian OM (Afan) Oromo SW SwahiliAM Ameharic FO Faroese KN Kannada OR Oriya TA TamilAR Arabic FY Frisian KO Korean (KOR) PA Panjabi TE TeluguAS Assamese GA Irish KS Kashmiri PL Polish TG TajikAY Aymara GD Scots Gaelic KU Kurdish PS Pashto, Pushto TH ThaiAZ Azerbaijani GL Galician KY Kirghiz QU Quechua TI TigrinyaBA Bashkir GN Guarani LA Latin RMRhaeto-RomanceTK TurkmenBE Byelorussian GU Gujarati LN Lingala RN Kirundi TL TagalogBG Bulgarian HA Hausa LO Laothian RO Rumanian TN SetswanaBH Bihari HI Hindi LT Lithuanian RW Kinyarwanda TO TongaBI Bislama HR Croatian LV Latvian, Lettish SA Sanskrit TR TurkishBN Bengali, Bangla HU Hungarian MG Malagasy SD Sindhi TS TsongaBO Tibetan HY Armenian MI Maori SG Sangho TT TatarBR Breton IA Interlingua MK Macedonian SH Serbo-Croatian TW TwiCA Catalan IE Interlingue ML Malayalam SI Singhalese UK UkrainianCO Corsican IK Inupiak MN Mongolian SK Slovak UR UrduCS Czech IN Indonesian MO Moldavian SL Slovenian UZ UzbekCY Welsh IS Icelandic MR Marathi SM Samoan VI VietnameseDZ Bhutani IW Hebrew MS Malay (MAY) SN Shona VO VolapukEL Greek JA Japanese MT Maltese SO Somali WO WolofEO Esperanto JI Yiddish MY Burmese SQ Albanian XH XhosaET Estonian JW Javanese NA Nauru SR Serbian YO YorubaEU Basque KA Georgian NE Nepali SS Siswati ZU ZuluAdditional informationEN_KW-NT30_50[J].indb   77EN_KW-NT30_50[J].indb   771/31/2011   3:24:36 PM1/31/2011   3:24:36 PM

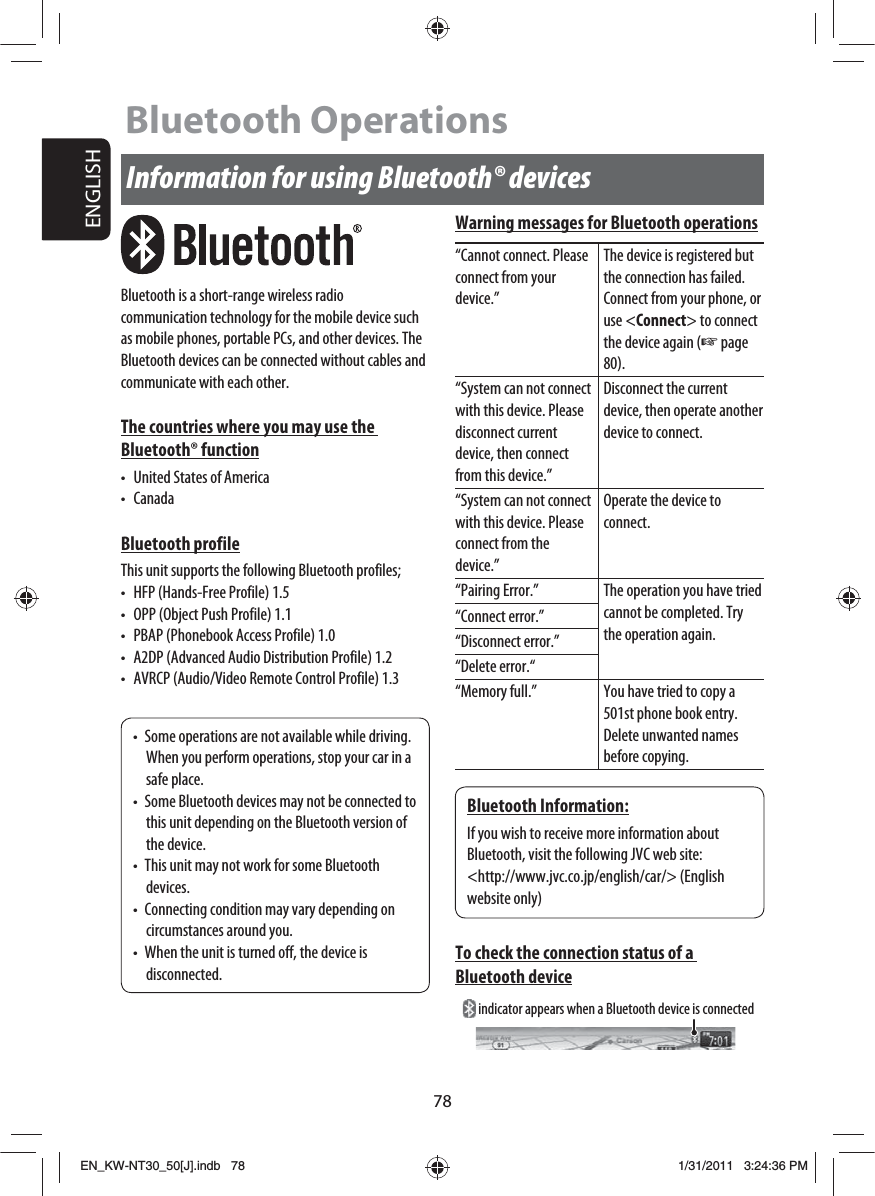

78ENGLISHInformation for using Bluetooth® devicesBluetooth is a short-range wireless radio communication technology for the mobile device such as mobile phones, portable PCs, and other devices. The Bluetooth devices can be connected without cables and communicate with each other.The countries where you may use the Bluetooth® function•  United States of America• CanadaBluetooth profileThis unit supports the following Bluetooth profiles;•  HFP (Hands-Free Profile) 1.5•  OPP (Object Push Profile) 1.1•  PBAP (Phonebook Access Profile) 1.0•  A2DP (Advanced Audio Distribution Profile) 1.2•  AVRCP (Audio/Video Remote Control Profile) 1.3•  Some operations are not available while driving. When you perform operations, stop your car in a safe place.•  Some Bluetooth devices may not be connected to this unit depending on the Bluetooth version of the device.•  This unit may not work for some Bluetooth devices.•  Connecting condition may vary depending on circumstances around you.•  When the unit is turned off, the device is disconnected.Bluetooth Information:If you wish to receive more information about Bluetooth, visit the following JVC web site:<http://www.jvc.co.jp/english/car/> (English website only)Warning messages for Bluetooth operations“Cannot connect. Please connect from your device.”The device is registered but the connection has failed. Connect from your phone, or use <Connect> to connect the device again (☞ page 80).“System can not connect with this device. Please disconnect current device, then connect from this device.”Disconnect the current device, then operate another device to connect.“System can not connect with this device. Please connect from the device.”Operate the device to connect.“Pairing Error.” The operation you have tried cannot be completed. Try the operation again.“Connect error.”“Disconnect error.”“Delete error.““Memory full.” You have tried to copy a 501st phone book entry. Delete unwanted names before copying.To check the connection status of a Bluetooth deviceBluetooth Operations indicator appears when a Bluetooth device is connectedEN_KW-NT30_50[J].indb   78EN_KW-NT30_50[J].indb   781/31/2011   3:24:36 PM1/31/2011   3:24:36 PM

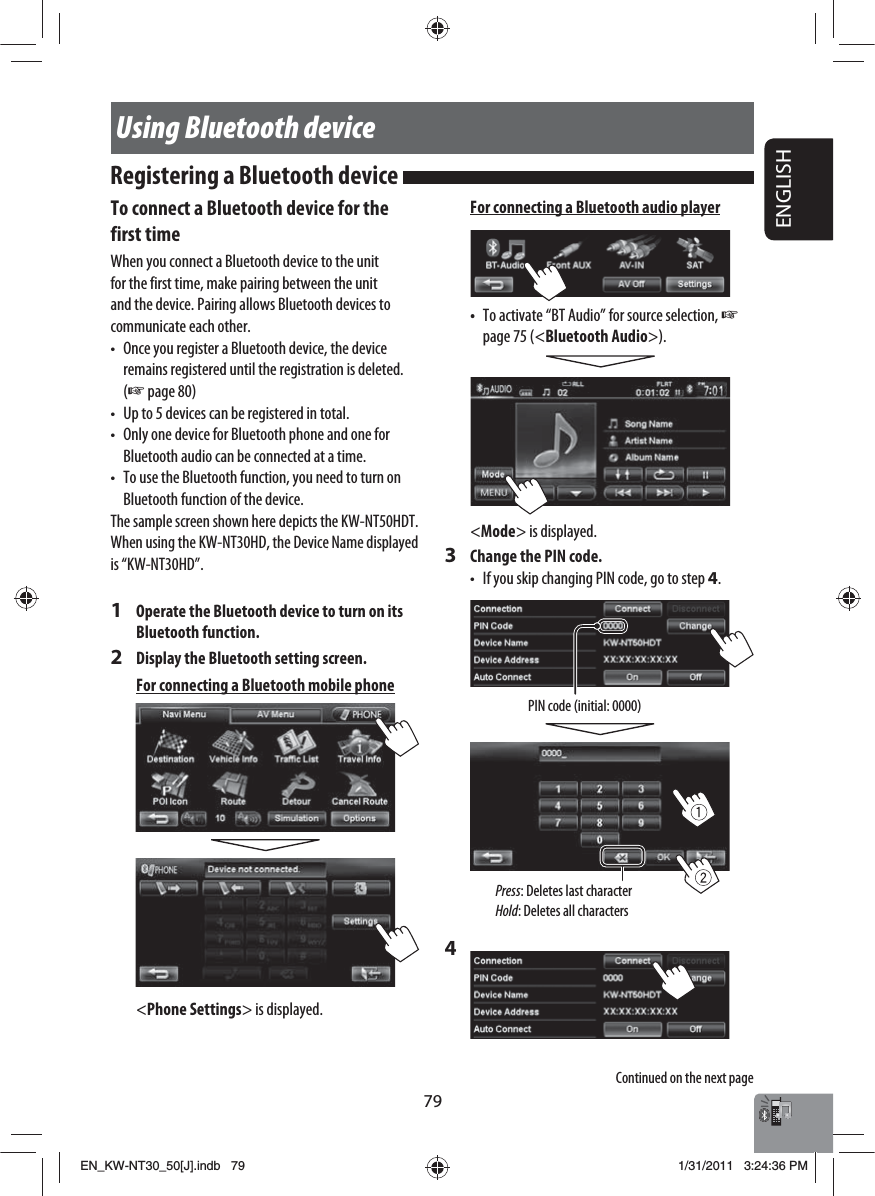

ENGLISH79Using Bluetooth deviceTo connect a Bluetooth device for the first timeWhen you connect a Bluetooth device to the unit for the first time, make pairing between the unit and the device. Pairing allows Bluetooth devices to communicate each other.•  Once you register a Bluetooth device, the device remains registered until the registration is deleted. (☞ page 80)•  Up to 5 devices can be registered in total.•  Only one device for Bluetooth phone and one for Bluetooth audio can be connected at a time.•  To use the Bluetooth function, you need to turn on Bluetooth function of the device.The sample screen shown here depicts the KW-NT50HDT. When using the KW-NT30HD, the Device Name displayed is “KW-NT30HD”.1  Operate the Bluetooth device to turn on its Bluetooth function.2  Display the Bluetooth setting screen.For connecting a Bluetooth mobile phone<Phone Settings> is displayed.Registering a Bluetooth device PIN code (initial: 0000)For connecting a Bluetooth audio player•  To activate “BT Audio” for source selection, ☞ page 75 (<Bluetooth Audio>).<Mode> is displayed.3  Change the PIN code.•  If you skip changing PIN code, go to step 4.4 Continued on the next pagePress: Deletes last characterHold: Deletes all charactersEN_KW-NT30_50[J].indb   79EN_KW-NT30_50[J].indb   791/31/2011   3:24:36 PM1/31/2011   3:24:36 PM

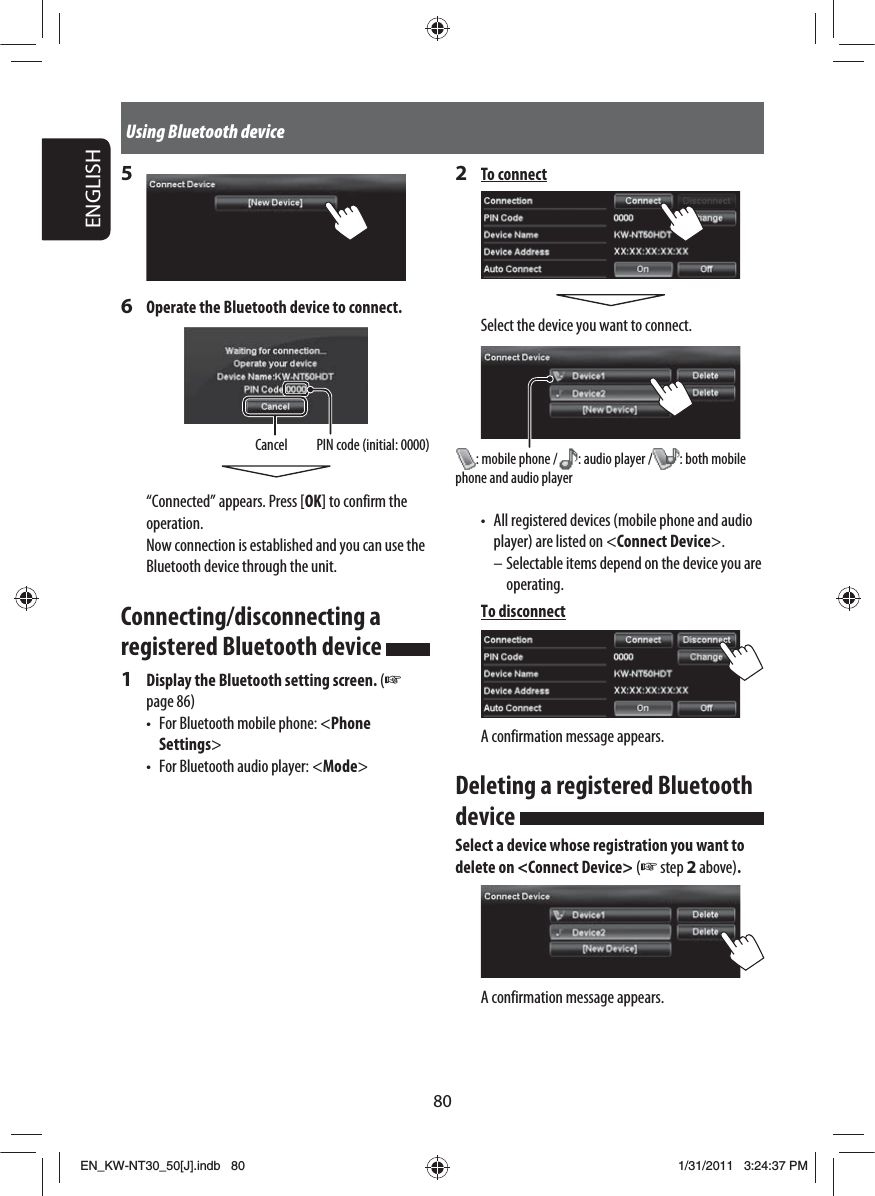

80ENGLISHUsing Bluetooth device2 To connectSelect the device you want to connect.•  All registered devices (mobile phone and audio player) are listed on <Connect Device>.– Selectable items depend on the device you are operating.To disconnectA confirmation message appears.Deleting a registered Bluetooth device Select a device whose registration you want to delete on <Connect Device> (☞ step 2 above).A confirmation message appears.5 6  Operate the Bluetooth device to connect.“Connected” appears. Press [OK] to confirm the operation.Now connection is established and you can use the Bluetooth device through the unit.Connecting/disconnecting a registered Bluetooth device 1  Display the Bluetooth setting screen. (☞ page 86)•  For Bluetooth mobile phone: <Phone Settings>•  For Bluetooth audio player: <Mode>Cancel PIN code (initial: 0000) : mobile phone / : audio player / : both mobile phone and audio playerEN_KW-NT30_50[J].indb   80EN_KW-NT30_50[J].indb   801/31/2011   3:24:37 PM1/31/2011   3:24:37 PM

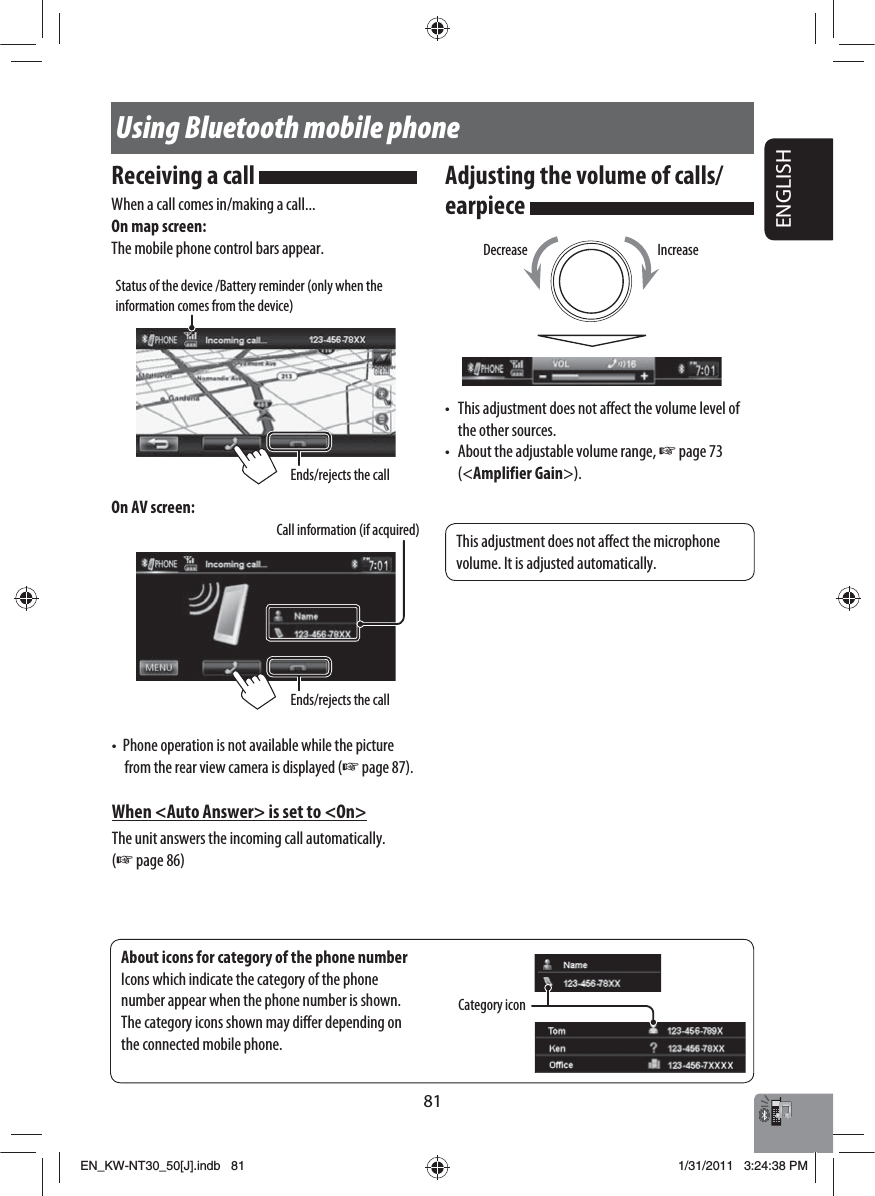

ENGLISH81Using Bluetooth mobile phoneStatus of the device /Battery reminder (only when the information comes from the device)Receiving a call When a call comes in/making a call...On map screen:The mobile phone control bars appear.On AV screen:• Phone operation is not available while the picture from the rear view camera is displayed (☞ page 87).When <Auto Answer> is set to <On>The unit answers the incoming call automatically. (☞ page 86)Adjusting the volume of calls/earpiece •  This adjustment does not affect the volume level of the other sources.•  About the adjustable volume range, ☞ page 73 (<Amplifier Gain>).Call information (if acquired)IncreaseDecreaseEnds/rejects the callEnds/rejects the callThis adjustment does not affect the microphone volume. It is adjusted automatically.About icons for category of the phone numberIcons which indicate the category of the phone number appear when the phone number is shown. The category icons shown may differ depending on the connected mobile phone.Category iconEN_KW-NT30_50[J].indb   81EN_KW-NT30_50[J].indb   811/31/2011   3:24:38 PM1/31/2011   3:24:38 PM

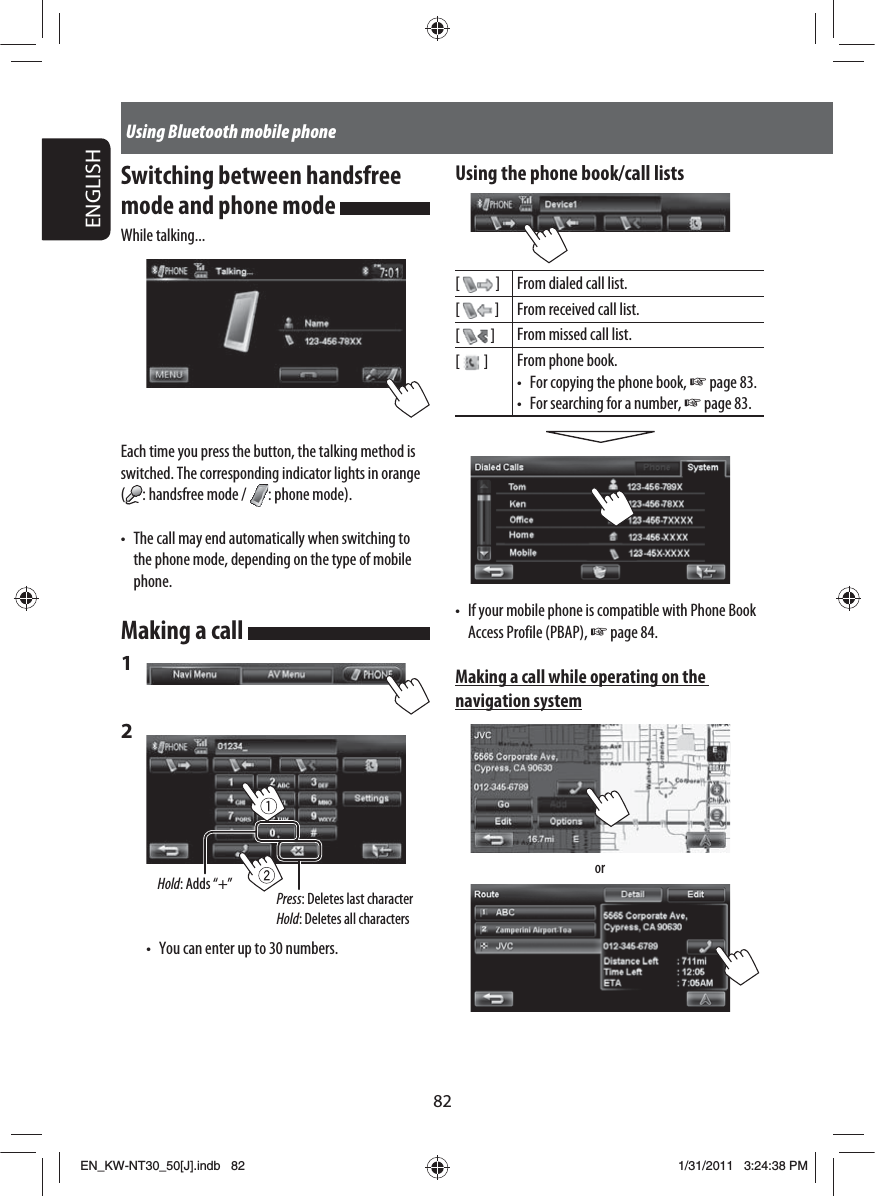

Tentative82ENGLISHSwitching between handsfree mode and phone mode While talking...Each time you press the button, the talking method is switched. The corresponding indicator lights in orange (: handsfree mode /  : phone mode).•  The call may end automatically when switching to the phone mode, depending on the type of mobile phone. Making a call 1 2 •  You can enter up to 30 numbers.Using Bluetooth mobile phoneUsing the phone book/call lists[   ] From dialed call list.[   ] From received call list.[   ] From missed call list.[   ] From phone book.•  For copying the phone book, ☞ page 83.•  For searching for a number, ☞ page 83.•  If your mobile phone is compatible with Phone Book Access Profile (PBAP), ☞ page 84.Making a call while operating on the navigation systemPress: Deletes last characterHold: Deletes all charactersHold: Adds “+”orEN_KW-NT30_50[J].indb   82EN_KW-NT30_50[J].indb   821/31/2011   3:24:38 PM1/31/2011   3:24:38 PM

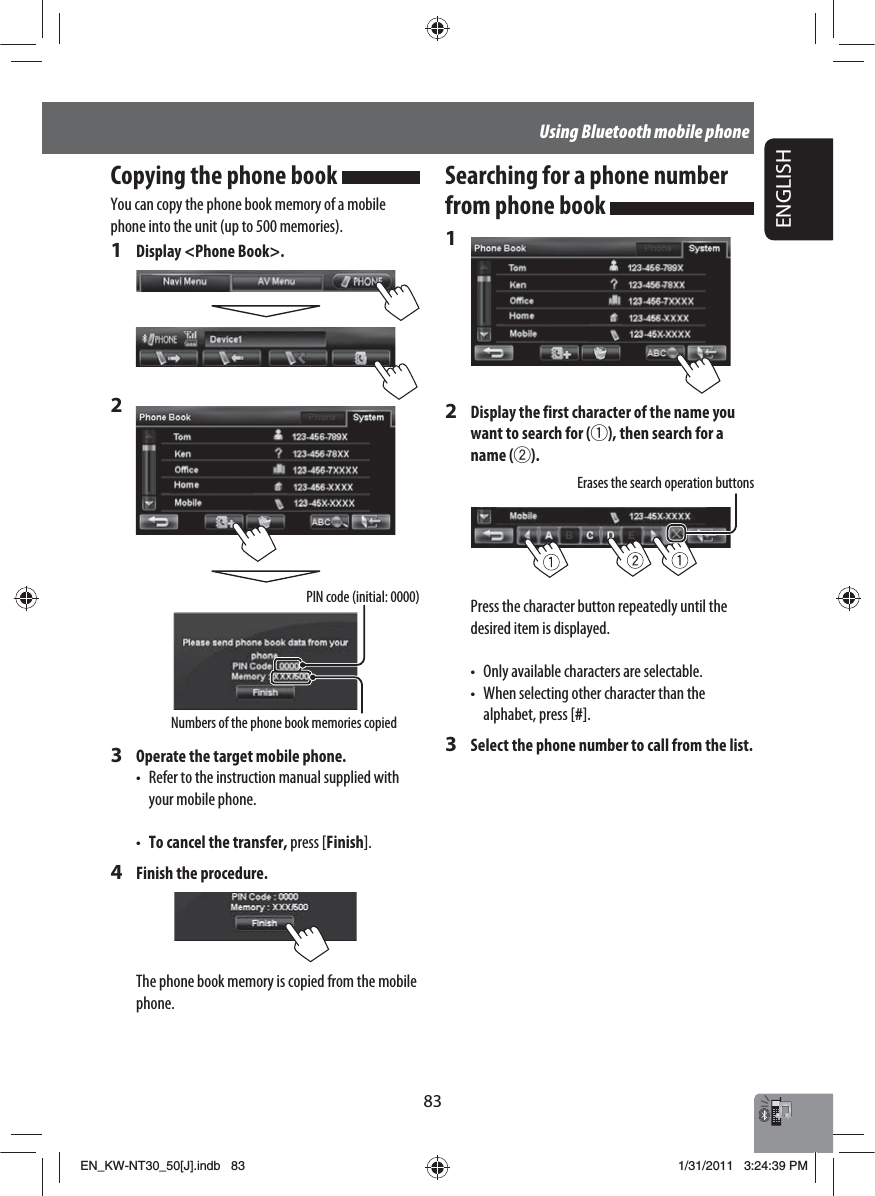

ENGLISH83Copying the phone book You can copy the phone book memory of a mobile phone into the unit (up to 500 memories).1  Display <Phone Book>.2 3  Operate the target mobile phone.•  Refer to the instruction manual supplied with your mobile phone.•  To cancel the transfer, press [Finish].4  Finish the procedure.The phone book memory is copied from the mobile phone.Searching for a phone number from phone book 1 2  Display the first character of the name you want to search for (1), then search for a name (2).Press the character button repeatedly until the desired item is displayed.•  Only available characters are selectable.•  When selecting other character than the alphabet, press [#].3  Select the phone number to call from the list.Numbers of the phone book memories copiedPIN code (initial: 0000)Erases the search operation buttonsUsing Bluetooth mobile phoneEN_KW-NT30_50[J].indb   83EN_KW-NT30_50[J].indb   831/31/2011   3:24:39 PM1/31/2011   3:24:39 PM

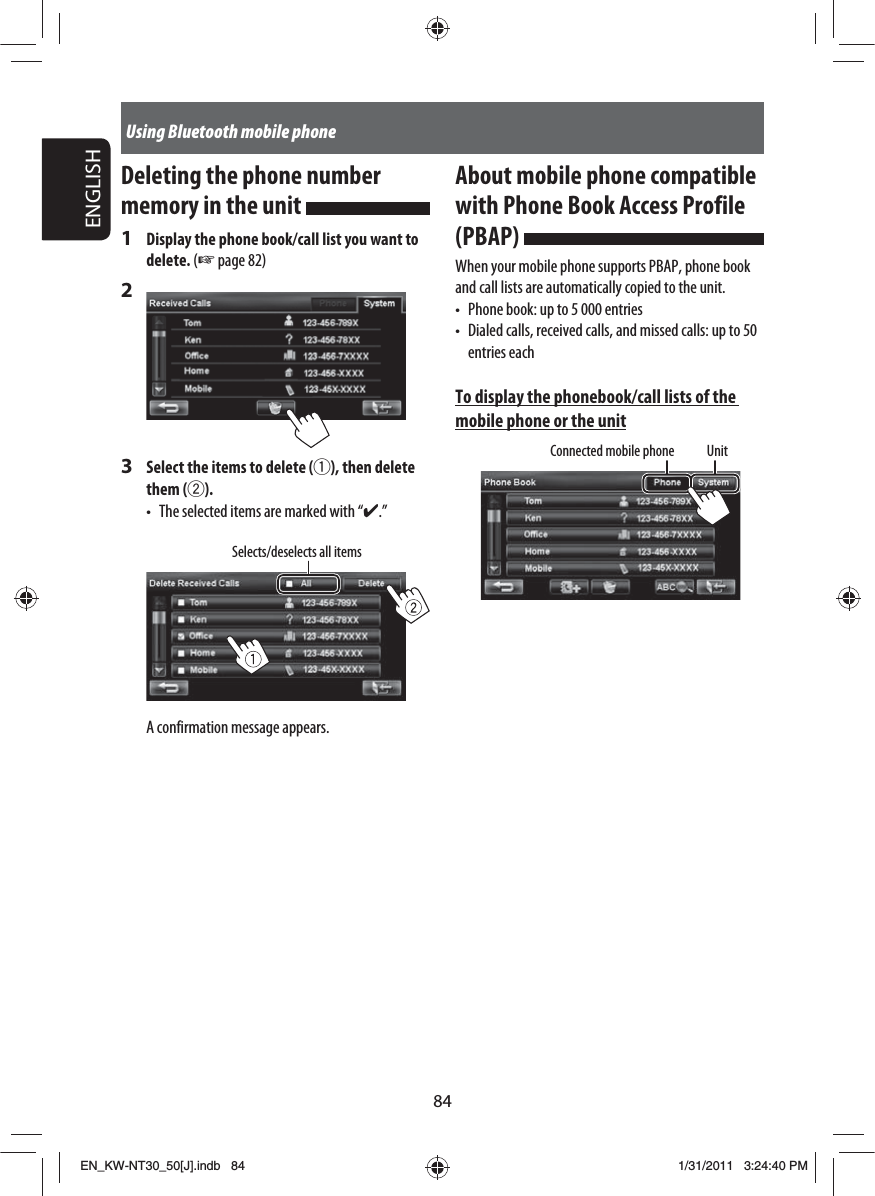

84ENGLISHAbout mobile phone compatible with Phone Book Access Profile (PBAP) When your mobile phone supports PBAP, phone book and call lists are automatically copied to the unit.•  Phone book: up to 5 000 entries•  Dialed calls, received calls, and missed calls: up to 50 entries eachTo display the phonebook/call lists of the mobile phone or the unitDeleting the phone number memory in the unit 1  Display the phone book/call list you want to delete. (☞ page 82)2 3  Select the items to delete (1), then delete them (2).•  The selected items are marked with “✔.”A confirmation message appears.Selects/deselects all itemsUsing Bluetooth mobile phoneConnected mobile phone UnitEN_KW-NT30_50[J].indb   84EN_KW-NT30_50[J].indb   841/31/2011   3:24:40 PM1/31/2011   3:24:40 PM

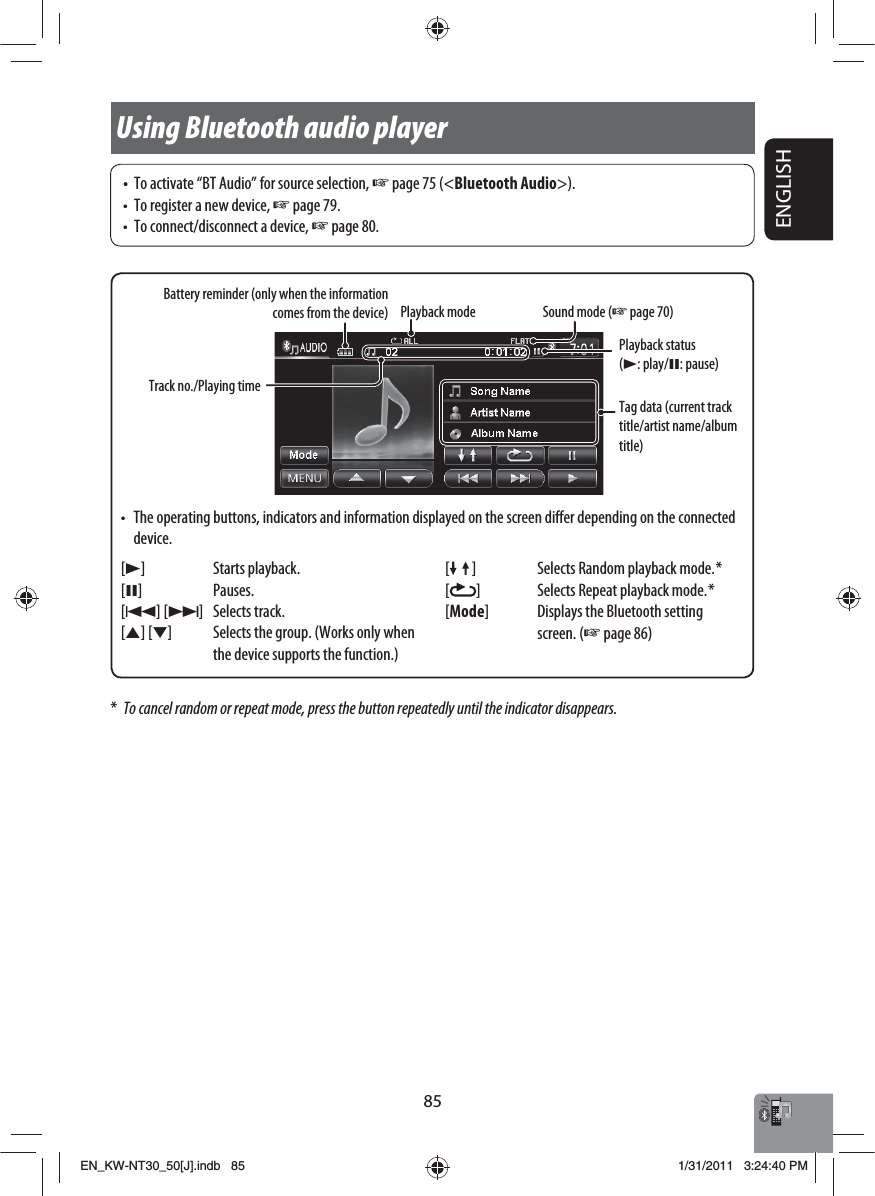

ENGLISH85Using Bluetooth audio player*  To cancel random or repeat mode, press the button repeatedly until the indicator disappears.Playback mode Sound mode (☞ page 70)[3] Starts playback.[8] Pauses.[4] [¢] Selects track.[5] [∞] Selects the group. (Works only when the device supports the function.)Tag data (current track title/artist name/album title)Playback status (3: play/8: pause)[ ] Selects Random playback mode. *[]Selects Repeat playback mode. *[Mode] Displays the Bluetooth setting screen. (☞ page 86) Battery reminder (only when the information comes from the device)•  To activate “BT Audio” for source selection, ☞ page 75 (<Bluetooth Audio>).•  To register a new device, ☞ page 79.•  To connect/disconnect a device, ☞ page 80.Track no./Playing time•  The operating buttons, indicators and information displayed on the screen differ depending on the connected device.EN_KW-NT30_50[J].indb   85EN_KW-NT30_50[J].indb   851/31/2011   3:24:40 PM1/31/2011   3:24:40 PM

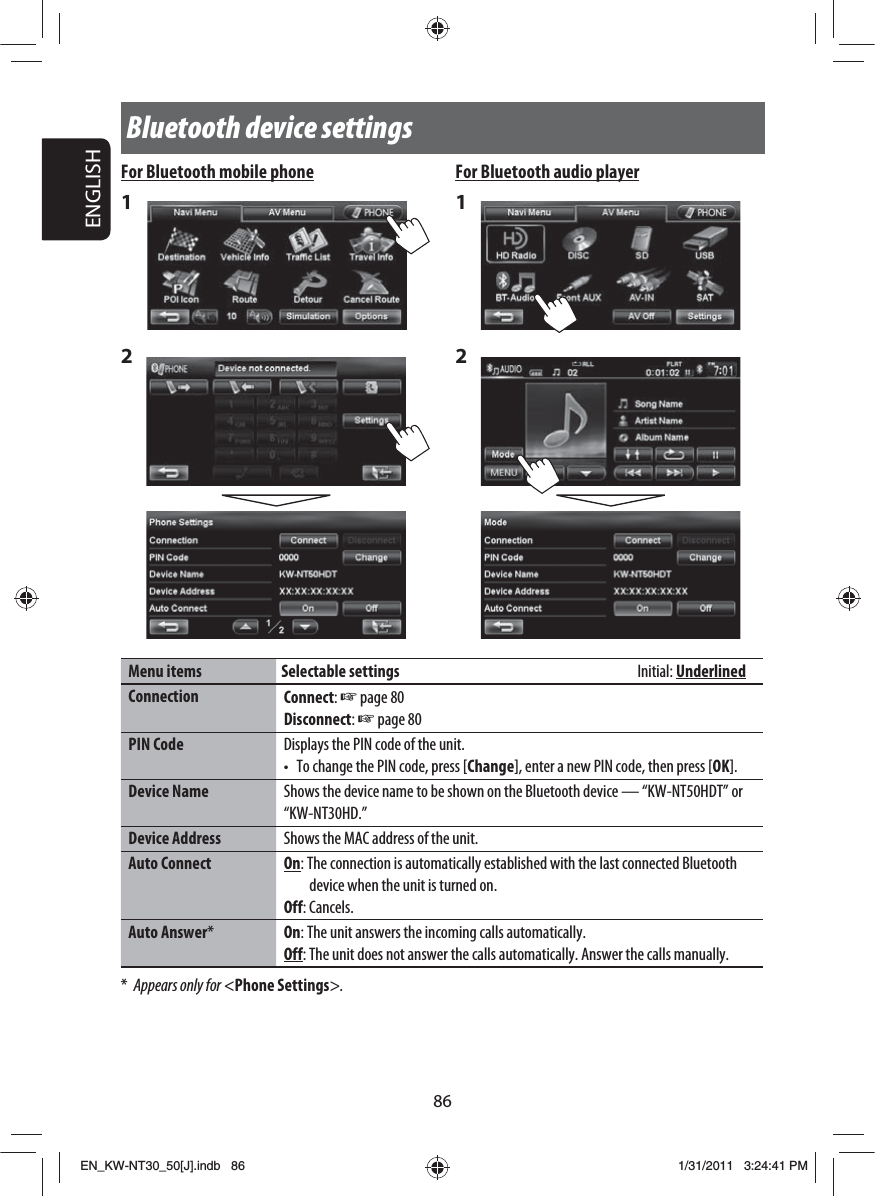

86ENGLISHFor Bluetooth mobile phone1 2 For Bluetooth audio player1 2 Menu items Selectable settings  Initial: UnderlinedConnection Connect: ☞ page 80Disconnect: ☞ page 80PIN Code Displays the PIN code of the unit.•  To change the PIN code, press [Change], enter a new PIN code, then press [OK].Device Name Shows the device name to be shown on the Bluetooth device — “KW-NT50HDT” or “KW-NT30HD.”Device Address Shows the MAC address of the unit.Auto Connect On: The connection is automatically established with the last connected Bluetooth device when the unit is turned on.Off: Cancels.Auto Answer*On: The unit answers the incoming calls automatically.Off: The unit does not answer the calls automatically. Answer the calls manually.*  Appears only for <Phone Settings>.Bluetooth device settingsEN_KW-NT30_50[J].indb   86EN_KW-NT30_50[J].indb   861/31/2011   3:24:41 PM1/31/2011   3:24:41 PM

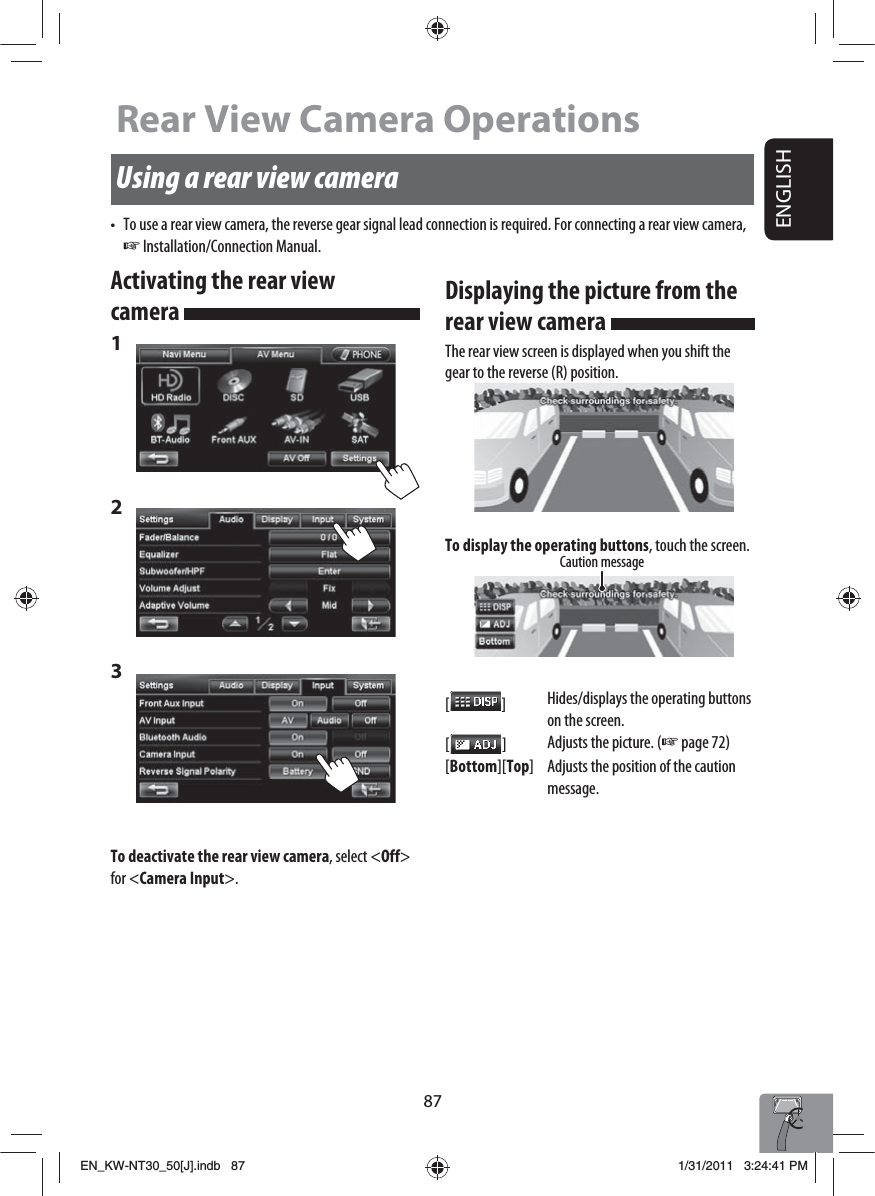

ENGLISH87Using a rear view camera•  To use a rear view camera, the reverse gear signal lead connection is required. For connecting a rear view camera, ☞ Installation/Connection Manual.Activating the rear view camera 1 2 3 To deactivate the rear view camera, select <Off> for <Camera Input>.Rear View Camera OperationsDisplaying the picture from the rear view camera The rear view screen is displayed when you shift the gear to the reverse (R) position.To display the operating buttons, touch the screen.[  ]Hides/displays the operating buttons on the screen.[  ]Adjusts the picture. (☞ page 72)[Bottom][Top] Adjusts the position of the caution message.Caution messageEN_KW-NT30_50[J].indb   87EN_KW-NT30_50[J].indb   871/31/2011   3:24:41 PM1/31/2011   3:24:41 PM

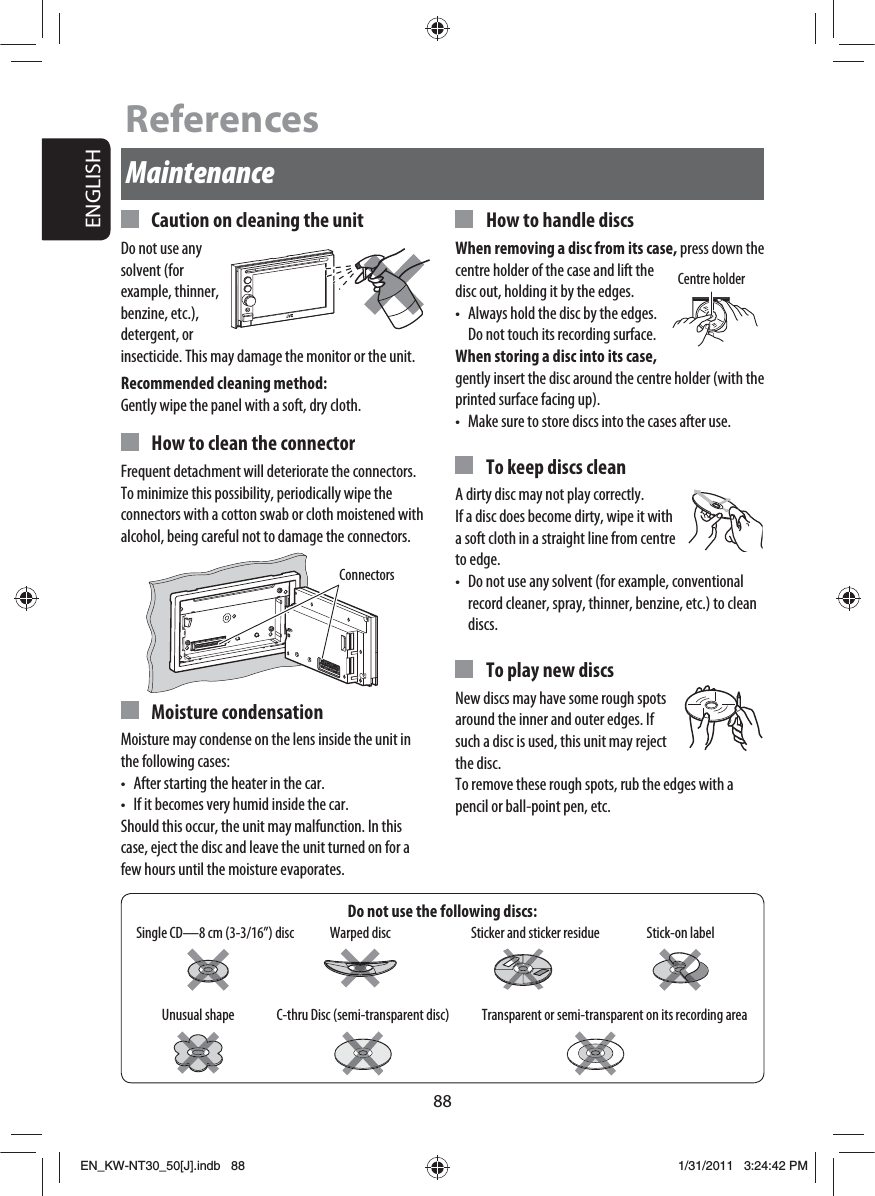

ENGLISH88Do not use the following discs:Maintenance  Caution on cleaning the unitDo not use any solvent (for example, thinner, benzine, etc.), detergent, or insecticide. This may damage the monitor or the unit.Recommended cleaning method:Gently wipe the panel with a soft, dry cloth.  How to clean the connectorFrequent detachment will deteriorate the connectors.To minimize this possibility, periodically wipe the connectors with a cotton swab or cloth moistened with alcohol, being careful not to damage the connectors. Moisture condensationMoisture may condense on the lens inside the unit in the following cases:•  After starting the heater in the car.•  If it becomes very humid inside the car.Should this occur, the unit may malfunction. In this case, eject the disc and leave the unit turned on for a few hours until the moisture evaporates.  How to handle discsWhen removing a disc from its case, press down the centre holder of the case and lift the disc out, holding it by the edges.•  Always hold the disc by the edges. Do not touch its recording surface.When storing a disc into its case, gently insert the disc around the centre holder (with the printed surface facing up).•  Make sure to store discs into the cases after use.  To keep discs cleanA dirty disc may not play correctly. If a disc does become dirty, wipe it with a soft cloth in a straight line from centre to edge.•  Do not use any solvent (for example, conventional record cleaner, spray, thinner, benzine, etc.) to clean discs.  To play new discsNew discs may have some rough spots around the inner and outer edges. If such a disc is used, this unit may reject the disc.To remove these rough spots, rub the edges with a pencil or ball-point pen, etc.Stick-on labelSticker and sticker residueUnusual shapeWarped discSingle CD—8 cm (3-3/16”) discC-thru Disc (semi-transparent disc) Transparent or semi-transparent on its recording areaCentre holderConnectorsReferencesEN_KW-NT30_50[J].indb   88EN_KW-NT30_50[J].indb   881/31/2011   3:24:42 PM1/31/2011   3:24:42 PM

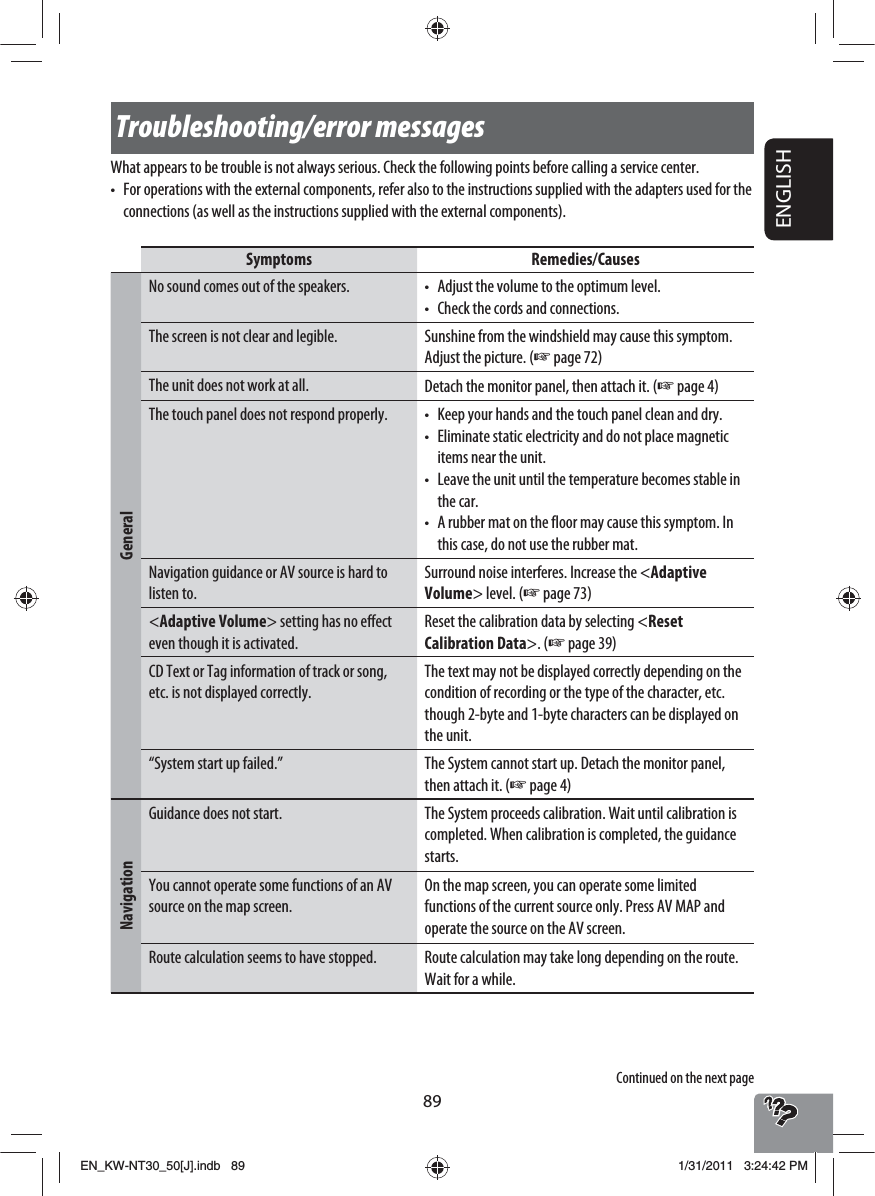

89ENGLISHTroubleshooting/error messagesWhat appears to be trouble is not always serious. Check the following points before calling a service center.•  For operations with the external components, refer also to the instructions supplied with the adapters used for the connections (as well as the instructions supplied with the external components).Symptoms Remedies/CausesGeneralNo sound comes out of the speakers. •  Adjust the volume to the optimum level.•  Check the cords and connections.The screen is not clear and legible. Sunshine from the windshield may cause this symptom.Adjust the picture. (☞ page 72)The unit does not work at all. Detach the monitor panel, then attach it. (☞ page 4)The touch panel does not respond properly. •  Keep your hands and the touch panel clean and dry.•  Eliminate static electricity and do not place magnetic items near the unit.•   Leave the unit until the temperature becomes stable in the car.•   A rubber mat on the floor may cause this symptom. In this case, do not use the rubber mat.Navigation guidance or AV source is hard to listen to.Surround noise interferes. Increase the <Adaptive Volume> level. (☞ page 73)<Adaptive Volume> setting has no effect even though it is activated.Reset the calibration data by selecting <Reset Calibration Data>. (☞ page 39)CD Text or Tag information of track or song, etc. is not displayed correctly.The text may not be displayed correctly depending on the condition of recording or the type of the character, etc. though 2-byte and 1-byte characters can be displayed on the unit.“System start up failed.” The System cannot start up. Detach the monitor panel, then attach it. (☞ page 4)NavigationGuidance does not start. The System proceeds calibration. Wait until calibration is completed. When calibration is completed, the guidance starts.You cannot operate some functions of an AV source on the map screen.On the map screen, you can operate some limited functions of the current source only. Press AV MAP and operate the source on the AV screen.Route calculation seems to have stopped. Route calculation may take long depending on the route. Wait for a while.Continued on the next pageEN_KW-NT30_50[J].indb   89EN_KW-NT30_50[J].indb   891/31/2011   3:24:42 PM1/31/2011   3:24:42 PM

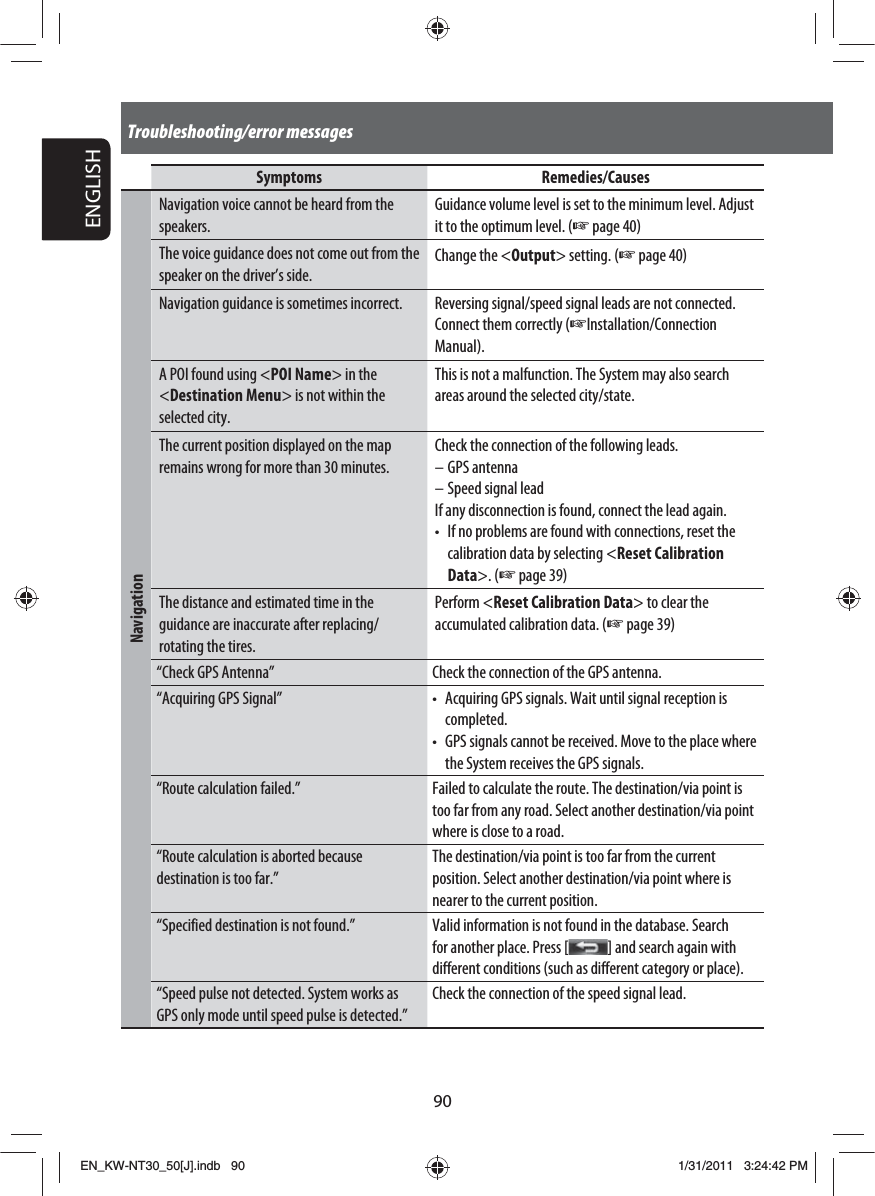

ENGLISH90Symptoms Remedies/CausesNavigationNavigation voice cannot be heard from the speakers.Guidance volume level is set to the minimum level. Adjust it to the optimum level. (☞ page 40)The voice guidance does not come out from the speaker on the driver’s side.Change the <Output> setting. (☞ page 40)Navigation guidance is sometimes incorrect. Reversing signal/speed signal leads are not connected. Connect them correctly (☞Installation/Connection Manual).A POI found using <POI Name> in the <Destination Menu> is not within the selected city.This is not a malfunction. The System may also search areas around the selected city/state.The current position displayed on the map remains wrong for more than 30 minutes.Check the connection of the following leads.– GPS antenna– Speed signal leadIf any disconnection is found, connect the lead again.•  If no problems are found with connections, reset the calibration data by selecting <Reset Calibration Data>. (☞ page 39)The distance and estimated time in the guidance are inaccurate after replacing/rotating the tires.Perform <Reset Calibration Data> to clear the accumulated calibration data. (☞ page 39)“Check GPS Antenna” Check the connection of the GPS antenna.“Acquiring GPS Signal” •  Acquiring GPS signals. Wait until signal reception is completed.•  GPS signals cannot be received. Move to the place where the System receives the GPS signals.“Route calculation failed.” Failed to calculate the route. The destination/via point is too far from any road. Select another destination/via point where is close to a road.“Route calculation is aborted because destination is too far.”The destination/via point is too far from the current position. Select another destination/via point where is nearer to the current position.“Specified destination is not found.” Valid information is not found in the database. Search for another place. Press [ ] and search again with different conditions (such as different category or place).“Speed pulse not detected. System works as GPS only mode until speed pulse is detected.”Check the connection of the speed signal lead.Troubleshooting/error messagesEN_KW-NT30_50[J].indb   90EN_KW-NT30_50[J].indb   901/31/2011   3:24:42 PM1/31/2011   3:24:42 PM

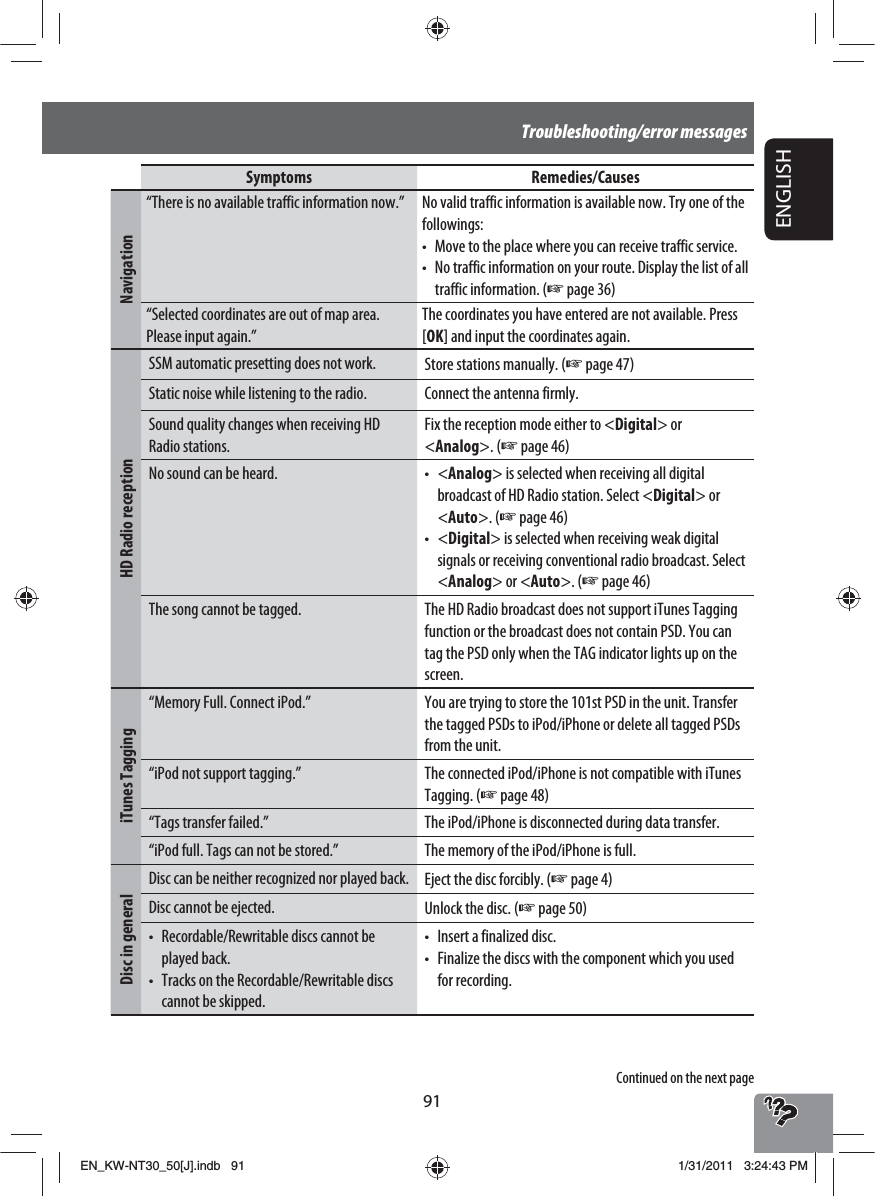

91ENGLISHSymptoms Remedies/CausesNavigation“There is no available traffic information now.” No valid traffic information is available now. Try one of the followings:•  Move to the place where you can receive traffic service.•  No traffic information on your route. Display the list of all traffic information. (☞ page 36)“Selected coordinates are out of map area. Please input again.”The coordinates you have entered are not available. Press [OK] and input the coordinates again.HD Radio receptionSSM automatic presetting does not work. Store stations manually. (☞ page 47)Static noise while listening to the radio. Connect the antenna firmly.Sound quality changes when receiving HD Radio stations.Fix the reception mode either to <Digital> or <Analog>. (☞ page 46)No sound can be heard. •  <Analog> is selected when receiving all digital broadcast of HD Radio station. Select <Digital> or <Auto>. (☞ page 46)• <Digital> is selected when receiving weak digital signals or receiving conventional radio broadcast. Select <Analog> or <Auto>. (☞ page 46)The song cannot be tagged. The HD Radio broadcast does not support iTunes Tagging function or the broadcast does not contain PSD. You can tag the PSD only when the TAG indicator lights up on the screen.iTunes Tagging“Memory Full. Connect iPod.” You are trying to store the 101st PSD in the unit. Transfer the tagged PSDs to iPod/iPhone or delete all tagged PSDs from the unit.“iPod not support tagging.” The connected iPod/iPhone is not compatible with iTunes Tagging. (☞ page 48)“Tags transfer failed.” The iPod/iPhone is disconnected during data transfer.“iPod full. Tags can not be stored.” The memory of the iPod/iPhone is full.Disc in generalDisc can be neither recognized nor played back. Eject the disc forcibly. (☞ page 4)Disc cannot be ejected. Unlock the disc. (☞ page 50)•  Recordable/Rewritable discs cannot be played back.•  Tracks on the Recordable/Rewritable discs cannot be skipped.•  Insert a finalized disc.•  Finalize the discs with the component which you used for recording.Troubleshooting/error messagesContinued on the next pageEN_KW-NT30_50[J].indb   91EN_KW-NT30_50[J].indb   911/31/2011   3:24:43 PM1/31/2011   3:24:43 PM

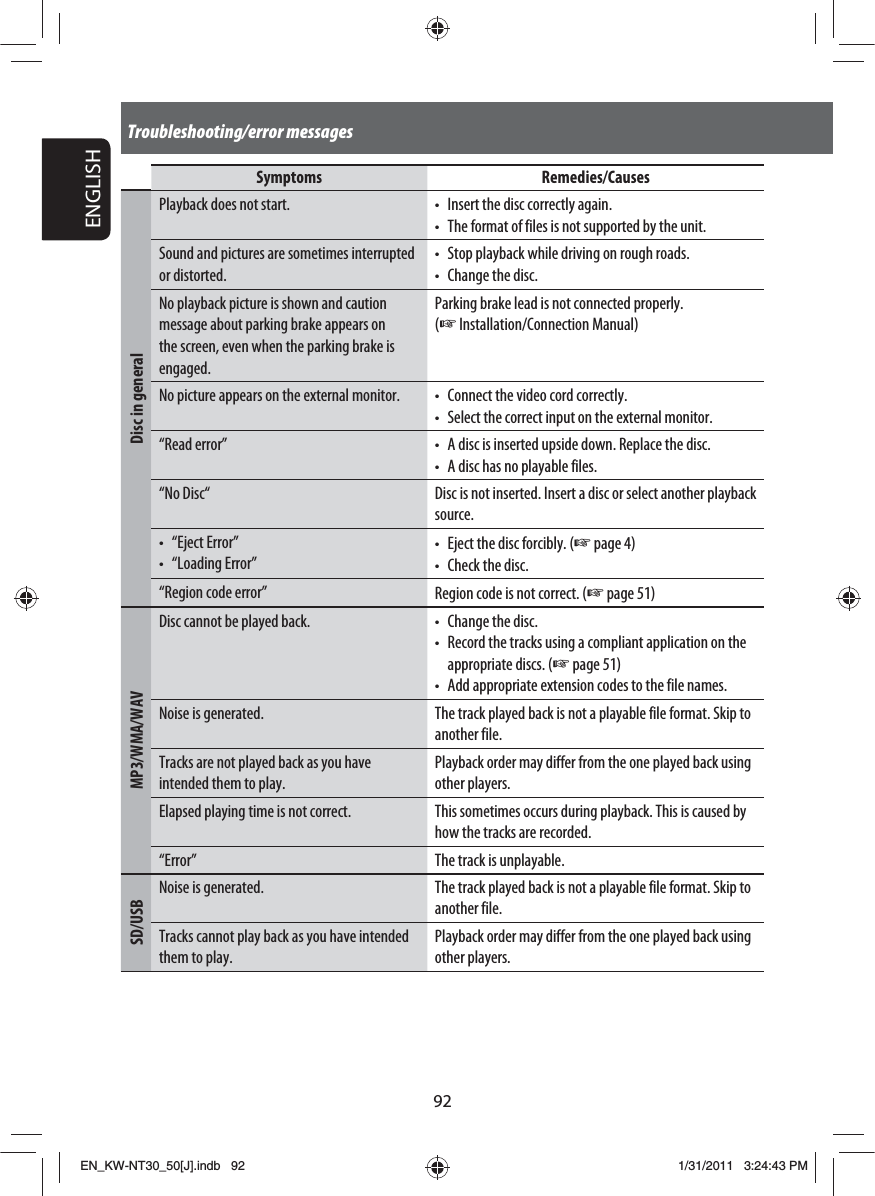

ENGLISH92Symptoms Remedies/CausesDisc in generalPlayback does not start. •  Insert the disc correctly again.•  The format of files is not supported by the unit.Sound and pictures are sometimes interrupted or distorted.•  Stop playback while driving on rough roads.• Change the disc.No playback picture is shown and caution message about parking brake appears on the screen, even when the parking brake is engaged.Parking brake lead is not connected properly. (☞ Installation/Connection Manual)No picture appears on the external monitor. •  Connect the video cord correctly.•  Select the correct input on the external monitor.“Read error” •  A disc is inserted upside down. Replace the disc.•  A disc has no playable files.“No Disc“ Disc is not inserted. Insert a disc or select another playback source.• “Eject Error”• “Loading Error”•  Eject the disc forcibly. (☞ page 4)• Check the disc.“Region code error” Region code is not correct. (☞ page 51)MP3/WMA/WAVDisc cannot be played back. •  Change the disc.•  Record the tracks using a compliant application on the appropriate discs. (☞ page 51)•  Add appropriate extension codes to the file names.Noise is generated. The track played back is not a playable file format. Skip to another file.Tracks are not played back as you have intended them to play.Playback order may differ from the one played back using other players.Elapsed playing time is not correct. This sometimes occurs during playback. This is caused by how the tracks are recorded.“Error” The track is unplayable.SD/USB Noise is generated. The track played back is not a playable file format. Skip to another file. Tracks cannot play back as you have intended them to play.Playback order may differ from the one played back using other players.Troubleshooting/error messagesEN_KW-NT30_50[J].indb   92EN_KW-NT30_50[J].indb   921/31/2011   3:24:43 PM1/31/2011   3:24:43 PM

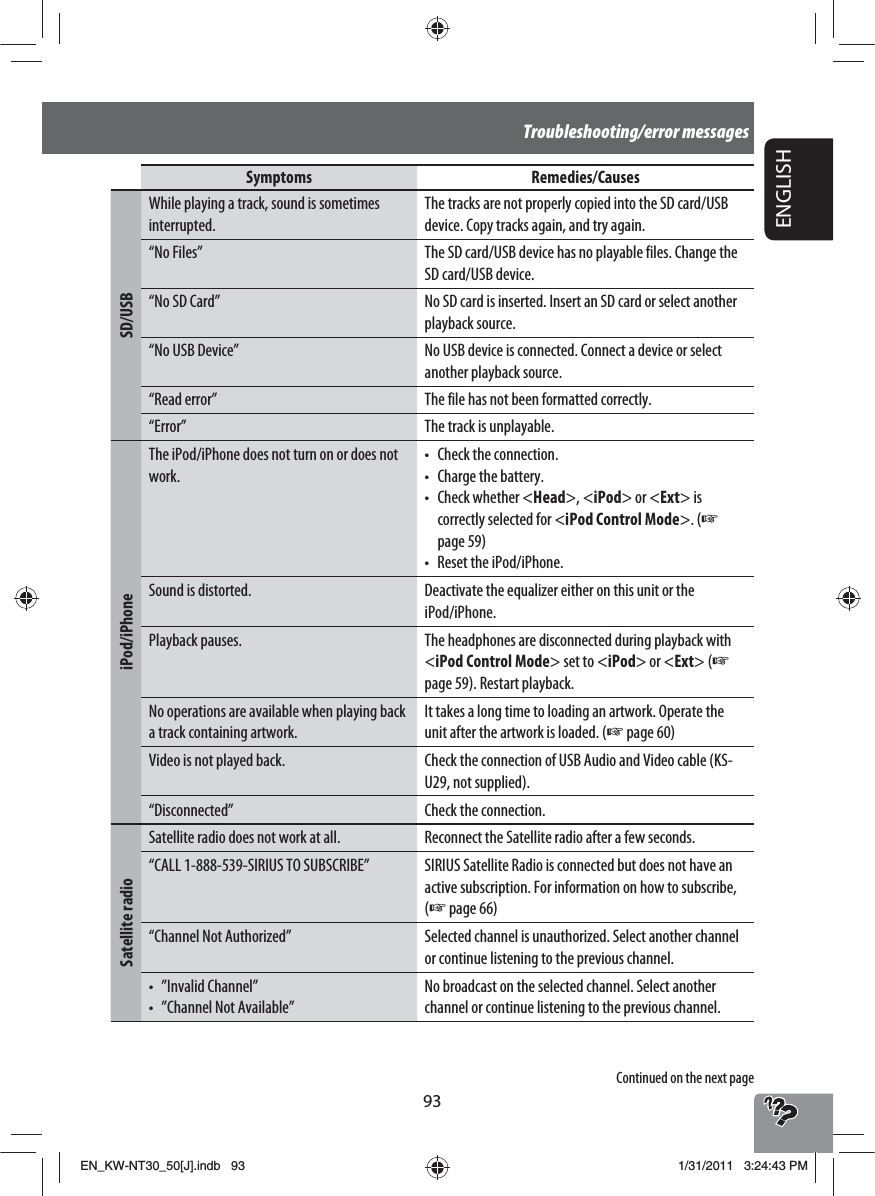

93ENGLISHSymptoms Remedies/CausesSD/USB While playing a track, sound is sometimes interrupted.The tracks are not properly copied into the SD card/USB device. Copy tracks again, and try again.“No Files” The SD card/USB device has no playable files. Change the SD card/USB device.“No SD Card” No SD card is inserted. Insert an SD card or select another playback source.“No USB Device” No USB device is connected. Connect a device or select another playback source.“Read error” The file has not been formatted correctly.“Error” The track is unplayable.iPod/iPhoneThe iPod/iPhone does not turn on or does not work.• Check the connection.•  Charge the battery.• Check whether <Head>, <iPod> or <Ext> is correctly selected for <iPod Control Mode>. (☞ page 59)•  Reset the iPod/iPhone.Sound is distorted. Deactivate the equalizer either on this unit or the iPod/iPhone.Playback pauses. The headphones are disconnected during playback with <iPod Control Mode> set to <iPod> or <Ext> (☞ page 59). Restart playback.No operations are available when playing back a track containing artwork.It takes a long time to loading an artwork. Operate the unit after the artwork is loaded. (☞ page 60)Video is not played back. Check the connection of USB Audio and Video cable (KS-U29, not supplied).“Disconnected” Check the connection.Satellite radioSatellite radio does not work at all. Reconnect the Satellite radio after a few seconds.“CALL 1-888-539-SIRIUS TO SUBSCRIBE”  SIRIUS Satellite Radio is connected but does not have an active subscription. For information on how to subscribe, (☞ page 66)“Channel Not Authorized” Selected channel is unauthorized. Select another channel or continue listening to the previous channel.• ”Invalid Channel”•  ”Channel Not Available”No broadcast on the selected channel. Select another channel or continue listening to the previous channel.Troubleshooting/error messagesContinued on the next pageEN_KW-NT30_50[J].indb   93EN_KW-NT30_50[J].indb   931/31/2011   3:24:43 PM1/31/2011   3:24:43 PM

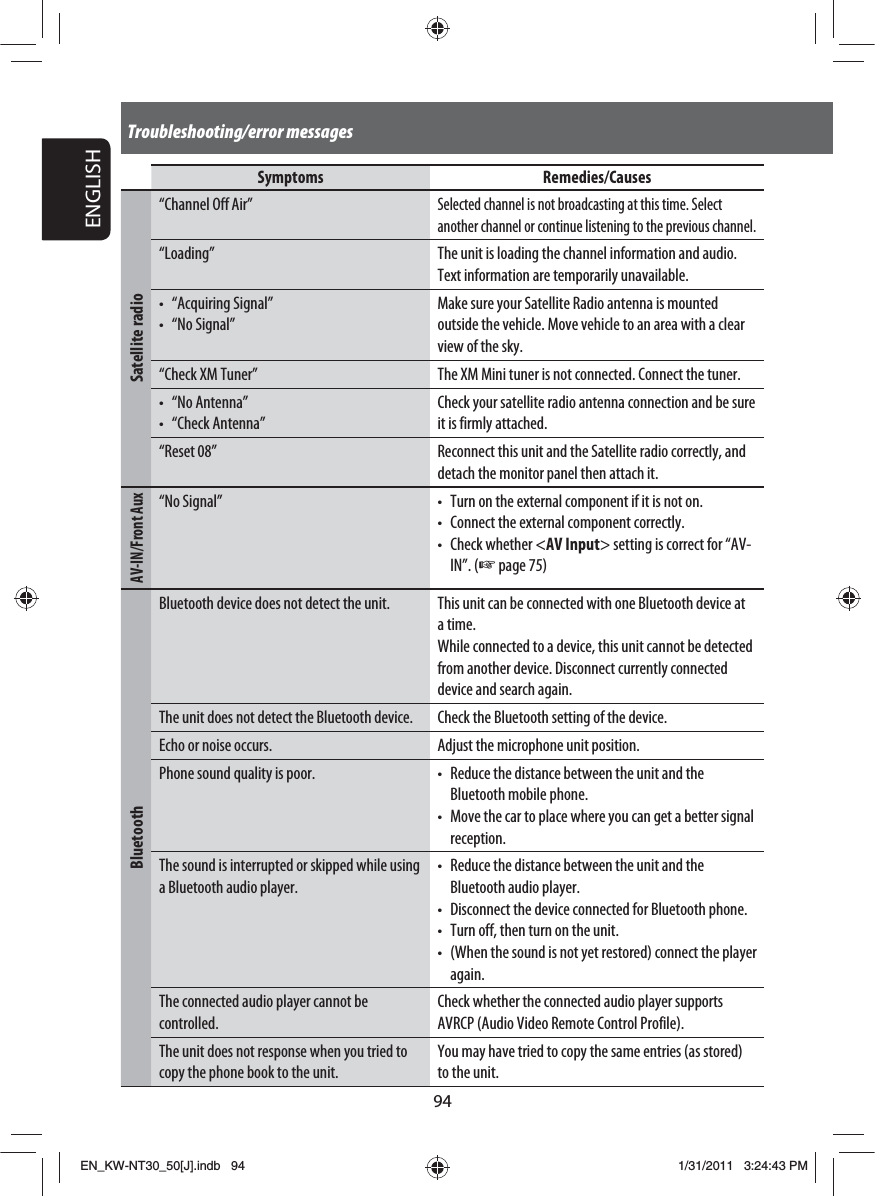

ENGLISH94Troubleshooting/error messagesSymptoms Remedies/CausesSatellite radio“Channel Off Air”Selected channel is not broadcasting at this time. Select another channel or continue listening to the previous channel. “Loading” The unit is loading the channel information and audio. Text information are temporarily unavailable.• “Acquiring Signal”• “No Signal”Make sure your Satellite Radio antenna is mounted outside the vehicle. Move vehicle to an area with a clear view of the sky.“Check XM Tuner” The XM Mini tuner is not connected. Connect the tuner.• “No Antenna”• “Check Antenna”Check your satellite radio antenna connection and be sure it is firmly attached.“Reset 08” Reconnect this unit and the Satellite radio correctly, and detach the monitor panel then attach it.AV-IN/Front Aux “No Signal” •  Turn on the external component if it is not on.•  Connect the external component correctly.•  Check whether <AV Input> setting is correct for “AV-IN”. (☞ page 75)BluetoothBluetooth device does not detect the unit. This unit can be connected with one Bluetooth device at a time.While connected to a device, this unit cannot be detected from another device. Disconnect currently connected device and search again.The unit does not detect the Bluetooth device. Check the Bluetooth setting of the device.Echo or noise occurs. Adjust the microphone unit position.Phone sound quality is poor. •  Reduce the distance between the unit and the Bluetooth mobile phone.•  Move the car to place where you can get a better signal reception.The sound is interrupted or skipped while using a Bluetooth audio player.•  Reduce the distance between the unit and the Bluetooth audio player.•  Disconnect the device connected for Bluetooth phone.•  Turn off, then turn on the unit.•  (When the sound is not yet restored) connect the player again.The connected audio player cannot be controlled.Check whether the connected audio player supports AVRCP (Audio Video Remote Control Profile).The unit does not response when you tried to copy the phone book to the unit.You may have tried to copy the same entries (as stored) to the unit.EN_KW-NT30_50[J].indb   94EN_KW-NT30_50[J].indb   941/31/2011   3:24:43 PM1/31/2011   3:24:43 PM

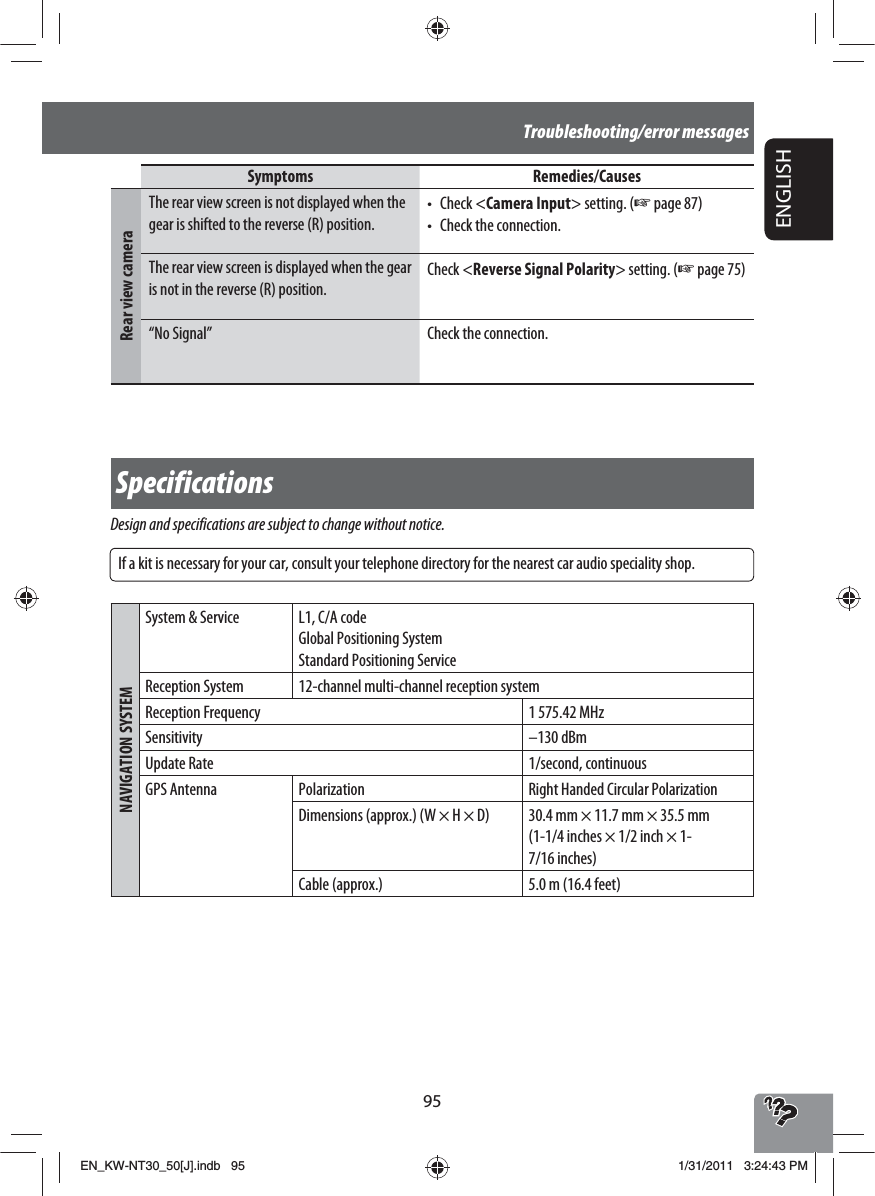

95ENGLISHSpecificationsDesign and specifications are subject to change without notice.NAVIGATION SYSTEMSystem & Service L1, C/A codeGlobal Positioning SystemStandard Positioning ServiceReception System 12-channel multi-channel reception systemReception Frequency 1 575.42 MHzSensitivity –130 dBmUpdate Rate 1/second, continuousGPS Antenna Polarization Right Handed Circular PolarizationDimensions (approx.) (W × H × D) 30.4 mm × 11.7 mm × 35.5 mm(1-1/4 inches × 1/2 inch × 1-7/16 inches)Cable (approx.) 5.0 m (16.4 feet)Troubleshooting/error messagesSymptoms Remedies/CausesRear view cameraThe rear view screen is not displayed when the gear is shifted to the reverse (R) position.• Check <Camera Input> setting. (☞ page 87)•  Check the connection.The rear view screen is displayed when the gear is not in the reverse (R) position.Check <Reverse Signal Polarity> setting. (☞ page 75)“No Signal” Check the connection.If a kit is necessary for your car, consult your telephone directory for the nearest car audio speciality shop.EN_KW-NT30_50[J].indb   95EN_KW-NT30_50[J].indb   951/31/2011   3:24:43 PM1/31/2011   3:24:43 PM

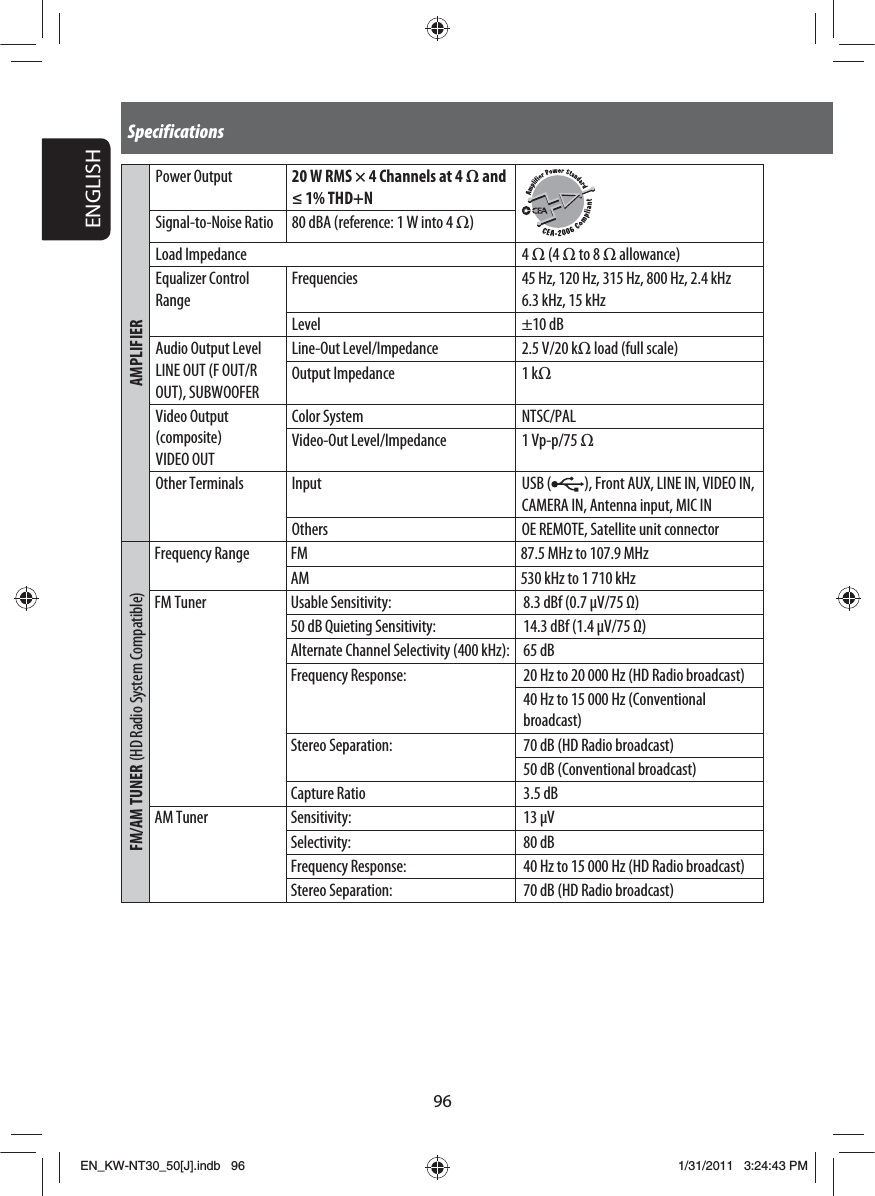

ENGLISH96AMPLIFIERPower Output 20 W RMS × 4 Channels at 4 Ω and ≤ 1% THD+NSignal-to-Noise Ratio 80 dBA (reference: 1 W into 4 Ω)Load Impedance 4  (4  to 8  allowance)Equalizer Control RangeFrequencies 45 Hz, 120 Hz, 315 Hz, 800 Hz, 2.4 kHz 6.3 kHz, 15 kHzLevel ±10 dBAudio Output LevelLINE OUT (F OUT/R OUT), SUBWOOFERLine-Out Level/Impedance 2.5 V/20 kΩ load (full scale)Output Impedance 1 kΩVideo Output (composite) VIDEO OUTColor System NTSC/PALVideo-Out Level/Impedance 1 Vp-p/75 ΩOther Terminals Input USB ( ), Front AUX, LINE IN, VIDEO IN, CAMERA IN, Antenna input, MIC INOthers OE REMOTE, Satellite unit connectorFM/AM TUNER (HD Radio System Compatible)Frequency Range FM 87.5 MHz to 107.9 MHzAM 530 kHz to 1 710 kHzFM Tuner Usable Sensitivity: 8.3 dBf (0.7 μV/75 Ω)50 dB Quieting Sensitivity: 14.3 dBf (1.4 μV/75 Ω)Alternate Channel Selectivity (400 kHz): 65 dBFrequency Response: 20 Hz to 20 000 Hz (HD Radio broadcast)40 Hz to 15 000 Hz (Conventional broadcast)Stereo Separation: 70 dB (HD Radio broadcast)50 dB (Conventional broadcast)Capture Ratio 3.5 dB AM Tuner Sensitivity: 13 μVSelectivity: 80 dBFrequency Response: 40 Hz to 15 000 Hz (HD Radio broadcast)Stereo Separation: 70 dB (HD Radio broadcast)SpecificationsEN_KW-NT30_50[J].indb   96EN_KW-NT30_50[J].indb   961/31/2011   3:24:43 PM1/31/2011   3:24:43 PM

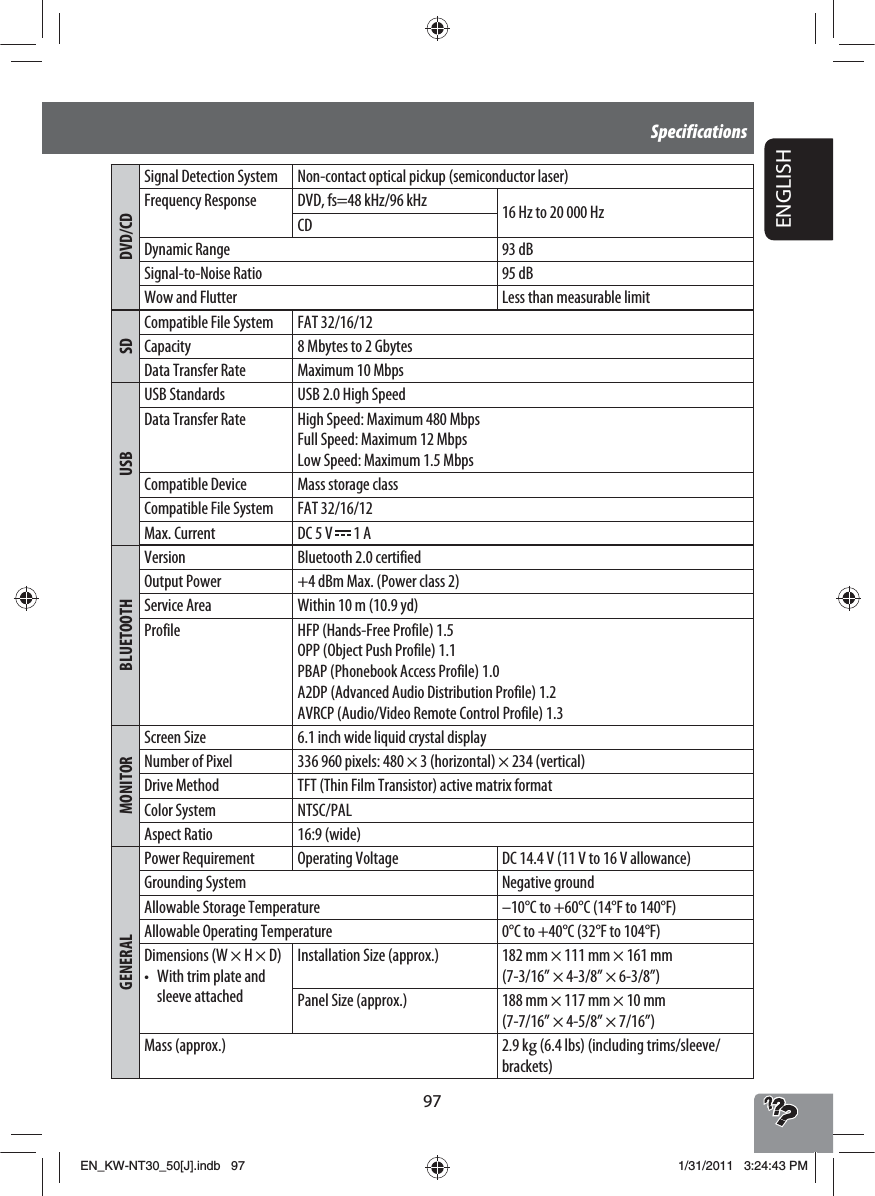

97ENGLISHDVD/CDSignal Detection System Non-contact optical pickup (semiconductor laser)Frequency Response DVD, fs=48 kHz/96 kHz 16 Hz to 20 000 HzCDDynamic Range 93 dBSignal-to-Noise Ratio 95 dBWow and Flutter Less than measurable limitSDCompatible File System FAT 32/16/12Capacity 8 Mbytes to 2 GbytesData Transfer Rate Maximum 10 MbpsUSBUSB Standards USB 2.0 High SpeedData Transfer Rate High Speed: Maximum 480 MbpsFull Speed: Maximum 12 MbpsLow Speed: Maximum 1.5 MbpsCompatible Device Mass storage classCompatible File System FAT 32/16/12Max. Current DC 5 V   1 ABLUETOOTHVersion Bluetooth 2.0 certifiedOutput Power +4 dBm Max. (Power class 2)Service Area Within 10 m (10.9 yd)Profile HFP (Hands-Free Profile) 1.5OPP (Object Push Profile) 1.1PBAP (Phonebook Access Profile) 1.0A2DP (Advanced Audio Distribution Profile) 1.2AVRCP (Audio/Video Remote Control Profile) 1.3MONITORScreen Size 6.1 inch wide liquid crystal displayNumber of Pixel 336 960 pixels: 480 × 3 (horizontal) × 234 (vertical)Drive Method TFT (Thin Film Transistor) active matrix formatColor System NTSC/PALAspect Ratio 16:9 (wide)GENERALPower Requirement Operating Voltage DC 14.4 V (11 V to 16 V allowance)Grounding System Negative groundAllowable Storage Temperature –10°C to +60°C (14°F to 140°F)Allowable Operating Temperature 0°C to +40°C (32°F to 104°F)Dimensions (W × H × D)•  With trim plate and sleeve attachedInstallation Size (approx.) 182 mm × 111 mm × 161 mm(7-3/16” × 4-3/8” × 6-3/8”)Panel Size (approx.) 188 mm × 117 mm × 10 mm(7-7/16” × 4-5/8” × 7/16”)Mass (approx.) 2.9 kg (6.4 lbs) (including trims/sleeve/brackets)SpecificationsEN_KW-NT30_50[J].indb   97EN_KW-NT30_50[J].indb   971/31/2011   3:24:43 PM1/31/2011   3:24:43 PM

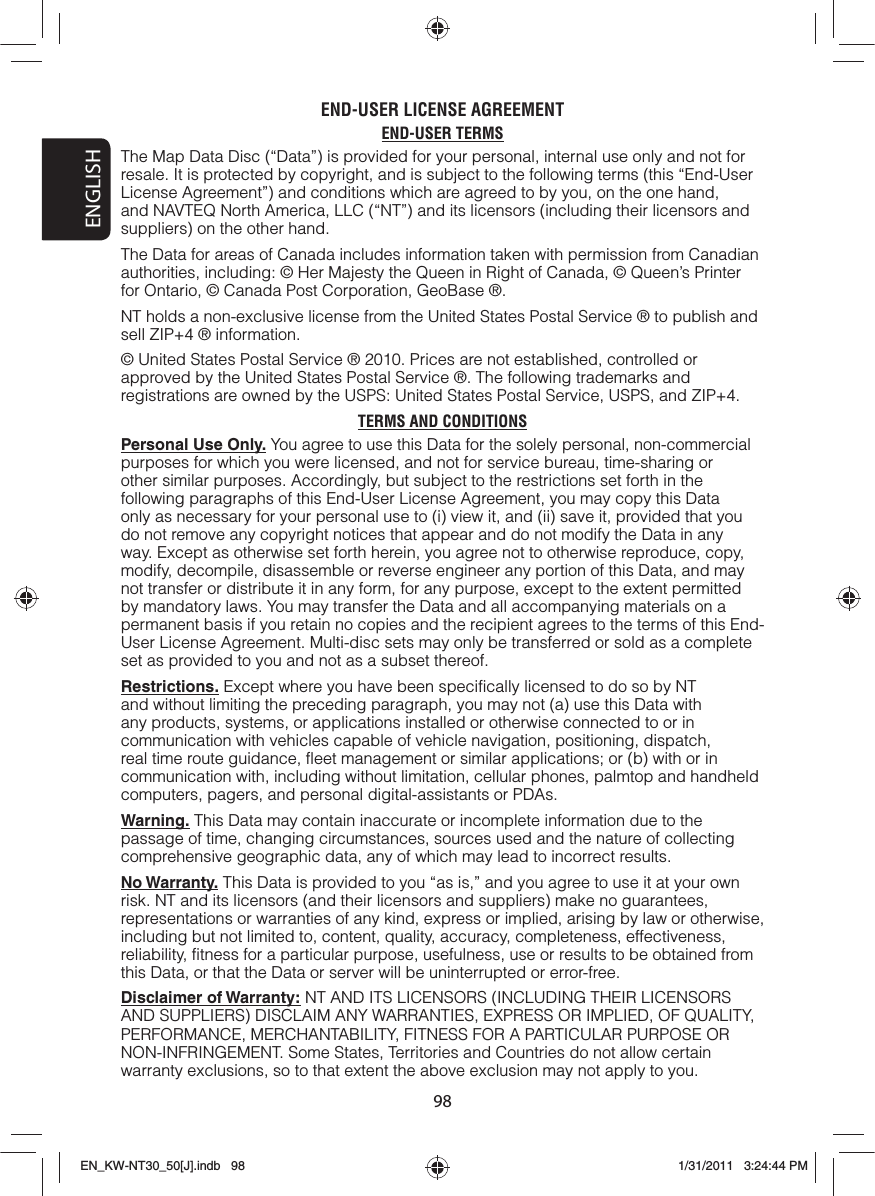

ENGLISH98END-USER LICENSE AGREEMENTEND-USER TERMSThe Map Data Disc (“Data”) is provided for your personal, internal use only and not for resale. It is protected by copyright, and is subject to the following terms (this “End-User License Agreement”) and conditions which are agreed to by you, on the one hand, and NAVTEQ North America, LLC (“NT”) and its licensors (including their licensors and suppliers) on the other hand.The Data for areas of Canada includes information taken with permission from Canadian authorities, including: © Her Majesty the Queen in Right of Canada, © Queen’s Printer for Ontario, © Canada Post Corporation, GeoBase ®.NT holds a non-exclusive license from the United States Postal Service ® to publish and sell ZIP+4 ® information.© United States Postal Service ® 2010. Prices are not established, controlled or approved by the United States Postal Service ®. The following trademarks and registrations are owned by the USPS: United States Postal Service, USPS, and ZIP+4.TERMS AND CONDITIONSPersonal Use Only. You agree to use this Data for the solely personal, non-commercial purposes for which you were licensed, and not for service bureau, time-sharing or other similar purposes. Accordingly, but subject to the restrictions set forth in the following paragraphs of this End-User License Agreement, you may copy this Data only as necessary for your personal use to (i) view it, and (ii) save it, provided that you do not remove any copyright notices that appear and do not modify the Data in any way. Except as otherwise set forth herein, you agree not to otherwise reproduce, copy, modify, decompile, disassemble or reverse engineer any portion of this Data, and may not transfer or distribute it in any form, for any purpose, except to the extent permitted by mandatory laws. You may transfer the Data and all accompanying materials on a permanent basis if you retain no copies and the recipient agrees to the terms of this End-User License Agreement. Multi-disc sets may only be transferred or sold as a complete set as provided to you and not as a subset thereof.Restrictions. Except where you have been specifically licensed to do so by NT and without limiting the preceding paragraph, you may not (a) use this Data with any products, systems, or applications installed or otherwise connected to or in communication with vehicles capable of vehicle navigation, positioning, dispatch, real time route guidance, fleet management or similar applications; or (b) with or in communication with, including without limitation, cellular phones, palmtop and handheld computers, pagers, and personal digital-assistants or PDAs.Warning. This Data may contain inaccurate or incomplete information due to the passage of time, changing circumstances, sources used and the nature of collecting comprehensive geographic data, any of which may lead to incorrect results.No Warranty. This Data is provided to you “as is,” and you agree to use it at your own risk. NT and its licensors (and their licensors and suppliers) make no guarantees, representations or warranties of any kind, express or implied, arising by law or otherwise, including but not limited to, content, quality, accuracy, completeness, effectiveness, reliability, fitness for a particular purpose, usefulness, use or results to be obtained from this Data, or that the Data or server will be uninterrupted or error-free.Disclaimer of Warranty: NT AND ITS LICENSORS (INCLUDING THEIR LICENSORS AND SUPPLIERS) DISCLAIM ANY WARRANTIES, EXPRESS OR IMPLIED, OF QUALITY, PERFORMANCE, MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR NON-INFRINGEMENT. Some States, Territories and Countries do not allow certain warranty exclusions, so to that extent the above exclusion may not apply to you.EN_KW-NT30_50[J].indb   98EN_KW-NT30_50[J].indb   981/31/2011   3:24:44 PM1/31/2011   3:24:44 PM

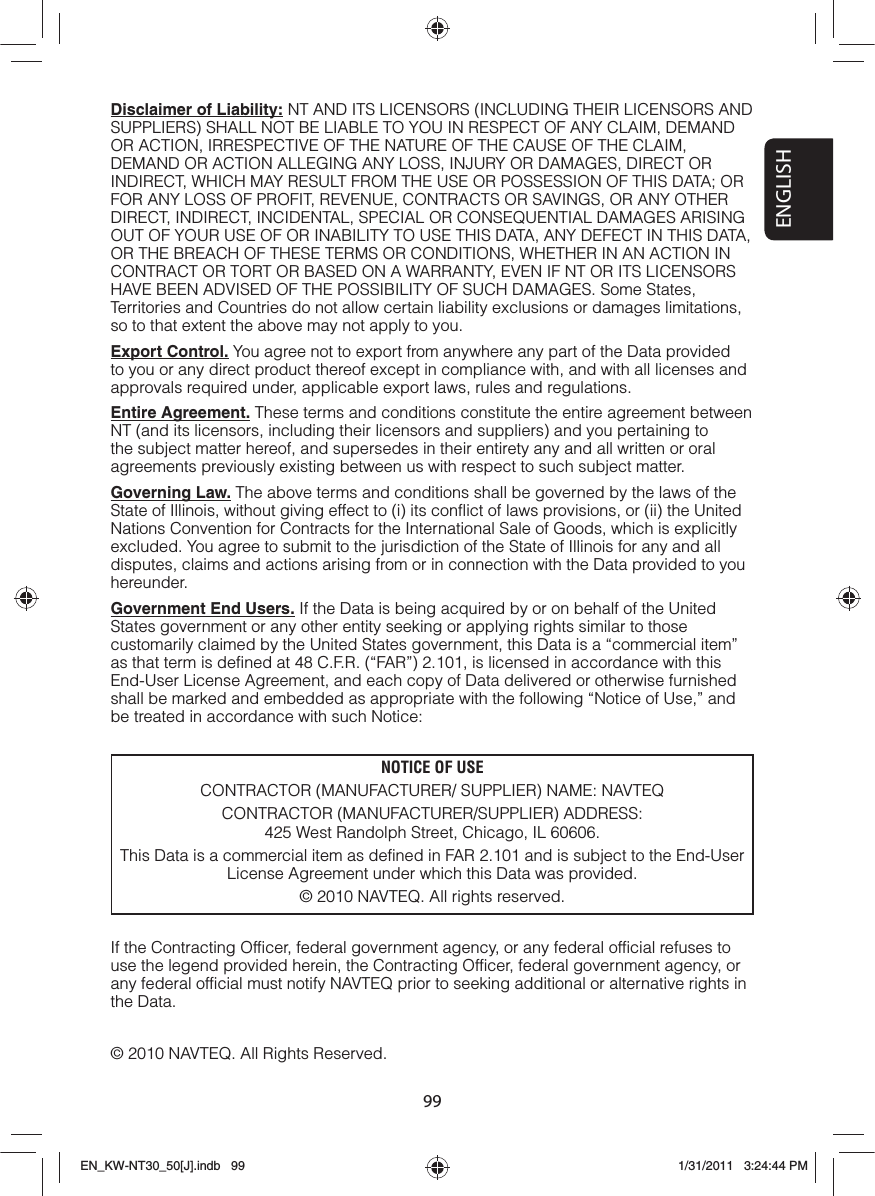

99ENGLISHDisclaimer of Liability: NT AND ITS LICENSORS (INCLUDING THEIR LICENSORS AND SUPPLIERS) SHALL NOT BE LIABLE TO YOU IN RESPECT OF ANY CLAIM, DEMAND OR ACTION, IRRESPECTIVE OF THE NATURE OF THE CAUSE OF THE CLAIM, DEMAND OR ACTION ALLEGING ANY LOSS, INJURY OR DAMAGES, DIRECT OR INDIRECT, WHICH MAY RESULT FROM THE USE OR POSSESSION OF THIS DATA; OR FOR ANY LOSS OF PROFIT, REVENUE, CONTRACTS OR SAVINGS, OR ANY OTHER DIRECT, INDIRECT, INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF YOUR USE OF OR INABILITY TO USE THIS DATA, ANY DEFECT IN THIS DATA, OR THE BREACH OF THESE TERMS OR CONDITIONS, WHETHER IN AN ACTION IN CONTRACT OR TORT OR BASED ON A WARRANTY, EVEN IF NT OR ITS LICENSORS HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Some States, Territories and Countries do not allow certain liability exclusions or damages limitations, so to that extent the above may not apply to you.Export Control. You agree not to export from anywhere any part of the Data provided to you or any direct product thereof except in compliance with, and with all licenses and approvals required under, applicable export laws, rules and regulations.Entire Agreement. These terms and conditions constitute the entire agreement between NT (and its licensors, including their licensors and suppliers) and you pertaining to the subject matter hereof, and supersedes in their entirety any and all written or oral agreements previously existing between us with respect to such subject matter.Governing Law. The above terms and conditions shall be governed by the laws of the State of Illinois, without giving effect to (i) its conflict of laws provisions, or (ii) the United Nations Convention for Contracts for the International Sale of Goods, which is explicitly excluded. You agree to submit to the jurisdiction of the State of Illinois for any and all disputes, claims and actions arising from or in connection with the Data provided to you hereunder.Government End Users. If the Data is being acquired by or on behalf of the United States government or any other entity seeking or applying rights similar to those customarily claimed by the United States government, this Data is a “commercial item” as that term is defined at 48 C.F.R. (“FAR”) 2.101, is licensed in accordance with this End-User License Agreement, and each copy of Data delivered or otherwise furnished shall be marked and embedded as appropriate with the following “Notice of Use,” and be treated in accordance with such Notice:If the Contracting Officer, federal government agency, or any federal official refuses to use the legend provided herein, the Contracting Officer, federal government agency, or any federal official must notify NAVTEQ prior to seeking additional or alternative rights in the Data.© 2010 NAVTEQ. All Rights Reserved.NOTICE OF USECONTRACTOR (MANUFACTURER/ SUPPLIER) NAME: NAVTEQCONTRACTOR (MANUFACTURER/SUPPLIER) ADDRESS:425 West Randolph Street, Chicago, IL 60606.This Data is a commercial item as defined in FAR 2.101 and is subject to the End-User License Agreement under which this Data was provided.© 2010 NAVTEQ. All rights reserved.EN_KW-NT30_50[J].indb   99EN_KW-NT30_50[J].indb   991/31/2011   3:24:44 PM1/31/2011   3:24:44 PM

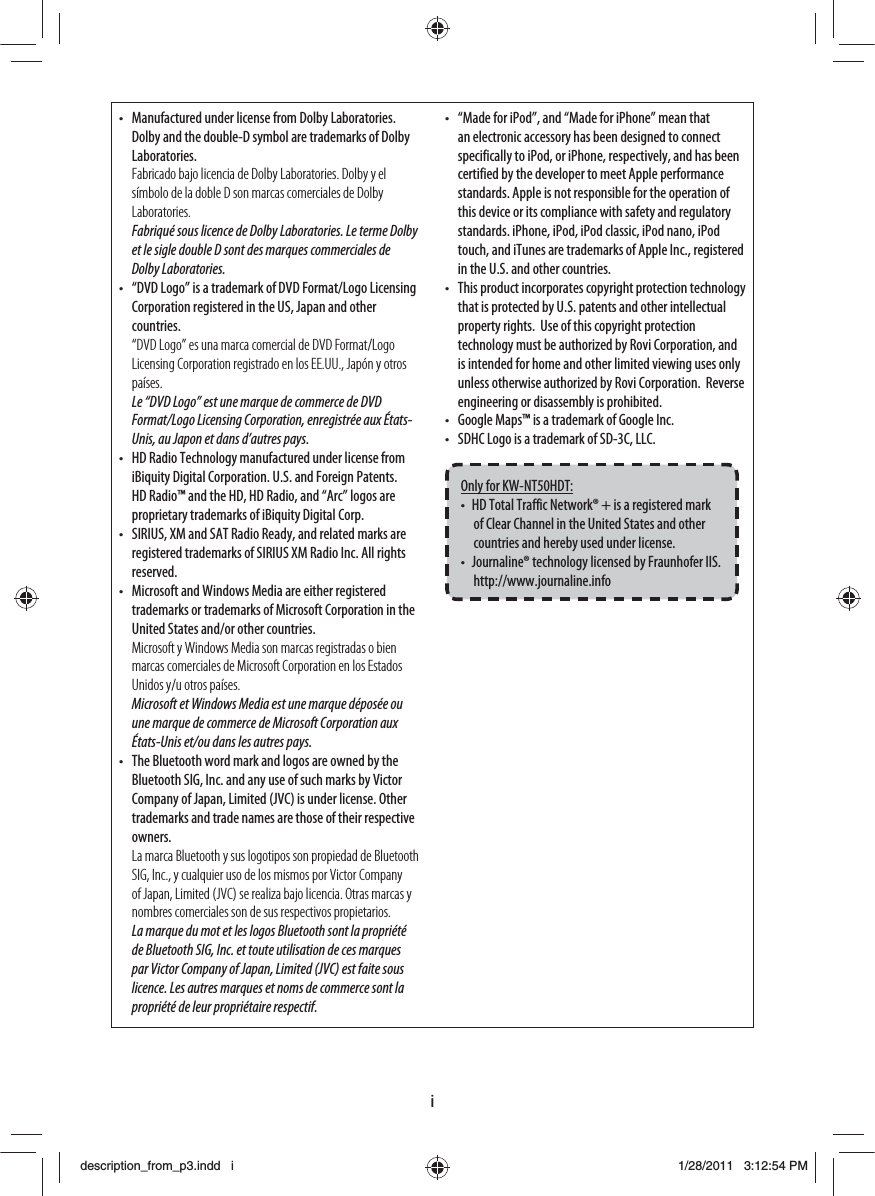

i•  Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.Fabricado bajo licencia de Dolby Laboratories. Dolby y el símbolo de la doble D son marcas comerciales de Dolby Laboratories.Fabriqué sous licence de Dolby Laboratories. Le terme Dolby et le sigle double D sont des marques commerciales de Dolby Laboratories.•  “DVD Logo” is a trademark of DVD Format/Logo Licensing Corporation registered in the US, Japan and other countries.“DVD Logo” es una marca comercial de DVD Format/Logo Licensing Corporation registrado en los EE.UU., Japón y otros países.Le “DVD Logo” est une marque de commerce de DVD Format/Logo Licensing Corporation, enregistrée aux États-Unis, au Japon et dans d’autres pays.•  HD Radio Technology manufactured under license from iBiquity Digital Corporation. U.S. and Foreign Patents. HD Radio™ and the HD, HD Radio, and “Arc” logos are proprietary trademarks of iBiquity Digital Corp.•  SIRIUS, XM and SAT Radio Ready, and related marks are registered trademarks of SIRIUS XM Radio Inc. All rights reserved.•  Microsoft and Windows Media are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.Microsoft y Windows Media son marcas registradas o bien marcas comerciales de Microsoft Corporation en los Estados Unidos y/u otros países.Microsoft et Windows Media est une marque déposée ou une marque de commerce de Microsoft Corporation aux États-Unis et/ou dans les autres pays.•  The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Victor Company of Japan, Limited (JVC) is under license. Other trademarks and trade names are those of their respective owners.La marca Bluetooth y sus logotipos son propiedad de Bluetooth SIG, Inc., y cualquier uso de los mismos por Victor Company of Japan, Limited (JVC) se realiza bajo licencia. Otras marcas y nombres comerciales son de sus respectivos propietarios.La marque du mot et les logos Bluetooth sont la propriété de Bluetooth SIG, Inc. et toute utilisation de ces marques par Victor Company of Japan, Limited (JVC) est faite sous licence. Les autres marques et noms de commerce sont la propriété de leur propriétaire respectif.•  “Made for iPod”, and “Made for iPhone” mean that an electronic accessory has been designed to connect specifically to iPod, or iPhone, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. iPhone, iPod, iPod classic, iPod nano, iPod touch, and iTunes are trademarks of Apple Inc., registered in the U.S. and other countries.•  This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights.  Use of this copyright protection technology must be authorized by Rovi Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Rovi Corporation.  Reverse engineering or disassembly is prohibited.•  Google Maps™ is a trademark of Google Inc.•  SDHC Logo is a trademark of SD-3C, LLC.Only for KW-NT50HDT:•  HD Total Traffic Network® + is a registered mark of Clear Channel in the United States and other countries and hereby used under license.•  Journaline® technology licensed by Fraunhofer IIS. http://www.journaline.infodescription_from_p3.indd   idescription_from_p3.indd   i1/28/2011   3:12:54 PM1/28/2011   3:12:54 PM

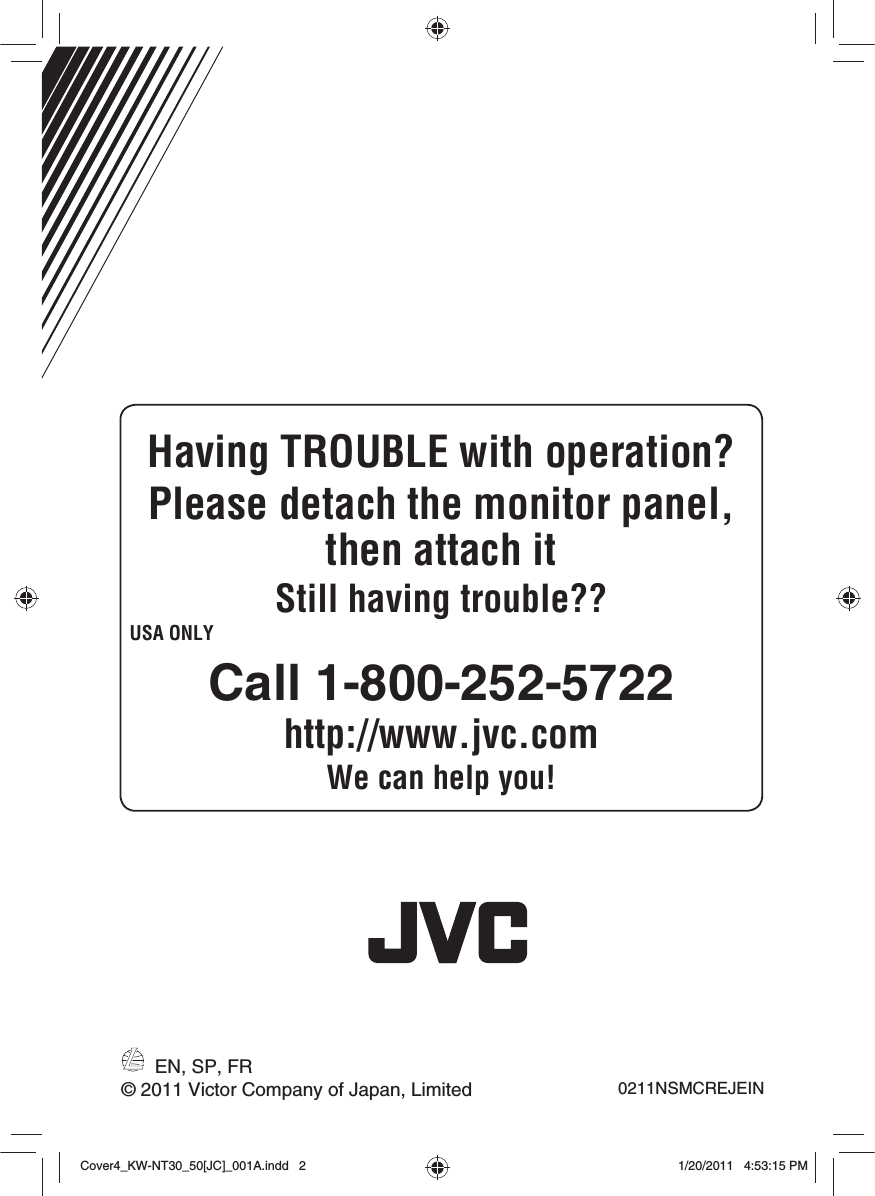

EN, SP, FR0211NSMCREJEIN© 2011 Victor Company of Japan, LimitedHaving TROUBLE with operation?Please detach the monitor panel, then attach itStill having trouble??USA ONLYCall 1-800-252-5722http://www.jvc.comWe can help you!Cover4_KW-NT30_50[JC]_001A.indd   2Cover4_KW-NT30_50[JC]_001A.indd   21/20/2011   4:53:15 PM1/20/2011   4:53:15 PM
