Junlan Electronic CHT-915 CONVERTIBLE TOWER & SOUND BAR SPEAKER SYSTEM User Manual 1
Shenzhen Junlan Electronic Ltd CONVERTIBLE TOWER & SOUND BAR SPEAKER SYSTEM 1
Contents
- 1. User manual1
- 2. User manual2
User manual1
Plastic Base
Washer
Screw
POWER SOURCE
INSTALLATION
NOTE:This AC/DC adapter is intended to be correctly
operated in a vented indoor wall outlet.
Speaker Net
Remote Sensor
Speakers

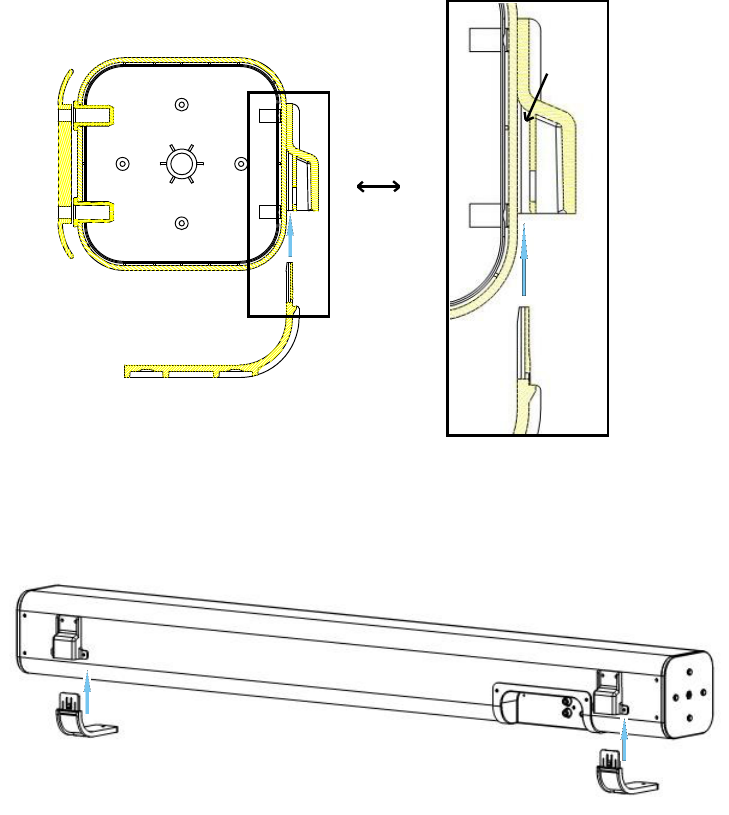

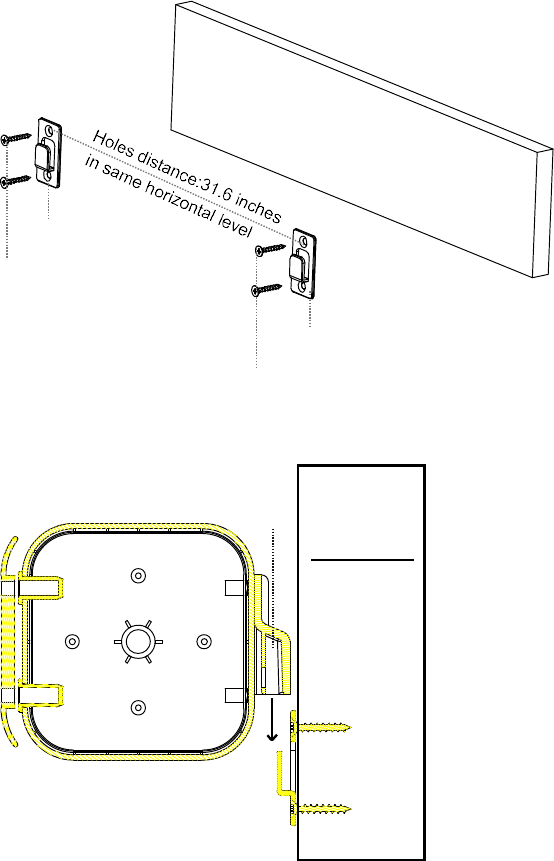

INSTALLATION
MAIN UNIT
1. INDICATOR
2. AUX IN 2 jack
3. SOURCE button
5. EQ (Equalizer) button
8. / TUNE+ button
10. / TUNE- button
7. POWER button
LOCATION OF CONTROLS
4. VOL- (Volume Down) button
6. VOL+ (Volume Up) button 11. FM Antenna
12. AUX IN 1 jacks
13. DC IN jack
9. (Play/Pause) button
REMOTE CONTROL
1. POWER button
2. / TUNE - button
3. VOL (Volume)+/- buttons
4. SOURCE button
5. (Mute) button
6. / TUNE+ button
7. (Play/Pause) button
8. EQ (Equalizer) button
LOCATION OF CONTROLS
