Portable MP3 CD / CD Player with Cassette
and USB / SD / MMC Slot
Instruction Manual
JX-CD573
Please read this manual carefully before operating and save it for future reference.
Have a question? Please visit http://www.jWIN.com
Portable MP3 CD Radio Cassette Recorder V10M10_IM_EN_11152007
www.jWIN.com - 1 -
USER SAFETY GIUDE
IMPORTANT SAFETY INSTRUCTIONS
WARNING: To prevent fire or shock hazard, do not expose this appliance to rain or moisture.
These markings are located on the bottom, side or back of the unit.
CAUTION: To prevent the risk of electric shock, do not remove cover (or back). Non- user-
serviceable parts inside. Refer servicing to a service professional.
• The lightning flash with an arrowhead symbol, within an equilateral triangle, is intended to
alert the user to the presence of un-insulated "dangerous voltage" within the product's
enclosure that may be of sufficient magnitude to constitute a risk of electric shock to a
person.
• The exclamation point within an equilateral triangle is intended to alert the user to the
presence of important operating, maintenance and servicing instructions in the literature
accompanying the appliance.
Dripping warning: "This product shall not be exposed to any dripping or splashing, and no
objects filled with liquids, such as vases, shall be placed on or near the product."
Ventilation warning: "The normal ventilation of the product shall not be impeded for intended
use." (Minimum distances must be kept around the apparatus for sufficient ventilation,
especially while use of the apparatus is in tropical and/or moderate climates.)
Dispose of old batteries safely. Do not throw them into a fire.
LASER SAFETY
This unit utilizes laser technology. Only a qualified professional should
remove the cover or attempt to service this device, due to possible eye
injury.
CAUTION
• Use of controls or adjustments or performance of procedure other than
specified herein may result in hazardous radiation exposure.
• Hazardous laser radiation when open and interlock defeated.
DANGER
Invisible laser radiation when open and interlock failure. Avoid direct
exposure to beam.
Portable MP3 CD Radio Cassette Recorder V10M10_IM_EN_11152007
www.jWIN.com - 2 -
USER SAFETY GIUDE
INSTRUCTIONS ON ENVIRONMENT PROTECTION
Do not dispose of this product in the usual household garbage at the end of its
life cycle; bring it to a collection point for the recycling of electrical and electronic
appliances. This symbol on the product means the instructions for use or the
packing will inform about the methods for disposal. The materials are recyclable
as mentioned in its marking. By recycling, material recycling, or other forms of
re-utilization of old appliances, you make an important contribution to protect the environment.
Please inquire at your local community administration for the authorized disposal location.
IMPORTANT SAFETY PRECAUTIONS
1. READ INSTRUCTIONS - All safety and operating instructions should be read before the
appliance is operated.
2. RETAIN INSTRUCTIONS - The safety and operating instructions should be retained in a
secure place for future reference.
3. HEED WARNINGS - All warnings on the appliance and in the operating instructions should
be observed.
4. FOLLOW INSTRUCTIONS - All operating and use instructions should be followed.
5. WATER AND MOISTURE - The appliance should not be used near water. For example:
near a bathtub, kitchen sink, laundry tub, and swimming pool or even in a wet basement.
6. VENTILATION - The appliance should be situated so that its location and position does not
interfere with its proper ventilation. For example, the appliance should not be situated on a
bed, sofa, rug or similar surface that may block the ventilation openings; or, be placed in a
built-in installation, such as a bookcase or cabinet that may impede the flow of air through the
ventilation openings.
7. HEAT - The appliance should be situated away from heat sources such as radiators, heat
registers, stoves, or other appliances (including amplifiers) that produce heat.
8. POWER SOURCES - The appliance should be connected to a power supply only of the type
described in the operating instructions or as marked on the appliance.
9. GROUNDING AND POLARIZATION - Precautions should be taken to ensure that the
grounding or polarization of the appliance is correct.
10. POWER CORD PROTECTION - Power supply cords should be routed so that they are not
likely to be walked on or obstructed by items placed upon or against them. Pay particular
attention to cords at plugs, convenience receptacles, and the point at which they exit from
the appliance.
11. CLEANING - The appliance should be cleaned only as recommended by the manufacturer.
12. POWER LINES - An outdoor antenna should be located away from power lines.
13. NONUSE PERIODS - The power cord of the appliance should be unplugged from the outlet
when the appliance is to be left unused for an extended period of time.
Portable MP3 CD Radio Cassette Recorder V10M10_IM_EN_11152007
www.jWIN.com - 3 -
USER SAFETY GIUDE
IMPORTANT SAFETY PRECAUTIONS – CONTINUED
14. OBJECT and LIQUID ENTRY - Care should be taken so that objects do not fall and liquids
are not spilled into the device’s openings.
15. CARTS AND STANDS - The appliance should be used only with a cart or
stand that is recommended by the manufacturer. An appliance and cart
combination should be moved with care. Quick stops, excessive force, and
uneven surfaces may cause the appliance and cart combination to overturn.
16. WALL OR CEILING MOUNTING - If the appliance is mounted to a wall or ceiling, it
should be mounted only as recommended by the manufacturer.
17. DAMAGE REQUIRING SERVICE - The appliance should be serviced by qualified service
professional when:
a. The power-supply cord or plug has been damaged.
b. Objects have fallen into, or liquid has been spilled into the appliance’s apertures.
c. The appliance has been exposed to rain.
d. The appliance has been dropped and suffered damage.
e. The appliance does not appear to operate normally or exhibits a marked change
in performance.
18. SERVICING - The user should not attempt to service the appliance beyond that described
in the user's operating instructions. All other servicing should be referred to qualified
service professional.
19. PROTECTIVE ATTACHMENT PLUG - The appliance is equipped with an attachment
plug that has an overload protection. This is a safety feature. If replacement of the plug is
required, be sure the service technician has used a replacement plug specified by the
manufacturer that has the same overload protection as the original plug. (UK Version
Only)
FCC NOTICE (USA)
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
FCC regulations state that any change or modification to the equipment, not expressly
approved by maker or its authorized parties, could void user’s authority to operate this
equipment.
• To prevent fire or electric shock, do not expose the unit to rain or moisture.
• Never attempt to open the cabinet. Dangerous high voltages are present in the unit.
Always refer servicing to a qualified technician.
IC NOTICE (CANADA)
This digital apparatus does not exceed the Class B limits for radio noise emissions from digital
apparatus as set out in the Radio Interference Regulations of Industry Canada.
Portable MP3 CD Radio Cassette Recorder V10M10_IM_EN_11152007
www.jWIN.com - 4 -
TABLE OF CONTENTS
1. Getting Started
a. Introduction ……………………………………………………………………… 5
b. Location of Controls (top, speaker, right, left) ………………………………. 6
c. Location of Controls (Back Panel) …..……………………………………….. 7
d. Location of Controls (Remote) ………………………………...……………… 7
e. Connecting the Speakers ……………………………………………………… 8
f. AC Operation …………………………………………………………………… 8
g. Antennas ………………………………………………………………………… 8
h. Listening with Stereo Headphones …………………………………………… 8
i. Installing the Batteries in the Remote Control ………………………………. 8
2. Operational Instructions
a. Loading a CD into the Player ……….………………………..…………….... 9
b. Listening to CDs ………………………………………………………………... 9
c. Repeat Mode ……...………………………………………………….……….. 10
d. Skip and Search Mode ………………….……………………………………. 10
e. Program Mode ………………………………………………………………….. 10
f. Listening to the Radio ………………………………………………………….. 11
g. FM Stereo Indicator …………………………………...……………………….. 11
h. Bass Boost ……………………………………………………………………… 11
3. Maintenance & Specifications
a. Notes on CDs ………………………………………………………………….. 12
b. Cleaning the lens ………………………………………………………………. 12
c. Cleaning the cabinet …………………………………………………………... 12
d. Troubleshooting………………………………………………………………… 13
e. Technical specifications ………………………………………………………. 14
Portable MP3 CD Radio Cassette Recorder V10M10_IM_EN_11152007
www.jWIN.com - 5 -
GETTING STARTED
Thank you for purchasing the JX-CD573. Unpack the unit and make sure to put aside all
accessories so they will not be lost. We recommend that you retain the original carton and
packaging materials for future use, should you transport or ship the unit in the future.

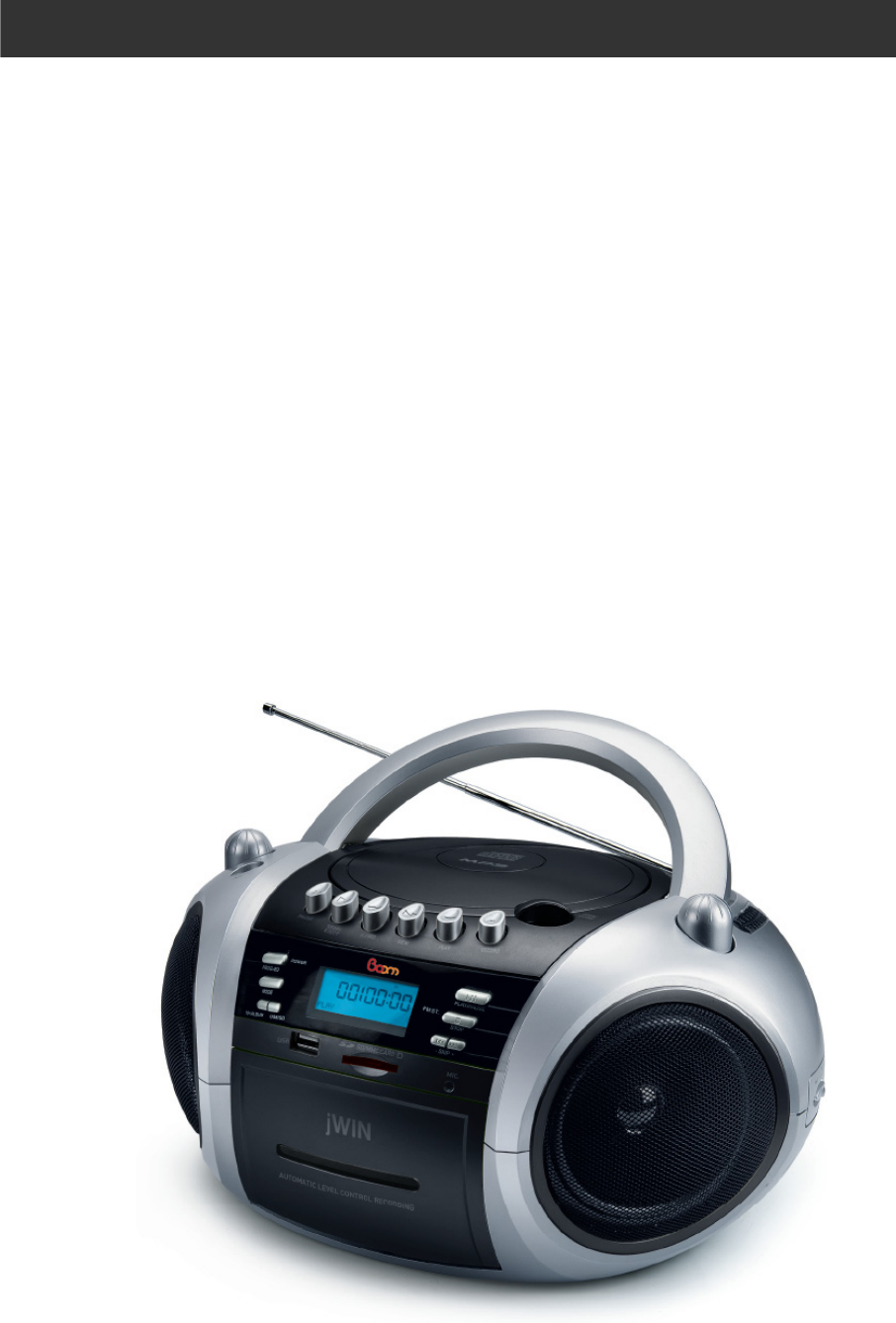

Portable MP3 CD / CD Player with Cassette and USB / SD / MMC Slot
• Top loading programmable MP3 CD / CD player
• Playable media: CD / CD-R / CD-RW / MP3 / Cassette tape
• Supports USB 2.0 full speed
• Supports SD / MMC cards
• Single Stereo Cassette recorder
• AM / FM Stereo radio
• LCD display
• Power output: 1.2W x 2 at 10% THD
• 3.5mm AUX in jack
• 3.5mm headphone jack
What’s included
• Portable MP3 CD / CD player with stereo radio
• Detachable power cord
• AUX in cable
• Instruction manual
• Warranty card
Portable MP3 CD Radio Cassette Recorder V10M10_IM_EN_11152007
www.jWIN.com - 6 -
GETTING STARTED
Location of Controls
1
23
4
56 7
1
8
91011121314
15 16 17 18 19 20 21 7
Portable MP3 CD Radio Cassette Recorder V10M10_IM_EN_11152007
www.jWIN.com - 7 -
GETTING STARTED
Location of Controls-continued
1. VOLUME CONTROL 17. CASSETTE RECORD BUTTON
2. HEADPHONE JACK 18. CD DOOR RELEASE
3. HANDLE 19. CD PLAY/PAUSE BUTTON
4. FM ANTENNA 20. CD STOP BUTTON
5. CD COVER 21. CD SKIP FORWARD/BACKWARD
6. ANALOG RADIO FREQUENCY READER 22. STEREO SPEAKERS
7. TUNING KNOB 23. LCD SCREEN
8. AUX JACK 24. USB CONNECTION
9. +10/ALBUM USB/SD BUTTON 25. CASSETTE DOOR
10. MODE BUTTON 26. SD/MMC CARD SLOT
11. PROG/EQ BUTTON 27. BUILT-IN MICROPHONE
12. CASSETTE PAUSE BUTTON 28. AC CONNECTION
13. CASSETTE STOP/EJECT BUTTON 29. USB/SD-RADIO-TAPE/OFF-
14 CASSETTE F.FWD BUTTON CD/MP3/AUX
15. CASSETTE REWIND BUTTON 30. FM-ST./FM/AM SWITCH
16. CASSETTE PLAY BUTTON 31. BATTERY COMPARTMENT
AC Operation
Before operating the JX-CD573, make sure that the voltage on the unit corresponds to the
voltage of your local area. Unravel the AC Line Cord; insert one end into an AC socket on the
unit and the other end into a standard AC outlet.
1. In case of malfunction due to electrostatic discharge (ESD), reset the unit by
reconnecting the AC cord again to resume to normal operation.
2. When not in use, unplug the AC power cord from the AC power socket.
Battery Operation
Disconnect the AC Cord. Open the BATTERY COMPARTMENT and insert 2/UM-“C” size x 8
batteries (not included) making sure that the battery polarity (+/-) is observed.
Remove the batteries if the unit will not be used for a long period of time.
43218
76 3
28
29
22
30
31
Portable MP3 CD Radio Cassette Recorder V10M10_IM_EN_11152007
www.jWIN.com - 8 -
GETTING STARTED
Antenna
For best FM reception, fully extend the FM ANTENNA. For AM reception, the unit has a built-in
antenna, turn the whole unit for best reception.
Auxiliary (AUX) Mode
1. Slide the FUNCTION SWITCH to the AUX position.
2. Connect the earphone socket from the Auxiliary unit (e.g. MP3 player or MD player)
into AUX-IN jack on the rear of this product via an Audio Line Cord (3.5mm plug on
both ends; not supplied).
3. Play the Auxiliary unit. Music from the Auxiliary unit can be listened through the
speaker of this product.
Listening with Stereo Headphones
For private listening, insert the plug of a Stereo Headphone into the STEREO HEADPHONE
JACK and adjust the VOLUME CONTROL KNOB accordingly. During the use of headphones
the Speakers are automatically disconnected.
Listening to the Radio
Slide the FUNCTION SWITCH to the RADIO position. Slide the BAND SWITCH to the desired
waveband. Turn the TUNING KNOB to your desired radio station. Adjust the sound level by
rotating the VOLUME CONTROL KNOB. To turn off the radio, simply slide the FUNCTION
SWITCH to OFF position.
Note: Radio frequency is shown on the LCD DISPLAY.
Listening to Cassettes
Slide the FUNCTION SWITCH to the CASSETTE position. Open the CASSETTE DOOR and
place a cassette tape in the player. Use the Cassette Controls (PLAY, PAUSE, F.FWD,
REWIND, RECORD, or STOP) to control the cassette playback. Adjust the sound level by
rotating the VOLUME CONTROL KNOB.
Listening to CDs and MP3 CDs
Open the CD DOOR by pulling it in an upward direction. Place a CD disc into the CD
COMPARTMENT and close the CD DOOR. Set the FUNCTION SWITCH to the CD position.
Adjust the sound level by rotating the VOLUME CONTROL KNOB. Follow the Operational
Instructions in the following pages of this manual.
Note: Before playing a CD or MP3 CD make sure the CD DOOR is properly closed.
Anti-Shock Protection
Special circuitry inside the JX-CD573 ensures that there will be no sound skipping when the
player is subject to shock or shaking during music playback. The laser scans the CD/MP3 CD
and saves data for between 60 and 120 seconds ahead of where the playback is on the disc.
In the event of shock, shaking, or other vibrations, the player reads from the memory until the
laser can read the CD again. However, when excessive vibration or shaking occurs, this
feature may malfunction causing some sound skipping. If this happens, place the JX-CD573 on
a level surface where there is little or no vibration to resume normal sound.
Portable MP3 CD Radio Cassette Recorder V10M10_IM_EN_11152007
www.jWIN.com - 9 -
OPERATIONAL INSTRUCTIONS
Audio CD Playback
1. When the CD DOOR is closed and a CD is inside,
the total number of the tracks in the disc show on the
LCD DISPLAY and will enter Stop mode. The DISC
indicator will always show on the LCD DISPLAY
when the JX-CD483 is in CD mode.
2. If there has no disc inside, the LCD DISPLAY will
show “ ” and remain in Stop mode.
3. If the CD DOOR is not closed, the LCD DISPLAY will
show “ ”.
PLAY/PAUSE MODE
1. When the PLAY/PAUSE BUTTON is pressed during
CD stop mode, the first track will play. The Play
Indicator “” will show on the LCD DISPLAY. The
LCD DISPLAY will also show the number of the track
playing.
2. For interruption while the CD is playing, press the CD
PLAY/PAUSE BUTTON once. Playback is now
paused and the Play Indicator “” will blink
continuously on the LCD DISPLAY.
3. Though the sound stops, the disc will continue to spin. To re-start playback, press the
PLAY/PAUSE BUTTON again. The music will start from the exact position where it was
interrupted.
4. To stop the CD, press the STOP BUTTON once in Play or Pause mode. The LCD
DISPLAY will show the total number of tracks on the disc again.
5. To turn off the unit, slide the FUNCTION SWITCH to OFF position.
SKIP AND SEARCH MODE
1. In play or pause mode, when CD SKIP/SEARCH or CD SKIP/SEARCH BUTTON
is pressed once, the player will advance to the next track or return to the beginning of
the track.
2. During play mode, when CD SKIP/SEARCH or CD SKIP/SEARCH BUTTON is
pressed and held, it will search the track with audible high-speed forward or backward
playback.
Portable MP3 CD Radio Cassette Recorder V10M10_IM_EN_11152007
www.jWIN.com - 10 -
OPERATIONAL INSTRUCTIONS
REPEAT MODE
1. Repeat 1:
When the MODE BUTTON is pressed once, the
REPEAT indicator show on the LCD DISPLAY. This
single track of music will be repeated.
2. Repeat All:
When the MODE BUTTON is pressed twice, the
REPEAT ALL indicator show on the LCD DISPLAY.
The whole disc will be played continuously.
3. To cancel the Repeat Function
Press the MODE BUTTON repeatedly until the Repeat Indicator disappears from the
LCD DISPLAY.
RANDOM PLAY MODE
This feature allows the track on the disc to be played in a random order.
1. In CD stop mode, press the MODE BUTTON three
times. The RANDOM indicator show on the LCD
DISPLAY and all music will play in random order.
2. To cancel the Random play function, press the MODE BUTTON again. The RANDOM
indicator will disappear from the LCD DISPLAY.
PROGRAM MODE
1. During the CD stop mode, press the PROGRAM
BUTTON once. The PROGRAM indicator and the
number of Program to be memorized starts from the
first program “ ” will blink continuously on the
LCD DISPLAY.
2. Press the CD SKIP/SEARCH or SKIP/SEARCH BUTTON to your desired musical
track, the LCD DISPLAY will show the appropriate track number. Press the PROGRAM
BUTTON to store this track in memory.
3. Repeat above procedure until all desired tracks have been programmed. A total of 20
tracks can be stored in memory.
Note: When the SKIP/SEARCH or
SKIP/SEARCH BUTTON is pressed, it will
always show the last programmed track first to
recall your memory.
After programming, the LCD DISPLAY will show
“PROGRAM _ _ _” and flash continuously.
Portable MP3 CD Radio Cassette Recorder V10M10_IM_EN_11152007
www.jWIN.com - 11 -
OPERATIONAL INSTRUCTIONS
Audio CD Playback-continued
PROGRAM MODE-continued
3. Press the CD PLAY/PAUSE BUTTON once to start
the program playback and the CD play Indicator “”
will light up.
4. To check the program you have stored after complete
programming, press the PROGRAM BUTTON once
during CD stop mode, then press the CD
SKIP/SEARCH BUTTON once, The LCD DISPLAY
will show the first programmed track number. Repeat
above procedure to read all the programmed memory.
5. To cancel the programmed memory:
• During the CD stop mode, press the CD STOP BUTTON once, or
• Open the CD DOOR during the CD stop mode.
The Program Indicator will disappear from the LCD DISPLAY.
MP3 CD Playback
1. When the CD DOOR is closed and an MP3 disc is
inside, the total number of the tracks in the disc will
show on the LCD DISPLAY and will enter the Stop
mode. The DISC indicator will always show on the
LCD DISPLAY when the JX-CD483D is in MP3 CD
mode.
2. When no disc is loaded, the LCD DISPLAY will show “ ” and remain in Stop mode.
3. If the CD DOOR is not closed, the DISPLAY will show “ ”.
PLAY/PAUSE MODE
1. When the PLAY/PAUSE BUTTON is pressed during
CD stop mode, the first track will be played. The
Play Indicator “” will light. The MP3 Indicator will
show as well to indicate MP3 Disc is playing. The
LCD DISPLAY will show the specific track number being played.
2. MP3 music can be stored on a CD Disc with or without folders depending on your MP3
burning method. To select specific musical tracks inside an MP3 disc, follow these
instructions:
a. If an MP3 disc is downloaded without dividing into folders, all track numbers will be
shown directly on the LCD DISPLAY. The Album number will only show after
pressing the FOLDER BUTTON.
b. If music is stored into different folders, select the specific Album number first by
pressing the FOLDER UP/DOWN (+/-) BUTTON. Press the CD SKIP/SEARCH
or SKIP/SEARCH BUTTON to select the Track number inside this Album.
Portable MP3 CD Radio Cassette Recorder V10M10_IM_EN_11152007
www.jWIN.com - 12 -
OPERATIONAL INSTRUCTIONS
MP3 CD Playback-continued
PLAY/PAUSE MODE-continued
Example:
To select Album # 4, track # 3.
STEP – 1: Press the FOLDER UP/DOWN (+/-)
BUTTON to select the Album # 4.
STEP – 2: Press the CD SKIP/SEARCH or
SKIP/SEARCH BUTTON to select the Track # 3
inside this Album # 4.
3. To interrupt MP3 disc playback, press the CD PLAY/PAUSE BUTTON once. The disc is
now in Pause mode. The Play Indicator “” will blink continuously on the LCD DISPLAY.
4. Though the sound stops, the disc will continue to spin. To re-start playback, press the
CD PLAY/PAUSE BUTTON again. The music will start from the exact position where it
was interrupted.
5. To stop the MP3 disc, press the CD STOP BUTTON once in Play or Pause mode.
6. To turn off the unit, slide the FUNCTION SWITCH to the OFF position.
REPEAT MODE
1. Repeat 1:
When the MODE BUTTON is pressed once, the
REPEAT Indicator will light. This single track of music
will be repeated.
2. Repeat Folder:
When the MODE BUTTON is pressed twice, the
REPEAT and ALBUM indicators will show. This folder
will be play repeatedly.
Note: The folder number and the track number will
show every 2 seconds alternatively.
3. Repeat All:
When the MODE BUTTON is pressed three times,
the REPEAT ALL Indicator will show. The whole disc
will play continuously.
4. To cancel the Repeat Function
Press the MODE BUTTON repeatedly until the REPEAT Indicator disappears from the
LCD DISPLAY.
Portable MP3 CD Radio Cassette Recorder V10M10_IM_EN_11152007
www.jWIN.com - 13 -
OPERATIONAL INSTRUCTIONS
MP3 CD Playback-continued
RANDOM PLAY MODE
This feature allows the tracks on the disc to be played in a random order.
1. During the CD Stop mode, press the MODE BUTTON
four times, the RANDOM Indicator will show on the
LCD DISPLAY and all music will be played in random
order automatically.
2. To cancel the Random Play function, press the MODE BUTTON again, The RANDOM
Indicator will disappear from the LCD DISPLAY.
SKIP AND SEARCH
1. In play or pause mode, when CD SKIP/SEARCH or CD SKIP/SEARCH BUTTON
is pressed once, it will go to the next track or go back to the beginning of the track.
2. In play mode, when CD SKIP/SEARCH or CD SKIP/SEARCH BUTTON is
pressed once and held, it will search the track with audible high speed forward or
backward playback.
PROGRAM MODE
1. In the CD stop mode, press the PROGRAM BUTTON
once. The PROGRAM Indicator and the number of
Program to be memorized starts from the first
program “ ” will light and blink continuously.
Press the FOLDER UP/DOWN (+/-) BUTTON, then
press CD SKIP/SEARCH or CD SKIP/SEARCH BUTTON to select your desired
musical track, the LCD DISPLAY will show the track number of the specific Album to be
programmed. Press the PROGRAM BUTTON to store this track in memory.
2. Repeat the above procedure until all desired tracks have been programmed.
Note: When the FOLDER UP/DOWN (+/-) BUTTON is pressed, it will always show the
last programmed Album number first to recall your memory.
A total of 20 tracks can be stored into memory. After programming is complete, the LCD
DISPLAY will show PROGRAM _ _ _ and blink continuously.
3. To begin Programmed playback, press the CD PLAY/PAUSE BUTTON once. The CD
Play Indicator “”, PROGRAM and the track number of the specific Album will light.
Example: Album # 3, Track # 2.
Portable MP3 CD Radio Cassette Recorder V10M10_IM_EN_11152007
www.jWIN.com - 14 -
OPERATIONAL INSTRUCTIONS
MP3 CD Playback-continued
PROGRAM MODE-continued
4. To check the program you have stored after programming is complete, press the
PROGRAM BUTTON once during the CD Stop mode. The LCD DISPLAY will show
“” and blink continuously. Press the FOLDER UP/DOWN (+/-) BUTTON to read the
Album number. Press the CD SKIP/SEARCH or CD SKIP/SEARCH BUTTON to
read the specific track number of said Album. Press the PROGRAM BUTTON again,
LCD DISPLAY will show “ ” and blink continuously. Repeat the above procedure to
check all stored programs.
5. To cancel the programmed memory:
• During the CD stop mode, press the CD STOP BUTTON once or
• Open the CD Door during the CD stop mode.
The PROGRAM Indicator will disappear from the LCD DISPLAY.
FM Stereo indicator
1. In FM ST mode, If FM is selected, ensure the telescopic antenna is fully extended and
positioned vertically, and clear station is selected, the FM ST indicator light turn on.
2. In the case of stereo stations with a bad (noisy) reception, we recommend band switch
from FM ST slide to FM position, and the FM ST indicator light turn off.
Portable MP3 CD Radio Cassette Recorder V10M10_IM_EN_11152007
www.jWIN.com - 15 -
MAINTENANCE
Notes on CDs
1. Before playing, clean the CD with a cleaning cloth.
Wipe the CD from the center out to the ends.
2. Do not use solvents such as benzine, thinner,
commercially available cleaners or anti-static spray
intended for vinyl LPs.
3. Do not expose the CD to direct sunlight or heat sources such as hot air ducts. Do not
expose to direct sunlight, nor leave CDs in a car, as there can be a considerable rise in
temperature.
4. Do not stick paper or sticker on the CD. Do not scratch, dirt or fingerprints on the CD, for
it may cause tracking error.
Cleaning the lens
If the lens becomes dirty, it may cause a skipping of sound during CD operation. Clean with a
commercially available lens cleaner.
Cleaning the cabinet
Clean the cabinet, panel and controls with a soft cloth slightly moistened with a mild detergent
solution. Do not use any type of abrasive pad, scouring powder, or solvent, such as alcohol or
benzine.
Portable MP3 CD Radio Cassette Recorder V10M10_IM_EN_11152007
www.jWIN.com - 16 -
TROUBLESHOOTING GUIDE
When the instructions in this manual are followed, this unit should function properly. However, if
any of the following difficulties occur and cannot be corrected by the user or if a problem arises
that is not mentioned here, please contact jWIN Customer Service or a qualified service
technician.
1. Unit Does Not Play
• Unit may be disconnected from power source (No AC connection or batteries). Check
connection.
• Disc is not correctly set. CDs should be inserted label side up.
• Disc is scratched or dirty. Please clean.
• The lens is dirty. Wipe clean gently with soft, dry cloth. Follow the instructions of the
lens cleaner.
• There is moisture on the lens wait an hour and try again.
2. No Sound, Distorted Sound or Feedback
• Ensure plugs are inserted firmly.
• Wipe off plugs with clean cloth.
• Disc is scratched or dirty. Please clean.
• Volume control is turned down. Please increase.
3. Radio Reception is Unclear
• Radio station frequency may be weak. Adjust antenna.
• If FM station, BAND switch may be set to FM ST. Slide BAND switch to FM.
Portable MP3 CD Radio Cassette Recorder V10M10_IM_EN_11152007
www.jWIN.com - 17 -
SPECIFICATIONS
• Audio Output Power
o RMS output at 10% THD: 1.2W x 2
• Inputs & Outputs
o 3.5mm Stereo Headphone jack
o 3.5mm AUX in jack
• Power Sources
o AC 110V
o Battery: C x 8 (not included)
• Power Consumption: 16W
* Specifications and features are subject to change without prior notice.
© 2007 jWIN Electronics Corp. All rights reserved. No portion of this printed material or product
enclosed herewith including design, shape and graphics, may be reproduced or transmitted in
any form without prior written consent of jWIN Electronics Corp. by any means, electronic or
mechanical, including photocopying, recording or use of an information storage and retrieval
system. Any unauthorized distribution or reproduction of this printed material or product, or any
portion thereof, will be prosecuted to the fullest possible extent of the law.
Printed in China
TEL: 516-626-7188
FAX: 516-626-7105
website: www.jWIN.com

Navigation menu
