Keekoonvision Technology KK002 IP Camera User Manual qsg keekoon

Shenzhen Keekoonvision Technology Co., Ltd IP Camera qsg keekoon

User Manual

Quick Start Guide
HD
720P Version 1.0.2 EN
IP Camera
KK002
Shenzhen Keekoonvision Technology Co., Ltd
What’s In the Box............................... ................ 1.....................
Get Started.................................................................................... 1
Hardware Installation........................................ .............. 2............
For Mobile Device...................................................... ... 3..............
Set Up Camera......................................................... ........... 6.........
View in Windows Web Browser.............................................. 8
View in Windows CMS Software.............................................. 11
FAQ................................................................................................... 14
Table of Contents
Notice:
Please refer the user manual in CD for detailed help.
1
What s In the Box’
1.IP Camera
2.DC Power Adapter
3.Network Cable
4.Mounting Bracket
5.Quick Start Guide
6.CD
Get Started
Hardware Installation
Add Camera
Set up Camera
Get Live Video
Get Live Video Via Wi-Fi
Hardware Installation
2
For Mobile Device
Download from App Store for iOS device or fromKEEKOON
Google’s Play Store for Android device. For easy installation,
please scanning the QR code to download and install .KEEKOON
If your android device could not access Google’s Play store,
please download the apk file from our website directly.
http://www.keekoonvision.com
KEEKOON in App Store KEEKOON in Google Play

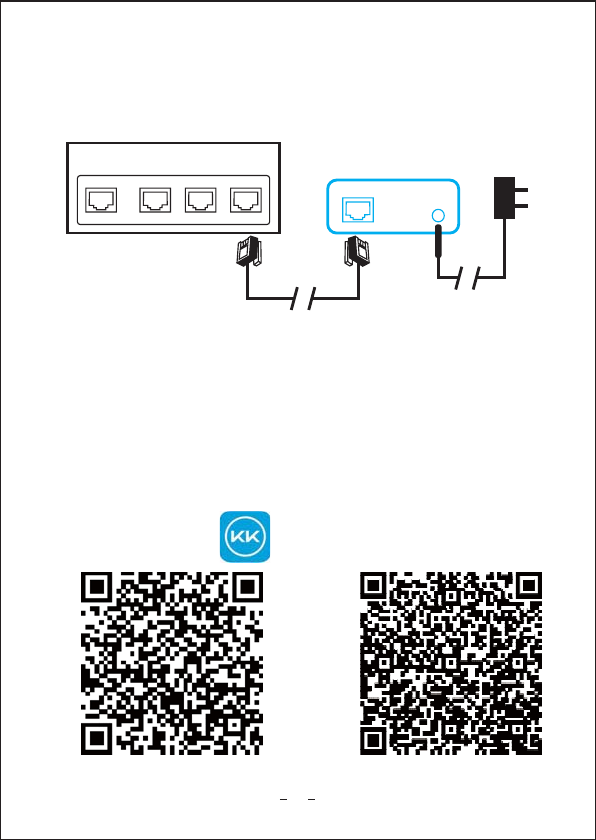

LAN
Router
IP Camera
1.
KEEKOON

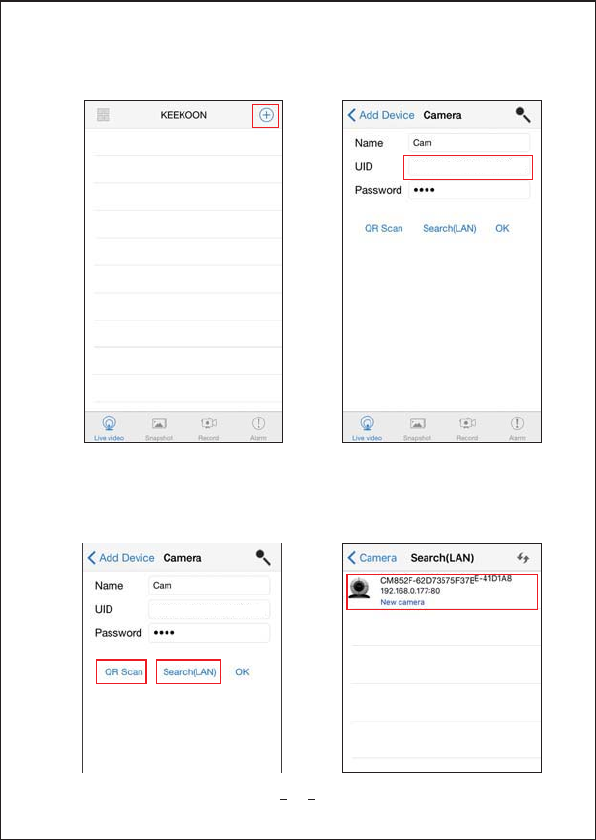

2.Tap on to add your new camera. Click ,+ Add new online cameras
and enter camera’s UID and password to add camera.
3
3.There are 2 ways to enter the camera’s UID quickly, by scanning the
QR code on the camera and search the cameras in LAN. Click toScan
initiate the scan and click to search the cameras in LAN.Search

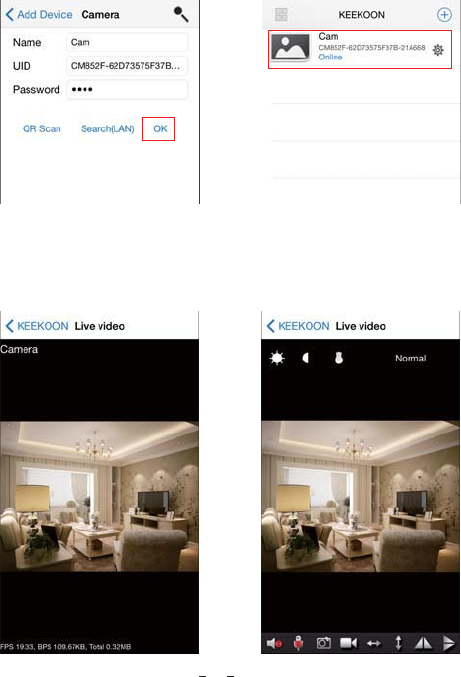

5. Select the camera you've just added to start viewing live video
and tap on the black area to launch the control panel.
We strongly recommend you to change the default password.
4. Enter the camera's name and P2P password. By default the P2P password
is . After click , the camera will be added successfully.8888 OK
4

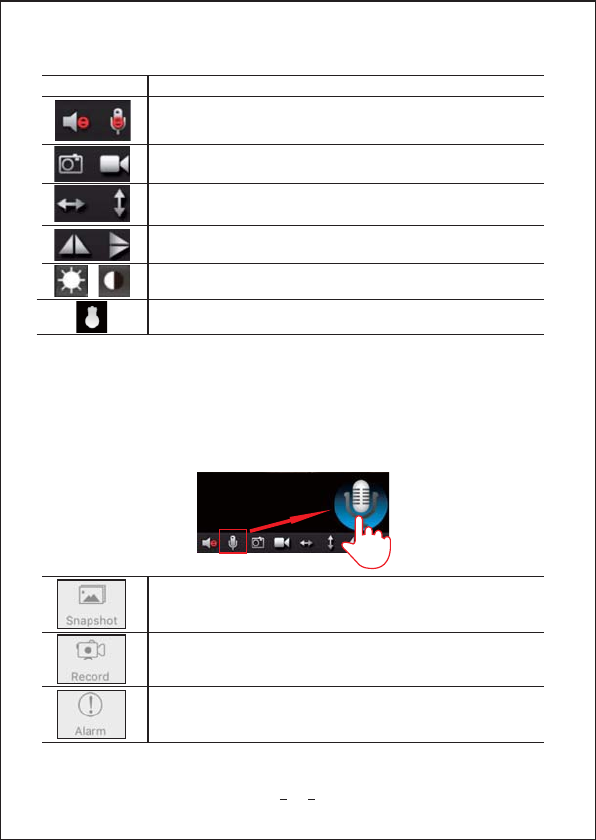

6. Instructions for the icons and buttons on live video page:
*Notice: This IP Camera is designed to only supplement existing
residential and business security systems.
5
7.Instructions for other pages:
View the record files in your mobile device or in the camera
Check the alarm events
View the snapshots taken
Slither the video to pan or tilt the camera
Allows User to listen to the camera's audio feed and talk to
the camera.

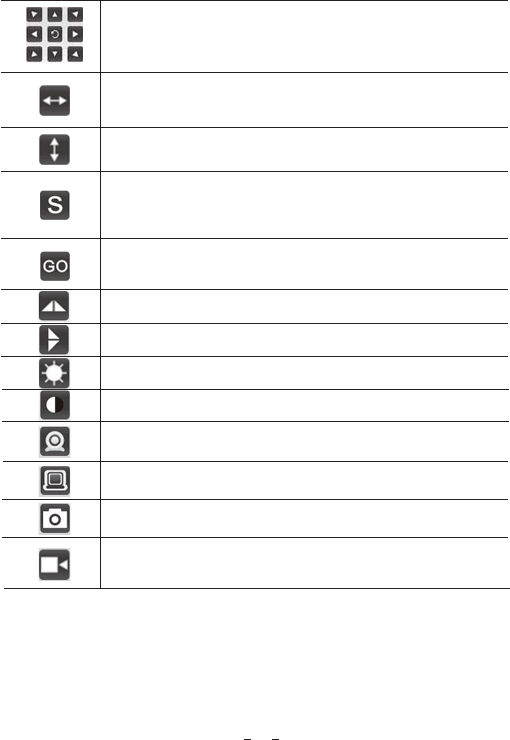

Pan/tilt control
Take snapshots and record video files.
Horizontal and vertical cruise
Flip the image horizontally and vertically
Adjust the brightness and contrast
Night Vision Control
If you want to speak to the camera, please press and hold the
microphone button to start speaking as a interphone.
Tips :
You could turn on or off the IR LED manually by clicking this button.
The IR LED's status will be lasted 30 minutes, after that the status
will be restored.
Set up Camera - Wi-Fi

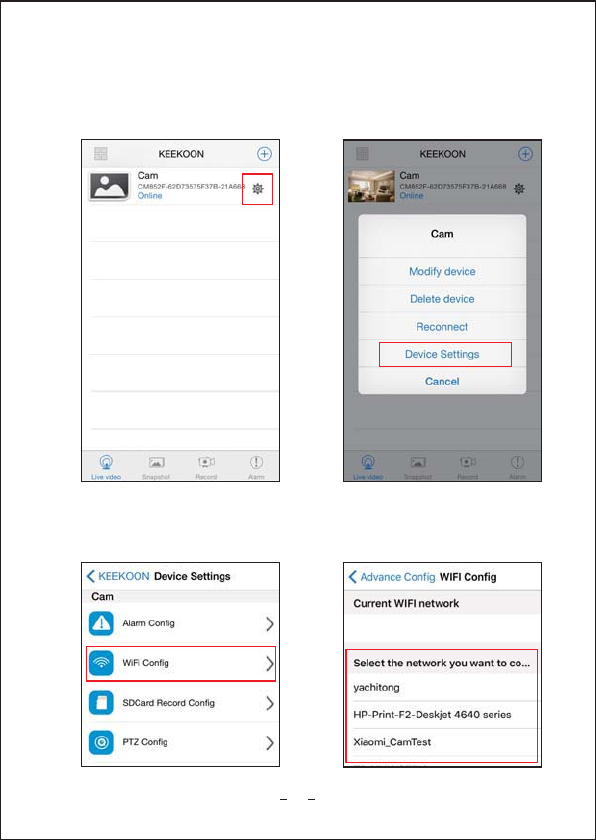

1. Press the in the camera list to start configuring your camera.gear icon
2. The camera will start scanning for Wi-Fi connections. Select your
Wi-Fi network ID (SSID). Enter the password for the Wi-Fi connection.
6
3. When the Wi-Fi is successfully configured, you can now disconnect
the network cable from your camera and start using your camera as
a wireless device.
*Notice: Please wait for at least 30s (maximum to 1 minute) for Wi-Fi
mode to be completely functional.

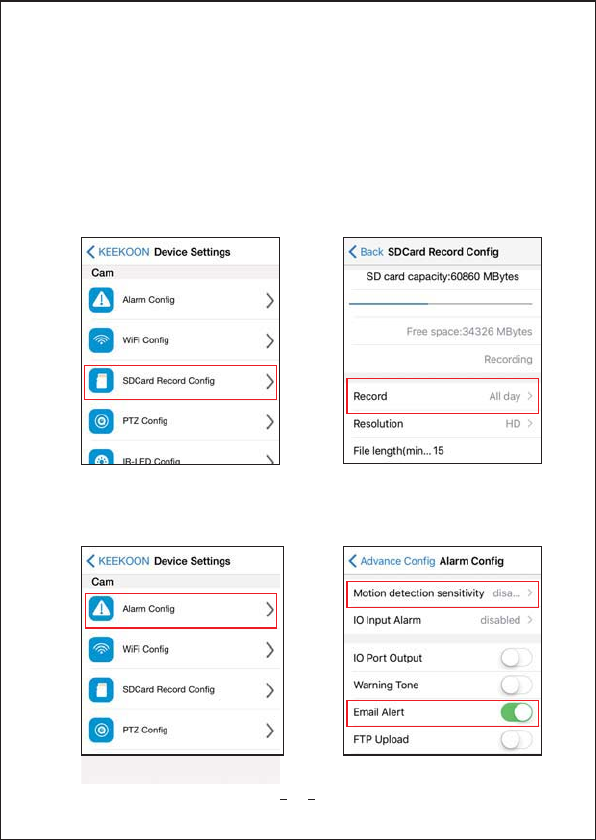

4. After set up Wi-Fi, we could set up mode.SD card recording
5. Set up to enable motion detection alarm.Alarm config
7
View in Windows Web Browsers

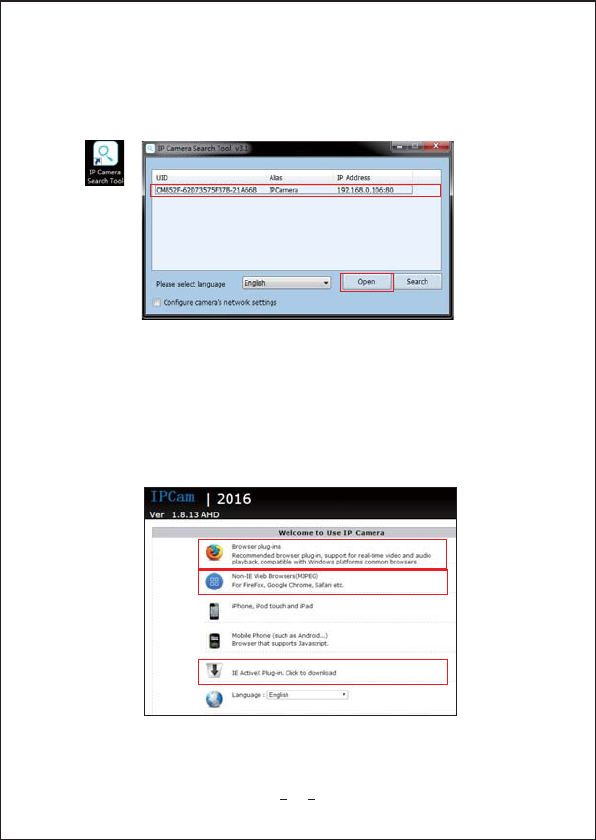

1. Run in CD's Windows folder. Click Search andIP Camera Search Tool
double click the camera item listed in the camera list.
2. The default web browser will try to login the camera automatically.
The default username is . There is no password by default, so leaveadmin
the password field blank.
3. Download and install it to support playing liveweb browser plug-in
video in Windows web browsers. Please ignore system warning ,when
downloading or installing the plug-in.
8
1
2
Support Mac OS X
Tips:
If it is a Win10 PC, please login the camera with IE or Firefox
instead of Edge.
4. After installing the plug-in, choose Browser plug-ins mode to get live
video.

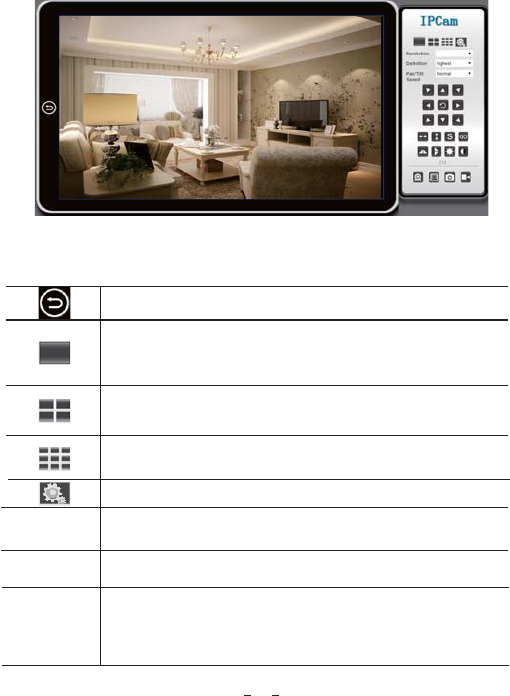

5. Instructions of the buttons of main panel
Return to the welcome page
Single camera view mode. For show back to single
camera mode from 4 camera view mode or 9 camera
view mode.
4 camera view mode. After set up multiple camera
settings, you could view up to 4 cameras by this mode
9 camera view mode. After set up multiple camera
settings, you could view up to 9 cameras by this mode
Click this button for camera settings
Resolution
Changed the resolution of the video, there are 3 options:
1280x720, 640x480 and 320x240.
Pan/Tilt Speed
Change the speed of the pan/tilt of the camera. There
are 5 options: Fastest, Fast, Normal, Slower and Slowest.
(only available for the camera with Pan/Tilt)
Definition Change the video''s quailty
9
The vertical cruise will tilt automatically
(only available for the camera with Pan/Tilt)
Set preset position; this camera supports 6 preset
positions.
(only available for the camera with Pan/Tilt)
Invert the video horizontally
Invert the video vertically
Adjust the brightness of the video
Adjust the contrast of the video
Go a specific preset position you have set
(only available for the camera with Pan/Tilt)
Receive audio from the camera
Send audio to the camera
Take snapshot with the camera
Record video to PC, you can change the path in
the settings page
The horizontal cruise will pan automatically
(only available for the camera with Pan/Tilt)
There are 8 direction keys and the center button is
rotation center.
(only available for the camera with Pan/Tilt)
10
View in Windows CMS Software

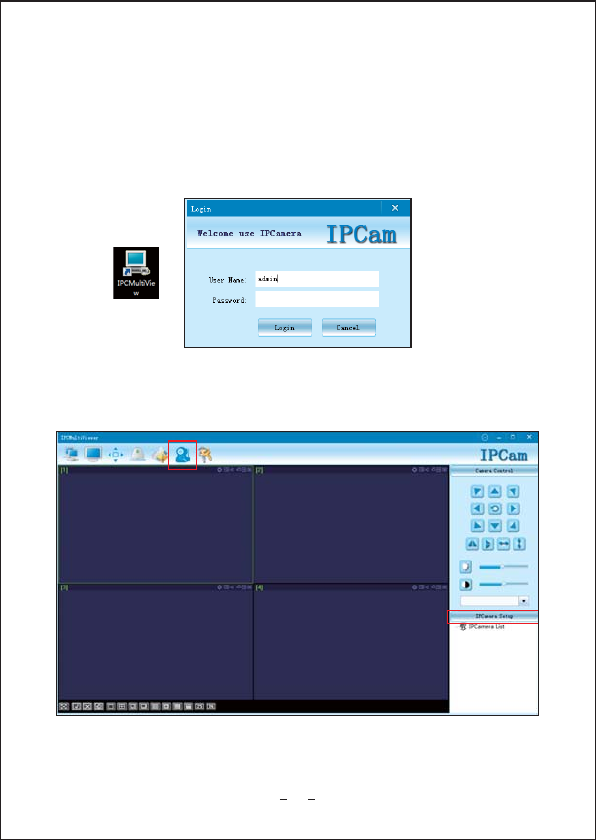

1. Install in CD Then launch.Centralized monitoring software
on your desktop. Once the software lanuched, it will askIPCMultiView
you a username and password to login the software. The default
username is admin, there is no default password, please leave it blank.
2. Once logged in the software, please click the orip camera button
IPCamera Setup to add a new camera to this software.
11

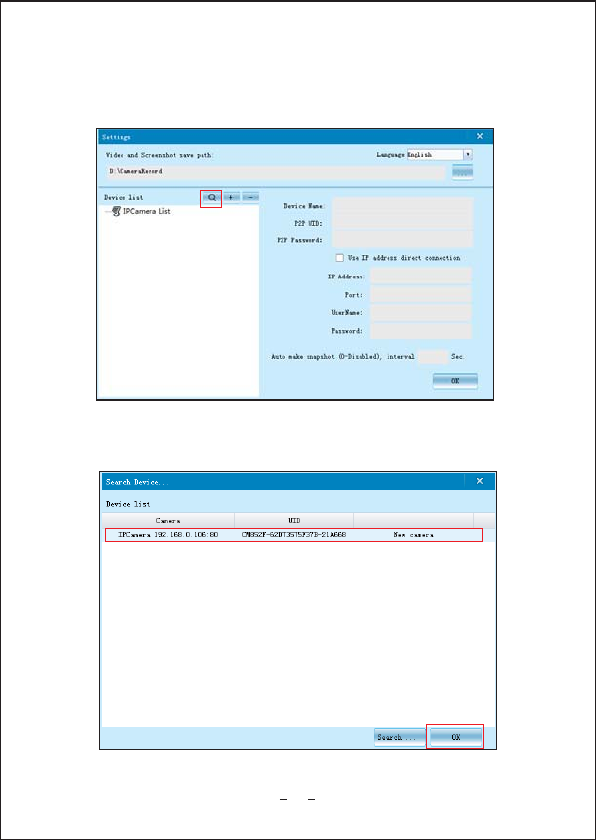

3. If you want to search the camera in LAN, please click the magnifier
icon to search the camera in LAN Or you could click icon to add the.+
camera manually by its P2P UID or IP address.
4. After searching the camera in LAN, please select the corresponding
camera and click .OK
12

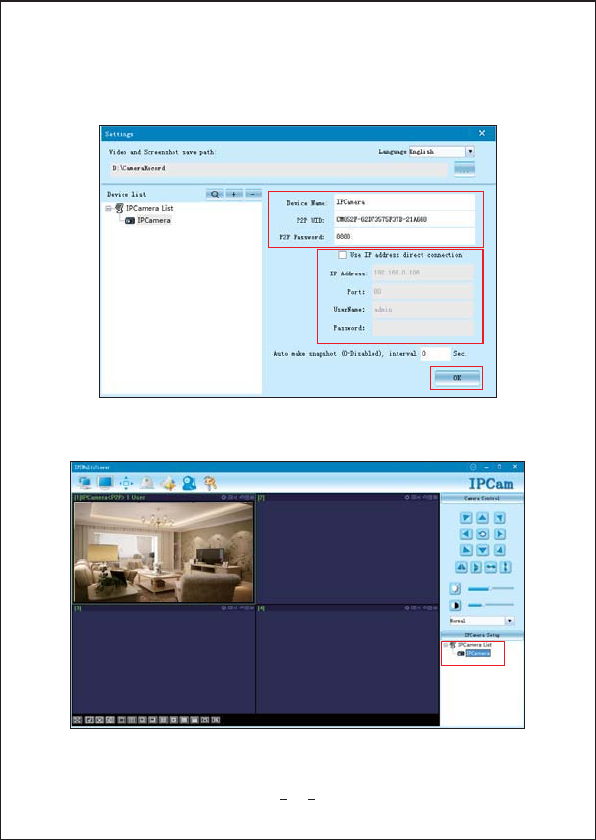

5. Select the connecting mode and enter the login information of the
camera. P2P mode support view the camera from Internet, IP address
mode do not need Internet support.
6. Then you could get live video by double clicking the camera in the list.
P2P Mode
IP Address Mode
13
FAQ
1. Why does my computer or security software say the software
is dangerous and it is a virus?
A: The software will detect device in your network, and it seems
like a virus. Please ignore the warning and continue.
2. How can I reset the camera to factory settings?
A: Please press the reset button under the camera for about 5-10
seconds until the camera's indicator turned off. Please make sure
the power supply is connected when you are doing it.
3. Why does the camera always ask for username and password, or
it says Incorrect User?
A: The camera's default username is admin, and the default password
is N/A, that means you just need leave it blank. If you forget your
username or password, you can reset the camera to factory settings
to get the default username and password.
4. Why can not get live video in web browser?
A: Please download and install plug-in before get live video. If still no live
video, check whether the plug-in enabled in your web browser? If it is a
Win10 PC, please login the camera with IE and Firefox instead of Edge.
5. Can I turned off IR LED manually?
A: Yes, you can turn it off in the setting following the instruction
below. Go to "Setting">>"Advance Config">>"IR-LED Config",
then you can adjust the sensitivity or turn off the IR light.
6. Will this camera function properly if you set it inside of a
window to record outdoors?
A:Yes if left in the day position only. The night camera light will
glare off the window and block vision. Also sun glare can affect
camera sight.
14
7. Why I could not download the App from Google Play?
A:Please login our website to download and install the Android
App directly. Our website is http://www.keekoonvision.com
15
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection
against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one
or more of the following measures:
o Reorient or relocate the receiving antenna.
o Increase the separation between the equipment and receiver.
o Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
o Consult the dealer or an experienced radio/TV
technician for help.
Caution: Any changes or modi cations to this device not
explicitly approved by manufacturer could void your authority
to operate this equipment.
This device complies with part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) This device
may not cause harmful interference, and (2) this device must
accept any interference received, including
interference that may cause undesired operation.
The device has been evaluated to meet general RF exposure
requirement. :NOYKW[OVSKTZYNU[RJHKOTYZGRRKJGTJUVKXGZKJ]OZN
GSOTOS[SJOYZGTIKULIKTZOSKZKXYHKZ]KKTZNKXGJOGZUXGTJ
_U[XHUJ_
