GPS NAVIGATION SYSTEM

DNX SERIES

DNX5260BT

MONITOR WITH DVD RECEIVER

DDX SERIES

DDX5026 DDX5056

INSTRUCTION MANUAL

B64-4606-00_02_E_En.indd 1B64-4606-00_02_E_En.indd 1 10.2.18 3:30:43 PM10.2.18 3:30:43 PM

2 DNX5260BT/DDX5026/DDX5056

Contents

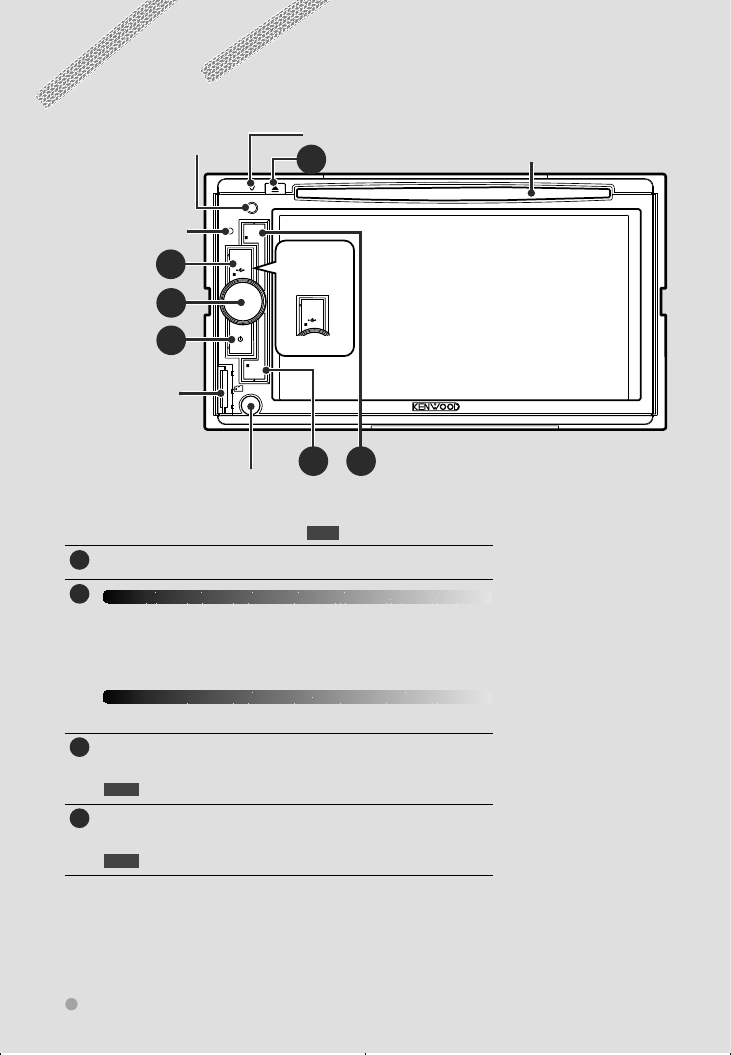

Functions of the buttons on the front

panel 10

Getting Started 12

How to Display the Navigation Screen 12

How to Select the Source 12

How to Set a Medium / a Device 13

Basic Operation 14

How to Display the Source Control Screen 14

How to Display Top Menu Screen 15

Operation on the Playback Screen of Visual

Sources 16

How to Display the Easy Control Screen 17

Watching DVD/Video CD 18

Playback Screen 18

Easy Control Screen 18

Source Control Screen 19

DVD-VIDEO Disc Menu 20

DVD-VR Menu Control 21

Video CD Zoom Control 22

Music Disc/ Audio File Listening &

Video File/ Picture File Watching 23

Source Control Screen 23

List Select 24

USB device select 25

Link search (Audio file in USB) 26

Playback Screen (Video file, Picture file) 26

Easy Control Screen (Video file, Picture file) 27

Picture Control 27

Movie Menu Control 28

iPod Control 29

Playback Screen 29

Easy Control Screen 29

Source Control Screen 30

iPod List 31

Link Search (Music file) 31

Radio Listening 32

Source Control Screen 32

Preset Select 33

Auto Memory 33

Manual Memory 34

Radio Text 34

Traffic Information 35

Search by Program Type 35

TV Watching 36

Function During TV Screen 36

Easy Control Screen 36

Source Control Screen 37

TV Menu (only with KTC-D500E (optional

accessory) connected) 37

Auto Memory

(only with KTC-V300E or KTC-V301E

(optional accessory) connected) 38

Manual Memory

(only with KTC-V300E or KTC-V301E

(optional accessory) connected) 38

Preset Select 39

Set Station Name 39

Bluetooth Audio Control

(DDX5026/DDX5056) 40

Before Use 40

Source Control Screen 40

Other Functions 41

Character Entry 41

Muting Audio Volume upon Reception of

Phone Call 41

Screen Control 42

Before Use 4

Notes 5

How to read this manual 8

Initial Setup 85

B64-4606-00_02_E_En.indd 2B64-4606-00_02_E_En.indd 2 10.2.18 3:30:44 PM10.2.18 3:30:44 PM

English 3

Hands-Free Phoning 43

Before Use 43

Downloading the Phonebook 43

Receiving a Call 44

During a Call 44

Call Waiting 44

Making a Call 45

Calling by Phonebook 46

Calling by Entering a Phone Number 46

Making a Call Using Call Records 47

Calling by Voice Recognition 47

Controlling Tone-based Services 48

Setting Up the Hands-Free Phone 49

Voice Registration 50

Key Word Voice Registration 51

Phone Number Preset 52

SMS (Short Message Service) 53

Audio Control 55

Audio Control Menu 55

Audio Control 55

Equalizer Control 56

Tone Setup 56

Zone Control 57

Setup Menu 58

How to Display SETUP Menu Screen 58

DivX Setup 59

Software Information 59

User Inter face 60

Language Setting 60

Touch Panel Adjustment 61

Clock Setup 62

Security Setup 62

Setup Memory 63

Entering Background 64

Panel Color Coordinate 65

Screen Adjustment 66

Registering Bluetooth Unit 67

Registering Bluetooth Unit PIN Code 68

Bluetooth Unit Connection 69

Bluetooth Hands-Free/Audio Output Setup 69

AV Input Setup 70

AV Interface Setup 70

Navigation Setup 71

Speaker Setup 72

DVD Setup 73

DVD Language Setup 74

DVD Parental Level Setup 74

Disc Setup 75

USB Setup 76

iPod Setup 76

Tuner Setup 77

TV Setup 77

Remote Controller 78

Battery installation 78

Remote Controller mode switch 79

Common operations (AUD mode) 79

DVD/VCD (DVD mode) 80

Music Disc/Audio file/Video file/ Picture file

(AUD mode) 82

Radio (AUD mode) 83

iPod (AUD mode) 83

USB (AUD mode) 83

TV (TV mode) 84

Initial Setup 85

Status bar Indicator items 86

DVD Language Codes 87

Help? Troubleshooting 88

Help? Error 89

Specifications 90

B64-4606-00_02_E_En.indd 3B64-4606-00_02_E_En.indd 3 10.2.18 3:30:44 PM10.2.18 3:30:44 PM

4 DNX5260BT/DDX5026/DDX5056

Before Use

2WARNING

To prevent injury or fire, take the following

precautions:

• To prevent a short circuit, never put or leave any

metallic objects (such as coins or metal tools) inside

the unit.

• Do not watch or fix your eyes on the unit’s display

when you are driving for any extended period.

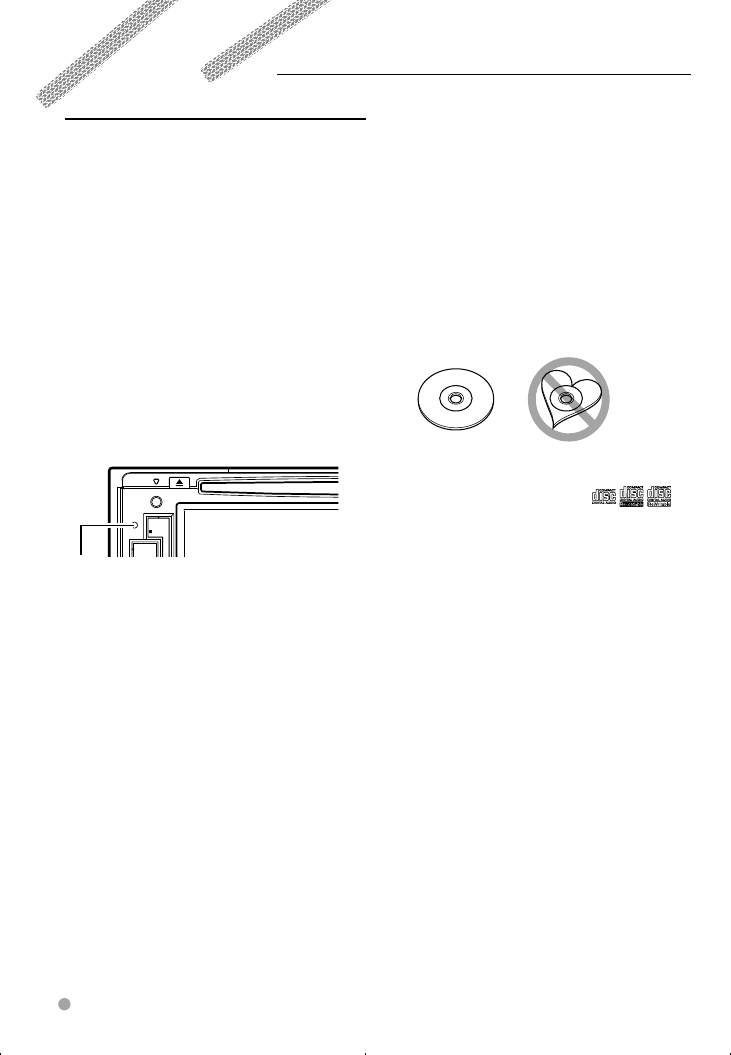

How to reset your unit

• If the unit or the connected unit fails to operate

properly, press the Reset button. The unit returns to

factory settings when the Reset button is pressed.

• Remove the USB device before pressing the Reset

button. Pressing the Reset button with the USB

device installed can damage the data contained in

the USB device. For how to remove the USB device,

see <How to Set a Medium / a Device> (page 13).

• When the unit is turned on after pressing the Reset

button, the Initial SETUP screen is displayed. (page

85)

NAV

TEL

AV OUT

Reset button

Cleaning the unit

If the faceplate of this unit is stained, wipe it with a

dry soft cloth such as a silicon cloth.

If the faceplate is stained badly, wipe the stain off

with a cloth moistened with neutral cleaner, then

wipe it again with a clean soft dry cloth.

• Applying spray cleaner directly to the unit may affect its

mechanical parts. Wiping the faceplate with a hard cloth

or using a volatile liquid such as thinner or alcohol may

scratch the surface or erases characters.

Lens fogging

When you turn on the car heater in cold weather,

dew or condensation may form on the lens in the

disc player of the unit. Called lens fogging, this

condensation on the lens may not allow discs to play.

In such a situation, remove the disc and wait for the

condensation to evaporate. If the unit still does not

operate normally after a while, consult your Kenwood

dealer.

Handling discs

• Do not touch the recording surface of the disc.

• Do not stick tape etc. on the disc, or use a disc with

tape stuck on it.

• Do not use disc type accessories.

• Clean from the center of the disc and move

outward.

• When removing discs from this unit, pull them out

horizontally.

• If the disc center hole or outside rim has burrs,

use the disc only after removing the burrs with a

ballpoint pen etc.

Discs that cannot be used

• Discs that are not round cannot be used.

• Discs with coloring on the recording surface or

discs that are dirty cannot be used.

• This unit can only play the CDs with .

This unit may not correctly play discs which do not

have the mark.

• You cannot play a disc that has not been finalized.

(For the finalization process refer to your writing

software, and your recorder instruction manual.)

• If you try to load a 3-inch-disc with its adapter into

the unit, the adapter might separate from the disc

and damage the unit.

Other notes

• If you experience problems during installation,

consult your Kenwood dealer.

• When you purchase optional accessories, check

with your Kenwood dealer to make sure that they

work with your model and in your area.

• Characters that conform to ISO 8859-1 can be

displayed.

• The RDS or RBDS feature won’t work where the

service is not supported by any broadcasting

station.

Protecting the monitor

To protect the monitor from damage, do not operate

the monitor using a ball point pen or similar tool with

the sharp tip.

B64-4606-00_02_E_En.indd 4B64-4606-00_02_E_En.indd 4 10.2.18 3:30:45 PM10.2.18 3:30:45 PM

English 5

Notes

List of playable discs

Disc

types

Standard Support Remark

DVD DVD Video ‡

DVD Audio ×

DVD-VR ‡Not compatible with CPRM.

DVD-R ‡MP3/WMA/AAC/WAV/

JPEG/MPEG/DivX Playback

Multi-border/Multisession/

(Playback depends on

authoring conditions)

Compatible with 8-cm (3

inch) discs

DVD-RW ‡

DVD+R ‡

DVD+RW ‡

DVD-R DL (Dual layer) ‡Only video format

DVD+R DL (Double layer) ‡

DVD-RAM ×

CD Music CD ‡CD-TEXT/8-cm (3 inch)

discs supported.

CD-ROM ‡MP3/WMA/AAC/WAV/

JPEG/DivX playback.

Multisession supported

Packet write not supported.

CD-R ‡

CD-RW ‡

DTS-CD ‡

Video CD (VCD) ‡

Super video CD ×

Photo CD ×

CD-EXTRA %Only music CD session can

be played.

HDCD %Sound quality of normal

CD music

CCCD ×

Others Dualdisc ×

Super audio CD %Only CD layer can be

played.

‡ : Playback is possible.

% : Playback is partly possible.

× : Playback is impossible.

⁄

• When buying DRM enabled contents, check the

Registration Code in the <DivX Setup> (page 59).

Registration Code changes each time a file with the

displayed Registration Code is played to protect against

copying.

Use of "DualDisc"

When playing a "DualDisc" on this unit, the surface

of the disc that is not played may be scratched

while the disc is inserted or ejected. Since the music

CD surface does not conform to the CD standard,

playback may be impossible.

(A "DualDisc" is a disc with one surface containing

DVD standard signals and the other surface

containing music CD signals.)

About Audio files

• Playable Audio file

AAC-LC (.m4a), MP3 (.mp3), WMA (.wma), Linear

PCM (WAV) (.wav)

⁄

• If music of normal CD and other playback systems are

recorded in the same disc, only the playback system

recorded at the first setout is played.

• Acceptable media

CD-R/RW/ROM, DVD±R/RW, mass-storage-class

USB device, iPod with KCA-iP301V

• Playable disc file format

ISO 9660 Level 1/2, Joliet, Romeo, Long file name.

• Playable USB device file system

FAT16, FAT32

Although the audio files are complied with the standards

listed above, the play maybe impossible depending on

the types or conditions of media or device.

• Playing order of the Audio file

In the example of folder/file tree shown below, the

files are played in the order from ① to ⑩.

v



() <

: Folder

v: Audio 



v



v

v

v.

 v

Folder

Audio file

An online manual about audio files is put on the

site, www.kenwood.com/cs/ce/audiofile/. On this

online manual, detailed information and notes

which are not written in this manual are provided.

Make sure to read through the online manual as

well.

About Video files

• Acceptable video files

MPEG1, MPEG2, DivX

• Extensions

mpg, mpeg, m1v, m2v, divx, div, avi

• Acceptable media

CD-R/RW/ROM, DVD±R/RW, mass-storage-class

USB device, iPod with KCA-iP301V

Acceptable discs, disc formats, USB device file system,

file and folder names and playing order are the same

as those for audio files. See <About Audio files>.

Next page 3

B64-4606-00_02_E_En.indd 5B64-4606-00_02_E_En.indd 5 10.2.18 3:30:45 PM10.2.18 3:30:45 PM

6 DNX5260BT/DDX5026/DDX5056

Notes

About Picture files

• Acceptable picture files

JPEG

• Extensions

jpg, jpeg

• Acceptable media

CD-R/RW/ROM, DVD±R/RW, mass-storage-class

USB device

Acceptable discs, disc formats, USB device file system,

file and folder names and playing order are the same

as those for audio files. See <About Audio files>.

iPod/iPhone that can be connected to this

unit

Made for

• iPod nano (1st generation) • iPod nano (2nd generation)

• iPod nano (3rd generation) • iPod nano (4th generation)

• iPod nano (5th generation)

• iPod with video • iPod classic

• iPod touch (1st generation) • iPod touch (2nd generation)

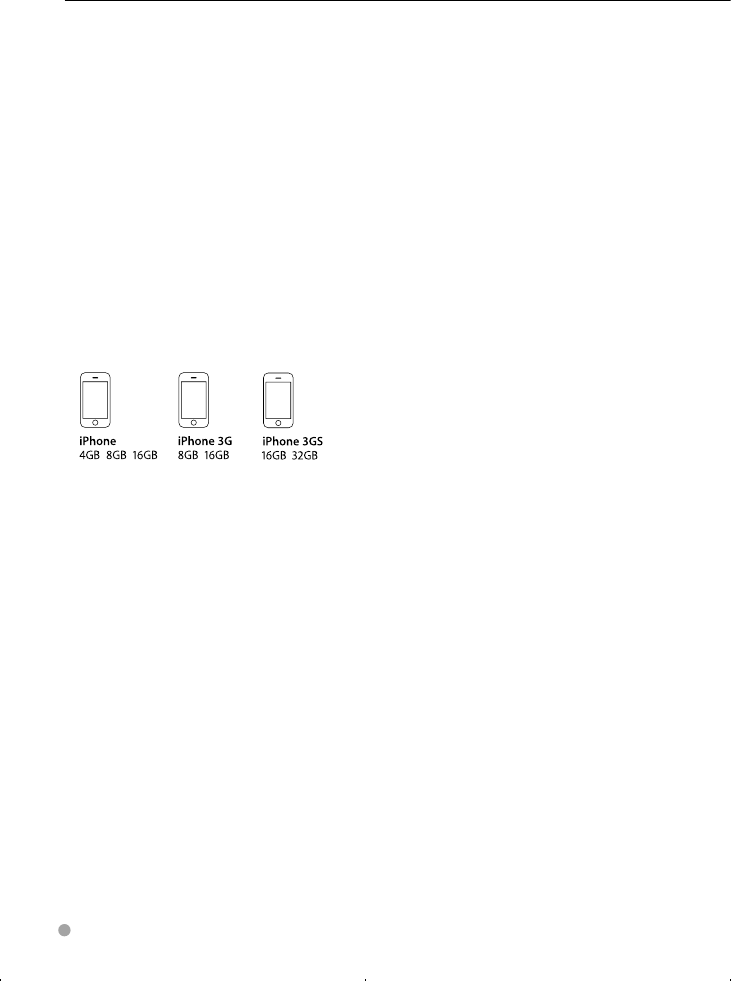

Works with

• Update iPod/iPhone software to the latest version.

• You can control an iPod/iPhone from this unit by

connecting an iPod/iPhone (commercial product)

with Dock connector using an optional accessory

iPod connection cable (KCA-iP301V). The word

"iPod" appearing in this manual indicates the iPod/

iPhone connected with the KCA-iP301V (optional

accessory).

• By connecting your iPod/iPhone to this unit with

an optional accessory iPod connection cable (KCA-

iP301V), you can supply power to your iPod/iPhone

as well as charge it while playing music. However,

the power of this unit must be on.

⁄

• If you start playback after connecting the iPod, the

music that has been played by the iPod is played

first.

In this case, "RESUMING" is displayed without

displaying a folder name, etc. Changing the browse

item will display a correct title, etc.

• When the iPod is connected to this unit,

"KENWOOD" or "✓" is displayed on the iPod to

indicate that you cannot operate the iPod.

About USB device

• In this manual, the word "USB device" is used for

flash memories and digital audio players which

have USB terminals.

• When the USB device is connected to this unit,

it can be charged up provided that this unit is

powered.

• Install the USB device in the place where it will not

prevent you from driving your vehicle properly.

• You cannot connect a USB device via a USB hub

and Multi Card Reader.

• Take backups of the audio files used with this unit.

The files can be erased depending on the operating

conditions of the USB device.

We shall have no compensation for any damage

arising out of erasure of the stored data.

• No USB device comes with this unit. You need to

purchase a commercially available USB device.

• When connecting the USB device, usage of the

CA-U1EX (option) is recommended.

Normal playback is not guaranteed when a cable

other than the USB compatible cable is used.

Connecting a cable whose total length is longer

than 5 m can result in abnormal playback.

Navigation units that can be connected to

this unit (DDX series only)

• KNA-G620T

Update the navigation software to the latest

version. For how to update the software, refer to the

instruction manual of the navigation unit.

For the latest information on connectable navigation

units, access www.kenwood.com/cs/ce/.

TV tuner that can be connected to this unit

• KTC-D500E • KTC-V300E • KTC-V301E

Bluetooth unit that can be connected to

this unit (DDX5026/DDX5056)

• KCA-BT200

B64-4606-00_02_E_En.indd 6B64-4606-00_02_E_En.indd 6 10.2.18 3:30:46 PM10.2.18 3:30:46 PM

English 7

Region codes in the world

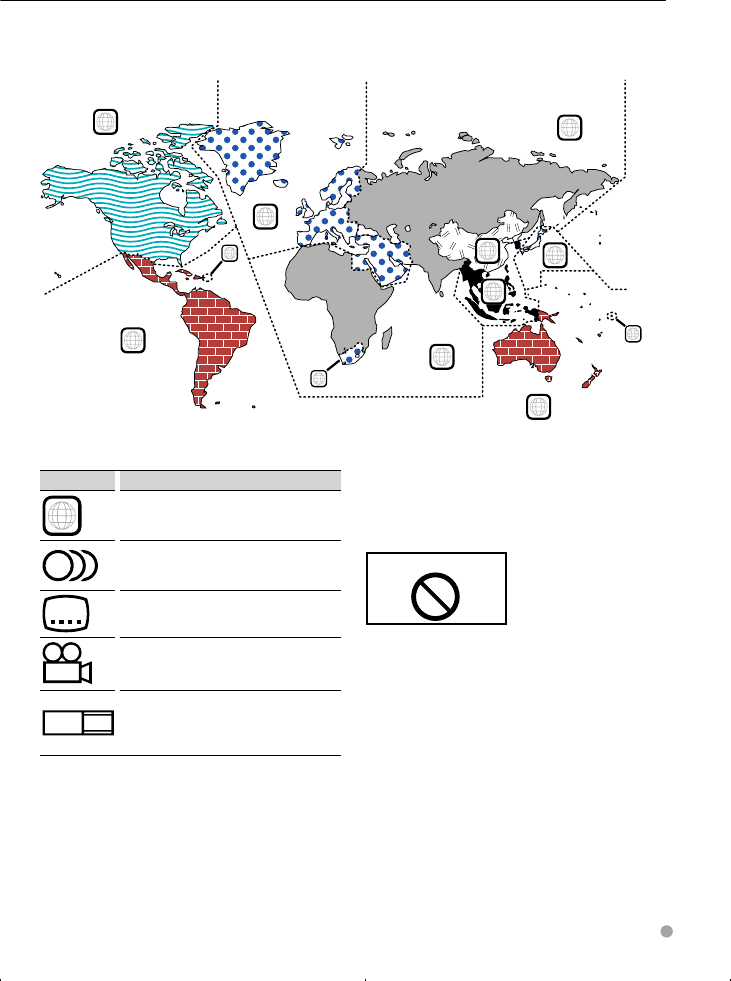

The DVD players are given a region code according to the country or area it is marketed, as shown in the

following map.

Operation regulatory marks

With this DVD, some functions of this unit such as the

play function may be restricted depending on the

location where the DVD is playing. In this case, the

following marks will appear on the screen. For more

information, refer to the disc manual.

Prohibition Mark

Discs with limited period of use

Do not leave discs with a limited period of use in this

unit. If you load an already expired disc, you may not

be able to remove it from this unit.

DVD disc marks

Symbol Description

ALL

Indicates a region number. The discs with this mark can

be played with any DVD player.

Indicates the number of audio languages recorded. Up

to 8 languages can be recorded in a movie. You can

select a favorite language.

Indicates the number of subtitled languages recorded.

Up to 32 languages can be recorded.

If a DVD disc has scenes shot from multiple angles, you

can select a favorite angle.

16:9 LB

Indicates the type of screen for the image. The left mark

indicates that a wide image picture (16:9) is displayed

on a standard TV set screen (4:3) with a black band at

both the top and bottom of the screen (letter box).

B64-4606-00_02_E_En.indd 7B64-4606-00_02_E_En.indd 7 10.2.18 3:30:46 PM10.2.18 3:30:46 PM

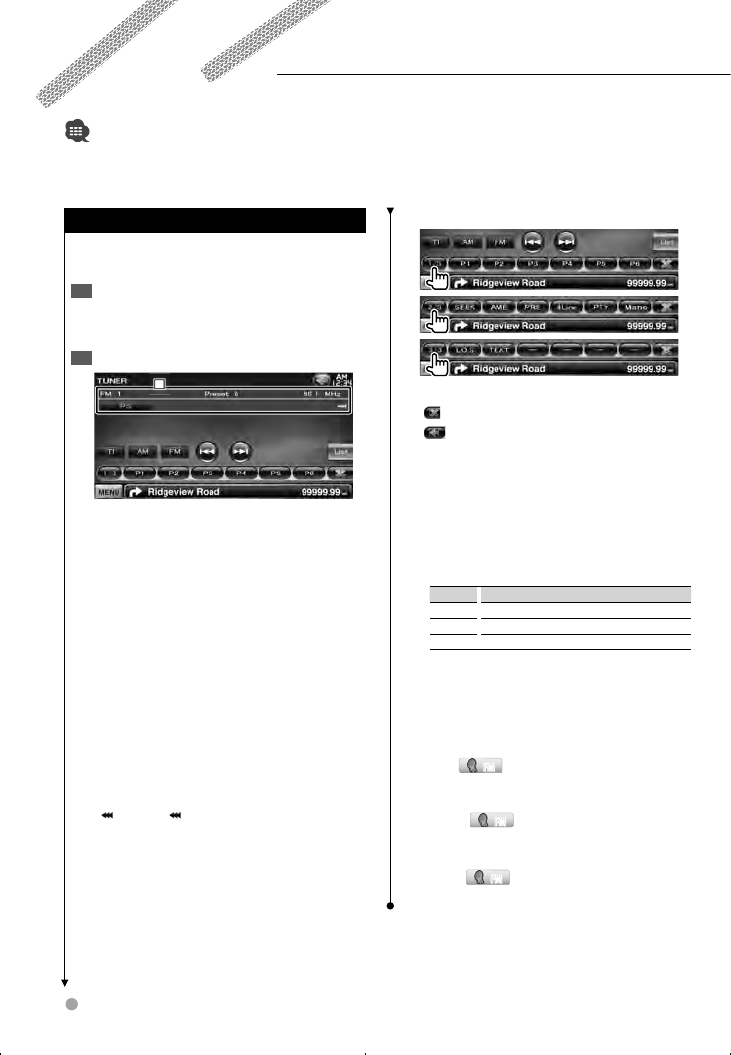

Source Control Screen

Switches to the source control screen to use

various functions.

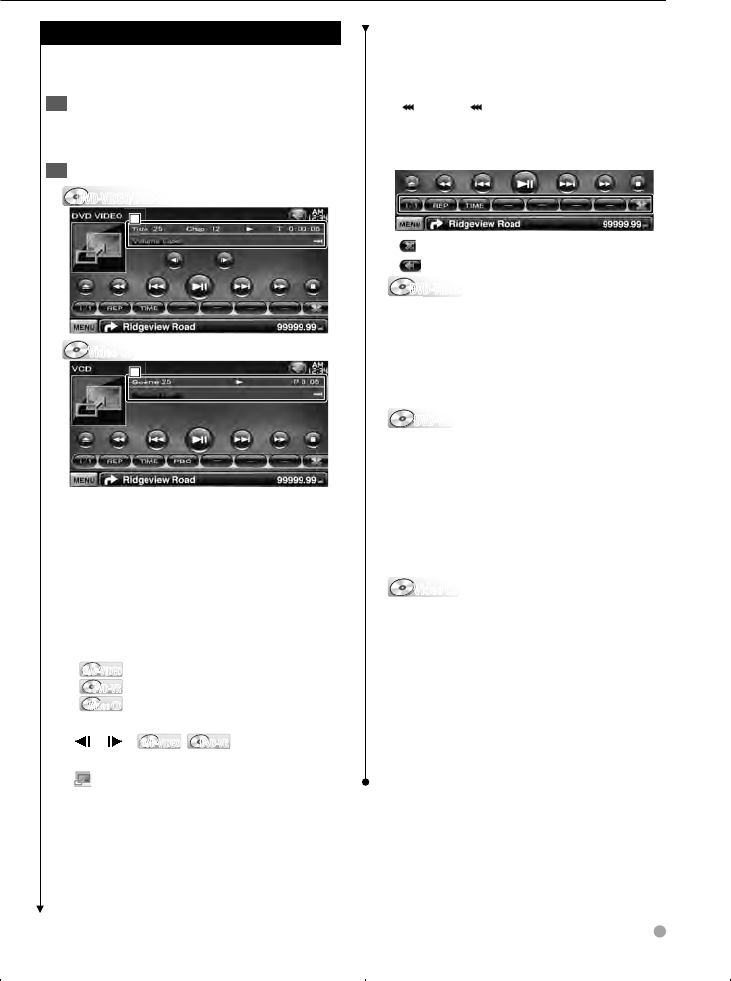

Display the Source 1 Control Screen

See <How to Display the Source Control

Screen>.

Operation on the 2 Source Control screen

[FM] Switches to the FM1/2/3 band.

[AM] Switches to the AM band.

[4], [¢] Tunes in a station.

Use the [SEEK] to change the frequency

switching.

Multi Function

[Mono] FMFM Selects the Monaural

reception.

[SEEK] Switches the Seek mode.

The mode is switched in the following order

each time you touch the button.

Display Setting

"AUTO1" Tunes in a station with good reception

automatically.

"AUTO2" Tunes in stations in memory one after another.

"MANU" Switches to the next frequency manually.

Store in memory3

2 sec.

Continue to touch until the memory number

appears.

Next page 3

8 DNX5260BT/DDX5026/DDX5056

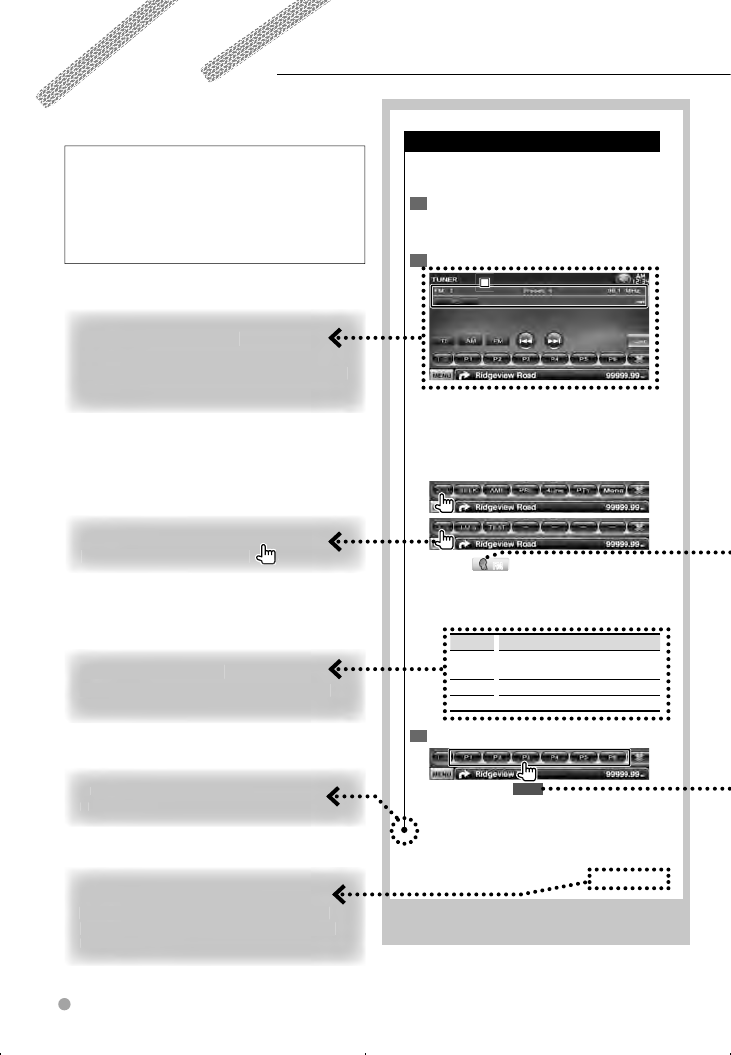

How to read this manual

This manual uses illustrations to explain its

operations.

The displays and panels shown in this manual

are examples used to provide clear explanations

of the operations.

For this reason, they may be different from the

actual displays or panels used, or some display

patterns may be different.

The above operation example with the mark

differs from the actual operation.

Sho

rt Pre

Pre

the

tto

den

ote

d b

Cha

e in the screen

Wit

eac

eration, t

e screen c

ges

the

der

own

re.

Con

tinue to t

e next page

The

instruction continues to the next pa

ake sure to flip the pa

e for the rest of the

ins

uct

Sel

ectin

a screen item

Sel

ect

d c

hoo

ite

m o

n t

scr

een

ect t

e item

touc

ing t

utton on t

scr

een

∞

: Continues to t

e next

ine

: En

ere.

B64-4606-00_02_E_En.indd 8B64-4606-00_02_E_En.indd 8 10.2.18 3:30:46 PM10.2.18 3:30:46 PM

English 9

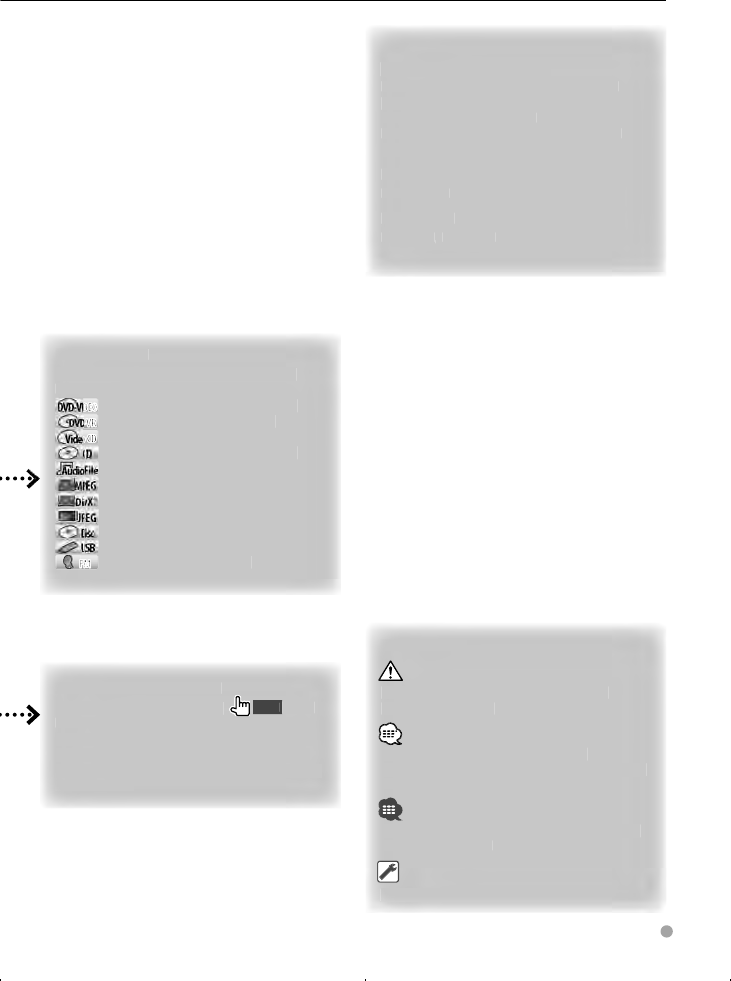

Pre

ss 2 secon

s or mor

Press the button, denoted b

sec.

seco

r m

Indicates to press and hold down the button

ntil operation starts or the screen chan

es.

he le

t example indicates to press the button

for

seco

ds.

Oth

er mar

mportant precautions are

escri

pre

vent

nju

es etc.

Spe

cia

instructions, su

ppl

ementa

exp

lanations, limitations, and re

erenc

e p

age

are

escri

Gen

eral precautions and re

erence pa

es are

sho

the

The

iti

val

eac

h s

etu

p i

s s

how

out t

e mo

group

f different functions are used in different

model groups, the model groups are

escribed as shown below.

ames of models included in each model

roup are as follows:

erie

NX5260BT

erie

DDX

5056

Fun

cti

Ico

Icons representing available

unctions are

own

ow.

DEO

: Function o

DVD-VIDEO

pla

yba

-VR

-V

: Function o

DVD-VR

pla

yba

: Function o

Video CD p

lay

bac

: Function o

CD (CD-DA)

ayb

ack

: Function o

Audio File

ayb

ack

: Function o

MPEG

ile

pla

yba

ck.

: Function o

DivX

ile

pla

yba

ck.

: Function o

JPEG

ile

pla

yba

ck.

: Function o

Disc (DVD

CD) medi

: Function o

USB device

: Function o

FM rece

pti

B64-4606-00_02_E_En.indd 9B64-4606-00_02_E_En.indd 9 10.2.18 3:30:47 PM10.2.18 3:30:47 PM

10 DNX5260BT/DDX5026/DDX5056

Functions of the buttons on the front panel

AEjects the disc.

DNX series

Displays the navigation screen.

When the navigation screen has already been displayed, it switches

to the currently selected source screen.

DDX series

Displays the Top Menu screen. %

CVolume adjustment. (Turn the knob either way.)

Attenuation of the volume On/Off. (Press the knob.)

1 sec. Displays Tone Control screen.*1 Y

DTurns the power On.

Displays the Source Select screen. @

1 sec. Turns the power Off.

Security indicator (page 62)

Remote control sensor

Reset button

(page 4)

1 sec. : Press for more than 1 second

FNC

SRC

NAV

TEL

V.OFF

AUD

AV OUT

AV-IN

NAV MAP

ATT

VOL

E F

Disc slot (page 13)

For DNX series

microSD card slot

for upgrading the

navigation system

(page 13)

Input jack for external device

TOP

AUD

ATT

VOL

For DDX

series

⁄

*1 The display may not switch to Tone

Control screen in some conditions.

B64-4606-00_02_E_En.indd 10B64-4606-00_02_E_En.indd 10 10.2.18 3:30:49 PM10.2.18 3:30:49 PM

English 11

Functions of the buttons on the front panel

DNX series

DDX series with navigation unit

7 While watching the playback screen of a visual source

Displays the Easy Control screen. &

7 While watching the navigation screen

Displays the Screen Control screen. w

7 While watching the screen other than the above

Screen Switching function On/Off. !

1 sec. Turns the display Off.*2

DDX series without navigation unit

7 While watching the playback screen of a visual source

Displays the Easy Control buttons. &

1 sec. Turns the display Off.*2

FHands Free control screen On/Off.

1 sec. Switches the source that is output at the AV OUTPUT

terminal.

⁄

*2 The function of the [FNC] button

can be changed to the display off

function. See <User Interface> (page

60).

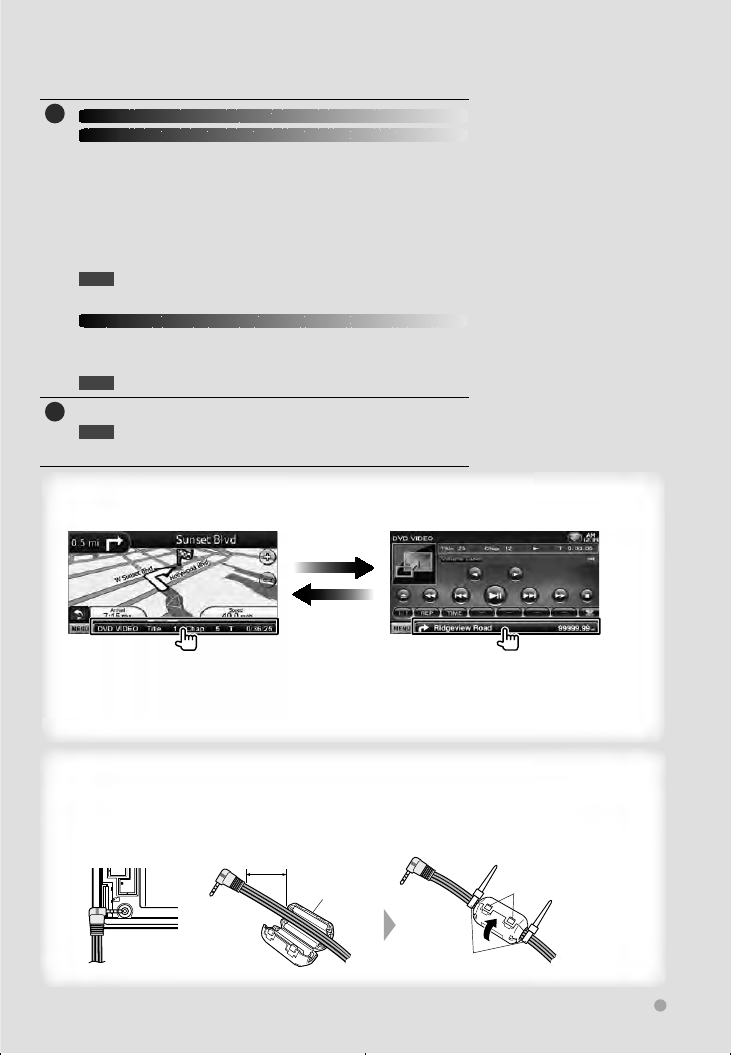

Screen Switching Function

Switching between the navigation screen and the source control screen with one touch operation.

⁄

• For DDX series

Screen Switching fuction can be activated when an optional navigation system is connected to this unit.

Connecting an external device to AV-IN jack (DNX5260BT only)

Use of the optional cable CA-C3AV is recommended for connecting an external player. When

connecting, make sure to attach the ferritic core supplied with this unit to prevent electromagnetic

noise. If the ferritic core may scratch the vehicle, wrap it with the cushion sheet (Accessory of this

unit).

FNC

SRC

R-CAM

AV-IN

NAV MAP

Approx. 10 cm (3-15/16 inch)

Ferritic core

(Accessory of this unit) Lock

Banding band

(Accessory of this unit)

B64-4606-00_02_E_En.indd 11B64-4606-00_02_E_En.indd 11 10.2.18 3:30:49 PM10.2.18 3:30:49 PM

12 DNX5260BT/DDX5026/DDX5056

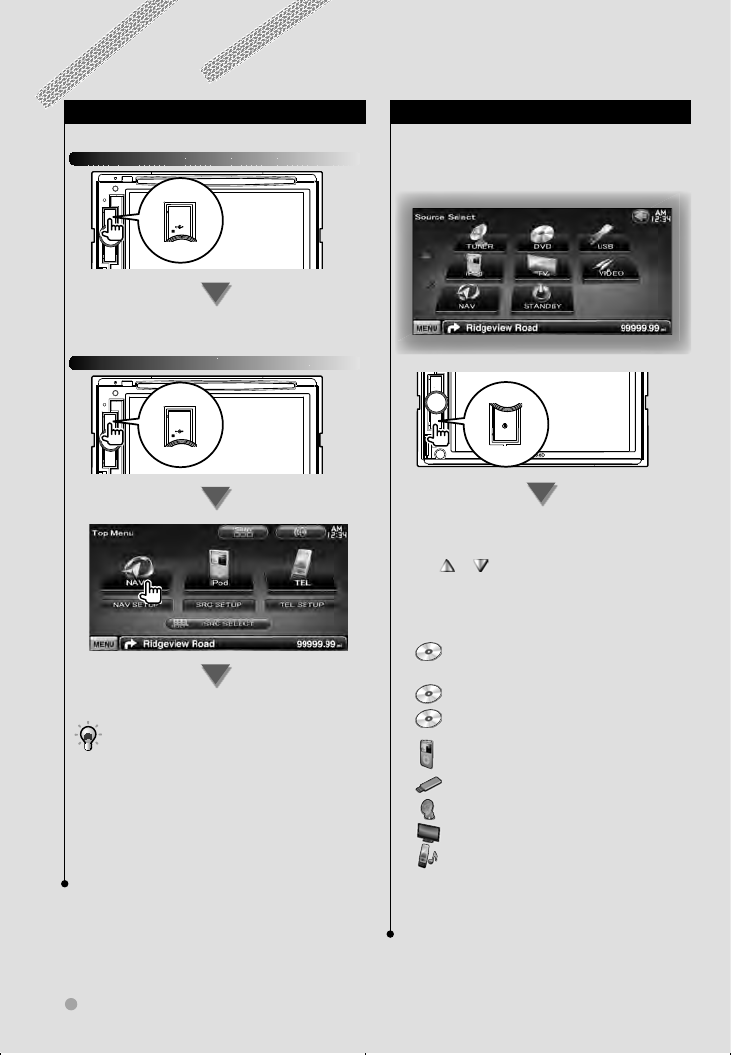

Getting Started

How to Select the Source

Sources can be selected from the Source Select

screen.

Source Select screen

SRC

The Source Select screen appears.

Touch the icon of the source.

Use or to turn the page.

For how to operate each source, see the

following pages.

DVD-VIDEO/ DVD-VR/

Video CD disc \ Page 18

CD \ Page 23

Audio file/ Video file/

Picture file disc \ Page 23

iPod \ Page 29

USB \ Page 23

TUNER \ Page 32

TV \ Page 36

Bluetooth \ Page 40

⁄

• For Disc media, iPod, and USB, the input is switched to

the source as the media or the device is set.

How to Display the Navigation Screen

DNX series

NAV

AUD

ATT

VOL

The navigation screen appears.

DDX series

TOP

AUD

ATT

VOL

The navigation screen appears.

• For how to set up and use the navigation function,

see the Navigation Instruction Manual.

⁄

• For DDX series

An optional navigation system needs to be connected.

See <Navigation unit that can be connected to this unit>

(page 6) for connectable navigation units.

B64-4606-00_02_E_En.indd 12B64-4606-00_02_E_En.indd 12 10.2.18 3:30:51 PM10.2.18 3:30:51 PM

English 13

Getting Started

How to Set a Medium / a Device

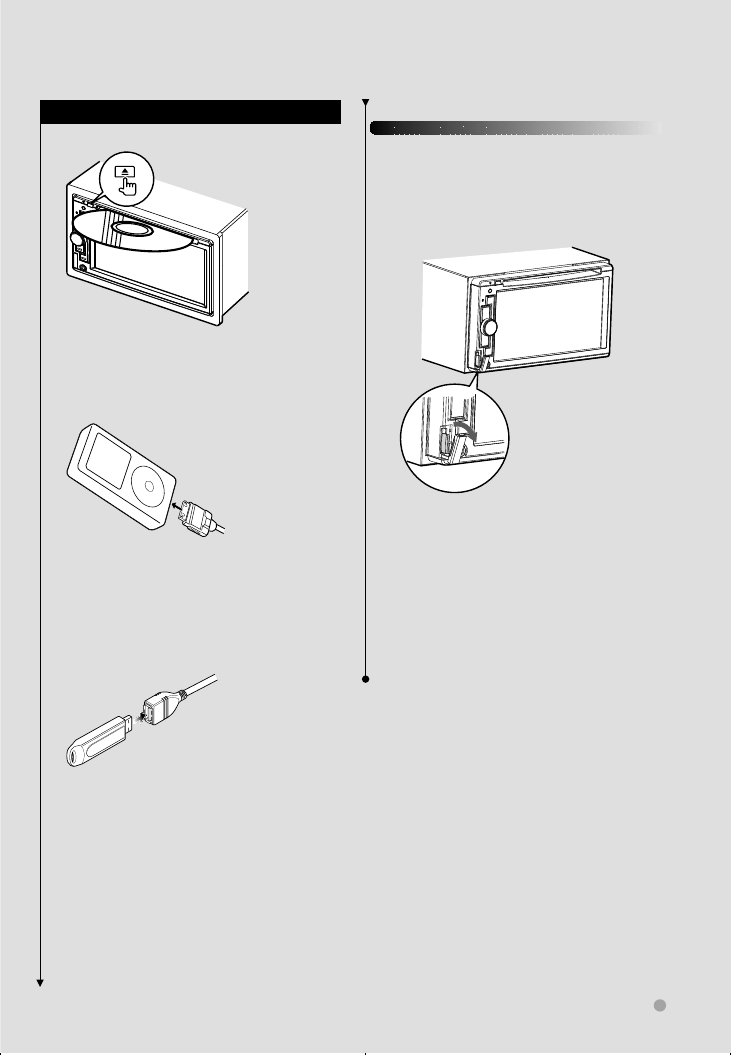

7 Disc media

If a disc is already inserted, it is ejected by

pressing the [0] button.

7 iPod

To disconnect the iPod, stop the playback

by touching the [38] button on the source

control screen, and then disconnect the iPod.

See <Source Control Screen> (page 30).

7 USB device

To disconnect the USB device, touch the [0]

button on the source control screen, and

then disconnect the USB device. See <Source

Control Screen> (page 23).

⁄

• The playback starts automatically after setting the media

or the device.

DNX series

7 microSD card

This microSD card slot is used to upgrade the

Navigation System.

For how to upgrade the Navigation System,

refer to the instruction manual of the

navigation system.

Inserting the microSD card

Hold the microSD card with the label side

facing left and the notched section up, and

insert it into the slot until it clicks.

Removing the microSD card

Push the microSD card until it clicks and

then remove your finger from the card. The

card pops up so that you can pull it out

with your fingers.

B64-4606-00_02_E_En.indd 13B64-4606-00_02_E_En.indd 13 10.2.18 3:30:53 PM10.2.18 3:30:53 PM

14 DNX5260BT/DDX5026/DDX5056

Basic Operation

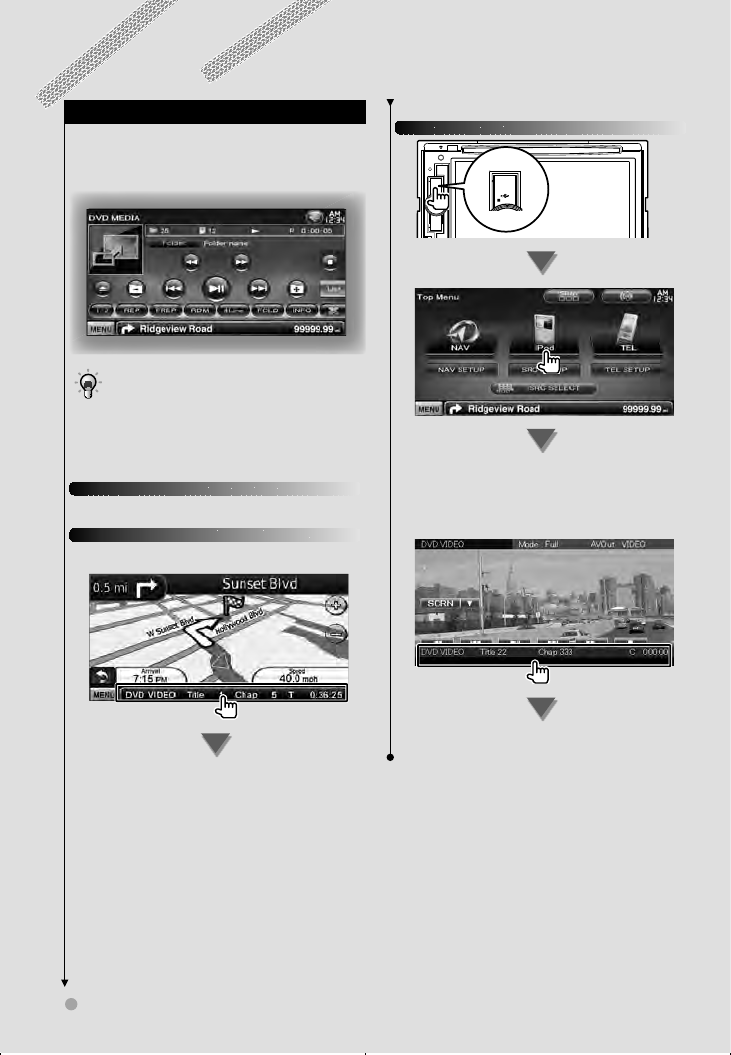

How to Display the Source Control Screen

On the Source Control screen you can find all the

control buttons for the selected source.

Source Control screen

• For how to use each button, see the operation pages

of each source.

How to display the Source Control screen

DNX series

DDX series

with navigation unit

7 While watching the navigation screen

The Source Control screen appears.

⁄

• The screen will return to the navigation screen by

touching the same part of the Source Control screen.

DDX series

TOP

AUD

ATT

VOL

The Source Control screen appears.

7 While watching the Easy Control screen

The Source Control screen appears.

B64-4606-00_02_E_En.indd 14B64-4606-00_02_E_En.indd 14 10.2.18 3:30:54 PM10.2.18 3:30:54 PM

English 15

Basic Operation

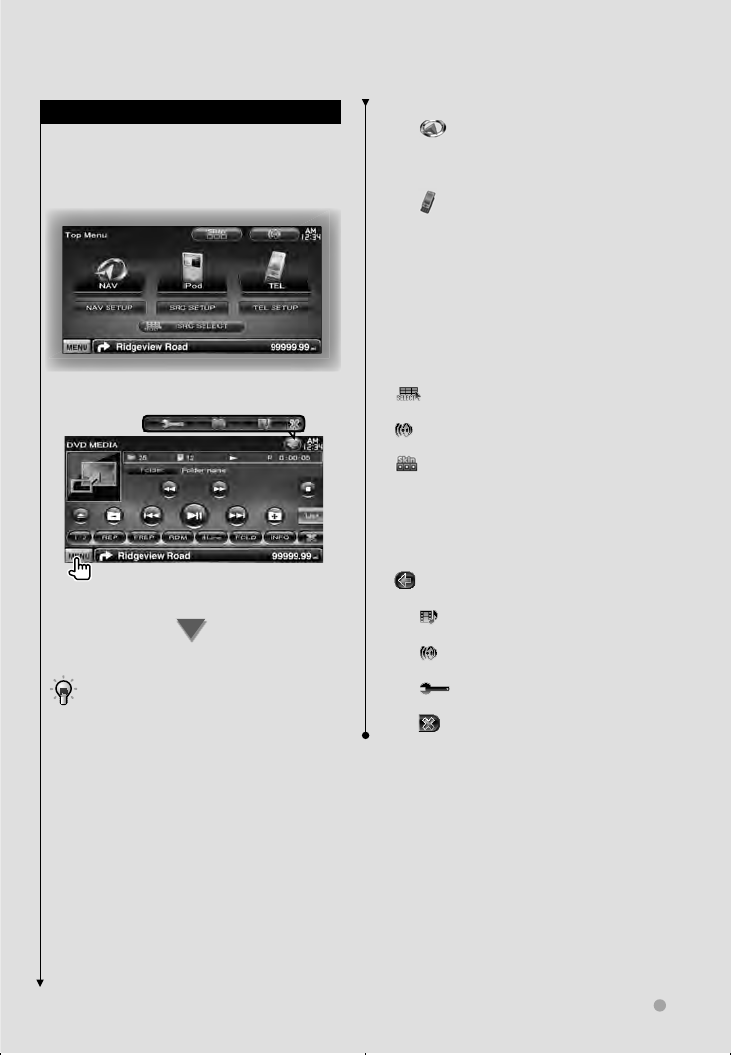

How to Display Top Menu Screen

Top Menu screen is the entrance to all the

functions. You can enter source operation screen

as well as various setup menu from this screen.

Top Menu screen

How to display the Top Menu screen

Touch the [MENU] button on any screen.

The Top Menu screen appears.

• For DDX series

Pressing the [TOP] button on the front panel also

displays the Top Menu screen.

Buttons on the Top Menu screen

[NAV

] Switches to the navigation screen.

[SRC] Switches to the source control screen of

the selected source. The icon of this button

changes according to the selected source.

[TEL ] Switches to the Hands Free Main

screen. (page 58)

[NAV SETUP] Displays Navigation SETUP screen.

(DNX series and DDX series with navigation

unit only)

Refer to the navigation instruction manual for

setting up the navigation system.

[SRC SETUP] Displays SETUP Menu screen. (page

58)

[TEL SETUP] Displays Hands Free SETUP screen.

(page 49)

[SRC SELECT] Displays Source Select

screen. (page 12)

[] Displays Audio Control Menu screen. (page

55)

[] Changes the screen skin each time it is

pressed.

The buttons listed below are common for

many screens.

[MENU] Displays Top Menu screen.

[] Opens the function bar. The buttons shown

below appear.

[] Displays the currently selected source

screen.

[] Displays Audio Control Menu screen.

(page 55)

[] Displays SETUP Menu screen. (page

58)

[] Closes the function bar.

B64-4606-00_02_E_En.indd 15B64-4606-00_02_E_En.indd 15 10.2.18 3:30:55 PM10.2.18 3:30:55 PM

16 DNX5260BT/DDX5026/DDX5056

Basic Operation

Operation on the Playback Screen of

Visual Sources

While watching visual sources, basic operation is

possible by touching the screen.

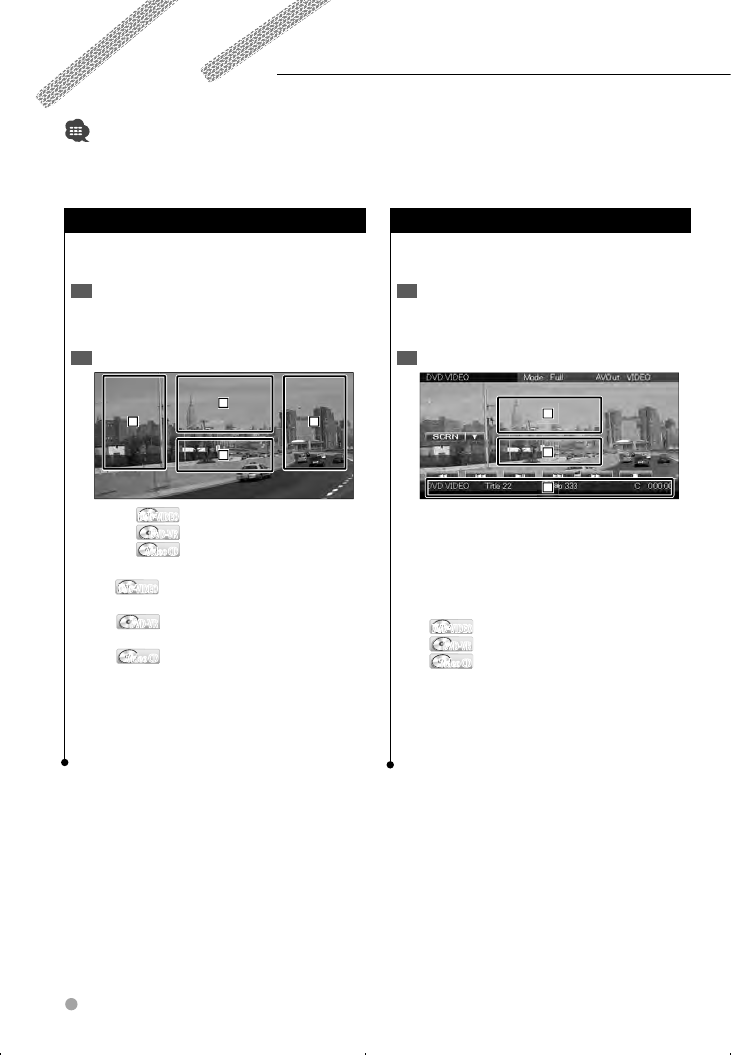

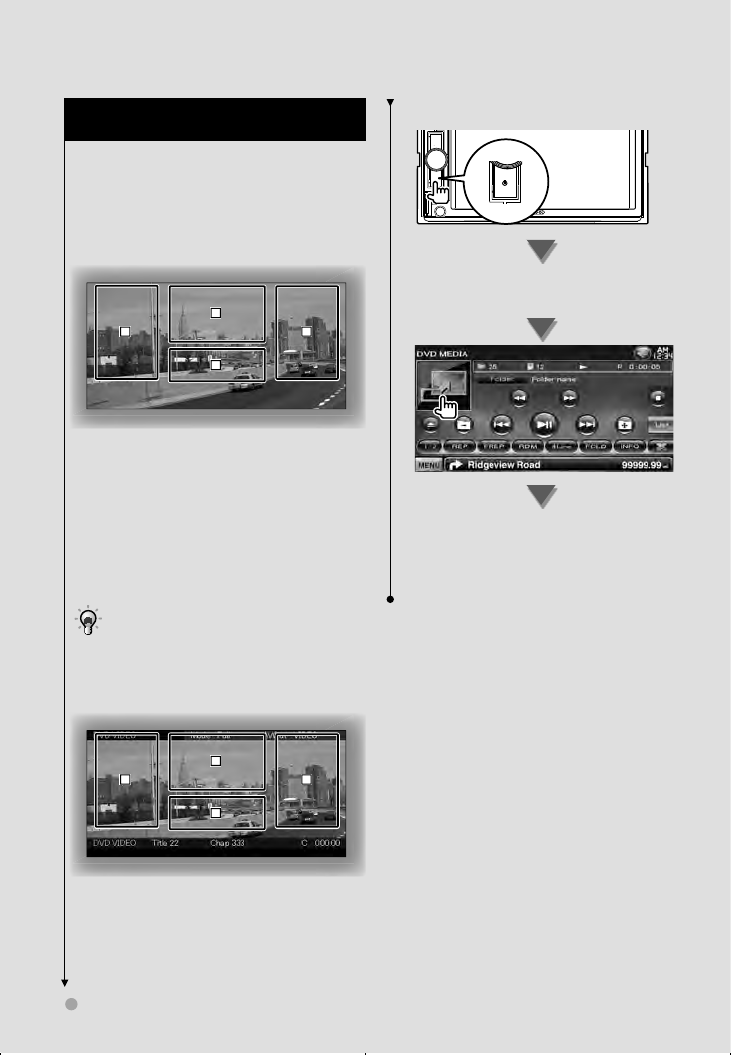

The screen has 4 function areas. The function of

each area is different depending on the sources.

(Some areas are unavailable for some sources.)

Playback screen of a visual source

Basic operation of each area

1 Reverse search.

2 Displays Menu control screen (DVD-VIDEO,

DVD-VR source), Picture control buttons

(sources with picture files), or Zoom control

buttons (Video CD).

Switches TV band.

3 Forward search.

4 Displays/ Clears Source Information screen.*

• For the function of each touching area, see the pages

of each source.

* Source Information screen

⁄

• The information display is cleared automatically after

approximately 5 seconds.

How to display the playback screen

SRC

The Source Select screen appears.

Touch the icon of the source.

The Playback screen of a visual source appears.

⁄

• The playback screen may appear directly after touching

the source icon on Source Select screen.

B64-4606-00_02_E_En.indd 16B64-4606-00_02_E_En.indd 16 10.2.18 3:30:56 PM10.2.18 3:30:56 PM

English 17

Basic Operation

How to Display the Easy Control Screen

Basic operation buttons of the selected source

can be displayed on the playback screen of

visual sources so that you can control the source

without switching the screen.

Easy Control screen

Buttons on the Easy Control screen

[∞] Changes the function as follows by touching

the [∞] button.

[SCRN] Displays Screen Control screen (page

42).

[TEL] Switches to the Hands Free Main

screen (page 45).

[1], [¡], [4], [¢], [7], [£8]

Buttons for source control. The buttons are

different depending on the source. See the

operation pages of each source.

While watching the visual source

FNC

V.OFF

The Easy control screen appears.

⁄

• Easy Control screen is hidden when you touch the central

part of the monitor.

B64-4606-00_02_E_En.indd 17B64-4606-00_02_E_En.indd 17 10.2.18 3:30:57 PM10.2.18 3:30:57 PM

18 DNX5260BT/DDX5026/DDX5056

Watching DVD/Video CD

You can play DVD/Video CD using various functions.

• Set the remote controller mode switch to "DVD" mode before starting operation, see <Remote Controller mode switch>

(page 79).

Playback Screen

Basic functions are available even when the

playback screen is displayed.

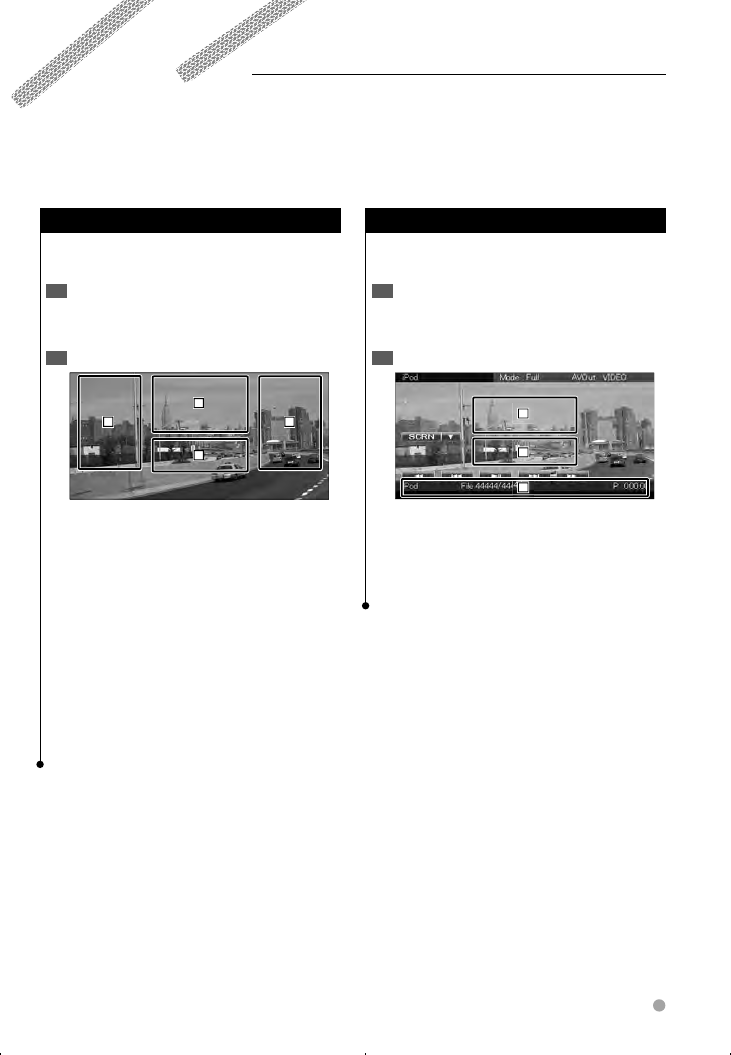

Display the Playback Screen1

See <Operation on the Playback Screen of Visual

Sources> (page 16).

Operation on the Playback Screen2

1, 3 DVD-VIDEODVD-VIDEO Searches for a chapter.

DVD-VRDVD-VR Searches for a chapter.

Video CDVideo CD Selects a scene (when PBC is

On) or a track (when PBC is Off ).

2 DVD-VIDEODVD-VIDEO Displays the Menu Control 1 screen

(page 20).

DVD-VRDVD-VR Displays the Menu Control screen

(page 21).

Video CDVideo CD Displays the Zoom Control screen

(page 22).

4 Displays/ Clears Source Information screen.

⁄

The information display is cleared automatically after •

approximately 5 seconds.

Easy Control Screen

Displays the basic operation buttons on the

screen.

Display the Easy Control Screen1

See <How to Display the Easy Control buttons>

(page 17).

Operation on the Easy Control Screen2

1, 2 Switches to the Playback screen.

3 Displays the Source Control screen.

[1], [¡] Fast Forwards or Fast Backwards.

Changes the speed (2 times, 3 times, or off) each

time the button is touched.

[4], [¢]

DVD-VIDEODVD-VIDEO Searches for a chapter.

DVD-VRDVD-VR Searches for a chapter.

Video CDVideo CD Selects a scene (when PBC is On) or a

track (when PBC is Off ).

[7] Stops playing.

When touched twice, the disc is played from

its beginning when you play it the next time.

[38] Plays or pauses.

B64-4606-00_02_E_En.indd 18B64-4606-00_02_E_En.indd 18 10.2.18 3:30:57 PM10.2.18 3:30:57 PM

English 19

Source Control Screen

Switches to the source control screen to use

various playback functions.

Display the Source 1 Control Screen

See <How to Display the Source Control

Screen> (page 14).

Operation on the Source Control Screen2

DVD-VIDEO/DVD-VRDVD-VIDEO/DVD-VR

Video CDVideo CD

[38] Plays or pauses.

[7] Stops playing.

When touched twice, the disc is played from

its beginning when you play it the next time.

[0] Ejects a disc.

[1], [¡] Fast Forwards or Fast Backwards.

Changes the speed (2 times, 3 times, or off) each

time the button is touched.

[4], [¢]

DVD-VIDEODVD-VIDEO Searches for a chapter.

DVD-VRDVD-VR Searches for a chapter.

Video CDVideo CD Selects a scene (when PBC is On) or a

track (when PBC is Off ).

[], [ ] DVD-VIDEODVD-VIDEO , DVD-VRDVD-VR Slow Forwards or

Backwards.

[] Switches to the playback screen.

1 Information display

Title display.

"Title" Title Number Display

"Chap" Chapter Number Display

"Scene"/ "Track" Scene/Track Number

Display

"3" Play Mode Display

"T"/ "C"/ "R"/ "P" Play Time Display

Use the [TIME] to change play time

display.

[] When appears, the text display is

scrolled by touching it.

Multi Function

[ ] Closes the multi function bar.

[] Opens the multi function bar.

DVD-VIDEODVD-VIDEO

[REP] Switches the Repeat Play operations in

the following sequence.

Title Repeat, Chapter Repeat, Repeat Off

[TIME] Switches the play time display in the

following sequence.

Chapter ("C"), Title ("T"), remaining titles ("R")

DVD-VRDVD-VR

[REP] Switches the Repeat Play operations in

the following sequence.

Title Repeat, Repeat Off

[TIME] Switches the play time display in the

following sequence.

Title ("T"), remaining titles ("R")

[PLST] Switches between the original mode

and Play list mode.

Video CDVideo CD

[REP] Switches the Repeat Play operations in

the following sequence.

Track Repeat, Repeat Off (Available when the

PBC is off )

[TIME] Switches the play time display in the

following sequence.

Track ("P"), remaining discs ("R") (Effective only

when the PBC function is off )

[PBC] Turns the PBC On or Off. (only when VCD

Ver 2.0 is in use)

B64-4606-00_02_E_En.indd 19B64-4606-00_02_E_En.indd 19 10.2.18 3:30:58 PM10.2.18 3:30:58 PM

20 DNX5260BT/DDX5026/DDX5056

Watching DVD/Video CD

DVD-VIDEO Disc Menu

Selects an option from the DVD-VIDEO Disc

Menu.

Display the Playback Screen1

See <Operation on the Playback Screen of Visual

Sources> (page 16).

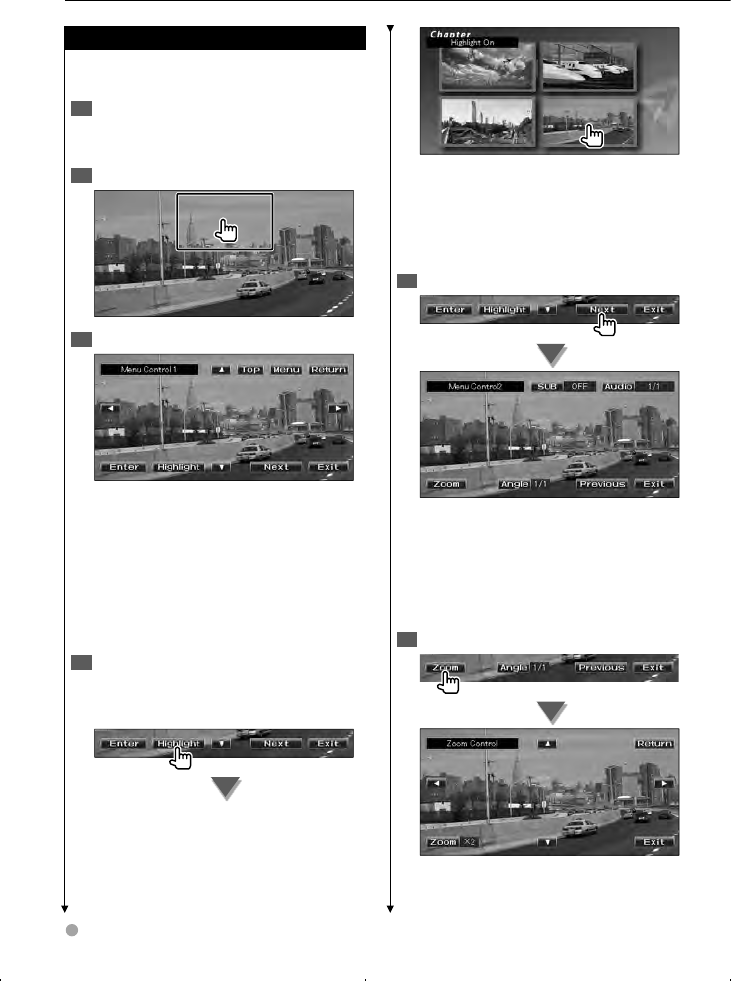

Display the Menu Control 1 screen2

Operation on the Menu Control 1 screen3

[Menu] Calls the Menu.

[Next] Displays the Menu Control 2 screen.

[2], [3], [5], [∞] Selects a menu option.

[Enter] Enters your menu selection.

[Return] Returns to the previous menu screen.

[Top] Displays the Top Menu.

[Highlight] Highlight Control.

[Exit] Exits the Menu Control 1 screen.

Operation on the Highlight Control4

Highlight control lets you control DVD Menu

by touching the menu button directly on the

screen.

⁄

• Touching the central part of the monitor also turns on

the Highlight Control.

• To cancel Highlight Control, press the [FNC] button.

• The Highlight Control is cleared automatically after

approximately 10 seconds.

Operation on the Menu Control 2 screen5

[Previous] Displays the Menu Control 1 screen.

[Angle] Switches the picture angle.

[SUB] Switches the subtitle language.

[Audio] Switches the voice language.

[Zoom] Displays the Zoom Control screen.

[Exit] Exits the Menu Control 2 screen.

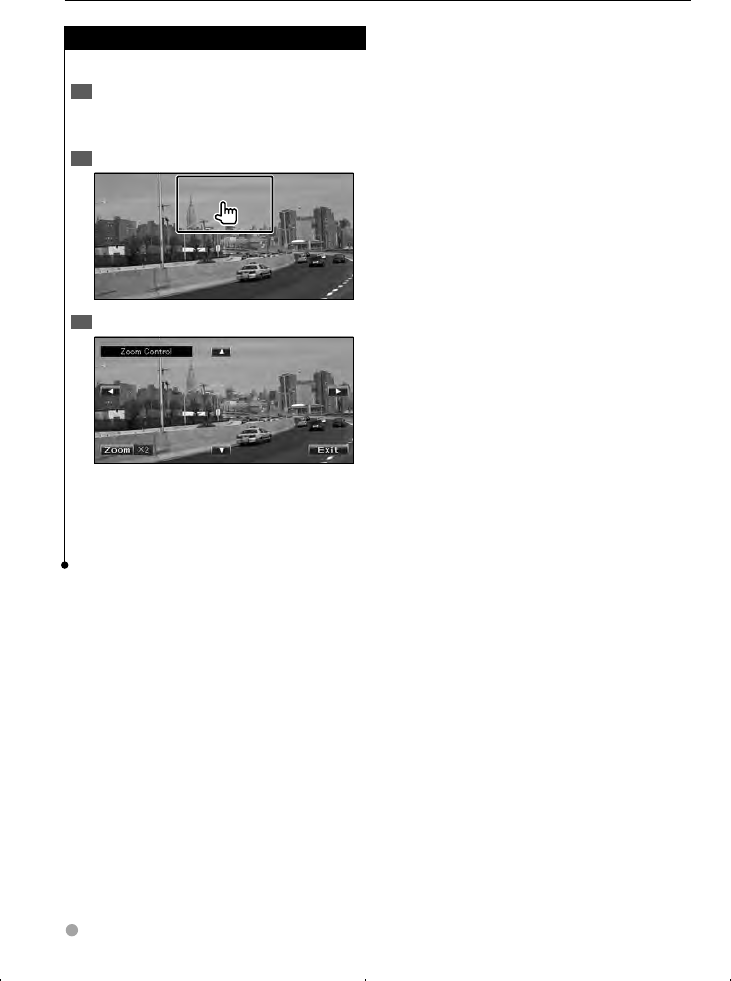

Operation on the Zoom Control screen6

B64-4606-00_02_E_En.indd 20B64-4606-00_02_E_En.indd 20 10.2.18 3:31:00 PM10.2.18 3:31:00 PM

English 21

[Zoom] Changes the zoom ratio at 4 levels (2

times, 3 times, 4 times, or off) each time you

touch.

[2], [3], [5], [∞] Scrolls the screen in the

direction you touch.

[Return] Returns to the Menu Control 2 screen.

[Exit] Exits the Zoom Control screen.

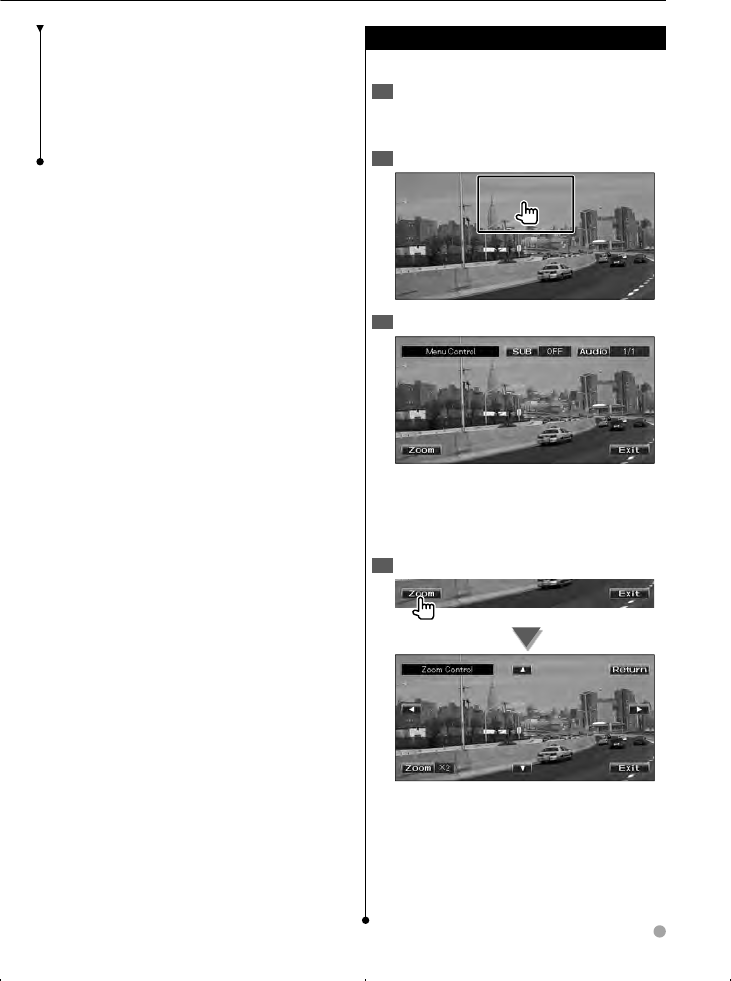

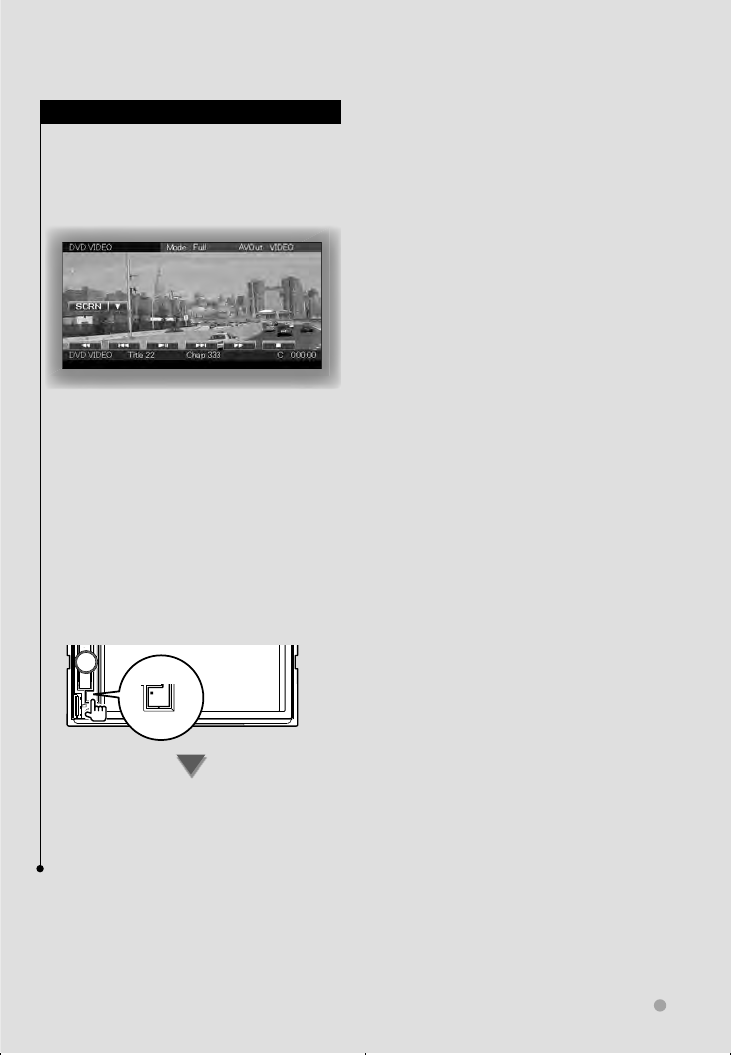

DVD-VR Menu Control

Selects an option from the DVD-VR Disc Menu.

Display the playback screen1

See <Operation on the Playback Screen of Visual

Sources> (page 16).

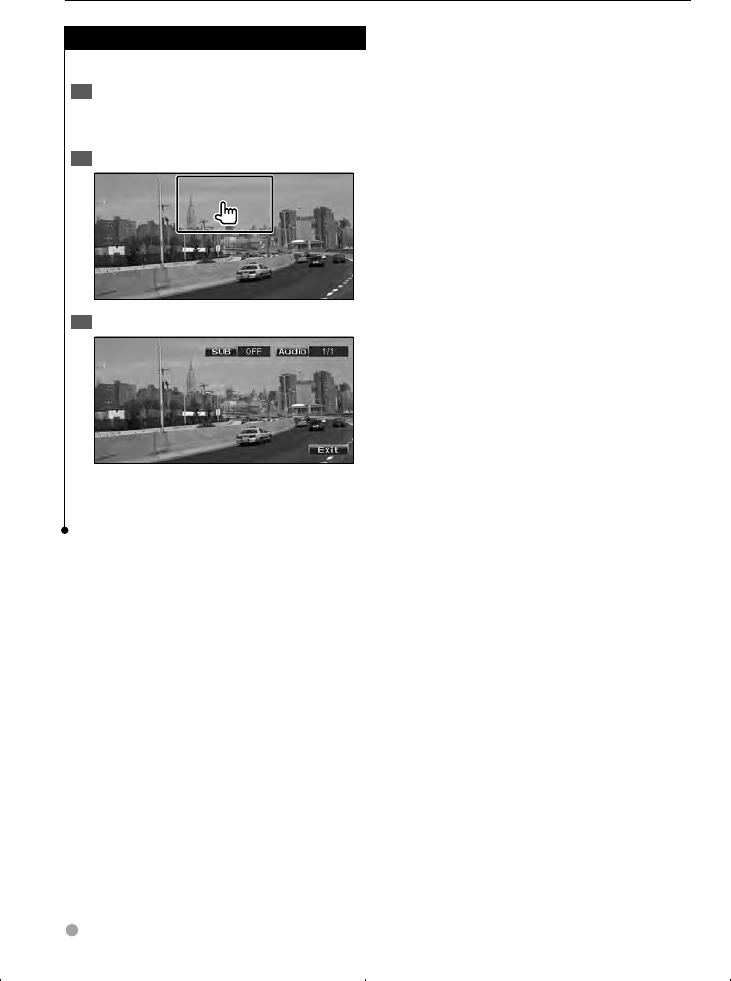

Display the Menu Control screen2

Operation on the Menu Control screen3

[Zoom] Displays the Zoom Control screen.

[SUB] Switches the subtitle language.

[Audio] Switches the voice language.

[Exit] Exits the Menu Control screen.

Operation on the Zoom Control screen4

[Zoom] Changes the zoom ratio at 4 levels (2

times, 3 times, 4 times, or off) each time you

touch.

[2], [3], [5], [∞] Scrolls the screen in the

direction you touch.

[Return] Returns to the Menu Control screen.

[Exit] Exits the Zoom Control screen.

B64-4606-00_02_E_En.indd 21B64-4606-00_02_E_En.indd 21 10.2.18 3:31:01 PM10.2.18 3:31:01 PM

22 DNX5260BT/DDX5026/DDX5056

Video CD Zoom Control

Displays an enlarged VCD screen.

Display the playback screen1

See <Operation on the Playback Screen of Visual

Sources> (page 16).

Display the Zoom Control screen2

Operation on the Zoom Control screen3

[Zoom] Changes the zoom ratio at 2 levels (2

times or off ) each time you touch.

[2], [3], [5], [∞] Scrolls the screen in the

direction you touch.

[Exit] Exits the Zoom Control screen.

Watching DVD/Video CD

B64-4606-00_02_E_En.indd 22B64-4606-00_02_E_En.indd 22 10.2.18 3:31:01 PM10.2.18 3:31:01 PM

English 23

Music Disc/ Audio File Listening &

Video File/ Picture File Watching

You can recall various control screens during playback of CD, audio file, video file and picture file.

• See <List of playable discs> (page 5) for playable discs.

• See <About Audio file> (page 5), <About Video files> (page 5) or <About Picture files> (page 6) for playable files.

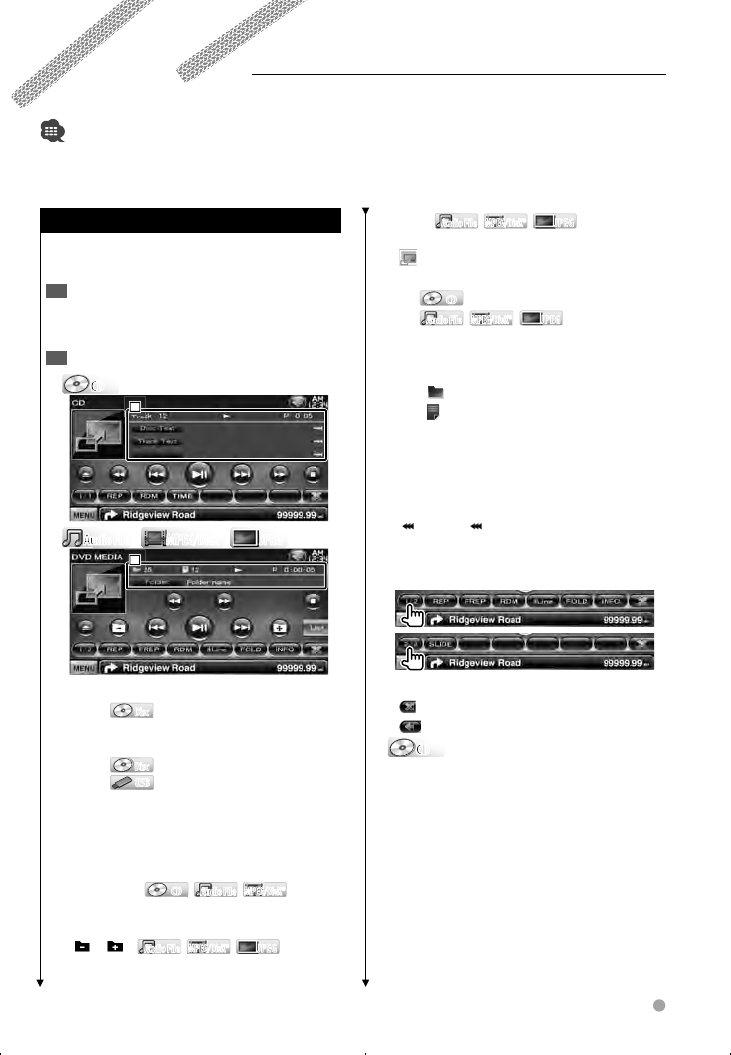

Source Control Screen

Switches to the source control screen to use

various playback functions.

Display the Source 1 Control Screen

See <How to Display the Source Control

Screen> (page 14).

Operation on the Source Control Screen2

CDCD

Audio FileAudio File

MPEG/DivX®MPEG/DivX® JPEGJPEG

[38] Plays or pauses.

[7] DiscDisc Stops playing.

When touched twice, the disc is played from

its beginning when you play it the next time.

[0] DiscDisc Ejects the disc.

USBUSB Disables the USB device.

When "No Device" is shown, the USB

device can be removed safely.

If you wish to play it again while the

USB device is connected, touch it

again.

[1], [¡] CDCD , Audio FileAudio File,

MPEG/DivX®MPEG/DivX®

Fast Forwards or Fast Backwards.

[4], [¢] Selects a track/ file.

[], [ ] Audio FileAudio File,

MPEG/DivX®MPEG/DivX®

, JPEGJPEG

Selects a folder.

[List] Audio FileAudio File,

MPEG/DivX®MPEG/DivX®

, JPEGJPEG

Displays the folder list or play list. (page 24)

[] Switches to the playback screen.

1 Information display

CDCD Selects the Disc Text or Track Text.

Audio FileAudio File,

MPEG/DivX®MPEG/DivX®

, JPEGJPEG

Selects Folder Name, File Name, Title,

Artist Name, or Album Name.

"Track" Track Number Display

"" Folder Number Display

"" File Number Display

"#### / ####" Total number of file in the

folder and the file number display

"3" Play Mode Display

"P"/ "R" Play Time Display

Use the [TIME] to change play time display.

[] When appears, the text display is

scrolled by touching it.

Multi Function

[1/2] Switches the multi function display.

[] Closes the multi function bar.

[] Opens the multi function bar.

CDCD

[REP] Repeats the present track.

[RDM] Starts or stops Random Play (to play

music in random order).

[TIME] Switches the play time display between

Track ("P"), and Disc Remaining Time ("R").

Next page 3

B64-4606-00_02_E_En.indd 23B64-4606-00_02_E_En.indd 23 10.2.18 3:31:01 PM10.2.18 3:31:01 PM

24 DNX5260BT/DDX5026/DDX5056

Audio FileAudio File

MPEG/DivX®MPEG/DivX® JPEGJPEG

[REP] Repeats the present file or data.

[FREP] Repeats the music or data of the

present folder.

[RDM] Starts or stops Random Play (to play

files of the present folder in random order).

Not available if there are only picture files.

[4Line]/ [2Line] Switches the number of lines

displayed in the Information Display.

[FOLD]/ [FLIST] Displays the folder list.

[PLIST] Audio FileAudio File in USBUSB

Displays the play list.

[SLIDE] Audio FileAudio File, JPEGJPEG

Displays images in the folder currently being

played one after another.

If there is no image in the folder currently

being played, initial background is displayed.

For information on setting the image display

time, see <Disc Setup> (page 75) or <USB

Setup> (page 76).

[INFO] Audio FileAudio File Displays music information

(such as Tag and content property) of Audio

file being played.

MPEG/DivX®MPEG/DivX®

, JPEGJPEG Displays information of file

being played.

[LINK] Audio FileAudio File in USBUSB Searches for another

song of the currently selected artist. See <Link

Search> (page 26).

[Device] USBUSB Selects the connected USB

device (or a partition). See <USB Device

Select> (page 25).

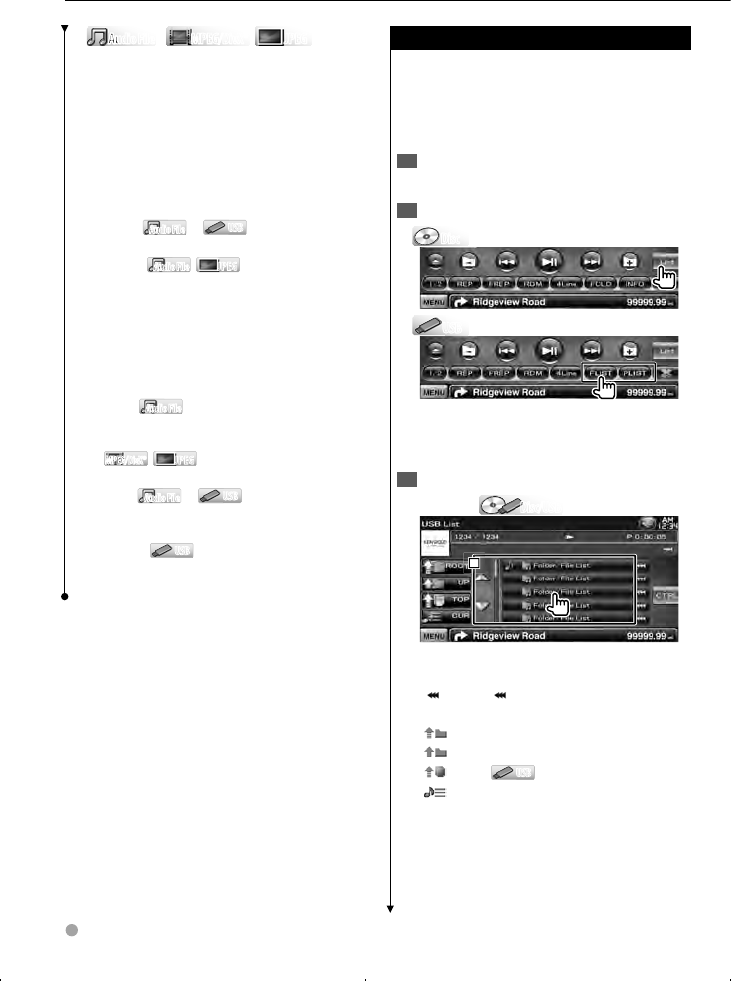

List Select

Folder list: Searches folders and Audio/ Video/

Picture files stored in media and devices

according to hierarchy.

Play list: Lists and searches music contained in the

USB device.

Display the Source 1 Control Screen

See <Source Control Screen> (page 23).

Start List Select2

DiscDisc

USBUSB

⁄

Touching [List] displays the previously used Folder •

list or Play list.

Select a file3

Folder list Disc/USBDisc/USB

1 Folder opens when touched, and the files in

the folder are played.

[] When appears, the text display is

scrolled by touching it.

[ ROOT] Moves to the top hierarchy level.

[ UP] Moves up a hierarchy level.

[ TOP] USBUSB Moves to the top folder.

[ CUR] Displays the currently playing folder.

[CTRL] Returns to the Source Control screen.

Music Disc/ Audio File Listening & Video File/ Picture File Watching

B64-4606-00_02_E_En.indd 24B64-4606-00_02_E_En.indd 24 10.2.18 3:31:04 PM10.2.18 3:31:04 PM

English 25

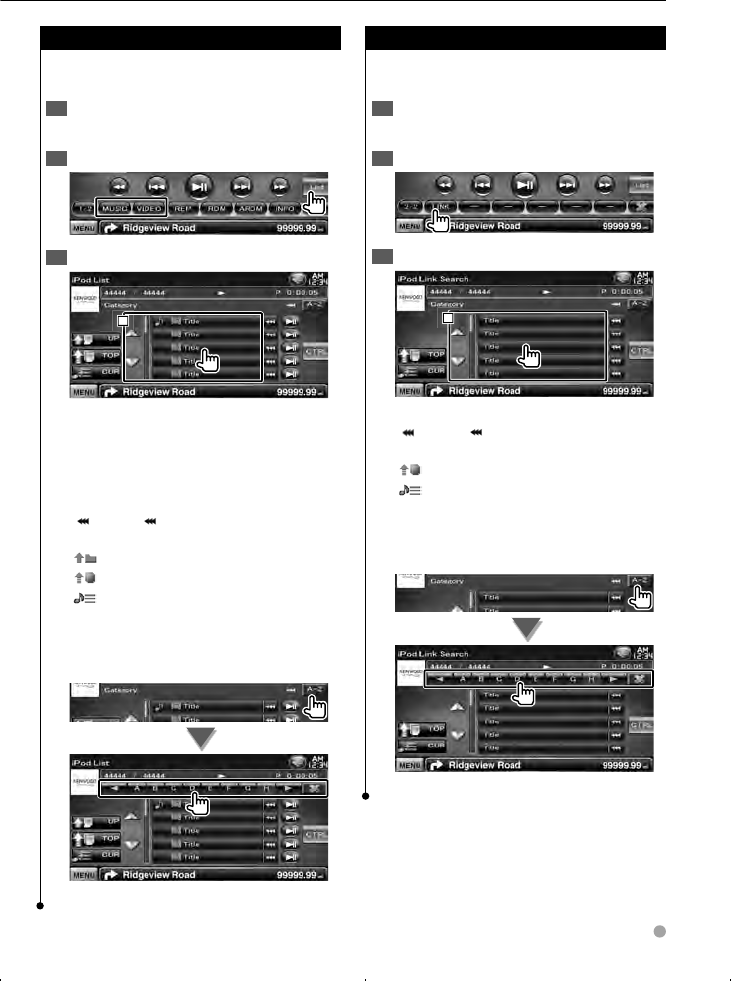

Play list Audio FileAudio File

in USBUSB

1 Switches to the lower level of the category.

[] When appears, the text display is

scrolled by touching it.

[ ALL] Lists all the music in the selected

category.

[ UP] Moves to the upper level of the

category.

[ TOP] Moves to the top category.

[ CUR] Displays the currently playing

category.

[CTRL] Returns to the Source Control screen.

Scrolls to the position of the specified initial

Scrolls to the selected initial.

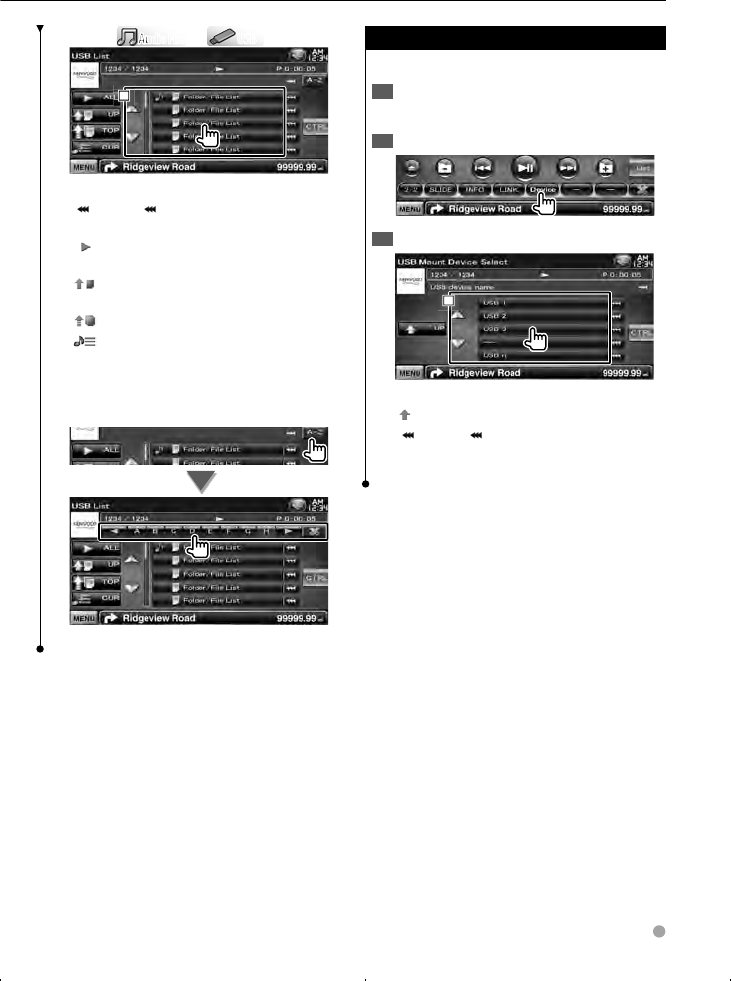

USB device select

Selects the connected USB device (or a partition).

Display the Source 1 Control Screen

See <Source Control Screen> (page 23).

Display the USB Device Select Screen2

Select a USB device3

1 Selects a device or partition.

[ UP] Returns to the Device Selection screen.

[] When appears, the text display is

scrolled by touching it.

[CTRL] Returns to the Source Control screen.

B64-4606-00_02_E_En.indd 25B64-4606-00_02_E_En.indd 25 10.2.18 3:31:06 PM10.2.18 3:31:06 PM

26 DNX5260BT/DDX5026/DDX5056

Music Disc/ Audio File Listening & Video File/ Picture File Watching

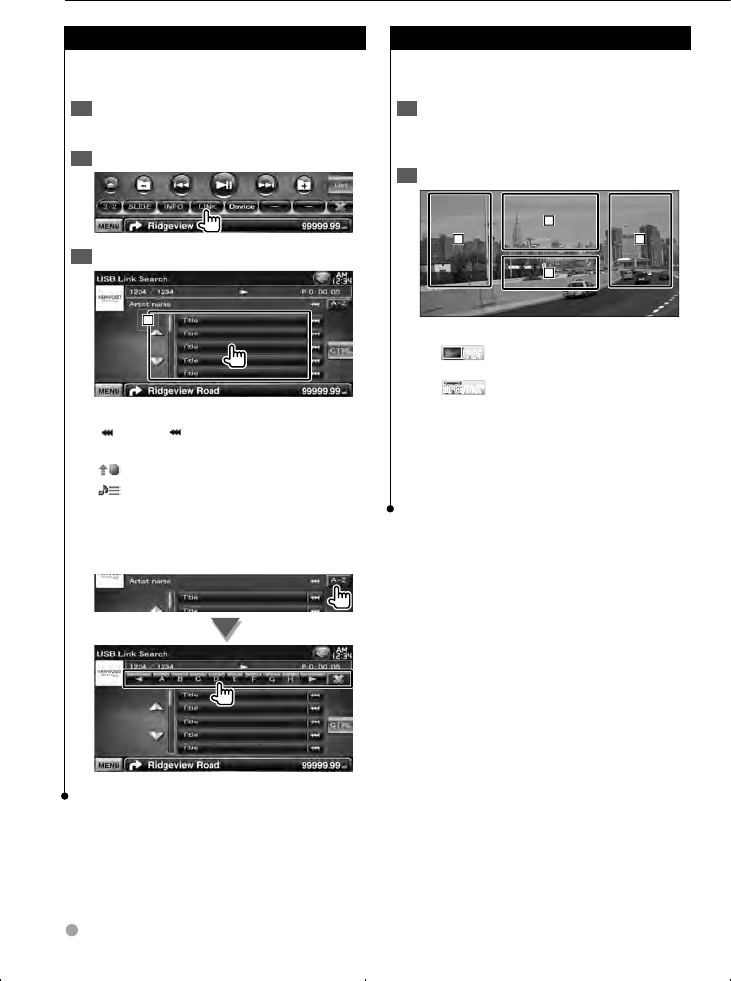

Link search (Audio file in USB)

Searches for another song of the currently

selected artist.

Display the Source 1 Control Screen

See <Source Control Screen> (page 23).

Start Link search2

Select a song3

1 Plays the touched song.

[] When appears, the text display is

scrolled by touching it.

[ TOP] Moves to the top category.

[ CUR] Displays the currently playing

category.

[CTRL] Returns to the Source Control screen.

Scrolls to the position of the specified initial

Scrolls to the selected initial.

Playback Screen (Video file, Picture file)

Basic functions are available even when the

playback screen is displayed.

Display the Playback Screen1

See <Operation on the Playback Screen of Visual

Sources> (page 16).

Operation on the Playback Screen2

1, 3 Searches for a file.

2 JPEGJPEG Displays the Picture Control screen

(page 27).

MPEG/DivX®MPEG/DivX®

Displays the Menu Control screen

(page 28).

4 Displays/ Clears Source Information screen.

⁄

The information display is cleared automatically after •

approximately 5 seconds. Also, the information can be

displayed automatically when it is updated.

B64-4606-00_02_E_En.indd 26B64-4606-00_02_E_En.indd 26 10.2.18 3:31:07 PM10.2.18 3:31:07 PM

English 27

Easy Control Screen

(Video file, Picture file)

Displays the basic operation buttons on the

screen.

Display the Easy Control Screen1

See <How to Display the Easy Control Screen>

(page 17).

Operation on the Easy Control Screen2

1, 2 Switches to the Playback screen.

3 Displays the Source Control screen.

[1], [¡] JPEGJPEG ,

MPEG/DivX®MPEG/DivX®

Fast Forwards or Fast Backwards.

[4], [¢] Searches for a file.

During the slide show of picture files, touching

the buttons searches the audio file.

[7] DiscDisc Stops playing.

When touched twice, the disc is played from

its beginning when you play it the next time.

[38] Plays or pauses.

Picture Control

Adjusting the picture display.

Display the Playback Screen1

See <Operation on the Playback Screen of Visual

Sources> (page 16).

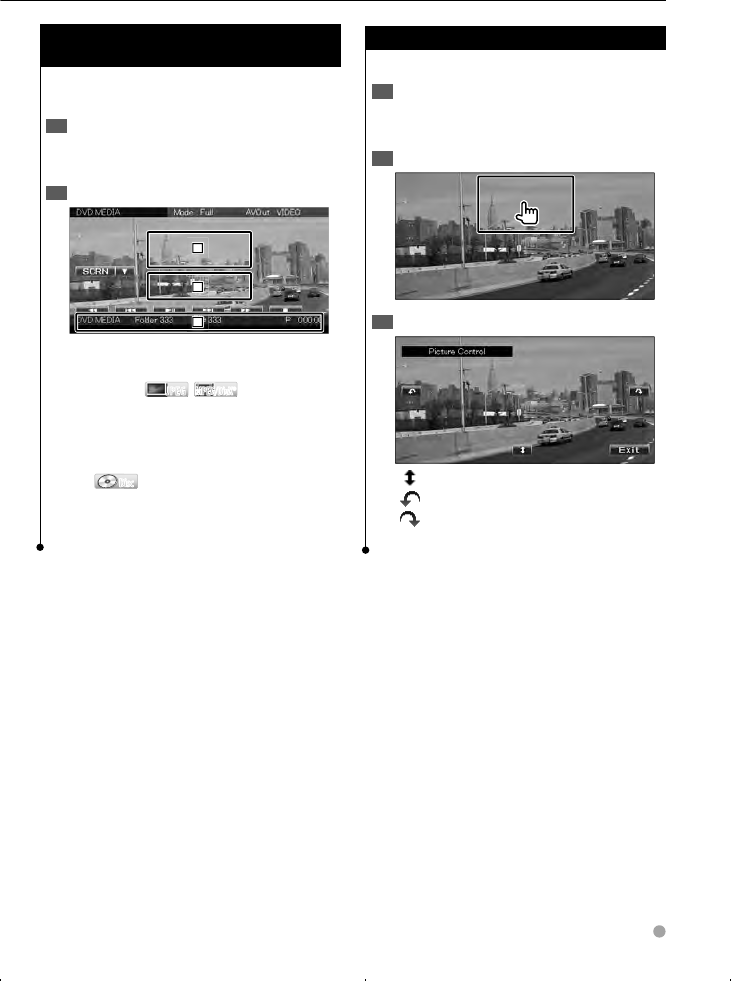

Display the Picture Control Screen2

Adjust the picture display3

[ ] Reverses the picture horizontally.

[] Rotates counter clockwise.

[] Rotates clockwise.

[Exit] Ends Picture Control.

B64-4606-00_02_E_En.indd 27B64-4606-00_02_E_En.indd 27 10.2.18 3:31:08 PM10.2.18 3:31:08 PM

28 DNX5260BT/DDX5026/DDX5056

Music Disc/ Audio File Listening & Video File/ Picture File Watching

Movie Menu Control

Selects an option from the Movie Menu.

Display the playback screen1

See <Operation on the Playback Screen of Visual

Sources> (page 16).

Display the Menu Control screen2

Operation on the Menu Control screen3

[SUB] Switches the subtitle language.

[Audio] Switches the voice language.

[Exit] Exits the Menu Control screen.

B64-4606-00_02_E_En.indd 28B64-4606-00_02_E_En.indd 28 10.2.18 3:31:09 PM10.2.18 3:31:09 PM

English 29

iPod Control

Easy Control Screen

Displays the basic operation buttons on the

screen.

Display the Easy Control Screen1

See <How to Display the Easy Control Screen>

(page 17).

Operation on the Easy Control Screen2

1, 2 Switches to the Playback screen.

3 Displays the Source Control screen.

[1], [¡] Fast Forwards or Fast Backwards.

[4], [¢] Music/Video Search.

[38] Plays or pauses.

Playback Screen

Basic functions are available even when the

playback screen is displayed.

Display the Playback Screen1

See <Operation on the Playback Screen of Visual

Sources> (page 16).

Operation on the Playback Screen2

1, 3 Selects the music/video.

2 Not effective

4 Displays/ Clears Source Information screen.

⁄

The information display is cleared automatically after •

approximately 5 seconds. Also, the information can be

displayed automatically when it is updated.

Remove all accessories such as headphone before •

connecting an iPod. You may not be able to control the

iPod if you connect it with accessories attached.

When you connect an iPod to this unit, playback starts •

from the song you were playing on the iPod itself

(Resume Function).

If the played song is not a video content, "No Video •

Signal" is displayed on the video screen.

You can control and listen to songs in your iPod by connecting an iPod to this unit with KCA-iP301V

(optional accessory). You can also display video contents on this unit when connecting an iPod with video.

B64-4606-00_02_E_En.indd 29B64-4606-00_02_E_En.indd 29 10.2.18 3:31:09 PM10.2.18 3:31:09 PM

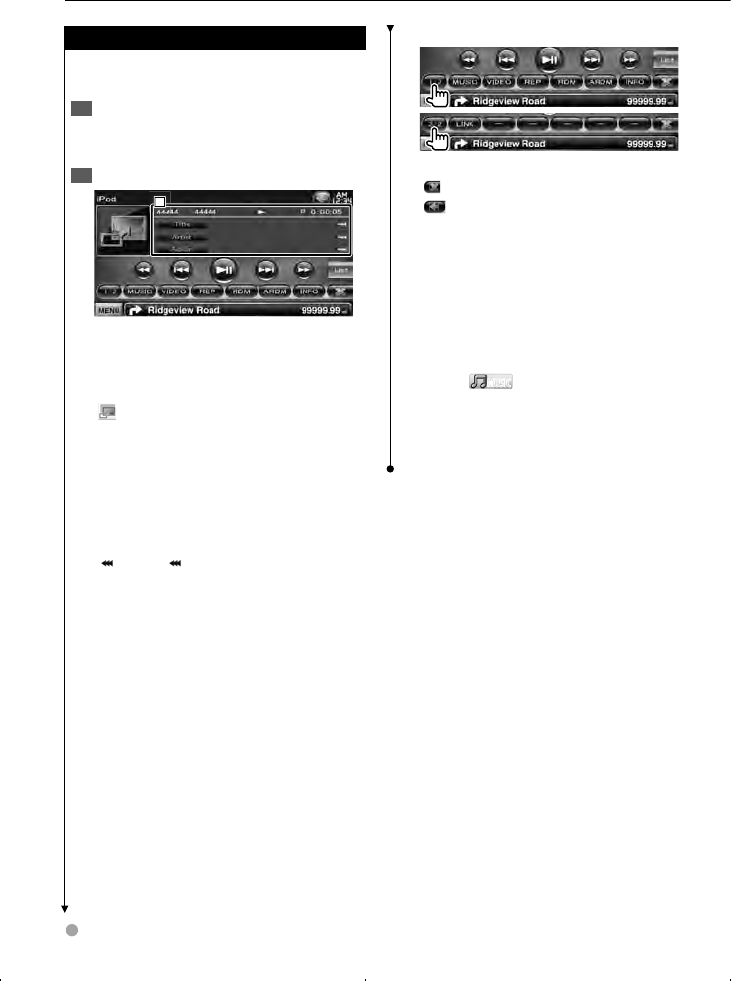

30 DNX5260BT/DDX5026/DDX5056

Multi Function

[1/2] Switches the multi function display.

[] Closes the multi function bar.

[] Opens the multi function bar.

[MUSIC] Displays the list of music category.

[VIDEO] Displays the list of video category.

[REP] Repeats the present file or data.

[RDM]* Starts or stops Random play.

[ARDM]* Starts or stops Album Random Play

(plays randomly from current album).

[INFO] Displays information screen of music/

video being played.

[LINK]* MUSICMUSIC Searches for another song of

the currently selected artist. See <Link Search>

(page 31).

⁄

* Disabled when VIDEO is being played.

Source Control Screen

Switches to the source control screen to use

various playback functions.

Display the Source 1 Control Screen

See <How to Display the Source Control

Screen> (page 14).

Operation on the Source Control Screen2

[38] Plays or pauses.

[1], [¡] Fast Forwards or Fast Backwards.

[4], [¢] Selects Music/Video.

[List] Displays the iPod list. (page 31)

[] Switches to the playback screen.

1 Information display

Selects the Title, Artist Name, Album Name

or iPod Name.

"##### / #####" Total number of music in

the iPod and the music number display

"3" Play Mode Display

"P" Play Time Display

[] When appears, the text display is

scrolled by touching it.

iPod Control

B64-4606-00_02_E_En.indd 30B64-4606-00_02_E_En.indd 30 10.2.18 3:31:09 PM10.2.18 3:31:09 PM

English 31

Link Search (Music file)

Searches for another song of the currently

selected artist.

Display the Source 1 Control Screen

See <Source Control Screen> (page 30).

Start Link search2

Select a song3

1 Plays the touched song.

[] When appears, the text display is

scrolled by touching it.

[ TOP] Moves to the top category.

[ CUR] Displays the currently playing

category.

[CTRL] Returns to the Source Control screen.

Scrolls to the position of the specified initial

Scrolls to the selected initial.

iPod List

Lists and searches music/video contained in the

iPod.

Display the Source 1 Control Screen

See <Source Control Screen> (page 30).

Display the iPod List2

Select music/video3

1 Categories and music are listed.

Touch a category name to move to its lower

level. If music title is displayed, the music is

played by touching it.

When [38] is appeared, all the music in its

category is played by touching the button.

[] When appears, the text display is

scrolled by touching it.

[ UP] Returns to previous category.

[ TOP] Moves to the top category.

[ CUR] Displays the currently playing

category.

[CTRL] Returns to the Source Control screen.

Scrolls to the position of the specified initial

Scrolls to the selected initial.

B64-4606-00_02_E_En.indd 31B64-4606-00_02_E_En.indd 31 10.2.18 3:31:10 PM10.2.18 3:31:10 PM

32 DNX5260BT/DDX5026/DDX5056

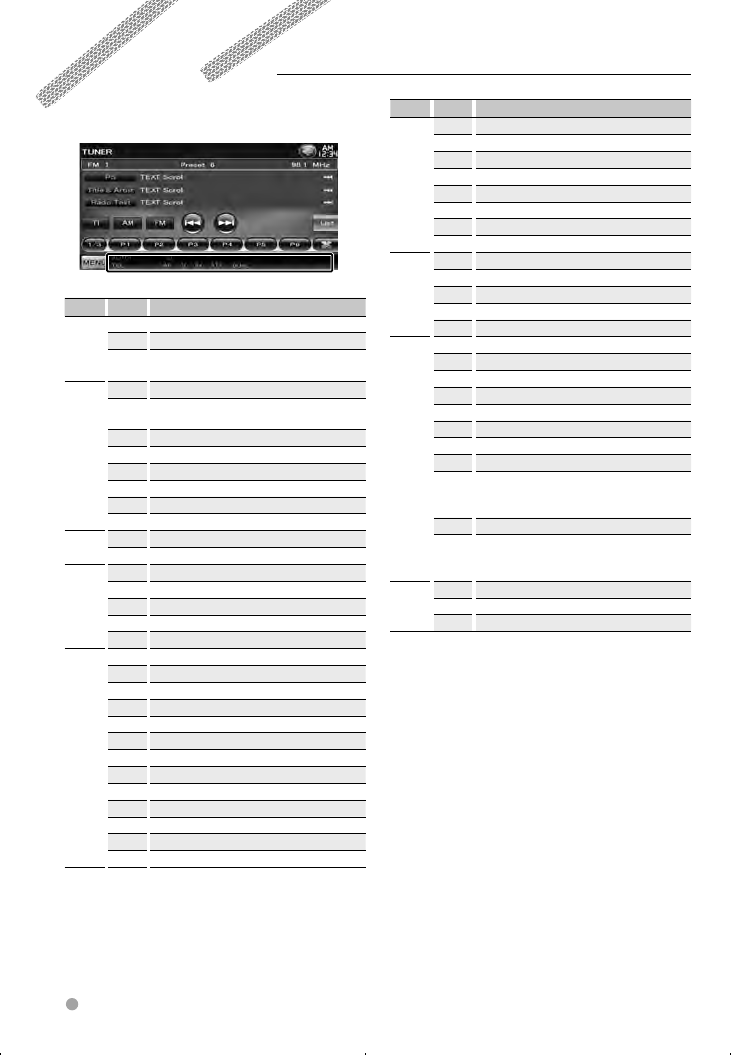

Radio Listening

Source Control Screen

Switches to the source control screen to use

various functions.

Display the Source 1 Control Screen

See <How to Display the Source Control

Screen> (page 14).

Operation on the Source Control Screen2

[FM] Switches to the FM1/2/3 band.

[AM] Switches to the AM band.

[TI] Turns the Traffic Information function On

or Off.

See <Traffic Information>, (page 35).

[4], [¢] Tunes in a station.

Use the [SEEK] to change the frequency.

[List] Display the Tuner Preset List screen. See

<Preset Select> (page 33).

1 Information display

Selects the Program Service Name, Title &

Artist name, Station Name, Radio Text Plus,

or Radio Text.

"FM"/ "AM" Band display

"Preset" Preset number

"MHz"/ "kHz" Frequency display

[] When appears, the text display is

scrolled by touching it.

Various control screens appear in the Tuner Source mode.

• Set the remote controller mode switch to "AUD" mode before starting operation, see <Remote Controller mode switch>

(page 79).

Multi Function

[1/3] Switches the multi function display.

[] Closes the multi function bar.

[] Opens the multi function bar.

[P1] – [P6] When [P1] to [P6] buttons appear,

you can recall the stations on memory.

For memory of broadcasting stations, see

<Auto Memory> (page 33) or <Manual

Memory> (page 34).

[SEEK] Switches the Seek mode.

The mode is switched in the following order

each time you touch the button.

Display Setting

"AUTO1" Tunes in a station with good reception automatically.

"AUTO2" Tunes in stations in memory one after another.

"MANU" Switches to the next frequency manually.

[AME] Selects the Auto Memory mode.

See <Auto Memory> (page 33).

[PRE] Lists and selects memorized station.

[4Line]/ [2Line] Switches the number of lines

displayed in the Information Display.

[PTY] FMFM Searches station by program

type.

See <Search by Program Type> (page 35).

[Mono] FMFM Selects the Monaural

reception.

[LO.S] Turns the Local Seek function ON or OFF.

[TEXT] FMFM Displays Radio Text screen.

See <Radio Text> (page 34).

B64-4606-00_02_E_En.indd 32B64-4606-00_02_E_En.indd 32 10.2.18 3:31:11 PM10.2.18 3:31:11 PM

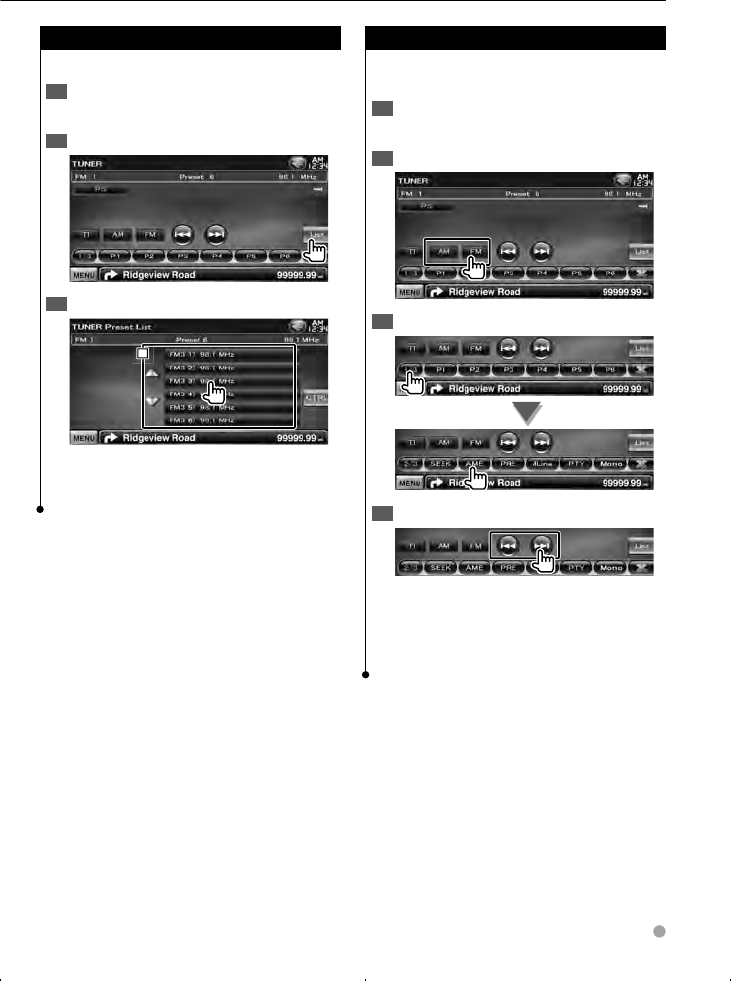

English 33

Preset Select

Lists and selects memorized station.

Display the Source 1 Control Screen

See <Source Control Screen> (page 32).

Display the Tuner Preset List Screen2

Select a station3

1 Memorized stations are displayed. Touch to

tune in.

[CTRL] Returns to the Source Control screen.

Auto Memory

Stores stations with good reception in memory

automatically.

Display the Source 1 Control Screen

See <Source Control Screen> (page 32).

Select a band you wish to store in memory2

Select the Auto Memory mode3

Start Auto Memory4

Auto Memory terminates when 6 stations are

stored or when all stations are tuned in.

⁄

• The operation ends automatically if you do not operate

within 10 seconds.

B64-4606-00_02_E_En.indd 33B64-4606-00_02_E_En.indd 33 10.2.18 3:31:12 PM10.2.18 3:31:12 PM

34 DNX5260BT/DDX5026/DDX5056

Radio Listening

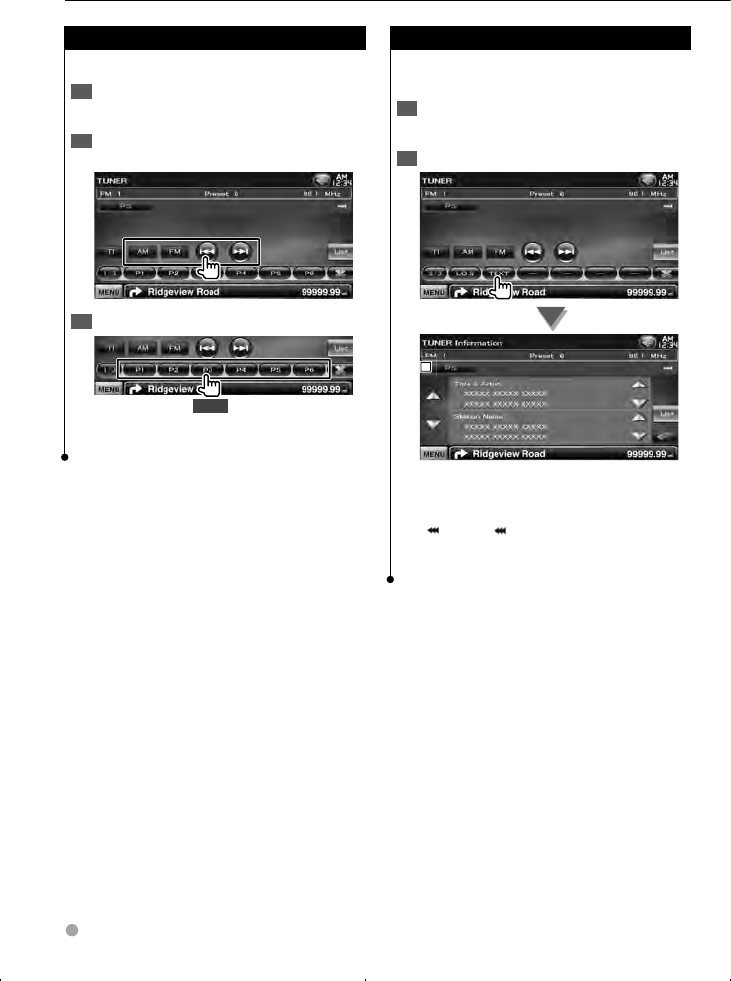

Manual Memory

Stores the current receiving station in memory.

Display the Source 1 Control Screen

See <Source Control Screen> (page 32).

Select a station you wish to store in 2

memory

Store in memory3

2 sec.

Continue to touch until the memory number

appears.

Radio Text

You can display the radio text. (Only when

receiving the FM broadcast)

Select a station1

See <Source Control Screen> (page 32).

Display the radio text2

1 Selects the Program Service Name, Title &

Artist name, Station Name, Radio Text Plus, or

Radio Text for text display.

[] When appears, the text display is

scrolled by touching it.

[5], [∞] Scrolls the text display.

B64-4606-00_02_E_En.indd 34B64-4606-00_02_E_En.indd 34 10.2.18 3:31:13 PM10.2.18 3:31:13 PM

English 35

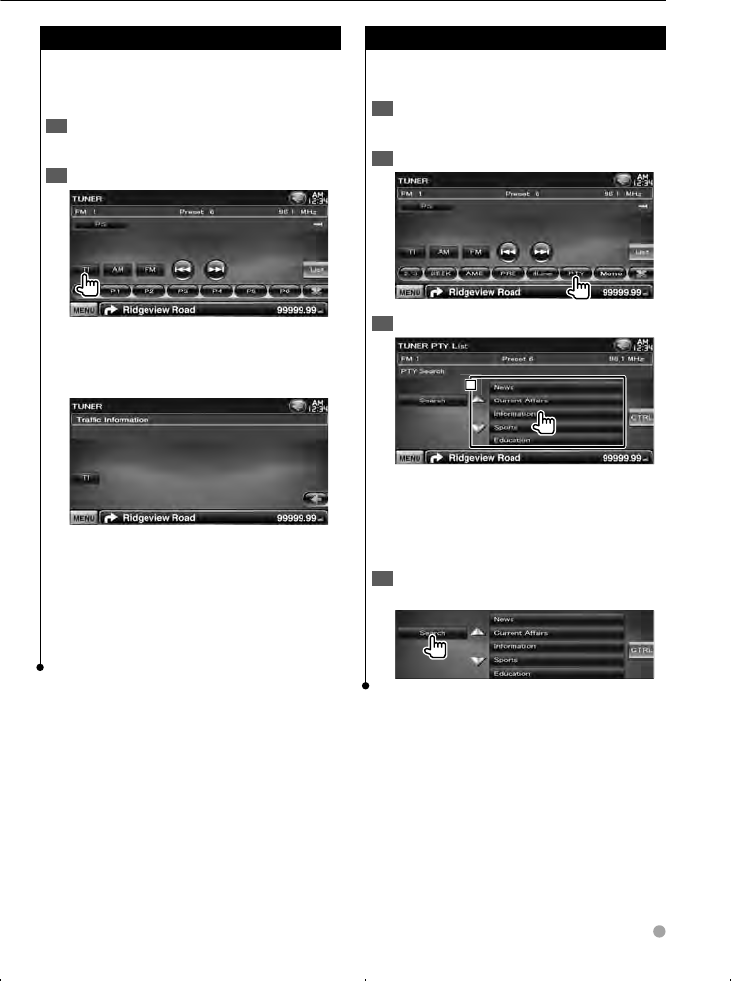

Traffic Information

When a traffic bulletin starts, any source is

switched to the traffic information and it is

displayed automatically.

Display the Source 1 Control Screen

See <Source Control Screen> (page 32).

Set the Traffic information mode2

When the traffic bulletin starts...

The Traffic Information screen appears

automatically.

Traffic Information screen

⁄

• It is necessary to have Traffic Information function set to

On in order to have the Traffic Information screen appear

automatically.

• During the reception of traffic information the adjusted

volume is automatically remembered, so that the next

time it switches to traffic information the volume level is

that from the previously adjusted and remembered level.

Search by Program Type

A program is tuned when you set its program

type. (Only when receiving the FM broadcast)

Display the Source 1 Control Screen

See <Source Control Screen> (page 32).

Enter Program Type Search mode2

Select a Program Type3

1 Program Type is displayed. Touch to select a

Program Type.

[Search] Searches for the program type.

It is displayed when the Program type is

selected.

Search a station of the selected Program 4

Type

B64-4606-00_02_E_En.indd 35B64-4606-00_02_E_En.indd 35 10.2.18 3:31:13 PM10.2.18 3:31:13 PM

36 DNX5260BT/DDX5026/DDX5056

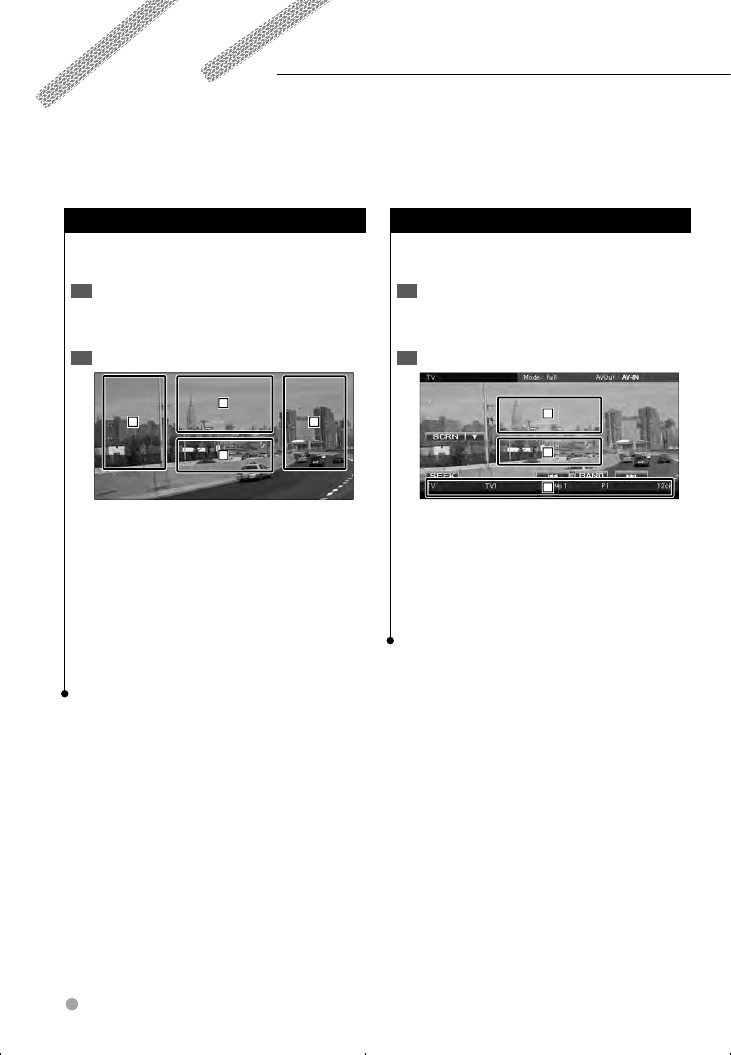

Easy Control Screen

Displays the basic operation buttons on the

screen.

Display the Easy Control Screen1

See <How to Display the Easy Control Screen>

(page 17).

Operation on the Easy Control Screen2

1, 2 Switches to the TV screen.

3 Displays the Source Control screen.

[BAND] Switches to TV1 or TV2.

[4], [¢] Selects a channel.

Use the [SEEK] to change the channel tuning

sequence.

[SEEK] Switches the Seek mode. (page 37)

TV Watching

Various control screens appear in the TV source mode. You can only operate TV with the optional accessory

TV Tuner connected.

Function During TV Screen

Basic functions are available even when the TV

screen is displayed.

Display the TV screen1

See <Operation on the Playback Screen of Visual

Sources> (page 16).

Operation on the TV screen2

1, 3 Selects a channel.

2 Switches to TV1 or TV2.

2 Displays Menu Control screen (only with

KTC-D500E (optional accessory) connected

(page 37).

4 Displays/ Clears Source Information screen.

⁄

• The information display is cleared automatically after

approximately 5 seconds. Also, the information can be

displayed automatically when it is updated.

B64-4606-00_02_E_En.indd 36B64-4606-00_02_E_En.indd 36 10.2.18 3:31:14 PM10.2.18 3:31:14 PM

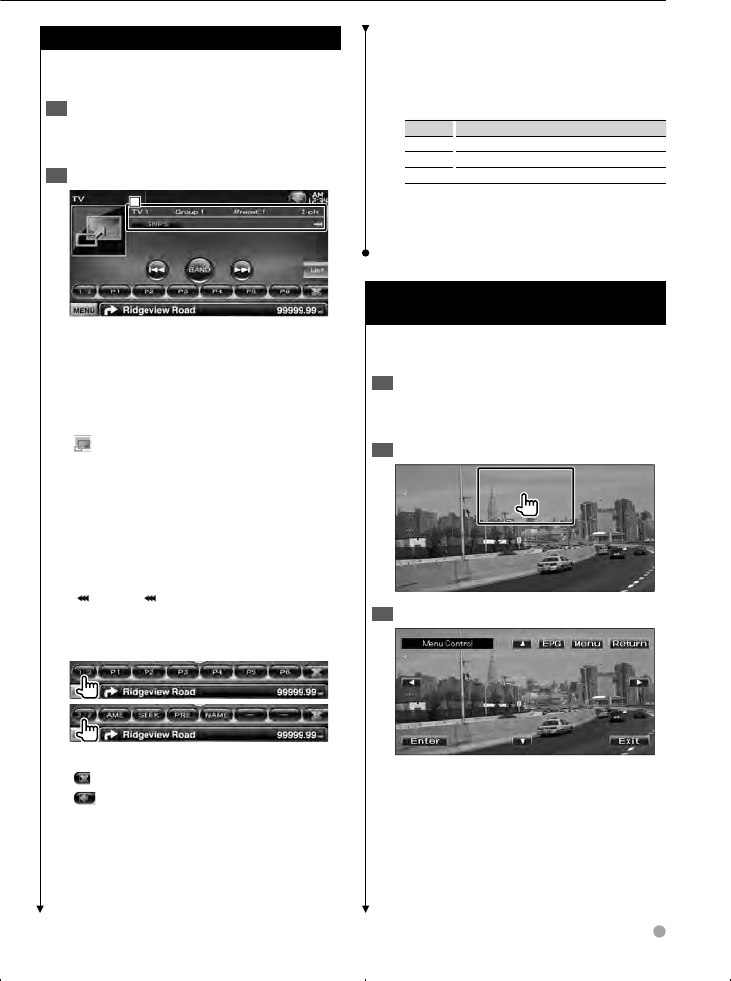

English 37

[AME] Selects the Auto Memory mode.

See <Auto Memory> (page 38).

[SEEK] Switches the Seek mode.

The mode is switched in the following order

each time you touch the button.

Display Setting

"AUTO1" Tunes in a station with good reception automatically.

"AUTO2" Tunes in stations in memory one after another.

"MANU" Switches to the next frequency manually.

[PRE] Lists and selects memorized station.

[NAME] Sets a name to the station. See <Set

Station Name> (page 39).

TV Menu (only with KTC-D500E (optional

accessory) connected)

Menu Control screen appears by touching the

area shown below.

Display the TV screen1

See <Operation on the Playback Screen of Visual

Sources> (page 16).

Display the Menu Control screen2

Operation on the Menu Control screen3

[Menu] Shows Digital TV Broadcasting menu

screen.

[EPG] Shows EPG (Electric Program Guide)

screen.

[2], [3], [5], [∞] Moves highlight in Digital TV

Broadcasting menu.

Source Control Screen

Switches to source control screen to use various

functions.

Display the Source 1 Control Screen

See <How to Display the Source Control

Screen> (page 14).

Operation on the Source Control Screen2

[BAND] Switches to TV1 or TV2.

[4], [¢] Select a channel.

Use the [SEEK] to change the channel tuning

sequence.

[List] Display the TV Preset List screen. (page

39).

[] Switches to the TV screen.

1 Information display

Channel information display

"TV" Band display

"Group" TV Area Group Display. See <TV

Setup> (page 77).

"Preset" Memory Number Display

"ch" Channel display

[] When appears, the text display is

scrolled by touching it.

Multi Function

[1/2] Switches the multi function display.

[] Closes the multi function bar.

[] Opens the multi function bar.

[P1] – [P6] When [P1] to [P6] buttons appear,

you can recall channels on memory.

For memory of broadcasting stations, see

<Auto Memory> (page 38) or <Manual

Memory> (page 38).

Next page 3

B64-4606-00_02_E_En.indd 37B64-4606-00_02_E_En.indd 37 10.2.18 3:31:14 PM10.2.18 3:31:14 PM

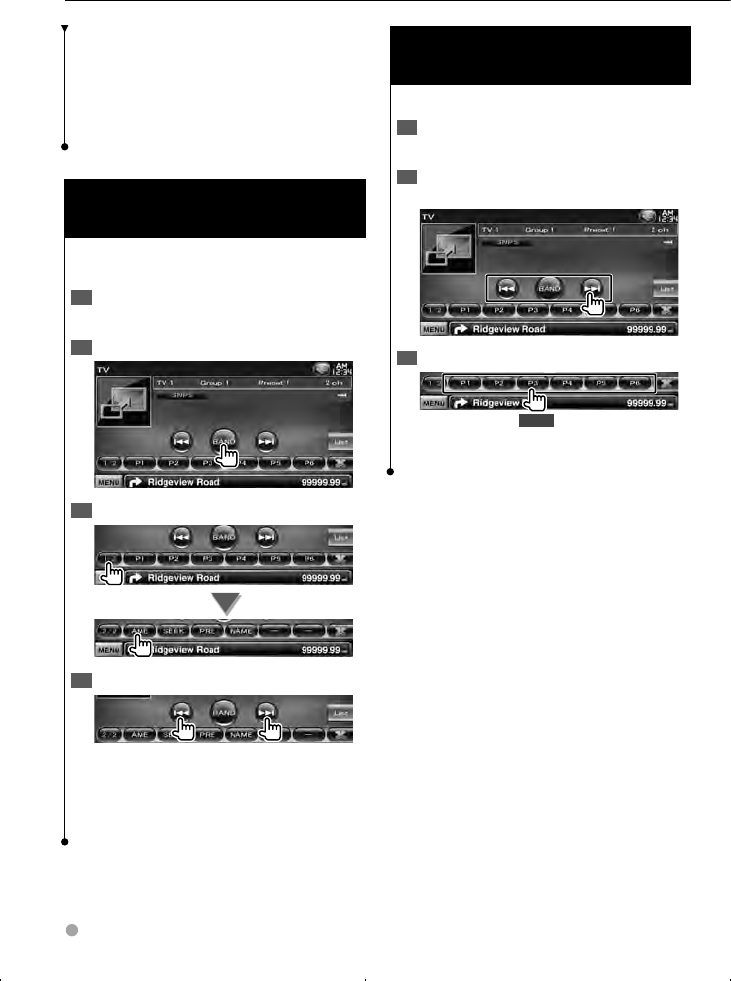

38 DNX5260BT/DDX5026/DDX5056

Manual Memory

(only with KTC-V300E or KTC-V301E

(optional accessory) connected)

Stores the current receiving channel in memory.

Display the Source 1 Control Screen

See <Source Control Screen> (page 37).

Select a station you wish to store in 2

memory

Store in memory3

2 sec.

Continue to touch until the memory number

appears.

TV Watching

[Enter] Executes selected menu item.

[Return] Returns to the previous screen.

[Exit] Returns to Digital TV screen.

⁄

• When using the remote control unit to operate the TV

menu, use the one of KTC-D500E.

Auto Memory

(only with KTC-V300E or KTC-V301E

(optional accessory) connected)

Stores stations with good reception in memory

automatically.

Display the Source 1 Control Screen

See <Source Control Screen> (page 37).

Select a band you wish to store in memory2

Select the Auto Memory mode3

Start Auto Memory4

Auto Memory terminates when 6 stations are

stored or when all stations are tuned in.

⁄

• The operation ends automatically if you do not operate

within 10 seconds.

B64-4606-00_02_E_En.indd 38B64-4606-00_02_E_En.indd 38 10.2.18 3:31:15 PM10.2.18 3:31:15 PM

English 39

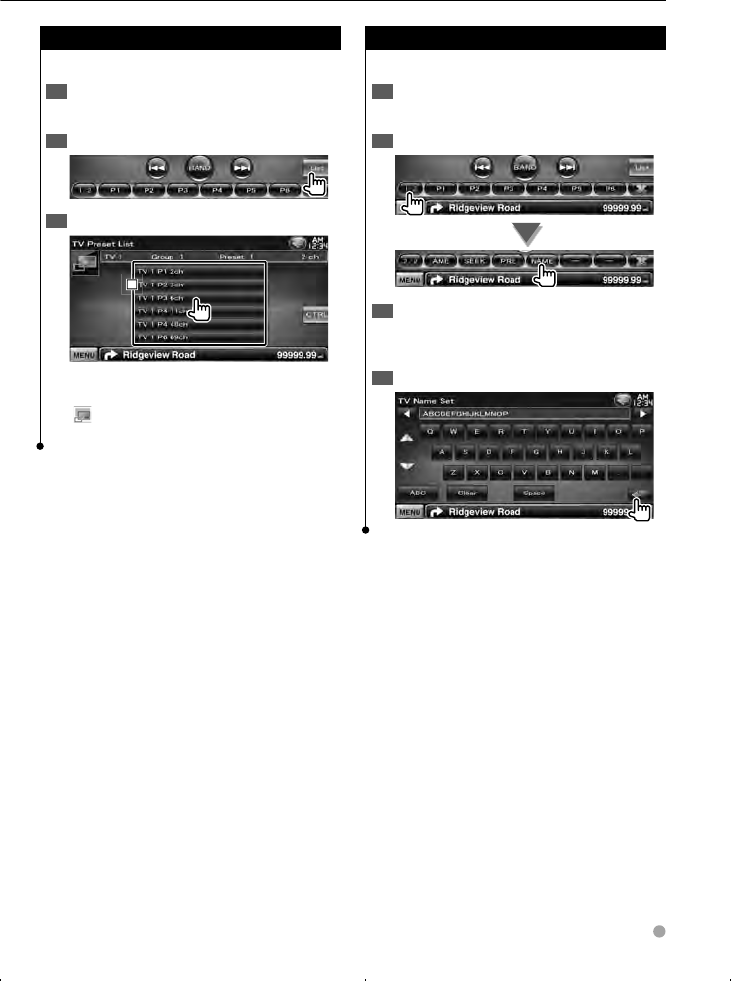

Set Station Name

Assigns a name to a station.

Tune in to the station to name1

See <Source Control Screen> (page 37).

Start Name set2

Enter the name3

See <Character Entry> (page 41) for information

on how to enter a name.

End Name set4

Preset Select

Lists and selects memorized station.

Display the Source 1 Control Screen

See <Source Control Screen> (page 37).

Start Preset Select2

Select a station3

1 Memorized stations are displayed. Touch to

tune in.

[] Switches to the TV screen.

[CTRL] Returns to the Source Control screen.

B64-4606-00_02_E_En.indd 39B64-4606-00_02_E_En.indd 39 10.2.18 3:31:16 PM10.2.18 3:31:16 PM

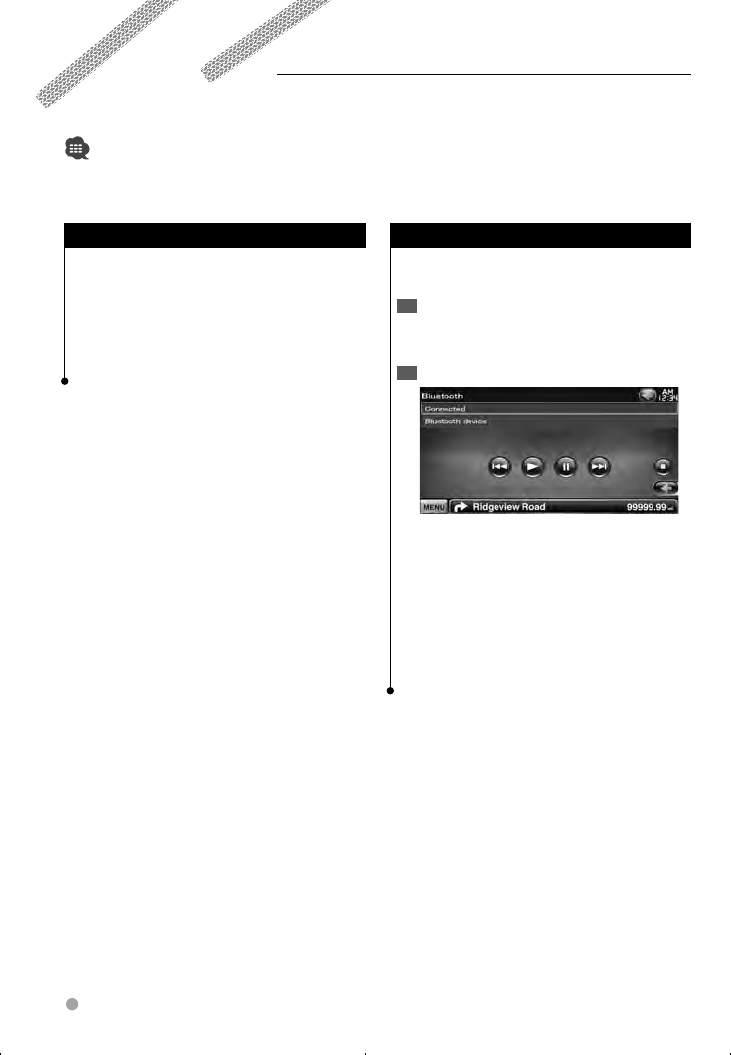

40 DNX5260BT/DDX5026/DDX5056

Source Control Screen

Switches to control screen to use various

functions.

Display the Source 1 Control Screen

See <How to Display the Source Control

Screen> (page 14).

Operation on the Source Control Screen2

[3] Plays.

[7] Stops playing.

[8] Pauses.

[4], [¢] Selects a file.

⁄

• If the Bluetooth Audio player does not support AVRCP

profile, buttons are not displayed. Operate from the

Audio player.

Bluetooth Audio Control (DDX5026/DDX5056)

You can listen to audio files stored in Bluetooth audio player and cell-phone.

It is necessary to connect the optional Bluetooth unit KCA-BT200.

• You need to register your audio player and cell-phone to your Bluetooth Unit beforehand. Make sure to read the instruction

manual of the Bluetooth Unit as well.

Before Use

• You need to register your audio player and cell-phone

before using it with this unit. For more details, see

<Registering Bluetooth Unit> (page 67).

• If you have registered two or more audio players or cell-

phones, you need to select one of them. For more details,

see <Bluetooth Unit Connection> (page 69).

• Sound output speaker can be set. See <Bluetooth Hands-

Free/Audio Output Setup> (page 69).

B64-4606-00_02_E_En.indd 40B64-4606-00_02_E_En.indd 40 10.2.18 3:31:16 PM10.2.18 3:31:16 PM

English 41

Other Functions

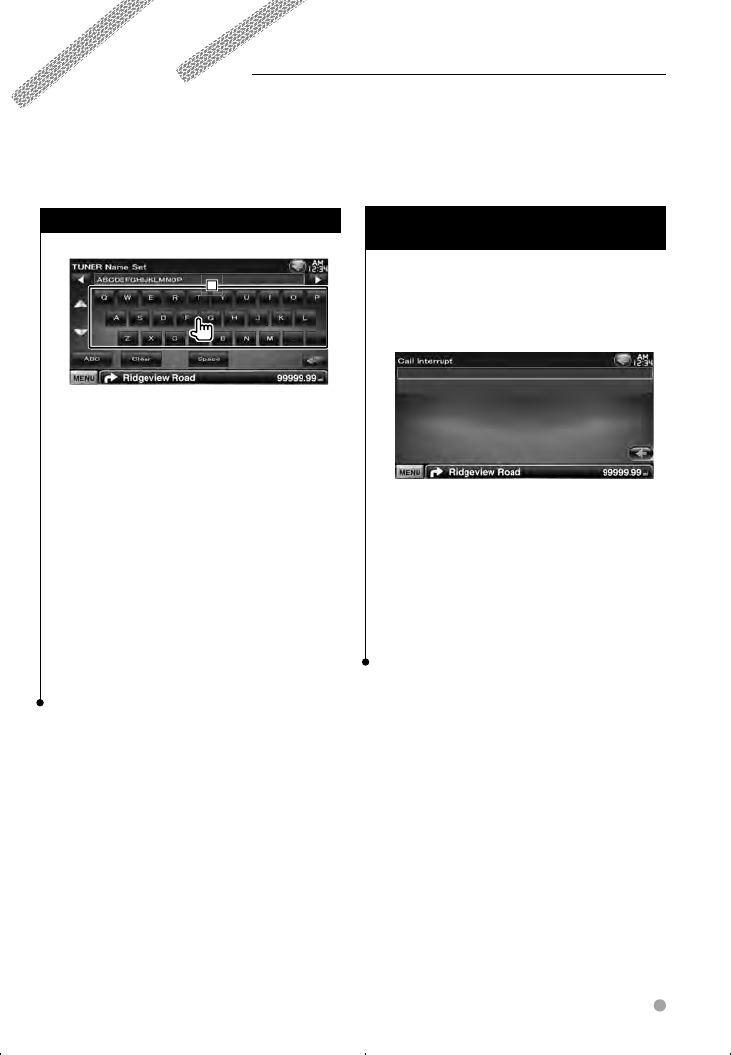

Character Entry

Character Entry screen

1 Enters characters.

[2], [3] Shifts the cursor.

[5], [∞] Scrolls up or down the character

button display.

[QWE]/ [ABC] Sets the key layout of the

character buttons.

ABC : Alphabetical key layout.

QWE : Qwerty key layout.

[Clear] Clears the character.

If you erase a character, locate the cursor on it

and touch this button.

If touched more than 1 second, all the input

characters are erased.

[Space] Enters a space.

⁄

• You can enter characters only after you have applied the

parking brake.

Muting Audio Volume upon Reception of

Phone Call

When a telephone call is received...

The Phone Call ("CALL") screen appears, and

system is paused.

Phone Call ("CALL") screen

When the call ends...

Hang up the phone.

The system resumes playing automatically.

⁄

• To use the TEL Mute feature, you need to hook up

the MUTE wire to your telephone using a commercial

telephone accessory. Refer to <INSTALLATION MANUAL>.

• Playback of the source output at the AV OUTPUT port

may not be paused even a call comes in.

B64-4606-00_02_E_En.indd 41B64-4606-00_02_E_En.indd 41 10.2.18 3:31:17 PM10.2.18 3:31:17 PM

42 DNX5260BT/DDX5026/DDX5056

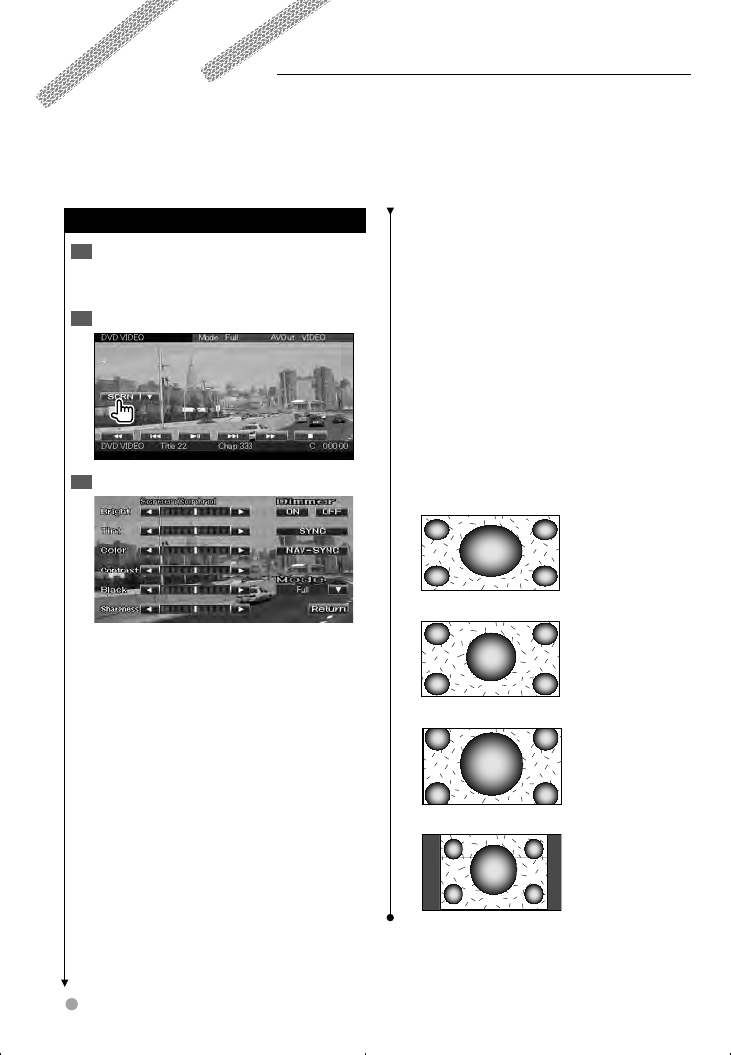

Screen Control

Display the Easy Control Screen1

See <How to Display the Easy Control Screen>

(page 17).

Display the Screen Control Screen2

Adjust the picture quality3

[Bright] Brightness Control

[Tint] Tint Control

Displayed for an NTSC system image on Video,

iPod, TV or Rear View Camera.

[Color] Color Control

Displayed on Video, iPod, TV or Rear View

Camera screen only.

[Contrast] Contrast Control

[Black] Black Level Adjustment

[Sharpness] Sharpness control

Displayed on Video, iPod, USB, TV or Rear View

Camera screen only.

[Dimmer] Dimmer Mode Setup

"ON": The display dims.

"OFF": The display doesn’t dim.

"SYNC": Turning the Dimmer function On or

Off when the vehicle light control

switch is turned On or Off.

"NAV-SYNC": Turning the Dimmer function

On or Off according to the

Navigation Day/Night display

setting. (DNX series and DDX

series with navigation unit only)

[Mode] Selects a screen mode.

You can select any of the following screen

mode.

"Full", "Just", "Zoom", "Normal"

⁄

• The Screen Control screen is displayed only when you

have applied the parking brake.

• The picture quality can be set for each source.

• You can set image quality of screens such as menu from

<Screen Adjustment> (page 66).

Full picture mode ("Full")

Justify picture mode ("Just")

Zoom picture mode ("Zoom")

Normal picture mode ("Normal")

Setting the monitor screen.

B64-4606-00_02_E_En.indd 42B64-4606-00_02_E_En.indd 42 10.2.18 3:31:17 PM10.2.18 3:31:17 PM

English 43

Hands-Free Phoning

Before Use

You need to register your cell-phone before using it with •

this unit. For more details, see <Registering Bluetooth

unit> (page 67).

If you have registered two or more cell-phones, you need •

to select one of them. For more details, see <Bluetooth

Unit Connection> (page 69).

To use the Phone Book, it must be downloaded to this •

unit in advance. For details, see <Downloading the

Phonebook> (page 43).

The units supporting the Bluetooth function have been •

certified for conformity with the Bluetooth Standard

following the procedure prescribed by Bluetooth

SIG. However, it may be impossible for such units to

communicate with your cell-phone depending on its

type.

For the cell-phones verified for compatibility, access the •

following URL:

http://www.kenwood.com/cs/ce/bt/

Sound output speaker can be set. See • <Bluetooth Hands-

Free/Audio Output Setup> (page 69).

Various functions can be used in the Hands Free control mode.

The following models need to connect the optional Bluetooth unit KCA-BT200:

DDX5026 and DDX5056

• You need to register your cell-phone to your Bluetooth Unit beforehand. Make sure to read the instruction manual of the

Bluetooth Unit as well.

• To use the Phonebook, it must have been downloaded from the cell-phone. For more details, see the instruction manual of

your Bluetooth Unit and your cell-phone.

Downloading the Phonebook

Downloads the phonebook data from the

cell-phone to this unit so that you can use the

Phonebook of this unit.

By operating the cell-phone, send the 1

phonebook data to this unit

By operating the cell-phone, start the 2

hands-free connection

⁄

• For the cell-phones which support auto-download of

phonebook:

If the phonebook is not downloaded automatically for

some reasons, follow the procedure above to download

manually.

• For how to operate the cell-phone, refer to the

Instruction Manual that comes with your cell-phone.

• Up to 1000 phone numbers can be registered for each

registered cell-phone.

• Up to 25 (DDX5026/DDX5056 : 32) digits can be

registered for each phone number along with up to 50*

characters representing a name.

(* 50: Number of alphabetical characters. Fewer

characters can be input depending on the type of

characters.)

• Depending on the type of your cell-phone, the following

restrictions are placed:

- The phonebook data cannot be downloaded normally.

- Characters in the Phonebook are garbled.

- The phonebook data cannot be downloaded normally

if it contains images. It may take several hours to a full

day to download the phone book depending on the

total image size.

• To cancel downloading of the phonebook data, operate

the cell-phone.

B64-4606-00_02_E_En.indd 43B64-4606-00_02_E_En.indd 43 10.2.18 3:31:18 PM10.2.18 3:31:18 PM

44 DNX5260BT/DDX5026/DDX5056

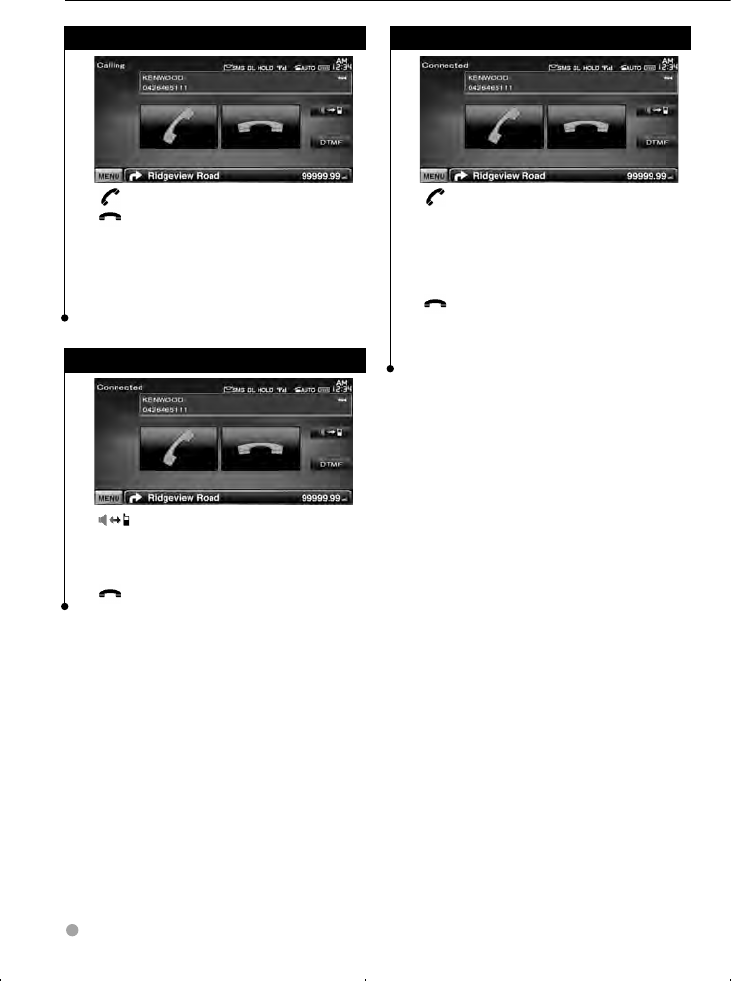

Receiving a Call

[ ] Answering a Phone Call

[] Rejecting an Incoming Call

⁄

While monitoring the rear view camera, this screen is •

not displayed even a call comes in. To display this screen,

press the [TEL] button or return the shift knob of car to

the drive position.

During a Call

[ ] Switches the voice output between

phone and speaker.

[DTMF] Outputs dial tone. See <Controlling

Tone-based Services> (page 48).

[] Disconnecting a call

Call Waiting

[ ] • Answering another incoming call with

the current call suspended

• Switching between the current call and

waiting call

Each touch of this button switches the

calling party.

[] • Answering another incoming call after

terminating the current call

• Answering the waiting call after

terminating the current call

Hands-Free Phoning

B64-4606-00_02_E_En.indd 44B64-4606-00_02_E_En.indd 44 10.2.18 3:31:18 PM10.2.18 3:31:18 PM

English 45

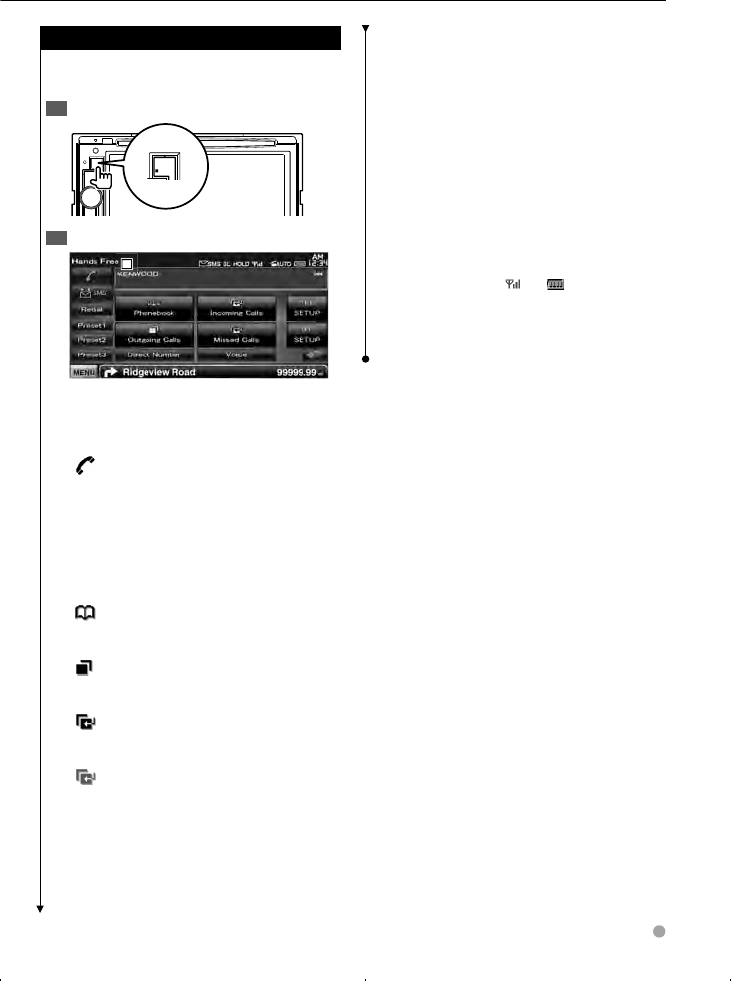

Making a Call

Displaying the control screen and using various

functions.

Display the Hands-Free Control screen1

TEL

AV OUT

Select a dialing method2

1 Calls the displayed phone number. If you

have registered a phone number in the

Phonebook, the destination person name is

displayed.

[] Calls the displayed phone number.

[Redial] Displays the previously called phone

number.

[Preset1], [Preset2], [Preset3] Displays the

preset phone number.

For information on how to preset a phone

number, see <Phone Number Preset> (page

52).

[ Phonebook] Displays the Search

for Phonebook screen. See <Calling by

Phonebook> (page 46).

[ Outgoing Calls] Displays the Outgoing

Calls screen. See <Making a Call Using Call

Records> (page 47).

[ Incoming Calls] Displays the Incoming

Calls screen. See <Making a Call Using Call

Records> (page 47).

[ Missed Calls] Displays the Missed

Calls screen. See <Making a Call Using Call

Records> (page 47).

[Direct Number] Displays the Dialing Display

screen. See <Calling by Entering a Phone

Number> (page 46).

[Voice] Starts voice recognition.

See <Calling by Voice Recognition> (page 47).

[BT SETUP] Displays the Bluetooth SETUP

screen. See <Registering Bluetooth Unit>

(page 67).

[TEL SETUP] Displays the Hands Free Setup

screen. See <Setting Up the Hands-Free

Phone> (page 49).

⁄

While your car is moving, some functions are disabled •

due to safety reasons. The buttons associated with the

disabled functions become ineffective if pressed.

When the Hands-Free Control screen appears, the name •

of the connected cell-phone is displayed for 5 seconds.

The status icons such as • and displayed on the

control unit may discord from those displayed on the

cell-phone.

Setting the cell-phone in the private mode can disable •

the hands-free function.

B64-4606-00_02_E_En.indd 45B64-4606-00_02_E_En.indd 45 10.2.18 3:31:18 PM10.2.18 3:31:18 PM

46 DNX5260BT/DDX5026/DDX5056

Hands-Free Phoning

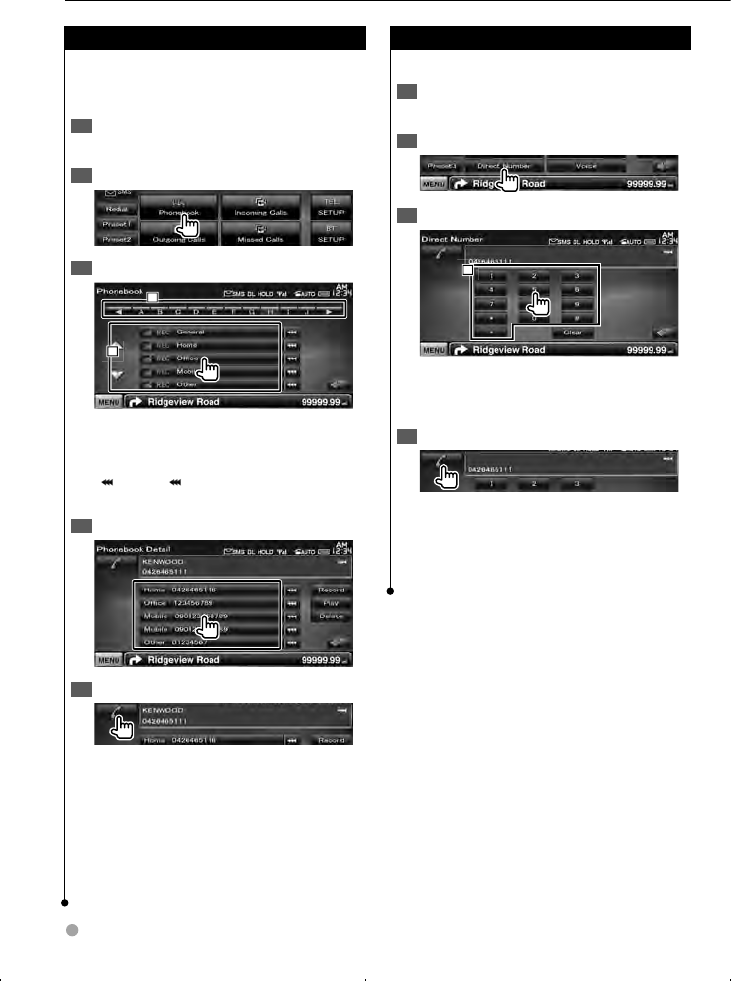

Calling by Phonebook

You can call a person using his/her phone

number that you have registered in the

Phonebook.

Display the Hands-Free Control screen1

See <Making a call> (page 45).

Display the Phonebook screen2

Select the name to call 3

1 Phonebook data list.

2 Displays the Phonebook beginning with the

name whose first character you have touched.

[] When appears, the text display is

scrolled by touching it.

Select the phone number to call 4

Make a call5

⁄

This function is unavailable while driving.•

To use the Phonebook, it must have been downloaded •

from the cell-phone. For more details, see the instruction

manual of your Bluetooth Unit and your cell-phone.

Initials including no corresponding name will not be •

displayed.

During search, a non-accent character such as "u" is •

searched for instead of an accent character such as "ü".

Calling by Entering a Phone Number

Makes a call by entering a phone number.

Display the Hands-Free Control screen1

See <Making a call> (page 45).

Display the number input screen2

Enter a phone number3

1 Enters the desired phone number using the

keypad.

[Clear] Clears the number.

Make a call4

Press the green phone icon to dial the entered

phone number.

⁄

You can input up to 25 (DDX5026/DDX5056 : 32) digits.•

This function is unavailable while driving.•

B64-4606-00_02_E_En.indd 46B64-4606-00_02_E_En.indd 46 10.2.18 3:31:19 PM10.2.18 3:31:19 PM

English 47

Next page 3

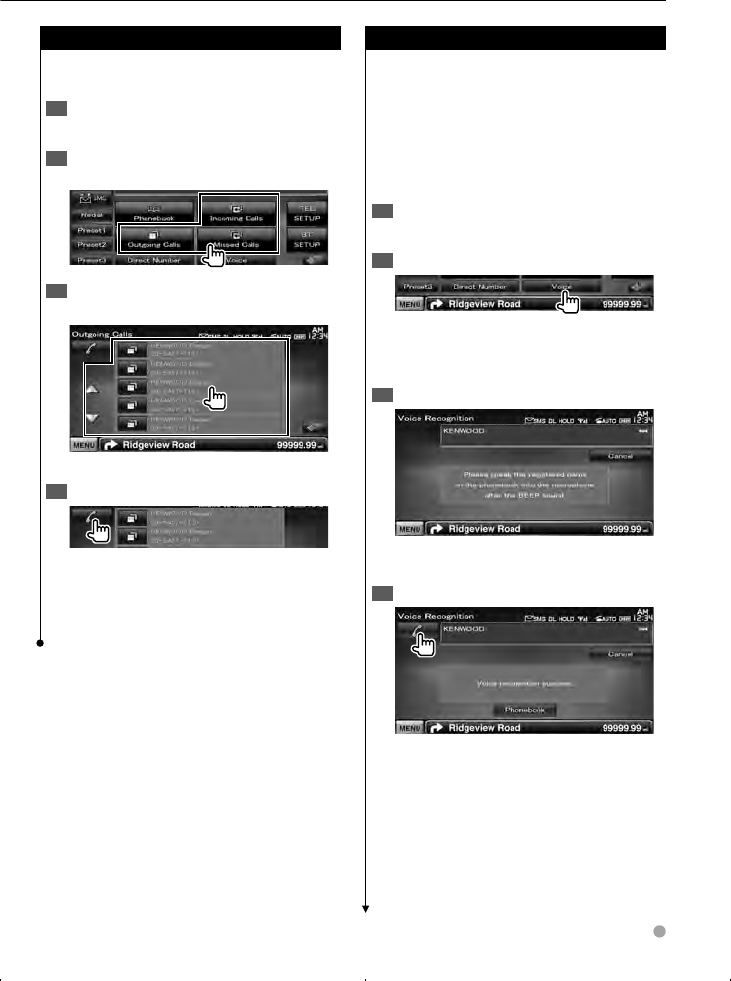

Making a Call Using Call Records

Calls by selecting a phone number from the

outgoing, incoming, or missed calls list.

Display the Hands-Free Control screen1

See <Making a call> (page 45).

Display the Outgoing Calls, Incoming Calls, 2

or Missed Calls screen

Select from calls list 3

Example : Outgoing Calls screen

Calls the selected phone number.

Make a call4

⁄

The Outgoing Calls list screen, Incoming Calls list, •

or Missed Calls list screen shows the list of the calls

originated from or received at this unit. They are not the

ones stored in the cell-phone memory.

Calling by Voice Recognition

Calls by recognizing the registered voice.

⁄

In order to perform voice recognition, voice must •

be registered in the Phonebook data. See <Voice

Registration> (page 50). Or, to perform voice recognition

by Phone number category (Home, Office, Mobile etc.)

of Phonebook data, a key word voice must be registered.

See <Key Word Voice Registration> (page 51).

Display the Hands-Free Control screen1

See <Making a call> (page 45).

Display the Voice Recognition screen2

7 If there is only one phone number assigned

under the registered name

Say the name registered in the Phonebook3

When a beep is heard, say the name within 2

seconds.

Make a call4

B64-4606-00_02_E_En.indd 47B64-4606-00_02_E_En.indd 47 10.2.18 3:31:20 PM10.2.18 3:31:20 PM

48 DNX5260BT/DDX5026/DDX5056

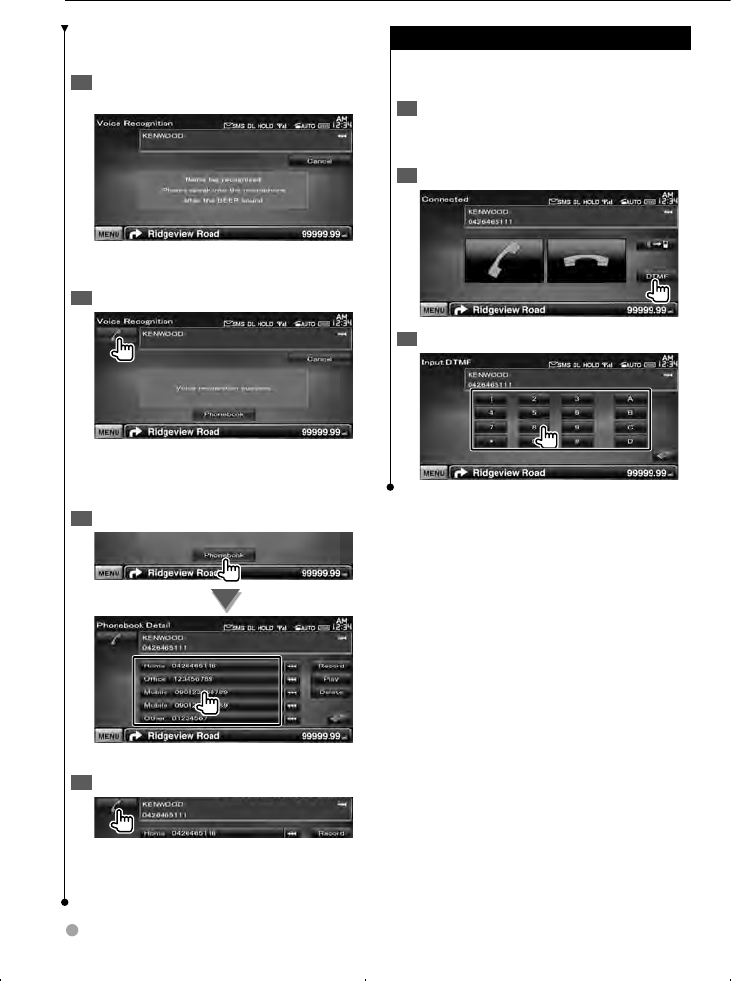

7 If there are more than one phone numbers

assigned under the registered name

Say the key word registered for the 5

category

When a beep is heard, say the key word within

2 seconds.

Make a call6

7 If there are more than one phone numbers

registered under the same name, go to step 7.

Select a Phone number category7

Selects the Phone number category.

Make a call8

⁄

A message is displayed if the voice is not recognized. •

Read the message for the further operation.

Controlling Tone-based Services

Uses tone base service using DTMF (Dual Tone

Multi Frequency).

Display the Talking screen1

See <Calling by Entering a Phone Number>

(page 46).

Display the DTMF input screen2

You can send tones during a call3

Hands-Free Phoning

B64-4606-00_02_E_En.indd 48B64-4606-00_02_E_En.indd 48 10.2.18 3:31:20 PM10.2.18 3:31:20 PM

English 49

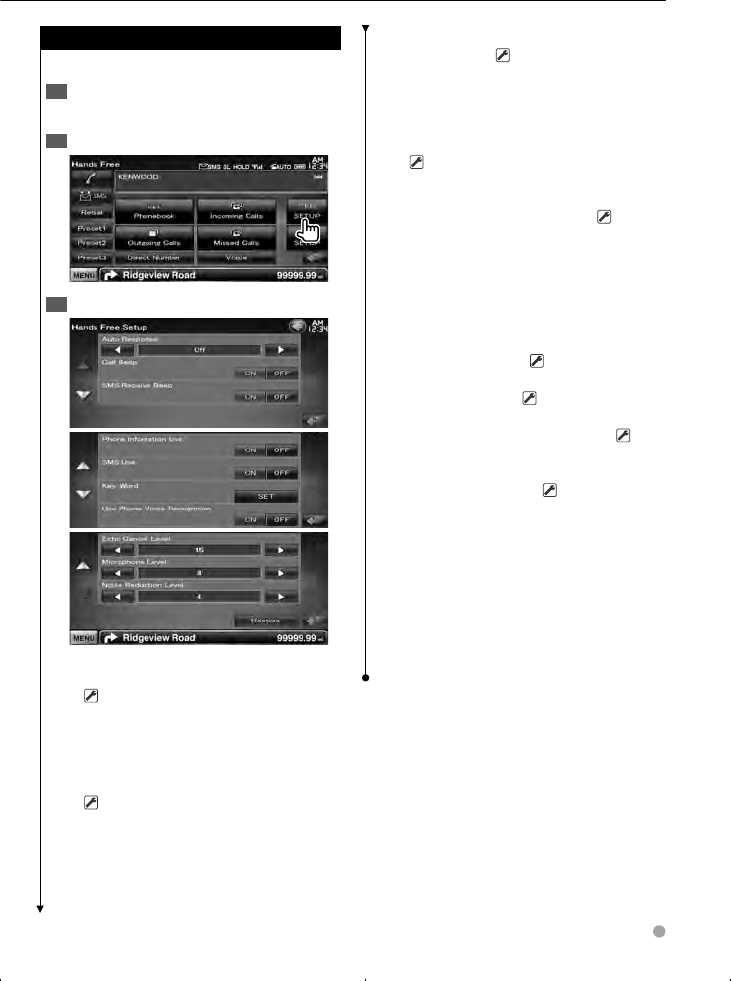

Setting Up the Hands-Free Phone

The Hands-Free system can be set as follows.

Display the Hands-Free Control screen1

See <Making a call> (page 45).

Display the Hands Free Setup screen2

Set each item3

[Auto Response] Sets an automatic response

time to pick-up an incoming call.

( DNX5260BT : "OFF",

DDX5026/DDX5056 : "8")

"OFF": This function is disabled.

"0-99": Sets the incoming call ringing duration

(in seconds).

[Call Beep] Sets the beep of the incoming call.

( "ON")

"ON": Beep is heard.

"OFF": Beep is canceled.

[SMS Receive Beep] Sets the beep of the

incoming SMS. ( "ON")

"ON": Beep is heard.

"OFF": Beep is canceled.

[Phone Information Use] Sets whether to

use cell-phone phonebook, outgoing calls list,

incoming calls list and missed calls list.

( "ON")

"ON": Yes.

"OFF": No.

[SMS Use] Sets the SMS function. ( "ON")

"ON": Use SMS function.

"OFF": SMS not available.

[Key Word] Registers the voice to select phone

number category with voice recognition.

See <Key Word Voice Registration> (page 51).

[Use Phone Voice Recognition]

Sets whether to dial using the phone voice

recognition function. ( "ON")

[Echo Cancel Level]* Adjusts the level of echo

cancelling function. ( "15")

[Microphone Level]* Adjusts the sensitivity of

the microphone for a telephone call. ( "8")

[Noise Reduction Level]* Adjusts the level

of the noise reduction and the quality of the

resulting speech signal. ( "4")

[Restore]* Restores the [Echo Cancel Level],

[Microphone Level], or [Noise Reduction Level]

value to the initial value.

⁄

Either the time interval for automatic answer set on this •

unit or the time interval set on the cell-phone, whichever

is shorter, takes effect.

* The items with asterisk (*) are not appeared on the •

following models:

DDX5026 and DDX5056

B64-4606-00_02_E_En.indd 49B64-4606-00_02_E_En.indd 49 10.2.18 3:31:21 PM10.2.18 3:31:21 PM

50 DNX5260BT/DDX5026/DDX5056

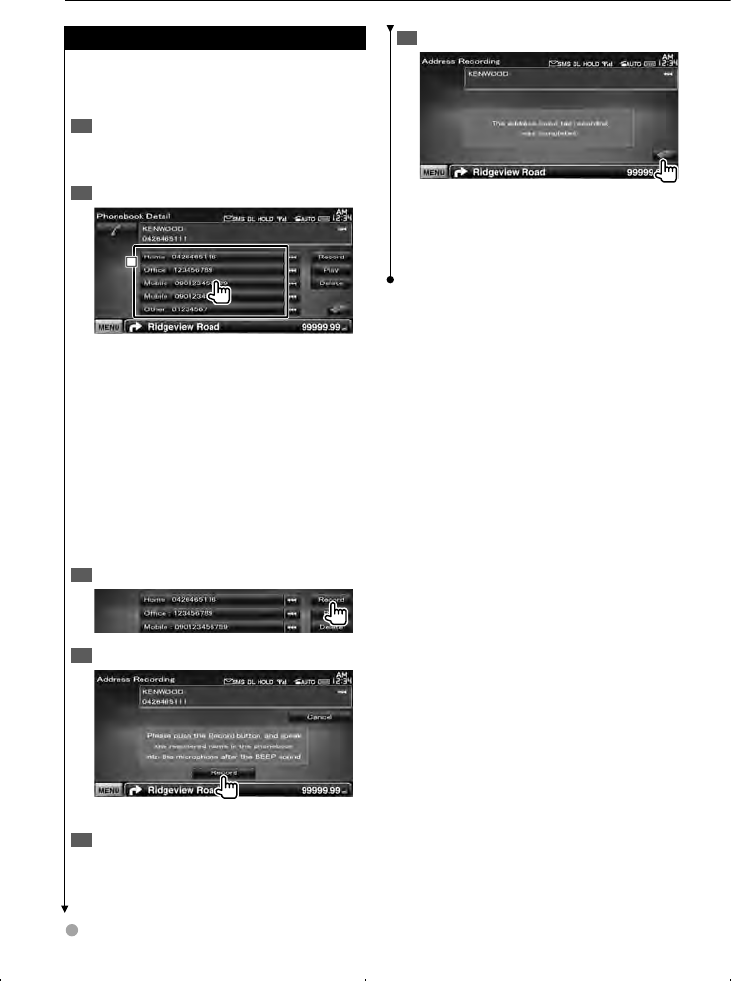

Voice Registration

Registers voice for voice recognition in

Phonebook. Up to 35 voices can be recorded in

one cell-phone.

Display the Phonebook Detail screen1

Go through the procedure of <Calling by

Phonebook> (page 46).

Select the name to register2

1 Selects a name.

[Record] Registers the voice for voice

recognition to the selected Phonebook. If

there are already 35 voice tag registered

in the same cell-phone, [Record] button is

deactivated.

[Play] Plays the voice registered in the selected

Phonebook data.

[Delete] Deletes the voice registered in the

selected Phonebook data.

Touch to display the confirmation screen.

Touch [Yes] to delete or [No] to cancel.

Display the voice registration screen 3

Say the name to register (1st try) 4

Say within 2 seconds after the Beep.

Say the name to register (2nd try)5

Say within 2 seconds after the Beep.

End voice registration6

⁄

A message is displayed if the voice is not recognized. •

Read the message for the further operation.

Repeat from 1st try if the voice is different from the 1st •

try.

Hands-Free Phoning

B64-4606-00_02_E_En.indd 50B64-4606-00_02_E_En.indd 50 10.2.18 3:31:21 PM10.2.18 3:31:21 PM

English 51

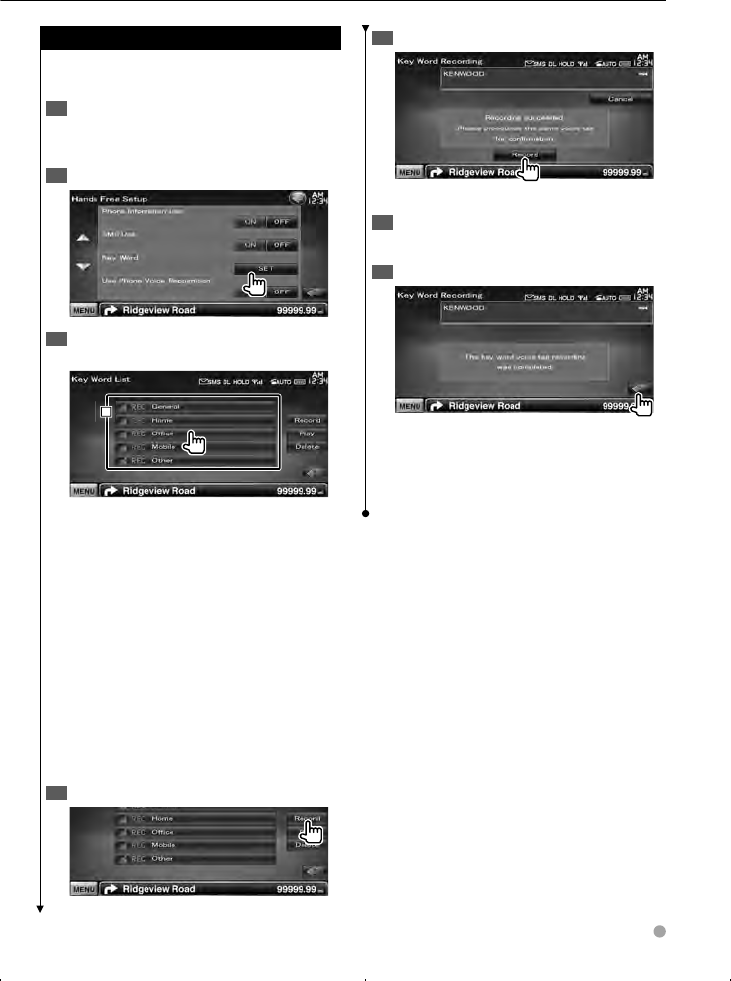

Key Word Voice Registration

Registers the voice to select the Phone number

category by Voice Recognition.

Display the Hands Free Setup screen1

See <Setting Up the Hands-Free Phone> (page

49).

Display the Key Word List screen2

Select the Phone number category to 3

1 Selects the Phone number category.

"REC" turns on for data with voice for voice

recognition already registered.

[Record] Registers voice for the selected

Phone number category.

[Play] Plays the voice registered for the

selected Phone number category.

[Delete] Deletes the voice registered for the

selected Phone number category.

Touch to display the confirmation screen.

Touch [Yes] to delete or [No] to cancel.

⁄

[Play], [Delete]•

Only for DDX5026 and DDX5056 with optional

Bluetooth unit KCA-BT200 connected.

Display voice registration screen4

Say the phone category to register (1st try) 5

Say within 2 seconds after the Beep.

Say the phone category to register (2nd try) 6

Say within 2 seconds after the Beep.

End voice registration 7

⁄

A message is displayed if the voice is not recognized. •

Read the message for the further operation.

Repeat from 1st try if the voice is different from the 1st •

try.

B64-4606-00_02_E_En.indd 51B64-4606-00_02_E_En.indd 51 10.2.18 3:31:22 PM10.2.18 3:31:22 PM

52 DNX5260BT/DDX5026/DDX5056

Hands-Free Phoning

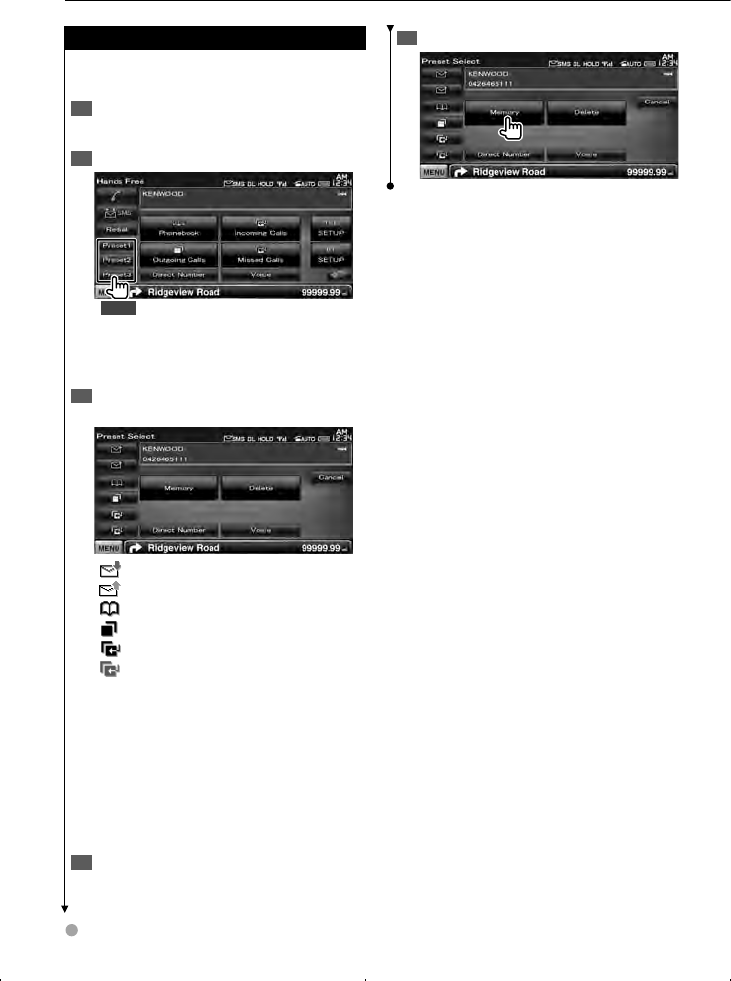

Phone Number Preset

Registers frequently used phone number to

Hands Free control screen preset button.

Display the Hands-Free Control screen1

See <Making a call> (page 45).

Select the Preset number to register2

1 sec.

⁄

If no Preset number is registered, pressing this button •

momentarily moves to the step 3.

Select the search destination of the number 3

to register

[ ] Registers from SMS received message list.

[] Registers from SMS sent message list.

[] Registers from Phonebook.

[] Registers from outgoing calls list.

[] Registers from incoming calls list.

[] Registers from missed calls list.

[Direct Number] Registers by entering phone

numbers.

[Voice] Registers voice for voice recognition to

preset number.

[Memory] Registers the currently displayed

phone number.

[Delete] Deletes the currently displayed phone

number. Touch to display the confirmation

screen. Touch [Yes] to delete or [No] to cancel.

Search phone number to register with each 4

function

B64-4606-00_02_E_En.indd 52B64-4606-00_02_E_En.indd 52 10.2.18 3:31:23 PM10.2.18 3:31:23 PM

English 53

Next page 3

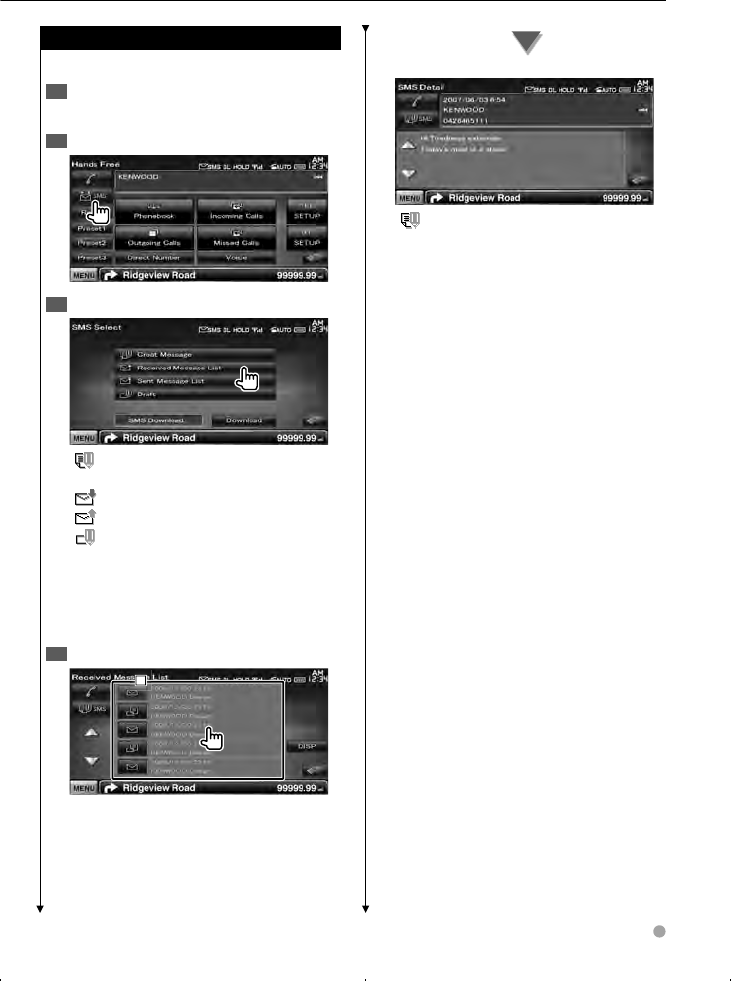

SMS (Short Message Service)

Uses SMS function.

Display the Hands-Free Control screen1

See <Making a call> (page 45).

Display the SMS Select screen2

Select a function3

[ ] Displays the SMS create menu screen.

See <Create a message>.

[] Displays received message list.

[] Displays sent message list.

[] Displays the SMS Create Menu screen.

See <Create a message>. The button will be

active when any message has been created

after power-on.

[Download] Retrieves SMS messages from the

cell-phone.

Select a message to display 4

1 Calls the number in the selected message.

[DISP] Displays the selected message.

⁄

If a large number of SMS messages are stored in •

the cell-phone, message list may not be displayed

correctly.

SMS Message screen

[ SMS] Creates a new message for the

selected message.

B64-4606-00_02_E_En.indd 53B64-4606-00_02_E_En.indd 53 10.2.18 3:31:23 PM10.2.18 3:31:23 PM

54 DNX5260BT/DDX5026/DDX5056

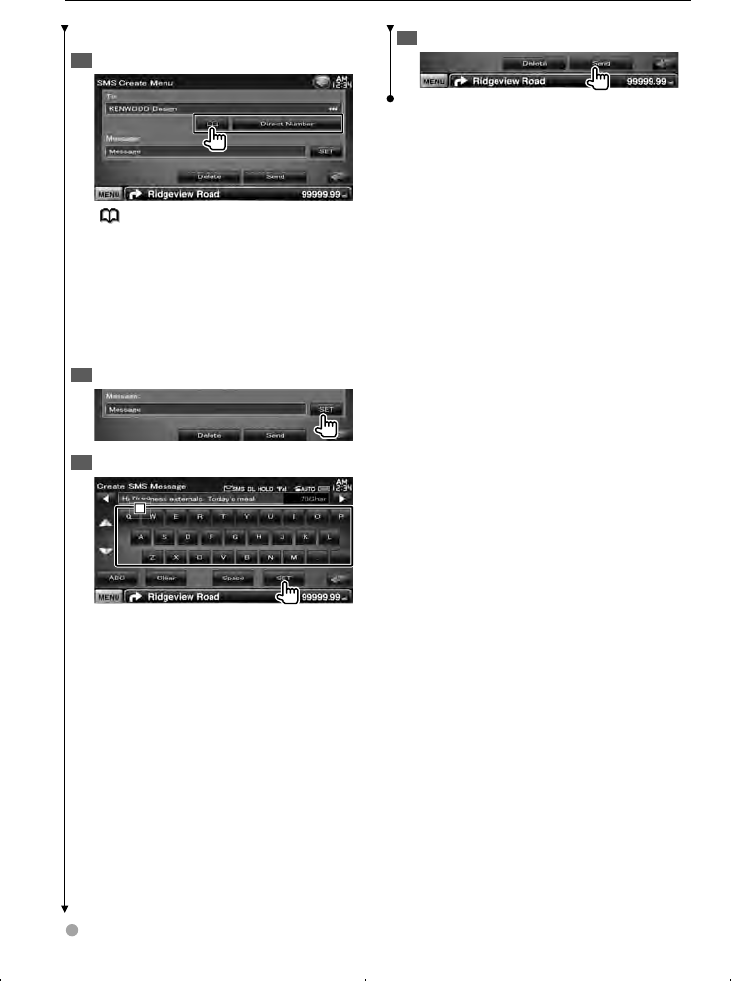

Send the message4

Hands-Free Phoning

Create a message

Enter phone number / Select contact1

[ ] Select a contact from the phonebook.

[Direct Number] Enter the phone number.

[SET] Display the Create SMS Message screen.

[Send] Sends the message.

[Delete] Deletes the Draft message.

Touching the screen displays a confirmation

message. Touch [Yes]. To cancel clearing, touch

[No].

Display the Create SMS Message screen2

Create a message3

1 Enters characters.

[2], [3] Moves the cursor.

[5], [∞] Scrolls up or down the character

button display.

[QWE]/ [ABC] Sets the key layout of the

character buttons.

ABC : Alphabetical key layout.

QWE : Qwerty key layout.

[Clear] Erases the entered character.

If touched more than 1 second, all the input

characters are erased.

[Space] Enters a space.

[SET] Saves the message and returns to the

Create SMS Menu screen.

Only one draft message can be saved /

retained in memory at any one time.

B64-4606-00_02_E_En.indd 54B64-4606-00_02_E_En.indd 54 10.2.18 3:31:24 PM10.2.18 3:31:24 PM

English 55

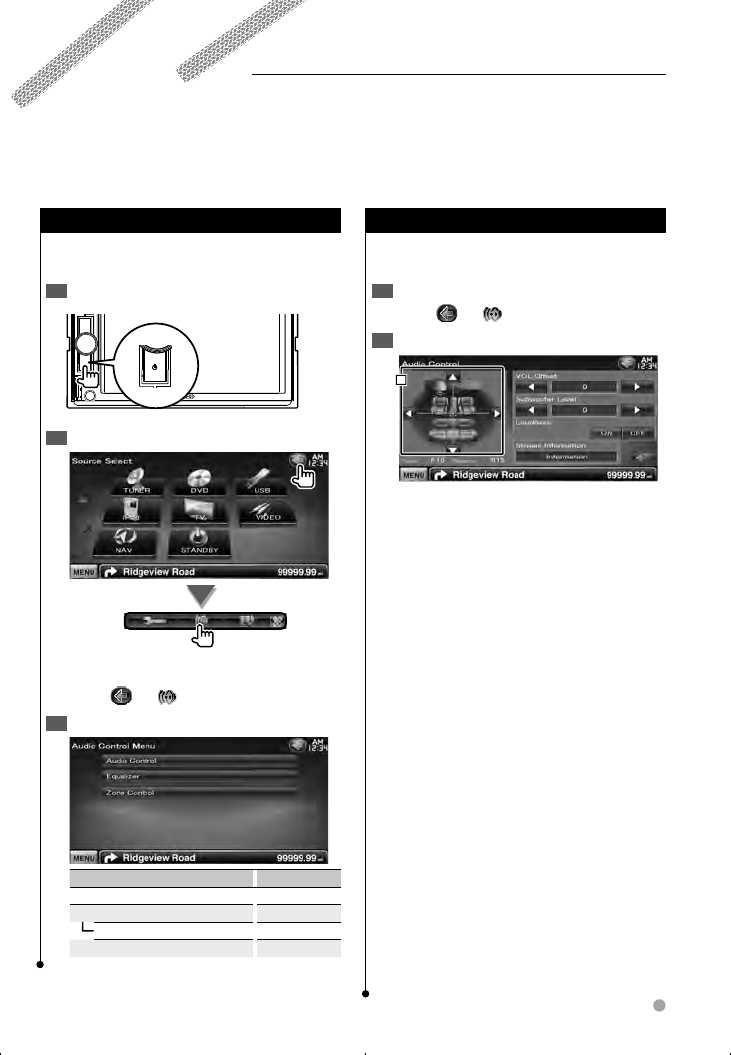

Audio Control

Audio Control Menu

Displays the Audio Control menu to set the sound

effect function of this unit.

Display the Source Select Screen1

SRC

Display the Audio Control menu2

In this manual, the above selection is indicated

as:

Touch [ ]

[ ].

Select the Audio Control item3

Item Page

[Audio Control] 55

[Equalizer] 56

[Tone] 56

[Zone Control] 57

Audio Control

You can adjust the front/rear and right/left audio

balance.

Display the Audio Control screen1

Touch [ ]

[ ]

[Audio Control]. (page 55)

Set each item2

1 Adjusts the front/back and left/right balance

of the volume by touching the Adjust screen.

[2], [3] Adjusts the right and left volume

balance.

[5], [∞] Adjusts the front and rear volume

balance.

[VOL.Offset] Finely adjust the volume of the

current source to minimize the difference in

volume between different sources.

⁄

If you have increased the volume first, then reduced •

the volume using the "VOL. Offset", the sound

generated if you suddenly switch to another source

may be extremely loud.

[Subwoofer Level] Adjusts the subwoofer

volume.

The setting is available when subwoofer is set

to "ON". See <Speaker Setup> (page 72).

[Loudness] Turns the loudness control

function On or Off.

If turned "ON", high and low tones are

automatically enhanced during low volume.

Settable only when zone function is set to Off.

See <Zone Control> (page 57).

[Stream Information] Displays the present

source information.

The stream (Dolby Digital, dts, Linear PCM,

MPEG, MP3, WMA or AAC) is displayed.

B64-4606-00_02_E_En.indd 55B64-4606-00_02_E_En.indd 55 10.2.18 3:31:24 PM10.2.18 3:31:24 PM

56 DNX5260BT/DDX5026/DDX5056

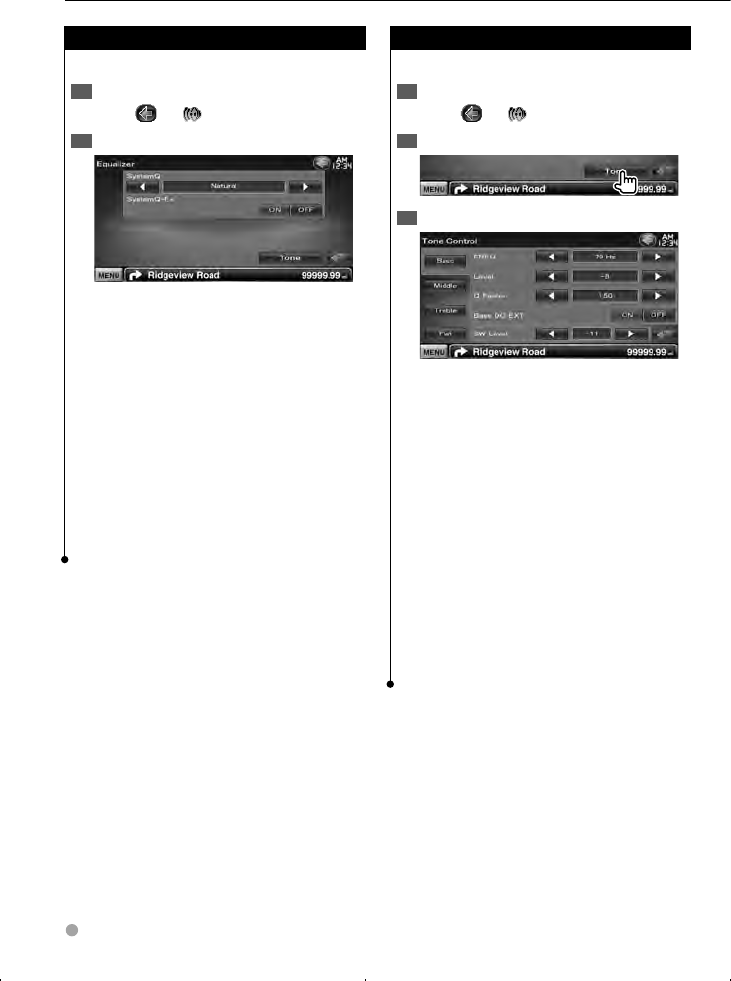

Equalizer Control

You can set up the equalizer.

Display the Equalizer screen1

Touch [ ]

[ ]

[Equalizer]. (page 55)

Set each item2

[SystemQ] Selects an equalizer curve type.

You can select any of the following equalizer

curves.

"Natural"/ "Rock"/ "Pop"/ "Easy"/ "Top40"/

"Jazz"/ "User"

⁄

"User":•

Your own tone curve can be created. See <Tone

Setup> (page 56).

[SystemQ-EX] Selects items to be adjusted for

tone curve setup.

If selected "OFF", only Level can be set up for

tone curves.

[Tone] Displays the Tone curve setup screen.

(page 56)

Tone Setup

You can set a Tone curve.

Display the Equalizer screen1

Touch [ ]

[ ]

[Equalizer]. (page 55)

Display the Tone Control screen2

Set the Tone3

[Bass] Bass adjustment items are displayed.

[Middle] Middle adjustment items are

displayed.

[Treble] Treble adjustment items are displayed.

[Flat] Tone level becomes 0 (flat).

[FREQ] Sets the Center frequency.

[Level] Sets the level.

[Q Factor] Sets the Q factor. (Only [Bass] and

[Middle] can be set)

[Bass DC EXT] Bass DC Extend settings. (Only

[Bass] can be set)

If turned "ON", it extends the bass center

frequency to the low register by approximately

20%.

[SW Level] Adjusts the subwoofer volume.

The setting is available when subwoofer is set

to "ON". See <Speaker Setup> (page 72).

Audio Control

B64-4606-00_02_E_En.indd 56B64-4606-00_02_E_En.indd 56 10.2.18 3:31:25 PM10.2.18 3:31:25 PM

English 57

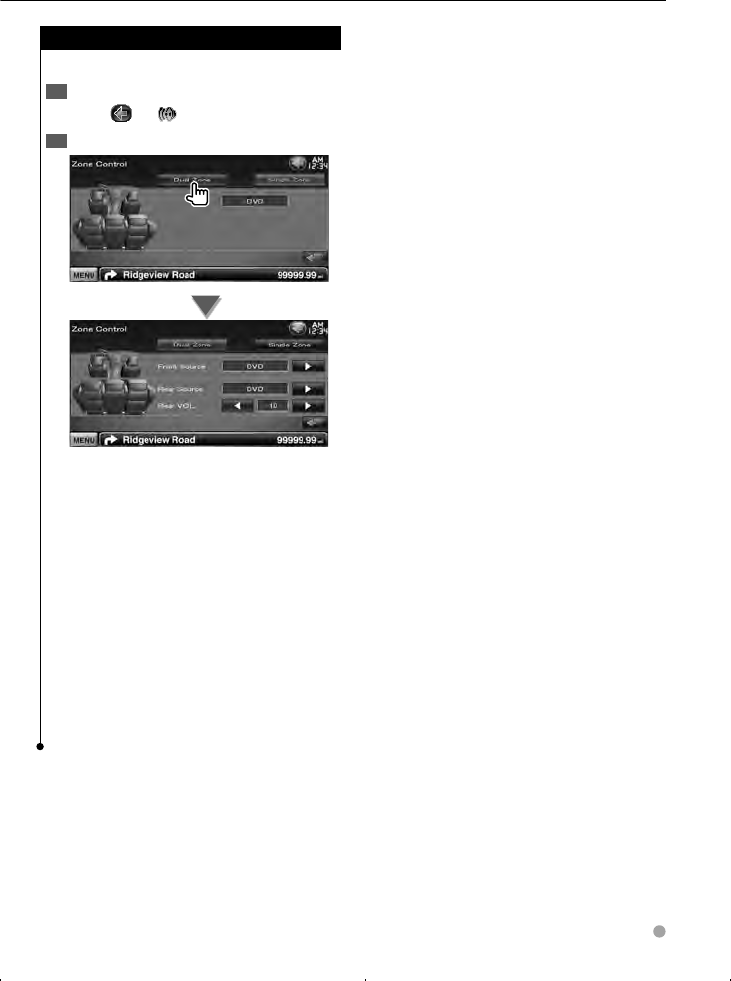

Zone Control

You can set the front and rear audio source.

Display the Zone Control screen1

Touch [ ]

[ ]

[Zone Control]. (page 55)

Set the Zone Control2

[Single Zone] Sets the unit to single zone.

[Dual Zone] Sets the unit to dual zone.

[Front Source] Sets the front audio source.

[Rear Source] Sets the rear audio source.

⁄

When the rear speaker sound is switched, the audio •

source that is output at the AV OUTPUT terminal is

also switched to the same source.

[Rear VOL.] Adjusts the volume of the rear

channel.

⁄

There are following limitations when zone function is set •

to "ON".

- There is no output from the subwoofer.

- <Equalizer Control> (page 56) and <Speaker Setup>

(page 72) are not available.

B64-4606-00_02_E_En.indd 57B64-4606-00_02_E_En.indd 57 10.2.18 3:31:25 PM10.2.18 3:31:25 PM

58 DNX5260BT/DDX5026/DDX5056

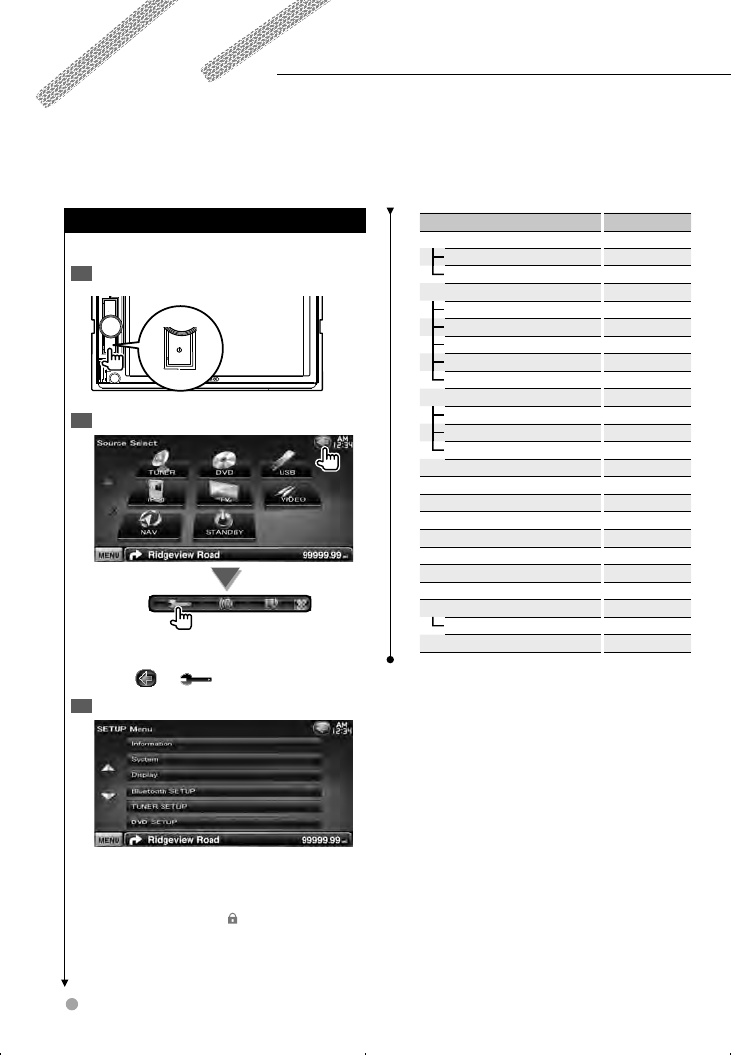

Setup Menu

How to Display SETUP Menu Screen

Displays the Setup menu to set various functions.

Display the Source Select Screen1

SRC

Display the Setup Menu Screen2

In this manual, the above selection is indicated

as:

Touch [ ]

[ ].

Select the setup item3

[5], [∞] Scrolls the setup menu.

⁄

[AV-IN SETUP], [Navigation] and [Audio SETUP] options •

can be locked. The key mark ( ) is displayed in reverse

video for the locked option. See <Setup Memory> (page

63).

You can set up various receiver parameters.

Item Page

[Information]

[DivX(R)] 59

[Software] 59

[System]

[User Interface] 60

[Touch] 61

[Clock] 62

[Security] 62

[SETUP Memory] 63

[Display]

[Background] 64

[Color] 65

[Screen Adjust] 66

[Bluetooth SETUP] 67

[TUNER SETUP] 77

[DVD SETUP] 73

[iPod SETUP] 76

[USB SETUP] 76

[TV SETUP] 77

[AV-IN SETUP] 70

[Navigation] 71

[Audio SETUP]

[Speaker Select] 72

[AV Interface] 70

B64-4606-00_02_E_En.indd 58B64-4606-00_02_E_En.indd 58 10.2.18 3:31:26 PM10.2.18 3:31:26 PM

English 59

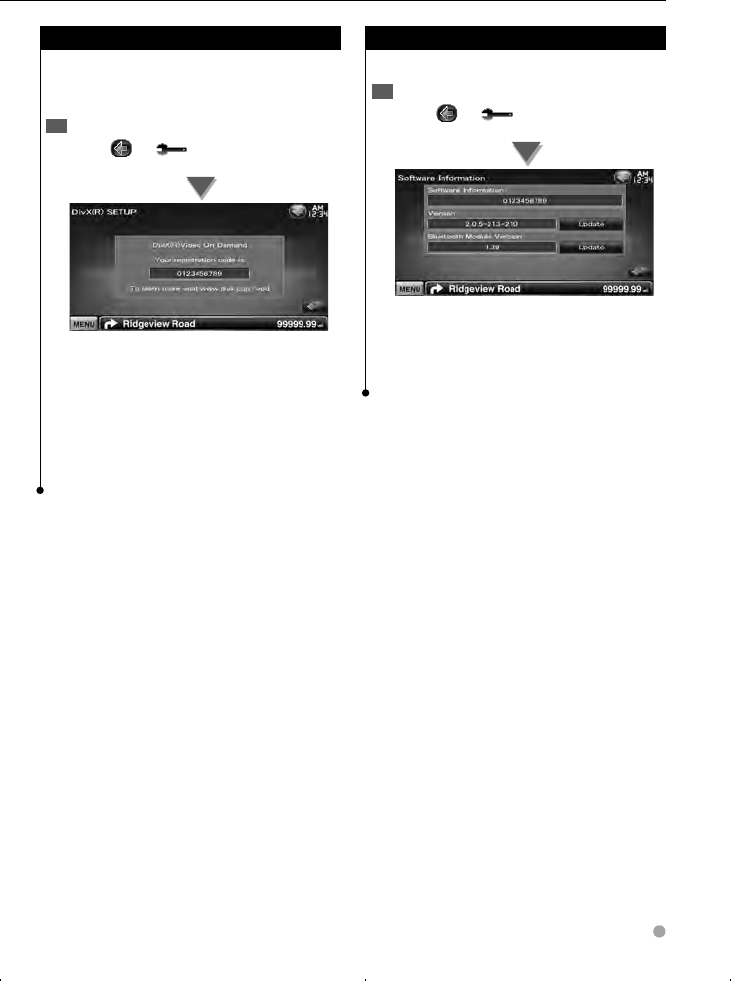

DivX Setup

Checks the registration code. This code is needed

when making a disc which has DRM (Digital

Rights Management).

Display the DivX Setup screen1

Touch [ ]

[ ]

[Information]

[DivX].

(page 58)

Displays the registration code.

⁄

• When downloading a DivX VOD file controlled by DRM,

one above. Otherwise the file may not be able to play

with this unit. Remaining number of viewing is displayed

when playing a DivX VOD file with the viewing restriction.

When the remaining number of viewing reached 0, a

warning message appears and the file cannot be played.

Software Information

Checks the software version of this unit.

Display the Software Information screen1

Touch [ ]

[ ]

[Information]

[Software]. (page 58)

Displays the software version.

⁄

For how to update the software, refer to the relevant •

update procedure manual which comes with the

software.

B64-4606-00_02_E_En.indd 59B64-4606-00_02_E_En.indd 59 10.2.18 3:31:27 PM10.2.18 3:31:27 PM

60 DNX5260BT/DDX5026/DDX5056

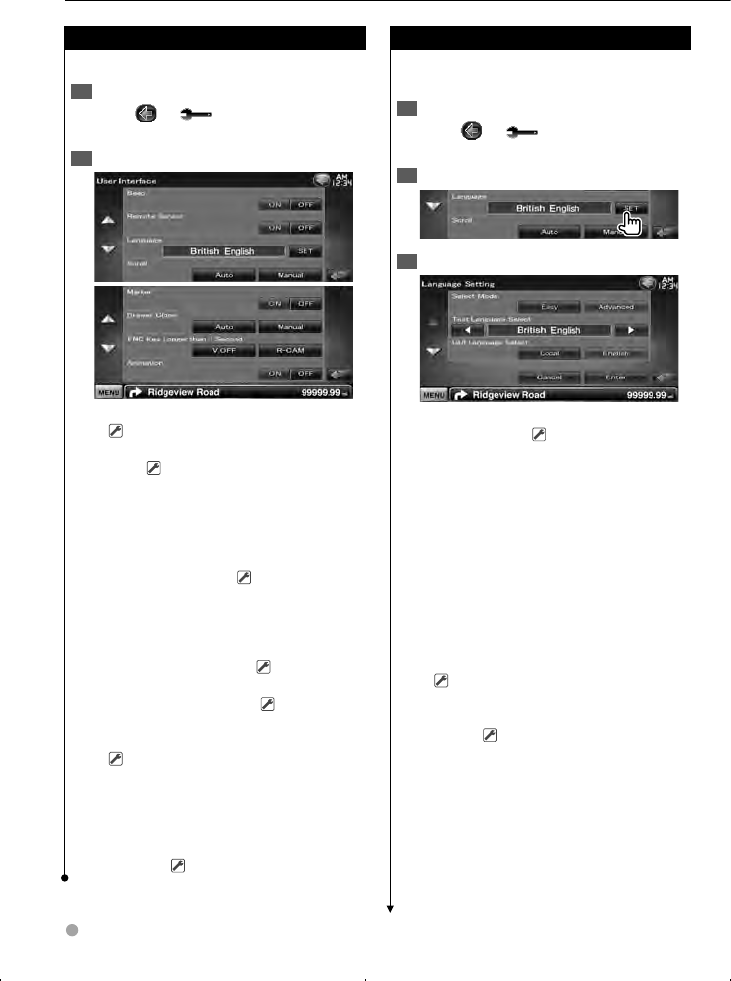

User Interface

You can setup user interface parameters.

Display the User Interface screen1

Touch [ ]

[ ]

[System]

[User

Interface]. (page 58)

Set each item2

[Beep] Turns the key touch tone On or Off.

( "ON")

[Remote Sensor] Selects a remote control

signal. ( "ON")

When turned "OFF", the remote control of TV

reception is rejected.

[Language] Select the language used for the

control screen and setting items. (page 60)

[Scroll] Allows scrolling of text display on the

Source Control screen. ( "Manual")

"Auto": Scrolls the screen automatically.

"Manual": Allows you to scroll the screen

manually.

[Marker] Sets whether to display the target

when touching the panel. ( "OFF")

[Drawer Close] Sets whether to close the

function bar automatically. ( "Manual")

[FNC Key Longer than 1 Second] Sets the

function of the [FNC] button.

( "V.OFF")

"V.OFF" : Press the [FNC] button for more than

1 second to turn the display off.

"R-CAM" : Press the [FNC] button for more than

1 second to switch to rear view.

[Animation] Sets whether to display

animation. ( "ON")

Language Setting

You can select the display language for the

control screen and audio file tags.

Display the User Interface screen1

Touch [ ]

[ ]

[System]

[User

Interface]. (page 58)

Display the Language Setting screen2

Select a language3

[Select Mode] Selects language select mode.

(DNX series only) ( "Easy")

"Easy" : Language to display text and tag

information, and language for GUI can

be selected.

Navigation language is set to that

selected in [Text Language Select].

"Advanced" : Language to display text and

tag information, language for

GUI, and language for navigation

information can be selected.

[Text Language Select] Selects the language

to display text information of the selected

source and tag information of the audio/video

files.

( "British English")

[GUI Language Select] Selects the language

used for the control screen, setting menu and

so forth. ( "Local")

"Local" : Sets the language to that selected in

[Text Language Select].

"English" : Sets the language to English.

[Enter] Determines the selected language.

[Cancel] Cancels the selected language.

Setup Menu

B64-4606-00_02_E_En.indd 60B64-4606-00_02_E_En.indd 60 10.2.18 3:31:27 PM10.2.18 3:31:27 PM

English 61

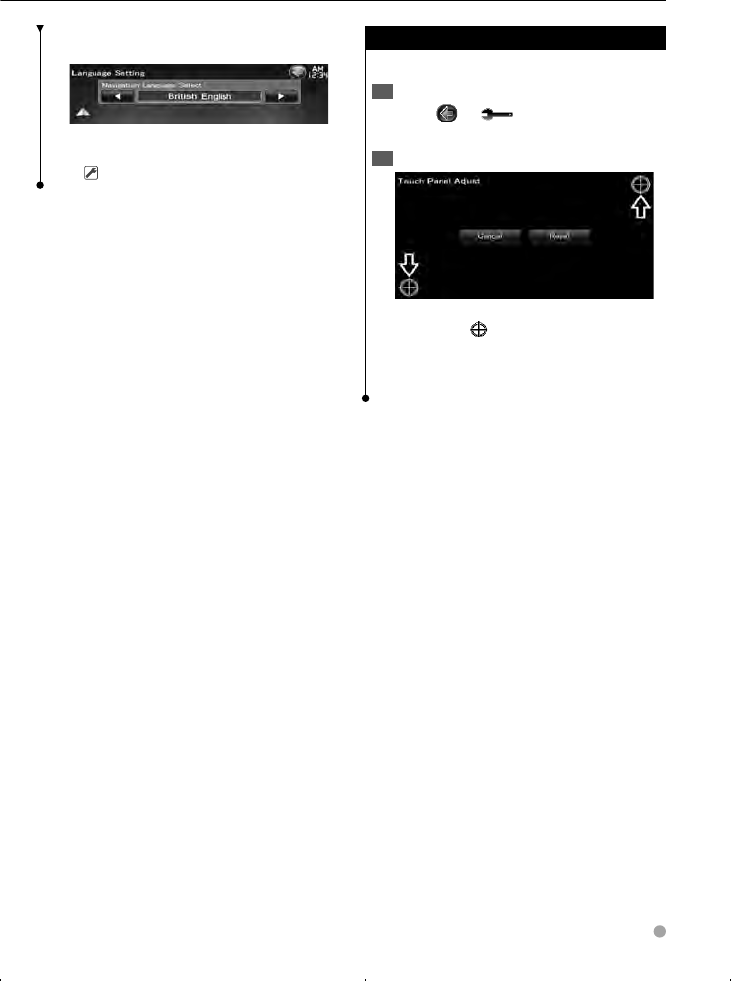

When [Select Mode] is set to "Advanced"

(DNX series only)

[Navigation Language Select] Selects the

language used for navigation.

( "British English")

Touch Panel Adjustment

You can adjust the touch panel operations.

Display the Touch panel Adjustment screen1

Touch [ ]

[ ]

[System]

[Touch].

(page 58)

Adjust the Touch panel2

Follow the instruction on the screen and touch

the center of .

[Cancel] Cancels the adjustment and returns

to the Touch Panel Adjust screen.

[Reset] Resets to the initial status.

B64-4606-00_02_E_En.indd 61B64-4606-00_02_E_En.indd 61 10.2.18 3:31:28 PM10.2.18 3:31:28 PM

62 DNX5260BT/DDX5026/DDX5056

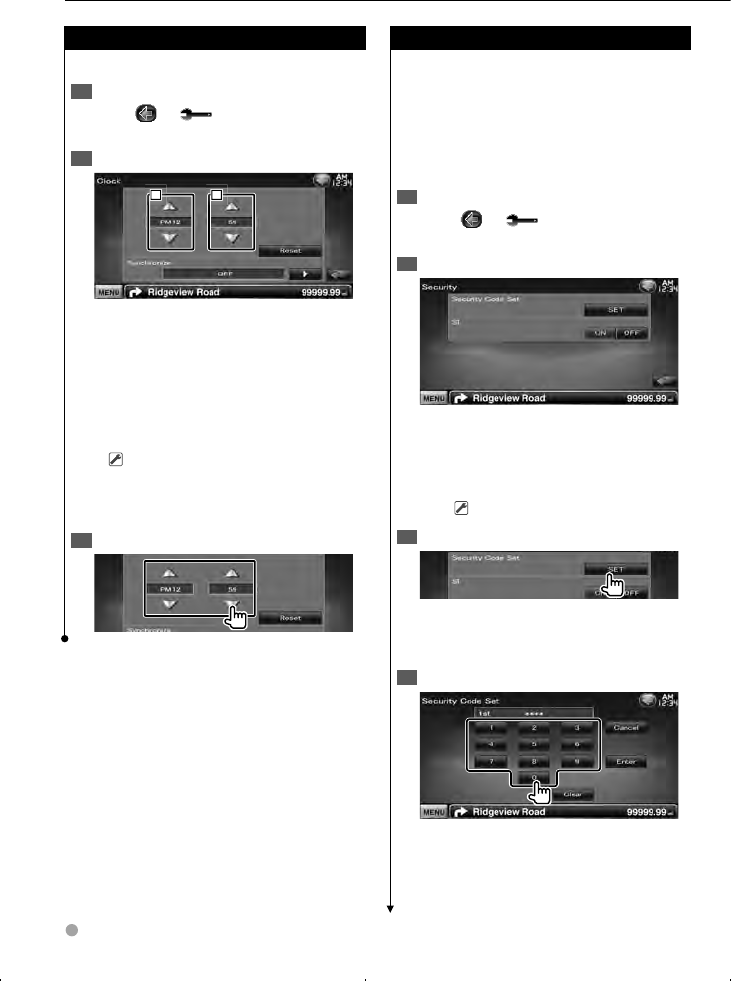

Clock Setup

You can adjust the clock time.

Display the Clock Setup screen1

Touch [ ]

[ ]

[System]

[Clock].

(page 58)

Setup the Clock2

1 Adjusts hours.

2 Adjusts minutes.

[Reset] Sets "00" minute.

Setup examples: 3:00 – 3:29 \ 3:00

3:30 – 3:59 \ 4:00

[Synchronize] Sets the clock time in

synchronization with the time data sent from

the navigation system or the RDS station.

( DNX series: "Navigation", DDX series: "RDS")

"OFF"/ "RDS"/ "Navigation"

When the synchronized mode is set, the clock

cannot be adjusted manually.

Adjust the clock time3

Security Setup

You can set a security code to protect your

receiver system against theft.

⁄

• When the Security Code function is activated, the code

cannot be changed and the function cannot be released.

Note the Security Code can be set as the 4 digit number

of your choice.

Display the Security screen1

Touch [ ]

[ ]

[System]

[Security].

(page 58)

Setup the SI (Security Indicator)2

[Security Code Set] Displays the Security code

input screen.

[SI] Turns the SI function on or off.

If turned "ON", the Security indicator on the

front panel flashes when the vehicle ignition is

off. ( "ON")

Start Security Code setup3

⁄

If you have already completed the code registration, •

[CLR] is displayed.

Enter a security Code4

Input four-digit number.

Setup Menu

B64-4606-00_02_E_En.indd 62B64-4606-00_02_E_En.indd 62 10.2.18 3:31:28 PM10.2.18 3:31:28 PM

English 63

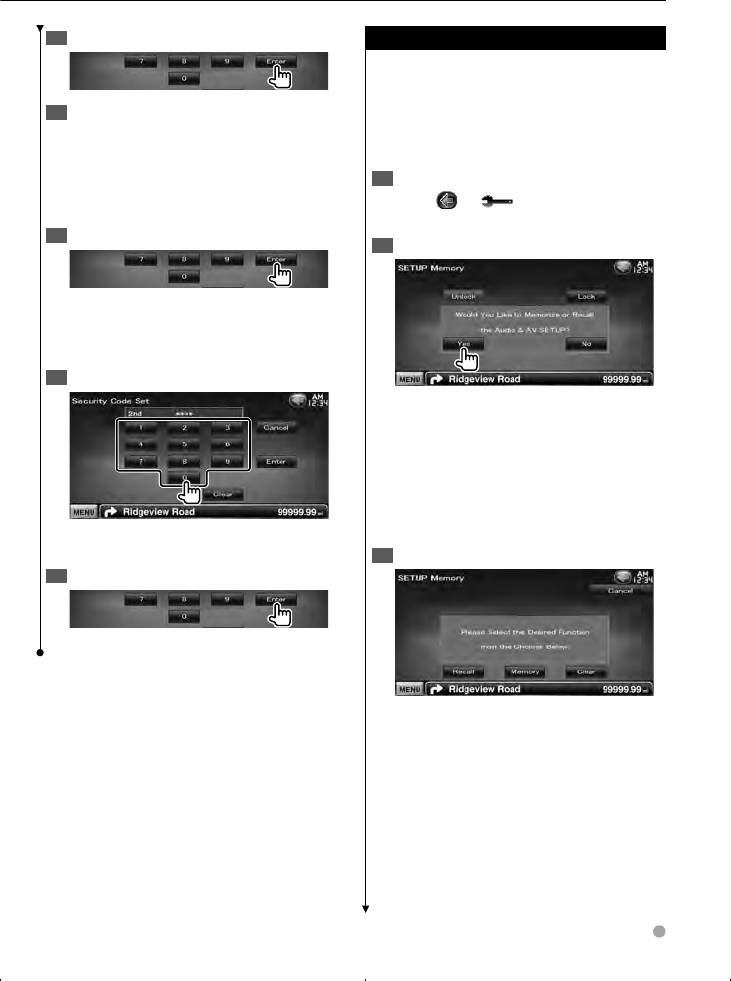

Reenter the security code6

Reenter the same security code as that you have

entered in Step 4 for confirmation.

⁄

If you enter a different security code, the screen •

returns to Step 4 (for the first code entry).

Now, your security code is registered.

If you have pressed the Reset button or if you

have disconnected the Receiver from battery...

Enter the correct security code1

You must enter the same security code as that

you have entered in Step 4.

Now, you can use your Receiver.

Setup Memory

Audio Control, AV-IN SETUP, AV Interface,

Navigation, and Audio SETUP settings can be

memorized. The memorized settings can be

recalled at any time. For example, even when the

settings are cleared due to replacement of the

battery, the settings can be restored.

Display the SETUP Memory screen1

Touch [ ]

[ ]

[System]

[SETUP

Memory]. (page 58)

Start Setup Memory2

[Lock] Locks the AV-IN SETUP, Navigation,

and Audio SETUP settings. When [Lock] is

selected, you cannot change the AV-IN SETUP,

Navigation, and Audio SETUP settings.

[Yes] Memorizes or recalls the settings.

[No] To cancel the function, touch [No]. To

cancel memorization, touch [No].

The SETUP Menu screen appears again.

Select a desired function3

[Recall] Recalls the memorized settings.

[Memory] Memorizes the current settings.

[Clear] Clears the currently memorized

settings.

Next page 3

B64-4606-00_02_E_En.indd 63B64-4606-00_02_E_En.indd 63 10.2.18 3:31:29 PM10.2.18 3:31:29 PM

64 DNX5260BT/DDX5026/DDX5056

Memorize or recall the settings4

When memorizing the Audio Setup and AV

Interface settings:

If settings have already been memorized, a

confirmation message appears. Touch [Yes]. To

cancel memorization, touch [No].

When recalling the memorized settings:

Touching the screen displays a confirmation

message. Touch [Yes]. To cancel recalling, touch

[No].

When clearing the currently memorized

settings:

Touching the screen displays a confirmation

message. Touch [Yes]. To cancel clearing, touch

[No].

Quit memorization/recalling of settings5

Entering Background

Loads a image from the connected USB device

and sets it for the background image.

Connect the device which has the image 1

to load

Display the Background screen2

Touch [ ]

[ ]

[Display]

[Background]. (page 58)

Display the Background Memory screen3

[Change] Selects a image for background.

[Delete] Deletes the background image.

Touching the screen displays a confirmation

message. Touch [Yes]. To cancel clearing, touch

[No].

Select a medium (USB device)4

Select the image to load5

1 Lists the files.

[] When appears, the text display is

scrolled by touching it.

[ ROOT] Moves to the top hierarchy level.

[ UP] Moves up a hierarchy level.

Setup Menu

B64-4606-00_02_E_En.indd 64B64-4606-00_02_E_En.indd 64 10.2.18 3:31:29 PM10.2.18 3:31:29 PM

English 65

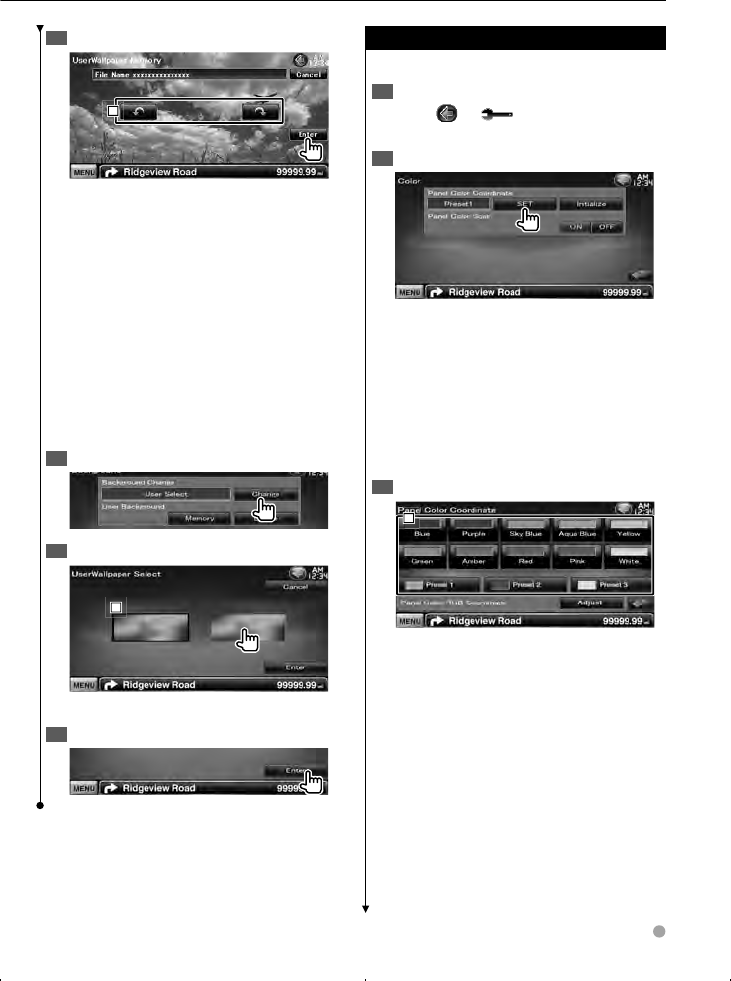

Load the image6

1 Rotates the image.

⁄

See • <About Picture files> (page 6) for readable image

specifications.

The [Memory] button on the “Background” screen •

becomes active only in STANDBY source mode.

Pressing the [Memory] button on the “Background” •

screen switches the AV OUT source to OFF.

For resetting the AV OUT source, refer to <AV Interface

Setup> section.

While loading the Background image, any other •

operation is prohibited.

Background Change

Selects a image for background.

Select Background Change screen1

Select a image for background2

1 Returns to the initial background.

Set the image as the background3

Panel Color Coordinate

Sets the button illumination color.

Display the Color screen1

Touch [ ]

[ ]

[Display]

[Color].

(page 58)

Display the Panel Color Coordinate screen2

[Initialize] Initialization resets the settings

made using the Panel Color to the default

settings made at the factory.

[Panel Color Scan] When set to "ON", the

illumination color of the buttons changes one

after another.

⁄

When touching [SET] or [Initialize], make sure [Panel •

Color Scan] is set to "OFF".

Select a color3

1 Sets to the touched color.

[Adjust] Sets and registers favorite color to the

preset buttons ([P1] – [P3]).

Next page 3

B64-4606-00_02_E_En.indd 65B64-4606-00_02_E_En.indd 65 10.2.18 3:31:30 PM10.2.18 3:31:30 PM

66 DNX5260BT/DDX5026/DDX5056

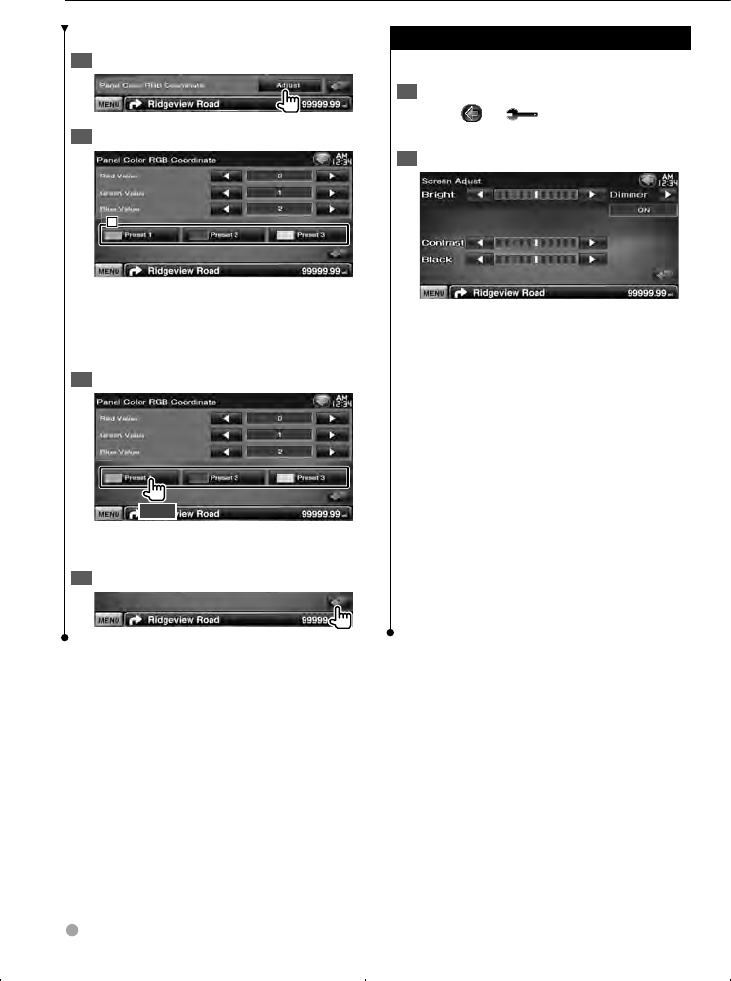

To register your original color

Start the RGB coordinate1

Adjust each color value2

1 Selects a preset number to register.

[Red Value] Adjusts the Red value.

[Green Value] Adjusts the Green value.

[Blue Value] Adjusts the Blue value.

Select a Preset number to register3

2 sec.

Adjusted color is registered to the selected

Preset button.

Complete the color coordination4

Screen Adjustment

You can adjust the screen mode of the monitor.

Display the Screen Adjust screen1

Touch [ ]

[ ]

[Display]

[Screen

Adjust]. (page 58)

Set each item2

[Bright] Brightness Control

[Contrast] Contrast Control

[Black] Black Level Adjustment

[Dimmer] Dimmer Mode Setup

"ON": The display dims.

"OFF": The display doesn’t dim.

"SYNC": Turning the Dimmer function On or

Off when the vehicle light control

switch is turned On or Off.

"NAV-SYNC": Turning the Dimmer function

On or Off according to the

Navigation Day/Night display

setting. (DNX series and DDX

series with navigation unit only)

⁄

• In this Screen Adjust screen, you can perform setups for

the menu screen. Setups for videos such as DVD can be

performed on the <Screen Control> (page 42).

Setup Menu

B64-4606-00_02_E_En.indd 66B64-4606-00_02_E_En.indd 66 10.2.18 3:31:31 PM10.2.18 3:31:31 PM

English 67

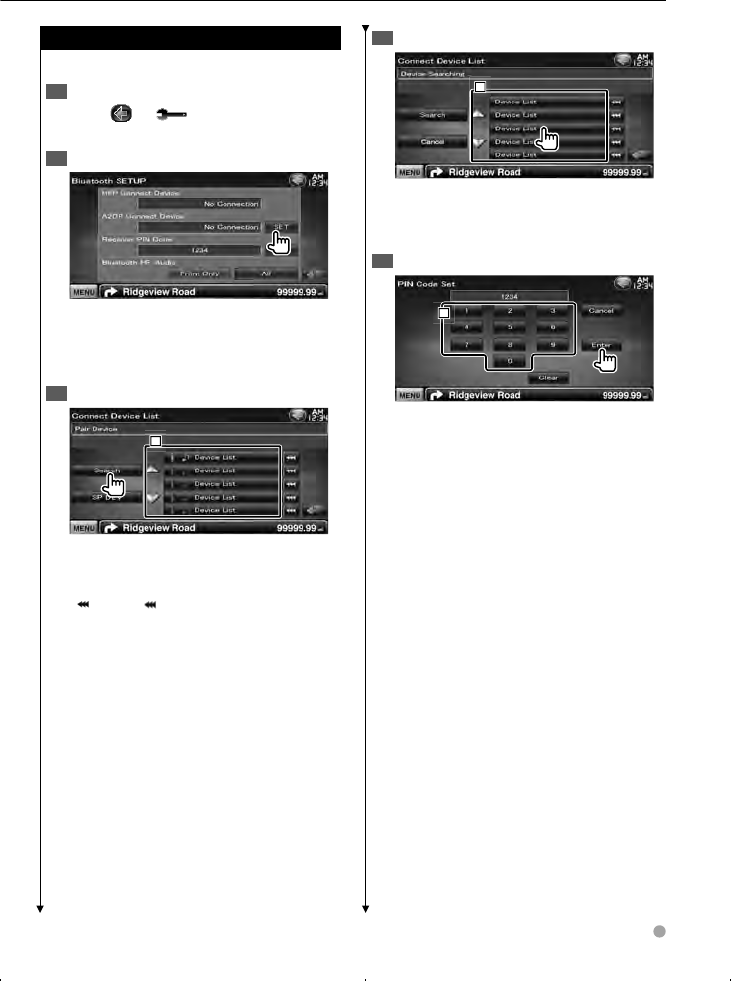

Registering Bluetooth Unit

Registers the Bluetooth unit to be connected.

Display the Bluetooth Setup screen1

Touch [ ]

[ ]

[Bluetooth SETUP].

(page 58)

Display the Connect Device List screen2

⁄

[A2DP Connect Device]•

Only for DDX5026 and DDX5056 with optional

Bluetooth unit KCA-BT200 connected.

Search for a Bluetooth unit3

1 Displays the registered Bluetooth units.

The busy service becomes active. The available

service becomes inactive.

[] When appears, the text display is

scrolled by touching it.

[Search] Searches for a Bluetooth unit.

[SP DEV] Registers a Bluetooth unit that

cannot be registered by normal register

(pairing) operation.

⁄

A new device cannot be registered if there are •

already 5 Bluetooth units registered. Delete

unnecessary registration. See <Bluetooth Unit

Connection> (page 69).

Select the Bluetooth unit to register4

1 Displays the searched Bluetooth unit.

[Search] Searches for a Bluetooth unit.

[Cancel] Cancels searching of Bluetooth unit.

Enter PIN code 5

1 Enters a code number using the keypad.

[Enter] Confirms the entered PIN code. Enter

the PIN code specified for the Bluetooth unit

you are registering.

This button will not be active until at least four

PIN code digits have been entered.

[Cancel] Cancels registration of PIN code.

[Clear] Clears the code number.

⁄

You can also register from the Bluetooth unit side. For •

the PIN code necessary for registration, see <Registering

Bluetooth Unit PIN Code> (page 68).

If the error message appears even though the PIN code is •

correct, try <Registering Special Bluetooth Unit>.

The screens used in this manual are for models with •

optional Bluetooth unit KCA-BT200 connected.

Models with built-in Bluetooth function do not have

some buttons described in this manual.

Next page 3

B64-4606-00_02_E_En.indd 67B64-4606-00_02_E_En.indd 67 10.2.18 3:31:32 PM10.2.18 3:31:32 PM

68 DNX5260BT/DDX5026/DDX5056

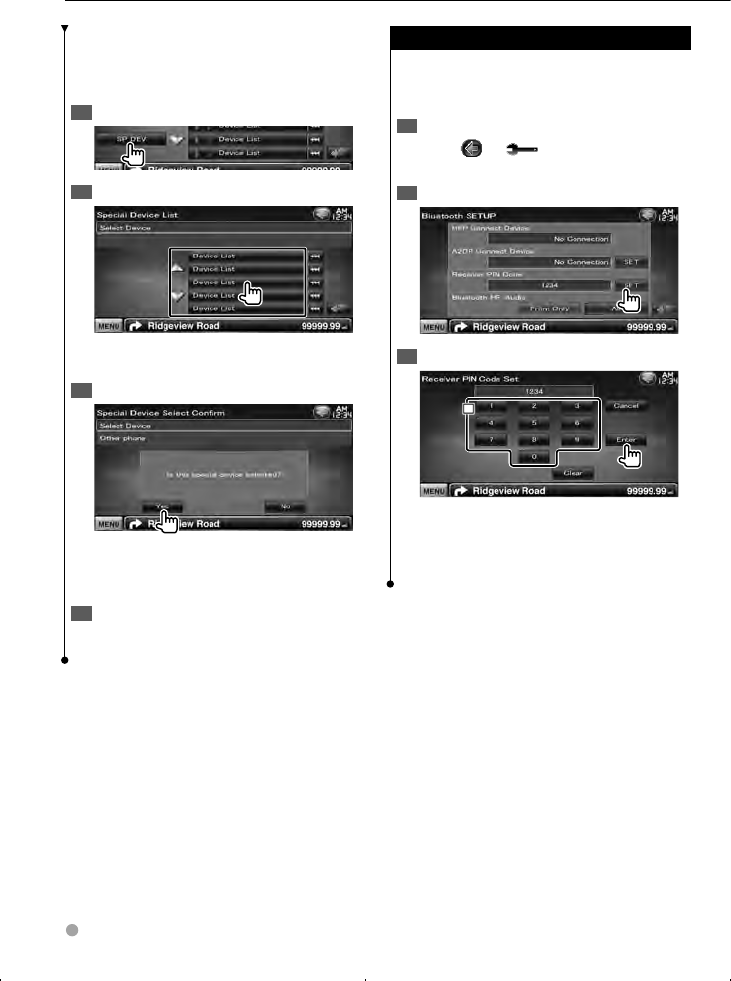

Registering Special Bluetooth Unit

Registers Special Bluetooth unit, that resulted

in error by normal registration method, by

selecting from the listed models.

Display the Special Device List screen1

Select a model name2

Displays the Bluetooth unit name that can be

registered.

Confirm whether to register3

⁄

Only models in Bluetooth unit name list can be •

registered.

Go through the procedure of <Registering 4

Bluetooth Unit> and complete the

registration (pairing)

Registering Bluetooth Unit PIN Code

Sets the PIN code of the Bluetooth unit to enter

when registering (pairing) from the cell-phone or

audio player side.

Display the Bluetooth Setup screen1

Touch [ ]

[ ]

[Bluetooth SETUP].

(page 58)

Display the Receiver PIN Code screen2

Enter PIN code3

1 Enters a code number using the keypad.

[Cancel] Cancels registration of PIN code.

[Enter] Registers the entered PIN code.

[Clear] Clears the code number.

Setup Menu

B64-4606-00_02_E_En.indd 68B64-4606-00_02_E_En.indd 68 10.2.18 3:31:32 PM10.2.18 3:31:32 PM

English 69

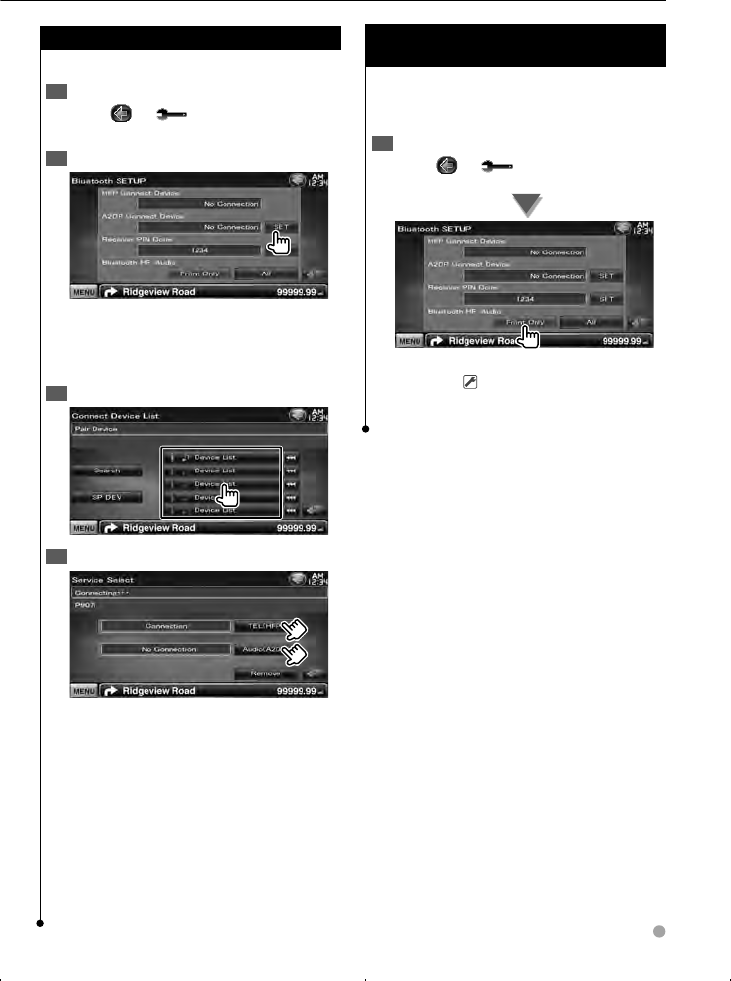

Bluetooth Unit Connection

Selects the Bluetooth unit to connect.

Display the Bluetooth Setup screen1

Touch [ ]

[ ]

[Bluetooth SETUP].

(page 58)

Display the Connect Device List screen2

⁄

[A2DP Connect Device]•

Only for DDX5026 and DDX5056 with optional

Bluetooth unit KCA-BT200 connected.

Select a registered Bluetooth unit3

Select the service to use4

[TEL (HFP)] Connects/disconnects cell-phone

to use for Hands Free.

[Audio (A2DP)] Connects/disconnects Audio

player to use for Bluetooth Audio.

[Remove] Deletes registration (pairing).

Touching the screen displays a confirmation

message. Touch [Yes]. To cancel clearing, touch

[No].

⁄

[Audio (A2DP)]•

Only for DDX5026 and DDX5056 with optional

Bluetooth unit KCA-BT200 connected.

Bluetooth Hands-Free/Audio Output

Setup

Selects speakers to output the sound of hands-

free phoning (such as phone call voice and

ringing tone) and Bluetooth audio.

Display the Bluetooth Setup screen1

Touch [ ]

[ ]

[Bluetooth SETUP].

(page 58)

[Bluetooth HF/Audio] Sets the output

speakers. ( "Front Only")

"Front Only" : Outputs from the front speakers.

"All" : Outputs from all the speakers.

B64-4606-00_02_E_En.indd 69B64-4606-00_02_E_En.indd 69 10.2.18 3:31:33 PM10.2.18 3:31:33 PM

70 DNX5260BT/DDX5026/DDX5056

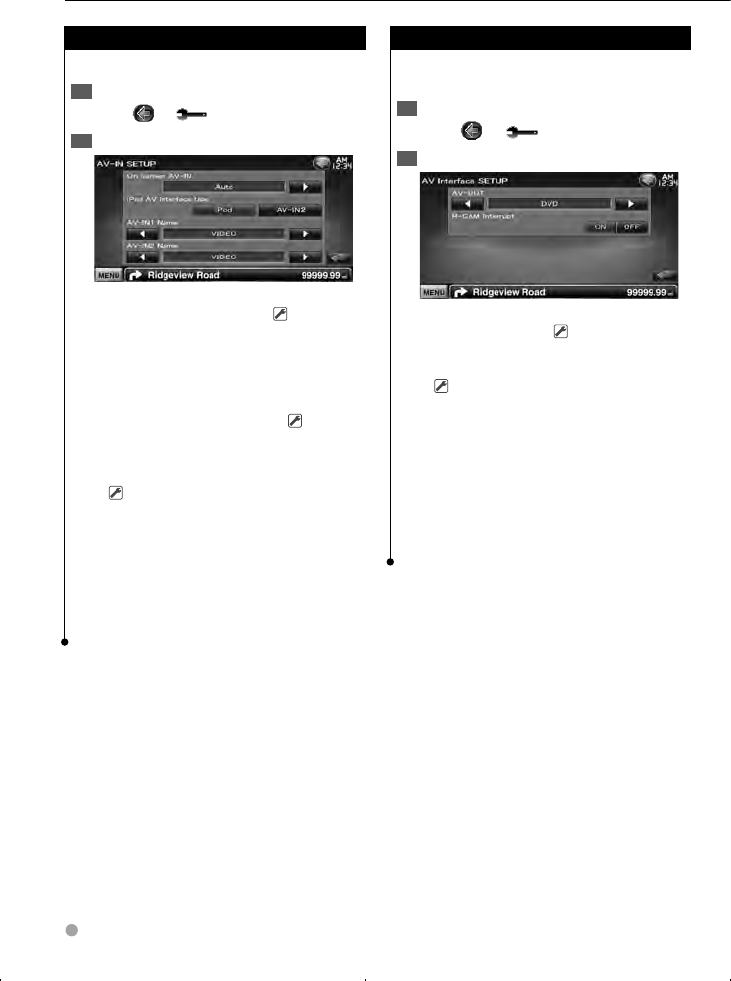

AV Input Setup

You can set AV input parameters.

Display the AV-IN Setup screen1

Touch [

[

]

[

]

[AV-IN SETUP]. (page 58)

Set each item2

[On Screen AV-IN] Sets an on-screen display

of the AV-IN playback screen. ( "Auto")

"Auto": Information is displayed for 5 seconds

when updated.

"Manual": Information is displayed when you

touch on the screen.

[iPod AV Interface Use] Sets the terminal to

which the iPod is connected to. ( "iPod")

[AV-IN1 Name], [AV-IN2 Name] Sets a name

to be displayed when you select a system that

is connected via the AV INPUT port.

( "VIDEO")

⁄

[iPod AV Interface Use]•

This item can be set when in STANDBY source and also

the iPod is unconnected.

[AV-IN Name]•

One AV-IN name is displayed when "iPod" is selected in

[iPod AV Interface Use] and two are displayed when not

selected.

AV Interface Setup

You can set audio and visual (AV) interface

parameters.

Display the AV Interface screen1

Touch [ ]

[ ]

[AV Interface]. (page 58)

Set each item2

[AV-OUT] Selects an AV source to be output at

the AV OUTPUT port. ( "AV-IN1")

[R-CAM Interrupt] Sets a method to switch to

the rear view camera video display.

( "OFF")

"ON": Switches to the rear camera video

display when "Reverse" gear is engaged.

"OFF": The monitor does not switch to the

rear view camera video display even

when engaging the shift knob of car to

"Reverse".

⁄

When in DVD source, "AV-OUT" cannot be set to USB. •

When in USB source, "AV-OUT" cannot be set to DVD.

Setup Menu

B64-4606-00_02_E_En.indd 70B64-4606-00_02_E_En.indd 70 10.2.18 3:31:34 PM10.2.18 3:31:34 PM

English 71

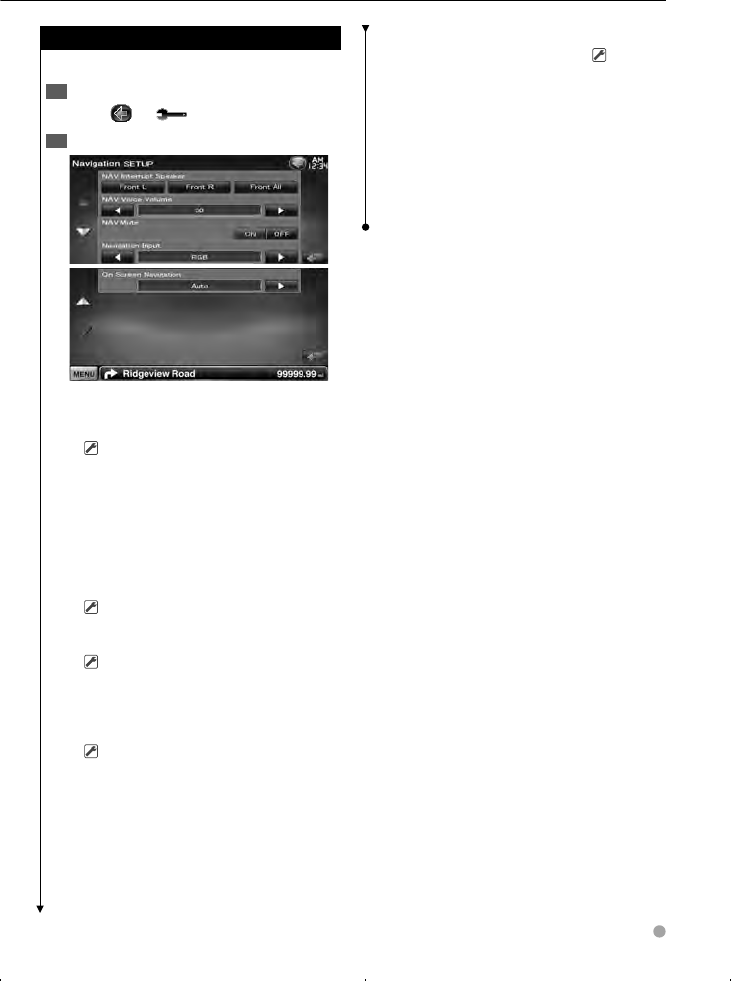

Navigation Setup

You can set Navigation parameters.

Display the Navigation Setup screen1

Touch [ ]

[ ]

[Navigation]. (page 58)

Set each item2

[NAV Interrupt Speaker] Selects speakers

used for voice guidance of the navigation

system.

( "Front All")

"Front L": Uses the front left side speaker for

voice guidance.

"Front R": Uses the front right side speaker for

voice guidance.

"Front All": Uses both front speakers for voice

guidance.

[NAV Voice Volume] Adjusts the volume for

voice guidance of the navigation system.

( DNX series: "25", DDX series: "21")

[NAV Mute] Mutes the volume during voice

guidance of the navigation system.

( "ON")

When turned "ON", the volume level drops for

voice guidance.

[Navigation Input] Selects a navigation

system connection.

( "RGB") (DDX series only)

"RGB": Allows the Kenwood’s Navigation

System to connect via its interface

cable.

"AV-IN": Allows a third-party navigation system

to connect via the AV INPUT1 port.

"OFF": Must be used if no navigation system is

connected.

(The navigation display is cancelled

when the AV source is switched.)

[On Screen Navigation] Sets an on-screen

display of the navigation screen. ( "OFF")

(DDX series only)

"Auto": Information is displayed for 5 seconds

when updated.

"OFF": Information is not displayed.

⁄

[On Screen Navigation]•

It can be set only when [Navigation Input] is set to "AV-

IN".

B64-4606-00_02_E_En.indd 71B64-4606-00_02_E_En.indd 71 10.2.18 3:31:34 PM10.2.18 3:31:34 PM

72 DNX5260BT/DDX5026/DDX5056

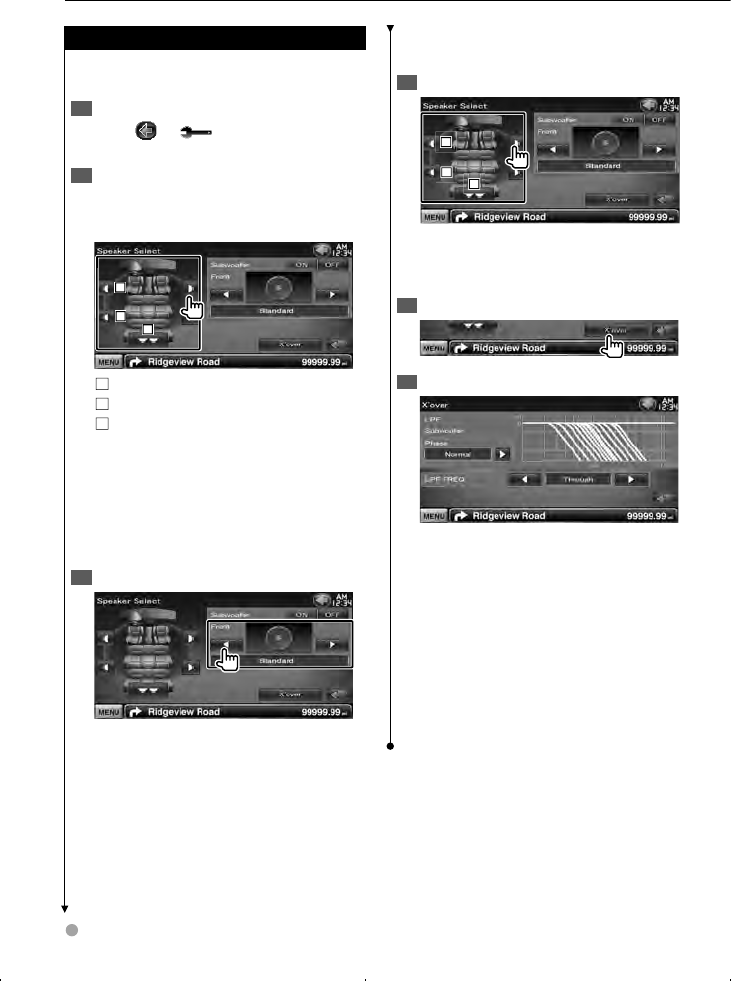

Speaker Setup

You can select a speaker type and its size to get

the best sound effects.

Display the Speaker Select screen1

Touch [ ]

[ ]

[Audio SETUP]

[Speaker Select]. (page 58)

Select a speaker you wish to adjust2

When the speaker type and size are set, the

speaker crossover network and equalizer curve

are set automatically.

1 Front speaker

2 Rear speaker

3 Subwoofer

[Subwoofer] Sets the availability of

subwoofers.

[X'over] Displays the Speaker Crossover Setup

screen.

You can adjust the crossover setup that was

set automatically when you selected the

speaker type.

Select a speaker type3

You can select front speaker type.

"Standard"/ "Wide"/ "Middle"/ "Narrow"

⁄

Speaker cannot be setup when in STANDBY source •

mode.

Crossover Network Setup

You can set a crossover frequency of speakers.

Select the speaker to set the crossover1

1 Sets the High Pass Filter of the front speaker.

2 Sets the High Pass Filter of the rear speaker.

3 Sets the Low Pass Filter of the sub woofer.

Display the Crossover setup screen2

Set the crossover3

[Phase] Sets the phase of subwoofer output.

The phase is reversed 180 degrees when set

to "Reverse".

Sets the subwoofer phase. (Only when

"Subwoofer" is set to "ON" in Speaker Setup,

and [LPF FREQ] is set to other than "Through")

[HPF FREQ] High Pass Filter adjustment.

(When front or rear speaker is selected on

Speaker Select screen)

[LPF FREQ] Low Pass Filter adjustment. (Only

when "Subwoofer" is set to "ON" in Speaker

Setup)

Setup Menu

B64-4606-00_02_E_En.indd 72B64-4606-00_02_E_En.indd 72 10.2.18 3:31:34 PM10.2.18 3:31:34 PM

English 73

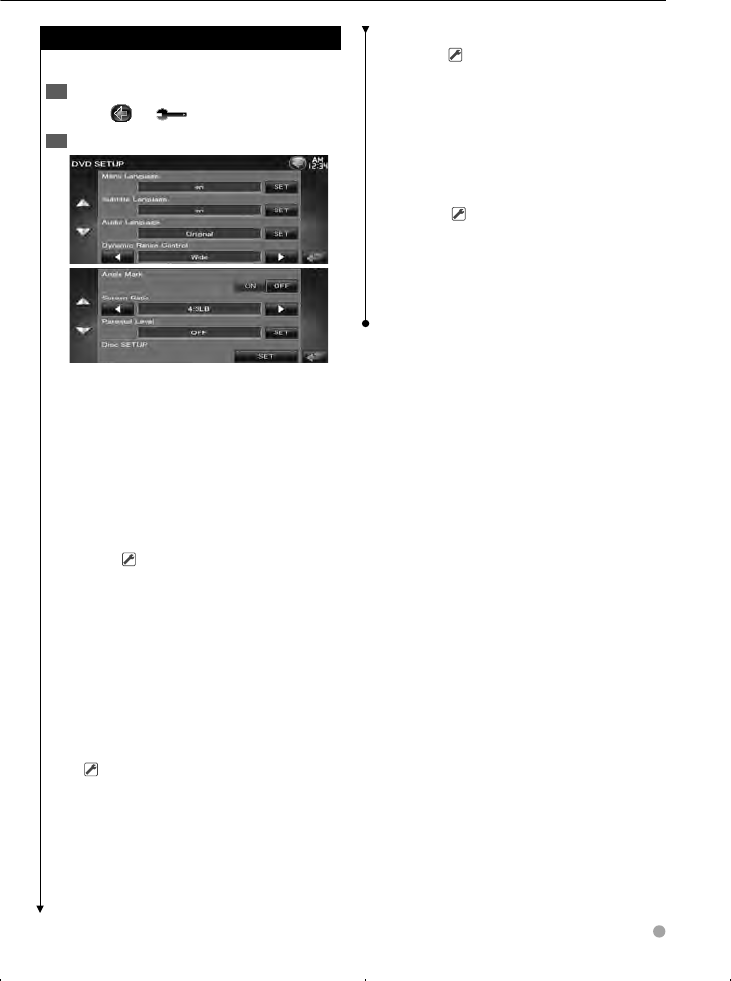

DVD Setup

You can set up the DVD play.

Display the DVD Setup screen1

Touch [ ]

[ ]

[DVD SETUP]. (page 58)

Set each item2

[Menu Language]* Selects a disc menu

language.

(See <DVD Language Setup>, page 74)

[Subtitle Language]* Selects a subtitle

language.

(See <DVD Language Setup>, page 74)

[Audio Language]* Selects an audio

language.

(See <DVD Language Setup>, page 74)

[Dynamic Range Control]* Sets the dynamic

range. ( "Dialog")

The dynamic range is reduced by changing

from "Wide" to "Normal" and from "Normal"

to "Dialog". "Dialog" makes the total sound

volume becomes larger as compared with

"Wide" and "Normal", allowing you to listen to

the movie's dialog more clearly.

This is effective only when you are using a

Dolby Digital software.

The operation is available during the play stop

mode.

[Angle Mark] Sets an angle mark display.

( "ON")

[Screen Ratio]* Selects the screen display

mode. ( "16:9")

"16:9": Displays wide pictures.

"4:3 LB": Displays wide pictures in the Letter

Box format (having black stripes at the

top and bottom of screen).

"4:3 PS": Displays wide pictures in the Pan &

Scan format (showing pictures cut at

the right and left ends).

[Parental Level]* Displays the Parental Lock

screen. ( "OFF")

(See <DVD Parental Level Setup>, page 74)

[Disc SETUP] Makes the settings related to the

disc media. (See <Disc Setup>, page 75)

⁄

* Disabled when a DVD is being played.•

B64-4606-00_02_E_En.indd 73B64-4606-00_02_E_En.indd 73 10.2.18 3:31:35 PM10.2.18 3:31:35 PM

74 DNX5260BT/DDX5026/DDX5056

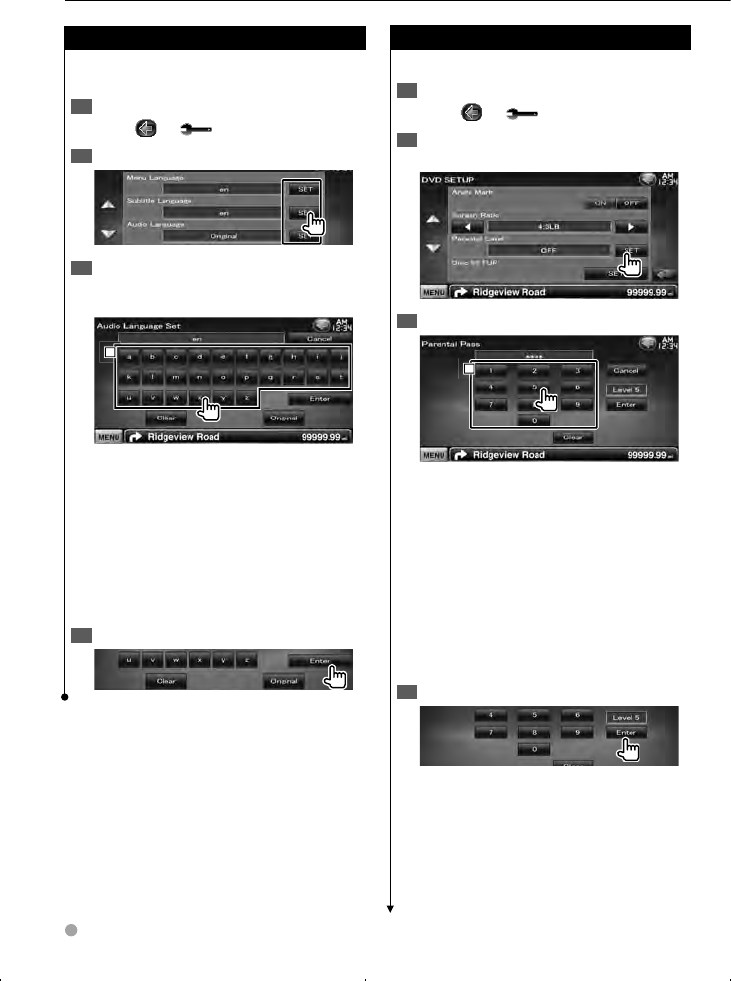

DVD Language Setup

Selects a language you use for the speech and

menus.

Display the DVD Setup screen1

Touch [ ]

[ ]

[DVD SETUP]. (page 58)

Select the language item to set2

Enter a language code3

See <DVD Language Codes> (page 87) and

select the desired language.

1 Enters a language code.

[Cancel] Cancels the language setup and

returns to the "DVD SETUP" screen.

[Enter] Sets the language and returns to the

"DVD SETUP" screen. (It appears after you have

entered a language code.)

[Original] Sets the DVD's original language

(only when setting an audio language).

[Clear] Clears the language code.

Set the language you use4

DVD Parental Level Setup

Sets a parental level.

Display the DVD Setup screen1

Touch [ ]

[ ]

[DVD SETUP]. (page 58)

Display the Parental Level code number 2

screen

Enter the code number3

1 Enters a code number.

[Cancel] Cancels the current setup and returns

to the "DVD SETUP" screen.

[Level] Indicates the present parental lock

level.

[Enter] Determines the code number and

displays the Parental Level setup screen.

[Clear] Clears the code number.

⁄

The number you enter first is set as your code •

number.

Display the Parental Level SETUP screen4

Setup Menu

B64-4606-00_02_E_En.indd 74B64-4606-00_02_E_En.indd 74 10.2.18 3:31:35 PM10.2.18 3:31:35 PM

English 75

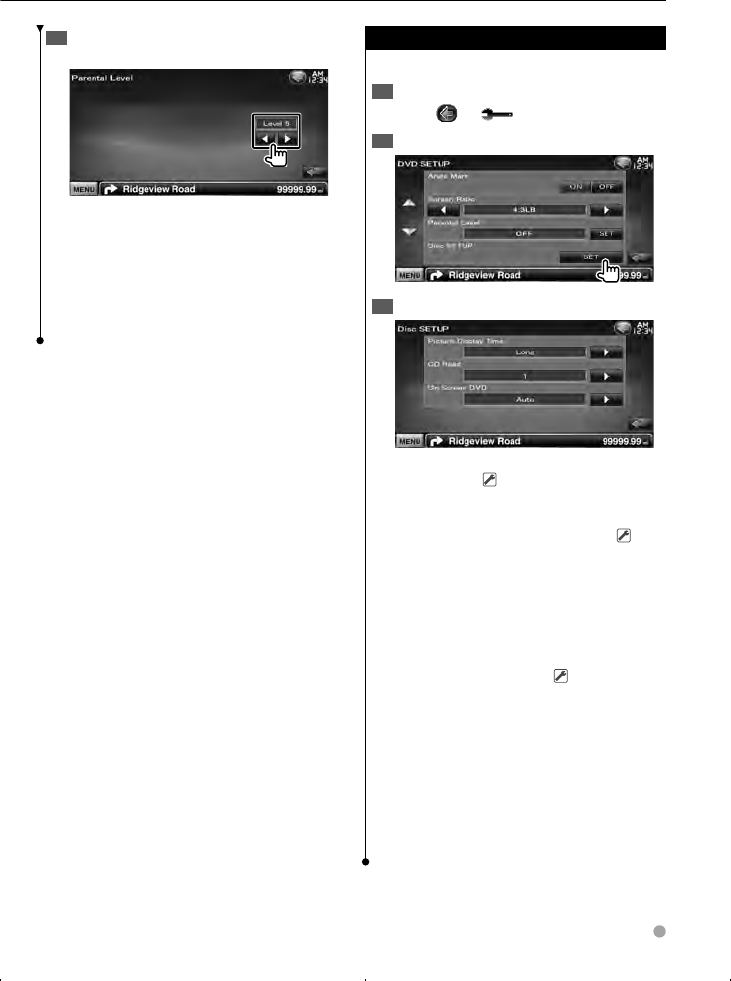

Select a parental level and complete the 5

setup

Selects a parental level.

⁄

• If a disc has higher parental lock level, you need to enter

the code number.

• The parental lock level varies depending on a loaded

disc.

• If a disc has no parental lock, anybody can play it back

even when you have set the parental lock.

Disc Setup

Performs setup when using disc media.

Display the DVD Setup screen1

Touch [ ]

[ ]

[DVD SETUP]. (page 58)

Display the Disc Setup screen2

Set each item3

[Picture Display Time] Selects a picture

display time. ( "Long")

The Display of a JPEG picture is changed.

("Short", "Middle", "Long")

[CD Read] Sets a music CD playback. ( "1")

"1": Automatically recognizes and plays back

an Audio file disc, a DVD or a music CD.

"2": Forcibly plays back a disc as a music CD.

Select "2" if you wish to play a music CD

having a special format or if you cannot

play a disc in the "1" position.

[On Screen DVD] Sets an on-screen display of

the DVD Playback screen. ( "Manual")

"Auto": Information is displayed for 5 seconds

when updated.

"Manual": Information is displayed when you

touch on the screen.

⁄

[CD Read]•

Disabled when a disc is in the unit.

You cannot play an Audio file/VCD disc in the "2"

position. Also, you may not play some music CDs in the

"2" position.

B64-4606-00_02_E_En.indd 75B64-4606-00_02_E_En.indd 75 10.2.18 3:31:36 PM10.2.18 3:31:36 PM

76 DNX5260BT/DDX5026/DDX5056

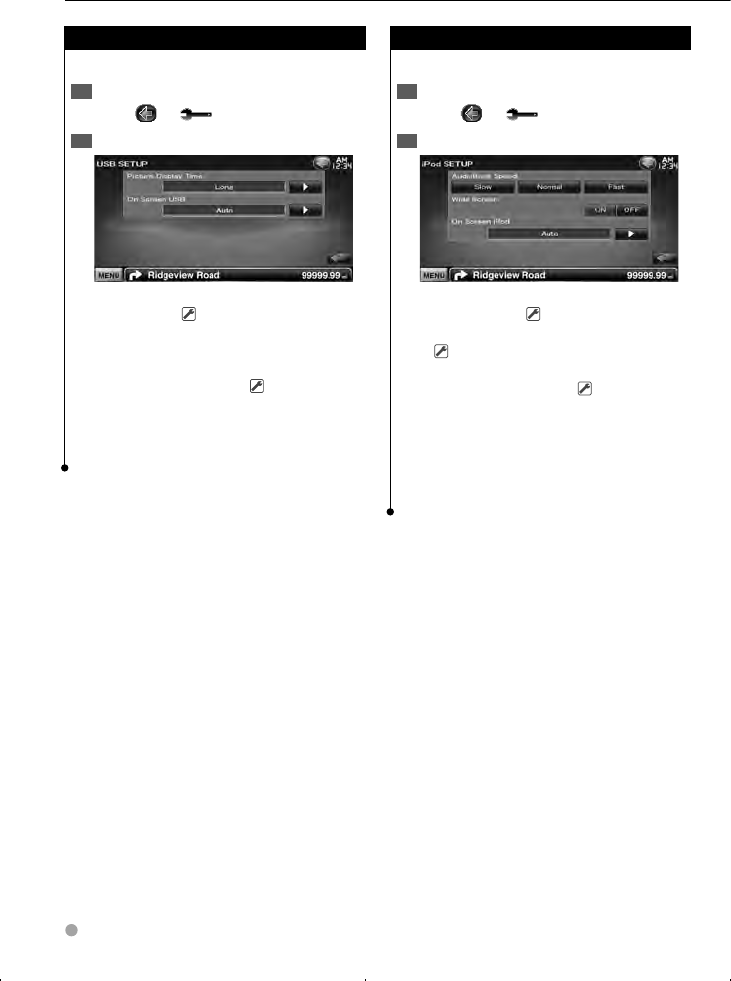

USB Setup

Performs setup when using USB.

Display the USB Setup screen1

Touch [ ]

[ ]

[USB SETUP]. (page 58)

Set each item2

[Picture Display Time] Selects a picture

display time. ( "Long")

The Display of a JPEG picture is changed.

("Short", "Middle", "Long")

[On Screen USB] Sets an on-screen display of

the USB Playback screen. ( "Auto")

"Auto": Information is displayed for 5 seconds

when updated.

"Manual": Information is displayed when you

touch on the screen.

iPod Setup

Performs setup when using iPod.

Display the iPod Setup screen1

Touch [ ]

[ ]

[iPod SETUP]. (page 58)

Set each item2

[AudioBook Speed] Sets the Audio book

playback speed. ( "Normal")

[Wide Screen] Sets Wide Screen on or off.

( "OFF")

[On Screen iPod] Sets an on-screen display of

the iPod Playback screen. ( "Auto")

"Auto": Information is displayed for 5 seconds

when updated.

"Manual": Information is displayed when you

touch on the screen.

⁄

• "Wide Screen" cannot be set while the iPod is connected.

Setup Menu

B64-4606-00_02_E_En.indd 76B64-4606-00_02_E_En.indd 76 10.2.18 3:31:37 PM10.2.18 3:31:37 PM

English 77

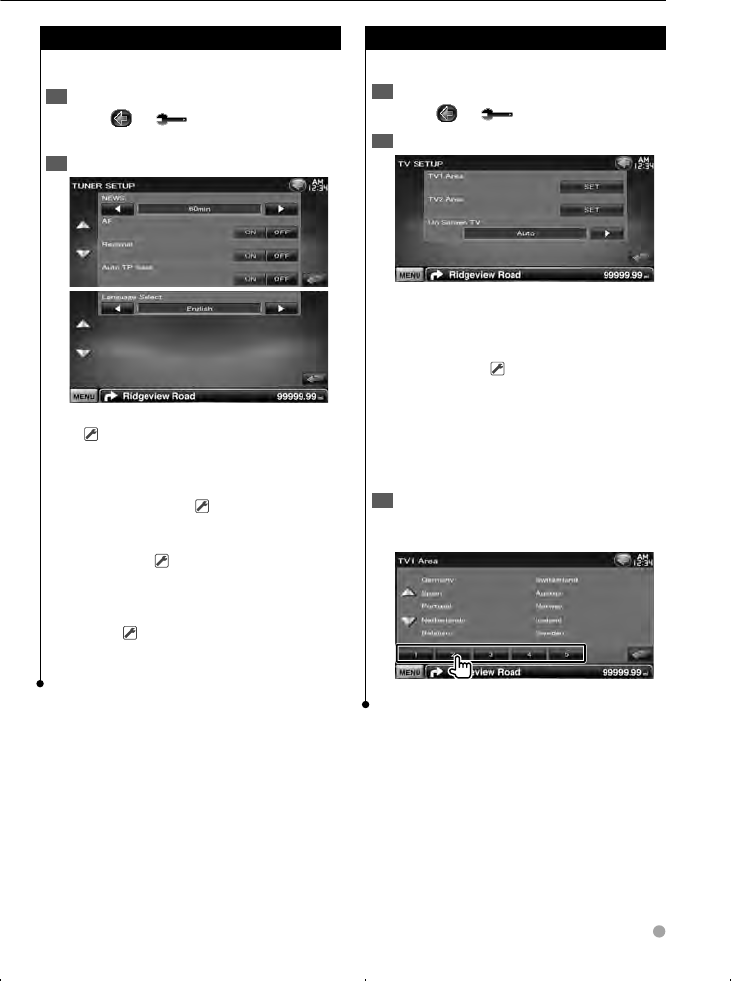

Tuner Setup

You can set Tuner related parameters.

Display the Tuner Setup screen1

Touch [ ]

[ ]

[TUNER SETUP]. (page

58)

Set each item2

[NEWS] Sets a news bulletin interrupt time.

( "OFF")

[AF] When station reception is poor,

automatically switches to the station that

is broadcasting the same program over the

same RDS network. ( "ON")

[Regional] Sets whether to switch to the

station only in the specific region using the

"AF" control. ( "ON")

[Auto TP Seek] When traffic information

station reception is poor, automatically

searches for a station that can be received

better. ( "ON")

[Language Select] Selects a display language

for the PTY function.

TV Setup

The TV signal receiving areas can be set.

Display the TV SETUP screen1

Touch [ ]

[ ]

[TV SETUP]. (page 58)

Set each item2

[TV1 Area], [TV2 Area] Sets the TV receiving

area. (only when KTC-V300E/KTC-V301E

(optional accessory) connected)

[On Screen TV] Sets an on-screen display of

the TV screen. ( "Auto")

(only when the optional accessory TV tuner

connected)

"Auto": Information is displayed for 5 seconds

when updated.

"Manual": Information is displayed when you

touch on the screen.

Set up TV 3 (only when KTC-V300E/KTC-

V301E (optional accessory) connected)

Example : TV1 Area screen

Sets the present TV1 or TV2 receiving area.

B64-4606-00_02_E_En.indd 77B64-4606-00_02_E_En.indd 77 10.2.18 3:31:37 PM10.2.18 3:31:37 PM

78 DNX5260BT/DDX5026/DDX5056

Remote Controller

For DDX5026/ DDX5056 : This unit can be operated using the Remote Controller (RC-DV340) supplied with

this unit.

For DNX5260BT : Optional Remote Controller KNA-RCDV331/ KNA-RCDV340 is designed for controlling this

unit. Refer to the instruction manual that comes with the remote controller.

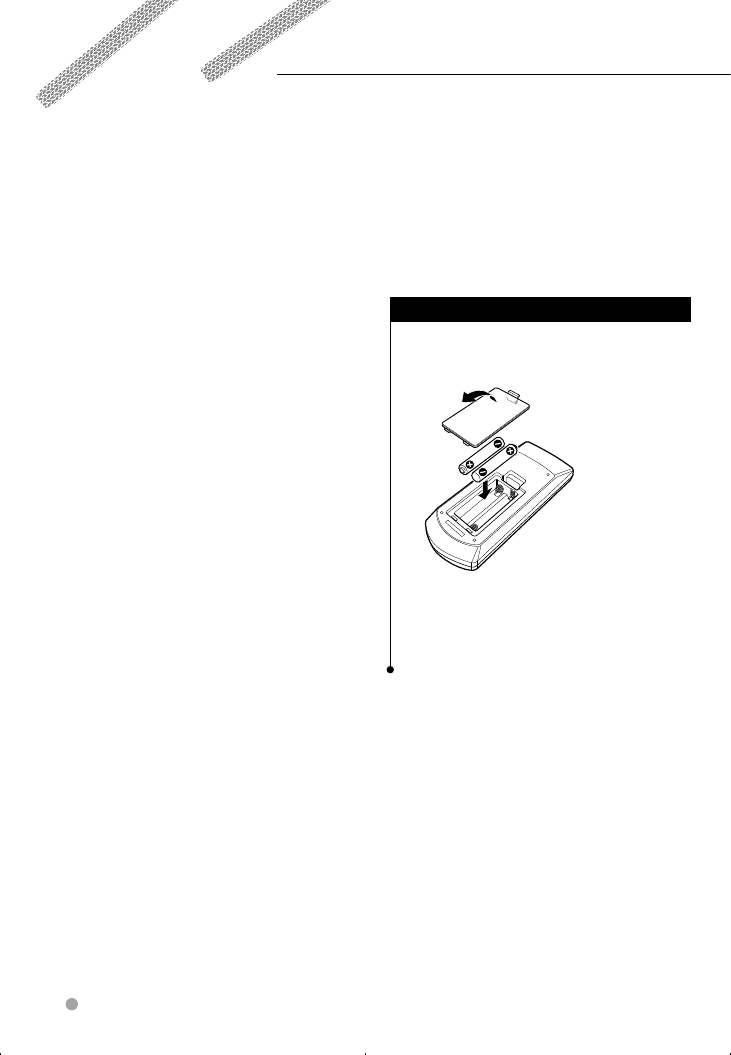

Battery installation

Use two "AAA"/"R03"-size batteries.

Insert the batteries with the + and – poles aligned

properly, following the illustration inside the case.

⁄

• If the Remote Controller operates only over shorter

distances or does not operate at all, it is possible that

the batteries are depleted. In such instances, replace the

both batteries with new ones.

¤CAUTION

• Put the Remote Controller in a place where it will not

move during braking or other operations. A dangerous

situation could result, if the Remote Controller falls down

and gets wedged under the pedals while driving.

• Do not leave the battery near fire or under direct sunlight.

A fire, explosion or excessive heat generation may result.

• Do not recharge, short, break up or heat the battery or

place it in an open fire. Such actions may cause the battery

to leak fluid. If spilled fluid comes in contact with your eyes

or on clothing, immediately rinse with water and consult a

physician.

• Place the battery out of reach of children. In the unlikely

event that a child swallows the battery, immediately

consult a physician.

• Danger of explosion if battery is incorrectly replaced.

Replace only with the same or equivalent type.

B64-4606-00_02_E_En.indd 78B64-4606-00_02_E_En.indd 78 10.2.18 3:31:38 PM10.2.18 3:31:38 PM

English 79

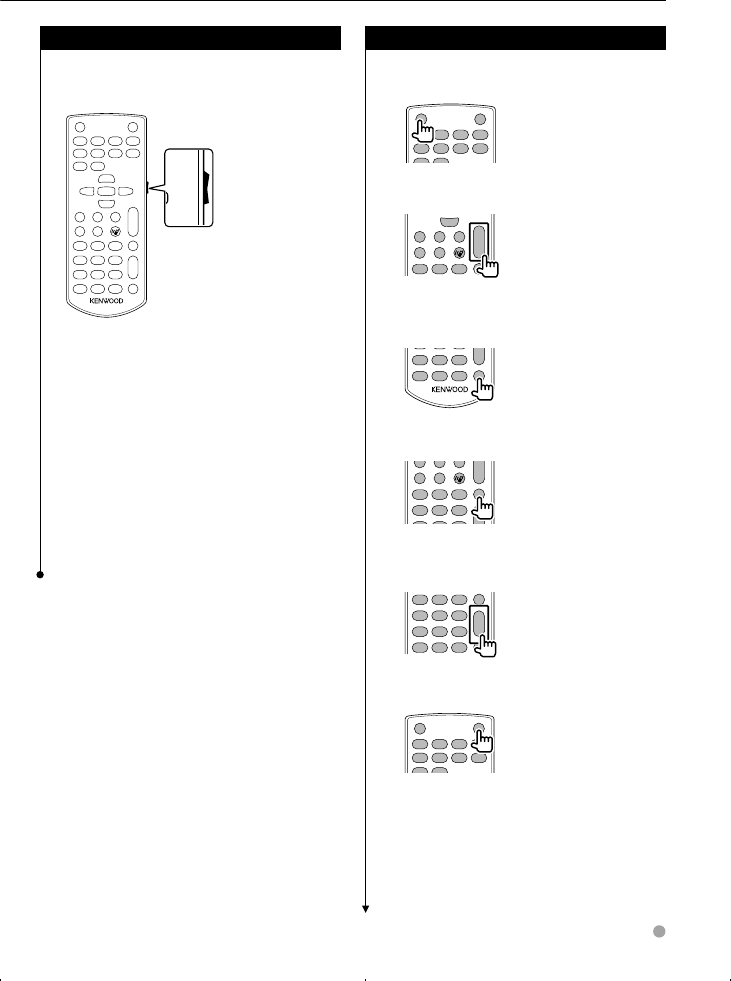

Remote Controller mode switch

The functions operated from the remote

controller differ depending on the position of the

mode switch.

V.SEL

R.VOL

ENTER

MODE FNC/PBC

DVD

AUD

DISP

ABC

DEF

GHI

PQRS

JKL

TUV

WXYZ

MNO

AUDIO ANGLE

OPEN

CLEAR ATTDIRECT

2 ZONE

VOL

−

ZOOM

RETURN

SRC















TOP MENU

DVD SETUP

SUBTITLE

DVD

AUD

AUD mode

Switch to this mode when controlling a selected

source or tuner source, etc.

DVD mode

Switch to this mode when playing DVDs or CDs etc.

with the player integrated in this unit.

TV mode

Switch to this mode when controlling TV.

⁄

• The position of the remote control mode switch is

indicated in the title of each mode, e.g., "(AUD mode)".

• When controlling a player that is not integrated in the

unit, select "AUD" mode.

Common operations (AUD mode)

Source switching

Switches to the source to be played.

V.SEL

MODE FNC/PBC

DISP

AUDIO ANGLE ZOOM

RETURN

SRC

 

TOP MENU

DVD SETUP

SUBTITLE

Volume control

Adjusts the volume.

ABC

DEF

OPEN

2 ZONE

VOL

−

 D



Volume attenuator

Press the key once to lower the volume. Press again

to restore the previous volume.

R.VOL

PQRS

TUV

WXYZ

CLEAR ATTDIRECT



Dual Zone

Switches the Dual Zone function ON and OFF.

R.VOL

ABC

DEF

GHI

JKL

MNO

OPEN

2 ZONE

VOL

−









Rear volume control

Adjusts volume at rear when the Dual Zone

function is ON.

R.VOL

ABC

DEF

GHI

PQRS

JKL

TUV

WXYZ

MNO

CLEAR ATTDIRECT

2 ZONE









V.SEL

Switches to the navigation screen.

V.SEL

MODE FNC/PBC

DISP

AUDIO ANGLE ZOOM

RETURN

SRC

 

TOP MENU

DVD SETUP

SUBTITLE

Next page 3

B64-4606-00_02_E_En.indd 79B64-4606-00_02_E_En.indd 79 10.2.18 3:31:38 PM10.2.18 3:31:38 PM

80 DNX5260BT/DDX5026/DDX5056

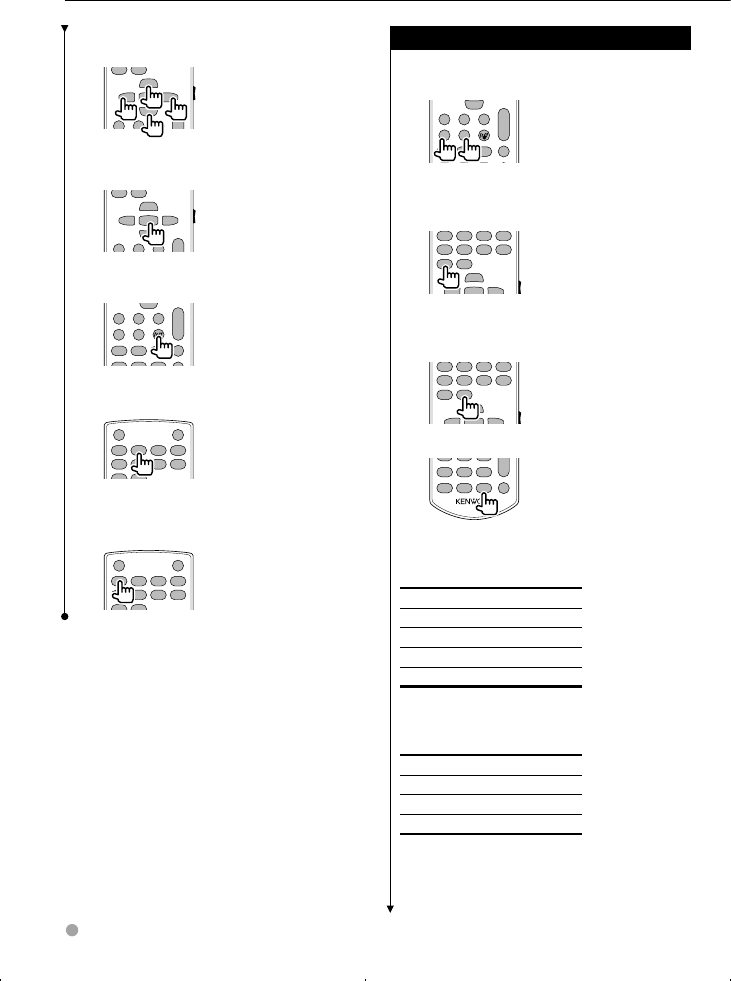

Cursor key

Moves the cursor when displaying menu.

ENTER

DVD

•

AUD

•

OPEN

−

 

ENTER

Enters options.

ENTER

DVD

•

AUD

•

OPEN

−

 

Hands-free communication

When a call comes in, it answers the call.

ABC

DEF

4 5 6

OPEN

2 ZONE

VOL

−









Function

Switches the function screen.

V.SEL

MODE FNC/PBC

DISP

AUDIO ANGLE ZOOM

RETURN

SRC

 

TOP MENU

DVD SETUP

SUBTITLE

MODE

Switches the screen mode.

Screen mode changes each time you press this key.

V.SEL

MODE FNC/PBC

DISP

AUDIO ANGLE ZOOM

RETURN

SRC

 

TOP MENU

DVD SETUP

SUBTITLE

Remote Controller

DVD/VCD (DVD mode)

Track search and file search

Selects the track or file to be played.

ABC

DEF

OPEN

2 ZONE

VOL

−

 D





Play/Pause

Pauses the track.

Press again to resume playing.

ENTER

DVD

•

AUD

•

AUDIO ANGLE ZOOM

RETURN

 

TOP MENU

DVD SETUP

SUBTITLE

Stop

Memorizes the last point where the disc stopped.

When pressed again, the last point is deleted.

ENTER

DVD

•

AUD

•

AUDIO ANGLE ZOOM

RETURN

 

TOP MENU

DVD SETUP

SUBTITLE

Direct search

R.VOL

GHI

PQRS

JKL

TUV

WXYZ

MNO

CLEAR ATTDIRECT



Pressing this key switches the features that can be

searched directly.

DVD-VIDEO

Title number

Chapter number

Play time

Item number*

Cancel

* You may not be able to use this function with some discs

or scenes.

DVD-VR

Title number

Chapter number

Play time

Cancel

B64-4606-00_02_E_En.indd 80B64-4606-00_02_E_En.indd 80 10.2.18 3:31:39 PM10.2.18 3:31:39 PM

English 81

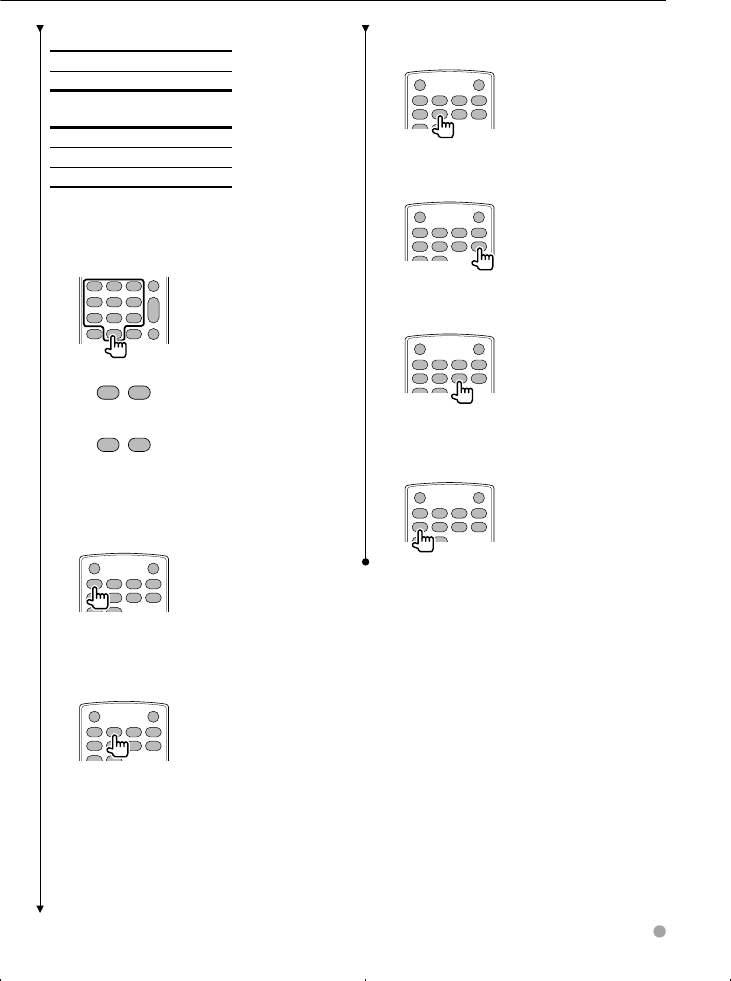

VCD 1.X, VCD 2.X (PBC OFF)

Track number

Cancel

VCD 2.X (PBC ON)

Scene number

Number

Cancel

Once you have switched to the direct search

feature, specify the search number from the

numeric keypad, and then press [ENTER] key.

Numeric keypad

R.VOL

ABC

DEF

GHI

PQRS

JKL

TUV

WXYZ

MNO

CLEAR ATTDIRECT

2 ZONE









• Specify the number to search in direct search.

• Press

2ABC

to fast forward/backward.

Switches the fast forward/backward speed each

time you press this key.

• Press

4GHI

5JKL

to slow forward/backward.

Switches the slow playback speed each time you

press this key.

DVD Top Menu

Returns to the DVD top menu.

V.SEL

MODE FNC/PBC

DISP

AUDIO ANGLE ZOOM

RETURN

SRC

 

TOP MENU

DVD SETUP

SUBTITLE

DVD Menu

Displays the DVD menu.

Turns the playback control on or off while playing

VCD.

V.SEL

MODE FNC/PBC

DISP

AUDIO ANGLE ZOOM

RETURN

SRC

 

TOP MENU

DVD SETUP

SUBTITLE

Switches the subtitle language.

V.SEL

MODE FNC/PBC

DISP

AUDIO ANGLE ZOOM

RETURN

SRC

 

TOP MENU

DVD SETUP

SUBTITLE

ZOOM

Switches the zoom ratio each time you press this

key.

V.SEL

MODE FNC/PBC

DISP

AUDIO ANGLE ZOOM

RETURN

SRC

 

TOP MENU

DVD SETUP

SUBTITLE

Picture Angle

Switches the picture angle each time you press this

key.

V.SEL

MODE FNC/PBC

DISP

AUDIO ANGLE ZOOM

RETURN

SRC

 

TOP MENU

DVD SETUP

SUBTITLE

AUDIO

Switches Voice Language.

Switches the voice language each time you press

this key.

V.SEL

MODE FNC/PBC

DISP

AUDIO ANGLE ZOOM

RETURN

SRC

 

TOP MENU

DVD SETUP

SUBTITLE

B64-4606-00_02_E_En.indd 81B64-4606-00_02_E_En.indd 81 10.2.18 3:31:40 PM10.2.18 3:31:40 PM

82 DNX5260BT/DDX5026/DDX5056

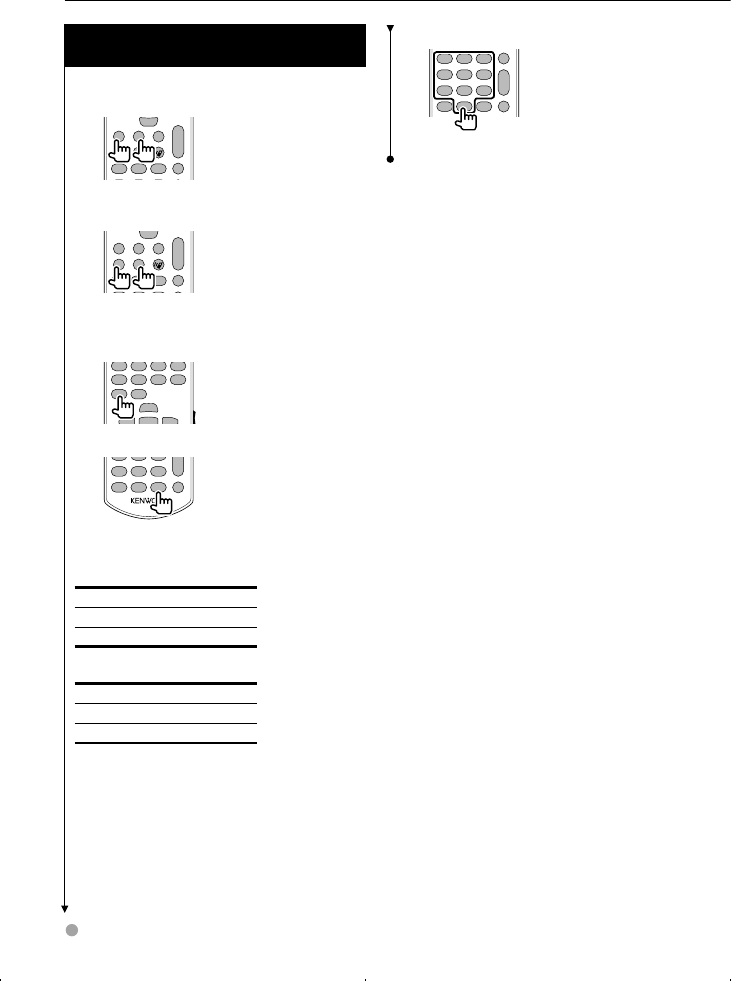

Music Disc/Audio file/Video file/

Picture file (AUD mode)

Folder search

Selects the folder to be played.

ABC

DEF

OPEN

2 ZONE

VOL

−

 D





Track search and file search

Selects the track or file to be played.

ABC

DEF

OPEN

2 ZONE

VOL

−

 D





Play/Pause

Pauses the track.

Press again to resume playing.

ENTER

DVD

•

AUD

•

AUDIO ANGLE ZOOM

RETURN

 

TOP MENU

DVD SETUP

SUBTITLE

Direct search

R.VOL

GHI

PQRS

JKL

TUV

WXYZ

MNO

CLEAR ATTDIRECT



Pressing this key switches the features that can be

searched directly.

Music Disc

Track number

Play time

Cancel

Audio files in DVD/CD disc

Folder number

File number

Cancel

Once you have switched to the direct search

feature, specify the search number from the

numeric keypad, and then press [38] key.

Remote Controller

Numeric keypad

R.VOL

ABC

DEF

GHI

PQRS

JKL

TUV

WXYZ

MNO

CLEAR ATTDIRECT

2 ZONE









• Specify the number to search in direct search.

B64-4606-00_02_E_En.indd 82B64-4606-00_02_E_En.indd 82 10.2.18 3:31:40 PM10.2.18 3:31:40 PM

English 83

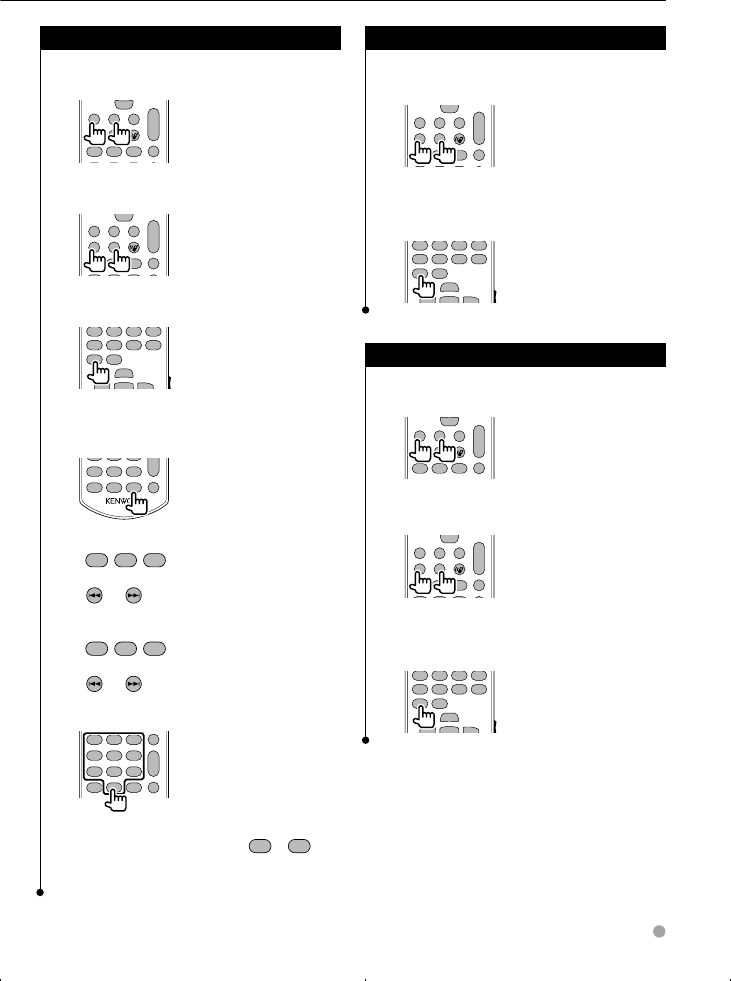

Radio (AUD mode)

Band switching

Switches to bands received by the unit.

ABC

DEF

OPEN

2 ZONE

VOL

−

 D





Station selection

Switches to broadcast stations received by the unit.

ABC

DEF

OPEN

2 ZONE

VOL

−

 D





Seek mode switching

Switches the Seek mode (AUTO1, AUTO2, MANU).

ENTER

DVD

•

AUD

•

AUDIO ANGLE ZOOM

RETURN

 

TOP MENU

DVD SETUP

SUBTITLE

Direct tuning

After pressing this key, use the keypad to specify

the broadcast station you wish to receive.

R.VOL

GHI

PQRS

JKL

TUV

WXYZ

MNO

CLEAR ATTDIRECT



Example: 92.1MHz (FM)

WXYZ

2ABC

Example: 810kHz (AM)

8TUV

Numeric keypad

R.VOL

ABC

DEF

GHI

PQRS

JKL

TUV

WXYZ

MNO

CLEAR ATTDIRECT

2 ZONE









• To use preset tuning, press the number of a

programmed broadcast station. (

–

MNO )

• Press the direct tuning key first, then specify the

frequency of the station to receive.

iPod (AUD mode)

Music/Video search

Selects the music/video to be played.

ABC

DEF

OPEN

2 ZONE

VOL

−

 D





Play/Pause

Pauses the music/video.

Press again to resume playing.

ENTER

DVD

•

AUD

•

AUDIO ANGLE ZOOM

RETURN

 

TOP MENU

DVD SETUP

SUBTITLE

USB (AUD mode)

Folder search

Selects the folder to be played.

ABC

DEF

OPEN

2 ZONE

VOL

−

 D





File search

Selects the file to be played.

ABC

DEF

OPEN

2 ZONE

VOL

−

 D





Play/Pause

Pauses the file.

Press again to resume playing.

ENTER

DVD

•

AUD

•

AUDIO ANGLE ZOOM

RETURN

 

TOP MENU

DVD SETUP

SUBTITLE

B64-4606-00_02_E_En.indd 83B64-4606-00_02_E_En.indd 83 10.2.18 3:31:41 PM10.2.18 3:31:41 PM

84 DNX5260BT/DDX5026/DDX5056

Remote Controller

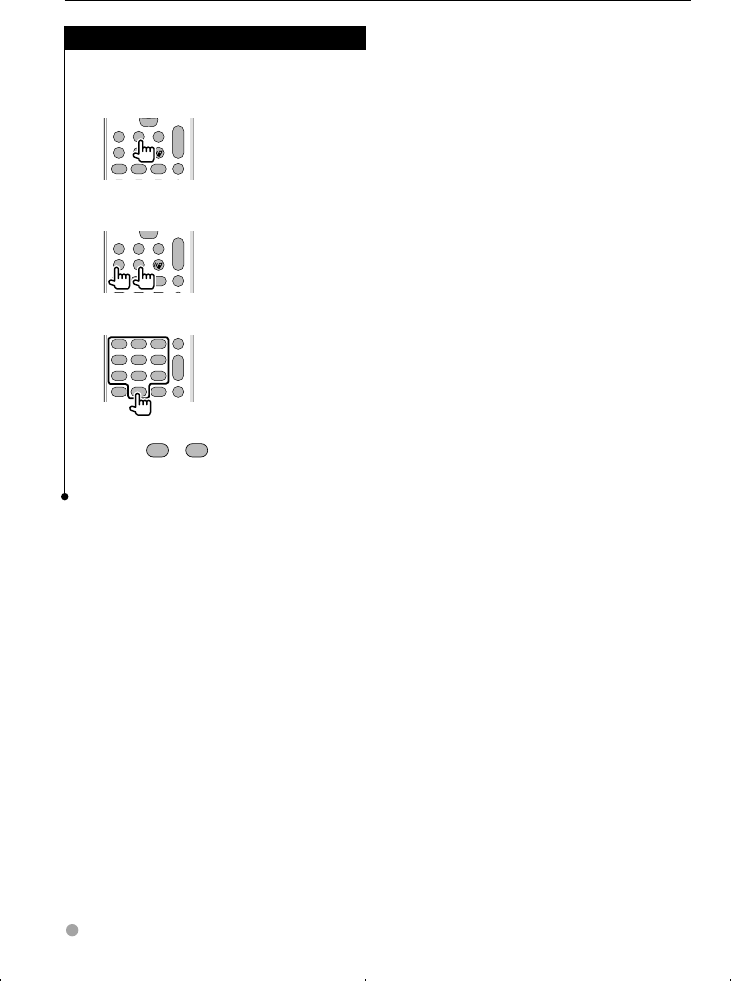

TV (TV mode)

Switching Band/Video

It switches between the station of the TV band to

receive and video input.

ABC

DEF

OPEN

2 ZONE

VOL

−

 D





Channel Selection

The TV channel to receive is selected.

ABC

DEF

OPEN

2 ZONE

VOL

−

 D





Numeric keypad

R.VOL

ABC

DEF

GHI

PQRS

JKL

TUV

WXYZ

MNO

CLEAR ATTDIRECT

2 ZONE









• The number of the memorized station is

selected. (

–

MNO )

• Press the direct tuning key first, then specify the

channel of the station to receive.

B64-4606-00_02_E_En.indd 84B64-4606-00_02_E_En.indd 84 10.2.18 3:31:42 PM10.2.18 3:31:42 PM

English 85

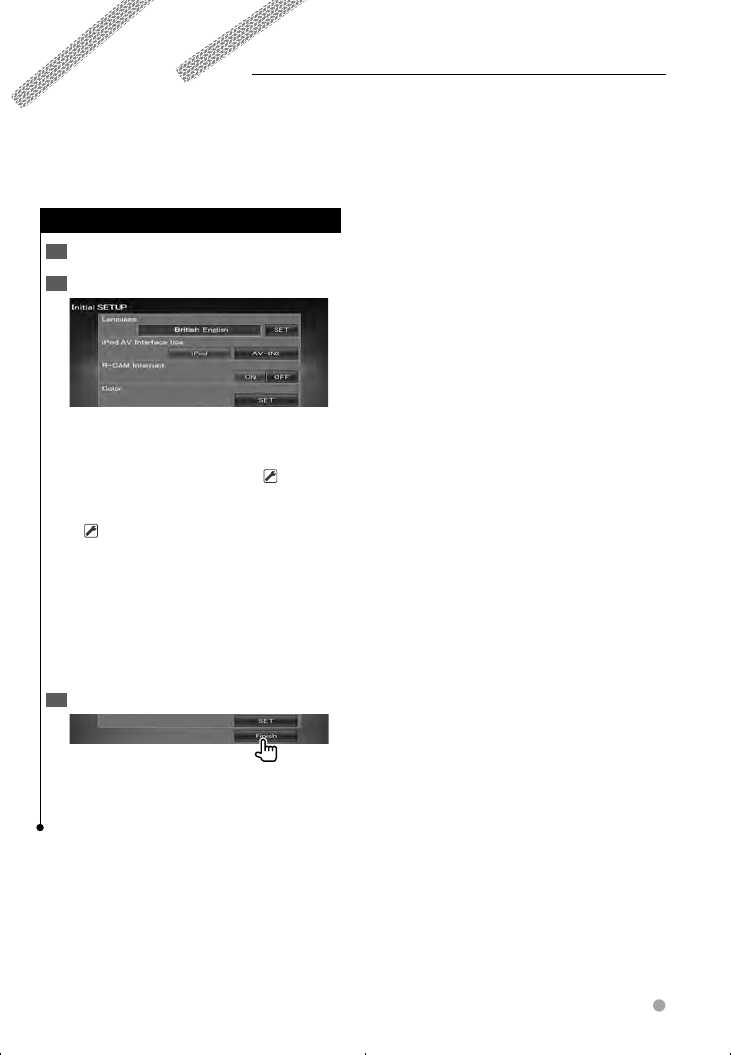

Initial Setup

Turn the power On1

Set each item2

[Language] Select the language used for the

control screen and setting items. (page 60)

[iPod AV Interface Use] Sets the terminal to

which the iPod is connected to. ( "iPod")

[R-CAM Interrupt] Sets a method to switch to

the rear view camera video display.

( "OFF")

"ON": Switches to the rear camera video

display when "Reverse" gear is engaged.

"OFF": The monitor does not switch to the

rear view camera video display even

when engaging the shift knob of car to

"Reverse".

[Color] Sets the screen and button illumination

color. (page 65)

End initial setup3

⁄

The settings above can be changed in • <Setup Menu>

(page 58).

When pressing the Reset button or turning on the unit for the first time, the Initial SETUP screen is

displayed.

Initial Setup

B64-4606-00_02_E_En.indd 85B64-4606-00_02_E_En.indd 85 10.2.18 3:31:43 PM10.2.18 3:31:43 PM

86 DNX5260BT/DDX5026/DDX5056

Source Display Overview

USB "FO-REP" Indicates that the Folder repeat function is ON.

"MOVIE" Identifies the video file.

"MUSIC" Identifies the music file.

"PICTURE" Identifies the image file.

"RDM" Indicates that the Random function is ON.

"REP" Identifies that the Repeat function is ON.

"PLST" Indicates that the Play list mode is selected now.

"SLIDE" Indicates that the slide show function is ON.

iPod "MUSIC" Identifies the music file.

"VIDEO" Identifies the video file.

"RDM" Indicates that the Random function is ON.

"A-RDM" Indicates that the Album random function is ON.

"REP" Indicates that the Repeat function is ON.

Tuner "AF" Indicates that the AF search function is ON.

"AUTO1" Indicates that Seek mode is set to Auto1.

"AUTO2" Indicates that Seek mode is set to Auto2.

"EON" Indicates that the RDS station is sending EON.

"LO.S" Indicates that the Local seek function is ON.

"MANU" Indicates that Seek mode is set to Manual.

"MONO" Indicates that the forced monaural function is ON.

"NEWS" Indicates that news bulletin interruption is in progress.

"RDS" Indicates the state of the RDS station when the AF function

is ON. (Orange: RDS is being received. White: RDS is not

being received.)

"ST" Indicates that stereo broadcast is being received.

"TI" Indicates the reception state of traffic information.

(Orange: TP is being received. White: TP is not being

received.)

TV "AUTO1" Indicates that Seek mode is set to Auto1.

"AUTO2" Indicates that Seek mode is set to Auto2.

"MANU" Indicates that Seek mode is set to Manual.

Shown below is a list of indicators displayed on

the Status bar.

Source Display Overview

General "ATT" Indicates that the attenuator is active.

"DUAL" Turns on the Dual zone function.

"TEL" Indicates the connection state of the Bluetooth hands-free

unit. (Orange: Connected. White: Not connected.)

DVD/CD

MEDIA

"FO-REP" Indicates that the Folder repeat function is ON.

"IN" Indicates that a disc is inserted. (White: A Disc is inside the

unit. Orange: Error at the disc player.)

"MOVIE" Identifies the video file.

"MUSIC" Identifies the music file.

"PICTURE" Identifies the image file.

"RDM" Indicates that the Random function is ON.

"REP" Indicates that the Repeat function is ON.

"SLIDE" Indicates that the slide show function is ON.

DVD-Video "C-REP" Indicates that the Chapter repeat function is ON.

"T-REP" Indicates that the Title repeat function is ON.

DVD-VR "1 M/S" Identifies the primary/secondary audio output of stream 1.

"1 MAIN" Identifies the primary audio output of stream 1.

"1 SUB" Identifies the secondary audio output of stream 1.

"PLST" Identifies the Play list mode.

"T-REP" Indicates that the Title repeat function is ON.

VCD "1chLL" Identifies the left audio output of channel 1.

"1chLR" Identifies the monaural audio output of channel 1.

"1chRR" Identifies the right audio output of channel 1.

"1chST" Identifies the stereo audio output of channel 1.

"LL" Identifies the left audio output.

"LR" Identifies the monaural audio output.

"RR" Identifies the right audio output.

"ST" Identifies the stereo audio output.

"PBC" Indicates that the PBC function is ON.

"SVCD" Identifies the Super Video CD.

"VER1" Indicates that the Video CD version is 1.

"VER2" Indicates that the Video CD version is 2.

"REP" Indicates that the Repeat function is ON.

Status bar Indicator items

B64-4606-00_02_E_En.indd 86B64-4606-00_02_E_En.indd 86 10.2.18 3:31:43 PM10.2.18 3:31:43 PM

English 87

DVD Language Codes

Code Language

aa Afar

ab Abkhazian

af Afrikaans

am Amharic

ar Arabic

as Assamese

ay Aymara

az Azerbaijani

ba Bashkir

be Byelorussian

bg Bulgarian

bh Bihari

bi Bislama

bn Bengali, Bangla

bo Tibetan

br Breton

ca Catalan

co Corsican

cs Czech

cy Welsh

da Danish

de German

dz Bhutani

el Greek

en English

eo Esperanto

es Spanish

et Estonian

eu Basque

fa Persian

fi Finnish

fj Fiji

fo Faroese

fr French

fy Frisian

ga Irish

gd Scots Gaelic

gli Galician

gn Guarani

gu Gujarati

ha Hausa

he Hebrew

hi Hindi

hr Croatian

hu Hungarian

hy Armenian

ia Interlingua

ie Interlingue

ik Inupiak

id Indonesian

Code Language

is Icelandic

it Italian

ja Japanese

jv Javanese

ka Georgian

kk Kazakh

kl Greenlandic

km Cambodian

kn Kannada

ko Korean

ks Kashmiri

ku Kurdish

ky Kirghiz

la Latin

lb Luxembourgish

ln Lingala

lo Laotian

lt Lithuanian

lv Latvian, Lettish

mg Malagasy

mi Maori

mk Macedonian

ml Malayalam

mn Mongolian

mo Moldavian

mr Marathi

ms Malay

mt Maltese

my Burmese

na Nauru

ne Nepali

nl Dutch

no Norwegian

oc Occitan

om (Afan) Oromo

or Oriya

pa Punjabi

pl Polish

ps Pashto, Pushto

pt Portuguese

qu Quechua

rm Rhaeto-Romance

rn Kirundi

ro Romanian

ru Russian

rw Kinyarwanda

sa Sanskrit

sd Sindhi

sg Sangho

sh Serbo-Croatian

Code Language

si Singhalese

sk Slovak

sl Slovenian

sm Samoan

sn Shona

so Somali

sq Albanian

sr Serbian

ss Siswati

st Sesotho

su Sundanese

sv Swedish

sw Swahili

ta Tamil

te Telugu

tg Tajik

th Thai

ti Tigrinya

tk Turkmen

tl Tagalog

tn Setswana

to Tongan

tr Turkish

ts Tsonga

tt Tatar

tw Twi

uk Ukrainian

ur Urdu

uz Uzbek

vi Vietnamese

vo Volapuk

wo Wolof

xh Xhosa

yo Yoruba

zh Chinese

zu Zulu

B64-4606-00_02_E_En.indd 87B64-4606-00_02_E_En.indd 87 10.2.18 3:31:43 PM10.2.18 3:31:43 PM

88 DNX5260BT/DDX5026/DDX5056

Help? Troubleshooting

Some functions of this unit may be disabled by

some settings made on this unit.

! • Cannot set up the subwoofer.

• Cannot set up subwoofer phase.

• No output from the subwoofer.

• Cannot set up the low pass filter.

• Cannot set up the high pass filter.

▲

Subwoofer is not set to On.

☞ <Speaker Setup> (page 72)

▲

The Dual zone function is enabled.

☞ <Zone Control> (page 57)

▲

The unit is set to STANDBY source.

! • Cannot select the output destination of the

subsource in the Dual zone.

• Cannot adjust the volume of the rear

speakers.

▲

The Dual zone function is disabled.

☞ <Zone Control> (page 57)

! Cannot play audio files.

▲

"CD Read" of <Disc Setup> (page 75) is set to

"2".

! Cannot Folder select.

▲

The Random play function is enabled.

! Cannot perform Repeat play.

▲

The PBC function is enabled.

! • Cannot set up the equalizer.

• Cannot set up the crossover network.

▲

The Dual zone function is enabled.

☞ <Zone Control> (page 57)

▲

The unit is set to STANDBY source.

What might seem to be a malfunction in your unit

may just be the result of slight misoperation or

miswiring. Before calling service, first check the

following table for possible problems.

General

? The Touch Sensor Tone doesn’t sound.

✔ The preout jack is being used.

☞ The Touch Sensor Tone can’t be output from

the preout jack.

Tuner source

? Radio reception is poor.

✔ The car antenna is not extended.

☞ Pull the antenna out all the way.

✔ The antenna control wire is not connected.

☞ Connect the wire correctly, referring to the

section on <INSTALLATION MANUAL>.

Disc source

? The specified disc does not play, but another

one plays instead.

✔ The specified CD is quite dirty.

☞ Clean the CD.

✔ The disc is severely scratched.

☞ Try another disc instead.

Audio file source

? The sound skips when an Audio file is being

played.

✔ The media is scratched or dirty.

☞ Clean the media, referring to the CD

cleaning of the section on <Handling discs>

(page 4).

✔ The recording condition is bad.

☞ Record the media again or use another

media.

B64-4606-00_02_E_En.indd 88B64-4606-00_02_E_En.indd 88 10.2.18 3:31:43 PM10.2.18 3:31:43 PM

English 89

Help? Error

When the unit fails to operate correctly, the cause

of the failure appears on the display.

"Protect" :

Protective circuit has been activated because a speaker

cord has shorted or it has come in contact with the car

chassis.

➡ Wire or insulate the speaker cord as appropriate

and then push the Reset button.

"Hot Error" :

When the internal temperature of this unit rises to 60°C

or more, the protection circuit is activated and you

may not be able to operate the unit. At such times this

message will appear.

➡ Use the unit again after reducing the

temperature inside the vehicle.

"Mecha Error" :

The disc player is malfunctioning.

➡ Eject the disc and try inserting it again. Contact

the Kenwood dealer if this indicator continues

blinking or the disc cannot be ejected.

"Disc Error" :

Disc is quite dirty.

➡ Clean the disc, referring tot he section on

<Handling discs> (page 4).

Disc is upside down.

➡ Load the disc with the labeled side up.

An unplayable disc is inserted.

"Region Code Error" :

The disc you wanted to play has a region code that

cannot be played with this unit.

"Parental Level Error" :

The disc you wanted to play has a higher level than the

parental level you set.

"No Device" (USB device):

The USB device is selected as a source although no USB

device is connected.

➡ Change the source to any source other than USB.

Connect an USB device, and change the source

to USB again.

"Disconnected" (iPod, Bluetooth audio player):

The iPod/Bluetooth audio player is selected as a source

although no iPod/Bluetooth audio player is connected.

➡ Change the source to any source other than

iPod/Bluetooth. Connect an iPod/Bluetooth

audio player, and change the source to iPod/

Bluetooth again.

"No Media File" :

The connected USB device contains no playable audio

file.

Media was played that doesn’t have data recorded that

the unit can play.

"USB Device Error!!" :

The connected USB device is rated a current capacity

higher than the allowable limit.

➡ Check the USB device.

Some trouble may have occurred to the connected

USB device.

➡ Change the source to any source other than USB.

Remove the USB device.

"Authorization Error" :

Connection to the iPod has failed.

➡ Remove the iPod and then reconnect it.

The unit does not support the iPod.

➡ Refer to <iPod/iPhone that can be connected to

this unit> (page 6).

"Update your iPod" :

The iPod's software is an older version which the unit

can not support.

➡ Confirm that the software for the iPod is the

latest version. Refer to <iPod/iPhone that can be

connected to this unit> (page 6).

"You only can connect one iPod." :

More than one iPod are connected to this unit.

➡ Connect only one iPod to the USB terminal with

iPod tag.

"Navigation Error. Please turn on power again

later." (DNX series only) :

The communication error has occurred due to severely

cold temperature.

➡ Turn on power again after warming your car

interior.

"No Navigation" (DDX series only):

This unit does not support the connected navigation

unit.

➡ The latest information on the connectable

navigation unit can be obtained from http://

www.kenwood.com/cs/ce.

No navigation unit is connected.

➡ Connect a supported navigation unit.

B64-4606-00_02_E_En.indd 89B64-4606-00_02_E_En.indd 89 10.2.18 3:31:44 PM10.2.18 3:31:44 PM

90 DNX5260BT/DDX5026/DDX5056

Specifications

Monitor section

Picture Size

: 6.1 inches (diagonal) wide

: 136.2 mm (W) x 72 mm (H)

Display System

: Transparent TN LCD panel

Drive System

: TFT active matrix system

Number of Pixels

: 1,152,000 (800H x 480V x RGB)

Effective Pixels

: 99.99 %

Pixel Arrangement

: RGB striped arrangement

Back Lighting

: LED

DVD player section

D/A Converter

: 24 bit

Audio Decoder

: Linear PCM/ Dolby Digital/ dts/ MP3/ WMA/

AAC/ WAV

Video Decoder

: MPEG1/ MPEG2/ DivX

Wow & Flutter

: Below Measurable Limit

Frequency Response

Sampling frequency 96 kHz : 20 – 22,000 Hz

Sampling frequency 48 kHz : 20 – 22,000 Hz

Sampling frequency 44.1 kHz : 20 – 20,000 Hz

Total Harmonic Distortion

: 0.010 % (1 kHz)

S/N Ratio (dB)

: 98 dB (DVD-Video 96 kHz)

Dynamic Range

: 98 dB (DVD-Video 96 kHz)

Disc Format

: DVD-Video/ VIDEO-CD/ CD-DA

Sampling Frequency

: 44.1/ 48/ 96 kHz

Quantifying Bit Number

: 16/ 20/ 24 bit

USB interface section

USB Standard

: USB 2.0

File System

: FAT 16/ 32

Maximum Power Supply Current

: 500 mA

D/A Converter

: 24 Bit

Video Decoder

: MPEG1/ MPEG2/ DivX

Audio Decoder

: MP3/ WMA/ AAC/ WAV

Bluetooth section (DNX5260BT)

Technology

: Bluetooth Ver. 2.0 Certified

Frequency

: 2.402 – 2.480 GHz

Output Power

: +4dBm (MAX), 0dBm (AVE), Power Class2

Maximum Communication range

: Line of sight approx. 10m (32.8 ft)

Profile

HFP (Hands Free Profile)

SPP (Serial Port Profile)

HSP (Headset Profile)

OPP (Object Push Profile)

PBAP (Phonebook Access Profile)

SYNC (Synchronization Profile)

B64-4606-00_02_E_En.indd 90B64-4606-00_02_E_En.indd 90 10.2.18 3:31:44 PM10.2.18 3:31:44 PM

English 91

FM tuner section

Frequency Range

50 kHz : 87.5 MHz – 108.0 MHz

Usable Sensitivity (S/N : 26 dB)

: 0.7 μV/ 50 Ω

Quieting Sensitivity (S/N : 46 dB)

: 1.6 μV/ 75 Ω

Frequency Response (± 3.0 dB)

: 30 Hz – 15 kHz

S/N Ratio (dB)

: 65 dB (MONO)

Selectivity (± 400 kHz)

: ≥ 80 dB

Stereo Separation

: 35 dB (1 kHz)

LW tuner section

Frequency Range (9 kHz)

: 153 kHz – 279 kHz

Usable Sensitivity

: 45 μV

MW tuner section

Frequency Range (9 kHz)

: 531 kHz – 1611 kHz

Usable Sensitivity

: 25 μV

Video section

Color System of External Video Input

: NTSC/ PAL

External Video Input Level (mini jack)

: 1 Vp-p/ 75 Ω

External Audio Max Input Level (mini jack)

: 2 V/ 25 kΩ

Video Output Level (RCA jacks)

: 1 Vp-p/ 75 Ω

Audio Output Level (RCA jacks)

: 1.2 V/ 10 kΩ

Audio section

Maximum Power (Front & Rear)

: 50 W x 4

Full Bandwidth Power (Front & Rear)

: 30 W x 4 (PWR DIN 45324, +B=14.4V)

Preout Level (V)

: 2 V/ 10 kΩ

Preout Impedance

: ≤ 600 Ω

Speaker Impedance

: 4 – 8 Ω

Tone Action

Bass : 100 Hz ± 8 dB

Middle : 1 kHz ± 8 dB

Treble : 10 kHz ± 8 dB

B64-4606-00_02_E_En.indd 91B64-4606-00_02_E_En.indd 91 10.2.18 3:31:44 PM10.2.18 3:31:44 PM

92 DNX5260BT/DDX5026/DDX5056

Specifications

Navigation section (DNX series only)

Receiver

: High-sensitivity GPS receiver

Reception Frequency

: 1575.42 MHz (C/A code)

Acquisition Times

Cold : < 38 seconds

Factory Reset : < 45 seconds

(On average for a stationary receiver with a clear

view of the sky)

Accuracy

Position : < 10 meters typical

Velocity : 0.05 m/sec. RMS

Position Method

: GPS

Antenna

: External GPS antenna

General

Operating voltage

: 14.4 V (10.5 – 16 V allowable)

Maximum Current Consumption

: 15 A

Installation Dimensions (W × H × D)

: 182 × 112 × 160 mm

7-3/16 x 4-7/16 x 6-5/16 inch

Operational Temperature Range

: -10 °C – +60 °C

Storage Temperature Range

: -20 °C – +85 °C

Weight

DNX series : 1.9 kg (4.1 lbs)

DDX series : 1.8 kg (4.0 lbs)

Although the effective pixels for the liquid crystal panel is

given as 99.99% or more, 0.01% of pixels may not light or

may light incorrectly.

Specifications subject to change without notice.

B64-4606-00_02_E_En.indd 92B64-4606-00_02_E_En.indd 92 10.2.18 3:31:44 PM10.2.18 3:31:44 PM

is a trademark of DVD Format/Logo Licensing Corporation registered in the U.S., Japan and other countries.

This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property

rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other

limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.

Manufactured under license from Dolby Laboratories.

Dolby and the double-D symbol are trademarks of Dolby Laboratories.

Manufactured under license under U.S. Patent #’s: 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,487,535 & other U.S. and

worldwide patents issued & pending. DTS is a registered trademark and the DTS logos, Symbol and DTS 2.0 Channel are

The "AAC" logo is a trademark of Dolby Laboratories.

The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Kenwood Corporation

is under license. Other trademarks and trade names are those of their respective owners.

iPod is a trademark of Apple Inc., registered in the U.S. and other countries.

iPhone is a trademark of Apple Inc.

iTunes is a trademark of Apple Inc.

“Made for iPod” means that an electronic accessory has been designed to connect specifically to iPod and has been certified

by the developer to meet Apple performance standards.

“Works with iPhone” means that an electronic accessory has been designed to connect specifically to iPhone and has been

certified by the developer to meet Apple performance standards.

Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.

Font for this product is designed by Ricoh.

The marking of products using lasers (Except for some areas)

The label is attached to the chassis/case and says that the component

uses laser beams that have been classified as Class 1. It means that the

unit is utilizing laser beams that are of a weaker class. There is no danger

of hazardous radiation outside the unit.

CLASS 1

LASER PRODUCT

DivX® is a registered trademark of DivX, Inc., and is under license.

ABOUT DIVX VIDEO:

DivX® is a digital video format created by DivX, Inc. This is an official DivX Certified device that plays DivX

video. Visit www.divx.com for more information and software tools to convert your files into DivX video.

ABOUT DIVX VIDEO-ON-DEMAND:

This DivX Certified® device must be registered in order to play DivX Video-on-Demand (VOD) content. To

generate the registration code, locate the DivX VOD section in <DivX Setup> (page 59). Go to vod.divx.com

with this code to complete the registration process and learn more about DivX VOD.

DNX5260BT:

B64-4606-00_02_E_En.indd 93B64-4606-00_02_E_En.indd 93 10.2.18 3:31:44 PM10.2.18 3:31:44 PM

DNX5260BT/DDX5026/DDX5056:

· Declaration of Conformity with regard to the EMC Directive 2004/108/EC

DNX5260BT:

· Declaration of Conformity with regard to the R&TTE Directive 1999/5/EC

Manufacturer:

Kenwood Corporation

2967-3 Ishikawa-machi, Hachioji-shi, Tokyo, 192-8525 Japan

EU Representative's:

Kenwood Electronics Europe BV

Amsterdamseweg 37, 1422 AC UITHOORN, The Netherlands

English

Hereby, Kenwood declares that this unit DNX5260BT is in compliance with the

essential requirements and other relevant provisions of Directive 1999/5/EC.

Français

Par la présente Kenwood déclare que l’appareil DNX5260BT est conforme aux

exigences essentielles et aux autres dispositions pertinentes de la directive

1999/5/CE.

Par la présente, Kenwood déclare que ce DNX5260BT est conforme aux

exigences essentielles et aux autres dispositions de la directive 1999/5/CE qui

lui sont applicables.

Deutsch

Hiermit erklärt Kenwood, dass sich dieser DNX5260BT in Übereinstimmung mit

den grundlegenden Anforderungen und den anderen relevanten Vorschriften

der Richtlinie 1999/5/EG befindet. (BMWi)

Hiermit erklärt Kenwood die Übereinstimmung des Gerätes DNX5260BT mit

den grundlegenden Anforderungen und den anderen relevanten Festlegungen

der Richitlinie 1999/5/EG. (Wien)

Nederlands

Hierbij verklaart Kenwood dat het toestel DNX5260BT in overeenstemming

is met de essentiële eisen en de andere relevante bepalingen van richtlijn

1999/5/EG.

Bij deze verklaat Kenwood dat deze DNX5260BT voldoet aan de essentiële

eisen en aan de overige relevante bepalingen van Richtlijn 1999/5/EC.

Italiano

Con la presente Kenwood dichiara che questo DNX5260BT è conforme ai

requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva

1999/5/CE.

Español

Por medio de la presente Kenwood declara que el DNX5260BT cumple con los

requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de

la Directiva 1999/5/CE.

Português

Kenwood declara que este DNX5260BT está conforme com os requisitos

essenciais e outras disposições da Directiva 1999/5/CE.

Polska

Kenwood niniejszym oświadcza, że DNX5260BT spełnia zasadnicze wymogi

oraz inne istotne postanowienia dyrektywy 1999/5/EC.

Český

Kenwood timto prohlasuje, ze DNX5260BT je ve shode se zakladnimi

pozadavky a s dalsimi prislusnymi ustanoveni Narizeni vlady c. 426/2000 Sb.

Magyar

Alulírott, Kenwood, kijelenti, hogy a jelen DNX5260BT megfelel az 1999/5/EC

irányelvben meghatározott alapvető követelményeknek és egyéb vonatkozó

előírásoknak.

Svenska

Härmed intygar Kenwood att denna DNX5260BT stär l överensstämelse med

de väsentliga egenskapskrav och övriga relevanta bestämmelser som framgår

av direktiv 1999/5/EG.

Suomi

Kenwood vakuuttaa täten että DNX5260BT tyyppinen laite on direktiivin

1999/5/EY oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen

mukainen.

Slovensko

S tem Kenwood izjavlja, da je ta DNX5260BT v skladu z osnovnimi zahtevami

in ostalimi ustreznimi predpisi Direktive 1999/5/EC.

Slovensky

Spoločnosť Kenwood týmto vyhlasuje, že DNX5260BT spĺňa zákldné

požiadavky a ďalšie prislušné ustanovenia Direktĺvy 1999/5/EC.

Dansk

Undertegnede Kenwood erklærer harved, at følgende udstyr DNX5260BT

overholder de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF.

Ελληνικά

ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ Kenwood ΔΗΛΩΝΕΙ ΟΤΙ DNX5260BT ΣΥΜΜΟΡΦΩΝΕΤΑΙ

ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ

ΟΔΗΓΙΑΣ 1999/5/EK.

Eesti

Sellega kinnitab Kenwood, et see DNX5260BT vastab direktiivi 1999/5/EC

põhilistele nõudmistele ja muudele asjakohastele määrustele.

Latviešu

Ar šo, Kenwood, apstiprina, ka DNX5260BT atbilst Direktīvas 1999/5/EK

galvenajām prasībām un citiem tās nosacījumiem.

Lietuviškai

Šiuo, Kenwood, pareiškia, kad šis DNX5260BT atitinka pagrindinius Direktyvos

1999/5/EB reikalavimus ir kitas svarbias nuostatas.

Malti

Hawnhekk, Kenwood, jiddikjara li dan DNX5260BT jikkonforma mal-ħtiġijiet

essenzjali u ma provvedimenti oħrajn relevanti li hemm fid-Dirrettiva 1999/5/

EC.

Українська

Компанія Kenwood заявляє, що цей виріб DNX5260BT відповідає

ключовим вимогам та іншим пов’язаним положенням Директиви

1999/5/EC.

B64-4606-00_02_E_En.indd 94B64-4606-00_02_E_En.indd 94 10.2.18 3:31:44 PM10.2.18 3:31:44 PM

This Product is not installed by the manufacturer of a vehicle on the production line, nor by the professional

importer of a vehicle into an EU Member State.

Information on Disposal of Old Electrical and Electronic Equipment and Batteries

(applicable for EU countries that have adopted separate waste collection systems)

Products and batteries with the symbol (crossed-out wheeled bin) cannot be disposed

as household waste.

Old electrical and electronic equipment and batteries should be recycled at a facility

capable of handling these items and their waste byproducts.

Contact your local authority for details in locating a recycle facility nearest to you.

Proper recycling and waste disposal will help conserve resources whilst preventing

detrimental effects on our health and the environment.

Notice: The sign "Pb" below the symbol for batteries indicates that this battery contains

lead.

B64-4606-00_02_E_En.indd 95B64-4606-00_02_E_En.indd 95 10.2.18 3:31:44 PM10.2.18 3:31:44 PM

B64-4606-00_02_E_En.indd 96B64-4606-00_02_E_En.indd 96 10.2.18 3:31:44 PM10.2.18 3:31:44 PM

Kenwood Ddx 5026 Instruction Manual B64 4606 00_02_E_En

DNX 5260 BT - Operating Instructions Dnx5260Bt_Ddx5026_Ddx5056_Im_En Free User Guide for Kenwood DNX Series GPS, Manual - page2

Navigation menu

Versions of this User Manual:

Views

Navigation
