KERCHAN TECHNOLOGY DSD2150AF Hand Sanitizing Billboard User Manual
Shenzhen Kerchan Technology Co.,Ltd. Hand Sanitizing Billboard
User manual
Uo
Android
Hand Sanitizing
Billboard
----Speciation---
2
Catalog
Chapter one Board Part --------------------------------------------------- 2
1.
Features ------------------------------------------------------------------ 2
2.
Other functions --------------------------------------------------------- 3
2.1 File manager ---------------------------------------------------------- 3
2.2 WIFI --------------------------------------------------------------------- 4
2.3DISPlay Rotation screen --------------------------------------------- 4
2.4 Font size ---------------------------------------------------------------- 5
2.5 Memory capacity ------------------------------------------------------ 5
2.6 Language and input method ----------------------------------------- 6
2.7 Reset to defaults ------------------------------------------------------- 6
2.8 Time setting ------------------------------------------------------------ 7
2.9 Version ------------------------------------------------------------------ 7
3
Chapter One. Specification
1. Features
Product made by Allwinner A83T (dual core) processor and dual core ARM Mail-400MP GPU. PCB has 1G RAM and 8G
ROM (Flash storage medium), Support Android 4.4.4 OS, support 10.1 inch to 84 inch LCD display panel directly also, IR,
capacitive and resistance touch panel are available. With 2 USB ports and 3 UART serial ports, can meet client’s
different demand. Product has RJ45/ WIFI/ multi Internet connection method. Support extra accessories addition
such as camera, touch screen, printer, etc.
2. Other functions
2.1 File manager
CPU
All-winner A83T
,
dual core 2.0GHz
RAM
1GB DDR3
ROM
8GB Nand Flash (Optional)
Decoding
Max.1080P
OS
Android 4.4.4
Network
Ethernet, WiFi,
Video format
RM/RMVB
,
MKV
,
TS
,
FLV
,
AVI,
VOB
,
MOV
,
WMV
,
MP4,
MPG
Audio format
MP3
,
WMA
,
APE
,
Flac etc
Image format
BMP
,
JPEG
,
PNG
,
GIF etc
USB2.0 port
1USB HOST,1 USB OTG
Ethernet
10M/100M automatically adapt to Ethernet
LVDS Output
Lighting panels as 50/60Hz 6Bit/8Bit
HDMI Output
support 1080P output
Audio output
headset trumpet
RTC
Available
Time setting
Available
Update method
Update via USB/SD
4

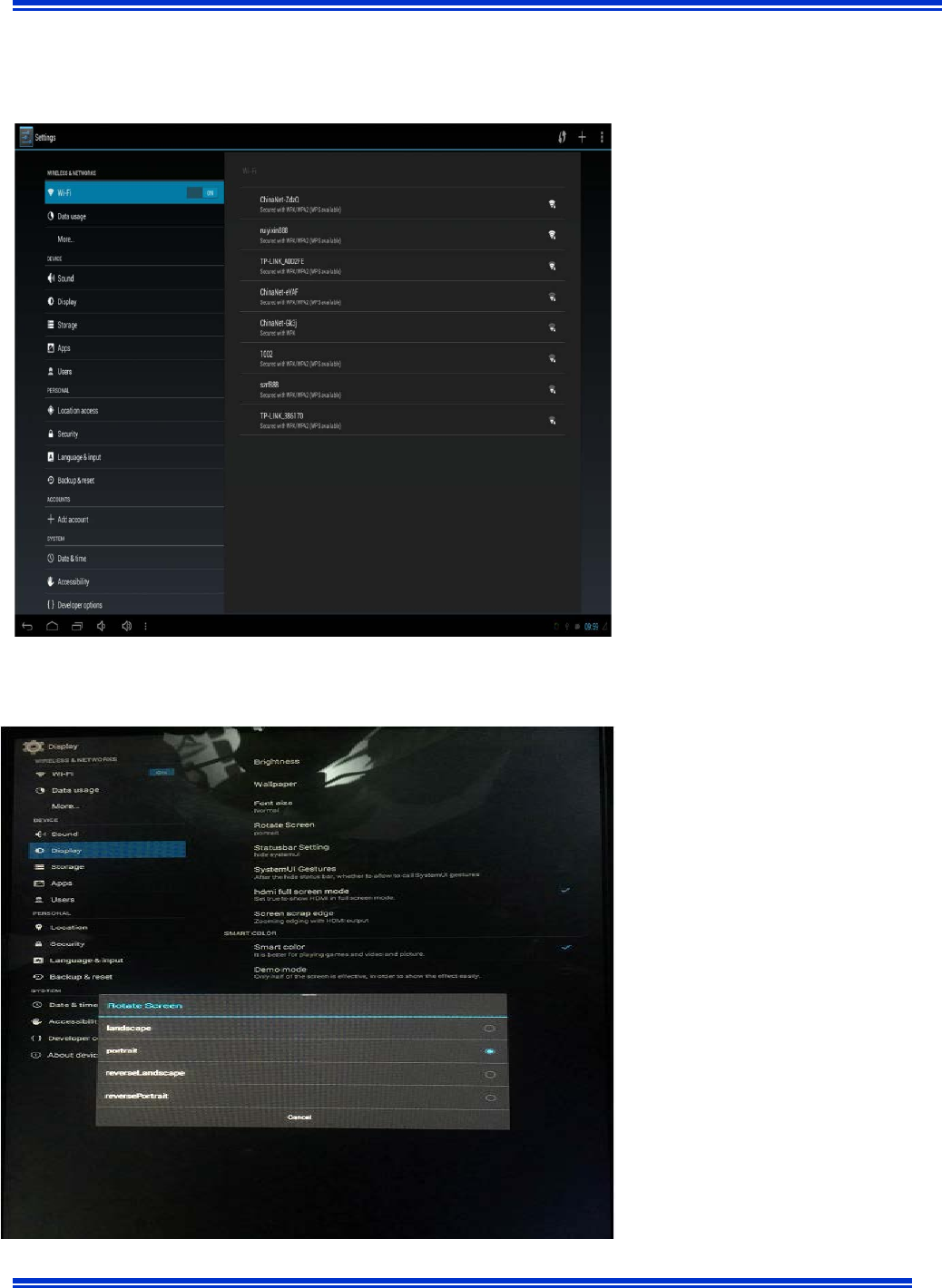

2.2 WIFI
2.3 Display Rotation screen
5

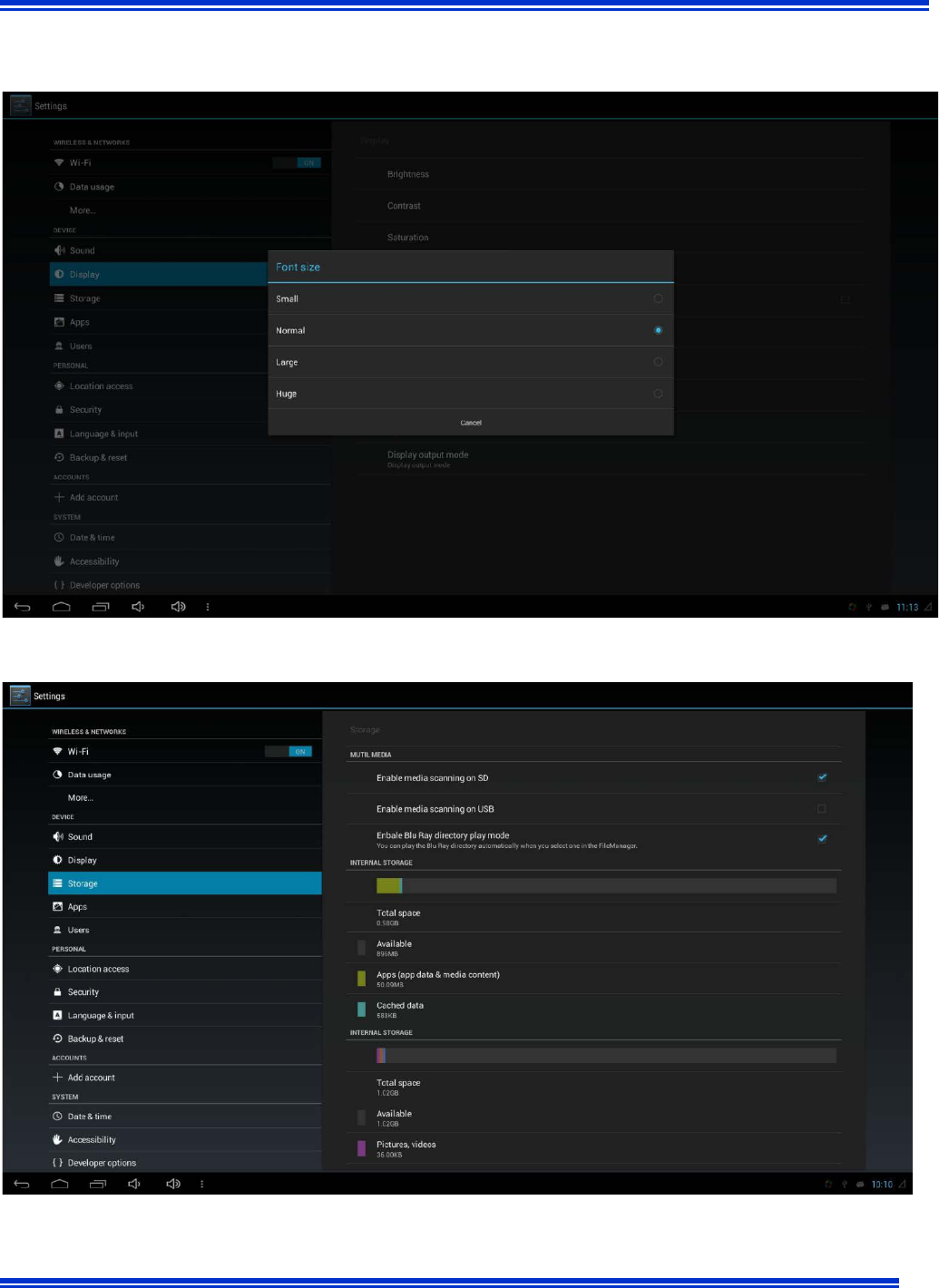

2.4 Font size
2.5 Memory capacity
6

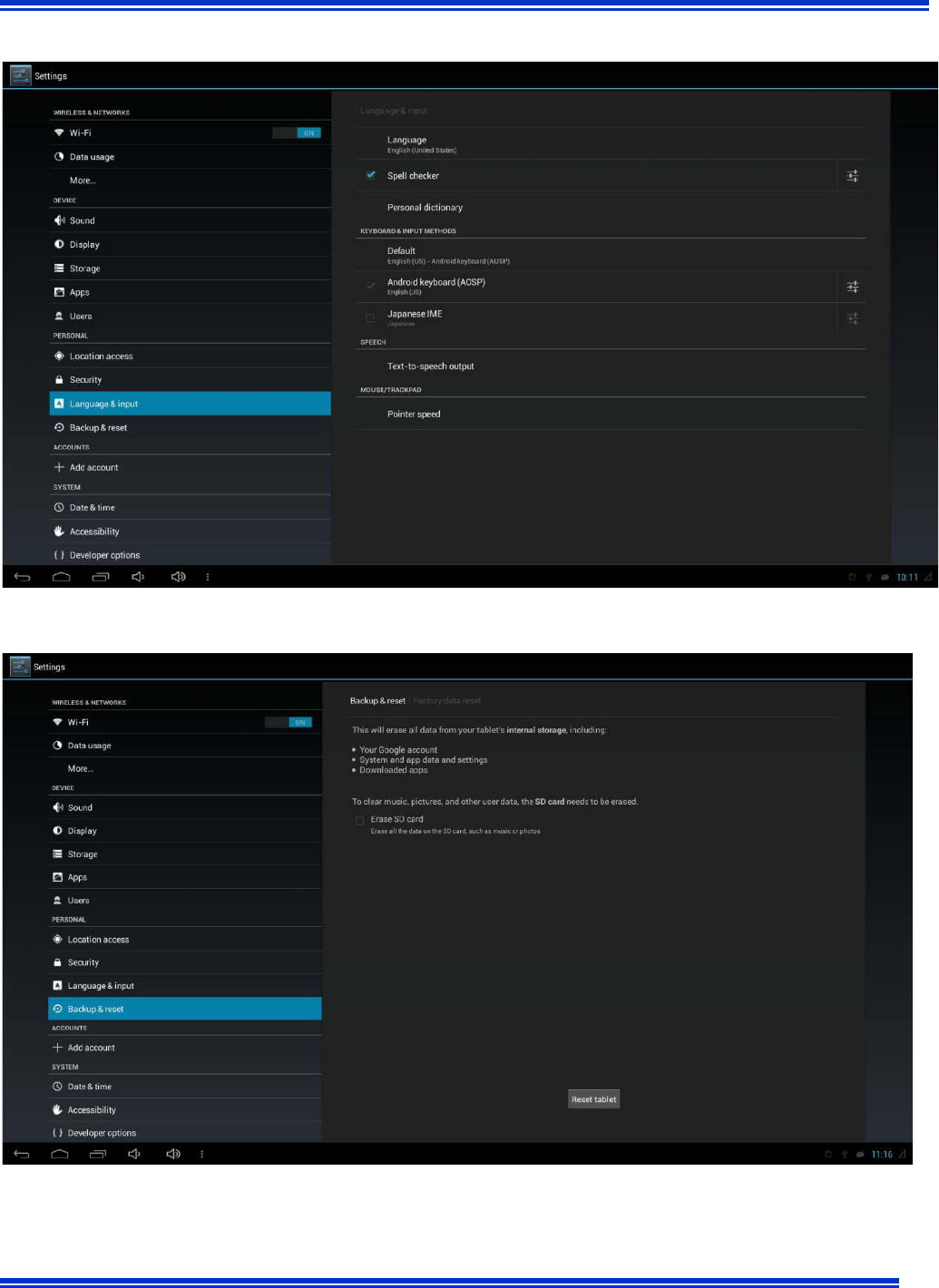

2.6 Language and input method
2.7 Reset to defaults

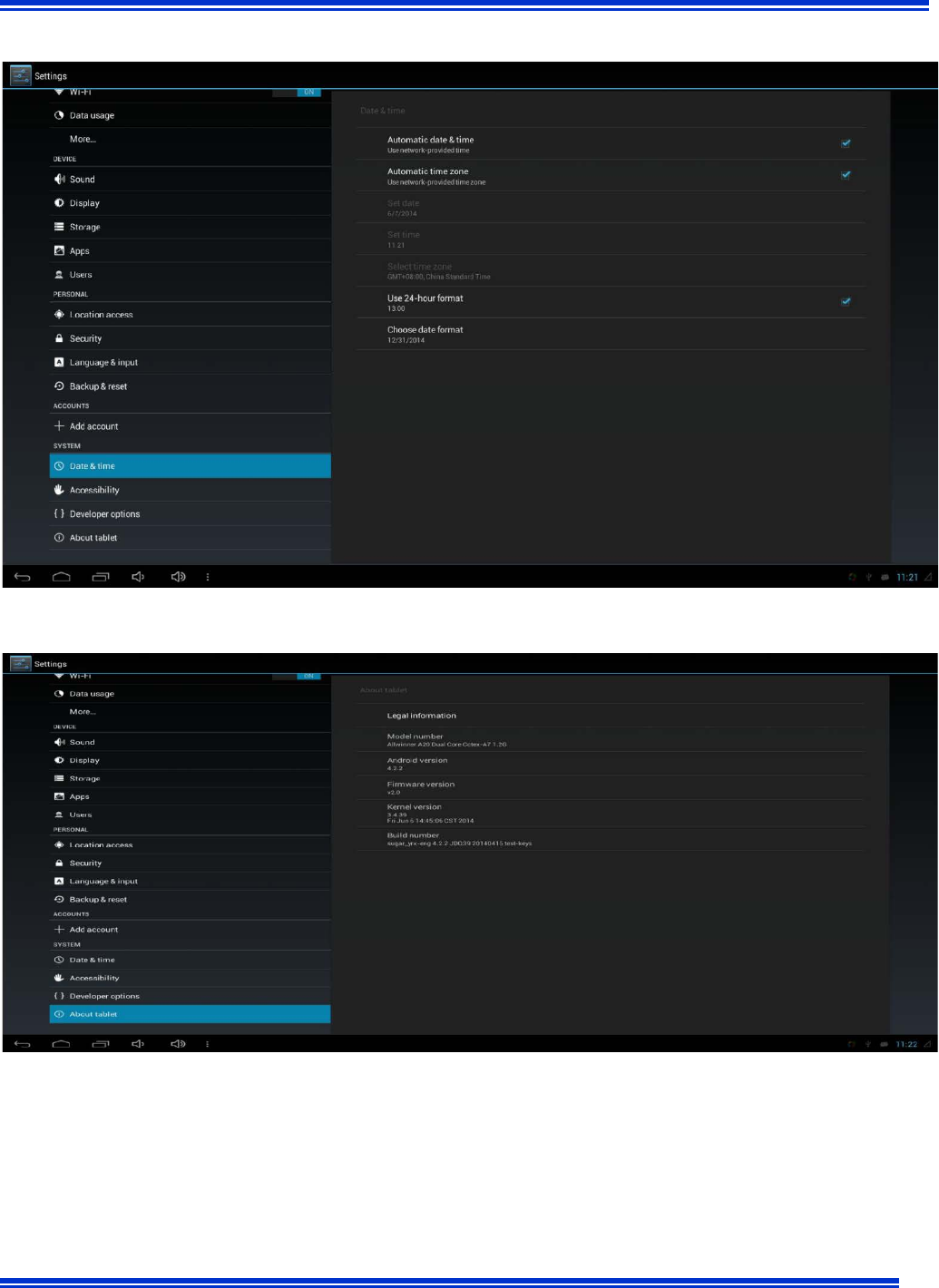

2.8 Time setting
2.9 Version
Warning Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modifications to this device not explicitly approved by manufacturer could
void your authority to operate this equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
To comply with FCC RF exposure compliance requirements, this grant is applicable to only mobile
configurations. The antennas used for this transmitter must be installed to provide a separation distance of at
least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna
or transmitter.
END
