AXS SERIES S40 iCLASS SE® PIN-Contactless Reader: This integrated keypad and contactless reader is rated for continuous
outdoor use in exposed, unsupervised locations. Featuring genuine HID™ iCLASS SE®, Seos®, contactless technology, this
access control keypad offers enhanced security by dual factor authentication. Authorized access through a secured door or barrier
can be gained by entry of a valid PIN and/or presentation of an authorized 13.56 MHz IS014443 contactless credential

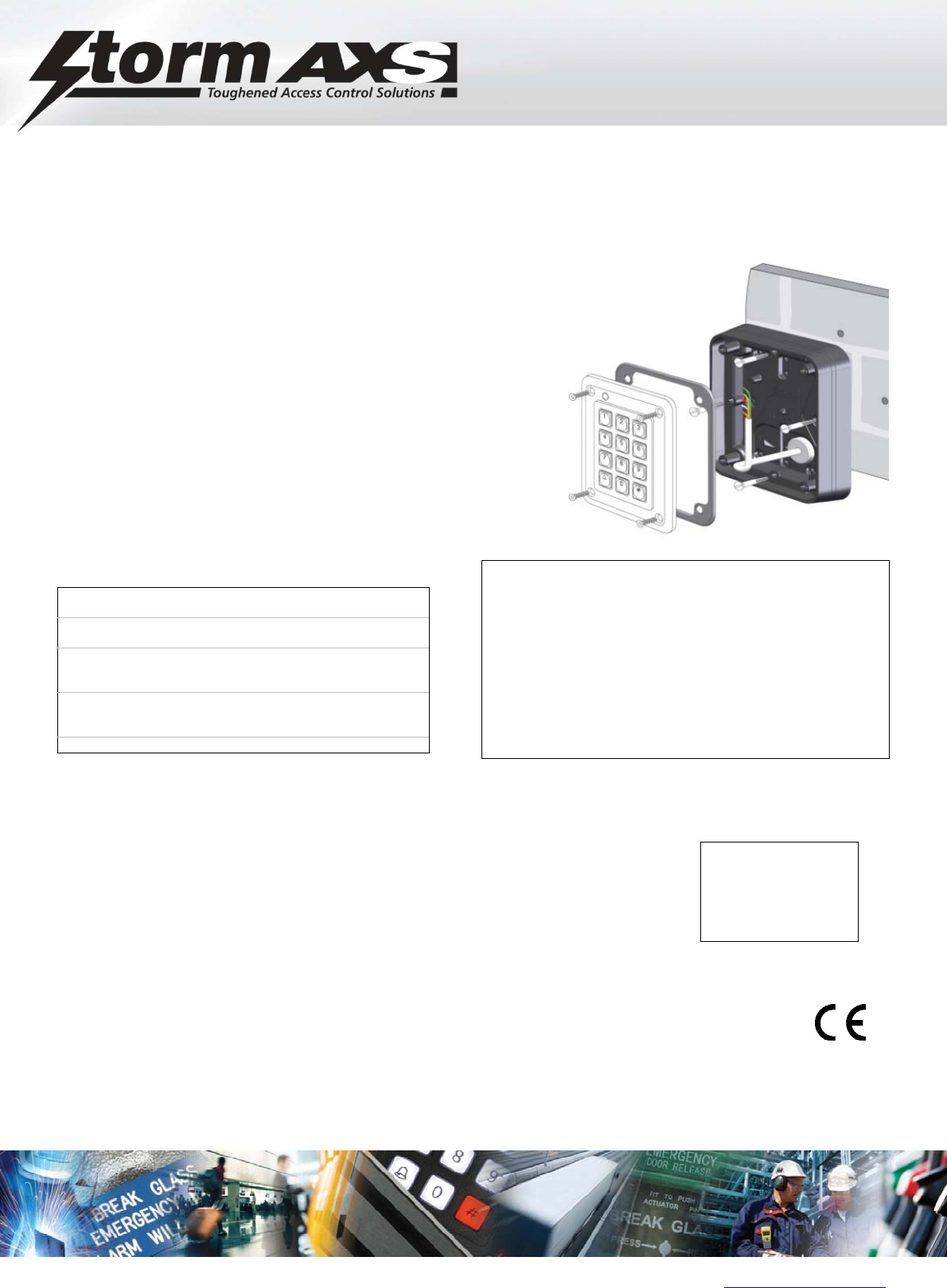

Installation
- Using the case as a template, mark the position of the four holes (A) on the surface.
(or if fixing to an already installed UK or US back box use the relevant hole pattern)
- Drill and plug the fixing holes to suit fixing screws (supplied).
- Run the cable through the sealing grommet
- Secure the case to the surface using the fixing screws
- Make the electrical connections to the connector block
- Plug the connector block into the keypad
- Make sure the rubber seal is located on the rear case.
- Fix the keypad to the rear case using the security screws
(Use the nylon sealing washers under the screw heads)
- Check the installation to ensure the rubber seal is in place and
compressed evenly around the perimeter of the case.
Weigand Format for PIN Wiring Connections
Factory default is Weigand 8 bit burst format (for PIN).
If you need Weigand 4 bit burst format follow the sequence below.
Press # on power up , LED FLASHES
RED/GREEN
Press #725 to enter format mode
Press 1 for FORMAT
or 2 for RESET TO DEFAULT
Press 0 for 4 BIT FORMAT
or 1 for 8 BIT FORMAT
Press 0 to EXIT, LED STAYS RED
Specification Credentials
Card Compatibility iClass® , Mifare® , ISO15693, ISO14443A & B
Card Read Range 2-5cm (depending on card)
Card Security V1 Security (Elite to special order only)
Coupling Frequency 13.56 MHz
Supply 5V or 12V DC 200 mA (Use 12V, 250mA for Illuminated Keypad)
Cable distance to host 150m max
Tamper detection Normally open or closed
Status Indication RED/GREEN as driven by the Controller As supported by the Controller
Performance Order Codes
Operational Temp -35°C to +65°C DS401KT20 AXS Series S40 Keypad Metal Keys
Weather Resistant IP65 DS402KW20 AXS Series S40i Keypad Illuminated Keys
Vibration & Shock ETSI 6M3
Impact Resistance IK09 (10J Rating) 1KFS020 Privacy Shield
Certification CE / FCC / UL294 RC12020 Rear Case Kit (Spare)
FCC ID 2AEEZ-DS40. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
+5V Power Input. Connect only 5V OR 12V power A
BEEP Active Low B
DATA HOLD Holds card data only – Active Low C
TAMPER Normally closed to 0V, open on tamper D
0V Power E
0V Power F
RED LED Active Low G
GREEN LED Active Low H
+12V Power input. Always use 12V for S40i I
WEIGAND DATA 1 Open Collector output J
WEIGAND DATA 0 Open Collector output K
TAMPER Normally open – connects to 0V on tamper L
iCLASS
Seos
MIFARE Classic
MIFARE PLUS
MIFARE Ultralight
DESFire 0.6
DESFire EV1
