LG ELECTRONICS SP110 Single-Band PCS CDMA Phone User Manual LG DM112 User Guide

LG Electronics, Inc. Single-Band PCS CDMA Phone LG DM112 User Guide

Contents

Users Manual

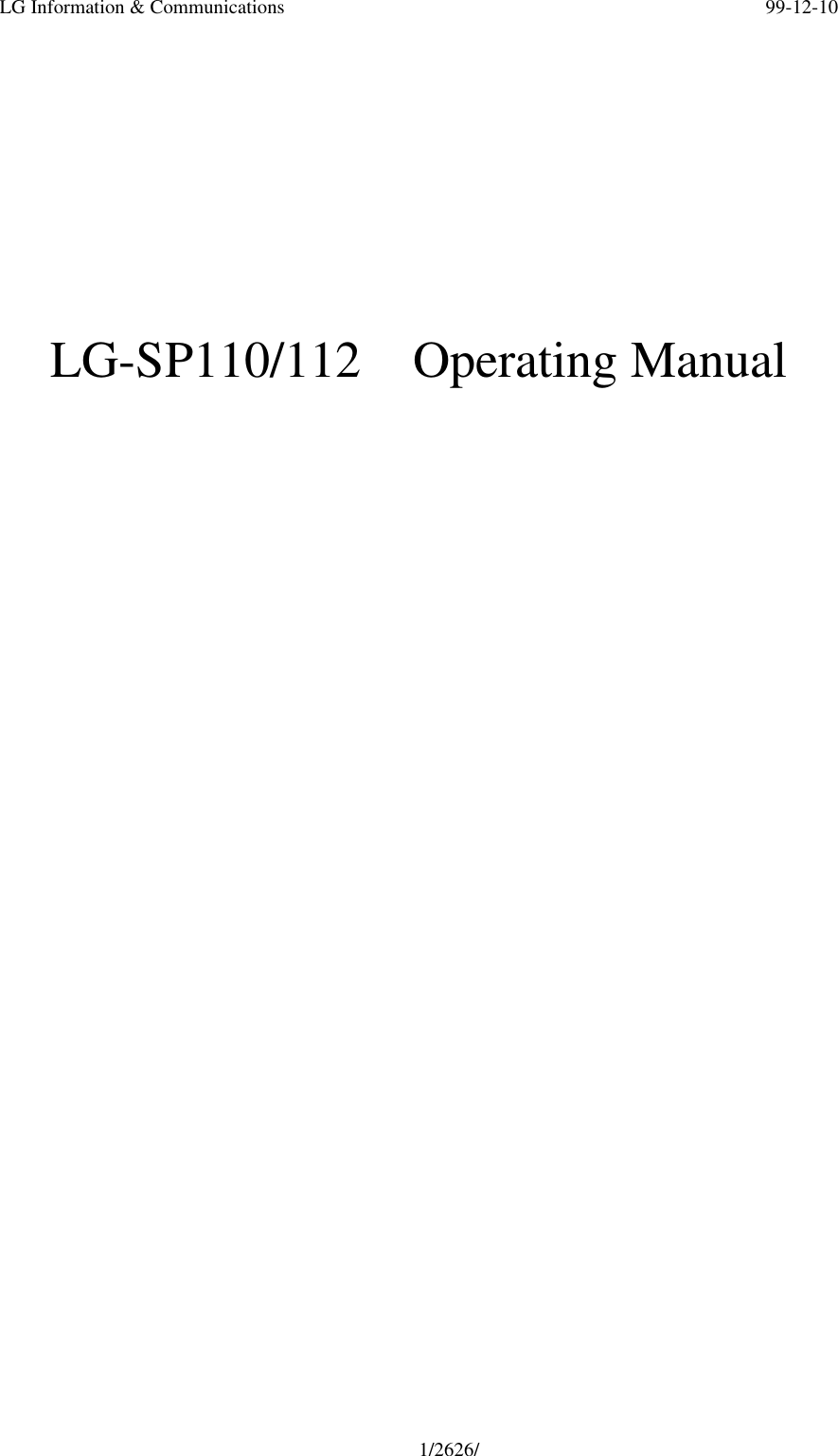

LG Information & Communications 99-12-101/2626/ LG-SP110/112 Operating Manual

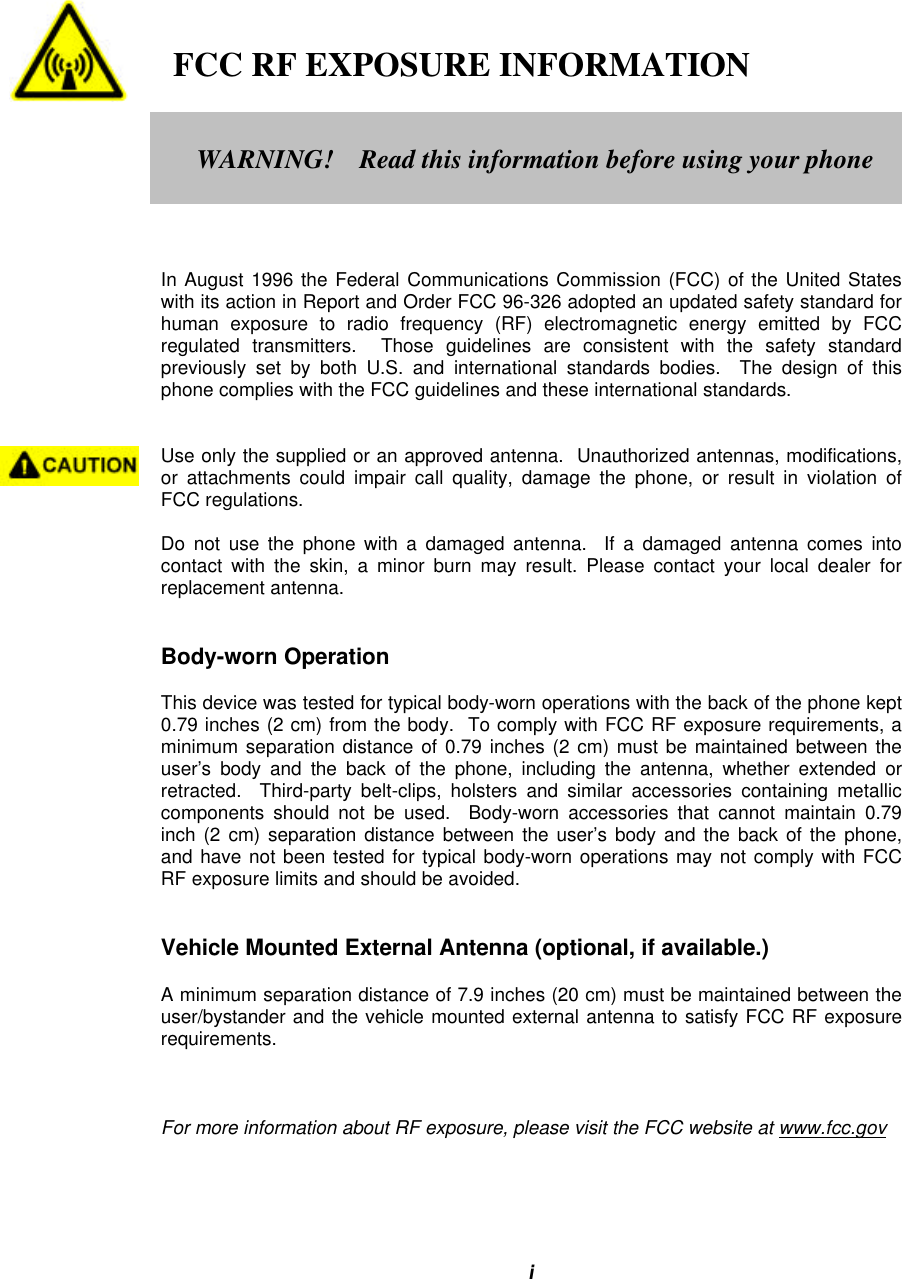

i FCC RF EXPOSURE INFORMATIONIn August 1996 the Federal Communications Commission (FCC) of the United Stateswith its action in Report and Order FCC 96-326 adopted an updated safety standard forhuman exposure to radio frequency (RF) electromagnetic energy emitted by FCCregulated transmitters. Those guidelines are consistent with the safety standardpreviously set by both U.S. and international standards bodies. The design of thisphone complies with the FCC guidelines and these international standards.Use only the supplied or an approved antenna. Unauthorized antennas, modifications,or attachments could impair call quality, damage the phone, or result in violation ofFCC regulations.Do not use the phone with a damaged antenna. If a damaged antenna comes intocontact with the skin, a minor burn may result. Please contact your local dealer forreplacement antenna.Body-worn OperationThis device was tested for typical body-worn operations with the back of the phone kept0.79 inches (2 cm) from the body. To comply with FCC RF exposure requirements, aminimum separation distance of 0.79 inches (2 cm) must be maintained between theuser’s body and the back of the phone, including the antenna, whether extended orretracted. Third-party belt-clips, holsters and similar accessories containing metalliccomponents should not be used. Body-worn accessories that cannot maintain 0.79inch (2 cm) separation distance between the user’s body and the back of the phone,and have not been tested for typical body-worn operations may not comply with FCCRF exposure limits and should be avoided.Vehicle Mounted External Antenna (optional, if available.)A minimum separation distance of 7.9 inches (20 cm) must be maintained between theuser/bystander and the vehicle mounted external antenna to satisfy FCC RF exposurerequirements.For more information about RF exposure, please visit the FCC website at www.fcc.govWARNING! Read this information before using your phone

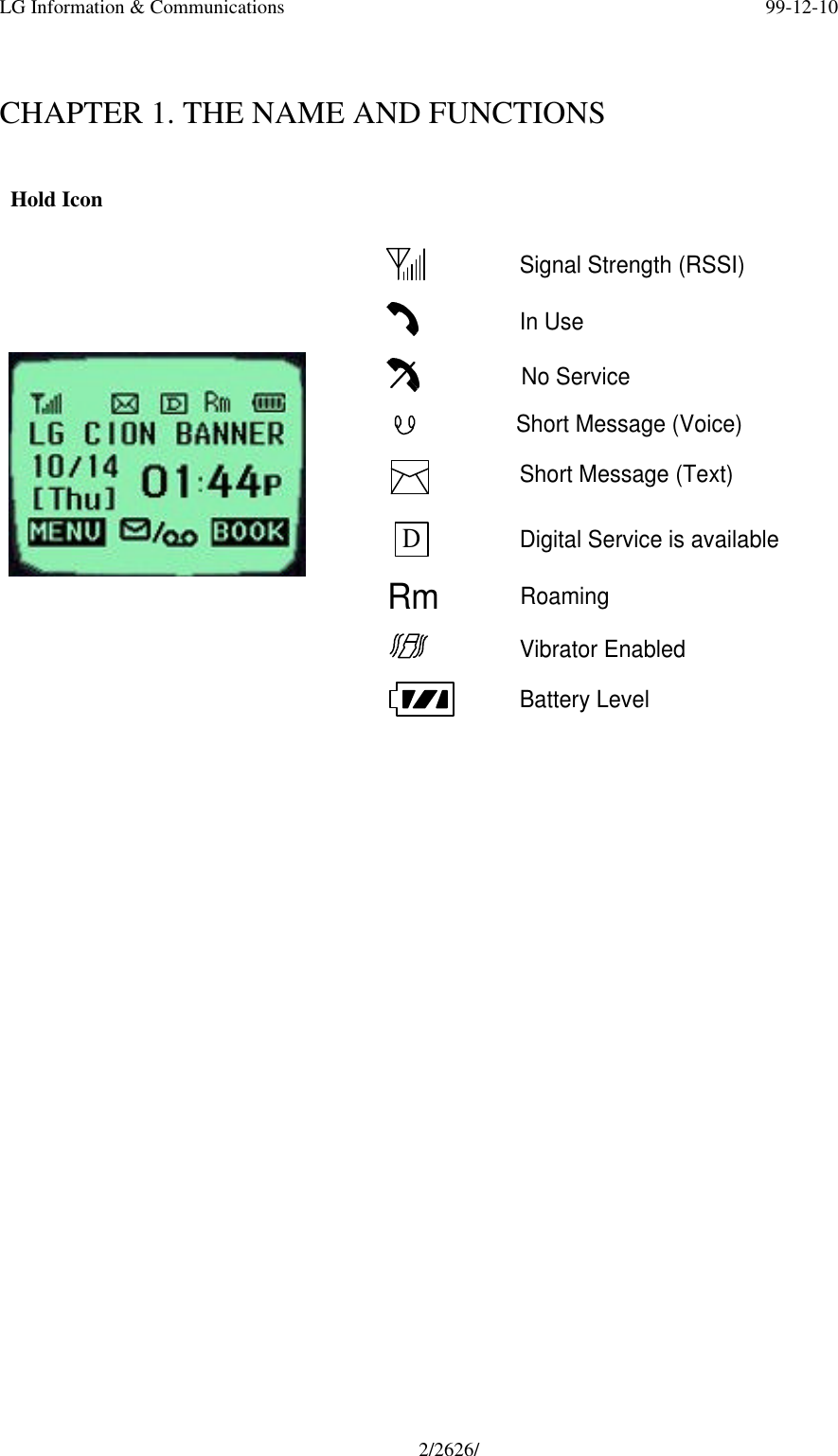

LG Information & Communications 99-12-102/2626/CHAPTER 1. THE NAME AND FUNCTIONS Hold IconRmSignal Strength (RSSI)In UseNo ServiceDigital Service is availableRoamingShort Message (Voice)Battery LevelShort Message (Text)Vibrator EnabledD

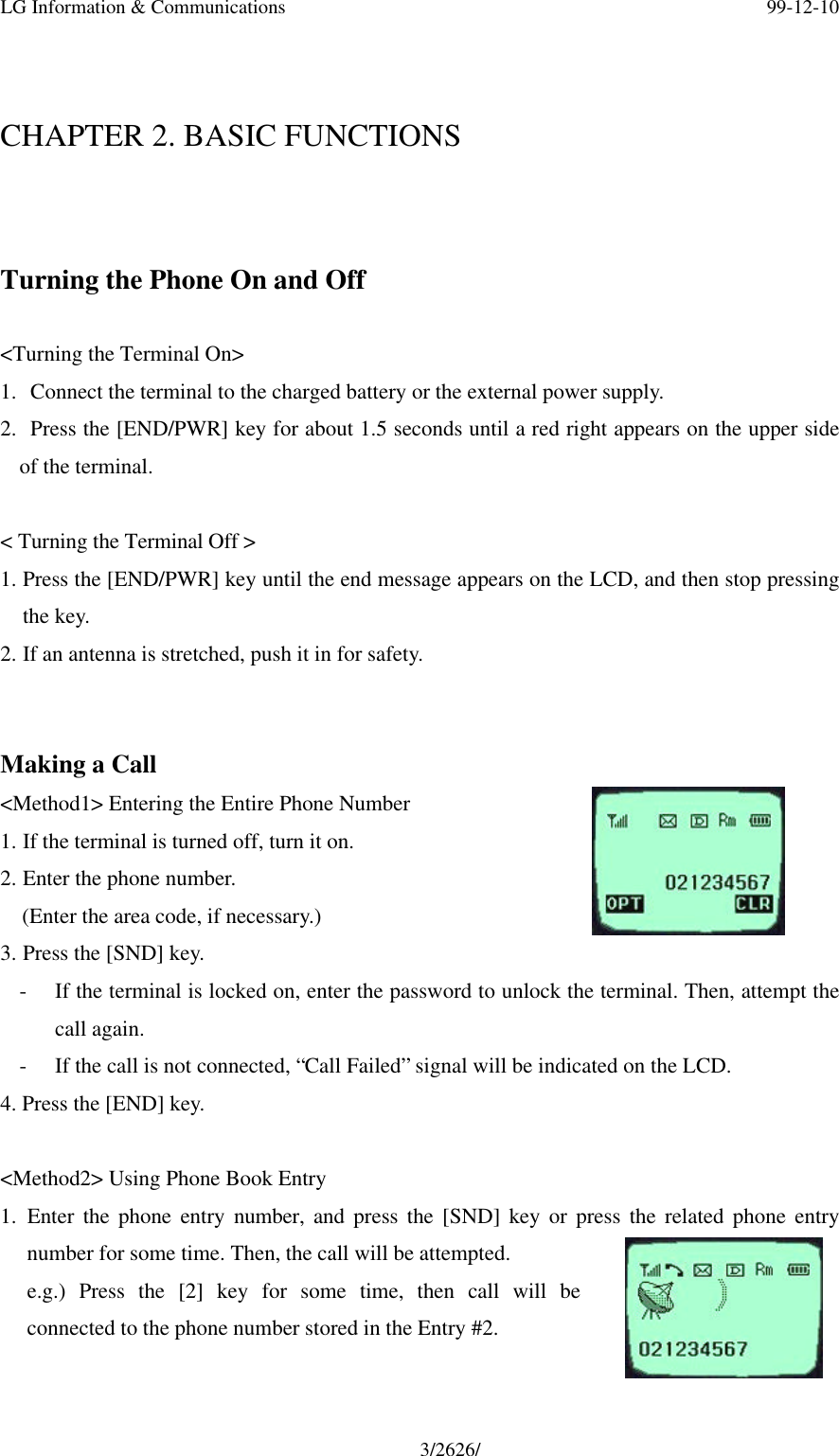

LG Information & Communications 99-12-103/2626/CHAPTER 2. BASIC FUNCTIONSTurning the Phone On and Off<Turning the Terminal On>1. Connect the terminal to the charged battery or the external power supply.2. Press the [END/PWR] key for about 1.5 seconds until a red right appears on the upper sideof the terminal.< Turning the Terminal Off >1. Press the [END/PWR] key until the end message appears on the LCD, and then stop pressingthe key.2. If an antenna is stretched, push it in for safety.Making a Call<Method1> Entering the Entire Phone Number1. If the terminal is turned off, turn it on.2. Enter the phone number. (Enter the area code, if necessary.)3. Press the [SND] key.- If the terminal is locked on, enter the password to unlock the terminal. Then, attempt thecall again.- If the call is not connected, “Call Failed” signal will be indicated on the LCD.4. Press the [END] key.<Method2> Using Phone Book Entry1. Enter the phone entry number, and press the [SND] key or press the related phone entrynumber for some time. Then, the call will be attempted.e.g.) Press the [2] key for some time, then call will beconnected to the phone number stored in the Entry #2.

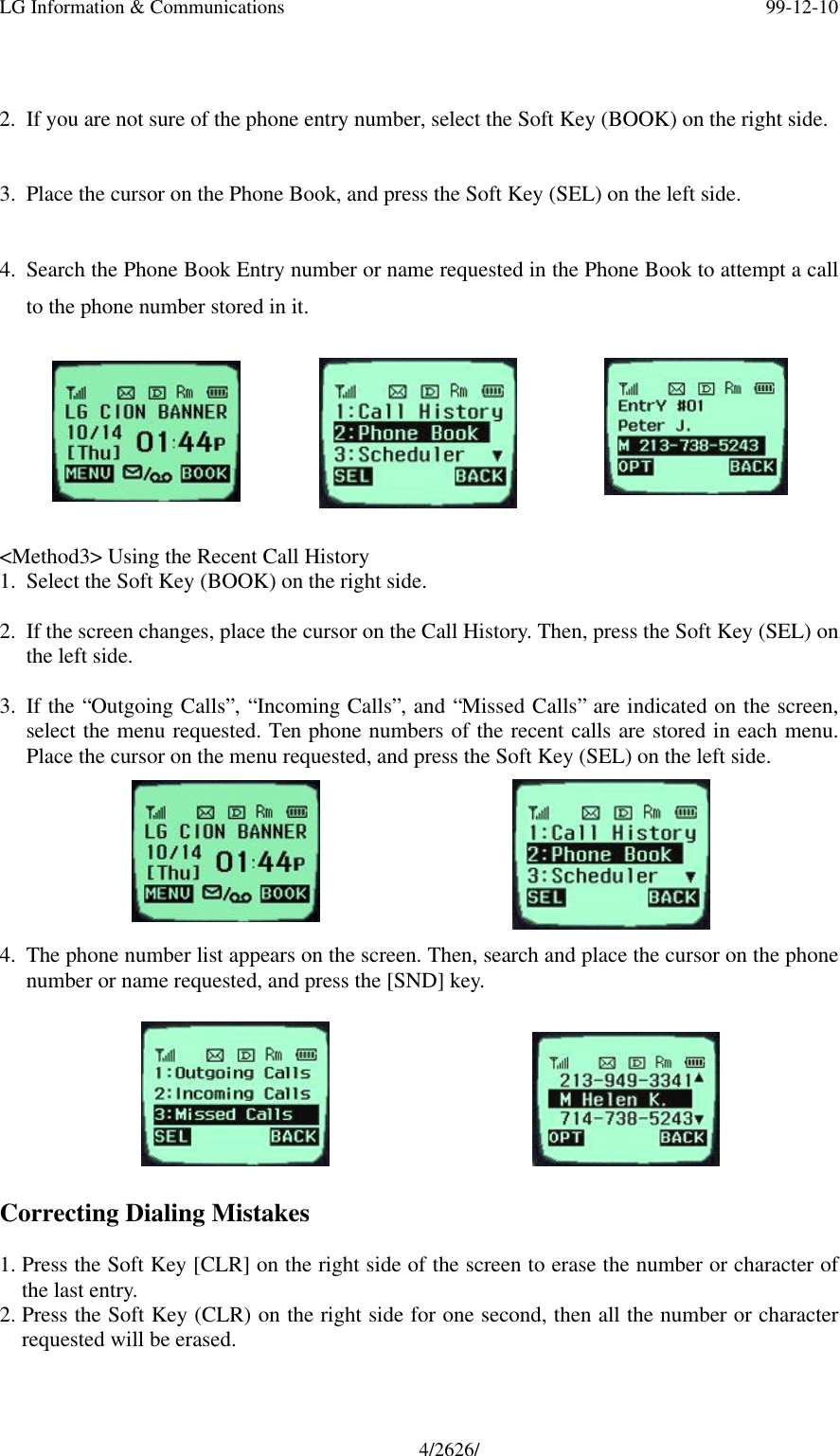

LG Information & Communications 99-12-104/2626/2. If you are not sure of the phone entry number, select the Soft Key (BOOK) on the right side.3. Place the cursor on the Phone Book, and press the Soft Key (SEL) on the left side.4. Search the Phone Book Entry number or name requested in the Phone Book to attempt a callto the phone number stored in it.<Method3> Using the Recent Call History1. Select the Soft Key (BOOK) on the right side.2. If the screen changes, place the cursor on the Call History. Then, press the Soft Key (SEL) onthe left side.3. If the “Outgoing Calls”, “Incoming Calls”, and “Missed Calls” are indicated on the screen,select the menu requested. Ten phone numbers of the recent calls are stored in each menu.Place the cursor on the menu requested, and press the Soft Key (SEL) on the left side.4. The phone number list appears on the screen. Then, search and place the cursor on the phonenumber or name requested, and press the [SND] key.Correcting Dialing Mistakes1. Press the Soft Key [CLR] on the right side of the screen to erase the number or character ofthe last entry.2. Press the Soft Key (CLR) on the right side for one second, then all the number or characterrequested will be erased.

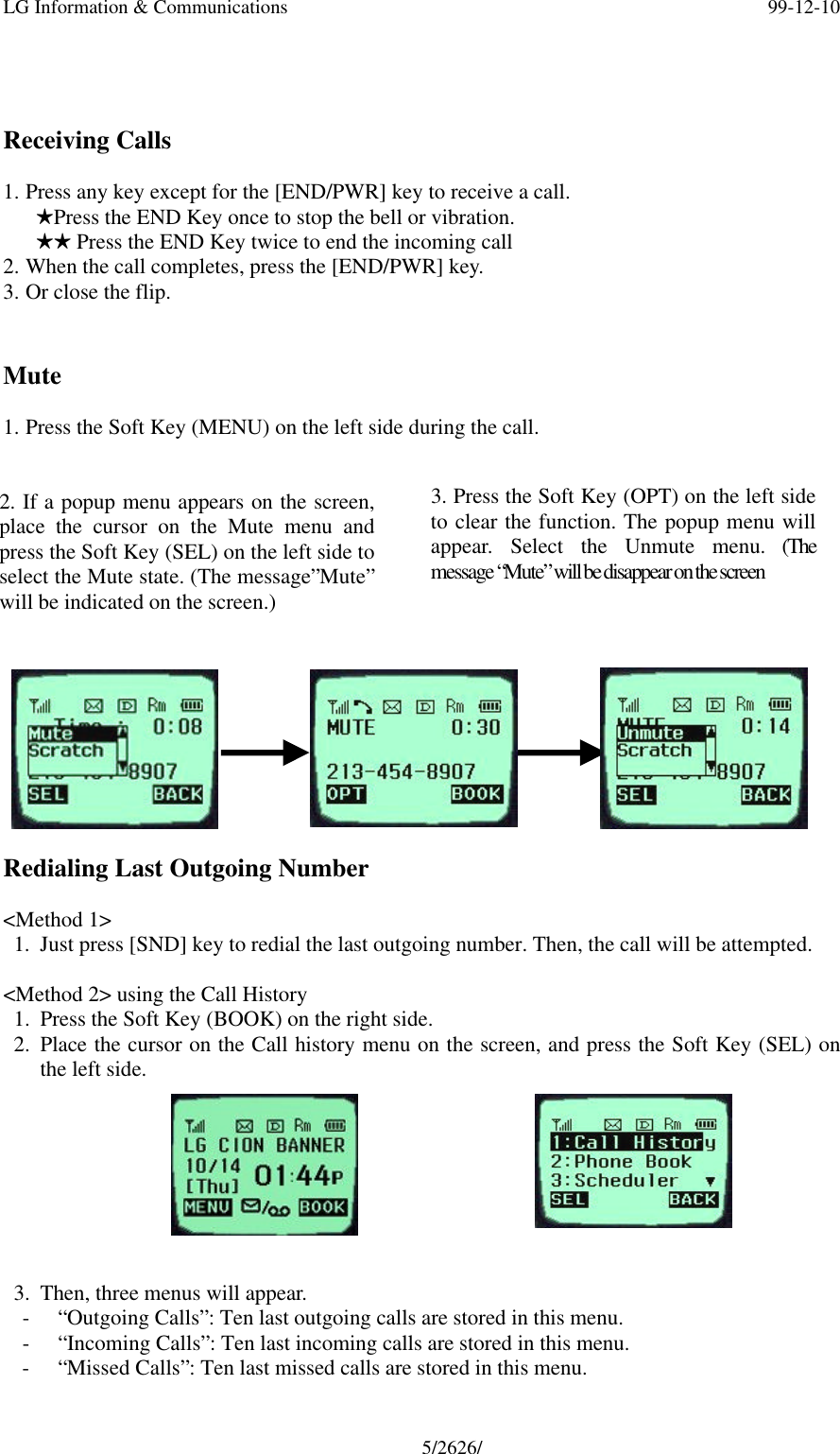

LG Information & Communications 99-12-105/2626/Receiving Calls1. Press any key except for the [END/PWR] key to receive a call. HPress the END Key once to stop the bell or vibration. HH Press the END Key twice to end the incoming call2. When the call completes, press the [END/PWR] key.3. Or close the flip.Mute1. Press the Soft Key (MENU) on the left side during the call.Redialing Last Outgoing Number<Method 1>1. Just press [SND] key to redial the last outgoing number. Then, the call will be attempted.<Method 2> using the Call History1. Press the Soft Key (BOOK) on the right side.2. Place the cursor on the Call history menu on the screen, and press the Soft Key (SEL) onthe left side.3. Then, three menus will appear.- “Outgoing Calls”: Ten last outgoing calls are stored in this menu.- “Incoming Calls”: Ten last incoming calls are stored in this menu.- “Missed Calls”: Ten last missed calls are stored in this menu.2. If a popup menu appears on the screen,place the cursor on the Mute menu andpress the Soft Key (SEL) on the left side toselect the Mute state. (The message”Mute”will be indicated on the screen.)3. Press the Soft Key (OPT) on the left sideto clear the function. The popup menu willappear. Select the Unmute menu. (Themessage “Mute” will be disappear on the screen

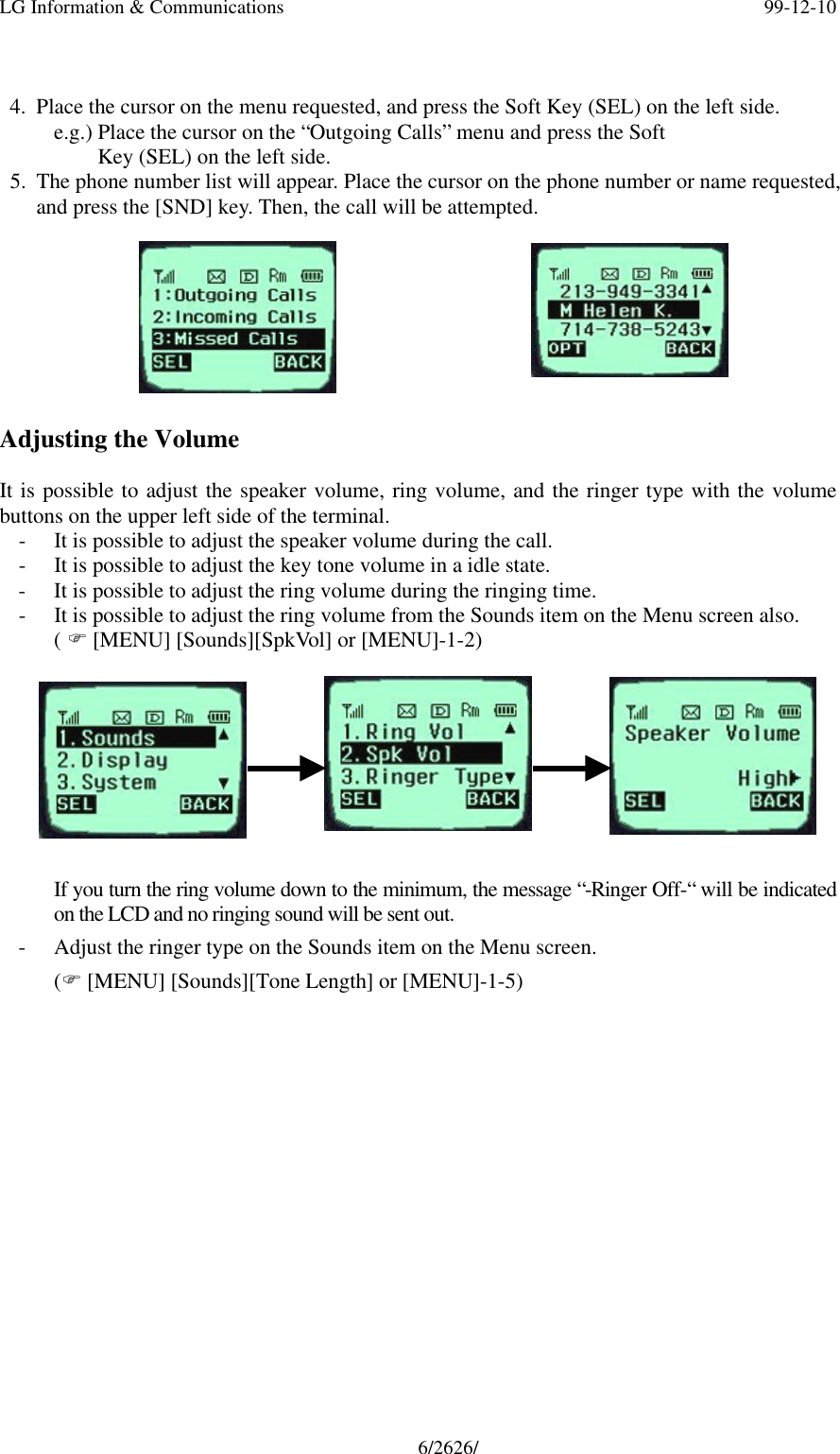

LG Information & Communications 99-12-106/2626/4. Place the cursor on the menu requested, and press the Soft Key (SEL) on the left side.e.g.) Place the cursor on the “Outgoing Calls” menu and press the Soft Key (SEL) on the left side.5. The phone number list will appear. Place the cursor on the phone number or name requested,and press the [SND] key. Then, the call will be attempted.Adjusting the VolumeIt is possible to adjust the speaker volume, ring volume, and the ringer type with the volumebuttons on the upper left side of the terminal.- It is possible to adjust the speaker volume during the call.- It is possible to adjust the key tone volume in a idle state.- It is possible to adjust the ring volume during the ringing time.- It is possible to adjust the ring volume from the Sounds item on the Menu screen also.( F [MENU] [Sounds][SpkVol] or [MENU]-1-2)If you turn the ring volume down to the minimum, the message “-Ringer Off-“ will be indicatedon the LCD and no ringing sound will be sent out.- Adjust the ringer type on the Sounds item on the Menu screen.(F [MENU] [Sounds][Tone Length] or [MENU]-1-5)

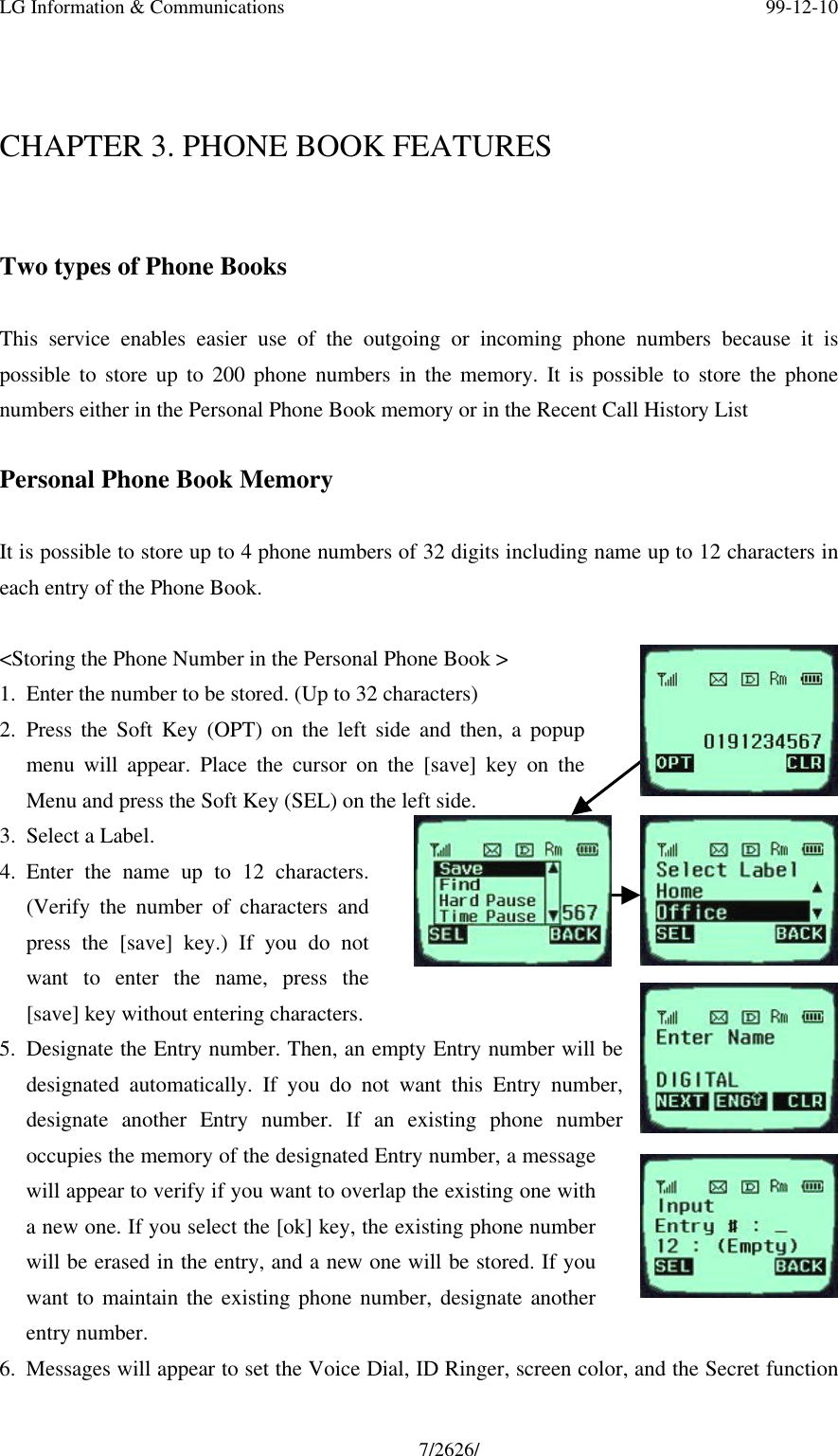

LG Information & Communications 99-12-107/2626/CHAPTER 3. PHONE BOOK FEATURESTwo types of Phone BooksThis service enables easier use of the outgoing or incoming phone numbers because it ispossible to store up to 200 phone numbers in the memory. It is possible to store the phonenumbers either in the Personal Phone Book memory or in the Recent Call History ListPersonal Phone Book MemoryIt is possible to store up to 4 phone numbers of 32 digits including name up to 12 characters ineach entry of the Phone Book.<Storing the Phone Number in the Personal Phone Book >1. Enter the number to be stored. (Up to 32 characters)2. Press the Soft Key (OPT) on the left side and then, a popupmenu will appear. Place the cursor on the [save] key on theMenu and press the Soft Key (SEL) on the left side.3. Select a Label.4. Enter the name up to 12 characters.(Verify the number of characters andpress the [save] key.) If you do notwant to enter the name, press the[save] key without entering characters.5. Designate the Entry number. Then, an empty Entry number will bedesignated automatically. If you do not want this Entry number,designate another Entry number. If an existing phone numberoccupies the memory of the designated Entry number, a messagewill appear to verify if you want to overlap the existing one witha new one. If you select the [ok] key, the existing phone numberwill be erased in the entry, and a new one will be stored. If youwant to maintain the existing phone number, designate anotherentry number.6. Messages will appear to set the Voice Dial, ID Ringer, screen color, and the Secret function

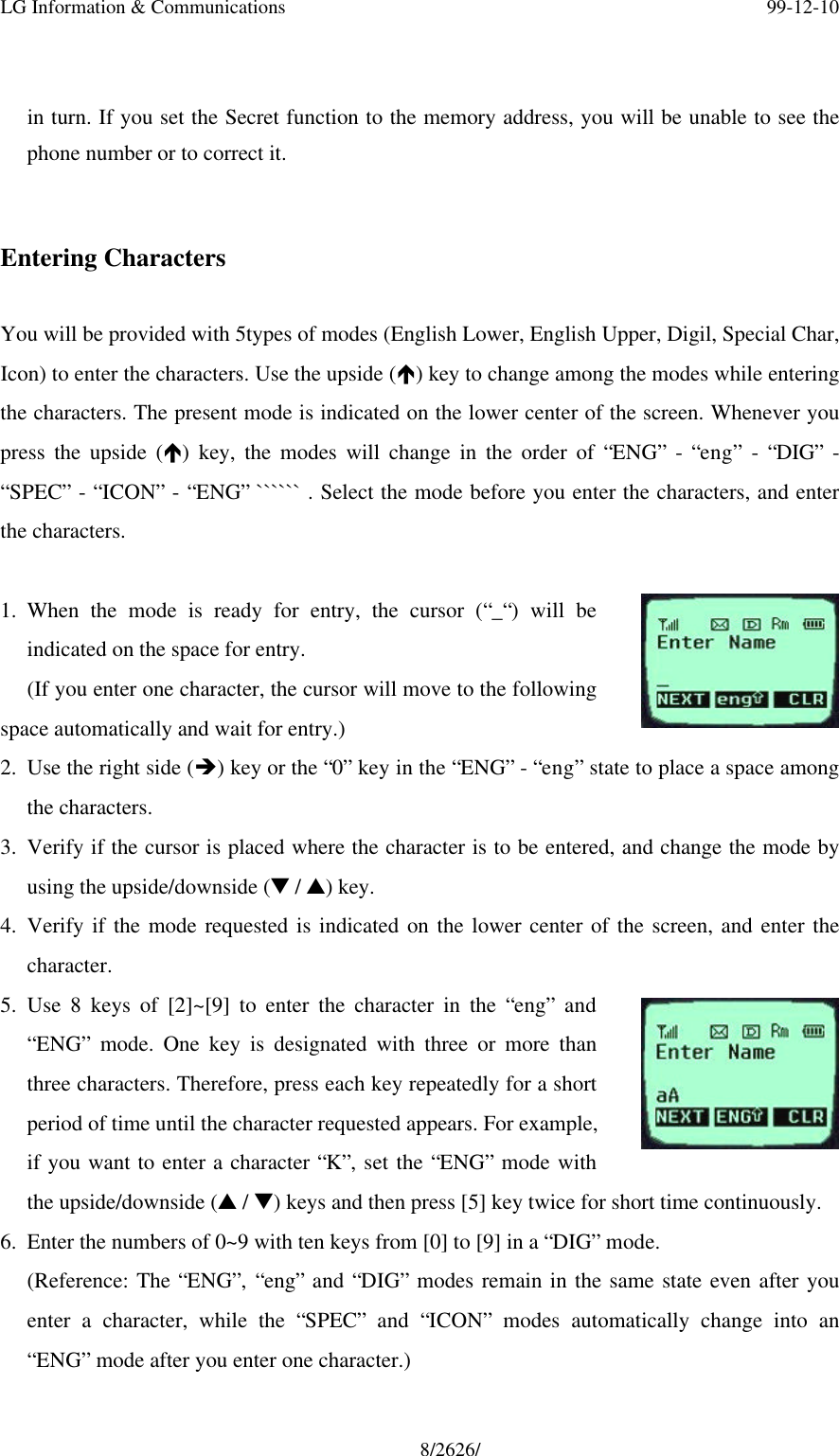

LG Information & Communications 99-12-108/2626/in turn. If you set the Secret function to the memory address, you will be unable to see thephone number or to correct it.Entering CharactersYou will be provided with 5types of modes (English Lower, English Upper, Digil, Special Char,Icon) to enter the characters. Use the upside (é) key to change among the modes while enteringthe characters. The present mode is indicated on the lower center of the screen. Whenever youpress the upside (é) key, the modes will change in the order of “ENG” - “eng” - “DIG” -“SPEC” - “ICON” - “ENG” `````` . Select the mode before you enter the characters, and enterthe characters.1. When the mode is ready for entry, the cursor (“_“) will beindicated on the space for entry.(If you enter one character, the cursor will move to the followingspace automatically and wait for entry.)2. Use the right side (è) key or the “0” key in the “ENG” - “eng” state to place a space amongthe characters.3. Verify if the cursor is placed where the character is to be entered, and change the mode byusing the upside/downside (t / s) key.4. Verify if the mode requested is indicated on the lower center of the screen, and enter thecharacter.5. Use 8 keys of [2]~[9] to enter the character in the “eng” and“ENG” mode. One key is designated with three or more thanthree characters. Therefore, press each key repeatedly for a shortperiod of time until the character requested appears. For example,if you want to enter a character “K”, set the “ENG” mode withthe upside/downside (s / t) keys and then press [5] key twice for short time continuously.6. Enter the numbers of 0~9 with ten keys from [0] to [9] in a “DIG” mode.(Reference: The “ENG”, “eng” and “DIG” modes remain in the same state even after youenter a character, while the “SPEC” and “ICON” modes automatically change into an“ENG” mode after you enter one character.)

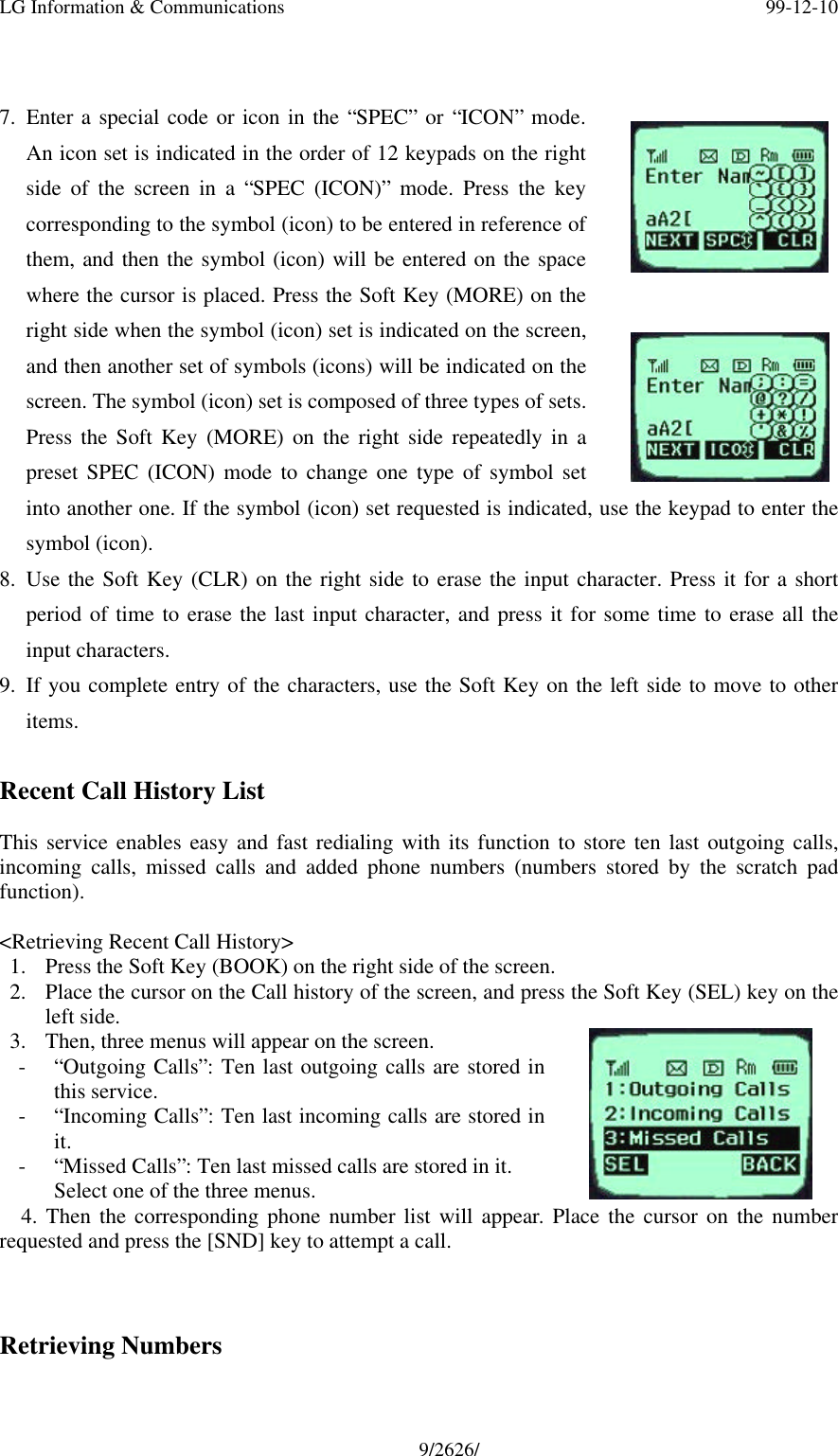

LG Information & Communications 99-12-109/2626/7. Enter a special code or icon in the “SPEC” or “ICON” mode.An icon set is indicated in the order of 12 keypads on the rightside of the screen in a “SPEC (ICON)” mode. Press the keycorresponding to the symbol (icon) to be entered in reference ofthem, and then the symbol (icon) will be entered on the spacewhere the cursor is placed. Press the Soft Key (MORE) on theright side when the symbol (icon) set is indicated on the screen,and then another set of symbols (icons) will be indicated on thescreen. The symbol (icon) set is composed of three types of sets.Press the Soft Key (MORE) on the right side repeatedly in apreset SPEC (ICON) mode to change one type of symbol setinto another one. If the symbol (icon) set requested is indicated, use the keypad to enter thesymbol (icon).8. Use the Soft Key (CLR) on the right side to erase the input character. Press it for a shortperiod of time to erase the last input character, and press it for some time to erase all theinput characters.9. If you complete entry of the characters, use the Soft Key on the left side to move to otheritems.Recent Call History ListThis service enables easy and fast redialing with its function to store ten last outgoing calls,incoming calls, missed calls and added phone numbers (numbers stored by the scratch padfunction).<Retrieving Recent Call History>1. Press the Soft Key (BOOK) on the right side of the screen.2. Place the cursor on the Call history of the screen, and press the Soft Key (SEL) key on theleft side.3. Then, three menus will appear on the screen.- “Outgoing Calls”: Ten last outgoing calls are stored inthis service.- “Incoming Calls”: Ten last incoming calls are stored init.- “Missed Calls”: Ten last missed calls are stored in it.Select one of the three menus. 4. Then the corresponding phone number list will appear. Place the cursor on the numberrequested and press the [SND] key to attempt a call.Retrieving Numbers

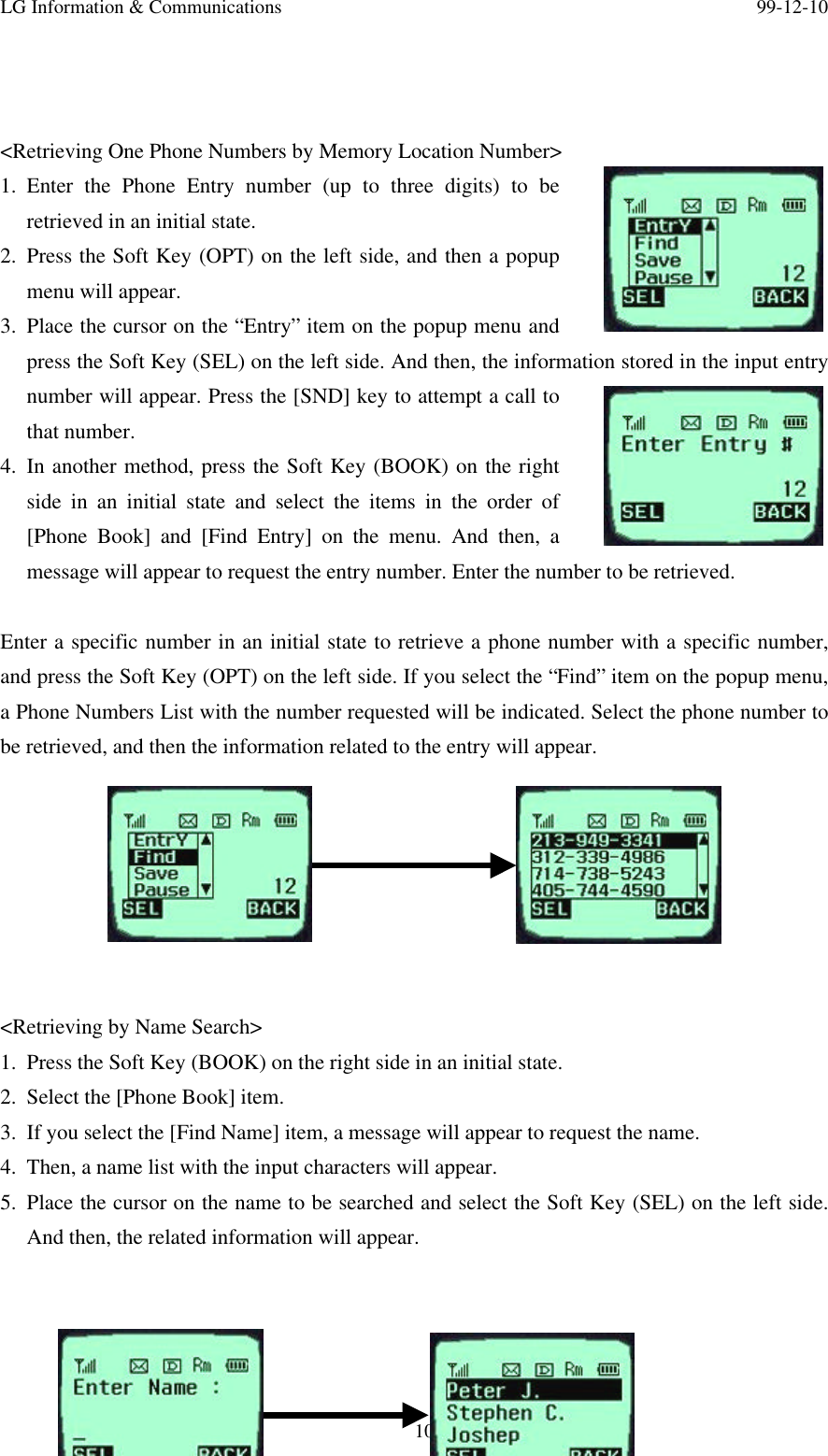

LG Information & Communications 99-12-1010/2626/<Retrieving One Phone Numbers by Memory Location Number>1. Enter the Phone Entry number (up to three digits) to beretrieved in an initial state.2. Press the Soft Key (OPT) on the left side, and then a popupmenu will appear.3. Place the cursor on the “Entry” item on the popup menu andpress the Soft Key (SEL) on the left side. And then, the information stored in the input entrynumber will appear. Press the [SND] key to attempt a call tothat number.4. In another method, press the Soft Key (BOOK) on the rightside in an initial state and select the items in the order of[Phone Book] and [Find Entry] on the menu. And then, amessage will appear to request the entry number. Enter the number to be retrieved.Enter a specific number in an initial state to retrieve a phone number with a specific number,and press the Soft Key (OPT) on the left side. If you select the “Find” item on the popup menu,a Phone Numbers List with the number requested will be indicated. Select the phone number tobe retrieved, and then the information related to the entry will appear.<Retrieving by Name Search>1. Press the Soft Key (BOOK) on the right side in an initial state.2. Select the [Phone Book] item.3. If you select the [Find Name] item, a message will appear to request the name.4. Then, a name list with the input characters will appear.5. Place the cursor on the name to be searched and select the Soft Key (SEL) on the left side.And then, the related information will appear.

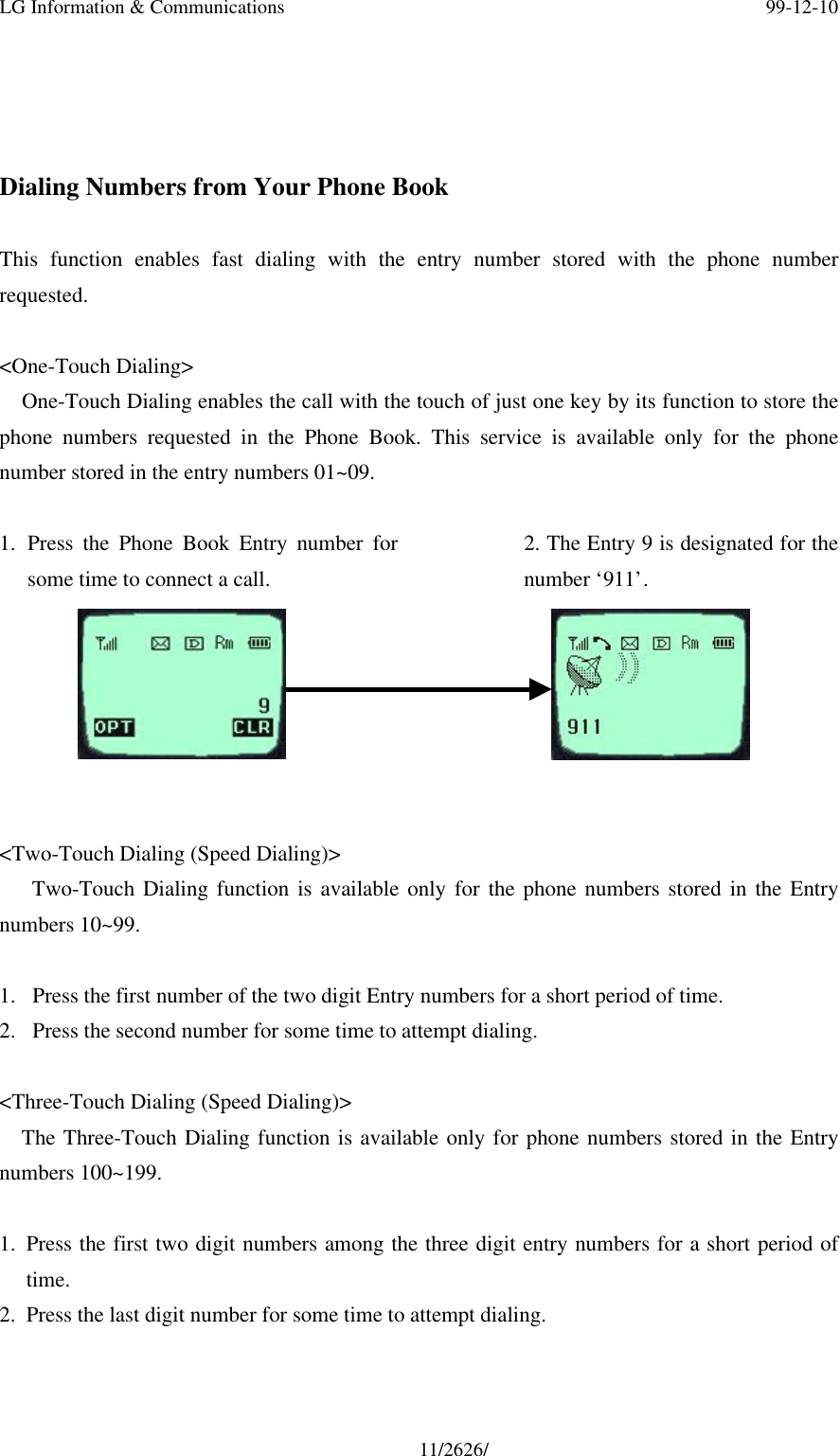

LG Information & Communications 99-12-1011/2626/Dialing Numbers from Your Phone BookThis function enables fast dialing with the entry number stored with the phone numberrequested.<One-Touch Dialing>One-Touch Dialing enables the call with the touch of just one key by its function to store thephone numbers requested in the Phone Book. This service is available only for the phonenumber stored in the entry numbers 01~09.1. Press the Phone Book Entry number forsome time to connect a call.2. The Entry 9 is designated for thenumber ‘911’.<Two-Touch Dialing (Speed Dialing)> Two-Touch Dialing function is available only for the phone numbers stored in the Entrynumbers 10~99.1. Press the first number of the two digit Entry numbers for a short period of time.2. Press the second number for some time to attempt dialing.<Three-Touch Dialing (Speed Dialing)>The Three-Touch Dialing function is available only for phone numbers stored in the Entrynumbers 100~199.1. Press the first two digit numbers among the three digit entry numbers for a short period oftime.2. Press the last digit number for some time to attempt dialing.

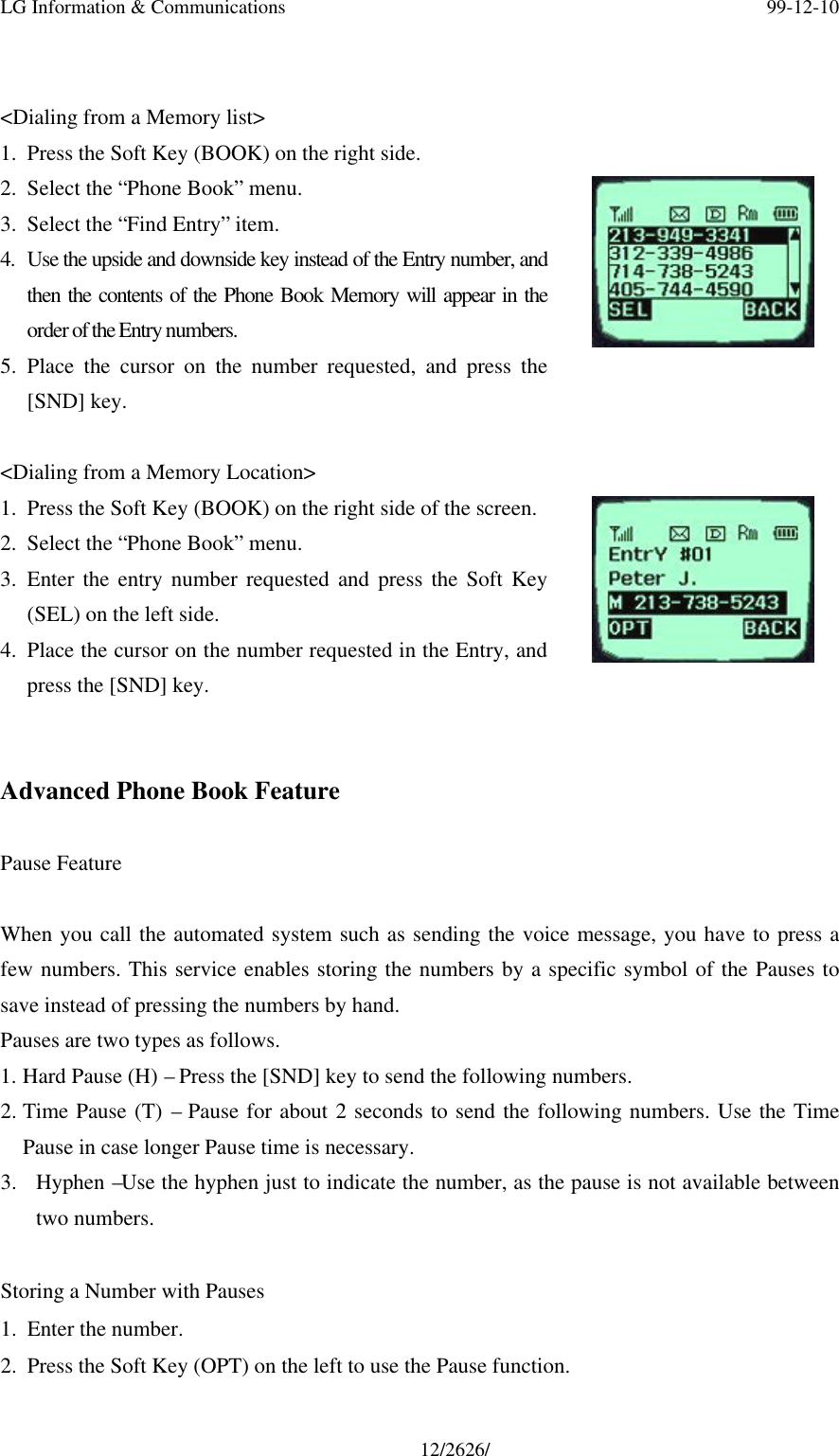

LG Information & Communications 99-12-1012/2626/<Dialing from a Memory list>1. Press the Soft Key (BOOK) on the right side.2. Select the “Phone Book” menu.3. Select the “Find Entry” item.4. Use the upside and downside key instead of the Entry number, andthen the contents of the Phone Book Memory will appear in theorder of the Entry numbers.5. Place the cursor on the number requested, and press the[SND] key.<Dialing from a Memory Location>1. Press the Soft Key (BOOK) on the right side of the screen.2. Select the “Phone Book” menu.3. Enter the entry number requested and press the Soft Key(SEL) on the left side.4. Place the cursor on the number requested in the Entry, andpress the [SND] key.Advanced Phone Book FeaturePause FeatureWhen you call the automated system such as sending the voice message, you have to press afew numbers. This service enables storing the numbers by a specific symbol of the Pauses tosave instead of pressing the numbers by hand.Pauses are two types as follows.1. Hard Pause (H) – Press the [SND] key to send the following numbers.2. Time Pause (T) – Pause for about 2 seconds to send the following numbers. Use the TimePause in case longer Pause time is necessary.3. Hyphen –Use the hyphen just to indicate the number, as the pause is not available betweentwo numbers. Storing a Number with Pauses1. Enter the number.2. Press the Soft Key (OPT) on the left to use the Pause function.

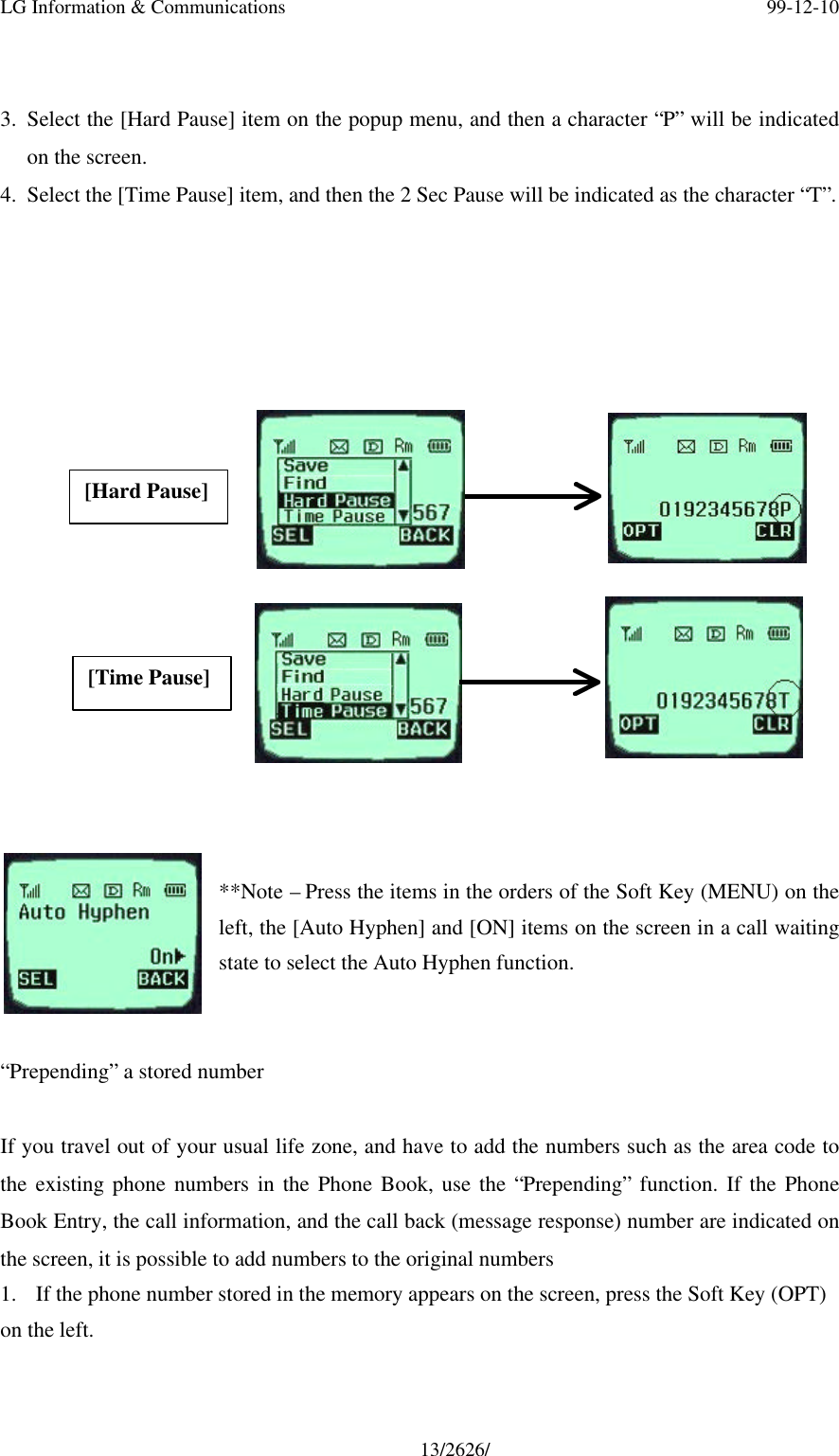

LG Information & Communications 99-12-1013/2626/3. Select the [Hard Pause] item on the popup menu, and then a character “P” will be indicatedon the screen.4. Select the [Time Pause] item, and then the 2 Sec Pause will be indicated as the character “T”. **Note – Press the items in the orders of the Soft Key (MENU) on theleft, the [Auto Hyphen] and [ON] items on the screen in a call waitingstate to select the Auto Hyphen function.“Prepending” a stored numberIf you travel out of your usual life zone, and have to add the numbers such as the area code tothe existing phone numbers in the Phone Book, use the “Prepending” function. If the PhoneBook Entry, the call information, and the call back (message response) number are indicated onthe screen, it is possible to add numbers to the original numbers1. If the phone number stored in the memory appears on the screen, press the Soft Key (OPT)on the left.[Hard Pause][Time Pause]

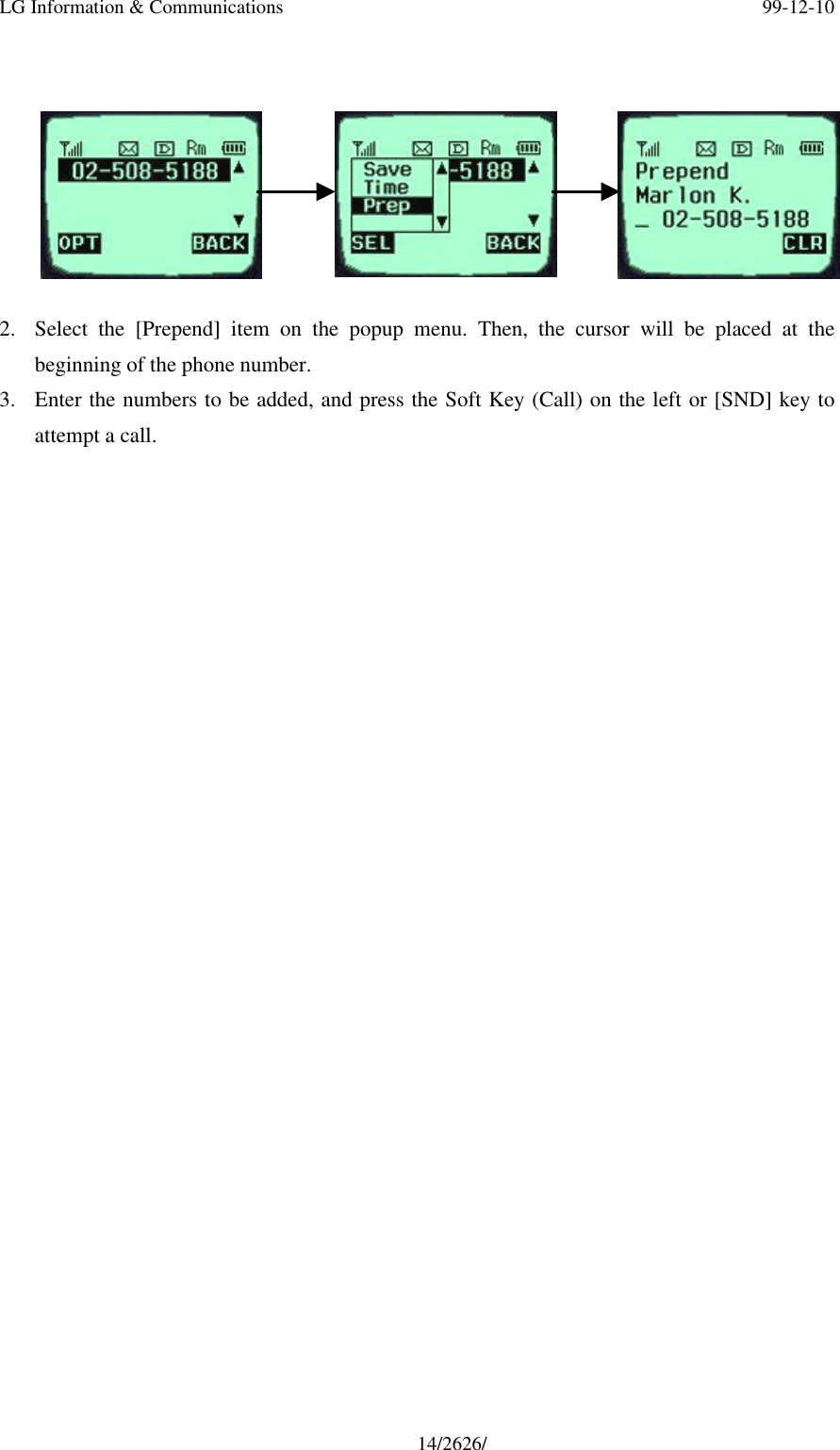

LG Information & Communications 99-12-1014/2626/2. Select the [Prepend] item on the popup menu. Then, the cursor will be placed at thebeginning of the phone number.3. Enter the numbers to be added, and press the Soft Key (Call) on the left or [SND] key toattempt a call.

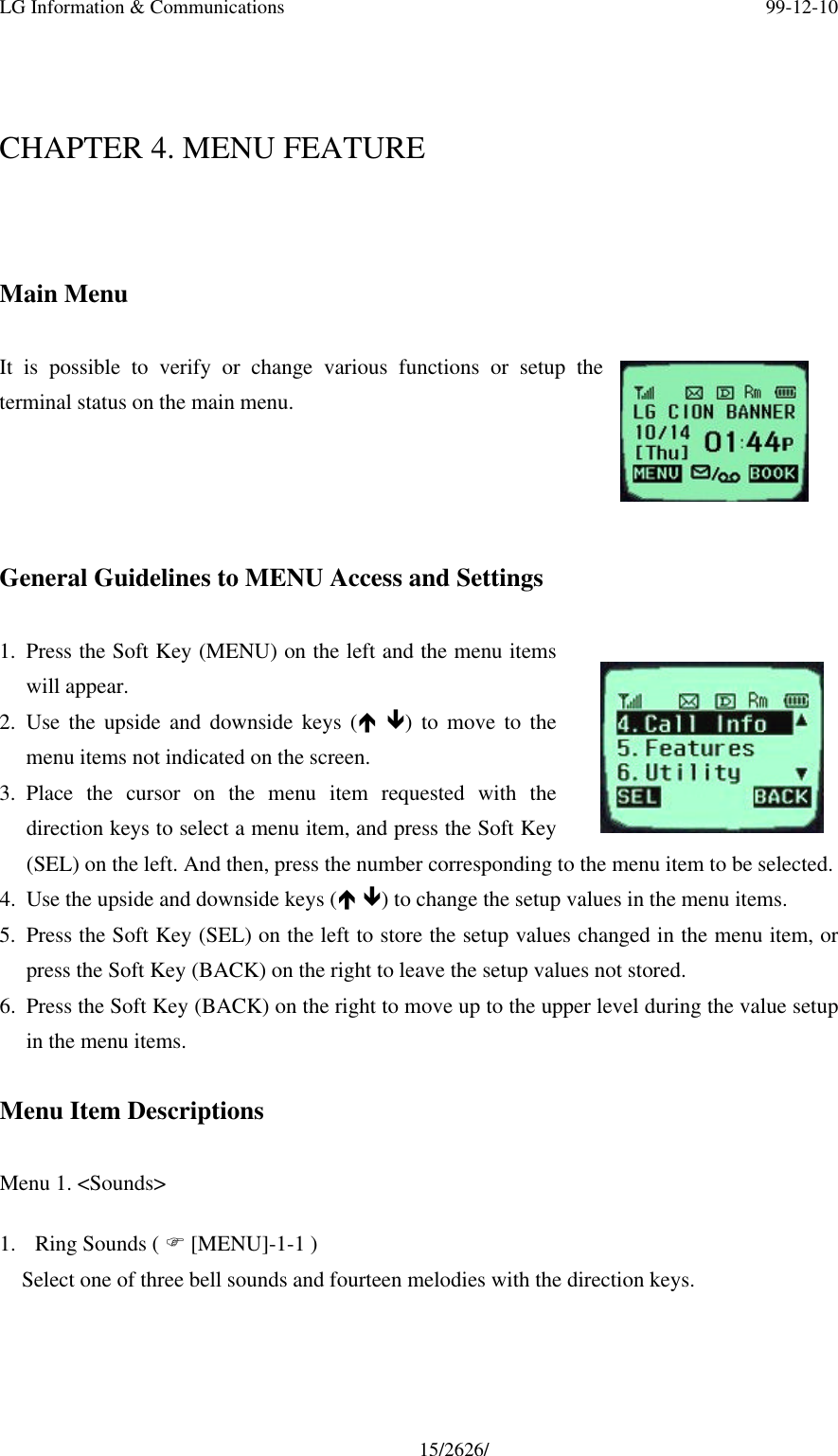

LG Information & Communications 99-12-1015/2626/CHAPTER 4. MENU FEATUREMain MenuIt is possible to verify or change various functions or setup theterminal status on the main menu.General Guidelines to MENU Access and Settings1. Press the Soft Key (MENU) on the left and the menu itemswill appear.2. Use the upside and downside keys (é ê) to move to themenu items not indicated on the screen.3. Place the cursor on the menu item requested with thedirection keys to select a menu item, and press the Soft Key(SEL) on the left. And then, press the number corresponding to the menu item to be selected.4. Use the upside and downside keys (é ê) to change the setup values in the menu items.5. Press the Soft Key (SEL) on the left to store the setup values changed in the menu item, orpress the Soft Key (BACK) on the right to leave the setup values not stored.6. Press the Soft Key (BACK) on the right to move up to the upper level during the value setupin the menu items.Menu Item DescriptionsMenu 1. <Sounds>1. Ring Sounds ( F [MENU]-1-1 )Select one of three bell sounds and fourteen melodies with the direction keys.

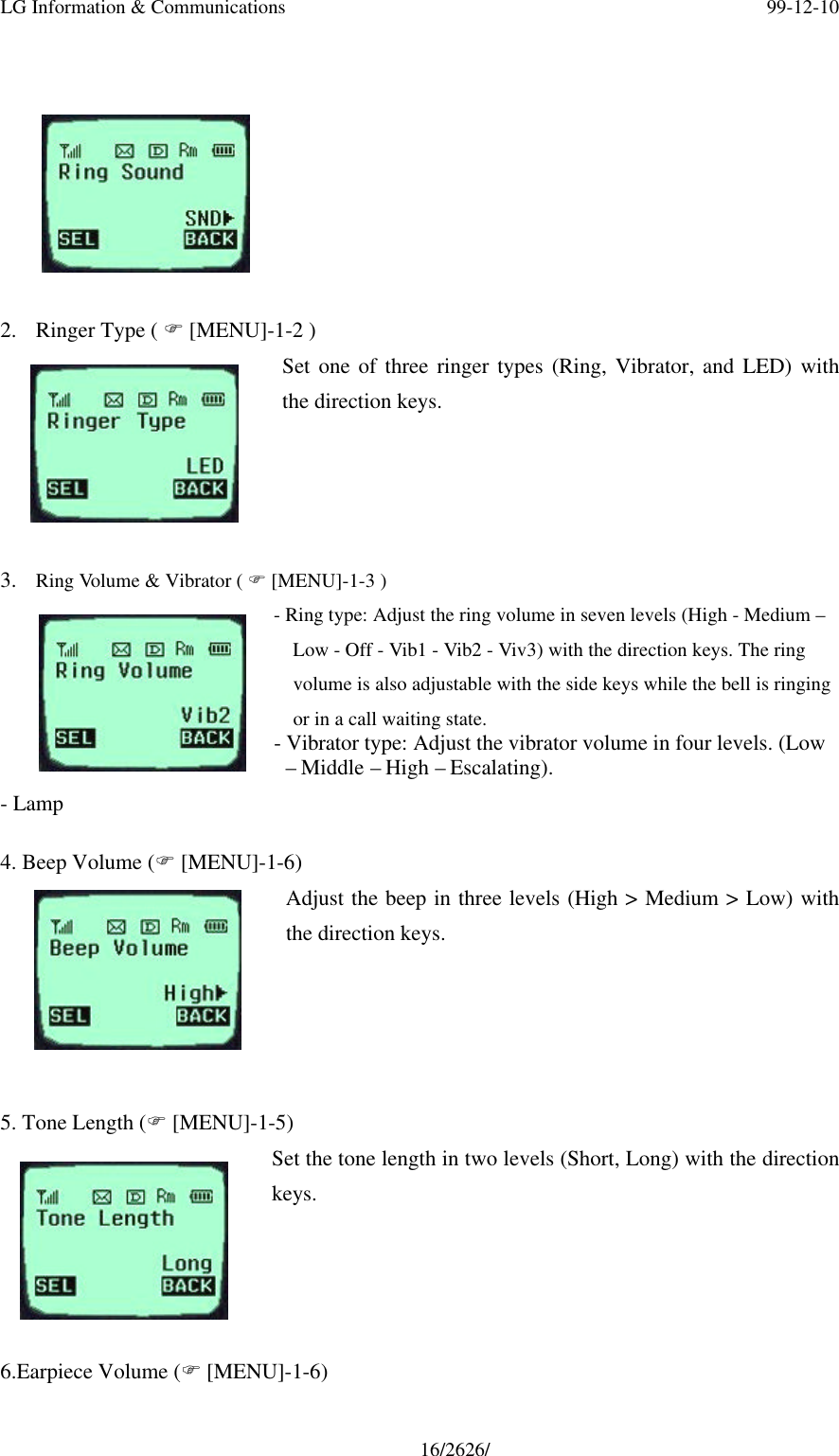

LG Information & Communications 99-12-1016/2626/2. Ringer Type ( F [MENU]-1-2 )Set one of three ringer types (Ring, Vibrator, and LED) withthe direction keys.3. Ring Volume & Vibrator ( F [MENU]-1-3 )- Ring type: Adjust the ring volume in seven levels (High - Medium –Low - Off - Vib1 - Vib2 - Viv3) with the direction keys. The ringvolume is also adjustable with the side keys while the bell is ringingor in a call waiting state.- Vibrator type: Adjust the vibrator volume in four levels. (Low – Middle – High – Escalating).- Lamp4. Beep Volume (F [MENU]-1-6)Adjust the beep in three levels (High > Medium > Low) withthe direction keys.5. Tone Length (F [MENU]-1-5)Set the tone length in two levels (Short, Long) with the directionkeys.6.Earpiece Volume (F [MENU]-1-6)

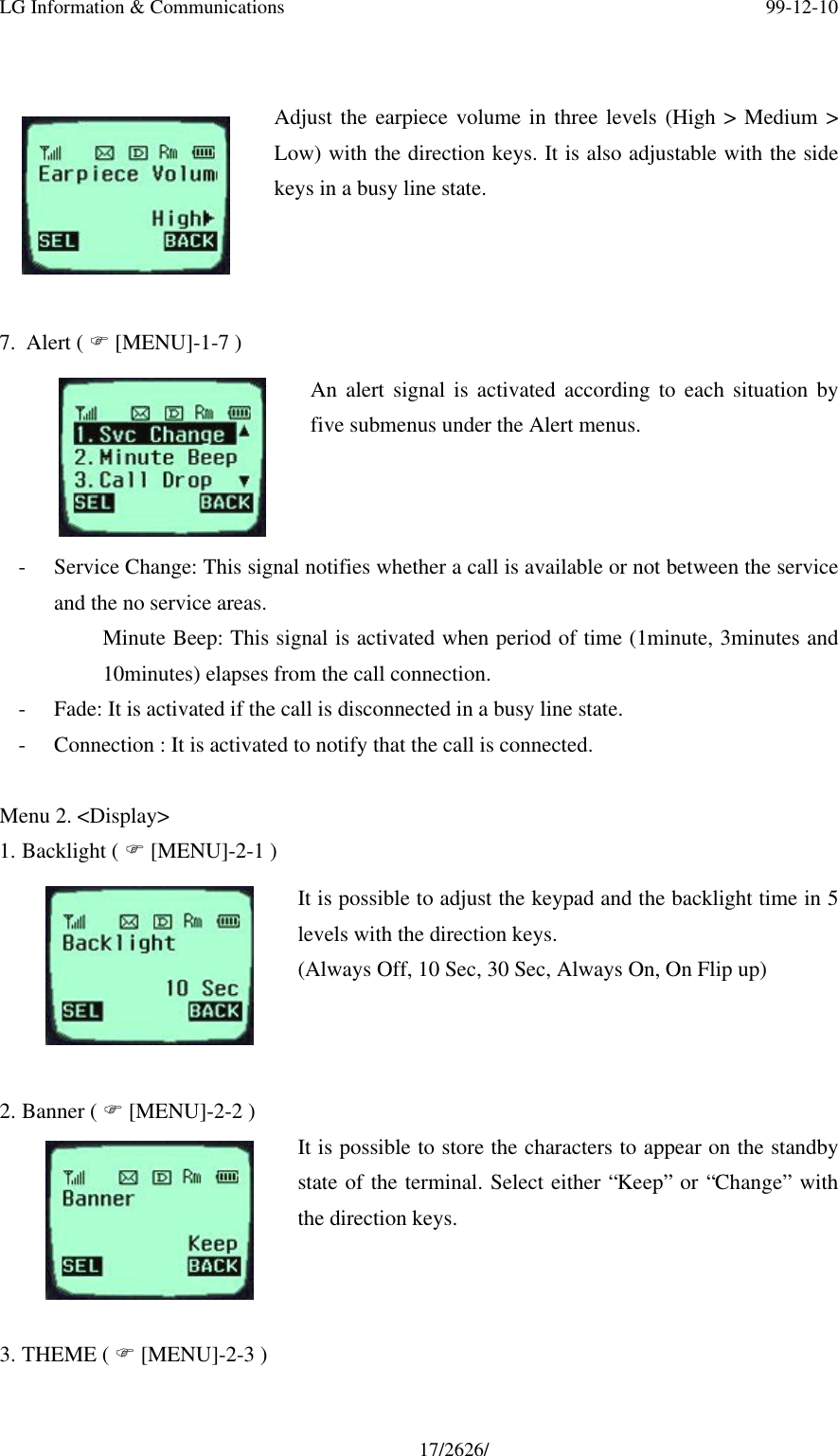

LG Information & Communications 99-12-1017/2626/Adjust the earpiece volume in three levels (High > Medium >Low) with the direction keys. It is also adjustable with the sidekeys in a busy line state.7. Alert ( F [MENU]-1-7 )An alert signal is activated according to each situation byfive submenus under the Alert menus.- Service Change: This signal notifies whether a call is available or not between the serviceand the no service areas.Minute Beep: This signal is activated when period of time (1minute, 3minutes and10minutes) elapses from the call connection.- Fade: It is activated if the call is disconnected in a busy line state.- Connection : It is activated to notify that the call is connected.Menu 2. <Display>1. Backlight ( F [MENU]-2-1 )It is possible to adjust the keypad and the backlight time in 5levels with the direction keys.(Always Off, 10 Sec, 30 Sec, Always On, On Flip up)2. Banner ( F [MENU]-2-2 )It is possible to store the characters to appear on the standbystate of the terminal. Select either “Keep” or “Change” withthe direction keys.3. THEME ( F [MENU]-2-3 )

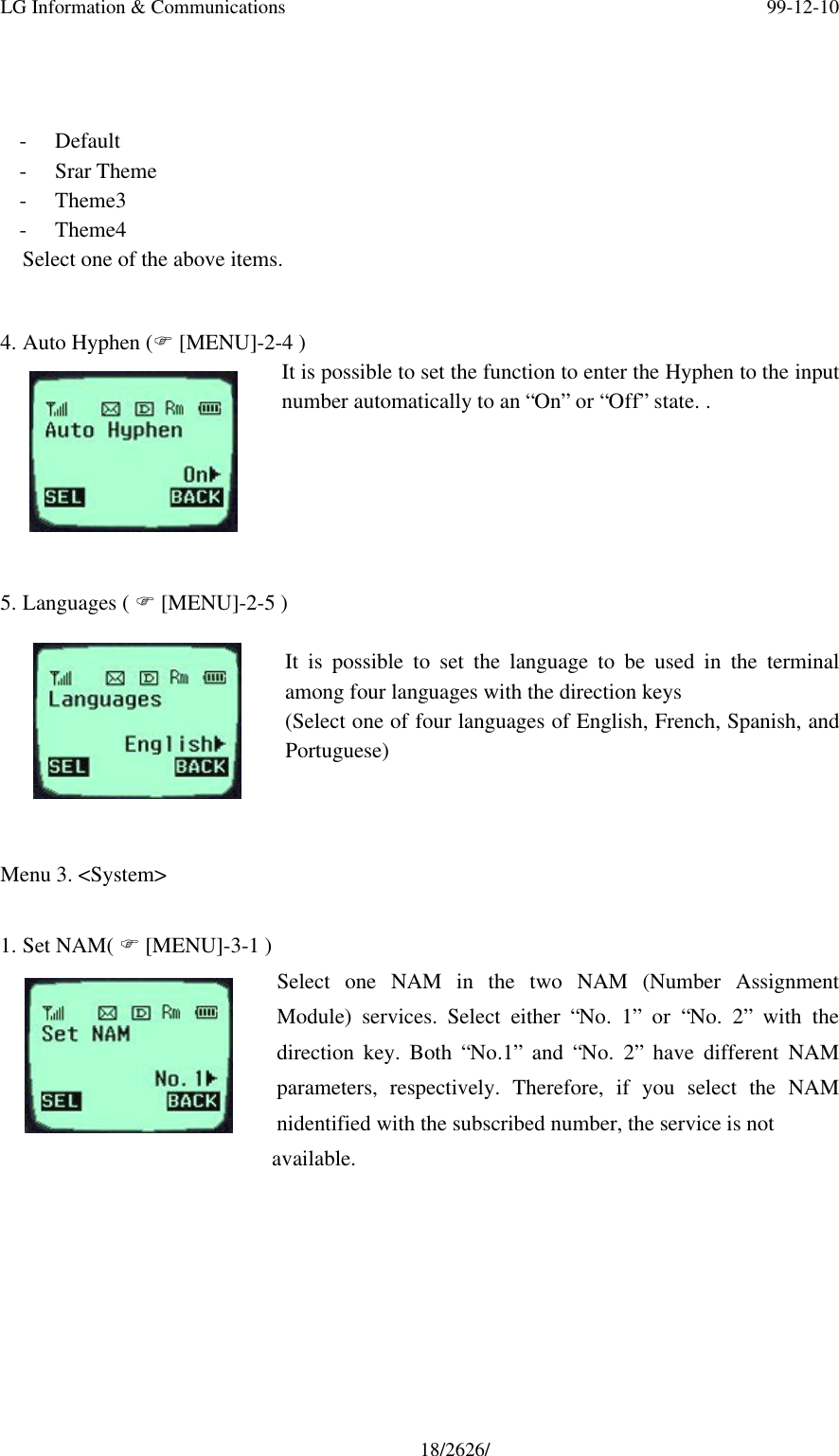

LG Information & Communications 99-12-1018/2626/- Default- Srar Theme- Theme3- Theme4Select one of the above items.4. Auto Hyphen (F [MENU]-2-4 )It is possible to set the function to enter the Hyphen to the inputnumber automatically to an “On” or “Off” state. .5. Languages ( F [MENU]-2-5 )It is possible to set the language to be used in the terminalamong four languages with the direction keys(Select one of four languages of English, French, Spanish, andPortuguese)Menu 3. <System>1. Set NAM( F [MENU]-3-1 )Select one NAM in the two NAM (Number AssignmentModule) services. Select either “No. 1” or “No. 2” with thedirection key. Both “No.1” and “No. 2” have different NAMparameters, respectively. Therefore, if you select the NAMnidentified with the subscribed number, the service is not available.

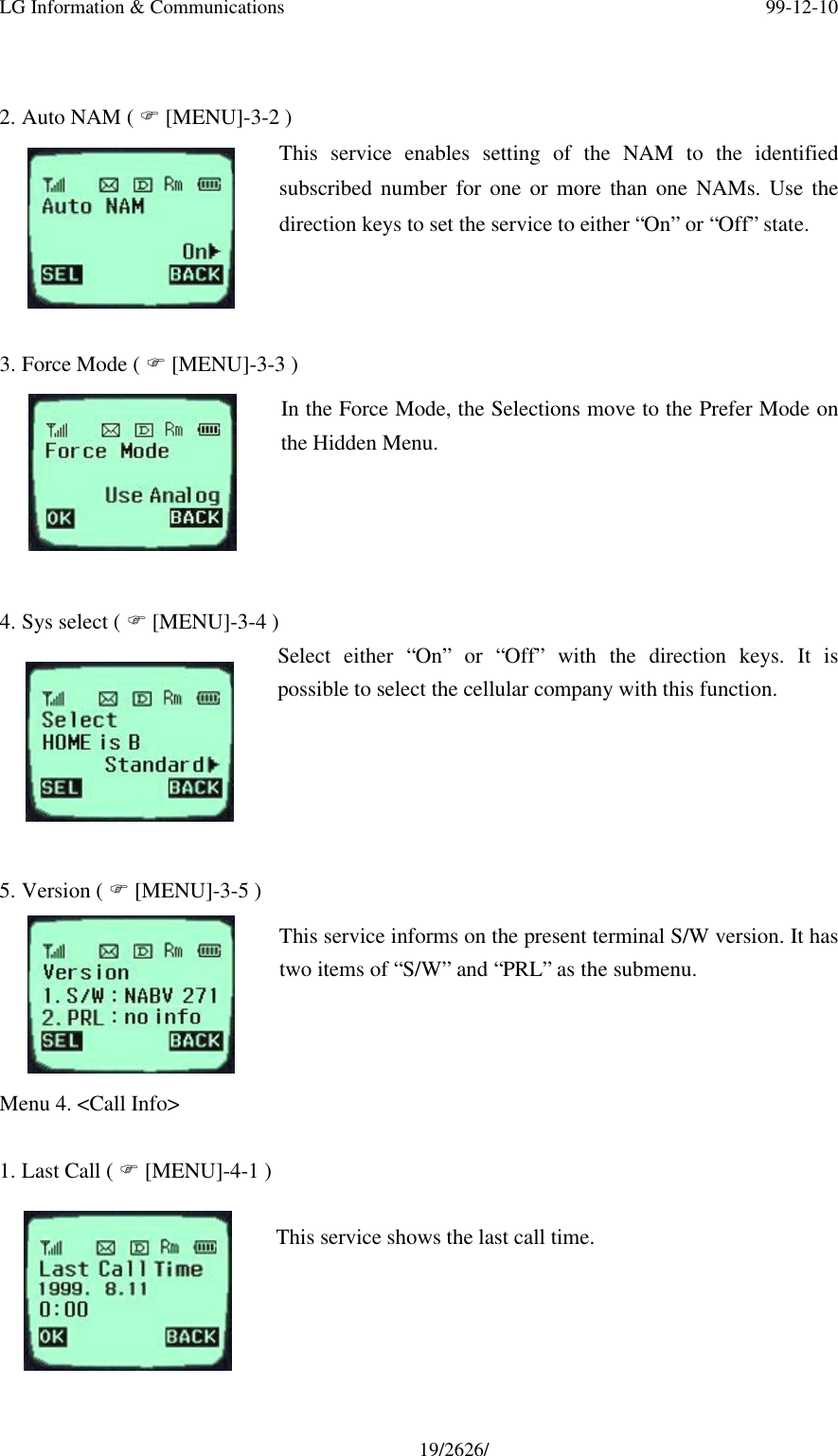

LG Information & Communications 99-12-1019/2626/2. Auto NAM ( F [MENU]-3-2 )This service enables setting of the NAM to the identifiedsubscribed number for one or more than one NAMs. Use thedirection keys to set the service to either “On” or “Off” state.3. Force Mode ( F [MENU]-3-3 )In the Force Mode, the Selections move to the Prefer Mode onthe Hidden Menu.4. Sys select ( F [MENU]-3-4 )Select either “On” or “Off” with the direction keys. It ispossible to select the cellular company with this function.5. Version ( F [MENU]-3-5 )This service informs on the present terminal S/W version. It hastwo items of “S/W” and “PRL” as the submenu.Menu 4. <Call Info>1. Last Call ( F [MENU]-4-1 )This service shows the last call time.

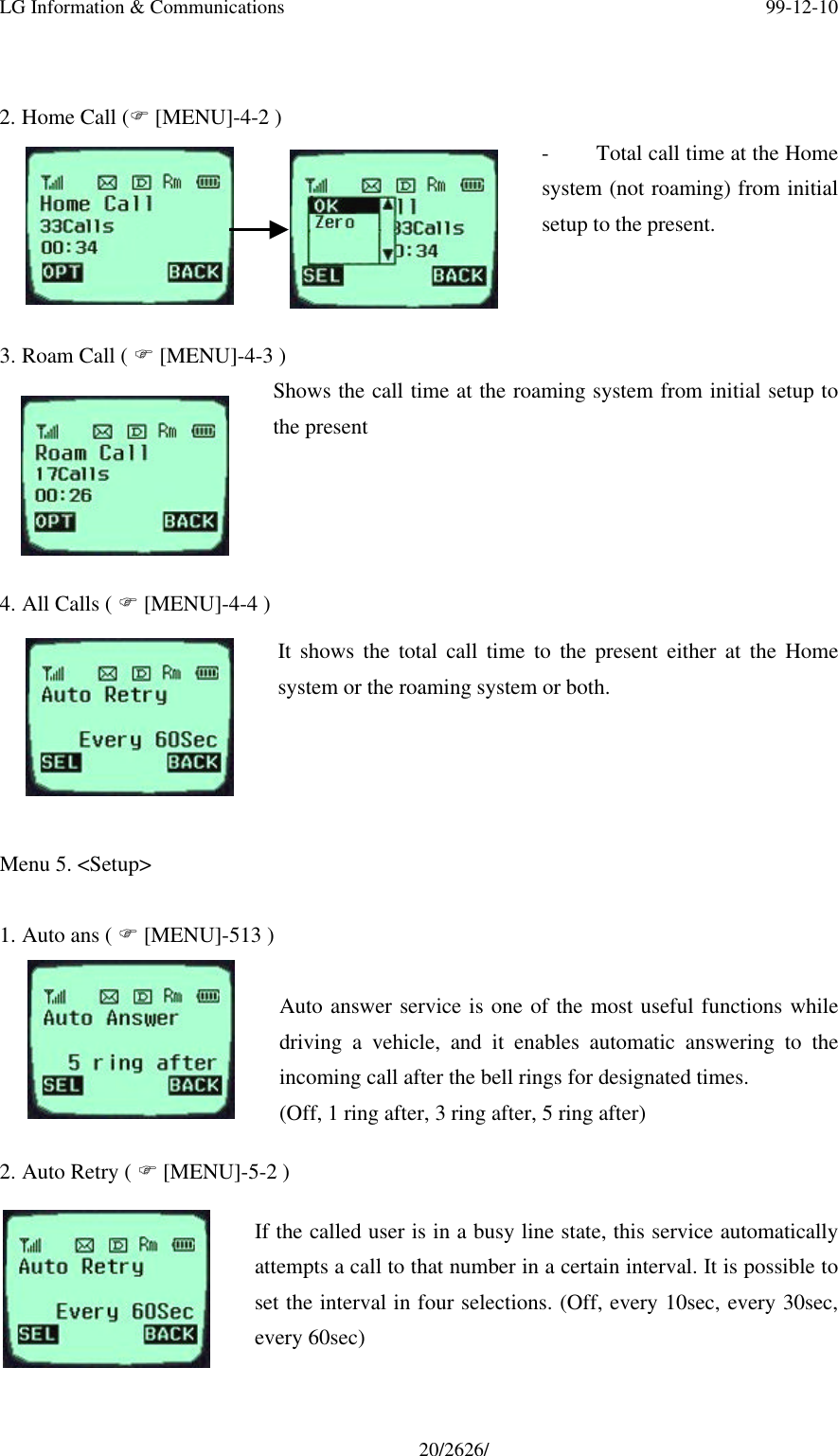

LG Information & Communications 99-12-1020/2626/2. Home Call (F [MENU]-4-2 )- Total call time at the Homesystem (not roaming) from initialsetup to the present.3. Roam Call ( F [MENU]-4-3 )Shows the call time at the roaming system from initial setup tothe present4. All Calls ( F [MENU]-4-4 )It shows the total call time to the present either at the Homesystem or the roaming system or both. Menu 5. <Setup>1. Auto ans ( F [MENU]-513 )Auto answer service is one of the most useful functions whiledriving a vehicle, and it enables automatic answering to theincoming call after the bell rings for designated times.(Off, 1 ring after, 3 ring after, 5 ring after)2. Auto Retry ( F [MENU]-5-2 )If the called user is in a busy line state, this service automaticallyattempts a call to that number in a certain interval. It is possible toset the interval in four selections. (Off, every 10sec, every 30sec,every 60sec)

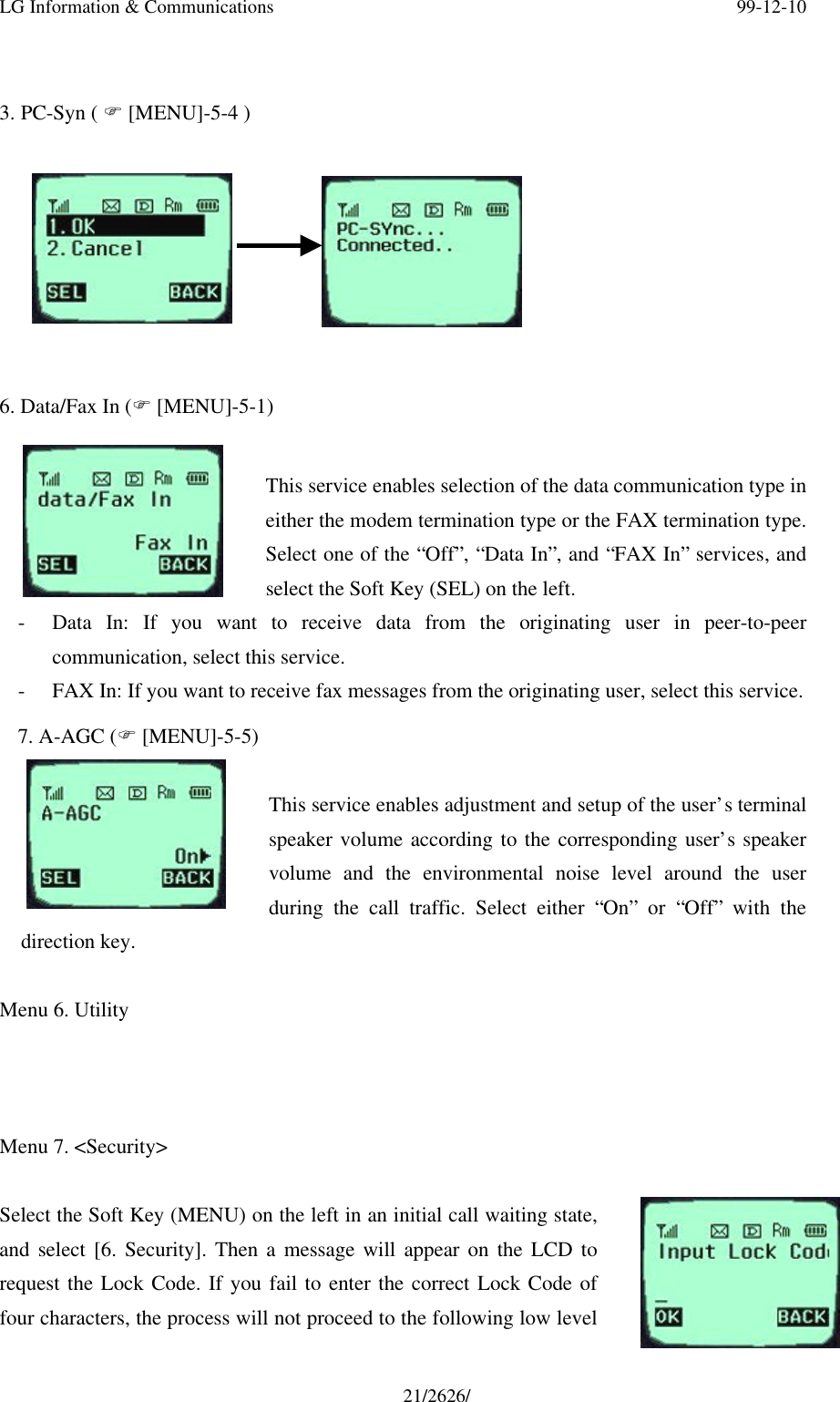

LG Information & Communications 99-12-1021/2626/3. PC-Syn ( F [MENU]-5-4 )6. Data/Fax In (F [MENU]-5-1)This service enables selection of the data communication type ineither the modem termination type or the FAX termination type.Select one of the “Off”, “Data In”, and “FAX In” services, andselect the Soft Key (SEL) on the left.- Data In: If you want to receive data from the originating user in peer-to-peercommunication, select this service.- FAX In: If you want to receive fax messages from the originating user, select this service.7. A-AGC (F [MENU]-5-5)This service enables adjustment and setup of the user’s terminalspeaker volume according to the corresponding user’s speakervolume and the environmental noise level around the userduring the call traffic. Select either “On” or “Off” with thedirection key.Menu 6. UtilityMenu 7. <Security>Select the Soft Key (MENU) on the left in an initial call waiting state,and select [6. Security]. Then a message will appear on the LCD torequest the Lock Code. If you fail to enter the correct Lock Code offour characters, the process will not proceed to the following low level

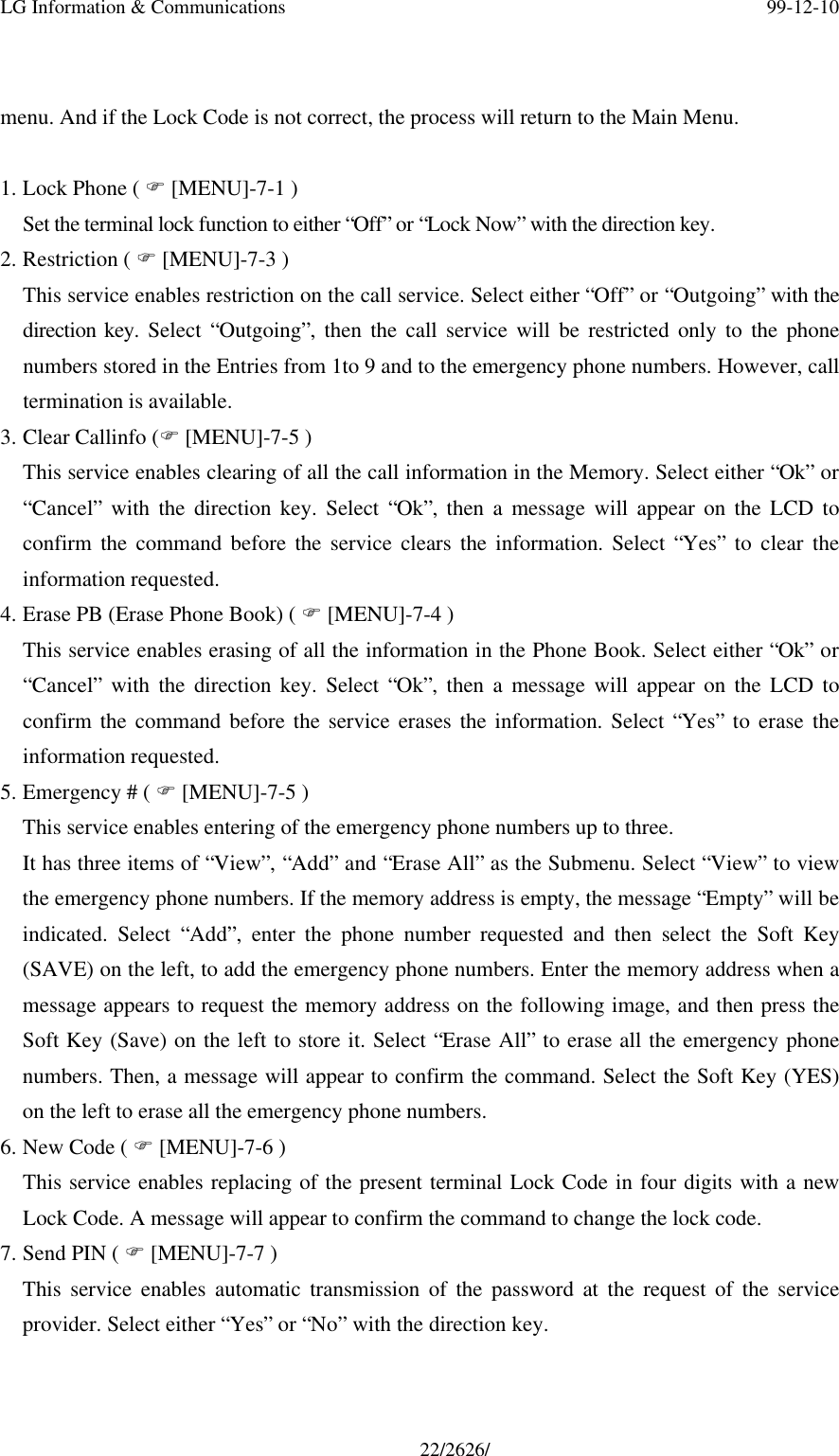

LG Information & Communications 99-12-1022/2626/menu. And if the Lock Code is not correct, the process will return to the Main Menu.1. Lock Phone ( F [MENU]-7-1 )Set the terminal lock function to either “Off” or “Lock Now” with the direction key.2. Restriction ( F [MENU]-7-3 )This service enables restriction on the call service. Select either “Off” or “Outgoing” with thedirection key. Select “Outgoing”, then the call service will be restricted only to the phonenumbers stored in the Entries from 1to 9 and to the emergency phone numbers. However, calltermination is available.3. Clear Callinfo (F [MENU]-7-5 )This service enables clearing of all the call information in the Memory. Select either “Ok” or“Cancel” with the direction key. Select “Ok”, then a message will appear on the LCD toconfirm the command before the service clears the information. Select “Yes” to clear theinformation requested.4. Erase PB (Erase Phone Book) ( F [MENU]-7-4 )This service enables erasing of all the information in the Phone Book. Select either “Ok” or“Cancel” with the direction key. Select “Ok”, then a message will appear on the LCD toconfirm the command before the service erases the information. Select “Yes” to erase theinformation requested.5. Emergency # ( F [MENU]-7-5 )This service enables entering of the emergency phone numbers up to three.It has three items of “View”, “Add” and “Erase All” as the Submenu. Select “View” to viewthe emergency phone numbers. If the memory address is empty, the message “Empty” will beindicated. Select “Add”, enter the phone number requested and then select the Soft Key(SAVE) on the left, to add the emergency phone numbers. Enter the memory address when amessage appears to request the memory address on the following image, and then press theSoft Key (Save) on the left to store it. Select “Erase All” to erase all the emergency phonenumbers. Then, a message will appear to confirm the command. Select the Soft Key (YES)on the left to erase all the emergency phone numbers.6. New Code ( F [MENU]-7-6 )This service enables replacing of the present terminal Lock Code in four digits with a newLock Code. A message will appear to confirm the command to change the lock code.7. Send PIN ( F [MENU]-7-7 )This service enables automatic transmission of the password at the request of the serviceprovider. Select either “Yes” or “No” with the direction key.

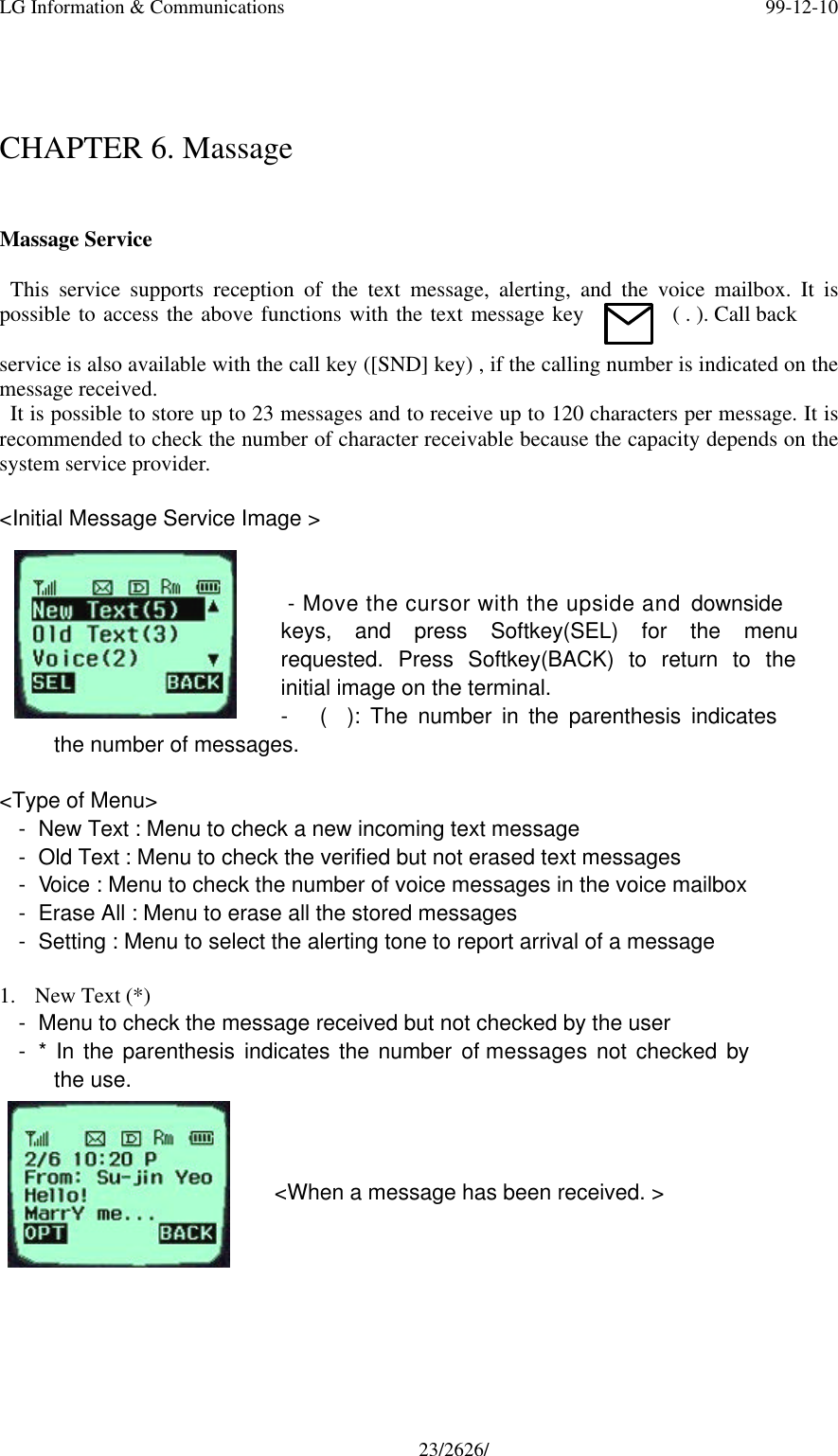

LG Information & Communications 99-12-1023/2626/CHAPTER 6. MassageMassage Service This service supports reception of the text message, alerting, and the voice mailbox. It ispossible to access the above functions with the text message key ( . ). Call backservice is also available with the call key ([SND] key) , if the calling number is indicated on themessage received. It is possible to store up to 23 messages and to receive up to 120 characters per message. It isrecommended to check the number of character receivable because the capacity depends on thesystem service provider.<Initial Message Service Image > - Move the cursor with the upside and downsidekeys, and press Softkey(SEL) for the menurequested. Press Softkey(BACK) to return to theinitial image on the terminal.- ( ): The number in the parenthesis indicatesthe number of messages.<Type of Menu>- New Text : Menu to check a new incoming text message- Old Text : Menu to check the verified but not erased text messages- Voice : Menu to check the number of voice messages in the voice mailbox- Erase All : Menu to erase all the stored messages- Setting : Menu to select the alerting tone to report arrival of a message1. New Text (*)- Menu to check the message received but not checked by the user- * In the parenthesis indicates the number of messages not checked bythe use.<When a message has been received. >

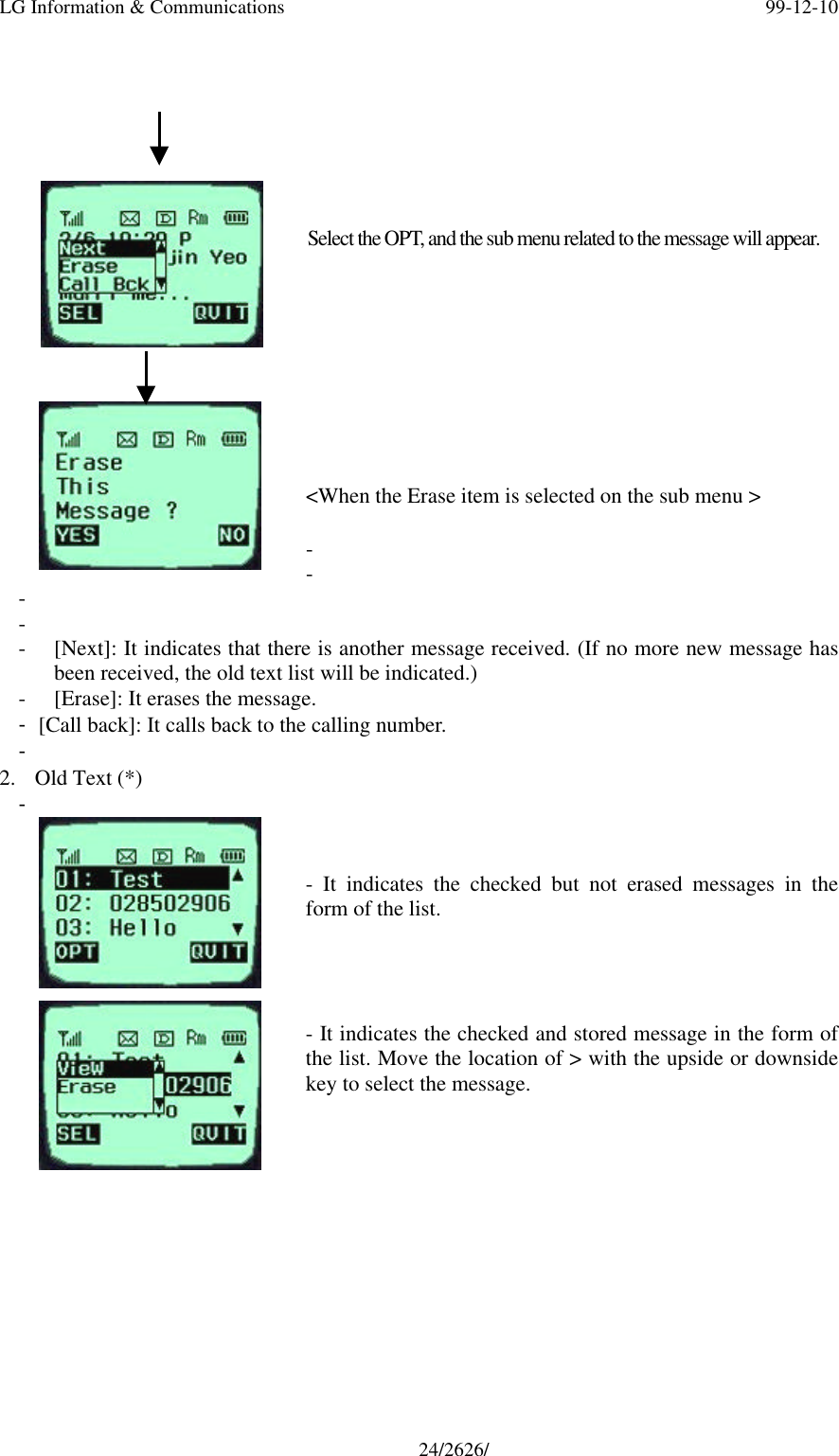

LG Information & Communications 99-12-1024/2626/Select the OPT, and the sub menu related to the message will appear.<When the Erase item is selected on the sub menu >- - - - - [Next]: It indicates that there is another message received. (If no more new message hasbeen received, the old text list will be indicated.)- [Erase]: It erases the message.- [Call back]: It calls back to the calling number.- 2. Old Text (*)- - It indicates the checked but not erased messages in theform of the list.- It indicates the checked and stored message in the form ofthe list. Move the location of > with the upside or downsidekey to select the message.

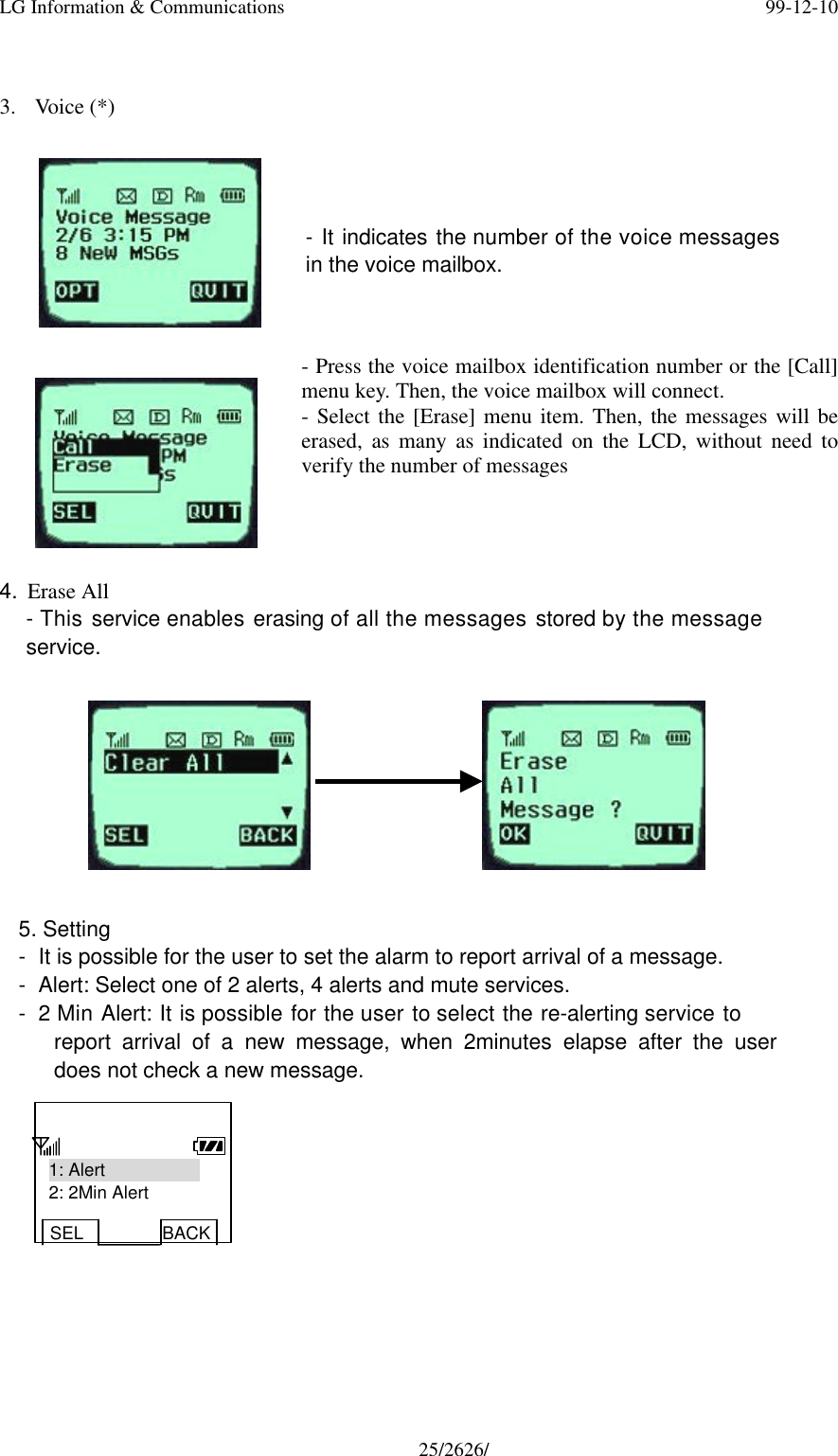

LG Information & Communications 99-12-1025/2626/3. Voice (*)- It indicates the number of the voice messagesin the voice mailbox.- Press the voice mailbox identification number or the [Call]menu key. Then, the voice mailbox will connect.- Select the [Erase] menu item. Then, the messages will beerased, as many as indicated on the LCD, without need toverify the number of messages4. Erase All- This service enables erasing of all the messages stored by the messageservice.5. Setting- It is possible for the user to set the alarm to report arrival of a message.- Alert: Select one of 2 alerts, 4 alerts and mute services.- 2 Min Alert: It is possible for the user to select the re-alerting service toreport arrival of a new message, when 2minutes elapse after the userdoes not check a new message.1: Alert2: 2Min AlertSEL BACK

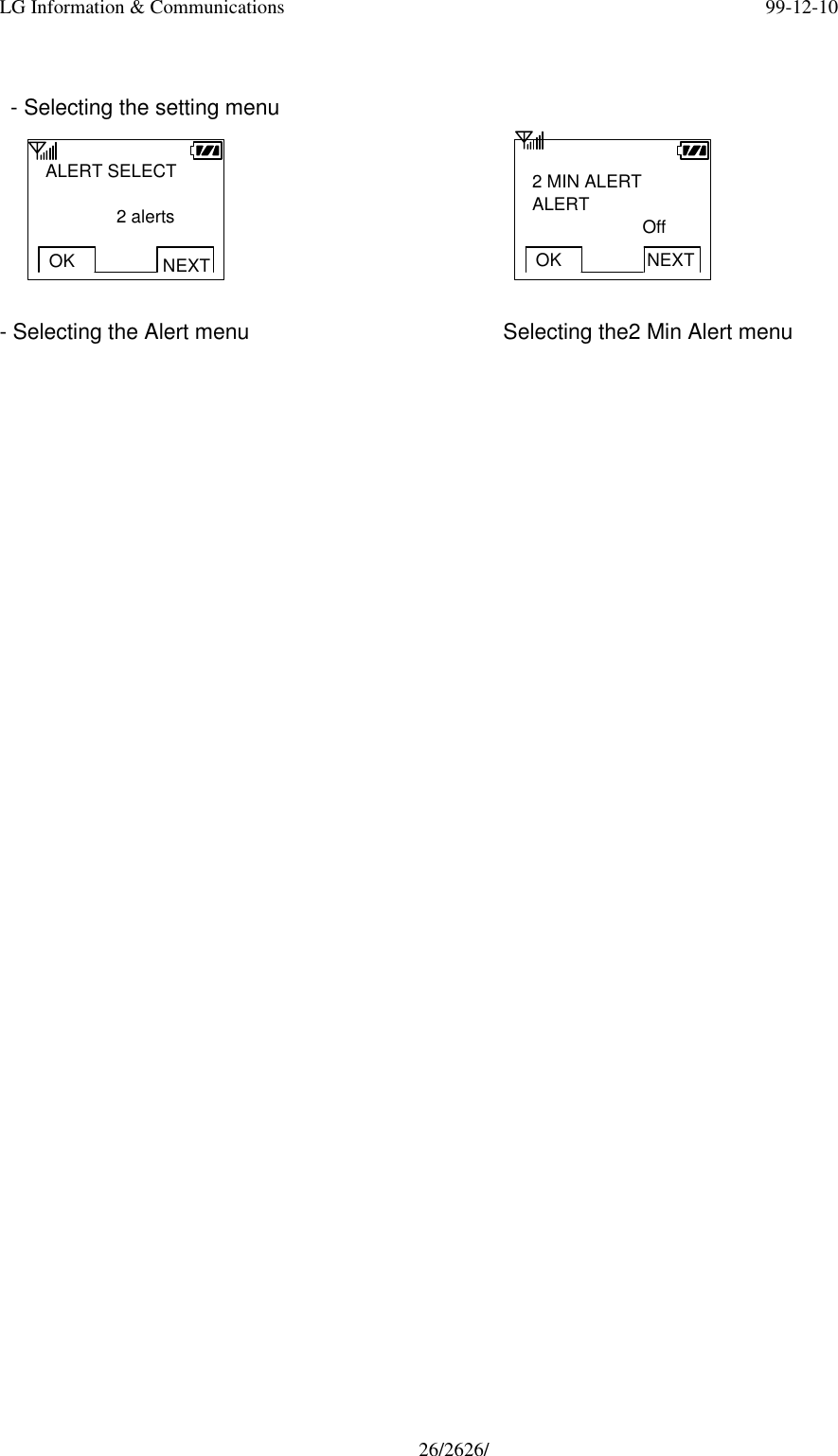

LG Information & Communications 99-12-1026/2626/ - Selecting the setting menu - Selecting the Alert menu Selecting the2 Min Alert menuALERT SELECT 2 alertsOK NEXT2 MIN ALERTALERT OffOK NEXT
