COOL ARC 40 STAND ALONE

WATER COOLER

IP 21S

OPERATOR’S MANUAL

IM670-A

December, 2008

Safety Depends on You

Lincoln arc welding and cutting

equipment is designed and built

with safety in mind. However, your

overall safety can be increased by

proper installation ... and thought-

ful operation on your part. DO

NOT INSTALL, OPERATE OR

REPAIR THIS EQUIPMENT

WITHOUT READING THIS

MANUAL AND THE SAFETY

PRECAUTIONS CONTAINED

THROUGHOUT. And, most

importantly, think before you act

and be careful.

For use with machines having Code Numbers: 10928, 11067

• Sales and Service through Subsidiaries and Distributors Worldwide •

Cleveland, Ohio 44117-1199 U.S.A. TEL: 216.481.8100 FAX: 216.486.1751 WEB SITE: www.lincolnelectric.com

• World's Leader in Welding and Cutting Products •

N80

RETURN TO MAIN MENU

SAFETY

FOR ENGINE

powered equipment.

1.a. Turn the engine off before troubleshooting and maintenance

work unless the maintenance work requires it to be running.

____________________________________________________

1.b.Operate engines in open, well-ventilated

areas or vent the engine exhaust fumes

outdoors.

____________________________________________________

1.c. Do not add the fuel near an open flame

welding arc or when the engine is running.

Stop the engine and allow it to cool before

refueling to prevent spilled fuel from vaporiz-

ing on contact with hot engine parts and

igniting. Do not spill fuel when filling tank. If

fuel is spilled, wipe it up and do not start

engine until fumes have been eliminated.

____________________________________________________

1.d. Keep all equipment safety guards, covers

and devices in position and in good

repair.Keep hands, hair, clothing and tools

away from V-belts, gears, fans and all other

moving parts when starting, operating or

repairing equipment.

____________________________________________________

1.e. In some cases it may be necessary to remove safety

guards to perform required maintenance. Remove

guards only when necessary and replace them when the

maintenance requiring their removal is complete.

Always use the greatest care when working near moving

parts.

___________________________________________________

1.f. Do not put your hands near the engine fan. Do not attempt

to override the governor or idler by pushing on the throttle

control rods while the engine is running.

___________________________________________________

1.g. To prevent accidentally starting gasoline engines while

turning the engine or welding generator during maintenance

work, disconnect the spark plug wires, distributor cap or

magneto wire as appropriate.

SAFETY

ARC WELDING CAN BE HAZARDOUS. PROTECT YOURSELF AND OTHERS FROM POSSIBLE SERIOUS INJURY OR DEATH.

KEEP CHILDREN AWAY. PACEMAKER WEARERS SHOULD CONSULT WITH THEIR DOCTOR BEFORE OPERATING.

Read and understand the following safety highlights. For additional safety information, it is strongly recommended that you

purchase a copy of “Safety in Welding & Cutting - ANSI Standard Z49.1” from the American Welding Society, P.O. Box

351040, Miami, Florida 33135 or CSA Standard W117.2-1974. A Free copy of “Arc Welding Safety” booklet E205 is available

from the Lincoln Electric Company, 22801 St. Clair Avenue, Cleveland, Ohio 44117-1199.

BE SURE THAT ALL INSTALLATION, OPERATION, MAINTENANCE AND REPAIR PROCEDURES ARE

PERFORMED ONLY BY QUALIFIED INDIVIDUALS.

WARNING

Mar ʻ95

ELECTRIC AND

MAGNETIC FIELDS

may be dangerous

2.a. Electric current flowing through any conductor causes

localized Electric and Magnetic Fields (EMF). Welding

current creates EMF fields around welding cables and

welding machines

2.b. EMF fields may interfere with some pacemakers, and

welders having a pacemaker should consult their physician

before welding.

2.c. Exposure to EMF fields in welding may have other health

effects which are now not known.

2.d. All welders should use the following procedures in order to

minimize exposure to EMF fields from the welding circuit:

2.d.1.

Route the electrode and work cables together - Secure

them with tape when possible.

2.d.2. Never coil the electrode lead around your body.

2.d.3. Do not place your body between the electrode and

work cables. If the electrode cable is on your right

side, the work cable should also be on your right side.

2.d.4. Connect the work cable to the workpiece as close as

possible to the area being welded.

2.d.5. Do not work next to welding power source.

1.h. To avoid scalding, do not remove the

radiator pressure cap when the engine is

hot.

CALIFORNIA PROPOSITION 65 WARNINGS

Diesel engine exhaust and some of its constituents

are known to the State of California to cause can-

cer, birth defects, and other reproductive harm.

The engine exhaust from this product contains

chemicals known to the State of California to cause

cancer, birth defects, or other reproductive harm.

The Above For Diesel Engines The Above For Gasoline Engines

COOL ARC® 40

SAFETY ii

SAFETY

COOL ARC® 40

ARC RAYS can burn.

4.a. Use a shield with the proper filter and cover

plates to protect your eyes from sparks and

the rays of the arc when welding or observing

open arc welding. Headshield and filter lens

should conform to ANSI Z87. I standards.

4.b. Use suitable clothing made from durable flame-resistant

material to protect your skin and that of your helpers from

the arc rays.

4.c. Protect other nearby personnel with suitable, non-flammable

screening and/or warn them not to watch the arc nor expose

themselves to the arc rays or to hot spatter or metal.

ELECTRIC SHOCK can

kill.

3.a. The electrode and work (or ground) circuits

are electrically “hot” when the welder is on.

Do not touch these “hot” parts with your bare

skin or wet clothing. Wear dry, hole-free

gloves to insulate hands.

3.b. Insulate yourself from work and ground using dry insulation.

Make certain the insulation is large enough to cover your full

area of physical contact with work and ground.

In addition to the normal safety precautions, if welding

must be performed under electrically hazardous

conditions (in damp locations or while wearing wet

clothing; on metal structures such as floors, gratings or

scaffolds; when in cramped positions such as sitting,

kneeling or lying, if there is a high risk of unavoidable or

accidental contact with the workpiece or ground) use

the following equipment:

• Semiautomatic DC Constant Voltage (Wire) Welder.

• DC Manual (Stick) Welder.

• AC Welder with Reduced Voltage Control.

3.c. In semiautomatic or automatic wire welding, the electrode,

electrode reel, welding head, nozzle or semiautomatic

welding gun are also electrically “hot”.

3.d. Always be sure the work cable makes a good electrical

connection with the metal being welded. The connection

should be as close as possible to the area being welded.

3.e. Ground the work or metal to be welded to a good electrical

(earth) ground.

3.f.

Maintain the electrode holder, work clamp, welding cable and

welding machine in good, safe operating condition. Replace

damaged insulation.

3.g. Never dip the electrode in water for cooling.

3.h. Never simultaneously touch electrically “hot” parts of

electrode holders connected to two welders because voltage

between the two can be the total of the open circuit voltage

of both welders.

3.i. When working above floor level, use a safety belt to protect

yourself from a fall should you get a shock.

3.j. Also see Items 6.c. and 8.

FUMES AND GASES

can be dangerous.

5.a. Welding may produce fumes and gases

hazardous to health. Avoid breathing these

fumes and gases. When welding, keep

your head out of the fume. Use enough

ventilation and/or exhaust at the arc to keep

fumes and gases away from the breathing zone. When

welding with electrodes which require special

ventilation such as stainless or hard facing (see

instructions on container or MSDS) or on lead or

cadmium plated steel and other metals or coatings

which produce highly toxic fumes, keep exposure as

low as possible and below Threshold Limit Values (TLV)

using local exhaust or mechanical ventilation. In

confined spaces or in some circumstances, outdoors, a

respirator may be required. Additional precautions are

also required when welding on galvanized steel.

5. b. The operation of welding fume control equipment is affected

by various factors including proper use and positioning of

the equipment, maintenance of the equipment and the spe-

cific welding procedure and application involved. Worker

exposure level should be checked upon installation and

periodically thereafter to be certain it is within applicable

OSHA PEL and ACGIH TLV limits.

5.c.

Do not weld in locations near chlorinated hydrocarbon

vapors

coming from degreasing, cleaning or spraying operations.

The heat and rays of the arc can react with solvent vapors

form phosgene, a highly toxic gas, and other irritating prod-

ucts.

5.d. Shielding gases used for arc welding can displace air and

cause injury or death. Always use enough ventilation,

especially in confined areas, to insure breathing air is safe.

5.e. Read and understand the manufacturerʼs instructions for this

equipment and the consumables to be used, including the

material safety data sheet (MSDS) and follow your

employerʼs safety practices. MSDS forms are available from

your welding distributor or from the manufacturer.

5.f. Also see item 1.b.

AUG 06

SAFETY iii

SAFETY

iii

COOL ARC® 40

FOR ELECTRICALLY

powered equipment.

8.a. Turn off input power using the disconnect

switch at the fuse box before working on

the equipment.

8.b. Install equipment in accordance with the U.S. National

Electrical Code, all local codes and the manufacturerʼs

recommendations.

8.c. Ground the equipment in accordance with the U.S. National

Electrical Code and the manufacturerʼs recommendations.

CYLINDER may explode

if damaged.

7.a. Use only compressed gas cylinders

containing the correct shielding gas for the

process used and properly operating

regulators designed for the gas and

pressure used. All hoses, fittings, etc. should be suitable for

the application and maintained in good condition.

7.b. Always keep cylinders in an upright position securely

chained to an undercarriage or fixed support.

7.c. Cylinders should be located:

• Away from areas where they may be struck or subjected to

physical damage.

• A safe distance from arc welding or cutting operations and

any other source of heat, sparks, or flame.

7.d. Never allow the electrode, electrode holder or any other

electrically “hot” parts to touch a cylinder.

7.e. Keep your head and face away from the cylinder valve outlet

when opening the cylinder valve.

7.f. Valve protection caps should always be in place and hand

tight except when the cylinder is in use or connected for

use.

7.g. Read and follow the instructions on compressed gas

cylinders, associated equipment, and CGA publication P-l,

“Precautions for Safe Handling of Compressed Gases in

Cylinders,” available from the Compressed Gas Association

1235 Jefferson Davis Highway, Arlington, VA 22202.

Jan, 07

WELDING and CUTTING

SPARKS can

cause fire or explosion.

6.a.

Remove fire hazards from the welding area.

If this is not possible, cover them to prevent

the welding sparks from starting a fire.

Remember that welding sparks and hot

materials from welding can easily go through small cracks

and openings to adjacent areas. Avoid welding near

hydraulic lines. Have a fire extinguisher readily available.

6.b. Where compressed gases are to be used at the job site,

special precautions should be used to prevent hazardous

situations. Refer to “Safety in Welding and Cutting” (ANSI

Standard Z49.1) and the operating information for the

equipment being used.

6.c. When not welding, make certain no part of the electrode

circuit is touching the work or ground. Accidental contact

can cause overheating and create a fire hazard.

6.d. Do not heat, cut or weld tanks, drums or containers until the

proper steps have been taken to insure that such procedures

will not cause flammable or toxic vapors from substances

inside. They can cause an explosion even

though

they have

been “cleaned”. For information, purchase “Recommended

Safe Practices for the

Preparation

for Welding and Cutting of

Containers and Piping That Have Held Hazardous

Substances”, AWS F4.1 from the American Welding Society

(see address above).

6.e. Vent hollow castings or containers before heating, cutting or

welding. They may explode.

6.f.

Sparks and spatter are thrown from the welding arc. Wear oil

free protective garments such as leather gloves, heavy shirt,

cuffless trousers, high shoes and a cap over your hair. Wear

ear plugs when welding out of position or in confined places.

Always wear safety glasses with side shields when in a

welding area.

6.g. Connect the work cable to the work as close to the welding

area as practical. Work cables connected to the building

framework or other locations away from the welding area

increase the possibility of the welding current passing

through lifting chains, crane cables or other alternate cir-

cuits. This can create fire hazards or overheat lifting chains

or cables until they fail.

6.h. Also see item 1.c.

6.I. Read and follow NFPA 51B “ Standard for Fire Prevention

During Welding, Cutting and Other Hot Work”, available

from NFPA,1 Batterymarch Park, PO box 9101, Quincy, Ma

022690-9101.

6.j. Do not use a welding power source for pipe thawing.

SAFETY

COOL ARC® 40

PRÉCAUTIONS DE SÛRETÉ

Pour votre propre protection lire et observer toutes les instruc-

tions et les précautions de sûreté specifiques qui parraissent

dans ce manuel aussi bien que les précautions de sûreté

générales suivantes:

Sûreté Pour Soudage A LʼArc

1. Protegez-vous contre la secousse électrique:

a. Les circuits à lʼélectrode et à la piéce sont sous tension

quand la machine à souder est en marche. Eviter toujours

tout contact entre les parties sous tension et la peau nue

ou les vétements mouillés. Porter des gants secs et sans

trous pour isoler les mains.

b. Faire trés attention de bien sʼisoler de la masse quand on

soude dans des endroits humides, ou sur un plancher

metallique ou des grilles metalliques, principalement dans

les positions assis ou couché pour lesquelles une

grande partie du corps peut être en contact avec la

masse.

c. Maintenir le porte-électrode, la pince de masse, le câble

de soudage et la machine à souder en bon et sûr état

defonctionnement.

d.Ne jamais plonger le porte-électrode dans lʼeau pour le

refroidir.

e. Ne jamais toucher simultanément les parties sous tension

des porte-électrodes connectés à deux machines à soud-

er parce que la tension entre les deux pinces peut être le

total de la tension à vide des deux machines.

f. Si on utilise la machine à souder comme une source de

courant pour soudage semi-automatique, ces precautions

pour le porte-électrode sʼapplicuent aussi au pistolet de

soudage.

2. Dans le cas de travail au dessus du niveau du sol, se pro-

téger contre les chutes dans le cas ou on recoit un choc. Ne

jamais enrouler le câble-électrode autour de nʼimporte quelle

partie du corps.

3. Un coup dʼarc peut être plus sévère quʼun coup de soliel,

donc:

a. Utiliser un bon masque avec un verre filtrant approprié

ainsi quʼun verre blanc afin de se protéger les yeux du

rayonnement de lʼarc et des projections quand on soude

ou quand on regarde lʼarc.

b. Porter des vêtements convenables afin de protéger la

peau de soudeur et des aides contre le rayonnement de

lʻarc.

c. Protéger lʼautre personnel travaillant à proximité au

soudage à lʼaide dʼécrans appropriés et non-inflamma-

bles.

4. Des gouttes de laitier en fusion sont émises de lʼarc de

soudage. Se protéger avec des vêtements de protection

libres de lʼhuile, tels que les gants en cuir, chemise épaisse,

pantalons sans revers, et chaussures montantes.

5. Toujours porter des lunettes de sécurité dans la zone de

soudage. Utiliser des lunettes avec écrans lateraux dans les

zones où lʼon pique le laitier.

6. Eloigner les matériaux inflammables ou les recouvrir afin de

prévenir tout risque dʼincendie dû aux étincelles.

7. Quand on ne soude pas, poser la pince à une endroit isolé de

la masse. Un court-circuit accidental peut provoquer un

échauffement et un risque dʼincendie.

8. Sʼassurer que la masse est connectée le plus prés possible

de la zone de travail quʼil est pratique de le faire. Si on place

la masse sur la charpente de la construction ou dʼautres

endroits éloignés de la zone de travail, on augmente le risque

de voir passer le courant de soudage par les chaines de lev-

age, câbles de grue, ou autres circuits. Cela peut provoquer

des risques dʼincendie ou dʼechauffement des chaines et des

câbles jusquʼà ce quʼils se rompent.

9. Assurer une ventilation suffisante dans la zone de soudage.

Ceci est particuliérement important pour le soudage de tôles

galvanisées plombées, ou cadmiées ou tout autre métal qui

produit des fumeés toxiques.

10. Ne pas souder en présence de vapeurs de chlore provenant

dʼopérations de dégraissage, nettoyage ou pistolage. La

chaleur ou les rayons de lʼarc peuvent réagir avec les

vapeurs du solvant pour produire du phosgéne (gas forte-

ment toxique) ou autres produits irritants.

11. Pour obtenir de plus amples renseignements sur la sûreté,

voir le code “Code for safety in welding and cutting” CSA

Standard W 117.2-1974.

PRÉCAUTIONS DE SÛRETÉ POUR

LES MACHINES À SOUDER À

TRANSFORMATEUR ET À

REDRESSEUR

1. Relier à la terre le chassis du poste conformement au code

de lʼélectricité et aux recommendations du fabricant. Le dis-

positif de montage ou la piece à souder doit être branché à

une bonne mise à la terre.

2. Autant que possible, Iʼinstallation et lʼentretien du poste

seront effectués par un électricien qualifié.

3. Avant de faires des travaux à lʼinterieur de poste, la

debrancher à lʼinterrupteur à la boite de fusibles.

4. Garder tous les couvercles et dispositifs de sûreté à leur

place.

Mar. ʻ93

Thank You

for selecting a QUALITY product by Lincoln Electric. We want you

to take pride in operating this Lincoln Electric Company product

••• as much pride as we have in bringing this product to you!

Read this Operators Manual completely before attempting to use this equipment. Save this manual and keep it

handy for quick reference. Pay particular attention to the safety instructions we have provided for your protection.

The level of seriousness to be applied to each is explained below:

WARNING

This statement appears where the information must be followed exactly to avoid serious personal injury or loss of life.

This statement appears where the information must be followed to avoid minor personal injury or damage to this equipment.

CAUTION

Please Examine Carton and Equipment For Damage Immediately

When this equipment is shipped, title passes to the purchaser upon receipt by the carrier. Consequently, Claims

for material damaged in shipment must be made by the purchaser against the transportation company at the

time the shipment is received.

Please record your equipment identification information below for future reference. This information can be

found on your machine nameplate.

Product _________________________________________________________________________________

Model Number ___________________________________________________________________________

Code Number or Date Code_________________________________________________________________

Serial Number____________________________________________________________________________

Date Purchased___________________________________________________________________________

Where Purchased_________________________________________________________________________

Whenever you request replacement parts or information on this equipment, always supply the information you

have recorded above. The code number is especially important when identifying the correct replacement parts.

On-Line Product Registration

- Register your machine with Lincoln Electric either via fax or over the Internet.

• For faxing: Complete the form on the back of the warranty statement included in the literature packet

accompanying this machine and fax the form per the instructions printed on it.

• For On-Line Registration: Go to our

WEB SITE at www.lincolnelectric.com. Choose “Quick Links” and then

“Product Registration”. Please complete the form and submit your registration.

CUSTOMER ASSISTANCE POLICY

The business of The Lincoln Electric Company is manufacturing and selling high quality welding equipment, consumables, and cutting equip-

ment. Our challenge is to meet the needs of our customers and to exceed their expectations. On occasion, purchasers may ask Lincoln

Electric for advice or information about their use of our products. We respond to our customers based on the best information in our posses-

sion at that time. Lincoln Electric is not in a position to warrant or guarantee such advice, and assumes no liability, with respect to such infor-

mation or advice. We expressly disclaim any warranty of any kind, including any warranty of fitness for any customerʼs particular purpose,

with respect to such information or advice. As a matter of practical consideration, we also cannot assume any responsibility for updating or

correcting any such information or advice once it has been given, nor does the provision of information or advice create, expand or alter any

warranty with respect to the sale of our products.

Lincoln Electric is a responsive manufacturer, but the selection and use of specific products sold by Lincoln Electric is solely within the control

of, and remains the sole responsibility of the customer. Many variables beyond the control of Lincoln Electric affect the results obtained in

applying these types of fabrication methods and service requirements.

Subject to Change – This information is accurate to the best of our knowledge at the time of printing. Please refer to www.lincolnelectric.com

for any updated information.

vi TABLE OF CONTENTS

Page

Installation .......................................................................................................Section A

Technical Specifications ........................................................................................A-1

Safety Precautions.................................................................................................A-2

Unpacking the COOL ARC® 40......................................................................A-2

Filling the Coolant Reservoir ...........................................................................A-2

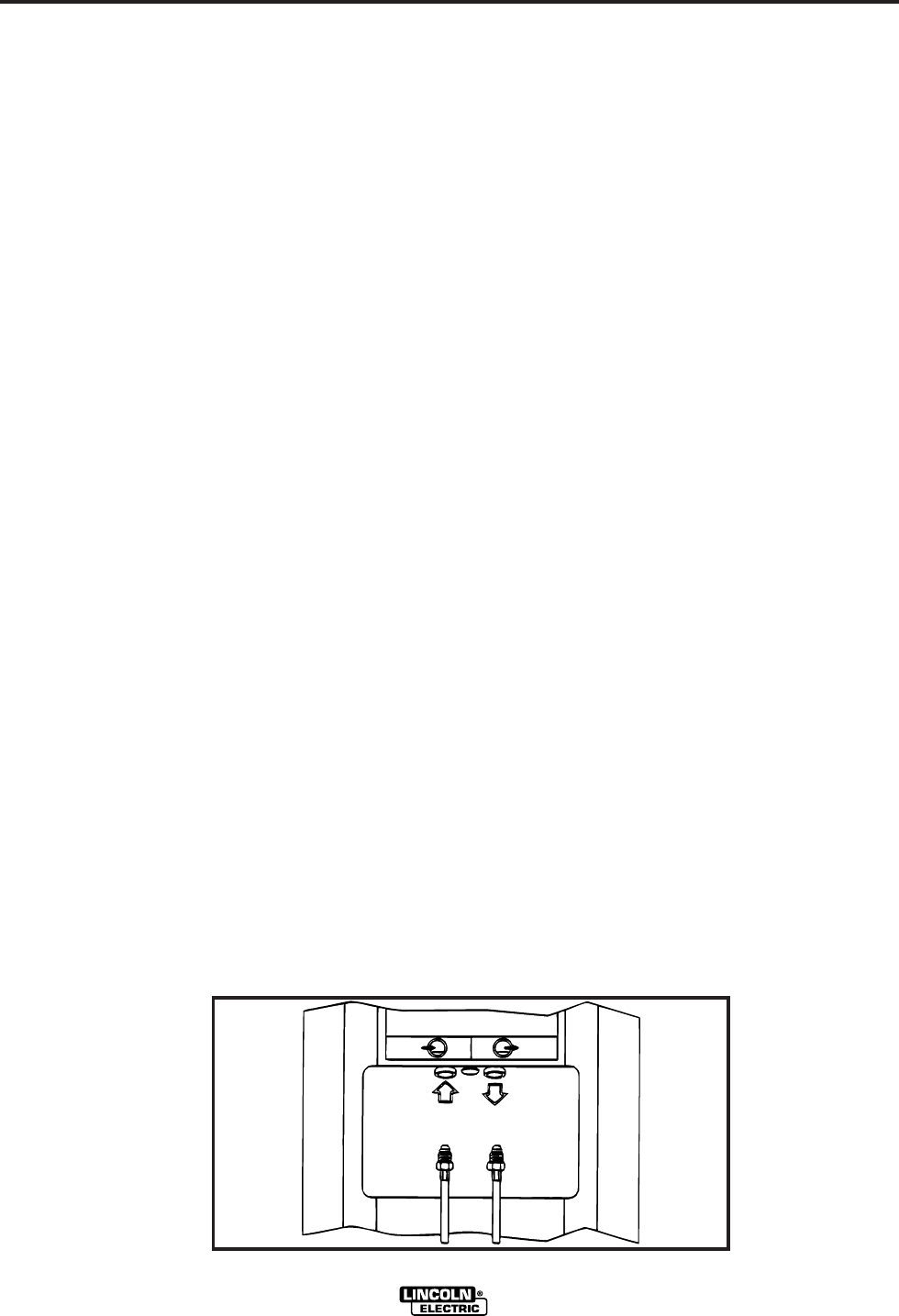

Coolant “In” and “out” Connections .................................................................A-3

Input Power Connection..................................................................................A-4

Installation on Undercarriage or Power Source .............................................A-4

Horizontal Installation on the Top of a Power Source............................................A-4

Vertical Installation on Power Source with a Dual Cylinder Undercarriage. ..........A-4

Installation of Water Cooled Accessories ..............................................................A-5

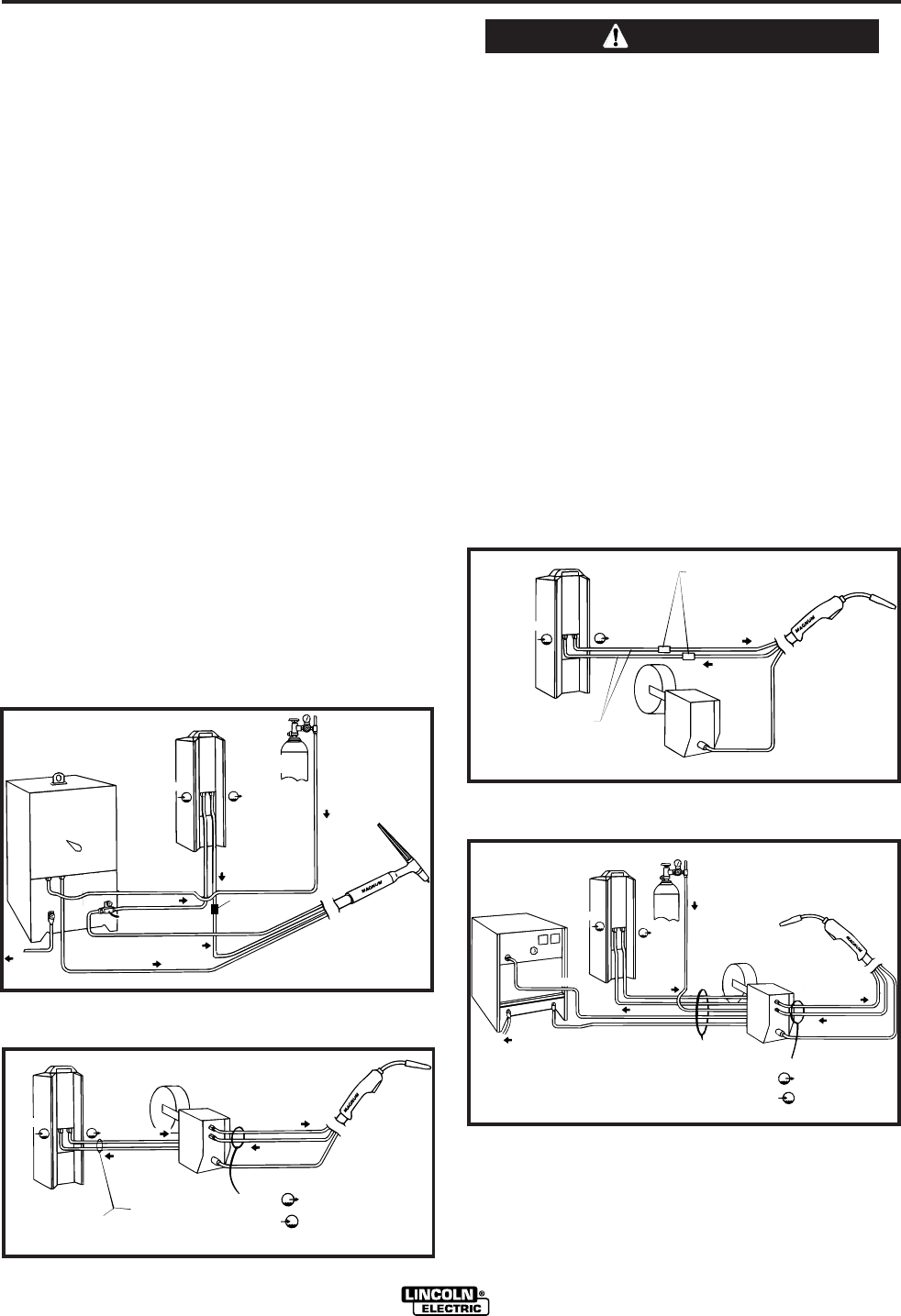

Water Cooled TIG Torch and MIG Gun ..........................................................A-5

Connection to Wire Feeders ...........................................................................A-5

K529-10 Power Input Cable with Water and Gas Hoses ................................A-5

Operation .........................................................................................................Section B

PRODUCT DESCRIPTION .............................................................................B-1

Recommended Processes and Equipment.....................................................B-1

Turning the System “On”.................................................................................B-1

Cooling Efficiency............................................................................................B-2

Accessories.....................................................................................................Section C

Optional Equipment (Field Installed) ....................................................................C-1

Maintenance ....................................................................................................Section D

Safety Precautions ................................................................................................D-1

ROUTINE MAINTENANCE ......................................................................................D-1

Periodic Maintenance .....................................................................................D-1

PUMP MAINTENANCE ..........................................................................................D-1

Pump Motor ....................................................................................................D-1

Heat Exchanger ..............................................................................................D-1

Reservoir Coolant Level..................................................................................D-1

Coolant Treatment Recommendation .............................................................D-2

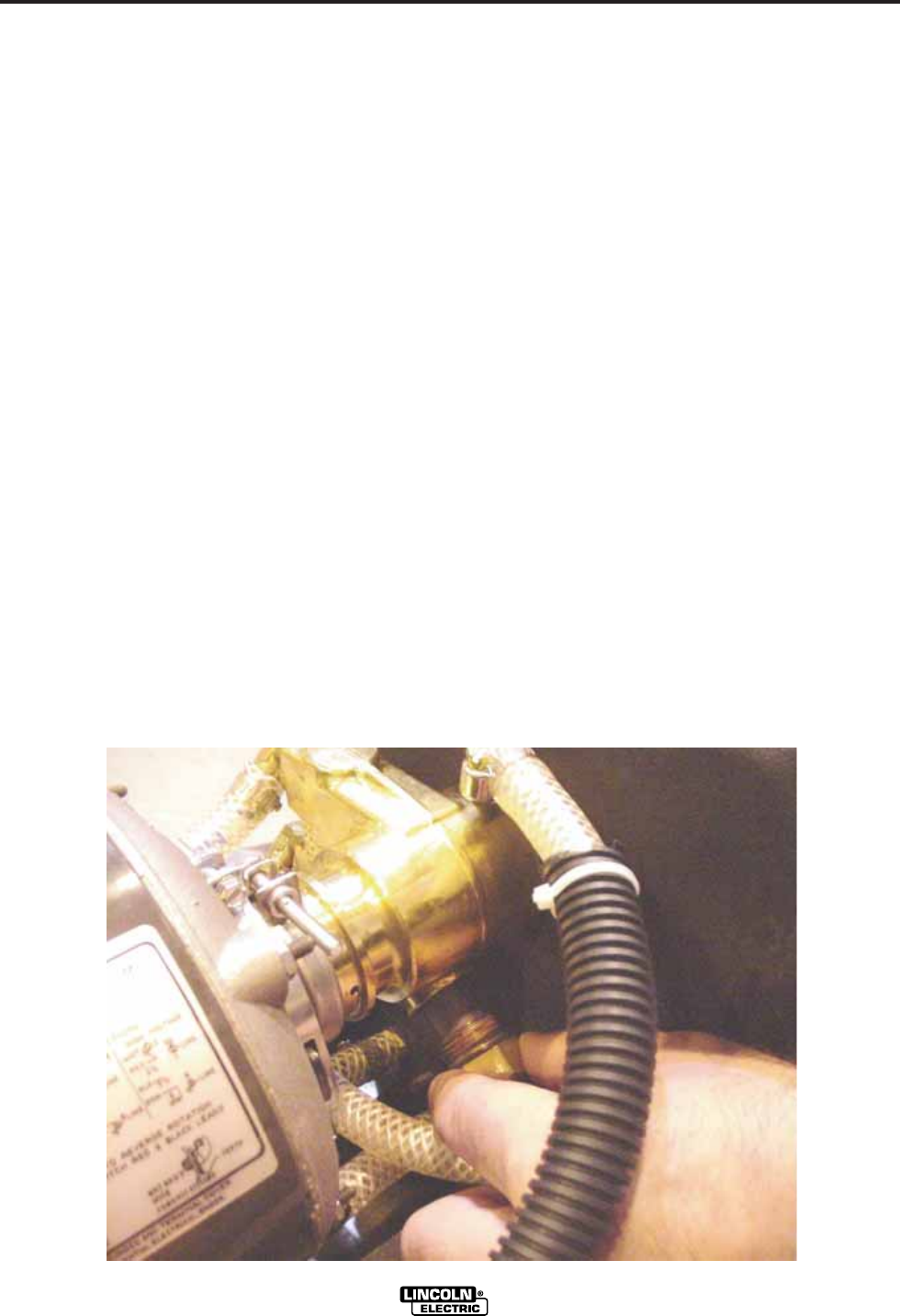

Pump Inlet Filter..............................................................................................D-2

Inspect Condition of Coolant...........................................................................D-2

Service the Pump Inlet Filter...........................................................................D-3

Additional Service Notes.................................................................................D-3

Troubleshooting..............................................................................................Section E

Safety Precautions.................................................................................................E-1

How to Use Troubleshooting Guide ................................................................E-1

Troubleshooting Guide ..........................................................................................E-2

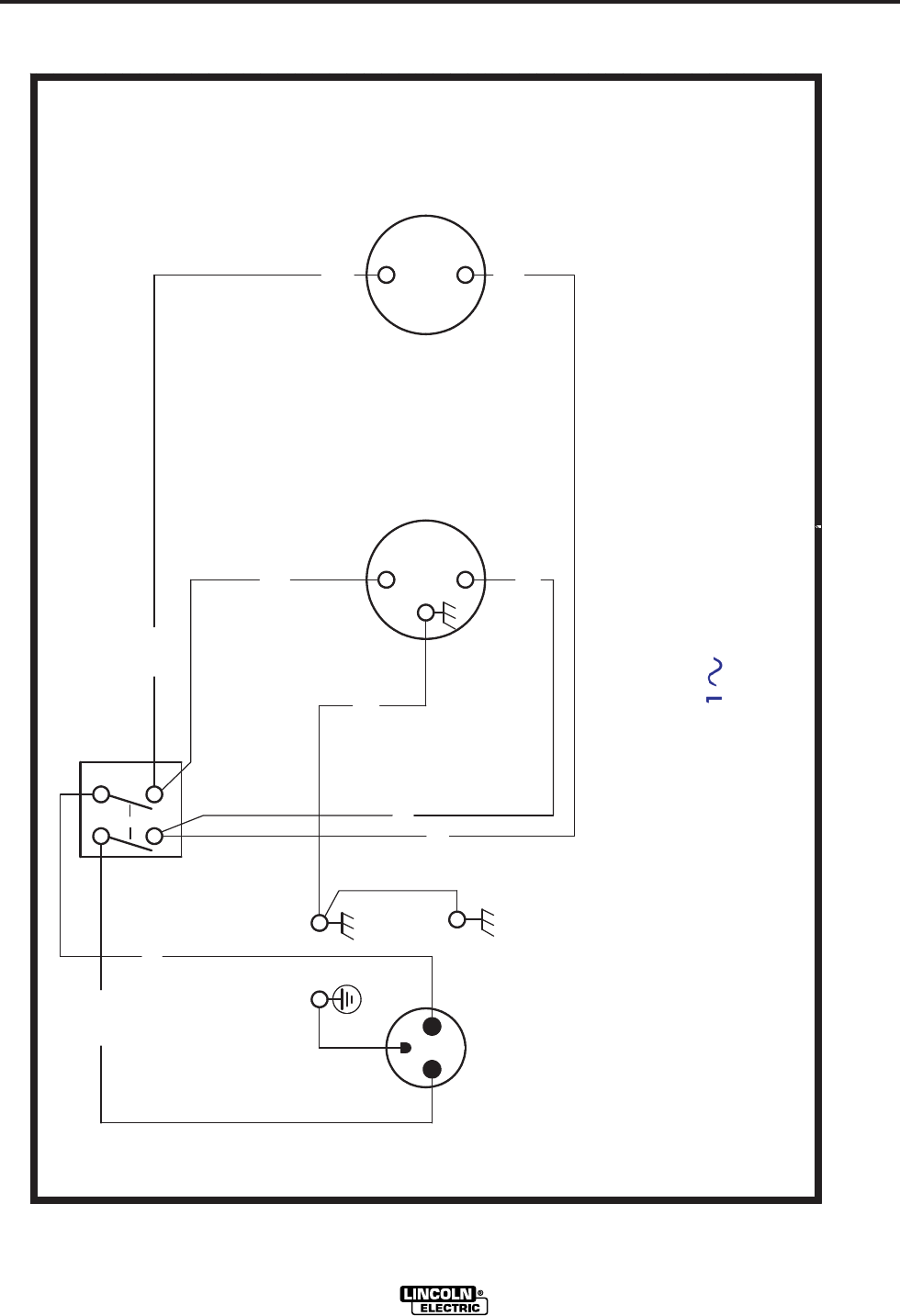

Wiring Diagrams..............................................................................................Section F

Wiring Diagram ......................................................................................................F-1

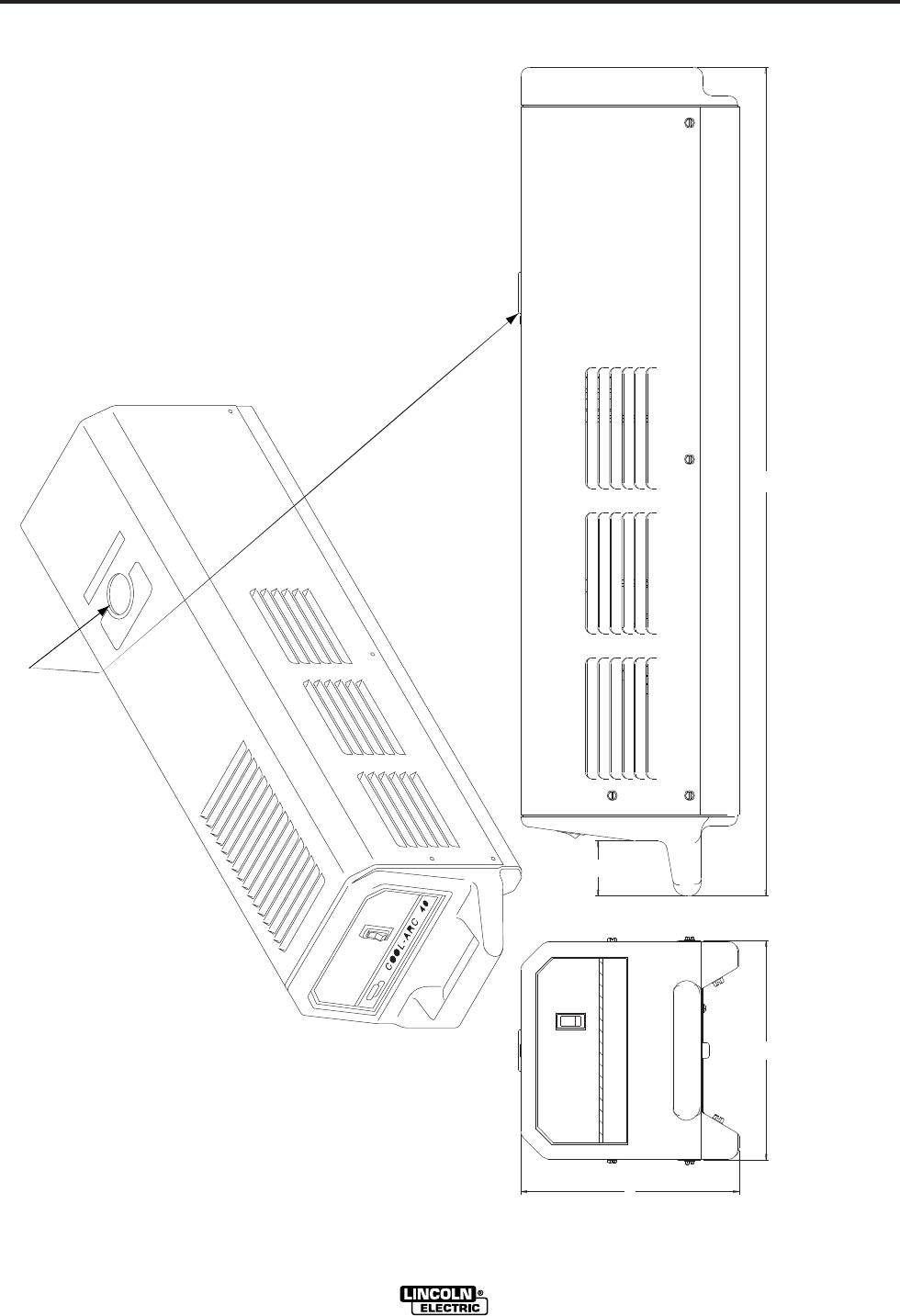

Dimension Print......................................................................................................F-2

Parts List.................................................................................................................P-385

K2187-1 ( COOL ARC® 40 230V International)

Via Continental European (SCHUKO)- PRONG PLUG

220-240VAC 50/60 Hz 1 Phase

1.3-1.7 Amps

2.0-2.4 Amps

60 psi (414 kPa) (4.14 bar)Max.

1.66 gal/min. (6.28 liter/min) Max.

53-57 psi (365-393 kPa)

.45-.60 gal/min. (1.7-2.3 liter/min)

2.0 ga. (7.6 liters)

For Use Above Freezing: Use Clean tap, distilled or de-ionized water.

For Use Below Freezing: Use

50% water and 50% pure ethylene glycol

(reagent or industrial grade) mixture.

DO NOT USE: Automotive anti-freeze that contains rust inhibitors or leak stoppers.

These coolants will damage the pump and block the small internal passageways of the

heat exchanger, affecting cooling performance. To acquire the proper coolant contact

a local welding distributor.

DO NOT USE: Pre-packaged welding industry coolants. These coolants may contain

oil-based substances, which attack the plastic components of the cooler. Once added

to the cooler, these substances are virtually impossible to purge from the water lines

and heat exchanger.

46.5 lbs. (21.1 kg)

61.2 lbs. (27.8 kg)

9.03 in. (229.4mm)

9.10 in. (231.1mm)

31.99 in. (812.6mm)

34.26 in. (870.2mm)

A-1

INSTALLATION

COOL ARC® 40

A-1

Product No. / Model

Input

Current Draw @ 60Hz Input

Current Draw @ 50Hz Input

Maximum Operating Pressure and Flow Rate

(Open Flow, Without Welding Torch Restriction)

Typical Operating Pressure and Flow Rate

(With Welding Torch Restriction)

Reservoir Size

Recommended Coolant

Shipping

Weight

Reservoir

Full (Water)

Dimensions

H (Top Face)

H Top Handle)

TECHNICAL SPECIFICATIONS – COOL ARC®40

EXPLANATION OF SYMBOLS THAT APPEAR ON THIS EQUIPMENT

OFFOFF

To avoid freeze damage and water leakage in ship-

ment, the COOL ARC® 40 unit is delivered empty

with no coolant in the system. To fill the unit, locate

the plastic Snap-On reservoir fill cap at the front mid-

dle of the unit. Remove the fill cap by pressing the

center of the cap inward while pulling at the tab on the

outer edge.

Clean tap water, distilled water, de-ionized water, a

50/50 mix of pure ethylene glycol and water, or any

other coolant specified by the manufacturer of the

water cooled product that the Cooler is used with, can

be added into the coolant reservoir. The opening of

the fill cap mates with most coolant containers but, to

avoid spillage of coolant, a funnel should be placed

into the reservoir hole when filling the COOL ARC®

40.

NOTE: Pure solutions and mixtures of, or materials

(i.e. towels) wetted with ethylene glycol are toxic to

humans and animals. They must not be haphazardly

discarded, especially by pouring liquids down the

drain. Contact the local EPA office for responsible dis-

posal methods or for recycling information.

For best results when using the COOL ARC® 40 with

Lincoln guns or torches, use distilled or de-ionized

water, although if not available, tap water can be

used. If protection from freezing is desired, use a 50%

water and 50% pure ethylene glycol (reagent or

industrial grade) mixture. An alcohol and water mix-

ture is also acceptable.

When using the COOL ARC® 40 with other products,

consult the manufacturer's instruction manual for rec-

ommended coolants.

DO NOT USE OIL BASED COOLANTS OR COOLANTS

THAT CONTAIN RUST INHIBITORS OR LEAK STOP-

PERS.

---------------------------------------------------------------------------

The unit can be filled either vertically or horizontally.

UNPLUG THE COOLER BEFORE FILLING THE

COOLANT RESERVOIR:

UPRIGHT (VERTICAL):

• Tilt the unit backward and pour 2 gallons (7.6 liters)

of coolant into the coolant reservoir fill hole through

a funnel.

• If a 1 gallon (3.8 liters) fill bottle is available, tilt the

unit forward until the bottle mates with the coolant

reservoir fill hole. Then tilt the unit backward until the

fill bottle is emptied. Fill the unit with 2 gallons (7.6

liters) of coolant.

A-2

INSTALLATION

COOL ARC® 40

A-2

SAFETY PRECAUTIONS

UNPACKING THE COOL ARC®40

The packaging of the Cooler is designed to withstand

shipping abuse, and contains a cardboard liner that

surrounds the unit. If any shipping damage has

occurred, contact your certified Lincoln distributor or

service center. When unpacking the unit, avoid thrust-

ing sharp objects through the carton liner, which may

puncture the plastic reservoir. Below is the recom-

mended procedure for unpacking the Cooler:

• Open top flap where identification label appears.

• Remove loose items and top insert.

• Open bottom flap.

• Remove bottom insert and slide Cooler, wrapped in

inside liner from outer carton.

• Gently remove liner and packaging foam from

Cooler.

Save the instruction manual and service directory sup-

plied with the COOL ARC® 40 for parts orders and

future maintenance service.

FILLING THE COOLANT RESERVOIR

Recommended Coolant

• For Use Above Freezing:

Clean tap, distilled or de-

ionized water.

• For Use Below Freezing: 50% water and 50% pure

ethylene glycol (reagent or industrial grade) mixture.

• DO NOT USE: Automotive anti-freeze that contains

rust inhibitors or leak stoppers. These coolants will

damage the pump and block the small internal pas-

sageways of the heat exchanger, affecting cooling

performance.

• DO NOT USE: Pre-packaged welding industry

coolants. These coolants may contain oil-based

substances, which attack the plastic components of

the cooler. Once added to the cooler, these sub-

stances are virtually impossible to purge from the

water lines and heat exchanger.

ELECTRIC SHOCK can kill.

• Disconnect input power by remov-

ing plug from receptacle before

working inside Cooler.

• Use only grounded receptacle.

• Do not remove the power cord ground prong.

• Do not touch electrically “hot” parts inside Cooler.

• Have qualified personnel do the installation, main-

tenance and troubleshooting work.

----------------------------------------------------------------------

WARNING

CAUTION

A-3

INSTALLATION

COOL ARC® 40

A-3

LYING DOWN (HORIZONTAL):

Carefully add 2 gallons (7.6 liters) of coolant through a

funnel into the coolant reservoir fill hole.

AVOID SPILLING COOLANT INTO THE LOUVERS

ON THE TOP OF THE COOLER.

The cooler is "FULL" when the coolant lies just below

the coolant reservoir opening with the cooler in the

upright (vertical) position.

NOTE: DO NOT ADD MORE THAN 2 GALLONS

(7.6 LITERS) OF COOLANT INTO THE RESER-

VOIR. The fill cap contains a pressure release air

hole, which must not be blocked by overfilling the

reservoir with coolant.

Be certain to replace the reservoir fill cap when the

reservoir is full. Simply press on the inside center of

the fill cap until the cap snaps into place. Operation of

the COOL ARC® 40 without the fill cap in place can

cause poor cooling efficiency, evaporation loss of

coolant and reduced product life.

COOLANT "IN" AND "OUT" CONNECTIONS

The fittings located on the back center of the COOL

ARC® 40 are two female 5/8-18 left-hand threaded

fittings. (CGA Style) These mate with water hoses

typically used in the welding industry.

Refer to Figure 1.

Water or Coolant Line Connections to the

COOL ARC® 40

Take the connector nut of the water hose and check if

the thread of the male connector nut matches the 5/8-

18 left hand female thread in the fitting on the back of

the unit.

For all Lincoln products and those with a connector

nut on the water hose that mate with the fittings on the

back of the COOL ARC® 40:

(Reference FIG. 1) Take the accessory "INLET" hose

(colored or tagged blue on most hoses) and thread it

into the coolant "OUT" fitting located on the right side

of the back of the cooler. Secure the connector nut of

the hose tightly into the fitting with a wrench so that

leaking does not occur. Then take the accessory

"OUTLET" hose (colored or tagged red on most

hoses) and thread it into the coolant "IN" fitting located

on the left side of the back of the cooler. Again, tightly

secure the connector nut of the hose into the fitting of

the cooler with a wrench to insure that no leaking

occurs.

NOTE: BE CERTAIN THAT NO LEAKS EXIST

WHEN THE COOLER IS TURNED ON. A LEAK

WILL DEPLETE RESERVOIR VOLUME, CAUSING

POOR COOLING PERFORMANCE AND REDUCING

GUN OR TORCH LIFE.

If the connector nut on a water hose does not mate

with the fittings on the back of the COOL ARC® 40,

order the following:

(See Parts Lists for Itemʼs below)

(2) Connector Nuts

(2) Nipples for 3/16" I.D. hose

(2) Hose Clamps

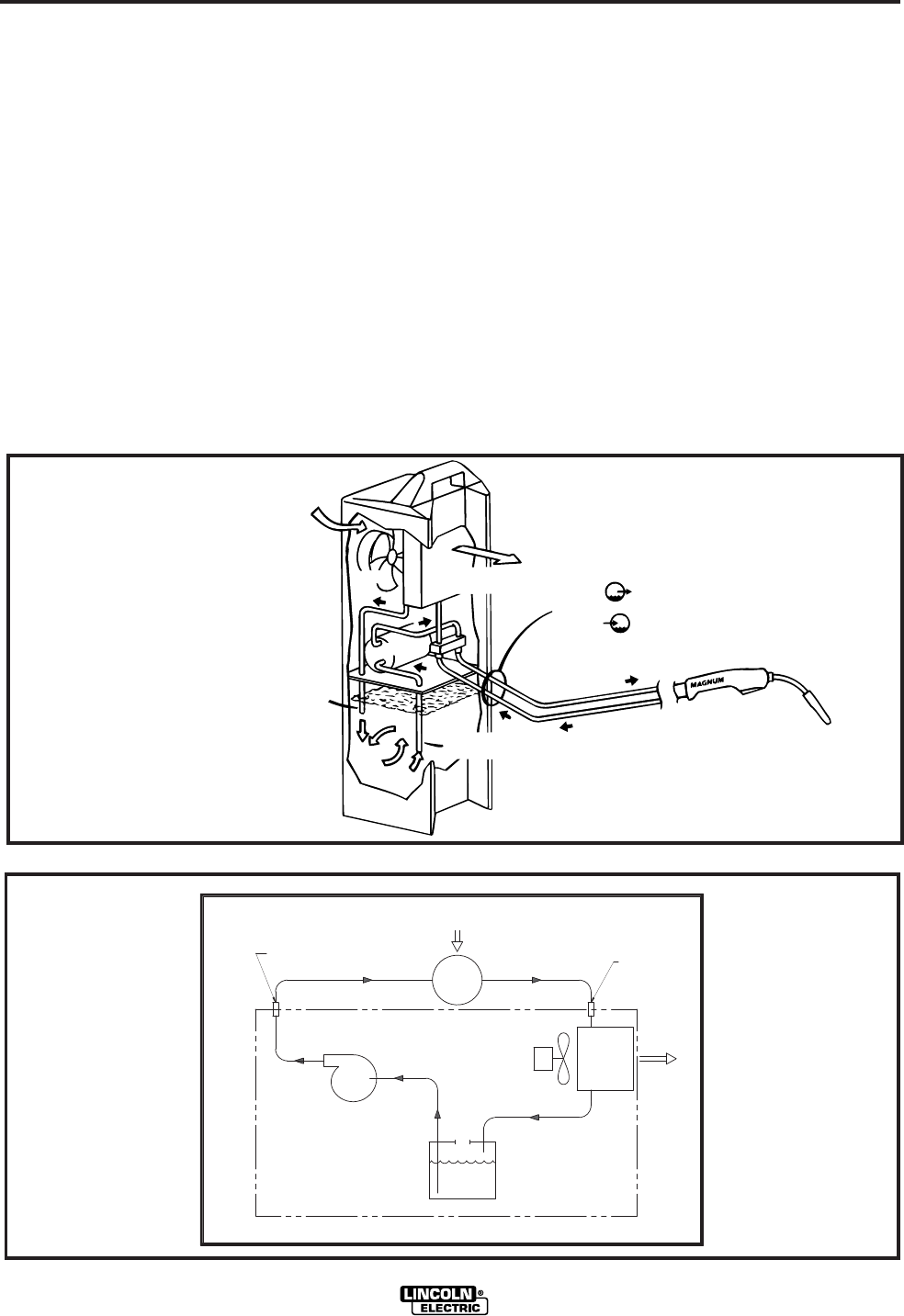

FIGURE 1

Inlet and Outlet Hose Connection Diagram

COOLANT

OUT

FROM

HEAT

SOURCE

(RED)

HEAT

SOURCE

(BLUE)

A-4

INSTALLATION

COOL ARC® 40

A-4

HORIZONTAL INSTALLATION ON THE

TOP OF A POWER SOURCE

For proper installation, follow the instructions provided

with the K559-2 Cooler Horizontal Mounting Bracket

Kit. The cooler is secured to the power source lift bale.

Reference the table below for a list of power sources

that allows the COOL ARC® 40 to be mounted hori-

zontally on top.

VERTICAL INSTALLATION ON POWER

SOURCE WITH A DUAL CYLINDER

UNDERCARRIAGE.

For proper installation, follow the instructions provided

with the K559-3 Cooler Vertical Mounting Bracket Kit.

The cooler is securely mounted to the dual cylinder

support bracket. Reference the table below for a list of

power sources and dual cylinder undercarriages that

allows the COOL ARC® 40 to be mounted vertically at

the rear of the machine on the gas bottle rack.

If the COOL ARC® 40 is not securely mounted

horizontally on top of a power source or vertically

on a dual cylinder undercarriage.

THE COOL-ARC 40 MUST BE OPERATED IN THE

HORIZONTAL POSITION. This will prevent the

cooler from being accidentally tipped over.

------------------------------------------------------------------------

Remove the connector nut from the INLET hose by

making a straight cut 6-12mm(1/4"-1/2") away from

the end of the nipple located inside of the hose. Take

the nipple and the connector nut ordered above and

insert the nipple into the connector nut so that the

threaded end of the connector nut points away from

the barbed end of the nipple. Twist the barbed end of

the nipple into the hose until the shoulder of the nip-

ple is flush with the end of the hose. Secure the hose

onto the nipple with the hose clamp to insure that the

connection is watertight. No water can leak from the

connection if it is properly attached. Repeat the proce-

dure for the OUTLET hose. When complete, follow the

connection procedure detailed above for connecting

the hoses to the COOL ARC® 40 fittings.

The connector and nipple listed fit tightly onto 4.0 mm

(5/32") to 4.8mm(3/16") inner diameter hose, but if

clamped tightly to the hose, can fit up to a

6.4mm(.25”) inner diameter hose.

INPUT POWER CONNECTION

Plug the input power cord on the COOL ARC® 40 into

a standard 230V circuit breaker protected receptacle.

INSTALLATION ON UNDERCARRIAGE OR

POWER SOURCE

The COOL ARC® 40 can be mounted either horizon-

tally or vertically on a power source. To mount the

cooler horizontally, order the K559-2 Cooler

Horizontal Mounting Bracket. To mount the cooler ver-

tically on a power source with a dual cylinder under-

carriage, order K559-3 Cooler Vertical Mounting

Bracket.

Power Source

CV-300

CV-400

CV-655

DC-250

DC-400

DC-600, DC-655

Square Wave TIG 275

Square Wave TIG 355

Power Wave 455

Power MIG 255

K559-3

Cooler Vertical Mounting

Bracket on a Dual

Cylinder Undercarriage

K874 Undercarriage

Not Available

K932-1 Undercarriage

Not Available

K1570-1 Undercarriage

Not Available

K559-2

Cooler Horizontal

Mounting Bracket

Can be used On Top

of a Power Source

Yes

WARNING

A-5

INSTALLATION

COOL ARC® 40

A-5

INSTALLATION OF WATER COOLED

ACCESSORIES

After following the installation instructions above, the

COOL ARC® 40 is ready for connection to a water-

cooled accessory.

WATER COOLED TIG TORCH AND MIG GUN

Follow Figure 2 when using the COOL ARC® 40 with

water-cooled TIG torches. Follow Figure 4 when using

the COOL ARC® 40 with water-cooled MIG gun.

Consult the manufacturer's instruction manual when

using the COOL ARC® 40 with other water-cooled

TIG and MIG accessories.

CONNECTION TO WIRE FEEDERS

Follow Figure 3 when using the COOL ARC® 40 in

conjunction with a wire feeder. The feeder will need to

have pass-through water hoses installed in order to

correctly function with the COOL ARC® 40, since the

cooler requires continuous flow. DO NOT USE A

WATER SOLENOID VALVE with the COOL ARC® 40.

Water pass-through connection kits are available for

wire feeders. Refer to product literature or the wire

feeder's instructions manual for kit availability and fur-

ther connection details. It is not required to run the

water lines through the wire feeder, but is does pro-

vide a very neat MIG gun connection.If pass-through

water hoses are unavailable, connect the MIG gun as

shown in

Figure 4.

DO NOT USE A WATER SOLENOID VALVE with

the COOL ARC® 40. When a solenoid valve clos-

es, the pump would dead-head, causing the pump

to heat up excessively leading to premature failure

of the pump.

------------------------------------------------------------------------

K529-10 POWER INPUT CABLE WITH WATER

AND GAS HOSES

This cable assembly includes a (1) power cable, (1)

control cable, (1) gas hose and (2) water hoses to

connect a power source to a wire feeder. The cable

length is 3.05m (10Ft.). The water hoses have 5/8"-18

left hand male hose fittings and the gas hose has a

5/8"-18 right hand male hose fitting. The cable and

hose lengths are designed to connect a wire feeder to

a COOL ARC® 40 that is vertically mounted at the

rear of a power source on a dual cylinder undercar-

riage.

Refer to Figure 5 for an illustration of this connection.

CAUTION

REGULATOR

FLOWMETER

GAS*

ARGON GAS

CYLINDER

COOLANT

OUT

COOLANT

COOLANT*

GAS

COOLANT*

GAS

IN OUT

COOLANT

GAS

TO WORK

POWER / COOLANT

POWER CABLE ADAPTER*

TIG TORCH

*INCLUDED IN

FEMALE TO FEMALE*

CGA FITTING

KP504 HOOK-UP KIT

POWER SOURCE

COOLANT

OUT COOLANT

COOLANT

GUN CABLE

KP504-WATER HOSES AND

FEMALE TO FEMALE 5/8" LH

CGA ADAPTER COUPLINGS

KP1529-1

FEMALE TO FEMALE 5/8" LH

CGA ADAPTER COUPLINGS

(COUPLINGS ONLY)

SHIELDING

GAS

COOLANT

OUT

NOTE:

ORDER K1859-1 ALONG WITH

K529-10 FOR WIRE FEEDERS

WITH QUICK DISCONNECT

FITTINGS.

COOLANT

GUN CABLE

OUT

K529-10

COOLANT

ELECTRODE CABLE

TO WORK

CONTROL CABLE

COOLANT

NOTE:

BLUE HOSE

RED HOSE

COOLANT

OUT

COOLANT

OUTCOOLANT

COOLANT

GUN CABLE

NOTE: COOLANT

OUT

K1859-1 FOR WIRE

FEEDERS WITH QUICK

DISCONNECT FITTINGS

KP504 FOR HOOK-UP

TO WIRE FEEDERS

WITH CGA FITTINGS

COOLANT

BLUE HOSE

RED HOSE

FIGURE 2

Water Cooled TIG Torch Connection

FIGURE 3

Water Cooled MIG Gun Connection

FIGURE 4

Connection to Wire Feeder (Do Not Use Water Solenoid)

FIGURE 5

Connection to Wire Feeder (Do Not Use Water Solenoid)

B-1

OPERATION

B-1

• The cooler should be turned "OFF" when welding is

not taking place for long periods of time.

• Be certain that the cooler is "ON" (power switch in

the " l " position) before beginning to weld.

• Never operate the cooler with the reservoir fill cap

removed. Unless checking coolant flow.

• Avoid placing the cooler near areas of extreme heat.

• Avoid placing the cooler near a flux hopper or an

area where dust build-up is extreme.

• Avoid kinking or putting sharp bends in any water

lines.

• Keep all water lines clean and free of any blockage.

• Do not operate cooler without coolant in reser-

voir. Never run pump dry.

TURNING THE SYSTEM "ON"

After connecting the COOL ARC® 40 per the installa-

tion instructions above, plug the unit into a

International 230V electrical receptacle for start-up

operation. Be certain that the power input into the unit

matches the Cooler's rated input.

The POWER SWITCH is located on the right side of

the control panel. The cooler will be "ON" when

pressed to " l " and "OFF" when pressed to " O ".

You will be able to hear the fan running and feel air-

flow out of the back of the unit when the cooler is

operating. The cooler will run continuously unless it is

plugged into a switched receptacle on the power

source.

The coolant FLOW INDICATOR is accessed by

removal of the fill cap. Actual return flow is directly vis-

ible, via the fill opening with the unit in the vertical or

horizontal position.

When first starting the unit, check all of the coolant

hoses to insure that no water leaks are present.

Water leakage causes poor welding performance,

poor cooling performance, low welding component life

and potential electrical safety hazards.

COOL ARC® 40

PRODUCT DESCRIPTION

The COOL ARC® 40 is a stand alone re-circulation

cooling system designed for use with water-cooled

TIG, MIG, PAC (Plasma Arc Cutting) and PAW

(Plasma Arc Welding) guns and torches. The coolant

"IN" and "OUT" connections are 5/8-18 left-hand

female threads which match the standard connector

nut of domestic water hoses (CGA style) and water-

cooled TIG torches. The COOL ARC® 40 is a continu-

ous duty cooler.

The overall size and shape of the cooler is identical to

the Magnum 20. The COOL ARC® 40 can operate in

either the vertical or horizontal position. The COOL

ARC® 40 is very easy to use and understand with

only one power switch on the control panel. The cool-

er has an International 230V power input receptacle,

making it very easy to power up. Adding coolant to the

reservoir is simple and connecting to the coolant "IN"

and "OUT" connections are easily made with an

adjustable wrench.

The COOL ARC® 40 coolant flow is circulated

through a heat exchanger to remove heat energy from

the coolant. The coolant flow is then deposited into

the coolant reservoir. The pump draws its coolant sup-

ply from the coolant reservoir and delivers coolant to

the welding torch or gun. Refer to Figure 6.

RECOMMENDED PROCESSES AND EQUIPMENT

The COOL ARC® 40 is designed for use with water-

cooled TIG, MIG, PAC (Plasma Arc Cutting) and PAW

(Plasma Arc Welding) guns and torches. The COOL

ARC® 40 can be used with MIG wire feeders and

power sources as well as TIG power sources.

The following should always be observed when oper-

ating the COOL ARC® 40:

• High voltage typical of welding operations can kill.

• Immersion in water around electrical lines can cause

electrical shock.

• Moving parts can injure. Never place fingers into

openings of Cooler.

• Never operate the cooler with any case parts off or

removed.

• Unplug the cooler before removing the wraparound

or servicing the unit.

• Unplug the cooler before filling the reservoir.

• Hot coolant can burn skin. Always be sure coolant is

NOT HOT before servicing the cooler.

• Do not pour used ethylene glycol coolant down the

drain.

• Do not remove the pump relief valve's 3/4" hex nut

or attempt to adjust the relief valve setting.

• Check the coolant reservoir level daily.

• Keep the reservoir full especially after changing any

water lines.

B-2

OPERATION

B-2

COOLING EFFICIENCY

The high cooling efficiency of the COOL ARC® 40

offers a cooler, more comfortable weld than conven-

tional air-cooled procedures as well as leading com-

petitors water cooled systems.

The COOL ARC® 40 effectively removes the heat of

the arc away from the gun or torch handle and places

it into the exiting air flow at the back of the Cooler.

Ambient air temperature affects the coolant tempera-

ture of the COOL ARC® 40.

For example:

Unlike other water coolers that depend on bulky reser-

voir size, the high efficiency components of the COOL

ARC® 40 allows the reservoir size to be small. The

result is a lightweight, portable unit.

COOL ARC® 40

COOL ARC® 40 WATER COOLER

M19724

3-23-2001

COOLANT

RESERVOIR

PUMP

HEAT

EXCHANGER

FAN

AIR

FLOW

WELDING

TORCH

GUN

HEAT

"IN"

COOL-ARC 40

COOLANT "OUT"

COOLANT "IN"

ROOM AIR

HEATED

AIR OUT

HEAT

EXCHANGER

FAN

PUMP

COOLANT

RETURN

COOLANT

INTAKE

COOLANT

NOTE:

COOLANT

OUT

COOLANT

BLUE HOSE

RED HOSE

FIGURE 6

Coolant Circulation Diagram

FIGURE 7

“The connector and nipple listed fit tightly onto 5/32"

(4.0mm) to 3/16" (4.8mm) inner diameter hose, but if

clamped tightly to the hose, can fit up to a .25

(6.4mm) inner diameter hose. These fittings are also

readily available from any industrial welding supplier.

K529-10

Power Input Cable with Water and Gas Hoses:

This cable assembly includes the following: (1) power

cable, (1) control cable, (1) gas hose and (2) water

hoses. The cable assembly connects a power source

to a wire feeder for water-cooled MIG applications.

The cable length is 10'. The water hoses have 5/8"-

18 left hand male hose fittings and the gas hose has a

5/8"-18 right hand male hose fitting. The cable and

hose lengths are designed to connect a wire feeder to

a COOL ARC® 40 that is vertically mounted at the

rear of a power source on a dual cylinder undercar-

riage.

Refer to Figure 5 for an illustration of this connection.

KP504 TIG Hook Up Kit:

The Hook-Up Kit includes: (2) water hoses, (1) gas

hose, (2) water adapter fittings, male to male 5/8" LH

thread, (1) water hose coupler, female to female 5/8"

LH thread and (1) power cable adapter. Threads on all

hoses and fittings are CGA style.

DO NOT USE A WATER SOLENOID VALVE with

the COOL ARC® 40. When a solenoid valve clos-

es, the pump would dead-head, causing the pump

to heat up excessively leading to premature failure

of the pump.

------------------------------------------------------------------------

Coolant Hoses:

Coolant hoses are readily available from an industrial

welding supplier or in various MIG or TIG hook-up kits

provided by Lincoln Electric. Refer to Magnum acces-

sory literature sheets.

For lengths of coolant hoses over 7.6m(25 Ft.) and up

to 15.2m(50 Ft)., 7.9mm(5/16”) I.D. hose is recom-

mended. 7.9mm(5/16”) I.D. hose and accommodating

fittings are available from an industrial welding suppli-

er.

C-1

ACCESSORIES

C-1

OPTIONAL EQUIPMENT (Field Installed)

K559-2 Cooler Horizontal Mounting Bracket:

Mounts the COOL ARC® 40 horizontally to the top of

a power source, securing the cooler to the lift bale.

The kit includes all necessary mounting hardware.

K559-3 Cooler Vertical Mounting Bracket:

Mounts the COOL ARC® 40 vertically to a power

source that has a dual cylinder undercarriage already

installed. The bracket securely mounts the cooler to

the dual cylinder support bracket. The kit includes all

necessary mounting hardware.

K1536-1 Magnum Flow Sensor:

Protects valuable torches, guns and robotic welding

systems from damage when loss of coolant flow has

occurred for any reason such as a blocked or kinked

water line or a ruptured hose.

KP1529-1 Quick Connect Water Adapter:

Converts a male 5/8"-18 left hand hose fitting (CGA

Style) to a female quick connect fitting. The female

quick connect mates with the male quick connects on

water cooled MIG guns or hoses.

K1859-1 Water Cooler Hoses (5/8" LH CGA to QD):

This kit includes two 25ʼ – 3/16 I.D. water hoses with a

5/8" LH CGA style fitting on one end and a male quick

disconnect on the other. Most wire feeders have

female quick disconnects and this kit allows direct

hook up between the water cooler and the wire feed-

er.

K1859-2

Water Cooler Hoses

(5/8" LH CGA to 5/8 LH CGA)

This kit includes two 7.6m(25 Ft.)-4.7mm(3/16”) inside

diameter hoses with a 5/8”LH CGA style fitting on both

ends. Hoses can be mated with KP1529-1 for a water

Cooler to MIG gun application. Ideal for water Cooler

to Machines or wire feeders with 5/8”LH CGA style fit-

tings.

Field Installed CGA style hose fittings:

Fittings to convert a standard 4.7mm(3/16") I.D. hose

to a 5/8"-18 left hand male hose fitting. These male fit-

tings mate with the fittings on the back of the Cool-Arc

40.

Order the following:

(2) Connector Nuts (T15007-2)

(2) Nipples for 3/16" I.D. Hose (T15008)

(2) Hose Clamps (S10888-35)

COOL ARC® 40

CAUTION

D-1

MAINTENANCE

D-1

ROUTINE MAINTENANCE

Remove accumulated dust and dirt from the internal

components of the cooler by blowing it out with a low-

pressure air hose or removing it with a vacuum hose.

PERIODIC MAINTENANCE

In dirty or dusty environments or if biological growth

occurs in the coolant, it may be necessary to flush the

coolant reservoir. Drain the old coolant, rinse the

inside of the reservoir and circulate rinsing solution

through the coolant system. Add new coolant when

cleaning is finished. It is recommended to flush the

coolant at least once a year. A cooling system free

from debris offers increased cooling efficiency and

longer pump and torch life. See the Coolant

Treatment Recommendation in this “Section D-2”.

NOTE: Pure solutions and mixtures of, or materials

(i.e. towels wetted) with ethylene glycol are toxic to

humans and animals. They must not be haphazardly

discarded, especially by pouring liquids down the

drain. Contact the local EPA office for responsible dis-

posal methods or for recycling information

PUMP MAINTENANCE

The pump head has a "built in" strainer on the inlet side of

the pump. It is recommended to clean or replace the

pumps inlet strainer at least once a year. (See Above):

•Drain the coolant reservoir and all coolant lines. Dispose

of the coolant properly as specified in NOTE above.

• Hold the pump head firmly to apply a counter-torque when

loosing the strainer's 7/8" acorn nut located on the bottom. Do

not confuse with 3/4" acorn nut. Remove nut and slide inlet

strainer down and out from the pump head.

• Gently rinse the strainer under running water to thor-

oughly clean it.

• Use a mirror to inspect the inside of the pump for

contamination. Carefully remove hardened debris

with a dental pick if necessary, without scratching

the inside of the pump.

• Reinstall the strainer and 7/8 acorn nut, tightening

with 75+/-15 in-lbs. of torque. Wipe dry all area wet-

ted with coolant. Dispose of coolant soaked towels

properly as specified above.

• For a more in depth procedure, See Section D-2,

“Pump Inlet Strainer”.

PUMP MOTOR

The COOL ARC® 40 is rated for continuous opera-

tion. It is recommended to re-oil the pump motor

bearings once a year as follows:

• Remove the plastic plugs located on the top of both

the inboard and outboard bearing end-caps.

• Re-oil each bearing with 30-35 drops of SAE 20 oil

then reinstall both plugs.

HEAT EXCHANGER

To maintain maximum cooler efficiency, the heat

exchanger should be kept free of dust and dirt build-

up. Clean the heat exchanger periodically using a vac-

uum hose or a low-pressure air line. Avoid placing the

unit near a flux hopper or a flux waste container. A

clean heat exchanger offers better cooling perfor-

mance and longer product life. In extremely dirty envi-

ronments, it may be necessary to remove the heat

exchanger completely from the cooler and clean the

fins with soap and water. Use care to avoid damaging

the fins.

RESERVOIR COOLANT LEVEL

The reservoir volume should be checked daily before

using the cooler. Remove the reservoir fill cap and

check the coolant level. The reservoir is full when the

coolant level is just below the reservoir fill opening

with the unit in the upright position. Keep the reservoir

full, especially after disconnecting the water lines or

changing the accessory being cooled.

COOL ARC® 40

ELECTRIC SHOCK can kill.

• Disconnect input power by

removing plug from receptacle

before working inside Cooler.

• Do not operate with covers

removed.

• Use only grounded receptacle.

• Do not remove the power cord ground prong.

• Do not touch electrically “hot” parts inside

Cooler.

• Have qualified personnel do the installation,

maintenance and troubleshooting work.

See additional warning information at the

front of this operatorʼs manual.

------------------------------------------------------------

WARNING

SAFETY PRECAUTIONS

D-2

MAINTENANCE

D-2

COOLANT TREATMENT

RECOMMENDATION

This procedure is intended to provide a means of reducing the

objectionable amount of fungal and bacterial contamination that

has occurred in

COOL ARC® 40

water coolers and cooling

systems.

Additive:

The recommended additive can be purchased at local

pool supply stores. An example is "Maintain Pool Pro

30% Non-Foam Algaecide".

Limitations:

• This additive should be used with fresh coolants con-

taining only pure water.

• This additive should not be used with coolants con-

taining any other substance, including antifreeze sub-

stances.

• No other additives shall be used with the specified

coolant that has been treated with the recommended

additive.

• This procedure is no permanent substitute for a peri-

odic maintenance schedule for the specified coolers

• A 1 quart bottle of additive is sufficient to disinfect

and treat about 720 coolers.

• Check with the manufacturer of your guns or

torches to be sure that this procedure is compati-

ble with your equipment.

Prepare the disinfectant:

Make a quantity of only what is needed to avoid an

excess Bulk preparation (for coolers serviced in quan-

tity):

8.775 liters(2.325 gals.) of pure, fresh water per cool-

er 1.625 ml of additive per cooler. Example: for 100

coolers, add 162.5 ml to 232.5 gals. of pure fresh

water Pour 7.55 liters(2.0 gals.) of disinfectant into the

empty reservoir. Recap the reservoir, tape over the air

vent in the cap, roll disinfectant around the inside the

reservoir to thoroughly coat all of its surfaces. Remove

the tape from the reservoir cap. Prime the cooling sys-

tem by positioning cooler horizontally and circulate dis-

infectant through it for 10 to 15 minutes. Drain disin-

fectant from the cooling system. Do not reuse this

solution. Add new, fresh coolant to the cooling system.

Add 1.225 liters(0.325 gals.) of fresh disinfectant to the

system by pouring it into the reservoir, then reduce the

concentration to the nominal 30 ppm:

Add the balance 6.325 liters(1.675 gals.) of fresh, pure

water to the reservoir to create the treated coolant

concentration. Prime the cooling system.

Check coolant level. Add more fresh, pure water if

required, without adding more than 0.475 liters(0.125

gal.) of pure water to prevent diluting the coolant addi-

tive.

PUMP INLET STRAINER

Poor cooler performance can usually be traced to a

partially or completely blocked pump inlet strainer.

This is a user-serviceable item and can be cleaned

and reused, or replaced. Continued pump operation

with a blocked strainer can cause:

• Voiding of cooler service warranty

• Cavitation damage to the pump headʼs inlet areas

• Welding accessory damage from overheating due to

insufficient coolant flow rate.

A new or properly cleaned pump inlet strainer should

restore the coolerʼs performance.

For additional service and periodic maintenance

details and for recommended coolants, follow the rec-

ommendations listed below.

Procedure and Preparation:

• Always switch off the COOL ARC® 40 machine

power

• Always disconnect the COOL ARC® 40 machine

from service input power.

• Always allow the coolant in the system to cool

enough to avoid burn injuries.

• Avoid contact with contaminated coolant. Wear

waterproof gloves and protective eye wear.

• Do not remove the pump relief valveʼs 3/4 in.

acorn hex nut or attempt to adjust the relief valve

setting.

------------------------------------------------------------------------

INSPECT CONDITION OF COOLANT

If coolant is contaminated or old:

• Drain the system of coolant and dispose of it in an

environmentally responsible manner.

• Flush system of old coolant.

• Fill with fresh tap or distilled water, run for ten min-

utes, and drain.

• Proceed to adding coolant..

If coolant is clean and fresh:

• If clean, dedicated coolant handling equipment,

including a clean siphon pump and a clean holding

tank are available then proceed to servicing the

Pump Inlet Strainer.

COOL ARC® 40

WARNING

D-3

MAINTENANCE

D-3

Removing Coolant:

a. Drain coolant from the reservoir using clean siphon-

ing equipment

b. Coolant level should be drained below the strainer-

pressure fitting:

• This prevents coolant from streaming out of unit

when strainer nut is removed

SERVICE THE PUMPS INLET STRAINER:

a. Place absorbent towels underneath pump head to

prevent stray coolant from wetting coolerʼs electrical

components.

b. See figure 7. Hold pump head to apply counter

torque when loosening strainerʼs 7/8 acorn nut. Do

not confuse with 3/4 acorn nut. Remove nut and

slide inlet strainer down and out from pump head.

c. Inspect strainer for damage or excessive clogging:

• Replace or Gently rinse strainer under running

water to thoroughly clean it.

d. Use a mirror to inspect inside of pump for contami-

nation. If hardened debris is present and interferes

with filter seating, carefully remove it with dental

pick without scratching inside of the pump. Use

care not to drop debris into pump.

e. Reinstall strainer and acorn nut, tightening with

34±15mm-Kilograms( 75±15 in.-lbs.) of torque.

• Hold pump head to apply counter-torque when

loosening strainers 7/8 acorn nut.

f. Wipe dry all areas wetted by coolant. Dispose of

towels in an environmentally responsible manner.

Add coolant:

a. Add 7.6 ltr. (2 gal.) of coolant, either the recommen-

dations off the water cooled accessory or if none,

see the design specification summary listed in this

manual.

ADDITIONAL SERVICE NOTES:

1. Always use a back-up wrench on pump head when

loosening or tightening pump fittings.

2. Never run the pump dry. Always use a recommend-

ed coolant, otherwise pump damage may result.

3. Flush coolant from system and replace with

fresh, recommended coolant at least once a

year. More frequent flushing may be necessary,

depending upon the userʼs particular system or

its usage, especially if it is prone to clogging

from biological growth in the coolant.

COOL ARC® 40

FIGURE 7

E-1

TROUBLESHOOTING

E-1

COOL ARC® 40

If for any reason you do not understand the test procedures or are unable to perform the tests/repairs safely, contact your

Local Lincoln Authorized Field Service Facility for technical troubleshooting assistance before you proceed.

CAUTION

This Troubleshooting Guide is provided to help you

locate and repair possible machine malfunctions.

Simply follow the three-step procedure listed below.

Step 1. LOCATE PROBLEM (SYMPTOM).

Look under the column labeled “PROBLEM (SYMP-

TOMS)”. This column describes possible symptoms

that the machine may exhibit. Find the listing that

best describes the symptom that the machine is

exhibiting.

Step 2. POSSIBLE CAUSE.

The second column labeled “POSSIBLE CAUSE” lists

the obvious external possibilities that may contribute

to the machine symptom.

Step 3. RECOMMENDED COURSE OF ACTION

This column provides a course of action for the

Possible Cause, generally it states to contact your

local Lincoln Authorized Field Service Facility.

If you do not understand or are unable to perform the

Recommended Course of Action safely, contact your

local Lincoln Authorized Field Service Facility.

HOW TO USE TROUBLESHOOTING GUIDE

Service and Repair should only be performed by Lincoln Electric Factory Trained Personnel.

Unauthorized repairs performed on this equipment may result in danger to the technician and

machine operator and will invalidate your factory warranty. For your safety and to avoid Electrical

Shock, please observe all safety notes and precautions detailed throughout this manual.

__________________________________________________________________________

WARNING

E-2

TROUBLESHOOTING

E-2

COOL ARC® 40

Observe all Safety Guidelines detailed throughout this manual

If for any reason you do not understand the test procedures or are unable to perform the tests/repairs safely, contact your

Local Lincoln Authorized Field Service Facility for technical troubleshooting assistance before you proceed.

CAUTION

PROBLEMS

(SYMPTOMS)

POSSIBLE AREAS OF

MISADJUSTMENTS(S)

RECOMMENDED

COURSE OF ACTION

Cooler does not operate with power

switch "ON".

(Switch pushed to "I" position.)

Internal water leak.

Torch or gun runs hot.

Fan operates but there is low coolant

flow.

Fan operates but there is no coolant

flow.

Pump operates, but fan does not.

Cooler trips outlet circuit breaker.

1. Input cord unplugged.

2. Power switch faulty

3. Power harness damaged.

4. Water lines blocked or crimped.

5. Leak in gun or water hoses.

6. Coolant reservoir empty.

7. The system needs to be primed

1. Hose clamp loose on one of inter-

nal hoses.

2. Internal hose punctured.

3. Heat exchanger leaking.

4. Pump seal is leaking

1. Unit placed by area of extreme

heat.

2. Low coolant flow.

3. No coolant flow.

4. Fan not operating.

5. Heat exchanger clogged.

1. Leak in torch/gun or hoses.

2.Torch/gun or hoses partially

obstructed.

3. Reservoir empty or very low.

4. Pump strainer is dirty.

1. Pump or pump motor failure.

2. Pump strainer is blocked.

1. Loose or disconnected fan lead.

2. Obstruction in fan blade.

3. Fan motor failure.

1. Circuit overloaded.

2. Fan or pump motor failure.

If all recommended possible areas of

misadjustment have been checked

and the problem persists, Contact

your local Lincoln Authorized

Field Service Facility.

F-1

DIAGRAMS

F-1

COOL ARC® 40

NOTE: This diagram is for reference only. It may not be accurate for all machines covered by this manual. The specific diagram for a particular code is pasted inside

the machine on one of the enclosure panels. If the diagram is illegible, write to the Service Department for a replacement. Give the equipment code number..

COOL ARC® 4 0 WATER COOLER

M20078

A.03

ELECTRICAL SYMBOLS PER E1537

COLOR CODE: B - BLACK OR GRAY

W - WHITE

G - GREEN

BR- BROWN

BL- BLUE

G1 - FAN SHROUD GROUND

CONNECTION(CUSTOMER

GROUND)

G2 - BASE GROUND CONNECTION

G3 - CHASSIS GROUND CONNECTION

(FAN SHROUD)

P1 - INPUT POWER PLUG

SW1 -

POWER SWITCH

MTR1 - PUMP MOTOR

MTR2 - FAN MOTOR

SW1

MTR1 MTR2

G1 G3

INPUT: 230 V

50/60 HZ

F-2

DIMENSION PRINT

F-2

COOL ARC® 40

9.03

9.10

2.27

34.26

L11540

FILL CAP

NOTE: This diagram is for reference only. It may not be accurate for all machines covered by this manual. The specific diagram for a particular code is pasted inside

the machine on one of the enclosure panels. If the diagram is illegible, write to the Service Department for a replacement. Give the equipment code number..

NOTES

COOL ARC® 40

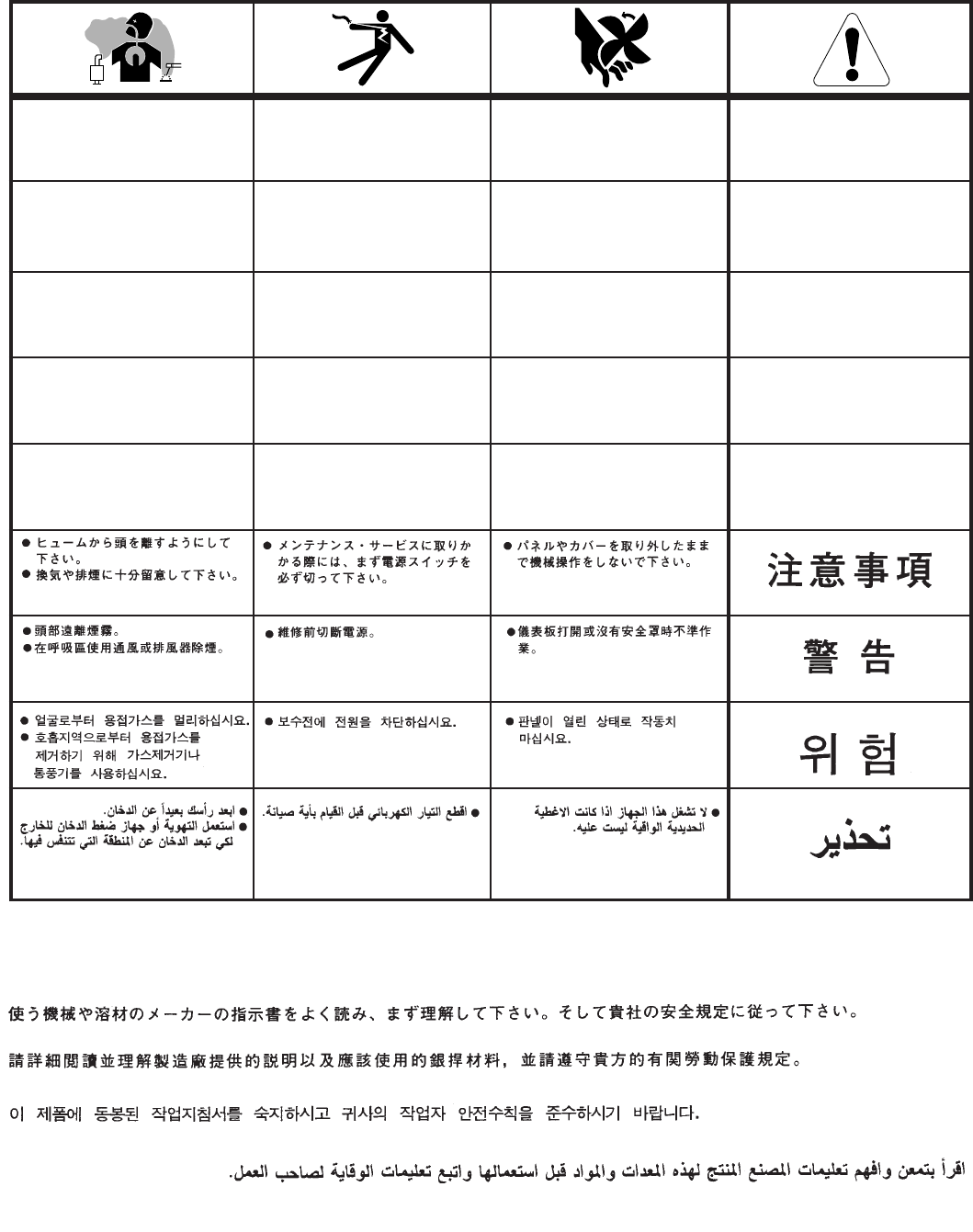

WARNING

AVISO DE

PRECAUCION

ATTENTION

WARNUNG

ATENÇÃO

Spanish

French

German

Portuguese

Japanese

Chinese

Korean

Arabic

READ AND UNDERSTAND THE MANUFACTURER’S INSTRUCTION FOR THIS EQUIPMENT AND THE CONSUMABLES TO BE

USED AND FOLLOW YOUR EMPLOYER’S SAFETY PRACTICES.

SE RECOMIENDA LEER Y ENTENDER LAS INSTRUCCIONES DEL FABRICANTE PARA EL USO DE ESTE EQUIPO Y LOS

CONSUMIBLES QUE VA A UTILIZAR, SIGA LAS MEDIDAS DE SEGURIDAD DE SU SUPERVISOR.

LISEZ ET COMPRENEZ LES INSTRUCTIONS DU FABRICANT EN CE QUI REGARDE CET EQUIPMENT ET LES PRODUITS A

ETRE EMPLOYES ET SUIVEZ LES PROCEDURES DE SECURITE DE VOTRE EMPLOYEUR.

LESEN SIE UND BEFOLGEN SIE DIE BETRIEBSANLEITUNG DER ANLAGE UND DEN ELEKTRODENEINSATZ DES HER-

STELLERS. DIE UNFALLVERHÜTUNGSVORSCHRIFTEN DES ARBEITGEBERS SIND EBENFALLS ZU BEACHTEN.

●Do not touch electrically live parts or

electrode with skin or wet clothing.

●Insulate yourself from work and

ground.

●No toque las partes o los electrodos

bajo carga con la piel o ropa moja-

da.

●Aislese del trabajo y de la tierra.

●Ne laissez ni la peau ni des vête-

ments mouillés entrer en contact

avec des pièces sous tension.

●Isolez-vous du travail et de la terre.

●Berühren Sie keine stromführenden

Teile oder Elektroden mit Ihrem

Körper oder feuchter Kleidung!

●Isolieren Sie sich von den

Elektroden und dem Erdboden!

●Não toque partes elétricas e elec-

trodos com a pele ou roupa molha-

da.

●Isole-se da peça e terra.

●Keep flammable materials away.

●Mantenga el material combustible

fuera del área de trabajo.

●Gardez à l’écart de tout matériel

inflammable.

●Entfernen Sie brennbarres Material!

●Mantenha inflamáveis bem guarda-

dos.

●Wear eye, ear and body protection.

●Protéjase los ojos, los oídos y el

cuerpo.

●Protégez vos yeux, vos oreilles et

votre corps.

●Tragen Sie Augen-, Ohren- und Kör-

perschutz!

●Use proteção para a vista, ouvido e

corpo.

WARNING

AVISO DE

PRECAUCION

ATTENTION

WARNUNG

ATENÇÃO

Spanish

French

German

Portuguese

Japanese

Chinese

Korean

Arabic

LEIA E COMPREENDA AS INSTRUÇÕES DO FABRICANTE PARA ESTE EQUIPAMENTO E AS PARTES DE USO, E SIGA AS

PRÁTICAS DE SEGURANÇA DO EMPREGADOR.

●Keep your head out of fumes.

●Use ventilation or exhaust to

remove fumes from breathing zone.

●Los humos fuera de la zona de res-

piración.

●Mantenga la cabeza fuera de los

humos. Utilice ventilación o

aspiración para gases.

●Gardez la tête à l’écart des fumées.

●Utilisez un ventilateur ou un aspira-

teur pour ôter les fumées des zones

de travail.

●Vermeiden Sie das Einatmen von

Schweibrauch!

●Sorgen Sie für gute Be- und

Entlüftung des Arbeitsplatzes!

●Mantenha seu rosto da fumaça.

●Use ventilação e exhaustão para

remover fumo da zona respiratória.

●Turn power off before servicing.

●Desconectar el cable de ali-

mentación de poder de la máquina

antes de iniciar cualquier servicio.

●Débranchez le courant avant l’entre-

tien.

●Strom vor Wartungsarbeiten

abschalten! (Netzstrom völlig öff-

nen; Maschine anhalten!)

●Não opere com as tampas removidas.

●Desligue a corrente antes de fazer

serviço.

●Não toque as partes elétricas nuas.

●Do not operate with panel open or

guards off.

●No operar con panel abierto o

guardas quitadas.

●N’opérez pas avec les panneaux

ouverts ou avec les dispositifs de

protection enlevés.

●Anlage nie ohne Schutzgehäuse

oder Innenschutzverkleidung in

Betrieb setzen!

●Mantenha-se afastado das partes

moventes.

●Não opere com os paineis abertos

ou guardas removidas.

• Sales and Service through Subsidiaries and Distributors Worldwide •

Cleveland, Ohio 44117-1199 U.S.A. TEL: 216.481.8100 FAX: 216.486.1751 WEB SITE: www.lincolnelectric.com

• World's Leader in Welding and Cutting Products •
