MINEW TECHNOLOGIES E5 Digital Broadcasting Device - iBeacon/Eddystone User Manual

SHENZHEN MINEW TECHNOLOGIES CO., LTD. Digital Broadcasting Device - iBeacon/Eddystone Users Manual

User Manual

TEL: +86-755-8886 8480 FAX: +86-755-2982 5342 EMAIL: sales@minewtech.com URL: www.minewtech.com
Page 1
Minew Technologies
E5 Location MiniBeacon
Datasheet V1.0.0
B
Be
ea
ac
co
on
n
/
/
i
iB
Be
ea
ac
co
on
n
/
/
M
Mi
in
ni
iB
Be
ea
ac
co
on
n
D
Da
at
ta
as
sh
he
ee
et
t
V
V1
1.
.0
0.
.0
0
Model
Description
E5-W
Round shape, white case with 3M adhesive sticker, including 2pcs ER12450
battery and industrial package, special for indoor location, RoHS
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) This device
may not cause harmful interference, and (2) this device must accept any interference received, including interference
that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority
to operate the equipment.
The device has been evaluated to meet general RF exposure requirement.
The device can be used in portable exposure condition without restriction.
TEL: +86-755-8886 8480 FAX: +86-755-2982 5342 EMAIL: sales@minewtech.com URL: www.minewtech.com
Page 2
Minew Technologies
E5 Location MiniBeacon
Datasheet V1.0.0
The Location MiniBeacon E5 is an enterprise-level iBeacon with ARM core chipset nRF51822 and leverage
BLE 4.0 technology; it has a strong case, accurate hardware and robust firmware. It is designed for the
commercial advertising and indoor location-based service.
MiniBeacon broadcasts 2.4GHz radio signals at regular and adjustable intervals. MiniBeacon can be heard
and interpreted by iOS and Android BLE-enabled devices that are equipped with many mobile apps.
FEATURES
- Programmed MiniBeacon standard firmware
- Included 2pcs ER12450 battery, total 2400mAh
- The max. 100 meters advertising distance
- Ultra-low power consumption chipset nRF51822 with ARM core
- Easy to replace the battery without any tools
- High location accuracy specialized for the indoor navigation application
- Supports the magnetic adsorption deployment
CERTIFICATIONS
- iBeacon MFi License (iBC-14-00582)
- FCC Regulation (FCC Part 15.)
- CE Regulations (Included EN300328/301489/60950/62479)

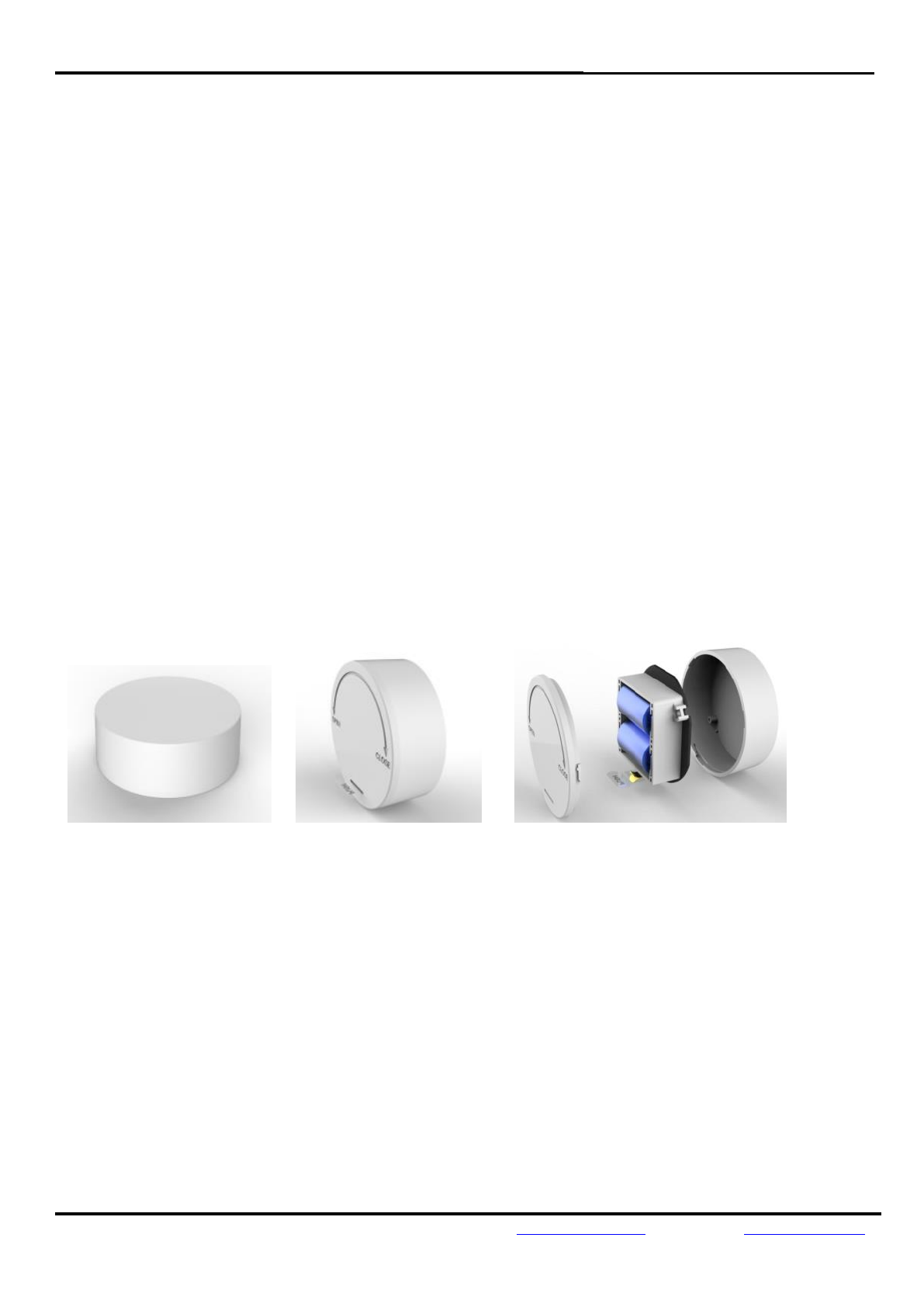

E5 Location MiniBeacon
Image 1
TEL: +86-755-8886 8480 FAX: +86-755-2982 5342 EMAIL: sales@minewtech.com URL: www.minewtech.com
Page 3
Minew Technologies
E5 Location MiniBeacon
Datasheet V1.0.0
SPECIFICATION
TURN ON/OFF E5
1. Turn on E5
1.1 Open the case;
1.2 Press the BUTTON and keep holding 5 seconds, the Blue LED will Light on 5 seconds and then off;
it means that MiniBeacon wakes up and starts to broadcasting.
2. Turn off E5
2.1 Open the case;
2.2 Press the BUTTON and keep holding 5 seconds, the Blue LED will flash 5 times and then off;
it means that MiniBeacon is on the sleeping mode and stops broadcasting.
Compatibility
- Supported iOS 7.0+ and Android 4.3+ system;
- Compatible with Apple iBeaconTM standard;
- Compatible with all Bluetooth 4.0 (BLE) devices;
Long Battery Lifetime and Battery Level
- 5 years, with the default settings;
- LED will be flashing when battery low;
- Easy to get the real-time battery level notification;
Soft-reboot
- Reboot the device via command without any tools;
OTA and J-Link
- Supported upgrade via Over-The-Air;
- Reserved J-Link port on the board for programming;
Connection Mode
- Advertising mode, non-connectable;
- Configuration mode, connectable;
TEL: +86-755-8886 8480 FAX: +86-755-2982 5342 EMAIL: sales@minewtech.com URL: www.minewtech.com
Page 4
Minew Technologies
E5 Location MiniBeacon
Datasheet V1.0.0
TECHNICAL SUPPORT
Item
Version
File Name
Updated Date
Datasheet
V1.00
E5_MiniBeacon Datasheet_1.00.pdf
8th April, 2017
Instruction
V2.03
Instructions_MiniBeacon_V2.03.pdf
25th May, 2015
SDK
V5.1
iOS & Android SDK
8th April, 2017
APP Tools
V2.0
BeaconSET
3rd March, 2015
* Minew sales team will send you these documents after the sample arrived.
CONFIGURABLE PARAMETERS
Characteristic
Item
Default Settings
0xFFF1
UUID
E2C56DB5-DFFB-48D2-B060-D0F5A71096E0 (Proximity)
0xFFF2
Major
0
0xFFF3
Minor
0
0xFFF4
Measured Power
-59 (0xC5)
0xFFF5
Transmission Power
6 (0dBm)
0xFFF6
Change Password
minew123 (Must be 8 characters)
0xFFF7
Broadcasting Interval
9(900mS)
0xFFF8
Serial ID
Random (Unique serial ID for beacon)
0xFFF9
iBeacon Name
MiniBeacon_ (the maximum 12 characters)
0xFFFE
Connection Mode
0 (connectable, configuration mode)
0xFFFF
Soft Reboot
minew123 (it is same as the value of Change Password)
ELECTRONIC PARAMETERS
Item
Value
Remarks
Case Color
white
Other colors can be customized
Battery Model
ER14250
2pcs ER14250, 2400mAh, 3.6V
Operation Voltage
1.8-3.6V
DC
Transmission Circuit
10.5mA (Max.)
Tested at 0dBm transmission power
Transmission Range
100 meters
Maximum
Antenna
50ohm
On board / PCB Antenna
Accessories
Double adhesive
1pc, high-strength, 3M brand;
Net Weight
39.0g
With 2pcs batteries but without package
Size
Ø 50×20.5mm
Null
TEL: +86-755-8886 8480 FAX: +86-755-2982 5342 EMAIL: sales@minewtech.com URL: www.minewtech.com
Page 5
Minew Technologies
E5 Location MiniBeacon
Datasheet V1.0.0
PACKING INFORMATION
Image 6
Details
Box
Carton
Quantity(E5)
20pcs / box
200pcs / carton
Net Weight
0.78Kg
7.8Kg
Gross Weight
1.0Kg
10.0Kg
Size
30.5 x 11 x 7.5 cm
32 x 23 x 40 cm
APPDENDIX
1. J-LINK Programmer Kit;
2. Over-the-Air Function;
Please contact Minew sales team to ask more related information if needed.
DECLARATION
The contents of this datasheet are subject to change without prior notice for further improvement. Minew
team reserves the right to explain all the terms of this datasheet.
