   TEL: +86-755-8886 8480              FAX: +86-755-2982 5342              EMAIL: sales@minewtech.com           URL: www.minewtech.com Page  1  Minew Technologies E6 Light Sensor Beacon   Datasheet V1.0.0                                       LLiigghhtt  SSeennssoorr  BBeeaaccoonn    DDaattaasshheeeett  VV11..00..00                               Ordering Code Description E6-6001A Black casing, CE&FCC certified BLE module with a simple light sensor and anti-dismantlement switch, includes 1pc 230mAh CR2032 coin battery, RoHS

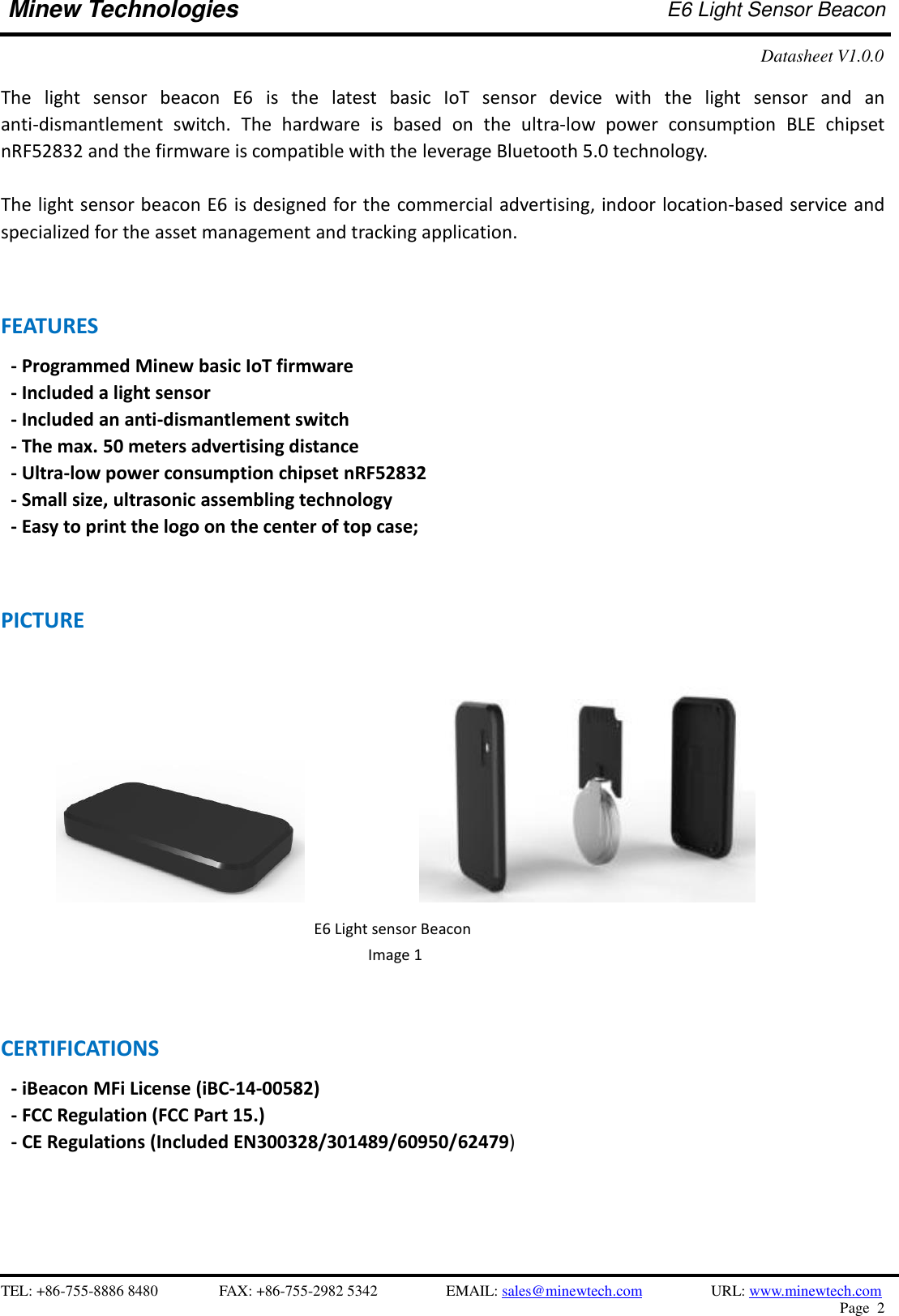

   TEL: +86-755-8886 8480              FAX: +86-755-2982 5342              EMAIL: sales@minewtech.com           URL: www.minewtech.com Page  2  Minew Technologies E6 Light Sensor Beacon   Datasheet V1.0.0    The  light  sensor  beacon  E6  is  the  latest  basic  IoT  sensor  device  with  the  light  sensor  and  an anti-dismantlement  switch.  The  hardware  is  based  on  the  ultra-low  power  consumption  BLE  chipset nRF52832 and the firmware is compatible with the leverage Bluetooth 5.0 technology.    The light sensor beacon E6 is designed for the commercial advertising, indoor location-based service and specialized for the asset management and tracking application.   FEATURES     - Programmed Minew basic IoT firmware   - Included a light sensor - Included an anti-dismantlement switch - The max. 50 meters advertising distance - Ultra-low power consumption chipset nRF52832   - Small size, ultrasonic assembling technology     - Easy to print the logo on the center of top case;   PICTURE               CERTIFICATIONS - iBeacon MFi License (iBC-14-00582)   - FCC Regulation (FCC Part 15.) - CE Regulations (Included EN300328/301489/60950/62479)                                                     E6 Light sensor Beacon Image 1

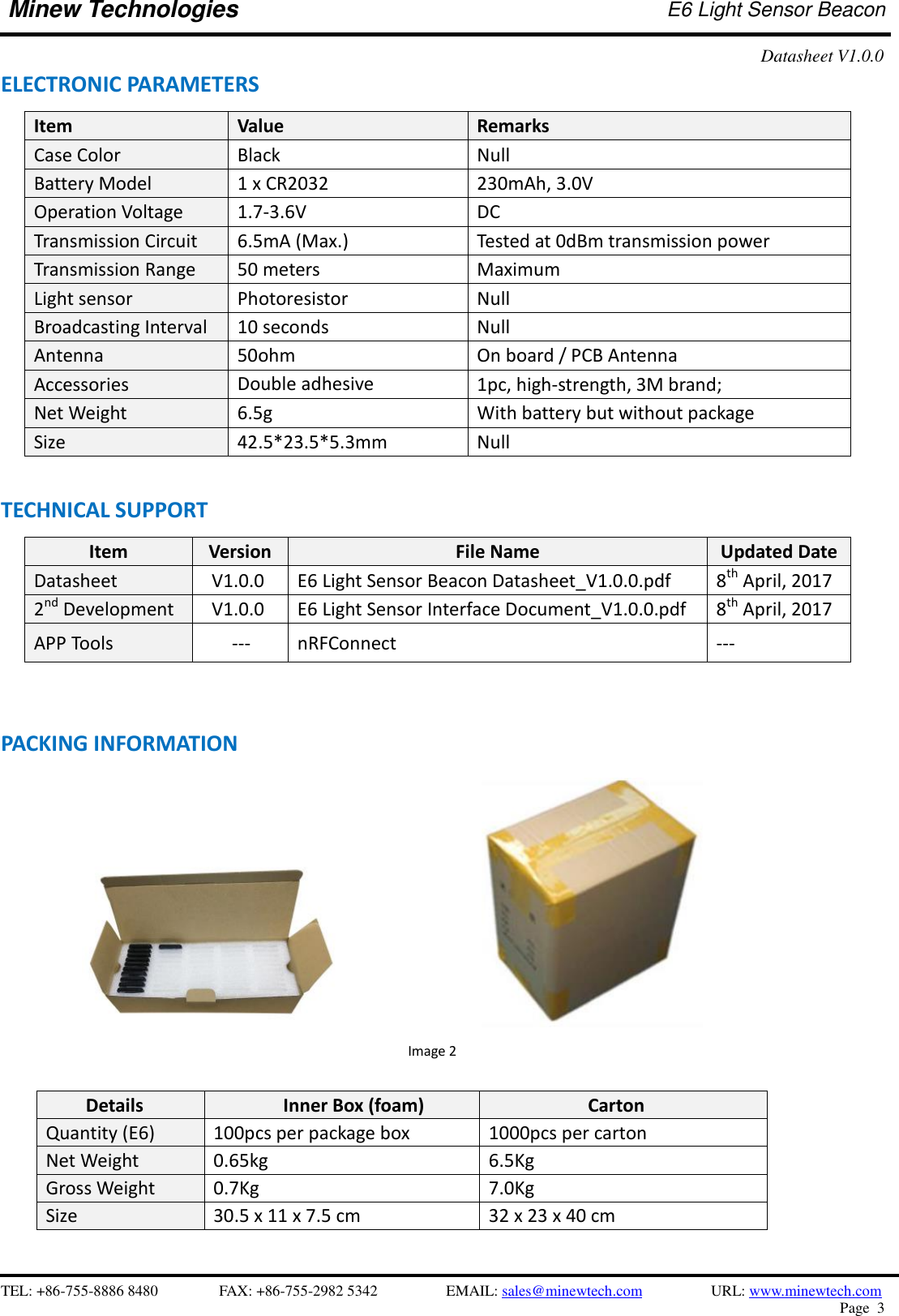

   TEL: +86-755-8886 8480              FAX: +86-755-2982 5342              EMAIL: sales@minewtech.com           URL: www.minewtech.com Page  3  Minew Technologies E6 Light Sensor Beacon   Datasheet V1.0.0   ELECTRONIC PARAMETERS Item   Value Remarks Case Color Black Null Battery Model 1 x CR2032 230mAh, 3.0V Operation Voltage 1.7-3.6V DC Transmission Circuit 6.5mA (Max.) Tested at 0dBm transmission power Transmission Range 50 meters Maximum Light sensor Photoresistor Null Broadcasting Interval 10 seconds Null Antenna 50ohm On board / PCB Antenna Accessories Double adhesive   1pc, high-strength, 3M brand; Net Weight 6.5g With battery but without package Size 42.5*23.5*5.3mm Null  TECHNICAL SUPPORT Item Version File Name Updated Date Datasheet V1.0.0 E6 Light Sensor Beacon Datasheet_V1.0.0.pdf 8th April, 2017 2nd Development V1.0.0 E6 Light Sensor Interface Document_V1.0.0.pdf 8th April, 2017 APP Tools    --- nRFConnect ---      PACKING INFORMATION                                                                      Image 2  Details Inner Box (foam) Carton Quantity (E6) 100pcs per package box 1000pcs per carton Net Weight 0.65kg 6.5Kg Gross Weight 0.7Kg 7.0Kg Size 30.5 x 11 x 7.5 cm 32 x 23 x 40 cm

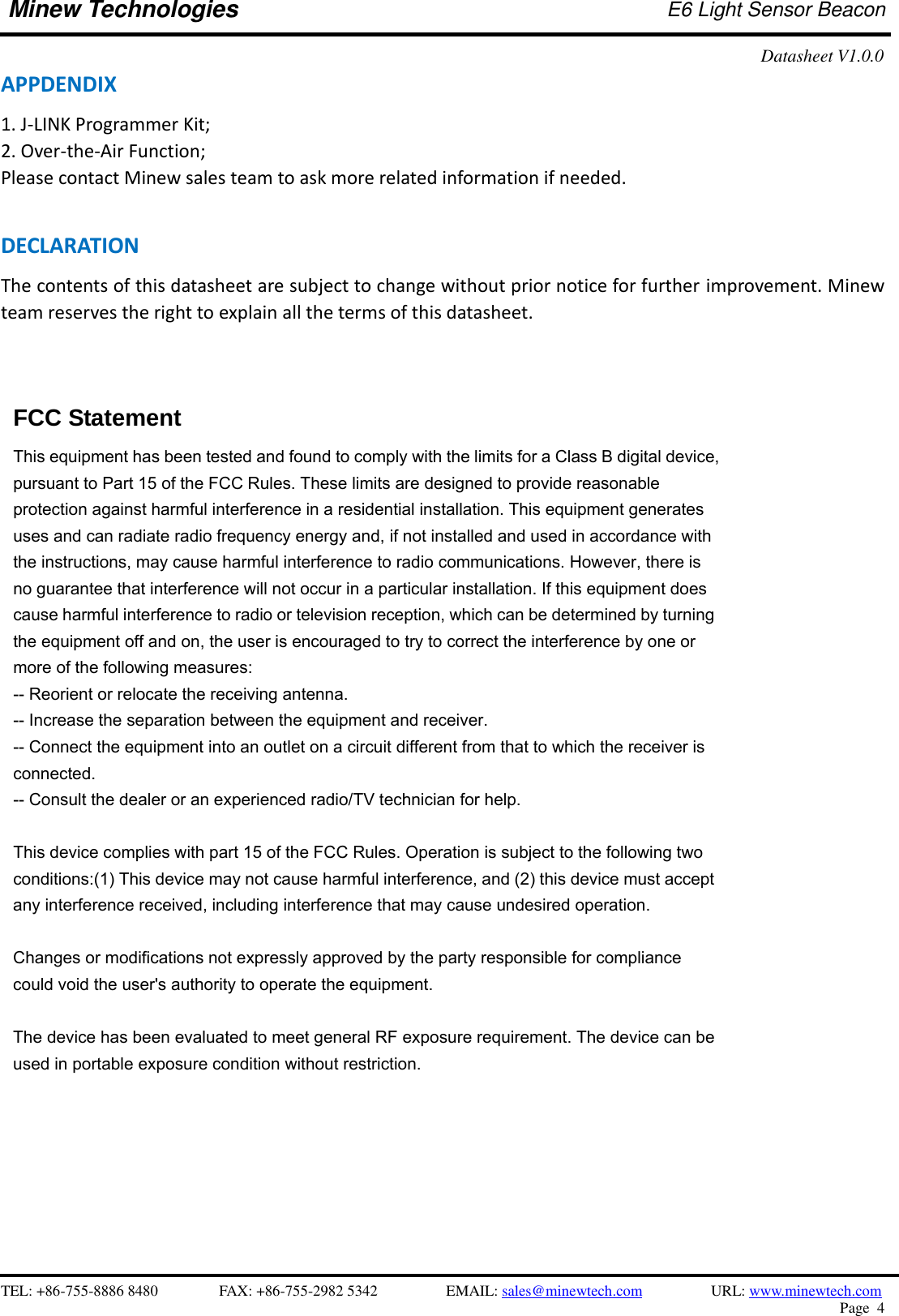

   TEL: +86-755-8886 8480              FAX: +86-755-2982 5342              EMAIL: sales@minewtech.com           URL: www.minewtech.com Page  4  Minew Technologies E6 Light Sensor Beacon   Datasheet V1.0.0   APPDENDIX 1. J-LINK Programmer Kit;   2. Over-the-Air Function; Please contact Minew sales team to ask more related information if needed.  DECLARATION The contents of this datasheet are subject to change without prior notice for further improvement. Minew team reserves the right to explain all the terms of this datasheet.      FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna.     -- Increase the separation between the equipment and receiver.       -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.   -- Consult the dealer or an experienced radio/TV technician for help.  This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.  Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.  The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.
