MINEW TECHNOLOGIES E9 Digital Broadcasting Device (iBeacon/Eddystone) User Manual

SHENZHEN MINEW TECHNOLOGIES CO., LTD. Digital Broadcasting Device (iBeacon/Eddystone) Users Manual

User Manual

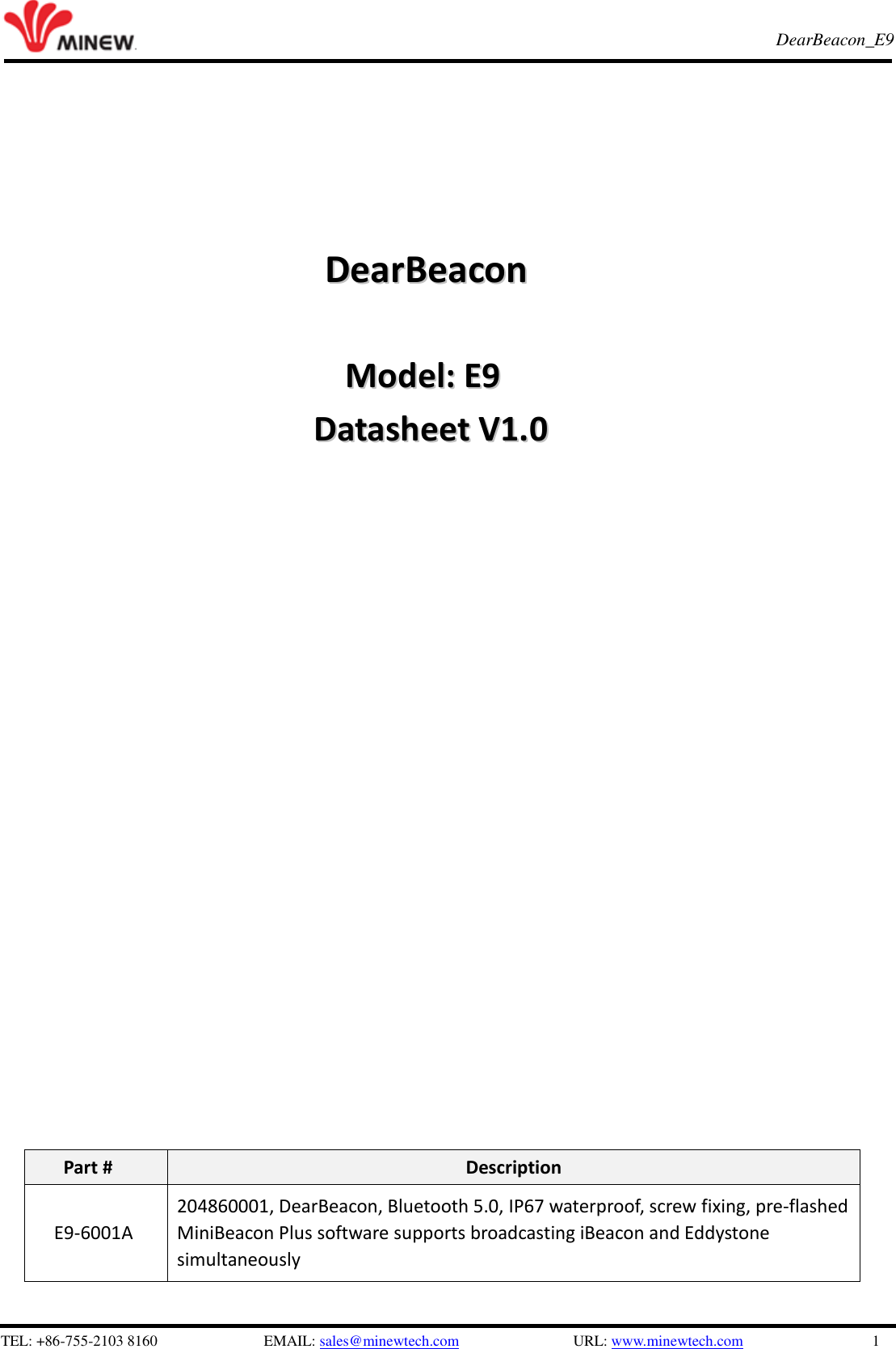

TEL: +86-755-2103 8160 EMAIL: sales@minewtech.com URL: www.minewtech.com 1 E8 TagBeacon DearBeacon_E9 DDeeaarrBBeeaaccoonn MMooddeell:: EE99 DDaattaasshheeeett VV11..00 Part # Description E9-6001A 204860001, DearBeacon, Bluetooth 5.0, IP67 waterproof, screw fixing, pre-flashed MiniBeacon Plus software supports broadcasting iBeacon and Eddystone simultaneously

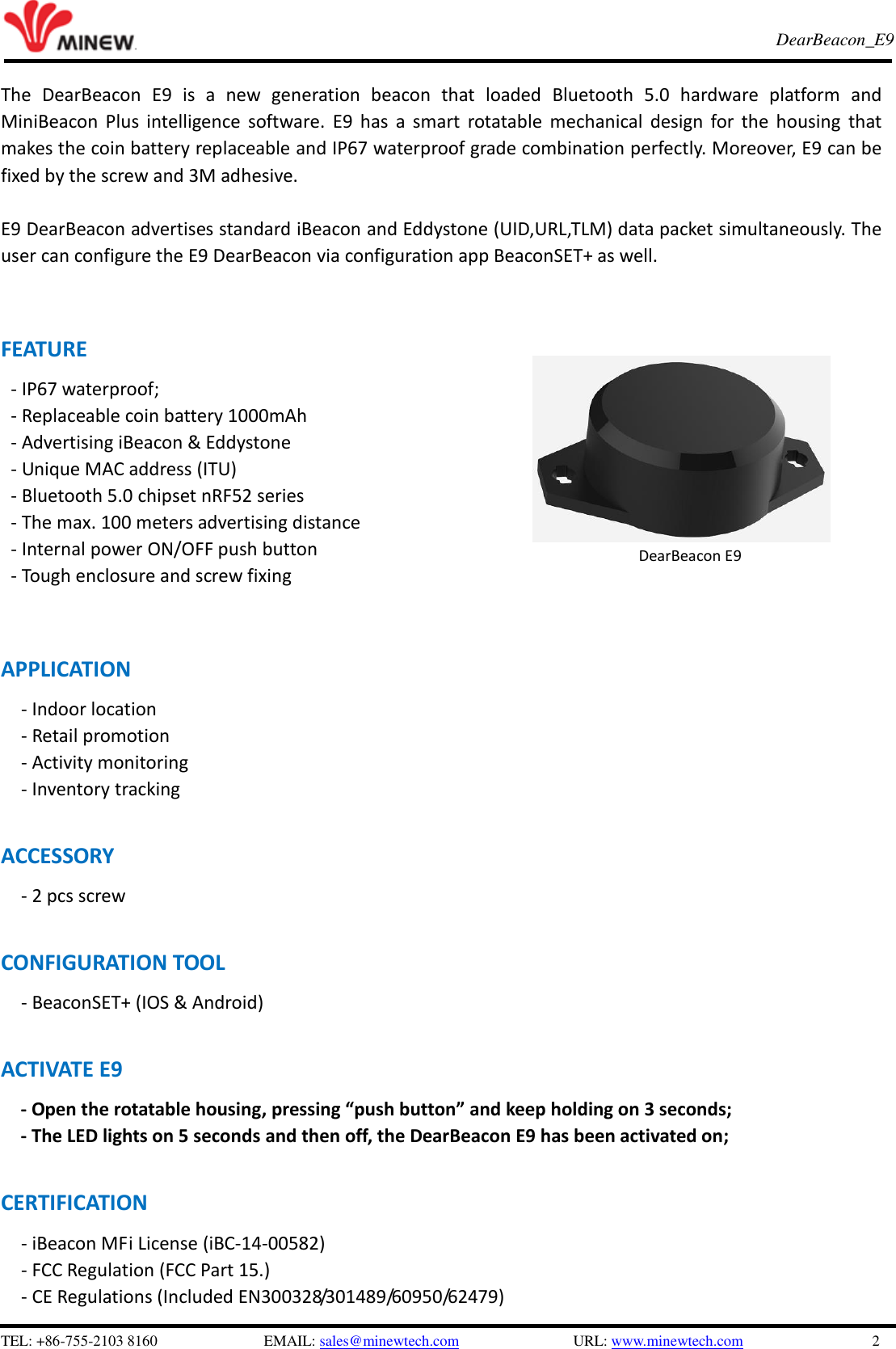

TEL: +86-755-2103 8160 EMAIL: sales@minewtech.com URL: www.minewtech.com 2 E8 TagBeacon DearBeacon_E9 The DearBeacon E9 is a new generation beacon that loaded Bluetooth 5.0 hardware platform and MiniBeacon Plus intelligence software. E9 has a smart rotatable mechanical design for the housing that makes the coin battery replaceable and IP67 waterproof grade combination perfectly. Moreover, E9 can be fixed by the screw and 3M adhesive. E9 DearBeacon advertises standard iBeacon and Eddystone (UID,URL,TLM) data packet simultaneously. The user can configure the E9 DearBeacon via configuration app BeaconSET+ as well. FEATURE - IP67 waterproof; - Replaceable coin battery 1000mAh - Advertising iBeacon & Eddystone - Unique MAC address (ITU) - Bluetooth 5.0 chipset nRF52 series - The max. 100 meters advertising distance - Internal power ON/OFF push button - Tough enclosure and screw fixing APPLICATION - Indoor location - Retail promotion - Activity monitoring - Inventory tracking ACCESSORY - 2 pcs screw CONFIGURATION TOOL - BeaconSET+ (IOS & Android) ACTIVATE E9 - Open the rotatable housing, pressing “push button” and keep holding on 3 seconds; - The LED lights on 5 seconds and then off, the DearBeacon E9 has been activated on; CERTIFICATION - iBeacon MFi License (iBC-14-00582) - FCC Regulation (FCC Part 15.) - CE Regulations (Included EN300328/301489/60950/62479) DearBeacon E9

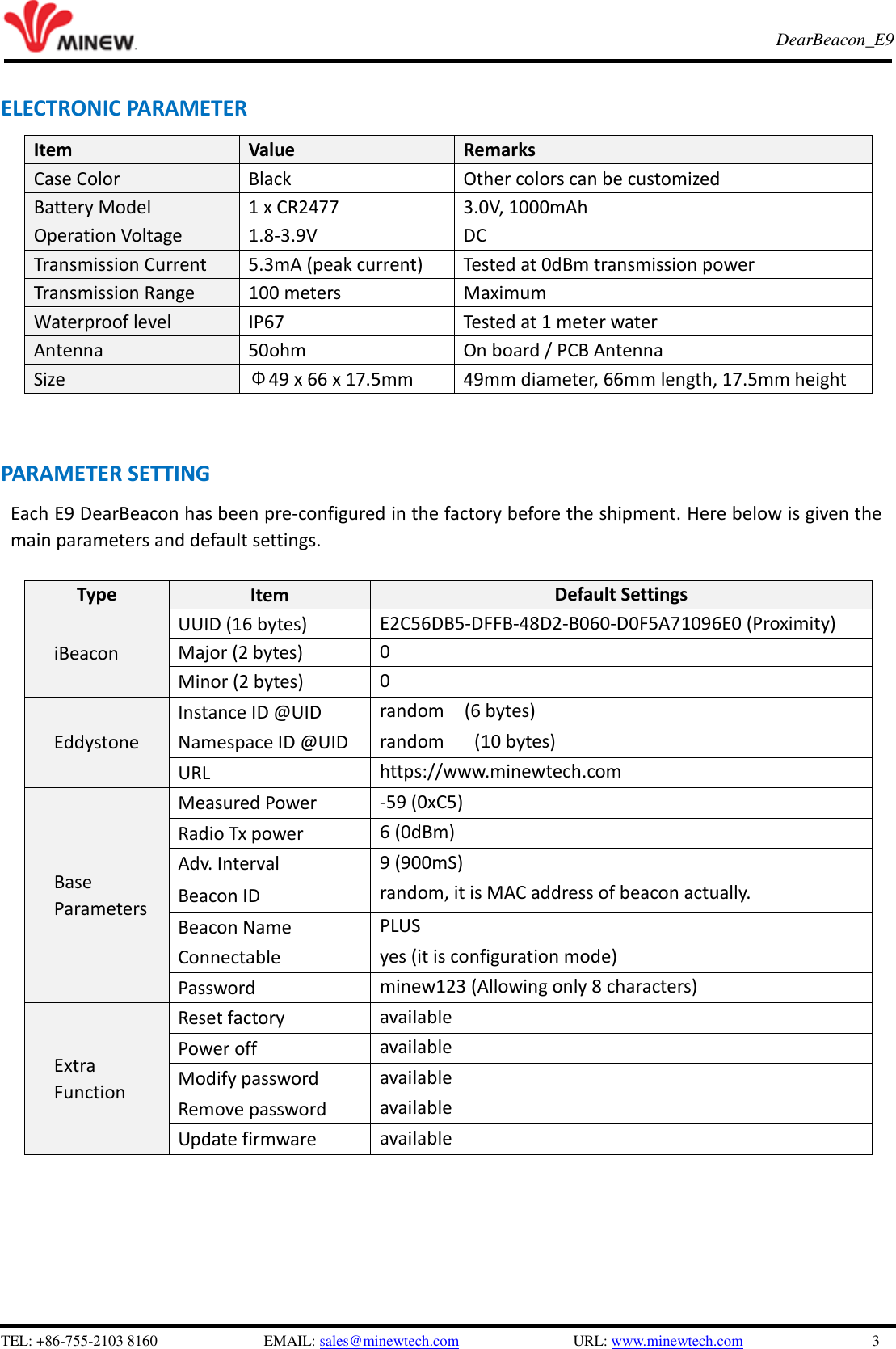

TEL: +86-755-2103 8160 EMAIL: sales@minewtech.com URL: www.minewtech.com 3 E8 TagBeacon DearBeacon_E9 ELECTRONIC PARAMETER Item Value Remarks Case Color Black Other colors can be customized Battery Model 1 x CR2477 3.0V, 1000mAh Operation Voltage 1.8-3.9V DC Transmission Current 5.3mA (peak current) Tested at 0dBm transmission power Transmission Range 100 meters Maximum Waterproof level IP67 Tested at 1 meter water Antenna 50ohm On board / PCB Antenna Size Φ49 x 66 x 17.5mm 49mm diameter, 66mm length, 17.5mm height PARAMETER SETTING Each E9 DearBeacon has been pre-configured in the factory before the shipment. Here below is given the main parameters and default settings. Type Item Default Settings iBeacon UUID (16 bytes) E2C56DB5-DFFB-48D2-B060-D0F5A71096E0 (Proximity) Major (2 bytes) 0 Minor (2 bytes) 0 Eddystone Instance ID @UID random (6 bytes) Namespace ID @UID random (10 bytes) URL https://www.minewtech.com Base Parameters Measured Power -59 (0xC5) Radio Tx power 6 (0dBm) Adv. Interval 9 (900mS) Beacon ID random, it is MAC address of beacon actually. Beacon Name PLUS Connectable yes (it is configuration mode) Password minew123 (Allowing only 8 characters) Extra Function Reset factory available Power off available Modify password available Remove password available Update firmware available

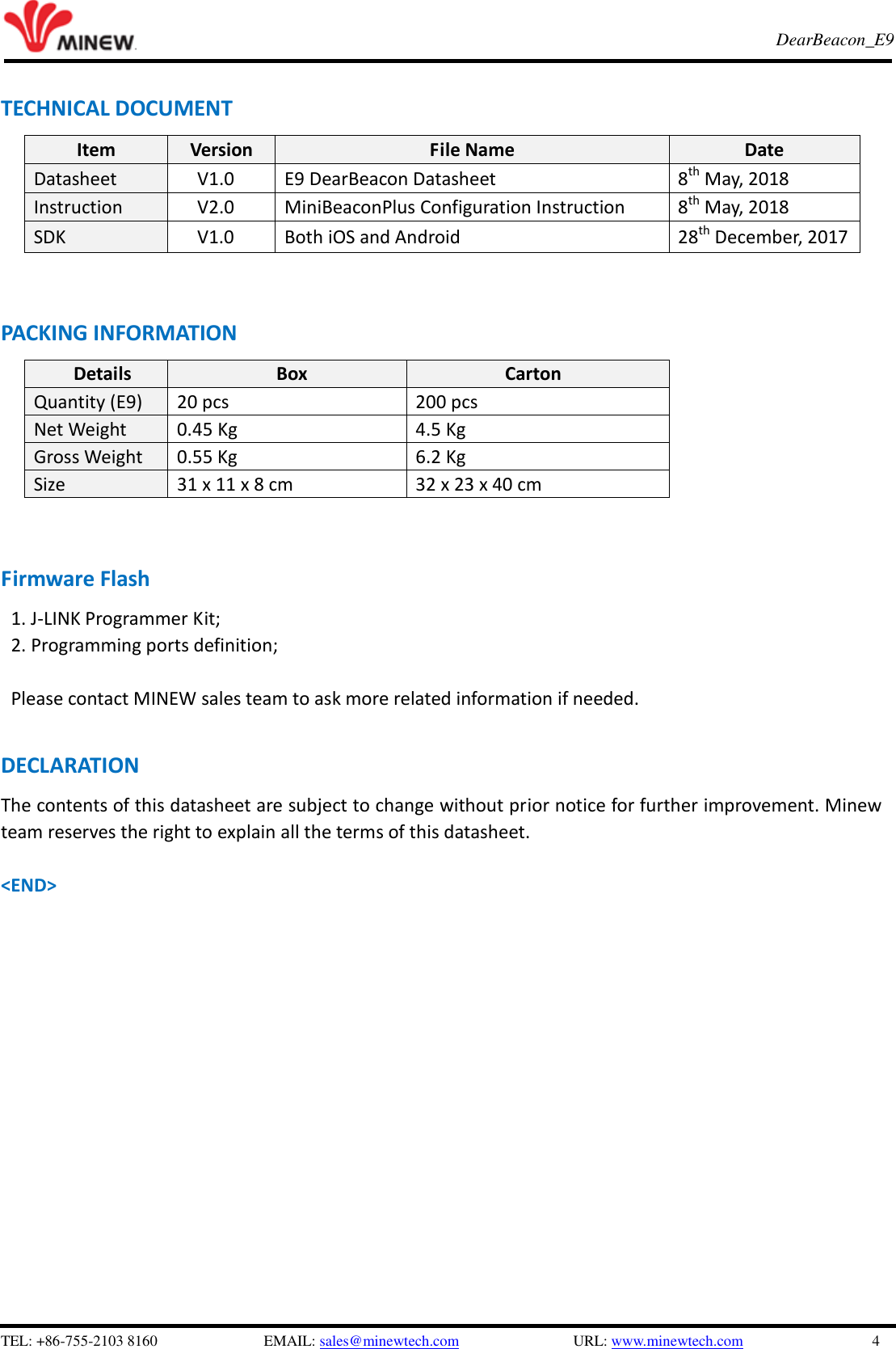

TEL: +86-755-2103 8160 EMAIL: sales@minewtech.com URL: www.minewtech.com 4 E8 TagBeacon DearBeacon_E9 TECHNICAL DOCUMENT Item Version File Name Date Datasheet V1.0 E9 DearBeacon Datasheet 8th May, 2018 Instruction V2.0 MiniBeaconPlus Configuration Instruction 8th May, 2018 SDK V1.0 Both iOS and Android 28th December, 2017 PACKING INFORMATION Details Box Carton Quantity (E9) 20 pcs 200 pcs Net Weight 0.45 Kg 4.5 Kg Gross Weight 0.55 Kg 6.2 Kg Size 31 x 11 x 8 cm 32 x 23 x 40 cm Firmware Flash 1. J-LINK Programmer Kit; 2. Programming ports definition; Please contact MINEW sales team to ask more related information if needed. DECLARATION The contents of this datasheet are subject to change without prior notice for further improvement. Minew team reserves the right to explain all the terms of this datasheet. <END>

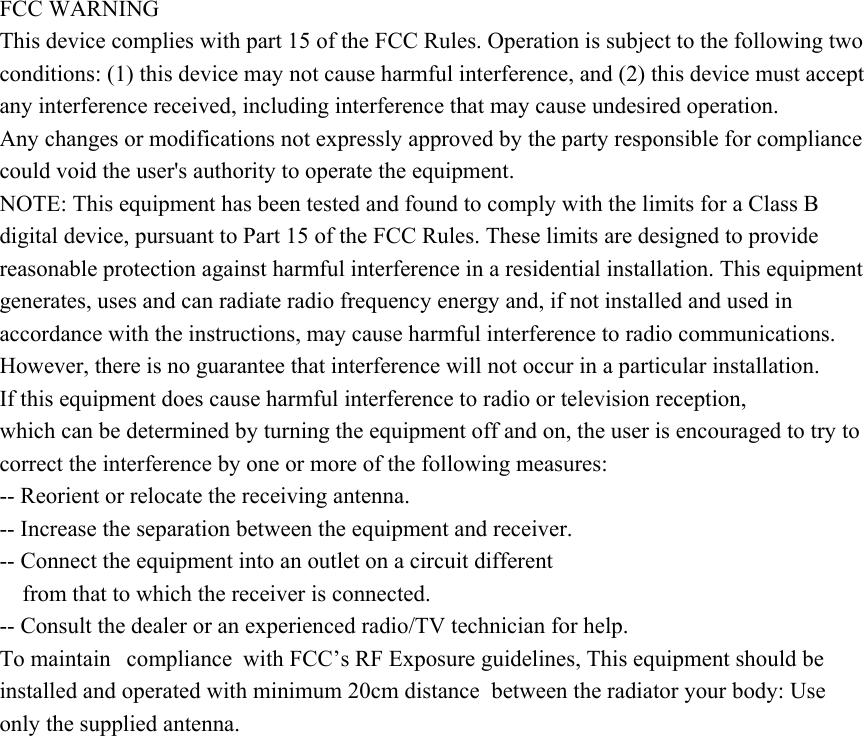

FCC WARNING This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. To maintain compliance with FCC’s RF Exposure guidelines, This equipment should be installed and operated with minimum 20cm distance between the radiator your body: Use only the supplied antenna.
