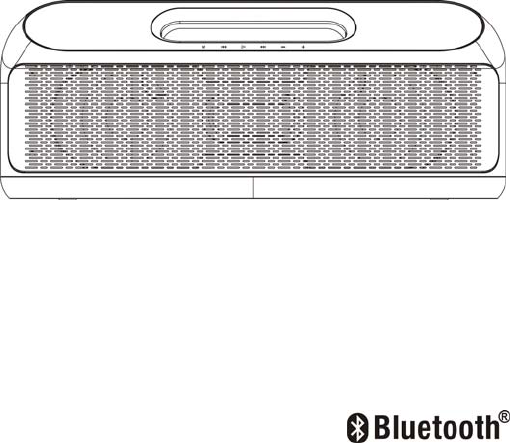

Maniway Electronics MW1361 Bluetooth Speaker User Manual MW 1361B R2
Shenzhen Maniway Electronics Limited. Bluetooth Speaker MW 1361B R2
Contents
- 1. Users Manual
- 2. user manual
user manual
B
BR
RA
AN
ND
D
P
Po
or
rt
ta
ab
bl
le
e
B
Bl
lu
ue
et
to
oo
ot
th
h
S
Sp
pe
ea
ak
ke
er
r
PLEASE READ BEFORE OPERATING THIS EQUIPMENT.
Model No. :MW-1361B
1
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water – The appliance should
not be used near water or moisture – for example, in a wet
basement or near a swimming pool, and the like.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance
with the
manufacture’s instructions.
8. Do not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including amplifiers) that
produce heat.
9. Do not defeat the safety purpose of the polarized or grounding
plug. A polarized plug has two blades with one wider than the
other. A grounding plug has two blades and a third grounding
prong. The wide blade or the third prong is provided for your
safety. If the provided plug does not fit into your outlet, consult
an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched
particularly at the plugs, convenience receptacles, and at the
point where they exit from the apparatus.
11. Only use attachments/accessories specified by the
manufacturer.
12. Unplug the apparatus during lightning storms or when
unused for long periods of time.
13. Refer all servicing to qualified personnel. Servicing is
required when the
2
apparatus has been damaged in any way, such as power supply
cord or plug is damaged, liquid has been spilled or objects have
fallen into the apparatus has been exposed to rain or moisture,
does not operate normally, or has been dropped.
14. CAUTION: These servicing instructions are for use by
qualified service personnel only.To reduce the risk of electric
shock, do not perform any servicing other than that contained in
the operating instructions unless you are qualified to do so.
15. Do not install this equipment in a confined or building-in
space such as a book case or similar unit, and remain a well
ventilation conditions at open site. The ventilation should not be
impeded by covering the ventilation openings with items such as
newspaper,
table-cloths, curtains etc.
16. WARNING：To reduce the risk of fire or electric shock, do not
expose this apparatus to rain or moisture. The apparatus shall
not be exposed to dripping or splashing and that objects filled
with liquids, such as vases, shall not be placed on apparatus.
17. CAUTION: Danger of explosion if battery is incorrectly
replaced. Replace only with the same or equivalent type.
18. WARNING: The battery (battery or batteries or battery pack)
shall not be exposed to excessive heat such as sunshine, fire or
the like.
29. WARNING: The mains plug is used as disconnect device,
the disconnect device shall remain readily operable.
20. This equipment is a Class II or double insulated
electrical appliance. It has been designed in such a way that it
does not require a safety connection to electrical earth.
3
21.
- This lightning flash with arrowhead symbol within an equilateral
triangle is intended to alert the user to the presence of
non-insulated “dangerous voltage”within the product’s
enclosure that may be of sufficient magnitude to constitute a risk
of electric shock.
- Warning: To reduce the risk of electric shock, do not remove
cover (or back) as there are no user-serviceable parts inside.
Refer servicing to qualified personnel.
- The exclamation point within an equilateral triangle is intended
to alert the user to the presence of important operating and
maintenance instructions in the literature
accompanying the appliance.
22. Correct Disposal of this product. This marking indicates
that this product should not be disposed with other household
wastes throughout the EU. To prevent possible harm to the
environment or human health from uncontrolled waste disposal,
recycle it responsibly to promote the sustainable reuse of
material resources. To return your used device, please use the
return and collection systems or contact the retailer where the
product was purchased. They can take this product for
environmental safe recycling.
23. No naked flame sources, such as lighted candles, should be
placed on the apparatus.
24. Attention should be drawn to environmental aspects of
battery disposal.
4
25. Use of the apparatus in moderate climates.
COMPLIANCE WITH FCC REGULATIONS
This device complies with Part 15 of the FCC Rules. Operation
is subject to the following two conditions:
(1) this device may not cause harmful interference.
(2) this device must accept any interference received,
including interference that may cause undesired
operation.
NOTE : This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following
measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and
receiver.
5
- Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV
technician for help.
CAUTION: Changes or modifications not expressly
approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
INDUSTRY CANADA REGULATORY INFORMATION
This device complies with Industry Canada license-exampt RSS
standard(s). Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this device
must accept any interference, including interference that may
cause undesired operation of the device.
Changes or modifications to your device not expressly approved
by the party responsible for compliance can void the user’s
authority to operate the equipment.
Le présent appareil est conforme aux CNR d'Industrie Canada
applicables aux appareils radio exempts de licence.
L'exploitation est autorisée aux deux conditions suivantes : (1)
l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de
l'appareil doit accepter tout brouillage radioélectrique subi,
même si le brouillage est susceptible d'en compromettre le
fonctionnement.
Les modifications apportées à votre appareil et non
expressément approuvés par la partie responsable de la
conformité peuvent annuler le droit de l'utilisateur à utiliser
l'équipement.
6
Industry Canada Regulatory Information
CAN ICES-3(B)/NMB-3(B)
Avis d’Industire Canada
CAN ICES-3(B)NMB-3(B)

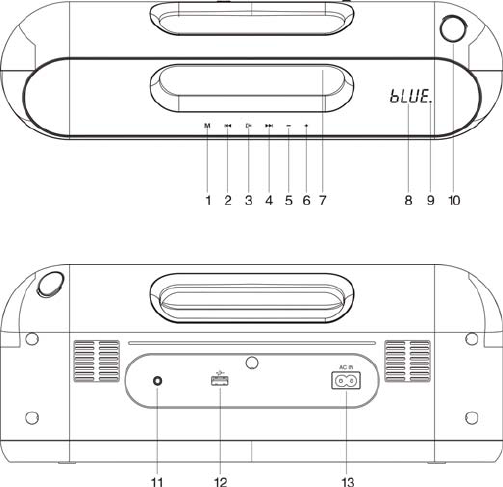

LOCATION OF CONTROLS
Top View
Back View
7
1. M (MODE) Button
.To select different play modes: Bluetooth/FM/USB/Aux
2. Button
z In Bluetooth or USB mode : Tap this button once to return
to the beginning of current track or previous track.
z In FM mode:
.Press and hold this button to auto search and
automatically save up all the stations with strong signals in
sequence. It will automatically play the No. 1 station saved
once the auto searching is finished.
.Tap this button continuously to manually tune to desired
station.
3. Play/Pause (On/Off) button
Press and hold this button to turn the unit On or Off.
In Bluetooth or USB playback mode: to play/ pause current
playback
In Bluetooth mode: when receiving an incoming call on your
cell phone, tap this button once to answer the phone, tap
this button again to end the call or ignore the incoming call.
In FM mode: to select the preset stations in sequence
4. Button
z In Bluetooth or USB mode : Tap this button once to to
advance to the next track.
z In FM mode:
.Press and hold this button to auto search and
automatically save up all the stations with strong signals in
sequence. It will automatically play the No. 1 station saved
once the auto searching is finished.
8
.Tap this button continuously to manually tune to desired
station.
5. -Button
Press this button to adjust volume level down.
6. + Button
z Press this button to adjust volume level up
7. Built-in Microphone
8. LED Display
9. Battery Status Indicator (Green color)
z Rapid flashing =low battery
While charging :
z Flashing =charging
z Steady Green= full charged
10. Telescopic Antenna
11. Aux-In Jack
12. USB port
13. AC Socket
POWER SOURCES
Power Supply
This unit is designed to operate on AC 100-240V～50/60 Hz household
mains supply or the built-in rechargeable Li-ion battery.
Connect To AC Power
Before using this new Wireless speaker the first time, you
should connect it to AC (mains) power.
1.Plug the connector of AC cord into the AC socket on the back
of the speaker unit.
9
2. Plug the AC cord plug into a convenient AC wall outlet.
3. The green color battery charging indicator will light up &
charging begins.
3. Press and hold the Button to turn on the unit, the LED
display will light up.
4. Press and hold the Button again to turn off the unit.
5.Remove the AC cord out of the wall outlet if you want to switch
off the main voltage completely.
OPERATING THE SPEAKER IN BLUETOOTH MODE
Bluetooth involves a technology for wireless radio connection of
devices over a short distance. Devices with Bluetooth standard
are transmitting between 2.402 and 2.480 GHz in the ISM band
(Industrial, Scientific and Medical). Interference can be caused,
for example by WLAN-networks, DAB radios, cordless phones,
or microwave ovens which work on the
same frequency band.
z This speaker offers you the possibility to use a Bluetooth
enabled device. The functional radius is limited to approx.10
metres depending on the surroundings and the unit used.
z If your playing device supports the A2DP profile (Advanced
Audio Distribution Profile) and has a music-player function,
then you can also wirelessly transfer music to the device. The
A2DP profile involves a multi-vendor Bluetooth profile. By
streaming, stereo-audio signals are wirelessly transferred
between the playing device (source) and the receiving
device.
10
z Due to the different device manufacturers, models, and
software versions, a full functionality cannot be guaranteed.
Pairing (Linking) A Bluetooth Enabled Cell Phone Or Other
Bluetooth Enabled Device To The Speaker
If the speaker has never been paired with a Bluetooth device
before . You need to follow the pairing instructions below to link
the speaker with your Bluetooth device .
1. When the speaker turned on, press the “M” button repeatedly,
until “bLUE” is shown on the display. The “bLUE” symbol
flashes to show that the speaker is ready to pair (link) with
your Bluetooth device .
2. Activate Bluetooth on the compatible device, and set it to
search for compatible devices.
3. Select the speaker name:”MW-1361B” from the list of found
devices.
Tips: Only one playback unit can be connected to the speaker.
If the speaker is already connected to another playback unit, the
speaker will not appear in the BT selection list.
4. If your device asks for a passkey (depending on the device
manufacturers, model, and software version), then enter
digits “0000”(four zeros) and press OK.
If pairing has been carried out successfully, a beep sound is
heard, meanwhile, the “bLUE” symbol stops flashing.
11
If the speaker has ever been paired with a Bluetooth device
before. You need to follow the pairing instructions below to
link the speaker with your Bluetooth device .
1. After turning on the speaker, the speaker will search for the
last paired device. If the unit finds the paired Bluetooth device,
a beep sound is heard and The “bLUE”symbol stop
flashing .
2. After successfully pairing (linking) , you can begin playing
music from your Bluetooth device wirelessly to the speaker .
3. Press the + / - button on the speaker to adjust to the desired
volume level .
4. To stop the unit, press and hold the Play/Pause on main unit
to turn off the device.
Using The Speaker as a Handfree Bluetooth Speakerphone
1. Link your cell phone to the speaker via Bluetooth as
described above .
2. When receiving an incoming call on your cell phone , tap
button on the speaker to switch the incoming call from cell
phone to the speaker. A short beep sound will be heard
confirming the call was answered. Complete your call using
the built-in microphone and speaker.
3. Adjust the volume control of your cell phone to obtain the
desired sound level.
4. To end the call, just tap the button again, a short beep
sound will be heard and the call will end. If you were playing
music from your cell phone to the speaker before answering
12
the call, the music will automatically resume playing when
you hang up.
LISTENING TO FM RADIO
Extend the Antenna
Extend the telescopic antenna fully and adjust the angel of
antenna for best reception.
Tuning and Playing the Radio
1. Press M button until the FM frequency appears on the display
to enter FM Radio mode.
2. Press and hold the “ ” or “ ” button until the frequency
digits on display begins to scan then release the button, the
unit will auto search from low-end frequency toward high-end
frequency and automatically save up all the stations with
strong signals in sequence. It will automatically play the No.
1 station saved once the auto searching is finished.
3. Press the button to select the preset station in sequence
4. Press the “” or “ ” button to manually tune to desired
station.
Notes:
-Manual tune to select weaker stations that might be by skipped
during automatic tuning
-If the automatic tuning does not stop on the exact frequency of
the station, for example, it stops on 100.8MHz instead of
13
100.6MHz, press the “” or “ ” button to fine tune to the
exact frequency of the desired station.
USB port
• This device has been developed in line with the latest
technical advances in the USB filed. The wide range of
different USB storage devices of all types which are currently
on the market, unfortunately do not allow us to guarantee full
compatibility with all USB storage devices. For this reason, in
rare cases there may be problems in playing back files from
USB storage devices. This is not a malfunction of the device.
USB port can connect to USB drive, iPod, etc., but don’t
connect to PC.
1. Press the M button repeatedly, until “USb” is shown on the
display to enter into the USB mode.
2. Connect a USB storage device directly into the port, after a
few seconds, it will start music playback automatically.
3. Press “+” or “-” button to raise up/lower the volume level.
4. Press “ ” button to skip to next track or press “ ”
button to the previous track.
NOTE:
• The USB port is also designed for charging external devices
during any mode other than USB mode.
OPERATING THE SPEAKER IN AUX-IN MODE
14
If you are using an iPod, MP3/MP4 player or other mobile phone
which can not connect this unit via bluetooth directly, you can
still play it on the speaker via an audio connecting cable.
1. Plug one end of the 3.5mm audio cable (included) into the
headphone or line out jack on your player, plug the other end
of cable into the unit AUX-IN jack of the speaker.
2. Turn on the external audio source and play your device.
3. Press M Button until “ AUH” shows up in the display to enter
the AUX-IN mode.
4. The volume level can now be controlled through the main unit.
Operate all other functions on the external device as usual.
Notes:
1). If you're connected to the Line out Jack of your external
device, then you only need to adjust the volume control of this
speaker. If you're connected to the Headphone Jack of your
external device, then you may need to adjust both the volume
control of your external device and the volume control of this unit
to find the most desirable volume setting.
2) Press and hold the button to turn off the unit when you
finish listening.
Don't forget to turn off the power of your external device as well.
OPERATING ON BATTERY POWER
A fully charged battery provides approximately three hours of
use at maximum volume. The rate of battery discharge varies
with the volume setting. You can extend the battery playback
time by reducing the volume.
15
Battery Status Indicator
The battery status indicator is normally off to conserve battery
power. When the internal battery capacity is very low, the
battery Indicator will rapidly flash to alert you to recharge the
internal battery as soon as possible.
Charging The Battery For First Time
Charge the built-in Li-ion battery a minimum of 4 hours prior to
first use.
1.) Plug the unit into the AC wall outlet using the included AC
cord.
2.) The battery charging indicator flashes while charging and it
stops flashing when the unit is fully charged.
Unplug the AC cord from the AC wall outlet once the battery is
fully charged.
Notes:
1. Charging time will vary if you are listening to music while
charging the internal battery.
2. To prolong the life of a rechargeable battery, it is
recommended to completely discharge it before fully charging
it again .
3. Rechargeable batteries need to be cycled for maximum
performance and longer battery life. If you don't use the player
that often, be sure to recharge the battery at least once a
month in order to keep the internal battery working properly.
16
Battery Note and Care
Do not burn or bury batteries.
Do not puncture or crush.
Do not disassemble.
Li-ion batteries must be recycled. Do not dispose of in the trash.
Use only chargers rated for Li-ion cells. Be sure the charger's
voltage and current settings are correct for the battery pack
being charged.
Charge batteries on a fireproof surface and away from
flammable items or liquids. Batteries should NEVER be left
unattended while charging. Only adults should charge the
batteries.
Unplug the power cord when the battery is fully charged or not in
use.
CARE AND MAINTENANCE
Do not subject the unit to excessive force, shock, dust or
extreme temperature.
Do not tamper the internal components of the unit.
Clean the unit with a damp (never wet) cloth except metal
contact or speaker grille, Solvent or detergent should never
be used.
Avoid leaving your unit in hot, humid or dusty places.
Keep your unit away from heating appliances and sources of
electrical noise such as fluorescent lamps or motors.
Always keep your finger dry and clear before touching all the
buttons.
17
Do not dispose of batteries in fire, batteries may explode or
leak.
Troubleshooting Guide
Should you experience difficulties in the use of this player,
please refer to the following chart.
Fault Cause Solution
Unit cannot be
operated.
Unit crashes and
“hangs”.
Disconnect from the
mains for around 5
seconds.Then switch the
unit on again.
No Charging
Wall outlet is not
functioning.
Plug another device into
the same outlet to
confirm the outlet is
working.
NO Sound The battery is
dead. Recharge the battery.
The speaker is not
linked with the cell
phone.
Go through “Speaker
Operations” process to
link the speaker.
Volume set too
low.
Increase the volume of
your device.
No audio signal
via the Bluetooth
connection
Speaker is not
paired to the audio
source.
Check whether a
connection exists. If
necessary, pair the
speaker again to the
audio source.
Volume too low Increase the volume on
18
the speaker
Increase the volume on
the audio source.
Speaker cannot
be connected
Pairing does not
work
Check whether the audio
source supports the A2DP
protocol
Audio source
is switched off
Switch on the audio
source
Bluetooth is
switched off at the
audio source.
Switch on the Bluetooth
function in the audio
source.
Bluetooth version
is not supported.
Use a different playback
unit.
Poor sound
quality from a
Bluetooth®
device
Bluetooth device
is almost out of
range of the
MW-1361B
Move your Bluetooth
device closer to the
MW-1361B
Radio
interference.
Too close to a
radio tower.
Move your speakers to
see if the interference
goes away.
SPECIFICATIONS
Power supply: AC100-240V~50/60Hz
USB output: DC 5V 1A
Battery capacity: 3.7V 1800mAH
Power Consumption: 16W
FM Frequency Range： 87.5-108MHz
Working Temperature: 0-35℃
Working Humidity： 20%-80%
19
Accessories : AC power cord, 3.5mm AUX-in Cable, User
Manual
The right to make technical and design modifications in the
course of Continuous product development remains reserved.
