the team to trust
Instruction manual
Safety

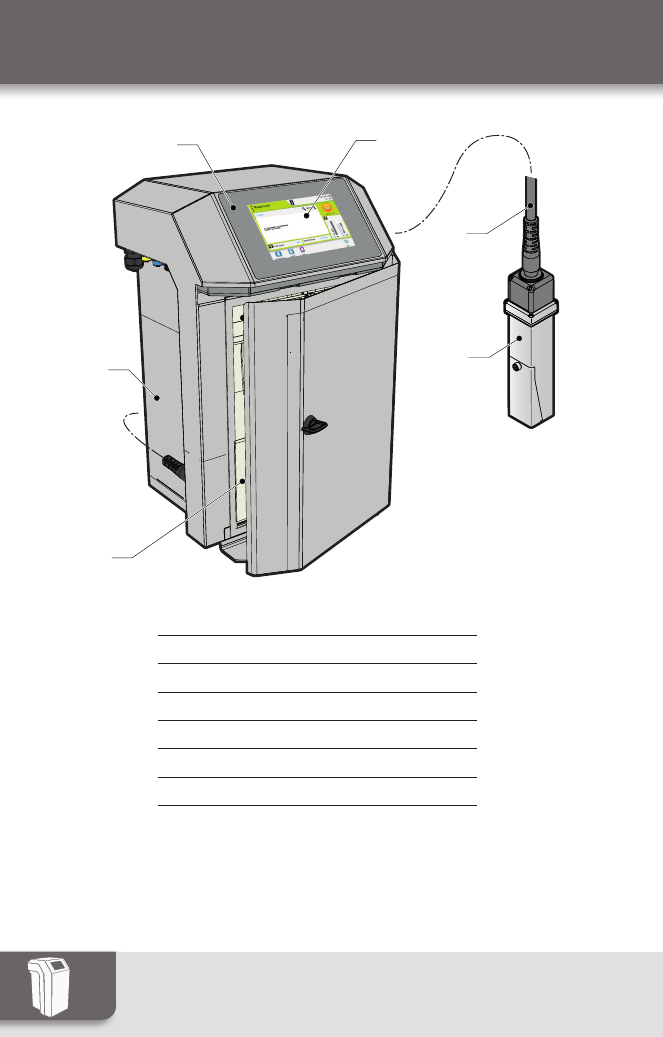

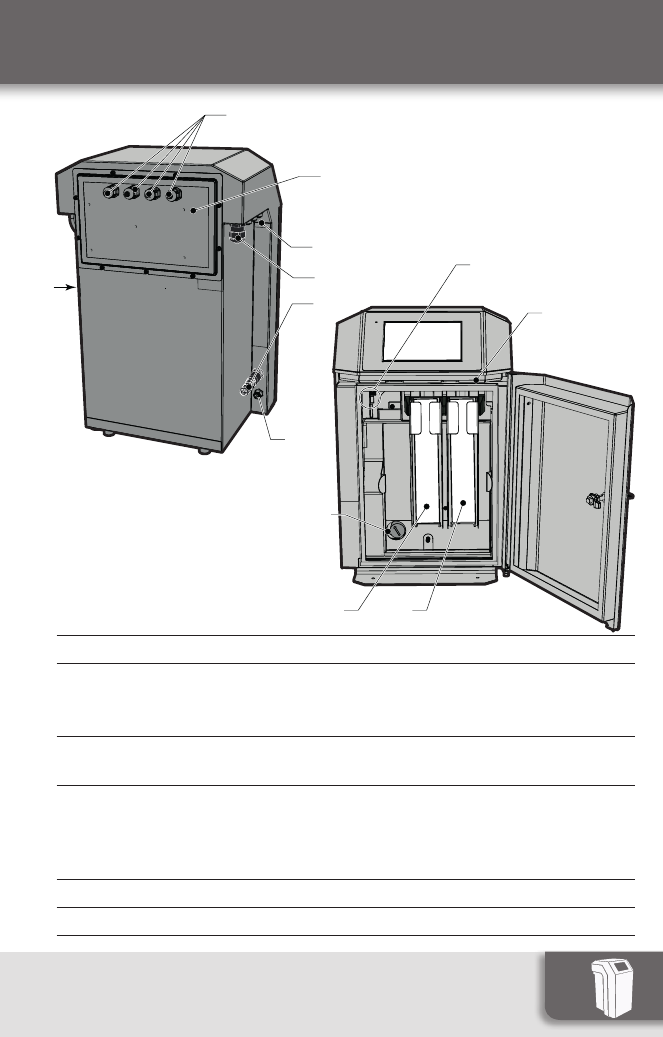

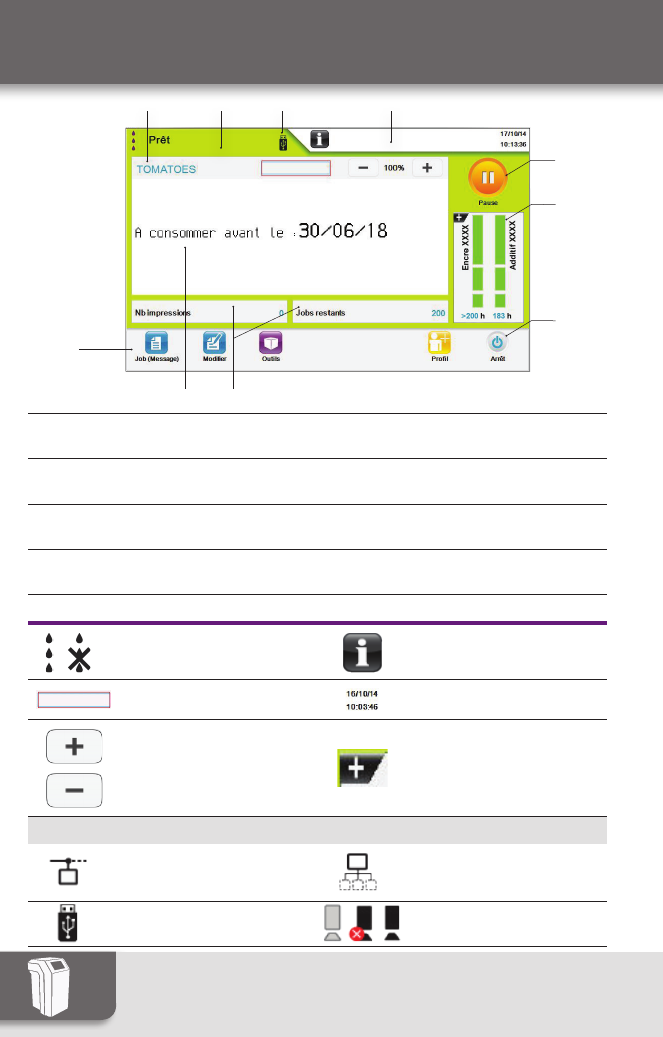

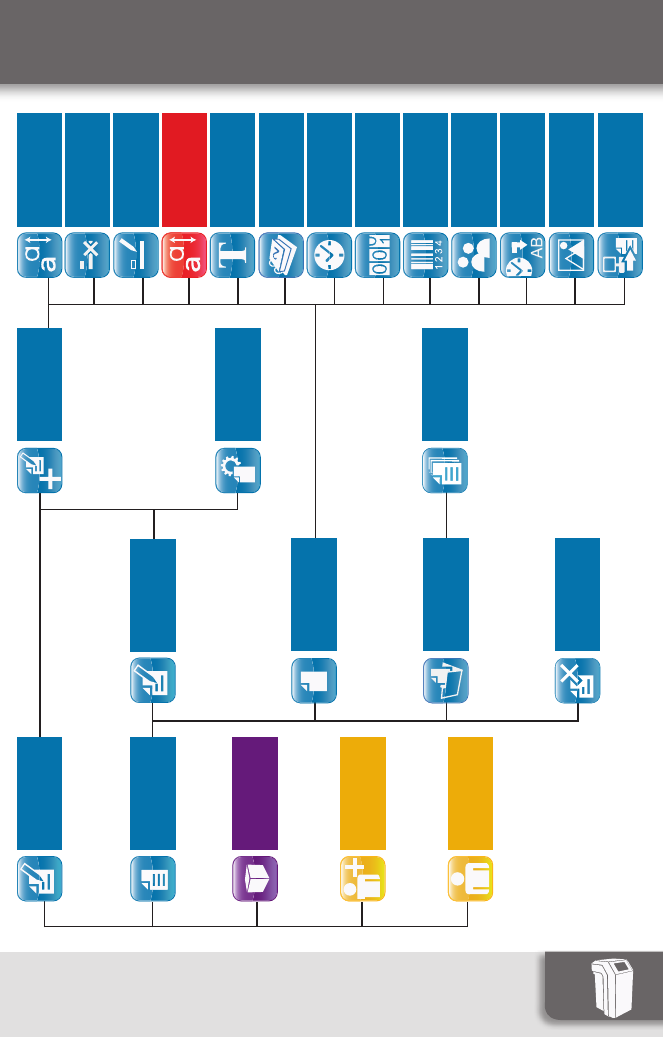

Printer and interface overview
Starting / shutting down the printer
Sending a job for printing
Modifying a job
Consulting the history
Replacing the consumables
Head cleaning
Troubleshooting -
Information

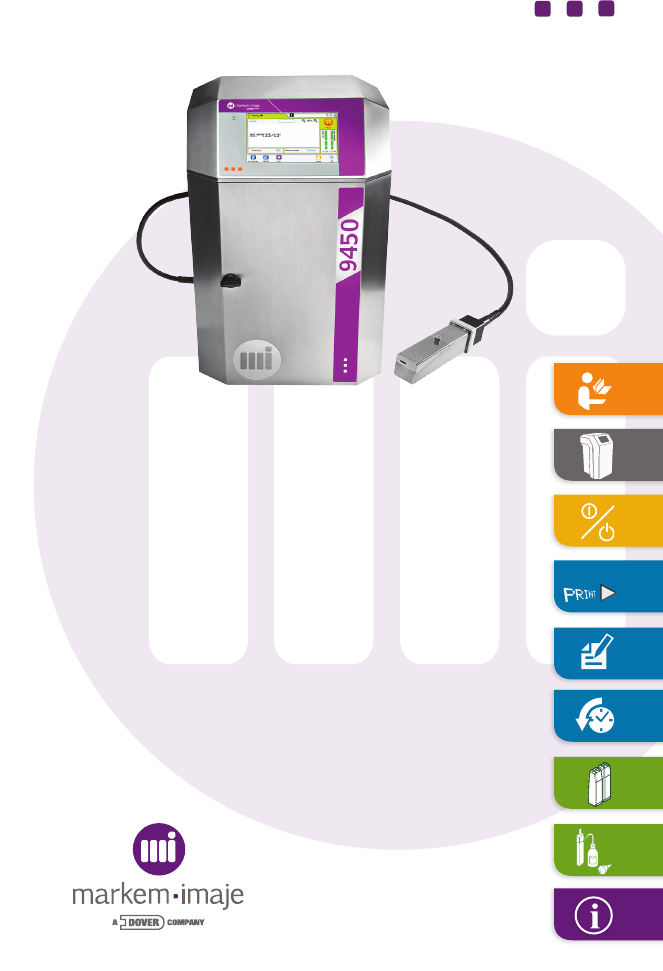

9410
9450
Safety
Instruction manual
DECLARATION DE CONFORMITE CE
EC DECLARATION OF CONFORMITY
___________________________________________________________________________________
MARKEM-IMAJE INDUSTRIES
9 Rue Gaspard Monge, BP 110
26501 Bourg Les Valence Cedex, France
certifie que l’équipement
de marquage et codage jet d’encre,
désigné ci-dessous :
MARKEM-IMAJE INDUSTRIES
9 Rue Gaspard Monge, BP 110
26501 Bourg Les Valence Cedex, France
ensures that the ink jet marking
and coding equipment
referenced below:
est conforme aux directives européennes
applicables aux équipements de marquage et
codage par jet d’encre, soit :
¥ à la directive machines 2006/42/CE
et aux normes européennes qui en
constituent la réponse technique,
ISO13849-1, 2008. EN12100 : 2010
¥ à la directive compatibilité
électromagnétique 2004/108/CE et aux normes
européennes qui en constituent la réponse
technique,
EN61000-6-2, 2005. EN 61000-6-4, 2007
¥ à la directive basse tension 2006/95/CE et
aux normes européennes qui en constituent la
réponse technique.
EN60950-1: 2006 + A11:2009 +A1 :2010
+ A12 :2011
A
En conséquence, le matériel ci-dessus cité, peut
p
porter le marquage CE.
Bourg-les-Valence, le 3 décembre 2013
is in accordance with European directives
applicable to ink jet marking and coding
equipments that is to say:
¥ with the machinery directive 2006/42/EC
and with the relevant European standards,
2006. ISO13849-1, 2008.
EN12100 : 2010
¥ with the electromagnetic compatibility
directive 2004/108/EC and with the relevant
European standards,
EN61000-6-2, 2005. EN 61000-6-4, 2007
¥ with the low voltage directive 2006/95/EC
and with the relevant European standards.
EN60950-1: 2006 + A11:2009 +A1:2010
+A12:2011
The above referenced equipment bears the CE
marking.
Bourg-les-Valence, december, 3rd, 2013
Dominique CHANUT
Responsable Normalisation/homologation Markem-Imaje Industries
Regulatory Compliance Manager Markem-Imaje Industries
___________________________________________________________________________________
Serial nb. :
Nº de serie:
Markem-Imaje SAS 9, rue Gaspard Monge – BP 110 – 26501 Bourg-lès-valence Cedex France
Tel. : +33 (0)4 75 75 55 00 – Fax : +33 (0)4 75 82 98 10 – www.markem-imaje.com
A44200-C 1/2
Markem Imaje Industries 9, rue Gaspard Monge - BP 110 - 26501 Bourg-lès-Valence Cedex France
Tél. : +33(0)4 75 75 55 00 - Fax : +33(0)4 75 82 98 10 - www.markem-imaje.com
La personne autorisée à rédiger cette déclaration et à constituer le dossier technique correspondant résidant dans la communauté.
The authorized person to write this declaration and to compile the relevant technical file residing in the Community.
2
SPECIMEN
Safety
Instruction manual
3
Before using this printer, please read and fully comply with these
instructions, the material safety data sheet (MSDS) for consumables
used, and safety labels afxed to the printer. Servicing must be
performed only by qualied people who are appropriately trained.
■Liability
Markem-Imaje shall not be liable for any damage or injury resulting
from any failure to follow these safety instructions, as well as good
manufacturing practices and safety standards that are generally
applicable in the industry, when installing, using or servicing Markem-
Imaje equipment.
Any user who modies or repairs Markem-Imaje equipment, uses
consumables, spare parts or accessories other than those supplied by
Markem-Imaje, or fails to comply with Markem-Imaje specications shall
have sole responsibility for the consequences thereof.
Markem-Imaje shall not be liable for any malfunction or damage caused
by any modication of the equipment or use of the equipment for any
purposes other than those for which it is designed. The user shall be
solely responsible to take any precautions required by any use to which
the user puts the Markem-Imaje equipment.
Markem-Imaje consumables (inks, cleaning products and other
consumables), spare parts and accessories are designed for use with
Markem-Imaje equipment.
Use of consumables, spare parts or accessories, that are not produced
or recommended by Markem-Imaje for use with the specic Markem-
Imaje equipment may harm the equipment and cause performance
failures.
Because Markem-Imaje equipment is tested with Markem-Imaje
consumables and spare parts for conformity with certain regulations
and safety standards, use of non-Markem-Imaje consumables and
spare parts also may be inconsistent with testing conditions and affect
compliance of the equipment with certain standards. The user shall bear
all risks associated with use of unsuitable consumables and spare parts.
This equipment is certied in accordance with the requirements for CE
marking.
Safety
Instruction manual 4
■Health / Hygiene / Environment
For certain consumables:
□ Wearing contact lenses when handling these consumables is strictly
prohibited.
□ Ink-resistant gloves and safety goggles are recommended during
cleaning operation.
Max. noise level < 70 dB A.
Operating temperature : +5°C to +40°C (+41°F to +104°F)
Humidity: 0 - 90% RH with no condensation. The use of certain inks
may limit the temperature and humidity ranges (see the ink specication
sheet).
The printer must not be used in explosive atmospheres.
■Fire prevention
CAUTION: For continued protection against possible re, use only the
ink/solvent mixtures specied by Markem-Imaje.
If your printer uses ammable ink or make-up:
□ Never leave containers containing ink, make-up or cleaning products,
or ink-soaked rags (even dry) near the printer.
□ Install a foam, CO2 or powder extinguisher immediately adjacent to
the printer (maximum 10 meters).
□ Never smoke near the printer. Afx a sign «NO SMOKING,
FLAMMABLE INK» near the printer.
□ Ensure that the printer is kept particularly clean, as dried ink deposits
remain highly ammable.
□ Drums of ink, make-up and cleaning solution must be closed and
stored in a ventilated room.
Safety
Instruction manual
5
■Handling
When a printer contains consumables, it may only be moved in a vertical
position, over a short distance (e.g. within a workshop). Completely
drain the printer before moving it in a position other than vertical, or if it
is to be transported for a longer distance (e.g. in a vehicle).
Printer weight: 25 Kg (55,1 lbs)
Due to the weight of the system, several people are required to handle
it.
■Installation
Installation work must be performed without fail by a team of Markem-
Imaje technicians. Any person modifying the installation shall be wholly
liable for such modications.
The print head must be secured rmly in place with fastening devices.
The printer must be installed in a ventilated location, away from any
source of heat, ames or sparks.
The printer installation on the production line must not generate any
risks for staff. The console must not be integrated on a moving system.
The operator’s work station faces the printer.
The printer must be connected to a single phase mains electricity
network with earth ground, using the cable supplied with the printer. The
standard plug on this cable must be easily accessible.
The electrical and pneumatic installations upline of the printer must
comply with applicable regulations. Printer electrical characteristics: see
manufacturer’s plate on the printer, adjacent to the power socket.
When the printer or a part thereof is attached to a stand, the stand must
be connected to earth ground.
Earth ground all conducting parts not at a voltage reference and which
are related to or close to the printer (metal frames, protective guards,
etc.).
Safety
Instruction manual 6
For information on fastening a Markem-Imaje accessory, refer to the
assembly instructions delivered with it.
The printer must be placed on a perfectly horizontal and unimpeded
surface (the underside of the printer must not be obstructed).
The bottom of the console must be between 0.7 m and 1 m above oor
level.
The print head must be between -2 m and +2 m from the bottom of the
console.

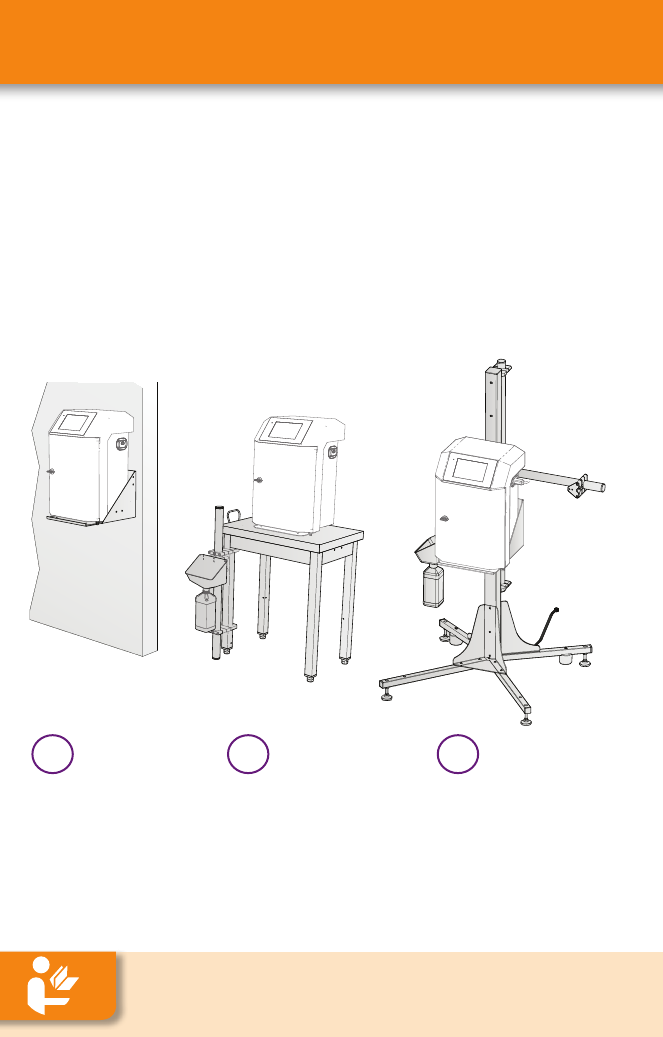

■ Three types of installation are possible:
1Wall-mounted 2Tabletop 3On base
Safety
Instruction manual

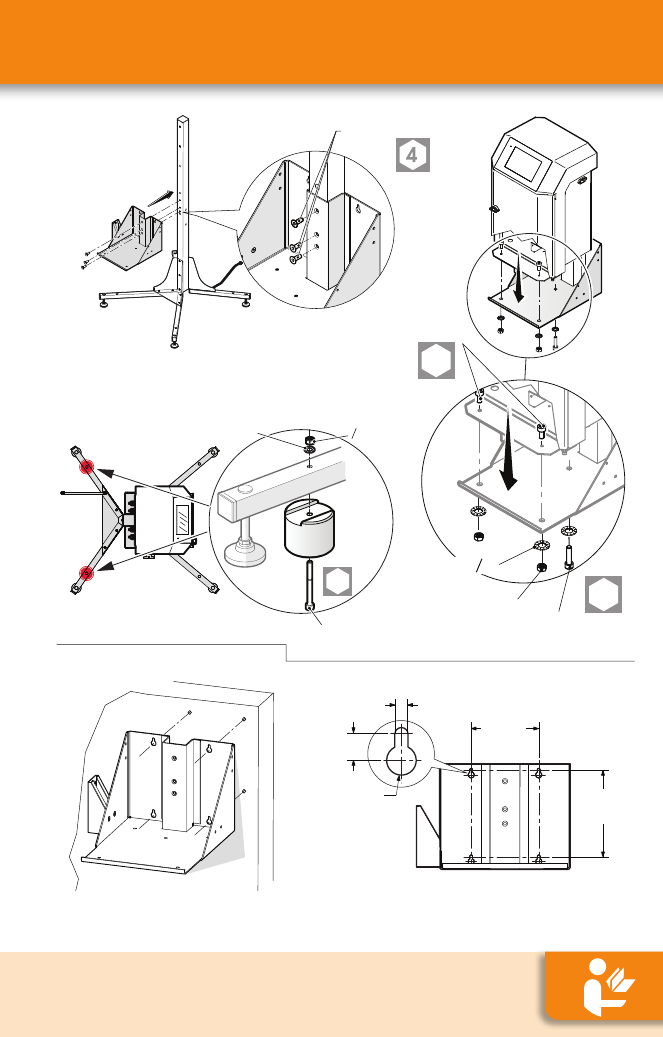

3 x FHc M6-16
CHc M6-75
156 mm
6.14 in
4 x Ø 14 mm
4 x Ø 0.55 in
6,2 mm
0.24 in
8 mm
0.47 in
200 mm
7.87 in
5
5
2 x CHc M6-12
CHc M6-25
2 x H M6
3 x O6
5
H M6 O6
7
• Wall-mounted
• On base
Stabilizer weights (x 2) mandatory.
They can be mounted above.
The fasteners (anchors + bolts) must withstand a weight of at least 35 kg.
Safety
Instruction manual 8
■Use
The printer is designed for contact-free printing by projecting ink. Any
other use of the printer is prohibited, and any consequences shall be
under the entire responsibility of the user.
■Servicing
We recommend that maintenance work be carried out only by staff who
have received technical training from Markem-Imaje and who have
the appropriate personal protective equipment (safety shoes, glasses,
gloves, etc.). Any maintenance work not described in this manual must
be carried out by Markem-Imaje technicians.
Disconnect the printer from the mains before any operations requiring
components to be removed or exchanged. Use appropriate tools for any
work on the electrical and hydraulic circuits.
After each maintenance operation, the waste recepticles used should be
emptied and cleaned. Do not leave rags soaked with consumables near
the printer.
This unit contains a non-replaceable internal lithium ion battery. The
battery may burst or explode, releasing hazardous chemicals. To reduce
the risk of re or burns, do not crush, puncture, or dispose of the battery
in re or water.
■Recycling
Disposal of used batteries and rechargeable batteries
(applicable in European Union countries and other European
countries with selective waste collection systems).
Disposal of used electrical and electronic equipment
(applicable in European Union countries and other European
countries with selective waste collection systems).
Safety
Instruction manual
9
These symbols indicate that the electrical and electronic device, and
the batteries and rechargeable batteries therein, must not be disposed
of at the end of its life as ordinary municipal solid waste. By ensuring
that these items are disposed of appropriately, you play an active role
in avoiding the harmful consequences that incorrect disposal could
have on the environment and human health. The recycling of materials
contributes to the preservation of natural resources.
By entrusting your end-of-life electrical devices to a duly authorized
disposal company, you ensure that all the items therein will be handled
correctly.
In all other cases and in order to safely remove batteries, rechargeable
batteries and other materials, see the user manual or contact your
Markem-Imaje representative.
■ Waste consumables
The Consumable waste must be managed in compliance with local
regulations related to waste management and dangerous goods
transport.
Transport, transit, treatment of consumable waste must be operated by
entity owning appropriate waste management licences.
Consumable waste must be treated in compliance with local regulations
either by recycling solution (e.g distillation), incineration with energy
recovery, incineration or specic land lling.
■FCC Rules
Caution: Changes or modications not expressly approved by the party
responsible for compliance could void the user’s authority to operate the
equipment.
NOTE: This equipment has been tested and found to comply with the
limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio
Safety
Instruction manual 10
communications. Operation of this equipment in a residential area
is likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense.
For Canada :
Under Industry Canada regulations, this radio transmitter may only
operate using an antenna of a type and maximum (or lesser) gain
approved for the transmitter by Industry Canada.
To reduce potential radio interference to other users, the antenna
type and its gain should be so chosen that the equivalent isotropically
radiated power (e.i.r.p.) is not more than that necessary for successful
communication.
This device complies with Industry Canada licence-exempt RSS
standard(s). Operation is subject to the following two conditions: this
device may not cause interference and this device must accept any
interference, including interference that may cause undesired operation
of the device.
■Printer integration
If this equipment is integrated in a machine, please read the instruction
manual for the machine before working on the printer.
If the printer is incorporated in a machine or assembled with other
machines in a way that forms machinery covered by the Directive
2006/95/CE:
- It may not operate independently
- It must not be commissioned until the end machine in which it is
incorporated has been declared to comply with the relevant provisions of
the Machinery Directive and other European directives applicable to the
end machine.
Safety
Instruction manual
DECLARATION D’INCORPORATION
Déclaration d’incorporation selon la Directive Européenne Machine 2006/42/CE, annexe II B
DECLARATION OF INCORPORATION
Declaration of incorporation in terms of the European Machinery Directive 2006/42/EC, annex II B
___________________________________________________________________________________
MARKEM-IMAJE INDUSTRIES
9 Rue Gaspard Monge, BP 110
26501 Bourg Les Valence Cedex, France
certifie que l’équipement de marquage et
codage jet d’encre, désigné ci-dessous :
MARKEM-IMAJE INDUSTRIES
9 Rue Gaspard Monge, BP 110
26501 Bourg Les Valence Cedex, France
ensures that the ink jet marking
and coding equipment referenced below:
répond aux exigences générales de sécurité et de santé de la
Directive Machines 2006/42/CE, Annexe1.
Que cet équipement imprimante à jet d’encre répond de plus
aux directives CE applicables, soient :
¥ A la Directive Machines 2006/42/CE et aux Normes
Européennes qui en constituent la réponse technique :
ISO13849-1 : 2008. EN12100 : 2010
¥ A la Directive Compatibilité Electromagnétique 2004/108/CE
et aux Normes Européennes qui en constituent la réponse
technique :
EN61000-6-2 : 2005. EN 61000-6-4 : 2007.
¥ A la Directive Basse Tension 2006/95/CE et aux Normes
Européennes qui en constituent la réponse technique :
EN60950-1 : 2006 +A11: 2009. +A1 :2010 +A12 :2011
La documentation technique pour cet équipement imprimante à
jet d’encre a été rédigée selon l’annexe VII, partie B.
Le fabricant s’engage à transmettre, à la suite d’une demande
motivée des autorités nationales, les informations pertinentes
concernant cet équipement imprimante à jet d’encre.
Cet équipement imprimante à jet d’encre est destiné à être
incorporé dans une machine ou à être assemblé avec d'autres
machines en vue de constituer une machine à laquelle s'applique
la directive 2006/42/CE et qu'il ne peut fonctionner de façon
indépendante.
Cet équipement imprimante à jet d’encre ne doit pas être mis en
service avant que la machine finale dans laquelle il doit être
incorporé ait été déclaré conforme aux dispositions pertinentes
de la Directive Machines et aux Directives Européennes
applicables à la machine finale.
Bourg-lès-Valence, le 3 décembre 2013
meets the general safety and health of the Machinery Directive
2006/42/EC, Annex 1.
Ink jet printer equipment that responds more to the EC
directives, that is to say:
¥ with the Machinery Directive 2006/42/EC and European
Standards that constitute the technical answer:
ISO13849-1: 2008. EN12100 : 2010
¥ with the Electromagnetic Compatibility Directive
2004/108/EC and European Standards that constitute the
technical answer:
EN61000-6-2: 2005. EN 61000-6-4: 2007.
¥ with the Low Voltage Directive 2006/95/EC and European
Standards that constitute the technical answer: EN60950-1:
2006 + A11:2009 +A1 :2010 +A12:2011
The documentation for this Ink jet printer equipment has been
drafted in accordance with Annex VII, Part B.
The manufacturer undertakes to forward, following a motivated
request of national authorities, relevant information regarding
this Ink jet printer equipment.
The Ink jet printer equipment is intended to be incorporated into
machinery or assembled with other machineries to create a
machinery to which the Machinery Directive 2006/42/EC and
that cannot work independently.
This Ink jet printer equipment may not be put into operation
until conformity of the final machine into which it is to be
incorporated has been declared in conformity with the relevant
provisions of the Machinery Directive and the European
Directives applicable to the final machine.
Bourg-lès-Valence, December, 3rd, 2013
Dominique CHANUT
Responsable Normalisation/homologation Markem-Imaje Industries
Regulatory Compliance Manager Markem-Imaje Industries
___________________________________________________________________________________
A44200-A 2/2
A44200-C 2/2
Markem Imaje Industries 9, rue Gaspard Monge - BP 110 - 26501 Bourg-lès-Valence Cedex France
Tél. : +33(0)4 75 75 55 00 - Fax : +33(0)4 75 82 98 10 - www.markem-imaje.com
La personne autorisée à rédiger cette déclaration et à constituer le dossier technique correspondant résidant dans la communauté.
The authorized person to write this declaration and to compile the relevant technical file residing in the Community.
11
SPECIMEN
Instruction manual
Printer overview
1
2
34
5
6
8
9
10
11
12
13
14
15
16
17
18
1
2
34
5
6
8
9
10
11
12
13
14
15
16
17
18
7
12
1Hydraulics compartment
2Cabinet
3Power-On LED
4Operator interface
5Umbilical
6Print head
Instruction manual
Printer overview
9
10
11
12
13
14
15
16
17
18
9
10
11
12
13
14
15
16
17
18
7
13
7Manufacturer’s plate 13 Plant air connector
8Cable glands: other
connections (Serial/Parallel
Link)
14 USB Port
SD card reader
9Access to the electrical
compartment
15 Air lter (model IP56)
10 Connection interface
- detection cell (black)
- encoder (blue)
- warning (yellow)
16 Additive cartridge
11 Cable glands: Ethernet 17 Ink cartridge
12 Umbilical outlet 18 Pressure pump
Instruction manual
Interface overview
14
1Name of the job being
printed 6Time remaining indicator
2Colored background.
Printing status 7Start/Stop printer
3External equipment
connection indicator 8Production information
4Colored bar. Printer
information 9Preview of the job being
printed
5Start/Pause printing 10 Icon bar
Printer reports Consult operating
information
Navigation window Current date and time
Increase or decrease
display size
Consult additional
information about the
consumables
Connection indicators:
Printer connected to the
network 'Parent' printer
USB key connected
Camera reports
(9450 option)
89
10
5
6
7
1 2 3 4
Instruction manual
Presentation of the menus
15
Modify
Job
(Message)
New
Manage job
Delete
Advanced
modication
Job settings
Library
Modify text
Delete text
Font size
Tools
Font size
Text
Date
Time
Counter
Barcode
Shiftcode
Custom
Date / Time
Symbol
External
variable
Modify
Simple modication
Advanced
Prole
Operator
Prole

Navigation menu
