Microchip Technology A090664 2.4GHz, 802.15.4/Zigbee OEM- Module User Manual ZigBit 2 4 GHz Wireless Modules ATZB 24 A2 B0

Atmel Norway AS 2.4GHz, 802.15.4/Zigbee OEM- Module ZigBit 2 4 GHz Wireless Modules ATZB 24 A2 B0

User Manual

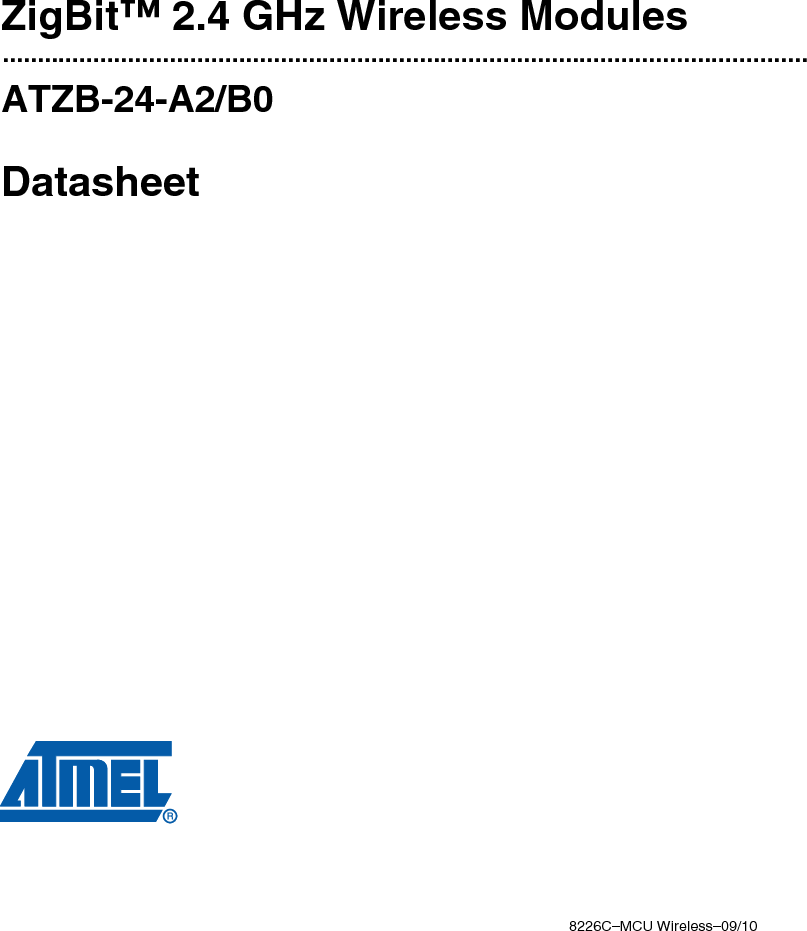

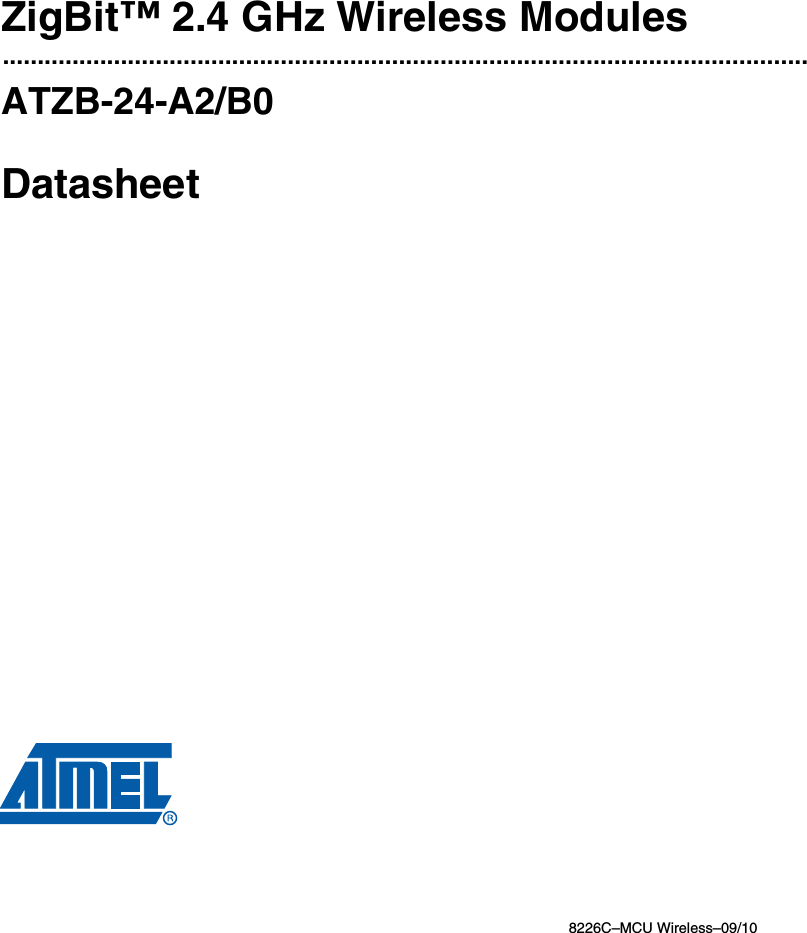

8226C–MCU Wireless–09/10ZigBit™ 2.4 GHz Wireless Modules....................................................................................................................ATZB-24-A2/B0Datasheet
ZigBit™ 2.4 GHz Wireless Modules 1-28226C–MCU Wireless–09/10

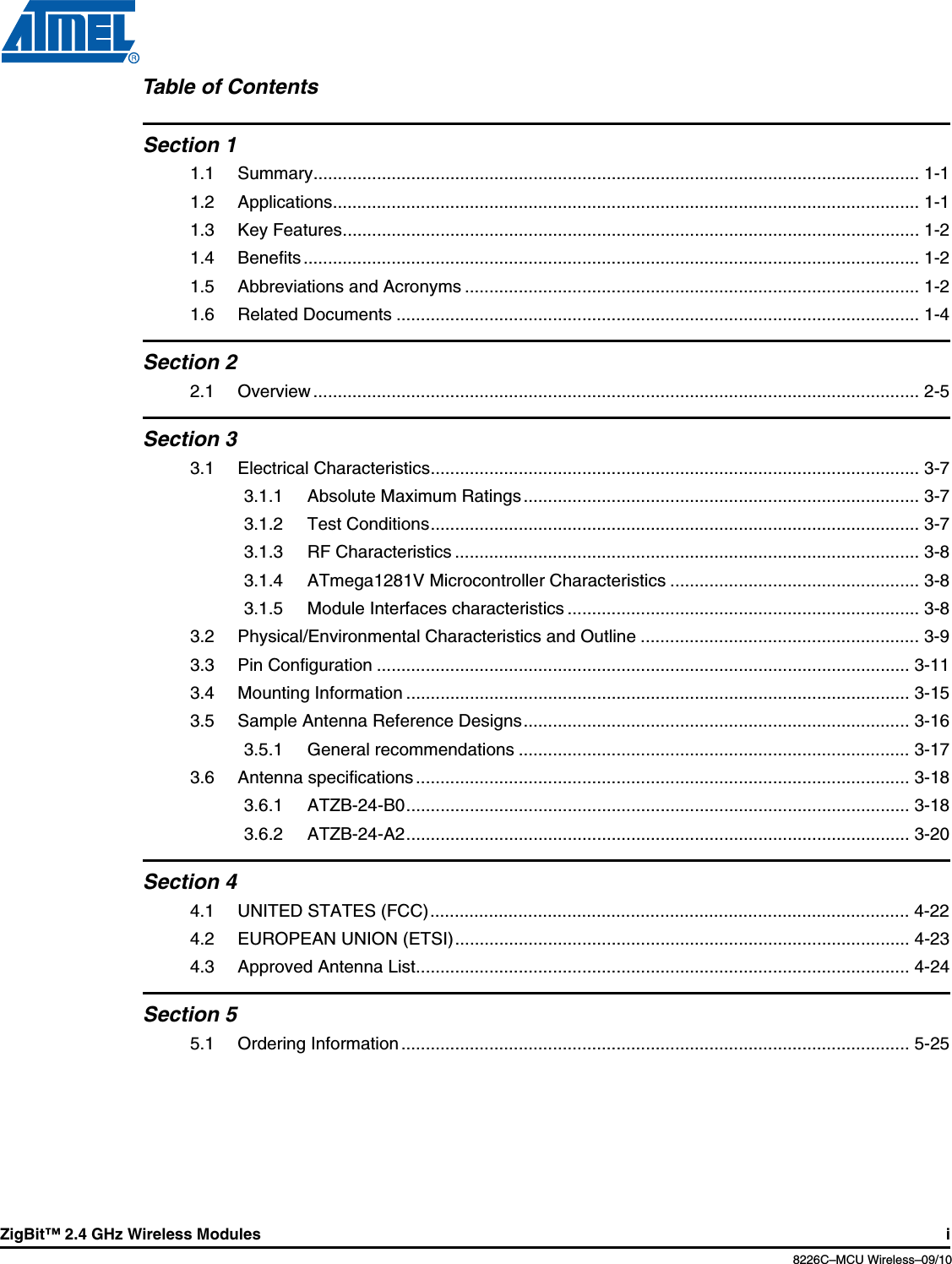

ZigBit™ 2.4 GHz Wireless Modules i8226C–MCU Wireless–09/10Table of ContentsSection 11.1 Summary............................................................................................................................ 1-11.2 Applications........................................................................................................................ 1-11.3 Key Features...................................................................................................................... 1-21.4 Benefits .............................................................................................................................. 1-21.5 Abbreviations and Acronyms ............................................................................................. 1-21.6 Related Documents ........................................................................................................... 1-4Section 22.1 Overview ............................................................................................................................ 2-5Section 33.1 Electrical Characteristics.................................................................................................... 3-73.1.1 Absolute Maximum Ratings................................................................................. 3-73.1.2 Test Conditions.................................................................................................... 3-73.1.3 RF Characteristics ............................................................................................... 3-83.1.4 ATmega1281V Microcontroller Characteristics ................................................... 3-83.1.5 Module Interfaces characteristics ........................................................................ 3-83.2 Physical/Environmental Characteristics and Outline ......................................................... 3-93.3 Pin Configuration ............................................................................................................. 3-113.4 Mounting Information ....................................................................................................... 3-153.5 Sample Antenna Reference Designs............................................................................... 3-163.5.1 General recommendations ................................................................................ 3-173.6 Antenna specifications ..................................................................................................... 3-183.6.1 ATZB-24-B0....................................................................................................... 3-183.6.2 ATZB-24-A2....................................................................................................... 3-20Section 44.1 UNITED STATES (FCC).................................................................................................. 4-224.2 EUROPEAN UNION (ETSI)............................................................................................. 4-234.3 Approved Antenna List..................................................................................................... 4-24Section 55.1 Ordering Information ........................................................................................................ 5-25

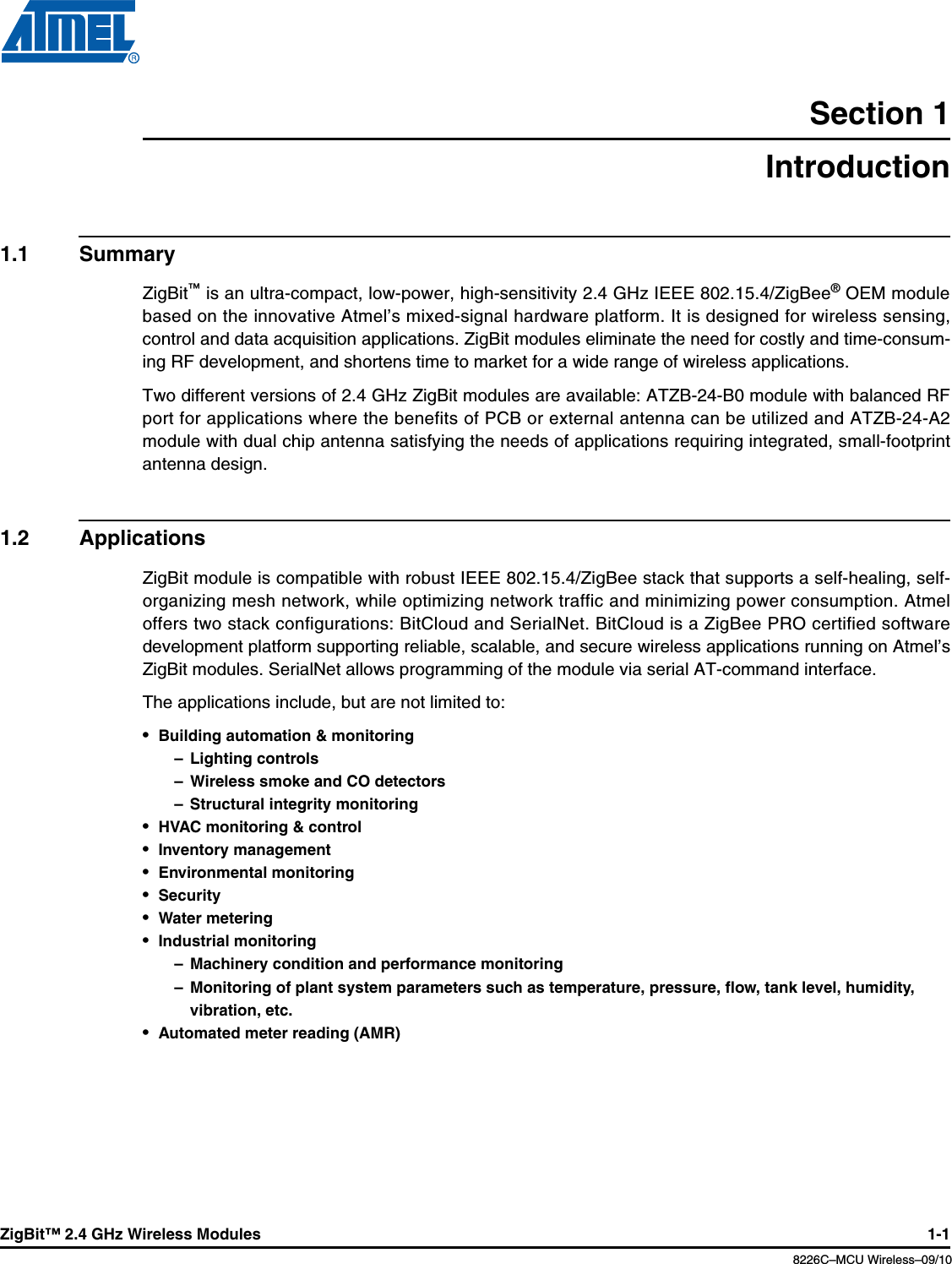

ZigBit™ 2.4 GHz Wireless Modules 1-18226C–MCU Wireless–09/10Section 1Introduction1.1 SummaryZigBit™ is an ultra-compact, low-power, high-sensitivity 2.4 GHz IEEE 802.15.4/ZigBee® OEM modulebased on the innovative Atmel’s mixed-signal hardware platform. It is designed for wireless sensing,control and data acquisition applications. ZigBit modules eliminate the need for costly and time-consum-ing RF development, and shortens time to market for a wide range of wireless applications.Two different versions of 2.4 GHz ZigBit modules are available: ATZB-24-B0 module with balanced RFport for applications where the benefits of PCB or external antenna can be utilized and ATZB-24-A2module with dual chip antenna satisfying the needs of applications requiring integrated, small-footprintantenna design.1.2 ApplicationsZigBit module is compatible with robust IEEE 802.15.4/ZigBee stack that supports a self-healing, self-organizing mesh network, while optimizing network traffic and minimizing power consumption. Atmeloffers two stack configurations: BitCloud and SerialNet. BitCloud is a ZigBee PRO certified softwaredevelopment platform supporting reliable, scalable, and secure wireless applications running on Atmel’sZigBit modules. SerialNet allows programming of the module via serial AT-command interface.The applications include, but are not limited to:•Building automation & monitoring– Lighting controls– Wireless smoke and CO detectors– Structural integrity monitoring•HVAC monitoring & control•Inventory management•Environmental monitoring•Security•Water metering•Industrial monitoring– Machinery condition and performance monitoring– Monitoring of plant system parameters such as temperature, pressure, flow, tank level, humidity, vibration, etc.•Automated meter reading (AMR)
IntroductionZigBit™ 2.4 GHz Wireless Modules 1-28226C–MCU Wireless–09/101.3 Key Features•Ultra compact size (24 x 13.5 x 2.0 mm for ATZB-24-A2 module and 18.8 x 13.5 x 2.0 mm for ATZB-24-B0 module)•Innovative (patent-pending) balanced dual chip antenna design with antenna gain of approximately 0 dBi (for ATZB-24-A2 version)•High RX sensitivity (-101 dBm)•Outperforming link budget (104 dB)•Up to 3 dBm output power•Very low power consumption:– < 6 µA in Sleep mode,– 19 mA in RX mode,– 18 mA in TX mode•Ample memory resources (128K bytes of flash memory, 8K bytes RAM, 4K bytes EEPROM)•Wide range of interfaces (both analog and digital):– 9 spare GPIO, 2 spare IRQ lines– 4 ADC lines + 1 line for supply voltage control (up to 9 lines with JTAG disabled)– UART with CTS/RTS control–USART–I2C– SPI–1-Wire– Up to 30 lines configurable as GPIO– Capability to write own MAC address into the EEPROM– Optional antenna reference designs– IEEE 802.15.4 compliant transceiver– 2.4 GHz ISM band– BitCloud embedded software, including serial bootloader and AT command set1.4 Benefits•Small physical footprint and low profile for optimum fit in even the smallest of devices•Best-in-class RF link range•Extended battery life•Easy prototyping with 2-layer PCB•Ample memory for user software application•Mesh networking capability•Easy-to-use low cost Evaluation Kit•Single source of support for HW and SW•Worldwide license-free operation1.5 Abbreviations and AcronymsADC Analog-to -Digital ConverterAPI Application Programming InterfaceDC Direct Current

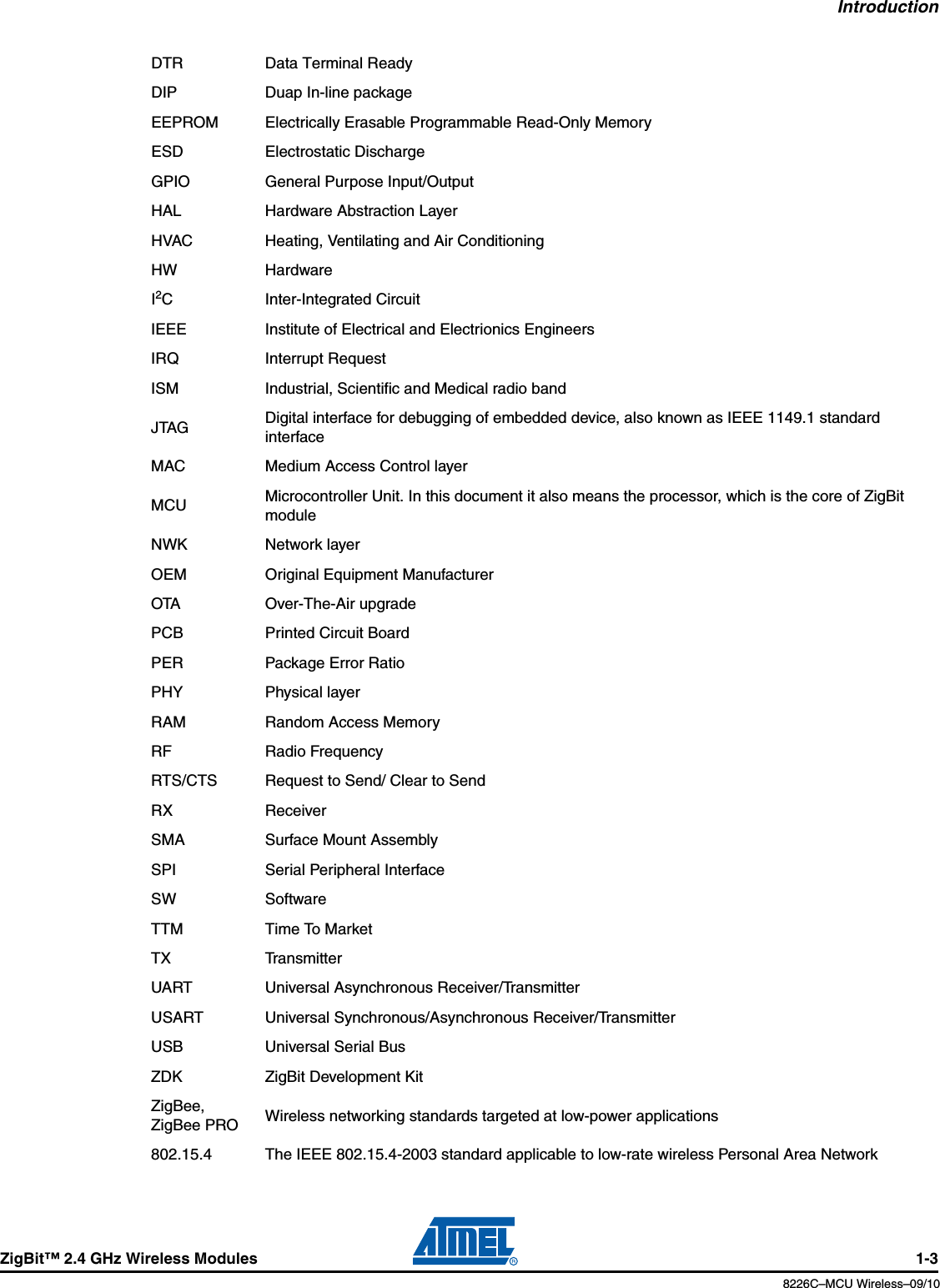

IntroductionZigBit™ 2.4 GHz Wireless Modules 1-38226C–MCU Wireless–09/10DTR Data Terminal ReadyDIP Duap In-line packageEEPROM Electrically Erasable Programmable Read-Only MemoryESD Electrostatic DischargeGPIO General Purpose Input/OutputHAL Hardware Abstraction LayerHVAC Heating, Ventilating and Air ConditioningHW HardwareI2C Inter-Integrated CircuitIEEE Institute of Electrical and Electrionics EngineersIRQ Interrupt RequestISM Industrial, Scientific and Medical radio bandJTAG Digital interface for debugging of embedded device, also known as IEEE 1149.1 standard interfaceMAC Medium Access Control layerMCU Microcontroller Unit. In this document it also means the processor, which is the core of ZigBit moduleNWK Network layerOEM Original Equipment ManufacturerOTA Over-The-Air upgradePCB Printed Circuit BoardPER Package Error RatioPHY Physical layerRAM Random Access MemoryRF Radio FrequencyRTS/CTS Request to Send/ Clear to SendRX ReceiverSMA Surface Mount AssemblySPI Serial Peripheral InterfaceSW SoftwareTTM Time To MarketTX TransmitterUART Universal Asynchronous Receiver/TransmitterUSART Universal Synchronous/Asynchronous Receiver/TransmitterUSB Universal Serial BusZDK ZigBit Development KitZigBee, ZigBee PRO Wireless networking standards targeted at low-power applications802.15.4 The IEEE 802.15.4-2003 standard applicable to low-rate wireless Personal Area Network
IntroductionZigBit™ 2.4 GHz Wireless Modules 1-48226C–MCU Wireless–09/101.6 Related Documents[1] Atmel 8-bit AVR Microcontroller with 64K/128K/256K Bytes In-System Programmable Flash. 2549FAVR 04/06[2] Atmel Low-Power Transceiver for ZigBee Applications. AT86RF230 datasheet. doc5131.pdf[3] IEEE Std 802.15.4-2003 IEEE Standard for Information technology - Part 15.4 Wireless MediumAccess Control (MAC) and Physical Layer (PHY) Specifications for Low-Rate Wireless Personal AreaNetworks (LR-WPANs)[4] ZigBee Specification. ZigBee Document 053474r17, October 19, 2007[5] BitCloud™ IEEE 802.15.4/ZigBee Software. AVR2050: BitCloud User Guide. Atmels doc8199.pdf[6] ZigBit™ Development Kit. User's Guide. MeshNetics Doc. S-ZDK-451 - TBD

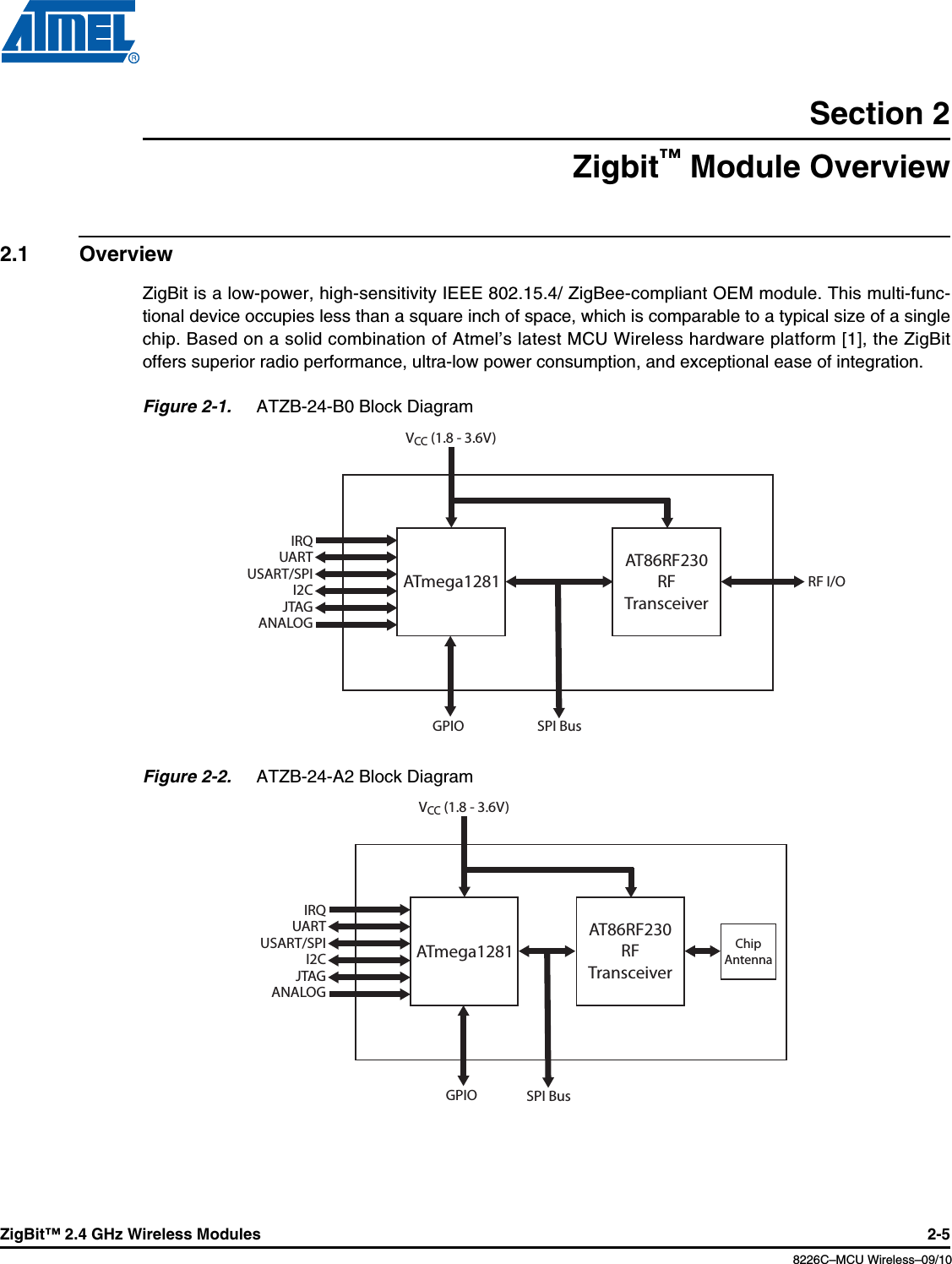

ZigBit™ 2.4 GHz Wireless Modules 2-58226C–MCU Wireless–09/10Section 2Zigbit™ Module Overview2.1 OverviewZigBit is a low-power, high-sensitivity IEEE 802.15.4/ ZigBee-compliant OEM module. This multi-func-tional device occupies less than a square inch of space, which is comparable to a typical size of a singlechip. Based on a solid combination of Atmel’s latest MCU Wireless hardware platform [1], the ZigBitoffers superior radio performance, ultra-low power consumption, and exceptional ease of integration.Figure 2-1. ATZB-24-B0 Block DiagramFigure 2-2. ATZB-24-A2 Block DiagramATmega1281AT86RF230RFTransceiverVCC (1.8 - 3.6V)RF I/OGPIO SPI BusIRQUARTUSART/SPII2CJTAGANALOGATmega1281AT86RF230RFTransceiverVCC (1.8 - 3.6V)GPIO SPI BusIRQUARTUSART/SPII2CJTAGANALOGChipAntenna
Zigbit™ Module OverviewZigBit™ 2.4 GHz Wireless Modules 2-68226C–MCU Wireless–09/10ZigBit modules comply with the FCC (Part 15), IC and ETSI (CE) rules applicable to the devices radiat-ing in uncontrolled environment. For details, see “Agency Certifications” on page 4-22.ZigBit fully satisfies the requirements of the “Directive 2002/95/EC of the European Parliament and theCouncil of 27January 2003 on the restriction of the use of certain hazardous substances in electrical andelectronic equipment” (RoHS). Atmel provides fully compliant product in all regions where the directive isenforced since July 1, 2006.ZigBit contains Atmel’s ATmega1281V Microcontroller [1] and AT86RF230 RF Transceiver [2]. The mod-ule features 128 Kbytes flash memory and 8 Kbytes RAM.The ZigBit already contains a complete RF/MCU-related design with all the necessary passive compo-nents included. The module can be easily mounted on a simple 2-layer PCB. Compared to a customRF/MCU design, a module-based solution offers considerable savings in development time and NREcost per unit during the design, prototyping, and mass production phases of product development.Innovative (patent-pending) dual chip antenna design in ATZB-24-A2 module eliminates the balun andachieves good performance over 2.4 GHz frequency band.To jumpstart evaluation and development, Atmel also offers a complete set of evaluation and develop-ment tools. The ZigBit Development Kit [6] (ATZB-DK-24) comes with everything you need to createcustom applications featuring ZigBit module.The kit features MeshBean development boards with an easy-to-access extension connector for attach-ing third party sensors and other peripherals, and a JTAG connector for easy application uploading anddebugging.The kit also includes reference applications to speed up application development, source code for hard-ware interface layer and reference drivers for the all the module interfaces, intuitive developmentenvironment from Atmel, and comprehensive set of application notes and product documentation.ZigBit modules comes bundled with BitCloud, a 2nd generation embedded software stack from Atmel.BitCloud is fully compliant with ZigBee PRO and ZigBee standards for wireless sensing and control [3],[4], [5] and it provides an augmented set of APIs which, while maintaining 100% compliance with thestandard, offer extended functionality designed with developer's convenience and ease-of-use in mind.Depending on end-user design requirements, ZigBit can operate as a self-contained sensor node, whereit would function as a single MCU, or it can be paired with a host processor driving the module over aserial interface. In the former case, a user application may be used with the BitCloud software allowingcustomization of embedded applications through BitCloud’s C API.In the latter case, the host processor controls data transmission and manages module peripherals via anextensive set of SerialNet AT commands. Thus, no firmware customization is required for a successfulmodule design-in. Additionally, third-party sensors can be connected directly to the module, thusexpanding the existing set of peripheral interfaces.

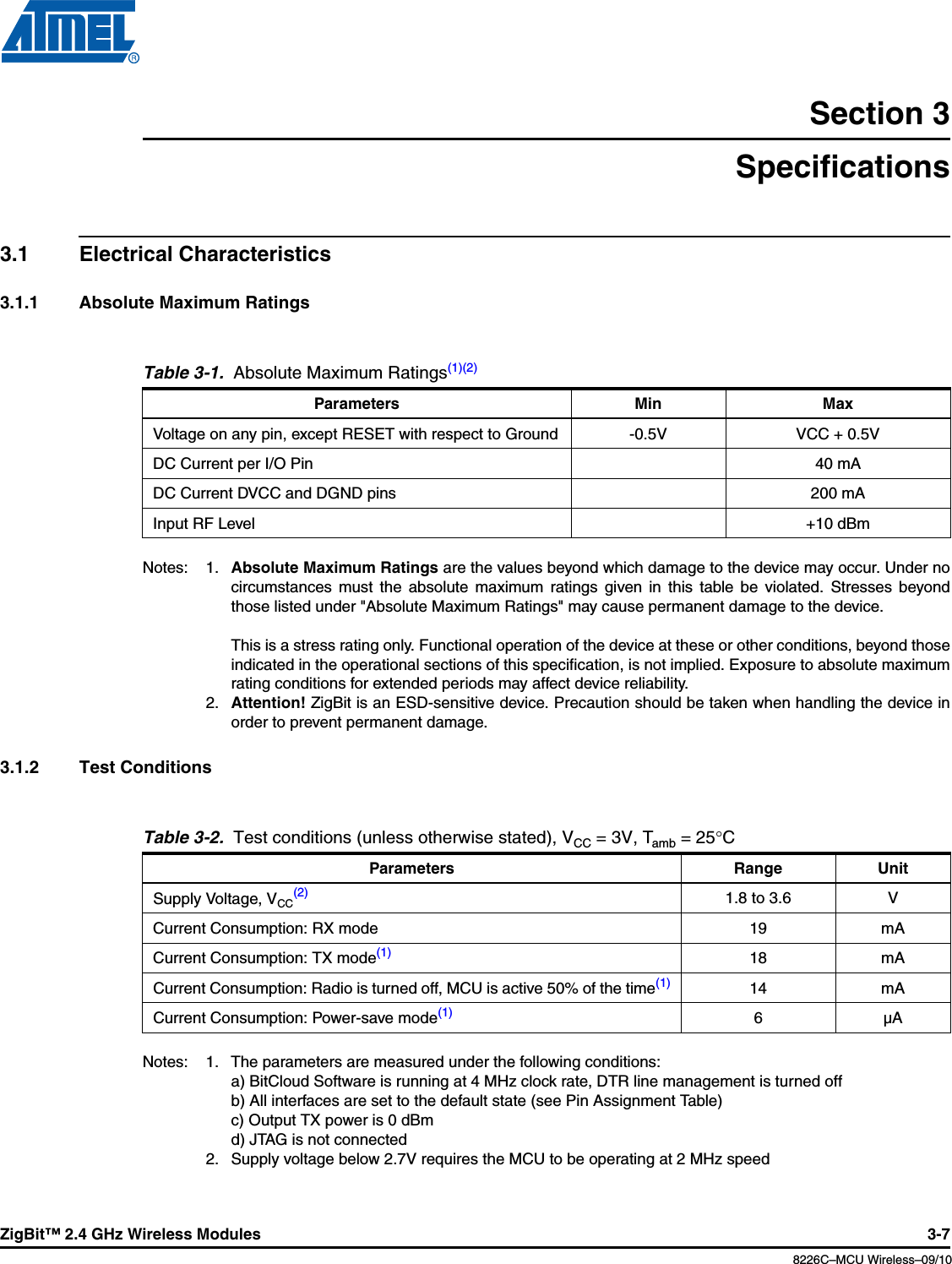

ZigBit™ 2.4 GHz Wireless Modules 3-78226C–MCU Wireless–09/10Section 3Specifications3.1 Electrical Characteristics3.1.1 Absolute Maximum RatingsNotes: 1. Absolute Maximum Ratings are the values beyond which damage to the device may occur. Under nocircumstances must the absolute maximum ratings given in this table be violated. Stresses beyondthose listed under "Absolute Maximum Ratings" may cause permanent damage to the device.This is a stress rating only. Functional operation of the device at these or other conditions, beyond thoseindicated in the operational sections of this specification, is not implied. Exposure to absolute maximumrating conditions for extended periods may affect device reliability.2. Attention! ZigBit is an ESD-sensitive device. Precaution should be taken when handling the device inorder to prevent permanent damage.3.1.2 Test Conditions Notes: 1. The parameters are measured under the following conditions:a) BitCloud Software is running at 4 MHz clock rate, DTR line management is turned offb) All interfaces are set to the default state (see Pin Assignment Table)c) Output TX power is 0 dBmd) JTAG is not connected2. Supply voltage below 2.7V requires the MCU to be operating at 2 MHz speedTable 3-1. Absolute Maximum Ratings(1)(2)Parameters Min MaxVoltage on any pin, except RESET with respect to Ground -0.5V VCC + 0.5VDC Current per I/O Pin 40 mADC Current DVCC and DGND pins 200 mAInput RF Level +10 dBmTable 3-2. Test conditions (unless otherwise stated), VCC =3V, Tamb =25°CParameters Range UnitSupply Voltage, VCC(2) 1.8 to 3.6 VCurrent Consumption: RX mode 19 mACurrent Consumption: TX mode(1) 18 mACurrent Consumption: Radio is turned off, MCU is active 50% of the time(1) 14 mACurrent Consumption: Power-save mode(1) 6µA
SpecificationsZigBit™ 2.4 GHz Wireless Modules 3-88226C–MCU Wireless–09/10Current consumption actually depends on multiple factors, including but not limited to, the board designand materials, BitCloud settings, network activity, EEPROM read/write operations. It also depends onMCU load and/or peripherals used by an application.3.1.3 RF Characteristics3.1.4 ATmega1281V Microcontroller Characteristics3.1.5 Module Interfaces characteristics Table 3-3. RF CharacteristicsParameters Condition Range UnitFrequency Band 2.4000 to 2.4835 GHzNumbers of Channels 16Channel Spacing 5 MHzTransmitter Output Power Adjusted in 16 steps -17 to +3 dBmReceiver Sensitivity PER = 1%On-Air Data Rate 250 kbpsTX Output/ RX Input Nominal Impedance For balanced output 100 ΩTable 3-4. ATmega1281V CharacteristicsParameters Condition Range UnitOn-chip Flash Memory size 128K bytesOn-chip RAM size 8K bytesOn-chip EEPROM size 4K bytesOperation Frequency 4 MHzTable 3-5. Module Interfaces characteristicsParameters Condition Range UnitUART Maximum Baud Rate 38.4 kbpsADC Resolution/ Conversion Time In single conversion mode 10/200 Bits/µsADC Input Resistance >1 MΩADC Reference Voltage (VREF) 1.0 to VCC -3 VADC Input Voltage 0 - VREF VI2C Maximum Clock 222 kHzGPIO Output Voltage (High/Low) -10/ 5 mA 2.3/ 0.5 VReal Time Oscillator Frequency 32.768 kHz
SpecificationsZigBit™ 2.4 GHz Wireless Modules 3-98226C–MCU Wireless–09/103.2 Physical/Environmental Characteristics and OutlineNote: 1. Minor degration of clock stability may occur.Figure 3-1. ATZB-24-B0 Mechanical drawingParameters Value CommentsSize 18.8 x 13.5 x 2.0 mm ATZB-24-B024.0 x 13.5 x 2.0 mm ATZB-24-A2Weight 1.3g ATZB-24-B01.5g ATZB-24-A2Operating Temperature Range -20°C to +70°C-40°C to +85°C operational(1)Operating Relative Humidity Range no more than 80%

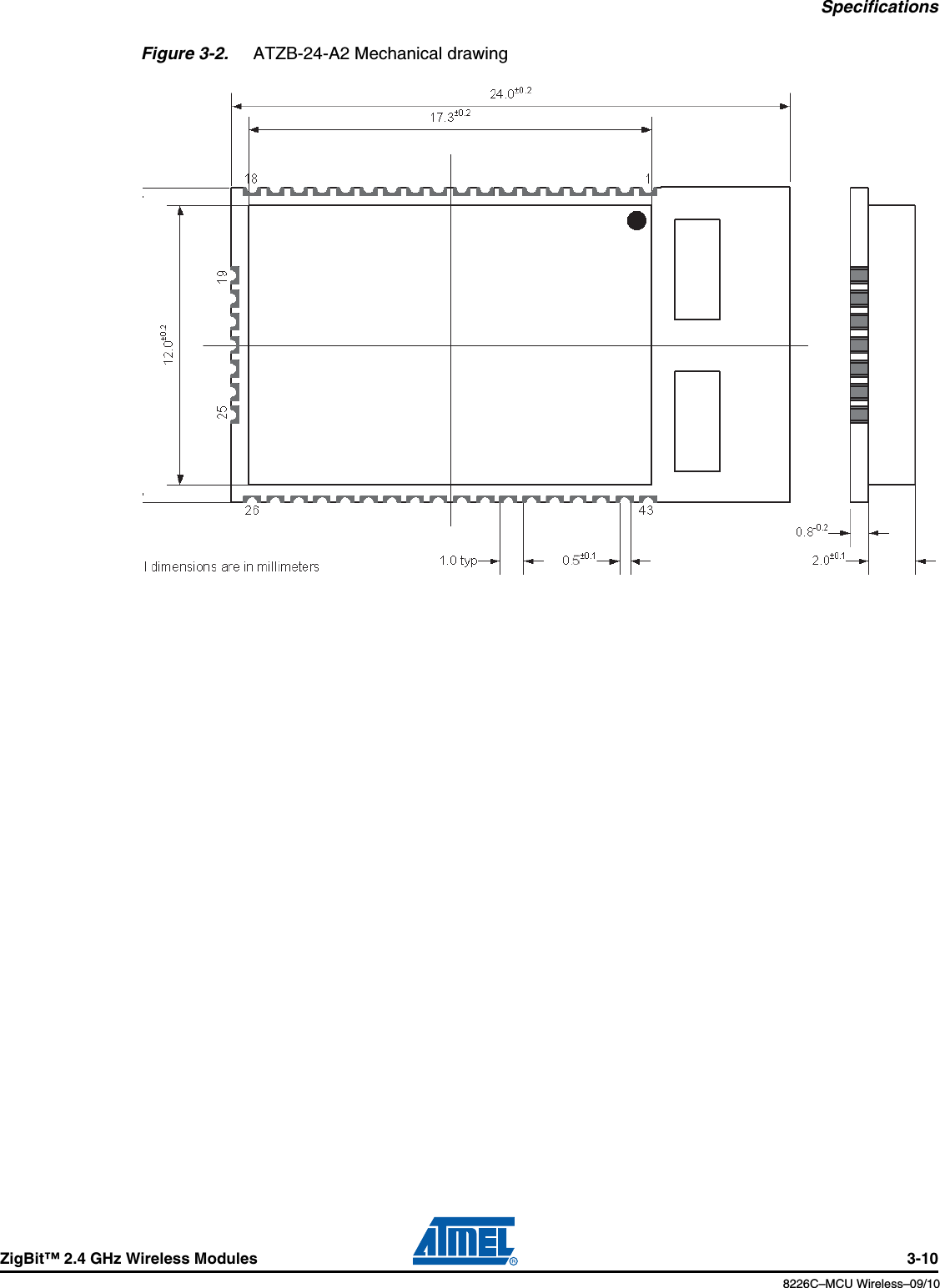

SpecificationsZigBit™ 2.4 GHz Wireless Modules 3-108226C–MCU Wireless–09/10Figure 3-2. ATZB-24-A2 Mechanical drawing

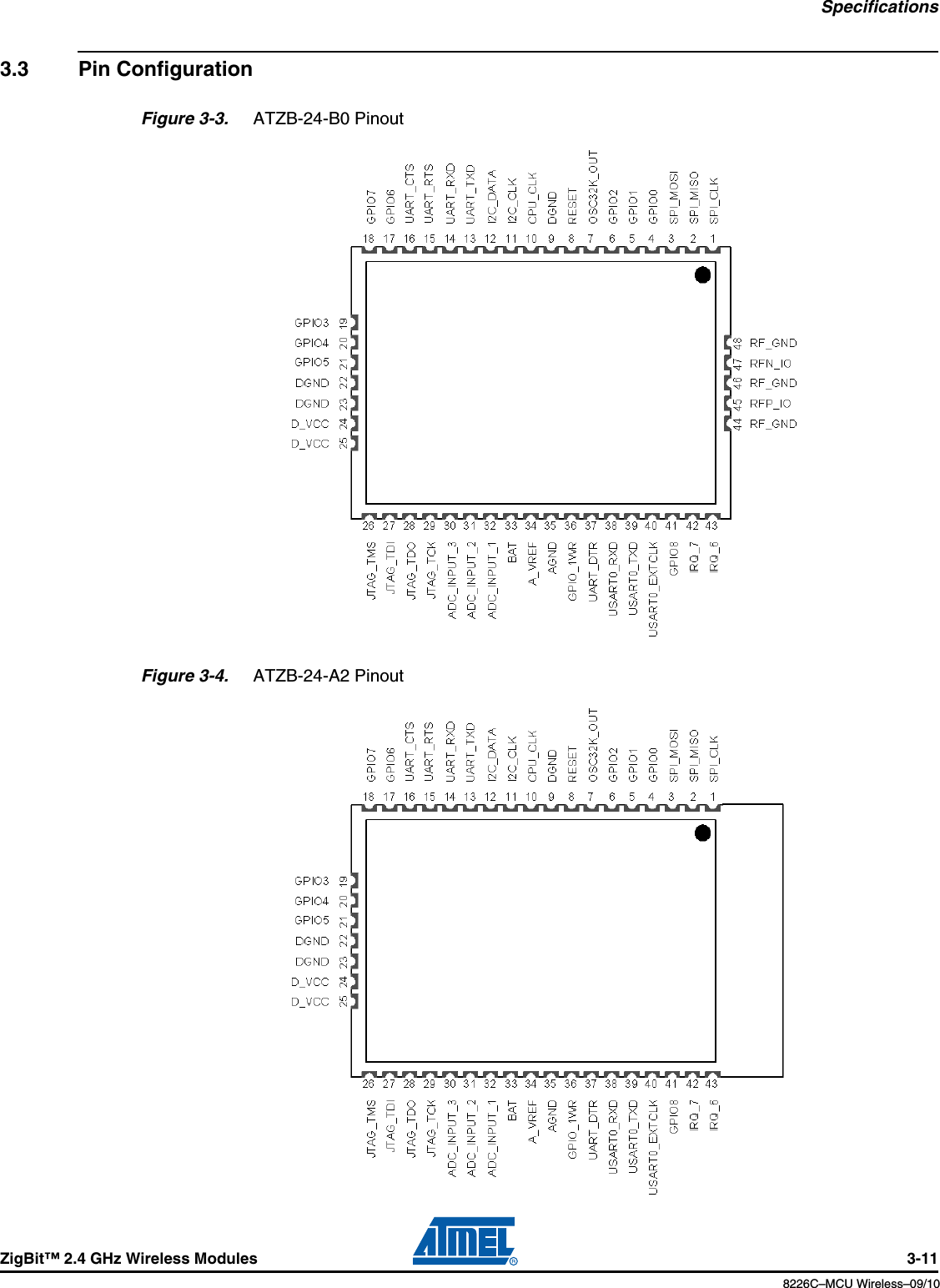

SpecificationsZigBit™ 2.4 GHz Wireless Modules 3-118226C–MCU Wireless–09/103.3 Pin ConfigurationFigure 3-3. ATZB-24-B0 PinoutFigure 3-4. ATZB-24-A2 Pinout

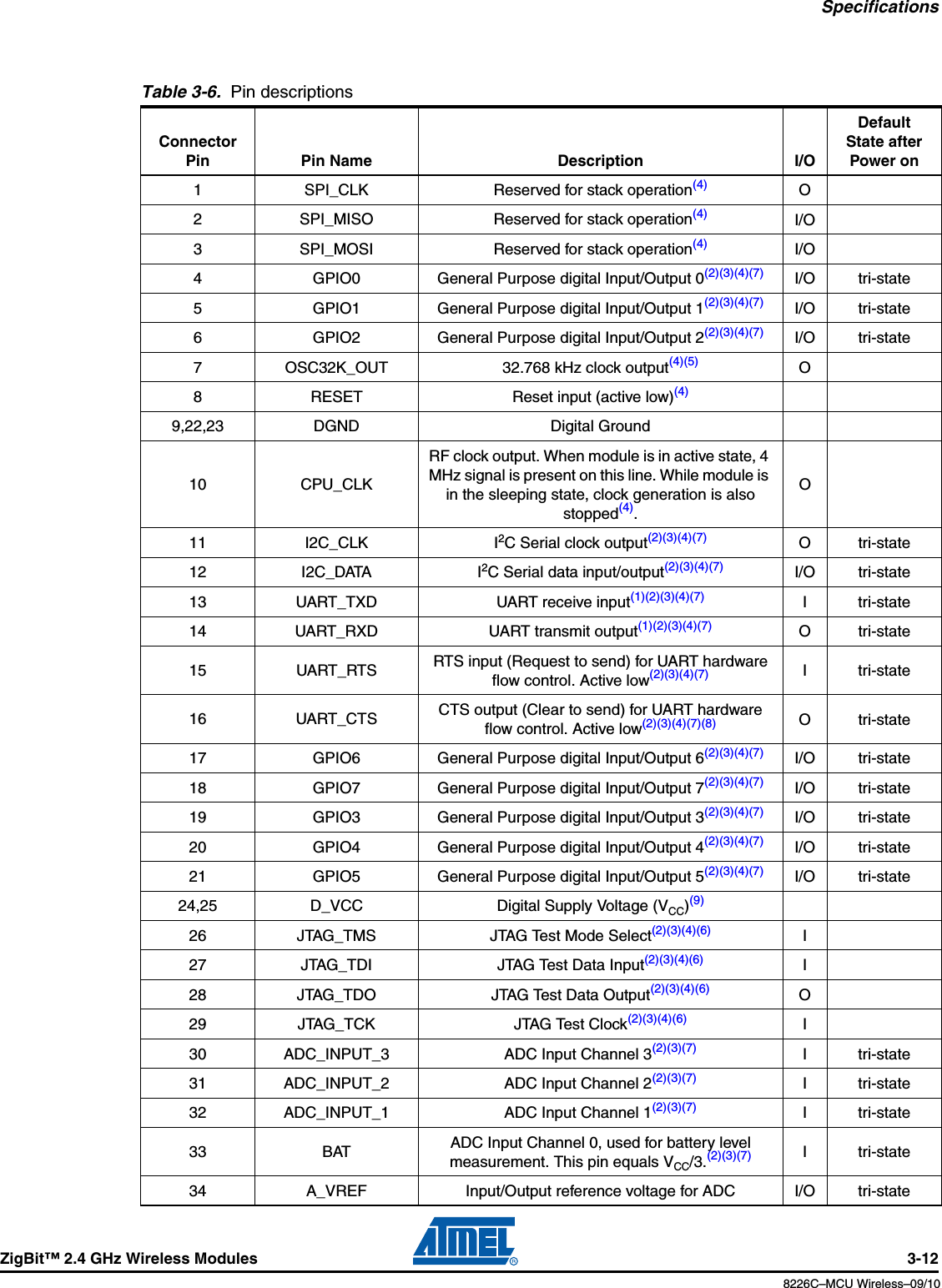

SpecificationsZigBit™ 2.4 GHz Wireless Modules 3-128226C–MCU Wireless–09/10Table 3-6. Pin descriptionsConnector Pin Pin Name Description I/ODefault State after Power on1 SPI_CLK Reserved for stack operation(4) O2 SPI_MISO Reserved for stack operation(4) I/O3 SPI_MOSI Reserved for stack operation(4) I/O4 GPIO0 General Purpose digital Input/Output 0(2)(3)(4)(7) I/O tri-state5 GPIO1 General Purpose digital Input/Output 1(2)(3)(4)(7) I/O tri-state6 GPIO2 General Purpose digital Input/Output 2(2)(3)(4)(7) I/O tri-state7 OSC32K_OUT 32.768 kHz clock output(4)(5) O8 RESET Reset input (active low)(4)9,22,23 DGND Digital Ground10 CPU_CLKRF clock output. When module is in active state, 4 MHz signal is present on this line. While module is in the sleeping state, clock generation is also stopped(4).O11 I2C_CLK I2C Serial clock output(2)(3)(4)(7) O tri-state12 I2C_DATA I2C Serial data input/output(2)(3)(4)(7) I/O tri-state13 UART_TXD UART receive input(1)(2)(3)(4)(7) I tri-state14 UART_RXD UART transmit output(1)(2)(3)(4)(7) O tri-state15 UART_RTS RTS input (Request to send) for UART hardware flow control. Active low(2)(3)(4)(7) I tri-state16 UART_CTS CTS output (Clear to send) for UART hardware flow control. Active low(2)(3)(4)(7)(8) O tri-state17 GPIO6 General Purpose digital Input/Output 6(2)(3)(4)(7) I/O tri-state18 GPIO7 General Purpose digital Input/Output 7(2)(3)(4)(7) I/O tri-state19 GPIO3 General Purpose digital Input/Output 3(2)(3)(4)(7) I/O tri-state20 GPIO4 General Purpose digital Input/Output 4(2)(3)(4)(7) I/O tri-state21 GPIO5 General Purpose digital Input/Output 5(2)(3)(4)(7) I/O tri-state24,25 D_VCC Digital Supply Voltage (VCC)(9)26 JTAG_TMS JTAG Test Mode Select(2)(3)(4)(6) I27 JTAG_TDI JTAG Test Data Input(2)(3)(4)(6) I28 JTAG_TDO JTAG Test Data Output(2)(3)(4)(6) O29 JTAG_TCK JTAG Test Clock(2)(3)(4)(6) I30 ADC_INPUT_3 ADC Input Channel 3(2)(3)(7) I tri-state31 ADC_INPUT_2 ADC Input Channel 2(2)(3)(7) I tri-state32 ADC_INPUT_1 ADC Input Channel 1(2)(3)(7) I tri-state33 BAT ADC Input Channel 0, used for battery level measurement. This pin equals VCC/3.(2)(3)(7) I tri-state34 A_VREF Input/Output reference voltage for ADC I/O tri-state
SpecificationsZigBit™ 2.4 GHz Wireless Modules 3-138226C–MCU Wireless–09/10Notes: 1. The UART_TXD pin is intended for input (i.e. its designation as "TXD" implies some complex systemcontaining ZigBit as its RF terminal unit), while UART_RXD pin, vice versa, is for output.2. Most of pins can be configured for general purpose I/O or for some alternate functions as described indetails in the ATmega1281V Datasheet [1].3. GPIO pins can be programmed either for output, or for input with/without pull-up resistors. Output pindrivers are strong enough to drive LED displays directly (refer to figures on pages 387-388, [1]).4. All digital pins are provided with protection diodes to D_VCC and DGND5. It is strongly recommended to avoid assigning an alternate function for OSC32K_OUT pin because it isused by BitCloud. However, this signal can be used if another peripheral or host processor requires32.768 kHz clock, otherwise this pin can be disconnected.6. Normally, JTAG_TMS, JTAG_TDI, JTAG_TDO, JTAG_TCK pins are used for on-chip debugging andflash burning. They can be used for A/D conversion if JTAGEN fuse is disabled.7. The following pins can be configured with the BitCloud software to be general-purpose I/O lines:GPIO0, GPIO1, GPIO2, GPIO3, GPIO4, GPIO5, GPIO6, GPIO7, GPIO8, GPIO_1WR, I2C_CLK,I2C_DATA, UART_TXD, UART_RXD, UART_RTS, UART_CTS, ADC_INPUT_3, ADC_INPUT_2,ADC_INPUT_1, BAT, UART_DTR, USART0_RXD, USART0_TXD, USART0_EXTCLK, IRQ_7, IRQ_6.Additionally, four JTAG lines can be programmed with software as GPIO as well, but this requireschanging the fuse bits and will disable JTAG debugging.8. With BitCloud, CTS pin can be configured to indicate sleep/active condition of the module thus provid-ing mechanism for power management of host processor. If this function is necessary, connection ofthis pin to external pull-down resistor is recommended to prevent the undesirable transients duringmodule reset process.35 AGND Analog ground36 GPIO_1WR 1-wire interface(2)(3)(4)(7) I/O37 UART_DTR DTR input (Data Terminal Ready) for UART. Active low(2)(3)(4)(7) I tri-state38 USART0_RXD USART/SPI Receive pin(2)(3)(4)(7) I tri-state39 USART0_TXD USART /SPI Transmit pin(2)(3)(4)(7) O tri-state40 USART0_EXTCLK USART/SPI External Clock(2)(3)(4)(7)(11) I/O tri-state41 GPIO8 General Purpose Digital Input/Output I/O tri-state42 IRQ_7 Digital Input Interrupt request 7(2)(3)(4)(7) I tri-state43 IRQ_6 Digital Input Interrupt request 6(2)(3)(4)(7) I tri-state44,46,48 RF GND RF Analog Ground(2)(3)(4)(7)45 RFP_IO Differential RF Input/Output(10) I/O47 RFN_IO Differential RF Input/Output(10) I/OTable 3-6. Pin descriptionsConnector Pin Pin Name Description I/ODefault State after Power on

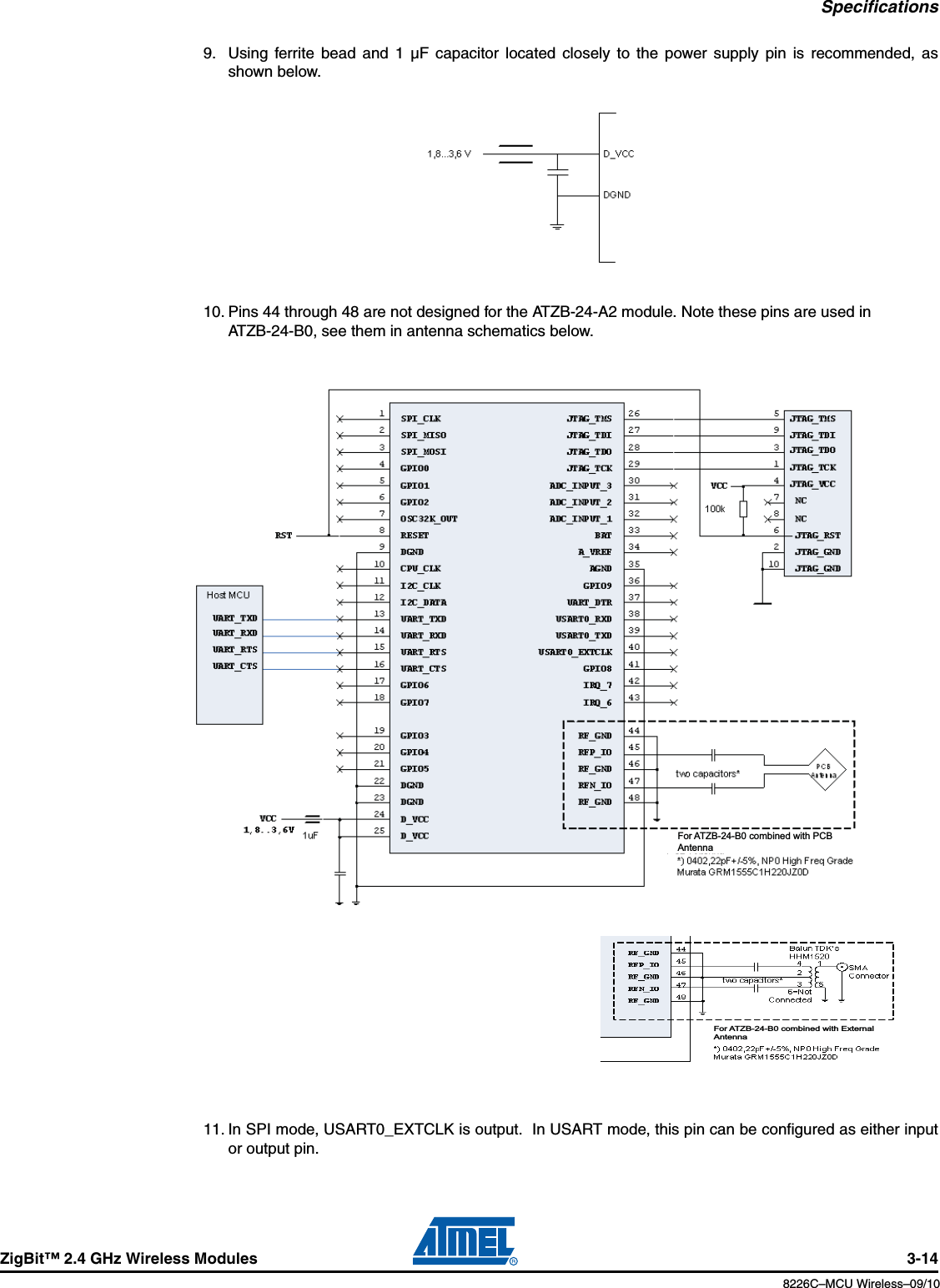

SpecificationsZigBit™ 2.4 GHz Wireless Modules 3-148226C–MCU Wireless–09/109. Using ferrite bead and 1 µF capacitor located closely to the power supply pin is recommended, asshown below.10. Pins 44 through 48 are not designed for the ATZB-24-A2 module. Note these pins are used inATZB-24-B0, see them in antenna schematics below.11. In SPI mode, USART0_EXTCLK is output. In USART mode, this pin can be configured as either inputor output pin.For ATZB-24-B0 combined with PCB AntennaFor ATZB-24-B0 combined with External Antenna
SpecificationsZigBit™ 2.4 GHz Wireless Modules 3-158226C–MCU Wireless–09/103.4 Mounting InformationThe below diagrams show the PCB layout recommended for ZigBit module. Neither via-holes nor wiresare allowed on the PCB upper layer in area occupied by the module. As a critical requirement, RF_GNDpins should be grounded via several holes to be located right next to the pins thus minimizing inductanceand preventing both mismatch and losses.Figure 3-5. ATZB-24-B0 PCB Recommended Layout, Top ViewFigure 3-6. ATZB-24-A2 PCB Recommended Layout, Top View

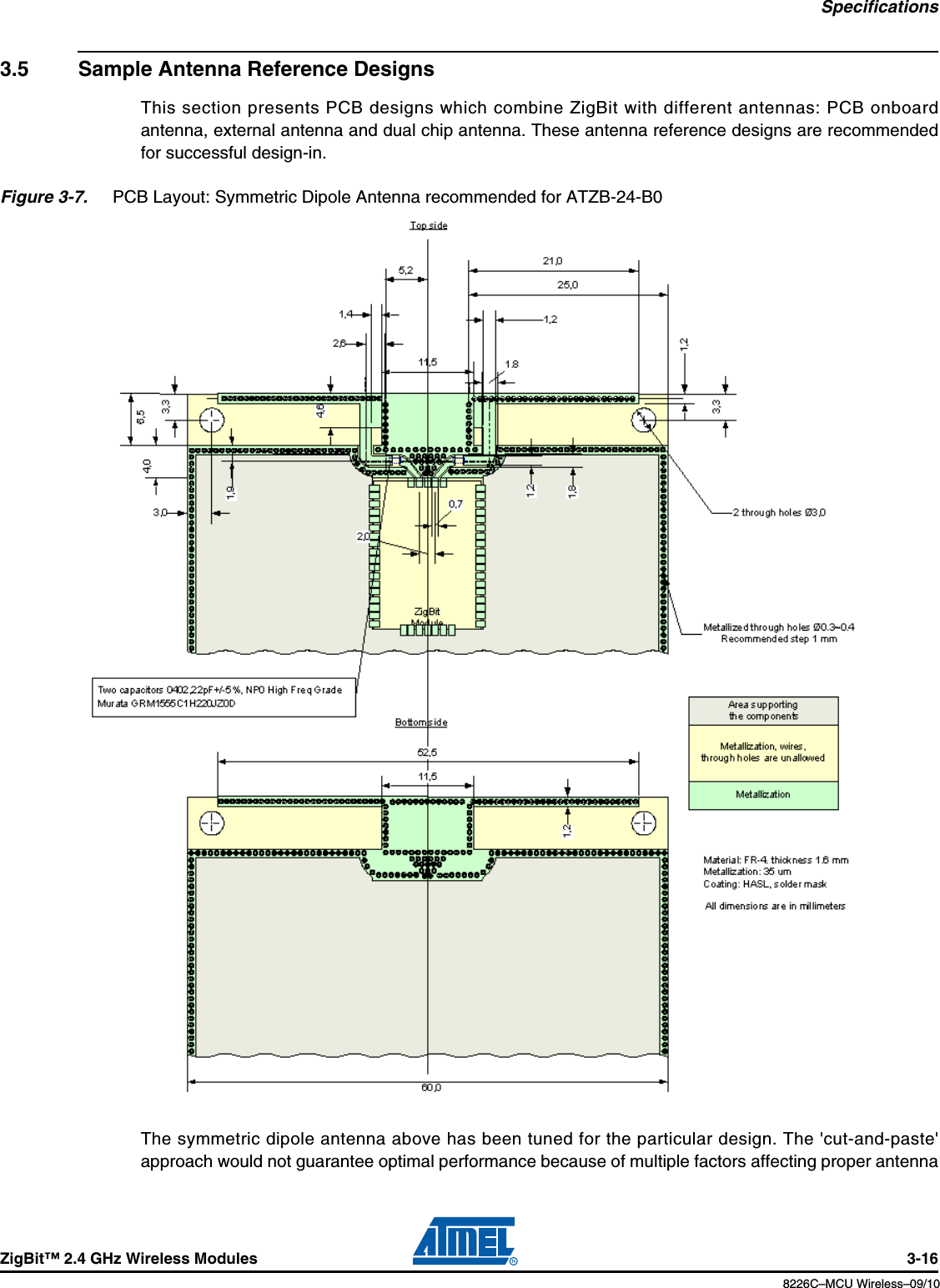

SpecificationsZigBit™ 2.4 GHz Wireless Modules 3-168226C–MCU Wireless–09/103.5 Sample Antenna Reference DesignsThis section presents PCB designs which combine ZigBit with different antennas: PCB onboardantenna, external antenna and dual chip antenna. These antenna reference designs are recommendedfor successful design-in.Figure 3-7. PCB Layout: Symmetric Dipole Antenna recommended for ATZB-24-B0The symmetric dipole antenna above has been tuned for the particular design. The 'cut-and-paste'approach would not guarantee optimal performance because of multiple factors affecting proper antenna
SpecificationsZigBit™ 2.4 GHz Wireless Modules 3-178226C–MCU Wireless–09/10match, hence, affecting the pattern. The particular factors are the board material and thickness, shields,the material used for enclosure, the board neighborhood, and other components adjacent to antenna.3.5.1 General recommendationsMetal enclosure should not be used. Using low profile enclosure might also affect antenna tuning. Placing high profile components next to antenna should be avoided.Having holes punched around the periphery of the board eliminates parasitic radiation from the board edges also distorting antenna pattern. ZigBit module should not be placed next to consumer electronics which might interfere with ZigBit's RF frequency band.
SpecificationsZigBit™ 2.4 GHz Wireless Modules 3-188226C–MCU Wireless–09/103.6 Antenna specifications3.6.1 ATZB-24-B0Figure 3-8. Symmetric Dipole Antenna Pattern (horizontal and vertical plane) for ATZB-24-B0ATZB-24-B0ATZB-24-B0:ATZB-24-B0:

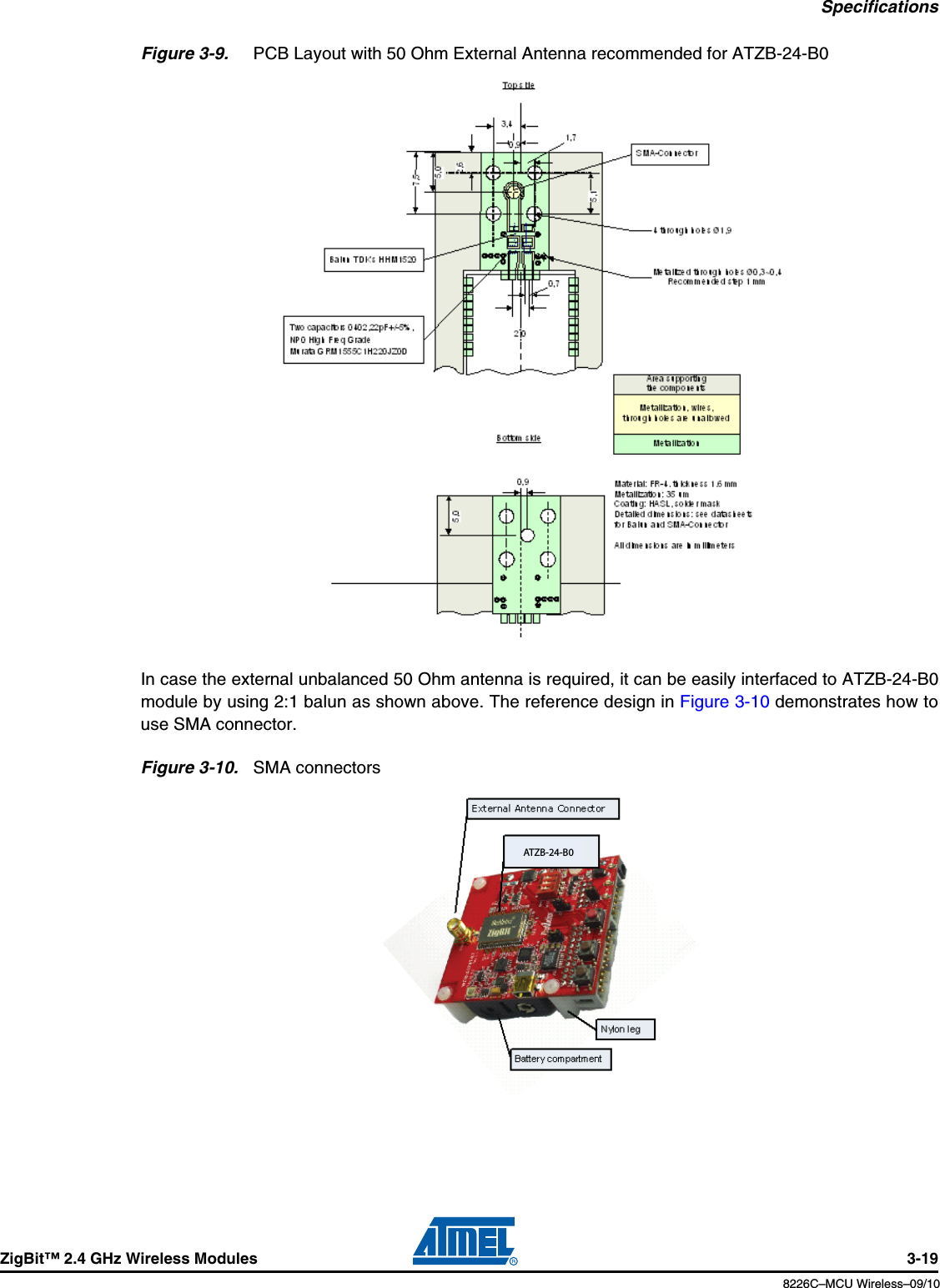

SpecificationsZigBit™ 2.4 GHz Wireless Modules 3-198226C–MCU Wireless–09/10Figure 3-9. PCB Layout with 50 Ohm External Antenna recommended for ATZB-24-B0In case the external unbalanced 50 Ohm antenna is required, it can be easily interfaced to ATZB-24-B0module by using 2:1 balun as shown above. The reference design in Figure 3-10 demonstrates how touse SMA connector.Figure 3-10. SMA connectorsATZB-24-B0
SpecificationsZigBit™ 2.4 GHz Wireless Modules 3-208226C–MCU Wireless–09/103.6.2 ATZB-24-A2Figure 3-11. Symmetric Dipole Antenna Pattern (horizontal and vertical plane) for ATZB-24-A2Note: The antenna patterns presented above were observed using PCB enhanced with legs made of originalnylon.ATZB-24-A2ATZB-24-A2:ATZB-24-A2:
SpecificationsZigBit™ 2.4 GHz Wireless Modules 3-218226C–MCU Wireless–09/10Figure 3-12. PCB Layout with Dual Chip Antenna Module recommended for ATZB-24-A2Normally, chip antennas are more tolerant of the board or enclosure materials in ZigBit's neighborhoodas well. However, general recommendations given above for the PCB antenna design still apply.The board design should prevent propagation of microwave field inside the board material. Electromag-netic waves of high frequency may penetrate the board thus making the edges of the board radiate,which may distort the antenna pattern. To eliminate this effect, metalized and grounded holes must beplaced around the board's edges as shown.Since the design of dual chip antenna is intended for installation on FR-4 board 1.6 mm thick, theantenna performance may only be guaranteed for the particular board type and thickness.
ZigBit™ 2.4 GHz Wireless Modules 4-228226C–MCU Wireless–09/10Section 4Agency Certifications4.1 UNITED STATES (FCC)This equipment complies with Part 15 of the FCC rules and regulations.To fulfill FCC Certification requirements, an OEM manufacturer must comply with the followingregulations:1. The modular transmitter must be labelled with its own FCC ID number, and, if the FCC ID is not visi-ble when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following:Example of label required for OEM product containing ATZB-24-A2 moduleExample of label required for OEM product containing ATZB-24-B0 moduleAny similar wording that expresses the same meaning may be used.2. To be used with the ATZB-24-B0 module, the external antennas have been tested and approved which are specified in here below. The ATZB-24-B0 Module may be integrated with other custom design antennas which OEM installer must authorize following the FCC 15.21 requirements.WARNING: The Original Equipment Manufacturer (OEM) must ensure that the OEM modular transmittermust be labeled with its own FCC ID number. This includes a clearly visible label on the outside of thefinal product enclosure that displays the contents shown below. If the FCC ID is not visible when theequipment is installed inside another device, then the outside of the device into which the equipment isinstalled must also display a label referring to the enclosed equipment.IMPORTANT: This equipment complies with Part 15 of the FCC Rules. Operation is subject to the follow-ing two conditions: (1) this device may not cause harmful interference, and (2) this device must acceptany interference received, including interference that may cause undesired operation (FCC 15.19).The internal / external antenna(s) used for this mobile transmitter must provide a separation distance ofat least 20 cm from all persons and must not be co-located or operating in conjunction with any otherantenna or transmitter.Contains FCC ID: VW4A090664The enclosed device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (i.) this device may not cause harmful interference and (ii.) this device must accept any interference received, including interference that may cause undesired operation.Contains FCC ID: VW4A090665The enclosed device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (i.) this device may not cause harmful interference and (ii.) this device must accept any interference received, including interference that may cause undesired operation.
Agency CertificationsZigBit™ 2.4 GHz Wireless Modules 4-238226C–MCU Wireless–09/10Installers must be provided with antenna installation instructions and transmitter operating conditions forsatisfying RF exposure compliance. This device is approved as a mobile device with respect to RF expo-sure compliance, and may only be marketed to OEM installers. Use in portable exposure conditions(FCC 2.1093) requires separate equipment authorization.IMPORTANT: Modifications not expressly approved by this company could void the user's authority tooperate this equipment (FCC section 15.21).IMPORTANT: This equipment has been tested and found to comply with the limits for a Class A digitaldevice, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protec-tion against harmful interference when the equipment is operated in a commercial environment. Thisequipment generates, uses, and can radiate radio frequency energy and, if not installed and used inaccordance with the instruction manual, may cause harmful interference to radio communications. Oper-ation of this equipment in a residential area is likely to cause harmful interference in which case the userwill be required to correct the interference at his own expense (FCC section 15.105).4.2 EUROPEAN UNION (ETSI)The ATZB-24-A2 and ATZB-24-B0 Modules has been certified for use in European Union countries.If the ATZB-24-A2 and ATZB-24-B0 Modules are incorporated into a product, the manufacturer mustensure compliance of the final product to the European harmonized EMC and low-voltage/safety stan-dards. A Declaration of Conformity must be issued for each of these standards and kept on file asdescribed in Annex II of the R&TTE Directive.Furthermore, the manufacturer must maintain a copy of the ATZB-24-A2 and ATZB-24-B0 Modules doc-umentation and ensure the final product does not exceed the specified power ratings, antennaspecifications, and/or installation requirements as specified in the user manual. If any of these specifica-tions are exceeded in the final product, a submission must be made to a notified body for compliancetesting to all required standards.IMPORTANT: The 'CE' marking must be affixed to a visible location on the OEM product. The CE markshall consist of the initials "CE" taking the following form:If the CE marking is reduced or enlarged, the proportions given in the above graduated drawing must be respected.The CE marking must have a height of at least 5mm except where this is not possible on account of the nature of the apparatus.The CE marking must be affixed visibly, legibly, and indelibly.More detailed information about CE marking requirements you can find at "DIRECTIVE 1999/5/EC OFTHE EUROPEAN PARLIAMENT AND OF THE COUNCIL" on 9 March 1999 at section 12.Certification Approved Antennas list is presented in below.
Agency CertificationsZigBit™ 2.4 GHz Wireless Modules 4-248226C–MCU Wireless–09/104.3 Approved Antenna ListATZB-24-A2 Module works with integrated dual chip antenna. The design of the antenna is fully compli-ant with all the aforementioned regulation.ATZB-24-B0 Module has been tested and approved for use with the antennas listed in the table below.ATZB-24-0B Module may be integrated with other custom design antennas which OEM installer mustauthorize with respective regulatory agencies.Table 4-1. Approved Antenna specificationsPart Number Manufacture and description Gain [dBi] Minimum separation [cm]2010B48-01Antenova Titanis, swivel antenna (1/4 wave antenna) with SMA connector, frequency range 2.4 - 2.5 GHz2.2 2017010.10 WiMo, swivel antenna (1/2 wave antenna) with SMA connector, frequency range 2.35 - 2.5 GHz 2.1 20

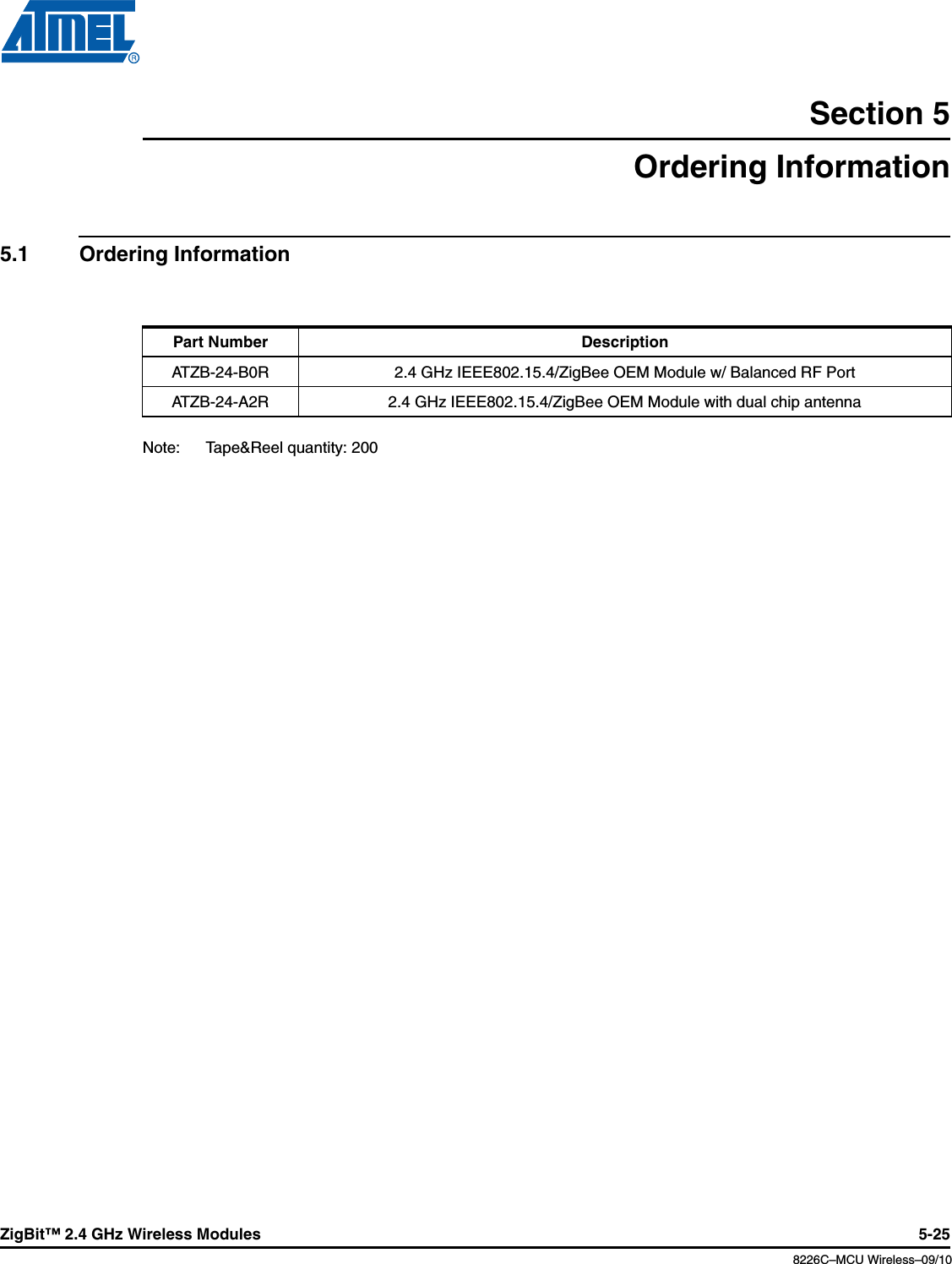

ZigBit™ 2.4 GHz Wireless Modules 5-258226C–MCU Wireless–09/10Section 5Ordering Information5.1 Ordering InformationNote: Tape&Reel quantity: 200Part Number DescriptionATZB-24-B0R 2.4 GHz IEEE802.15.4/ZigBee OEM Module w/ Balanced RF PortATZB-24-A2R 2.4 GHz IEEE802.15.4/ZigBee OEM Module with dual chip antenna

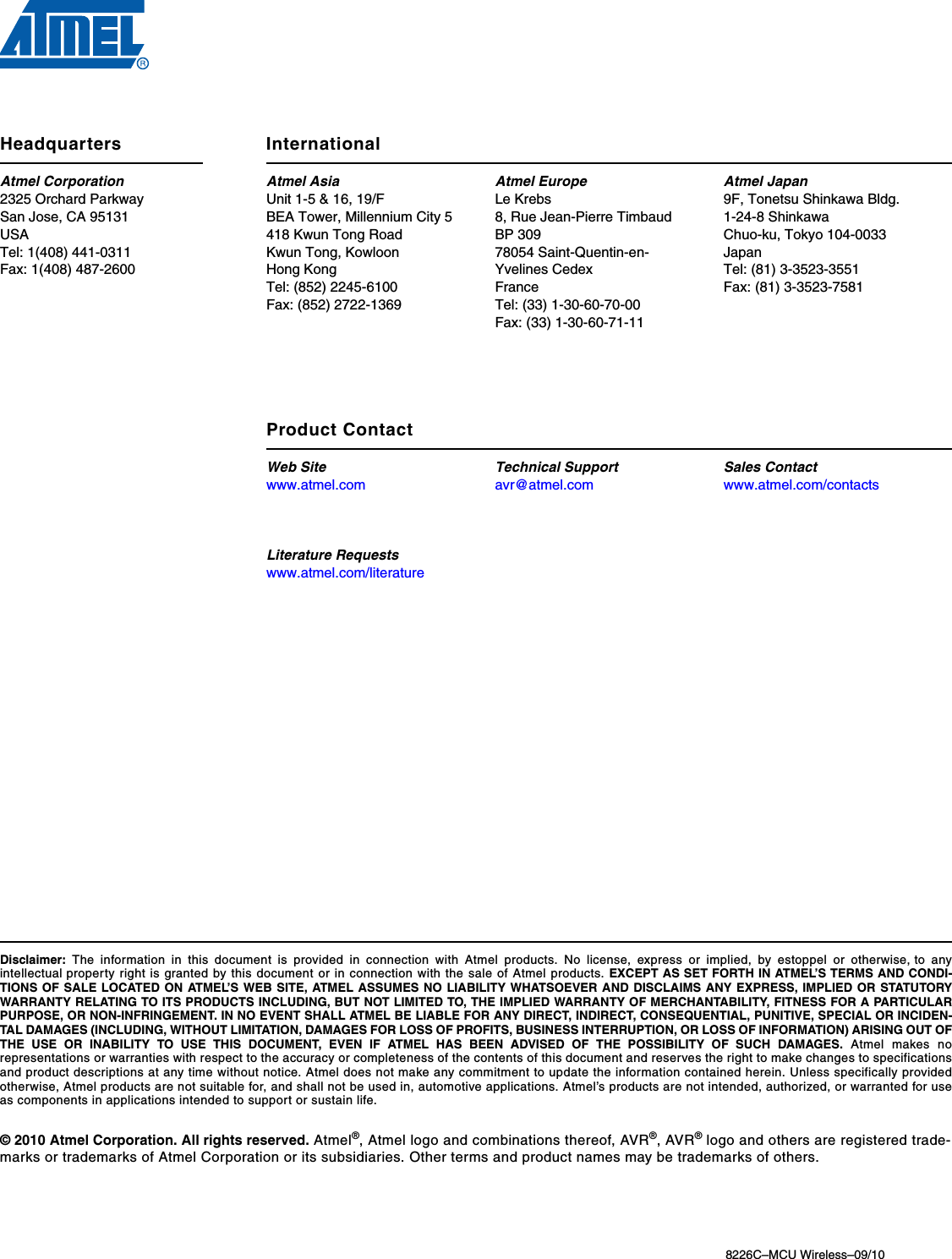

8226C–MCU Wireless–09/10© 2010 Atmel Corporation. All rights reserved. Atmel®, Atmel logo and combinations thereof, AVR®, AVR® logo and others are registered trade-marks or trademarks of Atmel Corporation or its subsidiaries. Other terms and product names may be trademarks of others.Headquarters InternationalAtmel Corporation2325 Orchard ParkwaySan Jose, CA 95131USATel: 1(408) 441-0311Fax: 1(408) 487-2600Atmel AsiaUnit 1-5 & 16, 19/FBEA Tower, Millennium City 5418 Kwun Tong RoadKwun Tong, KowloonHong KongTel: (852) 2245-6100Fax: (852) 2722-1369Atmel EuropeLe Krebs8, Rue Jean-Pierre TimbaudBP 30978054 Saint-Quentin-en-Yvelines CedexFranceTel: (33) 1-30-60-70-00 Fax: (33) 1-30-60-71-11Atmel Japan9F, Tonetsu Shinkawa Bldg.1-24-8 ShinkawaChuo-ku, Tokyo 104-0033JapanTel: (81) 3-3523-3551Fax: (81) 3-3523-7581Product ContactWeb Sitewww.atmel.comTechnical Supportavr@atmel.comSales Contactwww.atmel.com/contactsLiterature Requestswww.atmel.com/literatureDisclaimer: The information in this document is provided in connection with Atmel products. No license, express or implied, by estoppel or otherwise, to anyintellectual property right is granted by this document or in connection with the sale of Atmel products. EXCEPT AS SET FORTH IN ATMEL’S TERMS AND CONDI-TIONS OF SALE LOCATED ON ATMEL’S WEB SITE, ATMEL ASSUMES NO LIABILITY WHATSOEVER AND DISCLAIMS ANY EXPRESS, IMPLIED OR STATUTORYWARRANTY RELATING TO ITS PRODUCTS INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULARPURPOSE, OR NON-INFRINGEMENT. IN NO EVENT SHALL ATMEL BE LIABLE FOR ANY DIRECT, INDIRECT, CONSEQUENTIAL, PUNITIVE, SPECIAL OR INCIDEN-TAL DAMAGES (INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS OF PROFITS, BUSINESS INTERRUPTION, OR LOSS OF INFORMATION) ARISING OUT OFTHE USE OR INABILITY TO USE THIS DOCUMENT, EVEN IF ATMEL HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Atmel makes norepresentations or warranties with respect to the accuracy or completeness of the contents of this document and reserves the right to make changes to specificationsand product descriptions at any time without notice. Atmel does not make any commitment to update the information contained herein. Unless specifically providedotherwise, Atmel products are not suitable for, and shall not be used in, automotive applications. Atmel’s products are not intended, authorized, or warranted for useas components in applications intended to support or sustain life.
