ZIGBIT 2.4GHZ WIRELESS MODULES ATZB-X0-256-3-0-C DATASHEET Features  Compact size (33.0 x 20.0mm)  High RX sensitivity (- 96dBm)  Outperforming link budget (up to 99.6dB)  Up to +3.6dBm output power  Very low power consumption:  6.3mA in RX mode(1)  20.5mA in TX mode(1)  0.3µA in sleep mode(2)  Ample memory resources:  256KBytes in-system self-programmable Flash memory, 4KBytes EEPROM, 16KBytes SRAM  Wide range of interfaces (both analog and digital):  4- wire SPI, TWI  ISP, JTAG  Two analog comparator input  UART, USART  Timer, PWM  Four ADC lines  External clock input, internal clock output  Up to 32 lines configurable as GPIO  Capability to use MAC address into the internal EEPROM  IEEE® 802.15.4 compliant transceiver  2.4GHz ISM band  Serial bootloader  High performance, low power AVR® XMEGA® 8/16-bit Microcontroller  Rapid design-in with built-in chip antenna  RF test point using MS-147 RF connector  Small physical footprint and low profile for optimum fit in very small application boards  Mesh networking capability  Easy-to-use low cost development kit  Single source of support for HW and SW  Worldwide license-free operation 1. Measured in TX/RX mode with digital input pins pulled high; RX ON and RPC mode of TRX, Power Down mode of MCU. 2. Controller Sleep Mode: SLEEP_MODE_PWR_DOWN. 42172AWIRELESS10/2013

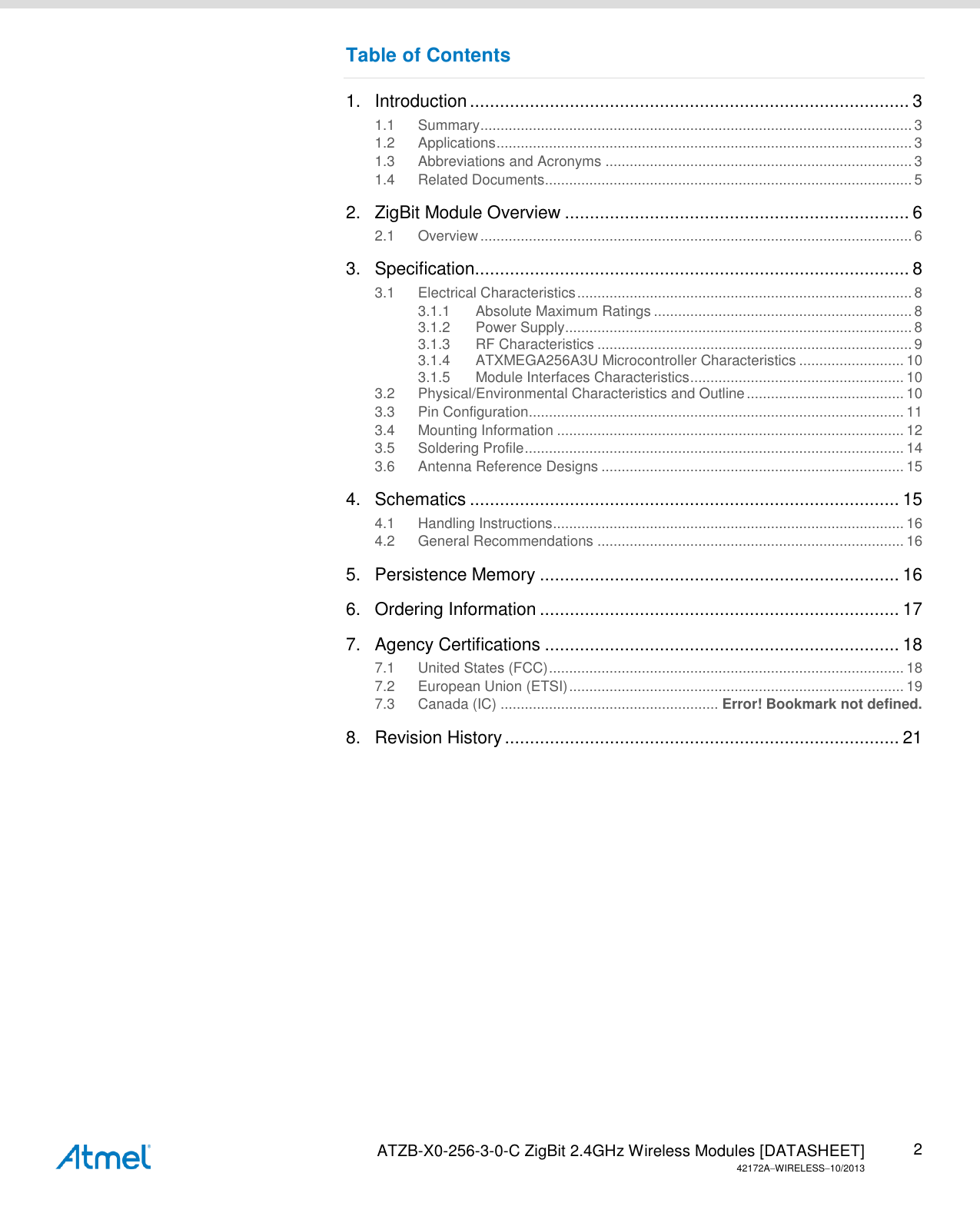

ATZB-X0-256-3-0-C ZigBit 2.4GHz Wireless Modules [DATASHEET] 42172AWIRELESS10/2013 2 Table of Contents 1. Introduction ........................................................................................ 3 1.1 Summary ........................................................................................................... 3 1.2 Applications ....................................................................................................... 3 1.3 Abbreviations and Acronyms ............................................................................ 3 1.4 Related Documents ........................................................................................... 5 2. ZigBit Module Overview ..................................................................... 6 2.1 Overview ........................................................................................................... 6 3. Specification....................................................................................... 8 3.1 Electrical Characteristics ................................................................................... 8 3.1.1 Absolute Maximum Ratings ................................................................ 8 3.1.2 Power Supply ...................................................................................... 8 3.1.3 RF Characteristics .............................................................................. 9 3.1.4 ATXMEGA256A3U Microcontroller Characteristics .......................... 10 3.1.5 Module Interfaces Characteristics ..................................................... 10 3.2 Physical/Environmental Characteristics and Outline ....................................... 10 3.3 Pin Configuration ............................................................................................. 11 3.4 Mounting Information ...................................................................................... 12 3.5 Soldering Profile .............................................................................................. 14 3.6 Antenna Reference Designs ........................................................................... 15 4. Schematics ...................................................................................... 15 4.1 Handling Instructions ....................................................................................... 16 4.2 General Recommendations ............................................................................ 16 5. Persistence Memory ........................................................................ 16 6. Ordering Information ........................................................................ 17 7. Agency Certifications ....................................................................... 18 7.1 United States (FCC) ........................................................................................ 18 7.2 European Union (ETSI) ................................................................................... 19 7.3 Canada (IC) ...................................................... Error! Bookmark not defined. 8. Revision History ............................................................................... 21

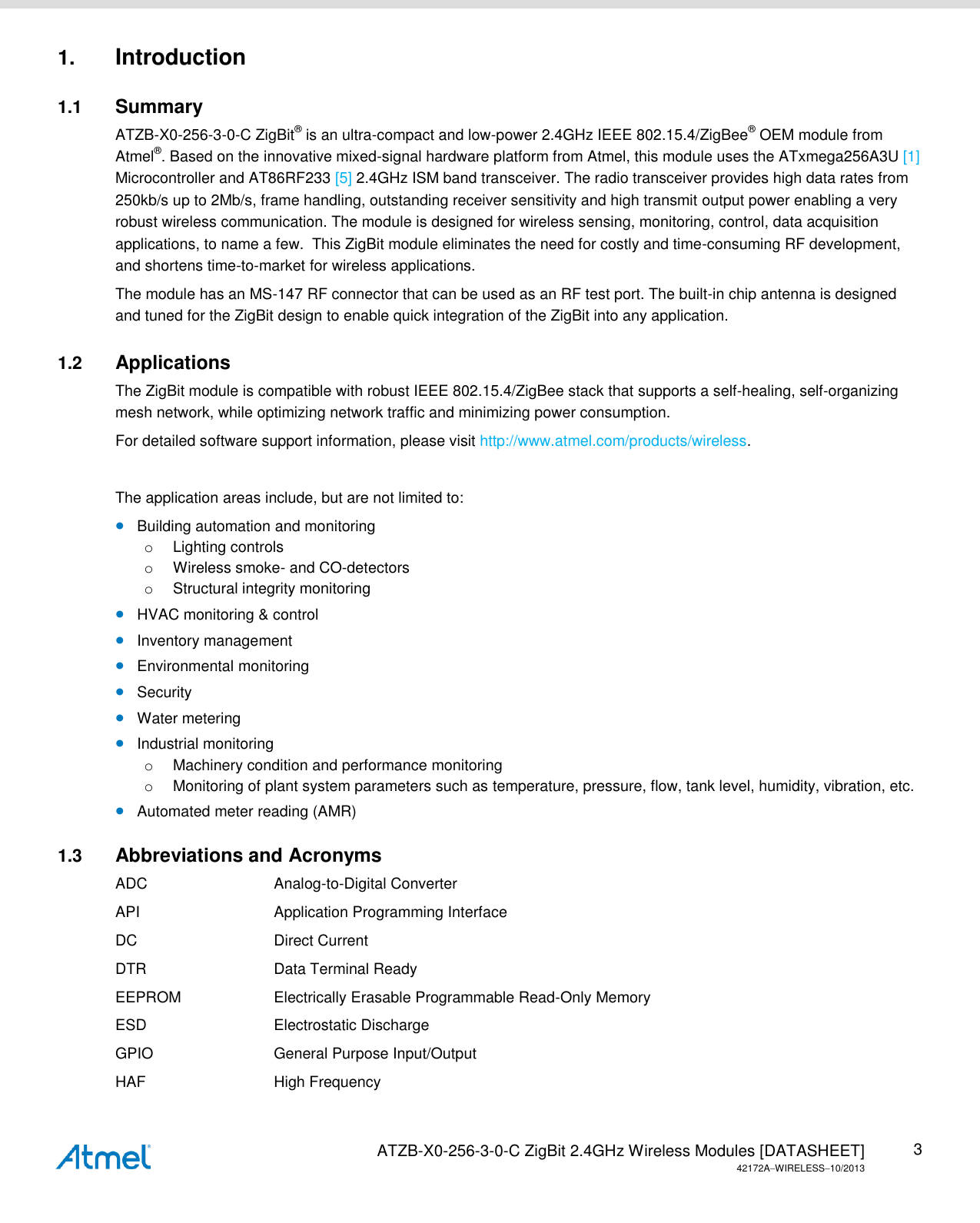

ATZB-X0-256-3-0-C ZigBit 2.4GHz Wireless Modules [DATASHEET] 42172AWIRELESS10/2013 3 1. Introduction 1.1 Summary ATZB-X0-256-3-0-C ZigBit® is an ultra-compact and low-power 2.4GHz IEEE 802.15.4/ZigBee® OEM module from Atmel®. Based on the innovative mixed-signal hardware platform from Atmel, this module uses the ATxmega256A3U [1] Microcontroller and AT86RF233 [5] 2.4GHz ISM band transceiver. The radio transceiver provides high data rates from 250kb/s up to 2Mb/s, frame handling, outstanding receiver sensitivity and high transmit output power enabling a very robust wireless communication. The module is designed for wireless sensing, monitoring, control, data acquisition applications, to name a few. This ZigBit module eliminates the need for costly and time-consuming RF development, and shortens time-to-market for wireless applications. The module has an MS-147 RF connector that can be used as an RF test port. The built-in chip antenna is designed and tuned for the ZigBit design to enable quick integration of the ZigBit into any application. 1.2 Applications The ZigBit module is compatible with robust IEEE 802.15.4/ZigBee stack that supports a self-healing, self-organizing mesh network, while optimizing network traffic and minimizing power consumption. For detailed software support information, please visit http://www.atmel.com/products/wireless. The application areas include, but are not limited to:  Building automation and monitoring o Lighting controls o Wireless smoke- and CO-detectors o Structural integrity monitoring  HVAC monitoring & control  Inventory management  Environmental monitoring  Security  Water metering  Industrial monitoring o Machinery condition and performance monitoring o Monitoring of plant system parameters such as temperature, pressure, flow, tank level, humidity, vibration, etc.  Automated meter reading (AMR) 1.3 Abbreviations and Acronyms ADC Analog-to-Digital Converter API Application Programming Interface DC Direct Current DTR Data Terminal Ready EEPROM Electrically Erasable Programmable Read-Only Memory ESD Electrostatic Discharge GPIO General Purpose Input/Output HAF High Frequency
ATZB-X0-256-3-0-C ZigBit 2.4GHz Wireless Modules [DATASHEET] 42172AWIRELESS10/2013 4 HVAC Heating, Ventilating, and Air Conditioning HW Hardware I2C Inter-Integrated Circuit IEEE Institute of Electrical and Electronics Engineers IRQ Interrupt Request ISM Industrial, Scientific and Medical radio band JTAG Digital interface for debugging of embedded device, also known as IEEE 1149.1 standard interface MAC Medium Access Control layer MCU Microcontroller Unit. In this document it also means the processor, which is the core of a ZigBit module NRE Network layer OEM Original Equipment Manufacturer OTA Over-The-Air upgrade PA Power Amplifier PCB Printed Circuit Board PER Package Error Ratio RAM Random Access Memory RF Radio Frequency RPC Reduced Power Consumption RTS/CTS Request to Send/ Clear to Send RX Receiver SMA Surface Mount Assembly SoC System on Chip SPI Serial Peripheral Interface SW Software TTM Time-To-Market TX Transmitter UART Universal Asynchronous Receiver/Transmitter USART Universal Synchronous/Asynchronous Receiver/Transmitter USB Universal Serial Bus ZigBee, ZigBee PRO Wireless networking standards targeted at low-power applications 802.15.4 The IEEE 802.15.4-2003 standard applicable to low-rate wireless Personal Area Network
ATZB-X0-256-3-0-C ZigBit 2.4GHz Wireless Modules [DATASHEET] 42172AWIRELESS10/2013 5 1.4 Related Documents [1] ATXMEGA256A3U Datasheet in http://www.atmel.com/Images/Atmel-8386-8-and-16-bit-AVR-Microcontroller-ATxmega64A3U-128A3U-192A3U-256A3U_datasheet.pdf [2] MS-147 Series Interface RF Connector with Switch, 3.9mm High, DC to 6GHz http://www.hirose.co.jp/cataloge_hp/e35801505.pdf [3] IEEE Std 802.15.4-2003 IEEE Standard for Information technology - Part 15.4 Wireless Medium Access Control (MAC) and Physical Layer (PHY) Specifications for Low-Rate Wireless Personal Area Networks (LR-WPANs) [4] ZigBee Specification. ZigBee Document 053474r17, October 19, 2007 [5] AT86RF233 Datasheet in http://www.atmel.com/Images/Atmel-8351-MCU_Wireless-AT86RF233_Datasheet.pdf

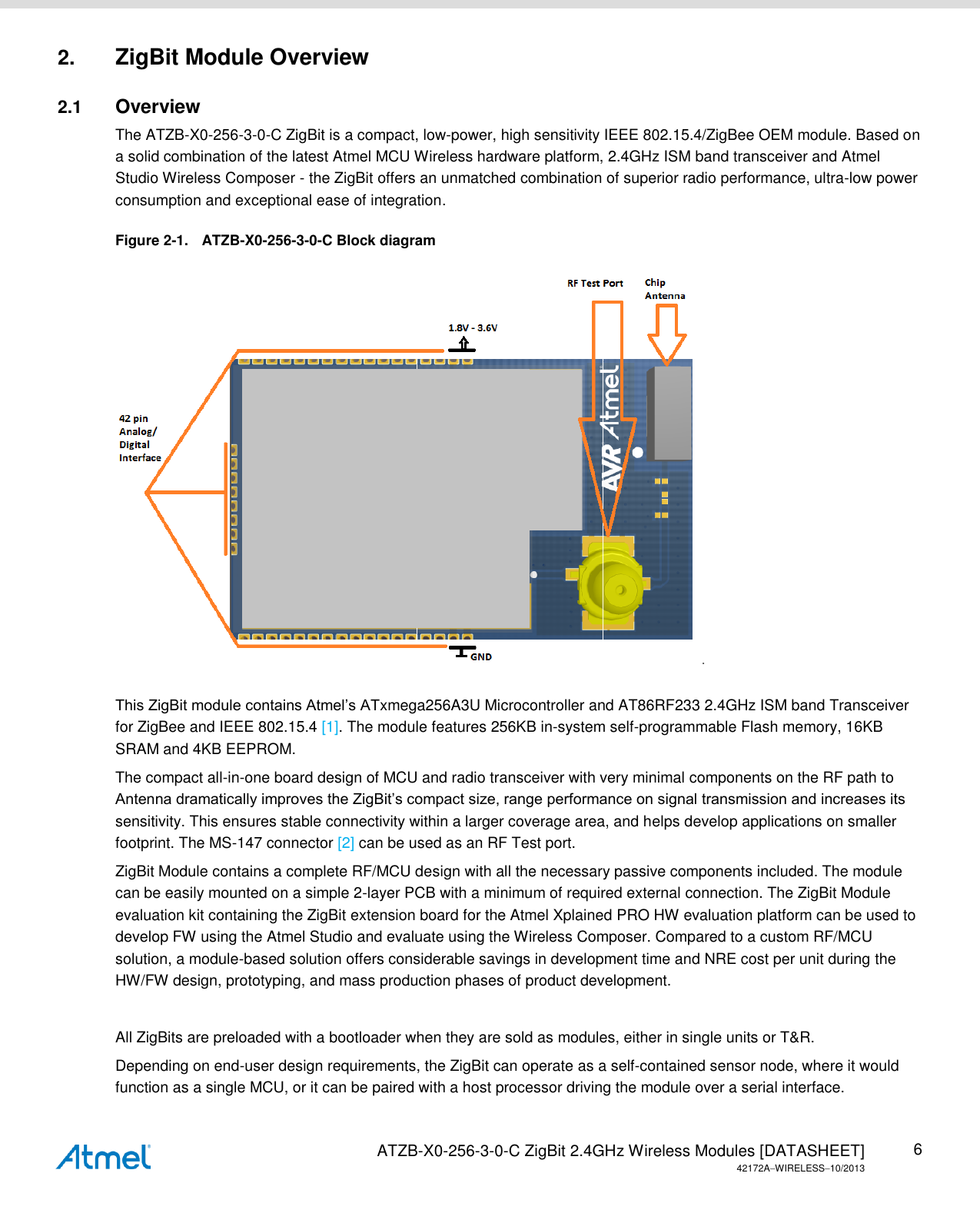

ATZB-X0-256-3-0-C ZigBit 2.4GHz Wireless Modules [DATASHEET] 42172AWIRELESS10/2013 6 2. ZigBit Module Overview 2.1 Overview The ATZB-X0-256-3-0-C ZigBit is a compact, low-power, high sensitivity IEEE 802.15.4/ZigBee OEM module. Based on a solid combination of the latest Atmel MCU Wireless hardware platform, 2.4GHz ISM band transceiver and Atmel Studio Wireless Composer - the ZigBit offers an unmatched combination of superior radio performance, ultra-low power consumption and exceptional ease of integration. Figure 2-1. ATZB-X0-256-3-0-C Block diagram . This ZigBit module contains Atmel’s ATxmega256A3U Microcontroller and AT86RF233 2.4GHz ISM band Transceiver for ZigBee and IEEE 802.15.4 [1]. The module features 256KB in-system self-programmable Flash memory, 16KB SRAM and 4KB EEPROM. The compact all-in-one board design of MCU and radio transceiver with very minimal components on the RF path to Antenna dramatically improves the ZigBit’s compact size, range performance on signal transmission and increases its sensitivity. This ensures stable connectivity within a larger coverage area, and helps develop applications on smaller footprint. The MS-147 connector [2] can be used as an RF Test port. ZigBit Module contains a complete RF/MCU design with all the necessary passive components included. The module can be easily mounted on a simple 2-layer PCB with a minimum of required external connection. The ZigBit Module evaluation kit containing the ZigBit extension board for the Atmel Xplained PRO HW evaluation platform can be used to develop FW using the Atmel Studio and evaluate using the Wireless Composer. Compared to a custom RF/MCU solution, a module-based solution offers considerable savings in development time and NRE cost per unit during the HW/FW design, prototyping, and mass production phases of product development. All ZigBits are preloaded with a bootloader when they are sold as modules, either in single units or T&R. Depending on end-user design requirements, the ZigBit can operate as a self-contained sensor node, where it would function as a single MCU, or it can be paired with a host processor driving the module over a serial interface.
ATZB-X0-256-3-0-C ZigBit 2.4GHz Wireless Modules [DATASHEET] 42172AWIRELESS10/2013 7 The MAC stack running on the host processor can then control data transmission and manages module peripherals. Thus very minimal firmware customization is required for successful module design-in. Third-party sensors can then be connected directly to the module, thus expanding the existing set of peripheral interfaces.

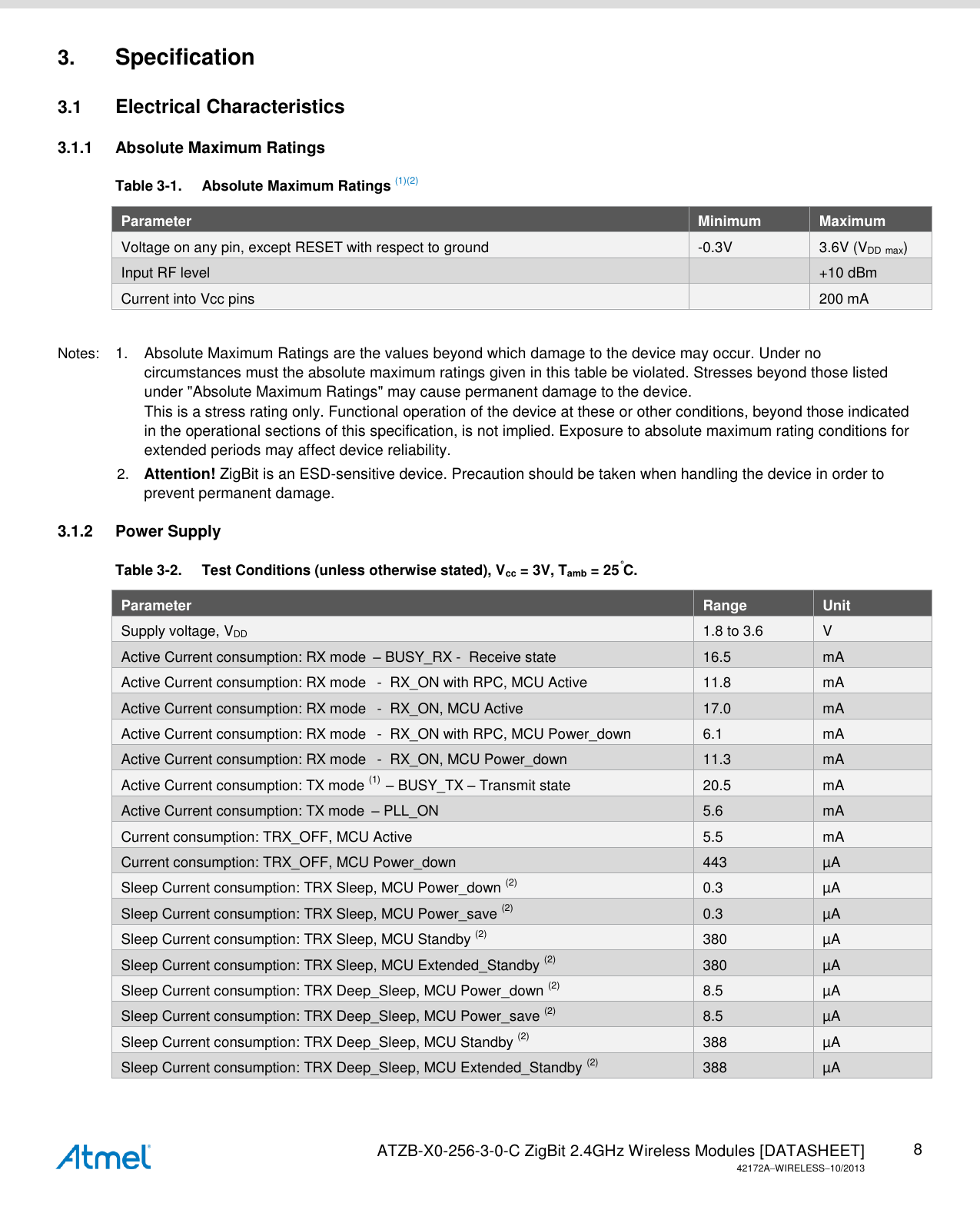

ATZB-X0-256-3-0-C ZigBit 2.4GHz Wireless Modules [DATASHEET] 42172AWIRELESS10/2013 8 3. Specification 3.1 Electrical Characteristics 3.1.1 Absolute Maximum Ratings Table 3-1. Absolute Maximum Ratings (1)(2) Parameter Minimum Maximum Voltage on any pin, except RESET with respect to ground -0.3V 3.6V (VDD max) Input RF level +10 dBm Current into Vcc pins 200 mA Notes: 1. Absolute Maximum Ratings are the values beyond which damage to the device may occur. Under no circumstances must the absolute maximum ratings given in this table be violated. Stresses beyond those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. This is a stress rating only. Functional operation of the device at these or other conditions, beyond those indicated in the operational sections of this specification, is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. 2. Attention! ZigBit is an ESD-sensitive device. Precaution should be taken when handling the device in order to prevent permanent damage. 3.1.2 Power Supply Table 3-2. Test Conditions (unless otherwise stated), Vcc = 3V, Tamb = 25°C. Parameter Range Unit Supply voltage, VDD 1.8 to 3.6 V Active Current consumption: RX mode – BUSY_RX - Receive state 16.5 mA Active Current consumption: RX mode - RX_ON with RPC, MCU Active 11.8 mA Active Current consumption: RX mode - RX_ON, MCU Active 17.0 mA Active Current consumption: RX mode - RX_ON with RPC, MCU Power_down 6.1 mA Active Current consumption: RX mode - RX_ON, MCU Power_down 11.3 mA Active Current consumption: TX mode (1) – BUSY_TX – Transmit state 20.5 mA Active Current consumption: TX mode – PLL_ON 5.6 mA Current consumption: TRX_OFF, MCU Active 5.5 mA Current consumption: TRX_OFF, MCU Power_down 443 µA Sleep Current consumption: TRX Sleep, MCU Power_down (2) 0.3 µA Sleep Current consumption: TRX Sleep, MCU Power_save (2) 0.3 µA Sleep Current consumption: TRX Sleep, MCU Standby (2) 380 µA Sleep Current consumption: TRX Sleep, MCU Extended_Standby (2) 380 µA Sleep Current consumption: TRX Deep_Sleep, MCU Power_down (2) 8.5 µA Sleep Current consumption: TRX Deep_Sleep, MCU Power_save (2) 8.5 µA Sleep Current consumption: TRX Deep_Sleep, MCU Standby (2) 388 µA Sleep Current consumption: TRX Deep_Sleep, MCU Extended_Standby (2) 388 µA
ATZB-X0-256-3-0-C ZigBit 2.4GHz Wireless Modules [DATASHEET] 42172AWIRELESS10/2013 9 Note 1: Output TX power (when measuring consumption in TX mode) is +3 dBm. Note 2: a) All interfaces are set to the default state (see Pin Assignment Table). b) JTAG is not connected. c) CPU Clock configured when doing this measurement – 16MHz for all modes except Power save and Power down modes Current consumption depends on multiple factors, including but not limited to, the board design and materials, Protocol settings, network activity, EEPROM read/write operations. It also depends on MCU load and/or peripherals used by an application. 3.1.3 RF Characteristics Table 3-3. RF Characteristics (1). Parameter Condition Range Unit Frequency band 2.4000 to 2.4835 GHz Numbers of channels 16 Channel spacing 5 MHz Transmitter output power Adjusted in 16 steps -17 to +4 dBm Receiver sensitivity PER = 1% -96 dBm On-air data rate 250, upto 2000 Kbps TX output/ RX input nominal impedance For balanced 50 Ω Range Open field, LoS, Elevated 178 m Table 3-4. TX power settings PHY_TX_PWR 3:0 Register value Power register setting [dBm] Output power [dBm] (typical values at RF connector) 0 +4 +3 1 +3.7 +2.9 2 +3.4 +2.7 3 +3 +2.6 4 +2.5 +2.5 5 +2 +0.4 6 +1 -0.3 7 0 -1 8 -1 -2 9 -2 -3.0 10 -3 -4. 11 -4 -5.7 12 -6 -7.5 13 -8 -9.8 14 -12 -13.0 15 -17 -17.9 Note 1: For detailed characteristics, refer to [2].

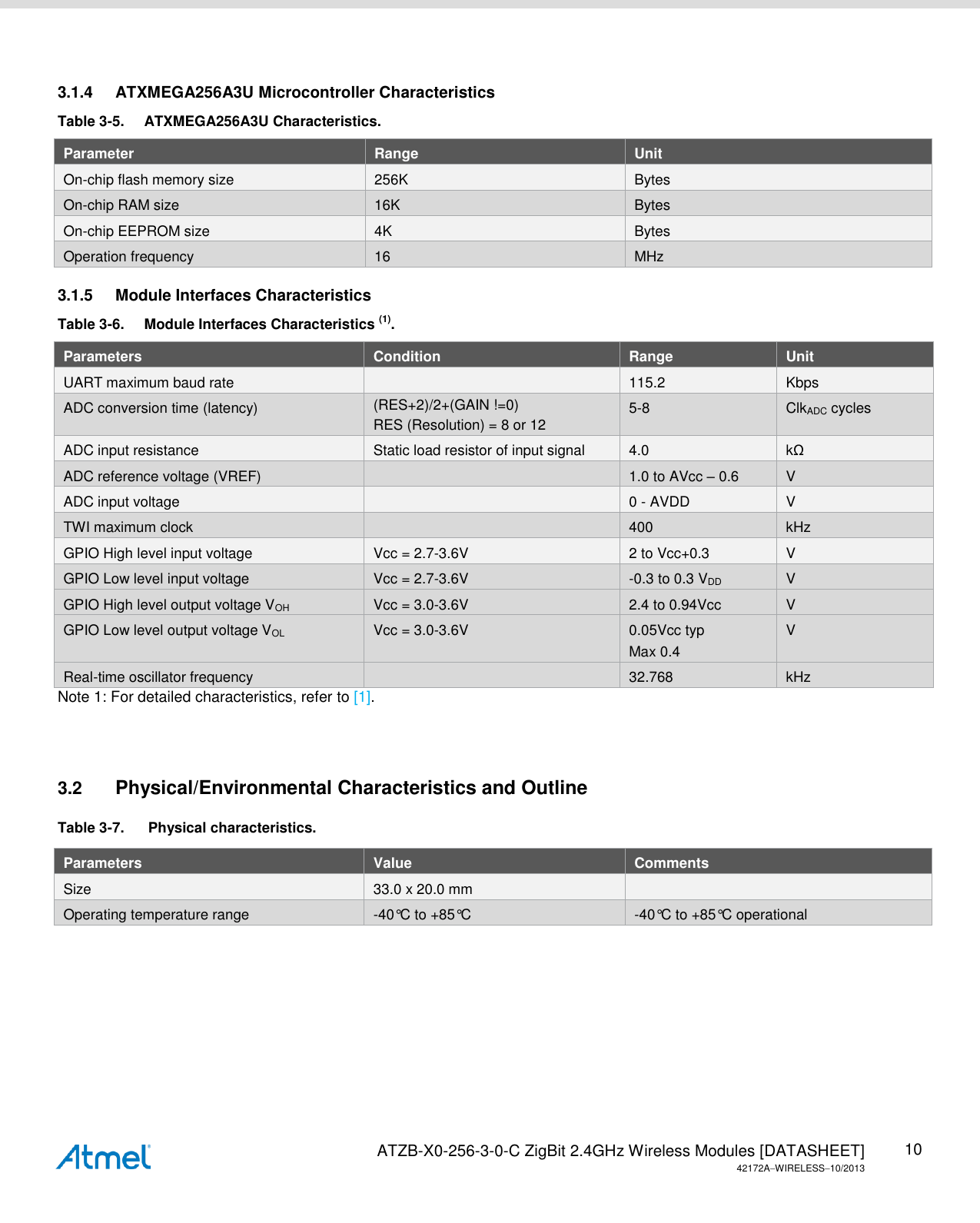

ATZB-X0-256-3-0-C ZigBit 2.4GHz Wireless Modules [DATASHEET] 42172AWIRELESS10/2013 10 3.1.4 ATXMEGA256A3U Microcontroller Characteristics Table 3-5. ATXMEGA256A3U Characteristics. Parameter Range Unit On-chip flash memory size 256K Bytes On-chip RAM size 16K Bytes On-chip EEPROM size 4K Bytes Operation frequency 16 MHz 3.1.5 Module Interfaces Characteristics Table 3-6. Module Interfaces Characteristics (1). Parameters Condition Range Unit UART maximum baud rate 115.2 Kbps ADC conversion time (latency) (RES+2)/2+(GAIN !=0) RES (Resolution) = 8 or 12 5-8 ClkADC cycles ADC input resistance Static load resistor of input signal 4.0 kΩ ADC reference voltage (VREF) 1.0 to AVcc – 0.6 V ADC input voltage 0 - AVDD V TWI maximum clock 400 kHz GPIO High level input voltage Vcc = 2.7-3.6V 2 to Vcc+0.3 V GPIO Low level input voltage Vcc = 2.7-3.6V -0.3 to 0.3 VDD V GPIO High level output voltage VOH Vcc = 3.0-3.6V 2.4 to 0.94Vcc V GPIO Low level output voltage VOL Vcc = 3.0-3.6V 0.05Vcc typ Max 0.4 V Real-time oscillator frequency 32.768 kHz Note 1: For detailed characteristics, refer to [1]. 3.2 Physical/Environmental Characteristics and Outline Table 3-7. Physical characteristics. Parameters Value Comments Size 33.0 x 20.0 mm Operating temperature range -40°C to +85°C -40°C to +85°C operational

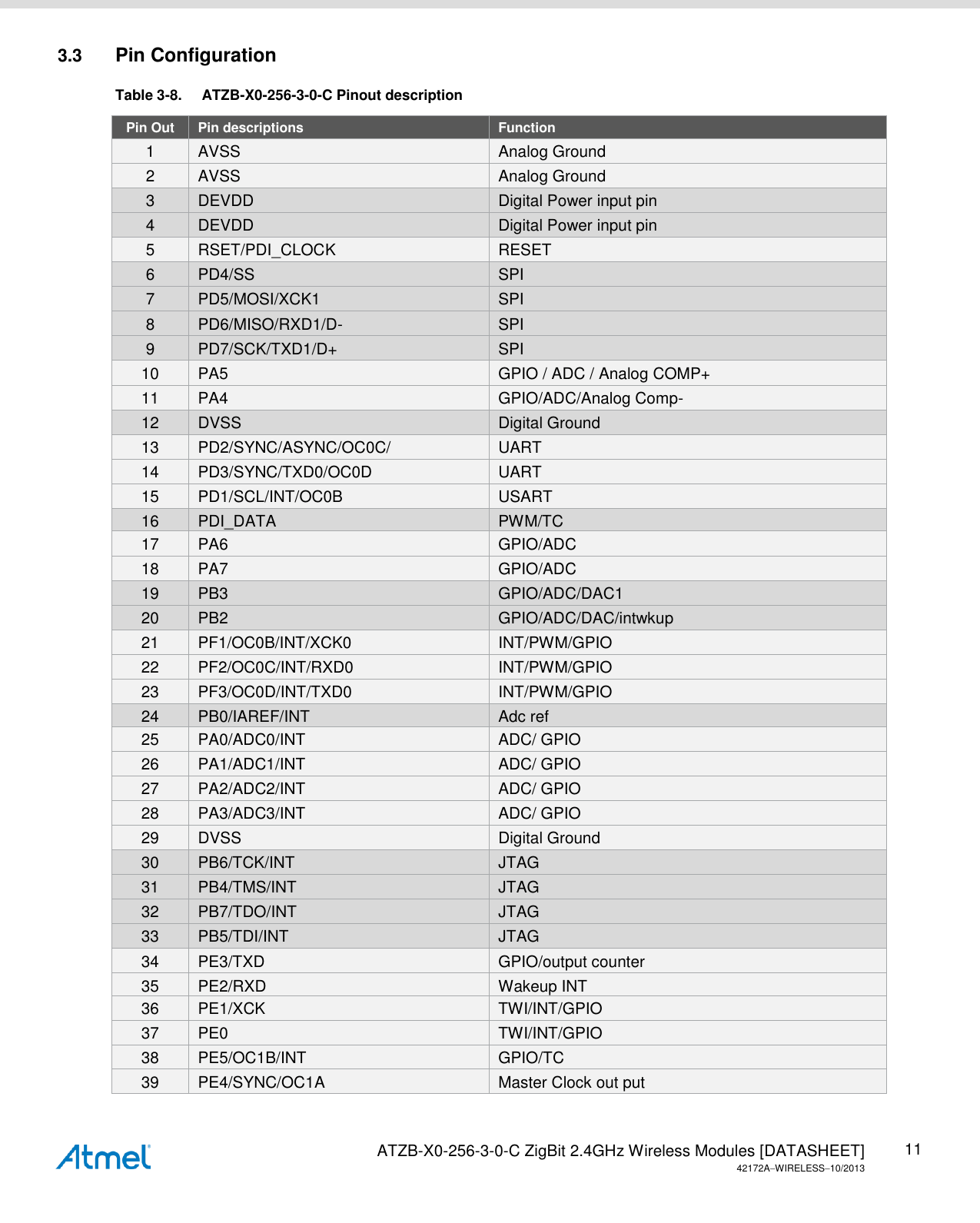

ATZB-X0-256-3-0-C ZigBit 2.4GHz Wireless Modules [DATASHEET] 42172AWIRELESS10/2013 11 3.3 Pin Configuration Table 3-8. ATZB-X0-256-3-0-C Pinout description Pin Out Pin descriptions Function 1 AVSS Analog Ground 2 AVSS Analog Ground 3 DEVDD Digital Power input pin 4 DEVDD Digital Power input pin 5 RSET/PDI_CLOCK RESET 6 PD4/SS SPI 7 PD5/MOSI/XCK1 SPI 8 PD6/MISO/RXD1/D- SPI 9 PD7/SCK/TXD1/D+ SPI 10 PA5 GPIO / ADC / Analog COMP+ 11 PA4 GPIO/ADC/Analog Comp- 12 DVSS Digital Ground 13 PD2/SYNC/ASYNC/OC0C/ UART 14 PD3/SYNC/TXD0/OC0D UART 15 PD1/SCL/INT/OC0B USART 16 PDI_DATA PWM/TC 17 PA6 GPIO/ADC 18 PA7 GPIO/ADC 19 PB3 GPIO/ADC/DAC1 20 PB2 GPIO/ADC/DAC/intwkup 21 PF1/OC0B/INT/XCK0 INT/PWM/GPIO 22 PF2/OC0C/INT/RXD0 INT/PWM/GPIO 23 PF3/OC0D/INT/TXD0 INT/PWM/GPIO 24 PB0/IAREF/INT Adc ref 25 PA0/ADC0/INT ADC/ GPIO 26 PA1/ADC1/INT ADC/ GPIO 27 PA2/ADC2/INT ADC/ GPIO 28 PA3/ADC3/INT ADC/ GPIO 29 DVSS Digital Ground 30 PB6/TCK/INT JTAG 31 PB4/TMS/INT JTAG 32 PB7/TDO/INT JTAG 33 PB5/TDI/INT JTAG 34 PE3/TXD GPIO/output counter 35 PE2/RXD Wakeup INT 36 PE1/XCK TWI/INT/GPIO 37 PE0 TWI/INT/GPIO 38 PE5/OC1B/INT GPIO/TC 39 PE4/SYNC/OC1A Master Clock out put
ATZB-X0-256-3-0-C ZigBit 2.4GHz Wireless Modules [DATASHEET] 42172AWIRELESS10/2013 12 Pin Out Pin descriptions Function 40 PF0 GPIO/Timer 41 DVSS Digital Ground 42 DVSS Digital Ground NOTE: TXD, RXD of UART are crossed inside ZigBit Module. External UART devices connecting to ZigBit Module should follow straight connection for UART. UART_TXD_external_device <-> UART_TXD UART_RXD_external_device <-> UART_RXD 3.4 Mounting Information The Figures below shows the PCB layout recommended for a ZigBit module. Neither via-holes nor wires are allowed on the PCB upper layer in the area occupied by the module. As a critical requirement, RF_GND pins should be grounded via several via-holes to be located right next to the pins thus minimizing inductance and preventing both mismatch and losses. Figure 3-1. ATZB-X0-256-3-0-C Dimensions

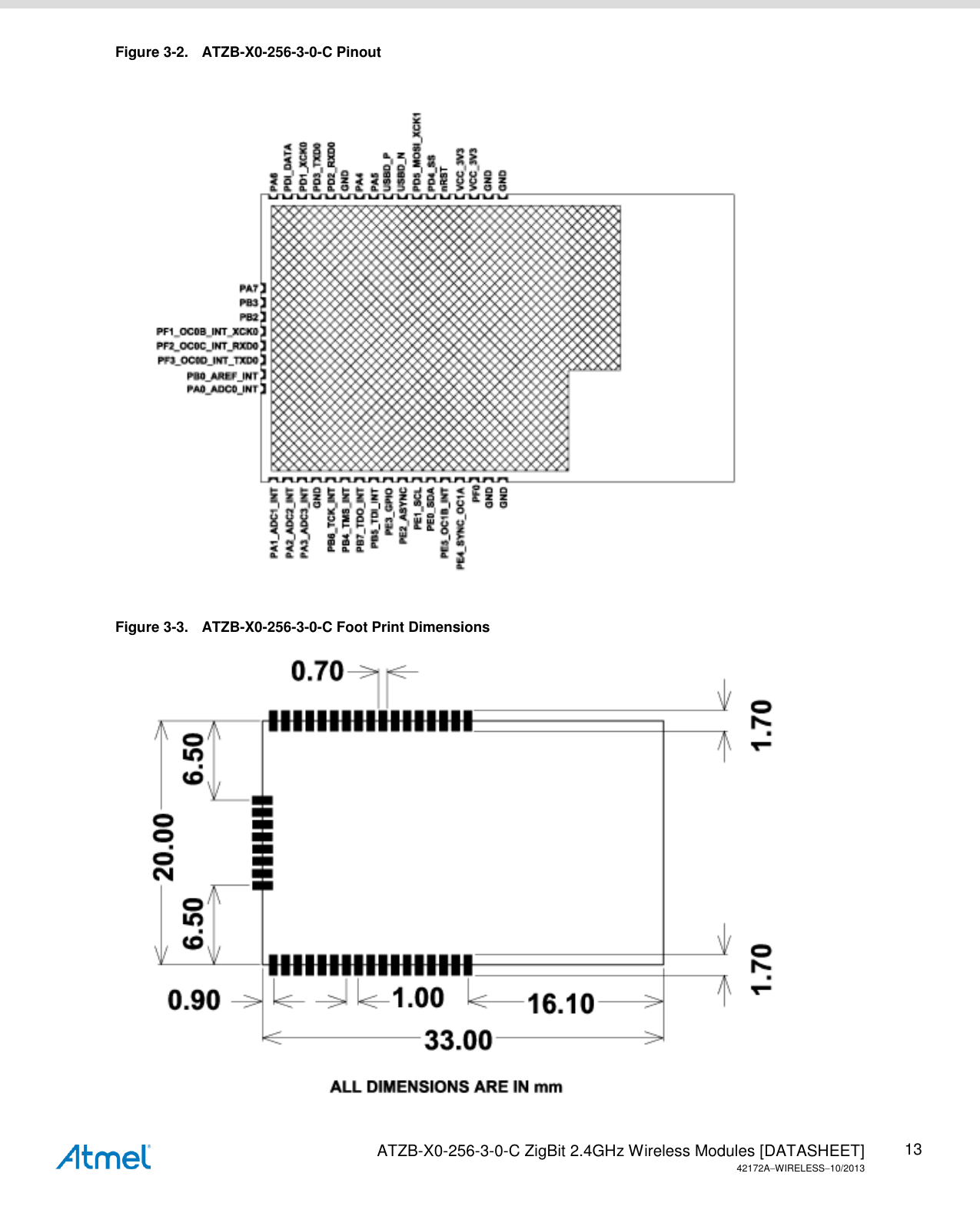

ATZB-X0-256-3-0-C ZigBit 2.4GHz Wireless Modules [DATASHEET] 42172AWIRELESS10/2013 13 Figure 3-2. ATZB-X0-256-3-0-C Pinout Figure 3-3. ATZB-X0-256-3-0-C Foot Print Dimensions

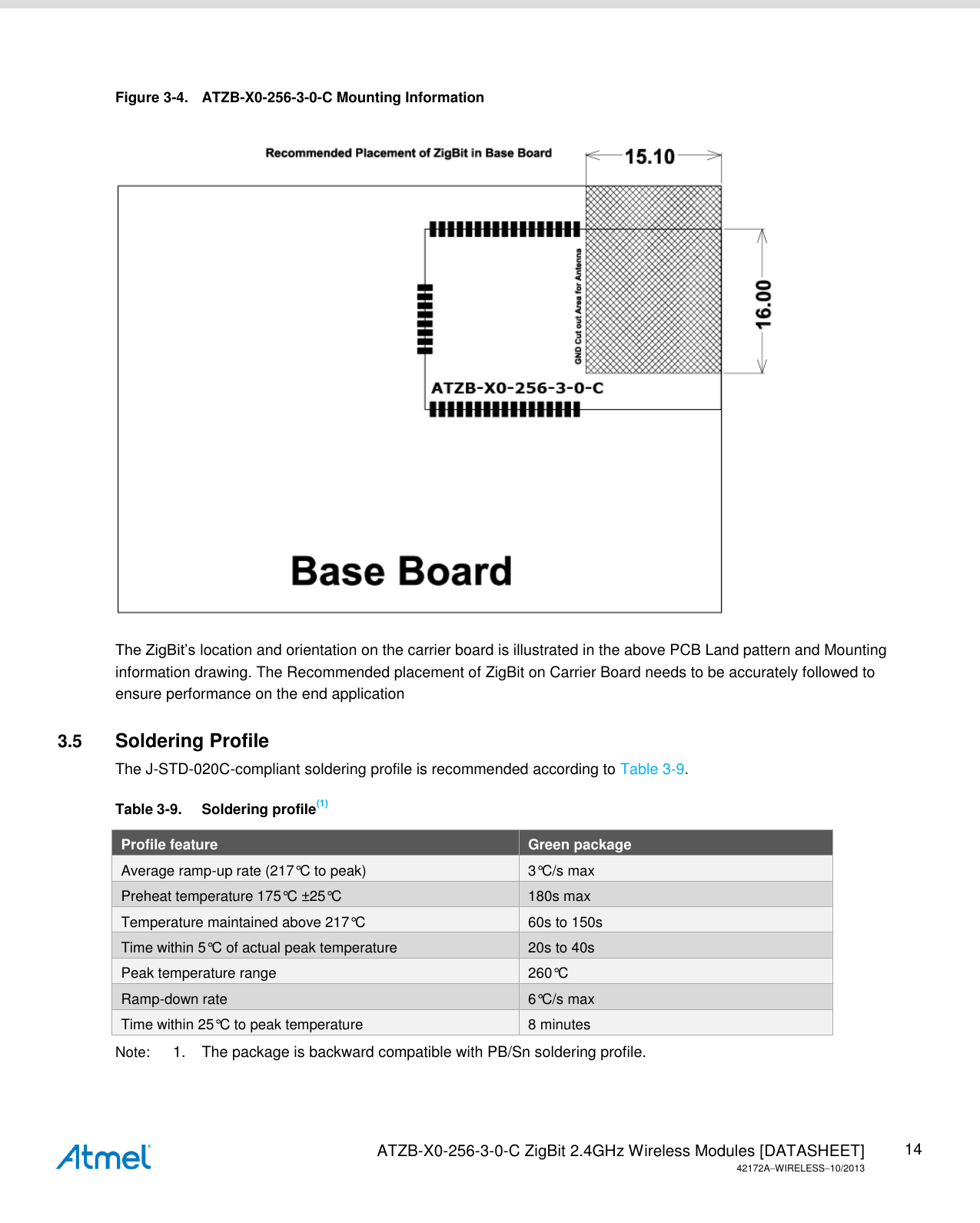

ATZB-X0-256-3-0-C ZigBit 2.4GHz Wireless Modules [DATASHEET] 42172AWIRELESS10/2013 14 Figure 3-4. ATZB-X0-256-3-0-C Mounting Information The ZigBit’s location and orientation on the carrier board is illustrated in the above PCB Land pattern and Mounting information drawing. The Recommended placement of ZigBit on Carrier Board needs to be accurately followed to ensure performance on the end application 3.5 Soldering Profile The J-STD-020C-compliant soldering profile is recommended according to Table 3-9. Table 3-9. Soldering profile(1) Profile feature Green package Average ramp-up rate (217°C to peak) 3°C/s max Preheat temperature 175°C ±25°C 180s max Temperature maintained above 217°C 60s to 150s Time within 5°C of actual peak temperature 20s to 40s Peak temperature range 260°C Ramp-down rate 6°C/s max Time within 25°C to peak temperature 8 minutes Note: 1. The package is backward compatible with PB/Sn soldering profile.
ATZB-X0-256-3-0-C ZigBit 2.4GHz Wireless Modules [DATASHEET] 42172AWIRELESS10/2013 15 3.6 Antenna Reference Designs Multiple factors affect proper antenna match, hence, affecting the antenna pattern. The particular factors are the board material and thickness, shields, the material used for enclosure, the board neighborhood, and other components adjacent to antenna. Following guidelines need to be followed when designing the base board for the ZigBit. General Recommendations:  Metal enclosure should not be used. Using low profile enclosure might also affect antenna tuning.  Placing high profile components next to antenna should be avoided.  Having holes/vias punched around the periphery of the board eliminates parasitic radiation from the board edges also distorting antenna pattern.  ZigBit module should not be placed next to consumer electronics which might interfere with ZigBit’s RF band frequency. The board design should prevent propagation of microwave field inside the board material. Electromagnetic waves of high frequency may penetrate the board thus making the edges of the board radiate, which may distort the antenna pattern. To eliminate this effect, metalized and grounded holes/vias must be placed around the board's edges. 4. Schematics The following schematic drawings for the ATZB-X0-256-3-0-C are in the following order:  Top level schematics  Connector schematics  ATxmega256A3BU schematics  AT86RF233 schematics
ATZB-X0-256-3-0-C ZigBit 2.4GHz Wireless Modules [DATASHEET] 42172AWIRELESS10/2013 16 4.1 Handling Instructions The ZigBit Modules are fixed with an EMI Shield to ensure compliance to Emission and Immunity rules. This shield is galvanic and NOT air tight. So cleaning of the module with IPA / other similar agents is not advised. Humidity protection coating (conformal) will cause deviated RF behavior and coating material being trapped inside EMI Shield. So this should be avoided. For products requiring conformal coating, it is advised to suitably mask the ZigBit before applying the coating to rest of the ZigBit carrier board. To protect ZigBit from humidity, the housing of the product should ensure suitable Ingress Protection standards are complied with. The MS-147 connector should never be exposed to varnish / similar conformal coating material which will affect electrical connection on the surfaces of connector. The in-built chip antenna has been tuned for the particular design 4.2 General Recommendations  Metal enclosure should not be used. Using low profile enclosure might also affect antenna tuning  Placing high profile components next to antenna should be avoided  Having holes/vias punched around the periphery of the board eliminates parasitic radiation from the board edges also distorting antenna pattern  ZigBit module should not be placed next to consumer electronics which might interfere with ZigBit RF frequency band 5. Persistence Memory A dedicated memory space is allocated to store product specific information and called the Persistence Memory. The organization of the persistence memory is as follows: Table 5-1. Persistence Memory Data Size Structure Revision 2 bytes MAC address(1) 8 bytes Board information overall 49 bytes Board information – PCBA Name 30 bytes Board information – PCBA Serial number 10 bytes Board information – PCBA Atmel Part Number 8 bytes Board information – PCBA Revision 1 byte XTAL Calibration Value 1 byte Reserved 7 bytes Reserved 4 bytes CRC 1 byte Note: 1. The MAC address stored inside the MCU is a uniquely assigned ID for each ZigBit and owned by Atmel. User of the ZigBit application can use this unique MAC ID to address the ZigBit in end-applications. The MAC ID can be read from the ZigBit using the Performance Analyzer Application that is supplied through Atmel Studio Gallery Extension.

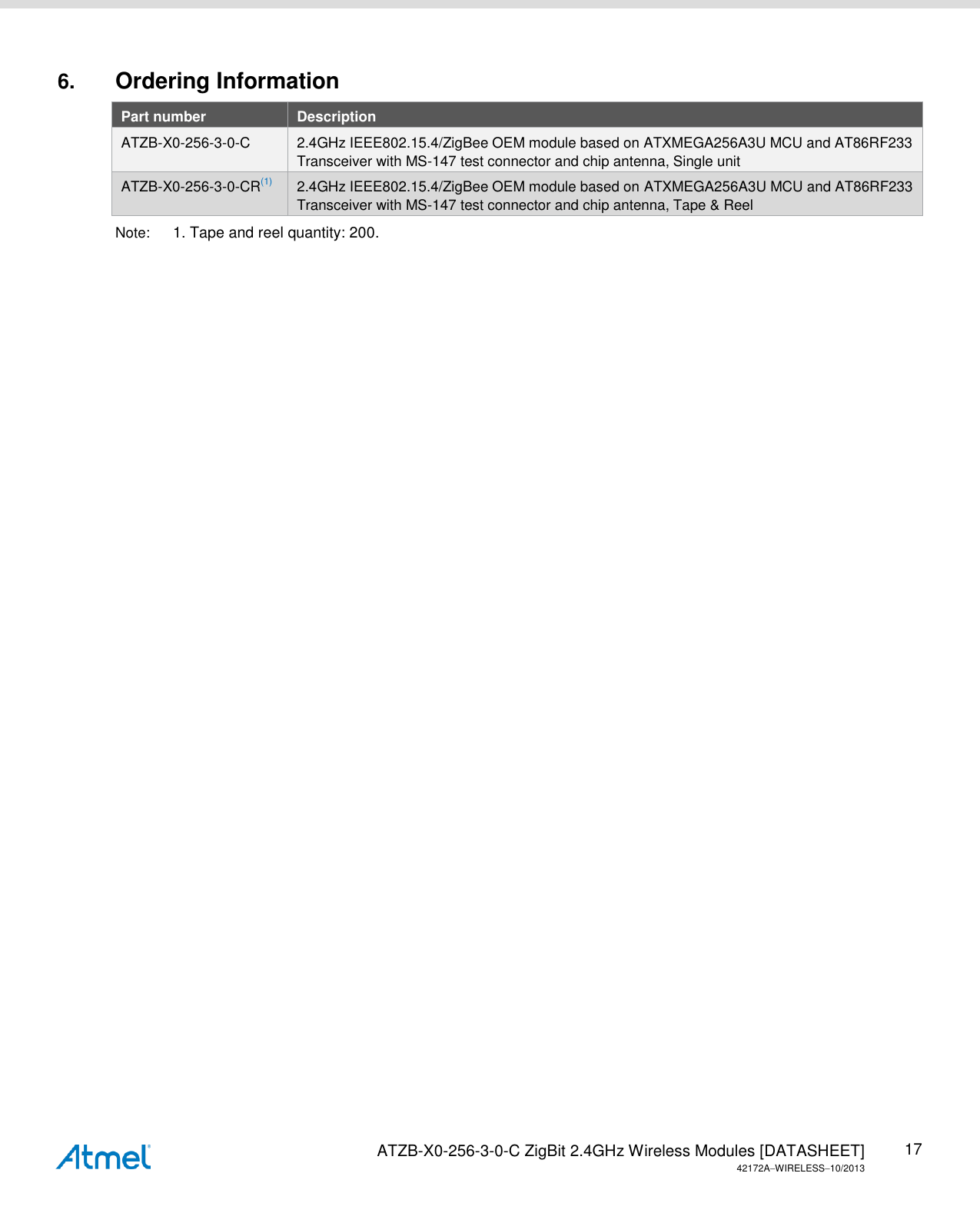

ATZB-X0-256-3-0-C ZigBit 2.4GHz Wireless Modules [DATASHEET] 42172AWIRELESS10/2013 17 6. Ordering Information Part number Description ATZB-X0-256-3-0-C 2.4GHz IEEE802.15.4/ZigBee OEM module based on ATXMEGA256A3U MCU and AT86RF233 Transceiver with MS-147 test connector and chip antenna, Single unit ATZB-X0-256-3-0-CR(1) 2.4GHz IEEE802.15.4/ZigBee OEM module based on ATXMEGA256A3U MCU and AT86RF233 Transceiver with MS-147 test connector and chip antenna, Tape & Reel Note: 1. Tape and reel quantity: 200.
ATZB-X0-256-3-0-C ZigBit 2.4GHz Wireless Modules [DATASHEET] 42172AWIRELESS10/2013 18 7. Agency Certifications 7.1 United States (FCC) This equipment complies with Part 15 of the FCC rules and regulations. To fulfill FCC Certification requirements, an OEM manufacturer must comply with the following regulations: 1. The ATZB-X0-256-3-0-C modular transmitter must be labeled with its own FCC ID number, and, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: Contains FCC ID: VW4A091731 The enclosed device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (i.) this device may not cause harmful interference and (ii.) this device must accept any interference received, including interference that may cause undesired operation. Any similar wording that expresses the same meaning may be used. IMPORTANT: This equipment complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation (FCC 15.19). The internal antenna used for this mobile transmitter must provide a separation distance of at least 20 cm from all persons and must not be colocated or operating in conjunction with any other antenna or transmitter. Installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device is approved as a mobile device with respect to RF exposure compliance, and may only be marketed to OEM installers. Use in portable exposure conditions (FCC 2.1093) requires separate equipment authorization. IMPORTANT: Modifications not expressly approved by this company could void the user's authority to operate this equipment (FCC section 15.21). IMPORTANT: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense (FCC section 15.105).

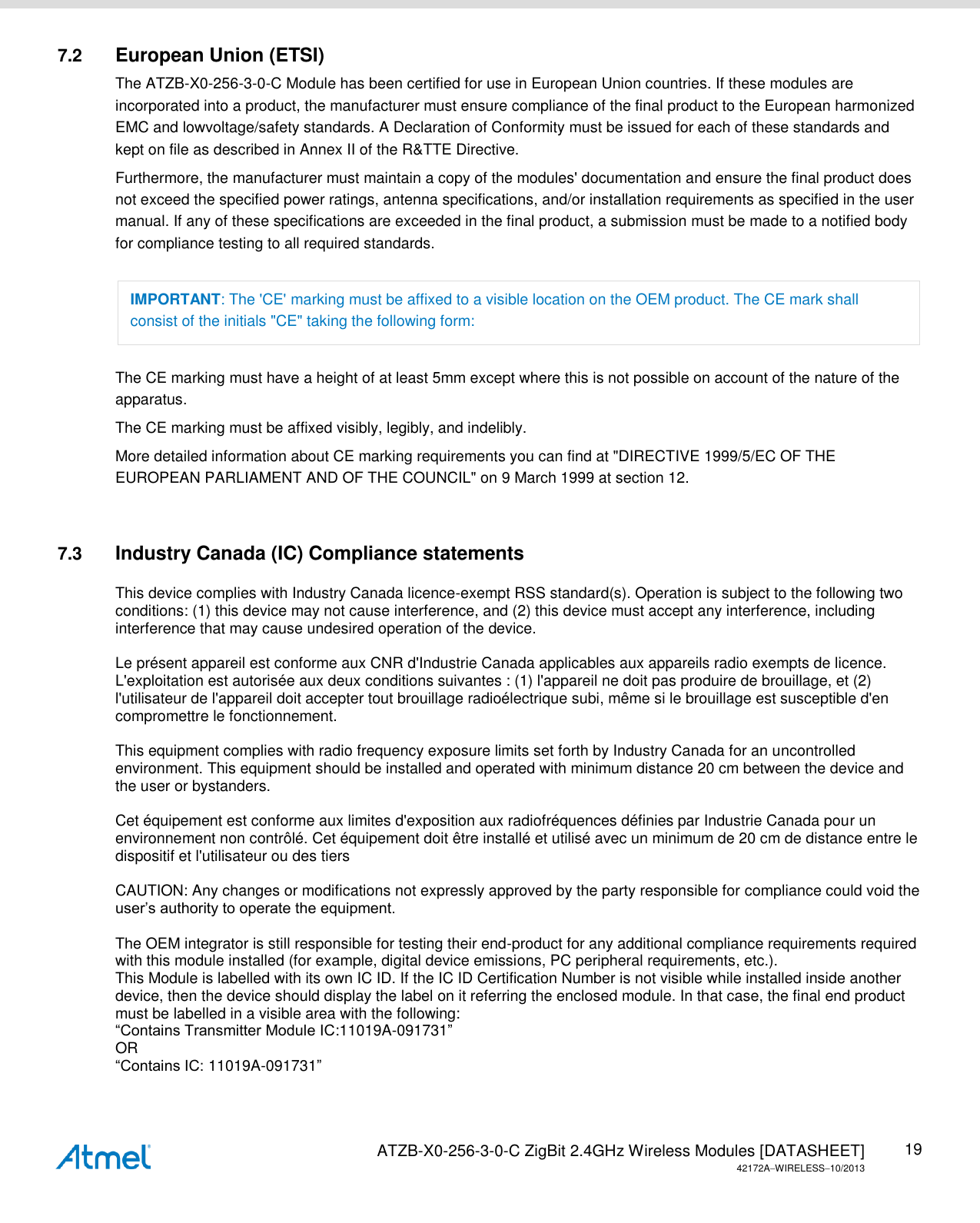

ATZB-X0-256-3-0-C ZigBit 2.4GHz Wireless Modules [DATASHEET] 42172AWIRELESS10/2013 19 7.2 European Union (ETSI) The ATZB-X0-256-3-0-C Module has been certified for use in European Union countries. If these modules are incorporated into a product, the manufacturer must ensure compliance of the final product to the European harmonized EMC and lowvoltage/safety standards. A Declaration of Conformity must be issued for each of these standards and kept on file as described in Annex II of the R&TTE Directive. Furthermore, the manufacturer must maintain a copy of the modules' documentation and ensure the final product does not exceed the specified power ratings, antenna specifications, and/or installation requirements as specified in the user manual. If any of these specifications are exceeded in the final product, a submission must be made to a notified body for compliance testing to all required standards. IMPORTANT: The 'CE' marking must be affixed to a visible location on the OEM product. The CE mark shall consist of the initials "CE" taking the following form: The CE marking must have a height of at least 5mm except where this is not possible on account of the nature of the apparatus. The CE marking must be affixed visibly, legibly, and indelibly. More detailed information about CE marking requirements you can find at "DIRECTIVE 1999/5/EC OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL" on 9 March 1999 at section 12. 7.3 Industry Canada (IC) Compliance statements This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. This equipment complies with radio frequency exposure limits set forth by Industry Canada for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20 cm between the device and the user or bystanders. Cet équipement est conforme aux limites d'exposition aux radiofréquences définies par Industrie Canada pour un environnement non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 20 cm de distance entre le dispositif et l'utilisateur ou des tiers CAUTION: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. The OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed (for example, digital device emissions, PC peripheral requirements, etc.). This Module is labelled with its own IC ID. If the IC ID Certification Number is not visible while installed inside another device, then the device should display the label on it referring the enclosed module. In that case, the final end product must be labelled in a visible area with the following: “Contains Transmitter Module IC:11019A-091731” OR “Contains IC: 11019A-091731”

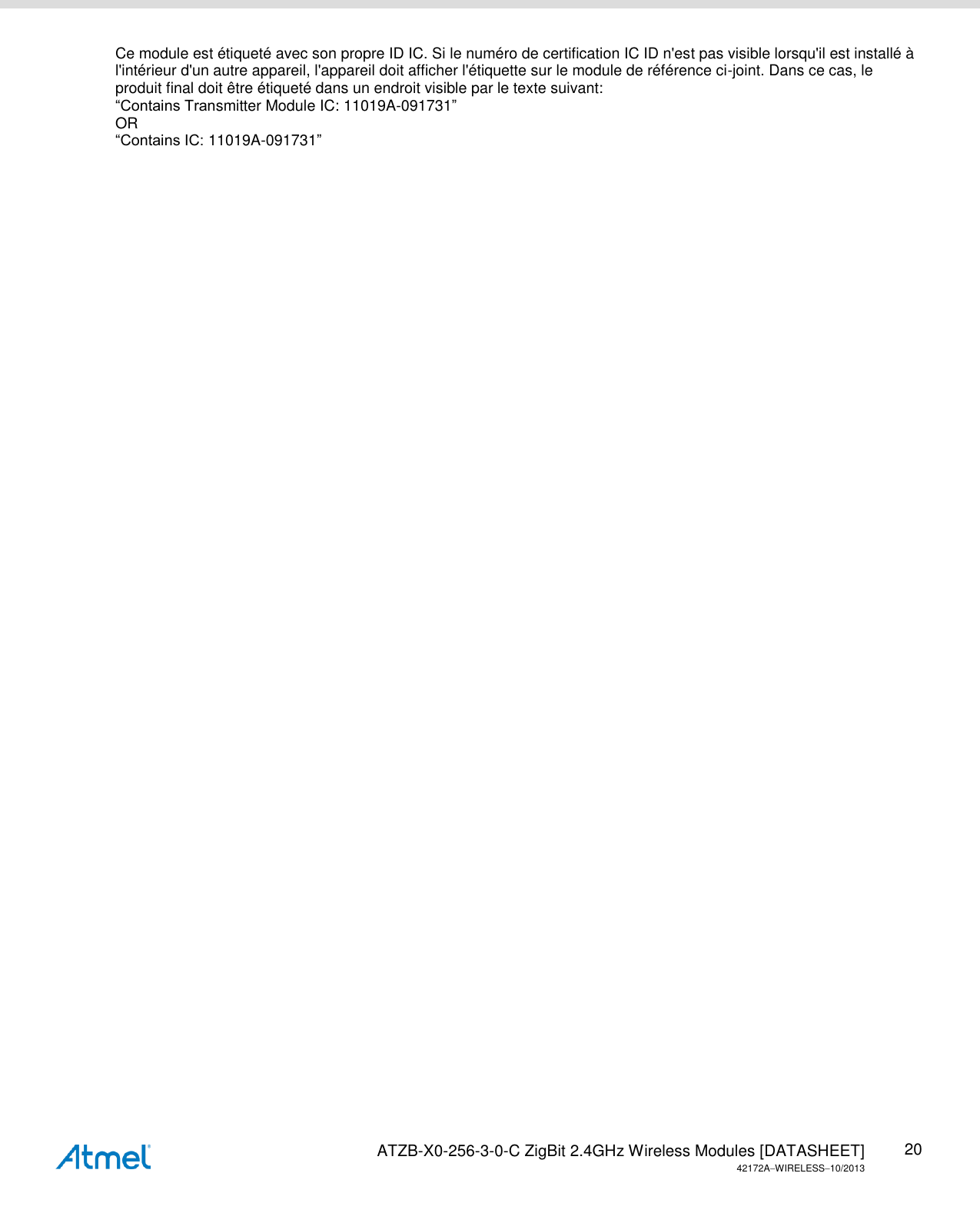

ATZB-X0-256-3-0-C ZigBit 2.4GHz Wireless Modules [DATASHEET] 42172AWIRELESS10/2013 20 Ce module est étiqueté avec son propre ID IC. Si le numéro de certification IC ID n'est pas visible lorsqu'il est installé à l'intérieur d'un autre appareil, l'appareil doit afficher l'étiquette sur le module de référence ci-joint. Dans ce cas, le produit final doit être étiqueté dans un endroit visible par le texte suivant: “Contains Transmitter Module IC: 11019A-091731” OR “Contains IC: 11019A-091731”

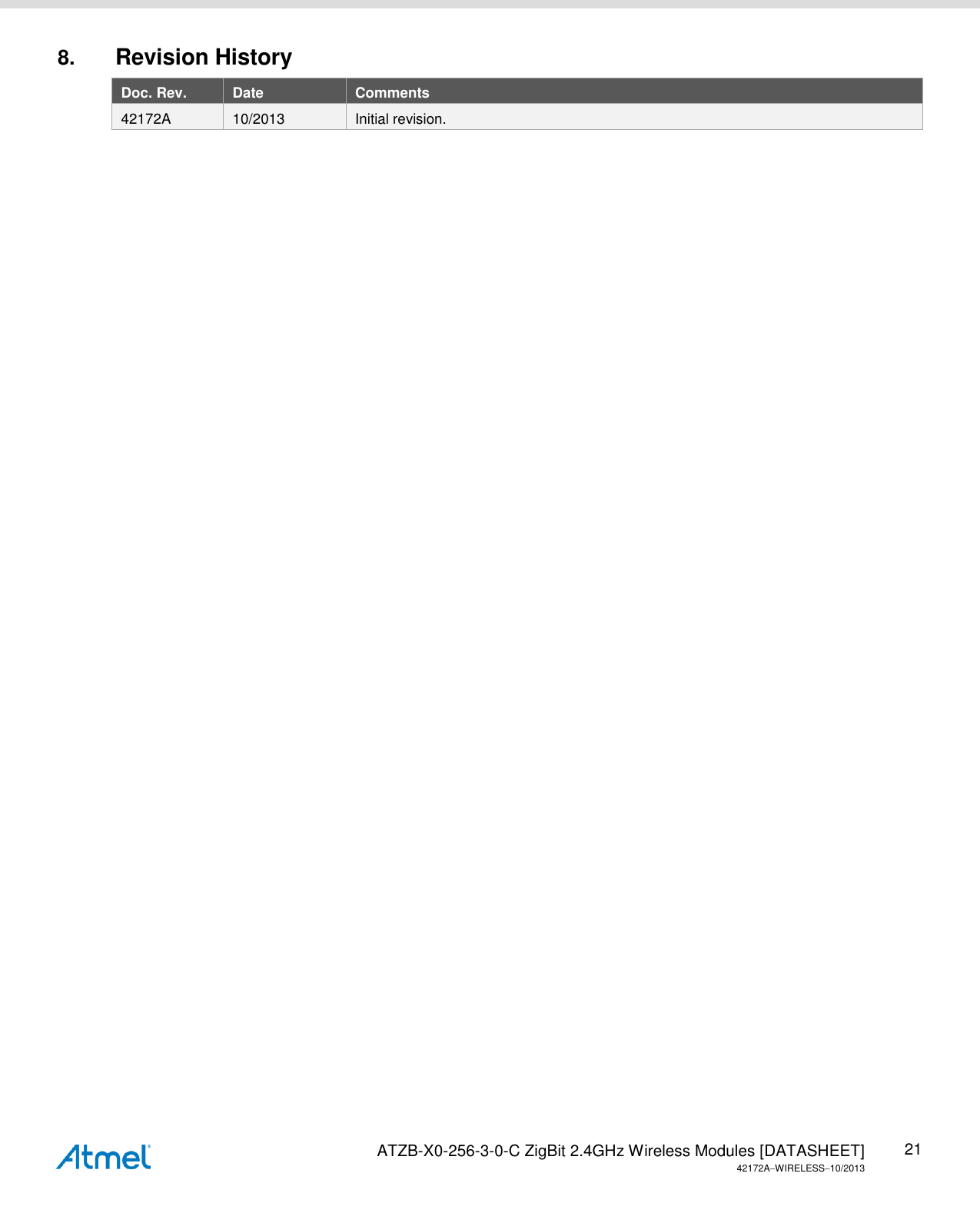

ATZB-X0-256-3-0-C ZigBit 2.4GHz Wireless Modules [DATASHEET] 42172AWIRELESS10/2013 21 8. Revision History Doc. Rev. Date Comments 42172A 10/2013 Initial revision.
Atmel Corporation 1600 Technology Drive San Jose, CA 95110 USA Tel: (+1)(408) 441-0311 Fax: (+1)(408) 487-2600 www.atmel.com Atmel Asia Limited Unit 01-5 & 16, 19F BEA Tower, Millennium City 5 418 Kwun Tong Road Kwun Tong, Kowloon HONG KONG Tel: (+852) 2245-6100 Fax: (+852) 2722-1369 Atmel Munich GmbH Business Campus Parkring 4 D-85748 Garching b. Munich GERMANY Tel: (+49) 89-31970-0 Fax: (+49) 89-3194621 Atmel Japan G.K. 16F Shin-Osaki Kangyo Building 1-6-4 Osaki, Shinagawa-ku Tokyo 141-0032 JAPAN Tel: (+81)(3) 6417-0300 Fax: (+81)(3) 6417-0370 © 2013 Atmel Corporation. All rights reserved. / Rev.: 42172AWIRELESS10/2013 Atmel®, Atmel logo and combinations thereof, Enabling Unlimited Possibilities®, AVR®, ZigBit®, and others are registered trademarks or trademarks of Atmel Corporation or its subsidiaries. Other terms and product names may be trademarks of others. Disclaimer: The information in this document is provided in connection with Atmel products. No license, express or implied, by estoppel or otherwise, to any intellectual property right is granted by this document or in connection with the sale of Atmel products. EXCEPT AS SET FORTH IN THE ATMEL TERMS AND CONDITIONS OF SALES LOCATED ON THE ATMEL WEBSITE, ATMEL ASSUMES NO LIABILITY WHATSOEVER AND DISCLAIMS ANY EXPRESS, IMPLIED OR STATUTORY WARRANTY RELATING TO ITS PRODUCTS INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, OR NON-INFRINGEMENT. IN NO EVENT SHALL ATMEL BE LIABLE FOR ANY DIRECT, INDIRECT, CONSEQUENTIAL, PUNITIVE, SPECIAL OR INCIDENTAL DAMAGES (INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS AND PROFITS, BUSINESS INTERRUPTION, OR LOSS OF INFORMATION) ARISING OUT OF THE USE OR INABILITY TO USE THIS DOCUMENT, EVEN IF ATMEL HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Atmel makes no representations or warranties with respect to the accuracy or completeness of the contents of this document and reserves the right to make changes to specifications and products descriptions at any time without notice. Atmel does not make any commitment to update the information contained herein. Unless specifically provided otherwise, Atmel products are not suitable for, and shall not be used in, automotive applications. Atmel products are not intended, authorized, or warranted for use as components in applications intended to support or sustain life.
