ZigBit 2.4GHz Single chip Wireless Module ATZB-S1-256-3-0-U / ATZB-S1-256-3-0-UF DATASHEET Features  Ultra compact size (30.0 × 20.0 mm)  High RX sensitivity (-98 dBm)  Outperforming link budget (up to 102 dB)  Up to +4dBm output power  Very low power consumption:  17 mA in RX mode (1)  16.4 mA in TX mode (1)  0.6 µA in sleep mode (2)  Ample memory resources (256K Bytes In-System, Self-Programmable Flash memory, 8K Bytes EEPROM, 32K Bytes SRAM)  Wide range of interfaces (both analog and digital)  4- wire SPI, TWI  ISP, JTAG  2 Analog comparator Input  UART, USART  Timer, PWM  4 ADC lines  External Clock Input, Internal Clock Output  Upto 31 lines configurable as GPIO  Preassigned Atmel MAC address that can be used on end product  Capability to use MAC address into the internal EEPROM  IEEE® 802.15.4 compliant Transceiver  2.4GHz ISM band  Serial bootloader  High Performance Low power AVR 8-bit Microcontroller  U.FL Antenna Connector to select approved antennae upto 5dBi  Small physical footprint and low profile for optimum fit in very small application boards  Mesh networking capability  Easy-to-use low cost development kit  Single source of support for HW and SW  Worldwide license-free operation Note: 1. MCU is in active state with 3V Supply, CPU clock @ 16MHz, RX RPC enabled (for RX current), PHY_TX_PWR=0x0 (for TX current), All digital outputs pulled high. 42199AWIRELESS10/2013
ATZB-S1-256-3-0-U ZigBit 2.4GHz Single chip Wireless Module [DATASHEET] 42199AWIRELESS10/2013 2 Note: 2. Controller Sleep Mode – SLEEP_MODE_PWR_DOWN Table of Contents 1. Introduction ........................................................................................ 3 1.1 Summary ........................................................................................................... 3 1.2 Abbreviations and Acronyms ............................................................................ 3 1.3 Related Documents ........................................................................................... 4 2. ZigBit Module Overview ..................................................................... 5 2.1 Overview ........................................................................................................... 5 3. Specifications ..................................................................................... 7 3.1 Electrical Characteristics ................................................................................... 7 3.1.1 Absolute Maximum Ratings ................................................................ 7 3.1.2 Power Supply ...................................................................................... 7 3.2 RF Characteristics ............................................................................................. 8 3.2.2 Microcontroller Characteristics ............................................................ 8 3.2.3 Module Interfaces Characteristics ....................................................... 9 3.3 Physical/Environmental Characteristics and Outline ......................................... 9 3.4 Pin Configuration ............................................................................................... 9 3.5 Mounting Information ...................................................................................... 11 3.6 List of Approved Antennas .............................................................................. 12 3.7 Soldering Profile .............................................................................................. 13 4. Schematics ...................................................................................... 13 4.1 Handling Instructions ....................................................................................... 14 4.2 General Recommendations ............................................................................ 14 5. Persistence Memory ........................................................................ 14 6. Ordering Information ........................................................................ 16 7. Agency Certifications ....................................................................... 17 7.1 United States (FCC) ........................................................................................ 17 7.2 European Union (ETSI) ................................................................................... 17 7.3 Industry Canada (IC) Compliance statements ................................................ 18 8. Revision History ............................................................................... 21
ATZB-S1-256-3-0-U ZigBit 2.4GHz Single chip Wireless Module [DATASHEET] 42199AWIRELESS10/2013 3 1. Introduction 1.1 Summary ATZB-S1-256-3-0-U ZigBit® is an ultra-compact and low-power 2.4GHz IEEE 802.15.4/ZigBee® OEM module from Atmel®. Based on the innovative mixed-signal hardware platform from Atmel, this module uses the ATmega256RFR2 SoC with the AVR 8-Bit Microcontroller and a high data rate transceiver for the 2.4GHz ISM band. The radio transceiver provides high data rates from 250kb/s up to 2Mb/s, frame handling, outstanding receiver sensitivity and high transmit output power enabling a very robust wireless communication. The module is designed for wireless sensing, monitoring, control, data acquisition applications, to name a few. This ZigBit module eliminates the need for costly and time-consuming RF development, and shortens time-to-market for wireless applications. The module has an U.FL RF connector that can be used to connect any of the approved antenna – cable assembly. This give freedom to applications to choose the external antenna1 that can be mounted on an end product. The ZigBit module is compatible with robust IEEE 802.15.4/ZigBee stack that supports a self-healing, self-organizing mesh network, while optimizing network traffic and minimizing power consumption. For detailed Software support information, please visit www.atmel.com/wireless The applications include, but are not limited to:  Building automation & monitoring o Lighting controls o Wireless smoke- and CO-detectors o Structural integrity monitoring  HVAC monitoring & control  Inventory management  Environmental monitoring  Security  Water metering  Industrial monitoring o Machinery condition and performance monitoring o Monitoring of plant system parameters such as temperature, pressure, flow, tank level, humidity, vibration, etc.  Automated meter reading (AMR) 1.2 Abbreviations and Acronyms ADC Analog-to-Digital Converter API Application Programming Interface DC Direct Current DTR Data Terminal Ready EEPROM Electrically Erasable Programmable Read-Only Memory ESD Electrostatic Discharge GPIO General Purpose Input/Output HAF High Frequency HVAC Heating, Ventilating, and Air Conditioning Notes: 1. External antenna must be selected from a list of approved antennae.
ATZB-S1-256-3-0-U ZigBit 2.4GHz Single chip Wireless Module [DATASHEET] 42199AWIRELESS10/2013 4 HW Hardware I2C Inter-Integrated Circuit IEEE Institute of Electrical and Electronics Engineers IRQ Interrupt Request ISM Industrial, Scientific and Medical radio band JTAG Digital interface for debugging of embedded device, also known as IEEE 1149.1 standard interface MAC Medium Access Control layer MCU Microcontroller Unit. In this document it also means the processor, which is the core of a ZigBit module NRE Network layer OEM Original Equipment Manufacturer OTA Over-The-Air upgrade PA Power Amplifier PCB Printed Circuit Board PER Package Error Ratio RAM Random Access Memory RF Radio Frequency RTS/CTS Request to Send/ Clear to Send RX Receiver SMA Surface Mount Assembly SoC System on Chip SPI Serial Peripheral Interface SW Software TTM Time-To-Market TX Transmitter UART Universal Asynchronous Receiver/Transmitter USART Universal Synchronous/Asynchronous Receiver/Transmitter USB Universal Serial Bus ZigBee, ZigBee PRO Wireless networking standards targeted at low-power applications 802.15.4 The IEEE 802.15.4-2003 standard applicable to low-rate wireless Personal Area Network 1.3 Related Documents [1] ATmegaAllRFR2 8-bit AVR Microcontroller with 2.4GHz Transceiver for ZigBee and IEEE 802.15.4 [2] IEEE Std 802.15.4-2003 IEEE Standard for Information technology - Part 15.4 Wireless Medium Access Control (MAC) and Physical Layer (PHY) Specifications for Low-Rate Wireless Personal Area Networks (LR-WPANs) [3] ZigBee Specification. ZigBee Document 053474r17, October 19, 2007
ATZB-S1-256-3-0-U ZigBit 2.4GHz Single chip Wireless Module [DATASHEET] 42199AWIRELESS10/2013 5 2. ZigBit Module Overview 2.1 Overview The ATZB-S1-256-3-0-U ZigBit is an ultra compact, low-power, high sensitivity IEEE 802.15.4/ZigBee OEM module. Based on a solid combination of the latest Atmel MCU Wireless hardware platform, 2.4GHz ISM band transceiver and Atmel Studio Wireless Composer - the ZigBit offers an unmatched combination of superior radio performance, ultra-low power consumption and exceptional ease of integration. Figure 2-1. ATZB-S1-256-3-0-U Block Diagram. This ZigBit module contains the Atmel ATmega256RFR2 Microcontroller and a 2.4GHz ISM band Transceiver for ZigBee and IEEE 802.15.4 [1]. The module features 256KB In-System Self-Programmable flash memory, 32KB SRAM and 8KB EEPROM. The compact all-in-one integration of MCU and Radio Transceiver inside the chip along with very minimal components on the RF path to Antenna dramatically improves the ZigBit's compact size, range performance on signal transmission and increases its sensitivity. This ensures stable connectivity within a larger coverage area, and helps develop applications on smaller footprint. ZigBit Module contains a complete RF/MCU design with all the necessary passive components included. The module can be easily mounted on a simple 2-layer PCB with a minimum of required external connection. The ZigBit Module Evaluation kit containing the ZigBit Extension board for the Atmel Xplained PRO HW Evaluation platform can be used to develop FW using the Atmel Studio and evaluate using the Wireless Composer. Compared to a custom RF/MCU solution, a module-based solution offers considerable savings in development time and NRE cost per unit during the HW/FW design, prototyping, and mass production phases of product development. All ZigBits are preloaded with a Bootloader when they are sold as Modules, either in Single units or T&R. Depending on end-user design requirements, the ZigBit can operate as a self-contained sensor node, where it would function as a single MCU, or it can be paired with a host processor driving the module over a serial interface.

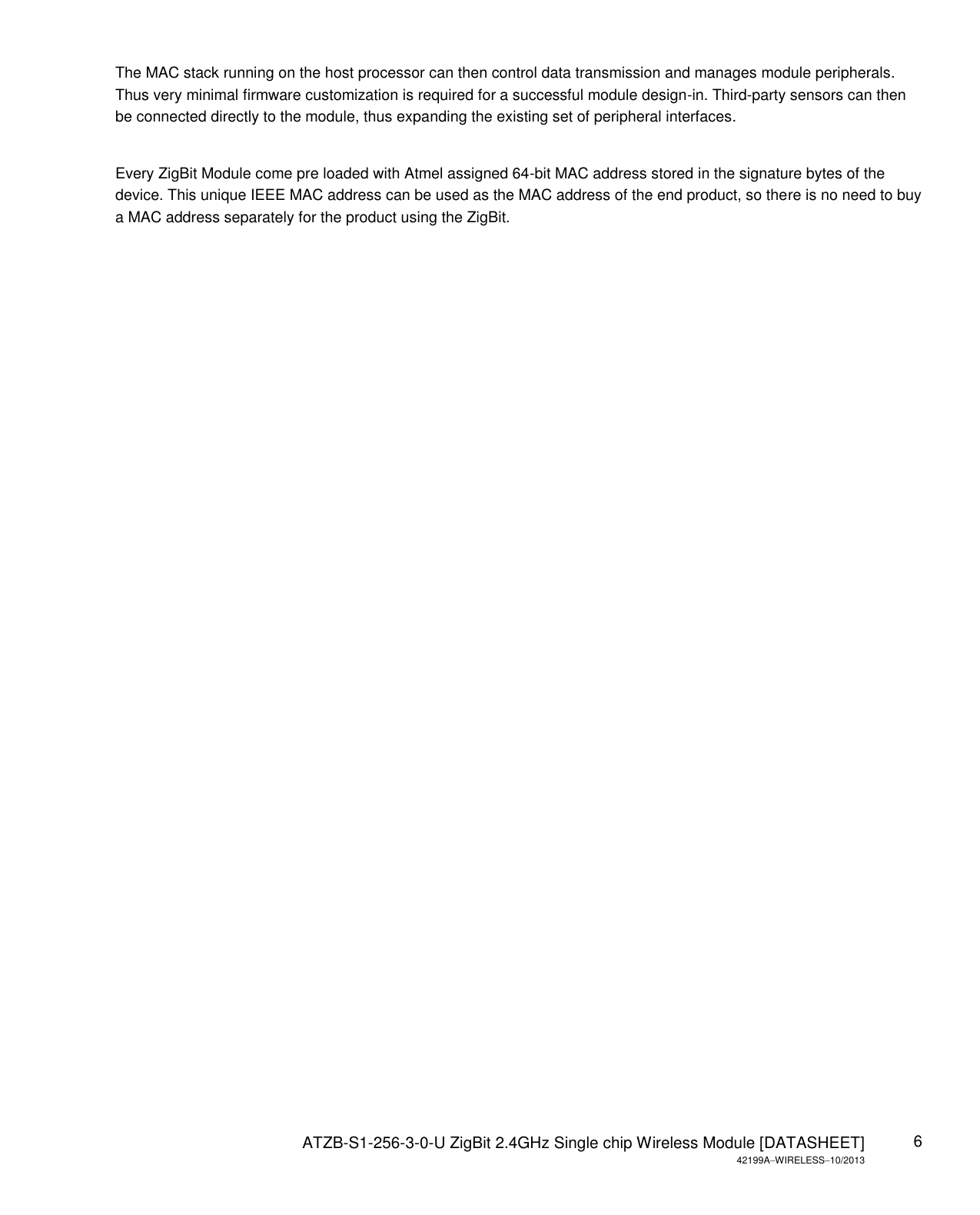

ATZB-S1-256-3-0-U ZigBit 2.4GHz Single chip Wireless Module [DATASHEET] 42199AWIRELESS10/2013 6 The MAC stack running on the host processor can then control data transmission and manages module peripherals. Thus very minimal firmware customization is required for a successful module design-in. Third-party sensors can then be connected directly to the module, thus expanding the existing set of peripheral interfaces. Every ZigBit Module come pre loaded with Atmel assigned 64-bit MAC address stored in the signature bytes of the device. This unique IEEE MAC address can be used as the MAC address of the end product, so there is no need to buy a MAC address separately for the product using the ZigBit.

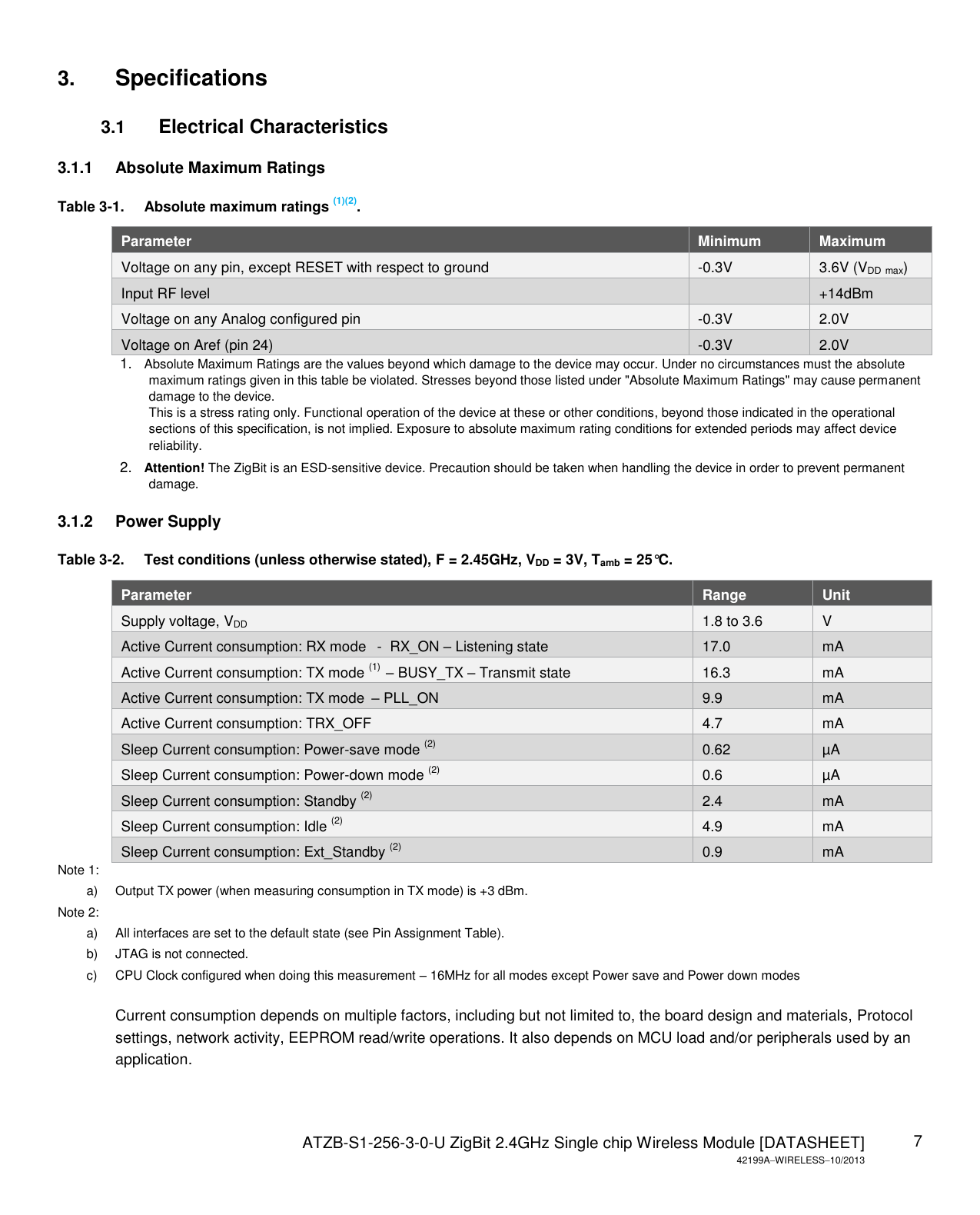

ATZB-S1-256-3-0-U ZigBit 2.4GHz Single chip Wireless Module [DATASHEET] 42199AWIRELESS10/2013 7 3. Specifications 3.1 Electrical Characteristics 3.1.1 Absolute Maximum Ratings Table 3-1. Absolute maximum ratings (1)(2). Parameter Minimum Maximum Voltage on any pin, except RESET with respect to ground -0.3V 3.6V (VDD max) Input RF level +14dBm Voltage on any Analog configured pin -0.3V 2.0V Voltage on Aref (pin 24) -0.3V 2.0V 1. Absolute Maximum Ratings are the values beyond which damage to the device may occur. Under no circumstances must the absolute maximum ratings given in this table be violated. Stresses beyond those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. This is a stress rating only. Functional operation of the device at these or other conditions, beyond those indicated in the operational sections of this specification, is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. 2. Attention! The ZigBit is an ESD-sensitive device. Precaution should be taken when handling the device in order to prevent permanent damage. 3.1.2 Power Supply Table 3-2. Test conditions (unless otherwise stated), F = 2.45GHz, VDD = 3V, Tamb = 25°C. Parameter Range Unit Supply voltage, VDD 1.8 to 3.6 V Active Current consumption: RX mode - RX_ON – Listening state 17.0 mA Active Current consumption: TX mode (1) – BUSY_TX – Transmit state 16.3 mA Active Current consumption: TX mode – PLL_ON 9.9 mA Active Current consumption: TRX_OFF 4.7 mA Sleep Current consumption: Power-save mode (2) 0.62 µA Sleep Current consumption: Power-down mode (2) 0.6 µA Sleep Current consumption: Standby (2) 2.4 mA Sleep Current consumption: Idle (2) 4.9 mA Sleep Current consumption: Ext_Standby (2) 0.9 mA Note 1: a) Output TX power (when measuring consumption in TX mode) is +3 dBm. Note 2: a) All interfaces are set to the default state (see Pin Assignment Table). b) JTAG is not connected. c) CPU Clock configured when doing this measurement – 16MHz for all modes except Power save and Power down modes Current consumption depends on multiple factors, including but not limited to, the board design and materials, Protocol settings, network activity, EEPROM read/write operations. It also depends on MCU load and/or peripherals used by an application.
ATZB-S1-256-3-0-U ZigBit 2.4GHz Single chip Wireless Module [DATASHEET] 42199AWIRELESS10/2013 8 3.2 RF Characteristics Table 3-3. RF characteristics. Parameter Condition Range Unit Frequency band 2.4000 to 2.4835 GHz Numbers of channels 16 Channel spacing 5 MHz Transmitter output power Adjusted in 16 steps -16.5 to +3.5 dBm Receiver sensitivity PER = 1% -97 dBm On-air data rate 250, upto 2000 kbps TX output/ RX input nominal impedance Unbalanced 50 Ω Table 3-4. TX power settings PHY_TX_PWR 3:0 Register value Power register setting [dBm] Typical Output power [dBm] (at RF connector) 0 +3.5 +3.79 1 +3.3 +3.40 2 +2.8 +3.41 3 +2.3 +2.43 4 +1.8 +2.41 5 +1.2 +1.21 6 +0.5 +0.58 7 -0.5 -0.11 8 -1.5 -1.02 9 -2.5 -1.97 10 -3.5 -3.12 11 -4.5 -4.48 12 -6.5 -6.28 13 -8.5 -8.52 14 -11.5 -11.64 15 -16.5 -16.26 3.2.2 Microcontroller Characteristics Table 3-5. ATmega256RFR2 characteristics. Parameters Condition Range Unit On-chip flah memory size 256K Bytes On-chip SRAM size 32K Bytes On-chip EEPROM size 8K Bytes Maximum Operation frequency 16 MHz

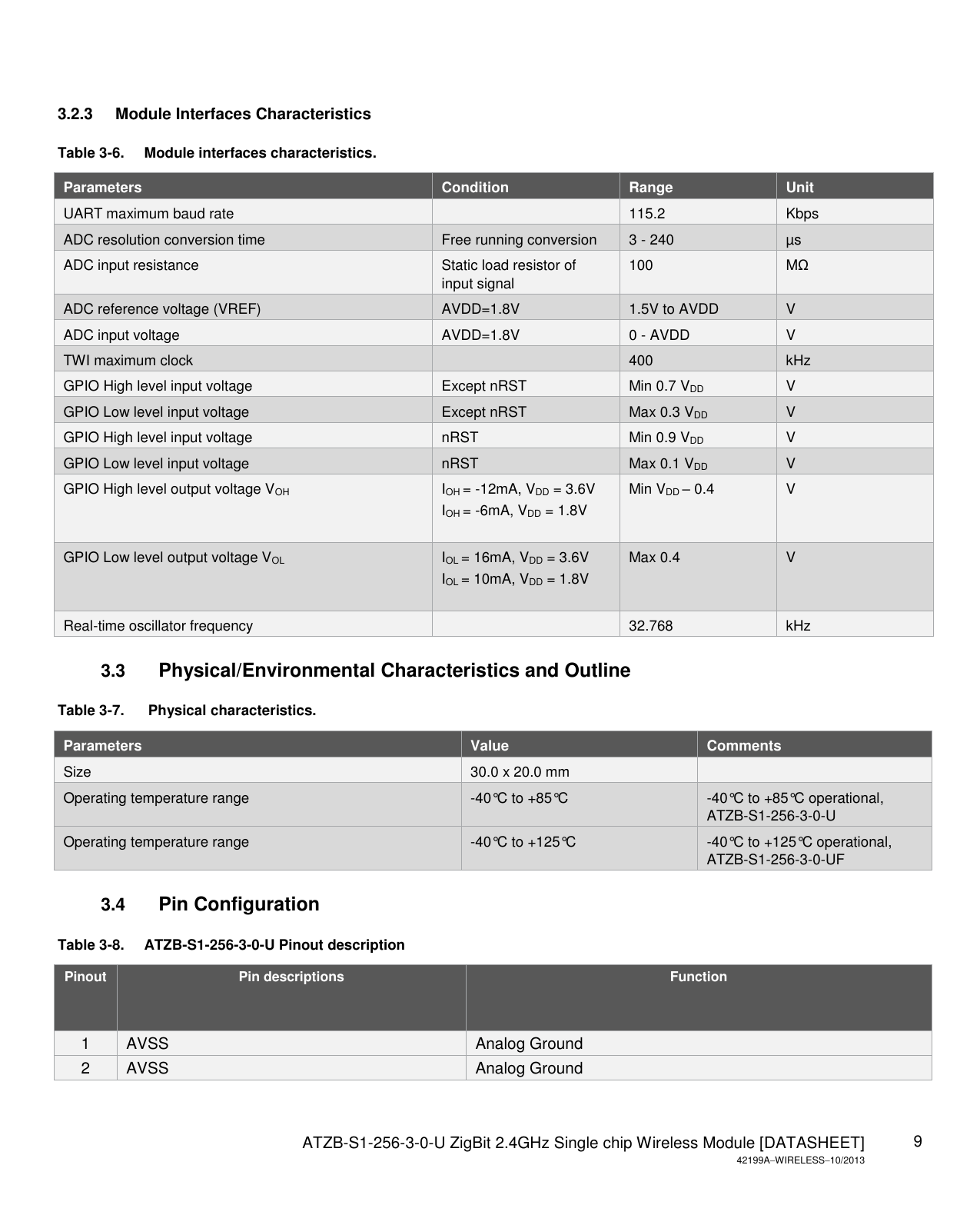

ATZB-S1-256-3-0-U ZigBit 2.4GHz Single chip Wireless Module [DATASHEET] 42199AWIRELESS10/2013 9 3.2.3 Module Interfaces Characteristics Table 3-6. Module interfaces characteristics. Parameters Condition Range Unit UART maximum baud rate 115.2 Kbps ADC resolution conversion time Free running conversion 3 - 240 µs ADC input resistance Static load resistor of input signal 100 MΩ ADC reference voltage (VREF) AVDD=1.8V 1.5V to AVDD V ADC input voltage AVDD=1.8V 0 - AVDD V TWI maximum clock 400 kHz GPIO High level input voltage Except nRST Min 0.7 VDD V GPIO Low level input voltage Except nRST Max 0.3 VDD V GPIO High level input voltage nRST Min 0.9 VDD V GPIO Low level input voltage nRST Max 0.1 VDD V GPIO High level output voltage VOH IOH = -12mA, VDD = 3.6V IOH = -6mA, VDD = 1.8V Min VDD – 0.4 V GPIO Low level output voltage VOL IOL = 16mA, VDD = 3.6V IOL = 10mA, VDD = 1.8V Max 0.4 V Real-time oscillator frequency 32.768 kHz 3.3 Physical/Environmental Characteristics and Outline Table 3-7. Physical characteristics. Parameters Value Comments Size 30.0 x 20.0 mm Operating temperature range -40°C to +85°C -40°C to +85°C operational, ATZB-S1-256-3-0-U Operating temperature range -40°C to +125°C -40°C to +125°C operational, ATZB-S1-256-3-0-UF 3.4 Pin Configuration Table 3-8. ATZB-S1-256-3-0-U Pinout description Pinout Pin descriptions Function 1 AVSS Analog Ground 2 AVSS Analog Ground

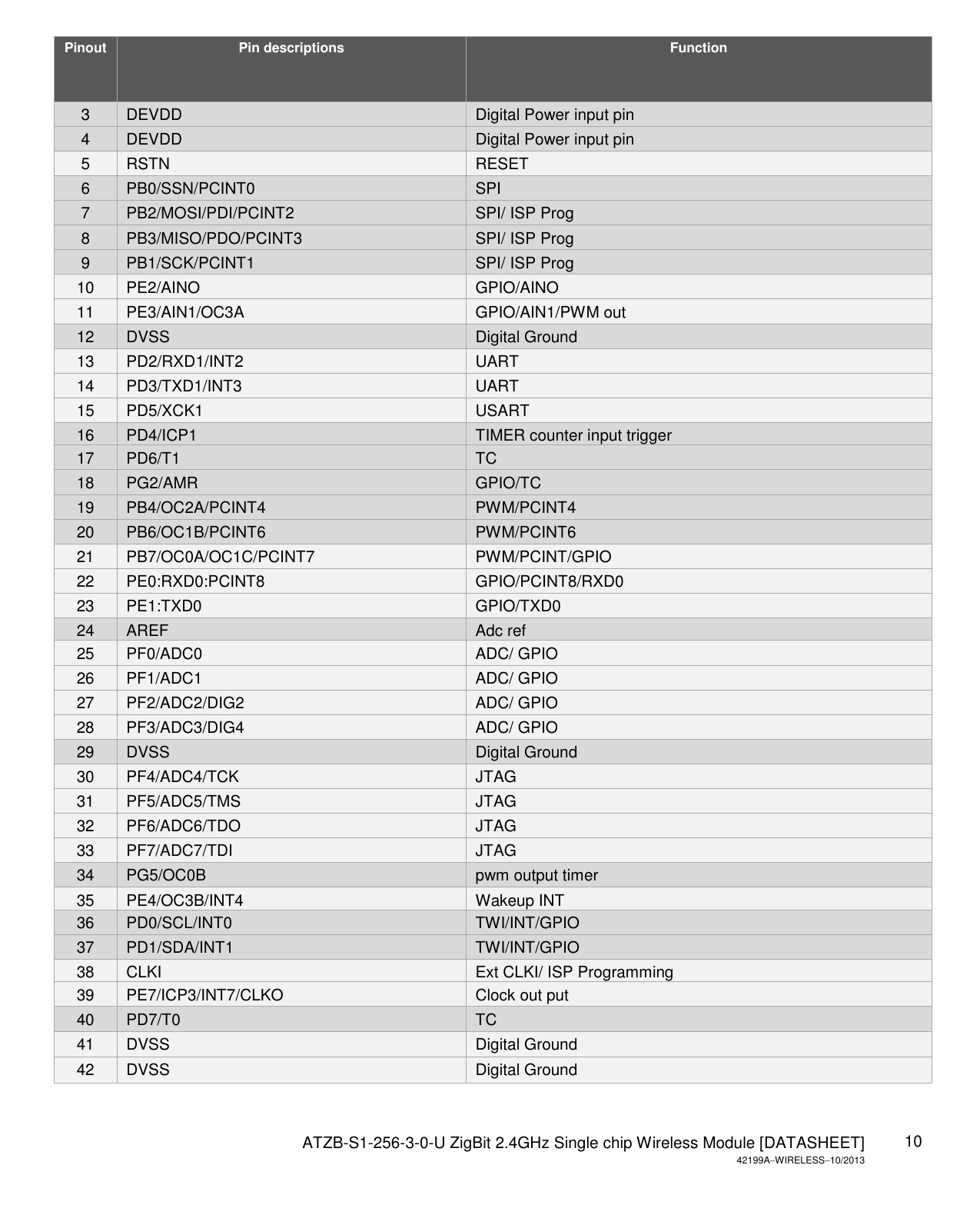

ATZB-S1-256-3-0-U ZigBit 2.4GHz Single chip Wireless Module [DATASHEET] 42199AWIRELESS10/2013 10 Pinout Pin descriptions Function 3 DEVDD Digital Power input pin 4 DEVDD Digital Power input pin 5 RSTN RESET 6 PB0/SSN/PCINT0 SPI 7 PB2/MOSI/PDI/PCINT2 SPI/ ISP Prog 8 PB3/MISO/PDO/PCINT3 SPI/ ISP Prog 9 PB1/SCK/PCINT1 SPI/ ISP Prog 10 PE2/AINO GPIO/AINO 11 PE3/AIN1/OC3A GPIO/AIN1/PWM out 12 DVSS Digital Ground 13 PD2/RXD1/INT2 UART 14 PD3/TXD1/INT3 UART 15 PD5/XCK1 USART 16 PD4/ICP1 TIMER counter input trigger 17 PD6/T1 TC 18 PG2/AMR GPIO/TC 19 PB4/OC2A/PCINT4 PWM/PCINT4 20 PB6/OC1B/PCINT6 PWM/PCINT6 21 PB7/OC0A/OC1C/PCINT7 PWM/PCINT/GPIO 22 PE0:RXD0:PCINT8 GPIO/PCINT8/RXD0 23 PE1:TXD0 GPIO/TXD0 24 AREF Adc ref 25 PF0/ADC0 ADC/ GPIO 26 PF1/ADC1 ADC/ GPIO 27 PF2/ADC2/DIG2 ADC/ GPIO 28 PF3/ADC3/DIG4 ADC/ GPIO 29 DVSS Digital Ground 30 PF4/ADC4/TCK JTAG 31 PF5/ADC5/TMS JTAG 32 PF6/ADC6/TDO JTAG 33 PF7/ADC7/TDI JTAG 34 PG5/OC0B pwm output timer 35 PE4/OC3B/INT4 Wakeup INT 36 PD0/SCL/INT0 TWI/INT/GPIO 37 PD1/SDA/INT1 TWI/INT/GPIO 38 CLKI Ext CLKI/ ISP Programming 39 PE7/ICP3/INT7/CLKO Clock out put 40 PD7/T0 TC 41 DVSS Digital Ground 42 DVSS Digital Ground

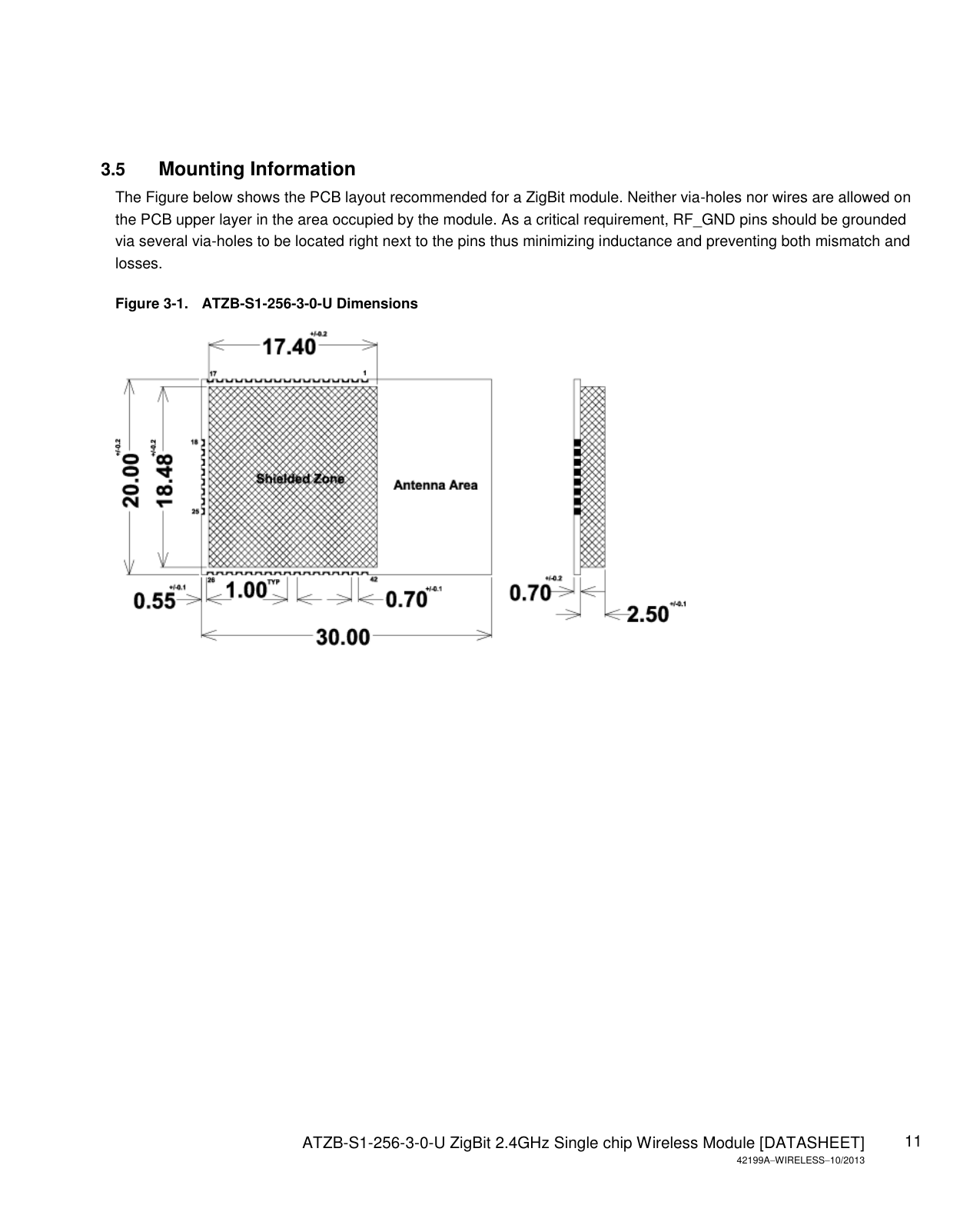

ATZB-S1-256-3-0-U ZigBit 2.4GHz Single chip Wireless Module [DATASHEET] 42199AWIRELESS10/2013 11 3.5 Mounting Information The Figure below shows the PCB layout recommended for a ZigBit module. Neither via-holes nor wires are allowed on the PCB upper layer in the area occupied by the module. As a critical requirement, RF_GND pins should be grounded via several via-holes to be located right next to the pins thus minimizing inductance and preventing both mismatch and losses. Figure 3-1. ATZB-S1-256-3-0-U Dimensions
ATZB-S1-256-3-0-U ZigBit 2.4GHz Single chip Wireless Module [DATASHEET] 42199AWIRELESS10/2013 12 Figure 3-2. ATZB-S1-256-3-0-U Pinout Figure 3-3. ATZB-S1-256-3-0-U Foot Print Dimensions 3.6 List of Approved Antennas The ATZB-S1-256-3-0-U Module has been tested and approved by Certification body to use any of the antenna listed below or similar antenna with lesser gain

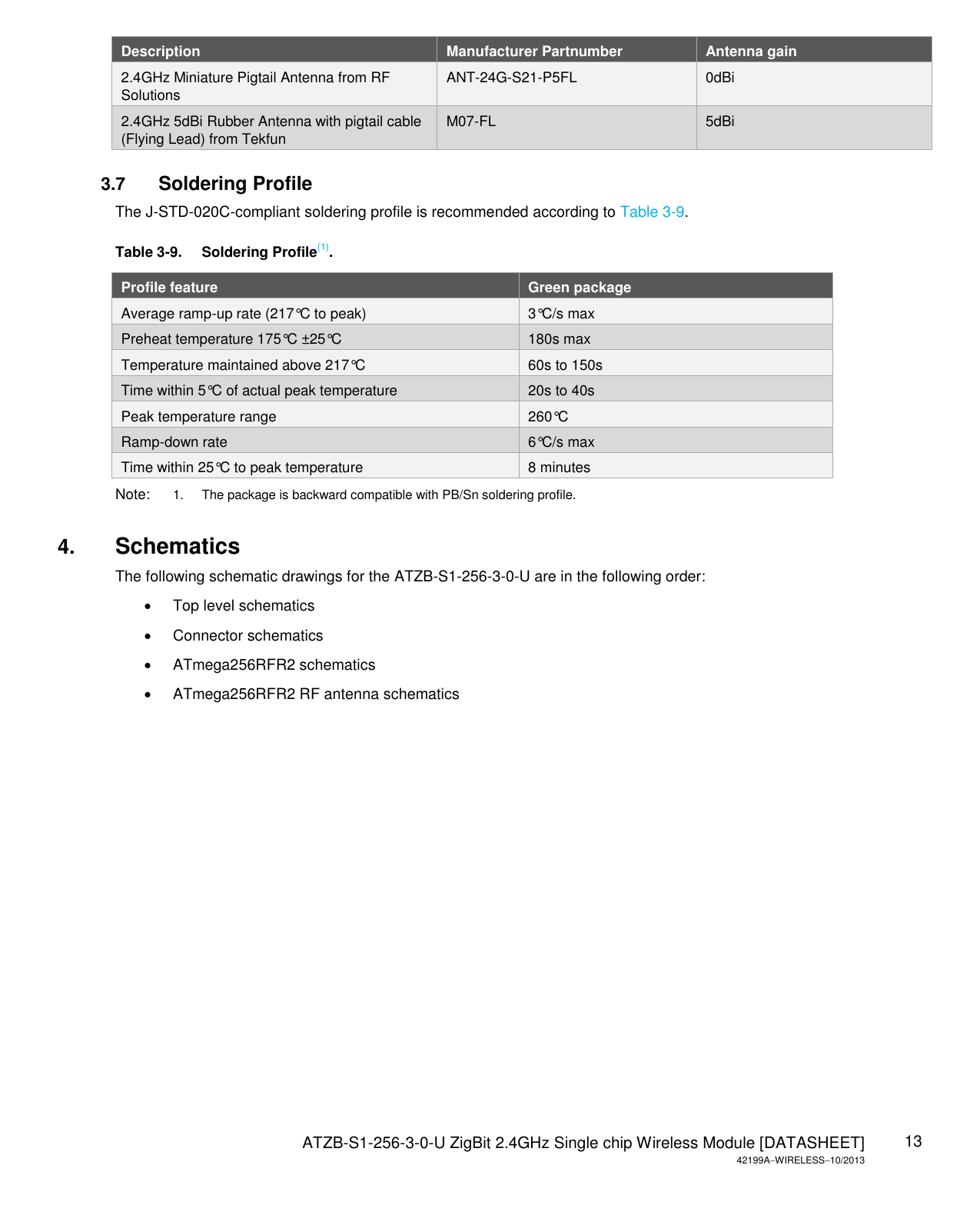

ATZB-S1-256-3-0-U ZigBit 2.4GHz Single chip Wireless Module [DATASHEET] 42199AWIRELESS10/2013 13 Description Manufacturer Partnumber Antenna gain 2.4GHz Miniature Pigtail Antenna from RF Solutions ANT-24G-S21-P5FL 0dBi 2.4GHz 5dBi Rubber Antenna with pigtail cable (Flying Lead) from Tekfun M07-FL 5dBi 3.7 Soldering Profile The J-STD-020C-compliant soldering profile is recommended according to Table 3-9. Table 3-9. Soldering Profile(1). Profile feature Green package Average ramp-up rate (217°C to peak) 3°C/s max Preheat temperature 175°C ±25°C 180s max Temperature maintained above 217°C 60s to 150s Time within 5°C of actual peak temperature 20s to 40s Peak temperature range 260°C Ramp-down rate 6°C/s max Time within 25°C to peak temperature 8 minutes Note: 1. The package is backward compatible with PB/Sn soldering profile. 4. Schematics The following schematic drawings for the ATZB-S1-256-3-0-U are in the following order:  Top level schematics  Connector schematics  ATmega256RFR2 schematics  ATmega256RFR2 RF antenna schematics

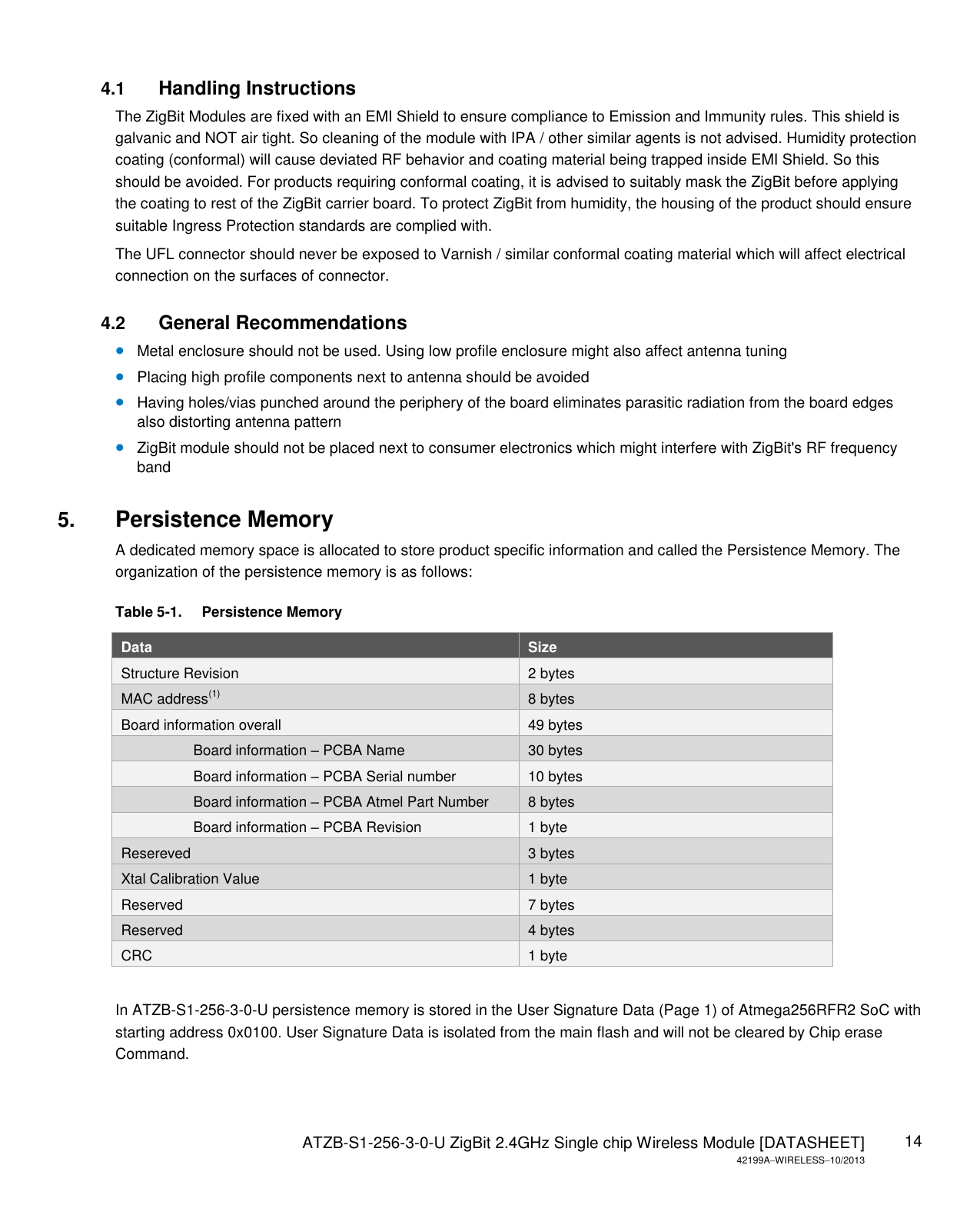

ATZB-S1-256-3-0-U ZigBit 2.4GHz Single chip Wireless Module [DATASHEET] 42199AWIRELESS10/2013 14 4.1 Handling Instructions The ZigBit Modules are fixed with an EMI Shield to ensure compliance to Emission and Immunity rules. This shield is galvanic and NOT air tight. So cleaning of the module with IPA / other similar agents is not advised. Humidity protection coating (conformal) will cause deviated RF behavior and coating material being trapped inside EMI Shield. So this should be avoided. For products requiring conformal coating, it is advised to suitably mask the ZigBit before applying the coating to rest of the ZigBit carrier board. To protect ZigBit from humidity, the housing of the product should ensure suitable Ingress Protection standards are complied with. The UFL connector should never be exposed to Varnish / similar conformal coating material which will affect electrical connection on the surfaces of connector. 4.2 General Recommendations  Metal enclosure should not be used. Using low profile enclosure might also affect antenna tuning  Placing high profile components next to antenna should be avoided  Having holes/vias punched around the periphery of the board eliminates parasitic radiation from the board edges also distorting antenna pattern  ZigBit module should not be placed next to consumer electronics which might interfere with ZigBit's RF frequency band 5. Persistence Memory A dedicated memory space is allocated to store product specific information and called the Persistence Memory. The organization of the persistence memory is as follows: Table 5-1. Persistence Memory Data Size Structure Revision 2 bytes MAC address(1) 8 bytes Board information overall 49 bytes Board information – PCBA Name 30 bytes Board information – PCBA Serial number 10 bytes Board information – PCBA Atmel Part Number 8 bytes Board information – PCBA Revision 1 byte Resereved 3 bytes Xtal Calibration Value 1 byte Reserved 7 bytes Reserved 4 bytes CRC 1 byte In ATZB-S1-256-3-0-U persistence memory is stored in the User Signature Data (Page 1) of Atmega256RFR2 SoC with starting address 0x0100. User Signature Data is isolated from the main flash and will not be cleared by Chip erase Command.

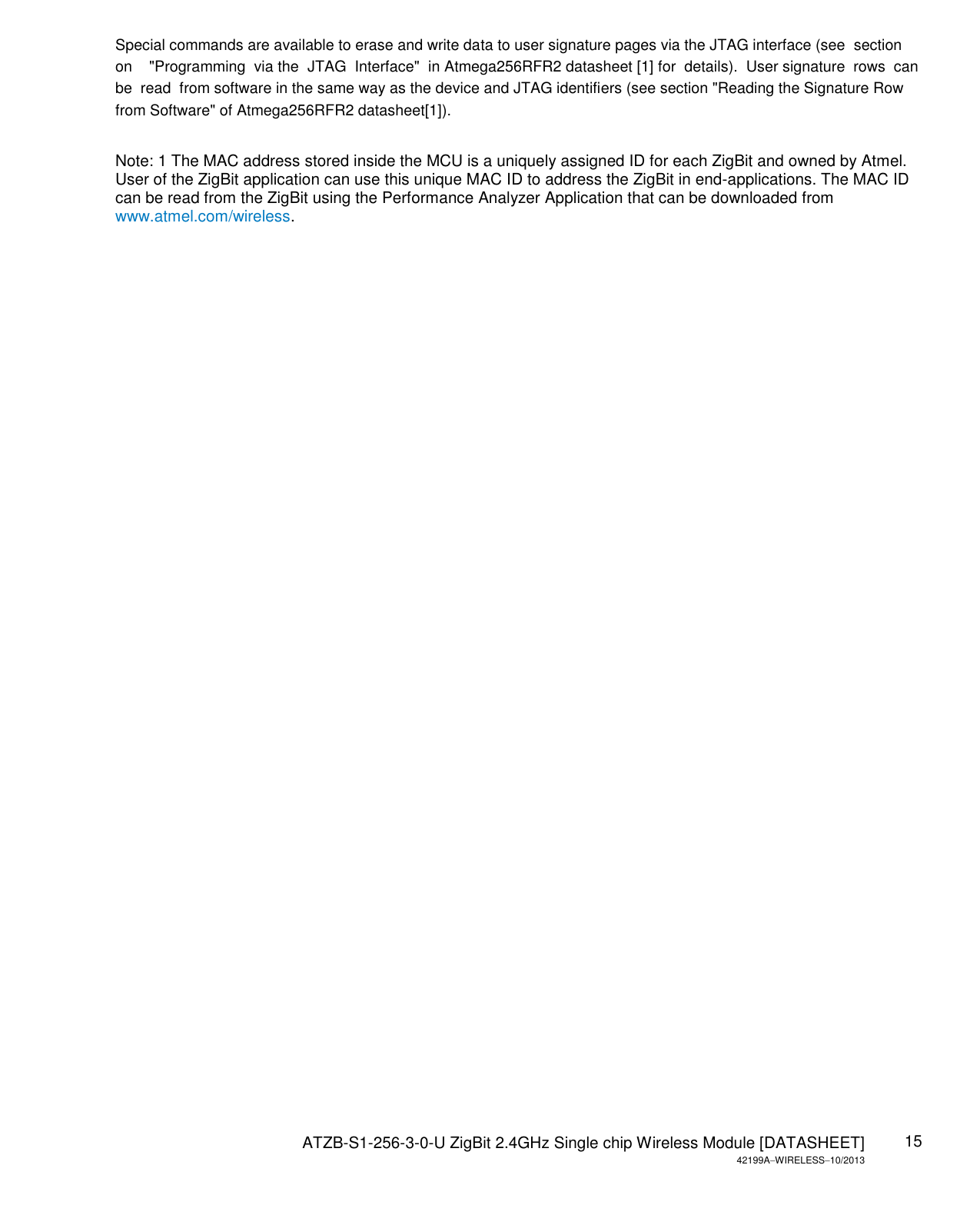

ATZB-S1-256-3-0-U ZigBit 2.4GHz Single chip Wireless Module [DATASHEET] 42199AWIRELESS10/2013 15 Special commands are available to erase and write data to user signature pages via the JTAG interface (see section on "Programming via the JTAG Interface" in Atmega256RFR2 datasheet [1] for details). User signature rows can be read from software in the same way as the device and JTAG identifiers (see section "Reading the Signature Row from Software" of Atmega256RFR2 datasheet[1]). Note: 1 The MAC address stored inside the MCU is a uniquely assigned ID for each ZigBit and owned by Atmel. User of the ZigBit application can use this unique MAC ID to address the ZigBit in end-applications. The MAC ID can be read from the ZigBit using the Performance Analyzer Application that can be downloaded from www.atmel.com/wireless.
ATZB-S1-256-3-0-U ZigBit 2.4GHz Single chip Wireless Module [DATASHEET] 42199AWIRELESS10/2013 16 6. Ordering Information Part number Description ATZB-S1-256-3-0-U 2.4GHz IEEE802.15.4/ZigBee OEM module based on ATmega256RFR2 SoC with UFL Antenna connector, Single unit ATZB-S1-256-3-0-UR 2.4GHz IEEE802.15.4/ZigBee OEM module based on ATmega256RFR2 SoC with UFL Antenna connector, tape and reel ATZB-S1-256-3-0-UF 2.4GHz IEEE802.15.4/ZigBee OEM module based on ATmega256RFR2 SoC with UFL Antenna connector, Single unit, Extended temperature ATZB-S1-256-3-0-UFR 2.4GHz IEEE802.15.4/ZigBee OEM module based on ATmega256RFR2 SoC with UFL Antenna connector, tape and reel, Extended temperature Note: Tape and reel quantity: 200.

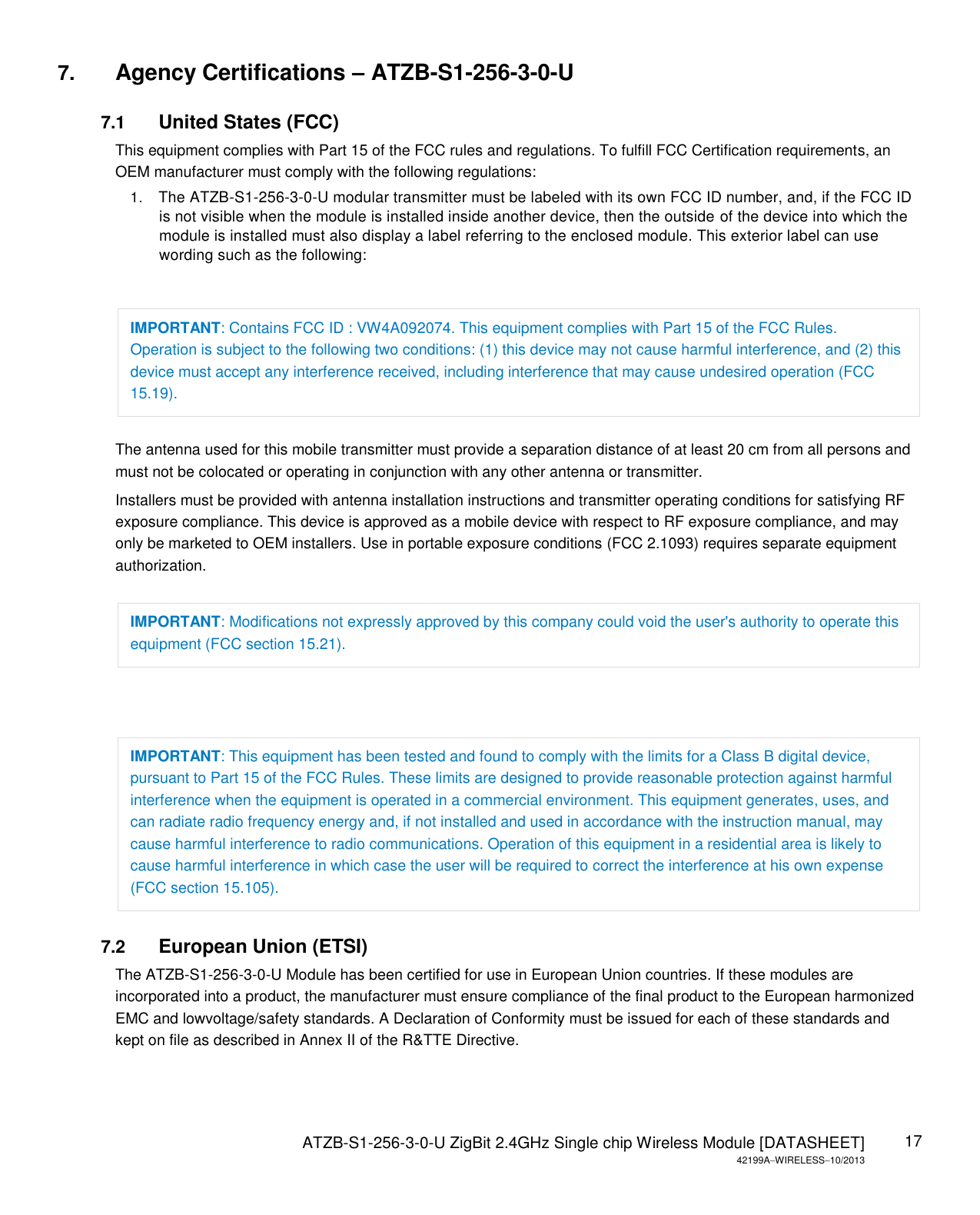

ATZB-S1-256-3-0-U ZigBit 2.4GHz Single chip Wireless Module [DATASHEET] 42199AWIRELESS10/2013 17 7. Agency Certifications – ATZB-S1-256-3-0-U 7.1 United States (FCC) This equipment complies with Part 15 of the FCC rules and regulations. To fulfill FCC Certification requirements, an OEM manufacturer must comply with the following regulations: 1. The ATZB-S1-256-3-0-U modular transmitter must be labeled with its own FCC ID number, and, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: IMPORTANT: Contains FCC ID : VW4A092074. This equipment complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation (FCC 15.19). The antenna used for this mobile transmitter must provide a separation distance of at least 20 cm from all persons and must not be colocated or operating in conjunction with any other antenna or transmitter. Installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device is approved as a mobile device with respect to RF exposure compliance, and may only be marketed to OEM installers. Use in portable exposure conditions (FCC 2.1093) requires separate equipment authorization. IMPORTANT: Modifications not expressly approved by this company could void the user's authority to operate this equipment (FCC section 15.21). IMPORTANT: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense (FCC section 15.105). 7.2 European Union (ETSI) The ATZB-S1-256-3-0-U Module has been certified for use in European Union countries. If these modules are incorporated into a product, the manufacturer must ensure compliance of the final product to the European harmonized EMC and lowvoltage/safety standards. A Declaration of Conformity must be issued for each of these standards and kept on file as described in Annex II of the R&TTE Directive.
ATZB-S1-256-3-0-U ZigBit 2.4GHz Single chip Wireless Module [DATASHEET] 42199AWIRELESS10/2013 18 Furthermore, the manufacturer must maintain a copy of the modules' documentation and ensure the final product does not exceed the specified power ratings, antenna specifications, and/or installation requirements as specified in the user manual. If any of these specifications are exceeded in the final product, a submission must be made to a notified body for compliance testing to all required standards. IMPORTANT: The 'CE' marking must be affixed to a visible location on the OEM product. The CE mark shall consist of the initials "CE" taking the following form: The CE marking must have a height of at least 5mm except where this is not possible on account of the nature of the apparatus. The CE marking must be affixed visibly, legibly, and indelibly. More detailed information about CE marking requirements you can find at "DIRECTIVE 1999/5/EC OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL" on 9 March 1999 at section 12. 7.3 Industry Canada (IC) Compliance statements This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. This equipment complies with radio frequency exposure limits set forth by Industry Canada for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20 cm between the device and the user or bystanders. Cet équipement est conforme aux limites d'exposition aux radiofréquences définies par Industrie Canada pour un environnement non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 20 cm de distance entre le dispositif et l'utilisateur ou des tiers CAUTION: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. The OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed (for example, digital device emissions, PC peripheral requirements, etc.). This Module is labelled with its own IC ID. If the IC ID Certification Number is not visible while installed inside another device, then the device should display the label on it referring the enclosed module. In that case, the final end product must be labelled in a visible area with the following: “Contains Transmitter Module IC:11019A-092074” OR “Contains IC: 11019A-092074” Ce module est étiqueté avec son propre ID IC. Si le numéro de certification IC ID n'est pas visible lorsqu'il est installé à l'intérieur d'un autre appareil, l'appareil doit afficher l'étiquette sur le module de référence ci-joint. Dans ce cas, le produit final doit être étiqueté dans un endroit visible par le texte suivant: “Contains Transmitter Module IC: 11019A-092074” OR “Contains IC: 11019A-092074”

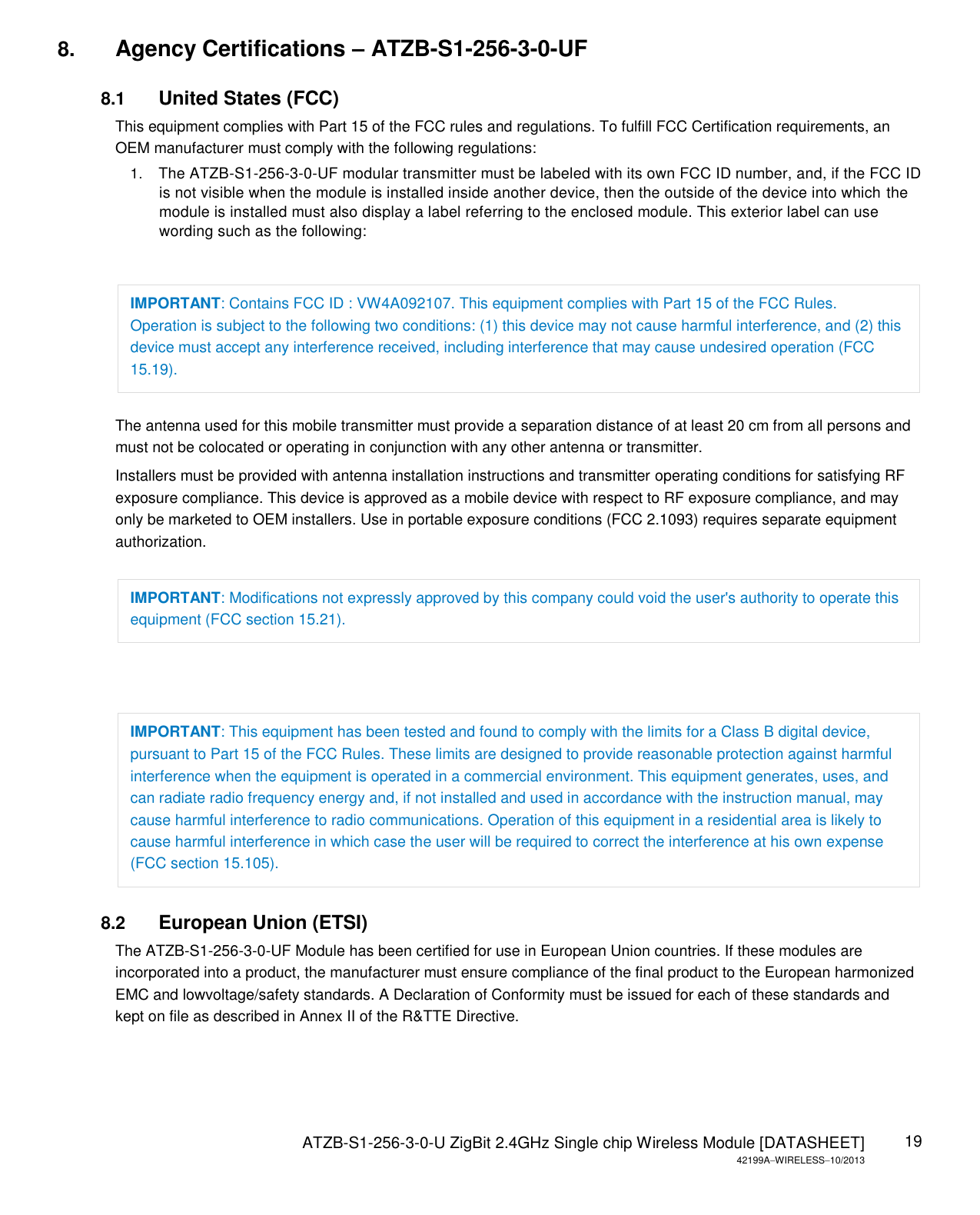

ATZB-S1-256-3-0-U ZigBit 2.4GHz Single chip Wireless Module [DATASHEET] 42199AWIRELESS10/2013 19 8. Agency Certifications – ATZB-S1-256-3-0-UF 8.1 United States (FCC) This equipment complies with Part 15 of the FCC rules and regulations. To fulfill FCC Certification requirements, an OEM manufacturer must comply with the following regulations: 1. The ATZB-S1-256-3-0-UF modular transmitter must be labeled with its own FCC ID number, and, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: IMPORTANT: Contains FCC ID : VW4A092107. This equipment complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation (FCC 15.19). The antenna used for this mobile transmitter must provide a separation distance of at least 20 cm from all persons and must not be colocated or operating in conjunction with any other antenna or transmitter. Installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device is approved as a mobile device with respect to RF exposure compliance, and may only be marketed to OEM installers. Use in portable exposure conditions (FCC 2.1093) requires separate equipment authorization. IMPORTANT: Modifications not expressly approved by this company could void the user's authority to operate this equipment (FCC section 15.21). IMPORTANT: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense (FCC section 15.105). 8.2 European Union (ETSI) The ATZB-S1-256-3-0-UF Module has been certified for use in European Union countries. If these modules are incorporated into a product, the manufacturer must ensure compliance of the final product to the European harmonized EMC and lowvoltage/safety standards. A Declaration of Conformity must be issued for each of these standards and kept on file as described in Annex II of the R&TTE Directive.

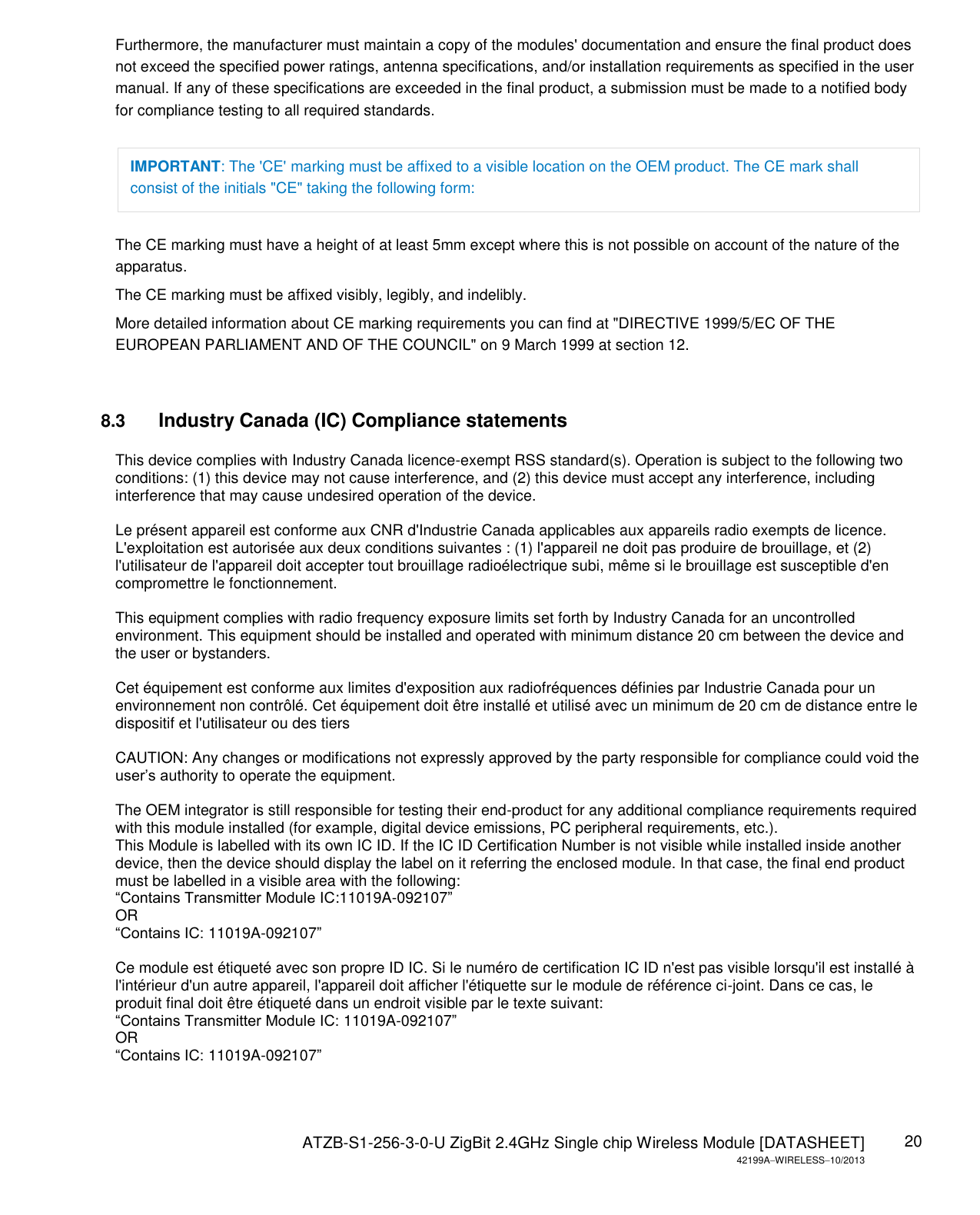

ATZB-S1-256-3-0-U ZigBit 2.4GHz Single chip Wireless Module [DATASHEET] 42199AWIRELESS10/2013 20 Furthermore, the manufacturer must maintain a copy of the modules' documentation and ensure the final product does not exceed the specified power ratings, antenna specifications, and/or installation requirements as specified in the user manual. If any of these specifications are exceeded in the final product, a submission must be made to a notified body for compliance testing to all required standards. IMPORTANT: The 'CE' marking must be affixed to a visible location on the OEM product. The CE mark shall consist of the initials "CE" taking the following form: The CE marking must have a height of at least 5mm except where this is not possible on account of the nature of the apparatus. The CE marking must be affixed visibly, legibly, and indelibly. More detailed information about CE marking requirements you can find at "DIRECTIVE 1999/5/EC OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL" on 9 March 1999 at section 12. 8.3 Industry Canada (IC) Compliance statements This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. This equipment complies with radio frequency exposure limits set forth by Industry Canada for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20 cm between the device and the user or bystanders. Cet équipement est conforme aux limites d'exposition aux radiofréquences définies par Industrie Canada pour un environnement non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 20 cm de distance entre le dispositif et l'utilisateur ou des tiers CAUTION: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. The OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed (for example, digital device emissions, PC peripheral requirements, etc.). This Module is labelled with its own IC ID. If the IC ID Certification Number is not visible while installed inside another device, then the device should display the label on it referring the enclosed module. In that case, the final end product must be labelled in a visible area with the following: “Contains Transmitter Module IC:11019A-092107” OR “Contains IC: 11019A-092107” Ce module est étiqueté avec son propre ID IC. Si le numéro de certification IC ID n'est pas visible lorsqu'il est installé à l'intérieur d'un autre appareil, l'appareil doit afficher l'étiquette sur le module de référence ci-joint. Dans ce cas, le produit final doit être étiqueté dans un endroit visible par le texte suivant: “Contains Transmitter Module IC: 11019A-092107” OR “Contains IC: 11019A-092107”
ATZB-S1-256-3-0-U ZigBit 2.4GHz Single chip Wireless Module [DATASHEET] 42199AWIRELESS10/2013 21 9. Revision History Doc. Rev. Date Comments 42199A 10/2013 Initial revision. 02/2014 Removed footnote for Table 3-8 Updated Title Updated Table 3-7 Updated Section 6 Ordering information Added Section 8 Agency Certication – ATZB-S1-256-3-0-UF
Atmel Corporation 1600 Technology Drive San Jose, CA 95110 USA Tel: (+1)(408) 441-0311 Fax: (+1)(408) 487-2600 www.atmel.com Atmel Asia Limited Unit 01-5 & 16, 19F BEA Tower, Millennium City 5 418 Kwun Tong Road Kwun Tong, Kowloon HONG KONG Tel: (+852) 2245-6100 Fax: (+852) 2722-1369 Atmel Munich GmbH Business Campus Parkring 4 D-85748 Garching b. Munich GERMANY Tel: (+49) 89-31970-0 Fax: (+49) 89-3194621 Atmel Japan G.K. 16F Shin-Osaki Kangyo Building 1-6-4 Osaki Shinagawa-ku, Tokyo 141-0032 JAPAN Tel: (+81)(3) 6417-0300 Fax: (+81)(3) 6417-0370 © 2013 Atmel Corporation. All rights reserved. / Rev.: 42199AWIRELESS10/2013 Atmel®, Atmel logo and combinations thereof, Enabling Unlimited Possibilities®, AVR®, ZigBit®, and others are registered trademarks or trademarks of Atmel Corporation or its subsidiaries. Other terms and product names may be trademarks of others. Disclaimer: The information in this document is provided in connection with Atmel products. No license, express or implied, by estoppel or otherwise, to any intellectual property right is granted by this document or in connection with the sale of Atmel products. EXCEPT AS SET FORTH IN THE ATMEL TERMS AND CONDITIONS OF SALES LOCATED ON THE ATMEL WEBSITE, ATMEL ASSUMES NO LIABILITY WHATSOEVER AND DISCLAIMS ANY EXPRESS, IMPLIED OR STATUTORY WARRANTY RELATING TO ITS PRODUCTS INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, OR NON-INFRINGEMENT. IN NO EVENT SHALL ATMEL BE LIABLE FOR ANY DIRECT, INDIRECT, CONSEQUENTIAL, PUNITIVE, SPECIAL OR INCIDENTAL DAMAGES (INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS AND PROFITS, BUSINESS INTERRUPTION, OR LOSS OF INFORMATION) ARISING OUT OF THE USE OR INABILITY TO USE THIS DOCUMENT, EVEN IF ATMEL HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Atmel makes no representations or warranties with respect to the accuracy or completeness of the contents of this document and reserves the right to make changes to specifications and products descriptions at any time without notice. Atmel does not make any commitment to update the information contained herein. Unless specifically provided otherwise, Atmel products are not suitable for, and shall not be used in, automotive applications. Atmel products are not intended, authorized, or warranted for use as components in applications intended to support or sustain life.
