ZIGBIT 900MHZ WIRELESS MODULES
ATZB-RF-212B-0-U
DATASHEET
Features
Compact size (30.0 x 20.0mm)
MCU less Tranceiver module with SPI interface
High RX sensitivity (-103dBm)
Outperforming link budget (up to +112dB)
Up to +9.0dBm output power
Very low power consumption:
8.7mA in RX mode (1)
27mA in TX mode (1)
0.7µA in sleep mode (2)
Internal Clock Output
Preassigned Atmel® MAC address that can be used on end product
Capability to use MAC address into the internal EEPROM
IEEE® 802.15.4 compliant Transceiver
900MHz ISM band
Serial bootloader
U.FL Antenna Connector to select approved antennae upto 2dBi
Small physical footprint and low profile for optimum fit in very small application
boards
Mesh networking capability
Easy-to-use low cost development kit
Single source of support for HW and SW
Worldwide license-free operation
Note: 1. RX RPC enabled (for RX current), PHY_TX_PWR=0x0 (for TX current).
2.Controller Sleep Mode: SLEEP_MODE_PWR_DOWN
ATZB-RF-212B-0-U [ZigBit 900MHz Wireless Modules]
42270AWIRELESS03/2014
2
Table of Contents
1. Introduction ........................................................................................ 3
1.1 Summary ........................................................................................................... 3
1.2 Applications ....................................................................................................... 3
1.3 Abbreviations and acronyms ............................................................................. 4
1.4 Related documents ........................................................................................... 5
2. ZigBit Module Overview ..................................................................... 6
2.1 Overview ........................................................................................................... 6
3. Specification....................................................................................... 8
3.1 Electrical Characteristics ................................................................................... 8
3.1.1 Absolute Maximum Ratings ................................................................ 8
3.1.2 Power Supply ...................................................................................... 8
3.1.3 RF Characteristics .............................................................................. 9
3.2 Physical/environmental characteristics and outline ......................................... 10
3.3 Pin Configuration ............................................................................................. 10
3.4 Mounting information ....................................................................................... 10
3.5 List of Approved Antennae .............................................................................. 12
3.6 Soldering profile .............................................................................................. 13
4. Schematics ...................................................................................... 13
4.1 Handling Instructions ....................................................................................... 14
4.2 General recommendations .............................................................................. 14
5. Persistence Memory ........................................................................ 14
6. Ordering Information ........................................................................ 16
Ordering information .................................................................................................. 16
7. Agency Certifications ....................................................................... 17
7.1 United States (FCC) ........................................................................................ 17
7.2 European Union (ETSI) ................................................................................... 18
7.3 Industry Canada (IC) Compliance statements ................................................ 18
Appendix A. Revision history ........................................................... 20
ATZB-RF-212B-0-U [ZigBit 900MHz Wireless Modules]
42270AWIRELESS03/2014
3
1. Introduction
1.1 Summary
ATZB-RF-212B-0-U ZigBit® is an ultra-compact and low-power 900MHz IEEE 802.15.4/ZigBee® OEM module from
Atmel. Based on the innovative mixed-signal hardware platform from Atmel, this module uses the AT86RF212B [3]
700/800/900MHz ISM band Transceiver alone on a very compact module design that provides the customer to integrate
the module to any of the recommended Atmel Microcontrollers that the application fits. The radio transceiver provides
high data rates from 20kb/s up to 1Mb/s, frame handling, outstanding receiver sensitivity and high transmit output power
enabling a very robust wireless communication. The module is designed for wireless sensing, monitoring, control, data
acquisition applications, to name a few. This ZigBit module eliminates the need for costly and time-consuming RF
development, and shortens time-to-market for wireless applications.
The module has a U.FL RF connector that can be used to connect any of the approved antennae1 – cable assembly.
This gives freedom for applications to choose the right type of external antenna that can be mounted on an end product.
1.2 Applications
The ZigBit module is compatible with robust IEEE 802.15.4/ZigBee stack that supports a self-healing, self-organizing
mesh network, while optimizing network traffic and minimizing power consumption.
For detailed Software support information, please visit http://www.atmel.com/products/wireless.
The applications include, but are not limited to:
Building automation & monitoring
o Lighting controls
o Wireless smoke- and CO-detectors
o Structural integrity monitoring
HVAC monitoring & control
Inventory management
Environmental monitoring
Security
Water metering
Industrial monitoring
o Machinery condition and performance monitoring
o Monitoring of plant system parameters such as temperature, pressure, flow, tank level, humidity, vibration, etc.
Automated meter reading (AMR)
Notes: 1. External antenna must be selected from a list of approved antennae.
ATZB-RF-212B-0-U [ZigBit 900MHz Wireless Modules]
42270AWIRELESS03/2014
4
1.3 Abbreviations and acronyms
ADC Analog-to-Digital Converter
API Application Programming Interface
DC Direct Current
DTR Data Terminal Ready
EEPROM Electrically Erasable Programmable Read-Only Memory
ESD Electrostatic Discharge
GPIO General Purpose Input/Output
HAF High Frequency
HVAC Heating, Ventilating, and Air Conditioning
HW Hardware
I2C Inter-Integrated Circuit
IEEE Institute of Electrical and Electronics Engineers
IRQ Interrupt Request
ISM Industrial, Scientific and Medical radio band
JTAG Digital interface for debugging of embedded device, also known as IEEE 1149.1 standard
interface
MAC Medium Access Control layer
MCU Microcontroller Unit. In this document it also means the processor, which is the core of a ZigBit
module
NRE Network layer
OEM Original Equipment Manufacturer
OTA Over-The-Air upgrade
PA Power Amplifier
PCB Printed Circuit Board
PER Package Error Ratio
RAM Random Access Memory
RF Radio Frequency
RPC Reduced Power Consumption
RTS/CTS Request to Send/ Clear to Send
RX Receiver
SMA Surface Mount Assembly
SoC System on Chip
SPI Serial Peripheral Interface
SW Software
TTM Time-To-Market
TX Transmitter
ATZB-RF-212B-0-U [ZigBit 900MHz Wireless Modules]
42270AWIRELESS03/2014
5
UART Universal Asynchronous Receiver/Transmitter
USART Universal Synchronous/Asynchronous Receiver/Transmitter
USB Universal Serial Bus
ZigBee, ZigBee PRO Wireless networking standards targeted at low-power applications
802.15.4 The IEEE 802.15.4-2003 standard applicable to low-rate wireless Personal Area Network
1.4 Related documents
[1] IEEE Std 802.15.4-2003 IEEE Standard for Information technology - Part 15.4 Wireless Medium Access Control
(MAC) and Physical Layer (PHY) Specifications for Low-Rate Wireless Personal Area Networks (LR-WPANs)
[2] ZigBee Specification. ZigBee Document 053474r17, October 19, 2007
[3] AT86RF212B Datasheet in http://www.atmel.com/devices/AT86RF212B.aspx?tab=documents
[4] AT24MAC602 Datasheet in http://www.atmel.com/devices/AT24MAC602.aspx
ATZB-RF-212B-0-U [ZigBit 900MHz Wireless Modules]
42270AWIRELESS03/2014
6
2. ZigBit Module Overview
2.1 Overview
The ATZB-RF-212B-0-U ZigBit is a compact, low-power, high sensitivity IEEE 802.15.4/ZigBee OEM module. Based on
a solid combination of the latest Atmel MCU Wireless hardware platform, 900MHz ISM band transceiver and Atmel
Studio Wireless Composer - the ZigBit offers an unmatched combination of superior radio performance, ultra-low power
consumption and exceptional ease of integration.

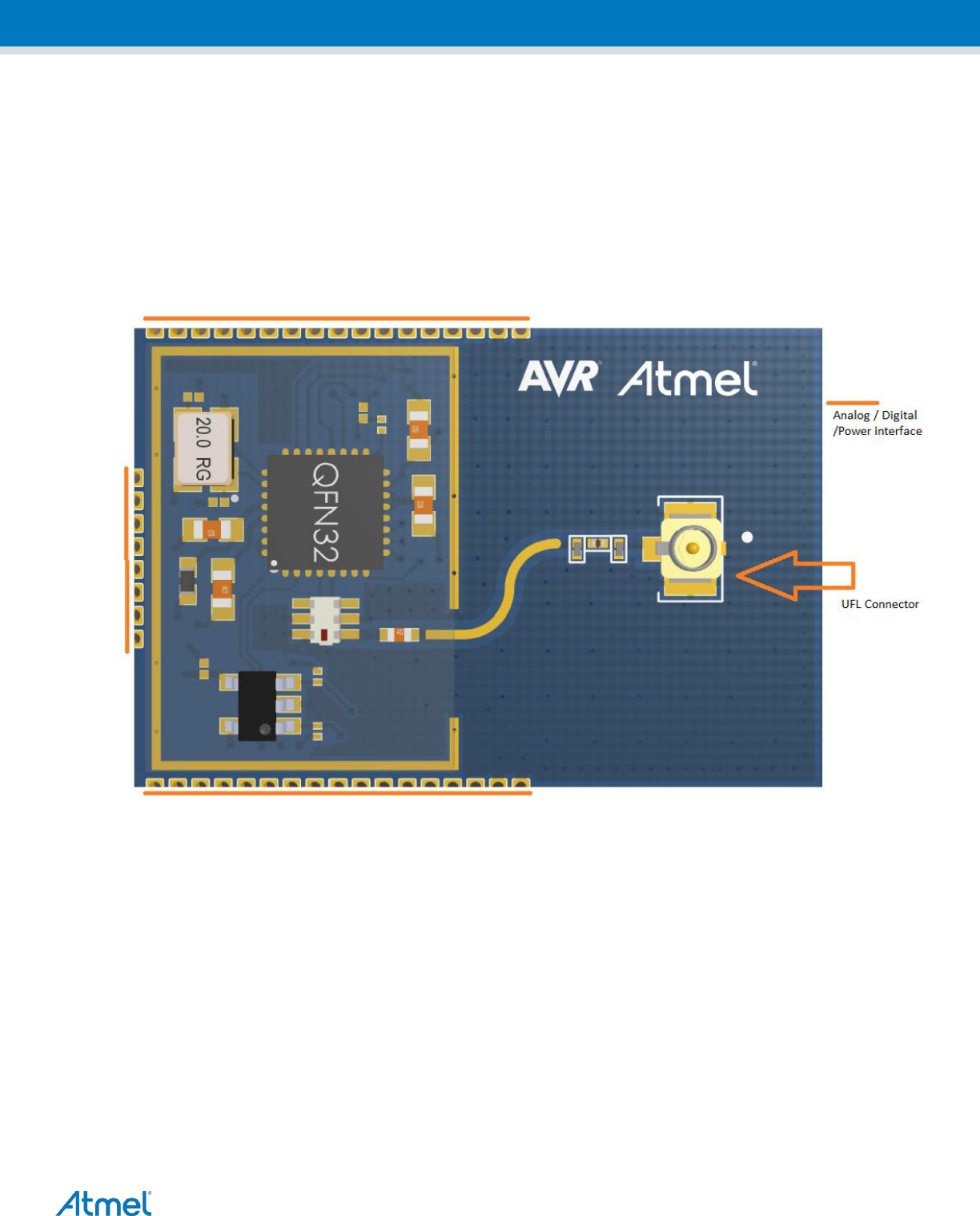

Figure 2-1. ATZB-RF-212B-0-U user interface diagram
This ZigBit module contains Atmel’s AT86RF212B 900MHz ISM band Transceiver for ZigBee and IEEE 802.15.4 [1].
The compact all-in-one board design of Radio Transceiver with very minimal components on the RF path to Antenna
connector dramatically improves the ZigBit’s compact size, range performance on signal transmission and increases its
sensitivity. This ensures stable connectivity within a larger coverage area, and helps develop applications on smaller
footprint.
ZigBit Module contains a complete RF design with all the necessary passive components included. The module can be
easily mounted on a simple 2-layer PCB with a minimum of required external connection. The ZigBit Module Evaluation
kit containing the ZigBit Extension board for the Atmel Xplained PRO HW Evaluation platform can be used to develop
FW using the Atmel Studio and evaluate using the Wireless Composer. Compared to a custom RF/MCU solution, a
module-based solution offers considerable savings in development time and NRE cost per unit during the HW/FW
design, prototyping, and mass production phases of product development.
ATZB-RF-212B-0-U [ZigBit 900MHz Wireless Modules]
42270AWIRELESS03/2014
7
Depending on end-user design requirements, the ZigBit can operate as a sensor node, where it can be paired with a
host processor driving the module over a serial interface.
The MAC stack running on the host processor can then control data transmission. Thus very minimal firmware
customization is required for successful module design-in. Third-party sensors can then be connected directly to the
host MCU.
Every ZigBit Module come pre loaded with Atmel assigned 64-bit MAC address stored in the EEPROM built-in the
module. This unique IEEE MAC address can be used as the MAC address of the end product, so there is no need to
buy a MAC address separately for the product using the ZigBit.
ATZB-RF-212B-0-U [ZigBit 900MHz Wireless Modules]
42270AWIRELESS03/2014
8
3. Specification
3.1 Electrical Characteristics
3.1.1 Absolute Maximum Ratings
Table 3-1. Absolute Maximum Ratings (1)(2)
Parameter
Minimum
Maximum
Voltage on any pin, except RESET with respect to ground
-0.3V
3.6V (VDD max)
Input RF level
+10dBm
Current into Vcc pins
200mA
Notes: 1. Absolute Maximum Ratings are the values beyond which damage to the device may occur. Under no circumstances must the absolute
maximum ratings given in this table be violated. Stresses beyond those listed under "Absolute Maximum Ratings" may cause permanent
damage to the device.
This is a stress rating only. Functional operation of the device at these or other conditions, beyond those indicated in the operational
sections of this specification, is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device
reliability.
2. Attention! ZigBit is an ESD-sensitive device. Precaution should be taken when handling the device in order to prevent permanent
damage.
3.1.2 Power Supply
Table 3-2. Test Conditions (unless otherwise stated), Vcc = 3V, Tamb = 25°C.
Parameter
Range
Unit
Supply voltage, VDD
1.8 to 3.6
V
Current consumption: RX mode
9.3
mA
Current consumption: TX mode, PLL ON
5
mA
Current consumption: TX mode (1) – BUSY_TX – Transmit state
26.9
mA
Current consumption: TRX_OFF
617
µA
Sleep Current consumption: TRX Sleep
0.7
µA
Note 1: Output TX power (when measuring consumption in TX mode) is +9 dBm.
Current consumption depends on multiple factors, including but not limited to, the board design and materials. When this module
is assembled on a base board, the MCU current also should be considered in estimating Active and Sleep currents of the
product
ATZB-RF-212B-0-U [ZigBit 900MHz Wireless Modules]
42270AWIRELESS03/2014
9
3.1.3 RF Characteristics
Table 3-3. RF Characteristics (1).
Parameter
Condition
Range
Unit
Frequency band – FCC and Industry Canada(2)
902 – 928
MHz
Numbers of channels (FCC and Industry
Canada)
10
Channel spacing (FCC and Insutry Canada)
2
MHz
Frequency band – ETSI (European Union)(2)
863 – 870
MHz
Number of channels (European Union)
1
Transmitter output power
Adjusted in 35 steps
-25 to +10
dBm
Receiver sensitivity
PER = 1%
-103
dBm
On-air data rate
20, upto 1000
Kbps
TX output/ RX input nominal impedance
For balanced
50
Ω
Table 3-4. TX power settings
PHY_TX_PWR 3:0 Register value
Power register setting
[dBm]
Output power [dBm] (typical values at RF
connector)
C1
10
8.14
80
9
7.43
82
8
5.85
83
7
4.97
84
6
4.1
40
5
3.58
86
4
2.12
00
3
1.4
01
2
0.42
02
1
-0.93
03
0
-2.09
04
-1
-3.16
27
-2
-4.29
91
-6
-7.86
0D
-10
-12.27
15
-18
-19.51
1D
-25
-26.82
Note 1: For detailed characteristics, please refer [4].
Note 2: Appropriate FW (Register selection) must be used for operating this ZigBit in United States, Canada and European Union
ATZB-RF-212B-0-U [ZigBit 900MHz Wireless Modules]
42270AWIRELESS03/2014
10
3.2 Physical/environmental characteristics and outline
Table 3-5. Physical characteristics.
Parameters
Value
Comments
Size
30.0 x 20.0 mm
Operating temperature range
-40°C to +85°C
-40°C to +85°C operational
3.3 Pin Configuration
Table 3-6. ATZB-RF-212B-0-U Pinout description
Pin Out
Pin descriptions
Function
1
AVSS
Analog Ground
2
AVSS
Analog Ground
3
DEVDD
Digital Power input pin
4
DEVDD
Digital Power input pin
5
/RST
RESET active low
6
/SEL
SPI select, active low
7
MOSI
SPI data input
8
MISO
SPI data output
9
SCLK
SPI clock
10
DIG1
Reserved
11
FEM_CSD
Reserved
32
DIG3
RX TX Indication
33
DIG4
RX TX Indication (Inverted)
34
DIG2
Tx- Rx time-stamp
35
SLP_TR
Controls sleep, deep sleep, transmit start, receive
states; active high
36
SCL
TWI- EEPROM
37
SDA
TWI- EEPROM
38
FEM_CPS
Reserved
39
CLKM
Master Clock out put
40
IRQ
Interrupt request signal output
41
DVSS
Digital Ground
42
DVSS
Digital Ground
3.4 Mounting information
The Figure below shows the PCB pinout of a ZigBit module. Neither via-holes nor wires are allowed on the PCB upper
layer in the area occupied by the module. As a critical requirement, RF_GND pins should be grounded via several via-
holes to be located right next to the pins thus minimizing inductance and preventing both mismatch and losses.
ATZB-RF-212B-0-U [ZigBit 900MHz Wireless Modules]
42270AWIRELESS03/2014
11

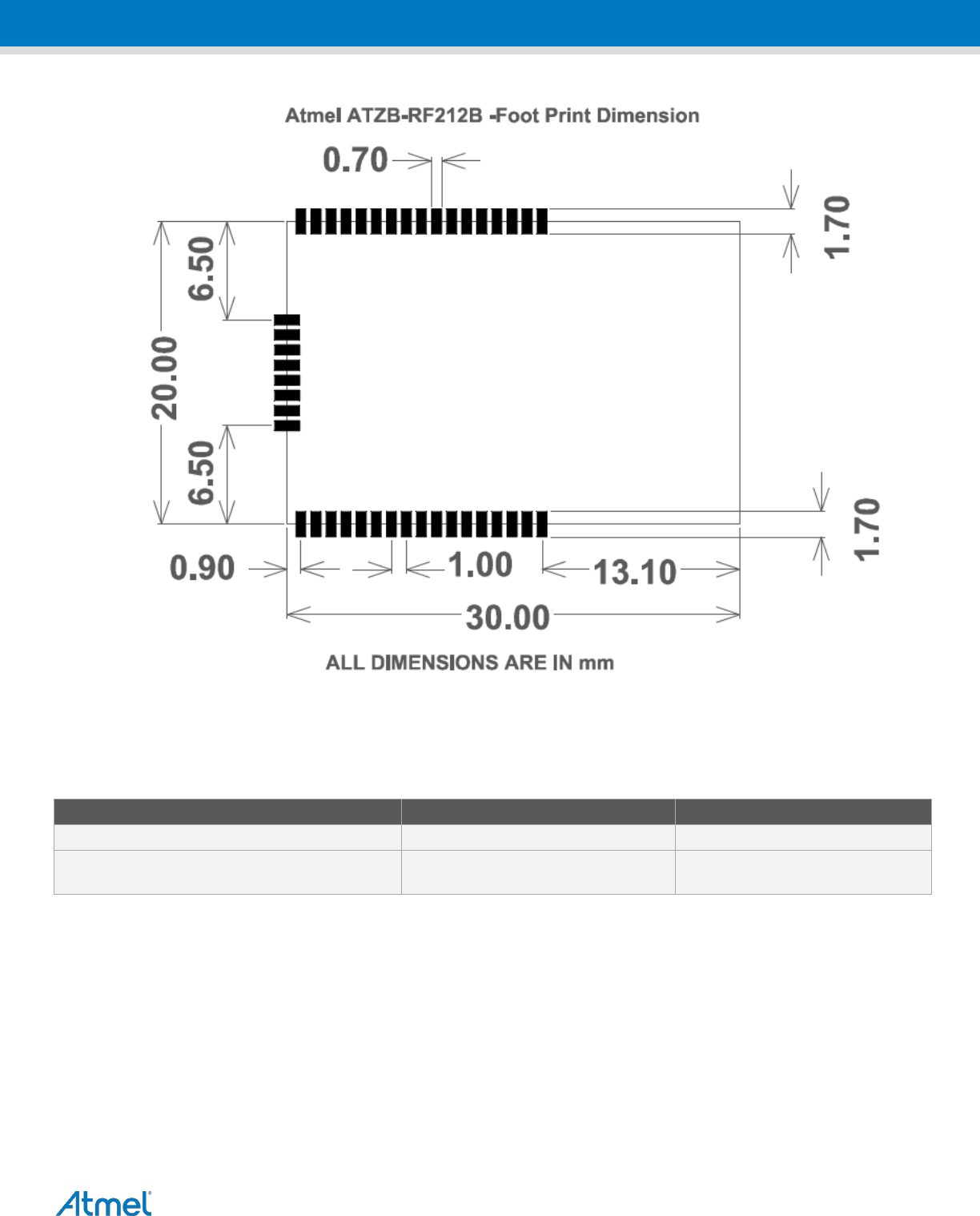

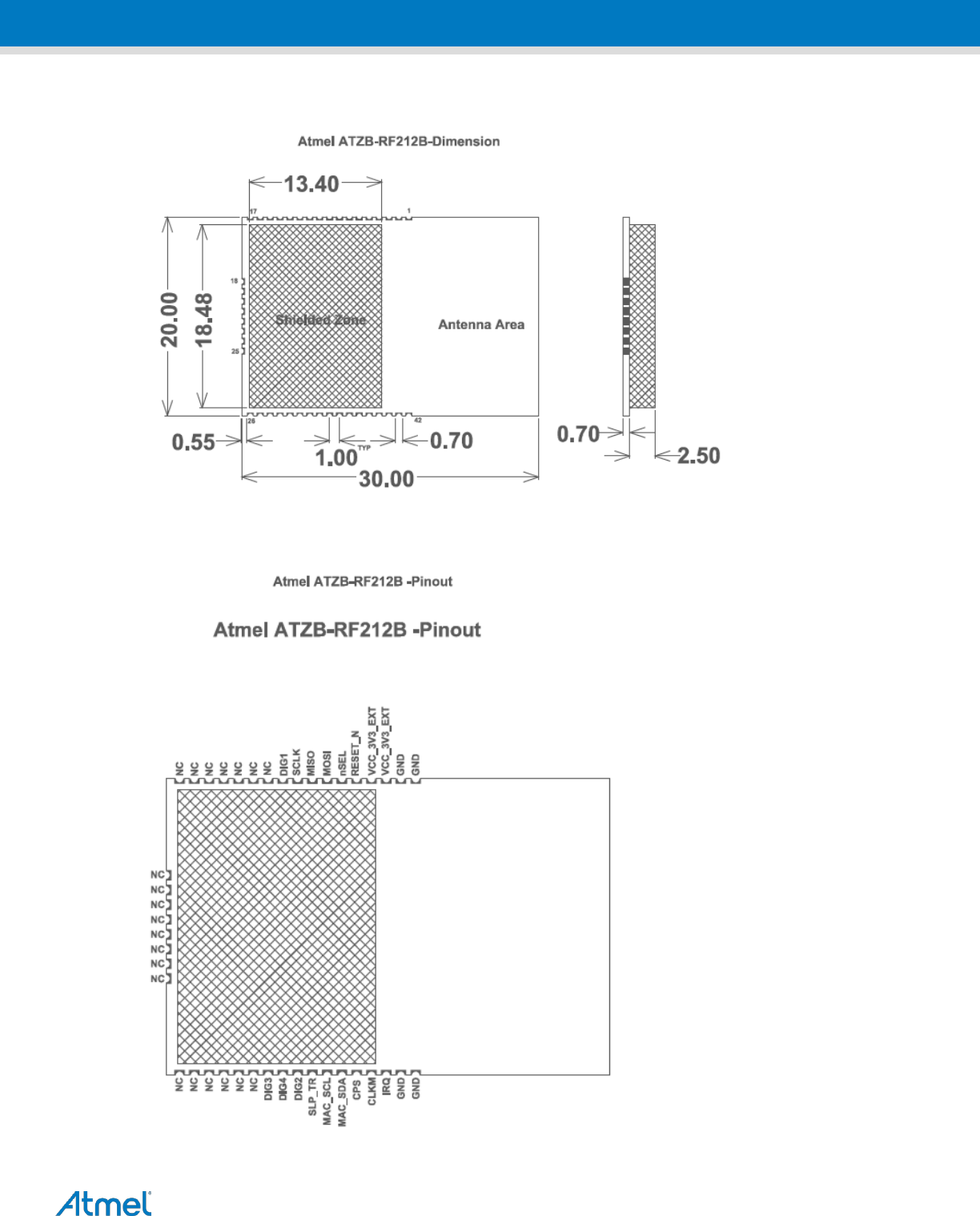

Figure 3-1. ATZB-RF-212B-0-U Dimensions & Pinout
ATZB-RF-212B-0-U [ZigBit 900MHz Wireless Modules]
42270AWIRELESS03/2014
12
3.5 List of Approved Antennae
The ATZB-RF-212B-0-U ZigBit Module has been tested and approved by Certifcation body to use any of the antenna
listed below or similar antenna with lesser gain.
Description
Manufacturer Part number
Antenna gain
UFL-cable integrated with Antenna from Molex
105262-0002
1.3dBi
ANTENNA 900MHZ HG R-SMA BLK 6.6" from
Pulse Electronics Corporation
W1063
3dBi
ATZB-RF-212B-0-U [ZigBit 900MHz Wireless Modules]
42270AWIRELESS03/2014
13
3.6 Soldering profile
The J-STD-020C-compliant soldering profile is recommended according to Table 3-7.
Table 3-7. Soldering profile (1).
Profile feature
Green package
Average ramp-up rate (217°C to peak)
3°C/s max
Preheat temperature 175°C ±25°C
180s max
Temperature maintained above 217°C
60s to 150s
Time within 5°C of actual peak temperature
20s to 40s
Peak temperature range
260°C
Ramp-down rate
6°C/s max
Time within 25°C to peak temperature
8 minutes
Note: 1. The package is backward compatible with PB/Sn soldering profile.
4. Schematics
ATZB-RF-212B-0-U [ZigBit 900MHz Wireless Modules]
42270AWIRELESS03/2014
14
4.1 Handling Instructions
The ZigBit Modules are fixed with an EMI Shield to ensure compliance to Emission and Immunity rules. This shield is
galvanic and NOT air tight. So cleaning of the module with IPA / other similar agents is not advised. Humidity protection
coating (conformal) will cause deviated RF behavior and coating material being trapped inside EMI Shield. So this
should be avoided. For products requiring conformal coating, it is advised to suitably mask the ZigBit before applying
the coating to rest of the ZigBit carrier board. To protect ZigBit from humidity, the housing of the product should ensure
suitable Ingress Protection standards are complied with.
The UFL RF connector should never be exposed to Varnish / similar conformal coating material which will affect
electrical connection on the surfaces of connector.
The in-built chip antenna has been tuned for the particular design
4.2 General recommendations
Metal enclosure should not be used. Using low profile enclosure might also affect antenna tuning
Placing high profile components next to antenna should be avoided
Having holes/vias punched around the periphery of the board eliminates parasitic radiation from the board edges
also distorting antenna pattern
ZigBit module should not be placed next to consumer electronics which might interfere with ZigBit's RF frequency
band
5. Persistence Memory
A dedicated memory space is allocated to store product specific information and called the Persistence Memory. The
organization of the persistence memory is as follows:
Table 5-1. Persistence Memory
Data
Size
Structure Revision
2 bytes
MAC address(1)
8 bytes
Board information overall
49 bytes
Board information – PCBA Name
30 bytes
Board information – PCBA Serial number
10 bytes
Board information – PCBA Atmel Part Number
8 bytes
Board information – PCBA Revision
1 byte
Reserved
3 bytes
Xtal Calibration Value
1 byte
Reserved
7 bytes
Reserved
4 bytes
CRC
1 byte
ATZB-RF-212B-0-U ZigBit contains AT24MAC602 which has a globally unique MAC address that can be assigned as
the physical address of a system hardware device or node. Persistence memory is stored in the first-half of the standard
2-Kbit EEPROM of AT24MAC602 starting from address 0x00.
ATZB-RF-212B-0-U [ZigBit 900MHz Wireless Modules]
42270AWIRELESS03/2014
15
Special commands are available to read the unique 64-bit MAC ID and the persisten memory via the I2C compatible (2-
wire) serial interface (see section “Device Addressing” in AT24MAC602 [4] for details)
Note: 1 The MAC address stored inside the AT24MAC602 is a uniquely assigned ID for each ZigBit and owned by
Atmel. User of the ZigBit application can use this unique MAC ID to address the ZigBit in end-applications. The MAC ID
can be read from the ZigBit using the Performance Analyzer Application that is supplied through Atmel Studio Gallery
Extension.
ATZB-RF-212B-0-U [ZigBit 900MHz Wireless Modules]
42270AWIRELESS03/2014
16
6. Ordering Information
Ordering information
Part number
Description
ATZB-RF-212B-0-U
900 MHz IEEE802.15.4/ZigBee OEM module based on AT86RF212B Transceiver with UFL RF
connector, Single unit
ATZB-RF-212B-0-UR
900 MHz IEEE802.15.4/ZigBee OEM module based on AT86RF212B Transceiver with UFL RF
connector, Tape & Reel
Note: Tape and reel quantity: 200.
ATZB-RF-212B-0-U [ZigBit 900MHz Wireless Modules]
42270AWIRELESS03/2014
17
7. Agency Certifications
7.1 United States (FCC)
This equipment complies with Part 15 of the FCC rules and regulations. To fulfill FCC Certification requirements, an
OEM manufacturer must comply with the following regulations:
1. The ATZB-RF-212B-0-U modular transmitter must be labeled with its own FCC ID number, and, if the FCC ID
is not visible when the module is installed inside another device, then the outside of the device into which the
module is installed must also display a label referring to the enclosed module. This exterior label can use
wording such as the following:
IMPORTANT: Contains FCC ID: VW4A092201. This equipment complies with Part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired operation (FCC 15.19).
The internal antenna used for this mobile transmitter must provide a separation distance of at least 20 cm from all
persons and must not be colocated or operating in conjunction with any other antenna or transmitter.
Installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF
exposure compliance. This device is approved as a mobile device with respect to RF exposure compliance, and may
only be marketed to OEM installers. Use in portable exposure conditions (FCC 2.1093) requires separate equipment
authorization.
IMPORTANT: Modifications not expressly approved by this company could void the user's authority to operate this
equipment (FCC section 15.21).
IMPORTANT: This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may
cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to
cause harmful interference in which case the user will be required to correct the interference at his own expense
(FCC section 15.105).
ATZB-RF-212B-0-U [ZigBit 900MHz Wireless Modules]
42270AWIRELESS03/2014
18
7.2 European Union (ETSI)
The ATZB-X0-256-3-0-U Module has been certified for use in European Union countries. If these modules are
incorporated into a product, the manufacturer must ensure compliance of the final product to the European harmonized
EMC and lowvoltage/safety standards. A Declaration of Conformity must be issued for each of these standards and
kept on file as described in Annex II of the R&TTE Directive.
Furthermore, the manufacturer must maintain a copy of the modules' documentation and ensure the final product does
not exceed the specified power ratings, antenna specifications, and/or installation requirements as specified in the user
manual. If any of these specifications are exceeded in the final product, a submission must be made to a notified body
for compliance testing to all required standards.
IMPORTANT: The 'CE' marking must be affixed to a visible location on the OEM product. The CE mark shall
consist of the initials "CE" taking the following form:
The CE marking must have a height of at least 5mm except where this is not possible on account of the nature of the
apparatus.
The CE marking must be affixed visibly, legibly, and indelibly.
More detailed information about CE marking requirements you can find at "DIRECTIVE 1999/5/EC OF THE
EUROPEAN PARLIAMENT AND OF THE COUNCIL" on 9 March 1999 at section 12.
7.3 Industry Canada (IC) Compliance statements
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two
conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including
interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence.
L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2)
l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en
compromettre le fonctionnement.
This equipment complies with radio frequency exposure limits set forth by Industry Canada for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20 cm between the device and
the user or bystanders.
Cet équipement est conforme aux limites d'exposition aux radiofréquences définies par Industrie Canada pour un
environnement non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 20 cm de distance entre le
dispositif et l'utilisateur ou des tiers
CAUTION: Any changes or modifications not expressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
The OEM integrator is still responsible for testing their end-product for any additional compliance requirements required
with this module installed (for example, digital device emissions, PC peripheral requirements, etc.).
This Module is labelled with its own IC ID. If the IC ID Certification Number is not visible while installed inside another
device, then the device should display the label on it referring the enclosed module. In that case, the final end product
must be labelled in a visible area with the following:
“Contains Transmitter Module IC:11019A-092201”
OR
“Contains IC: 11019A-092201”
ATZB-RF-212B-0-U [ZigBit 900MHz Wireless Modules]
42270AWIRELESS03/2014
19
Ce module est étiqueté avec son propre ID IC. Si le numéro de certification IC ID n'est pas visible lorsqu'il est installé à
l'intérieur d'un autre appareil, l'appareil doit afficher l'étiquette sur le module de référence ci-joint. Dans ce cas, le
produit final doit être étiqueté dans un endroit visible par le texte suivant:
“Contains Transmitter Module IC: 11019A-092201”
OR
“Contains IC: 11019A-092201”
ATZB-RF-212B-0-U [ZigBit 900MHz Wireless Modules]
42270AWIRELESS03/2014
20
Appendix A. Revision history
Doc. Rev.
Date
Comments
42270A
03/2014
Internal Initial release
Atmel Corporation
1600 Technology Drive
San Jose, CA 95110
USA
Tel: (+1)(408) 441-0311
Fax: (+1)(408) 487-2600
www.atmel.com
Atmel Asia Limited
Unit 01-5 & 16, 19F
BEA Tower, Millennium City 5
418 Kwun Tong Road
Kwun Tong, Kowloon
HONG KONG
Tel: (+852) 2245-6100
Fax: (+852) 2722-1369
Atmel Munich GmbH
Business Campus
Parkring 4
D-85748 Garching b. Munich
GERMANY
Tel: (+49) 89-31970-0
Fax: (+49) 89-3194621
Atmel Japan G.K.
16F Shin-Osaki Kangyo Building
1-6-4 Osaki, Shinagawa-ku
Tokyo 141-0032
JAPAN
Tel: (+81)(3) 6417-0300
Fax: (+81)(3) 6417-0370
© 2014 Atmel Corporation. All rights reserved. / Rev.: 42270AWIRELESS03/2014
Atmel®, Atmel logo and combinations thereof, AVR®, BitCloud®, Enabling Unlimited Possibilities®, ZigBit®, and others are registered trademarks or trademarks of
Atmel Corporation or its subsidiaries. Other terms and product names may be trademarks of others.
Disclaimer: The information in this document is provided in connection with Atmel products. No license, express or implied, by estoppel or otherwise, to any intellectual property right is granted by this
document or in connection with the sale of Atmel products. EXCEPT AS SET FORTH IN THE ATMEL TERMS AND CONDITIONS OF SALES LOCATED ON THE ATMEL WEBSITE, ATMEL ASSUMES
NO LIABILITY WHATSOEVER AND DISCLAIMS ANY EXPRESS, IMPLIED OR STATUTORY WARRANTY RELATING TO ITS PRODUCTS INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, OR NON-INFRINGEMENT. IN NO EVENT SHALL ATMEL BE LIABLE FOR ANY DIRECT, INDIRECT,
CONSEQUENTIAL, PUNITIVE, SPECIAL OR INCIDENTAL DAMAGES (INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS AND PROFITS, BUSINESS INTERRUPTION, OR LOSS OF
INFORMATION) ARISING OUT OF THE USE OR INABILITY TO USE THIS DOCUMENT, EVEN IF ATMEL HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Atmel makes no
representations or warranties with respect to the accuracy or completeness of the contents of this document and reserves the right to make changes to specifications and products descriptions at any time
without notice. Atmel does not make any commitment to update the information contained herein. Unless specifically provided otherwise, Atmel products are not suitable for, and shall not be used in,
automotive applications. Atmel products are not intended, authorized, or warranted for use as components in applications intended to support or sustain life.
