Introduction

1.1. Scope:

The scope of this document is to explain how to install and setup up the required hardware and programming tool for

the certification test.

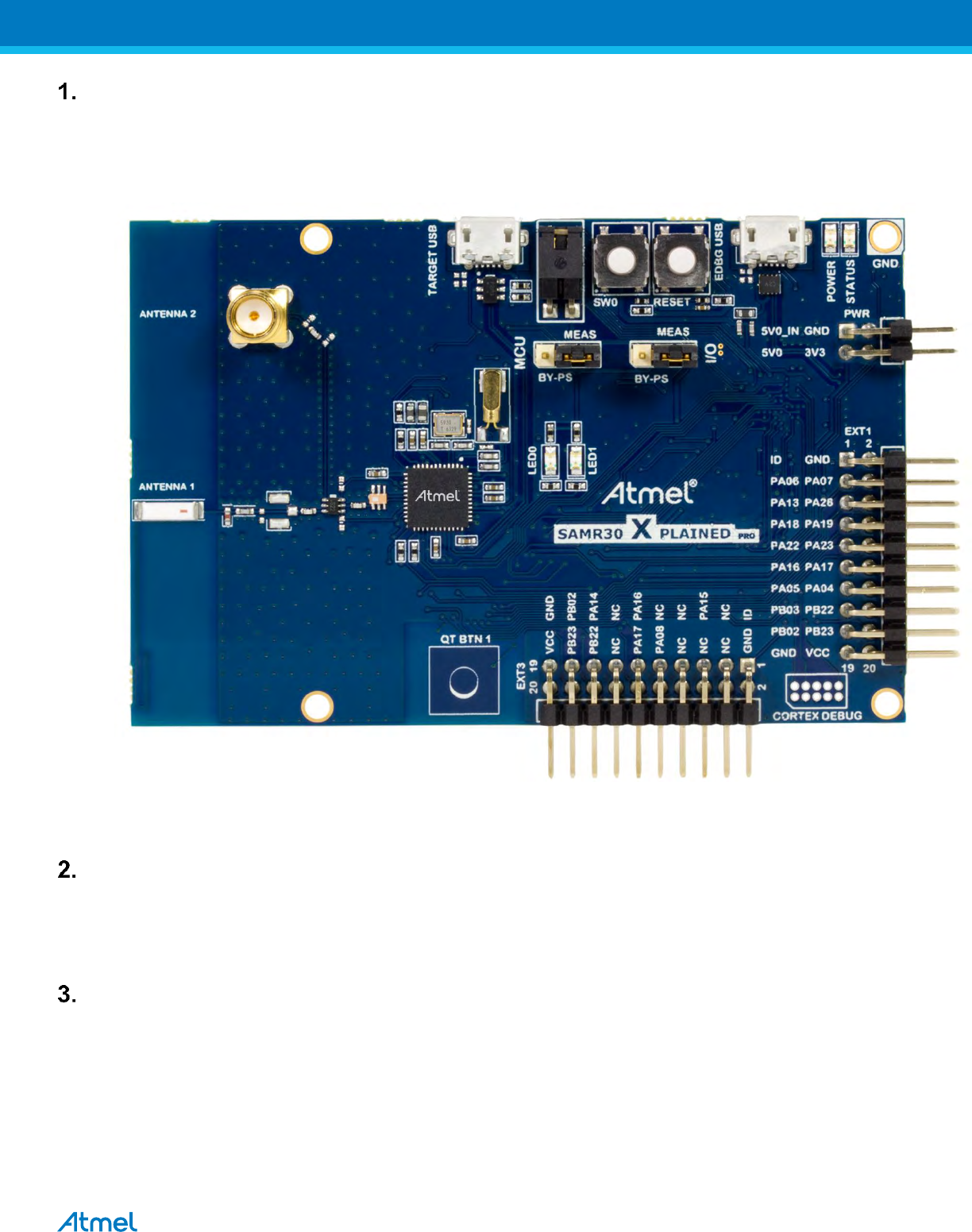

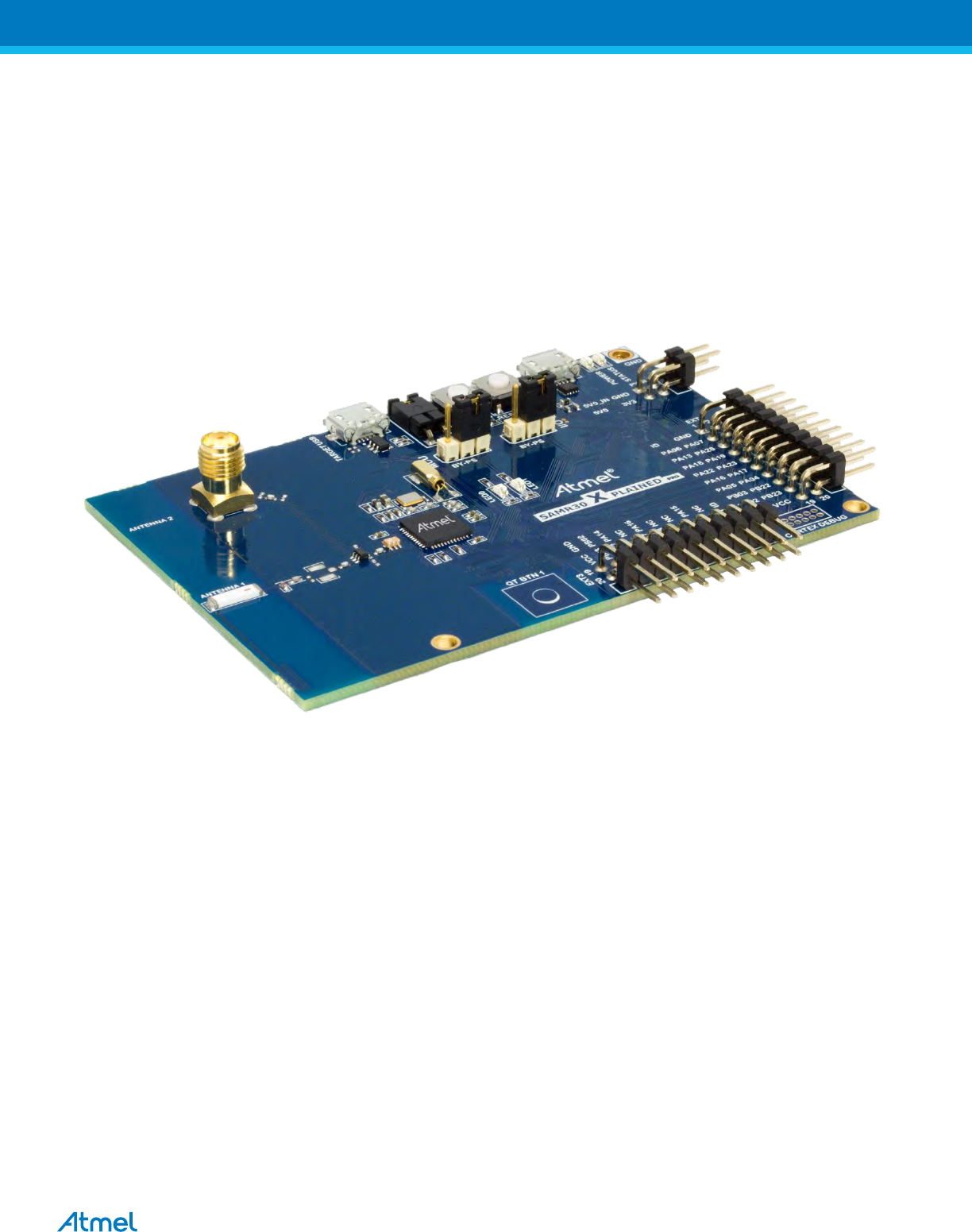

Figure 1 : Atmel ATSAMR30-XPRO Board

Hardware Setup

2.1. - 2 Nos

2.2. Micro USB cable - 2 Nos

Note: SMA cables not included in the box

Software Setup

3.1. Atmel Studio 7 (no need to install again if it is already available in Test PC)

3.2. Wireless Composer

3.3. Drivers - Installed automatically

3.4.

3.5.

ATSAMR30-XPRO Boards

ATSAMR30-XPRO

ATSAMR30-XPRO Performance Analyzer firmware flash-Install if required

ATSAMR30-XPRO Part Pack Intallation

Software Installation

4.1. Atmel Studio 7 Installation

Note: If Atmel Studio 7 is already available in Test PC, jump to step 4.2 in this section and install wireless composer

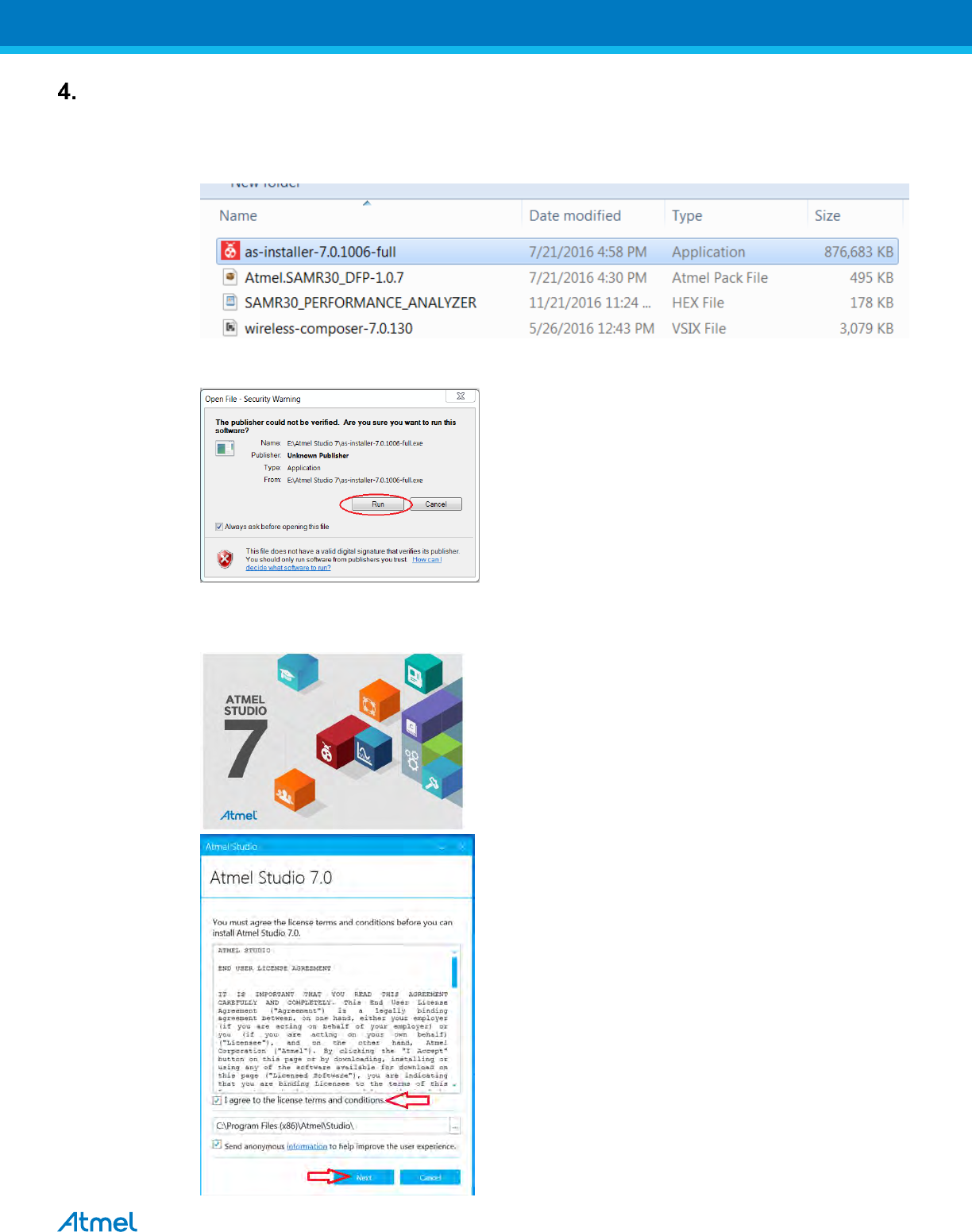

4.1.1. Open the DVD containing the Atmel Studio 7 Software package.

4.1.2. Double click the “as-installer-7.0.1006-full.exe” icon to launch Atmel Studio Installation.

4.1.3. Click Run icon.

4.1.4. Once you clicked the Run icon,the Atmel Studio 7 installer Wizard dialog box opens and agree the

licence terms and conditions.Then click “Next”

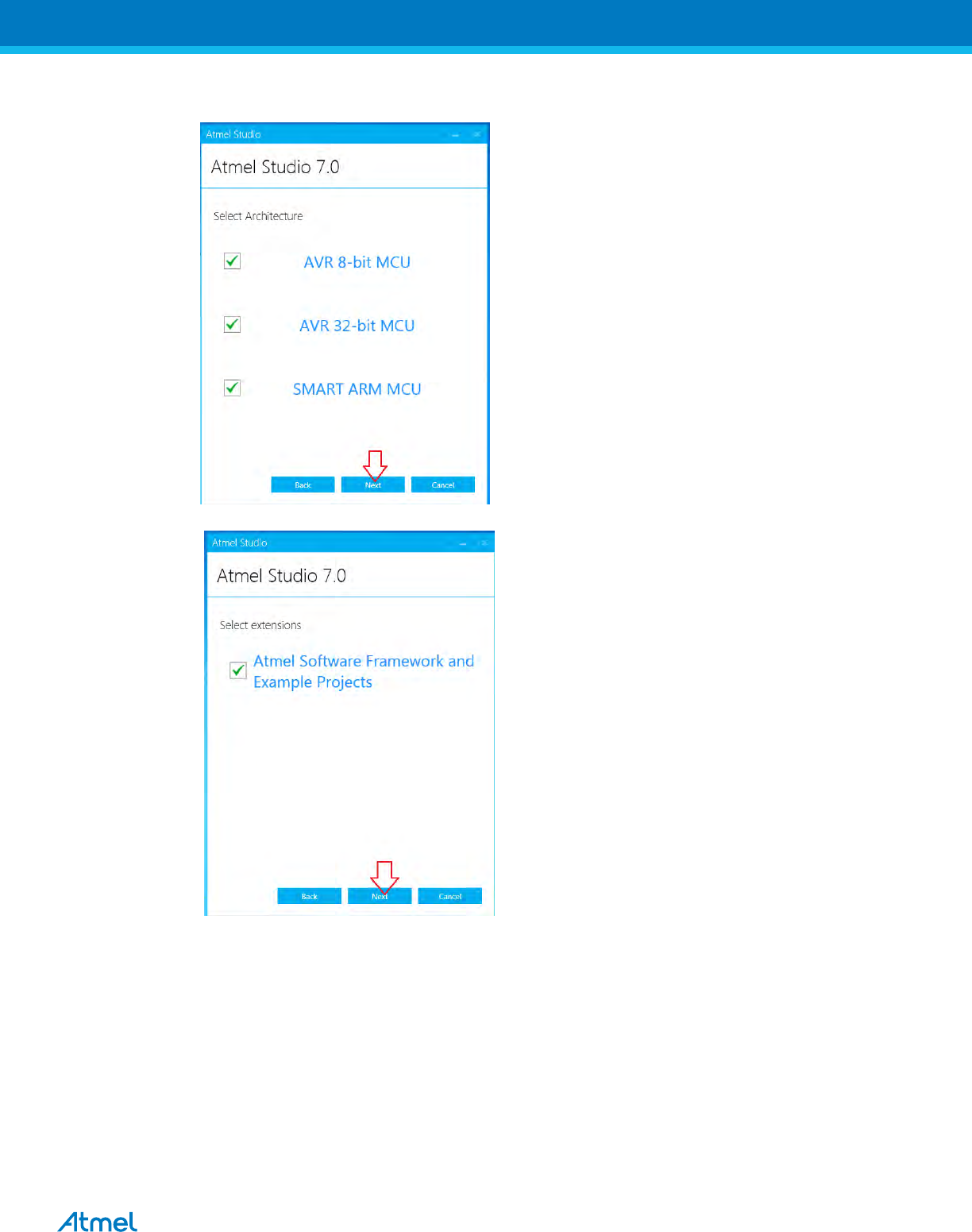

4.1.5. Ensure all the Architectires are selected and click “Next”.

4.1.6. Select ASF extensions and click “Next”

4.1.7. Click “Next”,ignore if any video card driver error shows,

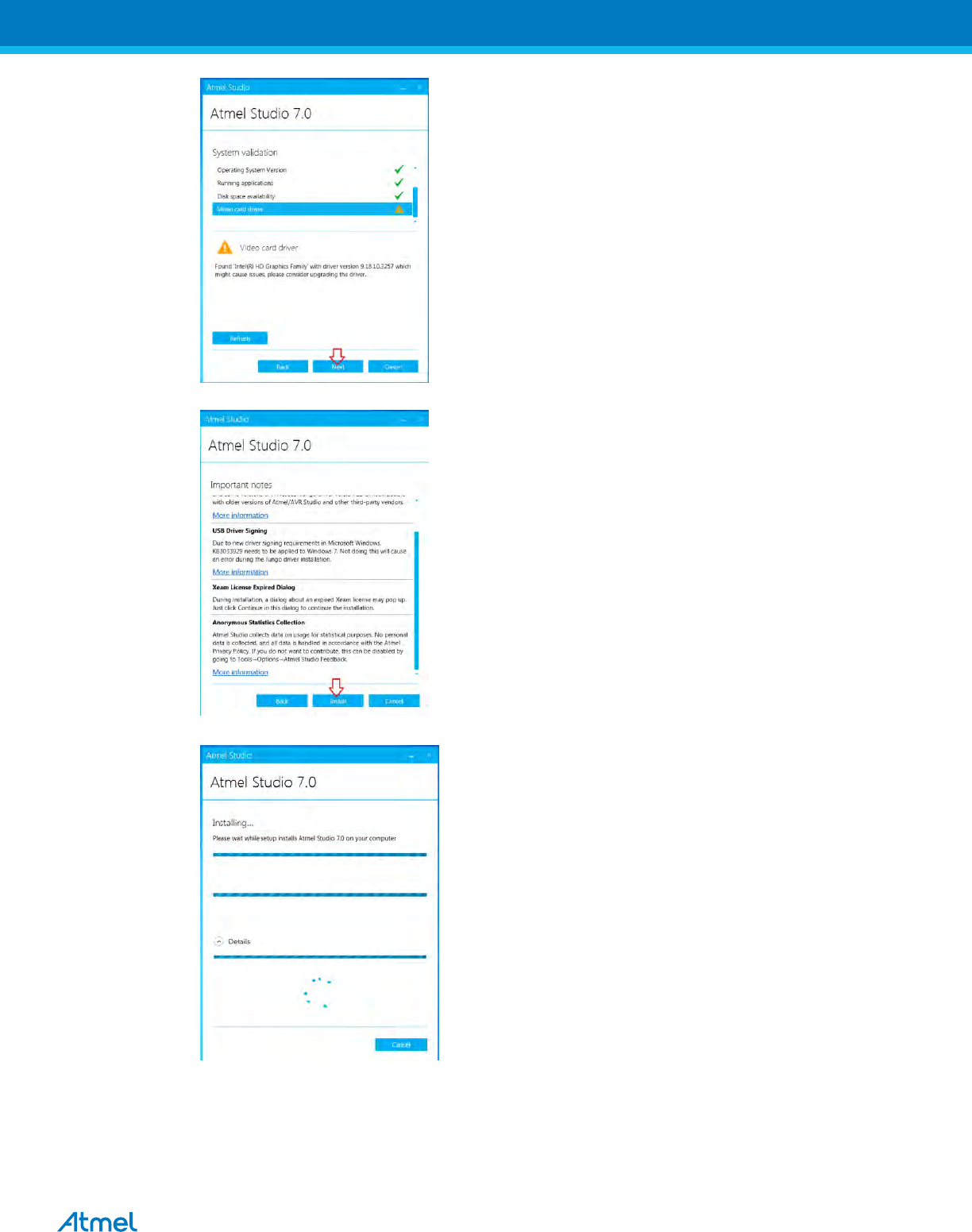

4.1.8. Click “Install”.

4.1.9. Atmel Studio 7 installion starts and once completed click ok.

4.2. Wireless Composer Installation

4.2.1. Next install the Wireless Composer extension by double clicking the “wireless-composer-7.0.130.vsix”

icon found in the DVD as shown in the following figure and follow the instakkation wizard to comple

the installation

Figure 2 : Wireless Composer Installation

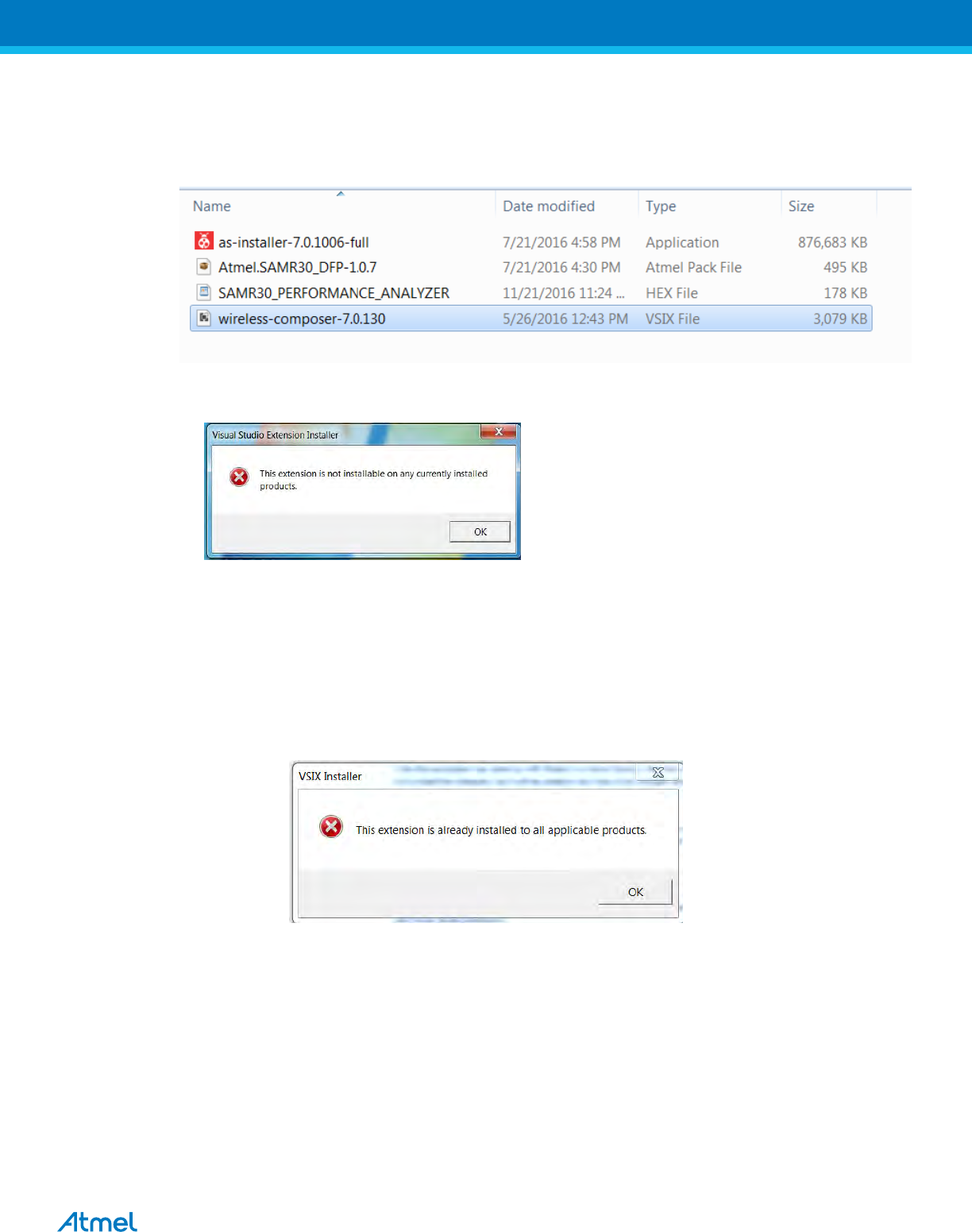

4.2.2. In case if you I get an error message saying,

4.2.3. To overcome the above error, you have to change the file association as follows

(i) Right click on the “wireless-composer-7.0.130.vsix” file and select 'Open with', and then 'Choose default

program'.

(ii) Click the 'Browse' button (Windows 7) or click on 'More' and 'Look for another app on this PC' (Windows 8 and

newer).

(iii) Browse to VSIXInstaller.exe located in C:\Program Files (x86)\Microsoft Visual Studio 14.0\Common7\IDE

(iv) After initializing, it will pop-up as follows.Click ‘ok’ and now the installation gets completed.

Hardware and Driver Installation (Automatic):

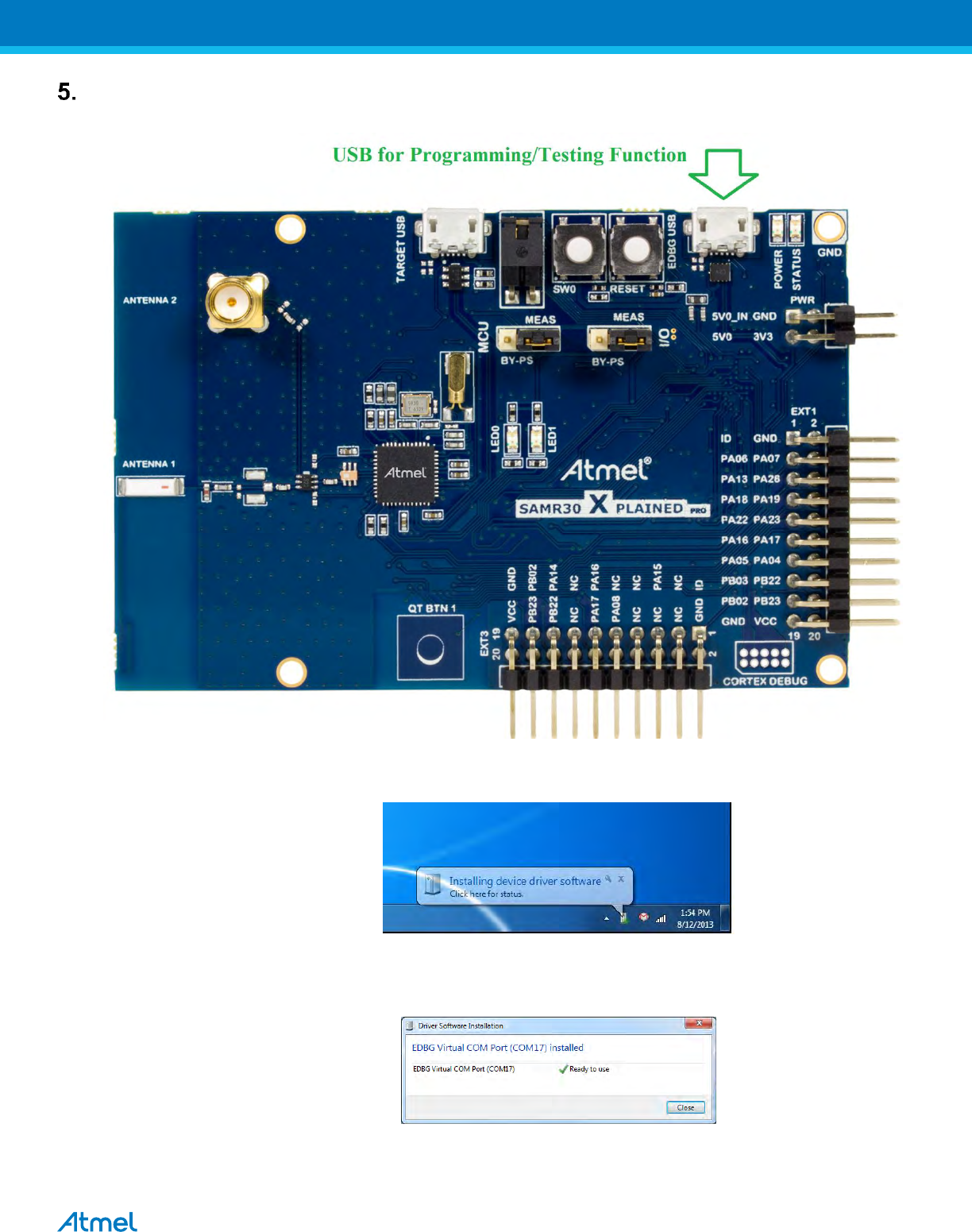

5.1. Connect a micro USB cable from PC to the micro USB port (USB for programming).

Figure.6 Hardware Setup

5.2. Next, EDBG Virtual COM port driver installation will begin automatically

Figure.7 EDBG Virtual COM PORT Driver installation

5.3. Click the taskbar notification. When the driver installation is successfully completed, there will be a

notificaion as shown below.

Figure.8 EDBG Virtual COM PORT Driver installation

Note: COM17 from the above figure is an example. The COM Port number varies depending upon the PC.

Programming the hex file in SAMR30-XPRO (If required):

Board was already programmed with certification software/performance analyzer. In case if required to flash the

program file, follow the below steps.

If programming the SAMR30-Xpro board for the first time, follow the section 7(SAMR30 part pack installation) before

start programming.

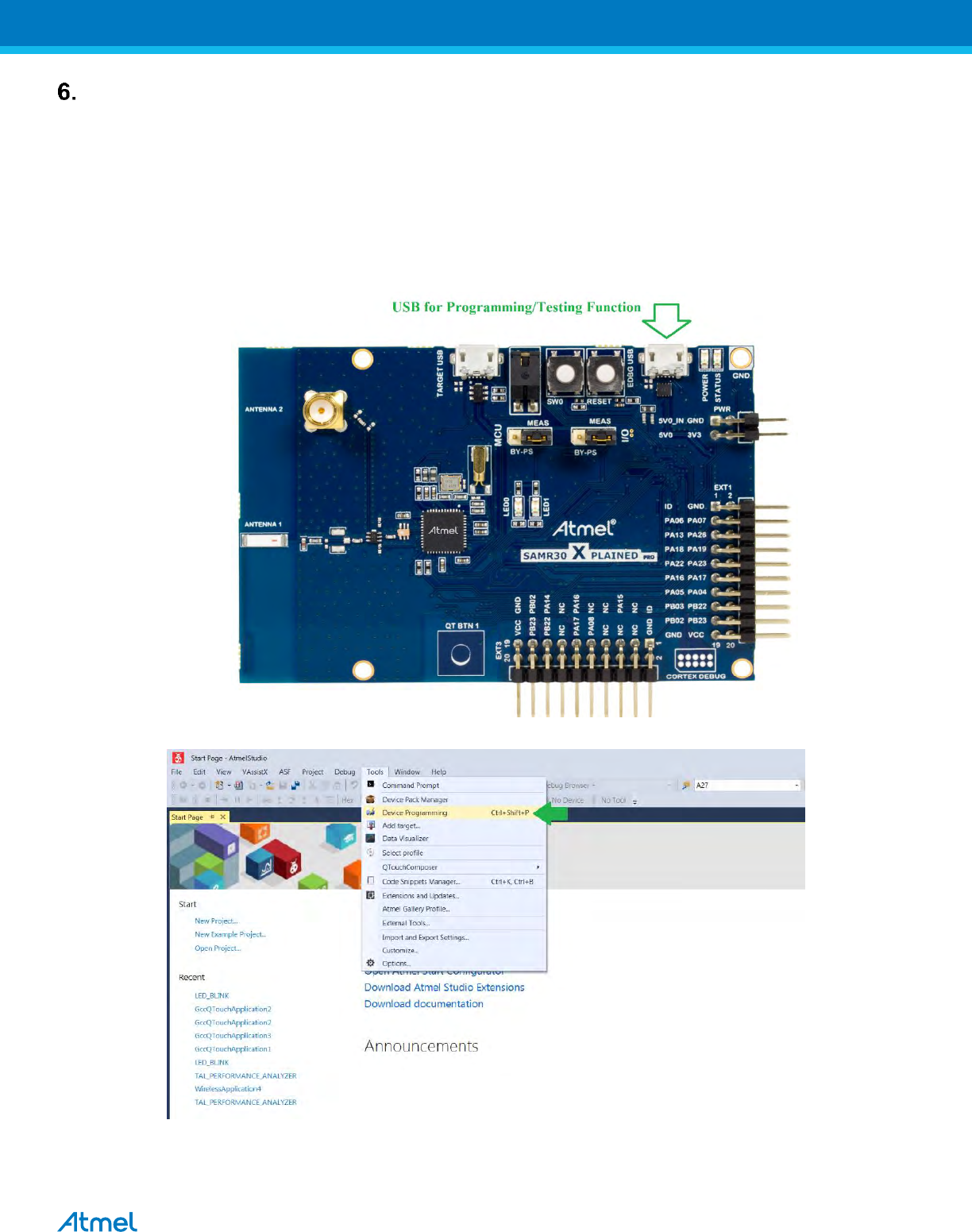

6.1. Connect the SAMR30 XPRO board to the PC via EDBG micro USB connector.

* PC should have the Atmel Studio 7 installed in it

6.2. In Atmel studio,select Tools Device Programming

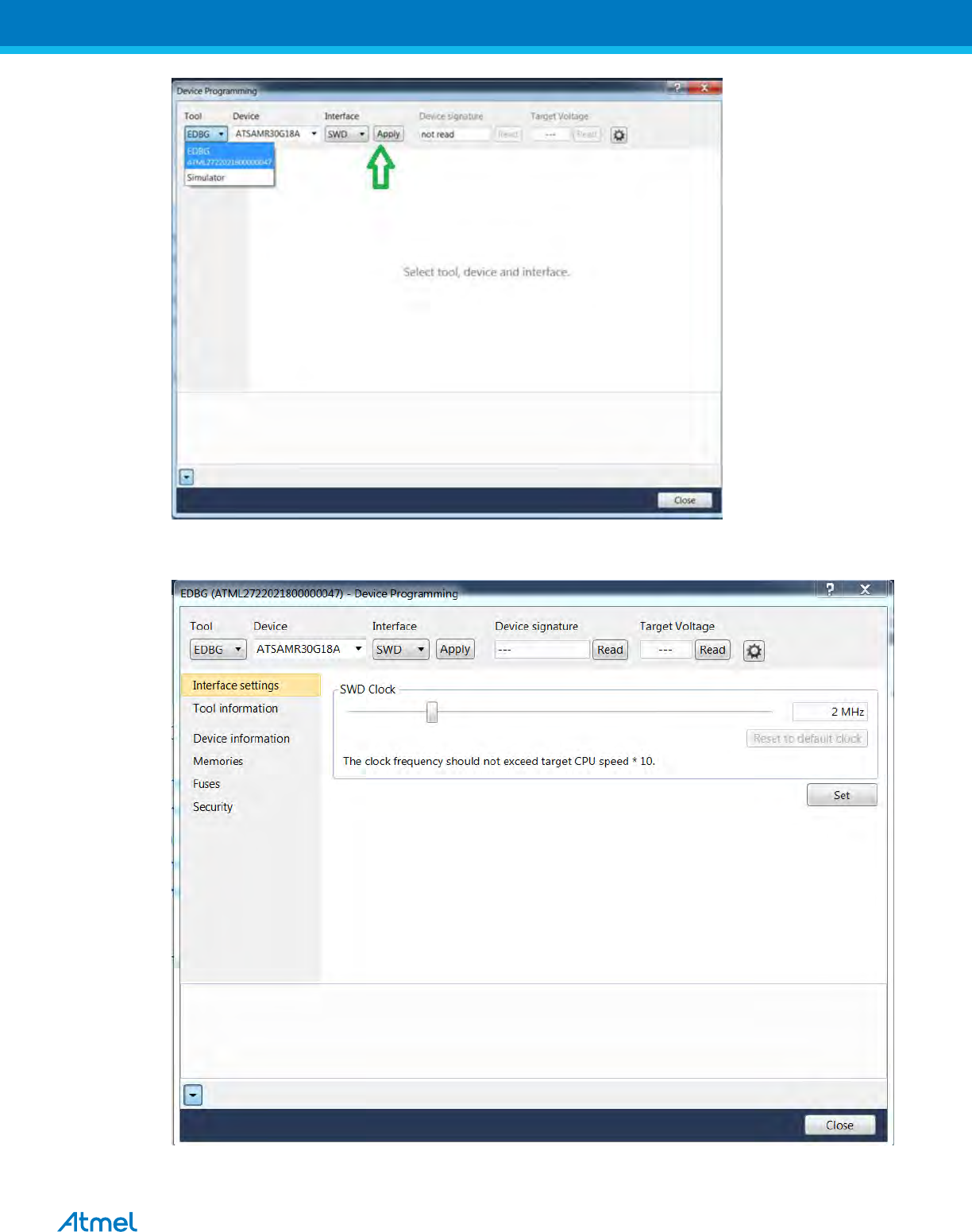

6.3. In Device Programming dialog box, select the edbg serial number and ensure the Device is “ATSAMR30G18A”

and select ‘SWD’ as Interface. Then click “Apply”

In case if you noticed that the Device “ATSAMR30G18A” is unsupported,see the section 7 to overcome the error.

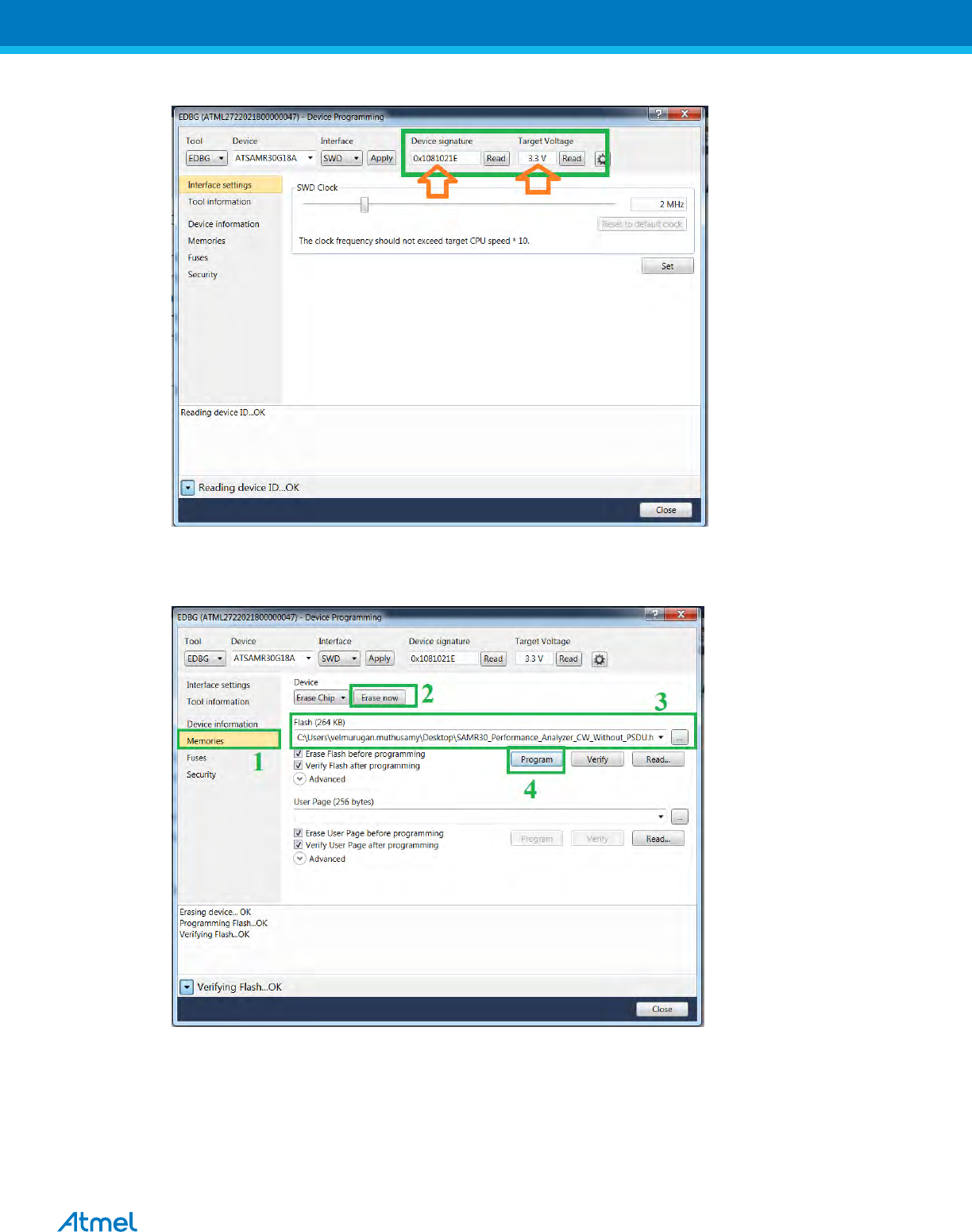

6.4. Once connected to the board,the device programming window will look like as follows

6.5. Read the Device signature and Target Voltage and ensure it is as follows

Device Programming: 0x1081021E

Target Volatge: 3.3V

6.6. Once ensured the device signature and Target Voltage, Click on Memories and then click “Erase now” to erase

the already existing program in the chip.

Then browse the hex file which you would like to program into the device and click Program.

6.7. Flashing the hex file in the SAMR30-XPRO board completed.

SAM R30 Part Pack Intallation

Before using Atmel Studio 7 for programming/debugging in any new device/board, don’t forget to install the part pack of the

device using following steps,

7.1. Get the part pack of the device.For SAM R30, it is available in the DVD

7.2. Goto the below link C:\Program Files (x86)\Atmel\Studio\7.0\atpackmanager

7.3. Double click on “PackManager.exe”.

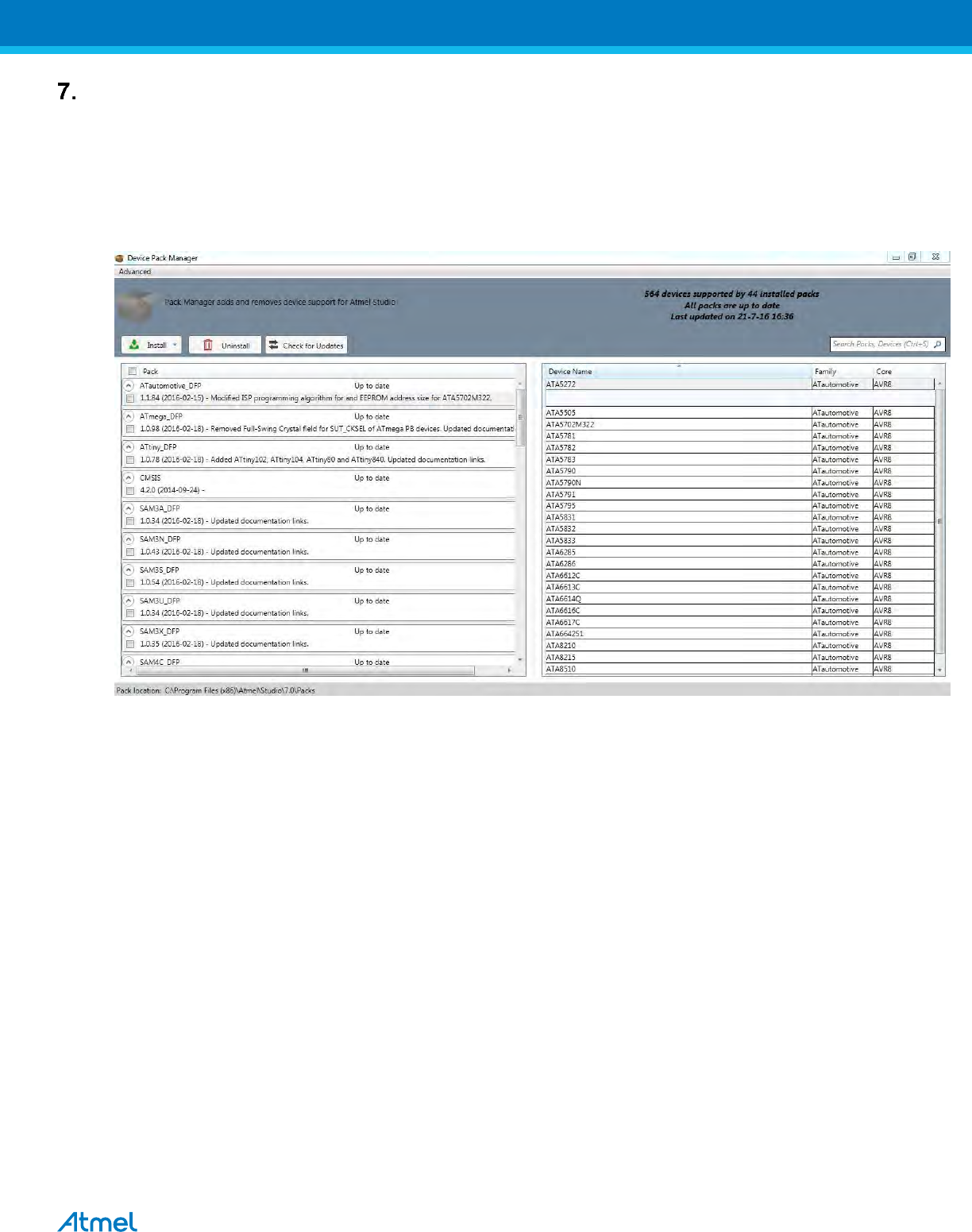

7.4. Device Part Manager window opens as follows and it will list all the device part packs installed.

7.5. To install new part pack, select Install->Browse pack file and choose “DFP” pack and click install.

For SAM R30, DFP pack (*.atpack) is available in the DVD.

Performance Analyzer

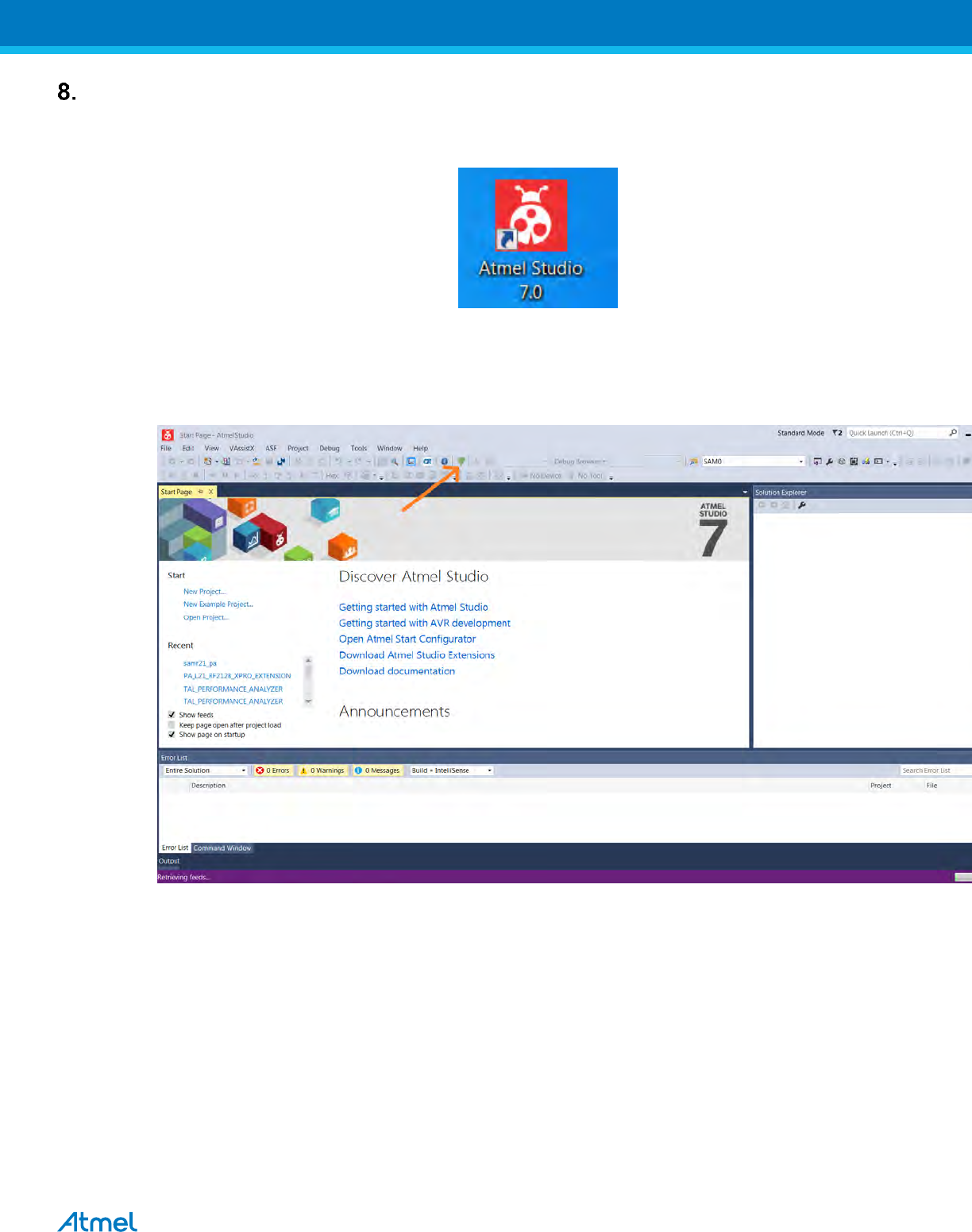

8.1. Launch Atmel Studio tool by clicking the Atmel Studio icon

Figure.9 Launch Atmel Studio 7.0

8.2. From the Atmel Studio Start page, launch Performance Analyzer utility by clicking the icon as shown in

below figure (or) select Tools  “IEEE 802.15.4 Performance Analyzer”.

Figure.11 Atmel Studio 7.0 – Start Page

8.3. After clicking the Performance Analyzer icon, Performance Analyzer window will open as shown in the

following figure.

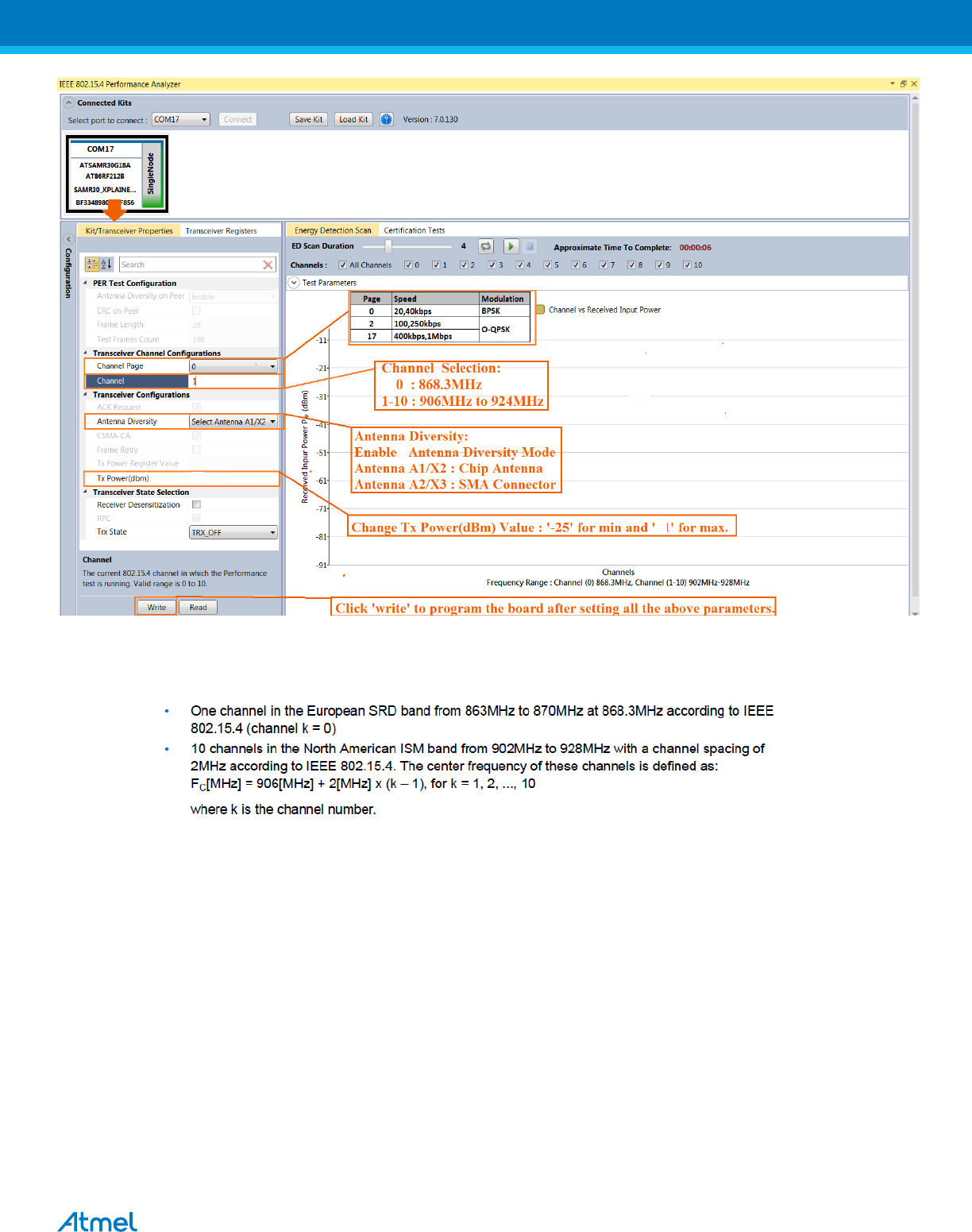

Figure.12 Performance Analyzer

8.4. Ensure the DUT is connected to the PC as explained in Step 1 of Section 5.

Connecting kit in Tx Test (Single node / CW):

CW – Continuous Wave Transmission

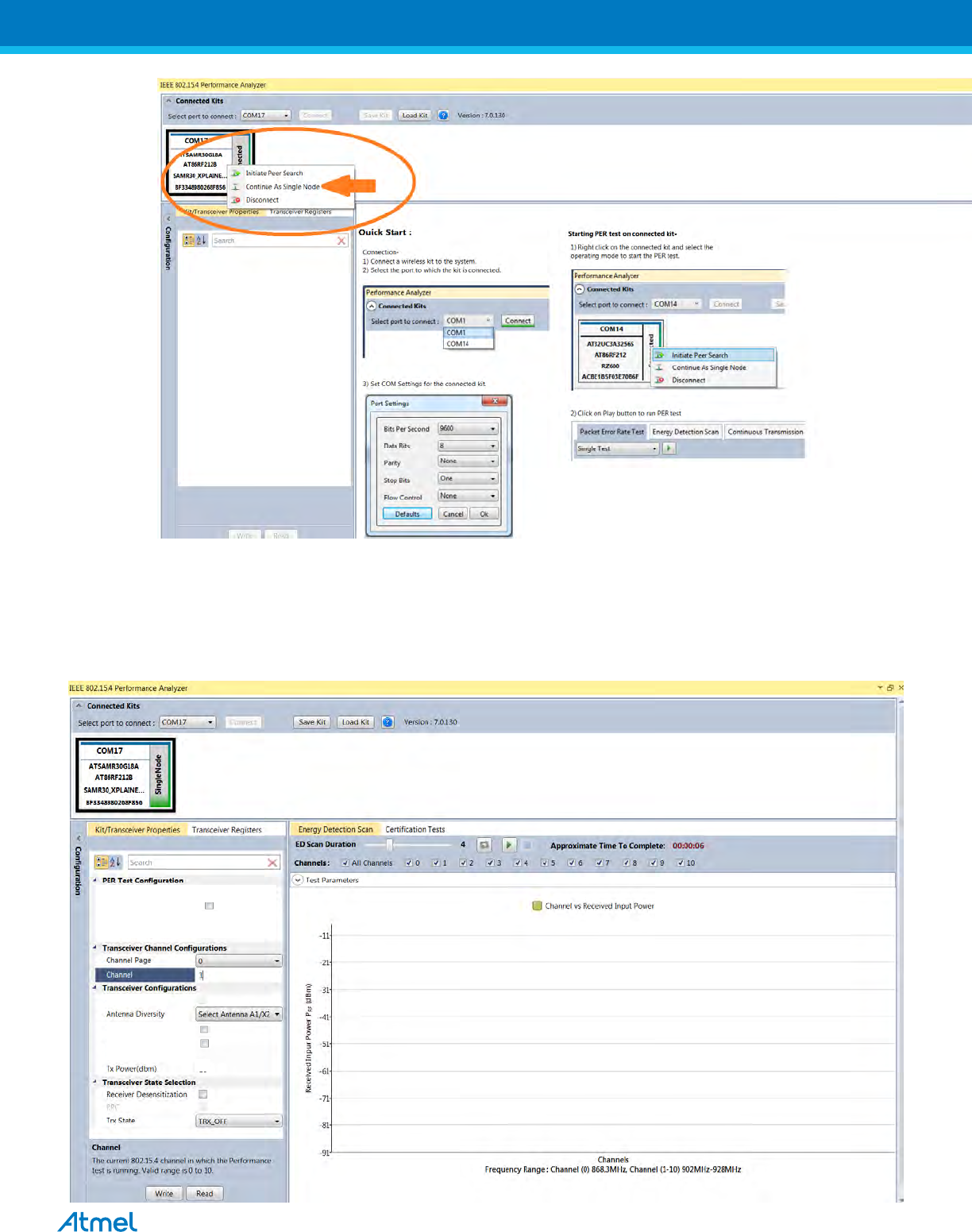

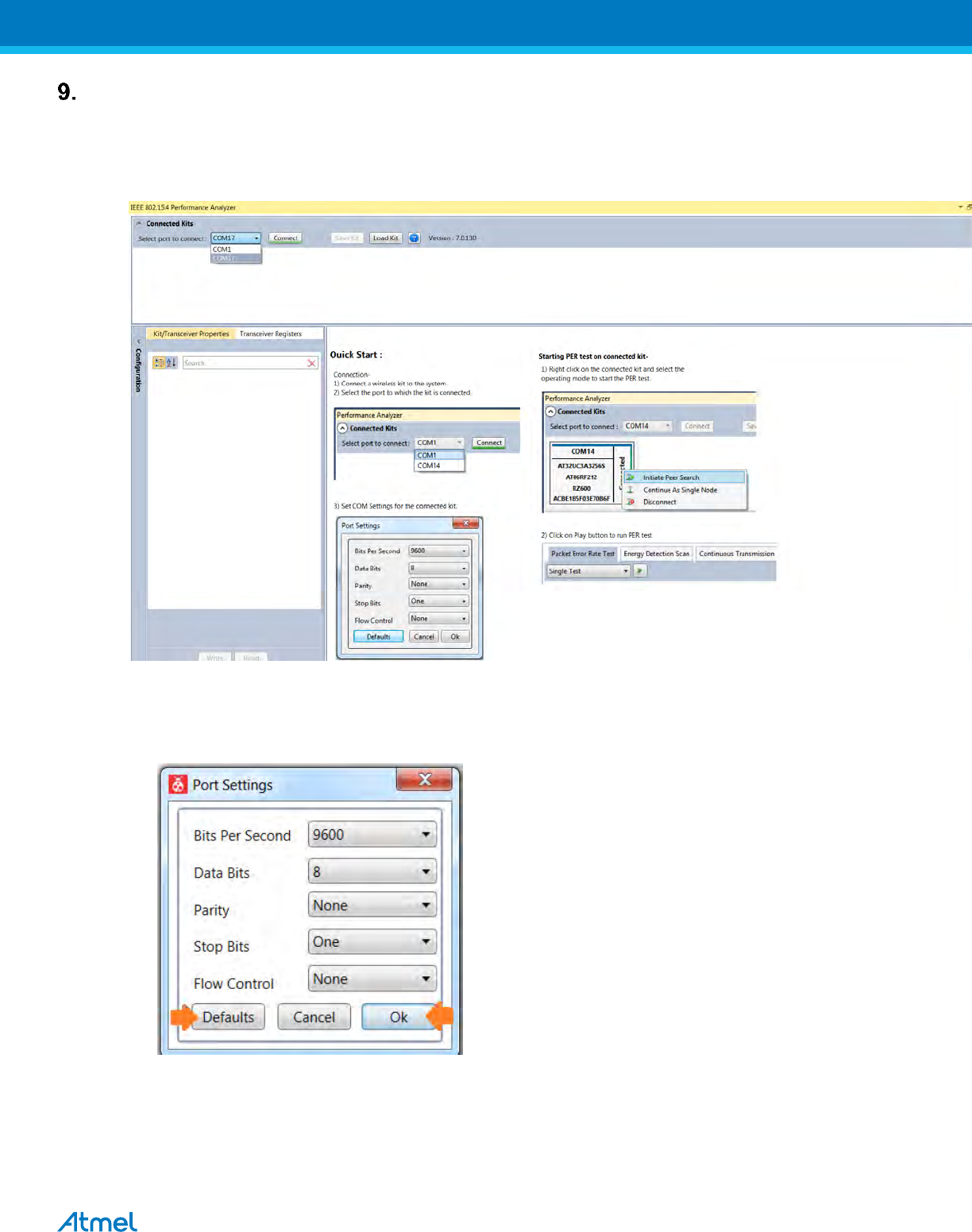

9.1. Select the COM Port from the dropdown menu and select a COM port to which the kit to be connected and

click “Connect”

Figure.13 Performance Analyzer – COM Port Selection

Note: COM17 from the above figure is an example. The COM Port number varies depending upon the PC.

9.2. Set the COM settings from the pop-up window. Click “Defaults” and then click “OK”

9.3. To check “transmit only” functionality; right click on the Kit information area select “Continue as a single node”.

This setting is used for continuous transmission.

Figure.14 Performance Analyzer – Kit Information

9.4. Kit / Transceiver properties, Channel Page, Channel Number, Antenna Selection and Power level can also be

changed in the Performance Analyzer window.

Antenna Diversity on Peer Enable

CRC on Peer

Frame length

Test Frames Count 100

ACK Request

CSMA CA

Frame Retry

Tx Power Register Value

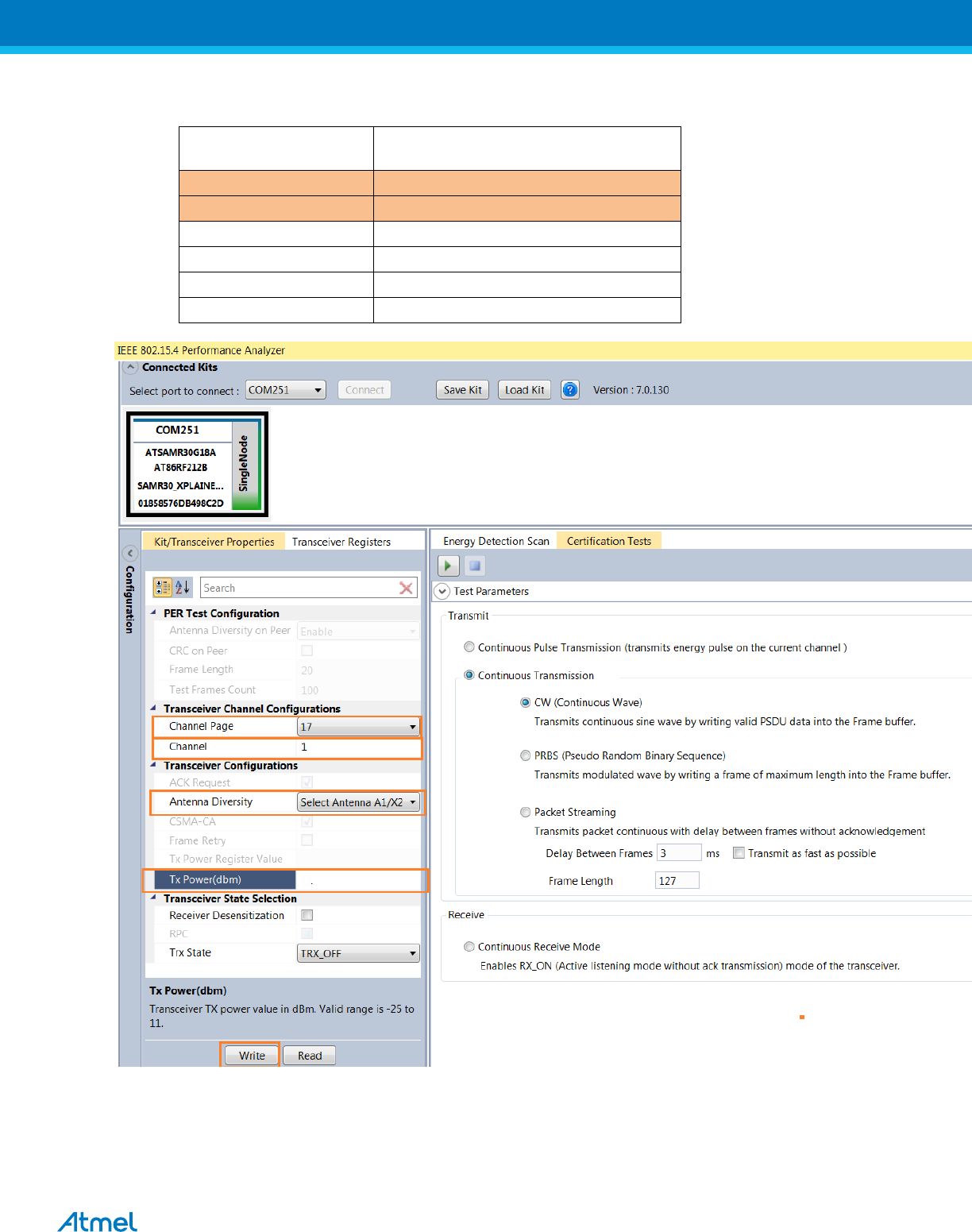

Figure.15 Performance Analyzer – Transceiver configuration

9.5. To Transmit CW mode or PRBS mode, click on Certification tab and Continuous transmission and CW or

PRBS.

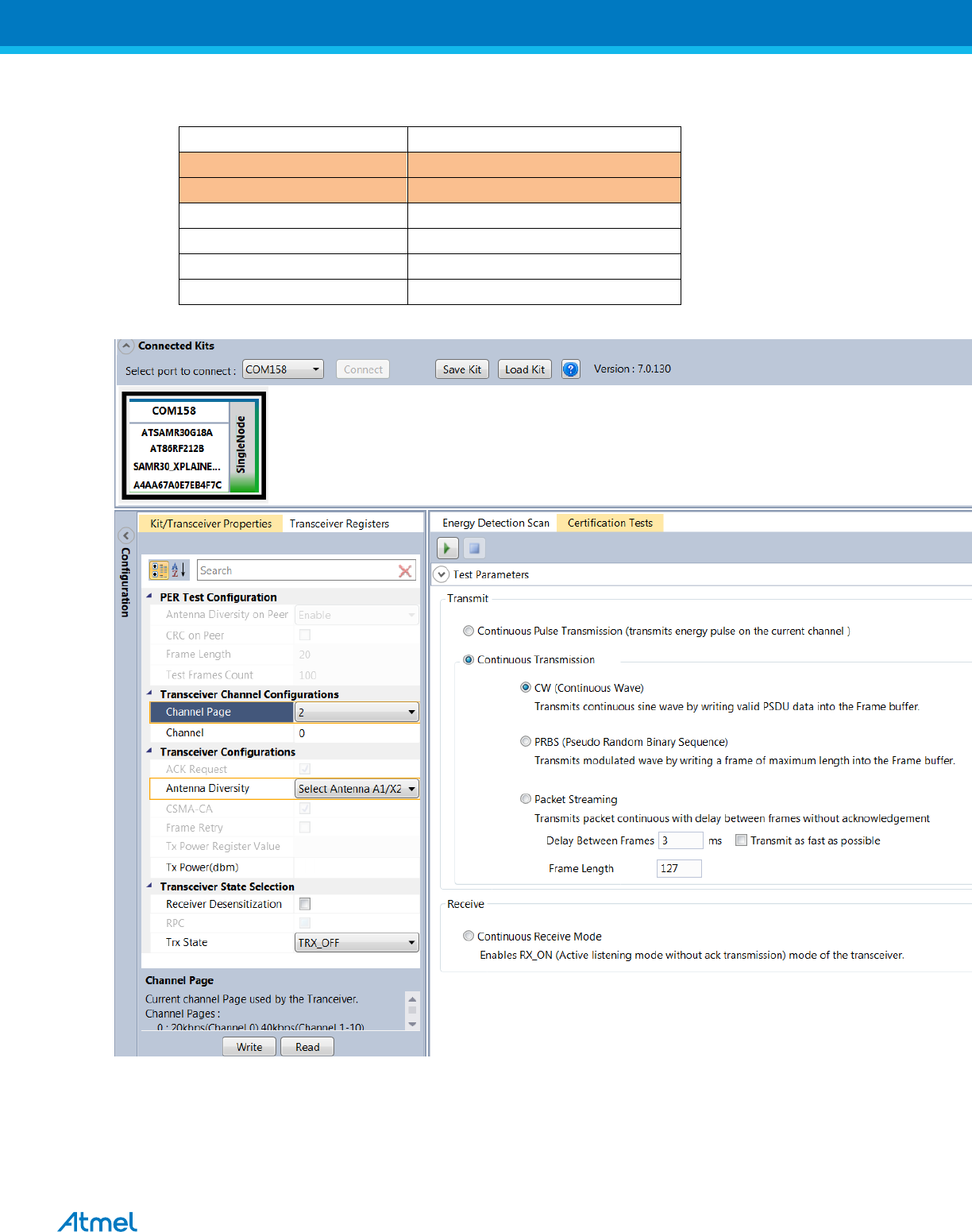

Figure.16 Performance Analyzer – Continuous Tx mode configuration

Tx Test Modes:

10.1. Tx Test (Single node / CW) for Sub-1GHz FCCTesting:

10.1.1. Operating mode #1: BPSK-40-ALT , 40kbps, 7dBm:

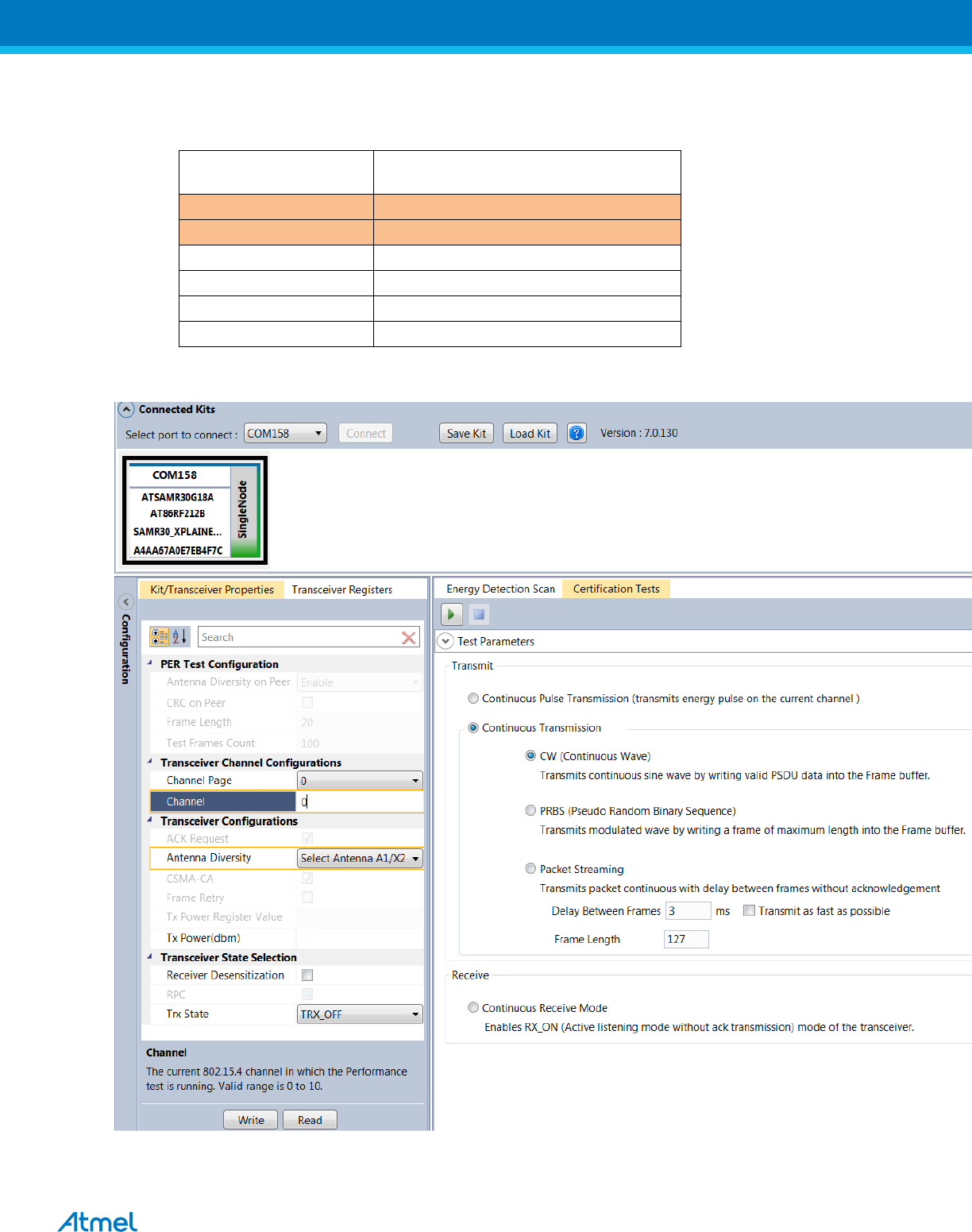

Connect and test the DUT in single test mode as mentioned in Section-9 with the following configuration,

Performance Analyzer Parameter

Setting

Channel Page

Channel

1 to 10

Antenna Diversity

Select Anetnna A1/X2

Tx Power(dBm)

Receiver Desensitization

- (Unchecked)

Trx State

TRX_OFF

TRX_CTRL_2 (0xC)

 With the above setting click “write” icon and go to “Transceiver Registers” tab.

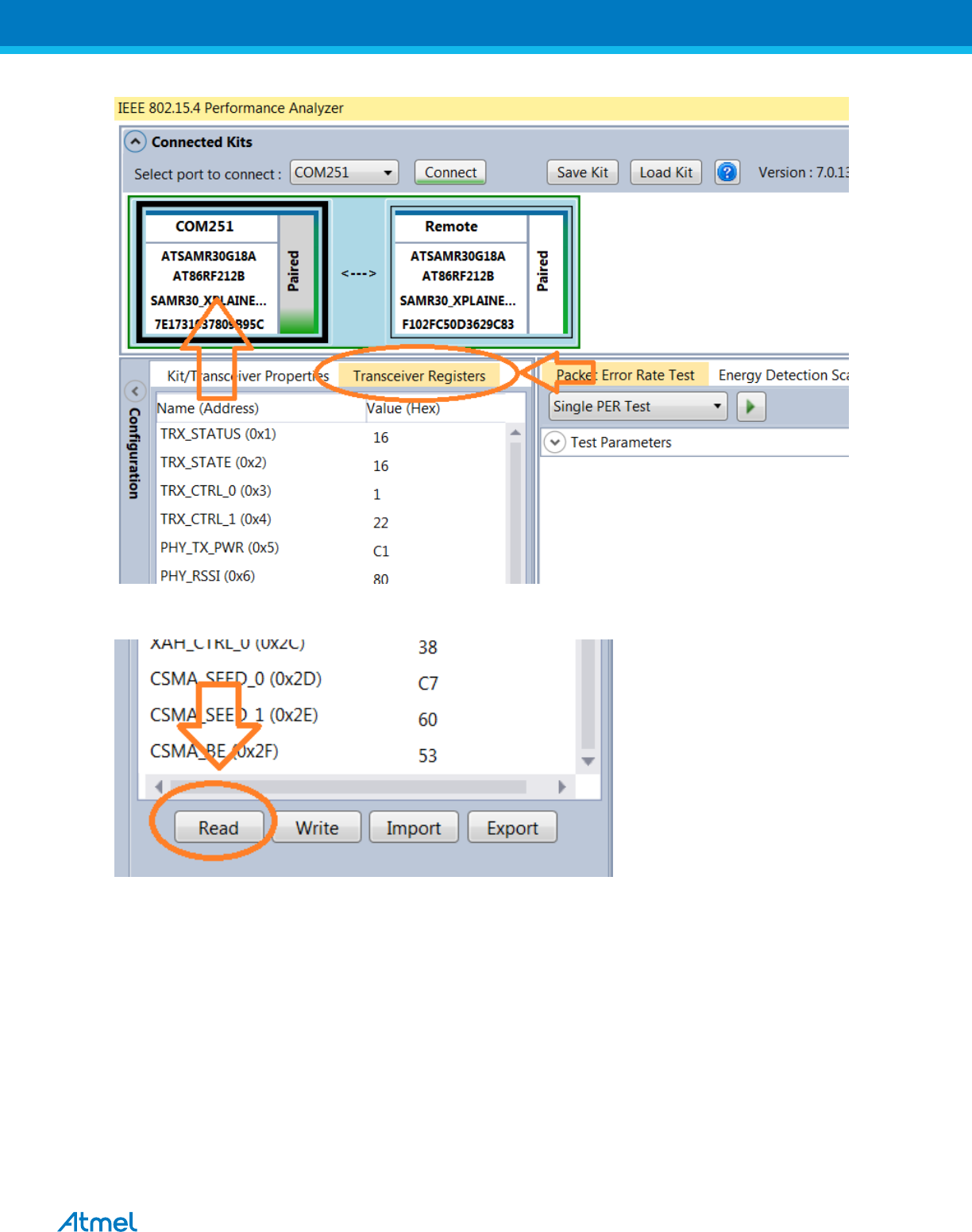

 At the bottom corner, there is an icon called “Read”, click it.

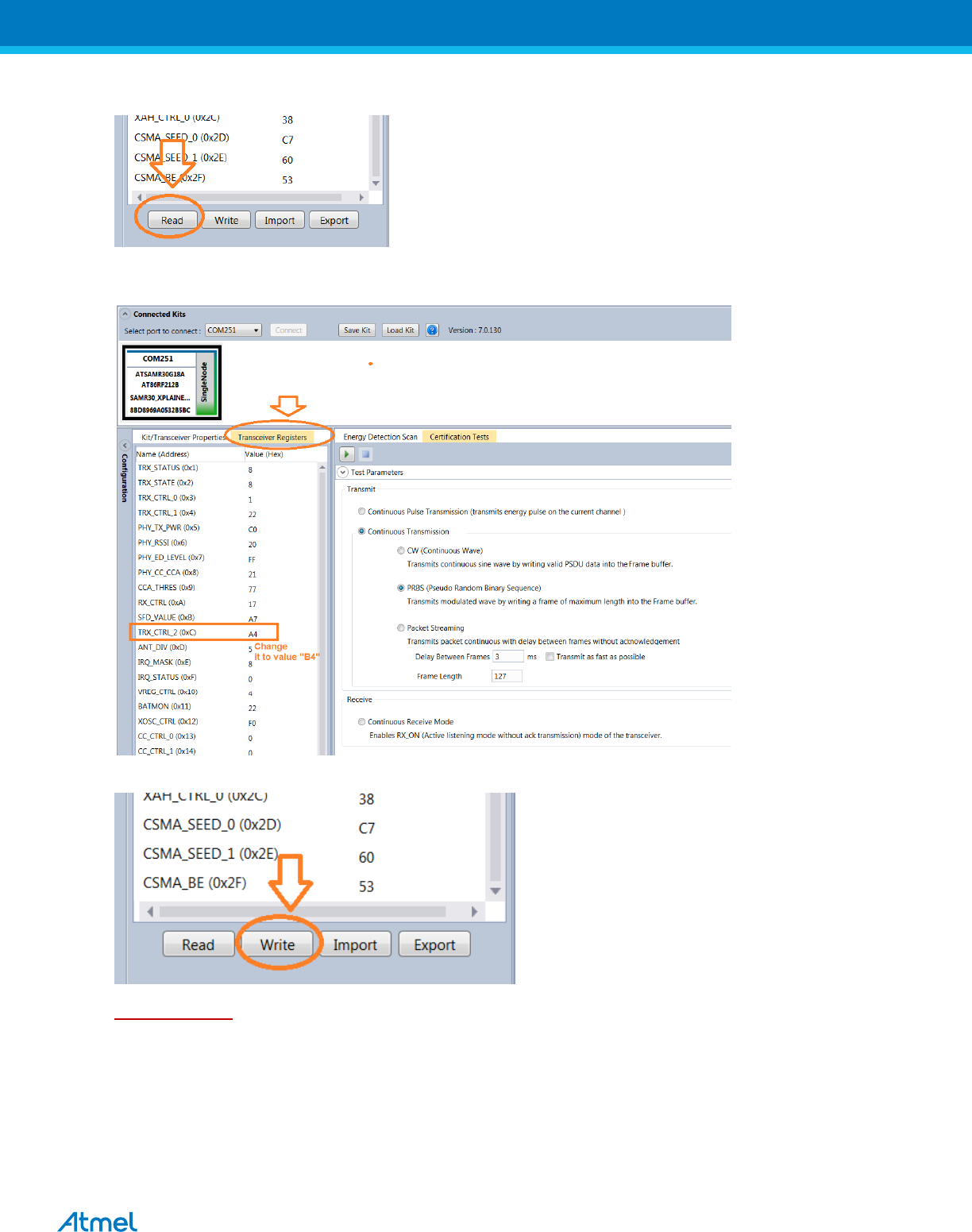

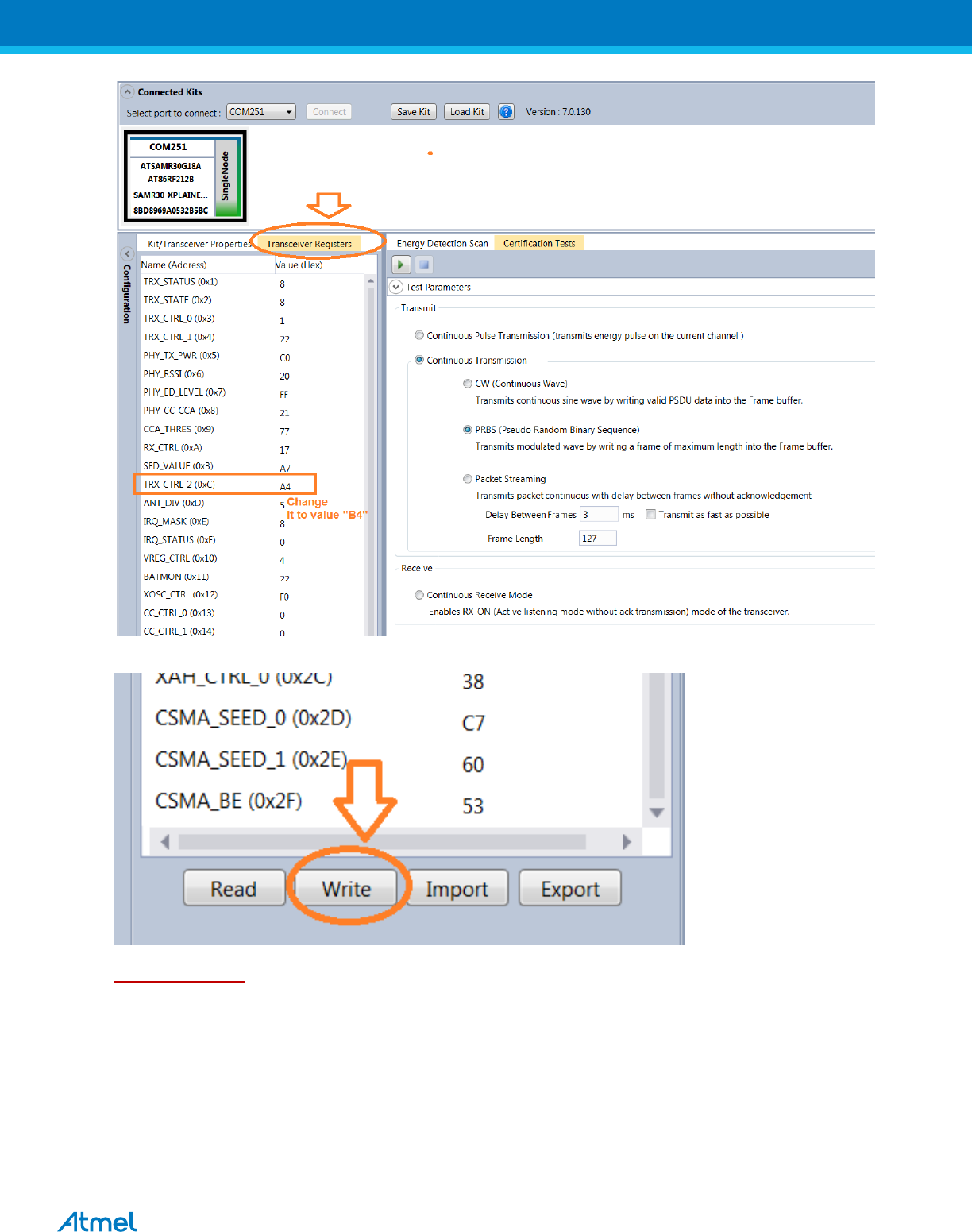

 Then Change the register value of TRX_CTRL_2 (0xC) to “B4” as shown in the below image and press ‘Enter’

in keyboard

 After the TRX_CTRL_2 (0xC) value changed to “B4”, click the “Write” icon and do the test.

Important Note: Everytime when you change the channel or power or channel page, we need to change the

TRX_CTRL_2 register value to “B4”.

10.1.2. Operating mode #2: OQPSK-SIN-250, 250kbps, 7dBm:

Connect and test the DUT in single test mode as mentioned in Section-9 with the following configuration,

Performance Analyzer

Parameter

Setting

Channel Page

Channel

1 to 10

Antenna Diversity

Select Anetnna A1/X2

Tx Power(dBm)

Receiver Desensitization

- (Unchecked)

Trx State

TRX_OFF

10.1.3. Operating mode #3: OQPSK-SIN-1000-SCR-ON , 1Mbps, 7dBm:

Connect and test the DUT in single test mode as mentioned in Section-9 with the following configuration,

Performance Analyzer

Parameter

Setting

Channel Page

Channel

1 to 10

Antenna Diversity

Select Anetnna A1/X2

Tx Power(dBm)

Receiver Desensitization

- (Unchecked)

Trx State

TRX_OFF

10.2. Tx Test (Single node / CW) for Sub-1GHz CE Testing

10.2.1. Operating Mode#4: BPSK-20, 20kbps, 7dBm:

Connect and test the DUT in single test mode as mentioned in Section-9 with the following configuration,

Performance Analyzer

Parameter

Setting

Channel Page

Channel

Antenna Diversity

Select Anetnna A1/X2

Tx Power(dBm)

Receiver Desensitization

- (Unchecked)

Trx State

TRX_OFF

10.2.2. Operating Mode#5: OQPSK-SIN-RC-100, 100kbps, 7dBm:

Connect and test the DUT in single test mode as mentioned in Section-9 with the following configuration,

Performance Analyzer Parameter

Setting

Channel Page

Channel

Antenna Diversity

Select Anetnna A1/X2

Tx Power(dBm)

Receiver Desensitization

- (Unchecked)

Trx State

TRX_OFF

Connecting kit in Tx-Rx Test mode (Transmit and Receive test):

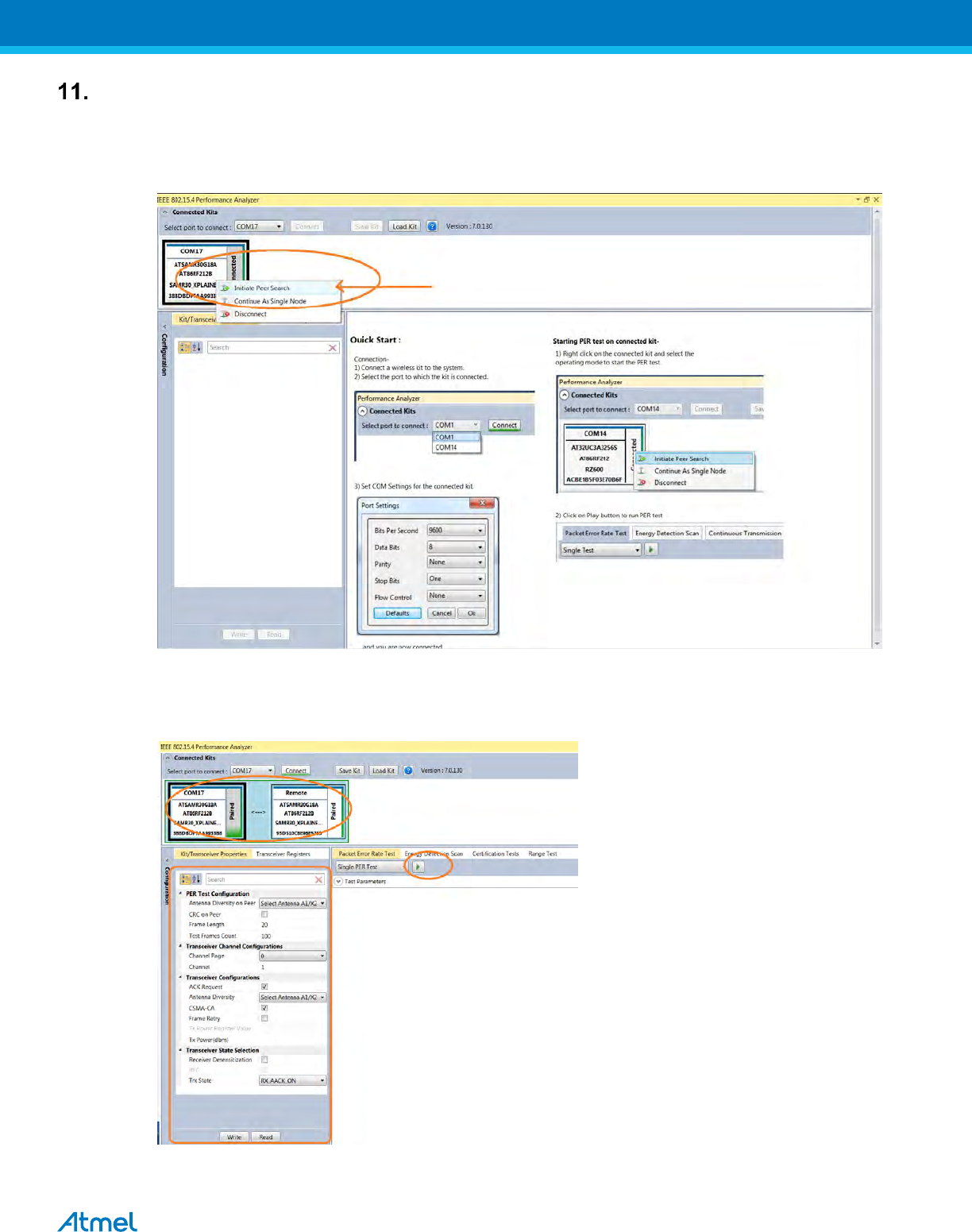

11.1. Connect two devices with PC by USB cables and so both are power up.

11.2. Select one COM Port and click ‘connect’ the device corresponding to that COM port is connected and select

“Initiate Peer Search” So other device connect by RF (RF Pairring). (Device connected to COM Port is

transmitter and other device is receiver)

Figure 21: Performance Analyzer – Paring devices

11.3. When both the devices are paired, the following window appears and it is ready to perform PER (Packet

Error Rate) test. Tranmitting channel, number of frames (packets), Tx Power value can be configured from the

left side of the window.

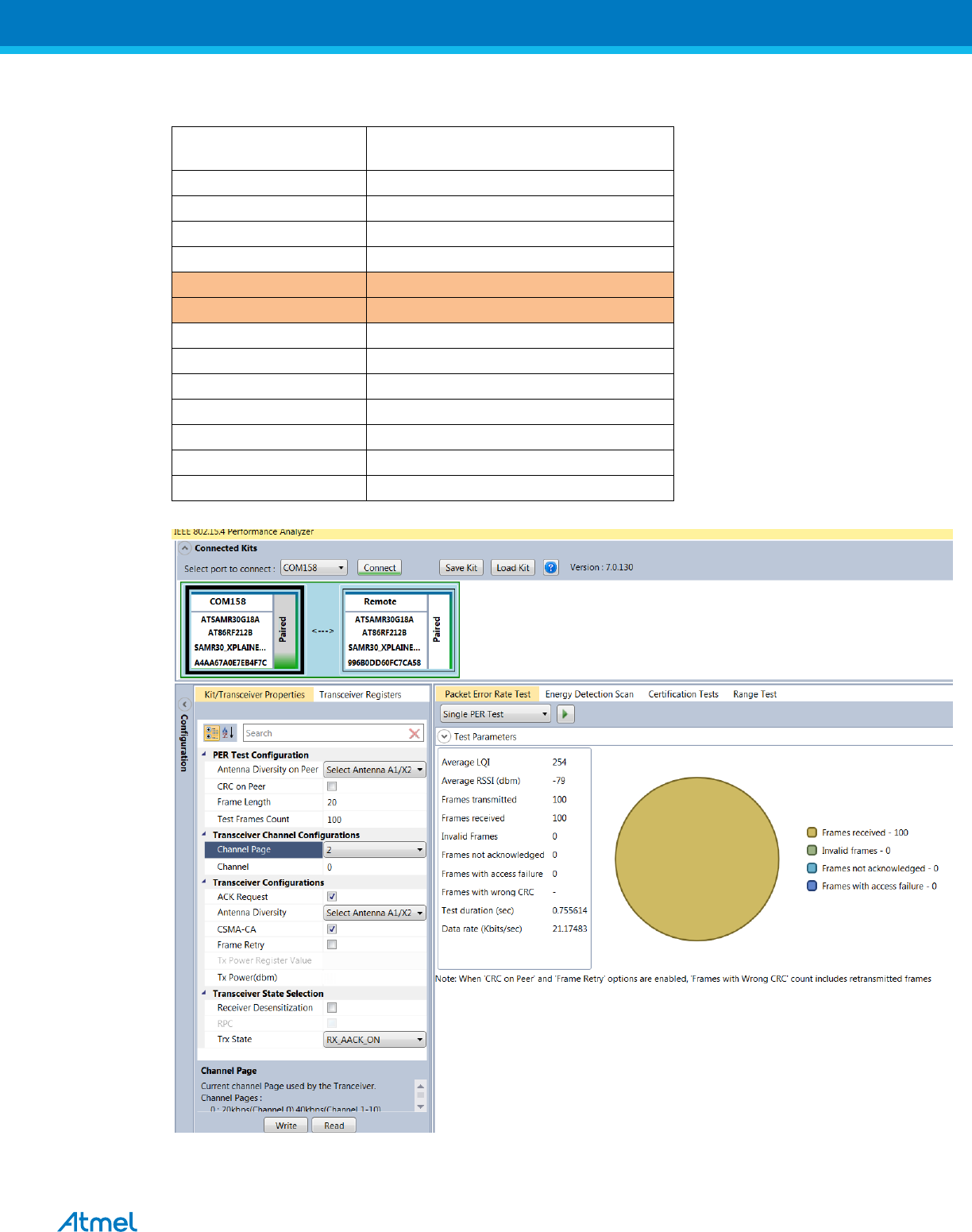

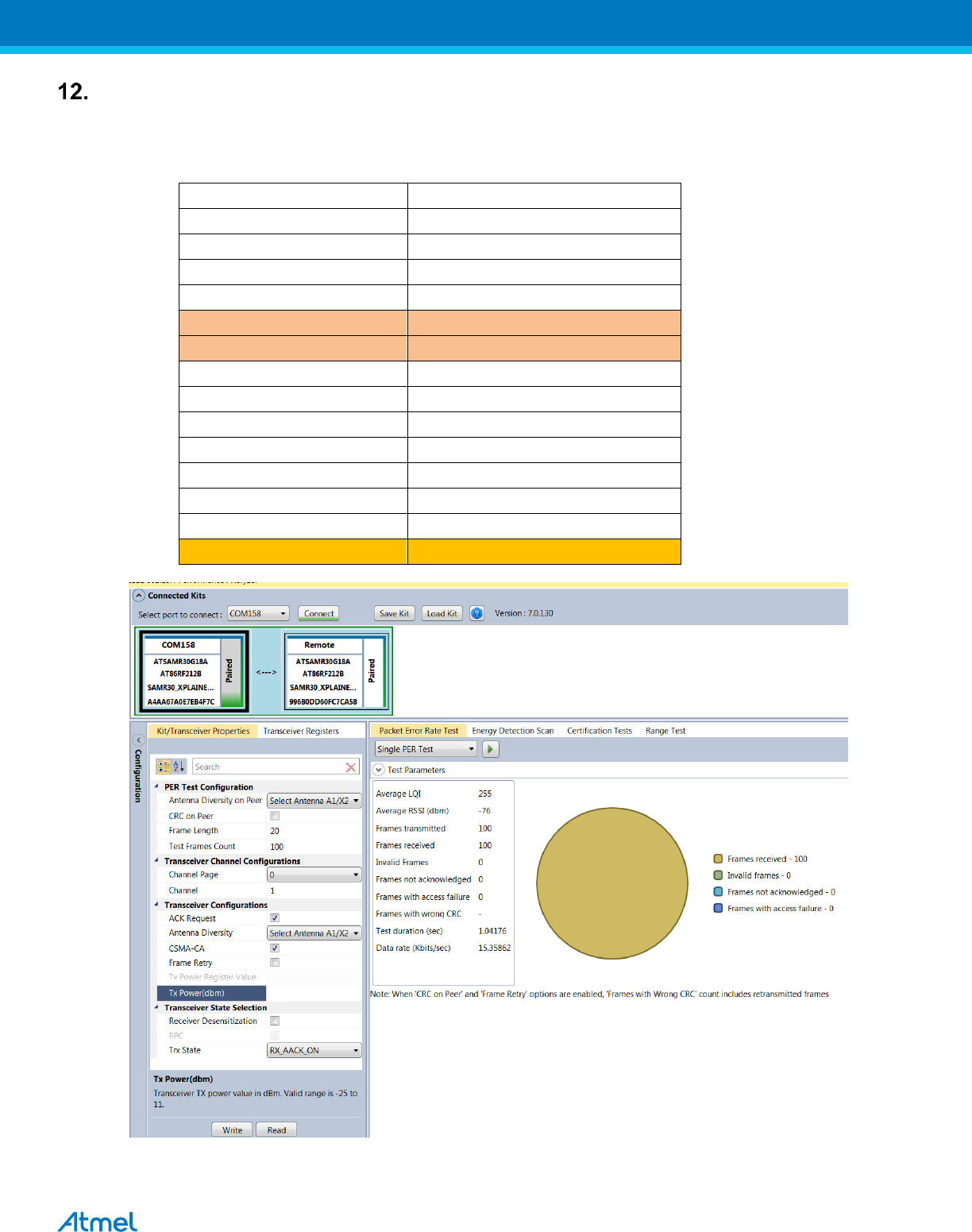

Figure 22: Performance Analyzer – PER Test Configuration

11.4. PER test is Transmit and Receive test. Number of transmit packets can be set by changing “Test Frames

Count”

Figure 23: Performance Analyzer – Transmit Packets

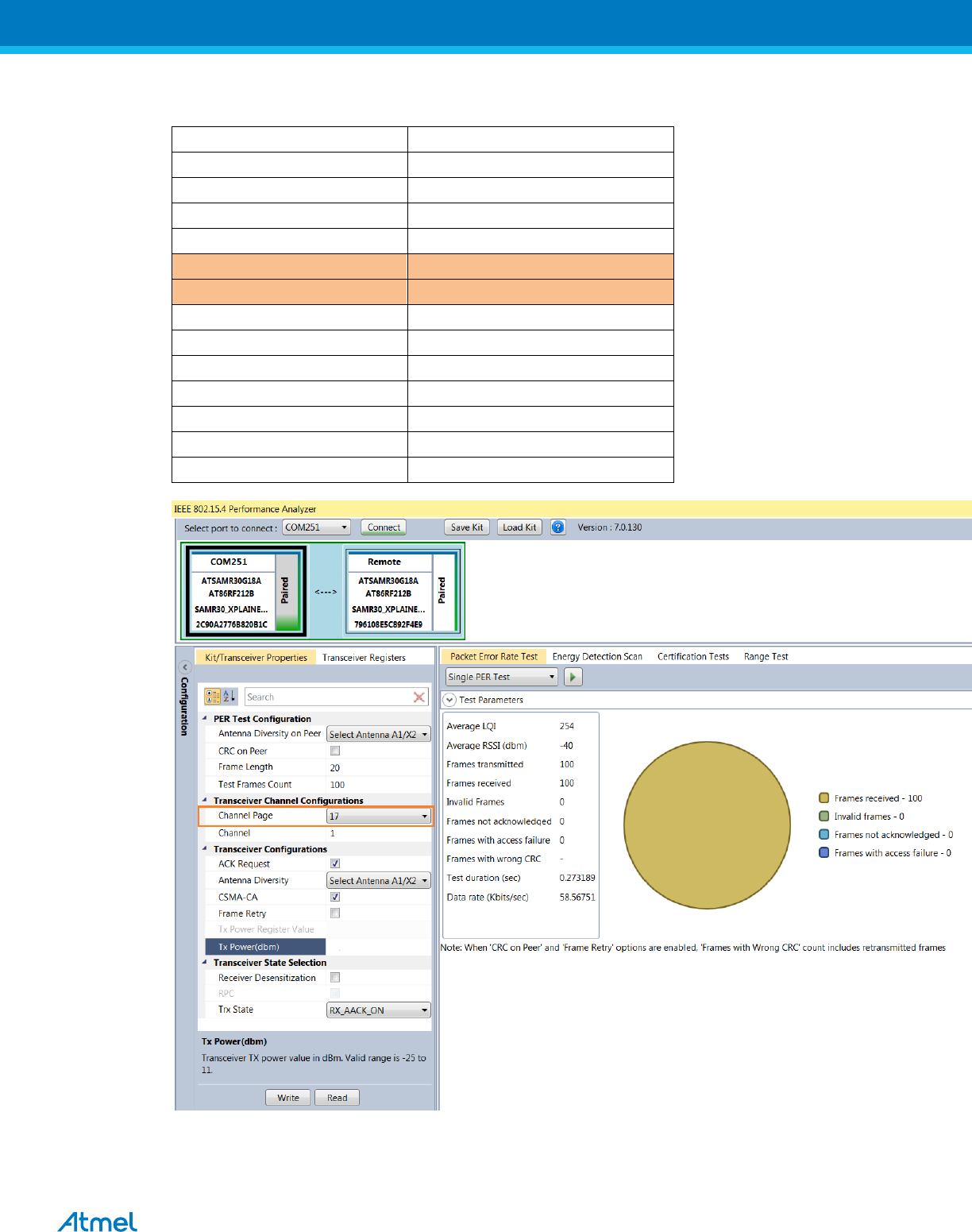

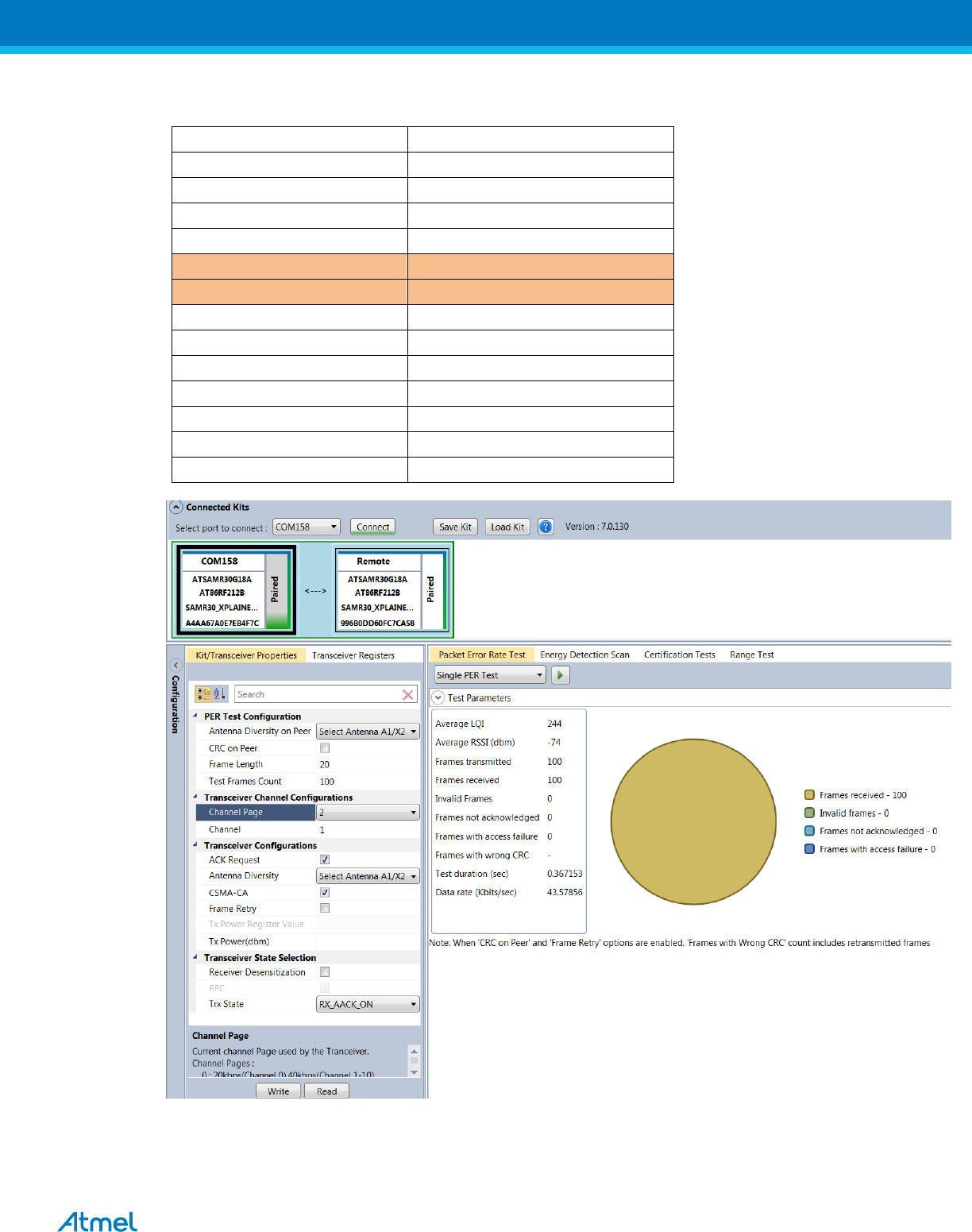

11.5. Run Single PER Test. Test parameter window display the Transmit packets (Frames transmitted), Receive

packets (Frames received) and RSSI (receive signal strength)

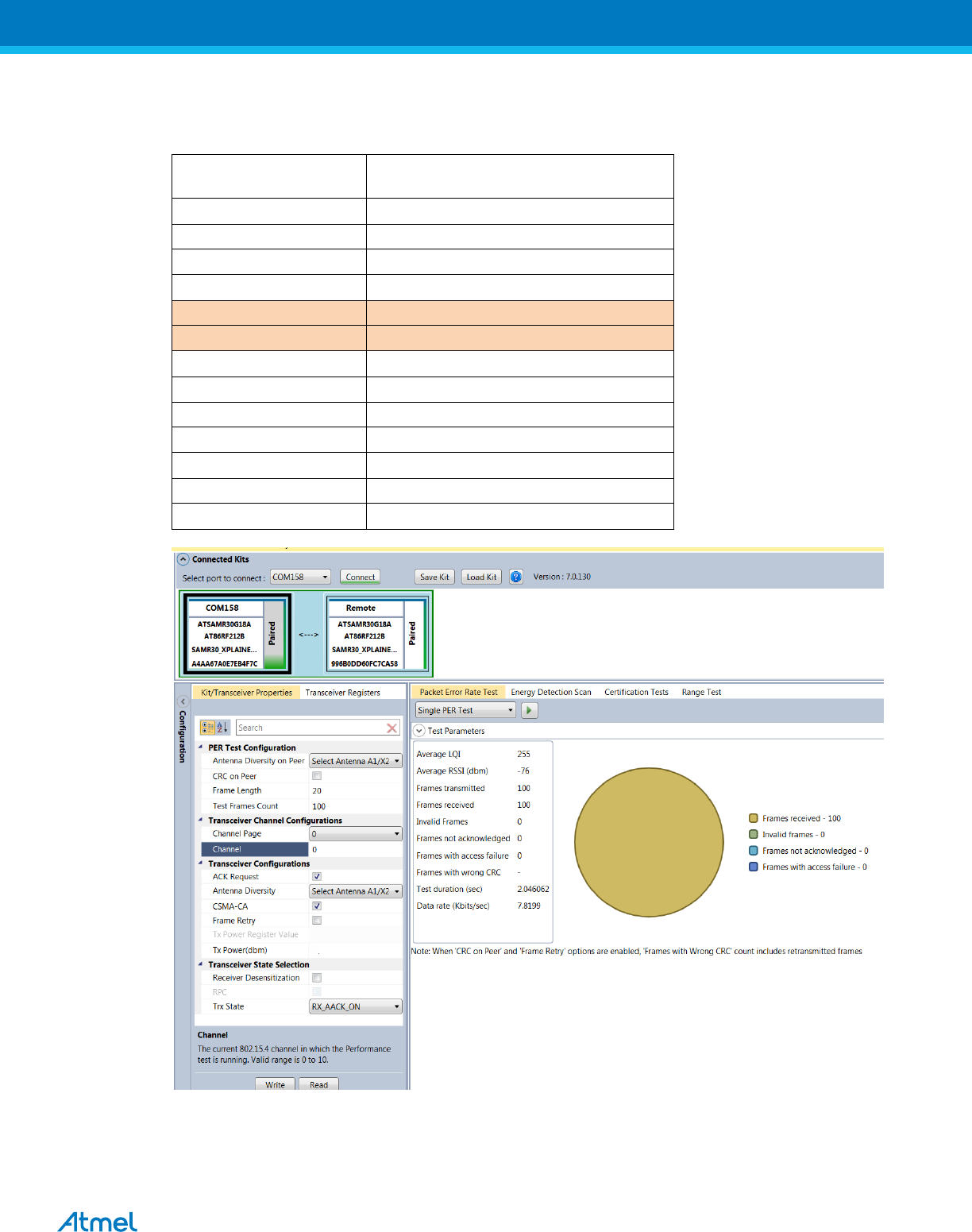

Figure 24: Performance Analyzer – PER Test

TRX Test Modes:

12.1.1. Tx-Rx Test (Transmit and Receive test) for Sub-1GHz FCC Testing

12.1.2. Tx-Rx Test - Operating mode #1 : BPSK-40-ALT , 40kbps, 7dBm:

Connect and test the DUT in single test mode as mentioned in Section-11 with the following configuration,

Performance Analyzer Parameter

Setting

Antenna Diversity on Peer

Select Anetnna A1/X2

CRC on Peer

- (Unchecked)

Frame Length

Test Frame Count

100

Channel Page

Channel

1 to 10

ACK Request

Checked

Antenna Diversity

Select Anetnna A1/X2

CSMA-CA

Checked

Frame Retry

- (Unchecked)

Tx Power(dBm)

Receiver Desensitization

- (Unchecked)

Trx State

RX_AACK_ON

TRX_CTRL_2 (0xC)

 With the above setting click “write” icon and go to “Transceiver Registers” tab.

 At the bottom corner, there is an icon called “Read”, click it.

 Then Change the register value of TRX_CTRL_2 (0xC) to “B4” as shown in the below image and press ‘Enter’

in keyboard

 After the TRX_CTRL_2 (0xC) value changed to “B4”, click the “Write” icon and do the test.

Important Note: Everytime when you change the channel or power or channel page, we need to

change the TRX_CTRL_2 register value to “B4”.

12.1.3. Tx-Rx Test - Operating mode #2: OQPSK-SIN-250, 250kbps, 7dBm:

Connect and test the DUT in single test mode as mentioned in Section-11 with the following configuration,

Performance Analyzer Parameter

Setting

Antenna Diversity on Peer

Select Anetnna A1/X2

CRC on Peer

- (Unchecked)

Frame Length

Test Frame Count

100

Channel Page

Channel

1 to 10

ACK Request

Checked

Antenna Diversity

Select Anetnna A1/X2

CSMA-CA

Checked

Frame Retry

- (Unchecked)

Tx Power(dBm)

Receiver Desensitization

- (Unchecked)

Trx State

RX_AACK_ON

12.1.4. Tx-Rx Test - Operating mode #3: OQPSK-SIN-1000-SCR-ON, 1Mbps, 7dBm:

Connect and test the DUT in single test mode as mentioned in Section-11 with the following configuration,

Performance Analyzer Parameter

Setting

Antenna Diversity on Peer

Select Anetnna A1/X2

CRC on Peer

- (Unchecked)

Frame Length

Test Frame Count

100

Channel Page

Channel

1 to 10

ACK Request

Checked

Antenna Diversity

Select Anetnna A1/X2

CSMA-CA

Checked

Frame Retry

- (Unchecked)

Tx Power(dBm)

Receiver Desensitization

- (Unchecked)

Trx State

RX_AACK_ON

12.2. Tx-Rx Test (Transmit and Receive test) for Sub-1GHz CE Testing

12.2.1. Tx-Rx Test - Operating Mode#4: BPSK-20, 20kbps, 7dBm:

Connect and test the DUT in single test mode as mentioned in Section-11 with the following configuration,

Performance Analyzer

Parameter

Setting

Antenna Diversity on Peer

Select Anetnna A1/X2

CRC on Peer

- (Unchecked)

Frame Length

Test Frame Count

100

Channel Page

Channel

ACK Request

Checked

Antenna Diversity

Select Anetnna A1/X2

CSMA-CA

Checked

Frame Retry

- (Unchecked)

Tx Power(dBm)

Receiver Desensitization

- (Unchecked)

Trx State

RX_AACK_ON

12.2.2. Tx-RxTest - Operating Mode#5: OQPSK-SIN-RC-100, 100kbps,7dBm:

Connect and test the DUT in single test mode as mentioned in Section-11 with the following configuration,

Performance Analyzer

Parameter

Setting

Antenna Diversity on Peer

Select Anetnna A1/X2

CRC on Peer

- (Unchecked)

Frame Length

Test Frame Count

100

Channel Page

Channel

ACK Request

Checked

Antenna Diversity

Select Anetnna A1/X2

CSMA-CA

Checked

Frame Retry

- (Unchecked)

Tx Power(dBm)

Receiver Desensitization

- (Unchecked)

Trx State

RX_AACK_ON

FCCCaution:

AnyChangesormodificationsnotexpresslyapprovedbythepartyresponsiblefor

compliancecouldvoidtheuser’sauthoritytooperatetheequipment.

Thisdevicecomplieswithpart15oftheFCCRules.Operationissubjecttothe

followingtwoconditions:(1)Thisdevicemaynotcauseharmfulinterference,and(2)

thisdevicemustacceptanyinterferencereceived,includinginterferencethatmay

causeundesiredoperation.

ThismoduleisintendedforOEMintegrator.TheOEMintegratorisstillresponsible

fortheFCCcompliancerequirementoftheendproduct,whichintegratesthis

module.Thefinalendproductmustbelabeledinavisibleareawiththefollowing”

ContainsFCCID:VM4A092722



FCCRadiationExposureStatement:

ThisequipmentcomplieswithFCCradiationexposurelimitssetforthfor

uncontrolledenvironment.Thisequipmentshouldbeinstalledandoperatedwith

minimumdistance20cmbetweentheradiator&yourbody.Thistransmittermustnot

beco‐locatedoroperatinginconjunctionwithanyotherantennaortransmitter.

Atmel Corporation

1600 Technology Drive

San Jose, CA 95110

USA

Tel: (+1)(408) 441-0311

Fax: (+1)(408) 487-2600

www.atmel.com

Atmel Asia Limited

Unit 01-5 & 16, 19F

BEA Tower, Millennium City 5

418 Kwun Tong Road

Kwun Tong, Kowloon

HONG KONG

Tel: (+852) 2245-6100

Fax: (+852) 2722-1369

Atmel Munich GmbH

Business Campus

Parkring 4

D-85748 Garching b. Munich

GERMANY

Tel: (+49) 89-31970-0

Fax: (+49) 89-3194621

Atmel Japan G.K.

16F Shin-Osaki Kangyo Bldg.

1-6-4 Osaki, Shinagawa-ku

Tokyo 141-0032

JAPAN

Tel: (+81)(3) 6417-0300

Fax: (+81)(3) 6417-0370

Atmel®, Atmel logo and combinations thereof, Enabling Unlimited Possibilities®, QTouch®, and others are registered trademarks or trademarks of Atmel

Corporation or its subsidiaries. ARM®, Cortex™ and others are registered trademarks or trademarks of ARM Ltd. Other terms and product names may be

trademarks of others.

Disclaimer: The information in this document is provided in connection with Atmel products. No license, express or implied, by estoppel or otherwise, to any intellectual property right is granted by this

document or in connection with the sale of Atmel products. EXCEPT AS SET FORTH IN THE ATMEL TERMS AND CONDITIONS OF SALES LOCATED ON THE ATMEL WEBSITE, ATMEL ASSUMES

NO LIABILITY WHATSOEVER AND DISCLAIMS ANY EXPRESS, IMPLIED OR STATUTORY WARRANTY RELATING TO ITS PRODUCTS INCLUDING, BUT NOT LIMITED TO, THE IMPLIED

WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, OR NON-INFRINGEMENT. IN NO EVENT SHALL ATMEL BE LIABLE FOR ANY DIRECT, INDIRECT,

CONSEQUENTIAL, PUNITIVE, SPECIAL OR INCIDENTAL DAMAGES (INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS AND PROFITS, BUSINESS INTERRUPTION, OR LOSS OF

INFORMATION) ARISING OUT OF THE USE OR INABILITY TO USE THIS DOCUMENT, EVEN IF ATMEL HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Atmel makes no

representations or warranties with respect to the accuracy or completeness of the contents of this document and reserves the right to make changes to specifications and products descriptions at any time

without notice. Atmel does not make any commitment to update the information contained herein. Unless specifically provided otherwise, Atmel products are not suitable for, and shall not be used in,

automotive applications. Atmel products are not intended, authorized, or warranted for use as components in applications intended to support or sustain life.

Microchip Technology A092722 ATSAMR30-XPRO User Manual

Atmel Norway AS ATSAMR30-XPRO Users Manual

Users Manual

Navigation menu

Namespaces

Views

Navigation
