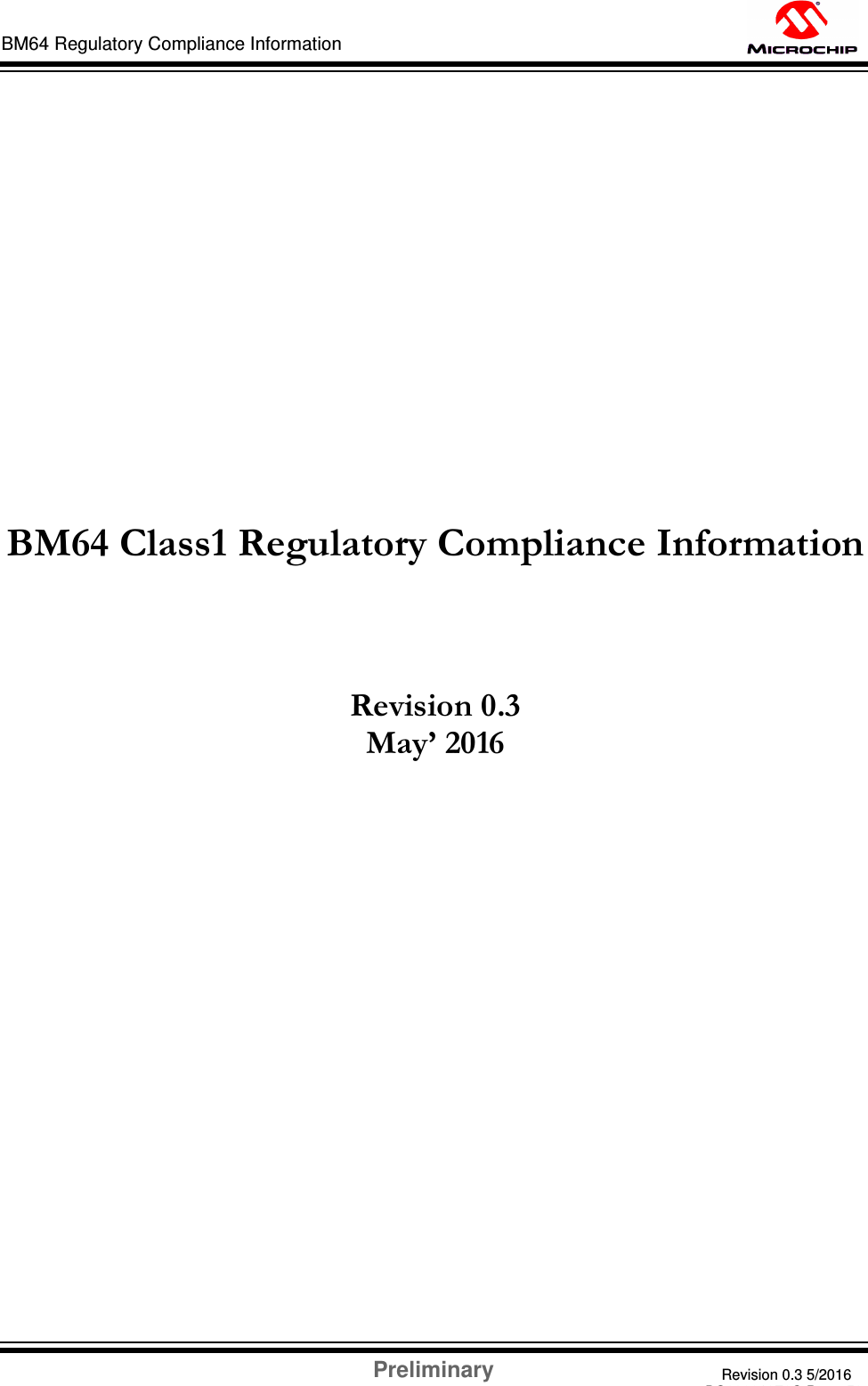

Preliminary Revision 0.3 5/2016 DS60001372C-Page 53 BM64 Regulatory Compliance Information BM64 Class1 Regulatory Compliance Information Revision 0.3 May’ 2016
BM64 Regulatory Compliance Information Preliminary Revision 0.3 5/2016 DS60001372C-Page 54 This document covers the Regulatory Compliance information which is part of the BM64 Module datasheet and related documents shared with customers.
Preliminary Revision 0.3 5/2016 DS60001372C-Page 55 BM64 Regulatory Compliance Information 1.0 ANTENNA 1.1 Antenna Characteristics 1.1.1 PCB ANTENNA The BM64 module contains an integral PCB antenna. The Figure 1-1 illustrates the antenna performance of the module. FIGURE 1-1: BM64 ANTENNA RADIATION PATTERN
BM64 Regulatory Compliance Information Preliminary Revision 0.3 5/2016 DS60001372C-Page 54 APPENDIX A: CERTIFICATION NOTICES BM64 module regulatory approval status: • BT SIG/QDID: in Progress • United States/FCC ID: A8TBM64S1( in Progress) • Canada/IC ID: 12246A-BM64S1( in Progress ) HVIN: BM64SPKS1MC1 • Europe/CE: in Progress • Japan/MIC: in Progress • Korea/KCC: in Progress • Taiwan/NCC No: in Progress • China/SRRC: in Progress A.1 REGULATORY APPROVAL This section outlines the regulatory information for the BM64 module for the following countries: • United States • Canada • Europe • Japan • Korea • Taiwan • China A.1.1 UNITED STATES The BM64 module has received Federal Communications Commission (FCC) CFR47 Telecom- munications, Part 15 Subpart C "Intentional Radiators" modular approval in accordance with Part 15.212 Mod- ular Transmitter approval. Modular approval allows the end user to integrate the BM64 module into a finished product without obtaining subsequent and separate FCC approvals for intentional radiation, provided no changes or modifications are made to the module cir- cuitry. Changes or modifications could void the user's authority to operate the equipment. The end user must comply with all of the instructions provided by the Grantee, which indicate installation and/or operating conditions necessary for compliance. The finished product is required to comply with all appli- cable FCC equipment authorizations regulations, requirements and equipment functions not associated with the transmitter module portion. For example, com- pliance must be demonstrated to regulations for other transmitter components within the host product; to requirements for unintentional radiators (Part 15 Sub- part B "Unintentional Radiators"), such as digital devices, computer peripherals, radio receivers, etc.; and to additional authorization requirements for the non-transmitter functions on the transmitter module (i.e., Verification, or Declaration of Conformity) (e.g., transmitter modules may also contain digital logic func- tions) as appropriate. A.1.2 LABELING AND USER INFORMATION REQUIREMENTS The BM64 module has been labeled with its own FCC ID number, and if the FCC ID is not visible when the module is installed inside another device, then the out- side of the finished product into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording as follows: Contains Transmitter Module FCC ID: A8TBM64S1 or Contains FCC ID: A8TBM64S1 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation A user's manual for the finished product should include the following statement: Additional information on labeling and user information requirements for Part 15 devices can be found in KDB Publication 784748 available at the FCC Office of Engi- Note: This device has no been au orized as required by the rules of the ederal Com- munications Commission This device is no and may not be, offered or sale or leas or sold or leased, until au orization is obtained is equipment has been tested and found o comply wi he limi for a Class B digi l device pursuan o pa 15 of the FCC Rule These limi s are designed provide reasonable protection agains ha ul in erence in a residential ins allation. his equip- ment generate uses and can radiate radio fre- quency energy and if no ins alled and used in accordance wi h he in ru ions may cause harmful in erence to radio communic ions Howeverere is no guaran ee hat in nce will not occur in a par icular in lla ion his equipmen does cause harmful in nce to radio or television recep io which can be determined by urning the equipment of and on, the user is encouraged to ry to corre the in erence by one or more o the follow- ing measures • Reorien or reloca e he receiving an enn • ncrease the separation between he equipment and receiver • Connec he equipmen in an outlet on a circuidi eren from hat which the receiver is con- ne ed. • Consult he dealer or an experienced radiochnician for help.
Preliminary Revision 0.3 5/2016 DS60001372C-Page 55 BM64 Regulatory Compliance Information neering and Technology (OET) Laboratory Division Knowledge Database (KDB) http://apps.fcc.gov/oetcf/kdb/index.cfm. A.1.3 RF EXPOSURE All transmitters regulated by FCC must comply with RF exposure requirements. KDB 447498 General RF Exposure Guidance provides guidance in determining whether proposed or existing transmitting facilities, operations or devices comply with limits for human exposure to Radio Frequency (RF) fields adopted by the Federal Communications Commission (FCC). From the FCC Grant: Output power listed is conducted. This grant is valid only when the module is sold to OEM integrators and must be installed by the OEM or OEM integrators. This transmitter is restricted for use with the specific antenna(s) tested in this application for Certification and must not be co-located or operating in conjunction with any other antenna or transmitters within a host device, except in accordance with FCC multi-transmitter product procedures. A.1.4 HELPFUL WEB SITES Federal Communications Commission (FCC): http://www.fcc.gov FCC Office of Engineering and Technology (OET) Lab- oratory Division Knowledge Database (KDB): http://apps.fcc.gov/oetcf/kdb/index.cfm A.2 Canada The BM64 module has been certified for use in Canada under Industry Canada (IC) Radio Standards Procedure (RSP) RSP-100, Radio Standards Specification (RSS) RSS-Gen and RSS-247. Modular approval permits the installation of a module in a host device without the need to recertify the device. A.2.1 LABELING AND USER INFORMATION REQUIREMENTS Labeling Requirements for the Host Device (from Sec- tion 3.1, RSS-Gen, Issue 4, November 2014): The host device shall be properly labeled to identify the module within the host device. The Industry Canada certification label of a module shall be clearly visible at all times when installed in the host device, otherwise the host device must be labeled to display the Industry Canada certification number of the module, preceded by the words "Contains transmit- ter module", or the word "Contains", or similar wording expressing the same meaning, as follows: User Manual Notice for License-Exempt Radio Appara- tus (from Section 8.4, RSS-Gen, Issue 4, November 2014): User manuals for license-exempt radio appara- tus shall contain the following or equivalent notice in a conspicuous location in the user manual or alterna- tively on the device or both: Transmitter Antenna (from Section 8.3, RSS-Gen, Issue 4, November 2014): User manuals for transmit- ters shall display the following notice in a conspicuous location: Under Industry Canada regulations, this radio trans- mitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the trans- mitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotrop- ically radiated power (e.i.r.p.) is not more than that necessary for successful communication. Conformément à la réglementation d'Industrie Can- ada, le présent émetteur radio peut fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Can- ada. Dans le but de réduire les risques de brouillage radioélectrique à l'intention des autres utilisateurs, il faut choisir le type d'antenne et son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire à l'établisse- ment d'une communication satisfaisante. The above notice may be affixed to the device instead of displayed in the user manual. Co ains transmitter module is device complies wi ndu Canada license-exem R andard(s) pera ion is sub- je to the ollowing two condi ions (1) this device may not cause interferenc and (2) this device muaccept any interference including in nce hay cause undesired operation o the device Le présen appareil es con orme aux CNR d dus- trie Canada applicables aux appareils radio exemp s de licence L'exploi ation es autorisée aux deux con- ditions suivant (1) l appareil ne doit pas produire de brouillage, (2) l'utilisateur de l appareil doit accepter out brouillage radioélec rique subi même si le brouillage es susceptible d'en comprome re le nctionneme
BM64 Regulatory Compliance Information Preliminary Revision 0.3 5/2016 DS60001372C-Page 56 A.2.2 RF EXPOSURE All transmitters regulated by IC must comply with RF exposure requirements listed in RSS-102 - Radio Fre- quency (RF) Exposure Compliance of Radio communi- cation Apparatus (All Frequency Bands). A.2.3 HELPFUL WEB SITES Industry Canada: http://www.ic.gc.ca/ A.3 Europe The BM64 module is in progress to be an R&TTE Directive assessed radio module that is CE marked and has been manufactured and tested with the inten- tion of being integrated into a final product. The BM64 module has been tested to R&TTE Directive 1999/5/EC Essential Requirements for Health and Safety (Article (3.1(a)), Electromagnetic Compatibility (EMC) (Article 3.1(b)), and Radio (Article 3.2) and are summarized in Table A-1. A Notified Body Opinion has also been issued. The R&TTE Compliance Association provides guid- ance on modular devices in “Technical Guidance Note 01” document available for download from the following location: http://www.rtteca.com/html/down- load_area.htm. A.3.1 LABELING AND USER INFORMATION REQUIREMENTS The label on the final product which contains the BM64 module must follow CE marking requirements. The R&TTE Compliance Association Technical Guidance Note 01 provides guidance on final product CE mark- ing. A.3.2 ANTENNA REQUIREMENTS From R&TTE Compliance Association document Tech- nical Guidance Note 01. Provided the integrator installing an assessed radio module with an integral or specific antenna and installed in conformance with the radio mod- ule manufacturer's installation instructions requires no further evaluation.Under Article 3.2 of the R&TTE Directive and does not require fur- ther involvement of an R&TTE Directive Notified Body for the final product. [Section 2.2.4] The European Compliance Testing listed in Table A-1 was performed using the integral ceramic chip antenna. Note: o main ain conformance to the testing li ed in Table A-1 European Compliance es ing the module shall be ins alled in accordance wi the in allation inons in this data sheet and shall no be modified When integra ing a radio module into a comple ed produc he in grator becomes the manuf urer of the final produ and is therefore responsible for demons ng compliance of the final produ wi h the essen ial requirements of the R&TTE Direc ive
Preliminary Revision 0.3 5/2016 DS60001372C-Page 57 BM64 Regulatory Compliance Information TABLE A-1: EUROPEAN COMPLIANCE TESTING Certification Standards Article Laboratory Report Number Safety EN60950-1:2006/A11:2010/A1:2010/ A12:2011/A2:2013 3(1)(a) TUV Rheinland xxxxxxxx xxx xxxxxxxx xxx Health EN62479:2010 xxxxxxxx xxx EMC EN301489-1 V1.9.2 3(1)(b) xxxxxxxx xxx xxxxxxxx xxx EN301489-17 V2.2.1 Radio EN300328 V1.9.1 3(2) xxxxxxxx xxx Notified Body A.3.3 HELPFUL WEB SITES A document that can be used as a starting point in understanding the use of Short Range Devices (SRD) in Europe is the European Radio Communications Committee (ERC) Recommendation 70-03 E, which can be downloaded from the European Radio Commu- nications Office (ERO) at: http://www.ero.dk/. Addi- tional helpful web sites are: • Radio and Telecommunications Terminal Equip- ment (R&TTE): http://ec.europa.eu/enterprise/rtte/index_en.htm • European Conference of Postal and Telecommu- nications Administrations (CEPT): http://www.cept.org • European Telecommunications Standards Insti- tute (ETSI): http://www.etsi.org • European Radio Communications Office (ERO): http://www.ero.dk • The Radio and Telecommunications Terminal Equipment Compliance Association (R&TTE CA): http://www.rtteca.com A.4 Japan The BM64 module has received type certification and is labeled with its own technical conformity mark and certification number as required to conform to the tech- nical standards regulated by the Ministry of Internal Affairs and Communications (MIC) of Japan pursuant to the Radio Act of Japan. Integration of this module into a final product does not require additional radio certification provided installa- tion instructions are followed and no modifications of the module are allowed. Additional testing may be required: • If the host product is subject to electrical appli- ance safety (for example, powered from an AC mains), the host product may require Product Safety Electrical Appliance and Material (PSE) testing. The integrator should contact their confor- mance laboratory to determine if this testing is required. • There is an voluntary Electromagnetic Compatibil- ity (EMC) test for the host product administered by VCCI: http://www.vcci.jp/vcci_e/index.html A.4.1 LABELING AND USER INFORMATION REQUIREMENTS The label on the final product which contains the BM64 module must follow Japan marking requirements. The integrator of the module should refer to the labeling requirements for Japan available at the Ministry of Internal Affairs and Communications (MIC) website. The BM64 module is labeled with its own technical con- formity mark and certification number. A.4.2 HELPFUL WEB SITES Ministry of Internal Affairs and Communications (MIC): http://www.tele.soumu.go.jp/e/index.htm Association of Radio Industries and Businesses (ARIB): http://www.arib.or.jp/english/ A.5 Korea The BM64 module has received certification of confor- mity in accordance with the Radio Waves Act. Integra- tion of this module into a final product does not require additional radio certification provided installation instructions are followed and no modifications of the module are allowed. ‘Pending’ ‘Pending’
BM64 Regulatory Compliance Information Preliminary Revision 0.3 5/2016 DS60001372C-Page 58 A.5.1 LABELING AND USER INFORMATION REQUIREMENTS The label on the final product which contains the BM64 module must follow KC marking requirements. The integrator of the module should refer to the labeling requirements for Korea available on the Korea Com- munications Commission (KCC) website. The BM64 module is labeled with its own KC mark. The final product requires the KC mark and certificate num- ber of the module: A.5.2 HELPFUL WEB SITES Korea Communications Commission (KCC): http://www.kcc.go.kr National Radio Research Agency (RRA): http://rra.go.kr A.6 Taiwan The BM64 module has received compliance approval in accordance with the Telecommunications Act.. Customers seeking to use the compliance approval in their product should contact Microchip Technology sales or distribution partners to obtain a Letter of Authority. Integration of this module into a final product does not require additional radio certification provided installa- tion instructions are followed and no modifications of the module are allowed. A.6.1 LABELING AND USER INFORMATION REQUIREMENTS The BM64 module is labeled with its own NCC mark and certificate number as below: The user's manual should contain below warning (for RF device) in traditional Chinese: ! A.6.2 HELPFUL WEB SITES National Communications Commission (NCC): http://www.ncc.gov.tw A.7 China The BM64 module has received certification of conformity in accordance with the China MIIT Notice 2014-01 of State Radio Regulation Committee (SRRC) certification scheme. Integration of this module into a final product does not require additional radio certification, provided installation instructions are followed and no modifications of the module are allowed. A.7.1 LABELING AND USER INFORMATION REQUIREMENTS The BM64 module is labeled with its own CMIIT ID as follows: When Host system is using an approved Full Modular Approval (FMA) radio: The host should bear a label containing the statement “This device contains SRRC approved Radio module CMIIT ID XXXXYYZZZZ”. A.8 A.8 Other Regulatory Jurisdictions Should other regulatory jurisdiction certification be required by the customer, or the customer need to recertify the module for other reasons, contact Microchip for the required utilities and documentation. CMIIT ID: XXXXYYZZZZ ‘Pending’
