MRF89XAM9A

Features

• Module designed from the MRF89XA Integrated

Ultra Low-Power, Sub-GHz Transceiver IC.

• Supports MiWi™ Development Environment

Proprietary Wireless Networking Protocols

• 4-Wire Serial Peripheral Interface (SPI) with

Interrupts

• Small Size: 0.7" x 1.1" (17.8 mm x 27.9 mm),

Surface Mountable — Pin compatible with

MRF89XAM9A

• Integrated Crystal, Internal Voltage Regulator,

Matching Circuitry and Printed Circuit Board

(PCB) Antenna

• Easy Integration into Final Product — Minimize

Product Development, Quicker Time to Market

• Compatible with Microchip’s Microcontroller

Families (PIC16, PIC18, PIC24, dsPIC33 and

PIC32)

• Radio Regulation Certified for United States

(FCC), Canada (IC) and Australia/New Zealand

(C-TICK)

Operational

• Operating Voltage: 2.1–3.6V (3.3V typical)

• Temperature Range: -40°C to +85°C Industrial

• Low-Current Consumption:

- Rx mode: 3 mA (typical)

- Tx mode: 25 mA at +10 dBm (typical)

- Sleep: 0.1 µA (typical)

RF/Analog Features

• ISM Band 902–928 MHz Operation

• Modulation: FSK and OOK

• Data Rate (to conform to FCC and IC regulations):

- FSK: 50–200 kbps

- OOK: 16 kbps

• Reception sensitivity

- FSK: -107 dBm (typical) at 50 kbps

- OOK: -113 dBm (typical) at 2 kbps

• +10 dBm Typical Output Power with 21 dB Tx

Power Control Range

Media Access Controller (MAC)/

Baseband Features

• Packet handling feature with data whitening and

automatic CRC generation

• Incoming sync word (pattern) recognition

• Built-in bit synchronizer for incoming data, and clock

synchronization and recovery

• 64-byte transmit/receive FIFO with preload in Stand-by

mode

• Supports Manchester encoding/decoding

techniques

Pin diagram

VIN

GND

RESET

CSCON

SDO

SDI

SCK

CSDATA

IRQ1

GND

IRQ0

11 GND

915 MHz Ultra Low-Power Sub-GHz Transceiver Module

MRF89XAM9A

Table of Contents

1.0 Device Overview .......................................................................................................................................................................... 3

2.0 Circuit Description ........................................................................................................................................................................ 9

3.0 Regulatory Approval................................................................................................................................................................... 17

4.0 Electrical Characteristics ............................................................................................................................................................ 21

Appendix A: Revision History............................................................................................................................................................... 27

The Microchip Web Site ....................................................................................................................................................................... 29

Customer Change Notification Service ................................................................................................................................................ 29

Customer Support ................................................................................................................................................................................ 29

Reader Response ................................................................................................................................................................................ 30

Product Identification System............................................................................................................................................................... 31

TO OUR VALUED CUSTOMERS

It is our intention to provide our valued customers with the best documentation possible to ensure successful use of your Microchip

products. To this end, we will continue to improve our publications to better suit your needs. Our publications will be refined and

enhanced as new volumes and updates are introduced.

If you have any questions or comments regarding this publication, please contact the Marketing Communications Department via

E-mail at docerrors@microchip.com or fax the Reader Response Form in the back of this data sheet to (480) 792-4150. We

welcome your feedback.

Most Current Data Sheet

To obtain the most up-to-date version of this data sheet, please register at our Worldwide Web site at:

http://www.microchip.com

You can determine the version of a data sheet by examining its literature number found on the bottom outside corner of any page.

The last character of the literature number is the version number, (e.g., DS30000A is version A of document DS30000).

Errata

An errata sheet, describing minor operational differences from the data sheet and recommended workarounds, may exist for current

devices. As device/documentation issues become known to us, we will publish an errata sheet. The errata will specify the revision

of silicon and revision of document to which it applies.

To determine if an errata sheet exists for a particular device, please check with one of the following:

• Microchip’s Worldwide Web site; http://www.microchip.com

• Your local Microchip sales office (see last page)

When contacting a sales office, please specify which device, revision of silicon and data sheet (include literature number) you are

using.

Customer Notification System

MRF89XAM9A

1.0 DEVICE OVERVIEW

The MRF89XAM9A is an Ultra Low-Power Sub-GHz

surface mount transceiver module with integrated

crystal, internal voltage regulator, matching circuitry

and PCB antenna. The MRF89XAM9A module

operates in the United States/Canada 902–928 MHz

ISM frequency band. The integrated module design

frees the integrator from extensive RF and antenna

design, and regulatory compliance testing, allowing

quicker time to market.

The MRF89XAM9A module is compatible with

Microchip’s MiWi™ Development Environment software

stacks. The software stacks are available as a free

download, including source code, from the Microchip’s

web site http://www.microchip.com/wireless.

The MRF89XAM9A module has received regulatory

approvals for modular devices in the United States

(FCC) and Canada (IC). Modular approval removes the

need for expensive RF and antenna design, and allows

the end user to place the MRF89XAM9A module inside

a finished product and not require regulatory testing for

an intentional radiator (RF transmitter). To maintain

conformance, refer to module settings in Section 3.1.1,

MRF89XAM9A SETTINGS for the United States and

Section 3.2.1, MRF89XAM9A SETTINGS for Canada.

1.1 Interface description

The simplified block diagram of the MRF89XAM9A

module is shown in Figure 1-1. The module is based on

the Microchip Technology MRF89XA Ultra Low-Power

Sub-GHz Transceiver Integrated Circuit (IC). The

module interfaces to many popular Microchip PIC®

microcontrollers through a 3-wire serial SPI interface,

two chip selects (Configuration and Data), two

interrupts — Interrupt Request 0 (IRQ0) and Interrupt

Request 1 (IRQ1), Reset, Power and Ground as shown

in Figure 1-2. Tab le 1- 1 provides the pin descriptions.

Data communication and module configuration are

documented in the “MRF89XA Ultra Low-Power,

Integrated Sub-GHz Transceiver” (DS70622) Data

Sheet. For more information on specific serial interface

protocol and general register definitions, refer to the

“MRF89XA Data Sheet” and see Section 1.3,

Operation for specific register settings unique to the

MRF89XAM9A module operation to maintain

regulatory compliance.

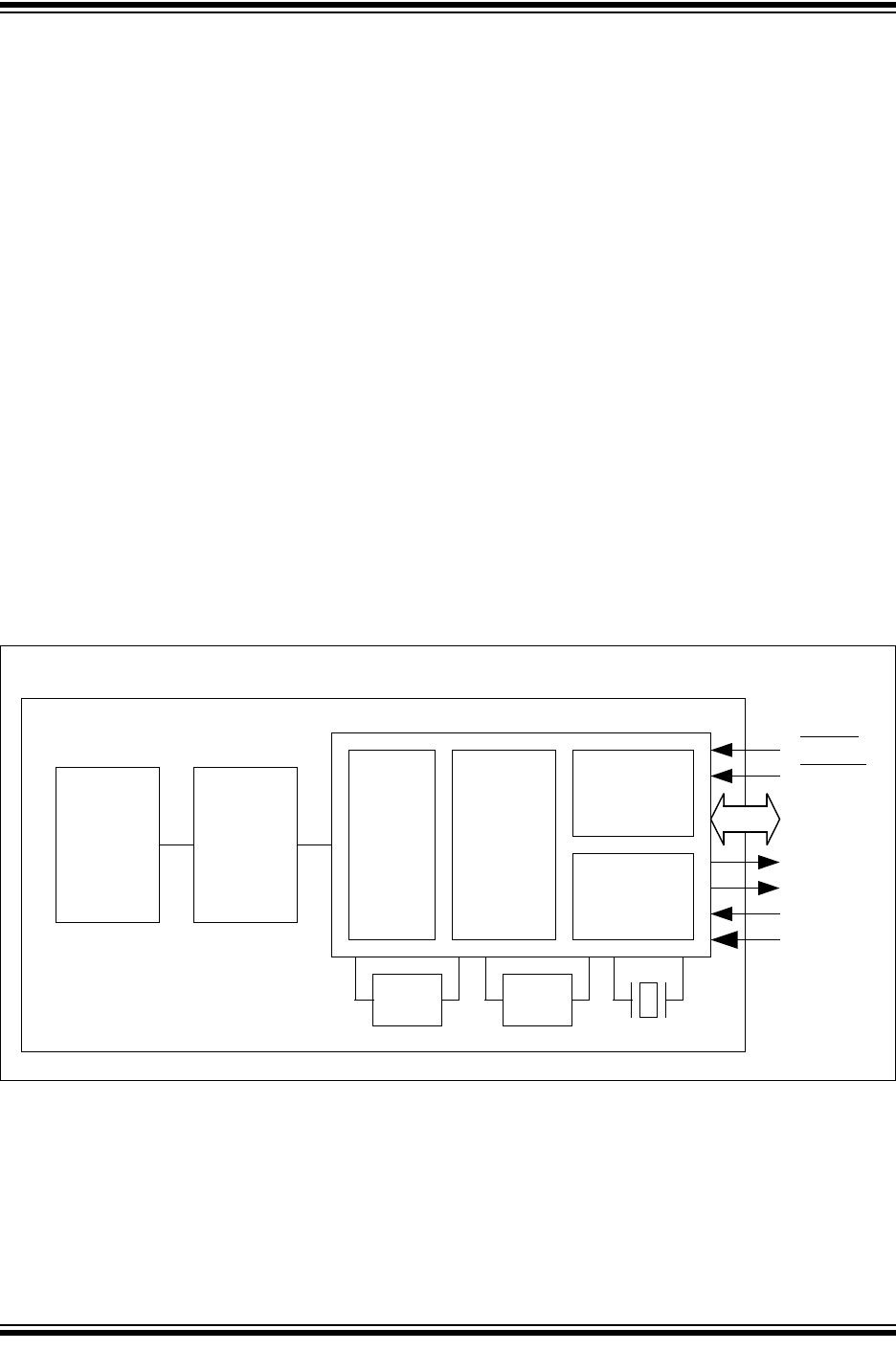

FIGURE 1-1: MRF89XAM9A BLOCK DIAGRAM

MRF89XA

Control

Interface

Power

Management

BasebandRF

MRF89XAM9A Module

SPI Digital I/O

IRQ0

Power

12.8 MHz Crystal

Matching

Circuitry

and

SAW Filter

PCB

Antenna

Loop

Filter

VCO

Tank

IRQ1

CSDATA

CSCON

RESET

MRF89XAM9A

TABLE 1-1: PIN DESCRIPTION

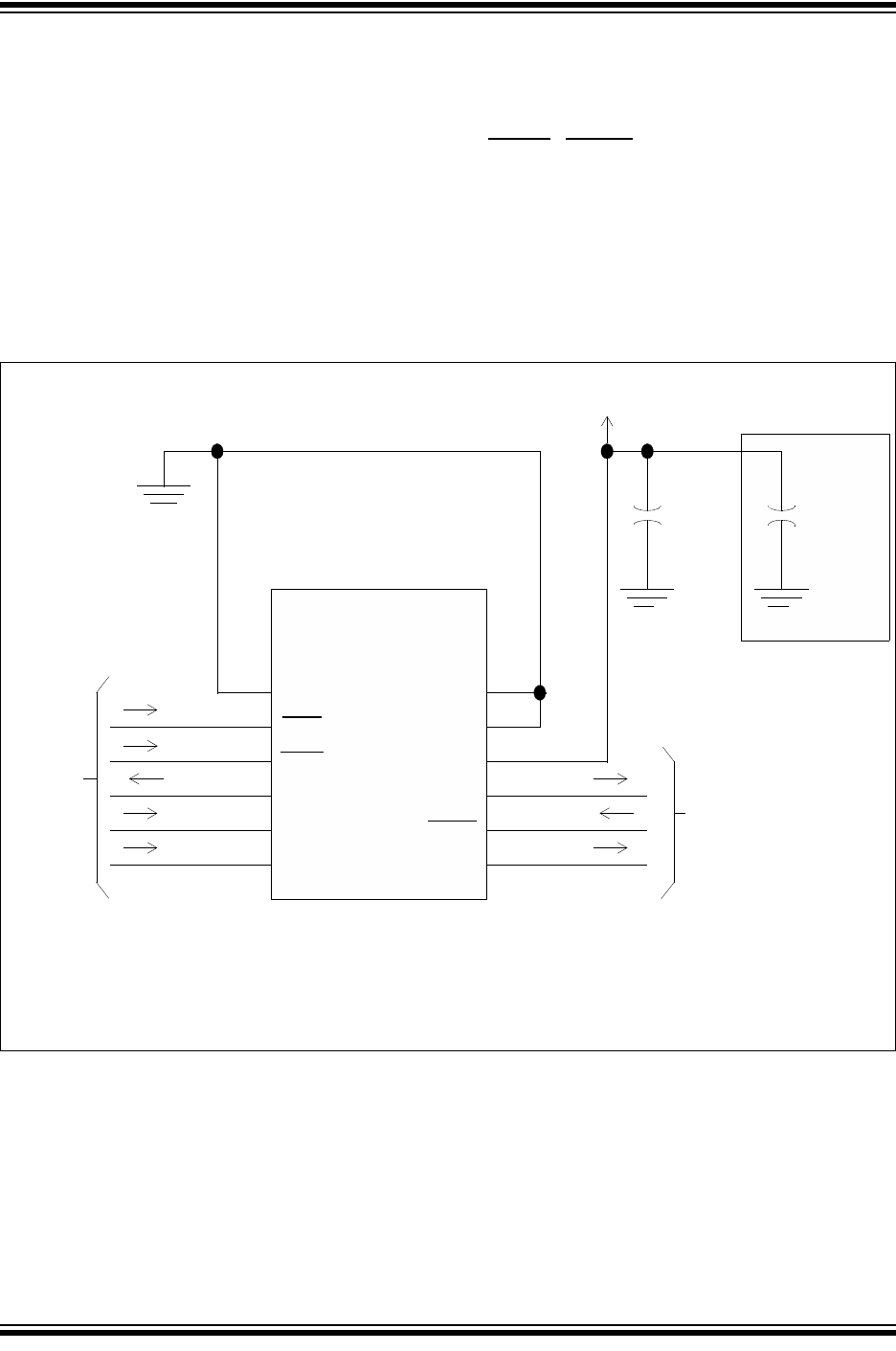

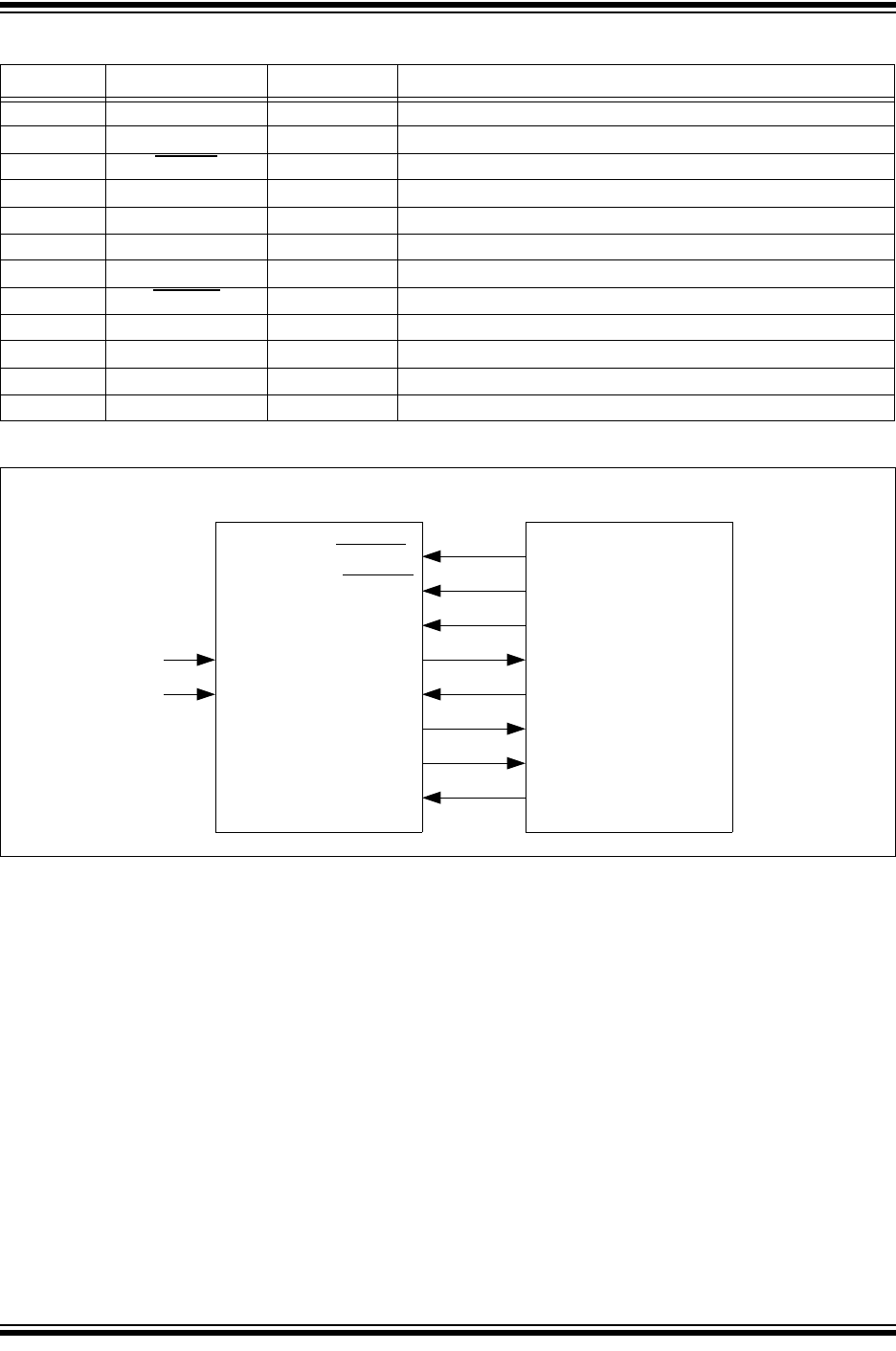

FIGURE 1-2: MICROCONTROLLER TO MRF89XAM9A INTERFACE

Pin Symbol Type Description

1GNDPower Ground

2 RESET DI Reset Pin

3CSCON DI Serial Interface Configure Chip Select

4 IRQ0 DO Interrupt Request Output

5 SDI DI Serial Interface Data Input

6 SCK DI Serial Interface Clock

7 SDO DO Serial Interface Data Output

8CSDATA DI Serial Interface Data Chip Select

9 IRQ1 DO Interrupt Request Output

10 Vin Power Power Supply

11 GND Power Ground

12 GND Power Ground

PIC® Microcontroller

I/O

SDO

SDI

SCK

INTx

I/O

MRF89XAM9A

CSCON

CSDATA

SDI

SDO

SCK

IRQ0

IRQ1

RESET

VIN

GND

MRF89XAM9A

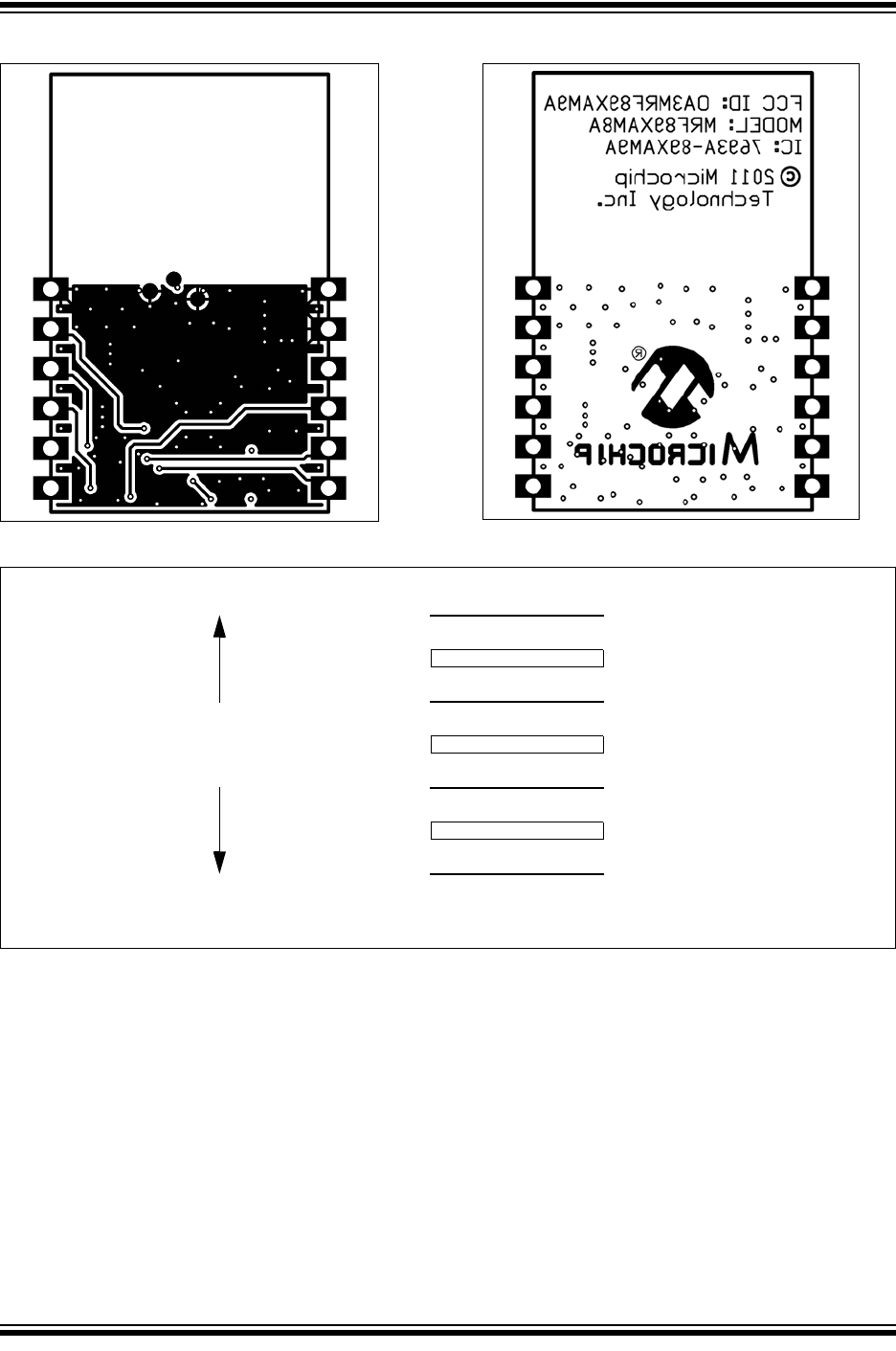

1.2 Mounting Details

The MRF89XAM9A is a surface mountable module.

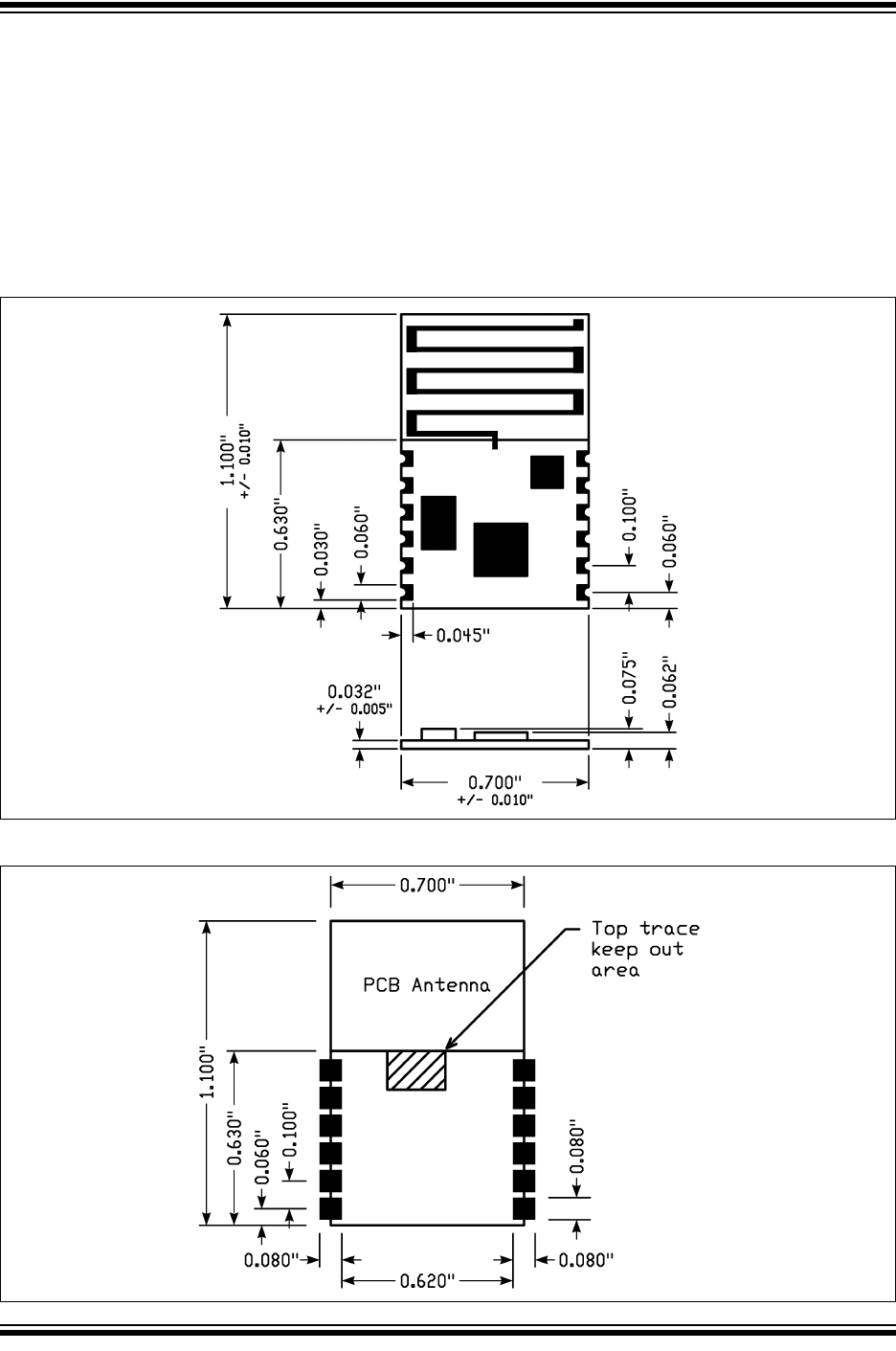

Module dimensions are shown in Figure 1-3. The

module PCB is 0.032" thick with castellated mounting

holes on the edge. Figure 1-4 is the recommended host

PCB footprint for the MRF89XAM9A.

The MRF89XAM9A has an integrated PCB antenna.

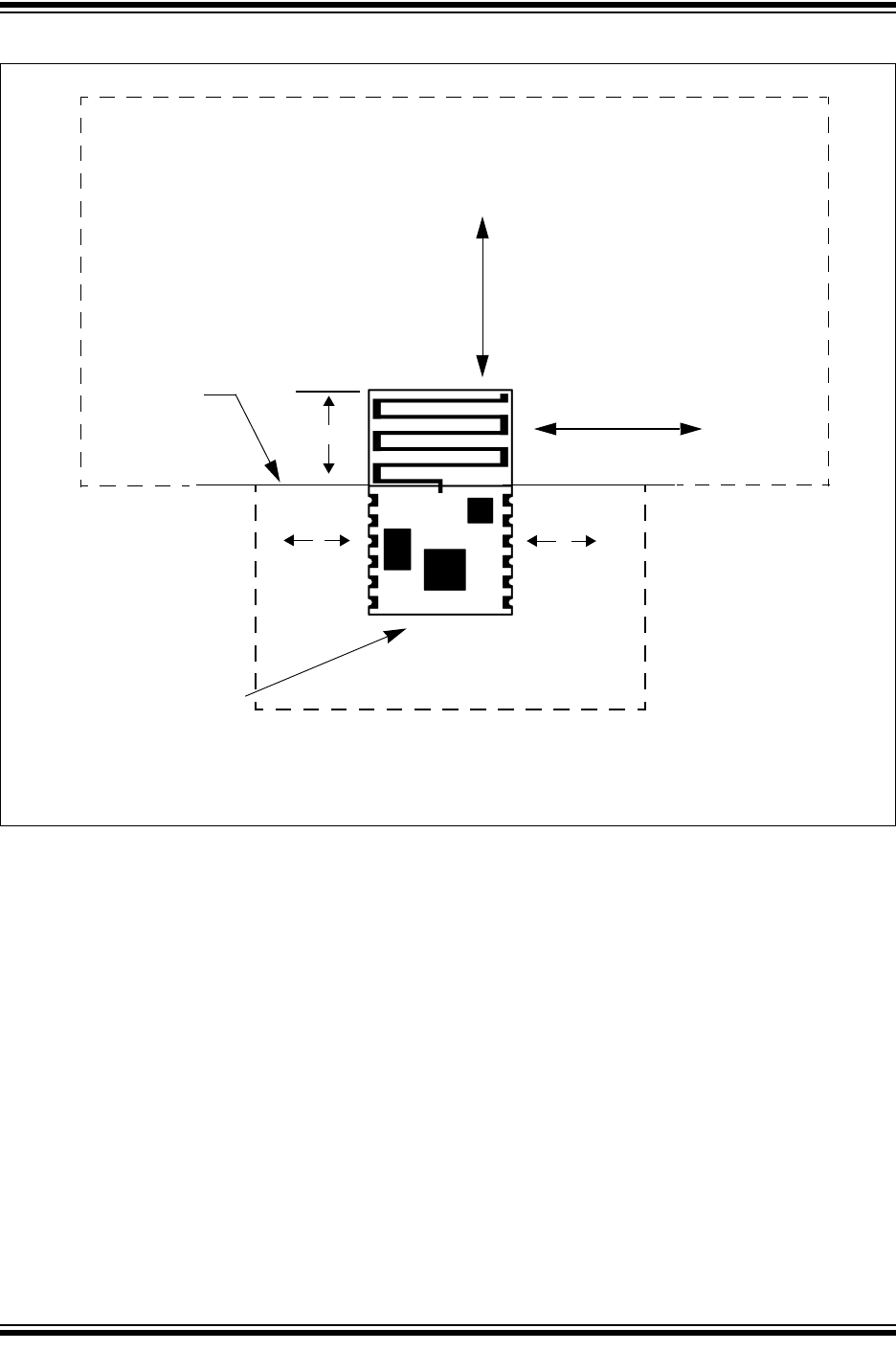

For the best performance, follow the mounting details

shown in Figure 1-5. It is recommended that the

module be mounted on the edge of the host PCB and

an area around the antenna, approximately 3.4" (8.6

cm), be kept clear of metal objects for best

performance. A host PCB ground plane around the

MRF89XAM9A acts as a counterpoise to the PCB

antenna. It is recommended to extend the ground plane

at least 0.4" (1 cm) around the module.

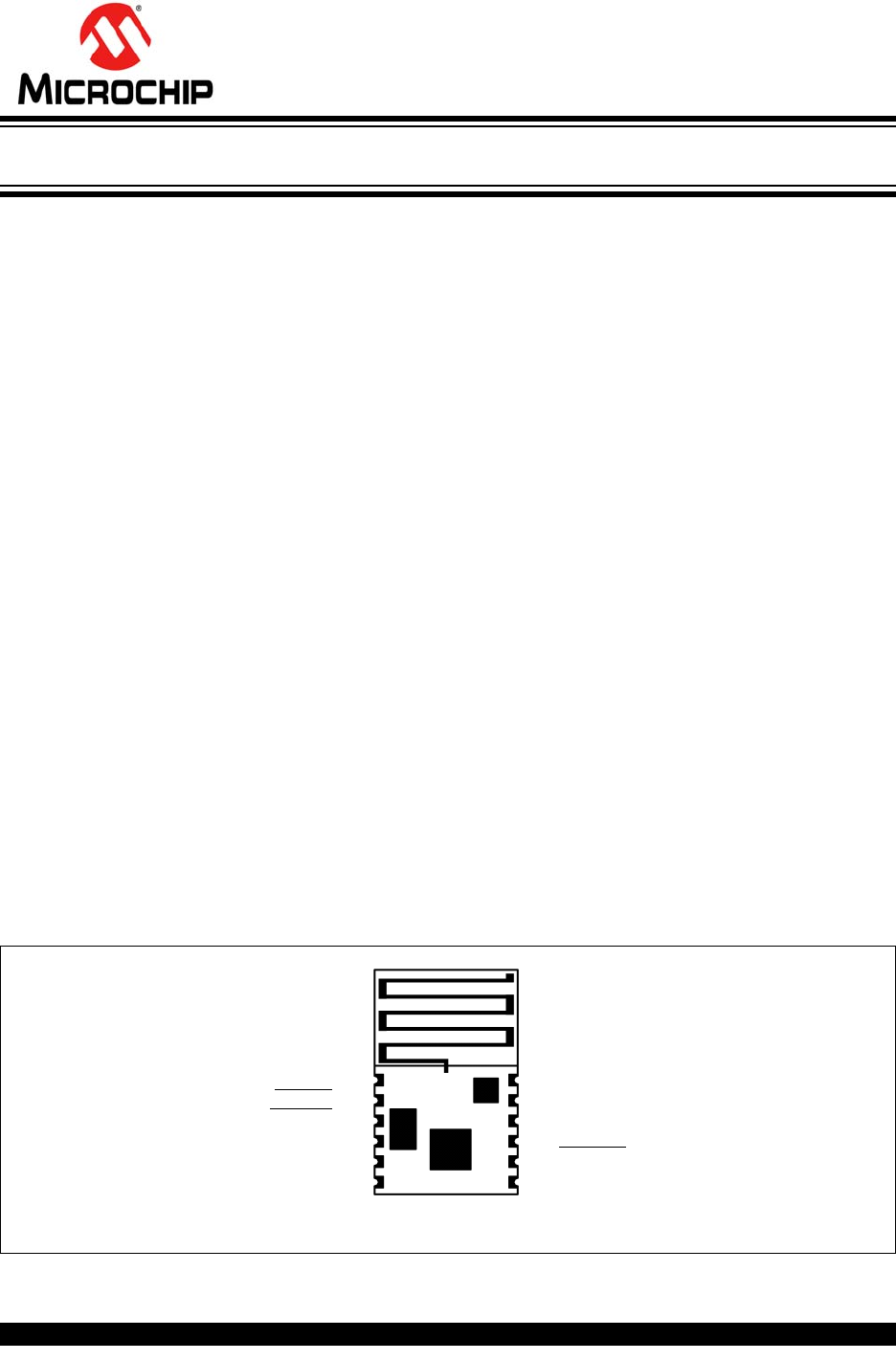

FIGURE 1-3: MODULE DETAILS

FIGURE 1-4: RECOMMENDED PCB FOOTPRINT

MRF89XAM9A

FIGURE 1-5: MOUNTING DETAILS

3.4”

0.4”

Edge of PCB

0.470”

Keep area around antenna

(approximately 3.4 (6.8 cm)

inches) clear of metallic structures

for best performance

Host PCB Top Copper Ground

Plane (Antenna Counterpoise):

Extend the host PCB top copper

ground plane under and to the left

and right side of the module at least

0.4 inches (1 cm) for best antenna

performance.

MRF89XAM9A

1.3 Operation

The MRF89XAM9A module is based on the Microchip

Technology MRF89XA Ultra Low-Power, Integrated

ISM Band Sub-GHz Transceiver IC. Data

communication and module configuration are

documented in the “MRF89XA Ultra Low-Power,

Integrated ISM Band Sub-GHz Transceiver Data

Sheet” (DS70622).

This section emphasizes operational settings that are

unique to the MRF89XAM9A module design that must

be followed for proper operation.

1.3.1 RESET

Pin 2 of the module, RESET, allows for an external

reset of the MRF89XA IC. RESET is connected to the

TEST8 pin of the MRF89XA IC. During normal

operations of the MRF89XAM9A, the RESET pin

should be held in a high impedance state. For more

information on Assertion of the RESET pin, refer to the

“Section 3.1.2 Manual Reset” of “MRF89XA Data

Sheet” (DS70622).

1.3.2 CRYSTAL FREQUENCY

When calculating frequency deviation, bit rate, receiver

bandwidth, and PLL R, P and S values, use crystal

frequency fxtal = 12.8 MHz.

1.3.3 CLOCK OUTPUT (CLKOUT)

The CLKOUT pin 19 of the MRF89XA IC is not used on

the module. Ensure that the CLKOUT signal is disabled

to minimize the current consumption.

1.3.4 FREQUENCY BAND SELECT

The Frequency Band Select (FBS<1:0>) bits in the

GCONREG<4:3> should be set for target channel

range 902–915 MHz FBS<1:0> = '00' or 915–928 MHz

FBS<1:0> = '01'.

1.3.5 VCO TANK TRIM VALUE

The VCO Trim (VCOT<1:0>) bits in the

GCONREG<2:1> should be set for VCOT<1:0> = '11'

for the inductor values of the module.

MRF89XAM9A

NOTES:

MRF89XAM9A

2.0 CIRCUIT DESCRIPTION

The MRF89XAM9A module interfaces to Microchip’s

PIC16, PIC 18, PIC24, dsPIC33 and PIC32

microcontrollers with a minimum of external

components through digital only connections. An

example application schematic is shown in Figure 2-2.

2.1 Module Schematic

The MRF89XAM9A module is based on the Microchip

Technology MRF89XA Ultra Low-Power, Integrated

ISM Band sub-GHz Transceiver IC. The serial I/O

(CSCON, CSDATA, SCK, SDO and SDI), RESET,

IRQ0 and IRQ1 pins are brought out to the module

pins. Crystal X1 is a 12.8 MHz crystal with a

frequency tolerance of ±10 ppm at 25°C. The RFIO

output is matched to the SAW filter FL1 and further

matched to the PCB trace antenna.

Figure 2-2 illustrates the MRF89XAM9A schematics.

Table 2-1 details the Bill of Materials (BOM).

FIGURE 2-1: MRF89XAM9A APPLICATION SCHEMATIC

Note 1

+C2

1 0

0.1

To Host

Microcontroller

To Host

Microcontroller

MRF89XAM9A-I/RM

+ 3.3V

GND

RESET

CSCON

IRQ0

SDI

SCK

GND

IRQ1

CSDATA

SDO

Note: For battery powered applications, place a 10 μF capacitor in parallel with the 0.1 μF bypass

capacitor to provide a low impedance during startup sequences.

MRF89XAM9A

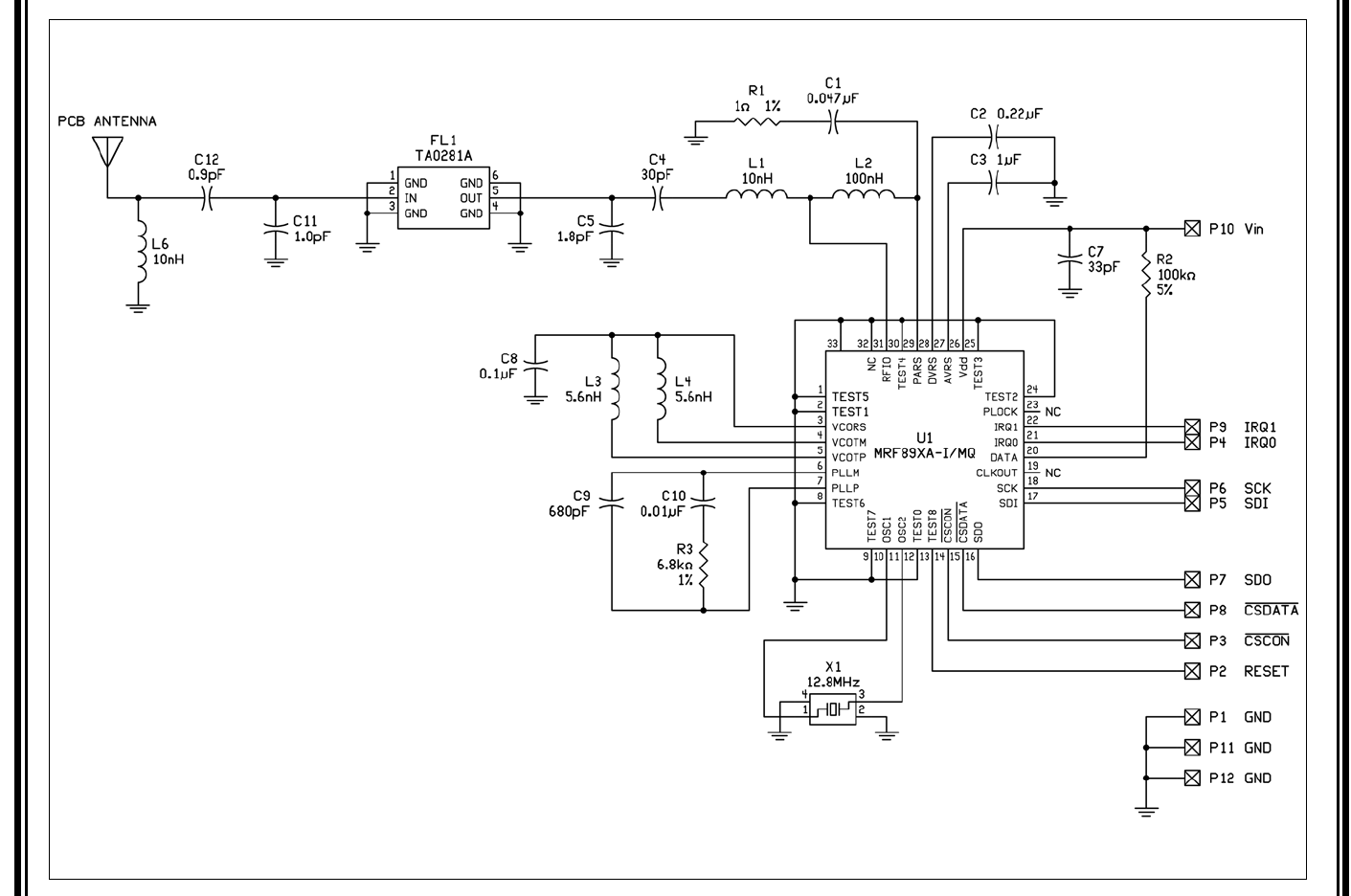

FIGURE 2-2: MRF89XAM9A SCHEMATIC

Note: Designators not used: C6, L5

MRF89XAM9A

TABLE 2-1: MRF89XAM9A BILL OF MATERIALS

Desi

gnat

or Value Description Manufacturer Part Number

C1 0.047 µF Capacitor, Ceramic, 10V, ±10%, X7R, SMT

0402

Murata GRM155R71A473KA01D

C2 0.22 µF Capacitor, Ceramic, 16V, ±10%, X7R, SMT

0402

Murata GRM155R71C224KA12D

C3 1 µF Capacitor, Ceramic, 6.3V, ±10%, X5R, SMT

0603

Murata GRM188R60J105KA01D

C4 30 pF Capacitor, Ceramic, 50V, ±5%, UHI-Q NP0,

SMT 0402

Johanson Technology 250R07S300JV4T

C5 1.8 pF Capacitor, Ceramic, 50V, ±0.1 pF, UHI-Q

NP0, SMT 0402

Johanson Technology 500R07S1R8BV4

C6 — Designator not used — —

C7 33 pF Capacitor, Ceramic, 50V, ±5%, C0G, SMT

0402

Murata GRM1555C1H330JZ01D

C8 0.1 µF Capacitor, Ceramic, 16V, ±10%, X7R, SMT

0402

Murata GRM155R71C104KA88D

C9 680 pF Capacitor, Ceramic, 50V, ±5%, C0G, SMT

0402

Murata GRM1555C1H681JA01D

C10 0.01 µF Capacitor, Ceramic, 16V, ±10%, X7R, SMT

0402

Murata GRM155R71C103KA01D

C11 1.0 pF Capacitor, Ceramic, 50V, ±0.1 pF, UHI-Q

NP0, SMT 0402

Johanson Technology 500R07S1R0BV4

C12 0.9 pF Capacitor, Ceramic, 50V, ±0.1 pF, UHI-Q

NP0, SMT 0402

Johanson Technology 500R07S0R9BV4

FL1 TA0281A Filter, SAW, 902–928 MHz Tai-saw Technology TA0281A

L1 10 nH Inductor, Ceramic, ±5%, SMT 0402 Johanson Technology L-07C10NJV6T

L2 100 nH Inductor, Ceramic, ±5%, SMT 0402 Johanson Technology L-07CR10JV6T

L3 5.6 nH Inductor, Wirewound, ±5%, SMT 0402 Johanson Technology L-07W5N6JV4T

L4 5.6 nH Inductor, Wirewound, ±5%, SMT 0402 Johanson Technology L-07W5N6JV4T

L5 — Designator not used — —

L6 10 nH Inductor, Ceramic, ±5%, SMT 0402 Johanson Technology L-07C10NJV6T

R1 1ΩResistor, 1%, ±100 ppm/0C, SMT 0402 Vishay/Dale CRCW04021R00FKED

R2 100KΩResistor, 5%, ±100 ppm/0C, SMT 0402 Yageo RC0402JR-07100KL

R3 6.8KΩResistor, 1%, ±100 ppm/0C, SMT 0402 Yageo RC0402FR-076K8L

U1 MRF89XA Transceiver, Ultra Low-Power, Integrated

Sub-GHz

Microchip Technology MRF89XA-I/MQ

X1 12.8 MHz Crystal, ±10 ppm, 15 pF, ESR 100 ohms,

SMT 5 x 3.2mm

Abracon ABM3B-155-12.800MHz-T

MRF89XAM9A

2.2 Printed Circuit Board

The MRF89XAM9A module PCB is constructed with

high temperature FR4 material, four layers and 0.032

inches thick. The layers are shown in Figure 2-3

through Figure 2-8. The stack up of the PCB is shown

in Figure 2-9

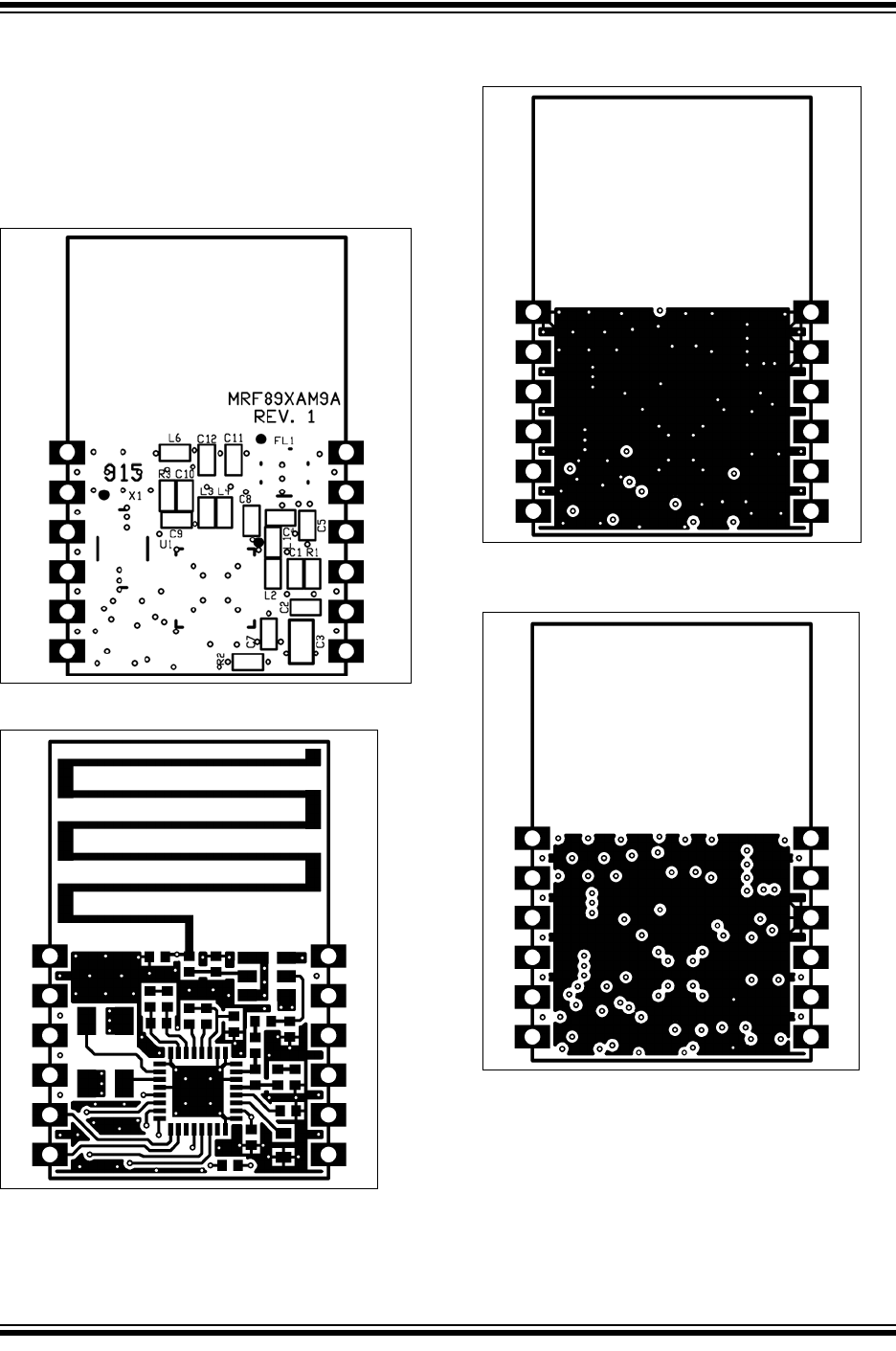

FIGURE 2-3: TOP SILK SCREEN

FIGURE 2-4: TOP COPPER

FIGURE 2-5: LAYER 2 — GROUND

PLANE

FIGURE 2-6: LAYER 3 — POWER

PLANE

MRF89XAM9A

FIGURE 2-7: BOTTOM COPPER FIGURE 2-8: BOTTOM SILK SCREEN

FIGURE 2-9: PCB LAYER STACK UP

Top Copper

Ground Plane

Power Plane

Bottom Copper

1/2 oz. Copper

8 mil FR4

12 mil FR4

8 mil FR4

0.032”

±0.005”

MRF89XAM9A

2.3 PCB Antenna

The PCB antenna is fabricated on the top copper trace.

Figure 2-11 shows the trace dimensions. The layers

below the antenna have no copper traces. The ground

and power planes under the components serve as a

counterpoise to the PCB antenna. Additional ground

plane on the host PCB will substantially enhance the

performance of the module. For best performance,

place the module on the host PCB by following the

recommendations in Section 1.2, Mounting Details.

The PCB antenna was designed and simulated using

Ansoft Designer® and HFSS™ 3D full-wave solver

software by ANSYS, Inc. (www.ansoft.com). The

design goal was to create a compact, low-cost antenna

with the best radiation pattern. Figure 2-11 shows the

simulation drawing and Figure 2-12 and Figure 2-13

show the 2D and 3D radiation patterns, respectively. As

shown by the radiation patterns, the performance of the

antenna is dependant upon the orientation of the

module. Figure 2-14 shows the impedance simulation

and Figure 2-15 shows the actual impedance

measurement. The discrete matching circuitry matches

the impedance of the antenna with the SAW filter and

MRF89XA transceiver IC.

FIGURE 2-10: PCB ANTENNA

DIMENSIONS

FIGURE 2-11: PCB ANTENNA SIMULATION DRAWING

16.8mm 1.0mm

8.4mm

1.1mm

0.5mm

2.5mm

MRF89XAM9A

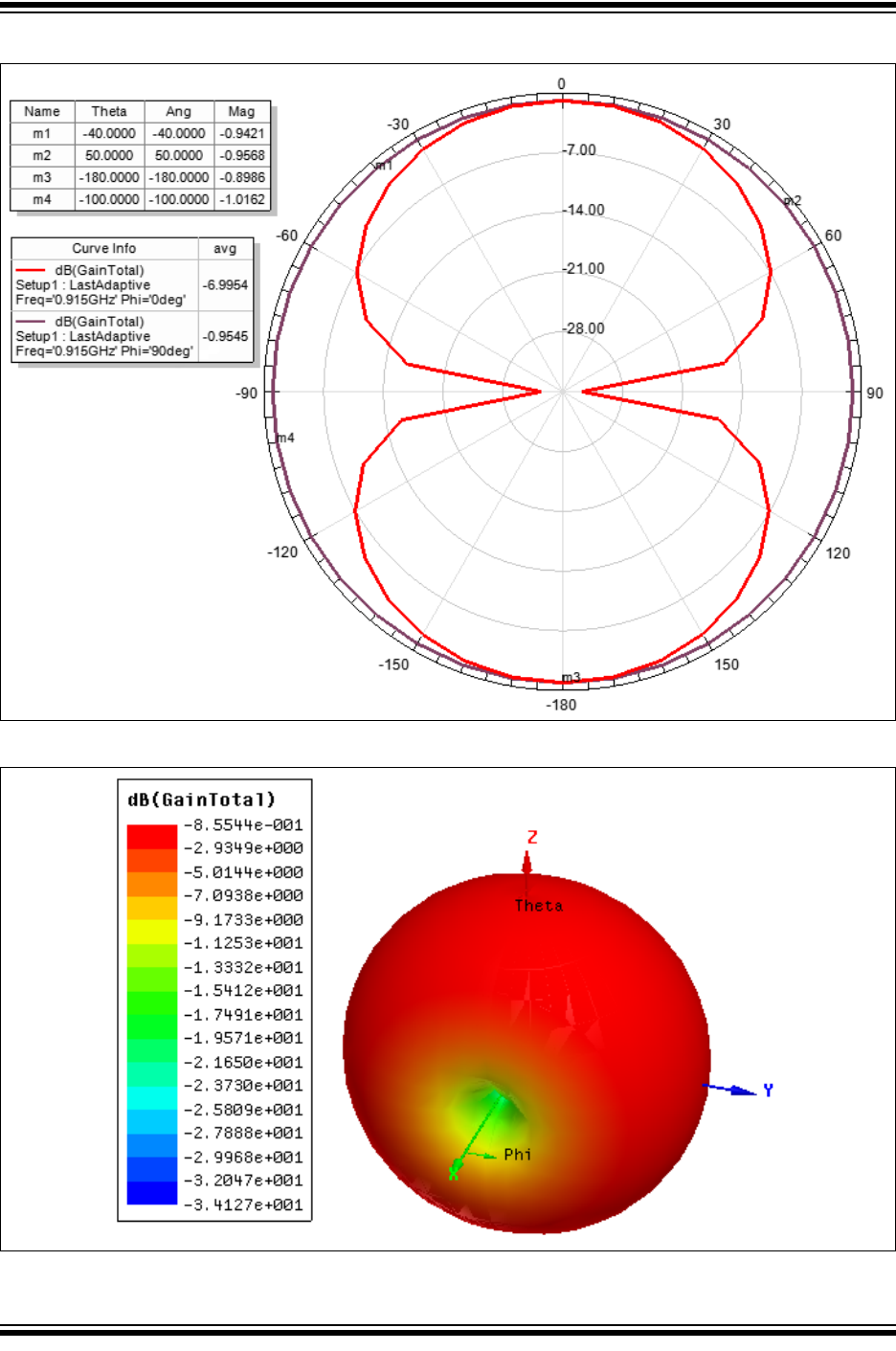

FIGURE 2-12: SIMULATED 2D RADIATION PATTERN

FIGURE 2-13: SIMULATED 3D RADIATION PATTERN

MRF89XAM9A

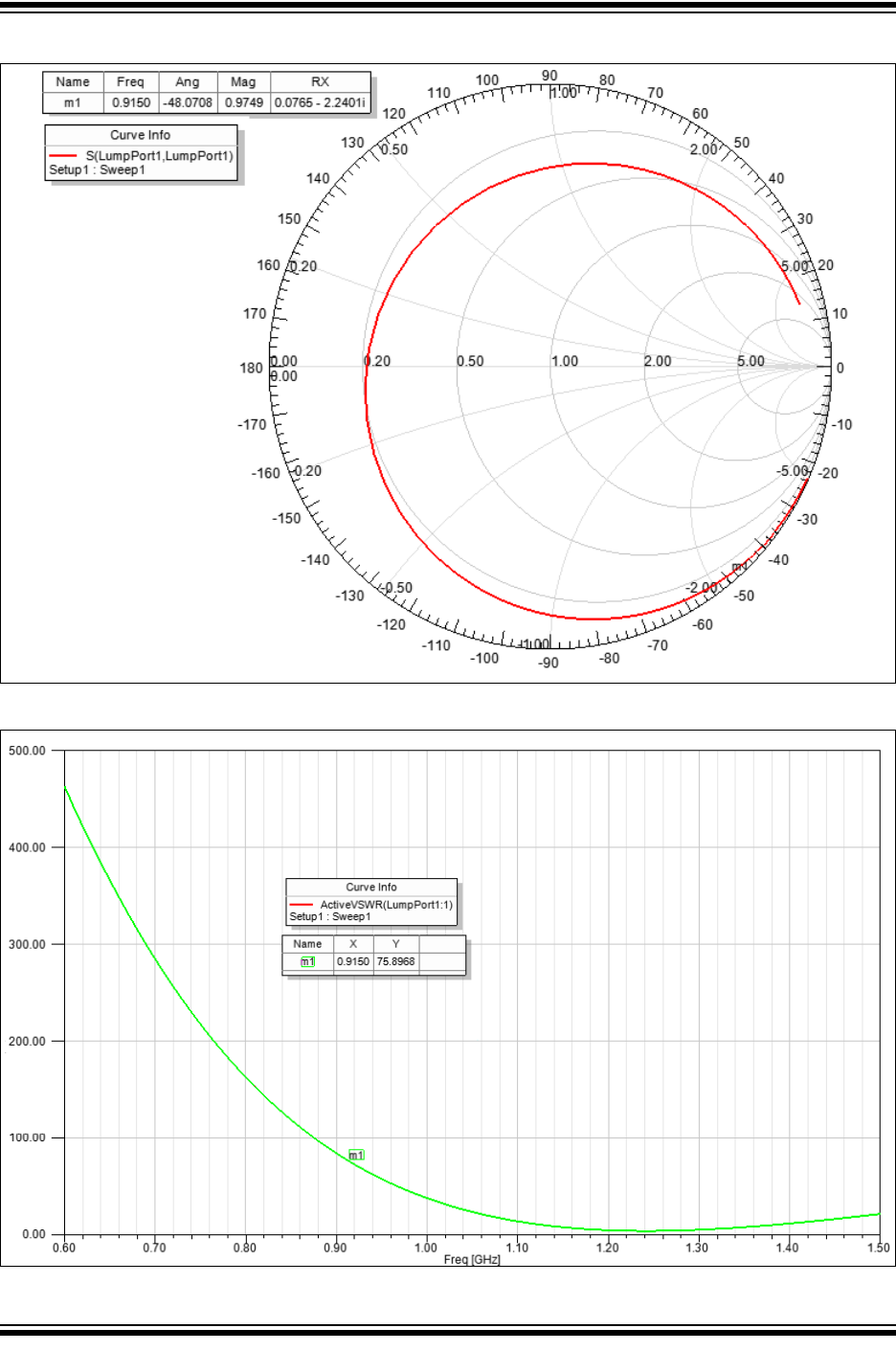

FIGURE 2-14: SIMULATED PCB ANTENNA IMPEDANCE

FIGURE 2-15: SIMULATED PCB ANTENNA VSWR

MRF89XAM9A

3.0 REGULATORY APPROVAL

The MRF89XAM9A module has received regulatory

approvals for modular devices in the United States and

Canada. Modular approval allows the end user to place

the MRF89XAM9A module inside a finished product

and not require regulatory testing for an intentional

radiator (RF transmitter), provided no changes or

modifications are made to the module circuitry.

Changes or modifications could void the user’s

authority to operate the equipment. The end user must

comply with all of the instructions provided by the

Grantee, which indicate installation and/or operating

conditions necessary for compliance.

The integrator is still responsible for testing the end

product for any additional compliance requirements

required with this module installed (digital device

emission, PC peripheral requirements, etc.) in the

specific country that the end device will be marketed.

For more information on details on regulatory

compliance, refer to the specific country radio

regulations in the following sections.

3.1 United States

The MRF89XAM9A has received Federal

Communications Commission (FCC) CFR47

Telecommunications, Part 15 Subpart C “Intentional

Radiators” 15.247 and 15.249 and modular approval in

accordance with FCC Public Notice DA 00-1407

Released: June 26, 2000, Part 15 Unlicensed Modular

Transmitter Approval. The MRF89XAM9A module can

be integrated into a finished product without obtaining

subsequent and separate FCC certification.

The MRF89XAM9A module has been labeled with its

own FCC ID number, and if the FCC ID is not visible

when the module is installed inside another device,

then the outside of the finished product into which the

module is installed must also display a label referring

to the enclosed module. This exterior label can use

wording as following:

The user’s manual should include the following

statement:

3.1.1 MRF89XAM9A SETTINGS

To meet the FCC requirements, the following settings

must be observed by the integrator:

3.1.1.1 FSK Modulation

The following settings configure the MRF89XAM9A for

wideband digital modulation techniques that conform to

the requirements of Part 15.247. These settings allow

for higher radio frequency (RF) output power and

greater link budget:

• Bit Rate Setting: 50 - 200 kbps

- Transmit Power Maximum Setting:13 dBm

• Bit Rate Setting: 2 - 40 kbps

- Transmit Power Maximum Setting:7 dBm

• Frequency Deviation Setting: 200 kHz

• Data Whitening: On

• Transmit Bandwidth Setting: 400 kHz

• Lower Frequency Setting: 902.800 MHz

• Upper Frequency Setting: 926.500 MHz

Contains Transmitter Module FCC ID:

OA3MRF89XAM9A

-or-

Contains FCC ID: OA3MRF89XAM9A

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions:

(1) this device may not cause harmful interference,

and (2) this device must accept any interference

received, including interference that may cause

undesired operation.

Requirements for product labeling are given in Part

15.19 Labelling Requirements.

This equipment has been tested and found to comply

with the limits for a Class B digital device, pursuant to

part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful

interference in a residential installation. This

equipment generates, uses and can radiate radio

frequency energy, and if not installed and used in

accordance with the instructions, may cause harmful

interference to radio communications. However, there

is no guarantee that interference will not occur in a

particular installation. If this equipment does cause

harmful interference to radio or television reception,

which can be determined by turning the equipment

OFF and ON, the user is encouraged to try to correct

the interference by one or more of the following

measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment

and receiver.

• Connect the equipment into an outlet on a

circuit different from that to which the receiver is

connected.

• Consult the dealer or an experienced radio/TV

technician for help.

MRF89XAM9A

3.1.1.2 OOK Modulation

The following settings configure the MRF89XAM9A for

narrowband operation that conform to the requirements

of Part 15.249. Part 15.249 requires a much lower

power setting than is allowed in Part 15.247. These set-

tings are good for applications that require lower trans-

mit power current consumption and shorter transmit

distances:

• Transmit Power Maximum Setting:1 dBm

• Bit Rate Maximum Setting: 16 kbps

• Frequency Deviation Setting: 200 kHz

• Transmit Bandwidth Setting: 400 kHz

• Lower Frequency Setting: 902.330 MHz

• Upper Frequency Setting: 927.500 MHz

3.1.2 RF EXPOSURE

All transmitters regulated by FCC must comply with RF

exposure requirements. OET Bulletin 65 “Evaluating

Compliance with FCC Guidelines for Human Exposure

to Radio Frequency Electromagnetic Fields” provides

assistance in determining whether proposed or existing

transmitting facilities, operations or devices comply

with limits for human exposure to RF fields adopted by

the Federal Communications Commission (FCC). The

bulletin offers guidelines and suggestions for

evaluating compliance.

If appropriate, compliance with exposure guidelines for

mobile and unlicensed devices can be accomplished

by the use of warning labels and by providing users

with information concerning minimum separation

distances from transmitting structures and proper

installation of antennas.

The following statement must be included as a

CAUTION statement in manuals and OEM products to

alert users of FCC RF Exposure compliance:

If the MRF89XAM9A module is used in a portable

application (antenna is less than 20 cm from persons

during operation), the integrator is responsible for

performing Specific Absorption Rate (SAR) testing in

accordance with FCC rules 2.1091.

3.1.3 HELPFUL WEB SITES

Federal Communications Commission (FCC) http://

www.fcc.gov

To satisfy FCC RF Exposure requirements for mobile

and base station transmission devices, a separation

distance of 20 cm or more should be maintained

between the antenna of this device and persons

during operation. To ensure compliance, operation at

closer than this distance is not recommended.

The antenna(s) used for this transmitter must not be

co-located or operating in conjunction with any other

antenna or transmitter.

MRF89XAM9A

3.2 Canada

The MRF89XAM9A module has been certified for use in

Canada under Industry Canada (IC) Radio Standards

Specification (RSS) RSS-210 and RSS-Gen. Modular

approval permits the installation of a module in a host

device without the need to recertify the device.

Labeling Requirements for the Host Device (from

Section 3.2.1, RSS-Gen, Issue 3, December 2010):

The host device shall be properly labeled to identify the

module within the host device.

The Industry Canada certification label of a module

shall be clearly visible at all times when installed in the

host device, otherwise the host device must be labeled

to display the Industry Canada certification number of

the module, preceded by the words “Contains

transmitter module”, or the word “Contains”, or similar

wording expressing the same meaning, as follows:

User Manual Notice for License-Exempt Radio

Apparatus (from Section 7.1.3 RSS-Gen, Issue 3,

December 2010):

User manuals for license-exempt radio apparatus shall

contain the following or equivalent notice in a

conspicuous location in the user manual or

alternatively on the device or both.

3.2.1 MRF89XAM9A SETTINGS

To meet Industry Canada (IC) requirements, the

following settings must be observed by the integrator:

3.2.1.1 FSK Modulation

The following settings configure the MRF89XAM9A for

wideband digital modulation techniques that conform to

the requirements of RSS-210 Issue 8 Annex 8. These

settings allow for higher radio frequency (RF) output

power and greater link budget.

• Bit Rate Setting: 50 - 200 kbps

- Transmit Power Maximum Setting:13 dBm

• Bit Rate Setting: 2 - 40 kbps

- Transmit Power Maximum Setting:7 dBm

• Frequency Deviation Setting: 200 kHz

• Data Whitening: On

• Transmit Bandwidth Setting: 400 kHz

• Lower Frequency Setting: 902.800 MHz

• Upper Frequency Setting: 926.500 MHz

3.2.1.2 OOK Modulation

The following settings configure the MRF89XAM9A for

narrowband operation that conform to the requirements

of RSS-Gen Issue 3. RSS-Gen Issue 3 requires a

much lower power setting than is allowed in Part RSS-

210 Issue 8 Annex 8. These settings are good for

applications that require lower transmit power current

consumption and shorter transmit distances.

• Transmit Power Maximum Setting:1 dBm

• Bit Rate Maximum Setting: 16 kbps

• Frequency Deviation Setting: 200 kHz

• Transmit Bandwidth Setting: 400 kHz

• Lower Frequency Setting: 902.330 MHz

• Upper Frequency Setting: 927.500 MHz

3.2.2 HELPFUL WEB SITES

Industry Canada: http://www.ic.gc.ca/

Contains transmitter module IC: 7693A-89XAM9A

This device complies with Industry Canada license-

exempt RSS standard(s). Operation is subject to the

following two conditions: (1) this device may not

cause interference, and (2) this device must accept

any interference, including interference that may

cause undesired operation of the device.

Le présent appareil est conforme aux CNR

d'Industrie Canada applicables aux appareils radio

exempts de licence. L'exploitation est autorisée aux

deux conditions suivantes: (1) l'appareil ne doit pas

produire de brouillage, et (2) l'utilisateur de l'appareil

doit accepter tout brouillage radioélectrique subi,

même si le brouillage est susceptible d'en

compromettre le fonctionnement.

MRF89XAM9A

NOTES:

MRF89XAM9A

4.0 ELECTRICAL CHARACTERISTICS

Absolute Maximum Ratings

Ambient temperature under bias.............................................................................................................. -40°C to +85°C

Storage temperature .............................................................................................................................. -55°C to +125°C

Voltage on VIN with respect to VSS ................................................................................................................ -0.3V to 6V

Voltage on any combined digital and analog pin with respect to VSS (except VIN) ...........................-0.3V to (VIN + 0.3V)

Input current into pin (except VIN and VSS)........................................................................................... -25 mA to 25 mA

Electrostatic discharge with human body model .................................................................................................... 1000V

NOTICE: Stresses above those listed under “Absolute Maximum Ratings” may cause permanent damage to the

device. This is a stress rating only and functional operation of the device at those or any other conditions above

those indicated in the operation listings of this specification is not implied. Exposure to maximum rating conditions for

extended periods may affect device reliability.

MRF89XAM9A

TABLE 4-1: RECOMMENDED OPERATING CONDITIONS

TABLE 4-2: CURRENT CONSUMPTION

TABLE 4-3: DIGITAL I/O PIN INPUT SPECIFICATIONS(1)

Parameter Min Typ Max Unit Condition

Ambient Operating Temperature -40 — +85 °C —

Supply Voltage for RF, Analog and Digital Circuits 2.1 — 3.6 V —

Supply Voltage for Digital I/O 2.1 — 3.6 V —

Input High Voltage (VIH) 0.5 * VIN —VIN + 0.3 V —

Input Low Voltage (VIL) -0.3V — 0.2 * VIN V—

AC Peak Voltage on Open Collector Outputs (IO)(1) VIN – 1.5 — VIN + 1.5 V —

Note 1: At minimum, VIN – 1.5V should not be lower than 1.8V.

Symbol Chip Mode Min Typ Max Unit Condition

IDDSL Sleep — 0.1 2 µA Sleep clock disabled, all blocks

disabled

IDDST Idle — 65 80 µA Oscillator and baseband enabled

IDDFS Frequency Synthesizer — 1.3 1.7 mA Frequency synthesizer running

IDDTX Tx —

—

Output power = +10 dBm

Output power = +1 dBm(1)

IDDRX Rx — 3.0 3.5 mA —

Note 1: Guaranteed by design and characterization.

Symbol Characteristic Min Typ Max Unit Condition

VIL Input Low Voltage — — 0.2 * VIN V—

VIH Input High Voltage 0.8 * VIN ——V —

IIL Input Low Leakage Current(2) -0.5 — 0.5 µA VIL = 0V

IIH Input High Leakage Current -0.5 — 0.5 µA VIH = VIN, VIN = 3.7

VOL Digital Low Output Voltage — — 0.1 * VIN —IOL = 1 mA

VOH Digital Low Output 0.9 * VIN ——V IOH = -1 mA

Note 1: Measurement Conditions: TA = 25°C, VIN = 3.3V, Crystal Frequency = 12.8 MHz, unless otherwise

specified.

2: Negative current is defined as the current sourced by the pin.

MRF89XAM9A

TABLE 4-4: PLL PARAMETERS AC CHARACTERISTICS(1)

Symbol Parameter Min Typ Max Unit Condition

FRO Frequency Ranges 902 — 928 MHz —

BRFSK Bit Rate (FSK) 1.56 — 40 kbps NRZ

BROOK Bit Rate (OOK) 1.56 — 16 kbps NRZ

FDFSK Frequency Deviation (FSK) 33 50 200 kHz —

FXTAL Crystal Oscillator Frequency 9 12.8 — MHz —

FSSTP Frequency Synthesizer Step — 2 — kHz Variable, depending on the

frequency

TSOSC Oscillator Wake-up Time — 1.5 5 ms From Sleep mode(1)

TSFS Frequency Synthesizer Wake-

up Time; at most, 10 kHz

away from the target

— 500 800 µs From Stand-by mode

TSHOP Frequency Synthesizer Hop

Time; at most, 10 kHz away

from the target

— 180 — µs 200 kHz step

— 200 — µs 1 MHz step

— 250 — µs 5 MHz step

— 260 — µs 7 MHz step

— 290 — µs 12 MHz step

— 320 — µs 20 MHz step

— 340 — µs 27 MHz step

Note 1: Guaranteed by design and characterization.

MRF89XAM9A

TABLE 4-5: RECEIVER AC CHARACTERISTICS(1)

Symbol Parameter Min Typ Max Unit Condition

RSF Sensitivity (FSK) — -107 — dBm 915 MHz, BR = 25 kbps,

fdev = 50 kHz, fc = 100 kHz

— -103 — dBm 915 MHz, BR = 66.7 kbps,

fdev = 100 kHz, fc = 200 kHz

RSO Sensitivity (OOK) — -113 — dBm 915 MHz, 2 kbps NRZ

fc – fo = 50 kHz, fo = 50 kHz

— -106 — dBm 915 MHz, 16.7 kbps NRZ

fc – fo = 100 kHz, fo = 100 kHz

CCR Co-Channel Rejection — -12 — dBc Modulation as wanted signal

ACR Adjacent Channel Rejection — 27 — dB Offset = 300 kHz, unwanted tone is

not modulated

— 52 — dB Offset = 600 kHz, unwanted tone is

not modulated

— 57 — dB Offset = 1.2 MHz, unwanted tone is

not modulated

BI Blocking Immunity — -48 — dBm Offset = 1 MHz, unmodulated

— -37 — dBm Offset = 2 MHz, unmodulated, no

SAW

— -33 — dBm Offset = 10 MHz, unmodulated, no

SAW

RXBWF Receiver Bandwidth in FSK

Mode(2) 50 — 250 kHz Single side BW, Polyphase Off

RXBWU Receiver Bandwidth in OOK

Mode(2) 50 — 400 kHz Single side BW, Polyphase On

ITP3 Input Third Order Intercept

Point

— -28 — dBm Interferers at 1 MHz and 1.950 MHz

offset

TSRWF Receiver Wake-up Time — 280 500 µs From FS to Rx ready

TSRWS Receiver Wake-up Time — 600 900 µs From Stand-by to Rx ready

TSRHOP Receiver Hop Time from Rx

Ready to Rx Ready with a

Frequency Hop

— 400 — µs 200 kHz step

— 400 — µs 1 MHz step

— 460 — µs 5 MHz step

— 480 — µs 7 MHz step

— 520 — µs 12 MHz step

— 550 — µs 20 MHz step

— 600 — µs 27 MHz step

RSSIST RSSI Sampling Time — — 1/fdev s From Rx ready

RSSTDR RSSI Dynamic Range — 70 — dB Ranging from sensitivity

Note 1: Guaranteed by design and characterization.

2: This reflects the whole receiver bandwidth, as described by conditions for active and passive filters.

MRF89XAM9A

TABLE 4-6: TRANSMITTER AC CHARACTERISTICS(1)

4.1 Timing Specification and Diagram

TABLE 4-7: SPI TIMING SPECIFICATION(1,2)

Symbol Description Min Typ Max Unit Condition

RFOP RF Output Power, Programmable

with 8 Steps of typ. 3 dB

— +12.5 — dBm Maximum power setting

— -8.5 — dBm Minimum power setting

PN Phase Noise — -112 — dBc/Hz Measured with a 600 kHz

offset at the transmitter output

TXSP Transmitted Spurious — — -47 dBc At any offset between 200 kHz

and 600 kHz, unmodulated

carrier, fdev = 50 kHz

Tx2 Second Harmonic

——-40dBm

No modulation, see Note(2)

Tx3 Third Harmonic

Tx4 Fourth Harmonic

Txn Harmonics above Tx4

FSKDEV FSK Deviation ±33 ±55 ±200 kHz Programmable

TSTWF Transmitter Wake-up Time — 120 500 µs From FS to Tx ready

TSTWS Transmitter Wake-up Time — 600 900 µs From Stand-by to Tx ready

Note 1: Guaranteed by design and characterization.

2: Transmitter in-circuit performance with SAW filter and crystal.

Parameter Min Typ Max Unit Condition

SPI Configure Clock Frequency — — 6 MHz —

SPI Data Clock Frequency — — 1 MHz —

Data Hold and Setup Time 2 — — µs —

SDI Setup Time for SPI Configure 250 — — ns —

SDI Setup Time for SPI Data 312 — — ns —

CSCON Low to SCK Rising Edge;

SCK Falling Edge to CSCON High

500 — — ns —

CSDATA Low to SCK Rising Edge;

SCK Falling Edge to CSDATA High

625 — — ns —

CSCON Rising to Falling Edge 500 — — ns —

CSDATA Rising to Falling Edge 625 — — ns —

Note 1: Typical Values: TA = 25°C, VIN = 3.3V, Crystal Frequency = 12.8 MHz, unless otherwise specified.

2: Negative current is defined as the current sourced by the pin.

MRF89XAM9A

NOTES:

MRF89XAM9A

APPENDIX A: REVISION HISTORY

Revision A (May 2011)

This is the Initial release of the document.

MRF89XAM9A

NOTES:

MRF89XAM9A

THE MICROCHIP WEB SITE

Microchip provides online support via our WWW site at

www.microchip.com. This web site is used as a means

to make files and information easily available to

customers. Accessible by using your favorite Internet

browser, the web site contains the following

information:

•Product Support – Data sheets and errata,

application notes and sample programs, design

resources, user’s guides and hardware support

documents, latest software releases and archived

software

•General Technical Support – Frequently Asked

Questions (FAQ), technical support requests,

online discussion groups, Microchip consultant

program member listing

•Business of Microchip – Product selector and

ordering guides, latest Microchip press releases,

listing of seminars and events, listings of

Microchip sales offices, distributors and factory

representatives

CUSTOMER CHANGE NOTIFICATION

SERVICE

Microchip’s customer notification service helps keep

customers current on Microchip products. Subscribers

will receive e-mail notification whenever there are

changes, updates, revisions or errata related to a

specified product family or development tool of interest.

To register, access the Microchip web site at

www.microchip.com. Under “Support”, click on

“Customer Change Notification” and follow the

registration instructions.

CUSTOMER SUPPORT

Users of Microchip products can receive assistance

through several channels:

• Distributor or Representative

• Local Sales Office

• Field Application Engineer (FAE)

• Technical Support

• Development Systems Information Line

Customers should contact their distributor,

representative or field application engineer (FAE) for

support. Local sales offices are also available to help

customers. A listing of sales offices and locations is

included in the back of this document.

Technical support is available through the web site

at: http://microchip.com/support

MRF89XAM9A

READER RESPONSE

It is our intention to provide you with the best documentation possible to ensure successful use of your Microchip

product. If you wish to provide your comments on organization, clarity, subject matter, and ways in which our

documentation can better serve you, please FAX your comments to the Technical Publications Manager at

(480) 792-4150.

Please list the following information, and use this outline to provide us with your comments about this document.

TO: Technical Publications Manager

RE: Reader Response

Total Pages Sent ________

From: Name

Company

Address

City / State / ZIP / Country

Telephone: (_______) _________ - _________

Application (optional):

Would you like a reply? Y N

Device: Literature Number:

Questions:

FAX: (______) _________ - _________

DS00000AMRF89XAM9A

1. What are the best features of this document?

2. How does this document meet your hardware and software development needs?

3. Do you find the organization of this document easy to follow? If not, why?

4. What additions to the document do you think would enhance the structure and subject?

5. What deletions from the document could be made without affecting the overall usefulness?

6. Is there any incorrect or misleading information (what and where)?

7. How would you improve this document?

MRF89XAM9A

PRODUCT IDENTIFICATION SYSTEM

To order or obtain information, for example, on pricing or delivery, refer to the factory or the listed sales office.

Device MRF89XAM9A-I/RM: Ultra Low-Power, Integrated ISM Band Sub-GHz

Transceiver module

Temperature

Range

I = -40ºC to +85ºC (Industrial)

Example:

a) MRF89XAM9A-I/RM: Industrial temperature

tray.

b) MRF89XAM9AT-I/RM: Industrial temperature

tape and reel,

PART NO

Device

Module

Type

Tape and

Reel

-X

Temperature

Range

AMERICAS

Corporate Office

2355 West Chandler Blvd.

Chandler, AZ 85224-6199

Tel: 480-792-7200

Fax: 480-792-7277

Technical Support:

http://www.microchip.com/

support

Web Address:

www.microchip.com

Atlanta

Duluth, GA

Tel: 678-957-9614

Fax: 678-957-1455

Boston

Westborough, MA

Tel: 774-760-0087

Fax: 774-760-0088

Chicago

Itasca, IL

Tel: 630-285-0071

Fax: 630-285-0075

Cleveland

Independence, OH

Tel: 216-447-0464

Fax: 216-447-0643

Dallas

Addison, TX

Tel: 972-818-7423

Fax: 972-818-2924

Detroit

Farmington Hills, MI

Tel: 248-538-2250

Fax: 248-538-2260

Indianapolis

Noblesville, IN

Tel: 317-773-8323

Fax: 317-773-5453

Los Angeles

Mission Viejo, CA

Tel: 949-462-9523

Fax: 949-462-9608

Santa Clara

Santa Clara, CA

Tel: 408-961-6444

Fax: 408-961-6445

Toronto

Mississauga, Ontario,

Canada

Tel: 905-673-0699

Fax: 905-673-6509

ASIA/PACIFIC

Asia Pacific Office

Suites 3707-14, 37th Floor

Tower 6, The Gateway

Harbour City, Kowloon

Hong Kong

Tel: 852-2401-1200

Fax: 852-2401-3431

Australia - Sydney

Tel: 61-2-9868-6733

Fax: 61-2-9868-6755

China - Beijing

Tel: 86-10-8528-2100

Fax: 86-10-8528-2104

China - Chengdu

Tel: 86-28-8665-5511

Fax: 86-28-8665-7889

China - Chongqing

Tel: 86-23-8980-9588

Fax: 86-23-8980-9500

China - Hong Kong SAR

Tel: 852-2401-1200

Fax: 852-2401-3431

China - Nanjing

Tel: 86-25-8473-2460

Fax: 86-25-8473-2470

China - Qingdao

Tel: 86-532-8502-7355

Fax: 86-532-8502-7205

China - Shanghai

Tel: 86-21-5407-5533

Fax: 86-21-5407-5066

China - Shenyang

Tel: 86-24-2334-2829

Fax: 86-24-2334-2393

China - Shenzhen

Tel: 86-755-8203-2660

Fax: 86-755-8203-1760

China - Wuhan

Tel: 86-27-5980-5300

Fax: 86-27-5980-5118

China - Xian

Tel: 86-29-8833-7252

Fax: 86-29-8833-7256

China - Xiamen

Tel: 86-592-2388138

Fax: 86-592-2388130

China - Zhuhai

Tel: 86-756-3210040

Fax: 86-756-3210049

ASIA/PACIFIC

India - Bangalore

Tel: 91-80-3090-4444

Fax: 91-80-3090-4123

India - New Delhi

Tel: 91-11-4160-8631

Fax: 91-11-4160-8632

India - Pune

Tel: 91-20-2566-1512

Fax: 91-20-2566-1513

Japan - Yokohama

Tel: 81-45-471- 6166

Fax: 81-45-471-6122

Korea - Daegu

Tel: 82-53-744-4301

Fax: 82-53-744-4302

Korea - Seoul

Tel: 82-2-554-7200

Fax: 82-2-558-5932 or

82-2-558-5934

Malaysia - Kuala Lumpur

Tel: 60-3-6201-9857

Fax: 60-3-6201-9859

Malaysia - Penang

Tel: 60-4-227-8870

Fax: 60-4-227-4068

Philippines - Manila

Tel: 63-2-634-9065

Fax: 63-2-634-9069

Singapore

Tel: 65-6334-8870

Fax: 65-6334-8850

Taiwan - Hsin Chu

Tel: 886-3-6578-300

Fax: 886-3-6578-370

Taiwan - Kaohsiung

Tel: 886-7-213-7830

Fax: 886-7-330-9305

Taiwan - Taipei

Tel: 886-2-2500-6610

Fax: 886-2-2508-0102

Thailand - Bangkok

Tel: 66-2-694-1351

Fax: 66-2-694-1350

EUROPE

Austria - Wels

Tel: 43-7242-2244-39

Fax: 43-7242-2244-393

Denmark - Copenhagen

Tel: 45-4450-2828

Fax: 45-4485-2829

France - Paris

Tel: 33-1-69-53-63-20

Fax: 33-1-69-30-90-79

Germany - Munich

Tel: 49-89-627-144-0

Fax: 49-89-627-144-44

Italy - Milan

Tel: 39-0331-742611

Fax: 39-0331-466781

Netherlands - Drunen

Tel: 31-416-690399

Fax: 31-416-690340

Spain - Madrid

Tel: 34-91-708-08-90

Fax: 34-91-708-08-91

UK - Wokingham

Tel: 44-118-921-5869

Fax: 44-118-921-5820

Worldwide Sales and Service

02/18/11

Microchip Technology MRF89XAM9A 915MHz Ultra Low-Power Communications Device Transmitter User Manual 915 MHz Ultra Low Power Sub GHz Transceiver Module

Microchip Technology Inc 915MHz Ultra Low-Power Communications Device Transmitter 915 MHz Ultra Low Power Sub GHz Transceiver Module

User Manual

Navigation menu

Namespaces

Views

Navigation
