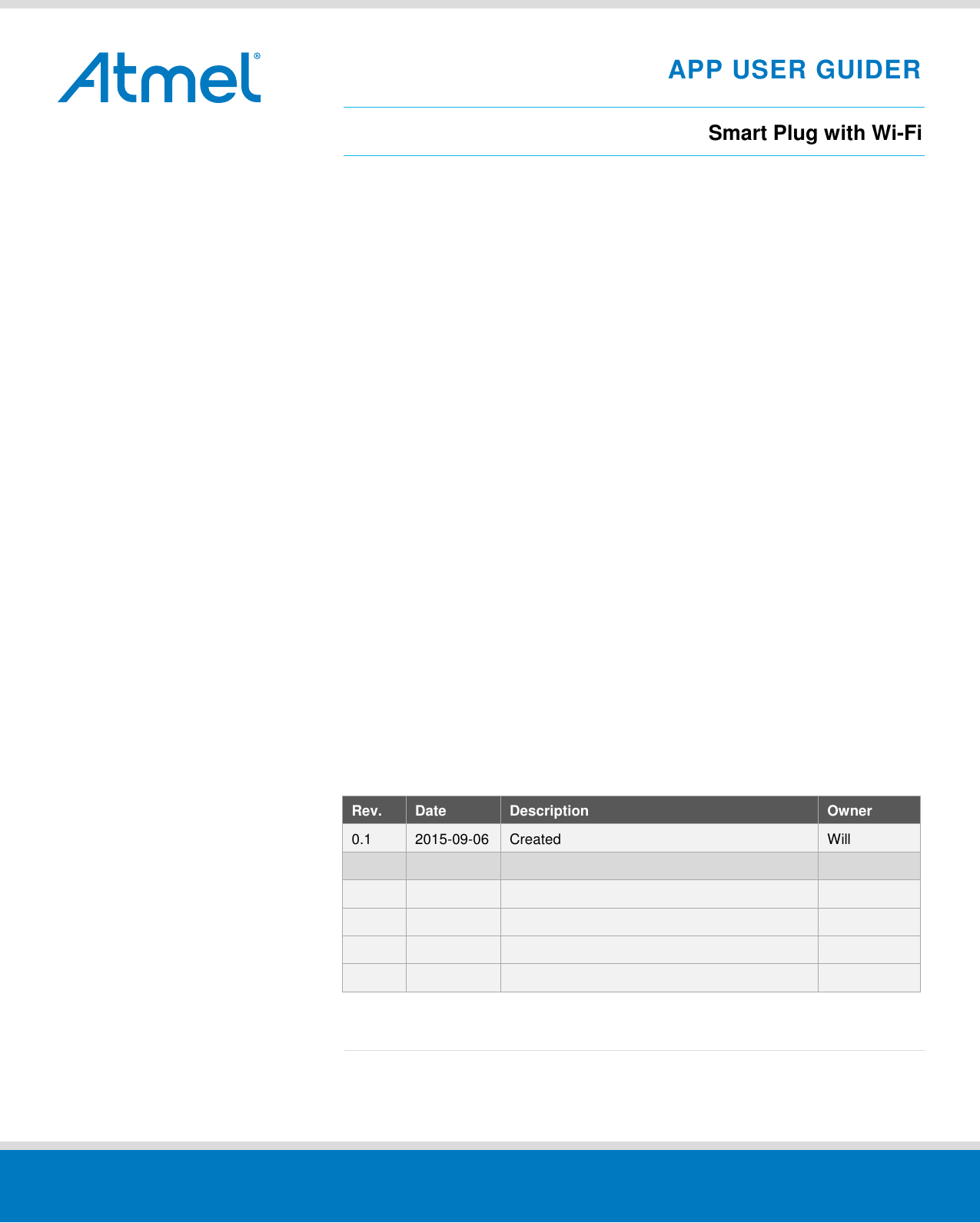

APP USER GUIDER Smart Plug with Wi-Fi Confidentiality Rev. Date Description Owner 0.1 2015-09-06 Created Will

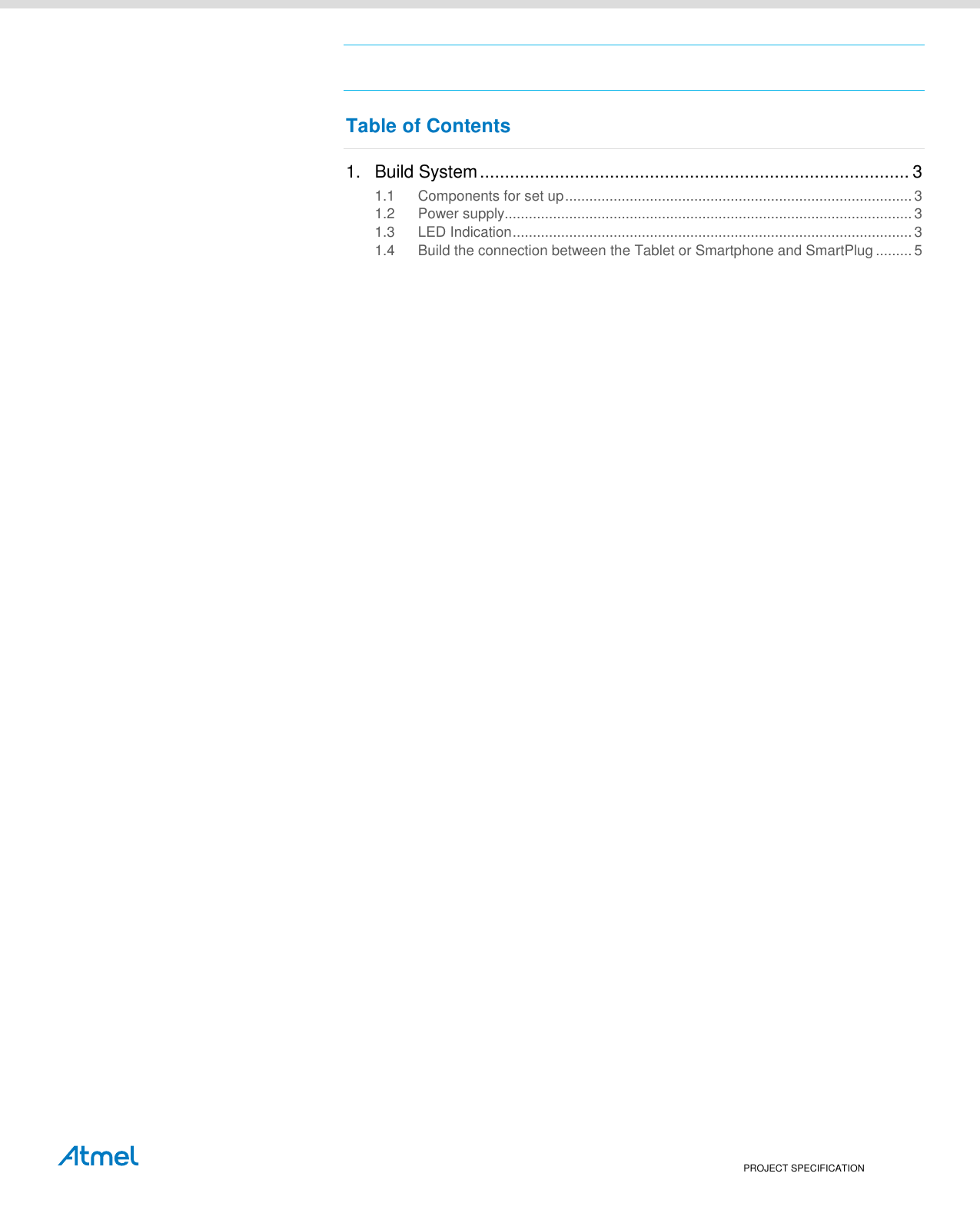

PROJECT SPECIFICATION Table of Contents 1. Build System ...................................................................................... 3 1.1 Components for set up ...................................................................................... 3 1.2 Power supply..................................................................................................... 3 1.3 LED Indication ................................................................................................... 3 1.4 Build the connection between the Tablet or Smartphone and SmartPlug ......... 5

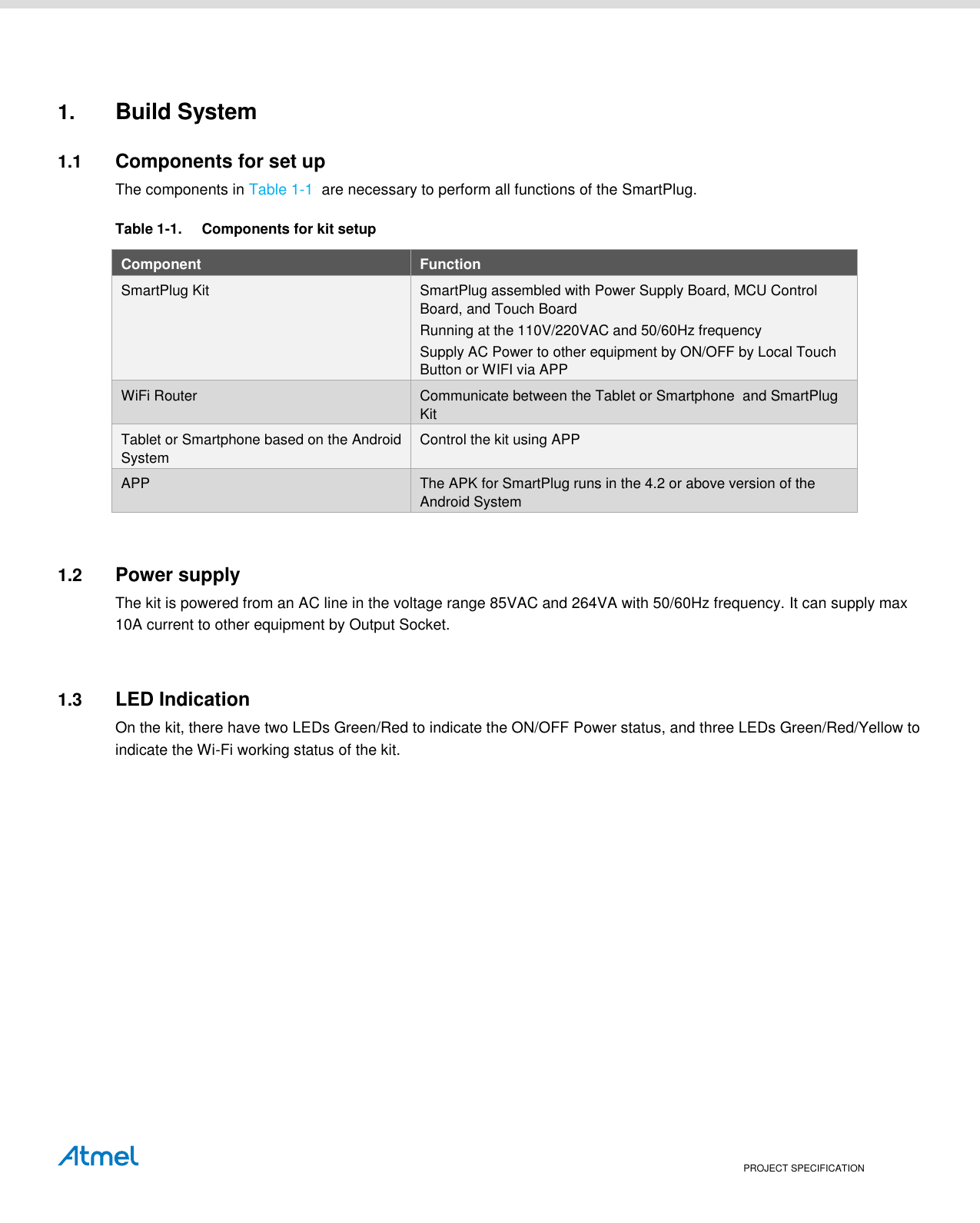

PROJECT SPECIFICATION 1. Build System 1.1 Components for set up The components in Table 1-1 are necessary to perform all functions of the SmartPlug. Table 1-1. Components for kit setup Component Function SmartPlug Kit SmartPlug assembled with Power Supply Board, MCU Control Board, and Touch Board Running at the 110V/220VAC and 50/60Hz frequency Supply AC Power to other equipment by ON/OFF by Local Touch Button or WIFI via APP WiFi Router Communicate between the Tablet or Smartphone and SmartPlug Kit Tablet or Smartphone based on the Android System Control the kit using APP APP The APK for SmartPlug runs in the 4.2 or above version of the Android System 1.2 Power supply The kit is powered from an AC line in the voltage range 85VAC and 264VA with 50/60Hz frequency. It can supply max 10A current to other equipment by Output Socket. 1.3 LED Indication On the kit, there have two LEDs Green/Red to indicate the ON/OFF Power status, and three LEDs Green/Red/Yellow to indicate the Wi-Fi working status of the kit.

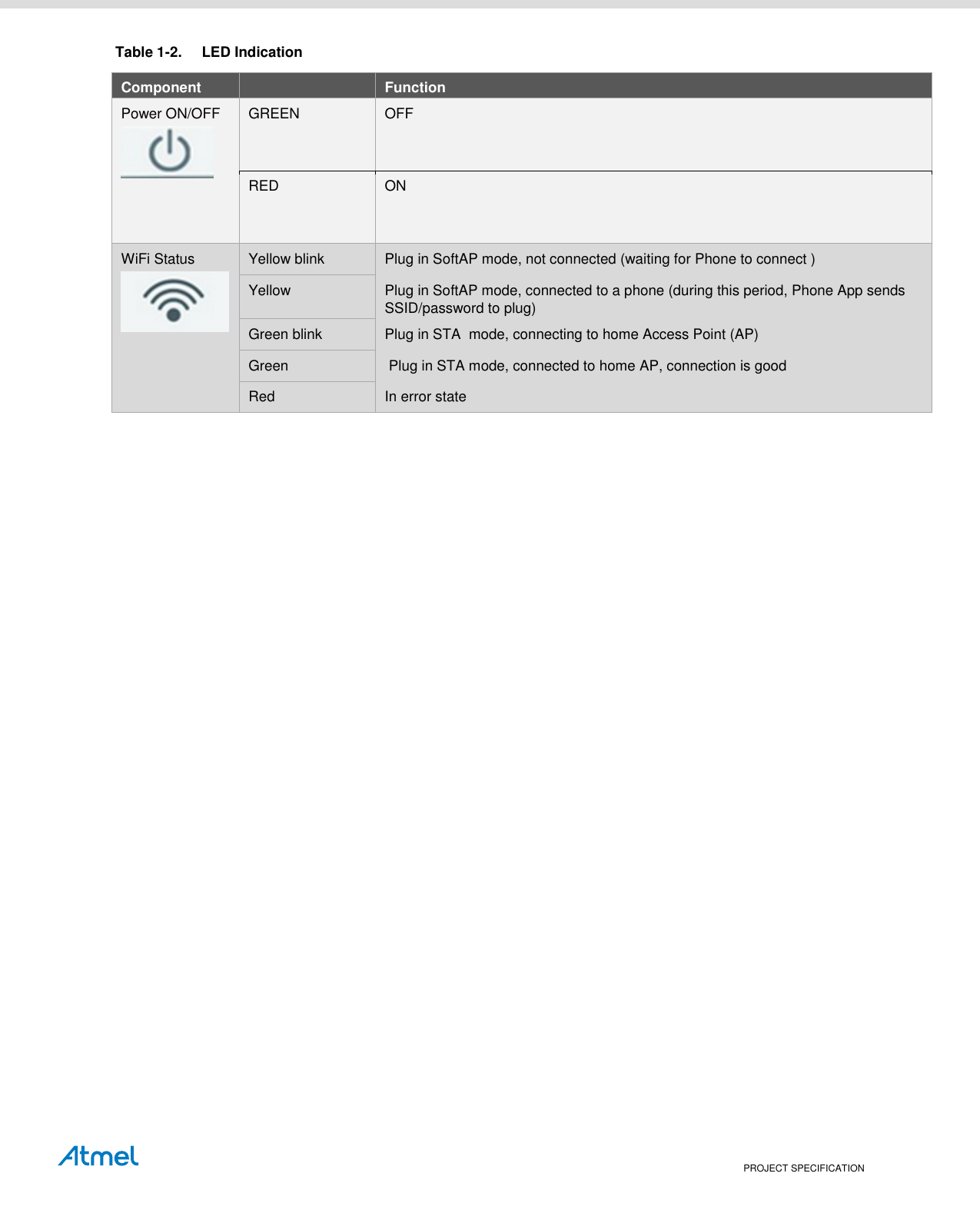

PROJECT SPECIFICATION Table 1-2. LED Indication Component Function Power ON/OFF GREEN OFF RED ON WiFi Status Yellow blink Plug in SoftAP mode, not connected (waiting for Phone to connect ) Yellow Plug in SoftAP mode, connected to a phone (during this period, Phone App sends SSID/password to plug) Green blink Plug in STA mode, connecting to home Access Point (AP) Green Plug in STA mode, connected to home AP, connection is good Red In error state

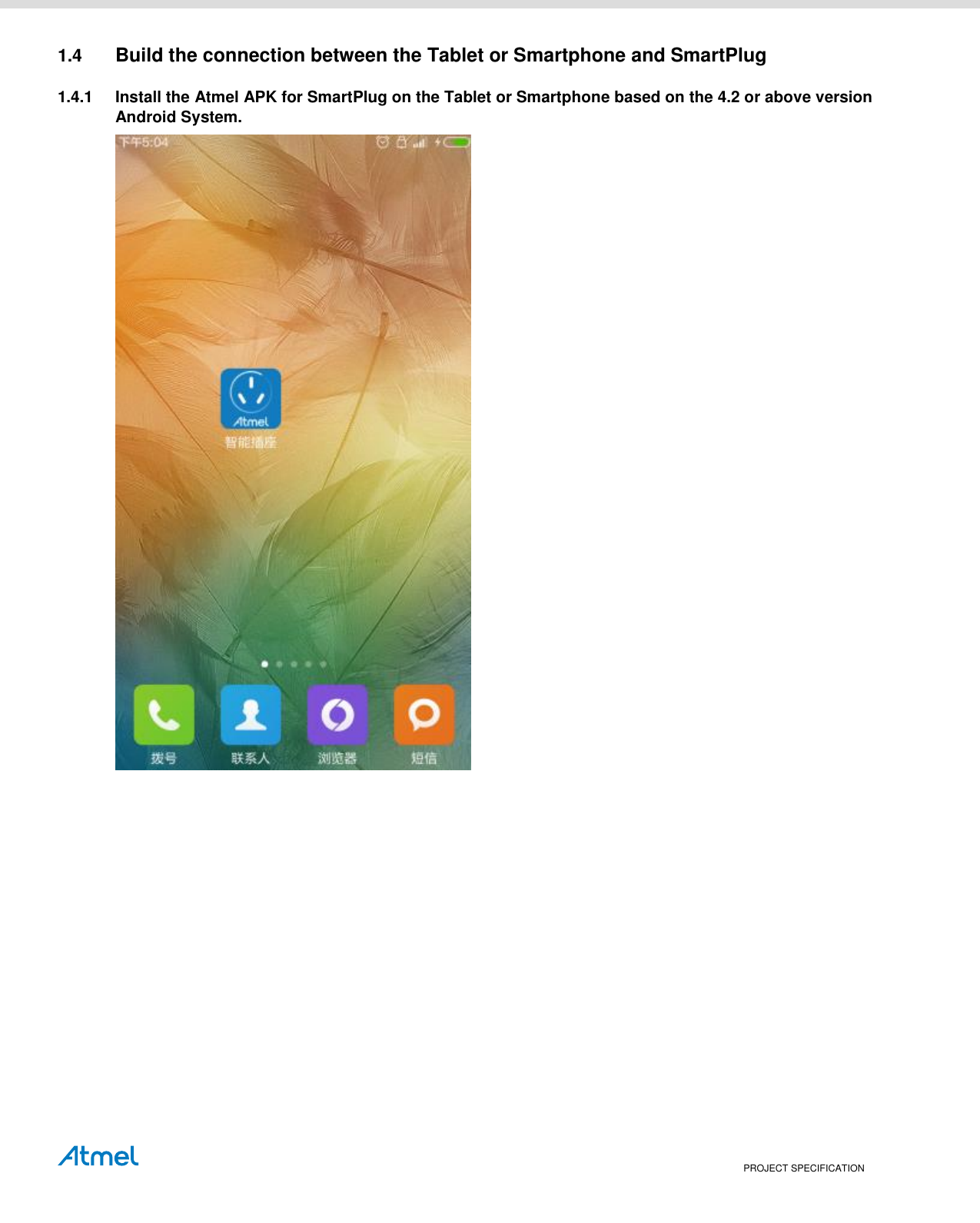

PROJECT SPECIFICATION 1.4 Build the connection between the Tablet or Smartphone and SmartPlug 1.4.1 Install the Atmel APK for SmartPlug on the Tablet or Smartphone based on the 4.2 or above version Android System.

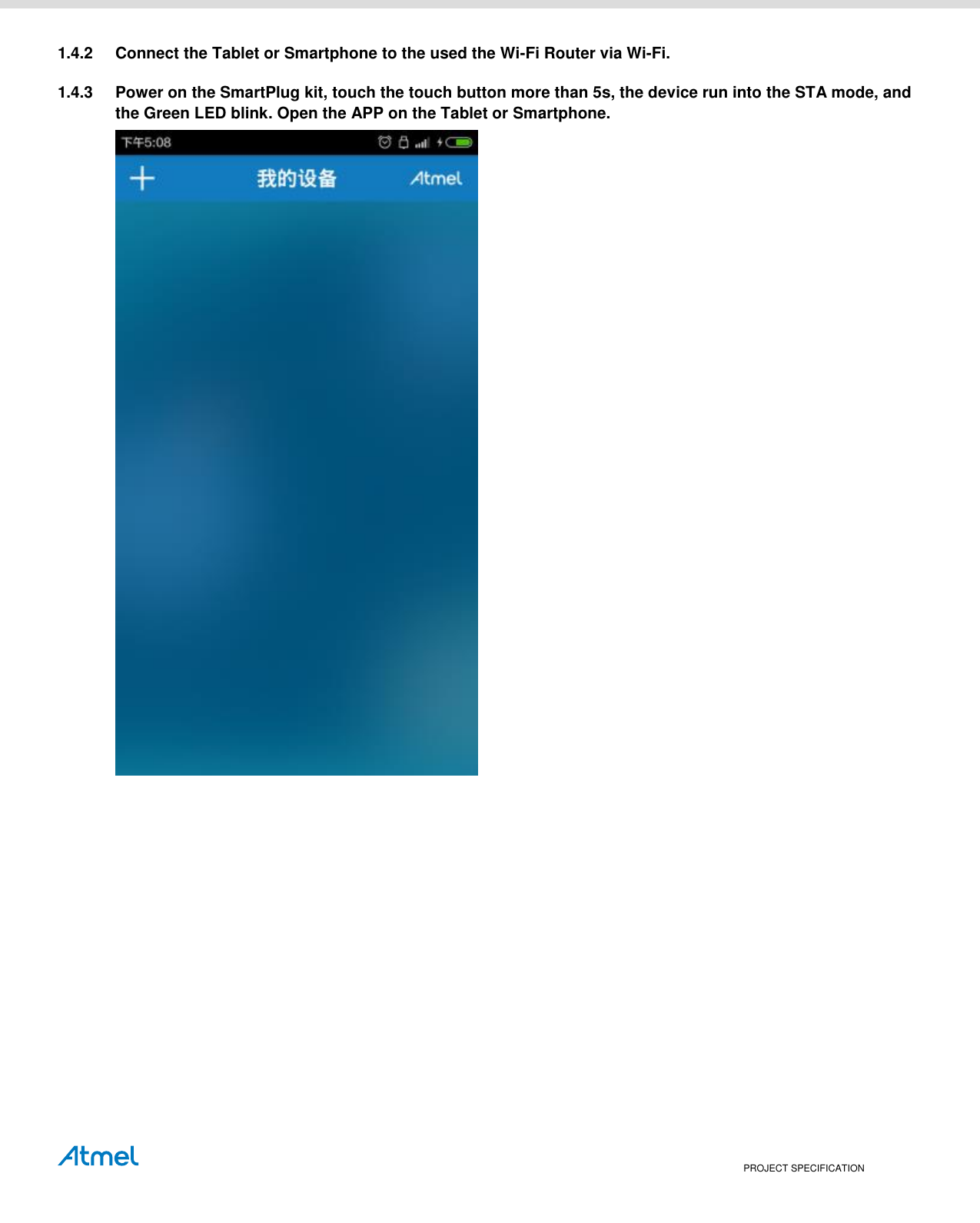

PROJECT SPECIFICATION 1.4.2 Connect the Tablet or Smartphone to the used the Wi-Fi Router via Wi-Fi. 1.4.3 Power on the SmartPlug kit, touch the touch button more than 5s, the device run into the STA mode, and the Green LED blink. Open the APP on the Tablet or Smartphone.

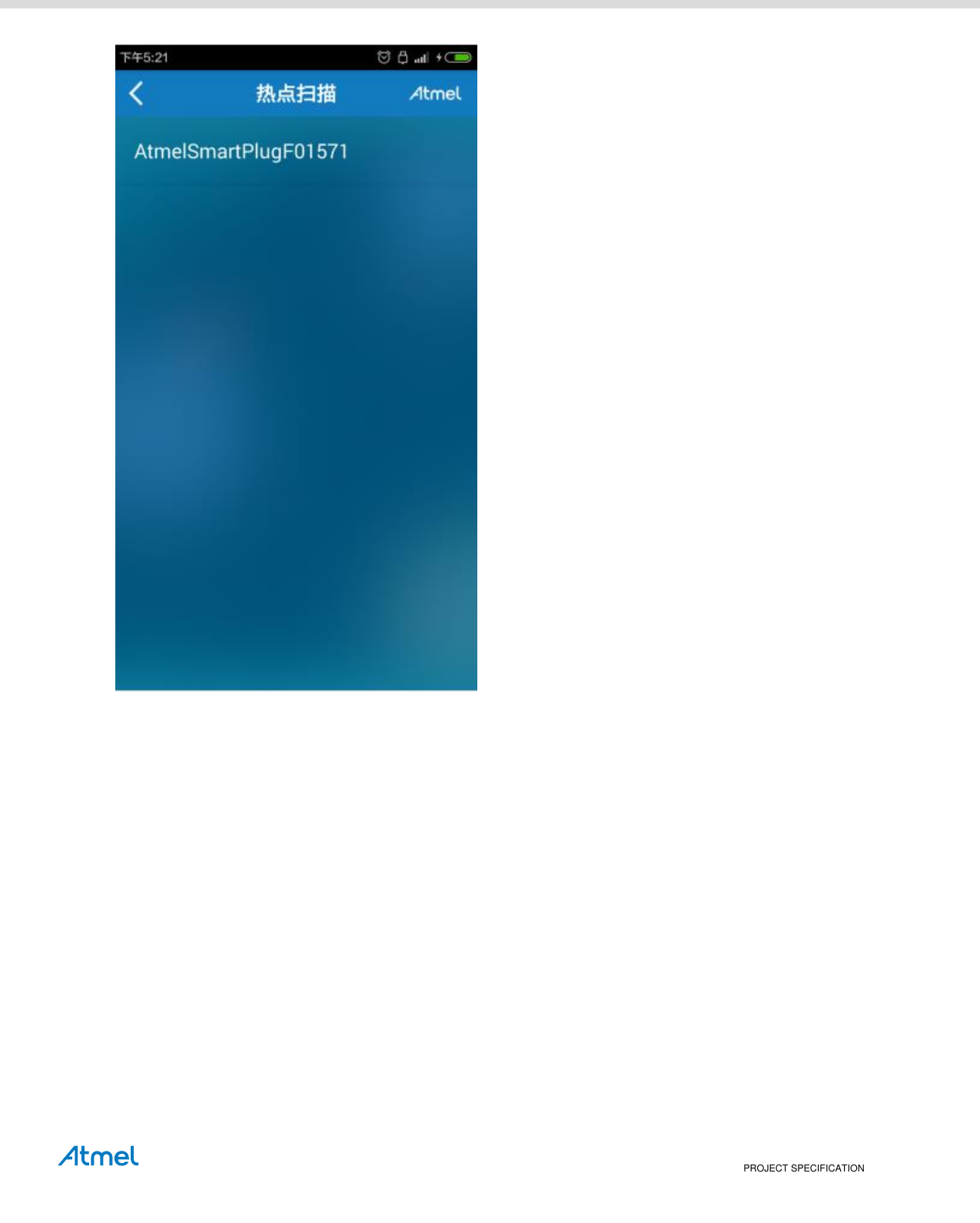

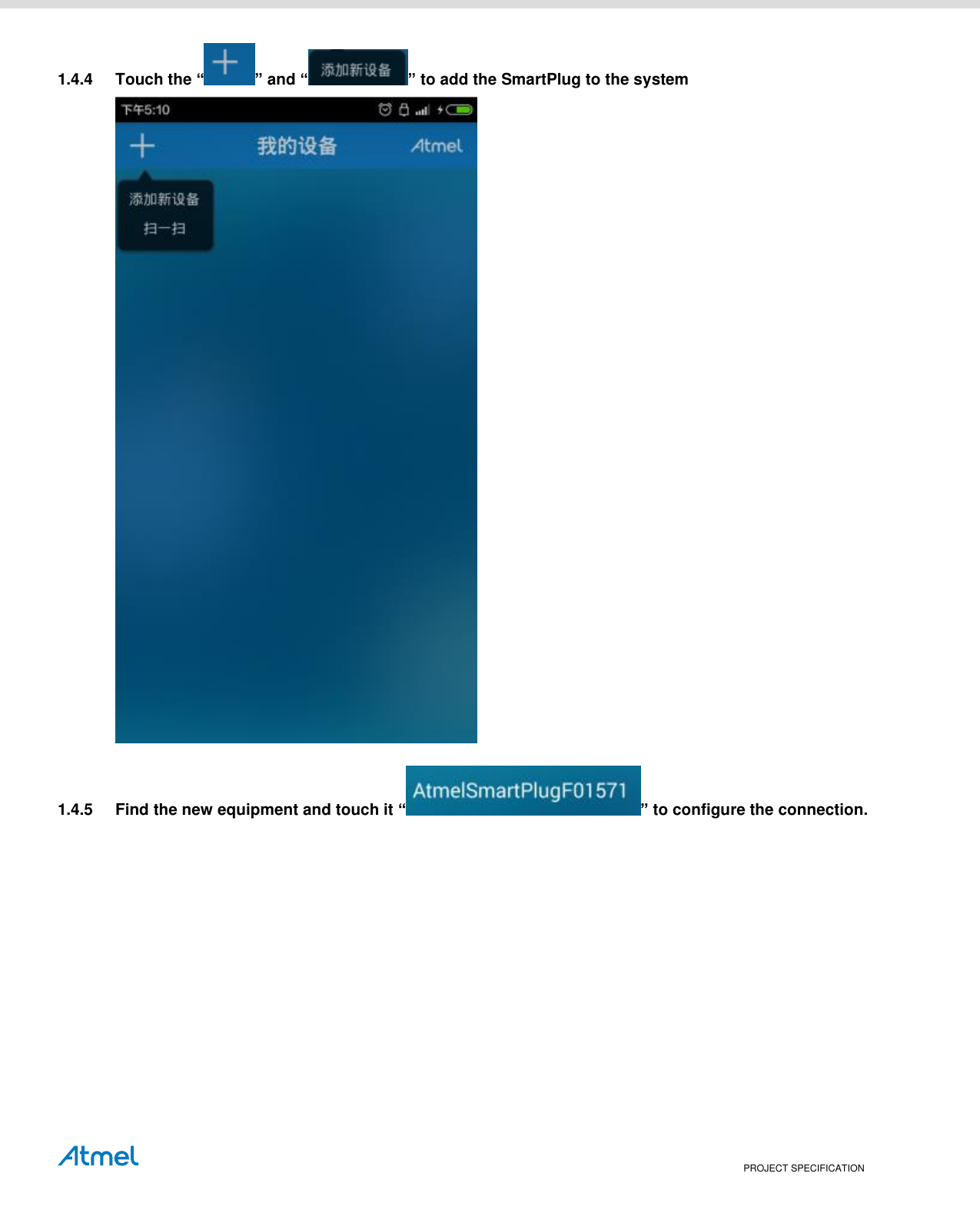

PROJECT SPECIFICATION 1.4.4 Touch the “ ” and “ ” to add the SmartPlug to the system 1.4.5 Find the new equipment and touch it “ ” to configure the connection.
PROJECT SPECIFICATION
PROJECT SPECIFICATION

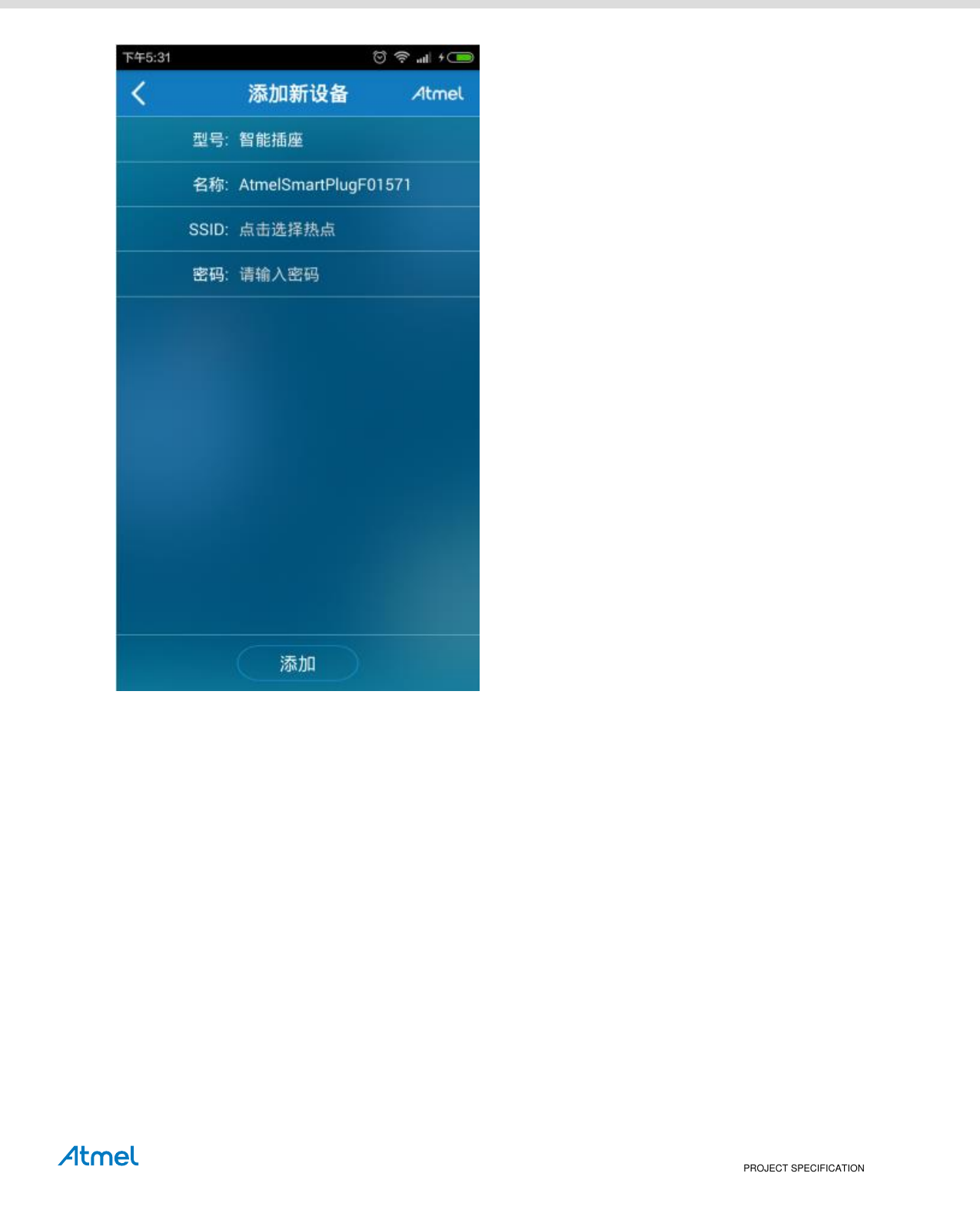

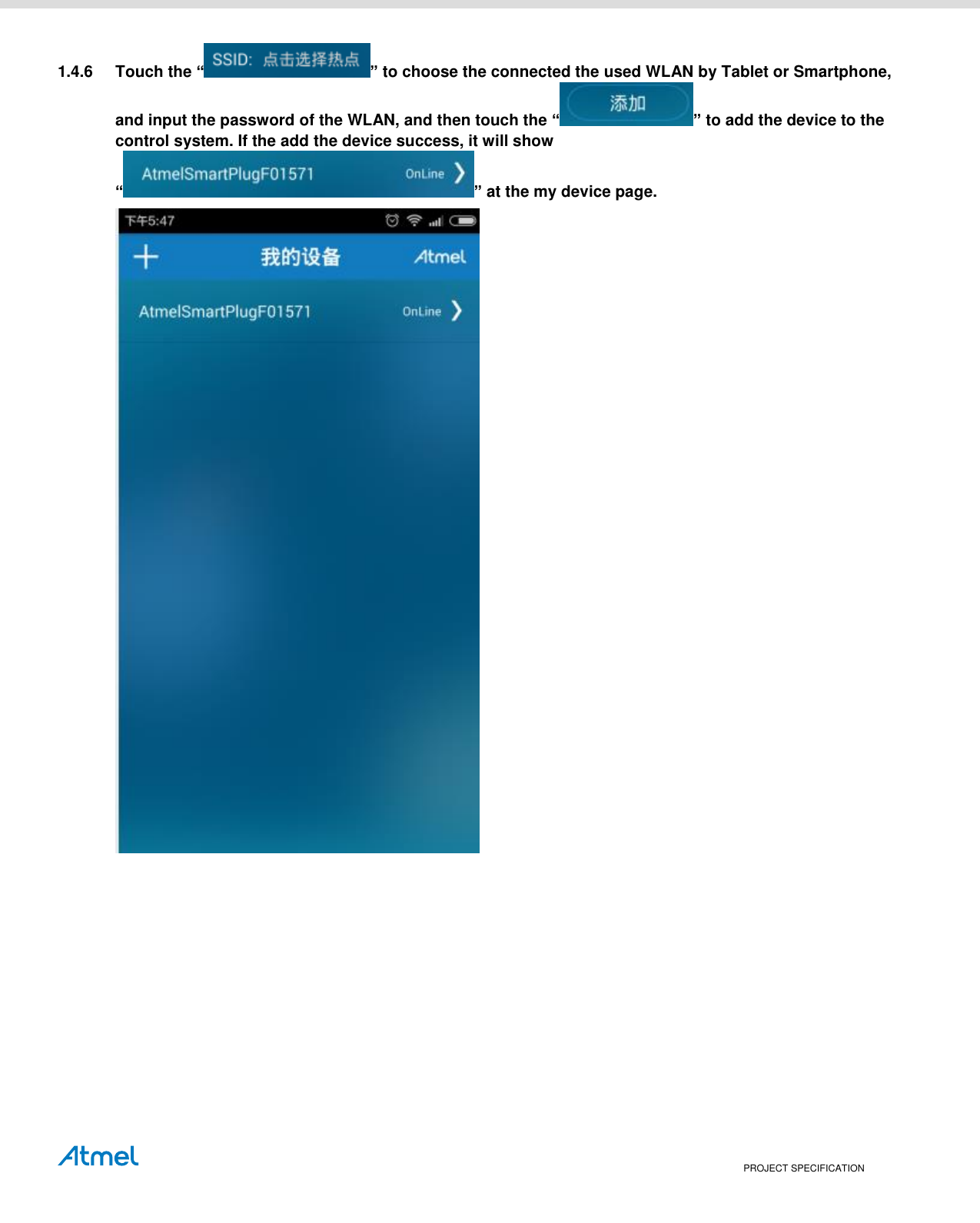

PROJECT SPECIFICATION 1.4.6 Touch the “ ” to choose the connected the used WLAN by Tablet or Smartphone, and input the password of the WLAN, and then touch the “ ” to add the device to the control system. If the add the device success, it will show “ ” at the my device page.

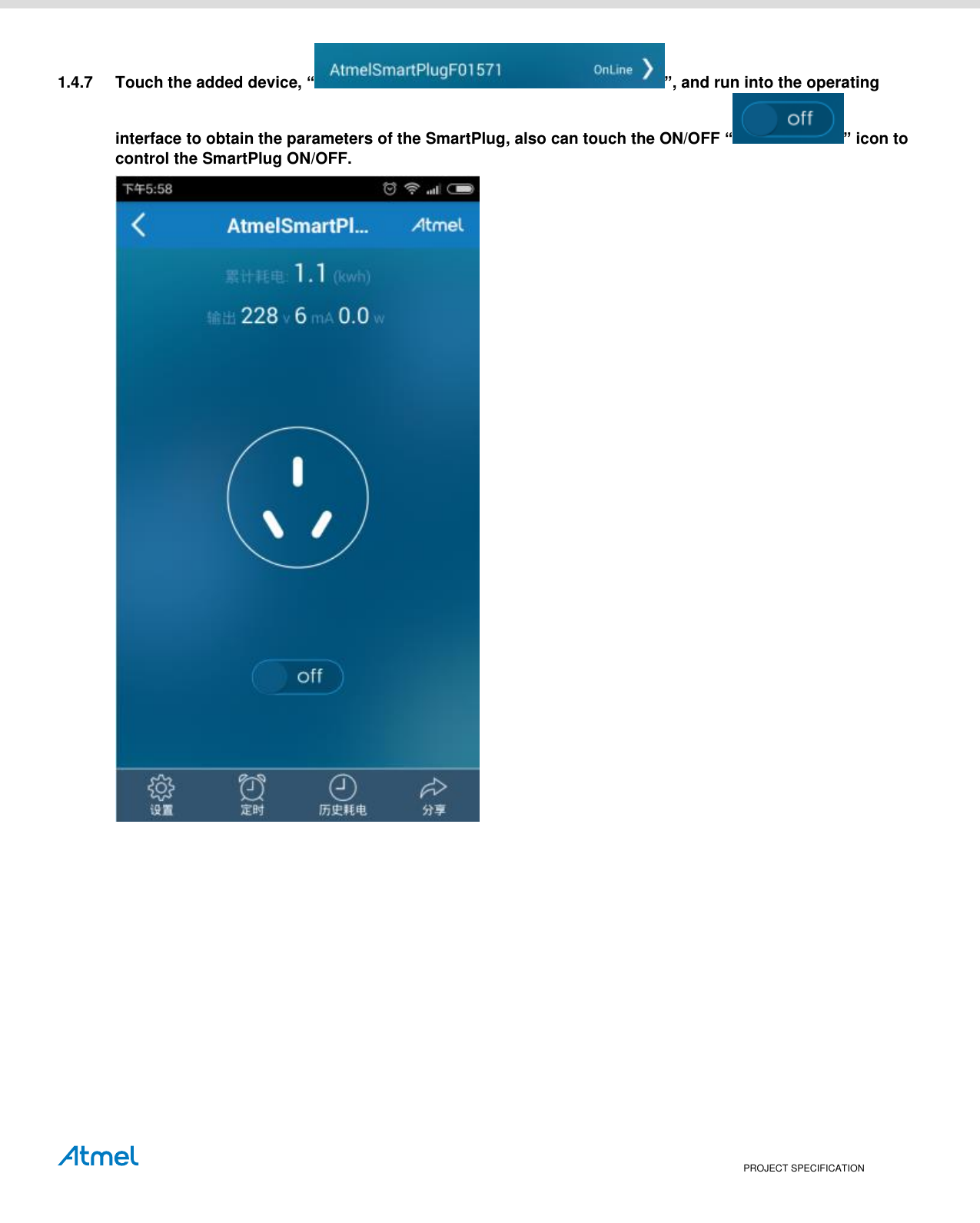

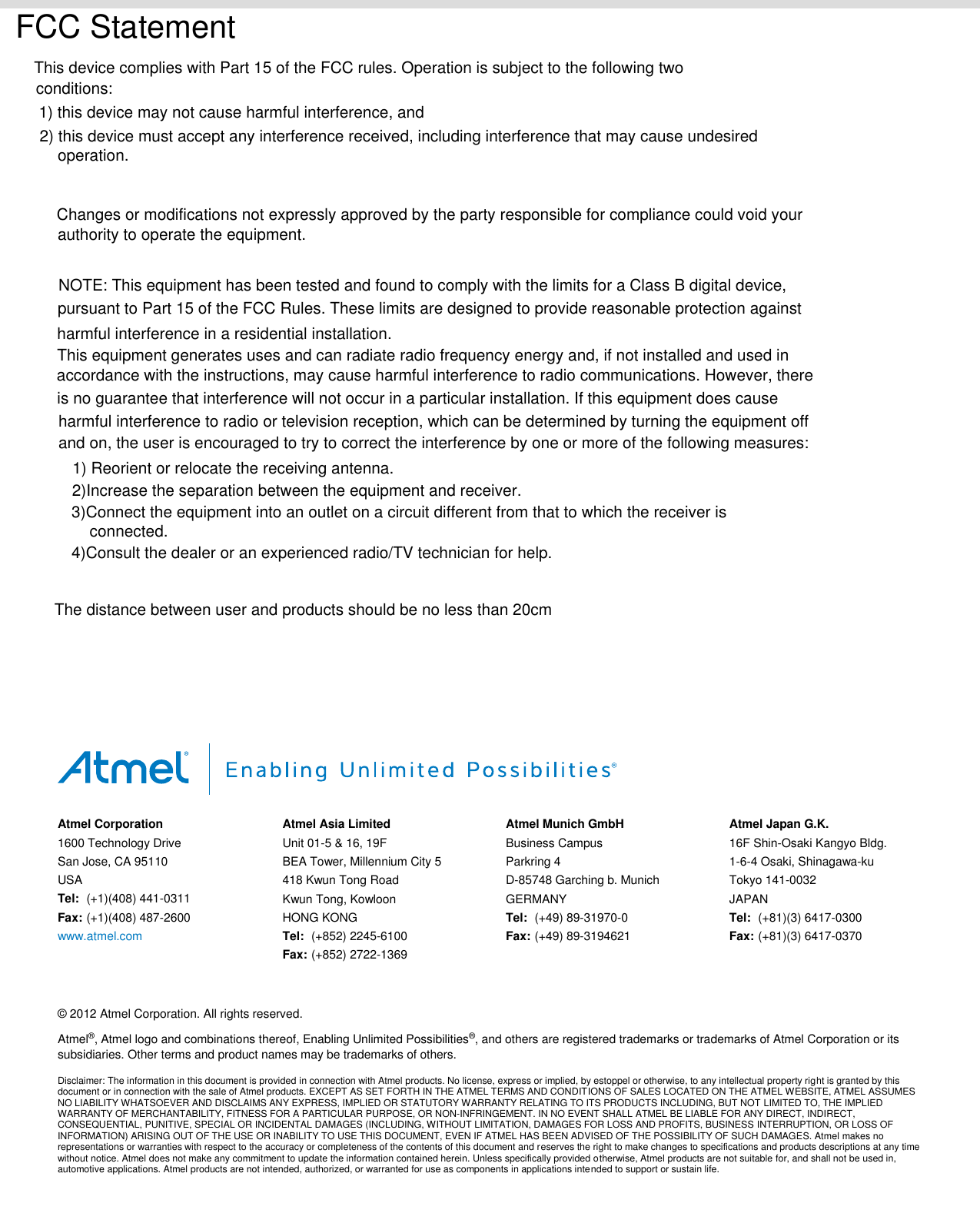

PROJECT SPECIFICATION 1.4.7 Touch the added device, “ ”, and run into the operating interface to obtain the parameters of the SmartPlug, also can touch the ON/OFF “ ” icon to control the SmartPlug ON/OFF.
