Installation Guide

41-001310-00

Rev 01

6739i IP Phone

OptionsOptions

CallersCallers

DirectoryDirectory

ServicesServices

Conf

Transfer

Messages

MuteMute

Speaker/

Headset

GoodbyeGoodbye

RedialRedial

HoldHold

Line 1Line 1

Line 2Line 2

Line 3Line 3

Model 6739i IP Phone Installation Guide iii

Software License Agreement

Aastra Telecom Inc., hereinafter known as "Seller", grants to Customer a

personal, worldwide, non-transferable, non-sublicenseable and non-exclu-

sive, restricted use license to use Software in object form solely with the

Equipment for which the Software was intended. This Product may inte-

grate programs, licensed to Aastra by third party Suppliers, for distribution

under the terms of this agreement. These programs are confidential and

proprietary, and are protected as such by copyright law as unpublished

works and by international treaties to the fullest extent under the applica-

ble law of the jurisdiction of the Customer. In addition, these confidential

and proprietary programs are works conforming to the requirements of

Section 401 of title 17 of the United States Code. Customer shall not dis-

close to any third party such confidential and proprietary programs and

information and shall not export licensed Software to any country except in

accordance with United States Export laws and restrictions.

Customer agrees to not reverse engineer, decompile, disassemble or dis-

play Software furnished in object code form. Customer shall not modify,

copy, reproduce, distribute, transcribe, translate or reduce to electronic

medium or machine readable form or language, derive source code with-

out the express written consent of the Seller and its Suppliers, or dissemi-

nate or otherwise disclose the Software to third parties. All Software

furnished hereunder (whether or not part of firmware), including all copies

thereof, are and shall remain the property of Seller and its Suppliers and

are subject to the terms and conditions of this agreement. All rights

reserved.

Customer's use of this software shall be deemed to reflect Customer's

agreement to abide by the terms and conditions contained herein. Removal

or modification of trademarks, copyright notices, logos, etc., or the use of

Software on any Equipment other than that for which it is intended, or any

other material breach of this Agreement, shall automatically terminate this

license. If this Agreement is terminated for breach, Customer shall imme-

diately discontinue use and destroy or return to Seller all licensed software

and other confidential or proprietary information of Seller. In no event

shall Seller or its suppliers or licensors be liable for any damages whatso-

ever (including without limitation, damages for loss of business profits,

business interruption, loss of business information, other pecuniary loss, or

consequential damages) arising out of the use of or inability to use the soft-

ware, even if Seller has been advised of the possibility of such damages.

Table of Contents

Software License Agreement ............................................................... iii

Introduction.............................................................................................. 1

Phone Features.................................................................................................... 1

Requirements ...................................................................................................... 2

About This Guide ............................................................................................... 2

Phone Parts............................................................................................... 3

Optional Accessories for 6739i (Not Included) ............................................. 3

Key Panel................................................................................................... 4

Key Descriptions...................................................................................... 5

Installation and Setup............................................................................. 7

Direct or Shared Network Connection........................................................... 7

Connecting to the Network and to Power...................................................... 9

Connecting a Handset, Headset, or DHSG Headset ................................. 11

Desk or Wall Installation................................................................................. 13

Customizing your phone...................................................................... 16

Other Phone Features........................................................................... 16

Adjusting the Volume...................................................................................... 17

Status Lights (LEDs)......................................................................................... 17

Call Timer........................................................................................................... 17

Line/Call Appearance Keys............................................................................ 18

Using a Headset with your Telephone ......................................................... 18

Troubleshooting Solutions................................................................... 19

Limited Warranty .................................................................................. 21

Model 6739i IP Phone Installation Guide 1

Introduction

Congratulations on your purchase of the Model 6739i IP telephone! The

6739i communicates over an IP network allowing you to place and receive

calls in the same manner as a regular business telephone. The 6739i is

capable of supporting the SIP IP protocol.

Phone Features

• 5.7" VGA Thin Film Transistor (TFT) technology graphical LCD with

touch screen and backlight capabilities

• Bluetooth headset support

• 3 call appearance line keys with LEDs

•USB jack

• Full-duplex speakerphone for handsfree calls

• Headset support jack

•DHSG headset jack

• Legacy Expansion Module support

• Next generation Expansion Module support

• Built-in-2-port, 10/100/1000 Ethernet switch - lets you share a connection

with your computer.

• Inline power support (based on 802.3af Power-over-Ethernet (PoE)

standard) which eliminates power adapters

• AC power adapter (sold separately)

2Model 6739i IP Phone Installation Guide

Introduction

Requirements

The 6739i IP Phone requires the following environment:

• SIP-based IP PBX system or network installed and running with a SIP

account created for the 6739i phone.

• Access to a Trivial File Transfer Protocol (TFTP) server, File Transfer

Protocol (FTP) server, Hypertext Transfer Protocol (HTTP) server, or

Hyper Text Transfer Protocol over Secure Sockets Layer (SSL) (HTTPS)

server.

• Ethernet/Fast Ethernet LAN (10/100 BaseT), Gigabit Ethernet LAN (1000

BaseT) recommended

• Category 5/5e straight through cabling

• Power source

For Ethernet networks that supply in-line power to the

phone (IEEE 802.3af):

- For power, use the Ethernet cable (supplied) to connect from the

phone directly to the network for power. (No 48v AC power

adapter required.)

For Ethernet networks that DO NOT supply power to the phone:

- (optional) For power, use the 48V AC Power Adapter (optional

accessory) to connect from the DC power port on the phone to a

power source.

- (optional) - For power, use a Power over Ethernet (PoE) power

injector or a PoE switch. A PoE power injector is available as an

optional accessory from Aastra Telecom. Contact your

Administrator for more information.

About This Guide

This manual describes how to physically set up your new 6739i. Not all

features listed are available by default and some may depend on your

phone system or service provider. Contact your system administrator if you

have any questions on what features and services are available to you

on your system. This guide complements the Aastra SIP IP Phone

Administrator Guide and the Aastra Model 6739i User Guide.

Aastra SIP IP Phone Administrator Guide – is designed for network

administrators, system administrators, developers and partners who need

information on installing this product on an IP network.

Aastra Model 6739i IP Phone User Guide – explains the most commonly

used IP telephone features for an end user.

These guides along with release notes, system updates, etc. can be

downloaded from our Web site at www.aastratelecom.com.

Model 6739i IP Phone Installation Guide 3

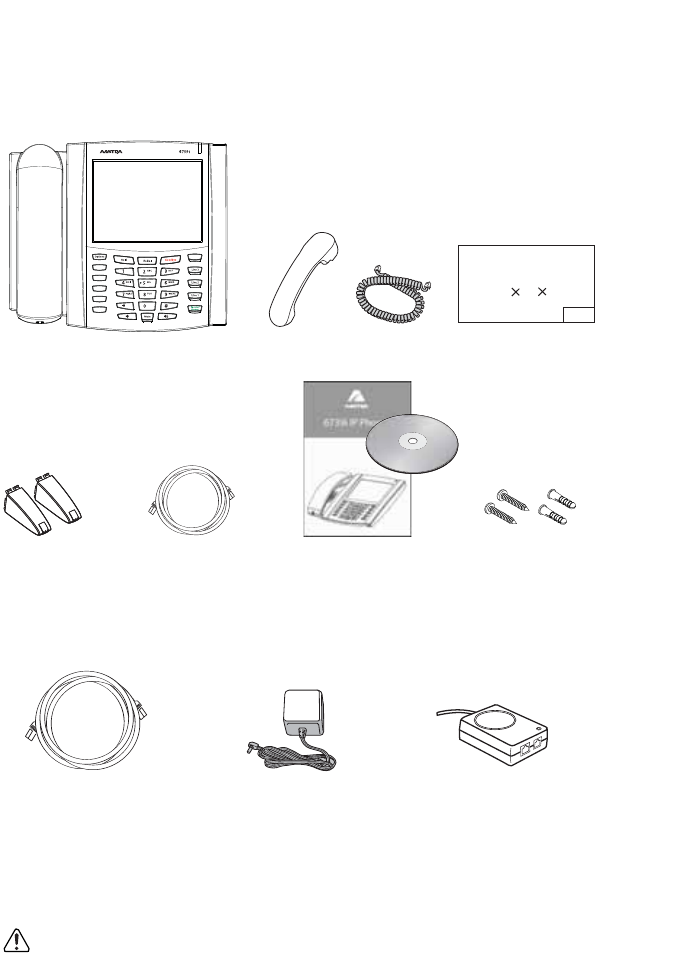

Phone Parts

When you unpack your phone, you should ensure that you have all of the

following items. If any part is missing, contact the supplier of your phone.

6739i SIP IP Phone

Optional Accessories for 6739i (Not Included)

A PoE (Power over Ethernet) inline power injector supplies 48v power to

the 6739i through the Ethernet Cable on pins 4 & 5 and 7 & 8.

Warning: Do not use this PoE inline power injector to power other

devices.

Wall Mount

Drilling Template

asdassa

asdadsda

Callers

Conf.

Transfer

Services

Directory

Messages

Volume Control (+)

Volume Control (-)

asd

qHandset aHold key

wSpeakerphone sRedial

eMessage Waiting Lamp dGoodbye Key

rOptions Key fMessages Key

tCallers List Key gThree (3) Call Appearance

Lines

yDirectory Key hSpeakerphone/Headset

Toggle Key

uServices Key jMute Key

iConference Key kColor LCD Touch Screen

oTransfer key lKeypad

Model 6739i IP Phone Installation Guide 5

Key Descriptions

Keys Key Description

Options Key - Accesses options to customize

your phone. Your System Administrator may

have already customized some of your settings.

Check with your System Administrator before

changing the administrator-only options.

Callers List Key - Accesses a list of calls received

by the phone.

Directory Key - Accesses a directory of names

and phone numbers (stored in alphabetical

order).

Services Key - Accesses enhanced features and

services set up by your System Administrator.

Conference Key - Begins a conference call with

the active call.

Transfer Key - Transfers the active call to another

number.

Hold Key - Places an active call on hold. To

retrieve a held call, press the call appearance

button beside the light that is flashing.

Redial Key - Redials previously dialed numbers.

Pressing the Redial key twice simultaneously

redials the last dialed number.

Goodbye Key - Ends an active call. The Goodbye

key also exits an open list, such as the Options

List, without saving changes.

Messages Key - Accesses your phone’s voice

mailbox to retrieve and listen to stored messages.

OptionsOptions

CallersCallers

DirectoryDirectory

ServicesServices

ConfConf

TransferTransfer

HoldHold

Redial

GoodbyeGoodbye

Messages

6Model 6739i IP Phone Installation Guide

Key Descriptions

Line/Call Appearance Keys - Connect you to a

line or call. The Aastra 6739i IP Phone IP phone

supports 3 line keys.

Speakerphone/Headset Key - Activates

Handsfree for making and receiving calls

without lifting the handset. When the audio

mode option is set, this key is used to switch

between a headset and the handsfree

speakerphone. See "Customizing your phone"

on page 16 for more information.

Volume control key - Adjusts the volume for the

handset, headset, ringer, and handsfree speaker.

See "Adjusting the Volume" on page 17 for more

information.

Mute key - Mutes the microphone so that your

caller cannot hear you (the light indicator flashes

when the microphone is on mute).

Keys Key Description

Line 1

Line 2

Line 3

Speaker/Speaker/

HeadsetHeadset

Mute

Model 6739i IP Phone Installation Guide 7

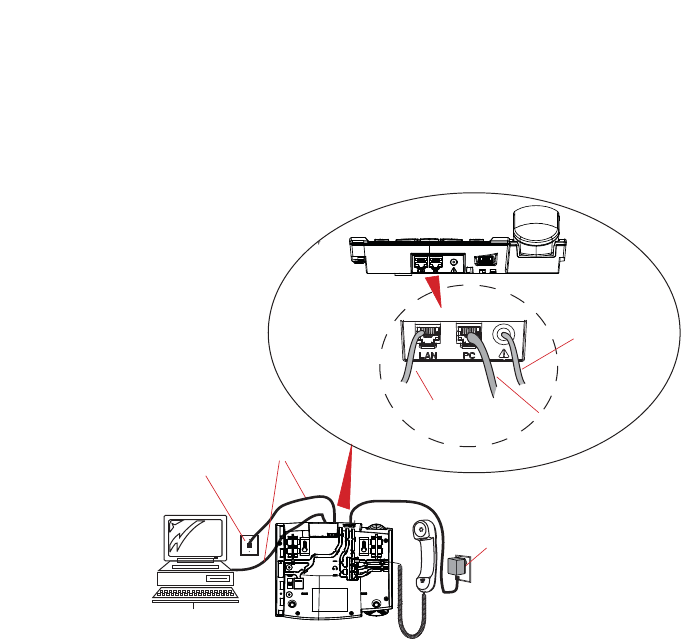

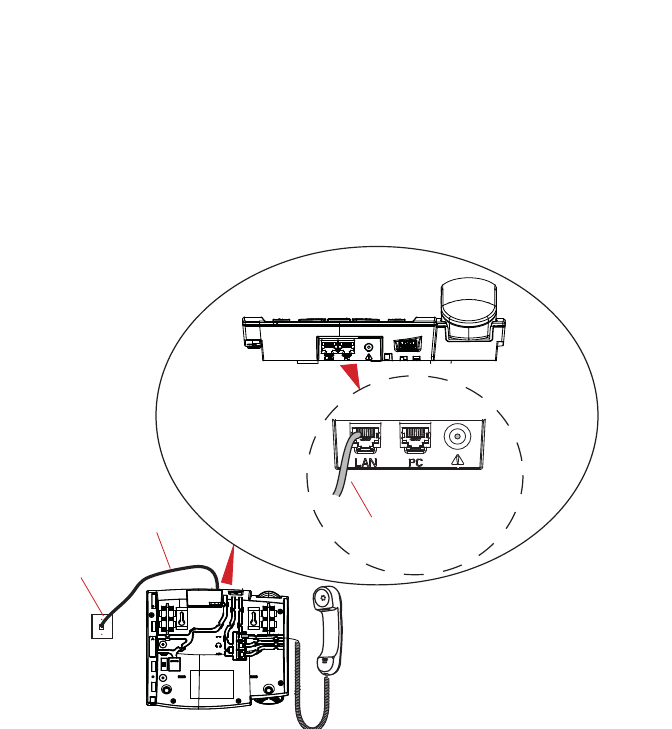

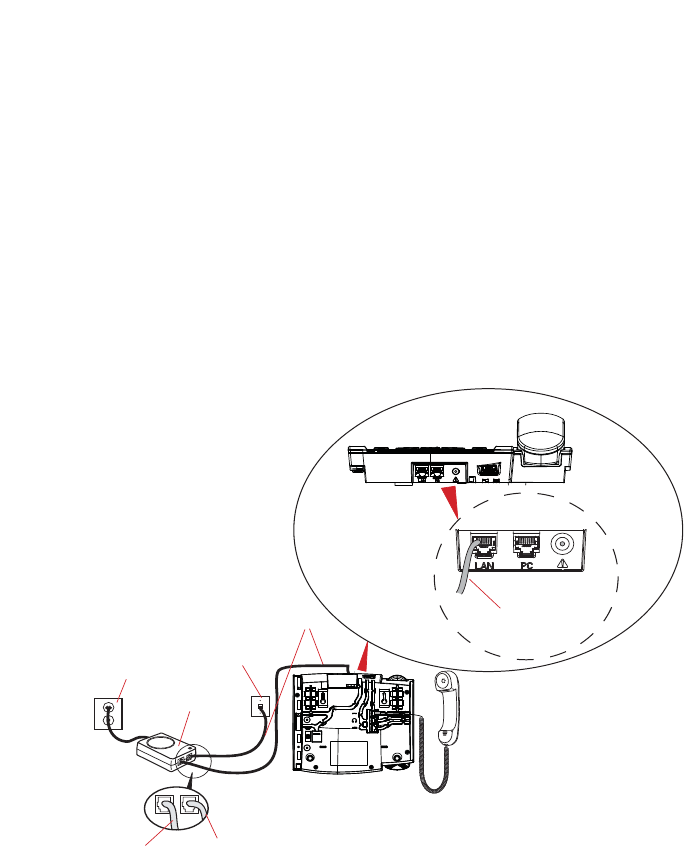

Installation and Setup

The 6739i can be setup to share a network connection with another network

device. Power can be provided by an AC adapter (optional accessory),

an 802.3af compliant network power source, or with a PoE inline power

injector (optional accessory). It can also be installed on a desk or mounted

on the wall. If your Network Administrator has already setup your

phone, please refer to the 6739i User Guide for call handling information

or contact your Network Administrator.

Note: You can download the Aastra Model 6739i IP Phone User Guide from the

Aastra Web site at www.aastratelecom.com

Direct or Shared Network Connection

The phone can be set up as a direct network connection to the Ethernet wall

jack or as a shared network connection as a pass-through if connecting a

computer or another network device to the phone.

Direct Network Connection

Located at the top of the phone are two fully switched

10/100/1000 Mbps Ethernet cable ports. The port marked with LAN is

used to connect the phone to the network, as well as provide power to

your phone (if required). See the section "Connecting to the Network and

to Power" on page 9 for more information.

EthernetEthernet

Cable Cable

Other Network DevicesOther Network Devices

Separate Separate

Network Network

Jack Jack

Network JackNetwork Jack

(if Inline power provided,(if Inline power provided,

do not install the power adapter)do not install the power adapter)

To NetworkTo Network

PowerPower

AdapterAdapter

Power AdapterPower Adapter

ConnectionConnection

8Model 6739i IP Phone Installation Guide

Installation and Setup

Shared Network Connection

To connect a network device (such as a computer) to the phone, connect an

Ethernet cable into the network port on the top of the phone marked PC.

Plug the other end of the Ethernet cable into the network port on the

network device with which you are sharing the network connection.

Note: The PC jack on the 6739i does not supply inline power onto other network

devices. All Ethernet cables used must be category 5/5e straight-through

cables, such as the cable provided with your phone

Ethernet

Cables

Other Network Devices

Network Jack

(if Inline power provided,

do not install the power adapter)

Power

Adapter

To Network

Power Adapter

Connection

To Other

Network Device

Model 6739i IP Phone Installation Guide 9

Installation and Setup

Connecting to the Network and to Power

Inline Power Provided

If your network provides 802.3af compliant in-line power, the phone is

powered through the network.

1. On the top of your phone, connect the Ethernet cable (provided with

your phone) into the network port marked with LAN.

2. Plug the other end of the Ethernet cable directly into the network jack on

the wall.

Ethernet

Cable

Network Jack

(if Inline power provided)

To Network

10 Model 6739i IP Phone Installation Guide

Installation and Setup

Inline Power Not Provided

If your network does not provide 802.3af compliant in-line power, you need

to install the supplied AC adapter or the PoE inline power injector (optional

accessory).

1. On the top of your phone, connect the Ethernet cable (provided with

your phone) into the network port marked with LAN.

2. On the PoE power injector, plug the other end of the Ethernet cable into

the network jack marked as indicated in the following illustration.

3. On the PoE power injector, connect an additional Ethernet cable into the

network port as indicated in the following illustration.

4. Plug the other end of the Ethernet cable into the network jack on the

wall.

5. Plug the PoE power injector into a power outlet.

Note: You should connect the power supply to a surge protector or power bar. All

Ethernet cables used must be category 5/5e straight-through cables, such as

the cable provided with your phone.

PoE

Power injector

(if Inline power is

not provided)

ower Outlet

To Network

Jack

To Ph on e

Ethernet

Cables

Network Jack

To Power over Ethernet (PoE)

Model 6739i IP Phone Installation Guide 11

Installation and Setup

Connecting a Handset, Headset, or DHSG Headset

Handset

To connect the handset to the phone:

1. On the back of the phone base, locate the handset port marked .

Insert one end of handset cord into the port until it clicks into place.

2. Route the handset cord through the channel as shown in the illustra-

tion on page 12.

3. Attach the handset to the other end of the handset cord.

Headset (Optional)

To connect a headset to the phone:

1. On the back of the phone base, locate the headset port marked .

Insert the headset cord into the port until it clicks into place.

2. Route the headset cord through the channel as shown in the above illus-

tration on page 12.

DHSG Headset (Optional)

You can attach an optional DHSG headset to the 6739i IP Phone if required.

To connect a DHSG headset to the phone:

1. On the back of the phone base, locate the DHSG port marked AUX.

2. Attach your 3rd party DHSG headset cable to Aastra’s DHSG jack.

Note: DHSG headsets may require further configuration before use. Refer to your

headset documentation or contact your headset vendor for more information.

12 Model 6739i IP Phone Installation Guide

Installation and Setup

Attaching Cords and Cables

Ports on Back of Phone Base

Attaching Cords to the Phone Base

Attach cord

to handset

Route cords through

applicable channels

Handset Port

Headset Port

DHSG Port

Model 6739i IP Phone Installation Guide 13

Installation and Setup

Desk or Wall Installation

Install on the Desk

The desk installation for the 6739i IP phone consists of two legs that attach

to the back of the phone near the top corners. A total of four different

viewing angles allows users to personalize their phone viewing preference.

1. Attach each leg by inserting the tabs on the leg into the slots on the bot-

tom of the phone. There are three pair of leg slots on each corner of the

phone; each leg uses two pairs (1&2, or 2&3) giving two leg positions

designating different viewing angles. Furthermore, the legs can be

reversed which offer two additional viewing angles.

2. For a higher viewing angle, use the second and third slots from the top.

3. For a lower viewing angle, use the first and second slots from the top.

4. Push the stand towards the phone until it snaps into place.

Three leg slot locations

for customizing the height

of the desk phone.

Total 4 Viewing Angles

20.7 deg.

Incline Angle 23.3 deg.

Incline Angle 26.6 deg.

Incline Angle 30.9 deg.

Incline Angle

14 Model 6739i IP Phone Installation Guide

Installation and Setup

Install on the Wall

The 6739i IP phone has two pre-drilled wall mounting holes on the back of

the phone.

1. Using the provided wall mount drilling template, locate and mark the

position for the mounting screws on the wall. Depending on the wall

type, you may need to use wall anchors. Both the screws and wall

anchors are included with your phone.

2. Place the wall mount holes on the phone over the screw heads on the

wall and pull down to lock the phone in.

Note: You may wish to purchase a short Ethernet cable from a local supplier for a

wall installation. Also, if 802.3af compliant in-line power is not provided on

your network, and you are installing the 6739i on a wall using a PoE in-line

power injector, you may also wish to use an equivalent flat Ethernet cable

rather than the one provided.

3. In the handset cradle, there is a small clip that sits flush with the cradle

surface. Using a small flathead screwdriver, pull the clip up and remove

it from the phone.

4. With the arms on the clip facing you and the flat side of the clip towards

the phone, turn the clip 180 degrees and reinsert it back into the clip

cavity in the phone’s cradle.

Wall Mount Holes

Model 6739i IP Phone Installation Guide 15

Installation and Setup

5. Push the clip in until it snaps into the slot flush with the surface and only

the legs on the clip are sticking up.

6. Place the handset into the phone’s cradle, inserting the legs on the clip

into the square hole on the handset. This allows the handset to rest in

the cradle in a vertical position without slipping off when the phone is

installed on the wall.

Remove clip, turn 180

degrees, and reinsert

clip.

Clip

Square Hole

on Handset

16 Model 6739i IP Phone Installation Guide

Customizing your phone

Your 6739i is a feature-rich IP Phone that allows you to customize and

configure it with the touch of your finger and/or the press of a button.

You can access configuration options by pressing the button on the

phone. You can also access options using the Aastra Web

User Interface (UI) to the phone.

For more information about using these features and options on your

phone, see your Aastra Model 6739i IP Phone User Guide available from the

Aastra Telecom Web site at www.aastratelecom.com.

Other Phone Features

Set Audio

The 6739i allows you to use a handset, a headset, or handsfree to handle

incoming and outgoing calls. The audio mode option provides different

combinations of these three methods to provide maximum flexibility in

handling calls. There are four audio mode options to choose from:

Headset Mic Volume

To adjust the headset microphone volume, press Advanced after selecting

the audio option, and then select the Low, Medium, or High volume level.

Audio Mode Option Description

Speaker This is the default setting. Calls can be made or

received using the handset or handsfree

speakerphone. In handset audio mode, pressing

the button on the phone switches to

handsfree speakerphone. In Speaker audio mode,

lift the handset to switch to the handset.

Headset Choose this setting if you want to make or receive

all calls using a handset or headset. Calls can be

switched from the handset to headset by pressing

the button on the phone. To switch from the

headset to the handset, lift the handset.

Speaker/Headset Incoming calls are sent to the handsfree

speakerphone first when the button is

pressed. By pressing the button again, you can

switch back and forth between the handsfree

speakerphone and the headset. At anytime, lifting

the handset switches back to the handset from

either the handsfree speakerphone or the headset.

Headset/Speaker Incoming calls are sent to the headset first when

the button is pressed. By pressing the button

again, you can switch back and forth between the

headset and the handsfree speakerphone. At

anytime, lifting the handset switches back to the

handset from either the headset or the handsfree

speakerphone.

Options

Speaker/

Headset

Speaker/Speaker/

HeadsetHeadset

Speaker/Speaker/

HeadsetHeadset

Speaker/Speaker/

HeadsetHeadset

Model 6739i IP Phone Installation Guide 17

Other Phone Features

Adjusting the Volume

Pressing the volume button adjusts the receiver, headset,

speaker, and ringer volume.

• To adjust the ringer volume, leave the handset in the cradle and press

the volume button while there is no active call. There are

10 settings for the ringer including Off — the display will temporarily

indicate the current ringer volume setting.

• To adjust the handset volume, lift the handset and press the volume but-

ton while the handset is off hook. The handset will remain

at this volume until it is adjusted again.

• To adjust the headset volume, press the volume button

while the headset is activated (activate the headset by pressing ;

ensure headset audio mode is set). The headset will remain at this vol-

ume until it is adjusted again.

• To adjust the speaker volume, press the volume button

while the speaker is activated (activate the speaker by pressing ;

ensure handsfree speakerphone audio mode is set). The speaker will

remain at this volume until it is adjusted again.

Status Lights (LEDs)

The speaker LED, beside the key, and the Message Waiting

Indicator (MWI) LED, on the top right of your phone, provide visual

indications of your phone’s status.

Speaker LED

Message Waiting Indicator (MWI)

Call Timer

• When you make or answer a call, the Timer shows the elapsed time of

the call.

Speaker LED Status Description

ON solid Indicates a call is on Handsfree (speakerphone)

Slow Flash Indicates you are using the headset.

Rapid Flash Indicates the call is muted. Press to take the

call off mute.

MWI LED Status Description

Slow Flash Indicates you have a message(s).

Rapid Flash Indicates you have an incoming call.

Even Flash Indicates one or more calls are on hold.

Speaker/Speaker/

HeadsetHeadset

Speaker/Speaker/

HeadsetHeadset

Speaker/Speaker/

HeadsetHeadset

Mute

18 Model 6739i IP Phone Installation Guide

Other Phone Features

Line/Call Appearance Keys

The 6739i has 3 hard/line call appearance keys each with a corresponding

status light. Additional line call appearances may also be set up on your

phone as softkeys.

These line/call appearance buttons and lights represent physical lines or

calls for your extension. By pressing a line call appearance button, you

connect to the line or a call it represents. The line call appearance light

indicates the status of that line or call.

When the phone is taken off-hook, the phone will automatically select a

line for you.

For more information about the Line Call Appearance keys, see the

Aastra Model 6739i IP Phone User Guide.

Using a Headset with your Telephone

The 6739i accepts standard and DHSG headsets through a modular port on

the back of the phone. Contact your telephone equipment retailer or

distributor to purchase a compatible headset. A non-amplified headset is

required. Customers should read and observe all safety

recommendations contained in headset operating guides when using

any headset.

Note: For best headset performance, Aastra recommends non-amplified headset

equipped with modular connector.

Making and Receiving Calls using a Headset

1. Ensure that you have selected a headset audio mode by accessing the

Options menu. See the section "Set Audio" on page 16 for detailed

information.

2. Plug the headset into jack.

3. Press the key to obtain dial tone or answer an incoming call.

Depending on the audio mode selected from the Options menu, dial

tone or an incoming call will be received on either the headset or the

handsfree speakerphone.

4. Press the key to end the call.

Line Call Appearance LED Status Description

OFF Indicates idle line or no call

activity

Rapid Flash Indicates ringing on the line.

Slow Flash Indicates a call is on hold.

Speaker/

Headset

Goodbye

Model 6739i IP Phone Installation Guide 19

Troubleshooting Solutions

Why is the light not coming on with a new Voice Mail Message?

Your phone system or service provider must provide “Visual” Message

Waiting service for this function to work. Check with your system

administrator for more information.

Why is my handset not working?

Check to ensure that the handset cord is fully connected to both the phone

and handset. See the section "Connecting a Handset, Headset, or DHSG

Headset" on page 11 for information.

Why is my speakerphone not working?

If you press and the speaker light flashes and you do not hear dial

tone, the Set Audio option has been used to set up the phone for headset

use; press a second time. If the light goes out, the phone is set up to

be used only with a headset or handset. If the light stays on steady and you

hear dial tone, you can alternate between the speakerphone and the

headset by pressing . See the section, "Set Audio" on page 16 for

instructions on how to change the Set Audio feature.

Why is my display blank?

Ensure that power is being provided to your phone. If your Network does

not provide Inline power over Ethernet, you can obtain an additional

accessory, the a PoE inline power injector, to provide power over

Ethernet locally to your phone. See the section "Connecting to the

Network and to Power" on page 9 for details.

Can I turn the backlight for the screen on and off?

Yes. You can use the IP phone UI to turn ON and OFF the backlight for the

screen.

1. Press the key.

2. Select Display>Backlight.

3. Press the Change key to turn the backlight on and off.

4. Press Save to save the change.

Why does the telephone wobble?

Make sure the cords are routed properly through the back of the phone, as

indicated in the section, "Connecting a Handset, Headset, or DHSG

Headset" on page 11. Check that the leg stands have been properly

snapped into place. Since the legs can be oriented in two different ways

and in two different positions to offer four different phone viewing angles,

check that both legs are oriented in the same direction and in the same

position on either side of the phone.

Speaker/Speaker/

HeadsetHeadset

Speaker/

Headset

Speaker/Speaker/

HeadsetHeadset

OptionsOptions

Model 6739i IP Phone Installation Guide 21

Limited Warranty

Aastra Telecom warrants this product against defects and malfunctions during a

one (1) year period from the date of original purchase. If there is a defect or

malfunction, Aastra Telecom shall, at its option, and as the exclusive remedy, either

repair or replace the telephone set at no charge, if returned within the warranty

period.

If replacement parts are used in making repairs, these parts may be refurbished, or

may contain refurbished materials. If it is necessary to replace the telephone set, it

may be replaced with a refurbished telephone of the same design and color. If it

should become necessary to repair or replace a defective or malfunctioning

telephone set under this warranty, the provisions of this warranty shall apply to the

repaired or replaced telephone set until the expiration of ninety (90) days from the

date of pick up, or the date of shipment to you, of the repaired or replacement set,

or until the end of the original warranty period, whichever is later. Proof of the

original purchase date is to be provided with all telephone sets returned for

warranty repairs.

Exclusions

Aastra Telecom does not warrant its telephone sets to be compatible with the

equipment of any particular telephone company. This warranty does not extend to

damage to products resulting from improper installation or operation, alteration,

accident, neglect, abuse, misuse, fire or natural causes such as storms or floods,

after the telephone is in your possession.

Aastra Telecom shall not be liable for any incidental or consequential damages,

including, but not limited to, loss, damage or expense directly or indirectly arising

from the customers use of or inability to use this telephone, either separately or in

combination with other equipment. This paragraph, however, shall not apply to

consequential damages for injury to the person in the case of telephones used or

bought for use primarily for personal, family or household purposes.

This warranty sets forth the entire liability and obligations of Aastra Telecom

with respect to breach of warranty, and the warranties set forth or limited herein

are the sole warranties and are in lieu of all other warranties, expressed or implied,

including warranties or fitness for particular purpose and merchantability.

Warranty Repair Services

Should the set fail during the warranty period;

In North America

, please call 1-800-574-1611 for further information.

Outside North America

, contact your sales representative for return instructions.

You will be responsible for shipping charges, if any. When you return this

telephone for warranty service, you must present proof of purchase.

After Warranty Service

Aastra Telecom offers ongoing repair and support for this product. This service

provides repair or replacement of your Aastra Telecom product, at Aastra

Telecom's option, for a fixed charge. You are responsible for all shipping charges.

For further information and shipping instructions;

In North America

, contact our service information number: 1-800-574-1611.

Outside North America

, contact your sales representative.

Note:

Repairs to this product may be made only by the manufacturer and its authorized

agents, or by others who are legally authorized. This restriction applies during and after

the warranty period. Unauthorized repair will void the warranty.

Model 6739i IP Phone Installation Guide Index-1

Index

Numerics

6739i line settings 18

audio, setting 16

call timer 17

callers list key 5

conference key 5

customizing your phone 16

desk installation 13

features, IP phone 1

handset, connecting 11

headset mode 16

headset, connecting 11

headset, making and receiving calls with

headset/speaker mode 16

indicator light 17

inline power

not provided 10

provided 9

introduction 1

key descriptions 5

key panel 4

keys callers list 5

conference 5

line 6

transfer 5

lights or LEDs

MWI 17

speaker 17

status 17

line keys 6

microphone volume, headset 16

MWI (message waiting indicator) 17

network

connecting to 9

connecting to direct or shared 7

other phone features 16

phone parts 3

power, connecting to 9

requirements, for IP phone 2

speaker mode 16

speaker/headset mode 16

transfer key 5

troubleshooting solutions 19

volume, adjusting 17

wall installation 14

warranty, limited 21

If you’ve read this owner’s manual and consulted the Troubleshooting section and still

have problems, please visit our Web site at www.aastra.com, or call 1-800-574-1611 for

technical assistance.

Mitel Networks 60-001254 VOIP Telephone with Bluetooth User Manual 6757i Install Guide

Mitel Networks VOIP Telephone with Bluetooth 6757i Install Guide

Contents

User Manual 1

Navigation menu

Namespaces

Views

Navigation
