MOTORIZR Z9 3G AT&T
User’s Guide
1
HELLOMOTO
The MOTO
RIZR
Z9 gives you a sleek slider experience, with access to powerful applications at the highest
network speeds. It’s the epitome of blending functional fashion with thin.
AT&T Music™ Portfolio
—Listen to your music, discover the latest songs, music news, concert updates, digital
radio, ringtones, Answer Tones™, and music videos (see page 41).
Control music with dedicated keys and fast downloads
—Music keys on the navigation disk give you quick
access to your music collection without opening the slide. 4 GB of external memory combined with the latest
Windows® Media DRM let you download and store up to 1,000 songs.
Capture the experience
—Video calling is the next best thing to being there (see page 39). Your phone’s 2 MP
digital camera captures clear, vivid photos and videos that you can save, send or print (see page 45).
Wireless Broadband Speed
—Enjoy even faster browsing, data transfer, and modem linking.
Use the large screen with the slide closed
—This large, vibrant 2.4” color display screen makes it even better to
see your song list, watch or capture videos, and play games!
For more information: To learn even more about your phone’s features, see the Web tutorial online at
www.motorola.com/support
.
2
Introducing your new MOTO
RIZR
Z9 3G wireless phone. Here’s a quick anatomy lesson.
You can close the phone during a call without hanging up (see page 26). To change your
Keypad Lock
setting, see
page 28.
Navigation Key
Center Select Key
Press and hold to change ring to vibrate.
Voice Key
Microphone
Turn on/off, hang up, exit menus.
Right Soft Key
Left Soft Key
Volume Keys
Smart Key
Make & answer calls.
Press and hold to call voicemail.
Go online.
Clear/Back Key
Charge up or connect.
Battery Charging Indicator Bluetooth
®
Connection Indicator
3
To change your home screen shortcuts and your main menu appearance, see page 33.
Home Screen Main Menu
Press the Navigation Key
up, down, left, or right
(
S
) to highlight a menu
feature.
3
Press the
Center Key (
s
)
to
select it.
4
Shortcuts Main Menu Options Back
AT&T Mall
Press and hold
O
for a
few seconds or until the
display lights up to turn
on your phone.
1
Press the
Center Key (
s
) to open
the
Main Menu
.
2
AT&T
12:00pm
4
Motorola, Inc.
Consumer Advocacy Office
1307 East Algonquin Road
Schaumburg, IL 60196
www.hellomoto.com
1-800-331-6456 (United States)
1-888-390-6456 (TTY/TDD United States for hearing impaired)
1-800-461-4575 (Canada)
Certain mobile phone features are dependent on the capabilities
and settings of your service provider’s network. Additionally,
certain features may not be activated by your service provider,
and/or the provider's network settings may limit the feature’s
functionality. Always contact your service provider about feature
availability and functionality. All features, functionality, and other
product specifications, as well as the information contained in this
user's guide are based upon the latest available information and
are believed to be accurate at the time of printing. Motorola
reserves the right to change or modify any information or
specifications without notice or obligation.
MOTOROLA and the Stylized M Logo are registered in the US
Patent & Trademark Office. All other product or service names are
the property of their respective owners. The Bluetooth trademarks
are owned by their proprietor and used by Motorola, Inc. under
license. America Online, AOL, the America Online & Design logo,
the AOL & Design logo, and the Triangle Logo, are registered
trademarks of America Online, Inc. in the United States and/or
other countries. Instant Messenger and Buddy List are trademarks
of America Online, Inc. Java and all other Java-based marks are
trademarks or registered trademarks of Sun Microsystems, Inc. in
the U.S. and other countries. Microsoft, Windows and Windows
Me are registered trademarks of Microsoft Corporation; and
Windows XP is a trademark of Microsoft Corporation.
AT&T, AT&T logo and Your World. Delivered. are trademarks of
AT&T Knowledge Ventures.
© Motorola, Inc., 2007.
Caution:
Changes or modifications made in the radio phone, not
expressly approved by Motorola, will void the user’s authority to
operate the equipment.
Software Copyright Notice
The Motorola products described in this manual may include
copyrighted Motorola and third-party software stored in
semiconductor memories or other media. Laws in the United
States and other countries preserve for Motorola and third-party
software providers certain exclusive rights for copyrighted
software, such as the exclusive rights to distribute or reproduce
the copyrighted software. Accordingly, any copyrighted software
contained in the Motorola products may not be modified,
reverse-engineered, distributed, or reproduced in any manner to
the extent allowed by law. Furthermore, the purchase of the
Motorola products shall not be deemed to grant either directly or
by implication, estoppel, or otherwise, any license under the
copyrights, patents, or patent applications of Motorola or any
third-party software provider, except for the normal, non-exclusive,
royalty-free license to use that arises by operation of law in the
sale of a product.
Manual Number: 6809515A70-O
contents
5
contents
menu map . . . . . . . . . . . . . . . . 7
Use and Care . . . . . . . . . . . . . . 9
Recycling Information . . . . . . 10
get started . . . . . . . . . . . . . . . 11
about this guide. . . . . . . . . . 11
SIM card . . . . . . . . . . . . . . . 12
battery . . . . . . . . . . . . . . . . . 12
turn it on & off . . . . . . . . . . . 15
make a call . . . . . . . . . . . . . 16
answer a call . . . . . . . . . . . . 16
store a phone number. . . . . 16
call a stored phone number. 17
your phone number. . . . . . . 17
tips & tricks . . . . . . . . . . . . . . 18
basics . . . . . . . . . . . . . . . . . . . 19
display . . . . . . . . . . . . . . . . . 19
text entry. . . . . . . . . . . . . . . 21

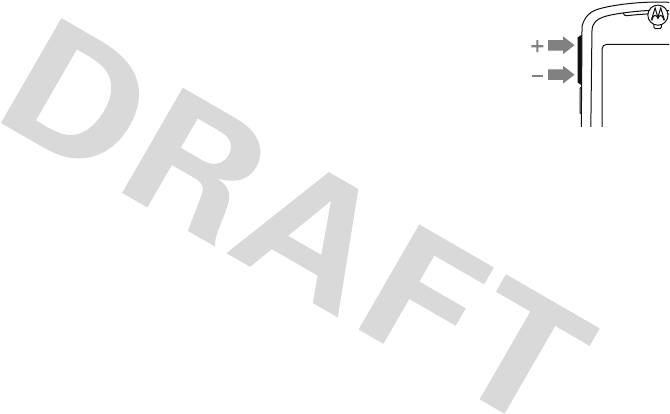

volume. . . . . . . . . . . . . . . . . 25
navigation key . . . . . . . . . . . 26
smart key . . . . . . . . . . . . . . . 26
close the phone . . . . . . . . . . 26
handsfree speaker . . . . . . . . 26
codes & passwords. . . . . . . 27
lock & unlock phone. . . . . . . 27
lock & unlock keys . . . . . . . . 28
personalize . . . . . . . . . . . . . . . 29
audio style . . . . . . . . . . . . . . 29
time & date . . . . . . . . . . . . . 30
wallpaper . . . . . . . . . . . . . . . 31
screen saver . . . . . . . . . . . . 31
themes . . . . . . . . . . . . . . . . 32
display appearance . . . . . . . 32
shortcuts . . . . . . . . . . . . . . . 33
answer options . . . . . . . . . . 33
phone updates . . . . . . . . . . 34
calls . . . . . . . . . . . . . . . . . . . . 35
turn off a call alert . . . . . . . 35
recent calls. . . . . . . . . . . . . 35
redial . . . . . . . . . . . . . . . . . 36
caller ID . . . . . . . . . . . . . . . 37
emergency calls. . . . . . . . . 37
voicemail . . . . . . . . . . . . . . 38
video calls . . . . . . . . . . . . . 39
entertainment . . . . . . . . . . . . 41
AT&T Music™ portfolio . . . 41
photos . . . . . . . . . . . . . . . . 45
videos . . . . . . . . . . . . . . . . 48
connections. . . . . . . . . . . . . . 50

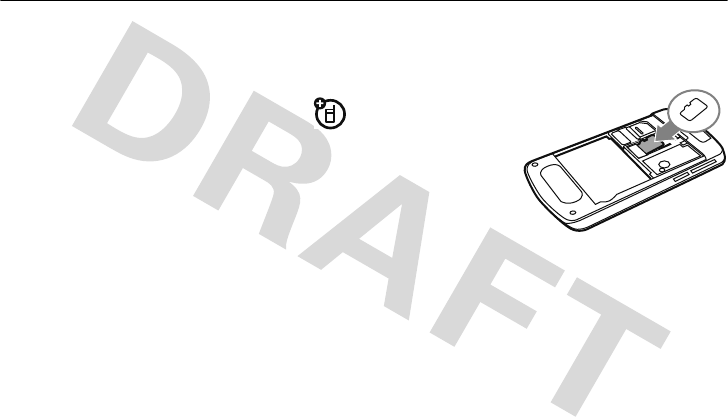

memory card . . . . . . . . . . . 50
cable connections . . . . . . . 51
Bluetooth® wireless . . . . . 53
6
contents
messages . . . . . . . . . . . . . . . . 59
text messages . . . . . . . . . . 59
other features . . . . . . . . . . . . 61
advanced calling . . . . . . . . . 61
address book . . . . . . . . . . . 66
messages . . . . . . . . . . . . . . 70
instant messaging. . . . . . . . 73
personalizing . . . . . . . . . . . . 74
call times. . . . . . . . . . . . . . . 75
handsfree . . . . . . . . . . . . . . 76
data calls. . . . . . . . . . . . . . . 77
network. . . . . . . . . . . . . . . . 78
personal organizer. . . . . . . . 79
security . . . . . . . . . . . . . . . . 82
fun & games . . . . . . . . . . . . 83
service & repairs . . . . . . . . . . 87
SAR Data . . . . . . . . . . . . . . . . 88
EU Conformance . . . . . . . . . . 90
index. . . . . . . . . . . . . . . . . . . . 91
menu map
7
menu map
main menu
Â
AT& T Mu s ic
• Music Player
• Shop Music
•MusicID
•XMRadio
• Music Videos
• The Buzz
• Community
• Music Apps
e
Messaging
• Create Message
• Message Inbox
•IM
• Mobile Email
•Voicemail
• Outbox
• Templates
•Drafts
• Browser Msgs
• Create Voice Message
{
Recent Calls
• (press the
*
or
#
to scroll
through recent, dialed, received,
and missed calls)
Ë
MEdia Net
Á
AT&T Mall
• Shop Music
• Shop Games
• Shop Graphics
• Shop Multimedia
• Shop Applications
•MEdia Net Home
W
Cellular Video
Ã
My Stuff
• Media Finder
•Music
•Pictures
• Videos
•Voice Notes
• Ring Tones
• Wallpapers
•Games
• Tools
• Calendar
•Alarm Clock
• World Clock
• Dialing Services
• Calculator
•Camera
• Video Camera
• Voice Record
=
Address Book
}
Settings
• (see next page)
* dependent on your SIM card
To change your home screen shortcuts
and your main menu appearance, see
page 33.
8
menu map
settings menu
l
Personalize
• Home Screen
•Skin
• Greeting
• Wallpaper
• Screen Saver
• Slide Tone
Ç
Themes
t
Audio
•Style
•(style) Detail
L
Connection
• Bluetooth® Link
• USB Settings
•MOTOSYNC
H
Call Forward *
• Voice Calls
• Cancel All
•Forward Status
• Push to Call Fwd Number *
U
In-Call Setup
• Date and Time
• In-Call Timer
• My Caller ID
• Answer Options
• Call Waiting
•MSG Alert
• Hearing Aid
Z
Initial Setup
• Time and Date
• Speed Dial
• Display Timeout
• Backlight
• Charging Lights
• TTY Setup
•Scroll
• Slide Closed
• Text Marquee
• Language
• Brightness
•DTMF
• Live Video Share Service *
• Master Reset
• Master Clear
m
Phone Status
• My Tel. Numbers
• Battery Meter
• User Accounts
• Download Location
• Storage Devices
•AGPS Service*
• Voice Dial Languages
• Software Update *
• Other Information
S
Headset
• Auto Answer
• Ringer Options
• Voice Dial
J
Car Settings
• Auto Answer
• Auto Handsfree
• Power-off Delay
• Charger Time
%
Airplane Mode
• Airplane Mode
• Prompt at Power Up
j
Network *
• Service Tone
• Call Drop Tone
u
Security
• Phone Lock
• Keypad Lock
• Lock Application
• Hide/Show Private Entries *
•Fixed Dial
• Restrict Calls *
• SIM PIN
• SIM PIN2
• New Passwords
• Certificate Mgmt *
c
Java™ Settings
á
Web Access
•MEdia Net
• Bookmarks
•History
• Go To Page
•Browser Setup
• Web Sessions
• Stored Pages
* dependent on your SIM card
Use and Care
9
Use and Care
Use and Care
To care for your Motorola phone, please keep it away from:
liquids of any kind dust and dirt
Don’t expose your phone to water, rain,
extreme humidity, sweat, or other moisture. If
it does get wet, don’t try to accelerate drying
with the use of an oven or dryer, as this may
damage the phone.
Don’t expose your phone to dust, dirt, sand,
food, or other inappropriate materials.
extreme heat or cold cleaning solutions
Avoid temperatures below 0°C/32°F or
above 45°C/113°F.
To clean your phone, use only a dry soft cloth.
Don’t use alcohol or other cleaning solutions.
microwaves the ground
Don’t try to dry your phone in a microwave
oven.
Don’t drop your phone.
10
Recycling Information
Caring for the Environment by Recycling
Recycling Information
This symbol on a Motorola product means the
product should not be disposed of with
household waste.
Disposal of your Mobile Device and
Accessories
Please do not dispose of mobile devices or electrical accessories
(such as chargers, headsets, or batteries) with your household
waste. These items should be disposed of in accordance with the
national collection and recycling schemes operated by your local or
regional authority. Alternatively, you may return unwanted mobile
devices and electrical accessories to any Motorola Approved
Service Center in your region. Details of Motorola approved
national recycling schemes, and further information on Motorola
recycling activities can be found at:
www.motorola.com/recycling
Disposal of your Mobile Device
Packaging and User’s Guide
Product packaging and user’s guides should only be disposed of in
accordance with national collection and recycling requirements.
Please contact your regional authorities for more details.
11
get started
get started
about this guide
This guide shows how to open a menu feature as
follows:
Find it:
s
>
eMessaging
>
Create Message
This means that, from the home screen:
1
Press the center key
s
to open the menu.
2
Press the navigation key
S
to scroll to
eMessaging
, and press the center key
s
to
select it.
3
Press the navigation key
S
to scroll to
Create Message
, and press the center key
s
to
select it.
CAUTION: Before using the
phone for the first time, read the
Important Safety and Legal
Information
included in the gray-
edged pages at the back of this
guide.
symbols
This means a feature is network, SIM card,
or subscription dependent and may not be
available in all areas. Contact your service
provider for more information.
This means a feature requires an optional
accessory.
12
get started
SIM card
Yo u r Subscriber Identity Module (SIM) card contains
personal information like your phone number and
address book entries. It can also contain your
voicemail, text message, and Internet access settings.
If you put your SIM card in another phone, that phone
uses your phone number.
Caution:
Don’t bend or scratch your SIM card. Keep it
away from static electricity, water, and dirt.
To insert and use a
memory card
, see page 50.
Turn off your phone and remove your battery
before you install or remove a SIM card.
battery
battery installation
12
12
13
get started
battery charging
New batteries are not fully
charged. Plug the battery
charger into your phone
and an electrical outlet.
Your phone might take
several seconds to start
charging the battery.
When finished, your
display shows
Charge Complete
.
Tip:
Relax, you can’t overcharge your battery. It will
perform best after you fully charge and discharge it a
few times.
The battery charger shipped with this device is
designed for Motorola 3G mobile phones. Other
chargers might take longer to charge your battery, or
cause your calls to fail during charging.
extend battery life
•
To m ake y o u r
backlight
turn off sooner,
press
s
>
wSettings
>
Initial Setup
>
Backlight
>
5 seconds
•
To m ake y o u r
display
turn off sonner,
press
s
>
wSettings
>
Initial Setup
>
Display Timeout
>
1minute
•
To turn off your
screen saver
,
press
s
>
wSettings
>
Personalize
>
Screen Saver
>
Delay
>
Off
•
To turn off
Bluetooth®
power when you’re
not using it, press
s
>
LConnection
>
Bluetooth Link
>
Setup
>
Power
>
Off
3
Charging Indicator
14
get started
battery use & safety
• Motorola recommends you always use
Motorola-branded batteries and chargers.
The warranty does not cover damage caused
by non-Motorola batteries and/or chargers.
Caution:
Use of an unqualified battery or
charger may present a risk of fire, explosion,
leakage, or other hazard. Improper battery
use, or use of a damaged battery, may result
in a fire, explosion, or other hazard.
•
Battery usage by children should be
supervised.
• Important:
Motorola mobile devices are
designed to work best with qualified batteries.
If you see a message on your display such as
Invalid Battery
or
Unable to Charge
, take the following
steps:
•
Remove the battery and inspect it to
confirm that it bears a Motorola “Original
Equipment” hologram;
•
If there is no hologram, the battery is not
a qualified battery;
•
If there is a hologram, replace the battery
and retry charging it;
•
If the message remains, contact a
Motorola Authorized Service Center.
•
New batteries or batteries stored for a long
time may take more time to charge.
• Charging precautions:
When charging your
battery, keep it near room temperature. Never
expose batteries to temperatures below 0°C
(32°F) or above 45°C (113°F) when charging.
Always take your mobile device with you
when you leave your vehicle
15
get started
•
When storing your battery, keep it in a cool,
dry place.
•
It is normal over time for battery life to
decrease, and for the battery to exhibit shorter
runtime between charges or require more
frequent or longer charging times.
• Avoid damage to battery and mobile
device.
Do not disassemble, open, crush,
bend, deform, puncture, shred, or submerge
the battery or mobile device. Avoid dropping
the battery or mobile device, especially on a
hard surface. If your battery or mobile device
has been subjected to such damage, take it to
a Motorola Authorized Service Center before
using. Do
not
attempt to dry it with an
appliance or heat source, such as a hair dryer
or microwave oven.
• Use care when handling a charged
battery
—particularly when placing it inside a
pocket, purse, or other container with metal
objects. Contact with metal objects (such as
jewelry, keys, beaded chains) could complete
an electrical circuit (short circuit), causing the
battery to become very hot, which could
cause damage or injury.
Promptly dispose of used batteries in
accordance with local regulations. Contact
your local recycling center for proper battery
disposal.
Warning:
Never dispose of batteries in a fire because
they may explode.
turn it on & off
Caution:
Some phones ask for your SIM card PIN
code when you turn them on. If you enter an incorrect
PIN code three times before the correct code, your
SIM card is disabled, and your display shows
SIM Blocked
.
Contact your service provider.
16
get started
To turn on your phone
, press and
hold
O
for a few seconds or until
the keypad or display lights up. If
prompted, enter your eight-digit SIM card PIN code
and/or four-digit unlock code.
To turn off your phone
, press and hold
O
for a few
seconds.
make a call
To m a ke a c a l l
, enter a phone number and press
N
.
To “hang up,”
close the flip or press
O
.
answer a call
To answer a call
when your phone rings and/or
vibrates, just open the flip or press
N
.
To “hang
up,”
close the flip or press
O
.
store a phone number
You can store a phone number in your
Address Book
:
1
Enter a phone number in the home screen.
2
Press the
Store
key.
Select
Create New Contact
, if necessary.
3
Enter a name and other details for the phone
number. To select a highlighted item, press the
center key
s
.
4
Press the
Done
key to store the number.
To
edit
or
delete
a stored
Address Book
entry, see
page 67.
To store a new
Address Book
entry with an
email
address:
From the home screen, press
s
>
=Address Book
.
Scroll to
Create Contact
and select it. Enter the new
contact’s name and
Email
information.
17
get started
call a stored phone
number
Find it:
s
>
=Address Book
1
Scroll to the address book entry.
Shortcut:
In the address book, press keypad keys
to enter the first letters of an entry you want. For
example, press
5
three times to go to entries
that start with “L.”
2
Press
N
to call the entry.
Note:
You can show contacts stored in your phone’s
memory or on your SIM card. To choose which
contacts you see, press
s
>
=Address Book
, then
press
Options
>
View
. You can select
Phone &SIM Card
,
SIM Card
, or
Phone Contacts
. Contacts on the SIM card only
have a
Name
and
Number
. To choose where you store
contacts, go back to the home screen and press
s
>
=Address Book
, then press
Options
>
Setup
>
Store Contacts To
>
Phone
or
SIM Card
.
your phone number
From the home screen, press
the clear key
(
then
#
, then select
Line 1
to see
your number.
Tip:
Want to see your phone number while you’re on a
call? Press
Options
>
My Tel. Number
.
You can edit the name and phone number
stored on your SIM card. From the home
screen, press
(#
, select an entry, press the
View
key, press the
Options
key, and select
Edit
. If you don’t
know your phone number, contact your service
provider.
18
tips & tricks
tips & tricks
In the home screen (shown on page 19):
To... Do this...
change audio
style
Press the volume keys up or
down. With your phone closed,
press a volume key to see your
audio style, press the smart key
to change it, then press a volume
key to store the change.
see your
recent calls
Press
N
to see a list of recent
calls, then press
*
or
#
to
switch to
Dialed Calls
,
Received Calls
,or
Missed Calls
.
store a phone
number
Enter a phone number, then
press
Store
.
check your
voicemail
Press and hold
1
to check your
voicemail.
return to the
home screen
In a menu, message, or other
screen, press
O
to cancel and
return to the home screen.
open the
music player
Press the
smart key
once to
open the music player. To change
your smart key shortcut, see
page 33.
To... Do this...
19
basics
basics
See page 1 for a basic phone diagram.
display
The home screen appears when you turn on the
phone.
Note:
Your home screen might look different from the
one shown, depending on your service provider.
To dial a number from the home screen, press number
keys and
N
.
Press
S
up, down, left, or right in the home screen
to open basic menu features. To change your home
screen shortcuts, see page 33.
Press the center key
s
to open the menu. Soft Key
Labels show the current soft key functions. For soft
key locations, see page 1.
Clock
Right Soft Key
Label
Left Soft Key
Label
AT&T
12:00pm
Shortcuts Main Menu
20
basics
Status indicators can show at the top of the home
screen:
1 Signal Strength Indicator –
Vertical bars show
the strength of the network connection. You can’t
make or receive calls when
1
or
0
appears.
2 Network Indicator –
Shows when your
phone is using a network that is 3G (
D
),
Enhanced Data for GSM Evolution (EDGE,
,
), or
General Packet Radio Service (GPRS,
B
).
3 Data Indicator –
Shows connection
status.
4Active Line Indicator –
Shows
h
to
indicate an active call, or
g
to indicate
when call forwarding is on.
4. Active
Line
6. Message
5. Reminder
7. Audio
Style
8. Battery
Level
3. Data
2. Network
1. Signal
Strength
AT&T
12:00pm
Shortcuts Main Menu
L
/
K
secure / unsecure packet data
transfer
N
/
M
secure/unsecure application
connection
S
/
T
secure/unsecure Circuit Switch
Data (CSD) call
R
/
Q
USB connect/transfer
P
auto answer
U
MOTOSYNC
8
High-Speed Downlink Packet
Access (HSDPA) data transfer
O
Bluetooth® connection is active
21
basics
5 Reminder Indicator –
Shows
6
when you set
an alarm, or an alert for a calendar event.
Shows
z
when a Java™ application is active.
6 Message Indicator –
Shows when you
receive a new message. Indicators can
include:
7 Audio Indicator –
Shows the audio style setting.
8 Battery Level Indicator –
Vertical bars show the
battery charge level. Recharge the battery when
your display shows
Low Battery
.
text entry
Some features let you enter text.
É
text or MMS
message
Ë
voice message
voice & text message
õ
loud ring
Ì
vibrate & ring
ô
soft ring
ö
vibrate then ring
Î
vibrate
Í
silent
For text
indicator
descriptions,
see following
section.
Flashing
cursor
indicates
insertion point.
Before you
enter text,
press the
Cancel
key to
cancel the
message.
Press the
Options
key to open the
sub-menu.
Msg
Options Cancel
ÂÆ
SMS:0
22
basics
Press
#
in a text entry view to select an entry
mode:
To set your primary and secondary text entry modes,
press
Options
>
Text Setup
in a text entry view and select
Primary Text
or
Secondary Text
.
iTAP® and tap mode tips
•
Press
0
in a text entry view to change text
case to all capital letters (
á
), no capitals
(
Á
), or next letter capital (
Â
).
•
To enter numbers quickly, just hold a number
key until the number appears. Now, you're in
numeric mode. To change back to iTAP or Tap
mode, just hold a key again.
•
Press
1
to enter punctuation or other
characters.
•
Press
S
to move the flashing cursor to enter
or edit message text.
•
Press
(
to delete the character to the left of
the cursor. Hold
(
to delete the word.
•
To cancel your message, press
O
.
entry modes
Û
or
Ô
Yo u r
Primary
text entry mode can be set to
any iTAP®
Û
or tap
Ô
mode.
Ú
or
Õ
Yo u r
Secondary
text entry mode can be set
to any iTAP
Ú
or tap
Õ
mode, or set
to
None
if you don’t want a secondary
entry mode.
ÃNumeric
mode enters numbers only.
ÄSymbol
mode enters symbols only.
23
basics
iTAP® mode
Press
#
in a text entry view to switch to iTAP mode.
If you don’t see
Û
or
Ú
, press
Options
>
Text Setup
to
set iTAP mode as your primary or secondary text entry
mode.
iTAP mode lets you enter words using one keypress
per letter. The iTAP software combines your
keypresses into common words and predicts each
word as you enter it.
For example, if you press
7764
, your
display shows:
If you want a different word (such as
Progress
), continue
pressing keypad keys to enter the remaining letters.
Tip:
Don’t worry if you forget how iTAP works. In a
text entry display, you can press
Options
>
Text Setup
>
Text Tutorial
to see an explanation.
ÁÚ
Send To
Prog ram
Options
Msg
SMS:7
Press
Options
key to open
message
options.
Press
S
right to accept
Program
.
Press
*
to
enter a space
at the cursor.
Hold
S
up or
down to see a
list of word
options.
Press
Send To
key when the
message is complete.
24
basics
tap and tap extended modes
Press
#
in a text entry view to switch to tap mode.
If you don’t see
ÂÔ
or
ÂÕ
, press
Options
>
Text Setup
to set tap mode as your primary or
secondary text entry mode.
To enter text in
Tap
mode, press a keypad key
repeatedly to cycle through the letters and number on
the key. Repeat this step to enter each letter. The
Tap Extended
mode works the same way, but includes
more special characters and symbols.
For example, if you press
7
one time, your display
shows:
The first character of every sentence is capitalized. If
necessary, press
S
down to change the character to
lowercase before the cursor moves to the next
position.
Msg
ÁÔ SMS:6
Character
displays at
insertion point.
After you enter
text, press the
Send To
key to
enter
recipients.
Press the
Options
key to
open message
options.
Your phone
suggests a
word. Press
S
right to accept
it, or press
*
to enter a space
at the cursor.
Options Send To
P age
25
basics
numeric mode
Press
#
in a text entry view until you see
Ã
.
Press the number keys to enter the numbers you
want.
Shortcut:
You can press and hold a number key to
temporarily switch to numeric mode from iTAP® or
Tap modes. Press the number keys to enter the
numbers you want. Enter a space to change back to
iTAP mode.
symbol mode
Press
#
in a text entry view until your display shows
a list of symbols. Scroll to the symbol you want, then
press the center key
s
.
volume
Press the volume keys to:
•
turn off an incoming
call alert
•
change the earpiece
volume during calls
•
change the ringer volume from the home
screen
Tip:
Sometimes silence really is golden. That’s
why you can quickly set your ringer to
Vibrate
or
Silent
by holding the down volume key while
you are in the home screen. You can also
switch to
Vibrate
or back by holding
#
in the
home screen.
26
basics
navigation key
Press the navigation key
S
up,
down, left, or right to scroll to items in
the display. When you scroll to an item,
press the center key
s
to select it.
smart key
The smart key gives you another way to do things. For
example, when you scroll to a menu item, you can
press the smart key to select it (instead of pressing
the center key
s
). The smart key usually does the
same thing as pressing the center key
s
. To find the
smart key, see page 1. To change what the smart key
does in the home screen, see page 75.
close the phone
You can change
what happens
when you close your
phone:
Find it:
s
>
}Settings
>
Initial Setup
>
Slide Closed
>
Continue Task
or
End Task
To ch a nge
the sound
that you hear when you open or
close your phone, press
s
>
}Settings
>
Personalize
>
Slide Tone
and choose a sound. The volume for this
sound is set by the
Key Volume
in your audio style details
(see page 29).
handsfree speaker
You can use your phone’s handsfree speaker to make
calls without holding the phone to your ear.
To turn the handsfree speaker on during a call, press
the
Speaker
key (if available), or
Options
>
Speakerphone On
.
Your display shows
Spkrphone On
until you turn it off or
end the call.
Note:
The handsfree speaker won’t work when your
phone is connected to a handsfree car kit or headset,
or if your phone is closed.
27
basics
codes & passwords
Your phone’s four-digit
unlock code
is originally set to
1234
. The six-digit
security code
is originally set to
000000
. If your service provider didn’t change these
codes, you should change them:
Find it:
s
>
}Settings
>
Security
>
New Passwords
You can also change your
SIM PIN2
or
Private Entries Code
.
If you forget your unlock code:
At the
Enter Unlock Code
prompt, try entering 1234 or the last four digits of your
phone number. If that doesn’t work, press
s
and
enter your six-digit security code instead.
If you forget other codes:
If you forget your security
code, SIM PIN code or PIN2 code, contact your
service provider.
lock & unlock phone
You can lock your phone to keep others from using it.
To lock or unlock your phone, you need the four-digit
unlock code.
To
manually lock
your phone:
Press
s
>
}Settings
>
Security
>
Phone Lock
>
Lock Now
,
then enter your four-digit unlock code.
To
automatically lock
your phone whenever you turn
it off: Press
s
>
}Settings
>
Security
>
Phone Lock
>
Automatic Lock
>
On
, then enter your four-digit unlock
code.
Note:
You can make emergency calls on a locked
phone (see page 37). A locked phone still rings or
vibrates for incoming calls or messages,
but you
need to unlock it to answer
.
28
basics
lock & unlock keys
When your phone is closed and on the home screen,
your keys lock to prevent accidental key presses.
To
change how long
your phone waits before it
automatically locks your keys: Press
s
>
}Settings
>
Security
>
Keypad Lock
>
Timer
> a time interval or
Off
To
unlock
your keys, press
Unlock
, then press
OK
.
29
personalize
personalize
audio style
Each audio style profile uses a different set of sounds
or vibrations for incoming calls and other events. Here
are the profiles you can choose:
The audio style profile’s indicator appears at the top of
your home screen. To choose your profile:
Find it:
s
>
}Settings
>
Audio
>
Style:
style name
Shortcut:
To change your audio style profile from the
home screen
, just press the volume keys up or down.
With your
phone closed
, press a volume key to see
your audio style profile, press the smart key to change
it, then press a volume key to store the change.
Tip:
Do you get a lot of text messages? If you don’t
want to hear incoming message alerts during phone
calls, press
s
>
}Settings
>
In-Call Setup
>
MSG Alert
>
Not in Call
.
change details in an audio style
You can change your keypad volume and the alerts for
incoming calls and other events. Your changes are
saved in the current audio style profile.
Find it:
s
>
}Settings
>
Audio
> style
Detail
1
Scroll to
Calls
(or
Line 1
or
Line 2
for dual-line phones),
then press the
Change
key to change it.
õLoud ÌVibe &Ring
ôSoft öVibe then Ring
ÎVibrate ÍSilent
30
personalize
Tip:
To change the volume of your keypress
beeps, choose
Key Volume
instead.
2
Scroll to an alert type (such as
Sound
,
Music
, or
Vibration Pattern
), then press the
Open
key to see a list
of alerts.
3
Scroll to the alert you want, then press the
center key
s
.
time & date
Your phone can automatically update your time zone,
time, and date. It uses the time and date for the
calendar.
To
synchronize
the time zone, time, and date
with the network: Press
s
>
}Settings
>
Initial Setup
>
Time and Date
>
Autoupdate
>
Time &Time Zone
. If
you don’t want your phone to automatically update
your time zone, choose
Time Only
instead.
Your phone uses the time zone city to adjust for
Daylight Savings Time (DST). Some cities have unique
DST rules. For example, if you choose “Chicago” and
then travel to Mexico City, the phone will still not
switch Time Zones because both cities are in the
GMT-6 time zone. However, Mexico City has unique
DST rules, so you should change
Autoupdate
to
Time Only
and select "Mexico City."
To
manually set
the time zone, time, and date, turn
off
Autoupdate
, then: Press
s
>
}Settings
>
Initial Setup
>
Time and Date
>
Time Zone
,time or date. To jump to a city
in the time zone list, enter the first letter of its name
by pressing keypad keys.
Tip:
To choose three time zones for easier access,
press
s
>
ÃMy Stuff
>
Tools
>
World Clock
. When you
open
World Clock
, you can press the
Options
key to see the
Map View
of time zones.
31
personalize
To ch o o s e an
analog or digital
clock for your home
screen, press
s
>
}Settings
>
Personalize
>
Home Screen
>
Clock
.
wallpaper
Set a photo, picture, or animation as a wallpaper
(background) image in your home screen.
Note:
Yo u r theme can also set your wallpaper
(page 32).
Find it:
s
>
}Settings
>
Personalize
>
Wallpaper
screen saver
Set a photo, picture, or animation as a screen saver.
The screen saver appears when the flip is open and no
activity is detected for a specified time.
Note:
Your theme can also set your screen saver
(page 32).
Tip:
This feature helps save your screen, but not your
battery. To extend battery life, turn off the screen
saver.
Find it:
s
>
}Settings
>
Personalize
>
Screen Saver
options
Press
S
up or down to select a
picture, or select
None
for no wallpaper.
Layout
Select
Center
to center the image in the
display,
Tile
to repeat the image across
the display, or
Fit-to-screen
to stretch the
image across the display.
options
Press
S
up or down to select a
graphic, picture, or Java™ screen saver,
or select
None
for no screen saver.
Delay
Select the length of inactivity before the
screen saver appears.
32
personalize
themes
A phone theme is a group of image and sound
files that you can apply to your phone. Most
themes include a wallpaper image, screen saver
image, and ring tone. Your phone may come with
some themes, and you can download more.
To
apply
a theme, press
s
>
}Settings
>
Themes
>theme.
To
delete themes you downloaded
, press
s
>
}Settings
>
Themes
, scroll to the theme, and
press
Options
>
Delete
or
Delete All
.
To
preview
a theme, press
s
>
}Settings
>
Themes
,
scroll to the theme, and press
Options
>
Preview
.
display appearance
To choose a phone
skin
that sets the look and feel of
your phone’s display: Press
s
>
}Settings
>
Personalize
>
Skin
. Your theme can also set your phone skin
(page 32).
To set your display
brightness
: Press
s
>
}Settings
>
Initial Setup
>
Brightness
.
To save battery life, your keypad
backlight
turns off
when you’re not using your phone. The backlight turns
on when you open the flip or press any key. To set
how long your phone waits before the backlight turns
off:
Press
s
>
}Settings
>
Initial Setup
>
Backlight
.
To save battery life, the
display
can turn off when
you’re not using your phone. The display turns back on
when you open the flip or press any key. To set how
long your phone waits before the display turns off:
Press
s
>
}Settings
>
Initial Setup
>
Display Timeout
.
33
personalize
shortcuts
In the home screen, you can press the
navigation key, soft keys, or smart key as
shortcuts
to your favorite features. You can change
the features that these keys open. For key locations,
see page 1.
Find it:
s
>
wSettings
>
Personalize
>
Home Screen
>
Home Keys
answer options
You can use different ways to answer an incoming call.
To turn on or turn off an answer option:
Find it:
s
>
}Settings
>
In-Call Setup
>
Answer Options
options
Icons
Show or hide your navigation key
shortcut icons in the home
screen.
Up
,
Down
,
Left
,
Right
Choose the features that open
when you press the navigation
key up, down, left, or right in the
home screen.
Smart Key
Choose the feature that opens
when you press the smart key in
the home screen.
options
Multi-key
Answer by pressing any key on
the keypad, with the flip open.
Open to Answer
Answer by opening the flip.
options
34
personalize
phone updates
Sometimes we think of ways to make your phone’s
software faster or more efficient after you’ve
purchased your phone. To check for updates:
Find it:
s
>
}Settings
>
Phone Status
>
Software Update
>
Check Server
Note:
Software updates do not affect your phonebook
entries or other personal entries.
If your
service provider sends
a software
update to you, your phone asks you whether to
install it now or save it for later. To install an update
you saved, press
s
>
}Settings
>
Phone Status
>
Software Update
>
Install Update
.
35
calls
calls
To make and answer calls, see page 16.
turn off a call alert
You can press the volume keys to turn off a call alert
before answering the call.
recent calls
Your phone keeps lists of incoming and outgoing calls,
even for calls that didn’t connect. The most recent
calls are listed first. The oldest calls are deleted as
new calls are added.
Shortcut:
Press
N
from the home screen to see a
list of recent calls, then press
*
or
#
to switch to
Dialed Calls
,
Received Calls
,or
Missed Calls
.
Find it:
s
>
{Recent Calls
, then press
*
or
#
to
switch to
Dialed Calls
,
Received Calls
,or
Missed Calls
Scroll to a call. A
%
next to a call means the call
connected.
•
To call the number, press
N
.
•
To see call details (like time and date), press
the center key
s
.
•
To s ee t he
Last Calls Menu
, press
Options
. This menu
can include:
options
Filter by
Select all, dialed, received, or
missed calls.
36
calls
redial
1
Press
N
from the home screen to see a list of
recent calls.
2
Scroll to the entry you want to call, then press
N
.
If you hear a
busy signal
, and you see
Call Failed
,
you can press
N
or the
Retry
key to redial the
number. When the call goes through, your phone rings
Store
Create an address book entry
with the number in the
No.
field.
Store
does not appear if the
number is already stored.
Video Call
Make a video call to the number.
Delete
Delete the entry.
Delete All
Delete all entries in the list.
Show ID / Hide ID
Hide or show your caller ID for
the next call.
Send Message
Open a new text message with
the number in the
To
field.
Send Voice Msg
Record and send a voice
message to the number.
Add Digits
Add digits after the number.
Attach Number
Attach a number from the
address book or recent calls lists.
options
Send Tones
Send the number to the network
as DTMF tones.
Note:
This option appears only if
you
enter digits during a call
.
Notepad
Open the number in a text editor.
Call Times
Open your call time
information.
options
37
calls
or vibrates one time, shows
Redial Successful
, and
connects the call.
caller ID
Calling line identification (caller ID) shows the
phone number for an incoming call in your
external and internal displays.
Your phone shows the caller’s name and picture when
they’re stored in your address book, or
Incoming Call
when caller ID information isn’t available.
You can set your phone to play a different ringer ID for
an entry stored in your address book (see page 67).
To show or hide
your phone number
from the next
person you call, enter the phone number and press
Options
>
Hide ID/Show ID
.
emergency calls
Your service provider programs one or more
emergency phone numbers, such as 911 or 112, that
you can call under any circumstances, even when your
phone is locked or the SIM card is not inserted.
Note:
Emergency numbers vary by country. Your
phone’s preprogrammed emergency number(s) may
not work in all locations, and sometimes an
emergency call cannot be placed due to network,
environmental, or interference issues.
1
Press the keypad keys to dial the emergency
number.
2
Press
N
to call the emergency number.
AGPS & emergency calls
When you make an emergency call, your
phone can use Assisted Global Positioning
38
calls
System (AGPS) satellite signals to tell the emergency
response center your approximate location.
The AGPS feature has limitations, so always tell the
emergency response center your best knowledge of
your location. Remain on the phone for as long as the
emergency response center instructs you.
AGPS
might not work
for emergency calls if your
local emergency response center does not process
AGPS location information. For details, contact your
local authorities.
For best results:
•
Go outside and away from underground
locations, covered vehicles, structures with
metal or concrete roofs, tall buildings, and
foliage. Indoor performance might improve if
you move closer to windows, but some
window sun shielding films can block satellite
signals.
•
Move away from radios, entertainment
equipment, and other electronic devices that
might interfere with or block AGPS satellite
signals.
If your phone cannot find strong AGPS satellite
signals, the location of the nearest cell tower in
contact with your phone is automatically provided to
the emergency response center.
Your phone can also use your location to help with
other programs (such as programs that provide
directions). To hide your location from these programs,
see page 86.
voicemail
Your network stores the voicemail messages
you receive. To listen to your messages, call
your voicemail number.
39
calls
Note:
Your service provider may include additional
information about using this feature.
When you
receive
a voicemail message, your phone
shows the voicemail message indicator
Ë
and
New Voicemail
. Press the
Call
key to listen to the message.
To
check
voicemail messages:
Find it:
s
>
eMessaging
>
Voicemail
Shortcut:
From the home screen, press and hold
1
to check your voicemail.
Your phone may prompt you to store your voicemail
phone number. If you don’t know your voicemail
number, contact your service provider.
Note:
You can’t store a
p
(pause),
w
(wait), or
n
(number) character in this number. If you want to store
a voicemail number with these characters, create an
address book entry for it. Then you can use the entry
to call your voicemail.
video calls
If you call someone who has a 3G video phone,
you can see each other while you talk. If your
phone is roaming on a
non-3G network
, video calls
will not work (see the network indicator on page 20).
make a video call
1
Start a normal voice call.
2
Press the
Share Video
key to start sharing video with
the caller. During the call:
•
Press
Stop Video
to change the call to a voice call
with the speakerphone on.
•
If you accept another
incoming voice call
,
your phone changes this video call to a voice
call.
•
If you accept another
incoming video call
,
your phone ends this video call.
40
calls
•
You can open and close your phone to change
what the other caller sees through the camera
lens. The camera lens is on the top of your
phone.
3
To end the call, press
O
.
record a video call
Note:
Recording of phone calls is subject to varying
State and Federal laws regarding privacy and recording
of phone conversations. Always obey the laws and
regulations on the use of this feature.
You can record a video call as a video clip.
During a video call:
1
Press the camera key on the right side of your
phone to start recording the call.
Your phone displays
Recording
. It records incoming
video and incoming and outgoing audio.
2
Press the camera key again to stop recording the
call and store the video clip.
The recording stops automatically if the call ends
or you reach your video capture or memory limit.
To view the video clip from the home screen,
press
s
>
ÃMy Stuff
>
Media Finder
>
Videos
>
All Videos
> video name.
Note:
Video recording requires video compatibility
with the other caller’s video phone.
turn video calling on or off
If you turn off video calling, your phone will not
accept video calls.
Find it:
s
>
}Settings
>
Initial Setup
>
Live Video Share Service
>
On
or
Off
After you change this setting, turn your phone off and
back on to complete the change.
41
entertainment
entertainment
AT&T Music™ portfolio
AT&T Music™ is the ultimate, integrated,
on-the-go music experience. Wherever you go,
AT&T Music will connect you to your music with a
touch of a button. You can listen to your music,
discover the latest songs, music news, concert
updates, digital radio, ringtones, Answer Tones™, and
watch the latest music videos.
You can access all AT&T Music features by selecting
ÂAT&TMusic
in the main menu.
Note:
XM Radio
uses a large amount of data, and you are
responsible for all data charges incurred. AT&T
strongly recommends that you subscribe to a
MEdia Max
data bundle with unlimited MEdia Net
in
addition
to this purchase. Call AT&T at 611 to sign up
for the MEdia Max package.
music player
Your phone can play and store MP3 and AAC
song files. You can use a removable memory
card with your phone to store more songs (see
page 50).
Find it:
s
>
ÂAT&TMusic
>
Music Player
42
entertainment
Press
S
up or down to scroll to an option, and press
the center key
s
to select it. Press
(
to return to
the menu:
When music is playing:
• To control the music player
,
press the center key
s
to
play or pause
y
, press
S
left for previous
x
, or press
S
right for
next
z
. Hold
S
left or right to rewind or
fast forward.
• To change the volume
, press the
volume keys on the left side of your phone.
• To close the music player
and leave the
music playing, press
Options
>
Hide
. To reopen
the hidden music player, press
S
down and
options
All Songs
Show and play individual songs.
Note:
All of your phone’s songs
appear in the
Songs
list. Some songs do
not have any
Artist
,
Album
, or
Genre
information stored, so they don’t
appear in those lists.
Recently
Played
Show and play recently played songs.
Playlists
Create or play a playlist (see page 43).
Artists
Select an artist to show or play their
songs.
Albums
Select an album to show or play its
songs.
Genres
Select a type of music to show or play
songs.
Composers
Select a composer to show or play
their songs.
options
43
entertainment
select the song again. To stop the music,
press
O
.
• If you receive a call
, the music pauses, then
resumes after the call.
You can use
Bluetooth® A2DP stereo headphones
to listen to music files you store on your phone (see
page 53).
Tip:
You can listen to tunes on your way. Use
airplane mode to make your phone safe to use with a
wired headset, even while you’re on a plane. See
page 86.
create a playlist
Find it:
s
>
ÂAT&TMusic
>
Music Player
>
Playlists
>
[Create New Playlist]
1
Select a song list, such as
All Songs
. Your display
shows a list of song titles.
2
Scroll to each song you want and press the
center key
s
to select it.
3
Press the
Done
key to store the list.
4
Enter a name for the playlist.
5
Press the
OK
key to store the name and the
playlist.
To hear your playlist, highlight it under
Playlists
and press
the center key
s
twice.
music sources
copy music from a computer
To copy music from your computer to your
phone, you need the following:
•
computer with MP3 or AAC music files, and a
program that manages them (for more details,
see
www.att.com/mobile-music
)
•
microSD memory card (see page 50)
•
USB data cable (see page 51)
44
entertainment
Once you have these, see page 52 to copy music from
your computer to your phone’s memory card.
shop music
Find it:
s
>
ÂAT&TMusic
>
Shop Music
Shop Music
launches the browser to a page where you
can purchase music and ring tones from third-party
stores, and personalization content from AT&T.
stream music
Find it:
s
>
ÂAT&TMusic
>
XM Radio
XM Radio
lets you listen to dozens of channels of digital
radio on your mobile phone. Get access to
commercial-free music, the latest Hip Hop, R&B,
Rock, Jazz, Country anywhere you go.
Note:
XM Radio
uses a large amount of data, and you are
responsible for all data charges incurred. AT&T
strongly recommends that you subscribe to a
MEdia Max
data bundle with unlimited MEdia Net
in
addition
to this purchase. Call AT&T at 611 to sign up
for the MEdia Max package.
identify music
Ever wonder what song is playing? Now you will
know!
MusicID
will listen to music playing and tell you
what song it is! It knows more than 3 million songs of
most types of music, so use it as much as you want
for one monthly fee! Use it in a bar, at the movies, in
the car... anywhere music is playing.
Find it:
s
>
ÂAT&TMusic
>
MusicID
Choose the
ID song!
option, then hold your phone
toward the speaker so it can hear the music.
MusicID
listens to a sample of the music, analyzes the sample,
then shows you the song title and artist.
music videos
Find it:
s
>
ÂAT&TMusic
>
Music Videos
45
entertainment
Music Videos
launches a browser that takes you directly
into the Music Video section of
W
. From this menu,
you have access to music videos from the latest
artists, as well as programming from AT&T, MTV, VH1,
and CMT, among others. Simply click on a video and
begin watching!
music news
Find it:
s
>
ÂAT&TMusic
>
The Buzz
The Buzz
launches a Java™ application that gives you
music industry news and information, including charts,
news, and concert locations.
music community
Find it:
s
>
ÂAT&TMusic
>
Community
Community
launches the browser to a user community
where you can interact with your friends and the
community, as well as review artist fan sites.
music applications
Find it:
s
>
ÂAT&TMusic
>
Music Apps
Music Apps
launches the browser to an area where you
can purchase music-related applications from AT&T’s
Media Mall
. This folder includes applications that are not
part of the core AT&T Music offering, such as
Podcasting, non-preloaded streaming apps, and
music games.
photos
To view, edit, or delete photos you’ve taken, see
page 83.
Your camera lens is on the back of your phone when
the phone is open.
To get the clearest pictures, wipe
the lens clean with a dry cloth before you take a
picture.
46
entertainment
1
Press
s
>
ÃMy Stuff
>
Camera
to see the camera
viewfinder.
2
Press the center key
s
to take the photo in the
viewfinder. You can:
•
Press the
Options
key to store the photo.
If you press
Options
>
Print
, you can print the
picture over a Bluetooth® connection (see
page 56).
•
Press the
Send
key to send the photo in a
message.
Your phone might tell you that this is a
Multimedia Msg
, since it has a picture in it. Some
other phones or networks do not support
picture messages. Press the
Yes
key to send
the message.
•
Press
(
to discard the photo and return to
the active viewfinder.
232
Press
S
up or down to
view camera
settings.
Press left or
right to
change.
Exit the
camera.
Focus point
BackOptions
Zoom
1x
Open the camera menu.
Camera
Mode (photo
or video)
Resolution
Remaining
photos
Storage
(phone or
memory card)
Timer
47
entertainment
Before you capture the photo, you can press
Options
to
open the camera menu:
self portrait
If you close your phone while the viewfinder is active,
the external display shows the image. Press the
volume keys to zoom, or press the smart key to
capture and store the image.
options
Go To Pictures
See stored pictures and
photos.
Go To Video Mode
Switch to the video camera.
Light On / Off
Turn the camera light on or off.
Note:
The light stays on until
you take a picture, receive a
phone call, or select
Light Off
.
Auto-Timed Capture
Set a timer for the camera to
take a photo.
Camera Setup
Open the setup menu to adjust
photo settings.
Switch Storage Device
Choose to store pictures
on your phone or a
memory card.
Free Space
See how much memory
remains.
Note:
Your service provider
may store some content in
user memory before you
receive the phone.
options
48
entertainment
videos
record a video
To view, delete, or manage videos you’ve recorded,
see page 84.
Your camera lens is on the back of your phone, when
your phone is open.
To get the clearest videos, wipe
the lens clean with a dry cloth before you capture
a video.
Press
s
>
ÃMy Stuff
>
Video Camera
to see the video
viewfinder.
Note:
The number of minutes remaining is an
estimate.
60
Press
s
to take the picture.
Press
S
up or down to view camera
settings. Press left or right to change.
Press the right
soft key to exit the
camera.
Back
Options
Zoom
1x
Press the left soft
key to open the
camera menu.
Camera Mode
(photo or
video)
Minutes
remaining
Storage
(phone or
memory card)
49
entertainment
Tip:
If you want to send your video in a message, the
video length must be set to
MMS
. To set length, press
Options
>
Video Camera Setup
>
Video Length
>
MMS
.
1
Press the center key
s
to start recording the
video in the viewfinder.
2
Press the
Stop
key to stop recording the video. You
can:
•
Press the
Options
key to store, discard, or
preview the video.
To play a stored video from the home screen,
press
s
>
ÃMy Stuff
>
Media Finder
>
Videos
>
All Videos
> video name.
•
Press the
Send
key to send the video in a
message.
Enter text and press
Send To
, then scroll to a
recipient address and press the
center key
s
to select it. Press the
Options
key
to enter a new number. To send the message,
press the
Send
key.
Note:
Some other phones or networks do not
support messages with videos.
•
Press
(
to discard the video and return to
the active viewfinder.
watch videos online
You can use
Cellular Video
to watch video clips
from your favorite programs, breaking news
stories, sports, and more. Cellular Video is available
with a MEdiaNet subscription, wherever 3G service is
available.
Find it:
s
>
WCellular Video
50
connections
connections
memory card
You can use a removable microSD memory
card (up to
4GB
) with your phone to store and
retrieve multimedia objects such as photos and
sounds.
Note:
If you download a copyrighted file and store it
on your memory card, you can use the file only while
your memory card is inserted in your phone. You
cannot send, copy, or change copyrighted files.
install or remove a memory card
1
Remove the
battery door
(see page 12).
2 To install the
memory card
,
make sure the
memory
card’s‘ metal contacts are facing down, lift up the
rubber memory card grommet, and slide the top
of the memory card under the metal band.
To remove the memory card
, lift up the rubber
grommet and slide the card back out of the
holder.
3
Replace the battery door.
51
connections
see and change memory card
information
To
see the files
stored on your memory card and on
your phone, open a file list, such as
Pictures
(see
page 83). Icons can indicate if a file is stored in your
phone memory (
®
) or on your memory card (
©
).To
copy or move a file from your phone to your memory
card, highlight it in the list and press
Options
>
Manage
>
Copy
or
Move
>
Memory Card
. You cannot copy or move
some copyrighted files.
To
copy files
between your memory card and a
computer, you can use a cable connection (see
page 52) or a Bluetooth connection (see page 54).
To see your
memory card name, available memory,
and other information about the card:
Find it:
s
>
}Settings
>
Phone Status
>
Storage Devices
1
Press
S
to scroll to the memory card that is
installed.
2
Press the center key
s
to see the memory card
information. Your phone stores any content that
you add, like ring tones or games, in user
memory. Your service provider may store some
content in user memory before you receive the
phone.
or
Press
Options
to see the
Storage Device
menu, which
lets you
Format
or
Rename
the memory card.
cable connections
Your phone has a
micro-USB port so
you can connect it to a
computer to transfer data.
52
connections
Note:
Motorola Original USB data cables
and supporting software may be sold
separately. Check your computer or
hand-held device to determine the type
of cable you need. To make
data calls
through a
connected computer, see page 77.
connect your memory card to a
computer
You can use a cable connection to access your phone’s
memory card with a PC.
Note:
When your phone is connected to a computer,
you can only access the memory card through the
computer.
On your phone:
Disconnect the cable
from your phone, if it is
connected, then press
s
>
}Settings
>
Connection
>
USB Settings
>
Default Connection
>
Memory Card
.
This directs the USB connection to your memory card.
Connect the cable
to your phone and to an available
USB port on your computer. Then follow these steps:
On your computer:
1
Open your “My Computer” window, where your
phone’s memory card appears as a “Removable
Disk” icon.
2
Click on the “Removable Disk” icon to access the
files on your phone’s memory card.
3
To store the desired files (up to
4GB
) onto the
memory card, drag and drop them as follows:
audio or ring files:
> mobile > audio
screen savers:
> mobile > picture
wallpapers:
> mobile > picture
video clips:
> mobile > video
Note:
Your phone may not play MP3 files that
have a bit rate higher than 128 kbps. If you try to
download or play one of these files, your phone
53
connections
might show you an error or ask you to delete the
file. Ring alert files must be 300 KB or smaller.
4
When you finish, disconnect your phone by
selecting the “Safely Remove Hardware” icon in
the system tray at the bottom of your computer
screen. Then disconnect the “USB Mass Storage
Device.”
5
Disconnect the cable from your phone and
computer.
On your phone:
To return to
Data
as your USB default connection, press
s
>
}Settings
>
Connection
>
USB Settings
>
Default Connection
>
Data Connection
.
Bluetooth® wireless
Your phone supports Bluetooth wireless connections.
You can connect your phone with a Bluetooth headset
or car kit to make handsfree calls. You can also
connect your phone with a phone or computer that
supports Bluetooth connections to exchange files.
You can use Bluetooth A2DP stereo headphones to
listen to music files you store on your phone.
Note:
The use of wireless phones while driving may
cause distraction. Discontinue a call if you can’t
concentrate on driving. Additionally, the use of
wireless devices and their accessories may be
prohibited or restricted in certain areas. Always obey
the laws and regulations on the use of these products.
For maximum Bluetooth security
, you should
always connect Bluetooth devices in a safe, private
environment.
use a headset or handsfree car kit
Before you try to connect your phone with a
handsfree device
, make sure the device is
on
and
ready
in pairing or bonding mode (see the user’s
guide for the device).
54
connections
Find it:
s
>
}Settings
>
Connection
>
Bluetooth Link
>
[Add Audio Device]
Shortcut:
From the home screen, you can also press
Options
>
Bluetooth Link
>
[Add Audio Device]
to look for devices.
Your phone lists the devices it finds within range.
1
Scroll to a device in the list and press the
center key
s
.
2
Press the
Yes
or
OK
key to connect to the device.
3
If necessary, enter the device passkey (such as
0000
) and press the
OK
key.
When your phone is connected, the
Bluetooth indicator
O
appears in the home screen.
You cannot play some copyrighted files over a
Bluetooth connection.
Shortcut:
When your phone’s Bluetooth power is on,
your phone can automatically connect to a handsfree
device you have used before. Just turn on the device,
or move it near the phone. If the device doesn’t
connect, turn it off and back on. During a call, you can
press
Options
>
Use Bluetooth
to connect to a headset or
handsfree device you have used before.
Tip:
Want to know more about your headset or car kit?
For specific information about a device, refer to the
instructions that came with it. For more
Bluetooth support, see:
www.motorola.com/support/Bluetooth
copy files to another device
You can copy a media file, address book entry,
calendar event, or Web Bookmark from your
phone to a computer or other device.
Note:
You can’t copy some copyrighted objects.
1
On your phone, scroll to the object that you want
to copy to the other device.
2
Press
Options
, then select:
55
connections
•
Send
>
via Bluetooth
for media files.
•
Share
>
Number
or
Contact
>
Use Bluetooth
for address
book entries.
•
Send
>
with Bluetooth
for calendar events.
3
Select a recognized device name, or
[Look For Devices]
to search for the device where you want to copy
the file.
If your phone could not copy the file to the other
device
, make sure the device is
on
and
ready
in
discoverable mode (see the user’s guide for the
device). Also, make sure the device is not busy with
another similar Bluetooth connection.
Note:
Once you connect your phone to a Bluetooth
device, that device can start similar Bluetooth
connections with your phone. Your display shows the
Bluetooth indicator
O
at the top when there is a
Bluetooth connection. To change a device’s
Access
setting, see page 58.
receive files from another device
If you do not see the Bluetooth indicator
O
at
the top of your phone display, turn on your
phone’s Bluetooth feature by pressing
s
>
}Settings
>
Connection
>
Bluetooth Link
>
Setup
>
Power
>
On
.
1
Place your phone near the device, and send the
file from the device.
If your phone and the sending device don’t
recognize each other, place your phone in
discoverable mode so the sending device can
locate it: press
s
>
}Settings
>
Connection
>
Bluetooth Link
>
Find Me
.
2
Press the
Accept
key on your phone to accept the
file from the other device.
Your phone notifies you when file transfer is complete.
If necessary, press the
Save
key to save the file.
56
connections
send files to a printer
You can use a Bluetooth connection to send a
picture, message, address book entry, or
calendar view from your phone to a printer.
Note:
You cannot print message
Templates
or an address
book
Mailing List
.
1
On your phone, scroll to the object that you want
to print, then press
Options
>
Print
>
Bluetooth
. In the
calendar, you can print the month, week, or day.
Tip:
If you see it, you can print it. After you
capture a picture in the camera, you can press the
Options
key and select
Print
.
2
If available, choose additional objects or print
options.
3
Select a recognized printer name listed in the
Printers
menu, or
[Look For Devices]
to search for the
printer where you want to print the object.
Note:
If you see
Service Not Supported
when you try to
print, select
Options
>
Manage
>
Copy
>
Bluetooth
instead.
Always use this option to print 4x6 photos.
advanced Bluetooth features
A device is recognized after you connect to it once
(see page 53).
features
make phone
visible to
other device
Allow a Bluetooth device
to discover your phone:
s
>
}Settings
>
Connection
>
Bluetooth Link
>
Find Me
57
connections
connect to
recognized
device
Connect your phone to a
recognized handsfree
device:
s
>
}Settings
>
Connection
>
Bluetooth Link
>
Audio Devices
>device name
drop
connection
with headset
or handsfree
device
s
>
}Settings
>
Connection
>
Bluetooth Link
>
Audio Devices
Scroll to the device name and
press the
Drop
key.
features
switch to
headset or
handsfree
device during
call
During a call, press
Options
>
Use Bluetooth
to
switch to a recognized headset or
car kit.
Your phone connects
automatically or shows a list of
devices you can select.
play sound
files on a
recognized
headset
While playing a sound file,
press
Options
>
Listen Via Bluetooth
to switch
to a recognized headset.
Your phone connects
automatically, or shows a list of
devices you can select.
You cannot play some
copyrighted files over a Bluetooth
connection.
features
58
connections
move
Media Finder
object to
device
Caution:
Moving an object
deletes
the original object from
your phone.
Scroll to the object, press
Options
>
Manage
>
Move
,
select the device name. You
cannot move some copyrighted
files.
copy
Media Finder
object to
device
Scroll to the object, press
Options
>
Manage
>
Copy
,
select the device name. You
cannot copy some copyrighted
files.
features
edit device
properties
s
>
}Settings
>
Connection
>
Bluetooth Link
>
Device History
Scroll to the device name and
press the center key
s
.
Note:
The
Access
setting can
restrict how this device connects
to your phone. You can choose
Automatic
(always connects),
Always Ask
(asks you before
connecting),
Just Once
,
Never
, or
Custom
.
set Bluetooth
options
s
>
}Settings
>
Connection
>
Bluetooth Link
>
Setup
features
59
messages
messages
text messages
To create a group mailing list, see page 69. For more
message features, see page 70.
send a text message
A text message can contain text and pictures,
sounds, or other media objects. You can add
multiple pages to a message, and you can put text and
media objects on each page. You can send a message
to other compatible phones or to email addresses.
Shortcut:
From the home screen, you can press
S
up to quickly open a new message.
Find it:
s
>
eMessaging
>
Create Message
1
Press keypad keys to enter text on the page (for
details about text entry, see page 21).
To insert a
picture, sound, or other object
on
the page, press the center key
s
and
select
Insert
. Scroll to and select the file type and
the file.
2
When you finish the message, press the
Send To
key.
3
Scroll to a recipient and press the center key
s
.
Repeat to add other recipients.
To enter a
new
number or email address, press
the
Options
key and select
Enter Number
or
Enter Email
.
4
To
send
the message, press the
Send
key.
60
messages
receive a text message
When you receive a message, your phone
plays an alert, and the display shows
New Message
with a message indicator, such as
É
. Press the
Read
key to open the message.
To see all of your text messages:
Find it:
s
>
eMessaging
>
Message Inbox
If a multimedia message contains media objects:
•
Photos, pictures, and animations show as you
read the message.
•
A sound file plays when its slide shows. Use
the volume keys to adjust the sound volume.
•
Attached files are added to the end of the
message. To open an attachment, scroll to the
file indicator/filename and press the
View
key
(image),
Play
key (sound), or
Open
key (address
book vCard, calendar vCalendar entry, or
unknown file type).
other features—advanced calling
61
other features
advanced calling
features
voice dial a number not stored in the address
book (digit dial)
Press and hold
N
.
When prompted, say “
digit dial
” (within
two seconds). When prompted again, say the digits
you want to dial (within two seconds per digit).
Your phone recognizes the digits you want. To voice
dial an address book entry, see page 66.
attach a phone number
Dial an area code or prefix for an address
book number, then press
Options
>
Attach Number
.
notepad
Press
s
>
{Recent Calls
, press the
Options
key, then
>
Notepad
.
•
To call the number, press
N
.
•
To create an address book entry with the
number in the
No.
field, press the
Store
key.
•
To open the
Dialing Menu
to attach a number or
insert a special character, press
Options
.
features
62
other features—advanced calling
international calls
If your phone service includes international
dialing, press and hold
0
to insert your local
international access code (indicated by
+
). Then,
press the keypad keys to dial the country code and
phone number.
hold a call
Press
Options
>
Hold
to put all active calls on hold.
mute a call
Press the
Mute
key (if available) or
Options
>
Mute
to put
all active calls on mute.
features
call waiting
When you’re on a call, you’ll hear an alert if
you receive a second call.
Press
N
to answer the new call.
•
To switch between calls, press the
Options
>
Switch
key.
•
To connect the two calls, press the
Link
key.
•
To end the call on hold, press
Options
>
EndCallOnHold
.
To turn the call waiting feature on or off, press
s
>
}Settings
>
In-Call Setup
>
Call Waiting
>
On
or
Off
.
features
other features—advanced calling
63
conference call
During a call:
Press
Options
>
New Call
. Dial the new call’s number,
then press
N
. When the person answers, press
the
Link
key.
automatic call forwarding
Set up or cancel automatic call forwarding:
s
>
}Settings
>
Call Forward
Choose
Voice Calls
to set up forwarding, or
Cancel All
to
cancel forwarding.
You can set how long your phone waits before it
forwards a call. In the
Voice Calls
menu, choose
Forward
>
Detailed
, then set
Delay
to
5
,
10
,
15
,
20
, or
25
seconds.
features
manual call forwarding
You can set your phone to forward an
incoming call only when you press a key.
To set the number where your phone forwards the
calls:
s
>
}Settings
>
Call Forward
>
Push to Call Fwd Number
,
and enter the phone number
To choose which key you press to forward incoming
calls:
s
>
}Settings
>
Personalize
>
Home Screen
>
Home Keys
,
select one of the key presses in the list, and then
select
Push to Call Forward
features
64
other features—advanced calling
restrict calls
Restrict outgoing or incoming calls:
s
>
}Settings
>
Security
>
Restrict Calls
, then enter
your unlock code (see page 27)
Tell your phone to allow
All
,
None
, or only the calls
from your
Address Book
.
TTY calls
Set up your phone for use with an optional
TTY device:
s
>
}Settings
>
Initial Setup
>
TTY Setup
features
fixed dial
When you turn on fixed dialing, you can call
only numbers stored in the fixed dial list.
Turn fixed dialing on or off:
s
>
}Settings
>
Security
>
Fixed Dial
Use the fixed dial list:
s
>
ÃMy Stuff
>
Tools
>
Dialing Services
>
Fixed Dial
service dial
Your service provider might give you phone
numbers for taxi companies or other services.
These phone numbers are stored on your SIM card.
To see them:
s
>
ÃMy Stuff
>
Tools
>
Dialing Services
>
Service Dial
features
other features—advanced calling
65
quick dial
Dial preprogrammed phone numbers:
s
>
ÃMy Stuff
>
Tools
>
Dialing Services
>
Dial AT&T
hearing aids
If you have a hearing aid set to Telecoil mode, you
can optimize your phone’s earpiece sound for your
hearing aid:
s
>
}Settings
>
In-Call Setup
>
Hearing Aid
>
Telecoil
Tip:
Did you change your mind? During a call, you
can press
Options
then choose
Telecoil On
or
Telecoil Off
.
features
DTMF tones
Activate DTMF tones:
s
>
}Settings
>
Initial Setup
>
DTMF
To send DTMF tones during a call, just press
number keys or scroll to a number in the address
book or recent calls lists and press
Options
>
Send Tones
.
features
66
other features—address book
address book
To store and call address book entries, see page 16.
features
voice dial an address book entry (name dial)
Voice dial a number stored in the address book:
Press and hold
N
.
When prompted, say “
name dial
” (within
two seconds). When prompted again, say the
entry’s name (within two seconds).
Your phone matches your voice to an address book
entry name. To voice dial a number not stored in the
address book, see page 61.
assign a speed dial key to an address book entry
You can assign the keys
1
through
9
to
address book entries. Then, when you press and
hold a key, your phone calls the entry.
Note:
Your service provider might assign some
keys, such as
1
for your voicemail number. You
can only speed dial the address book entries stored
on your phone (not on your SIM card).
Press
s
>
=Address Book
and scroll to the address
book entry. Then, press
Options
>
Add to Speed Dial
and
pick a speed dial key.
use the speed dial key for an address book entry
To
use a speed dial key
that you assigned to an
address book entry, just press and hold the key
while in your home screen.
features
other features—address book
67
edit your speed dial keys
s
>
=Address Book
, then press
Options
>
Setup
>
Speed Dial List
edit or delete an address book entry
Edit a number stored in the address book:
s
>
=Address Book
, scroll to the address book
entry, and press
Options
. You can select
Edit Contact
,
Delete Contact
, or other options.
Shortcut:
In the address book, press keypad keys
to enter the first letters of an entry you want. You
can also press
*
and
#
to see the entries in
other categories.
features
set ringer ID for an address book entry
Assign a ring alert (ringer ID) to an entry:
s
>
=Address Book
> entry, then press
Options
>
Edit Contact
>
Ringer ID
> ringer name
Note:
The
Ringer ID
option isn’t available for entries
stored on the SIM card. To copy an entry from SIM
to phone memory, see page 69.
Tip:
The ring alerts you can choose are stored in
sMy Stuff
>
Media Finder
>
Ring Tones
. Ring alert files
must be 300 KB or smaller.
To activate ringer IDs:
s
>
}Settings
>
Audio
> style
Detail
>
Ringer IDs
>
On
features
68
other features—address book
set picture ID for an address book entry
Assign a photo or picture to show when you receive
a call from an entry:
s
>
=Address Book
> entry, then press
Options
>
Edit Contact
>
> picture name
Note:
The
option isn’t available for entries
stored on the SIM card. To copy an entry from SIM
to phone memory, see page 69.
set picture ID view for address book
Show entries as a text list, or with picture caller ID
photos:
s
>
=Address Book
, then press
Options
>
Setup
>
View by
> view name
features
set category for an address book entry
s
>
=Address Book
> entry, then press
Options
>
Edit Contact
>
Category
> category name
When you open your address book, press
*
or
#
to see your categories.
set category view for address book
s
>
=Address Book
, then press
Options
>
Filter by
>
Category
>category name
You can show
All
entries, entries in a predefined
category (
Business
,
Personal
,
General
,
VIPs
), or entries in a
category you create.
Shortcut:
When you open your address book,
press
*
or
#
to see your categories.
features
other features—address book
69
create group mailing list
You can put several address book entries in a group
mailing list, then send a message to the list. To
create a list:
s
>
=Address Book
, then press
Options
>
Create New
>
Message List
Note:
A
Message List
cannot include entries stored on
the SIM card. To copy an entry from SIM to phone
memory, see page 69.
sort address book list
Set the order in which entries are listed:
s
>
=Address Book
, then press
Options
>
Setup
>
Sort by
>
First Name
or
Last Name
features
copy one address book entry
Copy an entry from the phone to the SIM card, or
from the SIM card to the phone:
s
>
=Address Book
, scroll to the entry, press
Options
>
Copy to SIM Card
or
Copy to Phone
copy multiple address book entries
Copy multiple address book entries between the
phone and SIM card:
s
>
=Address Book
, then press
Options
>
Select Multiple to
, and select
Copy Phone to SIM
or
Copy SIM to Phone
features
70
other features—messages
messages
For basic text message features, see page 59.
Your phone reads message settings from the USIM
card. If you put another USIM card in your phone, your
send address book entry to another device
Send an address book entry to another phone,
computer, or device:
s
>
=Address Book
, scroll to the entry, press
Options
>
Share
>
Contact
For more information about copying files to another
device, see page 54.
features
print address book entry over Bluetooth®
connection
You can use a Bluetooth wireless connection to
send an address book entry from your phone to a
printer.
s
>
=Address Book
Scroll to the entry you want to print, and press
Options
>
Select Multiple to
>
Print
.
You cannot print a
Mailing List
. For more about
Bluetooth connections, see page 53.
features
other features—messages
71
phone sends and receives messages for the phone
number on the new card.
features
send voice message
s
>
eMessaging
>
Create Voice Message
To record the voice message, press the
Record
key,
speak, then press the
Stop
key. Your phone inserts
the voice recording into a message and lets you
enter email addresses or phone numbers of the
recipients.
use a message template
s
>
eMessaging
>
Templates
>
Text Templates
or
Multimedia Templates
Select a template to create a new message based
on the template.
read and manage messages
s
>
eMessaging
>
Message Inbox
Icons next to each message indicate if it is read
>
or unread
<
. Icons can also indicate if the
message has an attachment
=
, might be SPAM
?
,
or is locked
9
, urgent
!
, or low priority
↓
.
To see options like
Reply
,
Delete
,
Call
,
Forward
, or
Lock
,
scroll to a message and press
Options
.
To open a message, press
s
. Then, you can press
Options
to use or store any phone numbers,
email addresses, Web sites, or files in the
message.
features
72
other features—messages
access email
You can use
Mobile Email
to check your email on
Windows® Live, Hotmail®, AOL®, AIM®,
Yahoo! Mail, and more.
s
>
eMessaging
>
Mobile Email
Select your service and follow the prompts to sign
in.
browser messages
Read messages received by your
micro-browser:
s
>
eMessaging
>
Browser Msgs
features
store message objects
Go to a multimedia message page, or scroll
to an object in a message. Then:
Press
Options
>
Store
and select the object you want to
store.
print message over Bluetooth®
connection
You can use a Bluetooth wireless connection to
send a message from your phone to a printer.
s
>
eMessaging
>
Message Inbox
,
Outbox
,or
Drafts
Scroll to the message you want to print and press
Options
>
Print
.
You cannot print message
Templates
. For more about
Bluetooth connections, see page 53.
features
other features—instant messaging
73
instant messaging
store text messages on your SIM card
To store incoming text messages on your
SIM card, press:
s
>
eMessaging
, then press
Options
>
Setup
>
Message Setup
>
Text Msg Setup
>
Default Storage
>
SIM Card
features
log in
s
>
eMessaging
>
IM
Select your IM service provider, then log in.
features
add contacts
After you log in:
Scroll to a contact, then press
Options
>
Manage
>
Add Contact
and enter the contact’s information.
start conversation
Press
Options
>
Send Msg To
and enter the
recipient’s IM ID.
log out
Press
Options
>
Sign Out
.
features
74
other features—personalizing
personalizing
features
language
Set menu language:
s
>
}Settings
>
Initial Setup
>
Language
scroll
Set the scroll bar to
Up/Down
or
Wrap Around
in menu
lists:
s
>
}Settings
>
Initial Setup
>
Scroll
text marquee
Set the speed for scrolling text in your
display:
s
>
}Settings
>
Initial Setup
>
Text Marquee
activate ringer IDs
Activate ringer IDs assigned to address book
entries and categories:
s
>
}Settings
>
Audio
> style
Detail
>
Ringer IDs
ring volume
s
>
}Settings
>
Audio
> style
Detail
>
Ring Volume
keypad volume
s
>
}Settings
>
Audio
> style
Detail
>
Key Volume
reminders
Set a reminder for when you have not responded to
an incoming call, message, or other event:
s
>
}Settings
>
Audio
> style
Detail
>
Reminders
features
other features—call times
75
call times
Network connection time
is the elapsed time from
the moment you connect to your service provider's
network to the moment you end the call by pressing
O
. This time includes busy signals and ringing.
The amount of network connection time you track
on your resettable timer may not equal the
amount of time for which you are billed by your
show/hide menu icons
Show or hide menu feature icons in the
home screen:
s
>
}Settings
>
Personalize
>
Home Screen
>
Home Keys
>
Icons
change home keys
Change features for the navigation key and
smart key in the home screen:
s
>
}Settings
>
Personalize
>
Home Screen
>
Home Keys
master reset
Reset all options
except
unlock code, security
code, and lifetime timer:
s
>
}Settings
>
Initial Setup
>
Master Reset
features
master clear
Caution:
Master clear
erases all information you
have entered
(including address book and calendar
entries)
and content you have downloaded
(including photos and sounds) stored in your
phone’s memory. After you erase the information,
you can’t recover it.
s
>
}Settings
>
Initial Setup
>
Master Clear
features
76
other features—handsfree
service provider. For billing information, contact
your service provider.
handsfree
Note:
The use of wireless phones while driving may
cause distraction. Discontinue a call if you can’t
concentrate on driving. Additionally, the use of
wireless devices and their accessories may be
prohibited or restricted in certain areas. Always obey
the laws and regulations on the use of these products.
features
call times
Show call timers:
s
>
{Recent Calls
, press the
Options
key, then
>
Call Times
in-call timer
Show time information during a call:
s
>
}Settings
>
In-Call Setup
>
In-Call Timer
in-call date and time display
Show the current date and time during voice
calls:
s
>
}Settings
>
In-Call Setup
>
Date and Time
features
speakerphone
Activate the speakerphone during a call:
Press the
Speaker
key (if available), or
Options
>
Speakerphone On
.
auto answer
(car kit or headset)
Automatically answer calls when connected
to a car kit or headset:
s
>
}Settings
>
Car Settings
or
Headset
>
Auto Answer
other features—data calls
77
data calls
To connect your phone with a USB cable, see page 51.
voice dial
(headset)
Enable voice dial with headset send/end key:
s
>
}Settings
>
Headset
>
Voice Dial
auto handsfree
(car kit)
Automatically route calls to a car kit when
connected:
s
>
}Settings
>
Car Settings
>
Auto Handsfree
features
send data
Connect your phone to the device, then
place the call through the device application.
features
receive data
Connect your phone to the device, then
answer the call through the device application.
use sync
You can call a SyncML Internet server and
synchronize your phonebook and calendar
entries with the server.
To
set up
an Internet sync partner, press
s
>
LConnection
>
MOTOSYNC
>
Sync
>
[New Entry]
.
Enter the server details, including
Server URL
(you can
omit
http://
) and
Data Path
(the folder below the URL
where your data is stored).
To
synchronize files
with a partner you set up,
select the partner from the list in
s
>
LConnection
>
MOTOSYNC
>
Sync
.
features
78
other features—network
network
set up ActiveSync
You can use the Internet to synchronize your
phone’s phonebook and calendar entries with an
email account on a Microsoft® Exchange 2003
Server.
You need to know the email account’s
user name
and
password
, the Microsoft® Exchange
server
name
, and the
user domain name
. Confirm that
the
Mobility
option is enabled on the email
account, and that
data service
is activated with
your phone service provider.
To
set up
an ActiveSync partner, press
s
>
LConnection
>
MOTOSYNC
>
Exchange
, press
Options
,
then >
Setup
. Enter the server details, including
Server Name
,
Domain
, and the
Web Session
to use. To set up
a
Web Session
, see page 85.
features
use ActiveSync
Once you set up an ActiveSync partner, you
can schedule your phone to synchronize with the
account automatically.
To
schedule
synchronization, press
s
>
LConnection
>
MOTOSYNC
>
Exchange
, press
Options
,
then >
Auto Sync Setup
. Enter the time and days you
want your phone to synchronize.
features
network settings
See network information and adjust network
settings:
s
>
}Settings
>
Network
features
other features—personal organizer
79
personal organizer
features
set alarm
s
>
ÃMy Stuff
>
Tools
>
Alarm Clock
turn off alarm
When an alarm happens: To turn off the alarm,
press the
Disable
key or
O
.
To set an eight-minute delay, press the
Snooze
key.
Note:
The
Snooze
key is available only if the phone is
already powered on when the alarm sounds.
add new calendar event or task
Your calendar can store events (with a start and end
time that can repeat) or tasks (with a due date).
s
>
ÃMy Stuff
>
Tools
>
Calendar
, scroll to the day,
press
s
, press
Options
>
Create New Event
or
Create New Task
Note:
An event
Reminder
will not sound again until
after its
End Date
. So, if you set an event’s
End Date
three
months after its
Start Date
, and set the event to
Repeat
daily, the event’s
Reminder
will only sound once every
three months.
features
80
other features—personal organizer
see calendar event or task
See or edit event or task details:
s
>
ÃMy Stuff
>
Tools
>
Calendar
, scroll to the day,
press
s
Tip:
Keeping up with life can be tough work. To see
a list of your upcoming events or tasks, open the
calendar and press
Options
>
View
>
Organized Events
or
Organized Tasks
.
change calendar settings
s
>
ÃMy Stuff
>
Tools
>
Calendar
, then press
Options
>
Setup
You can choose the
Default View
that appears when
you open your calendar, and you can show or hide
the
Tasks On Day View
. You can tell your phone to
Power On
if it is turned off when a calendar alert occurs.
features
event reminder
When an event reminder happens:
To see reminder details, press the
View
key.
To close the reminder, press the
Back
key.
send calendar event to another device
Send a calendar event to another phone, computer,
or device:
s
>
ÃMy Stuff
>
Tools
>
Calendar
, scroll to the day,
press
s
, scroll to the event, press
Options
>
Send
features
other features—personal organizer
81
print calendar month, week, or day over
Bluetooth® connection
You can use a Bluetooth wireless connection to
send a calendar month, week, or day from your
phone to a printer.
s
>
ÃMy Stuff
>
Tools
>
Calendar
Go to the month, week, or day view and press
Options
>
Print
.
For more about Bluetooth connections, see
page 53.
features
create voice record
s
>
ÃMy Stuff
>
Media Finder
>
Voice Notes
, then press
>
Options
>
Create New
>
Voice Note
Press the center key
s
to start and stop the
recording.
Note:
Recording phone calls is subject to varying
state and federal laws regarding privacy and
recording of conversations. Always obey the laws
and regulations on the use of this feature.
play voice record
Play back a voice record:
s
>
ÃMy Stuff
>
Media Finder
>
Voice Notes
>
All Voice Notes
, scroll to the voice record, and press
the center key
s
features
82
other features—security
security
calculator
s
>
ÃMy Stuff
>
Tools
>
Calculator
currency converter
s
>
ÃMy Stuff
>
Tools
>
Calculator
, then press
Options
>
Exchange Rate
Enter exchange rate, press the
OK
key, enter
amount, and press
Options
>
Convert Currency
.
features
features
SIM PIN
Caution:
If you enter an incorrect PIN code three
times before the correct code, your SIM card is
disabled and your display shows
SIM Blocked
.
Lock or unlock the SIM card:
s
>
}Settings
>
Security
>
SIM PIN
lock feature
s
>
}Settings
>
Security
>
Lock Application
Enter your unlock code to open a list of applications
(such as
Messaging
). Select an application and choose
Locked
to lock it.
other features—fun & games
83
fun & games
Note:
Icons next to a picture, sound, or other object
can indicate if the file is locked (
9
), or if it is stored on
your phone
®
or on your memory card (
©
).
For basic information on the camera, see page 45.
features
view, delete, or manage pictures
Manage photos, pictures, and animations:
s
>
ÃMy Stuff
>
Media Finder
>
Pictures
>
All Pictures
To
delete
a file, scroll to it in the list and press
Options
>
Manage
>
Delete
.
To
copy or move
a file from your memory
card (
©
) to your phone memory (
®
), scroll
to it in the list and press
Options
>
Manage
>
Copy
or
Move
. Options can include your phone
memory, memory card, or a Bluetooth device. You
cannot copy or move some copyrighted files.
84
other features—fun & games
view, delete, or manage video clips
s
>
ÃMy Stuff
>
Media Finder
>
Videos
>
All Videos
To
delete
a file, scroll to it in the list and press
Options
>
Manage
>
Delete
.
To
copy or move
a file from your memory
card (
©
) to your phone memory (
®
), scroll
to it in the list and press
Options
>
Manage
>
Copy
or
Move
. Options can include your phone
memory, memory card, or a Bluetooth device. You
cannot copy or move some copyrighted files.
features
start micro-browser
Just press
@
.
Your phone reads micro-browser settings from the
USIM card. When you remove the USIM card, your
phone clears the browser cache. To edit your
settings, press
s
>
}Settings
>
Web Access
>
Web Sessions
.
download objects from Web page
Download a picture, sound, or other object
from a Web page:
Press
@
, go to the page that links to the file, scroll
to the link, and select it.
features
other features—fun & games
85
Web sessions
A Web Session stores settings that your
phone uses to access the Internet. To select or
create a Web session:
s
>
}Settings
>
Web Access
>
Web Sessions
clear micro-browser history
Clear the micro-browser’s history, cache, or
cookies:
s
>
}Settings
>
Web Access
>
Browser Setup
>
Clear History
,
Reset Cache
, or
Clear Cookies
features
download game or application
You can download a Java™ game or
application the same way you download pictures or
other objects:
Press
@
, go to the page that links to the file, scroll
to the link, and select it.
start game or application
Start a Java™ game or application:
s
>
ÃMy Stuff
>
Games
, scroll to the game or
application, press the center key
s
Note:
To install and run games stored on your
memory card, press
s
>
ÃMy Stuff
>
Games
>
[Install New]
.
features
86
other features—fun & games
AGPS & your location
Note:
This Motorola mobile phone
incorporates Assisted Global Positioning
System (AGPS) technology that can be used by
emergency services to help determine a user’s
location (described on page 37). This functionality is
required by law and cannot be deactivated.
However, AGPS technology also can be used with
certain location-based software applications—for
example, to provide driving directions—which may
track and monitor a user’s location.
To
hide your location
from anything except
emergency calls: Press
s
>
}Settings
>
Phone Status
>
AGPS Service
>
Off
features
airplane mode
You can switch your phone to airplane mode to
prevent it from communicating with the network.
This lets you use games or other applications while
you are on an airplane, without interfering with
airplane communications.
Note:
Your phone cannot make Bluetooth®
connections when
Airplane Mode
is on.
s
>
}Settings
>
Airplane Mode
>
Airplane Mode
>
On
You can make the airplane mode option appear
whenever you turn on your phone:
s
>
}Settings
>
Airplane Mode
>
Prompt At Power Up
>
On
features
87
service & repairs
service & repairs
If you have questions or need assistance, we're here
to help.
Go to
www.motorola.com/support
, where you can
select from a number of customer care options. You
can also contact the Motorola Customer Support
Center at 1-800-331-6456 (United States),
1-888-390-6456 (TTY/TDD United States for hearing
impaired), or 1-800-461-4575 (Canada).
88
SAR Data
Specific Absorption Rate Data
SAR Data
This model wireless phone meets the
government’s requirements for exposure to radio
waves.
Your wireless phone is a radio transmitter and receiver. It is
designed and manufactured not to exceed limits for exposure to
radio frequency (RF) energy set by the Federal Communications
Commission (FCC) of the U.S. Government and by the Canadian
regulatory authorities. These limits are part of comprehensive
guidelines and establish permitted levels of RF energy for the
general population. The guidelines are based on standards that
were developed by independent scientific organizations through
periodic and thorough evaluation of scientific studies. The
standards include a substantial safety margin designed to assure
the safety of all persons, regardless of age or health.
The exposure standard for wireless mobile phones employs a unit
of measurement known as the Specific Absorption Rate, or SAR.
The SAR limit set by the FCC and by the Canadian regulatory
authorities is 1.6 W/kg.
1
Tests for SAR are conducted using
standard operating positions accepted by the FCC and by Industry
Canada with the phone transmitting at its highest certified power
level in all tested frequency bands. Although the SAR is
determined at the highest certified power level, the actual SAR
level of the phone while operating can be well below the
maximum value. This is because the phone is designed to operate
at multiple power levels so as to use only the power required to
reach the network. In general, the closer you are to a wireless
base station, the lower the power output.
Before a phone model is available for sale to the public in the U.S.
and Canada, it must be tested and certified to the FCC and Industry
Canada that it does not exceed the limit established by each
government for safe exposure. The tests are performed in
positions and locations (e.g., at the ear and worn on the body)
reported to the FCC and available for review by Industry Canada.
The highest SAR value for this model phone when tested for use at
the ear is ___ W/kg, and when worn on the body, as described in
this user guide, is ___ W/kg. The SAR value for this product in its
data transmission mode (body-worn use) is ___ W/kg. (Body-worn
measurements differ among phone models, depending upon
available accessories and regulatory requirements).
2
While there may be differences between the SAR levels of various
phones and at various positions, they all meet the governmental
requirements for safe exposure. Please note that improvements to
this product model could cause differences in the SAR value for
later products; in all cases, products are designed to be within the
guidelines.
0.94
0.64
0.51
SAR Data
89
Additional information on Specific Absorption Rates (SAR) can be
found on the Cellular Telecommunications & Internet Association
(CTIA) Web site:
http://www.phonefacts.net
or the Canadian Wireless Telecommunications Association (CWTA)
Web site:
http://www.cwta.ca
1. In the United States and Canada, the SAR limit for mobile phones used
by the public is 1.6 watts/kg (W/kg) averaged over one gram of tissue.
The standard incorporates a substantial margin of safety to give
additional protection for the public and to account for any variations in
measurements.
2. The SAR information includes the Motorola testing protocol,
assessment procedure, and measurement uncertainty range for this
product.
90
EU Conformance
European Union Directives Conformance Statement
EU Conformanc e
Hereby, Motorola declares that this product is in
compliance with:
•
The essential requirements and other relevant provisions
of Directive 1999/5/EC
•
All other relevant EU Directives
The above gives an example of a typical Product Approval Number.
You can view your product’s Declaration of Conformity (DoC) to
Directive 1999/5/EC (to R&TTE Directive) at
www.motorola.com/rtte
. To find your DoC, enter the Product
Approval Number from your product’s label in the “Search” bar on
the Web site.
0168
Product
Approval
Number
index
91
index
A
accessories 11, 76
accessory connector port 2
active line indicator 20
ActiveSync 78
address book 36, 61, 66, 67
AGPS 86
airplane mode 86
alarm clock 79
alarm indicator 21
alert
set 25, 29
turn off 25, 29, 35
alert indicator 21
animation 83
answer a call 16, 33
attach a number 36, 61
audio player 41
audio style indicator 21
audio style, setting 25, 29
B
backlight 32
battery 12, 13
battery indicator 21
battery life, extend 14
battery life, extending 13, 31, 32
Bluetooth connection
address book entries 70
calendar entry, printing 81
calendar entry, sending 80
description 53
messages, printing 72
restricting access 58
brightness 32
browser messages 72
browser. See micro-browser
C
cables 51
calculator 82
calendar 79, 80
call
answering 16, 33
end 16
ending 16, 40
forwarding 63
making 16
recording 40
timers 76
waiting 62
92
index
call forward indicator 20
caller ID 36, 37, 68
camera 45
car kit 76
categories 68
center key 2, 26
center select key 11
clock 30
codes 27
conference call 63
copy files 54
D
data call 77
data indicator 20
date, setting 30
dial a phone number 16, 64, 65
dialed calls 35
digit dial 61
digital audio 41
display 3, 19, 32
downloaded files
from Web pages 84
in messages 72
DTMF tones 36, 65
E
earpiece volume 25
EDGE indicator 20
email 72
emergency number 37
end a call 16, 40
end key 2, 16
Enter Unlock Code message 27
external display 47
F
fax call 77
fixed dial 64
flip 16, 33
forward calls 63
G
games 85
GPRS indicator 20
group mailing list 69
H
handsfree speaker 26
headset 76
headset jack 2
hearing aids 65
hold a call 62
home screen 3, 19, 33, 75
I
IM 73
in-call indicator 20
Incoming Call message 37
instant messaging. See IM
international access code 62
iTAP text entry mode 23
index
93
J
Java applications 85
Java indicator 21
K
keypad 33, 74
L
language 74
linking. See Bluetooth connection
location 86
lock
application 82
phone 27
SIM card 82
Low Battery message 21
M
make a call 16
master clear 75
master reset 75
memory card 50
menu 3, 11, 19, 74
menu icons 19, 33, 75
message 71, 73
message alerts 29
message indicator 21, 60
message reminders 74
micro-browser 72, 84, 85
MMS, defined 59
MOTOSYNC 77, 78
MP3 sound files 41, 52
multimedia message 59, 71, 73
mute a call 62
N
name dial 66
navigation key 2, 11, 26
network settings 78
notepad 61
number. See phone number
numeric entry mode 25
O
object exchange 54
1-touch dial 67
open to answer 33
optional accessory 11
optional feature 11
P
pairing. See Bluetooth connection
passwords. See codes
personalize 74
phone number 17
photo 45, 83
picture 83
picture ID 37, 68
PIN code 16, 27, 82
PIN2 code 27
power key 2, 16
printing 56
94
index
Q
quick dial 65
R
received calls 35
recent calls 35
recording a call 40
redial 36
reminder indicator 21
reminders 74
restrict calls 64
ringer ID 37, 67, 74
ringer volume 25, 74
S
screen saver 31
scrolling 74
security code 27
send key 2, 16
service dial 64
signal strength indicator 20
SIM Blocked message 15, 82
SIM card 12, 16, 27, 64, 73, 82
skin 32
smart key 26, 33, 75
soft keys 2, 19, 33, 75
software updates 34
speakerphone 76
speed dial 66
store your number 17
symbol entry mode 25
synchronizing 77, 78
T
tap text entry mode 24
telecoil hearing aids 65
telephone number. See phone
number
text entry 21
text marquee 74
text message 59, 71, 73
theme 32
time zone 30
time, setting 30
timers 76
TTY device 64
turn on/off 15
U
unlock
application 82
phone 16, 27
SIM card 82
unlock code 27
updates 34
USB cables 51
V
video clip 84
videos 40, 48
voice dial 61, 66, 77
voice message 71
