Motorola Mobility T56GM1 Portable Dual-Band GSM Transceiver User Manual Ballina W375

Motorola Mobility LLC Portable Dual-Band GSM Transceiver Ballina W375

Contents

Exhibit 8 Users Manual

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56GM1
INSTRUCTION MANUAL
• A preliminary draft copy of the User’s Manual follows this cover page.
• The User’s Manual will have the following text added to it:
"NOTE: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
. Reorient or relocate the receiving antenna.
. Increase the separation between the equipment and receiver.
. Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
. Consult the dealer or an experienced radio/TV technician for help."
EXHIBIT 8
motorola.com
W375
GSM
English
DRAFT
1
HELLOMOTO
Welcome to the world of Motorola digital wireless communications! We are pleased that you
have chosen the Motorola W375 wireless phone.
Earpiece
Listen to your voice calls
& messages.
Left Soft Key
Perform functions identified
by left display prompt.
Send/Answer Key
Make & answer calls. Press
in idle screen to see recently
dialed calls.
Menu Key
Open a menu when it
appears in the display.
Right Soft Key
Perform functions identified by
right display prompt.
Power/End Key
Press & hold to turn the phone
on/off. Press & release to end
phone calls, exit menu system.
Message Key
Access the Message menu.
Navigation Key
Scroll up, down, left or right.
Web Browser Key
Volume Controls
Mini-USB Connector
Charge the battery or
connect to a PC.
Headset Jack
2
Motorola, Inc.
Consumer Advocacy Office
1307 East Algonquin Road
Schaumburg, IL 60196
www.hellomoto.com
MOTOROLA and the Stylized M Logo are registered in the US
Patent & Trademark Office. 2006 All other product or service
names are the property of their respective owners.
© Motorola, Inc. 2006.
Caution:
Changes or modifications made in the radio phone, not
expressly approved by Motorola, will void the user's authority to
operate the equipment.
Certain mobile phone features are dependent on the capabilities
and settings of your service provider’s network. Additionally,
certain features may not be activated by your service provider,
and/or the provider's network settings may limit the feature’s
functionality. Always contact your service provider about feature
availability and functionality. All features, functionality, and other
product specifications, as well as the information contained in this
user's guide are based upon the latest available information and
are believed to be accurate at the time of printing. Motorola
reserves the right to change or modify any information or
specifications without notice or obligation.
Manual Number: 680XXXXAXX-O
DRAFT
3
check it out!
Note:
Your phone may not appear exactly as
the phone image above.
Headset Jack
Insert the
headset
accessory for
handsfree
use.
Battery
Battery
Indicator
Call Indicator
Camera Lens
Message
Indicator
DRAFT
4
contents
check it out!
. . . . . . . . . . 3
contents
. . . . . . . . . . . . . 4
menu map
. . . . . . . . . . . 6
essentials
. . . . . . . . . . . . 9
about this guide. . . . . . . 9
SIM card . . . . . . . . . . . 10
battery . . . . . . . . . . . . . 10
turn it on & off . . . . . . . 12
make a call. . . . . . . . . . 13
answer a call . . . . . . . . 13
your phone number . . . 13
main attractions
. . . . . 14
multimedia
messages . . . . . . . . . . 14
chatting . . . . . . . . . . . . 15
camera. . . . . . . . . . . . . 16
use the FM radio . . . . . 18
usb connection . . . . . . 20
basics
. . . . . . . . . . . . . . 22
display . . . . . . . . . . . . . 22
menus . . . . . . . . . . . . . 25
text entry . . . . . . . . . . . 26
volume. . . . . . . . . . . . . 29
navigation key . . . . . . . 29
handsfree speaker. . . . 29
codes & passwords . . . 30
check battery meter. . . 30
customize
. . . . . . . . . . . 31
ring style . . . . . . . . . . . 31
time & date . . . . . . . . . 31
wallpaper . . . . . . . . . . . 32
screen saver . . . . . . . . 32
display appearance . . . 33
answer options . . . . . . 34
personal greetings. . . . 34
optional handsfree
operation . . . . . . . . . . . 34
calls
. . . . . . . . . . . . . . . 36
recent calls . . . . . . . . . 36
redial . . . . . . . . . . . . . . 37
return a call . . . . . . . . . 37
notepad . . . . . . . . . . . . 37
hold or mute a call . . . . 37
call waiting. . . . . . . . . . 38
caller ID . . . . . . . . . . . . 38
emergency calls . . . . . 38
international calls . . . . . 39
1-touch dial. . . . . . . . . . 39
voicemail . . . . . . . . . . . 40
DRAFT
5
inserting special
characters into dialing
sequences . . . . . . . . . 41
other features
. . . . . . . . 42
advanced calling . . . . . 42
phonebook . . . . . . . . . 44
messages. . . . . . . . . . 47
chat. . . . . . . . . . . . . . . 49
web browser
(wap 2.0). . . . . . . . . . . 49
personalizing. . . . . . . . 50
call times & costs. . . . 52
handsfree operation . . 54
network . . . . . . . . . . . 54
personal organizer . . . 54
security. . . . . . . . . . . . 56
fun & games. . . . . . . . 56
troubleshooting
. . . . . . 57
check here first . . . . . . 57
when the backlight is
turned off, it can seem like
your phone isn’t
working. . . . . . . . . . . . 57
no display . . . . . . . . . . 57
no backlight on the
display . . . . . . . . . . . . 58
phone doesn’t vibrate. 58
messages: “enter special
code,” “SIM locked -
contact service provider,”
“subsidy password”. . 58
keypad does not
respond . . . . . . . . . . . 59
no signal or no
service . . . . . . . . . . . . 59
screen flickers while
taking a picture (for
W375 only) . . . . . . . . . 59
service and repairs . . . 60
EU Conformance
. . . . . 65
index
. . . . . . . . . . . . . . 66
6
menu map
DRAFT
menu map
main menu
n
Phonebook
s
Recent Calls
•Received Calls
• Dialed Calls
• NotePad
•Call Times
• Call Cost
• Data Times
• Data Volumes
e
Messages
•Create
•Inbox
•Draft
•Outbox
•Quick Notes
•Voicemail
• Browser Msgs
• Info Services
• MMS Templates
É
Office Tools
•Calculator
• MyMenu
•Alarm Clock
• Stop Watch
•Chat
• Dialing Services
•STK Service
• Calendar
•Lantern
Q
Games & Apps
• Football
•Space
•Crazy
á
WebAccess
• Start Browser
• Web Shortcut
•Go to URL
•Web Session
• Stored Pages
•History
• General Setting
h
Multimedia
•Camera
•Pictures
• Sounds
•FM Radio
l
Personalize
• Home Screen
•Main Menu
• Color Setting
• Greeting
• Wallpaper
• Screen Saver
•Quick Dial
w
Settings
(see next page)
Note:
The
STK Service
depends
on your carrier's SIM card.
You may not see this function.
Chat
and
Quick Dial
depend on
your carrier's settings. You
may not see these features in
your phone.
7
menu map
DRAFT
settings menu
t
Ring Style
•Style
•Detail
H
Call Forward
• Voice Calls
•Fax Calls
• Data Calls
• Cancel All
• Forward Status
U
In Call Setup
• In-Call Timer
•Call Cost Setup
• My Caller ID
• Answer Options
• Call Waiting
Z
Initial Setup
• Time and Date
• 1-Touch Dial
• Display Settings
• Backlight
•Scroll
• Language
• PC Charge Time Out
• Contrast
•DTMF
•TTY Setup
• Master Reset
• Master Clear
• Format USB storage device
m
Phone Status
•My Numbers
•Active Line
•Battery Meter
S
Headset
• Auto Answer
j
Network
•New Network
•Network Setup
• Avail. Networks
• My Network List
• Service Tone
•Call Drop Tone
• Band Selection
u
Security
• Phone Lock
• Fixed Dial
•Call Barring
• SIM PIN
•New Passwords
Easy Prefix
• Auto Change
•Pref. Op
Lantern
• Lantern
Note:
The
Active Line
function,
My Network List
,
Service Tone
,
STK
Service
and
Band Selection
depend
on your carrier's settings. You
may not see these features in
your phone.
8
Use and Care
Use and Care
To care for your Motorola phone, please keep it away from:
liquids of any kind dust and dirt
Don’t expose your phone to
water, rain, extreme humidity,
sweat, or other moisture.
Don’t expose your phone to
dust, dirt, sand, food, or other
inappropriate materials.
extreme heat or cold cleaning solutions
Avoid temperatures below
-10°C/14°F or above 45°C/113°F.
To clean your phone, use only a
dry soft cloth. Don’t use alcohol
or other cleaning solutions.
microwaves the ground
Don’t try to dry your phone in a
microwave oven.
Don’t drop your phone.
9
essentials
DRAFT
essentials
about this guide
This guide shows how to locate a menu
feature as follows:
Find it :
Press
M
>
Recent Calls
>
Dialed Calls
This example shows that, from the home
screen, you press
M
to open the menu,
highlight and select
Recent Calls
, then highlight
and select
Dialed Calls
.
Press
S
to scroll to and highlight a menu
feature. Press the
SELECT
key to select the
highlighted menu feature.
CAUTION: Before using the phone for the
first time, read the
Important Safety and
Legal Information
included in the
gray-edged pages at the back of this guide.
032257o
symbols
This means a feature depends on the
network or subscription and may not
be available in all areas. Contact your
service provider for more information.
This means a feature requires an
optional accessory.
10
essentials
DRAFT
SIM card
Yo u r Subscriber Identity Module (SIM) card
contains personal information like your phone
number and phonebook entries.
Caution:
Do not bend or scratch your SIM
card. Keep it away from static electricity,
water, and dirt.
battery

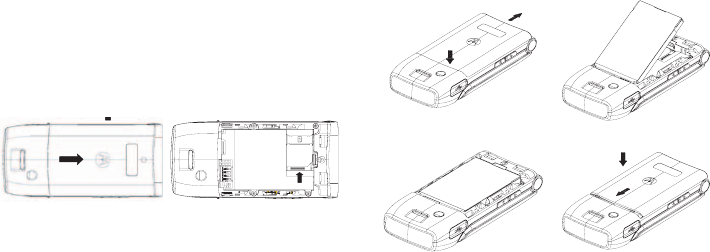

battery installation
Note:
If you remove the battery for a long
time, the phone will ask you to reset the time
and date. If you choose to cancel or ignore,
the time and date will be
affected
. You can
input the correct time and date by:
12
12
34
11
essentials
DRAFT
Find it:
Press
M
>
Setting
>
Initial Setup
>
Time and
Date
But, if you remove the battery just for a few
seconds (e.g., quickly change SIM card), the
system either won’t ask you to reset the time
and date or if prompted, you can choose
BACK
on the time and date screen, the clock will
only be slightly affected.
battery charging
Before you can use
your phone, you
need to completely
charge the battery.
New batteries are
not fully charged.
Plug the Mini-USB
cord into your
phone and an electrical outlet or a PC. Your
phone displays
Charge Complete
when finished.
Tip:
You cannot overcharge your battery. It will
perform best after you fully charge and
discharge it a few times.
New batteries are shipped partially charged.
Before you can use your phone, install and
charge the battery as described below. Some
batteries perform best after several full
charge/discharge cycles.
battery tips
Battery life depends on the network, signal
strength, temperature, features, and
accessories you use.
•
Always use Motorola
Original™ batteries and
chargers. The warranty does
not cover damage caused by
non-Motorola batteries and/or chargers.
•
New batteries or batteries stored for a
long time may take more time to charge.

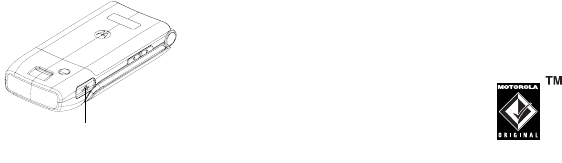

Power Connector
Insert the charger.
12
essentials
DRAFT
•
When charging your battery, keep it near
room temperature.
•
When storing your battery, keep it
uncharged in a cool, dark, dry place, such
as a refrigerator.
•
Never expose batteries to temperatures
below -10°C (14°F) or above 45°C (113°F).
Always take your phone with you when
you leave your vehicle.
•
It is normal for batteries to gradually wear
down and require longer charging times.
If you notice a change in your battery life,
it is probably time to purchase a new
battery.
Contact your local recycling center for
proper battery disposal.
Warning:
Never dispose of batteries
in a fire because they may explode.
Before using your phone, read the battery
safety information in the “Safety and General
Information”section included in the gray-
edged pages at the back of this guide.
turn it on & off
To turn on your phone,
press and hold
P
for 2
seconds. If prompted,
enter your SIM card PIN
code and/or unlock
code.
Caution:
If you enter an incorrect PIN code 3
times in a row, your SIM card is disabled and
your phone displays
SIM Blocked
. Contact your
service provider.
To turn off your phone, press and hold
P
for
2 seconds.
13
essentials
DRAFT
make a call
Enter a phone number and press
N
to make
a call.
To end the call, press
P
.
answer a call
When your phone rings and/or vibrates, press
N
to answer.
To end the call, press
P
.
You can also answer or end a call by pressing
any key when the
Multi-key
answer option is
activated.
Find it:
Press
M
>
Settings
>
In Call Setup
>
Answer Options
your phone number
To see your number:
Press
M
>
Settings
>
Phone Status
>
My Numbers
To store or edit your name and number on
your SIM card, press the
VIEW
key while
displaying it. If you don't know your phone
number, contact your service provider.
14
main attractions
DRAFT
main attractions
multimedia messages
For more message features, see page 47.
send a multimedia
message
A Multimedia Messaging Service (MMS)
message contains pages with text and media
objects (including photos, pictures,
animations, or sounds). You can send the
multimedia message to other phones with
MMS and to email addresses.
Find it:
Press
M
>
Messages
>
Create
>
Create
Message
>
SMS/EMS
,
MMS
or
MMS Templates
Note:
The
MMS templates
can’t be downloaded
or expanded. You can only use the default
templates.
1
Press
1
-
0
to enter text message. For
details about text entry, see page 26.
Tip:
To insert a
picture, sound, or other
object
, press
M
>
INSERT
.
To insert another slide, press
M
>
Insert
>
Insert Slide
. You can enter additional text
and objects on the new slide.
2
When the message is finished, press
OK
.
3
Scroll to the desired entry and press
ADD
.
Repeat step 3 until all desired entries are
added, and press
DONE
.
15
main attractions
DRAFT
Tip:
To enter a new number, scroll to
[One Time
Entry]
and press
SELECT
.
To enter and store a new number, scroll to
[New Entry]
and press
SELECT
.
4
Scroll to the desired message field, and
press
CHANGE
to edit.
5
Press
SEND
to send the message.
Tip:
To cancel or save the message as a Draft,
press
M
.
receive a multimedia
message
When you receive a multimedia message or
letter, your phone sounds an alert and displays
New Message
with a message indicator such as
r
.
Press the
READ
key to open the message.
If a multimedia message contains media
objects:
•
photos, pictures, and animations will
display as you read the message.
•
sound files will play when its slide bar
displays.
chatting
Select
Chat
from the
Office Tools
menu to keep in
touch with friends. You can save time by
inserting a common phrase, such as I
n a meeting
now
or
Take Care
, by selecting
Msg:
>
Change
>
Insert
.
16
main attractions
DRAFT
camera
To activate your phone's camera using the
menu system:
Find it:
Press
M
>
Multimedia > Camera
The active viewfinder image appears on your
display.
Point the camera lens at the photo subject,
then:
1
Press
CAPTURE
to take a photo.
2
Press
STORE
to view storage options. If you
choose to keep the photo, continue to
step 4.
3
Press
DISCARD
to delete the photo and
return to active viewfinder.
4
Scroll to
Send in Message
,
Store Only
,
Apply as
Wallpaper
,
Apply as Screen Saver
or
Apply as
Phonebook
and press
SELECT
.
Note:
If the screen flickers when taking a
picture, you may need to select an alternative
frequency for the
Flicker
setting. For example, if
the
Flicker
setting is currently 50Hz, switch to
60Hz, and try to take the picture again.
Find it:
Press
M
>
Multimedia
>
Camera
>
M
>
Picture Setup
>
Flicker
Press
S
up or
down to zoom
in or out.
Press
S
left or
right to
decrease or
increase image
brightness.
Press
CAPTURE
to take a photo.
Photo storage
space used
(phone).
Press
BACK
to
return to
previous
screen.
Press
M
to open
Pictures Menu
.
AREA
CAPTURE BACK
RAM Used:8%
Viewfinder
17
main attractions
DRAFT
From the active viewfinder, you can press
M
to enter the
Pictures Menu
:
After
Capture
, you can choose to
Store
your
picture. Store options include:.
option
Go to Pictures
Go to the picture library.
Auto-Timed Capture
Set the camera to take a photo
automatically after counting down 5 or 10
seconds.
Picture Setup
Adjust the picture settings, including
Auto
Repeat
,
Shuffle
,
Lighting Conditions
,
Special Effect
,
Exposure
,
Resolution
,
Shutter Tone
,
Image Quality
, and
Flicker
.
View Free Space
Check used and available memory.
option
Send in Message
An MMS message will be initiated with the
captured picture. You can edit the MMS
message and send it with the captured
picture. You can also add a voice note.
Store only
The captured picture will be stored in
Pictures
.
Apply as Wallpaper
Your picture will be applied as Wallpaper.
Apply as Screen Saver
Your picture will be applied as the Screen
Saver
Apply as Phonebook Entry
Your picture will be saved in the
Phonebook
.
18
main attractions
DRAFT
use the FM radio
You can listen to and program up to nine of
your favorite FM radio stations.
turn on the FM radio
Find it:
Press
M
>
Multimedia
>
FM radio
The FM radio will automatically tune in the
lowest available frequency when you use it for
the first time. After that, it will tune in the
frequency last used. Press
S
up and down
or use the side volume key to increase or
decrease the volume.
Press
M
>
MUTE
to make the output volume
silent.
Note:
The earpiece must be inserted into the
phone for the FM radio to function. If you try
to turn it on without inserting the earpiece,
your phone will display
Please Insert The Earpiece
.
Note:
The headset also acts as an antenna, so
the FM Radio receiver performance is
dependent on the type of headset device
connected. If a non-Motorola 3.5 mm headset
is connected to the phone through the
adapter (2.5 - 3.5 mm), or the headset is
curled up or kinked, performance may be
affected.
tune the FM radio
1
Press
M
>
Multimedia
and scroll to FM
radio.
2
Press
S
left or right to increase or
decrease the frequency. Each keypress
HIDE BACK
123456789
FM 100.7MHz
Icrt
19
main attractions
DRAFT
will increase or decrease the frequency
by 0.1 MHz.
3
Press and hold
S
left or right to activate
the scanning feature. The FM radio will
scan to the next usable frequency. You
can continue scanning by pressing
S
again. Press
M
>
Set Frequency
to save the
channel.
use the radio presets
You can store up to nine preset radio stations.
set the radio presets
1
Tune in the desired frequency by pressing
S
left or right.
2
Press and hold
1
-
9
to save that
number as the preset.
select a radio preset
Press
1
-
9
to select the corresponding
radio preset.
FM radio selection
You can manually set the radio frequency and
display or edit the frequency list.
set frequency
1
Press
M
and scroll to
Set Frequency
. Press
SELECT.
2
Use the number keys to enter the desired
frequency. Press
#
to enter a decimal
point.
3
Press
OK
.
OK BACK
Frequency (MHz)
103.3
20
main attractions
DRAFT
d
isplay or edit the channel list
1
Press
M
and scroll to
Station Presets.
Press
SELECT
.
2
Press the keypad keys to select the
desired channel or press
S
to scroll to
the desired channel, then press
M
>
EDIT.
3
Use the number keys to enter the
Friendly
Name
and
Frequency
.
4
Press
OK.
play FM radio through speaker
or headset
Press
M
and scroll to
Speaker
,
then press
SELECT
. To play the FM Radio through the
headset, press
M
and scroll to
Headset
, then
press
SELECT
.
Note:
The headset must be inserted into the
phone for the FM radio to play through the
Speaker.
turn off FM radio
To turn off the radio, press
O
.
usb connection
Your phone can be USB charged by
connection to a PC. It can also upload and
download files via connection to a PC or other
USB device.
To use this feature
1
Insert the USB cable into the USB port on
the left side of the phone. The phone will
display
Connect phone as storage device?
2
Press
Yes
to use phone as a portable USB
storage device.
Note:
When the phone is in this mass storage
mode, it cannot make or receive calls, or
perform any other functions. Disconnecting
will resume normal operation.
21
main attractions
DRAFT
or
Press
No
to enable USB charge if the
connected device is a PC.
Downloaded files can be viewed by pressing
M
>
Multimedia
>
Pictures or Sounds
>
Additional Storage Device.
Note:
The home screen must be displayed
when connecting.
22
basics
DRAFT
basics
See page 1 for a basic phone diagram.
display
The home screen displays when you turn on
the phone. To dial a number from the home
screen, press the number keys and
N
.
Note:
Your home screen may look different
from the one on this page, depending on your
service provider.
When
M
is displayed, you can press
M
to
open the menu. Labels at the bottom corners
of the display show the current soft key
functions. Press the left or right soft key to
perform the function indicated by the label.
For soft key locations, see page 1.
4*
7
ã?
d
s
x
å
6:35am
Service Provider
04/25/2006
G
BROWSER PH. BOOK
Date
Left Soft
Key Label
Clock
Menu Indicator
Right Soft
Key Label
23
basics
DRAFT
In the home screen, press
S
up, down, left,
or right to open basic menu features. You can
choose to show or hide home screen display
icons.
Find it:
Press
M
>
Personalize
>
Home Screen
>
Home Keys
>
Icons
status indicators
Status indicators may be shown at the top of
the home screen:
1 Signal Strength Indicator
−
Vertical bars
show the strength of the network
connection. You cannot make or receive
calls when
!
displays.
2GPRS Indicator
−
Shows when
your phone is using a high-speed
GPRS network connection. Indicators
show
PDP context active
*
or
packet data
available
+
.
3Data Indicator
−
Shows connection
status.
4*
7
ã?
d
s
x
c
PH. BOOK
S
6:35am
Service Provider
100.6 FM
G
1
234567
BROWSER
8
4
= secure packet
data transfer
7
= unsecure packet
data transfer
3
= secure
application
connection
6
= unsecure
application
connection
5
= secure Circuit
Switch Data
(CSD) call
5
= unsecure CSD
call
24
basics
DRAFT
4Roam Indicator
−
Shows when
your phone is seeking or using a
network outside of your home network.
5 Active Line Indicator
−
Shows
?
to indicate an active call, or
>
to
indicate when call forwarding is on.
Indicators for dual phone lines (requires
SIM card for 2 phone lines) can include:
6 Message Indicator
−
Shows when
you receive a new message.
Indicators can include:
7 Ring Style Indicator
−
Shows the ring
style setting.
8 Battery Level Indicator
−
Vertical bars
show the battery charge level. Recharge
the battery when your phone shows
Low
Battery
.
@
= line 1 active
B
= line 2 active
A
= line 1 active,
call forward on
C
= line 2 active,
call forward on
r
= text message
t
= voicemail
message
s
= voicemail &
text message
a
=active chat
session
y
= loud ring
Ó
= vibrate then
ring
z
= soft ring
Ò
=silent
|
=vibrate
Ì
=
vibrate & ring
25
basics
DRAFT
menus
From the home screen, press
M
to enter the
main menu.
The following menu icons may be available,
depending on your service provider and
service subscription options.
select a feature option
Some features require you to select an option
from a list.
Currently
Highlighted
Menu Feature
Icon
Select
highlighted
menu feature.
Exit the main
menu.
Scroll up, down
left, or right.
Press
to select
highlighted
menu feature.
Exit menu
without
making
changes.
menu features
nPhonebook áWeb Access
sRecent Calls hMultimedia
eMessages lPersonalize
ÉOffice Tools wSettings
QGames & Apps
VIEW BACK
Phonebook
another long
jeff
long name
Mgt
Maj
normal
Press
VIEW
to
see details of
highlighted
option. Press
BACK
to
return to
previous
screen.
Highlighted
Option
Press
M
to open
sub-menu
26
basics
DRAFT
•
Press
S
up or down to highlight the
option you want.
•
In a numbered list, press a number key
to highlight an option.
•
In an alphabetized list, press a key
repeatedly to cycle through the letters
and highlight the closest matching
option on the list.
•
When an option has a list of possible
settings, press
S
left or right to select
the setting.
•
When an option has a list of possible
numeric values, press a number key to
set the value.
text entry
Some features let you enter text.
INSERT CANCEL
Message 765
Flashing
cursor
indicates
insertion point.
Press
M
to open
sub-menu.
Character
Counter
Press
INSERT
to insert a
quick note,
picture,
or sound.
Press the
CANCEL
to
exit without
saving any
changes.
27
basics
DRAFT
choosing a text entry method
Multiple text entry methods make it easy for
you to enter names, numbers, and messages.
The method you select remains active until
you select another method.
Press
#
in any text entry screen to select
one of the following entry methods:
set up a text entry mode
To se t yo u r
Primary
and
Secondary
text entry
modes, press
M
>
Entry Setup
in a text entry
view and select
Primary setup
or
Secondary setup
.
iTAP
®
mode
Press
#
in a text entry screen to switch to
iTAP mode. If you don't see
j
or
p
, press
M
>
Entry Setup
to set iTAP mode as your
primary or secondary text entry mode.
iTAP mode lets you enter words using one
keypress per letter. The iTAP software
combines your keypresses into common
words and predicts each word as you enter it.
For example, if you press
7764
, your
phone displays:
Primary
The primary text entry
method (see below to set).
Numeric
Enter numbers only (see page
47).
Symbol
Enter symbols only (see page
47).
OK DELETE
Message 765
prog proh spoi
Press
OK
key
to enter
prog.
Press the
DELETE
key to
delete last letter.
28
basics
DRAFT
•
If you want a different word (such as
Progress
), continue pressing keypad keys
to enter the remaining characters.
•
Press
1
to enter punctuation or other
characters.
tap mode
Press
#
in a text entry screen to switch to
TAP
mode. If you do not see
g
or
m
, press
M
>
Entry
Setup
to set
TAP
mode as your
Primary
or
Secondary
text entry mode.
To enter text in
TAP
mode, press a keypad key
repeatedly to cycle through the letters and
number on the key. Repeat this step to enter
each letter.
For example, if you press
8
one time, your
phone displays:
After 2 seconds, the character is accepted
and the cursor moves to the next position.
numeric mode
In a text entry screen, press
#
to switch
entry modes until the
12
(numeric) indicator
displays.
Press keypad keys to enter the numbers you
want. When you finish entering numbers,
press
#
to switch to another entry mode.
OK DELETE
Message 765
T
Press
OK
to
accept &
store text.
Press
DELETE
to
erase the
character to left of
insertion point.
Character
displays at
insertion
point.
29
basics
DRAFT
symbol mode
In a text entry screen, press
#
to switch
entry modes until the
@
(symbol) indicator
displays.
Press keypad keys repeatedly to cycle through
its symbols. Highlight the symbol you want,
then press
SELECT
.
volume
You can adjust the earpiece speaker volume
while you are talking by pressing
S
right/up
to increase the volume or left/down to
decrease the volume. You can also adjust the
volume by pressing the side volume keys.
Tip:
During a call, you can set your phone to
mute by pressing
M
>
Mute
.
navigation key
Press the navigation key
S
up, down, left, or
right to scroll and
highlight options.
handsfree speaker
You can use your phone’s handsfree speaker
to make calls without holding the phone to
your ear.
During a call, press
SPKR ON
to turn the
handsfree speaker on. When your handsfree
speaker is on, you can press
SPKR OFF
to turn it
off.
Note:
The handsfree speaker does not work
when your phone is connected to a handsfree
car kit or headset.
30
basics
DRAFT
codes & passwords
Your phone's
unlock code
is originally set to
1234
. The
security code
is originally set to
000000
. If your service provider didn't change
these codes, you should change them:
Find it:
Press
M
>
Settings
>
Security
>
New
Passwords
You can also change your
SIM PIN
or call
barring passwords.
If you forget your unlock code:
At the
Enter
Unlock Code
prompt, try entering
1234
or the last four digits of your phone number. If
that doesn't work, press
M
and enter your
security code instead.
If you forget your other codes:
If you forget
your security code, SIM PIN code, PIN2 code,
or call barring password, contact your service
provider.
check battery meter
To check your battery meter:
Press
M
>
Settings
>
Phone Status > Battery Meter.
31
customize
DRAFT
customize
ring style
Your phone rings and/or vibrates to notify you
of an incoming call, message, or other event.
This ring and/or vibration is called an alert. You
can select one of six different alert profiles:
Loud Ring
,
Soft Ring
,
Vibrate
,
Vibrate & Ring
,
Vibrate then
Ring
, and
Silent
.
The ring style profile's indicator displays at the
top of your home screen. To choose your
profile:
Find it:
Press
M
>
Settings
>
Ring Style
>
Style
> style name
change alerts
You can change the alerts for incoming calls
and other events. Your changes are saved in
the current ring style profile.
Find it:
Press
M
>
Settings
>
Ring Style
>
Detail
> desired event >
Change
> alert for event
time & date
To set the time and date for your phone:
Find it:
Press
M
>
Settings
>
Initial Setup
>
Time
and Date
y
=
Loud |
=
Vibrate
z
=
Soft Ò
=
Silent
Ó
=
Vibe then Ring Ì
=
Vibrate and Ring
32
customize
DRAFT
Note:
To choose an analog or digital clock for
your home screen, press
M
>
Personalize
>
Home
Screen
>
Clock Set
.
time, date, date format,
and autoupdate setup
When you activate the Autoupdate feature,
your phone's clock will automatically adjust to
the correct time zone when you travel from
one time zone to another.
Note:
If your phone's clock does not adjust to
the correct time zone, verify that the
Autoupdate feature is activated, and check
with your service provider to ensure that the
network supports this feature.
Find it:
Press
M
>
Settings
>
Initial Setup
>
Time
and Date
wallpaper
You can set a photo, picture, or animation as a
wallpaper (background) image on your home
screen.
Find it:
Press
M
>
Personalize
>
Wallpaper
Select one of the following options
.
screen saver
You can set a photo, picture, or animation as a
screen saver image. The screen saver displays
option
Set Layout
Select
Center
to center the image
on the display,
Tile
to repeat the
image across the display, Fit-to-
Screen to fit the image to the
display.
Select an image for your
wallpaper image.
33
customize
DRAFT
when no activity is detected for a specified
time.
Tip:
This feature helps save your screen but
not your battery. To extend battery life, turn off
the screen saver.
Find it:
Press
M
>
Personalize
>
Screen Saver
display appearance
This section explains how to adjust the
display contrast, color, and backlight.
contrast
Find it:
Press
M
>
Settings
>
Initial Setup
>
Contrast
Press
S
right to increase the contrast.
Press
S
left to decrease the contrast.
color
Select the color style that sets the look and
feel of your phone.
Find it:
Press
M
>
Personalize
>
Color Setting
1
Press
S
to scroll to the desired style.
2
Press
SELECT
.
3
Press
BACK
to return to previous menu.
backlight
You can set the amount of time your
phone’s display and keypad backlight
remain lit.
Find it:
Press
M
>
Settings
>
Initial Setup
>
Backlight
1
Press
S
up or down to scroll to a time-
out setting.
2
Press
SELECT
.
34
customize
DRAFT
3
Press
BACK
to return to previous menu.
Note:
To save battery life, a shorter
backlight display time should be chosen.
The display and keypad backlight will be lit
when you press any key.
answer options
You can use additional, alternative methods to
answer an incoming call. To activate or
deactivate an answer option:
Find it:
Press
M
>
Settings
>
In Call Setup
>
Answer Options
personal greetings
You can create personal greetings that display
when you turn on the phone:
Find it:
Press
M
>
Personalize
>
Greeting
optional handsfree
operation
A phone headset enables you to use your
phone without using your hands.
option
Multi-key
On
Answer by pressing any key.
Multi-key
Off
Answer by pressing
N
.
Open to
answer
Answer by opening the flip.
35
customize
DRAFT
Note:
The use of wireless devices and their
accessories may be prohibited or restricted in
certain areas. Always obey the laws and
regulations on the use of these products.
Find it:
Press
M
>
Settings
>
Headset
>
Auto
Answer
> desired mode
36
calls
DRAFT
calls
This chapter describes features related to
making and answering calls.
recent calls
Your phone keeps lists of incoming and
outgoing calls, even for calls that did not
connect. The most recent calls are listed first.
The oldest calls are deleted as new calls are
added.
Tip:
Press
N
from the home screen to see
the Dialed Calls list.
Find it:
Press
M
>
Recent Calls
1
Press
S
to scroll to
Received Calls
or
Dialed
Calls
.
2
Press
SELECT
to select the list.
3
Press
S
to scroll to an entry. A
0
means
the call connected.
4
Press
N
to call the number.
5
Press
VIEW
to see call details.
•
To see the
Dialed Calls list
, press
M
. This
menu can include:
option
Store
Create a phonebook entry with
the number in the
No
. field.
Delete
Delete the entry.
Delete All
Delete all entries in the list.
Hide ID
Hide your caller ID for the next
call.
Send
Message
Deliver a message.
Add Digits
Add digits after the number.
37
calls
DRAFT
redial
1
Press
N
to view the
Dialed Calls
list.
2
Press
S
to scroll to the entry you want
to call.
3
Press
N
to redial the number. If you hear
a busy signal and see
Call Failed
,
Number Busy
,
press
N
to redial the number.
return a call
Your phone keeps a record of your
unanswered calls and displays
X Missed Calls
,
where
X
is the number of missed calls.
1
Press the
VIEW
key to see the
Received Calls
list.
2
Press
S
to select a call to return.
3
Press
N
to make the call.
notepad
The most recent set of digits entered on the
keypad are stored in your phone’s notepad.
These digits can be a phone number that you
called, or a number that you entered but did
not call. To retrieve the number stored in the
notepad:
Find it:
Press
M
>
Recent Calls
>
NotePad
Press
N
to call the number.
or
Press
STORE
to create a Phonebook entry with
the number in the
No.
field.
hold or mute a call
When you are on a call:
Attach
Number
Attach a number from the
phonebook or recent calls lists.
option
38
calls
DRAFT
Press
M
>
Hold
to put all active calls on hold.
Press
M
>
Mute
to put all active calls on mute.
call waiting
When you’re using your phone, you will
hear an alert if you receive a second call.
1
Press
N
to answer the new call.
2
Press
SWITCH
to switch between calls.
or
Press
LINK
to connect the 2 calls.
or
Press
M
>
End Call On Hold
to end the call on
hold.
To turn the call waiting feature on or off:
Find it:
Press
M
>
Settings
>
In Call Setup
>
Call Waiting
caller ID
Calling line identification (caller ID)
shows the phone number for an incoming call
on your external and internal displays.
Your phone shows the caller's name and
picture when they're stored in your
phonebook, or
Incoming Call
when caller ID
information isn't available.
To show or hide
your phone number
for the
next outgoing call or for all calls:
Find it:
Press
M
>
Settings
>
In Call Setup
>
My Caller ID
emergency calls
Your service provider programs one or more
emergency phone numbers (such as 911) that
you can call under any circumstances, even
when your phone is locked or the SIM card is
not inserted.
39
calls
DRAFT
Note:
Emergency numbers vary by country.
The preprogrammed emergency number(s) in
your phone may not work in all locations.
Sometimes an emergency call cannot be
placed due to network, environmental, or
interference issues.
To call the emergency number at any time:
1
Press the keypad keys to dial the
emergency number.
2
Press
N
to call the emergency number.
international calls
If your phone service includes
international dialing, press and hold
0
to
insert your local international access code
(indicated by +). Then, press the keypad keys
to dial the country code, such as +
44
for
the U.K., +
33
for France, etc., and phone
number.
1-touch dial
To call phonebook entries 1 through 9, press
and hold the 1-Touch Dial number for one
second.
You can set 1-Touch Dial to call the entries in
your phone's memory phonebook, your SIM
card's phonebook, or your
Fixed Dial
list:
Find it:
Press
M
>
Settings
>
Initial Setup
>
1 Touch
Dial
>
Phone
,
SIM
, or
Fixed Dial
Note:
For more information on the Fixed Dial
feature, see the Advanced Calling section on
page 42.
You can call phonebook entries 1 through 9
with the push of a single key. The first nine
numbers save to the SIM card correspond to
the 1-Touch Dial keys 1 through 9.
Press and hold the 1-Touch Dial number for 1
second.
40
calls
DRAFT
Find it:
Press
M
>
Phonebook,
highlight a
phone entry, then
M
>
Edit
>
Speed No.
voicemail
To listen to your messages, you must
call your voicemail phone number. Voicemail
messages that you receive are stored on the
network, not on your phone. Contact your
service provider for more details.
store your voicemail number
Find it:
Press
M
>
Messages
>
M
>
Voicemail
Setup
1
Press keypad keys to enter your voicemail
number.
2
Press
SAVE
to store the number.
receive voicemail
When you receive a voicemail message, your
phone displays
1 New Message
and
V
(Some
networks only indicate when you have
messages, whether they are new or not.) If
users delete all voicemail messages, the
voicemail indicator will disappear.
To listen to your voicemail messages:
Find it:
Press
M
>
Messages
>
Voicemail
Your phone may prompt you to store your
voicemail phone number. If you do not have a
voicemail number stored, the phone guides
you through storing a number.
41
calls
DRAFT
inserting special
characters into dialing
sequences
You can insert special characters, as well as
numbers, in a phone number.
You can add a pause or a wait while your call
is dialing. To add a pause before the phone
connects, press and hold
* .
When
p
appears, press it to add a pause. Or, if you are
adding a wait, do not press
p
. The
w
will
eventually appear and, when it does, press it
to add a wait.
option
p
(pause) Your phone waits until the call
connects before it dials the next
digit(s) in the series.
w
(wait) Your phone waits until the call
connects, then prompts you for
confirmation before it dials the
next digit(s).
42
other features
DRAFT
other features
advanced calling
feature
conference
call
After your first
participant is
connected, dial the next
number, press
N
and then
press the
LINK
key.
attach a
phone
number
Dial an area code or
prefix for a phonebook
number, press
M
>
Attach
Number.
speed dial
Speed dial a
phonebook entry:
Enter a speed dial number,
press
#
and then
N
.
Tip:
If you forget the speed
dial number for a phonebook’s
entry, press
M
>
Phonebook
,
highlight the desired entry,
and press the
VIEW
key.
call
forwarding
Set up or cancel call
forwarding:
M
>
Settings
>
Call Forward
feature
43
other features
DRAFT
call
barring
Restrict outgoing or
incoming calls:
M
>
Settings
>
Security
>
Call Barring
change
phone line
If you have a SIM card
for dual phone lines,
you can change your line to
make and receive calls from
your other phone number.
M
>
Settings
>
Phone Status
>
Active Line
The active line indicator
shows which phone line is
active (see page 24).
feature
lantern
The
Lantern
feature enables you
to change your phone’s idle
display into a flashlight.
Enable the lantern:
M
>
Office Tools
>
Lantern
You can specify how long the
Lantern
feature lights the
display when you activate it:
M
>
Settings
>
Lantern
> select
timing >
SELECT
feature
44
other features
DRAFT
phonebook
feature
fixed dial
When you turn on fixed
dialing, you can call
only numbers stored in the
fixed dial list.
Turn fixed dialing on or off:
M
>
Settings
>
Security
>
Fixed Dial
Use the fixed dial list:
M
>
Office Tools
>
Dialing Services
>
Fixed Dial
quick dial
Dial preprogrammed
phone numbers:
M
>
Office Tools
>
Dialing Services
>
Quick Dial
DTMF
tones
Set to
Long DTMF
or
Short DTMF
:
M
>
Settings
>
Initial Setup
>
DTMF
feature
add new
entry
Create a new phonebook
entry:
M
>
Phonebook
>
[New Entry]
>
Number
.
Shortcut:
Key in the the
number using keypad keys,
then press
STORE
.
Note:
An entry stored on the
SIM card stays on that SIM
card. If the SIM card is
replaced with another, you
won’t find the same entry.An
entry stored on the phone
stays on the phone. If the SIM
card is replaced with another,
you will find the same entry.
45
other features
DRAFT
add new
entry
Note:
Your phone's memory
limit is 100 entries. The SIM
card's memory limit depends
on your carrier's SIM card
type (maximum 255 entries).
Tip:
Some people have more
than one phone number.
When creating a phonebook
entry, select
More
to store
another number for the same
Name
.
feature
download
ringtones
You can use this function to
send ringtones from one
handset to another:
M
>
Messages
>
Create
>
SMS/
EMS
or
MMS
or
MMS Templates
>
Insert
>
Sound
Ringtones are downloaded
through
EMS
or
MMS
. When
you receive an
EMS
or
MMS
,
you can retrieve the ringtone.
You can also share the
ringtone by sending an
EMS
or
MMS
.
Note:
You can download mp3
ring tones via the
Browser
only.
feature
46
other features
DRAFT
dial
number
Call a number stored in the
phonebook:
M
>
Phonebook
, highlight the
phonebook entry, press
N
.
Shortcut:
In the phonebook,
press a keypad key one or
more times to jump to entries
that begin with the letters on
that key.
set
category
for entry
M
>
Phonebook
> entry
M
>
Category
You can classify an entry into
the following categories:
All
,
Business
,
Personal
,
General
,
VIPs
, or
a category you create.
feature
set
category
view
M
>
Phonebook
> entry
M
>
Category
You can view
All
entries or
those in the predefined
category such as
Business
,
Personal
,
General
,
VIPs
, or a
category you create.
search
phonebook
entry
Press a keypad key 1 or more
times to jump to entries that
begin with the key’s letters.
Press a second letter to jump
to entries beginning with the
two letters you entered. You
can enter up to three letters.
M
>
Phonebook
feature
47
other features
DRAFT
messages
For basic multimedia message features, see
page 14.
feature
sort
phonebook
list
Set the order in which entries
are listed:
M
>
Phonebook
>
M
>
Setup
>
Sorting
> sort order
copy
phonebook
entry
Copy a phonebook entry to
the SIM card, or from the SIM
card to the phone:
M
>
Phonebook
, highlight the
entry, press
M
>
Copy
>
Entries
>
To
copy
multiple
entries
Copy multiple phonebook
entries between the phone
and SIM card:
M
>
Phonebook
, highlight one
entry, press
M
>
Copy
>
Entries
,
press the
CHANGE
key, highlight
another entry, press the
ADD
key. Repeat as necessary,
press the
DONE
key.
set a
picture ID
for
phonebook
entry
When receiving a call from a
phone number stored on your
phone or SIM card, the
picture associated with that
number is displayed.
M
>
Phonebook
> entry.
M
>
Edit > Picture.
Note:
The
option is not
available for entries stored in
SIM cards.
feature
send text
message
M
>
Messages
>
Create
>
SMS
/
EMS
feature
48
other features
DRAFT
send
multimedia
message
M
>
Messages
>
Create
>
MMS
send a
quick note
M
>
Messages
>
Quick
Notes
send a
multimedia
template
Open a multimedia
template with
preloaded media:
M
>
Messages
>
Create
>
MMS
Templates
read new
message
Read a new text or
multimedia message:
Press the
READ
key when the
New Message
notification
displays.
feature
read old
messages
Read old messages:
M
>
Messages
>
Inbox
Press
M
to perform various
operations on a message.
read sent
messages
Read messages that
you sent:
M
>
Messages
>
Outbox
Sent messages are saved in
the
Outbox
.
edit old
draft
Save the message that you
are editing to the Draft folder
for later editing:
M
>
Messages
>
Draft
browser
messages
Read messages
received by your
browser:
M
>
Messages
>
Browser Msgs
feature
49
other features
DRAFT
chat
web browser (wap 2.0)
info
services
Read messages from
subscription-based
services:
M
>
Messages
>
Info Services
sending
and
receiving
vCard
You can send the vCard by
sending MMS with an
attachment (vCard is the
attachment). You can also
receive vCard from another
party through MMS with an
attachment. You can save the
received vCard by opening
MMS with the vCard
attachment. This function can
be sent from one handset to
another.
M
>
Messages
>
Create
>
MMS
or
MMS Templates
>
Insert
>
vCard
feature
feature
start chat
M
>
Office Tools
>
Chat
M
>
New Chat
receive
chat
request
Press the
ACCEPT
key or
the
IGNORE
key.
end chat
During a chat session:
M
>
End Chat
feature
start
browser
M
>
BROWSER
>
Start Browser
go to
bookmarks
M
>
BROWSER
>
Web Shortcut
go to URL
M
>
BROWSER
>
Go to URL
50
other features
DRAFT
personalizing
choose
web
session
M
>
BROWSER
>
Web Session
go to
stored
pages
M
>
BROWSER
>
Stored Pages
view/go to
previous
sites
M
>
BROWSER
>
History
adjust
web
settings
>
BROWSER
>
General Setting
end web
browser
Press
GO
in the web browser
menu and choose
4. Exit
.
feature
feature
language
Set menu language:
M
>
Settings
>
Initial Setup
>
Language
scroll
Set the highlight bar to stop
or wrap around in the menu
lists:
M
>
Settings
>
Initial Setup
>
Scroll
ring
volume
M
>
Settings
>
Ring Styles
> style
Detail
>
Ring Volume
keypad
volume
M
>
Settings
>
Ring Styles
> style
Detail
>
Key Volume
clock view
Display an analog or digital
clock in the home screen:
M
>
Personalize
>
Home Screen
>
Clock Set
51
other features
DRAFT
menu
view
Display the main menu as
graphic icons or as a text-
based list:
M
>
Personalize
>
Main Menu
>
View
main
menu
Reorder items in your phone’s
main menu:
M
>
Personalize
>
Main Menu
>
Reorder
show/hide
menu
icons
Show or hide menu feature
icons in the home screen:
M
>
Personalize
>
Home Screen
>
Home keys
>
Icons
change
home keys
Change the functions for the
soft keys and navigation key in
the home screen:
M
>
Personalize
>
Home Screen
>
Home keys
feature
shortcuts
Create a shortcut to a menu
item:
Highlight the menu item, then
press and hold
M
.
Use a shortcut:
Press
M
, then press the
shortcut number.
master
reset
Reset all options
except
unlock code, security code,
and lifetime timer:
M
>
Settings
>
Initial Setup
>
Master Reset
Note:
Before the master
reset, you need to input your
security code.
feature
52
other features
DRAFT
call times & costs
Network connection time
is the elapsed
time from the moment you connect to your
service provider's network to the moment
you end the call by pressing
O
. This time
includes busy signals and ringing.
The amount of network connection time
that you track on your resettable timer
may not equal the amount of time for
which you are billed by your service
provider. For billing information, contact
your service provider.
master
clear
To reset all options to their
factory settings and clear all
user entries (such as
downloaded wallpapers, main
menu animation, and sounds):
Warning:
This option erases
all
information you have
entered
(including phonebook
entries) and
content you
have downloaded
. Once you
erase the information, it
cannot be recovered. All
options are reset back to their
factory settings,
except
for
the unlock code, security
code, and lifetime timer.
M
>
Settings
>
Initial Setup
>
Master Clear
To clear all information, you
need to enter the
Security Code
(000000).
feature
feature
call times
Display call timers:
M
>
Recent Calls
>
Call
Times
53
other features
DRAFT
in-call
timer
Display time during a
call:
M
>
Settings
>
In Call Setup
>
In-Call Timer
call cost
Display call cost
trackers:
M
>
Recent calls
>
Call Cost
call cost
setup
Set a credit limit:
M
>
Settings
>
In-Call
Setup
>
Call Cost Setup
data times
Display data times:
M
>
Recent Calls
>
Data Times
data
volumes
Display data times:
M
>
Recent Calls
>
Data Volumes
feature
54
other features
DRAFT
handsfree operation
Note:
The use of wireless devices and their
accessories may be prohibited or restricted in
certain areas. Always obey the laws and
regulations on the use of these products.
network
personal organizer
feature
speaker-
phone
Activate a connected
external speakerphone
during a call:
Press the
SPKR ON
and
SPKR OFF
keys to turn the speakerphone
on and off.
auto
answer
Automatically answer
calls when connected
to a car kit or headset:
M
>
Settings
>
Headset
>
Auto
Answer
feature
network
settings
Display network
information and adjust
network settings:
M
>
Settings
>
Network
feature
set alarm
M
>
Office Tools
>
Alarm Clock
turn off
alarm
When an alarm displays:
To turn off the alarm, press
the
DISABLE
key.
To set the alarm to ring later,
press the
SNOOZE
key.
calculator
M
>
Office Tools
>
Calculator
55
other features
DRAFT
currency
converter
M
>
Office Tools
>
Calculator
M
>
Exchange Rate
Enter exchange rate, press
the
OK
key, enter amount, and
select
M
>
Convert Currency
.
calendar
M
>
Office Tools
>
Calendar
A way to schedule reminders
of important events/errands.
feature
stop
watch
M
>
Office Tools
>
Stop Watch
Press the
START
key to start
counting the time, the
STOP
key to stop counting the time,
and press
RESET
to reset the
stopwatch.
Note:
After
Stop Watch
is
activated, you can press
SNAPSHOT
to keep track of
elapsed time for later
reference. After you stop the
Stop Watch
, view elapsed time
snapshots by scrolling right or
left through snapshot 1, 2, 3,
etc.
feature
56
other features
DRAFT
security fun & games
feature
SIM PIN
Lock or unlock the SIM card:
M
>
Settings
>
Security
>
SIM PIN
Caution:
If you enter an
incorrect PIN code 3 times in
a row, your SIM card is
disabled and your phone
displays
SIM Blocked
.
phone
lock
M
>
Settings
>
Security
>
Phone
Lock
Select to lock the phone right
now or enable/disable the
Automatic Lock
.
feature
manage
pictures
Manage pictures and
animations:
M
>
Multimedia
>
Pictures
manage
sounds
Manage ring tones and music
that you have downloaded or
composed:
M
>
Multimedia
>
Sounds
start
browser
M
>
Web Access
>
Start
Browser
start
games
M
>
Games & Apps
> game
57
troubleshooting
DRAFT
troubleshooting
check here first
If your phone does not seem to work properly,
read this page first.
when the backlight is
turned off, it can seem
like your phone isn’t
working
Question:
My phone does not turn on when I
press the keys, but I know the battery is good.
Answer:
If the backlight set to off, it might
appear as if the phone is not working. Check
the backlight setting.
Find it:
Press
M
>
Settings
>
Other Settings
>
Initial
Setup
>
Backlight
no display
Question:
Why can’t I see the display when I
use my phone? I know the battery is good.
Answer:
The backlight may be set to off.
Check the backlight setting.
Find it:
Press
M
>
Settings
>
Other Settings
>
Initial
Setup
>
Backlight
58
troubleshooting
DRAFT
no backlight on the
display
Question:
During phone operation, why don’t
I see a backlight on the display?
Answer:
The backlight may be set to off.
Check the setting.
Find it:
Press
M
>
Settings
>
Other Settings
>
Initial
Setup
>
Initial Setup
>
Backlight
phone doesn’t vibrate
Question:
My phone doesn’t vibrate when I
have an incoming call or message. Why not?
Answer:
Make sure the volume setting is 0.
Press
S
right or left to adjust the volume
to 0.
messages: “enter
special code,” “SIM
locked - contact service
provider,” “subsidy
password”
Question:
What do these messages mean?
Answer:
You might see this message if you
have an incorrect SIM card or if you have
incorrectly entered your code five times. You
will have to enter it correctly. Contact your
service provider, if necessary. You might need
to replace your SIM card.
59
troubleshooting
DRAFT
keypad does not
respond
Question:
My display is dark and the keypad
doesn’t respond. Why not?
Answer:
The keypad could be automatically
locked. To check this, please unlock your
keypad by pressing
M
and
*
.
If you would like to disable the feature, please
go to
M
>
Settings
>
Security
>
Auto Key Lock
, to
disable the auto keypad lock function or
change the timers associated with it. If you
disable this feature, you can still manually lock
and unlock the keypad by pressing
M
and
*
.
no signal or no service
Question:
Why can’t I make a call? I always
see “no signal.”
Answer:
Make sure the “Band Setting” is set
to 900/1800 MHz* or 850/1900 MHz*.
Find it:
Press
M
>
Settings
>
Network
>
Band
Selection
>
900/1800
or
850/1900
*Band setting is dependent upon Region.
screen flickers while
taking a picture (for
W375 only)
Question:
Why does the screen flicker when
I take a picture with my camera?
Answer:
You might need to select an
alternative frequency for the
Flicker
setting. For
example, if the
Flicker
setting is currently 50Hz,
switch to 60Hz, and then try again to take a
picture.
Find it:
Press
M
>
Multimedia
>
Camera
>
M
>
Picture Setup
>
Flicker
60
troubleshooting
DRAFT
service and repairs
If you have questions or need assistance,
we're here to help.
Go to www.motorola.com/consumer/support
where you can select from a number of
customer care options. You can also contact
the Motorola Customer Support Center at 1-
800-331-6456 (United States), 1-888-390-6456
(TTY/TDD United States for hearing impaired),
or 1-800-461-4575 (Canada).
61
DRAFT
Specific Absorption Rate Data
The model wireless phone meets the
government’s requirements for exposure to radio
waves.
Your wireless phone is a radio transmitter and receiver. It is
designed and manufactured not to exceed limits for exposure to
radio frequency (RF) energy set by the Federal Communications
Commission (FCC) of the U.S. Government and by the Canadian
regulatory authorities. These limits are part of comprehensive
guidelines and establish permitted levels of RF energy for the
general population. The guidelines are based on standards that
were developed by independent scientific organizations through
periodic and thorough evaluation of scientific studies. The
standards include a substantial safety margin designed to assure
the safety of all persons, regardless of age or health.
The exposure standard for wireless mobile phones employs a unit
of measurement known as the Specific Absorption Rate, or SAR.
The SAR limit set by the FCC and by the Canadian regulatory
authorities is 1.6 W/kg.
1
Tests for SAR are conducted using
standard operating positions accepted by the FCC and by Industry
Canada with the phone transmitting at its highest certified power
level in all tested frequency bands. Although the SAR is
determined at the highest certified power level, the actual SAR
level of the phone while operating can be well below the
maximum value. This is because the phone is designed to operate
at multiple power levels so as to use only the power required to
reach the network. In general, the closer you are to a wireless
base station, the lower the power output.
Before a phone model is available for sale to the public in the U.S.
and Canada, it must be tested and certified to the FCC and Industry
Canada that it does not exceed the limit established by each
government for safe exposure. The tests are performed in
positions and locations (e.g., at the ear and worn on the body)
reported to the FCC and available for review by Industry Canada.
The highest SAR value for this model phone when tested for use at
the ear is 1.40 W/kg , and when worn on the body, as described in
this user guide, is 0.72 W/kg. (Body-worn measurements differ
among phone models, depending upon available accessories and
regulatory requirements).
2
While there may be differences between the SAR levels of various
phones and at various positions, they all meet the governmental
requirements for safe exposure. Please note that improvements to
this product model could cause differences in the SAR value for
later products; in all cases, products are designed to be within the
guidelines.
62
DRAFT
Additional information on Specific Absorption Rates (SAR) can be
found on the Cellular Telecommunications & Internet Association
(CTIA) Web site:
http://www.phonefacts.net
or the Canadian Wireless Telecommunications Association (CWTA)
Web site:
http://www.cwta.ca
1. In the United States and Canada, the SAR limit for
mobile phones used by the public is 1.6 watts/kg
(W/kg) averaged over one gram of tissue. The standard
incorporates a substantial margin of safety to give
additional protection for the public and to account for
any variations in measurements.
2. The SAR information includes the Motorola testing
protocol, assessment procedure, and measurement
uncertainty range for this product.
65
European Union Directives Conformance
DRAFT
European Union Directives ConformanceEU Conformance
European Union Directives Conformance
Statement
EHUe Croenfborym,
aMnceotorola declares that this
product is in compliance with:
•
The essential requirements and
other relevant provisions of
Directive 1999/5/EC
•
All other relevant EU Directives
The above gives an example of a typical
Product Approval Number.
You can view your product's Declaration of
Conformity (DoC) to Directive 1999/5/EC (to
R&TTE Directive) at www.motorola.com/rtte.
To find your DoC, enter the product Approval
Number from your product's label in the
"Search" bar on the Web site.
IMEI: 350034/40/394721/9
0168
Type: MC2-41H14
Product
Approval
Number
66
index
index
A
accessories 9, 29, 54
accessory connector port
1, 3
alarm clock 54
alarm, set 54
alarm, turn off 54
alert
set 31
turn off 31
animation 14, 32, 47, 56
answer a call 7, 13, 34
attach a number 37, 42
B
backlight 7, 11, 33
band selection 59
barring calls 43
battery 10
extending battery life 11,
33
battery indicator 24
battery life, extending 7, 11
bluetooth indicator 3
brightness 16
C
cables 1, 11
calculator 6, 54
calendar 6, 55
call
answer 7, 13, 34
barring 43
end 13
forward 42
forward, status 24
make 13, 36
waiting 38
call cost 53
call timers 52
caller ID 38, 47, 54
calls
international 39
camera 3, 16
car kit 29, 54
center key 1, 3, 29
center select key 29
chat 49
chat, note 6
index
67
codes 30
color style 33
color, setting 33
conference call 42
contrast, setting 33
currency converter 55
D
data call 23
data times 53
data volumes, tracking 53
dial
fixed 44
speed 42
dial a phone number 13,
36
dialed calls 36
dialing services 44
display 9, 22, 33
backlight 33
color 33
contrast 33
DTMF tones 44
E
earpiece volume 29
emergency number 13, 38
end a call 13
end key 1, 3, 13
enter unlock code message
30
external display 3
F
fax call 23
fixed dial 44
flicker 16
FM radio 18
forward a call 42
frequently asked questions
57
G
games 56
greeting 34
H
handsfree speaker 29
headset 29, 54
headset jack 1, 3
home screen 9, 22, 33, 51
I
incoming call message 38
initial setup 31
international calls 39
iTAP text entry
setup 27
iTAP text entry mode 27
68
index
K
keypad 14, 34, 50
L
language 50
lock
phone 56
Low Battery message 24
M
make a call 13, 36
master clear 52
master reset 51
menu 9, 50, 51
menu icons 51
menu map 6
message 27, 47, 48
message indicator 3, 15,
24
message reminders 55
missed calls message 37
MMS 14
multimedia messages 14
music 45, 56
mute a call 29, 37
N
navigation key 1, 3, 29
network
settings 54
network settings 37, 54
new password 30
NITZ 32
notepad 37
numeric entry mode 28
O
optional accessory 9
optional feature 9
P
password
new 30
passwords. See codes
personalize 23, 25
phone number 13
phonebook 36, 37, 42
photo 47, 56
picture 47, 56
setup 16
picture ID 38, 47, 54
power key 1, 3, 12
Q
quick dial 44
quick dial, note 6
R
received calls 36
recent calls 36
index
69
redial 37
reminders 55
restrict calls 43
restricting calls 43
return a call 37
ring style indicator 24, 31
ring style, setting 31
ring tone 45, 56
ring volume 50
ringer volume 50
roam indicator 24
S
screen flicker 16
security code 30
send key 1, 3, 13
setup
initial 31
picture 16
time and date 11
shortcuts 51
signal strength indicator 23
SIM
2 phone lines 24
PIN 30
store/edit phone number
or your name 13
SIM (Subscriber Identity
Module) card 10
smart key 3, 51
soft keys 1, 3, 51
sounds 56
speakerphone 29, 54
speed dial 42
standby time, increasing
33
STK service, note 6
stop watch 55
store your number 13
symbol entry mode 29
T
tap text entry
setup 28
tap text entry mode 28
Te m p l a t e s
MMS 14
text entry 26
setup 27
text message 27, 47, 48
time zone, automatic 32
timers 52
turn on/off 12
U
unlock
phone 30
unlock code 30
USB cables 1, 11
70
index
V
voicemail 40
voicemail message
indicator 24, 40
volume 29, 50
W
wallpaper 32
web browser 49
web browser, start 56
Y
your phone number 13

Navigation menu
