1Congratulations
Congratulations
MOTOROLa xt550
Yo u r M OTO R O L A XT550 smartphone gives you music
and the Internet in your pocket.
• Music Dashboard: Seamlessly synchronize easy
access to all your favorite music, see “quick start:
music” on page 31.
• High Speed Internet: Browse the web and
pinch-to-zoom on the high resolution touch display in
“Web” on page 35.
• Camera: Capture photos and videos with the 3MP
auto-focus camera in “Photos & videos” on page 27.
Note: Certain apps and features may not be available in
all countries.
This product meets the applicable limit for
exposure to radio waves (known as SAR) of
2.0 W/kg (ICNIRP). The limits and guidelines
include a substantial safety margin designed to assure
the safety of all persons, regardless of age and health.
The highest SAR values measured for this device are
Caution: Before assembling, charging, or using your
phone for the first time, please read the important
safety, regulatory and legal information provided
with your product.
2012.04.12
FCC
2Congratulations
listed in the regulatory information packaged with your
product.
Note: When using the product while worn on your body,
either use an approved accessory such as a holster or
maintain a distance of 2.5 cm (1 inch) from the body to
ensure compliance with SAR requirements. Note that
the product may be transmitting even if you are not
making a phone call.
Want more?
More help, more accessories, more free stuff. We’re
here to help.
• Updates: Phone updates, PC software, user’s guides,
online help, and more at www.motorola.com/support.
• Accessories: Find more for your phone at
www.motorola.com/products.
•Social: The latest news, tips & tricks, videos, and so
much more—join us on:
YouTube™ www.youtube.com/motorola
Facebook™ www.facebook.com/motorola
Twitter www.twitter.com/motomobile.
2012.04.12
FCC
3Your smartphone
Your smartphone

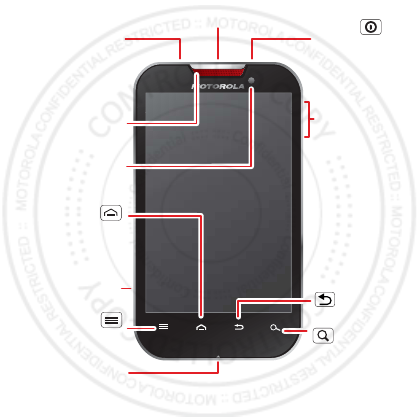

the important keys & connectors
Note: Your smartphone might look a little different.
Back Key
Menu Key
Home Key
Volume Keys
Touch to open
menu options.
Search
Key
Microphone
Front
3.5mm Headset Jack
Power/
Lock Key
Touch to open
menu options.
Micro USB
Connector
Music Key
Touch to open
music player,
then touch to
play/pause.
Camera
Notification
Light
2012.04.12
FCC
4Your smartphone
Contents
Let’s go . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Touchscreen & keys. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Home screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Apps & updates. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Contacts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Messaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Text entry. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Photos & videos. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Music . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Web. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Personalize . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Wireless. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
File management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Safety, Regulatory & Legal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
2012.04.12
FCC
5Let’s go
Let’s go
let’s get you up and running
Assemble & charge
Caution: Please read “Battery Use & Safety” on page 48.
microSD in.
m
3
Remove cover.
R
1
Insert battery.
In
4
Replace cover.
R
5
Charge up.
3H
C
6
Micro SIM in.
M
2
SIM microSIM microSIM
+ Adapter
2012.04.12
FCC
6Let’s go
Note: This smartphone supports apps and services that
use a lot of data, so make sure your data plan meets
your needs. Contact your service provider for details.
Wi-Fi connect
To use a Wi-Fi network for even faster Internet access,
touch the status bar at the top of the home screen and
drag it down. Touch the Wi-Fi networks available
notification to select a preferred network.
You can also touch Menu > Settings > Menu
>Settings > Wireless & networks to search for and
connect to wireless networks. There’s more in “Wi-Fi
networks” on page 40.
2012.04.12
FCC
7Touchscreen & keys
Touchscreen & keys
a few essentials
Touchscreen on/off
Your touchscreen is on when you need it and off when
you don’t.
•When you hold the smartphone to your ear during
calls, your touchscreen sleeps to prevent accidental
touches.

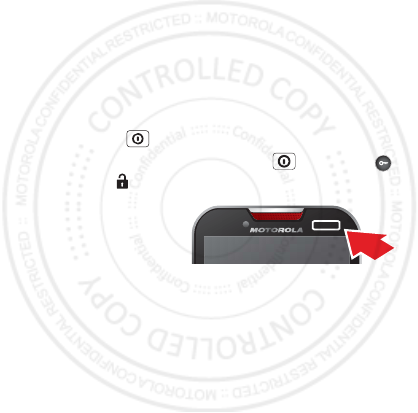

•To make your touchscreen sleep or wake up, just
press Power .
•To unlock the screen, press Power then touch
and flick to .
Note: Your
touchscreen might
stay dark if the sensor
just above it is
covered. Don't use
covers or screen protectors (even clear ones) that cover
this sensor.
2012.04.12
FCC
8Touchscreen & keys
Touch tips
It’s all in the touch:
•Touch: Choose an icon or option.
• Touch & Hold: Show options.
•Drag: Scroll or move slowly.
•Flick: Scroll or move quickly.

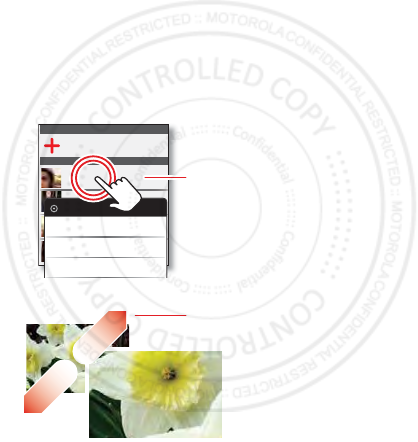

• Zoom: Slide fingers apart or together to zoom in or
out on web pages, or photos.
Displaying 297 contacts
In case of emergency
A
Abe Baudo
Allie Smyth
Anna Medina
Astrid Fanning
Abe Baudo
View contact
Call contact
Text contact
Slide two fingers
apart or together
to zoom in or out.
Touch & hold
to show options.
2012.04.12
FCC
9Touchscreen & keys

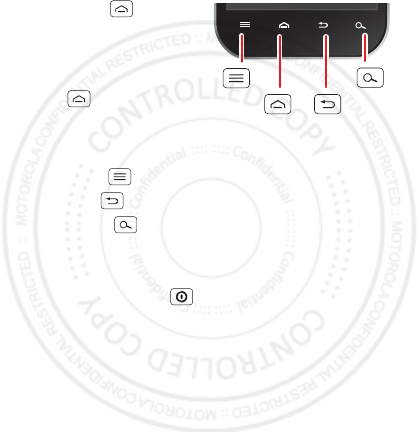

Key tips
Menu, home, back, & search
Touch Home to close
any menu or app and
return to the home
screen. In the home
screen, touch and hold
Home to show the
most recent apps used,
then touch an app to
open it.
Touch Menu to open menu options.
Touch Back to go back.
Touch Search for text search, or touch and hold for
voice search.
Power key menu
Press and hold Power to open the power key menu,
where you can turn off your smartphone (Power off),
turn Airplane mode or Silent mode on and off, or Restart
your smartphone.
Menu
Key
Search
Key
Home
Key
Back
Key
2012.04.12
FCC
10 Home screen
Home screen
quick access to the things you need most
Quick start: Home screen

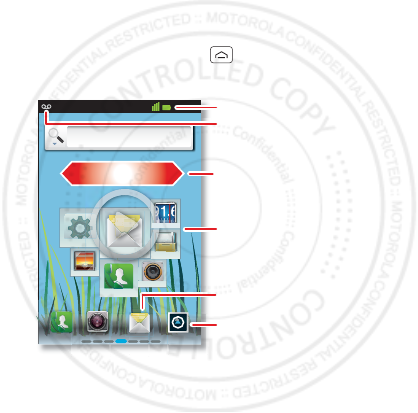

The home screen gives you all your latest information in
one place. It’s what you see when you turn on the
smartphone or touch Home from a menu. It’s
basically like this:
Note: Your home screen might look a little different.
The home screen extends left and right to give you more
room for adding shortcuts, widgets, and more. Flick the
11:19
Notifications
Flick down for details.
Status Indicators
Shortcuts dock
Browse your apps.
Widgets
Touch to open. Touch & hold to
move or delete.
Drag or flick to open panels (or
scroll in lists).
2012.04.12
FCC
11Home screen
home screen left and right to see more panels or to add
widgets or shortcuts.

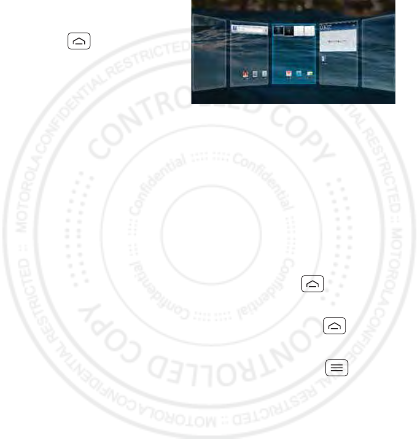

Tip: From the home
screen, touch
Home to see
thumbnails of the
seven home screen
panels. Touch a
thumbnail to go to the
panel.
Use & change your home screen
On your home screen, shortcuts are icons that open
your favorite apps, web bookmarks, contacts, mail
labels, or music playlists. Widgets show you news,
weather, messages, and other updates.
To see other panels of shortcuts and widgets, flick the
home screen left or right. Or, touch Home and touch
a thumbnail to go to the panel.
•To open something, touch it. Touch Home to
return to the home screen.
Tip: When you open a widget, touch Menu to see
any options or settings.
2012.04.12
FCC
12 Home screen
•To resize widgets, touch
and hold a corner until you
feel a vibration, then drag.
•To add something or
change your wallpaper,
touch and hold an empty
spot until you see the Add
to Home screen menu.
You can add a folder to organize your shortcuts.
•To move or delete something, touch and hold it until
you feel a vibration, then drag it to another spot,
another panel, or the trash at the top of the
screen.
Shortcuts in the dock at the bottom of the home screen
appear in all panel views. You can change these (except
the app shortcut ). Touch and hold a shortcut, then
select the shortcut you want to replace it.
Smartphone status & notifications
Icons at the top of the
screen notify you about
messages and
smartphone status. To
see your notifications,
touch the status bar and
drag it down. Touch
a notification to select it.
Kristine Kelley
Not even ready to
go back to school
8
3pm
Budget Meeting
THU
JUL
3p
m
Bud
g
et Meetin
g
THU
JU
L
2:47 PM
Wi-Fi networks available
Select to open Preferred N/W Finder
Jim Somers
Meet me outside the...
Notifications
Clear
Service Provider
October 6, 2012 11:23
2012.04.12
FCC
13Home screen
To dismiss a single notification, touch . To dismiss all
notifications, touch Clear.
Tip: To see today’s date, touch the status bar at the top
of the screen.
Status bar icons
network strength battery strength
new voicemail new text message
Bluetooth™ on Bluetooth
connected
Wi-Fi connected airplane mode
USB connected alarm set
silent ringer silent ringer, vibrate
on
mute call speakerphone
2012.04.12
FCC
14 Apps & updates
Apps & updates
get the app you want
Quick start: Apps & updates

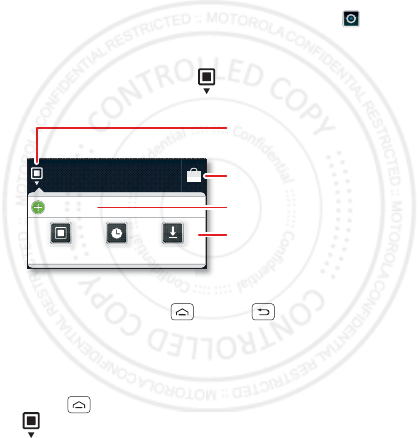

You can find all of your apps in one place. Touch to
open the app menu. To see all of your apps, flick up and
down.
To group your apps, touch All apps, then choose All
apps, Recent, or Downloaded.
To close, touch Home or Back .
Recent apps
Your smartphone remembers the apps that you used
most recently. From the home screen, touch and hold
Home to show the most recent apps used, or touch
> Recent.
All apps
New group
All apps
All apps
Recent
Rece
nt
Downloaded
Download
ed
Open and add groups.
Choose which group
you want to view.
Create a new group.
Find new apps
on Android Market™.
2012.04.12
FCC
15Calls
Calls
it’s good to talk

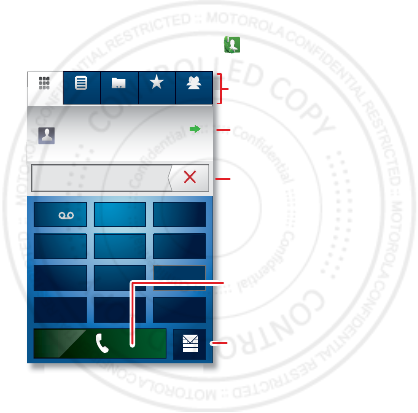

Quick start: Calls
Dialing options
From the home screen, touch Phone.
Tip: Search for contacts right from the dialpad. For
example, to find Jeff in your contacts list, touch 5-3-3-3.
Matching contacts appear above the dialpad.

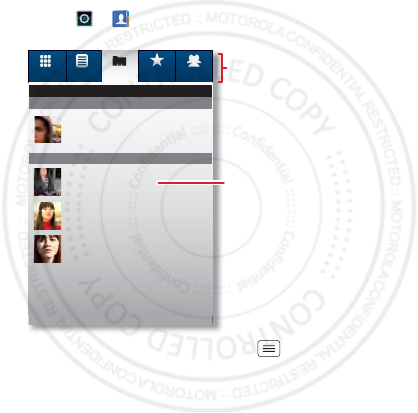

Phone Call log Contacts Favorites Groups
*
GHI
4
1
ABC
2
DEF
3
MNO
6
TUV
8
PQRS
7
WXYZ
9
+
0
5
JKL
#
Lists
Backspace
Delete digits you entered.
Call
Enter a phone number
& touch here to call it.
Julie Smith
Mobile 1-555-555-5555 1 hour ago
Return Call
Show/hide dialpad.
2012.04.12
FCC
16 Calls
In-call options
To use a Bluetooth™ device, touch Bluetooth. (The
device must be turned on and previously paired—see
“Connect new devices” on page 41.)
Tip: You can touch Home or Back to leave the
active call display. To reopen it, touch Home
>Phone.
M
Mo
bi
i
le
le
5
5
55
55
-5
-5
55
55
-4
57
7
0
0
V
V
i
i
c
c
c
t
t
t
o
o
o
r
r
r
H
H
H
H
a
a
a
r
r
r
p
p
p
Mobile 555-555-4570
Victor Harp
Add call DialpadEnd
MuteRecorder Speaker

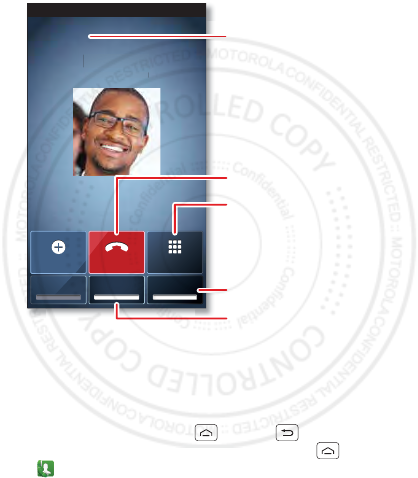

Current call 00:07 Call Timer
End Call
Speaker
Turn the speakerphone
on or off.
Dialpad
Enter numbers during a call.
Mute
Mute or unmute the call.
2012.04.12
FCC
17Calls
Note: Using a mobile device or accessory while driving
may cause distraction and may be illegal. Always obey
the laws and drive safely.
Make & answer calls
To make a call, touch Phone, enter a number, then
touch .
To answer a call, touch and flick to .
To ignore an incoming call, touch and flick to .
Tip: To silence an incoming call alert, press Power or
the volume keys.
Note: When you hold your smartphone to your ear, the
display goes dark to prevent accidental touches. When
you move it away from your ear, the display lights up
again.
Emergency calls
Note: Your service provider programs one or more
emergency phone numbers that you can call under any
circumstances, even when your smartphone is locked.
Emergency numbers vary by country. Your
pre-programmed emergency number(s) may not work in
all locations, and sometimes an emergency call cannot
be placed due to network, environmental, or
interference issues.
1Touch Phone (if your smartphone is locked, touch
Emergency Call).
2012.04.12
FCC
18 Calls
2Enter the emergency number.
3Touch to call the emergency number.
Cool down
In very limited circumstances, such as where your
smartphone has been exposed to extreme heat, you
may see “Cool Down” messages. To avoid possible
damage to your battery and smartphone, you should
follow these instructions until the smartphone is within
its recommended temperature range. When your
smartphone is in “Cool Down” mode, only emergency
calls can be made.
2012.04.12
FCC
19Contacts
Contacts
contacts like you’ve never had before
Quick start: Contacts
Find it: > Contacts
Tip: To search the list, touch Menu > Search.
Phone Call log Contacts Favorites Groups
Abe Baudo
Beth Smyth
Brianna Medina
Brittney Fanning
A
B
Displaying 4 contacts
Contacts List
Touch to view contact
information. Touch & hold
to call, send a text message,
& more.
Lists
2012.04.12
FCC
20 Contacts

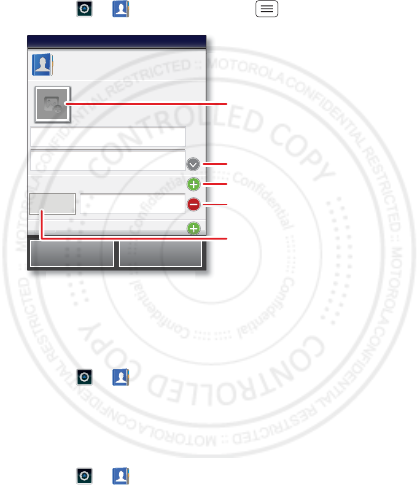

Create contacts
Find it: > Contacts >Menu >New contact
Touch any entry area to open the touchscreen keypad.
When you’re finished, touch Done.
Edit or delete contacts
Find it: > Contacts
Touch and hold the contact, then touch Edit contact or
Delete contact.
Personalize contacts
Find it: > Contacts
Phone-only
from youraccount@gmail.com
Add contact
Add contact
Add contact
Given name
Family name
Phone
Home
Phone
Email
Done Revert
Email
Select a picture
for the contact.
Set the number type.
Add more name details.
Remove this number.
Add another number.
2012.04.12
FCC
21Contacts
Add a photo: Touch and hold the contact, then touch
Edit contact >.
Set a ringtone: Touch the contact, then touch Menu
>Options > Ringtone.
2012.04.12
FCC
22 Messaging
Messaging
sometimes it’s best to text or email...

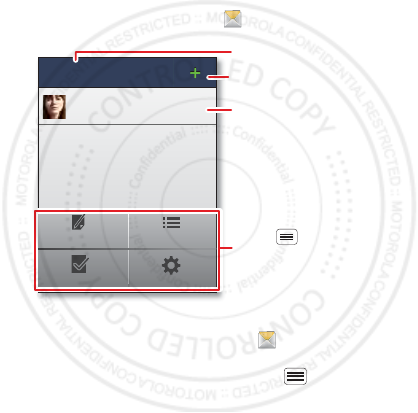

Quick start: Text messaging
From the home screen, touch Messaging.
Tip: To see more messages, flick or drag up.
•To create a text message, touch Messaging >
Compose new message. To attach a file, insert a
photo, or other options, touch Menu .
Text Messaging
Coffee at my place?
Anna Medina Jan 31, 2012
Multiples
Compose
Settings
Traditional mode Touch to change
settings and more.
Check for messages now.
Message List
Touch to open a message.
Touch and hold to move,
delete, and more.
Create a message.
2012.04.12
FCC
23Messaging
•To open text messages, touch Messaging, then
touch the sender’s name.
When you see in the status bar at the top of your
screen, flick down the status bar and touch the new
message to open it.
•To respond to a text message, just open it and enter
your response in the text box at the bottom.
•To forward, copy, and more, touch Messaging,
touch the sender’s name, then touch and hold the
message.
Email
•To set up up an email account, touch > Email
and follow the wizard. To add more standard
accounts, open Email and touch Menu >
Accounts > Menu > Add account. For details,
contact your account provider.
•To open an email, touch > Email. Touch a
message to open it.
Tip: Touch Menu for options, like Refresh or
Search.
•To create an email, touch > Email, then touch
Menu > Compose.
Tip: Touch Menu for options, like Attach or Add
Cc/Bcc.
2012.04.12
FCC
24 Messaging
Voicemail
When you have a new voicemail, appears at the top
of the screen. Drag down the status bar and touch the
New voicemail notification to listen to your voicemail
message.
For your voicemail number or other details, contact your
service provider.
2012.04.12
FCC
25Text entry
Text entry
keys when you need them

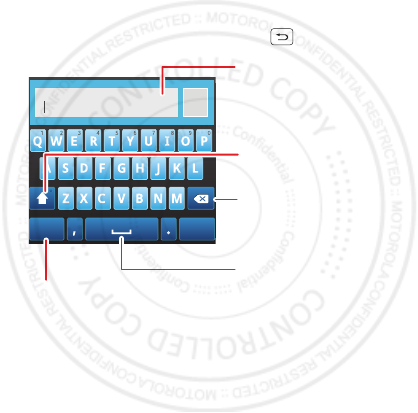

Touchscreen keypad
You can open a keypad on your screen by touching a text
box. To close the keypad, touch Back .
Input methods
To select an input method, touch and hold a text entry
area to open the Edit text menu. Touch Input method,
then touch the method you want.
Dinner at Bistro Fanta
Done
?123 :-)
... ...
Touch for numbers &
symbols.
Delete
Space
Text Entry Area
Touch to open
the keypad.
Shift
2012.04.12
FCC
26 Text entry
Typing tips
To . . .
Enter one capital
letter
Tou ch Sh i ft .
Enter only capital
letters, until you touch
Shift again
Touch Shift twice. Touch
again to revert to lowercase.
Move the text entry
cursor
Touch the text where you
want the cursor to go.
Select text Touch and hold text, then
touch Select word or Select
all.
Cut or Copy selected
text
Touch and hold text, then
touch Cut or Copy.
Paste cut or copied
text at cursor location
Touch and hold location to
paste, then touch Paste.
Delete character to left
of cursor
Touch Delete (hold to
delete more).
2012.04.12
FCC
27Photos & videos
Photos & videos
see it, capture it, share it!
Photos
Take & share photos
Take that family photo, and post it online for everyone
to see.

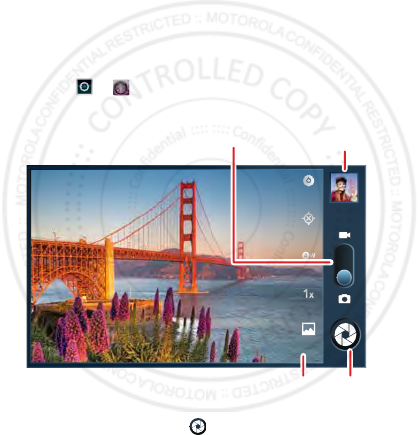

Find it: > Camera
To take the photo, touch in the viewfinder screen.
Switch between
camera and video.
Take
photo.
See your
last photo.
Adjust camera
settings.
2012.04.12
FCC
28 Photos & videos
Your smartphone stores the photo, and shows a
thumbnail image in the corner of the screen. To see the
photo you just took, touch the thumbnail. Then:
•To set the photo as a wallpaper or contact photo,
touch Menu > More > Set as > Wallpaper.
•To send the photo in a message or post it online,
touch .
•To delete the photo, touch Delete.
2012.04.12
FCC
29Photos & videos
Videos
Record & share videos

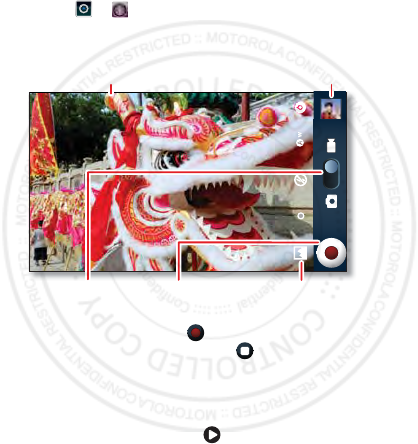

Find it: > Camera, then touch or drag the camera
switch up to select the camcorder
To record a video, touch in the viewfinder screen. To
stop the video recording, touch again.
Your phone stores the video, and shows a thumbnail
image of the video in the corner of the screen. To see
the video you just took, touch the thumbnail. Then:
•To play the video, touch .
HD
HD
00:13:50 San Francisco, CA
00:13:50 San Francisco, CA
Record
video.
Watch your
last video.
Adjust camcorder
settings.
Time
Remaining
Switch to
camera.
2012.04.12
FCC
30 Photos & videos
•To send the video in a message or post it online,
touch . For more info on sharing your video, see
“Record & share videos” on page 29.
•To delete the video, touch Delete.
your photos & videos
Share photos & videos
Find it: > Gallery > photo or video
Touch , then choose how you want to share—like
Bluetooth, Email, Messaging, or an online album.
Manage photos & videos
Find it: > Gallery > photo or video
Touch Menu > More > Delete, Crop, Set as (photo),
or Rotate.
Tip: To copy photos to/from a computer, go to “USB
connection” on page 43.
2012.04.12
FCC
31Music
Music
when music is what you need...
quick start: music
Your phone has that smooth, rich sound you are looking
for.
The audio quality of your music is significantly improved
with SRS WOW HD or with Dolby Mobile.
is a trademark of SRS Labs, Inc. WOW HD technology is
incorporated under
license from SRS
Labs, Inc.
WOW
HD
TM
signicantly
improves the
playback quality of audio,
delivering a dynamic
3D entertainment experience with deep, rich
bass
and high frequency clarity
for crisp detail.
2012.04.12
FCC
32 Music
You can access all your smartphone music on your
dashboard, just touch > . Music Dashboard
play Music
Add and listen to music on your smartphone, or stream
music from your computer with MotoCast.
Moves Like Jagger | Maroon 5
12:05
MusicDash
board
Empty
p
p
y
y
b
b
b
b
o
o
o
o
a
a
a
a
r
r
r
r
d
d
d
d
Moves Like Jagger
Moves Like Jagger (The Voice Perfor...

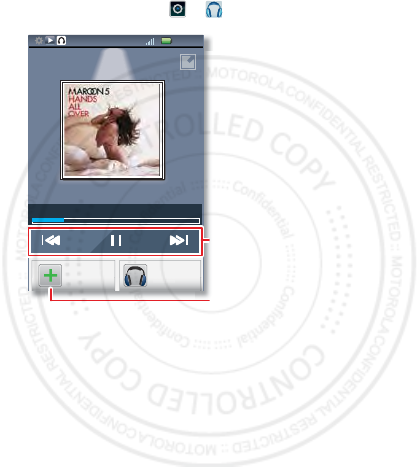

Music controls
Add a shortcut.
2012.04.12
FCC
33Music
Find it: > Music
To play music stored on your smartphone, touch >
Music, then choose a song to play.
To randomly play all of the songs in a playlist, touch
>.
Tip: When a song is playing, you can add it to a playlist
by touching Menu > Add to playlist.
Tip: To listen to music during a flight, turn off all your
network and wireless connections: Press and hold
Power then touch Airplane mode.

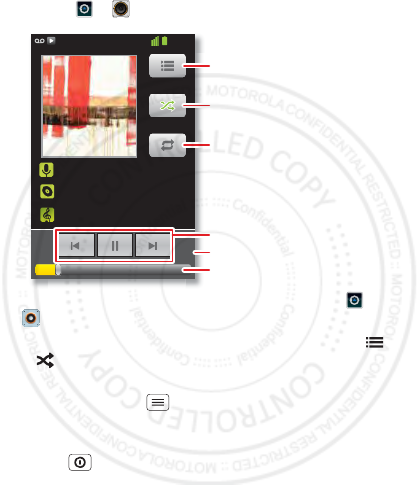

Music Artist
Album Title
Song Title
0:26 3:27
11:19
Open Playlist
Shuffle On/Off
Repeat Off/All/Current
Music Controls
Total Song Time
Progress Bar
2012.04.12
FCC
34 Music
Get music
Transfer
Transfer music from your computer to your smartphone
using a USB cable connection. See “USB connection” on
page 43 to learn how.
2012.04.12
FCC
35Web
Web
surf the web with your smartphone

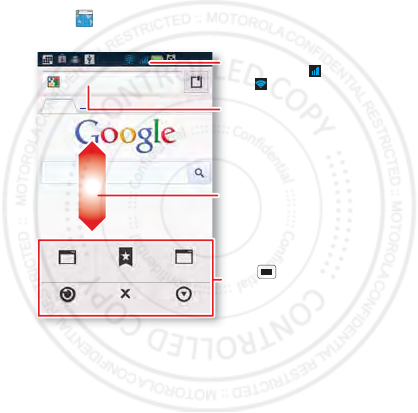

Quick start: Browser
Find it: Browser
Tip: To zoom, touch the display with two fingers, then
move them apart.
htt
p
:
//www
.
New window
Refresh
Bookmarks
Exit
Windows
More
Web Images Local News more
Google
Drag or flick to scroll.
Enter a web page URL.
Touch to open bookmarks,
windows, and more.
Connection
Mobile Network:
Wi-Fi:
2012.04.12
FCC
36 Web
Connect
Your smartphone uses the mobile phone network (over
the air) or a Wi-Fi connection to automatically access the
web.
Note: Your service provider may charge to surf the web
or download data.
If you want to use a Wi-Fi network for faster Internet
access, see “Wi-Fi networks” on page 40.
Note: If you can’t connect, contact your service provider.
Downloads
To download files in your browser, touch a file link or
touch and hold a picture to choose Save image.
To see the files you downloaded, touch
>Downloads.
There’s more about downloads in“Apps & updates” on
page 14.
2012.04.12
FCC
37Personalize
Personalize
add your personal touch
Ringtones
Personalize your ringtones:
Find it: Menu > Settings > Menu > Settings
>Sound > Volume
To set a song as a ringtone:
Find it: > Music and play the song, then touch
Menu > More > Use as ringtone
Wallpaper
Apply a new wallpaper:
1Touch and hold an empty spot on your home screen.
2Touch Wallpapers.
3Touch Gallery, Live wallpapers, or Wallpapers, and
choose a wallpaper.
Sounds
•To set volume for ringtones, media, and other
notifications touch Menu > Settings > Menu
>Settings >Sound > Volume
Display settings
•To set display brightness, touch Menu > Settings
> Menu > Settings >Display > Brightness.
2012.04.12
FCC
38 Personalize
•To set orientation, touch Menu > Settings >
Menu > Settings > Display > Auto-rotate screen.
Date & time
Set date, time, time zone, and formats:
Find it: Menu > Settings > Menu > Settings
>Date & time
Language & region
Set your menu language and region:
Find it: Menu > Settings > Menu > Settings
>Language & keyboard
2012.04.12
FCC
