Motorola Solutions 89FT7628 Mobile Computer with Bluetooth Transmitter User Manual ML910 CH0 new version 9 18 07
Motorola Solutions, Inc. Mobile Computer with Bluetooth Transmitter ML910 CH0 new version 9 18 07
Contents
- 1. Users Manual 1
- 2. Users Manual 2
Users Manual 1
![](/img.php?id=851461&img=bg1.png)
ML910™Rugged Notebook
User Guide
Motorola, Inc.
All rights reserved
Owner’s Manual R00
Part Number: 6871008P31
![](/img.php?id=851461&img=bg3.png)
i
TRADEMARKS
MOTOROLA, the Stylized M Logo, and ML910 TM RUGGED NOTEBOOK are registered in the
U.S. Patent and Trademark Office. All other product or service names are the property of their
respective owners.
NOTE:
Information in this user guide is subject to change without notice.
COPYRIGHT
Copyright © 2007 Motorola Inc. All rights reserved. No part of this user guide may be
transmitted, stored in a retrieval system, or translated into any language or computer language,
in any form or by any means, without the prior written permission of Motorola Inc.
![](/img.php?id=851461&img=bg4.png)
ii
LICENSE AGREEMENT
MOTOROLA, INC. (“MOTOROLA”) IS WILLING TO LICENSE THE SOFTWARE
EMBEDDED IN THE ENCLOSED PRODUCT (THE “SOFTARE”) TO YOU ONLY ON
THE CONDITION THAT YOU ACCEPT ALL OF THE TERMS CONTAINED IN THIS
LICENSE AGREEMENT (“AGREEMENT”). PLEASE READ THE TERMS
CAREFULLY.YOUR USE OF THE PRODUCT WITH THE EMBEDDED SOFTWARE
WILL INDICATE YOUR ASSENT TO THEM. IF YOU DO NOT AGREE TO THESE
TERMS, THEN MOTOROLA IS UNWILLING TO LICENSE THE SOFTWARE TO YOU,
IN WHICH EVENT YOU SHOULD NOT USE THE PRODUCT WITH THE EMBEDDED
SOFTWARE AND YOU SHOULD RETURN IT TO THE PLACE FROM WHICH IT WAS
ACQUIRED, AND YOUR MONEY WILL BE REFUNDED.
Section 1 GRANT OF LICENSE
Motorola hereby grants to You a personal, non-exclusive, non-transferable right to use the
Software subject to the Conditions Of Use set forth in Section 2 below and the terms and
conditions of this Agreement.
Section 2 CONDITIONS OF USE
2.1 Use of the Software outside of the conditions set forth herein is strictly prohibited and will
be deemed a breach of this Agreement.
2.2 You shall use the Software (i) only for Your internal business purposes; (ii) only as
described in the Software or product documentation; and (iii) in strict accordance with this
Agreement.
2.3 You shall not transfer, download, copy, distribute, sublicense, modify, adapt, merge with
other software, reverse engineer, prepare derivative works of, de–compile or
disassemble any Software for any reason.
2.4 You shall not remove, destroy, or alter any proprietary markings or legends placed upon
or contained within the Software, related materials or documentation.
2.5 You shall not export, re-export, resell, ship or divert or cause to be exported, re-exported,
resold, shipped, or diverted, directly or indirectly, the Software under this Agreement.
Section 3 TITLE AND OWNERSHIP
Title to all copies of Software will not pass to You at any time and remains vested exclusively in
Motorola or the copyright owner. Motorola or the copyright owner owns and retains all of its
proprietary rights in any form concerning the Software, including all rights in patents, patent
applications, inventions, copyrights, trade secrets, trademarks, trade names, and other
intellectual properties. Nothing in this Agreement is intended to restrict the proprietary rights of
Motorola or the copyright owner or to grant by implication or estoppel any proprietary rights. All
intellectual property developed, originated, or prepared by Motorola or the copyright owner in
connection with providing the Software, products, or related services to You remains vested
exclusively in Motorola or the copyright owner, and this Agreement does not grant to You any
shared development rights of intellectual property.
![](/img.php?id=851461&img=bg5.png)
iii
Section 4 CONFIDENTIALITY
You acknowledge that all Software contains valuable proprietary information and trade
secrets and that unauthorized or improper use of Software will result in irreparable harm to
Motorola for which monetary damages would be inadequate and for which Motorola will be
entitled to immediate injunctive relief. Accordingly, You will limit access to Software to
employees and agents who need to use the Software for Your internal business purposes,
and You will take appropriate action with those employees and agents to preserve the
confidentiality of Software, using the same degree of care to avoid unauthorized or improper
disclosure as You use for the protection of Your own proprietary software, but in no event less
than reasonable care. Notwithstanding anything to the contrary herein, You shall have no
obligation to preserve the confidentiality of any proprietary information that (i) was in the public
domain at the time of disclosure; (ii) entered the public domain through no fault of You; (iii) was
given to You free of any obligation to keep it confidential; (iv) is independently developed by
You; or (v) is disclosed as required by law provided that You notify Motorola prior to such
disclosure and provide Motorola with a reasonable opportunity to respond.
Section 5 RIGHT TO USE MOTOROLA’S NAME
You shall not, during the term of this Agreement or thereafter, use any trademark of Motorola,
or any word or symbol likely to be confused with any Motorola trademark, either alone or in any
combination with another word or words.
Section 6 PAYMENT
The rights granted hereunder are contingent upon payment for the product in which the
Software is embedded.
Section 7 TERM AND TERMINATION
Your right to use Software will begin when You begin using the product with the embedded
Software, which constitutes acceptance of the terms and conditions herein, and will continue
in perpetuity unless terminated as set forth herein. Your right to use Software will terminate
immediately without notice upon a breach of this Agreement by You. Otherwise, this
Agreement may be terminated by either party upon thirty (30) days prior written notice. Within
thirty (30) days after termination of this Agreement, You will certify to Motorola in writing that
through Your best efforts, and to the best of Your knowledge, the original and all copies, in
whole in part, in any form, of the Software and all related material and documentation, have
been destroyed.
Section 8 MAINTENANCE
Motorola shall not be responsible for maintenance or field service of the Software under this
Agreement.
Section 9 NO WARRANTY
MOTOROLA DOES NOT WARRANT THAT THE SOFTWARE WILL MEET YOUR
REQUIREMENTS, OR THAT THE OPERATION OF THE SOFTWARE WILL BE
UNINTERRUPTED OR ERROR-FREE. MOTOROLA DISCLAIMS ALL WARRANTIES,
EXPRESS OR IMPLIED, INCLUDING THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
![](/img.php?id=851461&img=bg6.png)
iv
Section 10 LIMITATION OF LIABILITY
MOTOROLA’S TOTAL LIABILITY UNDER THIS AGREEMENT FOR DAMAGES SHALL NOT
EXCEED THE TOTAL AMOUNT PAID BY YOU FOR THE SOFTWARE UNDER THIS
AGREEMENT. IN NO EVENT WILL MOTOROLA BE LIABLE FOR INCIDENTAL,
CONSEQUENTIAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES.
Section 11 U.S. GOVERNMENT
If You are a unit or agent of the U.S. Government, You acknowledge Motorola’s representation
that the Software represents “Commercial Computer Software” and that the Government’s
use of the Software shall be subject to “Restricted Rights”, as provided in DFARS
252.227–7013 (c) (1) (ii), or FAR 52.227–19.
Section 12 GOVERNING LAW
This Agreement shall be governed by the laws of the United States of America to the extent
that they apply and otherwise by the laws of the State of Illinois.
Section 13 ASSIGNMENT
This Agreement may not be assigned or otherwise transferred by You.
Section 14 SURVIVAL OF PROVISIONS
The parties agree that where the context of any provision indicates an intent that it shall
survive, the term of this Agreement then it shall survive.
Section 15 ENTIRE AGREEMENT:
This Agreement contains the parties’ entire agreement regarding Your use of Software and
may be amended only in a writing signed by both parties, except that Motorola may modify this
Agreement as necessary to comply with applicable laws and regulations including FCC
regulations.
Section 16 THIRD-PARTY SOFTWARE
The Software may contain one or more items of third-party software supplied by other
third-party suppliers. The terms of this Agreement govern Your use of any third-party software
UNLESS A SEPARATE THIRD-PARTY SOFTWARE LICENSE IS INCLUDED WITH THIS
PACKAGE, IN WHICH CASE YOUR USE OF THE THIRD-PARTY SOFTWARE WILL THEN
BE GOVERNED BY THE SEPARATE THIRD-PARTY LICENSE.
IF THE FOREGOING TERMS AND CONDITIONS ARE ACCEPTABLE TO YOU, YOU
AGREE THAT YOUR USE OF THE PRODUCT WITH THE EMBEDDED SOFTWARE WILL
INDICATE YOUR ACCEPTANCE OF THIS AGREEMENT.
IF THE FOREGOING TERMS AND CONDITIONS ARE NOT ACCEPTABLE TO YOU, THEN
MOTOROLA IS UNWILLING TO LICENSE THE SOFTWARE TO YOU, IN WHICH EVENT
YOU SHOULD NOT USE THE PRODUCT WITH THE EMBEDDED SOFTWARE AND YOU
SHOULD RETURN IT TO THE PLACE FROM WHICH IT WAS ACQUIRED, AND YOUR
MONEY WILL BE REFUNDED.
COMPUTER SOFTWARE COPYRIGHTS
![](/img.php?id=851461&img=bg7.png)
v
The Motorola products described in this user guide may include copyrighted Motorola
computer programs stored in semiconductor memories or other media. Laws in the United
States and other countries preserve for Motorola certain exclusive rights for copyrighted
computer programs, including the exclusive right to copy or reproduce in any form the
copyrighted computer program. Accordingly, any copyrighted Motorola computer programs
contained in the Motorola products described in this user guide may not be copied,
reproduced, modified, reverse-engineered, or distributed in any manner without the express
written permission of Motorola. Furthermore, the purchase of Motorola products shall not be
deemed to grant either directly or by implication, estoppel or otherwise, any license under the
copyrights, patents or patent applications of Motorola, except for the normal non-exclusive
license to use that arises by operation of law in the sale of a product.
This Warranty applies within the fifty (50) United States' the District of Columbia and Canada.
![](/img.php?id=851461&img=bg8.png)
vi
LIMITED WARRANTY
MOTOROLA COMMUNICATION PRODUCTS
If the affected product is being purchased pursuant to a written
Communications System Agreement signed by Motorola, the warranty contained in that
written agreement will apply. Otherwise, the following warranty applies.
I. WHAT THIS WARRANTY COVERS AND FOR HOW LONG:
Motorola Inc. or if applicable, Motorola Canada Limited ("Motorola",) warrants the Motorola
manufactured radio communications product ("Product"), against material defects in
material and workmanship under normal use and service for a period of Three (3)Years
from the date of shipment. Accessories, including batteries carry their own separate limited
One (1) year warranty.
Motorola, at its option, will at no charge either repair the Product (with new or reconditioned
parts), replace it with the same or equivalent Product (using new or reconditioned Product),
or refund the purchase price of the product during the warranty period provided purchaser
notifies Motorola according to the terms of this warranty. Repaired or replaced Product is
warranted for the balance of the original applicable warranty period. All replaced parts of
the Product shall become the property of Motorola.
This express limited warranty is extended by Motorola to the original end user purchaser
purchasing the Product for purposes of leasing or for commercial, industrial, or
governmental use only, and is not assignable or transferable to any other party. This is the
complete warranty for the Product manufactured by Motorola. Motorola assumes no
obligations or liability for additions or modifications to this warranty unless made in writing
and signed by an officer of Motorola. Unless made in a separate written agreement
between Motorola and the original end user purchaser, Motorola does not warrant the
installation maintenance or service of the Product.
Motorola cannot be responsible in any way for any ancillary equipment not furnished by
Motorola which is attached to or used in connection with the product, or for operation of the
Product with any ancillary equipment and all such equipment is expressly excluded from
this warranty. Because each system which may use the Product is unique, Motorola
disclaims liability for range, coverage, or operation of the system as a whole under this
warranty.
II. GENERAL PROVISIONS:
This warranty sets forth the full extent Motorola’s responsibilities regarding the product.
Repair replacement or Refund of the purchase price, at Motorola’s option, is the exclusive
is the exclusive remedy.
THIS WARRANTY IS GIVEN IN LIEU OF ALL OTHER EXPRESS WARRANTIES.
![](/img.php?id=851461&img=bg9.png)
vii
MOTOROLA DISCLAIMS ALL OTHER WARRANTIES OR CONDITIONS, EXPRESS OR
IMPLIED INCLUDING THE IMPLIED WARRANTIES OR CONDITIONS OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT
SHALL MOTOROLA BE LIABLE FOR DAMAGES IN EXCESS OF THE PURCHASE OF
PRICE THE PRODUCT FOR ANY LOSS OF USE LOSS OF TIME, INCONVENIENCE,
COMMERCIAL LOSS, LOST PROFITS OR SAVINGS OR OTHER INCIDENTAL,
SPECIAL INDIRECT OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR
INABILITY TO USE SUCH PRODUCT TO THE FULL EXTENT SUCH MAY BE
DISCLAMIED By LAW.
III. How TO GET WARRANTY SERVICE:
Purchaser must notify Motorola’s representative or call Motorola’s Customer Response
Center at1.800.247.2346 within the applicable warranty period for information regarding
warranty service.
IV. WHAT THIS WARRANTY DOES NOT COVER:
A) Defects or damage resulting from use of the Product in other than its
normal and customary manner.
B) Defects or damage from misuse, accident, water, or neglect.
C) Defects or damage from improper testing, operation, maintenance,
installation, alteration, modification, or adjustment.
D) Breakage or damage to antennas unless caused directly by defects
in material workmanship.
E) A Product subjected to unauthorized Product modifications, disassemblies or repairs
(including, without limitation, the addition to the Product of non-Motorola supplied
equipment) which adversely affect performance of the Product or interfere with Motorola’s
normal warranty inspection and testing of the Product to verify any warranty claim.
F) Product which has had the serial number removed or made illegible.
G) Accessories, including batteries carry their own separate limited One (1) year warranty.
H) Freight costs to the repair depot.
I) A Product which, due to illegal or unauthorized alteration of the
software/firmware in the Product, does not function in accordance
with Motorola’s published specifications or with the FCC type
acceptance labeling in effect for the Product at the time the Product
was initially distributed from Motorola.
J) Scratches or other cosmetic damage to Product surfaces that do not affect the operation
of the Product.
K) That the software in the product will meet the purchaser’s requirements or that the
operation of the software will be uninterrupted or error-free.
L) Normal and customary wear and tear.
M) Non-Motorola manufactured equipment unless bearing a Motorola Part Number in the
form of an alphanumeric number (i.e., TDE6030B).
![](/img.php?id=851461&img=bga.png)
viii
V. GOVERNING LAW
In the case of a Product sold in the United States and Canada, this Warranty is governed by
the laws of the State of Illinois and the Province of Ontario respectively.
VI. PATENT AND SOFTWARE PROVISIONS:
Motorola will defend, at its own expense, any suit brought against the end user purchaser to
the extent that it is based on a claim that the Product or its parts infringe a United States
patent, and Motorola will pay those costs and damages finally awarded against the end
user purchaser in any such suit which are attributable to any such claim, but such defense
and payments are conditioned on the following:
A) That Motorola will be notified promptly in writing by such purchaser of any notice of such
claim;
B) That Motorola will have sole control of the defense of such suit and all negotiations for
its settlement or compromise;
C) Should the Product or its parts become, or in Motorola’s opinion be likely to become, the
subject of a claim of infringement of a United States patent, that such purchaser will
permit Motorola, at its option and expense, either to procure for such purchaser the right
to continue using the product or its parts or to replace or modify the same so that it
becomes non-infringing or to grant such purchaser a credit for the Product or its parts as
depredated and accept its return. The depreciation will be an equal amount per year
over the lifetime of the product or its parts as established by Motorola.
Motorola will have no liability with respect to any claim of patent infringement which is
based upon the combination of the Product or its parts furnished hereunder with software,
apparatus or devices not furnished by Motorola, nor will Motorola have any liability for the
use of ancillary equipment or software not furnished by Motorola which is attached to or
used in connection with the Product. The foregoing states the entire liability of Motorola
with respect to infringement of patents by the Product or any of its parts thereof.
![](/img.php?id=851461&img=bgb.png)
ix
Regulations Information
SAFE USAGE NOTIFICATION
For reason of personal safety and optimal radio performance, Motorola has designed the
ML910 TM RUGGED NOTEBOOK with an intended purpose and position of use either in a
secured vehicle docking station or on the top of an office desk.
Motorola strongly recommends using this product in a vehicle only when it is
physically-secured in a lock or assured-stationary location as failure to do so may cause the
product to cause harm in accidents or other conditions.
US and Canada Class B Regulations
USA
Federal Communications Commission Radio Frequency Interference
Statement
NOTE:
This equipment has been tested and found to comply with the limits for a Class B digital device
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
Any changes or modifications not expressly approved by the manufacturer could void the user’s
authority to operate the equipment.
Please note:
The use of a non-shielded interface cable with this equipment is prohibited.
![](/img.php?id=851461&img=bgc.png)
x
Wireless LAN Module Statement
FCC CAUTION:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
If the ML910 TM RUGGED NOTEBOOK computer has the Intel 3945abg module
(802.11abg) installed, operation on the 5.15-5.25GHz frequency band is restricted to
indoor use only. The FCC requires indoor use for the 5.15-5.25GHz band to reduce the
potential for harmful interference to co-channel Mobile Satellite Systems.
When the internal ML910 TM RUGGED NOTEBOOK 802.11abg module is configured to the
Motorola default state, it will only transmit on the 5.15-5.25GHz band when associated with
an access point (AP) that uses the 5.15-5.25GHz band and such applications should only
be used indoors.
Use in the 802.11a frequency range is limited to client-AP association. Client-client
association (AD HOC mode) is not supported.
FCC External Antenna Placement

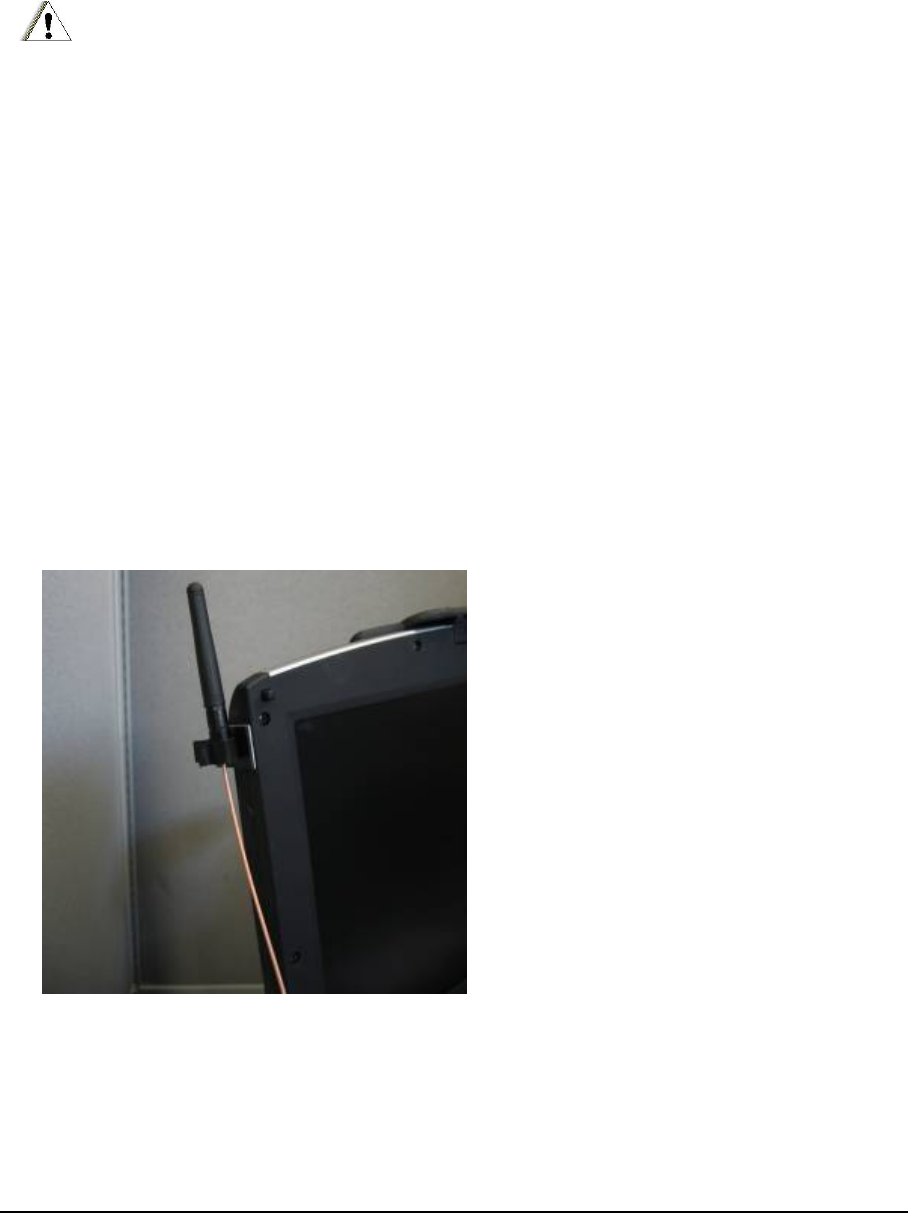

When the Motorola WMC6300 or WMC7300 PCMCIA radio modems are integrated in the
PCMCIA slot of the ML910 TM RUGGED NOTEBOOK, the external antenna must be
placed as shown in the picture below to comply with FCC RF exposure requirements.
FCC RF Exposure Statement
This equipment complies with FCC RF exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with a minimum distance of
20cm between the radiator and all persons. See page 1-10 of the Users Guide for antenna
locations.
![](/img.php?id=851461&img=bgd.png)
xi
To assure continued compliance, any changes or modifications not expressly approved by
the party responsible for compliance could void the user’s authority to operate this
equipment.
FCC RF Exposure Warning
The ML910 TM RUGGED NOTEBOOK provides a PCMCIA slot that could be used with
PCMCIA based wireless transmitters. Motorola only supports the use of PCMCIA based
wireless transmitter cards that have been approved for use in the ML910 TM. Currently the
WMC6300, WMC7300, and WDE1000 have been approved. Other 3rd party PCMCIA
based wireless transmitters have not been RF exposure evaluated for use in the ML910
and may not comply with FCC RF exposure requirements.
IMPORTANT NOTE:
To comply with FCC RF exposure compliance requirements, the antennas used for this transmitter
must be installed to provide a separation distance of at least 20 cm from all persons and must not
be co-located or operating in conjunction with any other antenna or transmitter other than those
approved for use in Motorola series ML910 TM RUGGED NOTEBOOK.
Canada
Canadian Department of Communications
Radio Interference Regulations Class B Compliance Notice
This Class B digital apparatus meets all requirements of the Canada Interference-Causing
equipment regulations.
Cet appareil numérique de Classe B respecte toutes les exigences du Règlement
Canadien sur le matériel brouileur.
This digital apparatus does not exceed the Class B limits for radio noise emissions from
digital apparatus set out in the Radio Interference Regulations of the Canadian
Department of Communications.
Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les
limites applicables aux appareils numériques de la classe B prescrites dans le
Règlement sur le brouillage radioélectrique édicté par le ministère des Communications
du Canada.
![](/img.php?id=851461&img=bge.png)
xii
CMM labeling and Disclosure Table
The People’s Republic of China require that our products comply with China Management
Methods (CMM) environmental regulations. (China Management Methods refers to the
Regulation Management Methods for Controlling Pollution by Electronic Information Products.)
Two items are used to demonstrate compliance; the Label and the Disclosure Table.
The label is placed in a customer visible position on the product. The first of the following
examples means that the product contains no hazardous substances; the second means that
the product contains hazardous substances, and has an Environmental Friendly Use Period
(EFUP) of fifty years.
Logo 1 Logo 2
The Environmental Friendly Use Period (EFUP) is the period (in years) during which the Toxic
and Hazardous Substances (T&HS) contained in the Electronic Information Product (EIP) will
not leak or mutate causing environmental pollution, or bodily injury from the use of the EIP.
The Disclosure Table, printed in simple Mandarin, is included with each customer order. An
example of the Disclosure Table follows, in both Mandarin and English.
![](/img.php?id=851461&img=bgf.png)
xiii
European Union CE Marking and Compliance
Notices
Statements of Compliance
English
This product follows the provisions of the European Directive 1999/5/EC.
Danish
Dette produkt er i overensstemmelse med det europæiske direktiv 1999/5/EC.
Dutch
Dit product is in navolging van de bepalingen van Europees Directief 1999/5/EC.
Finnish
Tämä tuote noudattaa EU-direktiivin 1999/5/EC määräyksiä.
French
Ce produit est conforme aux exigences de la Directive Européenne 1999/5/EC.
German
Dieses Produkt entspricht den Bestimmungen der Europäischen Richtlinie 1999/5/EC.
Greek
To προϊόν αυτό πληροί τις προβλέψεις της Ευρωπαϊκής Οδηγίας 1999/5/EC.
Icelandic
Þessi vara stenst reglugerð Evrópska Efnahags Bandalagsins númer 1999/5/EC.
Italian
Questo prodotto è conforme alla Direttiva Europea 1999/5/EC.
Norwegian
Dette produktet er i henhold til bestemmelsene i det europeiske direktivet 1999/5/EC.
Portuguese
Este produto cumpre com as normas da Diretiva Européia 1999/5/EC.
Spanish
Este producto cumple con las normas del Directivo Europeo 1999/5/EC.
Swedish
Denna produkt har tillverkats i enlighet med EG-direktiv 1999/5/EC.
![](/img.php?id=851461&img=bg10.png)
xiv
Local Restrictions of 802.11a/b/g Radio Usage
CAUTION:
Due to the fact that the frequencies used by 802.11a/b/g wireless LAN devices may not yet be
harmonized in all countries, 802.11a/b/g products are designed for use only in specific countries
or regions, and is not allowed to be operated in countries or regions other than those of
designated use. As a user of these products, you are responsible for ensuring that the products
are used only in the countries or regions for which they were intended and for verifying that they
are configured with the correct selection of frequency and channel for the country or region of
use. Any deviation from permissible settings and restrictions in the country or region of use could
be an infringement of local law and may be punished as such.
The European variant is intended for use throughout the European Economic Area.
However, authorization for use is further restricted in particular countries or regions
within countries, as follows:
General
European standards dictate maximum radiated transmit power of 100 mW Effective
Isotropic Radiated Power (EIRP) in the frequency range 2400 – 2483.5 MHz.
Belgium and the Netherlands
In Belgium and the Netherlands, the product may not be used outdoors. See the
instructions next under the heading “How to Turn Off the Wireless LAN Radio.”
![](/img.php?id=851461&img=bg11.png)
xv
France
Departments in Which the Wireless LAN Module Can Be Used (Indoors Only)
The wireless LAN module can currently be used indoors only in the following 38
departments of mainland France. Please turn off your wireless LAN radio when
operating the device in areas/places other than the 38 departments listed:
01 Ain Orientales 36 Indre 66 Pyrénées
02 Aisne 37 Indre et Loire 67 Bas Rhin
03 Allier 41 Loir et Cher 68 Haut Rhin
05 Hautes Alpes 42 Loire 70 Haute Saône
08 Ardennes 45 Loiret 71 Saône et Loire
09 Ariège 50 Manche 75 Paris
11 Aude 55 Meuse 82 Tarn et Garonne
12 Aveyron 58 Nièvre 84 Vaucluse
16 Charente 59 Nord 88 Vosges
24 Dordogne 60 Oise 89 Yonne
25 Doubs 61 Orne 90 Territoire de
Belfort
26 Drôme 63 Puy du Dôme 94 Val de Marne
32 Gers 64 Pyrénées
Atlantique
Departments in Which the Wireless LAN Module’s Maximum EIRP Not Shown in the
Previous Table
Frequency Ranges (MHz) Indoors Outdoors
2400 – 2446.5 10 mW Not permitted
2446.5 – 2483.5 100 mW 100 mW on private property with
Ministry of Defense approval
Turning Off the Wireless LAN Radio
NOTE:
1. Turning the wireless LAN radio off is not the same as disabling the wireless LAN card.
2. It is not necessary to disable the card to meet the regulatory requirements.
3. While operating the computer in those French departments that do not allow use of the
wireless LAN equipment, the user of the equipment must turn off the wireless LAN radio in
order to comply with local regulations.
![](/img.php?id=851461&img=bg12.png)
xvi
Product Safety and RF Exposure Information
CAUTION:
BEFORE USING ML910 TM RUGGED NOTEBOOK, READ THIS SECTION WHICH
CONTAINS IMPORTANT OPERATING INSTRUCTIONS FOR SAFE USAGE AND RF
ENERGY AWARENESS AND CONTROL INFORMATION FOR COMPLIANCE WITH RF
ENERGY EXPOSURE LIMITS IN APPLICABLE NATIONAL AND INTERNATIONAL
STANDARDS.
Compliance with RF Energy Exposure Standards
NOTE:
ML910 TM RUGGED NOTEBOOK is intended for general population, consumer or similar use;
where users are not necessarily aware of the potential for exposure and may not exercise control
over their exposure. This product safety section includes useful information about RF exposure
and helpful instructions on how to control your RF exposures. For additional information on
exposure requirements or other training information, visit http://www.motorola.com/rfhealth.
Radio Frequency Interference Requirements and SAR
The FCC with its action in ET Docket 93-62 has adopted a safety standard for human
exposure to Radio Frequency (RF) electromagnetic energy emitted by FCC certified
equipment. All wireless modules meets the Human Exposure limits found in OET
Bulletin 65, 2001 and IEEE Std C95.1™-2005. Proper operation of this radio according
to the instructions found in this manual will result in exposure substantially below the
FCC’s recommended limits. The following safety precautions should be observed:
• Do not touch or move antenna while the unit is transmitting or receiving.
• Do not operate the radio or attempt to transmit data unless the antenna is connected;
if not, the radio may be damaged.
Electromagnetic Interference/Compatibility
NOTE:
Nearly every electronic device is susceptible to electromagnetic interference (EMI) if
inadequately shielded, designed or otherwise configured for electromagnetic compatibility.
Facilities
To avoid electromagnetic interference and/or compatibility conflicts, turn off your ML910
TM RUGGED NOTEBOOK and/or integrated radios in any facility where posted notices
instruct you to do so. Hospitals or health care facilities may be using equipment that is
sensitive to external RF energy.
Aircraft
When instructed to do so, turn off your ML910 TM RUGGED NOTEBOOK and/or
integrated radios when on board an aircraft. Any use of a ML910 TM RUGGED
![](/img.php?id=851461&img=bg13.png)
xvii
NOTEBOOK or radio must be in accordance with applicable regulations per airline crew
instructions.
Medical Devices
Pacemakers
Keep the antennas of ML910 TM RUGGED NOTEBOOK at least 8 inches (20cm) away
from any person’s body. Along with ensuring compliance with the RF energy exposure
limits (as instructed in the RF Energy Exposure section previously), this separation
distance meets or exceeds the distance recommendation of pacemaker manufacturers
and the FCC to avoid interference with pacemakers.
Hearing Aids
Some digital wireless radios may interfere with some hearing aids. In the event of such
interference, you may want to consult your hearing aid manufacturer to discuss
alternatives.
Other Medical Devices
If you use any other personal medical device, consult the manufacturer of your device to
determine if it is adequately shielded from RF energy. Your physician may be able to
assist you in obtaining this information.
Driver Safety
Always abide by the laws and regulations on the use of computers and/or integrated
radios in the area where you drive.
When using ML910 TM RUGGED NOTEBOOK and/or radio while driving, please:
• Give full attention to driving and to the road.
• Pull off the road and park before using the equipment if driving conditions so
require.
Operational Warnings
For Vehicles with an Air Bag
Do not place a ML910 TM RUGGED NOTEBOOK in the area over an air bag or in the air
bag deployment area. Air bags inflate with great force. If a ML910 TM RUGGED
NOTEBOOK is placed in the air bag deployment area and the air bag inflates, ML910 TM
RUGGED NOTEBOOK may be propelled with great force and cause serious injury to
occupants of the vehicle.
Potentially Explosive Atmospheres
Turn off your ML910 TM RUGGED NOTEBOOK prior to entering any area with a
potentially explosive atmosphere. Do not remove, install, or charge batteries in such
areas. Sparks in a potentially explosive atmosphere can cause an explosion or fire
![](/img.php?id=851461&img=bg14.png)
xviii
resulting in bodily injury or even death. The areas with potentially explosive
atmospheres referred to above include fuelling areas such as below decks on boats, fuel
or chemical transfer or storage facilities, areas where the air contains chemicals or
particles, such as grain, dust or metal powders. Areas with potentially explosive
atmospheres are often but not always posted.
Blasting Caps and Areas
To avoid possible interference with blasting operations, turn off ML910 TM RUGGED
NOTEBOOK when you are near electrical blasting caps, in a blasting area, or in areas
posted: "Turn off two-way radio". Obey all signs and instructions.
Operational Cautions
Antennas
Do not use the integrated radios of any ML910 TM RUGGED NOTEBOOK that has a
damaged antenna. If a damaged antenna comes into contact with your skin, a minor
burn can result.
Batteries
All batteries can cause property damage and/or bodily injury such as burns if conductive
materials such as jewelry, keys, or beaded chains touch exposed terminals. The
conductive material may complete an electrical circuit (short circuit) and become quite
hot. Exercise care in handling any charged battery, particularly when placing it inside a
pocket, purse, or other container with metal objects.
About the Battery
Caution Texts Concerning Lithium Batteries
DANISH
ADVARSEL!
Lithiumbatteri - Eksplosionsfare ved fejlagtig håndtering. Udskiftning må kun ske med batteri af
samme fabrikat og type. Levér det brugte batteri tilbage til leverandøren.
NORWEGIAN
ADVARSEL:
Eksplosjonsfare ved feilaktig skifte av batteri. Benytt samme batteritype eller en tilsvarende type
anbefalt av apparatfabrikanten. Brukte batterier kasseres i henhold til fabrikantens instruksjoner.
SWEDISH
VARNING:
Explosionsfara vid felaktigt batteribyte. Använd samma batterityp eller en ekvivalent typ som
rekommenderas av apparattillverkaren. Kassera använt batteri enligt fabrikantens instruktion.
![](/img.php?id=851461&img=bg15.png)
xix
FINNISH
VAROITUS:
Paristo voi räjähtää, jos se on virheellisesti asennettu. Vaihda paristo ainoastaan valmistajan
suosittelemaan tyyppiin. Hävitä käytetty paristo valmistajan ohjeiden mukaisesti.
ENGLISH
CAUTION:
Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent
type recommended by the equipment manufacturer. Discard used batteries according to
manufacturer's instructions.
DEUTSCH
VORSICHT:
Explosionsgefahr bei unsachgemäßem Austausch der Batterie. Ersatz nur durch denselben
oder einen vom Hersteller empfohlenen gleich-wertigen Typ. Entsorgung gebrauchter Batterien
nach Angaben des Herstellers.
FRENCH
ATTENTION:
II y a danger d’explosion s’il y a remplacement incorrect de la batterie. Remplacer uniquement
avec une batterie du même type ou d’un type équivalent recommandé par le constructeur. Mettre
au rebut les batteries usagées conformément aux instructions du fabricant.
Attention (for USA Users)
The product that you have purchased contains a rechargeable battery. The battery is recyclable.
At the end of its useful life, under various state and local laws, it may be illegal to dispose of this
battery into the municipal waste stream. Check with your local solid waste officials for details in
your area for recycling options or proper disposal.
About the Modem
CAUTION:
1. Never install telephone wiring during a lightning storm.
2. Never install telephone jacks in wet locations unless the jack is specifically designed for wet
locations.
3. Never touch uninsulated telephone wires or terminals unless the telephone line has been
disconnected at the network interface.
4. Use caution when installing or modifying telephone lines.
5. Avoid using the telephone function (other than a cordless-type) during an electrical storm.
There may be a remote risk of electric shock from lightning.
6. Do not use the telephone function to report a gas leak in the vicinity of the leak.
7. Do not use this product near water, for example near a bathtub, wash bowl, kitchen sink or
laundry tub, in a wet basement or near a swimming pool.
![](/img.php?id=851461&img=bg16.png)
xx
About the AC Adapter
1. Use only the AC adapter supplied with your computer. Use of another type of AC
adapter will result in malfunction and/or danger.
2. Do not use the adapter in a high moisture environment. Never touch the adapter
when your hands or feet are wet.
3. Allow adequate ventilation around the adapter when using it to operate the device or
charge the battery. Do not cover the AC adapter with paper or other objects that will
reduce cooling. Do not use the AC adapter while it is inside a carrying case.
4. Connect the adapter to a proper power source. The voltage requirements are found
on the product case and/or packaging.
5. Do not use the adapter if the cord becomes damaged.
6. Do not attempt to service the unit. There are no serviceable parts inside. Replace the
unit if it is damaged or exposed to excess moisture.
![](/img.php?id=851461&img=bg17.png)
xxi
Table of Contents
Preface.................................................................................... xxv
Chapter 1 Getting Started..................................................... 1-1
Getting the Computer Running ...................................... 1-2
Unpacking.................................................................1-2
Installing the Battery Pack ........................................1-2
Initializing the Battery Pack.......................................1-3
Connecting to AC Power........................................... 1-4
Opening the Cover.................................................... 1-5
Turning On and Off the Computer ............................ 1-5
Taking a Look at the Computer...................................... 1-7
To fo the Computer ..................................................1-7
Right-Side Components............................................ 1-8
Left-Side Components ..............................................1-9
Rear Components................................................... 1-10
Front Components ..................................................1-11
Bottom-Side Components....................................... 1-12
Antenna Location (Intergrated Radio Modems)……1-13
Top-open Components ...........................................1-14
Where to Go from Here................................................ 1-16
Chapter 2 Operating Your Computer................................... 2-1
Starting and Stopping the Computer.............................. 2-2
Starting the Computer............................................... 2-2
Shutting Down the Computer.................................... 2-2
Using the Keyboard .......................................................2-3
Typewriter Keys ........................................................2-3
Cursor-Control Keys ................................................. 2-4
Numeric Keypad ....................................................... 2-4
Euro Symbol ............................................................. 2-5
Windows Keys .......................................................... 2-5
Function Keys ...........................................................2-5
Fn Key....................................................................... 2-5
Hot Keys ................................................................... 2-6
Using the Touchpad.......................................................2-8
Configuring the Touchpad......................................... 2-9
Using the Touchscreen ............................................... 2-10
Using the Hard Disk Drive............................................ 2-11
Using the Optical Disk Drive ........................................ 2-12
To installing the
Optical Disk Drive/2nd HDD/2nd Battery ................... 2-12
![](/img.php?id=851461&img=bg18.png)
xxii
Removing the Optical Disk Drive/
2nd HDD/2nd Battery…………………………………...2-13

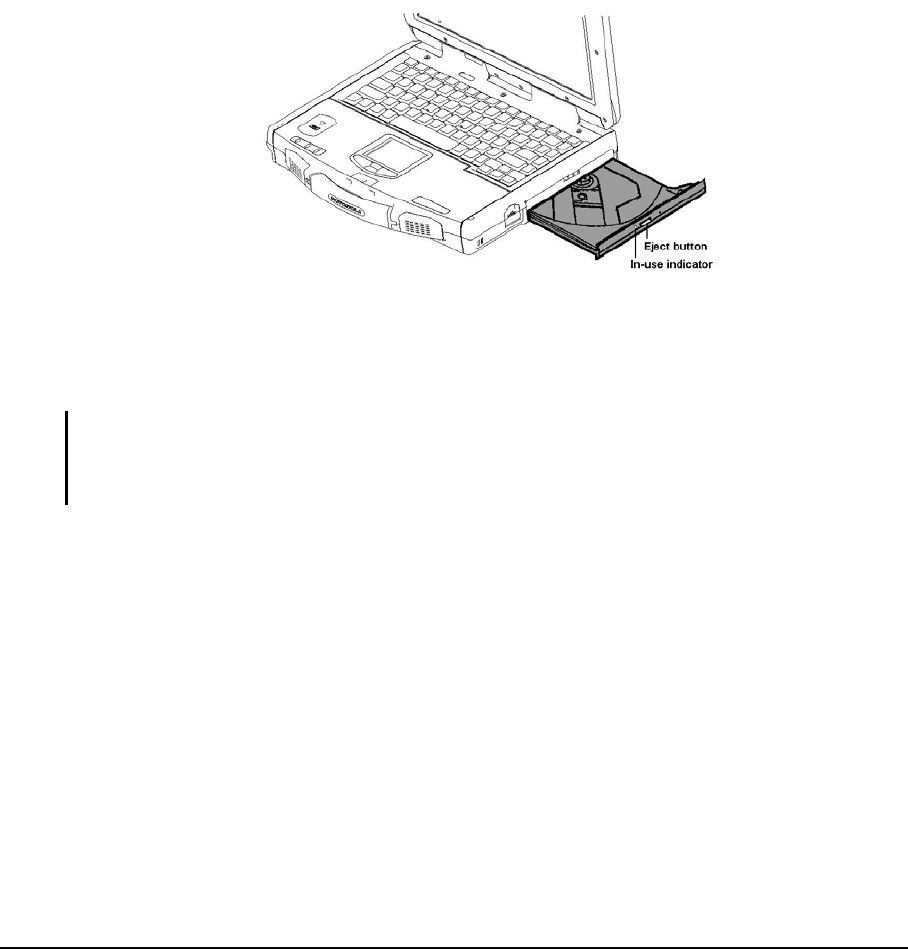

Inserting and Removing a Disc............................... 2-15
Using the Video Features ............................................ 2-15
Configuring the Display Modes............................... 2-16
Using the Audio Features ............................................ 2-17
Connecting Audio Devices ..................................... 2-17
Using the Communication Features ............................ 2-18

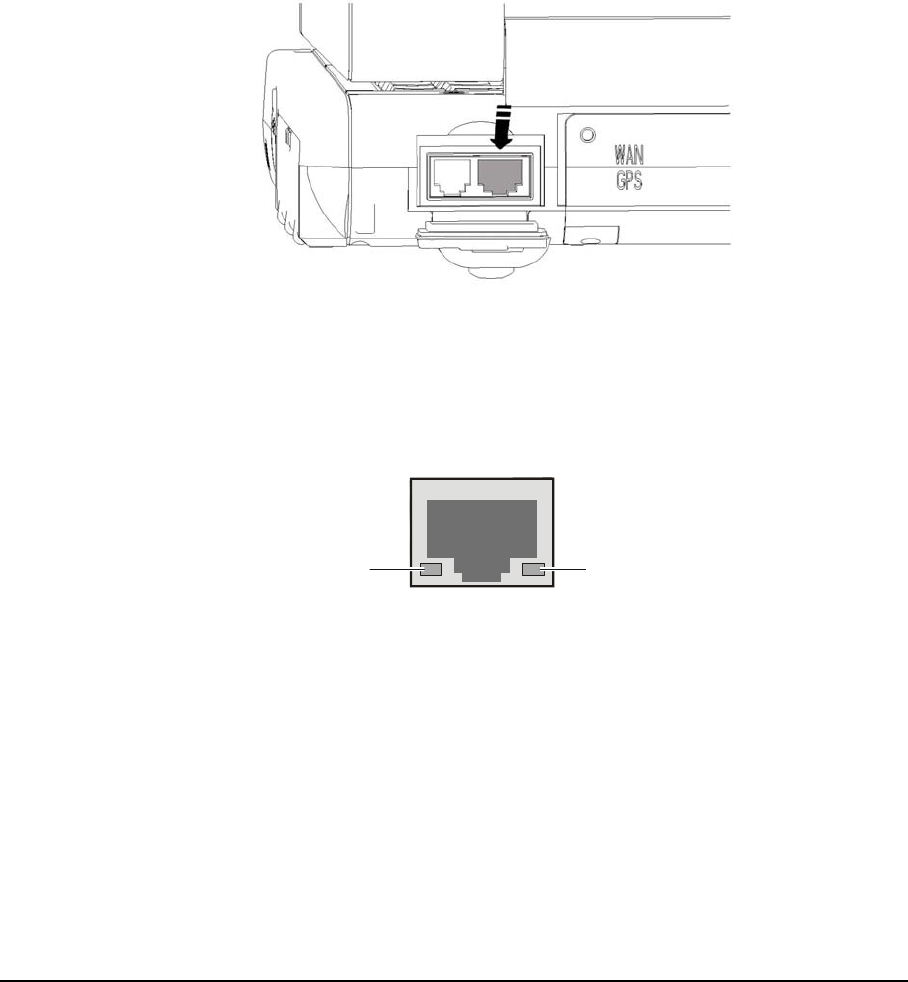

Using the LAN ........................................................ 2-18
Using the Wire Line Modem ................................... 2-19

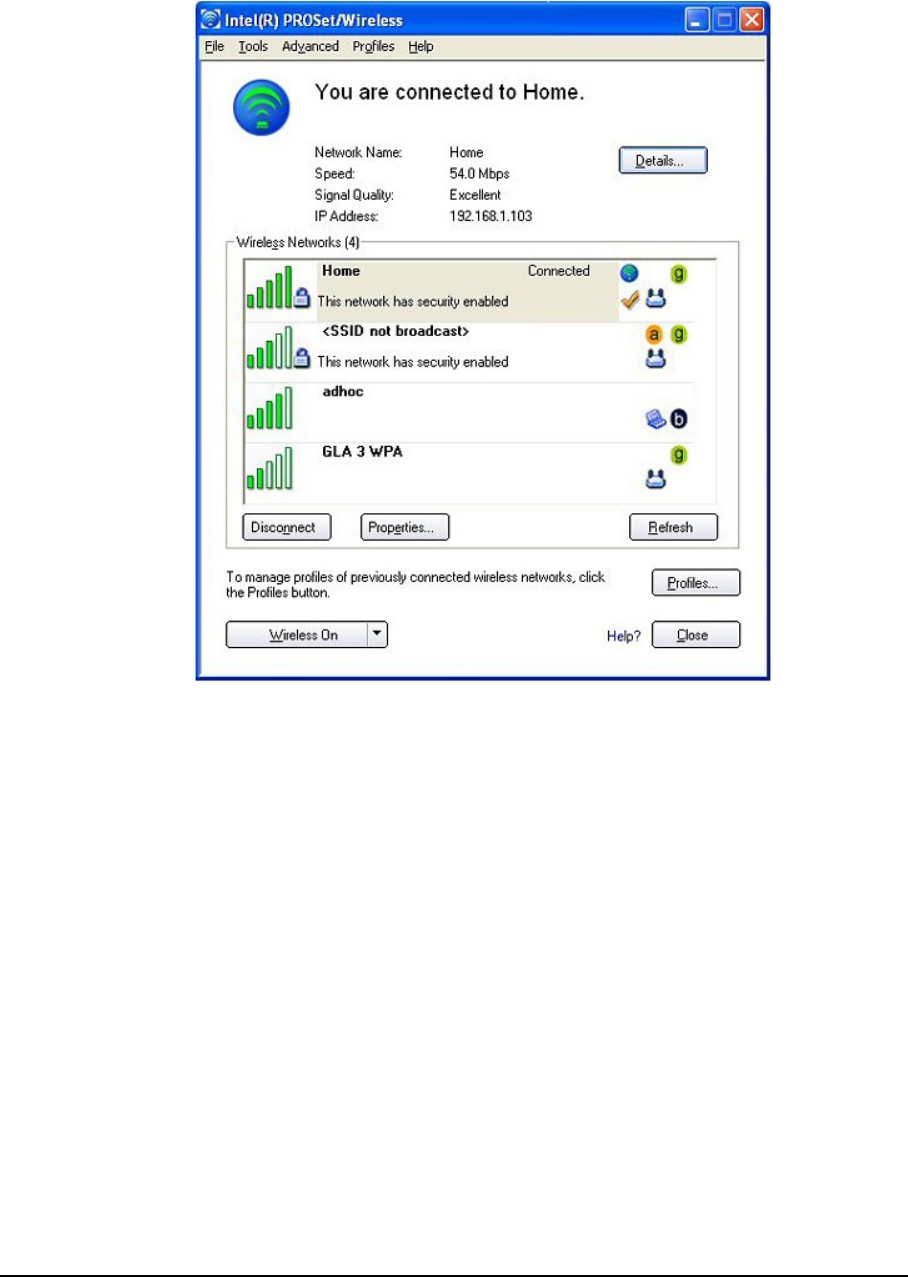

Using the Wireless LAN ......................................... 2-20
Using the PRM240 Wireless Modem (optional)...... 2-22
Using the GPS (optional)........................................ 2-23
Using the MESH Modem (optional) ........................ 2-24
Using the Bluetooth .............................................. 2-24
Embedded EVDO or UMTS Modem (optional)………….. 2-25
Chapter 3 Managing Power .................................................. 3-1
AC Adapter .................................................................... 3-2
Battery Pack .................................................................. 3-2
Charging the Battery Pack........................................ 3-2
Initializing the Battery Pack ...................................... 3-4
Checking the Battery Level....................................... 3-4
Replacing the Battery Pack ...................................... 3-5
Battery Low Signals and Actions .............................. 3-5
Power Management ...................................................... 3-6
Hibernation ............................................................... 3-6

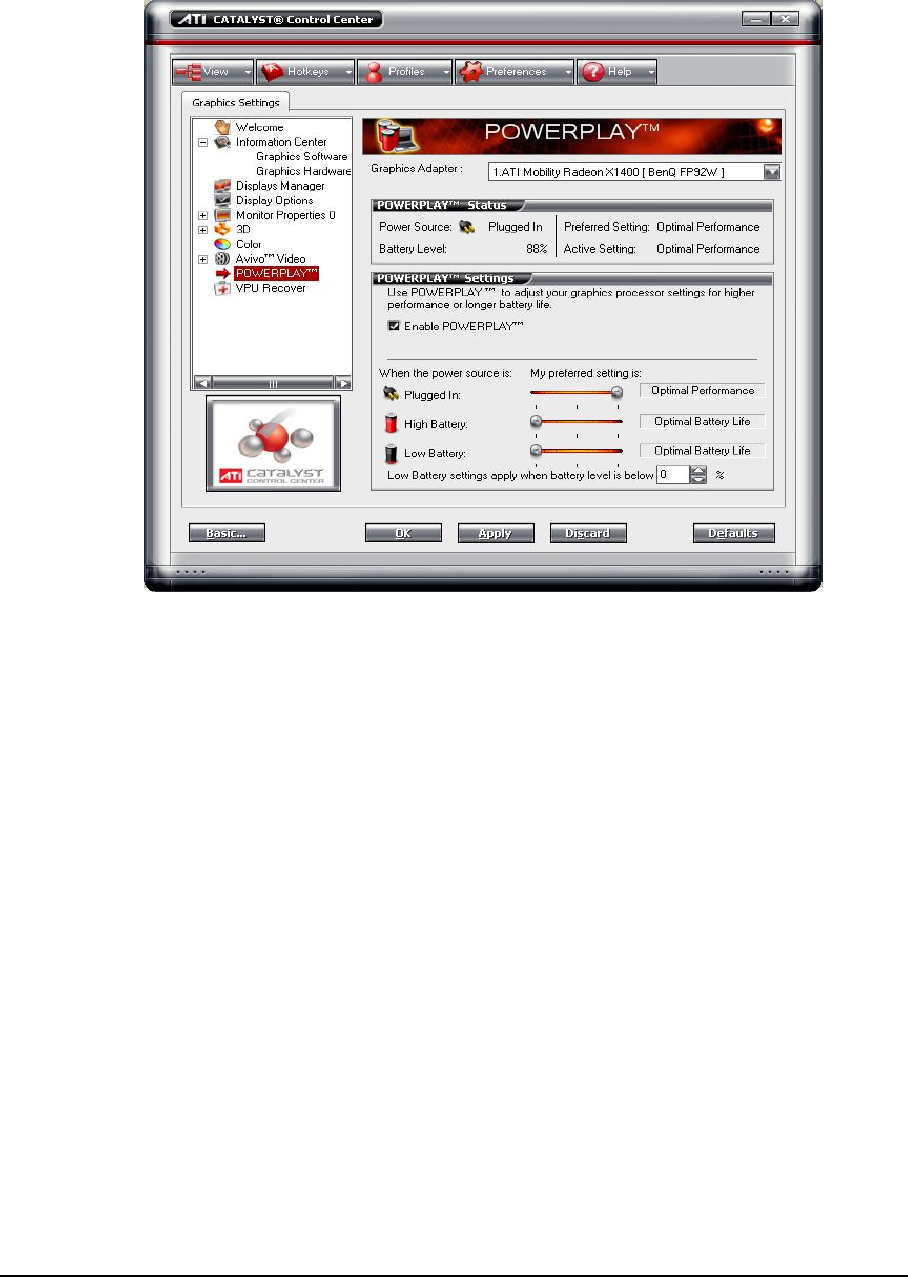

ATI PowerPlayTM Management...................................... 3-7
Power-Saving Tips ................................................. 3-10
Chapter 4 Expanding Your Computer ................................. 4-1
Connecting an External Monitor .................................... 4-2
Connecting a USB Device ............................................. 4-3
Connecting a Serial Device ........................................... 4-4
Connecting a Video Capture Device ............................. 4-5
System Memory Upgrade.............................................. 4-6
Chapter 5 BIOS Setup Utility and ML User Application
(MLUA).............................................................. 5-1
When and How to Use the BIOS Setup Utility............... 5-2
When to Use............................................................. 5-2
Starting BIOS Setup ................................................. 5-2
Moving Around and Making Selections .................... 5-2
Main Menu…………………………………………….5-3
![](/img.php?id=851461&img=bg19.png)
xxiii
Advanced Menu……………………………………… ..5-4
CPU Configuration…………………………………….. 5-4
Drive Configuration………………………………….....5-5
Information Device…………………………………….. 5-5
Peripherals Configuration………………….................5-6
System Recovery...................................................... 5-6
USB Configuration ……………..................................5-7
Boot Settings……… …………………………………...5-7
Boot Settings Configuration ……………………...…..5-9
Boot Device Priority..................................................5-9
Security Settings…………… ……………………..…5-10
BIOS Password Setup……………. ……………… ..5-10
ML User Application (MLUA)………………………....... ..5-13
ML Administrator Application (MLAA)…………….......... 5-15
Chapter 6 Installing Software Drivers .................................6-1
How to Use the Driver CD..............................................6-2
Main Menu ..................................................................... 6-3
Installing Device Driver .............................................6-4
Installing Applications ...............................................6-8
Chapter 7 Caring for the Computer ..................................... 7-1
Protecting the Computer ................................................ 7-2
Using the Password ..................................................7-2
Using an Anti-Virus Strategy..................................... 7-2
Taking Care of the Computer......................................... 7-3
Location Guidelines ..................................................7-3
General Guidelines ...................................................7-3
Cleaning Guidelines..................................................7-3
Battery Pack Guidelines............................................ 7-4
When Traveling..............................................................7-7
Chapter 8 Troubleshooting .................................................. 8-1
Preliminary Checklist .....................................................8-2
Solving Common Problems............................................8-3
Battery Problems ...................................................... 8-4
Bluetooth Problems................................................... 8-5
ODD Drive Problems ................................................ 8-5
Display Problems ......................................................8-6
Hardware Device Problems ......................................8-7
Hard Disk Drive Problems.........................................8-7
Keyboard, Mouse, and Touchpad Problems.............8-8
LAN Problems........................................................... 8-8
WLAN Problems ....................................................... 8-9
![](/img.php?id=851461&img=bg1a.png)
xxiv
Modem Problems .................................................. .8-10
Power Management Problems ............................... 8-10
Software Problems ................................................. 8-10
Sound Problems ..................................................... 8-11
Startup Problems.................................................... 8-11
Other Problems ...................................................... 8-11
Resetting the Computer ......................................... 8-12
HDD Recovery Process .............................................. 8-13
Chapter 9 The Accessories List ........................................... 9-1
Chapter 10 The Acronyms and Glossary........................... 10-1
Appendix A Specifications....................................................A-1
Appendix B Fingerprint Recognition System……………….B-1
Finger Placement ..........................................................B-2
Fingerprint Recognition ................................................. B-3
Appendix C Self Install Internal Wireless Modems.............C-1
Installation of the HSDPA Internal Modem Module .......C-2
Installation of the EVDO Rev. A
Internal Modem Module.................................................C-7
Installation of the PRM240 Internal Modem Module....C-11
Appendix D RoHS/WEEE ......................................................D-1
![](/img.php?id=851461&img=bg1b.png)
xxv
Preface
This user guide contains information that will help you operate the computer. It is divided
into 10 chapters and 3 appendices.
Chapter 1, Getting Started, takes you through the process of setting up the computer
and identifying its external components.
Chapter 2, Operating Your Computer, tells you how to use the computer’s
components and features.
Chapter 3, Managing Power, provides information on power.
Chapter 4, Expanding Your Computer, provides information on installing and using
peripheral devices.
Chapter 5, BOIS Setup, describes the SCU program that configures the computer’s
BIOS settings.
Chapter 6, Installing Software Drivers, describes how to install the drivers and utilities
supplied with the computer.
Chapter 7, Caring for the Computer, gives you tips in care and maintenance.
Chapter 8, Troubleshooting, gives solutions to common problems you may encounter
when using the computer.
Chapter 9, The Accessories List, give reference components for your replacement.
Chapter 10, The Acronyms and Glossary, Let user understand real means of
Acronyms when they read User Guide.
Appendix A, Specifications, gives a brief specification of the computer.
Appendix B, Fingerprint Recognition System, gives a brief safety measures.
Appendix C, RoHS / WEEE, World Wide RoHS / WEEE Standard.
![](/img.php?id=851461&img=bg1c.png)
xxvi
This page intentionally left blank
![](/img.php?id=851461&img=bg1d.png)
Getting Started 1-1
CHAPTER 1
Getting Started
Congratulations on your purchase of the ML910TM RUGGED NOTEBOOK.
This high performance notebook computer is especially designed for the practical
applications of warehouses, automobiles, vehicles, public security, repairing, assisting the
handicapped, and other demanding situations where conventional notebook computers just
cannot measure up.
This chapter first tells you step by step how to get the computer up and running. You will
find instructions for these procedures:
Unpacking
Connecting to the AC power
Opening the cover
Turning on the computer
Turning off the computer

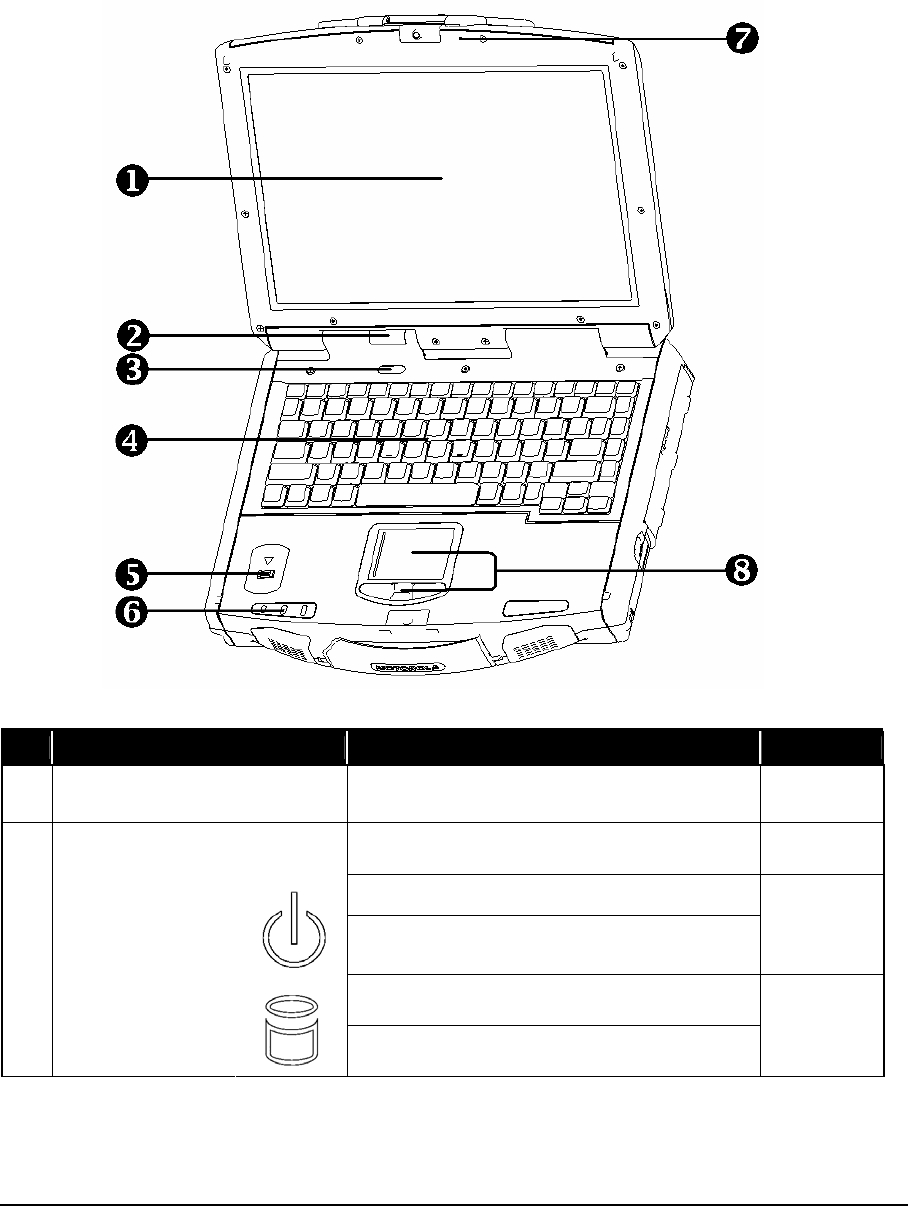

Then, you will find a section briefly introducing the external components of the computer.
The last section navigates you to the information you may need after the computer is ready
for use.
![](/img.php?id=851461&img=bg1e.png)
1-2 Getting Started
Getting the Computer Running
This section guides you through the procedures for getting the computer ready for
operation.
Unpacking
After unpacking the shipping carton, you should find these standard items:
Notebook computer
Accessories:
− AC adapter (100~240 VAC, 50/60 Hz)
− AC power cord (US)
− Battery
− CD including Drivers and User Guide
− Windows XP Operating System CD
– PCMCIA to Express 34 Card Converter
– Nero OEM Suite CD
Inspect all the items. If any item is damaged or missing, notify your dealer immediately.
Keep the shipping carton and packing materials in case you need to ship or store the
computer in the future.
Installing the Battery Pack
CAUTION:
1. There is danger of damage if the battery is incorrectly installed.
2. Do not attempt to disassemble the battery pack.

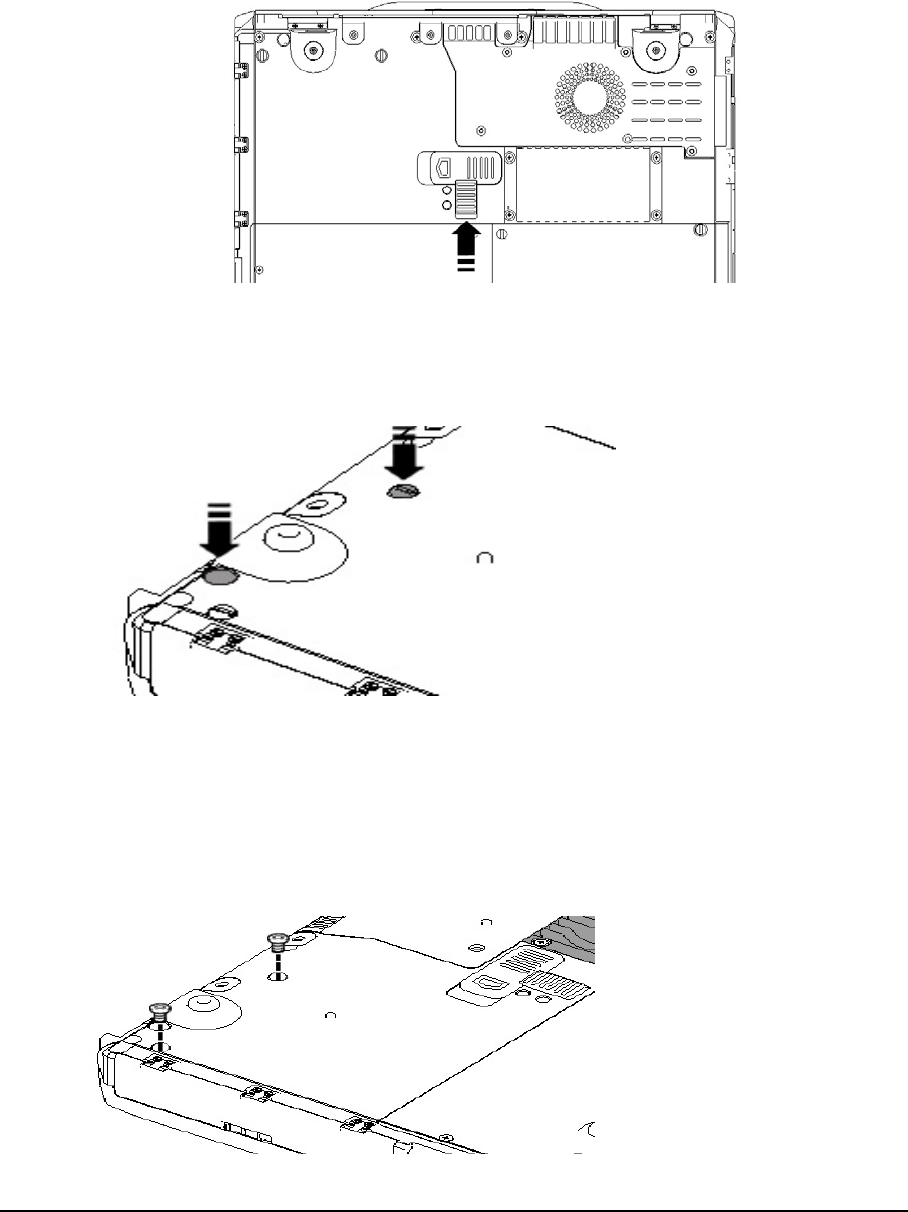

To install the battery pack, follow these steps:
1. Make sure the computer is not on or connected to the AC power.
2. Loosen the four screws and lift the battery pack compartment cover to take it off the
computer.
![](/img.php?id=851461&img=bg1f.png)
Getting Started 1-3
3. Insert the battery pack into the compartment.
4. Replace the compartment cover and secure the four screws.
Initializing the Battery Pack
You need to initialize the new battery pack before using it for the first time or when the
actual operating time of a battery pack is less than expected.
Initializing is the process of fully charging, discharging, and then charging that can take
several hours.
1. Make sure the computer is turned off. Connect the AC adapter to fully charge the
battery pack.
2. After the battery pack is fully charged, turn on the computer.
3. Disconnect the AC adapter and leave the computer on until the battery is fully
discharged. The computer will shut down automatically.
4. Connect the AC adapter to fully charge the battery pack.
![](/img.php?id=851461&img=bg20.png)
1-4 Getting Started
Connecting to AC Power
The computer operates on either the external AC power or the internal battery power.
We recommend that you use AC power when you start up the computer for the first time.
CAUTION:
Use only the AC adapter included with your computer. Use of any other AC adapters may
damage the computer.
NOTE:
Power Supply Cord:
For US territory: Detachable, minimum 1.8m long. Listed, rated minimum 125V, 2.5A, having
a 3/18 AWG, flexible cord. One end terminates with a molded-on, attachments plug with a 10A,
125V (NEMA 5–15) configuration; other end terminates with a molded-on appliance coupler.
For UK territory: Detachable, minimum 1.8m long. Listed, rated minimum 250V, 2.5 A, having
a 3/0.75mm2, flexible cord. One end terminates with a molded-on, attachments plug with a3A,
250V (BS1363), and 3 A fuse configuration; other end terminates with a molded-on appliance
coupler.
5. Make sure the computer is turned off.
6. Plug the DC cord of the AC adapter to the power connector on the rear side of the
computer ().
7. Plug the female end of the AC power cord to the AC adapter and the male end to an
electrical outlet ().
8. When the AC adapter is connected, the indicator on the AC adapter lights up,
indicating that power is being supplied from the electrical outlet to the AC adapter
and onto your computer. Now, you are ready to turn on the computer.
CAUTION:
1. When you disconnect the AC adapter, disconnect from the electrical outlet first and then
from the computer. A reverse procedure may damage the AC adapter or the computer.
2. When unplugging the connector, always hold the plug head. Never pull on the cord.
![](/img.php?id=851461&img=bg21.png)
Getting Started 1-5
NOTE:
When the AC adapter is connected, it also charges the battery pack. For information on using
battery power, see Chapter 3.
Opening the Cover
1. Press the top cover latch
2. Lift up the cover. You can tilt the cover forward or backward for optimal viewing
clarity.
Turning On and Off the Computer
Turning On
3. Make sure the computer has a charged battery or is connected to the AC power
supply.
4. Press the power button.
![](/img.php?id=851461&img=bg22.png)
1-6 Getting Started
5. Each time the computer is turned on, it performs a Power-On Self Test (POST), and
the operating system (such as Windows) should load.
Turning Off
To turn off the computer safely, use the “Shut Down” command of your operating
system.
NOTE:
1. Pressing the power button for 4 seconds or longer will shut the computer off. If the power
button is held for 10 seconds or more once the computer is turned off, this will cause the
internal controller to reset.
2. There are other ways to turn off the computer that can allow you to return to the state where
you left off. Please refer to “Shutting Down the Computer” in Chapter 2 for more information.
![](/img.php?id=851461&img=bg23.png)
Getting Started 1-7
Taking a Look at the Computer
This section identifies the external components of the computer and briefly describes
the function of each component.
NOTE:
Depending on the model you purchased, the appearance of your computer may not exactly be
the same as those shown in this user guide.
Top of the Computer
Ref Component Description See Also
Internal Modem
Compartment Behind the M logo is a compartment which
provides the various connection for installing
internal modems.
C-2
1
![](/img.php?id=851461&img=bg24.png)
1-8 Getting Started
Right-Side Components
Ref Component Description See Also
Security Lock
Slot Connects an optional security lock to anchor the
computer to a desk or other large object.
USB Port Supports USB 2.0 (i.e. USB High Speed Devices)
and Legacy USB Full and Low Speed Devices (i.e.
USB 1.1 and US B1.0); and up to 1A load for each
USB Port.
P. 4-3
Configurable
Media Bay Accepts an Optical Disc Drive (ODD) for installing
or loading software, accessing data, and playing
music/video. This bay can also accept the optional
second battery or second hard drive.
P. 2-12
![](/img.php?id=851461&img=bg25.png)
Getting Started 1-9
Left-Side Components
Ref Component Description See Also
VGA Port Connects an external monitor. P. 4-2
Serial Port Connects a RS-232 device. P. 4-4
Video Capture
Port This is a video input port, that can connect to a
video capture device. P. 4-5
Microphone
Connector Connects an external microphone. P. 2-17
Audio Output
Connector
Connects a set of headphones, external speakers
with amplifier, or an audio recording device. The
audio jack also supports S/PDIF optical standard
and is capable of interfacing a mini-toshlink for
optical S/PDIF.
P. 2-17
PC Card Slot Accepts a Type II PCMCIA/CardBus card or USB
ExpressCard/34 via USB Express Card adapter
for additional functions. P. A-2
![](/img.php?id=851461&img=bg26.png)
1-10 Getting Started
Rear Components
Ref Component Description See Also
RJ-11 Port Connects the telephone line. P. 2-18
RJ-45 Port Connects the LAN cable. Included a link indicator
and an active indicator. P. 2-18
GPS RF
Pass-through
Port"
Serves as the interface between the system and
external GPS antenna. P. 2-23
WWAN Module
RF Pass-through
Port"
Serves as the interface between the system and
antenna of the optional WWAN module. P. 2-22
Docking Port For connecting to an Office Port Replicator or
Vehicle Dock (both are available as an option).
USB Port 1
USB Port 2
Supports USB2.0 (i.e. USB High Speed Devices)
and Legacy USB Full and Low Speed Devices (i.e.
USB 1.1 and YSB1.0); and up to 1A load for each
USB Port.
P. 4-3
Power
Connector Connects the AC adapter. P. 1-2
CAUTION:
Connection of external antenna (GPS, WWAN) by using the RF Pass-Thru ports when the
ML910TM RUGGED NOTEBOOK will be used outside of a car without the vehicle docking
station is not an FCC certified configuration. Customers should not configure their systems in
this way.
![](/img.php?id=851461&img=bg27.png)
Getting Started 1-11
Front Components
Ref Component Description See Also
Stereo
Speaker Set Output stereo audio from the computer. P. 2–17
Handle Allows you to carry your computer with an
easy grip.
Top Cover
Latch Locks the top cover. P. 1–5
GPS Antenna
(optional) Serves as an antenna for the Global
Positioning System (GPS). It is built into the
top cover.
P. 2–23
![](/img.php?id=851461&img=bg28.png)
1-12 Getting Started
Bottom-Side Components
Ref Component Description See Also
Configurable
Media Bay Eject
Latch
Allows you to remove the Optical Disk Drive,
Second Battery or Second Hard Drive. P. 2-12
Configurable
Media Bay Lock/
Unlock Switch
Allows you to lock the Optical Disk Drive, Second
Battery or Second Hard Drive in place P. 2-13
Hard Disk Drive
Compartment Contains the hard disk drive of your computer. P. 2-11
Ventilation
Openings Allow for air circulation to prevent overheating and
do not cover or block the ventilation openings.
CPU Cooling Fan Contains cooling fan to protect it from overheating.
Memory
Compartment Contains the memory compartment for expanding
the memory size of your computer. P. 4-6
Main Battery Pack
Compartment Supplies power to your computer when the external
power is not connected. P. 2-12
![](/img.php?id=851461&img=bg29.png)
Getting Started 1-13
Antenna Location (Integrated Radio Modems)
Ref Component Description See Also
GPS Antenna For with Optional GPS Receiver NA
External PCMCIA
Antenna Mount
Location For WMC6300 & WMC7300 X
WWAN Antenna 1 Primary – TX and RX -- MC8775 and
MC5725 NA
WLAN Antenna 1 Primary TX and RX NA
WWAN Antenna 2 Secondary – RX only -- MC5725 NA
WLAN Antenna 2 Secondary – RX only NA
Bluetooth NA
External PCMCIA
Antenna Location WDE1000 x
6
4
4
3
6
5
2
1
7
![](/img.php?id=851461&img=bg2a.png)
1-14 Getting Started
Top-Open Components
Ref Component Description See Also
LCD Screen with touch panel Displays the output of the computer. P.2-9
Device Indicators Show the current status of the computer’s
devices.
Power on: Green color.
Standby mode: Amber color. P. 3-2 & 3
Hard disk drive in-use: Amber color (Blinking).
Hard disk heater is on: Red color (Blinking).
P. 2-11
![](/img.php?id=851461&img=bg2b.png)
Getting Started 1-15
Ref Component Description See Also
Battery charging indicator.
Battery full: Glows green.
Battery charging: Glows amber.
Battery low: Red (Blinking).
P.3-3
AC indicator.
Glows green when the computer is connected
to AC power.
P. 1-4 or
P. 3-2
Power Button Turns your computer ON or OFF. P. 1-5
Keyboard Serves as the data input device of the
computer. P. 2-3
Fingerprint Scanner Contains the fingerprint scanner. P. B-1
Device Indicators Show the current status of the computer’s
devices.
Touchpad indicator –
Glows green (or red) when the touchpad is
enabled press Fn+F2 to toggle the touchpad
on/off. (or disabled).
P. 2-8
Num Lock indicator. P. 2-3
Caps Lock indicator. P. 2-3
Light Sensor Detects ambient light and automatically turns
on/off the keyboard backlight function. Hot
keys: Fn+F1.
P. 2-3
P. 2-5
Touchpad / Touchpad Buttons Serves as the pointing device of the computer. P.2-7
![](/img.php?id=851461&img=bg2c.png)
1-16 Getting Started
Where to Go from Here
As your computer is ready for operation, you may want to do any of the following now:
For this purpose… Do this…
To know more about the
computer… Go on to the next chapter.
To install the operating system if
your dealer has not already done
so…
See the operating system
manual.
To know more about the operating
system… Read the operating system
manual.
To install the drivers if your dealer
has not already done so… See Chapter 6.
To set a power-on password… See “Security Settings” in
Chapter 5.
To charge the battery pack for the
first time… See “Charging the Battery Pack”
in Chapter 3.
![](/img.php?id=851461&img=bg2d.png)
Operating Your Computer 2-1
CHAPTER 2
Operating Your Computer
This chapter provides information about the use of the computer.
If you are new to computers, reading this chapter will help you learn your computer’s basic
operations. If you are already a computer user but are new to notebook computers, you
may choose to read only the parts containing information unique to your computer.
This chapter describes the following components:
z Keyboard
z Touchpad
z Touchscreen
z Hard disk drive
z Optical disk drive
And these features:
z Starting and shutting down the computer
z Video features
z Audio features
z Communication features
![](/img.php?id=851461&img=bg2e.png)
2-2 Operating Your Computer
Starting and Shutting Down the Computer
There are a number of ways to start and stop the computer.
Starting the Computer
You always start the computer using the power button.
A computer starts up with an operating system (OS) existing on the storage device such
as the hard disk; or from a CD if you have the respective modules installed. The
computer will automatically load the OS after you turn it on. This process is called
booting.
NOTE:
An operating system is the platform for all your software application programs to run on. The
most widely used operating system today is Microsoft Windows.
CAUTION:
Do not use a sharp object such as a ballpoint pen or pencil on the power button. Doing so may
damage the power button surface.
Shutting Down the Computer
When you finish a working session, you can stop the computer by turning off the
power or leaving the computer in Standby or Hibernation mode:
To stop in
this mode… Do this… To start up or
resume again
Off Follow the shutdown procedure of your
operating system. This can prevent
loss of unsaved data or damage to
your software programs.
If the system locks up because of
hardware or software problems, press
the power button to turn off the
computer.
Press the power
button.
Standby Depending on your Windows settings,
you can place the computer in Standby
mode by:
· Closing the display cover
· Pressing the power button
Press any key.
Hibernation Depending on your Windows settings,
you can place the computer in
Hibernation mode by:
· Closing the display cover
· Pressing the power button
Press the power
button.
![](/img.php?id=851461&img=bg2f.png)
Operating Your Computer 2-3
NOTE:
1. Placing your computer in Standby or Hibernation mode allows you to return to the tasks you
were doing the next time you start up the computer. (See “Power Management” in Chapter 3
for more information.)
2. Pressing the power button for 4 seconds or longer will shut the computer off. If the power
button is held for 10 seconds or more, once the computer is turned off, this will cause the
internal controller to reset.
CAUTION:
Using the power button to shut down the computer can cause damage to the OS when shutting
down.
Using the Keyboard
Your keyboard has all the standard functions of a full-sized computer keyboard with an
additional Fn key for specific functions.
The standard functions of the keyboard are divided into four major categories:
z Typewriter keys
z Cursor-control keys
z Numeric keys
z Function keys
Typewriter Keys
Typewriter keys are similar to the keys on a typewriter. Several keys that are not found
on the typewriter, such as the Ctrl, Alt, Esc, and lock keys, are added for special
purposes. When the lock keys (Caps Lock, Num Lk, and Scroll Lk) are pressed, their
corresponding indicators will light up.
![](/img.php?id=851461&img=bg30.png)
2-4 Operating Your Computer
Cursor-Control Keys
NOTE:
1. The word “cursor” refers to the indicator on the screen that lets you know exactly where on
your screen anything you type will appear.
2. It can take the form of a vertical or horizontal line, a block, or one of many other shapes.
Numeric Keypad
A 15-key numeric keypad is embedded on the typewriter keys as shown next:
Numeric keys facilitate the entering of numbers and calculations. When Num Lock is
turned on, the numeric keys are activated; meaning you can use these keys to enter
numerals.
NOTE:
1. When the numeric keypad is activated and you need to type the English letter in the keypad
area, you can turn Num Lock off or you can press Fn and then the letter without turning Num
Lock off.
2. Some software may not be able to use the numeric keypad on the computer. If so, use the
numeric keypad on an external keyboard instead.
![](/img.php?id=851461&img=bg31.png)
Operating Your Computer 2-5
Euro Symbol
For the Euro dollar sign :
On an UK keyboard, hold down the Alt Gr key and press 4 (which has a Euro sign on it).
Windows Keys
The keyboard has two keys that perform Windows-specific functions:
Windows Logo key and Application key.
The Windows Logo key opens the Start menu and performs software-specific
functions when used in combination with other keys.
The Application key has the same effect as a right mouse click. (See your Windows
manual for more information.)
Function Keys
On the top row of the keyboard are the function keys: F1 to F12. Function keys are
multi-purpose keys that perform operations defined by the individual programs.
Fn Key
The Fn key, located at the lower left corner of the keyboard, is used with another key to
perform the alternative function of a key. The letter “Fn” and the alternative functions are
identified by the blue colored labels on the key top. To perform a desired function, first
press and hold Fn, then press the other key.
![](/img.php?id=851461&img=bg32.png)
2-6 Operating Your Computer
Hot Keys
Hot keys refer to a combination of keys that you can press at any time to activate special
functions of the computer. Most hot keys operate in a cyclic way. Each time a hot key
combination is pressed, it shifts the corresponding function to the other or next choice.
You can easily identify the hot keys with the icons imprinted on the key top. Refer to the
table below to understand the functions of the hot keys:
Key Description
Enables/Disables the keyboard backlight function.
Enables/Disables the Touchpad.
Decreases the sound volume.
Increases the sound volume.
1. Fn+F5: going to decreases the LCD brightness.
2. Fn+F6: going to increases the LCD brightness.
3. There are 5 levels of LCD brightness.
(0 is no backlight)
![](/img.php?id=851461&img=bg33.png)
Operating Your Computer 2-7
Key Description
Fn+F7 hotkey turn on/off all wireless devices. i.e.
WLAN, WWAN, GPS and Bluetooth.
Switches the LCD off and on.
Switches the display output when an external
device is connected. This is a circular change i.e.
LCD to CRT to CRT and LCD back to CRT.
Serves as the sleep button that you can define with
Windows’ Power Management. (See the “Power
Management” in Chapter 3.)
Switches the LCD backlight on and off.
Switches the Optional GPS Receiver on and off.
![](/img.php?id=851461&img=bg34.png)
2-8 Operating Your Computer
Using the Touchpad
CAUTION:
1. Do not use a sharp object such as a pen on the touchpad.
2. Doing so may damage the touchpad surface as well as for RUBBER part of the touchpad
section.
NOTE:
1. By default, the touchpad is enabled. Use the Fn+F2 hot keys to enable/disable this function.
The touchpad indicator found on the keyboard panel glows red when it is disabled.
2. For optimal performance of the touchpad, keep your fingers and the pads clean and dry.
When tapping on the pad, tap lightly. Do not use excessive force.
The touchpad is a pointing device that allows you to communicate with the computer by
controlling the location of the pointer on the screen and making selection with the
buttons.
The touchpad consists of a rectangular pad and four buttons. To use the touchpad,
place your forefinger or thumb on the pad. The rectangular pad acts like a miniature
duplicate of your display. As you slide your fingertip across the pad, the pointer (also
called cursor) on the screen moves accordingly. When your finger reaches the edge of
the pad, simply lift the finger and place it on the other side of the touchpad.
Here are some common terms that you should know when using the touchpad:
Term Action
Point Move your finger on the pad until the cursor points to the selection on the
screen.
Click Press and release the left button.
–or–
Tap gently anywhere on the pad.
Double-click Press and release the left button twice in quick succession.
–or–
Tap twice on the pad rapidly.
![](/img.php?id=851461&img=bg35.png)
Operating Your Computer 2-9
Term Action
Drag and
drop Press and hold the left button, then move your finger until you reach your
destination (drag). Finally, release the button (drop) when you finish
dragging your selection to the destination. The object will drop into the new
location.
–or–
Gently tap twice on the pad and on the second tap, keep your finger in
contact with the pad. Then, move your finger across the pad to drag the
selected object to your destination. When you lift your finger from the pad,
the selected object will drop into place.
Scroll To scroll is to move up and down or left and right in the working area on the
screen.
The scroll button located between the two buttons under the touchpad can
be used to move vertically in a convenient way. Press the upper part of the
scroll button to move up and the lower part of the scroll button to move
down.
–or–
To move vertically, place your finger on the right edge of the pad and slide
your finger up and down along the edge. To move horizontally, place your
finger on the bottom edge of the pad and slide your finger left and right.
This function works only after you install the touchpad driver supplied with
the computer and it may not work for all applications.
NOTE:
If you swap the left and right buttons, “tapping” on the touchpad as an alternative method of
pressing the left button will no longer be valid.
Configuring the Touchpad
You may want to configure the touchpad to suit your needs. For example, if you are a
left-handed user, you can swap the two buttons so that you can use the right button as
the left button and vice versa. You can also change the size of the on-screen pointer, the
speed of the pointer, and so on.
NOTE:
1. The touch pad is pressure sensitive.
2. The presence of a foreign object on the touch pad may cause the cursor to move erratically.
3. Use an optical cleaning kit such as a bower brush to remove any such objects.
![](/img.php?id=851461&img=bg36.png)
2-10 Operating Your Computer
Using the Touchscreen
CAUTION:
Do not use a sharp object such as a ballpoint pen or pencil on the touchscreen. Doing so may
damage the touchscreen surface.
NOTE:
1. The touchscreen is pressure sensitive. The presence of a foreign object on the touchscreen
may cause the cursor to move erratically.
2. Use an optical cleaning kit such as a bower brush to remove any such objects.
The touchscreen is a touch-sensitive device that allows you to communicate with the
computer by controlling the location of the pointer on the screen and making selection.
The touchscreen allows you to use the computer without a mouse or touchpad.
Here are some common terms that you should know when using the touchscreen:
Term Action
Click/Point Tap gently on the touchscreen.
Double-click Tap twice on the touchscreen rapidly.
Drag and
drop Press lightly on the touchscreen and move your
finger until you reach your destination (drag). Finally,
release your finger (drop) when you finish dragging
your selection to the destination. The object will drop
into the new location.
![](/img.php?id=851461&img=bg37.png)
Operating Your Computer 2-11
Using the Hard Disk Drive
Your computer comes with a 2.5-inch Serial-ATA hard disk drive. A hard disk drive is a
storage device where your operating system and application programs are stored.
This type of drive embodies the latest in fast, reliable mass storage by integrating all the
control circuitry necessary for operation directly onto the drive itself. This allows the
drive manufacturer to optimize the performance of the drive.
The system comes with a built-in heater that automatically turns on during low
temperature operation. The HDD-heater-on indicator blinks red when the heater is on. In
low temperature environments, you should operate the system using AC power to
conserve battery power.
CAUTION:
1. Make regular backups of your data files from the hard disk drive to CDs or other storage
media.
2. Never try to remove or install the hard disk drive while the computer is powered on. Doing so
can result in loss of data, and can damage the computer and the hard disk drive’s sensitive
circuitry.
3. Never turn off or reset the computer while the hard disk drive in-use indicator is on.
![](/img.php?id=851461&img=bg38.png)
2-12 Operating Your Computer
Using the Optical Disk Drive
Your computer (model-dependent) comes with a optical disk drive located on the right
side of the computer in the configurable media bay.
Depending on the model of your computer, the drive may be one of the following:
z DVD drive – reads DVD (Digital Versatile Disc) discs in addition to CDs, audio CDs,
CD-R, and CD-RW discs.
z CD-RW/DVD Combo drive – works both as a DVD drive and CD-RW drive.
z DVD-RW Dual drive – aside from working as a Combo drive, it can also write to
DVD±RW (+R DL), DVD-R, DVD+R, DVD-RAM, CD-R & CDRW discs.
NOTE:
1. If you are using the optical disk drive for more than half an hour (e.g. playing a DVD title), it
is recommended to use the AC power source instead of the battery.
2. If not, the battery may run out of power before you can complete your multimedia task.
CAUTION:
1. When inserting a disc, do not use force.
2. Make sure the disc is correctly inserted into the tray, before closing the tray.
3. Do not leave the optical disk tray open unnecessarily. Also, avoid touching the lens in
the tray with your hand. If the lens becomes dirty, the drive may malfunction.
4. Do not wipe the lens using materials with rough surface (such as paper towel).
Instead, use a cotton swab to wipe the lens gently.
5. FDA regulations require the following statement for all laser-based devices.
6 Use of controls or adjustments or performance of procedures other than those
specified herein may result in hazardous radiation exposure.
7. The optical disk drive is classified as a Class 1 laser product.
This label is located on the optical disk drive.
To install the Optical Disk Drive/2nd HDD/2nd Battery:
1. Insert the optical disk drive/2nd HDD/2nd Battery into the configurable media bay
located on the right side of the computer.
![](/img.php?id=851461&img=bg39.png)
Operating Your Computer 2-13
2. Slide the multipurpose bay lock/unlock switch to the lock position to secure the
optical disk drive/2nd HDD/2nd Battery in place.
3. Tighten the positioning screws to lock the optical disk drive/2nd HDD/2nd Battery in
place.
Removing the Optical Disk Drive/2nd HDD/2nd Battery
To remove the optical disk drive/2nd HDD/2nd Battery:
1. Remove the two positioning screws from the base.
![](/img.php?id=851461&img=bg3a.png)
2-14 Operating Your Computer
2. Open the door of the configurable media bay on the right side of the computer.
3. Push to release the lock/unlock switch.
4. Push the Eject icon switch to remove the optical disk drive/2nd HDD/2nd Battery.
Warning:
1. Without the two positioning screws locked on the base, the unit will no longer be
waterproof and will be more susceptible to damage if dropped.
2. The optical disk drive (or any other secondary kit i.e. 2nd HDD/2nd Battery) needs to
be replaced back in the unit for positioning screws to lock on.
![](/img.php?id=851461&img=bg3b.png)
Operating Your Computer 2-15
Inserting and Removing a Disc
Follow this procedure to insert or remove a disc.
1. Turn on the computer.
2. Press the eject button and the optical disk drive tray will slide out partially. Carefully
pull it out until fully extended.
3. To insert a disc, place the disc in the empty tray with its label facing up. Gently press
the center of the disc until it clicks into place.
To remove a disc, hold the disc by its outer edge and lift it up from the tray.
4. Gently push the tray back into the drive.
NOTE:
In the unlikely event that you are unable to release the optical disk drive tray by pressing the
eject button, you can manually release the optical media. (See “Optical Disk Drive Problems” in
Chapter 8.)
Using the Video Features
The video subsystem of your computer features:
13.3-inch Display:
z 13.3-inch TFT (Thin-Film Transistor) color LCD display with 1280×800 WXGA (Wide
extend Graphics Array) resolution.
z 128 MB discrete video memory.
z Simultaneous display on LCD and external monitor, which is useful when you have a
presentation as you can control the screen from your computer and face the
audience at the same time.
z Dual view capability that allows you to extend your desktop to another display device
so you have more desktop space to work on.
![](/img.php?id=851461&img=bg3c.png)
2-16 Operating Your Computer
z Power Management.
z Polarizer touchscreen function.
NOTE:
System enters Standby/Hibernation mode when the LCD is closed. If you want to use the
computer with the LCD closed, set Do Nothing to the “When I close the lid of my portable
computer” option in the Power Options Properties. Thus, the computer will not enter Standby
or Hibernation mode when the LCD is closed.
Configuring the Display Modes
Your computer has been set to a default resolution and number of colors before
shipment. You can view and change display settings through your operating system.
See your operating system documentation or online help for specific information.
For displaying in higher resolutions, you can connect an external monitor that supports
higher resolutions. (See “Connecting an External Monitor” in Chapter 4 for more
information.)
The following table lists the display modes supported by your computer.
Display
Mode
Resolution Colors LCD Only CRT Only Simultaneous Display
16-bit 9 9 9
800×600 32-bit 9 9 9
16-bit 9 9 9
1024x600 32-bit 9 9 9
16-bit 9 9 9
1024×768 32-bit 9 9 9
16-bit 9 9 9
1280x720 32-bit 9 9 9
16-bit 9 9 9
1280x768 32-bit 9 9 9
16-bit 9 9 9
1280x800 32-bit 9 9 9
NOTE:
1. 16-bit = High Color or 65,536 (64 K) colors; 32-bit = True Color 16,770,000 (16 M) colors.
2. When using an external monitor only, the resolution depends on the resolution supported by
the external monitor.
![](/img.php?id=851461&img=bg3d.png)
Operating Your Computer 2-17
Using the Audio Features
NOTE:
1. To take advantage of the enhanced audio capabilities, the audio driver supplied with your
computer must be installed (see chapter 6 for details).
2. If you experience interference while recording, try lowering the microphone recording
volume.
The audio subsystem of your computer features:
z Recording analog audio
z Digital audio and analog mixing functions and playing sound on your computer
z Microsoft Windows Sound System support
z A set of built-in speakers (n)
z External audio connectors (o)
Modes of playing and recording sound vary with the operating system used. See your
operating system documentation or online help for specific information.
Connecting Audio Devices
For higher audio quality, you can send or receive sound through external audio devices.
z Microphone Connector ( ) can be connected to an external microphone for
recording voice or sound.
z Audio Output Connector ( ) can be connected to the line-in connector of
powered speakers with built-in amplifiers, headphones, or earphone set. The audio
jack also supports S/PDIF optical standard and capable of interfacing a mini-toslink
for optical S/PDIF.
NOTE:
When using external speakers/headphones, the internal speakers will be disabled.
![](/img.php?id=851461&img=bg3e.png)
2-18 Operating Your Computer
Using the Communication Features
Using the LAN
The internal 10/100/1000 Base-T Ethernet LAN (Local Area Network) module allows
you to connect your computer to a network. It supports data transfer rate up to 1000
Mbps. When the ML910TM RUGGED NOTEBOOK is used in a Vehicle Docking Station
or Office Port Replicator the data rate transfer will only be 10/100 Mbps.
To connect the network cable to the LAN module, plug in one end of the LAN cable to
the RJ-45 connector on the computer and the other end to the network hub.
Link Indicator Glows green when the system has an
available connection to LAN.
Active
Indicator Blinks amber when the system is accessing
the LAN.
A
ctive indicator
(Amber blinking) Link indicato
r
(Green)
![](/img.php?id=851461&img=bg3f.png)
Operating Your Computer 2-19
Using the Wire line Modem
The internal 56K fax/data modem allows you to use the telephone line to communicate
with others by fax, email, or connect to an online service or web browser. Connect one end
of the RJ-11 telephone cable to the modem port and the other end to the phone line.
![](/img.php?id=851461&img=bg40.png)
2-20 Operating Your Computer
Using the Wireless LAN
Your computer may have an internal PCIe (PCI Express) Mini Card network adapter
(WLAN) pre-installed by the computer manufacturer. This card allows you to access
corporate networks or the Internet in a wireless environment.
Features Module 3945ABG for
ML910 TM RUGGED NOTEBOOK
Band Indicates the wireless band of the current connection
Supported Data rates
Rates at which the wireless adapter can send and receive
data. Displays the speed in Mbps or the frequency being
used.
• 802.11a - 6, 9, 12, 18, 24, 36, 48 and 54mbps
• 802.11b- 1, 2, 5.5 and 11
• 802.11g- 1, 2, 5.5 and 11
Radio Frequency • Display the frequency of the current wireless connection.
• 2.4 GHz
• 5 GHz
Channel Number Displays the transmit and receive channel.
Network Authentication WPA-Personal, WPA2-Personal, WPA-Enterprise,
WPA2-Enterprise.
CCX Version Version of the Cisco Compatible Extensions on this wireless
connection.
CCX TPC Cisco Compatible Extensions Power Levels.
CCX Power Levels 1.0, 5.0, 20.0, 31.6, 50.1 mW
Access Point MAC Address The Media Access Control (MAC) address for the associated
access point.
Mandatory Access Point
Display None, if not enabled. If enabled, from the access
point MAC address is displayed. This option directs the
wireless adapter to connect to an access point that uses a
specific MAC address(48bit 12 hexadecimal digits, for
example, 00:06:25:0E:9D:84)
CAUTION:
The FAA (Federal Aviation Agency) has deemed it unsafe to operate wireless devices in
aircraft as this may interfere with flight safety. Remember to turn off wireless LAN when using
your computer in the airplane.
Connecting to a Wireless Network
1. Double-click the Intel PROSet/Wireless Software icon located on the Windows
system tray. The following window appears on screen:
NOTE:
If the "Intel(R) PRO/Wireless Network connection is disabled, press Fn+F7 to enable it.
![](/img.php?id=851461&img=bg41.png)
Operating Your Computer 2-21
2. Select a wireless network to connect to, and then click Connect.
3. You may be asked to enter a key or pass phrase if a network security setting is
enabled. Refer to your Windows online help for more information on setting a
wireless network connection.
![](/img.php?id=851461&img=bg42.png)
2-22 Operating Your Computer
Using the PRM240 Wireless Modem (Optional)
The PRM240 is a radio modem intended for use on Motorola's Private DataTAC data
communications network.
It is primarily designed to be integrated into the customer’s equipment as an OEM
modem. There are two versions available–an 800MHz version (A band) and a 900 MHz
version (B band).
The modem interfaces to the equipment’s controller by using the data interface port. The
protocol supported over this link is a Native Control Language (NCL).
Although the modem has embedded software, it also has the application software that
must be installed separately in order for the device to which the modem is connected to
communicate with it.
NOTE:
Please refer to your PRM240 user manual for more information on the installation and
configuration of the modem.
The PRM240 modem has the following features:
− Serial communications interference port (TTL level)
− Four configurable digital Input/output lines for external control/monitoring
− Software configurable RF calibration adjustments to suit specific networks
− High sensitivity reception
− Small footprint and low profile design
− Low-voltage and low standby current consumption for battery based
products
− Auto-wake up of host on incoming messages
− Roaming capabilities as used in DataTAC network
− Easy to install, service and update
![](/img.php?id=851461&img=bg43.png)
Operating Your Computer 2-23
Using GPS (Optional)
Navigation and positioning are crucial to many activities and yet the process has always
been quite cumbersome. With GPS technology, you can now figure out where you are
and where you are going.
Global Positioning System (GPS) is a worldwide radio-navigation system formed from a
constellation of 24 satellites and their ground stations. GPS uses these "man-made
stars" as reference points to calculate positions accurate to a matter of meters. In fact,
with advanced forms of GPS you can make measurements to better than a centimeter!
In a sense, it is like giving every square meter on the planet a unique address.
Five broad categories of GPS application:
z Location – determining a basic position
z Navigation – getting from one location to another
z Tracking – monitoring the movement of people and things
z Mapping – creating maps of the world
z Timing – bringing precise timing to the world
NOTE:
1. The basis of GPS is "triangulation" from satellites.
2. To "triangulate," a GPS receiver measures distance using the travel time of radio signals.
3. To measure travel time, GPS needs very accurate timing.
4. Along with distance, you need to know exactly where the satellites are in space. High orbits
and careful monitoring.
5. Finally you must correct for any delays the signal experiences as it travels through the
atmosphere."
![](/img.php?id=851461&img=bg44.png)
2-24 Operating Your Computer
Using the MESH Modem (Optional)
Motorola's MESH networking technology enables users to wirelessly access critical
broadband applications seamlessly–anytime and anywhere. Whether utilizing
pre-deployed infrastructure or an instant, adhoc broadband network formed with other
users, Motorola's MESH networking technology delivers real-time data to detect,
prevent and respond. Key features of MESH include:
• Advanced Encryption Standard (AES) Support for Wi-Fi Clients.
• Layer 2 Multicast Support.
• Network Time Protocol (NTP) Support.
• Differentiated Services using IP quality of Service (QoS) Support.
• Over-the-Air Software upgrade Support.
• MAC Access Control lists.
• Web (HTTP) based management interface.
• SNMP agent for remote management.
• Firmware Upgrades via TFTP.
The following MESH modems are supported:
– WMC6300, WMC7300 & WDE1000
NOTE:
1. Please refer to your MESH modem user manual for more information on installation and
configuration of the modem.
2. Refer to Page x of this manual for external antenna placement.
CAUTION:
MESH cards are EXTERNAL to the computer and when used they are not water/humidity/dust
proof since the rubber door is open.
Using the Bluetooth
Your computer is equipped with a Bluetooth Class 2 device that is compliant with
Bluetooth specification V2.0 to ensure interoperability between other electronic devices
supporting Bluetooth technology, check with the manufacturers of those electronic
devices to determine their compatibility with your computer.
NOTE:
1. There may be restrictions on using Bluetooth technology in some locations. Check with your
local authorities or service provider.
2. Features using Bluetooth technology, or allowing such features to run in the background
increase the demand on battery power and reduces the battery life.
Bluetooth technology enables wireless connections between electronic devices. A
Bluetooth connection can be used to send files or to connect wirelessly to compatible
devices such as cellular phones and PDAs using Bluetooth technology.
![](/img.php?id=851461&img=bg45.png)
Operating Your Computer 2-25
Since devices using Bluetooth technology communicate using radio waves, your
computer and the other devices do not need to be in direct line-of-sight. Your computer
and the other device only need to be within a maximum of 10 meters of each other,
although the connection can be subject to interference from obstructions such as walls
or from other electronic devices.
Embedded EVDO REV. A or HSDPA Modem (Optional)
Your ML910TM RUGGED NOTEBOOK may be equipped with an embedded EVDO REV.
A or HSDPA carrier modem to provide data connectivity via a cellular service provider.
Embedding the carrier modem card ensures connectivity without exposing components
to outside environmental hazards such as water, dust, sand, humidity, and the long-term
affects of extreme temperatures.
The ML910 TM RUGGED NOTEBOOK carrier modem solution also includes embedded
antennas to provide consistent data service in even the most hazardous conditions. An
external antenna pass-through option is also available for rural areas with little
connectivity or those with significant interference. Pass-through allows the user
maximum coverage in any environment.
Please refer to your carrier’s connection service software to verify
activation, connectivity and system settings. The ML910 TM RUGGED NOTEBOOK
integrates data only cellular radio modules that use radio signals and cellular networks
which cannot be guaranteed to connect in all conditions. Therefore, you should never
rely solely upon any wireless device for essential communications.
![](/img.php?id=851461&img=bg46.png)
2-26 Operating Your Computer
This is page is intentionally left blank.
![](/img.php?id=851461&img=bg47.png)
Managing Power 3-1
CHAPTER 3
Managing Power
Your computer operates either on external AC power or on internal battery power.
This chapter tells you how to manage power effectively. In order to keep the optimal
performance of battery, it is important to use the battery properly.
The topics in this chapter include:
z What is an AC adapter.
z How to charge the battery pack.
z When and how to initialize the battery pack.
z How to check the battery level.
z How to replace the battery pack.
z What happens when the battery is low and what actions to take.
z What is Power Management.
z How to save power.
![](/img.php?id=851461&img=bg48.png)
3-2 Managing Power
AC Adapter
CAUTION:
1. The AC adapter is designed for use with your computer only. Connecting the AC adapter to
another device can damage the adapter.
2. The AC power cord supplied with your computer is for use in the country where you
purchased your computer. If you plan to go overseas with the computer, consult your dealer
for the appropriate power cord.
3. When you disconnect the AC adapter, disconnect from the electrical outlet first and then
from the computer. A reverse procedure may damage the AC adapter or computer.
4. When unplugging the connector, always hold the plug head. Never pull on the cord.
When connected to AC power, the AC adapter converts from AC (Alternating Current) to
DC (Direct Current) power for use by your computer and also charges the battery pack.
The AC adapter operates on any voltage in the range of 100 ~ 240 V AC.
Battery Pack
The battery pack is an internal power source for the computer and is rechargeable using the
AC adapter.
The operating time of a fully charged battery pack depends on how you use the computer. If
your applications often access peripherals, you will experience a shorter operating time. In
low or high temperature environments, you are recommended to operate the computer
using the AC power.
NOTE:
Care and maintenance information for the battery is provided in the “Battery Pack Guidelines”
section in Chapter 7.
Charging the Battery Pack
NOTE:
1. Charging will not start if the battery’s temperature is below 0°C (32 °F) or above
45 °C (113 °F).
2. The thermal protection of battery pack is 60 °C (140°F) for the discharge mode. In any case,
once the temperature of battery pack reaches 60°C (140°F), the battery pack will shut off the
output immediately, this means the battery will stop discharging. If this happens, the
computer must be connected to external power before attempting to restart.
3. The battery will not discharge if the temperature is lower than –20°C (–4°F) or higher than
60°C (140°F).
4. During charging, it is not recommended to disconnect the AC adapter before the battery has
been fully charged; otherwise you will not get a fully charged battery.
5. The absolute highest temperature for the battery pack is 85°C (185°F), this temperature will
result in irreversible damage and permanent disabling of the pack.
6. Permanent damage can occur at temperatures above 60°C (140°F) and should be avoided
if possible.
![](/img.php?id=851461&img=bg49.png)
Managing Power 3-3
CAUTION:
1. Batteries in ML910™ RUGGED NOTEBOOK are allowed to discharge when the battery
temperature is from –20°C (–4°F) to 60°C (140°F) and allowed to be charged when its
temperature is ranging from 0°C (32°F) to 45 °C (113 °F).
2. These batteries are not allowed to operate outside of this range. When the ML910™
RUGGED NOTEBOOK is operating at extreme temperature and the battery is out of the
operating range, an external power supplies is required to be connected to allow continued
operation of the ML910™ RUGGED NOTEBOOK unit.
To charge the battery pack, connect the AC adapter to the computer and the electrical
outlet. The “Battery status indicator ( )” will light amber when battery is charging, and
green when the battery is fully charged . The “Battery low” indicator will blink red when
battery capacity is below 10 percent.
It takes approximately 180 minutes (3 hours) to charge the battery pack when the
computer is off and 240 minutes (4 hours) to fully charge the battery pack when the
computer is on.
CAUTION:
After the battery has been fully recharged, do not immediately disconnect and reconnect the
AC adapter to charge it again. Doing so may reduce the life of the battery.
NOTE:
1. The battery level may automatically lessen due to the self-discharge process (0.21% per
day), even after the battery pack has been fully charged to 100%. This will happen whether
the battery pack is installed in the computer or not.
2. The discharge will be significantly higher if the pack is stored in the computer with no
external power connected.
Initializing the Battery Pack
You need to initialize the new battery pack before using it for the first time or when the
actual operating time of a battery pack is less than expected.
Initializing is the process of fully charging the pack and may take several hours.
1. Make sure the computer is turned off. Connect the AC adapter to fully charge the
battery pack.
2. After the battery pack is fully charged, turn on the computer.
Checking the Battery Level
NOTE:
The battery level indication is an estimated result. The actual operating time can be different
from the estimated time, depending on how you are using the computer.
![](/img.php?id=851461&img=bg4a.png)
3-4 Managing Power
You can check the approximate battery level using the battery meter function of the
operating system. To read the battery level in Windows, click the icon on the taskbar.
(Click the icon if the computer is using AC power.)
Replacing the Battery Pack
CAUTION:
1. There is danger of damage if the battery is incorrectly replaced.
2. Replace the battery only with the computer manufacturer’s optional battery packs.
3. Discard used batteries according to the dealer’s instructions.
4. Do not attempt to disassemble the battery pack.
If you often rely on battery power for long periods of time while traveling, you may
consider the purchase of an additional battery pack from your dealer and keep it with
you in a fully charged state as a backup.
To replace the battery pack, follow these steps:
1. Make sure the computer is not on or connected to the AC power.
2. Loosen the four screws and lift the battery pack compartment cover to take it off the
computer.
3. Pull on the ribbon and remove the battery pack from the computer.
4. Insert the new battery pack into the compartment.
5. Replace the compartment cover and secure the four screws.
![](/img.php?id=851461&img=bg4b.png)
Managing Power 3-5
Battery Low Signals and Actions
Battery Low occurs when the battery has approximately 10% (Windows default setting)
of its charge remaining. The computer gives warning beeps or messages and the
Battery Power Indicator ( ) blinks red to alert you to take actions.
NOTE:
You can set up your threshold and signals of Battery Low under Windows.
Immediately save your data upon Battery Low. The remaining operating time depends
on how you are using the computer. If you are using the audio subsystem, hard drive or
DVD/Combo/DVD Dual drives, the battery may run out very quickly.
Always respond to Battery Low by placing your computer in Standby or Hibernation
mode, turning off the computer, or connecting the AC adapter.
If you do not take any action, the computer will automatically hibernate and turn off.
CAUTION:
If you fail to save your data when the battery completely runs out of charge, then your unsaved
data will be lost.
![](/img.php?id=851461&img=bg4c.png)
3-6 Managing Power
Power Management
Your computer supports ACPI (Advanced Configuration and Power Interface) for power
management. The power management feature allows you to reduce the power
consumption for energy saving.
With an ACPI-compliant operating system such as Windows XP, power supply to
different computer components is controlled on an as-needed basis. This allows
maximum power conservation and performance at the same time.
In general, Windows’ power management works in this way:
What… When…
Power to the hard disk is turned
off When the hard disk has been idle
for a set period.
Power to the display is turned off When the display has been idle for
a set period.
When the entire system has been
idle for a set period.
When you press Fn+F10. *
When you close the cover. *
The computer enters Standby
mode. The hard disk and display
are turned off and the entire
system consumes less power.
When you press the power button. *
When you press the power button. *
When you press Fn+F10. *
The computer enters Hibernation
mode. (See the next subsection
for more information.) When you close the cover. *
* depends on your Windows settings.
For detailed information on power management, see Windows’ Help. Power
management settings should not be completely disabled. Generally, users will not see
significant benefit by setting hard drive shutdown times of greater than a few minutes.
When ML910™ Rugged Notebook is intended for in vehicle use it is recommended that
hard drive power down be set at 1 minute to prevent premature failure of hard-drive.
CAUTION:
Do not disable power management if system will be used in extreme temperatures or
high vibration environments (e.g.: vehicles.
Hibernation
When you use the hibernation feature, you do not have to close the applications and
documents that are running on the computer. The computer stores the state of your
computer to a file on the hard disk before shutting down. The next time you turn on your
computer, you return to exactly where you left off.
![](/img.php?id=851461&img=bg4d.png)
Managing Power 3-7
ATI PowerPlayTM Management
PowerPlayTM manages the power requirements of your graphics settings for higher
performance or longer battery life. Use PowerPlayTM to balance performance and power
consumption.
When you bought the notebook from Motorola or Motorola’s Agencies, PowerPlayTM is the
fixed default value by driver of the graphics card which can be adjusted under the “Enable
PowerPlayTM” procedure.
Access to PowerPlayTM
1. Start notebook and click on the “ATI Catalyst Control Center” symbol.
2. You will see the following screen once you’ve accessed the “ATI Catalyst Control
Center” program.
![](/img.php?id=851461&img=bg4e.png)
3-8 Managing Power
3. Click the “Next” key to proceed to the next step for system access.
NOTE:
This following will only happened the first time you access to Catalyst Control Center only,
Functions of PowerPlayTM
Enabling PowerPlayTM
You can adjust the AC mode and battery mode to reduce the power consumption under
the Enable Power Play Function
1. From the Graphics Settings tree, click PowerPlayTM.
2. Click Enable PowerPlayTM
3. You will see the following screen :
![](/img.php?id=851461&img=bg4f.png)
Managing Power 3-9
Please check the function of “Enable POWERPLAY” when you access the
PowerPlayTM program.
Select your preferred settings depending on power source
The default power settings can be changed to meet your performance to power
requirements.
1. From the Graphics Setting tree, click PowerPlayTM.
2. Click and drag the slider next to the relevant power source to the desired setting.
Set low battery level
PowerPlayTM can automatically change to low power consumption settings.
NOTE:
This option is not available on system running Windows® Vista.
1. From the Graphics Settings tree, click PowerPlayTM.
2. Click the up or down buttons next to Low Battery settings to a desired battery power level
percentage.
3. Optionally, enter a value in the power percentage value box.
![](/img.php?id=851461&img=bg50.png)
3-10 Managing Power
Power-Saving Tips
In addition to your computer’s automatic power management, you can do your part to
maximize the battery’s operating time by following these suggestions.
1. Do not disable Power Management.
2. Decrease the LCD brightness to the lowest comfortable level.
3. Disable the serial port if no device is connected to this port. (See “Advanced
Settings” in Chapter 5.)
4. If you work with an application that uses the serial port or features wireless
connectivity (LAN/WLAN/modem/GPS/Bluetooth), exit the application when you
finish using it.
5. Turn off the computer when you are not using it.
![](/img.php?id=851461&img=bg51.png)
Expanding Your Computer 4-1
CHAPTER 4
Expanding Your Computer
You can expand the capabilities of your computer by connecting other peripheral
devices. When using a device, be sure to read the instructions accompanying the device
together with the relevant section in this chapter.
This chapter gives guidelines on installing and using these devices:
z External monitor.
z USB device.
z Serial device.
z Video source.
z System Memory Upgrade.
![](/img.php?id=851461&img=bg52.png)
4-2 Expanding Your Computer
Connecting an External Monitor
If you want the benefits of a larger display screen with higher resolution, you can
connect an external monitor that supports VGA interface to your computer.
Follow this procedure to connect an external monitor:
1. Make sure that the computer is not turned on.
2. Plug the monitor’s signal connector to the computer’s VGA port.
3. Plug one end of the monitor’s power cord into the power socket on the monitor and
the other end to an electrical outlet.
4. To use the monitor, switch on the monitor before turning on the computer.
5. The monitor should respond by default. If not, you can switch the display to the
monitor or to both (simultaneous display), or to multi-display by pressing Fn+F9. In
Windows, you can also change the display through the settings in Display
Properties.
6. You can change display settings through your operating system. See your operating
system documentation or online help for specific information.
CAUTION:
Do not disconnect the external monitor while the computer is in Standby mode or Hibernation
mode. If no external monitor is connected when the computer resumes, the LCD remains blank
and the output is not displayed.
![](/img.php?id=851461&img=bg53.png)
Expanding Your Computer 4-3
Connecting a USB Device
Your computer has three USB ports that support transfer rates of up to 12 Mbps for USB 1.1
devices and 480 Mbps for USB 2.0 devices, such as digital camera, scanner, printer,
modem, and mouse.
USB is specified to be an industry standard extension to the PC architecture. It supports
“Plug-and-Play” technology so you can install and remove USB devices without turning off
the computer. With its multiple connection capability, up to 127 devices can be connected
in a daisy-chain configuration. In addition, you can use a USB hub that converts a single
USB connector into multiple ports where USB devices can be connected.
To connect a USB device, simply plug the device cable into one of the USB ports with the
USB “converging arrows” symbol facing up.
![](/img.php?id=851461&img=bg54.png)
4-4 Expanding Your Computer
Connecting a Serial Device
Your computer has a serial port for connecting a serial device such as an external
modem.
Follow this procedure to connect a serial device:
1. Plug the device cable to the serial port on the left side of the computer.
2. Turn on the computer.
NOTE:
Portable modems that derive power through the serial port cannot be used with the computer.
Instead, use a modem that is powered by its own internal battery or external AC power.
![](/img.php?id=851461&img=bg55.png)
Expanding Your Computer 4-5
Connecting a Video Capture Device
Your computer has a video capture port for connecting a video source such as
high-quality CCD, as well as consumer electronic equipment such as DVCAM and VCR.
To connect a video capture device, simply plug the device cable into the video capture
port of the computer.
![](/img.php?id=851461&img=bg56.png)
4-6 Expanding Your Computer
System Memory Upgrade
You can upgrade your computer by changing system memory to a maximum of 2 GB on the
two 200-pin DDR2 SO-DIMM slots. However, to avoid damage during the installation
procedure, please ask your dealer for help.
![](/img.php?id=851461&img=bg57.png)
BIOS Setup Utility & MLUA 5-1
CHAPTER 5
BIOS Setup Utility and ML User
Application (MLUA)
BIOS Setup Utility is a program for configuring the BIOS (Basic Input/Output System)
settings of the computer.
BIOS is a layer of software, called firmware, that translates instructions from other layers of
software into instructions that the computer hardware can understand. The BIOS settings are
needed by your computer to identify the types of installed devices and establish special
features.
The ML User Application or MLUA is designed for users to configure the parameters of various
functions in the notebook. By using these configuration parameters, you can change the
default configuration that automatically loads when you turn on the computer.
ML User Application is automatically launched every time you boot your notebook into
Windows Operating System, this can be indicated by the ML User Application icon on the
taskbar. Double-click on the ML User Application icon will bring up the application window.
Every time you start the ML User Application, the current configuration parameters saved in
Embedded Controller is loaded and displayed in the ML User Application window.
This chapter tells you how to use the BIOS Setup Utility and provide you with some of the
basic information related to the MLUA
