OPERATION AND PARTS MANUAL

Revision #1 (09/30/05)

THIS MANUAL MUST ACCOMPANY

THE EQUIPMENT AT ALL TIMES.

MODEL GA-6HE/GA-6HEA

Portable Generators

(HONDA GASOLINE ENGINE)

PAGE 2 — GA-6HE/GA-6HEA A.C. GENERATORS — OPERATION & PARTS MANUAL — REV. #1 (09/30/05)

GA-6HE/GA-6HEA A.C. GENERATORS — OPERATION & PARTS MANUAL — REV. #1 (09/30/05) — PAGE 3

HERE'S HOW TO GET HELP

PLEASE HAVE THE MODEL AND SERIAL

NUMBER

ON-HAND

WHEN CALLING

MULTIQUIP CORPORATE OFFICE

18910 Wilmington Ave. 800-421-1244

Carson, CA 90746

FAX:

310-537-3927

Email: mq@multiquip.com

Internet: www.multiquip.com

PARTS DEPARTMENT

800-427-1244

FAX:

800-672-7877

310-537-3700

FAX:

310-637-3284

MAYCO PARTS

800-306-2926

FAX:

800-672-7877

310-537-3700

FAX:

310-637-3284

SERVICE DEPARTMENT

800-421-1244

FAX:

310-537-4259

310-537-3700

TECHNICAL ASSISTANCE

800-478-1244

FAX:

310-631-5032

WARRANTY DEPARTMENT

800-421-1244,

EXT.

279

FAX:

310-537-1173

310-537-3700,

EXT.

279

Multiquip Inc, the MQ logo are registered trademarks of Multiquip Inc. and may not be used, reproduced, or altered without written

permission. All other trademarks are the property of thier respective owners and used with permission.

This manual MUST accompany the equipment at all times. This manual is considered a permanent part of the equipment and should

remain with the unit if resold.

The information and specifications included in this publication were in effect at the time of approval for printing. Illustrations are

based on the

MQ GA-6HE/GA-6HEA Portable Generators.

Illustrations, descriptions, references and technical data contained in

this manual are for guidance only and may not be considered as binding. Multiquip Inc. reserves the right to discontinue or change

specifications, design or the information published in this publication at any time without notice and without incurring any obligations.

To find the latest revision of this

publication, visit our website at:

www.multiquip.com

PAGE 4 — GA-6HE/GA-6HEA A.C. GENERATORS — OPERATION & PARTS MANUAL — REV. #1 (09/30/05)

TABLE OF CONTENTS

NOTE

Specification and part

number are subject to

change without notice.

HONDA GX340K1EDE2

ENGINE

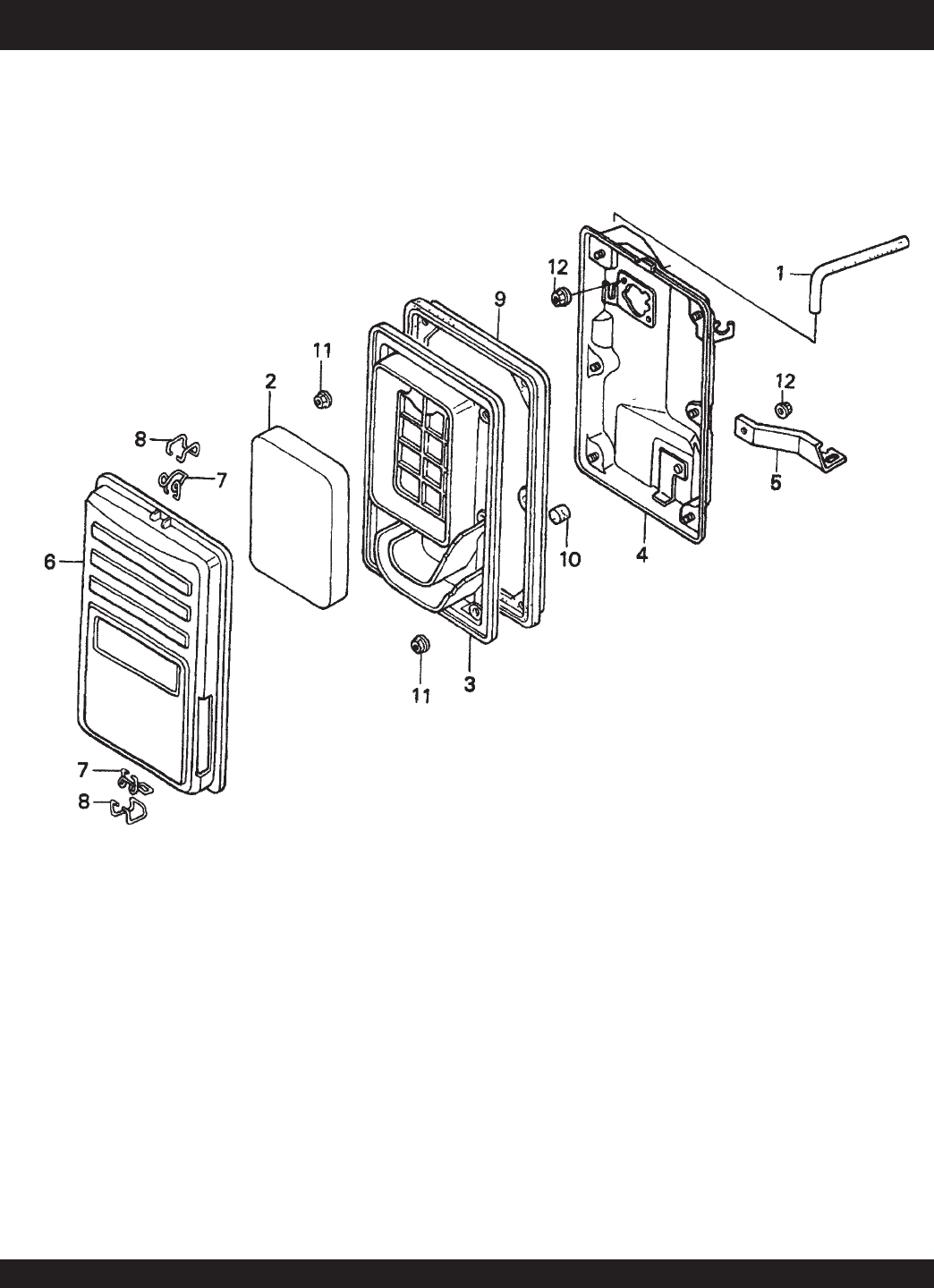

Air Cleaner Assembly ......................................... 54-55

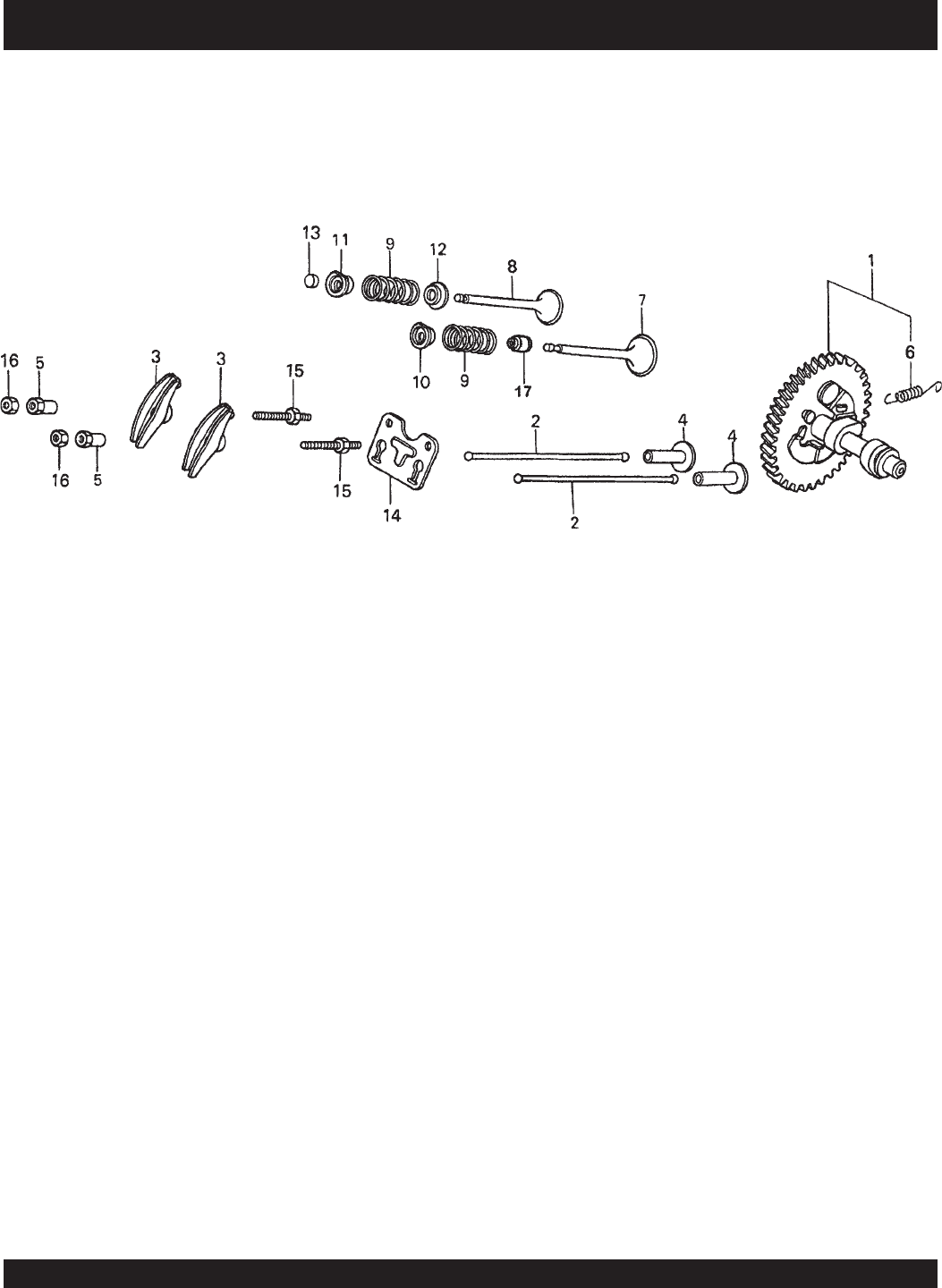

Camshaft Assembly ........................................... 56-57

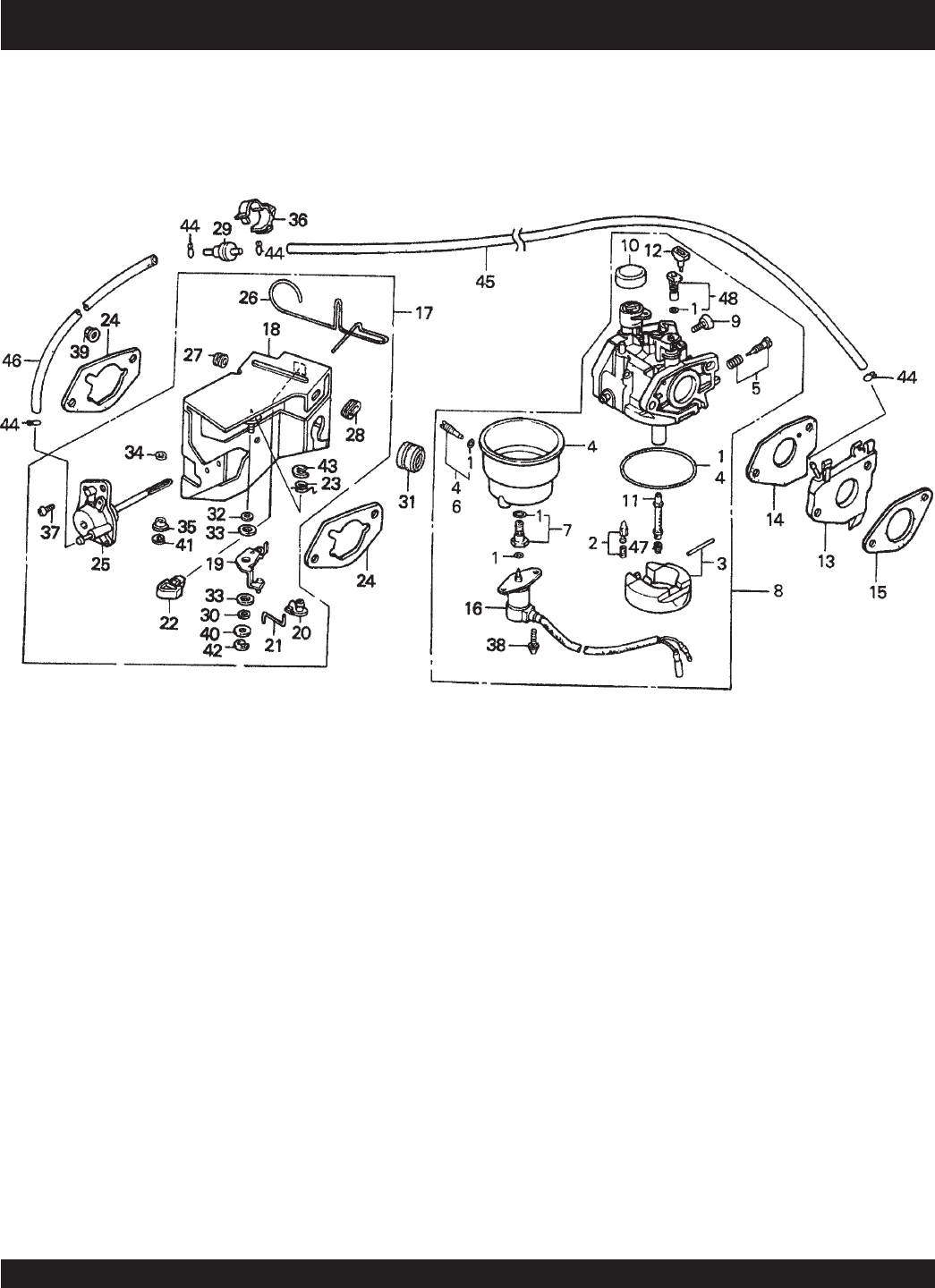

Carburetor Assembly ......................................... 58-59

Control Assembly ............................................... 60-61

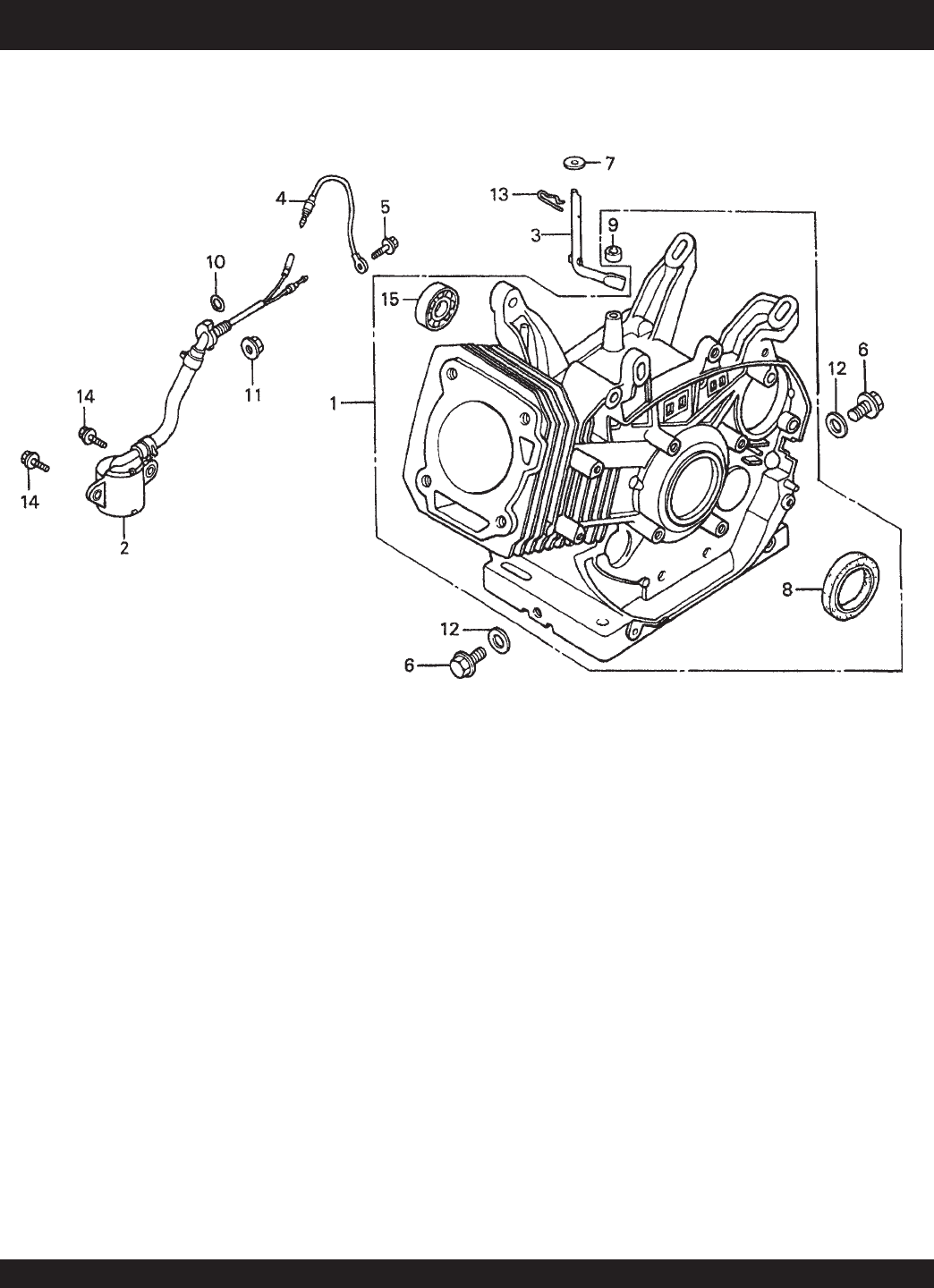

Crankcase Cover Assembly ............................... 62-63

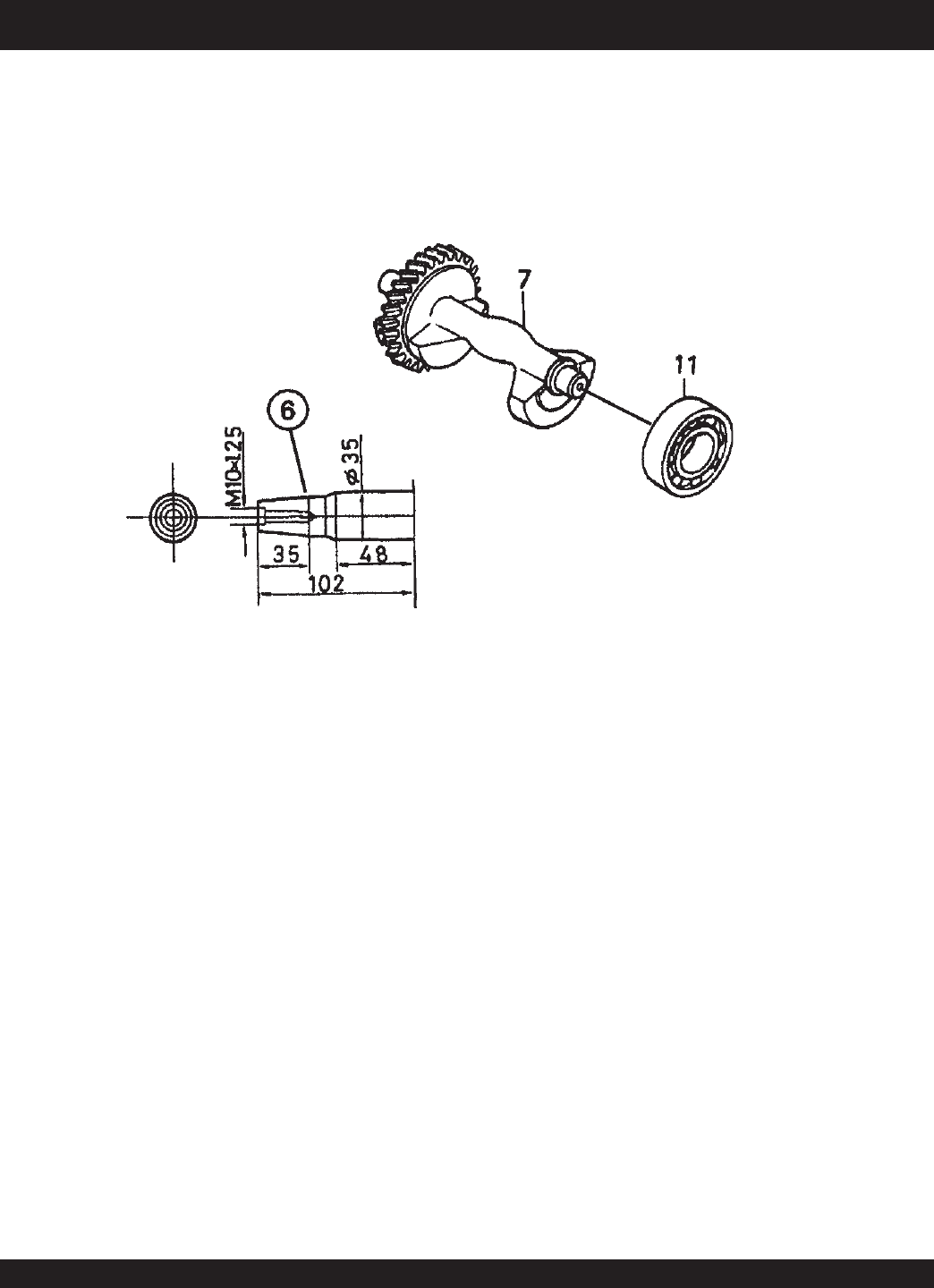

Crankshaft Assembly ......................................... 64-65

Cylinder Barrel Assembly ................................... 66-67

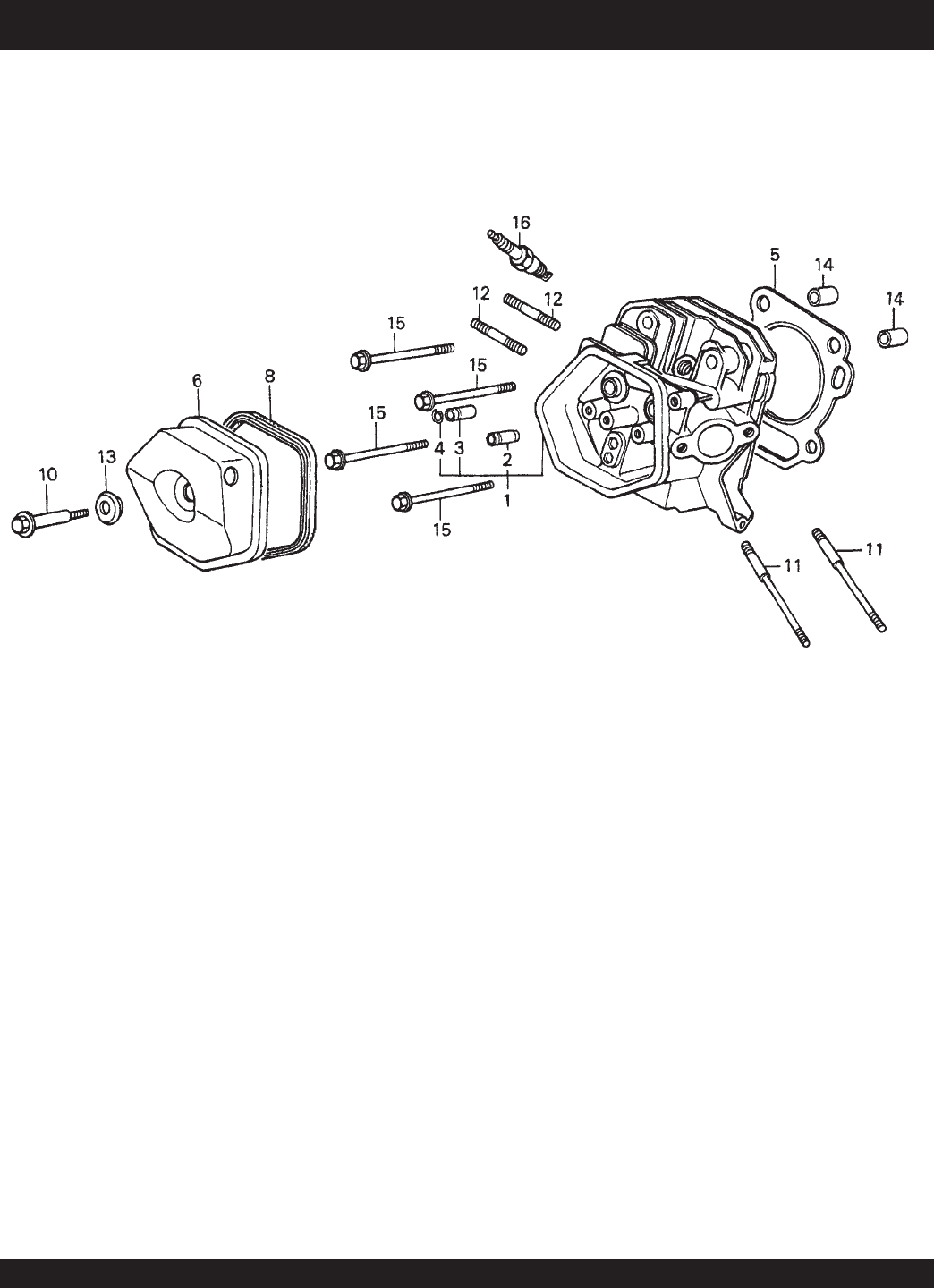

Cylinder Head Assembly .................................... 68-69

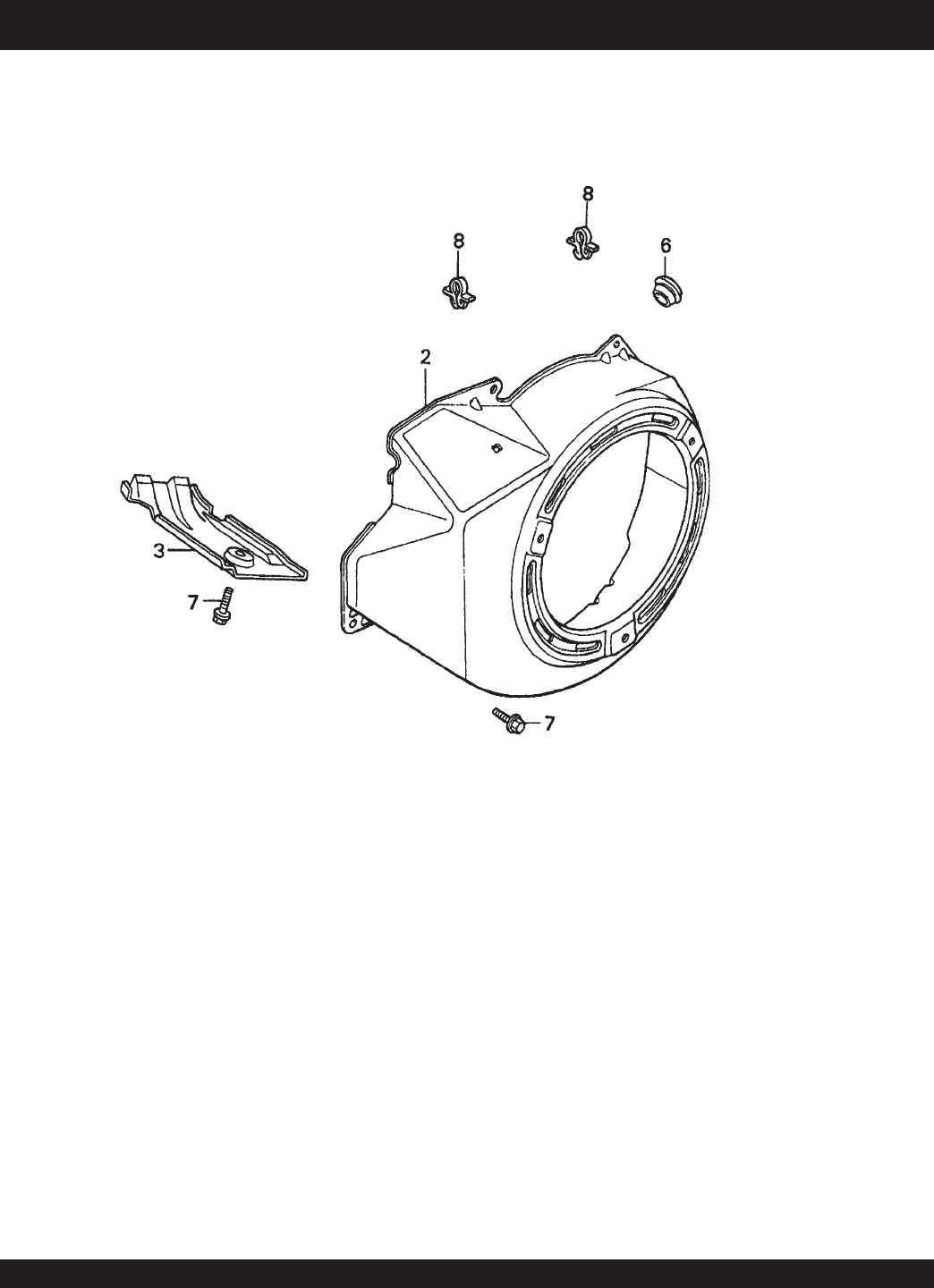

Fan Cover Assembly .......................................... 70-71

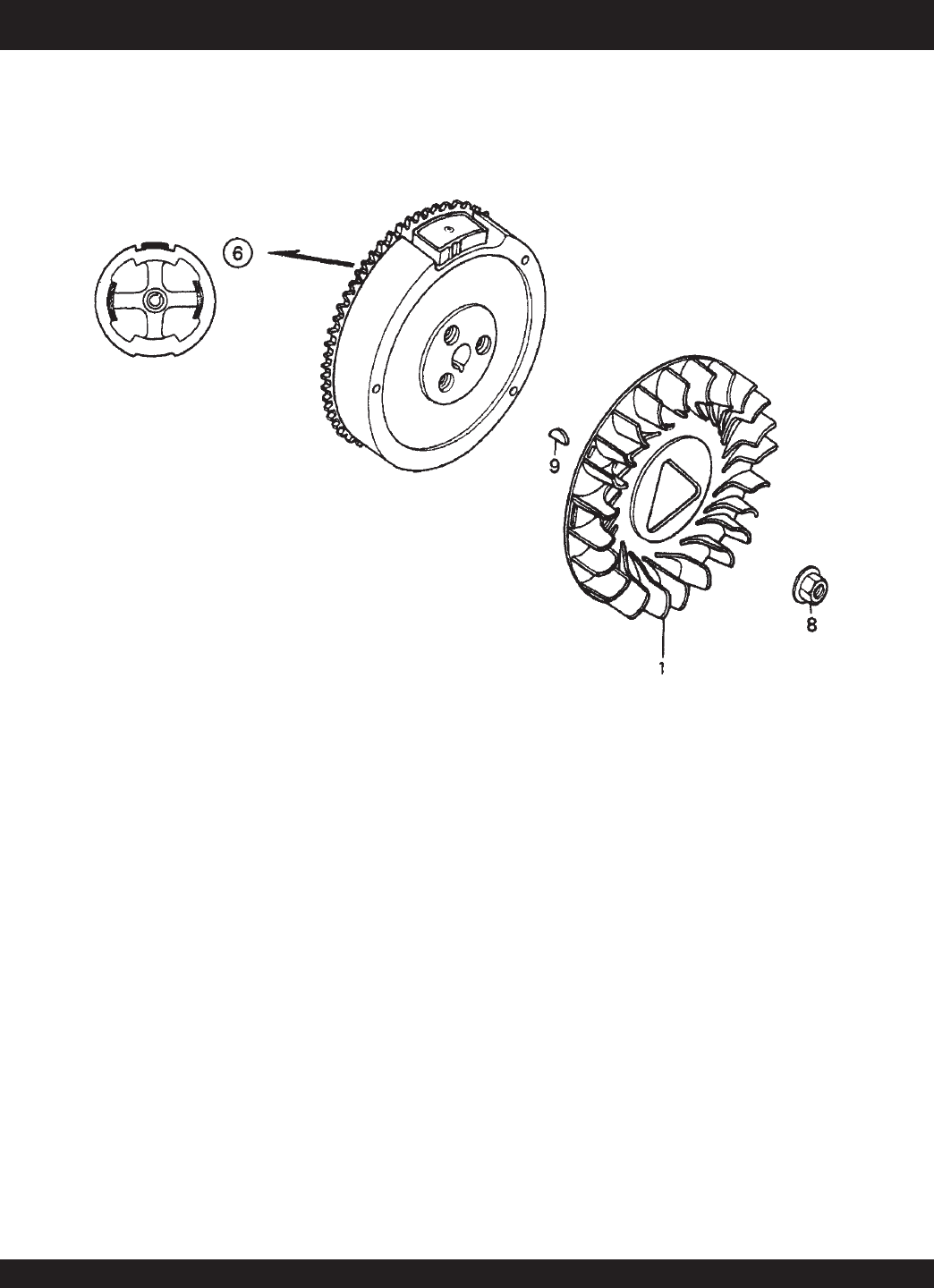

Flywheel Assembly ............................................ 72-73

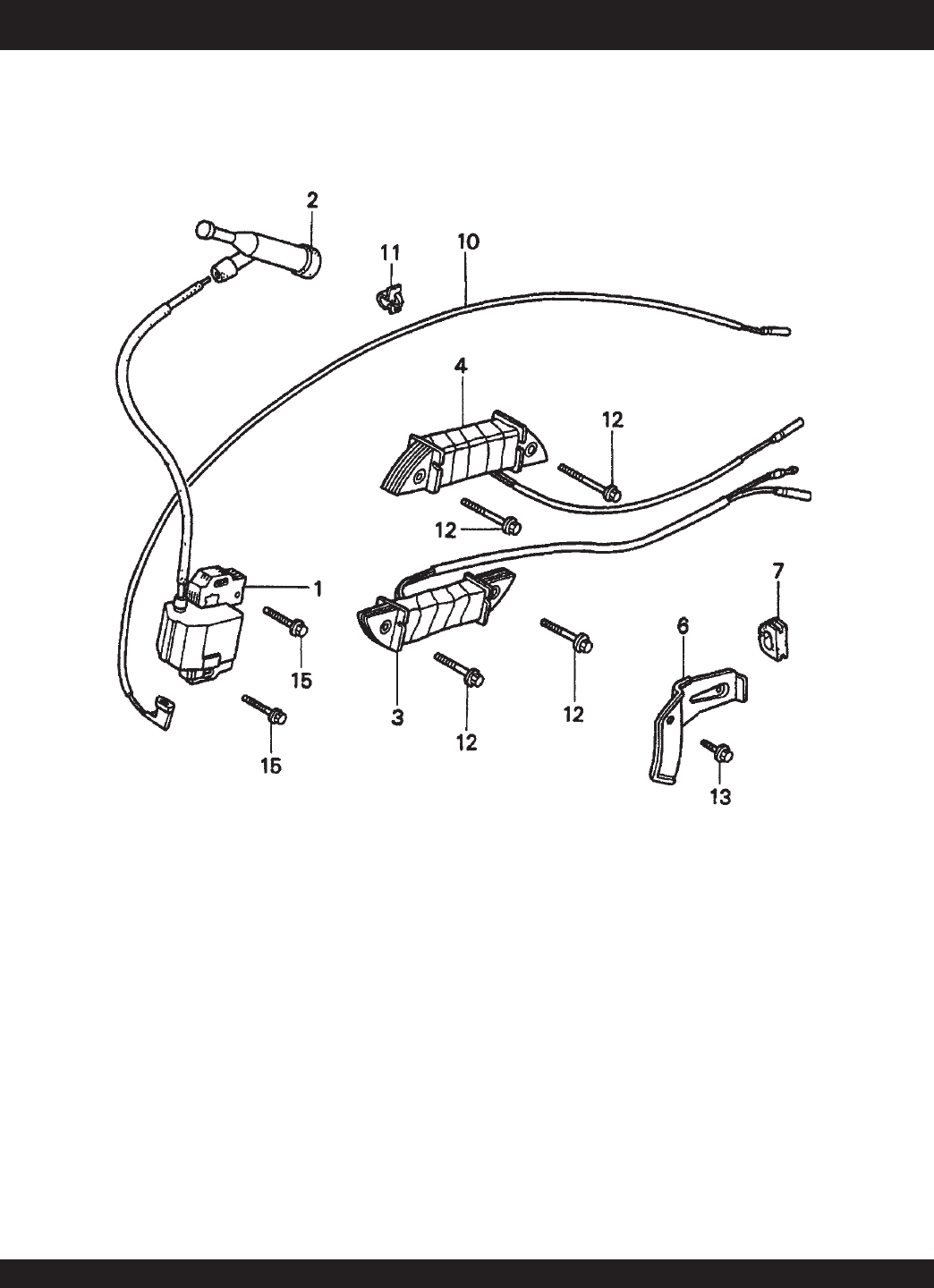

Ignition Coil Assembly ........................................ 74-75

Piston Assembly ................................................. 76-77

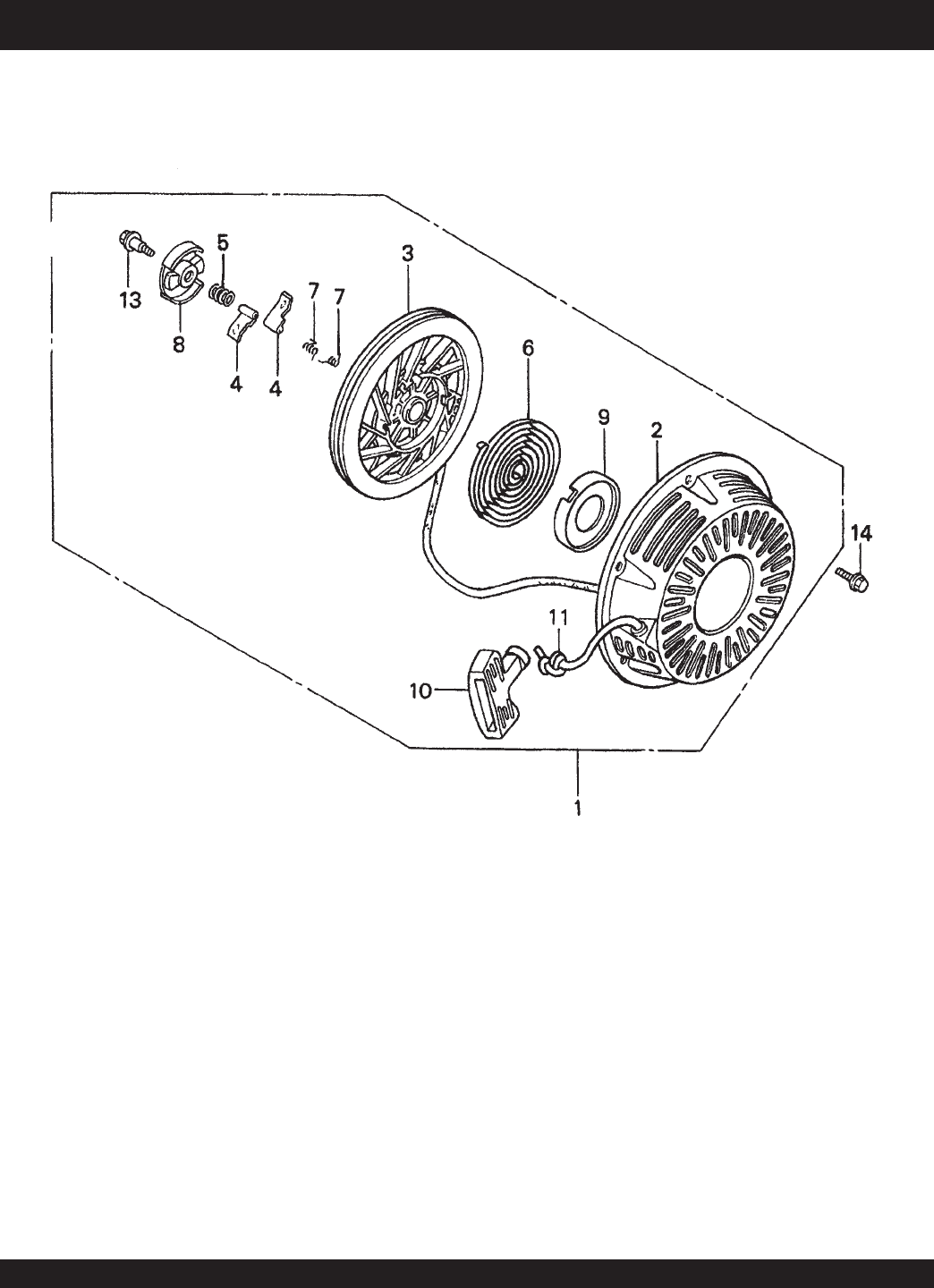

Recoil Starter Assembly..................................... 78-79

Starter Motor Assembly ..................................... 80-81

Label Assembly .................................................. 82-83

Terms and Conditions Of Sale — Parts ................. 84.

Multiquip GA-6HE/GA-6HEA

AC Portable Generators

Here's How To Get Help ............................................ 3

Table Of Contents ..................................................... 4

Parts Ordering Procedures ....................................... 5

Safety Message Alert Symbols .............................. 6-7

Rules for Safe Operation ..................................... 8-10

Operation and Safet Decals .................................... 11

Specifications (Generator) ...................................... 12

Specifications (Engine) ........................................... 13

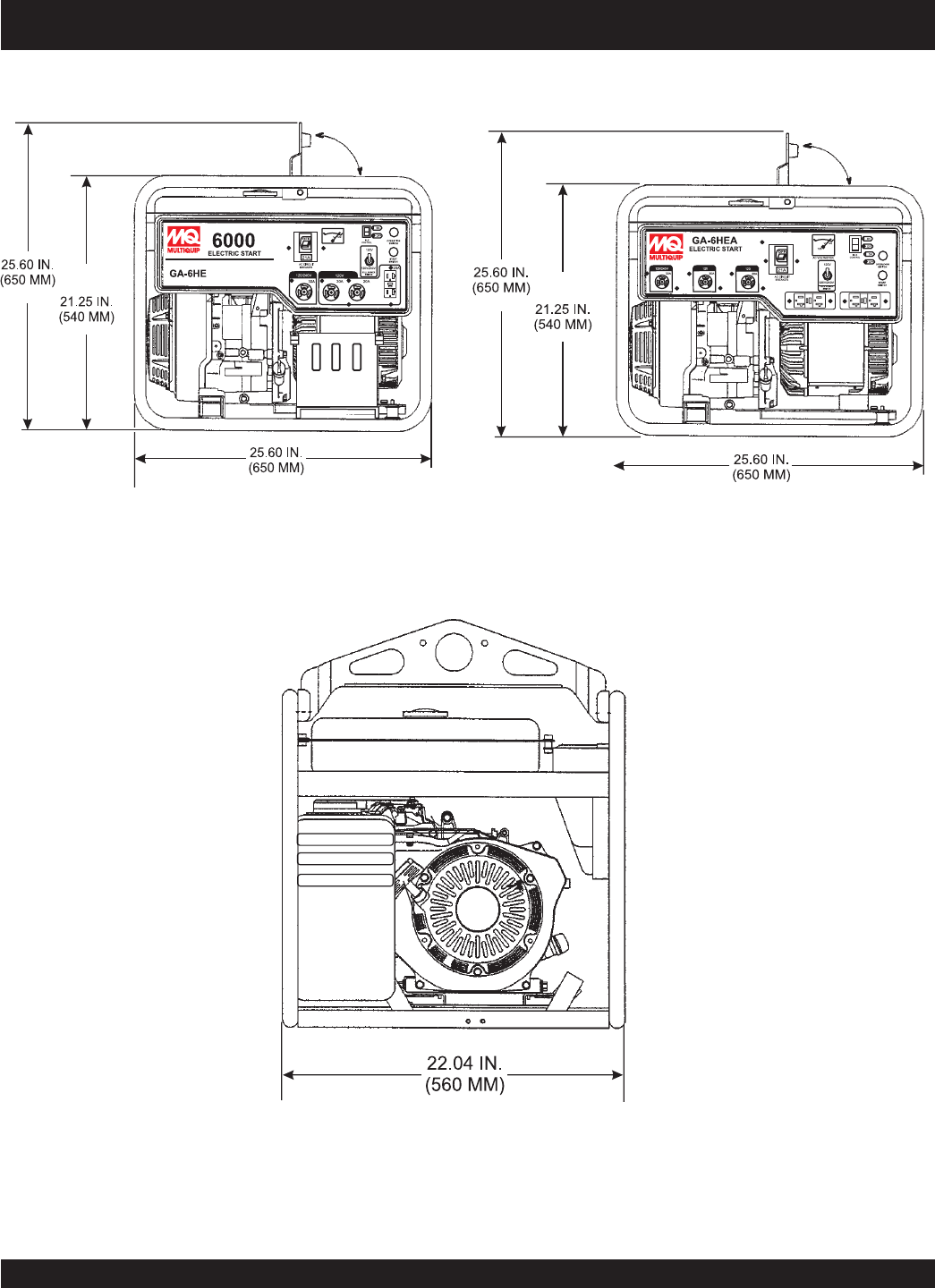

Dimensions ............................................................. 14

General Information ................................................ 15

Load Application ..................................................... 16

Controls and Indicators ...................................... 17-19

Generator Refueling ............................................... 20

Installation .......................................................... 21-22

Pre-Inspection ......................................................... 23

Pre-Inspection (Engine) .......................................... 24

Initial Start-up (Engine) ...................................... 25-26

Initial Start-up/Generator Operation ....................... 26

Generator Operation/Shutdown.............................. 27

Preparation For Long Term Storage ....................... 28

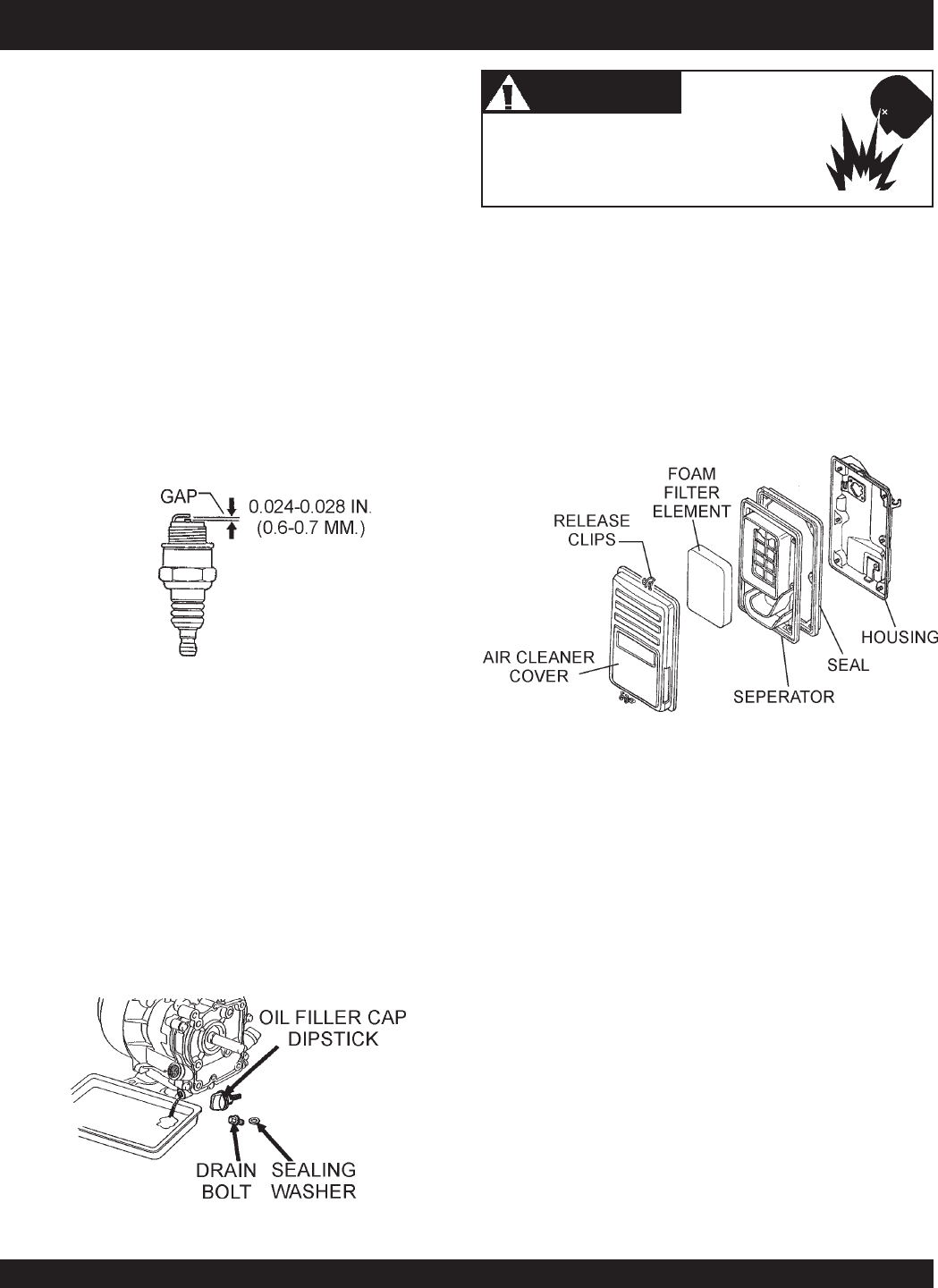

Maintenance (Engine)........................................ 29-30

Maintenance (Battery) ............................................ 31

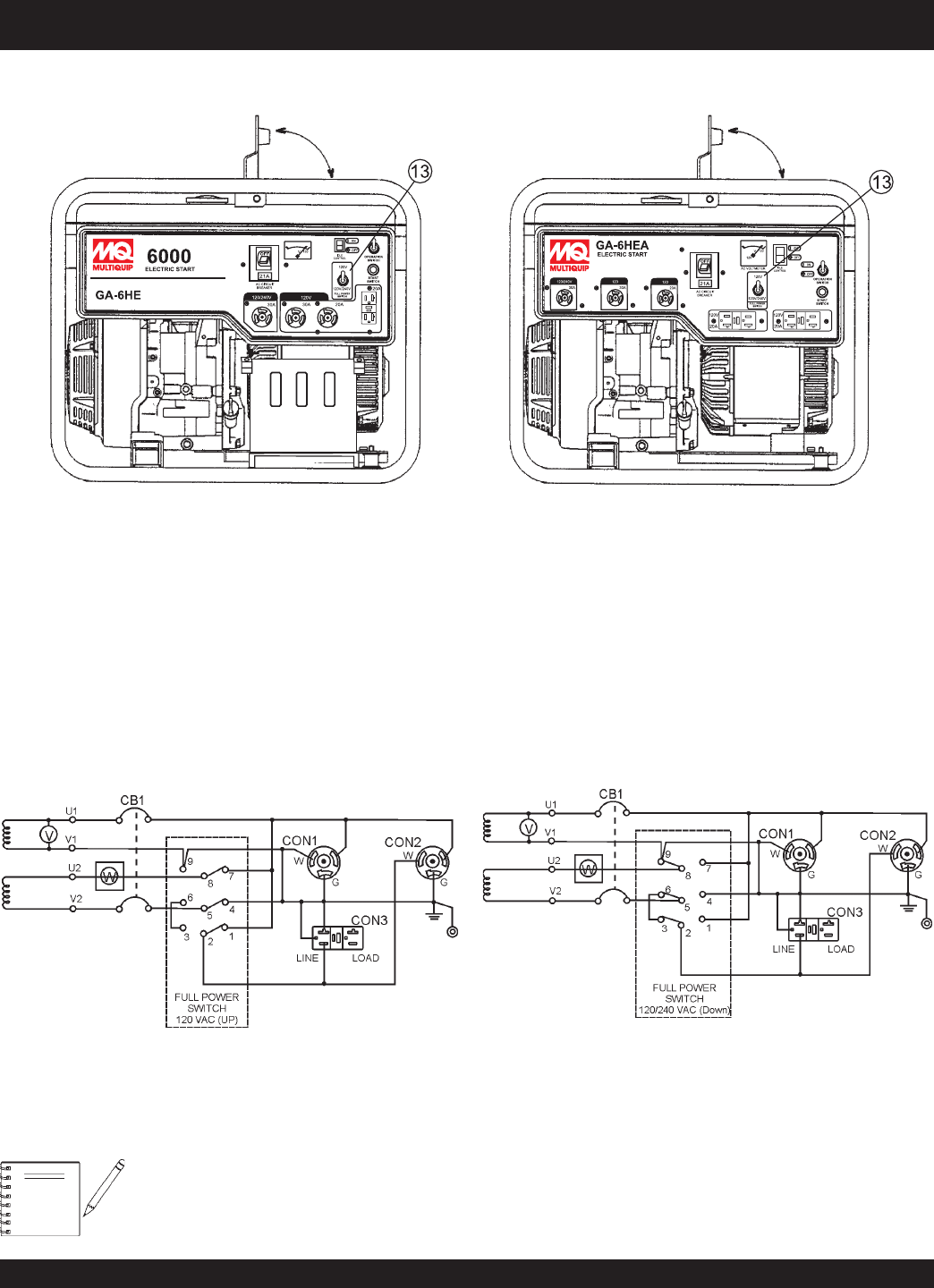

Wiring Diagram (GA-6HE Generator) ..................... 32

Wiring Diagram (GA-6HEA Generator) ................... 33

Troubleshooting (Engine) ................................... 34-35

Troubleshooting (Generator) .................................. 36

Explanation of Code In Remarks Column ............... 38

Suggested Spare Parts ........................................... 39

Component DrawingsComponent Drawings

Component Drawings

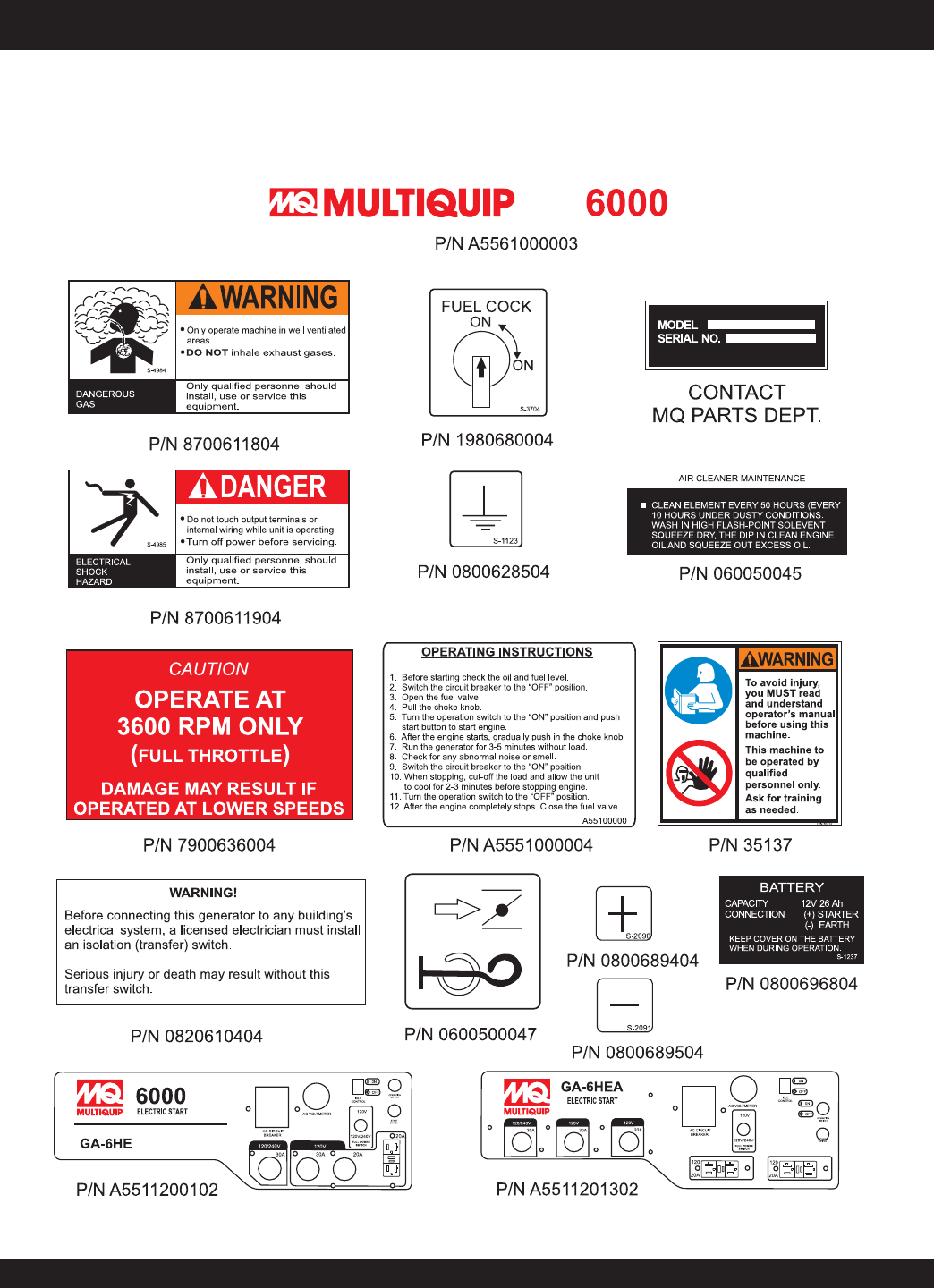

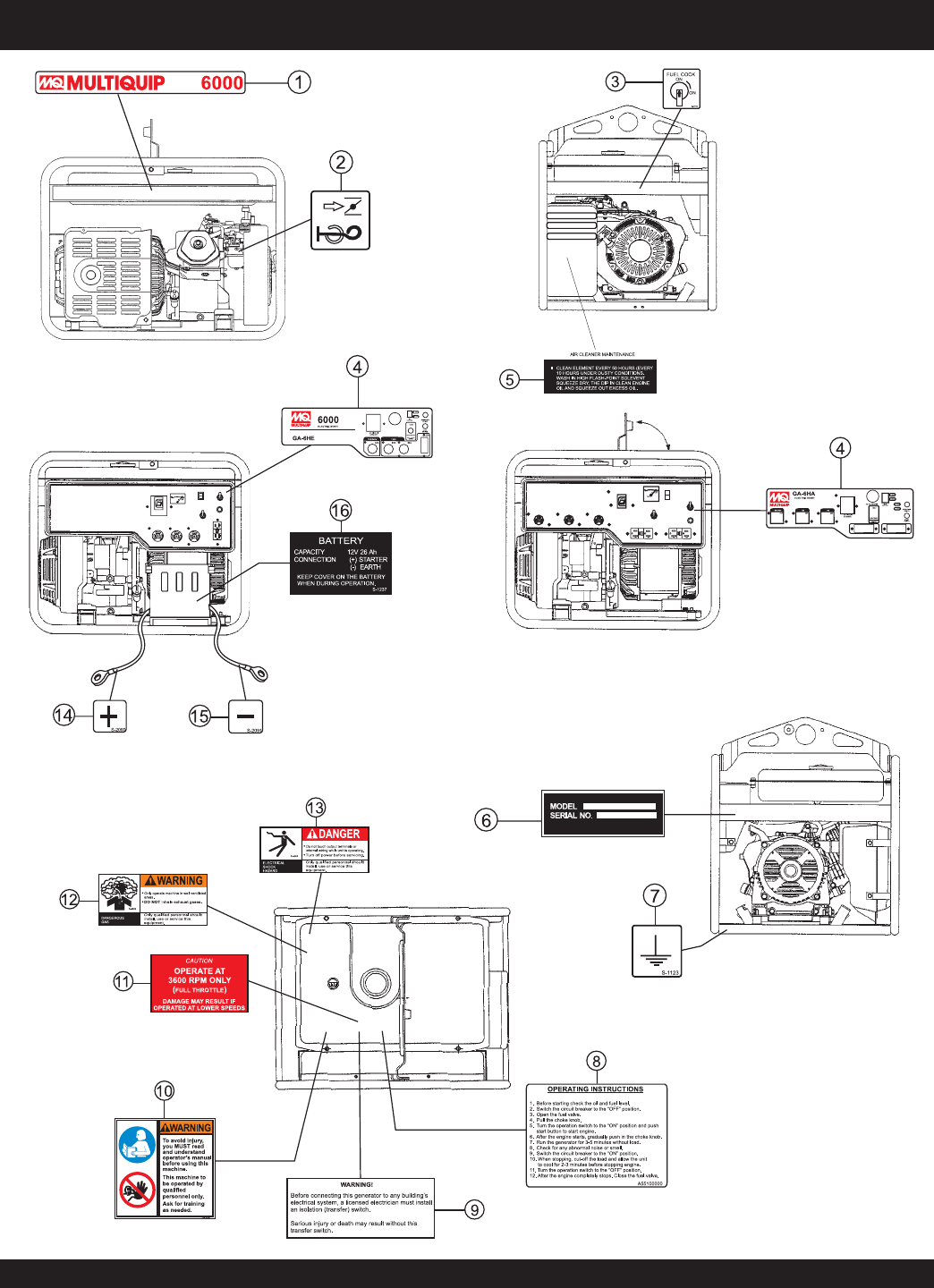

Nameplate and Decals....................................... 40-41

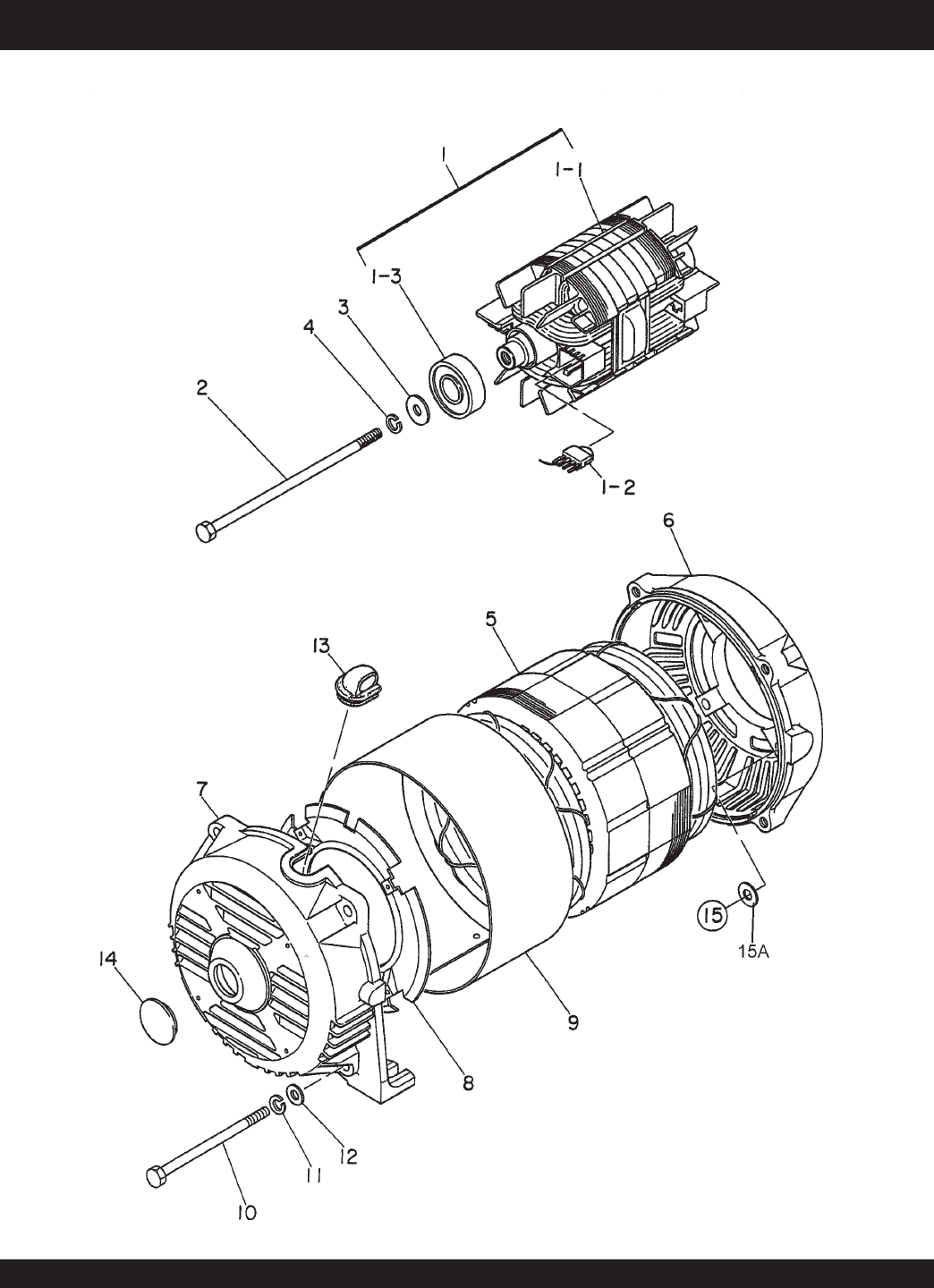

Generator Assembly .......................................... 42-43

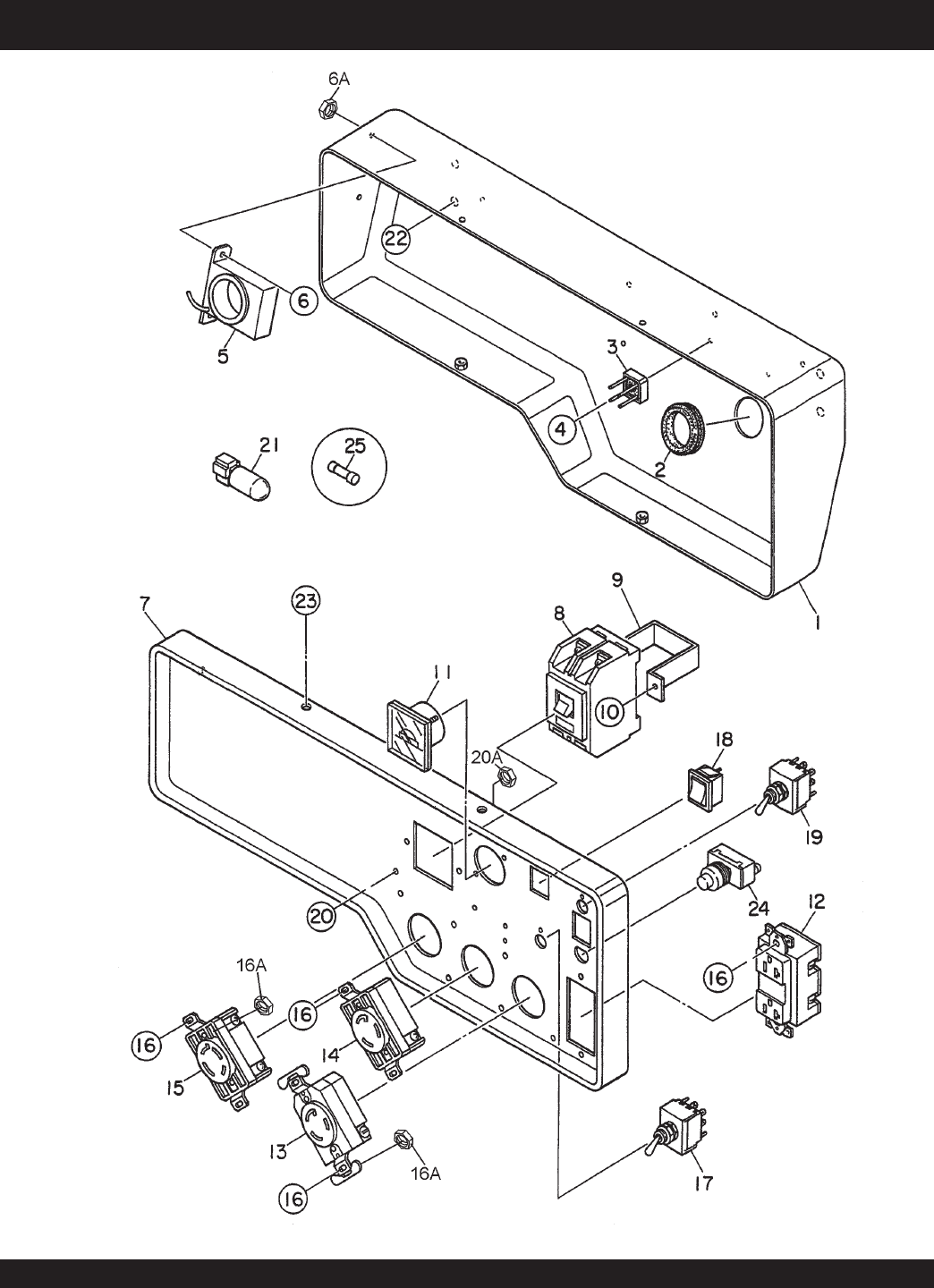

Control Box Assembly (GA-6HE) ....................... 44-45

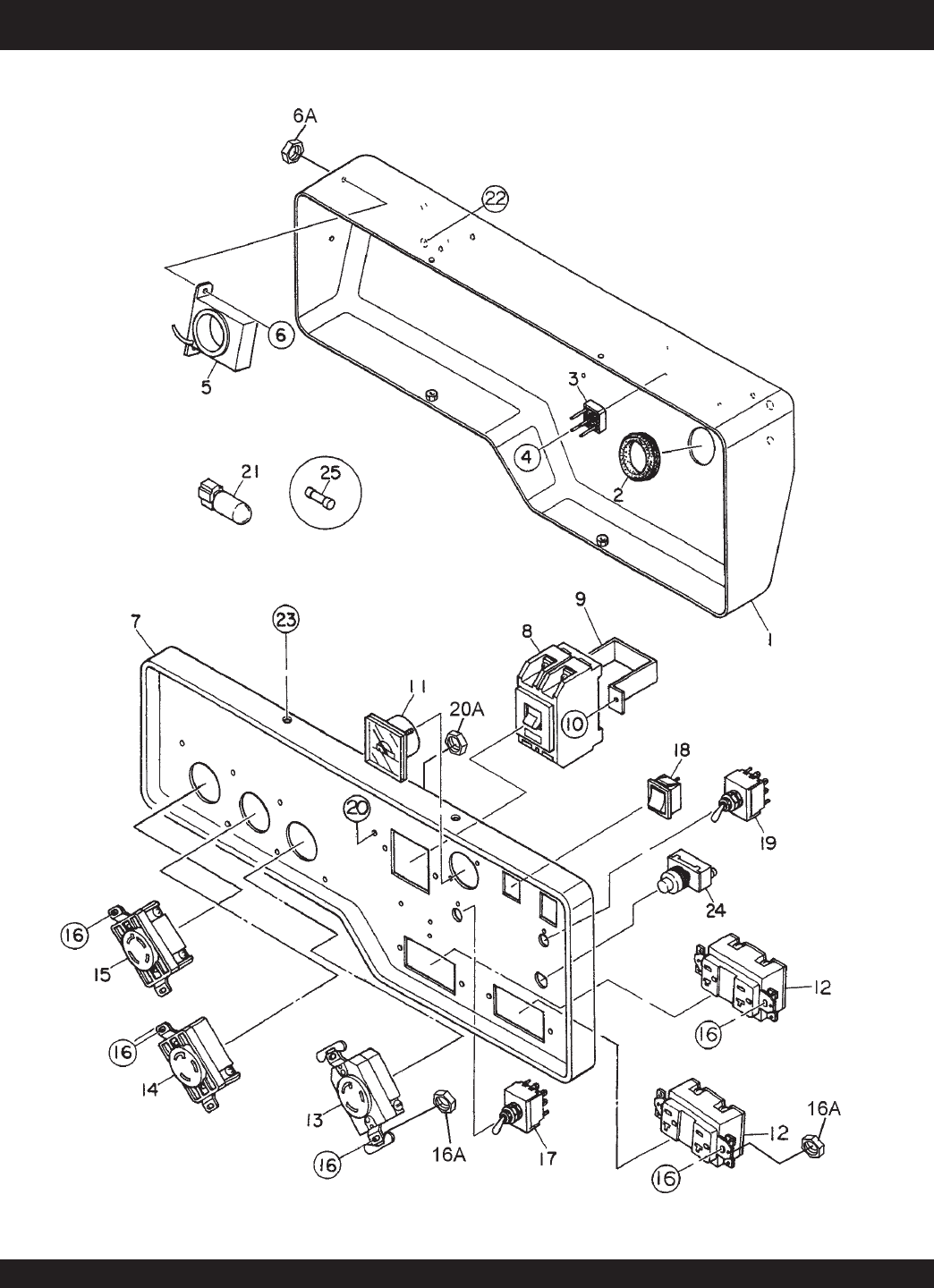

Control Box Assembly (GA-6HEA) ..................... 46-47

Muffler Assembly ............................................... 48-49

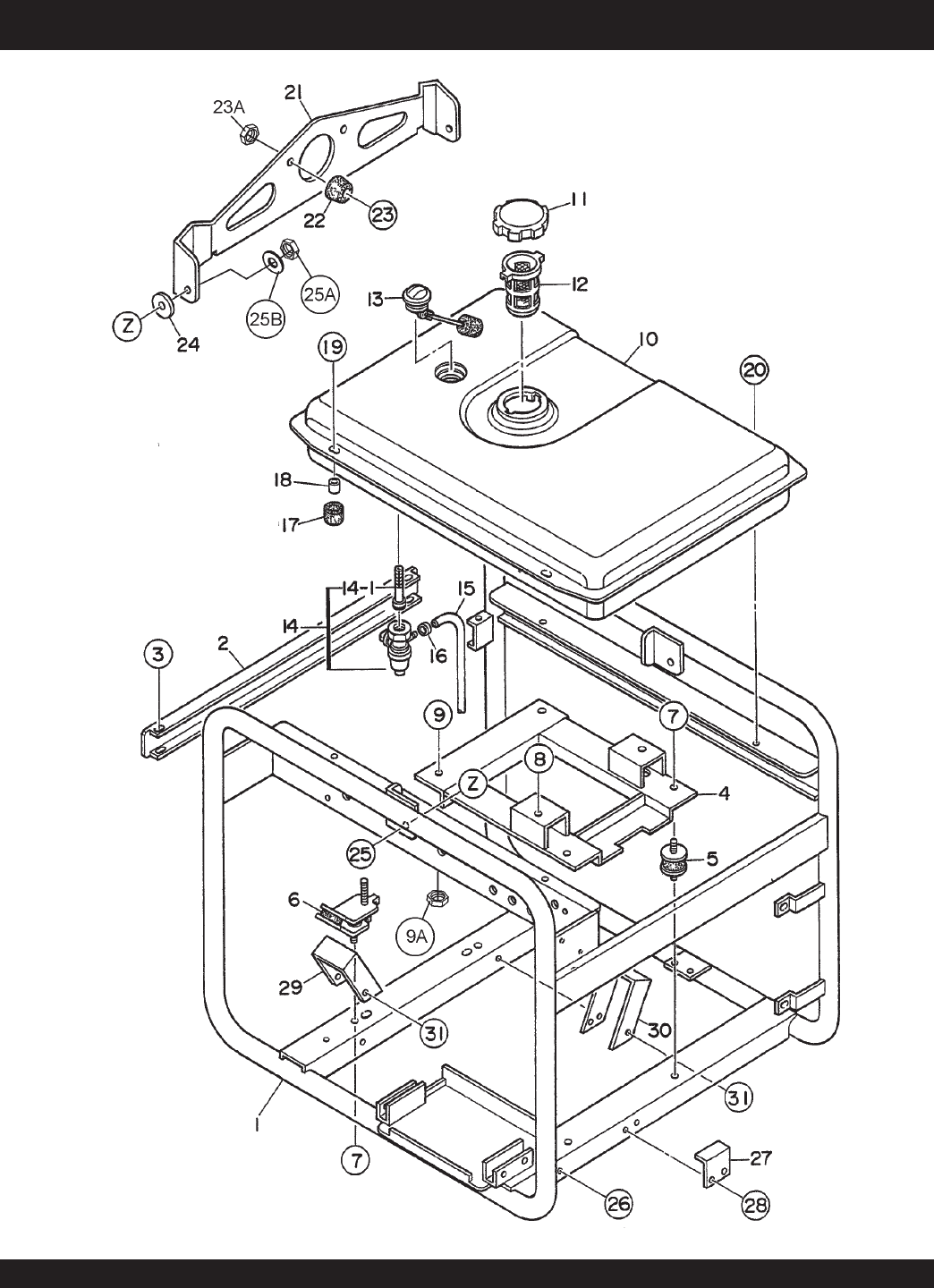

Pipe Frame Assembly ........................................ 50-51

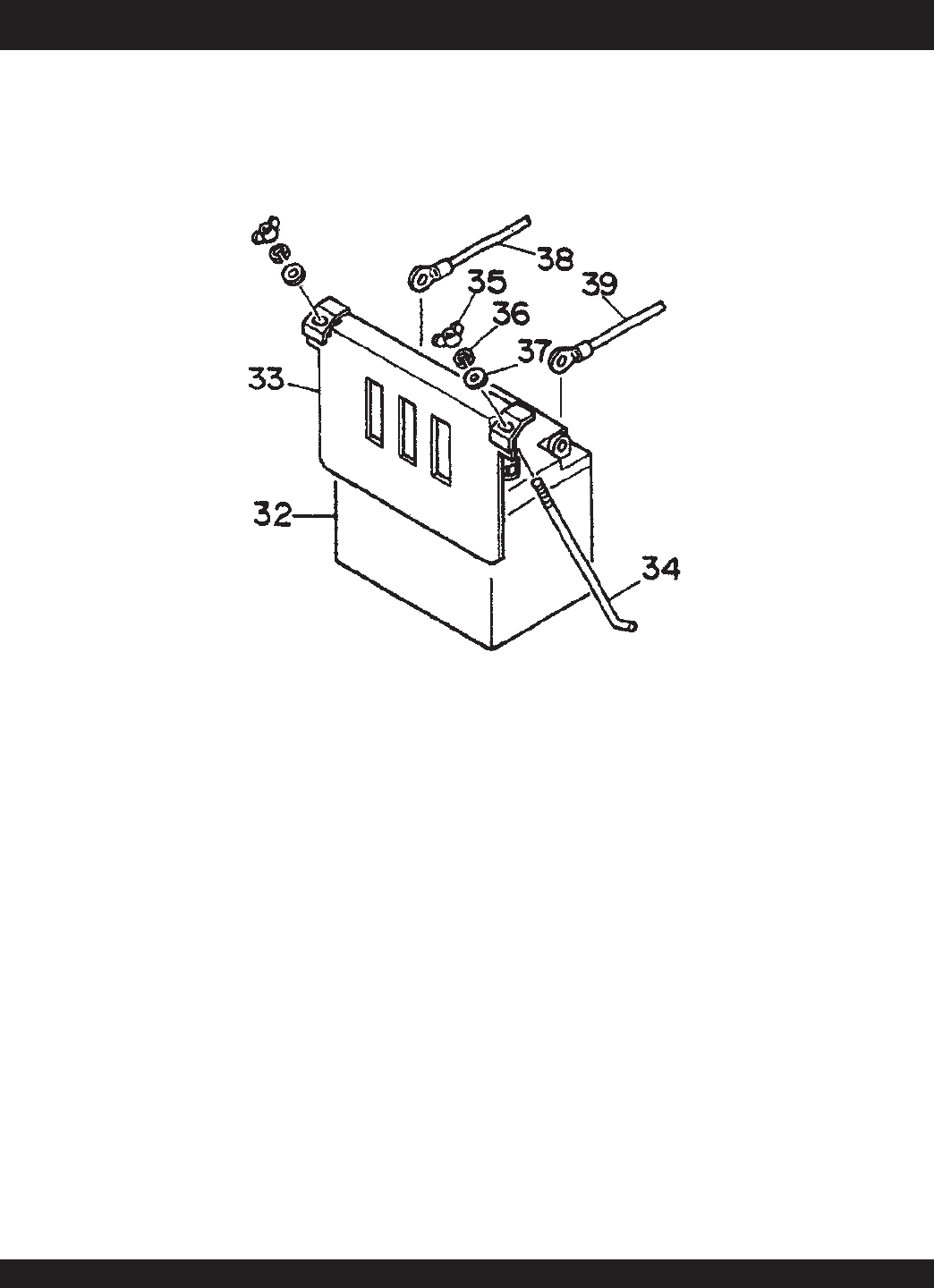

Battery Assembly ............................................... 52-53

GA-6HE/GA-6HEA A.C. GENERATORS — OPERATION & PARTS MANUAL — REV. #1 (09/30/05) — PAGE 5

When ordering parts,

please supply the following information:

❒❒

❒Dealer account number

❒❒

❒Dealer name and address

❒❒

❒Shipping address (if different than billing address)

❒❒

❒Return fax number

❒❒

❒Applicable model number

❒❒

❒Quantity, part number and description of each part

❒❒

❒Specify preferred method of shipment:

✓FedEx or UPS Ground

✓FedEx or UPS Second Day or Third Day

✓FedEx or UPS Next Day

✓Federal Express Priority One

✓DHL

✓Tr u c k

Direct TOLL-FREE access

to our Parts Department:

Toll-free nationwide — 800-427-1244

Toll-free FAX — 800-6-PARTS-7 (800/672-7877)

MULTIQUIP INC.

18910 WILMINGTON AVENUE

POST OFFICE BOX 6254

CARSON, CALIFORNIA 90749

310-537-3700 • 800-421-1244

FAX: 310-537-3927

E-MAIL: mq@multiquip.com

INTERNET: www.multiquip.com

Here’s how to get help...

Please have the model and serial number

on hand when calling.

MULTIQUIP CORPORATE OFFICE

18910 Wilmington Ave. 800-421-1244

Carson, CA 90746

FAX:

310-537-3927

Email: mq@multiquip.com

Internet: www.multiquip.com

PARTS DEPARTMENT

800-427-1244

FAX:

800-672-7877

310-537-3700

FAX:

310-637-3284

MAYCO PARTS

800-306-2926

FAX:

800-672-7877

310-537-3700

FAX:

310-637-3284

SERVICE DEPARTMENT

800-421-1244

FAX:

310-537-4259

310-537-3700

TECHNICAL ASSISTANCE

800-478-1244

FAX:

310-631-5032

WARRANTY DEPARTMENT

800-421-1244,

EXT.

279

FAX:

310-537-1173

310-537-3700,

EXT.

279

PARTS ORDERING PROCEDURES

Note: Unless otherwise indicated by customer, all

orders are treated as “Standard Orders”, and will

ship within 24 hours. We will make every effort to ship

“Air Shipments” the same day that the order is

received, if prior to 2PM west coast time. “Stock

Orders” must be so noted on fax or web forms.

Extra Discounts!

All parts orders which include complete part numbers and

are received by our automated web parts order system, or

by fax qualify for the following extra discounts:

Ordered Standard Stock orders

via orders ($750 list and above)

Fax 3% 10%

Web 5% 10%

Special freight allowances

when you order 10 or more

line items via Web or Fax!**

FedEx Ground Service

at no charge for freight

No other allowances on freight shipped by any other carrier.

**Common nuts, bolts and washers (all items under $1.00

list price) do not count towards the 10+ line items.

Place Your Parts Order Via Web or Fax

For Even More Savings!

(Domestic USA Dealers Only)

NOTE: DISCOUNTS ARE SUBJECT TO CHANGE

PAGE 6 — GA-6HE/GA-6HEA A.C. GENERATORS — OPERATION & PARTS MANUAL — REV. #1 (09/30/05)

GA-6HE/GA-6HEA — SAFETY MESSAGE ALERT SYMBOLS

Safety precautions should be followed

at all times when operating this

equipment. Failure to read and

understand the Safety Messages and

Operating Instructions could result in

injury to yourself and others.

FOR YOUR SAFETY AND THE SAFETY OF OTHERS!

This Owner's Manual has been

developed to provide complete

instructions for the safe and efficient

operation of the MQ Model GA-6HE/

GA-6HEA

Portable Generators

Refer to the engine manufacturers

instructions for data relative to its safe

operation.

SAFETY MESSAGE ALERT SYMBOLS

The three (3) Safety Messages shown below will inform you

about potential hazards that could injure you or others. The

Safety Messages specifically address the level of exposure to

the operator, and are preceded by one of three words: DANGER,

NOTE

You WILL be

KILLED

SERIOUSLY INJURED

if you DO NOT follow these directions.

You CAN be KILLED or

SERIOUSLY INJURED

you DO NOT follow these directions.

You CAN be

INJURED

if you DO NOT follow

these directions.

CAUTICAUTI

CAUTION

DANGERDANGER

DANGER

WARNINGWARNING

WARNING

Lethal Exhaust Gases

HAZARD SYMBOLS

Potential hazards associated with the operation of a

GA-

6HE/GA-6HEA Portable Generators

will be referenced with

Hazard Symbols which appear throughout this manual, and

will be referenced in conjunction with Safety Message Alert

Symbols.

Engine exhaust gases contain

poisonous carbon monoxide. This gas

is colorless and odorless, and can

cause death if inhaled. NEVER operate

this equipment in a confined area or

enclosed structure that does not provide

ample free flow air.

Gasoline is extremely flammable, and

its vapors can cause an explosion if

ignited. DO NOT start the engine near

spilled fuel or combustible fluids.

DO NOT fill the fuel tank while the engine is running or

hot. DO NOT overfill tank, since spilled fuel could ignite if

it comes into contact with hot engine parts or sparks from

the ignition system. Store fuel in approved containers, in

well-ventilated areas and away from sparks and flames.

Engine components can generate extreme

heat. To prevent burns, DO NOT touch

these areas while the engine is running or

immediately after operations. Never

operate the engine with heat shields or heat

guards removed.

ALWAYS wear approved

respiratory

protection when required.

Lethal Exhaust Gas Hazards

WARNINGWARNING

WARNING

Explosive Fuel Hazards

WARNINGWARNING

WARNING

Burn Hazards

WARNINGWARNING

WARNING

Respiratory Hazards

WARNINGWARNING

WARNING

Before using this generator, ensure that the operating

individual has read and understands all instructions in this

manual.

GA-6HE/GA-6HEA A.C. GENERATORS — OPERATION & PARTS MANUAL — REV. #1 (09/30/05) — PAGE 7

GA-6HE/GA-6HEA — SAFETY MESSAGE ALERT SYMBOLS

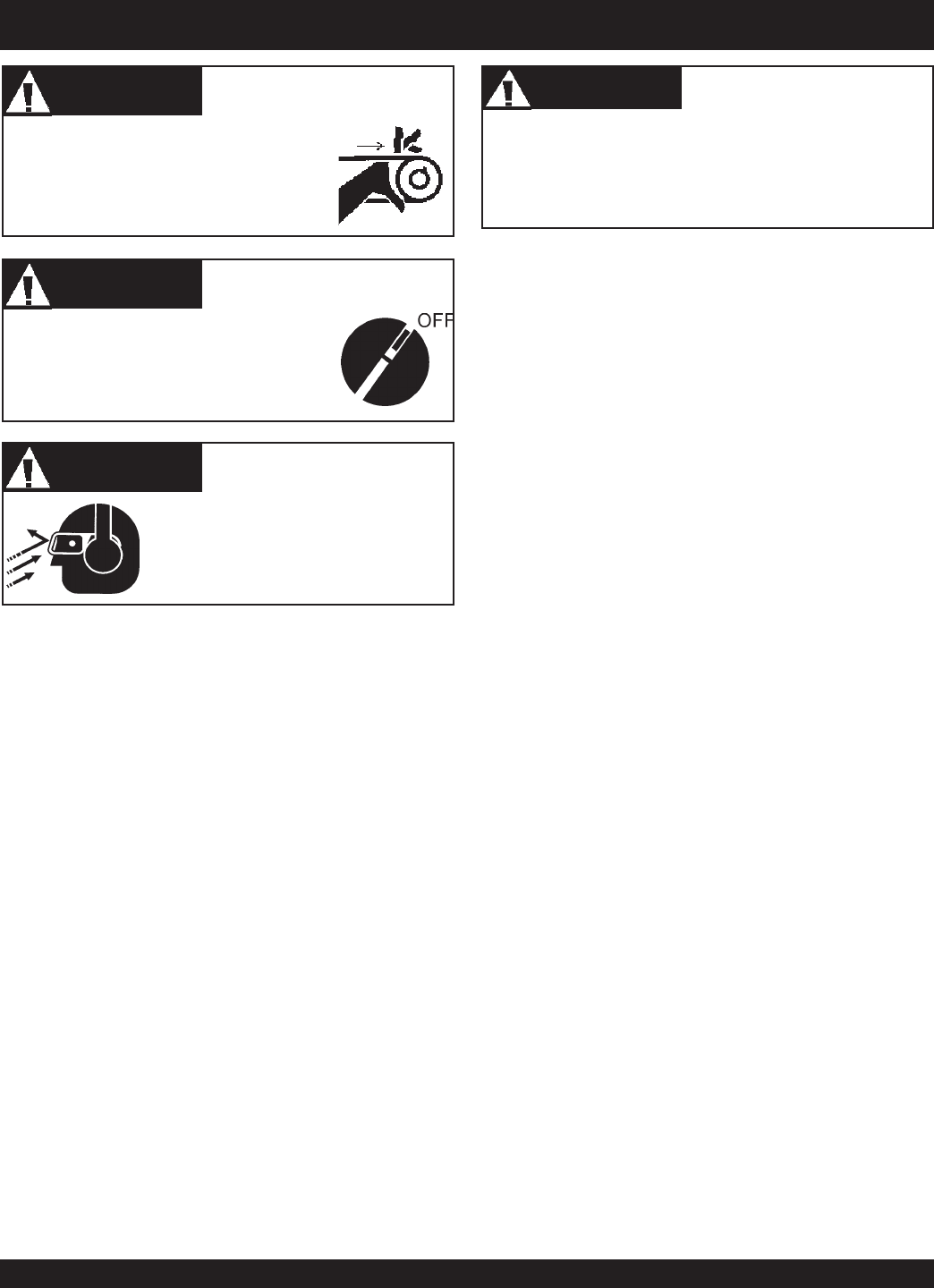

ALWAYS wear approved eye and

hearing protection.

NEVER operate equipment with covers,

or guards removed. Keep fingers, hands,

hair and clothing away from all moving

parts to prevent injury.

Rotating Parts Hazards

CAUTIONCAUTION

CAUTION

Eye and Hearing Hazards

CAUTIONCAUTION

CAUTION

Other important messages are provided throughout this

manual to help prevent damage to your portable generator,

other property, or the surrounding environment.

Equipment Damage

Hazards

CAUTIONCAUTION

CAUTION

ALWAYS place the power source, circuit

breakers or ON/OFF switch in the OFF

position, when the generators is not in use,

unless connected to transfer switch.

Accidental Starting Hazards

CAUTIONCAUTION

CAUTION

PAGE 8 — GA-6HE/GA-6HEA A.C. GENERATORS — OPERATION & PARTS MANUAL — REV. #1 (09/30/05)

The following safety guidelines should always be used when

operating the GA-6HE/GA-6HEA Portable Generators:

GENERAL SAFETY

■

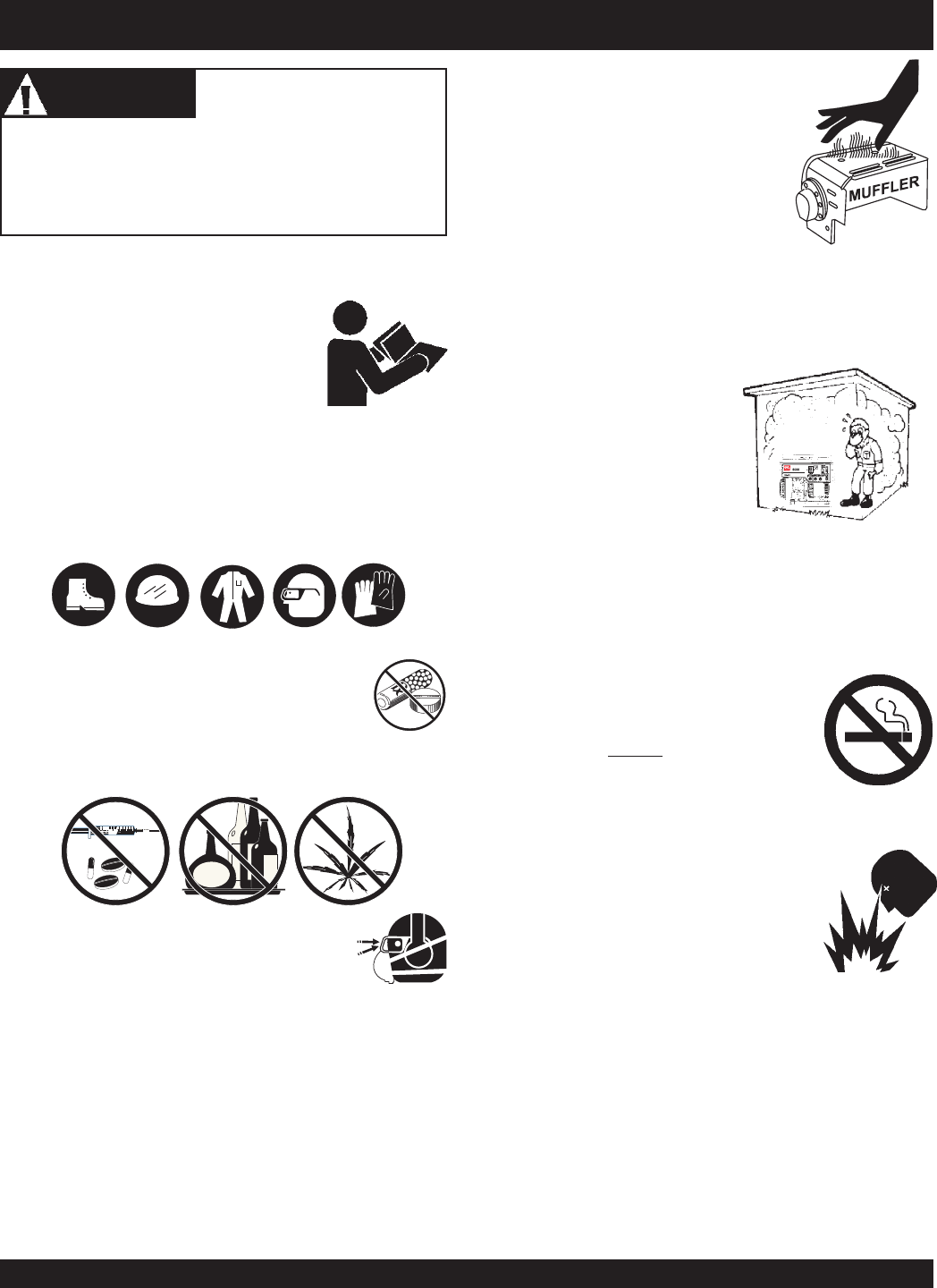

DO NOT operate or service this

equipment before reading this entire

manual.

■

This equipment should not be operated by persons under

18 years of age.

■

NEVER operate this equipment without proper protective

clothing, shatterproof glasses, steel-toed boots and other

protective devices required by the job.

■

The engine section of this generators requires an adequate

free flow of cooling air.

NEVER

operate the generators in

any enclosed or narrow area

where free flow of the air is

restricted. If the air flow is

restricted it will cause

serious damage to the

generators or engine and

may cause injury to people.

Remember the generator's

engine gives off

DEADLY

carbon monoxide gas.

DANGERDANGER

DANGER

Failure to follow instructions in this manual may lead

to serious injury or even death! This equipment is to

be operated by trained and qualified personnel only!

This equipment is for industrial use only.

■

NEVER operate this equipment under the influence of

drugs

alcohol

Read this manual!

■

NEVER touch the hot exhaust

manifold, muffler or cylinder. Allow

these parts to cool before servicing

engine or generators.

■

ALWAYS wear proper respiratory (mask),

hearing and eye protection equipment when

operating the generators.

■

Whenever necessary, replace nameplate, operation and

safety decals when they become difficult read.

■

Manufacturer does not assume responsibility for any

accident due to equipment modifications.

■

NEVER use accessories or attachments, which are not

recommended by Multiquip for this equipment. Damage

to the equipment and/or injury to user may result.

■

NEVER operate this equipment when not

feeling well due to fatigue, illness or taking

medicine.

GA-6HE/GA-6HEA — RULES FOR SAFE OPERATION

■

ALWAYS refuel in a well-ventilated area, away from sparks

and open flames.

■

ALWAYS use extreme caution when

working with flammable liquids. When

refueling, stop the engine and allow it to

cool. DO NOT

smoke

around or near the

machine. Fire or explosion could result

from fuel vapors, or if fuel is spilled on a

hot engine.

■

NEVER operate the generators in an

explosive atmosphere or near

combustible materials. An explosion or

fire could result causing severe

bodily

harm or even death.

■

NEVER disconnect any

"emergency or safety devices"

These devices are intended for operator safety. Disconnection

of these devices can cause severe injury, bodily harm or even

death! Disconnection of any of these devices will void all

warranties.

GA-6HE/GA-6HEA A.C. GENERATORS — OPERATION & PARTS MANUAL — REV. #1 (09/30/05) — PAGE 9

GA-6HE/GA-6HEA — RULES FOR SAFE OPERATION

■

ALWAYS be sure the operator is familiar with proper safety

precautions and operation techniques before using generator.

■

NEVER leave the generators unattended, turn off engine

when unattended.

■

Unauthorized equipment modifications will void all

warranties.

■

ALWAYS ensure generators are on level ground before use.

■

DO NOT place hands or fingers inside generators engine

compartment when engine is running.

■

NEVER run engine without air cleaner. Severe engine damage

may occur.

■

NEVER change or adjust the engine speed which has been

set at the factory prior to shipping.

■

Removing the engine oil drain plug while

the engine is hot will result in hot oil to gush

out of the oil drain plug, therefore causing

severe scalding to any persons in the general

area of the generator.

Power Cord Safety

■

NEVER let power cables or cords

lay in wate

■

NEVER

stand in water

while AC power from the generators

are being transfer to a load.

■

NEVER use a defective or frayed power cable. Check the

cable for cuts in the insulation.

■

NEVER use a extension cord that is frayed or damaged where

the insulation has been cut.

■

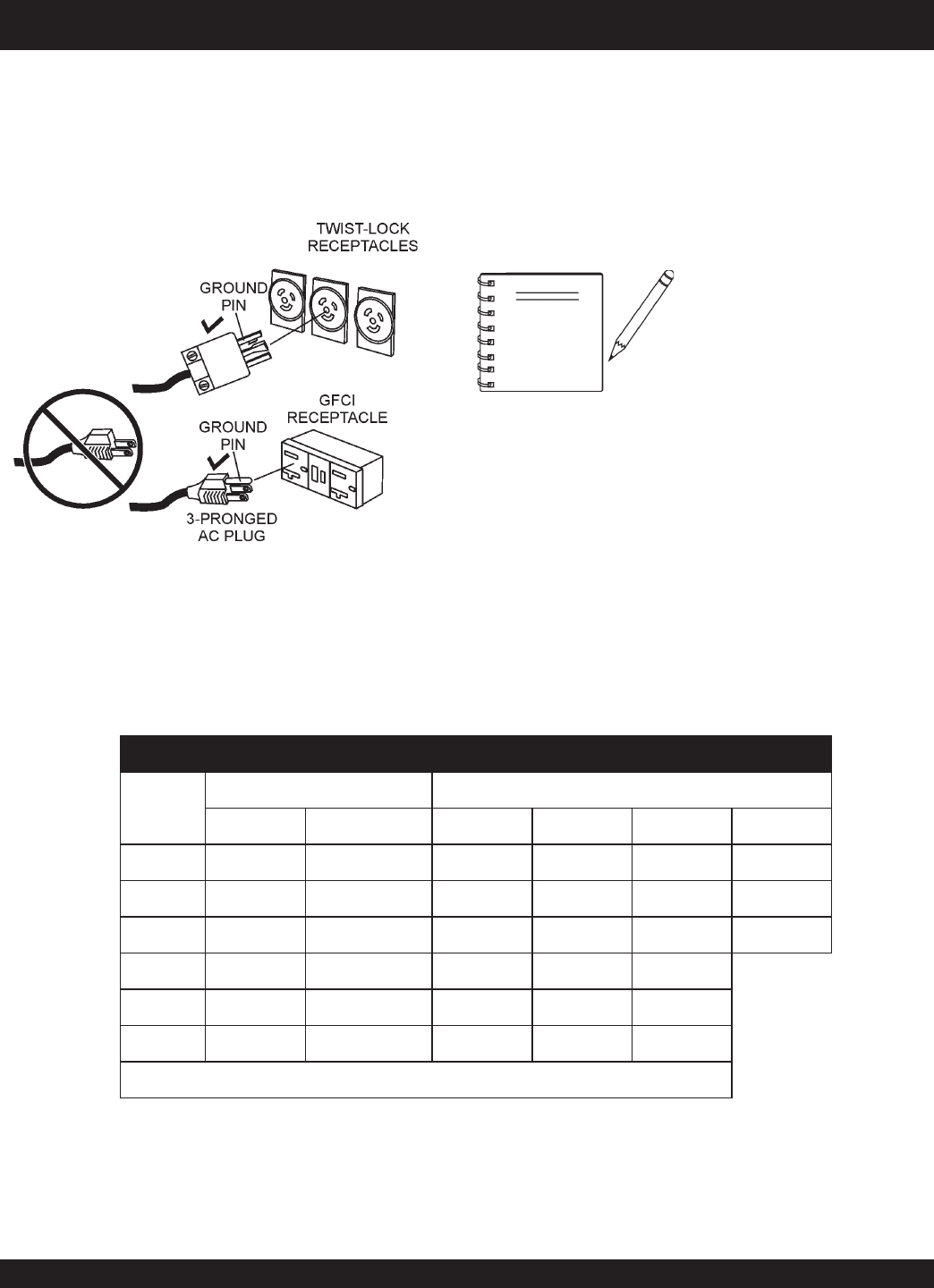

ALWAYS make certain that proper power or extension cord

has been selected for the job See Table 4.

Grounding Safety

■

ALWAYS make sure that electrical circuits are properly

grounded

per the

National Electrical Code

(NEC) and

local codes before operating generator. Severe

injury

death!

by electrocution can result from operating an

ungrounded generator.

■

ALWAYS make sure generators are properly grounded to a

suitable earth ground (GROUND ROD). See installation in

this manual.

■

NEVER use

gas piping

as an electrical ground.

Maintenance Safety

■

NEVER lubricate components or attempt service on a running

machine.

■

High Temperatures – Always stop engine and

allow the engine to cool before adding fuel, oil

or performing service and maintenance

functions. Contact with

hot!

components can

cause serious burns.

■

Keep the machinery in proper running condition.

■

Fix damage to the machine immediately and replace any

broken parts immediately.

■

ALWAYS replace any worn or damaged warning decals.

■

ALWAYS store equipment properly when it is not being used.

Equipment should be stored in a clean, dry location out of the

reach of children and un-authorized personnel.

■

The electrical voltage required to operate the generators can

cause severe injury or even death through physical contact

with live circuits.

Turn all circuit breakers OFF before

performing maintenance on the generator.

■

Dispose of hazardous waste properly. Examples of potentially

hazardous waste are used motor oil, fuel and fuel filters.

■

DO NOT use food or plastic containers to dispose of

hazardous waste.

■

DO NOT pour waste, oil or fuel directly onto the ground,

down a drain or into any water source.

PAGE 10 — GA-6HE/GA-6HEA A.C. GENERATORS — OPERATION & PARTS MANUAL — REV. #1 (09/30/05)

Backfeed to a utility system can cause

electrocution

and or property damage.

NEVER connect the generators to a

building's electrical system without a

transfer switch or other approved device.

All installations should be performed by

licensed electrician

in accordance

with all applicable laws and electrical

codes. Failure to do so could result in

electrical shock or burn causing serious

injury or even death!

GA-6HE/GA-6HEA — RULES FOR SAFE OPERATION

Emergencies

■

ALWAYS know the location of the

nearest

fire extinguisher

■

ALWAYS know the location of the nearest

first aid kit

■

In emergencies

always

know the location of the

nearest phone or

keep a phone on the job site

Also know the phone numbers of the nearest

ambulance

doctor

and

fire department

. This

information will be invaluable in the case of an

emergency.

DANGERDANGER

DANGER

ELECTROCUTION HAZARDSELECTROCUTION HAZARDS

ELECTROCUTION HAZARDS

During operation of this generation, there

exists the possibility of

electrocution

electrical shock or burn

, which can

cause

severe bodily harm

or even

DEATH!

To avoid these hazards:

NEVER use

damaged

worn

cables when connecting

equipment to the generator. Make sure power connecting

cables are securely connected to the generator’s output

receptacles, incorrect connections may cause damage

to the generators and electrical shock.

NEVER insert any objects into

the output receptacles during

operation. This is extremely

dangerous. ALWAYS turn-off

the generators and place all circuit breakers in the “OFF”

position when contact with the output receptacles is

required. There exist the possibility of

electrocution,

electrical shock or burn, which can cause severe

bodily harm or even death

NEVER grab or touch a live

power cord with wet hands, the

possibility exist of electrical

shock, electrocution, and even

death!

GA-6HE/GA-6HEA A.C. GENERATORS — OPERATION & PARTS MANUAL — REV. #1 (09/30/05) — PAGE 11

GA-6HE/GA-6HEA — OPERATION AND SAFETY DECALS

Machine Safety Decals

The GA-6HE/GA-6HEA portable generators are equipped with a number of safety decals (Figure 1). These decals are provided for

operator safety and maintenance information. The illustration below shows these decals as they appear on the machine. Should any

of these decals become unreadable, replacements can be obtained from your dealer.

Figure 1. Operation and Safety Decals

PAGE 12 — GA-6HE/GA-6HEA A.C. GENERATORS — OPERATION & PARTS MANUAL — REV. #1 (09/30/05)

GA-6HE/GA-6HEA — SPECIFICATIONS (GENERATOR)

The maximum output of the engines listed above are applicable to supplying electrical power for continuous service at ambient

conditions in accordance with SAE Test cord J607. The above ambient conditions are at standard sea level, with a barometric

reading of 29.92 inches and a temperature of 60 degrees fahrenheit.

Generally, the engine's output power will decrease 3-1/2% for each 1000 feet of altitude above sea level, and 1% for each 10

°°

Fahrenheit above the standard temperature of 60

°°

Effects of Altitude and Heat

)srotareneG(snoitacificepS.1elbaT

rotareneGCA

ledoMAEH6-AG/EH6-AG

epyTepyTdleiFgnivloveRsselhsurB

noitaticxEmetsySdeticxEyllacitatS,etatSdilo

deepSMPR006,3

metsySgnilooCnoitalitneV-fleS

yticapaCleuF)sretil91(snollag5

rewoPCAelcyC06

ecruoS

tuptuOsuoun

itnoCWk0.5

tuptuOybnatSWk0.6

egatloVdetaRV042/021

)V021(suounitnoC/xaMtnerruCspma6.14/05

)V042(suounitnoC/xaM

tnerruCspma8.02/0.52

esahP)eriw4(esahPelgniS

ycneuqerFzH06

rotcaFrewoP1

)HxWxL(snoisnemiDrotareneG .ni52.12X40

.22x06.52

)mm045X065X056(

yrettaB 1xhA62-V21

epyT1U,ACC022

)HxWxL(snoisnemiDyrettaB .ni05.7X00.5x05.7

)mm191

X721X191(

thgieWteNyrDrotareneG ).gk89(.sbl612

)leuFhtiW(thgieWrotareneG ).gk311(.sbl942

GA-6HE/GA-6HEA A.C. GENERATORS — OPERATION & PARTS MANUAL — REV. #1 (09/30/05) — PAGE 13

GA-6HE/GA-6HEA — SPECIFICATIONS (ENGINE)

In keeping with Multiquip's policy of

constantly improving its products, the

specifications quoted herein are subject

to change without prior notice.

NOTE

)enignE(snoitacificepS.2elbaT

enignE

ledoM2EDE1K043XGADNOH

epyT

elgniS,ekorts4delooc-riA

,VHO,rednilyC

enilosaGtfahSlatnoziroH

enignE

ekort

SXeroB .ni03.2X.ni09.2

).mm85xmm37(

tnemecalpsiDmc983(ni-uc07.32

)

tuptuOxaM.M.P.R0063/.P.H0.11

leuFenilosaGelibomotuAdedaelnU

yticapaCliOebuL)sretil1.1(strauq61.1

metsyStre

lAliOseY

dohteMlortnoCdeepSepyTthgiew-ylFlagufirtneC

dohteMgnitratStratScirtcelE

snoisnemiD

)HxWxL(

.ni4.71X7

.71x0.51

).mm344X054X083(

thgieWteNyrD ).gK13(sbl4.86

PAGE 14 — GA-6HE/GA-6HEA A.C. GENERATORS — OPERATION & PARTS MANUAL — REV. #1 (09/30/05)

GA-6HE/GA-6HEA — DIMENSIONS

Figure 2. Dimensions

GA-6HE/GA-6HEA A.C. GENERATORS — OPERATION & PARTS MANUAL — REV. #1 (09/30/05) — PAGE 15

GA-6HE/GA-6HEA — GENERAL INFORMATION

GA-6HE/GA-6HEA FAMILIARIZATION

Generator

The Multiquip GA-6HE and GA-6HEA generators have been

designed as a portable dual purpose power source for 60

Hz (single phase) lighting facilities, power tools, submersible

pumps and other industrial and construction machinery.

These generators are mounted on rubber vibration isolators

that have a steel base backplate which is attached to the

protective steel pipe carrying frame. The protective carrying

frame is made of steel tubing and fully wraps around the

generators to protect against damage. See Figures 3A

through 3E for the basic controls and indicators for the GA-

6HE/GA-6HEA generators.

These portable generators are supplied with a electrical

control box

. To reduce vibration caused by the engine, the

control box is also placed on rubber isolators.

Control Box

The control box is provided with the following:

■

120/240V twist-lock output receptacle (single phase).

■

120V twist-lock receptacle (2) (single phase).

■

120V GFCI single phase duplex output receptacle ( GA-

6HEA has two).

■

21 amp main circuit breaker.

■

AC Voltmeter

■

Ground Terminal

■

Full Power Switch

■

Idle Control Switch

■

Operation Switch

Excitation System

The GA-6HE/GA-6HEA-series generators use a magnet

attached to a flywheel to produce AC voltage from a lamp

coil beneath the flywheel. As the magnetic passes the coil it

produces approximately 19-22 AC volts.

This voltage (19-22 VAC) is then sent to the control box that

contains three rectifying diodes:

Excitation (diode 1)

Battery (diode 2)

Slow Down (diode 3)

The AC voltage will pass through the excitation diode that

converts the voltage to DC power.

This DC power is then sent to the excitation windings housed

within the main windings commonly called the "stator".

This voltage is then transferred into the rotor through

induction. The rotor contains two diodes within it which rectify

the DC voltage and send it out through the main windings,

as AC voltage.

Alternator

The alternator, a brushless revolving-field type, is

permanently aligned to the engine through rigid coupling.

Engine

These generators are powered by a 11 HP, air-cooled, 4-

stroke HONDA gasoline engine. Reference Table 2, for

engine specifications.

Before connecting this generators to any building’s

electrical system, a licensed electrician must install an

isolation (transfer) switch.

Serious injury or death may result without this transfer

switch.

WARNINGWARNING

WARNING

PAGE 16 — GA-6HE/GA-6HEA A.C. GENERATORS — OPERATION & PARTS MANUAL — REV. #1 (09/30/05)

GA-6HE/GA-6HEA — LOAD

APPLICATION

Single Phase Load — 60 Hz

Always be sure to check the nameplate on the generators

and equipment to insure the wattage, amperage and

frequency requirements are satisfactorily supplied by the

generators for operating the equipment.

Generally, the wattage listed on the nameplate of the

equipment is its rated output. Equipment may require 130—

150% more wattage than the rating on the nameplate, as

the wattage is influenced by the efficiency, power factor and

starting system of the equipment.

If wattage is not given on the equipment's

name plate, approximate wattage may be

determined by multiplying nameplate

voltage by the nameplate amperage.

WATTS = VOLTAGE x AMPERAGE

The power factor of this generators is 1.0 See Table 3 below

when connecting loads.

NOTE

To determine the running wattage for your load, multiply

the running wattage as indicated by steps 1, 2, and 3 below:

1. INCANDESCENT LOADS

Lights, heaters and similar appliances.

Total the running wattage and multiply by 1.

Example:

29 light bulbs @ 100W each = 2.9 KW

use a 3 KW generator.

2. SMALL MOTORS

Drills and other small power tools.

Total the running wattage and multiply by 2.

Example:

A 1 inch drill runs at 1 KW

use a 2 KW generator.

3. LARGE MOTORS

Submersible pumps, table saws etc.

Total the running wattage and multiply by 3.

Example:

A conveyor belt runs at 8 KW

use a 24 KW generator.

Extension Cables

When electric power is to be provided to various tools or

loads at some

distance

from the generator, extension cords

are normally used.

Cables should be sized to allow for

distance in length and amperage so that the voltage

drop between the generators and point of use (load) is

held to a

minimum

. Use the cable selection chart (Tables

4 and 5 ) as a guide for selecting proper cable size.

The idle control device is operated at a

minimum load capacity of 100W. If the

load capacity is less than 100W, place

the idle control switch in the OFF position.

NOTE

Motors and motor-driven equipment draw much greater

current for starting than during operation.

Always

use an

adequate size

extension cable

which can carry the

required load.

CAUTIONCAUTION

CAUTION

When using a combination of dual

receptacles, total load

should not

exceed

the rated capacity of the

generator.

NOTE

daoLyBrotcaFrewoP.3elbaT

daoLfOepyTrotcaFrewoP

srotomnoitcudniesahp-elgniS57.0-4.0

tnecsednacni,sretaehcirtcelE

spmal 0.1

yrucem,spma

ltnecseroulF

spmal 9.0-4.0

,secivedcinortcelE

tnempiuqenoitacinummoc 0.1

slootrewopnommoC8.0

GA-6HE/GA-6HEA A.C. GENERATORS — OPERATION & PARTS MANUAL — REV. #1 (09/30/05) — PAGE 17

GA-6HE/GA-6HEA — CONTROLS AND INDICATORS

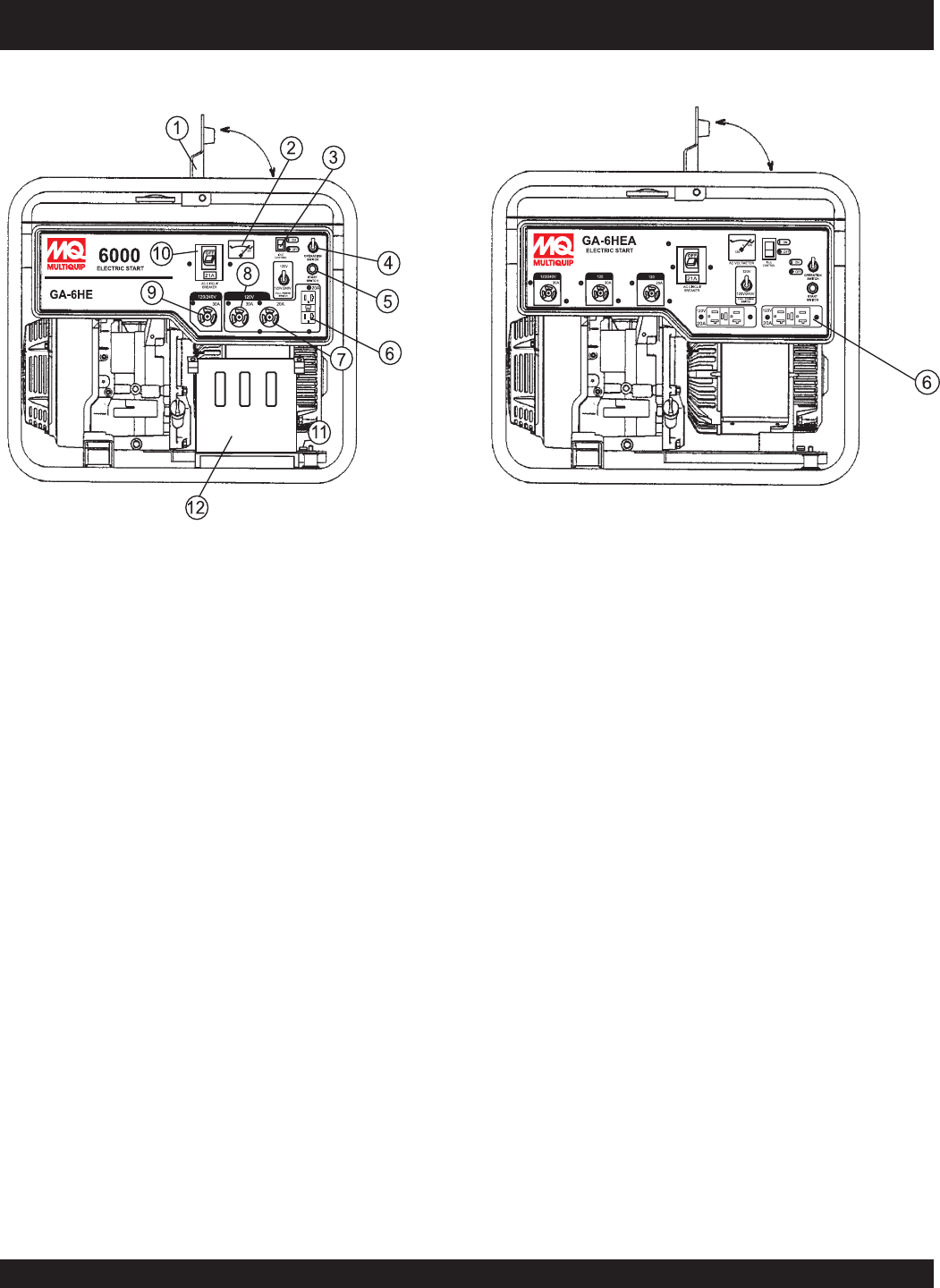

Figure 3A. Generator Components

5. Start Switch – Press this

pushbutton

switch to start the

generators.

6. GFCI Duplex Receptacle – This NEMA 5-20R, GFCI

receptacle will provide 120V, 20 amps.(There are two on

the GA- 6HEA.)

7. 120V Output Receptacle – NEMA L5-20R twist-lock

receptacle will provide 120V, 20 amps, 60 Hz.

8. 120V Output Receptacle – NEMA L5-30R twist-lock

receptacle will provide (120V, 30 amps, 60 Hz.)

9. 120V/240V Output Receptacle – NEMA L14-30R twist-

lock receptacle will provide (120V, 50 amps, or 240V,

25 amps, 60 Hz.)

10. Main Breaker – This 2-pole circuit breaker (240V/25 amps

or 120V/50 amps) protects the generator from short

circuiting or overloading. When starting the generator

always

have the circuit breaker placed in the "OFF"

position.

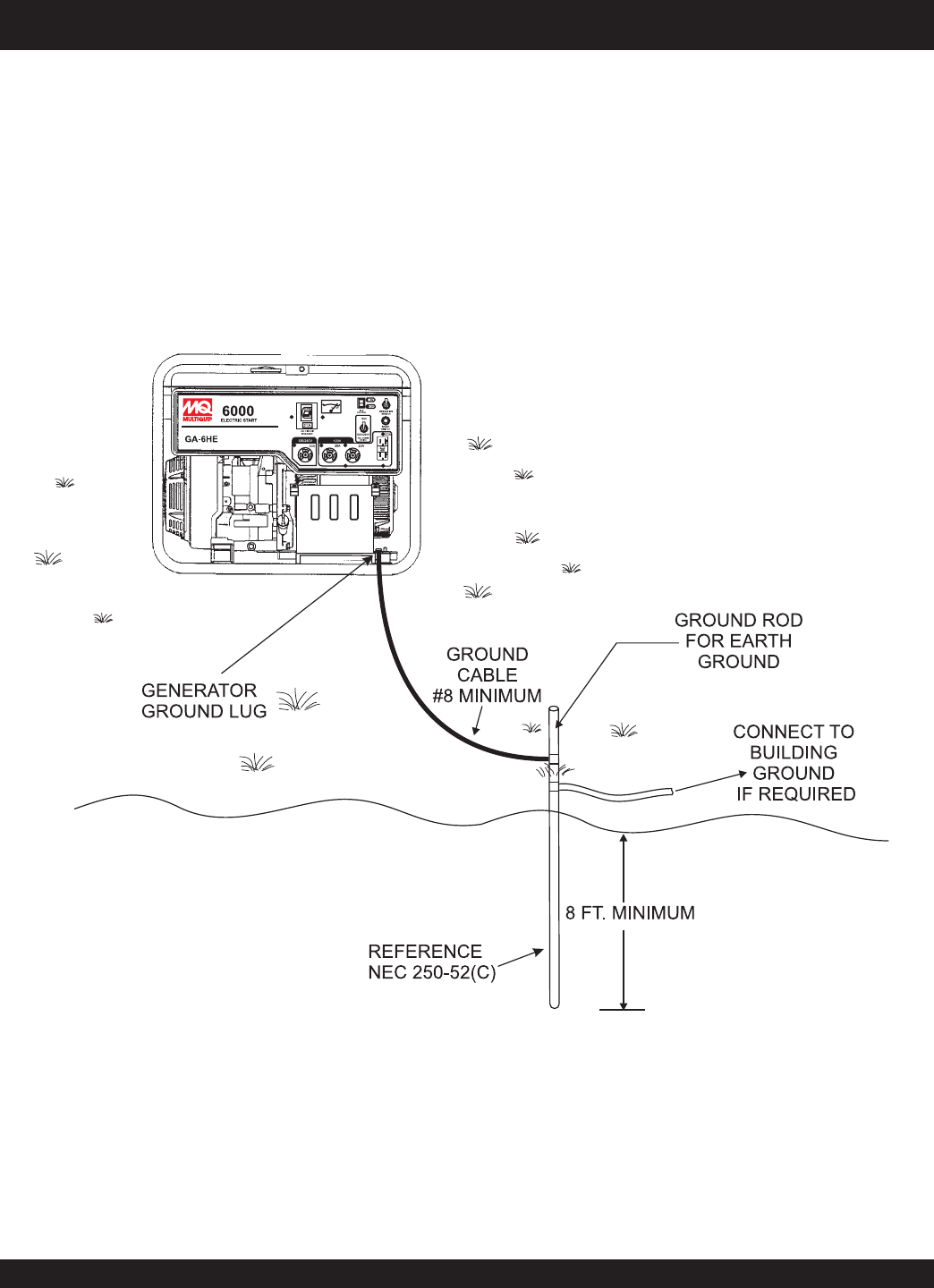

11. Ground – This ground connection point should be

connect to a good earth ground (ground rod)

12. Battery – This unit is equipped with a 12 VDC battery.

Replace with only recommended type battery.

1. Lifting Bail Eye – Attach a rope or chain to this lifting eye

when lifting of the generator is required. Never stand

underneath the generator while it is being lifted. Place lifting

eye in down position when not in use.

2. AC-Voltmeter – This voltmeter indicates (with a mark) the

rated 60 Hz (single-phase) output voltage. In addition the

voltmeter can also be used as a diagnostic tool. If the

voltmeter indicator (needle) is below the rated voltage,

engine problems may exist (low/high RPM's). To prevent

damage to the generator or power tools turn the generator

OFF and consult your authorized Multiquip service dealer.

3. Idle Control Switch – These generators are provided with

an automatic idle control device for noise suppression and

reduced fuel consumption. The automatic idle control

automatically engages under a no-load condition. With the

automatic idle control switched “ON”, the engine revolutions

will automatically drop to about 2600 rpm (low-speed

operation) within 3 seconds after the load stops. When the

operation is resumed, the engine speed is automatically

increased to about 3600 rpm (high-speed operation) as

soon as the load is connected.

4. Operation Switch – Place this

toggle

switch in the "ON"

position (up) for normal operation. To turn-off the generator,

place the operation switch in the "OFF" position (down).

PAGE 18 — GA-6HE/GA-6HEA A.C. GENERATORS — OPERATION & PARTS MANUAL — REV. #1 (09/30/05)

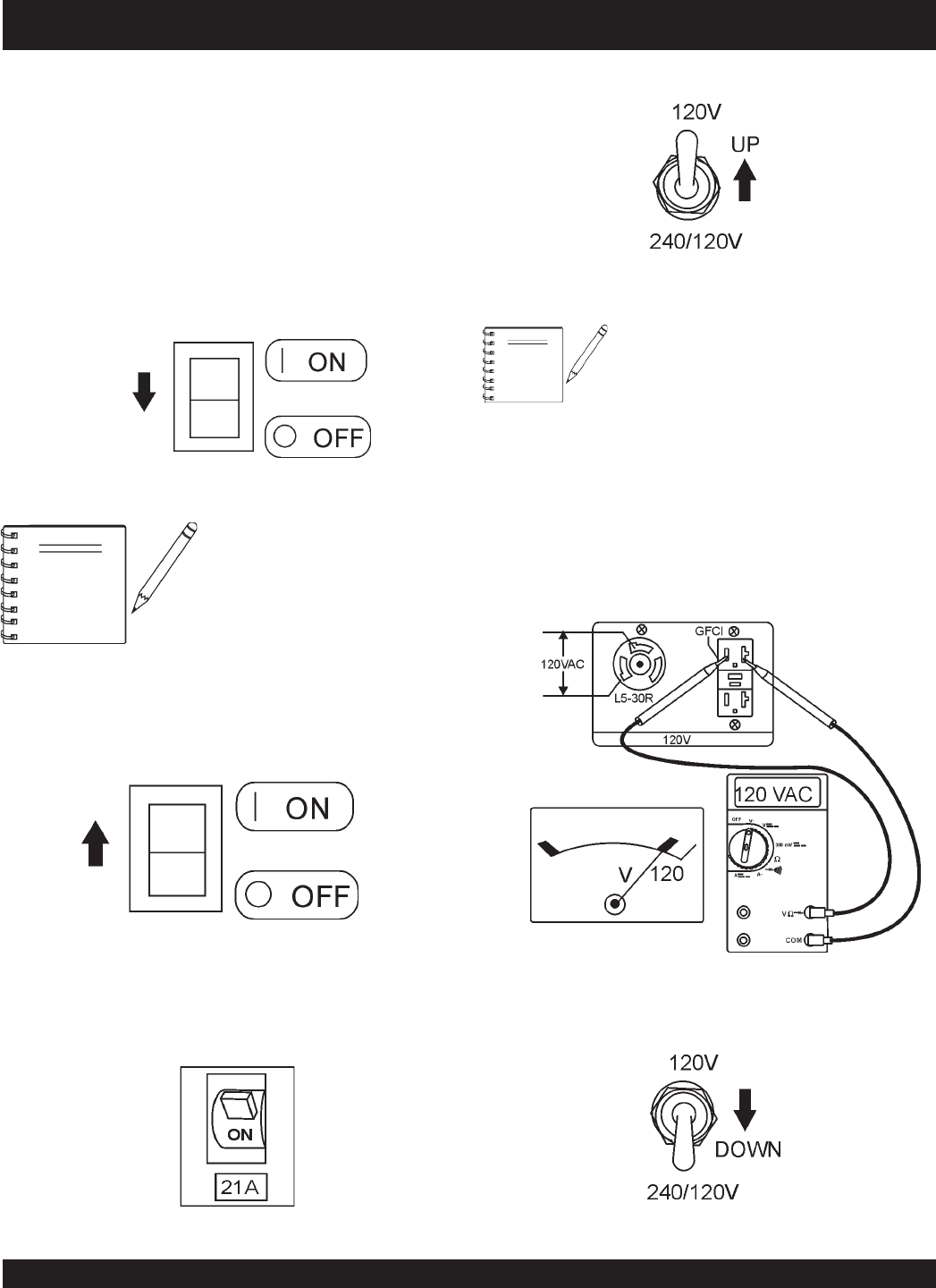

Figure 3D. 120/240V Full Power Switch

Simplified Diagram (Down Position)

Figure 3C. 120V Full Power Switch

Simplified Diagram (Up Position)

Figure 3B. Generator Components

GA-6HE/GA-6HEA — CONTROLS AND INDICATORS

When the

full power switch

is in the

120V position, the 240V twist-lock

receptacle

cannot be used

NOTE

When the switch is in the 240 volt (down) position, you can

acess

half of the rated power

of the generating set at 120

volts from the GFCI duplex receptacle and up to half of the

rated power of the set at 120 volts from 120V twist-lock

receptacle; or full rated power of the set at 240 volts from

the 240V twist-lock receptacle.

13. Full Power Switch – The generator is provided with a full

power switch. Figures 3C and 3D show simplified wiring

diagrams of the dual voltage system.

When the full power switch is in the 120 volt (up) position,

you can access the

full rated power

of the generator at

120 volts from the GFCI duplex receptacle and the120V

twist-lock receptacle, or a combination of both receptacles

as long as the total load does not exceed the generating

set capacity.

GA-6HE/GA-6HEA A.C. GENERATORS — OPERATION & PARTS MANUAL — REV. #1 (09/30/05) — PAGE 19

This

HONDA

engine is equipped

with a low oil shutdown capability. A

built in sensor will automatically turn

off the engine should the oil level fall

below a safe operating condition.

Make sure the generators is placed

on level ground. Placing the generators on level ground will

ensure that the low oil sensor will function properly.

NOTE

GA-6HE/GA-6HEA — CONTROLS AND INDICATORS

14. Fuel Cock Lever – Turn this lever

downward

start

(down)the flow of fuel into the carburetor. Turn

upward

stop (

)

the flow of fuel.

15. Spark Plug – Provides spark to the ignition system. Set

spark plug gap to 0.6 - 0.7 mm (0.028 - 0.031 inch) Clean

spark plug once a week.

16. Muffler/Heat Shield – Used to reduce noise and emissions.

NEVER touch this

heat shield

when the generator/welder

is in use. Always allow time for the generators to cool down

before performing maintenance.

17. Choke Lever – Used for starting the engine.

the

choke lever when starting a cold engine or in cold weather

conditions. The choke enriches the fuel mixture.

Open

the

choke lever if starting a warm engine or in warm weather

conditions.

18. Recoil Starter (pull rope) – Manual-starting method. Pull

the starter grip until resistance is felt, then pull briskly and

smoothly.

19. Engine Oil Filler Cap – Remove this cap/dipstick when

the adding of engine oil is required. See Table 5 for

recommended type engine oil.

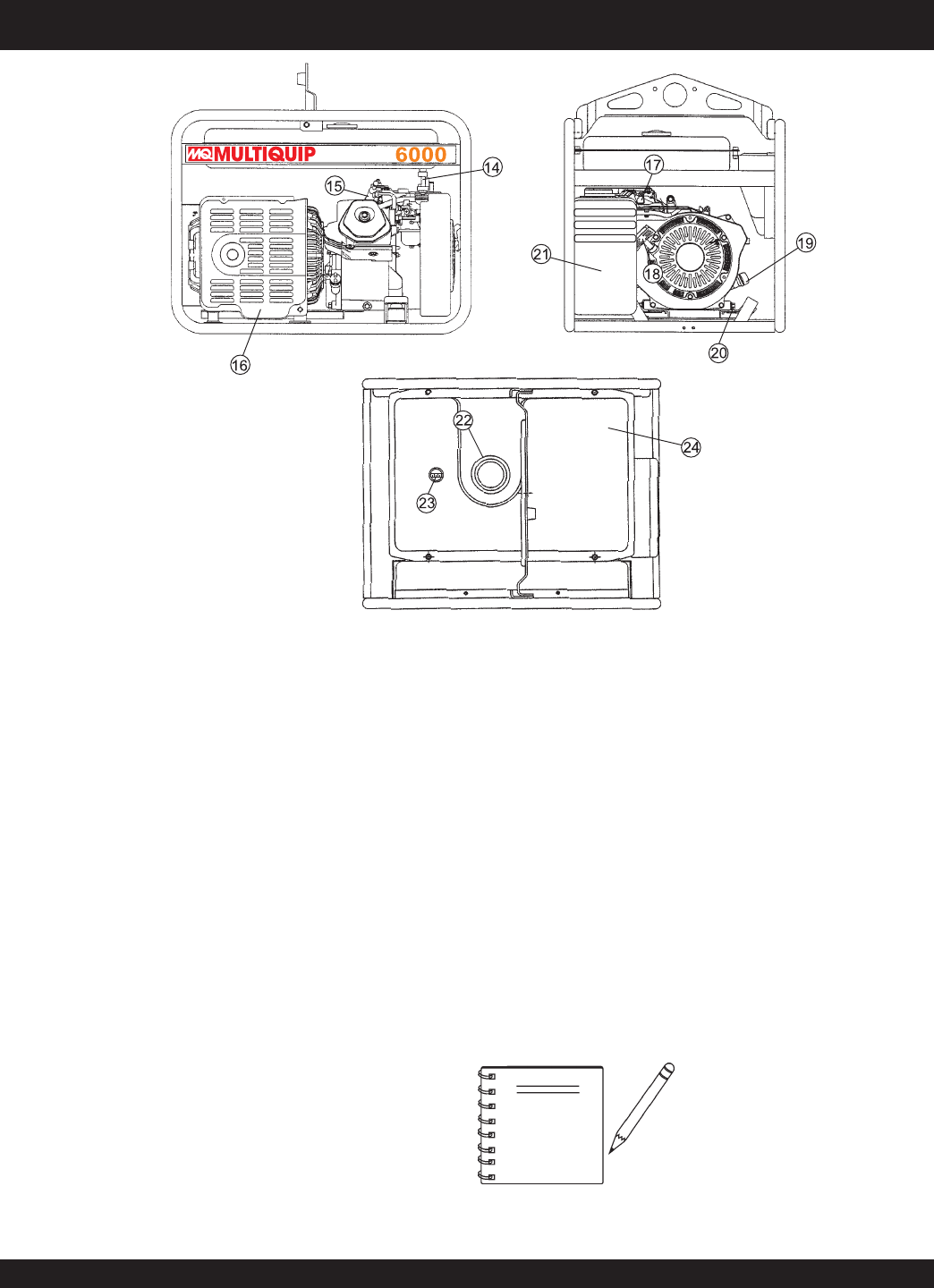

Figure 3E. Generator Components

20. Engine Oil Drain Plug – Remove this drain plug when

draining of the oil from the engine crankcase is required.

Fill with recommeded type oil as listed in Table 5.

21. Air Cleaner – Prevents dirt and other debris from entering

the fuel system. Remove wing-nut on top of air filter

cannister to gain access to filter element. NEVER run the

engine without an air cleaner.

22. Fuel Tank Cap – Remove this cap to add unleaded

gasoline to the fuel tank.

Replenish

with

clean unleaded

gasoline. Make sure cap is tightened securely. DO NOT

over fill.

23. Fuel Gauge – This gauge is located on top of the fuel tank.

Read this gauge to determine when fuel is

low

24. Fuel Tank – Fuel tank capacity is 5 gallons (19 liters).

PAGE 20 — GA-6HE/GA-6HEA A.C. GENERATORS — OPERATION & PARTS MANUAL — REV. #1 (09/30/05)

GA-6HE/GA-6HEA — GENERATOR REFUELING

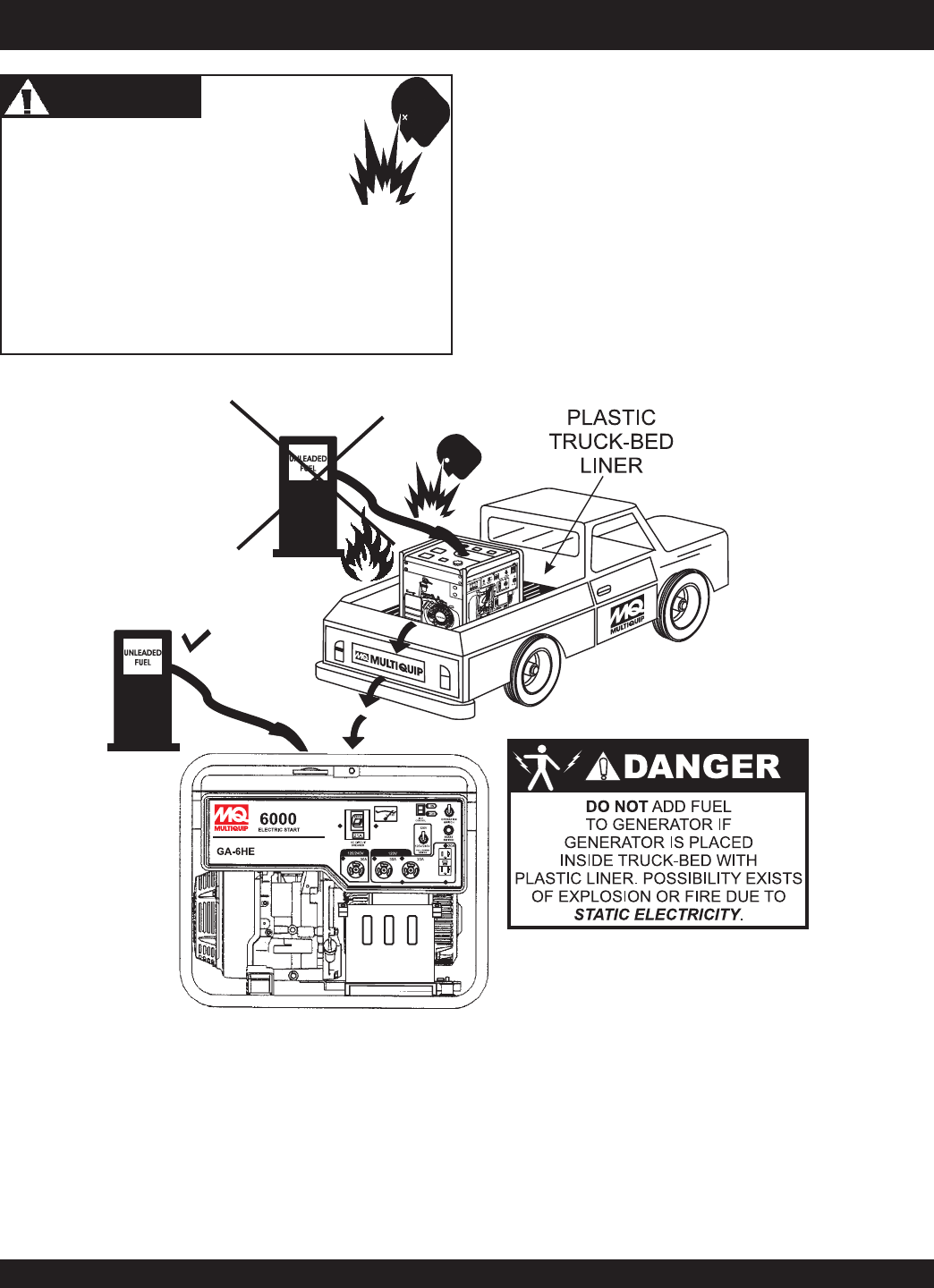

Figure 4. Generator Refueling

Adding fuel to the tank should be done only when

the engine is stopped and has had an opportunity

to cool down. In the event of a fuel spill, DO NOT

attempt to start the engine until the fuel residue

has been completely wiped up, and the area surrounding the

engine is dry. If generators is placed in a truck bed with a plastic

liner, REMOVE generators from truck bed and place on ground

(Figure 4) to refuel. This possibility exist of

fire

explosion

due

to static electricity.

DANGERDANGER

DANGER

GA-6HE/GA-6HEA A.C. GENERATORS — OPERATION & PARTS MANUAL — REV. #1 (09/30/05) — PAGE 21

GA-6HE/GA-6HEA — INSTALLATION

Outdoor Installation

Install the generator/welder in a area that is free of

debris

bystanders

, and

overhead obstructions

. Make sure the

generators are on secure level ground so that it cannot slide

or shift around. Also install the generators in a manner so

that the exhaust will not be discharged in the direction of

nearby homes.

The installation site must be relatively free from moisture

and dust. All electrical equipment should be protected from

excessive moisture. Failure to do will result in deterioration

of the insulation and will result in short circuits and grounding.

Foreign materials such as dust, sand, lint and abrasive

materials have a tendency to cause excessive wear to

engine and alternator parts.

Indoor Installation

Exhaust gases from gasoline engines are extremely

poisonous. Whenever an engine is installed indoors the

exhaust fumes must be vented to the outside. The engine

should be installed at least two feet from any outside wall.

Using an exhaust pipe which is too long or too small can

cause excessive back pressure which will cause the engine

to heat excessively and possibly burn the valves.

Eliminate the danger of deadly carbon monoxide gas.

Remember that exhaust fumes from any gasoline engine

are very poisonous if discharged in a closed room, but

harmless if allowed to mix with the outside air. If the

generators is installed indoors, you must make provisions

for venting the engine exhaust to the outside of the building.

Generator Grounding

To guard against electrical shock and possible damage to

the equipment, it is important to provide a good EARTH

ground. Always use the ground terminal on the generators

to ground the generators. Ground the generators from its ground

connector so that the resistance to ground is 500 ohms or less.

Article 250 (Grounding) of the National Electrical Code (NEC)

provides guide lines for proper grounding and specifies that

the cable ground shall be connected to the grounding system

of the building as close to the point of cable entry as

practical.

NEC articles 250-64(b) and 250-66 set the following

grounding requirements:

1. Use one of the following wire types to connect the

generators to earth ground.

a. Copper - 10 AWG (5.3 mm2) or larger.

b. Aluminum - 8 AWG (8.4 mm2) or larger.

2. When grounding the generators (Figure 3) connect the

ground cable between the lock washer and the nut on

the generators and tighten the nut fully. Connect the

other end of the ground cable to earth ground.

3. NEC article 250-52(c) specifies that the earth ground

rod should be buried a minimum of 8 ft. into the ground.

Mounting

The generators should always be mounted on a flat level

surface to isolate vibration of the generators when it is

running. DO NOT place the generators on slopes, the

possibility exists that the generators could slide.

Pay close attention to ventilation when

operating the generators inside tunnels

and caves. The engine exhaust contains

noxious elements.

CAUTIONCAUTION

CAUTION

An electric shock is apt to happen

when vibrators are used. Pay close

attention to handling when operating

vibrators and always use rubber

boots and gloves to insulate the

body from a short circuit.

CAUTIONCAUTION

CAUTION

PAGE 22 — GA-6HE/GA-6HEA A.C. GENERATORS — OPERATION & PARTS MANUAL — REV. #1 (09/30/05)

Connecting the Ground

The nut and ground terminal on the generators should always be used to connect the generators to a suitable ground. The

ground cable should be #8 size wire minimum.

At the generator, connect the terminal of the ground cable between the lock washer and the nut (Figure 5) and tighten the

nut fully. Connect the other end of the ground cable to a suitable earth ground (ground rod).

GA-6HE/GA-6HEA — INSTALLATION

Figure 5. Generator Grounding

GA-6HE/GA-6HEA A.C. GENERATORS — OPERATION & PARTS MANUAL — REV. #1 (09/30/05) — PAGE 23

General Inspection Prior to Operation

Ground Power Tools

When using power tools or electrical equipment requireing AC

power from the generators, make sure connecting (power tool)

cable (Figure 6) has a ground as shown in Figure.

GA-6HE/GA-6HEA — PRE-INSPECTION

Extension Cable

When electric power is to be provided to various tools or loads at

some distance from the generators, extension cords are normally

used. Cables should be sized to allow for distance in length and

amperage so that the voltage drop between the generators and

point of use (load) is held to a minimum. Use the cable selection

chart (Table 4) as a guide for selecting proper cable size.

Main Circuit Breaker

To protect the generators from an overload always place the

main circuit breaker in the "OFF" position prior to starting the

engine.

)noitarepOesahPelgniS,zH06(noitceleSelbaC.4elbaT

nItnerruC

serepmA

sttaWnIdaoL htgneLelbaCelbawollAmumixaM

stloV021stloV042eriW01#eriW21#eriW41#eriW61#

5.2003006.t

f0001.tf006.tf573.tf052

50060021.tf005.tf003.tf002.tf521

5.70090081.tf053.tf002.tf521.tf001

0100210042.tf052.tf051.tf001

51008

10063.tf051.tf001.tf56

0200420084.tf521.tf57.tf05

.egatlovwolmorftlusernacegamadtnempiuqE:NOITUAC

Figure 6. Ground Cables/Plugs

NOTE

Never!

use power tools or

equipment that do not have a

ground capability, the possibility

exists

of electrocution

electrical

shock or burn

, which can cause

severe bodily harm

or even

DEATH!

PAGE 24 — GA-6HE/GA-6HEA A.C. GENERATORS — OPERATION & PARTS MANUAL — REV. #1 (09/30/05)

GA-6HE/GA-6HEA — PRE-INSPECTION (ENGINE)

Figure 7. Engine Oil Dipstick (Removal)

3. Insert and remove the dipstick without screwing it into the filler

neck. Check the oil level shown on the dipstick.

4. If the oil level is low (Figure 8), fill to the edge of the oil filler

hole with the recommended oil type (Table 5). Maximum oil

capacity is 1.16 quarts (1.1 liters)

Figure 8. Engine Oil Dipstick (Oil Level)

Before Starting

1. Read safety instructions at the

beginning of manual.

2. Clean the generator, removing dirt

and dust, particularly the engine

cooling air inlet, carburetor and air

cleaner.

3. Check the air filter for dirt and dust. If air filter is dirty, replace

air filter with a new one as required.

4. Check carburetor for external dirt and dust. Clean with dry

compressed air.

5. Check fastening nuts and bolts for tightness.

Fuel Check

1. Close the fuel cock before filling the fuel tank.

2. Remove the fuel cap located on top of fuel tank.

3. Read the fuel gauge located on top of the fuel tank (Figure 9) to

determin if the fuel level is low. If fuel is low, replenish with

clean unleaded fuel

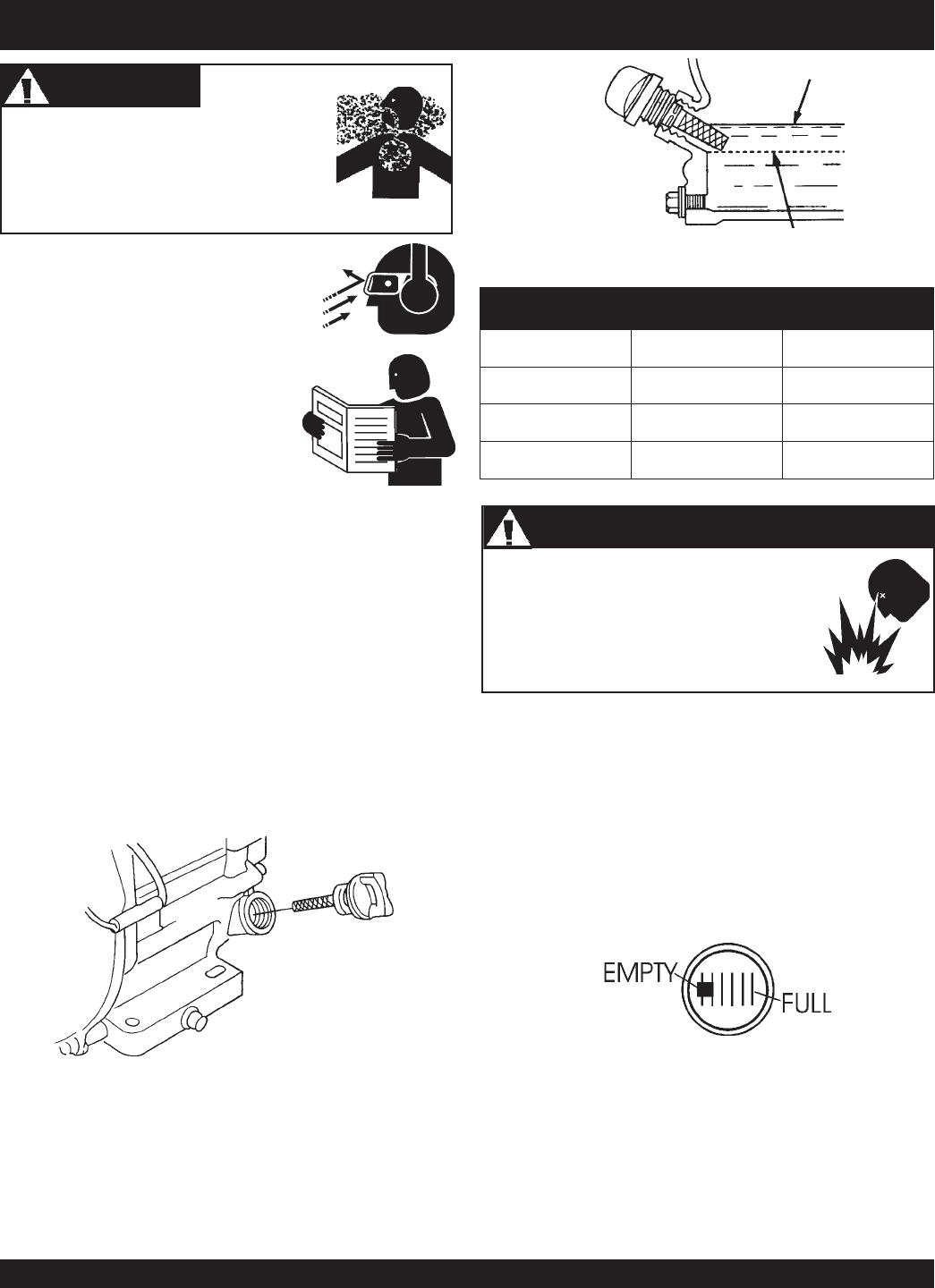

Engine Oil Check

1. To check the engine oil level, place the generators on

secure level ground with the engine stopped.

2. Remove the filler dipstick from the engine oil filler hole

(Figure 7) and wipe clean.

ALWAYS wear approved eye and hearing

protection before operating the generator.

4. When refueling, be sure to use a strainer for filtration. DO

NOT top-off fuel. DO NOT fill the tank beyond capacity.

Wipe up any spilled fuel

immediately!

Figure 9. Fuel Gauge

Motor fuels are highly flammable and can

be dangerous if mishandled. DO NOT

smoke while refueling. DO NOT attempt to

refuel the generators if the engine is

hot!

running or in the dark

DANGER EXPLOSIVE FUELDANGER EXPLOSIVE FUEL

DANGER EXPLOSIVE FUEL

NEVER operate the generators in a confined

area or enclosed area structure that does

not provide ample

free flow of air

CAUTIONCAUTION

CAUTION

epyTliO.5elbaT

nosaeS erutarepmeT epyTliO

remmuS rehgiHroC°52 03-W01EAS

llaF/gnirpS C°01~C°52 02/03-W01EAS

retniW rewoLroC°0 01-W01EAS

GA-6HE/GA-6HEA A.C. GENERATORS — OPERATION & PARTS MANUAL — REV. #1 (09/30/05) — PAGE 25

This section is intended to assist the operator with the

initial

start-up

of the portable generator. It is extremely important that

this section be read carefully before attempting to use the

generator in the field.

Before Starting the Engine

1. Be sure to

disconnect all electrical loads

from the

Generator

prior to starting the engine.

2. NEVER start the engine with the main

circuit breaker

in the “ON" position. Always place this circuit breaker

(Figure 10) in the OFF position before starting.

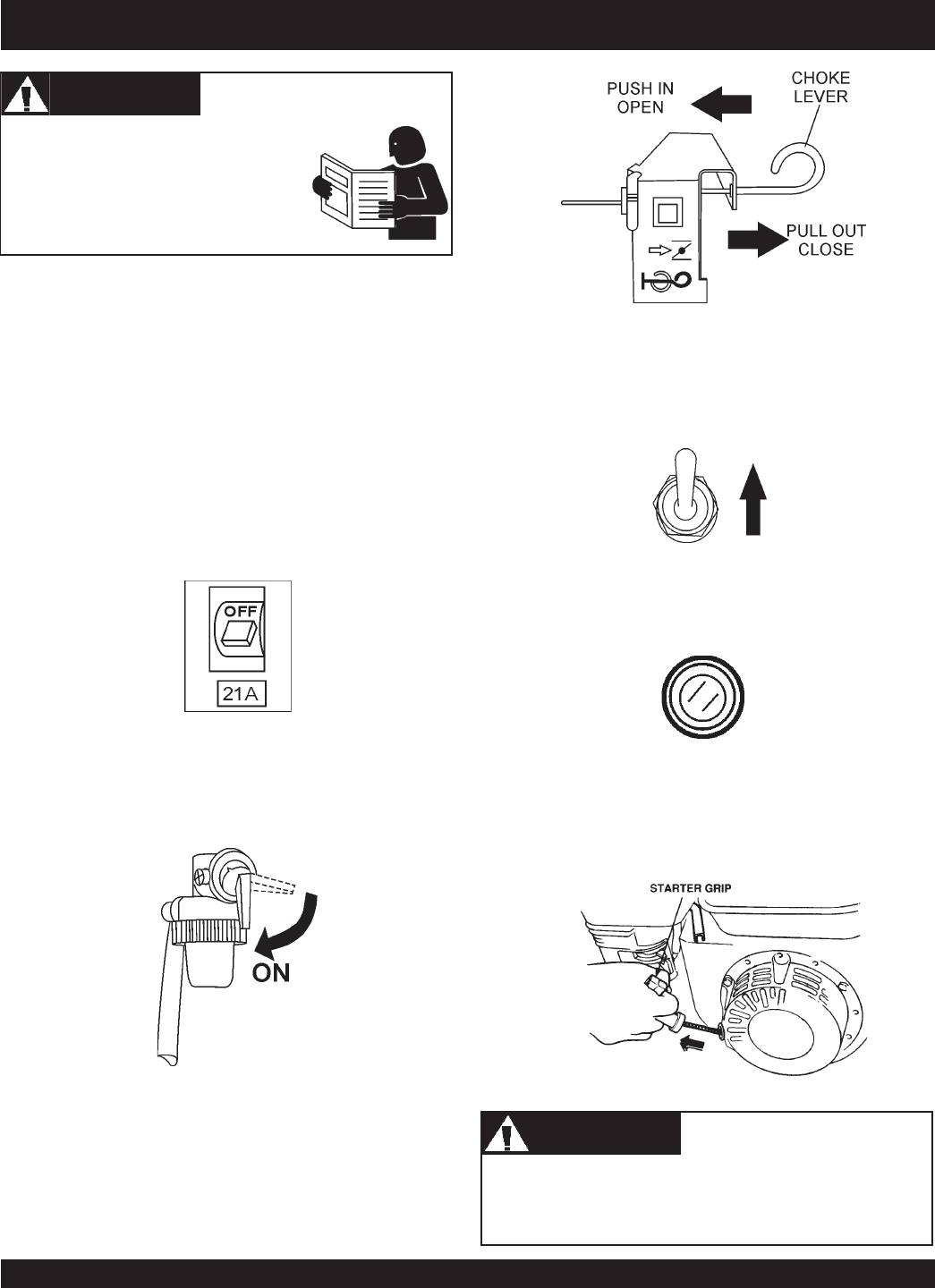

Figure 11. Engine Fuel Valve Lever (ON Position)

Figure 12. Choke Lever

3. Place the

choke lever

(Figure 12) in the "

OPEN

" position

if starting a

warm engine

or the

temperature is warm.

4. Place the

generator's

operation switch

(Figure 13) in the

" position.

Starting the Engine

1. Place the engine

fuel valve lever

(Figure 11) in the "ON"

position.”

Figure 10. Main Circuit Breaker (OFF Position)

Figure 13. Operation Switch (ON Position)

CAUTIONCAUTION

CAUTION

DO NOT attempt to operate this

generator until the Safety, General

Information and Inspection sections of

this manual have been

read and

thoroughly understood

5. Press the

generator's

start switch

(Figure 14) and listen

for the engine to start. If the battery is not installed proceed

to step 6.

6. Grasp the

starter grip

(Figure 15) and slowly pull it out. The

resistance becomes the hardest at a certain position, corre-

sponding to the compression point. Pull the starter grip

briskly and smoothly for starting.

Figure 15. Starter Grip

Figure 14. Start Pushbutton Switch

DO NOT pull the starter rope all the way to the end.

DO NOT release the starter rope after pulling. Allow it to

rewind as soon as possible.

CAUTIONCAUTION

CAUTION

2. Place the

choke lever

(Figure 12) in the "

CLOSED

" position

if starting a

cold

engine.

GA-6HE/GA-6HEA — INITIAL START-UP (ENGINE)

PAGE 26 — GA-6HE/GA-6HEA A.C. GENERATORS — OPERATION & PARTS MANUAL — REV. #1 (09/30/05)

7. If the engine has started, slowly return the choke lever

(Figure 12 ) to the

“OPEN”

position. If the engine has not

started repeat steps 1 through 6.

8. Before the generators is placed into operation, run the

engine for 3-5 minutes. Check for abnormal smells, fuel

leaks, and noises that would associate with lose compo-

nents.

Place

the

idle control switch

(Figure 16) in the "OFF"

(down) position. This will allow the engine speed to run

at speed about 3600 RPM's

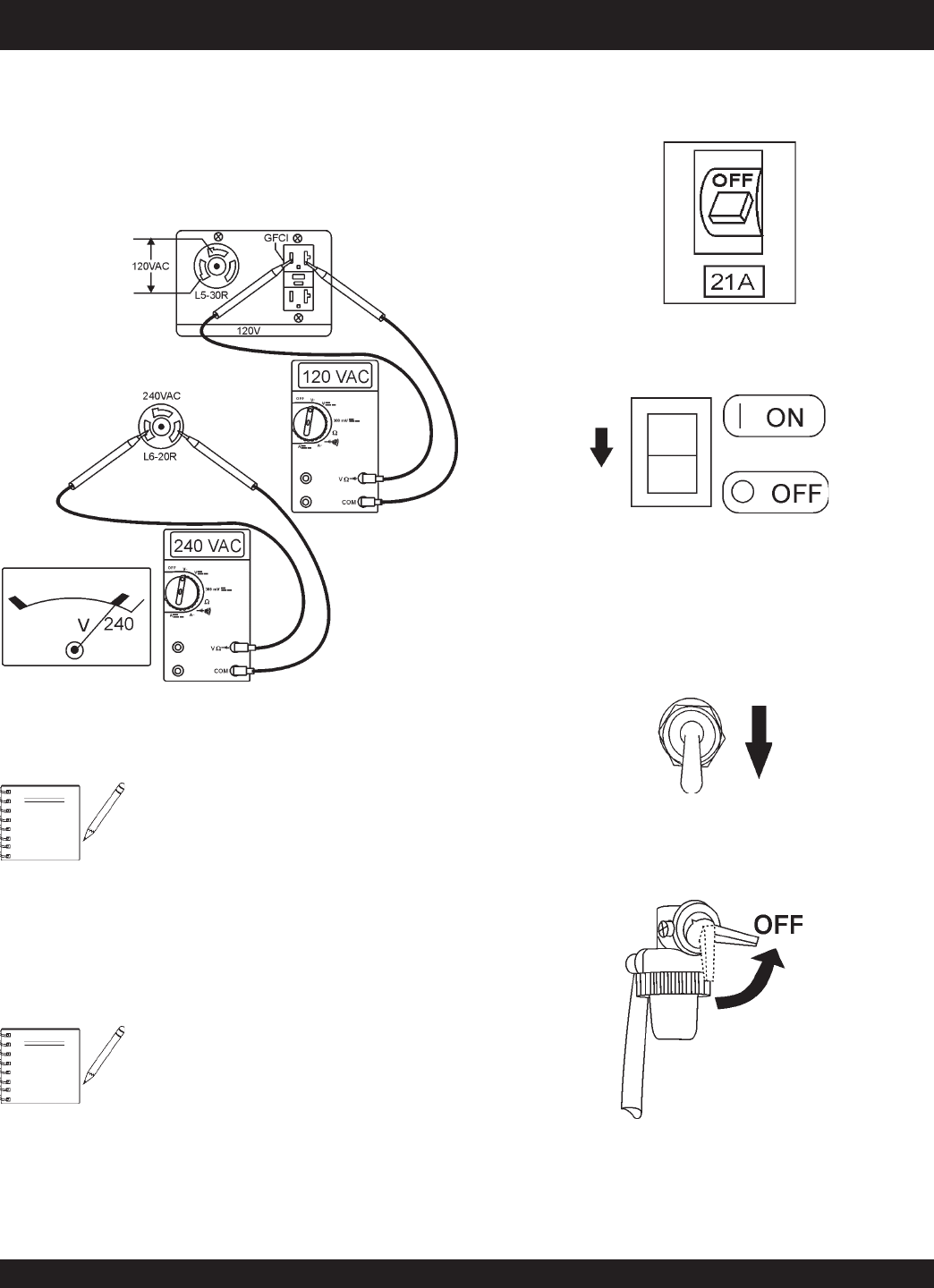

3. Read the

voltmeter

on the front panel of the generator

(Figure 20) and verify that120 VAC is present at the

120V twist-lock and GFCI duplex receptacles. For

additional verification of voltage, an external voltmeter

can be used to measure the output voltage as shown in

Figure 20.

Figure 20. 120 V and GFCI Receptacles

NOTE

Placing the

idle control switch

the OFF position (Figure 16) allows

the engine to operate at a maximum

speed of about 3600 RPM's. When

the idle control switch is placed in

the up position (ON) (Figure 17),

the generators will run at idle speed (2200 RPM's) until a load is

applied, at that time the engine speed will increase to 3600

RPM's as long as the load is being applied. When the load is not

in use, the engine speed will drop back to the idle mode after

about 3 seconds.

GA-6HE/GA-6HEA — INITIAL START-UP/GENERATOR OPERATION

Figure 16. Idle Control Switch (Off)

Figure 17. Idle Control Switch (On)

Figure 18. Main Circuit Breaker (ON)

60 Hz Operation

1. Place main circuit breaker (Figure 18) in the ON position.

2. Place the full power switch (Figure 19) in the 120V

position (up).

When the

full power switch

is in the 120 V

position, the 240V twist-lock receptacle

cannot be used.

NOTE

4. Place the full power switch (Figure 21) in the 240V

position (down).

Figure 19. Full Power Switch 120 V Position (Up)

Figure 21. Full Power Switch 240/120 V Position (Down)

GA-6HE/GA-6HEA A.C. GENERATORS — OPERATION & PARTS MANUAL — REV. #1 (09/30/05) — PAGE 27

Connecting the Load

1. If small wattage power tools are required, connect them

to the 60 Hz output receptacles at this time.

GA-6HE/GA-6HEA — GENERATOR OPERATION/SHUTDOWN

5. Read the

voltmeter

on the front panel of the generator

(Figure 22) and verify that 240 VAC is present at the

240V twist-lock receptacle. Using an external voltmeter

verify that 120V is present at the 120V twist-lock and

GFCI duplex receptacles.

Figure 22. 120/240 VAC- 60 Hz Output Receptacles

When the full power switch is in the 240

volt (down) position, you can take up to

half of the rated power

of the generating

set at 120 volts from the GFCI duplex

receptacle and up to half of the rated power of the set at 120

volts from the 120V twist-lock receptacle; or full rated power

of the genset at 240 volts from the 240V twist-lock

receptacle.

When using a combination of dual

receptacles, total load should not exceed

the rated capacity of the generator.

NOTE

Stopping the Engine

1. Place the main circuit breaker (Figure 23) in the OFF

position.

Figure 23. Main Circuit Breakers (Off)

2. Place the

idle control switch

(Figure 24) in the OFF

position.

3. Let the engine run at idle with no load for 2-3 minutes.

4. To shut-down the engine, place the generator's

operation switch

(Figure 25) in the OFF position.

Figure 24. Idle Control Switch (Off)

Figure 25. Operation Switch (OFF Position)

5. Place the engine

fuel valve lever

(Figure 26) to the "OFF"

position.”

Figure 26. Engine Fuel Valve Lever (OFF Position)

6. Remove all

loads

from the generator.

PAGE 28 — GA-6HE/GA-6HEA A.C. GENERATORS — OPERATION & PARTS MANUAL — REV. #1 (09/30/05)

Generator Storage

For storage of the generating set for over 30 days, the

following is required:

■

Drain the fuel tank completely, or add STA-BIL to the fuel.

■

Run the engine until the gasoline in the carburetor is

completely consumed.

■

Completely drain the oil from the crankcase and refill with

fresh oil.

■

Remove the spark plug, pour 2 or 3 cc of SAE 30 oil into the

cylinder and crank slowly to distribute the oil.

■

Slowly rotate the engine a few times with the starter Rope and

install a new plug.

■

Pull out the starter rope slowly and stop at the compression

point.

■

Clean all external parts of the generating set with a cloth.

■

Cover the generating set and store in a clean, dry place.

GA-6HE/GA-6HEA — PREPARATION FOR LONG TERM STORAGE

GA-6HE/GA-6HEA A.C. GENERATORS — OPERATION & PARTS MANUAL — REV. #1 (09/30/05) — PAGE 29

GA-6HE/GA-6HEA — MAINTENANCE (ENGINE)

Use Table 6 as a general maintenance guideline when servicing

your engine. For more detail engine maintenance information,

refer to the engine owner's manual supplied with your engine.

eludehcSecnanetniaMenignE.6elbaT

)3(NOITPIRCSEDNOITAREPOEROFEB

TSRIF

HTNOM

.SRH01

YREVE

SHTNOM3

.SRH52

YREVE

SHTNOM6

.SRH05

YREVE

RAEY

.SRH001

YREVE

SRAEY2

.SRH002

liOenignE

KCEHCX

EGNAHCX

renaelCriA

KCEHCX

EGNAHC)1(X

stloB&stuNllA fInethgit-eR

yrasseceN X

gulPkrapS

NAELC-KCEHCX

ECALPER X

sniFgnilooCKCEHCX

retserrAkrapSNAELC X

knaTleuFNAELC X

retliFleuFKCEHC X

deepSeldITSUJ

DA-KCEHC )2(X

ecnaraelCevlaVTSUJDA-KCEHC )2(X

senilleuFKCEHC )2()yrassecenfiecalper(sraey2yrevE

nidesunehwylt

neuqerferomecivreS)1( YTSUD .saera

yllacinahcemeradnaslootreporpehtevahuoysselnu,relaedecivresruoyybdeci

vresebdluohssmetiesehT)2(

.serudecorpecivresroflaunaMpohSADNOHehtotrefeR.tneiciforp

.slavretniecnanetni

amreporpenimretedotnoitarepofosruohgol,esulaicremmocroF)3(

PAGE 30 — GA-6HE/GA-6HEA A.C. GENERATORS — OPERATION & PARTS MANUAL — REV. #1 (09/30/05)

GA-6HE/GA-6HEA — MAINTENANCE (ENGINE)

Maintenance

Perform the scheduled maintenance procedures as defined by

Table 6 and below:

DAILY

■

Thoroughly remove dirt and oil from the engine and control

area. Clean or replace the air cleaner elements as necessary.

Check and retighten all fasteners as necessary. Check the

gearbox for oil leaks. Repair or replace as needed.

WEEKLY

■

Remove the fuel filter cap and clean the inside of the fuel

tank.

■

Remove or clean the filter at the bottom of the tank.

■

Remove and clean the spark plug (Figure 27), then adjust

the spark gap to 0.024 ~0.028 inch (0.6~0.7 mm). This unit

has electronic ignition, which requires no adjustments.

ENGINE OIL

1. Drain the engine oil when the oil is

warm

as shown in

Figure 28.

2. Remove the oil drain bolt and sealing washer and allow

the oil to drain into a suitable container.

3. Replace engine oil with recommended type oil as listed

in Table 5. For engine oil capacity, see Table 2 (engine

specifications). DO NOT overfill.

4. Install drain bolt with sealing washer and tighten se-

curely.

Figure 28. Engine Oil (Draining)

Figure 27. Spark Plug Gap

ENGINE AIR CLEANER

1. Remove the air cleaner cover and foam filter element as

shown in Figure 29.

2. Clean foam element in warm, soapy water or nonflammable

solvent. Rinse and dry thoroughly. Dip the element in clean

engine oil and completely squeeze out the excess oil from the

element before installing.

Figure 29. Engine Air Cleaner

DO NOT use gasoline as a cleaning solvent,

because that would create a risk of fire or

explosion.

DANGERDANGER

DANGER

GA-6HE/GA-6HEA A.C. GENERATORS — OPERATION & PARTS MANUAL — REV. #1 (09/30/05) — PAGE 31

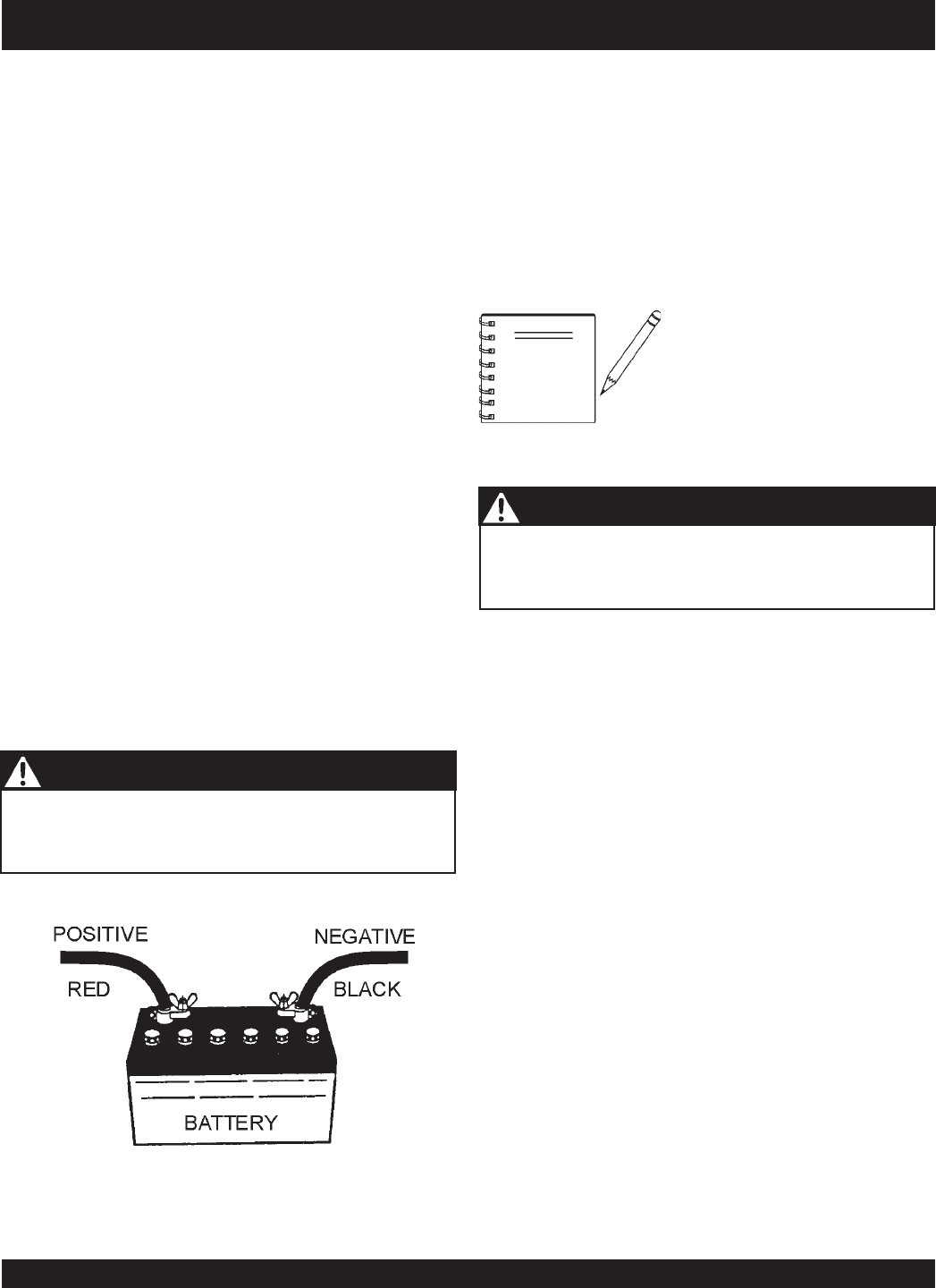

GA-6HE — MAINTENANCE (BATTERY)

When connecting battery do the following:

1. NEVER use worn or damaged battery cables. Replace

defective battery cables immediately.

2. Place a small amount of battery terminal treatment

compound around both battery terminals. This will ensure

a good connection and will help prevent corrosion around

the battery terminals.

Figure 30. Battery Connections

ALWAYS

disconnect the negative terminal FIRST and

reconnect negative terminal LAST.

Inadequate battery connections may cause poor starting

of the generator, and create other malfunctions.

Polarity

The polarity of the battery is extremely important. When an

inverted circuit connection takes place, the circuit will be in

short circuit instantaneously resulting in possible damage

to the control box electronics and starter.

When connecting the battery cables to the battery terminals

be sure to check the polarity.

Wiring

Inspect the entire generator for bad or worn electrical wiring

or connections. If any wiring or connections are exposed

(insulation missing) replace wiring immediately.

Piping and Hose Connection

Inspect all piping, oil hose, and fuel hose connections for

wear and tightness. Tighten all hose clamps and check hoses

for leaks.

If any hose (

fuel

oil

) lines are defective replace them

immediately.

If the battery cable is connected

incorrectly, electrical damage to the

generator will occur. Pay close

attention to the polarity of the

battery when connecting the

battery.

NOTE

Battery

This unit is of negative ground DO NOT connect in reverse.

Always maintain battery fluid level between the specified

marks. Battery life will be shortened, if the fluid level are not

properly maintained. Add only distilled water when

replenishment is necessary.

DO NOT over fill. Check to see whether the battery cables

are loose. Poor contact may result in poor starting or

malfunctions.

Always

keep the terminals firmly tightened.

Coating the terminals with an approved battery terminal

treatment compound. Replace battery with only

recommended type battery.

The battery is sufficiently charged if the specific gravity of

the battery fluid is 1.28 (at 68° F). If the specific gravity

should fall to 1.245 or lower, it indicates that the battery is

dead and needs to be recharged or replaced.

Before charging the battery with an external electric source,

be sure to disconnect the battery cables.

Battery Cable Installation

ALWAYS be sure the battery cables (Figure 30) are properly

connected to the battery terminals as shown below. The red

cable is connected to the positive terminal of the battery,

and the

black

cable is connected to the negative terminal of

the battery.

CAUTION - BATTERY SERVICING SAFETY

PAGE 32 — GA-6HE/GA-6HEA A.C. GENERATORS — OPERATION & PARTS MANUAL — REV. #1 (09/30/05)

GA-6HE — WIRING DIAGRAM (GENERATOR)

Figure 31. GA-6HE Generator Wiring Diagram

GA-6HE/GA-6HEA A.C. GENERATORS — OPERATION & PARTS MANUAL — REV. #1 (09/30/05) — PAGE 33

GA-6HEA — WIRING DIAGRAM (GENERATOR)

Figure 32. GA-6HEA Generator Wiring Diagram

PAGE 34 — GA-6HE/GA-6HEA A.C. GENERATORS — OPERATION & PARTS MANUAL — REV. #1 (09/30/05)

GA-6HE/GA-6HEA — TROUBLESHOOTING (ENGINE)

Practically all breakdowns can be prevented by proper

handling and maintenance inspections, but in the event of a

breakdown, please take a remedial action following the

diagnosis based on the Engine Troubleshooting (Table 7) and

Generator Troubleshooting (Table 8) information shown below

and on the proceeding pages. If the problem cannot be

remedied, please leave the unit just as it is and consult our

company's business office or service plant.

GNITOOHSELBUORTENIGNE.7ELBAT

MOTPMYS MELBORPELBISSOP NOITULOS

gnitratsrooP

leuffieesotroterubractcepsnI

?tignihcaersi

enilleufkcehC

?leuFoN leuFddA

?knatleufniretaW .knatleufecalperrohsulF

?deggolcretlifleuF retlifleufecalpeR

?roterubrackcutS .msinahcemtaolfkcehC

?dersigulpkrapS .tinunoitingirotsinartkcehC.deluofsigulpkrapS

?etihw-eulbsigulpkrapS erastejroterubraC.gnikaelriadetcejni,noisserpmoctneiciffusnI

.)wolfrevo(deggolc

krapsfopittatneserpkrapsoN

?gulp

.nekorbrodekcarcdrocegatlovhgih,nekorbtinunoitingirotsinarT

.deluoffigulpkrapsecalpeR.nekorbhctiwspotS

/tratS

?liooN .deriuqersalioddA

sknilbpmalmralaerusserpliO

?gnitratsnopu ."rosneslio"tiucricnwodtuhscitamotuAkcehC

on"tuptuorewoptneiciffusnI

"noisserpmoc

?revonruttonlliwenignE .tniojlexayrassecenfidnanotsipdnarednilycecalpeR

stlobgnitcennocdaehrednilyC

?esool .stlobgnitcennocdaehrednilycnethgiT

?degamadteksagdaehrednilyC .teksagdaehrednilycecalpeR

?taesevlavfonoitcnuflaM .sevlavtaes-eR

?esoolsigulpkrapS .gulpkrapsecalpeR

?sgnirnotsipnroW .sgnirnotsipecalpeR

tuptuorewoptneiciffusnI

"noisserpmoc"

renaelc-rianinoitcnuflaM

?deggolcretlifria,metsys .retlifriaecalperronaelC

ecafretnimorfnignikaelriA

rednilycdnaroterubracneewteb

?daeh

ecalpeR.daehrednilycdnaroterubracneewtebstlobnethgiT

.teksagdaehrednilyc

?metsysleufninoitcnuflaM

.retlifleufecalperronaelC

.roterubracecalperronaelC

.taolfroterubrackcehC

GA-6HE/GA-6HEA A.C. GENERATORS — OPERATION & PARTS MANUAL — REV. #1 (09/30/05) — PAGE 35

GA-6HE/GA-6HEA — TROUBLESHOOTING (ENGINE)

)DEUNITNOC(GNITOOHSELBUORTENIGNE.7ELBAT

MOTPMYS MELBORPELBISSOP NOITULOS

tuptuorewoptneiciffusnI

staehrevodna"noisserpmoc"

?nafgniloocninoitcnuflaM .nafgniloocecalperrokcehC

?deggolcretlifekat-niriA .retlifekat-niriaecalperronaelC

leufhcumotsnruB

tsuahxefonoitalumuccarevO

?stcudorp

.sevlavkcehcdnanaelC

.yrassecenfiecalper,relffumkcehC

?gulpkrapsgnorW .gulpkrapsepytdetseggusserutcafunamhtiwgulpkrapsecalpeR

ylsuoinitnocsiroloctsuahxE

"ETIHW"

gnorwsiliognitacirbuL

?ytisocsiv

.ytisocsivtcerrochtiwliognitacirbulecalpeR

?sgnirnroW sgnirecalpeR

ylsuoinitnocsiroloctsuahxE

"KCALB"

?deggolcrennaelcriA .renaelcriaecalperronaelC

tesneebtonsahevlavekohC

?noitisoptcerrocehtot

.noitisoptcerrocehtotevlavekohctsujdA

nolaes,evitcefedroterubraC

?nekorbroterubrac

.laesroroterubracecalpeR

tnemtsujdaroterubracrooP

?hcirootsnurenigne"

.roterubractsujdA

PAGE 36 — GA-6HE/GA-6HEA A.C. GENERATORS — OPERATION & PARTS MANUAL — REV. #1 (09/30/05)

GA-6HE/GA-6HEA — TROUBLESHOOTING (GENERATOR)

GNITOOHSELBUORTROTARENEG.8ELBAT

MOTPMYS MELBORPELBISSOP NOITULOS

egatlovwoL ?wolootdeepsenignE .MPRdetarotdeepsenigneesiaR

deepsenignE.egatlovwoL

,)dedaolnu(MPR0563lamron

)eldi(MPR0052

?gnikrowtonretemtlovCA .retemtlovCAecalpeR

gniriwlanretnixoblortnoC

?noitcnuflam

.gniriwxoblortnockcehC

?liocnoitingievitcefeD fiseriwnoitingiecalpeR.seriwnoitingineergdnaderkcehC

.yrassecen

?noitcnuflamgnidniwrotoR .rotorecalperrokcehC

?noitcnuflamgnidniwrotatS .rotatsecalperrokcehC

?noitcnuflamrekaerbegakaeL .1BCecalperrokcehC

?noitcnuflamhctiwsrewoplluF .tiucrichctiwsrewopllufdnahctiwsrewopllufkcehC

.hgihoottuptuoegatloV ?hgihootdeepsenignE .MPRdetarotdeepsenignerewoL

enignE.hgihoottuptuoegatloV

MPR0563lamrondeeps

)eldi(MPR0052,)dedaolnu(

gniriwlanretnixoblortnoC

noitcnuflam

.gniriwxoblortnockcehC

nonruttonlliwrekaerbtiucriC

"DAOLON"

?rekaerbtiucricevitcefeD .rekaerbtiucricecalpeR

nonrutlliwrekaerbtiucriC

.yletaidemmispirttub"DEDAOL"

?noitidnoCdaolrevO .rekaerbecalperrodaolecudeR

?detrohssitiucricdaoL .trohsroftiucricdaolkcehC

otwolmorfetareleccatonseoD

"DAOLON"hgih

?dioneloskcutS .dioneloskcehC

?hctiwslortnoceldIdaB .hctiwslortnoceldiecalperrokcehC

otwolmorfetareleccatonseoD

EVITCADAOL"hgih

?noitcnuflamhctiwslortnoceldI .hctiwslortnoceldiecalperrokcehC

?noitcnuflamecivedlortnoceldI .ecivedlortnoceldiecalperrokcehC

gniriwlaretnixoblortnoC

?evitcefed

.gniriwxoblortnockcehC

onetarelecedtonseoD

."TUPTUOEGATLOV"

?sgnidniwrotorevitcefeD .rotorecalperrokcehC

?dionelosevitcefeD .dionelosecalperrokcehC

?ecivedlortnoceldievitcefeD .ecivedlortnoceldiecalperrokcehC

?dionelosevitcefeD .ecivedlortnoceldiecalperrokcehC

sahtubetarelecedtonseoD

."TUPTUOEGATLOV"

?noitcnuflamgniriwxoblortnoC .stnenopmocevitcefedynaecalper,gniriwxoblortnockcehC

?dionelosevitcefeD .dionelosecalperrokcehC

?noitcnuflamecivedlortnoceldI .ecivedlortnoceldiecalperrokcehC

GA-6HE/GA-6HEA A.C. GENERATORS — OPERATION & PARTS MANUAL — REV. #1 (09/30/05) — PAGE 37

NOTE PAGE

PAGE 38 — GA-6HE/GA-6HEA A.C. GENERATORS — OPERATION & PARTS MANUAL — REV. #1 (09/30/05)

GA-6HE/GA-6HEA — EXPLANATION OF CODE IN REMARKS COLUMN

How to read the marks and remarks used in this parts

book.

Items Found In the “Remarks” Column

Serial Numbers-Where indicated, this indicates a serial

number range (inclusive) where a particular part is used.

Model Number-Where indicated, this shows that the

corresponding part is utilized only with this specific model

number or model number variant.

Items Found In the “Items Number” Column

All parts with same symbol in the number column, *, #, +, %, or

■

, belong to the same assembly or kit.

If more than one of the same

reference number is listed, the

last one listed indicates newest

(or latest) part available.

The contents of this catalog are

subject to change without notice

NOTE

GA-6HE/GA-6HEA A.C. GENERATORS — OPERATION & PARTS MANUAL — REV. #1 (09/30/05) — PAGE 39

GA-6HE/GA-6HEA — SUGGESTED SPARE PARTS

GA-6HE/GA-6HEA 1 TO 3 UNITS WITH HONDA

GX340K1EDE2 ENGINE

1 to 3 Units

Qty.P/N Description

1 ........A9924800014 ...........CAP FUEL TANK

1 ........A9924800004 ...........FILTER FUEL

2 ........3015419604 ..............RUBBER SUSPENSION

2 ........1665419004 ..............RUBBER SUSPENSION

3 ........9807955855 ..............SPARK PLUG

2 ........28462ZV7003 ...........ROPE, RECOIL

3 ........17211899000............ELEMENT AIR CLEANER

1 ........16952ZB4005 ...........SCREEN SET, FUEL STRAINER

3 ........0601802137 ..............FUSE, 10 AMP

Part numbers on this Sug-

gested Spare Parts List

may supercede/replace

the P/N shown in the text

pages of this book.

NOTE

PAGE 40 — GA-6HE/GA-6HEA A.C. GENERATORS — OPERATION & PARTS MANUAL — REV. #1 (09/30/05)

GA-6HE/GA-6HEA — NAMEPLATE AND DECALS.

GA-6HE/GA-6HEA A.C. GENERATORS — OPERATION & PARTS MANUAL — REV. #1 (09/30/05) — PAGE 41

GA-6HE/GA-6HEA — NAMEPLATE AND DECALS.

NAME PLATE ASSY.

NO. PART NO. PART NAME QTY.REMARKS

1 A5561000003 DECAL; MQ MULTIQUIP 6000 1

2 87528898620 DECAL; CHOKE ......................................................... 1......... REPLACES P/N 0600500047

3 1980680004 DECAL; FUEL COCK .................................................. 1......... S-3704

4 A5511200102 DECAL; CONTROL PANEL ......................................... 1......... GA-6HE, A51120010

4 A5511201302 DECAL; CONTROL PANEL ......................................... 1......... GA-6HEA, A51120130

5 87533ZC0630 DECAL; AIR CLEANER .............................................. 1......... REPLACES P/N 0600500045

6 NAMEPLATE .............................................................. 1......... CONTACT MQ PARTS DEPT.

7 0800628504 DECAL; GROUND ....................................................... 1......... S-1123

8 A5551000004 DECAL; OPERATING INSTRUCTIONS ...................... 1......... A55100000

9 0820610404 DECAL; WARNING ...................................................... 1......... S-3627

10 35137 DECAL; WARNING 1

11 7900636004 DECAL; CAUTION OPER. AT 3600 RPM ONLY ......... 1......... S-4461

12 8700611804 DECAL; WARNING DANGEROUS GAS ..................... 1......... S-4984

13 8700611904 DECAL; DANGER ELECTRICAL SHOCK HAZ. ......... 1......... S-4985

14 0800689404 DECAL; POSITIVE (+) ................................................ 1......... S-2090

15 0800689504 DECAL; NEGATIVE (-) ................................................ 1......... S-2091

16 0800696604 DECAL; BATTERY ...................................................... 1......... S-1237

PAGE 42 — GA-6HE/GA-6HEA A.C. GENERATORS — OPERATION & PARTS MANUAL — REV. #1 (09/30/05)

GA-6HE/GA-6HEA — GENERATOR ASSY.

GENERATOR ASSY.

GA-6HE/GA-6HEA A.C. GENERATORS — OPERATION & PARTS MANUAL — REV. #1 (09/30/05) — PAGE 43

GA-6HE/GA-6HEA — GENERATOR ASSY.

GENERATOR ASSY.

NO. PART NO. PART NAME QTY.REMARKS

1 7901002403 ROTOR ASSY. ...................................1 .................. INCLUDES ITEMS W/*

1-1*FIELD ASSY. .....................................1 .................. NOT SOLD SEPERATELY

1-2*0601823213 RECTIFIER, D3SB80 2

0601822638 SURGE ABSORBER,........................2 .................. TNR15G431K

1-3*0071706304 BEARING, 6304 2RU NYCM 1

2 7901017004 SET BOLT, ROTOR 1

3 0801086104 SET WASHER, BEARING 1

4 0040010000 SPRING WASHER 1

5 A5135000003 ARMATURE ASSY. 1

6 7901315502 END BRACKET 1

7 7871315022 END BRACKET 1

8 7875021523 GUIDE PANEL, AIR 1

9 7871331003 COVER 1

10 7901316004 SET BOLT, STATOR 4

11 0040008000 SPRING WASHER 4

12 0041208000 PLAIN WASHER 4

13 7871329514 GROMMET 1

14 0601851760 CAP, 0B-13 1

15 0013608020 HEX, HEAD BOLT 4

15A 0040008000 SPRING WASHER 4

PAGE 44 — GA-6HE/GA-6HEA A.C. GENERATORS — OPERATION & PARTS MANUAL — REV. #1 (09/30/05)

GA-6HE — CONTROL BOX ASSY.

CONTROL BOX ASSY. (GA-6HE)

GA-6HE/GA-6HEA A.C. GENERATORS — OPERATION & PARTS MANUAL — REV. #1 (09/30/05) — PAGE 45

GA-6HE — CONTROL BOX ASSY.

CONTROL BOX ASSY. (GA-6HE)

NO. PART NO. PART NAME QTY.REMARKS

1 A3214000003 CONTROL BOX 1

2 0601850102 GROMMET, G-3 1

3 0601823204 RECTIFIER, S5VB60 2

4 0027103012 MACHINE SCREW 2

5 0601823853 SLOW DOWN UNIT, ND-80 1

6 0027104010 MACHINE SCREW 2

6A 0207004000 HEX, NUT 2

7 A3224000003 CONTROL PANEL 1

8 0601804819 CIRCUIT BREAKER, KM-2 21A 1

9 4341817004 BRACKET, CIRCUIT BREAKER 1

10 0021004010 MACHINE SCREW 2

11 0601806819 AC VOLTMETER, DE450-011 0~120/240V 1

12 0601812598 RECEPTACLE, 5-20R 1

13 0601812592 RECEPTACLE, L5-20R 1

14 0601811035 RECEPTACLE, LS-30R 1

15 0601812529 RECEPTACLE, L14-30R 1

16 0021004010 MACHINE SCREW 8

16A 0207004000 HEX, NUT 8

17 0601830737 FULL POWER SWITCH, ET-330D12 1

18 0601831620 IDLE CONTROL SWITCH, C1550WA 1

19 0601830737 OPERATION SWITCH, ET-330D12 1

20 0021004015 MACHINE SCREW 1

20A 0207004000 HEX, NUT 1

21 A3262800004 CAPACITOR ASSY., VR1H102MHA, 50V 1000

22 0017106016 HEX, HEAD BOLT 4

23 0017105010 HEX, HEAD BOLT 4

24 0602100102 START SWITCH, ST-403 1

25 0601802137 FUSE, 10A 1

PAGE 46 — GA-6HE/GA-6HEA A.C. GENERATORS — OPERATION & PARTS MANUAL — REV. #1 (09/30/05)

GA-6HEA — CONTROL BOX ASSY.

CONTROL BOX ASSY. (GA-6HEA)

GA-6HE/GA-6HEA A.C. GENERATORS — OPERATION & PARTS MANUAL — REV. #1 (09/30/05) — PAGE 47

GA-6HEA — CONTROL BOX ASSY.

CONTROL BOX ASSY. (GA-6HEA)

NO. PART NO. PART NAME QTY.REMARKS

1 A3214000103 CONTROL BOX 1

2 0601850102 GROMMET, G-3 1

3 0601823204 RECTIFIER, S5VB60 2

4 0027103012 MACHINE SCREW 2

5 0601823853 SLOW DOWN UNIT, ND-80 1

6 0027104010 MACHINE SCREW 2

6A 0207004000 HEX, NUT 2

7 A3224000103 CONTROL PANEL 1

8 0601804819 CIRCUIT BREAKER, KM-2 21A 1

9 4341817004 BRACKET, CIRCUIT BREAKER 1

10 0021004010 MACHINE SCREW 2

11 0601806819 AC VOLTMETER, DE450-011 0~120/240V 1

12 0601812598 RECEPTACLE, 5-20R 2

13 0601812592 RECEPTACLE, L5-20R 1

14 0601811035 RECEPTACLE, LS-30R 1

15 0601812529 RECEPTACLE, L14-30R 1

16 0021004010 MACHINE SCREW 8

16A 0207004000 HEX, NUT 8

17 0601830737 FULL POWER SWITCH, ET-330D12 1

18 0601831620 IDLE CONTROL SWITCH, C1550WA 1

19 0601830737 OPERATION SWITCH, ET-330D12 1

20 0021004015 MACHINE SCREW 1

20A 0207004000 HEX, NUT 1

21 A3262800004 CAPACITOR ASSY., VR1H102MHA, 50V 1000

22 0017106016 HEX, HEAD BOLT 4

23 0017105010 HEX, HEAD BOLT 4

24 0602100102 START SWITCH, ST-403 1

25 0601802137 FUSE, 10A 1

PAGE 48 — GA-6HE/GA-6HEA A.C. GENERATORS — OPERATION & PARTS MANUAL — REV. #1 (09/30/05)

GA-6HE/GA-6HEA — MUFFLER ASSY.

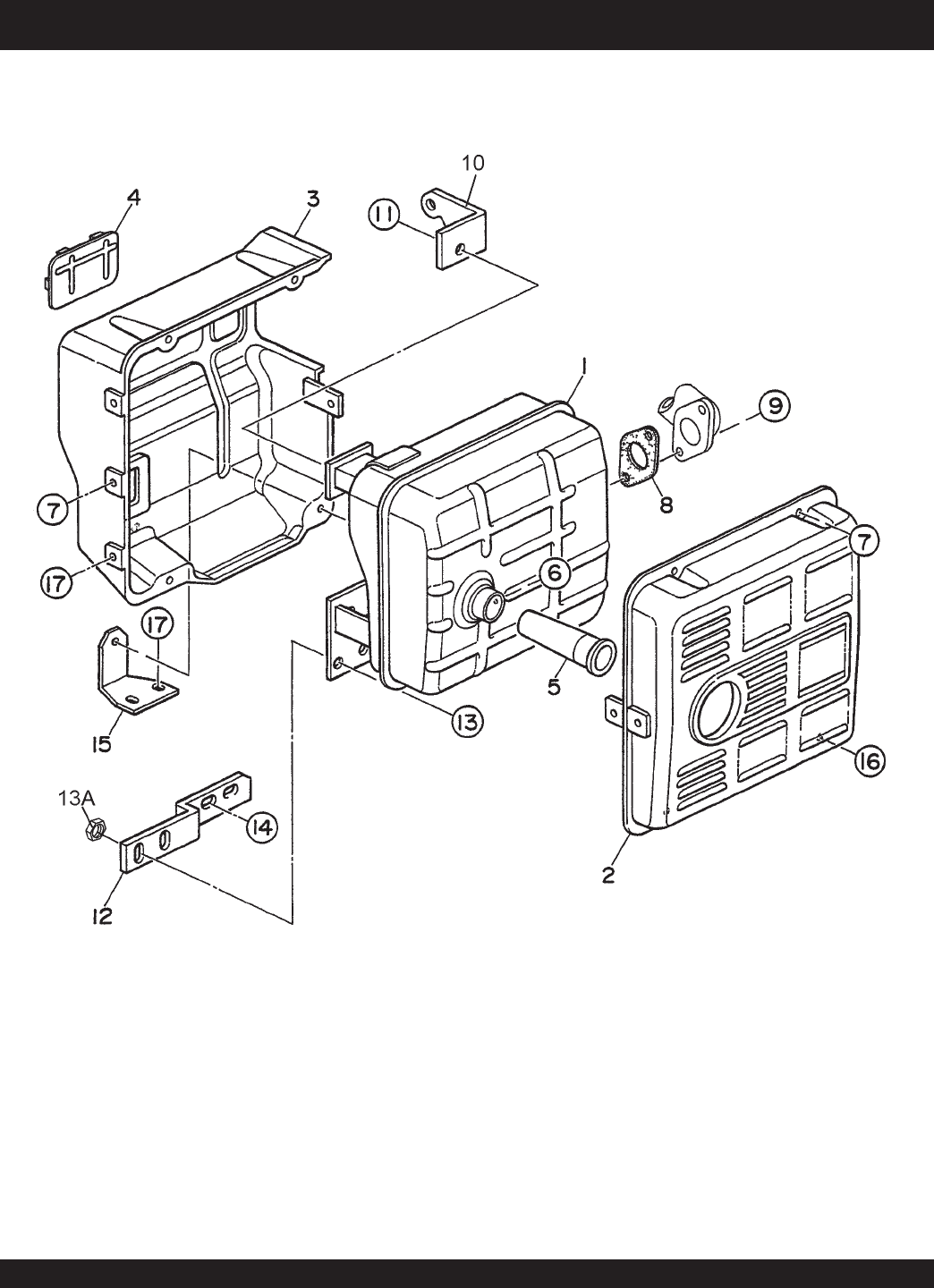

MUFFLER ASSY.

GA-6HE/GA-6HEA A.C. GENERATORS — OPERATION & PARTS MANUAL — REV. #1 (09/30/05) — PAGE 49

GA-6HE/GA-6HEA — MUFFLER ASSY.

MUFFLER ASSY.

NO PART NO PART NAME QTY.REMARKS

1 7912310003 MUFFLER 1

2 18320ZC2000 PROTECTOR ......................... 1 ......... REPLACES P/N 0602302001

3 18325ZB4000 PROTECTOR ......................... 1 ......... REPLACES P/N 0602302002

4 18329ZB4000 SEAL ..................................... 2 ......... REPLACES P/N 0602302003

5 8355ZB4630 ARRESTOR, SPARK ............. 1 ......... REPLACES P/N 0602313060

6 90183671003 TAPPING SCREW ................. 1 ......... REPLACES P/N 0602322060

7 0017106012 BOLT HEX HEAD 5

8 18333ZB4800 GASKET ................................ 1 ......... REPLACES P/N 0602320175

9 957000802000 HEX HEAD BOLT .................. 2 ......... REPLACES P/N 0602322061

11 0017108020 BOLT HEX HEAD 1

12 7905469004 BRACKET 1

13 0017108025 BOLT HEX HEAD 2

13A 020708000 HEX NUT 2

14 0017108020 BOLT HEX HEAD 1

15 7905469004 BRACKET 1

16 0017106020 BOLT HEX HEAD 1

17 0017106012 BOLT HEX HEAD 4

PAGE 50 — GA-6HE/GA-6HEA A.C. GENERATORS — OPERATION & PARTS MANUAL — REV. #1 (09/30/05)

GA-6HE/GA-6HEA — PIPE FRAME ASSY.

PIPE FRAME ASSY.

GA-6HE/GA-6HEA A.C. GENERATORS — OPERATION & PARTS MANUAL — REV. #1 (09/30/05) — PAGE 51

GA-6HE/GA-6HEA — PIPE FRAME ASSY.

PIPE FRAME ASSY.

NO. PART NO. PART NAME QTY.REMARKS

1 A5417000102 PIPE FRAME ............................... 1 ................GA-6HE

1 A5417000502 PIPE FRAME ............................... 1 ................GA-6HEA

2 A3417100004 BRACKET 1

3 0017106016 HEX, HEAD BOLT 4

4 7905443003 BASE 1

5 3015419604 RUBBER SUSPENSION 2

6 1725419214 RUBBER SUSPENSION 2

7 0207008000 HEX, NUT 8

8 0017108030 HEX, HEAD BOLT 2

9 0017108040 HEX, HEAD BOLT 2

9A 0207008000 HEX, NUT 2

10 7905512002 FUEL TANK 1

11 A9924800014 CAP, FUEL TANK 1

12 A9924800004 FUEL FILTER 1

13 0602125034 FUEL GAUGE 1

14 0605510068 FUEL STRAINER ......................... 1 ................REPLACES P/N 0605510068

14-1 16952ZB4005 SCREEN SET .............................. 1 ................REPLACES P/N 0605510069

15 950014521040 HOSE ........................................... 1 ................REPLACES P/N 0605513146

16 9500202080 HOSE BAND ................................ 2 ................REPLACES P/N 0605515178

17 7855525514 RUBBER CUSHION 2

18 7855525604 COLLAR 2

19 0017108030 BOLT HEX HEAD 2

20 0017108020 BOLT HEX HEAD 2

21 A9117200103 HANGER 1

22 0601850097 STOPPER, 30029 1

23 0021008025 MACHINE SCREW 1

23A 0207008000 HEX, NUT 1

24 A9311100004 PLASTIC WASHER ...................... 2 ................GA-6HE

24 0601851116 PLASTIC WASHER ...................... 2 ................GA-6HEA

25 0011308025 HEX, HEAD BOLT 2

25A 0037908000 HEX, NUT 2

25B 0042108000 PLAIN WASHER 2

26 0019206016 HEX, HEAD BOLT 1

27 7915456004 STOPPER 1

28 0017106016 HEX, HEAD BOLT 2

29 7915455103 COVER 1

30 7815455003 COVER 1

31 0017106016 HEX, HEAD BOLT 6

PAGE 52 — GA-6HE/GA-6HEA A.C. GENERATORS — OPERATION & PARTS MANUAL — REV. #1 (09/30/05)

GA-6HE/GA-6HEA — BATTERY ASSY.

BATTERY ASSY.

GA-6HE/GA-6HEA A.C. GENERATORS — OPERATION & PARTS MANUAL — REV. #1 (09/30/05) — PAGE 53

GA-6HE/GA-6HEA — BATTERY ASSY.

BATTERY ASSY.

NO. PART NO. PART NAME QTY.REMARKS

32 BATTERY ..................................... 1 ................PURCHASE LOCALLY

33 7905458103 BATTERY BAND 1

34 A5344200004 BATTER BOLT 2

35 0037806000 WING NUT 2

36 0040006000 SPRING NUT 2

37 0041206000 WASHER, FLAT 2

38 A5347000104 BATTERY CABLE 1

39 A5347000004 BATTERY CABLE 1

PAGE 54 — GA-6HE/GA-6HEA A.C. GENERATORS — OPERATION & PARTS MANUAL — REV. #1 (09/30/05)

HONDA GX340K1EDE2 ENGINE — AIR CLEANER ASSY.

AIR CLEANER ASSY.

GA-6HE/GA-6HEA A.C. GENERATORS — OPERATION & PARTS MANUAL — REV. #1 (09/30/05) — PAGE 55

HONDA GX340K1EDE2 ENGINE — AIR CLEANER ASSY.

AIR CLEANER ASSY.

NO. PART NO. PART NAME QTY.REMARKS

1 15721ZB4000 TUBE BREATHER 1

2 17211899000 ELEMENT, AIR CLEANER 1

3 17212ZB4003 SEPARATOR, AIR CLEANER 1

4 17220ZB4003 HOUSING, AIR CLEANER 1

5 17222ZC2000 STAY, AIR CLEANER 1

6 17231899000 COVER, AIR CLEANER 1

7 17235899000 CLIP A, AIR CLEANER WIRE 2

8 17236899000 CLIP B, AIR CLEANER WIRE 2

9 17252899000 SEAL, AIR CLEANER 1

10 17367413690 FILTER, DRAIN TUBE 1

11 9405005000 NUT, FLANGE (5MM) 6

12 9405006000 NUT, FLANGE (6MM) 3

PAGE 56 — GA-6HE/GA-6HEA A.C. GENERATORS — OPERATION & PARTS MANUAL — REV. #1 (09/30/05)

HONDA GX340K1EDE2 ENGINE — CAMSHAFT ASSY.

CAMSHAFT ASSY.

GA-6HE/GA-6HEA A.C. GENERATORS — OPERATION & PARTS MANUAL — REV. #1 (09/30/05) — PAGE 57

HONDA GX340K1EDE2 ENGINE — CAMSHAFT ASSY.

CAMSHAFT ASSY.

NO. PART NO. PART NAME QTY.REMARKS

1 14100ZE3020 CAMSHAFT ASSY. ................................... 1 ............. INCLUDES ITEMS/W*

2 14410ZE3013 ROD, PUSH 2

3 14431ZE2000 ARM, VALVE ROCKER 2

3 14431ZE2010 ARM, VALVE ROCKER 2

4 14441ZE2000 LIFTER, VALVE 2

5 14451ZE1013 PIVOT, ROCKER ARM 2

6*14568ZE1000 SPRING, WEIGHT RETURN 1

7 14711ZE3000 VALVE, IN. 1

8 14721ZE3000 VALVE, EX. 1

9 14751ZE2003 SPRING, VALVE 2

10 14771ZE2000 RETAINER, IN. VALVE SPRING 1

11 14773ZE2000 RETAINER, EX. VALVE SPRING 1

12 14775ZE2010 SEAT, VALVE SPRING 1

13 14781ZE2000 ROTATOR, VALVE 1

14 14791ZE2010 PLATE, PUSH ROD GUIDE 1

15 90012ZE0010 BOLT, PIVOT (8MM) 2

16 90206ZE1000 NUT, PIVOT ADJ. 2

PAGE 58 — GA-6HE/GA-6HEA A.C. GENERATORS — OPERATION & PARTS MANUAL — REV. #1 (09/30/05)

HONDA GX340K1EDE2 ENGINE — CARBURETOR ASSY.

CARBURETOR ASSY.

GA-6HE/GA-6HEA A.C. GENERATORS — OPERATION & PARTS MANUAL — REV. #1 (09/30/05) — PAGE 59

HONDA GX340K1EDE2 ENGINE — CARBURETOR ASSY.

CARBURETOR ASSY.

NO. PART NO. PART NAME QTY.REMARKS

1*16010ZE3701 GASKET SET 1

2*16011ZA0931 VALVE SET, FLOAT 1

3*16013ZA0931 FLOAT SET 1

4*16015ZA0931 CHAMBER SET, FLOAT 1

5*16016ZH7W01 SCREW SET 1

6 16024124760 SCREW SET, DRAIN 1

7*16028ZA0931 SCREW SET B 1

8 16100ZE3F11 CARBURETOR ASSY. (BE82B B) ......................... 1 ........ INCLUDES ITEMS W/*

9*16124ZE0005 SCREW, THROTTLE STOP 1

10*16148141881 CAP, CHOKE LEVER DUST 1

11*16166ZE3F10 NOZZLE, MAIN 1

12*16172ZE3W10 COLLAR, SET 1

13 16211ZE3700 INSULATOR, CARBURETOR 1

14 16221ZE3800 GASKET, CARBURETOR 1

15 16223ZE3800 GASKET, INSULATOR 1

16*16230ZE3701 VALVE ASSY., SOLENOID 1

17 16260ZE2722 STAY ASSY., MANUAL CHOKE ............................ 1 ........ INCLUDES ITEMS W/#

18#16261ZE2702 STAY, SOLENOID 1

19#16262ZE2711 LEVER, CHOKE 1

20#16263ZA0000 JOINT, ROD 1

21#16264ZE2701 ROD, CHOKE 1

22#16265ZE2721 STOPPER, CHOKE ROD 1

23#16268ZE2721 SPRING, MANUAL CHOKE 1

24 16269ZA0800 GASKET, AIR CLEANER 2

25#16400ZE2703 DIAPHRAGM ASSY. 1

26#16611ZE2711 ROD, CHOKE CONTROL 1

27#16613893000 GROMMET, CHOKE ROD 1

28#16615893000 GUIDE, CHOKE ROD 1

29 36135ZF6D41 VALVE, DASHPOT CHECK 1

30#53149964003 BUSH, ARM PIVOT 1

31 88911MJ3000 GROMMET, FENDER 1

32#90431ZE2700 WASHER, CHOKE LEVER 1

33#90432ZE2700 SEAL, CHOKE LEVER 2

34#90433ZE2700 WASHER, THRUST (2.7X8) 1

35#90434ZE2700 COLLAR, LEVER 1

36 90650SD9003 CLIP, WIRE HARNESS 1

37#93500050120A SCREW, PAN (5X12) 2

38*938920501208 SCREW, WASHER (5X12) 2

39 9405006000 NUT, FLANGE (6MM) 2

40#9410305000 WASHER, PLAIN (5MM) 1

41#9454002010 E-RING (2MM) 1

42#9454004010 E-RING (4MM) 1

43#9454007010 E-RING (7MM) 1

44 9500202070 CLIP, TUBE (B7) 4

45 950053500810M BULK HOSE, VACUUM (3.5X8000) (3.5X75) 1

46 950053500810M BULK HOSE, VACUUM (3.5X8000) (3.5X130) 1

47 99101ZH80950 JET, MAIN (#95) (OPTIONAL) 1

47 99101ZH80980 JET, MAIN (#98) (OPTIONAL) 1

47*99101ZH81000 JET, MAIN (#100) 1

48*99204ZE00350 JET SET, PILOT (#35) 1

PAGE 60 — GA-6HE/GA-6HEA A.C. GENERATORS — OPERATION & PARTS MANUAL — REV. #1 (09/30/05)

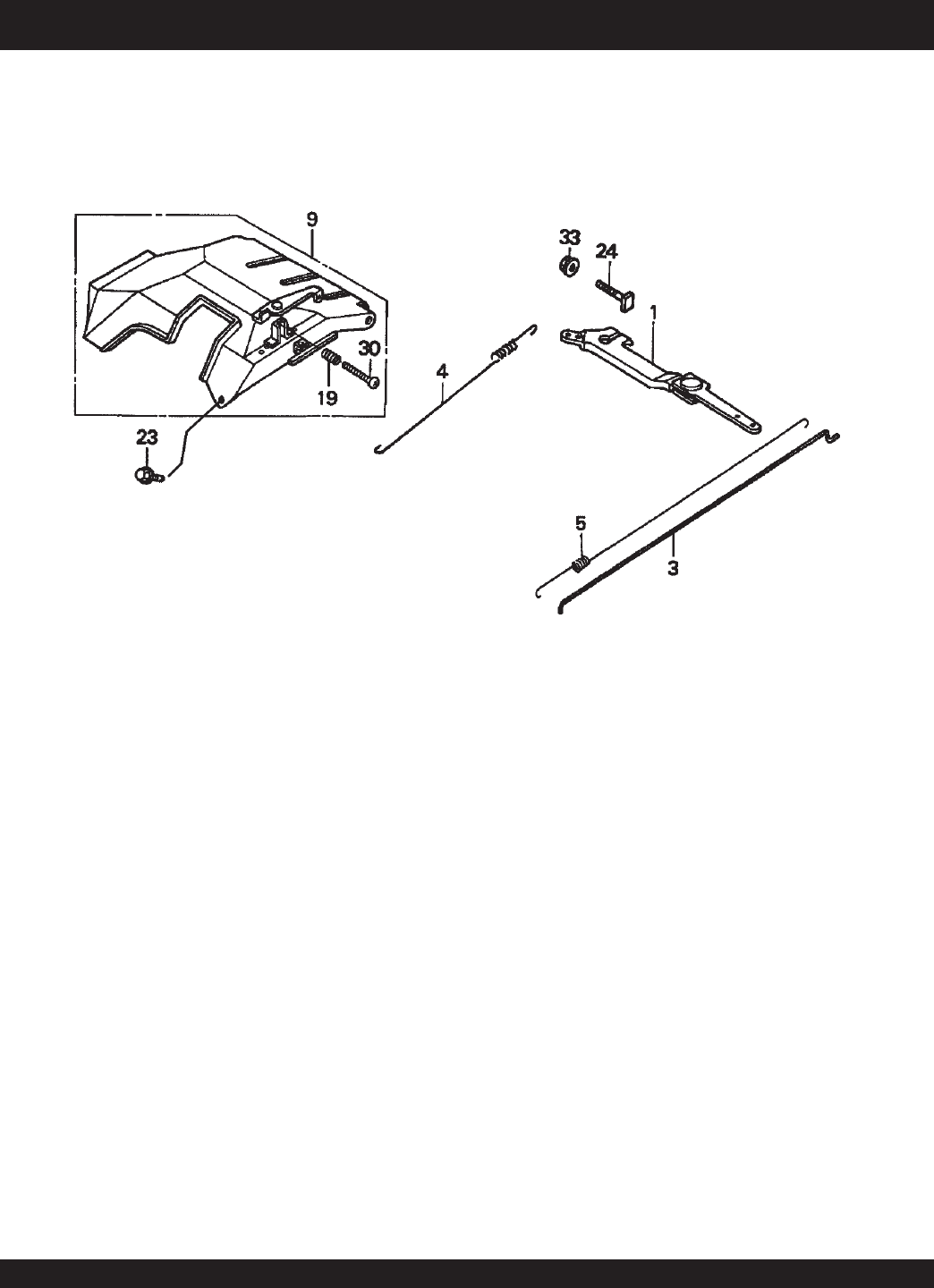

CONTROL ASSY.

HONDA GX340K1EDE2 ENGINE — CONTROL ASSY.

GA-6HE/GA-6HEA A.C. GENERATORS — OPERATION & PARTS MANUAL — REV. #1 (09/30/05) — PAGE 61

CONTROL ASSY.

NO. PART NO. PART NAME QTY.REMARKS

1 16550ZE3700 ARM, GOVERNOR 1

3 16555ZE3000 ROD, GOVERNOR 1

4 16561ZE3000 SPRING, GOVERNOR 1

5 16562ZE3700 SPRING, THROTTLE RETURN 1

9 16570ZE3700 CONTROL ASSY. ................................................ 1 ... INCLUDES ITEMS W/*

19*16584883300 SPRING, CONTROL ADJUSTING 1

23 90013883000 BOLT, FLANGE (6X12) (CT200) 2

24 90015ZE5010 BOLT, GOVERNOR ARM 1

30*93500050350A SCREW, PAN (5X35) 1

33 9405006000 NUT, FLANGE (6MM) 1

HONDA GX340K1EDE2 ENGINE — CONTROL ASSY.

PAGE 62 — GA-6HE/GA-6HEA A.C. GENERATORS — OPERATION & PARTS MANUAL — REV. #1 (09/30/05)

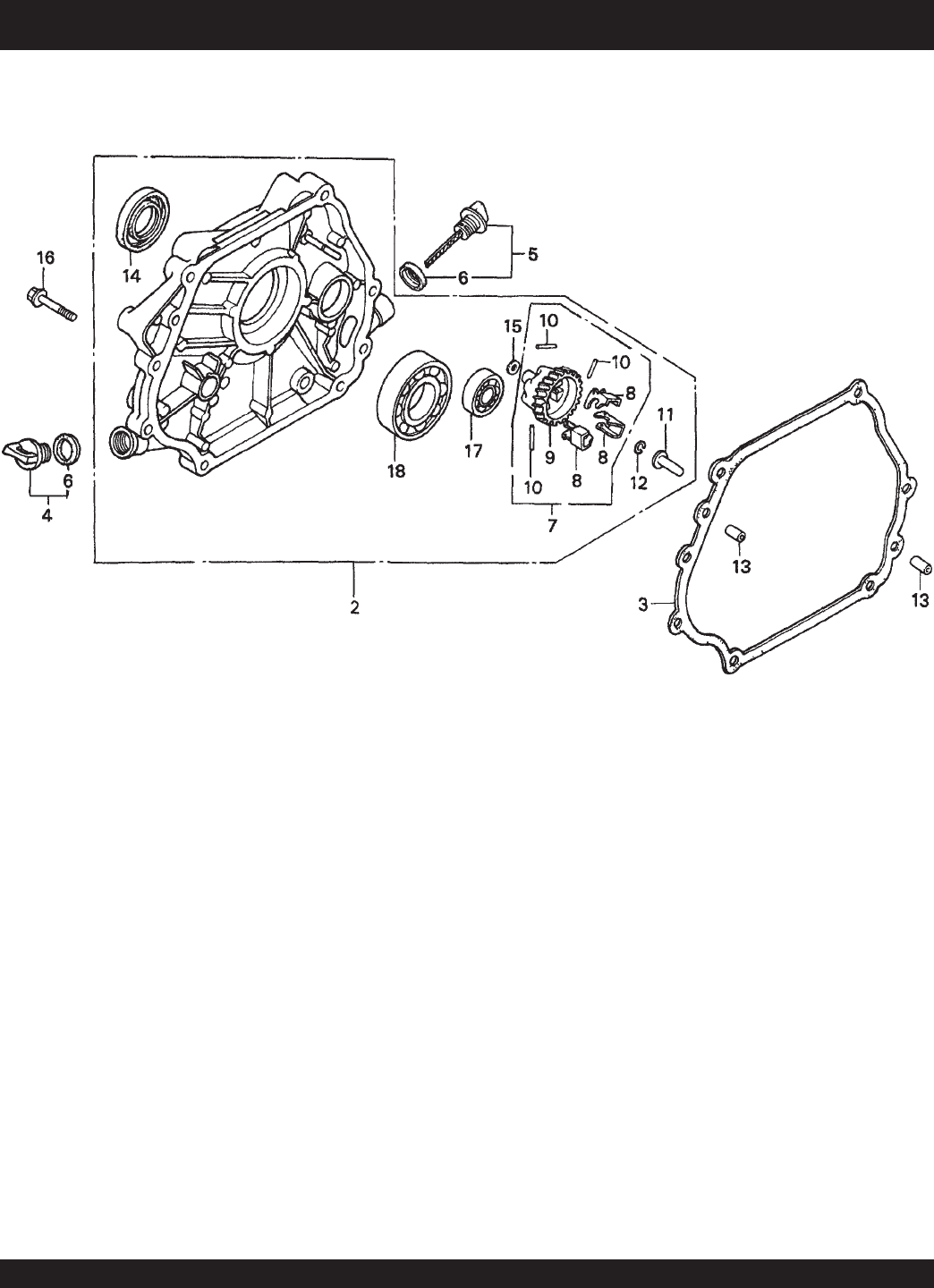

HONDA GX340K1EDE2 ENGINE — CRANKCASE COVER ASSY.

CRANKCASE COVER ASSY.

GA-6HE/GA-6HEA A.C. GENERATORS — OPERATION & PARTS MANUAL — REV. #1 (09/30/05) — PAGE 63

HONDA GX340K1EDE2 ENGINE — CRANKCASE COVER ASSY.

CRANKCASE COVER ASSY.

NO. PART NO. PART NAME QTY.REMARKS

2 11300ZE3020 COVER ASSY., CRANKCASE (S-TYPE) ............ 1 ........ INCLUDES ITEMS W/*

3 11381ZE3801 GASKET, CASE COVER 1

4 15600ZG4003 CAP ASSY., OIL FILLER 1 INCLUDES ITEMS W/%

5 15600735003 CAP ASSY., OIL FILLER 1 INCLUDES ITEMS W/%

6%15625ZE1003 GASKET, OIL FILLER CAP 2

7 16510ZE3000 GOVERNOR ASSY. ............................................. 1 ........ INCLUDES ITEMS W/#

8#16511ZE8000 WEIGHT, GOVERNOR 3

9#16512ZE3000 HOLDER, GOVERNOR WEIGHT 1

10#16513ZE2000 PIN, GOVERNOR WEIGHT 3

11*16531ZE2000 SLIDER, GOVERNOR 1

12*90602ZE1000 CLIP, GOVERNOR HOLDER 1

13 90701HC4000 PIN, DOWEL (8X12) 2

14*92102ZE3004 OIL SEAL (35X52X8) 1

15*9410106800 WASHER, PLAIN (6MM) 1

16 957010804000 BOLT, FLANGE (8X40) 7

17*961006202000 BEARING, RADIAL BALL (6202) 1

18*961006207000 BEARING, RADIAL BALL (6207) 1

PAGE 64 — GA-6HE/GA-6HEA A.C. GENERATORS — OPERATION & PARTS MANUAL — REV. #1 (09/30/05)

CRANKSHAFT ASSY.

HONDA GX340K1EDE2 ENGINE — CRANKSHAFT ASSY.

GA-6HE/GA-6HEA A.C. GENERATORS — OPERATION & PARTS MANUAL — REV. #1 (09/30/05) — PAGE 65

CRANKSHAFT ASSY.

NO. PART NO. PART NAME QTY.REMARKS

6 13310ZE3701 CRANKSHAFT (E-TYPE) 1

7 13351ZE3010 WEIGHT, BALANCER 1

11 961006207000 BEARING, RADIAL BALL (6207) 1

HONDA GX340K1EDE2 ENGINE — CRANKSHAFT ASSY.

PAGE 66 — GA-6HE/GA-6HEA A.C. GENERATORS — OPERATION & PARTS MANUAL — REV. #1 (09/30/05)

HONDA GX340K1EDE2 ENGINE — CYLINDER BARREL ASSY.

CYLINDER BARREL ASSY.

GA-6HE/GA-6HEA A.C. GENERATORS — OPERATION & PARTS MANUAL — REV. #1 (09/30/05) — PAGE 67

HONDA GX340K1EDE2 ENGINE — CYLINDER BARREL ASSY.

CYLINDER BARREL ASSY.

NO. PART NO. PART NAME QTY.REMARKS

1 12000ZE3817 CYLINDER ASSY. (ALERT) ................................. 1 ........ INCLUDES ITEMS W/*

2 15510ZE2043 SWITCH ASSY., OIL LEVEL 1

3 16541ZE3010 SHAFT, GOVERNOR ARM 1

4 31161ZE2000 WIRE, GROUND 1

5 90013883000 BOLT, FLANGE (6X12) (CT200) 1

6 90131896650 BOLT, DRAIN PLUG 2

7 90446KE1000 WASHER (8.2X17X0.8) 1

8*91201ZE3004 OIL SEAL (35X52X8) 1

9*91203952771 OIL SEAL (8X14X5) 1

10 91353671003 O-RING (13.5X1.5) (ARAI) 1

11 9405010000 NUT, FLANGE (10MM) 1

12 9410912000 WASHER, DRAIN PLUG (12MM) 2

13 9425110000 PIN, LOCK (10MM) 1

14 957010601200 BOLT FLANGE (6X12) 2

15*961006202000 BEARING, RADIAL BALL (6202) 1

PAGE 68 — GA-6HE/GA-6HEA A.C. GENERATORS — OPERATION & PARTS MANUAL — REV. #1 (09/30/05)

HONDA GX340K1EDE2 ENGINE — CYLINDER HEAD ASSY.

CYLINDER HEAD ASSY.

GA-6HE/GA-6HEA A.C. GENERATORS — OPERATION & PARTS MANUAL — REV. #1 (09/30/05) — PAGE 69

HONDA GX340K1EDE2 ENGINE — CYLINDER HEAD ASSY.

CYLINDER HEAD ASSY.

NO. PART NO. PART NAME QTY.REMARKS

1 12200ZF6W01 CYLINDER HEAD ................................................ 1 ........ INCLUDES ITEMS W/*

2 12204ZE2306 GUIDE, VALVE (OS) (OPTIONAL) 1

3*12205ZE2305 GUIDE, EX. VALVE (OS) (OPTIONAL) 1

4*12216ZE2300 CLIP, VALVE GUIDE 1

5 12251ZE3W00 GASKET, CYLINDER HEAD 1

6 12310ZE2020 COVER, HEAD 1

8 12391ZE2020 GASKET, CYLINDER HEAD COVER 1

10 90014ZE2000 BOLT, HEAD COVER 1

11 90042ZE3700 BOLT, STUD (8X106) 2

12 92900080320E BOLT 2, STUD (8X32) 2

13 90441ZE2010 WASHER, HEAD COVER 1

14 9430112200 PIN A, DOWEL (12X20) 2

15 957011008000 BOLT, FLANGE (10X80) 4

16 9807955846 SPARK PLUG (BPR5ES) (NGK) (OPTIONAL) 1

16 9807955855 SPARK PLUG (W16EPR-U) (DENSO) 1

PAGE 70 — GA-6HE/GA-6HEA A.C. GENERATORS — OPERATION & PARTS MANUAL — REV. #1 (09/30/05)

HONDA GX340K1EDE2 ENGINE — FAN COVER ASSY.

FAN COVER ASSY.

GA-6HE/GA-6HEA A.C. GENERATORS — OPERATION & PARTS MANUAL — REV. #1 (09/30/05) — PAGE 71

HONDA GX340K1EDE2 ENGINE — FAN COVER ASSY.

FAN COVER ASSY.

NO. PART NO. PART NAME QTY.REMARKS

2 19610ZE3700ZB COVER, FAN *NH1* (BLACK) 1

3 19631ZE3W00 SHROUD 1

6 81329567020 GROMMET, DRAIN HOLE 1

7 90013883000 BOLT, FLANGE (6X12) (CT200) 6

8 90654SA4003 CLIP, WIRE HARNESS (6MM) (WHITE) 2

PAGE 72 — GA-6HE/GA-6HEA A.C. GENERATORS — OPERATION & PARTS MANUAL — REV. #1 (09/30/05)

HONDA GX340K1EDE2 ENGINE — FLYWHEEL ASSY.

FLYWHEEL ASSY.

GA-6HE/GA-6HEA A.C. GENERATORS — OPERATION & PARTS MANUAL — REV. #1 (09/30/05) — PAGE 73

HONDA GX340K1EDE2 ENGINE — FLYWHEEL ASSY.

FLYWHEEL ASSY.

NO. PART NO. PART NAME QTY.REMARKS

1 19511ZE3000 FAN, COOLING 1

6 31100ZE3712 FLYWHEEL, LAMP 1

8 90201ZE3V00 NUT, SPECIAL 16MM 1

9 90741ZE2000 KEY, SPECIAL WOODRUFF (25X18) 1

PAGE 74 — GA-6HE/GA-6HEA A.C. GENERATORS — OPERATION & PARTS MANUAL — REV. #1 (09/30/05)

HONDA GX340K1EDE2 ENGINE — IGNITION COIL ASSY.

IGNITION COIL ASSY.

GA-6HE/GA-6HEA A.C. GENERATORS — OPERATION & PARTS MANUAL — REV. #1 (09/30/05) — PAGE 75

HONDA GX340K1EDE2 ENGINE — IGNITION COIL ASSY.

IGNITION COIL ASSY.

NO. PART NO. PART NAME QTY.REMARKS

1 30500ZE2023 COIL ASSY., IGNITION 1

2 30700ZE1013 CAP ASSY., NOISE SUPPRESSOR 1

3 31510ZE1811 COIL ASSY., LAMP (12V/25W) 1

4 31510ZE3003 COIL ASSY., LAMP (12V/25W) 1

6 31511ZE3000 CLAMP, WIRE 1

7 31512ZE2000 GROMMET, WIRE 1

10 36101ZE3800 WIRE, STOP SWITCH (470MM) 1

11 36103ZE1000 HOLDER, STOP SWITCH WIRE 1

12 90012888000 BOLT, FLANGE (6X40) 4

13 90013883000 BOLT, FLANGE (6X12) (CT200) 1

15 90015883000 BOOT, FLANGE (6X28) 2

PAGE 76 — GA-6HE/GA-6HEA A.C. GENERATORS — OPERATION & PARTS MANUAL — REV. #1 (09/30/05)

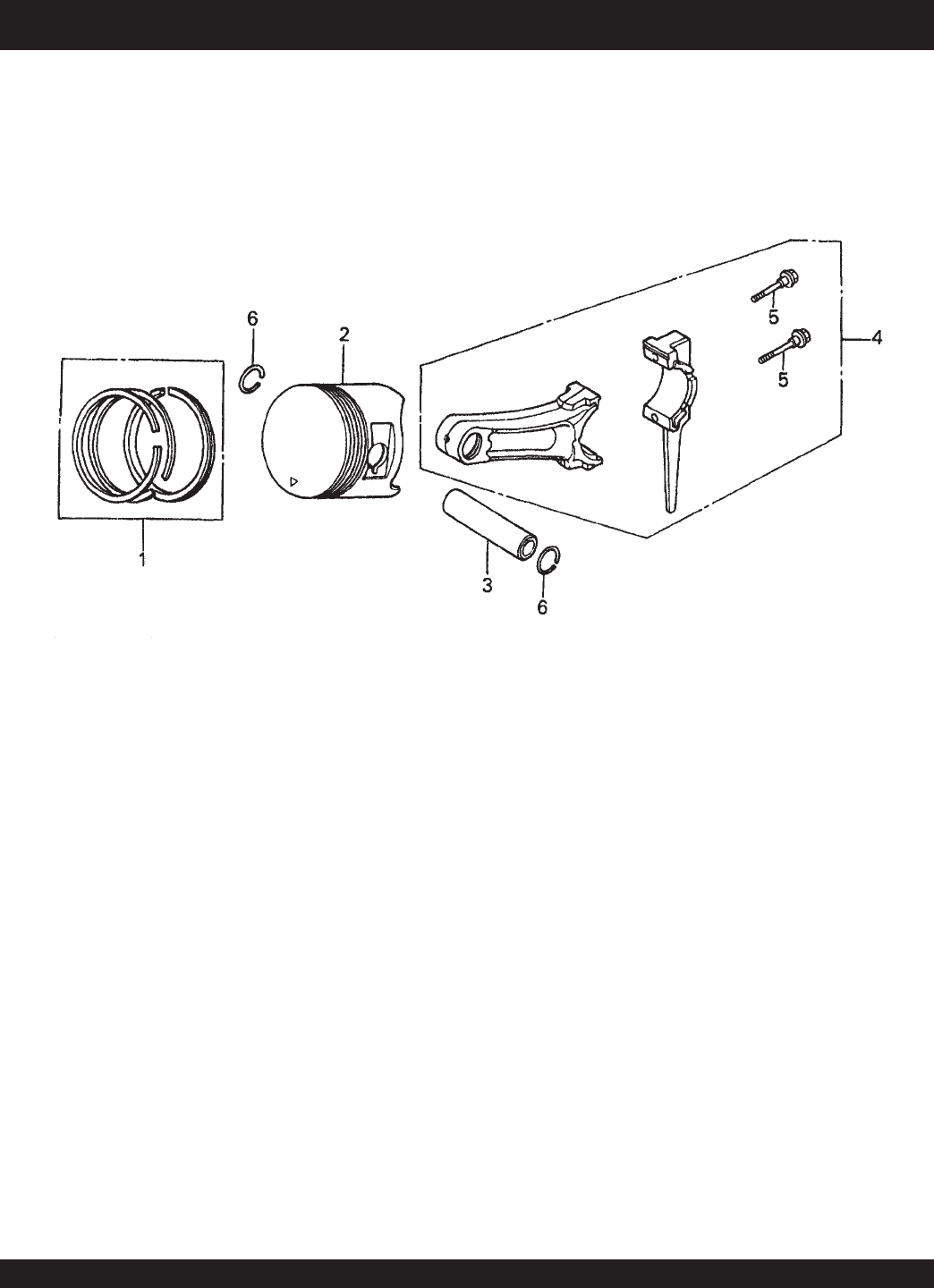

HONDA GX340K1EDE2 ENGINE — PISTON ASSY.

PISTON ASSY.

GA-6HE/GA-6HEA A.C. GENERATORS — OPERATION & PARTS MANUAL — REV. #1 (09/30/05) — PAGE 77

HONDA GX340K1EDE2 ENGINE — PISTON ASSY.

PISTON ASSY.

NO. PART NO. PART NAME QTY.REMARKS

1 13010ZE3003 RING SET, PISTON (STD) 1

1 13011ZE3003 RING SET, PISTON (OS 0.25) (OPTIONAL) 1

1 13012ZE3003 RING SET, PISTON (OS O.50) (OPTIONAL) 1

1 13013ZE3003 RING SET, PISTON (0.75) (OPTIONAL) 1

2 13101ZE3W00 PISTON (STD) 1

3 13111ZF6000 PIN, PISTON 1

4 13200ZE3010 ROD ASSY., CONNECTING (STD) ..................... 1 ........ INCLUDES ITEMS W/*

5*90001ZE8000 BOLT, CONNECTING ROD 2

6 90601ZE3000 CLIP, PISTON PIN (20MM) 2

PAGE 78 — GA-6HE/GA-6HEA A.C. GENERATORS — OPERATION & PARTS MANUAL — REV. #1 (09/30/05)

HONDA GX340K1EDE2 ENGINE — RECOIL STARTER ASSY.

RECOIL STARTER ASSY.

GA-6HE/GA-6HEA A.C. GENERATORS — OPERATION & PARTS MANUAL — REV. #1 (09/30/05) — PAGE 79

HONDA GX340K1EDE2 ENGINE — RECOIL STARTER ASSY.

RECOIL STARTER ASSY.

NO. PART NO. PART NAME QTY.REMARKS

1 28400ZE3W01ZB STARTER ASSY., RECOIL *NH1* (BLACK) ........ 1 ........ INCLUDES ITEMS W/*

2*28410ZE3W01ZB CASE, RECOIL STARTER *NH1* (BLACK) 1

3*28421ZE3W01 PULLEY, RECOIL STARTER 1

4*28422ZE2W01 RATCHET, STARTER 2

5*28441ZE2W01 SPRING, FRICTION 1

6*28442ZE2W01 SPRING, STARTER RETURN 1

7*28443ZE2W01 SPRING, RATCHET 2

8*28444ZE2W01 RETAINER, SPRING 1

9*28445ZE2W01 HOLDER, SPRING 1

10*28461ZE2W02 GRIP, STARTER 1

11*28462ZV7003 ROPE, RECOIL STARTER .................................. 1 ........ REPLACES P/N 28462ZE3W01

13*90004ZE2W01 SCREW, CENTER 1

14 90008ZE2003 BOLT, FLANGE (6X10) 3

PAGE 80 — GA-6HE/GA-6HEA A.C. GENERATORS — OPERATION & PARTS MANUAL — REV. #1 (09/30/05)

HONDA GX340K1EDE2 ENGINE — STARTER MOTOR ASSY.

STARTER MOTOR ASSY.

GA-6HE/GA-6HEA A.C. GENERATORS — OPERATION & PARTS MANUAL — REV. #1 (09/30/05) — PAGE 81

STARTER MOTOR ASSY.

NO. PART NO. PART NAME QTY.REMARKS

1*31204ZA0003 CONTACTOR ASSY. 1

2*31206ZE3003 ARMATURE 1

3*31207ZE3003 CLUTCH, OVERRUNNING ......................1 ................ INCLUDES ITEMS W/%

4 31210ZE3013 MOTOR UNIT, STARTER .........................1 ................ INCLUDES ITEMS W/*

5*31211ZE2003 BRACKET, CENTER 1

6*31212ZE3003 BRACKET, FRONT 1

7*31213ZE2003 GEAR, DRIVE PINION 1

8*31215ZE2003 BRUSH 2

9*31218ZE3003 YOKE 1

10*31219ZE2003 SPRING, BRUSH RETURN 4

11*%31222ZE3791 GEAR, REDUCTION 1

12*31231ZE2003 HOLDER, BRUSH 1

14*31232ZE3003 WIRE, WATER COVER ............................1 ................ INCLUDES ITEMS W/#

15*31233ZE2003 INSULATOR 1

16*#90110ZE2003 SCREW, WASHER (4X6) 1

18*91601ZE2003 GASKET 1

19*90007ZE2003 BOLT, WASHER (5X14) 2

20*938920503208 SCREW, WASHER (5X3) 4

21*9407006080 NUT, WASHER (6 MM) 2

22 957010803508 BOLT, FLANGE (8X35) 2

HONDA GX340K1EDE2 ENGINE — STARTER MOTOR ASSY.

PAGE 82 — GA-6HE/GA-6HEA A.C. GENERATORS — OPERATION & PARTS MANUAL — REV. #1 (09/30/05)

HONDA GX340K1EDE2 ENGINE — LABELS ASSY.

LABELS ASSY.

GA-6HE/GA-6HEA A.C. GENERATORS — OPERATION & PARTS MANUAL — REV. #1 (09/30/05) — PAGE 83

HONDA GX340K1EDE2 ENGINE — LABELS ASSY.

LABELS ASSY.

NO. PART NO. PART NAME QTY.REMARKS

1 87521ZE3W01 EMBLEM 1

4 87528898620 MARK, CHOKE 1

6 87533ZC0630 MARK, AIR CLEANER 1

10 87594ZB4A00 MARK, OIL CAUTION 1

PAGE 84 — GA-6HE/GA-6HEA A.C. GENERATORS — OPERATION & PARTS MANUAL — REV. #1 (09/30/05)

Effective: October 1, 2002 TERMS AND CONDITIONS OF SALE — PARTS

Multiquip reserves the right to quote and sell

direct to Government agencies, and to Origi-

nal Equipment Manufacturer accounts who

use our products as integral parts of their own

products.

SPECIAL EXPEDITING SERVICE

A $35.00 surcharge will be added to the invoice

for special handling including bus shipments,

insured parcel post or in cases where Multiquip

must personally deliver the parts to the carrier.

LIMITATIONS OF SELLER’S LIABILITY

Multiquip shall not be liable hereunder for

damages in excess of the purchase price of the

item with respect to which damages are

claimed, and in no event shall Multiquip be

liable for loss of profit or good will or for any

other special, consequential or incidental dam-

ages.

LIMITATION OF WARRANTIES

No warranties, express or implied, are made

in connection with the sale of parts or trade

accessories nor as to any engine not manufac-

tured by Multiquip. Such warranties made in

connection with the sale of new, complete units

are made exclusively by a statement of war-

ranty packaged with such units, and Multiquip

neither assumes nor authorizes any person to

assume for it any other obligation or liability

whatever in connection with the sale of its

products. Apart from such written statement of

warranty, there are no warranties, express,

implied or statutory, which extend beyond the

description of the products on the face hereof.

5. Parts must be in new and resalable con-

dition, in the original Multiquip package (if

any), and with Multiquip part numbers

clearly marked.

6. The following items are not returnable:

a. Obsolete parts. (If an item is in the

price book and shows as being re-

placed by another item, it is obsolete.)

b. Any parts with a limited shelf life

(such as gaskets, seals, “O” rings,

and other rubber parts) that were pur-

chased more than six months prior to

the return date.

c. Any line item with an extended dealer

net price of less than $5.00.

d. Special order items.

e. Electrical components.

f. Paint, chemicals, and lubricants.

g. Decals and paper products.

h. Items purchased in kits.

7. The sender will be notified of any material

received that is not acceptable.

8. Such material will be held for five working

days from notification, pending instruc-

tions. If a reply is not received within five

days, the material will be returned to the

sender at his expense.

9. Credit on returned parts will be issued at

dealer net price at time of the original

purchase, less a 15% restocking charge.

10. In cases where an item is accepted, for

which the original purchase document

can not be determined, the price will be

based on the list price that was effective

twelve months prior to the RMA date.

11. Credit issued will be applied to future

purchases only.

PRICING AND REBATES

Prices are subject to change without prior

notice. Price changes are effective on a spe-

cific date and all orders received on or after that

date will be billed at the revised price. Rebates

for price declines and added charges for price

increases will not be made for stock on hand

at the time of any price change.

PAYMENT TERMS

Terms of payment for parts are net 10 days.

FREIGHT POLICY

All parts orders will be shipped collect or

prepaid with the charges added to the invoice.

All shipments are F.O.B. point of origin.

Multiquip’s responsibility ceases when a signed

manifest has been obtained from the carrier,

and any claim for shortage or damage must be

settled between the consignee and the carrier.

MINIMUM ORDER

The minimum charge for orders from Mul-

tiquip is $15.00 net. Customers will be asked

for instructions regarding handling of orders

not meeting this requirement.

RETURNED GOODS POLICY

Return shipments will be accepted and credit

will be allowed, subject to the following provi-

sions:

1. A Returned Material Authorization must

be approved by Multiquip prior to ship-

ment.

2. To obtain a Return Material Authorization,

a list must be provided to Multiquip Parts

Sales that defines item numbers, quanti-

ties, and descriptions of the items to be

returned.

a. The parts numbers and descriptions

must match the current parts price

list.

b. The list must be typed or computer

generated.

c. The list must state the reason(s) for

the return.

d. The list must reference the sales

order(s) or invoice(s) under which the

items were originally purchased.

e. The list must include the name and

phone number of the person request-

ing the RMA.

3. A copy of the Return Material Authoriza-

tion must accompany the return shipment.

4. Freight is at the sender’s expense. All

parts must be returned freight prepaid to

Multiquip’s designated receiving point.

GA-6HE/GA-6HEA A.C. GENERATORS — OPERATION & PARTS MANUAL — REV. #1 (09/30/05) — PAGE 85

NOTE PAGE

HERE'S HOW TO GET HELP

PLEASE HAVE THE MODEL AND SERIAL

NUMBER

ON-HAND

WHEN CALLING

MULTIQUIP CORPORATE OFFICE

18910 Wilmington Ave. 800-421-1244

Carson, CA 90746

FAX:

310-537-3927

Email: mq@multiquip.com

Internet: www.multiquip.com

PARTS DEPARTMENT

800-427-1244

FAX:

800-672-7877

310-537-3700

FAX:

310-637-3284

MAYCO PARTS

800-306-2926

FAX:

800-672-7877

310-537-3700

FAX:

310-637-3284

SERVICE DEPARTMENT

800-421-1244

FAX:

310-537-4259

310-537-3700

TECHNICAL ASSISTANCE

800-478-1244

FAX:

310-631-5032

WARRANTY DEPARTMENT

800-421-1244,

EXT.

279

FAX:

310-537-1173

310-537-3700,

EXT.

279

MULTIQUIP INC..

18910 WILMINGTON AVE.

CARSON, CALIFORNIA 90746

800-421-1244 • 310-537-3700

FAX: 310-537-3927

E-mail:mq@multiquip.com

Internet:multiquip.com

Your Local Dealer is:

OPERATION AND PARTS MANUAL

Multiquip Portable Generator Ga 6He Users Manual 6HEA REV0.p65

Multiquip Portable Generator GA-6HEA Generators_portable_GA6HE_GA6HEA_rev_1_manual_DataId_18215_Version_1

GA-6HEA to the manual 6ed51e07-2ce7-4cb0-bbed-e23be8d36eb9

Navigation menu

Versions of this User Manual:

Views

Navigation
