ProSafe Premium 3 x 3
Dual-Band Wireless-N
Access Point WNDAP660
Reference Manual
2
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
Support
Thank you for choosing NETGEAR.
After installing your device, locate the serial number on the label of your product and use it to register your product
at https://my.netgear.com. You must register your product before you can use NETGEAR telephone support.
NETGEAR recommends registering your product through the NETGEAR website. For product updates and web
support, visit http://support.netgear.com.
Phone (US & Canada only): 1-888-NETGEAR.
Phone (Other Countries): Check the list of phone numbers at
http://support.netgear.com/general/contact/default.aspx.
NETGEAR recommends that you use only the official NETGEAR support resources.
Trademarks
NETGEAR, the NETGEAR logo, and Connect with Innovation are trademarks and/or registered trademarks of
NETGEAR, Inc. and/or its subsidiaries in the United States and/or other countries. Information is subject to change
without notice. Other brand and product names are registered trademarks or trademarks of their respective
holders. NETGEAR, Inc. All rights reserved.
Revision History
Publication
Part Number Version Publish Date Comments
202-10984-01 2.0 October 2012 Minor nontechnical revisions
202-10984-01 1.0 September 2012 First publication
3
Contents
Chapter 1 Introduction
About the ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point
WNDAP660 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
What Is in the Box? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Key Features and Standards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Supported Standards and Conventions . . . . . . . . . . . . . . . . . . . . . . . . . .8
Key Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
802.11b/g/n and 802.11a/n Standards–Based Wireless Networking . . .11
Autosensing Ethernet Connections with Auto Uplink . . . . . . . . . . . . . . .11
Hardware Description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Top Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Bottom Panel with Product Label . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Register the Wireless Access Point . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Chapter 2 Installation and Basic Configuration
What You Need Before You Begin. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Wireless Equipment Placement and Range Guidelines. . . . . . . . . . . . .17
Ethernet Cabling Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
LAN Configuration Requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Hardware Requirements for Computers on Your LAN . . . . . . . . . . . . . .19
Operating Frequency (Channel) Guidelines. . . . . . . . . . . . . . . . . . . . . .19
Requirements for Entering IP Addresses . . . . . . . . . . . . . . . . . . . . . . . .19
Install and Configure the Wireless Access Point . . . . . . . . . . . . . . . . . . . . 20
Connect the Wireless Access Point to a Computer . . . . . . . . . . . . . . . . 20
Log In to the Wireless Access Point. . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Configure Basic General System Settings and Time Settings . . . . . . . .23
Configure the IPv4 Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Configure the Optional DHCPv4 Server . . . . . . . . . . . . . . . . . . . . . . . . .27
Configure the Basic Wireless Settings . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Test Basic Wireless Connectivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Mount the Wireless Access Point. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
Ceiling Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Wall Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Desk Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41
4
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
Chapter 3 Wireless Configuration and Security
Wireless Data Security Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Security Profiles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Before You Change the SSID, WEP, and WPA Settings . . . . . . . . . . . . 46
Configure and Enable Security Profiles . . . . . . . . . . . . . . . . . . . . . . . . . 48
Configure RADIUS Server Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Restrict Wireless Access by MAC Address . . . . . . . . . . . . . . . . . . . . . . . . 60
Schedule the Wireless Radios to Be Turned Off . . . . . . . . . . . . . . . . . . . . 61
Configure Basic Wireless Quality of Service . . . . . . . . . . . . . . . . . . . . . . . 62
Chapter 4 Management and Monitoring
Enable Remote Management. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
SNMP Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Secure Shell and Telnet Management . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Upgrade the Wireless Access Point Software . . . . . . . . . . . . . . . . . . . . . . 67
Web Browser Upgrade Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
TFTP Server Upgrade Procedure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Manage the Configuration File or Reset to Factory Defaults . . . . . . . . . . .70
Save the Configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Restore the Configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Restore the Wireless Access Point to the Factory Default Settings. . . . 71
Reboot the Wireless Access Point without Restoring the
Default Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Change the Administrator Password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Manage User Accounts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Enable the Syslog Server. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Monitor the Wireless Access Point. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
View System Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Monitor Wireless Stations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
View the Activity Log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Traffic Statistics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Enable Rogue AP Detection and Monitor Access Points. . . . . . . . . . . . . . 85
Enable and Configure Rogue AP Detection . . . . . . . . . . . . . . . . . . . . . . 85
View and Save Access Point Lists . . . . . . . . . . . . . . . . . . . . . . . . . . . . .87
Configure Wireless Intrusion Detection and Prevention. . . . . . . . . . . . . . . 89
Configure Wireless Intrusion Detection and Prevention Policy Settings 89
Configure Wireless Intrusion Detection and Prevention Mail Settings . . 95
Monitor Traps, Counters, and Ad Hoc Networks . . . . . . . . . . . . . . . . . . 96
Chapter 5 Advanced Configuration
Configure IPv6 Settings and Optional DHCPv6 Server Settings . . . . . . . . 99
Configure the IPv6 Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
Configure the Optional DHCPv6 Server. . . . . . . . . . . . . . . . . . . . . . . . 101
Configure Spanning Tree Protocol, 802.1Q VLAN, and
Link Layer Discovery Protocol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
Configure STP and VLANs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
5
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
Configure Ethernet LLDP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .105
Configure Hotspot Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .106
Configure Advanced Wireless Settings . . . . . . . . . . . . . . . . . . . . . . . . . .107
Configure Advanced Quality of Service Settings . . . . . . . . . . . . . . . . . . .111
Configure Quality of Service Policies . . . . . . . . . . . . . . . . . . . . . . . . . . . .113
Configure Wireless Bridging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .119
Configure a Point-to-Point Wireless Network . . . . . . . . . . . . . . . . . . . .119
Configure a Point-to-Multipoint Wireless Network . . . . . . . . . . . . . . . .123
Configure the Wireless Access Point to Repeat the Wireless
Signal Using Point-to-Multipoint Bridge Mode . . . . . . . . . . . . . . . . . . .127
Chapter 6 Troubleshooting
Basic Functioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .133
Verify the Correct Sequence of Events at Startup . . . . . . . . . . . . . . . .133
No LEDs Are Lit on the Wireless Access Point . . . . . . . . . . . . . . . . . .133
The Active LED or the LAN LED Is Not Lit . . . . . . . . . . . . . . . . . . . . . .134
The WLAN LED Does Not Light Up . . . . . . . . . . . . . . . . . . . . . . . . . . .134
You Cannot Access the Internet or the LAN from a
Wireless-Capable Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .135
You Cannot Configure the Wireless Access Point from a Browser . . . . .135
When You Enter a URL or IP Address a Time-Out Error Occurs. . . . . . .136
Troubleshoot a TCP/IP Network Using the Ping Utility. . . . . . . . . . . . . . .136
Test the LAN Path to Your Wireless Access Point . . . . . . . . . . . . . . . .137
Test the Path from Your Computer to a Remote Device . . . . . . . . . . .138
Problems with Date and Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .138
Use the Packet Capture Tool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .139
Appendix A Supplemental Information
Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .140
Factory Default Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .143
Appendix B Command-Line Reference
Appendix C Notification of Compliance
Index
6
1
1. Introduction
This chapter introduces the NETGEAR® ProSafe® Premium 3 x 3 Dual-Band Wireless-N
Access Point WNDAP660 and describes some of the key features. The chapter includes the
following sections:
•About the ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
•What Is in the Box?
•System Requirements
•Key Features and Standards
•Hardware Description
•Register the Wireless Access Point
Note: For more information about the topics covered in this manual, visit
the Support website at http://support.netgear.com.
Note: Firmware updates with new features and bug fixes are made
available from time to time at downloadcenter.netgear.com. Some
products can regularly check the site and download new firmware,
or you can check for and download new firmware manually. If the
features or behavior of your product do not match what is described
in this guide, you might need to update your firmware.
About the ProSafe Premium 3 x 3 Dual-Band Wireless-N
Access Point WNDAP660
The ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660, going forward
in this manual referred to as the wireless access point, is a powerful building block of a
wireless LAN infrastructure. It provides concurrent 2.4 GHz 802.11b/g/n and
5 GHz 802.11a/n connectivity between wired Ethernet networks and radio-equipped wireless
notebook systems, desktop systems, print servers, and other devices. Support for three
Introduction
7
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
transmit radio chains and three receive radio chains, also referred to as 3x3 multiple input,
multiple output (MIMO), can increase wireless throughput considerably.
The wireless access point provides wireless connectivity to multiple wireless network devices
within a fixed range or area of coverage—interacting with a wireless network interface card
(NIC) through an antenna. Typically, an individual in-building wireless access point provides a
maximum connectivity area with about a 500-foot radius. The wireless access point can
support a maximum of 128 clients in a range of several hundred feet. The throughput is
shared between all clients. Make sure that you install a sufficient number of wireless access
points to meet the required coverage, throughput, and quality of your wireless network.
The wireless access point acts as a bridge between the wired LAN and wireless clients.
Connecting multiple wireless access points through a wired Ethernet backbone can further
increase the wireless network coverage. As a mobile computing device moves out of the
range of one wireless access point, it moves into the range of another. As a result, wireless
clients can freely roam from one wireless access point to another and still maintain a
seamless connection to the network.
The autosensing capability of the wireless access point allows packet transmission at up to
450 Mbps, or at reduced speeds to compensate for distance or electromagnetic interference.
Advanced wireless features that are supported on the wireless access point include a
wireless intrusion detection system (IDS), wireless intrusion prevention system (IPS),
configurable wireless QoS policies, and band steering.
You can manage the wireless access point from either an IPv4 or IPv6 address, and the
wireless access point can allocate either IPv4 or IPv6 DHCP addresses to its wireless clients.
What Is in the Box?
The product package contains the following items:
•ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
•Power adapter and cord (12 VCD, 1.5A)
•Straight-through Category 5 Ethernet cable
•Installation guide
•Resource CD, which includes this manual
•Wall-mount kit made up of brackets and hardware
Contact your reseller or customer support in your area if there are any missing or damaged
parts.
See the NETGEAR website at http://support.netgear.com/general/contact/default.aspx for
the telephone number of customer support in your area. Keep the installation guide, along
with the original packing materials. If you need to return the wireless access point for repair,
use the packing materials to repack the wireless access point.
Introduction
8
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
System Requirements
Before installing the wireless access point, make sure that your system meets these
requirements:
•A 10/100/1000 Mbps local area network device such as a hub or switch
•The Category 5 UTP straight-through Ethernet cable with RJ-45 connector included in the
package, or one like it
•A 100–120V, 50–60 Hz AC power source
•A computer with the TCP/IP protocol installed and a web browser for configuration, such
as Microsoft Internet Explorer 6.0 or later, or Mozilla 1.5 or later
•An 802.11a/n- or 802.11b/g/n-compliant device, such as the NETGEAR N600 Wireless-N
Dual Band USB Adapter (WNDA3100)
Key Features and Standards
•Supported Standards and Conventions
•Key Features
•802.11b/g/n and 802.11a/n Standards–Based Wireless Networking
•Autosensing Ethernet Connections with Auto Uplink
The wireless access point is easy to use and provides solid wireless and networking support.
It also offers a wide range of security options.
Supported Standards and Conventions
The wireless access point supports the following standards and conventions:
•Standards compliance. The wireless access point complies with the IEEE 802.11a/b/g
standards for wireless LANs and is Wi-Fi certified for 802.11n standard.
•WPA and WPA2. The wireless access point provides WPA and WPA2 enterprise-class
strong security with RADIUS and certificate authentication as well as dynamic encryption
key generation. The WPA-PSK and WPA2-PSK pre-shared key authentication does not
have the overhead of RADIUS servers but provides the strong security of WPA.
•Multiple BSSIDs. The wireless access point supports multiple BSSIDs. When a wireless
access point is connected to a wired network and a set of wireless stations, it is called a
basic service set (BSS). The basic service set identifier (BSSID) is a unique identifier
attached to the header of packets sent over a WLAN that differentiates one WLAN from
another when a mobile device tries to connect to the network.
The multiple BSSID feature allows you to configure up to 16 SSIDs (8 per radio) on your
wireless access point and assign different configuration settings to each SSID. All the
configured SSIDs are active, and the network devices can connect to the wireless access
point by using any of these SSIDs.
Introduction
9
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
•DHCP server and client. The DHCP server of the wireless access point can provide a
dynamic IPv4 or IPv6 address to wireless clients. The wireless access point can also act
as a client and obtain an IPv4 or IPv6 address from a DHCP server on the LAN.
•SNMP. The wireless access point supports Simple Network Management Protocol
(SNMP) for Management Information Base (MIB) management.
•STP and LLDP. The wireless access point supports Spanning Tree Protocol (STP) and
Ethernet Link Layer Discovery Protocol (LLDP). LLDP is enabled by default.
•802.1Q VLAN. A network of computers can behave as if they are connected to the same
network even though they might actually be physically on different segments of a LAN.
Virtual LANs (VLANs) are configured through software rather than hardware, which
makes them very flexible. VLANs are very useful for user and host management,
bandwidth allocation, and resource optimization.
Key Features
The wireless access point provides solid functionality, including the following features:
•Dual band. The wireless access point can operate concurrently in the 2.4 GHz and
5 GHz bands.
•Band steering. Band steering can ensure that a dual-band wireless station operates in
the 5 GHz band rather than in the 2.4 GHz band, which is often highly congested. Band
steering can also move a wireless station that already operates in the 2.4 GHz band to
the 5 GHz band. Band steering is an advanced wireless feature that reduces the client
density in the 2.4 GHz band and increases the wireless network capacity.
•IPv4 and IPv6. The wireless access point is manageable from either an IPv4 or IPv6
address, it can function as an IPv4 or IPv6 DHCP client, and its DHCP server can
allocate either IPv4 or IPv6 addresses.
•Multiple operating modes:
-Wireless access point. Operates as a standard 802.11b/g/n and 802.11a/n wireless
access point.
-Point-to-point bridge. In this mode, the wireless access point communicates only
with another bridge-mode wireless station or wireless access point. Network
authentication should be used to protect this communication.
-Point-to-multipoint bridge. Select this option only if this wireless access point is the
master for a group of bridge-mode wireless stations. The other bridge-mode wireless
stations send all traffic to this master and do not communicate directly with each
other. Network authentication should be used to protect this traffic.
-Repeater. In this mode, the wireless access point does not function as an access
point for clients but functions only in point-to-multipoint bridge mode to repeat the
wireless signal and send all traffic to a remote access point. Network authentication
should be used to protect this communication.
•WMM. Wi-Fi Multimedia (WMM) is a subset of the 802.11e standard. WMM allows
wireless traffic to have a range of priorities, depending on the kind of data.
Time-dependent information, like video or audio, has a higher priority than normal traffic.
For WMM to function correctly, wireless clients also need to support WMM.
Introduction
10
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
•QoS. Quality of Service (QoS) support lets you configure parameters that affect traffic
flowing from the wireless access point to the client station and traffic flowing from the
client station to the wireless access point:
-The QoS settings let you prioritize traffic, such as voice and video traffic, so that
packets do not get dropped.
-The QoS policies let you configure classifications (match clauses) and apply traffic to
eight priority queues based on IP precedence, DSCP, MAC address, IP address, and
other information that might be present in Layer 2 and Layer 3 packet headers.
•Wireless IDS/IPS. The wireless intrusion detection system (IDS) and intrusion prevention
system (IPS) can detect and prevent a variety of wireless attacks. Attacks are covered by
preconfigured policy rules. When an attack occurs, the wireless access point can notify a
network administrator though an email.
•Hotspot support. You can allow all HTTP (TCP, port 80) requests to be captured and
redirected to the URL you specify.
•Rogue AP and ad hoc network detection. Rogue AP filtering and ad hoc network
detection ensure that unknown APs and networks are not given access to any part of the
secured wireless and wired LAN.
•Access control. MAC address filtering can ensure that only trusted wireless stations can
use the wireless access point to gain access to the wireless and wired LAN.
•Security profiles. When using multiple BSSIDs, you can configure unique security
settings (encryption, SSID, and so on) for each BSSID.
•Hidden mode. The SSID is not broadcast, assuring that only clients configured with the
correct SSID can connect.
•Secure Telnet command-line interface. The secure Telnet command-line interface
(CLI) enables direct secure access over the serial port and easy scripting of configuration
of multiple wireless access points across an extensive network through the Ethernet
interface. A Secure Shell (SSH) client is required.
•Upgradeable firmware. Firmware is stored in a flash memory. You can upgrade it easily,
using only your web browser, and you can upgrade it remotely. You can also use the
command-line interface.
•Configuration backup. Configuration settings can be backed up to a file and restored.
•Secure and economical operation. Adjustable power output allows more secure or
economical operation.
•PoE support. Using Power over Ethernet (PoE), any 802.3af-compliant midspan or
end-span sources can supply power to the wireless access point over one or two
Ethernet ports. The wireless access point can receive all required power on one Ethernet
port from a single PoE source. However, with two Ethernet ports and two PoE sources,
power redundancy ensures that if one Ethernet port is down, the other Ethernet port can
still supply all power to the wireless access point for continued operation.
•Autosensing Ethernet connection with Auto Uplink™ interface. Connects to
10/100/1000 Mbps IEEE 802.3 Ethernet networks.
•LED indicators. Power/Test, Active, LAN, and WLAN for each radio mode are easily
identified.
Introduction
11
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
•VLAN security profiles. Each security profile is automatically allocated a VLAN ID when
the security profile is modified.
802.11b/g/n and 802.11a/n Standards–Based Wireless
Networking
The wireless access point provides a bridge between wired Ethernet LANs and 802.11b/g/n-
and 802.11a/n-compatible wireless LAN networks. It provides connectivity between wired
Ethernet networks and radio-equipped wireless notebook systems, desktop systems, print
servers, and other devices.
In addition, the wireless access point supports the following wireless features:
•Aggregation support
•Reduced InterFrame spacing support
•3 x 3 multiple input, multiple output (MIMO) support
•Distributed coordinated function (CSMA/CA, back-off procedure, ACK procedure,
retransmission of unacknowledged frames)
•RTS/CTS handshake
•Beacon generation
•Packet fragmentation and reassembly
•Auto or long preamble
•Roaming among wireless access points on the same subnet
Autosensing Ethernet Connections with Auto Uplink
The wireless access point can connect to a standard Ethernet network. The LAN interface is
autosensing and capable of full-duplex or half-duplex operation.
The wireless access point incorporates Auto Uplink technology. The Ethernet port
automatically senses whether the Ethernet cable plugged into the port should have a
“normal” connection such as to a computer or an “uplink” connection such as to a switch or
hub. That port then configures itself correctly. This feature also eliminates any concerns
about crossover cables, as Auto Uplink accommodates either type of cable to make the right
connection.
Hardware Description
This section describes the top and rear hardware functions of the wireless access point.
•Top Panel
•Rear Panel
•Bottom Panel with Product Label
Introduction
12
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
Top Panel
The LEDs of the wireless access point are described in the following figure and table:
Figure 1.
Table 1. Top panel LEDs
Item LED Description
1Power/Test Off Power is off.
On (green) Power is on.
Amber, then blinking
green A self-test is running or software is being loaded.
During startup, the LED is first steady amber, then
goes off, and then blinks green before turning steady
green after about 45 seconds. If after 1 minute the
LED remains amber or continues to blink green, it
indicates a system fault.
2Active Off No Ethernet traffic is detected, or no link is detected.
On or blinking (green) Ethernet traffic is detected.
3LAN 1 Off 10 Mbps or no link is detected on LAN port 1.
Amber 10/100 Mbps link is detected on LAN port 1.
Green 1000 Mbps link is detected on LAN port 1.
4LAN 2 Off 10 Mbps or no link is detected on LAN port 2.
Amber 10/100 Mbps link is detected on LAN port 2.
Green 1000 Mbps link is detected on LAN port 2.
123
4
56
Introduction
13
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
Rear Panel
Figure 2.
The rear panel components of the wireless access point, from left to right, are described in
the following list:
1. First reverse SMA connector for an optional 2.4 GHz antenna.
2. Factory default Reset button. Using a sharp object, press and hold this button for about
5 seconds to reset the wireless access point to factory defaults settings. All configuration
settings are lost, and the default password is restored. For more information, see Restore
the Wireless Access Point to the Factory Default Settings on page 71.
3. First 10/100/1000BASE-T Gigabit Ethernet (RJ-45) port with Auto Uplink (Auto MDI-X) with
IEEE 802.3af Power over Ethernet (PoE) support for connection to a switch or router.
4. Second 10/100/1000BASE-T Gigabit Ethernet (RJ-45) port with Auto Uplink (Auto MDI-X)
with IEEE 802.3af Power over Ethernet (PoE) support for connection to a switch or router.
5. Second reverse SMA connector for an optional 2.4 GHz antenna.
6. Console port for connecting to an optional console terminal. The port has an RJ-45
connector and supports the following settings: 9600 K default baud rate, 8 data bits, no (N)
parity bit, and one (1) stop bit.
7. Cable security lock receptacle for an optional lock.
5 2.4
Ghz
WLAN Off Wireless 802.11b/g/n (2.4 GHz) LAN is not ready, or
no wireless activity is detected.
On or blinking (green) Wireless 802.11b/g/n (2.4 GHz) LAN is ready, or
wireless activity is detected.
6 5
Ghz WLAN Off Wireless 802.11n/a (5 GHz) LAN is not ready, or no
wireless activity is detected.
On or blinking (green) Wireless 802.11n/a (5 GHz) LAN is ready, or wireless
activity is detected.
Table 1. Top panel LEDs (continued)
Item LED Description
123567894
Introduction
14
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
8. Power socket for a 12 VDC, 1.5A power adapter.
9. Third reverse SMA connector for an optional 2.4 GHz antenna.
Note: The wireless access point can support up to three optional 2.4 GHz
antennas.
Bottom Panel with Product Label
The product label on the bottom of the wireless access point’s enclosure displays factory
default settings, regulatory compliance, and other information:
Figure 3.
Register the Wireless Access Point
To qualify for product updates and product warranty, NETGEAR encourages you to register
your product. The first time that you connect to the wireless access point while it is connected
to the Internet, you have the option to register your product. At any time, you can register
your product from the web management interface, or you can go to the NETGEAR website
for registration at https://my.netgear.com/registration/login.aspx.
To register the wireless access point with NETGEAR:
1. Select Support > Registration. The Product Registration screen displays:
Introduction
15
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
Figure 4.
2. Click Register. A new screen displays in your browser:
Figure 5.
3. Enter the information in the blank fields. The serial number, model number, and date of
purchase are entered automatically.
4. Click Register. The registration web page displays:
Introduction
16
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
Figure 6.
5. Complete the registration form.
6. Click submit.
17
2
2. Installation and Basic Configuration
This chapter describes how to install and configure the wireless access point for wireless
connectivity to your LAN. This basic configuration enables computers with 2.4 GHz 802.11b/g/n
and 5 GHz 802.11a/n wireless adapters to connect to the Internet or access printers and files on
your LAN. In planning your wireless network, consider the level of security required. Chapter 3,
Wireless Configuration and Security, describes how to set up wireless security for your network.
This chapter includes the following sections:
•What You Need Before You Begin
•Install and Configure the Wireless Access Point
•Test Basic Wireless Connectivity
•Mount the Wireless Access Point
What You Need Before You Begin
•Wireless Equipment Placement and Range Guidelines
•Ethernet Cabling Requirements
•LAN Configuration Requirements
•Hardware Requirements for Computers on Your LAN
•Operating Frequency (Channel) Guidelines
•Requirements for Entering IP Addresses
You need to consider the following guidelines and requirements before you can set up your
wireless access point. See also System Requirements on page 8.
Wireless Equipment Placement and Range Guidelines
The range of your wireless connection can vary significantly based on the location of the
wireless access point. The latency, data throughput performance, and power consumption of
wireless adapters also vary depending on your configuration choices.
Installation and Basic Configuration
18
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
Note: Failure to follow these guidelines can result in significant
performance degradation or inability to connect wirelessly to the
wireless access point. For complete performance specifications, see
Appendix A, Supplemental Information.
Note: Before you position and mount the wireless access point at its
permanent position, first configure the wireless access point and test
the computers on your LAN for wireless connectivity as explained in
this chapter.
For best results, place your wireless access point according to the following general
guidelines:
•Near the center of the area in which the wireless devices will operate.
•In an elevated location such as a high shelf where the wirelessly connected devices have
line-of-sight access (even if through walls).
•Away from sources of interference, such as computers, microwaves ovens, and 2.4 GHz
cordless phones.
•Away from large metal surfaces or water.
•Placing an external antenna in a vertical position provides best side-to-side coverage.
Placing an external antenna in a horizontal position provides best up-and-down coverage.
(An external antenna does not come standard with the wireless access point.)
•If you are using multiple wireless access points, it is better if adjacent wireless access
points use different radio frequency channels to reduce interference. The recommended
channel spacing between adjacent wireless access points is five channels (for example,
use Channels 1 and 6, or 6 and 11, or 1 and 11).
The time it takes to establish a wireless connection can vary depending on both your security
settings and placement. WEP connections can take slightly longer to establish. Also, WEP
encryption can consume more battery power on a notebook computer.
Ethernet Cabling Requirements
The wireless access point connects to your LAN using twisted-pair Category 5 Ethernet cable
with RJ-45 connectors.
LAN Configuration Requirements
For the initial configuration of your wireless access point, you need to connect a computer to
the wireless access point.
Installation and Basic Configuration
19
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
Hardware Requirements for Computers on Your LAN
To connect to the wireless access point on your network, each computer needs to have an
802.11b/g/n or 802.11a/n wireless adapter installed. NETGEAR recommends using the
wireless access point with computers that have the NETGEAR N600 Wireless Dual Band
USB Adapter (WNDA3100) installed.
Operating Frequency (Channel) Guidelines
You do not need to change the operating frequency (channel) unless you notice interference
problems or you place the wireless access point near another wireless access point. If you do
change the operating frequency, observe the following guidelines:
•Wireless access points use a fixed channel. You can select a channel that provides the
least interference and best performance. In the United States and Canada, 11 channels
are available.
•If you use multiple wireless access points, it is better if adjacent wireless access points
use different channels to reduce interference. The recommended channel spacing
between adjacent wireless access points is 5 channels (for example, use channels 1 and
6, or 6 and 11).
•In infrastructure mode (which is the default mode for the wireless access point), wireless
stations normally scan all channels, looking for a wireless access point. If more than one
wireless access point can be used, the one with the strongest signal is used. This is
possible only if the wireless access points use the same SSID.
Requirements for Entering IP Addresses
IPv4
The fourth octet of an IP address needs to be between 0 and 255 (both inclusive). This
requirement applies to any IP address that you enter on a screen of the web management
interface.
IPv6
IPv6 addresses are denoted by eight groups of hexadecimal quartets that are separated by
colons. Any four-digit group of zeroes within an IPv6 address can be reduced to a single zero
or altogether omitted.
The following errors invalidate an IPv6 address:
•More than eight groups of hexadecimal quartets
•More than four hexadecimal characters in a quartet
•More than two colons in a row
Installation and Basic Configuration
20
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
Install and Configure the Wireless Access Point
Install and configure your wireless access point in the order of the following sections:
1. Connect the Wireless Access Point to a Computer
2. Log In to the Wireless Access Point
3. Configure Basic General System Settings and Time Settings
4. Configure the IPv4 Settings
5. Configure the Optional DHCPv4 Server
6. Configure the Basic Wireless Settings
Before installing the wireless access point, make sure that your Ethernet network functions.
After you have connected the wireless access point to the Ethernet network, computers with
802.11b/g/n and 802.11a/n wireless adapters are able to communicate with the Ethernet
network.
For this to work correctly, verify that you have met all the system requirements, shown in
System Requirements on page 8.
Connect the Wireless Access Point to a Computer
Tip: Before you place the wireless access point in an elevated position that is
difficult to reach, first set up and test the wireless access point to verify
wireless network connectivity.
To set up the wireless access point:
1. Unpack the box and verify the contents.
2. Prepare a computer with an Ethernet adapter. If this computer is already part of your
network, record its TCP/IP configuration settings. Configure the computer with a static IP
address of 192.168.0.210 and 255.255.255.0 as the subnet mask.
3. Connect an Ethernet cable from the wireless access point to the computer (point A in the
following figure).
4. Securely insert the other end of the cable into the wireless access point’s Ethernet port
(point B in the following figure).
.
Installation and Basic Configuration
21
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
Figure 7.
5. Turn on your computer.
6. Connect the power adapter to the wireless access point.
Tip: The wireless access point supports Power over Ethernet (PoE) with
power redundancy. Both Ethernet ports can provide power. If you have a
switch that provides PoE, you do not need to use the power adapter to
power the wireless access point. Using PoE can be especially
convenient when the wireless access point is installed in a high location
far away from a power outlet.
7. Verify the following:
Power/Test LED. The Power/Test LED blinks when the wireless access point is
first turned on. (To be exact, during startup, the LED is first steady amber, then
goes off, and then blinks green.) After about 45 seconds, the LED should stay lit
(steady green). If after 1 minute the Power/Test LED is not lit or is still blinking,
check the connections and see if the power outlet is controlled by a wall switch
that is turned off.
Active LED. The Active LED is lit or blinks green when there is Ethernet traffic.
LAN 1 LED. The LAN LED indicates the LAN speed for LAN port 1: green for
1000 Mbps, amber for 100 Mbps, and no light for 10 Mbps. If the LAN LED is not
lit, make sure that the Ethernet cable is securely attached at both ends.
LAN 2 LED. The LAN LED indicates the LAN speed for LAN port 2: green for
1000 Mbps, amber for 100 Mbps, and no light for 10 Mbps. If the LAN LED is not
lit, make sure that the Ethernet cable is securely attached at both ends.
A
B
Ethernet cable
Ethernet port
Installation and Basic Configuration
22
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
WLAN LED. The 2.4 GHz WLAN LED is lit or blinks green when the wireless LAN
(WLAN) is ready.
WLAN LED. The 5 GHz WLAN LED is lit or blinks green when the wireless LAN
(WLAN) is ready.
Log In to the Wireless Access Point
The default IP address of your wireless access point is 192.168.0.100. By default, the DHCP
client on the wireless access point is disabled so you can log in using the default IP address.
To log in to the wireless access point:
1. Open a web browser such as Microsoft Internet Explorer 6.0 or later, or Mozilla Firefox
1.5 or later.
2. Connect to the wireless access point by entering its default address of 192.168.0.100 into
your browser (use http and not https). The Login screen displays:
Figure 8.
3. Enter the default user name of admin and the default password of password.
4. Click Login. The web browser displays the basic General system settings screen under the
Configuration tab of the main menu as shown in Figure 11 on page 23.
Web Management Interface
The navigation tabs across the top of the web management interface provide access to all
the configuration functions of the wireless access point and remain constant. The menu items
in the blue bar change according to the navigation tab that is selected.
2.4
Ghz
5
Ghz
Installation and Basic Configuration
23
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
Figure 9.
The bottom right corner of all screens that allow you to make configuration changes show the
Apply and Cancel buttons, and on several screens the Edit button.
Figure 10.
These buttons have the following functions:
•Edit. Allows you to edit the existing configuration.
•Cancel. Cancels all configuration changes that you made on the screen.
•Apply. Saves and applies all configuration changes that you made on the screen.
Configure Basic General System Settings and Time Settings
Note: After you have successfully logged in to the wireless access point,
the basic General system settings screen displays.
To configure basic system settings:
1. Select Configuration > System > Basic > General. The basic General system settings
screen displays:

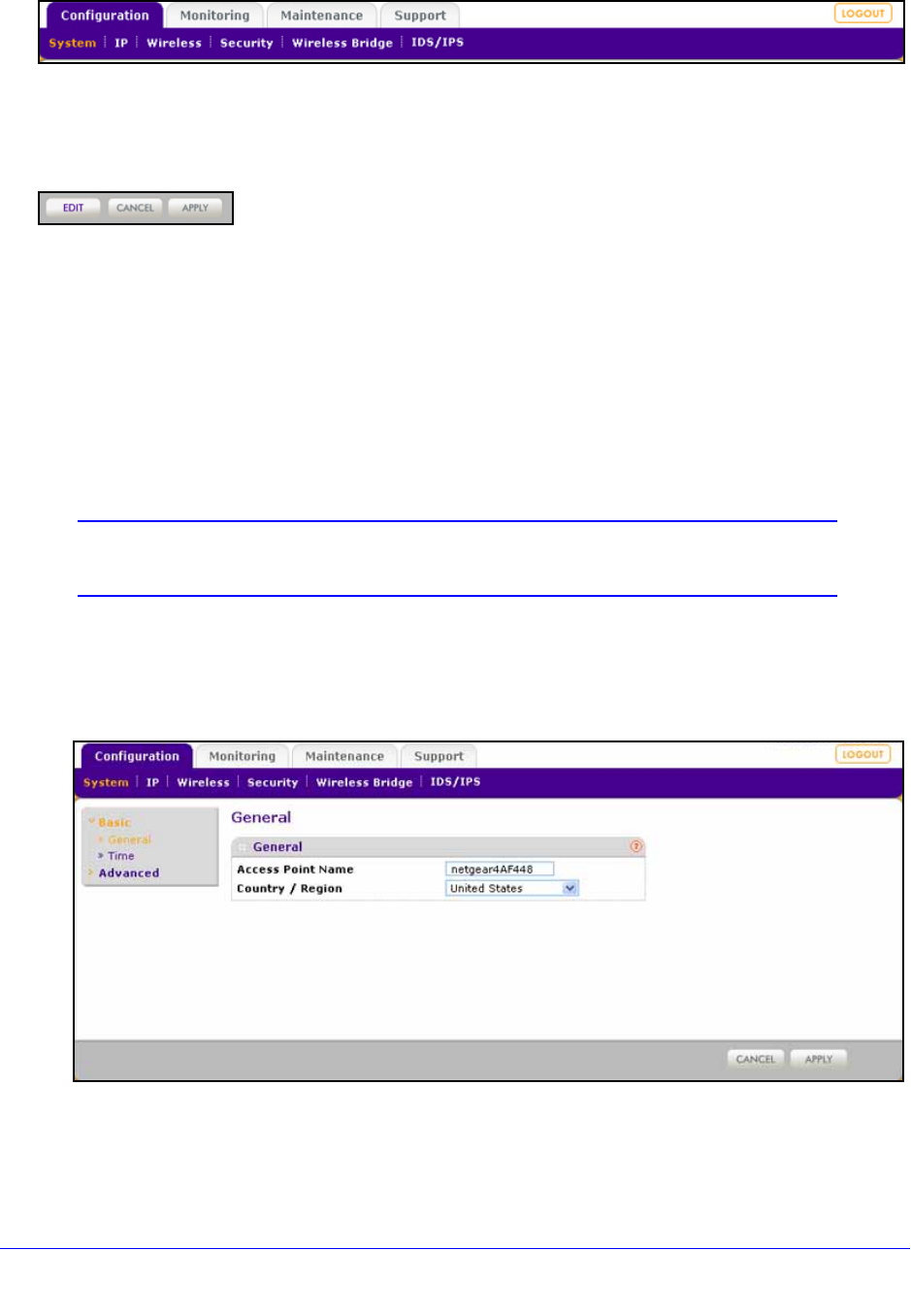

Figure 11.
Installation and Basic Configuration
24
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
2. Configure the settings as explained in the following table:
3. Click Apply to save your settings.
To configure time settings:
1. Select Configuration > System > Basic > Time. The Time screen displays:
Figure 12.
2. Configure the settings as explained in the following table:
Table 2. Basic general system settings
Setting Description
Access Point Name This unique name is the wireless access point NetBIOS name. The name is printed
on the rear label of the wireless access point. The default is netgearxxxxxx, in which
xxxxxx represents the last 6 digits of the wireless access point MAC address. You
can replace the default name with a unique name up to 15 characters long. The
access point name can be retrieved through SNMP.
Country / Region From the Country / Region drop-down list, select the country where the wireless
access point is installed.
Note: It might not be legal to operate this wireless access point in a region other than
one of those identified in this field.
Table 3. Time system settings
Setting Description
Time Zone Select the time zone to match your location.
Current Time This is a nonconfigurable field that displays the current date and time.
Installation and Basic Configuration
25
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
3. Click Apply to save your settings.
Configure the IPv4 Settings
Note: For information about how to configure the IPv6 settings, see
Configure the IPv6 Settings on page 99.
WARNING:
If you enable the DHCP client, the IP address of the wireless
access point changes when you click Apply, causing you to lose
your connection to the wireless access point. You then need to
use the new IP address to reconnect to the wireless access point.
Tip: If you enable the DHCP client on the wireless access point, you can
discover the new IP address of the wireless access point by accessing
the DHCP server on your LAN, or by using a network IP address scanner
application.
To configure the IPv4 settings:
1. Select Configuration > IP > IP Settings. The IP Settings screen displays:
NTP Client Enable the Network Time Protocol (NTP) client to synchronize the time of the
wireless access point with an NTP server. By default the Enable radio button is
selected.
Use Custom NTP Server Select this check box if you want to use a custom NTP server.
Note: You need to have an Internet connection to use an NTP server that is
not on your local network.
Hostname /
IP Address Enter the host name or IP address of the custom NTP server.
The default is time-b.netgear.com.
Note: If you use a host name, make sure that you have
configured a DNS server. For more information, see the next
section.
Table 3. Time system settings (continued)
Setting Description
Installation and Basic Configuration
26
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
Figure 13.
2. Configure the IPv4 settings as explained in the following table:
3. Click Apply to save your settings.
Table 4. IPv4 settings
Setting Description
DHCP Client By default, the Dynamic Host Configuration Protocol (DHCP) client is disabled. If
you have a DHCP server on your LAN and you select the Enable check box, the
wireless access point receives its IP address, subnet mask, and default gateway
settings automatically from the DHCP server on your network when you connect
the wireless access point to your LAN.
IP Address Enter the IP address of your wireless access point. The default IP address is
192.168.0.100. To change the address, enter an unused IP address from the
address range used on your LAN, or enable DHCP the server.
IP Subnet Mask Enter the network number portion of an IP address. Unless you are
implementing subnetting, enter 255.255.0.0 as the subnet mask.
Default Gateway Enter the IP address of the ISP gateway to which the wireless access point
connects.
Primary DNS Server
Enter the IP address of the primary and secondary DNS servers.
A DNS server is a host on the Internet that translates Internet names (such as
www.netgear.com) to numeric IP addresses. Typically your ISP transfers the IP
address of one or two DNS servers to your wireless access point during login. If
the ISP does not transfer an address, you need to obtain it from the ISP and
enter it manually in this field.
Secondary DNS Server
Network Integrity Check Select this check box to validate that the upstream link is active before allowing
wireless associations. Ensure that the default gateway is configured.
Installation and Basic Configuration
27
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
Configure the Optional DHCPv4 Server
The wireless access point provides a built-in DHCPv4 server for wireless clients only, which
can be especially useful in small networks. When the DHCP server is enabled, the wireless
access point provides preconfigured TCP/IP configurations to all connected wireless stations.
Note: For information about how to configure the DHCPv6 server, see
Configure the Optional DHCPv6 Server on page 101.
To configure DHCPv4 server settings:
1. Select Configuration > IP > DHCP Server Settings. The DHCP Server Settings screen
displays. The following figure displays the DHCPv4 server settings only. For information
about the DHCPv6 server settings, see Configure the Optional DHCPv6 Server on
page 101.
Figure 14.
2. Configure the settings as explained in the following table:
Table 5. DHCP server settings for IPv4
Setting Description
Select the DHCPv4 Server check box to enable the DHCP server. Use the default settings or specify the
pool of IPv4 addresses to be assigned by setting the starting IPv4 address and ending IPv4 address. These
addresses should be part of the same IPv4 address subnet as the wireless access point’s LAN IPv4
address.
DHCP Server VLAN ID Enter the VLAN ID for the DHCP server. The VLAN ID range is from 1 to 4094.
The default VLAN is 1.
Starting IPv4 Address Enter the first address in the range of IPv4 addresses to be assigned to DHCP
clients. The default address is 192.168.1.02.
Installation and Basic Configuration
28
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
3. Click Apply to save your settings.
Configure the Basic Wireless Settings
For proper compliance and compatibility between similar products in your coverage area, you
need to configure the 802.11b/g/n and 802.11a/n wireless adapter settings correctly, including
the operating channel and country. You also need to configure the basic wireless network
settings for wireless devices to connect to your network. For other wireless features,
including wireless security, see Chapter 3, Wireless Configuration and Security.
If you configure the wireless access point from a wireless
computer and you change the wireless access point’s SSID,
channel, or wireless security settings, you lose your wireless
connection when you click Apply. You then need to change the
wireless settings of your computer to match the wireless access
point’s new settings.
Configure 802.11b/bg/ng Wireless Settings
To configure the 802.11b/g/n wireless settings:
1. Select Configuration > Wireless > Basic > Wireless Settings. The basic Wireless
Settings screen displays. (The following figure shows the 11ng settings.)
Ending IPv4 Address Enter the last address in the range of IPv4 addresses to be assigned to DHCP
clients. The default address is 192.168.1.50.
Subnet Mask Enter the subnet mask to be used by DHCP clients. The default mask is
255.255.255.0.
Gateway IPv4 Address Enter the IPv4 address of the default routing gateway to be used by DHCP
clients. The default address is 192.168.0.1.
Primary DNS Address Enter the IP address of the primary Domain Name System (DNS) server
available to DHCP clients.
Secondary DNS Address Enter the IP address of the secondary DNS server available to DHCP clients.
Primary WINS Server Enter the IP address of the primary WINS server for the network, if there is any.
Secondary WINS Server Enter the IP address of the secondary WINS server for the network, if there is
any.
Lease Enter the period that the DHCP server grants to DHCP clients to use the
assigned IP addresses. The default time is one day.
Table 5. DHCP server settings for IPv4 (continued)
Setting Description
Installation and Basic Configuration
29
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
Note: The radio wave icon ( ) displays next to the enabled wireless mode
(b, bg, or ng).
Figure 15.
2. Specify the wireless mode in the 2.4 GHz band by selecting one of the following radio
buttons:
•11b. Both 802.11n- and 802.11g-compliant devices can connect to the access point
because they are backward compatible.
•11bg. 802.11n-compliant devices can connect to the access point because they are
backward compatible.
•11ng. This is the default setting. 802.11b-compliant devices cannot connect to the
access point. If you keep the default setting, go to Step 5.
When you change the wireless mode, the Turn Radio On check box is automatically
cleared, and all fields, buttons, and drop-down lists onscreen are masked out.
3. Turn on the radio by selecting the Turn Radio On check box. A pop-up screen displays.
Note: Under normal conditions, you want the radio to be turned on. Turning off
the radio disables access through the wireless access point, which can be
helpful for configuration, network tuning, or troubleshooting activities.
4. Click OK to confirm the change of wireless mode. The change does not take effect until you
click the Apply button after you have completed the wireless configuration.
Installation and Basic Configuration
30
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
5. Specify the remaining wireless settings as explained the following table:
Table 6. Basic 2.4 GHz band wireless settings
Setting Descriptions
Wireless Network Name
(SSID) Enter a 32-character (maximum) service set identifier (SSID); the characters are
case-sensitive. The default is NETGEAR_11ng. The SSID assigned to a wireless
device needs to match the wireless access point’s SSID for the wireless device
to communicate with the wireless access point. If the SSIDs do not match, you
do not get a wireless connection to the wireless access point.
Wireless On-Off Status This field is not configurable. It shows the status of the wireless scheduler. For
more information, see Schedule the Wireless Radios to Be Turned Off on
page 61.
Broadcast Wireless
Network Name (SSID) Select the Yes radio button to enable the wireless access point to broadcast its
SSID, allowing wireless stations that have a null (blank) SSID to adopt the
wireless access point’s SSID. Yes is the default setting. To prevent the SSID
from being broadcast, select the No radio button.
Channel / Frequency From the drop-down list, select the channel you wish to use for your wireless
LAN. The wireless channels and frequencies depend on the country and
wireless mode. The default setting is Auto.
Note: It should not be necessary to change the wireless channel unless you
experience interference (indicated by lost connections or slow data transfers). If
this happens, you might want to experiment with different channels to see which
is the best. For more information, see Operating Frequency (Channel)
Guidelines on page 19.
Note: For more information about available channels and frequencies, see
Technical Specifications on page 140.
11ng mode only
Note: For most
networks, the default
settings work fine.
MCS Index / Data
Rate From the drop-down list, select a Modulation and Coding
Scheme (MCS) index and transmit data rate for the wireless
network. The default setting is Best. For a list of all options
that you can select from in 11ng mode, see Factory Default
Settings on page 143.
Channel Width From the drop-down list, select a channel width. The options
are Dynamic 20/40 MHz, 20 MHz, and 40 MHz. The default is
20 MHz. A wider channel improves the performance, but
some legacy devices can operate only in either 20 MHz or
40 MHz.
Guard Interval From the drop-down list, select the guard interval to protect
transmissions from interference. The default is Auto, or you
can select Long - 800 ns. Some legacy devices can operate
only with a long guard interval.
Installation and Basic Configuration
31
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
6. Click Apply to save your settings and enable the selected wireless mode.
Note: For information about how to configure advanced wireless settings,
see Configure Advanced Wireless Settings on page 107.
Configure 802.11a/na Wireless Settings
To configure the 802.11a/na wireless settings:
1. Select Configuration > Wireless > Basic > Wireless Settings. The basic Wireless
Settings screen displays. (The following figure shows the 802.11na settings.)
Note: The radio wave icon ( ) displays next to the selected radio mode
(a or na).
11b and 11bg modes
only Data Rate From the drop-down list, select the transmit data rate of the
wireless network. The default setting is Best. For a list of all
options that you can select from in 11b mode and 11bg mode,
see Factory Default Settings on page 143.
Output Power From the drop-down list, select the transmission power of the wireless access
point: Full, Half, Quarter, Eighth, Minimum. The default is Full.
Note: Increasing the power improves performance, but if two or more wireless
access points are operating in the same area and on the same channel,
interference can occur.
Note: Make sure that you comply with the regulatory requirements for total radio
frequency (RF) output power in your country.
Table 6. Basic 2.4 GHz band wireless settings (continued)
Setting Descriptions
Installation and Basic Configuration
32
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
Figure 16.
2. Specify the wireless mode in the 5 GHz band by selecting one of the following radio buttons:
•11a. 802.11n-compliant devices can connect to the access point because they are
backward compatible.
•11na. This is the default setting. If you keep the default setting, go to Step 5.
When you change the wireless mode, the Turn Radio On check box is automatically
cleared, and all fields, buttons, and drop-down lists onscreen are masked out.
3. Turn on the radio by selecting the Turn Radio On check box. A pop-up screen displays.
Note: Under normal conditions, you want the radio to be turned on. Turning off
the radio disables access through the wireless access point, which can be
helpful for configuration, network tuning, or troubleshooting activities.
4. Click OK to confirm the change of wireless mode. The change does not take effect until you
click the Apply button after you have completed the wireless configuration.
Installation and Basic Configuration
33
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
5. Specify the remaining wireless settings as explained the following table:
Table 7. Basic 5 GHz band wireless settings
Setting Descriptions
Wireless Network Name
(SSID) Enter a 32-character (maximum) service set identifier (SSID); the characters are
case-sensitive. The default is NETGEAR_11na. The SSID assigned to a wireless
device needs to match the wireless access point’s SSID for the wireless device
to communicate with the wireless access point. If the SSIDs do not match, you
do not get a wireless connection to the wireless access point.
Wireless On-Off Status This is a nonconfigurable field that shows the status of the wireless scheduler.
For more information, see Schedule the Wireless Radios to Be Turned Off on
page 61.
Broadcast Wireless
Network Name (SSID) Select the Yes radio button to enable the wireless access point to broadcast its
SSID, allowing wireless stations that have a null (blank) SSID to adopt the
wireless access point’s SSID. Yes is the default setting. To prevent the SSID
from being broadcast, select the No radio button.
Channel / Frequency From the drop-down list, select the channel you wish to use on your wireless
LAN. The wireless channels and frequencies depend on the country and
wireless mode. The default setting is Auto.
Note: It should not be necessary to change the wireless channel unless you
experience interference (indicated by lost connections or slow data transfers). If
this happens, you might want to experiment with different channels to see which
is the best. For more information, see the guidelines following this table.
Note: For more information about available channels and frequencies, see
Technical Specifications on page 140.
11na mode only
Note: For most
networks, the default
settings work fine.
MCS Index / Data
Rate From the drop-down list, select a Modulation and Coding
Scheme (MCS) index and transmit data rate for the wireless
network. The default setting is Best. For a list of all options
that you can select from in 11na mode, see Factory Default
Settings on page 143.
Channel Width From the drop-down list, select a channel width. The options
are Dynamic 20/40 MHz, 20 MHz, and 40 MHz. The default is
Dynamic 20/40 MHz. A wider channel improves the
performance, but some legacy devices can operate only in
either 20 MHz or 40 MHz.
Guard Interval From the drop-down list, select the guard interval to protect
transmissions from interference. The default is Auto, or you
can select Long - 800 ns. Some legacy devices can operate
only with a long guard interval.
Installation and Basic Configuration
34
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
6. Click Apply to save your settings and enable the selected wireless mode.
Note: For information about how to configure advanced wireless settings,
see Configure Advanced Wireless Settings on page 107.
Test Basic Wireless Connectivity
After you have configured the wireless access point as explained in the previous sections,
test the computers on your LAN for wireless connectivity before you position and mount the
wireless access point at its permanent position.
To test for wireless connectivity:
1. Configure the 802.11b/g/n and 802.11a/n wireless adapters of your computers so that
they all have the same SSID and channel that you have configured on the wireless
access point.
2. Verify that your computers have a wireless link to the wireless access point. If you have
enabled the DHCP server on the wireless access point, verify that your computers are able
to obtain an IP address through DHCP from the wireless access point.
3. Verify network connectivity by using a browser such as Internet Explorer 6.0 or later or
Mozilla Firefox 1.5 or later to browse the Internet, or check for file and printer access on your
network.
Note: If you have trouble connecting to the wireless access point, see
Chapter 6, Troubleshooting.
11a mode only Data Rate From the drop-down list, select the transmit data rate of the
wireless network. The default setting is Best. For a list of all
options that you can select from in 11a mode, see Factory
Default Settings on page 143.
Output Power From the drop-down list, select the transmission power of the wireless access
point: Full, Half, Quarter, Eighth, Minimum. The default is Full.
Note: Increasing the power improves performance, but if two or more wireless
access points are operating in the same area and on the same channel,
interference can occur.
Note: Make sure that you comply with the regulatory requirements for total radio
frequency (RF) output power in your country.
Table 7. Basic 5 GHz band wireless settings (continued)
Setting Descriptions
Installation and Basic Configuration
35
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
NETGEAR recommends that you complete the following tasks before you deploy the
wireless access point in your network:
•Configure wireless security and other wireless features as described in Chapter 3,
Wireless Configuration and Security.
•Configure any additional features that you might need as described in Chapter 4,
Management and Monitoring, and Chapter 5, Advanced Configuration.
After you have completed the configuration of the wireless access point, you can reconfigure
the computer that you used for this process back to its original TCP/IP settings.
Mount the Wireless Access Point
•Ceiling Installation
•Wall Installation
•Desk Installation
Note: NETGEAR recommends that you review the information in Wireless
Equipment Placement and Range Guidelines on page 17 before you
mount the wireless access point at its permanent position.
Note: The figures in the procedures in this section do not show the
WNDAP660 wireless access point. However, the procedures are
generic and do apply to the WNDAP660 wireless access point.

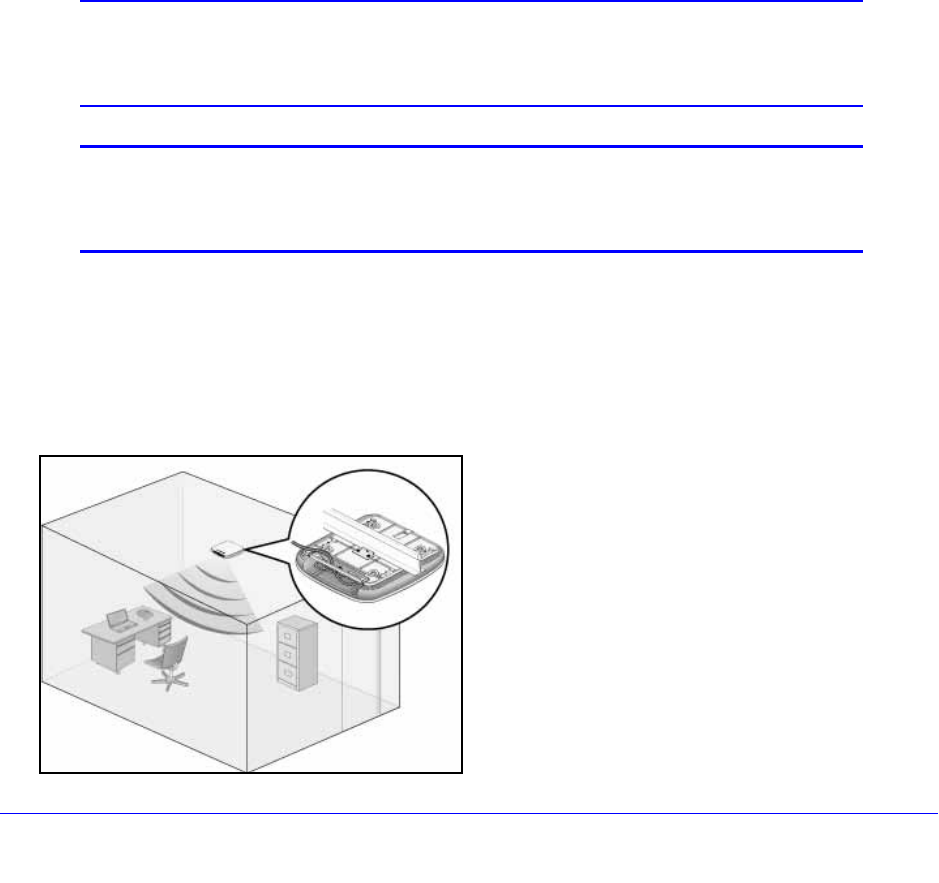

Ceiling Installation
The best location for ceiling installation is at the center of your wireless coverage area, and
within line of sight of all mobile devices. Make sure the top (the dome side) of the wireless
access point is directed toward the users and not the ceiling.
Installation and Basic Configuration
36
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
Note: Do not place the wireless access point in a false ceiling space facing up.
To install the wireless access point using the ceiling installation kit:

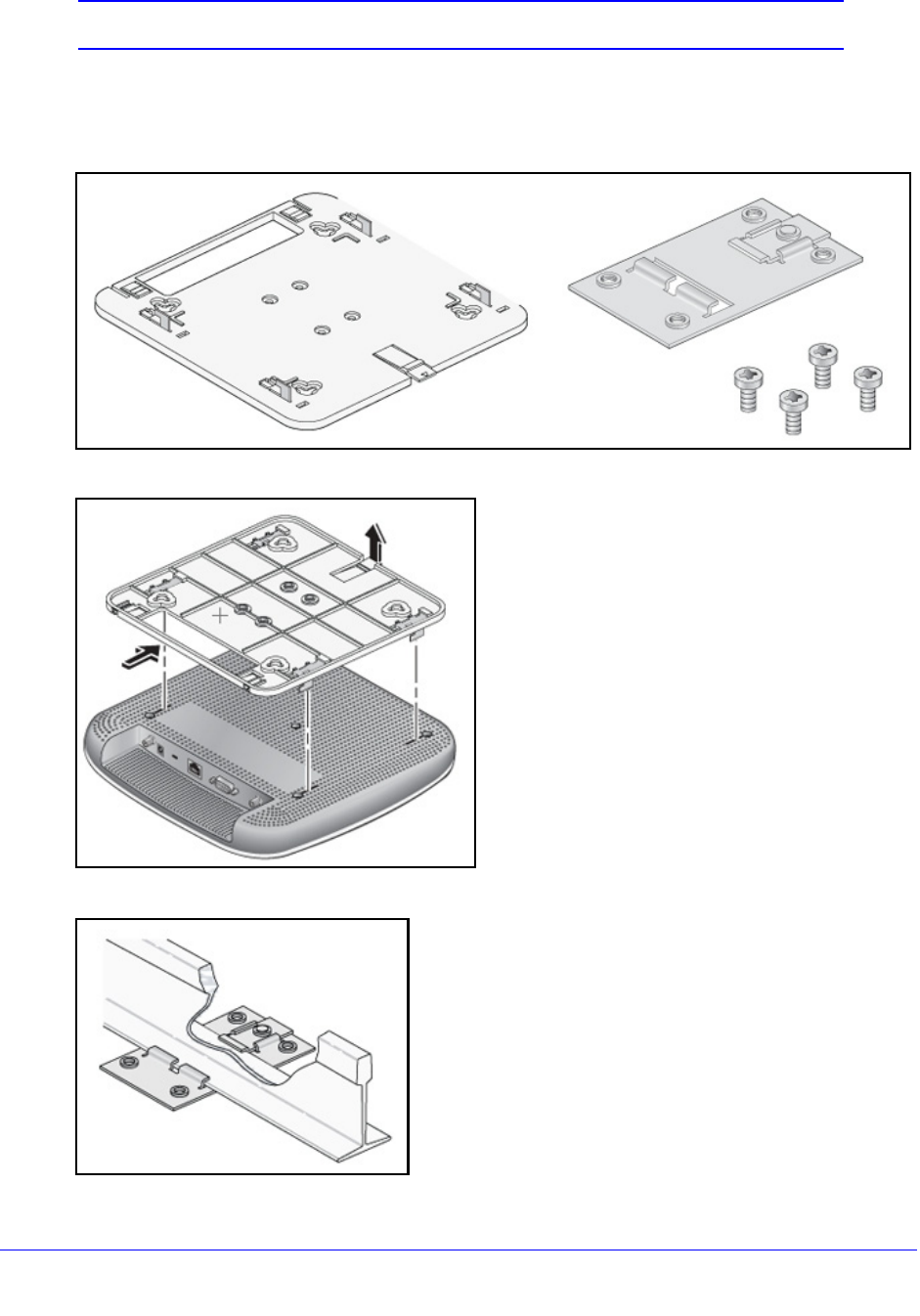

1. Verify the package contents of the ceiling installation kit.
2. Detach the mounting plate from the wireless access point.
3. Attach the clamp to the ceiling rail.
Mounting plate
Clamp with screws
Installation and Basic Configuration
37
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660

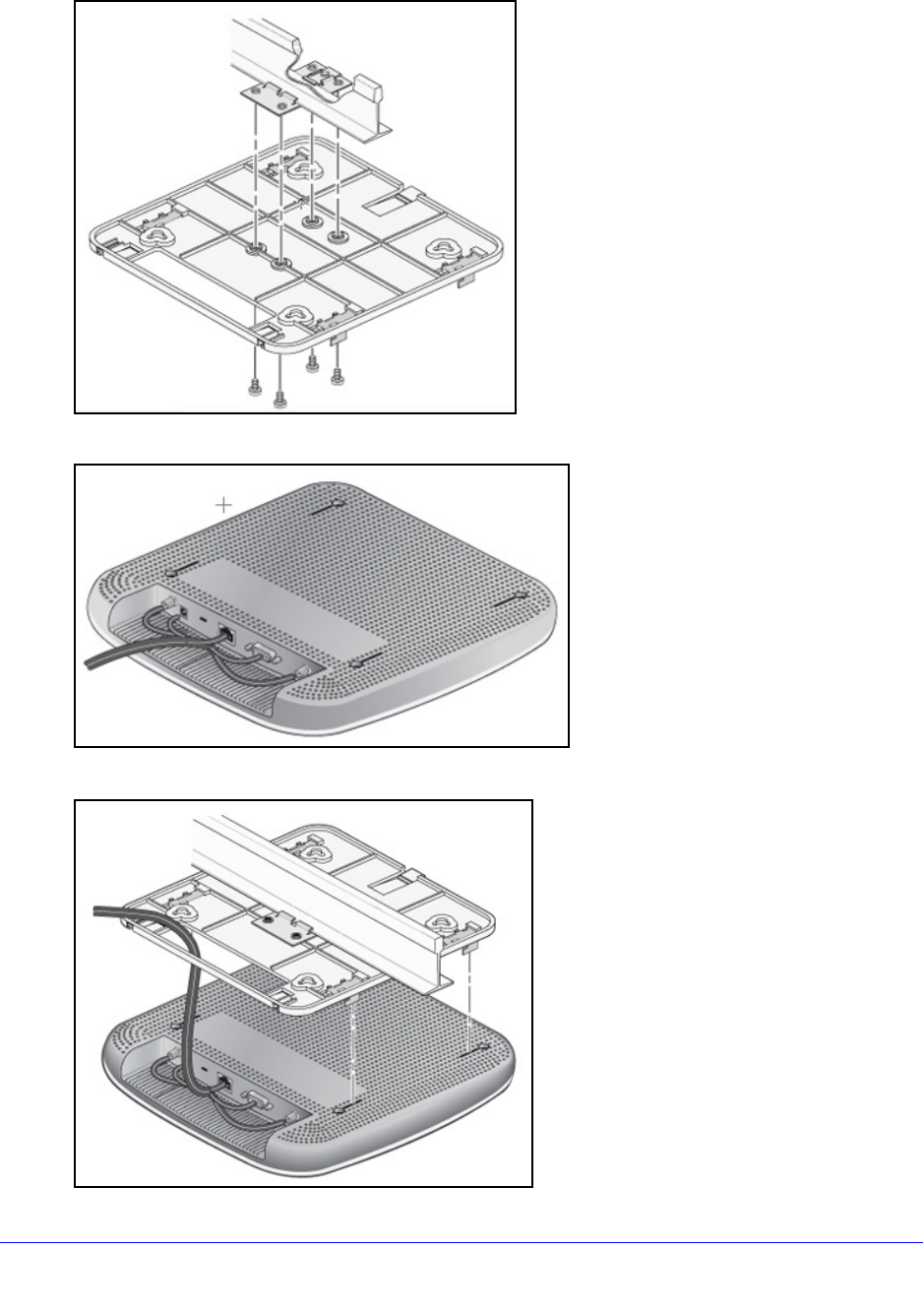

4. Attach the mounting plate to the clamp.
5. Connect the cables to the wireless access point.
6. Attach the wireless access point to the mounting plate.
Installation and Basic Configuration
38
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660

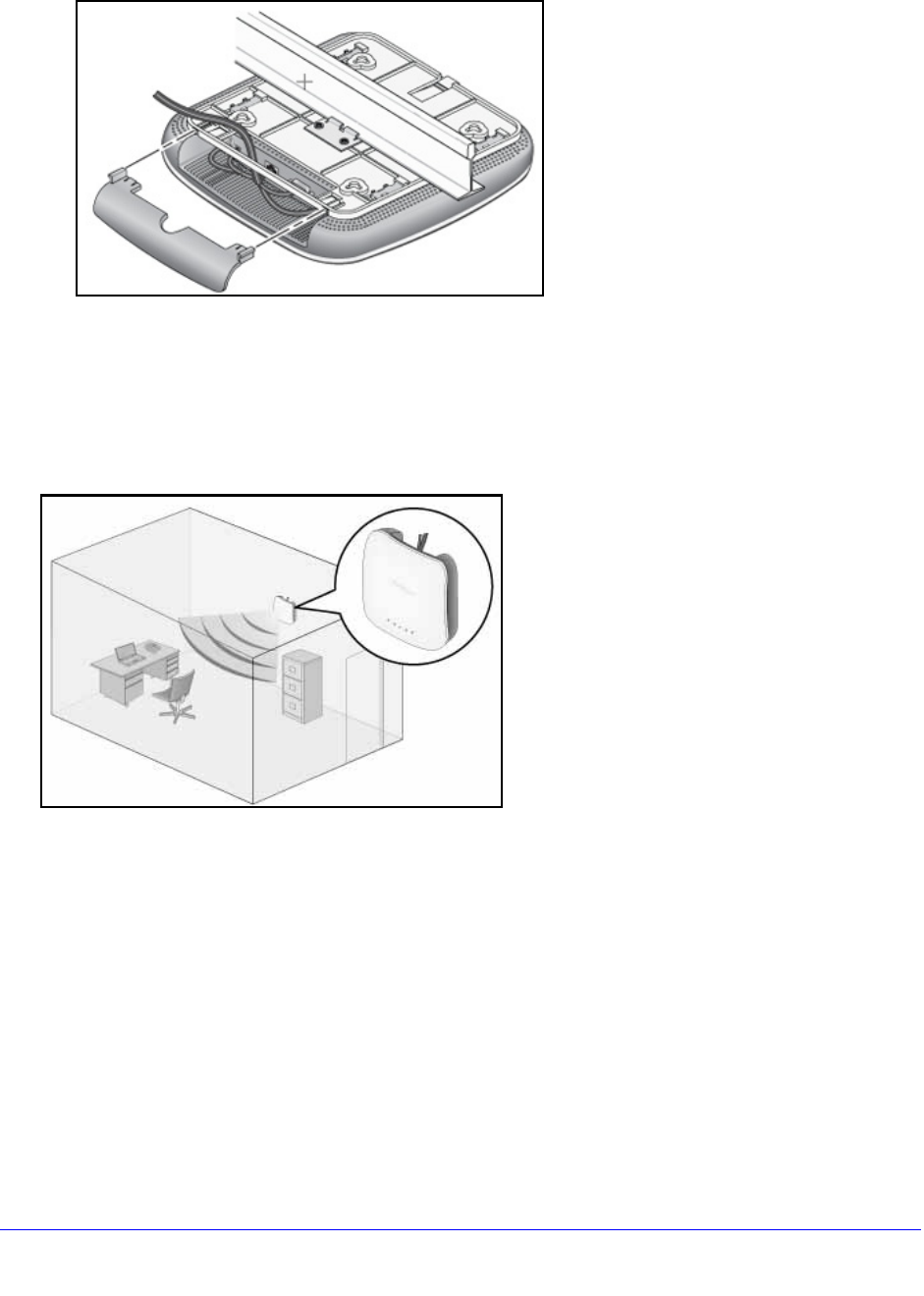

7. Attach the cover to the wireless access point.
Wall Installation
The best location for wall installation is at the center of your wireless coverage area, and
within line of sight of all mobile devices. Make sure the top (the dome side) of the wireless
access point is directed toward the users and not the wall.
To install the wireless access point using the wall installation kit:
1. Verify the package contents of the wall installation kit.
Installation and Basic Configuration
39
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
2. Detach the mounting plate from the wireless access point.
3. Attach the mounting plate to the wall.
4. Connect the cables to the wireless access point.
Mounting plate
Screws and
wall supports
Installation and Basic Configuration
40
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660

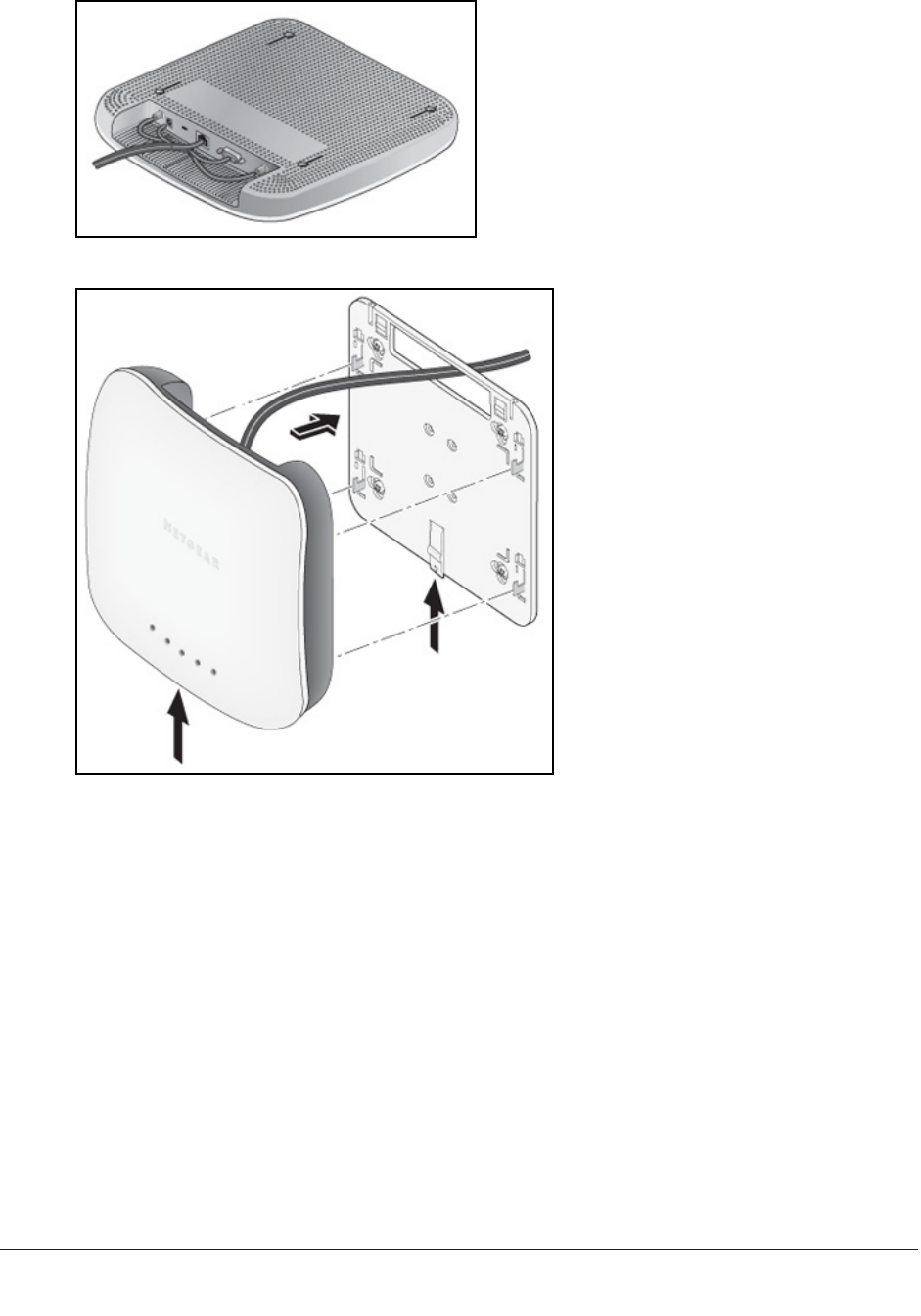

5. Attach the wireless access point to the mounting plate.

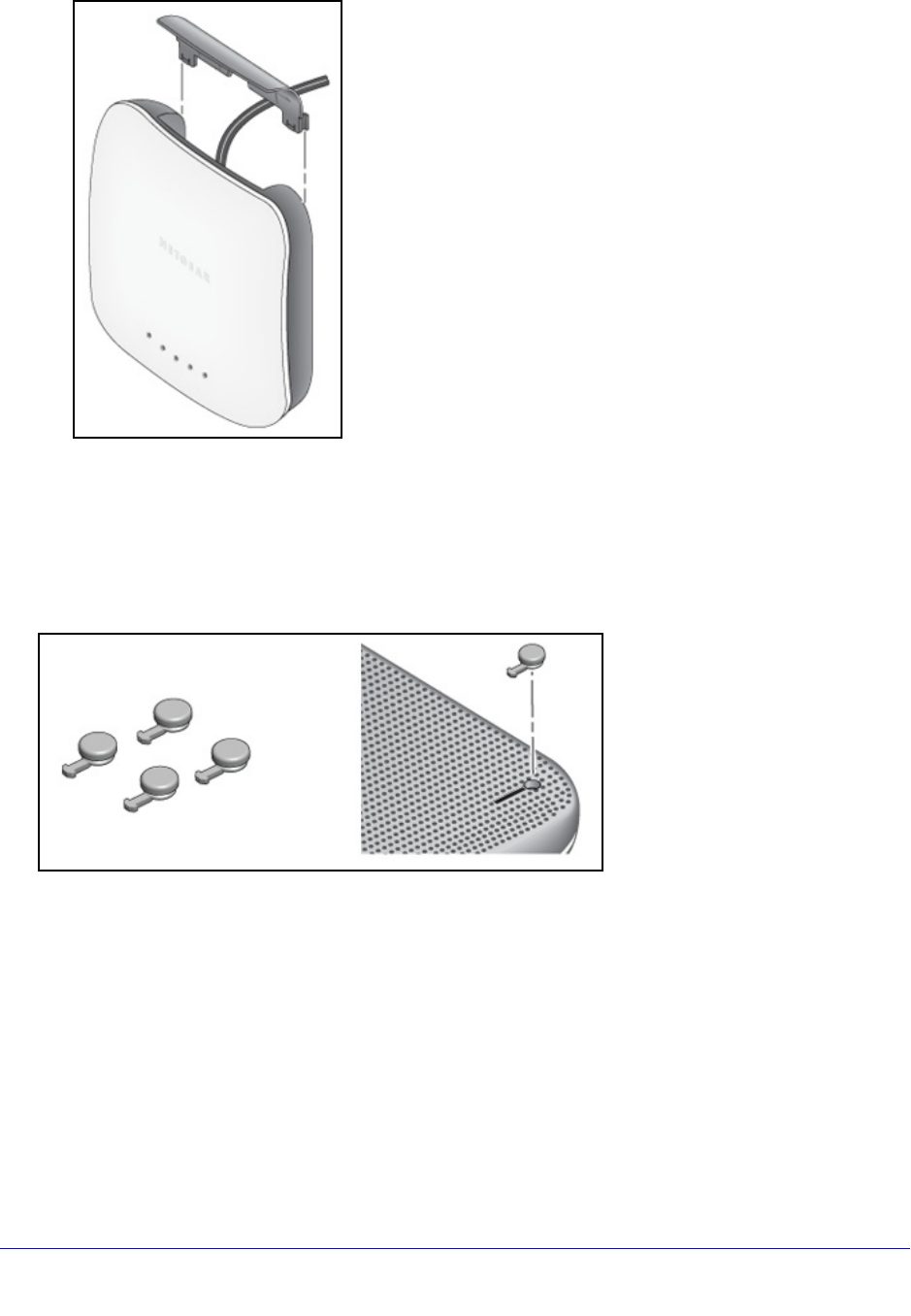

6. Attach the cover to the wireless access point.
Installation and Basic Configuration
41
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
Desk Installation
To install the wireless access point on a desk:
Attach the rubber feet to the holes in the bottom of the wireless access point.
Rubber feet
42
3
3. Wireless Configuration and Security
This chapter describes how to configure the wireless features of the wireless access point. The
chapter includes the following sections:
•Wireless Data Security Options
•Security Profiles
•Configure RADIUS Server Settings
•Restrict Wireless Access by MAC Address
•Schedule the Wireless Radios to Be Turned Off
•Configure Basic Wireless Quality of Service
Before you set up wireless security and additional wireless features that are described in this
chapter, connect the wireless access point, get the Internet connection working, and
configure the 802.11b, 11bg, or 11ng wireless settings and the 802.11a or 11na wireless
settings as described in Chapter 2, Installation and Basic Configuration. The wireless access
point functions with an Ethernet LAN connection. Make sure that you have verified wireless
connectivity before you set up wireless security and additional wireless features.
WARNING:
If you are configuring the wireless access point from a wireless
computer and you change the wireless access point’s SSID,
channel, or wireless security settings, you lose your wireless
connection when you click Apply. You then need to change the
wireless settings of your computer to match the wireless access
point’s new settings.
Wireless Data Security Options
Indoors, computers can connect over 802.11n wireless networks at a maximum range of
300 feet. Typically, a wireless access point inside a building works best with devices within a
100-foot radius. Such distances can allow for others outside your immediate area to access
your network.
Wireless Configuration and Security
43
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
Unlike wired network data, your wireless data transmissions can extend beyond your walls
and can be received by anyone with a compatible adapter. For this reason, use the security
features of your wireless equipment. The wireless access point provides highly effective
security features that are covered in detail in this chapter. Deploy the security features
appropriate to your needs.
Figure 17.
There are several ways you can enhance the security of your wireless network:
•Use multiple BSSIDs combined with VLANs. You can configure combinations of
VLANS and BSSIDs (security profiles) with stronger or less restrictive access security
according to your requirements. For example, visitors could be given wireless Internet
access but be excluded from any access to your internal network. For information about
how to configure BSSIDs, see Configure and Enable Security Profiles on page 48.
•Restrict access based by MAC address. You can allow only trusted devices to connect
so that unknown devices cannot wirelessly connect to the wireless access point.
Restricting access by MAC address adds an obstacle against unwanted access to your
network, but the data broadcast over the wireless link is fully exposed. For information
about how to restrict access by MAC address, see Restrict Wireless Access by MAC
Address on page 60.
•Turn off the broadcast of the wireless network name (SSID). If you disable broadcast
of the SSID, only devices that have the correct SSID can connect. This nullifies the
wireless network discovery feature of some products, such as Windows XP, but the data
is still exposed. For information about how to turn off broadcast of the SSID, see
Configure and Enable Security Profiles on page 48.
•WEP. Wired Equivalent Privacy (WEP) data encryption provides data security. WEP
shared key authentication and WEP data encryption block all but the most determined
eavesdropper. This data encryption mode has been superseded by WPA-PSK and
WPA2-PSK. For information about how to configure WEP, see Configure and Enable
Security Profiles on page 48 and Configure an Open System with WEP or Shared Key
with WEP on page 53.
•Legacy 802.1X. Legacy 802.1X uses RADIUS-based 802.1x authentication but no data
encryption. For information about how to configure Legacy 802.1X, see Configure and
Enable Security Profiles on page 48 and Configure Legacy 802.1X on page 54.
Wireless Configuration and Security
44
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
•WPA and WPA-PSK (TKIP). Wi-Fi Protected Access (WPA) data encryption provides
strong data security with Temporal Key Integrity Protocol (TKIP) encryption. The very
strong authentication along with dynamic per-frame rekeying of WPA makes it virtually
impossible to compromise.
WPA uses RADIUS-based 802.1x authentication; for more information, see Configure
and Enable Security Profiles on page 48 and Configure WPA with RADIUS, WPA2 with
RADIUS, and WPA & WPA2 with RADIUS on page 55.
WPA-PSK uses a pre-shared key (PSK) for authentication; for more information, see
Configure and Enable Security Profiles on page 48 and Configure WPA-PSK,
WPA2-PSK, and WPA-PSK & WPA2-PSK on page 56.
•WPA2 and WPA2-PSK (AES). Wi-Fi Protected Access version 2 (WPA2) data encryption
provides strong data security with Advanced Encryption Standard (AES) encryption. The
very strong authentication along with dynamic per-frame rekeying of WPA2 makes it
virtually impossible to compromise.
WPA2 uses RADIUS-based 802.1x authentication; for more information, see Configure
and Enable Security Profiles on page 48 and Configure WPA with RADIUS, WPA2 with
RADIUS, and WPA & WPA2 with RADIUS on page 55.
WPA2-PSK uses a pre-shared key (PSK) for authentication; for more information, see
Configure and Enable Security Profiles on page 48 and Configure WPA-PSK,
WPA2-PSK, and WPA-PSK & WPA2-PSK on page 56.
•WPA & WPA2 and WPA-PSK & WPA2-PSK mixed modes. These modes support data
encryption either with both WPA and WPA2 clients or with both WPA-PSK and
WPA2-PSK clients and provide the most reliable security.
WPA & WPA2 uses RADIUS-based 802.1x authentication; for more information, see
Configure and Enable Security Profiles on page 48 and Configure WPA with RADIUS,
WPA2 with RADIUS, and WPA & WPA2 with RADIUS on page 55.
WPA-PSK & WPA2-PSK uses a pre-shared key (PSK) for authentication; for more
information, see Configure and Enable Security Profiles on page 48 and Configure
WPA-PSK, WPA2-PSK, and WPA-PSK & WPA2-PSK on page 56.
Security Profiles
•Before You Change the SSID, WEP, and WPA Settings
•Configure and Enable Security Profiles
Security profiles let you configure unique security settings for each SSID on each radio of the
wireless access point. For each radio, the wireless access point supports up to eight security
profiles (BSSIDs) that you can configure on the individual Edit Wireless Network screens that
are accessible from the Edit Security Profile screen (see Configure and Enable Security
Profiles on page 48).
Wireless Configuration and Security
45
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
To set up a security profile, select its network authentication type, data encryption, wireless
client security separation, and VLAN ID:
•Network authentication
The wireless access point is set by default as an open system with no authentication.
When you configure network authentication, bear in mind that not all wireless adapters
support WPA or WPA2. Windows XP, Windows 2000 with Service Pack 3, and Windows
Vista do include the client software that supports WPA. However, client software is
required on the client. Consult the product documentation for your wireless adapter and
WPA or WPA2 client software for instructions about how to configure WPA2 settings.
For information about the types of network authentication that the wireless access point
supports, see Configure and Enable Security Profiles on page 48.
•Data encryption
Select the data encryption that you want to use. The available options depend on the
network authentication setting described earlier (otherwise, the default is None). The data
encryption settings are explained in Configure and Enable Security Profiles on page 48.
•Wireless client security separation
If this feature is enabled, the associated wireless clients (using the same SSID) are not
able to communicate with each other. This feature is useful for hotspots and other public
access situations. By default, wireless client separation is disabled. For more information,
see Configure and Enable Security Profiles on page 48.
•VLAN ID
If this feature is enabled and if the network devices (hubs and switches) on your LAN
support the VLAN (802.1Q) standard, the default VLAN ID for the wireless access point is
associated with each profile. The default VLAN ID needs to match the IDs that are used
by the other network devices. For more information, see Configure and Enable Security
Profiles on page 48.
Some concepts and guidelines regarding the SSID are explained in the following list:
•A basic service set (BSS) is a group of wireless stations and a single wireless access
point, all using the same security profile or service set identifier (BSSID). The actual
identifier in the BSSID is the MAC address of the wireless radio. (A wireless radio can
have multiple MAC addresses, one for each security profile.)
•An extended service set (ESS) is a group of wireless stations and multiple wireless
access points, all using the same identifier (ESSID).
•Different wireless access points within an ESS can use different channels. To reduce
interference, adjacent wireless access points should use different channels.
•Roaming is the ability of wireless stations to connect wirelessly when they physically
move from one BSS to another one within the same ESS. The wireless station
automatically changes to the wireless access point with the least interference or best
performance.
Wireless Configuration and Security
46
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
Before You Change the SSID, WEP, and WPA Settings
For a new wireless network, print or copy the following forms and fill in the settings. For an
existing wireless network, the network administrator can provide this information. Be sure to
set the country or region correctly as the first step.
Form for 802.11b/bg/ng Modes
Print this page and store the security information in a safe place:
•SSID: The service set identifier (SSID) identifies the wireless local area network. You can
customize it by using up to 32 alphanumeric characters. Write your SSID on the line.
SSID: ___________________________________
The SSID in the wireless access point is the SSID you configure on the wireless adapter
card. All wireless nodes in the same network need to be configured with the same SSID.
•WEP key size and authentication
Choose the key size by circling one: 64, 128, or 152 bits.
Choose the authentication type by circling one: open system or shared key.
Passphrase: ___________________________________
Note: If you select shared key, the other devices in the network cannot connect unless
they are set to shared key and have the same keys in the same positions as those in the
wireless access point.
•WPA-PSK (pre-shared key) and WPA2-PSK
Record the WPA-PSK passphrase:
WPA-PSK passphrase: ________________________________
Record the WPA2-PSK passphrase:
WPA2-PSK passphrase: ________________________________
•WPA RADIUS settings
For WPA, record the following settings for the primary and secondary RADIUS servers:
Server name/IP address: Primary ________________ Secondary _________________
Port: ___________________________________
Shared secret: ___________________________________
•WPA2 RADIUS settings
For WPA2, record the following settings for the primary and secondary RADIUS servers:
Server name/IP address: Primary ________________ Secondary _________________
Port: ___________________________________
Shared secret: ___________________________________
------------------------------------------------End of Form--------------------------------------------------------
Wireless Configuration and Security
47
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
Form for 802.11a/an Modes
Print this page and store the security information in a safe place:
•SSID: The service set identifier (SSID) identifies the wireless local area network. You can
customize it by using up to 32 alphanumeric characters. Write your SSID on the line.
SSID: ___________________________________
The SSID in the wireless access point is the SSID you configure on the wireless adapter
card. All wireless nodes in the same network need to be configured with the same SSID.
•WEP key size and authentication
Choose the key size by circling one: 64, 128, or 152 bits.
Choose the authentication type by circling one: open system or shared key.
Passphrase: ___________________________________
Note: If you select shared key, the other devices in the network cannot connect unless
they are set to shared key and have the same keys in the same positions as those in the
wireless access point.
•WPA-PSK (pre-shared key) and WPA2-PSK
Record the WPA-PSK passphrase:
WPA-PSK passphrase: ________________________________
Record the WPA2-PSK passphrase:
WPA2-PSK passphrase: ________________________________
•WPA RADIUS settings
For WPA, record the following settings for the primary and secondary RADIUS servers:
Server name/IP address: Primary ________________ Secondary _________________
Port: ___________________________________
Shared secret: ___________________________________
•WPA2 RADIUS settings
For WPA2, record the following settings for the primary and secondary RADIUS servers:
Server name/IP address: Primary ________________ Secondary _________________
Port: ___________________________________
Shared secret: ___________________________________
------------------------------------------------End of Form--------------------------------------------------------
Wireless Configuration and Security
48
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
Configure and Enable Security Profiles
To configure and enable a security profile, you need to enable the associated radio:
•For 802.11b/bg/ng modes, the 2.4 GHz radio needs to be enabled (see Configure
802.11b/bg/ng Wireless Settings on page 28).
•For 802.11a/na modes, the 5 GHz radio needs to be enabled. (see Configure 802.11a/na
Wireless Settings on page 31).
Both radios can function concurrently.
To configure and enable a security profile:
1. Select Configuration > Security > Profile Settings. The Profile Settings screen for the
802.11b/bg/ng modes displays, showing eight wireless security profiles. (If the 2.4 GHz
radio is disabled, the Enable column is masked out.)
Figure 18.
2. Optional: To display the Profile Settings screen for the 802.11a/na modes, click the
802.11a/na tab. This screen also shows eight wireless security profiles. (If the 5 GHz radio is
disabled, the Enable column is masked out.)
Wireless Configuration and Security
49
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660

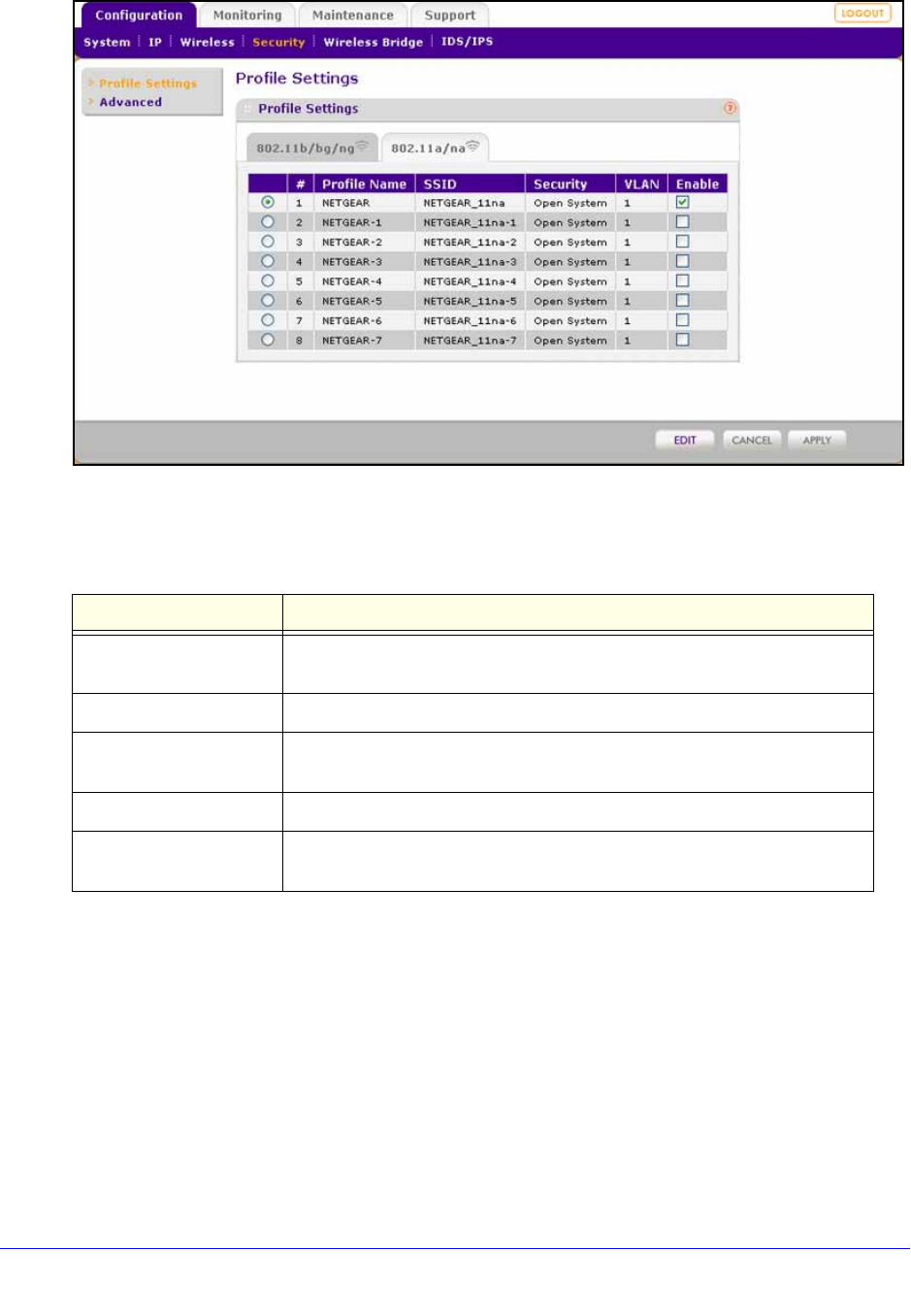

Figure 19.
The following table explains the fields of the Profile Settings screen:
3. To configure a wireless security profile, select the corresponding radio button to the left of
the wireless security profile. The Edit Security Profile screen opens for the selected wireless
security profile (see the following figure). The screen has three sections:
•Profile Definition (see Step 4)
•Authentication Settings (see Step 5)
•QoS Policies (see Step 6)
Table 8. Profile settings
Setting Description
Profile Name The unique name of the wireless security profile that makes it easy to
recognize the profile.
SSID The wireless network name (SSID) for the wireless security profile.
Security The configured wireless authentication method for the wireless security
profile.
VLAN The default VLAN ID that is associated with the wireless security profile.
Enable The check box that lets you select the wireless security profile so you can
enable it by clicking Apply.
Wireless Configuration and Security
50
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660

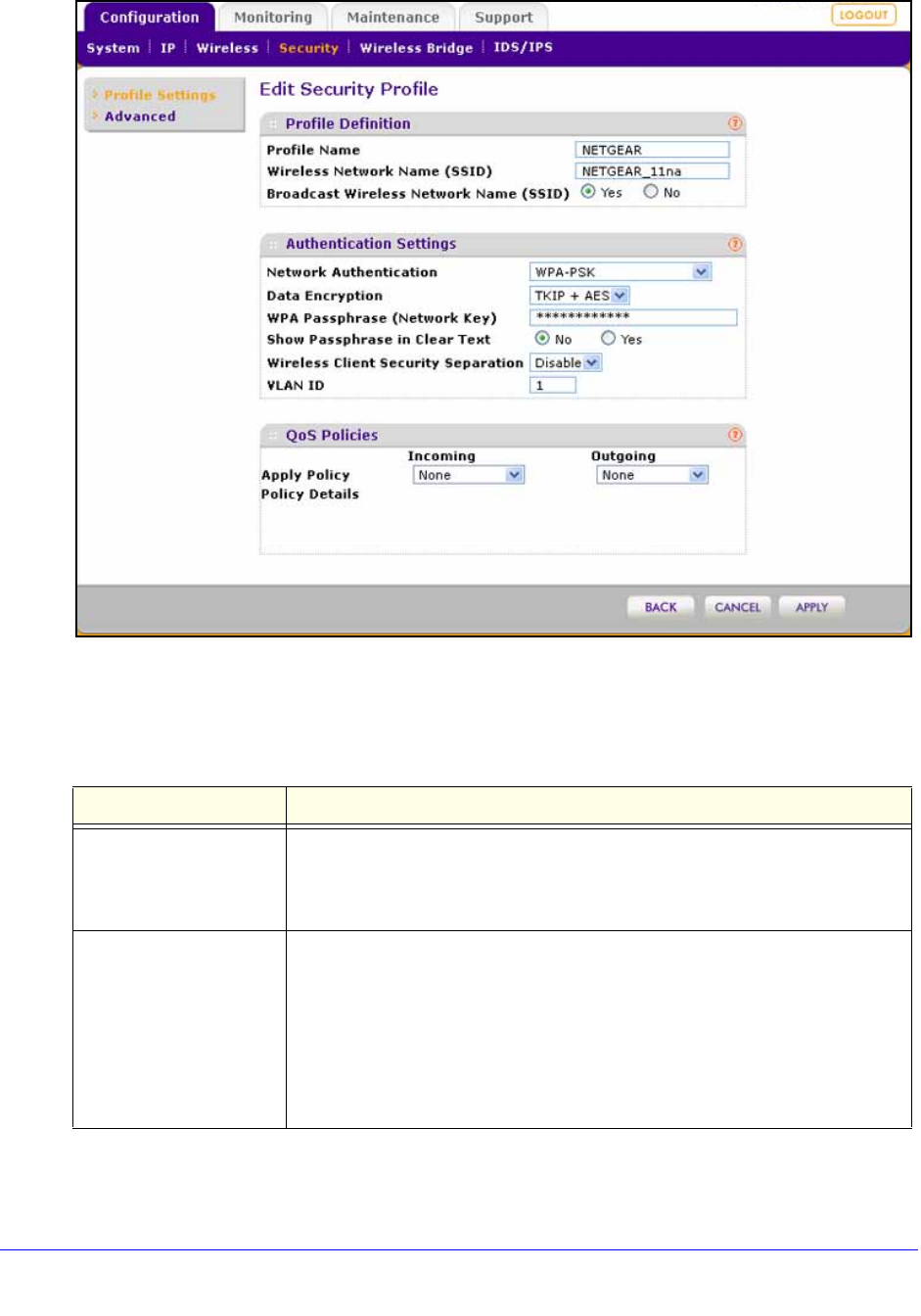

Figure 20.
4. Specify the settings of the Profile Definition section of the Edit Security Profile screen as
explained in the following table:
Table 9. Profile definition settings
Setting Description
Profile Name Enter a unique name of the wireless security profile that makes it easy to
recognize the profile. The default names are NETGEAR, NETGEAR-1,
NETGEAR-2, and so on, through NETGEAR-7. You can enter a value of up to
32 alphanumeric characters.
Wireless Network Name
(SSID) The wireless network name (SSID) for the wireless security profile. The default
names depend on the selected radio band:
•802.11b/bg/ng. The default names are NETGEAR_11ng,
NETGEAR_11ng-1, NETGEAR_11ng-2, and so on, through
NETGEAR_11ng-7 for the eighth profile.
•802.11a/na. The default names are NETGEAR_11na, NETGEAR_11na-1,
NETGEAR_11na-2, and so on, through NETGEAR_11na-7 for the eighth
profile.
Wireless Configuration and Security
51
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
5. Specify the settings of the Authentication Settings section of the Edit Security Profile screen
as explained in the following table.
The wireless access point is set by default as an open system with no authentication.
When you configure network authentication, bear in mind the following:
•If you are using access point mode (which is the default mode if you did not enable
wireless bridging), then all options are available. In other modes such as bridge
mode, some options might be unavailable.
•Not all wireless adapters support WPA or WPA2. Windows XP, Windows 2000 with
Service Pack 3, and Windows Vista do include the client software that supports WPA.
However, client software is required on the client. Consult the product documentation
for your wireless adapter and WPA or WPA2 client software for instructions about how
to configure WPA2 settings.
Broadcast Wireless
Network Name (SSID) Select the Yes radio button to enable the wireless access point to broadcast its
SSID, allowing wireless stations that have a null (blank) SSID to adopt the
wireless access point’s SSID. Yes is the default setting. To prevent the SSID
from being broadcast, select the No radio button.
Table 10. Profile authentication settings
Setting Description
Network Authentication
and Data Encryption
Note: The data
encryption fields that
display onscreen
depend on your
selection from the
Network Authentication
drop-down list.
Open System This is the default setting. Use an open system without any
encryption or with WEP encryption.
See Configure an Open System with WEP or Shared Key
with WEP on page 53.
Shared Key Use WEP encryption and enter at least one shared key.
See Configure an Open System with WEP or Shared Key
with WEP on page 53.
Legacy 802.1X Configure the RADIUS server settings. Encryption is not
supported.
See Configure Legacy 802.1X on page 54.
WPA with Radius Configure the RADIUS server settings and select TKIP or
TKIP + AES encryption.
See Configure WPA with RADIUS, WPA2 with RADIUS,
and WPA & WPA2 with RADIUS on page 55.
WPA2 with Radius Configure the RADIUS server settings and select AES or
TKIP + AES encryption.
See Configure WPA with RADIUS, WPA2 with RADIUS,
and WPA & WPA2 with RADIUS on page 55.
Note: Select this setting only if all clients support WPA2.
Table 9. Profile definition settings (continued)
Setting Description
Wireless Configuration and Security
52
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
6. Optional: In the QoS Policies section of the screen, select a QoS policy from the Incoming
drop-down list, Outgoing drop-down list, or both. Depending on your selection, the policy is
applied to incoming packets, outgoing packets, or both incoming and outgoing packets, and
is displayed in the Policy Details fields.
Note: To be able to select a QoS policy, you first need to have configured one
or more policies (see Configure Quality of Service Policies on page 113).
7. Click Apply to save your settings.
Network Authentication
and Data Encryption
(continued)
WPA & WPA2 with
Radius Configure the RADIUS server setting. TKIP + AES
encryption is the default encryption.
See Configure WPA with RADIUS, WPA2 with RADIUS,
and WPA & WPA2 with RADIUS on page 55.
Note: This setting allows clients to connect through either
WPA with TKIP or WPA2 with AES.
WPA-PSK Enter a WPA passphrase and select TKIP or TKIP + AES
encryption.
See Configure WPA-PSK, WPA2-PSK, and WPA-PSK &
WPA2-PSK on page 56.
WPA2-PSK Enter a WPA passphrase and select AES or TKIP + AES
encryption.
See Configure WPA-PSK, WPA2-PSK, and WPA-PSK &
WPA2-PSK on page 56.
Note: Select this setting only if all clients support WPA2.
WPA-PSK &
WPA2-PSK Enter a WPA passphrase. TKIP + AES encryption is the
default encryption.
See Configure WPA-PSK, WPA2-PSK, and WPA-PSK &
WPA2-PSK on page 56.
Note: This setting allows clients to connect through either
WPA with TKIP or WPA2 with AES.
Wireless Client Security
Separation If you enable wireless client security separation by selecting Enable from the
drop-down list, the associated wireless clients cannot communicate with each
other. By default, Disable is selected from the drop-down list. This feature is
intended for hotspots and other public access situations.
VLAN ID Enter the VLAN ID to be associated with this wireless security profile. The
default VLAN ID is 1. The VLAN ID needs to match the VLAN ID that is used by
the other devices in your network.
Table 10. Profile authentication settings (continued)
Setting Description
Wireless Configuration and Security
53
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
WARNING:
If you use a wireless computer to configure wireless security settings,
you are disconnected when you click Apply. Reconfigure your
wireless computer to match the new settings, or access the wireless
access point from a wired computer to make further changes.
To change the QoS policy selection on the Edit Security Profile screen:
1. From the drop-down list from which you want select another QoS policy, select None.
2. Click Apply to remove the old policy from the security profile.
3. Select the new QoS policy from the same drop-down list.
4. Click Apply to save your settings.
Configure an Open System with WEP or Shared Key with WEP
Whether you use an open system with WEP or shared key with WEP, configure the settings
that are explained in the following table.
•Open system with WEP
An open system can function without any encryption or with pre-shared WEP key
encryption without RADIUS authentication. The security level of static WEP is not very
strong.
When you select Open System from the Network Authentication drop-down list and any
selection other than None from the Data Encryption drop-down list, the screen expands to
display the WEP fields:

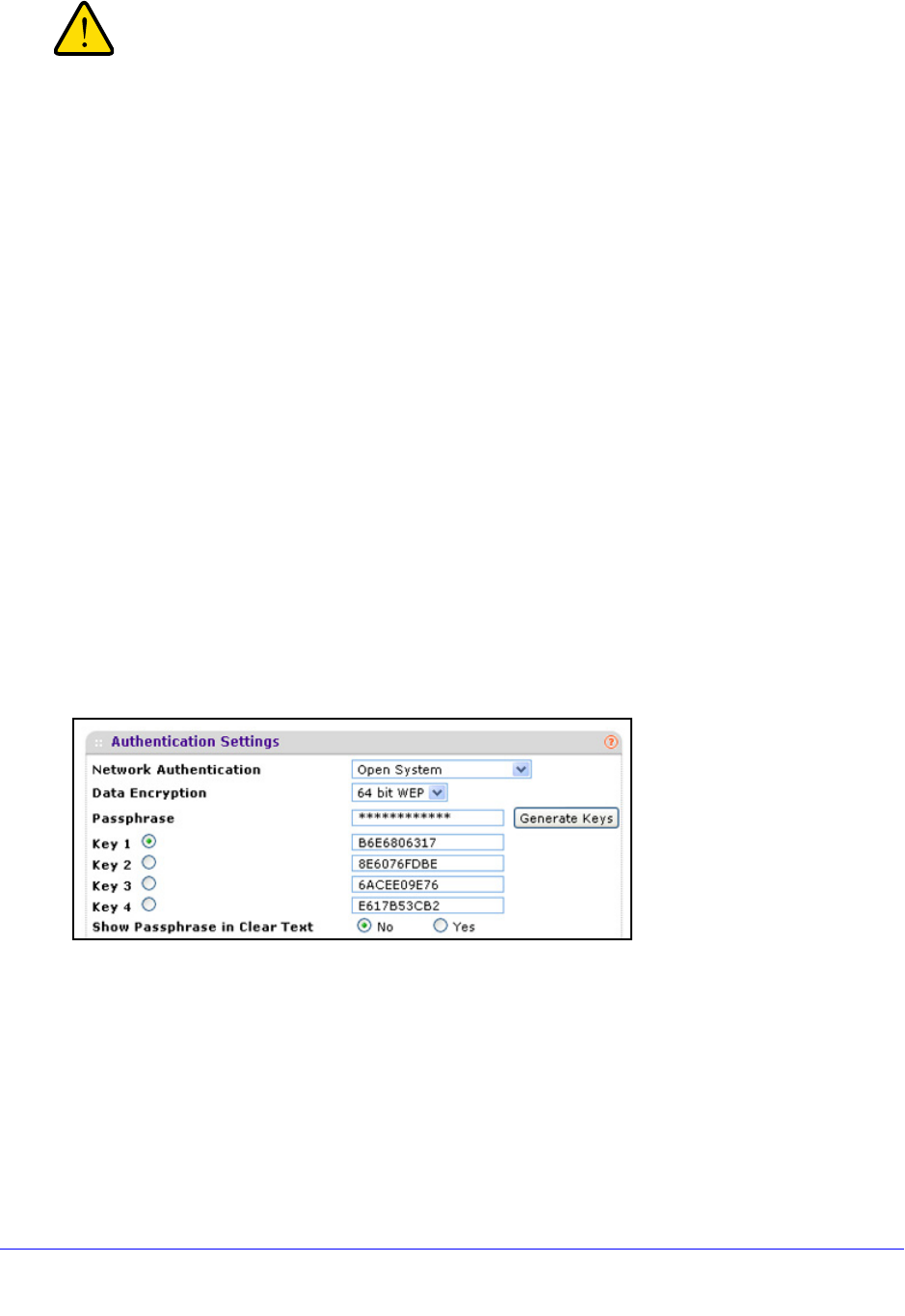

Figure 21.
•Shared key with WEP
Shared key provides pre-shared WEP key encryption without RADIUS authentication.
The security level of static WEP is not very strong. When you select Shared Key from the
Network Authentication drop-down list, the screen expands to display the WEP fields:
Wireless Configuration and Security
54
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
Figure 22.
Configure Legacy 802.1X
To use legacy 802.1X security, you need to define RADIUS server settings. For information
about RADIUS servers, see Configure RADIUS Server Settings on page 57.
When you select Legacy 802.1X from the Network Authentication drop-down list, the Data
Encryption drop-down list is automatically set to None. To use legacy 802.1X security, you
need to define the RADIUS servers only.
Table 11. WEP encryption settings
Setting Descriptions
Data Encryption Select the encryption key size from the drop-down list:
•64-bit WEP. Standard WEP encryption, using 40/64-bit encryption.
•128-bit WEP. Standard WEP encryption, using 104/128-bit encryption.
•152-bit WEP. Proprietary WEP encryption mode, using 128+24 bit encryption. This
mode functions only with other wireless stations that support this mode.
Passphrase Enter a passphrase. The passphrase length needs to be between 8 and 63 characters
(inclusive). The secret passphrase allows you to generate the keys automatically by
clicking Generate Keys. The default passphrase is sharedsecret.
You can display the actual passphrase by selecting the Show Passphrase in Clear Text
Yes radio button.
Encryption Key
(Key1–Key4) Either enter a key manually or allow the key to be automatically generated by clicking
Generate Keys.
• For ASCII format, depending on the key size selected, the manually entered
encryption key needs to have a length of 5 (64-bit WEP), 13 (128-bit WEP), or
16 characters (152-bit WEP).
• For HEX format, depending on the key size selected, the manually entered or
automatically generated encryption key needs to have a length of 10 (64-bit WEP),
26 (128-bit WEP), or 32 (152-bit WEP) characters.
Note: Wireless stations need to use the key to access the wireless access point.
Show Passphrase in
Clear Text Select the Yes radio button to display the actual passphrase in the Passphrase field. The
default setting is No.
Wireless Configuration and Security
55
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660

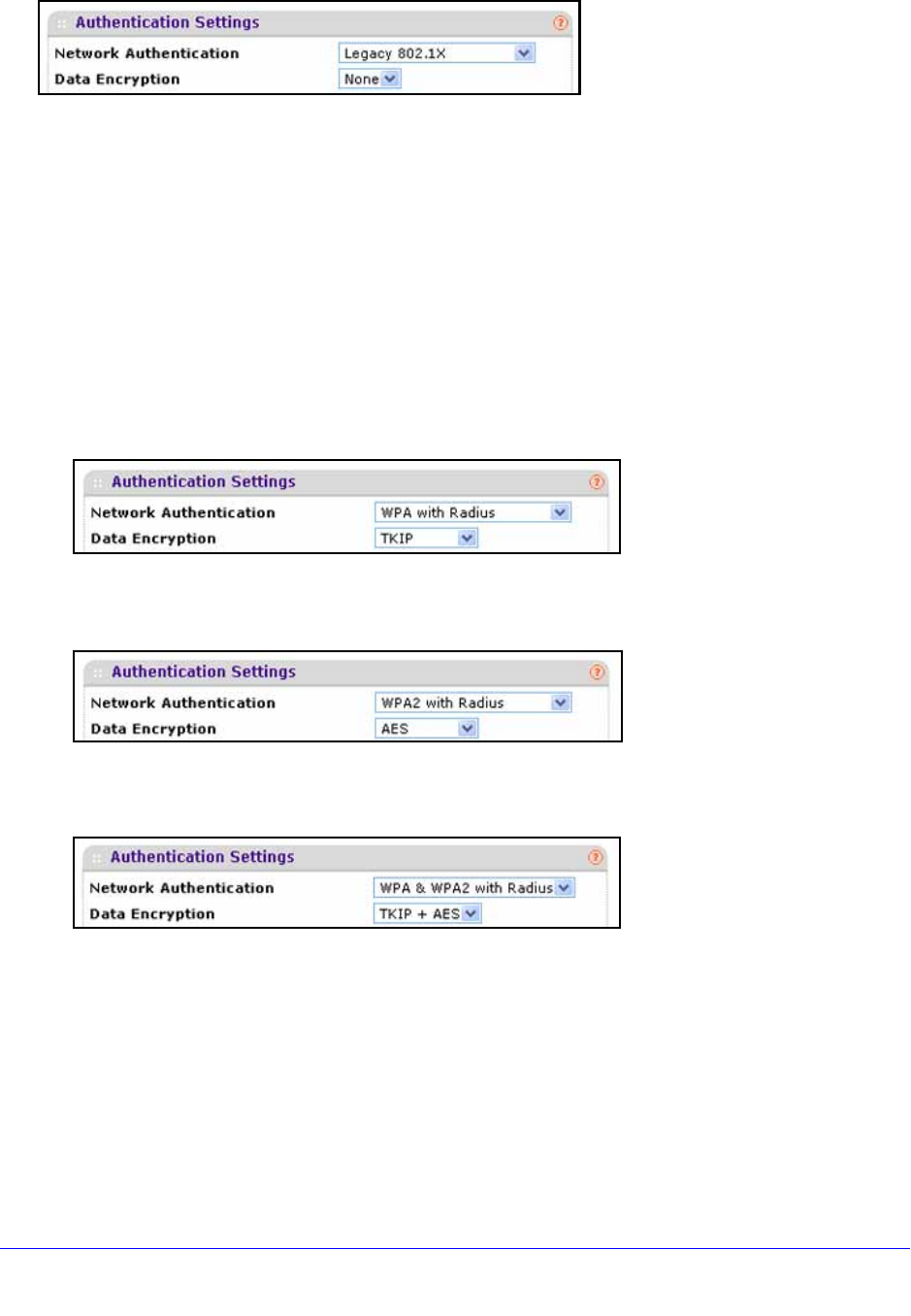

Figure 23.
Configure WPA with RADIUS, WPA2 with RADIUS, and WPA & WPA2 with
RADIUS
WPA, WPA2, and WPA & WPA2 security requires RADIUS-based 802.1x authentication, so
you also need to define RADIUS server settings. For information about RADIUS servers, see
Configure RADIUS Server Settings on page 57.
The selections that are available from the Data Encryption drop-down list depend on the type
of WPA authentication that you select from the Network Authentication drop-down list and are
shown in the table that follows the figures.
•WPA with RADIUS
Figure 24.
•WPA2 with RADIUS
Figure 25.
•WPA & WPA2 with RADIUS
Figure 26.
Wireless Configuration and Security
56
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
Configure WPA-PSK, WPA2-PSK, and WPA-PSK & WPA2-PSK
WPA-PSK, WPA-PSK, and WPA-PSK & WPA2-PSK authentication use a pre-shared key
(PSK, also called a passphrase or a network key) and do not require authentication from a
RADIUS server.
The selections that are available from the Data Encryption drop-down list depend on the type
of WPA-PSK authentication that you select from the Network Authentication drop-down list
and are shown in the table that follows the figures.

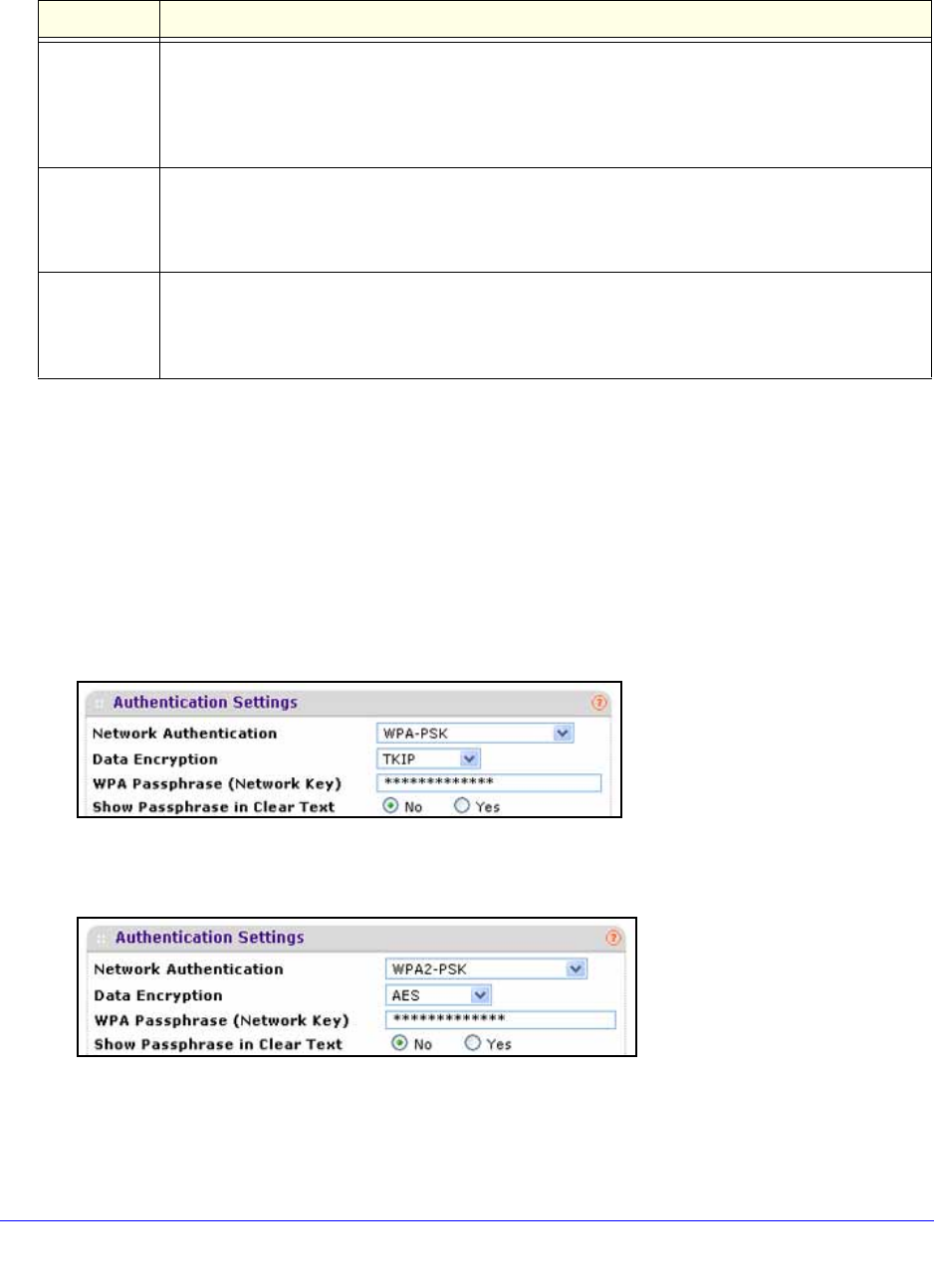

•WPA-PSK
Figure 27.
•WPA2-PSK
Figure 28.
Table 12. Settings for WPA with RADIUS, WPA2 with RADIUS, and WPA & WPA2 with RADIUS
Setting Descriptions
TKIP Temporal Key Integrity Protocol (TKIP) is the standard encryption method used with WPA. You
can also use TKIP with WPA2.
Note: TKIP provides only legacy (slower) rates of operation. NETGEAR recommends WPA2
authentication with AES encryption if you want to use the 11n rates and speed.
AES Advanced Encryption Standard (AES) is the standard encryption method used with WPA2.
Note: Although some wireless clients might support AES with WPA, the WNDAP660 wireless
access point does not support WPA with AES.
TKIP + AES The TKIP + AES encryption method is supported both for WPA and WPA2. Broadcast packets
use TKIP. For unicast (point-to-point) transmissions, WPA clients use TKIP, and WPA2 clients
use AES. For the WPA & WPA2 mixed mode, TKIP + AES is the only supported data encryption
method.
Wireless Configuration and Security
57
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
•WPA-PSK & WPA2-PSK

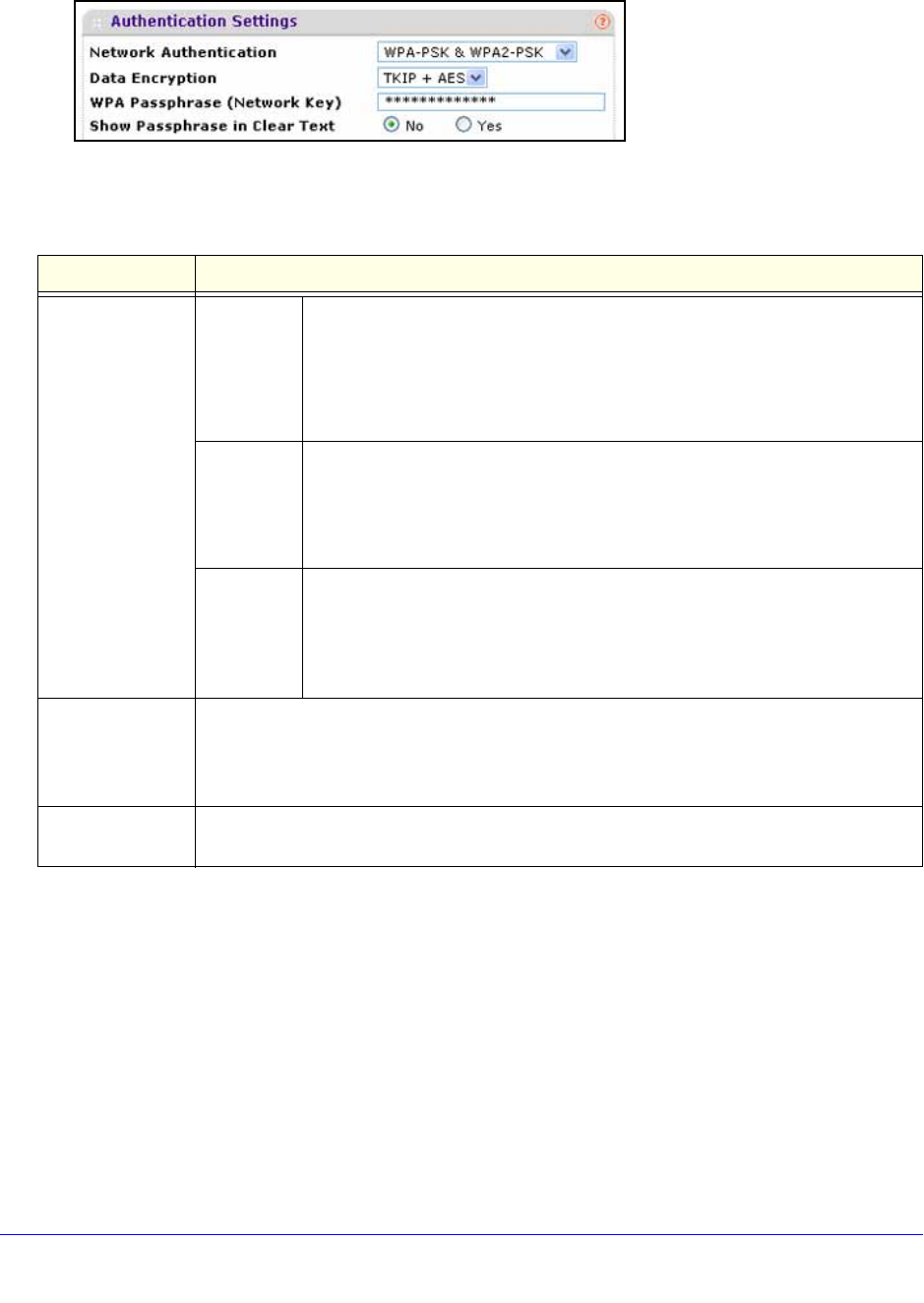

Figure 29.
Configure RADIUS Server Settings
For authentication, accounting, or both authentication and accounting using RADIUS, you
need to configure primary servers and optional secondary servers. These RADIUS server
settings can apply to all devices that are connected to the wireless access point.
You can configure both IPv4 and IPv6 servers. In the IPv4 Radius Server Settings section,
enter IPv4 addresses only; in the IPv6 Radius Server Settings section, enter IPv6 addresses
only.
Table 13. Settings for WPA-PSK, WPA2-PSK, and WPA-PSK & WPA2-PSK
Setting Descriptions
Data Encryption TKIP Temporal Key Integrity Protocol (TKIP) is the standard encryption method
used with WPA. You can also use TKIP with WPA2.
Note: TKIP provides only legacy (slower) rates of operation. NETGEAR
recommends WPA2 authentication with AES encryption if you want to use the
11n rates and speed.
AES Advanced Encryption Standard (AES) is the standard encryption method used
with WPA2.
Note: Although some wireless clients might support AES with WPA, the
WNDAP660 wireless access point does not support WPA with AES.
TKIP + AES TKIP + AES supports both WPA and WPA2. Broadcast packets use TKIP. For
unicast (point-to-point) transmissions, WPA clients use TKIP, and WPA2
clients use AES.
For the WPA & WPA2 mixed mode, TKIP + AES is the only supported data
encryption method.
Passphrase Enter a passphrase. The passphrase length needs to be between 8 and 63 characters
(inclusive). The default passphrase is sharedsecret.
You can display the actual passphrase by selecting the Show Passphrase in Clear Text
Yes radio button.
Show Passphrase
in Clear Text Select the Yes radio button to display the actual passphrase in the Passphrase field. The
default setting is No.
Wireless Configuration and Security
58
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
To configure the RADIUS server settings:
1. Select Configuration > Security > Advanced > Radius Server Settings. The Radius
Server Settings screen displays.
Figure 30.
2. Specify the settings as explained in the following table:
Table 14. RADIUS server settings for IPv4 and IPv6
Setting Descriptions
Radius Server Settings
Primary
Authentication Server IPv4 Address or
IPv6 Address Enter the IP address of the primary RADIUS server for
authentication.
Port Enter the number of the UDP port on the wireless access point
that is used to access the primary RADIUS server for
authentication. The default port number is 1812.
Shared Secret Enter the shared key that is used between the wireless access
point and the primary RADIUS server during authentication.
Wireless Configuration and Security
59
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
3. Click Apply to save your settings.
Secondary
Authentication Server IPv4 Address or
IPv6 Address Enter the IP address of the secondary RADIUS server for
authentication. The secondary RADIUS server is used when the
primary RADIUS server is not available.
Port Enter the number of the UDP port on the wireless access point
that is used to access the secondary RADIUS server for
authentication. The default port number is 1812.
Shared Secret Enter the shared key that is used between the wireless access
point and the secondary RADIUS server during authentication.
Primary
Accounting Server IPv4 Address or
IPv6 AddressEnter the IP address of the primary RADIUS server for
accounting.
Port Enter the number of the UDP port on the wireless access point
that is used to access the primary RADIUS server for accounting.
The default port number is 1813.
Shared Secret Enter the shared key that is used between the wireless access
point and the primary RADIUS server during the accounting
process.
Secondary
Accounting Server IPv4 Address or
IPv6 AddressEnter the IP address of the secondary RADIUS server for
accounting. The secondary RADIUS server is used when the
primary RADIUS server is not available.
Port Enter the number of the UDP port on the wireless access point
that is used to access the secondary RADIUS server for
accounting. The default port number is 1813.
Shared Secret Enter the shared key that is used between the wireless access
point and the secondary RADIUS server during the accounting
process.
Authentication Settings
Reauthentication
Time (Seconds) The interval in seconds after which the supplicant is reauthenticated with the
RADIUS server. The default interval is 3600 seconds (1 hour). Enter 0 to disable
reauthentication.
Update Global Key
Every (Seconds) Select the check box to allow the global key update, and enter the interval in
seconds. The check box is selected by default, and the default interval is
1800 seconds (30 minutes). Clear the check box to prevent the global key update.
Table 14. RADIUS server settings for IPv4 and IPv6 (continued)
Setting Descriptions
Wireless Configuration and Security
60
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
Restrict Wireless Access by MAC Address
For increased security, you can restrict access to an SSID by allowing access to only specific
computers or wireless stations based on their MAC addresses. You can restrict access to
only trusted computers so that unknown computers cannot connect wirelessly to the wireless
access point. MAC address filtering adds an obstacle against unwanted access to your
network, but the data broadcast over the wireless link is fully exposed.
Note: For wireless adapters, you can usually find the MAC address printed
on the wireless adapter.
To restrict access based on MAC addresses:
1. Select Configuration > Security > Advanced > MAC Authentication. The MAC
Authentication screen displays. (The following figure shows some examples.)
Figure 31.
2. Optional: To display the MAC Authentication screen for the 802.11a/na modes, click the
802.11a/na tab.
3. Select the Turn Access Control On check box to enable the access control feature.
4. From the Select Access Control Database drop-down list, select one of the following
database options:
•Local MAC Address Database. The wireless access point uses the local MAC
address database for access control. This is the default setting.
•Remote MAC Address Database. The wireless access point uses the MAC address
database on an external RADIUS server on the LAN for access control. If you select
this database, you first need to configure the RADIUS server settings (see Configure
RADIUS Server Settings on page 57).
Wireless Configuration and Security
61
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
5. Click Refresh to refresh the Available Wireless Stations table. The wireless access point
places the MAC addresses of the attached wireless stations in this table.
6. Populate the Trusted Wireless Stations table by one of the following methods:
•Select MAC addresses from the Available Wireless Stations table:
a. Select individual check boxes for MAC addresses, or select all MAC addresses by
selecting the check box in the heading.
b. Click Move to transfer the MAC addresses from the Available Wireless Stations
table to the Trusted Wireless Stations table.
•Enter MAC addresses manually:
a. Enter a MAC address directly in the Trusted Wireless Stations table.
b. Click Add.
To delete a MAC address from the Trusted Wireless Stations table, select individual check
boxes for MAC addresses, or select all MAC addresses by selecting the check box in the
heading, and then click Delete.
7. Click Apply to save your settings.
Now, only devices in the Trusted Wireless Stations table are allowed to connect to the
wireless access point over a wireless connection.
WARNING:
When configuring the wireless access point from a wireless
computer whose MAC address is not on the access control list,
you lose your wireless connection when you click Apply. You then
need to access the wireless access point from a wired computer
or from a wireless computer that is on the access control list to
make any further changes.
Schedule the Wireless Radios to Be Turned Off
Scheduling the wireless radios to be turned off is a green feature that allows you to turn off
the wireless radios during scheduled vacations, office shutdowns, on evenings, or on
weekends.
To schedule the radios to be turned on and off:
1. Select Configuration > Wireless > Basic > Wireless On-Off. The Wireless On-Off
screen displays:
Wireless Configuration and Security
62
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
Figure 32.
2. Specify the settings as explained in the following table:
3. Click Apply to save your settings.
Configure Basic Wireless Quality of Service
Wi-Fi Multimedia (WMM) is a subset of the 802.11e standard. WMM allows wireless traffic to
have a range of priorities, depending on the type of data. Time-dependent information, such
as video or audio, has a higher priority than normal traffic. For WMM to function correctly,
wireless clients also need to support WMM.
By enabling WMM, you allow Quality of Service (QoS) control for upstream traffic flowing
from a wireless station to the wireless access point and for downstream traffic flowing from
the wireless access point to a wireless station.
Table 15. Wireless radio on/off settings
Setting Description
Wireless On-Off Select the On radio button to enable the timer. By default, the Off radio button is
selected.
Radio off schedule Select check boxes to specify the days when you want to schedule the radios to
be turned off. By default, Saturday and Sunday are selected.
Radio ON Time Enter the time that you want the radios to be turned back on. Use 24-hour time
format.
Radio OFF Time Enter the time that you want the radios to be turned off. Use 24-hour time
format.
Wireless Configuration and Security
63
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
WMM defines the following four queues in decreasing order of priority:
•Voice. The highest priority queue with minimum delay, which makes it ideal for
applications like VoIP and streaming media.
•Video. The second highest priority queue with low delay is given to this queue. Video
applications are routed to this queue.
•Best Effort. The medium priority queue with medium delay is given to this queue. Most
standard IP applications use this queue.
•Background. Low priority queue with high throughput. Applications, such as FTP, that
are not time-sensitive but require high throughput can use this queue.
The WMM Powersave feature saves power for battery-powered equipment by increasing the
efficiency and flexibility of data transmission.
Note: For information about how to configure advanced wireless QoS, that
is, to configure specific Enhanced Distributed Channel Access
(EDCA) settings, see Configure Advanced Quality of Service
Settings on page 111.
To configure basic wireless QoS:
1. Select Configuration > Wireless > Basic > QoS Settings. The basic QoS Settings
screen displays:
Figure 33.
2. Optional: To display the basic QoS Settings screen for the 802.11a/na modes, click the
802.11a/na tab.
3. Enable or disable the WMM features:
•Enable Wi-Fi Multimedia (WMM). To enable this feature, select the Enable radio
button, which is the default setting. Select the Disable radio button to disable the
feature.
•WMM Powersave. To enable this feature, select the Enable radio button, which is the
default setting. Select the Disable radio button to disable the feature.
4. Click Apply to save your settings.
64
4
4. Management and Monitoring
This chapter describes how to use the management and monitoring features of the wireless
access point. The chapter includes the following sections:
•Enable Remote Management
•Upgrade the Wireless Access Point Software
•Manage the Configuration File or Reset to Factory Defaults
•Change the Administrator Password
•Manage User Accounts
•Enable the Syslog Server
•Monitor the Wireless Access Point
•Enable Rogue AP Detection and Monitor Access Points
•Configure Wireless Intrusion Detection and Prevention
Enable Remote Management
•SNMP Management
•Secure Shell and Telnet Management
Both Simple Network Management Protocol (SNMP) and the remote console Secure Shell
(SSH) are enabled by default, which allows for remote management of the wireless access
point from a client running SNMP management software, as well as from an SSH client. The
Telnet console is disabled by default.
SNMP Management
To set up an SNMP management interface:
1. Select Maintenance > Remote Management > SNMP. The SNMP screen displays:
Management and Monitoring
65
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
Figure 34.
2. Specify the settings as explained in the following table:
3. Click Apply to save your settings.
Table 16. SNMP settings
Setting Description
SNMP Select the Enable radio button to allow the SNMP network management
software, such as HP OpenView, to manage the wireless access point
through SNMPv1/v2 protocol. By default, the Disable radio button is
selected.
Read-Only Community Name Enter the community string to allow the SNMP manager to read the
wireless access point’s Management Information Base (MIB) objects. The
default is public.
Read-Write Community Name Enter the community string to allow the SNMP manager to read and write
the wireless access point’s MIB objects. The default is private.
Trap Community Name Enter the community string to allow the SNMP manager to send traps. The
default is trap.
IP Address to Receive Traps Enter the IP address of the SNMP manager to receive traps sent from the
wireless access point.
Trap Port Enter the number of the SNMP manager port to receive traps sent from the
wireless access point. The default is 162.
Management and Monitoring
66
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
Secure Shell and Telnet Management
To configure remote console features:
1. Select Maintenance > Remote Management > Remote Console. The Remote
Console screen displays:
Figure 35.
2. Enable or disable the remote console features:
•Secure Shell (SSH). To enable this feature, select the Enable radio button, which is
the default setting. Select the Disable button to disable the feature.
•Telnet. To enable this feature, select the Enable radio button. Select the Disable
button to disable the feature, which is the default setting.
3. Click Apply to save your settings.
To manage the wireless access point over a Telnet connection:
1. Connect an Ethernet cable to the console port of the wireless access point.
2. Connect the other end of the cable to a VT100/ANSI terminal or a workstation.
If you attach a PC, Apple Macintosh, or UNIX workstation, start a secure terminal
emulation program, and configure the terminal emulation program to use the following
settings:
•Baud rate: 9600 bps
•Data bits: 8
•Parity: none
•Stop bit: 1
•Flow control: none
3. Start a secure Telnet session from the terminal or workstation to the wireless access point. A
screen similar to the following displays:
Management and Monitoring
67
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
Figure 36.
4. Enter the login name and password (admin and password are the defaults).
After successful login, the > prompt appears, preceded by the name of the wireless
access point. In this example, the prompt is netgear334408.
5. Enter the CLI commands that you want to use. You can enter show configuration to
display the available CLI commands. The CLI commands are also listed in Appendix B,
Command-Line Reference.
Note: You can also access the wireless access point remotely over a
Telnet or SSH session using an application such as PuTTY, if such
an encryption application is allowed by law in your country. After you
have connected to the wireless access point, enter the login name
and password to access the CLI.
Upgrade the Wireless Access Point Software
The software of the wireless access point is stored in flash memory and can be upgraded as
NETGEAR releases new software. You can download upgrade files from the NETGEAR
website. If the upgrade file is compressed (.zip file), you first need to extract the image (.rmt)
file before sending it to the wireless access point. You can send the upgrade file using your
browser. There are two methods to perform a software upgrade that are described in the
following sections:
•Web Browser Upgrade Procedure
•TFTP Server Upgrade Procedure
Note: The web browser that you use to upload new firmware into the
wireless access point needs to support HTTP uploads. Use a
browser such as Microsoft Internet Explorer 6.0 or later or Mozilla
1.5 or later.
Management and Monitoring
68
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
Note: You cannot perform the software upgrade from a computer that is
connected to the wireless access point over a wireless link. You
need to use a computer that is connected to the wireless access
point over an Ethernet cable.
When uploading software to the wireless access point, do not
interrupt the web browser by closing the window, clicking a link, or
loading a new page. If the browser is interrupted, the upload might
fail, corrupt the software, and render the wireless access point
inoperable.
In some cases, such as a major upgrade, you might need to erase the
configuration and manually reconfigure your wireless access point
after upgrading it. See the release notes included with the software to
find out if you need to reconfigure the wireless access point.
Web Browser Upgrade Procedure
To use a web browser to upgrade the wireless access point firmware:
1. Download the new software file from the NETGEAR website and save it to your hard
disk.
2. If necessary, unzip the new software file.
3. If available, read the release notes before upgrading the software.
4. Select Maintenance > Upgrade > Firmware Upgrade. The Firmware Upgrade screen
displays:

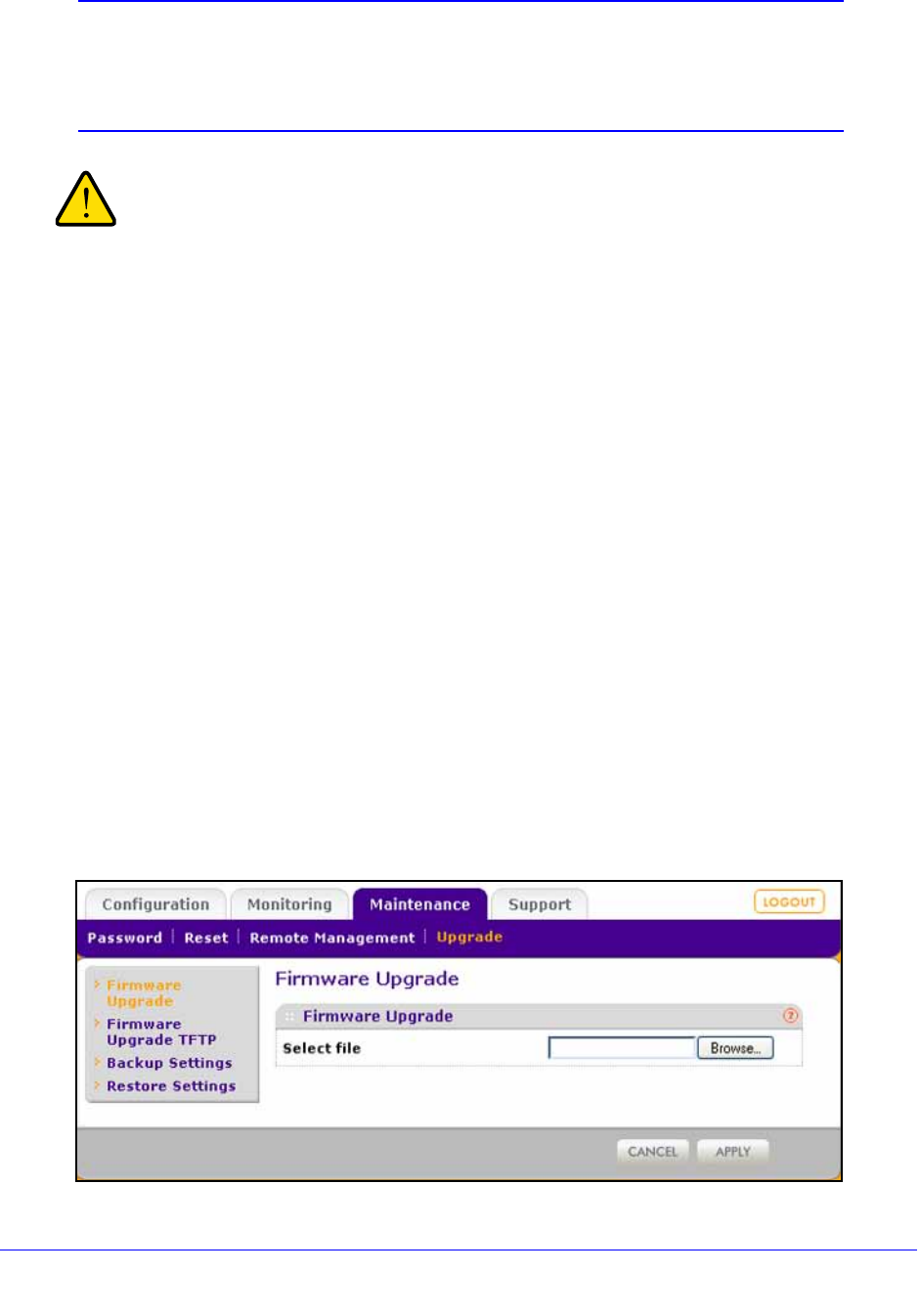

Figure 37.
Management and Monitoring
69
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
5. Click Browse and locate the image (.zip) upgrade file.
6. Click Apply to initiate the upgrade process.
During the upgrade process, the wireless access point automatically restarts. The
upgrade process typically takes several minutes. When the Test LED turns off, wait a few
more seconds before doing anything with the wireless access point.
7. Verify that the new software file has been installed by selecting Monitoring > System. The
System screen displays (see Figure 46 on page 78). The firmware version is shown in the
Access Point Information section of the screen.
TFTP Server Upgrade Procedure
To use this method, you need to have a TFTP server set up.
To use a TFTP server to upgrade the wireless access point firmware:
1. Download the new software file from the NETGEAR website and save it to your hard
disk.
2. Place the software file in your TFTP server location. (You do not need to unzip the file.)
3. If available, read the release notes before upgrading the software.
4. Select Maintenance > Upgrade > Firmware Upgrade TFTP. The Firmware Upgrade TFTP
screen displays:

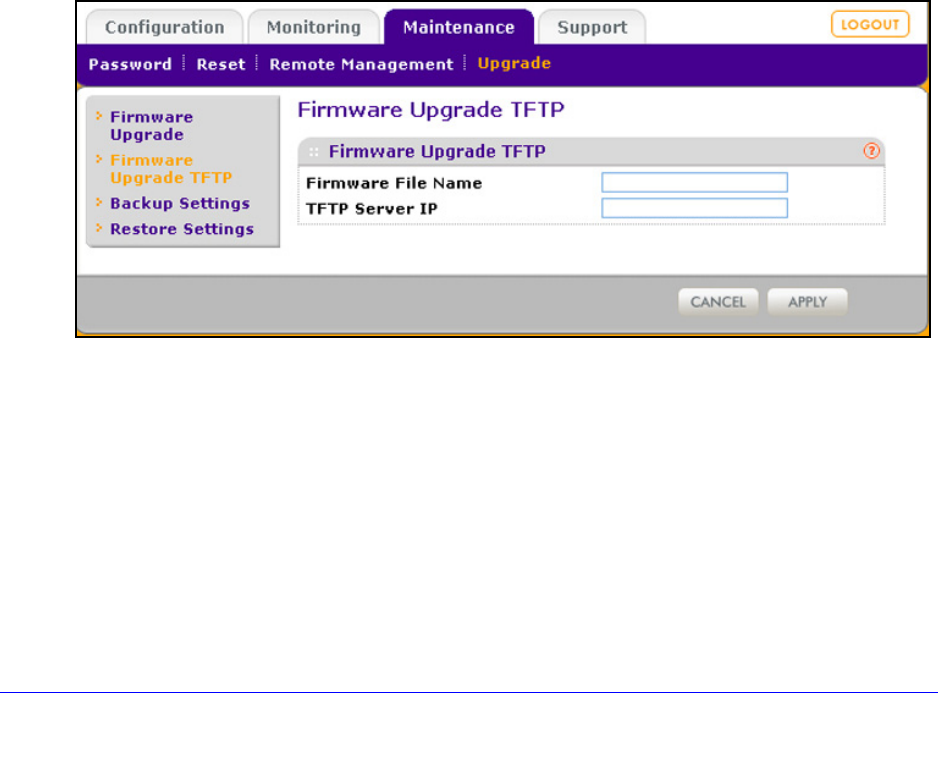

Figure 38.
5. Specify the following information:
•Firmware File Name. The name of the unzipped software file.
•TFTP Server IP. The IP address of your TFTP server.
6. Click Apply to initiate the upgrade process.
During the upgrade process, the wireless access point automatically restarts. The
upgrade process typically takes several minutes. When the Test LED turns off, wait a few
more seconds before doing anything with the wireless access point.
Management and Monitoring
70
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
7. Verify that the new software file has been installed by selecting Monitoring > System. The
System screen displays (see Figure 46 on page 78). The firmware version is shown in the
Access Point Information section of the screen.
Manage the Configuration File or Reset to Factory
Defaults
•Save the Configuration
•Restore the Configuration
•Restore the Wireless Access Point to the Factory Default Settings
•Reboot the Wireless Access Point without Restoring the Default Configuration
The wireless access point settings are stored in the configuration file. You can save this file
(back it up) to a computer, restore it from a computer, or reset it to factory default settings.
Save the Configuration
To save your settings:
1. Select Maintenance > Upgrade > Backup Settings. The Backup Settings screen
displays (see the following figure).
2. Click Backup. Your browser extracts the configuration file (the file name is config) from the
wireless access point and prompts you for a location on your computer to store the file.
3. Follow the instructions of your browser to save the file.
Figure 39.
Management and Monitoring
71
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
Restore the Configuration
IMPORTANT:
During the restoration process, do not try to go online, turn off the
wireless access point, shut down the computer, or do anything else
to the wireless access point until it finishes restarting!
To restore your settings from a saved configuration file:
1. Select Maintenance > Upgrade > Restore Settings. The Restore Settings screen
displays:
Figure 40.
2. Click Browse and locate the backup configuration file (the file name is config).
3. Click Apply to initiate the restoration process. During the restoration process, the wireless
access point automatically restarts. The restoration process typically takes about 1 minute.
When the Test LED turns off, wait a few more seconds before doing anything with the
wireless access point.
Restore the Wireless Access Point to the Factory Default
Settings
You can restore the wireless access point to the factory default settings by two methods that
are described in the following sections:
•Use the Web Management Interface to Restore Factory Default Settings
•Use the Reset Button to Restore Factory Default Settings
Management and Monitoring
72
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
Note: After you have restored the factory default settings on the wireless
access point:
* All custom configurations are lost.
* The login password is password.
* The default LAN IP address is 192.168.0.100.
* The DHCP client is disabled.
* The Access Point Name field is reset to the name printed on
the label on the bottom of the unit.
Use the Web Management Interface to Restore Factory Default Settings
During the restoration process, do not try to go online, turn off the
wireless access point, shut down the computer, or do anything else
to the wireless access point until it finishes restarting!
To restore the factory default settings using the web management interface:
1. Select Maintenance > Reset > Restore Defaults. The Restore Defaults screen
displays:

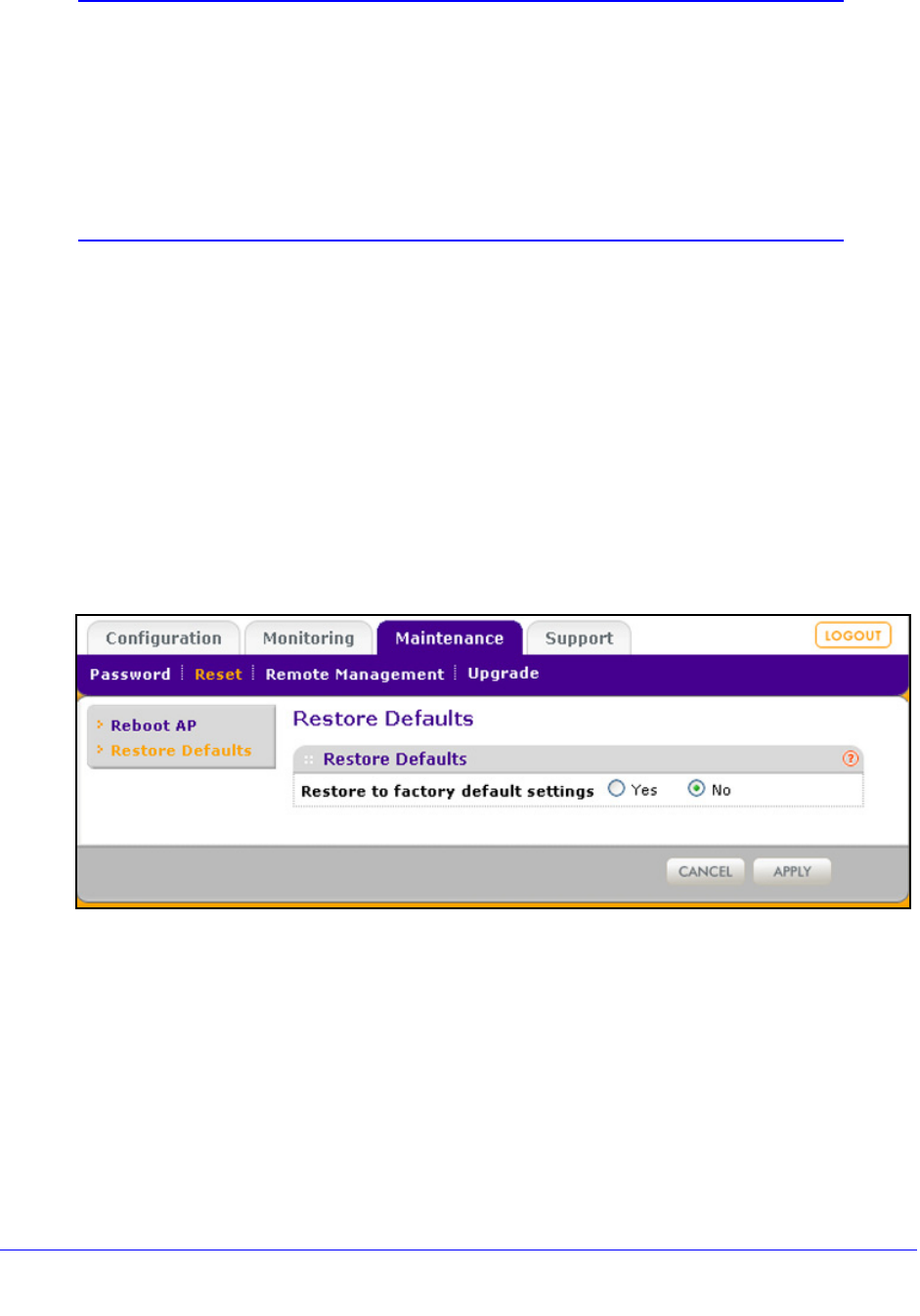

Figure 41.
2. Select the Yes radio button. (By default, the No radio button is selected.)
3. Click Apply to reset the wireless access point to the factory default settings.
During the restoration process, the wireless access point automatically restarts. The
restoration process typically takes about 1 minute. When the Test LED turns off, wait a
few more seconds before doing anything with the wireless access point.
Management and Monitoring
73
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
Use the Reset Button to Restore Factory Default Settings
To restore the factory default settings when you do not know the login user name, login
password, or IP address, you need to use the Reset button on the rear panel of the wireless
access point (see Figure 2 on page 13).
To restore the factory default settings using the Reset button:
1. Using a sharp object, press and hold the Reset button for about 5 seconds (until the Test
LED blinks rapidly) to reset the wireless access point to factory defaults settings.
Note: Pressing the Reset button for a shorter time simply causes the
wireless access point to reboot.
2. Release the Reset button.
During the restoration process, the wireless access point automatically restarts. The
restoration process typically takes about 1 minute. When the Test LED turns off, wait a
few more seconds before doing anything with the wireless access point.
Reboot the Wireless Access Point without Restoring the
Default Configuration
If you do not have physical access to the wireless access point to switch it off and on again,
you can use the software to reboot the wireless access point.
To reboot the wireless access point:
1. Select Maintenance > Reset > Reboot AP. The Reboot AP screen displays:

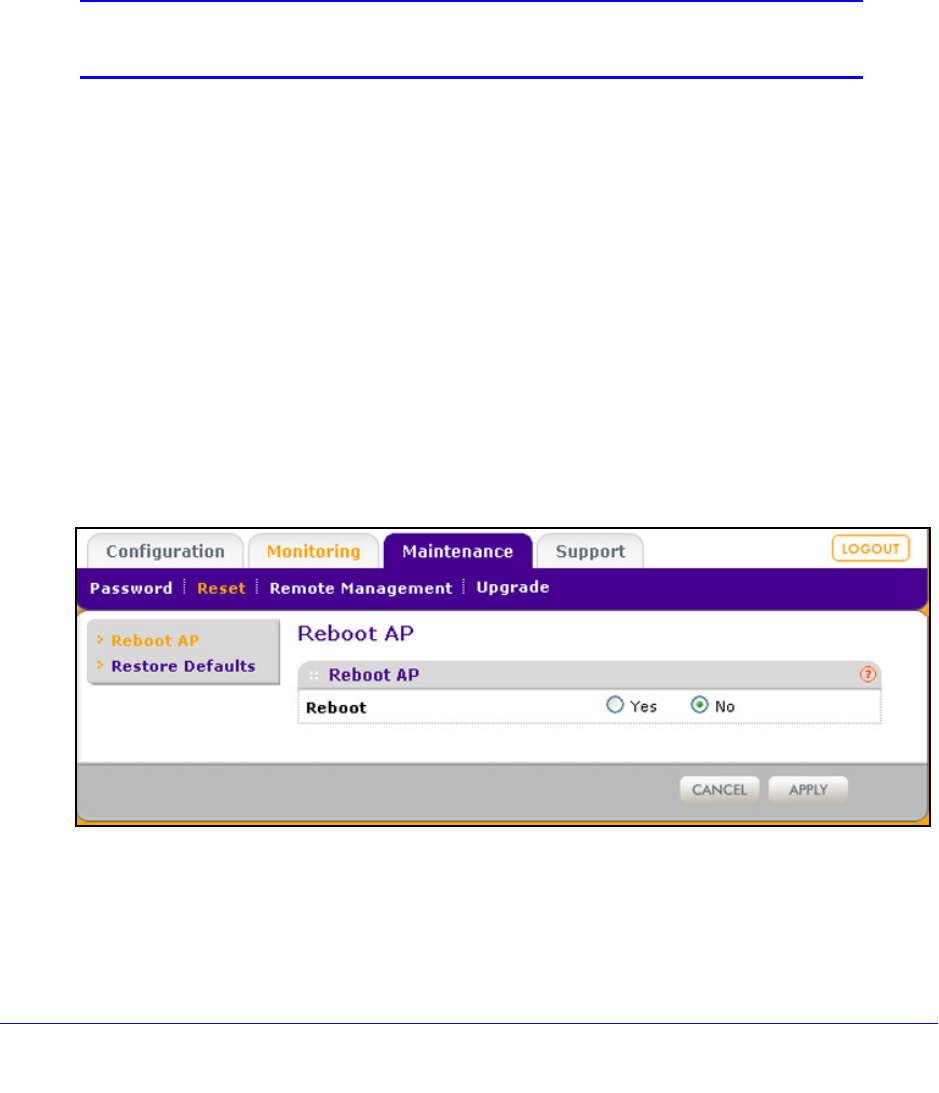

Figure 42.
2. Select the Yes radio button. (By default, the No radio button is selected.)
3. Click Apply to reboot the wireless access point.
Management and Monitoring
74
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
The reboot process typically takes about 1 minute. When the Test LED turns off, wait a
few more seconds before doing anything with the wireless access point.
Change the Administrator Password
The default password is password. NETGEAR recommends that you change this password
to a more secure password. You cannot change the administrator login name (admin).
The ideal password contains no dictionary words from any language and is a mixture of
letters (both uppercase and lowercase), numbers, and symbols. Your password can be up to
30 characters.
To change the administrator password:
1. Select Maintenance > Password > Change Password. The Change Password screen
displays:
Figure 43.
2. Take one of the following actions:
•Enter a new password twice, once in the New Password field and again in the Repeat
New Password field.
•Next to Restore Default Password, select the Yes radio button to restore the default
password. By default, the No radio button is selected.
3. Click Apply to save your settings.
If you have restored the default password, the login password is password. If you have
configured a new password, write it down in a secure place.
Management and Monitoring
75
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
Manage User Accounts
The admin user account is the default user account, which you cannot delete. However, you
can add other user accounts, modify them, and delete them. Users for whom you set up an
account can access the web management interface with read-only or read-write privileges.
Note: Only the administrator can create, change, and delete user accounts.
To add a new user account:
1. Select Configuration > System > Advanced > User Accounts. The User Accounts
screen displays:
Figure 44.
2. Configure the settings in the upper part of the screen as explained in the following table:
3. Click Add.
Table 17. Add user account settings
Setting Description
User Name Enter a new user name
Password Enter a password between 4 and 12 characters in length.
Privilege From the Privilege drop-down list, select Read Write or Read Only.
Management and Monitoring
76
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
4. Click Apply to save your settings.
To change the name for a user account:
1. On the User Accounts screen, in the lower part of the screen, select the user from the
Existing Users drop-down list.
2. In the User Name field, modify the name.
3. Click Modify.
4. Click Apply to save your settings.
To change the privilege for a user account:
1. On the User Accounts screen, in the lower part of the screen, select the user from the
Existing Users drop-down list.
2. From the Privilege drop-down list, select another privilege.
3. Click Reset Password. The password is reset to the default password, which is password.
4. Click Apply to save your settings.
To reset the password for a user account:
1. On the User Accounts screen, in the lower part of the screen, select the user from the
Existing Users drop-down list.
2. Click Reset Password. The password is reset to the default password, which is password.
3. Click Apply to save your settings.
Note: If you want to modify a password, delete the user account, and then
recreate the user account with the password of your choice.
To delete a user account:
1. On the User Accounts screen, in the lower part of the screen, select the user from the
Existing Users drop-down list.
2. Click Delete.
3. Click Apply to save your settings.
Enable the Syslog Server
The Syslog screen allows you to enable the syslog option if you have a syslog server on your
LAN. If syslog is enabled, the wireless access point sends its syslog files to the syslog server.
To enable a syslog server:
1. Select Configuration > System > Advanced > Syslog. The Syslog screen displays:
Management and Monitoring
77
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
Figure 45.
Specify the settings as explained in the following table:
2. Click Apply to save your settings.
Monitor the Wireless Access Point
•View System Information
•Monitor Wireless Stations
•View the Activity Log
•Traffic Statistics
View System Information
The System screen provides a summary of the current wireless access point configuration
settings, including current IP settings and current wireless settings. This information is read
only, so any changes need to be made on other screens.
Table 18. Syslog settings
Setting Description
Enable Syslog Select the check box to enable the syslog option. By default, the syslog option
is disabled.
Syslog Server IP Address Enter the IP address of the syslog server to which the wireless access point
sends the syslog files.
Port Number Enter the port number that is configured on the syslog server. The default port
number is 514.
Management and Monitoring
78
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
To view the System screen:
Select Monitoring > System.
Figure 46.
Management and Monitoring
79
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
The following table explains the fields of the System screen:
Table 19. System screen fields
Setting Description
Access Point Information
Access Point Name The NetBIOS name. For information about how to change the default name, see
Configure Basic General System Settings and Time Settings on page 23.
Ethernet MAC Address The MAC address of the wireless access point’s Ethernet port.
Wireless MAC Address The MAC address of the wireless access point’s wireless card.
Ethernet LLDP Enabled indicates that LLDP is enabled. Disabled indicates that it is not.
Country/Region The country or region for which the wireless access point is licensed for use. For
information about how to change the country or region, see Configure Basic General
System Settings and Time Settings on page 23.
Note: It might not be legal to operate this wireless access point in a country or region
other than one of those identified in this field.
Firmware Version The version of the firmware that is currently installed.
Serial Number The serial number of the wireless access point.
Current Time The current time. For information about how to change the time settings, see
Configure Basic General System Settings and Time Settings on page 23.
Current IPv4 Settings
For information about how to change any of these IP settings, see Configure the IPv4 Settings on page 25.
IP Address The IPv4 address of the wireless access point.
Subnet Mask The subnet mask for the address of the wireless access point.
Default Gateway The default IPv4 gateway for the wireless access point communication.
DHCP Client Enabled indicates that the current IP address was obtained from a DHCPv4 server on
your LAN network. Disabled indicates a static IP configuration.
Current IPv6 Settings
For information about how to change any of these IP settings, see Configure IPv6 Settings and Optional
DHCPv6 Server Settings on page 99.
IPv6 Address The default IPv6 address of the wireless access point.
Prefix Length The prefix length for the address of the wireless access point.
Dynamic IPv6 Address The dynamically assigned IPbv6 address if the DHCPv6 server has the stateful
option enabled.
Default Gateway The default IPv6 gateway for the wireless access point communication.
LAN IPv6 Link-Local
Address This is an automatically generated IPv6 address that uses the IPv4 address in the
interface portion of its address.
Management and Monitoring
80
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
Monitor Wireless Stations
The Wireless Stations screen contains the Available Wireless Stations table. This table shows
all IP devices that are associated with the wireless access point in the wireless network that
is defined by the wireless network name (SSID). The table headings indicate the wireless
modes (802.11b, 802.11bg, or 802.11ng for the 2.4-GHz band, and 802.11a or 802.11na for
the 5-GHz band).
Note: A wireless network can include multiple wireless access points, all
using the same network name (SSID). This uniformity extends the
reach of the wireless network and allows users to roam from one
wireless access point to another, providing seamless network
connectivity. Under these circumstances, be aware that the
Available Wireless Stations table includes only the stations
associated with this wireless access point.
To view the attached wireless stations, and to view details for a wireless station:
1. Select Monitoring > Wireless Stations. The Wireless Stations screen displays:
DHCP Client Enabled indicates that the current IP address was obtained from a DHCPv6 server on
your LAN network. Disabled indicates a static IP configuration.
Current Wireless Settings for 802.11b, 802.11g, or 802.11ng
and
Current Wireless Settings for 802.11a or 802.11na
Note: The section heading depends on the configured wireless mode.
Access Point Mode The operating mode of the wireless access point. One of the following modes is
indicated:
• Access Point
• Point-to-Point Bridge
• Point-to-Point Bridge with Access Point
• Multi-Point Bridge with/without client association
For information about how to change the mode, see Configure Wireless Bridging on
page 119.
Channel / Frequency The channel that the wireless port is using. For information about how to change the
channel and frequency, see Configure 802.11b/bg/ng Wireless Settings on page 28
and Configure 802.11a/na Wireless Settings on page 31.
Rogue AP Detection Enabled indicates that rogue AP detection is enabled. Disabled indicates that it is not.
Table 19. System screen fields (continued)
Setting Description
Management and Monitoring
81
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
Figure 47.
To update the list, click Refresh. If the wireless access point is rebooted, the wireless
station data is lost until the wireless access point rediscovers the devices. To force the
wireless access point to look for associated devices, click Refresh.
The Available Wireless Stations table shows the MAC address, BSSID, SSID, channel,
rate, state, type, AID, mode, and status for each device. For information about these and
more fields, see the table that follows the next figure.
2. To view details of a wireless station, select the corresponding radio button, and then click
Details. The Wireless Stations Details screen displays:
Figure 48.
Management and Monitoring
82
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
The following table explains the fields of the Wireless Stations Details screen:
Table 20. Wireless stations details fields
Setting Description
MAC Address The MAC address of the wireless station.
BSSID The BSSID that the wireless station is using.
SSID The SSID that the wireless station is using.
Channel The channel that the wireless station is using.
Rate The transmit data rate in Mbps of the wireless station.
State The features that are enabled on the wireless station.
Type The authentication and encryption type that the wireless station is using.
AID The associated identifier (AID) of the wireless station.
Mode The wireless mode in which the wireless station is operating.
Status The wireless status of the wireless station (Associated).
RSSI The received signal strength indicator (RSSI) of the wireless station.
Idle Time The time since the last frame was received from the wireless station.
Tx Sequence The sequence number of the last frame that was transmitted to the wireless station.
Rx Sequence The sequence number of the last frame that was received from the wireless station.
Capability The summary of the capability of the wireless station that was detected during
association.
Cipher The cipher that the wireless station is using and that defines the type of encryption.
SNR The signal-to-noise ratio (SNR) that indicates how much the signal of the wireless
station has been corrupted by noise.
Recv. Bytes The number of bytes received on the wireless station since it last started up.
Trans. bytes The number of bytes transmitted by the wireless station since it last started up.
Assoc. Time Stamp The time when these details of the wireless station were retrieved.
IP Address The IP address of the wireless station.
Channel Width The channel width at which the wireless station operates.
Management and Monitoring
83
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
View the Activity Log
You can view the wireless access point’s activity logs onscreen and save the logs.
To display the activity log and save it:
1. Select Monitoring > Logs. The Logs screen displays:
Figure 49.
2. Click Save As to save the log contents to a file on your computer or to a disk drive.
To update the display onscreen, click Refresh; to clear the log content, click Clear.
Traffic Statistics
The Statistics screen displays information for both wired (LAN) and wireless (WLAN) network
traffic.
To display the Statistics screen:
Select Monitoring > Statistics.
Management and Monitoring
84
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
Figure 50.
To update the statistics information, click Refresh.
The following table explains the fields of the Statistics screen:
Table 21. Statistics fields
Setting Description
Wired Ethernet
Packets The number of packets received and transmitted over the Ethernet connection
since the wireless access point was restarted.
Bytes The number of bytes received and transmitted over the Ethernet connection
since the wireless access point was restarted.
Management and Monitoring
85
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
Enable Rogue AP Detection and Monitor Access Points
•Enable and Configure Rogue AP Detection
•View and Save Access Point Lists
Enable and Configure Rogue AP Detection
The wireless access point can detect rogue access points and prevent them from connecting
to the wireless access point. The wireless access point maintains a list of access points it
detects in the area. Initially all detected access points are displayed in the Unknown AP List.
You restrict communication to approved access points by adding them to the Known AP List
and enabling the rogue AP detection feature.
If you enable rogue AP detection, the wireless access point continuously scans the wireless
network and collects information about all access points on its channel.
Wireless 802.11b, Wireless 802.11bg, or Wireless 801.11ng
and
Wireless 802.11a or Wireless 802.11na
Note: The section heading depends on the configured wireless mode.
Unicast Packets The number of unicast packets received and transmitted over the wireless
connection since the wireless access point was restarted.
Broadcast Packets The number of broadcast packets received and transmitted over the wireless
connection since the wireless access point was restarted.
Multicast Packets The number of multicast packets received and transmitted over the wireless
connection since the wireless access point was restarted.
Total Packets The total number of packets received and transmitted over the wireless
connection since the wireless access point was restarted.
Total Bytes The total number of bytes received and transmitted over the wireless connection
since the wireless access point was restarted.
Client Association
802.11b Radio,
802.11bg Radio, or
802.11ng Radio
and
802.11na Radio or
802.11a Radio
The number of associated clients connected to the radio in the configured
wireless modes.
Table 21. Statistics fields (continued)
Setting Description
Management and Monitoring
86
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
To enable and configure rogue AP detection:
1. Select Configuration > Security > Advanced > Rogue AP. The Rogue AP screen
displays. (The following figure shows examples in the Known AP List and Unknown AP
List.)
Figure 51.
2. Optional: To enable and configure rogue AP detection for the 802.11a/na modes, click the
802.11a/na tab.
3. Select the Turn Rogue AP Detection On check box to enable rogue AP detection.
4. Specify the detection policy by making a selection from the Rogue AP Detection Policy
drop-down list:
•Mild. The wireless access point scans for rogue access points every 10 seconds.
•Moderate. The wireless access point scans for rogue access points every 5 seconds.
This is the default setting.
•Aggressive. The wireless access point scans for rogue access points every second.
5. Click Refresh to let the wireless access point discover the access points and populate the
Unknown AP List.
6. In the Unknown AP List, select individual check boxes for access points, or select all access
points by selecting the check box in the column heading.
7. Click Move to transfer the access points from the Unknown AP List to the Known AP List.
8. Click Apply to save your settings.
To remove APs from the Known AP List and return them to the Unknown AP List:
1. In the Known AP List, select individual check boxes for access points, or select all
access points by selecting the check box in the column heading.
2. Click Delete.
Management and Monitoring
87
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
To import a file with a precompiled list of access points into the Known AP List:
1. Take one of the following actions:
•Select the Replace radio button to let the imported list of access points replace the
existing Known AP List.
•Select the Merge radio button to add the imported list of access points to the existing
Known AP List.
2. Click Browse and locate the file that contains the list of access points. This file needs to be
a simple text file with one MAC address per line.
3. Select the file, and click Open.
4. Click Apply to upload the list of access points to the Known AP List.
View and Save Access Point Lists
The wireless access point detects nearby APs and wireless stations and maintains them in a
list. You can use this list to prevent them from connecting to the wireless access point.
To view the Unknown AP List and save it to a file:
1. Select Monitoring > Rogue AP > Unknown AP List. The Unknown AP List screen
displays:
Figure 52.
2. Click Refresh to let the wireless access point discover the access points and populate the
Unknown AP List for the configured wireless modes.
Management and Monitoring
88
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
The following table explains the fields of the Unknown AP List screen:
3. Click Save to export the list of unknown or known APs to a file. A window opens so you can
browse to the location where you want to save the file. The default file name is macList.txt.
If you wish, you can now import the saved list into the Known AP List on the Rogue AP
screen (see Enable and Configure Rogue AP Detection on page 85).
To view the Known AP Lists and save it to a file:
1. Select Monitoring > Rogue AP > Known AP List. The Known AP List screen displays:

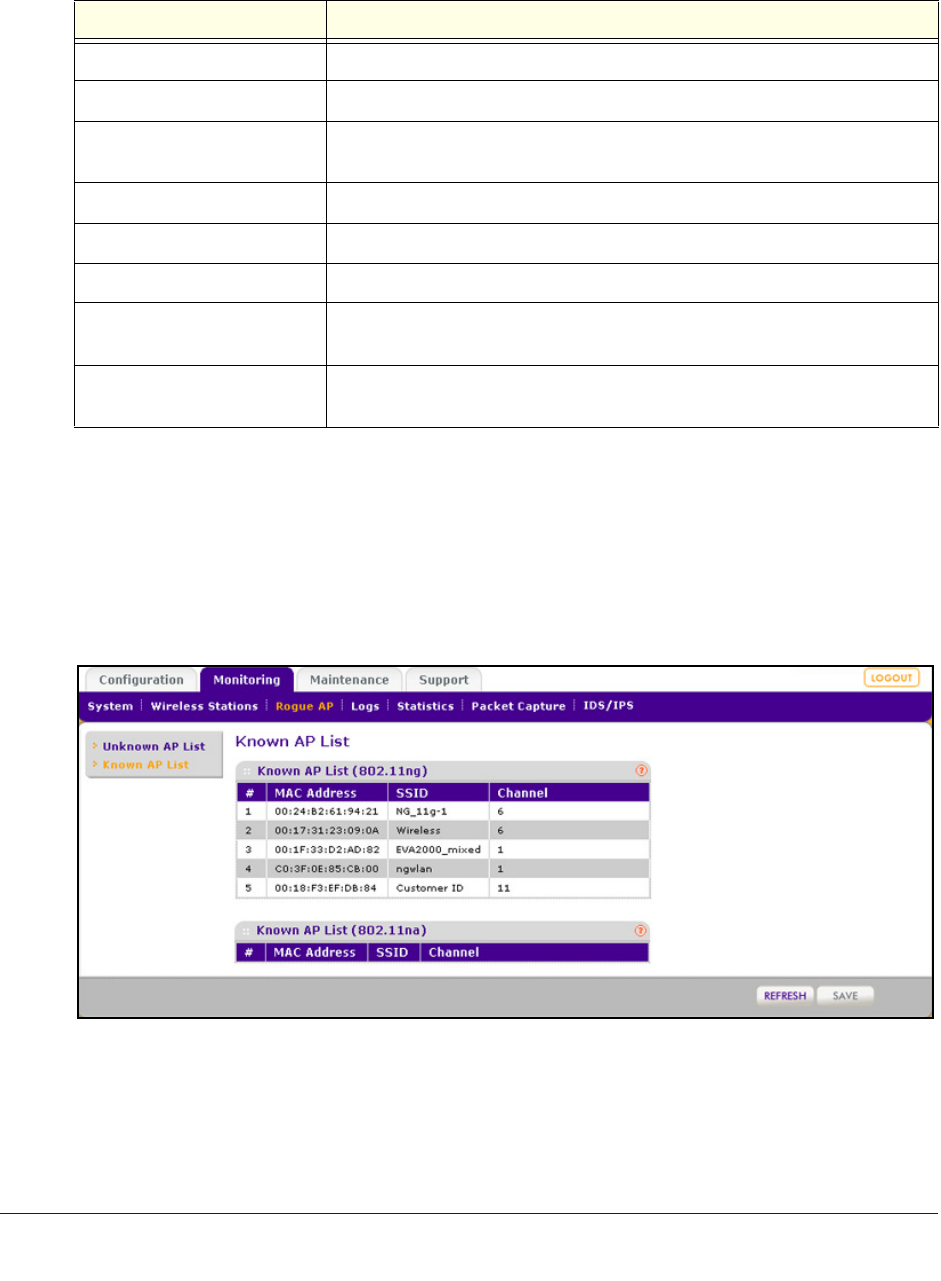

Figure 53.
2. Click Refresh to let the wireless access point discover the access points and populate the
Known AP List for the configured wireless modes.
Table 22. Unknown AP List fields
Setting Description
MAC Address The MAC address of the unknown AP.
SSID The SSID that the unknown AP is using.
Privacy Indicates whether security is enabled (1 means enabled; 0 means
disabled).
Channel The channel that the unknown AP is using.
Rate The transmit data rate in Mbps of the unknown the AP.
Beacon Int. The interval for each beacon transmission in ms.
# of Beacons The number of beacons transmitted by the unknown AP that the wireless
access point has detected.
Last Beacon The time stamp that indicates the time when the most recent beacon was
detected.
Management and Monitoring
89
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
The following table explains the fields of the Known AP List screen:
3. Click Save to export the list of known access points to a file. A window opens so you can
browse to the location where you want to save the file. The default file name is macList.txt.
You can now import the saved list into the Known AP List on the Rogue AP screen (see
Enable and Configure Rogue AP Detection on page 85).
Configure Wireless Intrusion Detection and Prevention
•Configure Wireless Intrusion Detection and Prevention Policy Settings
•Configure Wireless Intrusion Detection and Prevention Mail Settings
•Monitor Traps, Counters, and Ad Hoc Networks
Configure Wireless Intrusion Detection and Prevention Policy
Settings
The wireless access point provides a wireless intrusion detection system (WIDS) and
wireless intrusion prevention system (WIPS) to detect and mitigate wireless attacks. These
intrusion systems are referred to as IDS/IPS.
If enabled, the IDS recognizes multiple types of wireless attacks, and the IPS automatically
neutralizes many attacks. Attacks are covered by preconfigured policy rules. When an attack
occurs, the wireless access point can notify a network administrator though an email.
The following table lists all IDS/IPS policies with their policy rules. Most of these policies
provide protection against denial of service (DoS) attacks. You can enable or disable IDS/IPS
policies, but both the policies and the policy rules are not configurable.
All thresholds are measured over a short period. For the IDS/IPS to send a notification according
to the policy rule, you first need to configure the email settings (see Configure Wireless Intrusion
Detection and Prevention Mail Settings on page 95).
Table 23. Known AP List fields
Setting Description
MAC Address The MAC address of the known AP.
SSID The SSID that the known AP is using.
Channel The channel that the known AP is using.
Management and Monitoring
90
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
Table 24. IDS/IPS policies and policy rules
Policy Description Policy Rule
Threshold Notification
Authentication flood •Attack. Multiple authentication requests (5 or more) that use
spoofed MAC addresses of legitimate clients are sent to the
wireless access point.
•Result. The client association table overflows, causing
authentication requests from legitimate clients to be denied.
•Solution. The oldest clients that are stuck in the authentication
phase are removed from the table.
5Trap
Association flood •Attack. Multiple association requests (5 or more) that use
spoofed MAC addresses of legitimate clients are sent to the
wireless access point.
•Result. The client association table overflows, causing
association requests from legitimate clients to be denied.
•Solution. The oldest associations are removed from the table.
5Trap
Unauthenticated
association •Attack. Multiple unauthenticated association requests (5 or
more) that use spoofed MAC addresses of legitimate clients are
sent to the wireless access point.
•Result. The client association table overflows, causing
authentication requests from legitimate clients to be denied.
•Solution. The oldest clients that are stuck in the authentication
phase are removed from the table.
5Trap
Association table
overflow •Attack. Multiple clients (5 or more) that use spoofed MAC
addresses of legitimate clients attempt to connect to the
wireless access point.
•Result. The client association table overflows, causing
association requests from legitimate clients to be denied.
•Solution. The oldest associations are removed from the table.
5Trap
Authentication
failure attack •Attack. Multiple invalid authentication requests (5 or more) that
use the spoofed MAC address of a legitimate client are sent to
the wireless access point.
•Result. The client is disconnected from the wireless access
point.
•Solution. The wireless access point determines if the legitimate
client is already connected before processing an authentication
request.
5Trap
Deauthentication
broadcast attack •Attack. Multiple deauthentication frames (5 or more) that use
the spoofed MAC address of the wireless access point are sent
to legitimate clients.
•Result. Clients are disconnected from the wireless access
point.
Note: The IDS detects this attack, but the IPS does not take action
against this attack.
5Trap
Management and Monitoring
91
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
Disassociation flood •Attack. Multiple disassociation frames (5 or more) that use the
spoofed MAC address of the wireless access point are sent to a
legitimate client.
•Result. The client is disconnected from the wireless access
point.
Note: The IDS detects this attack, but the IPS does not take action
against this attack.
5Trap
Malformed 802.11
packets detected •Detection. Multiple malformed packets (5 or more) are sent to
the wireless access point.
•Result. Clients behave unexpectedly or crash.
•Solution. The wireless access point drops the malformed
packets.
5Trap
EAPOL-start attack •Attack. Multiple EAPOL start frames (5 or more) are sent to the
wireless access point to initiate the RADIUS authentication
process for clients.
•Result. Wireless service is disrupted.
•Solution. The wireless access point determines if the legitimate
clients have already been authenticated before processing
EAPOL start frames.
5Trap
EAPOL-logoff attack •Attack. Several EAPOL logoff frames (2 or more) that use the
spoofed MAC address of a legitimate client are sent to the
wireless access point to terminate a RADIUS-authenticated
session.
•Result. The client is disconnected from the wireless access
point.
•Solution. The wireless access point determines if it still
receives traffic from the client before disconnecting the client.
2Trap
Premature EAP
failure attack •Attack. Several premature EAP failure frames (2 or more) are
sent to a legitimate client to suggest RADIUS authentication
failure.
•Result. The client cannot be authenticated and cannot connect
to the wireless access point.
Note: The IDS detects this attack, but the IPS does not take action
against this attack.
2Trap
Premature EAP
success attack •Attack. Several premature EAP success frames (2 or more) are
sent to a legitimate client to suggest RADIUS authentication
success.
•Result. The client cannot be authenticated and cannot connect
to the wireless access point.
Note: The IDS detects this attack, but the IPS does not take action
against this attack.
2Trap
Table 24. IDS/IPS policies and policy rules (continued)
Policy Description Policy Rule
Threshold Notification
Management and Monitoring
92
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
CTS flood •Attack. Multiple clear-to-send (CTS) frames (60 or more) are
sent to the wireless access point.
•Result. Wireless service is disrupted.
•Solution. The wireless access point sends a channel change
frame to the legitimate clients and uses automatic channel
selection to switch to a new clear channel.
60 Trap
RTS flood •Attack. Multiple request-to-send (RTS) frames (60 or more) are
sent to the wireless access point.
•Result. Wireless service is disrupted.
•Solution. The wireless access point sends a channel change
frame to the legitimate clients and uses automatic channel
selection to switch to a new clear channel.
60 Trap
RF jamming attack •Attack. Multiple RF transmissions (100 or more) are sent to the
wireless access point, jamming the radio frequency.
•Result. Wireless service is disrupted.
Note: The IDS detects this attack, but the IPS does not take action
against this attack.
100 Trap
Virtual carrier attack •Attack. Multiple frames (60 or more) with a large duration value
are sent to the wireless access point.
•Result. Wireless service is disrupted.
•Solution. The wireless access point sends a channel change
frame to the legitimate clients and uses automatic channel
selection to switch to a new clear channel.
60 Trap
MAC spoofing •Attack. Several frames (3 or more) that contain the spoofed
MAC address of the wireless access point itself or the spoofed
MAC address of a legitimate client are sent to the wireless
access point.
•Result. Wireless security might be compromised.
Note: The IDS detects MAC spoofing, but the IPS does not take
action against MAC spoofing.
3Trap
Rogue AP detection •Detection. A wireless access point is not in the managed AP
list (see View and Save Access Point Lists on page 87) and is
not connected to the secured wireless or wired network.
•Result. Wireless security might be compromised.
Note: The IDS detects rogue APs, but the IPS does not take action
against rogue APs. For information about how to exclude rogue APs
from your network, see Enable Rogue AP Detection and Monitor
Access Points on page 85.
0Trap
Table 24. IDS/IPS policies and policy rules (continued)
Policy Description Policy Rule
Threshold Notification
Management and Monitoring
93
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
Ad-hoc network
detected •Detection. A group of wireless access points are part of an
ad hoc network that might broadcast the same SSID as the
secured wireless network.
•Result. Wireless security might be compromised.
Note: The IDS detects ad hoc networks, but the IPS does not take
action against ad hoc networks.
0Trap
Ad-hoc network with
wired connectivity •Detection. A group of wireless access points are part of an
ad hoc network that has a wired connection and that might
broadcast the same SSID as the secured wireless network.
•Result. Wireless security might be compromised.
Note: The IDS detects ad hoc networks, but the IPS does not take
action against ad hoc networks.
0Trap
Known client
associating with
ad-hoc network
•Detection. Clients that should be connected to the secured
wireless network are instead connected to wireless access
points that are part of an ad hoc network.
•Result. Wireless security might be compromised.
•Solution. The clients are disconnected from the ad hoc
network.
0Trap
AP property
changed •Detection. Unauthorized changes such as a change of SSID,
security settings, or channel are made on a known wireless
access point in the network.
•Result. Wireless security is compromised and clients cannot
connect to the wireless access point.
Note: The IDS detects that the properties of a known wireless
access point in the network are changed, but the IPS does not take
action.
The changes that the IDS detects are listed in a table. The affected
wireless access point is identified by its MAC address. To correct
the situation, access the web management interface of the affected
wireless access point, and reverse the changes.
To remove the detected changes from the table:
1. Select the check box to the left of the wireless access point for
which you want to remove the changes from the table.
2. Above the table, click Delete.
0Trap
Table 24. IDS/IPS policies and policy rules (continued)
Policy Description Policy Rule
Threshold Notification
Management and Monitoring
94
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
To enable and configure the IDS/IPS:
1. Select Configuration > IDS/IPS. The IDS/IPS screen displays:
Figure 54.
2. Select the Enable radio button. By default, the IDS/IPS is disabled.
Device probing for
access points •Detection. Multiple probe requests (30 or more) are sent to
collect information about the wireless access point for possible
future attacks. For example, it is suspect when there are too
many probe requests with a different SSID from same MAC
address.
•Result. An attack might occur, or wireless security might
become compromised.
•Solution. The wireless access point does not respond to probe
requests that do not contain its SSID.
30 Trap
PS poll flood attack •Attack. Multiple power save (PS)–Poll frames (50 or more) are
sent to the wireless access point from an address that has a
spoofed MAC address of a legitimate client.
•Result. Traffic that is intended for the legitimate client is sent to
the attacking address and is lost.
•Solution. PS-Poll frames without a corresponding traffic
indication map (TIM) are rejected.
50 Trap
Table 24. IDS/IPS policies and policy rules (continued)
Policy Description Policy Rule
Threshold Notification
Management and Monitoring
95
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
3. Specify the detection policy by making a selection from the IDS/IPS Detection Policy
drop-down list:
•Mild. The wireless access point scans for attacks every 10 seconds.
•Moderate. The wireless access point scans for attacks every 5 seconds. This is the
default setting.
•Aggressive. The wireless access point scans for attacks every second.
4. Optional: Click a policy name to display the policy rules that are stated next to the policy in
the table. IDS/IPS policy rules are not configurable.
5. Optional: Clear check boxes for policies that you want to disable. By default, the check box
next to Select Policy in the table heading is selected, and all IDS/IPS policies are enabled.
6. Click Apply to save your settings.
Configure Wireless Intrusion Detection and Prevention Mail
Settings
For the IDS/IPS to send a notification according to the policy rule, you need to configure the email
settings.
To configure IDS/IPS email settings:
1. Select Configuration > IDS/IPS Mail Settings. The IDS/IPS Mail Settings screen
displays:
Figure 55.
2. Configure the settings as explained in the following table.
Table 25. IDS/IPS mail settings
Setting Description
Show as Mail Sender A descriptive name of the sender for email identification purposes. For
example, enter WNAP620-IDS-IPS@company.com.
SMTP Server The IP address or Internet name of the outgoing email SMTP server of your
ISP.
Management and Monitoring
96
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
3. Click Apply to save your settings.
Monitor Traps, Counters, and Ad Hoc Networks
The IDS/IPS monitoring screens provide information about the most recent attacks, the
number of occurrences per attack, and ad hoc networks. This information is read only.
Most Recent Attacks
To display the last 50 attacks against the wireless access point and its clients:
Select Monitoring > IPS/IDS > Traps. The Traps screen displays.

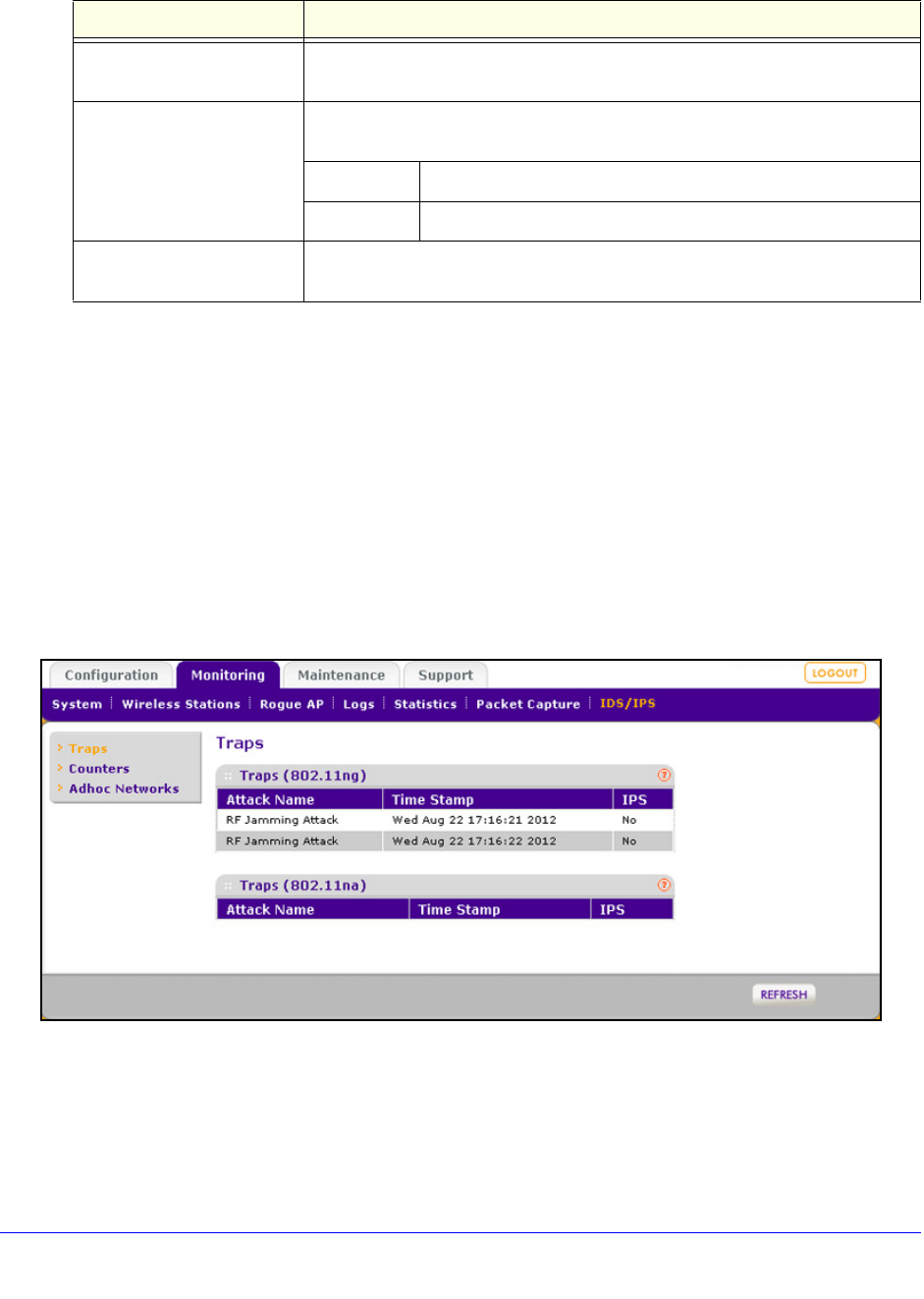

Figure 56.
To update the information onscreen, click Refresh.
Port Number The port number of the outgoing email SMTP server of your ISP. The default
port number is 25.
This server requires
authentication If the SMTP server requires authentication, select the This server requires
authentication check box, and enter the user name and password.
User Name The user name for SMTP server authentication.
Password The password for SMTP server authentication.
Send Notifications to Admin The email address to which the notifications should be sent. Typically, this is
the email address of the administrator.
Table 25. IDS/IPS mail settings (continued)
Setting Description
Management and Monitoring
97
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
The following table explains the fields of the Traps screen:
Ad Hoc Networks
To display the ad hoc networks and their associated clients:
Select Monitoring > IPS/IDS > Adhoc Networks. The Adhoc Network screen displays.
Figure 57.
To update the information onscreen, click Refresh.
The following table explains the fields of the Adhoc Networks screen:
Table 26. Traps fields
Setting Description
Attack Name The name of the attack that corresponds to a policy in Table 24 on page 90.
Time Stamp The time that the attack occurred.
IPS If the IPS has prevented the attack, the field displays Yes. If the IPS did not prevent the
attack, or the IPS is not applicable to the attack, the field displays No.
Table 27. Ad hoc network fields
Setting Description
Client MAC Address The MAC address of the client that is connected to the ad hoc network.
BSSID The BSSID of the ad hoc network.
Note: A wireless access point that is connected to a wired network and a set of wireless
stations is called a basic service set (BSS). The basic service set identifier (BSSID)
differentiates one WLAN from another.
Wired Connectivity If the ad hoc network has wired connectivity, the field displays YES. If the ad hoc
network does not have wired connectivity, the field displays NO.
Management and Monitoring
98
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
Attack Counter
To display the number of occurrences per attacks:
Select Monitoring > IPS/IDS > Counters. The Counters screen displays.

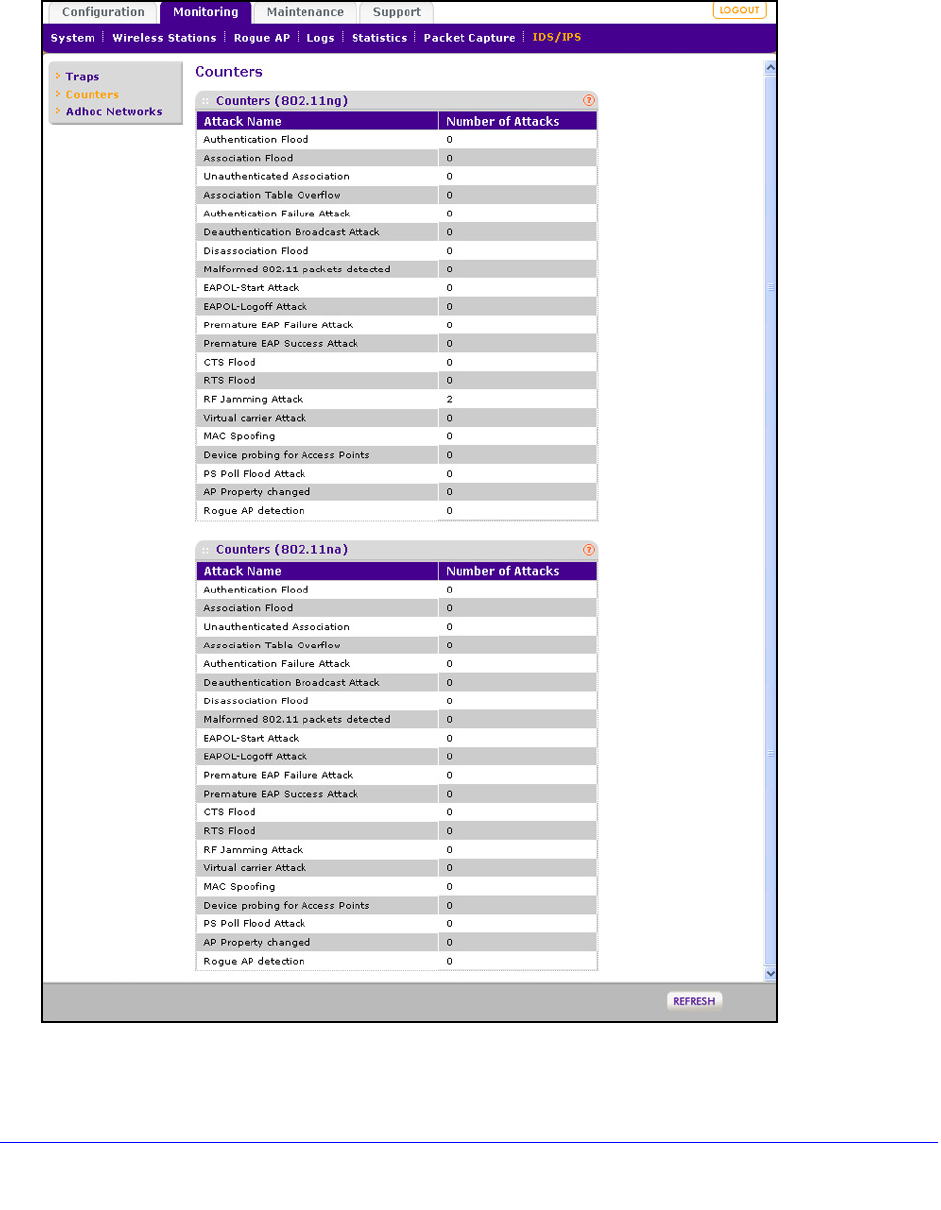

Figure 58.
To update the information onscreen, click Refresh.
99
5
5. Advanced Configuration
This chapter describes how to configure the advanced features of the wireless access point. The
chapter includes the following sections:
•Configure IPv6 Settings and Optional DHCPv6 Server Settings
•Configure Spanning Tree Protocol, 802.1Q VLAN, and Link Layer Discovery Protocol
•Configure Hotspot Settings
•Configure Advanced Wireless Settings
•Configure Advanced Quality of Service Settings
•Configure Quality of Service Policies
•Configure Wireless Bridging
Configure IPv6 Settings and Optional DHCPv6 Server
Settings
The wireless access point supports IPv6:
•You can manage the wireless access point from an IPv6 address.
•The wireless access point can function as an IPv6 DHCP client.
•The DHCPv6 server of the wireless access point can allocate IPv6 addresses to its
wireless clients, either through stateless or stateful allocation.
Configure the IPv6 Settings
Note: For information about how to configure the IPv4 settings, see
Configure the IPv4 Settings on page 25.
Advanced Configuration
100
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
If you enable the DHCP client, the IP address of the wireless
access point changes when you click Apply, causing you to lose
your connection to the wireless access point. You then need to
use the new IP address to reconnect to the wireless access point.
Tip: If you enable the DHCP client on the wireless access point, you can
discover the new IP address of the wireless access point by accessing
the DHCP server on your LAN, or by using a network IP address scanner
application.
To configure the IPv6 settings:
1. Select Configuration > IP > IPv6 Settings. The IP Settings screen displays:

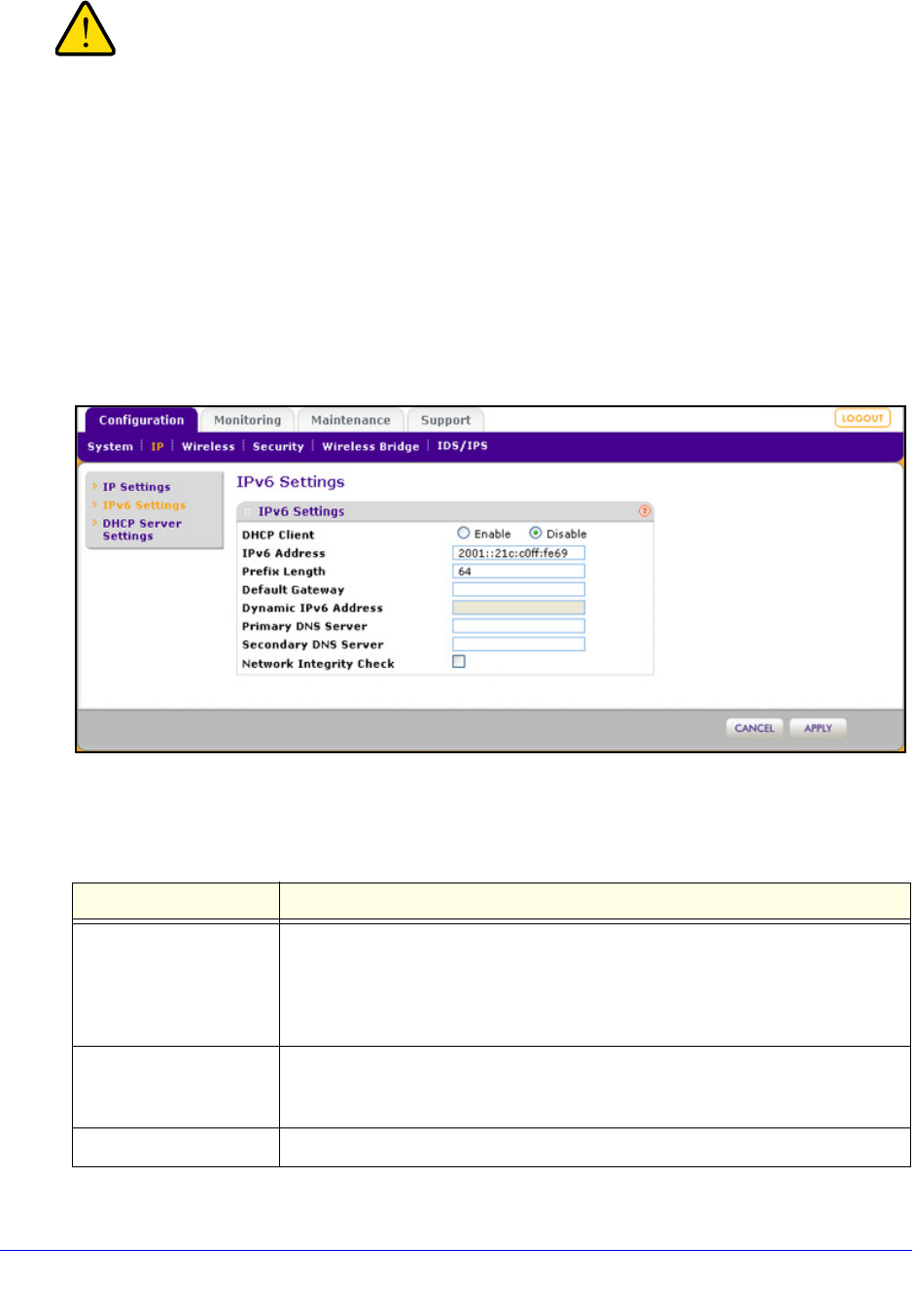

Figure 59.
2. Configure the IPv6 settings as explained in the following table:
Table 28. IPv6 settings
Setting Description
DHCP Client By default, the Dynamic Host Configuration Protocol (DHCP) client is disabled. If
you have a DHCPv6 server on your LAN and you select the Enable radio button,
the wireless access point receives its dynamic IPv6 address, prefix length, and
default gateway settings automatically from the DHCPv6 server on your network
when you connect the wireless access point to your LAN.
IPv6 Address Enter the IP address of your wireless access point. The default IP address is
2001::21c:c0ff:fe69. To change the address, enter an unused IPv6 address
from the address range used on your LAN.
Prefix Length Enter the prefix length for the IPv6 address. The default prefix length us 64.
Advanced Configuration
101
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
3. Click Apply to save your settings.
Configure the Optional DHCPv6 Server
The wireless access point provides a built-in DHCPv6 server for wireless clients only, which
can be especially useful in small networks. When the DHCP server is enabled, the wireless
access point provides preconfigured TCP/IP configurations to all connected wireless stations.
Note: For information about how to configure the DHCPv4 server, see
Configure the Optional DHCPv4 Server on page 27.
To configure DHCPv6 server settings:
1. Select Configuration > IP > DHCP Server Settings. The DHCP Server Settings screen
displays. The following figure displays the DHCPv6 server settings only. For information
about the DHCPv6 server settings, see Configure the Optional DHCPv4 Server on
page 27.
Default Gateway Enter the IPv6 address of the ISP gateway to which the wireless access point
connects.
Dynamic IPv6 Address The dynamic IPv6 address that is assigned by the DHCPv6 server on your
network. This address does not overwrite the address in the IPv6 Address field.
Primary DNS Server
Enter the IP address of the primary and secondary DNS servers.
A DNS server is a host on the Internet that translates Internet names (such as
www.netgear.com) to numeric IP addresses. Typically your ISP transfers the IP
address of one or two DNS servers to your wireless access point during login. If
the ISP does not transfer an address, you need to obtain it from the ISP and
enter it manually in this field.
Secondary DNS Server
Network Integrity Check Select this check box to validate that the upstream link is active before allowing
wireless associations. Ensure that the default gateway is configured.
Table 28. IPv6 settings (continued)
Setting Description
Advanced Configuration
102
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660

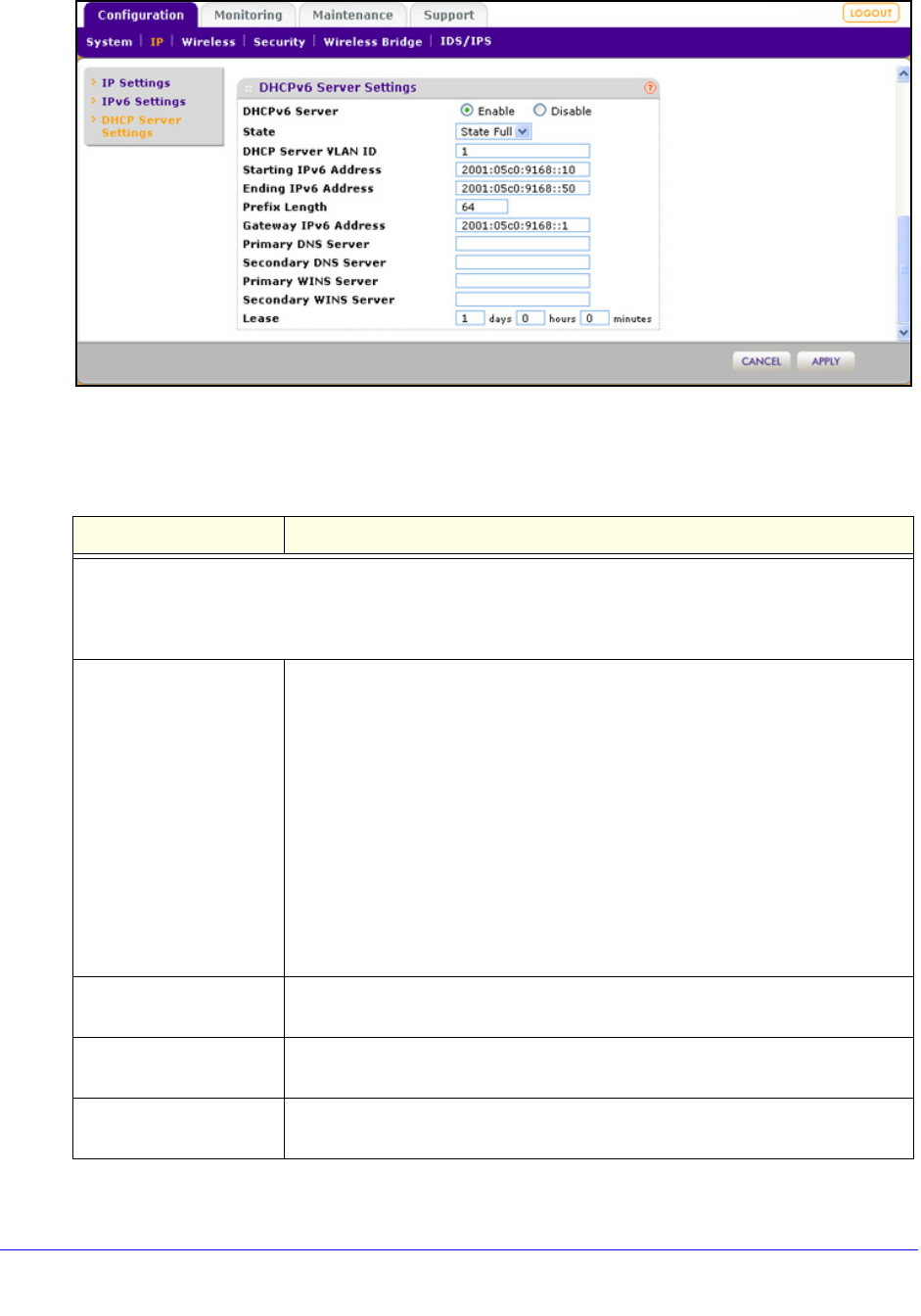

Figure 60.
2. Configure the settings as explained in the following table:
Table 29. DHCP server settings for IPv6
Setting Description
Select the DHCPv6 Server Enable radio button to enable the DHCP server. Use the default settings or
specify the pool of IPv6 addresses to be assigned by setting the starting IPv6 address and ending IPv6
address. These addresses should be part of the same IP address subnet as the wireless access point’s
LAN IPv6 address.
State From the State drop-down list, select the DHCPv6 server option:
•Stateless. The IPv6 clients in the LAN generate their own IP address by
using a combination of locally available information and router
advertisements, but receive DNS server information from the DHCPv6
server.
Note: When you select the Stateless option, you do not need to configure
any other DHCPv6 server settings fields.
•Stateful. The IPv6 clients in the LAN obtain an interface IP address,
configuration information such as DNS server information, and other
parameters from the DHCPv6 server. The IP address is a dynamic address.
Note: When you select the Stateful option, you need to configure all other
DHCPv6 server settings fields.
DHCP Server VLAN ID Enter the VLAN ID for the DHCP server. The VLAN ID range is from 1 to 4094.
The default VLAN is 1.
Starting IPv6 Address Enter the first address in the range of IPv6 addresses to be assigned to DHCP
clients. The default address is 2001:05c0:9168::10.
Ending IPv6 Address Enter the last address in the range of IPv6 addresses to be assigned to DHCP
clients. The default address is 2001:05c0:9168::50.
Advanced Configuration
103
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
3. Click Apply to save your settings.
Configure Spanning Tree Protocol, 802.1Q VLAN, and
Link Layer Discovery Protocol
•Configure STP and VLANs
•Configure Ethernet LLDP
As part of the advanced system configuration, you can enable the Spanning Tree Protocol
(STP), configure the VLANs, and enable Ethernet Link Layer Discovery Protocol (LLDP).
Configure STP and VLANs
STP provides network traffic optimization in locations where multiple wireless access points
are active by preventing path redundancy. NETGEAR recommends that you enable STP if
you have more than one active wireless access point at your location.
The 802.1Q VLAN protocol on the wireless access point logically separates traffic on the
same physical network:
•Untagged VLAN. When the wireless access point sends frames that are associated with
the untagged VLAN from its Ethernet interface, those frames are untagged. When the
wireless access point receives untagged frames over its Ethernet interface, those frames
are assigned to the untagged VLAN.
Prefix Length Enter the prefix length to be used by DHCP clients. The default length is 64.
Gateway IPv6 Address Enter the IPv6 address of the default routing gateway to be used by DHCP
clients. The default address is 2001:05c0:9168::1.
Primary DNS Address Enter the IP address of the primary Domain Name System (DNS) server
available to DHCP clients.
Secondary DNS Address Enter the IP address of the secondary DNS server available to DHCP clients.
Primary WINS Server Enter the IP address of the primary WINS server for the network, if there is any.
Secondary WINS Server Enter the IP address of the secondary WINS server for the network, if there is
any.
Lease Enter the period that the DHCP server grants to DHCP clients to use the
assigned IP addresses. The default time is one day.
Table 29. DHCP server settings for IPv6 (continued)
Setting Description
Advanced Configuration
104
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
Note: Select the Untagged VLAN check box only if the hubs and switches
on your LAN support the 802.1Q VLAN protocol. Likewise, change
the untagged VLAN value only if the hubs and switches on your LAN
support the 802.1Q VLAN protocol.
•Tagged VLAN. When you clear the Untagged VLAN check box, the wireless access point
tags all frames that are sent from its Ethernet interface. Only incoming frames that are
tagged with known VLAN IDs are accepted.
•Management VLAN. The management VLAN can be active only when the wireless
access point functions as a point-to-point or point-to-multipoint bridge (see Configure
Wireless Bridging on page 119). The management VLAN is used for managing traffic
(Telnet, SNMP, and HTTP) to and from the wireless access point.
Frames belonging to the management VLAN are not given any 802.1Q header when they
are sent over the trunk. If a port is in a single VLAN, it can be untagged. However, if the
port is a member of multiple VLANs, it needs to be tagged.
To configure STP and VLANs:
1. Select Configuring > System > Advanced > General. The advanced General system
settings screen displays:
Figure 61.
Advanced Configuration
105
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
2. Specify the settings as explained in the following table:
WARNING:
Selecting the Untagged VLAN check box or changing the
untagged VLAN value causes loss of IP connectivity if the hubs
and switches on your LAN have not yet been configured with the
corresponding VLAN.
3. Click Apply to save your settings.
Configure Ethernet LLDP
Link Layer Discovery Protocol (LLDP), IEEE 802.1ab, is a management tool that delivers
link-layer messages to adjacent network devices. For example, LLDP messages enable
networking devices such as switches and management tools to discover the wireless access
point in the network, and might indicate whether the wireless access point receives power
through a PoE connection. LLDP is intervendor compatible.
By default, LLDP is enabled on the wireless access point.
To turn off LLDP:
1. Select Configuring > System > Advanced > Ethernet LLDP. The Ethernet LLDP
screen displays:
Table 30. STP and VLAN settings
Setting Description
Spanning Tree Protocol
Spanning Tree Protocol Select the Enable radio button to enable STP to prevent path redundancy. By
default, the Disable radio button is selected.
802.1Q VLAN
Untagged VLAN Select the Untagged VLAN check box to configure one VLAN as an untagged
VLAN. By default, the Untagged VLAN check box is selected.
Specify a VLAN ID. The default VLAN ID is 1.
Management VLAN Specify an ID for the VLAN from which the wireless access point can be
managed. The default VLAN ID is 1.
Note: If you configure the management VLAN ID as 0 (zero), the wireless access
point can be managed over any VLAN, and frames that belong to the
management VLAN are not tagged with an 802.1Q header when sent over the
trunk.
Advanced Configuration
106
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
Figure 62.
2. Select the Disable radio button. By default, the Enable radio button is selected.
3. Click Apply to save your settings.
Configure Hotspot Settings
If the wireless access point functions as a public access point and you want it to capture and
redirect all HTTP requests (over TCP, port 80), set up a hotspot server to redirect the
requests to the specified URL and manage the clients. For example, you can redirect HTTP
requests to a web server for authentication, timing control, or advertising. A hotel might want
all wireless connections to go to its server to start a billing transaction.
Note: The redirection occurs only the first time that a wireless client opens
a web browser.
To set up a hotspot server:
1. Select Configuration > System > Advanced > Hotspot. The Hotspot screen displays:
Advanced Configuration
107
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
Figure 63.
2. To enable HTTP redirection, select the Enable radio button. By default, the Disable radio
button is selected.
3. In the Redirect URL field, enter the URL of the web server to which you wish to redirect
HTTP requests.
4. Click Apply to save your settings. All HTTP requests are now redirected to the specified
URL.
Configure Advanced Wireless Settings
Use the advanced Wireless Settings screen to configure and enable various WLAN settings
for the 802.11b/bg/ng and 802.11a/na modes. Band steering is an advanced wireless feature
that reduces the client density in the 2.4 GHz band and increases the wireless network
capacity.
The default WLAN settings normally work well. However, you can use the advanced settings
to fine-tune the overall performance of the wireless access point for your specific
environment.
To configure advanced wireless settings:
1. Select Configuration > Wireless > Advanced > Wireless Settings. The advanced
Wireless Settings screen displays. The following figure shows the 11ng settings, as
indicated by the radio wave icon ( ) that is displayed next to ng:
Advanced Configuration
108
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
Figure 64.
2. Optional: To configure advanced wireless settings for the 802.11a/na modes, click the
802.11a/na tab.
3. Specify the settings as explained in the following table:
Table 31. Advanced wireless settings
Setting Description
RTS Threshold (0–2347) Enter the Request to Send (RTS) threshold. The default setting is
2347.
If the packet size is equal to or less than the RTS threshold, the
wireless access point uses the Carrier Sense Multiple Access with
Collision Detection (CSMA/CD) mechanism, and the data frame is
transmitted immediately after the silence period.
If the packet size is larger than the RTS threshold, the wireless access
point uses the CSMA with Collision Avoidance (CSMA/CA)
mechanism. In this situation, the transmitting station sends an RTS
packet to the receiving station and waits for the receiving station to
return a Clear to Send (CTS) packet before sending the actual packet
data.
Advanced Configuration
109
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
Fragmentation Length (256–2346) Enter the maximum packet size that is used for the fragmentation of
data packets. Packets that are larger than the specified fragmentation
length are broken up into smaller packets before being transmitted.
The fragmentation length needs to be an even number. The default
setting is 2346.
Beacon Interval (100–1000) Enter the interval between 100 ms and 1000 ms for each beacon
transmission, which allows the wireless access point to synchronize
the wireless network. The default setting is 100.
Aggregation Length (1024–65535)
Note: This setting does not apply
to the 802.11a mode.
Enter the maximum length of aggregated MAC protocol data unit
(A-MPDU) packets. Larger aggregation lengths could lead to better
network performance. Aggregation is a mechanism used to achieve
higher throughput. The default setting is 65535.
AMPDU
Note: This setting does not apply
to the 802.11b/bg modes and the
802.11a mode.
Select the Enable radio button to allow the aggregation of several MAC
frames into a single large frame to achieve higher throughput. Enabling
the aggregated MAC protocol data unit (A-MPDU) could lead to better
network performance. By default, the Enable radio button is selected.
RIFS Transmission
Note: This setting does not apply
to the 802.11b/bg modes and the
802.11a mode.
Select the Enable radio button to allow transmission of successive
frames at different transmit powers. Enabling reduced interframe space
(RIFS) could lead to better network performance. By default, the
Disable radio button is selected.
DTIM Interval (1–255) Enter the delivery traffic indication message (DTIM) interval, also
referred to as the data beacon rate, which indicates the beacon
delivery traffic indication message period in multiples of beacon
intervals. This value needs to be between 1 and 255. The default
setting is 3.
Preamble Type
Note: This setting does not apply
to the 802.11a/na modes.
Select one of the following radio buttons to specify the preamble type:
•Long. A long transmit preamble might provide a more reliable
connection or a slightly longer range. A short transmit preamble
gives better performance.
•Auto. The Auto setting enables the wireless access point to handle
both long and short preambles. The default setting is Auto.
Antenna
Note: This setting does not apply
to the 802.11a/na modes.
Select one of the following radio buttons to specify the antenna:
•Internal. Enables the internal antenna. This is the default setting.
•External. Enables an optional external antenna or antennas.
802.11d
Note: This setting does not apply
to the 802.11a/na modes.
Select this check box to enable support for additional regulatory
domains that are not in the current standard; support includes the
addition of a country information element to beacons, probe requests,
and probe responses. This check box is selected by default.
Table 31. Advanced wireless settings (continued)
Setting Description
Advanced Configuration
110
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
4. Click Apply to save your settings.
Client Isolation From the drop-down list, select one of the following options:
•Enable. Communication between wireless clients that are
associated to different virtual access points (VAPs) is blocked.
•Disable. Communication between wireless clients that are
associated to different VAPs is allowed. This is the default setting.
Max. Wireless Clients Enter the maximum number of wireless clients that can simultaneously
connect to the wireless access point at one time. The default setting is
128 clients.
Band Steering to 5GHz
Note: This setting does not apply
to the 802.11a/na modes.
Select the Enable radio button to enable band steering to the
5 GHz band. When band steering is enabled, the wireless access point
identifies wireless clients that are dual-band capable and can force
them to connect to the 5 GHz band rather than 2.4 GHz band. Wireless
clients that are already connected to the 2.4 GHz band can be forced
into the 5 GHz band.
In general, the 5 GHz band has more channels available, has more
bandwidth, and causes less interference for wireless clients. By default,
the Disable radio button is selected, and band steering is disabled.
When band steering is enabled, you can set the RSSI thresholds that
determine whether a wireless client is forced into the 5 GHz band.
Rssi Threshold 2.4GHz
Note: This setting does not apply
to the 802.11a/na modes.
Enter a value for the minimum received signal strength indicator (RSSI)
threshold that a wireless client needs to have to connect to the 2.4 GHz
band. The default is 15.
The RSSI threshold for the 2.4 GHz band functions in the following
way:
• If the RSSI of the wireless client is less than the minimum RSSI
threshold for the 2.4 GHz band, the wireless client connects to the
2.4 GHz band and is not forced into the 5 GHz band.
• If the RSSI of the wireless client is equal to or more than the
minimum RSSI threshold for the 2.4 GHz band, the wireless client
can be forced into the 5 GHz band. Whether the wireless client is
actually forced into the 5 GHz band also depends on the minimum
RSSI threshold for the 5 GHz band.
Rssi Threshold 5GHz
Note: This setting does not apply
to the 802.11a/na modes.
Enter the minimum RSSI threshold that a wireless client needs to have
to connect to the 5 GHz radio. The default is 15.
The RSSI threshold for the 5 GHz band functions in the following way:
• If the RSSI of the wireless client is less than the minimum RSSI
threshold for the 5 GHz band, the wireless client connects to the
2.4 GHz band and is not forced into the 5 GHz band.
• If the RSSI of the wireless client is equal to or more than the
minimum RSSI threshold for the 5 GHz band, the wireless client
can be forced into the 5 GHz band. Whether the wireless client is
actually forced into the 5 GHz band also depends on the minimum
RSSI threshold for the 2.4 GHz band.
Table 31. Advanced wireless settings (continued)
Setting Description
Advanced Configuration
111
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
Configure Advanced Quality of Service Settings
For most networks, the default Quality of Service (QoS) queue settings work well. For
information about how to configure basic QoS, see Configure Basic Wireless Quality of
Service on page 62.
You can specify the settings on multiple queues for increased throughput and better
performance of differentiated wireless traffic such as Voice-over-IP (VoIP), other types of
audio, video, and streaming media, as well as traditional IP data.
The advanced QoS options on the wireless access point are as follows:
•AP EDCA parameters. Specify the access point (AP) Enhanced Distributed Channel
Access (EDCA) settings for different types of data transmitted from the wireless access
point to wireless clients.
•Station EDCA parameters. Specify the station EDCA parameters for different types of
data transmitted from the wireless clients to the wireless access point. If WMM is
disabled, you cannot configure the Station EDCA parameters. (For information about how
to enable WMM, see Configure Basic Wireless Quality of Service on page 62.)
When you configure the EDCA settings, the wireless access point can leverage existing
information in the IP packet header that is related to the Type of Service (ToS). The wireless
access point examines the ToS field in the headers of all packets that it processes. Based on
the value in a packet’s ToS field, the wireless access point prioritizes the packet for
transmission by assigning it to one of the queues. A different type of data is associated with
each queue. You can configure how the wireless access point treats each queue.
The queues defined for different types of data transmitted from AP-to-station and
station-to-AP are:
•Data 0 (Best Effort). Medium priority queue, medium throughput and delay. Most
traditional IP data is sent to this queue.
•Data 1 (Background). Lowest priority queue, high throughput. Bulk data that requires
maximum throughput and is not time-sensitive is sent to this queue (FTP data, for
example).
•Data 2 (Video). Highest priority queue, minimum delay. Time-sensitive video data is
automatically sent to this queue.
•Data 3 (Voice). Highest priority queue, minimum delay. Time-sensitive data such as VoIP
and streaming media are automatically sent to this queue.
To configure advanced QoS:
1. Select Configuration > Wireless > Advanced > QoS Settings. The advanced QoS
Settings screen displays:
Advanced Configuration
112
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660

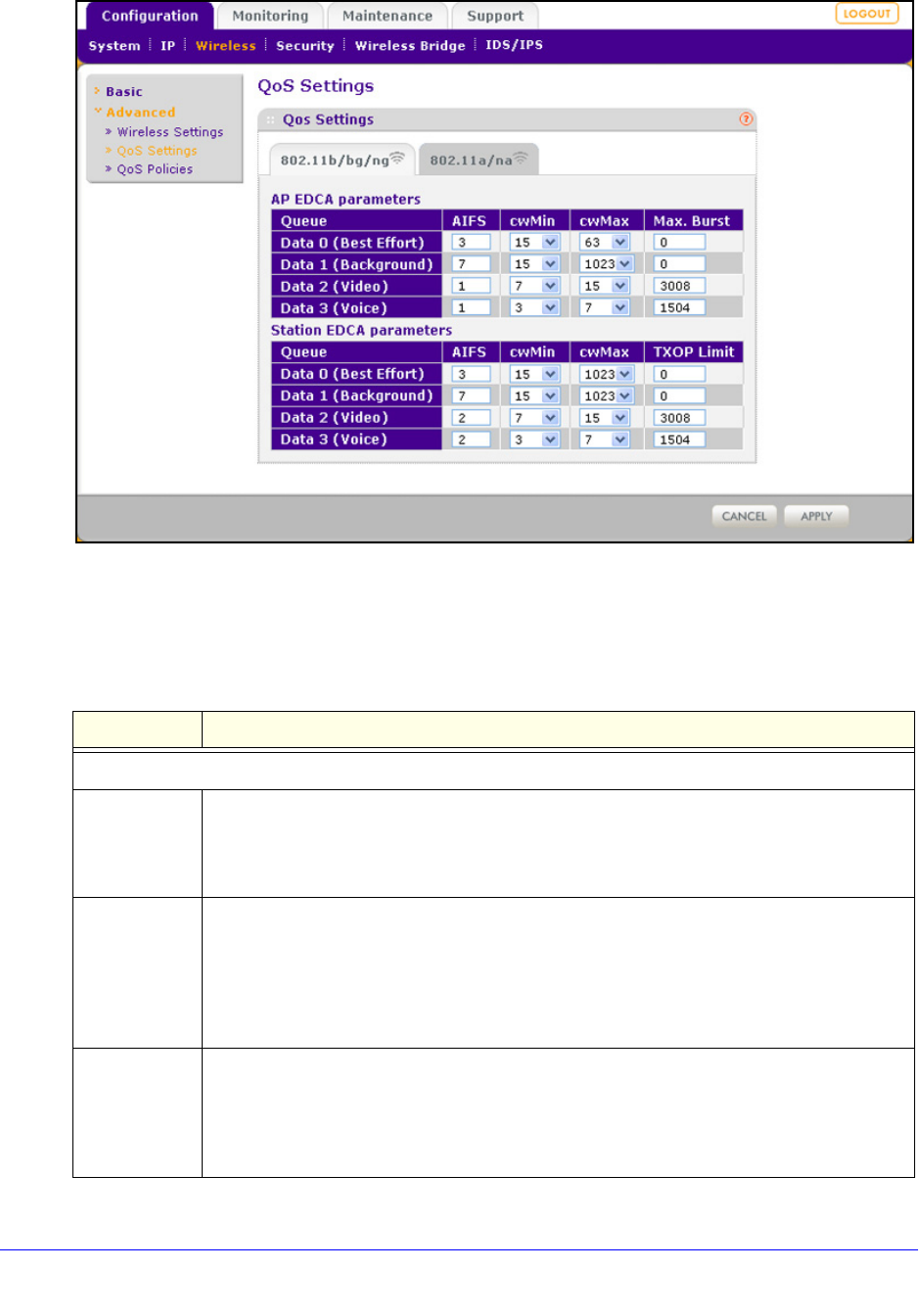

Figure 65.
2. Optional: To configure advanced QoS for the 802.11a/na modes, click the 802.11a/na tab.
3. Specify the settings as explained in the following table:
Table 32. EDCA settings
Setting Description
AP EDCA parameters
AIFS Enter the Arbitration Inter-Frame Spacing (AIFS) interval that specifies the wait time (in
milliseconds) between data frames. A higher AIFS value means a higher priority for a
queue. Valid values for AIFS are 0 through 8.
The default values are Data 0: 3; Data 1: 7; Data 2: 1; Data 3: 1.
cwMin Enter the minimum contention window (cwMin) value that specifies the upper limit (in
milliseconds) of a range from which the initial random back-off wait time is determined.
Decreasing this value increases the priority of the queue. The value for cwMin needs to be
lower than the value for cwMax. Valid values are 0, 1, 3, 7, 15, 31, 63, 127, 255, 511, and
1023.
The default values are Data 0: 15; Data 1: 15; Data 2: 7; Data 3: 3.
cwMax Enter the maximum contention window (cwMax) value that specifies the upper limit (in
milliseconds) for the doubling of the random back-off value. Decreasing this value
increases the priority of the queue. The value for cwMax needs to be higher than the value
for cwMin. Valid values are 0, 1, 3, 7, 15, 31, 63, 127, 255, 511, and 1023.
The default values are Data 0: 63; Data 1: 1023; Data 2: 15; Data 3: 7.
Advanced Configuration
113
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
4. Click Apply to save your settings.
Configure Quality of Service Policies
The wireless access point lets you configure and apply QoS policies to wireless clients. In
each QoS policy, you can specify multiple classifications (match clauses) and apply traffic to
eight priority queues based on the following information in the Layer 2, Layer 3, Layer 3 IP
headers, and Layer 4:
•IP precedence. Indicates the IP Type of Service (ToS) or precedence in the IP headers.
•IP DSCP. Indicates the Differentiated Services Code Point (DSCP) marking in the IP
header.
•IP protocol 119. Indicates the IP protocol field in the IP header with value 119.
•802.1P. Indicates the 3-bit Class of Service (CoS) field in the class header.
•IP protocol. Indicates the protocol field in the IP header.
Max. Burst Enter the maximum burst value that specifies the maximum burst length (in microseconds)
allowed for packet bursts on the wireless network. A packet burst is a collection of multiple
frames transmitted without header information. Decreasing this value increases the priority
of the queue. Valid values for maximum burst length are all multiples of 32 between 0 and
8192, inclusive of 0 and 8192.
The default values are Data 0: 0; Data 1: 0; Data 2: 3008; Data 3: 1504.
Station EDCA parameters
AIFS Enter the Arbitration Inter-Frame Spacing (AIFS) interval that specifies the wait time (in
milliseconds) between data frames. A higher AIFS value means a higher priority for a
queue. Valid values for AIFS are 0 through 8.
The default values are Data 0: 3; Data 1: 7; Data 2: 2; Data 3: 2.
cwMin Enter the minimum contention window (cwMin) value that specifies the upper limit (in
milliseconds) of a range from which the initial random back-off wait time is determined.
Decreasing this value increases the priority of the queue. The value for cwMin needs to be
lower than the value for cwMax. Valid values are 0, 1, 3, 7, 15, 31, 63, 127, 255, 511, and
1023.
The default values are Data 0: 15; Data 1: 15; Data 2: 7; Data 3: 3.
cwMax Enter the maximum contention window (cwMax) value that specifies the upper limit (in
milliseconds) for the doubling of the random back-off value. Decreasing this value
increases the priority of the queue. The value for cwMax needs to be higher than the value
for cwMin. Valid values are 0, 1, 3, 7, 15, 31, 63, 127, 255, 511, and 1023.
The default values are Data 0: 1023; Data 1: 1023; Data 2: 15; Data 3: 7.
TXOP Limit Enter the transmission opportunity (TXOP) value that specifies the time interval (in
microseconds) in which a client station can initiate transmissions on the wireless medium
(WM). Decreasing this value increases the priority of the queue. Valid values for TXOP
Limit are all multiples of 32 between 0 and 8192, inclusive of 0 and 8192.
The default values are Data 0: 0; Data 1: 0; Data 2: 3008; Data 3: 1504.
Table 32. EDCA settings (continued)
Setting Description
Advanced Configuration
114
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
•EtherType. Indicates the EtherType field in Ethernet-II frame header.
•Source MAC. Indicates the source MAC address in Ethernet-II frame header.
•Destination MAC. Indicates the destination MAC address in Ethernet-II frame header.
•Source IP. Indicates the source IP address in the IP header.
•Destination IP. Indicates the destination IP address in the IP header.
•Source port. Indicates the source port number in the port header.
•Destination port. Indicates the destination port number in the port header.
For each classification in a QoS policy, you can configure rate limiting by specifying the
maximum bit rate and maximum burst rate. Packets that exceed the maximum bit rate are
retained in the traffic queue and are processed when transmission falls below the maximum
bit rate again. You can also configure the overall maximum bit rate and maximum burst rate
for the entire wireless interface.
You can configure up to eight QoS policies.
To configure a new QoS policy:
1. Select Configuration > Wireless > Advanced > QoS Policies. The advanced QoS
Policies screen displays:
Figure 66.
2. Optional: To configure the QoS Policies screen for the 802.11a/na modes, click the
802.11a/na tab.
3. From the Create Policy drop-down list, select NEW. If you have not created any QoS
policies, NEW is the only selection possible.
4. In the Policy Name field, enter a name for the new QoS policy.
Advanced Configuration
115
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
5. Specify a classification for the QoS policy as explained in the following table.
Note: Depending on your selection from the Match Frame Fields drop-down
list, Match Classifications appears either as a drop-down list from which you
need to make a selection or a field in which you need to enter information.
Table 33. QoS classification settings
Setting Description
Match Frame
Fields and Match
Classifications
IP DCSP From the Match Classifications drop-down list, select the DSCP traffic
class against which the information in the IP header needs to be
matched:
• Routine(0)
• Priority(1)
• Immediate(2)
•Flash(3)
• Flash Override(4)
•Critic/CCP(5)
• Inter Control(6)
• Network Control(7)
IP Precedence From the Match Classifications drop-down list, select the DSCP
marking against which the information in the IP header needs to be
matched:
• Best Effort
• Assured Forwarding - Class 1 Low
• Assured Forwarding - Class 1 Medium
• Assured Forwarding - Class 1 High
• Assured Forwarding - Class 2 Low
• Assured Forwarding - Class 2 Medium
• Assured Forwarding - Class 2 High
• Assured Forwarding - Class 3 Low
• Assured Forwarding - Class 3 Medium
• Assured Forwarding - Class 3 High
• Assured Forwarding - Class 4 Low
• Assured Forwarding - Class 4 Medium
• Assured Forwarding - Class 4 High
• Class Selector 1
• Class Selector 2
• Class Selector 3
• Class Selector 4
• Class Selector 5
• Class Selector 6
• Class Selector 7
• Expedited Forwarding
IP Protocol119 Traffic is matched against value 119 in the IP protocol field in the IP
header.
Advanced Configuration
116
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
Match Frame
Fields and Match
Classifications
(continued)
802.1P From the Match Classifications drop-down list, select the CoS priority
value against which the information in the IP header needs to be
matched:
• Routine(0)
• Priority(1)
• Immediate(2)
• Flash(3)
• Flash Override(4)
• Critic/CCP(5)
• Inter Control(6)
• Network Control(7)
IP Protocol In the Match Classifications field, enter the IP protocol value against
which the information in the IP header needs to be matched. A list of
protocol values is available at
http://www.iana.org/assignments/protocol-numbers/protocol-numbers.xml.
Ether Type In the Match Classifications field, enter the Ether type value against
which the information in the IP header needs to be matched. A list of
Ether type values is available at
http://standards.ieee.org/develop/regauth/ethertype/eth.txt.
Source MAC In the Match Classifications field, select or enter the source MAC
address against which the information in the IP header needs to be
matched.
To select the MAC address of a wireless client that is connected to the
wireless access point:
1. Select the radio button to the left of the Match Classifications
drop-down list.
2. From the drop-down list, select a MAC address.
To enter a MAC address:
1. Select the radio button to the right of the Match Classifications
drop-down list.
2. In the field to the right of the radio button, enter a MAC address.
Destination
MAC In the Match Classifications field, select or enter the destination MAC
address against which the information in the IP header needs to be
matched.
To select the MAC address of a wireless client that is connected to the
wireless access point:
1. Select the radio button to the left of the Match Classifications
drop-down list.
2. From the drop-down list, select a MAC address.
To enter a MAC address:
1. Select the radio button to the right of the Match Classifications
drop-down list.
2. In the field to the right of the radio button, enter a MAC address.
Table 33. QoS classification settings (continued)
Setting Description
Advanced Configuration
117
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
6. Optional: Specify rate limiting for the classification as explained in the following table:
7. Click Add to add the classification to the Classifications field.
8. To add another classification to the QoS policy, repeat Step 5, Step 6, and Step 7.
9. Click Apply to save your settings. The QoS policy is saved.
Match Frame
Fields and Match
Classifications
(continued)
Source IP In the Match Classifications field, enter the source IP address against
which the information in the IP header needs to be matched.
Destination IP In the Match Classifications field, enter the destination IP address
against which the information in the IP header needs to be matched.
Source Port The Match Classifications field is separated into two sections. In the left
section, enter the source port number, and optionally, in the right
section, enter the associated IP address against which the information
in the IP header needs to be matched.
Destination
Port The Match Classifications field is separated into two sections. In the left
section, enter the destination port number, and optionally, in the right
section, enter the associated IP address against which the information
in the IP header needs to be matched.
Apply
Classification From the Apply Classification drop-down list, select the traffic class that needs to be
applied to the packets that match the selection in the Match Classifications field:
• Best Effort(0)
• Background(1)
•Spare(2)
• Excellent(3)
• Control Load(4)
• Video < 100 ms Latency(5)
• Voice < 10 ms Latency(6)
• Network Control(7)
Table 34. Classification rate limiting settings
Setting Description
Classification
Rate Limiting
Bits Per Sec. Enter a value between 0 and 300,000,000 bps to specify the maximum
data rate up to which packets that match the classification are queued
for transmission and sent immediately over the wireless interface. This
value applies only to traffic that matches the classification.
Note: When the maximum rate is exceeded, packets are retained in
the queue and sent when the transmission falls below the maximum
rate again.
Burst Rate
(Bytes) Enter a value between 0 and 37,500,000 bytes to specify the maximum
amount of data that can be transmitted in a burst for packets that match
the classification. This value applies only to traffic that matches the
classification.
Table 33. QoS classification settings (continued)
Setting Description
Advanced Configuration
118
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
Note: Rate limiting for the wireless interface is an optional setting that
applies to all traffic on the wireless interface. Unlike classification
rate limiting, which you can specify for each classification, rate
limiting for the wireless interface needs to be specified only once.
To specify rate limiting for the wireless interface:
1. Specify rate limiting for the entire wireless interface as explained in the following table:
2. Click Apply to save your settings.
To modify a QoS policy:
1. From the Create Policy drop-down list, select the policy that you want to modify.
2. To delete a classification, select it in the Classification field, and click Delete Classification.
3. To add a classification, follow Step 5 through Step 7 in the procedure to configure a new
QoS policy. You can also change the name of the policy.
4. Click Apply to save your settings.
To delete a QoS policy:
1. From the Create Policy drop-down list, select the policy that you want to delete.
2. Click Delete Policy.
3. Click Apply to save your settings.
Table 35. Wireless interface rate limiting settings
Setting Description
Interface
Rate Limiting
Bits Per Sec. Enter a value between 0 and 300,000,000 bps to specify the maximum
data rate up to which packets are queued for transmission and sent
immediately over the wireless interface. This value applies to all traffic
on the wireless interface.
Note: When the maximum rate is exceeded, packets are retained in
the queue and sent when the transmission falls below the maximum
rate again.
Burst Rate
(Bytes) Enter a value between 0 and 37,500,000 bytes to specify the maximum
amount of data that can be transmitted in a burst over the wireless
interface. This value applies to all traffic on the wireless interface.
Advanced Configuration
119
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
Configure Wireless Bridging
•Configure a Point-to-Point Wireless Network
•Configure a Point-to-Multipoint Wireless Network
•Configure the Wireless Access Point to Repeat the Wireless Signal Using
Point-to-Multipoint Bridge Mode
The wireless access point supports a wireless distributing system (WDS) that lets you build
large bridged wireless networks. You can select from the following wireless access point
modes:
•Wireless point-to-point bridge. In this mode, the wireless access point can
communicate with another bridge-mode wireless station and, as an option, also with
wireless clients. Use WEP, WPA-PSK, or WPA2-PSK to secure the communication. For
information about how to configure this mode, see Configure a Point-to-Point Wireless
Network on page 119.
•Wireless point-to-multipoint bridge. In this mode, the wireless access point is the
master for a group of bridge-mode wireless stations. As an option, the wireless access
point can also communicate with wireless clients. You can configure up to four profiles.
The other bridge-mode wireless stations need to be set to point-to-point bridge mode,
using the MAC address of the master wireless access point. Rather than communicating
directly with each other, all other bridge-mode wireless stations send their traffic to the
master wireless access point. Use WEP, WPA-PSK, or WPA2-PSK to secure the
communication. For information about how to configure this mode, see Configure a
Point-to-Multipoint Wireless Network on page 123.
•Repeating the wireless signal. In this mode, this wireless access point repeats the
wireless signal, does not support communication with wireless clients, and sends all
traffic to a remote access point. In this mode, wireless clients cannot associate with the
wireless access point. Use WEP, WPA-PSK, or WPA2-PSK to secure the communication.
For information about how to configure this mode, see Configure the Wireless Access
Point to Repeat the Wireless Signal Using Point-to-Multipoint Bridge Mode on page 127.
Note: You cannot configure wireless bridging when automatic channel
selection is enabled. On the basic Wireless Settings screen, make sure
that Auto is not selected from the Channel / Frequency drop-down list
(see Configure the Basic Wireless Settings on page 28).
Configure a Point-to-Point Wireless Network
In point-to-point bridge mode, the wireless access point communicates with another
bridge-mode wireless station. Use wireless security to protect this communication. The
following figure shows an example in which two wireless access points (APs) function in
point-to-point bridge mode:
Advanced Configuration
120
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660

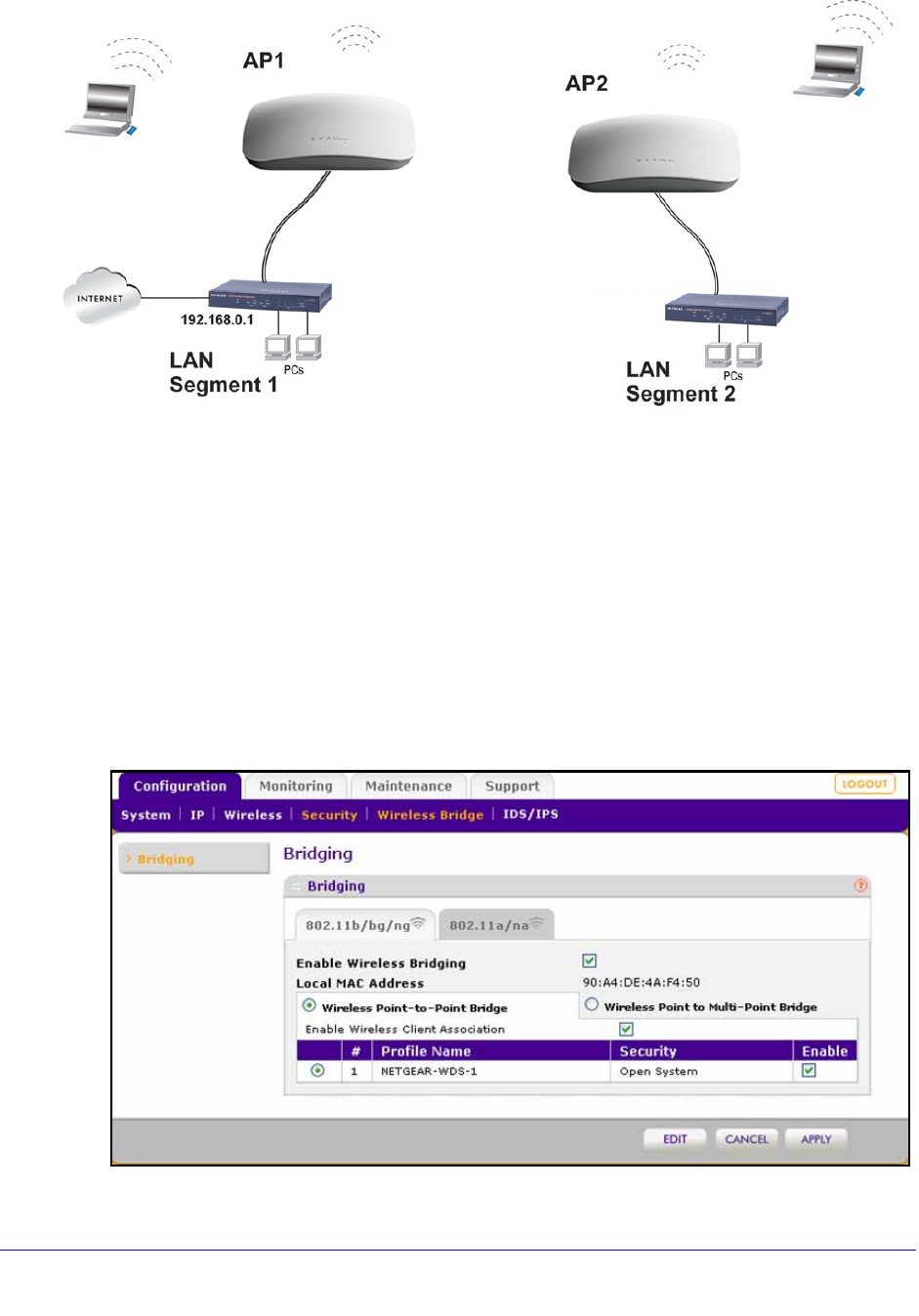

Figure 67.
To configure a point-to-point wireless network:
1. Configure the wireless access point (AP1 on LAN Segment 1 in the previous figure) as
a point-to-point bridge:
a. Select Configuration > Wireless Bridge. The Bridging screen displays (see the
following figure).
b. Optional: To display the Bridging screen for the 802.11a/na modes, click the 802.11a/na
tab.
c. Select the Enable Wireless Bridging check box. The Local MAC Address field is a
nonconfigurable field that shows the MAC address of the wireless access point.
d. Select the Wireless Point-to-Point Bridge radio button. The screen adjusts.
Figure 68.
Wireless PC card
in a notebook computer
Wireless PC card
in a notebook computer
Point-to-point
bridge mode Point-to-point
bridge mode
Router Hub or switch
Advanced Configuration
121
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
e. If you want to enable wireless client association while the wireless access point
functions as a point-to-point bridge, select the Enable Wireless Client Association
check box.
f. Click Edit to configure the security profile settings. The Edit Security Profile screen
displays:

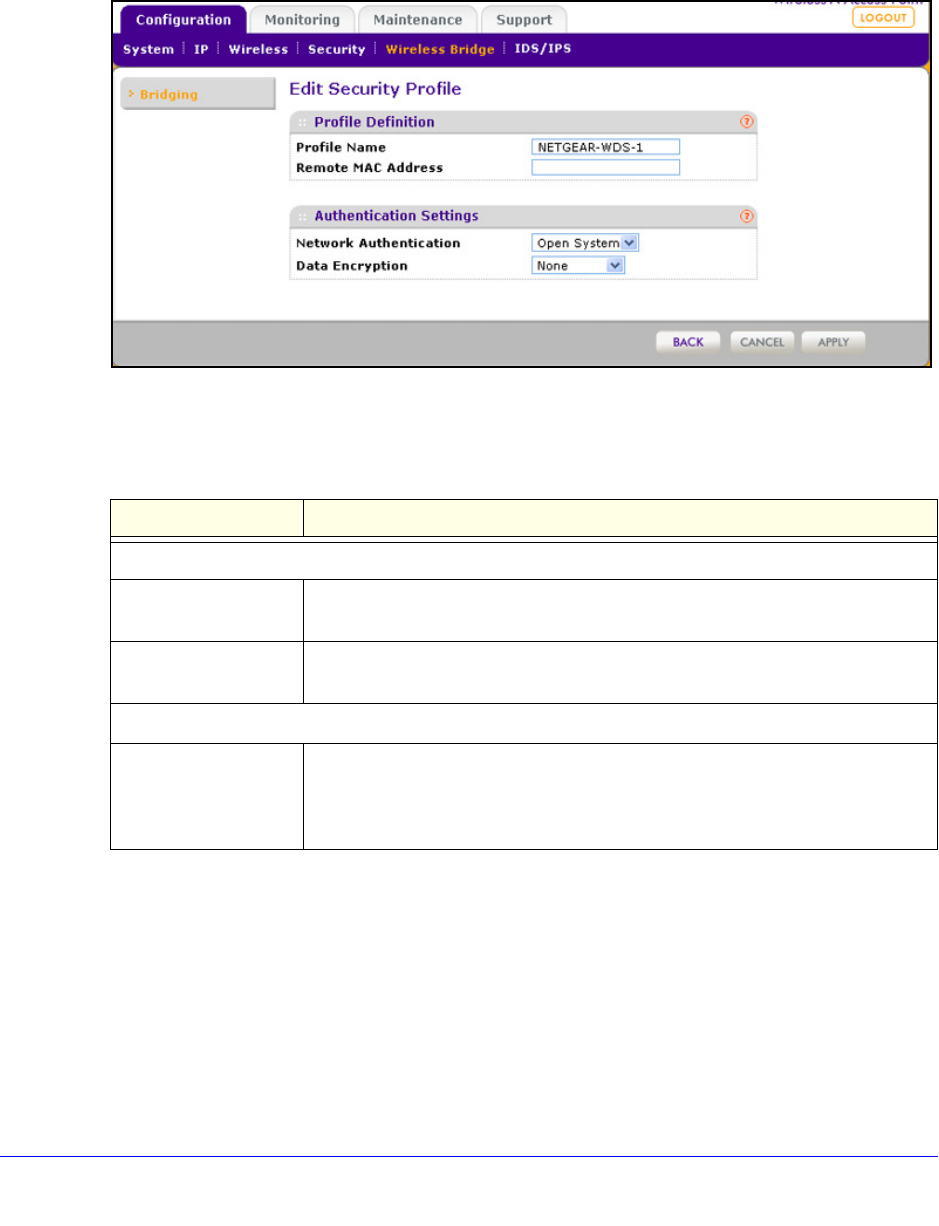

Figure 69.
g. Specify the settings as explained in the following table:
Table 36. Point-to-point bridge profile and authentication settings
Setting Description
Profile Definition
Profile Name Enter a profile name that is easy to remember. The default name is
NETGEAR-WDS-1.
Remote MAC Address Enter the MAC address of the remote wireless access point (the MAC address
of AP2 on LAN Segment 1 in Figure 67 on page 120).
Authentication Settings
Network
Authentication and
Data Encryption
From the Network Authentication drop-down list, select Open System,
WPA-PSK, or WPA2-PSK. Your selection determines the options that the Data
Encryption drop-down list provides, and whether the WPA Passphrase
(Network Key) field displays.
Advanced Configuration
122
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
h. Click Apply to save your security profile settings. The Bridging screen displays
again.
i. If the correct profile name and security option are displayed in the table, select the
check box in the Enable column.
j. Click Apply on the Bridging screen to save your point-to-point bridge settings.
2. Configure a second wireless access point (AP2) on LAN Segment 2 (see Figure 67 on
page 120) in point-to-point bridge mode.
AP1 needs to have AP2’s MAC address in its Remote MAC Address field, and AP2 needs
to have AP1’s MAC address in its Remote MAC Address field.
3. Verify the following settings for both wireless access points:
•Both wireless access points are configured to operate in the same LAN network
address range as the LAN devices.
•Both wireless access points use the same channel, authentication mode, and security
settings.
4. Verify connectivity across the LAN 1 and LAN 2.
Network
Authentication and
Data Encryption
(continued)
Open System Although you can use the bridge communication without any
authentication and encryption, NETGEAR recommends that
you use WEP if you do select an open system. From the Data
Encryption drop-down list, select one of the following:
•None. No authentication and encryption.
•64-bit WEP. Standard WEP encryption, using 40/64-bit
encryption.
•128-bit WEP. Standard WEP encryption, using
104/128-bit encryption.
•152-bit WEP. Proprietary WEP encryption mode, using
128+24 bit encryption. This mode functions only with
other wireless stations that support this mode.
WPA-PSK TKIP (Temporal Key Integrity Protocol) is the standard
encryption method used with WPA-PSK and the only
selection possible from the Data Encryption drop-down list.
In the WPA Passphrase (Network Key) field, enter a
passphrase. The passphrase length needs to be between
8 and 63 characters (inclusive).
WPA2-PSK AES (Advanced Encryption Standard) is the standard
encryption method used with WPA2-PSK and the only
selection possible from the Data Encryption drop-down list.
In the WPA Passphrase (Network Key) field, enter a
passphrase. The passphrase length needs to be between
8 and 63 characters (inclusive).
Note: NETGEAR recommends WPA2-PSK authentication
with AES encryption if you want to use the 11n rates and
speed.
Table 36. Point-to-point bridge profile and authentication settings (continued)
Setting Description
Advanced Configuration
123
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
A computer on either LAN segment should be able to connect to the Internet or share
files and printers of any other computers or servers connected to LAN Segment 1 or LAN
Segment 2.
Configure a Point-to-Multipoint Wireless Network
In a point-to-multipoint bridge, the wireless access point is the master for a group of
bridge-mode wireless access points. All traffic is sent to the master rather than to the other
wireless access points. Use wireless security to protect this communication.
For each wireless access point that you want the master to be able to connect to, you need to
configure a security profile with a unique name and the MAC address of the wireless access
point. You can configure up to four such security profiles (NETGEAR-WDS-1,
NETGEAR-WDS-2, and so on).
The following figure shows an example in which AP1 functions in point-to-multipoint bridge
mode and AP2 and AP3 function in point-to-point bridge mode:
Figure 70.
To configure a point-to-multipoint wireless network:
1. Configure the security profiles on the wireless access point (AP1 on LAN Segment 1 in
the previous figure):
a. Select Configuration > Wireless Bridge. The Bridging screen displays. (The
following figure shows the screen after you have completed Step d.)
Wireless PC card
in a notebook computer Point-to-point
bridge mode
Multipoint
bridge mode
Point-to-point
bridge mode
Router Hub or switch
Hub or switch
Advanced Configuration
124
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
Figure 71.
b. Optional: To display the Bridging screen for the 802.11a/na modes, click the 802.11a/na
tab.
c. Select the Enable Wireless Bridging check box. The Local MAC Address field is a
nonconfigurable field that shows the MAC address of the wireless access point.
d. Select the Wireless Point-to-Multi-Point Bridge radio button. The screen adjusts.
e. The profile table shows four security profiles. Choose a security profile to edit by
selecting the corresponding radio button to the left of the profile.
f. Click Edit to configure the selected security profile settings. The Edit Security Profile
screen displays for the selected security profile. (The following figure contains an
example.)

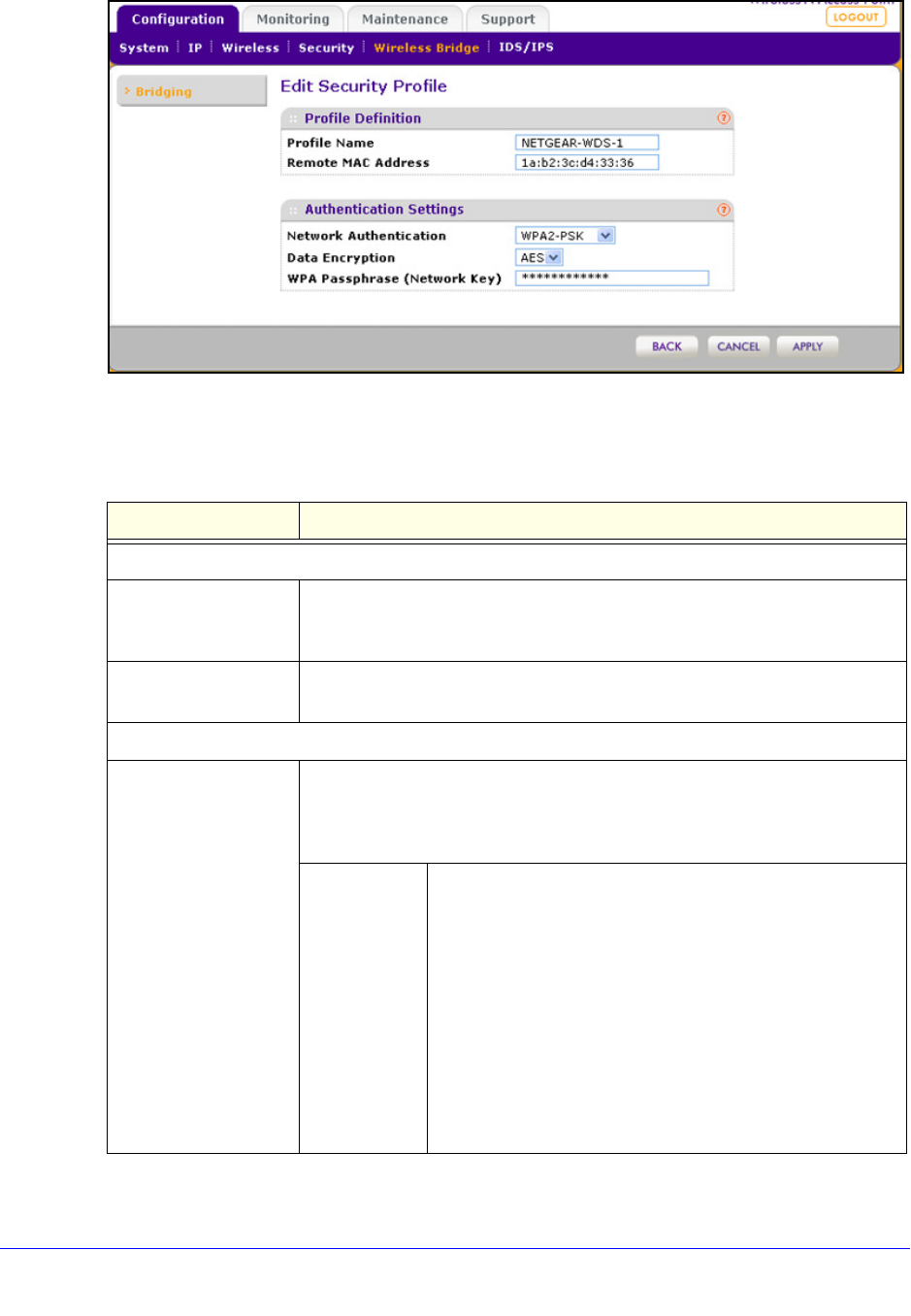

Figure 72.
Advanced Configuration
125
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
g. Specify the settings as explained in the following table:
h. Click Apply to save your security profile settings. The Bridging screen displays
again.
i. Repeat Step c through Step h for any other security profile that you want to edit.
Table 37. Point-to-multipoint bridge profile and authentication settings
Setting Description
Profile Definition
Profile Name Enter a profile name that is easy to remember. The default names for the four
security profiles are NETGEAR-WDS-1, NETGEAR-WDS-2,
NETGEAR-WDS-3, and NETGEAR-WDS-4.
Remote MAC Address Enter the MAC address of the remote wireless access point (the MAC
address of AP2 or AP 3 on LAN Segment 1 in Figure 70 on page 123).
Authentication Settings
Network Authentication
and
Data Encryption
From the Network Authentication drop-down list, select Open System,
WPA-PSK, or WPA2-PSK. Your selection determines the options that the
Data Encryption drop-down list provides, and whether the WPA Passphrase
(Network Key) field displays.
Open System Although you can use the bridge communication without any
authentication and encryption, NETGEAR recommends that
you use WEP if you do select an open system. From the
Data Encryption drop-down list, select one of the following:
•None. No authentication and encryption.
•64-bit WEP. Standard WEP encryption, using 40/64-bit
encryption.
•128-bit WEP. Standard WEP encryption, using
104/128-bit encryption.
•152-bit WEP. Proprietary WEP encryption mode, using
128+24 bit encryption. This mode functions only with
other wireless stations that support this mode.
WPA-PSK TKIP (Temporal Key Integrity Protocol) is the standard
encryption method used with WPA-PSK and the only
selection possible from the Data Encryption drop-down list.
In the WPA Passphrase (Network Key) field, enter a
passphrase. The passphrase length needs to be between
8 and 63 characters (inclusive).
WPA2-PSK AES (Advanced Encryption Standard) is the standard
encryption method used with WPA2-PSK and the only
selection possible from the Data Encryption drop-down list.
In the WPA Passphrase (Network Key) field, enter a
passphrase. The passphrase length needs to be between
8 and 63 characters (inclusive).
Note: NETGEAR recommends WPA2-PSK authentication
with AES encryption if you want to use the 11n rates and
speed.
Advanced Configuration
126
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
For example, first configure security profile NETGEAR-WDS-1 with the MAC address
of AP2, and then configure security profile NETGEAR-WDS-2 with the MAC address
of AP3 (see Figure 70 on page 123).
2. Activate the wireless access point (AP1 on LAN Segment 1 in Figure 70 on page 123) as
a point-to-multipoint bridge (that is, it is the master in the wireless network):
a. On the Bridging screen, select the Enable Wireless Bridging check box.
b. Select the Wireless Point-to-Multi-Point Bridge radio button.
c. Select the Enable Wireless Client Association check box to enable wireless client
association.
Note: If you do not select the Enable Wireless Client Association check
box, the wireless access point does not function in
point-to-multipoint bridge but in repeater mode.
d. If the correct profile names and security options are displayed in the table, select the
check boxes in the Enable column for all security profiles that you want to enable.
e. Click Apply on the Bridging screen to activate your point-to-multipoint bridge
settings.
3. Configure AP2 on LAN Segment 2 (see Figure 70 on page 123) in point-to-point bridge
mode with the remote MAC address of AP1.
4. Configure AP3 on LAN Segment 3 (see Figure 70 on page 123) in point-to-point bridge
mode with the remote MAC address of AP1.
5. Verify the following for all wireless access points:
•Only AP1 on LAN Segment 1 is configured in point-to-multipoint bridge mode, and all
others APs are configured in point-to-point bridge mode.
•AP2 and AP3 (the point-to-point APs) have AP1’s MAC address in their Remote MAC
Address field.
•All APs are on the same LAN, that is, the LAN IP addresses of all APs are in the same
network as the LAN devices.
•If you use DHCP, all wireless access points can obtain IP addresses automatically (as
DHCP clients). For more information, see Configure the Optional DHCPv4 Server on
page 27 or Configure the Optional DHCPv6 Server on page 101.
•All wireless access points use the same channel, authentication mode, and security
settings.
6. Verify connectivity across the LANs:
A computer on any LAN segment should be able to connect to the Internet or share files
and printers with any other devices or servers connected to any of the three LAN
segments.
Advanced Configuration
127
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
Note: You can extend this multipoint bridging configuration by adding
additional wireless access points that are configured in point-to-point
mode for each additional LAN segment. Furthermore, you can
extend the range of the wireless network with NETGEAR wireless
antenna accessories.
Configure the Wireless Access Point to Repeat the Wireless
Signal Using Point-to-Multipoint Bridge Mode
You can configure the wireless access point to repeat the wireless signal, without
communication with other wireless clients. All traffic is sent to the remote or downstream
wireless access point. You can configure up to four security profiles to enable the wireless
access point to repeat the wireless signal for four remote wireless access points. Each
security profile requires a unique name and needs to include the MAC address of the remote
wireless access point. You can configure up to four such security profiles
(NETGEAR-WDS-1, NETGEAR-WDS-2, and so on).
The following figure shows an example in which AP1, AP2, and AP3 repeat the wireless
signal in point-to-multipoint bridge mode. AP2 requires a security profile for AP1 and another
one for AP3:
Figure 73.
Multipoint
Router
Hub or switch
bridge mode
repeating only
Multipoint
bridge mode
repeating only
Multipoint
bridge mode
repeating only
Advanced Configuration
128
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
To configure the wireless access point to repeat the wireless signal:
1. Configure the security profiles on the wireless access point (AP2 in the previous figure):
a. Select Configuration > Wireless Bridge. The Bridging screen displays (see the
following figure).
b. Optional: To display the Bridging screen for the 802.11a/na modes, click the 802.11a/na
tab.
c. Select the Enable Wireless Bridging check box. The Local MAC Address field is a
nonconfigurable field that shows the MAC address of the wireless access point.
d. Select the Wireless Point-to-Multi-Point Bridge radio button. The screen adjusts.
Figure 74.
e. The profile table shows four security profiles. Choose a security profile to edit by
selecting the corresponding radio button to the left of the profile.
f. Click Edit to configure the selected security profile settings. The Edit Security Profile
screen displays for the selected security profile. (The following figure contains an
example.)
Advanced Configuration
129
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
Figure 75.
g. Specify the settings as explained in the following table:
Table 38. Wireless signal repeating profile and authentication settings
Setting Description
Profile Definition
Profile Name Enter a profile name that is easy to remember. The default names for the four
security profiles are NETGEAR-WDS-1, NETGEAR-WDS-2,
NETGEAR-WDS-3, and NETGEAR-WDS-4.
Remote MAC Address Enter the MAC address of the remote wireless access point (the MAC
address of AP1 or AP3 in Figure 73 on page 127).
Authentication Settings
Network Authentication
and
Data Encryption
From the Network Authentication drop-down list, select Open System,
WPA-PSK, or WPA2-PSK. Your selection determines the options that the
Data Encryption drop-down list provides, and whether the WPA Passphrase
(Network Key) field displays.
Open System Although you can use the bridge communication without any
authentication and encryption, NETGEAR recommends that
you use WEP if you do select an open system. From the
Data Encryption drop-down list, select one of the following:
•None. No authentication and encryption.
•64-bit WEP. Standard WEP encryption, using 40/64-bit
encryption.
•128-bit WEP. Standard WEP encryption, using
104/128-bit encryption.
•152-bit WEP. Proprietary WEP encryption mode, using
128+24 bit encryption. This mode functions only with
other wireless stations that support this mode.
Advanced Configuration
130
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
h. Click Apply to save your security profile settings. The Bridging screen displays
again.
i. Repeat Step e through Step h for any other security profile that you want to edit.
For example, first configure security profile NETGEAR-WDS-1 with the MAC address
of AP1, and then configure security profile NETGEAR-WDS-2 with the MAC address
of AP3 (see Figure 73 on page 127).
2. Activate repeater mode on the wireless access point (AP2 in Figure 73 on page 127):
a. On the Bridging screen, select the Enable Wireless Bridging check box.
b. Select the Wireless Point-to-Multi-Point Bridge radio button.
c. Clear the Enable Wireless Client Association check box to disable wireless client
association (see the red circle in Figure 74 on page 128).
Note: If you do not clear the Enable Wireless Client Association check box,
the wireless access point functions in regular point-to-multipoint
bridge mode.
d. If the correct profile names and security options are displayed in the table, select the
check boxes in the Enable column for all security profiles that you want to enable.
e. Click Apply on the Bridging screen to activate your repeater settings.
3. Configure AP1 on LAN Segment 1 (see Figure 73 on page 127) in repeater mode with the
remote MAC address of AP2.
4. Configure AP3 on LAN Segment 3 (see Figure 73 on page 127) in repeater mode with the
remote MAC address of AP2.
Network Authentication
and
Data Encryption
(continued)
WPA-PSK TKIP (Temporal Key Integrity Protocol) is the standard
encryption method used with WPA-PSK and the only
selection possible from the Data Encryption drop-down list.
In the WPA Passphrase (Network Key) field, enter a
passphrase. The passphrase length needs to be between
8 and 63 characters (inclusive).
WPA2-PSK AES (Advanced Encryption Standard) is the standard
encryption method used with WPA2-PSK and the only
selection possible from the Data Encryption drop-down list.
In the WPA Passphrase (Network Key) field, enter a
passphrase. The passphrase length needs to be between
8 and 63 characters (inclusive).
Note: NETGEAR recommends WPA2-PSK authentication
with AES encryption if you want to use the 11n rates and
speed.
Table 38. Wireless signal repeating profile and authentication settings (continued)
Setting Description
Advanced Configuration
131
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
5. Verify the following for all wireless access points:
•All APs are on the same LAN, that is, the LAN IP addresses of all APs are in the same
network as the LAN devices.
•If you use DHCP, all wireless access points can obtain IP addresses automatically (as
DHCP clients). For more information, see Configure the Optional DHCPv4 Server on
page 27 or Configure the Optional DHCPv6 Server on page 101.
•All wireless access points use the same channel, authentication mode, and security
settings.
6. Verify connectivity across the LANs:
A computer on any LAN segment should be able to connect to the Internet or share files
and printers with any other devices or servers connected to any of the two LAN
segments.
Note: You can extend repetition of the wireless signal by adding up to two
more wireless access points that are configured in
point-to-multipoint bridge mode without client association. Also, you
can extend the range of the wireless network with NETGEAR
wireless antenna accessories.
132
6
6. Troubleshooting
This chapter provides information about troubleshooting the wireless access point. After each
problem description, instructions are given to help you diagnose and solve the problem. For the
common problems listed, go to the section indicated.
•Is the wireless access point on?
Go to Basic Functioning on page 133.
•Have I connected the wireless access point correctly?
Go to Basic Functioning on page 133.
•I cannot access the Internet or the LAN.
Go to You Cannot Access the Internet or the LAN from a Wireless-Capable Computer on
page 135.
•I cannot access the wireless access point from a browser.
Go to You Cannot Configure the Wireless Access Point from a Browser on page 135.
•A time-out occurs.
Go to When You Enter a URL or IP Address a Time-Out Error Occurs on page 136.
•I have problems with the LAN connection.
Go to Troubleshoot a TCP/IP Network Using the Ping Utility on page 136.
•I cannot remember the wireless access point’s configuration password.
Go to Change the Administrator Password on page 74.
•I want to clear the configuration and start over again.
Go to Restore the Wireless Access Point to the Factory Default Settings on page 71.
•The date or time is not correct.
Go to Problems with Date and Time on page 138.
The wireless access point provides a packet capture tool that enables you to perform
problem diagnoses. For information about how to use this tool, see Use the Packet Capture
Tool on page 139.
Troubleshooting
133
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
Basic Functioning
•Verify the Correct Sequence of Events at Startup
•No LEDs Are Lit on the Wireless Access Point
•The Active LED or the LAN LED Is Not Lit
•The WLAN LED Does Not Light Up
Note: For descriptions of the LEDs, see Top Panel on page 12.
Verify the Correct Sequence of Events at Startup
After you turn on power to the wireless access point, check that the following
sequence of events occurs:
•The Power/Test LED is first steady amber, then goes off, and then blinks green before
turning steady green after about 45 seconds.
•The Active LED is lit or blinks green when there is Ethernet traffic.
•The LAN LED indicates the LAN speed: green for 1000 Mbps, amber for 100 Mbps, and
no light for 10 Mbps.
•The WLAN LED is lit or blinks green when the wireless LAN (WLAN) is ready.
If any of these conditions does not occur, see to the appropriate following section.
No LEDs Are Lit on the Wireless Access Point
It takes a few seconds for the Power LED to light up. Wait a minute and check the Power LED
status on the wireless access point. If the wireless access point has no power:
If you use one or more PoE switches to provide power to the wireless access point,
check these items:
•Make sure that the Ethernet cables between the wireless access point and the PoE
switches are correctly connected at both ends.
•Make sure that the power cords of the PoE switches are plugged into working power
outlets or power strips.
•Make sure that the PoE switches are functioning normally.
Troubleshooting
134
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
If you use a power cord to provide power to the wireless access point, check these
items:
•Make sure that the power cord is connected to the wireless access point.
•Make sure that the power adapter is connected to a functioning power outlet. If it is in a
power strip, make sure that the power strip is turned on. If it is plugged directly into the
wall, verify that it is not a switched outlet.
•Make sure that you are using the correct NETGEAR power adapter that is supplied with
your wireless access point.
The Active LED or the LAN LED Is Not Lit
There is a hardware connection problem.
Check these items:
•Make sure that the cable connectors are securely plugged in at the wireless access point
and the network device—hub, (PoE) switches, or router.
•Make sure that the connected device is turned on.
•Make sure that the correct cable is used. Use a standard Category 5 Ethernet patch
cable. If the network device has Auto Uplink (MDI/MDIX) ports, you can use either a
crossover cable or a normal patch cable.
The WLAN LED Does Not Light Up
The wireless access point’s antenna is not working.
Check these items:
•If the WLAN LED remains off, either disconnect the cables to the PoE switches and then
reconnect them again, or disconnect the adapter from its power source and then plug it in
again.
•Make sure that optional external antennas are tightly connected to the wireless access
point.
Contact NETGEAR technical support if the WLAN LED remains off.
Troubleshooting
135
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
You Cannot Access the Internet or the LAN from a
Wireless-Capable Computer
There is a configuration problem.
Check these items:
•You might not have restarted the computer with the wireless adapter to allow TCP/IP
changes take effect. Restart the computer.
•The computer with the wireless adapter might not have the correct TCP/IP settings to
communicate with the network. Restart the computer and check that TCP/IP is set up
correctly for that network. In Windows, the usual setting for Network Properties is to
obtain an IP address automatically.
•The wireless access point’s default values might not work with your network. Check the
wireless access point’s default configuration against the configuration of other devices in
your network.
•Make sure that the SSID, network authentication, and data encryption settings of the
computer with the wireless adapter are the same as those of the wireless access point.
•Ping the IP address of the wireless access point to verify that there is a wireless
connection between the computer with the wireless adapter and the wireless access
point. If the ping fails, check the network configuration (for the wireless access point, see
Configure the IPv4 Settings on page 25).
•Ping the default gateway to verify that there is a path from the computer with the wireless
adapter to the default gateway. If the ping fails, check the network configuration or call the
Internet service provider (ISP).
You Cannot Configure the Wireless Access Point from a
Browser
Check these items:
•The wireless access point is correctly installed, it is powered on, and LAN connections
are okay. Check that the Active LED and LAN LED are on to verify that the Ethernet
connection is okay.
•If your computer uses a fixed (static) IP address, ensure that it is using an IP address in
the range of the wireless access point. The wireless access point’s default IP address is
192.168.0.100, and its subnet mask is 255.255.255.0 with DHCP disabled. Make sure
that your network configuration settings are correct.
•If you are using the NetBIOS name of the wireless access point to connect, ensure that
your computer and the wireless access point are on the same network segment or that
there is a WINS server on your network.
•If your computer is set to obtain an IP address automatically (DHCP client), restart it.
Troubleshooting
136
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
•Make sure that your browser has Java, JavaScript, or ActiveX enabled. If you are using
Internet Explorer, click Refresh to be sure that the Java applet is loaded.
•Try quitting the browser, clearing the cache, deleting the cookies, and launching the
browser again.
•Make sure that you are using the correct login information. The factory default login name
is admin, and the password is password. Make sure that Caps Lock is off when entering
this information.
If the wireless access point does not save changes you have made in the web
management interface, check the following:
•When entering configuration settings, be sure to click the Apply button before moving to
another screen or tab, or your changes are lost.
•Click the Refresh or Reload button in the web browser. The changes might have
occurred, but the web browser might be caching the old configuration.
When You Enter a URL or IP Address a Time-Out Error
Occurs
A number of things could be causing this.
Try the following troubleshooting steps:
•Check whether other computers on the LAN work correctly. If they do, ensure that your
computer’s TCP/IP settings are correct. If you use a fixed (static) IP address, check the
subnet mask, default gateway, DNS, and IP addresses of the wireless access point (see
Configure the IPv4 Settings on page 25).
•If the computer is configured correctly but still not working, ensure that the wireless
access point is connected and turned on. Access it and check its settings. If you cannot
connect to the wireless access point, check the LAN and power connections.
•If the wireless access point is configured correctly, check your Internet connection (for
example, your cable modem) to make sure that it is working correctly.
Troubleshoot a TCP/IP Network Using the Ping Utility
•Test the LAN Path to Your Wireless Access Point
•Test the Path from Your Computer to a Remote Device
Most TCP/IP terminal devices and routers contain a ping utility that sends an echo request
packet to the designated device. The device then responds with an echo reply. You can easily
troubleshoot a TCP/IP network by using the ping utility in your computer.
Troubleshooting
137
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
Test the LAN Path to Your Wireless Access Point
You can ping the wireless access point from your computer to verify that the LAN path to your
wireless access point is set up correctly.
To ping the wireless access point from a computer running Windows 95 or later:
1. From the Windows toolbar, click the Start button, and select Run.
2. In the field provided, type ping followed by the IP address of the wireless access point, as
in this example:
ping 192.168.0.100
3. Click OK.
You should see a message like this one:
Pinging <IP address> with 32 bytes of data
If the path is working, you see this message:
Reply from < IP address >: bytes=32 time=NN ms TTL=xxx
If the path is not working, you see this message:
Request timed out
If the path is not functioning correctly, you could have one of the following problems:
•Wrong physical connections:
- Make sure that the Active LED and LAN LED are on. If one or both of these LEDs
are off, follow the instructions in The Active LED or the LAN LED Is Not Lit on
page 134.
- Check that the corresponding link LEDs are on for your network interface card
and for the hub ports (if any) that are connected to your workstation and wireless
access point.
•Wrong network configuration:
- Verify that the Ethernet card driver software and TCP/IP software are both
installed and configured on your computer.
- Verify that the IP address for your wireless access point and your workstation are
correct and that the addresses are on the same subnet.
Troubleshooting
138
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
Test the Path from Your Computer to a Remote Device
After verifying that the LAN path works correctly, test the path from your computer to a remote
device.
1. From the Windows toolbar, click the Start button, and select Run.
2. In the Windows Run window, type:
ping -n 10 <IP address>
where <IP address> is the IP address of a remote device such as the DNS server of your
ISP.
If the path is functioning correctly, replies as in the previous section display. If you do not
receive replies:
•Check that your computer has the IP address of your router listed as the default wireless
access point. If the IP configuration of your computer is assigned by DHCP, this
information is not visible in your computer’s Network Control Panel. Verify that the IP
address of the router is listed as the default wireless access point.
•Check to see that the network address of your computer (the portion of the IP address
specified by the netmask) is different from the network address of the remote device.
•Check that your cable or DSL modem is connected and functioning.
•If your ISP assigned a host name to your computer, enter that host name as the account
name in the basis General system settings screen (see Configure Basic General System
Settings and Time Settings on page 23).
Problems with Date and Time
The Time Settings screen that is accessible through the Configuration > System > Basic >
Time menu choices displays the current date and time of day. The wireless access point uses
the Network Time Protocol (NTP) to obtain the current time from a network time server on the
Internet that you specify in the Time Settings screen (see Configure Basic General System
Settings and Time Settings on page 23). Each entry on the Logs screen is stamped with the
date and time of day. Problems with the date and time function can include the following:
•Date and time shown is Fri Dec 31 00:00:00 1999 or a similar incorrect date and time.
Cause: The wireless access point has not yet successfully reached the network time
server. Check that your Internet access settings are configured correctly. If you have just
completed configuring the wireless access point, wait at least 5 minutes and check the
date and time again.
•The day is correct or one day ahead or behind, and the hours are ahead or behind.
Cause: You have selected an incorrect time zone for your area. Specify the correct time
zone in the basic General system settings screen (see Configure Basic General System
Settings and Time Settings on page 23).
Troubleshooting
139
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
Use the Packet Capture Tool
You can capture wireless packets to analyze traffic patterns with a network traffic analyzer
tool. The captured packet flow can show if traffic is flowing correctly to its destinations or if
packets are dropped. There is a limit to the size of the packet flow that you can capture in a
file.
To capture packets:
1. Select Monitoring > Packet Capture. The Packet Capture screen displays:
Figure 76.
2. Click Start to start capturing wireless packets leaving or entering the wireless access point
on the active operating channel. Packets on the 2.4 GHz interface and 5 GHz interface are
captured. Normal functioning of the wireless access point is not affected during the packet
capture process.
If any previously captured packets exist, you are prompted to delete them, and only then
can you capture new packets.
3. Click Stop to stop capturing packets.
4. Click Save as to save the pacture.pcap file on your computer or to a disk drive.
140
A
A. Supplemental Information
This appendix provides factory default settings and technical specifications for the ProSafe
Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660. The appendix includes the
following sections:
•Technical Specifications
•Factory Default Settings
Technical Specifications
Table 39. Technical specifications
Feature Description
802.11b/bg/ng wireless specifications
802.11b data rates 1, 2, 5.5, and 11 Mbps, and auto-rate capable
802.11bg data rates 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54 Mbps, and auto-rate capable
802.11ng MCS index and
data rates Data rates for a 20 MHz channel width and an automatic guard interval:
0 / 7.2 Mbps, 1 / 14.4 Mbps, 2 / 21.7 Mbps, 3 / 28.9 Mbps, 4 / 43.3 Mbps,
5 / 57.8 Mbps, 6 / 65 Mbps, 7 / 72.2 Mbps, 8 / 14.44 Mbps, 9 / 28.88 Mbps,
10 / 43.33 Mbps, 11 / 57.77 Mbps, 12 / 86.66 Mbps, 13 / 115.56 Mbps,
14 / 130 Mbps, 15 / 144.44 Mbps, 16 / 21.7 Mbps, 17 / 43.3 Mbps, 18 / 65 Mbps,
19 / 86.7 Mbps, 20 / 130.7 Mbps, 21 / 173.3 Mbps, 22 / 195 Mbps, 23 / 216.7 Mbps,
and auto-rate capable
Data rates for a 20 MHz channel width and a long guard interval (800 ms):
0 / 6.5 Mbps, 1 / 13 Mbps, 2 / 19.5 Mbps, 3 / 26 Mbps, 4 / 39 Mbps, 5 / 52 Mbps,
6 / 58.5 Mbps, 7 / 65 Mbps, 8 / 13 Mbps, 9 / 26 Mbps, 10 / 39 Mbps, 11 / 52 Mbps,
12 / 78 Mbps, 13 / 104 Mbps, 14 / 117 Mbps, 15 / 130 Mbps, 16 / 19.5 Mbps,
17 / 39 Mbps, 18 / 58.5 Mbps, 19 / 78 Mbps, 20 / 117 Mbps, 21 / 156 Mbps,
22 / 175.5 Mbps, 23 / 195 Mbps, and auto-rate capable
Data rates for a 40 MHz channel width and an automatic guard interval:
0 / 15 Mbps, 1 / 30 Mbps, 2 / 45 Mbps, 3 / 60 Mbps, 4 / 90 Mbps, 5 / 120 Mbps,
6 / 135 Mbps, 7 / 150 Mbps, 8 / 30 Mbps, 9 / 60 Mbps, 10 / 90 Mbps, 11 / 120 Mbps,
12 / 180 Mbps, 13 / 240 Mbps, 14 / 270 Mbps, 15 / 300 Mbps, 16 / 45 Mbps,
17 / 90 Mbps, 18 / 135 Mbps, 19 / 180 Mbps, 20 / 270 Mbps, 21 / 360 Mbps,
22 / 405 Mbps, 23 / 450 Mbps, and auto-rate capable
Supplemental Information
141
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
802.11ng MCS index and
data rates
(continued)
Data rates for a 40 MHz channel width and a long guard interval (800 ms):
0 / 13.5 Mbps, 1 / 27 Mbps, 2 / 40.5 Mbps, 3 / 54 Mbps, 4 / 81 Mbps, 5 / 108 Mbps,
6 / 121.5 Mbps, 7 / 135 Mbps, 8 / 27 Mbps, 9 / 54 Mbps, 10 / 81 Mbps,
11 / 108 Mbps, 12 / 162 Mbps, 13 / 216 Mbps, 14 / 243 Mbps, 15 / 270 Mbps,
16 / 40.5 Mbps, 17 / 81 Mbps, 18 / 121.5 Mbps, 19 / 162 Mbps, 20 / 243 Mbps,
21 / 324 Mbps, 22 / 364.5 Mbps, 23 / 405 Mbps, and auto-rate capable
802.11b/bg/ng
operating frequencies • 2.412–2.462 GHz (US)
• 2.457–2.462 GHz (Spain)
• 2.410–2.484 GHz (Japan 11b)
• 2.410–2.472 GHz (Japan 11ng)
• 2.457–2.472 GHz (France)
• 2.412–2.472 GHz (Europe ETSI)
• 2.412–2.472 GHz (China)
802.11 b/bg/ng
encryption • 64-bit, 128-bit, and 52-bit WEP
•AES
•TKIP
802.11a/na wireless specifications
802.11a data rates 6, 9, 12, 18, 24, 36, 48, 54 Mbps, and auto-rate capable
802.11na data rates Data rates for a 20 MHz channel width and an automatic guard interval:
0 / 7.2 Mbps, 1 / 14.4 Mbps, 2 / 21.7 Mbps, 3 / 28.9 Mbps, 4 / 43.3 Mbps,
5 / 57.8 Mbps, 6 / 65 Mbps, 7 / 72.2 Mbps, 8 / 14.44 Mbps, 9 / 28.88 Mbps,
10 / 43.33 Mbps, 11 / 57.77 Mbps, 12 / 86.66 Mbps, 13 / 115.56 Mbps,
14 / 130 Mbps, 15 / 144.44 Mbps, 16 / 21.7 Mbps, 17 / 43.3 Mbps, 18 / 65 Mbps,
19 / 86.7 Mbps, 20 / 130.7 Mbps, 21 / 173.3 Mbps, 22 / 195 Mbps, 23 / 216.7 Mbps,
and auto-rate capable
Data rates for a 20 MHz channel width and a long guard interval (800 ms):
0 / 6.5 Mbps, 1 / 13 Mbps, 2 / 19.5 Mbps, 3 / 26 Mbps, 4 / 39 Mbps, 5 / 52 Mbps,
6 / 58.5 Mbps, 7 / 65 Mbps, 8 / 13 Mbps, 9 / 26 Mbps, 10 / 39 Mbps, 11 / 52 Mbps,
12 / 78 Mbps, 13 / 104 Mbps, 14 / 117 Mbps, 15 / 130 Mbps, 16 / 19.5 Mbps,
17 / 39 Mbps, 18 / 58.5 Mbps, 19 / 78 Mbps, 20 / 117 Mbps, 21 / 156 Mbps,
22 / 175.5 Mbps, 23 / 195 Mbps, and auto-rate capable
Data rates for a 40 MHz channel width and an automatic guard interval:
0 / 15 Mbps, 1 / 30 Mbps, 2 / 45 Mbps, 3 / 60 Mbps, 4 / 90 Mbps, 5 / 120 Mbps,
6 / 135 Mbps, 7 / 150 Mbps, 8 / 30 Mbps, 9 / 60 Mbps, 10 / 90 Mbps, 11 / 120 Mbps,
12 / 180 Mbps, 13 / 240 Mbps, 14 / 270 Mbps, 15 / 300 Mbps, 16 / 45 Mbps,
17 / 90 Mbps, 18 / 135 Mbps, 19 / 180 Mbps, 20 / 270 Mbps, 21 / 360 Mbps,
22 / 405 Mbps, 23 / 450 Mbps, and auto-rate capable
Data rates for a 40 MHz channel width and a long guard interval (800 ms):
0 / 13.5 Mbps, 1 / 27 Mbps, 2 / 40.5 Mbps, 3 / 54 Mbps, 4 / 81 Mbps, 5 / 108 Mbps,
6 / 121.5 Mbps, 7 / 135 Mbps, 8 / 27 Mbps, 9 / 54 Mbps, 10 / 81 Mbps,
11 / 108 Mbps, 12 / 162 Mbps, 13 / 216 Mbps, 14 / 243 Mbps, 15 / 270 Mbps,
16 / 40.5 Mbps, 17 / 81 Mbps, 18 / 121.5 Mbps, 19 / 162 Mbps, 20 / 243 Mbps,
21 / 324 Mbps, 22 / 364.5 Mbps, 23 / 405 Mbps, and auto-rate capable
Table 39. Technical specifications (continued)
Feature Description
Supplemental Information
142
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
802.11a/na
operating frequencies • 5.180–5.240 GHz (US, lower frequencies)
• 5.260–5.320 GHz (US, middle frequencies)
• 5.180–5240 GHz (CE [EU], lower frequencies)
• 5.260–5.320 GHz (CE [EU], middle frequencies)
• 5.500–5.680 GHz (CE [EU], upper frequencies)
802.11 a/na encryption • 64-bit, 128-bit, and 52-bit WEP
• AES
•TKIP
Management and Other Specifications
Network management • Remote configuration and management through the web management
interface, through SNMP, or through Telnet or SSH with the command-line
interface (CLI).
• SNMP management supports SNMP MIB I, MIB II, 802.11 MIB and proprietary
configuration MIB.
Maximum clients Limited by the amount of wireless network traffic generated by each node; a
maximum of 128 clients is supported.
Status LEDs • Power/Test LED
• Link speed LED
• Ethernet LAN
• Wireless LAN (2.4 GHz and 5 GHz)
Electrical and Physical Specifications
Power adapter 12 VDC, 1A; plug is localized to country of sale
Physical specifications • Dimensions (h x w x d): 253.75 x 253.75 x 54.76 mm (10.0 x 10.0 x 2.16 in.)
• Weight: 1.5 kg (3.31 lb)
Environmental
specifications Operating temperature: 0 to 55°C (32 to 131°F)
Operating humidity: 10–9%, noncondensing
Compliance
Note: For more information about compliance, see Appendix C, Notification of Compliance.
Electromagnetic
compliance •FCC Part 15 SubPart B
• FCC Part 15 SubPart C
• FCC Part 15 SubPart E
•CE
•C-TICK
Table 39. Technical specifications (continued)
Feature Description
Supplemental Information
143
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
Factory Default Settings
You can use the Reset button located on the rear of the wireless access point to reset all
settings to their factory defaults. This is called a hard reset.
To perform a hard reset, use a sharp object to press and hold the Reset button for
approximately 5 seconds (until the Test LED blinks rapidly). This returns the wireless access
point to the factory configuration settings that are shown in the following table.
Note: Pressing the Reset button for a shorter period of time simply causes
the wireless access point to reboot.
Table 40. Default configuration settings
Feature Description
Login for management and configuration
LAN IPv4 management address 192.168.0.100
Subnet mask for IPv4 management address 255.255.255.0
LAN IPv6 management address 2001::21c:c0ff:fe69
Prefix length for IPv6 management address 64
Required static IPv4 address for management
computer 192.168.0.210 and 255.255.255.0
User name (case-sensitive) for login admin
Login password (case-sensitive) for login password
LAN and management features
DHCPv4 client Disabled
DHCPv6 client Disabled
Untagged VLAN Enabled, VLAN ID 1
Management VLAN VLAN ID 1
SNMP Disabled
Syslog Disabled
Spanning Tree Protocol (STP) Disabled
Link Layer Discovery Protocol (LLDP) Enabled
Secure Shell (SSH) Enabled
Supplemental Information
144
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
Hotspot Disabled
Secure Telnet Disabled
Time zone USA-Pacific
NTP client Enabled
Custom NTP server Disabled
Port speed 10/100/1000
Ethernet MAC address See bottom label
DHCP server
IPv4 DHCPv4 server Disabled
DHCPv4 server VLAN ID 1
DHCPv4 server IP range start address 192.168.0.2
DHCPv4 server IP range start address 192.168.0.50
DHCPv4 server subnet mask 255.255.255.0
DHCPv4 server gateway IPv4 address 192.168.0.1
DHCPv4 server IP address lease for clients 1 day
IPv6 DHCPv6 server Disabled
DHCPv6 server state Stateful
DHCPv6 server VLAN ID 1
DHCPv6 server IP range start address 2001:05c0:9168::10
DHCPv6 server IP range start address 2001:05c0:9168::50
DHCPv6 server prefix length 64
DHCPv6 server gateway IPv4 address 2001:05c0:9168::1
DHCPv6 server IP address lease for clients 1 day
Radio and wireless settings
Operating mode Access point, infrastructure mode
Wireless access point name netgearxxxxxx, where xxxxxx are the last 6 digits
of the wireless access point MAC address
Country and region Varies by region
Wireless communication 2.4 GHz radio enabled
5 GHz radio enabled
Table 40. Default configuration settings (continued)
Feature Description
Supplemental Information
145
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
Wireless modes 11ng
11na
Wireless network names (SSIDs) NETGEAR_11ng
NETGEAR_11na
Broadcast network names (SSIDs) Enabled
Radio frequency channels 11ng: Auto
11na: Auto
MCS index/data rate (transmission speed) Best
Note: Maximum wireless signal rate derived
from IEEE Standard 802.11 specifications.
Actual throughput will vary. Network conditions
and environmental factors, including volume of
network traffic, building materials and
construction, and network overhead, lower
actual data throughput rate.
Channel width 11ng: 20 MHz
11na: Dynamic 20/40 MHz
Guard interval Auto
Output power Full
Wireless on/off (radio scheduling) Disabled
RTS threshold 2347
Fragmentation length 2346
Beacon interval 100
Aggregation length 65535
A-MPDU Enabled
RIFS transmission Disabled
DTIM interval 3
Preamble type Auto
Antenna Internal
802.11d Enabled
Client isolation Disabled
Maximum wireless clients 128
Wi-Fi Multimedia (WMM) Enabled
Table 40. Default configuration settings (continued)
Feature Description
Supplemental Information
146
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
WMM powersave Enabled
AP EDCA parameters (QoS settings) See Table 32 on page 112.
Station EDCA parameters (QoS settings)
QoS policies None
Wireless bridging Disabled
Default wireless profile and profile security
Profile name NETGEAR
Profile state Enabled
Wireless network names (SSIDs) NETGEAR_11ng
NETGEAR_11na
Broadcast wireless network names (SSIDs) Enabled
Network authentication Open system (no authentication)
Data encryption None
Wireless client security separation Disabled
VLAN ID 1
Wireless security features
Rogue AP detection Disabled
Rogue AP detection policy Moderate
MAC authentication Disabled
RADIUS servers None
RADIUS authentication port number 1812
RADIUS shared secret sharedsecret
RADIUS accounting port number 1813
RADIUS reauthentication time 3600 seconds
RADIUS update of the global key 1800 seconds
IDS/IPS Disabled
IDS/IPS policies Preconfigured policies (see Table 24 on
page 90), all disabled
IDS/IPS detection policy Moderate
IDS/IPS mail settings Blank
Table 40. Default configuration settings (continued)
Feature Description
147
B
B. Command-Line Reference
The wireless access point can be configured through either the command-line interface (CLI), a
web browser, or a MIB browser.
The CLI allows viewing and modification of the configuration from a terminal or computer through
a Telnet or SSH connection.
Keyword Description
------------------------------------------------------------------------------
|-backup-configuration --Backup configuration
|
|-config> --Configuration setting
| |-apname --Access point name
| |-country --Country/region
| |
| |-dhcpv4> --DHCPv4 server
| | |-dns-server --DNS server
| | |-gateway --Default gateway
| | |-ip-address --IP range
| | |-lease-time --Lease time
| | |-status --Status
| | |-vlan-id --Vlan-id
| | |-subnet-mask --Subnet mask
| | |-wins-server --WINS server
| |
| |-dhcpv6> --DHCPv6 server
| | |-dns-server --DNS server
| | |-gateway --Default gateway
| | |-ip-address --IP range
| | |-prefixlen --Prefixlen of IP
| | |-status --Status
| | |-vlan-id --Vlan-id
| | |-state --State
| | |-wins-server --WINS server
| |
| |-http-redirect --Enable HTTP redirection
| |-http-redirect-url --HTTP redirection URL
| |
| |-ids-ips-mail> --IDS/IPS mail settings
| | |-mail-sender --Administrator/superuser mail address
| | |-smtp-server --SMTP server address & port
Command-Line Reference
148
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
| | |-smtp-server-authentication --SMTP server status
| | |-username --Username of the Administrator/superuser
| | |-password --Password of the Administrator/superuser
| | |-send-notifications --Administrator/superuser mail address
| |
| |-interface> --Select wireless lan interface
| | |-wlan> --Wireless LAN interface setting
| | | |-2.4GHz> --2.4 GHz wireless LAN interface setting
| | | | |-aggregation-length --Aggregated packet size
| | | | |-ampdu --Aggregated MAC Protocol Data Unit
| | | | |-beacon-interval --Wireless beacon period in TU(1024 us)
| | | | |-channel --Wireless channel (depends on country and wireless mode)
| | | | |-channelwidth --Wireless channel width
| | | | |-dtim-interval --Wireless DTIM period in beacon interval
| | | | |-fragmentation-length --Wireless fragmentation threshold(even only)
| | | | |-guardinterval --Interval (from interference from other transmissions)
| | | | |-knownap-add --Add known access point
| | | | |-knownap-del --Delete known access point
| | | | |-macacl-add --Add wireless access control (ACL)
| | | | |-macacl-database --Delete wireless access control (ACL) database
| | | | |-macacl-del --Delete wireless access control (ACL)
| | | | |-mcsrate --Transmit data rate
| | | | |-mode --Enable wireless access control (ACL)
| | | | |-operation-mode --Wireless operation mode
| | | | |-power --Wireless transmit power
| | | | |-preamble --Wireless preamble (only effect on 802.11b rates)
| | | | |-radio --Enable wireless radio
| | | | |-rate --Wireless transmission date rate
| | | | |-rifs-transmission --Enable successive frame transmission at different transmit
| | | | | powers
| | | | |-rogue-ap-detection --Enable rogue access point detection
| | | | |-rts-threshold --Wireless RTS/CTS threshold
| | | | |-11dSupport --IEEE802.11d status
| | | | |-client-isolation --Client isolation status
| | | | |-create-qos-policy --Create QoS (Quality of service) policy
| | | | |-create-qos-classification --Create Qos (Quality of service) classification
| | | | |-delete-qos-policy --Delete QoS (Quality of service) policy
| | | | |-delete-qos-classification --Delete Qos (Quality of service) classification
| | | | |
| | | | |-security-profile> --Create security profile
| | | | | |-1> --1st security profile
| | | | | | |-authentication --Wireless authentication type
| | | | | | |-encryption --Data encryption
| | | | | | |-hide-network-name --Hide network name
| | | | | | |-key1 --Wireless wep key 1
| | | | | | |-key2 --Wireless wep key 2
| | | | | | |-key3 --Wireless wep key 3
| | | | | | |-key4 --Wireless wep key 4
| | | | | | |-keyno --Key number
| | | | | | |-name --Profile name
| | | | | | |-presharedkey --Pre-shared key
| | | | | | |-security-separation --Disable associated wireless client communication
Command-Line Reference
149
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
| | | | | | |-ssid --Network name (1-32 chars)
| | | | | | |-status --Profile status
| | | | | | |-vlan-id --VLAN id
| | | | | | |-wep-pass-phrase --Wireless wep passphrase key
| | | | | | |-wepkeytype --Wireless wep key type
| | | | | | |-apply-incoming-QoSpolicy --Apply QoS policy as a incoming
| | | | | | |-apply-outgoing-QoSpolicy --Apply QoS policy as a outgoing
| | | | | | |-delete-incoming-QoSpolicy --Delete incoming QoS policy
| | | | | | |-delete-outgoing-QoSpolicy --Delete outgoing QoS policy
| | | | | |
| | | | | |-2> --2nd security profile
| | | | | | |-authentication --Wireless authentication type
| | | | | | |-encryption --Data encryption
| | | | | | |-hide-network-name --Hide network name
| | | | | | |-key1 --Wireless wep key 1
| | | | | | |-key2 --Wireless wep key 2
| | | | | | |-key3 --Wireless wep key 3
| | | | | | |-key4 --Wireless wep key 4
| | | | | | |-keyno --Key number
| | | | | | |-name --Profile name
| | | | | | |-presharedkey --Pre-shared key
| | | | | | |-security-separation --Disable associated wireless client communication
| | | | | | |-ssid --Network name (1-32 chars)
| | | | | | |-status --Profile status
| | | | | | |-vlan-id --VLAN id
| | | | | | |-wep-pass-phrase --Wireless wep passphrase key
| | | | | | |-wepkeytype --Wireless wep key type
| | | | | | |-apply-incoming-QoSpolicy --Apply QoS policy as a incoming
| | | | | | |-apply-outgoing-QoSpolicy --Apply QoS policy as a outgoing
| | | | | | |-delete-incoming-QoSpolicy --Delete incoming QoS policy
| | | | | | |-delete-outgoing-QoSpolicy --Delete outgoing QoS policy
| | | | | |
| | | | | |-3> --3rd security profile
| | | | | | |-authentication --Wireless authentication type
| | | | | | |-encryption --Data encryption
| | | | | | |-hide-network-name --Hide network name
| | | | | | |-key1 --Wireless wep key 1
| | | | | | |-key2 --Wireless wep key 2
| | | | | | |-key3 --Wireless wep key 3
| | | | | | |-key4 --Wireless wep key 4
| | | | | | |-keyno --Key number
| | | | | | |-name --Profile name
| | | | | | |-presharedkey --Pre-shared key
| | | | | | |-security-separation --Disable associated wireless client communication
| | | | | | |-ssid --Network name (1-32 chars)
| | | | | | |-status --Profile status
| | | | | | |-vlan-id --VLAN id
| | | | | | |-wep-pass-phrase --Wireless wep passphrase key
| | | | | | |-wepkeytype --Wireless wep key type
| | | | | | |-apply-incoming-QoSpolicy --Apply QoS policy as a incoming
| | | | | | |-apply-outgoing-QoSpolicy --Apply QoS policy as a outgoing
| | | | | | |-delete-incoming-QoSpolicy --Delete incoming QoS policy
Command-Line Reference
150
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
| | | | | | |-delete-outgoing-QoSpolicy --Delete outgoing QoS policy
| | | | | |
| | | | | |-4> --4th security profile
| | | | | | |-authentication --Wireless authentication type
| | | | | | |-encryption --Data encryption
| | | | | | |-hide-network-name --Hide network name
| | | | | | |-key1 --Wireless wep key 1
| | | | | | |-key2 --Wireless wep key 2
| | | | | | |-key3 --Wireless wep key 3
| | | | | | |-key4 --Wireless wep key 4
| | | | | | |-keyno --Key number
| | | | | | |-name --Profile name
| | | | | | |-presharedkey --Pre-shared key
| | | | | | |-security-separation --Disable associated wireless client communication
| | | | | | |-ssid --Network name (1-32 chars)
| | | | | | |-status --Profile status
| | | | | | |-vlan-id --VLAN id
| | | | | | |-wep-pass-phras --Wireless wep passphrase key
| | | | | | |-wepkeytype --Wireless wep key type
| | | | | | |-apply-incoming-QoSpolicy --Apply QoS policy as a incoming
| | | | | | |-apply-outgoing-QoSpolicy --Apply QoS policy as a outgoing
| | | | | | |-delete-incoming-QoSpolicy --Delete incoming QoS policy
| | | | | | |-delete-outgoing-QoSpolicy --Delete outgoing QoS policy
| | | | | |
| | | | | |-5> --5th security profile
| | | | | | |-authentication --Wireless authentication type
| | | | | | |-encryption --Data encryption
| | | | | | |-hide-network-name --Hide network name
| | | | | | |-key1 --Wireless wep key 1
| | | | | | |-key2 --Wireless wep key 2
| | | | | | |-key3 --Wireless wep key 3
| | | | | | |-key4 --Wireless wep key 4
| | | | | | |-keyno --Key number
| | | | | | |-name --Profile name
| | | | | | |-presharedkey --Pre-shared key
| | | | | | |-security-separation --Disable associated wireless client communication
| | | | | | |-ssid --Network name (1-32 chars)
| | | | | | |-status --Profile status
| | | | | | |-vlan-id --VLAN id
| | | | | | |-wep-pass-phrase --Wireless wep passphrase key
| | | | | | |-wepkeytype --Wireless wep key type
| | | | | | |-apply-incoming-QoSpolicy --Apply QoS policy as a incoming
| | | | | | |-apply-outgoing-QoSpolicy --Apply QoS policy as a outgoing
| | | | | | |-delete-incoming-QoSpolicy --Delete incoming QoS policy
| | | | | | |-delete-outgoing-QoSpolicy --Delete outgoing QoS policy
| | | | | |
| | | | | |-6> --6th security profile
| | | | | | |-authentication --Wireless authentication type
| | | | | | |-encryption --Data encryption
| | | | | | |-hide-network-name --Hide network name
| | | | | | |-key1 --Wireless wep key 1
| | | | | | |-key2 --Wireless wep key 2
Command-Line Reference
151
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
| | | | | | |-key3 --Wireless wep key 3
| | | | | | |-key4 --Wireless wep key 4
| | | | | | |-keyno --Key number
| | | | | | |-name --Profile name
| | | | | | |-presharedkey --Pre-shared key
| | | | | | |-security-separation --Disable associated wireless client communication
| | | | | | |-ssid --Network name (1-32 chars)
| | | | | | |-status --Profile status
| | | | | | |-vlan-id --VLAN id
| | | | | | |-wep-pass-phrase --Wireless wep passphrase key
| | | | | | |-wepkeytype --Wireless wep key type
| | | | | | |-apply-incoming-QoSpolicy --Apply QoS policy as a incoming
| | | | | | |-apply-outgoing-QoSpolicy --Apply QoS policy as a outgoing
| | | | | | |-delete-incoming-QoSpolicy --Delete incoming QoS policy
| | | | | | |-delete-outgoing-QoSpolicy --Delete outgoing QoS policy
| | | | | |
| | | | | |-7> --7th security profile
| | | | | | |-authentication --Wireless authentication type
| | | | | | |-encryption --Data encryption
| | | | | | |-hide-network-name --Hide network name
| | | | | | |-key1 --Wireless wep key 1
| | | | | | |-key2 --Wireless wep key 2
| | | | | | |-key3 --Wireless wep key 3
| | | | | | |-key4 --Wireless wep key 4
| | | | | | |-keyno --Key number
| | | | | | |-name --Profile name
| | | | | | |-presharedkey --Pre-shared key
| | | | | | |-security-separation --Disable associated wireless client communication
| | | | | | |-ssid --Network name (1-32 chars)
| | | | | | |-status --Profile status
| | | | | | |-vlan-id --VLAN id
| | | | | | |-wep-pass-phrase --Wireless wep passphrase key
| | | | | | |-wepkeytype --Wireless wep key type
| | | | | | |-apply-incoming-QoSpolicy --Apply QoS policy as a incoming
| | | | | | |-apply-outgoing-QoSpolicy --Apply QoS policy as a outgoing
| | | | | | |-delete-incoming-QoSpolicy --Delete incoming QoS policy
| | | | | | |-delete-outgoing-QoSpolicy --Delete outgoing QoS policy
| | | | | |
| | | | | |-8> --8th security profile
| | | | | | |-authentication --Wireless authentication type
| | | | | | |-encryption --Data encryption
| | | | | | |-hide-network-name --Hide network name
| | | | | | |-key1 --Wireless wep key 1
| | | | | | |-key2 --Wireless wep key 2
| | | | | | |-key3 --Wireless wep key 3
| | | | | | |-key4 --Wireless wep key 4
| | | | | | |-keyno --Key number
| | | | | | |-name --Profile name
| | | | | | |-presharedkey --Pre-shared key
| | | | | | |-security-separation --Disable associated wireless client communication
| | | | | | |-ssid --Network name (1-32 chars)
| | | | | | |-status --Profile status
Command-Line Reference
152
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
| | | | | | |-vlan-id --VLAN id
| | | | | | |-wep-pass-phrase --Wireless wep passphrase key
| | | | | | |-wepkeytype --Wireless wep key type
| | | | | | |-apply-incoming-QoSpolicy --Apply QoS policy as a incoming
| | | | | | |-apply-outgoing-QoSpolicy --Apply QoS policy as a outgoing
| | | | | | |-delete-incoming-QoSpolicy --Delete incoming QoS policy
| | | | | | |-delete-outgoing-QoSpolicy --Delete outgoing QoS policy
| | | | | |
| | | | |
| | | | |-ids-ips-profile>
| | | | | |-ips-status --IDS/IPS (Intrusion detection & prevention system) status
| | | | | |-ips-detection-policy --IDS/IPS (Intrusion detection & prevention system) policies
| | | | | |-attack-status> --IDS/IPS attack configurations
| | | | | | |-EAPOL-logoff-attack --EAPOL logoff attack status
| | | | | | |-EAPOL-start-attack --EAPOL start attack status
| | | | | | |-adhoc-network-detected --ADHOC network detected attack status
| | | | | | |-adhoc-nw-wired-connectivity --ADHOC network wired connectivity attack status
| | | | | | |-ap-property-change --AP property change attack status
| | | | | | |-association-flood --Association flood attack status
| | | | | | |-association-table-overflow --Association table overflow attack status
| | | | | | |-authentication-failure-attack --Authentication failure attack status
| | | | | | |-authentication-flood --Authentication flood attack status
| | | | | | |-cts-flood --CTS flood attack status
| | | | | | |-rts-flood --RTS flood attack status
| | | | | | |-deauthentication-broadcast-attack --Deauthentication broadcast attack status
| | | | | | |-device-probing-for-AP --Device probing for AP attack status
| | | | | | |-disassociation-flood --Disassociation flood attack status
| | | | | | |-known-client-association-Adhoc-nw --Known client association ADHOC network attack status
| | | | | | |-mac-spoofing --MAC spoofing attack status
| | | | | | |-malformed-802.11-packet-detection --Malformed IEEE802.11 packet detection attack status
| | | | | | |-premature-EAP-failure-attack --Premature EAP failure attack status
| | | | | | |-premature-EAP-success-attack --Premature EAP success attack status
| | | | | | |-ps-poll-flood-attack --PS POLL flood attack status
| | | | | | |-rf-jamming-attack --RF jamming attack status
| | | | | | |-rogue-ap-detection --Rogue AP detection attack status
| | | | | | |-unauthenticated-association --Unauthenticated-association attack status
| | | | | | |-virtual-carrier-attack --Virtual carrier attack status
| | | | |
| | | | |-wireless-bridge> --Wireless bridge setting
| | | | | |-security-profile> --Create security profile
| | | | | | |-1> --1st security profile
| | | | | | | |-authentication --Authentication type
| | | | | | | |-encryption --Data encryption
| | | | | | | |-name --Profile name
| | | | | | | |-presharedkey --Preshared key
| | | | | | | |-remote-mac --Remote MAC
| | | | | | | |-status --Profile status
| | | | | | | |-wep-pass-phrase --Wireless wep passphrase key
| | | | | | | |-wepkey --Wireless wep key
| | | | | | | |-wepkeytype --Wireless wep key type
| | | | | | |
| | | | | | |-2> --2nd security profile
Command-Line Reference
153
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
| | | | | | | |-authentication --Authentication type
| | | | | | | |-encryption --Data encryption
| | | | | | | |-name --Profile name
| | | | | | | |-presharedkey --Preshared key
| | | | | | | |-remote-mac --Remote MAC
| | | | | | | |-status --Profile status
| | | | | | | |-wep-pass-phrase --Wireless wep passphrase key
| | | | | | | |-wepkey --Wireless wep key
| | | | | | | |-wepkeytype --Wireless wep key type
| | | | | | |
| | | | | | |-3> --3rd security profile
| | | | | | | |-authentication --Authentication type
| | | | | | | |-encryption --Data encryption
| | | | | | | |-name --Profile name
| | | | | | | |-presharedkey --Preshared key
| | | | | | | |-remote-mac --Remote MAC
| | | | | | | |-status --Profile status
| | | | | | | |-wep-pass-phrase --Wireless wep passphrase key
| | | | | | | |-wepkey --Wireless wep key
| | | | | | | |-wepkeytype --Wireless wep key type
| | | | | | |
| | | | | | |-4> --4th security profile
| | | | | | | |-authentication --Authentication type
| | | | | | | |-encryption --Data encryption
| | | | | | | |-name --Profile name
| | | | | | | |-presharedkey --Preshared key
| | | | | | | |-remote-mac --Remote MAC
| | | | | | | |-status --Profile status
| | | | | | | |-wep-pass-phrase --Wireless wep passphrase key
| | | | | | | |-wepkey --Wireless wep key
| | | | | | | |-wepkeytype --Wireless wep key type
| | | | | | |
| | | | | |
| | | | |
| | | | |-wmm> --WMM settings
| | | | | |-ap-data0-best-effort --Access point best effort voice data
| | | | | |-ap-data1-background --Access point low-priority data
| | | | | |-ap-data2-video --Access point video data
| | | | | |-ap-data3-voice --Access point voice data
| | | | | |-powersave
| | | | | |-station-data0-best-effort --Station best effort voice data
| | | | | |-station-data1-background --Station low-priority data
| | | | | |-station-data2-video --Station video data
| | | | | |-station-data3-voice --Station voice data
| | | | | |-support --Support
| | | | |
| | | | |-band-steering>
| | | | | |-status --Band steering status
| | | | | |-rssi24GHz --2.4 GHz Band steering RSSI value
| | | | | |-rssi50GHz --5.0 GHz Band steering RSSI value
| | | | |
| | | |
Command-Line Reference
154
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
| | | |-5GHz> --5.0 GHz wireless LAN interface setting
| | | | |-aggregation-length --Aggregated packet size
| | | | |-ampdu --Aggregated MAC Protocol Data Unit
| | | | |-beacon-interval --Wireless beacon period in TU(1024 us)
| | | | |-channel --Wireless channel (depends on country and wireless mode)
| | | | |-channelwidth --Wireless channel width
| | | | |-dtim-interval --Wireless DTIM period in beacon interval
| | | | |-fragmentation-length --Wireless fragmentation threshold(even only)
| | | | |-guardinterval --Interval (from interference from other transmissions)
| | | | |-knownap-add --Add known access point
| | | | |-knownap-del --Delete known access point
| | | | |-macacl-add --Add wireless access control (ACL)
| | | | |-macacl-database --Delete wireless access control (ACL) database
| | | | |-macacl-del --Delete wireless access control (ACL)
| | | | |-mcsrate --Transmit data rate
| | | | |-mode --Enable wireless access control (ACL)
| | | | |-operation-mode --Wireless operation mode
| | | | |-power --Wireless transmit power
| | | | |-preamble --Wireless preamble (only effect on 802.11b rates)
| | | | |-radio --Enable wireless radio
| | | | |-rate --Wireless transmission date rate
| | | | |-rifs-transmission --Enable successive frame transmission at different transmit
| | | | | powers
| | | | |-rogue-ap-detection --Enable rogue access point detection
| | | | |-rts-threshold --Wireless RTS/CTS threshold
| | | | |-11dSupport --IEEE802.11d status
| | | | |-client-isolation --Client isolation status
| | | | |-create-qos-policy --Create QoS (Quality of service) policy
| | | | |-create-qos-classification --Create Qos (Quality of service) classification
| | | | |-delete-qos-policy --Delete QoS (Quality of service) policy
| | | | |-delete-qos-classification --Delete Qos (Quality of service) classification
| | | | |
| | | | |-security-profile> --Create security profile
| | | | | |-1> --1st security profile
| | | | | | |-authentication --Wireless authentication type
| | | | | | |-encryption --Data encryption
| | | | | | |-hide-network-name --Hide network name
| | | | | | |-key1 --Wireless wep key 1
| | | | | | |-key2 --Wireless wep key 2
| | | | | | |-key3 --Wireless wep key 3
| | | | | | |-key4 --Wireless wep key 4
| | | | | | |-keyno --Key number
| | | | | | |-name --Profile name
| | | | | | |-presharedkey --Pre-shared key
| | | | | | |-security-separation --Disable associated wireless client communication
| | | | | | |-ssid --Network name (1-32 chars)
| | | | | | |-status --Profile status
| | | | | | |-vlan-id --VLAN id
| | | | | | |-wep-pass-phrase --Wireless wep passphrase key
| | | | | | |-wepkeytype --Wireless wep key type
| | | | | | |-apply-incoming-QoSpolicy --Apply QoS policy as a incoming
| | | | | | |-apply-outgoing-QoSpolicy --Apply QoS policy as a outgoing
Command-Line Reference
155
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
| | | | | | |-delete-incoming-QoSpolicy --Delete incoming QoS policy
| | | | | | |-delete-outgoing-QoSpolicy --Delete outgoing QoS policy
| | | | | |
| | | | | |-2> --2nd security profile
| | | | | | |-authentication --Wireless authentication type
| | | | | | |-encryption --Data encryption
| | | | | | |-hide-network-name --Hide network name
| | | | | | |-key1 --Wireless wep key 1
| | | | | | |-key2 --Wireless wep key 2
| | | | | | |-key3 --Wireless wep key 3
| | | | | | |-key4 --Wireless wep key 4
| | | | | | |-keyno --Key number
| | | | | | |-name --Profile name
| | | | | | |-presharedkey --Pre-shared key
| | | | | | |-security-separation --Disable associated wireless client communication
| | | | | | |-ssid --Network name (1-32 chars)
| | | | | | |-status --Profile status
| | | | | | |-vlan-id --VLAN id
| | | | | | |-wep-pass-phrase --Wireless wep passphrase key
| | | | | | |-wepkeytype --Wireless wep key type
| | | | | | |-apply-incoming-QoSpolicy --Apply QoS policy as a incoming
| | | | | | |-apply-outgoing-QoSpolicy --Apply QoS policy as a outgoing
| | | | | | |-delete-incoming-QoSpolicy --Delete incoming QoS policy
| | | | | | |-delete-outgoing-QoSpolicy --Delete outgoing QoS policy
| | | | | |
| | | | | |-3> --3rd security profile
| | | | | | |-authentication --Wireless authentication type
| | | | | | |-encryption --Data encryption
| | | | | | |-hide-network-name --Hide network name
| | | | | | |-key1 --Wireless wep key 1
| | | | | | |-key2 --Wireless wep key 2
| | | | | | |-key3 --Wireless wep key 3
| | | | | | |-key4 --Wireless wep key 4
| | | | | | |-keyno --Key number
| | | | | | |-name --Profile name
| | | | | | |-presharedkey --Pre-shared key
| | | | | | |-security-separation --Disable associated wireless client communication
| | | | | | |-ssid --Network name (1-32 chars)
| | | | | | |-status --Profile status
| | | | | | |-vlan-id --VLAN id
| | | | | | |-wep-pass-phrase --Wireless wep passphrase key
| | | | | | |-wepkeytype --Wireless wep key type
| | | | | | |-apply-incoming-QoSpolicy --Apply QoS policy as a incoming
| | | | | | |-apply-outgoing-QoSpolicy --Apply QoS policy as a outgoing
| | | | | | |-delete-incoming-QoSpolicy --Delete incoming QoS policy
| | | | | | |-delete-outgoing-QoSpolicy --Delete outgoing QoS policy
| | | | | |
| | | | | |-4> --4th security profile
| | | | | | |-authentication --Wireless authentication type
| | | | | | |-encryption --Data encryption
| | | | | | |-hide-network-name --Hide network name
| | | | | | |-key1 --Wireless wep key 1
Command-Line Reference
156
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
| | | | | | |-key2 --Wireless wep key 2
| | | | | | |-key3 --Wireless wep key 3
| | | | | | |-key4 --Wireless wep key 4
| | | | | | |-keyno --Key number
| | | | | | |-name --Profile name
| | | | | | |-presharedkey --Pre-shared key
| | | | | | |-security-separation --Disable associated wireless client communication
| | | | | | |-ssid --Network name (1-32 chars)
| | | | | | |-status --Profile status
| | | | | | |-vlan-id --VLAN id
| | | | | | |-wep-pass-phrase --Wireless wep passphrase key
| | | | | | |-wepkeytype --Wireless wep key type
| | | | | | |-apply-incoming-QoSpolicy --Apply QoS policy as a incoming
| | | | | | |-apply-outgoing-QoSpolicy --Apply QoS policy as a outgoing
| | | | | | |-delete-incoming-QoSpolicy --Delete incoming QoS policy
| | | | | | |-delete-outgoing-QoSpolicy --Delete outgoing QoS policy
| | | | | |
| | | | | |-5> --5th security profile
| | | | | | |-authentication --Wireless authentication type
| | | | | | |-encryption --Data encryption
| | | | | | |-hide-network-name --Hide network name
| | | | | | |-key1 --Wireless wep key 1
| | | | | | |-key2 --Wireless wep key 2
| | | | | | |-key3 --Wireless wep key 3
| | | | | | |-key4 --Wireless wep key 4
| | | | | | |-keyno --Key number
| | | | | | |-name --Profile name
| | | | | | |-presharedkey --Pre-shared key
| | | | | | |-security-separation --Disable associated wireless client communication
| | | | | | |-ssid --Network name (1-32 chars)
| | | | | | |-status --Profile status
| | | | | | |-vlan-id --VLAN id
| | | | | | |-wep-pass-phrase --Wireless wep passphrase key
| | | | | | |-wepkeytype --Wireless wep key type
| | | | | | |-apply-incoming-QoSpolicy --Apply QoS policy as a incoming
| | | | | | |-apply-outgoing-QoSpolicy --Apply QoS policy as a outgoing
| | | | | | |-delete-incoming-QoSpolicy --Delete incoming QoS policy
| | | | | | |-delete-outgoing-QoSpolicy --Delete outgoing QoS policy
| | | | | |
| | | | | |-6> --6th security profile
| | | | | | |-authentication --Wireless authentication type
| | | | | | |-encryption --Data encryption
| | | | | | |-hide-network-name --Hide network name
| | | | | | |-key1 --Wireless wep key 1
| | | | | | |-key2 --Wireless wep key 2
| | | | | | |-key3 --Wireless wep key 3
| | | | | | |-key4 --Wireless wep key 4
| | | | | | |-keyno --Key number
| | | | | | |-name --Profile name
| | | | | | |-presharedkey --Pre-shared key
| | | | | | |-security-separation --Disable associated wireless client communication
| | | | | | |-ssid --Network name (1-32 chars)
Command-Line Reference
157
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
| | | | | | |-status --Profile status
| | | | | | |-vlan-id --VLAN id
| | | | | | |-wep-pass-phrase --Wireless wep passphrase key
| | | | | | |-wepkeytype --Wireless wep key type
| | | | | | |-apply-incoming-QoSpolicy --Apply QoS policy as a incoming
| | | | | | |-apply-outgoing-QoSpolicy --Apply QoS policy as a outgoing
| | | | | | |-delete-incoming-QoSpolicy --Delete incoming QoS policy
| | | | | | |-delete-outgoing-QoSpolicy --Delete outgoing QoS policy
| | | | | |
| | | | | |-7> --7th security profile
| | | | | | |-authentication --Wireless authentication type
| | | | | | |-encryption --Data encryption
| | | | | | |-hide-network-name --Hide network name
| | | | | | |-key1 --Wireless wep key 1
| | | | | | |-key2 --Wireless wep key 2
| | | | | | |-key3 --Wireless wep key 3
| | | | | | |-key4 --Wireless wep key 4
| | | | | | |-keyno --Key number
| | | | | | |-name --Profile name
| | | | | | |-presharedkey --Pre-shared key
| | | | | | |-security-separation --Disable associated wireless client communication
| | | | | | |-ssid --Network name (1-32 chars)
| | | | | | |-status --Profile status
| | | | | | |-vlan-id --VLAN id
| | | | | | |-wep-pass-phrase --Wireless wep passphrase key
| | | | | | |-wepkeytype --Wireless wep key type
| | | | | | |-apply-incoming-QoSpolicy --Apply QoS policy as a incoming
| | | | | | |-apply-outgoing-QoSpolicy --Apply QoS policy as a outgoing
| | | | | | |-delete-incoming-QoSpolicy --Delete incoming QoS policy
| | | | | | |-delete-outgoing-QoSpolicy --Delete outgoing QoS policy
| | | | | |
| | | | | |-8> --8th security profile
| | | | | | |-authentication --Wireless authentication type
| | | | | | |-encryption --Data encryption
| | | | | | |-hide-network-name --Hide network name
| | | | | | |-key1 --Wireless wep key 1
| | | | | | |-key2 --Wireless wep key 2
| | | | | | |-key3 --Wireless wep key 3
| | | | | | |-key4 --Wireless wep key 4
| | | | | | |-keyno --Key number
| | | | | | |-name --Profile name
| | | | | | |-presharedkey --Pre-shared key
| | | | | | |-security-separation --Disable associated wireless client communication
| | | | | | |-ssid -Network name (1-32 chars)
| | | | | | |-status --Profile status
| | | | | | |-vlan-id --VLAN id
| | | | | | |-wep-pass-phras --Wireless wep passphrase key
| | | | | | |-wepkeytype --Wireless wep key type
| | | | | | |-apply-incoming-QoSpolicy --Apply QoS policy as a incoming
| | | | | | |-apply-outgoing-QoSpolicy --Apply QoS policy as a outgoing
| | | | | | |-delete-incoming-QoSpolicy --Delete incoming QoS policy
| | | | | | |-delete-outgoing-QoSpolicy --Delete outgoing QoS policy
Command-Line Reference
158
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
| | | | | |
| | | | |
| | | | |-ids-ips-profile>
| | | | | |-ips-status --IDS/IPS (Intrusion detection & prevention system) status
| | | | | |-ips-detection-policy --IDS/IPS (Intrusion detection & prevention system) policies
| | | | | |-attack-status> --IDS/IPS attack configurations
| | | | | | |-EAPOL-logoff-attack --EAPOL logoff attack status
| | | | | | |-EAPOL-start-attack --EAPOL start attack status
| | | | | | |-adhoc-network-detected --ADHOC network detected attack status
| | | | | | |-adhoc-nw-wired-connectivity --ADHOC network wired connectivity attack status
| | | | | | |-ap-property-change --AP property change attack status
| | | | | | |-association-flood --Association flood attack status
| | | | | | |-association-table-overflow --Association table overflow attack status
| | | | | | |-authentication-failure-attack --Authentication failure attack status
| | | | | | |-authentication-flood --Authentication flood attack status
| | | | | | |-cts-flood --CTS flood attack status
| | | | | | |-rts-flood --RTS flood attack status
| | | | | | |-deauthentication-broadcast-attack --Deauthentication broadcast attack status
| | | | | | |-device-probing-for-AP --Device probing for AP attack status
| | | | | | |-disassociation-flood --Disassociation flood attack status
| | | | | | |-known-client-association-Adhoc-nw --Known client association ADHOC network attack status
| | | | | | |-mac-spoofing --MAC spoofing attack status
| | | | | | |-malformed-802.11-packet-detection --Malformed IEEE802.11 packet detection attack status
| | | | | | |-premature-EAP-failure-attack --Premature EAP failure attack status
| | | | | | |-premature-EAP-success-attack --Premature EAP success attack status
| | | | | | |-ps-poll-flood-attack --PS POLL flood attack status
| | | | | | |-rf-jamming-attack --RF jamming attack status
| | | | | | |-rogue-ap-detection --Rogue AP detection attack status
| | | | | | |-unauthenticated-association --Unauthenticated-association attack status
| | | | | | |-virtual-carrier-attack --Virtual carrier attack status
| | | | | |
| | | | |
| | | | |-wireless-bridge> --Wireless bridge setting
| | | | | |-security-profile> --Create security profile
| | | | | | |-1> --1st security profile
| | | | | | | |-authentication --Authentication type
| | | | | | | |-encryption --Data encryption
| | | | | | | |-name --Profile name
| | | | | | | |-presharedkey --Preshared key
| | | | | | | |-remote-mac --Remote MAC
| | | | | | | |-status --Profile status
| | | | | | | |-wep-pass-phrase --Wireless wep passphrase key
| | | | | | | |-wepkey --Wireless wep key
| | | | | | | |-wepkeytype --Wireless wep key type
| | | | | | |
| | | | | | |-2> --2nd security profile
| | | | | | | |-authentication --Authentication type
| | | | | | | |-encryption --Data encryption
| | | | | | | |-name --Profile name
| | | | | | | |-presharedkey --Preshared key
| | | | | | | |-remote-mac --Remote MAC
| | | | | | | |-status --Profile status
Command-Line Reference
159
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
| | | | | | | |-wep-pass-phrase --Wireless wep passphrase key
| | | | | | | |-wepkey --Wireless wep key
| | | | | | | |-wepkeytype --Wireless wep key type
| | | | | | |
| | | | | | |-3> --3rd security profile
| | | | | | | |-authentication --Authentication type
| | | | | | | |-encryption --Data encryption
| | | | | | | |-name --Profile name
| | | | | | | |-presharedkey --Preshared key
| | | | | | | |-remote-mac --Remote MAC
| | | | | | | |-status --Profile status
| | | | | | | |-wep-pass-phrase --Wireless wep passphrase key
| | | | | | | |-wepkey --Wireless wep key
| | | | | | | |-wepkeytype --Wireless wep key type
| | | | | | |
| | | | | | |-4> --4th security profile
| | | | | | | |-authentication --Authentication type
| | | | | | | |-encryption --Data encryption
| | | | | | | |-name --Profile name
| | | | | | | |-presharedkey --Preshared key
| | | | | | | |-remote-mac --Remote MAC
| | | | | | | |-status --Profile status
| | | | | | | |-wep-pass-phrase --Wireless wep passphrase key
| | | | | | | |-wepkey --Wireless wep key
| | | | | | | |-wepkeytype --Wireless wep key type
| | | | | | |
| | | | | |
| | | | |
| | | | |-wmm> --WMM settings
| | | | | |-ap-data0-best-effort --Access point best effort voice data
| | | | | |-ap-data1-background --Access point low-priority data
| | | | | |-ap-data2-video --Access point video data
| | | | | |-ap-data3-voice --Access point voice data
| | | | | |-powersave
| | | | | |-station-data0-best-effort --Station best effort voice data
| | | | | |-station-data1-background --Station low-priority data
| | | | | |-station-data2-video --Station video data
| | | | | |-station-data3-voice --Station voice data
| | | | | |-support --???
| | | | |
| | | |
| | |
| |
| |-ipv4> --Set host IPv4
| | |-address --Host IPv4 address
| | |-default-gateway --IPv4 address of default gateway
| | |-dhcp-client --Enable dhcpv4 client
| | |-dns-server --IPv4 address of DNS server
| | |-network-integrity-check
| |
| |-ipv6> --Set host IPv6
| | |-address --Host IPv6 address
Command-Line Reference
160
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
| | |-default-gateway --IPv6 address of default gateway
| | |-dhcp-client --Enable dhcpv6 client
| | |-dns-server --IPv6 address of DNS server
| | |-network-integrity-check
| |
| |-log> --Syslog setting
| | |-syslog-status --Enable syslog client
| | |-syslog-server-ip --Syslog server IP address
| | |-syslog-server-port --Syslog server port number
| |
| |-lldp-status --Enable/Disable LLDP
| |
| |-radiusv4> --Radiusv4 settings
| | |-accounting-server-primary --Primary accounting server
| | |-accounting-server-primary-port --Primary accounting server port
| | |-accounting-server-primary-sharedsecret --Primary accounting server shared secret
| | |-accounting-server-secondary --Secondary accounting server
| | |-accounting-server-secondary-port --Secondary accounting server port
| | |-accounting-server-secondary-sharedsecret --Secondary accounting server shared secret
| | |-authentication-server-primary --Primary authentication server
| | |-authentication-server-primary-port --Primary system accounting server shared secret
| | |-authentication-server-primary-sharedsecret --Primary authentication server shared secret
| | |-authentication-server-secondary --Secondary authentication server
| | |-authentication-server-secondary-port --Secondary authentication server port
| | |-authentication-server-secondary-sharedsecret --Secondary authentication server shared secret
| | |-reauthentication-time
| | |-update-global-key
| | |-update-global-key-interval
| |
| |-radiusv6> --Radiusv4 settings
| | |-accounting-server-primary --Primary accounting server
| | |-accounting-server-primary-port --Primary accounting server port
| | |-accounting-server-primary-sharedsecret --Primary accounting server shared secret
| | |-accounting-server-secondary --Secondary accounting server
| | |-accounting-server-secondary-port --Secondary accounting server port
| | |-accounting-server-secondary-sharedsecret --Secondary accounting server shared secret
| | |-authentication-server-primary --Primary authentication server
| | |-authentication-server-primary-port --Primary system accounting server shared secret
| | |-authentication-server-primary-sharedsecret --Primary authentication server shared secret
| | |-authentication-server-secondary --Secondary authentication server
| | |-authentication-server-secondary-port --Secondary authentication server port
| | |-authentication-server-secondary-sharedsecret --Secondary authentication server shared secret
| | |-reauthentication-time
| | |-update-global-key
| | |-update-global-key-interval
| |
| |-remote> --Remote access settings
| | |-ssh --Enable remote access via SSH
| | |-telnet --Enable remote access via Telnet
| |
| |-snmp> --SNMP settings
| | |-description --SNMP system description
Command-Line Reference
161
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
| | |-read-community --SNMP ReadCommunity
| | |-snmp-status --SNMP status
| | |-trap-community --SNMP ReadCommunity
| | |-trap-server --SNMP TrapServer IP address
| | |-write-community --SNMP WriteCommunity
| |
| |-spanning-tree --Enable spanning tree protocol
| |
| |-time> --Time Setting
| | |-custom-ntp-server --Custom NTP server host name
| | |-ntp-client --NTP client host name
| | |-ntp-server --NTP server host name
| | |-time-zone --Time zone
| |
| |-vlan> --VLAN settings
| | |-management-vlan --VLAN management-id
| | |-untagged-vlan --Untagged VLAN-id
| | |-untagged-vlan-status --Untagged vlan status
| |
|
|-exit --Logout from CLI
|-file --
|-firmware-upgrade --Upload new system firmware file from httpd server
|-firmware-upgrade-tftp --Upload new system firmware file from tftpd server
|-password --System password
|-reboot --System reboot
|-restore-configuration --Restore system configuration
|-restore-default-password --Restore default system password
|-restore-factory-default --Restore default system configurations
|-show> --Show system settings
| |-configuration --Show system configuration
| |-interface> --Show wireless lan interface
| | |-eth> --Ethernet interface
| | | |-statistics --Show ethernet statistics
| | |
| | |-wlan> --Wlan interface settings
| | | |-2.4GHz> --2.4GHz wlan interface settings
| | | | |-configuration --Interface configuration
| | | | |-statistics --Interface statistics
| | | | |-stationlist --Station list
| | | | |-trusted-stationlist --Trusted station list
| | | | |-knownaplist --Known access point list
| | | | |-unknownaplist --Unknown access point list
| | | | |-ids-ips-statistics --IDS/IPS statistics
| | | | |-ids-ips-thresholds --IDS/IPS thresholds
| | | | |-ids-ips-traps --IDS/IPS trap list
| | | | |-qos-policies --QoS policy list
| | | |
| | | |-5GHz> --5GHz wlan interface settings
| | | | |-configuration --Interface configuration
| | | | |-statistics --Interface statistics
| | | | |-stationlist --Station list
Command-Line Reference
162
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
| | | | |-trusted-stationlist --Trusted station list
| | | | |-knownaplist --Known access point list
| | | | |-unknownaplist --Unknown access point list
| | | | |-ids-ips-statistics --IDS/IPS statistics
| | | | |-ids-ips-thresholds --IDS/IPS thresholds
| | | | |-ids-ips-traps --IDS/IPS trap list
| | | | |-qos-policies --QoS policy list
| | | |
| | |
| |
| |-log> --System log
| |-system --System setting
| |-time --System time settings
| |
163
C
C. Notification of Compliance
NETGEAR Dual Band - Wireless
Regulatory Compliance Information
This section includes user requirements for operating this product in accordance with National laws for usage of radio
spectrum and operation of radio devices. Failure of the end-user to comply with the applicable requirements may
result in unlawful operation and adverse action against the end-user by the applicable National regulatory authority.
Note: This product’s firmware limits operation to only the channels allowed in a particular Region or Country.
Therefore, all options described in this user's guide may not be available in your version of the product.
Europe - EU Declaration of Conformity
Marking by the above symbol indicates compliance with the Essential Requirements of the R&TTE Directive of the
European Union (1999/5/EC). This equipment meets the following conformance standards:
EN300 328 (2.4 GHz), EN301 489-17, EN301 893 (5 GHz), EN60950-1
For complete DoC please visit the NETGEAR EU Declarations of Conformity website at
http://support.netgear.com/app/answers/detail/a_id/11621/.
EDOC in Languages of the European Community
Language Statement
Cesky [Czech] NETGEAR Inc. tímto prohlašuje, že tento Radiolan je ve shode se základními požadavky
a dalšími príslušnými ustanoveními smernice 1999/5/ES.
Dansk [Danish] Undertegnede NETGEAR Inc. erklærer herved, at følgende udstyr Radiolan overholder de
væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF.
Deutsch
[German] Hiermit erklärt NETGEAR Inc., dass sich das Gerät Radiolan in Übereinstimmung mit den
grundlegenden Anforderungen und den übrigen einschlägigen Bestimmungen der
Richtlinie 1999/5/EG befindet.
Eesti [Estonian] Käesolevaga kinnitab NETGEAR Inc. seadme Radiolan vastavust direktiivi 1999/5/EÜ
põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjakohastele sätetele.
English Hereby, NETGEAR Inc., declares that this Radiolan is in compliance with the essential
requirements and other relevant provisions of Directive 1999/5/EC.
Notification of Compliance
164
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
Español [Spanish] Por medio de la presente NETGEAR Inc. declara que el Radiolan cumple con los
requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la
Directiva 1999/5/CE.
Ελληνική [Greek] ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ NETGEAR Inc. ΔΗΛΩΝΕΙ ΟΤΙ Radiolan ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ
ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ
1999/5/ΕΚ.
Français [French] Par la présente NETGEAR Inc. déclare que l'appareil Radiolan est conforme aux
exigences essentielles et aux autres dispositions pertinentes de la directive 1999/5/CE.
Italiano [Italian] Con la presente NETGEAR Inc. dichiara che questo Radiolan è conforme ai requisiti
essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE.
Latviski [Latvian] Ar šo NETGEAR Inc. deklarē, ka Radiolan atbilst Direktīvas 1999/5/EK būtiskajām
prasībām un citiem ar to saistītajiem noteikumiem.
Lietuvių
[Lithuanian] Šiuo NETGEAR Inc. deklaruoja, kad šis Radiolan atitinka esminius reikalavimus ir kitas
1999/5/EB Direktyvos nuostatas.
Nederlands
[Dutch] Hierbij verklaart NETGEAR Inc. dat het toestel Radiolan in overeenstemming is met de
essentiële eisen en de andere relevante bepalingen van richtlijn 1999/5/EG.
Malti [Maltese] Hawnhekk, NETGEAR Inc., jiddikjara li dan Radiolan jikkonforma mal-htigijiet essenzjali u
ma provvedimenti ohrajn relevanti li hemm fid-Dirrettiva 1999/5/EC.
Magyar
[Hungarian] Alulírott, NETGEAR Inc. nyilatkozom, hogy a Radiolan megfelel a vonatkozó alapvetõ
követelményeknek és az 1999/5/EC irányelv egyéb elõírásainak.
Polski [Polish] Niniejszym NETGEAR Inc. oświadcza, że Radiolan jest zgodny z zasadniczymi
wymogami oraz pozostałymi stosownymi postanowieniami Dyrektywy 1999/5/EC.
Português
[Portuguese] NETGEAR Inc. declara que este Radiolan está conforme com os requisitos essenciais e
outras disposições da Directiva 1999/5/CE.
Slovensko
[Slovenian] NETGEAR Inc. izjavlja, da je ta Radiolan v skladu z bistvenimi zahtevami in ostalimi
relevantnimi določili direktive 1999/5/ES.
Slovensky
[Slovak] NETGEAR Inc. týmto vyhlasuje, že Radiolan spĺňa základné požiadavky a všetky
príslušné ustanovenia Smernice 1999/5/ES.
Suomi [Finnish] NETGEAR Inc. vakuuttaa täten että Radiolan tyyppinen laite on direktiivin 1999/5/EY
oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen mukainen.
Svenska
[Swedish] Härmed intygar NETGEAR Inc. att denna Radiolan står I överensstämmelse med de
väsentliga egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv
1999/5/EG.
Notification of Compliance
165
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
This device is a 2.4 GHz wideband transmission system (transceiver), intended for use in all EU member states and
EFTA countries, except in France and Italy where restrictive use applies.
In Italy the end-user should apply for a license at the national spectrum authorities in order to obtain authorization to
use the device for setting up outdoor radio links and/or for supplying public access to telecommunications and/or
network services.
This device may not be used for setting up outdoor radio links in France and in some areas the RF output power
may be limited to 10 mW EIRP in the frequency range of 2454 - 2483.5 MHz. For detailed information the end-user
should contact the national spectrum authority in France.
FCC Requirements for Operation in the United States
FCC Information to User
This product does not contain any user serviceable components and is to be used with approved antennas only.
Any product changes or modifications will invalidate all applicable regulatory certifications and approvals.
FCC Guidelines for Human Exposure (Radiation Exposure Statement)
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This
equipment should be installed and operated with minimum distance of 23 cm between the radiator and your body.
This device and its antenna(s) must not be co-located or operation in conjunction with any other antenna or
transmitter.
FCC Declaration of Conformity
We, NETGEAR, Inc., 350 East Plumeria Drive, San Jose, CA 95134, declare under our sole responsibility that the
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660 complies with Part 15 Subpart B of FCC
CFR47 Rules. Operation is subject to the following two conditions:
• This device may not cause harmful interference, and
• This device must accept any interference received, including interference that may cause undesired operation.
FCC Radio Frequency Interference Warnings & Instructions
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following methods:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an electrical outlet on a circuit different from that which the radio receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC Caution
• Any changes or modifications not expressly approved by the party responsible for compliance could void the
user's authority to operate this equipment.
Íslenska
[Icelandic] Hér með lýsir NETGEAR Inc. yfir því að Radiolan er í samræmi við grunnkröfur og aðrar
kröfur, sem gerðar eru í tilskipun 1999/5/EC.
Norsk
[Norwegian] NETGEAR Inc. erklærer herved at utstyret Radiolan er i samsvar med de grunnleggende
krav og øvrige relevante krav i direktiv 1999/5/EF.
Notification of Compliance
166
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
• This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
• For operation within 5.15 ~ 5.25GHz frequency range, it is restricted to indoor environment. This device meets all
the other requirements specified in Part 15E, Section 15.407 of the FCC Rules.
• This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
• For products available in the USA market, only channel 1 ~ 11 can be operated. Selection of other channels is
not possible.
Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This
equipment should be installed and operated with minimum distance 23 cm between the radiator & your body.
Industry Canada
This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
This device has been designed to operate with an antenna having a maximum gain of 6.29dB. Antenna having a
higher gain is strictly prohibited per regulations of Industry Canada. The required antenna impedance is 50 ohms.
Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum
(or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users,
the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more
than that necessary for successful communication.
IMPORTANT NOTE: Radiation Exposure Statement
This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment
should be installed and operated with minimum distance 23 cm between the radiator and your body.
Caution
The device for operation in the band 5150 - 5250 MHz is only for indoor usage to reduce the potential for harmful
interference to co-channel mobile satellite systems.
High power radars are allocated as primary users (that is, priority users) of the bands 5250 - 5350 MHz and
5650 - 5850 MHz and these radars could cause interference and/or damage to LE-LAN devices.
Industrie Canada
Ce dispositif est conforme à la norme CNR-210 d'Industrie Canada applicable aux appareils radio exempts de licence.
Son fonctionnement est sujet aux deux conditions suivantes:
(1) le dispositif ne doit pas produire de brouillage préjudiciable, et
(2) ce dispositif doit accepter tout brouillage reçu, y compris un brouillage susceptible de provoquer un fonctionnement
indésirable.
Ce dispositif a été conçu pour fonctionner avec une antenne ayant un gain maximal de dB 6.29. Une antenne à gain
plus élevé est strictement interdite par les règlements d'Industrie Canada. L'impédance d'antenne requise est de
50 ohms.
Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peutfonctionner avec une antenne
d'un type et d'un gain maximal (ou inférieur) approuvé pourl'émetteur par Industrie Canada. Dans le but de réduire les
risques de brouillage radioélectriqueà l'intention des autres utilisateurs, il faut choisir le type d'antenne et son gain de
sorte que lapuissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire àl'établissement
d'une communication satisfaisante.
NOTE IMPORTANTE: Déclaration d'exposition aux radiations
Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies pour un environnement non
contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 23 cm de distance entre la source de
rayonnement et votre corps.
Notification of Compliance
167
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
Avertissement
Les dispositifs fonctionnant dans la bande 5150 - 5250 MHz sont réservés uniquement pour une utilisation à
l'intérieur afin de réduire les risques de brouillage préjudiciable aux systèmes de satellites mobiles utilisant les
mêmes canaux.
De plus, les utilisateurs devraient aussi être avisés que les utilisateurs de radars de haute puissance sont désignés
utilisateurs principaux (c.-à-d., qu'ils ont la priorité) pour les bandes 5250 - 5350 MHz et 5650 - 5850 MHz et que
ces radars pourraient causer du brouillage et/ou des dommages aux dispositifs LAN-EL.
Detachable Antenna Usage
This device has been designed to operate with a Dipole antenna with a maximum gain of 5dBi. An antenna having
a higher gain is strictly prohibited per regulations of Industry Canada. The required antenna impedance is 50 ohms.
Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and
maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to
other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power
(e.i.r.p.) is not more than that necessary for successful communication.
This radio transmitter (IC: 4054A-12200202 / Model: WNDAP620) has been approved by Industry Canada to
operate with the antenna type, maximum permissible gain and required antenna impedance for each antenna type
indicated. Antenna types not included in this user's manual, having a gain greater than the maximum gain indicated
for that type, are strictly prohibited for use with this device.
Ce dispositif a ete concu pour fonctionner avec une antenne ayant un gain maximal de Dipole antenna avec 5dBi.
Une antenne a gain plus eleve est strictement interdite par les reglements d'Industrie Canada. L'impedance
d'antenne requise est de 50 ohms.
Conformement a la reglementation d'Industrie Canada, le present emetteur radio peutfonctionner avec une antenne
d'un type et d'un gain maximal (ou inferieur) approuve pourl'emetteur par Industrie Canada. Dans le but de reduire
les risques de brouillage radioelectriquea l'intention des autres utilisateurs, il faut choisir le type d'antenne et son
gain de sorte que lapuissance isotrope rayonnee equivalente (p.i.r.e.) ne depasse pas l'intensite necessaire
al'etablissement d'une communication satisfaisante.
Le present emetteur radio (IC: 4054A-12200202 / Model: WNDAP620) a ete approuve par Industrie Canada pour
fonctionner avec les types d'antenne enumeres ci-dessous et ayant un gain admissible maximal et l'impedance
requise pour chaque type d'antenne. Les types d'antenne non inclus dans cette liste, ou dont le gain est superieur
au gain maximal indique, sont strictement interdits pour l'exploitation de l'emetteur.
168
Index
Numerics
11a and 11na wireless modes 32
11b, 11bg, and 11ng wireless modes 29
2.4 GHz antenna, connectors for 13
2.4 GHz or 5 GHz operation 9
64-bit, 128-bit, and 152-bit WEP 54
802.11b/g/n and 802.11a/n
wireless adapters 19
wireless settings 28–34
802.11d support 109
802.1P, QoS policies 116
802.1Q VLAN 9, 105
A
access, restricting by MAC address 43, 60
accounting, RADIUS servers 57–59
accounts, users 75
Active LED
behavior 21
described 12
troubleshooting 134
ActiveX 136
activity log 83
ad hoc networks
detecting 93
monitoring 97
admin password
changing or restoring 74
default 143
AES (Advanced Encryption Standard) 44, 56–57
Aggregated MAC Protocol Data Unit (A-MPDU)
frames 109
aggregation length 109
aggressive detection policy 86, 95
AID (associated identifier) 82
AIFS (Arbitration Inter-Frame Spacing) interval 112
A-MPDU (Aggregated MAC Protocol Data Unit)
frames 109
antennas
connecting external 13
enabling internal or external 109
external orientation 18
Arbitration Inter-Frame Spacing (AIFS) interval 112
associated identifier (AID) 82
association flood and table overflow 90
associations, wireless clients 85
attacks
detecting and preventing 90
monitoring 96
authentication
network 45
RADIUS servers 57–58
authentication flood and failure attack 90
autosensing over Ethernet 10
B
background traffic
advanced QoS 111
WMM QoS 63
backing up 70
band steering 9, 110
basic service set (BSS) 45
basic service set identifier (BSSID)
ad hoc networks 97
configuring 48–57
described 8, 43–44
monitoring 81
beacon interval 109
beacons, unknown access points 88
best effort traffic
advanced QoS 111
WMM QoS 63
bits per second, QoS policies 117–118
bridging modes, wireless 119
broadcast packets, transmitted and received 85
broadcasting wireless network names (SSIDs)
802.11a/na modes 33
802.11b/bg/ng modes 30
security 43
browsers, recommended 22
BSS (basic service set) 45
BSSID (basic service set identifier)
ad hoc networks 97
configuring 48–57
described 8, 43–44
169
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
monitoring 81
burst rate, QoS policies 117–118
bytes, received and transmitted
Ethernet connection 84
wireless connection 82
C
capturing packets 139
Carrier Sense Multiple Access (CSMA) 108
Category 5 Ethernet cable 7
channel width (802.11na) 33
channel width and offset (802.11ng) 30
channels and frequencies
defaults 141
selecting for 802.11a/na modes 33
selecting for 802.11b/bg/ng modes 30
channels, wireless spacing 18
classifications, QoS policies 115–118
Clear to Send (CTS) packets 108
CLI (command line-interface) commands 147
clients
associated, number of 85
DHCPv4, enabling 26
DHCPv6, enabling 100
isolation, enabling 110
maximum number 110
monitoring 80
NTP, enabling 25
trusted 61
wireless separation, enabling 45, 52
collision detection and collision avoidance, CSMA 108
command line-interface (CLI) commands 147
community names and traps, SNMP 65
compliance 163
electromagnetic 142
notification of 163
configuration file, backing up or restoring 70
connectors and ports, rear panel 13
console port 13
country, wireless location 24
CSMA (Carrier Sense Multiple Access) 108
CTS (Clear to Send) packets 108
CTS flood 92
cwMin (minimum contention window) and cwMax
(maximum contention window) values 112
D
data encryption
WEP 54
WPA and WPA2 57
data rates
802.11a mode 34
802.11b/bg modes 31
specifications for all modes 140–141
date and time, troubleshooting 138
deauthentication broadcast attack 90
defaults
channels and frequencies 141
DHCPv4 gateway 28
DHCPv6 gateway 103
factory settings, list of 143–146
factory settings, restoring 71
IPv4 address 22, 143
IPv6 address 143
ISP gateway 26, 101
login password 22, 143
prefix length 143
SNMP 65
subnet mask 26, 143
user name 22, 143
delivery traffic indication message (DTIM) interval 109
destination port, QoS policies 117
detection policies
IDS/IPS 95
rogue access points 86
device probing 94
DHCP (Dynamic Host Configuration Protocol)
DHCPv4 client and server 26–28
DHCPv6 client and server 100–103
disassociation flood 91
DNS (Domain Name System) servers
IPv4 26–28
IPv6 100–103
DTIM (delivery traffic indication message) interval 109
dual-band support (concurrent) 9
Dynamic Host Configuration Protocol (DHCP)
DHCPv4 client and server 26–28
DHCPv6 client and server 100–103
E
EAPOL (Extensible Authentication Protocol) attacks 91
EDCA (Enhanced Distributed Channel Access)
parameters 111–113
electromagnetic compliance 142
email settings, IDS/IPS 95
encryption
WEP 54
WPA and WPA2 57
environmental specifications 142
ESS (extended service set) 45
Ether type, QoS policies 116
Ethernet cabling requirements 18
170
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
Ethernet packets and bytes, received and transmitted 84
extended service set (ESS) 45
Extensible Authentication Protocol EAPOL) attacks 91
external antennas
connecting 13
enabling 109
F
factory default settings
list of 143–146
restoring 71
firmware
backing up 70
factory defaults 71
restoring from backup file 71
upgrading 68
version, viewing 79
flash memory 67
fragmentation length 109
frequencies and channels
defaults 141
selecting for 802.11a/na modes 33
selecting for 802.11b/bg/ng modes 30
FTP traffic
advanced QoS 111
WMM QoS 63
G
gateways
ISP and DHCPv4 26–28
ISP and DHCPv6 101–103
generating keys, WEP 54
Gigabit Ethernet (RJ-45) port 13
graphical user interface (GUI)
described 22
troubleshooting 135
guard interval
802.11na 33
802.11ng 30
H
hotspot server 106
I
idle time 82
IDS (intrusion detection system) 10, 89
importing known access points 87
infrastructure mode 19
installation kits 35
installation order 20
interface rate limiting and burst rate 118
interference 18
internal antenna, disabling 109
Internet browsing, troubleshooting 135
intrusion detection system (IDS) and intrusion prevention
system (IPS) 10, 89
IP addresses
NTP servers 25
QoS policies 117
SNMP manager 65
syslog server 77
TFTP server 69
IP DCSP and IP precedence, QoS policies 115
IPS (intrusion prevention system) 10, 89
IPv4 addresses
default 22, 26, 79, 143
DHCPv4 and DNS servers 26–28
DHCPv4 WINS servers 28
errors 19
RADIUS servers 58
requirements 19
static for management computer 143
IPv6 addresses
default 79, 100, 143
DHCPv6 and DNS servers 100–103
DHCPv6 WINS servers 103
dynamic 79, 101
errors 19
RADIUS servers 58
requirements 19
isolating clients 110
J
Java and Javascript 136
K
key generation, WEP 54
key update, RADIUS servers 59
L
LANconfiguration requirements 18
IPv4 and IPv6 addresses 143
troubleshooting 135
LAN LED
behavior 21
described 12
troubleshooting 134
LAN path, troubleshooting 137
171
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
lease
DHCPv4 28
DHCPv6 103
LEDs
behavior 21
described 12
troubleshooting 133
legacy 802.1X (wireless security) 51, 54
LLDP (Link Layer Discovery Protocol) 105
local MAC addresses 60
location, country and region 24
logging activities 83
logging in 22
login URL, name, and password 143
losing wireless connection 61
M
MAC addresses
ad hoc network clients 97
default, wireless access point 24
Ethernet port 79
known access points 89
QoS policies 116
restricting access by 43, 60
unknown access points 88
wireless card 79
MAC spoofing 92
malformed 802.11 packets 91
management VLAN 104
management, remote options 64
match clauses, QoS policies 115–118
maximum burst value 113
maximum contention window (cwMax) value 112
maximum number of clients 110
MCS (Modulation and Coding Scheme)
index and data rate 802.11na 33
index and data rate 802.11ng 30
mild detection policy 86, 95
minimum contention window (cwMin) value 112
moderate detection policy 86, 95
Modulation and Coding Scheme (MCS) 30, 33
mounting plate
ceiling 36
wall 38
multicast packets, transmitted and received 85
N
names
attacks and IDS/IPS policies 90
firmware file 69
mail sender 95
NTP server 25
profiles 50
QoS policies 114
SNMP communities 65
users 75
wireless access point 24
wireless network (SSID for 802.11a/na modes) 33
wireless network (SSID for 802.11b/bg/ng modes)
30
NetBIOS name 24
network
ad hoc 97
authentication 45
configuration, troubleshooting 137
integrity check 26, 101
Network Time Protocol (NTP), client and server 25
O
open system (no security) 51, 53
operating frequencies 141
operating modes 9
order of installation and configuration 20
output power
2.4 GHz transmission 31
5 GHz transmission 34
P
package contents 7
packets
capturing 139
received and transmitted 84
passphrase
WEP 54
WPA, WPA2, and mixed mode 44, 57
password
changing or restoring 74
default 22
login 143
physical connections, troubleshooting 137
physical specifications 142
pinging wireless access point 135, 136
placement, wireless equipment 17
PoE (Power over Ethernet) 10, 21
point-to-multipoint bridge
regular mode 123
repeating wireless signal 127
point-to-point bridge 119
port and connectors, rear panel 13
ports
QoS policy classification 117
172
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
RADIUS servers 58
SNMP manager, traps 65
syslog server 77
power adapter specifications 142
power redundancy 10, 21
power socket 14
Power/Test LED
behavior 21
described 12
troubleshooting 133
powersaving, WMM 63
preamble type 109
prefix length
default 143
DHCPv6 clients 103
wireless access point 79, 100
premature EAP attacks 91
pre-shared key (PSK), WPA, WPA2, and mixed mode
44, 57
priority queues
advanced QoS 111
WMM QoS 63
privileges, user accounts 75
product registration 14
profiles, security
creating and configuring 48–52
described 44
PS poll flood attack 94
PSK (pre-shared key), WPA, WPA2, and mixed mode
44, 57
Q
QoS (Quality of Service)
advanced settings 111–113
basic settings (WMM) 62–63
policies 113–118
rate limiting and burst rate 117–118
R
radio
scheduling to turn off 61
turning off, 2.4 GHz 29
turning off, 5 GHz 32
RADIUS servers, configuring 57
range guidelines, wireless equipment 17
rate limiting, QoS policies 117–118
read-only name, read-write name, SNMP 65
rear panel 13
reauthentication time, RADIUS servers 59
rebooting from web management interface 73
received signal strength indicator (RSSI) 82, 110
redirecting HTTP requests 106
Reduced Interframe Space (RIFS) transmission 109
region, wireless location 24
registering product 14
remote devices, troubleshooting 138
remote MAC addresses 60
remote management, options 64
repeating wireless signal 127
Request to Send (RTS) threshold 108
Reset button 13, 73, 143
restoring
factory defaults 71
password 74
settings, from backup file 71
restricting access by MAC address 43, 60
RF jamming attack 92
RIFS (Reduced Interframe Space) transmission 109
roaming 45
rogue access point detection 85–89
RSSI (received signal strength indicator) 82, 110
RTS (Request to Send) threshold 108
RTS flood 92
Rx sequence 82
S
Secure Shell (SSH), enabling 66
security lock 13
security profiles
creating and configuring 48–52
described 44
security, wireless options 42
separating wireless clients 45, 52
serial number 79
servers, configuring
DHCPv4 27
DHCPv6 102
DNS 26–28, 101–103
hotspot 106
NTP 25
RADIUS 57
syslog 76
service set identifiers. See SSIDs.
shared key, WEP 51, 53
shared secrets, RADIUS servers 59
signal-to-noise ratio (SNR) 82
SMA connectors, external antennas 13
SNMP (Simple Network Management Protocol),
configuring 64
173
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
software
backing up 70
factory defaults 71
restoring from backup file 71
upgrading 68
version, viewing 79
source port, QoS policies 117
Spanning Tree Protocol (STP), enabling 105
specifications, technical 140
SSH (Secure Shell), enabling 66
SSIDs (service set identifiers)
broadcasting 50
broadcasting and security 43
broadcasting for 802.11a/na modes 33
broadcasting for 802.11b/bg/ng modes 30
matching 19
stateless and stateful DHCPv6 server 102
station EDCA parameters 113
statistics, traffic 83
STP (Spanning Tree Protocol), enabling 105
streaming media
advanced QoS 111
WMM QoS 63
subnet mask
default 143
DHCPv4 clients 28
wireless access point 26
supported standards 8
syslog 76
system monitoring 77
system requirements 8
T
tagged VLAN 104
TCP/IP network, troubleshooting 136
technical specifications 140
technical support 2
Telnet, enabling 66
Temporal Key Integrity Protocol (TKIP) 44, 56–57
TFTP server, upgrade procedure 69
time and time zone
configuring 24
troubleshooting 138
time-out error 136
TKIP (Temporal Key Integrity Protocol) 44, 56–57
TKIP + AES (WPA & WPA2 mixed mode) 56–57
top panel 12
trademarks 2
traffic
advanced QoS 111
patterns, analyzing 139
statistics 83
WMM QoS 63
traffic classes, QoS policies 117
transmission opportunity (TXOP) limit 113
transmission output power
2.4 GHz radio 31
5 GHz radio 34
traps
IDS/IPS 90
SNMP 65
troubleshooting
basic functioning 133
browser configuration 135
capturing packets 139
date 138
Internet and LAN connection 135
IP addresses, requirements 19
LAN path 137
LEDs 133
network configuration 137
path to remote device 138
physical connections 137
pinging 135, 136
PoE connection 133
power cord 134
TCP/IP settings 135
time and time zone 138
time-out error 136
trusted wireless stations 61
turning off
2.4 GHz radio 29
5 GHz radio 32
scheduling wireless radio 61
Tx sequence 82
TXOP (transmission opportunity) limit 113
U
unauthenticated association 90
unauthorized changes 93
unicast packets
encryption methods 56
transmitted and received 85
untagged VLAN 103
upgrading software 68
URLs, redirecting 106
user accounts 75
user name, default 22, 143
V
VAPs (virtual access points) 110
version, software 79
174
ProSafe Premium 3 x 3 Dual-Band Wireless-N Access Point WNDAP660
video traffic
advanced QoS 111
WMM QoS 63
virtual access points (VAPs) 110
virtual carrier attack 92
VLANs
DHCPv4 server VLAN ID 27
DHCPv6 server VLAN ID 102
identifiers (IDs) 45, 52
tagged, untagged, and management, enabling 103
VoIP (voice over IP) traffic
advanced QoS 111
WMM QoS 63
W
web browsers, recommended 22
web management interface
described 22
troubleshooting 135
WEP (wired equivalent privacy)
configuring 51, 53
types of encryption 43
WEP legacy 802.1X, configuring 51, 54
WIDS (wireless intrusion detection system) 10, 89
Wi-Fi Multimedia (WMM) 9, 62, 63
Wi-Fi Protected Access (WPA), WPA2, and mixed mode
adapter restrictions 51
PSK (pre-shared key), configuring with 52, 56
RADIUS, configuring with 51, 55
types of encryption 44
WINS servers 28, 103
WIPS (wireless intrusion prevention system) 10, 89
wired equivalent privacy (WEP)
configuring 51, 53
types of encryption 43
wireless adapters, 802.11b/g/n and 802.11a/n 19
wireless band steering 9
wireless bridging modes 119
wireless clients
associated, number of 85
monitoring 80
separating 45, 52
trusted 61
wireless connection, losing 61
wireless equipment, placement and range 17
wireless IDS/IPS 10, 89
wireless interface rate limiting and burst rate 118
wireless intrusion detection system (WIDS) and wireless
intrusion prevention system (WIPS) 10, 89
wireless location 24
wireless modes
2.4 GHz band 29
5 GHz band 32
monitoring 80
wireless network name (SSID)
broadcasting 50
broadcasting and security 43
broadcasting for 802.11a/na modes 33
broadcasting for 802.11b/bg/ng modes 30
matching 19
wireless packets and bytes, transmitted and received 85
wireless radio, turning off
2.4 GHz radio 29
5 GHz radio 32
scheduling 61
wireless security, options 42
wireless specifications 140
wireless stations
associated, number of 85
monitoring 80
separating 45, 52
trusted 61
WLAN LED
behavior 22
described 13
troubleshooting 134
WMM (Wi-Fi Multimedia) 9, 62, 63
WPA (Wi-Fi Protected Access), WPA2, and mixed mode
adapter restrictions 51
PSK (pre-shared key), configuring with 52, 56
RADIUS, configuring with 51, 55
types of encryption 44

Navigation menu
