NewLift Technologies NT-006I FM TRANSMITTER User Manual

NewLift Technologies LTD. FM TRANSMITTER Users Manual

Users Manual

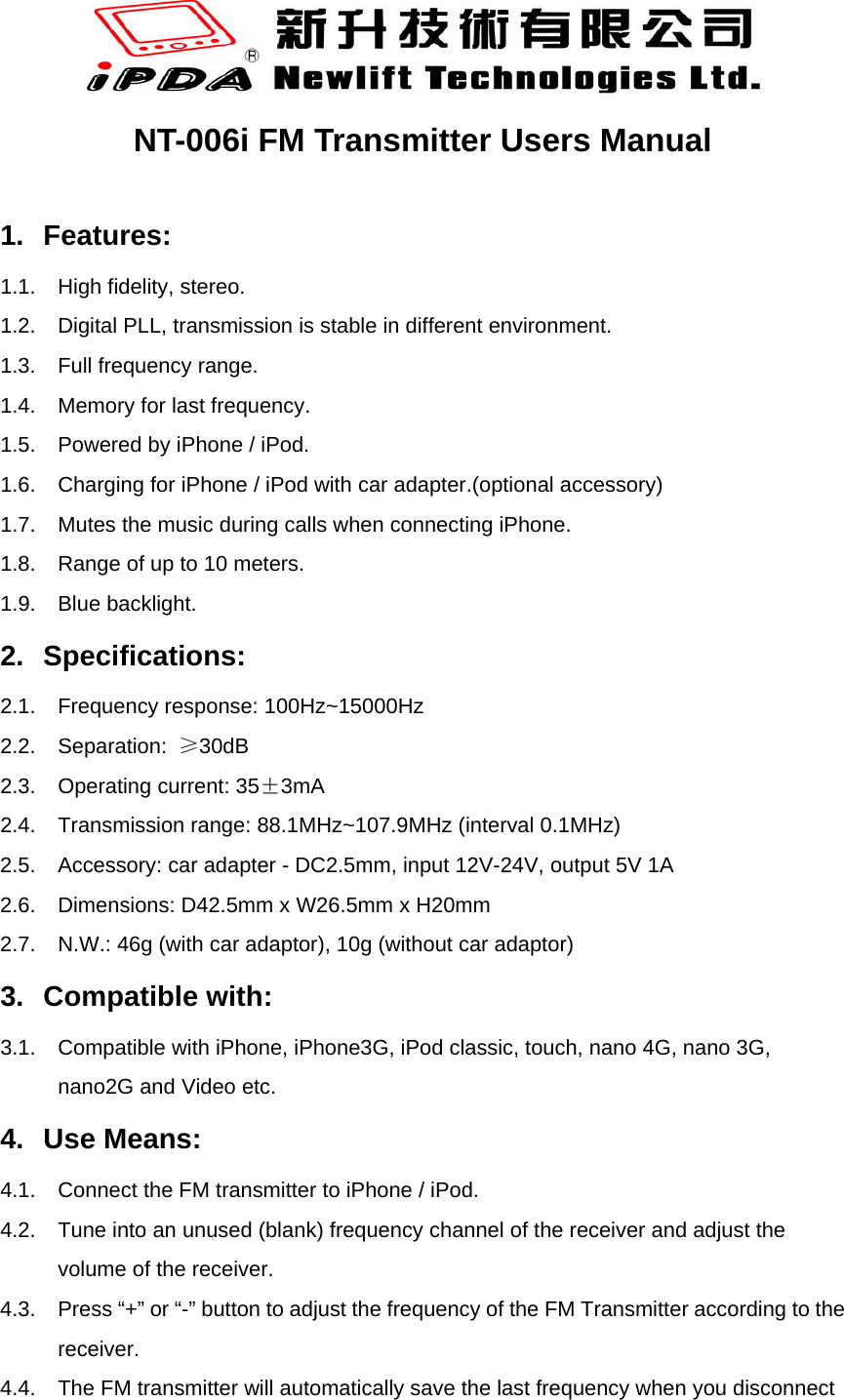

NT-006i FM Transmitter Users Manual 1. Features: 1.1. High fidelity, stereo. 1.2. Digital PLL, transmission is stable in different environment. 1.3. Full frequency range. 1.4. Memory for last frequency. 1.5. Powered by iPhone / iPod. 1.6. Charging for iPhone / iPod with car adapter.(optional accessory) 1.7. Mutes the music during calls when connecting iPhone. 1.8. Range of up to 10 meters. 1.9. Blue backlight. 2. Specifications: 2.1. Frequency response: 100Hz~15000Hz 2.2. Separation: ≥30dB 2.3. Operating current: 35±3mA 2.4. Transmission range: 88.1MHz~107.9MHz (interval 0.1MHz) 2.5. Accessory: car adapter - DC2.5mm, input 12V-24V, output 5V 1A 2.6. Dimensions: D42.5mm x W26.5mm x H20mm 2.7. N.W.: 46g (with car adaptor), 10g (without car adaptor) 3. Compatible with: 3.1. Compatible with iPhone, iPhone3G, iPod classic, touch, nano 4G, nano 3G, nano2G and Video etc. 4. Use Means: 4.1. Connect the FM transmitter to iPhone / iPod. 4.2. Tune into an unused (blank) frequency channel of the receiver and adjust the volume of the receiver. 4.3. Press “+” or “-” button to adjust the frequency of the FM Transmitter according to the receiver. 4.4. The FM transmitter will automatically save the last frequency when you disconnect

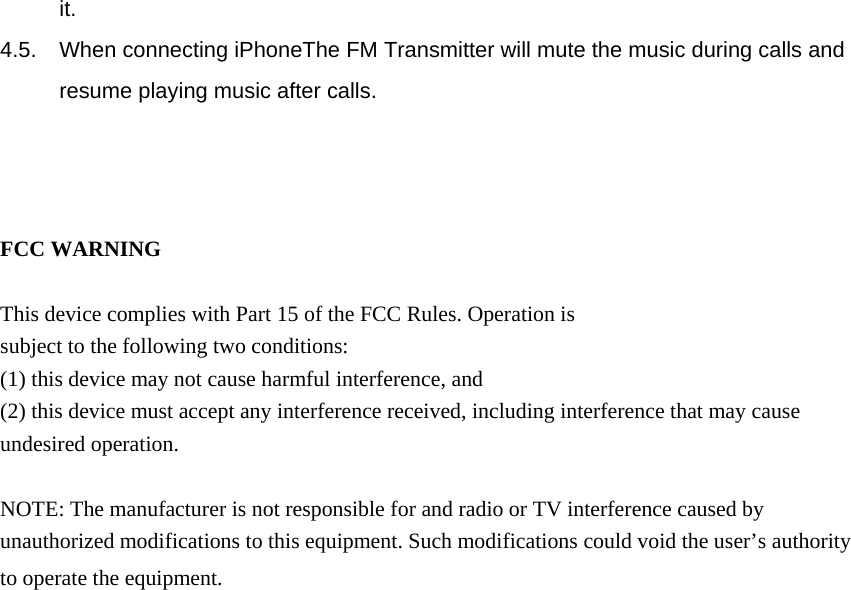

it. 4.5. When connecting iPhoneThe FM Transmitter will mute the music during calls and resume playing music after calls. FCC WARNING This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: The manufacturer is not responsible for and radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment.
