Next Generation Home SBT100 BLUETOOTH EXTENDER User Manual

Next Generation Home Products BLUETOOTH EXTENDER Users Manual

User Manual

R
e
e
moc
o
o
n A
p
p
p for
S
Next
G
S
eoby El
e
G
en
B
e
ctronic
s
B
T
s
CO., L
t
td
Remocon App for NextGen BT
2
Index
1. RUNNING REMOCONAPP ................................................................................................................................................... 3
1.1. PAIRING SMARTPHONE AND NEXTGEN BT VIA BLUETOOTH ................................................................................................. 3
1.2. RUNNING APPLICATION ......................................................................................................................................................... 4
1.3. APP LOADING SCREEN ........................................................................................................................................................... 4
1.4. BLUETOOTH CONNECTION .................................................................................................................................................... 5
1.5. SET-TOP BOX ........................................................................................................................................................................ 7
1.6. TV ........................................................................................................................................................................................ 9
1.7. DVD/BLU-RAY ................................................................................................................................................................... 10
1.8. AUDIO ................................................................................................................................................................................ 11
1.9. VOICE ................................................................................................................................................................................. 11
1.10. ADD .................................................................................................................................................................................. 13
2. SETTING MENU ................................................................................................................................................................... 14
3. CODE SEARCH ..................................................................................................................................................................... 15
3.1. CODE SEARCH .................................................................................................................................................................... 15
3.2. HOW TO CODE SEARCH ...................................................................................................................................................... 15
4. AUTOSCAN ............................................................................................................................................................................ 18
4.1. AUTOSCAN ......................................................................................................................................................................... 18
4.2. HOW TO AUTOSCAN ........................................................................................................................................................... 18
5. LEARNING ............................................................................................................................................................................ 20
5.1. LEARNING .......................................................................................................................................................................... 20
5.2. HOW TO ‘LEARNING’ .......................................................................................................................................................... 20
6. ADD BUTTON ........................................................................................................................................................................ 22
6.1. ADD BUTTON ..................................................................................................................................................................... 22
6.2. HOW TO ADD BUTTON ........................................................................................................................................................ 22
7. SETTINGS .............................................................................................................................................................................. 25
7.1. SOUND ................................................................................................................................................................................ 25
7.2. APPLICATION INFORMATION ............................................................................................................................................... 25
7.3. SUPPORTING MODEL .......................................................................................................................................................... 26
7.4. EDIT VOICE COMMAND ...................................................................................................................................................... 26
7.5. VOICE COMMAND LIST ....................................................................................................................................................... 28
7.6. VOICE COMMAND CHANNEL ............................................................................................................................................... 28
1.
1.
1
Runnin
g
1

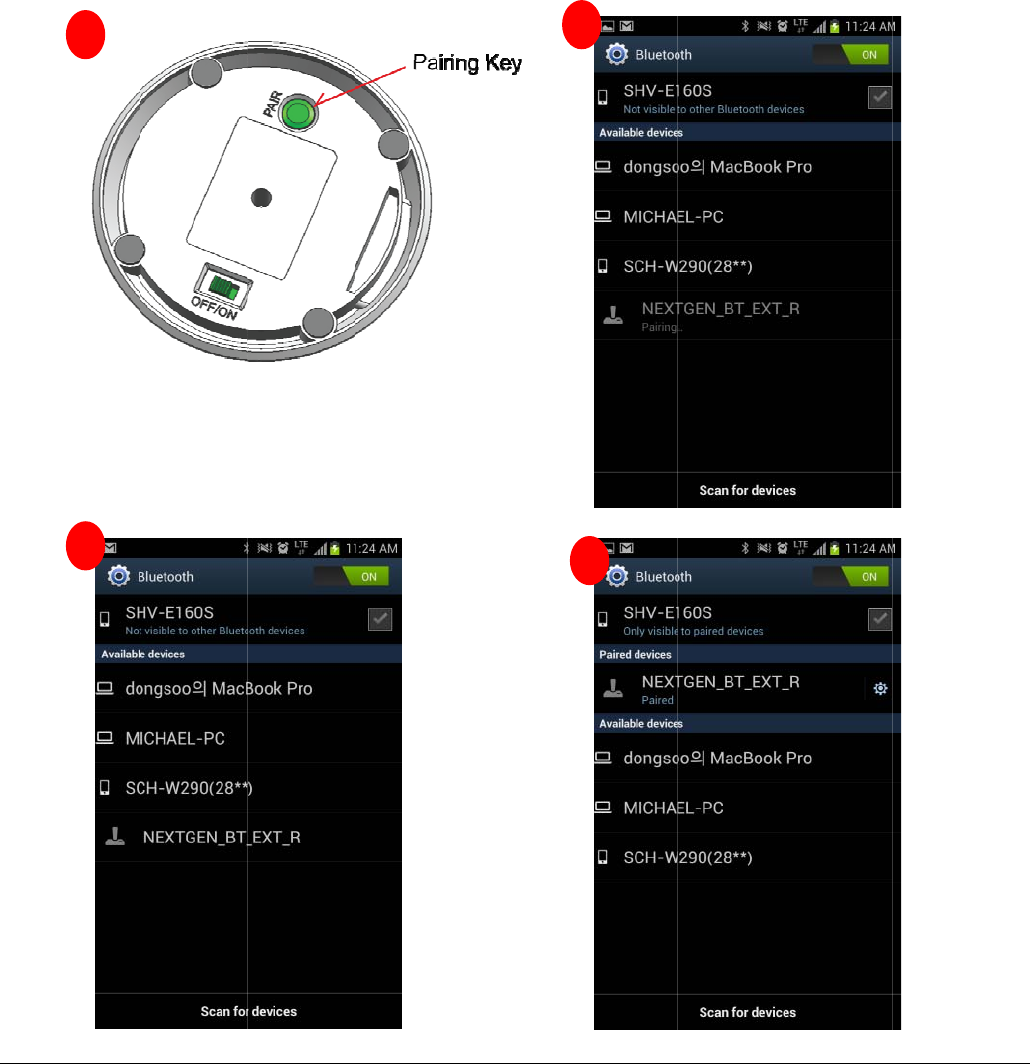

. Pairing
S
In order t
o
Bluetooth
.
Method o
f
9 Press ‘
P
9 When ‘
S
9 When
N
9 Smartp
h
3
1
g
Remoco
n
S
martphon
e
o
use NextG
e
.
f
pairing Sm
a
P
airing ke
y
’
a
S
can for dev
i
N
EXTGEN_
B
h
one is pair
e
n
App
e
and
Next
e
n BT throu
g
a
rtphone to
N
a
t the botto
m
i
ces’ is press
e
B
T_EXT_R
i
e
d with Next
Gen BT
v
i
a
g
h Smartph
o
N
extGen BT
.
m
of NextGen
e
d on Smart
p
i
s pressed, it
Gen BT.
3
a
Bluetoot
h
o
ne applicati
o
.
BT.
p
hone,
NEX
T
will wait to
s
h
o
n, Smartph
T
GEN_BT_
E
s
tart pairing
2
4
Re
m
one and Ne
x
E
XT_R
w
ill
p
.
m
ocon App f
o
x
tGen BT m
u
p
op up on t
h
o
r NextGen
B
u
st be paired
h
e list.
B
T
via
Remocon App for NextGen BT
4
1.2. Running application
Run NextGen BT by pressing its icon on the screen
1.3. App loading screen
NextGen logo will pop up when application started
App
Remocon App for NextGen BT
5
1.4. Bluetooth connection
In order to use NextGen BT via Bluetooth, it should be checked if Smartphone and NextGen BT is connected
through Bluetooth
Pair NextGen BT and Smartphone as below.
Check Bluetooth device list
9 When application is run, device list which
shows paired device or devices scanned by
Bluetooth will pop up.
9 Click "NEXTGEN_BT_EXT_R" on the list.
Check Bluetooth connection
9 If connected successfully, it will show “Connected to NEXTGEN_BT_EXT_R” at the bottom of the screen.
9 Also, if connection is succeeded, there will be blue animated line displayed at the top of the screen and ‘Voice’
icon will be showed on the list.
Animation
Remocon App for NextGen BT
6
Failure of Bluetooth connection
9 When NextGen BT failed to connect, message
saying "Unable to connect device" will pop up for
2 seconds and disappear.
9 When it is not connected, blue animated line at
the top and ‘Voice’ icon will not be showed.
Connecting Bluetooth again
9 Press menu button on the phone, and press
‘Connection’ icon to start connecting again.
Bluetooth Connection
Remocon App for NextGen BT
7

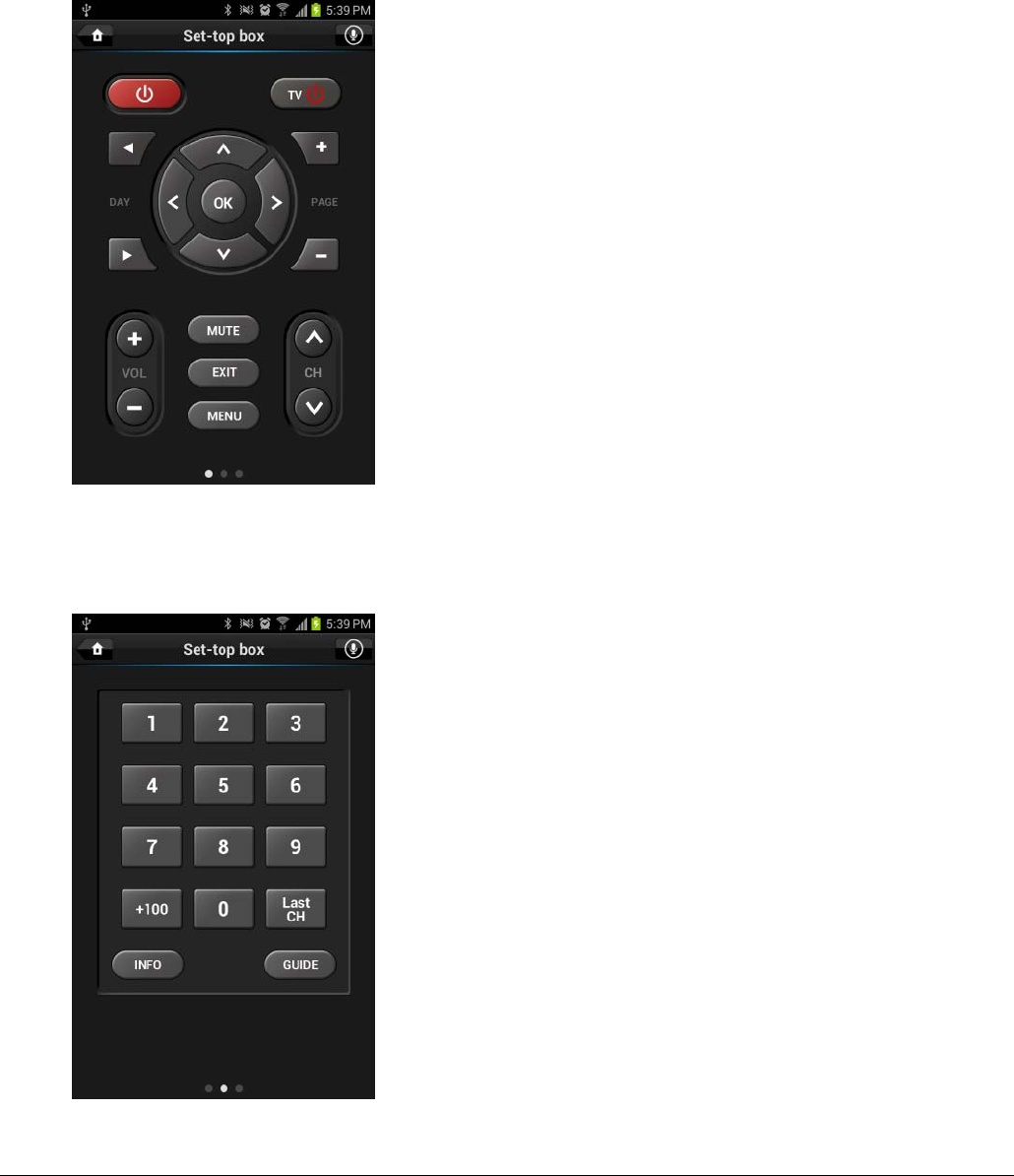

1.5. Set-top box
CH/VOL screen
9 Function keys : Power, Mute, Menu, etc.
9 Control keys : Volume Up/Down, Channel Up/Down, Left/Right/Up/Down, etc.
Numeric KEY screen
9 Keypad to input channels number
Remocon App for NextGen BT
8
Navi Key screen
9 Function keys to control video contents on set-top box
Remocon App for NextGen BT
9

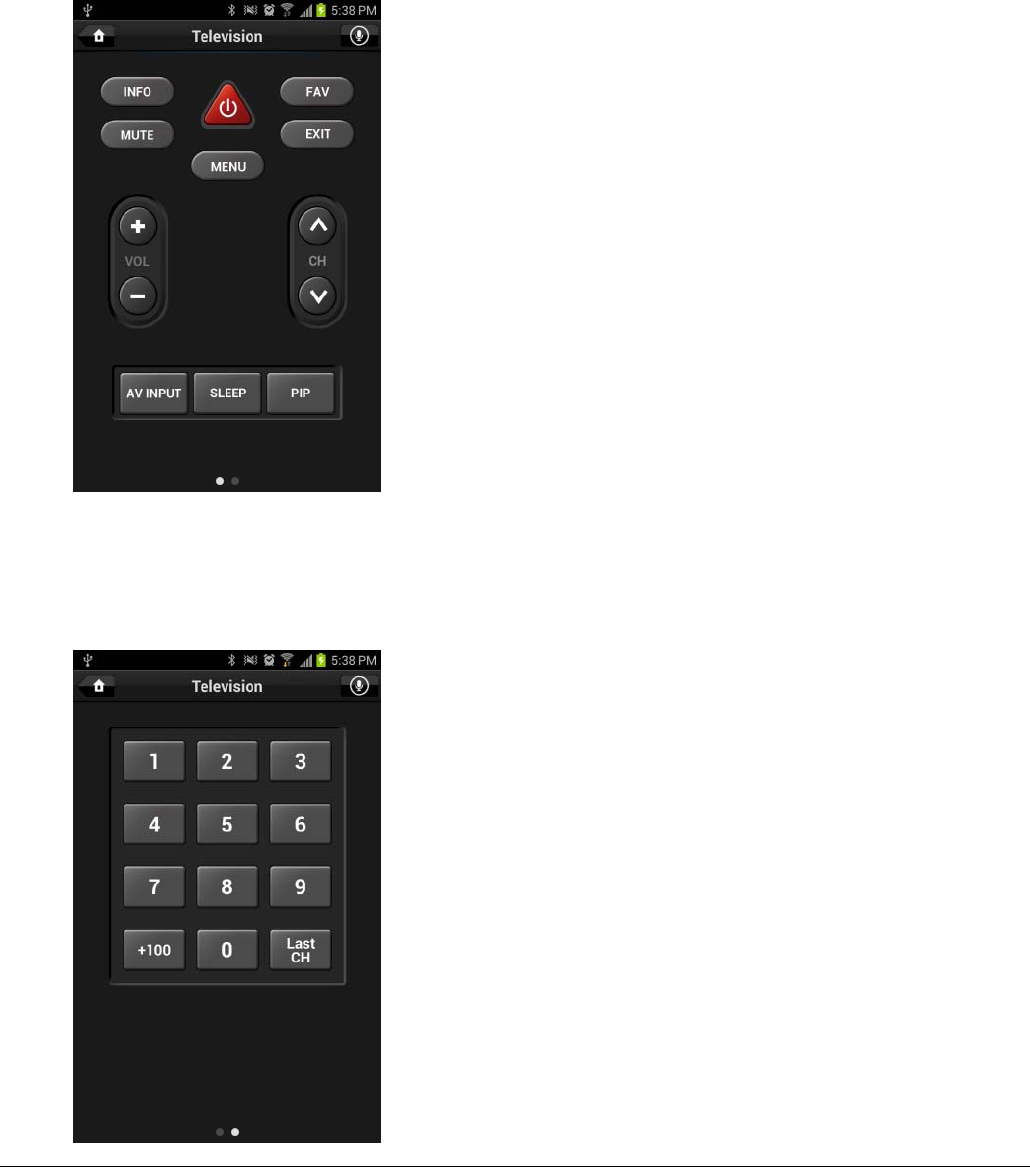

1.6. TV
CH/VOL screen
9 Function keys : Power, Sleep, Mute, PIP, etc.
9 Control keys : Volume Up/Down, Channel Up/Down, etc.
Numeric KEY screen
9 Keypad to input channels number
Remocon App for NextGen BT
10

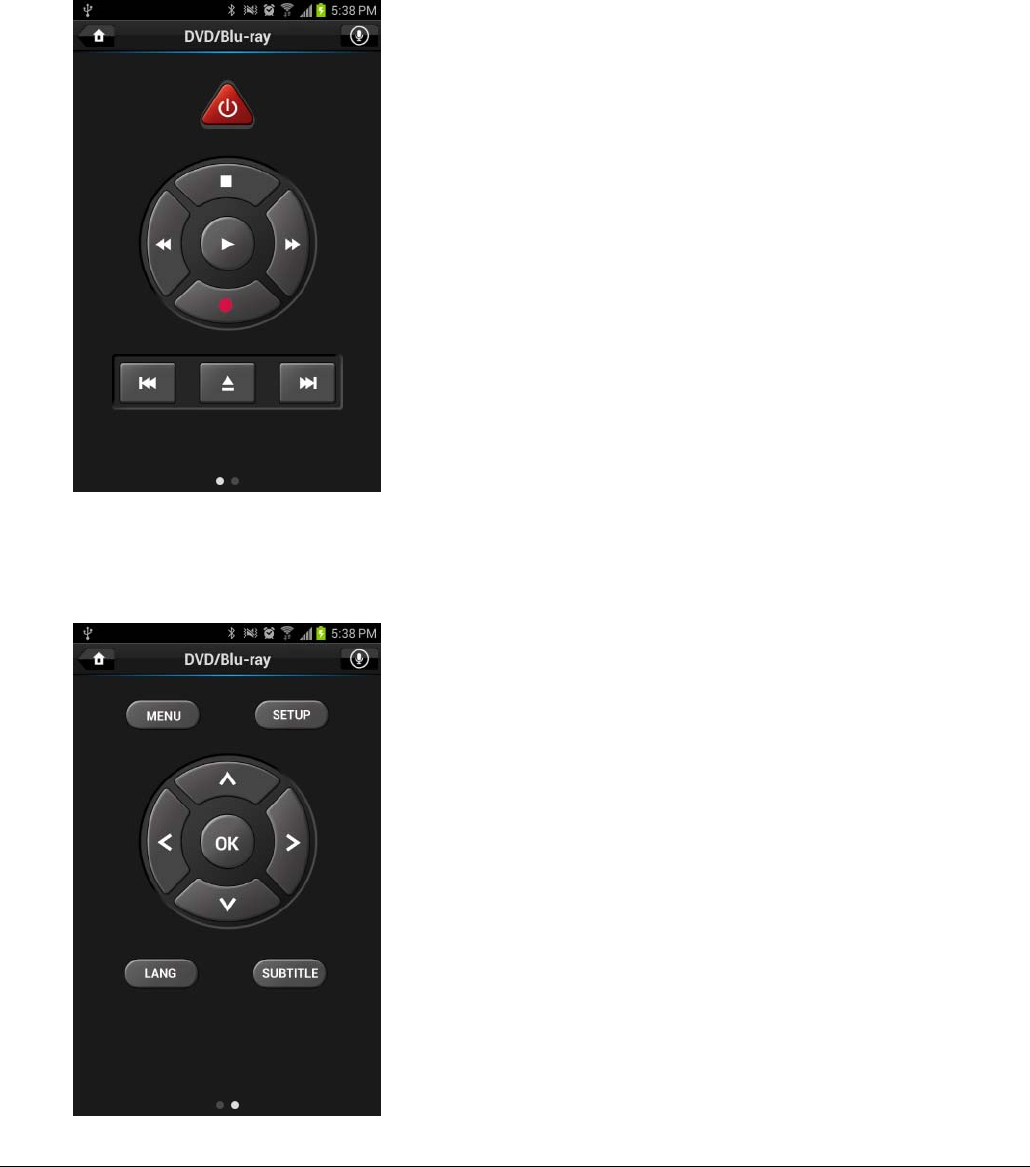

1.7. DVD/Blu-ray
Navi screen
9 Keys to use DVD/Blu-ray’s functions
Fun screen
9 Function keys to control DVD/Blu-ray
Remocon App for NextGen BT
11

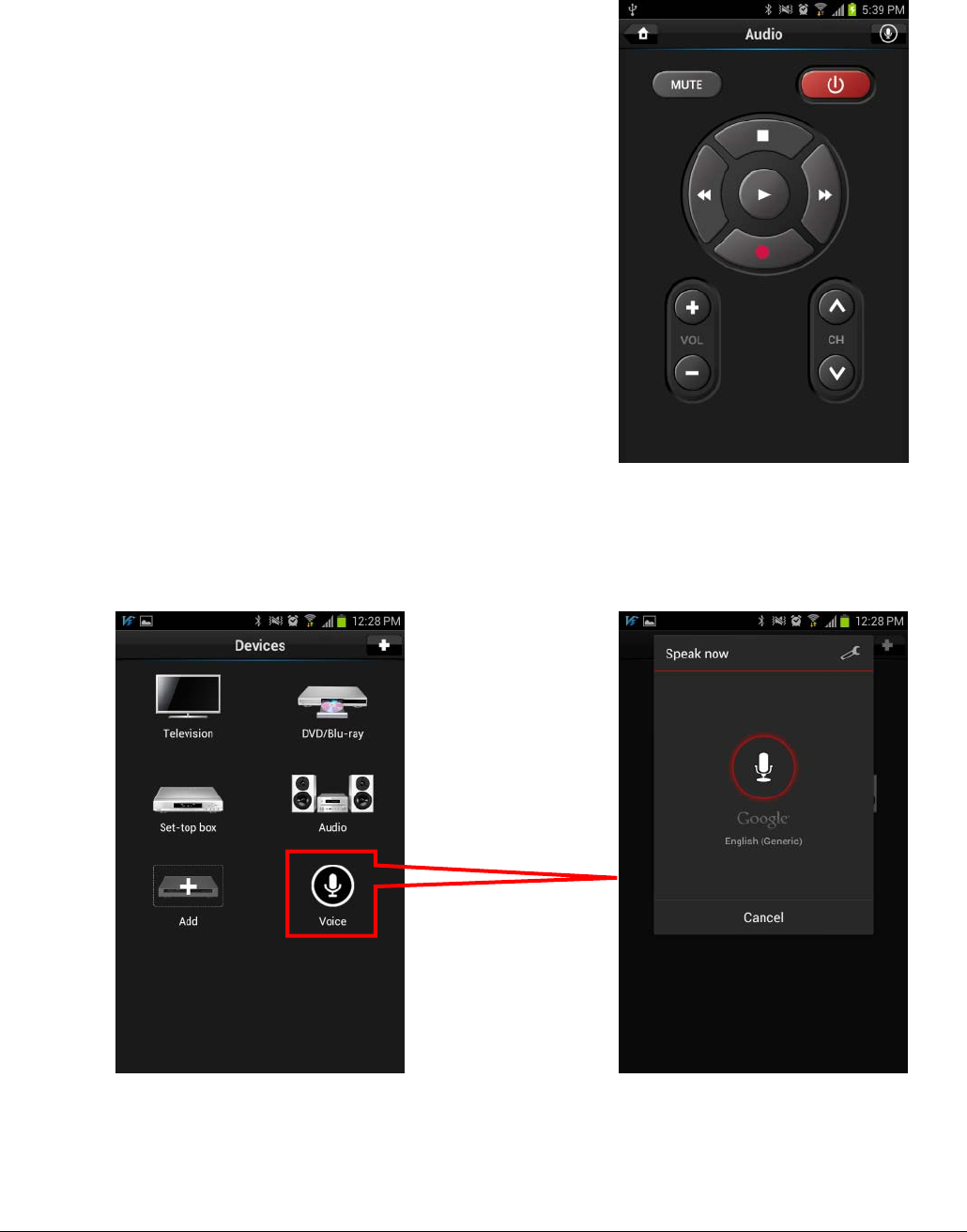

1.8. Audio
Navi screen
9 Keys to use Audio’s function
1.9. Voice
Voice recognition function
9 Via Google voice recognition, if recognized voice commands correspond to remote control commands, it will
execute the corresponding function.
9 If ‘Voice’ icon is pressed, voice recognition screen will be shown.
Remocon App for NextGen BT
12

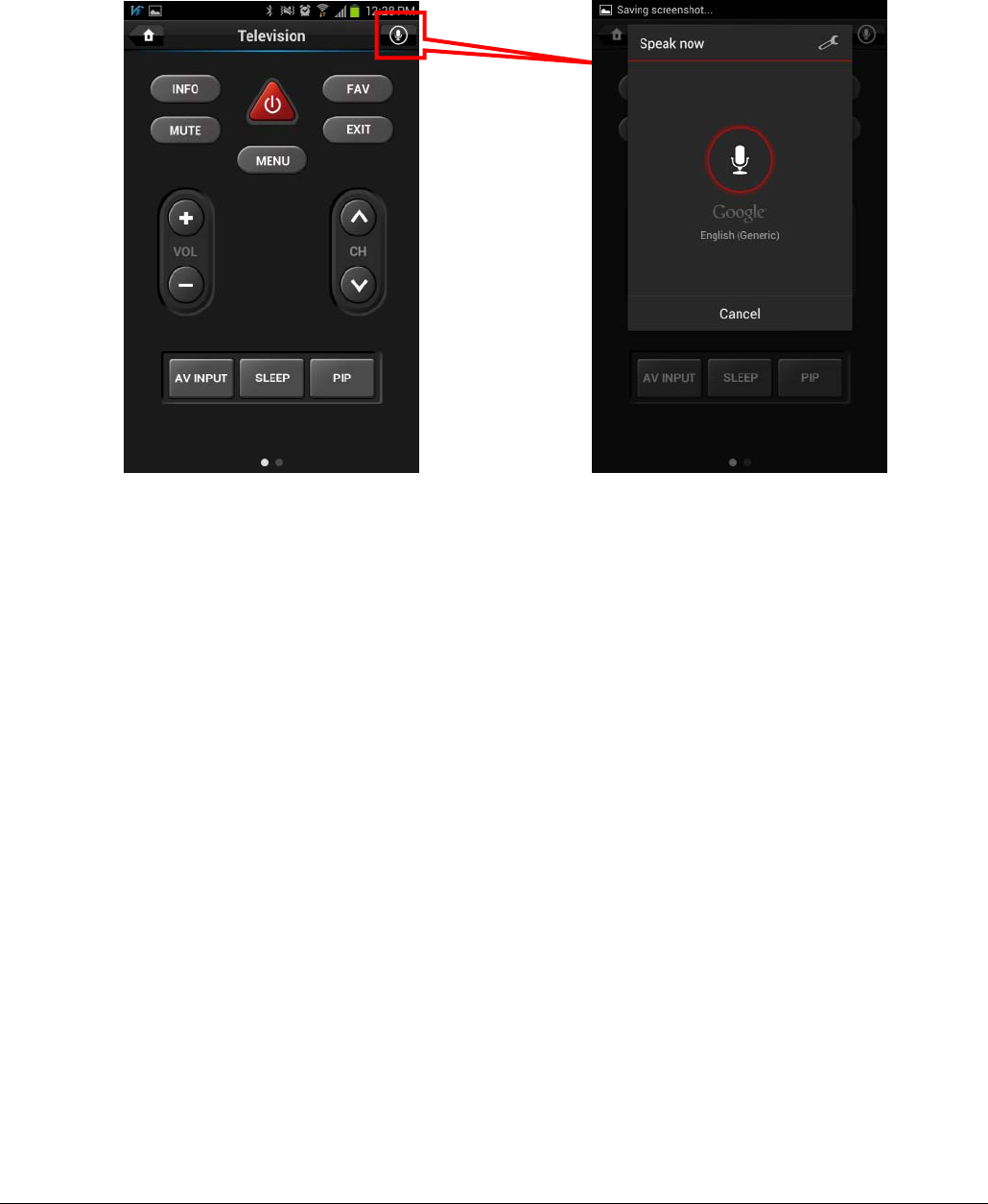

9 On each devices screen, there is microphone icon on the top right, and when it is pressed, voice recognition
screen will be popped up.

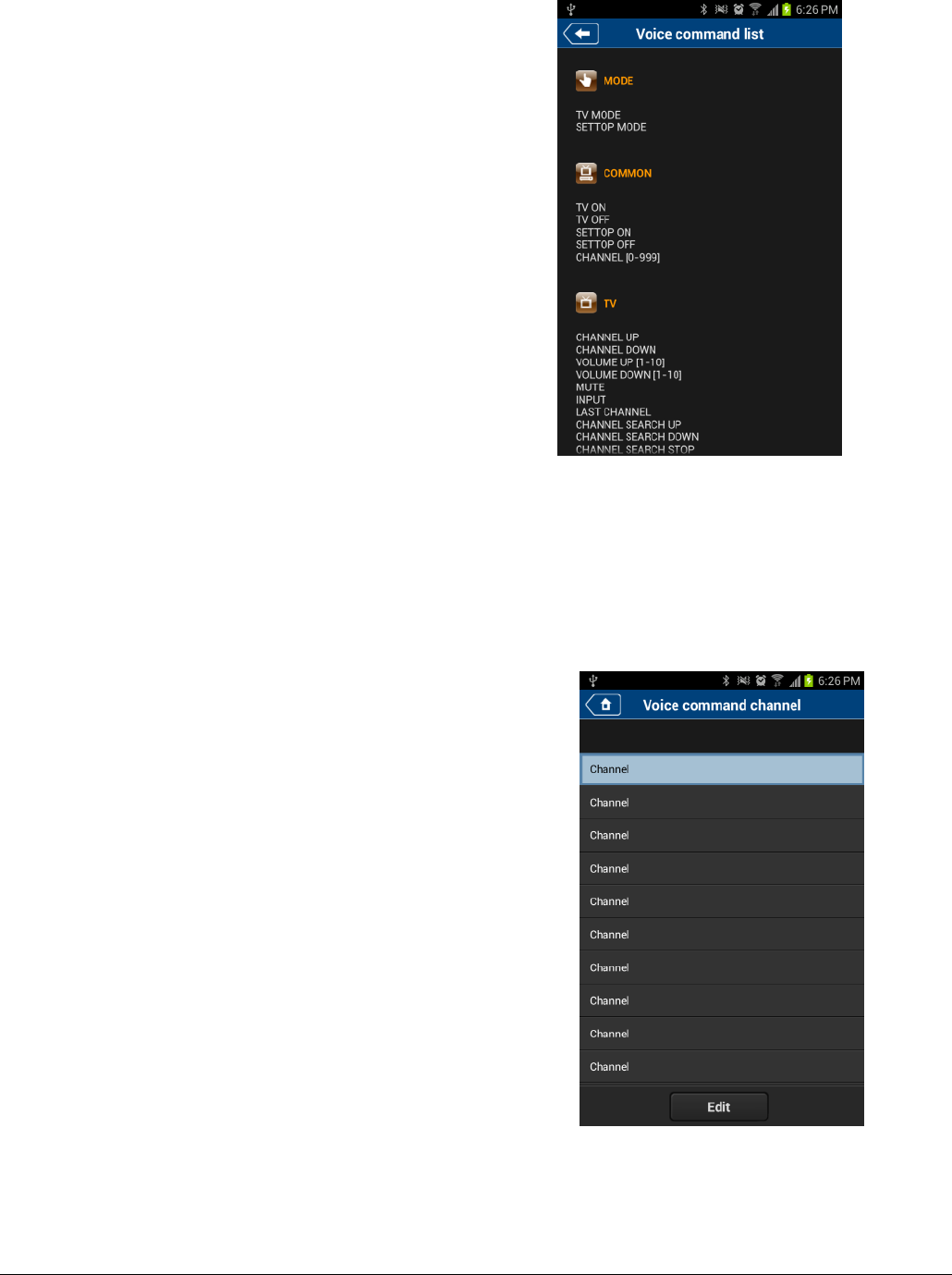

List of voice recognition commands
9 Go to Setting - Voice Command List, it will provide list of voice commands that are supported on the
application

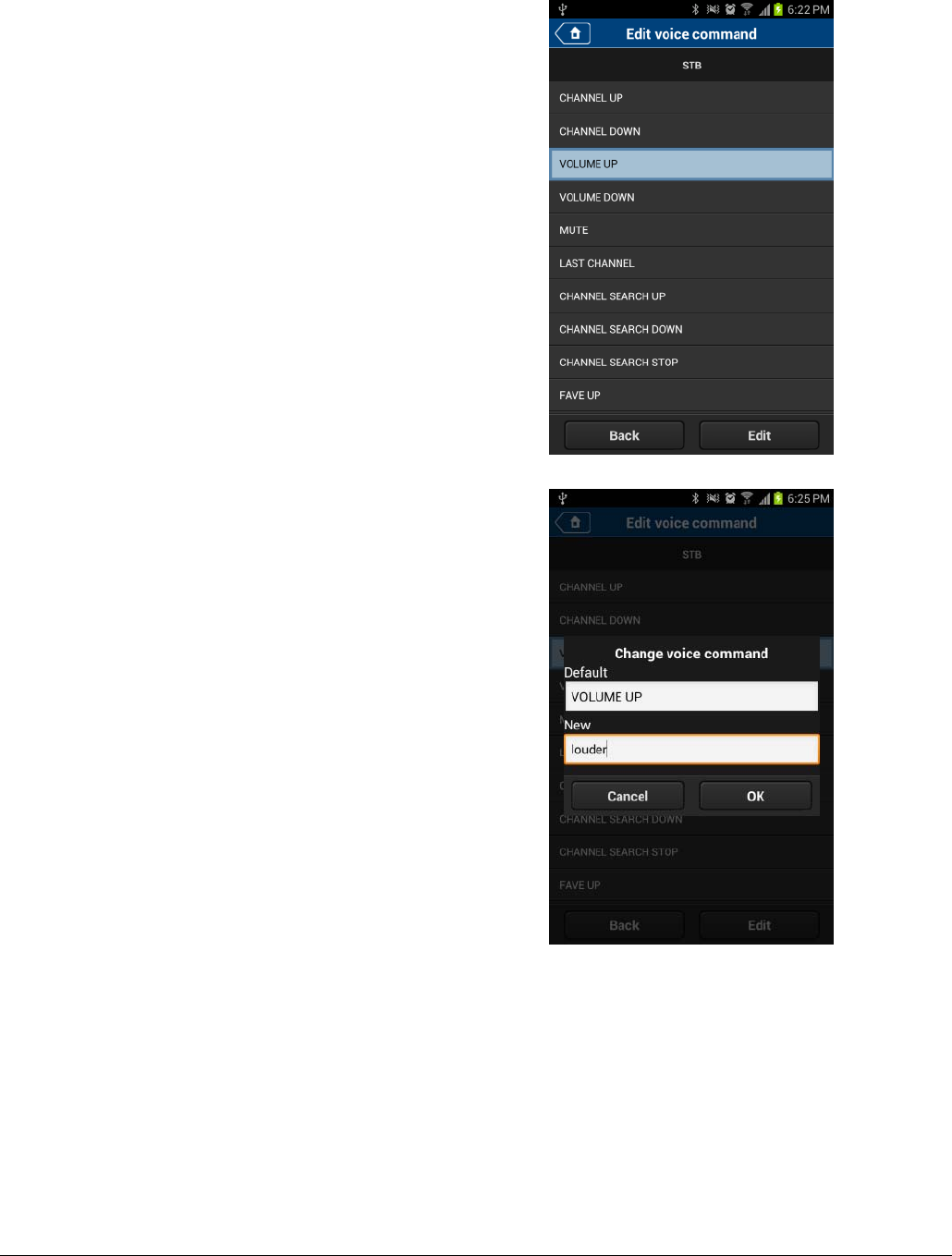

Editing voice commands
9 The basic voice commands provided from this application can be altered as users’ wish.
9 It can be done on Setting – Edit Voice Command
Voice recognition mode
9 There are same voice commands for TV MODE and SET-TOP MODE, therefore users have to first choose
which mode they want to control through providing a voice command ‘TV MODE’ or ‘SET-TOP MODE’.
9 Set as TV MODE by providing voice command ‘TV MODE’, and provide a command ‘VOLUME UP’, then the
TV volume will increase.
9 Set as SET-TOP MODE by providing voice command ‘SET-TOP MODE’, and provide a command ‘VOLUME
UP’, then the SET-TOP BOX volume will increase.
Voice commands to change channels
9 When changing channels through voice commands, users can change to specific channels.
9 For example, there are two ways to change to channel 120
Provide the command like ‘CHANNEL 120(One hundred twenty)’
Provide the command like ‘CHANNEL 1, 2, 0(OneTwoZero)’
9 Whether ‘CHANNEL 120(One hundred twenty)’ or ‘CHANNEL 1, 2, 0(OneTwoZero)’ is inputted into
application, NextGen BT will output 1, 2, 0 separately.
Voice commands to alter volumes
9 Increase or decrease in volume through application with voice commands, by not just one, but by plural
levels of volumes
9 Voice commands to increase or decrease volumes
To increase volumes by 5 levels at once : VOLUME UP 5
To decrease volumes by 10 levels at once : VOLUME DOWN 10
Remocon App for NextGen BT
13
9 When received ‘VOLUME UP 5’ NextGen BT will execute ‘VOLUME UP’ 5 times.

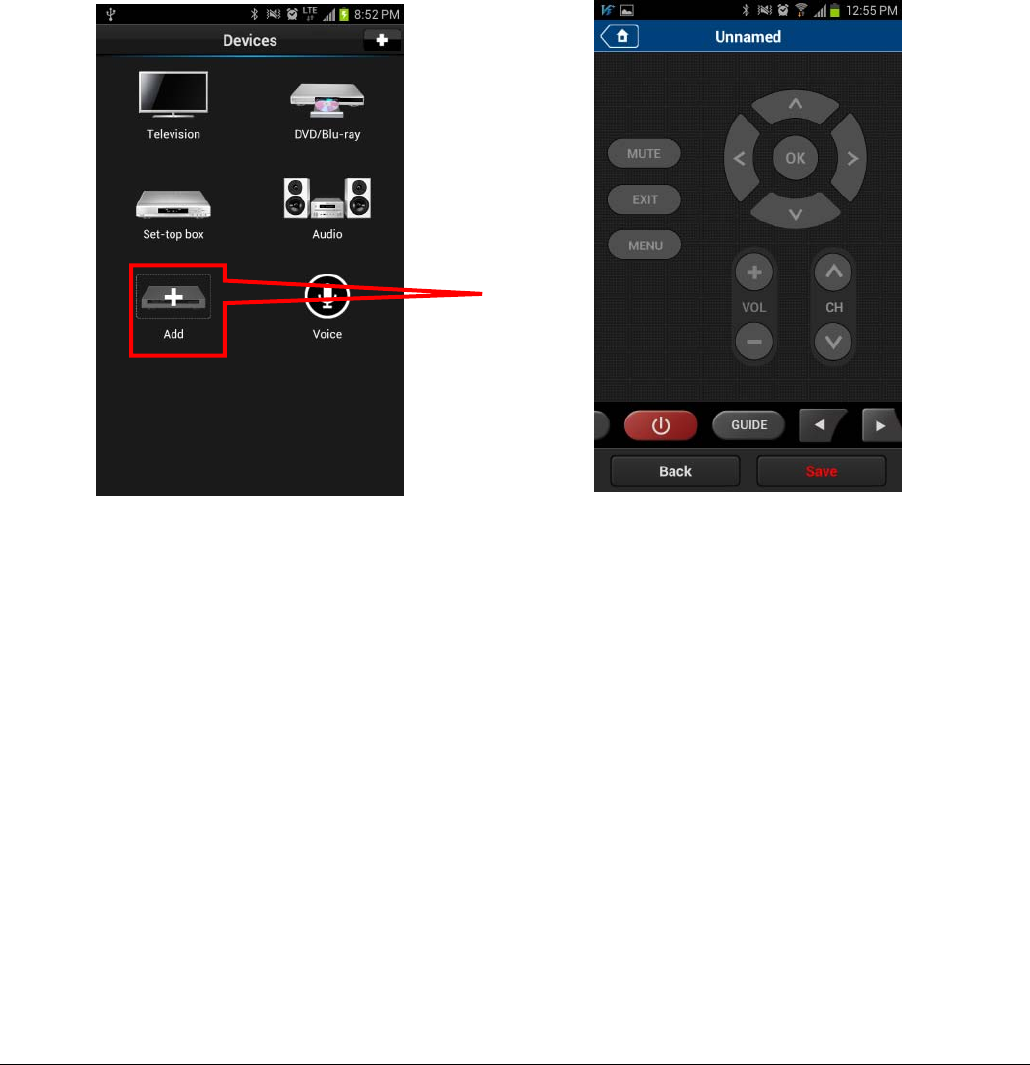

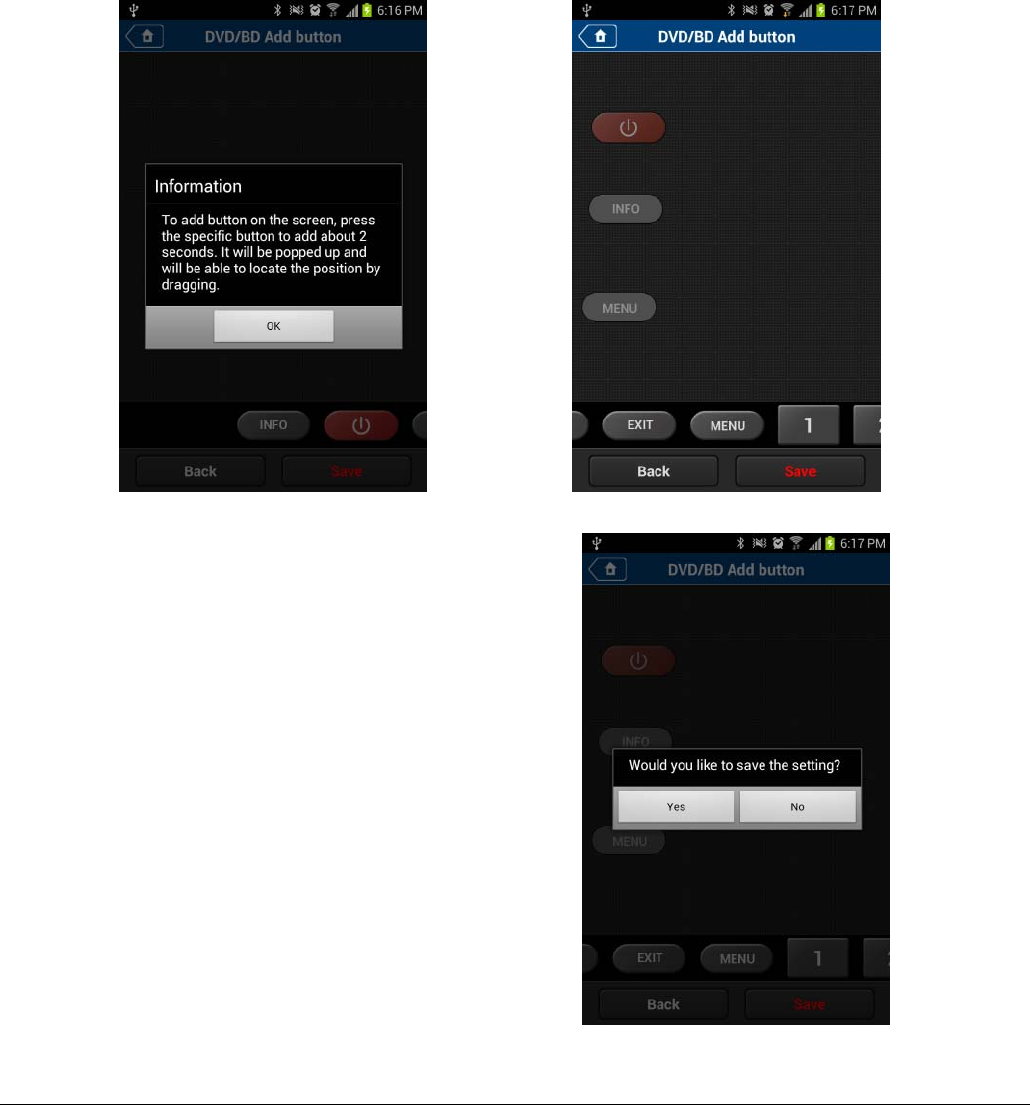

1.10. Add
Application provides a functions to add a device other than provided devices on the list
9 If Add button is pressed, it will change to Add screen
9 Users can arrange the buttons as their wish by finding buttons at the bottom by sliding left to right
9 To add a button on the screen, press the button for few seconds on the list at the bottom and it will come up
on the bottom left
9 Users then are able to drag and drop to arrange
9 This function is similar to ‘Add Button’
As above, when arranging buttons are finished, press ‘Save’ button to proceed to next step
Add functions to buttons
9 Users then have to provide functions to each buttons.
9 Setting button functions are as Learning function.
2
o
n
t
h
fi
Functions
9 Newly
p
9 It can b
9 Write t
h
2
. Settin
g
If press M
e
n
Smartpho
n
h
is list revea
l
gure.
Menu But
provided d
e
p
rocessed de
v
e altered by
p
h
e name an
d
Menu
e
nu button
n
e, it shows
l
ed on the
ton
e
vices are all
o
v
ices’ name
i
p
ressing top
d
press
Save
o
wed to cha
n
i
s set as
“Un
n
right butto
n
14
n
ge its name
n
amed”
n
1.
B
2.
C
3.
A
4.
L
5.
A
6.
S
Re
m
B
luetooth
C
ode Search
A
utoscan
L
earning
A
dd Button
S
ettings
m
ocon App f
o
: refer
C
: refer
C
: refer
C
: refer
C
: refer
C
: refer
C
o
r NextGen
B
C
hapter 1.4
C
hapter 3
C
hapter 4
C
hapter 5
C
hapter 6
C
hapter 7
B
T
Remocon App for NextGen BT
15
3. Code Search
3.1. Code Search
A function to select a stored device model
Devices model database is stored in application, if it knows the users owned devices model, Code Search
searched the model, process few test and allows users to use

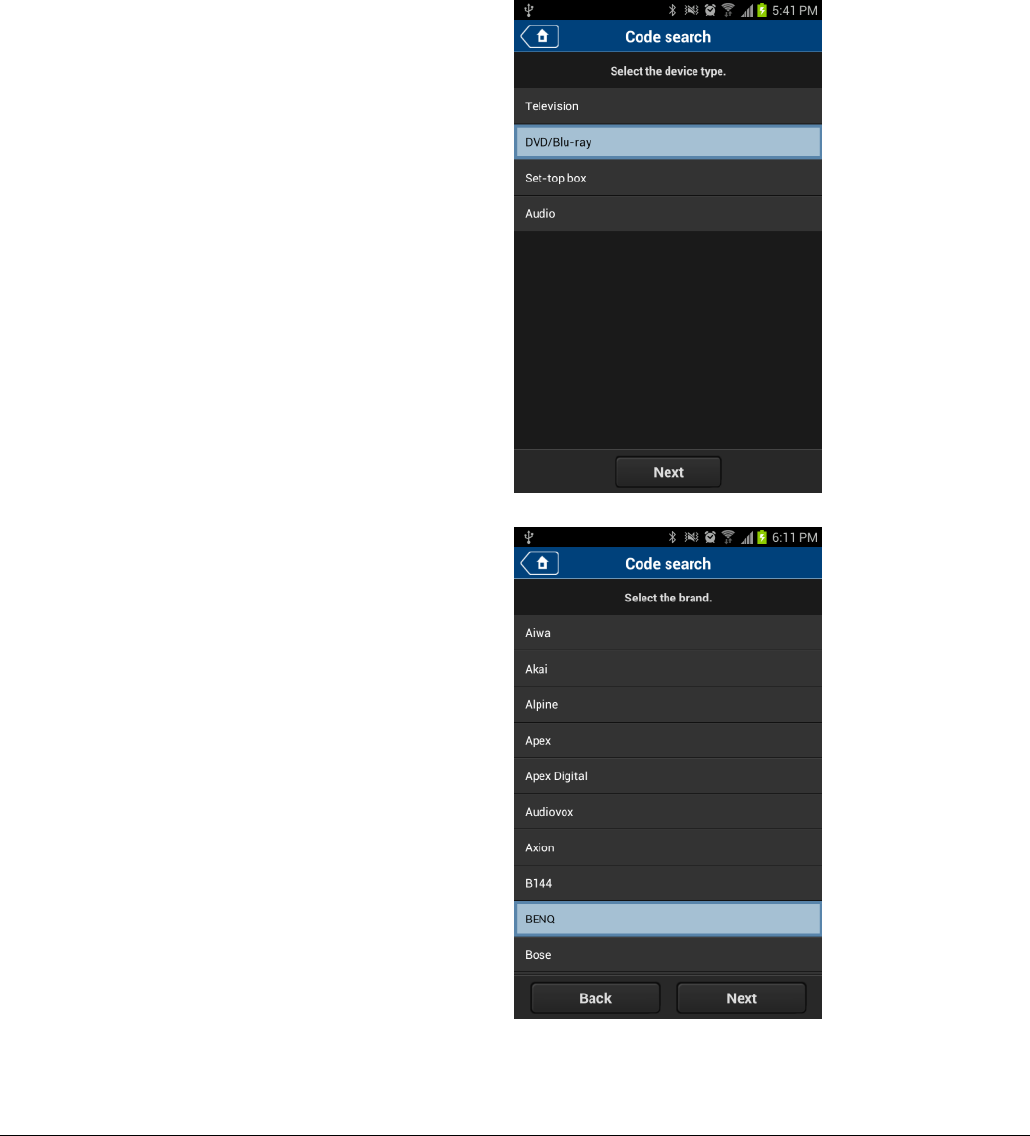

3.2. How to Code Search
Choose a device to Code Search
Choose a brand to Code Search
Remocon App for NextGen BT
16

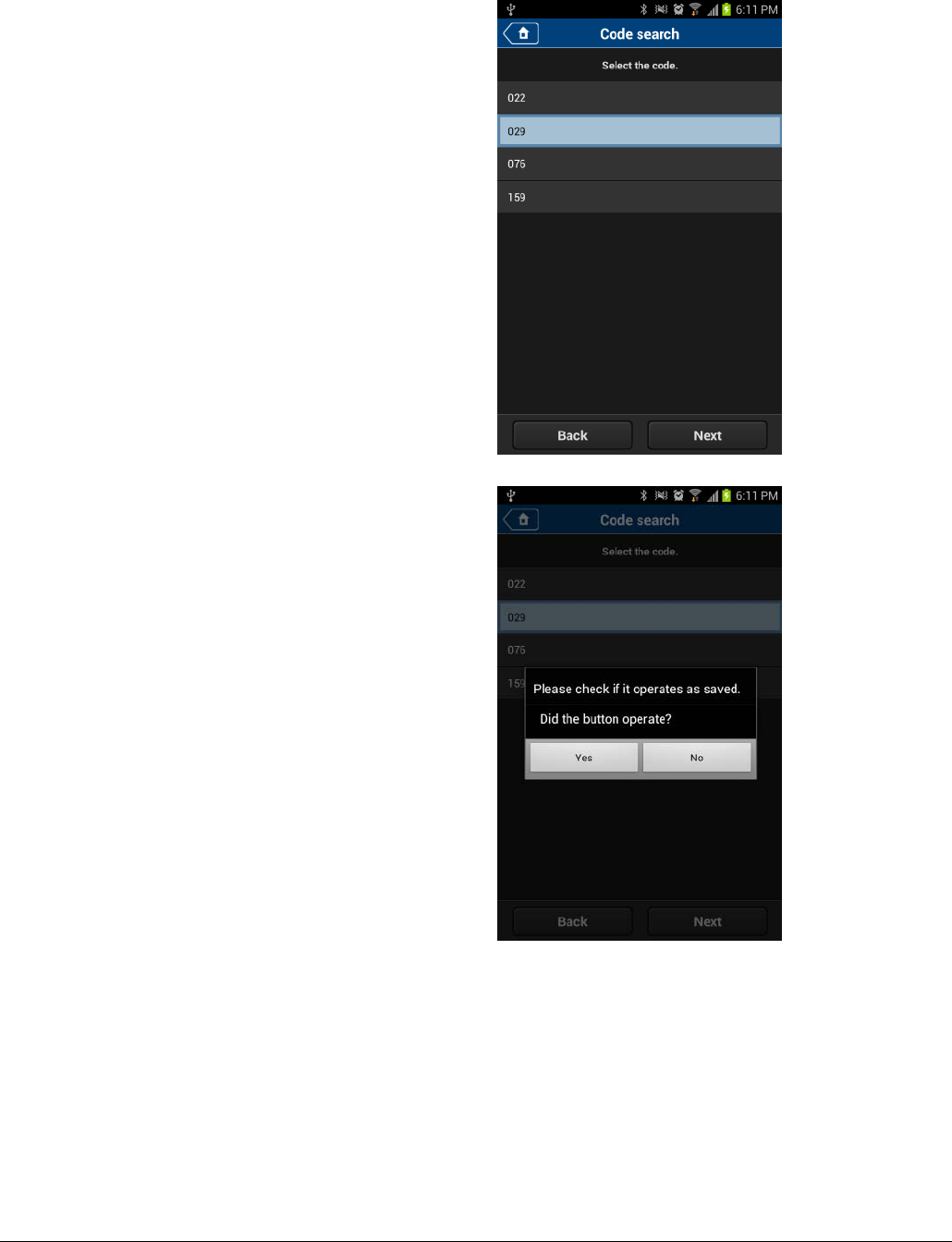

Choose a model
Check selected devices function
9 It will output IR signal and if the function
works, press YES.
9 If the function is not working, press NO to Code
Search again.
Remocon App for NextGen BT
17

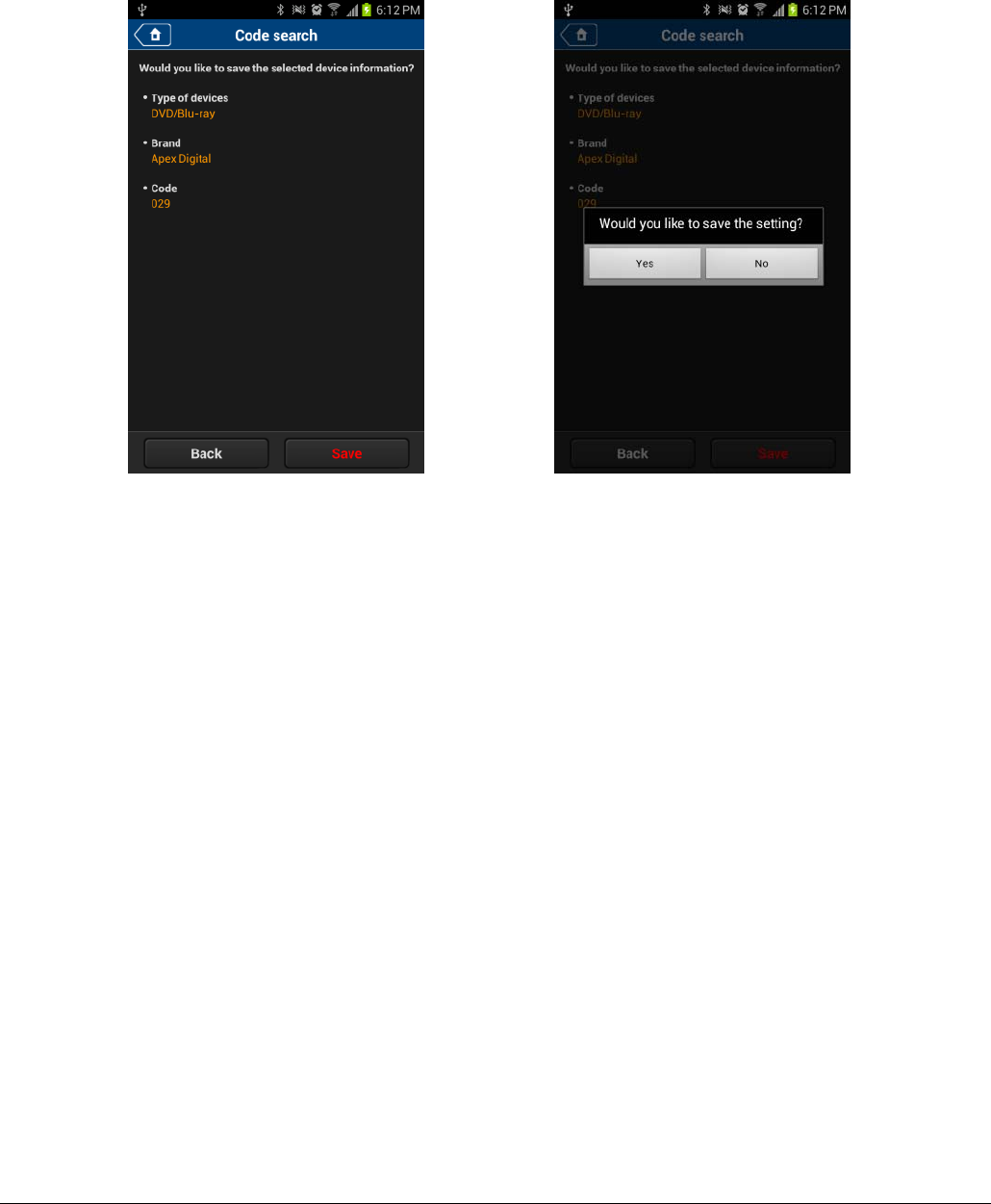

Save Code Search
9 If found device model through Code Search, review the detail of the model and save.
Remocon App for NextGen BT
18
4. AutoScan
4.1. AutoScan
This functions is used when users are not familiar or not aware with their own devices
Using application’s database to find out which model users have.

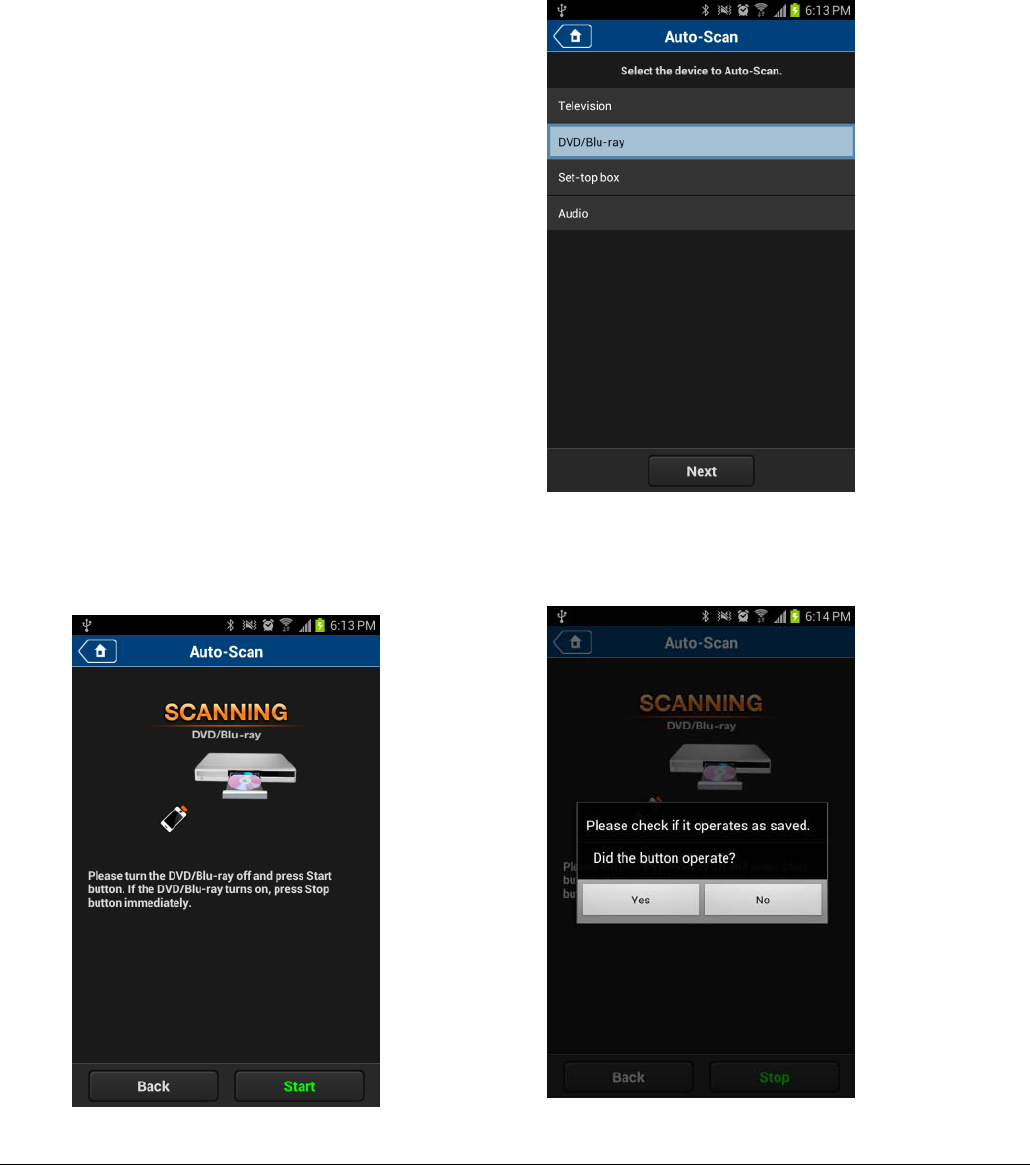

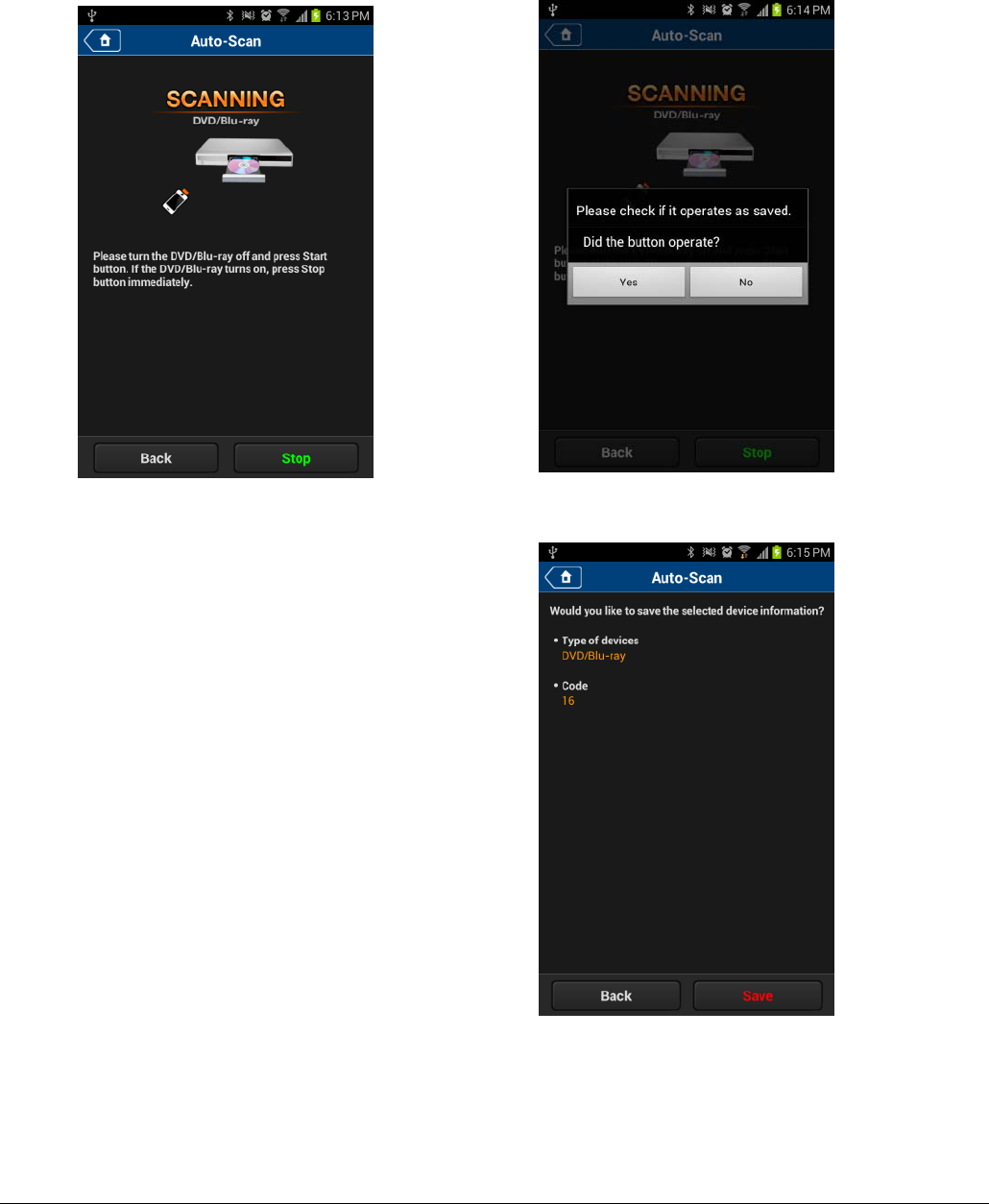

4.2. How to AutoScan
Choose a device to AutoScan
When AutoScan is started, it will output each brand’s signal
9 When the device corresponds to Autoscan, press STOP and ask whether it worked or not
9 Then press yes, and it will process to next step
Remocon App for NextGen BT
19
It will process Autoscan twice for each device, and if it works well, it will proceed to next step, and as the
second operating method for each device are different, follow the application and do the next step.
Finish the Autoscan by saving the detail if it worked
perfectly

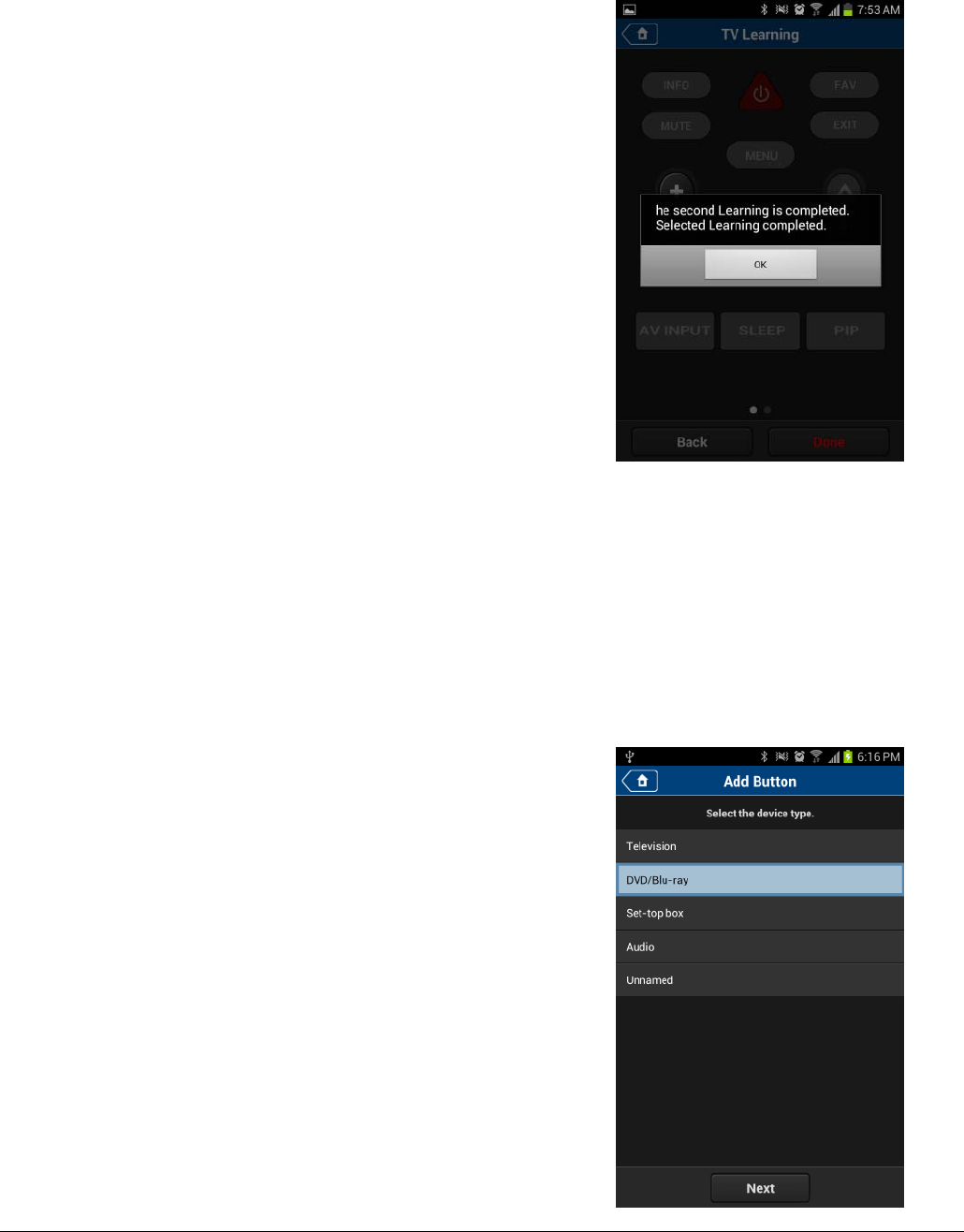

5.
5.
1
5.
2
Learnin
g
1
. Learnin
g
If there a
r
NextGen
B
Users can
2

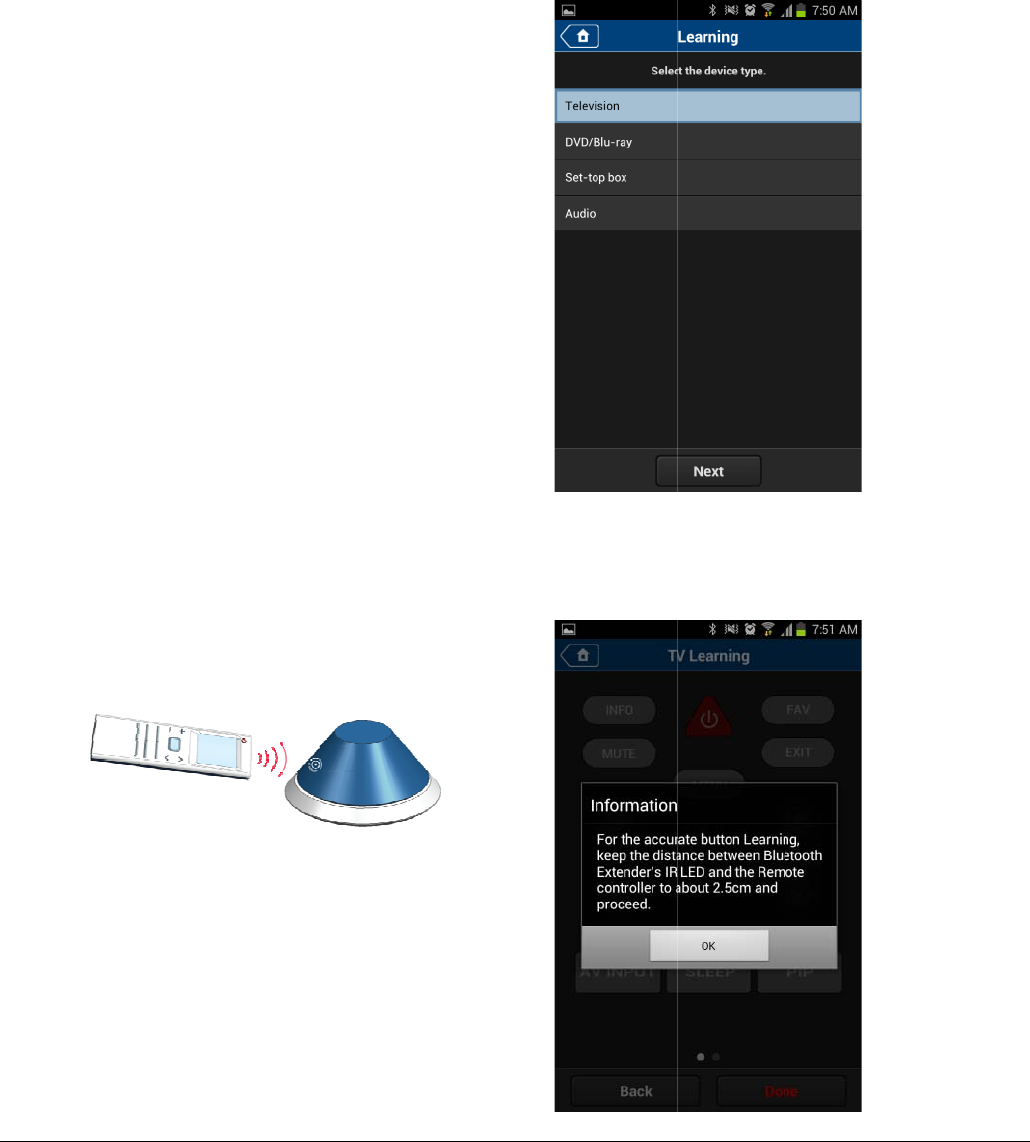

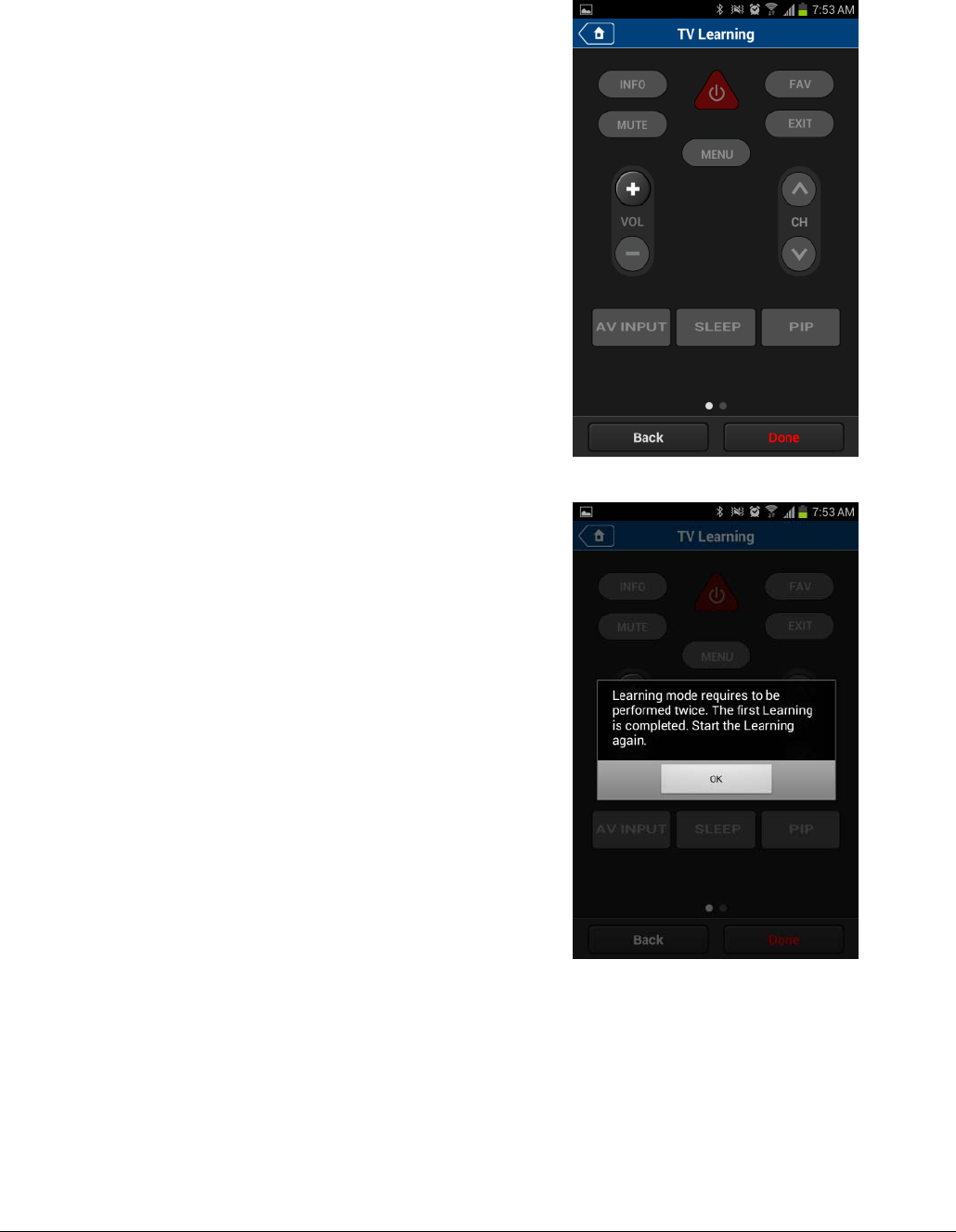

. How to ‘
L
Choose a
d
9 Choose
9 Press
N
For Next
G
controller
IR receive
r
9 To che
c
the sig
n
g
g
r
e no infor
m
B
T to registe
r
set variety b
L
earnin
g
’
d
evice to ‘Le
a
a device
N
ext
G
en BT to l
e

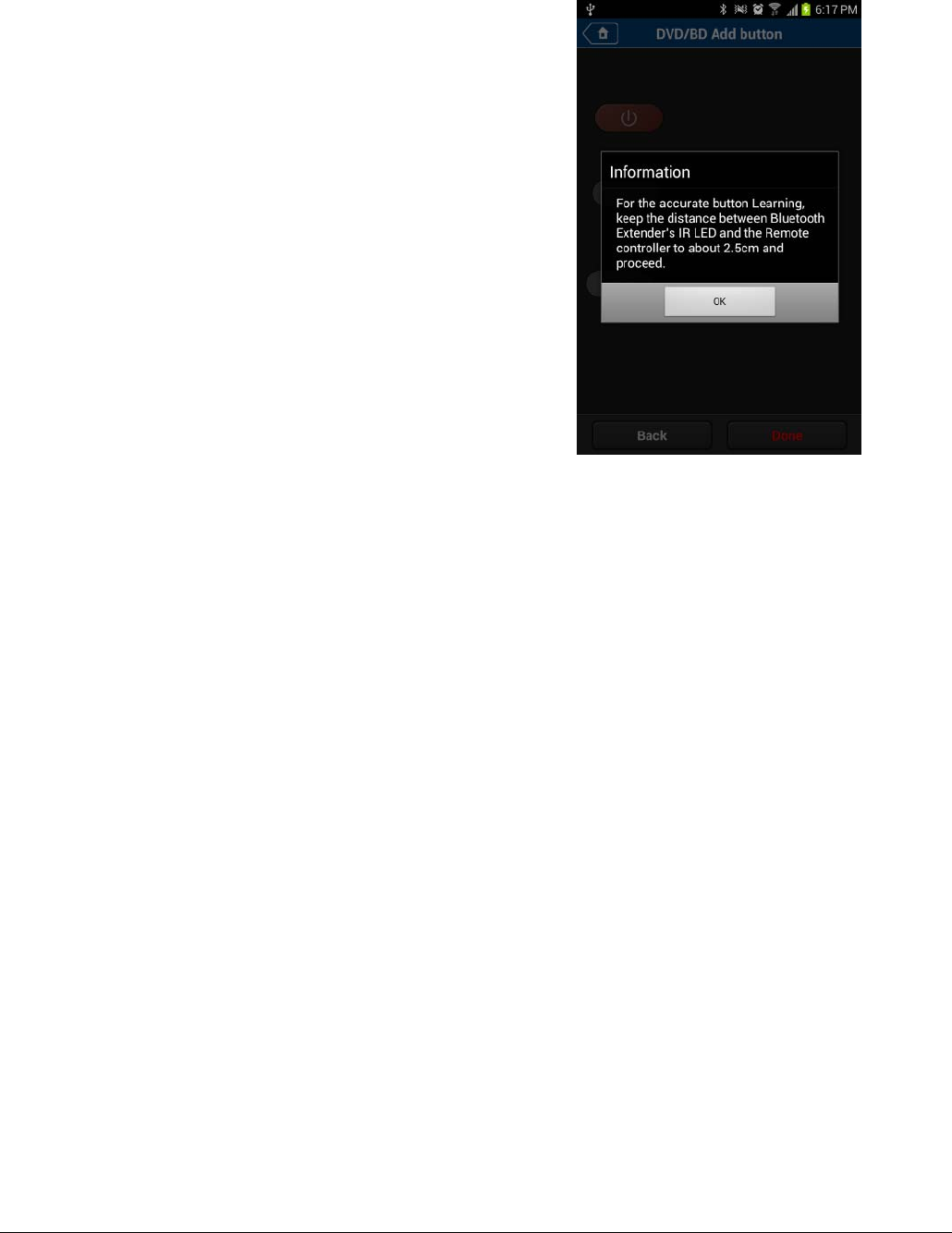

about 2.5c
m
r
and provi
d
c
k the sign
a
n
al twice.
m
ation of th
e
r
a signal fo
r
uttons in an
a
rning’
e
arn a sign
a
m
far from t
h
d
e a signal
a
l perfectly,
i
e
device mo
d
r
application
application
t
a
l, hold a re
m
h
e NextGen
i
t will recei
v
20
d
el, use the
t
o set functi
o
m
ote
BT’s
v
e
remote con
t
o
ns for the d
Re
m
t
roller of th
e
evice
m
ocon App f
o
e
device to
s
o
r NextGen
B
s
end a signa
l
B
T
l
to
Remocon App for NextGen BT
21
Choose a button to learn.
9 Buttons not learnt will not be activated.
9 If the button is chose and processed in
learning, it will be activated.
In example on the right, + button
If the signal is received once, the message will pop up
saying input the external remote signal again.
Remocon App for NextGen BT
22
If the signal is received twice perfectly, the message will
pop up saying that it is completed, and learning function
is all done.
6. Add Button
6.1. Add Button
add Button is to add new menu-tab, add buttons users want and arrange, and through Learning to provide
functions to buttons
It can be sorted as Device or group, and it can be set as users’ wish
6.2. How to Add Button
Choose a device to Add Button
9 Choose a device
9 Choose a group that includes a device
9 If press Next, it will proceed to Add Button
9 Press Back button to main screen
Remocon App for NextGen BT
23
Add buttons from the list at the bottom
9 Find the buttons by sliding left or right on the list at the bottom
9 To add a button on the screen, press the button for few seconds on the list at the bottom and it will come up
on the bottom left
9 Users then are able to drag and drop to arrange
9 If there are more buttons to add, it can be done as same as above
Complete add button
9 To finish the add button, press Save on the
bottom right.
Remocon App for NextGen BT
24
Learning- refer to Learning function on this manual
Remocon App for NextGen BT
25
7. Settings
7.1. Sound
Sound On/Off toggle
7.2. Application Information
Version of this application
Software version : Application’s version information
Protocol version : Protocol version information
with BT Extender
Remocon App for NextGen BT
26
7.3. Supporting Model
All of the devices supported by the NextGen BT
application
7.4. Edit Voice Command
It provides a function to alter voice commands
Choose a device to alter voice commands
Remocon App for NextGen BT
27
Choose a voice commands to alter
Write new voice command on the current using
command and press OK to save
Users can also use default voice commands
Remocon App for NextGen BT
28
7.5. Voice command list
Shows every voice commands that application supports
7.6. Voice command channel
As in broadcasting channels voice commands, set TV and Set-top box’s channels, and voice recognize the
broadcasting channel, to set TV or set-top box’s channel.
For example, if it is KBS, write as figure below and provide voice command as ‘KBS’, on TV MODE, it will input
7 or on SET-TOP MODE, it will input 21.
9 Voice commands : KBS
9 Television : 7
9 Set-top box : 21
Choose a channel to set. If it is not set, it is set as
channel.
Remocon App for NextGen BT
29

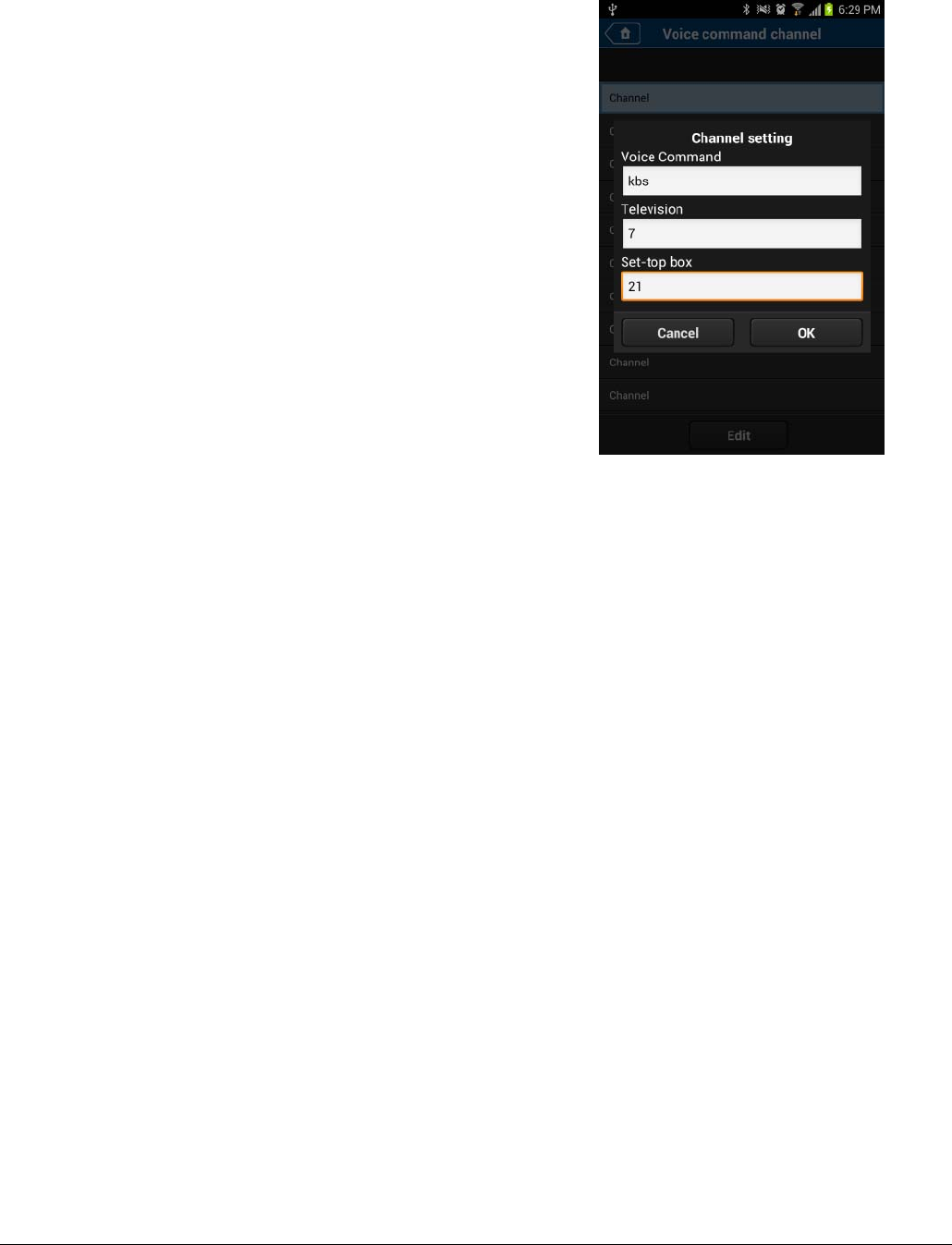

Input channel’s information
9 Voice Command : word which will be used in voice command
9 Television : channel number on TV
9 Set-top box : channel number on Set-top box.
When inputting is done, press OK
FCC Information to User
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
con-nected.
• Consult the dealer or an experienced radio/TV technician for help.
Caution
Modifications not expressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
FCC Compliance Information : This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received, including interference
that may cause undesired operation
IMPORTANT NOTE:
FCC RF Radiation Exposure Statement:
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled
environment.
The antennas used for this transmitter must be installed to provide a separation distance of at
least 25 cm from all persons and must not be co-located or operating in conjunction with any
other antenna or transmitter.
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this equipment near water.
6) Do not using near any heat sources such as radiators, heat resisters, stove, or other
equipment that produce heat.
European CE notice to users and product statements
This product is CE marked according to the provisions of the R&TTE
Directive(99/5/EC). Hereby, Next Generation Home Products declares
that this product is in compliance with the essential requirements and
other relevant provisions of Directive 1999/5/EC.
For further information, please contact http:// www.nextgen.us
Next Generation Home Products
8064 Washington St. Port Richey, FL 34668, U.S.A
Tel: 727.834.9400 / Fax: 727.846.1788
URL: www.nextgen.us

Navigation menu
