Nokia FastMile Outdoor Unit User Manual
2
FastMile User Manual
3TG-00088-AAAA-TCZZA Issue: 01
Nokia is a registered trademark of Nokia Corporation. Other products and company
names mentioned herein may be trademarks or tradenames of their respective
owners.
The information presented is subject to change without notice. No responsibility is
assumed for inaccuracies contained herein.
© 2018 Nokia.
Contains proprietary/trade secret information which is the property of Nokia and must
not be made available to, or copied or used by anyone outside Nokia without its
written authorization. Not to be used or disclosed except in accordance with
applicable agreements.
FastMile User Manual Preface
Issue: 01 3TG-00088-AAAA-TCZZA 3
1 Preface
This preface provides general information about the user manual for the Nokia
FastMile Outdoor Unit.
1.1 Scope
This document provides an overview of the Nokia FastMile Outdoor Unit along with
information about safety, installing, and troubleshooting the Nokia FastMile Outdoor
Unit.
1.2 Audience
This document is intended for planners, administrators, operators, and maintenance
personnel involved in installing, upgrading, or maintaining the Nokia FastMile
Outdoor Unit.
Table 1 provides a summary of how the main content of this manual is organized.
Table 1 Main content of manual
1.3 Required knowledge
The reader must be familiar with general telecommunications principles.
1.4 Acronyms and initialisms
The expansions and optional descriptions of most acronyms and initialisms used in
this document appear in the glossary at the back of the document.
Chapter
number Chapter content Description
This
chapter Document preface Defines the purpose, scope, and intended audience of this
document; explains how information is organized in this document
5Overview Brief overview of the Nokia FastMile Outdoor Unit
6Installation Detailed installation steps for the Nokia FastMile Outdoor Unit
7Troubleshooting Resolutions for problems that might be faced during installation
Preface
4
User Manual
3TG-00088-AAAA-TCZZA Issue: 01
1.5 Assistance and ordering phone numbers
Nokia provides global technical support through regional call centers. Phone
numbers for the regional call centers are available at the following URL:
http://support.alcatel-lucent.com.
For ordering information, contact your Nokia sales representative.
1.6 Nokia quality processes
Nokia’s FastMile Outdoor Unit quality practices are in compliance with TL 9000
requirements.These requirements are documented in the Fixed Networks Quality
Manual 3FQ-30146-6000-QRZZA. The quality practices adequately ensure that
technical requirements and customer end-point requirements are met. The customer
or its representatives may be allowed to perform on-site quality surveillance audits,
as agreed upon during contract negotiations.
1.7 Safety information
For safety information, see the appropriate safety guideline chapters.
1.8 Documents
Documents are available from Nokia using ALED or OLCS.
Procedure 1 To download a ZIP file package of the customer documentation
1Navigate to http://support.alcatel-lucent.com and enter your user name and password. If you
are a new user and require access to this service, please contact your Nokia sales
representative.
2From the Technical Content for drop-down menu, choose the product.
3Click on Downloads: Electronic Delivery.
4Choose Documentation from the drop-down menu and click Next.
Nokia FastMile Outdoor Unit User Manual Preface
Issue: 01 3TG-00088-AAAA-TCZZA 5
5Select the image from the drop-down menu and click Next.
6Follow the on-screen directions to download the file.
Procedure 2 To access individual documents
Individual PDFs of customer documents are also accessible through the Nokia Customer Support
website.
1Navigate to http://support.alcatel-lucent.com and enter your user name and password. If you
are a new user and require access to this service, please contact your Nokia sales
representative.
2From the Technical Content for drop-down menu, choose the product.
3Click on Manuals and Guides to display a list of customer documents by title and part
number. You can filter this list using the Release drop-down menu.
4Click on the PDF to open or save the file.
1.9 Special information
The following are examples of how special information is presented in this document.
Danger — Danger indicates that the described activity or
situation may result in serious personal injury or death; for
example, high voltage or electric shock hazards.
Warning — Warning indicates that the described activity or
situation may, or will, cause equipment damage or serious
performance problems.
Caution — Caution indicates that the described activity or
situation may, or will, cause service interruption.
Preface
6
Nokia FastMile Outdoor Unit User Manual
3TG-00088-AAAA-TCZZA Issue: 01
1.9.1 Steps with options or substeps
When there are options in a step, they are identified by letters. When there are
required substeps in a step, they are identified by roman numerals.
Procedure 3 Example of options in a step
At step 1, you must choose option a or b.
1This step offers two options. You must choose one of the following:
aThis is one option.
bThis is another option.
2You must perform this step.
Procedure 4 Example of required substeps in a step
At step 1, you must perform a series of substeps within the step.
1This step has a series of substeps that you must perform to complete the step. You must
perform the following substeps:
iThis is the first substep.
ii This is the second substep.
iii This is the third substep.
2 You must perform this step.
Note — A note provides information that is, or may be, of
special interest.
Nokia FastMile Outdoor Unit User Manual Preface
Issue: 01 3TG-00088-AAAA-TCZZA 7
1.10 Multiple PDF document search
You can use Adobe Reader Release 6.0 and later to search multiple PDF files for a
common term. Adobe Reader displays the results in a single display panel. The
results are grouped by PDF file, and you can expand the entry for each file.
Procedure 5 To search multiple PDF files for a common term
1Open Adobe Acrobat Reader.
2Choose Edit→Search from the Acrobat Reader main menu. The Search PDF panel appears.
3Enter the search criteria.
4Click on the All PDF Documents In radio button.
5Select the folder in which to search using the drop-down menu.
6Click on the Search button.
Acrobat Reader displays the search results. You can expand the entries for each document
by clicking on the + symbol.
Note — The PDF files in which you search must be in the same
folder.
Nokia FastMile Outdoor Unit User Manual ETSI environmental and CRoHS guidelines
Issue: 01 3TG-00088-AAAA-TCZZA 9
2 ETSI environmental and CRoHS
guidelines
This chapter provides information about the ETSI environmental China Restriction of
Hazardous Substances (CRoHS) regulations that govern the installation and
operation of Nokia FastMile Outdoor Unit equipment. This chapter also includes
environmental operation parameters of general interest.
2.1 Environmental labels
This section describes the environmental instructions that are provided with the
customer documentation, equipment, and location where the equipment resides.
2.1.1 Overview
CRoHS is applicable to Electronic Information Products (EIP) manufactured or sold
and imported in the territory of the mainland of the People’s Republic of China. EIP
refers to products and their accessories manufactured by using electronic
information technology, including electronic communications products and such
subcomponents as batteries and cables.
2.1.2 Environmental related labels
Environmental labels are located on appropriate equipment. The following are
sample labels.
2.1.2.1 Products below Maximum Concentration Value
(MCV) label
Figure 1 shows the label that indicates a product is below the maximum
concentration value, as defined by standard SJ/T11363-2006 (Requirements for
Concentration Limits for Certain Hazardous Substances in Electronic Information
Products). Products with this label are recyclable. The label may be found in this
documentation or on the product.
ETSI environmental and CRoHS guidelines
10
Nokia FastMile Outdoor Unit User Manual
3TG-00088-AAAA-TCZZA Issue: 01
Figure 1 Products below MCV value label
2.1.2.2 Products containing hazardous substances above
Maximum Concentration Value (MCV) label
Figure 2 shows the label that indicates a product is above the maximum
concentration value, as defined by standard SJ/T11363-2006 (Requirements for
Concentration Limits for Certain Hazardous Substances in Electronic Information
Products). The number contained inside the label indicates the Environment-Friendly
User Period (EFUP) value. The label may be found in this documentation or on the
product.
18986
Nokia FastMile Outdoor Unit User Manual ETSI environmental and CRoHS guidelines
Issue: 01 3TG-00088-AAAA-TCZZA 11
Figure 2 Products above MCV value label
Together with major international telecommunications equipment companies, Nokia
has determined it is appropriate to use an EFUP of 50 years for network
infrastructure equipment and an EFUP of 20 years for handsets and accessories.
These values are based on manufacturers' extensive practical experience of the
design, manufacturing, maintenance, usage conditions, operating environments,
and physical condition of infrastructure and handsets after years of service. The
values reflect minimum values and refer to products operated according to the
intended use conditions. See “Hazardous Substances Table (HST)” for more
information.
2.2 Hazardous Substances Table (HST)
This section describes the compliance of the Nokia FastMile Outdoor Unit
equipment to the CRoHS standard when the product and subassemblies contain
hazardous substances beyond the MCV value. This information is found in this user
documentation where part numbers for the product and subassemblies are listed. It
may be referenced in other documentation that describes the Nokia FastMile
Outdoor Unit equipment.
In accordance with the People’s Republic of China Electronic Industry Standard
Marking for the Control of Pollution Caused by Electronic Information Products
(SJ/T11364-2006), customers may access the Nokia Hazardous Substance Table,
in Chinese, from the following location:
•http://www.alcatel-sbell.com.cn/wwwroot/images/upload/private/1/media/ChinaRo
HS.pdf
18985
ETSI environmental and CRoHS guidelines
12
Nokia FastMile Outdoor Unit User Manual
3TG-00088-AAAA-TCZZA Issue: 01
2.3 Other environmental requirements
Observe the following environmental requirements when handling Nokia FastMile
Outdoor Unit equipment.
2.3.1 Environmental requirements
See chapter 8 in this guide for more information about temperature ranges for the
Nokia FastMile Outdoor Unit equipment and other Nokia FastMile Outdoor Unit
specifications.
2.3.2 Storage
According to ETS 300-019-1-1 - Class 1.1, storage of Nokia FastMile Outdoor Unit
equipment must be in Class 1.1, weather-protected, temperature-controlled
locations.
2.3.3 Transportation
According to EN 300-019-1-2 - Class 2.3, transportation of Nokia FastMile Outdoor
Unit equipment must be in packed, public transportation.
2.3.4 Stationary use
According to EN 300-019-1-3 - Class 3.1/3.2/3.E, stationary use of Nokia FastMile
Outdoor Unit equipment must be in a temperature-controlled location with no
condensation allowed.
2.3.5 Thermal limitations
The thermal limitations for the Nokia FastMile Outdoor Unit equipment are:
•operating temperature (ambient): –30°C to 65°C (–22°F to 149°F)
•operating relative humidity: 5% to 85% relative humidity, non-condensing
•short-term relative humidity: 5% to 93% relative humidity, non-condensing
Nokia FastMile Outdoor Unit User Manual ETSI environmental and CRoHS guidelines
Issue: 01 3TG-00088-AAAA-TCZZA 13
2.3.6 Material content compliance
European Union (EU) Directive 2002/95/EC, “Restriction of the use of certain
Hazardous Substances” (RoHS), restricts the use of lead, mercury, cadmium,
hexavalent chromium, and certain flame retardants in electrical and electronic
equipment. This Directive applies to electrical and electronic products placed on the
EU market after 1 July 2006, with various exemptions, including an exemption for
lead solder in network infrastructure equipment. Nokia products shipped to the EU
after 1 July 2006 comply with the EU RoHS Directive.
Nokia has implemented a material/substance content management process. The
process is described in: Nokia process for ensuring RoHS Compliance
(1AA002660031ASZZA). This ensures compliance with the European Union
Directive 2011/65/EU on the Restriction of the Use of Certain Hazardous Substances
in Electrical and Electronic Equipment (RoHS2). With the process equipment is
assessed in accordance with the Harmonised Standard EN50581:2012 (CENELEC)
on Technical documentation for the assessment of electrical and electronic products
with respect to the restriction of hazardous substances.
2.3.7 End-of-life collection and treatment
Electronic products bearing or referencing the symbol shown in Figure 3, when put
on the market within the European Union (EU), shall be collected and treated at the
end of their useful life, in compliance with applicable EU and local legislation. They
shall not be disposed of as part of unsorted municipal waste. Due to materials that
may be contained in the product, such as heavy metals or batteries, the environment
and human health may be negatively impacted as a result of inappropriate disposal.
Figure 3 Recycling/take back/disposal of product symbol
At the end of its life, Nokia FastMile Outdoor Unit equipment is subject to the
applicable local legislations that implement the European Directive 2012/19EU on
waste electrical and electronic equipment (WEEE).
There can be different requirements for collection and treatment in different member
states of the European Union.
ETSI environmental and CRoHS guidelines
14
Nokia FastMile Outdoor Unit User Manual
3TG-00088-AAAA-TCZZA Issue: 01
In compliance with legal requirements and contractual agreements, where
applicable, Nokia will offer to provide for the collection and treatment of Nokia
products bearing the logo shown in Figure 3 at the end of their useful life, or products
displaced by Nokia equipment offers. For information regarding take-back of
equipment by Nokia, or for more information regarding the requirements for
recycling/disposal of product, contact your Nokia account manager or Nokia take
back support at sustainability.global@nokia.com.
2.4 Additional information
See Chapter 9 for RF exposure information.
Nokia FastMile Outdoor Unit User Manual ETSI safety guidelines
Issue: 01 3TG-00088-AAAA-TCZZA 15
3 ETSI safety guidelines
This chapter provides information about the mandatory regulations that govern the
installation and operation of Nokia FastMile Outdoor Unit equipment in the ETSI
market.
3.1 Safety instructions
This section describes the safety instructions that are provided in the customer
documentation and on the Nokia FastMile Outdoor Unit equipment.
3.1.1 Safety instruction boxes
The safety instruction boxes are provided in the Nokia FastMile Outdoor Unit
customer documentation. Observe the instructions to meet safety requirements.
The following is an example of the Danger box.
The Danger box indicates that the described activity or situation may pose a threat
to personal safety. It calls attention to a situation or procedure which, if not correctly
performed or adhered to, may result in death or serious physical harm.
Do not proceed beyond a Danger box until the indicated conditions are fully
understood and met.
The following is an example of the Warning box.
The Warning box indicates that the described activity or situation may, or will, cause
equipment damage, loss of data, or serious performance problems. It identifies a
possible equipment-damaging situation or provides essential information to avoid the
degradation of system operations or data.
Do not proceed beyond a warning until the indicated conditions are fully understood
and met.
Danger — Possibility of personal injury.
Warning 1 — Possibility of equipment damage.
Warning 2 — Possibility of data loss.
ETSI safety guidelines
16
Nokia FastMile Outdoor Unit User Manual
3TG-00088-AAAA-TCZZA Issue: 01
The following is an example of the Caution box.
The Caution box indicates that the described activity or situation may, or will, cause
service interruption.
Do not proceed beyond a caution until the indicated conditions are fully understood
and met.
The following is an example of the Note box.
The Note box provides information that assists the personnel working with Nokia
FastMile Outdoor Unit equipment. It does not provide safety-related instructions.
3.1.2 Safety-related labels
The Nokia FastMile Outdoor Unit equipment is labeled with the specific safety
instructions and compliance information that is related to a product, or product
variant, of the equipment. Observe the instructions on the safety labels.
Table 2 provides sample safety labels on Nokia FastMile Outdoor Unit equipment.
Table 2 Safety labels
3.2 Safety standards compliance
This section describes Nokia FastMile Outdoor Unit equipment compliance with the
European safety standards.
Caution 1 — Possibility of service interruption.
Caution 2 — Service interruption.
Note — Information of special interest.
Description Label text
ESD warning Caution: This assembly contains an electrostatic sensitive device.
Nokia FastMile Outdoor Unit User Manual ETSI safety guidelines
Issue: 01 3TG-00088-AAAA-TCZZA 17
3.2.1 EMC compliance
The Nokia FastMile Outdoor Unit equipment complies with the following EMC
requirements:
•Electromagnetic compatibility of multimedia equipment - Emission requirements
CISPR 32, EN 55032
•Electromagnetic compatibility of multimedia equipment - Immunity requirements
CISPR 35, EN55035
•Electromagnetic Compatibility (EMC) standard for radio equipment and services;
Part 1: Common technical requirements; Harmonized Standard covering the
essential requirements of article 3.1(b) of Directive 2014/53/EU and the essential
requirements of article 6 of Directive 2014/30/EU EN 301489-1
•Electromagnetic Compatibility (EMC) standard for radio equipment and services;
Part 17: Specific conditions for Broadband Data Transmission Systems;
Harmonized Standard covering the essential requirements of article 3.1(b) of
Directive 2014/53/EU EN 301489-17
3.2.2 Equipment safety standard compliance
The Nokia FastMile Outdoor Unit equipment complies with the requirements of the
following:
•EN 60950-1, Safety of Information Technology Equipment for use in a restricted
location (per R-269)
•IEC 60950-22, EN 60950-22: Information Technology Equipment- Safety - Part 22
Equipment to be installed Outdoors
3.2.3 Environmental standard compliance
The Nokia FastMile Outdoor Unit equipment complies with the EN 300 019 European
environmental standards.
3.2.4 Laser product standard compliance
The Nokia FastMile Outdoor Unit equipment is not a laser product.
ETSI safety guidelines
18
Nokia FastMile Outdoor Unit User Manual
3TG-00088-AAAA-TCZZA Issue: 01
3.3 Electrical safety guidelines
This section provides the electrical safety guidelines for the Nokia FastMile Outdoor
Unit equipment.
3.3.1 Power supplies
The use of any non-Nokia approved power supplies or power adapters is not
supported or endorsed by Nokia. Such use will void any warranty or support contract
with Nokia. Such use greatly increases the danger of damage to equipment or
property.
3.3.2 Cabling
The following are the guidelines regarding cables used for the Nokia FastMile
Outdoor Unit equipment:
•All cables must be approved by the relevant national electrical code.
•Cables for outdoor connection to the Nokia FastMile Outdoor Unit equipment
must be suitable for outdoor use.
•The Nokia FastMile Outdoor Unit equipment must be used with the cabling
supplied with the equipment.
3.3.3 Protective earth
Earthing and bonding of the Nokia FastMile Outdoor Unit equipment must comply
with the requirements of local electrical codes.
Note 1 — The Nokia FastMile Outdoor Unit equipment complies
with the U.S. National Electrical Code. However, local electrical
authorities have jurisdiction when there are differences
between the local and U.S. standards.
Note 2 — The Nokia FastMile Outdoor Unit equipment complies
with BS EN 61140.
Nokia FastMile Outdoor Unit User Manual ETSI safety guidelines
Issue: 01 3TG-00088-AAAA-TCZZA 19
3.4 ESD safety guidelines
The Nokia FastMile Outdoor Unit equipment is sensitive to ESD if opened.
Operations personnel must observe the following ESD instructions when they handle
the Nokia FastMile Outdoor Unit equipment.
Service personnel are not required to wear wrist straps when performing normal
installation or maintenance activities.
3.5 Environmental requirements
See chapter 8 in this guide for more information about temperature ranges for the
Nokia FastMile Outdoor Unit equipment and other Nokia FastMile Outdoor Unit
specifications.
During operation in the supported temperature range, condensation inside the Nokia
FastMile Outdoor Unit equipment caused by humidity is not an issue because the
Nokia FastMile Outdoor Unit is a sealed unit.
3.6 Additional information
See Chapter 9 for RF exposure information.
Caution — This equipment is ESD sensitive if opened. Proper
ESD protections should be used if you open the Nokia FastMile
Outdoor Unit.
Nokia FastMile Outdoor Unit User Manual ANSI safety guidelines
Issue: 01 3TG-00088-AAAA-TCZZA 21
4 ANSI safety guidelines
This chapter provides information about the mandatory regulations that govern the
installation and operation of the Nokia FastMile Outdoor Unit equipment in the North
American or ANSI market.
4.1 Safety instructions
This section describes the safety instructions that are provided in the customer
documentation and on the Nokia FastMile Outdoor Unit equipment.
4.1.1 Safety instruction boxes in customer
documentation
The safety instruction boxes are provided in the Nokia FastMile Outdoor Unit
customer documentation. Observe the instructions to meet safety requirements.
The following is an example of the Danger box.
The Danger box indicates that the described activity or situation may pose a threat
to personal safety. It calls attention to a situation or procedure which, if not correctly
performed or adhered to, may result in death or serious physical harm.
Do not proceed beyond a Danger box until the indicated conditions are fully
understood and met.
The following is an example of the Warning box.
The Warning box indicates that the described activity or situation may, or will, cause
equipment damage, loss of data, or serious performance problems. It identifies a
possible equipment-damaging situation or provides essential information to avoid the
degradation of system operations or data.
Do not proceed beyond a warning until the indicated conditions are fully understood
and met.
Danger — Possibility of personal injury.
Warning 1 — Possibility of equipment damage.
Warning 2 — Possibility of data loss.
ANSI safety guidelines
22
Nokia FastMile Outdoor Unit User Manual
3TG-00088-AAAA-TCZZA Issue: 01
The following is an example of the Caution box.
The Caution box indicates that the described activity or situation may, or will, cause
service interruption.
Do not proceed beyond a caution until the indicated conditions are fully understood
and met.
The following is an example of the Note box.
The Note box provides information that assists the personnel working with Nokia
FastMile Outdoor Unit equipment. It does not provide safety-related instructions.
4.1.2 Safety-related labels
The Nokia FastMile Outdoor Unit equipment is labeled with specific safety
compliance information and instructions that are related to a product, or product
variant, of the equipment. Observe the instructions on the safety labels.
Table 3 provides examples of the text in the various Nokia FastMile Outdoor Unit
equipment safety labels.
Table 3 Safety labels
Caution 1 — Possibility of service interruption.
Caution 2 — Service interruption.
Note — Information of special interest.
Description Label text
UL compliance ETL/cETL
UL50E compliance Type 3
ESD warning Caution: This assembly contains electrostatic sensitive device.
FCC standards compliance Tested to comply with FCC standards for home or office use.
Operation conditions This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
CE marking There are various CE symbols for CE compliance.
Nokia FastMile Outdoor Unit User Manual ANSI safety guidelines
Issue: 01 3TG-00088-AAAA-TCZZA 23
Figure 4 shows a sample safety label for FCC and Figure 5 shows a sample safety
label for ETL.
Figure 4 Sample safety label for FCC
Figure 5 Sample safety label for ETL
4.2 Safety standards compliance
This section describes the Nokia FastMile Outdoor Unit equipment compliance with
North American safety standards.
18533
5011710
27799
Warning — Changes or modifications to this unit not expressly
approved by the party responsible for compliance could void
the user's authority to operate the equipment.
ANSI safety guidelines
24
Nokia FastMile Outdoor Unit User Manual
3TG-00088-AAAA-TCZZA Issue: 01
4.2.1 EMC, EMI, and ESD compliance
The Nokia FastMile Outdoor Unit equipment complies with the following EMC, EMI,
and ESD requirements:
•Federal Communications Commission PART 15-RADIO FREQUENCY DEVICES
Subpart C-INTENTIONAL RADIATORS Title 47 CFR Part 15. Part 15.247
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the
receiver is needed.
•Consult the dealer or an experienced radio/TV technician for help.
4.2.2 Equipment safety standard compliance
The Nokia FastMile Outdoor Unit equipment complies with the requirements of:
•UL62368-1, Outdoor ONTs to “Communication Service Equipment” (CSE) and
Indoor ONTs to Information Technology Equipment (ITE)
•Information Technology Equipment- Safety - Part 22 Equipment to be installed
Outdoors
•UL 60950-22
Nokia FastMile Outdoor Unit User Manual ANSI safety guidelines
Issue: 01 3TG-00088-AAAA-TCZZA 25
4.3 Electrical safety guidelines
This section provides the electrical safety guidelines for the Nokia FastMile Outdoor
Unit equipment.
4.3.1 Power supplies
The use of any non-Nokia approved power supplies or power adapters is not
supported or endorsed by Nokia. Such use will void any warranty or support contract
with Nokia. Such use greatly increases the danger of damage to equipment or
property.
4.3.2 Cabling
The following are the guidelines regarding cables used for the Nokia FastMile
Outdoor Unit equipment:
•All cables must be approved by the relevant national electrical code.
•Cables for outdoor connection to the Nokia FastMile Outdoor Unit equipment
must be suitable for outdoor use.
•The Nokia FastMile Outdoor Unit equipment must be used with the cabling
supplied with the equipment.
4.3.3 Protective earth
Earthing and bonding of the Nokia FastMile Outdoor Unit equipment must comply
with the requirements of NEC article 250 or local electrical codes.
Note — The Nokia FastMile Outdoor Unit equipment complies
with the U.S. National Electrical Code. However, local electrical
authorities have jurisdiction when there are differences
between the local and U.S. standards.
ANSI safety guidelines
26
Nokia FastMile Outdoor Unit User Manual
3TG-00088-AAAA-TCZZA Issue: 01
4.4 ESD safety guidelines
The Nokia FastMile Outdoor Unit equipment is sensitive to ESD if opened.
Operations personnel must observe the following ESD instructions when they handle
the Nokia FastMile Outdoor Unit equipment.
Service personnel are not required to wear wrist straps when performing normal
installation or maintenance activities.
4.5 Environmental requirements
See chapter 8 in this guide for more information about temperature ranges for the
Nokia FastMile Outdoor Unit equipment and other Nokia FastMile Outdoor Unit
specifications.
During operation in the supported temperature range, condensation inside the Nokia
FastMile Outdoor Unit equipment caused by humidity is not an issue because the
Nokia FastMile Outdoor Unit is a sealed unit.
4.6 Additional information
See Chapter 9 for RF exposure information.
See Chapter 10 for additional FCC compliance information.
Caution — This equipment is ESD sensitive if opened. Proper
ESD protections should be used if you open the Nokia FastMile
Outdoor Unit.
Nokia FastMile Outdoor Unit User Manual
Issue: 01 3TG-00088-AAAA-TCZZA 27
Table of contents
1 Preface.............................................................................................3
1.1 Scope ..........................................................................................................3
1.2 Audience......................................................................................................3
1.3 Required knowledge....................................................................................3
1.4 Acronyms and initialisms.............................................................................3
1.5 Assistance and ordering phone numbers....................................................4
1.6 Nokia quality processes...............................................................................4
1.7 Safety information........................................................................................4
1.8 Documents ..................................................................................................4
1.9 Special information......................................................................................5
1.9.1 Steps with options or substeps....................................................................6
1.10 Multiple PDF document search ...................................................................7
2 ETSI environmental and CRoHS guidelines.................................9
2.1 Environmental labels ...................................................................................9
2.1.1 Overview......................................................................................................9
2.1.2 Environmental related labels .......................................................................9
2.1.2.1 Products below Maximum Concentration Value (MCV) label......................9
2.1.2.2 Products containing hazardous substances above Maximum
Concentration Value (MCV) label..............................................................10
2.2 Hazardous Substances Table (HST).........................................................11
2.3 Other environmental requirements............................................................12
2.3.1 Environmental requirements......................................................................12
2.3.2 Storage......................................................................................................12
2.3.3 Transportation ...........................................................................................12
2.3.4 Stationary use............................................................................................12
2.3.5 Thermal limitations ....................................................................................12
2.3.6 Material content compliance......................................................................13
2.3.7 End-of-life collection and treatment...........................................................13
2.4 Additional information................................................................................14
3 ETSI safety guidelines..................................................................15
3.1 Safety instructions .....................................................................................15
3.1.1 Safety instruction boxes ............................................................................15
3.1.2 Safety-related labels..................................................................................16
3.2 Safety standards compliance ....................................................................16
3.2.1 EMC compliance .......................................................................................17
3.2.2 Equipment safety standard compliance.....................................................17
3.2.3 Environmental standard compliance .........................................................17
3.2.4 Laser product standard compliance ..........................................................17
3.3 Electrical safety guidelines ........................................................................18
3.3.1 Power supplies ..........................................................................................18
3.3.2 Cabling ......................................................................................................18
3.3.3 Protective earth .........................................................................................18
3.4 ESD safety guidelines ...............................................................................19
3.5 Environmental requirements......................................................................19
28
Nokia FastMile Outdoor Unit User Manual
3TG-00088-AAAA-TCZZA Issue: 01
3.6 Additional information................................................................................19
4 ANSI safety guidelines.................................................................21
4.1 Safety instructions .....................................................................................21
4.1.1 Safety instruction boxes in customer documentation ................................21
4.1.2 Safety-related labels..................................................................................22
4.2 Safety standards compliance ....................................................................23
4.2.1 EMC, EMI, and ESD compliance...............................................................24
4.2.2 Equipment safety standard compliance.....................................................24
4.3 Electrical safety guidelines ........................................................................25
4.3.1 Power supplies ..........................................................................................25
4.3.2 Cabling ......................................................................................................25
4.3.3 Protective earth .........................................................................................25
4.4 ESD safety guidelines ...............................................................................26
4.5 Environmental requirements......................................................................26
4.6 Additional information................................................................................26
5 Overview........................................................................................35
5.1 Product overview.......................................................................................35
5.2 Functional overview...................................................................................37
5.2.1 LTE characteristics....................................................................................38
5.2.2 Ethernet characteristics.............................................................................38
5.2.3 Power supply characteristics.....................................................................38
5.3 Variant overview........................................................................................38
5.3.1 Variant label information............................................................................39
5.4 Physical interfaces ....................................................................................39
5.5 LED behavior ............................................................................................40
5.6 Power information......................................................................................41
5.7 Performance information ...........................................................................41
5.7.1 Throughput information .............................................................................41
5.7.2 Power consumption information ................................................................42
5.8 Standards certification...............................................................................42
6 Installation procedure ..................................................................45
6.1 Safety information......................................................................................45
6.2 Package contents......................................................................................46
6.3 Installation prerequisites ...........................................................................46
6.3.1 Lightning protection ...................................................................................48
6.4 Installation steps for the Nokia FastMile Outdoor Unit ..............................48
6.5 Post-installation of the Nokia FastMile Outdoor Unit.................................75
7 Troubleshooting ...........................................................................89
7.1 Potential problems during installation and startup phase..........................89
7.1.1 Nokia FastMile Outdoor Unit cannot attach to LTE network due to
hardware mismatch ...................................................................................89
7.1.2 Failed to get Base Station Location...........................................................89
7.1.3 Subscriber has already registered a receiver with its serial number
to controller................................................................................................89
7.2 Potential problems during execution phase...............................................90
7.2.1 Nokia FastMile Outdoor Unit firmware upgrade to latest build failed.........90
7.2.2 Trace request ............................................................................................90
Nokia FastMile Outdoor Unit User Manual
Issue: 01 3TG-00088-AAAA-TCZZA 29
8 Appendix A: Specifications .........................................................91
8.1 Specifications ............................................................................................91
9 Appendix B: RF exposure............................................................93
9.1 RF exposure..............................................................................................93
10 Appendix C: FCC statements and label instructions................95
10.1 FCC compliance statement .......................................................................95
10.2 FCC radiation exposure statement............................................................95
10.3 FCC label instructions ...............................................................................96
11 Glossary ........................................................................................97
Nokia FastMile Outdoor Unit User Manual
Issue: 01 3TG-00088-AAAA-TCZZA 31
List of figures
2 ETSI environmental and CRoHS guidelines.................................9
Figure 1 Products below MCV value label...............................................................10
Figure 2 Products above MCV value label ..............................................................11
Figure 3 Recycling/take back/disposal of product symbol.......................................13
4 ANSI safety guidelines.................................................................21
Figure 4 Sample safety label for FCC......................................................................23
Figure 5 Sample safety label for ETL ......................................................................23
5 Overview........................................................................................35
Figure 6 Application example of the Nokia FastMile Outdoor Unit ..........................36
Figure 7 Versions of the Nokia FastMile Outdoor Unit ............................................37

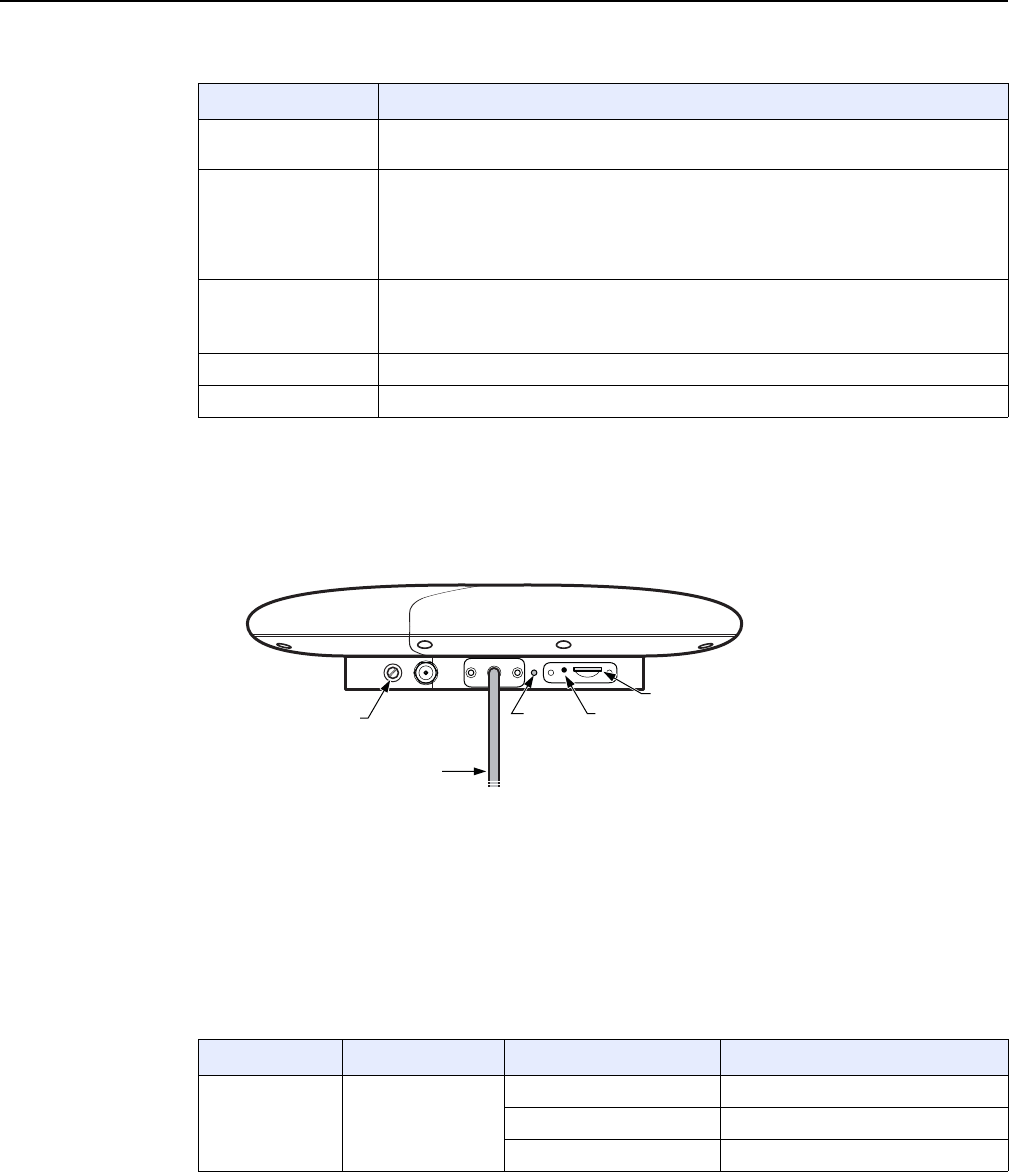

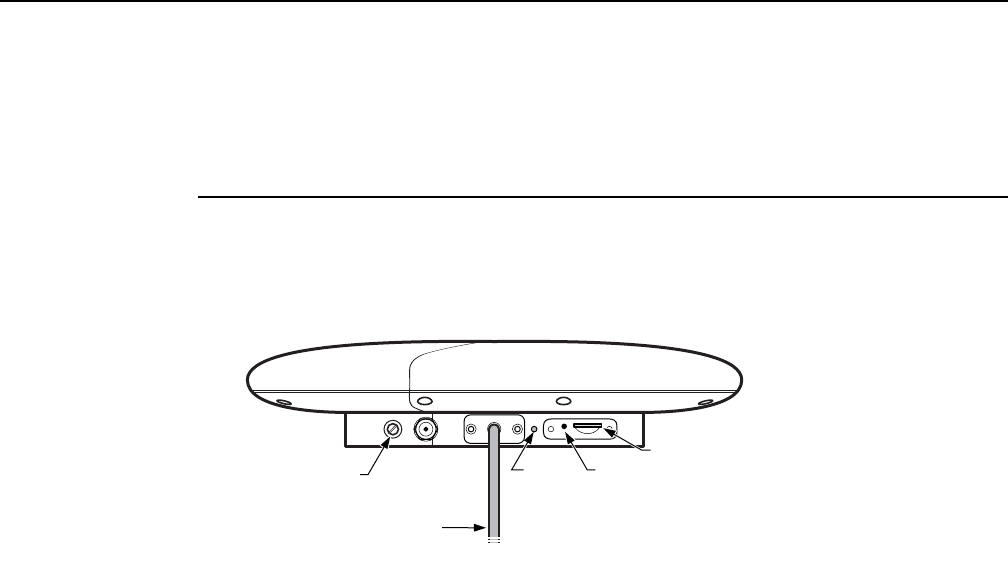

Figure 8 Location of physical interfaces on the Nokia FastMile Outdoor Unit .........40
6 Installation procedure ..................................................................45

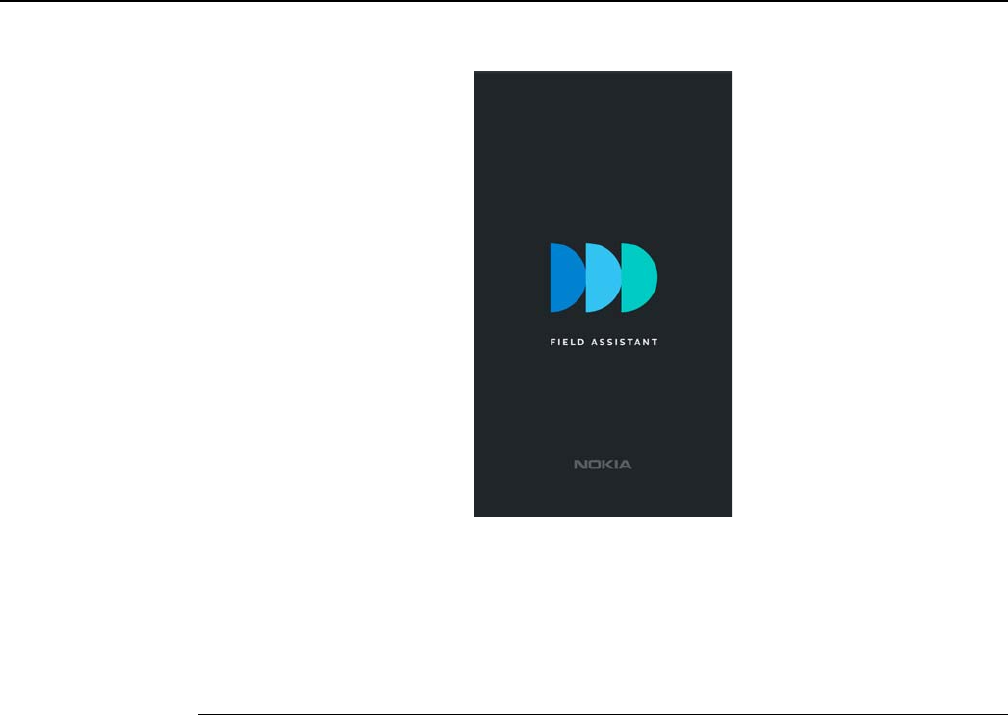

Figure 9 Splash screen............................................................................................49

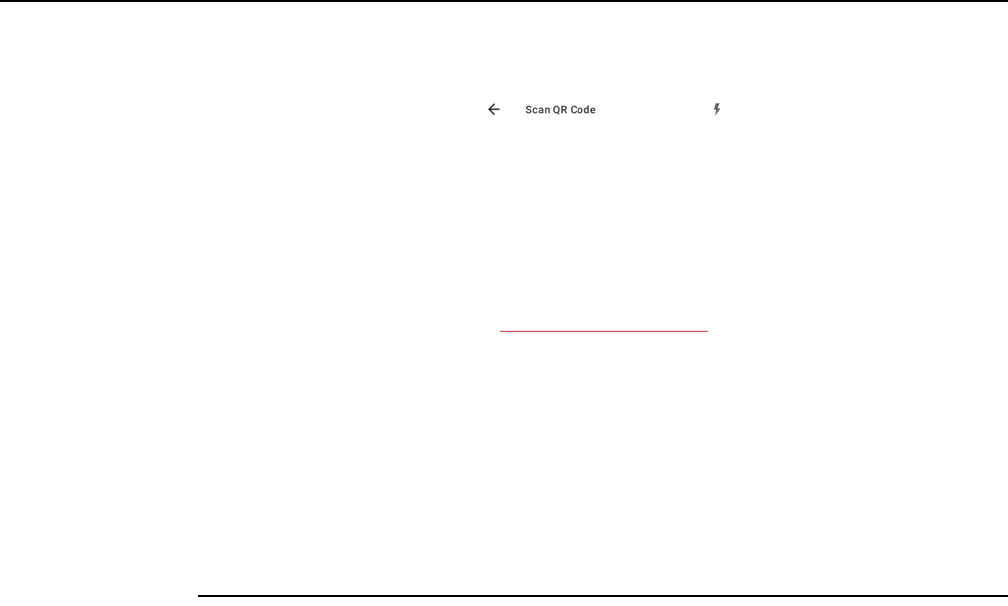

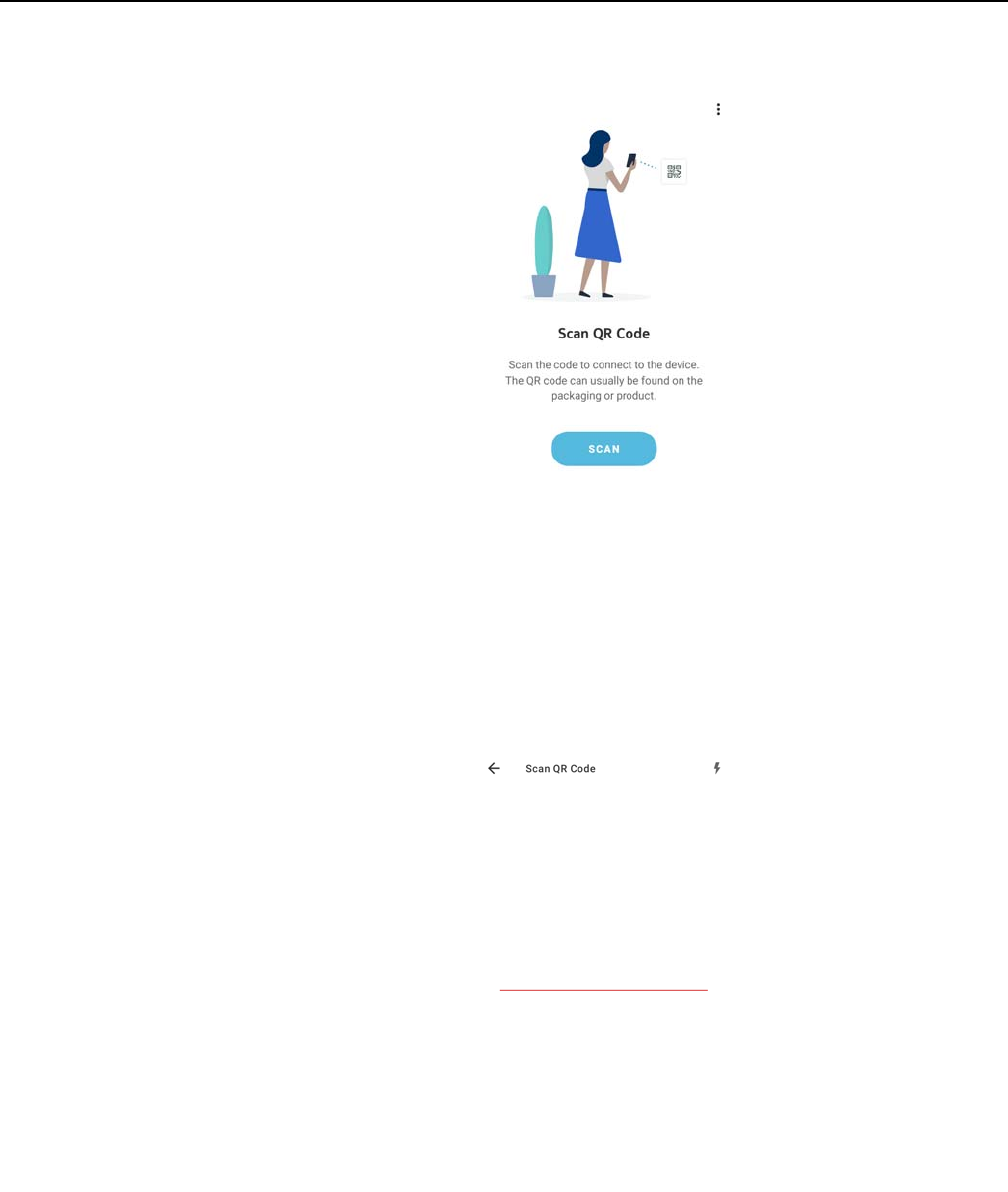

Figure 10 Screen for preparing to scan the QR code................................................50
Figure 11 QR code screen.........................................................................................51
Figure 12 Screen showing the Fresh Install option....................................................52

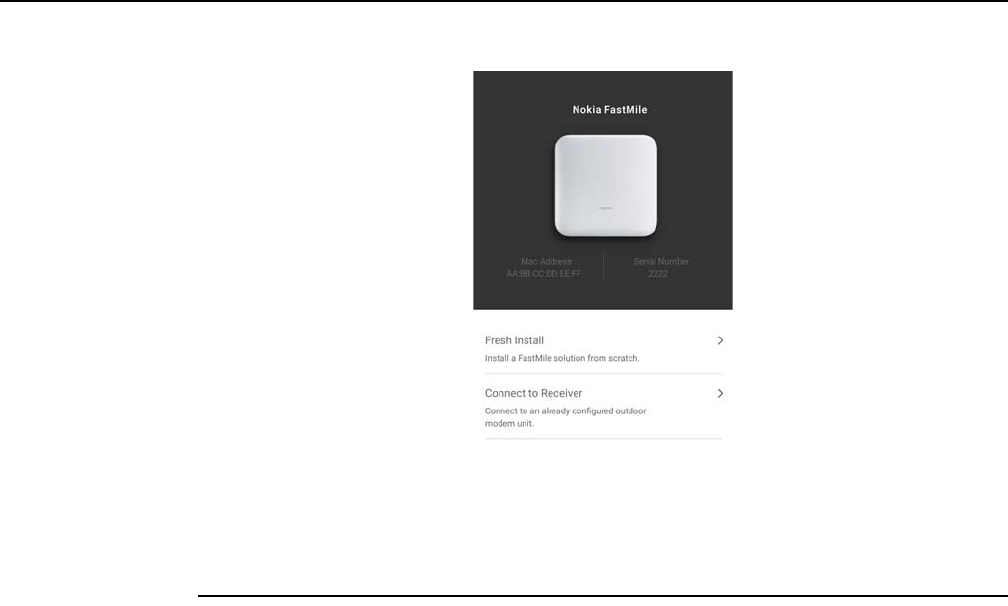

Figure 13 Screen for logging in to the Nokia Altiplano FastMile Controller ...............53

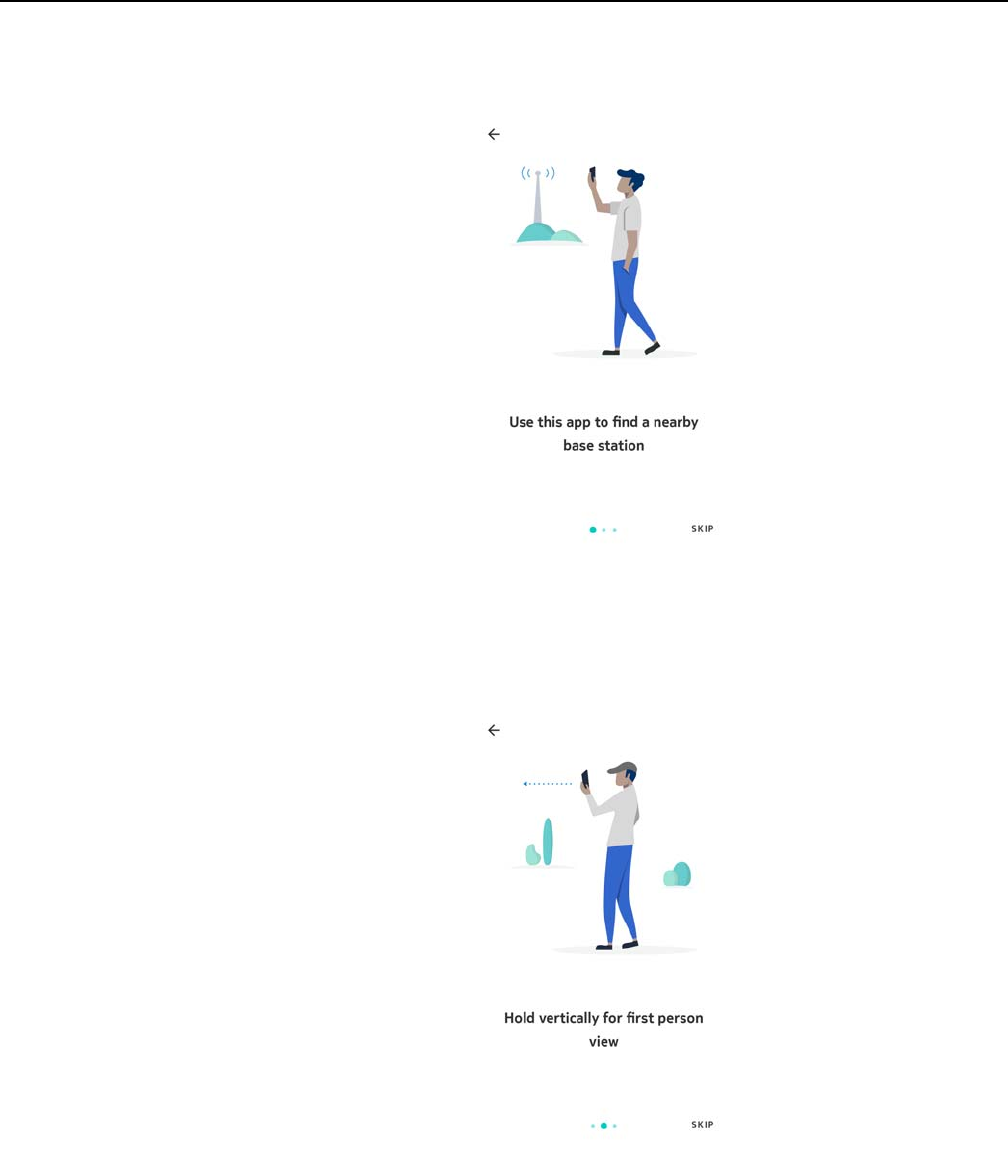

Figure 14 Screen indicating to use the Nokia Field Assistant app to start
finding a nearby base station.....................................................................54
Figure 15 Screen showing to hold vertically for first person view..............................54

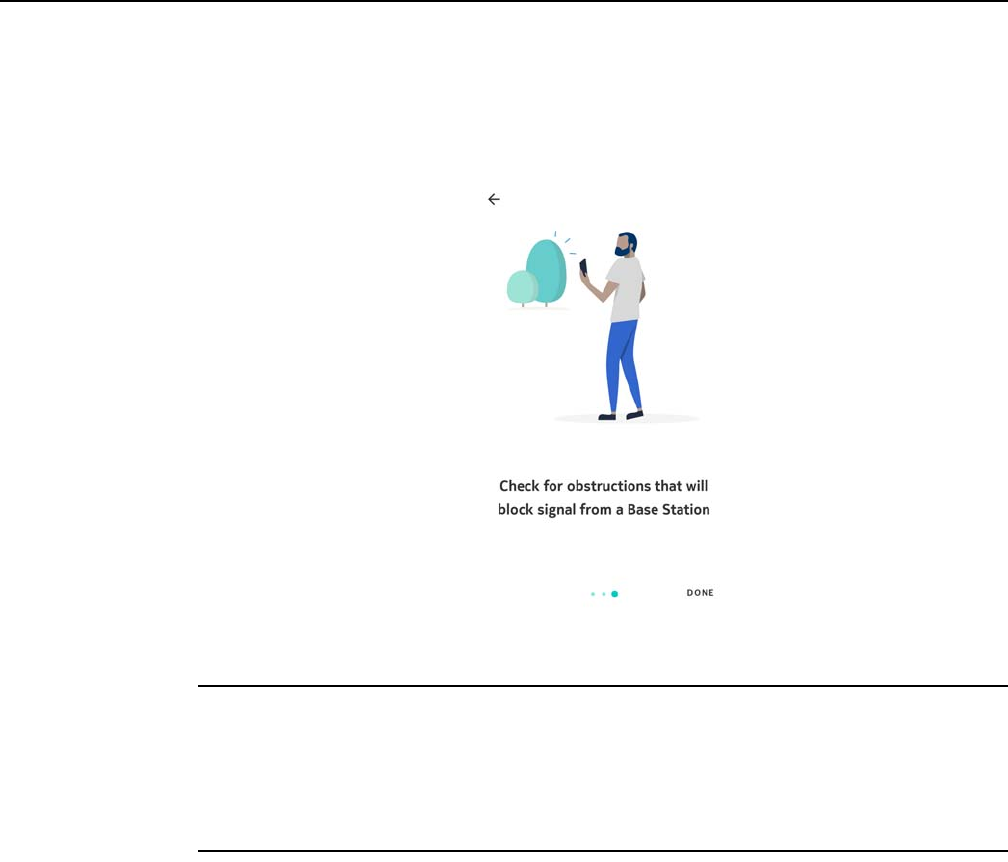

Figure 16 Screen showing to check for obstructions that will block signal from
a base station ............................................................................................55

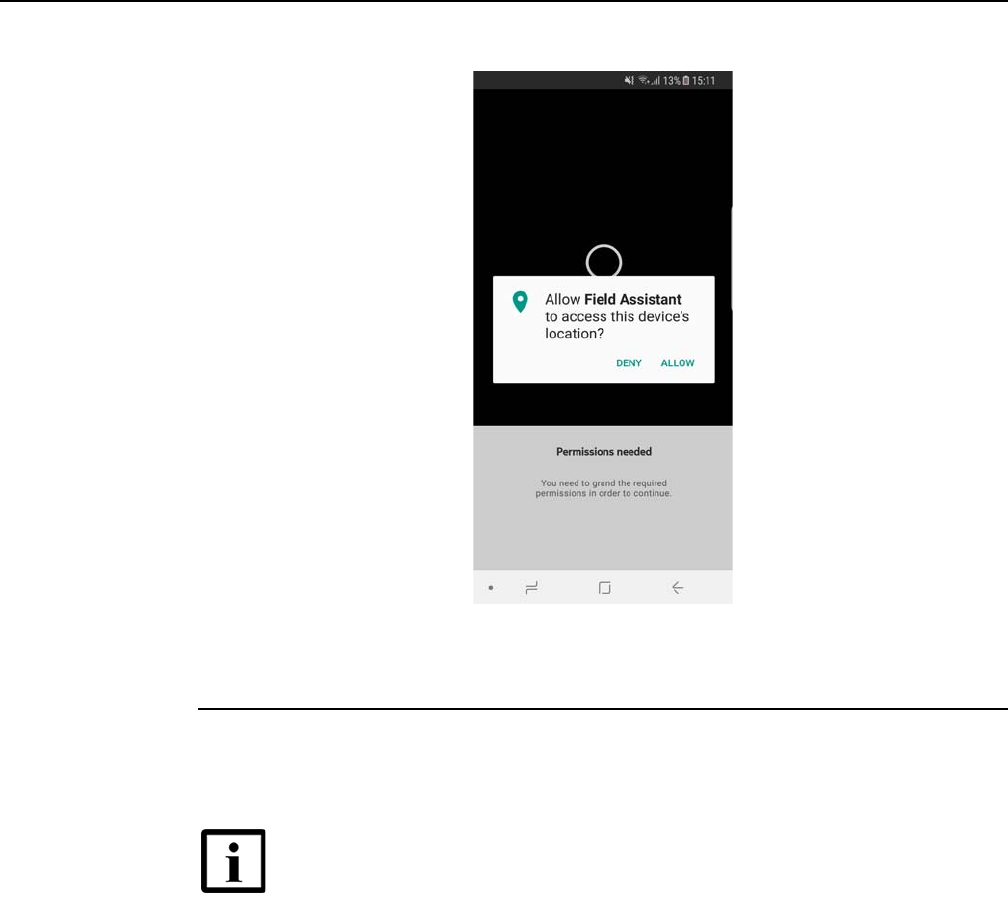

Figure 17 Screen with prompt to allow access to the device’s location.....................56

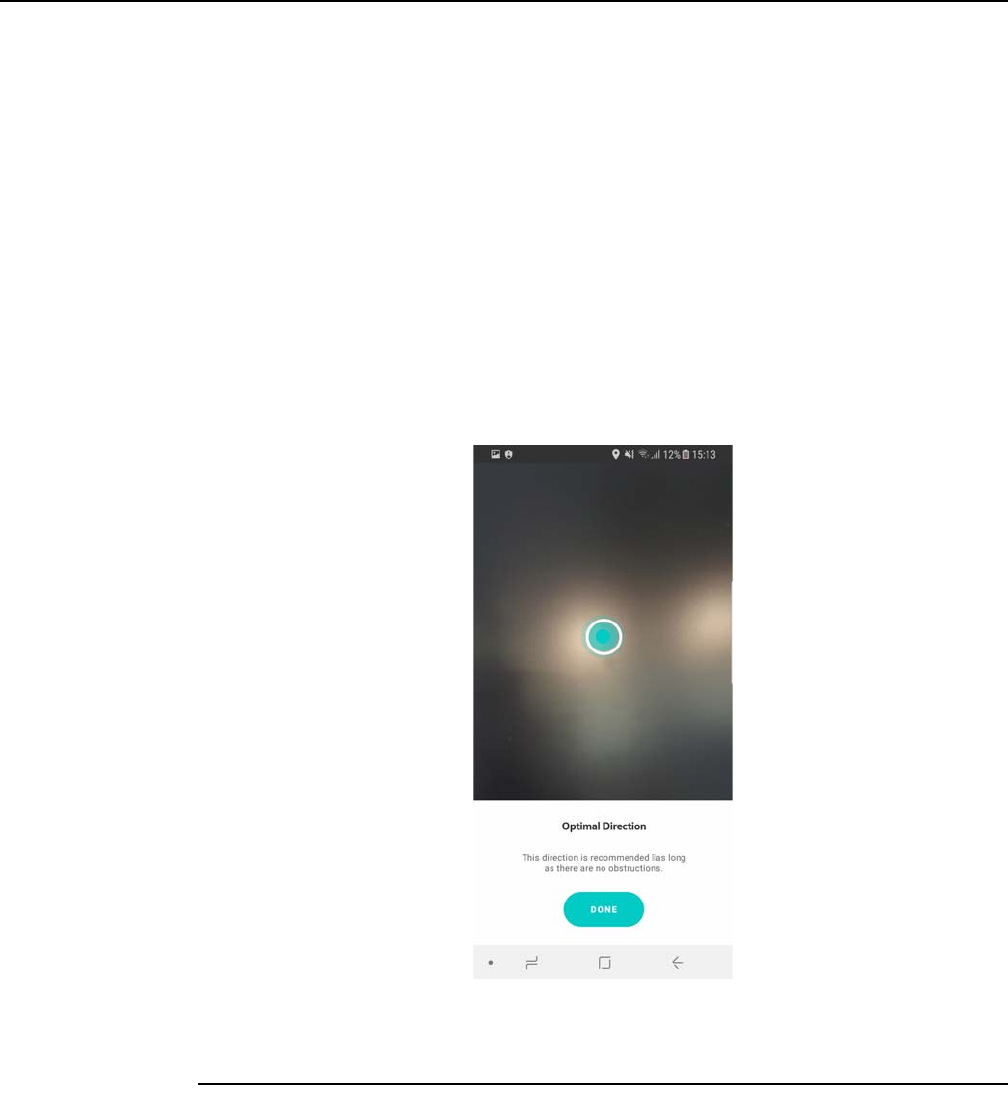

Figure 18 Screen showing good location with respect to the base station................57
Figure 19 Location of physical interfaces on the Nokia FastMile Outdoor Unit .........58
Figure 20 Attaching the mounting plate to the Nokia FastMile Outdoor Unit.............59
Figure 21 Mounting the wall-mount bracket...............................................................60

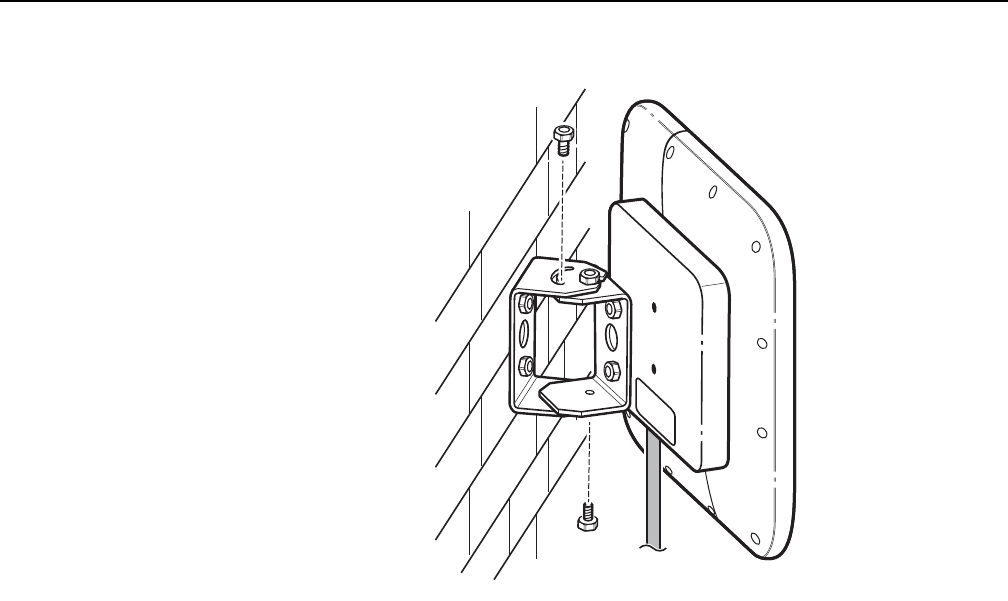

Figure 22 Mounting the Nokia FastMile Outdoor Unit................................................61

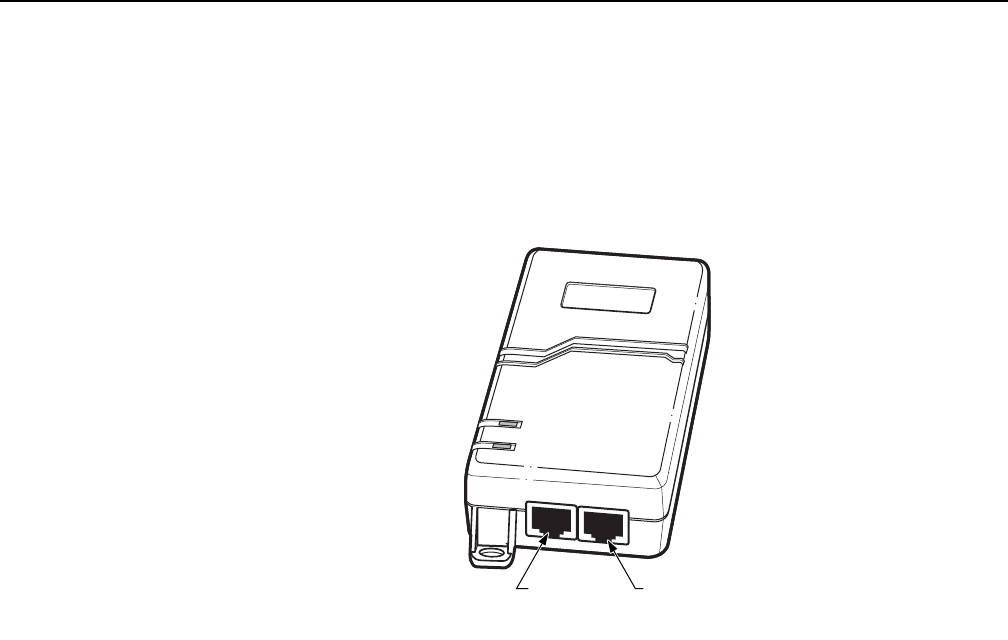

Figure 23 Location of ports on a PoE injector............................................................62

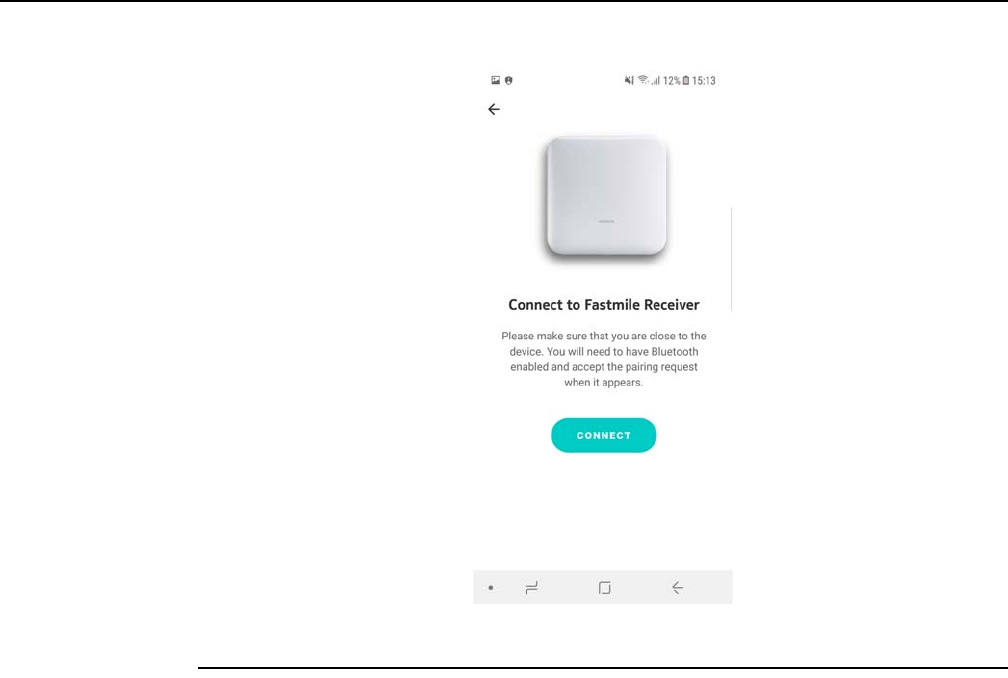

Figure 24 Screen showing the connect prompt .........................................................63

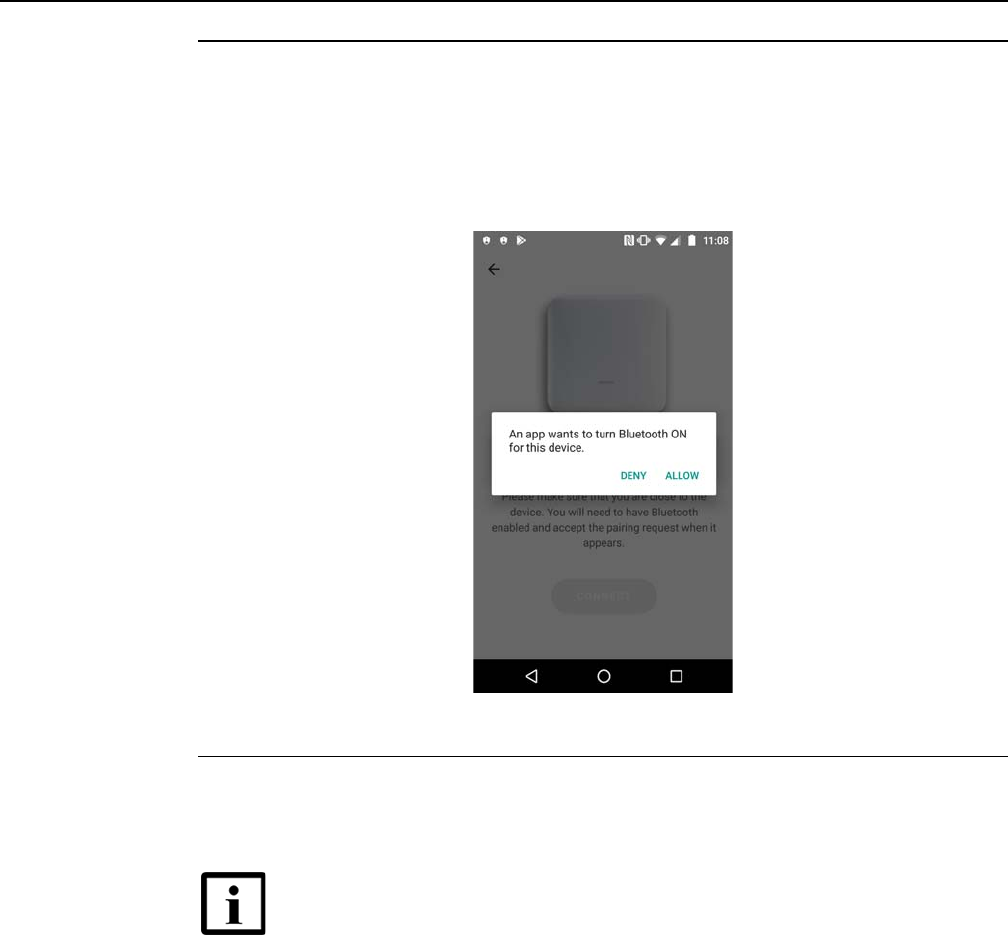

Figure 25 Screen showing the Bluetooth enabling request .......................................64

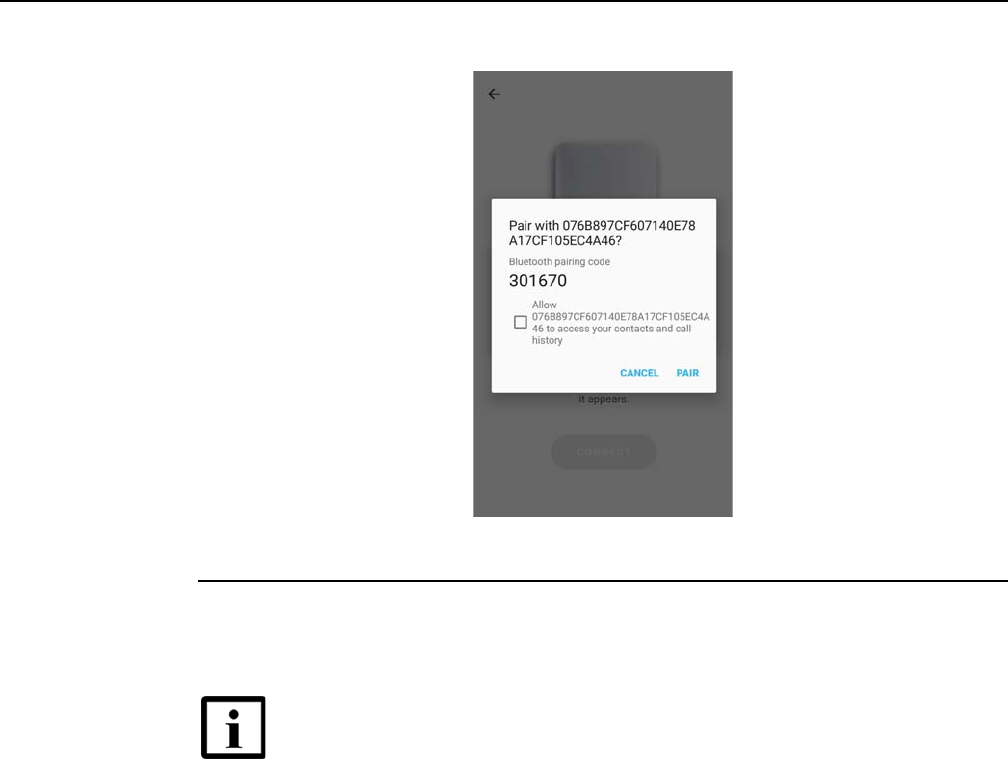

Figure 26 Screen showing the Bluetooth pairing request..........................................65

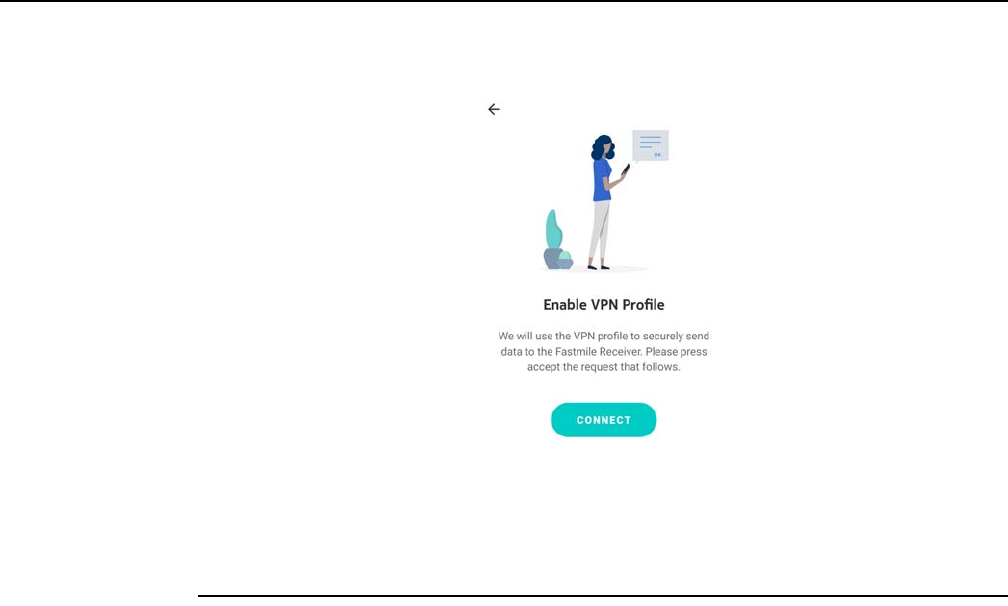

Figure 27 Screen for enabling the VPN profile .........................................................66

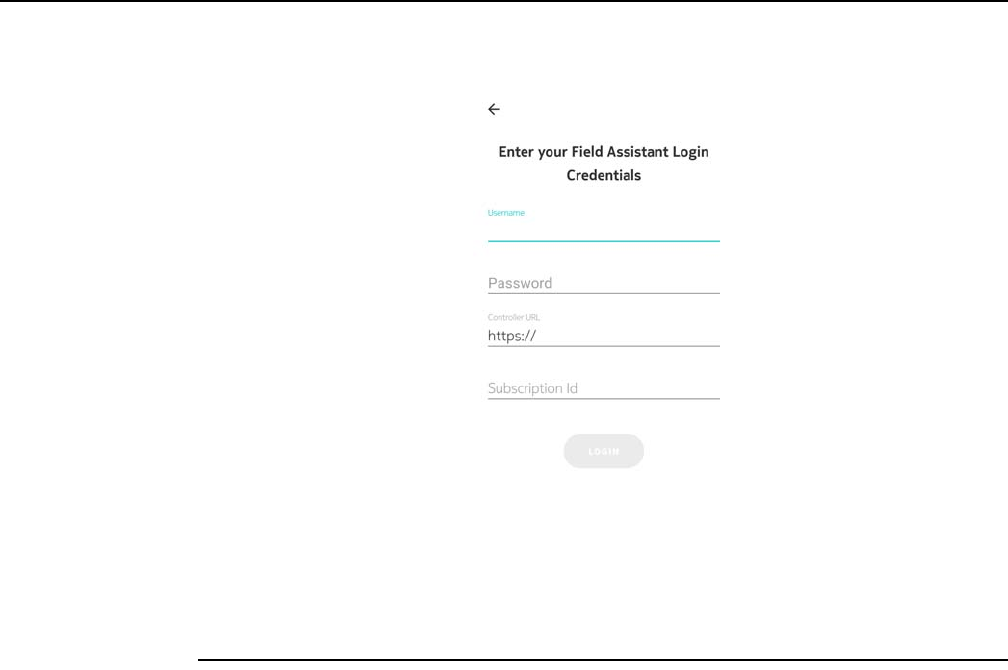

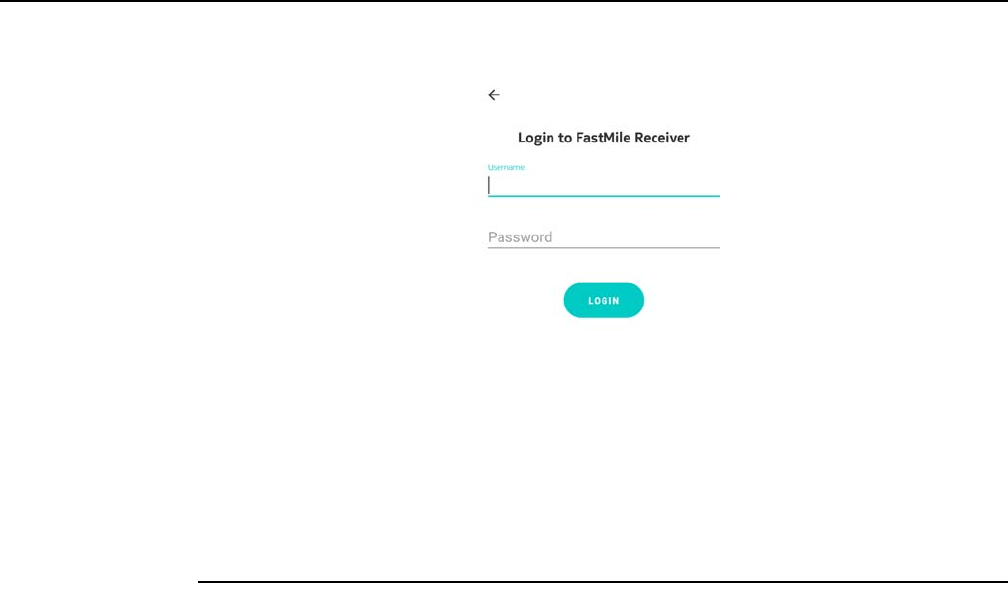

Figure 28 Screen showing the login prompt ..............................................................67

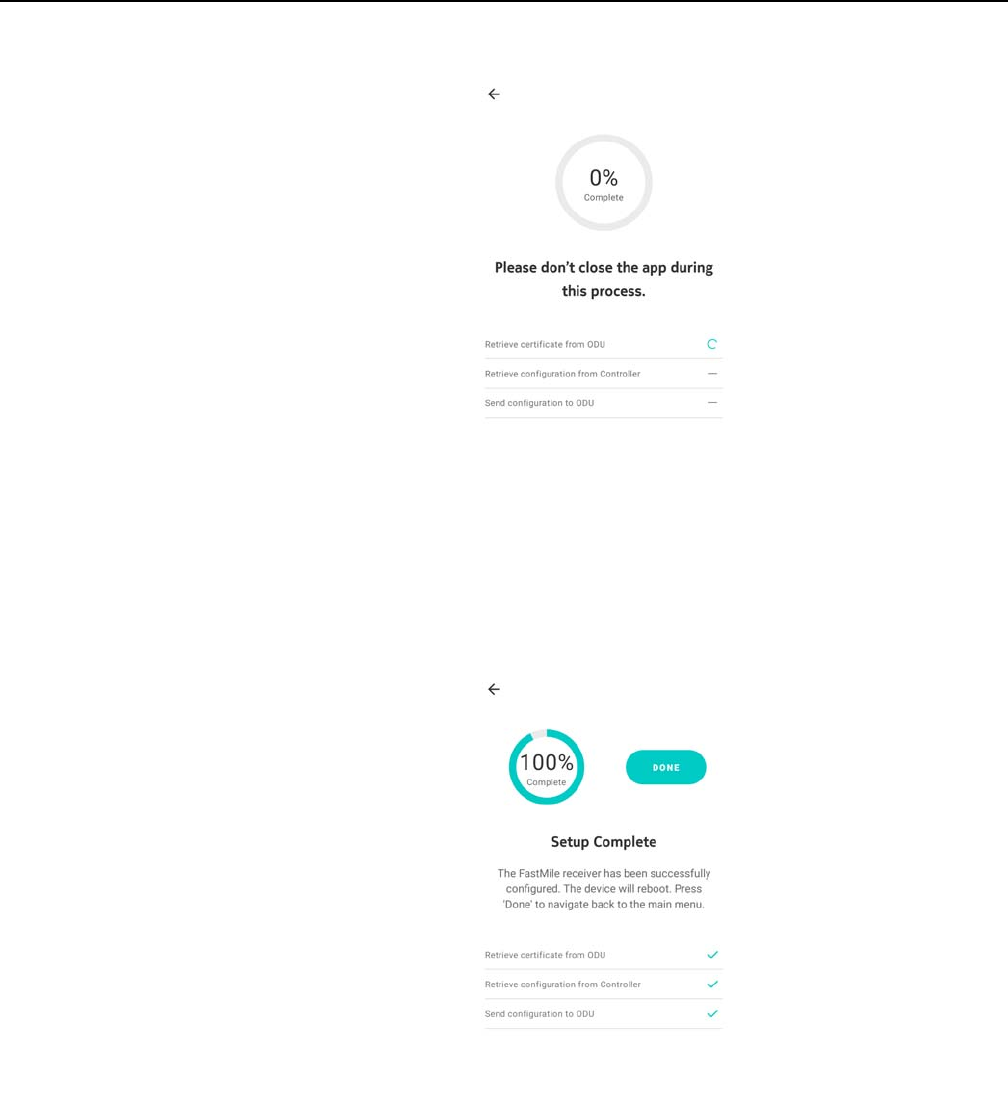

Figure 29 Screen showing that 0% of the reboot process is complete......................68
Figure 30 Screen showing that 100% of the reboot process is complete..................68

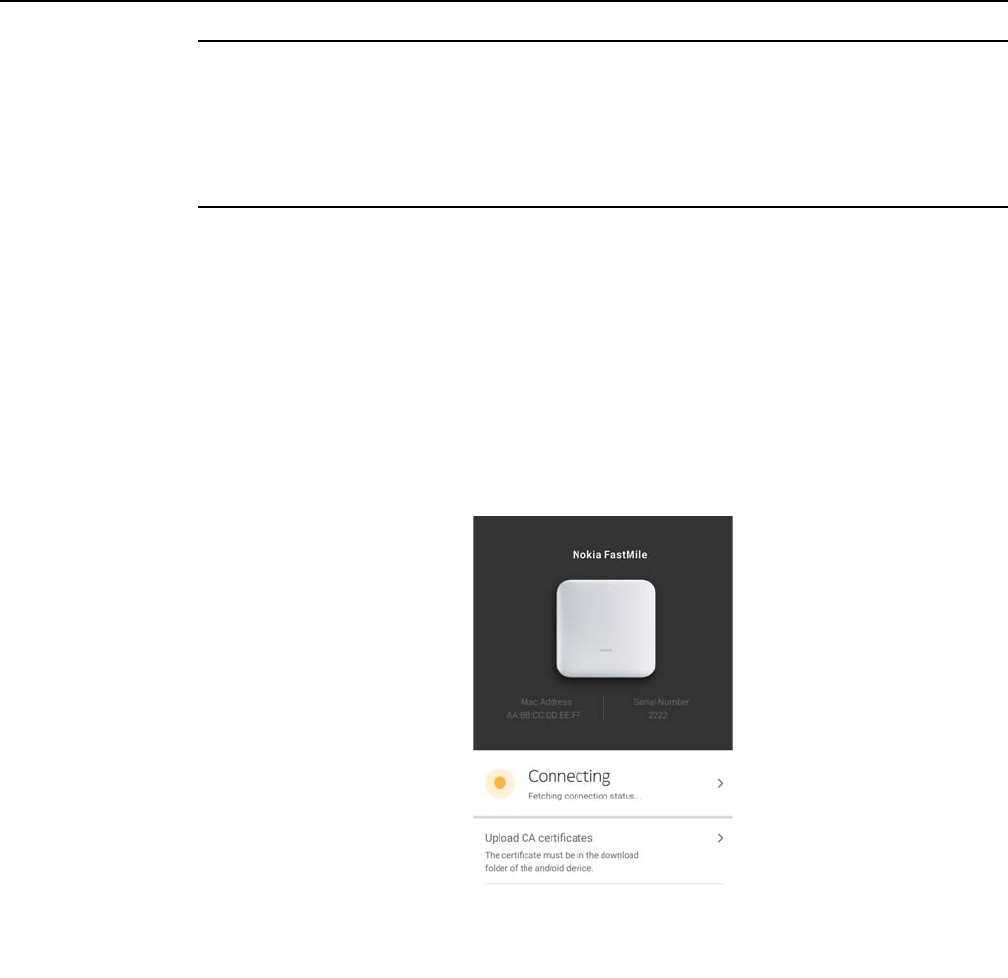

Figure 31 Screen showing connecting state..............................................................69

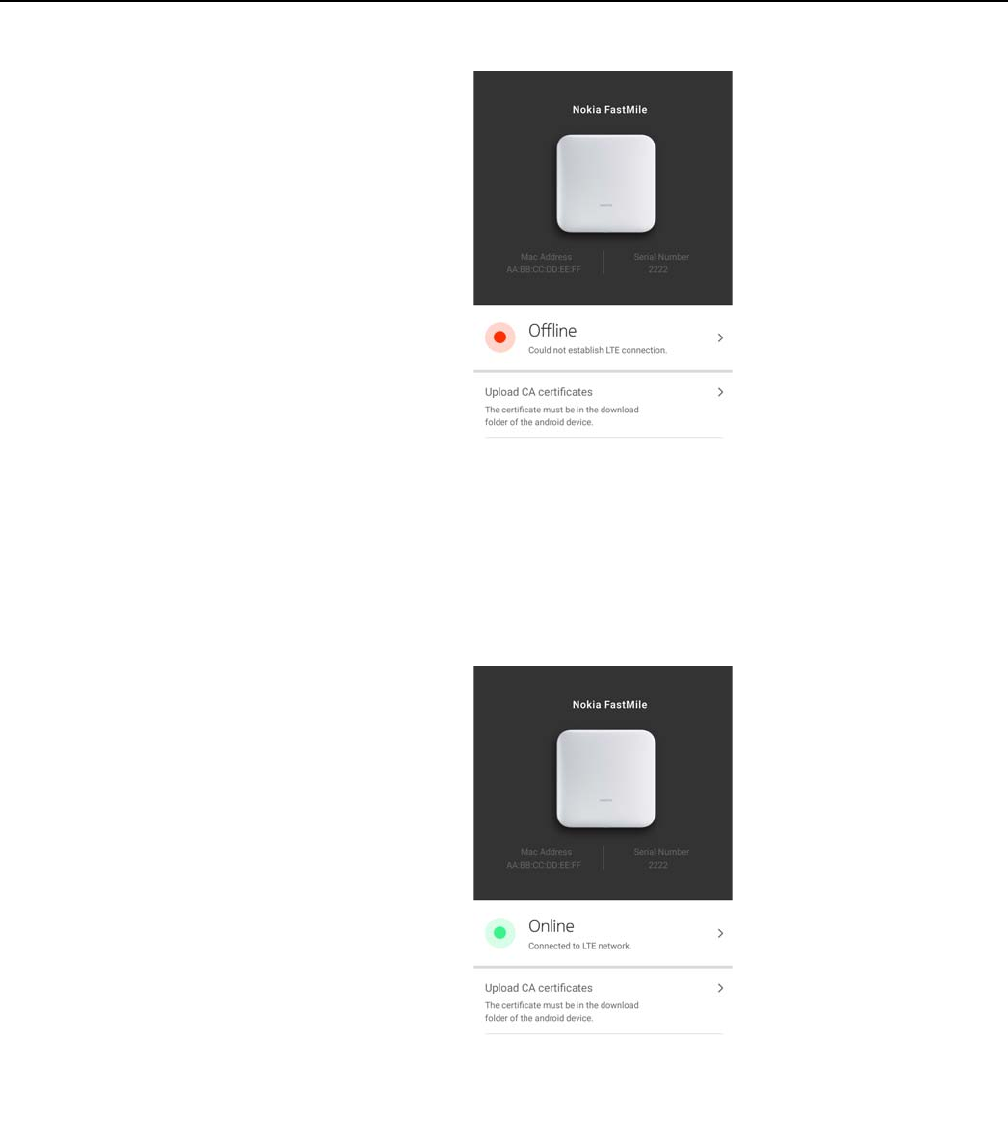

Figure 32 Screen showing offline state......................................................................70
Figure 33 Screen showing online state......................................................................70

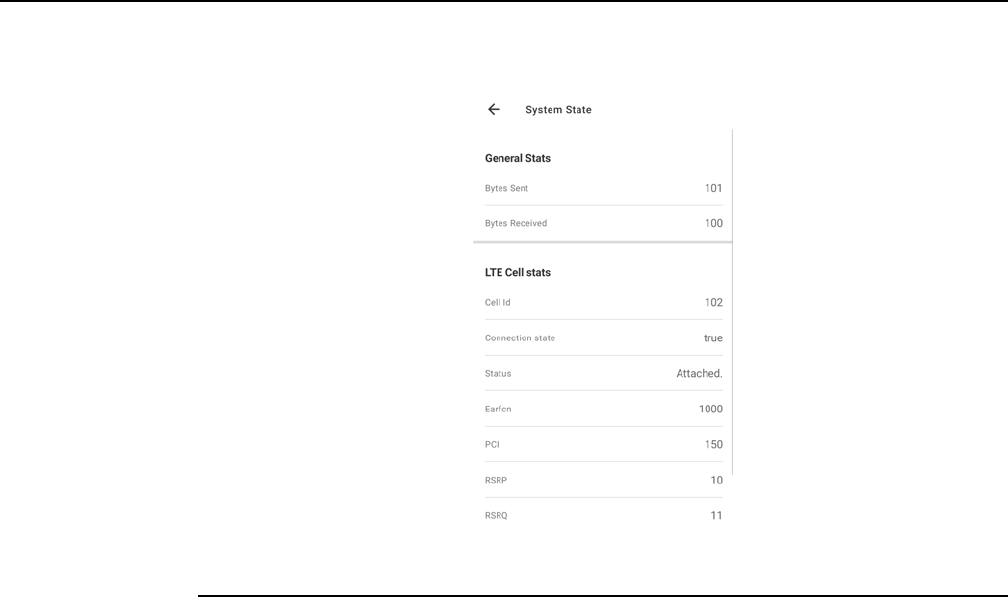

Figure 34 System state screen..................................................................................72

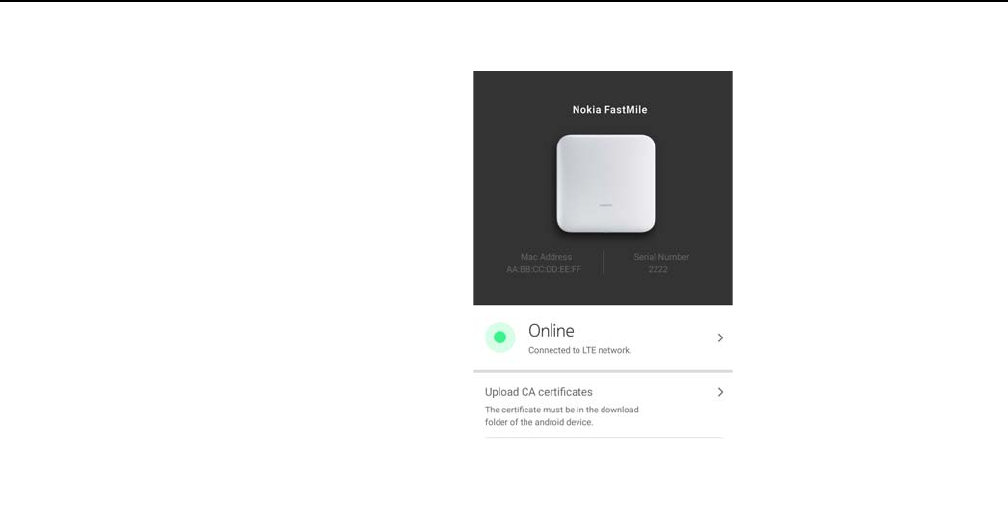

Figure 35 Screen that has the “Upload CA certificates” option..................................73

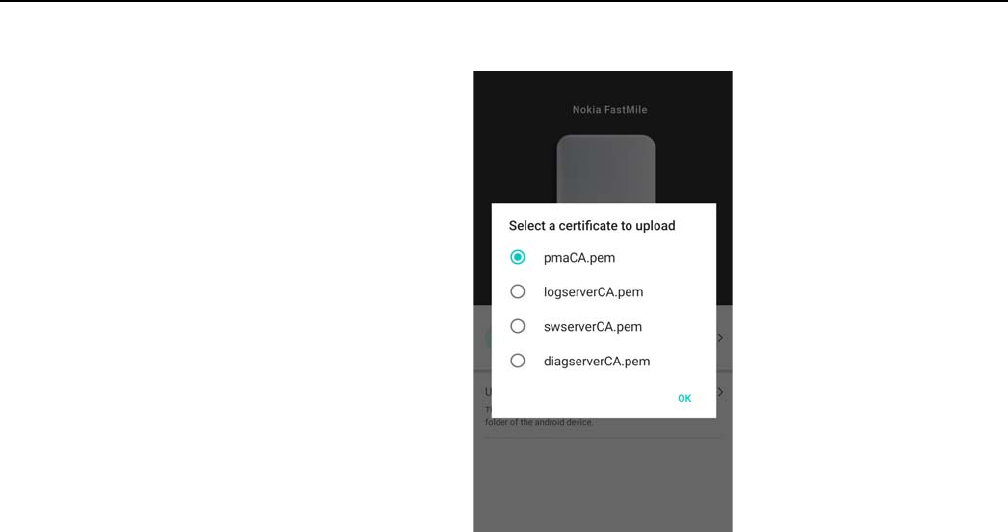

Figure 36 Screen that lists the CA certificates...........................................................74

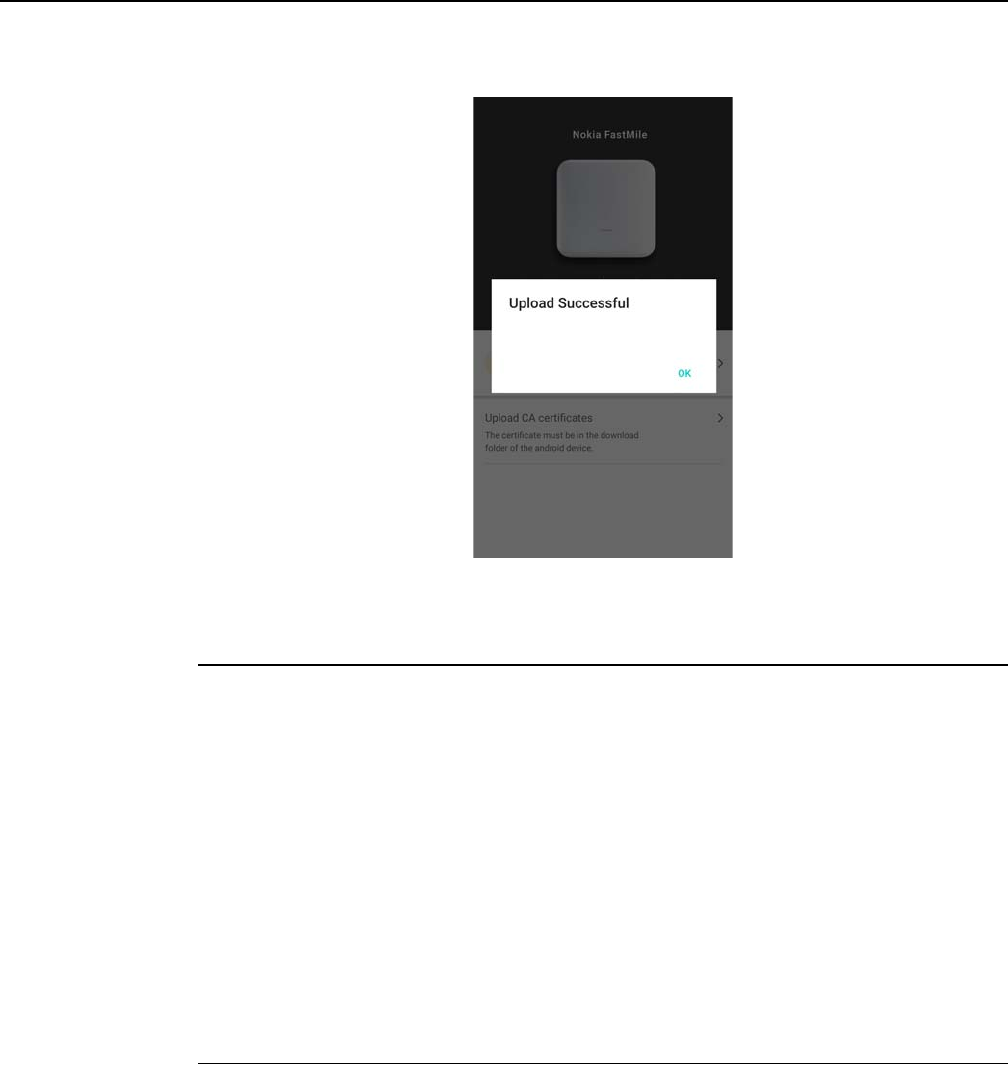

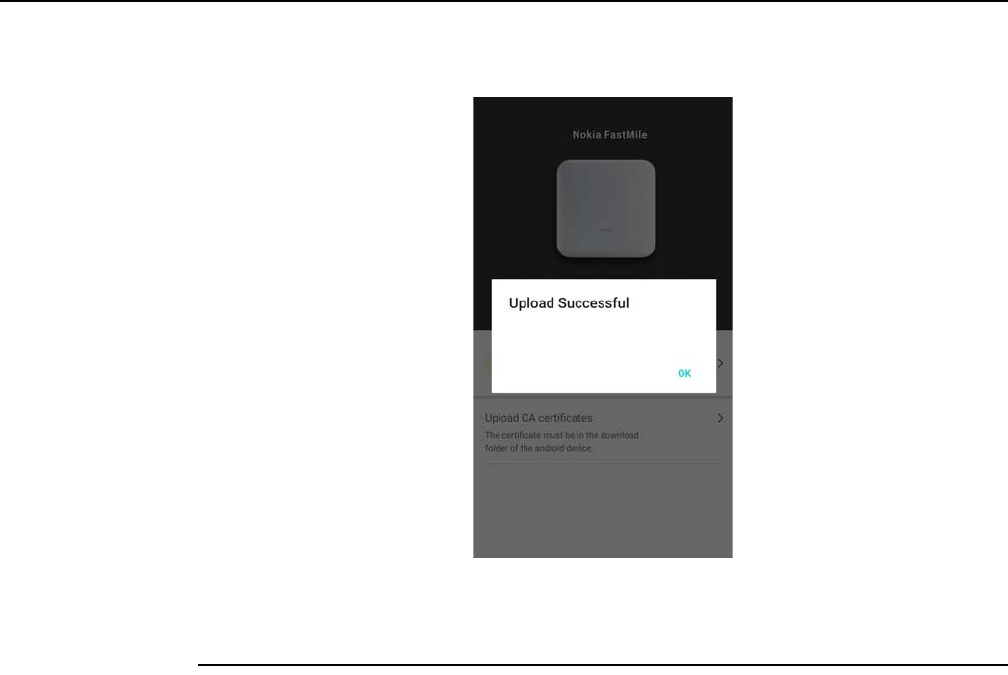

Figure 37 Screen indicating that uploading of the CA certificates was
successful..................................................................................................75
32
Nokia FastMile Outdoor Unit User Manual
3TG-00088-AAAA-TCZZA Issue: 01

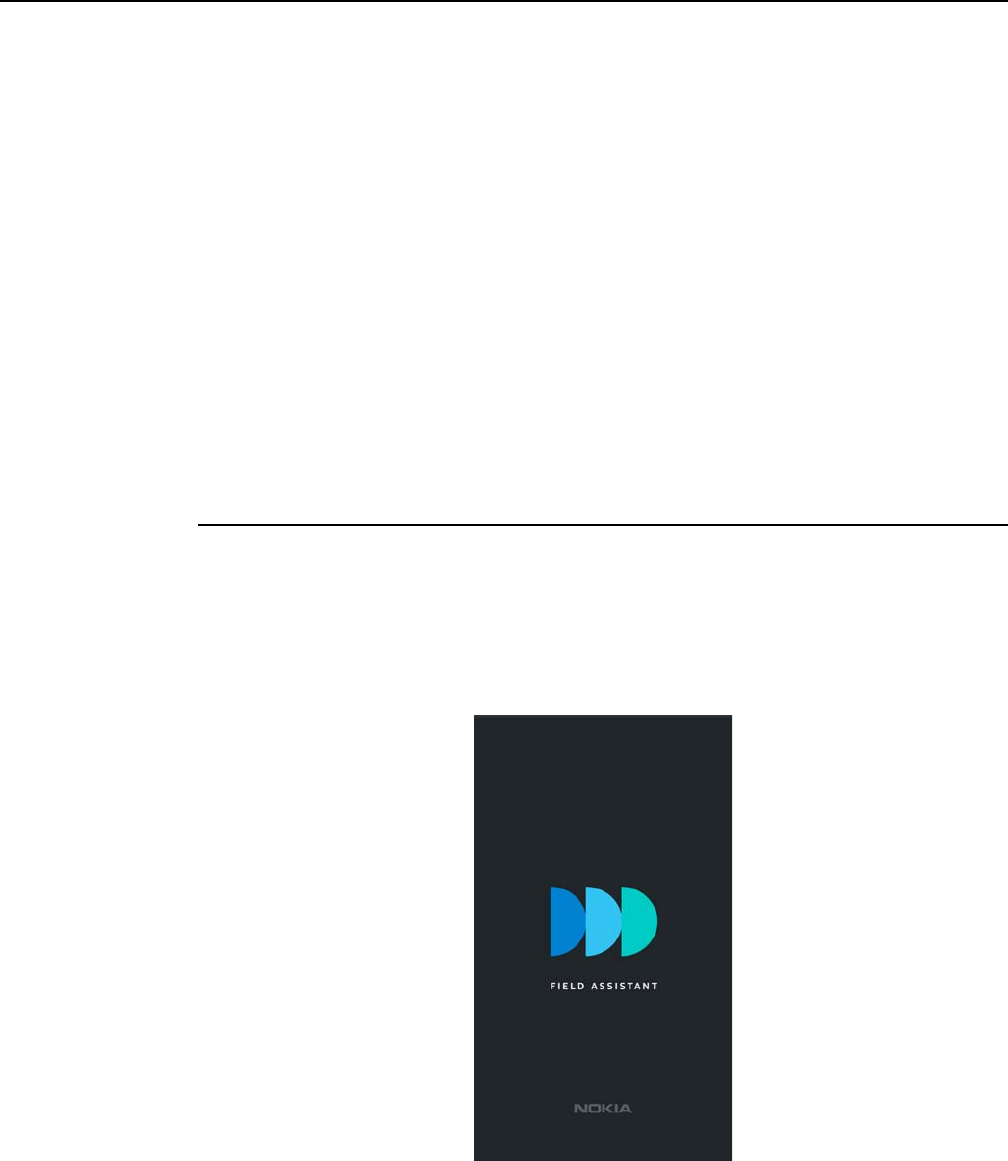

Figure 38 Splash screen............................................................................................76
Figure 39 Screen for preparing to scan the QR code................................................77
Figure 40 QR code screen.........................................................................................77

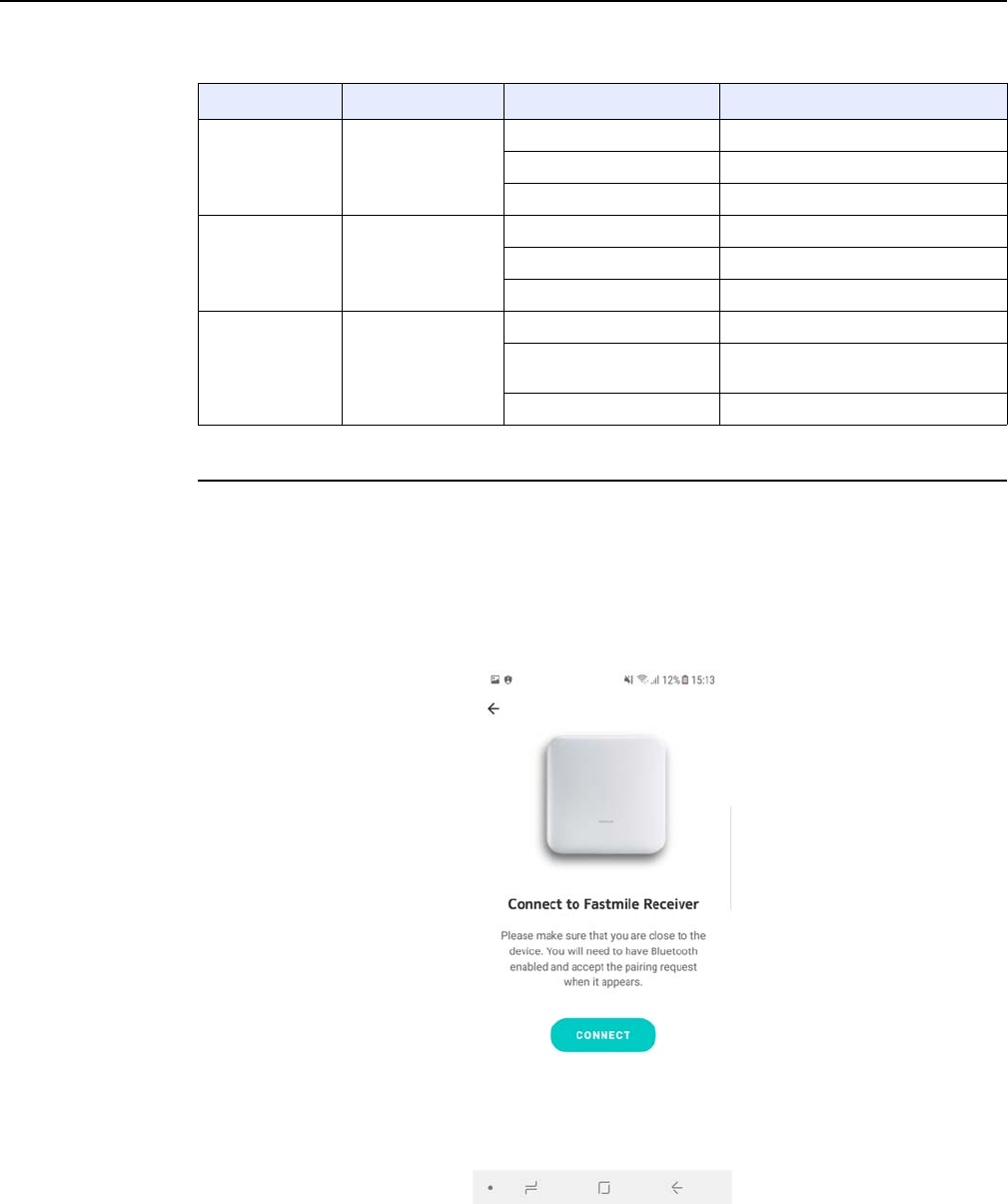

Figure 41 Screen showing the Connect to Receiver option.......................................78
Figure 42 Screen showing the connect prompt .........................................................79
Figure 43 Screen showing the Bluetooth enabling request .......................................80
Figure 44 Screen showing the Bluetooth pairing request..........................................81
Figure 45 Screen for enabling the VPN profile .........................................................82
Figure 46 Screen showing the login prompt ..............................................................83
Figure 47 System state screen..................................................................................84
Figure 48 Screen that has the “Upload CA certificates” option..................................85
Figure 49 Screen that lists the CA certificates...........................................................86
Figure 50 Screen indicating that uploading of the CA certificates was
successful..................................................................................................87
Nokia FastMile Outdoor Unit User Manual
Issue: 01 3TG-00088-AAAA-TCZZA 33
List of tables
1 Preface.............................................................................................3
Table 1 Main content of manual ...............................................................................3
3 ETSI safety guidelines..................................................................15
Table 2 Safety labels..............................................................................................16
4 ANSI safety guidelines.................................................................21
Table 3 Safety labels..............................................................................................22
5 Overview........................................................................................35
Table 4 Variants of the Nokia FastMile Outdoor Unit .............................................39
Table 5 Label information for Nokia FastMile Outdoor Unit variants......................39
Table 6 Physical interfaces of the Nokia FastMile Outdoor Unit ............................40
Table 7 LED behavior description ..........................................................................40
Table 8 LTE throughput information.......................................................................41
Table 9 Power consumption information ................................................................42
Table 10 Standards certifications for the Nokia FastMile Outdoor Unit....................43
6 Installation procedure ..................................................................45
Table 11 LED behavior description ..........................................................................63
8 Appendix A: Specifications .........................................................91
Table 12 Specifications for the Nokia FastMile Outdoor Unit...................................91
10 Appendix C: FCC statements and label instructions................95
Table 13 FCC ID for Nokia FastMile Outdoor Unit variants......................................95
Nokia FastMile Outdoor Unit User Manual Overview
Issue: 01 3TG-00088-AAAA-TCZZA 35
5Overview
5.1 Product overview
5.2 Functional overview
5.3 Variant overview
5.4 Physical interfaces
5.5 LED behavior
5.6 Power information
5.7 Performance information
5.8 Standards certification
5.1 Product overview
The Nokia FastMile Outdoor Unit is the outdoor unit (ODU) of the Nokia FastMile
solution, the purpose of which is to use 3GPP based LTE radio technology to provide
broadband connectivity with guaranteed high bitrates in larger service areas in a
more cost-efficient manner than is possible with other existing solutions.
The Nokia FastMile solution can overcome network performance challenges faced
by today's mobile networks by optimizing all of the following:
•intra site interference due to neighbor sectors in same LTE base station
•inter site interference due to neighbor base stations
•link performance due to wall penetration loss and several miles path loss
The Nokia FastMile Outdoor Unit provides high-performing, wireless broadband
access over LTE to meet residential users’ total home connectivity needs for urban,
suburban, rural, and deep rural spots.
The Nokia FastMile Outdoor Unit supports LTE connectivity to an LTE base station
in the network and provides 1 Gbps Ethernet connectivity through a pre-attached 3
m (9.8 ft) Ethernet cable to an indoor unit, such as a residential gateway like the
Nokia 7368 ISAM CPE A-020W-A.
Figure 6 shows an application example of the Nokia FastMile Outdoor Unit.
Overview
36
Nokia FastMile Outdoor Unit User Manual
3TG-00088-AAAA-TCZZA Issue: 01

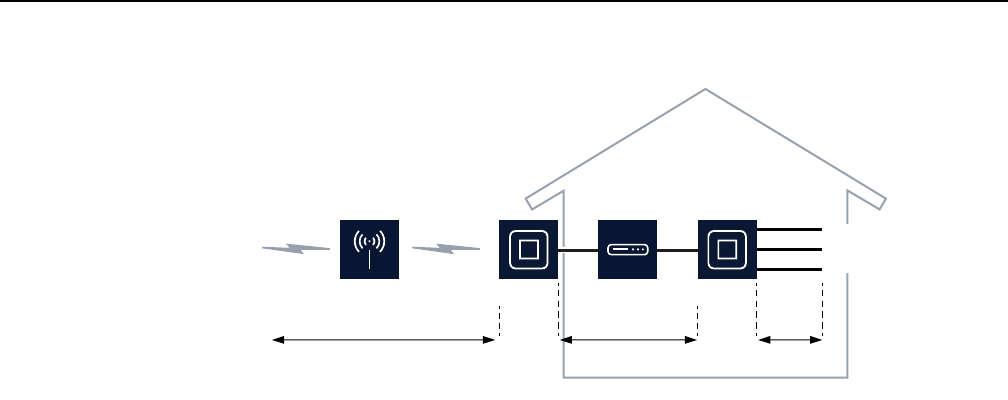

Figure 6 Application example of the Nokia FastMile Outdoor Unit
The Nokia FastMile Outdoor Unit is available in two versions:
•Compact with fixed beamforming antennas
•ABA version with high gain beam steering antenna with automated beam
alignment
Figure 7 shows the two versions of the Nokia FastMile Outdoor Unit.
Radio
basestation
ODU IDU
PoE
Injector
LTE 1 Gbps
Ethernet
Wi-Fi or
Ethernet
WiFi or Ethernet
connectivity to
end-user devices
27903
Nokia FastMile Outdoor Unit User Manual Overview
Issue: 01 3TG-00088-AAAA-TCZZA 37
Figure 7 Versions of the Nokia FastMile Outdoor Unit
The Nokia FastMile Outdoor Unit has built-in antenna and an LTE modem that
provide the LTE broadband access to the network.
The Nokia FastMile Outdoor Unit is capable of withstanding outdoor environmental
conditions. It has an IP rating of IP66 TYPE3 and can operate in a temperature of
–30°C to 65°C (–22°F to 149°F). See chapter 8 for additional specifications of the
Nokia FastMile Outdoor Unit.
5.2 Functional overview
The Nokia FastMile Outdoor Unit provides wireless broadband access in the form of
LTE to meet the ever growing network needs of end users.
The Nokia FastMile Outdoor Unit lets operators use LTE to offer fixed wireless
broadband to their customers. The Nokia FastMile Outdoor Unit is easy to install and
user-friendly to operate. It uses a mobile phone installation application known as the
Nokia Field Assistant to make sure that it is deployed in the optimal location.
The Nokia FastMile Outdoor Unit supports remote management capability, allowing
management and health monitoring of it from the Nokia Altiplano FastMile Controller.
Compact version ABA version
27897
Overview
38
Nokia FastMile Outdoor Unit User Manual
3TG-00088-AAAA-TCZZA Issue: 01
5.2.1 LTE characteristics
The following are some of the key LTE characteristics of the Nokia FastMile Outdoor
Unit:
•LTE 3GPP Release 12 Compliant, UE Category 12
•has variants that support the following E-UTRA bands:
•Band 7/41
5.2.2 Ethernet characteristics
The following are some of the key Ethernet characteristics of the Nokia FastMile
Outdoor Unit:
•provides a 1 Gbps Ethernet LAN Interface
•supports IEEE802.3 1000BASE-T
•supports IEEE802.3az energy efficient Ethernet
•has a pre-attached 3 m (9.8 ft) Cat5e shielded twisted pair Ethernet cable with an
RJ 45 connector at the free end; the same cable is also used for power over
Ethernet (PoE) as per IEEE802.3 at type-2 and for grounding to an indoor ground
5.2.3 Power supply characteristics
The following are some of the key power supply characteristics of the Nokia FastMile
Outdoor Unit:
•powered through PoE from an indoor unit, such as a residential gateway, or
through a PoE injector; the same cable also provides grounding to an indoor
ground
•supports PoE+ as per IEEE802.3 at type-2
•rating: 53 VDC at 600 mA
See section 5.6 for power information.
5.3 Variant overview
Variants are available for the Nokia FastMile Outdoor Unit to support different
E-UTRA bands for LTE.
Compact B7/B41 Nokia FM compact 3FE75113ACAA
Nokia FastMile Outdoor Unit User Manual Overview
Issue: 01 3TG-00088-AAAA-TCZZA 39
Table 4 describes the E-UTRA band and frequency support and the antenna
configurations for each variant of the Nokia FastMile Outdoor Unit, and provides the
orderable part number.
Table 4 Variants of the Nokia FastMile Outdoor Unit
5.3.1 Variant label information
Table 5 describes the label information for the variants of the Nokia FastMile Outdoor
Unit.
Table 5 Label information for Nokia FastMile Outdoor Unit variants
5.4 Physical interfaces
Table 6 describes the physical interfaces of the Nokia FastMile Outdoor Unit.
Version and
variant E-UTRA band support and frequencies Antenna configuration Orderable part
number
Compact
B7/B41
•Band 7: FDD, Tx 2500 MHz – 2570 MHz,
Rx 2620 MHz – 2690 MHz
•Band 41: TDD, 2496 MHz – 2690 MHz
Integrated with 12.5 dBi fixed beamforming
antenna 3FE 75113 AC
Version and variant Product details Model
Overview
40
Nokia FastMile Outdoor Unit User Manual
3TG-00088-AAAA-TCZZA Issue: 01
Table 6 Physical interfaces of the Nokia FastMile Outdoor Unit
Figure 8 shows the location of the physical interfaces on the Nokia FastMile Outdoor
Unit. Note that the cover for the SIM slot has been removed to show the slot.
Figure 8 Location of physical interfaces on the Nokia FastMile Outdoor Unit
5.5 LED behavior
Table 7 describes the behavior of the Nokia FastMile Outdoor Unit LED.
Table 7 LED behavior description
Interface Description
Ground point External ground point in case a ground separate from indoor grounding provided by the
Ethernet cable is required
Ethernet cable Pre-attached 3 m (9.8 ft) Ethernet cable; the same cable is also used for power (PoE
as per IEEE802.3 at type-2) and for grounding to an indoor ground.
The RJ 45 connector at the free end of the cable supports connection of an additional
length of cat5e shielded Ethernet cabling up to a maximum of 40 m (131 ft) in combined
length.
LED Single multifunction LED that indicates status information for the Nokia FastMile
Outdoor Unit
See section 5.5 for information about LED behavior
Reset button Button to reset the Nokia FastMile Outdoor Unit
SIM slot Slot for Nano/4FF SIM card for the Nokia FastMile Outdoor Unit
SIM slot
Ground point
Ethernet Cable
LED Reset
button
27898
LED color LED priority LED behavior Status information
Blue First priority Blinking Bluetooth connection in progress
Solid Bluetooth connection established
Off No Bluetooth connection
(1 of 2)
Nokia FastMile Outdoor Unit User Manual Overview
Issue: 01 3TG-00088-AAAA-TCZZA 41
5.6 Power information
The Nokia FastMile Outdoor Unit receives power though a CAT5e shielded Ethernet
cable connected to an indoor unit, such as a residential gateway like the Nokia 7368
ISAM CPE A-020W-A, or a PoE injector.
See section 5.7.2 for power consumption information.
5.7 Performance information
This section provides throughput and power consumption information for the Nokia
FastMile Outdoor Unit:
•section 5.7.1 provides throughput consumption information
•section 5.7.2 provides power consumption information
5.7.1 Throughput information
Table 8 provides LTE throughput information for the Nokia FastMile Outdoor Unit.
Table 8 LTE throughput information
Red Second priority Blinking Critical alarm
Solid Major or minor alarm
Off No alarm
Green Third priority Blinking twice per second Kernel and application start up
Blinking one per second Application start up and OAM link
established
Off OAM link established
LED color LED priority LED behavior Status information
(2 of 2)
Mode UDP UL UDP DL TCP UL TCP DL
FDD 73.5M 293M 73M 220M
TDD 14M 332M 14M 220M
Overview
42
Nokia FastMile Outdoor Unit User Manual
3TG-00088-AAAA-TCZZA Issue: 01
The results in the above table are based on the following:
•Data rates can have a margin of 2%
•Packet length is 1470B for UDP
•Window is 128k for TCP
•Data rates are for IPv4 cases
•TDD based on configuration 2, subframe 7
•Data forwarding working on bridge model
The end-to-end throughput is achieved in the conductive mode with cable
connected.
Ethernet throughput for the Nokia FastMile Outdoor Unit is as per standard Ethernet
1000BASE-T, with a maximum of 1000 Mbps. The Ethernet link gets negotiated at
1000 Mbps when the indoor unit, such as a residential gateway like the Nokia 7368
ISAM CPE A-020W-A, or a PoE injector is connected to the Nokia FastMile Outdoor
Unit.
5.7.2 Power consumption information
Table 9 provides power consumption information for the Nokia FastMile Outdoor
Unit.
Table 9 Power consumption information
5.8 Standards certification
Table 10 provides standards certification information for the Nokia FastMile Outdoor
Unit.
Condition Power consumption
Maximum power output 7 w
Provisioned but not activated 1 w
Nokia FastMile Outdoor Unit User Manual Overview
Issue: 01 3TG-00088-AAAA-TCZZA 43
Table 10 Standards certifications for the Nokia FastMile Outdoor Unit
The CE mark is valid for Band 3, 7, 38, 40, 42, 43 of the Compact version and Band
42, 43 of the ABA version.
The FCC ID is valid for Band 7, 41 of the Compact version
See chapter 10 for FCC statements and label instructions.
Category Certifications
RF EN 301 908-13 for Band 3, 7, 38, 40, 42, 43 of the Compact version and Band 42, 43 of the
ABA version
FCC 47 Parts 27 for Band 7, 41 of the Compact version
EMC ETSI EN 301 489-1 and -52 for Band 3, 7, 38, 40, 42, 43 of the Compact version and Band 42,
43 of the ABA version
FCC 47 part 2/15 for Band 7, 41 of the Compact version
RoHS Directive 2011/65/EU
Safety EN/IEC 60950-1; 60950-22
UL 62368-1, UL 60950-22,UL 50E, EN/IEC 60529 (IP66)
Nokia FastMile Outdoor Unit User Manual Installation procedure
Issue: 01 3TG-00088-AAAA-TCZZA 45
6 Installation procedure
6.1 Safety information
6.2 Package contents
6.3 Installation prerequisites
6.4 Installation steps for the Nokia FastMile Outdoor Unit
6.5 Post-installation of the Nokia FastMile Outdoor Unit
6.1 Safety information
Be sure to observe the following before installing the Nokia FastMile Outdoor Unit:
•Professional installation is recommended for the Nokia FastMile Outdoor Unit. If
the end-user is going to install the Nokia FastMile Outdoor Unit, appropriate safety
instructions and appropriate information must be provided.
•Only use a Nokia-approved indoor unit or a Nokia-approved PoE Injector for
powering the Nokia FastMile Outdoor Unit.
•Do not provide power to the Nokia FastMile Outdoor Unit before completing the
hardware installation step of the installation procedure.
•Maintain at least 50 cm (20 in) distance from the front face of the Nokia FastMile
Outdoor Unit while the system is operating.
Installation procedure
46
Nokia FastMile Outdoor Unit User Manual
3TG-00088-AAAA-TCZZA Issue: 01
6.2 Package contents
The shipping package for the Nokia FastMile Outdoor Unit contains the following:
•Nokia FastMile Outdoor Unit (quantity one) with pre-attached 3 m (9.8 ft) Ethernet
cable
•wall mount-bracket and mounting plate (quantity one of each), attached to each
other with three fasteners when shipped
•two screws for attaching the mounting plate to the Nokia FastMile Outdoor Unit
The outside of the shipping package of the Nokia FastMile Outdoor Unit has a QR
code that has system-use information for the Nokia FastMile Outdoor Unit.
6.3 Installation prerequisites
Before starting installation, it is useful to consider the following roles along with their
responsibilities and interrelationships:
•mobile network operator: responsible for running the mobile network that has the
LTE and EPC networks and typically provides the SIM card for the Nokia FastMile
Outdoor Unit
•fixed network operator: responsible for owning the residential gateway and the
ACP
•ODU installer: responsible for installing the Nokia FastMile Outdoor Unit
Danger 1 — Lightning danger: Since cables from external
environment may connect to the system and they are exposed
to lightning, do not work on equipment or cables during periods
of lightning activity.
Danger 2 — Height danger: Falling from high elevations can
cause serious injury or death. Caution should be observed
whenever performing aerial installations.
Danger 3 — Power danger:
•Hazardous electrical voltages and currents can cause
serious physical harm or death. Always use insulated tools
and follow proper safety precautions when connecting or
disconnecting power circuits.
•Make sure all sources of power are turned off and have no
live voltages present on feed lines or terminals. Use a
voltmeter to measure for voltage before proceeding.
•Always contact the local utility company before connecting
the equipment to power.
Nokia FastMile Outdoor Unit User Manual Installation procedure
Issue: 01 3TG-00088-AAAA-TCZZA 47
It is possible that more than one of the above roles could be performed by the same
organization.
You need to be aware of the following before installing the Nokia FastMile Outdoor
Unit. Contact your Nokia representative for additional information.
•information about route and bridge mode operation of the Nokia FastMile Outdoor
Unit
•information about Nokia FastMile Outdoor Unit operation with assigned Cell List
or Free Run Mode
•determine if port forwarding is required on the Nokia FastMile Outdoor Unit for
residential gateway connectivity with the ACP
•the operator's EPC network should align with the following of the Nokia FastMile
Outdoor Unit:
•the Nokia FastMile Outdoor Unit’s mobile subscriber profile in the HSS should be
assigned by the mobile network operator as follows:
- a specific APN should be used for the Nokia FastMile Outdoor Unit to attach the
LTE network; if no specific APN is indicated, the Nokia FastMile Outdoor Unit will
attach to the LTE network with the default APN that the mobile operator sets in the
MME
- for this subscriber's profile in the PCRF, the related QCI setting should be defined
the same as the DSCP for the residential gateway
•the SIM card of the Nokia FastMile Outdoor Unit should be related to a specific data
service of the mobile network in the HSS; this SIM card should have the same PIN
or an empty PIN, as the Nokia FastMile Outdoor Unit will not do a PIN unlock if the
wrong PIN code is set on the device; if this happens, the Nokia FastMile Outdoor Unit
installer needs to go onsite and replace the SIM card
•for other configuration information for the Nokia FastMile Outdoor Unit, refer to the
FastMile playbook for detailed operation
Before beginning installation of the Nokia FastMile Outdoor Unit, it is important that
all necessary preparation in the NAC be done according to the details and steps in
the Nokia Altiplano FastMile Controller documentation.
Be sure to observe the following prerequisites before installing the Nokia FastMile
Outdoor Unit:
•Installation personnel must have knowledge about installing the unit
•A valid Nano/4FF SIM card is needed for the Nokia FastMile Outdoor Unit to
connect to the LTE network
•If required, a Cat5e shielded Ethernet cable that can be connected to the Ethernet
cable of the Nokia FastMile Outdoor Unit to make it longer, up to a maximum of
40 m (131 ft) in combined length
•A ground cable is needed if the Nokia FastMile Outdoor Unit will be grounded
separately from the indoor ground provided by the Ethernet cable; requires a hex
key suitable for hex socket knurled head cup screw assemblies, ISO 4762-M5X8
•Appropriate fasteners for securing the Nokia FastMile Outdoor Unit to an outside
wall
•Silicone or other waterproof sealing or caulking compound
Installation procedure
48
Nokia FastMile Outdoor Unit User Manual
3TG-00088-AAAA-TCZZA Issue: 01
•Mechanical tools are required (but are not included) for mounting the Nokia
FastMile Outdoor Unit, including:
•TROX T8 screwdriver to open the SIM slot
•hex key as described above if ground cable is needed
•The Nokia Field Assistant app must be installed on an Android mobile phone
through Google Play and the mobile phone must have a camera, hardware
compass, rotation vector (either a groscope or an enhanced geomagnetic sensor
that supports rotation vector), and Android OS 6.0 (Marshmallow) or above
•The LTE base station that will be used by the Nokia FastMile Outdoor Unit must
be available and functioning
•The indoor unit, such as a residential gateway like the Nokia 7368 ISAM CPE
A-020W-A, that will be connecting to the Nokia FastMile Outdoor Unit must be
available and reachable; if the indoor unit cannot supply PoE power to the Nokia
FastMile Outdoor Unit, then a Nokia-approved PoE injector must be used in
conjunction with the indoor unit
6.3.1 Lightning protection
Be sure to observe the following lightning protection information:
6.4 Installation steps for the Nokia FastMile
Outdoor Unit
The Nokia FastMile Outdoor Unit can be installed by using the Nokia Field Assistant
app in conjunction with the following steps.
The Nokia Field Assistant app must be installed on a mobile phone as indicated in
section 6.3 before you start the Nokia FastMile Outdoor Unit installation procedure.
Danger — If you are installing the Nokia FastMile Outdoor Unit
above roof level, check that lightning rods are above the
planned installation location.
PoE+ capable surge protectors should be used if the outside
cabling is longer than 10 meters (32 feet). If the outside cable
length is less than 10 meters (32 feet), no protection is required.
Only use a properly earthed wall socket for powering the indoor
unit or PoE+ injector.
Nokia FastMile Outdoor Unit User Manual Installation procedure
Issue: 01 3TG-00088-AAAA-TCZZA 49
The following need to be considered before the start of Nokia FastMile Outdoor Unit
installation procedure:
•Follow the installation steps with exact order described in Procedure 6
•During the installation procedure and especially during base station location, you
need to avoid sending the Nokia Field Assistant app to background or press back
and forth options, otherwise the procedure will fail and you won't be able to
register the Subscription ID again since it will be considered already registered.
•During the installation procedure you need to ensure that the connection between
the Nokia Field Assistant app and the Nokia Altiplano FastMile Controller (WiFi or
LTE) and the connection between the Nokia Field Assistant app and the Nokia
FastMile Outdoor Unit (Bluetooth and VPN) will not be lost otherwise installation
will fail.
•You need to finish the Nokia FastMile Outdoor Unit installation procedure within
two hours from the time the Nokia Field Assistant app is connected to the Nokia
Altiplano FastMile Controller, otherwise the installation procedure will fail.
Procedure 6 To install the Nokia FastMile Outdoor Unit
1Connect the mobile phone to the Internet and open the Nokia Field Assistant app on the
phone.
A splash screen appears on screen for a few seconds.
Figure 9 shows the splash screen.
Figure 9 Splash screen
Installation procedure
50
Nokia FastMile Outdoor Unit User Manual
3TG-00088-AAAA-TCZZA Issue: 01
In the next screens, you can:
•learn about the Nokia Field Assistant app by tapping on the “More” option
•get information about the open source software included in Nokia Field Assistant by
tapping on the “Open source licenses” option
2After the splash screen has cleared, the Nokia Field Assistant app prompts you to scan the
QR code of the Nokia FastMile Outdoor Unit so that the app can access the MAC address,
unique device identifier, enterprise id, and device type of the Nokia FastMile Outdoor Unit.
Tap on “Scan” to start the scan of the QR code.
Figure 10 shows the screen for preparing to scan the QR code.
Figure 10 Screen for preparing to scan the QR code
Use the viewfinder of the phone to align with the QR code on the shipping package of the
Nokia FastMile Outdoor Unit.
Figure 11 shows the QR code screen.
Nokia FastMile Outdoor Unit User Manual Installation procedure
Issue: 01 3TG-00088-AAAA-TCZZA 51
Figure 11 QR code screen
3After successful scan of the QR code, the Nokia Field Assistant app redirects you to the
home screen so that you can start a fresh install for the Nokia FastMile Outdoor Unit.
Tap on the “Fresh Install” option from the main menu of the Nokia Field Assistant app.
Figure 12 shows the Fresh Install option.
Installation procedure
52
Nokia FastMile Outdoor Unit User Manual
3TG-00088-AAAA-TCZZA Issue: 01
Figure 12 Screen showing the Fresh Install option
4After you select the Fresh Install option, the Nokia Field Assistant app needs you to log in to
the Nokia Altiplano FastMile Controller.
A login screen prompts you to input the user name, password, FastMile Controller URL, and
the Subscription ID.
Figure 13 shows the prompt to log in to the Nokia Altiplano FastMile Controller.
Nokia FastMile Outdoor Unit User Manual Installation procedure
Issue: 01 3TG-00088-AAAA-TCZZA 53
Figure 13 Screen for logging in to the Nokia Altiplano FastMile Controller
When the button is enabled (that is, it turns to blue), tap on “Login” to log in to the Nokia
Altiplano FastMile Controller
5The Nokia Field Assistant app provides instructions to find a base station.
Figure 14 shows the screen that indicates to use Nokia Field Assistant app to start finding a
nearby base station.
Installation procedure
54
Nokia FastMile Outdoor Unit User Manual
3TG-00088-AAAA-TCZZA Issue: 01
Figure 14 Screen indicating to use the Nokia Field Assistant app to start
finding a nearby base station
Figure 15 shows to screen to hold vertically for first person view.
Figure 15 Screen showing to hold vertically for first person view
Nokia FastMile Outdoor Unit User Manual Installation procedure
Issue: 01 3TG-00088-AAAA-TCZZA 55
Figure 16 shows the screen indicating to check for obstructions that will block the signal from
a base station.
Figure 16 Screen showing to check for obstructions that will block signal
from a base station
6The Nokia Field Assistant app sends the Subscription ID, Device Unique Identifier (DUID),
Device Type, Geocoordinates of Mobile phone to the Nokia Altiplano FastMile Controller
using token authorization.
The Nokia Field Assistant app retrieves the Cell ID and Geocoordinates of provided Cell ID
from the Nokia Altiplano FastMile Controller.
7The Nokia Field Assistant app prompts you to allow access to location of the Nokia FastMile
Outdoor Unit.
Figure 17 shows the prompt to allow access to the device’s location.
Installation procedure
56
Nokia FastMile Outdoor Unit User Manual
3TG-00088-AAAA-TCZZA Issue: 01
Figure 17 Screen with prompt to allow access to the device’s location
Tap on “Allow” to allow access to the location of the Nokia FastMile Outdoor Unit.
8The Nokia Field Assistant app uses augmented reality and the mobile phone's camera to
help you identify the direction that the Nokia FastMile Outdoor Unit should be facing, based
on base station location information stored by the server.
When the optimal direction is detected, tap on the “Done” option.
The Nokia Field Assistant app updates information on the screen dynamically to indicate the
status of the process.
Note — Do not send the Nokia Field Assistant app to Background or
press back and forth otherwise the installation will fail and you won't be
able to repeat procedure for same Subscriber ID.
Nokia FastMile Outdoor Unit User Manual Installation procedure
Issue: 01 3TG-00088-AAAA-TCZZA 57
The Nokia Field Assistant app can do the following:
•inform you about the location status, the fetching of the base station location, and so on
•if the base station is not visible, the app prompts you with an arrow to move left or right
•if the base station is visible in the screen you need to center it in a circle that the app
provides
•if the base station is centered, the app enables the “Done” option so that you can proceed
with the installation
•if the direction of the phone is inaccurate, the app informs you
•if fetching of the base station location from the server went wrong, the app informs you
user
Figure 18 shows the screen with a circle on the base station. The green color in the circle
means that this is a good place to mount the Nokia FastMile Outdoor Unit with respect to the
location of the base station.
Figure 18 Screen showing good location with respect to the base station
Tap on “Done”.
9Use a pencil or similar device to mark the location where the Nokia FastMile Outdoor Unit is
to be mounted and be sure to note the direction that the Nokia FastMile Outdoor Unit will
need to face with respect to the base station.
Installation procedure
58
Nokia FastMile Outdoor Unit User Manual
3TG-00088-AAAA-TCZZA Issue: 01
Confirm that the location is suitable for considerations within the home, and that the Ethernet
cable (with or without an additional Cat5e shielded Ethernet cable attached) can be safely
and securely run though the wall and inside the home from the Nokia FastMile Outdoor Unit
to the indoor unit or PoE injector or to the prospective indoor unit or PoE injector location.
The indoor unit can be a residential gateway such the Nokia 7368 ISAM CPE A-020W-A; the
PoE injector must be a Nokia-approved PoE injector.
10 Mount the Nokia FastMile Outdoor Unit and make connections as described below.
As part of this step you will be working with most of the interfaces shown in Figure 19.
Figure 19 Location of physical interfaces on the Nokia FastMile Outdoor Unit
iUnpack the following from the shipping package:
•Nokia FastMile Outdoor Unit
•wall-mount bracket; note that the wall mount-bracket is shipped attached to the
mounting plate with three fasteners
•two screws for attaching the mounting plate to the Nokia FastMile Outdoor Unit
ii Separate the mounting plate from the wall-mount bracket and save the three fasteners
for securing the mounting plate to the wall-mount bracket later on in this step
iii Use the two supplied screws to attach the mounting plate to the back of the Nokia
FastMile Outdoor Unit as shown in Figure 20.
SIM slot
Ground point
Ethernet Cable
LED Reset
button
27898
Nokia FastMile Outdoor Unit User Manual Installation procedure
Issue: 01 3TG-00088-AAAA-TCZZA 59
Figure 20 Attaching the mounting plate to the Nokia FastMile Outdoor Unit
iv Use a TROX T8 screwdriver to remove the cover from the SIM slot of the Nokia FastMile
Outdoor Unit, insert a valid Nano/4FF SIM card in the slot, and re-attach the cover on
the SIM slot. Figure 19 shows the location of the SIM slot on the Nokia FastMile Outdoor
Unit.
vAs appropriate, drill a hole through the wall for the Ethernet cable from the Nokia
FastMile Outdoor Unit to be able to pass through. It is recommended that you drill the
hole for the Ethernet cable at a slight angle so that any water that might enter the hole
will run down towards the outside of the home.
vi As appropriate, drill two anchor holes for the wall-mount bracket on the outside of the
wall. The anchor holes should be one directly above the other. You can use the
wall-mount bracket as a template for the anchor holes.
vii Mount the wall-mount bracket on the outside of the wall using two appropriate fasteners
in the anchor holes drilled in the previous step, as shown in Figure 21. Ensure that the
wall-mount bracket is in a vertical position on the wall.
Install the
screws
27899
Installation procedure
60
Nokia FastMile Outdoor Unit User Manual
3TG-00088-AAAA-TCZZA Issue: 01
Figure 21 Mounting the wall-mount bracket
viii Line up the mounting plate (attached earlier on the back of the Nokia FastMile Outdoor
Unit with the wall-mount bracket and temporarily secure in place with the three saved
fasteners as shown in Figure 22. The figure shows one of the fasteners already in place.
27900
Nokia FastMile Outdoor Unit User Manual Installation procedure
Issue: 01 3TG-00088-AAAA-TCZZA 61
Figure 22 Mounting the Nokia FastMile Outdoor Unit
ix If the Nokia FastMile Outdoor Unit is to be connected to an outside ground, use a hex
key to connect the ground cable to the ground connection point of the Nokia FastMile
Outdoor Unit and ensure that the far end of the ground cable is connected to a suitable
ground point. Figure 19 shows the location of the ground point on the Nokia FastMile
Outdoor Unit.
xPass the Ethernet cable from the Nokia FastMile Outdoor Unit through the hole in the
wall and use silicone or other waterproof sealing or caulking compound to seal the hole.
xi If required, rotate the Nokia FastMile Outdoor Unit +/-35 degrees horizontally for best
alignment with the LTE base station. Tighten the fasteners to securely hold the Nokia
FastMile Outdoor Unit in place.
xii If the Ethernet cable from the Nokia FastMile Outdoor Unit will not be long enough to
reach the indoor unit or PoE injector, make the cable longer by attaching an additional
Cat5e shielded Ethernet cable to it. The maximum combined length is 40 m (131 ft).
Do not run the cable to the indoor unit or PoE injector yet.
xiii Confirm that the indoor unit that is going to provide service for the Nokia FastMile
Outdoor Unit is installed and powered up, or install and power up the indoor unit. The
indoor unit indoor unit can be a residential gateway such as the Nokia 7368 ISAM CPE
A-020W-A.
27901
Installation procedure
62
Nokia FastMile Outdoor Unit User Manual
3TG-00088-AAAA-TCZZA Issue: 01
xiv If the Nokia FastMile Outdoor Unit is not going to be powered from the indoor unit, set
up a Nokia-approved PoE injector that is going to provide power over Ethernet to the
Nokia FastMile Outdoor Unit, including connecting the PoE injector to the indoor unit at
the PoE injector's “LAN” port and to power. Figure 23 shows the location of the “LAN”
port on a PoE injector. Specifics of the set up will depend on the PoE injector and indoor
unit.
Figure 23 Location of ports on a PoE injector
xv Connect the Nokia FastMile Outdoor Unit to its power source:
•If the Nokia FastMile Outdoor Unit is going to be powered directly by the indoor unit,
safely and securely run the Ethernet cabling from the hole in the wall, through the
home to the indoor unit, and make the connection at the indoor unit. The Nokia
FastMile Outdoor Unit powers up when it receives power from the indoor unit.
•If the Nokia FastMile Outdoor Unit is going to be powered by the PoE injector, safely
and securely run the Ethernet cable from the hole in the wall, through the home to
the PoE injector, and make the connection at the PoE injector's “POE” port. Figure
23 shows the location of the “POE” port on a PoE injector. Specifics of the set up will
depend on the PoE injector. The Nokia FastMile Outdoor Unit powers up when it
receives power from the PoE injector.
xvi Check the LED on the Nokia FastMile Outdoor Unit. The LED is located on the bottom
of the Nokia FastMile Outdoor Unit as shown in Figure 19. Table 11 describes the LED
behavior.
LAN
POWER
ACTIVE
POE
LAN port PoE port
27902
Nokia FastMile Outdoor Unit User Manual Installation procedure
Issue: 01 3TG-00088-AAAA-TCZZA 63
Table 11 LED behavior description
11 The Nokia Field Assistant app prompts you to connect to the Nokia FastMile Outdoor Unit.
Tap on “Connect” to initiate a Bluetooth connection via MAC address to the Nokia FastMile
Outdoor Unit.
Figure 24 shows the screen for the connect prompt.
Figure 24 Screen showing the connect prompt
LED color LED priority LED behavior Status information
Blue First priority Blinking Bluetooth connection in progress
Solid Bluetooth connection established
Off No Bluetooth connection
Red Second priority Blinking Critical alarm
Solid Major or minor alarm
Off No alarm
Green Third priority Blinking twice per second Kernel and application start up
Blinking one per second Application start up and OAM link
established
Off OAM link established
Installation procedure
64
Nokia FastMile Outdoor Unit User Manual
3TG-00088-AAAA-TCZZA Issue: 01
12 If Bluetooth is not enabled, the Nokia Field Assistant app informs you than an app wants to
turn Bluetooth on.
Allow the Bluetooth enabling request by tapping on “Allow”.
Figure 26 shows the screen for the Bluetooth enabling request.
Figure 25 Screen showing the Bluetooth enabling request
13 The Nokia Field Assistant app requests that you allow the Bluetooth pairing request.
Allow the Bluetooth pairing request by tapping on “Pair”.
Figure 26 shows the screen for the Bluetooth pairing request.
Note — Only one active Bluetooth connection is allowed towards the
Nokia FastMile Outdoor Unit. This means that at any one time, only one
mobile phone device can have a Bluetooth connection to the Nokia
FastMile Outdoor Unit. In case of a new Bluetooth connection attempt
from a different mobile phone, at the same time, the new connection will
not be accepted by the Nokia FastMile Outdoor Unit.
Nokia FastMile Outdoor Unit User Manual Installation procedure
Issue: 01 3TG-00088-AAAA-TCZZA 65
Figure 26 Screen showing the Bluetooth pairing request
14 The Nokia Field Assistant app prompts you to enable the VPN profile.
Enable the VPN profile by tapping on “Connect”.
Figure 27 shows the screen for enabling the VPN profile.
Note — Any preexisting VPN connection on the mobile phone will be
deactivated when you enable the VPN profile.
Installation procedure
66
Nokia FastMile Outdoor Unit User Manual
3TG-00088-AAAA-TCZZA Issue: 01
Figure 27 Screen for enabling the VPN profile
15 After successfully enabling the VPN profile, the Nokia Field Assistant app will log in to the
Nokia FastMile Outdoor Unit to exchange certificates and apply necessary configuration.
A login screen appears and prompts you to input credentials for the Nokia FastMile Outdoor
Unit.
When the button is enabled (that is, it turns to blue), you can tap on “Connect” to continue.
Figure 28 shows the login prompt.
Nokia FastMile Outdoor Unit User Manual Installation procedure
Issue: 01 3TG-00088-AAAA-TCZZA 67
Figure 28 Screen showing the login prompt
16 After successful credential validation from the Nokia FastMile Outdoor Unit is done, the Nokia
Field Assistant app retrieves the ODU Public Key and sends it to the Nokia Altiplano FastMile
Controller along with the Subscription ID. The Nokia Altiplano FastMile Controller uses the
ODU Public Key in order to encrypt the config package. The Nokia Field Assistant app
retrieves the config package including the encrypted Configuration file, the Public Key
(signed by Operator CA) and the Operator CA Certificate.
The Nokia Field Assistant app relays configuration file towards the Nokia FastMile Outdoor
Unit.
The Nokia Field Assistant app waits for the Nokia FastMile Outdoor Unit to acknowledge that
has received the configuration file.
17 After successful receipt of the configuration file from the Nokia FastMile Outdoor Unit, the
Nokia Field Assistant informs you that the Nokia FastMile Outdoor Unit will be rebooted and
prompts you to press “Done” in order to navigate back to main menu.
Figure 29 shows the screen when 0% of the reboot is complete.
Installation procedure
68
Nokia FastMile Outdoor Unit User Manual
3TG-00088-AAAA-TCZZA Issue: 01
Figure 29 Screen showing that 0% of the reboot process is complete
Figure 30 shows the screen when all of the reboot process is complete.
Figure 30 Screen showing that 100% of the reboot process is complete
Tap on “Done” when the Nokia Field Assistant app indicates that the setup is complete.
Nokia FastMile Outdoor Unit User Manual Installation procedure
Issue: 01 3TG-00088-AAAA-TCZZA 69
18 After the Nokia FastMile Outdoor Unit has finished rebooting, tap on “Connect to Receiver”
on the main menu of the Nokia Field Assistant app to connect to the Nokia FastMile Outdoor
Unit.
The Nokia Field Assistant app prompts you to connect again to the Nokia FastMile Outdoor
Unit via Bluetooth and afterwards to enable VPN as described in earlier steps.
19 The Nokia Field Assistant shows the status of the connection to the Nokia FastMile Outdoor
Unit.
There are three possible states:
•connecting: the Nokia FastMile Outdoor Unit is connecting to LTE network
•offline: the Nokia FastMile Outdoor Unit is not connected to LTE network
•online: the Nokia FastMile Outdoor Unit is connected to the LTE network and is
communicating with the Nokia Altiplano FastMile Controller
Figure 31 shows the connecting state.
Figure 31 Screen showing connecting state
Figure 32 shows the offline state.
Nokia FastMile Outdoor Unit User Manual Installation procedure
Issue: 01 3TG-00088-AAAA-TCZZA 71
20 You can view the following information by selecting the Connection Status option of the main
screen:
•General stats:
•bytes sent: the total number of bytes sent on the interface
•bytes received: the total number of bytes received on the interface
•LTE cell stats:
•cell ID: The External Call Interface (ECI) of cell
•connection state: Does the Nokia FastMile Outdoor Unit connect to this cell
•status: The current operational state of the PDN connection
•EARFCN: The carrier frequency in the uplink and downlink is designated by the E-UTRA.
Absolute Radio Frequency Channel Number (EARFCN) in the range 0 - 65535.
•PCI: The physical cellid of cell
•RSRP: The average value of Reference Signal Received Power (dBm) in measured
interval, resolution 1dBm.
•RSRQ: The average value of Reference Signal Received Quality (dB) in measured
interval, resolution 1dB.
•RSSI: The average value of Received Signal Strength Indicator (dBm) in measured
interval, resolution 1dBm.
•SINR: The average value of Signal-to-Interference-plus-Noise Ratio (dB) in measured
interval, resolution 1dB.
Figure 34 shows an example of the System state screen.
Note — After Fresh Installation and when LTE attach is successful,
some of the values displayed will not be updated for some time (values
will be zero until the first 15 minutes interval is finished).
Installation procedure
72
Nokia FastMile Outdoor Unit User Manual
3TG-00088-AAAA-TCZZA Issue: 01
Figure 34 System state screen
21 Additionally, the main menu of the Nokia Field Assistant app displays an additional option
“Upload CA certificates’ where you can transfer updated certificates (stored under download
mobile phone's directory) towards the Nokia FastMile Outdoor Unit.
iTap on the “Upload CA certificates” option.
Figure 35 shows the screen that has the “Upload CA certificates” option.
Nokia FastMile Outdoor Unit User Manual Installation procedure
Issue: 01 3TG-00088-AAAA-TCZZA 73
Figure 35 Screen that has the “Upload CA certificates” option
ii Select the required Upload CA certificates and tap on “Ok”. Note that the certificates
must be in the download folder of the mobile phone before you can upload them to the
Nokia FastMile Outdoor Unit.
Figure 36 shows the screen that lists the CA certificates.
Installation procedure
74
Nokia FastMile Outdoor Unit User Manual
3TG-00088-AAAA-TCZZA Issue: 01
Figure 36 Screen that lists the CA certificates
The following CA certificates are supported for the Nokia FastMile Outdoor Unit:
•pmaCA.pem (used for authenticating the Nokia Altiplano FastMile Controller)
•logserverCA.pem (used for authenticating the log server)
•swserverCA.pem (used for authenticating the software upgrade server)
•diagserverCA.pem (used for authenticating the optional diagnostics server)
iii Figure 37 shows the screen that indicates that uploading of the CA certificates was
successful.
Nokia FastMile Outdoor Unit User Manual Installation procedure
Issue: 01 3TG-00088-AAAA-TCZZA 75
Figure 37 Screen indicating that uploading of the CA certificates was
successful
Tap on “Ok” to clear the message.
6.5 Post-installation of the Nokia FastMile
Outdoor Unit
After installation, the Nokia FastMile Outdoor Unit can be accessed by using the
Nokia Field Assistant app in conjunction with the following steps.
The Nokia FastMile Outdoor Unit must be installed as indicated in section 6.4 before
you can do this post-installation procedure.
Procedure 7 To access an installed Nokia FastMile Outdoor Unit
1Connect the mobile phone to the Internet and open the Nokia Field Assistant app on the
phone.
A splash screen appears on screen for a few seconds.
Figure 38 shows the splash screen.
Installation procedure
76
Nokia FastMile Outdoor Unit User Manual
3TG-00088-AAAA-TCZZA Issue: 01
Figure 38 Splash screen
In the next screens, you can:
•learn about the Nokia Field Assistant app by tapping on the “More” option
•get information about the open source software included in Nokia Field Assistant by
tapping on the “Open source licenses” option
2After the splash screen has cleared, the Nokia Field Assistant app prompts you to scan the
QR code of the Nokia FastMile Outdoor Unit so that the app can access the MAC address,
Unique Device Identifiier, enterprise id, and device type of the Nokia FastMile Outdoor Unit.
Tap on “Scan” to start the scan of the QR code.
Figure 39 shows the screen for preparing to scan the QR code.
Nokia FastMile Outdoor Unit User Manual Installation procedure
Issue: 01 3TG-00088-AAAA-TCZZA 77
Figure 39 Screen for preparing to scan the QR code
Use the viewfinder of the phone to align with the QR code on the shipping package of the
Nokia FastMile Outdoor Unit.
Figure 40 shows the QR code screen.
Figure 40 QR code screen
Installation procedure
78
Nokia FastMile Outdoor Unit User Manual
3TG-00088-AAAA-TCZZA Issue: 01
3After successful scan of the QR code, the Nokia Field Assistant app redirects you to the
home screen so that you can connect to the Nokia FastMile Outdoor Unit.
Tap on the “Connect to Receiver” option from the main menu of the Nokia Field Assistant
app.
Figure 41 shows the Connect to Receiver option.
Figure 41 Screen showing the Connect to Receiver option
4The Nokia Field Assistant app prompts you to connect to the Nokia FastMile Outdoor Unit.
Tap on “Connect” to initiate a Bluetooth connection via MAC address to the Nokia FastMile
Outdoor Unit.
Figure 42 shows the screen for the connect prompt.
Nokia FastMile Outdoor Unit User Manual Installation procedure
Issue: 01 3TG-00088-AAAA-TCZZA 79
Figure 42 Screen showing the connect prompt
5If Bluetooth is not enabled, the Nokia Field Assistant app informs you than an app wants to
turn Bluetooth on.
Allow the Bluetooth enabling request by tapping on “Allow”.
Figure 43 shows the screen for the Bluetooth enabling request.
Installation procedure
80
Nokia FastMile Outdoor Unit User Manual
3TG-00088-AAAA-TCZZA Issue: 01
Figure 43 Screen showing the Bluetooth enabling request
6The Nokia Field Assistant app requests that you allow the Bluetooth pairing request.
Allow the Bluetooth pairing request by tapping on “Pair”.
Figure 44 shows the screen for the Bluetooth pairing request.
Note — Only one active Bluetooth connection is allowed towards the
Nokia FastMile Outdoor Unit. This means that at any one time, only one
mobile phone device can have a Bluetooth connection to the Nokia
FastMile Outdoor Unit. In case of a new Bluetooth connection attempt
from a different mobile phone, at the same time, the new connection will
not be accepted by the Nokia FastMile Outdoor Unit.
Nokia FastMile Outdoor Unit User Manual Installation procedure
Issue: 01 3TG-00088-AAAA-TCZZA 81
Figure 44 Screen showing the Bluetooth pairing request
7The Nokia Field Assistant app prompts you to enable the VPN profile.
Enable the VPN profile by tapping on “Connect”.
Figure 45 shows the screen for enabling the VPN profile.
Note — Any preexisting VPN connection on the mobile phone will be
deactivated when you enable the VPN profile.
Installation procedure
82
Nokia FastMile Outdoor Unit User Manual
3TG-00088-AAAA-TCZZA Issue: 01
Figure 45 Screen for enabling the VPN profile
8After successfully enabling the VPN profile, the Nokia Field Assistant app will log in to the
Nokia FastMile Outdoor Unit to exchange certificates and apply necessary configuration.
A login screen appears and prompts you to input credentials for the Nokia FastMile Outdoor
Unit.
When the button is enabled (that is, it turns to blue), you can tap on “Connect” to continue.
Figure 46 shows the login prompt.
Nokia FastMile Outdoor Unit User Manual Installation procedure
Issue: 01 3TG-00088-AAAA-TCZZA 83
Figure 46 Screen showing the login prompt
9You can view the following information by selecting the Connection Status option of the main
screen:
•General stats:
•bytes sent: the total number of bytes sent on the interface
•bytes received: the total number of bytes received on the interface
•LTE cell stats:
•cell ID: The External Call Interface of cell
•connection state: Does ODU connect to this cell
•status: The current operational state of the PDN connection
•EARFCN: The carrier frequency in the uplink and downlink is designated by the E-UTRA.
Absolute Radio Frequency Channel Number (EARFCN) in the range 0 - 65535.
•PCI: The physical cellid of cell
•RSRP: The average value of Reference Signal Received Power (dBm) in measured
interval, resolution 1dBm.
•RSRQ: The average value of Reference Signal Received Quality (dB) in measured
interval, resolution 1dB.
•RSSI: The average value of Received Signal Strength indicator (dBm) in measured
interval, resolution 1dBm.
•SINR: The average value of Signal-to-Interference-plus-Noise Ratio (dB) in measured
interval, resolution 1dB.
Figure 47 shows an example of the System state screen.
Installation procedure
84
Nokia FastMile Outdoor Unit User Manual
3TG-00088-AAAA-TCZZA Issue: 01
Figure 47 System state screen
10 Additionally, the main menu of the Nokia Field Assistant app displays an additional option
“Upload CA certificates’ where you can transfer updated certificates (stored under download
mobile phone's directory) towards the Nokia FastMile Outdoor Unit.
iTap on the “Upload CA certificates” option.
Figure 48 shows the screen that has the “Upload CA certificates” option.
Nokia FastMile Outdoor Unit User Manual Installation procedure
Issue: 01 3TG-00088-AAAA-TCZZA 85
Figure 48 Screen that has the “Upload CA certificates” option
ii Select the required Upload CA certificates and tap on “Ok”. Note that the certificates
must be in the download folder of the mobile phone before you can upload them to the
Nokia FastMile Outdoor Unit.
Figure 49 shows the screen that lists the CA certificates.
Installation procedure
86
Nokia FastMile Outdoor Unit User Manual
3TG-00088-AAAA-TCZZA Issue: 01
Figure 49 Screen that lists the CA certificates
The following CA certificates are supported for the Nokia FastMile Outdoor Unit:
•pmaCA.pem (used for authenticating the Nokia Altiplano FastMile Controller)
•logserverCA.pem (used for authenticating the log server)
•swserverCA.pem (used for authenticating the software upgrade server)
•diagserverCA.pem (used for authenticating the optional diagnostics server)
iii Figure 50 shows the screen that indicates that uploading of the CA certificates was
successful.
Nokia FastMile Outdoor Unit User Manual Installation procedure
Issue: 01 3TG-00088-AAAA-TCZZA 87
Figure 50 Screen indicating that uploading of the CA certificates was
successful
Tap on “Ok” to clear the message.
Nokia FastMile Outdoor Unit User Manual Troubleshooting
Issue: 01 3TG-00088-AAAA-TCZZA 89
7 Troubleshooting
7.1 Potential problems during installation and startup phase
7.2 Potential problems during execution phase
7.1 Potential problems during installation and
startup phase
The following are potential problems that can occur during the installation and startup
phase.
7.1.1 Nokia FastMile Outdoor Unit cannot attach to LTE
network due to hardware mismatch
This issue can be due to E-UTRA band support mismatch between the Nokia
FastMile Outdoor Unit and LTE network because the Nokia FastMile Outdoor Unit is
not the correct variant for the E-UTRA band of the LTE network.
Check the variants listed in section 5.3 to see if the variant you are installing supports
the E-UTRA band of the LTE network. If there is a mismatch, change the Nokia
FastMile Outdoor Unit to a variant that supports the E-UTRA band of the LTE
network. If the variant is correct, contact operator.
7.1.2 Failed to get Base Station Location
One possible cause of this error, visible on Augmented Reality View, is the input of
wrong Subscription ID at login step to the Nokia Altiplano FastMile Controller.
By pressing Retry button problem persists.
In order to overcome this issue, press Back option until you reach login step and
enter again a valid Subscription ID.
7.1.3 Subscriber has already registered a receiver with its
serial number to controller
This problem can occur when the Subscriber ID given at login step to the Nokia
Altiplano FastMile Controller is already registered.
Troubleshooting
90
Nokia FastMile Outdoor Unit User Manual
3TG-00088-AAAA-TCZZA Issue: 01
In order to overcome this issue, you need to delete the Subscriber ID registration at
the Nokia Altiplano FastMile Controller side. After deletion, try logging in again with
the same Subscriber ID by pressing the Back option until you reach the login step or
by starting again.
7.2 Potential problems during execution phase
The following are potential problems that can occur during the execution phase.
7.2.1 Nokia FastMile Outdoor Unit firmware upgrade to
latest build failed
This issue can be due to a radio signal issue in the LTE network for the Nokia
FastMile Outdoor Unit.
If another LTE network is available, select it for the Nokia FastMile Outdoor Unit.
When the connection to the Nokia Altiplano FastMile Controller is recovered, check
the radio signal condition. If no problem, then perform the firmware upgrade again.
If problem persists, contact operator.
7.2.2 Trace request
The Nokia FastMile Outdoor Unit has a trace and log function that can be used for
troubleshooting purposes and for help in performing root cause analysis.
If internet is available for the Nokia FastMile Outdoor Unit, contact Nokia to request
that the trace and log function be used for the Nokia FastMile Outdoor Unit.
The trace log can be uploaded to the Nokia Altiplano FastMile Controller or other
HTTP file servers.
Nokia FastMile Outdoor Unit User Manual Appendix A: Specifications
Issue: 01 3TG-00088-AAAA-TCZZA 91
8 Appendix A: Specifications
8.1 Specifications
8.1 Specifications
Table 12 provides some specifications for the Nokia FastMile Outdoor Unit.
Table 12 Specifications for the Nokia FastMile Outdoor Unit
Item Description
Dimensions Compact: 23.5 cm by 23.5 cm by 5.2 cm (9.3
in by 9.3 in by 2 in)
ABA: 31.8 cm by 31.8 cm by 5.6 cm (12.5 in
by 12.5 in by 2.2 in)
Weight Compact: 1.3 kg (2.9 lb)
ABA: 2 kg (4.4. lb)
Power consumption Less than 8 w
Operating altitude Maximum operating altitude is 3048 m (10
000 ft) above mean sea level
Non-operating altitude Maximum non-operating altitude is 12 192 m
(40 000 ft) above mean sea level
Operating temperature –30°C to 65°C (–22°F to 149°F)
Storage temperature –40°C to 85°C (–85°F to 185°F)
Operating humidity 5% to 85% relative humidity, non-condensing
Storage humidity 5% to 93% relative humidity, non-condensing
IP rating IP66 TYPE3
Nokia FastMile Outdoor Unit User Manual Appendix B: RF exposure
Issue: 01 3TG-00088-AAAA-TCZZA 93
9 Appendix B: RF exposure
9.1 RF exposure
9.1 RF exposure
The international standard used for the assessment of this device provides simple
conformity assessment methods for low power electronic and electrical equipment to
an exposure limit relevant to electromagnetic fields (EMF).
Based on the compliance criteria for maximum permissible exposure as in EN
50385:2017 and CE Council Recommendation Directive 2014/53/EU, there
should be a minimum of 50 cm separation distance from the user
Compact B7/B41 3FE75113ACAA 2ADZR23002690FM20
Nokia FastMile Outdoor Unit User Manual Appendix C: FCC statements and label instructions
Issue: 01 3TG-00088-AAAA-TCZZA 95
10 Appendix C: FCC statements
10.1 FCC compliance statement
10.2 FCC radiation exposure statement
10.1 FCC compliance statement
Table 13 provides the FCC ID for the variants of the Nokia FastMile Outdoor Unit.
Table 13 FCC ID for Nokia FastMile Outdoor Unit variants
Any Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions:
1) This device may not cause harmful interference, and
2) This device must accept any interference received, including Interference that may
cause undesired operation.
10.2 FCC radiation exposure statement
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance 50 cm between the radiator and your body.
Version and variant Model FCC ID
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
Nokia FastMile Outdoor Unit User Manual Glossary
Issue: 01 3TG-00088-AAAA-TCZZA 97
11 Glossary
This glossary provides the expansions and optional descriptions of most acronyms
