Nokia E5-00 User Guide
Issue 2.0
Contents
Safety 6
About your device 7
Network services 8
About Digital Rights Management 8
Battery removing 10
Get started 11
Keys and parts 11
Insert the SIM card and battery 13
Insert the memory card 15
Remove the memory card 16
Wrist strap 16
Charge the battery 17
Lock or unlock the keyboard 18
Connect a compatible headset 18
Switch the device on and off 19
Antenna locations 20
Nokia Switch 20
Nokia Ovi Suite 23
Ovi by Nokia 24
About Ovi Store 25
Access codes 25
Basic use 26
Home screen 26
One-touch keys 28
Write text 29
Contacts 31
Calendar 34
Clock 37
Multitasking 39
Flashlight 39
Make calls 39
Voice calls 39
During a call 40
Voice mail 41
Answer or decline a call 42
Make a conference call 42
1-touch dial a phone number 43
Call waiting 43
Call forward 44
Call restrictions 45
Voice dialing 46
Make a video call 47
During a video call 48
Answer or decline a video call 49
Video sharing 49
Log 53
Messaging 55
Messaging folders 56
Organize messages 56
E-mail 57
Nokia Messaging 62
Message reader 62
Speech 63
Text and multimedia messages 64
Special message types 69
Cell broadcast 70
2Contents
Messaging settings 70
About Chat 74
Set up Office Communicator 74
Connectivity 75
Data connections and access points 75
Network settings 75
Wi-Fi/WLAN connection 76
Active data connections 79
Synchronization 80
Bluetooth connectivity 81
Data cable 86
PC connections 87
About home network 87
Internet 88
Browse the web 88
Browser toolbar 89
Navigate pages 90
Web feeds and blogs 91
Content search 91
Bookmarks 92
Empty the cache 92
End the connection 93
Connection security 93
Web settings 94
Nokia Office Tools 95
Active notes 95
Calculator 97
File manager 97
Quickoffice 99
Converter 99
Zip manager 100
PDF reader 101
Printing 101
Dictionary 104
Notes 104
Positioning (GPS) 105
About GPS 105
Assisted GPS (A-GPS) 105
Hold your device correctly 106
Tips on creating a GPS connection 107
Position requests 108
Landmarks 108
GPS data 109
Positioning settings 110
Maps 111
Maps overview 111
View your location and the map 112
Map view 113
Change the look of the map 114
Download and update maps 114
About positioning methods 115
Find a location 116
View location details 116
Save places and routes 117
View and organize places or routes 117
Send places to your friends 118
Share location 119
Synchronize your Favorites 120
Get voice guidance 120
Contents 3
Drive to your destination 121
Navigation view 122
Get traffic and safety information 122
Walk to your destination 123
Plan a route 124
Personalization 126
Profiles 126
Select ringing tones 127
Customize profiles 127
Change the display theme 128
Download a theme 129
3-D ringing tones 129
Media 130
Camera 130
Gallery 135
Photos 137
Create a post 146
Nokia Podcasting 147
Music player 150
RealPlayer 153
Recorder 155
Nokia Internet Radio 155
Security and data management 159
Lock the device 159
Memory card security 160
Encryption 161
Fixed dialing 162
Certificate manager 163
View and edit security modules 165
Remote configuration 165
Application manager 167
Licenses 171
Synchronization 173
Mobile VPN 173
Settings 175
General settings 176
Telephone settings 181
Connection settings 183
Application settings 196
Shortcuts 196
General shortcuts 196
Glossary 199
Troubleshooting 203
Find help 208
Support 208
Update device software 208
In-device help 210
Accessibility solutions 211
Do more with your device 211
Settings 211
Prolong battery life 211
Free memory 213
Protect the environment 213
Save energy 213
Recycle 214
4Contents
Product and safety information 214
Index 222
Contents 5
Safety
Read these simple guidelines. Not following them may be dangerous or illegal. Read
the complete user guide for further information.
SWITCH ON SAFELY
Do not switch the device on when wireless phone use is prohibited or
when it may cause interference or danger.
ROAD SAFETY COMES FIRST
Obey all local laws. Always keep your hands free to operate the vehicle
while driving. Your first consideration while driving should be road
safety.
INTERFERENCE
All wireless devices may be susceptible to interference, which could affect
performance.
SWITCH OFF IN RESTRICTED AREAS
Follow any restrictions. Switch the device off in aircraft, near medical
equipment, fuel, chemicals, or blasting areas.
QUALIFIED SERVICE
Only qualified personnel may install or repair this product.
6Safety
ACCESSORIES AND BATTERIES
Use only approved accessories and batteries. Do not connect
incompatible products.
WATER-RESISTANCE
Your device is not water-resistant. Keep it dry.
About your device
The wireless device described in this guide is approved for use on the UMTS 850,
1900, and 2100 MHz networks, and GSM 850, 900, 1900, and 2100 MHz networks .
Contact your service provider for more information about networks.

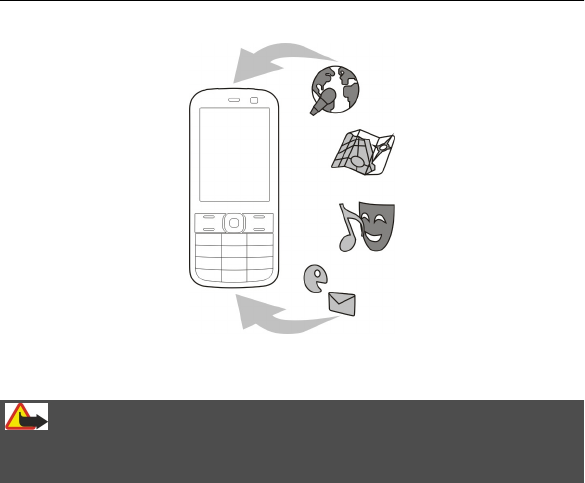

Your device supports several connectivity methods and like computers may be
exposed to viruses and other harmful content. Exercise caution with messages,
connectivity requests, browsing, and downloads. Only install and use services and
software from trustworthy sources that offer adequate security and protection,
such as applications that are Symbian Signed or have passed the Java Verified™
testing. Consider installing antivirus and other security software on your device and
any connected computer.
Your device may have preinstalled bookmarks and links for third-party internet sites
and may allow you to access third-party sites. These are not affiliated with Nokia,
and Nokia does not endorse or assume liability for them. If you access such sites,
take precautions for security or content.
Warning:
To use any features in this device, other than the alarm clock, the device must be
switched on. Do not switch the device on when wireless device use may cause
interference or danger.
Safety 7
When using this device, obey all laws and respect local customs, privacy and
legitimate rights of others, including copyrights. Copyright protection may prevent
some images, music, and other content from being copied, modified, or transferred.
Make back-up copies or keep a written record of all important information stored
in your device.
When connecting to any other device, read its user guide for detailed safety
instructions. Do not connect incompatible products.
The images in this guide may differ from your device display.
Refer to the user guide for other important information about your device.
Network services
To use the device you must have service from a wireless service provider. Some
features are not available on all networks; other features may require that you make
specific arrangements with your service provider to use them. Network services
involve transmission of data. Check with your service provider for details about fees
in your home network and when roaming on other networks. Your service provider
can explain what charges will apply. Some networks may have limitations that affect
how you can use some features of this device requiring network support such as
support for specific technologies like WAP 2.0 protocols (HTTP and SSL) that run on
TCP/IP protocols and language-dependent characters.
Your service provider may have requested that certain features be disabled or not
activated in your device. If so, these features will not appear on your device menu.
Your device may also have customized items such as menu names, menu order, and
icons.
About Digital Rights Management
When using this device, obey all laws and respect local customs, privacy and
legitimate rights of others, including copyrights. Copyright protection may prevent
you from copying, modifying, or transferring images, music, and other content.
8Safety
Content owners may use different types of digital rights management (DRM)
technologies to protect their intellectual property, including copyrights. This device
uses various types of DRM software to access DRM-protected content. With this
device you can access content protected with WMDRM 10 and OMA DRM 2.0. If certain
DRM software fails to protect the content, content owners may ask that such DRM
software's ability to access new DRM-protected content be revoked. Revocation may
also prevent renewal of such DRM-protected content already in your device.
Revocation of such DRM software does not affect the use of content protected with
other types of DRM or the use of non-DRM-protected content.
Digital rights management (DRM) protected content comes with an associated
license that defines your rights to use the content.
If your device has OMA DRM-protected content, to back up both the license and the
content, use the backup feature of Nokia Ovi Suite.
Other transfer methods may not transfer the licenses which need to be restored
with the content for you to be able to continue the use of OMA DRM-protected
content after the device memory is formatted. You may also need to restore the
license in case the files on your device get corrupted.
If your device has WMDRM-protected content, both the license and the content will
be lost if the device memory is formatted. You may also lose the license and the
content if the files on your device get corrupted. Losing the license or the content
may limit your ability to use the same content on your device again. For more
information, contact your service provider.
Some licenses may be connected to a specific SIM card, and the protected content
can be accessed only if the SIM card is inserted in the device.
During extended operation such as an active video call and high speed data
connection, the device may feel warm. In most cases, this condition is normal. If
you suspect the device is not working properly, take it to the nearest authorized
service facility.
Safety 9
Battery removing
Switch the device off and disconnect the charger before removing the battery.
10 Safety
Get started
Learn how to start using your device.

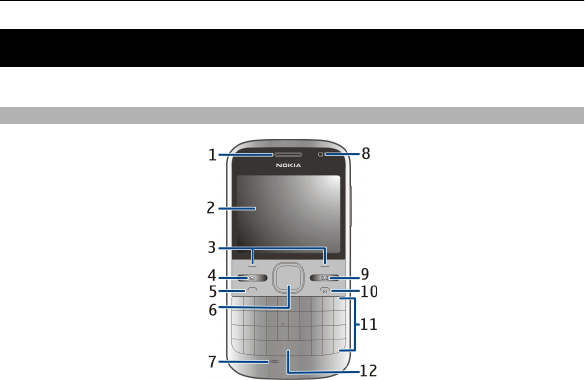

Keys and parts
1Ear piece
2Display
3Left and right selection keys
4Home key
5Call key
6Navi™ key (scroll key). Also used to zoom and capture images when using the
camera.
7Microphone
8Light sensor
9Messaging key
10 End/Power key
11 Keyboard
12 Flashlight key
Get started 11

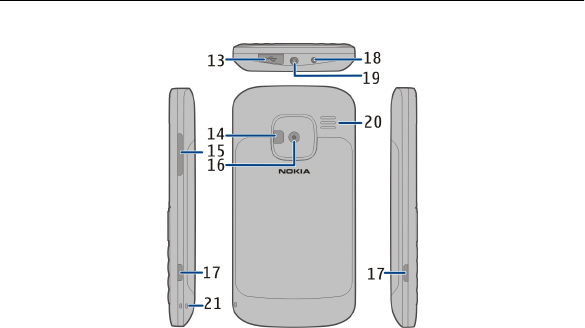

13 Micro USB connector
14 Camera flash/Flashlight
15 Volume key
16 Camera lens
17 Release buttons for back cover
18 Charger connector
19 Headset connector
20 Loudspeaker
21 Wrist strap hole
12 Get started

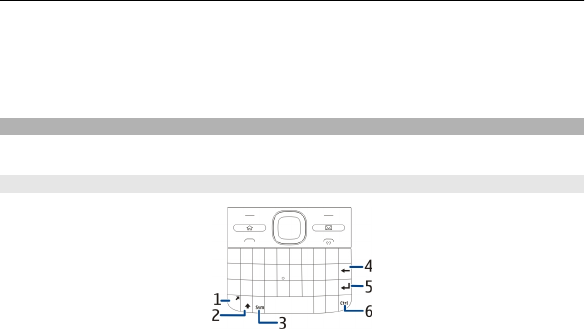

1Function key
2Shift key
3Sym key
4Backspace key
5Enter key
6Ctrl/Mute key

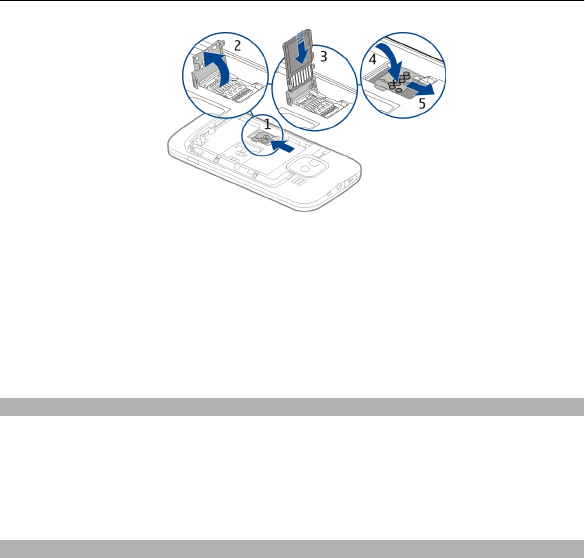

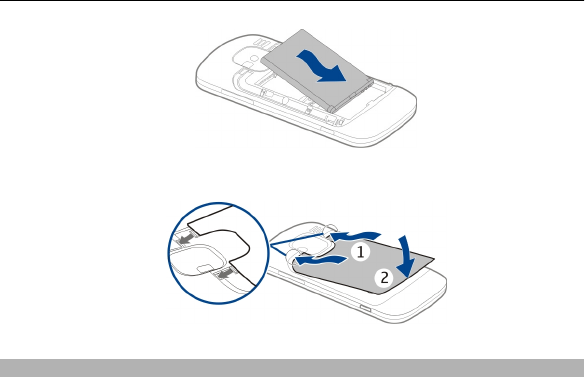

Insert the SIM card and battery
Important: Do not use a mini-UICC SIM card, also known as a micro-SIM card,
a micro-SIM card with an adapter, or a SIM card that has a mini-UICC cutout (see
figure) in this device. A micro-SIM card is smaller than the standard SIM card. This
device does not support the use of micro-SIM cards and use of incompatible SIM
cards may damage the card or the device, and may corrupt data stored on the card.

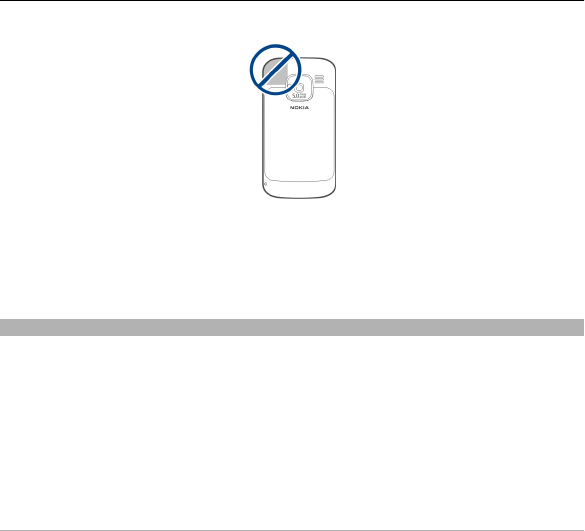

Safe removal. Always switch the device off and disconnect the charger before
removing the battery.
1 Remove the back cover.
Get started 13
2 Remove the battery, if inserted.
3 Slide the SIM card holder to unlock it, and swing it open. Insert the SIM card,
with the contact area facing down, and swing the holder back. Slide the card
holder to lock it.
4 Line up the battery contacts, and insert the battery.
14 Get started
5 Replace the back cover.
Insert the memory card
A memory card may already be in the device. If not, do the following:
1 Remove the back cover and battery, if inserted.
2 Slide the card holder to unlock it, and swing it open.
Get started 15
3 Insert the memory card, with the contact area facing down.
4 Swing the card holder back. Slide the card holder to lock it.
5 Replace the battery and back cover.
Use only compatible microSD cards approved by Nokia for use with this device. Nokia
uses approved industry standards for memory cards, but some brands may not be
fully compatible with this device. Incompatible cards may damage the card and the
device and corrupt data stored on the card.
Remove the memory card
1 Switch the device off.
2 Remove the back cover and the battery.
3 Open the memory card holder, and remove the memory card. Close the SIM card
holder.
4 Replace the battery and back cover.
Wrist strap
Thread the wrist strap, and tighten it.
16 Get started
Charge the battery
Your battery has been partially charged at the factory. If the device indicates a low
charge, do the following:
1 Connect the charger to a wall outlet.
2 Connect the charger to the device.
If you are using a USB charger, connect the charger plug to the USB connector.
3 When the battery is fully charged, disconnect the charger from the device, then
from the wall outlet.
You do not need to charge the battery for a specific length of time, and you can use
the device while it is charging. If the battery is completely discharged, it may take
several minutes before the charging indicator appears on the display or before any
calls can be made.
Get started 17
Charging with the USB data cable
Charging with the USB data cable is slower than charging with the charger. Charging
with the USB data cable may not work if you use a USB hub. USB hubs may be
incompatible for charging a USB device.
When the USB data cable is connected, you can transfer data at the same time as
charging.
1 Connect a compatible USB device to your device using a compatible USB data
cable.
Depending on the type of the device that is used for charging, it may take a
while for charging to start.
2 If the device is switched on, select from the available USB modes.
Lock or unlock the keyboard
Lock the keyboard
In the home screen, select Menu, and quickly press the right selection key.
Set the keyboard to lock automatically after a defined length of time
Select Menu > Ctrl. panel > Settings and General > Security > Phone and SIM
card > Keypad autolock period > User defined, and select the desired length of
time.
Unlock the keyboard
Select Unlock > OK.
When the device or keypad is locked, calls may be possible to the official emergency
number programmed into your device.
Connect a compatible headset
Do not connect products that create an output signal as this may cause damage to
the device. Do not connect any voltage source to the Nokia AV Connector.
18 Get started
When connecting any external device or any headset, other than those approved
by Nokia for use with this device, to the Nokia AV Connector, pay special attention
to volume levels.
Switch the device on and off
To switch on the device:
1 Press and hold the power key.
2 If the device asks for a PIN code or lock code, enter it, and select OK. The preset
lock code is 12345. If you forget the code and your device is locked, your device
will require service and additional charges may apply. For more information,
contact a Nokia Care point or your device dealer.
Get started 19
To switch off the device, press the power key briefly, and select Switch off!.
Antenna locations
Your device may have internal and external antennas. Avoid touching the antenna
area unnecessarily while the antenna is transmitting or receiving. Contact with
antennas affects the communication quality and may cause a higher power level
during operation and may reduce the battery life.
Nokia Switch
About Switch
Select Menu > Ctrl. panel > Switch.
You can use the Switch application to copy content such as phone numbers,
addresses, calendar items, and images from your previous Nokia device to your
device. The type of content you can transfer depends on the model of your old
device.
If you cannot use your old device without a SIM card, insert the card in it. You can
use Switch in your new device without a SIM card.
20 Get started
Copy content from your old device
You can use the Switch application to copy content such as phone numbers,
addresses, calendar items, and images from your previous compatible Nokia device
to your new device.
Copy content for the first time
1 To retrieve data from the other device for the first time, on your device, select
Menu > Ctrl. panel > Switch.
2 Pair the two devices. To have your device search for devices with Bluetooth
connectivity, select Continue. Select the device from which you want to transfer
content. You are asked to enter a code on your device. Enter a code (1-16 digits),
and select OK. Enter the same code on the other device, and select OK. The
devices are now paired.
If your old Nokia device does not have the Switch application, your new device
sends it in a message. Open the message in the old device, and follow the
instructions on the display.
Get started 21
3 On your device, select the content you want to transfer from the other device.
When the transfer has started, you can cancel it and continue later.
Content is transferred from the memory of the other device to the corresponding
location in your device. The transfer time depends on the amount of data to be
transferred.
The type of content that can be transferred depends on the model of the device
from which you want to transfer content. If that device supports synchronization,
you can also synchronize data between the devices. Your device notifies you if the
other device is not compatible.
Synchronize, retrieve, or send content
Select Menu > Ctrl. panel > Switch.
After the first transfer, select from the following to start a new transfer, depending
on the model:
to synchronize content between your device and the other device, if the
other device supports synchronization. The synchronization is two-way. If
an item is deleted in one device, it is deleted in both. You cannot restore
deleted items with synchronization.
to retrieve content from the other device to your device. With retrieval,
content is transferred from the other device to your device. You may be
asked to keep or delete the original content in the other device, depending
on the device model.
to send content from your device to your other device
If you cannot send an item, depending on the type of the other device, you can add
the item to the Nokia folder, to C:\Nokia or E:\Nokia in your device. When you select
the folder to transfer, the items are synchronized in the corresponding folder in the
other device, and vice versa.
22 Get started
Use shortcuts to repeat a transfer
After a data transfer, you can save a shortcut with the transfer settings to the main
view to repeat the same transfer later.
To edit the shortcut, select Options > Shortcut settings. For example, you can
create or change the name of the shortcut.
A transfer log is shown after every transfer. To view the log of the last transfer, select
a shortcut in the main view and Options > View log.
Handle transfer conflicts
If an item to be transferred has been edited in both devices, the device attempts to
merge the changes automatically. If this is not possible, there is a transfer conflict.
Select Check one by one, Priority to this phone, or Priority to other phone to
solve the conflict.
Nokia Ovi Suite
Nokia Ovi Suite is a set of applications that you can install to a compatible PC. Ovi
Suite groups all available applications in a launcher window from which you can
open the applications. Ovi Suite may be included on a memory card, if provided with
your device.
You can use Ovi Suite to synchronize contacts, calendar, and to-do and other notes
between your device and a compatible PC application. You can also use Ovi Suite to
transfer bookmarks between your device and compatible browsers, and transfer
images and videos between your device and a compatible PC.
Pay attention to synchronization settings. Data deletion as part of normal
synchronization process is determined by the settings selected.
Get started 23
To use Ovi Suite, you need a PC that runs Microsoft Windows XP (SP2 or newer) or
Windows Vista (SP1 or newer), and is compatible with a USB data cable or with
Bluetooth connectivity.
Ovi Suite is not compatible with Apple Macintosh computers.
For further information on Ovi Suite, see the built-in help, or go to www.nokia.com/
support.
Install Nokia Ovi Suite
1 Ensure the memory card is inserted in your Nokia E5-00.
2 Connect the USB cable. Your PC recognizes the new device and installs the
necessary drivers. This can take several minutes to complete.
3 Select Mass storage as the USB connection mode in your device. Your device is
displayed in the Windows file browser as a Removable Disk.
4 Open the root of the memory card drive with the Windows file browser, and
select the Ovi Suite installation file.
5 The installation is started. Follow the instructions.
Tip: To update Ovi Suite, or if you have problems when installing Ovi Suite from the
memory card, copy the installation file to your PC, and install from your PC.
Ovi by Nokia
With Ovi by Nokia, you can find new places and services, and stay in touch
with your friends. You can do, for example, the following:
•Download games, applications, videos, and ringtones to your device
•Find your way with free walk and drive navigation, plan trips, and view locations
on a map
•Get music
Some items are free of charge, others you may need to pay for.
24 Get started
The available services may also vary by country or region, and not all languages are
supported.
To access Nokia's Ovi services, go to www.ovi.com, and register your own Nokia
account.
For more information, go to the support section at www.ovi.com.
About Ovi Store
In Ovi Store, you can download mobile games, applications, videos, images,
themes, and ringing tones to your device. Some items are free of charge; others you
need to pay for with your credit card or in your phone bill. The availability of
payment methods depends on your country of residence and your network service
provider. Ovi Store offers content that is compatible with your cellular phone and
relevant to your tastes and location.
Access codes
If you forget any of the access codes, contact your service provider.
Personal identification number (PIN) code — This code protects your SIM card
against unauthorized use. The PIN code (4 - 8 digits) is usually supplied with the
SIM card. After three consecutive incorrect PIN code entries, the code is blocked, and
you need the PUK code to unblock it.
UPIN code — This code may be supplied with the USIM card. The USIM card is an
enhanced version of the SIM card and is supported by 3G cellular phones.
PIN2 code — This code (4 to 8 digits) is supplied with some SIM cards and is required
to access some functions in your device.
Lock code (also known as security code) — The security code helps to protect your
phone against unauthorized use. You can create and change the code, and set the
device to request the code. Keep the code secret and in a safe place separate from
your phone. If you forget the code and your device is locked, your device will require
service and additional charges may apply. Additional charges may apply, and all the
Access codes 25
personal data in your device may be deleted. For more information, contact a Nokia
Care Point or your device dealer.
UPUK code — This code (8 digits) is required to change a blocked UPIN code. If the
code is not supplied with the USIM card, contact the network service provider whose
USIM card is in your device.
International Mobile Equipment Identity (IMEI) number — This number (15 or 17
digits) is used to identify valid devices on the GSM network. Devices that are, for
example, stolen, can be blocked from accessing the network. The IMEI number for
your device can be found under the battery.
The personal unblocking key (PUK) code and the universal personal unblocking key
(UPUK) code (8 digits) are required to change a blocked PIN code and UPIN code,
respectively. The PUK2 code (8 digits) is required to change a blocked PIN2 code.
These codes are not supplied with the SIM card. Contact your local service provider
for the codes.
Basic use
Learn how to use the basic features of your device.
Home screen
Learn how to use and customize your home screen, and organize the content as
you like.
Home screen
The home screen is your starting point where you can collect all your important
contacts and application shortcuts.
When you have switched on the device, and it is registered to a network, the device
is in the home screen view.
Use the scroll key to navigate in the home screen.
26 Basic use
1Contacts bar
2Application plug-ins
3Application shortcuts
To customize application plug-ins and shortcuts, or to change the home screen
theme, select Menu > Ctrl. panel > Settings and General > Personalization >
Standby mode > Home screen theme and the appropriate option. You might not
be able to change all shortcuts. Some home screen themes may not support all
applications.
Contacts bar
To add a contact to your home screen, select the Add icon and a contact from the
list.
To create a new contact, select Options > New contact, enter the details, and select
Done. You can also add an image to the contact information.
To remove a contact from the home screen, in the contact information view, select
the Open icon and Remove.
Basic use 27
One-touch keys
With the One-touch keys, you can access applications and tasks quickly. Your service
provider may have assigned applications to the keys, in which case you cannot
change them.
1Home key
2Messaging key
Home key
To access the home screen, press the home key briefly. Press the home key briefly
again to access the menu.
To view the list of active applications, press the home key for a few seconds. When
the list is open, press the home key briefly to scroll the list. To open the selected
application, press the home key for a few seconds or press the scroll key. To close
the selected application, press the backspace key.
Leaving applications running in the background increases the demand on battery
power and reduces the battery life.
Messaging key
To open the Messaging application, press the messaging key.
To start writing a new message, press and hold the messaging key.
28 Basic use
When you press the messaging key for the first time, you are asked to define the
messaging key settings. Follow the instructions on the display. You can edit the
settings later.
Write text
The available input methods may vary.
Use the keyboard
1Function key
2Shift key
3Sym key
4Backspace key
5Enter key
6Ctrl key
Switch between the different character cases
To change between the upper and lower case modes, press the shift key twice. To
enter a single upper case letter in lower case mode, or vice versa, press the shift key
once, and then the desired alphabet key.
Insert a number or special character printed at the top of a key
Press the function key, and then press the corresponding alphabet key, or press and
hold the alphabet key only. To enter several special characters in a row, press the
Basic use 29
function key twice quickly, and then press the desired alphabet keys. To return to
normal mode, press the function key again.
Insert a special character that is not on the keyboard
Press the sym key, and select and a character.
Insert a letter that is not on the keyboard
It is possible to insert variations of letters, for example, letters with accents. For
example, to insert á, press and hold the sym key, and simultaneously press the A
key repeatedly, until the desired character is displayed. The order and availability
of letters depends on the selected writing language.
Insert a smiley
Press the sym key, and select a smiley. Smileys are only available for text and
multimedia messages.
Tip: To add a recently used special character, while pressing and holding the ctrl
key, press the sym key, and from the pop-up menu, select the character.
Copy and paste text
1 Press and hold the shift key, and scroll to highlight the text you want to copy.
2Press ctrl + C.
3 Go to the place where you want to paste the text, and press ctrl + V.
Change the writing language or activate predictive text input
Select Options > Input options.
Predictive text input
To activate predictive text input, select Options > Input options > Activate
prediction. The indicator is displayed.
30 Basic use
When you start writing a word, your device suggests possible words. When the
correct word is found, scroll right to confirm it.
While writing, you can also scroll down to access a list of suggested words. If the
desired word is on the list, select the word.
If the word you are writing is not in the dictionary of the device, the device suggests
a possible word, while the word you were writing is shown above the suggested
word. Scroll up to select your word. The word is added to the dictionary when you
start writing the next word.
To deactivate predictive text input, select Options > Input options > Deactivate
prediction.
To define the settings for text input, select Options > Input options > Settings.
To change the writing language, select Options > Input options > Writing
language.
Contacts
Stay connected with your online friends
You can synchronize the contact information on your device with contacts you have
on Facebook. When you allow synchronization, you are able to view your contacts'
Facebook profile information, such as their picture and status updates, in the
Contacts application on your device.
Synchronizing your contacts and retrieving status updates are network services.
Roaming and data transfer charges may apply. If the social networking service is
not available or functioning correctly, you may not be able to synchronize or retrieve
status updates.
Synchronize your contacts
Open the social networking service application, and follow the instructions.
Basic use 31
This feature may not be available in certain regions.
Copy contacts
Select Menu > Contacts.
When you open the contacts list for the first time, the device asks if you want to
copy names and numbers from the SIM card to your device.
Start copying
Select OK.
Cancel copying
Select Cancel.
The device asks if you want to view the SIM card contacts in the contacts list. To
view the contacts, select OK. The contacts list opens, and the names stored on your
SIM card are indicated with .
Manage names and numbers
Select Menu > Contacts.
Delete a contact
Go to a contact, and select Options > Delete.
Delete several contacts
1 To mark a contact to be deleted, go to the contact, and select Options > Mark/
Unmark.
2 To delete the marked contacts, select Options > Delete.
Copy a contact
Go to a contact, and select Options > Copy and the desired location.
32 Basic use
Send a contact to another device
Select the contact and Options > View details > Options > Send business card.
Listen to the voice tag assigned to a contact
Select the contact and Options > View details > Options > Voice tag details >
Options > Play voice tag.
When entering contacts or editing voice commands, do not use very short or similar
names for different contacts or commands.
Using voice tags may be difficult in a noisy environment or during an emergency,
so you should not rely solely upon voice dialing in all circumstances.
Save and edit names and numbers
Select Menu > Contacts.
Add a new contact to the contacts list
1 Select Options > New contact.
2 Fill in the appropriate fields, and select Done.
Edit a contact
Select a contact and Options > View details > Options > Edit.
Ringing tones, images, and call text for contacts
You can define a ringing tone for a contact or group, and an image and a call text
for a contact. When the contact calls you, the device plays the selected ringtone and
shows the call text or image if the caller’s phone number is sent with the call and
your device recognizes it.
To define a ringing tone for a contact or a contact group, select the contact or contact
group, Options > View details > Options > Ringing tone, and a ringing tone.
Basic use 33
To define the call text for a contact, select the contact and Options > View
details > Options > Add text for call. Enter the call text, and select OK.
1 To add an image for a contact saved in the device memory, select the contact
and Options > View details > Options > Add image.
2 Select an image from Photos.
To remove the ringing tone, select Default tone from the list of ringing tones.
To view, change, or remove the image from a contact, select the contact, Options >
View details > Options > Image, and the desired option.
Calendar
About Calendar
Select Menu > Calendar.
With calendar, you can create and view scheduled events and appointments, and
switch between different calendar views.
In the month view, calendar entries are marked with a triangle. Anniversary entries
are also marked with an exclamation mark. The entries of the selected day are
displayed as a list.
To open calendar entries, select a calendar view and an entry.
Whenever you see the icon, scroll right to access a list of available actions. To
close the list, scroll left.
Create calendar entries
Select Menu > Calendar.
34 Basic use
You can create the following types of calendar entries:
•Meeting entries remind you of events that have a specific date and time.
•Meeting requests are invitations that you can send to the participants. Before
you can create meeting requests you must have a compatible mailbox
configured to your device.
•Memo entries are related to the whole day but not to a specific time of the day.
•Anniversary entries remind you of birthdays and special dates. They refer to a
certain day but not a specific time of the day. Anniversary entries are repeated
every year.
•To-do entries remind you of a task that has a due date but not a specific time
of the day.
To create a calendar entry, select a date, Options > New entry, and the entry type.
To set the priority for meeting entries, select Options > Priority.
To define how the entry is handled during synchronization, select Private to hide
the entry from viewers if the calendar is available online, Public to make the entry
visible to viewers, or None to not copy the entry to your computer.
To send the entry to a compatible device, select Options > Send.
To make a meeting request from a meeting entry, select Options > Add
participants.
Create meeting requests
Select Menu > Calendar.
Before you can create meeting requests, you must have a compatible mailbox
configured for your device.
Basic use 35
To create a meeting entry:
1 To create a meeting entry, select a day and Options > New entry > Meeting
request.
2 Enter the names of the required participants. To add names from your contacts
list, enter the first few characters, and select from the proposed matches. To
add optional participants, select Options > Add optional participants.
3 Enter the subject.
4 Enter the start and end times and dates, or select All-day event.
5 Enter the location.
6 Set an alarm for the entry, if needed.
7 For a recurring meeting, set the recurrence time, and enter the end date.
8 Enter a description.
To set the priority for the meeting request, select Options > Priority.
To send the meeting request, select Options > Send.
Calendar views
Select Menu > Calendar.
You can switch between the following views:
•Month view shows the current month and the calendar entries of the selected
day in a list.
•Week view shows the events for the selected week in seven day boxes.
•Day view shows the events for the selected day grouped into time slots
according to their starting time.
•To-do view shows all to-do items.
•Agenda view shows the events for the selected day in a list.
36 Basic use
To change the view, select Options > Change view and the desired view.
Tip: To open the week view, select the week number.
To move to the next or the previous day in month, week, day, and agenda view,
select the desired day.
To change the default view, select Options > Settings > Default view.
Clock
Alarm clock
Select Menu > Applications > Clock.
To view your active and inactive alarms, open the alarms tab. To set a new alarm,
select Options > New alarm. Define the repetition, if needed. When an alarm is
active, is displayed.
To turn off the sounding alarm, select Stop. To stop the alarm for a certain time
period, select Snooze.
If your device is switched off when an alarm is due, your device switches itself on
and starts sounding the alarm tone.
Tip: To define the time period after which the alarm sounds again when you set it
to snooze, select Options > Settings > Alarm snooze time.
To cancel an alarm, select Options > Remove alarm.
To change the time, date, and clock type settings, select Options > Settings.
Basic use 37
To automatically update the time, date, and time zone information to your device
(network service), select Options > Settings > Automatic time update > On.
World clock
Select Menu > Applications > Clock.
To view the time in different locations, open the world clock tab. To add locations
to the list, select Options > Add location. You can add a maximum of 15 locations
to the list.
To set your current location, scroll to a location, and select Options > Set as current
location. The location is displayed in the clock main view, and the time in your
device is changed according to the selected location. Ensure that the time is correct
and matches your time zone.
Clock settings
Select Options > Settings.
To change the time or date, select Time or Date.
To change the clock shown on the home screen, select Clock type > Analog or
Digital.
To allow the mobile phone network to update the time, date and time zone
information to your device (network service), select Automatic time update >
On.
To change the alarm tone, select Clock alarm tone.
38 Basic use
Multitasking
You can have several applications open at the same time. To switch between active
applications, press and hold the home key, scroll to an application, and press the
scroll key. To close the selected application, press the backspace key.
Example: When you have an active phone call and want to check your calendar,
press the home key to access the menu, and open the Calendar application. The
phone call remains active in the background.
Example: When you are writing a message and want to check a web site, press the
home key to access the menu, and open the Web application. Select a bookmark or
enter the web address manually, and select Go to. To return to your message, press
and hold the home key, scroll to the message and press the scroll key.
Flashlight
The camera flash can be used as a flashlight. To switch the flashlight on or off, in
the home screen, press and hold the space bar.
Do not point the flashlight at anyone's eye.
Make calls
Voice calls
1 In the home screen, enter the phone number, including the area code. To
remove a number, press the backspace key.
For international calls, press + (+ replaces the international access code), and
enter the country code, area code (omit the leading zero if necessary), and
phone number. The + character as a replacement for the international access
code may not work in all regions. In this case, enter the international access
code directly.
2 To make the call, press the call key.
3 To end the call (or to cancel the call attempt), press the end key.
Make calls 39
Pressing the end key always ends a call, even if another application is active.
To make a call from the contacts list, select Menu > Contacts.
Scroll to the desired name, or enter the first letters or characters of the name in the
search field.
To call the contact, press the call key. If you have saved several numbers for a contact,
select the desired number from the list, and press the call key.
During a call
Mute or unmute the microphone
Select Options > Mute or Unmute.
Put an active voice call on hold
Select Options > Hold.
Activate the loudspeaker
Select Options > Activate loudspeaker. If you have attached a compatible headset
with Bluetooth connectivity, to route the sound to the headset, select Options >
Activate handsfree.
Switch back to the handset
Select Options > Activate handset.
End a call
Press the end key.
Switch between active and held calls
Select Options > Swap.
40 Make calls
Tip: To put an active call on hold, press the call key. To activate the held call, press
the call key again.
Send Touch tone strings
1 Select Options > Send touch tones.
2 Enter the Touch tone string or search for it from the contacts list.
3 To enter a wait character (w) or a pause character (p), press * repeatedly.
4 To send the tone, select OK. You can add touch tones to the phone number or
touch tone field in contact details.
End an active call and replace it with another incoming call
Select Options > Replace.
End all calls
Select Options > End all calls.
Many of the options that you can use during a voice call are network services.
Voice mail
Select Menu > Ctrl. panel > Call mailbox.
When you open the Voice mail application (network service) for the first time, you
are asked to enter the number of your voice mailbox.
To call your voice mailbox, scroll to Voice mailbox, and select Options > Call voice
mailbox.
To call your mailbox in the home screen, press and hold 1; or press 1 and then the
call key. Select the mailbox you want to call.
To change the mailbox number, select the mailbox and Options > Change
number.
Make calls 41
Answer or decline a call
To answer the call, press the call key.
To mute the ringing tone of an incoming call, select Silence.
If you do not want to answer a call, press the end key. If you activate the Call
forwarding > Voice calls > If busy function in phone settings to forward calls,
declining an incoming call also forwards the call.
When you select Silence to mute the ringing tone of an incoming call, you can send
a text message without rejecting the call, informing the caller that you cannot
answer the call. Select Options > Send message.
To activate or deactivate rejecting calls with a text message, select Menu > Ctrl.
panel > Settings and Phone > Call > Decline call with msg.. To edit the content
of the message sent to the caller, select Message text.
Make a conference call
1 Make a call to the first participant.
2 To make a call to another participant, select Options > New call. The first call
is put on hold.
3 When the new call is answered, to join the first participant in the conference
call, select Options > Conference.
To add a new person to the call, repeat step 2, and select Options >
Conference > Add to conference.
Your device supports conference calls between a maximum of six participants,
including yourself.
To have a private conversation with one of the participants, select Options >
Conference > Private.
42 Make calls
Select a participant, and select Private. The conference call is put on hold on
your device. The other participants can still continue the conference call.
After you finish the private conversation, select Options > Conference to
return to the conference call.
To drop a participant, select Options > Conference > Drop participant, scroll
to the participant, and select Drop.
4 To end the active conference call, press the end key.
1-touch dial a phone number
To activate the feature, select Menu > Ctrl. panel > Settings and Phone > Call >
1-touch dialing.
1 To assign a phone number to one of the number keys (2-9), select Menu > Ctrl.
panel > 1-touch.
2 Scroll to the key to which you want to assign the phone number, and select
Options > Assign.
1 is reserved for the voice mailbox.
To call an assigned number, in the home screen, press the assigned key and then
the call key.
Call waiting
You can answer a call while you have another call in progress. To activate call
waiting (network service), select Menu > Ctrl. panel > Settings and Phone >
Call > Call waiting.
Make calls 43
To answer the waiting call, press the call key. The first call is put on hold.
To switch between the two calls, select Swap.
To connect an incoming call or a call on hold with an active call and to disconnect
yourself from the calls, select Options > Transfer.
To end the active call, press the end key.
To end both calls, select Options > End all calls.
Call forward
Select Menu > Ctrl. panel > Settings and Phone > Call forwarding.
Forward incoming calls to your voice mailbox or to another phone number. For
details, contact your service provider.
Select the type of calls to forward and from the following options:
All voice calls, All data and video calls or All fax calls — Forward all incoming
voice, data, video or fax calls. You cannot answer the calls, only forward the calls to
another number.
If busy — Forward incoming calls if you have an active call.
If not answered — Forward incoming calls after your device rings for a specified
period of time. Select the length of time for the device to ring before forwarding
the call.
If out of reach — Forward calls when the device is switched off or out of network
coverage.
If not available — Forward calls if you have an active call, do not answer, or the
device is switched off or out of network coverage.
To forward calls to your voice mailbox, select a call type, a forwarding option, and
Options > Activate > To voice mailbox.
44 Make calls
To forward calls to your voice mailbox, select a call type, a forwarding option, and
Options > Activate > To other number. Enter the number, or select Find to
retrieve a number saved in Contacts.
To check the current forwarding status, scroll to the forwarding option, and select
Options > Check status.
To stop forwarding calls, scroll to the forwarding option, and select Options >
Deactivate.
Call restrictions
Select Menu > Ctrl. panel > Settings and Phone > Call restriction.
You can restrict the calls that can be made or received with the device (network
service). To modify the settings, you need the restriction password from your service
provider. Call restriction affects all call types.
Select from the following voice call restriction settings:
Outgoing calls — Prevent making voice calls with your device.
Incoming calls — Prevent incoming calls.
International calls — Prevent calling to foreign countries or regions.
Incoming calls if roaming — Prevent incoming calls when outside your home
country.
International calls except to home country — Prevent calls to foreign countries
or regions, but allow calls to your home country.
To check the status of voice call restrictions, select the restriction option and
Options > Check status.
To deactivate all voice call restrictions, select a restriction option and Options >
Deact. all restrictions.
Make calls 45
To change the password used for restricting voice, fax, and data calls, select
Options > Edit restriction passwd.. Enter the current code, then the new code
twice. The restriction password must be four digits long. For details, contact your
service provider.
Voice dialing
Your device supports enhanced voice commands. Enhanced voice commands are
not dependent on the speaker’s voice, so you do not need to record voice tags in
advance. The device creates a voice tag for the entries in the contacts, and compares
the spoken voice tag to it. The voice recognition in the device adapts to the main
user’s voice to recognize the voice commands better.
The voice tag for a contact is the name that is saved for the contact.
To listen to the synthesized voice tag, select a contact and Options > View
details > Options > Voice tag details > Options > Play voice tag.
Note: Using voice tags may be difficult in a noisy environment or during an
emergency, so you should not rely solely upon voice dialing in all circumstances.
Make a call with a voice tag
When you use voice dialing, the loudspeaker is in use. Hold the device at a short
distance away when you say the voice tag.
1 To start voice dialing, in the home screen, press and hold the right selection
key. If a compatible headset with the headset key is attached, press and hold
the headset key to start voice dialing.
2 A short tone sounds, and Speak now is displayed. Say clearly the name that is
saved for the contact.
3 The device plays a synthesized voice tag for the recognized contact, and displays
the name and number. If you do not want to call that contact, select another
contact from the list of matches within 2.5 seconds, or, to cancel, select Quit.
46 Make calls
If several numbers are saved for a name, the device selects the default number, if
defined. Otherwise, the device selects the first available number in a contact card.
You can also say the name and telephone number type, such as cellular or home.
Make a video call
When you make a video call (network service), you can see a real-time, two-way
video between you and the recipient of the call. The live video image, or video image
captured by the camera in your device is shown to the video call recipient.
To be able to make a video call, you must have a USIM card and be in the coverage
of a 3G network. For availability of and subscription to video call services, contact
your network service provider.
A video call can only be made between two parties. The video call can be made to
a compatible mobile device or an ISDN client. Video calls cannot be made while
another voice, video, or data call is active.
indicates that you have denied video sending from your device. To send an
image instead, select Menu > Ctrl. panel > Settings and Phone > Call > Image
in video call.
Even if you denied video sending during a video call, the call is still charged as a
video call. Check the pricing with your service provider.
1 To start a video call, enter the phone number in the standby mode, or select
Contacts and a contact.
2 Select Options > Call > Video call.
Starting a video call may take a while. Waiting for video image is shown. If
the call is not successful (for example, video calls are not supported by the
network, or the receiving device is not compatible), you are asked if you want
to try a normal call or send a text or multimedia message instead.
The video call is active when you see two video images, and hear the sound
through the loudspeaker. The call recipient may deny video sending ( ), in
Make calls 47
which case you only hear the sound and may see a still image or a grey
background graphic.
3 To end the video call, press the end key.
During a video call
View live video or listen to the caller only
Select Options > Enable or Disable and the desired option.
Mute or unmute the microphone
Select Mute or Unmute.
Activate the loudspeaker
Select Options > Activate loudspeaker. If you have attached a compatible headset
with Bluetooth connectivity, to route the sound to the headset, select Options >
Activate handsfree.
Switch back to the handset
Select Options > Activate handset.
Take a snapshot of the video you are sending
Select Options > Send snapshot. Video sending is paused and the snapshot is
shown to the recipient. The snapshot is not saved.
Zoom your image
Select Options > Zoom.
Set the video quality
Select Options > Adjust > Video preference > Normal quality, Clearer detail
or Smoother motion.
48 Make calls
Answer or decline a video call
When a video call arrives, is displayed.
To answer the video call, press the call key. Allow video image to be sent to caller?
is displayed.
To start sending live video image, select Yes.
If you do not activate the video call, you only hear the sound of the caller. A grey
screen replaces the video image. To replace the grey screen with a still image
captured by the camera in your device, select Menu > Ctrl. panel > Settings and
Phone > Call > Image in video call.
To end the video call, press the end key.
Video sharing
Use video sharing (network service) to send live video or a video clip from your
mobile device to another compatible mobile device during a voice call.
The loudspeaker is active when you activate video sharing. If you do not want to
use the loudspeaker for the voice call while you share video, you can also use a
compatible headset.
Warning:
Continuous exposure to high volume may damage your hearing. Listen to music at
a moderate level, and do not hold the device near your ear when the loudspeaker
is in use.
Make calls 49
Video sharing requirements
Video sharing requires a 3G connection. For more information on the service, 3G
network availability, and fees associated with using this service, contact your
service provider.
To use video sharing you must do the following:
•Ensure that your device is set up for person-to-person connections.
•Ensure you have an active 3G connection and are within 3G network coverage.
If you move outside the 3G network during a video sharing session, the sharing
stops while your voice call continues.
•Ensure that both the sender and recipient are registered to the 3G network. If
you invite someone to a sharing session and the recipient’s device is not within
3G network coverage, does not have video sharing installed, or person-to-
person connections set up, the recipient does not receive invitations. You
receive an error message that indicates that the recipient cannot accept the
invitation.
Video sharing settings
To set up video sharing, you need person-to-person and 3G connection settings.
A person-to-person connection is also known as a Session Initiation Protocol (SIP)
connection. The SIP profile settings must be configured in your device before you
can use video sharing. Ask your service provider for the SIP profile settings, and save
them to your device. Your service provider may send you the settings or give you a
list of the needed parameters.
Add a SIP address to a contact
1 Select Menu > Contacts.
2 Select a contact or create a new contact.
3 Select Options > Edit.
4 Select Options > Add detail > Share video.
50 Make calls
5 Enter the SIP address in the format username@domainname (you can use an
IP address instead of a domain name).
If you do not know the SIP address for the contact, you can use the phone
number of the recipient, including the country code, to share video (if supported
by the network service provider).
Set up your 3G connection
Contact your service provider to establish an agreement for you to use the 3G
network.
Ensure that the 3G access point connection settings for your device are configured
properly. For more information about the settings, contact your service provider.
Share live video or video clips
During an active voice call, select Options > Share video.
1 To share live video during the call, select Live video.
To share a video clip, select Video clip and the clip you want to share.
Your device checks if the video needs to be converted. If needed, the video is
automatically converted.
2 If the recipient has several SIP addresses or phone numbers including the
country code saved in the contacts list, select the desired address or number. If
the SIP address or phone number of the recipient is not available, enter the
address or number of the recipient including the country code, and select OK
to send the invitation. Your device sends the invitation to the SIP address.
Sharing begins automatically when the recipient accepts the invitation.
Options during video sharing
Zoom the video (available for sender only).
Adjust the brightness (available for sender only).
Mute or unmute the microphone.
Make calls 51
Turn the loudspeaker on and off.
Pause and resume video sharing.
Switch to full screen mode (available for receiver only).
3 To stop sharing video, select Stop. To end the voice call, press the end key. When
you end the call, video sharing also ends.
To save the live video you shared, select Yes when prompted. The device notifies
you of the memory location of the saved video. To define the preferred memory
location, select Menu > Ctrl. panel > Settings and Connection > Video
sharing > Preferred saving memory.
If you access other applications while you are sharing a video clip, the sharing is
paused. To return to the video sharing view, and to continue sharing, in the home
screen, select Options > Resume video sharing.
Accept an invitation
When someone sends you a video sharing invitation, the invitation message
displays the sender’s name or SIP address. If your device is not set to silent, it rings
when you receive an invitation.
If someone sends you a share invitation and you are not within UMTS network
coverage, you will not know that you received an invitation.
When you receive an invitation, select from the following:
Yes — Accept the invitation, and activate the sharing session.
No — Reject the invitation. The sender receives a message that you rejected the
invitation. You can also press the end key to reject the invitation and end the voice
call.
To mute the video on your device, select Options > Mute.
52 Make calls
To play the video at the original volume, select Options > Original volume. This
does not affect the audio playback of the other party of the phone call.
To end the sharing session, select Stop. To end the voice call, press the end key.
When you end the call, also video sharing ends.
Log
The log stores information about the communication history of the device. The
device registers missed and received calls only if the network supports these
functions, the device is switched on, and within the network service area.
Recent calls
You can view information about your recent calls.
Select Menu > Log and Recent calls.
View missed, received, and dialed calls
Select Missed calls, Received calls or Dialed numbers.
Tip: To open the dialled numbers list in the home screen, press the call key.
Select Options and from the following:
Save to Contacts — Save a phone number from a recent calls list to your contacts.
Clear list — Clear the selected recent calls list.
Delete — Clear an event in the selected list.
Settings — Select Log duration and the length of time that the communication
information is saved in the log. If you select No log, no information is saved in the
log.
Make calls 53
Call duration
Select Menu > Log.
To view the approximate duration of your last call, and dialled and received calls,
select Call timers.
Packet data
Select Menu > Log.
You may be charged for your packet data connections by the amount of data sent
and received.
To check the amount of data sent or received during packet data connections, select
Packet data > All sent dataor All received data.
To clear both sent and received information, select Options > Clear counters. You
need the lock code to clear the information.
Monitor all communication events
Select Menu > Log.
To open the general log where you can monitor all voice calls, text messages, or
data and wireless LAN connections registered by the device, select the general log
tab .
Subevents, such as a text message sent in more than one part and packet data
connections, are logged as one communication event. Connections to your mailbox,
multimedia messaging center or web pages are shown as packet data connections.
To view how much data was transferred and how long a certain packet data
connection lasted, scroll to an incoming or outgoing event indicated by Pack., and
select Options > View.
54 Make calls
To copy a phone number from the log to the clipboard, and paste it into a text
message, for example, select Options > Use number > Copy.
To filter the log, select Options > Filter and a filter.
To set the log duration, select Options > Settings > Log duration. If you select
No log, all the log contents, recent calls register and messaging delivery reports are
permanently deleted.
Messaging
Select Menu > Messaging.
In Messaging (network service), you can send and receive text messages,
multimedia messages, audio messages, and e-mail messages. You can also receive
web service messages, cell broadcast messages, and special messages containing
data, and send service commands.
Before sending or receiving messages, you may need to do the following:
•Insert a valid SIM card in the device and be located in the service area of a cellular
network.
•Verify that the network supports the messaging features you want to use and
that they are activated on your SIM card.
•Define the internet access point settings on the device.
•Define the e-mail account settings on the device.
•Define the text message settings on the device.
•Define the multimedia message settings on the device.
The device may recognize the SIM card provider and automatically configure some
of the message settings. If not, you may need to define the settings manually; or
contact your service provider to configure the settings.
Messaging 55
Messaging folders
Select Menu > Messaging.
Messages and data received using Bluetooth connectivity are stored in the Inbox
folder. E-mail messages are stored in the Mailbox folder. Messages that you have
been writing can be stored in the Drafts folder. Messages that are waiting to be sent
are stored in the Outbox folder, and messages that have been sent, excluding
Bluetooth messages, are stored in the Sent folder.
Tip: Messages are placed in the Outbox folder, for example, when your device is
outside network coverage.
Note: The message sent icon or text on your device screen does not indicate
that the message is received at the intended destination.
To request the network to send you a delivery report of the text messages and
multimedia messages you have sent (network service), select Options >
Settings > Text message > Receive report or Multimedia message > Receive
reports. The reports are saved in the Reports folder.
Organize messages
Select Menu > Messaging and My folders.
To create a new folder to organize your messages, select Options > New folder.
To rename a folder, select Options > Rename folder. You can only rename folders
that you have created.
To move a message to another folder, select the message, Options > Move to
folder, the folder, and OK.
To sort messages in a specific order, select Options > Sort by.
56 Messaging
To view the properties of a message, select the message and Options > Message
details.
E-mail
Set up your e-mail
With the Nokia e-mail wizard, you can set up your corporate e-mail account, such
as Microsoft Outlook, Mail for Exchange, or Intellisync, and your internet e-mail
account.
When setting up your corporate e-mail, you may be prompted for the name of the
server associated with your e-mail address. For details, contact your company IT
department.
1 To open the wizard, in the home screen, select Set up e-mail.
2 Enter your e-mail address and password. If the wizard is not able to configure
your e-mail settings automatically, you need to select your e-mail account type,
and enter the related account settings.
If your device contains any additional e-mail clients, those are offered to you when
you open the wizard.
Send e-mail
Select Menu > Messaging.
1 Select your mailbox and Options > Create email.
2 In the To field, enter the recipient's e-mail address. If the recipient's e-mail
address can be found in Contacts, start entering the recipient's name, and select
the recipient from the proposed matches. If you add several recipients, insert ;
to separate the e-mail addresses. Use the Cc field to send a copy to other
recipients, or the Bcc field to send a blind copy to recipients. If the Bcc field is
not visible, select Options > More > Show Bcc field.
3 In the Subject field, enter the subject of the e-mail.
Messaging 57
4 Enter your message in the text area.
5 Select Options and from the following:
Add attachment — Add an attachment to the message.
Priority — Set the priority of the message.
Flag — Flag the message for follow-up.
Insert template — Insert text from a template.
Add recipient — Add recipients to the message from Contacts.
Editing options — Cut, copy, or paste the selected text.
Input options — Activate or deactivate predictive text input, or select the
writing language.
6 Select Options > Send.
Available options may vary.
Add attachments
Select Menu > Messaging.
To write an e-mail message, select your mailbox and Options > Create email.
To add an attachment to the e-mail message, select Options > Add attachment.
To remove the selected attachment, select Options > Remove attachment.
Read e-mail
Select Menu > Messaging.
Important: Exercise caution when opening messages. Messages may contain
malicious software or otherwise be harmful to your device or PC.
58 Messaging
To read a received e-mail message, select the mailbox, and select the message from
the list.
To reply to the message sender, select Options > Reply. To reply to the sender and
all other recipients, select Options > Reply to all.
To forward the message, select Options > Forward.
Download attachments
Select Menu > Messagingand a mailbox.
To view the attachments in a received e-mail message, scroll to the attachment
field, and select Options > Actions. If there is one attachment in the message,
select Open to open the attachment. If there are several attachments, select View
list to see a list showing which attachments have been downloaded.
To download the selected attachment or all the attachments from the list to your
device, select Options > Actions > Download or Download all. The attachments
are not saved in your device, and are deleted when you delete the message.
To save the selected attachment or all the downloaded attachments in your device,
select Options > Actions > Save or Save all.
To open the selected, downloaded attachment, select Options > Actions > Open.
Reply to a meeting request
Select Menu > Messagingand a mailbox.
Select a received meeting request, Options, and from the following:
Accept — Accept the meeting request.
Decline — Decline the meeting request.
Messaging 59
Forward — Forward the meeting request to another recipient.
Remove from calendar — Remove a canceled meeting from your calendar.
Search for e-mail messages
Select Menu > Messagingand a mailbox.
To search for items within the recipients, subjects, and body texts of the e-mail
messages in the mailbox, select Options > Search.
To stop the search, select Options > Stop search.
To start a new search, select Options > New search.
Delete e-mails
Select Menu > Messagingand a mailbox.
To delete an e-mail message, select the message and Options > Actions >
Delete. The message is placed in the Deleted items folder, if available. If there is no
Deleted items folder available, the message is deleted permanently.
To empty the Deleted items folder, select the folder and Options > Empty deleted
items.
Switch between e-mail folders
Select Menu > Messagingand a mailbox.
To open another e-mail folder or mailbox, select Inbox at the top of the display.
Select the e-mail folder or mailbox from the list.
60 Messaging
Disconnect from the mailbox
Select Menu > Messagingand a mailbox.
To cancel the synchronization between the device and the e-mail server, and to
work with e-mail without a wireless connection, select Options > Disconnect. If
your mailbox does not have the Disconnect option, select Options > Exit to
disconnect from the mailbox.
To start the synchronization again, select Options > Connect.
Set an out-of-office reply
Select Menu > Office > Email.
To set an out-of-office reply, if available, select your mailbox and Options >
Settings > Mailbox settings. Depending on the mailbox type, select either
Mailbox > Out of office > On or Mailbox settings > Out of office > On.
To enter the text for the reply, select Out of office reply.
General e-mail settings
Select Menu > Office > Email and Settings > Global settings.
Select from the following:
Message list layout — Select whether the e-mail messages in Inbox display one
or two lines of text.
Body text preview — Preview messages when scrolling through the list of e-mail
messages in Inbox.
Title dividers — To be able to expand and collapse the list of e-mail messages,
select On.
Download notifications — Set the device to display a notification when an e-mail
attachment has been downloaded.
Messaging 61
Warn before delete — Set the device to display a warning before you delete an
e-mail message.
Home screen — Define how many lines of e-mail are displayed in the home screen
information area.
Nokia Messaging
The Nokia Messaging service automatically pushes e-mail from your existing e-mail
address to your Nokia E5-00. You can read, respond to, and organize your e-mails
on the go. The Nokia Messaging service works with a number of internet e-mail
providers that are often used for personal e-mail, such as Google e-mail services.
The Nokia Messaging service must be supported by your network and may not be
available in all regions.
Install the Nokia Messaging application
1 Select Menu > Messaging and New mailbox.
2 Read the information on the display, and select Start.
3 If requested, allow your device to connect to the internet.
4 Select your e-mail service provider or account type.
5 Enter the required account details, such as e-mail address and password.
The Nokia Messaging service can run on your device even if you have installed other
e-mail applications, such as Mail for Exchange.
Message reader
With Message reader you can listen to text, multimedia, audio, and e-mail messages.
To listen to new messages or e-mail, in the home screen, press and hold the left
selection key until Message reader opens.
62 Messaging
To listen to a message from your Inbox, scroll to the message, and select Options >
Listen. To listen to an e-mail message from your mailbox, scroll to the message,
and selectOptions > Listen. To stop the reading, press the end key.
To pause and continue the reading, press the scroll key. To skip to the next message,
scroll right. To replay the current message or e-mail, scroll left. To skip to the
previous message, scroll left at the beginning of the message.
To view the current message or e-mail in text format without the sound, select
Options > View.
Speech
Select Menu > Ctrl. panel > Speech.
With Speech, you can set the language, voice, and voice properties for the message
reader.
To set the language for the message reader, select Language. To download
additional languages to your device, select Options > Download languages.
When you download a new language, you must download at least one voice for
that language.
To set the speaking voice, select Voice. The voice depends on the selected language.
To set the speaking rate, select Speed.
To set the speaking volume, select Volume.
To view the details of a voice, open the voice tab, and select the voice and Options >
Voice details. To listen to a voice, select the voice and Options > Play voice.
To delete languages or voices, select the item and Options > Delete.
Messaging 63
Text and multimedia messages
Select Menu > Messaging.
Only devices that have compatible features can receive and display multimedia
messages. The appearance of a message may vary depending on the receiving
device.
A multimedia message (MMS) can contain text and objects such as images, sound
clips, or video clips. Before you can send or receive multimedia messages on your
device, you must define the multimedia message settings. Your device may
recognize the SIM card provider and configure the correct multimedia message
settings automatically. If not, contact your service provider for the correct settings,
order the settings from your service provider in a configuration message, or use the
Settings wizard application.
Write and send messages
Select Menu > Messaging.
Important: Exercise caution when opening messages. Messages may contain
malicious software or otherwise be harmful to your device or PC.
Before you can create a multimedia message or write an e-mail, you must have the
correct connection settings in place.
The wireless network may limit the size of MMS messages. If the inserted picture
exceeds this limit, the device may make it smaller so that it can be sent by MMS.
Check the size limit of e-mail messages with your service provider. If you attempt
to send an e-mail message that exceeds the size limit of the e-mail server, the
message is left in the Outbox folder, and the device will attempt to resend it
periodically. Sending an e-mail requires a data connection, and continuous
attempts to resend the e-mail may increase your data transfer costs. In the Outbox
folder, you can delete such a message, or move it to the Drafts folder.
64 Messaging
1 Select New message.
2 To send a text or multimedia message (MMS), select Message. To send a
multimedia message that includes one sound clip, select Audio message. To
send an e-mail, select E-mail.
3 In the To field, press the scroll key to select recipients or groups from the
contacts list, or enter the recipient’s phone number or e-mail address. You can
also copy and paste the number or address from the clipboard.
4 In the subject field, enter the subject of the message for a multimedia or an e-
mail message. To hide or display fields when writing a text or multimedia
message, select Options > Message header fields.
5 In the message field, write the message. To add a template or note to a text or
multimedia message, select Options > Insert content > Insert text >
Template or Note. To add a template to an e-mail message, select Options >
Insert template.
6 To add a media file to a multimedia message, select Options > Insert
content, the file type or source, and the desired file. To add a business card,
slide, note, or other file to the message, select Options > Insert content >
Insert other.
7 To capture an image or record a video or sound clip for a multimedia message,
select Options > Insert content > Insert image > New, Insert video clip >
New, or Insert sound clip > New.
8 To insert a smiley to a text or multimedia message, press the sym key, and select
the smiley.
9 To add an attachment to an e-mail, select Options > Add attachment, the
memory, and the file to attach. indicates an e-mail attachment.
10 To send the message, select Options > Send, or press the call key.
Available options may vary.
Note: The message sent icon or text on your device screen does not indicate
that the message is received at the intended destination.
Messaging 65
Your device supports text messages beyond the limit for a single message. Longer
messages are sent as two or more messages. Your service provider may charge
accordingly. Characters with accents, other marks, or some language options take
more space, and limit the number of characters that can be sent in a single message.
You may not be able to send video clips that are saved in an MP4 file format or that
exceed the size limit of the wireless network in a multimedia message.
Text messages on the SIM card
Select Menu > Messaging and Options > SIM messages.
Text messages may be stored on your SIM card. Before you can view SIM messages,
you must copy the messages to a folder in the device. After copying the messages
to a folder, you can view them in the folder or delete them from the SIM card.
1 Select Options > Mark/Unmark > Mark or Mark all to mark every message.
2 Select Options > Copy.
3 Select a folder and OK to begin copying.
To view SIM card messages, open the folder where you copied the messages, and
open a message.
Receive and reply to multimedia messages
Important: Exercise caution when opening messages. Messages may contain
malicious software or otherwise be harmful to your device or PC.
Tip: If you receive multimedia messages that contain objects unsupported by your
device, you cannot open them. Try to send these objects to another device such as
a computer, and open them there.
1 To reply to a multimedia message, open the message, and select Options >
Reply.
66 Messaging
2 Select To sender to reply to the sender, To all to reply to everyone included in
the received message, Via audio message to reply with an audio message, or
Via e-mail to reply with an e-mail message. E-mail message is available only if
a mailbox is configured and the message is sent from an e-mail address.
3 Enter the text of the message, and select Options > Send.
Create presentations
Select Menu > Messaging.
Creating multimedia presentations is not possible if MMS creation mode is set to
Restricted. To change the setting, select Options > Settings > Multimedia
message > MMS creation mode > Free or Guided.
1 To create a presentation, select New message > Message. The message type
is changed to multimedia message based on the inserted content.
2 In the To field, enter a recipient's number or e-mail address, or press the scroll
key to add a recipient from the contacts list. If you enter more than one number
or e-mail address, separate them with a semicolon.
3 Select Options > Insert content > Insert presentation and a presentation
template. A template may define which media objects you can include in the
presentation, where they appear, and which effects are displayed between
images and slides.
4 Scroll to the text area, and enter the text.
5 To insert images, sound or video clips, or notes in your presentation, scroll to
the corresponding object area, and select Options > Insert content.
6 To add slides, select Options > Insert content > New slide.
To select the background color for the presentation and background images for
different slides, select Options > Background settings.
To set effects between images or slides, select Options > Effect settings.
Messaging 67
To preview the presentation, select Options > Preview. Multimedia presentations
may only be viewed in compatible devices that support presentations. They may
appear different in different devices.
View presentations
To view a presentation, open the multimedia message from the Inbox folder. Scroll
to the presentation, and press the scroll key.
To pause the presentation, press either selection key.
To resume playing the presentation, select Options > Continue.
If the text or images are too large to fit on the display, select Options > Activate
scrolling, and scroll to see the entire presentation.
To find phone numbers and e-mail or web addresses in the presentation, select
Options > Find. You may use these numbers and addresses to make calls, send
messages, or create bookmarks, for example.
View and save multimedia attachments
To view multimedia messages as complete presentations, open the message, and
select Options > Play presentation.
Tip: To view or play a multimedia object in a multimedia message, select View
image, Play sound clip, or Play video clip.
To view the name and size of an attachment, select the message and Options >
Objects.
68 Messaging
To save a multimedia object, select Options > Objects, the object, and Options >
Save.
Special message types
Select Menu > Messaging.
You can receive special messages that contain data, such as operator logos, ringing
tones, bookmarks, or internet access or e-mail account settings.
To save the contents of these messages, select Options > Save object.
Service messages
Service messages are sent to your device by service providers. Service messages may
contain notifications such as news headlines, services, or links through which the
message content can be downloaded.
To define the service message settings, select Options > Settings > Service
message.
To download the service or message content, select Options > Download
message.
To view information about the sender, web address, expiration date, and other
details of the message before downloading it, select Options > Message details.
Send service commands
You can send a service request message (also known as a USSD command) to your
service provider and request activation for certain network services. Contact your
service provider for the service request text.
Messaging 69
To send a service request message, select Options > Service commands. Enter the
service request text and select Options > Send.
Cell broadcast
Select Menu > Messaging and Options > Cell broadcast.
With the cell broadcast network service, you can receive messages on various topics
from your service provider, such as weather or traffic conditions in a particular
region. For available topics and relevant topic numbers, contact your service
provider. Cell broadcast messages cannot be received when the device is in the
remote SIM mode. A packet data (GPRS) connection may prevent cell broadcast
reception.
Cell broadcast messages cannot be received in UMTS (3G) networks.
To receive cell broadcast messages, you may need to turn cell broadcast reception
on. Select Options > Settings > Reception > On.
To view messages related to a topic, select the topic.
To receive messages related to a topic, select Options > Subscribe.
Tip: You can set important topics as hot topics. You are notified in the home screen,
when you receive a message related to a hot topic. Select a topic and Options >
Hotmark.
To add, edit, or delete topics, select Options > Topic.
Messaging settings
Select Menu > Messaging and Options > Settings.
70 Messaging
Open the message type in question, and define all fields marked with Must be
defined or with a red asterisk.
Your device may recognize the SIM card provider and configure the correct text
message, multimedia message, and GPRS settings automatically. If not, contact your
service provider for the correct settings, order the settings from your service
provider in a configuration message, or use the Settings wizard application.
Text message settings
Select Menu > Messaging and Options > Settings > Text message.
Select from the following:
Message centers — View the available message centers for your device, or add a
new one.
Message center in use — Select a message center to send the message.
Character encoding — Select Reduced support to use automatic character
conversion to another encoding system when available.
Receive report — Select Yes if you want the network to send you delivery reports
on your messages (network service).
Message validity — Select how long the message center resends your message if
the first attempt fails (network service). If the recipient cannot be reached within
the validity period, the message is deleted from the message center.
Message sent as — Convert the message to another format, for example, fax or e-
mail. Change this option only if you are sure that your message center is able to
convert text messages into these other formats. For more information, contact your
service provider.
Preferred connection — Select the preferred method of connection when sending
text messages from your device.
Reply via same center — Select whether you want the reply message to be sent
using the same text message center number (network service).
Messaging 71
Multimedia message settings
Select Menu > Messaging and Options > Settings > Multimedia message.
Select from the following:
Image size — Scale images in multimedia messages.
MMS creation mode — Select Restricted to set your device to prevent you from
including content in multimedia messages that may not be supported by the
network or the receiving device. To receive warnings about including such content,
select Guided. To create a multimedia message with no restrictions on attachment
type, select Free. If you select Restricted, creating multimedia presentations is not
possible.
Access point in use — Select the default access point to connect to the multimedia
message center. You may not be able to change the default access point if it is preset
in your device by your service provider.
Multimedia retrieval — Select how you want to receive messages, if available.
Select Always automatic to receive multimedia messages always automatically,
Auto in home netw. to receive notification of a new multimedia message that you
can retrieve from the message center (for example, when you are traveling abroad
and are outside your home network), Manual to retrieve multimedia messages
from the message center manually, or Off to prevent receipt of any multimedia
messages. Automatic retrieval may not be supported in all regions.
Allow anonymous msgs. — Receive messages from unknown senders.
Receive ads — Receive messages defined as advertisements.
Receive reports — Request for delivery and read reports of sent messages
(network service). Receiving a delivery report of a multimedia message that has
been sent to an e-mail address may not be possible.
Deny report sending — Select Yes to not send delivery reports from your device
for received multimedia messages.
Message validity — Select how long the messaging center tries to send the
message (network service). If the recipient of a message cannot be reached within
72 Messaging
the validity period, the message is removed from the multimedia messaging center.
Maximum time is the maximum amount of time allowed by the network.
The device requires network support to indicate that a sent message has been
received or read. Depending on the network and other circumstances, this
information may not always be reliable.
Service message settings
Select Menu > Messaging and Options > Settings > Service message.
To allow your device to receive service messages from your service provider, select
Service messages > On.
To select how to download services and service message content, select Download
messages > Automatically or Manually. If you select Automatically, you may
still need to confirm some downloads since not all services can be downloaded
automatically.
Cell broadcast settings
Select Menu > Messaging and Options > Settings > Cell broadcast.
To receive cell broadcast messages, select Reception > On.
To select the languages in which you want to receive cell broadcast messages, select
Language.
To display new topics in the cell broadcast topics list, select Topic detection >
On.
Other settings
Select Menu > Messaging and Options > Settings > Other.
Messaging 73
Select from the following:
Save sent messages — Select whether to save sent messages in the Sent folder.
Number of saved msgs. — Enter the number of sent messages to save. When the
limit is reached, the oldest message is deleted.
Memory in use — Select where to save your messages. You can save messages to
the memory card only if a memory card is inserted.
Folder view — Select if you want to see folder information on one or two lines.
About Chat
With IM (network service), you can exchange instant messages with your friends.
You can access several chat services or communities simultaneously and switch
between them. If you want to, for example, browse the web, you can leave the IM
application to run in the background, and still be notified of new instant messages.
The IM application is preinstalled on your device. To start chatting, select Menu >
Internet > Chat.
Using network services and downloading content to your device may result in data
traffic costs.
Set up Office Communicator
With the Office Communicator application, you can communicate with your
colleagues and see their availability.
1 Select Menu > Office > Communicator.
2 Define the settings.
Some services may not be available in all countries, and may be provided only in
selected languages. The services may be network dependent. For more information,
contact your network service provider.
Using the service or downloading content may cause transfer of large amounts of
data, which may result in data traffic costs.
74 Messaging
Connectivity
Your device offers several options to connect to the internet or to another
compatible device or computer.
Data connections and access points
Your device supports packet data connections (network service), such as GPRS in
the GSM network. When you use your device in GSM and UMTS networks, multiple
data connections can be active at the same time, and access points can share a data
connection. In the UMTS network, data connections remain active during voice calls.
You can also use a Wi-Fi/WLAN data connection. Only one connection in one wireless
LAN can be active at a time, but several applications can use the same internet access
point.
To establish a data connection, an access point is required. You can define different
kinds of access points, such as the following:
•MMS access point to send and receive multimedia messages
•Internet access point (IAP) to send and receive e-mail and connect to the
internet
Check the type of access point you need with your service provider for the service
you want to access. For availability and subscription to packet data connection
services, contact your service provider.
Network settings
Your device can automatically switch between GSM and 3G networks. The GSM
network is indicated with in the standby mode. The 3G network is indicated with
.
Select Menu > Ctrl. panel > Settings and Phone > Network and from the
following:
Connectivity 75
Network mode — Select which network to use. If you select Dual mode, the device
uses the GSM or 3G network automatically, according to the network parameters
and the roaming agreements between the wireless service providers. For details
and roaming costs, contact your network service provider. This option is shown only
if supported by the wireless service provider.
A roaming agreement is an agreement between two or more service providers to
enable the users of one service provider to use the services of other service
providers.
Operator selection — Select Automatic to set the device to search for and select
one of the available networks, or Manual to manually select the network from a
list. If the connection to the manually selected network is lost, the device sounds
an error tone and asks you to reselect a network. The selected network must have
a roaming agreement with your home cellular network.
Cell info display — Set the device to indicate when it is used in a cellular network
based on microcellular network (MCN) technology and to activate cell info reception.
Wi-Fi/WLAN connection
Your device can detect and connect to wireless local area networks (WLAN). Using
a WLAN, you can connect your device to the internet and compatible devices that
have WLAN support.
About WLAN
To use a Wi-Fi network connection, it must be available in the location, and your
device must be connected to the Wi-Fi network. Some WLANs are protected, and
you need an access key from the service provider to connect to them.
Note: Using Wi-Fi may be restricted in some countries. For example, in
France, you are only allowed to use Wi-Fi indoors. For more information, contact
your local authorities.
Features that use WLAN, or that are allowed to run in the background while using
other features, increase the demand on battery power and reduce the battery life.
76 Connectivity
Use encryption to increase the security of your Wi-Fi connection. Using encryption
reduces the risk of others accessing your data.
Wi-Fi connections
To use a wireless LAN (Wi-Fi) connection, you must create an internet access point
(IAP) for Wi-Fi. Use the access point for applications that need to connect to the
internet.
A Wi-Fi connection is established when you create a data connection using a Wi-Fi
internet access point. The active Wi-Fi connection ends when you end the data
connection.
You can use Wi-Fi during a voice call or when packet data is active. You can only be
connected to one Wi-Fi access point device at a time, but several applications can
use the same internet access point.
When the device is in the offline profile, you can still use Wi-Fi (if available).
Remember to comply with any applicable safety requirements when establishing
and using a Wi-Fi connection.
Tip: To check the unique media access control (MAC) address that identifies your
device, enter *#62209526# in the home screen.
WLAN wizard
Select Menu > Ctrl. panel > Connectivity > WLAN wiz..
The WLAN wizard helps you to connect to a wireless LAN (WLAN) and manage your
WLAN connections.
If the search finds WLANs, to create an internet access point (IAP) for a connection
and start the web browser using this IAP, select the connection and Start web
browsing.
Connectivity 77
If you select a secured WLAN, you are asked to enter the relevant password. To
connect to a hidden network, you must enter the correct network name (service set
identifier, SSID).
If you already have the web browser running using the currently active WLAN
connection, to return to the web browser, select Cont. web browsing.
To end the active connection, select the connection and Disconnect WLAN.
WLAN internet access points
Select Menu > Ctrl. panel > Connectivity > WLAN wiz. and Options.
Select from the following:
Filter WLAN networks — Filter out wireless LANs (WLANs) from the list of found
networks. The selected networks are not displayed the next time the application
searches for WLANs.
Details — View the details of a network shown in the list. If you select an active
connection, the connection details are displayed.
Operating modes
There are two operating modes in Wi-Fi: infrastructure and ad hoc.
The infrastructure operating mode allows two kinds of communication: wireless
devices are connected to each other through a Wi-Fi access point device, or wireless
devices are connected to a wired LAN through a Wi-Fi access point device.
In the ad hoc operating mode, devices can send and receive data directly with each
other.
WLAN settings
Select Menu > Ctrl. panel > Settings and Connection > Wireless LAN.
78 Connectivity
To have an indicator displayed when there is a wireless LAN (WLAN) available in
your current location, select Show WLAN availability > Yes.
To select the interval for your device to scan for available WLANs, and to update the
indicator, select Scan for networks. This setting is not available unless you select
Show WLAN availability > Yes.
To set the device to test the internet capability of the selected WLAN automatically,
to ask for permission every time, or to never perform the connectivity test, select
Internet connectivity test > Run automatically, Ask every time, or Never run.
If you select Run automatically or allow the test to be performed when the device
asks for it, and the connectivity test is performed successfully, the access point is
saved to internet destinations.
To check the unique media access control (MAC) address that identifies your device,
enter *#62209526# in the home screen. The MAC address is displayed.
Active data connections
Select Menu > Ctrl. panel > Connectivity > Conn. mgr..
Select Active data connections.
In the active data connections view, you can see the open data connections:
data calls
packet data connections
wireless LAN (WLAN) connections
Note: The actual invoice for calls and services from your service provider may
vary, depending on network features, rounding off for billing, taxes, and so forth.
To end a connection, select Options > Disconnect.
Connectivity 79
To close all open connections, select Options > Disconnect all.
To view the details of a connection, select Options > Details.
Synchronization
With the Sync application, you can synchronize your notes, messages, contacts, and
other information with a remote server.
Select Menu > Ctrl. panel > Connectivity > Sync.
You may receive synchronization settings as a configuration message from your
service provider.
A synchronization profile contains the necessary settings for synchronization. When
you open the application, the default or previously used synchronization profile is
displayed.
Include or exclude content types
Select a content type.
Synchronize data
Select Options > Synchronize.
Create a new synchronization profile
Select Options > New sync profile.
Manage synchronization profiles
Select Options and the desired option.
80 Connectivity
Bluetooth connectivity
About Bluetooth connectivity
With Bluetooth connectivity, you can make a wireless connection to other
compatible devices, such as mobile phones, computers, headsets, and car kits.
You can use the connection to send images, video clips, music and sound clips, and
notes; transfer files from your compatible PC; and print images with a compatible
printer.
Since devices with Bluetooth wireless technology communicate using radio waves,
they do not need to be in direct line-of-sight. However, they must be within 10
meters (33 feet) of each other, although the connection may be subject to
interference from obstructions, such as walls or from other electronic devices.
This device is compliant with Bluetooth Specification 2.0 + EDR supporting the
following profiles: Advanced Audio Distribution, Audio Video Remote Control, Basic
Imaging, Basic Printing, Dial-up Networking, File Transfer, Generic Access, Hands-
free, Headset, Human Interface Device, Object Push, Phone Book Access, SIM Access,
Serial Port, Service Discovery Application, Generic Object Exchange. To ensure
interoperability between other devices supporting Bluetooth technology, use Nokia
approved accessories for this model. Check with the manufacturers of other devices
to determine their compatibility with this device.
Features using Bluetooth technology increase the demand on battery power and
reduce the battery life.
When the device is locked, only connections to authorized devices are possible.
Bluetooth settings
Select Menu > Ctrl. panel and Connectivity > Bluetooth.
Select from the following:
Bluetooth — Activate Bluetooth connectivity.
Connectivity 81
My phone's visibility — To allow your device to be visible to other Bluetooth
devices, select Shown to all. To set a length of time, after which the visibility is set
from shown to hidden, select Define period. To hide your device from other devices,
select Hidden.
My phone's name — Edit the name of your device. The name is shown to other
Bluetooth devices.
Remote SIM mode — Allow another device, such as a compatible car kit accessory,
to use the SIM card in your device to connect to the network.
Security tips
Select Menu > Ctrl. panel and Connectivity > Bluetooth.
When you are not using Bluetooth connectivity, to control who can find your device
and connect to it, select Bluetooth > Off or My phone's visibility > Hidden.
Deactivating the Bluetooth function does not affect other functions in your device.
Do not pair with or accept connection requests from an unknown device. This helps
to protect your device from harmful content. Operating the device in hidden mode
is a safer way to avoid malicious software.
Send data using Bluetooth connectivity
Several Bluetooth connections can be active at a time. For example, if you are
connected to a compatible headset, you can also transfer files to another compatible
device at the same time.
1 Open the application where the item you want to send is stored.
2 Scroll to an item, and select Options > Send > Via Bluetooth.
Devices with Bluetooth wireless technology that are within range are displayed.
Device icons are as follows:
computer
phone
82 Connectivity
audio or video device
other device
To interrupt the search, select Stop.
3 Select the device with which you want to connect.
4 If the other device requires pairing before data can be transmitted, a tone
sounds, and you are asked to enter a passcode. The same passcode must be
entered in both devices.
When the connection is established, Sending data is displayed.
Tip: When searching for devices, some devices may show only the unique address
(device address). To find the unique address of your device, enter *#2820#.
Pair devices
To pair with compatible devices and view your paired devices, in the main view of
Bluetooth connectivity, scroll right.
Before pairing, create your own passcode (1 to 16 digits) and agree with the owner
of the other device to use the same code. Devices that do not have a user interface
have a factory-set passcode. The passcode is used only once.
1 To pair with a device, select Options > New paired device. Devices that are
within range are displayed.
2 Select the device, and enter the passcode. The same passcode must be entered
on the other device as well.
3 Some audio enhancements connect automatically to your device after pairing.
Otherwise, scroll to the enhancement, and select Options > Connect to audio
device.
Paired devices are indicated by in the device search.
Connectivity 83
To set a device as authorized or unauthorized, scroll to the device, and select from
the following options:
Set as authorized — Connections between your device and the authorized device
can be made without your knowledge. No separate acceptance or authorization is
needed. Use this status for your own devices, such as your compatible headset, PC
or devices that belong to someone you trust. indicates authorized devices in the
paired devices view.
Set as unauthorized — Connection requests from this device must be accepted
separately every time.
To cancel a pairing, scroll to the device, and select Options > Delete.
If you want to cancel all pairings, select Options > Delete all.
Receive data using Bluetooth connectivity
When you receive data through Bluetooth connectivity, a tone sounds, and you are
asked if you want to accept the message. If you accept, is displayed, and the
item is placed in the Inbox folder in Messaging. Messages received through
Bluetooth connectivity are indicated by .
Tip: If your device notifies you that the memory is full when you try to receive data
through Bluetooth connectivity, change memory card as the memory where the
data is stored.
Block devices
You can prevent devices from establishing a Bluetooth connection to your device.
Select Menu > Ctrl. panel and Connectivity > Bluetooth.
84 Connectivity
Block a device
On the Paired devices tab, go to a device you want to block, and select Options >
Block.
Unblock a device
On the Blocked devices tab, go to a device, and select Options > Delete.
Unblock all blocked devices
Select Options > Delete all.
If you reject a pairing request from another device, you are asked if you want to
block all future connection requests from this device. If you accept the query, the
device is added to the list of blocked devices.
Remote SIM mode
Before the remote SIM mode can be activated, the two devices must be paired and
the pairing initiated from the other device. When pairing, use a 16-digit passcode
and set the other device as authorized.
To use the remote SIM mode with a compatible car kit enhancement, activate
Bluetooth connectivity and enable the use of the remote SIM mode with your device.
Activate the remote SIM mode from the other device.
When the remote SIM mode is on in your device, Remote SIM mode is displayed in
the standby mode. The connection to the wireless network is turned off, as indicated
by in the signal strength indicator area, and you cannot use SIM card services or
features requiring cellular network coverage.
When the wireless device is in the remote SIM mode, you can only use a compatible
connected enhancement, such as a car kit, to make or receive calls. Your wireless
device will not make any calls while in this mode, except to the emergency numbers
Connectivity 85
programmed into your device. To make calls from your device, you must leave the
remote SIM mode. If the device is locked, enter the lock code to unlock it.
To leave the remote SIM mode, press the power key, and select Exit remote SIM
mode.
Data cable
To avoid corrupting data, do not disconnect the USB data cable during data transfer.
Transfer data between your device and a PC
1 Insert a memory card in your device, and connect the device to a compatible PC
with the data cable.
2 When the device asks which mode to use, select Mass storage. In this mode,
you can see your device as a removable hard drive in your computer.
3 End the connection from the computer (from the Unplug or Eject Hardware
wizard in Microsoft Windows, for example) to avoid damaging the memory
card.
To use Nokia Ovi Suite with your device, install Nokia Ovi Suite on your PC, connect
the data cable, and select PC Suite as the USB connection mode.
To synchronize the music in your device with Nokia Ovi Player, install the Nokia Ovi
Player software on your PC, connect the data cable, and select PC Suite as the USB
connection mode.
To change the USB mode you normally use with the data cable, select Menu > Ctrl.
panel > Connectivity > USB and USB connection mode, and the desired option.
To set the device to ask for the mode each time you connect the data cable to the
device, select Menu > Ctrl. panel > Connectivity > USB and Ask on connection >
Yes.
86 Connectivity
PC connections
You can use your mobile device with a variety of compatible PC connectivity and
data communications applications. With Nokia Ovi Suite you can, for example,
transfer files and images between your device and a compatible computer.
To use Ovi Suite with USB connection mode, select PC Suite.
For more information about Ovi Suite, see the support area at www.ovi.com.
About home network
With home network, you can share and synchronize media files in your cellular
phone with other devices, such as a computer, sound system, or television. You can
also view and play media files from other home network devices on your device or
on other compatible devices. For example, you can play music stored in your device
using a home stereo system certified by the Digital Living Network Alliance (DLNA),
controlling the playlists and volume levels directly from your device.
Your device is compatible with Universal Plug and Play (UPnP) and certified by the
Digital Living Network Alliance. You can create a home network with a wireless LAN
(WLAN) access point device or router. You can connect compatible WLAN enabled
and DLNA certified UPnP devices to the network.
Examples of compatible devices
•Cellular phone
•Compatible computer
•Television
•Sound system
•Compatible wireless multimedia receiver, connected to a sound system
You can also store your media files to a media server or retrieve media files from a
compatible home server.
Connectivity 87
To use the WLAN function of your device in a home network, you must have a
working WLAN home connection.
The home network uses the security settings of the WLAN connection. Use the home
network feature in a WLAN infrastructure network with a WLAN access point device
and encryption enabled.
Internet
With the Web browser, you can view hypertext markup language (HTML) web pages
on the internet as originally designed. You can also browse web pages that are
designed specifically for mobile devices, and use extensible hypertext markup
language (XHTML), or the wireless markup language (WML).
To browse the web, you need to have an internet access point configured in your
device. Using the web browser requires network support.
Browse the web
With the Browser application, you can browse web pages.
Select Menu > Internet > Web.
Shortcut: To open the browser, press and hold 0 (zero) in the home screen.
Go to a web page
In the bookmarks view, select a bookmark, or start entering a web address (the
field opens automatically), and select Go to.
Some web pages may contain material, such as videos, that requires a large amount
of memory to view. If your device runs out of memory while loading such a web
page, insert a memory card. Otherwise, the videos are not displayed.
88 Internet
Disable graphics to save memory and speed up downloading
Select Options > Settings > Page > Load content > Text only.
Refresh the content of the web page
Select Options > Web page options > Reload.
View snapshots of web pages you have visited
Select Back. A list of pages you have visited during the current browsing session
opens. This option is available if History list is activated in the browser settings.
Block or allow the automatic opening of multiple windows
Select Options > Web page options > Block pop-ups or Allow pop-ups.
View the shortcut keys
Select Options > Keypad shortcuts. To edit the shortcut keys, select Edit.
Zoom in and out on a web page
To zoom in, press *. To zoom out, press #.
Tip: To send the browser to the background without exiting the application or
closing the connection, press the end key once.
Browser toolbar
The browser toolbar helps you select frequently used functions of the browser.
Open the toolbar
Press and hold the scroll key on a blank area of a web page.
Move within the toolbar
Scroll left or right.
Internet 89
Select a feature from the toolbar
Press the scroll key
From the toolbar, select from the following:
Go to web address — Enter a web address.
Recently visited pages — View a list of the web addresses you visit frequently.
Bookmarks — Open the bookmarks view.
Full screen — View the web page in full screen.
Page overview — Display an overview of the current web page.
Search by keyword — Search the current web page.
Settings — Edit the web browser settings.
Navigate pages
When you are browsing a large web page, you can use Mini Map or Page overview
to view the page at one glance.
Select Menu > Internet > Web.
Activate the Mini Map
Select Options > Settings > General > Mini map > On.
When you scroll through a large web page, the Mini Map opens and shows an
overview of the page.
Move on the Mini Map
Scroll left, right, up, or down. When you find the desired location, stop scrolling. The
Mini Map disappears and leaves you at the selected location.
Find information on a web page with Page overview
1Press 8. A miniature image of the current web page opens.
90 Internet
2 Move on the miniature image by scrolling up, down, left, or right.
3 When you find a section you want to view, select OK to go to that section on
the web page.
Web feeds and blogs
With web feeds, you can easily follow news headlines and your favorite blogs.
Select Menu > Internet > Web.
Web feeds are XML files on web pages. They are used to share, for example, the
latest news headlines or blogs. It is common to find web feeds on web, blog, and
wiki pages.
The browser application automatically detects if a web page contains web feeds.
Subscribe to a web feed when a feed is available on the page
Select Options > Subscribe to web feeds.
Update a web feed
In the Web feeds view, select a feed and Options > Web feed options >
Refresh.
Set automatic update for all web feeds
In the Web feeds view, select Options > Edit > Edit. This option is not available if
one or more feeds are marked.
Content search
With keyword search, you can quickly find the information you are looking for on
a web page.
Select Menu > Internet > Web.
Internet 91
Search for text within the current web page
Select Options > Find keyword. To view the previous or next month, scroll up or
down.
Tip: To search for text within the current web page, press 2.
Bookmarks
You can store your favorite web pages in Bookmarks for instant access.
Select Menu > Internet > Web.
Access bookmarks
1 If you have a page other than Bookmarks as your homepage, select Options >
Go to > Bookmarks.
2 Select a web address from the list or from the collection of bookmarks in the
Recently visited pages folder.
Save the current web page as a bookmark
While browsing, select Options > Web page options > Save as bookmark.
Edit or delete bookmarks
Select Options > Bookmark manager.
Send or add a bookmark, or set a bookmarked web page as the homepage
Select Options > Bookmark options.
Empty the cache
Emptying the cache memory helps you keep your data secure.
Select Options > Clear privacy data > Cache.
92 Internet
A cache is a memory location that is used to store data temporarily. If you have tried
to access or have accessed confidential information requiring passwords, empty the
cache after each use. The information or services you have accessed are stored in
the cache.
End the connection
To end the connection and close the browser, select Options > Exit.
To delete the information the network server collects about your visits to various
web pages, select Options > Clear privacy data > Cookies.
Connection security
If the security indicator ( ) is displayed during a connection, the data transmission
between the device and the internet gateway or server is encrypted.
The security icon does not indicate that the data transmission between the gateway
and the content server (where the data is stored) is secure. The service provider
secures the data transmission between the gateway and the content server.
Security certificates may be required for some services, such as banking services.
You are notified if the identity of the server is not authentic or if you do not have
the correct security certificate in your device. For more information, contact your
service provider.
Important: Even if the use of certificates makes the risks involved in remote
connections and software installation considerably smaller, they must be used
correctly in order to benefit from increased security. The existence of a certificate
does not offer any protection by itself; the certificate manager must contain correct,
authentic, or trusted certificates for increased security to be available. Certificates
have a restricted lifetime. If "Expired certificate" or "Certificate not valid yet" is
Internet 93
shown, even if the certificate should be valid, check that the current date and time
in your device are correct.
Before changing any certificate settings, you must make sure that you really trust
the owner of the certificate and that the certificate really belongs to the listed
owner.
Web settings
Select Menu > Internet > Web and Options > Settings and from the following:
General settings
Access point — Change the default access point. Some or all access points may be
preset for your device by your service provider. You may not be able to change,
create, edit, or remove them.
Homepage — Define the homepage.
Mini map — Turn Mini Map on or off. Mini Map helps with web page navigation.
History list — If you select On, while browsing, to see a list of the pages you have
visited during the current session, select Back.
Web address suffix — Enter a web address suffix that the device uses by default
when you enter a web address in the Go to field (for example, .com or .org).
Security warnings — Hide or show security notifications.
Java/ECMA script — Enable or disable the use of scripts.
Java/ECMA script errors — Select whether you want to receive script notifications.
Page settings
Load content — Select whether you want to load images and other objects while
browsing. If you select Text only, to load images or objects later during browsing,
select Options > Display options > Load images.
Default encoding — If text characters are not shown correctly, you can select
another encoding according to the language for the current page.
94 Internet
Block pop-ups — Allow or block automatic opening of different pop-ups while
browsing.
Automatic reload — Select whether you want the web pages to be refreshed
automatically while browsing.
Font size — Define the font size that is used for web pages.
Privacy settings
Recently visited pages — Enable or disable automatic bookmark collecting. If you
want to continue saving the addresses of the visited web pages into the Recently
visited pages folder, but hide the folder from the bookmarks view, select Hide
folder.
Form data saving — Select whether you want the password data or data you enter
on different forms on a web page to be saved and used the next time you open the
page.
Cookies — Enable or disable the receiving and sending of cookies.
Web feed settings
Acc. point for auto-update — Select the desired access point for updating. This
option is only available when Automatic updates is active.
Update when roaming — Select whether you want the web feeds to be updated
automatically when roaming.
Nokia Office Tools
Nokia Office Tools support wireless business and enable effective communication
with work teams.
Active notes
Select Menu > Office > Active notes.
Active notes allows you to create, edit and view different kinds of notes, for example,
meeting memos, hobby notes or shopping lists. You can insert images, videos and
Nokia Office Tools 95
sound in the notes. You can link notes to other applications, such as Contacts, and
send notes to others.
Create and edit notes
Select Menu > Office > Active notes.
Create a note
Start writing.
Edit a note
Select Options > Editing options.
Add boldface, italics, or underlining
Press and hold the shift key, and scroll to select the text. Then select Options >
Text.
Select Options and from the following:
Insert object — Insert items to the note.
Send — Send the note to a compatible device.
Link note to call — Select Add contacts to link a note to a contact. The note is
displayed when making a call to or receiving a call from the contact.
Active notes settings
Select Menu > Office > Active notes and Options > Settings.
Select where to save notes
Select Memory in use and the desired memory.
Change the layout of active notes
Select Change view > Grid or List.
96 Nokia Office Tools
Display a note during phone calls
Select Show note during call > Yes.
Tip: If you temporarily do not want to see notes during phone calls, select Show
note during call > No. This way you do not have to remove the links between notes
and contact cards.
Calculator
Select Menu > Office > Calculator.
This calculator has limited accuracy and is designed for simple calculations.
To make a calculation, enter the first number of the calculation. Select a function
such as add or subtract from the function map. Enter the second number of the
calculation and select = . The calculator performs operations in the order they are
entered. The result of the calculation remains in the editor field and can be used as
the first number of a new calculation.
The device saves the result of the last calculation in its memory. Exiting the
Calculator application or switching off the device does not clear the memory. To
recall the last saved result the next time you open the Calculator application, select
Options > Last result.
To save the numbers or results of a calculation, select Options > Memory > Save.
To retrieve the results of a calculation from the memory and use them in a
calculation, select Options > Memory > Recall.
File manager
About File manager
Select Menu > Office > File mgr..
Nokia Office Tools 97
With File manager, you can browse, manage, and open files.
The available options may vary.
To map or delete drives, or to define settings for a compatible remote drive
connected to your device, select Options > Remote drives.
Find and organize files
Select Menu > Office > File mgr..
To find a file, select Options > Find. Select where to search, and enter a search term
that matches the file name.
To move or copy files and folders, or to create new folders, select Options >
Organize.
Edit the memory card
You can format a memory card to erase the data on it, or you can protect the data
on the memory card with a password.
Select Menu > Office > File mgr..
Rename or format a memory card
Select Options > Memory card options and the desired option.
Password protect a memory card
Select Options > Memory card password.
These options are available only if a compatible memory card is inserted in the
device.
98 Nokia Office Tools
Back up files to a memory card
Select Menu > Office > File mgr..
To back up files to a memory card, select the file types you want to back up, and
Options > Back up phone memory. Ensure that your memory card has enough
free memory for the files that you have chosen to back up.
Quickoffice
About Quickoffice
Select Menu > Office > Quickoffice.
Quickoffice consists of Quickword for viewing Microsoft Word documents,
Quicksheet for viewing Microsoft Excel worksheets, Quickpoint for Microsoft
PowerPoint presentations, and Quickmanager for purchasing software. You can
view Microsoft Office 2000, XP, 2003, and 2007 documents (DOC, XLS, and PPT file
formats) with Quickoffice. If you have the editor version of Quickoffice, you can also
edit files.
Not all file formats or features are supported.
Converter
Select Menu > Office > Converter.
The converter has limited accuracy, and rounding errors may occur.
Convert measurements
Select Menu > Office > Converter.
1 Scroll to the type field, and select Options > Conversion type to open a list of
measures. Select the measurement type to use (other than currency) and OK.
2 Scroll to the first unit field, and select Options > Select unit. Select the unit
from which to convert and OK. Scroll to the next unit field, and select the unit
to which to convert.
Nokia Office Tools 99
3 Scroll to the first amount field, and enter the value to convert. The other amount
field changes automatically to show the converted value.
Set base currency and exchange rate
Select Menu > Office > Converter.
When you change base currency, you must enter new exchange rates because all
previously set exchange rates are cleared.
Before you can make currency conversions, you must choose a base currency and
add exchange rates. The rate of the base currency is always 1. The base currency
determines the conversion rates of the other currencies.
1 To set the exchange rate for the unit of currency, scroll to the type field, and
select Options > Currency rates.
2 Scroll to the currency type, and enter the exchange rate you would like to set
per single unit of currency.
3 To change the base currency, scroll to the currency, and select Options > Set
as base currency.
4 Select Yes > Done to save the changes.
After you have set all the necessary exchange rates, you can make currency
conversions.
Zip manager
Select Menu > Office > Zip.
With Zip manager, you can create new archive files to store compressed ZIP
formatted files; add single or multiple compressed files or directories to an archive;
set, clear, or change the archive password for protected archives; and change
settings, such as the level of compression used.
You can save the archived files in the device memory or on a memory card.
100 Nokia Office Tools
PDF reader
Select Menu > Office > Adobe PDF.
With PDF reader, you can read PDF documents on the display of your device; search
for text in the documents; modify settings, such as zoom level and page views; and
send PDF files using e-mail.
Printing
You can print documents, such as files, messages, images, or web pages, from your
device. You may not be able to print all types of documents.
File printing
Print files
Select Menu > Ctrl. panel > Connectivity > Printers.
Before printing, ensure that all the necessary configurations have been done to
connect your device to the printer.
Select Options > Printing options and from the following:
Print — Print a document. To print to a file, select Print to file, and define the
location for the file.
Page setup — You can change the paper size and orientation, define the margins,
and insert a header or a footer. The maximum length of the header and footer is
128 characters.
Preview — Preview the document before printing.
Printing options
Open a document, such as a file or message, and select Options > Printing
options > Print.
Define the following options:
Printer — Select an available printer from the list.
Nokia Office Tools 101
Print — Select All pages, Even pages, or Odd pages as the print range.
Print range — Select All pages in range, Current page, or Defined pages as the
page range.
Number of copies — Select the number of copies to print.
Print to file — Select to print to a file and determine the location for the file.
The available options may vary.
Printer settings
Select Menu > Ctrl. panel > Connectivity > Printers.
To add a new printer, select Options > Add.
Define the following:
Printer — Enter a name for the printer.
Driver — Select a driver for the printer.
Bearer — Select a bearer for the printer.
Access point — Select the access point.
Port — Select the port.
Host — Define the host.
User — Enter the user.
Queue — Enter the print queue.
Orientation — Select the orientation.
Paper size — Select the paper size.
Media type — Select the media type.
Color mode — Select the color mode.
Printer model — Select the printer model.
The available options may vary.
102 Nokia Office Tools
Image print
You can print images from your device using a printer compatible with PictBridge.
You can only print images that are in the JPEG file format.
To print images in Photos, camera, or image viewer, mark the images, and select
Options > Print.
Connect to printer
Connect your device to a compatible printer with a compatible data cable, and select
Image transfer as the USB connection mode.
To set your device to ask the purpose of the connection each time the cable is
connected, select Menu > Ctrl. panel and Connectivity > USB > Ask on
connection > Yes.
Print preview
After you select the printer, the selected images are displayed using predefined
layouts.
If the images do not fit on a single page, scroll up or down to display the additional
pages.
Image print view
After you select the images to print and the printer, define the printer settings.
Select from the following:
Layout — Select the layout for the images.
Paper size — Select the paper size.
Print quality — Select the print quality.
Nokia Office Tools 103
Dictionary
You can translate words from one language to another. Not all languages may be
supported.
Look up a word to translate
1 Select Menu > Office > Dictionary.
2 Enter text in the search field. As you enter text, suggestions of words to translate
are displayed.
3 Select the word from the list.
Select Options and from the following:
Listen — Listen to the selected word.
History — Find previously translated words from the current session.
Languages — Change the source or target language, download languages from
the internet, or remove a language from the dictionary. You cannot remove the
English language from the dictionary. You can have two additional languages
installed, besides English.
Speech — Edit the voice feature settings. You can adjust the speed and volume of
the voice.
Notes
Select Menu > Office > Notes.
You can create and send notes to other compatible devices, and save received plain
text files (TXT file format) to Notes.
To write a note, start entering the text. The note editor opens automatically.
To open a note, select Options > Open.
To send a note to other compatible devices, select Options > Send.
104 Nokia Office Tools
To synchronize or to define synchronization settings for a note, select Options >
Synchronization. Select Start to initialize synchronization or Settings to define
the synchronization settings for the note.
Positioning (GPS)
You can use applications such as GPS data to determine your location, or measure
distances and coordinates. These applications require a GPS connection.
About GPS
The Global Positioning System (GPS) is operated by the government of the United
States, which is solely responsible for its accuracy and maintenance. The accuracy
of location data can be affected by adjustments to GPS satellites made by the United
States government and is subject to change with the United States Department of
Defense civil GPS policy and the Federal Radionavigation Plan. Accuracy can also be
affected by poor satellite geometry. Availability and quality of GPS signals may be
affected by your location, buildings, natural obstacles, and weather conditions. GPS
signals may not be available inside buildings or underground and may be impaired
by materials such as concrete and metal.
GPS should not be used for precise location measurement, and you should never
rely solely on location data from the GPS receiver and cellular radio networks for
positioning or navigation.
The trip meter has limited accuracy, and rounding errors may occur. Accuracy can
also be affected by availability and quality of GPS signals.
The coordinates in the GPS are expressed using the international WGS-84 coordinate
system. The availability of the coordinates may vary by region.
Assisted GPS (A-GPS)
Your device also supports assisted GPS (A-GPS).
Positioning (GPS) 105
A-GPS requires network support.
Assisted GPS (A-GPS) is used to retrieve assistance data over a packet data
connection, which assists in calculating the coordinates of your current location
when your device is receiving signals from satellites.
When you activate A-GPS, your device receives useful satellite information from an
assistance data server over the cellular network. With the help of assisted data, your
device can obtain the GPS position faster.
Your device is preconfigured to use the Nokia A-GPS service, if no service provider-
specific A-GPS settings are available. The assistance data is retrieved from the Nokia
A-GPS service server only when needed.
To disable the A-GPS service, select Menu > Applications > Location > GPS data
and Options > Positioning settings > Positioning methods > Assisted GPS >
Options > Disable.
You must have an internet access point defined in the device to retrieve assistance
data from the Nokia A-GPS service over a packet data connection. The access point
for A-GPS can be defined in positioning settings. A wireless LAN (WLAN) access point
cannot be used for this service. Only a packet data internet access point can be used.
Your device asks you to select the internet access point when GPS is used for the
first time.
Hold your device correctly
When using the GPS receiver, ensure you do not cover the antenna with your hand.
106 Positioning (GPS)
Establishing a GPS connection may take from a couple of seconds to several minutes.
Establishing a GPS connection in a vehicle may take longer.
The GPS receiver draws its power from the device battery. Using the GPS receiver
may drain the battery faster.
Tips on creating a GPS connection
If your device cannot find the satellite signal, consider the following:
•If you are indoors, go outdoors to receive a better signal.
•If you are outdoors, move to a more open space.
•Ensure that your hand does not cover the GPS antenna of your device.
•If the weather conditions are bad, the signal strength may be affected.
•Some vehicles have tinted (athermic) windows, which may block the satellite
signals.
Check satellite signal status
To check how many satellites your device has found, and whether your device is
receiving satellite signals, select Menu > Applications > Location > GPS data and
Options > Satellite status.
Positioning (GPS) 107
If your device has found satellites, a bar for each satellite is displayed in the satellite
information view. The longer the bar, the stronger the satellite signal is. When your
device has received enough data from the satellite signal to calculate the
coordinates of your location, the bar color changes.
Initially, your device must receive signals from at least four satellites to be able to
calculate the coordinates of your location. When the initial calculation has been
made, it may be possible to continue calculating the coordinates of your location
with three satellites. However, the accuracy is generally better when more satellites
are found.
Position requests
You may receive a request from a network service to receive your position
information. Service providers may offer information about local topics, such as
weather or traffic conditions, based on the location of your device.
When you receive a position request, the service that is making the request is
displayed. Select Accept to allow your position information to be sent or Reject to
deny the request.
Landmarks
With Landmarks, you can save the position information of specific locations in your
device. You can sort the saved locations into different categories, such as business,
and add other information to them, such as addresses. You can use your saved
landmarks in compatible applications, such as GPS data.
Select Menu > Applications > Location > Landmarks.
108 Positioning (GPS)
The coordinates in the GPS are expressed using the international WGS-84 coordinate
system.
Select Options and from the following:
New landmark — Create a new landmark. To make a positioning request for your
current location, select Current position. To select the location from the map, select
Select from map. To enter the position information manually, select Enter
manually.
Edit — Edit or add information to a saved landmark (for example, a street address).
Add to category — Add a landmark to a category in Landmarks. Select each
category to which you want to add the landmark.
Send — Send one or several landmarks to a compatible device. Your received
landmarks are placed in the Inbox folder in Messaging.
You can sort your landmarks into preset categories, and create new categories. To
edit and create new landmark categories, open the categories tab, and select
Options > Edit categories.
GPS data
Route guidance
Select Menu > Applications > Location > GPS data and Navigation.
Start the route guidance outdoors. If started indoors, the GPS receiver may not
receive the necessary information from the satellites.
Route guidance uses a rotating compass on the device display. A red ball shows the
direction to the destination, and the approximate distance to it is shown inside the
compass ring.
Route guidance is designed to show the straightest route and the shortest distance
to the destination, measured in a straight line. Any obstacles on the route, such as
buildings and natural obstacles, are ignored. Differences in altitude are not taken
Positioning (GPS) 109
into account when calculating the distance. Route guidance is active only when you
move.
To set your trip destination, select Options > Set destination and a landmark as
the destination, or enter the latitude and longitude coordinates.
To clear the destination set for your trip, select Stop navigation.
Trip meter
Select Menu > Applications > Location > GPS data and Trip distance.
The trip meter has limited accuracy, and rounding errors may occur. Accuracy can
also be affected by availability and quality of GPS signals.
To turn trip distance calculation on or off, select Options > Start or Stop. The
calculated values remain on the display. Use this feature outdoors to receive a better
GPS signal.
To set the trip distance and time and average and maximum speeds to zero, and to
start a new calculation, select Options > Reset. To set the trip meter and total time
to zero, select Restart.
Positioning settings
Select Menu > Ctrl. panel > Settings and General > Positioning.
Positioning methods
Select from the following:
Integrated GPS — Use the integrated GPS receiver of your device.
Assisted GPS — Use Assisted GPS (A-GPS) to receive assistance data from an
assistance data server.
110 Positioning (GPS)
Bluetooth GPS — Use a compatible external GPS receiver with Bluetooth
connectivity.
Network based — Use information from the cellular network (network service).
Positioning server
To define an access point and positioning server for network-assisted positioning
methods, such as assisted GPS or network-based positioning, select Positioning
server.
The positioning server may be preset by your service provider, and you may not be
able to edit the settings.
Notation settings
To select which measurement system you want to use for speeds and distances,
select Measurement system > Metric or Imperial.
To define in which format the coordinate information is displayed in your device,
select Coordinate format and the desired format.
Maps
Maps overview
Select Menu > Maps.
Welcome to Maps.
Maps shows you what is nearby, helps you plan your route, and guides you where
you want to go.
•Find cities, streets, and services.
Maps 111
•Find your way with turn-by-turn directions.
•Synchronize your favorite locations and routes between your cellular phone and
the Ovi Maps internet service.
•Check weather forecasts and other local information, if available.
Note: Downloading content such as maps, satellite images, voice files, guides
or traffic information may involve transmission of large amounts of data (network
service).
Some services may not be available in all countries, and may be provided only in
selected languages. The services may be network dependent. For more information,
contact your network service provider.
Almost all digital cartography is inaccurate and incomplete to some extent. Never
rely solely on the cartography that you download for use in this device.
Content such as satellite images, guides, weather and traffic information and
related services are generated by third parties independent of Nokia. The content
may be inaccurate and incomplete to some extent and is subject to availability.
Never rely solely on the aforementioned content and related services.
View your location and the map
See your current location on the map, and browse maps of different cities and
countries.
Select Menu > Maps and My position.
When the GPS connection is active, marks your current or last known location
on the map. If the icon's colors are faint, no GPS signal is available.
If only cell ID based positioning is available, a red halo around the positioning icon
indicates the general area you might be in. The accuracy of the estimate increases
in densely populated areas.
112 Maps
Move on the map
Use the scroll key. By default, the map is oriented north.
View your current or last known location
Press 0.
Zoom in or out.
Press * or #.
If you browse to an area not covered by maps that are stored on your device and
you have an active data connection, new maps are automatically downloaded.
Map coverage varies by country and region.
Map view
1Selected location
2Indicator area
3Point of interest (for example, a railway station or a museum)
Maps 113
4Information area
Change the look of the map
View the map in different modes, to easily identify where you are.
Select . Menu > Maps and My position.
Press 1, and select from the following:
Map — In the standard map view, details such as location names or highway
numbers, are easy to read.
Satellite — For a detailed view, use satellite images.
Terrain — View at a glance the ground type, for example, when you are traveling
off-road.
Change between 2D and 3D views
Press 3.
Download and update maps
To avoid cellular data transfer costs, download the latest maps and voice guidance
files to your computer, and then transfer and save them to your device.
Use the Nokia Ovi Suite application to download the latest maps and voice guidance
files to your compatible computer. To download and install Nokia Ovi Suite on your
compatible computer, go to www.ovi.com.
Tip: Save new maps to your device before a journey, so you can browse the maps
without an internet connection when traveling abroad.
To make sure your device does not use an internet connection, in the main menu,
select Options > Settings > Internet > Connection > Offline.
114 Maps
About positioning methods
Maps displays your location on the map using GPS, A-GPS, or cell ID based
positioning.
The Global Positioning System (GPS) is a satellite-based navigation system used for
calculating your location. Assisted GPS (A-GPS) is a network service that sends you
GPS data, improving the speed and accuracy of the positioning.
When you use Maps for the first time, you are prompted to define an internet access
point to download map information or use A-GPS.
indicates the availability of the satellite signals. One bar is one satellite.
When the device is searching for satellite signals, the bar is yellow. When there is
enough data available to calculate your location, the bar turns green. The more
green bars, the more reliable the location calculation.
The Global Positioning System (GPS) is operated by the government of the United
States, which is solely responsible for its accuracy and maintenance. The accuracy
of location data can be affected by adjustments to GPS satellites made by the United
States government and is subject to change with the United States Department of
Defense civil GPS policy and the Federal Radionavigation Plan. Accuracy can also be
affected by poor satellite geometry. Availability and quality of GPS signals may be
affected by your location, buildings, natural obstacles, and weather conditions. GPS
signals may not be available inside buildings or underground and may be impaired
by materials such as concrete and metal.
GPS should not be used for precise location measurement, and you should never
rely solely on location data from the GPS receiver and cellular radio networks for
positioning or navigation.
The trip meter has limited accuracy, and rounding errors may occur. Accuracy can
also be affected by availability and quality of GPS signals.
With cell ID based positioning, the position is determined through the antenna
tower your cellular phone is currently connected to.
Maps 115
Depending on the available positioning method, the accuracy of positioning may
vary from a few meters to several kilometers.
Find a location
Maps helps you find specific locations and types of business you are looking for.
Select Menu > Maps and Find places.
1 Enter search terms, such as a street address or postcode. To clear the search
field, select Clear.
2 Select Go.
3 In the list of proposed matches, go to the desired item. To display the location
on the map, select Map.
To view the other locations of the search result list on the map, scroll up and
down with the scroll key.
Return to the list of proposed matches
Select List.
Search for different types of nearby places
Select Browse categories and a category, such as shopping, accommodation, or
transport.
If no search results are found, ensure the spelling of your search terms is correct.
Problems with your internet connection may also affect results when searching
online.
To avoid data transfer costs, you can also get search results without an active
internet connection, if you have maps of the searched area stored on your device.
View location details
View more information about a specific location or place, such as a hotel or
restaurant, if available.
116 Maps
Select Menu > Maps and My position.
View the details of a place
Select a place, press the scroll key, and select Show details.
Save places and routes
Save addresses, places of interest, and routes, so they can be quickly used later.
Select Menu > Maps.
Save a place
1 Select My position.
2 Go to the location. To search for an address or place, select Search.
3 Press the scroll key.
4 Select Save place.
Save a route
1 Select My position.
2 Go to the location. To search for an address or place, select Search.
3 To add another route point, press the scroll key, and select Add to route.
4 Select Add new route point and the appropriate option.
5 Select Show route > Options > Save route.
View your saved places and routes
Select Favorites > Places or Routes.
View and organize places or routes
Use your Favorites to quickly access the places and routes you have saved.
Group the places and routes into a collection, for example, when planning a trip.
Maps 117
Select Menu > Maps and Favorites.
View a saved place on the map
1 Select Places.
2 Go to the place.
3 Select Show on map.
To return to the list of saved places, select List.
Create a collection
Select Create new collection, and enter a collection name.
Add a saved place to a collection
1 Select Places and the place.
2 Select Organize collections.
3 Select New collection or an existing collection.
If you need to delete places or routes, or add a route to a collection, go to the Ovi
Maps internet service at www.ovi.com.
Send places to your friends
When you want to share place information with your friends, send these details
directly to their devices.
Select Menu > Maps and My position
Send a place to your friend's compatible device
Select a location, press the scroll key, and select Send.
118 Maps
Share location
Publish your current location to Facebook, together with text and a picture. Your
Facebook friends can see your location on a map.
Select Menu > Maps and Share location.
To share your location, you need a Nokia account and a Facebook account.
1 Sign in to your Nokia account, or, if you do not yet have one, select Create new
account.
2 Sign in to your Facebook account.
3 Select your current location.
4 Enter your status update.
5 To attach a picture to your post, select Add a photo.
6 Select Share location.
Manage your Facebook account
In the main view, select Options > Account > Share location settings >
Facebook.
Sharing your location and viewing the location of others requires an internet
connection. This may involve the transmission of large amounts of data and related
data traffic costs.
The Facebook terms of use apply to sharing your location on Facebook. Familiarize
yourself with the Facebook terms of use and the privacy practices.
Before sharing your location to others, always consider carefully with whom you
are sharing it. Check the privacy settings of the social networking service you are
using as you might share your location with a large group of people.
Maps 119
Synchronize your Favorites
Plan a trip on your computer at the Ovi Maps website, synchronize the saved places,
routes, and collections with your cellular phone, and access the plan on the go.
To synchronize places, routes, or collections between your cellular phone and the
Ovi Maps internet service, you need a Nokia account. If you do not have one, in the
main view, select Options > Account > Nokia account > Create new account.
Synchronize saved places, routes, and collections
Select Favorites > Synchronize with Ovi. If you do not have a Nokia account, you
are prompted to create one.
Set the device to synchronize Favorites automatically
Select Options > Settings > Synchronization > Change > At start-up and shut-
d..
Synchronizing requires an active internet connection, and may involve the
transmission of large amounts of data through your service provider’s network.
Contact your service provider for information about data transmission charges.
To use the Ovi Maps internet service, go to www.ovi.com.
Get voice guidance
Voice guidance, if available for your language, helps you find your way to a
destination, leaving you free to enjoy the journey.
Select Menu > Maps and Drive or Walk.
When you use drive or walk navigation for the first time, you are asked to select the
language of the voice guidance, and download the appropriate files.
If you select a language that includes street names, also the street names are said
aloud. Voice guidance may not be available for your language.
120 Maps
Change the voice guidance language
In the main view, select Options > Settings > Navigation > Drive guidance or
Walk guidance and the appropriate option.
Repeat the voice guidance for car navigation
In the navigation view, select Options > Repeat.
Adjust the volume of the voice guidance for car navigation
In the navigation view, select Options > Volume.
Drive to your destination
When you need turn-by-turn directions while driving, Maps helps you get to your
destination.
Select Menu > Maps and Drive.
Drive to a destination
Select Set destination and the appropriate option.
Drive to your home
Select Drive home.
When you select Drive home or Walk home for the first time, you are prompted
to define your home location. To later change the home location, do the following:
1 In the main view, select Options > Settings > Navigation > Home
Location > Change > Redefine.
2 Select the appropriate option.
Tip: To drive without a set destination, select Map. Your location is displayed on
the center of the map as you move.
Maps 121
Change views during navigation
Press the scroll key, and select 2D view, 3D view, Arrow view, or Route
overview.
Obey all local laws. Always keep your hands free to operate the vehicle while driving.
Your first consideration while driving should be road safety.
Navigation view
1Route
2Your location and direction
3Compass
4Information bar (speed, distance, time)
Get traffic and safety information
Enhance your driving experience with real-time information about traffic events,
lane assistance, and speed limit warnings, if available for your country or region.
122 Maps
Select Menu > Maps and Drive.
View traffic events on the map
During drive navigation, select Options > Traffic info. The events are displayed as
triangles and lines.
Update traffic information
Select Options > Traffic info > Update traffic info.
When planning a route, you can set the device to avoid traffic events, such as traffic
jams or roadworks.
Avoid traffic events
In the main view, select Options > Settings > Navigation > Reroute due to
traffic.
The location of speed cameras may be shown on your route during navigation, if
this feature is enabled. Some jurisdictions prohibit or regulate the use of speed
camera location data. Nokia is not responsible for the accuracy, or the consequences
of using speed camera location data.
Walk to your destination
When you need directions to follow a route on foot, Maps guides you over squares,
and through parks, pedestrian zones, and even shopping centers.
Select Menu > Maps and Walk.
Walk to a destination
Select Set destination and the appropriate option.
Walk to your home
Select Walk home.
Maps 123
When you select Drive home or Walk home for the first time, you are prompted
to define your home location. To later change the home location, do the following:
1 In the main view, select Options > Settings > Navigation > Home
Location > Change > Redefine.
2 Select the appropriate option.
Tip: To walk without a set destination, select Map. Your location is displayed on
the center of the map as you move.
Plan a route
Plan your journey, and create your route and view it on the map before setting off.
Select Menu > Maps and My position.
Create a route
1 Go to your starting point.
2 Press the scroll key, and select Add to route.
3 To add another route point, select Add new route point and the appropriate
option.
Change the order of the route points
1 Go to a route point.
2 Press the scroll key, and select Move.
3 Go to the place where you want to move the route point to, and select OK.
Edit the location of a route point
Go to the route point, press the scroll key, and select Edit and the appropriate
option.
View the route on the map
Select Show route.
124 Maps
Navigate to the destination
Select Show route > Options > Start driving or Start walking.
Change the settings for a route
The route settings affect the navigation guidance and the way the route is displayed
on the map.
1 In the route planner view, open the Settings tab. To get to the route planner
view from the navigation view, select Options > Route pts. or Route point
list.
2 Set the transportation mode to Drive or Walk. If you select Walk, one-way
streets are regarded as normal streets, and pathways and routes through, for
example, parks and shopping centers, can be used.
3 Select the desired option.
Select the walking mode
Open the Settings tab, and select Walk > Preferred route > Streets or Straight
line. Straight line is useful on off-road terrain as it indicates the walking direction.
Use the faster or shorter driving route
Open the Settings tab, and select Drive > Route selection > Faster route or
Shorter route.
Use the optimized driving route
Open the Settings tab, and select Drive > Route selection > Optimized. The
optimized driving route combines the advantages of both the shorter and the faster
routes.
You can also choose to allow or avoid using, for example, highways, toll roads, or
ferries.
Maps 125
Personalization
You can customize your device by, for example, adjusting the various tones,
background images, and screen savers.
Profiles
Select Menu > Ctrl. panel > Profiles.
You can adjust and customize the ringing tones, alert tones, and other device tones
for different events, environments, or caller groups. The active profile is shown at
the top of the display in the home screen. However, if the active profile is General,
only today's date is shown.
To create a new profile, select Options > Create new, and define the settings.
To customize a profile, select a profile and Options > Customize.
To activate a profile, select a profile and Options > Activate.
To set the profile to be active until a certain time within the next 24 hours, scroll to
the profile, select Options > Timed, and set the time. When the time expires, the
profile changes back to the previously active non-timed profile. When the profile is
timed, is displayed in the home screen. The Offline profile cannot be timed.
To delete a profile that you created, select Options > Delete profile. You cannot
delete the predefined profiles.
When the Offline profile is activated, your connection to the cellular network is
closed. All radio frequency signals between the device and the cellular network are
prevented. If you try to send a message, it is placed in the Outbox folder, and is sent
only when another profile is activated.
126 Personalization
You can also use your device without a SIM card. If you remove the SIM card, the
Offline profile is activated.
Important: In the Offline profile you cannot make or receive any calls, or use
other features that require cellular network coverage. Calls may still be possible to
the official emergency number programmed into your device. To make calls, you
must first activate the phone function by changing profiles. If the device has been
locked, enter the lock code.
When you use the Offline profile, you can still use a Wi-Fi network, for example, to
read your mail or browse the internet. You can also use Bluetooth connectivity.
Remember to comply with any applicable safety requirements when you establish
and use Wi-Fi or Bluetooth connections.
Select ringing tones
To set a ringing tone for a profile, select Options > Customize > Ringing tone.
Select a ringing tone from the list, or select Download sounds to open a bookmark
folder containing a list of bookmarks for downloading tones using the browser. Any
downloaded tones are saved to Gallery.
To play the ringing tone for a selected contact group only, select Options >
Customize > Alert for, and select the desired group. Phone calls coming from
outside that group have a silent alert.
To change the message tone, select Options > Customize > Message alert tone.
Customize profiles
Select Menu > Ctrl. panel > Profiles.
Select Options > Customize and from the following:
Personalization 127
Ringing tone — Select a ringing tone from the list, or select Download sounds
to open a bookmark folder containing a list of bookmarks for downloading tones
using the browser.
Video call tone — Select a ringing tone for video calls.
Say caller's name — When you select this option and someone from your contacts
list calls you, the device sounds a ringing tone that is a combination of the spoken
name of the contact and the selected ringing tone.
Ringing type — Select how you want the ringing tone to alert.
Ringing volume — Select the volume level of the ringing tone.
Message alert tone — Select a tone for received text messages.
E-mail alert tone — Select a tone for received e-mail messages.
Vibrating alert — Set the device to vibrate when you receive a call or message.
Keypad tones — Select the volume level of the keypad tones.
Warning tones — Deactivate the warning tones. This setting also affects the tones
of some games and Java™ applications.
Alert for — Set the device to ring only upon calls from phone numbers that belong
to a selected contact group. Phone calls coming from outside that group have a
silent alert.
PTT call alert tone — Select a ringing tone for PTT calls.
Push to talk status — Set the PTT status to each profile.
Profile name — You can give a name to a new profile or rename an existing profile.
The Normal and Offline profiles cannot be renamed.
Change the display theme
Select Menu > Ctrl. panel > Themes.
Select from the following:
General — Change the theme used in all applications.
Menu view — Change the theme used in the main menu.
128 Personalization
Standby — Change the theme used in the home screen.
Wallpaper — Change the background image in the home screen.
Call image — Change the image displayed during calls.
Audio themes — Set sounds for various device events.
To activate or deactivate the theme effects, select General > Options > Theme
effects.
Download a theme
Select Menu > Ctrl. panel > Themes.
To download a theme, select General > Download themes > Options > Go to >
New web page. Enter the Web address from which you want to download your
theme. Once the theme is downloaded, you can preview or activate the theme.
To preview a theme, select Options > Preview.
To activate a theme, select Options > Set.
3-D ringing tones
Select Menu > Ctrl. panel > 3-D tones.
To enable three-dimensional (3-D) sound effects for ringing tones, select 3-D
ringing tone effects > On. Not all ringing tones support 3–D effects.
To change the 3–D effect that is applied to the ringing tone, select Sound trajectory
and the desired effect.
To modify the 3–D effect, select from the following:
Trajectory speed — Select the speed at which sound moves from one direction to
another. This setting is not available for all effects.
Personalization 129
Reverberation — Select the desired effect to adjust the amount of echo.
Doppler effect — Select On to set the ringing tone sound higher when you are
closer to your device, and lower when you are farther away. This setting is not
available for all effects.
To listen to the ringing tone with the 3–D effect, select Options > Play tone.
To adjust the volume of the ringing tone, select Menu > Ctrl. panel > Profiles and
Options > Customize > Ringing volume.
Media
Your device contains a variety of media applications for both business and leisure
time use.
Camera
Select Menu > Media > Camera.
Capture an image
Select Menu > Media > Camera.
Your device supports an image capture resolution of 2592x1944 pixels. The image
resolution in this guide may appear different.
1 Use the display as a viewfinder.
2 To zoom in or out before capturing an image, use the volume keys.
3 To temporarily activate the toolbar when it is hidden, scroll left.
The toolbar provides you with shortcuts to different items and settings before and
after capturing an image or recording a video. Select from the following:
Switch to image mode.
130 Media
Switch to video mode.
Select the scene.
Switch to panorama mode.
Switch the video light on or off (video mode only)
Switch the video light on or off (video mode only)
Select the flash mode (images only).
Activate the self-timer (images only).
Activate sequence mode (images only).
Select a color effect.
Adjust the white balance.
The available options vary depending on the capture mode and view you are in. The
settings return to the default values when you close the camera.
To customize the camera toolbar, switch to image mode, and select Options >
Customize toolbar.
Scenes
Select Menu > Media > Camera.
A scene helps you to find the right color and lighting settings for the current
environment. The settings of each scene have been set according to a certain style
or environment.
To change the scene, select Scene modes in the toolbar.
To make your own scene, scroll to User defined, and select Options > Change.
To copy the settings of another scene, select Based on scene mode and the desired
scene.
Media 131
To activate your own scene, select User defined > Select.
Capture images in a sequence
Select Menu > Media > Camera.
To capture several images in a sequence, if enough memory is available, select
Sequence mode in the toolbar and press the scroll key.
The captured images are shown in a grid on the display. To view an image, scroll
to it and press the scroll key. If you used a time interval, only the last image is shown
on the display, and the other images are available in Gallery.
To send the image, select Options > Send.
To send the image to a caller during an active call, select Options > Send to
caller.
To turn off sequence mode, select Sequence mode > Single shot in the toolbar.
View captured image
Select Menu > Media > Camera.
The image you captured is automatically saved in Gallery. If you do not want to keep
the image, select Delete from the toolbar.
Select from the following toolbar items:
Send — Send the image to a compatible device.
Sign in for Share online — Send the image to your compatible online album
(network service).
132 Media
To use the image as the background image, select Options > Use image > Set as
wallpaper.
To add the image to a contact, select Options > Use image > Assign to contact.
The available toolbar items and options may vary.
Record videos
Select Menu > Media > Camera.
1 If the camera is in image mode, select video mode from the toolbar.
2 To start recording, press the scroll key.
3 To pause recording, select Pause. Select Continue to resume recording.
4 To stop recording, select Stop. The video clip is automatically saved in Gallery.
The maximum length of the video clip depends on the available memory.
Play a video
Select Menu > Media > Camera.
To play a recorded video, select Play from the toolbar.
Select from the following toolbar items:
Send — Send the video clip to a compatible device.
Sign in for Share online — Send the video to an online album (network service).
Delete — Delete the video.
To enter a new name for the video, select Options > Rename video clip.
The available toolbar items and options may vary.
Media 133
Image settings
Select Menu > Media > Camera.
To edit still image settings, select Options > Settings and from the following:
Image quality — Set the image quality. The better the image quality, the more
memory the image consumes.
Add to album — Define to which album the captured images are saved.
Show captured image — To see the image after the capture, select Yes. To
continue capturing images immediately, select No.
Default image name — Define the default name for the captured images.
Extended digital zoom — The On (continuous) option allows the zoom
increments to be smooth and continuous between the digital and extended digital
zoom. The Off option allows a limited amount of zoom while retaining the image
resolution.
Capture tone — Set the tone that sounds when you capture an image.
Memory in use — Select where to store your images.
Restore camera settings — Restore the camera settings to the default values.
Video settings
Select Menu > Media > Camera.
Select Options > Settings and from the following:
Video quality — Set the quality of the video clip. Select Sharing, if you want to
send the video clip using a multimedia message. The clip is recorded with OCIF
resolution, in the 3GPP file format, and the size is limited to 300 kB (approximately
20 seconds). You may not be able to send video clips saved in the MPEG-4 file format
in a multimedia message.
Audio recording — Select Mute if you do not want to record sound.
Add to album — Define to which album the recorded videos are saved.
134 Media
Show captured video — View the first frame of the recorded video after the
recording stops. To view the entire video, select Play from the toolbar.
Default video name — Define the default name for recorded video clips.
Memory in use — Select where to store your videos.
Restore camera settings — Restore the camera settings to the default values.
Gallery
About Gallery
Select Menu > Media > Gallery.
Gallery is a storage place for your images, video and sound clips, songs, and
streaming links.
Main view
Select Menu > Media > Gallery.
Select from the following:
Images — View images and video clips in Photos.
Video clips — View video clips in Video center.
Songs — Open Music player.
Sound clips — Listen to sound clips.
Streaming links — View and open streaming links.
Presentations — View presentations.
You can browse and open folders and copy and move items to folders. You can also
create albums and copy and add items to albums.
Files stored on your compatible memory card (if inserted) are indicated with .
Media 135
To open a file, select the file from the list. Video clips and streaming links open and
play in Video center, and music and sound clips in Music player.
To copy or move files to another memory location, select a file, Options > Move
and copy, and the appropriate option.
Sound clips
Select Menu > Media > Gallery and Sound clips.
This folder contains all the sound clips you have downloaded from the web. The
sound clips created with the Recorder application with MMS-optimized or normal
quality settings are also saved in this folder, but the sound clips created with high
quality settings are stored in the Music player application.
To listen to a sound file, select the file from the list.
To rewind or fast-forward, scroll left or right.
To download sounds, select Downld. sounds.
Streaming links
Select Menu > Media > Gallery and Streaming links.
To open a streaming link, select the link from the list.
To add a new streaming link, select Options > New link.
Presentations
Select Menu > Media > Gallery.
136 Media
With presentations, you can view scalable vector graphics (SVG) and flash files (SWF),
such as cartoons and maps. SVG images maintain their appearance when printed
or viewed with different screen sizes and resolutions.
To view files, select Presentations. Go to an image, and select Options > Play. To
pause playing, select Options > Pause.
To zoom in, press 5. To zoom out, press 0.
To rotate the image 90 degrees clockwise or counterclockwise, press 1 or 3,
respectively. To rotate the image 45 degrees, press 7 or 9.
To switch between full and normal screen mode, press *.
Photos
Learn how to view, edit, and share pictures and videos on your device.
About Photos
Select Menu > Media > Gallery > Images and from the following:
Captured — View all the images and videos you have captured.
Months — View images and videos categorized by the month they where captured.
Albums — View the default albums and the ones you have created.
Tags — View the tags you have created for each item.
Downloads — View items and videos downloaded from the web or received as a
multimedia or e-mail message.
All — View all items.
Share online — Post your images or videos to the web.
Files stored on your compatible memory card (if inserted) are indicated with .
Media 137
To copy or move files to another memory location, select a file, Options > Move
and copy, and from the available options.
View images and videos
Select Menu > Media > Gallery > Images and from the following:
All — View all images and videos.
Captured — View images captured and video clips recorded with the camera of
your device.
Downloads — View downloaded video clips.
Images and video clips can also be sent to you from a compatible device. To be able
to view a received image or video clip in Photos, you must first save it.
The images and video clip files are in a loop and ordered by date and time. The
number of files is displayed. To browse the files one by one, scroll left or right. To
browse files in groups, scroll up or down.
To open a file, select the file. When an image opens, to zoom in the image, use the
volume keys. The zooming ratio is not stored permanently.
138 Media
To edit an image or a video clip, select Options > Edit.
To print your images on a compatible printer, select Options > To printer or
kiosk.
To move images to an album for later printing, select Options > Add to album >
Print later.
View and edit file details
Select Menu > Media > Gallery > Images. Go to an item.
To view and edit image or video properties, select Options > Details > View and
edit and from the following:
Tags — View the currently used tags. To add more tags to the current file, select
Add.
Description — View a free-form description of the file. To add a description, select
the field.
Title — View the thumbnail image of the file and the current file name. To edit the
file name, select the file name field.
Albums — View in which albums the current file is located.
Resolution — View the size of the image in pixels.
Duration — View the length of the video.
Usage rights — To view the DRM rights of the current file, select View.
Available options may vary.
Organize images and videos
Select Menu > Media > Gallery > Images. You can organize files as follows:
To view items in the Tags view, add tags to the items.
Media 139
To view items by months, select Months.
To create an album to store items, select Albums > Options > New album.
To add an image or a video clip to an album, select the item and Options > Add to
album.
To delete an image or video clip, select the item and Delete from the active toolbar.
Active toolbar
The active toolbar is available only when you have selected an image or a video clip
in a view.
In the active toolbar, go to different items, and select the desired option. The
available options vary depending on the view you are in and whether you have
selected an image or a video clip.
To hide the toolbar, select Options > Hide toolbar. To activate the active toolbar
when it is hidden, press the scroll key.
Select an image or a video clip and from the following:
View the image in landscape or portrait mode.
Play the video clip.
Send the image or video clip.
Upload the image or video clip to a compatible online album (only available
if you have set up an account for a compatible online album).
Add the item to an album.
Manage tags and other properties of the item.
140 Media
Albums
Select Menu > Media > Gallery > Images and Albums.
With albums, you can conveniently manage your images and video clips.
To create a new album, select Options > New album.
To add an image or a video clip to an album, select the item and Options > Add to
album. A list of albums opens. Select the album to which you want to add the image
or video clip. The item you added to the album is still visible in Photos.
To remove an image or a video clip from an album, select the album and the item,
and Options > Remove from album.
Tags
Select Menu > Media > Gallery > Images.
Use tags to categorize media items in Photos. You can create and delete tags in Tag
manager. Tag manager shows the currently used tags and the number of items
associated with each tag.
To open Tag manager, select an image or video clip and Options > Details > Tag
manager.
To create a tag, select Options > New tag.
To assign a tag to an image, select the image and Options > Add tags.
To see the tags you have created, select Tags. The size of the tag name corresponds
to the number of items the tag is assigned to. To view all the images associated
with a tag, select the tag from the list.
Media 141
To view the list in most frequently used order, select Options > Most used.
To remove an image from a tag, select the tag and the image, and select Options >
Remove from tag.
Slide show
Select Menu > Media > Gallery > Images.
To view your images as a slide show, select an image and Options > Slide show >
Play forwards or Play backwards. The slide show starts from the selected file.
To view only the selected images as a slide show, select Options > Mark/Unmark >
Mark to mark images. To start the slide show, select Options > Slide show > Play
forwards or Play backwards.
To resume a paused slide show, select Continue.
To end the slide show, select End.
To browse the images, scroll left or right.
Before starting the slide show, to adjust the slide show settings, select Options >
Slide show > Settings and from the following:
Music — Add sound to the slide show.
Song — Select a music file from the list.
Delay between slides — Adjust the tempo of the slide show.
To adjust the volume during the slide show, use the volume keys.
142 Media
Edit images
Image editor
To edit the pictures after taking them or the ones already saved in Photos, select
Options > Edit. The image editor opens.
To open a grid where you can select different edit options indicated by small icons,
select Options > Apply effect . You can crop and rotate the image; adjust the
brightness, color, contrast and resolution; and add effects, text, clip art or a frame
to the picture.
Crop image
To crop an image, select Options > Apply effect > Crop, and a predefined aspect
ratio from the list. To crop the image size manually, select Manual.
If you select Manual, a cross appears in the upper left corner of the image. Use the
scroll key to select the area to crop, and select Set. Another cross appears in the
lower right corner. Again select the area to be cropped. To adjust the first selected
area, select Back. The selected areas form a rectangle that forms the cropped image.
If you select a predefined aspect ratio, select the upper left corner of the area to be
cropped. To resize the highlighted area, use the scroll key. To freeze the selected
area, press the scroll key. To move the area within the picture, use the scroll key.
To select the area to be cropped, press the scroll key.
Reduce red-eye
1 Select Menu > Media > Gallery > Images.
2 Select an image and Options > Edit > (Red eye reduction).
Media 143
3 Scroll the cross onto the eye, and press the scroll key. Scroll to resize the loop
to fit the size of the eye. To reduce the redness, press the scroll key. When you
have finished editing the image, select Done.
4 To save the changes and return to the previous view, select Back.
Useful shortcuts
You can use the following shortcuts when editing images:
•To view a full-screen image, press *. To return to the normal view, press * again.
•To rotate an image clockwise or anticlockwise, press 3 or 1.
•To zoom in or out, press 5 or 0.
•To move on a zoomed image, scroll up, down, left or right.
Edit videos
The video editor supports .3gp and .mp4 video file formats, and .aac, .amr, .mp3,
and .wav audio file formats. It does not necessarily support all features of a file
format or all the variations of file formats.
To edit video clips in Photos, scroll to a video clip, select Options > Edit, and from
the following:
Merge — to add an image or a video clip to the beginning or the end of the selected
video clip
Change sound — to add a new sound clip, and to replace the original sound in the
video clip.
Add text — to add text to the beginning or the end of the video clip
Cut — to trim the video and mark the sections you want to keep in the video clip
144 Media
To take a snapshot of a video clip, in the cut video view, select Options > Take
snapshot. In the thumbnail preview view, press the scroll key, and select Take
snapshot.
Print images
Image print
To print images with Image print, select the image you want to print, and the print
option in Photos, camera, image editor or image viewer.
Use Image print to print your images using a compatible USB data cable, or
Bluetooth connectivity. You can also print images using wireless LAN.If a compatible
memory card is inserted, you can store the images to the memory card and print
them using a compatible printer.
You can only print images that are in .jpeg format. The pictures taken with the
camera are automatically saved in .jpeg format.
Printer selection
To print images with Image print, select the image and the print option.
When you use Image print for the first time, a list of available compatible printers
is displayed. Select a printer. The printer is set as the default printer.
To use a printer compatible with PictBridge, connect the compatible data cable
before you select the print option, and check that the data cable mode is set to
Image print or Ask on connection. The printer is automatically displayed when
you select the print option.
If the default printer is not available, a list of available printers is displayed.
Media 145
To change the default printer, select Options > Settings > Default printer.
Print preview
After you select the printer, the selected images are displayed using predefined
layouts.
To change the layout, scroll left or right to browse through the available layouts for
the selected printer. If the images do not fit on a single page, scroll up or down to
display the additional pages.
Print settings
The available options vary depending on the capabilities of the printing device you
selected.
To set a default printer, select Options > Default printer.
To select the paper size, select Paper size, the size of paper from the list, and OK.
Select Cancel to return to the previous view.
Print online
With Print online, you can order prints of images online directly to your home or to
a store where you can pick them up. You can also order different products with the
selected image, such as mugs or mouse pads. The available products depend on the
service provider.
For more information on the application, see the guides available at the Nokia
product support pages or your local Nokia website.
Create a post
Select Menu > Media > Share online.
146 Media
To post media files to a service, go to a service, and select Options > New
upload. If the online sharing service provides channels for posting files, select the
desired channel.
To add an image, video, or sound clip to the post, select Options > Insert.
Enter a title or description for the post, if available.
To add tags to the post, select Tags:.
To send the post to the service, select Options > Upload.
Nokia Podcasting
Select Menu > Media > Podcasting.
Download podcasts to your device, and play them.
Play and manage podcasts
Podcasting delivers audio or video content over the internet for playback on mobile
devices and PCs.
With the Nokia Podcasting application, you can search, discover, subscribe to, and
download podcasts over the air. You can also play, manage, and share podcasts with
your device.
Define the connection and downloading settings before using the application.
Select Options > Settings > Connection and Download.
To search for new podcast episodes to subscribe to, select Directories.
To search for podcasts using keywords and podcast show titles, select Search.
Media 147
To display the available episodes from the selected podcast, open the Podcasts
folder and select Open.
To download the selected episode, select Options > Download.
To play the downloaded episode, select Options > Play.
To update the selected podcast or marked podcasts for a new episode, select
Options > Update.
To open the web site of the podcast (network service), select Options > Open web
page.
Some podcasts provide the opportunity to interact with the creators by commenting
and voting. To connect to the internet to do this, select Options > View
comments.
Directories
Select Directories.
Directories help you find new podcast episodes to which to subscribe.
Contents of the directories change. Select the desired directory folder to update it
(network service). The color of the folder changes, when the update is complete.
To subscribe to a podcast, scroll to the podcast title and select Options > Update.
After you have subscribed to episodes of a podcast, you can download, manage,
and play them in the podcasts menu.
1 To add a new directory or folder, select Options > New > Web directory or
Folder.
148 Media
2 Select a title, web address of the .opml (outline processor markup language)
file, and Done.
To import an .opml file stored on your device, select Options > Import OPML file.
To save a received .opml file, open the file to save the file into the Received folder
in Directories. Open the folder to subscribe to any of the links to add to your
podcasts.
Search podcasts
Search helps you find podcasts by keyword or title.
The search engine uses the podcast search service you set up in Podcasting >
Options > Settings > Connection > Search service URL.
To search for podcasts, select Search, and enter the desired keywords.
Tip: Search looks for podcast titles and keywords in descriptions, not specific
episodes. General topics, such as football or hip-hop, usually give better results than
a specific team or artist.
To subscribe to selected channels and add them to your podcasts, select
Subscribe.
To start a new search, select Options > New search.
To see the details of a podcast, select Options > Description.
Podcasting settings
To edit the connection settings, select Options > Settings > Connection.
Media 149
To edit the download settings, select Options > Settings > Download.
To restore the default settings, open the corresponding settings and select
Options > Restore default.
Music player
Select Menu > Media > Music player.
Music player supports file formats such as AAC, AAC+, eAAC+, MP3, and WMA. Music
player does not necessarily support all features of a file format or all the variations
of file formats.
Play a song
Select Menu > Media > Music player.
To add all available songs to the music library, select Options > Refresh library.
To play a song, select the desired category, and the song.
To pause playback, press the scroll key; to resume, press the scroll key again. To
stop playback, scroll down.
To fast-forward or rewind, press and hold the scroll key to the right or left.
To skip to the next item, scroll right. To return to the beginning of the item, scroll
left. To skip to the previous item, scroll left again within 2 seconds after a song has
started.
To modify the tone of the music playback, select Options > Equalizer.
To modify the balance and stereo image, or to enhance the bass, select Options >
Settings.
150 Media
To return to the home screen and leave the player playing in the background, press
the end key briefly.
Warning:
Continuous exposure to high volume may damage your hearing. Listen to music at
a moderate level, and do not hold the device near your ear when the loudspeaker
is in use.
Playlists
To view and manage playlists, select Music library > Playlists.
To create a new playlist, select Options > New playlist.
To add songs to the playlist, select the song and Options > Add to playlist > Saved
playlist or New playlist.
To reorder songs in a playlist, scroll to the song you want to move, and select
Options > Reorder playlist.
Ovi Music
With Ovi Music (network service), you can search, browse, purchase, and download
music to your device.
The Ovi Music service will eventually replace the Music store.
Select Menu > Media > Ovi Music.
To download music, you first need to register for the service.
Media 151
Downloading music may involve additional costs and the transmission of large
amounts of data (network service). For information about data transmission
charges, contact your network service provider.
To access Ovi Music, you must have a valid internet access point in the device. You
may be asked to select the access point to use when connecting to Ovi Music.
Select the access point
Select Default access point.
The availability and appearance of Ovi Music settings may vary. The settings may
also be predefined and you may not be able to modify them. When browsing Ovi
Music, you may be able to modify the settings.
Modify Ovi Music settings
Select Options > Settings.
Ovi Music is not available for all countries or regions.
Transfer music from a computer
You can use the following methods to transfer music:
•To install Nokia Ovi Player to manage and organize your music files, download
the PC software from www.ovi.com, and follow the instructions.
•To view your device on a computer as a mass memory device where you can
transfer any data files, make the connection with a compatible USB data cable
or Bluetooth connectivity. If you are using a USB data cable, select Mass storage
as the USB connection mode. A compatible memory card must be inserted in
the device.
•To synchronize music with Windows Media Player, connect a compatible USB
data cable, and select PC Suite as the USB connection mode. A compatible
memory card must be inserted in the device.
152 Media
To change the default USB connection mode, select Menu > Ctrl. panel >
Connectivity > USB and USB connection mode.
Preset frequency settings
Select Menu > Media > Music player and Options > Go to Now playing >
Options > Equalizer.
To use a preset frequency setting when playing music, select the frequency setting
you want to use and Options > Activate.
To modify the frequency of a preset setting, select Options > Edit and a frequency
band, and scroll up or down to adjust its value. You hear your frequency adjustment
immediately in the playback.
To reset the frequency bands to their original values, select Options > Reset to
defaults.
To create your own frequency setting, select Options > New preset.
Enter a name for the frequency setting.
Scroll up or down to move between the frequency bands, and set the frequency for
each band.
RealPlayer
Select Menu > Media > RealPlayer.
RealPlayer plays video and sound clips that are stored on your device, transferred
from an e-mail message, or a compatible computer, or streamed to your device over
the web. Supported file formats include MPEG-4, MP4 (not streaming), 3GP, RV, RA,
AMR, and Midi. RealPlayer does not necessarily support all variations of a media file
format.
Media 153
Play video clips and stream links
To play a video, select Video clips, and a video.
To list recently played files, in the application main view, select Recently played.
To stream content over the air (network service), select Streaming links and a link.
RealPlayer recognizes two kinds of links: an rtsp:// URL and an http:// URL that points
to a RAM file. Before the content begins streaming, your device must connect to a
website and buffer the content. If a network connection problem causes a playback
error, RealPlayer attempts automatically to reconnect to the internet access point.
To download video clips from the web, select Downld. videos.
To adjust the volume during playback, use the volume keys.
To fast-forward during playback, scroll right and hold. To rewind during play, scroll
left and hold.
To stop the playback or streaming, select Stop. Buffering or the connection to the
streaming site stops, the playback of the clip stops, and the clip rewinds to the
beginning.
To view the video in full-screen mode, select Options > Continue in normal scr. .
View information about a media clip
To view the properties of a video or sound clip, or web link, select Options > Clip
details. Information may include for example the bit rate or the internet link of a
streaming file.
154 Media
RealPlayer settings
Select Menu > Media > RealPlayer.
You may receive RealPlayer settings in a message from your service provider.
To define the settings manually, select Options > Settings > Video or
Streaming.
Recorder
Select Menu > Media > Recorder.
With the Recorder application, you can record voice memos and telephone
conversations.
The recorder cannot be used when a data call or GPRS connection is active.
To record a sound clip, select .
To stop recording a sound clip, select .
To listen to the sound clip, select .
To select the recording quality or where you want to save your sound clips, select
Options > Settings.
Recorded sound clips are saved in the Sound clips folder in Gallery.
To record a telephone conversation, open the recorder during a voice call, and select
. Both parties hear a tone at regular intervals during recording.
Nokia Internet Radio
Select Menu > Media > Radio > Internet radio.
Media 155
With the Nokia Internet Radio application (network service), you can listen to
available radio stations on the internet. To listen to radio stations, you must have
a wireless LAN (WLAN) or packet data access point defined in your device. Listening
to the stations may involve the transmission of large amounts of data through your
service provider's network. The recommended connection method is WLAN. Check
with your service provider for terms and data service fees before using other
connections. For example, a flat rate data plan can allow large data transfers for a
set monthly fee.
Listen to internet radio stations
Select Menu > Media > Radio > Internet radio.
To listen to a radio station on the internet, do the following:
1 Select a station from your favorites or the station directory, or search for
stations by name from the Nokia Internet Radio service.
To add a station manually, select Options > Add station manually. You can
also browse for station links with the Web browser application. Compatible
links are automatically opened in the Internet Radio application.
2 Select Options > Listen.
The Now playing view opens, displaying information about the currently
playing station and song.
To pause the playback, press the scroll key; to resume, press the scroll key again.
To view station information, select Options > Station information (not available
if you have saved the station manually).
If you are listening to a station saved in your favorites, scroll left or right to listen
to the previous or next saved station.
156 Media
Favorite stations
Select Menu > Media > Radio > Internet radio.
To view and listen to your favorite stations, select Favorites.
To add a station manually to favorites, select Options > Add station manually.
Enter the web address of the station and a name that you want to appear in the
favorites list.
To add the currently playing station to favorites, select Options > Add to
Favorites.
To view station information, to move a station up or down in the list, or to delete
a station from favorites, select Options > Station and the desired option.
To view only stations beginning with particular letters or numbers, start entering
the characters. Matching stations are displayed.
Search for stations
Select Menu > Media > Radio > Internet radio.
To search for radio stations in the Nokia Internet Radio service by name, do the
following:
1 Select Search.
2 Enter a station name or the first letters of the name in the search field, and
select Options > Search.
Matching stations are displayed.
To listen to a station, select the station and Options > Listen.
Media 157
To save a station to your favorites, select the station and Options > Add to
Favorites.
To make another search, select Options > Search again.
Station directory
Select Menu > Media > Radio > Internet radio and Station directory.
The station directory is maintained by Nokia. If you want to listen to internet radio
stations outside the directory, add station information manually or browse for
station links on the internet with the Web browser application.
Select from the following:
Browse by genre — View the available radio station genres.
Browse by language — View the languages in which there are stations
broadcasting.
Browse by country/region — View the countries in which there are stations
broadcasting.
Top stations — View the most popular stations in the directory.
Internet radio settings
Select Menu > Media > Radio > Internet radio and Options > Settings.
To select the default access point to connect to the network, select Default access
point and from the available options. If you want the device to ask you to select
the access point every time you open the application, select Always ask.
To change the connection speeds for different connection types, select from the
following:
GPRS connection bitrate — GPRS packet data connections
158 Media
3G connection bitrate — 3G packet data connections
Wi-Fi connection bitrate — WLAN connections
The quality of the radio broadcast depends on the selected connection speed. The
higher the speed, the better the quality. To avoid buffering, use the highest quality
only with high speed connections.
Security and data management
Manage the data and software on your device, and take care of the security of the
device and its contents.
Important: Your device can only support one antivirus application. Having
more than one application with antivirus functionality could affect performance
and operation or cause the device to stop functioning.
Lock the device
The lock code protects your device against unauthorized use. The preset code is
12345.
To lock the device, in the home screen, press the power key, and select Lock
phone.
To unlock your device, select Unlock > OK, enter the lock code, and select OK.
To change the lock code, select Menu > Ctrl. panel > Settings and General >
Security > Phone and SIM card. Enter the old code and then the new code twice.
A minimum of 6 characters is required, and numbers, symbols, and upper and lower
case letters can be used.
Keep the lock code secret and in a safe place separate from your device. If you forget
the lock code and your device is locked, your device will require service. Additional
Security and data management 159
charges may apply, and all the personal data in your device may be deleted. For
more information, contact a Nokia Care point or your device dealer.
You can also lock the device remotely by sending a text message to the device.
Lock your device remotely
1 To enable remote locking, select Menu > Ctrl. panel > Settings and General >
Security > Phone and SIM card > Remote phone locking > Enabled.
2 Enter the text message content. It can be 5-20 characters, and both upper and
lower case letters can be used.
3 Enter the same text again to verify it.
4 Enter the lock code.
5 To lock the device remotely, write the predefined text, and send it to your device
as a text message. To unlock your device, you need the lock code.
Memory card security
Select Menu > Office > File mgr..
You can protect a memory card with a password to prevent unauthorized access.
To set a password, select Options > Memory card password > Set. The password
can be up to 8 characters long and is case-sensitive. The password is stored in your
device. You do not need to enter it again while you use the memory card on the
same device. If you use the memory card on another device, you are asked for the
password. Not all memory cards support password protection.
To remove the memory card password, select Options > Memory card
password > Remove. When you remove the password, the data on the memory
card is not protected against unauthorized use.
To open a locked memory card, select Options > Unlock memory card. Enter the
password.
160 Security and data management
If you cannot recall the password to unlock a locked memory card, you may reformat
the card, in which case the card is unlocked and password removed. Formatting a
memory card destroys all data stored on the card.
Encryption
Select Menu > Ctrl. panel > Data mgr. > Encryption.
Encrypt your device or memory card to prevent outsiders from accessing your
important information.
Encrypt device memory or memory card
To encrypt the device memory, select Phone memory.
To encrypt the memory card, select Memory card and from the following:
Encrypt without saving key — Encrypt the memory card without saving the
encryption key. If you select this option, you cannot use the memory card in other
devices, and if you restore factory settings, you cannot decrypt the memory card.
Encrypt and save key — Encrypt the memory card and save the key manually in
the default folder. For security, store the key to a safe place outside the device. For
example, you can send the key to your computer. Enter a pass phrase for the key
and a name for the key file. The pass phrase should be long and complex.
Encrypt with restored key — Encrypt the memory card with a key you have
received. Select the key file and enter the pass phrase.
Decrypt device memory or memory card
Always remember to decrypt the device memory and/or the memory card before
updating the device software.
To decrypt the device memory, select Phone memory.
Security and data management 161
To decrypt the memory card without destroying the encryption key, select Memory
card > Decrypt.
To decrypt the memory card and destroy the encryption key, select Memory card >
Decrypt and turn off encryption.
Fixed dialing
Select Menu > Contacts and Options > SIM numbers > Fixed dial contacts.
With the fixed dialing service, you can restrict calls from your device to certain phone
numbers. Not all SIM cards support the fixed dialing service. For more information,
contact your service provider.
When security features that restrict calls are in use (such as call restriction, closed
user group, and fixed dialing), calls may be possible to the official emergency
number programmed into your device. Call restriction and call forwarding cannot
be active at the same time.
You need your PIN2 code to activate and deactivate fixed dialing or edit your fixed
dialing contacts. Contact your service provider for your PIN2 code.
Select Options and from the following:
Activate fixed dialing — Activate the fixed dialing.
Deactivate fixed dialing — Deactivate the fixed dialing.
New SIM contact — Enter the contact name and phone number to which calls are
allowed.
Add from Contacts — Copy a contact from the list of contacts to the fixed dialing
list.
To send text messages to the SIM contacts while the fixed dialing service is active,
you need to add the text message centre number to the fixed dialing list.
162 Security and data management
Certificate manager
Select Menu > Ctrl. panel > Settings and General > Security > Certificate
management.
Digital certificates are used to verify the origins of software but do not guarantee
safety. There are four different types of certificates: authority certificates, personal
certificates, trusted site certificates, and device certificates. During a secure
connection, a server may send a server certificate to your device. Upon receipt, it is
checked through an authority certificate stored in your device. You receive
notification if the identity of the server is not authentic or if you do not have the
correct certificate in your device.
You can download a certificate from a web site, or receive a certificate as a message.
Certificates should be used when you connect to an online bank or a remote server
to transfer confidential information. They should also be used if you want to reduce
the risk of viruses or other malicious software, and to check the authenticity of
software when you download and install software to your device.
Tip: When you add a new certificate, check its authenticity.
View certificate details
You can only be sure of the correct identity of a server when the signature and the
validity period of a server certificate have been checked.
To view certificate details, open a certificate folder, and select a certificate and
Options > Certificate details.
One of the following notes may appear:
Certificate not trusted — You have not set any application to use the certificate.
You may want to change the trust settings.
Expired certificate — The period of validity has ended for the selected certificate.
Certificate not valid yet — The period of validity has not yet begun for the selected
certificate.
Security and data management 163
Certificate corrupted — The certificate cannot be used. Contact the certificate
issuer.
Certificate trust settings
Select Menu > Ctrl. panel > Settings and General > Security > Certificate
management.
Trusting a certificate means that you authorize it to verify web pages, e-mail servers,
software packages and other data. Only trusted certificates can be used to verify
services and software.
Important: Even if the use of certificates makes the risks involved in remote
connections and software installation considerably smaller, they must be used
correctly in order to benefit from increased security. The existence of a certificate
does not offer any protection by itself; the certificate manager must contain correct,
authentic, or trusted certificates for increased security to be available. Certificates
have a restricted lifetime. If "Expired certificate" or "Certificate not valid yet" is
shown, even if the certificate should be valid, check that the current date and time
in your device are correct.
Before changing any certificate settings, you must make sure that you really trust
the owner of the certificate and that the certificate really belongs to the listed
owner.
To change the trust settings, select a certificate and Options > Trust settings.
Scroll to an application field, and press the scroll key to select Yes or No. You cannot
change the trust settings of a personal certificate.
Depending on the certificate, a list of applications that can use the certificate is
displayed:
Symbian installation — New Symbian operating system application.
Internet — E-mail and graphics.
164 Security and data management
App. installation — New Java application.
Online certif. check — Online certificate status protocol.
View and edit security modules
Select Menu > Ctrl. panel > Settings and General > Security > Security
module.
To view or edit a security module, select the module from the list.
To view detailed information about a security module, select Options > Security
details.
To edit the PIN codes for the security module, open the module, and select Module
PIN to edit the PIN code for the security module or Signing PIN to edit the PIN code
for digital signatures. You may not be able to change these codes for all security
modules.
The key store contains the contents of the security module. To delete the key store,
select Options > Delete. You may not be able to delete the key store of all security
modules.
Remote configuration
Select Menu > Ctrl. panel > Data mgr. > Device mgr..
With Device manager, you can manage settings, data, and software on your device
remotely.
You can connect to a server, and receive configuration settings for your device. You
may receive server profiles and different configuration settings from your service
providers or company information management department. Configuration
settings may include connection and other settings used by different applications
in your device. The available options may vary.
Security and data management 165
The remote configuration connection is usually started by the server when the
device settings need to be updated.
To create a new server profile, select Options > Server profiles > Options > New
server profile.
You may receive these settings from your service provider in a configuration
message. If not, define the following:
Server name — Enter a name for the configuration server.
Server ID — Enter the unique ID to identify the configuration server.
Server password — Enter a password to identify your device to the server.
Access point — Select the access point to use for the connection, or create a new
access point. You can also choose to be asked for the access point every time you
start a connection. This setting is available only if you have selected Internet as the
bearer type.
Host address — Enter the web address of the configuration server.
Port — Enter the port number of the server.
User name and Password — Enter your user ID and password for the configuration
server.
Allow configuration — Select Yes to allow the server to initiate a configuration
session.
Auto-accept all requests — Select Yes if you do not want the server to ask for
your confirmation when it initiates a configuration session.
Network authentication — Select whether to use http authentication.
Network user name and Network password — Enter your user ID and password
for the http authentication. This setting is available only if you have selected
Network authentication to be used.
166 Security and data management
To connect to the server and receive configuration settings for your device, select
Options > Start configuration.
To view the configuration log of the selected profile, select Options > View log.
To update the device software over the air, select Options > Check for updates.
The update does not erase your settings. When you receive the update package on
your device, follow the instructions on the display. Your device is restarted once the
installation is complete.
Downloading software updates may involve the transmission of large amounts of
data (network service).
Make sure that the device battery has enough power, or connect the charger before
starting the update.
Warning:
If you install a software update, you cannot use the device, even to make emergency
calls, until the installation is completed and the device is restarted.
Application manager
With Application manager, you can see the software packages installed in your
device. You can view details of installed applications, remove applications, and
define installation settings.
You can install two types of applications and software to your device:
•JME applications based on Java technology with the .jad or .jar file extensions
•Other applications and software suitable for the Symbian operating system with
the .sis or .sisx file extensions
Only install software that is compatible with your device.
Security and data management 167
Install applications and software
You can transfer installation files to your device from a compatible computer,
download them during browsing, or receive them in a multimedia message, as an
e-mail attachment, or using other connectivity methods, such as Bluetooth
connectivity. You can use Nokia Application Installer in Nokia Ovi Suite to install an
application to your device.
Select Menu > Ctrl. panel > Data mgr. > App. mgr..
The installation files are in the Installation files folder, and installed applications in
the Installed apps. folder.
Icons indicate the following:
.sis or .sisx application
Java application
Application not fully installed
Application installed on the memory card
Important: Only install and use applications and other software from trusted
sources, such as applications that are Symbian Signed or have passed the Java
Verified™ testing.
Before installation, note the following:
•To view the application type, version number and the supplier or manufacturer
of the application, select Options > View details.
To display the security certificate details of the application, select Details: >
Certificates: > View details.
•If you install a file that contains an update or repair to an existing application,
you can only restore the original application if you have the original installation
file or a full backup copy of the removed software package. To restore the
168 Security and data management
original application, remove the application, and install the application again
from the original installation file or the backup copy.
The JAR file is required for installing Java applications. If it is missing, the device
may ask you to download it. If there is no access point defined for the
application, you are asked to select one. When you are downloading the JAR
file, you may need to enter a user name and password to access the server. You
obtain these from the supplier or manufacturer of the application.
To install an application or software:
1 To locate an installation file, press Menu > Ctrl. panel > Data mgr. > App.
mgr., and select Installation files . Alternatively, search installation files using
File manager, or select Messaging > Inbox, and open a message that contains
an installation file.
2 In Application manager, select the application you want to install.
During installation, the device shows information about the progress of the
installation. If you install an application without a digital signature or
certification, the device displays a warning. Continue installation only if you are
sure of the origin and contents of the application.
To start an installed application, select the application. If the application does not
have a default folder defined, it is installed in the Installations folder in the main
menu.
To see which software packages are installed or removed and when, select
Options > View log.
Important: Your device can only support one antivirus application. Having
more than one application with antivirus functionality could affect performance
and operation or cause the device to stop functioning.
Security and data management 169
After you install applications to a compatible memory card, installation files
(.sis, .sisx) re main in the device m emory. The files may use large amounts of memory
and prevent you from storing other files. To maintain sufficient memory, use Nokia
Ovi Suite to back up installation files to a compatible PC, then use the file manager
to remove the installation files from the device memory. If the .sis file is a message
attachment, delete the message from the Messaging inbox.
Remove applications and software
Select Menu > Ctrl. panel > Data mgr. > App. mgr..
Scroll to a software package and select Options > Uninstall. Select Yes to confirm.
If you remove software, you can only reinstall it if you have the original software
package or a full backup of the removed software package. If you remove a software
package, you may no longer be able to open files created with that software.
If another software package depends on the software package that you removed,
the other software package may stop working. For more information, see the
documentation of the installed software package.
Application manager settings
Select Menu > Ctrl. panel > Data mgr. > App. mgr..
Select Options > Settings and from the following:
Software installation — Select whether Symbian software that has no verified
digital signature can be installed.
Online certificate check — Check the online certificates before installing an
application.
Default web address — Set the default address used when checking online
certificates.
Some Java applications may require that a message be sent or a network connection
be made to a specific access point to download extra data or components.
170 Security and data management
Licenses
Digital rights management
Content owners may use different types of digital rights management (DRM)
technologies to protect their intellectual property, including copyrights. This device
uses various types of DRM software to access DRM-protected content. With this
device you can access content protected with WMDRM 10 and OMA DRM 2.0. If certain
DRM software fails to protect the content, content owners may ask that such DRM
software's ability to access new DRM-protected content be revoked. Revocation may
also prevent renewal of such DRM-protected content already in your device.
Revocation of such DRM software does not affect the use of content protected with
other types of DRM or the use of non-DRM-protected content.
About Licenses
Select Menu > Ctrl. panel > Data mgr. > Licenses.
Some media files, such as images, music or video clips, are protected by digital usage
rights. The licenses for such files may allow or restrict their usage. For example, with
some licenses you may listen to a song only a limited number of times. During one
playback session you may rewind, fast-forward, or pause the song, but once you
stop it, you have used one of the instances allowed.
Use licenses
Digital rights management (DRM) protected content comes with an associated
license that defines your rights to use the content.
If your device has OMA DRM-protected content, to back up both the license and the
content, use the backup feature of Nokia Ovi Suite.
Other transfer methods may not transfer the license which need to be restored with
the content for you to be able to continue the use of OMA DRM-protected content
after the device memory is formatted. You may also need to restore the license in
case the files on your device get corrupted.
Security and data management 171
If your device has WMDRM-protected content, both the license and the content will
be lost if the device memory is formatted. You may also lose the license and the
content if the files on your device get corrupted. Losing the license or the content
may limit your ability to use the same content on your device again. For more
information, contact your service provider.
Some license may be connected to a specific SIM card, and the protected content
can be accessed only if the SIM card is inserted in the device.
To view your licenses by type, select Valid licenses, Invalid licenses, or Not in
use.
To view the key details, select Options > License details.
The following details are displayed for each media file:
Status — The status is License is valid, License expired or License not yet
valid.
Content sending — Allowed indicates that you can send the file to another device.
Content in phone — Yes indicates that the file is in the device and the path of the
file is displayed. No indicates that the related file is not currently in the device.
To activate a license, in the licenses main view, select Invalid licenses > Options >
Get new license. Establish a network connection at the prompt, and you are
directed to a website where you can purchase rights to the media.
To remove file rights, go to the desired file, and select Options > Delete. If there
are several rights related to the same media file, all the rights are deleted.
The group license view displays all of the files related to a group right. If you have
downloaded multiple media files with the same rights, they are all displayed in this
view. You can open the group view from either the valid licenses or invalid licenses
tabs. To access these files, open the group rights folder.
172 Security and data management
Synchronization
With the Sync application, you can synchronize your notes, messages, contacts, and
other information with a remote server.
Select Menu > Ctrl. panel > Connectivity > Sync.
You may receive synchronization settings as a configuration message from your
service provider.
A synchronization profile contains the necessary settings for synchronization. When
you open the application, the default or previously used synchronization profile is
displayed.
Include or exclude content types
Select a content type.
Synchronize data
Select Options > Synchronize.
Create a new synchronization profile
Select Options > New sync profile.
Manage synchronization profiles
Select Options and the desired option.
Mobile VPN
Select Menu > Ctrl. panel > Settings and Connection > VPN.
The Nokia mobile virtual private network (VPN) client creates a secure connection
to compatible corporate intranet and services, such as e-mail. Your device connects
from a mobile network, through the internet, to a corporate VPN gateway that acts
as a front door to the compatible corporate network. The VPN client uses IP Security
Security and data management 173
(IPSec) technology. IPSec is a framework of open standards for supporting the
secure exchange of data over IP networks.
VPN policies define the method used by the VPN client and a VPN gateway to
authenticate each other, and the encryption algorithms that they use to help protect
the confidentiality of data. For a VPN policy, contact your company's IT department.
To install and configure the VPN client, certificates, and policies, contact the IT
administrator of your organization.
Manage VPN
Select from the following:
VPN policies — Install, view, and update VPN policies.
VPN policy servers — Edit the connection settings of VPN policy servers from which
you can install and update VPN policies. A policy server refers to a Nokia Security
Service Manager (NSSM), which is not necessarily required.
VPN log — View the log for your VPN policy installations, updates and
synchronizations, and other VPN connections.
Edit VPN access points
Select Menu > Ctrl. panel > Settings and Connection > Destinations.
An access point is where your phone connects to the network. To use e-mail and
multimedia services, or to browse web pages, you must first define internet access
points for these services. Virtual private network (VPN) access points pair VPN
policies with regular internet access points to create secure connections.
Your service provider may preset some or all access points for your device, and you
may not be able to create, edit, or remove them.
Select a destination and Options > Edit, and define the following:
Connection name — Enter a name for the VPN access point.
VPN policy — Select the VPN policy to combine with the internet access point.
174 Security and data management
Internet access point — Select the internet access point with which to combine
the VPN policy to create secure connections for data transfer.
Proxy server address — Enter the proxy server address of the private network.
Proxy port number — Enter the proxy port number.
Use access point — Select whether connections using this access point are
established automatically.
The settings available for editing may vary.
For the correct settings, contact your company's IT department.
Use a VPN connection in an application
You may have to prove your identity when you log on to the enterprise network.
Contact your company's IT department for the credentials.
To use a VPN connection in an application, the application must be associated with
a VPN access point.
Tip: You can configure the application's connection setting to Always ask, in which
case you select the VPN access point from a list of connections when a connection
is established.
1 In the application in which you want to create a VPN connection, select a VPN
access point as the access point.
2 If you are using legacy authentication, enter your VPN user name and passcode
or password. If the SecurID token has become out of synchronization with the
clock of the ACE/Server, enter the next passcode. If you are using certificate-
based authentication, you may have to enter the key store password.
Settings
Select Menu > Ctrl. panel > Settings.
Settings 175
You can define and modify various settings of your device. Modifying these settings
affects the operation of your device across several applications.
Some settings may be preset for the device or sent to you in a special message by
your service provider. You may not be able to change such settings.
Select the setting you want to edit to do the following:
•Switch between two values, such as on or off.
•Select a value from a list.
•Open a text editor to enter a value.
•Open a slider, and scroll left or right to adjust a value.
General settings
Select Menu > Ctrl. panel > Settings and General.
Select from the following:
Personalization — Change the display settings, and customize the device.
Date and time — Change the date and time.
Enhancement — Change the settings for your accessories.
Security — Change the security settings.
Factory settings — Restore the original settings of the device.
Positioning — Define the positioning method and server for GPS-based
applications.
Available options may vary.
Personalization settings
Select Menu > Ctrl. panel > Settings and General > Personalization.
176 Settings
Display settings
To define the level of light that the device needs before switching on the backlight,
select Display > Light sensor.
To change the text size, select Display > Font size.
To adjust the length of time the display can be left idle before the screen saver is
activated, select Display > Power saver time-out.
To select a welcome note or logo for the display, select Display > Welcome note /
logo. You can either choose the default welcome note, enter your own text, or select
an image.
To set how quickly the display dims after the last keypress, select Display > Light
time-out.
Tone settings
Select Menu > Ctrl. panel > Settings.
Select General > Personalization > Tones and from the following:
Ringing tone — Select a ringing tone from the list, or select Download sounds
to open a bookmark folder containing a list of bookmarks for downloading tones
using the browser.
Video call tone — Select a ringing tone for video calls.
Say caller's name — If you select this setting and someone from your contacts list
calls you, the device sounds a ringing tone that is a combination of the spoken name
of the contact and the selected ringing tone.
Ringing type — Select how you want the ringing tone to alert you.
Ringing volume — Set the volume level of the ringing tone.
Settings 177
Message alert tone — Select a tone for received text messages.
E-mail alert tone — Select a tone for received e-mail messages.
Calendar alarm tone — Select a tone for calendar alerts.
Clock alarm tone — Select a tone for clock alarms.
Vibrating alert — Set the device to vibrate when you receive a call or message.
Keypad tones — Set the volume level of the keypad tones.
Warning tones — Activate the warning tones.
T-coil hearing aid mode — Activate T-coil hearing aid mode.
Language settings
Select Menu > Ctrl. panel > Settings and General > Personalization >
Language.
Phone language — Set the device language.
Writing language — Select the language used for writing notes and messages.
Predictive text — Activate predictive text input.
Input options — Define the settings for predictive text input.
Messaging key settings
Select Menu > Ctrl. panel > Settings and General > Personalization >
Messaging key.
To select which application or task is opened when you press the messaging key,
select Messaging key.
To restore the preset application or task, select Restore defaults.
Date and time settings
Select Menu > Ctrl. panel > Settings and General > Date and time.
178 Settings
Select from the following:
Date and Time — Set the current date and time.
Time zone — Define your time zone.
Date format and Date separator — Define the date format and separator.
Time format and Time separator — Select whether to use the 12-hour or 24-hour
clock system and with which symbol to separate hours and minutes.
Clock type — Define the clock type.
Clock alarm tone — Select the tone for the alarm clock.
Alarm snooze time — Define the snooze time for the alarm clock.
Workdays — Define the days of the week that are work days for you.
Automatic time update — Update the time, date, and time zone information
automatically (network service).
Accessory settings
Select Menu > Ctrl. panel > Settings and General > Enhancement.
To define which profile is activated when you attach an accessory to your device,
select the accessory and Default profile.
To set the device to answer phone calls automatically after 5 seconds when an
accessory is attached, select the accessory and Automatic answer > On. If the
ringing type is set to Beep once or Silent in the selected profile, automatic
answering is disabled.
To illuminate the device while it is attached to an accessory, select Lights > On.
This option is only available for certain accessories.
Security settings
Security settings
Select Menu > Ctrl. panel > Settings and General > Security.
Settings 179
Select from the following:
Phone and SIM card — Edit the security settings for your device and SIM card.
Certificate management — Manage your security certificates.
Protected content — Edit your settings for DRM-protected content.
Security module — Manage your security module.
Avoid using codes that are similar to emergency numbers to prevent accidental
dialing of the emergency number. Codes are shown as asterisks. When you change
a code, enter the current code, then the new code twice.
Device and SIM card security
Select Menu > Ctrl. panel > Settings > General > Security.
To change the PIN code, select Phone and SIM card > PIN code. The new code
must be 4 to 8 digits long. The PIN code protects your SIM card against unauthorized
use and is provided with the SIM card. After three consecutive incorrect PIN code
entries, the code is blocked, and you need to use the PUK code to unblock it before
you can use the SIM card again.
To set the keypad to lock automatically after a defined period, select Phone and
SIM card > Keypad autolock period.
To set a time-out period after which the device is automatically locked and can be
used only if the correct lock code is entered, select Phone and SIM card > Phone
autolock period. Enter the length of the time-out period in minutes, or select None
to deactiveate the autolock feature. When the device is locked, you can still answer
incoming calls and calls may still be possible to the official emergency number
programed into your device.
To change the pin code, select Phone and SIM card > Lock code. The default lock
code is 12345. Enter the current code and then the new code twice. The new code
must be 4-255 characters long. Alphanumeric (uppercase and lowercase) characters
can be used. The device notifies you if the lock code is not properly formatted.
180 Settings
Restore original settings
To restore the original device settings, select Menu > Ctrl. panel > Settings and
General > Factory settings. To do this, you need your device lock code. After
resetting, the device may take a longer time to power on. Documents, contact
information, calendar entries, and files are unaffected.
Positioning settings
Select Menu > Ctrl. panel > Settings and General > Positioning.
To use a specific positioning method to detect the location of your device, select
Positioning methods.
To select a positioning server, select Positioning server.
To select which measurement system you want to use for speeds and distances,
select Notation preferences > Measurement system.
To define in which format the coordinate information is displayed in your device,
select Notation preferences > Coordinate format.
Telephone settings
Select Menu > Ctrl. panel > Settings and Phone.
Select from the following:
Call — Define general call settings.
Call forwarding — Define your call forwarding settings. See "Call forward,"
p. 44.
Call restriction — Define your call restricting settings. See "Call restrictions,"
p. 45.
Network — Adjust the network settings.
Settings 181
Call settings
Select Menu > Ctrl. panel > Settings and Phone > Call.
Select from the following:
Send my caller ID — Display your phone number to the person you are calling.
Call waiting — Set the device to notify you of incoming calls while you are in a call
(network service).
Decline call with msg. — Send a text message when you reject a call, informing
the caller why you could not answer the call.
Message text — Write the standard text message that is sent when you reject a
call.
Own video in recvd. call — Allow or deny video sending during a video call from
your device.
Image in video call — If video is not sent during a video call, you can select a still
image to be displayed instead.
Automatic redial — Set your device to make a maximum of 10 attempts to connect
the call after an unsuccessful call attempt. To stop automatic redialing, press the
end key.
Show call duration — Display the length of a call during a call.
Summary after call — Display the length of a call after a call.
1-touch dialing — Activate 1-touch dialing.
Anykey answer — Activate anykey answer.
Contact search — Activate contact search in the home screen.
Network settings
Select Menu > Ctrl. panel > Settings and Phone > Network.
To select the network mode, select Network mode and Dual mode, UMTS, or
GSM. In dual mode, the device switches automatically between networks.
182 Settings
Tip: Selecting UMTS enables faster data transfer, but may increase the demand on
battery power and reduce the battery life. In regions close to both GSM and UMTS
networks, selecting Dual mode may cause constant jumping between the two
networks, which also increases the demand on battery power.
To select the operator, select Operator selection and Manual to select from
available networks, or Automatic to set the device to select the network
automatically.
To set the device to indicate when it is used in a microcellular network (MCN), select
Cell info display > On.
Connection settings
Select Menu > Ctrl. panel > Settings and Connection.
Select from the following:
Bluetooth — Edit the Bluetooth settings.
USB — Edit the data cable settings.
Destinations — Set up new or edit existing access points. Some or all access points
may be preset for your device by your service provider, and you may not be able to
create, edit or remove them.
VPN — Manage the settings for virtual private networking.
Packet data — Define when packet data network is attached, and enter the default
packet switched access point name if you use your device as a modem for a
computer.
Wireless LAN — Set the device to display an indicator when a wireless LAN (WLAN)
is available, and define how often the device searches for networks.
Video sharing — Enable video sharing, select the SIP profile for video sharing, and
define the video saving settings.
SIP settings — View or create session initiation protocol (SIP) profiles.
Settings 183
XDM profile — Create an XDM profile. The XDM profile is required for many
communications applications, for example, presence.
Presence — Edit the settings for presence (network service). To register for the
service, contact your service provider.
Remote drives — Connect the device to a remote drive.
Configurations — View and delete trusted servers from which your device may
receive configuration settings.
Access points
Create a new access point
Select Menu > Ctrl. panel > Settings and Connection > Destinations.
You may receive access point settings in a message from a service provider. Some
or all access points may be preset for your device by your service provider, and you
may not be able to change, create, edit, or remove them.
When you select one of the access point groups ( , , , , ), you can see the
access point types:
indicates a protected access point
indicates a packet data access point
indicates a wireless LAN (WLAN) access point
Tip: You can create internet access points in a WLAN with the WLAN wizard.
To create a new access point, select Access point.
The device asks you to check for available connections. After the search, connections
that are already available are displayed and can be shared by a new access point.
If you skip this step, you are asked to select a connection method and to define the
settings needed.
184 Settings
To edit the settings of an access point, select one of the access point groups, scroll
to an access point, and select Options > Edit. Use the instructions provided by your
service provider to edit the following:
Connection name — Enter a name for the connection.
Data bearer — Select the data connection type.
Depending on the data connection you select, only certain setting fields are
available. Fill in all fields marked with Must be defined or with a red *. Other fields
can be left empty, unless your service provider has instructed otherwise.
To use a data connection, your service provider must support this feature, and if
necessary, activate it for your SIM card.
Create access point groups
Select Menu > Ctrl. panel > Settings and Connection > Destinations.
Some applications allow you to use access point groups to connect to a network.
To avoid selecting which access point to use every time the device attempts to
connect to a network, you can create a group that contains various access points,
and define the order in which the access points are used to connect to a network.
For example, you can add wireless LAN (WLAN) and packet data access points to an
internet access point group and use the group for browsing the web. If you give the
WLAN access point the higher priority, the device connects to the internet through
a WLAN if available and through a packet data connection if not.
To create a new access point group, select Options > Manage > New
destination.
To add access points to an access point group, select the group and Options > New
access point. To copy an existing access point from another group, select the group,
Settings 185
scroll to an existing access point, and select Options > Organize > Copy to other
dest..
To change the priority order of access points within a group, scroll to an access
point, and select Options > Organize > Change priority.
Packet data access points
Select Menu > Ctrl. panel > Settings and Connection > Destinations > Access
point, and follow the instructions on the screen.
To edit a GPRS access point, open one of the access point groups, and select an access
point marked with .
Follow the instructions from your service provider.
Select from the following:
Connection name — Define a name for the connection.
Data bearer — You might not be able to edit the data bearer once defined. Define
a new access point if needed.
Access point name — You obtain the access point name from your service provider.
User name — The user name may be needed to make a data connection, and is
usually provided by your service provider.
Prompt password — If you must enter the password every time you log in to a
server, or if you do not want to save your password in the device, select Yes.
Password — A password may be needed to make a data connection and is usually
provided by your service provider.
Authentication — Select Secure to always send your password encrypted or
Normal to send your password encrypted when possible.
Homepage — Depending on the access point you are setting up, enter the web
address or the address of the multimedia message center.
186 Settings
Use access point — Select After confirmation if you want the device to ask for
confirmation before the connection using this access point is created, or
Automatically if you want the device to connect to the destination using this access
point automatically.
Select Options > Advanced settings and from the following:
Network type — Select the internet protocol type to transfer data to and from
your device. The other settings depend on the selected network type.
Phone IP address (for IPv4 only) — Enter the IP address of your device.
DNS addresses — Enter the IP addresses of the primary and secondary DNS servers,
if required by your service provider. To obtain these addresses, contact your internet
service provider.
Proxy server address — Enter the address of the proxy server.
Proxy port number — Enter the port number of the proxy server.
Wi-Fi internet access points
Select . Menu > Ctrl. panel > Settings and Connection > Destinations > Access
point, and follow the instructions on the display. Or, open one of the access point
groups, select an access point marked with , and select Options > Edit.
Use the instructions provided by your service provider to edit the following:
Connection name — Define a name for the connection.
Data bearer — You might not be able to edit the data bearer once defined. Define
a new access point if needed.
WLAN network name — Select Enter manually or Search for networks. If you
select an existing network, WLAN network mode and WLAN security mode are
determined by the settings of its access point device.
Network status — Define whether the network name is displayed.
Settings 187
WLAN network mode — Select Ad-hoc to create an ad hoc network, and to allow
devices to send and receive data directly; a Wi-Fi access point device is not needed.
In an ad hoc network, all devices must use the same Wi-Fi network name.
WLAN security mode — Select the encryption used: WEP, 802.1x, or WPA/
WPA2. (802.1x and WPA/WPA2 are not available for ad hoc networks.) If you select
Open network, no encryption is used. The WEP, 802.1x, and WPA functions can be
used only if the network supports them.
Use access point — Select After confirmation to set the device to ask for
confirmation before the connection using this access point is created or
Automatically to set the device to connect to the destination using this access point
automatically.
To enter the settings for the selected security mode, select WLAN security
settings.
Advanced Wi-Fi settings
Select Options > Advanced settings and from the following:
IPv4 settings — Enter the IP address of your device, the subnet IP address, the
default gateway, and the IP addresses of the primary and secondary DNS servers.
Contact your internet service provider for these addresses.
IPv6 settings — Define the type of DNS address.
Ad-hoc channel (only for ad hoc networks) — To enter a channel number (1-11)
manually, select User defined.
Proxy server address — Enter the address for the proxy server.
Proxy port number — Enter the proxy port number.
Packet data (GPRS) settings
Select Menu > Ctrl. panel > Settings and Connection > Packet data.
Your device supports packet data connections, such as GPRS in the GSM network.
When you are using your device in GSM and UMTS networks, it is possible to have
188 Settings
multiple data connections active at the same time; access points can share a data
connection, and data connections remain active, for example, during voice calls.
To define the packet data settings, select Packet data connection and When
available to register the device to the packet data network when you switch the
device on in a supported network, or When needed to register the device to a
packet data network only when an application or action attempts to establish a
packet data connection. This setting affects all access points for packet data
connections.
To use the device as a packet data modem for your computer, select Access point,
and enter the access point name provided by your service provider.
WLAN settings
Select Menu > Ctrl. panel > Settings and Connection > Wireless LAN.
To have an indicator displayed when there is a wireless LAN (WLAN) available in
your current location, select Show WLAN availability > Yes.
To select the interval for your device to scan for available WLANs, and to update the
indicator, select Scan for networks. This setting is not available unless you select
Show WLAN availability > Yes.
To set the device to test the internet capability of the selected WLAN automatically,
to ask for permission every time, or to never perform the connectivity test, select
Internet connectivity test > Run automatically, Ask every time, or Never run.
If you select Run automatically or allow the test to be performed when the device
asks for it, and the connectivity test is performed successfully, the access point is
saved to internet destinations.
To check the unique media access control (MAC) address that identifies your device,
enter *#62209526# in the home screen. The MAC address is displayed.
Settings 189
Advanced WLAN settings
Select Options > Advanced settings. The advanced WLAN settings are normally
defined automatically, and changing them is not recommended.
To edit the settings manually, select Automatic configuration > Disabledand
define the following:
Long retry limit — Enter the maximum number of transmission attempts if the
device does not receive a receiving acknowledgement signal from the network.
Short retry limit — Enter the maximum number of transmission attempts if the
device does not receive a clear-to-send signal from the network.
RTS threshold — Select the data packet size at which the WLAN access point device
issues a request to send before sending the packet.
TX power level — Select the power level of your device when sending data.
Radio measurements — Enable or disable the radio measurements.
Power saving — Select whether to use the WLAN power saving mechanism to save
the power in the device battery. Using the power saving mechanism enhances the
battery performance but may weaken WLAN interoperability.
To restore all settings to their original values, select Options > Restore defaults.
WLAN security settings
Select Menu > Ctrl. panel > Settings and Connection > Destinations > Access
point, and follow the instructions on the display.
To edit a wireless LAN (WLAN) access point, open one of the access point groups,
and select an access point marked with .
To enter the settings for the selected security mode, select WLAN security
settings.
190 Settings
WEP security settings
Select WEP as the WLAN security mode.
The wired equivalent privacy (WEP) encryption method encrypts data before it is
transmitted. Access to the network is denied to users who do not have the required
WEP keys. When the WEP security mode is in use, and your device receives a data
packet not encrypted with the WEP keys, the data is discarded.
In an ad-hoc network, all devices must use the same WEP key.
Select WLAN security settings and from the following:
WEP key in use — Select the desired WEP key.
Authentication type — Select Open or Shared.
WEP key settings — Edit the settings for the WEP key.
WEP key settings
In an ad-hoc network, all devices must use the same WEP key.
Select WLAN security settings > WEP key settings and from the following:
WEP encryption — Select the desired WEP encryption key length.
WEP key format — Select whether you want to enter the WEP key data in ASCII
or Hexadecimal format.
WEP key — Enter the WEP key data.
802.1x security settings
Select 802.1x as the WLAN security mode.
802.1x authenticates and authorizes devices to access a wireless network, and
prevents access if the authorization process fails.
Select WLAN security settings and from the following:
Settings 191
WPA/WPA2 — Select EAP (Extensible Authentication Protocol) or Pre-shared key
(a secret key used for device identification).
EAP plug-in settings — If you selected WPA/WPA2 > EAP, select which EAP plug-
ins defined in your device to use with the access point.
Pre-shared key — If you selected WPA/WPA2 > Pre-shared key, enter the shared
private key that identifies your device to the WLAN to which you connect.
WPA security settings
Select WPA/WPA2 as the WLAN security mode.
Select WLAN security settings and from the following:
WPA/WPA2 — Select EAP (Extensible Authentication Protocol) or Pre-shared key
(a secret key used for device identification).
EAP plug-in settings — If you select WPA/WPA2 > EAP, select which EAP plug-ins
defined in your device to use with the access point.
Pre-shared key — If you select WPA/WPA2 > Pre-shared key, enter the shared
private key that identifies your device to the WLAN to which you connect.
WPA2 only mode — To allow both TKIP and AES (Advanced Encryption Standard)
encryption, select Off. To allow AES only, select On
Wireless LAN plugins
Select Menu > Ctrl. panel > Settings and Connection > Destinations, and an
access point group.
The extensible authentication protocol (EAP) plug-ins are used in wireless networks
to authenticate wireless devices and authentication servers, and the different EAP
plug-ins make possible the use of various EAP methods (network service).
You can view the EAP plug-ins currently installed in your device (network service).
192 Settings
EAP plug-ins
1 To define the EAP plug-in settings, select Options > New access point, and
define an access point that uses Wi-Fi as a data bearer.
2 Select 802.1x or WPA/WPA2 as the security mode.
3 Select WLAN security settings > WPA/WPA2 > EAP > EAP plug-in settings.
Use EAP plug-ins
To use an EAP plug-in when you connect to a WLAN using the access point, select
the desired plug-in and Options > Enable. The EAP plug-ins enabled for use with
this access point have a check mark next to them. To not use a plug-in, select
Options > Disable.
To edit the EAP plug-in settings, select Options > Edit.
To change the priority of the EAP plug-in settings, select Options > Raise priority
to attempt to use the plug-in before other plug-ins when connecting to the network
with the access point, orOptions > Lower priority to use this plug-in for network
authentication after attempting to use other plug-ins.
See the device help for more information on EAP plugins.
Session initiation protocol (SIP) settings
Select Menu > Ctrl. panel > Settings and Connection > SIP settings.
The session initiation protocol (SIP) is used for creating, modifying, and terminating
certain types of communication sessions with one or more participants (network
service). SIP profiles include settings for these sessions. The SIP profile used by
default for a communication session is underlined.
Settings 193
To create a SIP profile, select Options > New SIP profile > Use default profile or
Use existing profile.
To select the SIP profile you want to use by default for communication sessions,
select Options > Default profile.
Edit SIP profiles
Select Menu > Ctrl. panel > Settings and Connection > SIP settings.
Select Options > Edit and from the following:
Profile name — Enter a name for the SIP profile.
Service profile — Select IETF or Nokia 3GPP.
Default destination — Select the destination to use for the internet connection.
Default access point — Select the access point to use for the internet connection.
Public user name — Enter your user name provided by your service provider.
Use compression — Select if compression is used.
Registration — Select the registration mode.
Use security — Select if security negotiation is used.
Proxy server — Enter the proxy server settings for this SIP profile.
Registrar server — Enter the registration server settings for this SIP profile.
Edit SIP proxy servers
Select Options > New SIP profile or Edit > Proxy server.
Proxy servers are intermediate servers between a browsing service and its users
used by some service providers. These servers may provide additional security and
speed up access to the service.
Select from the following:
194 Settings
Proxy server address — Enter the host name or IP address of the proxy server in
use.
Realm — Enter the proxy server realm.
User name and Password — Enter your user name and password for the proxy
server.
Allow loose routing — Select if loose routing is allowed.
Transport type — Select UDP, Automatic or TCP.
Port — Enter the port number of the proxy server.
Edit registration servers
Select Options > New SIP profile or Edit > Registrar server.
Select from the following:
Registrar server address — Enter the host name or IP address of the registrar
server in use.
Realm — Enter the registrar server realm.
User name and Password — Enter your user name and password for the registrar
server.
Transport type — Select UDP, Automatic or TCP.
Port — Enter the port number of the registrar server.
Configuration settings
Select Menu > Ctrl. panel > Settings and Connection > Configurations.
You can receive messages from your service provider or company information
management containing configuration settings for trusted servers. These settings
are automatically saved in Configurations. You may receive configuration settings
for access points, multimedia, or e-mail services, and instant messaging (IM) or
synchronization settings from trusted servers.
Settings 195
To delete configurations for a trusted server, select Options > Delete. The
configuration settings for other applications provided by this server are also
deleted.
Application settings
Select Menu > Ctrl. panel > Settings and Applications.
Select an application from the list to adjust its settings.
Shortcuts
Here are some of the available keyboard shortcuts in your device. Shortcuts can
make the use of the applications more efficient.
General shortcuts
Power key Press and hold to switch your device on and off.
Press once to switch between profiles.
Sym key Press and hold to activate or deactivate Bluetooth
connectivity.
Ctrl key Press and hold to activate or deactivate the Silent
profile.
Ctrl + C Copy text.
Ctrl + V Paste text.
Ctrl + X Cut text.
Ctrl + A Select all.
196 Shortcuts
Home screen
Left selection key + right
selection key
Lock and unlock the keypad and keyboard.
Call key Open the call register.
0Press and hold to open your homepage in the Web
browser.
1Press and hold to call your voice mailbox.
Number key (2–9) Call a phone number using 1-touch dialing. You must
first activate 1-touch dialing in Menu > Ctrl. panel and
Phone > Call > 1-touch dialing.
Web shortcuts
*Zoom into the page.
#Zoom out of the page.
0Go to the homepage.
1Show the toolbar
2Open the search dialog.
3Return to the previous page.
4Save the current web page as a bookmark.
5Open the map of keypad shortcuts.
6Reload the current page.
7View the page in full screen.
8View the page overview.
Shortcuts 197
9Open the dialog for entering a new web address.
E-mail
CCreate a new e-mail message.
DRemove the selected e-mail messages.
RCreate a reply message to the sender of the e-mail
message.
ACreate a reply message to the sender and all other
recipients.
FForward the e-mail message.
OOpen the selected e-mail message.
JMove up one page in the e-mail message.
KMove down one page in the e-mail message.
TMove to the first e-mail message in the mailbox or move
to the beginning of an e-mail message.
BMove to the last e-mail message in the mailbox or move
to the end of an e-mail message.
UChange the read or unread status of an e-mail message.
EAccept a meeting request.
GTentatively accept a meeting request.
VDecline a meeting request.
WSort e-mail messages.
IExpand and collapse the messages.
198 Shortcuts
SStart the search.
Calendar shortcuts for keyboard
AOpen the agenda view.
DOpen the day view.
WOpen the week view.
MOpen the month view.
TOpen the to-do view.
NAdd a new meeting.
Glossary
Glossary
3G 3rd generation mobile communications. A digital system for
mobile communications which aims at global use and
provides increased bandwidth. 3G lets a mobile device user
access a wide variety of services, such as multimedia.
Ad-hoc operating
mode
A WLAN network mode where two or more devices connect
to each other using WLAN directly without a WLAN access
point.
Cookies Cookies are little pieces of information, given by the server
to you, to store information about your visits to a web site.
When you accept cookies, the server is able to evaluate your
use of the web site, what you are interested in, what you
want to read and so on.
Glossary 199
DNS Domain name service. An internet service that translates
domain names such as www.nokia.com into IP addresses
such as 192.100.124.195. Domain names are easier to
remember but this translation is needed because the
internet is based on IP addresses.
EAP Extensible authentication protocol. EAP plug-ins are used in
wireless networks to authenticate wireless devices and
authentication servers.
EGPRS Enhanced GPRS. EGPRS is similar to GPRS, but it enables faster
connection. For availability and data transfer speed, contact
your service provider.
GPRS General packet radio service. GPRS enables wireless access
for mobile phones to data networks (network service). GPRS
uses packet data technology where information is sent in
short bursts of data over the mobile network. The benefit of
sending data in packets is that the network is occupied only
when sending or receiving data. As GPRS uses the network
efficiently, it allows for quick data connection setup and fast
data transmission speeds.
You must subscribe to the GPRS service. For availability and
subscription to GPRS, contact your service provider.
During a voice call, you cannot establish a GPRS connection,
and any existing GPRS connection is put on hold unless the
network supports dual transfer mode.
GPS Global positioning system. GPS is a worldwide radio
navigation system.
200 Glossary
HTTP Hypertext transfer protocol. A document transfer protocol
used in the web.
HTTPS HTTP over a secure connection.
IMAP4 Internet mail access protocol, version 4. A protocol used for
accessing your remote mailbox.
Internet access
point
An access point is where your device connects to a network.
To use e-mail and multimedia services or to connect to the
internet and browse web pages, you must first define
internet access points for these services.
Infrastructure
operating mode
A WLAN network mode where devices are connected to
WLAN using a WLAN access point.
PIN Personal identity number. The PIN code protects your device
from unauthorized use. The PIN code is supplied with the
SIM card. If the PIN code request is selected, the code is
required each time the device is switched on. The PIN code
must be 4 to 8 digits long.
PIN2 The PIN2 code is supplied with some SIM cards. The PIN2
code is required to access certain functions supported by the
SIM card. The length of the PIN2 code is 4 to 8 digits.
POP3 Post office protocol, version 3. A common mail protocol that
can be used for accessing your remote mailbox.
PUK and PUK2 Personal Unblocking Key. PUK and PUK2 codes are required
to change a blocked PIN code or PIN2 code, respectively. The
length of the code is 8 digits.
SIP Session Initiation Protocol. SIP is used for creating,
modifying and terminating certain types of communication
sessions with one or more participants.
Glossary 201
SSID Service set identifier. SSID is the name that identifies the
specific WLAN.
Streaming Streaming audio and video files means playing them directly
from the web without downloading them first to your
device.
UMTS Universal Mobile Telecommunications System. UMTS is a 3G
mobile communication system. Besides voice and data,
UMTS enables audio and video delivery to wireless devices.
When you use your device in GSM and UMTS networks,
multiple data connections can be active at the same time,
and access points can share a data connection. In the UMTS
network, data connections remain active during voice calls.
You can, for example, browse the web faster than previously
possible while simultaneously speaking on the phone.
UPIN PIN code used in UMTS network.
UPUK UPIN Unblocking Key. UPUK code is required to change a
blocked UPIN code or PIN2 code. The length of the code is 8
digits.
USIM SIM card used in UMTS network.
USSD command A service request, such as request to activate an application
or configure various settings remotely, that you can send to
your operator or service provider with your device.
VPN Virtual private network. VPN creates a secure connection to
compatible corporate intranet and services, such as e-mail.
WAP Wireless application protocol. WAP is an international
standard for wireless communication.
202 Glossary
WEP Wired equivalent privacy. WEP is an encryption method that
encrypts data before it is transmitted in WLAN.
WLAN Wireless local area network.
WPA Wi-Fi Protected Access. Security method for WLAN.
WPA2 Wi-Fi Protected Access 2. Security method for WLAN.
Troubleshooting
To view frequently asked questions about your device, go to www.nokia.com/
support.
Q: What is my lock, PIN, or PUK code?
A: The default lock code is 12345. If you forget or lose the lock code, contact your
device dealer. If you forget or lose a PIN or PUK code, or if you have not received
such a code, contact your network service provider.
Q: How do I close an application that is not responding?
A: Press and hold the home key. Scroll to the application and press the backspace
key to close the application.
Q: Why do images look smudgy?
A: Ensure that the camera lens protection windows are clean.
Troubleshooting 203
Q: Why do missing, discolored, or bright dots appear on the screen every time
I switch on my device?
A: This is a characteristic of this type of display. Some displays may contain pixels
or dots that remain on or off. This is normal, not a fault.
Q: Why can’t I find my friend’s device while using Bluetooth connectivity?
A: Check that both devices are compatible, have activated Bluetooth connectivity,
and are not in hidden mode. Check also that the distance between the two devices
is not over 10 meters (33 feet) and that there are no walls or other obstructions
between the devices.
Q: Why can’t I close a Bluetooth connection?
A: If another device is connected to your device, you can close the connection using
the other device or by deactivating Bluetooth connectivity. Select Menu > Ctrl.
panel > Connectivity > Bluetooth and Bluetooth > Off.
Q: Why can't I see a wireless LAN (WLAN) access point even though I know I'm
within its range?
A: Check that the Offline profile is not in use in your device.
The WLAN access point may use a hidden service set identifier (SSID). You can only
access networks that use a hidden SSID if you know the correct SSID, and have
created a WLAN access point for the network on your Nokia device.
Check that the WLAN access point is not on channels 12-13, as they cannot be
associated with.
204 Troubleshooting
Q: How do I turn off the WLAN on my Nokia device?
A: The WLAN on your Nokia device deactivates when you are not connected or trying
to connect to another access point, or not scanning for available networks. To
further reduce battery consumption, you can specify that your Nokia device does
not scan, or scans less often, for available networks in the background. The WLAN
deactivates in between background scans.
To stop the background scans, select Menu > Ctrl. panel > Settings and
Connection > Wireless LAN > Show WLAN availability > Never. You can still
manually scan for available WLANs and connect to WLANs as usual.
To increase the background scan interval, select Show WLAN availability > Yes
and define the interval in Scan for networks.
Q: Why can't I browse the web even though the WLAN connection is working
and the IP settings are correct?
A: Check that you have defined the HTTP/ HTTPS proxy settings correctly in the
advanced settings of your WLAN access point.
Q: How do I check the signal quality of my WLAN connection?
Select Menu > Ctrl. panel > Connectivity > Conn. mgr. and Active data
connections > Options > Details. If the signal quality is weak or moderate, you
may encounter connection problems. Try again closer to the access point.
Q: Why do I have problems with the security mode?
A: Check that you have configured the security mode correctly, and that it is the
same that the network uses. To check the security mode the network uses, select
Troubleshooting 205
Menu > Ctrl. panel > Connectivity > Conn. mgr. and Active data connections >
Options > Details.
Check also the following: you have the correct WPA mode (preshared key or EAP),
you have disabled all EAP types that are not needed, and all the EAP type settings
are correct (passwords, user names, certificates).
Q: Why can’t I select a contact for my message?
A: The contact card does not have a phone number, an address, or an e-mail address.
Select Menu > Contacts, and edit the contact card.
Q: The note Retrieving message is shown briefly. What is happening?
A: The device is trying to retrieve a multimedia message from the multimedia
messaging center. This note is shown if you have selected Menu > Messaging and
Options > Settings > Multimedia message > Multimedia retrieval > Always
automatic.
Check that the settings for multimedia messaging are defined correctly and that
there are no mistakes in phone numbers or addresses.
Q: How can I end the data connection when the device starts a data
connection again and again?
A: The device may be trying to retrieve a multimedia message from the multimedia
message center. To stop the device from making a data connection, select Menu >
Messaging and Options > Settings > Multimedia message > Multimedia
retrieval > Manual to have the multimedia messaging center save messages to be
retrieved later, or Off to ignore all incoming multimedia messages. If you select
Manual, you receive a notification when there is a new multimedia message that
206 Troubleshooting
you can retrieve in the multimedia message center. If you select Off, the device does
not make any network connections related to multimedia messaging.
To set the device to use a packet data connection only if you start an application or
action that needs it, select Menu > Ctrl. panel > Settings and Connection >
Packet data > Packet data connection > When needed.
If this does not help, restart the device.
Q: How do I save battery power?
A: Many features in your device increase the demand on battery power and reduce
the battery life time. To save battery power, do the following:
•Deactivate Bluetooth connectivity when you do not need it.
•Stop the background scans for WLAN. Select Menu > Ctrl. panel > Settings and
Connection > Wireless LAN > Show WLAN availability > Never. You can still
manually scan for available WLANs and connect to WLANs as usual.
•Set the device to use a packet data connection only if you start an application
or action that needs it. Select Menu > Ctrl. panel > Settings and
Connection > Packet data > Packet data connection > When needed.
•Prevent the device from automatically downloading new maps in the Maps
application. Select Menu > Maps and Options > Settings > Internet >
Connection.
•Change the time-out after which the backlight is switched off. Select Menu >
Ctrl. panel > Settings and General > Personalization > Display > Light
time-out.
•Close the applications you are not using. Press and hold the home key. Scroll to
the application, and press the backspace key to close the application.
Troubleshooting 207
Find help
For local services and warranty information, please refer to the separate booklet.
Support
When you want to learn more about how to use your product or you are unsure
how your phone should function, read the user guide in your phone. Select Menu >
Help > Help.
If this does not resolve your issue, do one of the following:
•Reboot your phone. Switch off the phone, and remove the battery. After about
a minute, replace the battery, and switch on the phone.
•Update your phone software
•Restore the original factory settings
If your issue remains unsolved, contact Nokia for repair options. Go to
www.nokia.com/repair, or in Latin America, www.nokia-latinoamerica.com/
centrosdeservicio. Before sending your phone for repair, always back up your data.
For additional product support information, see the warranty and reference leaflet
included with your Nokia phone.
Update device software
About device software and application updates
With device software updates and application updates, you can get new features
and enhanced functions for your device. Updating the software may also improve
your device's performance.
208 Find help
It is recommended that you back up your personal data before updating your device
software.
Warning:
If you install a software update, you cannot use the device, even to make emergency
calls, until the installation is completed and the device is restarted.
Downloading software updates may involve the transmission of large amounts of
data (network service).
Make sure that the device battery has enough power, or connect the charger before
starting the update.
After you update your device software or applications, the instructions in the user
guide may no longer be up to date.
Find help 209
Update device software using your PC
You can use the Nokia Software Updater PC application to update your device
software. To update your device software, you need a compatible PC, a high-speed
internet connection, and a compatible USB data cable to connect your device to the
PC.
To get more information and to download the Nokia Software Updater application,
go to www.nokia.com/softwareupdate, or in Latin America, www.nokia-
latinoamerica.com/nsu.
In-device help
Your device contains instructions to help to use the applications in your device.
To open help texts from the main menu, select Menu > Help > Help and the
application for which you want to read instructions.
When an application is open, to access the help text for the current view, select
Options > Help.
When you are reading the instructions, to change the size of the help text, select
Options > Decrease font size or Increase font size.
You may find links to related topics at the end of the help text.
If you select an underlined word, a short explanation is displayed.
Help texts use the following indicators:
Link to a related help topic.
Link to the application being discussed.
When you are reading the instructions, to switch between help texts and the
application that is open in the background, select Options > Show open apps. and
the desired application.
210 Find help
Accessibility solutions
Nokia is committed to making mobile phones easy to use for all individuals,
including those with disabilities. For more information, visit the Nokia website at
www.nokiaaccessibility.com.
Do more with your device
There are various applications provided by Nokia and third party software
developers, that help you do more with your device. To find and download
applications, visit the Ovi Store at store.ovi.com. These applications are explained
in the guides that are available on the product support pages at www.nokia.com/
support or your local Nokia website.
Settings
Your device normally has MMS, GPRS, streaming, and mobile internet settings
automatically configured, based on your network service provider information. You
may have settings from your service providers already installed in your device, or
you may receive or request the settings from the network service providers as a
special message.
You can change the general settings in your device, such as language, standby
mode, display, and keypad lock settings.
Prolong battery life
Many features in your device increase the demand on battery power and reduce the
battery life time. To save battery power, observe the following:
•Features that use Bluetooth technology, or allowing such features to run in the
background while using other features, increase the demand on battery power.
Switch off Bluetooth when you do not need it.
•Features that use wireless LAN (WLAN), or allowing such features to run in the
background while using other features, increase the demand on battery power.
The WLAN on your Nokia device switches off when you are not trying to connect,
Find help 211
not connected to another access point, or not scanning for available networks.
To further reduce battery consumption, you can specify that your device not
scan, or scans less often, for available networks in the background.
•If you have set Packet data connection to When available in connection
settings, and there is no packet data coverage (GPRS), the device periodically
tries to establish a GPRS connection. To prolong the operating time of your
device, select Menu > Ctrl. panel > Settings and Connection > Packet
data > Packet data connection > When needed.
•The Maps application downloads new map information when you scroll to new
areas on the map, which increases the demand on battery power. You can
prevent the automatic download of new maps.
•If the signal strength of the cellular network varies much in your area, your
device must scan for the available network repeatedly. This increases the
demand on battery power.
If the network mode is set to dual mode in the network settings, the device
searches for the 3G network. You can set the device to use only the GSM network.
To use only the GSM network, select Menu > Ctrl. panel > Settings and
Phone > Network > Network mode > GSM.
•The backlight of the display increases the demand on battery power. In the
display settings, you can change the length of the time-out period after which
the backlight is switched off. Select Menu > Ctrl. panel > Settings and
General > Personalization > Display > Light time-out. To adjust the light
sensor that observes lighting conditions and adjusts the display brightness, in
the display settings, select Light sensor.
•To save power, activate the power save mode. Press the power key, and select
Activate power saving. To deactivate it, press the power key, and select
Deactivate power saving. You may not be able to change the settings of
certain applications when the power save mode is activated.
212 Find help
Free memory
To view how much memory is available for different data types, select Menu >
Office > File mgr..
Many features of the device use memory to store data. The device notifies you if
available memory is low.
To free memory, transfer data to an alternative memory (if available) or compatible
computer.
To remove data you no longer need, use File manager or the respective application.
You can remove the following:
•Messages in the folders in Messaging and retrieved e-mail messages from the
mailbox
•Saved web pages
•Contact information
•Calendar notes
•Applications shown in Application manager that you do not need
•Installation files (with .sis or .sisx file extensions) of installed applications. Back
up the installation files to a compatible computer.
•Images and video clips in Photos.
Protect the environment
Save energy
You do not need to charge your battery so often if you do the following:
•Close applications and data connections, such as your Wi-Fi or Bluetooth
connection, when not in use.
Protect the environment 213
•Turn off unnecessary sounds, such as key tones.
Recycle
When this phone has reached the end of its working life, all of its materials can be
recovered as materials and energy. To guarantee the correct disposal and reuse,
Nokia co-operates with its partners through a program called We:recycle. For
information on how to recycle your old Nokia products and where to find collection
sites, go to www.nokia.com/werecycle, or call the Nokia Contact Center.
Recycle packaging and user guides at your local recycling scheme.
For more information on the environmental attributes of your phone, go to
www.nokia.com/ecoprofile.
Product and safety information
Accessories
Warning:
Use only batteries, chargers, and accessories approved by Nokia for use with this particular model. The use of any other
types may invalidate any approval or guarantee, and may be dangerous. In particular, use of unapproved chargers or
batteries may present a risk of fire, explosion, leakage, or other hazard.
For availability of approved accessories, please check with your dealer. When you disconnect the power cord of any
accessory, grasp and pull the plug, not the cord.
214 Product and safety information
Battery
Battery and charger information
Your device is powered by a rechargeable battery. The battery intended for use with this device is BL-4D. Nokia may make
additional battery models available for this device. This device is intended for use when supplied with power from the
following chargers: AC-8. The exact charger model number may vary depending on the type of plug. The plug variant is
identified by one of the following: E, EB, X, AR, U, A, C, K, or UB.
The battery can be charged and discharged hundreds of times, but it will eventually wear out. When the talk and standby
times are noticeably shorter than normal, replace the battery. Use only Nokia approved batteries, and recharge your
battery only with Nokia approved chargers designated for this device.
If a battery is being used for the first time or if the battery has not been used for a prolonged period, it may be necessary
to connect the charger, then disconnect and reconnect it to begin charging the battery. If the battery is completely
discharged, it may take several minutes before the charging indicator appears on the display or before any calls can be
made.
Safe removal. Always switch the device off and disconnect the charger before removing the battery.
Proper charging. Unplug the charger from the electrical plug and the device when not in use. Do not leave a fully charged
battery connected to a charger, since overcharging may shorten its lifetime. If left unused, a fully charged battery will
lose its charge over time.
Avoid extreme temperatures. Always try to keep the battery between 59°F and 77°F (15°C and 25°C). Extreme
temperatures reduce the capacity and lifetime of the battery. A device with a hot or cold battery may not work temporarily.
Battery performance is particularly limited in temperatures well below freezing.
Do not short-circuit. Accidental short-circuiting can occur when a metallic object such as a coin, clip, or pen causes direct
connection of the positive (+) and negative (-) terminals of the battery. (These look like metal strips on the battery.) This
might happen, for example, when you carry a spare battery in your pocket or purse. Short-circuiting the terminals may
damage the battery or the connecting object.
Disposal. Do not dispose of batteries in a fire as they may explode. Dispose of batteries according to local regulations.
Please recycle when possible. Do not dispose as household waste.
Leak. Do not dismantle, cut, open, crush, bend, puncture, or shred cells or batteries. In the event of a battery leak, prevent
battery liquid contact with skin or eyes. If this happens, flush the affected areas immediately with water, or seek medical
help.
Damage. Do not modify, remanufacture, attempt to insert foreign objects into the battery or immerse or expose it to
water or other liquids. Batteries may explode if damaged.
Correct use. Use the battery only for its intended purpose. Improper battery use may result in a fire, explosion, or other
hazard. If the device or battery is dropped, especially on a hard surface, and you believe the battery has been damaged,
Product and safety information 215
take it to a service center for inspection before continuing to use it. Never use any charger or battery that is damaged.
Keep your battery out of the reach of small children.
Taking care of your device
Your device is a product of superior design and craftsmanship and should be treated with care. The following suggestions
will help you protect your warranty coverage.
•Keep the device dry. Precipitation, humidity, and all types of liquids or moisture can contain minerals that will
corrode electronic circuits. If your device does get wet, remove the battery, and allow the device to dry completely
before replacing it.
•Do not use or store the device in dusty, dirty areas. Its moving parts and electronic components can be damaged.
•Do not store the device in high or cold temperature. High temperatures can shorten the life of electronic devices,
damage batteries, and warp or melt certain plastics. When the device warms to its normal temperature from a cold
temperature, moisture can form inside the device and damage electronic circuit boards.
•Do not attempt to open the device other than as instructed in this guide.
•Do not drop, knock, or shake the device. Rough handling can break internal circuit boards and fine mechanics.
•Do not use harsh chemicals, cleaning solvents, or strong detergents to clean the device. Only use a soft, clean, dry
cloth to clean the surface of the device.
•Do not paint the device. Paint can clog the moving parts and prevent proper operation.
•Use only the supplied or an approved replacement antenna. Unauthorized antennas, modifications, or attachments
could damage the device and may violate regulations governing radio devices.
•Use chargers indoors.
•Backup all data you want to keep, such as contacts and calendar notes.
•To reset the device from time to time for optimum performance, power off the device and remove the battery.
These suggestions apply equally to your device, battery, charger, or any accessory.
Recycle
Always return your used electronic products, batteries, and packaging materials to dedicated collection points. This way
you help prevent uncontrolled garbage disposal and promote the recycling of materials. Check product environmental
information and how to recycle your Nokia products at www.nokia.com/werecycle, or with a cellular phone, nokia.mobi/
werecycle.
Additional safety information
Small children
Your device and its accessories are not toys. They may contain small parts. Keep them out of the reach of small children.
216 Product and safety information
Operating environment
This device meets RF exposure guidelines in the normal use position at the ear or at least 1.5 centimeters (5/8 inch) away
from the body. Any carry case, belt clip, or holder for body-worn operation should not contain metal and should position
the device the above-stated distance from your body.
To send data files or messages requires a quality connection to the network. Data files or messages may be delayed until
such a connection is available. Follow the separation distance instructions until the transmission is completed.
Parts of the device are magnetic. Metallic materials may be attracted to the device. Do not place credit cards or other
magnetic storage media near the device, because information stored on them may be erased.
Medical devices
Operation of radio transmitting equipment, including wireless phones, may interfere with the function of inadequately
protected medical devices. Consult a physician or the manufacturer of the medical device to determine whether they are
adequately shielded from external RF energy. Switch off your device when regulations posted instruct you to do so, for
example, in hospitals.
Implanted medical devices
Manufacturers of medical devices recommend a minimum separation of 15.3 centimeters (6 inches) between a wireless
device and an implanted medical device, such as a pacemaker or implanted cardioverter defibrillator, to avoid potential
interference with the medical device. Persons who have such devices should:
•Always keep the wireless device more than 15.3 centimeters (6 inches) from the medical device.
•Not carry the wireless device in a breast pocket.
•Hold the wireless device to the ear opposite the medical device.
•Turn the wireless device off if there is any reason to suspect that interference is taking place.
•Follow the manufacturer directions for the implanted medical device.
If you have any questions about using your wireless device with an implanted medical device, consult your health care
provider.
Hearing
Warning:
When you use the headset, your ability to hear outside sounds may be affected. Do not use the headset where it can
endanger your safety.
Some wireless devices may interfere with some hearing aids.
Product and safety information 217
Your cellular device complies with FCC rules governing hearing aid compatibility. These rules require an M3 microphone
or higher. The M value of your device microphone is marked on the device sales package. To determine the M-rating of
your hearing aid and compatibility with this device, consult your hearing health professional. For more information about
accessibility, see www.nokiaaccessibility.com.
To use a telecoil-equipped hearing aid with this device, activate the hearing aid (T switch) and the device telecoil. The
sound quality depends on the type of your hearing aid.
Note: The surface of this device does not contain nickel in the platings. The surface of this device contains
stainless steel.
Vehicles
RF signals may affect improperly installed or inadequately shielded electronic systems in motor vehicles such as electronic
fuel injection, electronic antilock braking, electronic speed control, and air bag systems. For more information, check with
the manufacturer of your vehicle or its equipment.
Only qualified personnel should service the device or install the device in a vehicle. Faulty installation or service may be
dangerous and may invalidate your warranty. Check regularly that all wireless device equipment in your vehicle is
mounted and operating properly. Do not store or carry flammable liquids, gases, or explosive materials in the same
compartment as the device, its parts, or accessories. Remember that air bags inflate with great force. Do not place your
device or accessories in the air bag deployment area.
Switch off your device before boarding an aircraft. The use of wireless teledevices in an aircraft may be dangerous to the
operation of the aircraft and may be illegal.
Potentially explosive environments
Switch off your device in any area with a potentially explosive atmosphere. Obey all posted instructions. Sparks in such
areas could cause an explosion or fire resulting in bodily injury or death. Switch off the device at refueling points such as
near gas pumps at service stations. Observe restrictions in fuel depots, storage, and distribution areas; chemical plants;
or where blasting operations are in progress. Areas with a potentially explosive atmosphere are often, but not always,
clearly marked. They include areas where you would be advised to turn off your vehicle engine, below deck on boats,
chemical transfer or storage facilities and where the air contains chemicals or particles such as grain, dust, or metal
powders. You should check with the manufacturers of vehicles using liquefied petroleum gas (such as propane or butane)
to determine if this device can be safely used in their vicinity.
Emergency calls
Important: This device operates using radio signals, wireless networks, landline networks and user-
programmed functions. If your device supports voice calls over the internet (internet calls), activate both the internet
calls and the cellular phone. The device may attempt to make emergency calls over both the cellular networks and through
218 Product and safety information
your internet call provider if both are activated. Connections in all conditions cannot be guaranteed. You should never
rely solely on any wireless device for essential communications like medical emergencies.
To make an emergency call:
1 If the device is not on, switch it on. Check for adequate signal strength. Depending on your device, you may also
need to complete the following:
•Insert a SIM card if your device uses one.
•Remove certain call restrictions you have activated in your device.
•Change your profile from Offline or Flight profile to an active profile.
2 Press the end key as many times as needed to clear the display and ready the device for calls.
3 Enter the official emergency number for your present location. Emergency numbers vary by location.
4 Press the call key.
When making an emergency call, give all the necessary information as accurately as possible. Your wireless device may
be the only means of communication at the scene of an accident. Do not end the call until given permission to do so.
Certification information (SAR)
This mobile device meets guidelines for exposure to radio waves.
Your mobile device is a radio transmitter and receiver. It is designed not to exceed the limits for exposure to radio waves
recommended by international guidelines. These guidelines were developed by the independent scientific organization
ICNIRP and include safety margins designed to assure the protection of all persons, regardless of age and health.
The exposure guidelines for mobile devices employ a unit of measurement known as the Specific Absorption Rate or SAR.
The SAR limit stated in the ICNIRP guidelines is 2.0 watts/kilogram (W/kg) averaged over 10 grams of tissue. Tests for SAR
are conducted using standard operating positions with the device transmitting at its highest certified power level in all
tested frequency bands. The actual SAR level of an operating device can be below the maximum value because the device
is designed to use only the power required to reach the network. That amount changes depending on a number of factors
such as how close you are to a network base station.
Use of device accessories may result in different SAR values. SAR values may vary depending on national reporting and
testing requirements and the network band. Additional SAR information may be provided under product information at
www.nokia.com.
Your mobile device is also designed to meet the requirements for exposure to radio waves established by the Federal
Communications Commission (USA) and Industry Canada. These requirements set a SAR limit of 1.6 W/kg averaged over
Product and safety information 219
The highest SAR value under the ICNIRP guidelines for use of the device at the ear is 0.99 W/kg .
one gram of tissue. The highest SAR value reported under this standard during product certification for use at the ear is
Copyright and other notices
DECLARATION OF CONFORMITY
Hereby, NOKIA CORPORATION declares that this RM-634 product is in compliance with the essential requirements and other
relevant provisions of Directive 1999/5/EC. A copy of the Declaration of Conformity can be found at http://www.nokia.com/
phones/declaration_of_conformity/.
© 2010 Nokia. All rights reserved.
Nokia, Nokia Connecting People, and Navi are trademarks or registered trademarks of Nokia Corporation. Nokia tune is
a sound mark of Nokia Corporation. Other product and company names mentioned herein may be trademarks or
tradenames of their respective owners.
Reproduction, transfer, distribution, or storage of part or all of the contents in this document in any form without the
prior written permission of Nokia is prohibited. Nokia operates a policy of continuous development. Nokia reserves the
right to make changes and improvements to any of the products described in this document without prior notice.
Java and all Java-based marks are trademarks or registered trademarks of Sun Microsystems, Inc.
This product is licensed under the MPEG-4 Visual Patent Portfolio License (i) for personal and noncommercial use in
connection with information which has been encoded in compliance with the MPEG-4 Visual Standard by a consumer
engaged in a personal and noncommercial activity and (ii) for use in connection with MPEG-4 video provided by a licensed
video provider. No license is granted or shall be implied for any other use. Additional information, including that related
to promotional, internal, and commercial uses, may be obtained from MPEG LA, LLC. See http://www.mpegla.com.
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, UNDER NO CIRCUMSTANCES SHALL NOKIA OR ANY OF ITS LICENSORS
BE RESPONSIBLE FOR ANY LOSS OF DATA OR INCOME OR ANY SPECIAL, INCIDENTAL, CONSEQUENTIAL OR INDIRECT DAMAGES
HOWSOEVER CAUSED.
220 Copyright and other notices
1.18 W/kg and when properly worn on the body is 1.34 W/kg .
THE CONTENTS OF THIS DOCUMENT ARE PROVIDED "AS IS". EXCEPT AS REQUIRED BY APPLICABLE LAW, NO WARRANTIES OF ANY
KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN RELATION TO THE ACCURACY, RELIABILITY OR CONTENTS OF THIS DOCUMENT.
NOKIA RESERVES THE RIGHT TO REVISE THIS DOCUMENT OR WITHDRAW IT AT ANY TIME WITHOUT PRIOR NOTICE.
Reverse engineering of software in the device is prohibited to the extent permitted by applicable law. Insofar as this user
guide contains any limitations on Nokia's representations, warranties, damages and liabilities, such limitations shall
likewise limit any representations, warranties, damages and liabilities of Nokia's licensors.
The third-party applications provided with your device may have been created and may be owned by persons or entities
not affiliated with or related to Nokia. Nokia does not own the copyrights or intellectual property rights to the third-party
applications. As such, Nokia does not take any responsibility for end-user support, functionality of the applications, or
the information in the applications or these materials. Nokia does not provide any warranty for the third-party
applications. BY USING THE APPLICATIONS YOU ACKNOWLEDGE THAT THE APPLICATIONS ARE PROVIDED AS IS WITHOUT
WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW. YOU FURTHER
ACKNOWLEDGE THAT NEITHER NOKIA NOR ITS AFFILIATES MAKE ANY REPRESENTATIONS OR WARRANTIES, EXPRESS OR IMPLIED,
INCLUDING BUT NOT LIMITED TO WARRANTIES OF TITLE, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OR THAT
THE APPLICATIONS WILL NOT INFRINGE ANY THIRD-PARTY PATENTS, COPYRIGHTS, TRADEMARKS, OR OTHER RIGHTS.
The availability of particular products and applications and services for these products may vary by region. Please check
with your Nokia dealer for details and availability of language options. This device may contain commodities, technology
or software subject to export laws and regulations from the US and other countries. Diversion contrary to law is prohibited.
FCC/INDUSTRY CANADA NOTICE
Your device may cause TV or radio interference (for example, when using a telephone in close proximity to receiving
equipment). The FCC or Industry Canada can require you to stop using your telephone if such interference cannot be
eliminated. If you require assistance, contact your local service facility. This device complies with part 15 of the FCC rules.
Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that may cause undesired operation. Any changes
or modifications not expressly approved by Nokia could void the user's authority to operate this equipment.
Copyright and other notices 221
/Issue 2.0 EN-US
Index
Symbols/Numbers
1-touch dialing 43
3-D ringing tones 129
802.1x
— security settings 191
A
A-GPS (assisted GPS) 105
Access codes 25
access points 78, 184
— groups 185
— VPN 174
accessories
— settings 179
Active notes 96
active toolbar
— in Photos 140
alarm clock 37
albums
— media 141
answering calls 42
antennas 20
application manager 167
application settings 196
applications 167
assisted GPS (A-GPS) 105
attachments
— multimedia messages 68
audio files
— details 154
audio messages 64
auto-update for time/date 37
autolock period 180
B
background image 128
backing up device memory 97
battery
— charging 17
— inserting 13
— saving power 211
blocking
— device 84
blogs 91
Bluetooth 82, 84
Bluetooth connectivity
— device address 83
— low memory 84
— pairing devices 83
— receiving data 84
— sending data 82
bookmarks 92
browser
— bookmarks 88, 92
— browsing pages 88, 90
— cache memory 92
— searching content 91
— security 93
— settings 94
222 Index
— toolbar 89
C
cable connection 86
cache memory 92
calculator 97
calendar 34
— creating entries 34
— meeting requests 35
— views 36
call forward 44
call log 53, 54
call restriction 45
call waiting 43
caller ID 182
calls 39
— answering 42
— conference 42
— duration of 54
— options during 40
— rejecting 42
— restricting
See fixed dialing
— settings 182
— voice mail 41
camera
— capturing images 130
— image settings 134
— playing videos 133
— scenes 131
— sequence mode 132
— toolbar 130
— video clips 133
— video settings 134
— viewing images 132
Carte SIM
— inserting 13
cell broadcast 70
— settings 73
certificates
— details 163
— settings 164
charging the battery 17
chat services (IM) 74
Clock
— settings 38
clock 37
computer connections 87
See also data connections
conference calls 42
configuration messages 195
connectors 11
contacts
— copying 21, 32
— images in 33
— in social networks 31
— managing 32, 33
— ringing tones 33
— synchronizing 80, 173
— voice tags 32
contacts bar 27
Index 223
content
— synchronizing, sending, and
retrieving 22
converting
— currencies 100
— measurements 99
copying content 20
currency conversions 100
customization 177
customizing your device 126
D
data cable 86
data connections
— PC connectivity 87
— synchronization 80, 173
date
— settings 178
date and time 37
declining calls 42
decrypting
— device memory and memory card161
device manager 165
dictionary 104
dismissing calls 42
display
— settings 177
DLNA 87
duration of calls 54
E
e-mail
— accounts 60
— adding attachments 58
— attachments 59
— deleting 60
— disconnecting 61
— folders 60
— out-of-office reply 61
— reading 58
— searching 60
— sending 57, 64
— settings 61
— setup 57
EAP
— plug-in settings 193
— using an EAP plug-in 193
encrypting
— device memory and memory card161
environmental tips 213
equalizer 153
F
feeds, news 91
file management 98
file manager 97
fixed dialing 162
flashlight 39
224 Index
G
gallery 135
— presentations 136
— sound clips 136
— streaming links 136
general information 208
GPRS
— settings 188
GPRS connection
— access point settings 186
GPS
— position requests 108
GPS (Global Positioning System) 105
GPS (global positioning system) 105
H
headphones 18
headset 18
help application 210
home key 28
home network 87
home screen 26
I
IAPs (internet access points) 78
IM (instant messaging) 74
images 138
— editing 143
— printing 145, 146
installing applications 168
internet browser 88
internet connection 88
See also browser
internet radio 156
— favorites 157
— searching for stations 157
— settings 158
— station directory 158
J
Java applications 167
JME Java application support 167
K
keselamatan
— penyemak imbas 93
key store 165
keyboard 29
keyguard 18
keypad
— lock settings 180
keypad lock 18
keys
— WEP keys 191
keys and parts 11
L
landmarks 108
language
— settings 178
licenses 171
location information 105
Index 225
lock code 19, 25, 159, 180
locking
— device 159
— device autolock 180
— keypad 180
logos
— welcome logo 177
M
Maps 111
— browsing 112
— changing views 114
— display elements 113, 122
— downloading maps 114
— driving routes 121
— Favorites 117
— finding locations 116
— navigating 121, 123
— organizing places 117
— organizing routes 117
— planning routes 124
— positioning 115
— saving places 117
— saving routes 117
— sending places 118
— sharing locations 119
— synchronizing 120
— traffic information 122
— viewing location details 116
— voice guidance 120
— walking routes 123
measurements
— converting 99
meeting requests
— receiving 59
memory
— clearing 213
— web cache 92
memory card 15, 16, 98
— locking 160
— passwords 160
message reader 62, 63
messages 56
— cell broadcast settings 73
— configuration messages 195
— service messages 69
— settings 73
— speech options 63
— text message settings 71
messaging
— folders 56
messaging key 28, 178
Mini Map 90
MMS (multimedia message service) 64,
72
multimedia 135
multimedia messages 64, 72
— attachments 68
— creating presentations 67
— receiving 66
— replying to 66
multitasking 39
226 Index
music player
— playing 150
— playlists 151
N
navigation tools 105
network
— settings 182
network settings 75
news feeds 91
Nokia Ovi Player 152
Nokia support information 208
notes 104
O
Office Communicator 74
operator
— selecting 182
original settings 181
out-of-office reply 61
Ovi by Nokia 24
Ovi Music 151
Ovi Store 25
Ovi Suite 23
P
packet data
— settings 188
packet data connection
— counters 54
page overview 90
PDF reader 101
personalization
— changing language 178
— display 177
Photos
— tags 141
photos 138
— editing 143
— file details 139
— organizing files 139
— toolbar 140
PictBridge 145
pictures
— copying 21
PIN code 25
— changing 180
pin code 19
PIN2 code 25
playing
— video and audio 154
podcasting 147
— directories 148
— searching 149
— settings 149
positioning
— settings 181
positioning information 105
positioning settings 110
predictive text input 30, 178
presentations 67, 136
printer settings 102
Index 227
printing 101
— images 145
profiles
— creating 126
— customizing 127
— personalizing 126
— selecting ringing tones 127
proxy settings 187
PUK code 25
R
RealPlayer
— playing media clips 154
— settings 155
— viewing clip details 154
recent calls 53
recycling 213
red-eye removal 143
rejecting calls 42
remote configuration 165
remote lock 159
remote SIM mode 85
restoring original settings 181
ringing tones 177
— 3-D 129
— in profiles 127
roaming 75
S
screen saver 128, 177
security
— device and SIM card 180
— memory card 160
security code 25, 159
security module 165
service commands 69
service messages 69
— settings 73
settings
— access points 184, 185
— accessories 179
— advanced WLAN 190
— applications 196
— Bluetooth 81
— browser 94
— call 182
— camera 134
— cell broadcast 73
— certificate 164
— clock 38
— date 178
— display 177
— EAP plug-ins 193
— GPRS 188
— GPRS access points 186
— internet radio 158
— keypad lock 180
— language 178
— messages 72
— network 75, 182
— packet data 188
228 Index
— podcasting 149
— positioning 110, 181
— printer 102
— RealPlayer 155
— restoring 181
— security 179
— service messages 73
— SIP 193
— text messages 71
— time 178
— tones 177
— WEP security 191
— Wi-Fi internet access points 187
— WLAN 78, 189
— WLAN security 190
Share online
— creating posts 146
shared video 49
shortcuts 144, 196
SIM card
— text messages 66
SIP
— creating profiles 193
— editing profiles 194
— editing proxy servers 194
— editing registration servers 195
— settings 193
slide show 142
SMS (short message service) 64
software applications 167
software updates 208, 210
sound clips 136
speech 63
streaming links 136
support 208
Switch 20
Symbian applications 167
synchronization 80, 173
T
text
— changing size 177
— predictive input 30
text input 29
text messages
— messages on SIM card 66
— sending 64
— settings 71
themes 128
— downloading 129
time
— settings 178
time and date 37
time zone settings 38
tones
— settings 177
transferring
— data 20
transferring content 21
transferring music 152
troubleshooting 203
Index 229
U
updates
— applications 208
— device software 208, 210
UPIN code 25
— changing 180
UPUK code 25
USB data cable 86
useful information 208
V
video
— playing 133
— shared 50
video calls 47, 48, 49
video clips 138
— details 154
— playing 154
— shared 49
video sharing
— accepting invitation 52
— sharing live video 51
— sharing video clips 51
videos
— copying 21
virtual private network
— use in applications 175
voice calls
See calls
voice commands 46
voice mail
— calling 41
— changing number 41
VPN
— access points 174
— use in applications 175
W
web browser 88
web connection 88
welcome note 177
WEP
— keys 191
— security settings 191
Wi-Fi 187
wireless LAN (WLAN) 76
WLAN
— 802.1x security settings 191
— advanced settings 190
— MAC address 78, 189
— security settings 190
— settings 78, 189
— WEP keys 191
— WPA security settings 192
WLAN (wireless local area network) 76
world clock 38
WPA security settings 192
wrist strap 16
Z
Zip manager 100
230 Index

Navigation menu
