User manual
Master Specification
Data Collector with Bluetooth
Model No. OPN-3002i
Manufacturing
Specification No. XF2OPN3002 DOC_ID SS13001
Issue No. Edition 1st
Issue Date 2013- -
Approved by
Optoelectronics Co., Ltd.
4-12-17 Tsukagoshi Warabi-shi, Saitama
335-0002 Japan
TEL +81-48-446-1183
FAX +81-48-446-1184
営業 営業管理 C S Q A/QC 照査 作成
OPN-3002i DOC ID：SS12003
Revision History
DOC_ID ：SS12003
Model No. ：OPN-3002i
Edition Date Section Description of Changes
1st 2013- - - （Initial Issue）
OPN-3002i DOC ID：SS12003
Index page
1. ABSTRACT ................................................................................................................................. 1
2. OVERVIEW................................................................................................................................. 1
3. BASIC SPECIFICATION........................................................................................................... 2
4. DETAILED VIEW....................................................................................................................... 5
5. ELECTRICAL SPECIFICATIONS ............................................................................................ 6
5.1. ＵＳＢ..........................................................................................................................................6
5.2. Charging Cradle ......................................................................................................................6
6. INTERFACE ............................................................................................................................... 6
6.1. USB .......................................................................................................................................... 6
6.1.1. Connector....................................................................................................................................... 6
6.1.2. USB Interface Circuit...................................................................................................................... 6
6.2. Bluetooth..................................................................................................................................7
7. OPTICAL SPECIFICATIONS.................................................................................................... 7
7.1. Basic Optical Specifications ....................................................................................................7
7.2. Aiming Pattern........................................................................................................................8
7.3. Imaging Range.........................................................................................................................8
8. TECHNICAL SPECIFICATIONS.............................................................................................. 9
8.1. Bar code Test Sample ..............................................................................................................9
8.2. Scan Area and Depth of Field ............................................................................................... 11
8.3. Printed Contrast Signal (PCS).............................................................................................. 11
8.4. Minimum Resolution ...............................................................................................................12
8.5. Wide Barcode .........................................................................................................................12
8.6. Petch, Skew and Tilt ...............................................................................................................12
8.7. Curvature ................................................................................................................................13
9. ENVIRONMENTAL SPECIFICATIONS ................................................................................ 14
9.1. Temperature ..........................................................................................................................14
9.2. Humidity................................................................................................................................14
9.3. Ambient Light Immunity ......................................................................................................14
9.4. Dust and Drip Proof ..............................................................................................................14
9.5. Vibration Strength(without packing) ...................................................................................15
9.6. Vibration Strength (in individual packing) .......................................................................... 15
Drop Impact Strength.........................................................................................................................15
9.7. Drop Impact Strength (in individual packaging).................................................................15
9.8. Electrical Specifications ........................................................................................................15
10. REGULATORY COMPLIANCE............................................................................................... 16
10.1. LED Safety.............................................................................................................................16
10.2. Product Safety .......................................................................................................................16
10.3. EMC .......................................................................................................................................16
10.4. Other ......................................................................................................................................17
11. ROHS......................................................................................................................................... 17
12. MTBF ........................................................................................................................................ 17
13. PRECAUTIONS........................................................................................................................ 17
13.1. Precaution against Laser Light ............................................................................................17
13.2. Handling ................................................................................................................................ 17
13.3. Radio Low ..............................................................................................................................18
OPN-3002i DOC ID：SS12003
13.4. Export Administration Regulations......................................................................................18
13.5. Bluetooth................................................................................................................................18
13.6. Frequency Band.....................................................................................................................18
14. PRODUCT LABEL ...................................................................................................................20
15. PACKAGING SPECIFICATIONS ........................................................................................... 21
15.1. Individual Packaging Specification ......................................................................................21
15.2. Collective Packaging Specification .......................................................................................21
16. WARRANTY.............................................................................................................................. 22
16.1. Warranty period.....................................................................................................................22
16.2. Delivery..................................................................................................................................22
16.3. Repair Timeframe..................................................................................................................22
16.4. Maintenance Period............................................................................................................... 22
16.5. Other ......................................................................................................................................22
17. PHYSICAL FEATURES........................................................................................................... 22
17.1. Dimensions ............................................................................................................................22
17.2. Weight .................................................................................................................................... 22
17.3. Mechanical Drawing..............................................................................................................23
18. SUPPORTED SYMBOLOGIES ............................................................................................... 24
18.1. 1D symbologies ......................................................................................................................24
18.2. GS1 Databar, Composite Code..............................................................................................25
18.3. 2D codes .................................................................................................................................25
OPN-3002i DOC ID：SS13001
1
1. Abstract
This manual provides specifications for the OPN-3002i 2D Imager Barcode Scanner.
2. Overview
The OPN-3002i scanner enables data transmission of barcode using Bluetooth wireless thechnology.
z The OPN-3002i is handy and simple data collector.
Data transmission is performed via a USB or Bluetooth.
z The OPN-3002i has SPP and HID profiles.
z Power supply is 3.7V, 600mAh(typ.) and Lithium-ion polymer battery is used.
z The power supply charging is done via a USB interface or charging cradle.
z MFi license agreement approved by Apple Inc.
OPN-3002i DOC ID：SS13001
2
3. Basic Specification
Item Spedification Note
CPU 32bit CISC/96MHz
FROM 512Kbyte + 32KByte
SRAM 96Kbyte
Control
Section
FROM(strage) 1Mbyte For user data
Input
Section
Key type 2 keys: Trigger, Function
LED bi-colors(red and green) 2pcs, a blue LED
Beeper Tone:variable frequency, Volume:3-level
variable
Display section
Vibration motor Amplitude:3-level variable
Contents year, month, day, hour, minute and second
RTC
Error ≤±90seconds per a month
Frequency 2402MHz - 2480MHz
Specification Bluetooth Ver2.1
Communication
distance 10ｍ
It may shorter
depending on usage
environments
Output level Class 2 2dBm max.
Bluetooth
Profile SPP/HID
USB ・Full-Speed 12Mbps ( HID/COM )
・Hi-Power Bus-powered 対応
I /F
Serial interface 2contacts for cradle.
Scanning method WVGA (0.36 million-pixel) CMOS area sensor Frame rate: 60 fps
Scanning light source 2 red LEDs
Aiming light source 1 green LED
Effective pixels 0.36 million pixels (H: 752 x V: 480)
Optical Section
View angle Horizontal: about 40.6°
Vertical: about 26.4°
Symbologies
UPC-A, UPC-A Add-on, UPC-E, UPC-E Add-on,
EAN-13, EAN-13 Add-on, EAN-8, EAN-8 Add-on,
JAN-8, JAN-13, Code 39, Tri-Optic, Codabar
(NW-7), Industrial 2 of 5, Interleaved 2 of 5, S-Code,
IATA, Code 93, Code 128, MSI/Plessey,
UK/Plessey, TELEPEN, Matrix 2 of 5, Chinese Post
Matrix 2 of 5, Code 11, Korean Postal Authority
code, Postal Code
Minimum resolution Code 39 : 0.127 mm PCS 0.9
Curvature Radius ≧ 16 mm (12-digit 0.15mm Codabar)
Radius ≧ 20 mm (13-digit UPC) PCS 0.9
Supported 1D Symbologies
Wide Bar Code Possible to read: Code 39 with 100 mm width and
resolution 0.2mm (DOF: 135 mm)
OPN-3002i DOC ID：SS13001
3

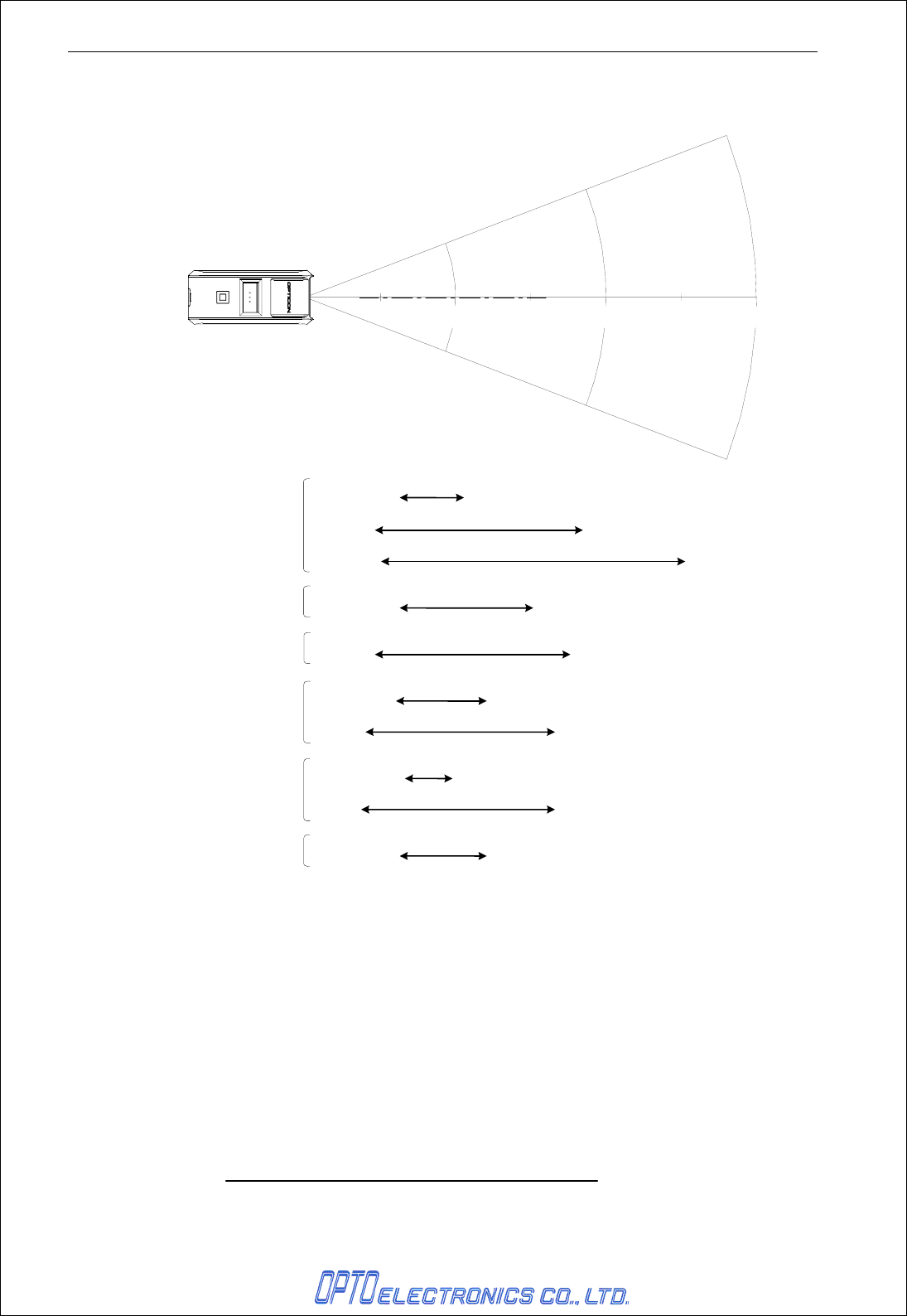

Motion tolerance Possible to read: UPC 100% moving at 2 m/s (DOF:
100 mm)
Resolution (0.127) 65 - 105
Resolution (0.254) 45 - 185
Code 39
Resolution (0.508) 50- 250
Code 128 Resolution (0.2) 65 - 150
Depth of
field (mm)
UPC Resolution (0.33) 45 - 175
Symbologies
GS1 DataBar, GS1 DataBar Limited, GS1 DataBar
Expanded, Composite GS1-DataBar, Composite
GS1-128, Composite EAN, Composite UPC
GS1 DataBar: formerly
called “RSS”
GS1/Composite
Minimum resolution GS1 DataBar : 0.169 mm
Composite Code: 0.169 mm
Symbologies
PDF417, MicroPDF417, Codablock F, QR Code ,
Micro QR Code, DataMatrix (ECC 0 - 140 / ECC
200), MaxiCode (Modes 2 to 5), Aztec Code,
Chinese Sensible Code
Disable Code 128 when
Codablock F is enabled.
Minimum resolution (mm)
PDF417 : 0.169 mm
QR Code : 0.212 mm
DataMatrix : 0.212 mm
PCS 0.9
Resolution (0.169) 60- 120
PDF417
Resolution (0.254) 45 - 185
Resolution (0.212) 70 - 95
QR Code
Resolution (0.381) 35 - 165
Supported 2D Symbologies
Depth of field
(mm)
DataMatrix Resolution (0.254) 65 - 120
PCS 0.9

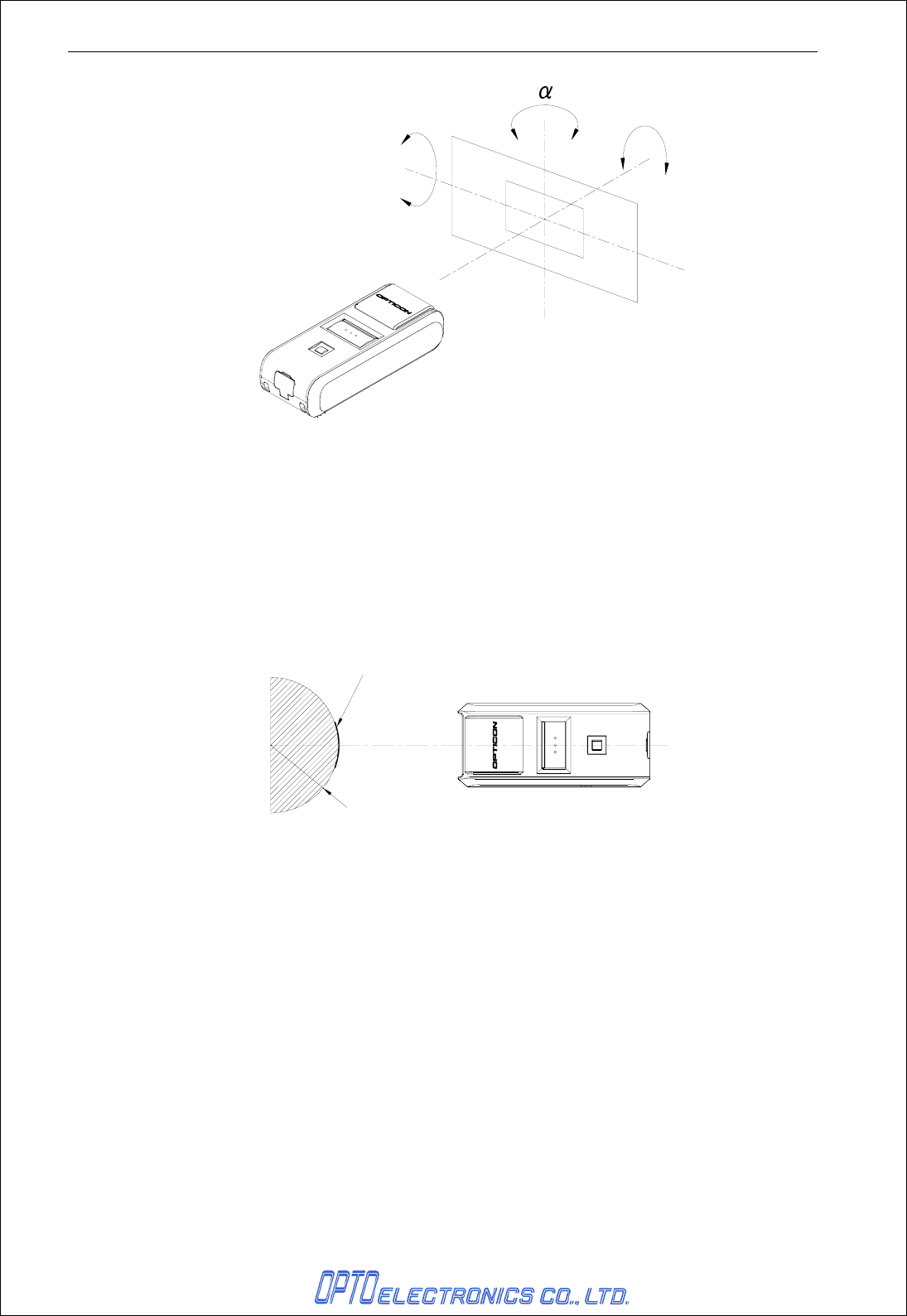

Pitch : ±40°
Skew : ±50° Scan angle
Tilt : ±180°
Common
Minimum PCS 0.3 or more MRD: 32% or more
OPN-3002i DOC ID：SS13001
4
Item Specification Note
Main Battery Lithium-ion polymer battery 600mAh(typ.)
Up-time 10hours or more When a barcode is scanned
twice in 10 sec. at 25 deg. C
Range of
Operation(Charging)
Voltage
4.5 - 5.5 V
Power
Current
consump
tion
Charging <500mA
Operating 0 - 50 ℃ Tempera
ture Storage -20 - 60 ℃
Operating 20%RH - 85%RH No frost, no condensation.
Humidity Storage 20%RH - 85%RH No frost, no condensation.
Fluorensc
ent 10,000 lx or less
Ambient
Light
Immunity Sunlight： 100,000 lx or less
Vibration
Increase the frequency of vibration from 10 Hz
to 100 Hz at an accelerated velocity of 19.6
m/s2 (2G) for 6 minutes each in X, Y and
Z-direction. Repeated this test for 10 times.

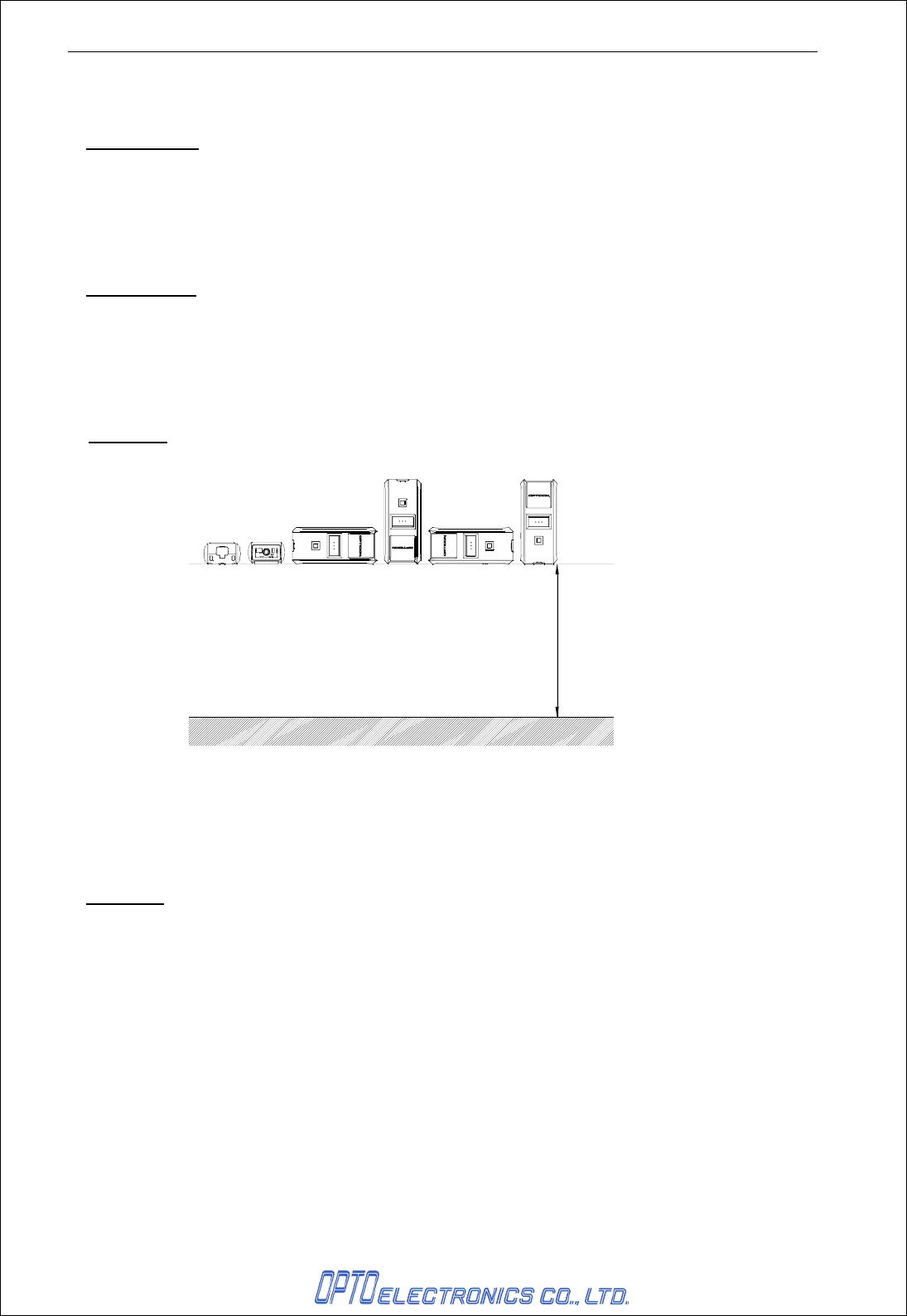

Drop
Drop 3 times, at each 6 faces (right, left, front,
back and top), from a height of 120 cm onto a
concrete surface.
Environmental Specification
Dust and drip proof IP42
Item Specification Note
LED safety IEC 62471-1:2006 Exempt Risk Group
Safety standards EN60950-1:2005
IEC60950-1:2006
EMC
EN55022
EN55024
FCC Part 15 Subpart C , Subpart B ClassB
VCCI ClassB
For residential, commercial
and light-industrial
environments
Product safety CE Marking
Regulatory
Other Bluetooth logo certification
MFi License program
No
destruction 15kV (Air)
Immunity test
ESD
immunit
y
No
malfunctio
n
8kV (Air)
Condition:
IEC61000-4-2 compliant

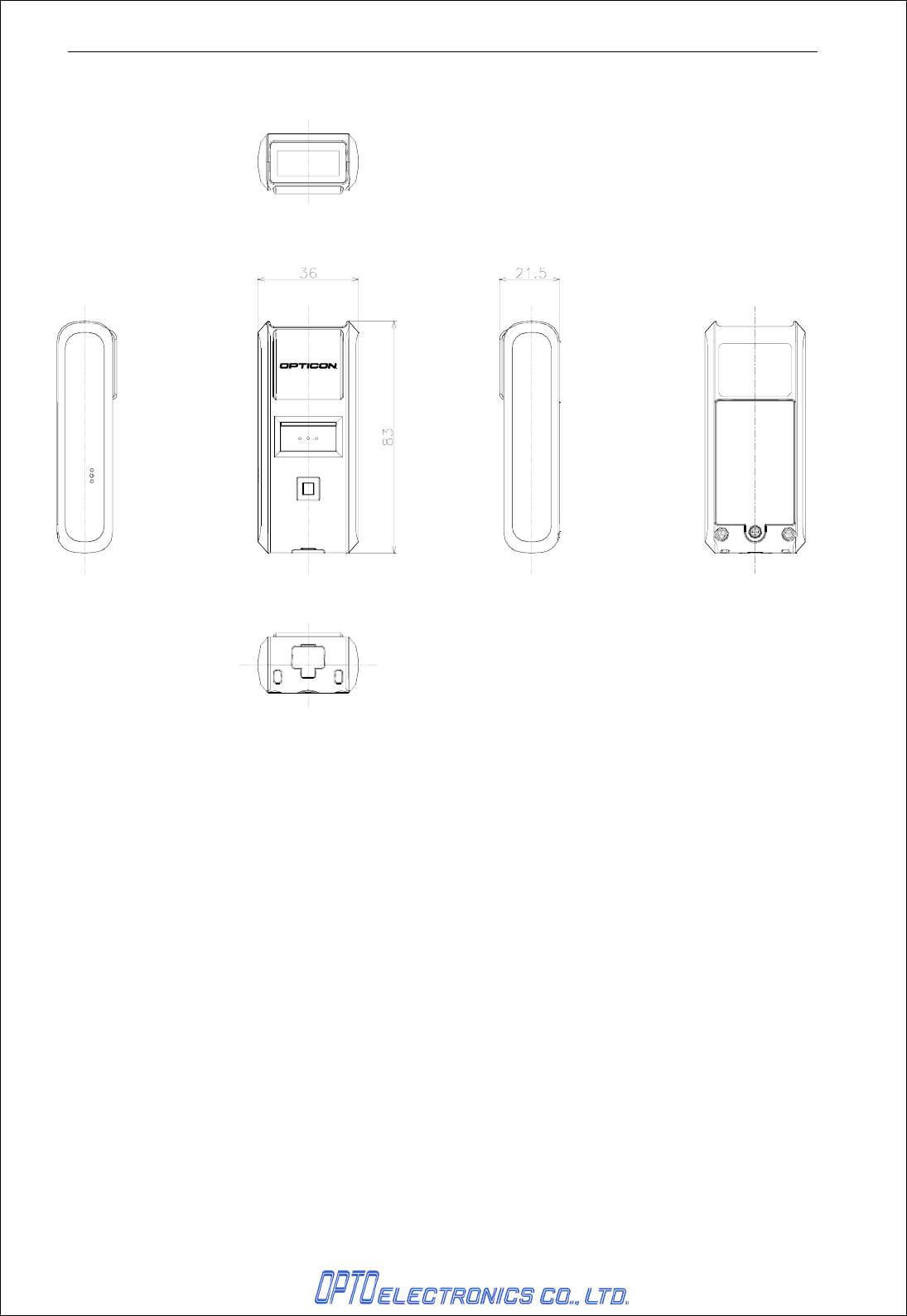

Dimensions 83.0(D) × 36.0(W) × 21.5(H) (mm)
Physical
Features
Weight Approx. 57g Excluding the accessories
OPN-3002i DOC ID：SS13001
5

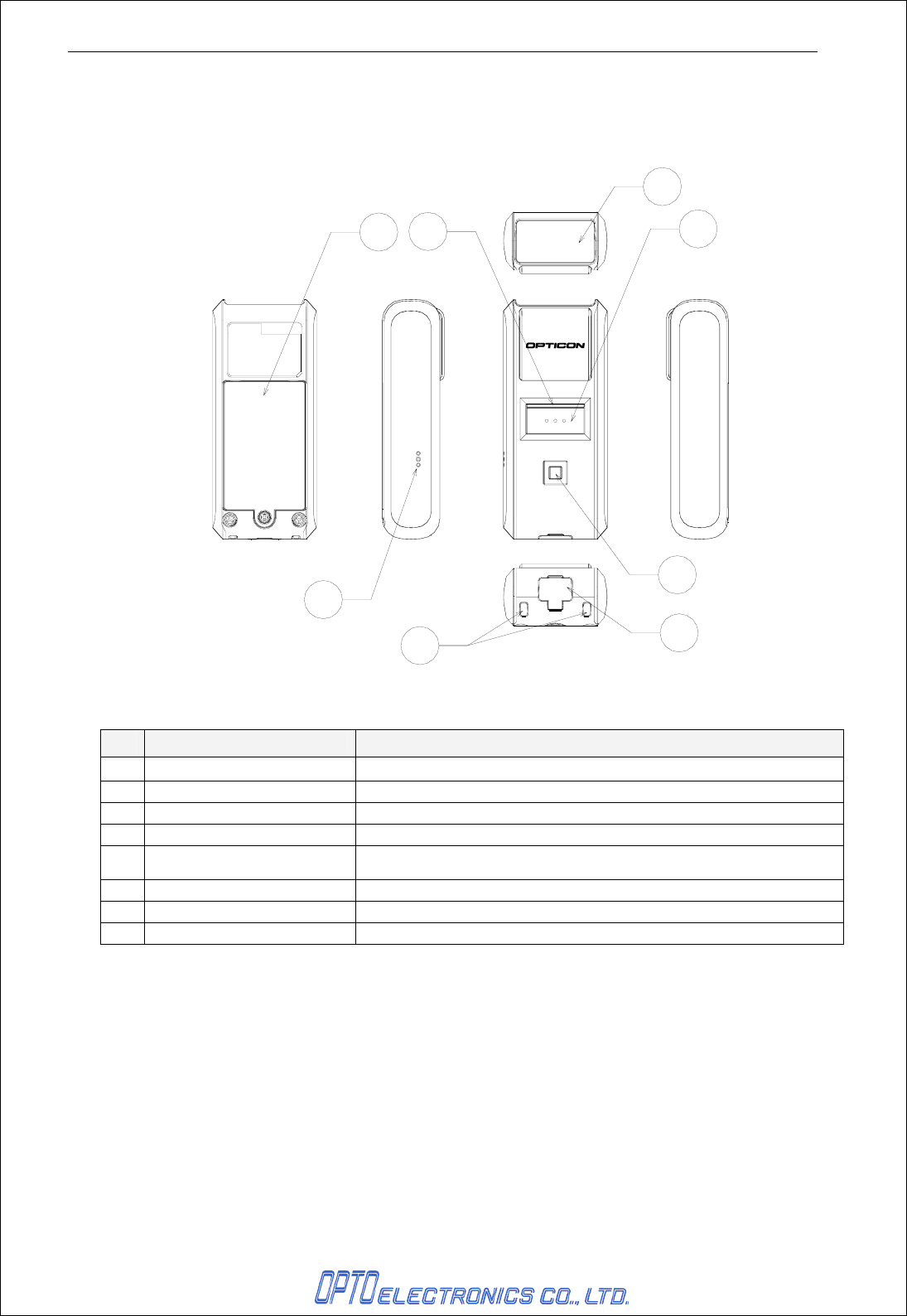

4. Detailed View
1
2
3
4
5
6
7
8
Figure 1:Detailed View
No. Name Description
1 Scanning Window Laser light is emitted through this window to read bar codes.
2 Scanning Window The laser light is emitted through this window.
3 Trigger Key A trigger key used to read bar codes
4 Function Key A function key that can be configured with application
5 LED Indicator of operating status, such as bar code reading and
warnings
6 Buzzer Hole Sound from a built-in buzzer comes out through these holes.
7 Strap Hole A hole to attach a hand strap
8 Battery Box Cover A cover is opened to remove battery.
OPN-3002i DOC ID：SS13001
6
5. Electrical Specifications
5.1. ＵＳＢ
・Voltage ： 4.5-5.5V
・Bus-Power Class ： Hi-Power ( 500mA max )
・Current consumption ： <500mA
5.2. Charging Cradle
・Voltage ： 4.5-5.5V
6. Interface
The OPN-3002i supports USB, Bluetooth and serial interfaces.

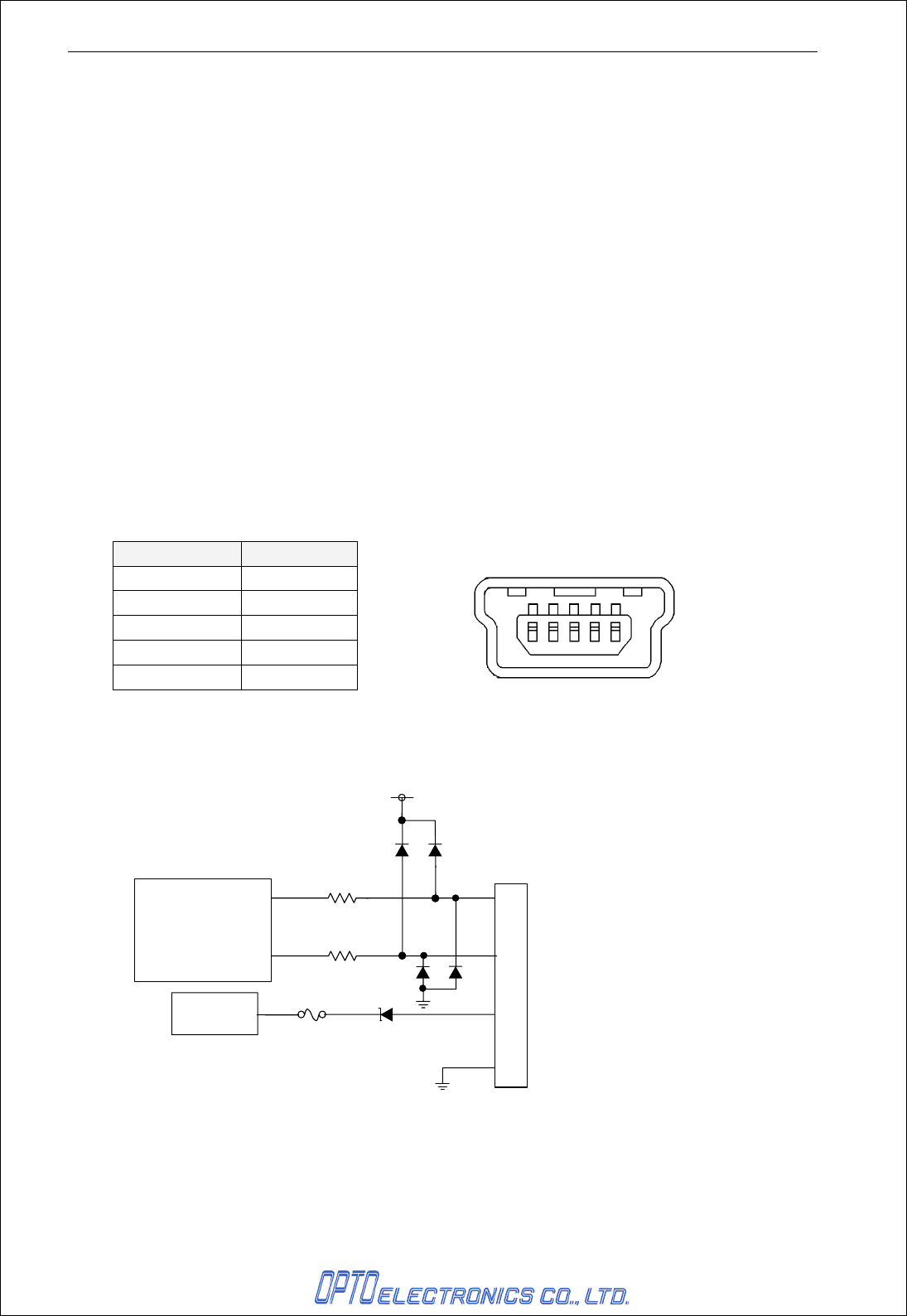

6.1. USB
This interface supported FULL Speed USB.
6.1.1. Connector
Signal Pin No.
VCC 1
Data(-) 2
Data(+) 3
( NC ) 4
GND 5
Figure 2 : MINI USB B Connector
6.1.2. USB Interface Circuit
Figure 3:USBInterface Circuit
3
2
1
4
Microcontroller Data(+)
Data(-)
VCC
GND
USB connector
+5.0V Power
......
15
......
5
OPN-3002i DOC ID：SS13001
7
6.2. Bluetooth
The OPN-3002i supported Bluetooth.
Frequency : 2402MHz - 2480MHz
Specification : Bluetooth Ver2.1
Communication
distance : 10ｍ
Output level : Class 2 (2dBm Max.)
Supported profiles : SPP/HID
Topology of connection : Point-to-point
Operating mode : Master or Slave mode
Security mode : Enabled
Encryption : Enabled
7. Optical Specifications
7.1. Basic Optical Specifications
Item Characteristics
Scan method CMOS area sensor (white / black) -
Number of effective pixel (Column) × (Row) 752 × 480 dots
Image capture speed (*1) Frame rate 60 fps
Focal distance Distance from the front edge of scanner 104 mm
Horizontal Approx. 40.6°
View angle Vertical Approx. 26.4°
Red LED -
Peak wavelength 617 nm
Directivity angle: 2Φ 1/2 (*2) 60°
Illumination light source
(LED × 2)
Maximum radiation output (*3) 15000 mcd
Green LED -
Peak wavelength 528 nm
Aiming light source
Maximum radiation output (*4) 18700 mcd
*1 The fastest seed of image capture
*2 Reference value extracted from the datasheet.
*3, *4 Reference value based on the datasheet (25°C, IF = 140 mA ).
OPN-3002i DOC ID：SS13001
8

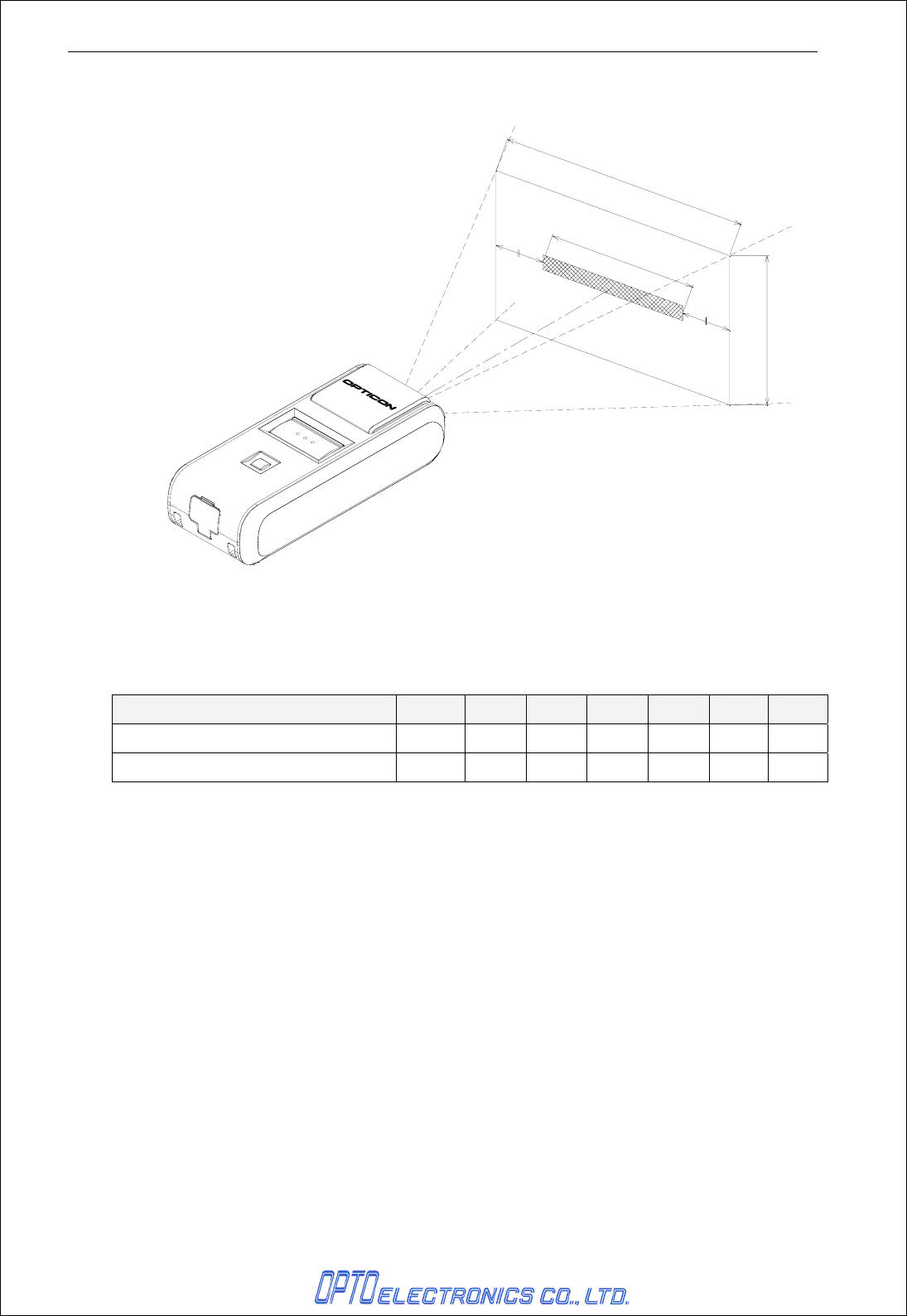

7.2. Aiming Pattern
水平撮像範囲
垂直撮像範囲
エイミング水平幅
L
Figure 4 : Aiming Pattern and Imaging Range
7.3. Imaging Range
The range is ±5% from the following values.
L: Distance from the front edge of scanner [mm] 60 80 100 120 140 160
H: Horizontal imaging range [mm] 66 82 97 111 125 136
V: Vertical imaging range [mm] 42 52 62 72 82 93
OPN-3002i DOC ID：SS13001
9
8. Technical Specifications
Aim the laser light at the center of a code to scan it. For long distance scanning, ambient light entering the
angle of view may affect the scanning performance. The conditions for technical specifications are as follows,
unless otherwise specified in each section.
<Conditions>
Ambient Temperature and Humidity Room temperature, room humidity
Ambient Light 100 -200 lux (on the surface of a bar code)
Angles Pitch: α = 0°, Skew: β = 15°, Tilt: γ = 0°
Curvature R = ∞
Power Supply Voltage 3.7 V
PCS (1D and 2D) 0.9 or higher
Scanning Test Accept the performance with 70% or more success rate
for 10 tries of scan. One reading should be 2 seconds.
Barcode Test Sample (1D and 2D) Specified below.
< Test chart >
For 1D codes, OPTOELECTRONICS test samples
For GS1 Databar, stacked codes and 2D codes, printed by a dedicated printer for bar code
8.1. Bar code Test Sample
1D Bar Codes
<Code 39>
Resolution Symbology PCS Size (mm) No. of Digits
0.127 mm (5 mil) 32 × 10 15
0.20 mm (7.9 mil) 100 × 10 31
0.254 mm (10 mil) 32.5 × 12 7
0.508 mm (20 mil)
Code 39 0.9
36 × 25 4
<Code 128>
Resolution Symbology PCS Size (mm) No. of Digits
0.20 mm (7.9 mil) Code 128 0.9 42 × 10 16
<UPC>
Resolution Symbology PCS Size (mm) No. of Digits
0.330 mm (13 mil) 12-digit UPC 0.9/0.3 31.5 × 25.0 12
<Codabar>
Resolution Symbology PCS Size (mm) No. of Digits
0.15 mm (6 mil) Codabar 0.9 20 × 10 10
GS1 Databar/Composite
<GS1-limited>
Resolution Symbology PCS Size (mm) No. of Digits
0.169 mm (6.7 mil) Limited 0.9 12 × 1.5 14
0.169 mm (6.7 mil) Limited-Composite 0.9 12 × 3.0 26
OPN-3002i DOC ID：SS13001
10
2D Codes
<PDF417>
Resolution Error Correction PCS Size (mm) No. of Character
0.169 mm (6.7 mil) 23 × 10
0.254 mm (10 mil) Level-3 0.9
35 × 15 58
<QR Code: Model-2>
Resolution Error Correction PCS Size (mm) No. of Character
0.212 mm (8.4 mil) 6 × 6
0.381 mm (15 mil) M 0.9
11 × 11 44
<Data Matrix>
Resolution Model PCS Size (mm) No. of Character
0.212 mm (8.4 mil) 5 × 5
0.254 mm (10 mil) ECC200 0.9 6 × 6 40
* The size is outline dimensions excluding the quiet zones.
OPN-3002i DOC ID：SS13001
11
8.2. Scan Area and Depth of Field
Figure 5: Depth of Field
8.3. Printed Contrast Signal (PCS)
0.3 or higher
<Conditions>
MRD : 32% and higher
(70% or higher reflectivity of space and quiet zone)
Distance : 105mm from the front edge of the scanner
Bar Code Sample : UPC specified in Chapter 8. (Resolution: 0.33 mm, PCS: 0.3)
MRD = Minimum reflectance of white bar - Maximum reflectance of black bar
PCS = Reflectance of white bar－Reflectance of black bar
Reflectance of white bar
250
65 150
175
12060
16540
70 95
35 165
65 120
Code 128
UPC 100 %
PDF
417
QR Code
Data Matrix
：0.508
0.20
0.33
0.169
0.254
0.212
0.381
0.254
45
50
0.127
65 105
45 185 [ Unit ： mm ]
0.254
Code 39
100 200 300
50 150 250
OPN-3002i DOC ID：SS13001
12
8.4. Minimum Resolution
1D Code : 0.127 mm (5 mil) Code 39 specified in Chapter 8.1
GS1-Databar : 0.169 mm (6.7 mil) GS1 Databar Limited specified in Chapter 8.1
Stacked Code : 0.169 mm (6.7 mil) PDF417, GS1 Databar Limited Composite specified in Chapter 7.1
2D Code : 0.212 mm (8.4 mil) QR Code and Data Matrix specified in Chapter 8.1
<Conditions>
Bar Code Sample : The above codes specified in Chapter 8.1
Distance : 75 mm from the front edge of the scanner
Angle : α = 0°, β =＋15°, γ = 0°
Curvature : R = ∞

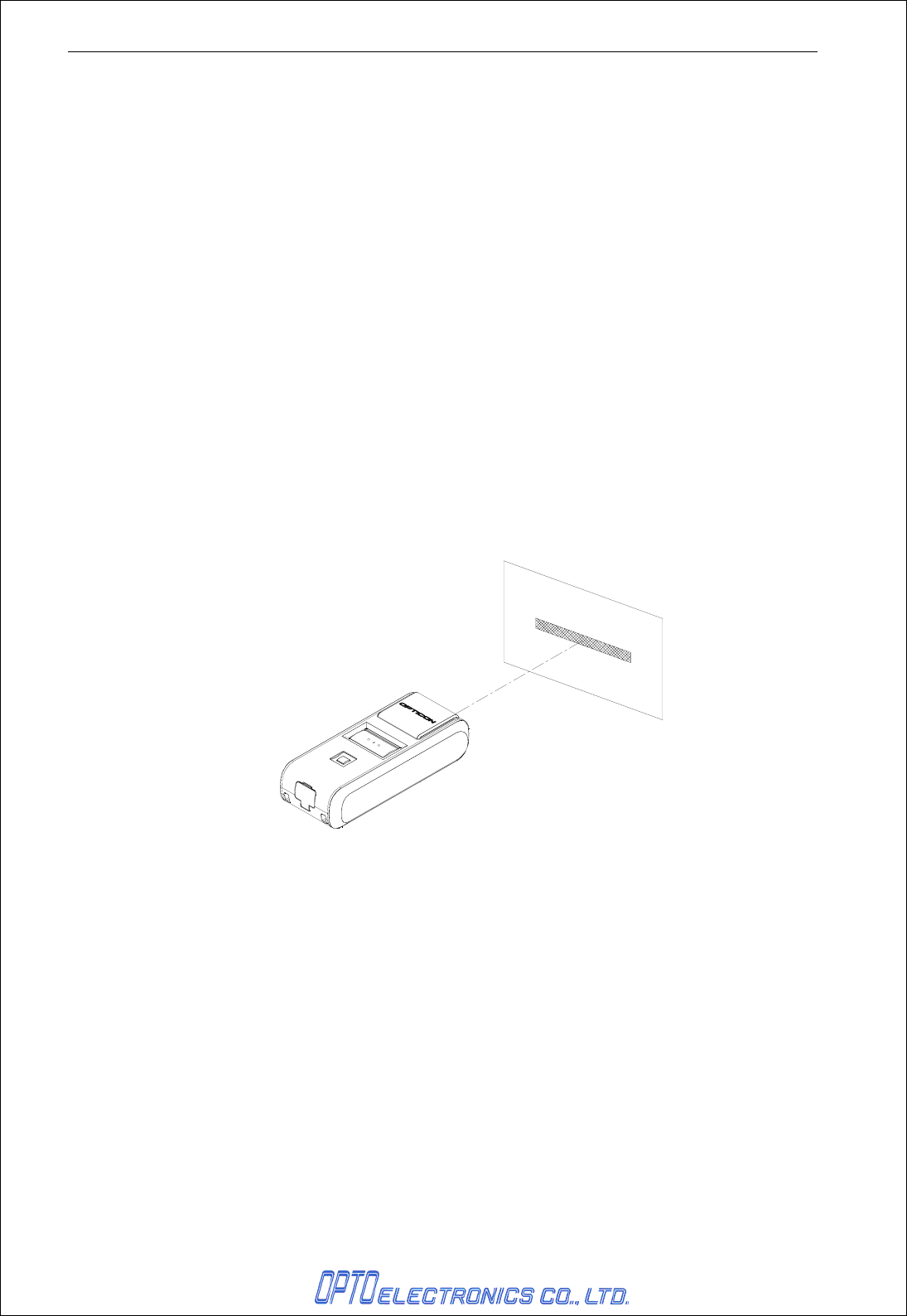

8.5. Wide Barcode
Code 39 with width of 100 mm and resolution of 0.2 mm can be read
<Conditions>
Bar Code Sample : 0.20 mm Code 39 / PCS 0.9 specified in Chapter 8.1
Distance : 135 mm from the front edge of the scanner
Angle : α = 0°, β =＋15°, γ = 0°
Curvature : R = ∞
Figure 6 : Wide Barcode
8.6. Petch, Skew and Tilt
Pitch : α = ±50°
Skew : β = ±50°
Tilt : γ = ±180°
<Conditions>
Bar Code Sample : 0.33 mm UPC specified in Chapter 7.1
Distance : 105 mm from the front edge of the scanner
Curvature : R = ∞
* For the pitch angle and tilt angle measurement, set the skew angle β = +15°
OPN-3002i DOC ID：SS13001
13
β
γ
+
+
+
-
-
-
Figure 7 : Pitch, Skew and Tilt
8.7. Curvature
0.33 mm 12-digit UPC : R ≧ 20 mm
0.15 mm 10-digit Codabar : R ≧ 16 mm
<Conditions>
Bar Code Sample : 0.33 mm UPC, 0.15 mm Codabar specified in Chapter 7.1
Distance : 85 mm from the front edge of the scanner
Angle : α = 0°, β =＋15°, γ = 0°
R
バーコード
Figure 8 : Curvature
Note: Scanning may fail due to the specular reflection of LED illumination when the reflectivity is high.
Barcode
OPN-3002i DOC ID：SS13001
14
9. Environmental Specifications
9.1. Temperature
Operating : 0 - 50 ℃
Strage : -20 - 60 ℃
9.2. Humidity
Operating : 20 - 85%RH（no condensation, no frost）
Strage : 20 - 85%RH（no condensation, no frost）
9.3. Ambient Light Immunity
Scanning performance is guaranteed when the range of illumination on a barcode surface is the following
values.
Incandescent light : 0 - 10,000 lx
Fluorescent light : 0 - 10,000 lx
Sunlight : 0 - 100,000 lx
<Conditions>
Bar Code Sample : 0.33 mm UPC specified in Chapter 7.1
Distance : 100 mm from the front edge of the camera module
Angle : α = 0°, β =＋15°, γ = 0°
Curvature : R = ∞
Power Supply Voltage : 3.7 V
* Be sure that the direct light or specular reflection from the light source does not enter the light receiving
section of the OPN-3002i.
9.4. Dust and Drip Proof
IEC IP42 equivalent
Protection against solid objects: Level 4
Protected against solid objects greater than 1.0 mm
Protection against liquids: Level 2 (JIS IPX2)
Protected against dripping water from the vertical when tilted up to 15°
OPN-3002i DOC ID：SS13001
15
9.5. Vibration Strength(without packing)
There shall be no sign of malfunction after the following vibration test.
Vibration test: Increase the frequency of the vibration from 10Hz to 100Hz at an accelerated velocity of
19.6m/s2 (2.0 G) for 30 minutes (60 minutes for a cycle) in the non-operating state. Repeat this in each X, Y
and Z direction.
9.6. Vibration Strength (in individual packing)
There shall be no sign of malfunction after the following vibration test.
Vibration test: Increase the frequency of the vibration from 10Hz to 100Hz at an accelerated velocity of 19.6
m/s2 (2.0 G) for 30 minutes (60 minutes for a cycle) in individually packaged state. Repeat this in each X, Y
and Z direction.
9.7. Drop Impact Strength
There shall be no sign of malfunction after the following drop test.
Drop test: Drop the scanner three times (18 times in total), at each 6 face, from a height of 150cm onto a
concrete floor as shown below.
150cm
Figure 9:
Drop test
9.8. Drop Impact Strength (in individual packaging)
There shall be no sign of malfunction after the following drop test.
Drop test: Drop an individually packaged scanner 10 times in total, at any of 1 corner, 3 edges, and 6 faces,
from a height of 150 cm onto a concrete floor.
9.9. Electrical Specifications
Air discharge ±8 kV max. (No malfunction)
±15 kV max. (No destruction)
Measurement environment An electrostatic testing device compliant with IEC 61000-4-2 is
used.
Discharge resistance 330 Ω
Charging capacitor 150 pF
OPN-3002i DOC ID：SS13001
16
10. Regulatory Compliance
10.1. LED Safety
IEC 62471-1:2006 Exempt Risk Group
10.2. Product Safety
EN60950-1:2005
IEC60950-1:2006
10.3. EMC
EN55022
EN55024
FCC Part 15 Subpart C , Subpart B ClassB
Federal Communications Commission Notices
This product complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
Harmful Interference Notice
This product has been tested and complies with the specifications for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used according to the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which is found by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment or devices
• Connect the equipment to an outlet other than the receiver's
• Consult a dealer or an experienced radio/TV technician for assistance
Changes or modifications to this equipment that have not been approved by Ruckus
Wireless may void the user's authority to operate this equipment.
RF Exposure
The OPN-3002i unit (FCC ID: UFOOPN3002I) complies with FCC radiation exposure
limits set forth for uncontrolled environment and meets the FCC radio frequency (RF)
Exposure Guidelines in Supplement C to OET65. The unit has very low level of RF
energy that it is deemed to comply without testing of specific absorption ratio (SAR).
OPN-3002i DOC ID：SS13001
17
VCCI Class B
10.4. Other
Bluetooth logo certification
MFi License Program
The OPN-3002i uses Bluetooth module which qualifies as radio equipment for low-power radio
stations as specified in the Radio Law 38-24-1.
11. RoHS
The OPN-3002i is compliant with RoHS.
RoHS: The restriction of the use of certain hazardous substances in electrical and electronic
equipment, 2002/95/EC
12. MTBF
MTBF (Mean Time Between Failures) 10,000 hours
13. Precautions
13.1. Precaution against Laser Light
*Use of controls or adjustments or performance of procedures other than those specified herein may result
in hazardous radiation exposure.
Caution - Do not stare into the laser light from a scanning window. It may harm your eyes.
Do not point the laser directly at others’ eyes. It may harm your eyes.
Do not stare into the beam with optical instruments. It may harm your eyes.
13.2. Handling
Handle this product carefully. Do not deliberately subject it to any of the following:
(1) Shock:
• Do not drop this product from a height greater than specified in this manual.
• Do not place this product under or between any heavy items.
• Do not swing this product around holding the hand strap.
(2) Temperature Conditions:
• Do not use this product at temperatures outside the specified range.
• Do not pour boiling water on this product.
• Do not throw this product into a fire.
(3) Foreign Materials:
This is a Class B product, to be used in a domestic environment, based on the Technical
Requirement of the Voluntary Control Council for Interference from Information
Technology Equipment (VCCI). If this is used near a radio or television receiver in a
domestic environment, it may cause radio interference.
Specified Radio Equipment：
Low power data communications system in the 2.4GHz band in Article 2 paragraph 1 item (19),
Ordinance of MPT.
Model type of Bluetooth module：OPA-26X1
Number of certification:
201-125603
OPN-3002i DOC ID：SS13001
18
• Do not immerse this product in water or other liquid.
• Do not expose this product to chemicals.
(4) Others
• Do not disassemble this product.
• Do not use this product near a radio or a TV. It may cause reception problems.
• This product may be affected by a momentary voltage drop caused by lightning.
• This product may not perform properly in a place where it will be subjected to a flickering light, such as a
CRT (computer monitor, television, etc.).
13.3. Radio Low
The OPN-3002i uses Bluetooth module which qualifies as radio equipment for low-power radio stations (2.4
GHz band advanced data communication systems) as specified in the Radio Law 38-24-1.
Therefore it does not need to have a radio station license in Japan.
The following activities are prohibited under the Radio Law:
・ Remodeling and disassembly
・ Peeling off the certificate label
Do NOT use the scanner under the following environment, as radio interference may affect other device and
end up with causing physical or material damage.
・ Safety apparatus and medical device for human body protection
・ Environment where is concerned to cause serious damage
13.4. Export Administration Regulations
This product is subject to the strategically controlled exports regulated under “Foreign Exchange and
Foreign Trade Laws”. Therefore, export of this product may require an export permission of Japanese
government.
13.5. Bluetooth
To communicate via Bluetooth, the device which OPN-3002i is connected to must support the same
Bluetooth version and profile as OPN-3002i’s.
・ OPN-3002i is compliant to Bluetooth standards. However, we cannot assure the connection between
OPN-3002i and other Bluetooth devices which have not been tested.
・ Bluetooth supporting devices use 2.4 GHz frequency band. However, many other sorts of devices also
utilize this frequency band. It may have an effect on the communication speed or communication range of
this data collector.
・ The use of OPN-3002i outside of the European Union, the United States and Canada is punishable under
the law.
・ Communication speed and communication range of OPN-3002i may differ due to the obstacles and radio
wave conditions between OPN-3002i and the device, which OPN-3002i is connected to.
・ Conditions of the device, which OPN-3002i is connected to, may also affect the communication speed and
communication range of OPN-3002i.
13.6. Frequency Band
The frequency band 2.4 GHz is utilized by this product. Read carefully the followings before using this
product.
In the frequency band of this product, scientific, medical and industrial devices including microwaves are
used. Also other radio stations including local private radio station for mobile object identification requiring
OPN-3002i DOC ID：SS13001
19
license for such as manufacturing lines at factories, specific power-saving radio station requiring no license
and amateur radio station are managed.
1. Please make sure that “other radio stations” are not managed in the frequency band 2.4 GHz before
using this product.
2. In case that radio interference occurs between this product and “other radio stations,” change the
service space immediately, or stop transmitting radio wave to avoid the interference.
3. If you have any questions or troubles, please contact our sales office.
* This s
p
ecification manual is sub
j
ect to chan
g
e without
p
rior notice.
OPN-3002i DOC ID：SS13001
20
14. Product Label

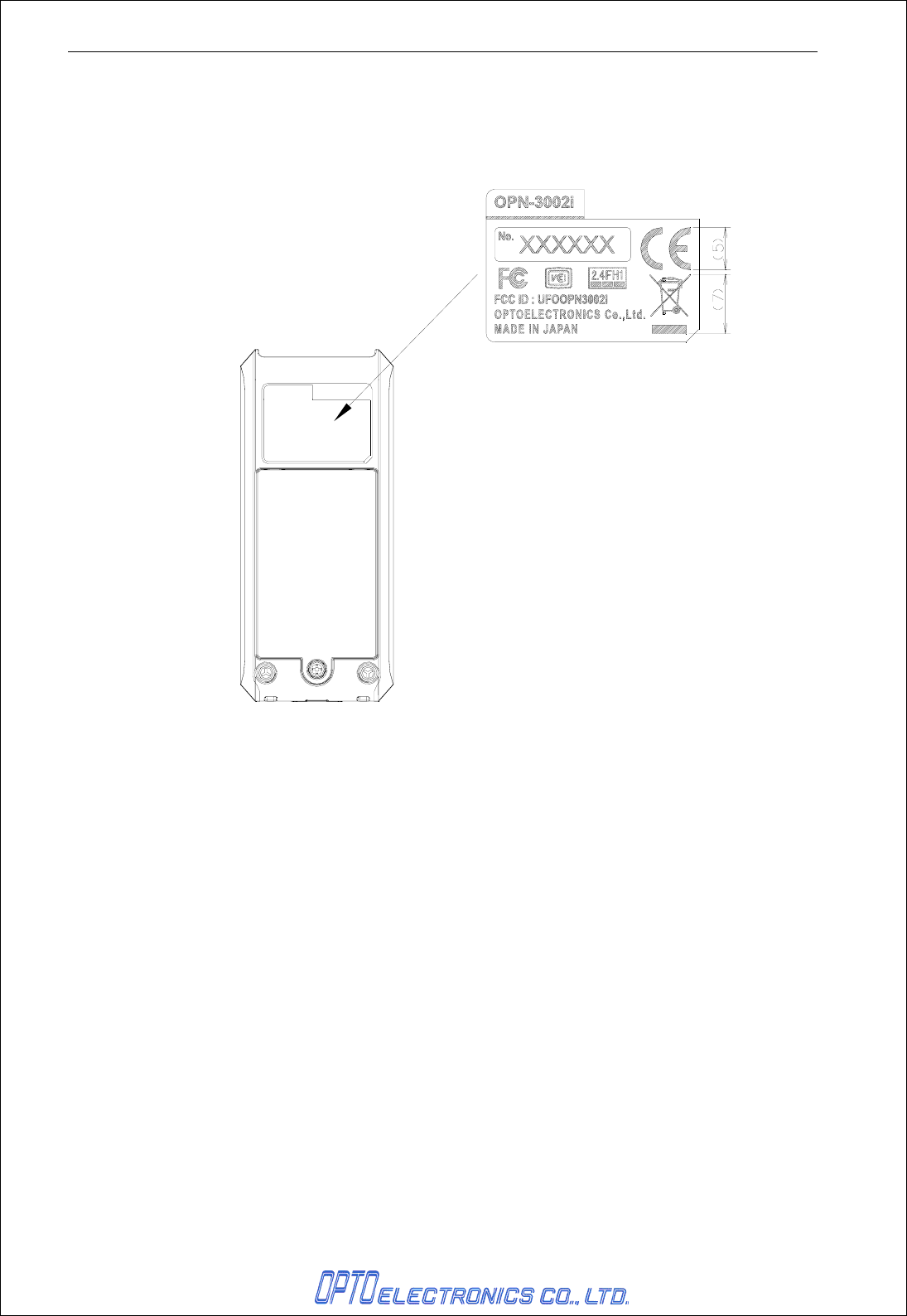

The labels shown below are attached to the back side of the data collector.
Figure 10:
Product & Laser Caution Label
OPN-3002i DOC ID：SS13001
21
15. Packaging Specifications
15.1. Individual Packaging Specification
Assembled package size: 125 x 112 x 40 (WDH mm)
<TBD>
Figure 11:
Individual Packaging
15.2. Collective Packaging Specification
Assembled package size: 595 x 520 x 245 (WDH mm), 100 pieces/box
<TBD>
Figure 12:
Collective Packaging
OPN-3002i DOC ID：SS13001
22
16. Warranty
16.1. Warranty period
OPTOELECTRONICS Co., Ltd. warrants that this product is free of defects or malfunctions for a
period of twelve (12) months from its shipment. In case of having defects or malfunctions caused by
normal usage in accordance with this specification during the foregoing warranty period,
OPTOELECTRONICS shall repair or adjust the product free of charge.
Any repair or replacement of the product after the foregoing warranty period shall be charged at
regular repair rates.
If defects or malfunctions were caused by customer mishandling, product repairs or replacement will
be charged at regular repair rates, even during the foregoing warranty period.
16.2. Delivery
Products for maintenance or repair shall be sent back to OPTOELECTRONICS. The sender is
responsible for all shipping costs.
16.3. Repair Timeframe
Repaired products shall be shipped back to the customer within 20 days after acceptance by
OPTOELECTRONICS.
Expedited repairs may be available, subject to terms agreed to by OPTOELECTRONICS and the
customer.
16.4. Maintenance Period
The maintenance period of this product is 5 years after its shipment.
OPTOELECTRONICS may discontinue maintenance for this product during the 5-year maintenance
period if a satisfactory replacement product or maintenance solution is agreed to.
16.5. Other
Any additional warranty issues must be discussed with OPTOELECTRONICS on a case-by-case
basis.
17. Physical Features
17.1. Dimensions
83.0(D) × 36.0(W) × 21.5(H) (mm)
17.2. Weight
Approx. 57g （Excluding the accessories）
OPN-3002i DOC ID：SS13001
23
17.3. Mechanical Drawing
Figure 13:
Mechanical Drawing
OPN-3002i DOC ID：SS13001
24
18. Supported Symbologies
The OPN-3002i is set to default settings by reading the following menu label regardless of the
interface types.
Default
18.1. 1D symbologies
Code type Default Minimum
length Remarks
UPC ○ -
UPC Add-on 2
UPC Add-on 5
EAN(JAN) ○ -
EAN Add-on 2
EAN Add-on 5
EAN-13 ○
EAN-13 Add-on 2
EAN-13 Add-on 5
EAN-8 ○
EAN-8 Add-on 2
EAN-8 Add-on 5
Code 39 ○ 1 Not transmit ST/SP
Tri-Optic ○ - Not transmit ST/SP
Codabar (NW7) ○ 1 Not transmit ST/SP
Industrial 2of 5 ○ 5
Interleaved 2of 5 ○ 6
S-Code 5
Code 128 ○ 1 GS1 conversion (setting required)
Code 93 ○ 1
IATA ○ 5
MSI/Plessey 3
UK/Plessey 2
Telepen 1
Code 11 1
Matrix 2 of 5 5
Chinese Post Matrix 2 of 5 -
Korean Postal Authority -
Intelligent Mail Barcode -
POSTNET -
JPN (Customer Bar Code) -
@MENU_OPTO@ZZ@SO@ZZ@OTPO_UNEM@
OPN-3002i DOC ID：SS13001
25
18.2. GS1 Databar, Composite Code
Code type Default Remarks
GS1 DataBar
・GS1 DataBar Omnidirectional
・GS1 DataBar Truncated
・GS1 DataBar Stacked
・GS1 DataBar Stacked Omnidirectional
○
GS1 DataBar Limited ○
GS1 DataBar Expanded
・GS1 DataBar Expanded
・GS1 DataBar Expanded Stacked
○
GS1 conversion (setting required)
Composite GS1 DataBar
・CC-A
・CC-B
・Limited CC-A
・Limited CC-B
・Expanded CC-A
・Expanded CC-B
GS1 conversion (setting required)
Composite GS1-128
・CC-A
・CC-B
・CC-C
GS1 conversion (setting required)
Composite EAN
・EAN-13 CC-A
・EAN-13 CC-B
・EAN-8 CC-A
・EAN-8 CC-B
GS1 conversion (setting required)
Composite UPC
・UPC-A CC-A
・UPC-A CC-B
・UPC-E CC-A
・UPC-E CC-B
GS1 conversion (setting required)
18.3. 2D codes
Code type Default Remarks
PDF417 ○
Micro PDF417
Codablock F
QR Code ○ GS1 conversion (setting required)
Micro QR ○
Data Matrix (ECC 200) ○ GS1 conversion (setting required)
Data Matrix (ECC 000-140)
Aztec Code ○
Aztec Runes
Chinese-sensible code
Maxi Code
