PA Times Technology EP5 Wearable Digital Video Camera User Manual

Shenzhen Pa. Times Technology Co., Ltd Wearable Digital Video Camera

User Manual

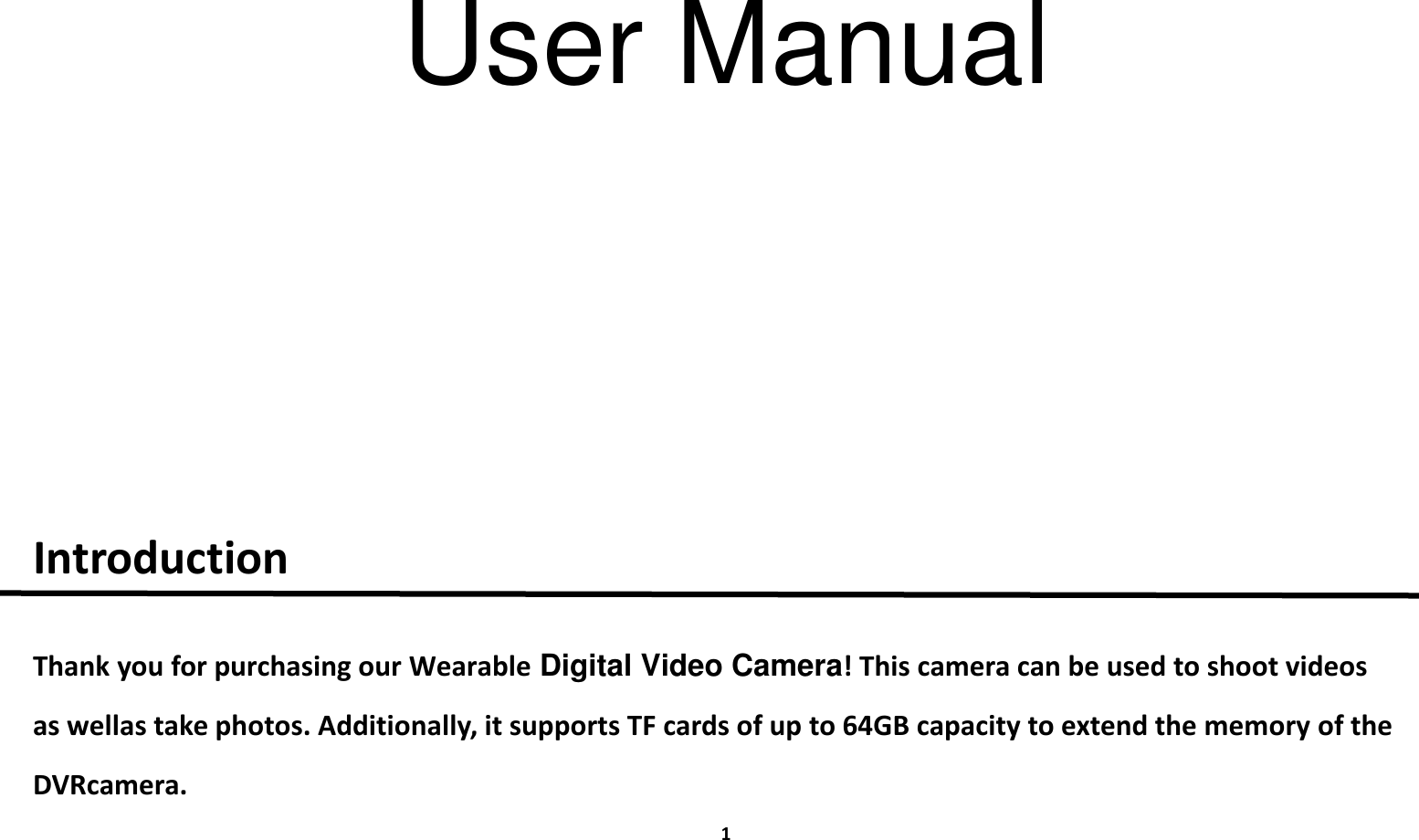

1IntroductionThank you for purchasing our Wearable Digital Video Camera! This camera can be used to shoot videos as well as take photos. Additionally, it supports TF cards of up to 64GB capacity to extend the memory of the DVR camera.User Manual

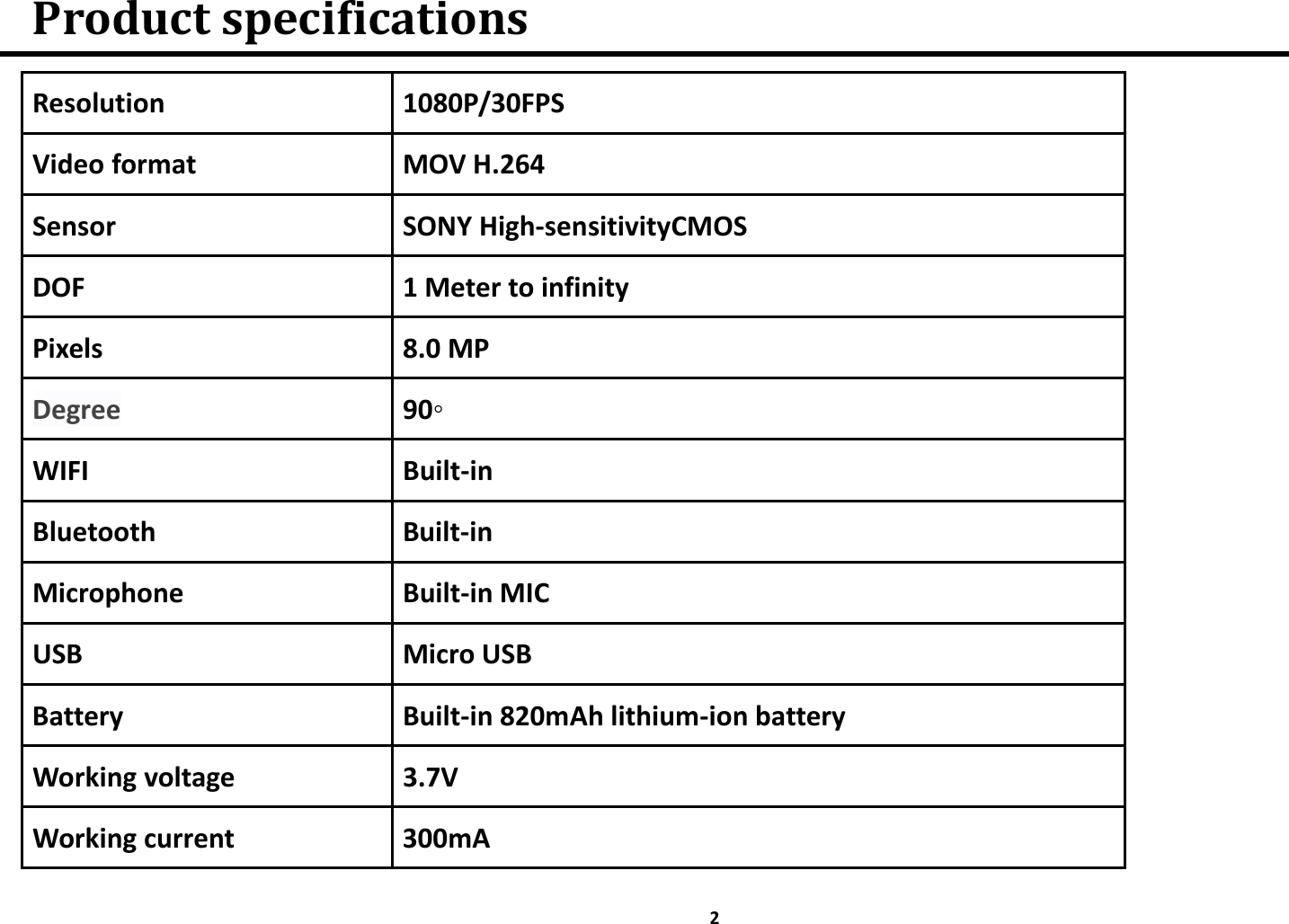

2Product specificationsResolution 1080P/30FPSVideo format MOV H.264Sensor SONY High-sensitivityCMOSDOF 1 Meter to infinityPixels 8.0 MPDegree 90◦WIFI Built-inBluetooth Built-inMicrophone Built-in MICUSB Micro USBBattery Built-in 820mAh lithium-ion batteryWorking voltage 3.7VWorking current 300mA

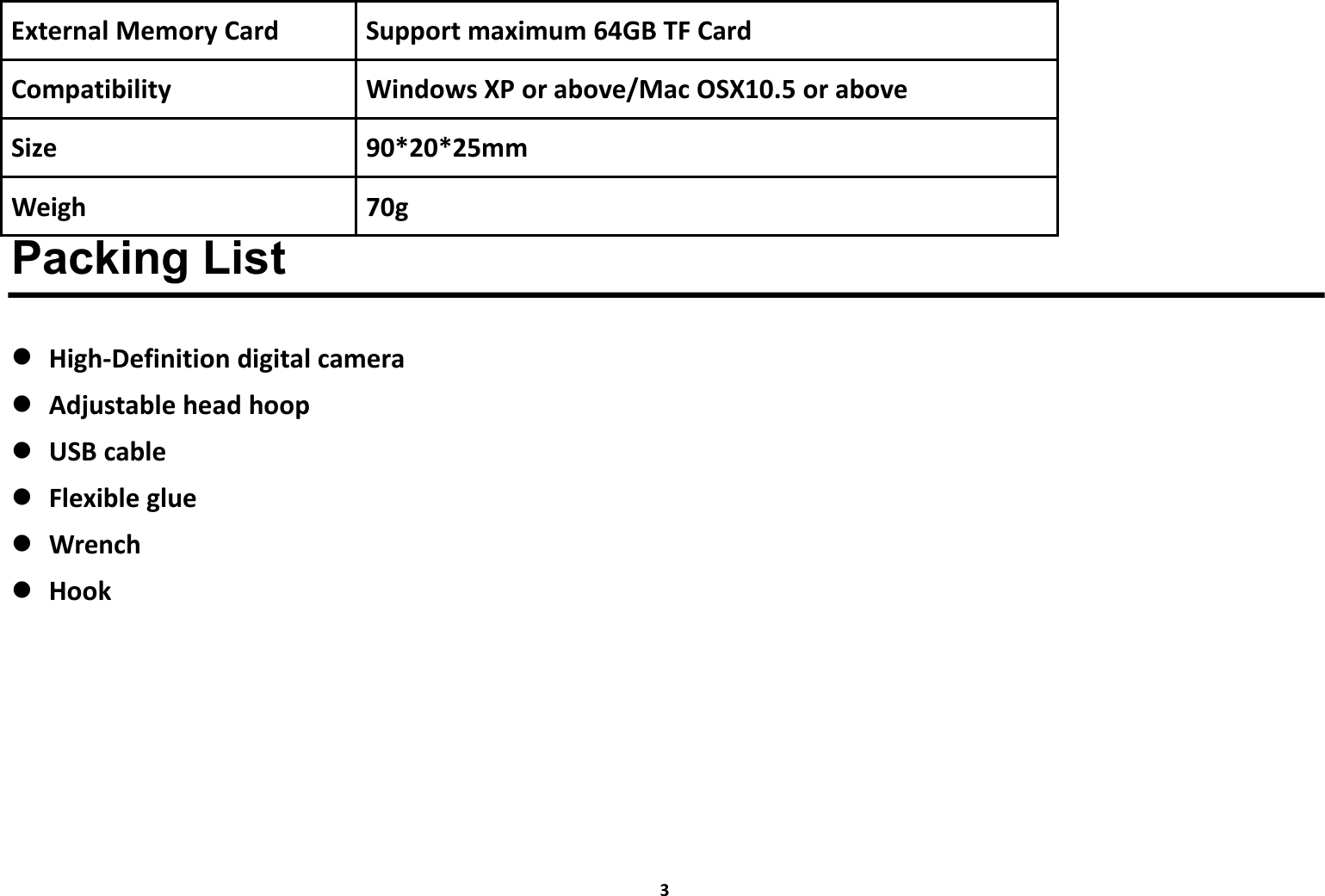

3External Memory Card Support maximum 64GB TF CardCompatibility Windows XP or above/Mac OSX10.5 or aboveSize 90*20*25mmWeigh 70gPacking ListHigh-Definition digital cameraAdjustable head hoopUSB cableFlexible glueWrenchHook

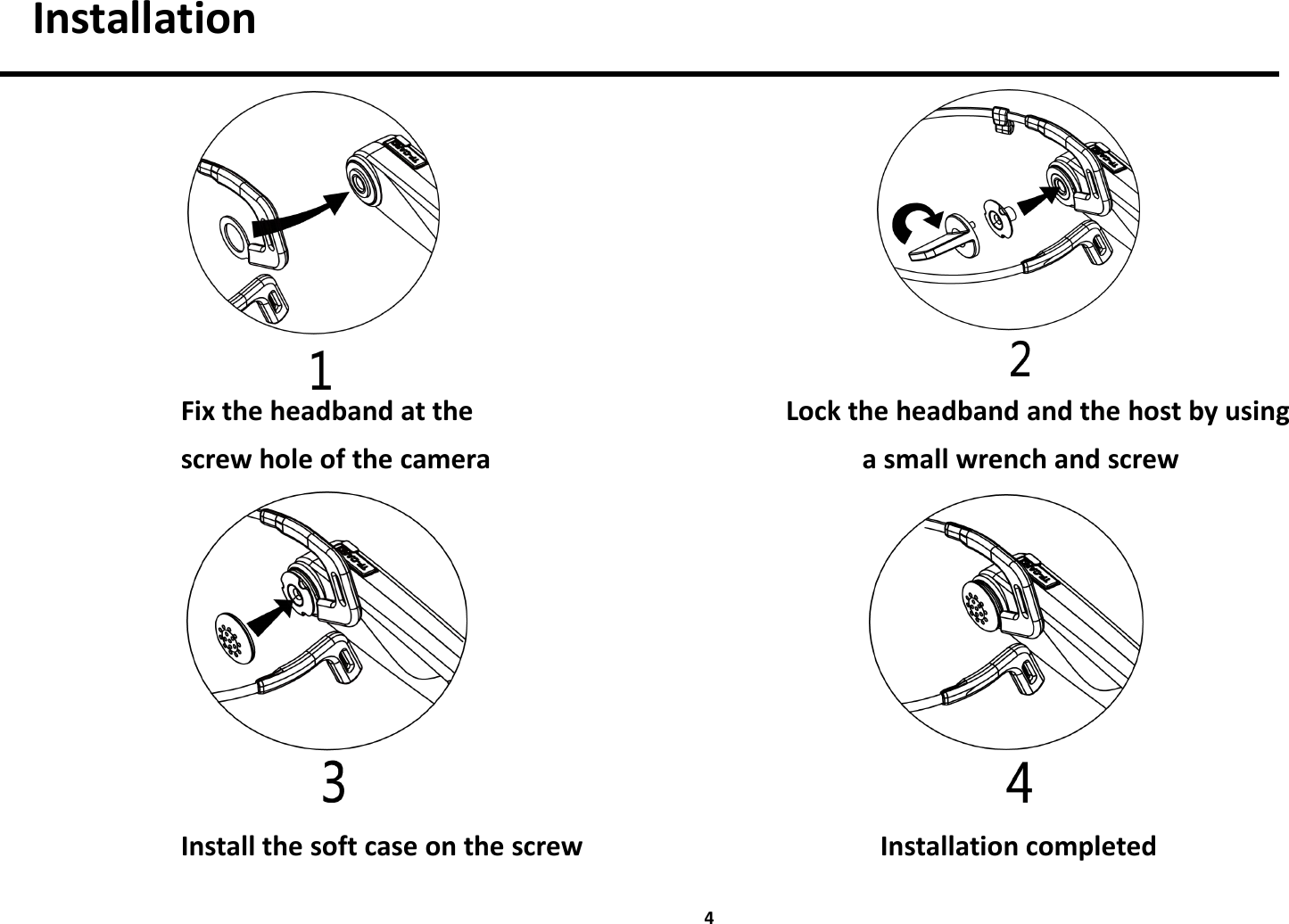

4InstallationFix the headband at the Lock the headband and the host by usingscrew hole of the camera a small wrench and screwInstall the soft case on the screw Installation completed

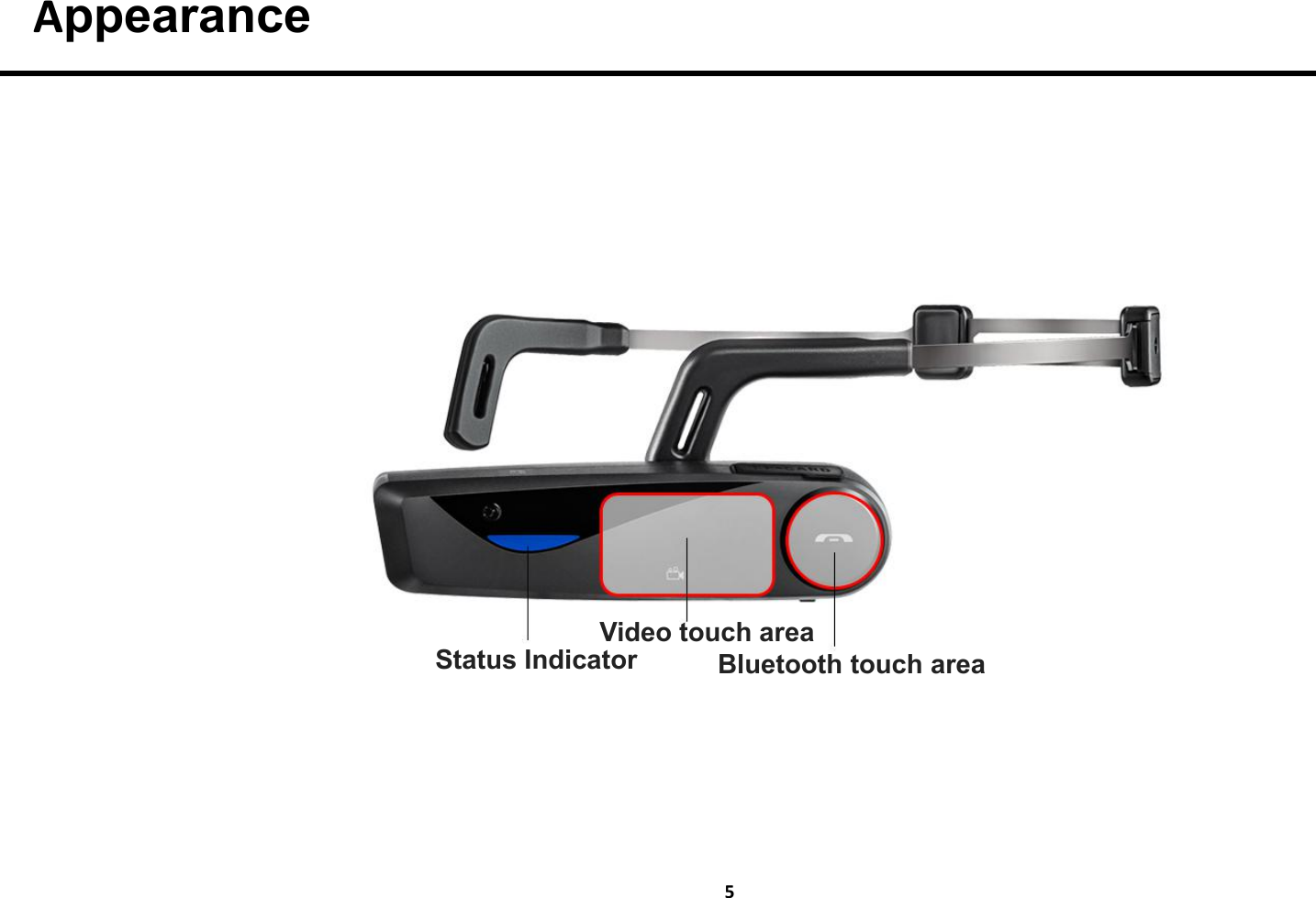

5AppearanceStatus IndicatorVideo touch areaBluetooth touch area

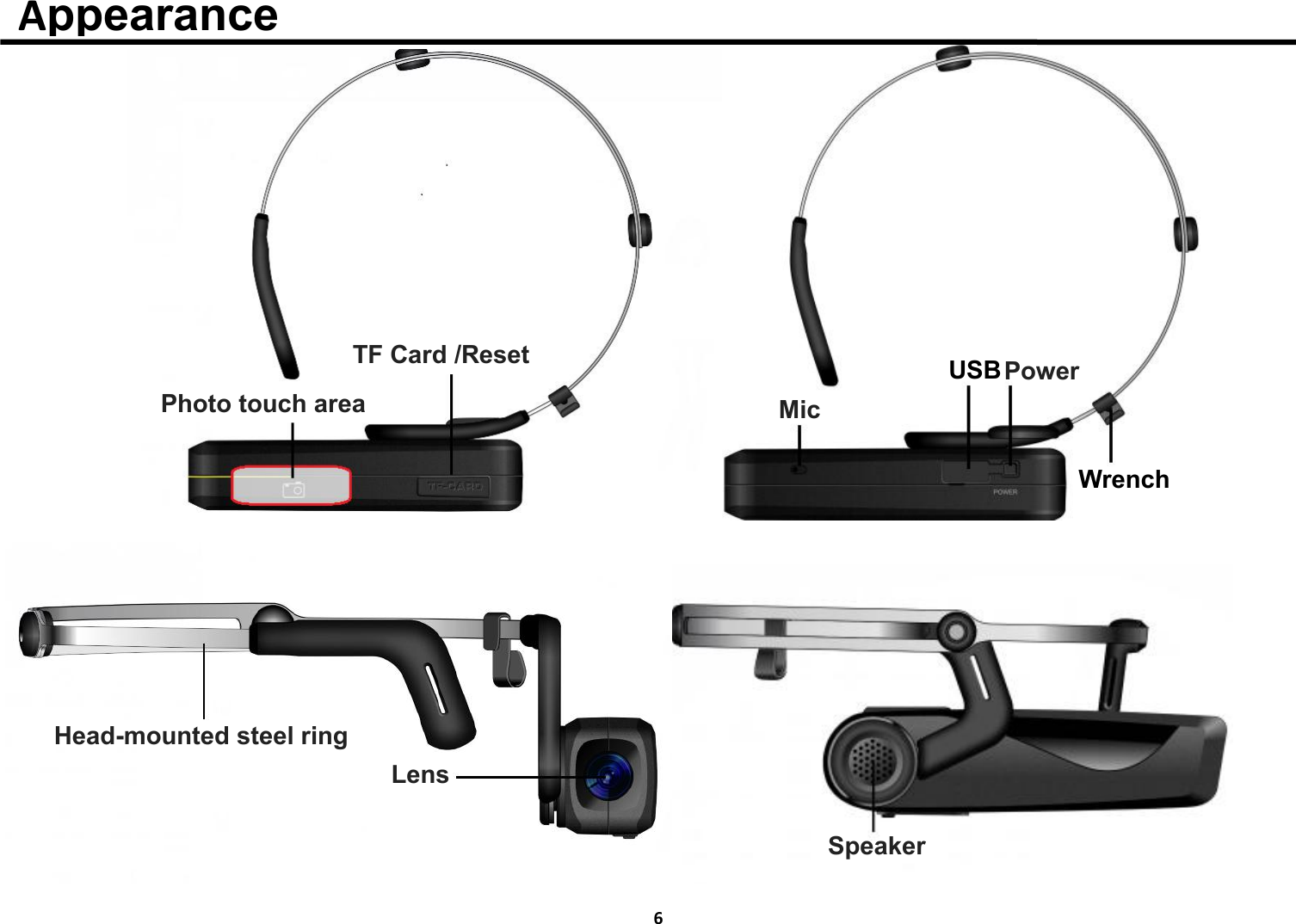

6PowerTF Card /ResetWrenchMicUSBHead-mounted steel ringPhoto touch areaLensSpeakerAppearance

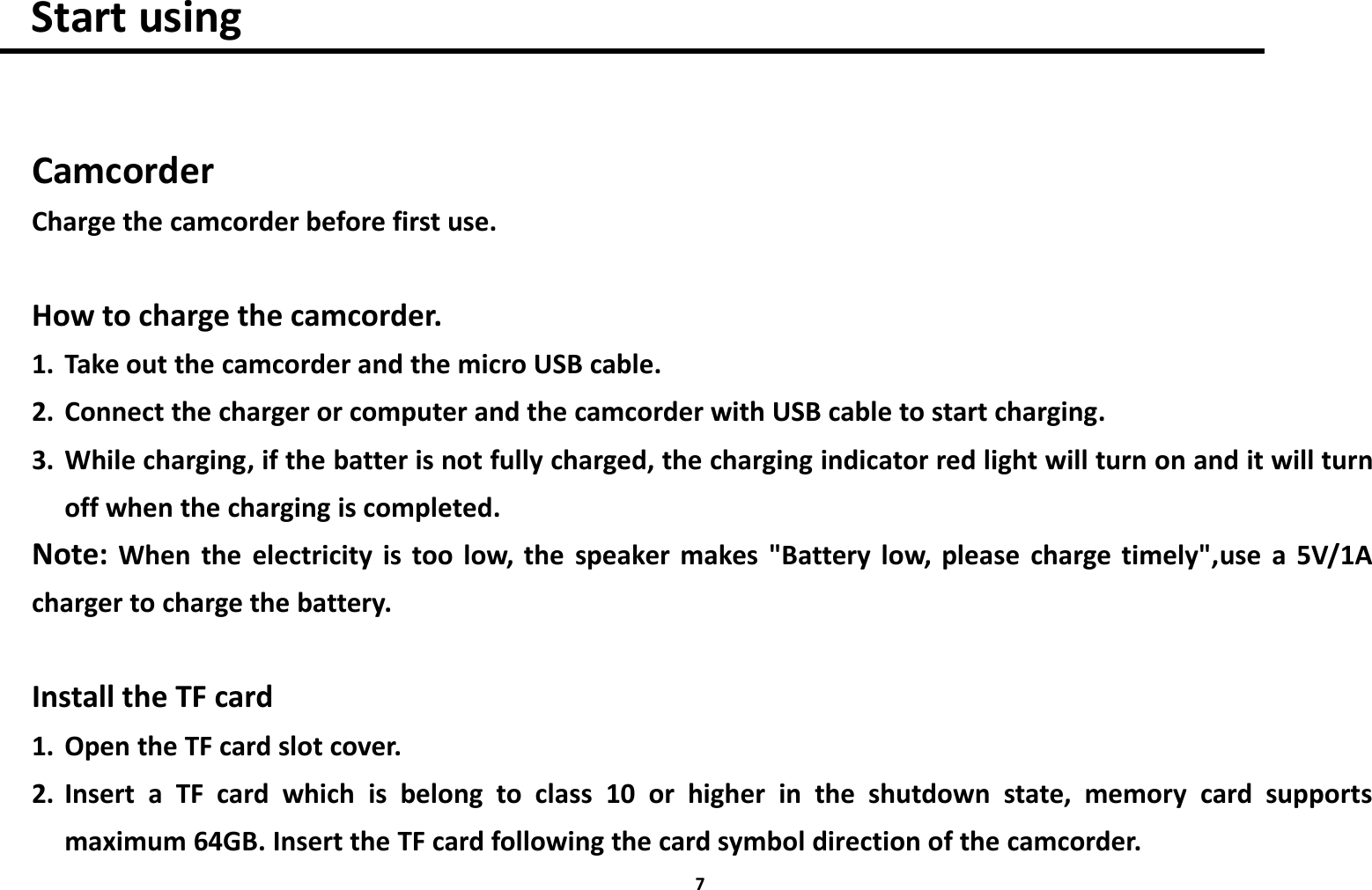

7Start usingCamcorderCharge the camcorder before first use.How to charge the camcorder.1. Take out the camcorder and the micro USB cable.2. Connect the charger or computer and the camcorder with USB cable to start charging.3. While charging, if the batter is not fully charged, the charging indicator red light will turn on and it will turnoff when the charging is completed.Note: When the electricity is too low, the speaker makes "Battery low, please charge timely",use a 5V/1Acharger to charge the battery.Install the TF card1. Open the TF card slot cover.2. Insert a TF card which is belong to class 10 or higher in the shutdown state, memory card supportsmaximum 64GB. Insert the TF card following the card symbol direction of the camcorder.

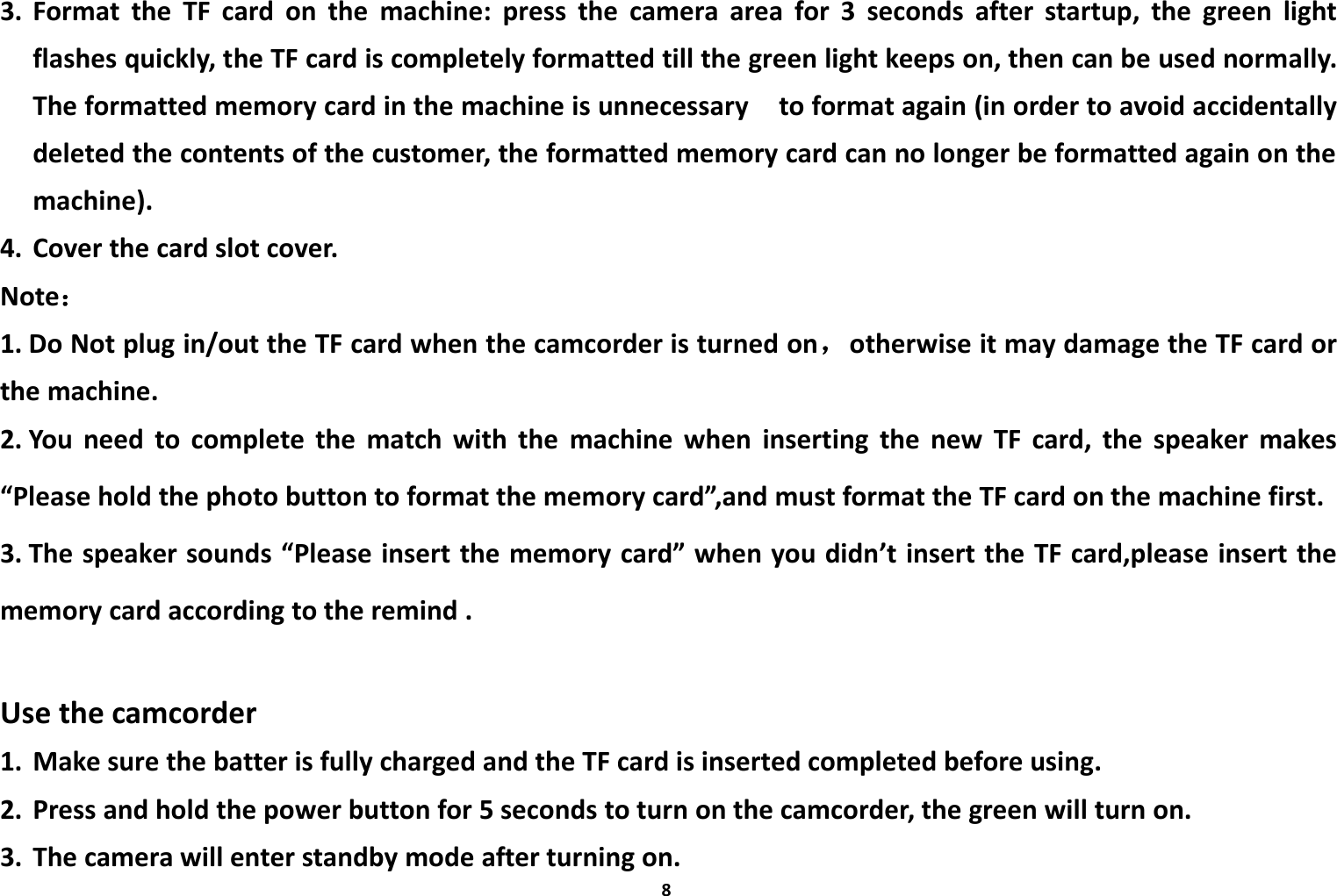

83. Format the TF card on the machine: press the camera area for 3 seconds after startup, the green lightflashes quickly, the TF card is completely formatted till the green light keeps on, then can be used normally.The formatted memory card in the machine is unnecessary to format again (in order to avoid accidentallydeleted the contents of the customer, the formatted memory card can no longer be formatted again on themachine).4. Cover the card slot cover.Note:1. Do Not plug in/out the TF card when the camcorder is turned on,otherwise it may damage the TF card orthe machine.2. You need to complete the match with the machine when inserting the new TF card, the speaker makes“Please hold the photo button to format the memory card”,and must format the TF card on the machine first.3. The speaker sounds “Please insert the memory card” when you didn’t insert the TF card,please insert thememory card according to the remind .Use the camcorder1. Make sure the batter is fully charged and the TF card is inserted completed before using.2. Press and hold the power button for 5 seconds to turn on the camcorder, the green will turn on.3. The camera will enter standby mode after turning on.

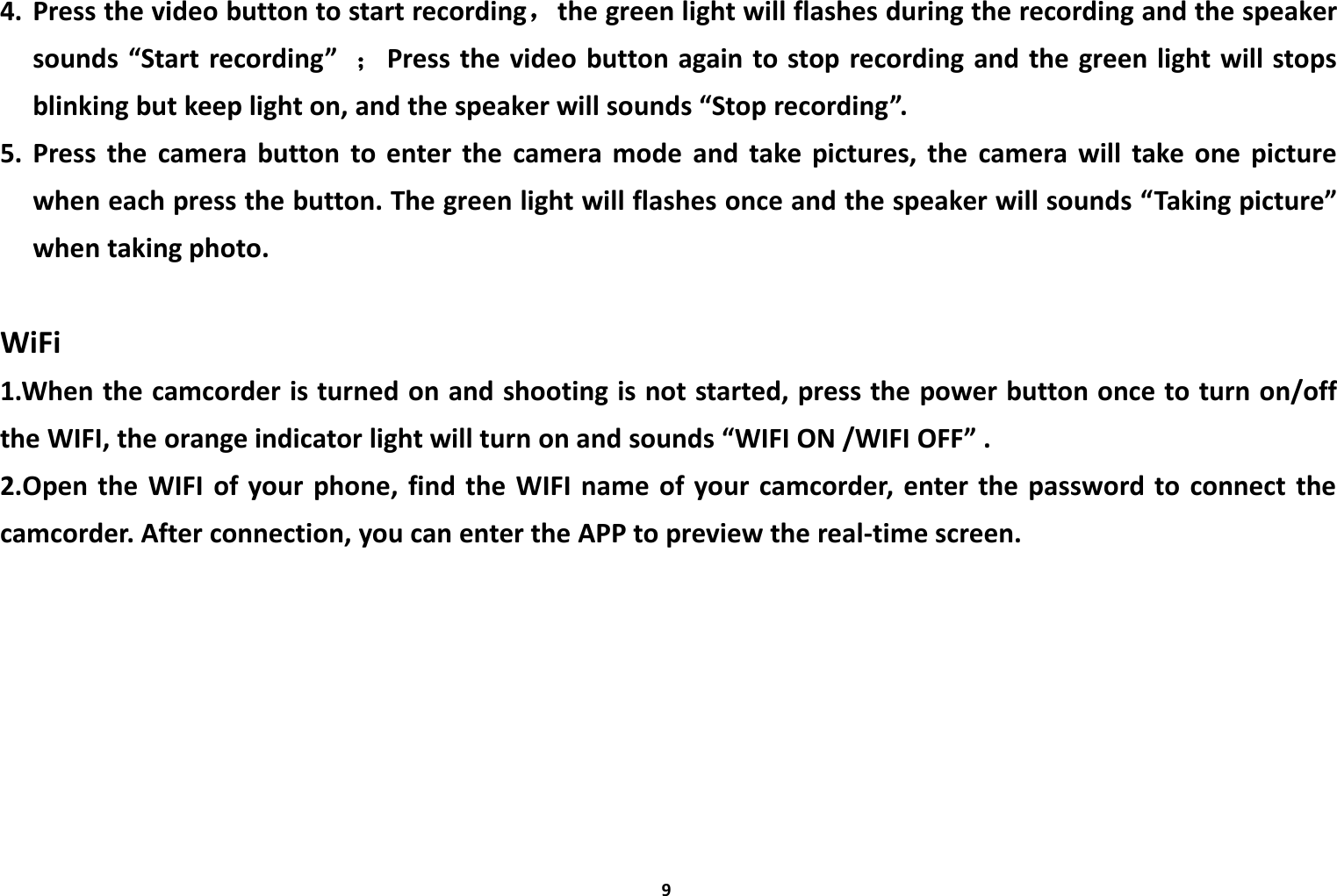

94. Press the video button to start recording,the green light will flashes during the recording and the speakersounds “Start recording” ;Press the video button again to stop recording and the green light will stopsblinking but keep light on, and the speaker will sounds “Stop recording”.5. Press the camera button to enter the camera mode and take pictures, the camera will take one picturewhen each press the button. The green light will flashes once and the speaker will sounds “Taking picture”when taking photo.WiFi1.When the camcorder is turned on and shooting is not started, press the power button once to turn on/offthe WIFI, the orange indicator light will turn on and sounds “WIFI ON /WIFI OFF” .2.Open the WIFI of your phone, find the WIFI name of your camcorder, enter the password to connect thecamcorder. After connection, you can enter the APP to preview the real-time screen.

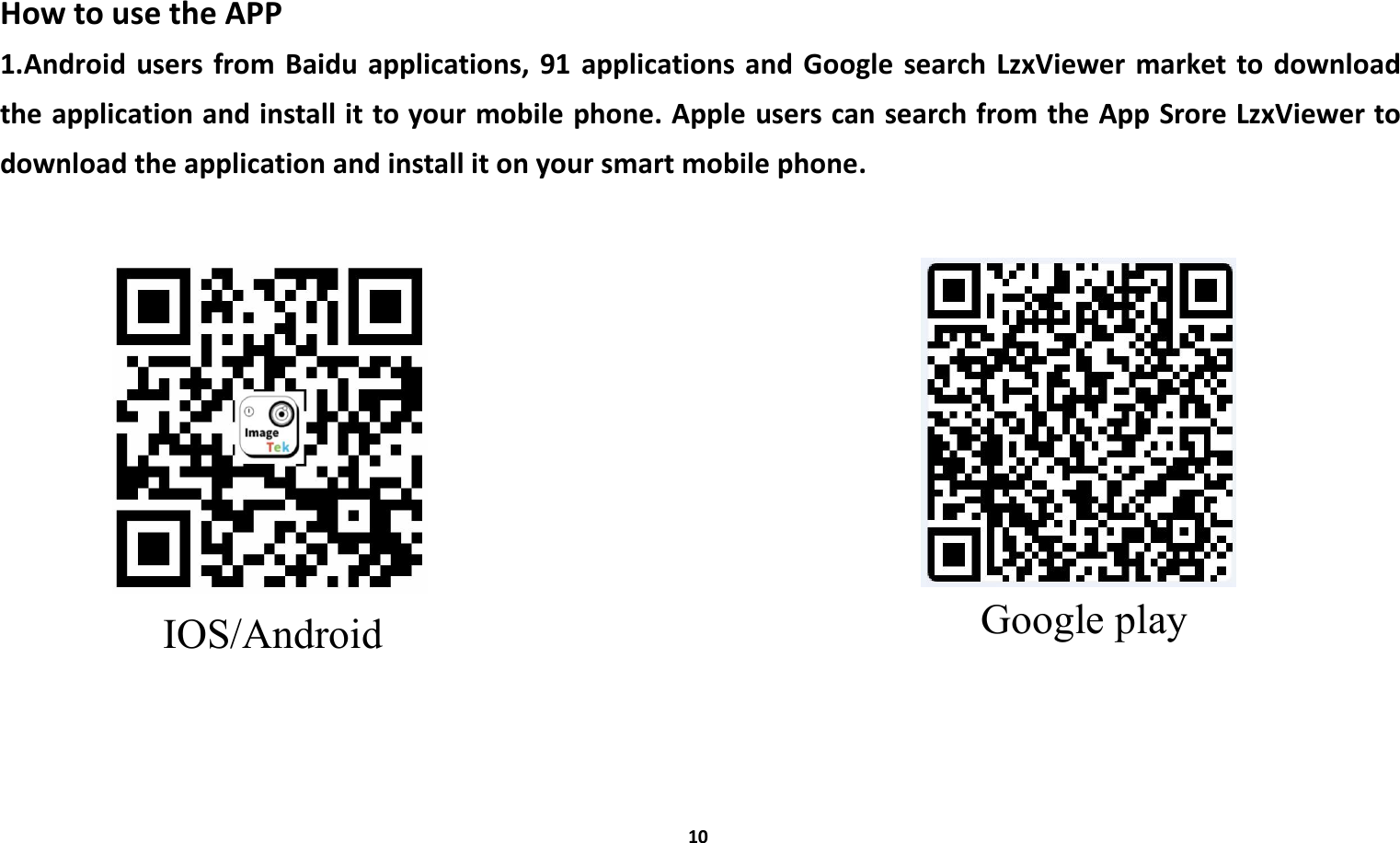

10How to use the APP1.Android users from Baidu applications, 91 applications and Google search LzxViewer market to downloadthe application and install it to your mobile phone. Apple users can search from the App Srore LzxViewer todownload the application and install it on your smart mobile phone.IOS/Android Google play

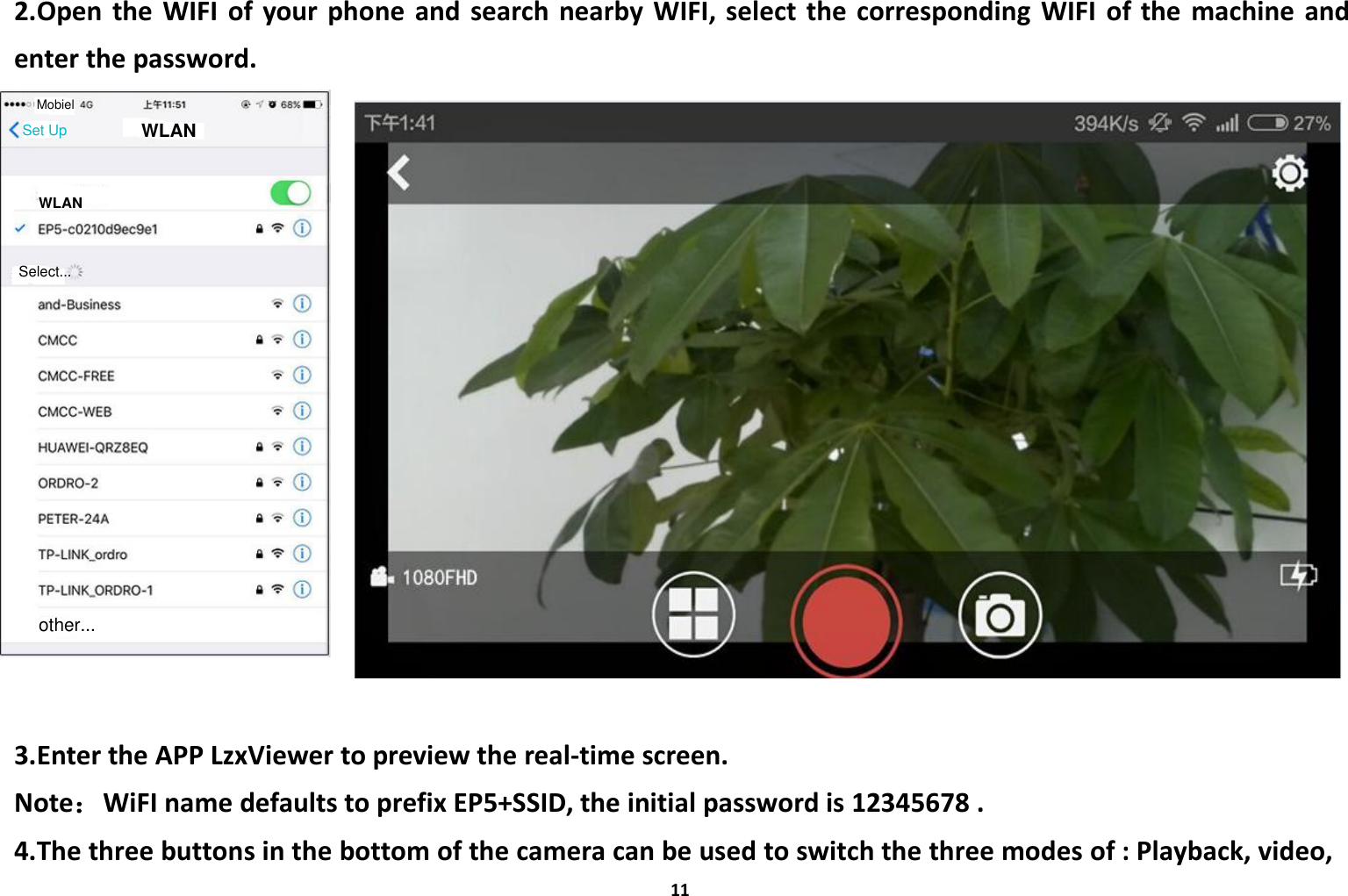

112.Open the WIFI of your phone and search nearby WIFI, select the corresponding WIFI of the machine andenter the password.3.Enter the APP LzxViewer to preview the real-time screen.Note:WiFI name defaults to prefix EP5+SSID, the initial password is 12345678 .4.The three buttons in the bottom of the camera can be used to switch the three modes of : Playback, video,WLANWLANother...Set UpMobielSelect...

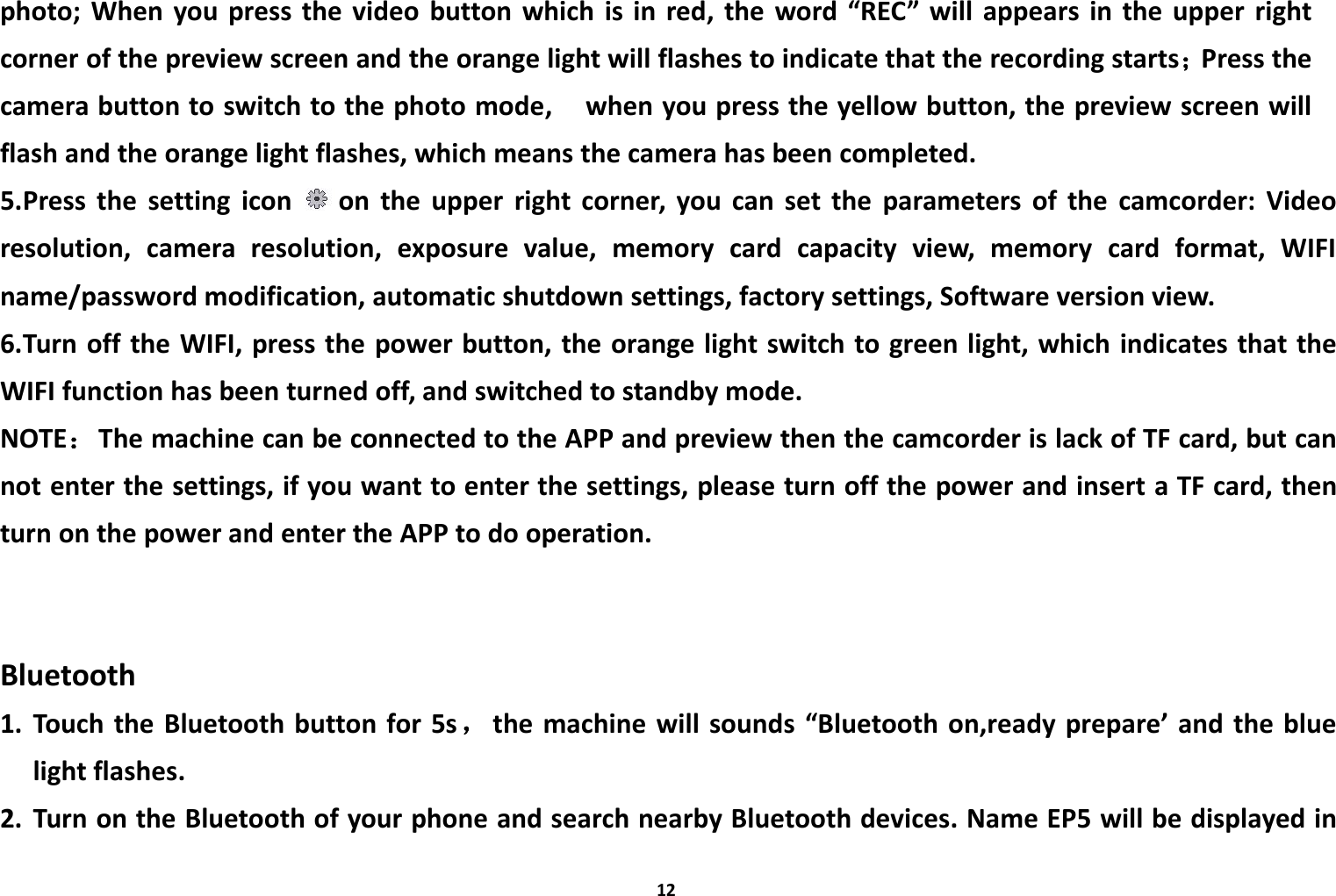

12photo; When you press the video button which is in red, the word “REC” will appears in the upper rightcorner of the preview screen and the orange light will flashes to indicate that the recording starts;Press thecamera button to switch to the photo mode, when you press the yellow button, the preview screen willflash and the orange light flashes, which means the camera has been completed.5.Press the setting icon on the upper right corner, you can set the parameters of the camcorder: Videoresolution, camera resolution, exposure value, memory card capacity view, memory card format, WIFIname/password modification, automatic shutdown settings, factory settings, Software version view.6.Turn off the WIFI, press the power button, the orange light switch to green light, which indicates that theWIFI function has been turned off, and switched to standby mode.NOTE:The machine can be connected to the APP and preview then the camcorder is lack of TF card, but cannot enter the settings, if you want to enter the settings, please turn off the power and insert a TF card, thenturn on the power and enter the APP to do operation.Bluetooth1. Touch the Bluetooth button for 5s,the machine will sounds “Bluetooth on,ready prepare’ and the bluelight flashes.2. Turn on the Bluetooth of your phone and search nearby Bluetooth devices. Name EP5 will be displayed in

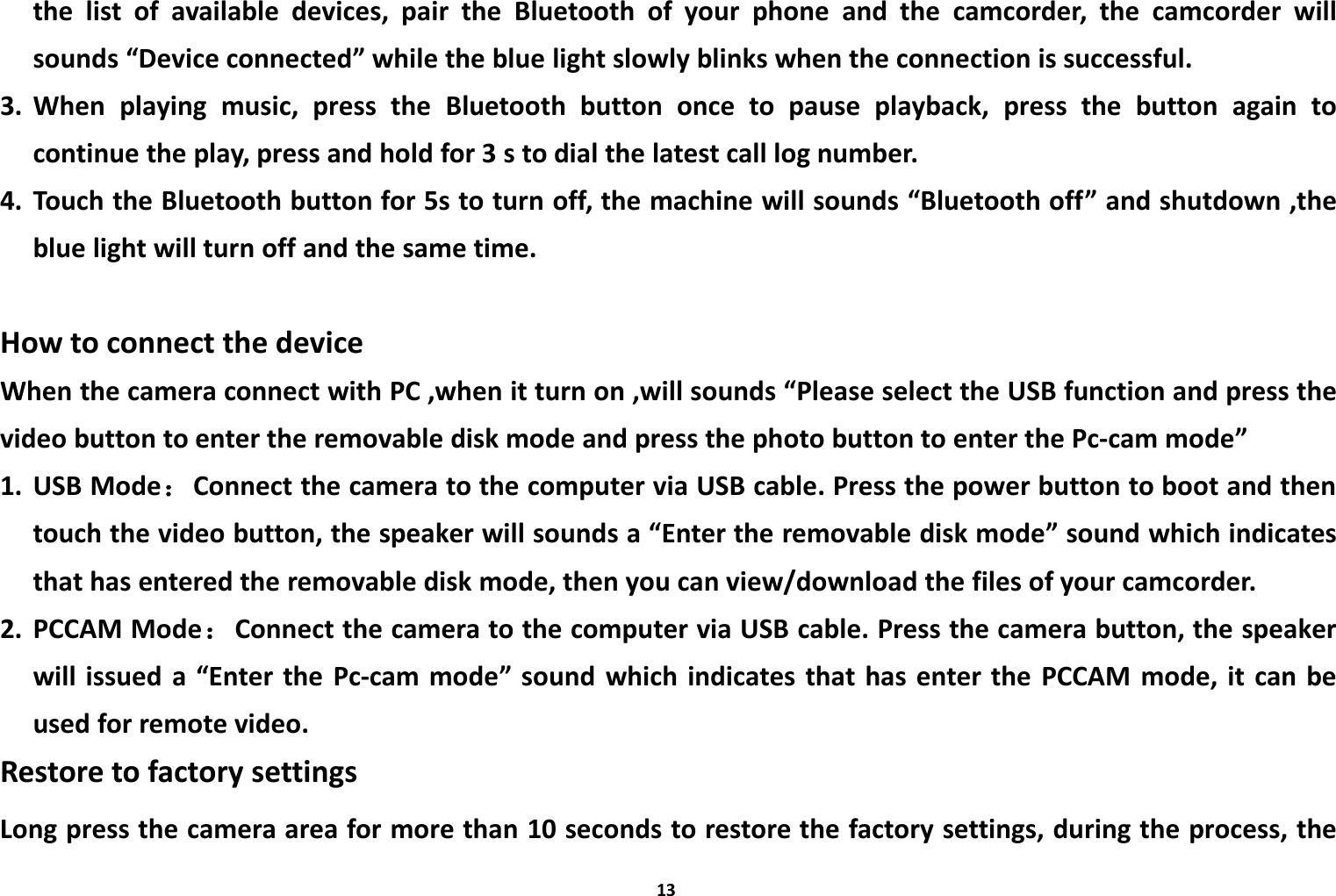

13the list of available devices, pair the Bluetooth of your phone and the camcorder, the camcorder willsounds “Device connected” while the blue light slowly blinks when the connection is successful.3. When playing music, press the Bluetooth button once to pause playback, press the button again tocontinue the play, press and hold for 3 s to dial the latest call log number.4. Touch the Bluetooth button for 5s to turn off, the machine will sounds “Bluetooth off” and shutdown ,theblue light will turn off and the same time.How to connect the deviceWhen the camera connect with PC ,when it turn on ,will sounds “Please select the USB function and press thevideo button to enter the removable disk mode and press the photo button to enter the Pc-cam mode”1. USB Mode:Connect the camera to the computer via USB cable. Press the power button to boot and thentouch the video button, the speaker will sounds a “Enter the removable disk mode” sound which indicatesthat has entered the removable disk mode, then you can view/download the files of your camcorder.2. PCCAM Mode:Connect the camera to the computer via USB cable. Press the camera button, the speakerwill issued a “Enter the Pc-cam mode” sound which indicates that has enter the PCCAM mode, it can beused for remote video.Restore to factory settingsLong press the camera area for more than 10 seconds to restore the factory settings, during the process, the

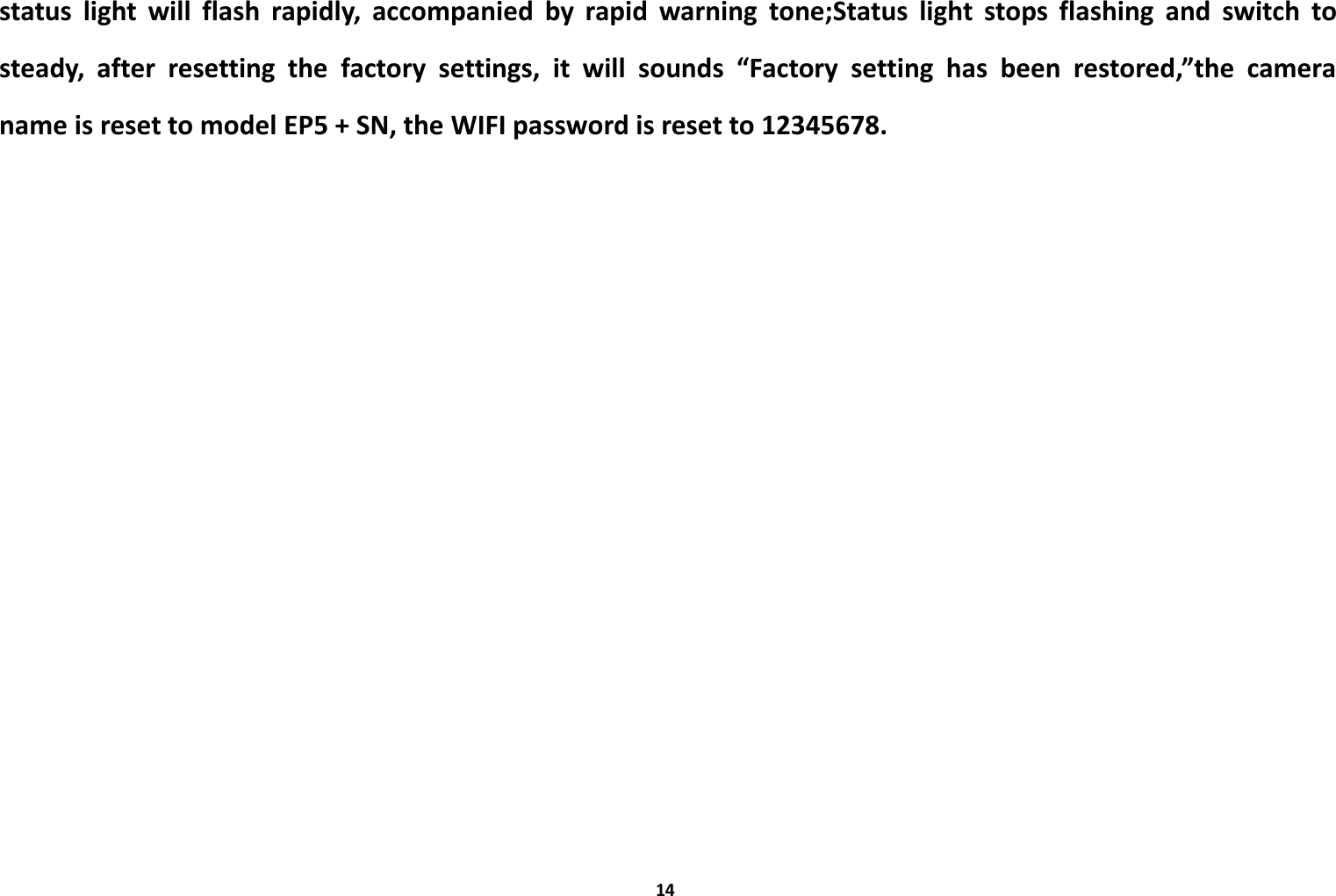

14status light will flash rapidly, accompanied by rapid warning tone;Status light stops flashing and switch tosteady, after resetting the factory settings, it will sounds “Factory setting has been restored,”the cameraname is reset to model EP5 + SN, the WIFI password is reset to 12345678.

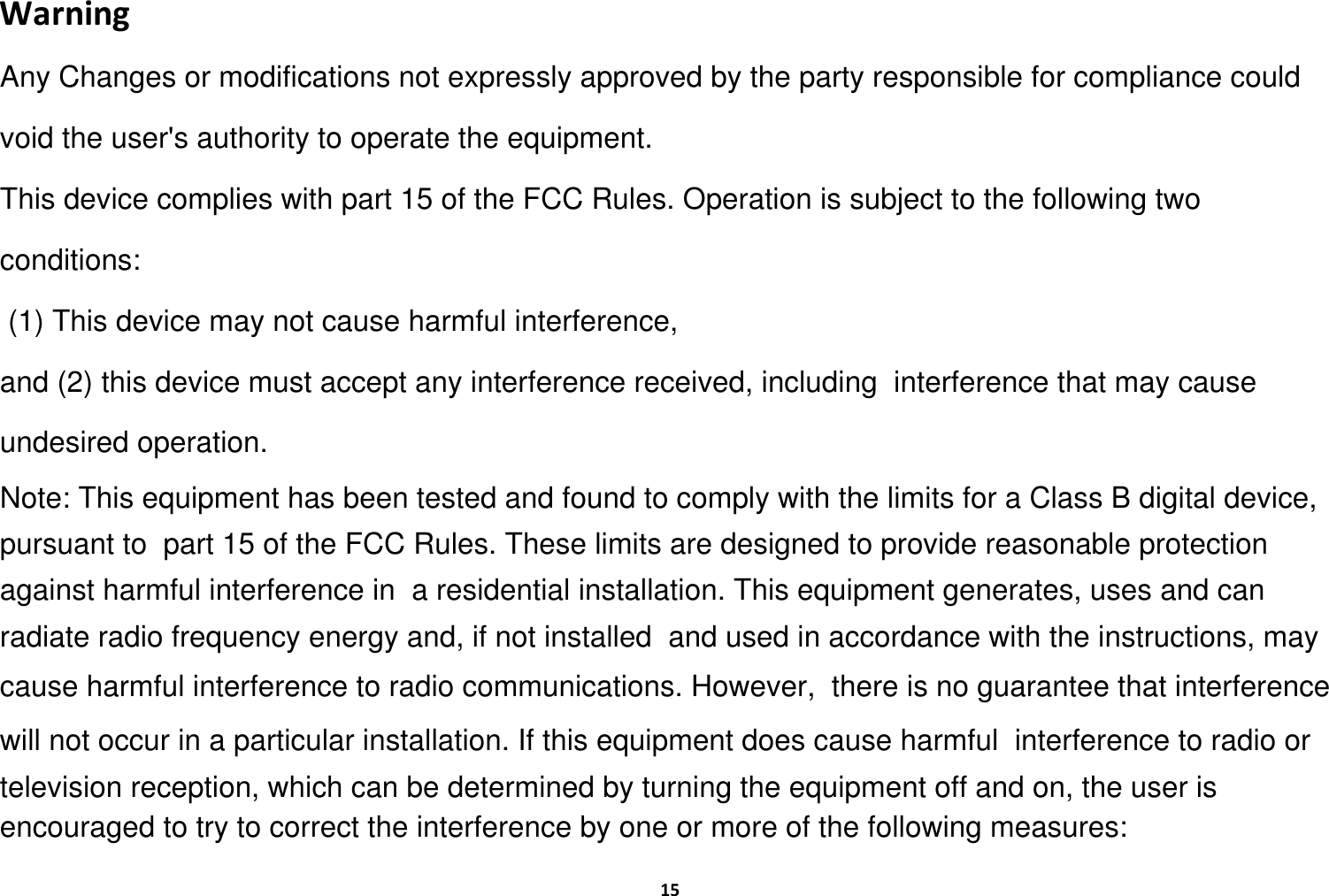

15WarningAny Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference,and (2) this device must accept any interference received, including  interference that may cause undesired operation.Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to  part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in  a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed  and used in accordance with the instructions, may cause harmful interference to radio communications. However,  there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful  interference to radio or television reception, which can be determined by turning the equipment off and on, the user is  encouraged to try to correct the interference by one or more of the following measures:

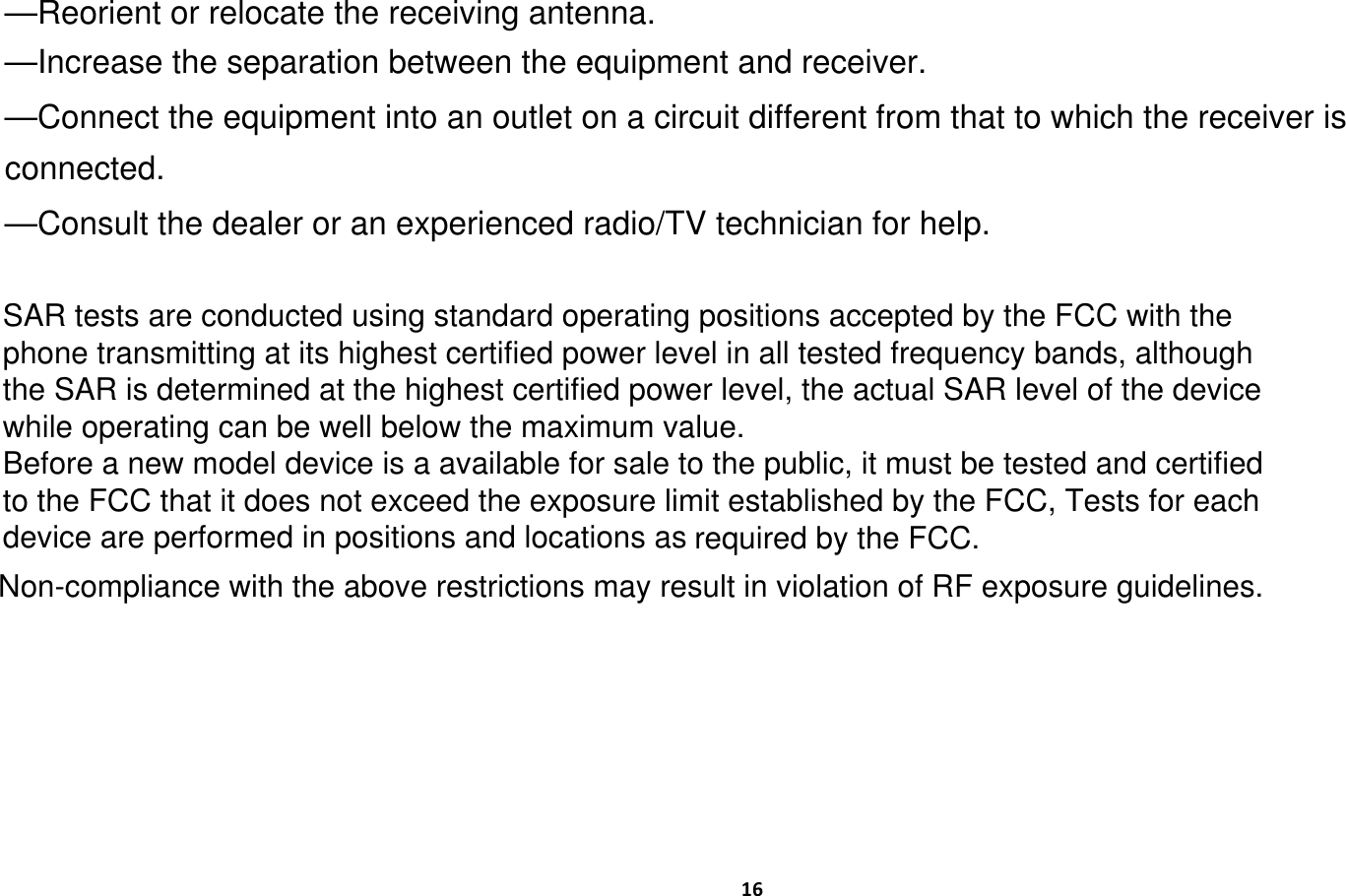

device are performed in positions and locations as16—Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help.SAR tests are conducted using standard operating positions accepted by the FCC with thephone transmitting at its highest certified power level in all tested frequency bands, althoughthe SAR is determined at the highest certified power level, the actual SAR level of the devicewhile operating can be well below the maximum value.Before a new model device is a available for sale to the public, it must be tested and certifiedto the FCC that it does not exceed the exposure limit established by the FCC, Tests for eachrequired by the FCC.Non-compliance with the above restrictions may result in violation of RF exposure guidelines.
