2015 HUBBELL LIGHTING EXPRESSLINE

EXPRESSLINE

LED Lighting Solutions

Floodlighting

Motion Sensors

Wallpacks

Dusk-to-Dawn

Life Safety

Vaportites

Lightscaper

Ceiling / Surface

Industrial Highbay / Lowbay

LED Downlighting

New LED Solutions

Hubbell Lighting’s ExpressLine product offering is a collection of our most popular items including our expanding offering of

LED wallpacks, floodlights, life safety and recessed downlight products (more below). Maximize your energy savings and reduce

maintenance costs with the latest products.

LED Products

Life Safety Products

Landscape Lighting

LED Downlighting

Floodlighting

Wallpacks

Worklights

Ceiling/Surface

Motion Sensors

Dusk-To-Dawn

Walkway & Path

Industrial Bay Lights

Lamp Holders

Vaportites

LED Highbays

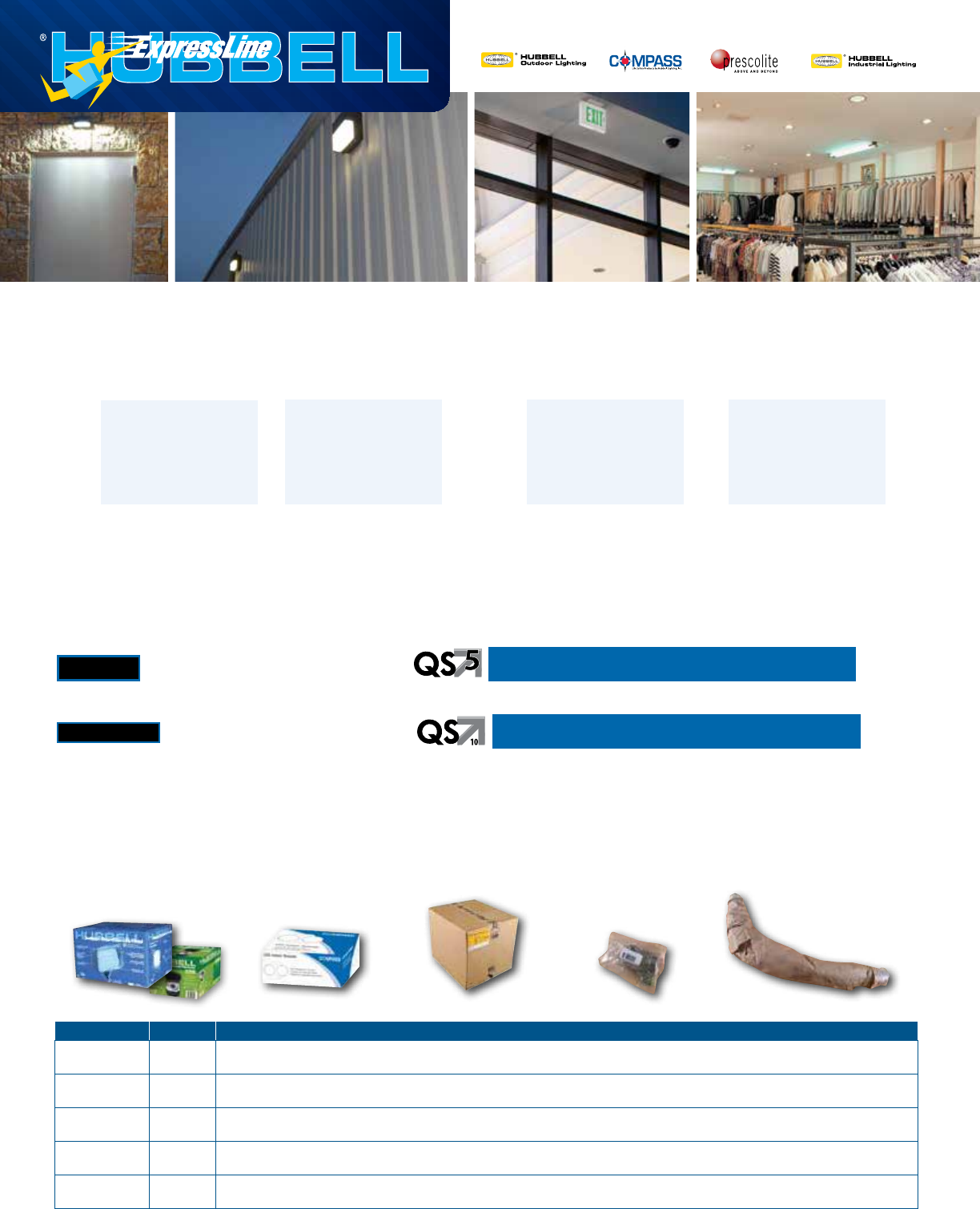

ExpressLine Merchandising and Product Information

ExpressLine program products offer full color and single color cartons for select high volume products for point-of-purchase

merchandising. Product packaging information is provided in modules located on product pages throughout the full-line catalog.

ExpressLine items are packaged according to their likelihood of being used for merchandising and POP advertisement. All items will

fall into one of the following categories which are noted along with the product ordering information.

PACKAGING PKG. CODE DESCRIPTION

Full Color Carton FCC High impact multi-language cartons (four color with bright blue background) for simpliﬁed product selection including application guides, detailed product features, descriptions,

and color photography. All cartons include bar codes (UPC) for inventory management.

Single Color Carton SCC Vibrant blue and white colored cartons (one or two color) to complement HLI’s full color cartons. Product descriptions include basic information, basic features, and

product line art. All cartons include bar codes (UPC) for inventory management.

Brown Carton BC Traditional brown craft carton with branded label including material number, basic description, wattage, and lamp type. Select products (those stocked by Hubbell

Lighting) include bar codes (UPC) for inventory management.

Clear Poly Bag CPB Used exclusively for small items where product damage from mishandling isn’t likely. All products include branded labels with the material number. Select products

(those stocked by Hubbell Lighting) include bar codes (UPC) for inventory management.

Protective Wrapper PW Used exclusively for large items too bulky for traditional cartons. An examples would be a steel ﬂoodlight bracket. All products include branded labels with the material

number. Select products (those stocked by Hubbell Lighting) include bar codes (UPC) for inventory management.

FCC SCC BC CPB PW

Stock, Quick-Ship and Made-to-Order

Many ExpressLine items are stocked for immediate shipment while offering competitive pricing and great performance. Additionally, select

items are included in our Quick-Ship 5, Quick-Ship 10 programs as well as Made-to-Order. Products throughout the catalog are marked with

icons below defining availability.

10-Day Quick Ship Ordering Guide

Order Limit Per Fixture Selection: 15 – BC Pkg Code

5-Day Quick Ship Ordering Guide

Order Limit Per Fixture Selection: 15 – BC Pkg Code

STOCK In stock products ship – 1 to 2 days

MADE-TO-ORDER Standard 4 to 6 week lead time

Series Number Equivalency Delivered

Lumens

System

Watts

Energy

Savings Mounting Height CCT Voltage Drivers/

Current

PKG.

CODE

MH HPS CFL

GSL-15L 150w 150w 84w+ 4524 53.3 72% 8-12 ft. 4000K 120-277V 1@1050mA BC

GSL-21L 250w 250w 84w+ 6138 74 54% 12-15 ft. 4000K 120-277V 1@1050mA BC

Contents

LED FLOODLIGHTING................................................................................................... 4

HID FLOODLIGHTING ................................................................................................ 12

WORKLIGHTS ........................................................................................................... 19

MOTION SENSORS ..................................................................................................... 20

FLOODLIGHT MOUNTING ACCESSORIES ........................................................................ 21

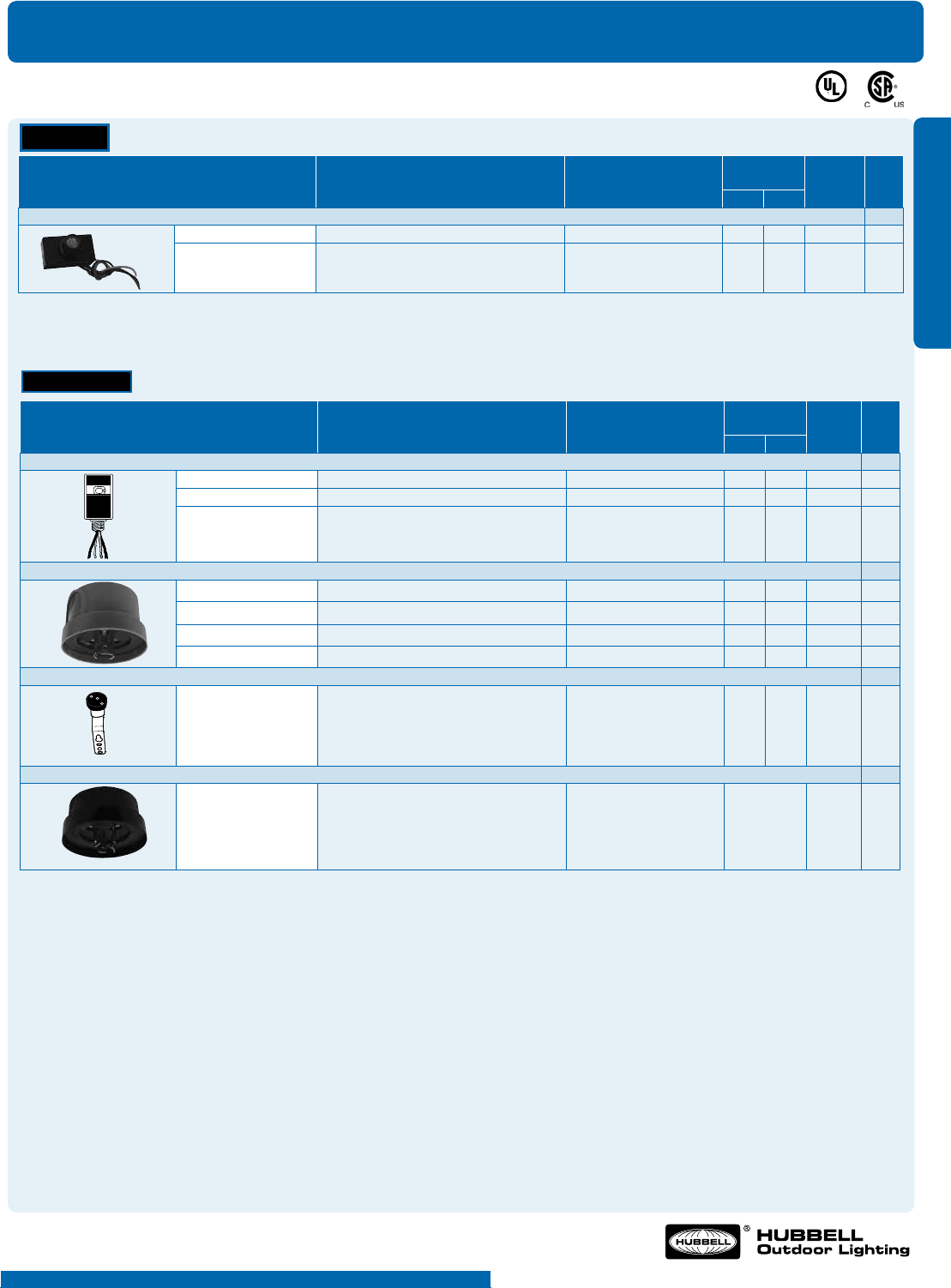

PHOTOCONTROLS ...................................................................................................... 23

LED ZERO UPLIGHT WALLPACKS .................................................................................. 24

LED REFRACTOR WALLPACKS ....................................................................................... 26

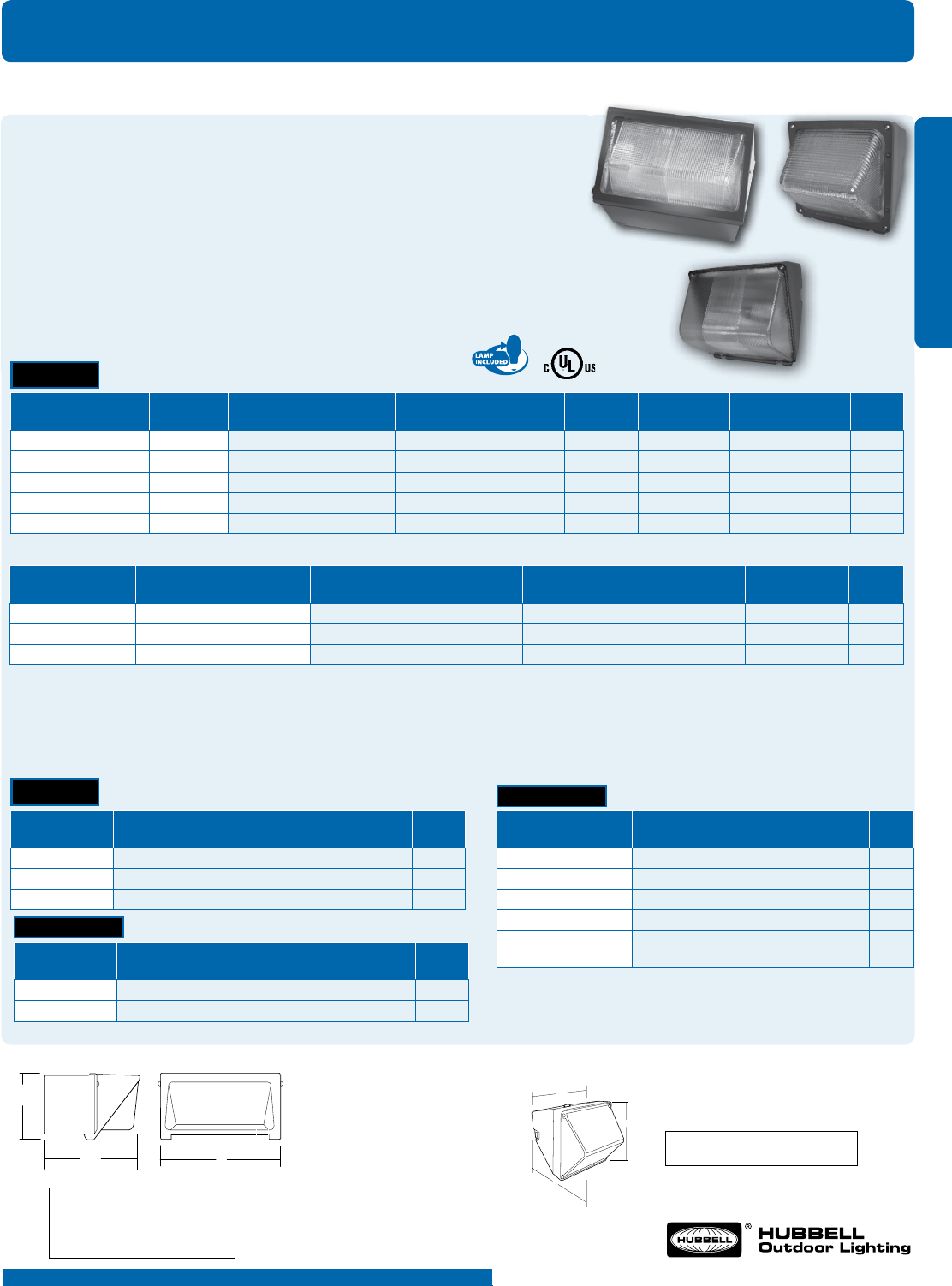

HID ZERO UPLIGHT WALLPACKS .................................................................................. 30

HID REFRACTOR WALLPACKS ...................................................................................... 34

LED CEILING/SURFACE .............................................................................................. 40

HID CEILING/SURFACE .............................................................................................. 42

HID CANOPY ............................................................................................................ 46

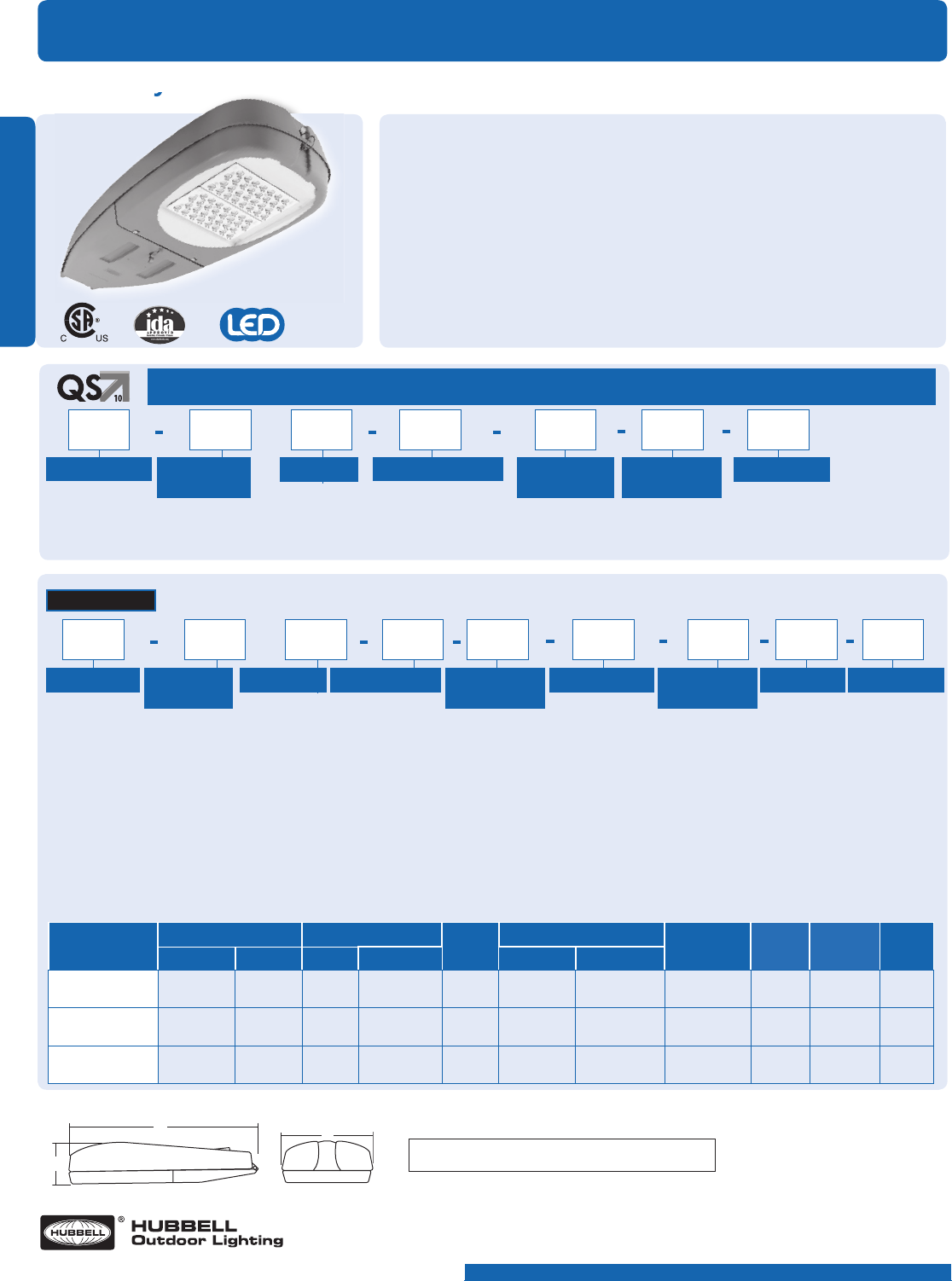

LED ROADWAY .......................................................................................................... 47

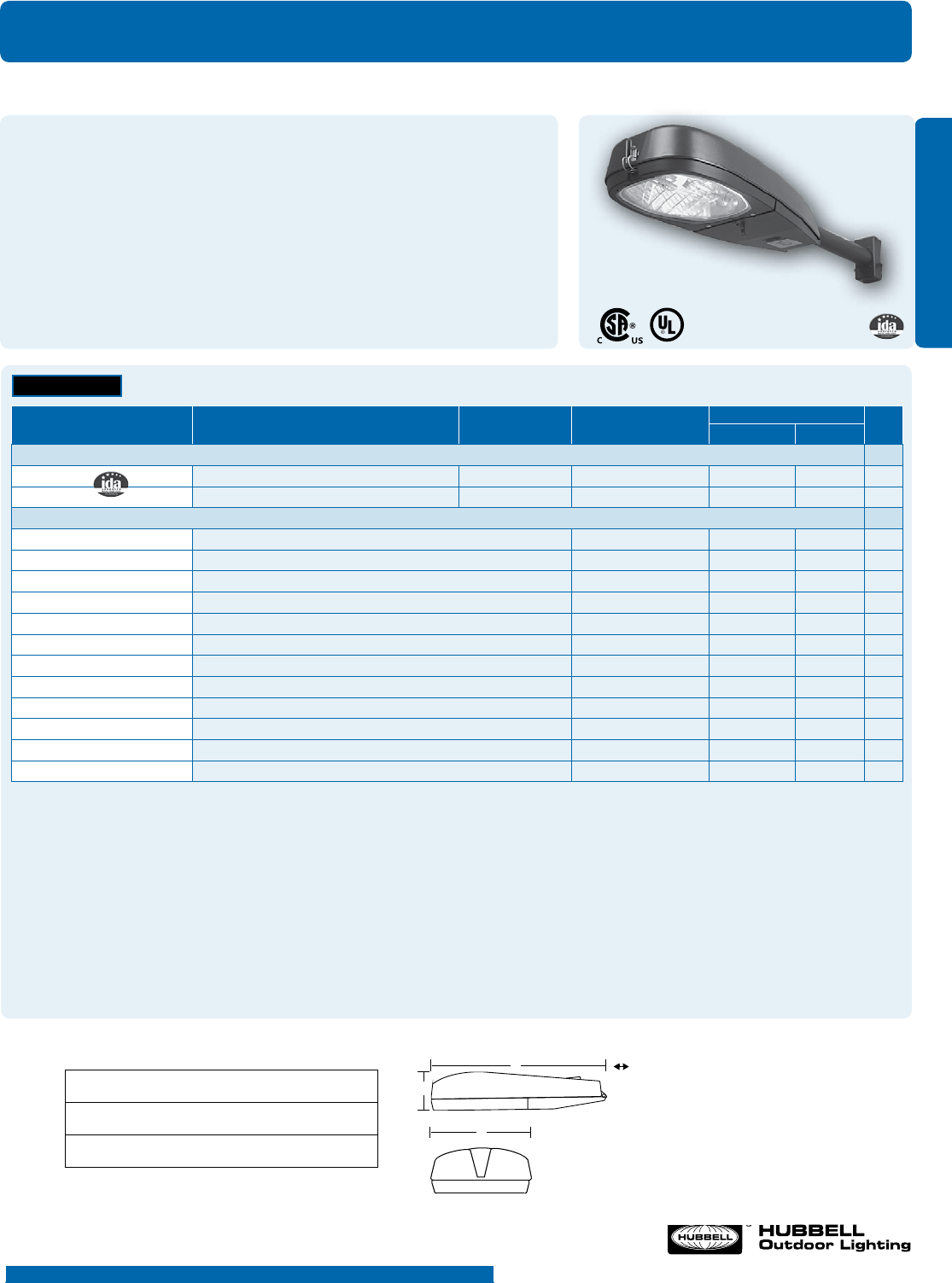

HID ROADWAY ......................................................................................................... 49

LED DUSK-TO-DAWN .................................................................................................. 52

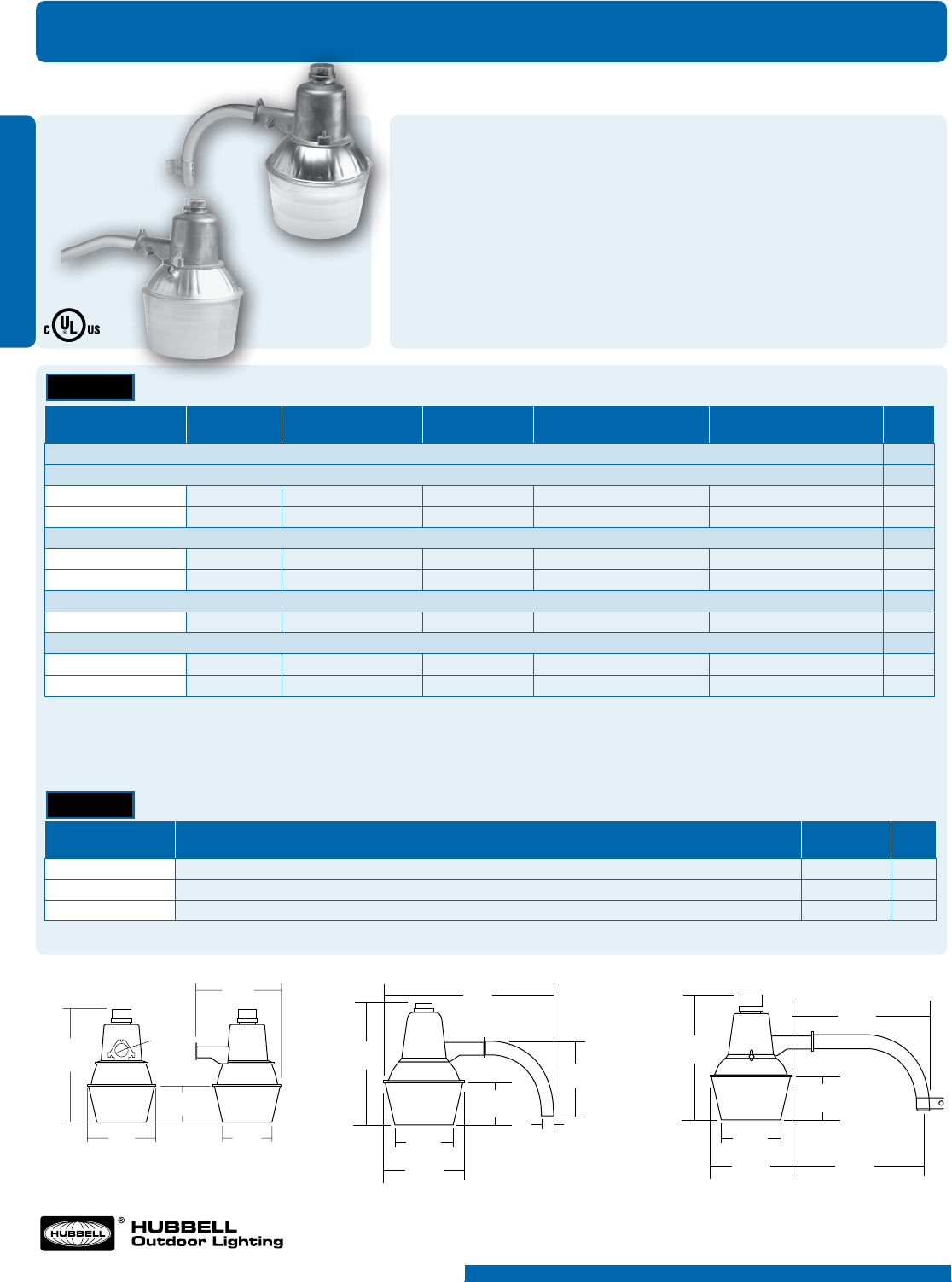

HID DUSK-TO-DAWN ................................................................................................. 54

VAPORTITES ............................................................................................................. 55

LANDSCAPE (12V LED) .............................................................................................. 57

WALKWAY & PATH (120V) .......................................................................................... 59

LAMP HOLDERS ........................................................................................................ 60

LED HIGHBAY INDUSTRIAL ........................................................................................ 64

HID HIGHBAY/LOW BAY ............................................................................................ 66

INDUSTRIAL VAPORTITES .......................................................................................... 67

LED DOWNLIGHTING ................................................................................................. 68

EXIT SIGNS/EMERGENCY LIGHTING ............................................................................. 72

PRODUCT INDEX ....................................................................................................... 82

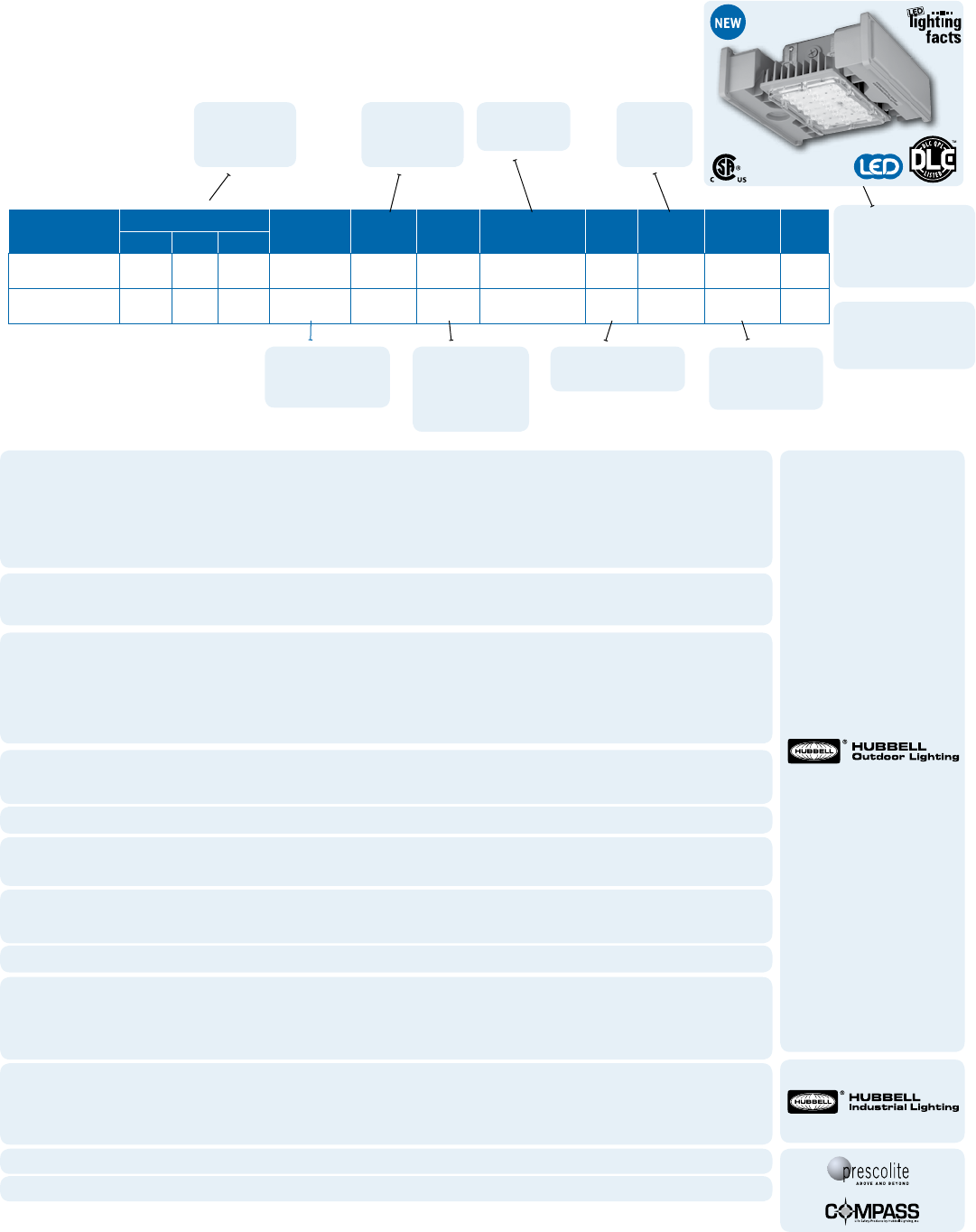

Maximum lumens

produced by

luminaire

Equivalent

traditional

light sources

(CCT) Correlated

Color Temperature

Percentage of

energy savings

over traditional

light sources

Total watts

consumed by

luminaire

Voltage

range

options

Number of

drivers and

drive current

Industry listings,

energy-efﬁciency

and environmental

qualiﬁcations

Code for type of

product packaging

(see page 2)

Suggested

application

Each LED product in the ExpressLine catalog includes complete information in easy to

read modules. Information speciﬁc to energy-efﬁciency, LED performance, traditional

luminaire source equivalency, and CCT are available for each product.

New Features, LED Products Equivalency

LED Product Partner

FLOODLIGHTING

WALLPACKS

ACCESSORIES

SECURITY

VAPORTITES

CANOPY

LANDSCAPE

HIGHBAY/LOWBAYS

INDUSTRIAL

VAPORTITES

DOWNLIGHTING

LIFE SAFETY

CEILING/SURFACE

ROADWAY

Visit www.hubbelloutdoor.com/products for up-to-date availability information

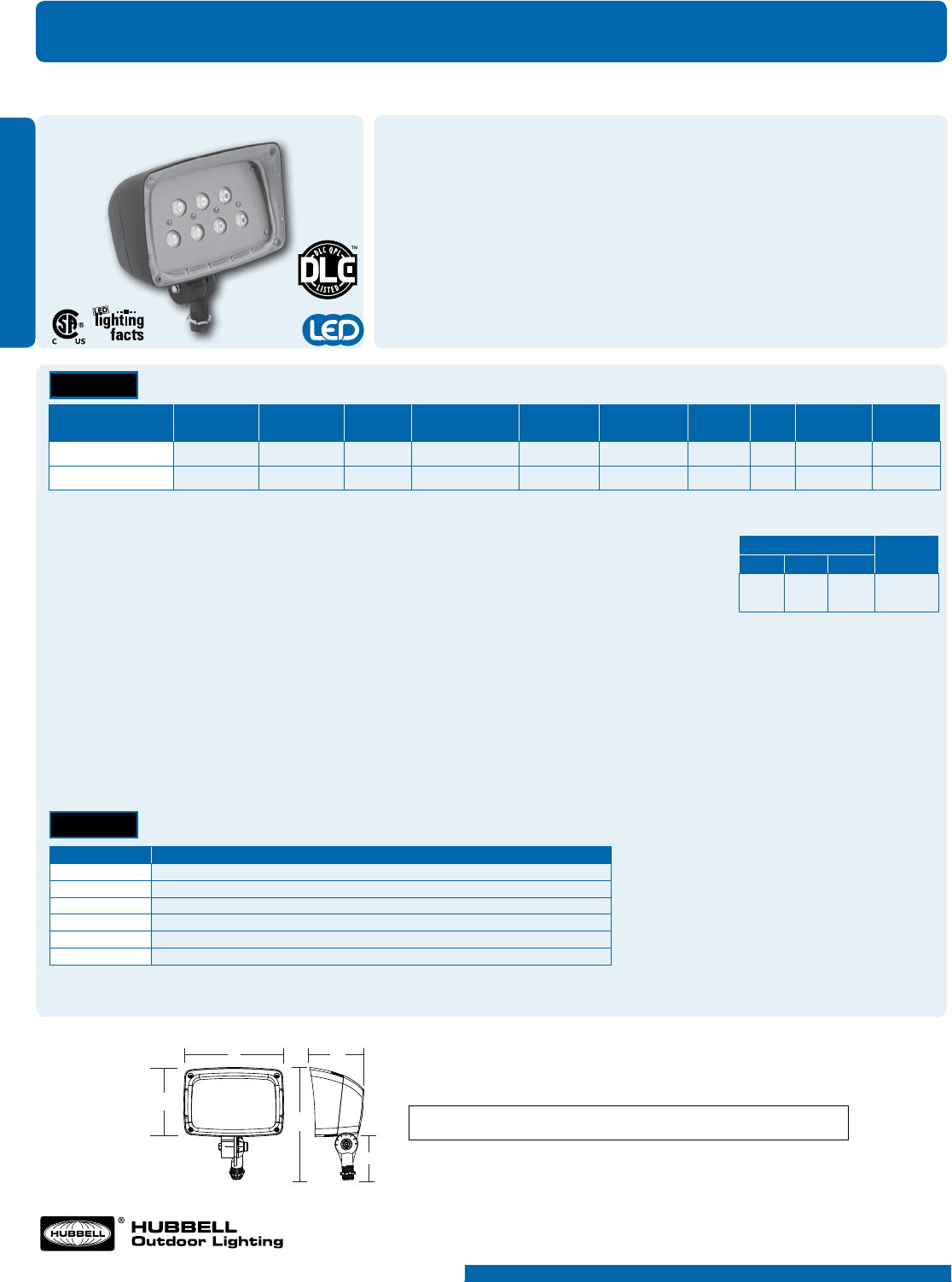

LED FLOODLIGHTING

Decorative Flood

FSL

Equivalency Energy

Savings

MH HPS CFL

100w 100w 42w 82%

• Ultra-compact size measuring only 4.5" x

7.5" x 4"

• Wide ﬂood NEMA 6 x 6 distribution for

general purpose ﬂood and facade lighting

• Traditional ½” x 14 NPS threaded adjust-

able knuckle mounting

• 120-277V operation (PC version 120V only)

• Rugged die-cast aluminum housing with

dark bronze ﬁnish

• Vented housing isolates LED module from

driver maximizing product life and

performance

• High impact UV stabilized acrylic outer lens

protects LEDs and allows for cleaning and

debris removal

• DesignLights Consortium (DLC) qualiﬁed

• IP66, listed to UL1598 for use in wet

locations

• Four color multi-language merchandising

carton with application details

• Visor and vandal shield available

ORDERING INFORMATION

DIMENSIONS

EQUIVALENCY INFORMATION

Catalog Number Mount Beam Pattern Wattage # Drivers/

Current Voltage Color

Temperature Lumens LPW Weight

lbs. (kg)

PKG.

CODE

FSL-7 1/2" thread Wide 26.5 1@1050mA 120-277V 5000K 2040 77 6 (2.7)

FCC

FSL-7-PC1 1/2" thread Wide 26.5 1@1050mA 120V 5000K 2040 77 6 (2.7)

FCC

ACCESSORIES/REPLACEMENT PARTS

- (ORDER SEPARATELY)

Catalog Number Description

FSL-SPC Polycarbonate shield/lens (Replaces existing acrylic lens)

FSL-VISOR-DB Top/bottom visor (Tap holes in lens frame for ﬁeld installation)

93047942AC Acrylic lens w/ gasket

93047957 25w, 120-277V Dimming driver, 1040mA

20750110264 Knuckle mount Dark Bronze ﬁnish; Contact factory for additional ﬁnishes

S-302-M51

Slipﬁts 1 1/2” or 2” pipe (1.9” OD or 2 3/8” OD) with 1/2” N.P.S.M. hub; Bronze

LED Product Partner

STOCK

B C

A B C D E Weight

5.125" 7.5" 4" 8.625" 3.5" 6 lbs.

130 mm 190 mm 102 mm 219 mm 89 mm 2.7 kg

Visit www.hubbelloutdoor.com/products for up-to-date availability information

LED FLOODLIGHTING

Decorative Flood

FML

Equivalency Energy

Savings

MH HPS CFL

100w 100w 42w 82%

Equivalency Energy

Savings

MH HPS CFL

150w 150w 2x42w 78%

• Compact size measuring only 6.7" x 9.6"

x 4.5"

• Wide ﬂood NEMA 6 x 6 distribution for

general purpose ﬂood and facade lighting

• Traditional ½” x 14 NPS threaded adjust-

able knuckle mounting

• 120-277V operation (PC version 120V only)

• Rugged die-cast aluminum housing with

dark bronze ﬁnish

• DesignLights Consortium (DLC) qualiﬁed

• High impact UV stabilized acrylic outer lens

protects LEDs and allows for cleaning and

debris removal

• IP65, listed to UL1598 for use in wet

locations

• Four color multi-language merchandising

carton with application details

• Visor and vandal shield available

• Vented housing isolates LED module from

driver maximizing product life and

performance

ORDERING INFORMATION

DIMENSIONS

EQUIVALENCY INFORMATION

Catalog Number Mount Beam Pattern Wattage # Drivers/

Current Voltage Color

Temperature Lumens LPW Weight

lbs. (kg)

PKG.

CODE

FML-14 1/2" thread Wide 53 1@1050mA 120-277V 5000K 4285 81 8.5 (3.8)

FCC

FML-14-PC1 1/2" thread Wide 53 1@1050mA 120V 5000K 4285 81 8.5 (3.8)

FCC

ACCESSORIES/REPLACEMENT PARTS

- (ORDER SEPARATELY)

Catalog Number Description

FML-SPC Polycarbonate shield/lens (Replaces existing acrylic lens)

FML-VISOR-DB Top/Bottom visor (Tap holes in lens frame to ﬁeld install)

93047961AC Acrylic lens w/ gasket

93047971 50w, 120-277V Dimming driver, 1040mA

20750110264 Knuckle mount Dark Bronze ﬁnish; Contact factory for additional ﬁnishes

S-302-M51

Slipﬁts 1 1/2” or 2” pipe (1.9” OD or 2 3/8” OD) with 1/2” N.P.S.M. hub; Bronze

LED Product Partner

STOCK

B C

A B C D E Weight

6.7" 9.6" 4.5" 10.20" 3.5" 8.5 lbs.

169 mm 224 mm 115 mm 259 mm 89 mm 3.8 kg

Visit www.hubbelloutdoor.com/products for up-to-date availability information

Large Decorative Flood

Large LED ﬂood with wide beam NEMA 6 x

6 distribution for lighting applications such

as safety/security, facade, area, or signs;

operating temperature range -35˚C to 40˚C

• 28 high powered LEDs deliver 8054

lumens

• 5000K CCT, 67 CRI

• Rugged die-cast aluminum housing with

dark bronze ﬁnish

• Tempered glass lens protects LEDs and

allows for cleaning/debris removal

• Visor accessory available

• Vented housing isolates LED module from

driver, maximizing product life and per-

formance

• 120-277V operation, 50/60Hz, 100w,

1050mA

• DesignLights Consortium (DLC) qualiﬁed

• IP65, listed to UL1598 for use in wet locations

• Driver RoHS compliant and IP66

• 0-10V Dimming driver

• Traditional adjustable yoke mounting

• 3' SEOOW cord

FLL

LED FLOODLIGHTING

Catalog Number Mount Max Candle

Power Beam Pattern Wattage # Drivers/

Current Voltage Color Temperature Lumens LPW Weight

lbs. (kg)

PKG.

CODE

FLL-28L Yoke 5508 Wide 100w 1@1050mA 120-277V 5000K 8054 80.5 20 (9.0)

FCC

DIMENSIONS

ACCESSORIES/REPLACEMENT PARTS

- (ORDER SEPARATELY)

Catalog Number Description

FLL-VISOR-DB Top visor (Tap holes in lens frame for ﬁeld installation)

93058186 96w, 120-277V Dimming driver, 1050mA (1 Qty)

Equivalency Energy

Savings

MH HPS CFL

250w 250w 2x42w+ 50%

EQUIVALENCY INFORMATION

A B C D E F Weight

15" 5.5" 6.0" 7.0" 6.24" 3.3" 20.6 lbs.

378 mm 140 mm 152 mm 177 mm 158 mm 84 mm 9.3 kg

ORDERING INFORMATION

STOCK

Visit www.hubbelloutdoor.com/products for up-to-date availability information

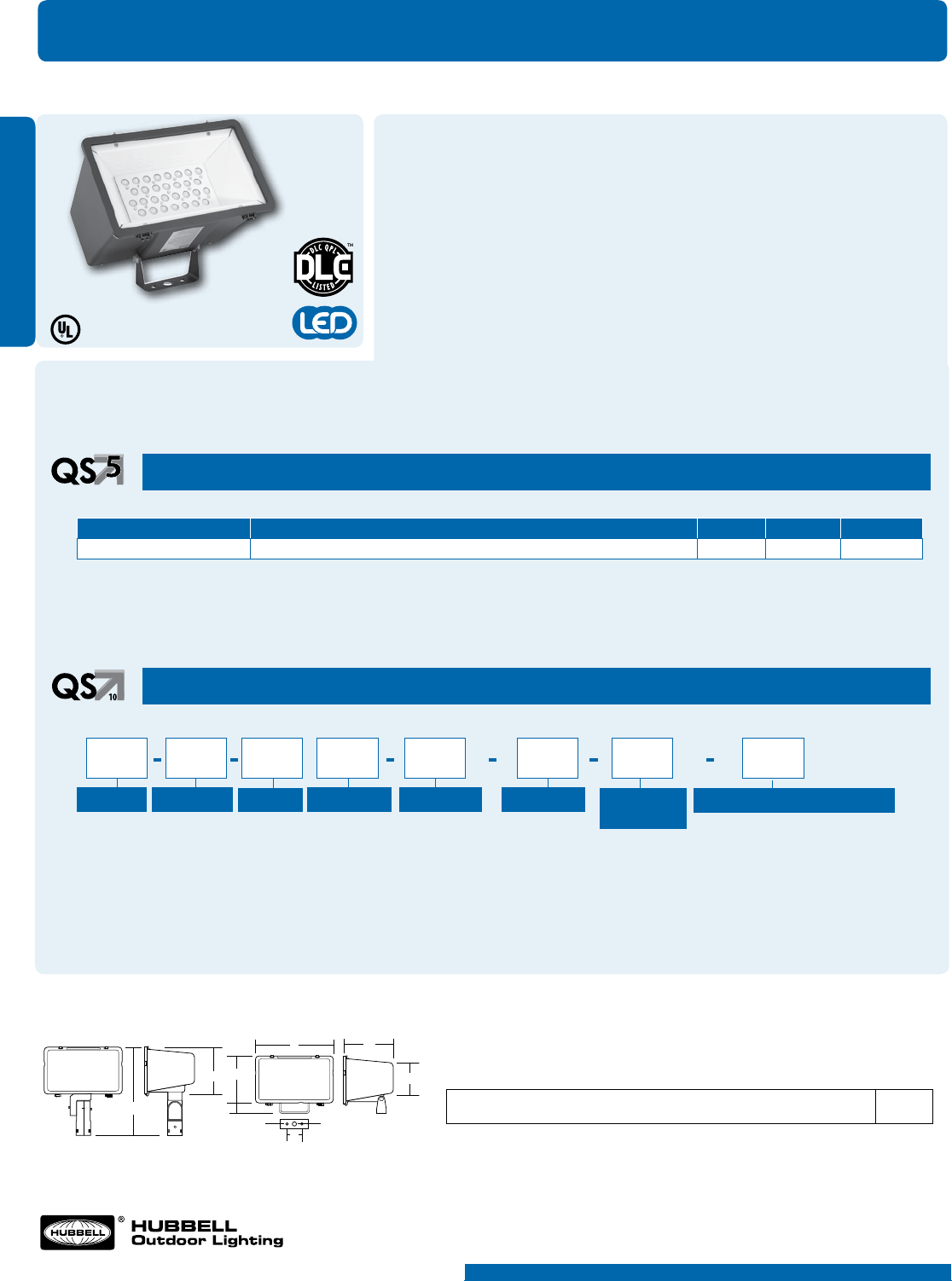

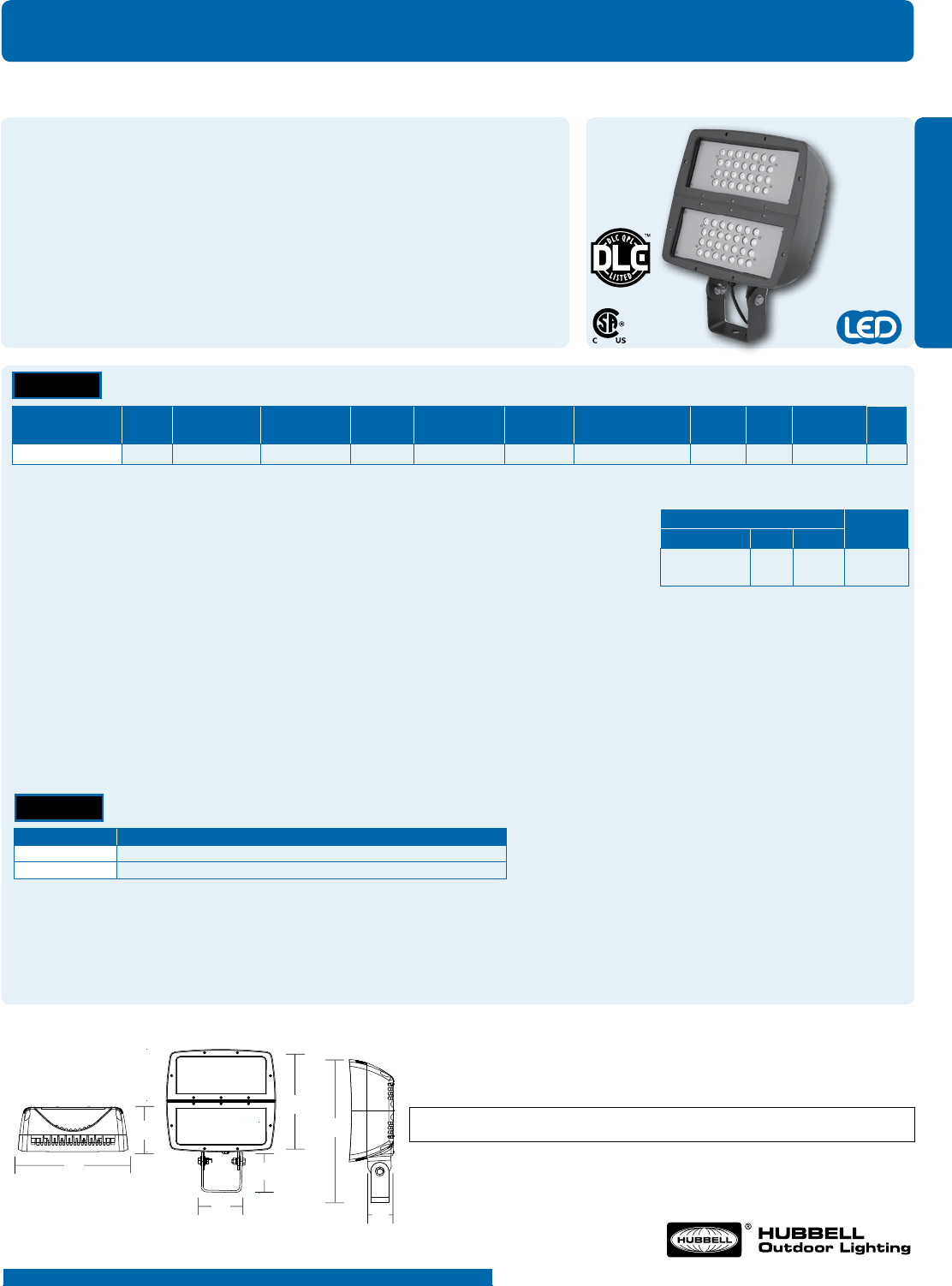

Large Decorative Flood

FXL

LED FLOODLIGHTING

Extra large LED ﬂood with wide beam NEMA 6

x 6 distribution for lighting applications such

as safety/security, facade, area, or signs;

operating temperature range -35˚C to 40˚C

• 56 high powered LEDs deliver 16358

lumens

• 5000K CCT, 67 CRI

• Rugged die-cast aluminum housing with

dark bronze ﬁnish

• Tempered glass lens protects LEDs and

allows for cleaning/debris removal

• Visor accessory available

• Vented housing isolates LED module from

driver, maximizing product life and per-

formance

• 120-277V operation, 50/60Hz,

200w, 1050mA

• DesignLights Consortium (DLC) qualiﬁed

• IP65, listed to UL1598 for use in wet locations

• Driver RoHS compliant and IP66

• 0-10V Dimming driver

• Traditional adjustable yoke mounting

• 3' SEOOW cord

Catalog Number Mount Max Candle

Power Beam Pattern Wattage # Drivers/

Current Voltage Color Temperature Lumens LPW Weight

lbs. (kg)

PKG.

CODE

FXL-56L Yoke 10872 Wide 200w 1@1050mA 120-277V 5000K 16358 82 32 (14.5)

FCC

DIMENSIONS

ACCESSORIES/REPLACEMENT PARTS

- (ORDER SEPARATELY)

Catalog Number Description

FLL-VISOR-DB Top/Bottom visor (Tap holes in lens frame for ﬁeld installation)

93058186 96w, 120-277V Dimming driver, 1050mA (2 Qty per ﬁxture)

Equivalency Energy

Savings

MH HPS CFL

400w-750w 400w 2x42w+ 50%

EQUIVALENCY INFORMATION

A B C D E F Weight

15" 5.5" 6.0" 7.0" 6.24" 3.3" 20.6 lbs.

378 mm 140 mm 152 mm 177 mm 158 mm 84 mm 9.3 kg

A B C D E F G Weight

15" 14.0" 19.6" 6.0" 5.5" 6.24" 3.3" 36.2 lbs.

380 mm 356 mm 498 mm 152 mm 139 mm 158 mm 84 mm 16.4 kg

ORDERING INFORMATION

STOCK

Visit www.hubbelloutdoor.com/products for up-to-date availability information

LED FLOODLIGHTING

MHS

MHS YOKE MOUNT

A B C D E F G H I

Weight

6 1/2” 14 1/2” 12” 9 7/8” 16 1/4” 3 1/8” 17/32” 7/8” 17” 20 lbs.

165 mm 368 mm 305 mm 251 mm 413 mm 79 mm 14 mm 22 mm 432 mm (9.1) kgs.

MHS KNUCKLE MOUNT MHS YOKE MOUNT

DIMENSIONS

Hubbell Outdoor Lighting’s proven Miniliter®

MHS features multiple beam patterns and

color temperatures, two mounting options, a

rugged design and the highest energy efficiency

to solve your floodlighting needs.

Energy-efficient LED floodlight for sign, facade,

area, accent and general security lighting.

• Die-cast aluminum housing and door, rugged,

corrosion resistant and compact

• Tempered, impact resistant glass lens

• Tool-free entry for easy maintenance – twin

stainless steel latches

• Protective dark bronze powder paint finish

• Effective projected area (EPA) is 1.4 sq. ft.

• 30 high powered LEDs deliver up to 6200

lumens at 700mA with 88 LPW efficacy

• Different lenses offer a variety of beam spreads

– Narrow, Medium, Rectangular and Wide

• 10KA, 10KV surge protection included

• 3000K, 4000K, and 5000K CCT

• Silicone lens/door gasket provides positive seal

• Electronic driver 71w system. 0.4 AMPS max,

120-277V, 50/60Hz, 0-10V dimming

• Flat glass lens protects LEDs and allows easy

cleaning and debris removal

• Steel yoke (MHS-Y) with three-hole pattern

allows versatile mounting

• Cast aluminum knuckle (MHS-K) slip-fits

2 3/8” OD tenons/pipe, provides concealed

wiring for appearance and safety

• Listed to UL1598 for use in wet locations

• 4K and 5K models DesignLights

Consortium (DLC) qualiﬁed, consult DLC

website for more details:

http://www.designlights.org/QPL

Miniliter® LED Series

Catalog Number Description CCT Lumens Watts

MHS-Y-30LU-5K-W-BZ Flood, Yoke, 30 LED, 120-277V, Wide Beam, Bronze 5000K 6164 71

ACCESSORIES/REPLACEMENT PARTS

- STOCK (ORDER SEPARATELY)

Catalog Number Description

FLL-VISOR-DB Top visor (Tap holes in lens frame for ﬁeld installation)

93058186 96w, 120-277V Dimming driver, 1050mA (1 Qty)

MHS 30L

FAMILY

MHS

# LEDS

30L

MOUNTING

YYoke

KKnuckle

VOLTAGE

U120V-277V

FIXTURE

COLOR

BZ Bronze

CCT

4K 4000K,

70 CRI

5K 5000K,

67 CRI

BEAM

NNarrow

(Narrow

3x3)

MMedium

(Wide

3x3)

WWide

(6x6)

OPTIONS

PC1 Button photocontrol 120V

PC2 Button photocontrol 277V

ORDERING INFORMATION

10-Day Quick Ship Ordering Guide

Order Limit Per Fixture Selection: 15 – BC Pkg Code

5-Day Quick Ship Ordering Guide

Order Limit Per Fixture Selection: 15 – BC Pkg Code

Visit www.hubbelloutdoor.com/products for up-to-date availability information

LED FLOODLIGHTING

Miniliter® LED Series

MHS

Series Number Equivalency Delivered

Lumens

System

Watts

Energy

Savings

Max Candle

Power

Beam

Pattern CCT # Drivers/

Current

MH HPS

MHS-X-30LU-3K-N 250w 250w 4500 71 71% 34958 Narrow

3 X 3 3000K 1@700mA

MHS-X-30LU-3K-M 250w 250w 4632 71 71% 19018 Wide

3 X 3 3000K 1@700mA

MHS-X-30LU3K-RM 250w 250w 4079 71 71% 7146 Rectangular

5 X 5 3000K 1@700mA

MHS-X-30LU-3K-W 250w 250w 4468 71 71% 3755 6 X 6 3000K 1@700mA

MHS-X-30LU-4K-N 250w 250w 5530 71 71% 43674 Narrow

3 X 3 4000K 1@700mA

MHS-X-30LU-4K-M 250w 250w 5996 71 71% 23391 Wide

3 X 3 4000K 1@700mA

MHS-X-30LU-4K-RM 250w 250w 5163 71 71% 9514 Rectangular

5 X 5 4000K 1@700mA

MHS-X-30LU-4K-W 250w 250w 5792 71 71% 4538 6 X 6 4000K 1@700mA

MHS-X-30LU-5K-N 250w 250w 6045 71 77% 45341 Narrow

3 X 3 5000K 1@700mA

MHS-X-30LU-5K-M 250w 250w 6233 71 77% 24530 Wide

3 X 3 5000K 1@700mA

MHS-X-30LU-5K-RM 250w 250w 5575 71 77% 9246 Rectangular

5 X 5 5000K 1@700mA

MHS-X-30LU-5K-W 250w 250w 6164 71 77% 4559 6 X 6 5000K 1@700mA

PERFORMANCE INFORMATION

ORDERING INFORMATION – (BC PKG CODE)

OPTIONS

FFusing

(voltage

speci-

ﬁed and

determined

by voltage

ﬁeld)

MHS 30L

FAMILY

MHS

# LEDS

30L

MOUNTING

YYoke

KKnuckle

VOLTAGE1

U120V-277V

1120V

2208V

3240V

4277V

5480V

F347V

FIXTURE

COLOR

BZ Bronze

BL Black

WH White

GR Gray

PL Platinum

CC Custom

Color

CCT2

3K23000K,

80 CRI

4K 4000K,

70 CRI

5K 5000K,

67 CRI

BEAM

NNarrow

(Narrow

3x3)

MMedium

(Wide

3x3)

RM Rectangu-

lar (5x5)

WWide

(6x6)

DRIVE

CURRENT

BLANK 700mA

PC Photo but-

ton Control

(voltage

speci-

ﬁed and

determined

by voltage

ﬁeld)

PR Twist lock

photocontrol

receptacle

1 Specify voltage for PC and Fusing options

2 DLC qualiﬁcation 4K and 5K models only

MADE-TO-ORDER

Visit www.hubbelloutdoor.com/products for up-to-date availability information

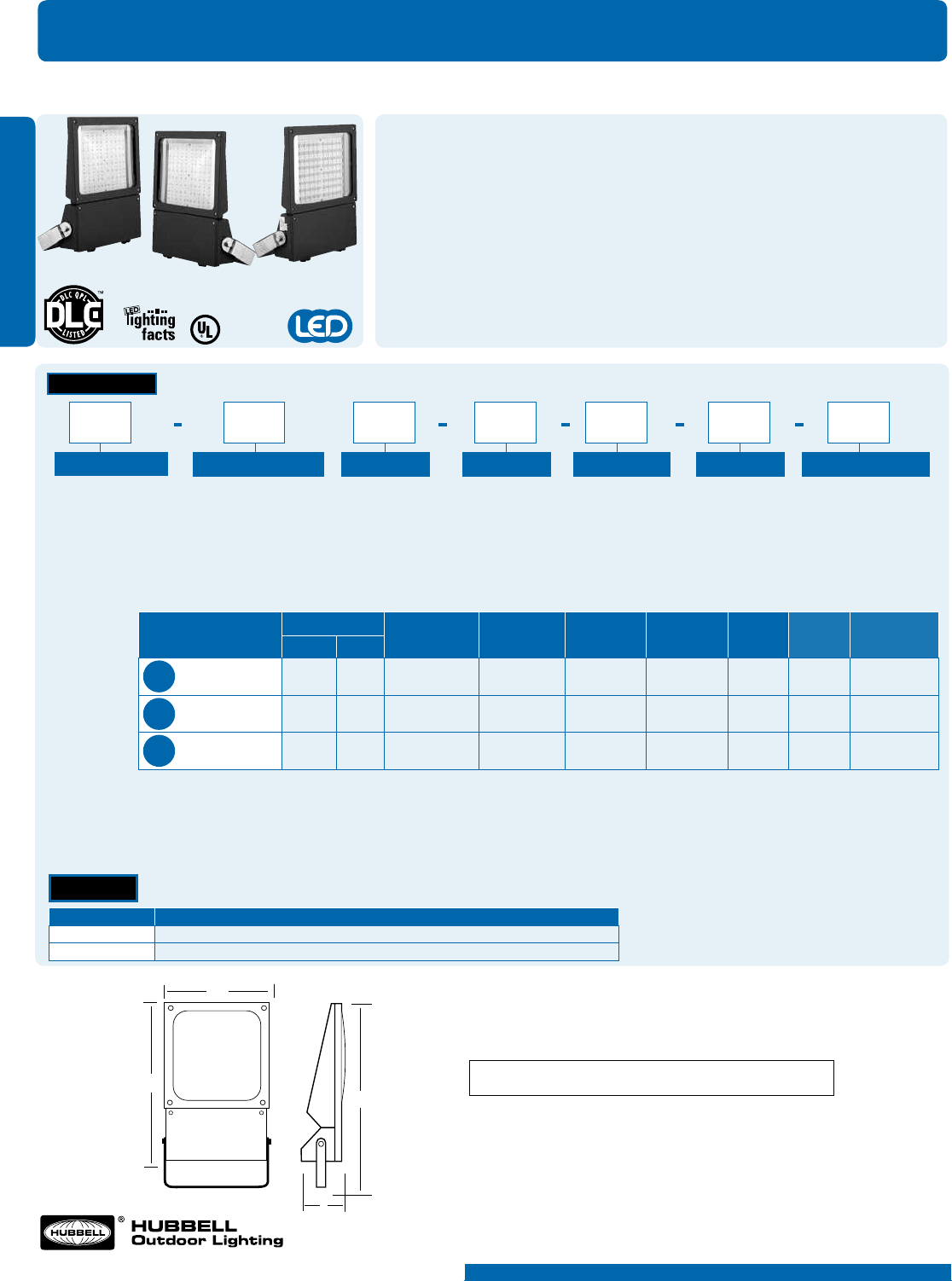

LED FLOODLIGHTING

MLED

Magnuliter LED Floodlights

The MLED family is a large area LED ﬂoodlight

designed to provide multiple NEMA distributions

for best beam utilization for safety and security,

build façade illumination, ﬂag lighting, large

sign or statuary accent.

Available in 80 LED ﬂoodlight that produces

up to 11,500. Three NEMA beam spreads (3x3,

5x5, 7x7) allow the best utilization of the

lumens and reduce spill light. The light engine

is protected from the elements by the sealed

tempered molded glass outer lens.

• LED drivers are universal 120-277V, 50/60Hz

• 80 LED ﬂoods 179w, 120-277V

• The lens door is sealed with four stainless

steel screws and features a convex molded glass

protective lens sealed with silicone gaskets

• A heavy gauge steel full yoke with aiming

angle increments provided along with locking

washers and stars for vibration resistance

• Listed to UL1598 for use in wet locations,

IP65 rated; Some models meet DesignLights

Consortium (DLC) qualiﬁcations, consult DLC

website for more details:

http://www.designlights.org/QPL

A B C D EPA Weight

16" 18.8" 4.3" 21.0" 2.0 ft² 20 lbs.

406 mm 476 mm 108 mm 534 mm 0.06 m² 9.09 kg

DIMENSIONS

SERIES

MLED Magnuliter

LED Series

MLED U 5K

NUMBER OF LEDS

80L180 LEDs

VOLTAGE

U120-277V

5480V

CCT

5K 4800K

nominal

BEAM SPREAD

WWide 7x7

MMedium 5x5

N1Narrow 3x3

FINISH

BZ Bronze

BL Black

GR Gray

WH White

OPTIONS

PRU Photocontrol

receptacle

120-277V

SP Surge

protection

Catalog Number Description

4024C 2 3/8” O.D. slipﬁtter for yoke units – Bronze

4090 Heavy-duty cast iron crossarm ﬁtting for horizontal trunnion; Bronze Lektrocote®

ACCESSORIES/REPLACEMENT PARTS

- (ORDER SEPARATELY)

Series Number Equivalency Delivered

Lumens

System

Watts

Lumens Per

Watt

Max Candle

Power

Beam

Pattern CCT Drivers/

Current

MH HPS

MLED-80LU-W 400w 400w 9,874 176 55 3,585 7 X 7 4800K 2@525mA

MLED-80LU-M 400w 400w 11,226 178 62 17,648 5 X 5 4800K 2@525mA

MLED-80LU-N 400w 400w 11,532 179 64 61,540 3 X 3 4800K 2@525mA

PERFORMANCE INFORMATION

48%

SAVINGS!*

48%

SAVINGS!*

48%

SAVINGS!*

MLED-80LU-5K-W

MLED-80LU-5K-M MLED-80LU-5K-N

IP65

LED Product Partner

1 - MLED-80LU-5K-N model DLC qualiﬁed

ORDERING INFORMATION – (BC PKG CODE)

MADE-TO-ORDER

STOCK

Visit www.hubbelloutdoor.com/products for up-to-date availability information 11

Architectural LED Floodlight/Wall Mount

ALF

• ALF is excellent for small floodlighting

applications such as signs, façade, land

scape accent or small area illumination

• The compact, low profile size allows the

flood to be easily hidden or blend into

the landscape environment

• Knuckle mount: Universal ½” swivel

knuckle has serrated teeth for sure aiming

• Wall mount: Cast aluminum cover/quick

mount plate and universal adapter allows

easy installation to 3 1/2 or 4” standard

junction boxes; Tilt for increased foward

throw; up to 10ft mounting height

• Universal voltage driver is 120-277V,

50/60Hz, with 11 or 22 input watts

• Impact resistant tempered glass lens s

seals to housing with silicone gaskets

• Dark bronze durable powder paint finish

• Six or twelve 1.5w LEDs produce 510 or

1000 lumens at 5100K

• Wide 110 degree lateral spread covers

three times the set back distance with

uniform light

• Listed to UL1598 for use in wet locations

AFL-6: IP65, ALF12: IP64

Catalog Number Wattage Number of LEDs Voltage1Delivered

Lumens

Max Candle

Power CCT Beam

Pattern

# Drivers/

Current

Weight

lbs. (kg)

PKG.

CODE

1/2" Knuckle Mount

ALF-6LU-5K-BZ 10.7w 6 120-277V 510 628 5100K 6 X 5 1@470mA 4.0 (1.8)

FCC

ALF-12LU-5K-BZ 21.5w 12 120-277V 1000 1208 5100K 6 X 5 2@470mA 8.0 (3.6)

FCC

Wall Mount

ALFW-6LU-5K-BZ 10.7w 6 120-277V 510 - 5100K - 1@470mA 4.5 (2.0)

FCC

ALFW-6LU-5K-BZ-PC 10.7w 6 120V 510 - 5100K - 1@470mA 4.5 (2.0)

FCC

1 Unit should not be used above 240V in Canada

A B C D

12/24" 3 1/2" 1 1/2" 3 1/2"

305/609.6 mm 89 mm 38 mm 89 mm

EQUIVALENCY INFORMATION

A B C D

5 1/2" 6 1/2" 1 1/8" 2 1/8"

139 mm 165 mm 28 mm 54 mm

Series Number Equivalency Energy

Savings

MH HPS CFL

ALF/ALFW-6L 70w 70w 26w 85%

ALF-12LU 100w 100w 42w 80%

DIMENSIONS

ALF-6LU

ALFW-6LU

ALF-12LU

LED FLOODLIGHTING

PERFORMANCE INFORMATION

ORDERING INFORMATION

STOCK

Visit www.hubbelloutdoor.com/products for up-to-date availability information

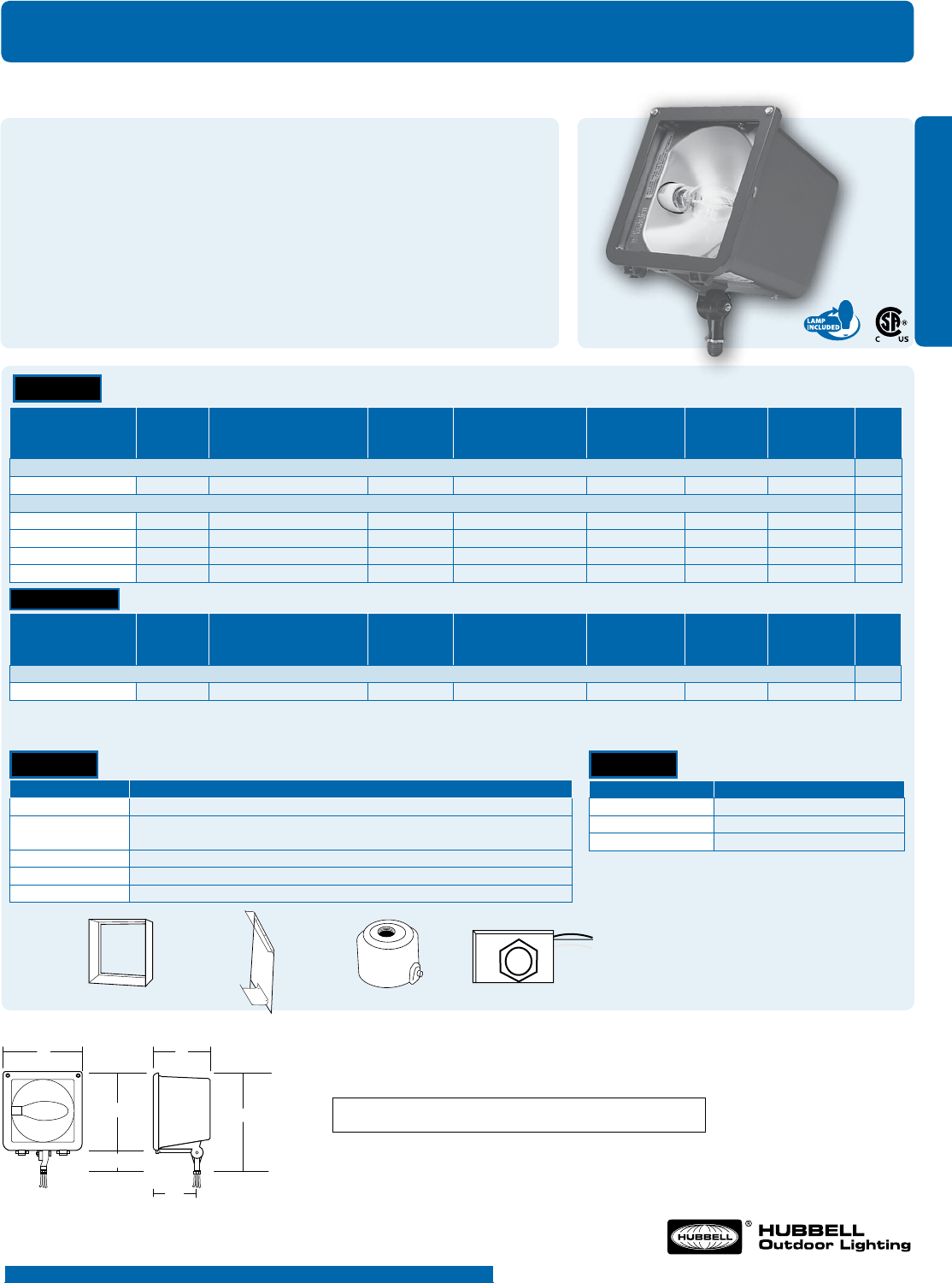

Close Setback Floodlight

• Durable die-cast aluminum housing -

has front gasket to seal to lens door

• Polycarbonate lens door retains

tempered glass lens and provides

tool-free entry

• Rugged 1/2” swivel knuckle for simple

mounting to boxes or adapters

(1/2-10NPSM)

• Wide, uniform beam spread designed for

close set backs; Coverage is four times

set back distance

• Ballastry -

– HPS is reactor NPF 120V,

-40°F starting

– 50 PS is CWA HPF 120V,

-20°F starting

– 70-100 PSMH is CWA HPF 120-277V,

-20°F starting, wired to 120V

– 42 CFL is electronic 50/60 Hz

120-277V, 0°F starting

• Bronze powder coat protective ﬁnish

• Lamp included

•

Listed to UL1598 for use in wet locations

Facade Flood

Catalog Number Lamp Type/Wattage NEMA Beam

Type1 H° x V° Voltage Weight

lbs. (kg)

EPA

ft² (m²) Ballast Type PKG.

CODE

High Pressure Sodium

F-150S1 150 6(127°) x 7(146°) 120 8 (3.6) .6 (0.1) RX

FCC

Pulse Start Metal Halide

F-050H1 50 6H x 7V 120 8 (3.6) .6 (0.1) CWA

FCC

F-070H1 70 6H x 7V Quad-Tap®9 (4.1) .6 (0.1) CWA

FCC

F-100H1 100 6(128°) x 7(146°) Quad-Tap®10 (4.5) .6 (0.1) CWA

FCC

Compact Fluorescent

F-042F8†42 6H x 7V Quad-Tap®5 (2.3) .6 (0.1) ELECTRONIC

FCC

Note: All HPS units are NPF; Pulse Start Metal Halide units are all HPF

Note: Medium base lamps included

†CFL lamp is 3500K

A B C D E F G

4 9/16” 6 7/8” 7 7/16” 8 1/16” 6 1/16” 2” 9”

116 mm 175 mm 189 mm 205 mm 154 mm 51 mm 229 mm

PBT-1 1031-1

S-314-B S-319-B S-329-B C-5 206-BC3

GLN-1-G NM-BC 1414 1031-1 1034 S-302

S-302-M51

S-314-B S-319-B S-329-B C-5 206-BC3

GLN-1-G NM-BC 1414 1031-1 1034 S-302

NMBC

S-314-B S-319-B S-329-B C-5 206-BC3

GLN-1-G NM-BC 1414 1031-1 1034 S-302

S-329-B

S-314-B S-319-B S-329-B C-5 206-BC3

GLN-1-G NM-BC 1414 1031-1 1034 S-302

REPLACEMENT PARTS1

Catalog Number Description

FL214-FRAMEGLASS Lens door assembly

FL214-GASKET Door gasket

FL214-KNUCKLE Bronze 1/2” knuckle

1 - BC Pkg Code

ACCESSORIES

1 - (ORDER SEPARATELY, BC PKG CODE)

Catalog Number Description

PBT-1 Photocontrol, button type, 120V

NMBC

Non-metallic, high-impact phenolic weatherproof box and cover; Box is drilled

at 180° for two burial cable connectors which are included allowing feed-

through capability; gasketed cover has weathertight 1/2” hub; Brass cover

screws

S-302-M51 Pole-top slipﬁtter for 1/2” knuckle, slipﬁts 2 3/8” OD pipe, bronze ﬁnish

S-329-B Cast round box with (4) 1/2” side hubs and (1) 1/2” back hub - cover included

with 1/2” hub for ﬁxture knuckle; natural aluminum ﬁnish

1031-3 Spike with splice box and 6 ft. cordset, portable; gray ﬁnish

1 - BC Pkg Code

LAMP

INCLUDED

HID FLOODLIGHTING

DIMENSIONS

ORDERING INFORMATION

STOCK

STOCK STOCK

Visit www.hubbelloutdoor.com/products for up-to-date availability information 13

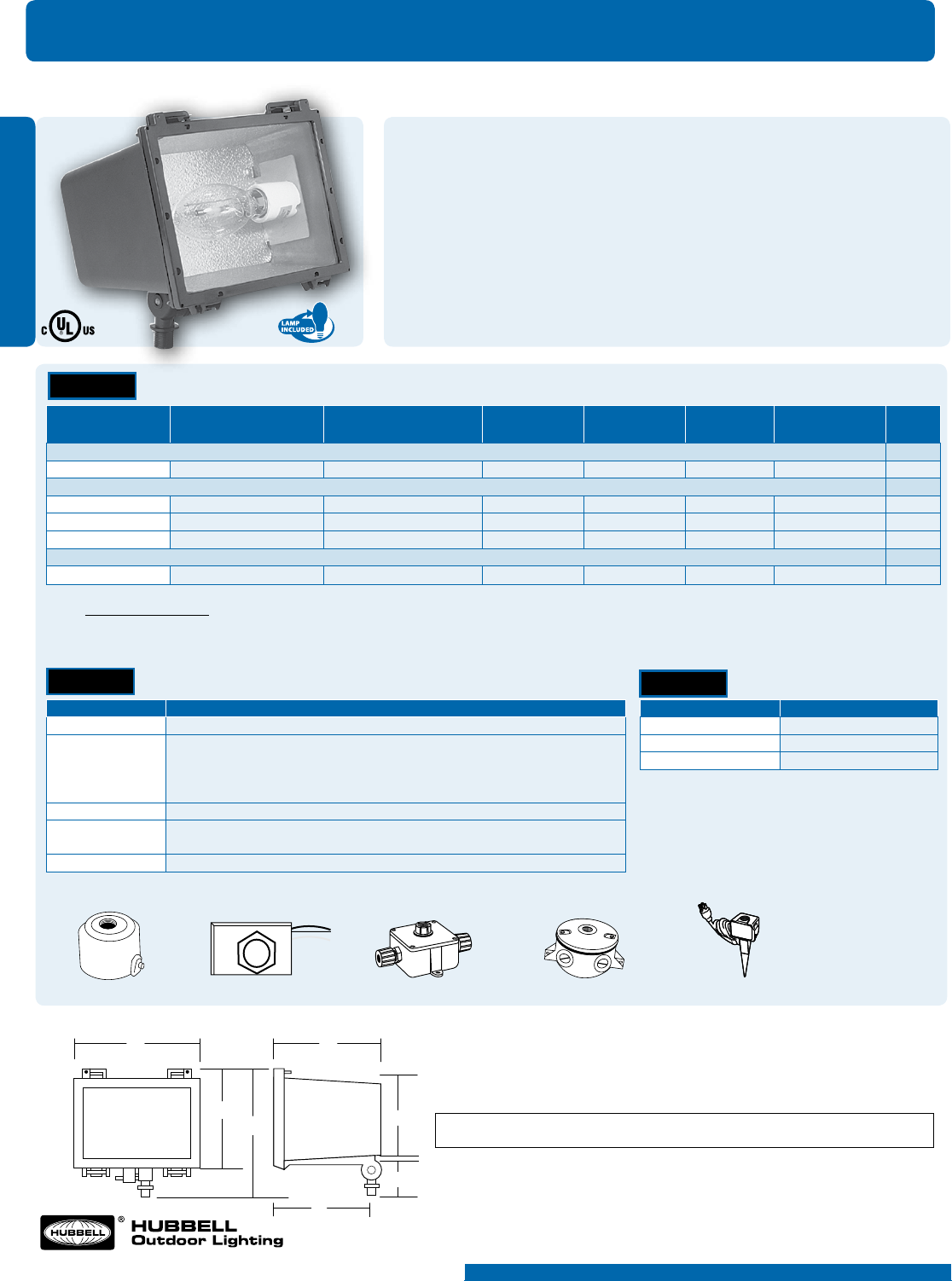

HID FLOODLIGHTING

Medium Beam Compact Floodlight

• Die-cast aluminum housing is light

weight, yet rugged

• Cast door frame hinges and is removable

for servicing, two screw closure

• Tempered, impact resistant glass lens,

silicone gasket provides seal

• Large 1/2” universal aiming swivel

knuckle (1/2 x 14 NPS)

• Rotatable optics for best beam utilization,

medium base lamp included

• Medium and spot distributions available

from 150w Pulse Start source;

Standard medium distribution covers two

times set back distance

• HPF Quad-Tap® and NPF 120V systems

available, consult ordering

information

• Bronze powder coat protective ﬁnish

• Lamp included

•

Listed to UL1598 for use in wet locations

Microliter® MIC

Catalog Number1Wattage

Photometry

NEMA/IES

H° x V°

Lamp Type Voltage Weight

lbs. (kg)

EPA

ft² (m²) Ballast Type2

PKG.

CODE

Normal Power Factor, High Pressure Sodium

MIC-0070S-651 70 5 (90°) x 6 (102°) Coated 120 NPF 9 (4.1) 0.71 (0.1) RX BC

High Power Factor, Pulse Start Metal Halide

MIC-0070H-358370 5 (81°) x 4 (60°) Clear 120/208/240/277 11 (5) 0.71 (0.1) AL BC

MIC-0100H-3583100 5 (86°) x 4 (62°) Clear 120/208/240/277 13 (5.9) 0.71 (0.1) AL FCC

MIC-0150P-3383150 3 (32°) x 3 (36°) Clear 120/208/240/277 14 (6.4) 0.71 (0.1) PLA FCC

MIC-0150P-3583150 6 (103°) x 5 (81°) Clear 120/208/240/277 14 (6.4) 0.71 (0.1) PLA BC

A B C D E F

4 7/8” 2 1/2” 9 1/4” 7 3/8” 12 1/8” 9 1/4”

124 mm 64 mm 235 mm 187 mm 308 mm 235 mm

PBT-1

S-314-B S-319-B S-329-B C-5 206-BC3

GLN-1-G NM-BC 1414 1031-1 1034 S-302

S-302-M51

MIC-SPC-2

MIC-GS-2

REPLACEMENT PARTS1

Catalog Number Description

264-0292-9903 Lens

800-2827-0100 Bronze lens/door assembly

207-5011-0264 Bronze knuckle

1 - BC Pkg Code

ACCESSORIES

1 - (ORDER SEPARATELY, BC PKG CODE)

Catalog Number Description

MIC-GS-2 Glare shield (360°) bronze

MIC-TB Crossarm trunnion box, half yoke with large wiring box for mounting to any

ﬂat surface

MIC-SPC-2 Polycarbonate shield assembly

S-302-M51 Pole-top slipﬁtter for 1/2” knuckle, slipﬁts 2 3/8” OD pipe, bronze ﬁnish

PBT-1 Photocontrol, button type, 120V

1 - BC Pkg Code

LAMP

INCLUDED

DIMENSIONS

Catalog Number1Wattage

Photometry

NEMA/IES

H° x V°

Lamp Type Voltage Weight

lbs. (kg)

EPA

ft² (m²) Ballast Type2

PKG.

CODE

Less Ballast - Medium Base Socket

MIC-XXXXX-XXX Less Ballast Varies 150 max None 6 (2.7) 0.71 (0.1) None BC

1 Lamp included

2 Ballasts are Class H, -40°F starting (HPS), -20°F starting (PSMH)

3 Quad-Tap® luminaires are shipped wired for 277V, easily changed to other voltages in the ﬁeld

ORDERING INFORMATION

MADE-TO-ORDER

STOCK

STOCK STOCK

Visit www.hubbelloutdoor.com/products for up-to-date availability information

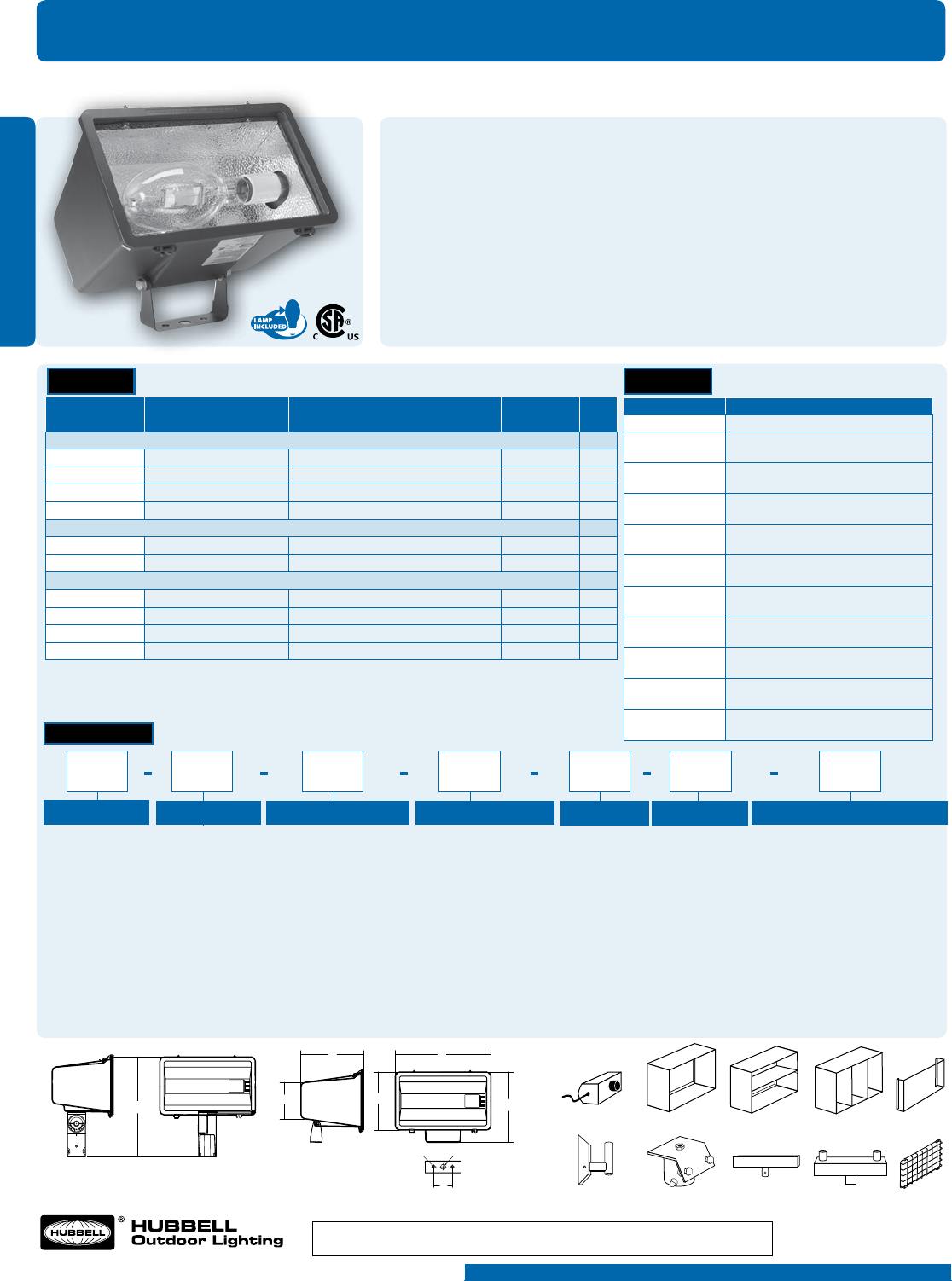

Compact Wide Beam Floodlight

• Sign, facade, area, accent and general

security lighting

• Die-cast housing and door, rugged but

lightweight

• Tempered glass lens

• Tool-free entry for lamping or

maintenance, silicone gasket provides seal

• Steel yoke (MHS-Y) or cast aluminum 2

3/8” knuckle slipﬁtter (MHS-K) mounting

• Lamp included

• HPF ballastry in Quad-Tap®, and 480V

(consult listings below)

• Wide, uniform beam for illumination of

signs, facades and large areas; coverage

is four times set back distance; lamp

included

• UST ﬁxtures are built in Christiansburg,

VA and meet ARRA level 2 requirements

• Available in dark bronze powder paint

ﬁnish

• Listed to UL1598 for use in wet loca-

tions, CSA 22.2 No. 250.0-00, suitable

for wet locations

• U.S. Patent No. 6,461,026

Miniliter® V MHS

ORDERING INFORMATION

ORDERING INFORMATION – (

BC PKG CODE)

Catalog Number Lamp Type/Wattage1Voltage Weight

lbs. (kg)

PKG.

CODE

Pulse Start Metal Halide Yoke Mount

MHS-Y400P8 400W PS ED37 Quad-Tap® (120, 208, 240, 277V) 26 (11.8)

FCC

MHS-Y400P5 400W PS ED37 480V 26 (11.8)

MHS-Y250P8 250W PS ED28 Quad-Tap® (120, 208, 240, 277V) 22 (10.0)

FCC

MHS-Y150P8 150W MH ED28 Quad-Tap® (120, 208, 240, 277V) 21 (9.5)

Pulse Start Metal Halide Knuckle Mount

MHS-K400P8 400W PS ED37 Quad-Tap® (120, 208, 240, 277V) 31 (14.1)

MHS-K250P8 250W PS ED28 Quad-Tap® (120, 208, 240, 277V) 27 (12.2)

High Pressure Sodium Yoke Mount

MHS-Y400S8 400W HPS E18 Quad-Tap® (120, 208, 240, 277V) 28 (12.7)

FCC

MHS-Y400S5 400W HPS E18 480V 28 (12.7)

MHS-Y250S8 250W HPS E18 Quad-Tap® (120, 208, 240, 277V) 24 (10.9)

MHS-Y150S8 150W HPS ED28 Quad-Tap® (120, 208, 240, 277V) 23 (10.4)

1 All ﬁxtures have dark bronze powder ﬁnish and are shipped with mogul base lamp; NOTE: EPA is 1.4 sq. ft.

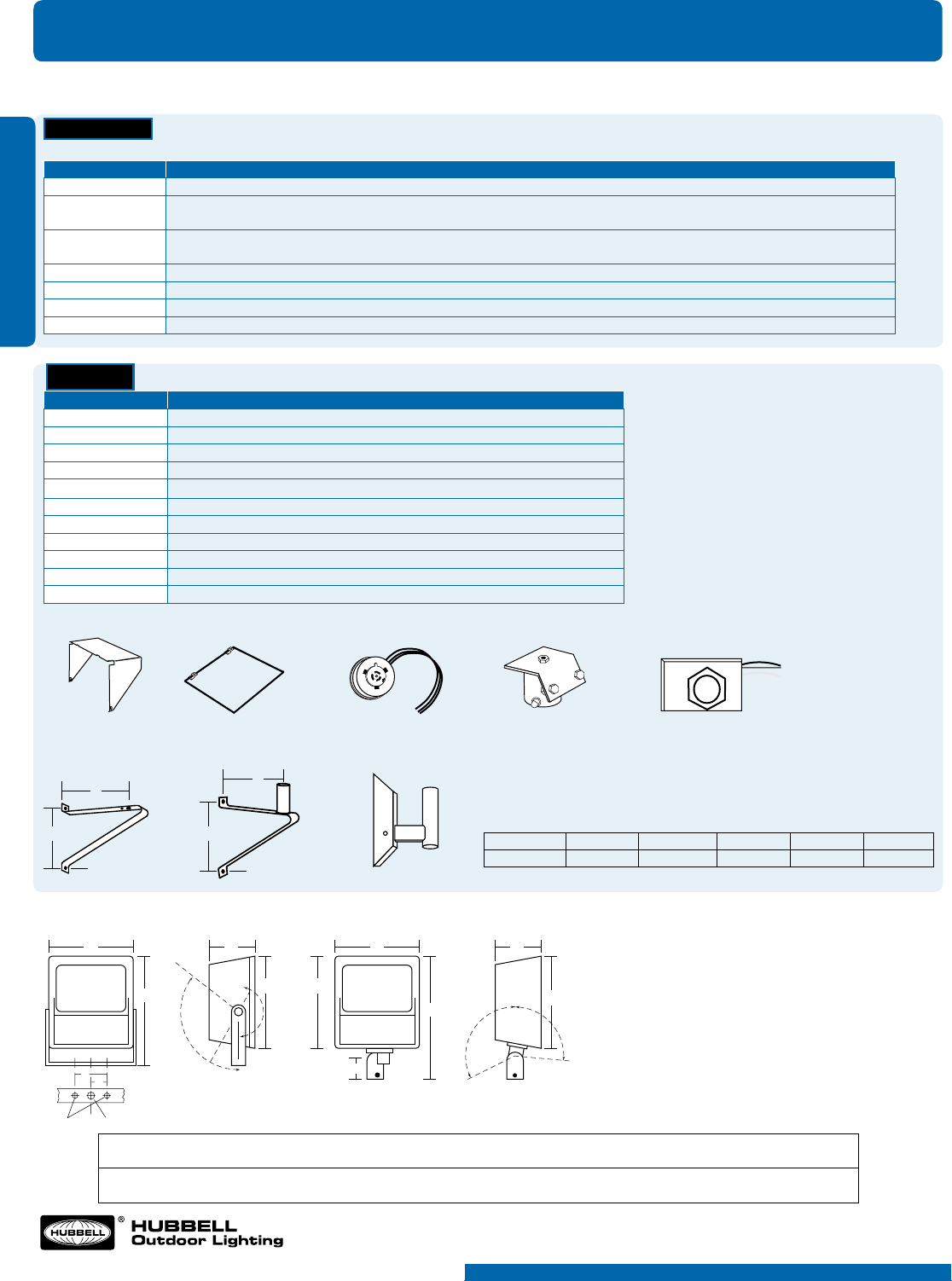

ACCESSORIES

- (ORDER SEPARATELY, BC PKG CODE)

Catalog Number Description

PBT-1 Photocontrol, button type, 120V

PBT-234 Photocontrol, button type, 208, 240,

277V

MHS4-SPC Polycarbonate shield (for independent

use only)

MHS4-G Wire guard, 2” square grid (for indepen-

dent use only)

4024C Steel slipﬁtter for 2” pipe, 2 3/8” OD

yoke mount, bronze ﬁnish

MHS4-GS Glare shield, black ﬁnish (for indepen-

dent use only)

MHS4-VGS Vertical glare shield, black ﬁnish (for

independent use only)

MHS4-HGS Horizontal glare shield, black ﬁnish (for

independent use only)

MHS-21 Two light bracket, bolt on yoke mount,

slipﬁts 2 3/8” OD tenons, bronze ﬁnish

SSB-21-M51 Two light bracket, knuckle mount units,

slipﬁts 2 3/8” OD tenons, bronze ﬁnish

TWK-11 Steel wall bracket with 2 3/8” tenon,

bronze ﬁnish (use with MHS-K)

MHS-Y (Yoke Mount)

ABCDEFGHI

6.25" 10.75 12.00" 9.875" 16.25" 3.125" .653" .875" 17.00"

165 mm 273 mm 305 mm 251 mm 413 mm 79 mm 17 mm 22 mm 432 mm

ABCDEFGHI

6.25" 10.75 12.00" 9.875" 16.25" 3.125" .653" .875" 17.00"

165 mm 273 mm 305 mm 251 mm 413 mm 79 mm 17 mm 22 mm 432 mm

A B C D E F G H I

6 1/2” 14 1/2” 12” 9 7/8” 16 1/4” 3 1/8” 17/32” 7/8” 17”

165 mm 368 mm 305 mm 251 mm 413 mm 79 mm 14 mm 22 mm 432 mm

PBT-1, PBT-234 MHS4-SPC

MHS4-GTWK-11

MHS4-GS MHS4-VGS MHS4-HGS

4024C MHS-21 SSB-21-M51

MHS KNUCKLE MOUNT

MHS-K

LAMP

INCLUDED

SERIES

MHS Miniliter V

Series

WATTAGE/SOURCE

PULSE START METAL

HALIDE

150P 150w PSMH

250P 250w PSMH

320P 320w PSMH

400P 400w PSMH

HIGH PRESSURE SODIUM

150S 150w HPS

250S 250w HPS

400S 400w HPS

MOUNTING

YYoke

KKnuckle

VOLTS

5480V

6347V

8Quad Tap®

(120, 208, 240, 277V)

OPTIONS

QST Quartz standby Skt/Relay

EM Quartz Skt

C3 3ft. 16/3 SO

C6 3ft. 16/3 SO

PR(X) NEMA Photo cell recep-

tacle (replace X with

voltage:

1=120V, 2=208V, 3=240V,

4=277V, 5=480V, 6=347V)

F(X) Fusing (replace X with

voltage: 1-120V, 2-208V,

3-240V, 4-277V, 5-480V,

6-347V)

MHS

FINISH

BZ Bronze

BL Black

WH White

GR Gray

PS Platinum

CC Custom

Color

UST

UST U.S.

trans-

formed,

ARRA

level 2

UST

MHS YOKE MOUNT

MHS-Y

HID FLOODLIGHTING

DIMENSIONS

MADE-TO-ORDER

STOCK STOCK

Visit www.hubbelloutdoor.com/products for up-to-date availability information

ORDERING INFORMATION – (

BC PKG CODE)

HID FLOODLIGHTING

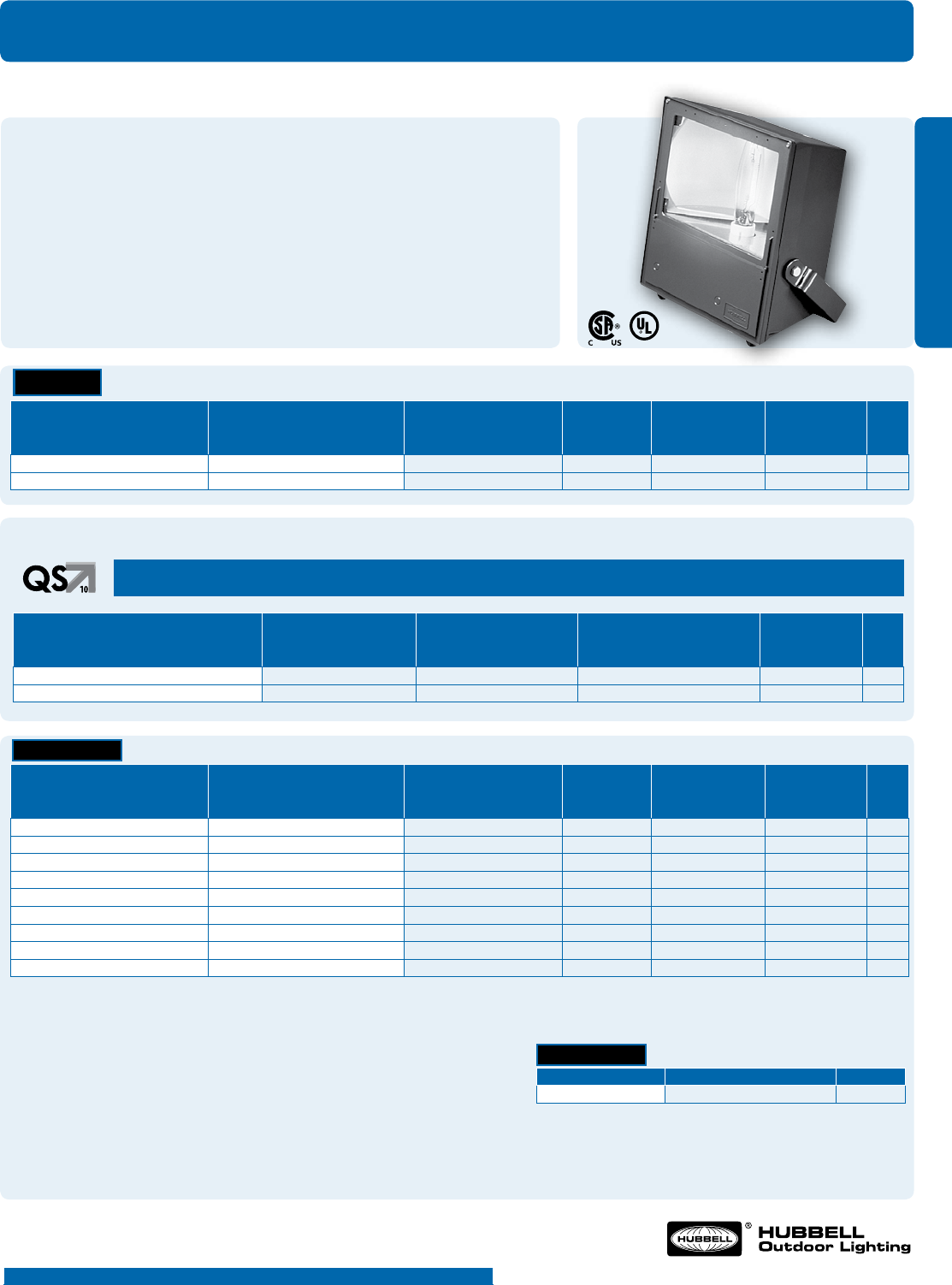

Magnuliter®

• MV series features vertical lamp, wide

uniform beam distribution (coverage is 4x

set back distance)

• MH series features horizontal lamp,

medium or narrow distribution (medium

distribution is 2x set back distance)

• Twin closure screws are steel with

protective HubbellGard® coating; Allow

easy service and long-life

• Die-cast aluminum housing and door

provide protection for internal components

• Tempered, clear glass lens, sealed with

silicone door gasket

• PowrPanl® ballast tray allows easy

access and ground maintenance of

electrical package up to 400w

• Quad Tap® ballast standard; Change

8 to 5 for 480V, to 6 for Tri-Tap 120/

277/347V, to E for 50Hz, 220/240V

• Standard dark bronze ﬁnish;

Add M50 for black, M53 for gray

•

Listed to UL1598 for use in wet locations

•

High ambient versions available – consult

factory

MV/MH

ORDERING INFORMATION

Catalog Number

MVM3

Trunnion Mount

Catalog Number

MVK1,3

Slipﬁtter Mount

Photometry

NEMA/IES

H° x V°

Source/

Wattage

Weight

lbs. (kg)

EPA

ft² m²

PKG.

CODE

MVM-1000H-2682MVK-1000H-26826(130°) x 6(114°) 1000w PSMH 44 (21.0) 2.3 .22 BC

MVM-1000H-2652 – 6(130°) x 6(114°) 1000w PSMH 44 (21.0) 2.3 .22 BC

MVM

1 For use with remote ballasts, maximum wattage: 400; MHK slipﬁts 23/8” O.D

2 3 ft. of 16/3 S.O. cord (cord on MVM style only) included; Dark bronze ﬁnish is standard

3 Dark bronze ﬁnish is standard

4 ED28 lamp size is required; For lamp shipped in ﬁxture carton add - LP

NOTE: Lamps are not included; All ballasts are HPF and Quad-Tap® 120/208/240/277V; For 480V,

change last digit 8 to 5; For Tri-Tap® 120/277/347V, change last digit 8 to 6;

For 220/240V, 50 Hz, consult factory; Order mounting accessories separately

REPLACEMENT PART

Catalog Number Description PKG. CODE

800-2918-0115 Lens door assembly, bronze BC

Catalog Number

MVM3

Trunnion Mount

Catalog Number

MVK1,3

Slipﬁtter Mount

Photometry

NEMA/IES

H° x V°

Source/

Wattage

Weight

lbs. (kg)

EPA

ft² m²

PKG.

CODE

MVM-HPS-SEA21 – 7(146°) x 6(115°) less ballast 19 (8.6) 2.3 .22 BC

MVM-0250P-2684 MVK-0250P-26847(146°) x 6(115°) 250w PSMH 36 (16.3) 2.3 .22 BC

– MVK-0400P-26847(146°) x 6(119°) 400w PSMH 41 (18.6) 2.3 .22 BC

MVM-0250S-268 MVK-0250S-268 7(144°) x 6(113°) 250w HPS 36 (17.3) 2.3 .22 BC

MVM-0400S-268 MVK-0400S-268 7(144°) x 6(113°) 400w HPS 43 (19.5) 2.3 .22 BC

MHP-0400P-338 MHK-0400P-338 3(44°) x 3(37°) 400w PSMH 32 (14.5) 2.3 .22 BC

MHP-0400P-368 MHK-0400P-368 5(83°) x 5(85°) 400w PSMH 32 (14.5) 2.3 .22 BC

MHP-0400S-238 MHK-0400S-238 5(73°) x 3(32°) 400 HPS 43 (19.5) 2.3 .22 BC

MHP-0400S-268 MHK-0400S-268 7(144°) x 6(113°) 400 HPS 43 (19.5) 2.3 .22 BC

10-Day Quick Ship Ordering Guide

Order Limit Per Fixture Selection: 15 – BC Pkg Code

Catalog Number

Trunnion Mount

Photometry

NEMA/IES

H° x V°

Source/

Wattage

Weight

lbs. (kg)

EPA

ft² m²

PKG.

CODE

MVM-0400P-268 7(146°) x 6(119°) 400w PSMH 41 (18.6) 2.3 .22 BC

MVM-0400P-268-LP (Lamp included) 7(146°) x 6(119°) 400w PSMH 41 (18.6) 2.3 .22 BC

ORDERING INFORMATION

MADE-TO-ORDER

STOCK

Visit www.hubbelloutdoor.com/products for up-to-date availability information

Magnuliter®

MV/MH

ORDERING INFORMATION - OPTIONS

B D

E E

155

120

B D

120

MVM/MHPMVK/MHK

OPTIONS - Add Sufﬁx

Catalog Number Description

-F(X) Single fuse for 120/277/347V; Double fuse for 208/240/480V; (specify voltage, e.g. “F(240)”)

-PCR(X) Twist-Lockw photocontrol receptacle, specify voltage (e.g. “PCR(120)”) when ordering with Quad-Tap or Tri-Tap (PTL photocontrol or

WIH-OM ordered separately)

-C(X1)(X2)16/3 pre-wired S.O. Cord - replace X1 with cord length desired: 3 - 3ft.; 6 - 6ft.; 12 -12ft.; specify voltage by replacing X2

(e.g. “C6(120)”); not available in knuckle style mounting

-L Unit with lamp (shipped separately)

-LP Unit with lamp (shipped in ﬁxture carton)

-M53 Gray Lektrocote® ﬁnish

-M50 Black Lektrocote® ﬁnish

ACCESSORIES - (ORDER SEPARATELY)

Catalog Number Description

MVM-V21Top visor

MVM-S21, 2 Polycarbonate shield

MVM-PCR Photocontrol receptacle (120-480V) less photocontrol

4024C Steel slipﬁtter for MVM, mounts over 2 3/8” OD tenons

PBT-1 Button photocontrol 120 volt (knockout on back & door)

PBT-234 Button photocontrol 208, 240, 277 volt

4040 Steel angle bracket for MVM, bronze ﬁnish

4041 Steel angle bracket with 2 3/8” OD tenon for MVK, bronze ﬁnish

TWK-11 Steel wall bracket with 2 3/8” tenon, bronze ﬁnish (use with MVK/MHK)

WIH-OM-UNV

120/277/347VAC Wireless On/Off control, see PSG8 pg. 382

WIH-OM-480

480VAC Wireless On/Off control, see PSG8

1 Visor and polycarbonate shield may be used together; Visors are ﬁnished in bronze Lektrocote®

2 For use with 400w and below

A B C D E F G H I J

3 1/8” 16 3/8” 25 1/2” 9” 17 7/8” 17/32” 7/8” 1 9/16” 12” R. 8 5/8” R.

MVM/MHP 79 mm 416 mm 648 mm 229 mm 454 mm 14 mm 22 mm 40 mm 305 mm 219 mm

5 1/2” 16 3/8” 25 1/2” 9” 17 7/8” - - - - -

MVK/MHK 140 mm 416 mm 648 mm 229 mm 454 mm - - - - -

MVMV-2

15.7” WIDE

6.0” DEEP

8.2” TALL AT DOOR

MVMS-2

.125”

POLYCARBONATE

MVM/MHP MVK/MHK

MVM-PCR

KNOCKOUT ON BACK OF

HOUSING

4024C PBT-1, PBT-234

4040 4041

TWK-11

A B C D E F

8 1/4” 9 1/2” 11/16” dia. 11” 8” 8”

210 mm 241 mm 17.4 mm 279 mm 203 mm 203 mm

FLOODLIGHTING

DIMENSIONS

MADE-TO-ORDER

STOCK

Visit www.hubbelloutdoor.com/products for up-to-date availability information

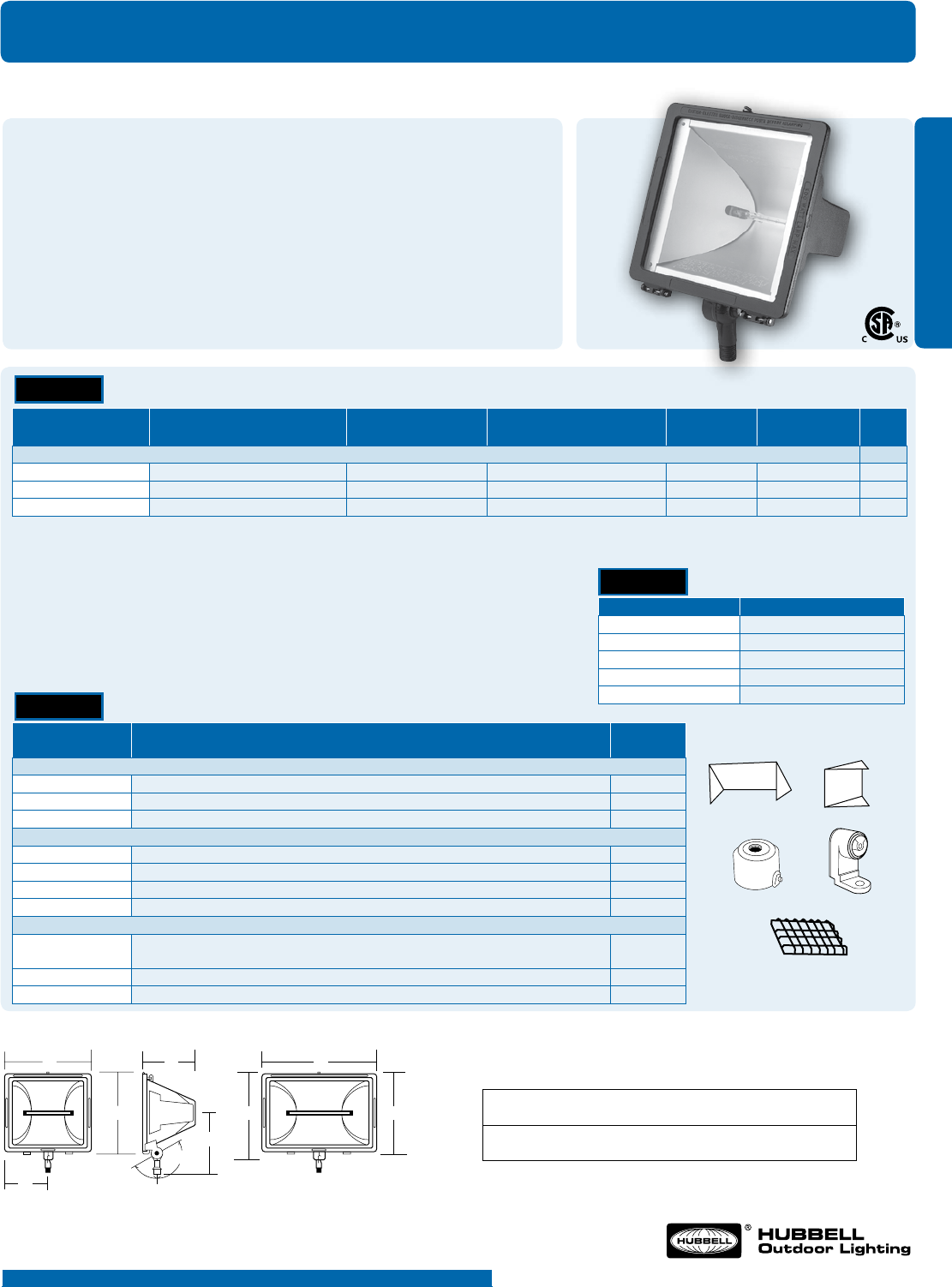

Quartzliter® Series – Industrial Grade

• Die-cast aluminum housing and door,

deep ﬁn system maintains rated lamp life

• High temperature lens, silicone gasket,

tool-free stainless latch entry

• Large 1/2” swivel knuckle provides

versatile aiming

• QL produces a wide uniform beam with

true color rendering

• QL505 suitable for 300-500w lamps,

QL1505 suitable for 900-1500w lamps

• Models available with or without lamp,

consult listings

• Gray and dark bronze ﬁnishes are avail-

able, consult listings

•

Listed to UL1598 for use in wet locations

ORDERING INFORMATION

Catalog Number Max. Watts Housing Finish NEMA Beam Spread

H° x V°

Weight

lbs. (kg)

EPA

ft² (m²)

PKG.

CODE

Lamp Not Included

QL-150511000/1500 Gray 6(115°) x 5(78°) 6 (2.7) .9 (0.1) BC

QL-505 300/500 Gray 5(88°) x 5(82°) 4 (1.8) .5 (0.1) BC

QL-505-BZ 300/500 Bronze 5(88°) x 5(82°) 4 (1.8) .5 (0.1) BC

1 Do not aim at ±10° from horizontal or higher

2 Fixture voltage is controlled by lamp voltage rating

Note: Do not operate on voltage higher than lamp voltage rating,

shortens lamp life and increases heat stress within the ﬁxture

60 120

A B C D E F

4 5/16” 8 5/8” 8 1/2” 5 1/4” 7” 2 1/2”

QL-505 110 mm 219 mm 216 mm 133 mm 178 mm 64 mm

4 1/2” 14” 8 1/2” 5 1/4” 7” 2 1/2”

QL-1505 292 mm 356 mm 216 mm 133 mm 178 mm 64 mm

ACCESSORIES (ORDER SEPARATELY)

Catalog Number Description Weight

lbs. (kg)

QL-505 Series

QL-5G Wire guard (2 inch square grid) 1 (0.5)

QL-VS Top/side visor (max use two - at 1800) .5 (0.2)

26100119905 500w 120V Quartz lamp -

QL-1505 Series

QL-15G Wire guard (2 inch square grid) 1.3 (0.6)

QL-15V Top visor / bottom visor 1.3 (0.6)

QL-VS Side visor (will not work with QL-15V on same ﬁxture) .5 (0.2)

26100149902 1500w 240V Quartz lamp -

QL-500 / QL-1500

QL-TB Crossarm trunnion box; Half yoke with large wiring box for mounting to any ﬂat

surface, natural aluminum .8 (0.4)

S-302 Pole top slipﬁtter for 1/2” swivel knuckle; slipﬁts 2 3/8” OD pipe; gray ﬁnish .8 (0.4)

S-302-M51 Pole-top slipﬁtter for 1/2” knuckle, slipﬁts 2 3/8” OD pipe; bronze ﬁnish .8 (0.4)

REPLACEMENT PARTS

Catalog Number Description

26401849803 Glass lens QL505

26401839805 Glass lens QL1505

20750110214 Knuckle, gray

80021660108 Replacement socket QL505

705327 Replacement socket QL1505

S-314-B S-319-B S-329-B C-5 206-BC3

GLN-1-G NM-BC 1414 1031-1 1034 S-302

Top Visor Side Visor

S-302 QL-TB

Guard

ORDERING INFORMATION - OPTIONS

HID FLOODLIGHTING

DIMENSIONS

STOCK

Visit www.hubbelloutdoor.com/products for up-to-date availability information

Quartz Floods – Commercial Grade

Q Series

ORDERING INFORMATION

• General and accent ﬂood lighting where

short burning hours are planned

• Instant on/off

• 150 to 500w capability

• Die-cast aluminum construction for

long life

• Single screw door closure for easy

installation

• Tempered glass lens protects lamp

• 1/2” Cast swivel knuckle ﬁts standard

boxes and covers

• Wide, uniform beam for even illumination

• 120V lamps are included

• Units offered in dark bronze or white

powder paint ﬁnish

•

Listed to UL1598 for use in wet locations

Q300X

Q150W

Catalog Number Wattage/Voltage Color

Photometry

NEMA/IES

H° x V°

Weight

lbs. (kg)

EPA

ft² (m²)

PKG.

CODE

Lamp Included

Q-150-B 150w/120V Bronze 6(124°) x 6(124°) 1.4 (0.6) .14 (.01) FCC

Q-150-W 150w/120V White 6(124°) x 6(124°) 1.4 (0.6) .14 (.01) FCC

Q-300-B 300w/120V Bronze 6(109°) x 4(66°) 2.6 (1.2) .6 (.05) FCC

Q-300-W 300w/120V White 6(109°) x 4(66°) 2.6 (1.2) .6 (.05) BC

Q-500-B 500w/120V Bronze 6(100°) x 5(86°) 2.6 (1.2) .6 (.05) FCC

Q-500-W 500w/120V White 6(100°) x 5(86°) 2.6 (1.2) .6 (.05) FCC

A B C D

5 7/16” 3 7/8” 5 1/2” 4”

Q150X 138 mm 98 mm 139 mm 100 mm

Q500X/ 3 5/8” 7 23/32” 8 13/16”

Q300X 92 mm 196 mm 227 mm

Q150X Q500X/Q300X

Q500B

LAMP

INCLUDED

HID FLOODLIGHTING

DIMENSIONS

STOCK

Visit www.hubbelloutdoor.com/products for up-to-date availability information 19

ORDERING INFORMATION ORDERING INFORMATION

HID FLOODLIGHTING

Portable Quartz Work Lights

Versatile task lighting ﬁxtures, ﬁve-foot cord

set, weather-tight switch, 120V, protective

guard, adjustable aiming. Lamps included. UL

listed. QWL-1000T features adjustable tripod

unit with handy removable top for maximum

versatility. Twin 500w units with guards and

individual switching. Tripod and ﬁxtures are

safety yellow ﬁnish with black accents.

• Three popular styles with ﬁve foot cord sets

and weathertight switch

• Die-cast aluminum housing and door for light

weight

• Adjustable ﬁxture aiming after mounting

• Protective wire guards included

• Designed for standard 120V house current

• Mini-stand unit shipped with both 300 and

500w lamps for brightness choice and

twice the life

• Tripod “2 in 1” unit adjusts from 33” to 69”

height, twin 500w dual lamp upper assembly

easily removes for table top or ﬂoor mount

versatility

• Rigid steel tubing with tool-free nylon

twist clamps

• Listed to UL1598 for use in wet locations

QWL Series

Catalog Number Wattage/Voltage Mounting Weight

lbs. (kg) PKG. CODE

QWL-150C 150w/120V Clamp/hook 2.0 (.91) FCC

QWL-500S 500w/120V & 300w/120V Mini-stand 4.0 (1.8) FCC

QWL-1000T 2x500w/120V Tripod 27.0 (12.3) FCC

Note Lamp(s) included (T3-RSC)

QWL-500S

QWL-150C

QWL-1000T

A B

Base

31” 69”

QWT-1000T 203 mm 1752 mm

A B

Fixture

19” 14”

QWT-1000T 483 mm 356 mm

31.0"

(203 mm)

69.0"- 33.0"

(1752 mm - 838 mm)

19.0"

(483 mm)

14.0"

(356 mm)

A B C D

8" 12 1/4" 8 5/8" 8"

QWL-500S 203 mm 311 mm 219 mm 203 mm

8.0”

(203 mm)

5.5”

(140 mm)

3.875”

(98 mm)

1.25

”

(32 mm)

8.0”

(203 mm)

5.0”

(127 mm)

7.625”

(194 mm)

6.0”

(152 mm)

8.62”

(219 mm)

QWL500S

QWL150C

12.25”

(311 mm)

12.25”

(311 mm)

3.5”

(89 mm)

8.0”

(203 mm)

5.5”

(140 mm)

3.875”

(98 mm)

1.25”

(32 mm)

8.0”

(203 mm)

5.0”

(127 mm)

7.625”

(194 mm)

6.0”

(152 mm)

8.62”

(219 mm)

12.25”

(311 mm)

12.25”

(311 mm)

3.5”

(89 mm)

A B C D E F G H

5" 12 1/4" 7 5/8" 6" 5.5" 3.5" 1.25" 3 7/8"

QWL-150C 127 mm 311 mm 194 mm 152 mm 140 mm 89 mm 32 mm 98 mm

8.0”

(203 mm)

5.5”

(140 mm)

3.875”

(98 mm)

1.25”

(32 mm)

8.0”

(203 mm)

5.0”

(127 mm)

7.625”

(194 mm)

6.0”

(152 mm)

8.62”

(219 mm)

QWL500S

QWL150C

12.25”

(311 mm)

12.25”

(311 mm)

3.5”

(89 mm)

8.0”

(203 mm)

5.5”

(140 mm)

3.875”

(98 mm)

1.25”

(32 mm)

8.0”

(203 mm)

5.0”

(127 mm)

7.625”

(194 mm)

6.0”

(152 mm)

8.62”

(219 mm)

12.25”

(311 mm)

12.25”

(311 mm)

3.5”

(89 mm)

31.0"

(203 mm)

69.0"- 33.0"

(1752 mm - 838 mm

)

19.0"

(483 mm)

14.0"

(356 mm)

LAMP

INCLUDED

DIMENSIONS

STOCK

Visit www.hubbelloutdoor.com/products for up-to-date availability information

Decorative Twin-Head Quartz Halogen Motion Sensor Kit

R2LHQ

FLOODS/MOTION SENSORS

Attractive security ﬂoodlight set. Power-

ful 75w G8 quartz ﬂoods controlled by

130° motion sensor so you save energy –

lights only when you need it!

• Die-cast aluminum decorative heads

• Thumb screw adjustment for aiming –

no tools required

• Cast aluminum cover plate – use on 4"

junction boxes (not included)

• Weathertight 130° motion sensor with

multiple controls

• Lamps included

• White or bronze

•

Listed to UL1598 for use in wet locations

ORDERING INFORMATION

Catalog Number Watts Finish Beam Weight

lbs. (kg)

PKG.

CODE

R2LHQ 2x75 Bronze Wide 1.5 (.23) FCC

R2LHQW 2x75 White Wide 1.5 (.23) FCC

9”

10”

Projection 6.5”

S/M Series

SOW

S2LHW

S Series Motion Sensors

• 270° detection ﬁeld

• Surge protection; 600V, 1200A, 30

Joules

• Center focus range to 75 feet

• Broad 20-25 ft. detection range

• 1500w incandescent load capacity

• 120V, 60Hz

• Time-on adjustment; Manual override

• LED unit on indicator

• Test mode

• Sensitivity adjustment

• UL 1598 listed for use in wet locations

S Series Sensor Kits

• Sensor above plus (2) 150w PAR

cast aluminum lampholders and 4”

round cover plate

• Complete instructions for operation

• UL/C-UL wet location listed with

lampholders aimed below horizontal

M Series Motion Sensors

• 130° detection ﬁeld

• Surge protection; 600V, 1200A, 14 Joules

• Center focus range to 40 feet

• Broad 20 ft. detection range

• 500w incandescent load capacity

• 120V, 60Hz

• Time on adjustment

• Sensitivity adjustment

• Night/daytime or night operation mode

• UL 1598 listed for use in wet locations

M Series Sensor Kits

• White ﬁnish

• Sensor above plus (2) 150w PAR

non-metallic lampholders and 4” round

non-metallic cover plate

• Complete instructions for operation

• UL/C-UL wet location listed with

lampholders aimed below horizontal

Catalog Number Description Weight

lbs. (kg)

PKG.

CODE

SO-W Sensor only, 2700 detection range, white 0.7 (.32)

FCC

S2LH-W Sensor kit, twin 150w lampholders, cover plate, white 1.7 (.77)

FCC

MO-W Sensor only, 1300 detection range, white 0.5 (.23)

FCC

M2LH Sensor kit, 1300 detection range, twin lampholders, cover plate, bronze 1.2 (.54)

FCC

A B C

3 1/2” 8” 2 5/8”

S0 89 mm 203 mm 67 mm

10 1/2” 8 1/2”

S2 267 mm 216 mm

MO/MOW

M2LH

A B C

2 3/8” 6” 2 1/4”

M0 60 mm 152 mm 57 mm

10 1/2” 6”

M2 267 mm 152 mm

LAMP

INCLUDED

DIMENSIONS

STOCK

Visit www.hubbelloutdoor.com/products for up-to-date availability information 21

FLOODLIGHTING

ORDERING INFORMATION

Accessories: Trunnion Mount Fittings

Accessories: Wall and Pole Mount Brackets

Mounting Accessories

Catalog Number Description Weight

lbs. (kg)

HID Floodlights

4024C Steel slipﬁtter for 2" pipe, 2 3/8" OD yoke mount, bronze ﬁnish;

Also available in gray: 4024CM53 and galvanized: 4024CM38 4 (1.8)

4090 Heavy-duty cast iron crossarm ﬁtting for horizontal trunnion; Bronze Lektrocote®3 (1.4)

LR-301Safety retainer complete with crimp clamp and 30" long 1/8" stranded metal cable .3 (0.1)

1 For yoke (trunnion) mounted units only

Catalog Number1Description Weight

lbs. (kg)

Maximum Loading

Weight

For Use With Crossarm Fittings

4040 Heavy-duty steel wall/pole bracket; bronze Lektrocote®5.5 (2.5) 90 (40.8)

For Use With Slipﬁtter Fittings

4041 Heavy-duty steel wall/pole bracket 2" pipe (2 3/8" OD) tenon ﬁtting for use with slipﬁtter units

or 4024C; bronze Lektrocote®7 (3.2) 90 (40.8)

241-C-XX Flat surface bracket - 900 horn steel (2 3/8" OD) 16 (7.3) 70 (30.7)

TWK-11 Wall bracket with splice compartment for thru-wiring with 2" pipe (2 3/8" OD) tenon 15 (6.8) 90 (40.8)

TCB-1 Wood pole clamp on bracket with 2" pipe (2 3/8" OD) tenon; Clamps 6" to 12" diameter 16 (7.3) 70 (31.7)

TCB-2 Wood pole clamp on bracket with 2" pipe (2 3/8" OD) tenon; Two tenons at 120° (clamps 6" to

12" diameter) 20 (9.1) 140 (63.4)

TCB-3 Wood pole clamp on bracket with 2" pipe (2 3/8" OD) tenon; Three tenons at 120° (clamps 6"

to 12" diameter) 28 (12.7) 210 (95.1)

Tenon Reducers

TPR-222 1/2" to 2" pipe size tenon reducer 6 (2.7) 105 (47.6)

TPR-333" to 2" pipe size tenon reducer 8 (3.6) 105 (47.6)

TPR-444" to 2" pipe size tenon reducer 9 (4.1) 105 (47.6)

1 Bronze color standard, for other colors add sufﬁx to catalog number: -M50 black ﬁnish, -M52 white ﬁnish, -M53 gray ﬁnish.

2 Bracket I.D., 3 1/16"

3 Bracket I.D., 3 1/2"

4 Bracket I.D., 4 5/8"

(152 mm)

4024C LR-30

TCB-1 TCB-2 TCB-3 TPR

A B C D E

8 1/4” 9 1/2” 11” 8” 11/16” dia.

4040/4041 210 mm 241 mm 279 mm 203 mm 17 mm

4041

4040

4090

A B C D

3 1/8” 9/16” dia. 5/16” slot 13/16” dia.

4090 79 mm 14 mm 8 mm 21 mm

TWK-11

sq.

23/8" OD

65/8"

12"

6.75" sq. 11"

240-HBS-XX 241-C-XX

241-C

DIMENSIONS

ORDERING INFORMATION

STOCK

Visit www.hubbelloutdoor.com/products for up-to-date availability information

Accessories: Steel Bullhorns

Mounting Accessories

Accessories: Square Steel Brackets (Project ﬁnishes available)

Catalog Number Maximum Loading Description Finish Weight

lbs. (kg)

EPA

ft² (m²)

PKG.

CODE

Fixture Qty. Weight lbs (kg)

THB-21 2 210 (95.3) Two tenons at 180° Bronze 17 (7.7) .9 (0.1) PW

THB-21-M53 2 210 (95.3) Two tenons at 180° Gray 17 (7.7) .9 (0.1) PW

THB-31 3 315 (142.9) Three tenons at 180° Bronze 30 (13.6) 1.5 (0.1) PW

THB-32 3 315 (142.9) Three tenons at 120° Bronze 23 (10.4) 1.2 (0.1) PW

THB-41 4 420 (190.5) Four tenons at 180° Bronze 43 (19.5) 2.2 (0.2) PW

THB-43 4 420 (190.5) Four tenons at 90° Bronze 29 (13.1) 1.3 (0.1) PW

Catalog Number Description Maximum Weight Per Tenon

lbs. (kg)

EPA

ft² (m²)

Weight

lbs. (kg)

PKG.

CODE

SSB-21-M51 Twin 180° 60 (27.2) 1.2 (0.1) 24 (10.9) PW

SSB-31-M51 Triple 180° 60 (27.2) 2.3 (0.2) 44 (19.9) PW

SSB-41-M51 Quad 180° 60 (27.2) 3.4 (0.3) 64 (29) PW

SSB-43-M51 Quad 90° 60 (27.2) 2.8 (0.3) 46 (20.8) PW

Note: Bronze color standard, for others, add sufﬁx to catalog number: -M50; Black ﬁnish; M52; White ﬁnish; M53; Gray ﬁnish.

THB-21

THB-31

THB-41

(arm - arm)

A (ht)

THB-43

A B C D

17” 30” 21.25” 26”

431 mm 762 mm 539 mm 660 mm

A B C D E

24” 30” 54” 78” 30”

610 mm 762 mm 1372 mm 1981 mm 762 mm

(arm - arm)

A (ht)

SSB-21 SSB-31

SSB-41 SSB-43

Steel “bull horn” ﬂoodlight brackets. Fixture mounting pipe or tenons are 23/8" O.D. and brackets mount on 23/8" O.D. pole tenons.

Stainless steel set screws and thru-bolts included. Finishes as shown below.

Decorative steel ﬂoodlight brackets. 4" square tubing with 23/8" O.D. ﬁxture tenons. Square 4" bottom with 21/2" I.D. internal adapter for

standard round tenons. Available in multiple ﬁnishes as shown. Use with SSS series poles.

ORDERING INFORMATION

THB-32

(arm - arm)

A (ht)

FLOODLIGHTING

DIMENSIONS

MADE-TO-ORDER

Visit www.hubbelloutdoor.com/products for up-to-date availability information

A B C D

17” 30” 21.25” 26”

431 mm 762 mm 539 mm 660 mm

ORDERING INFORMATION

PHOTOCONTROLS

Photocontrols

Catalog Number Voltage Max. Watts Incand.

Max. Watts

HID Weight

lbs. (kg)

PKG.

CODE

HPF NPF

Photocontrol - Button Type1

PBT-16120 1200 400 250 .125 (0.1) SCC

PBT-2346208/240/277 1200 400 250 .125 (0.1) SCC

Catalog Number Voltage Max. Watts Incand.

Max. Watts

HID Weight

lbs. (kg)

PKG.

CODE

HPF NPF

Photocontrol - 1/2” Thread Mount2

PTA-16120 2000 1000 400 .25 (0.1) SCC

PTA-86120-277 2000 1000 400 .25 (0.1) SCC

PTA-56480 2000 1000 400 .25 (0.1) SCC

Photocontrol - Twist-Lock® Cell3

PTL-16120 1800 1000 400 .25 (0.1) SCC

PTL-86120-277 1800 1000 400 .25 (0.1) SCC

PTL-5 480 1800 1000 400 .25 (0.1) SCC

PTL-66347 1800 1000 400 .25 (0.1) SCC

Receptacle - Remote Twist-Lock® Cell with Bracket4

PRR 120-480 1800 1000 400 .5 (0.2) SCC

Shorting Cap - Twist-Lock® Mount5

PSC Completes circuit - Eliminates PCR .25 (0.1) SCC

1 Miniature photocontrol sealed in a sturdy plastic housing 2 1/16” x 1 1/8” x 7/8” with 3/4” nipple length, nipple dia. is 3/8" pipe thread – 5/8" outside diameter

ﬁts 1/2" tapped hubs; Use in any suitable enclosed box or luminaire; A gasket and lock nut provide weather tight seal at exit point

2 Weatherproof photocontrol in a polycarbonate housing with ﬁeld adjustable light sensitivity level feature; 3 5/8” x 2” x 1 1/2” housing with 5/8” nipple length

3 Weatherproof Twist-Lock® photocell enclosed in a high butyrate protective housing; Meets EEI-NEMA standards; For use with Twist-Lock® receptacles (PCR)

4 Remote receptacle for PTL Twist-Lock® cell; Includes aluminum angle bracket and color coded leads; Bolts to wood poles, crossarms, walls or any ﬂat surface

5 Weatherproof shorting cap to complete circuit and allow ﬁxture to operate when Twist-Lock® photocontrol (PTL) is not used; For use with

Twist-Lock® receptacles (PCR)

6 CSA certiﬁed

ORDERING INFORMATION

MADE-TO-ORDER

STOCK

Visit www.hubbelloutdoor.com/products for up-to-date availability information

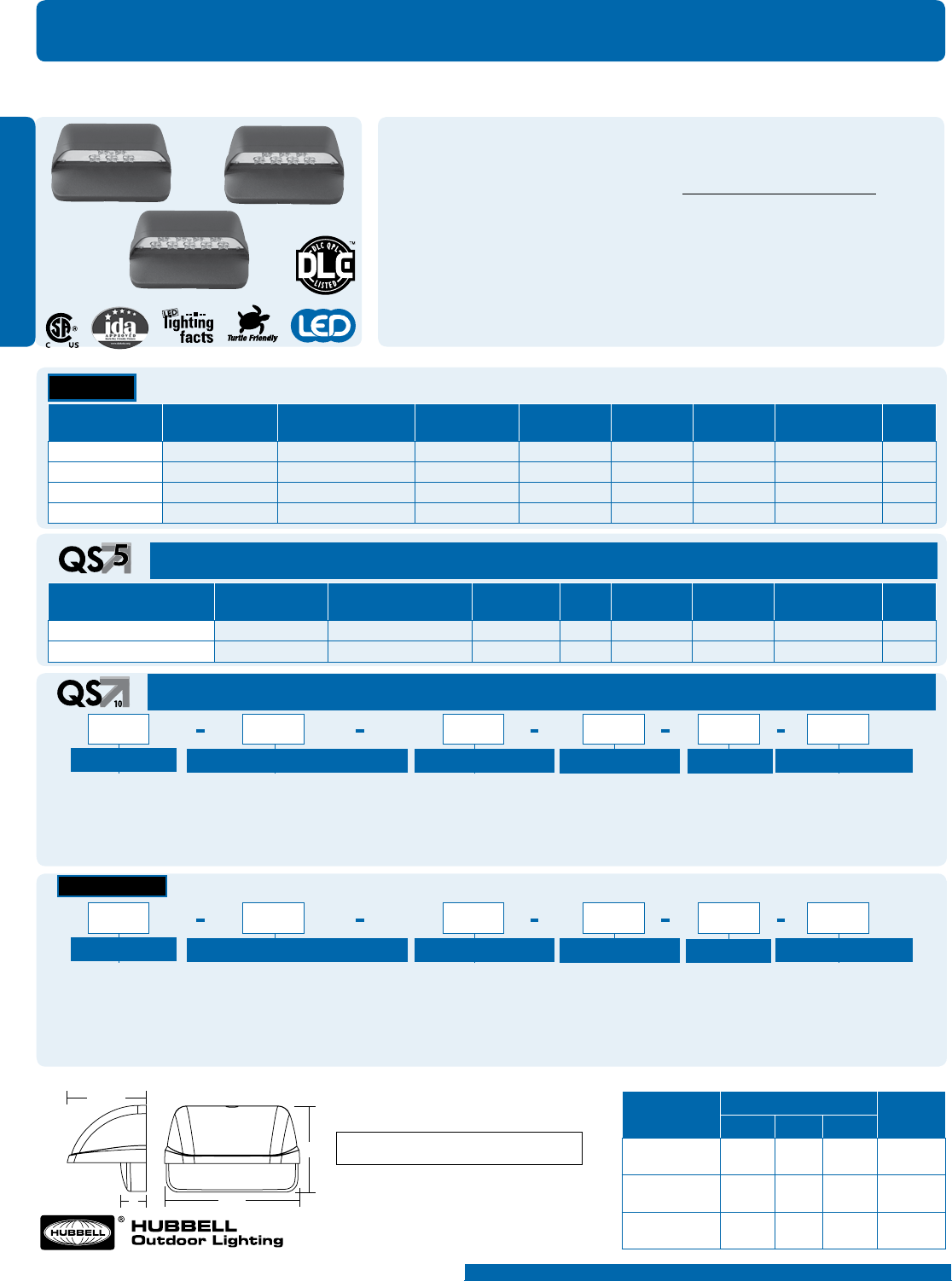

Ultra Compact LED Wallpack – Zero Uplight

LNC

LED WALLPACKS

The compact LED LNC is designed for entry/

perimeter illumination, available in 3 lumen

packages for safety, security and general il-

lumination applications; Neighbor friendly with

zero uplight; Typical mounting height up to 12

feet with 40ft ﬁxture spacing (without acrylic

diffuser) and 30ft spacing with acrylic diffuser

installed. Photocontrol option

• IES Progress Award Winner - 2012

• DesignLights Consortium (DLC) qualiﬁed 5/7/9

LED models 4K and 5K only, consult DLC web

site for more details:

http://www.designlights.org/QPL

APPLICATIONS

Zero uplight; IDA compliant; Listed to UL1598 for

use in wet locations; Long-life (60,000hr L96 rated)

high output LEDs; Quick mount adapter; Designed

for both recessed box or surface conduit wiring;

CCT/CRI and more options available in the larger

7L and 9L lumen packages.

ORDERING INFORMATION

A B C D

4.8" 1.6" 8.2" 5.3"

122 mm 39 mm 209 mm 133 mm

Catalog Number System watts delivered lumens Voltage CCT # Drivers/

current

Mounting

Height

Weight

lbs. (kg)

PKG.

CODE

LNC-5LU-5K 12.8w 967 120-277V 5000K 1@700mA up to 10 ft. 4.0 (1.8) FCC

LNC-5LU-5K-PC 12.8w 967 120V 5000K 1@700mA up to 10 ft. 4.0 (1.8) FCC

LNC-7LU-5K 16.4w 1147 120-277V 5000K 1@700mA up to 11 ft. 4.0 (1.8) FCC

LNC-9LU-5K 20.6w 1460 120-277V 5000K 1@700mA 10-12 ft. 4.0 (1.8) FCC

Catalog Number System watts delivered lumens Voltage CCT # Drivers/

current

Mounting

Height

Weight

lbs. (kg)

PKG.

CODE

LNC-7LU-5K-3-1-PC1 16.4w 1147 120-277V 5000K 1@700mA up to 11 ft. 4.0 (1.8) FCC

LNC-9LU-5K-3-1-PC1 20.6w 1460 120-277V 5000K 1@700mA 10-12 ft. 4.0 (1.8) FCC

1 When PC is ordered, input must match PC voltage

2Amber LEDs are 035mA drive current

SERIES

LNC LNC

Zero

uplight

SERIES

LNC LNC

Zero

uplight

NUMBER OF LEDS/SOURCE/VOLTAGE

7LU 7 LEDs, Universal voltage

120-277V

9LU 9 LEDs, Universal voltage

120-277V

NUMBER OF LEDS/SOURCE/VOLTAGE

7LU 7 LEDs, Universal voltage

120-277V

9LU 9 LEDs, Universal voltage

120-277V

CCT

3K 3000K nominal,

80 CRI

AM2

Amber (590 µm

available for “Turtle

Friendly”/observatory

applications);

Consult factory

CCT

4K 4000K nominal,

80 CRI

5K 5000K nominal,

67 CRI

IES DISTRIBUTION

3Type III

4Type IV

IES DISTRIBUTION

3Type III

4Type IV

OPTIONS

PC(X)1Button photo-

control, replace

X with voltage,

specify 1-120V,

2-208V, 3-240V,

4-277V

OPTIONS

PC(X)1Button photo-

control, replace

X with voltage,

specify 1-120V,

2-208V, 3-240V,

4-277V

LNC

Series Number Equivalency Energy

Savings

MH HPS CFL

LNC-5L 50w 50w 42w 85%

LNC-7L 70w 70w 42w 85%

LNC-9L 100w 100w 42w 85%

PERFORMANCE INFORMATION

DIMENSIONS

LED Product Partner

LNC-5LU LNC-7LU

LNC-9LU

STOCK

10-Day Quick Ship Ordering Guide

Order Limit Per Fixture Selection: 15 – BC Pkg Code

5-Day Quick Ship Ordering Guide

Order Limit Per Fixture Selection: 15 – BC Pkg Code

MADE-TO-ORDER ORDERING INFORMATION – (

BC PKG CODE)

FINISH

1Bronze

2Black

3Gray

4White

5Platinum

FINISH

1Bronze

2Black

3Gray

4White

5Platinum

Visit www.hubbelloutdoor.com/products for up-to-date availability information

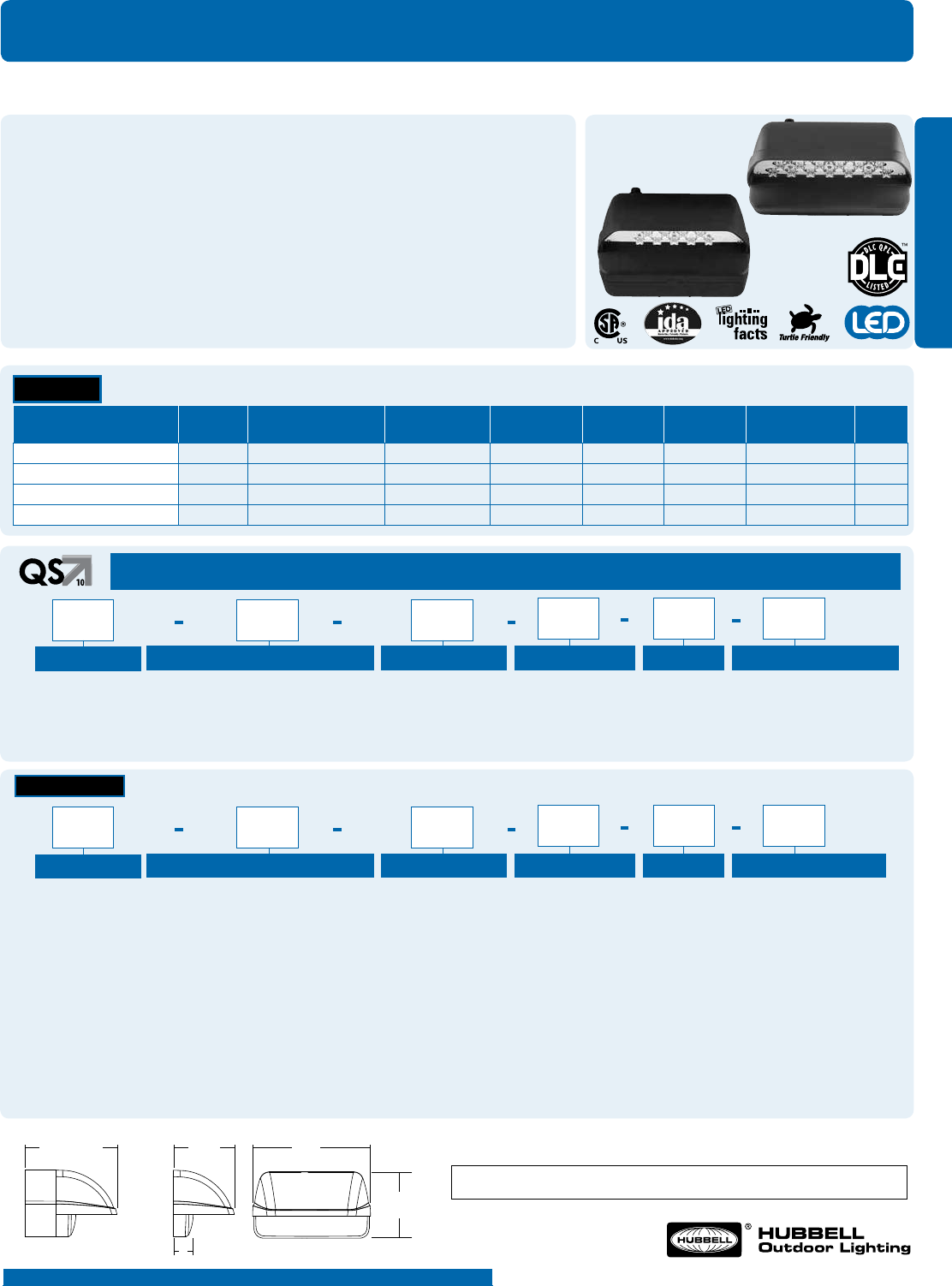

Compact LED Wallpack – Zero Uplight

• IES Progress Award Winner - 2013

• Building Operting Management 2014

Top Products Award - LNC2-18LU

• DesignLights Consortium (DLC) qualiﬁed,

Consult DLC website for more

details: http://www.designlights.org/QPL

The compact LED LNC2, slightly larger than the

LNC is designed for perimeter illumination for

safety, security and general lighting application

with typical mounting height up to 15 feet and

60ft ﬁxture spacing (without acrylic diffuser)

and 40ft spacing with acrylic diffuser installed.

APPLICATIONS

Battery backup option in 12L versions for egress

applications – provides 1 fc average over 16' L x

48' W at 11' mounting height. Zero uplight, IDA

compliant entry/perimeter lighting. Listed to

UL1598 for use in wet locations. Features long-

life (60,000hr L96 rated), high CRI, 3000K,

4000K, and 5000K LEDs. Single SKU designed

for both recessed box or surface conduit wir-

ing, includes quick-mount adapter for ease

of installation. Acrylic diffuser softens high

angle output for use at entrances or pedestrian

pathways.

LNC2

A B C D E Weight Weight w/BBU

6.25" 1.6" 10.25" 5.6" 10.25" 7.0 lbs. 15.0 lbs.

158.7 mm 40.2 mm 260.4 mm 142.2 mm 260.4 mm 3.2 kg 6.8 kg

LNC2

LNC2-18LU

DIMENSIONS

LED Product Partner

1 Amber LEDs only available on 18LU conﬁgurations, 350 mA only;

Universal Voltage 120V-277V

2Battery backup only available 12L models, not available for Canada

3Does not qualify for DLC

4Replace U with 1 for 120V or 4 for 277V for 12L with BBU

LNC2-BBU

12'

24'

36'

12'

24'

2fc

1fc

.2fc

42'

36'

.5fc

12'

24'

36'

12'

24'

2fc

1fc

.2fc

42'

36'

.5fc

With Battery Backup

12'

24'

36'

12'

24'

2fc

1fc

.2fc

42'

36'

.5fc

LED WALLPACKS

ORDERING INFORMATION ORDERING INFORMATION

Catalog Number System

watts delivered lumens Voltage CCT # Drivers/

current

Mounting

Height

Weight

lbs. (kg)

PKG.

CODE

LNC2-12LU-5K-3-1 28.6w 2420 120-277V 5000K 1@700mA up to 11 ft. 7.0 (13.3) FCC

LNC2-12LU-5K-3-1-PC-1 28.6w 2420 120V 5000K 1@700mA 10-12 ft. 7.0 (13.3) FCC

LNC2-18LU-5K-3-1 44.5w 5311 120-277V 5000K 1@700mA up to 15 ft. 7.0 (13.3) FCC

LNC2-18LU-5K-3-1-PC-1 44.5w 5311 120V 5000K 2@700mA up to 15 ft. 7.0 (13.3) FCC

STOCK

MADE-TO-ORDER ORDERING INFORMATION – (

BC PKG CODE)

SERIES

LNC2 LNC2 Zero

uplight

SERIES

LNC2 LNC2 Zero

uplight

NUMBER OF LEDS/SOURCE/VOLTAGE

7LU 7 LEDs, 16w input, Universal

voltage 120-277V

9LU 9 LEDs, 22w input, Universal

voltage 120-277V

12LU412 LEDs, 29w input, Universal

voltage 120-277V

18LU 18 LEDs, 42w input, Universal

voltage 120-277V

12L5 12 LEDs, 29w input, 480V

12L6 12 LEDs, 29w input, 347V

NUMBER OF LEDS/SOURCE/VOLTAGE

12LU 12 LEDs, 29w input, Universal

voltage 120-277V

18LU 18 LEDs, 42w input, Universal

voltage 120-277V

CCT

3K33000K nominal

80 CRI

4K 4000K nominal

70 CRI

5K 5000K nominal

67 CRI

AM1Amber (590 µm

available for

“Turtle Friend-

ly”/observatory

applications,

350mA; consult

factory

CCT

4K 4000K nominal

70 CRI

5K 5000K nominal

67 CRI

IES DISTRIBUTION

23Type II

3Type III

4Type IV

IES DISTRIBUTION

3Type III

4Type IV

OPTIONS

PC(X) Button photo-

control, replace

X with voltage,

specify 1-120V,

2-208V, 3-240V,

4-277V

BBU2Integral battery

for 12L only (must

specify 120V or

277V voltage in

voltage category)

rated for -20˚C to

30˚C

OPTIONS

PC1 Button photocontrol,

120V

PC4 Button photocontrol,

277V

FINISH

1Bronze

2Black

3Gray

4White

5Platinum

FINISH

1Bronze

10-Day Quick Ship Ordering Guide

Order Limit Per Fixture Selection: 15 – BC Pkg Code

Visit www.hubbelloutdoor.com/products for up-to-date availability information

LED WALLPACKS

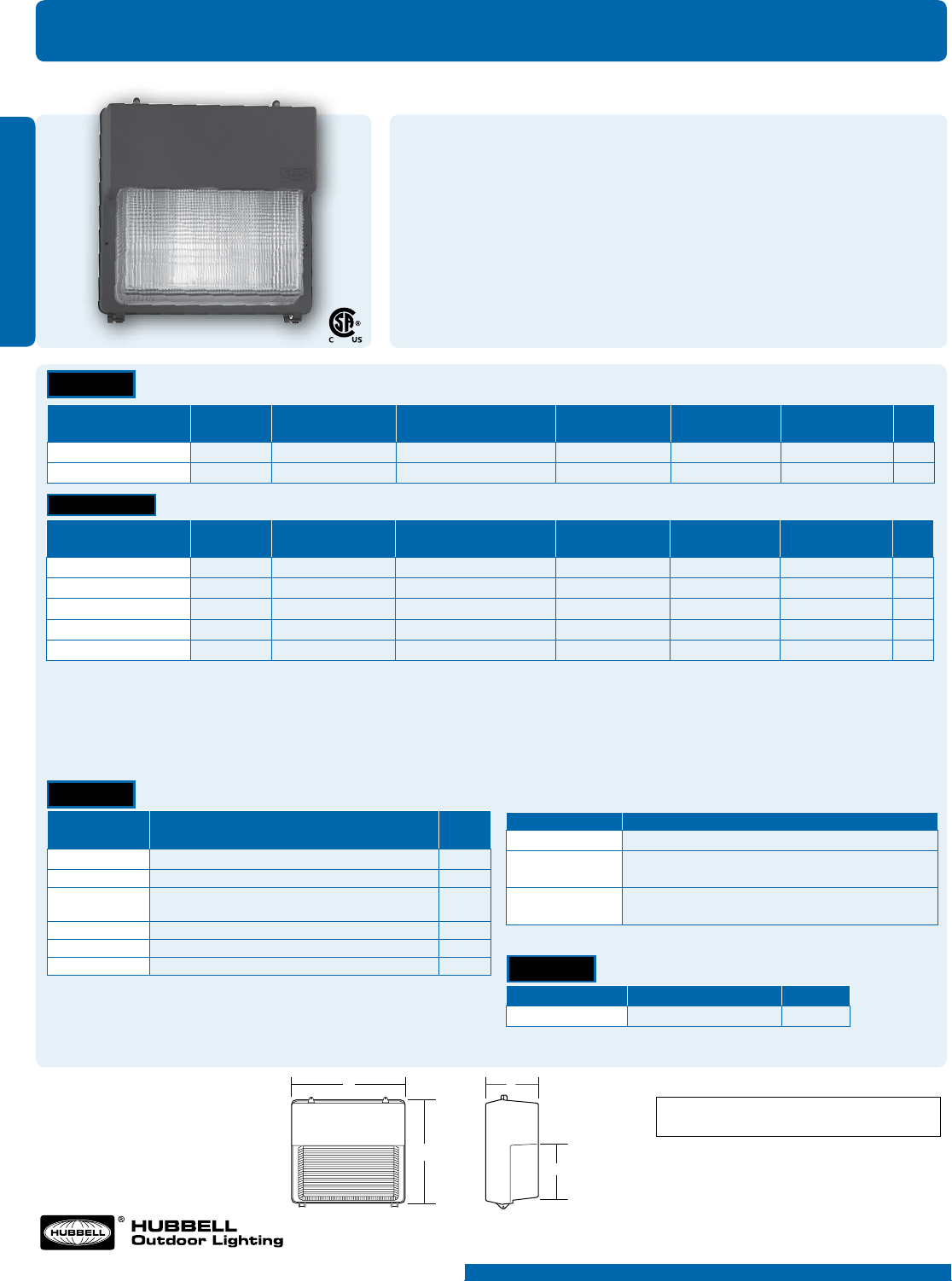

Perimeter Wallpack

• Full polycarbonate front provides vandal

resistance and uniform light distribu-

tion; Internally painted bronze ﬁnish for

lasting appearance

• 12LED unit provides long-life with low

energy consumption, a perfect upgrade

for older units

• Rugged cast aluminum back housing for

rigid mounting; Bottom 1/2” conduit

knockout for surface conduit wiring

• Bronze ﬁnish

• Units available with or without 120V

button photocontrol, see ordering

information

• Tamper resistant center pin Torx

hardware included

• Listed to UL1598 for use in wet

locations

NRG® 300 Series

Catalog Number Wattage Delivered Lumens Voltage CCT Mounting Height Drivers/

Current

Weight

lbs. (kg)

PKG.

CODE

NRG-312LU-5K-BZ 18w 1120 120-277V 5000K Up to 10 ft. 1@350mA 6 (2.7)

FCC

NRG-312LU-5K-BZ-PC 18w 1120 120V 5000K Up to 10 ft. 1@350mA 6 (2.7)

FCC

A B C

5.4" 11.0" 6.9"

137 mm 280 mm 175 mm

A C

ACCESSORIES - Order Separately

Catalog Number Description PKG. CODE

PBT-1 Button photocontrol, 120V SCC

PBT-234 Button photocontrol, 208, 240, 277V SCC

REPLACEMENT PART

Catalog Number Description PKG. CODE

SM352-COVER Polycarbonate front cover, Bronze BC

Series Number Equivalency Energy

Savings

MH HPS CFL

NRG-312LU 50w 50w 42w 73%

DIMENSIONS

PERFORMANCE INFORMATION

ORDERING INFORMATION

STOCK

MADE-TO-ORDER

Visit www.hubbelloutdoor.com/products for up-to-date availability information

LED WALLPACKS

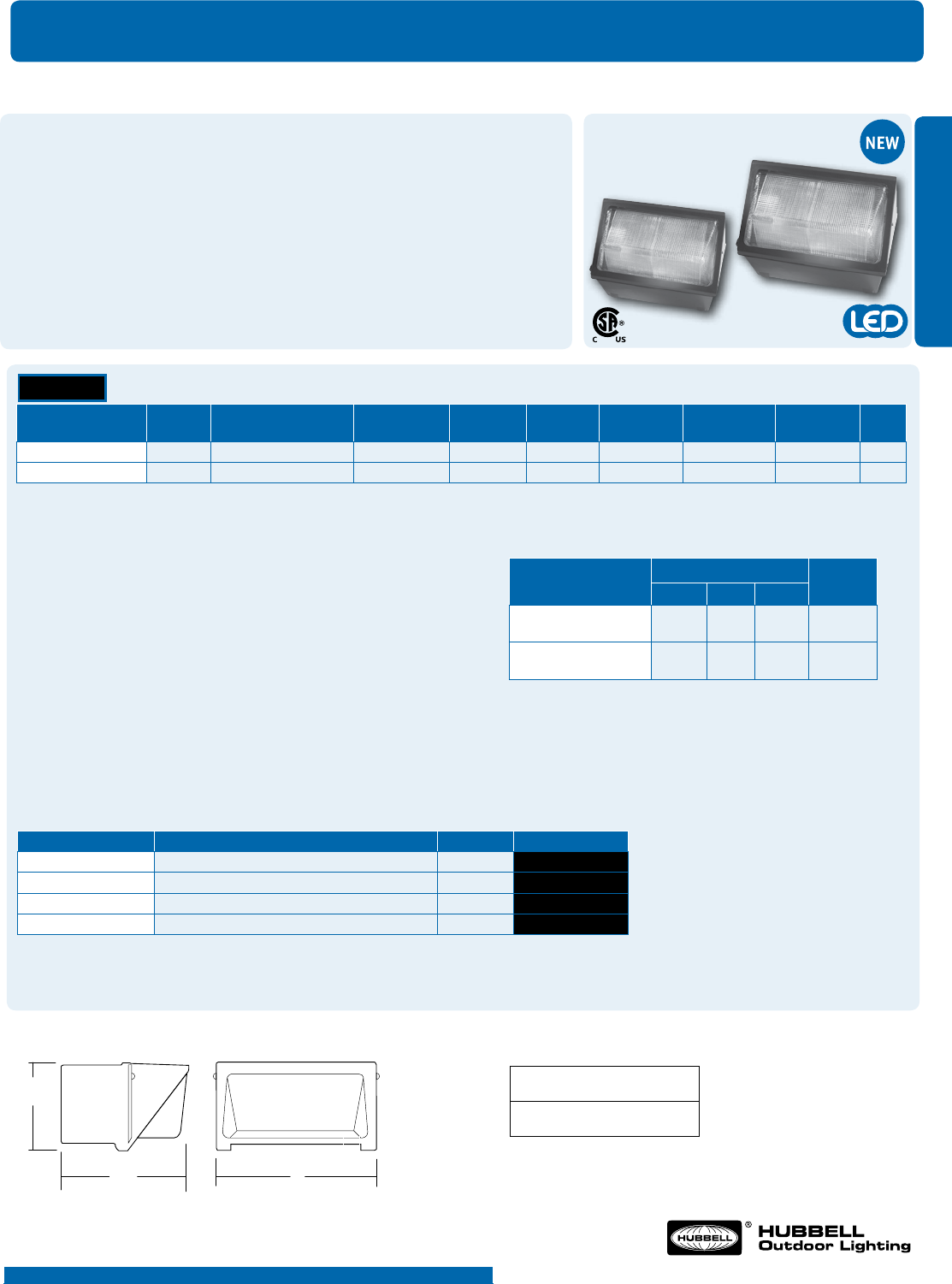

WGH

Perimeter Glass Wallpack

Series Number Equivalency Energy

Savings

MH HPS CFL

WGH-110L-4K-U-M 250w 250w 2x42w 78%

WGH-225L-4K-U-L 400w 400w N/A 76%

DIMENSIONS

PERFORMANCE INFORMATION

• Two sizes: Medium and Large provides

energy-efﬁcient one-for-one replace-

ment of existing legacy technology

• Mid power offers lower glare, better

uniformity, higher efﬁciencies (up to 105

LPW) and lower thermals for longer lasting

electronic components

• Borosilicate glass refractor softens LED

and provides uniform distribution

• Medium size available in 4000K and 5000K

• Large size available in 4000K

• Cast aluminum frame holds lens, hinges

to side of medium housing and hinges

down on large housing; Seals with two

stainless steel screws

• Cast aluminum housing with three 1/2”

conduit entries (on top and sides) for

button photocontrol or surface conduit

• All units have dark bronze powder paint

ﬁnish

• Listed to UL1598 for use in wet locations

A B C

9.0” 7.3” 13"

Mid-Size 229 mm 184 mm 330 mm

9.0” 13.0” 17.0"

Large 229 mm 330 mm 432 mm

Catalog Number Wattage Delivered Lumens Voltage CCT Dist. Type Mounting

Height

Weight

lbs. (kg)

# Drivers/

Current

PKG.

CODE

WGH-110L-4K-U-M 53w 4888 120-277V 4000K 4 Up to 15 ft. 12.0 (5.4) 1@140mA

FCC

WGH-225L-4K-U-L 97w 10151 120-277V 4000K 4 Up to 25 ft. 12.0 (5.4) 1@125mA

FCC

1 Chip on Board LED

ACCESSORIES - Order Separately

Catalog Number Description PKG. CODE SOURCE

PBT-1 Button photocontrol, 120V SCC STOCK

PBT-234 Button photocontrol, 208, 240, 277V SCC STOCK

SM708-GUARD Wire guard for L Size BC MADE-TO-ORDER

SM708-FRAME/GLASS Glass and door frame for L Size BC MADE-TO-ORDER

ORDERING INFORMATION ORDERING INFORMATION

STOCK

Visit www.hubbelloutdoor.com/products for up-to-date availability information

LED WALLPACKS

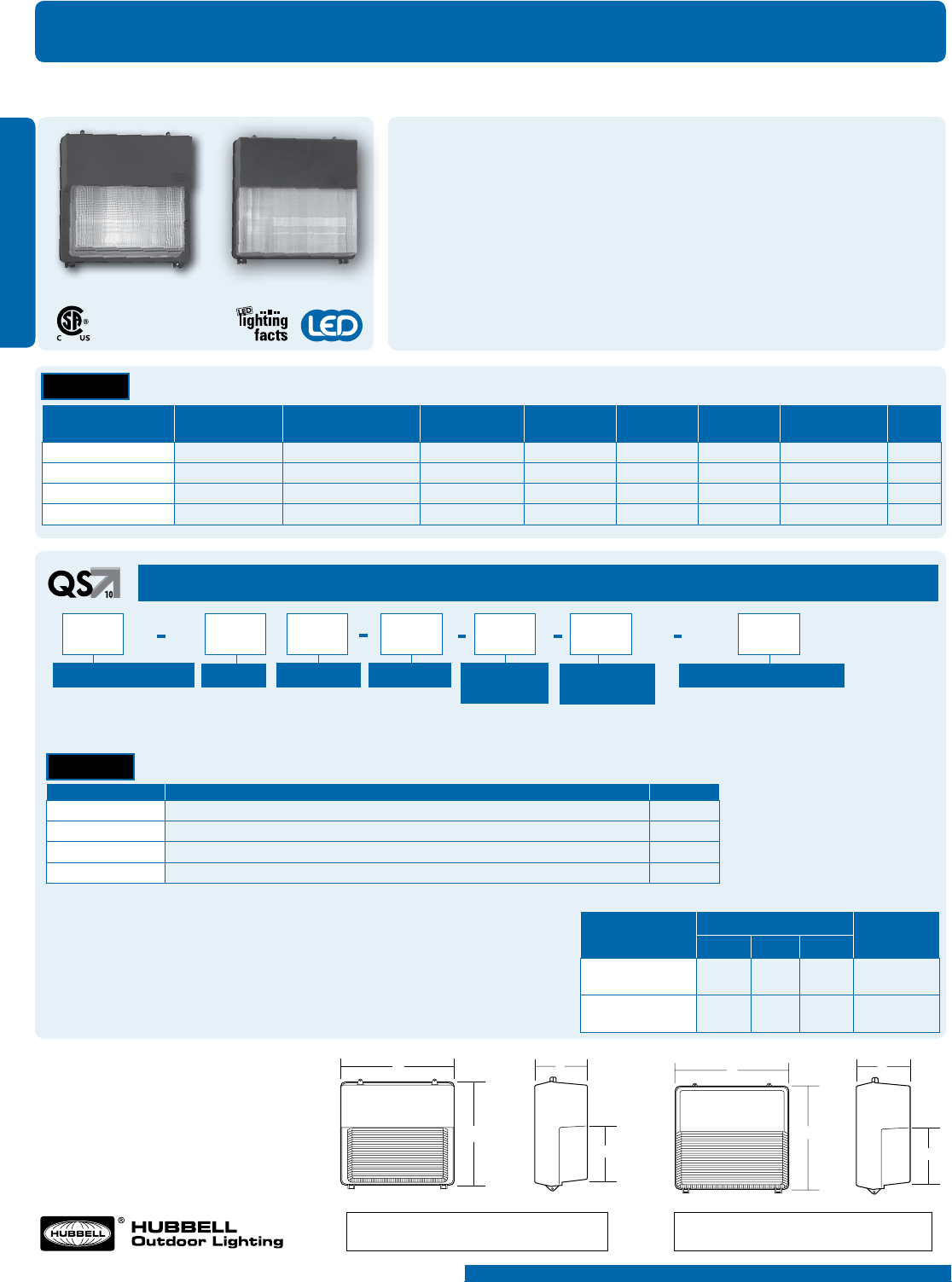

Glass and Polycarbonate LED Wallpacks

• LED units provide 60-70% energy sav-

ings over typical pulse start wallpacks.

• Die-cast aluminum housing mounts over

recessed junction boxes; ½” side hubs

for surface conduit wiring; Top hub

for use with button photo controls for

dusk-to-dawn control;

• Two cover options are available: A cast

aluminum with prismatic borosilicate

glass assembly (PGM3) and an all poly-

carbonate, one-piece, vandal resistant

door (PVL3)

• Typical mounting heights of 12-15 feet;

with spacing of three to four times the

mounting height

• BBU integral battery option for 120 or

277V, rated for -20˚C to 25˚C; designed

to provide minimum of 1fc in a 10'

square at 10-12' mounting height

• SCO/SCP - motion sensor on/off or user

programmable

• Listed to UL1598 for use in wet loca-

tions

Perimaliter® PGM3 PVL3

REPLACEMENT PARTS - Order Separately

Catalog Number Description PKG. CODE

200-0180-9904 Replacement lens/door PVL3 BC

80033990104 Replacement lens/door PGM3 BC

93044764 40w driver, 700mA, 120V-277V dimmable, 2x = 700mA, 1x = 350mA BC

SCP-REMOTE2

Remote control for SCP option. Order at least one per project to program and control

1/2" feed thru surface

hub conduit

A B C D

14 7/8” 15” 8” 6 13/16”

PGM3 378 mm 381 mm 203 mm 173 mm

PGM3 PVL3

A B C D

14 7/8” 15” 8” 7 7/16”

PVL3 378 mm 381 mm 203 mm 189 mm

Series Number Equivalency Energy

Savings

MH HPS CFL

PGM3 250w 250w – 72%

PVL3 250w 250w – 54%

DIMENSIONS

PERFORMANCE INFORMATION

LED Product Partner

ORDERING INFORMATION

STOCK

Catalog Number System watts delivered lumens Voltage CCT # Drivers/

current

Mounting

Height

Weight

lbs. (kg)

PKG.

CODE

PGM3-30LU-4K-BZ 68w 5157 120-277V 4000K 2@700mA 15-18 ft. 20 (9) SCC

PGM3-30LU-5K-BZ 68w 5678 120-277V 5000K 2@700mA 15-18 ft. 20 (9) SCC

PVL3-30LU-4K-BZ 68w 4505 120-277V 4000K 2@700mA 15-18 ft. 13 (5.9) SCC

PVL3-30LU-5K-BZ 68w 4873 120-277V 5000K 2@700mA 15-18 ft. 13 (5.9) SCC

30L

FAMILY

PGM3 Glass Refractor

PVL35Polycarbonate

Refractor

# LEDS

30L

VOLTAGE1

U120V-277V

FIXTURE

COLOR

BZ5Bronze

CCT

4K 4000K,

70 CRI

5K 5000K,

67 CRI

DRIVE

CURRENT

BLANK 700mA

0353350mA

OPTIONS

PC1 Button photocontrol,

120V

PC4 Button photocontrol,

277V

10-Day Quick Ship Ordering Guide

Order Limit Per Fixture Selection: 15 – BC Pkg Code

STOCK

Visit www.hubbelloutdoor.com/products for up-to-date availability information

LED WALLPACKS

Glass and Polycarbonate LED Wallpacks

Perimaliter® PGM3 PVL3

30L

FAMILY

PGM3 Glass Refractor

PVL35Polycarbonate

Refractor

# LEDS

30L

VOLTAGE1

U120V-277V

1120V

2208V

3240V

4277V

5480V

F347V

FIXTURE

COLOR

BZ5Bronze

BL Black

WH White

GR Gray

PL Platinum

CC Custom

Color

CCT

3K 3000K,

80 CRI

4K 4000K,

70 CRI

5K 5000K,

67 CRI

DRIVE

CURRENT

BLANK 700mA

0353350mA

1 Voltage speciﬁc option, designate in voltage ﬁeld

2 0-10V fully adjustable dimming with automatic daylight calibration and different time delay settings, must order

minimum of one remote to program dimming settings, 120V or 277V only

3 BBU only available in 350mA, 120V or 277V only

4 PC option not applicable, included in sensor. For SCP, PC function turns on to lower setting until motion is detected

5 PVL3 only available in BZ Bronze ﬁxture color

MADE-TO-ORDER ORDERING INFORMATION – (

BC PKG CODE)

OPTIONS

F1Fusing (voltage determined by

voltage ﬁeld) Single fusing only

120V, 277V or 347V

PC1Button photocontrol, (Must

specify individual voltage)

BBU1,3 Integral battery for 120 or 277V

rated for -20˚C to 25˚C (Must

specify individual voltage)

SC02,4 Motion sensor On/Off control,

No light output when no motion

detected

SCP2,4 Programmable motion control, fac-

tory default is 10%

SP Surge protector, 10KA 273 joules

Visit www.hubbelloutdoor.com/products for up-to-date availability information

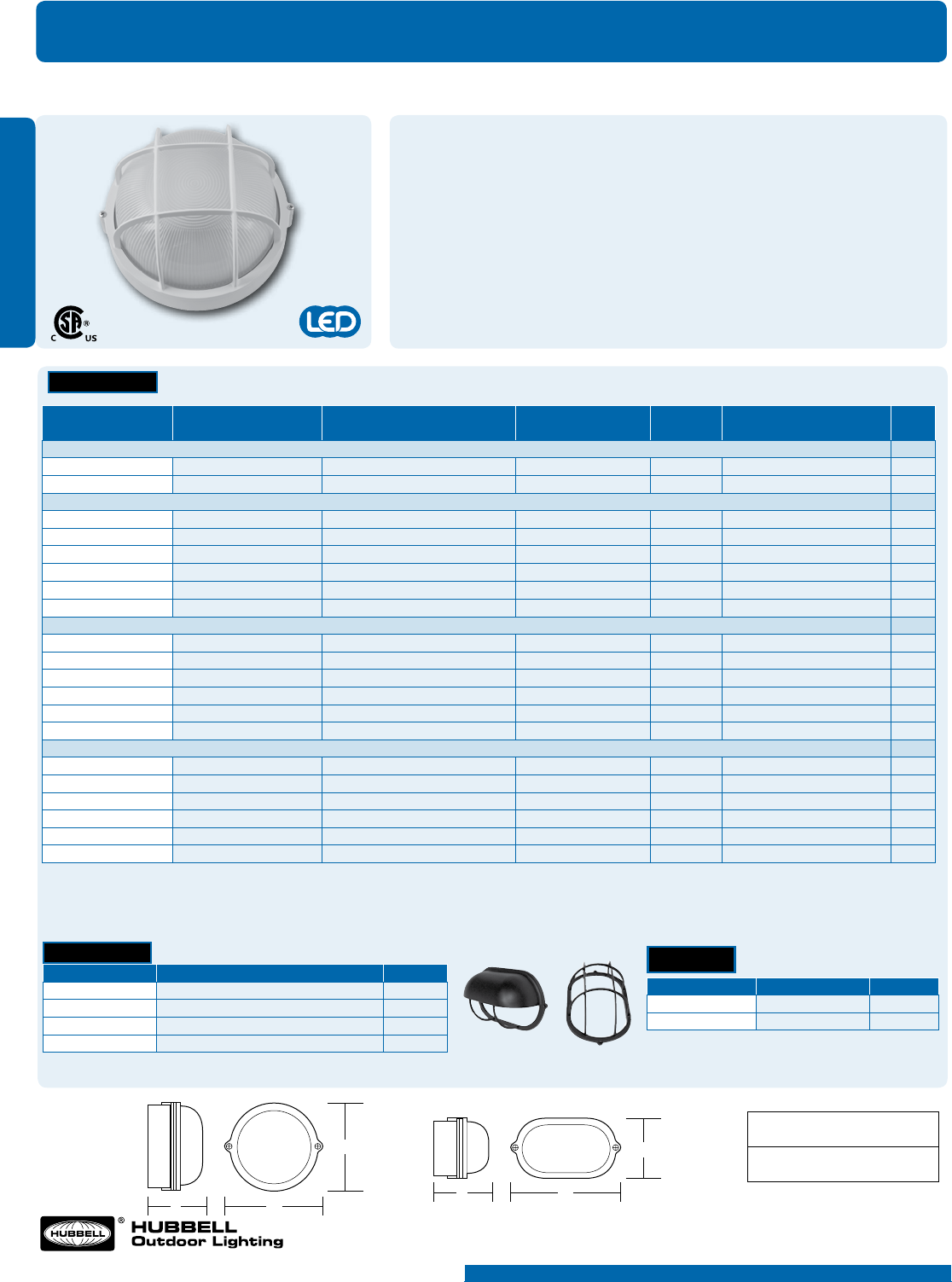

Decorative Wall/Ceiling Series

Euroluxe®

WALL/SURFACE

Catalog Number Shape Finish Wattage Volts Weight

lbs. (kg)

PKG.

CODE

LED (lamps included)4

BRLU-01 Round Bronze 15w 120-277V 6.0 (2.7)

BRLU-04 Round White 15w 120-277V 6.0 (2.7)

Incandescent - Medium Base Socket

BRI-01 Round Bronze 100 max. 120V 4 (1.8)

BRI-02 Round Black 100 max. 120V 4 (1.8)

BRI-04 Round White 100 max. 120V 4 (1.8)

BOI-01 Oval Bronze 100 max. 120V 3.5 (1.6)

BOI-02 Oval Black 100 max. 120V 3.5 (1.6)

BOI-04 Oval White 100 max. 120V 3.5 (1.6)

High Pressure Sodium (lamp included)2 - Medium Base Socket

BRS-01 Round Bronze 50 120V 7.5 (3.4)

BRS-02 Round Black 50 120V 7.5 (3.4)

BRS-04 Round White 50 120V 7.5 (3.4)

BOS-01 Oval Bronze 50 120V 7 (3.2)

BOS-02 Oval Black 50 120V 7 (3.2)

BOS-04 Oval White 50 120V 7 (3.2)

Compact Fluorescent (lamp included)1, 3

BRF-01 Round Bronze 28 120V 6 (2.7)

BRF-02 Round Black 28 120V 6 (2.7)

BRF-04 Round White 28 120V 6 (2.7)

BOF-01 Oval Bronze 28 120V 5.5 (2.5)

BOF-02 Oval Black 28 120V 5.5 (2.5)

BOF-04 Oval White 28 120V 5.5 (2.5)

1 Fluorescent CSA certiﬁed for outdoor applications only, not available in 277V (Alternate: see Hercules HVS Series)

2 Pulse-rated medium base socket

Two-pin ﬂuorescent socket - PLC28, 2700K, -20°F starting

LED Color temperature 5000K, 6 LEDs at 700mA, 830 lumens, 120-277V, 50/60Hz

ACCESSORIES - Order Separately

Catalog Number Description PKG. CODE

BO-GX1Cast aluminum guard for oval ﬁxture BC

BR-GX1Cast aluminum guard for round ﬁxture BC

BO-SX1Cast aluminum shield for oval ﬁxture BC

BR-SX1Cast aluminum shield for round ﬁxture BC

1 Finish must be speciﬁed, substitute X for: 1-bronze, 2-black, 4-white.

A C

A B C

5 1/2” 9 1/2” 10 1/8”

BR Round 140 mm 241 mm 257 mm

5 1/2” 6 1/4” 11 1/4”

BO Oval 140 mm 159 mm 286 mm

BR BO

Shield Guard

REPLACEMENT PARTS

Catalog Number Description PKG. CODE

266-0067-9904 BR replacement lens

266-0068-9904 BO replacement lens

• Use for wall or ceiling applications at

entrances, stairs, corridors or single

story building accent

• Borosilicate glass lens with silicone gas-

ket; Shields the lamp and softly spreads

the light in a symmetrical distribution

• Die-cast aluminum housing and face

trims; Two point lag mount or hickey

mount to recessed wiring boxes; (no

side conduit feeds); Twin stainless steel

screws secure the trims and lens to the

housing

• 50w HPS, 28w CFL (-20 degree starting)

and 100w max incandescent

• BRLU LED unit available in 15w,

120-277V, 830 lumens, 5000K

• Lamp included on HPS and CFL sources

• Finishes in dark bronze, white and black

• Listed to UL1598 for use in wet loca-

tions

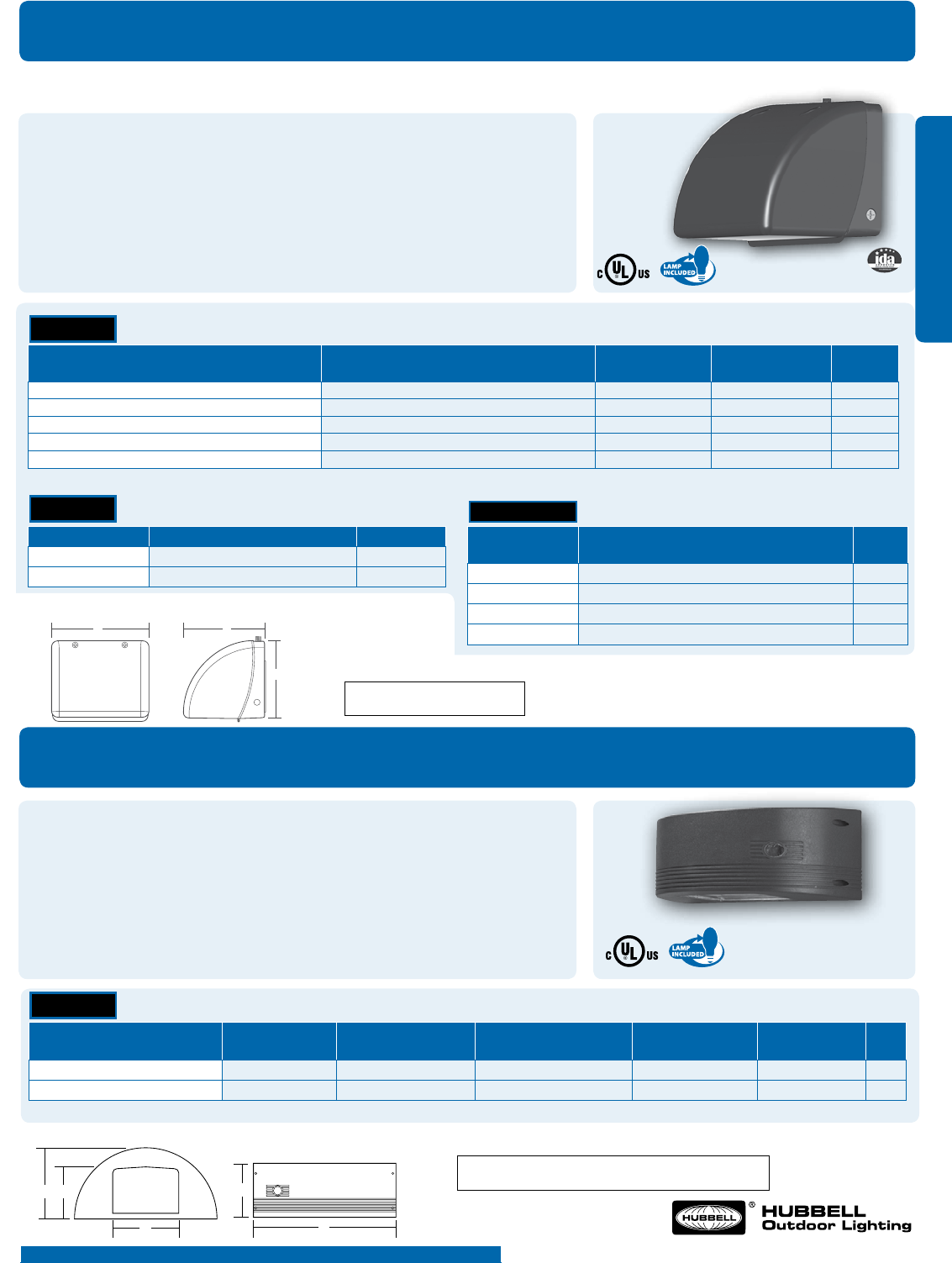

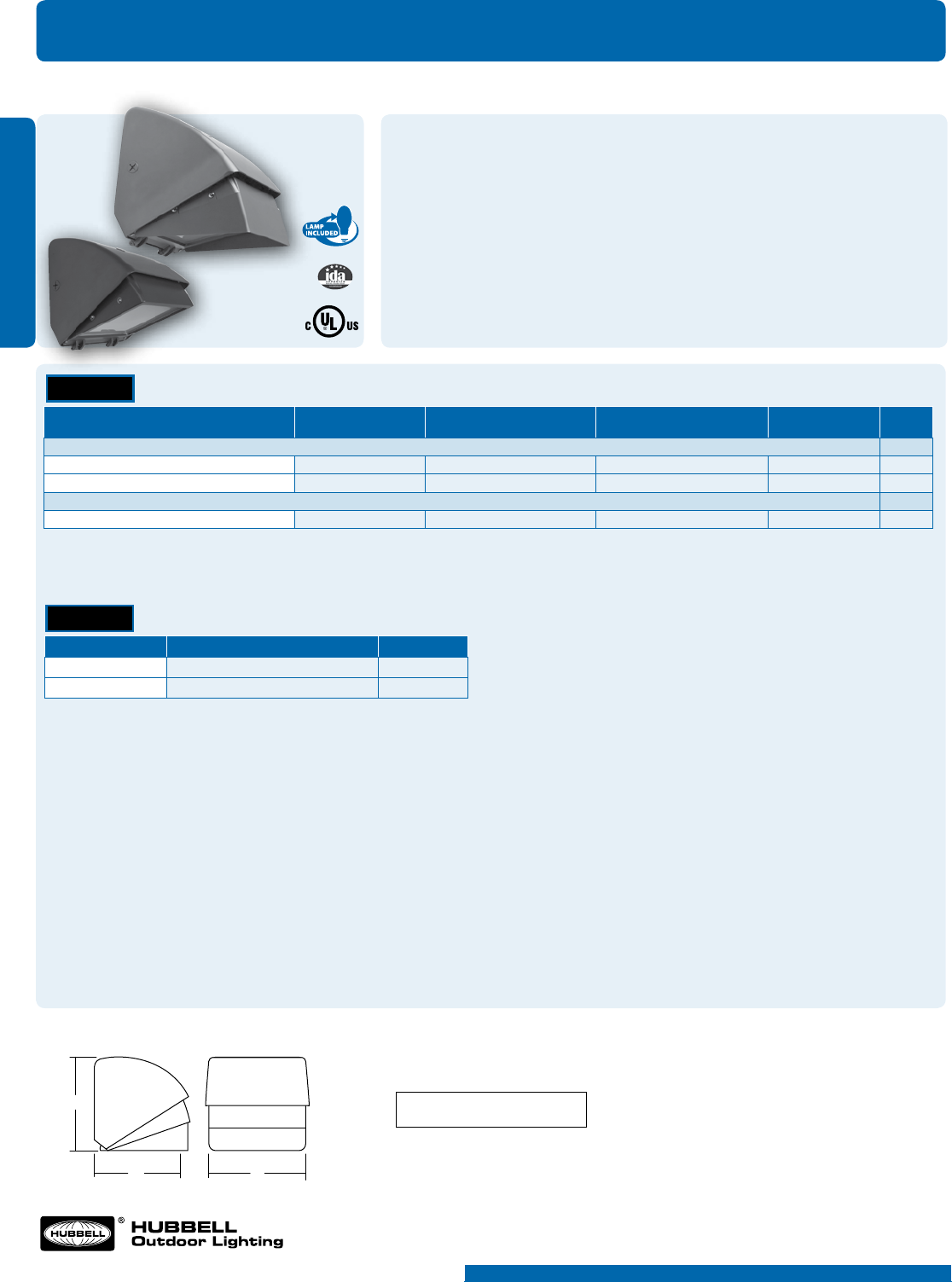

MADE-TO-ORDER ORDERING INFORMATION – (

BC PKG CODE)

MADE-TO-ORDER STOCK

Visit www.hubbelloutdoor.com/products for up-to-date availability information

Catalog Number1Shape Wattage Voltage Photocontrol Weight

lbs. (kg)

PKG.

CODE

WMR-42F1-PC Radius 42w CFL 120 Yes 6.0 (2.7)

WMR-70P6 Radius 70w PSMH 120, 277, 347 No 11.0 (5.0)

1 All units have molded-in dark bronze ﬁnish and include lamps; CFL 2 x 13w lamps are PLC, 42w lamp is PLT; Lamps are 3500K

A B C D E

14.6” 5.5” 7.3” 4.8” 6.7”

WMR 370 mm 140 mm 185 mm 121 mm 170 mm

Compact Wallpack – Full Cut-off

Hubbell Outdoor Lighting’s NRG® 1100 family

is packed with owner beneﬁts. The IDA com-

pliant optics allow no up light, saving energy

and keeping the neighbors happy!

Two sets of recessed closure screws are

included – Phillips head and tamper resistant

allen head.

For wall perimeter or entry at mounting

heights of 8-15 feet. Decorative rugged

styling with one piece polycarbonate front,

painted bronze or white on the inside, that

resists rocks and other small projectiles. The

die-cast housing provides rigid mounting,

conduit and photocontrol hubs, easy mount

design and heat dissipation.

Listed to UL1598 for use in wet locations

NRG® 1100

WMR

Catalog Number1Wattage/Voltage Finish Weight

lbs. (kg)

PKG.

CODE

NRG-1111-W 100w PSMH, 120, 277, 347V white 12 (5.4)

FCC

NRG-1171-B 70w PSMH, 120, 277, 347V bronze 11 (5.0)

NRG-1112-W 100w HPS, 120, 277, 347V white 10 (4.5)

NRG-1172-W 70w HPS, 120, 277, 347V white 9 (4.1)

NRG-1143-W 42w CFL, 120-277V, 60/50hz white 7 (3)

FCC

1All ﬁxtures include medium base or compact ﬂuorescent lamps. CFL units use universal socket and are capable of operating 26 or 32w PLT lamps if substituted in the ﬁeld; CFL lamps are 3500K, GX24q-4 base

A B C

11 3/4” 9 1/2” 9 1/2”

298 mm 241 mm 241 mm

ACCESSORIES - Order Separately

Catalog Number Description PKG. CODE

PBT-1 Photocontrol, button type, 120V

SCC

PBT-234 Photocontrol, button type, 277V

SCC

REPLACEMENT PARTS

Catalog Number Description PKG.

CODE

NRG1100FHB Polycarbonate front housing-bronze, 70w max.

NRG1100FHW Polycarbonate front housing-white, 70w max.

NRG1111FHB Polycarbonate front housing-bronze, 100w max.

NRG1111FHW Polycarbonate front housing-white, 100w max.

LAMP

INCLUDED

LAMP

INCLUDED

DIMENSIONS

HID WALLPACKS

ORDERING INFORMATION

STOCK

STOCK MADE-TO-ORDER

• Accent wall sconces for mounting

heights of 8-12 ft

• Shipped as full cut-off downlight

- Units have a removable internal

shield that allows up/down

distribution

• UV stabilized polycarbonate front

• Die-cast housing provides rigid mounting

and dissipates ballast/lamp heat

• Silicone gasket seals out moisture and

insects

• CFL units feature 120V photocontrol for

dusk to dawn energy saving control

• 70w PSMH units have Tri-Tap® ballast

(120, 277, 347V) and are shipped less

photocontrol; PBT-1 or PBT-234 may be

ﬁeld installed if photocontrol is desired

• Listed to UL1598 for use in wet locations

Visit www.hubbelloutdoor.com/products for up-to-date availability information

Compact Wallpacks – Full Cut-off

WGC Series

• Rugged cast aluminum housing and

door provide rigid mounting to surface

• Full cut-off distribution with factory

installed shield (Shield can be removed

in the ﬁeld if more forward throw is

desirable)

• Tempered stippled glass lens increases

distribution spread and softens lamp


• Typical mounting height is 8-12'

• Dark bronze powder paint ﬁnish

protects surfaces and appearance

• Listed to UL1598 for use in wet loca-

tions

• Lamps are included

ORDERING INFORMATION

Catalog Number1Wattage/Source Voltage Finish Weight

lbs. (kg)

PKG.

CODE

Compact Series - Medium Base Socket1

WGC-70H 70w PSMH 120, 208, 240, 277V Bronze 11 (5.0)

FCC

WGC-100H 100w PSMH 120, 208, 240, 277V Bronze 12 (5.4)

FCC

Compact Fluorescent1

WGC-42F242w CFL 120-277V Bronze 8 (3.6)

FCC

A B C

Compact 8.8" 8.2" 8.75"

224 mm 208 mm 222 mm

B C

Compact Series

Compact unit with

shield removed in ﬁeld

LAMP

INCLUDED

1 Lamp included on all units

2 CFL lamps are 3500K 4-Pin, GX24q-4 base, 120-277V, 50/60 Hz

DIMENSIONS

HID WALLPACKS

STOCK

ACCESSORIES - Order Separately

Catalog Number Description PKG. CODE

PBT-1 Photocontrol, button type, 120V

SCC

PBT-234 Photocontrol, button type, 277V

SCC

STOCK

Visit www.hubbelloutdoor.com/products for up-to-date availability information 33

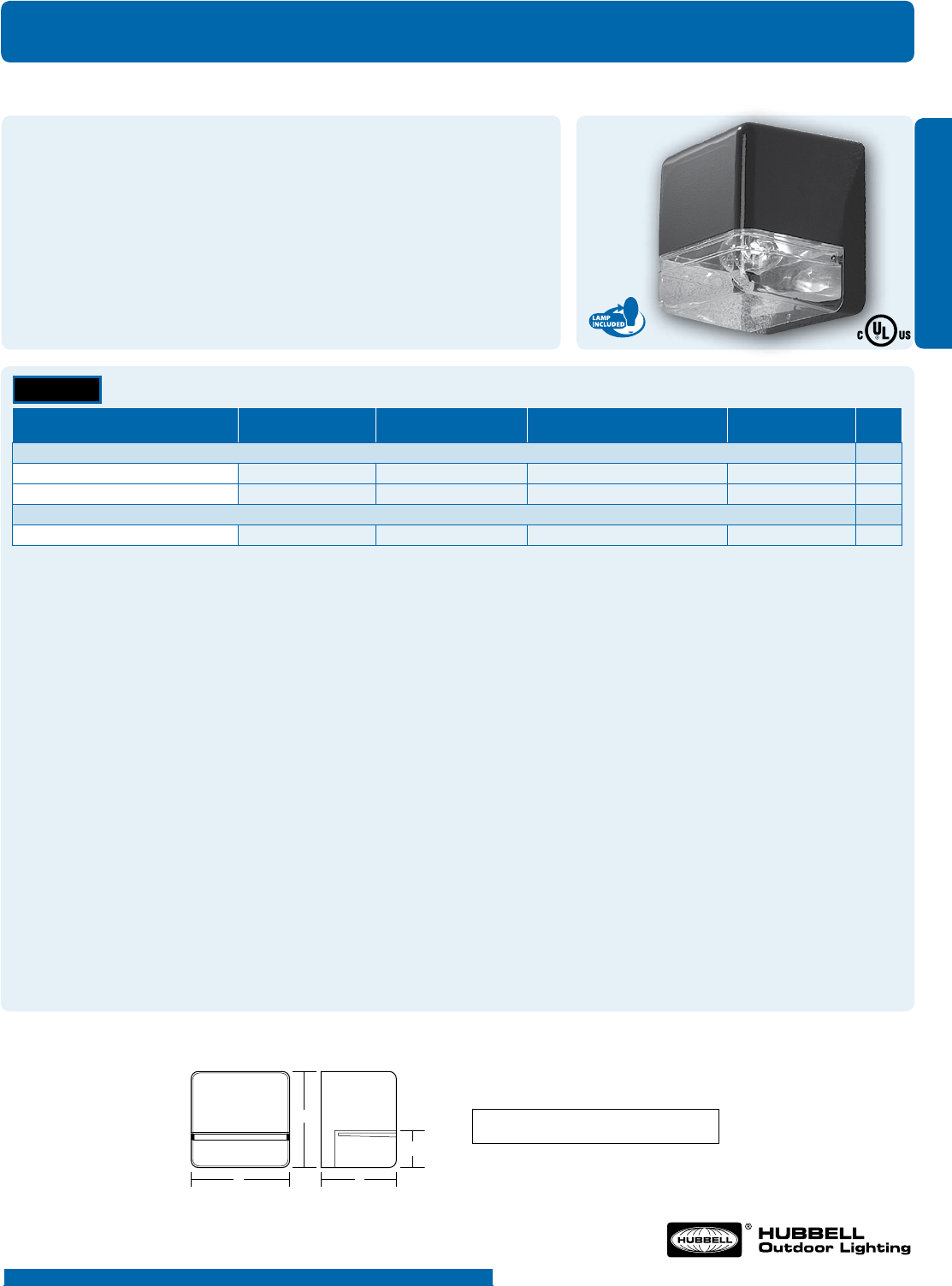

Shielded Wallpack – Full Cut-off

• Clear polycarbonate lens with recessed

phillips head retaining screws; An

undercut ﬁt provides water shedding,

wet location listing

• Cast aluminum housing mounts to

recessed junction boxes and provides

lamp arc tube shielding at 90 degrees

• 4 to 1 spacing to mounting height ra-

tio with two mounting height forward

throw

• Additional shielding can be added in

the ﬁeld by applying the light

trespass inhibitor (included) along the

lens, top or sides

• Available in 50 and 70w HPS or

50w PSMH 120/277V; Lamp included

• Dark bronze powder paint ﬁnish

• Listed to UL 1598 for use in

wet locations

NRG® 31X

A B C D

7 1/4” 7” 5 1/2” 2 3/8”

184 mm 178 mm 140 mm 60 mm

NRG 31X

Catalog Number Wattage Voltage Ballast Type Weight

lbs. (kg)

PKG.

CODE

High Pressure Sodium

NRG-311 50 120/277 AL-HPF 6.5 (3)

NRG-317 70 120/277 AL-HPF 7.5 (3.4)

Pulse Start Metal Halide

NRG-315 50 120/277 AL-HPF 6.5 (3)

Note All units have dark bronze powder paint ﬁnish, 120/277 dual voltage ballasts, and include medium base lamp

Note No options or accessories available.

ORDERING INFORMATION ORDERING INFORMATION

LAMP

INCLUDED

DIMENSIONS

HID WALLPACKS

STOCK

Visit www.hubbelloutdoor.com/products for up-to-date availability information

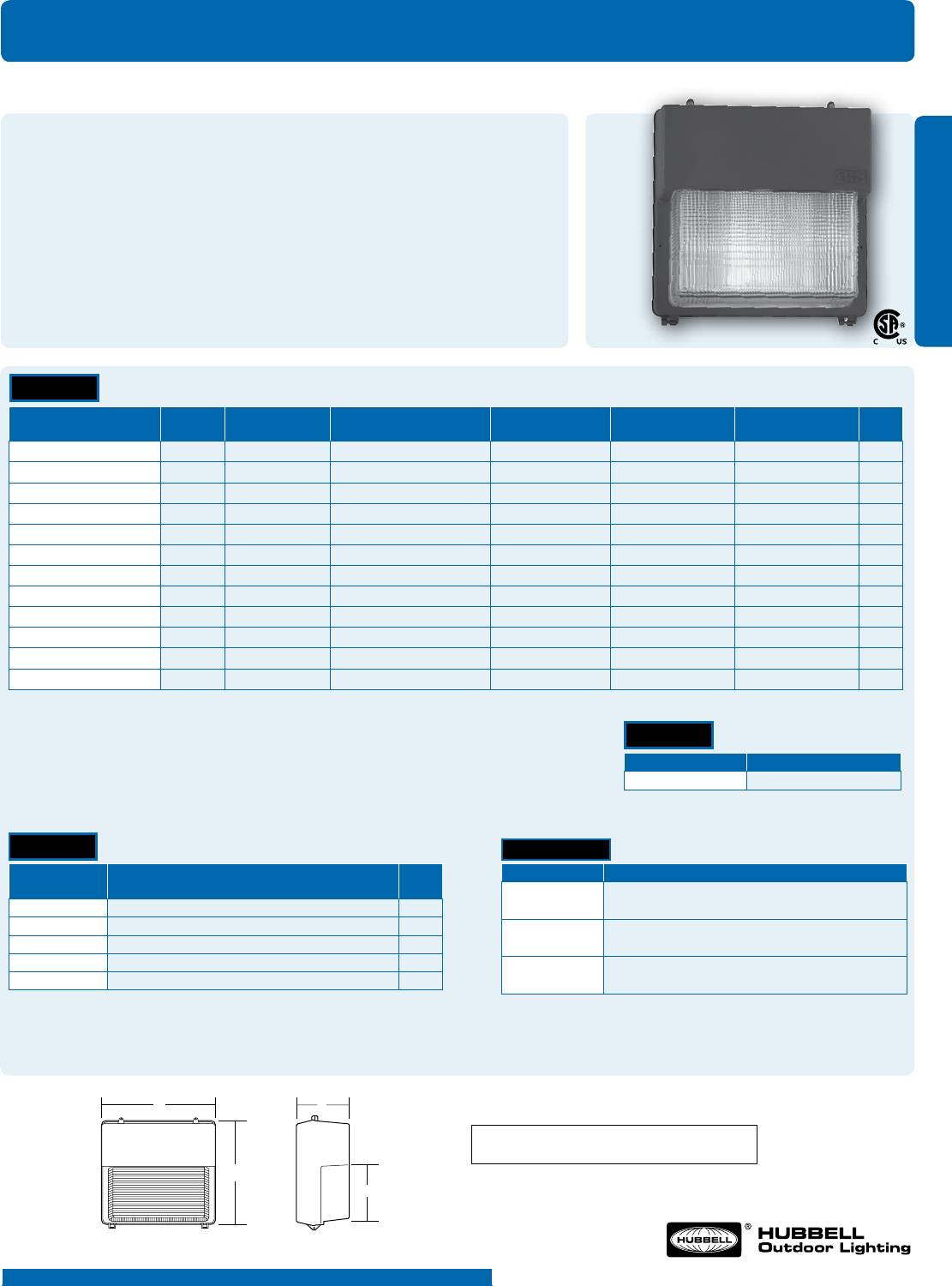

Vertical Lamp Position Polycarbonate Refractor Wallpack

• One-piece polycarbonate lens, inter-

nally painted for lasting appearance; 6

to 1 spacing to mounting height ratio;

Two HubbellGard® fasteners provide

weathertight seal to housing; Door

hinges and is removable

• Housing is die-cast aluminum for rugged

mounting and heat dissipation; 1/2”

feed-through hubs provided and top

photocontrol hub location for ﬁeld

installation; Standard mount is over

recessed wiring boxes; Fixtures have

dark bronze ﬁnish

• Specular reﬂector, vertical lamps and

refractor combine for efﬁcient and

uniform perimeter lighting; PVL3 is

150w max; 50 Hz ballastry available

• Socket is porcelain medium base with

spring-loaded center contact

• Accessories: Photocontrols/ Full cut-off

visors

• CFL egress units provide redundant

lamp and battery backup

• Listed to UL1598 for use in wet loca-

tions

Perimaliter® PVL3

ORDERING INFORMATION

OPTIONS - Add Sufﬁx

Catalog Number Description

-EM Double contact socket for remote power (less lamp) all units

-QSS Quartz restrike system including relay (less lamp) all units

(Double contact bayonet socket)

-UST Substantially transformed version in the U.S. meeting level 2

of the Buy American Act

ACCESSORIES - Order Separately

Catalog Number Description

PBT-1 Photocontrol, button type, 120V

PBT-234 Photocontrol, button type, 208, 240, 277V

PVL3V Full cut-off visor, formed aluminum, bronze ﬁnish

1/2" feed thru surface

hub conduit

A B C D

14 7/8” 15” 8” 7 7/16”

378 mm 381 mm 203 mm 189 mm

PVL3

REPLACEMENT PARTS

Catalog Number Description

200-0180-9904 Polycarbonate front

80033990104 Aluminum/glass front, bronze (glass conversion)

Catalog Number1Wattage Lamp Type Voltage Ballast Lamp Included Weight

lbs. (kg)

PKG.

CODE

PVL3-100P-18-BZ-L 100 PSMH Quad Tap HX-HPF Yes 20 (9.0)

PVL3-150P-18-BZ 150 PSMH Quad Tap HX-HPF No 20 (9.0)

PVL3-150P-18-BZ-L 150 PSMH Quad Tap HX-HPF Yes 20 (9.0)

PVL3-070S-18-BZ 70 HPS Quad Tap AL-HPF No 18 (8.1)

PVL3-100S-18-BZ 100 HPS Quad Tap AL-HPF No 19 (8.6)

PVL3-100S-18-BZ-L 100 HPS Quad Tap AL-HPF Yes 19 (8.6)

PVL3-150S-18-BZ 150 HPS Quad Tap AL-HPF No 20 (9.0)

PVL3-150S-18-BZ-L 150 HPS Quad Tap AL-HPF Yes 20 (9.0)

PVL3-150S-51-BZ-L 150 HPS 120V NPF HX-NPF Yes 7 (3.1)

PVL3-242F-18-BZ-L 2x42 CFL Quad Tap – GX24q-4 base 12.0 (5.4)

PVL3-242F-18-BZ-L-2BOC22x42 CFL Quad Tap With twin battery

backup GX24q-4 base 17.0 (7.7)

PVL3 – HID1

• L - Indicates lamp included with the ﬁxture

• Above units (-18) are Quad Tap (120,208,240,277V); 480V

available as Made-to-order on 150w unit, change -18 to -15

• For TriTap Canadian ballast (120,277,347V) change 18 to 16

(Made-to-order)

• All units are provided in BZ - dark bronze ﬁnish

• 50 Hz ballastry available - consult factory for availability

PVL3 – Egress2

Notes: • Lamps included, 4100K

• 2 BOC batteries rated 0°C (32°F) to 50°C (122°F) ambients (typical ﬁxture ambient is 32°F-77°F)

• Each lamp supported by individual ballast

• Electronic ballasts operate on voltage between 120-277V, 50/60 Hz

DIMENSIONS

HID WALLPACKS

STOCK

MADE-TO-ORDER

Visit www.hubbelloutdoor.com/products for up-to-date availability information 35

Vertical Lamp Position Glass Refractor Wallpack

Perimaliter® PGM3

• Cast aluminum door with borosilicate

glass refractor; Bottom hinge allows

door removal; Twin HubbellGard® screw

closure for positive seal

• Cast aluminum back housing provides

ﬁrm mounting and heat dissipation;

Mounts over recessed wiring boxes;

Has two 1/2” conduit hubs for feed-

through wiring. Top hub for ﬁeld instal-

lation of photocontrol

• Specular aluminum reﬂector, vertical

lamp and refractor prisms combine for

excellent perimeter lighting; Provides

5 times spacing-to-mounting height

• PGM3 is 250w max

• Socket is porcelain medium base with

spring-loaded center contact, for all

offerings below 250w; 250w

units are mogul base

• Bronze powder paint ﬁnish is standard,

other ﬁnishes available, consult factory

• Listed to UL1598 for use in wet loca-

tions

ORDERING INFORMATION

ACCESSORIES - Order Separately

Catalog Number Description PKG.

CODE

PBT-1 Photocontrol, button type, 120V

SCC

PBT-234 Photocontrol, button type, 208, 240, 277V

SCC

PG-PS1Polycarbonate shield for refractor

PG-WG1Wire guard for refractor

PVL3V Full cut-off visor, formed aluminum, bronze ﬁnish

1 Guard and shield can be used on the same ﬁxture

OPTIONS - Add Sufﬁx

Catalog Number Description

-EM Double contact socket for remote power (less lamp)

all units

-QSS Quartz restrike system including relay

(less lamp) all units (double contact bayonet socket)

-UST Substantially transformed version in the U.S. meeting level

2 of the Buy American Act

REPLACEMENT PART

Catalog Number Description

80033990104 Lens door assembly, bronze

Catalog Number Wattage Lamp Type Voltage Ballast Lamp Included/Base Weight

lbs. (kg)

PKG.

CODE

PGM3-100P-18-BZ-L 100 PSMH Quad Tap HX-HPF Yes/Med. 25 (11.3)

PGM3-150P-18-BZ 150 PSMH Quad Tap HX-HPF No/Med. 25 (11.3)

PGM3-150P-18-BZ-L 150 PSMH Quad Tap HX-HPF Yes/Med. 25 (11.3)

PGM3-250P-18-BZ 250 PSMH Quad Tap CWA-HPF No/Mog. 27 (12.2)

PGM3-250P-18-BZ-L 250 PSMH Quad Tap CWA-HPF Yes/Mog. 27 (12.2)

PGM3-070S-18-BZ 70 HPS Quad Tap AL-HPF No/Med. 23 (10.4)

PGM3-100S-18-BZ 100 HPS Quad Tap AL-HPF No/Med. 24 (10.9)

PGM3-150S-18-BZ-L 150 HPS Quad Tap AL-HPF Yes/Med. 25 (11.3)

PGM3-250S-18-BZ 250 HPS Quad Tap CWA-HPF No/Mog. 30 (13.6)

PGM3-250S-18-BZ-L 250 HPS Quad Tap CWA-HPF Yes/Mog. 33 (14.9)

PGM3-LB 250Max None None None No/Mog. 15 (6.8)

Notes: • L - Indicates lamp included with the ﬁxture

• Above units (-18) are Quad Tap (120,208,240,277V) 480V available on 150/250w units, change 8 to 5

• For TriTap Canadian ballast (120,277,347V) change 8 to 6

• BZ - Dark Bronze ﬁnish is standard; For alternate ﬁnish - consult factory for price adder and availability

BL - Black, GR - Gray, WH - White, PS - Platinum

• 50HZ ballastry is available - consult factory

• Less ballast

A B C D

14 7/8” 15” 8” 6 13/16”

PGM3 378 mm 381 mm 203 mm 173 mm

DIMENSIONS

HID WALLPACKS

STOCK

MADE-TO-ORDER

STOCK

Visit www.hubbelloutdoor.com/products for up-to-date availability information

• Cast aluminum door with borosilicate

glass refractor; Bottom hinge allows

door removal; Twin HubbellGard® screw

closure for positive seal

• Cast aluminum back housing provides

ﬁrm mounting and heat dissipation;

Mounts over recessed wiring boxes;

Has two 1/2” conduit hubs for feed-

through wiring; Side hub for ﬁeld

installation of photocontrol

• Specular aluminum reﬂector, vertical

lamp position and refractor prisms

combine for excellent perimeter lighting;

Provides 5 times spacing to mounting

height

• PGL is mogul base 250-400w max

• Bronze powder paint ﬁnish is standard,

other ﬁnishes available, consult factory

• Listed to UL1598 for use in wet loca-

tions

Vertical Lamp Position Glass Refractor Wallpack

Perimaliter® PGL

ORDERING INFORMATION

Catalog Number Wattage Lamp Type Voltage Ballast Lamp Included Weight

lbs. (kg)

PKG.

CODE

PGL-250P-128-1-LP 250 PSMH Quad Tap CWA-HPF Yes 30 (13.6)

PGL-350P-128-1-LP 350 PSMH Quad Tap CWA-HPF Yes 27 (15.0)

Notes: • LP - Indicates lamp included with the ﬁxture.

• Above units are Quad Tap (120,208,240,277V ED28 lamps are required)

• For Tri-Tap Canadian ballast (120,277,347 volt) change 8 to 6

• Dark Bronze ﬁnish (-1) is standard; For alternate ﬁnish (2- Black, 3- Gray, 4- White) - consult factory for

price adder and availability

• 50Hz ballastry is available - Consult factory

ACCESSORIES - Order Separately

Catalog Number Description PKG.

CODE

PBT-1 Photocontrol, button type, 120V

SCC

PBT-234 Photocontrol, button type, 208, 240, 277V

SCC

PTA-8 Photocontrol, external, weather tight, 208, 240,

277V

PG-PS1Polycarbonate shield for refractor

PG-WG1Wire guard for refractor

PVL3V Full cut-off visor, formed aluminum, bronze ﬁnish

1 Guard and shield can be used on the same ﬁxture

A B C D

14 7/8” 15” 9 7/8” 6 13/16”

PGL 378 mm 381 mm 251 mm 173 mm

REPLACEMENT PART

Catalog Number Description PKG. CODE

80033990104 Lens door assembly, bronze BC

OPTIONS - Add Sufﬁx

Catalog Number Description

-EM Double contact socket for remote power (less lamp) all units

-QSS Quartz restrike system including relay (less lamp) all units

(Double contact bayonet socket)

-UST Substantially transformed version in the U.S. meeting level 2

of the Buy American Act

DIMENSIONS

HID WALLPACKS

STOCK

Catalog Number Wattage Lamp Type Voltage Ballast Lamp Included Weight

lbs. (kg)

PKG.

CODE

PGL-250P-128-1-LP 250 PSMH Quad Tap CWA-HPF Yes 30 (13.6)

PGL-350P-128-1-LP 350 PSMH Quad Tap CWA-HPF Yes 27 (15.0)

PGL-250S-128-1 250 HPS Quad Tap CWA-HPF No 32 (14.5)

PGL-400S-128-1 400 HPS Quad Tap CWA-HPF No 36 (16.3)

PGL-400S-128-1-LP 400 HPS Quad Tap CWA-HPF Yes 36 (16.3)

MADE-TO-ORDER

STOCK

Visit www.hubbelloutdoor.com/products for up-to-date availability information 37

Glass Wallpacks – Horizontal Lamp

WGH/WPH

ORDERING INFORMATION

• Borosilicate glass refractor softens lamp

image and provides uniform distribution

- 4 times spacing to mounting height

• Cast aluminum frame holds lens, hinges

to side of housing and seals with two

stainless steel screws

• Cast aluminum housing with 1/2”

conduit entries, button photocontrol

can be ﬁeld installed

• WGH Mid-size is 150w PSMH; WGH large

handles 250-400w

• WGH-70/100 compact size PSMH and HPS

• Listed to UL1598 for use in wet locations

• All units have dark bronze powder paint

ﬁnish, Quad-Tap® ballasts and lamps

included; 150w PSMH is shipped with

medium base lamp; All other HID watt-

ages include mogul base lamp

ORDERING INFORMATION

Catalog Number1Size Wattage/Source Voltage Finish Lamp Weight

lbs. (kg)

PKG.

CODE

WGH-150P Mid-Size 150w PSMH 120, 208, 240, 277V Bronze Included 19 (8.6)

FCC

WGH-150S Mid-Size 150w HPS 120, 208, 240, 277V Bronze Included 18 (8.2)

FCC

WGH-150S120 Mid-Size 150w HPS 120V Bronze Included 15 (6.8)

FCC

WGH-250P Large 250w PSMH 120, 208, 240, 277V Bronze Included 34 (15.4)

FCC

WGH-400P Large 400w PSMH 120, 208, 240, 277V Bronze Included 37 (16.8)

FCC

ACCESSORIES - Order Separately

Catalog Number Description PKG.

CODE

PBT-1 Photocontrol - button type 120V

SCC

PBT-234 Photocontrol - button type 208, 240, 277V

SCC

PTA -8 Photocontrol - external stem mount 120, 240, 277V

REPLACEMENT PARTS

Catalog Number Description PKG.

CODE

SM708-REPLGL Glass only for WGH-250/400

SM708-FRAME/GLASS Lens door assembly for WGH-250/400

SM704-REPLGL Glass only for WGH-70H/100H

SM704-FRAME/GLASS Lens door assembly for WGH-70H/100H

SM705-LENS Polycarbonate refractor only for WPH-

70S/100S

LAMP

INCLUDED

DIMENSIONS -WGH 84/150/250/400 DIMENSIONS -WPH/WGH 70/100

Catalog Number Source/ Lens Wattage/Voltage Finish Start Temperature Weight

lbs. (kg)

PKG.

CODE

WPH-70S HPS - Polycarbonate/Lens 70 HPS 120V Bronze -40°F 8 (3.6)

FCC

WGH-70H PSMH - Glass Refractor 70 PSMH 120/208/240/277V Bronze -20°F 9 (4.1)

FCC

WGH-100H PSMH - Glass Refractor 100 PSMH 120/208/240/277V Bronze -20°F 10 (4.5)

FCC

A B C

8 1/2” 8 1/2” 8 1/2”

216 mm 216 mm 216 mm

PSMH WGH 70-100

HPS WPH 70-100

WGH 150-400

A B C

9” 7.25” 13"

Mid-Size 229 mm 184 mm 330 mm

9” 13” 17"

Large 229 mm 330 mm 432 mm

HID WALLPACKS

STOCK

STOCK MADE-TO-ORDER

MADE-TO-ORDER

ACCESSORIES - Order Separately

Catalog Number Description PKG.

CODE

SM708-GUARD Wireguard for large ﬁxtures

SM708-VISOR Top visor for large ﬁxtures

Visit www.hubbelloutdoor.com/products for up-to-date availability information

Decorative Perimeter Wallpack

• Decorative polycarbonate front provides

vandal resistance and efﬁcient spread;

Typical mounting height is up to 10 feet;

Internally painted bronze ﬁnish for last-

ing appearance

• Rugged cast aluminum back housing for

rigid mounting; Bottom 1/2” conduit

knockout for surface conduit wiring (ex-

cept on 'MS' unit); Back hub allows access to

recessed wiring boxes; Two point mounting

• Motion controlled unit has 180˚ detec-

tion range – saves energy by providing

illumination only when needed

• Motion sensor unit features multiple con-

trol settings - for more energy savings

• Most units available with or without

120V button photocontrol, see ordering

information

• Tamper resistant center pin Torx

hardware included for vandal prone ap-

plications

• Lamp included

• Listed to UL1598 for use in wet

locations

NRG® 200B

ORDERING INFORMATION

Catalog Number1

Wattage Voltage Color Weight

lbs. (kg)

PKG.

CODE

Without Photocontrol With Photocontrol

Pulse Start Metal Halide

NRG-250B NRG-250B-PC1,2 50w 120V2Bronze 6.5 (2.9)

FCC

Electronic Fluorescent3

NRG-204B NRG-204B-PC142w 120-277V (-PC120) Bronze 4.2 (1.9)

FCC

– NRG-206B-PC126w 120V Bronze 4.2 (1.9)

FCC

Motion Controlled Electronic Fluorescent3

NRG-204B-MS442w 120V Bronze 6.0 (2.7)

FCC

1 120V only when ordered with photocontrol

2 120V NPF ballast for H.I.D.

3 CFL lamps are 4-Pin, 3500K

4 Motion sensor has 180˚ detection range, adjustable time-on and sensitivity settings

ACCESSORIES - Order Separately

Catalog Number Description PKG. CODE

PBT-1 Button photocontrol, 120V

PBT-234 Button photocontrol, 208, 240, 277V

NRG-204B

2.8˝

LAMP

INCLUDED

REPLACEMENT PART

Catalog Number Description PKG. CODE

NRG200BLENS Polycarbonate front cover, bronze

HID WALLPACKS

DIMENSIONS

STOCK

Visit www.hubbelloutdoor.com/products for up-to-date availability information 39

Perimeter Wallpack

• Full polycarbonate front provides vandal

resistance and efﬁcient spread; Lateral

coverage on HID units is 5 times the

typical mounting height up to 10 feet;

Internally painted bronze ﬁnish for last-

ing appearance; Fluorescent photocon-

trol version available in white

• Motion controlled unit has 180˚ detec-

tion range – saves energy by providing

illumination only when needed

• Lamp included

• Rugged cast aluminum back housing for

rigid mounting; Bottom 1/2” conduit

knockout for surface conduit wiring

(except on 'MS' unit); Back hub allows

access to recessed wiring boxes; Two point

mounting

• Units available with or without 120V

button photocontrol, see ordering

information

• Listed to UL1598 for use in wet

locations

• Tamper resistant center pin Torx

hardware included

NRG® 300B

Catalog Number1

Wattage Voltage Color Weight

lbs. (kg)

PKG.

CODE

Without Photocontrol With Photocontrol

High Pressure Sodium

NRG-301B NRG-301B-PC1,2 50w 120V Bronze 5 (2.3)

FCC

NRG-307B NRG-307B-PC1,2 70w 120V Bronze 5 (2.3)

FCC

Pulse Start Metal Halide

NRG-350B NRG-350B-PC1,2 50w 120V Bronze 6.5 (2.9)

FCC

Electronic Fluorescent3

– NRG-306B-PCW126w 120-277V (-PC120) White 4.2 (1.9)

FCC

– NRG-306B-PC126w 120-277V (-PC120) Bronze 4.2 (1.9)

FCC

– NRG-304B-PCW142w 120-277V (-PC120) White 4.2 (1.9)

FCC

NRG-304B NRG-304B-PC142w 120-277V (-PC120) Bronze 4.2 (1.9)

FCC

Motion Controlled Electronic Fluorescent3

– NRG-304B-MS442w 120V Bronze 6 (2.7)

FCC

1 Lamp included

2 120V NPF ballast for HID

3 CFL lamps are 4-Pin, 3500K, GX24q-4

4 Motion sensor has 180˚ detection range, adjustable time-on and sensitivity settings

A B C D E

5.39" 11.02" 6.89" 6.50" 2.5"

137 mm 280 mm 175 mm 165 mm 63.5 mm

A C

ACCESSORIES - Order Separately

Catalog Number Description PKG. CODE

PBT-1 Button photocontrol, 120V

SCC

PBT-234 Button photocontrol, 208, 240, 277V

SCC

REPLACEMENT PART

Catalog Number Description PKG. CODE

SM352-COVER Polycarbonate front cover, Bronze

Dual-Lite

Ridgeline Battery Fixture

for 42w CFL egress unit with

battery back-up

NRG-304B-MS

14.00”

(356 mm)

5.39”

(137 mm)

6.89”

(175 mm)

6.5”

(165 mm)

2.5”

(63.5 mm)

LAMP

INCLUDED

HID WALLPACKS

DIMENSIONS

STOCK

MADE-TO-ORDER

ORDERING INFORMATION

Visit www.hubbelloutdoor.com/products for up-to-date availability information

LED CEILING/CANOPY/GARAGE

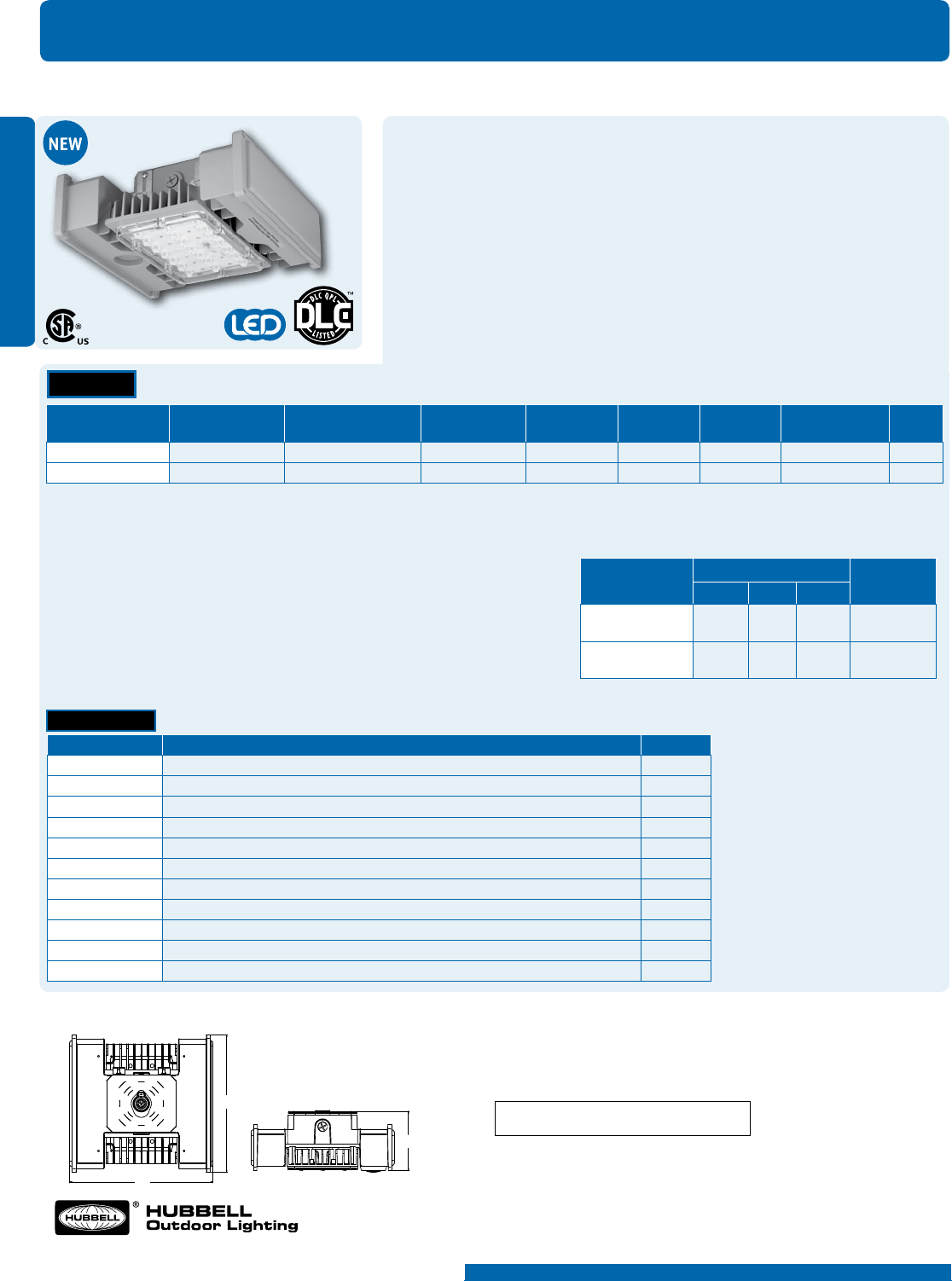

Ceiling/Canopy/Garage LED Luminaire

GSL

DIMENSIONS

A B C Weight

12.5” sq. 12.0” 5.2” 13.8 lbs.

317.5 mm 304 mm 132 mm 6.25 kg

ORDERING INFORMATION

Series Number Equivalency Energy

Savings

MH HPS CFL

GSL-15L 150w 150w 84w+ 72%

GSL-21L 250w 250w 84w+ 54%

PERFORMANCE INFORMATION

ACCESSORIES/REPLACEMENT PARTS - Order Separately (ﬁeld installed)

Catalog Number Description PKG. CODE

GSL-SPC Vandal shield, polycarbonate

GSL-CS Comfort shield, acrylic, improved uniformity, 10-15% lumen reduction

93048453 Programmable motion sensor (High/low or on/off capability, user programmable low settings)

95005520 Motion sensor lens (wide lens, 48 ft. diameter, 16ft. maximum mounting height)

PTA-1 120V button photocell with 1/2" thread

PTA-8 120V - 277V button photocell with 1/2" thread

SCP-REMOTE Infrared IR remote control to program motion sensor (Minimum 1 required per project)

GSL-MTG-PL Hinged mounting plate

GSL-LENS-M LED lens for symmetrical Type V

GSL-LENS-R LED lens for asymmetrical Type II rectangular

GSL-Protector 15KA surge protector

• Designed for a range of ceiling ap-

plications from eight to ﬁfteen feet for

junction box or pendant mount; Parking

garage, walkway or building canopies,

corridors, tunnels, large stairwells and

other cover applications; Two lumen

packages and two optical distributions

make the the GSL Series luminaire both

versatile and functional

• Vertically ﬁnned cast aluminum housing

for maximum heat dissipation ensuring

long component life and performance

• Wattage: 53.3w or 74w, >81 LPW

• Gray powder coat paint ﬁnish

• IP66 luminaire rating, Listed to UL1598

for use in wet locations

• Field conﬁgurable symmetric and

asymmetric optic in a single SKU

• DesignLights Consortium qualiﬁed

• Two 1/2" threaded hubs for accessories

• CCT: 4000K (70 CRI)

• Lumen packages ranging from 4,500 –

6,100 with 15 or 21 LEDs

• Designed for 40° C ambient temperatures

• Hinged mounting plate standard, allows

single person installation

STOCK

Catalog Number System watts delivered lumens Voltage CCT # Drivers/

current

Mounting

Height

Weight

lbs. (kg)

PKG.

CODE

GSL-15L 53.3w 4524 120-277V 4000K 1@1050mA 8-12 ft. 13.8 (6.2) BC

GSL-21L 74w 6138 120-277V 4000K 1@1050mA 12-15 ft. 13.8 (6.2) BC

MADE-TO-ORDER

Visit www.hubbelloutdoor.com/products for up-to-date availability information

LED CEILING/CANOPY/GARAGE

High Performance LED Indoor/Outdoor Lowbay Series

• Designed for illumination of commercial

indoor/outdoor lowbay applications

including: mechanical rooms, retail,

covered loading docks and utility areas

• Rugged, die-cast housing has a durable

powder coat paint finish available in

bronze, white, black and gray; Mounts

over recessed J-box and features two

convenient 1/2” side hubs for surface

conduit mounting

• Stainless steel vandal-resistant screws

standard

• Fully gasketed for weatherproof/bug-

proof integrity

• 4000K CCT (70 CRI) nominal and 5000K

CCT (67 CRI) nominal

• One-piece, injection-molded, clear pris-

matic acrylic refractor enhances space

with 10% uplight; High temperature

acrylic for reduced yellowing, uniform

light distribution and low glare

• Listed to UL1598 for use in wet loca-

tions

• Five year limited warranty

• 10KA, 10KV surge protector standard

• 4000K, 700mA model DesignLights

Consortium (DLC) qualiﬁed

Lumasquare® NRG® 4000

ORDERING INFORMATION

Catalog Number System watts delivered

lumens Voltage CCT # Drivers/

current

Mounting

Height

Weight

lbs. (kg)

PKG.

CODE

NRG4-30LU-4K-035-BZ 35 3355 120-277V 4000K 1@350mA up to 16 ft. 13.9 (6.3)

NRG4-30LU-5K-035-BZ 35 3543 120-277V 5000K 1@350mA up to 16 ft. 13.9 (6.3)

1 For alternate housing ﬁnish change BZ to WH-White, BL-Black, GR-Gray (Made-To-Order only)

A B C Weight

14” sq. 8 1/8” 4 3/4” 13.9 lbs.

356 mm 206 mm 121 mm 6.3 kg

REPLACEMENT PART

Catalog Number Description

800-3289-0100 Replacement refractor kit

Series Number Equivalency Energy

Savings

MH HPS IND

NRG4-30LU-4K-035-BZ 70w 70w 70w 65%

NRG4-30LU-4K-BZ 100w 100w 85w 53%

NRG4-30LU-5K-035-BZ 70w 70w 70w 65%

NRG4-30LU-5K-BZ 100w 100w 85w 53%

PERFORMANCE INFORMATION

DIMENSIONS

ORDERING INFORMATION

Catalog Number System watts delivered

lumens Voltage CCT # Drivers/

current

Mounting

Height

Weight

lbs. (kg)

DesignLights

CONSORTIUM

PKG.

CODE

NRG4-30LU-4K-BZ 70 5872 120-277V 4000K 2@700mA up to 16 ft. 13.9 (6.3)

NRG4-30LU-5K-BZ 70 6122 120-277V 4000K 2@700mA up to 16 ft. 13.9 (6.3) N/A

STOCK

5-Day Quick Ship Ordering Guide

Order Limit Per Fixture Selection: 15 – BC Pkg Code

Visit www.hubbelloutdoor.com/products for up-to-date availability information

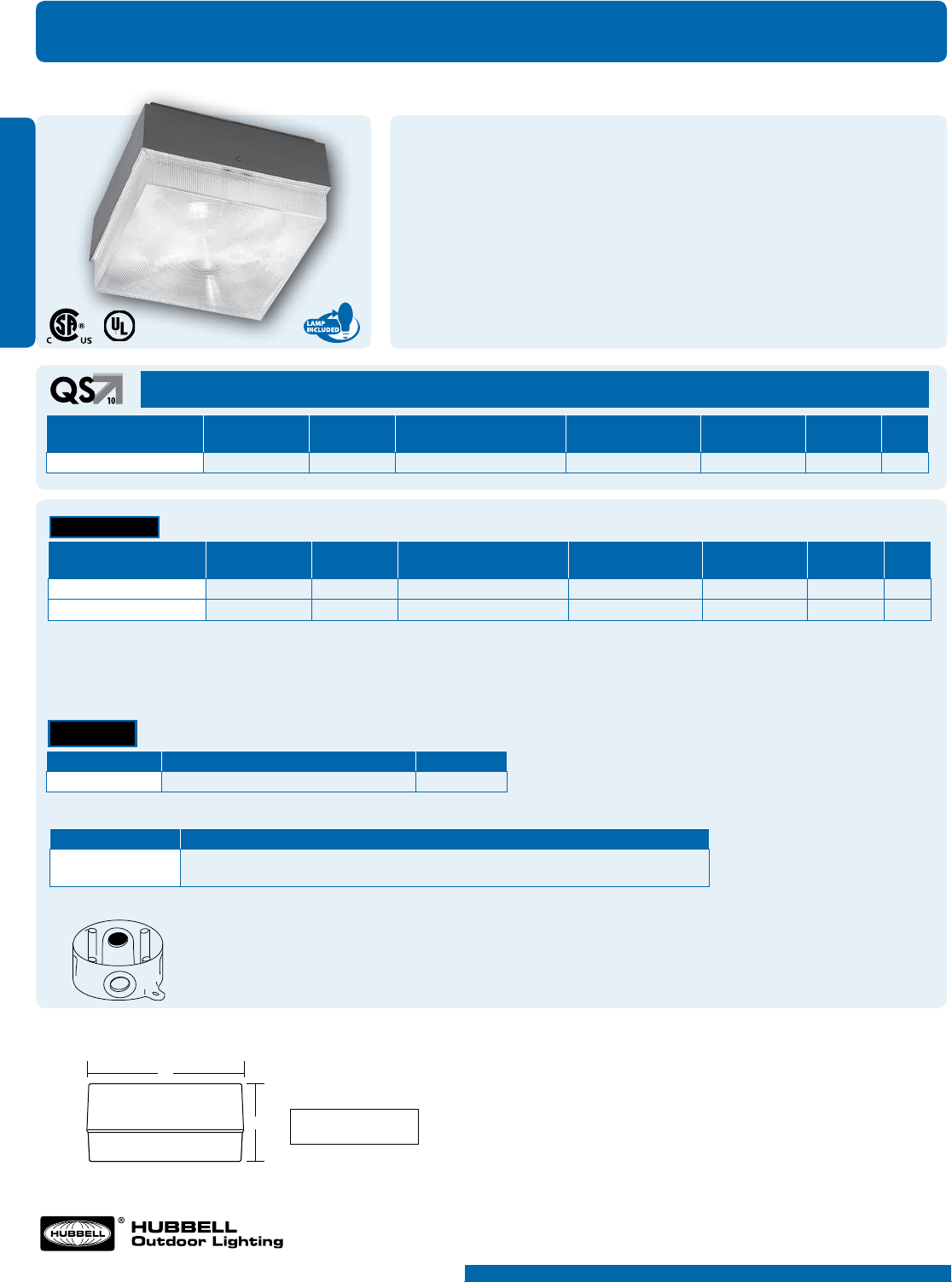

Lumasquare® I Decorative Ceiling Series

• Polycarbonate housing with molded-in

dark bronze textured ﬁnish; Mounts

directly to recessed junction boxes;

“Hidden” latches secure refractor for

tamper resistance and clean appear-

ance; Shallow 5” depth

• Polycarbonate refractor minimizes

side light while providing a uniform

distribution from the bottom prisms;

Excellent for low (7-10ft) mounting ap-

plications; HPS unit has hydroformed

aluminum reﬂector, ﬂuorescent reﬂectors

are high gloss white to maximize

lumens into the refractor

• Units provide a Type V distribution

with good uniformity

• Available in 50w HPS, 2x13w PL-S and

2x28w PLC CFL – all units 120V and

include lamp(s)

• Listed to UL1598 for damp locations

indoor and outdoor

NRG® 400 Series

ORDERING INFORMATION

S-319-B

Catalog Number1Wattage Voltage Ballast Type Min. Start Temp Input Amps Weight

lbs. (kg)

PKG.

CODE

NRG-401150w HPS 120 Reactor -40F 1.8 6 (2.7)

A B

10” sq. 5”

254 mm 127 mm

S-314-B S-319-B S-329-B C-5 206-BC3

GLN-1-G NM-BC 1414 1031-1 1034 S-302

REPLACEMENT PART

Catalog Number Description PKG. CODE

264-0225-9904 Replacement refractor with molded hinges

LAMP

INCLUDED

CEILING/CANOPY/GARAGE

DIMENSIONS

MADE-TO-ORDER

Catalog Number1Wattage Voltage Ballast Type Min. Start Temp Input Amps Weight

lbs. (kg)

PKG.

CODE

NRG-406-212 x 13w CFL 120 Preheat 32F .7 5 (2.3)

NRG-45612 x 28w CFL 120 NPF Reactor -20F 1.2 6 (2.7)

1 CSA certiﬁed for outdoor applications only; UL indoor/ outdoor, NRG-406 uses GX23

base, NRG-456 uses GX32d-3 base lamps

Note: Lamp included

ACCESSORIES - Order Separately

Catalog Number Description

S-319-B 4” Cast aluminum round junction box for surface conduit mounting with two mounting lugs,

four 1/2” tapped hubs, and three plugs; leaves ﬁxture 2” from ceiling

10-Day Quick Ship Ordering Guide

Order Limit Per Fixture Selection: 15 – BC Pkg Code

STOCK

Visit www.hubbelloutdoor.com/products for up-to-date availability information 43

Lumasquare® II High Performance Canopy/Parking Garage Series

• Cast aluminum housing for rugged

mounting and heat dissipation; Two 1/2”

hubs for feed-through wiring standard;

Three point lag to ceiling over recessed

junction boxes is wet location listed

when mounted to smooth surfaces

• Refractor is high temperature acrylic;

Side prisms minimize side brightness

while bottom prisms spread the light

uniformly; Vertical H.I.D. lamp reduces

intensity below the ﬁxture and provides

more lateral lumens for better project

uniformity

• Reﬂector is hydroformed with ﬂuted

segments for excellent performance

• CFL version has a ﬂat, high reﬂectance

white reﬂector with horizontal lamps

• Standard ﬁnish is dark bronze powder

paint; White (-WH) available as shown

• Lamp is included

• Listed to UL1598 for use in wet

locations

NRG® 4000 Series

ORDERING INFORMATION

Catalog Number Mounting Wattage Voltage Power Factor Refractor Weight

lbs. (kg)

PKG.

CODE

NRG-413P81Ceiling/conduit 100w PSMH Quad HPF High temp. acrylic 18 (8.2)

NRG-415P81Ceiling/conduit 150w PSMH Quad HPF High temp. acrylic 19 (8.6)

Catalog Number Mounting Wattage Voltage Power Factor Refractor Weight

lbs. (kg)

PKG.

CODE

NRG-413S81Ceiling/conduit 100w HPS Quad HPF High temp. acrylic 18 (8.2)

NRG-414S81Ceiling/conduit 150w HPS Quad HPF High temp. acrylic 19 (8.6)

NRG-413P8-WH1 (white) Ceiling/conduit 100w PSMH Quad HPF High temp. acrylic 18 (8.2)

NRG-415P8-WH1 (white) Ceiling/conduit 150w PSMH Quad HPF High temp. acrylic 19 (8.6)

NRG-484F82Ceiling/Conduit 2x42w CFL 120-277 HPF High temp. acrylic 15 (6.8)

1 Includes medium base lamp

2 Includes two 3500K, 4-PIN lamps, two ballast design allows independent lamp operation

A B C

14” sq. 8 1/8” 4 3/4”

356 mm 206 mm 121 mm

REPLACEMENT PART

Catalog Number Description PKG. CODE

800-3289-0100 Replacement refractor kit BC

LAMP

INCLUDED

CEILING/CANOPY/GARAGE

DIMENSIONS

MADE-TO-ORDER

10-Day Quick Ship Ordering Guide

Order Limit Per Fixture Selection: 15 – BC Pkg Code

STOCK

Visit www.hubbelloutdoor.com/products for up-to-date availability information

HID/CFL CEILING

Round Vandal Resistant Ceiling/Wall Mount Units

• Polycarbonate diffusers with center-pin

torx tamper-proof hardware (driver bit

included)

• Spun aluminum ballast enclosures with

1/2” knockouts

• Medium base and lamps are included

• CFL units are electronic with PLT lamps

included (no hubs, no upper housing,

low proﬁle)

• All units are Quad-Tap®; CFL units are

50/60 Hz standard

• Units have dark bronze protective paint

ﬁnish

• Listed to UL1598 for use in wet loca-

tions

R9/R12 Series

ORDERING INFORMATION

Catalog Number1Wattage/ Source Voltage2Weight

lbs. (kg)

PKG.

CODE

11 Inch Diameter

R9-70H 70w PSMH Quad-Tap®10 (4.5)

R9-70S 70w HPS Quad-Tap®10 (4.5)

15 Inch Diameter

R12-100H 100w PSMH Quad-Tap®15 (6.8)

1 Lamp included

2 Quad-Tap® - 120,208,240,277V

R12-HID R9-HID

R9-42F

7.4"

(189 mm)

4.25"

(108 mm)

11.4"

(290 mm)

9.8"

(249 mm)

7.9"

(200 mm)

4.9"

(124 mm)

15.0"

(380 mm)

12.8"

(325 mm)

R9 (HID) R12 (HID)

REPLACEMENT PARTS

Catalog Number Description PKG. CODE

SM020-LENS Replacement lens only for R9 units

SM021-LENS Replacement lens only for R12 units

LAMP

INCLUDED

DIMENSIONS

STOCK

MADE-TO-ORDER

Visit www.hubbelloutdoor.com/products for up-to-date availability information 45

HID CEILING

7.1"

(180 mm) 5.3"

(135 mm)

5.3"

(135 mm)

8.9"

(226 mm)

4.1"

(104 mm)

4.1"

(104 mm)

8.9"

(226 mm)

12.4"

(315 mm)

8.5"

(216 mm) 11.8"

(300 mm) 8.5"

(216 mm) 11.8"

(300 mm)

8.9"

(226 mm)

12.4"

(315 mm)

Vandal Resistant Fixtures

• Die-cast aluminum housing with 1/2”

conduit hubs on H.I.D. units; CFL units

have no top casting or hubs – low

proﬁle, see dimensions below

• Vandal resistant prismatic polycarbonate

refractor

• Bronze powder paint ﬁnish on H.I.D.

units

• Medium base or CFL lamps included

• Typical mounting height ranges from 8

to 15 feet

• Listed to UL1598 for use in wet loca-

tions, wall or ceiling mount

• Center pin torx screws are standard

(bit included)

S9/S12 Series

ORDERING INFORMATION

REPLACEMENT PARTS

Catalog Number Description PKG. CODE

SM009-LENS Refractor only for S9 units

SM012-LENS Refractor only for S12 units

Catalog Number1Wattage/ Source Voltage Finish Weight

lbs. (kg)

PKG.

CODE

Wet Location - Ceiling / Wall Mount

Compact S9 – 9 inch Square

S9-42F* 42w CFL 120, 208, 240, 277 - 4 (1.8)

FCC

S9-70H 70w PSMH 120, 208, 240, 277 Bronze 10 (4.5)

FCC

Mid-Size S12 – 12 inch Square

S12-100H 100w PSMH 120, 208, 240, 277 Bronze 15 (6.8)

FCC

S12-150P 150w PSMH 120, 208, 240, 277 Bronze 16 (7.3)

FCC

1 Lamp included

* Low proﬁle, see photos and dimensions, no hubs or top housing, CFL lamps are 4-pin, 3500K

S12 HID S9 HID

S9-42F

S9-HID S9-42F

S12-HID S12-84F

For CFL unit with

battery backup for

egress applications,

see Dual-Lite PSG8 page 945

LAMP

INCLUDED

DIMENSIONS

STOCK

MADE-TO-ORDER

Visit www.hubbelloutdoor.com/products for up-to-date availability information

ORDERING INFORMATION

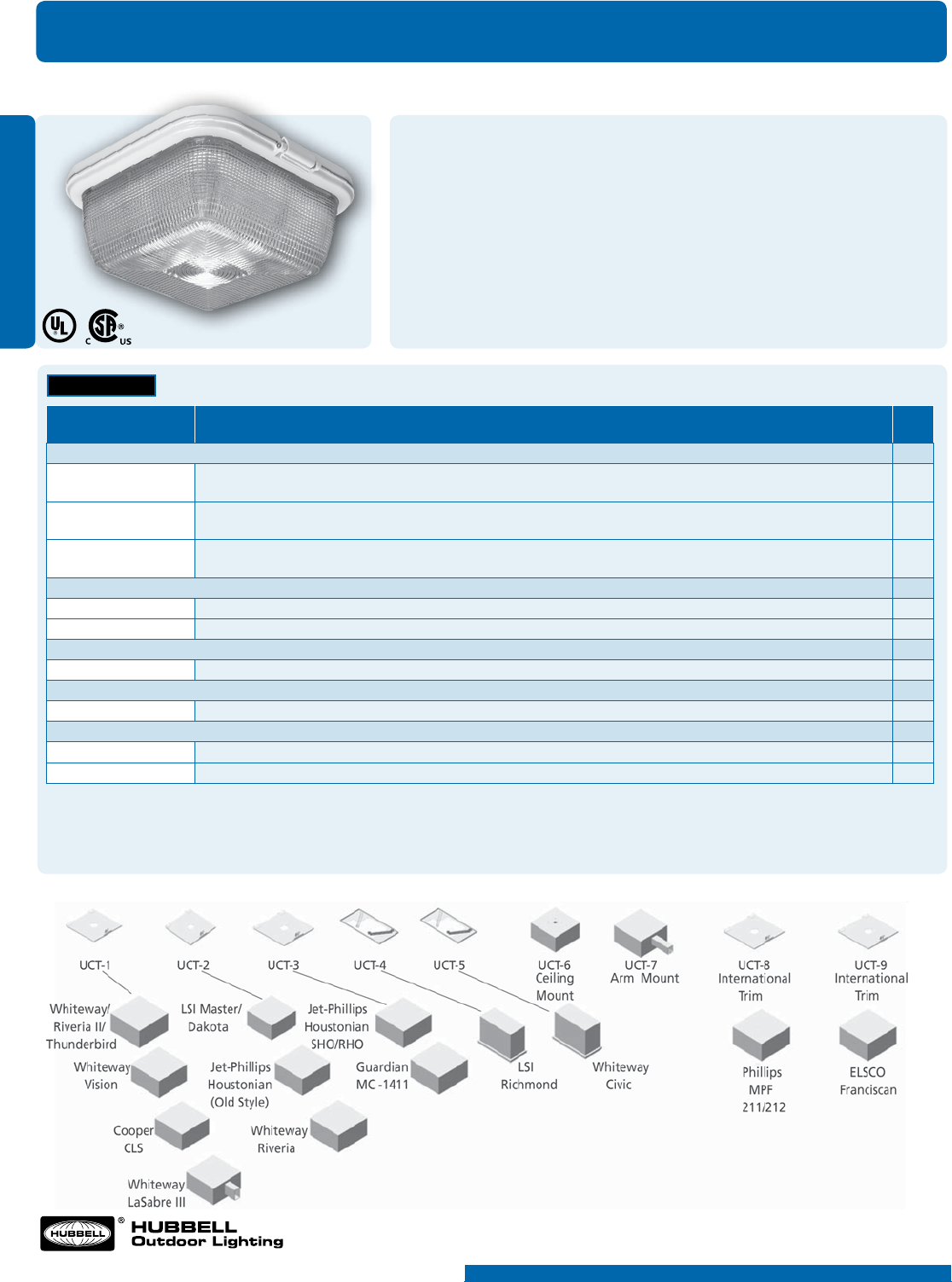

UCT Modular System

Catalog Number Description PKG.

CODE

2 x 2 RetroTrims

UCT-1 Fixture size: 21 1/8” square; min. 6” above ﬂange; ﬂange opening range: 18 13/16” through 19 5/16”;

Whiteway Riviera II/Thunderbird/Vision/LaSabre III; Cooper CLS BC

UCT-2 Fixture Size: 23” square; min. 6” above ﬂange; ﬂange opening range: 20 13/16” through 21 9/32”; LSI Master/Dakota;

Jet Phillips Houstonian (old style); Whiteway Riviera BC

UCT-3 Fixture size: 21 3/4” square through 22” square; min. 6” above ﬂange; ﬂange opening range: 19 3/4” through 20 7/32”;

Jet Phillips Houstonian SHO/RHO; Guardian MC-1411 BC

Recessed RetroTrims

UCT-4 Fixture size: LSI Richmond Series 21 1/2” x 11 15/16” outside frame BC

UCT-5 Fixture size: Whiteway Civic Series 20 3/4” x 11 1/16” outside frame BC

Surface Mount Housing Trims

UCT-6 16 1/4” square x 8” high surface mount housing trim; mounting hardware not included BC

Arm Mounted Housing Trims

UCT-7 16 1/4” square x 8” high arm mounted housing; order appropriate arm separately BC

International RetroTrims

UCT-8 Phillips MPF 211/212 recessed series: 520mm square frame BC

UCT-9 Elsco Franciscan recessed or surface-mount series: 23 3/4” (603mm) square housing BC

Note: Order UCL as shown on page 558, plus one UCT

Note: Due to our ongoing improvement program, speciﬁcations and design are subject to change without notice

HID CANOPY

RetroTrim System Canopy Lighting

UCT

• Modular design for ﬂexibility, availabil-

ity and value

• UCTs are used in conjunction with the

UCL to retroﬁt an existing ﬁxture

• White Lektrocote® powder paint for

superior longevity

• Can reuse UCL for new installations

• Easy, cost effective installation

• Improved lighting with less energy

• U.S. Patent No. 6,182,848 and

6,276,818

MADE-TO-ORDER

Visit www.hubbelloutdoor.com/products for up-to-date availability information 47

LED ROADWAY

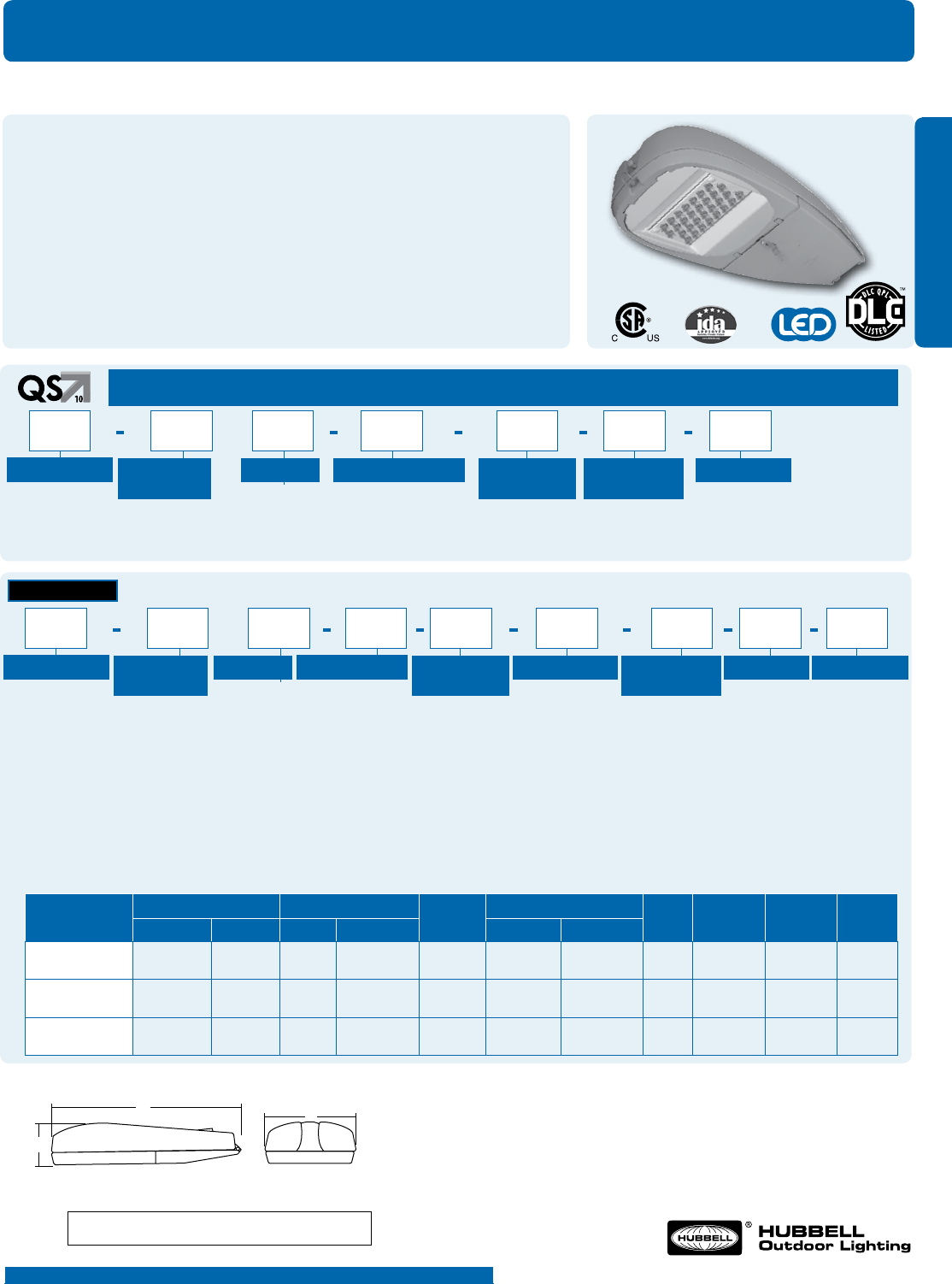

Roadway

RM LED

ORDERING INFORMATION

• Designed for roadway, parking, area

and perimeter lighting; These versatile

Roadway luminaires are designed to

replace existing cobra-head style ﬁxtures

from 70-150w while saving up to 65% in

energy; LED luminaires feature optimum

uniformity, elimination of 'hot spots' and

zero uplight

• 3800 lumens at 350 mA or 6700 lumens

at 700 mA

• 30 LED light engine

• Standard IES distributions of Type II, III,

IV, V with up to 95 LPW efﬁcacy

• 120-277V, 347/480V electronic dimming

drivers, 2 at 700 mA, 1 at 350 mA

• Die-cast aluminum housing

• Lektrocote® ﬁnish in 2 standard and

custom colors

• DesignLights Consortium (DLC) qualiﬁed

• IP65 LED light engine assembly and drivers

• 10KA surge protector standard

DIMENSIONS

A B C EPA Weight

6.75" 13" 29.75" 0.6 ft.214.20 lbs.

171 mm 330 mm 756 mm .05 m2 6.44 kg.

ORDERING INFORMATION

SERIES

RM Zero

uplight

medium

Roadway

SERIES

RM Zero

uplight

medium

Roadway

CCT

3K 3000K

nominal, 80

CRI

4K 4000K

nominal, 70

CRI

5K 5000K

nominal, 67

CRI

CCT

4K 4000K nominal,

70 CRI

5K 5000K nominal,

67 CRI

IES

DISTRIBUTION

2Type II

3Type III

4Type IV

5M Type V

IES

DISTRIBUTION

2Type II

3Type III

4Type IV

PHOTOCONTROL

RECEPTACLE

2None

3Yes

30L

30L U

FINISH

BK Black

DB Dark

Bronze

CC Custom

Color

(Reference

RAL#)

GR Gray

PS Platinum

Silver

WH White

FINISH

GR Gray

DRIVE CURRENT

BLANK 700 mA

035 350 mA

VOLTAGE

U120-277V

5480V

F347V

VOLTAGE

U120-277V

NUMBER OF

LEDS

30L 30 LEDs

NUMBER OF

LEDS

30L 30 LEDs

Series Number Equivalency Delivered Lumens Energy

Savings

System Watts LPW CCT Drivers/

Current

PKG.

CODE

MH HPS Type 2 Type 3 120V-277V 347V-480V

RM-30LU-3K 100w 100w 4612 4632 65% 70 70 65 3000K 2@700mA BC

RM-30LU-4K 150w 100w 5844 5840 53% 70 70 83 4000K 2@700mA BC

RM-30LU-5K 175w 150w 6712 6718 60% 70 70 95 5000K 2@700mA BC

PERFORMANCE INFORMATION

1 Recommended for Type III and IV distributions only

10-Day Quick Ship Ordering Guide

Order Limit Per Fixture Selection: 15 – BC Pkg Code

PHOTOCONTROL

RECEPTACLE

2None

3Yes

MADE-TO-ORDER

OPTIONS

F(X) Fusing,

replace

X with

voltage,

specify:

1-120V

2-208V

3-240V

4-277V

5-480V

6-347V

BC1Back-

light

control

Visit www.hubbelloutdoor.com/products for up-to-date availability information

LED ROADWAY

Roadway

RL LED

• Designed for roadway, parking, area and

perimeter lighting; These versatile Road-

way luminaires replace existing cobra-head

style ﬁ xtures from 200-400w while saving

up to 56% in energy; LED luminaires

feature optimum uniformity, elimination of

'hot spots' and zero uplight

• 12000 lumens at 700 mA

• Standard IES distributions of Type II, III,

IV, V with up to 85 LPW efﬁ cacy

• Two 30 LED light engines

• 120-277V, 347/480V electronic dimming

drivers (4) standard

• Die-cast aluminum housing

• Lektrocote® ﬁ nish in 2 standard and

custom colors

• IP65 LED light engine assembly and drivers

• 10KA surge protector standard

SERIES

RL Zero

uplight

large

Roadway

CCT

3K 3000K

nominal, 80

CRI

4K 4000K

nominal, 70

CRI

5K 5000K

nominal, 67

CRI

IES

DISTRIBUTION

2Type II

3Type III

4Type IV

5M Type V

PHOTOCONTROL

RECEPTACLE

2None

3Yes

RL 60L

FINISH

BK Black

DB Dark

Bronze

CC Custom

Color

(Reference

RAL#)

GR Gray

PS Platinum

Silver

WH White

DRIVE CURRENT

BLANK 700 mA

(141w)

VOLTAGE

U120-277V

5480V

F347V

NUMBER OF

LEDS

60L 60 LEDs

Roadway Roadway

DIMENSIONS

A B C EPA Weight

8.25" 15.75" 36.75" 1.0 ft.228 lbs.

210 mm 400 mm 933 mm 0.1 m2 12.7 kg.

Series Number Equivalency Delivered Lumens Energy

Savings

System Watts LPW CCT Drivers/

Current

PKG.

CODE

MH HPS Type 2 Type 3 120V-277V 347V-480V

RL-60LU-3K 250w 200w 8833 8694 31% 141 141 63 3000K 4@700mA BC

RL-60LU-4K 320w 250w 11044 11062 56% 141 141 79 4000K 4@700mA BC

RL-60LU-5K 320w 250w 11759 12058 56% 141 141 85 5000K 4@700mA BC

PERFORMANCE INFORMATION

1 Recommended for Type III and IV distributions only

SERIES

RL Zero

uplight

medium

Roadway

CCT

4K 4000K nominal,

70 CRI

5K 5000K nominal,

67 CRI

IES

DISTRIBUTION

2Type II

3Type III

4Type IV

RL 60L U

FINISH

GR Gray

VOLTAGE

U120-277V

NUMBER OF

LEDS

60L 60 LEDs

10-Day Quick Ship Ordering Guide

Order Limit Per Fixture Selection: 15 – BC Pkg Code

PHOTOCONTROL

RECEPTACLE

2None

3Yes

ORDERING INFORMATION

MADE-TO-ORDER

OPTIONS

F(X) Fusing,

replace

X with

voltage,

specify:

1-120V

2-208V

3-240V

4-277V

5-480V

6-347V

BC1Back-

light

Control

Visit www.hubbelloutdoor.com/products for up-to-date availability information

HID ROADWAY

Standard Roadway Conﬁgurations

RL SERIES

• Rugged die-cast aluminum with a two

door design allowing maximum ease in

installation and maintenance; This large

size roadway ﬁxture is designed for 250-

400w lamps

• Flat tempered glass lens is cut-off de-

sign; A dense, self-ﬁltering, felt gasket

seals both optic systems with a screw

and latch closure

• Horizontal lamp orientation with multi-

faceted reﬂectors

• Pulse-rated mogul base porcelain sockets

with nickel-plated center contacts

• Quad-Tap® or 480V ballastry, HPF, with

quick connect to housing power door;

Photoelectric receptacle standard; HPS-

auto lag (70, 100, 150w), auto regulator

(250, 400w)/ pulse start metal halide

auto transformer; Suitable for wet loca-

tions

• 4 bolt slip ﬁtter mounting, adjustable

for 1 1/4" - 2" pipe, +/- horizontal

adjustment for leveling

RM/RL DIMENSIONS

Catalog Number Description EPA Ballast Type Weight PKG.

CODE

lbs. kgs.

Fixture Housings: Breathing Felt Gasket Optical Seal, with Photocell Receptacle2, Type III Distribution

RLC-3-1 Full cut-off, III med, Bronze 1.0 - 19 8.6 BC

RLC-3-3 Full cut-off, III med, Gray 1.0 - 19 8.6 BC

Ballast Doors: Screw and Latch Closure, HPF ballast, ANSI label, UL Listed3

RLD-25S38-1 250 HPS Quad, Bronze Auto Reg 17 7.7 BC

RLD-25S35-1 250 HPS 480V, Bronze Auto Reg 17 7.7 BC

RLD-25S38-3 250 HPS Quad, Gray Auto Reg 17 7.7 BC

RLD-25S35-3 250 HPS 480V, Gray Auto Reg 17 7.7 BC

RLD-40S38-1 400 HPS Quad, Bronze Auto Reg 19 8.6 BC

RLD-40S35-1 400 HPS 480V, Bronze Auto Reg 19 8.6 BC

RLD-40S38-3 400 HPS Quad, Gray Auto Reg 19 8.6 BC

RLD-40S35-3 400 HPS 480V, Gray Auto Reg 19 8.6 BC

RLD-40P38-11400 PSMH Quad, Bronze PLA 18 8.2 BC

RLD-40P35-11400 PSMH 480V, Bronze PLA 18 8.2 BC

RLD-40P38-31400 PSMH Quad, Gray PLA 18 8.2 BC

RLD-40P35-31400 PSMH 480V, Gray PLA 18 8.2 BC

1 When used with RLC (cut-off) housings, must use PS ED-28 size lamps; Standard ED-37 lamps may be used with RLG housings

2 PSCPhotocontrol shorting cap (see pg. 517) ordered separately

3 Ballast doors are available in Tri-Tap with 347 volt, change 8 to 6

A B C D

RLC 8 1/4’’

(210 mm)

15 3/4’’

(400 mm)

36 3/4’’

(933 mm)

RMC 6 1/2’’

(165 mm)

13’’

(330 mm)

29 3/4’’

(756 mm)

RLG - 15 3/4’’

(400 mm)

36 3/4’’

(933 mm)

14 3/4’’

(375 mm)

}

12'' Minimum

(305 mm)

Distance for

Door Removal

(Cut-off & Refractor

units)

12'' Minimum (305 mm)

Distance for Door Removal

(Cut-off & Refractor units)

RLG/RMA/RMG Housings

RLC/RMC Housings

ORDERING INFORMATION

MADE-TO-ORDER

Visit www.hubbelloutdoor.com/products for up-to-date availability information

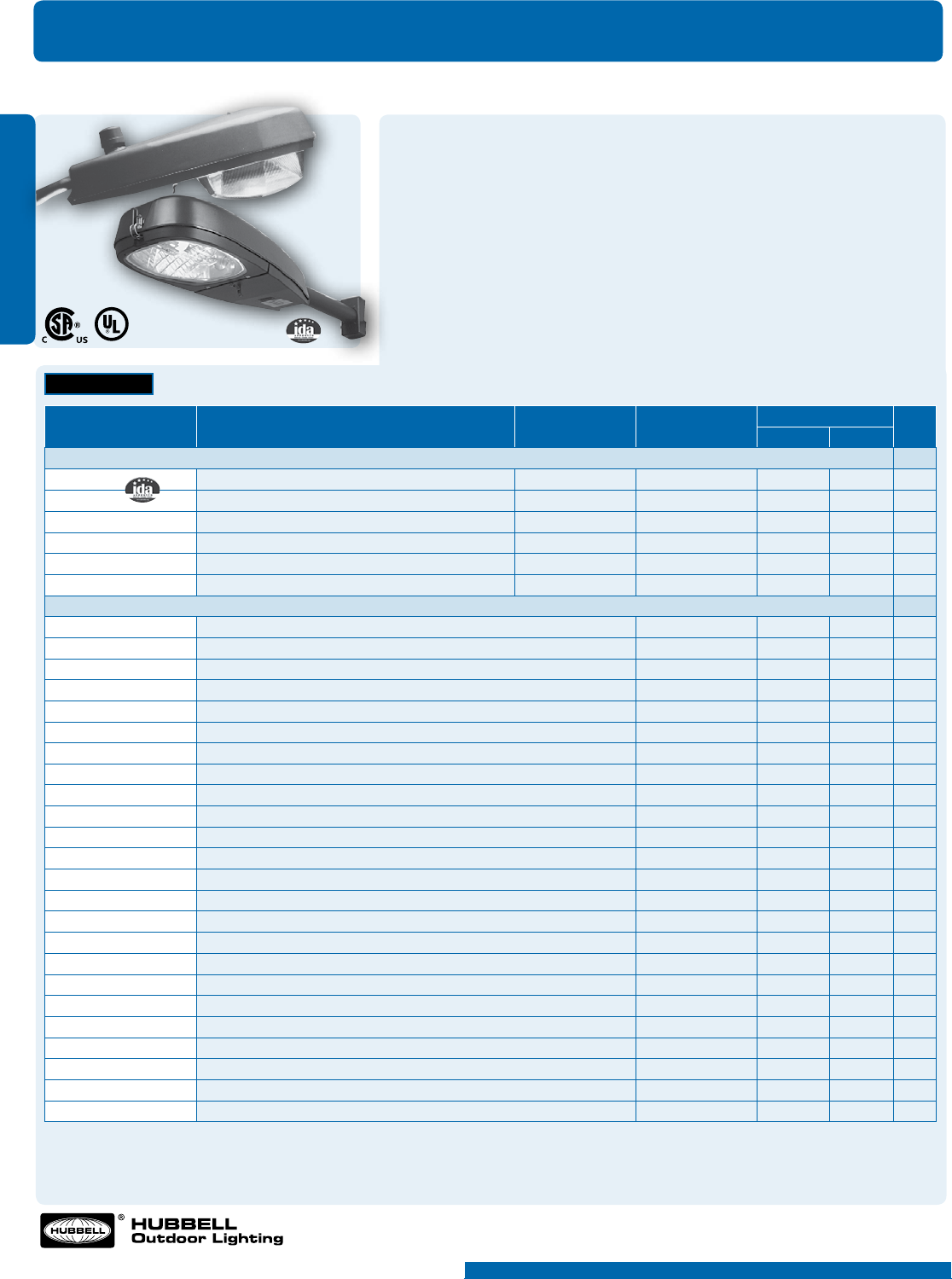

Standard Roadway Conﬁgurations

RM Series

HID ROADWAY

• Rugged die-cast aluminum with a two

door design allowing maximum ease

in installation and maintenance;

This medium size roadway ﬁxture is

designed for 70-250w lamps

• Prismatic refractor (glass and acrylic) or

ﬂat tempered glass lens allows a choice

of refractor or cut-off designs; A dense,

self-ﬁltering, felt gasket seals both

optic systems with a screw and latch

closure

• Horizontal lamp orientation with multi-

faceted reﬂectors on cut-off designs for

a no-glare unit; Refractor units feature

horizontal lamps as well; Type III

distribution, ﬁeld adjustable to Type II

• Mogul base pulse-rated porcelain sockets

with nickel-plated center contacts

• Quad-Tap® or 480V ballastry, HPF, with

quick connect to housing power door;

Photoelectric receptacle standard. HPS-

auto lag (70, 100, 150w), auto regula-

tor (250w), PSMH auto transformer;

Suitable for wet locations

• 4 bolt slip ﬁtter mounting, adjustable

for 1 1/4" - 2" pipe, +/- horizontal

adjustment for leveling

Catalog Number Description EPA Ballast Type Weight PKG.

CODE

lbs. kgs.

Fixture Housings: Breathing Felt Gasket Optical Seal, with Photocell Receptacle2 Type III Distribution

RMC-3-1 Full cut-off, III med, Bronze 0.6 - 14 6.4 BC

RMC-3-3 Full cut-off, III med, Gray 0.6 - 14 6.4 BC

RMA-3-11Acrylic refractor, Semi-cut-off III med, Bronze 0.6 - 14 6.4 BC

RMA-3-31Acrylic refractor, Semi-cut-off III med, Gray 0.6 - 14 6.4 BC

RMG-3-1 Glass refractor, Non-cut-off III med, Bronze 0.6 - 16 7.3 BC

RMG-3-3 Glass refractor, Non-cut-off III med, Gray 0.6 - 16 7.3 BC

Ballast Doors: Screw and Latch Closure, HPF ballast, ANSI label, UL Listed3

RMD-07S28-1 70 HPS Quad-Tap® V, Bronze Auto Lag 5 2.3 BC

RMD-07S25-1 70 HPS 480V, Bronze Auto Lag 5 2.3 BC

RMD-07S28-3 70 HPS Quad-Tap® V, Gray Auto Lag 5 2.3 BC

RMD-07S25-3 70 HPS 480V, Gray Auto Lag 5 2.3 BC

RMD-10S28-1 100HPS Quad-Tap®, Bronze Auto Lag 6 2.7 BC

RMD-10S25-1 100HPS 480V, Bronze Auto Lag 6 2.7 BC

RMD-10S28-3 100HPS Quad-Tap®, Gray Auto Lag 6 2.7 BC

RMD-10S25-3 100HPS 480V, Gray Auto Lag 6 2.7 BC

RMD-15S28-1 150HPS Quad-Tap®, Bronze Auto Lag 7 3.2 BC

RMD-15S25-1 150HPS 480V, Bronze Auto Lag 7 3.2 BC

RMD-15S28-3 150HPS Quad-Tap®, Gray Auto Lag 7 3.2 BC

RMD-15S25-3 150HPS 480V, Gray Auto Lag 7 3.2 BC

RMD-25S38-1 250HPS Quad-Tap® Bronze Auto Reg 14 6.4 BC

RMD-25S35-1 250HPS 480V, Bronze Auto Reg 14 6.4 BC

RMD-25S38-3 250HPS Quad-Tap®, Gray Auto Reg 14 6.4 BC

RMD-25S35-3 250HPS 480V, Gray Auto Reg 14 6.4 BC

RMD-15P38-1 150PSMH Quad-Tap®, Bronze PLA 7 3.2 BC

RMD-15P35-1 150PSMH 480V, Bronze PLA 7 3.2 BC

RMD-15P38-3 150PSMH Quad-Tap®, Gray PLA 7 3.2 BC

RMD-15P35-3 150PSMH 480V, Gray PLA 7 3.2 BC

RMD-25P38-1 250PSMH Quad-Tap®, Bronze PLA 9 4.1 BC

RMD-25P35-1 250PSMH 480V, Bronze PLA 9 4.1 BC

RMD-25P38-3 250PSMH Quad-Tap®, Gray PLA 9 4.1 BC

RMD-25P35-3 250PSMH 480V, Gray PLA 9 4.1 BC

1 150w maximum

2 PSCPhotocontrol shorting cap (see pg. 517) ordered separately

3 Ballast doors are available in Tri-Tap with 347V, change 8 to 6

}

ORDERING INFORMATION

MADE-TO-ORDER

Visit www.hubbelloutdoor.com/products for up-to-date availability information 51

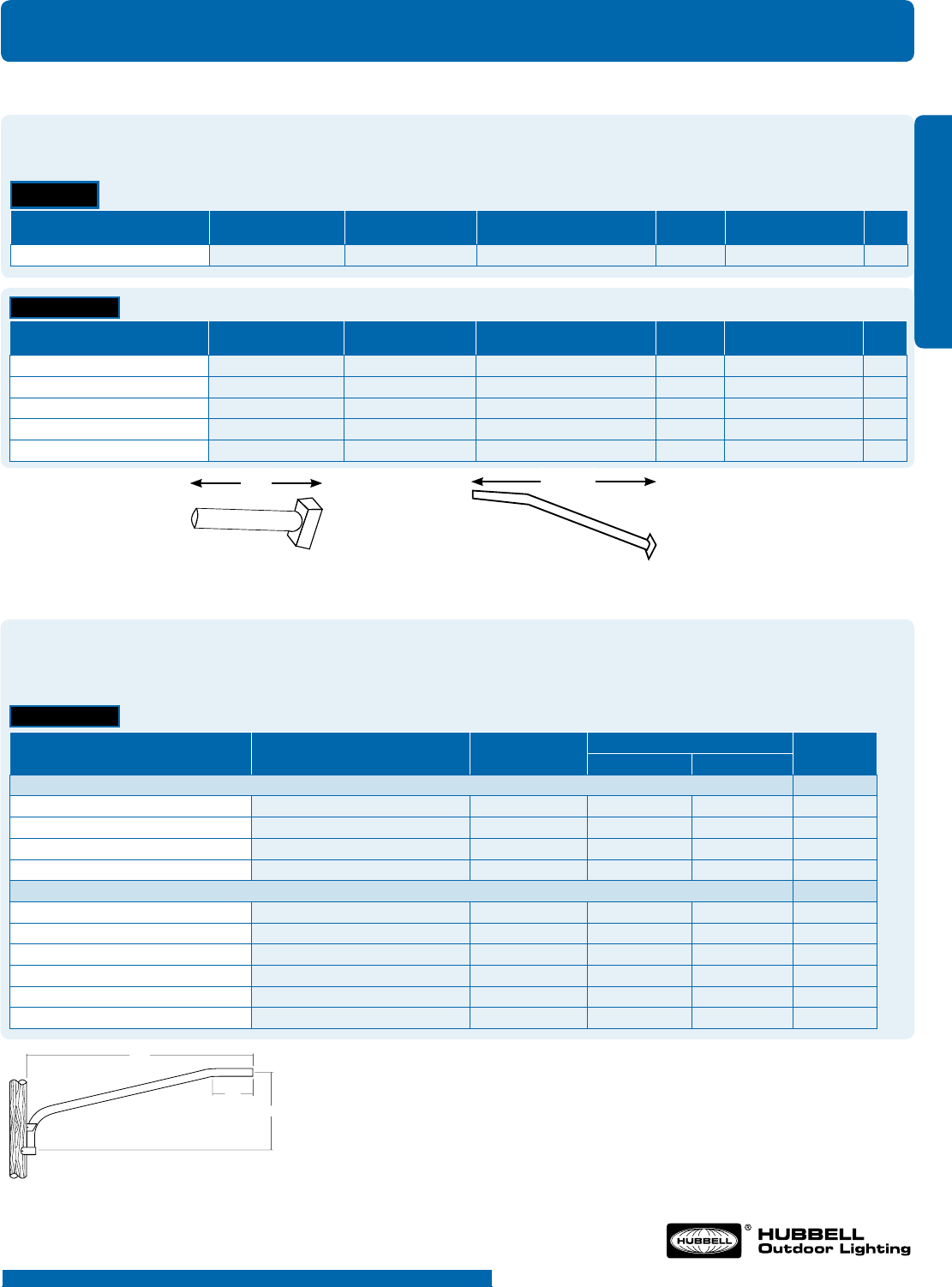

ROADWAY

Square Steel Pole Mounting Brackets

Wood Pole Mounting Brackets

The ARM and RA brackets are made from 2 3/8” OD steel tubing and are designed to mount on square steel poles (SSS Series). Units are

offered in gray or dark bronze powder paint ﬁnishes to match our RM/RL roadway series. Brackets are the #6 drilling pattern on Hubbell /

Spaulding poles. Mounting hardware for those poles is included.

This section of aluminum and galvanized steel utility wood pole brackets provides a range of mounting capabilities.

1 1/4” pipe arms can be used with RM roadway units or DD dusk-to-dawns. The 2” pipe arms (2 3/8” OD) are perfect for RL or RM roadway units.

Mounting hardware is not included and mounting holes vary slightly from bracket to bracket. Select hardware after your brackets arrive and in

relation to the speciﬁc pole diameter on which it is to be mounted.

Mounting Brackets

Catalog Number Length (ft) OD Finish EPA Weight lbs (kg) PKG.

CODE

ARM-16-1 21” 2 3/8” Bronze 0.18 8 (3.7) BC

ARM-16-3 21” 2 3/8” Gray 0.18 8 (3.7) BC

RA-4P-M51-W 48” 2 3/8” Bronze 1.0 16 (7.3) BC

RA-4P-M53-W 48” 2 3/8” Gray 1.0 16 (7.3) BC

RA-6P-M51-W 72” 2 3/8” Bronze 1.2 20 (9.1) BC

Catalog Number Dimensions (inches)

lbs Kg

Aluminum

WB-01A 10” 19” 42” 1 1/4” 4 1.8 BC

WB-04A 10” 19” 42” 2” 7 3.2 BC

WB-05A 12” 24” 66” 2” 10 4.5 BC

WB-07A 15” 30” 90” 2” 16 7.3 BC

Galvanized Steel

WB-02S 10” 15” 30” 1 1/4” 9 4.1 BC

WB-03S 10” 19” 42” 1 1/4” 11 5 BC

WB-04S 12” 24” 66” 1 1/4” 15 6.8 BC

WB-06S 10” 19” 42” 2” 18 8.2 BC

WB-07S 12” 24” 66” 2” 24 10.9 BC

WB-08S 15” 30” 90” 2” 30 13.6 BC

Fig. 3

Fig. 4

Arm-16

ure #1

RA-4P / RA-6P

Figure #2

ARM - 16 - X RA-4P / RA-6P

4’ or 6’21”

Dimensions

ORDERING INFORMATION

MADE-TO-ORDER

ORDERING INFORMATION

MADE-TO-ORDER

Catalog Number Length (ft) OD Finish EPA Weight lbs (kg) PKG.

CODE

RA-6P-M53-W 72” 2 3/8” Gray 1.2 20 (9.1) BC

STOCK

Visit www.hubbelloutdoor.com/products for up-to-date availability information

ORDERING INFORMATION

DIMENSIONS

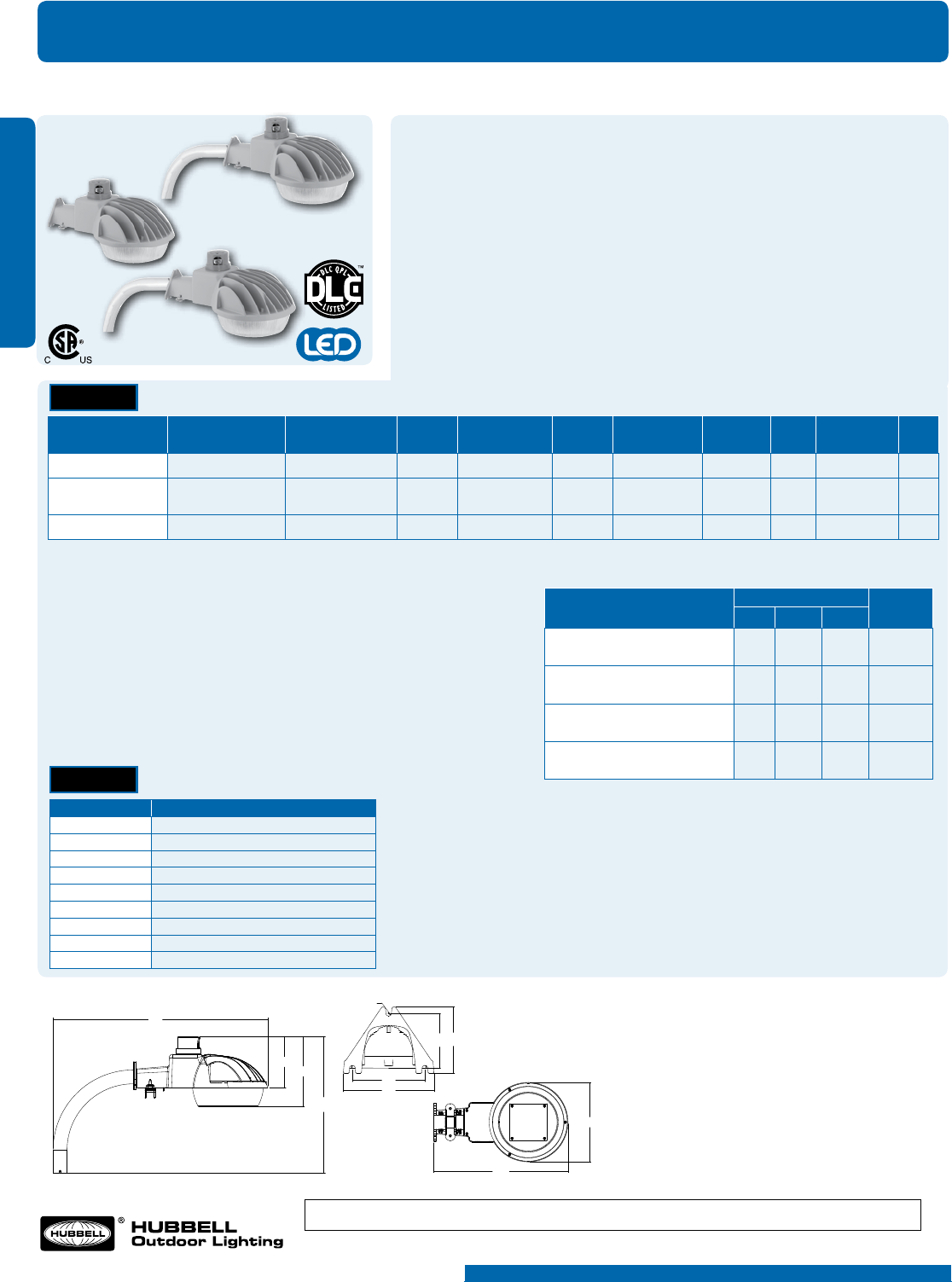

Multi-purpose LED Luminaire

DDL Dusk-to-Dawn

• Rugged die-cast aluminum housing with

both 2-3/8” & 1-5/8” OD mast arm

mount capability as well as direct wall/

surface mounting

• Zero uplight design for environmentally

friendly installations

• Refractor accessory (order separately)

provides enhanced security lighting and

LED brightness control when installed

(Does not comply with DLC 0% up light

requirement with refractor installed)

• Three models from 2900-5200 lumens,

30-43.5w, up to 121 LPW efﬁcacy

• Symmetric lens installed standard

• Prismatic acrylic refractor included for

security applications and glare control

• DDL-9L only: Field rotatable asymmetric

lens included – for pathway/ roadway

application

• 120V operation

• 120V twist-lock style photocontrol included

• Textured gray powder paint ﬁnish

• 24" (18" projection) arm included for

DDL-9L and DDL-140L only, arm not

included for DDL-56L

• ANSI 3G Rated

• Listed to UL1598 for use in wet locations

• All models are DesignLights Consortium

qualiﬁed

PERFORMANCE INFORMATION

Catalog Number Mounting Height Mount Wattage # of Drivers/

Current Voltage Color

Temperature

Delivered

Lumens LPW Weight

lbs. (kg)

PKG.

CODE

DDL-9L1 up to 20 ft. Arm/Wall/Surface 40 1@1280mA 120V 5000K 3437 86 6.8 (3.08)

FCC

DDL-56L-4K-1-NA up to 15 ft. Wall/Arm (not

included) 30 1@150mA 120V 4000K 2906 97 6.8 (3.08) SCC

DDL-140L-1 up to 25 ft. Wall/Arm included 43.5 1@92mA 120V 5000K 5279 121 6.8 (3.08) SCC

Series Number Equivalency Energy

Savings

MH HPS CFL

DDL-9L1 (Symmetric lens) 100w 100w 85w 60%

DDL-9L1 (Asymmetric lens) 100w 100w 85w 60%

DDL-56L-4K-1-NA 100w 100w 85w 70%

DDL-140L-1 175w 150w 125w 71%

A B C D E F G H I J K

29.7" 6" or 4" 8.3" 16.2" 9.5" 16" 3.6" 4.5" 2.7" 3.3" .14"

754 mm 152 mm 209 mm 411 mm 240 mm 406 mm 92 mm 115 mm 69 mm 84 mm 3.5mm

16.19

9.45

324.00

168.80

123.20

29.72

3.291

4.520

2.740

3.622

R .138

I J

16.19

9.45

324.00

168.80

123.20

29.72

3.291

4.520

2.740

3.622

R .138

I J

B Dimension = 4" without photocontrol

ACCESSORIES/REPLACEMENT PARTS

- Order Separately

Catalog Number Description

ARM-DD24 24" aluminum arm with hardware

ARM-DD30 30" aluminum arm with hardware

DDL-DRIVER-12OV Driver for DDL9L (120V)

DDL-DRIVER-140 Diver for DDL-140L (120V)

DDL-DRIVER-56 Driver for DDL-56L (120V)

DDL-LENS-140 LED Asymmetric lens for DDL-140L

DDL-LENS2 LED Asymmetric lens for DDL-9L

DDL-LENS5 LED Symmetric lens for DDL-9L or DDL-56L

DDL-REFR Refractor for all DDL models

16.19

9.45

324.00

168.80

123.20

29.72

3.291

4.520

2.740

3.622

R .138

I J

DDL-56L-4K-1

DDL-140L-1

DDL-9L1

LED DUSK-TO-DAWN

STOCK

Visit www.hubbelloutdoor.com/products for up-to-date availability information 53

A B C D E F G H I J K

29.7" 6" or 4" 8.3" 16.2" 9.5" 16" 3.6" 4.5" 2.7" 3.3" .14"

754 mm 152 mm 209 mm 411 mm 240 mm 406 mm 92 mm 115 mm 69 mm 84 mm 3.5mm

16.19

9.45

324.00

168.80

123.20

29.72

3.291

4.520

2.740

3.622

R .138

I J

B Dimension = 4" without photocontrol

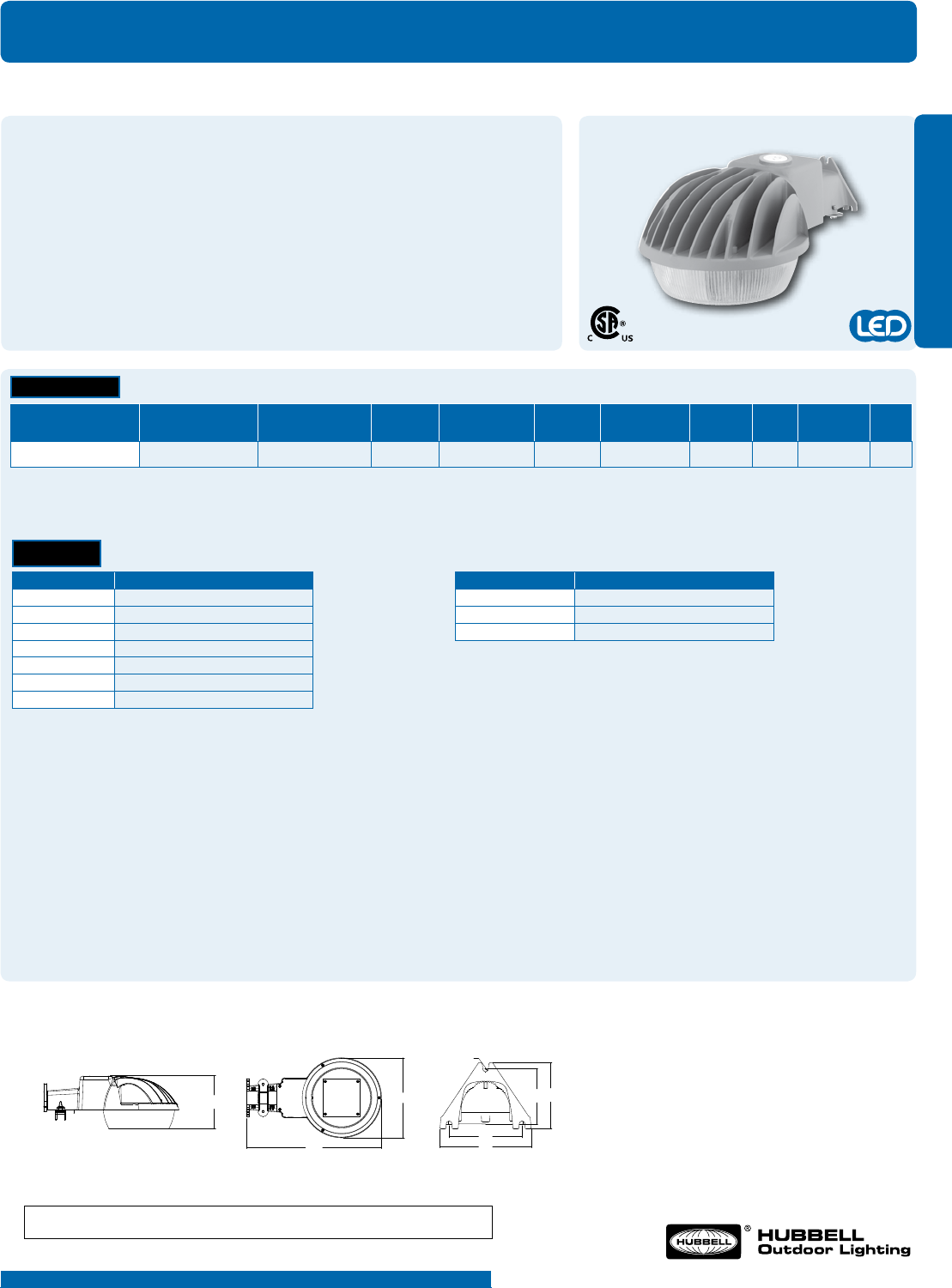

DDL Utility Dusk-to-Dawn

Multi-purpose LED Utility Luminaire

• Utility grade design and performance

• 8' long supply leads

• Refractor is installed and provides

enhanced security lighting and LED

brightness control

• Removal of refractor provides zero

uplight for environmentally friendly

installations

• 40w system with up to 3437 lumens

and 86 LPW

• Symmetric lens installed standard

• 120V operation

• Rugged die-cast aluminum housing with

both 2-3/8” & 1-5/8” OD mast arm

mount capability as well as direct wall/

surface mounting

• Textured gray powder paint ﬁnish

• ANSI 3G Rated

• Listed to UL1598 for use in wet

locations

ORDERING INFORMATION

Catalog Number Construction Mount Wattage # Drivers/

Current Voltage Color

Temperature Lumens LPW Weight

lbs. (kg)

PKG.

CODE

DDL9L1NANPC8C Die-cast aluminum up to 20 ft. 40 1@1280mA 120V 5000K 3437 86 6.8 (3.08)

DIMENSIONS

16.19

9.45

324.00

168.80

123.20

29.72

3.291

4.520

2.740

3.622

R .138

E F

16.19

9.45

324.00

168.80

123.20

29.72

3.291

4.520

2.740

3.622

R .138

E F

OPTIONAL FEATURES

- Consult Factory

Item Description

Replacement Driver 120V-277V Driver

Photocell 120V-277V Photocell

Surge Protector 10KV/10KA Surge Protector

16.19

9.45

324.00

168.80

123.20

29.72

3.291

4.520

2.740

3.622

R .138

E F

ACCESSORIES/REPLACEMENT PARTS

- Order Separately

Catalog Number Description

DDL-DRIVER-12OV Driver for DDL9L (120V)

DDL-LENS2 LED Asymmetric lens for DDL-9L

DDL-LENS5 LED Symmetric lens for DDL-9L

DDL-REFR Refractor for DDL-9L

ARM-DD24 24" aluminum arm with hardware

ARM-DD30 30" aluminum arm with hardware

DDL-LENS LED Asymmetric lens for DDL-9L

A B C D E F G H

4" 9.5" 16" .14" 2.7" 3.3" 3.6" 4.5"

152 mm 240 mm 406 mm 3.5 mm 69 mm 84 mm 92 mm 115 mm

LED DUSK-TO-DAWN

MADE-TO-ORDER

STOCK

Visit www.hubbelloutdoor.com/products for up-to-date availability information

HID DUSK-TO-DAWN

Dusk-To-Dawn

• The DD Series offers HID and CFL

energy savings and safety/security

lighting

• The Type V acrylic refractor provides

wide, uniform coverage

• Units are designed in distributor or

utility versions, see listings below

• Kits include 1 1/4" pipe arm, lamp,

120V photocontrol and mounting hard-

ware, except for DD-70S, which is wall

mount as shown

• PSMH and CFL units offer “white” light

option; CFL unit is recommended for

use in warmer climates; Minimum start-

ing for CFL is 0°F; Nominal light output

is at 77°F ambient

• Distributor kits are listed to UL1598 for

use in wet locations (utility versions

not listed)

DD Series

REPLACEMENT PARTS

Catalog Number Description Weight

lbs. (kg)

PKG.

CODE

DDR-5AP Replacement optics, latch-on, Type V acrylic for DDR ﬁxtures 1.5 (0.7) BC

PTL-1 Replacement 120V twist lock photocontrol 0.1 (0.05) BC

93023491 Replacement 65w CF lamp 5 (2.25) BC

Catalog Number Wattage Source Optic Dia. Lamp Weight

lbs. (kg)

PKG.

CODE

Distributor kits - 24” curved aluminum arm, UL listed. Screw-on optics

High Pressure Sodium

DDS-100S 100 HPS 12” Med. Clear 4.5 (2.0)

FCC

DDS-150S 150 HPS 12” Med. Clear 5.0 (2.3)

FCC

Pulse Start Metal Halide

DDS-100P 100 PSMH 12” Med. Clear 6.0 (2.7)

FCC

DDS-100PL 100 PSMH 12” with latches Med. Clear 6.0 (2.7)

Compact Fluorescent

DDS-65F 65 CFL 12” Med. Screw Base 4.0 (1.8)

FCC

Utility kits - 24” curved aluminum arm, terminal block, 60” leads, latch-on optics

DDR100S 100 HPS 12” Mogul Clear 6.5 (2.9)

DDR150S 150 HPS 12” Mogul Clear 6.5 (2.9)

DD DDS DDR

DDS

7.09”

(180 mm)

9.448”

(240 mm)

16.93”

(430 mm)

6.69”

(170 mm)

ø1.65”

(ø42 mm)

12.71”

(323 mm)

10.5”

(267 mm)

16.11”

(450 mm)

16.2”

(411 mm)

24”

(610 mm)

20.3”

(516 mm)

9.92”

(252 mm)

6.69”

(170 mm)

18.11”

(460 mm)

12.05”

(306 mm)

24”

(610 mm)

21.5”

(546 mm)

10.0”

(254 mm)

6.7”

(170 mm)

16.3”

(415 mm)

1.65”

(42 mm)

18.0”

(457 mm)

12.0”

(306 mm)

22.4”

(569 mm)

7.09”

(180 mm)

9.448”

(240 mm)

16.93”

(430 mm)

6.69”

(170 mm)

ø1.65”

(ø42 mm)

12.71”

(323 mm)

10.5”

(267 mm)

16.11”

(450 mm)

16.2”

(411 mm)

24”

(610 mm)

20.3”

(516 mm)

9.92”

(252 mm)

6.69”

(170 mm)

18.11”

(460 mm)

12.05”

(306 mm)

24”

(610 mm)

21.5”

(546 mm)

10.0”

(254 mm)

6.7”

(170 mm)

16.3”

(415 mm)

1.65”

(42 mm)

18.0”

(457 mm)

12.0”

(306 mm)

22.4”

(569 mm)

7.09”

(180 mm)

9.448”

(240 mm)

16.93”

(430 mm)

6.69”

(170 mm)

ø1.65”

(ø42 mm)

12.71”

(323 mm)

10.5”

(267 mm)

16.11”

(450 mm)

16.2”

(411 mm)

24”

(610 mm)

20.3”

(516 mm)

9.92”

(252 mm)

6.69”

(170 mm)

18.11”

(460 mm)

12.05”

(306 mm)

24”

(610 mm)

21.5”

(546 mm)

10.0”

(254 mm)

6.7”

(170 mm)

16.3”

(415 mm)

1.65”

(42 mm)

18.0”

(457 mm)

12.0”

(306 mm)

22.4”

(569 mm)

DDR

DIMENSIONS

ORDERING INFORMATION

STOCK

Visit www.hubbelloutdoor.com/products for up-to-date availability information 55

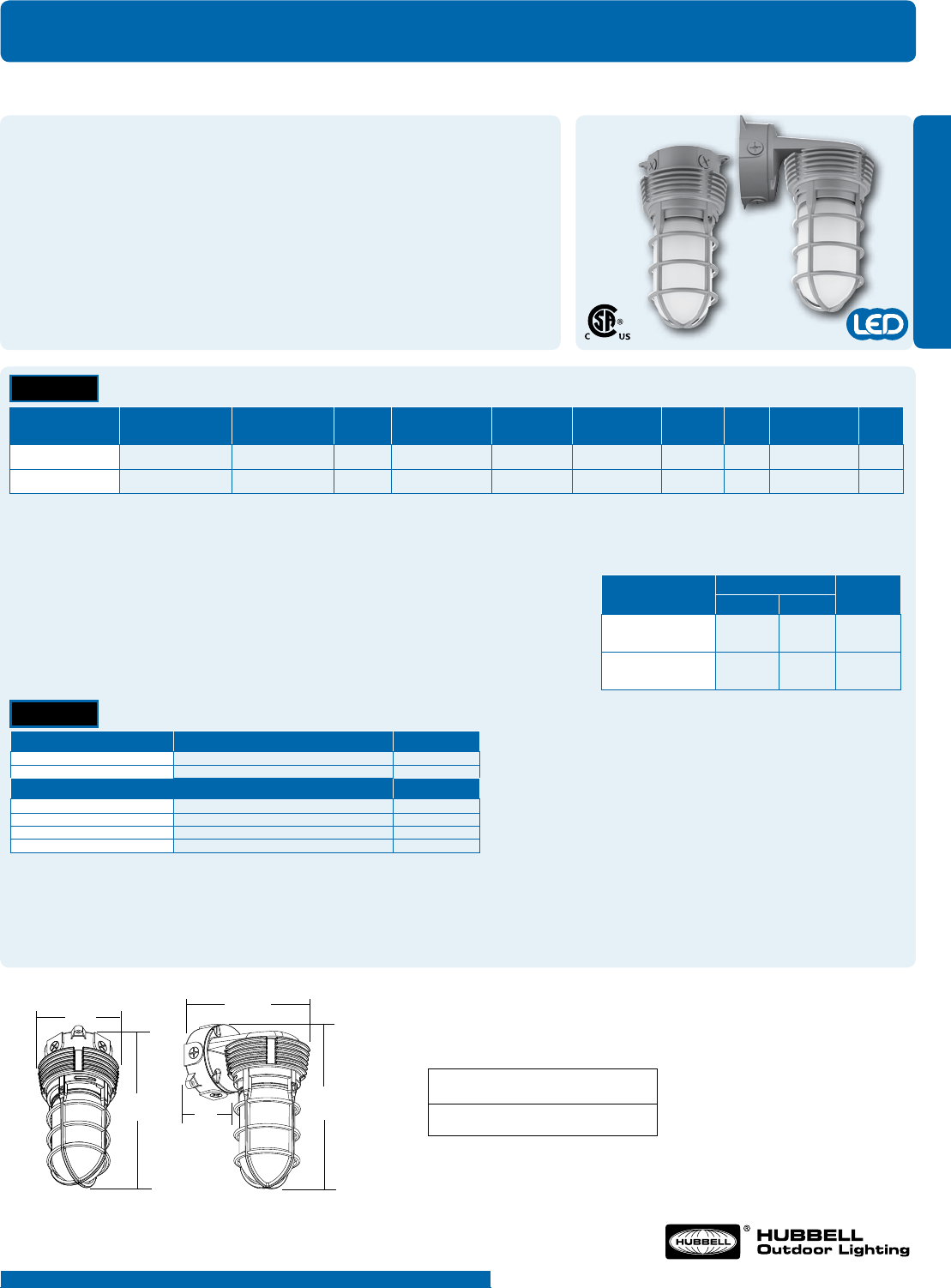

VBGL/VWGL

Wet Location LED Vaportites

INCANDESCENT VAPORTITES

• Compact size measuring only 5.2" x

10.4" (wall mount version slightly

larger)

• 757 lumens, 11w system, 70 LPW

• Frosted glass lens distributes symmetric

light evenly without any LED brightness

or glare

• Pendant mount version accommodates

traditional ½” x 14 NPS threaded

conduit

• 120-277V operation, 50/60Hz

• Rugged die-cast aluminum housing with

removable cast aluminum guard with

vandal resistant set screws included,

gray ﬁnish

• IP66, listed to UL1598 for use in wet

locations (unit is not rated for use in

hazardous locations)

• Four color multi-language merchandising

carton with application details

PERFORMANCE INFORMATION

Series Number Equivalency Energy

Savings

INC CFL

VBGL-1 150w 32w 88%

VWGL-1 150w 32w 88%

DIMENSIONS

Catalog Number Construction Mount System

Wattage

# Drivers/

Current Voltage Color

Temperature Lumens LPW Weight

lbs. (kg)

PKG.

CODE

VBGL-1 Globe refractor Ceiling/Pendant 11 1@250mA 120-277V 4000K 757 70 3.4 (1.54)

FCC

VWGL-1 Globe refractor Wall 11 1@250mA 120-277V 4000K 757 70 3.6 (1.63)

FCC

A B C

5.2” 10.4” –

VBGL-1 132 mm 263 mm –

VWGL-1 7.3”

186 mm

11.0”

280 mm

5.2”

132 mm

REPLACEMENT GLOBES

Catalog Number Description PKG. CODE

VGL-FG Frosted globe BC

VGL-GUARD Guard with set screws BC

Colored Globes PKG. CODE

VGL-GN Green globe BC

VGL-YW Yellow globe BC

VGL-BU Blue globe BC

VGL-RD Red globe BC

ORDERING INFORMATION

STOCK

Catalog Number Wattage Mounting Weight

lbs. (kg)

PKG.

CODE

VBGG-150 150 Box/pendant 3 (1.36)

FCC

VWGG-150 150 Wall 3.5 (1.59)

FCC

A B C D E F G

7” 1 1/2” 9” 7 1/4” 9 3/4” 8 1/2” 4”

150w 178 mm 38 mm 229 mm 184 mm 248 mm 216 mm 102 mm

150w

Lugs: 5” center to center

Lugs: 5" center to center

G G

4.5"

(114 mm)

Lugs: 5" center to center

7.25"

(184 mm)

7.0"

(178 mm)

9.0"

(229 mm)

9.75"

(248 mm)

8.5"

(216 mm)

4.5"

(114 mm)

Lugs: 5" center to center

5.5"

(140 mm) 5.5"

(140 mm)

8.0"

(203 mm)

9.0"

(229 mm)

11.0"

(279 mm)

11.0"

(279 mm)

9.0"

(229 mm)

150 Watt

300 Watt

REPLACEMENT GLOBES

Catalog Number Description PKG. CODE

VAMG-100 Amber

VBG-100 Blue

VBGP-100 Blue, tempered

VCGP-100 Clear, tempered

VCGPT-100 Clear, tempered w/ Tuffskin® coating

VGG-100 Blue Green

VGGP-100 Blue Green, tempered

VPG-100 Purple

VRG-100 Ruby

VRSG-100 Green

VCGP-200 Clear, Tempered

VAMG-200 Amber

VGG-200 Blue Green

VGGP-200 Blue Green, tempered

VRG-200 Ruby

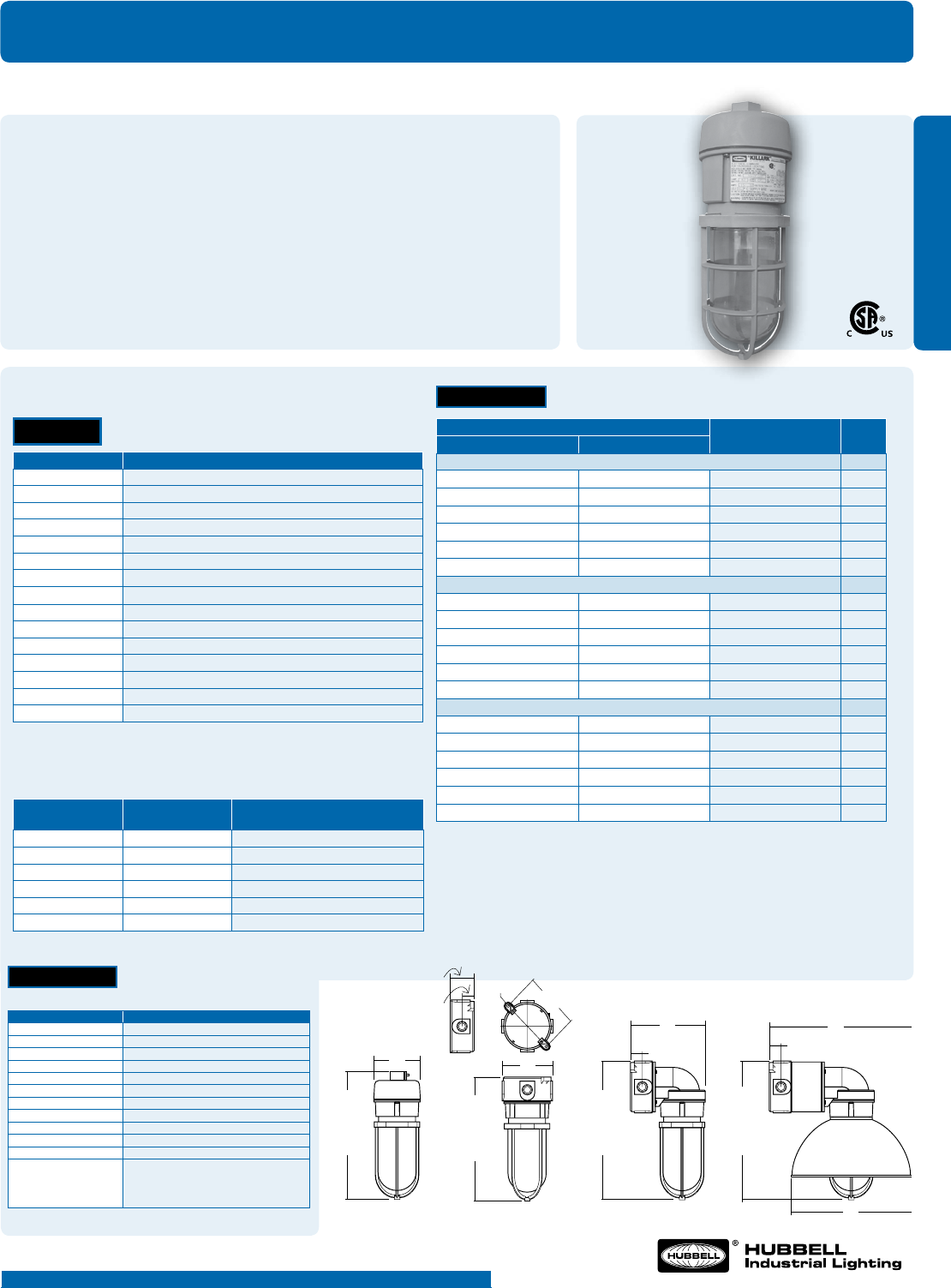

INCANDESCENT VAPORTITES

VBGG/VWGG Series

Wet Location Vaportites

DIMENSIONS

150 Watt

• Wall/ceiling/pendant entry, corridor, tunnel,

service area, stairwell, or retro-accent

• 150w/300w maximum medium base

incandescent

• Platinum silver protective ﬁnish

• VWGG has cast aluminum wall bracket

with cast wiring box; Box has external

lugs and four side 1/2” hubs for surface

conduit and one rear 1/2” access hub

• VBGG has cast aluminum wiring box

with external lugs for ceiling mount

and four 1/2” hubs for surface conduit;

Wiring box has top 1/2” hub for

pendant mount

• All units have water/bug tight gasketing

• All units have medium base porcelain

socket

• All units include clear glass protective

globe with thread-on cast aluminum

guard; Guard includes vandal-resistant

set screw

• All units are UL listed for use in wet

locations

ORDERING INFORMATION

STOCK

MADE-TO-ORDER

Visit www.hubbelloutdoor.com/products for up-to-date availability information

REPLACEMENT GLOBES

Catalog Number Description PKG. CODE

VRGP-100 Ruby, tempered

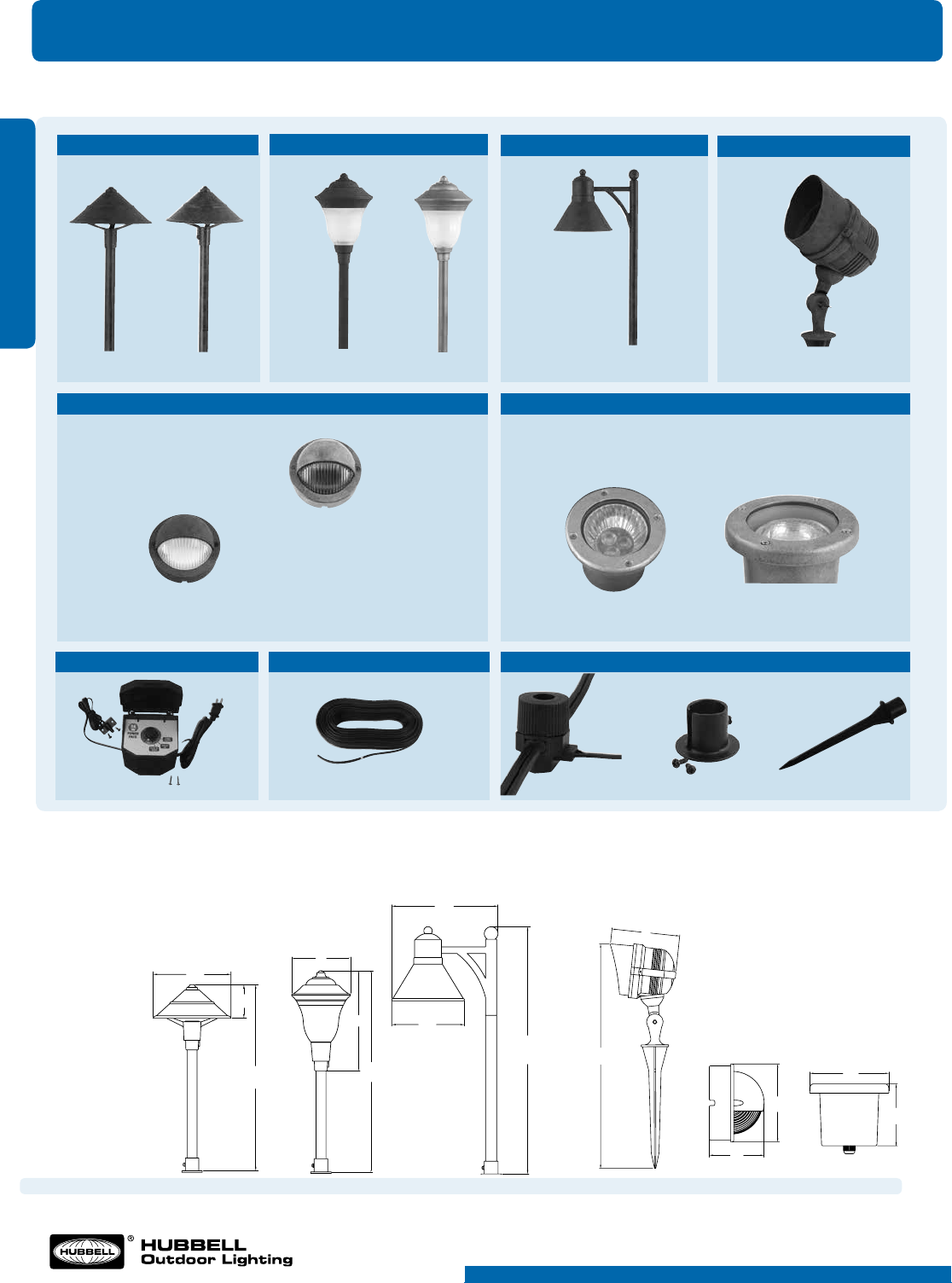

Long Life, Easy to Install, No Maintenance Lighting System

NOTE: All ﬁxtures are complete with LED light engine, 4' minimum ﬁxture cable and ”Smart Connect” tool-free connector. Path lights and ﬂoods

also include ground stake and a deck mount adapter for ﬂat surfaces. When you purchase Lightscaper®, you get it all!

12V LED Lightscaper® System

Catalog

Number Finish Description Weight PKG.

CODE

CONE

CO-AB Antique Bronze Create a tropical image. The basic 7" dia. cone shape sits 15" high and creates a 5' lighted area with soft,

indirect shielded light. Excellent for subtle illumination of plants or walkways. 2.0 lbs

FCC

CO-AG Antique Green

GREENVILLE

GN-AB Antique Bronze A stately appearance with classic shape. Stands 16" tall with 5" dia. head. Frosted lens provides soft lighting of

taller surrounding plantings with 5' coverage. Use along walkways, steps. Typical spacing 8'-12'. 2.75 lbs

FCC

GN-PT Pewter

REIDVILLE

RD-AB Antique Bronze Bell-shaped head supported by decorative arm and sturdy staff. Full cut-off pattern provides 5' light pool on

ground with no glare. Perfect for highlighting walkways, ﬂowers and specimen plants. Typical spacing 8'-10'. 3.25 lbs

FCC

EYELID

EL-AB Antique Bronze Round eyelid for deck post or steplighting. Can be surface mounted or semi-recessed. Use for accent or small area

illumination of perimeters or stairways. 2' mounting height provides soft coverage 5' w, 2' forward. 6' ﬁxture cable. 1.0 lbs

FCC

EL-PT Pewter

RECESSED

RE-PT Pewter Round recessed uplight for accent lighting of trees, columns and building facades. Powerful 3w LED projection

beam. Provides hidden light source. 1.5 lbs

FCC

FLOODLIGHT

FL-AB Antique Bronze Powerful 3w LED projection ﬂood with adjustable knuckle for versatile aiming. Use for accent lighting of building

facades, small signs or address numbers, columns, trees and residential ﬂags to 20'. 2.0 lbs

FCC

CONTROL CENTER

LVT56 Black

Non-metallic case protects timer controls and 120V to 12V transformer. Surge protected with grounded cord/

plug set and easy 12V cable attachment. Photocontrol triggers “time on”, eliminating seasonal adjustment.

UL and cETL certiﬁed. 56w capacity.

4.0 lbs

FCC

CABLE

CB-75 Black Low voltage #14 cable runs from LVT56 transformer down path of lighting. UV protected, burial is not required,

hide with mulch if desired. Perfect ﬁt with ﬁxture connectors for easy installation (150' is the max. run distance

from transformer location to assure best ﬁxture operation).

4.0 lbs

FCC

CB-150 Black 6.0 lbs

FCC

• LED landscape ﬁxtures, long life, low

energy consumption, no maintenance,

three-year limited warranty

• Die-cast aluminum construction,

professional grade, built to perform

with durable design

• Powder coat polyester epoxy ﬁnish

maintains lasting beauty

• 1.5w path ﬁxtures in 7 styles; 3w

ﬂood and recessed uplight; 3000K CCT

• Path and ﬂood ﬁxtures are complete

with stake, 4' ﬁxture cable, and ”Smart

Connect” tool-free connector; Flat

surface deck adapter included

• Control center is UL listed for wet

locations and features non-metallic

housing, grounded cord set,

photocontrol, and easy cable connect

A simple system, easy to install and maintain, with low energy consumption for safety,

security and property enhancement. Go Green with Hubbell Lightscaper® LED products!

LED LANDSCAPE

ORDERING INFORMATION

STOCK

Visit www.hubbelloutdoor.com/products for up-to-date availability information

Control Center Cable Included Accessories

Recessed

Floodlight

Eyelid

Greenville

EL-PT

EL-AB

RE-PT

GN-AB GN-PT FL-AB

Reidville

RD-AB

CO-AB CO-AG

Cone

LVT56 CB-75 CB-150 "SMART CONNECT" FLAT SURFACE CONNECTOR STAKE

12V LED

Lightscaper® Fixtures

(176.0mm)

6.9"

(76.0mm)

3.0" (421.0mm)

16.6"

(176.0mm)

6.9"

(76.0mm)

3.0" (421.0mm)

16.6" (632.0mm)

24.9"

(241.2mm)

7.0"

(165.0mm)

6.5"

(561.0mm)

22.1" (771.2mm)

30.4"

(241.2mm)

7.0"

(165.0mm)

6.5"

(561.0mm)

22.1"

(130.0mm)

5.1"

(221.5mm)

8.7" (445.0mm)

17.5"

(130.0mm)

5.1"

(221.5mm)

8.7" (445.0mm)

17.5" (656.0mm)

25.8"

(378.0mm)

14.9"

(114.5mm)

4.5"

CONE GREENVILLE FLOODLIGHTREIDVILLE

(105.0mm)

4.1"

(

74.0mm

)

2.9"

(128.0mm)

5.0"

(100.0mm)

3.9"

EYELID RECESSED

LED LANDSCAPE

DIMENSIONS

LANDSCAPE

120V Louverlights

Lightscaper®

ORDERING INFORMATION

Catalog Number Description Weight

lbs. (kg)

PKG.

CODE

Three Tier

583-G Fixture with three louvers; Green ﬁnish; 60w inc max. 2 (0.9)

Note: For accessories, see Landscape Accessories (page 565)

MADE-TO-ORDER

• Use for landscape lighting in ﬂower beds,

along paths, sidewalks and steps. Accent

and safety illumination.

• 583-G Non-metallic louverlight is incan-

descent for use with lamps up to 60watts.

Molded-in Shalda green ﬁnish for lasting

appearance and corrosion resistance. Ribbed

glass globe shields lamp image and spreads

light. Three steel screws secure cap and lou-

vers to base. ½” female threads for

mounting. CSA certiﬁed to UL1598 for

ground mount in wet locations.

• All units are 120V

• Listed to UL1598 for use in wet locations

583-G

DIMENSIONS

A B

6 1/2” 8 1/2”

165 mm 216 mm

Visit www.hubbelloutdoor.com/products for up-to-date availability information

LAMPHOLDERS

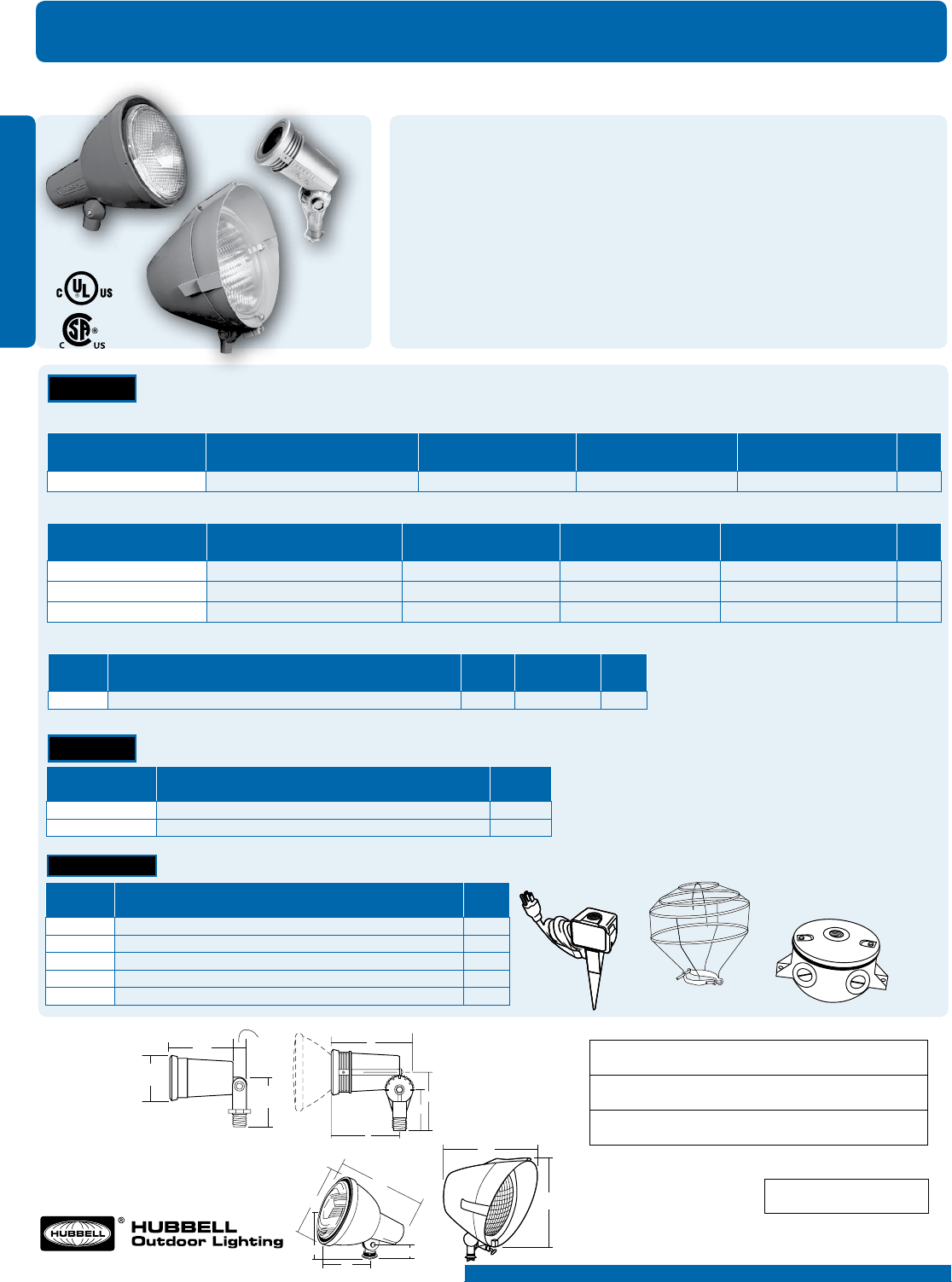

PAR Lampholders

103/103-7/306 Series

S-329-B

S-307

1031-3

103-7 103

A B C D E

2 1/2” 3” 0.5” 1.5” -

101B 55 mm 76 mm 13 mm 38 mm -

4 13/16” 4” 3 7/16” 2 3/8” -

103 122 mm 102 mm 87 mm 60 mm -

1 5/16” 6” 5 3/8” 4 1/16” 3 7/16”

103-7 33 mm 152 mm 137 mm 103 mm 87 mm

103 Series

103-7 Series

101B Series

103

Catalog Number Description Gasket Finish Weight

lbs. (kg)

PKG.

CODE

103 Unshielded, full size Silicone Natural Aluminum .75 (.3)

103-7 Series

Catalog Number Description Gasket Finish Weight

lbs. (kg)

PKG.

CODE

103-7 Shielded, bell shape Silicone Gray 1.25 (0.6)

FCC

103-71 Shielded, bell shape Silicone Bronze 1.25 (0.6)

103-72 Shielded, bell shape Silicone Black 1.25 (0.6)

Catalog

Number Description PKG.

CODE

1306C Lens & Gasket

S-307 Wire guard for PAR and R lamps, for use with 103 ﬁxture

1324 Wire guard for PAR lamps, for use with 103-7 Series

1308 Plated wire guard for 306 (0.2lbs (.09kg))

1031-3 Ground spike with splice box and 6’ cord set - 1/2” top hub

ACCESSORIES - Order Separately

Note PAR 56 lampholders for 300w (maximum) incandescent or 500w quartz; Lamp not included

306 Series

A B

8 1/8” 9 7/8”

206 mm 251 mm

REPLACEMENT PARTS

Catalog Number Description PKG.

CODE

207-5011-0264 Bronze knuckle

S-329-B 4” Round wet location outlet box with cover - 1/2” hubs

306

Catalog

Number Desription Finish Weight

lbs. (kg)

PKG.

CODE

306 1/2” Swivel knuckle mount, 12” leads, hinged door and lens Gray 3.375 (1.7)

DIMENSIONS

103 LAMPHOLDER

• Full size lampholder with rugged construc-

tion. Large 1/2” swivel knuckle adds strength

and allows universal aiming; Silicone gasket

seals to PAR lamps for water-tight design;

150w max. Natural aluminum ﬁnish; Porcelain

medium base socket; Listed to UL1598 for

use in wet locations

103-7 SERIES

• Shielded lampholder for use with PAR lamps to

150w max; “Bell” shape has traditional styling;

porcelain medium base socket; 1/2” cast

aluminum swivel knuckle allows universal aim-

ing; Various ﬁnishes available – gray, bronze,

black, white, Shalda green; Listed to UL1598

for use in wet locations

306 SERIES

• Die-cast housing and door available in Gray

powder paint protective ﬁnish with tempered

glass lens with silicone gasket; PAR 56

lamps - 300w incandescent or 500w quartz

(by others); Listed to UL1598 for use in wet

locations

ORDERING INFORMATION

STOCK

MADE-TO-ORDER

Visit www.hubbelloutdoor.com/products for up-to-date availability information

Bullet Lampholders

• PAR/BR Lampholders, 150w max.

• Energy-saving 10 LED/15w, nominal

315 lumens, 3500K

• Decorative ﬁnishes vary

• Die-cast aluminum housing (and doors)

• Tempered glass lens

• Large 1/2” swivel knuckle, 308 down

aim outdoors, 309 is universal aim

• Medium base porcelain socket

(150w max) for PAR/BR models

• Available in Gray, Black, Green, Bronze,

White and Verdi ﬁnishes; See ordering

information

• CSA certiﬁed to UL 1598, CSA 22.2 No.

250.0-00, Suitable for wet locations

• Deep shield, wire guard accessories

available

308/309 Series

Catalog Number Description Finish Weight

lbs. (kg)

PKG.

CODE

Damp Location Listed - Aim Down Outdoors1

308-13-M 8 1/4” long Garden Green 2.25 (1)

Wet Location Listed - Universal Aiming2

309-ML 9 7/8” long Gray 3 (1.4)

309-13-ML 9 7/8” long Garden Green 3 (1.4)

309-14-ML 9 7/8” long Matte Black 3 (1.4)

309-VG-ML 9 7/8” long Verdi 3 (1.4)

309-M51-ML 9 7/8” long Dark Bronze 3 (1.4)

FCC

309-M54-ML 9 7/8” long White 3 (1.4)

LED - Wet Location Listed - Universal Aiming - 15w

30910LEDML 9 7/8” long Bronze 5 (2.2)

1 Use medium base PAR 38 lamps or smaller, 150w maximum

2 Use PAR 38 or BR40 lamps, 150w maximum

ACCESSORIES - Order Separately

Catalog Number Description Weight

lbs. (kg)

PKG.

CODE

264 0097 9702 Clear lens .5 (0.2)

S-329-B Cast round box, 4”, 6-sided 1/2” back hub (wall or ceiling) .75 (.3)

ACCESSORIES - Order Separately

Catalog Number Description Weight

lbs. (kg)

PKG.

CODE

1324 Zinc-plated wire guard .25 (0.1)

C-5 Wall or tree box, 3 mounting lugs in body; 2 1/2” hubs in “L” shape

layout, side access plate .25 (.11)

NM-BC

Non-metallic high impact phenolic weatherproof box & cover, box is

drilled at 180° for two burial cable connectors (included), allowing feed-

through capability; gasketed cover has weathertight 1/2” hub; brass

cover with screws; gray

1414-BOX Cast iron box - two side hubs, one top (1/2”); heavy-duty; gray .8 (.4)

1031-3 Cast spike with internal splice box, 1/2” NPSM hub for ﬁxture & 6’

#18/3 grounded cord set; gray 1.75 (.8)

A B C

5” 8 1/4” 5 3/8”

127 mm 210 mm 137 mm

308 Series 309 Series

A B C

5” 9 7/8” 5 3/8”

127 mm 251 mm 137 mm

C-5 S-329-B NM-BC

1414 1031-3

1324 309-S

S-314-B S-319-B S-329-B C-5 206-BC3

GLN-1-G NM-BC 1414 1031-1 1034 S-302

S-314-B S-319-B S-329-B C-5 206-BC3

GLN-1-G NM-BC 1414 1031-1 1034 S-302

S-314-B S-319-B S-329-B C-5 206-BC3

GLN-1-G NM-BC 1414 1031-1 1034 S-302

S-314-B S-319-B S-329-B C-5 206-BC3

GLN-1-G NM-BC 1414 1031-1 1034 S-302

S-314-B S-319-B S-329-B C-5 206-BC3

GLN-1-G NM-BC 1414 1031-1 1034 S-302

LANDSCAPE

DIMENSIONS

ORDERING INFORMATION

STOCK

MADE-TO-ORDER

Visit www.hubbelloutdoor.com/products for up-to-date availability information

LANDSCAPE ACCESSORIES

Landscape Accessories

ORDERING INFORMATION: Cast Round Boxes

Boxes & Covers

Catalog Number Size

in. (mm)

Hubs

Mt. Lugs Weight

lbs. (kg)

PKG.

CODE Source

Side Back Cover

Qty. Size Qty. Size Qty. Size

S-314-B14 (102) 6 1/2” 1 1/2” - - - .75 (0.3)

STOCK

S-329-B 4 (102) 4 1/2” 1 1/2” 1 1/2” 2 .75 (0.3)

STOCK

S-319-B14 (102) 4 1/2” 1 1/2” - - 2 .75 (0.3)

MADE-TO-ORDER

1 Box furnished without cover; If cover required, order applicable cover as listed in covers for round boxes

ORDERING INFORMATION: Specialty Boxes (All Hubs Tapped NPSM)

Catalog Number Description Weight lbs. (kg) PKG. CODE

C-5 Wall or tree box: 3 mounting lugs in body; 2 1/2” hubs in “L” shape layout - side access plate .25 (.11)

ORDERING INFORMATION: Round Covers - Cast Aluminum With Hubs

Catalog Number Size

in. (mm) Boxes Used With Tapped Hubs Finish Weight

lbs. (kg)

PKG.

CODE Source

Qty. Size

206-BC3 4 (102) 3 1/4” x 4” (83 mm x 102 mm) 3 1/2” Gray .5 (0.2)

STOCK

206-BC3-B 4 (102) 3 1/4” x 4” (83 mm x 102 mm) 3 1/2” Black .5 (0.2)

MADE-TO-ORDER

ORDERING INFORMATION: Landscape Accessories

Catalog Number Description Weight

lbs. (kg)

PKG.

CODE

Junction Boxes

NM-BC Non-metallic high impact phenolic weatherproof box and cover; Box is drilled at 180° for two burial cable connectors,

included, allowing feed-through capability; Gasketed cover has weathertight 1/2” hub; Brass cover screws; Gray

—

1414-BOX Cast Iron Box - 2 side hubs, one top (1/2”); Heavy Duty; Gray 5 (2.3)

Ground Spikes

1031-3 Cast spike with internal splice box, 1/2” N.P.S.M. hub for ﬁxture and 6’ #18/3 grounded cord set; Gray 1.75 (0.8)

Fitters

S-302-M51 Slipﬁts 1 1/2” or 2” pipe (1.9” OD or 2 3/8” OD) with 1/2” N.P.S.M. hub; Bronze .6 (0.3)

S-302-M52 Slipﬁts 1 1/2” or 2” pipe (1.9” OD or 2 3/8” OD) with 1/2” N.P.S.M. hub; White .6 (0.3)

NM-BC 1414-BOX 1031-3 S-302

S-314-B S-319-B S-329-B C-5 206-BC3

GLN-1-G NM-BC 1414 1031-1 1034 S-302

S-314-B S-319-B S-329-B C-5 206-BC3

GLN-1-G NM-BC 1414 1031-1 1034 S-302

S-314-B S-319-B S-329-B C-5 206-BC3

GLN-1-G NM-BC 1414 1031-1 1034 S-302

S-314-B S-319-B S-329-B C-5 206-BC3

Hubbell has a variety of junction boxes and covers to allow easy

installation of lampholders, compact ﬂoodlights and landscape

luminaires. Cast aluminum construction, gasketed covers designed for

wet locations and conduit plugs are standard. Boxes have a natural

aluminum ﬁnish. Covers are painted gray or black.

• These accessories make it simple to install the various Lightscaper®

ﬁxtures.

• Two grades of burial junction boxes, portable spike mounts and

2 3/8” stub up ﬁtters are speciﬁcally designed to mate with

lampholders and louver lights

MADE-TO-ORDER

Visit www.hubbelloutdoor.com/products for up-to-date availability information

ORDERING INFORMATION: Landscape Accessories

Catalog Number Description Weight

lbs. (kg)

PKG.

CODE

Fitter

S-302 Slipﬁts 1 1/2” or 2” pipe (1.9” OD or 2 3/8” OD) with 1/2” N.P.S.M. hub; Gray .6 (0.3)

STOCK

LED Highbay Series Severe Location

The LED Highbay Series is designed to

eciently light any large interior space

with its high performance LED design and

delivery of up to 100 lumens per watt of

5000 deg K light. The unique radial design

with ﬁns of durable cast aluminum allow

it to operate in -40˚C to 55˚C ambient

environments and keeps the LEDs cool

resulting in an estimated 100,000 hours of

life at L70.

The LED Highbay oers nine unique ﬁxture

versions for a wide variety of applications.

The LED Highbay is DesignLights

Consortium® qualiﬁed for general highbay

ﬁxtures.

The total wattage ranges from 112-169

watts with a lumen output ranging from

10,000 to almost 17,000 lumens. The

LED Highbay comes standard with 0-10v

dimmable, universal voltage LED drivers

with input from 120v to 277v at 50hz or

60 hz. Surge protection is included as

standard. Complete ﬁxture assembly is

IP56. DLC Approved.

Accessories - Order Separately

Catalog Number Description

HOOK/LOOP Fixture Mounting Hook

BLA-C4HLPX Cord and Plug Set

LG2S DUAL-LITE 250 VA LiteGear

Emergency Lighting Inverter

Note: One (1) LED Highbay per LG2S

A B C

18” 11” 6”

457 mm 288 mm 152 mm

Lighting Facts labels are available for specific SKUs.

Contact factory for more information.

LED HIGHBAY

HBL

Visit www.hubbellindustrial.com/products for up-to-date availability information

10-Day Quick Ship Ordering Guide

Order Limit Per Fixture Selection: 15 – BC Pkg Code

ORDERING INFORMATION

DIMENSIONS

SERIES

HBL

LED Highbay

NUMBER OF LEDS

60L 60 High brightness LEDs

72L 72 High brightness LEDs

DISTRIBUTION

NNarrow

WWide

COLOR

TEMPERATURE

3K 3000K

4K 4000K

5K 5000K

OPTIONS

Fx Fusing (Replace “x”

with voltage - Refer

to spec sheet for more

info.)

ENCA Frosted Acrylic

Protective Lens

ENCG Glass Protective Lens

OCS(X) Occupancy Sensor

WG Bottom Wire Gaurd

WIHUBB Wireless Control System

Notes:

1. OCS unavailable with ENCA or

ENCG options

2. OCS and WIHUBB options can

not be speciﬁed together

HBL U

VOLTAGE

U120 - 277V

MOUNT

APendant

HUB

23/4” Hub

070 ND2

DRIVE CURRENT

070 700 MA

COLORS

BL Black

GR Gray

WH White

DIMMING

ND Non-

Dimming

Notes: Voltage must be speciﬁed for Fusing

and Occupancy Sensor compatibility.

Refer to product spec sheet for 480V speciﬁ-

cation requirements

ORDERING INFORMATION

Catalog Number Description Voltage Color Weight

lbs. (kg)

PKG.

CODE

HBL-72LU-NN-5K-W-070-ND-WH HBL LED Highbay, 72 LED, No Mount, 5K, Wide, Non Dimming, White 120-277V White 36.6 (16.6)

HBL-72LU-NN-5K-N-070-ND-WH HBL LED Highbay, 72 LED, No Mount, 5K, Narrow, Non Dimming, White 120-277V White 36.6 (16.6)

HBA2B Pendant, 3/4” White – White 3 (1.3)

STOCK

LED HIGHBAY

LED Highbay Series Severe Location

SERIES

HBL

LED Highbay

NUMBER OF LEDS

48L 48 High brightness LEDs

60L 60 High brightness LEDs

72L 72 High brightness LEDs

DISTRIBUTION

NNarrow

WWide

AAisle

COLOR

TEMPERATURE

27K 2700K

3K 3000K

35K 3500K

4K 4000K

5K 5000K

Note: Refer to

product spec

sheet for more

details

OPTIONS

Fx Fusing (Replace “x”

with voltage - Refer

to spec sheet for more

info.)

ENCA Frosted Acrylic

Protective Lens

ENCG Glass Protective Lens

OCS(X) Occupancy Sensor

WG Bottom Wire Gaurd

WIHUBB Wireless Control System

Notes:

1. OCS unavailable with ENCA or

ENCG options

2. OCS and WIHUBB options can

not be speciﬁed together

HBL

VOLTAGE

U120 - 277V

1120V

2208V

3240V

4277V

5480V

MOUNT

APendant

CCone

SStraight

stancheon

XCeiling

YYoke

HUB

23/4” Hub

Available with A,

C, X and Y Mount

31” Hub

Available with A,

C, X Mount

41 1/4” Hub

51 1/2” Hub

Available with

S Mount

070

DRIVE CURRENT

070 700 MA

COLORS

BL Black

GR Gray

WH White

DIMMING

CD Continuous

Dimming

ND Non-

Dimming

Notes: Voltage must be speciﬁed for Fusing

and Occupancy Sensor compatibility.

Refer to product spec sheet for 480V speciﬁ-

cation requirements

PERFORMANCE INFORMATION

Catalog Number Input

Watts LEDs Color

Temperature CRI Total

Lumens

per Watt

Ambient

Temperature

HBL-48LU-5K-N-070-WH 112 48 5000˚K 68 11206 100 45˚C

HBL-48LU-5K-W-070-WH 112 48 5000˚K 68 10778 96 45˚C

HBL-48LU-5K-A-070-WH 112 48 5000˚K 68 10213 91 45˚C

HBL-60LU-5K-N-070-WH 139 60 5000˚K 68 14007 101 45˚C

HBL-60LU-5K-W-070-WH 139 60 5000˚K 68 13472 97 45˚C

HBL-60LU-5K-A-070-WH 139 60 5000˚K 68 12776 92 45˚C

HBL-72LU-5K-N-070-WH 169 72 5000˚K 68 16808 99 45˚C

HBL-72LU-5K-W-070-WH 169 72 5000˚K 68 16166 96 45˚C

HBL-72LU-5K-A-070-WH 169 72 5000˚K 68 15319 91 45˚C

HBL

Visit www.hubbellindustrial.com/products for up-to-date availability information

MADE-TO-ORDER ORDERING INFORMATION – (

BC PKG CODE)

ORDERING INFORMATION

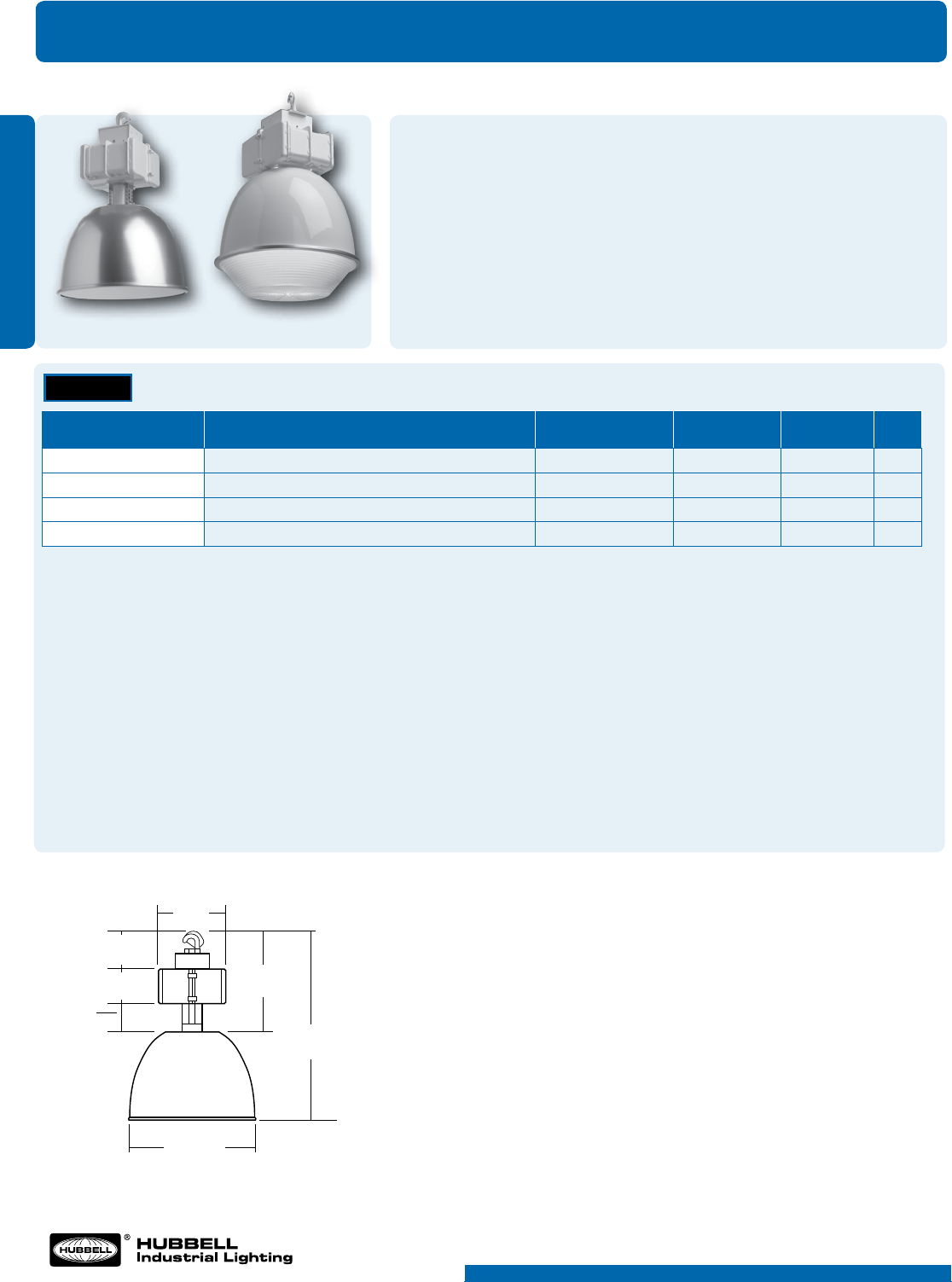

Ruggedly built industrials with cast

aluminum ballast housing for heat

dissipation and long ballast life. Cast

aluminum safety hook included. 3/4”

top hub on easy wire box. 400w pulse

start metal halide lamp included. 16”

diameter optics. Glass lens provided on

BL-400PHB, drop acrylic on BL-400PLB.

Typical mounting height: Highbay 18’-

25’/Lowbay 14’-20’. Quartz restrike units

are available. (Quartz lamp included)

APPLICATIONS

• Warehouses, workshops, auto

maintenance, factories, etc.

• For applications with ceiling heights of

15-30 ft

LISTINGS

• UL listed for use in damp locations

BL-400PHB BL-400PLB

ORDERING INFORMATION

Catalog Number Description Voltage Color Weight

lbs. (kg)

PKG.

CODE

BL-400P-HB Highbay, 400w PS 120/208/240/277V White 24 (2.7)

FCC

BL-400P-HB-Q Highbay, 400w PS, w/ Quartz restrike 120/208/240/277V White 24 (2.7)

FCC

BL-400P-LB-EX Lowbay, 400w PS 120/208/240/277V White 24

FCC

BL-400P-LB-EX-Q Lowbay, 400w PS, w/ Quartz restrike 120/208/240/277V White 24

FCC

STOCK

DIMENSIONS

16.2”

(412 mm)

24.6”

(625 mm)

14.0”

(358 mm)

5.2”

(132 mm)

5.0”

(127 mm)

3.8”

(97 mm)

9.2”

(234 mm)

HID Utility Highbay

BL-400

HID HIGHBAY

DIMENSIONSDIMENSIONS

Visit www.hubbellindustrial.com/products for up-to-date availability information

Catalog Number Type PKG.

CODE

Standard Globe Tempered Globe

Pendant 3/4” Fixture with Clear Globe & Guard

NV2IG15ASG NV2IG15AHG 150w Incandescent

NV2FG13ASG NV2FG13AHG 13w Fluorescent

NV2FG18ASG NV2FG18AHG 18w Fluorescent

NV2FG26ASG NV2FG26AHG 26w Fluorescent

NV2FG32ASG NV2FG32AHG 32w Fluorescent

NV2FG42ASG NV2FG42AHG 42w Fluorescent

Ceiling 3/4” Fixture with Clear Globe & Guard

NV2IG15XSG NV2IG15XHG 150w Incandescent

NV2FG13XSG NV2FG13XHG 13w Fluorescent

NV2FG18XSG NV2FG18XHG 18w Fluorescent

NV2FG26XSG NV2FG26XHG 26w Fluorescent

NV2FG32XSG NV2FG32XHG 32w Fluorescent

NV2FG42XSG NV2FG42XHG 42w Fluorescent

Wall 3/4” Fixture with Clear Globe & Guard

NV2IG15BSG NV2IG15BHG 150w Incandescent

NV2FG13BSG NV2FG13BHG 13w Fluorescent

NV2FG18BSG NV2FG18BHG 18w Fluorescent

NV2FG26BSG NV2FG26BHG 26w Fluorescent

NV2FG32BSG NV2FG32BHG 32w Fluorescent

NV2FG42BSG NV2FG42BHG 42w Fluorescent

Catalog Number Description

040541B Lamp, 32w SYLV CF32DT/E/IN/830

0460542B Lamp, 42w SYLV CF42DT/E/IN/830

0460543B Lamp,26w SYLV CF26DT/E/IN/830

0460547B Lamp, 18w SYLV CF18DT/E/IN/827

NV2AG 3/4” Pendant splice box

NV2XG 3/4” Ceiling splice box (M20 entry NV2MG)

NV2BG Elbow (used between NV2XG & ﬁxture body)

NV2GG Guard

NV2FG18 18w Fluor. body 120VAC - 277V 50/60Hz

NV2FG26 26 Fluor. body 120VAC - 277V 50/60Hz

NV2FG32 32w Fluor. body 120VAC - 277V 50/60Hz

NV2FG42 42w Fluor. body 120VAC - 277V 50/60Hz

NV2CG Gray blank cover for NV2XG

VG15 Clear, standard

VRGP100 Ruby, tempered

1 Fluorescent “bodies only” do not include lamps

Class I, Div. 2, Groups A, B, C, D • Class I, Zone 2, Groups IIC, IIB, IIA

Class II, Div. 2, Groups F, G, C, D • Class III • NEMA 4X, IP66, Marine Rated

Components1

Sux Standard

Globe Sux Tempered

Globe2Description

A A Amber

B B Blue

R R Ruby

G N/A Green

P N/A Purple

BG BG Blue-Green

2 Tempered globes are required for Wet Location applications

Colored Globe Options2

MADE-TO-ORDER ORDERING INFORMATION – (

BC PKG CODE)

Enclosed & Gasketed

NV2 Series

• Typical applications include manufacturing

plants, chemical and petrochemical process-

ing facilities, sewage treatment plants, o-

shore and dockside installations, agricultural,

commercial, industrial, mining, and marine

facilities

• NV2 Series non-metallic light ﬁxtures

combine an outstanding balance of strength,

stiness, toughness and electrical properties

• Energy and labor-saving ﬂuorescent or incan-

descent models

• Accessories include polycarbonate dome

reﬂectors and wall extension

• Molded from 30% glass-ﬁlled thermoset

polyester for high strength

• Resists corrosive eects of most chemicals,

hydrocarbons and solvents

• Designed for indoor and outdoor applications

• UL1598 Standard for luminaires

• UL 1598A Marine type luminaires

• UL 844 Standard for lighting ﬁxtures for

hazardous locations

• CSA C22.2 no. 137-M1981 electric luminaires for

use in hazardous locations

• Enclosed and gasketed

• NEMA 3, 4X; IP66

Notes: • Tempered Globes are required for Wet Location applications

• All assemblies are unit packed with required components (not assembled)

• Fluorescent unit pack models (only) include the lamp

• Reﬂector is sold separately; For wall mounting with reﬂector, the NVEXTG

extension is required and sold separately

• Fluorescent models use “world voltage” ballasts for 120VAC through 277VAC,

50/60Hz applications

4.53"

(115 mm)

4.53"

(115 mm)

1.15"

(29 mm)

INCANDESCENT

11.20"

(285 mm)

FLUORESCENT

12.31"

(340 mm)

4.53"

(115 mm)

2.12"

(54 mm) 5.19"

(102 mm)

Ø .33 TYP.

(8 mm)

VOLUME

24 CU. IN.

1.15"

(29 mm)

INCANDESCENT

10.84"

(275 mm)

FLUORESCENT

11.95"

(304 mm)

INCANDESCENT

12.26"

(311 mm)

FLUORESCENT

13.37"

(340 mm)

13.78"

(350 mm)

11.69"

(297 mm)

1.15"

(29 mm)

INCANDESCENT

12.26"

(311 mm)

FLUORESCENT

13.37"

(340 mm)

Pendant Ceiling

Wall Wall Fluorescent w/

Extension & Dome Reﬂector

ORDERING INFORMATION: 150w GLOBES V/NV/NVQ

Catalog Number Description

VCGP-100 Clear, tempered

VCGPT-100 Clear, tempered w/ Tuskin® coating

VAMG-100 Amber

VGG-100 Blue Green

VGGP-100 Blue Green, tempered

VBG-1001 Blue

VBGP-100 Blue, tempered

VRG-100 Ruby

VRGP-100 Ruby

VRSG-100 Green

VPG-100 Purple

VPLGC-100 Polycarbonate (cannot be used with

guard or in high ambient temperature

locations-40°C/104°F max.) Not UL

listed

HAZARDOUS SEALED

Visit www.hubbellindustrial.com/products for up-to-date availability information

MADE-TO-ORDER

STOCK

RECESSED

STOCK ORDERING INFORMATION EXAMPLE: BX4QL120LB4LEDA6L30K9 WH

LB4LEDA6L 30K 9 WH

BX4QL120

HOUSING

BX4QL-120 4" line volt-

age Non-IC

housing, new

construction

applications

IBX4QL-120 4" line voltage

IC housing, new

construction

applications,

AirShield™

rated

RMN4QL-120 4" line voltage

Non-IC hous-

ing. Remodel

applications.

NOTES

1See trim dimensions on

page 330

2IBX4QL-120 only

ACCESSORIES

G42Ceiling gasket for the 4" line

voltage housings. Seals housing

to drywall opening

ICBOX Recessed enclosure for Non-IC

housing in IC applications. See

page 274.

Ceiling Cut Out: 4-1/2"

Maximum Ceiling Thickness: 2-1/2"

Ceiling Cut Out: 4-1/2"

Maximum Ceiling Thickness: 2-1/2"

BX4QL-120 IBX4QL-120 RMN4QL-120

Ceiling Cut Out: 4-1/2"

Maximum Ceiling Thickness: 1"

13-1/8

9-5/8

7-3/4

10 3/4

7/8

5 1/2

10-3/4

7-7/8

5-1/2



4 13/16"

4 1/8"

5 9/16"

11 3/4"

59⁄16"

41⁄8"

413⁄16"

113⁄4"

FEATURES

• Ideal for residential and light commercial lighting projects that require a small, concealed line-voltage

source.

• RMN4QL-120 remodel housing allows for quick and easy installation into existing ceilings

• Nail included on bar hangers.

• Suitable for wet locations and through wiring

• Luminaires are certiﬁed by a National Recognized Testing Lab (NRTL), either UL or CSA

IBX4QL-120

4" LED QuickLink

California Title 24 Compliant

BX4QL/IBX4QL/RMN4QL 120

QUICKLINK trims comply with the requirements of California

Title 24 by providing a plug-in power connector in place of a

screw shell socket. Ideal for residential and light commercial

new construction applications where the use of screw shell

sockets is restricted. The LB6LEDA trim is compatible with both

an Edison Base and QL base housing.

QuickLink: California Title 24 Compliant Connectors

Visit www.prescolite.com/products for up-to-date availability information

TRIM

LB4LEDA6L14" LED

QuickLink

trim

LED COLOR

TEMP

30K 3000

Kelvin

CRI

990+ CRI

TRIM COLOR

WH White

MADE-TO-ORDER ORDERING INFORMATION

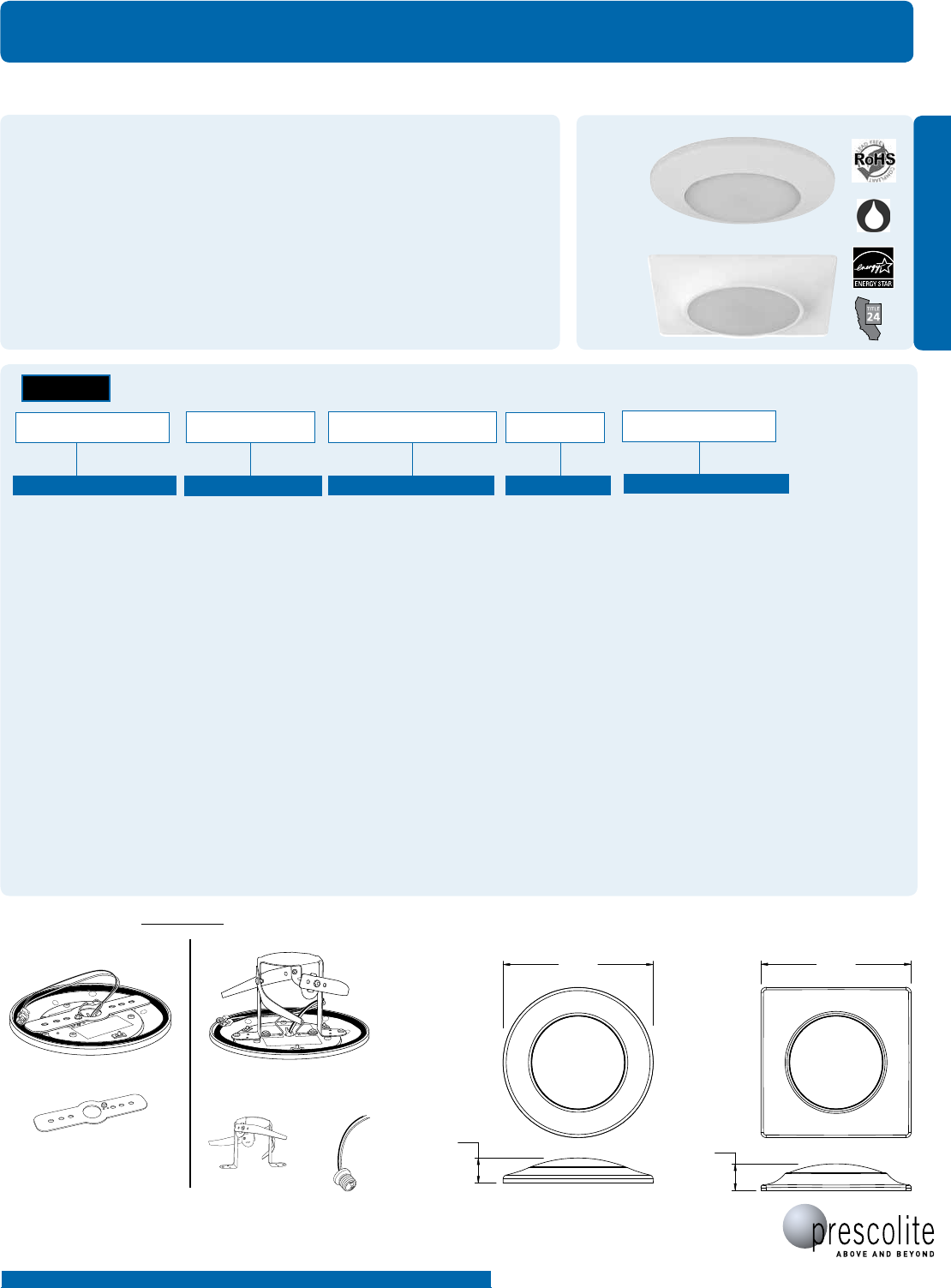

7” Surface Mount LED Downlight

120V

LBSLED/LBSQLED

LITEBOX

#8022_strap quick

#8022-30_recessed

#8022_recessed bracket

#8022_socket

#8022_strap

Recessed Mount with optional LBSMTGKIT

J-Box Mount with quick link

Recessed Adapter E26 Edison Base Adapter

J-Box Adapter

Mounting Options:

7 1/4"

1 1/4"

7 1/4"

1 1/4"

7" Round LiteBox LED 7" Square LiteBox LED

7 1/4"

1 1/4"

7 1/4"

1 1/4"

7" Round LiteBox LED

7" Square LiteBox LED

7 1/4"

1 1/4"

7 1/4"

1 1/4"

7" Round LiteBox LED 7" Square LiteBox LED

7 1/4"

1 1/4"

7 1/4"

1 1/4"

7" Round LiteBox LED

7" Square LiteBox LED

EXAMPLE:LBSLEDA10L30K WH

CRI

990+ CRI

LBSLEDA10L

TRIM

LBSLEDA10L Surface

Mount

Round LED

Module

LBSQLEDA10L Surface

Mount

Square LED

Module

ACCESSORIES

LiteGear See spec sheet

for availability

LBSMTGKIT Mounting kit

for LiteBox

LED Surface

ﬁxtures to in-

stall into most

4", 5", or 6"

recessed cans.

Set of 8.

TRIM COLOR

WH White

30K

LED COLOR

30K 3000 Kelvin

LBSLEDA10L

LBSQLEDA10L

FEATURES

• Installs to Standard 4x4 J-Box

• Energy saving LED light engine with 17-watt input power

• Lumen out put and distribution comparable up to 100W incandescent

• Photometrics tested per IESNA-LM-79-2008 standards.

• Retroﬁt applications with compatible 4", 5", or 6"housings using the optional mounting kit.

• 42,000 hours life at 70% lumen maintenance per TM-21

• ENERGY STAR® Qualiﬁed

• IC/Non-IC rated. Suitable for wet locations.

• Luminaires are certiﬁed by a National Recognized Testing Lab (NRTL), either UL or CSA.

• 972 Delivered Lumens, 17 Watts

• Dimmable to 15% using many LED rated dimmers

Visit www.prescolite.com/products for up-to-date availability information

ORDERING INFORMATION – (

BC PKG CODE)

STOCK

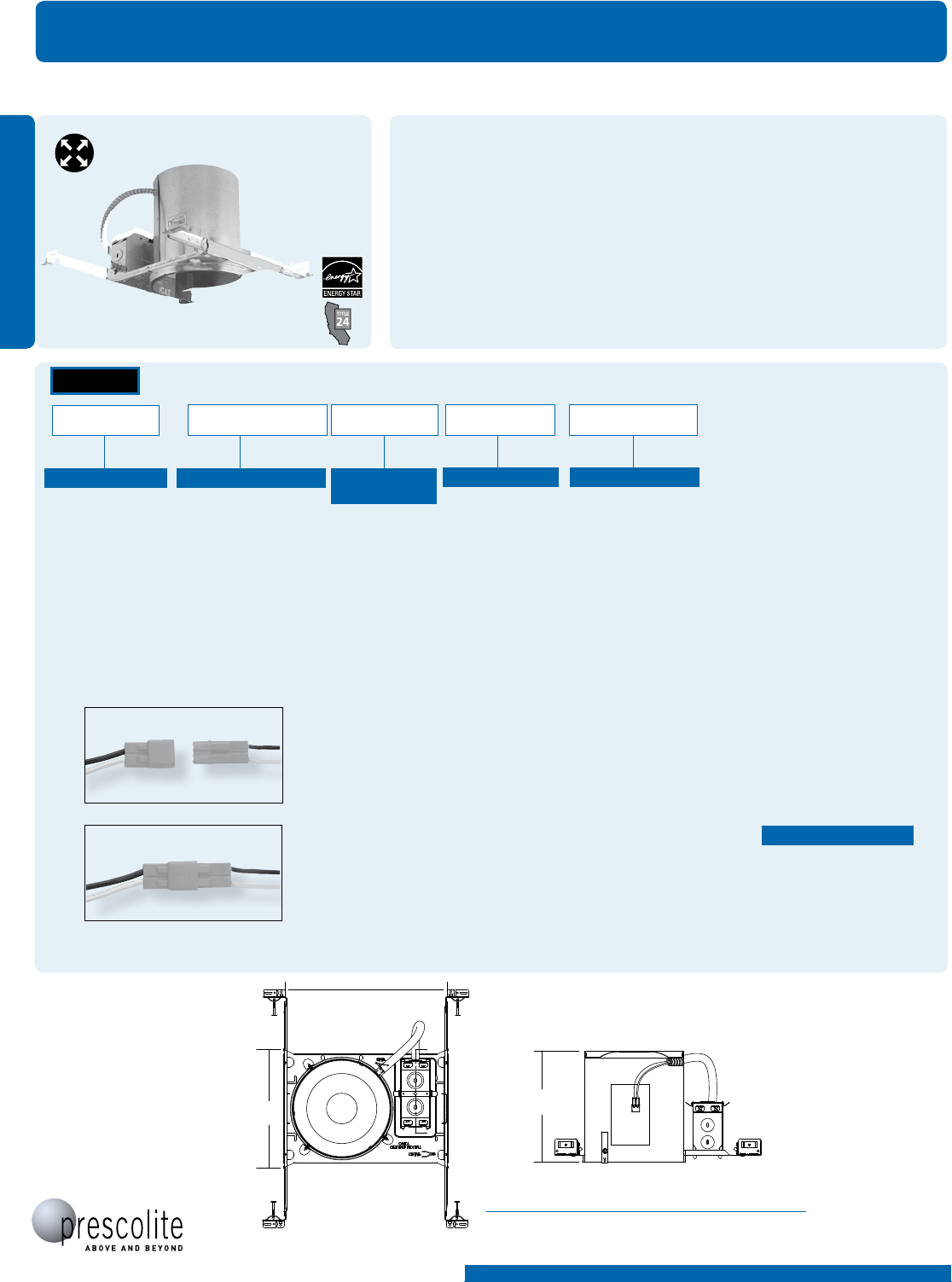

6” LED QuickLink

California Title 24 Compliant

DBXQL

LITEBOX

DBXQL

"A" "A"

XX XX/XX/XX EC-XXXX --- ---

PV:1

asachs

---

10/26/12

--/--/--

DBX/IBXTICAT/DBXQL SPEC LINEART

--- --- ---

--- -SHT 2

3 SHTS

8 7 6 5 4 3 2

8 7 6 5 4 3

CHCKDESNRECORDDATEREV

UNSPECIFED TOLERANCES: INCHES

X.X=±0.1 X.XX=±0.03 X.XXX=±0.010

FRACTIONS=±1/32 ANGULAR TOLERANCE=±1°

DRAWING NO.SIZE

SCALE

CATALOG NO:

ENGINEERING:

CHECKED BY:

DIMENSIONS IN INCHES

DIMENSIONS IN [ ] IN MM

CONFORMS TO ASME Y14.5M

DO NOT SCALE PRINT

DRAWN BY:

THIRD ANGLE PROJECTION

MATERIAL: FINISH:

REV.

PART NO:

CRITICAL DIMENSIONS

This document contains confidential and proprietary information of

Prescolite. Receipt or possession of this document does not convey any

rights to reproduce or disclose its contents, or to make, use , or sell

anything it may disclose. Reproduction, disclosure, or use of the document

or its contents, without the specific written authorization of Prescolite, may

violate the intellectual property rights of Prescolite.

DBXQL

Ceiling Cut Out: 6-7/8"

Maximum Ceiling Thickness: 1-1/2"

10 3/4"

7 7/8" 7 1/2"

EXAMPLE: DBXQLLB6LEDA30K WH

LB6LEDA

TRIM

LB6LEDA8L16" 800

Lumen

LED

QuickLink

trim

LB6LEDA10L16" 1000

Lumen

LED

QuickLink

trim

30K

LED COLOR

TEMP

30K 3000

Kelvin

35K23500

Kelvin

CRI

Blank 80+ CRI

TRIM COLOR

WH White

BL2Black

Z2Zet

BZ2Bronze

DBXQL

HOUSING

DBXQL 6" LED

QuickLink

housing

–

NOTES

1See trim dimensions on

page 329

2Not available for LB6LEDA8L

*See spec sheet or www.

dual-lite.com for LiteGear

Compatibility Matrix

QUICKLINK trims comply with the requirements of California

Title 24 by providing a plug-in power connector in place of a

screw shell socket. Ideal for residential and light commercial

new construction applications where the use of screw shell

sockets is restricted. The LB6LEDA trim is compatible with both

an Edison Base and QL base housing.

QuickLink: California Title 24 Compliant Connectors

DBXQL

FEATURES

• Energy saving LED light engine with 12-14-watt input power

• California Title 24 compliant QuickLink connectors on housings and trims

• Lumen output and distribution comparable up to 75W PAR incandescent lamp.

• Photometrics tested per IESNA LM-79-2008 standards

• 60,000 hour life at 70% lumen maintenance per TM-21

• Heat sink to maximize life expectancy and lumen output.

• Excellent glare control and optical cuto

• Dimmable to 15% with most standard dimmers

• IC/Non-IC, AirShield rated. Wet location with LB6LEDA.

• Luminaires are certiﬁed by a National Recognized Testing Lab (NRTL), either UL or CSA.

Visit www.prescolite.com/products for up-to-date availability information

ORDERING INFORMATION – (

BC PKG CODE)

STOCK

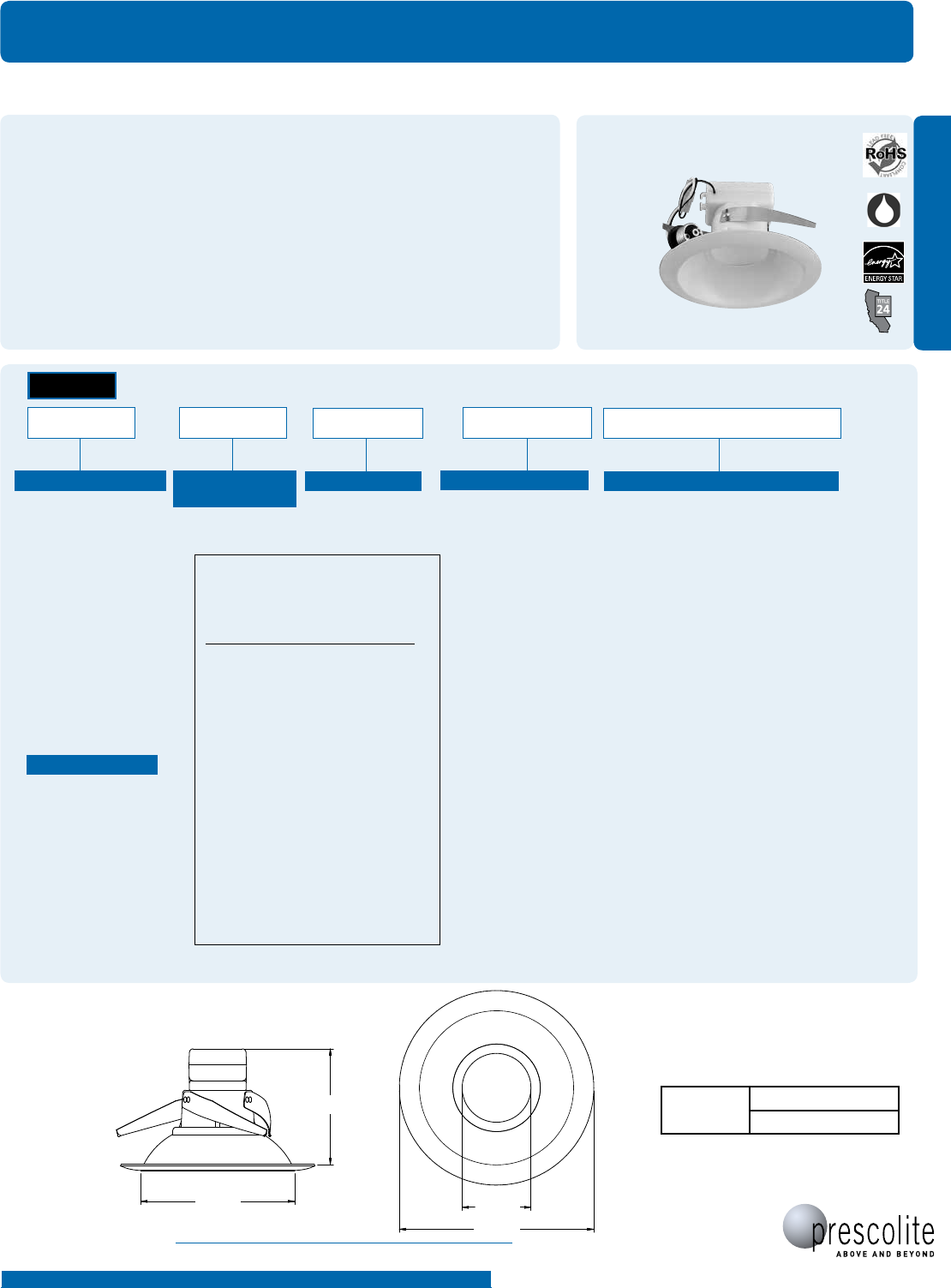

FEATURES

• Energy saving LED light engine with 12-14-watt input power

• Lumen output and distribution comparable up to 75W PAR incandescent lamp

• Photometrics tested per IESNA LM-79-2008 standards

• New construction with DBXQL, California Title 24 compliant

• Retroﬁt applications with compatible 6" housings using the universal screw base adapter (see below)

• Dimmable to 15% with most standard dimmers

• Easy installation with (3) friction spring clips and diuse acrylic lens controls direct glare

• 60,000 hours life at 70% lumen maintenance per TM-21

• Heat sink to maximize life expectancy and lumen output

• ENERGY STAR® Qualiﬁed

• IC/Non-IC rated. Suitable for wet locations.

• Luminaires are certiﬁed by a National Recognized Testing Lab (NRTL), either UL or CSA.

EXAMPLE: LB6LEDA30K WH

LB6LEDA

TRIM

LB6LEDA8L 6" 800

Lumen LED

module

with dim-

ming to

15% 120V

LB6LEDA10L 6" 1000

Lumen LED

module

with dim-

ming to

15% 120V

30K

LED COLOR

TEMP

30K 3000 Kelvin

35K13500 Kelvin

6" LED Trims

LB6LEDA

–

TRIM COLOR

WH White

BL1Black

Z1Zet

BZ1Bronze

LB6LEDA

NOTES

1Available with

LB6LEDA10L only.

*See spec sheet or www.

dual-lite.com for LiteGear

Compatibility Matrix and

compatible dimmers

LB6LEDA

Compatible for use with Prescolite DBX, IBXHW,

RMNICD, & FT6. Partial list of competitor IC & Non-

IC housings UL classified with 6" trims includes:

Manufacturer

Capri

Commercial Electric

Elco

Emerald

Halo

Intense

Jimway

Juno

Lithonia

LumaPro

Luminaire

Nora

Progress

Sea Gull

WAC

For complete list of competitor part numbers, see

spec sheet at www.Prescolite.com

CRI

Blank 80+ CRI

ACCESSORIES

LiteGear See spec sheet for availability

DBXQL IC/Non-IC, Airtight housing with

supply wire quick connects

XX XX/XX/XX ECO-XXXX XXX XXX

8 7 6 5 4 3 2

8 7 6 5 4 3

This document contains confidential and proprietary information of Progress

Lighting. Receipt or possession of this document does not convey any rights

to reproduce or disclose its contents, or to make, use , or sell anything it may

disclose. Reproduction, disclosure, or use of the document or its contents,

without the specific written authorization of Progress Lighting, may violate the

intellectual property rights of Progress Lighting.

UNSPECIFED TOLERANCES: INCHES

X.X=

0.1 X.XX=

0.03 X.XXX=

0.010

FRACTIONS=

1/32 ANGULAR TOLERANCE=

CRITICAL DIMENSIONS

PART NO:

REV.

FINISH:MATERIAL:

THIRD ANGLE PROJECTION

DRAWN BY:

DO NOT SCALE PRINT

CONFORMS TO ASME Y14.5M

DIMENSIONS IN [ ] IN MM

DIMENSIONS IN INCHES

CHECKED BY:

ENGINEERING:

CATALOG NO: SCALE

SIZE DRAWING NO.

CHCKDESNRECORDDATEREV

SHT 1

1 SHTS

Error: No reference

line art

948071-LED

ASSY-TRIM P8071 LED

mbartlett 01/11/12

XXX 05/19/05

PV:1

4 5/8 "

2 3/4

7 3/4

6 1/8

6 1/8"

XX XX/XX/XX ECO-XXXX XXX XXX

8 7 6 5 4 3 2

8 7 6 5 4 3

This document contains confidential and proprietary information of Progress

Lighting. Receipt or possession of this document does not convey any rights

to reproduce or disclose its contents, or to make, use , or sell anything it may

disclose. Reproduction, disclosure, or use of the document or its contents,

without the specific written authorization of Progress Lighting, may violate the

intellectual property rights of Progress Lighting.

UNSPECIFED TOLERANCES: INCHES

X.X=

0.1 X.XX=

0.03 X.XXX=

0.010

FRACTIONS=

1/32 ANGULAR TOLERANCE=

CRITICAL DIMENSIONS

PART NO:

REV.

FINISH:MATERIAL:

THIRD ANGLE PROJECTION

DRAWN BY:

DO NOT SCALE PRINT

CONFORMS TO ASME Y14.5M

DIMENSIONS IN [ ] IN MM

DIMENSIONS IN INCHES

CHECKED BY:

ENGINEERING:

CATALOG NO: SCALE

SIZE DRAWING NO.

CHCKDESNRECORDDATEREV

SHT 1

1 SHTS

Error: No reference

line art

948071-LED

ASSY-TRIM P8071 LED

mbartlett 01/11/12

XXX 05/19/05

PV:1

4 5/8 "

2 3/4

7 3/4

6 1/8

7 3/4"

2 3/4"

Dim. A LB6LEDA8L = 3-5/8"

LB6LEDA10L = 4-5/8"

LITEBOX

Visit www.prescolite.com/products for up-to-date availability information

ORDERING INFORMATION – (

BC PKG CODE)

STOCK

FEATURES

Combination LED Exit/Light

• Combination unit for commercial applications

• UV stable thermoplastic white or black housing available

• Long life LED lamps in exit sign rated at 50,000 hour life expectancy

• LED Lamps with a life-cycle of more than 10 years

• Dual-voltage 120 or 277V AC input

• Remote capacity or extended runtime option

• Long-life Nickel Cadmium battery with fully automatic charger

• UL 924 Damp Location Listed

CATALOG NUMBER DESCRIPTION PKG. CODE

CCR White Thermoplastic, Combination Exit/Emergency Light, Universal Face, Red Letters

SCC

CCRB Black Thermoplastic, Combination Exit/Emergency Light, Universal Face, Red Letters

SCC

CCG White Thermoplastic, Combination Exit/Emergency Light, Universal Face, Green Letters

SCC

CCGB Black Thermoplastic, Combination Exit/Emergency Light, Universal Face, Green Letters

SCC

CCRRC White Thermoplastic, Combination Exit/Emergency Light, Universal Face, Red Letters, Remote Capacity

SCC

CCRRCB Black Thermoplastic, Combination Exit/Emergency Light, Universal Face, Red Letters, Remote Capacity

SCC

CCGRC White Thermoplastic, Combination Exit/Emergency Light, Universal Face, Green Letters, Remote Capacity

SCC

Note: Remote Capacity Unit will only power the Compass Indoor and Outdoor Remote(CIR and COR Series)

ACCESSORIES

MODEL DESCRIPTION

MATCHING REMOTE FIXTURES

MODEL DESCRIPTION

CIR LED Indoor Remote Heads

COR LED Outdoor Remote Heads

WGEL

Wall Mount Wireguard- 8” H X 20” W X 8” D

Single Carton Weight: 2.5 lbs.

Master Carton Quantity: 6 each

CIRS

CIRD

CORS

CORD

ELECTRONICS

• 90 minute emergency operation with 1 double or 2

single remotes

• Test switch and LED AC-on indicator light

CCGB

EXIT SIGNS

ORDERING INFORMATION

STOCK

Visit http://www.compasslightingproducts.com/ for up-to-date availability information

EXIT SIGNS

CATALOG NUMBER DESCRIPTION PKG. CODE

CCR White Thermoplastic, Combination Exit/Emergency Light, Universal Face, Red Letters

SCC

CCRB Black Thermoplastic, Combination Exit/Emergency Light, Universal Face, Red Letters

SCC

CCG White Thermoplastic, Combination Exit/Emergency Light, Universal Face, Green Letters

SCC

CCGB Black Thermoplastic, Combination Exit/Emergency Light, Universal Face, Green Letters

SCC

CCRRC White Thermoplastic, Combination Exit/Emergency Light, Universal Face, Red Letters, Remote Capacity

SCC

CCRRCB Black Thermoplastic, Combination Exit/Emergency Light, Universal Face, Red Letters, Remote Capacity

SCC

CCGRC White Thermoplastic, Combination Exit/Emergency Light, Universal Face, Green Letters, Remote Capacity

SCC

Note: Remote Capacity Unit will only power the Compass Indoor and Outdoor Remote(CIR and COR Series)

Thin Die-Cast LED Emergency Exit

CCE

FEATURES

• Thin die-cast aluminum Exit sign for commercial or light industrial applications

• Painted black housing with brushed aluminum face

• Long life LED lamps provide bright, even illumination

• Universal end or ceiling mount with canopy included

• Dual-voltage 120 or 277V AC input

• Emergency models include long-life Nickel Cadmium battery

• UL 924 Damp Location Listed

Single Carton Weight: 2.8 lbs.

Master Carton Quantity: 8 each

CATALOG NUMBER DESCRIPTION PKG. CODE

CCESRE Die-Cast Exit, Brushed Face, Black Housing, Single-Face, Red Letters, Emergency

SCC

CCEDRE Die-Cast Exit, Brushed Face, Black Housing, Double-Face, Red Letters, Emergency

SCC

CCESGE Die-Cast Exit, Brushed Face, Black Housing, Single-Face, Green Letters, Emergency

SCC

CCEDGE Die-Cast Exit, Brushed Face, Black Housing, Double-Face, Green Letters, Emergency

SCC

CCESR Die-Cast Exit, Brushed Face, Black Housing, Single-Face, Red Letters, AC

SCC

CCEDR Die-Cast Exit, Brushed Face, Black Housing, Double-Face, Red Letters, AC

SCC

CCESG Die-Cast Exit, Brushed Face, Black Housing, Single-Face, Green Letters, AC

SCC

CCEDG Die-Cast Exit, Brushed Face, Black Housing, Double-Face, Green Letters, AC

SCC

ELECTRONICS

• 90 minute emergency operation

• AC or Emergency operation

• Test switch and LED AC-on indicator light

ORDERING INFORMATION

STOCK

Visit http://www.compasslightingproducts.com/ for up-to-date availability information

EXIT SIGNS

FEATURES

LED Emergency Exit

CATALOG NUMBER DESCRIPTION PKG. CODE

CER White Thermoplastic Exit, Universal Face, Red LED Emergency Exit

SCC

CERB Black Thermoplastic Exit, Universal Face, Red LED Emergency Exit

SCC

CEG White Thermoplastic Exit, Universal Face, Green LED Emergency Exit

SCC

CEGB Black Thermoplastic Exit, Universal Face, Green LED Emergency Exit

SCC

CERRC White Thermoplastic Exit, Universal Face, Red LED Emergency Exit,Remote Capacity

SCC

CERRCB Black Thermoplastic Exit, Universal Face, Red LED Emergency Exit,Remote Capacity

SCC

CEGRC White Thermoplastic Exit, Universal Face, Green LED Emergency Exit, Remote Capacity

SCC

Note: Remote Capacity Unit will only power the Compass Indoor and Outdoor Remote(CIR and COR Series)

ACCESSORIES

MODEL DESCRIPTION

MATCHING REMOTE FIXTURES

MODEL DESCRIPTION

CIR LED Indoor Remote Heads

COR LED Outdoor Remote Heads

WGLX

Wall Mount Wireguard- 10” H X 14” W X 2.25” D

Single Carton Weight: 2 lbs.

Master Carton Quantity: 6 each

CIRS

CIRD

C0RS

C0RD

ELECTRONICS

• 90 minute emergency operation with 1 double or 2

single remotes

• Test switch and LED AC-on indicator light

• Exit sign for commercial applications

• UV stable thermoplastic white or black housing available

• Long life LED lamps provide bright, even illumination

• Universal end or ceiling mount

• Dual-voltage 120 or 277V AC input

• Remote capacity or extended runtime option

• Long-life Nickel Cadmium battery with fully automatic charger

• UL 924 Damp Location Listed

CEGB

ORDERING INFORMATION

STOCK

Visit http://www.compasslightingproducts.com/ for up-to-date availability information

EXIT

EXIT SIGNS

ADDITIONAL MOUNTING OPTIONS

Surface Mount Recessed Wall Recessed Ceiling

CATALOG NUMBER DESCRIPTION PKG. CODE

CELS1RNE Edge-Lit Exit, Surface Mount, Single Face, Red Letters, Brushed Aluminum, Battery

SCC

CELS1GNE Edge-Lit Exit, Surface Mount, Single Face, Green Letters, Brushed Aluminum, Battery

SCC

CELS2RNE Edge-Lit Exit, Surface Mount, Double Face, Red Letters, Brushed Aluminum, Battery

SCC

CELS2GNE Edge-Lit Exit, Surface Mount, Double Face, Green Letters, Brushed Aluminum, Battery

SCC

CELR1RNE Edge-Lit Exit, Recessed Mount, Single Face, Red Letters, Brushed Aluminum, Battery

SCC

CELR1GNE Edge-Lit Exit, Recessed Mount, Single Face, Green Letters, Brushed Aluminum, Battery

SCC

CELR2RNE Edge-Lit Exit, Recessed Mount, Double Face, Red Letters, Brushed Aluminum, Battery

SCC

CELR2GNE Edge-Lit Exit, Recessed Mount, Double Face, Green Letters, Brushed Aluminum, Battery

SCC

Note: Remote Capacity Unit will only power the Compass Indoor and Outdoor Remote(CIR and COR Series)

ELECTRONICS

• 90 minute emergency operation with 1 double or 2

single remotes

• Test switch and LED AC-on indicator light

FEATURES

• Edgelit exit sign for architectural applications

• Brushed aluminum housing with ﬁeld installed directional arrows

• Long life LED lamps provide bright, even illumination

• Recessed or surface mount with canopy included

• Mirror divider on single and double-face models

• Dual-voltage 120 or 277V AC input

• Emergency models include long-life Nickel Cadmium battery

• UL 924 listed

Edge-Lit LED Emergency Exit

CEL

ORDERING INFORMATION

STOCK

Visit http://www.compasslightingproducts.com/ for up-to-date availability information

EXIT

EXIT SIGNS

Wet Location LED Emergency Exit

CEW

Single Carton Weight: 4.3 lbs.

Master Carton Quantity: 6 each

FEATURES

4.4”

2.5”

12.5”

8.5” 9.3”

5.5”

ELECTRONICS

• 90 minute emergency operation

• Test switch and LED AC-on indicator light

• Exit sign for wet location or light industrial environments

• UV stable thermoplastic grey housing with polycarbonate lens

• Long life LED lamps provide bright, even illumination

• Single face end, wall or ceiling mount

• Double face end or ceiling mount

• Dual-voltage 120 or 277V AC input

• Long-life Nickel Cadmium battery with fully automatic charger

• UL 924 Wet Location Listed

CATALOG NUMBER DESCRIPTION PKG. CODE

CEWSRE Thermoplatic, Wet Location Exit, Single-Face, Red Letters, Emergency

SCC

CEWDRE Thermoplatic, Wet Location Exit, Double-Face, Red Letters, Emergency

SCC

CEWSGE Thermoplatic, Wet Location Exit, Single-Face, Green Letters, Emergency

SCC

CEWDGE Thermoplatic, Wet Location Exit, Double-Face, Green Letters, Emergency

SCC

ORDERING INFORMATION

STOCK

Visit http://www.compasslightingproducts.com/ for up-to-date availability information

REMOTE

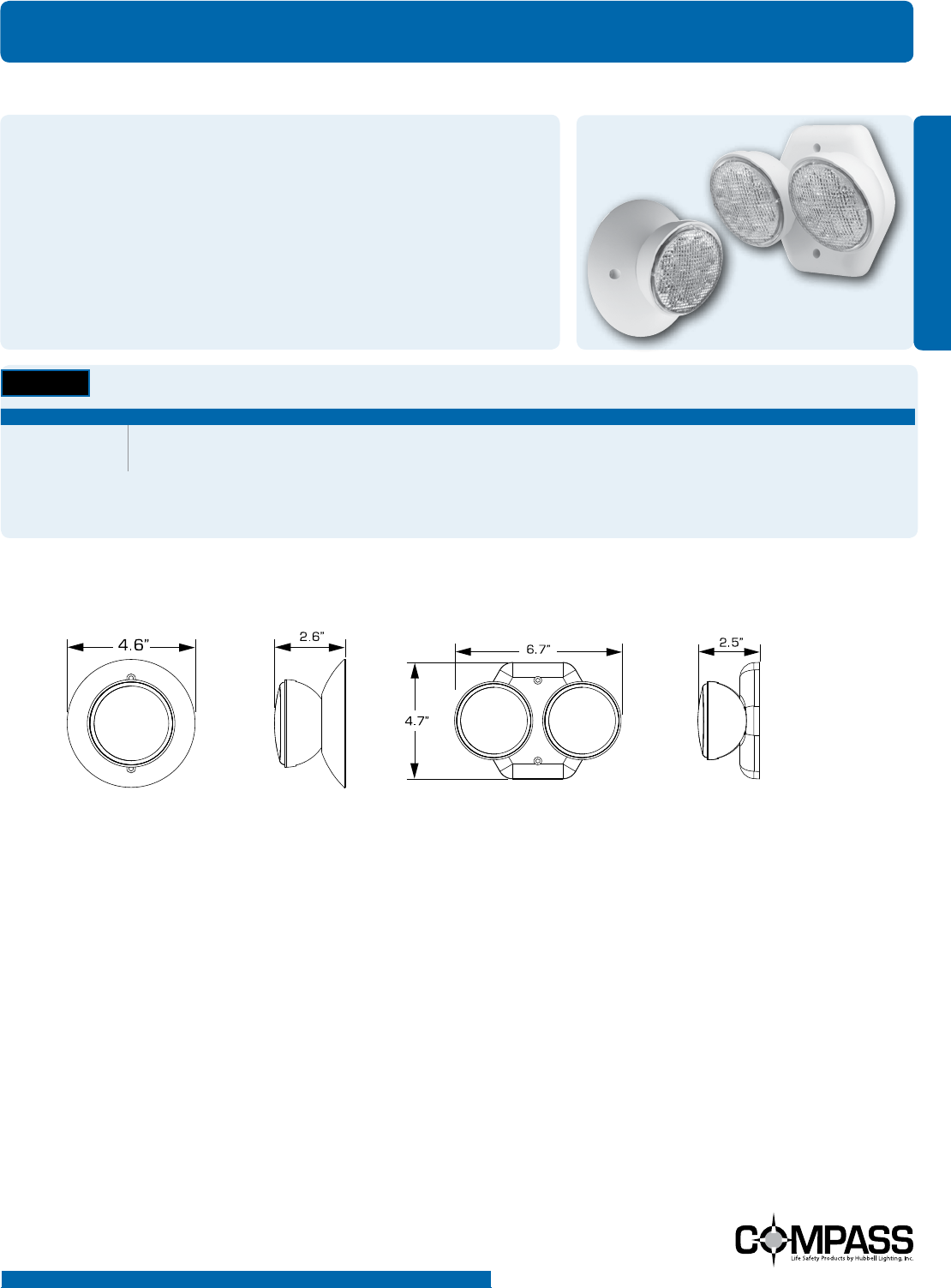

LED Indoor Remote

CIR

FEATURES

• Single or Double lamp-head remote with base-plate

• LED life-cycle of more than 10 years

• Quick installation

• Dual-voltage 120 or 277V AC input

• UL924 Damp Location Listed

• Fully adjustable lamp-heads

Single Remote Carton Weight: 1 lbs.

Master Carton Quantity: 20 each

12.6”

Double Remote Carton Weight: 1.2 lbs.

Master Carton Quantity: 20 each

CIRS CIRD

CATALOG NUMBER DESCRIPTION PKG. CODE

CIRS LED Remote, Single Mounting Base, 3 VDC, 1 Watt

SCC

CIRD LED Remote, Double Mounting Base, 3 VDC, 1 Watt

SCC

Note: Powered by the Compass Exit, Combo or Emergency Light with Remote Capacity

CATALOG NUMBER DESCRIPTION PKG. CODE

CEWSRE Thermoplatic, Wet Location Exit, Single-Face, Red Letters, Emergency

SCC

CEWDRE Thermoplatic, Wet Location Exit, Double-Face, Red Letters, Emergency

SCC

CEWSGE Thermoplatic, Wet Location Exit, Single-Face, Green Letters, Emergency

SCC

CEWDGE Thermoplatic, Wet Location Exit, Double-Face, Green Letters, Emergency

SCC

ORDERING INFORMATION

STOCK

Visit http://www.compasslightingproducts.com/ for up-to-date availability information

REMOTE

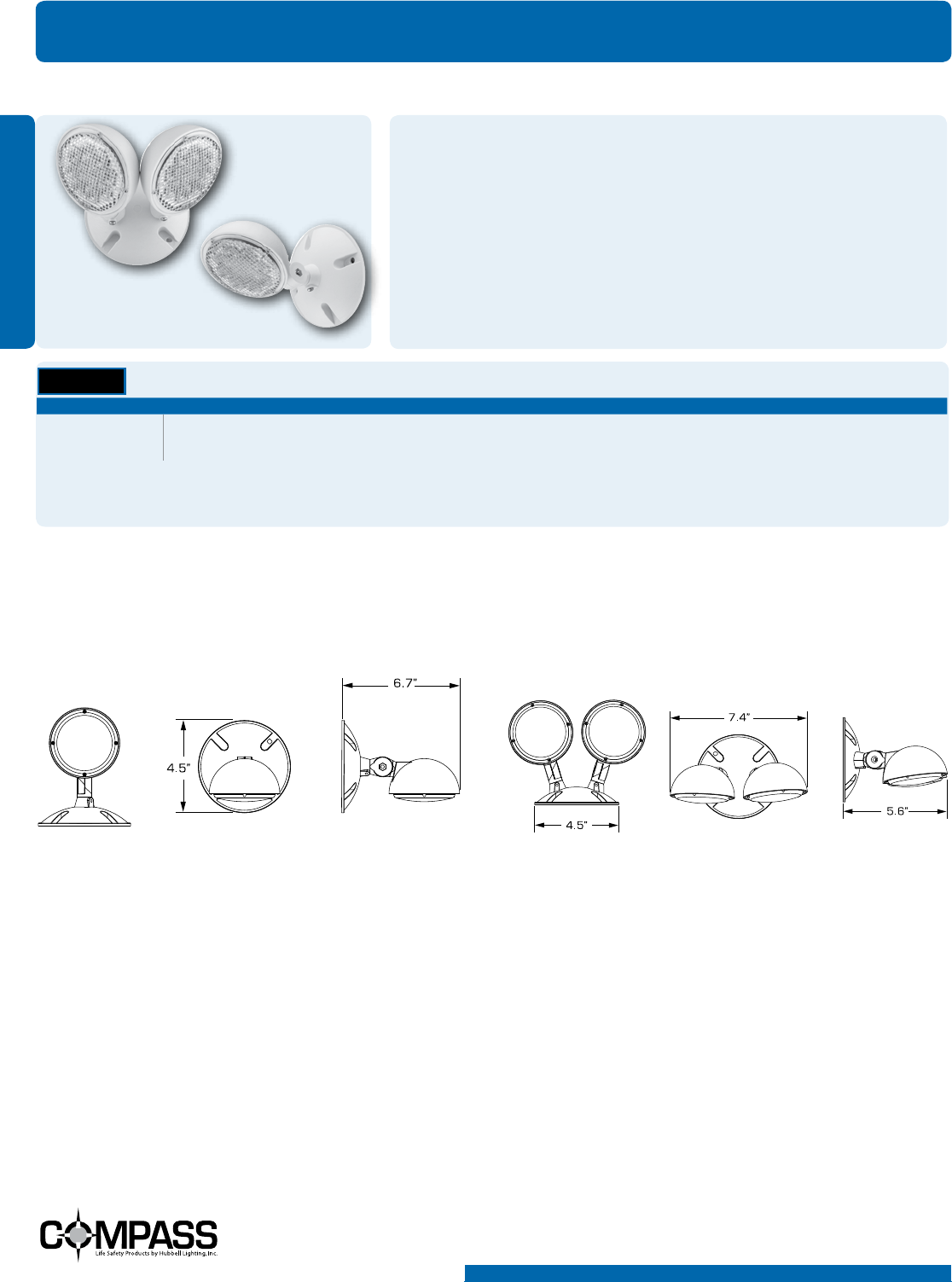

LED Outdoor Remote

COR

FEATURES

Double Remote Carton Weight: 1.2 lbs.

Master Carton Quantity: 20 each

CORD

Single Remote Carton Weight: 1 lbs.

Master Carton Quantity: 20 each

CORS

• Single or Double lamp-head remote with base

• LED life-cycle of more than 10 years

• Quick installation

• Fully adjustable lamp-heads

• Fully gasketed for application in wet environment

CATALOG NUMBER DESCRIPTION PKG. CODE

CORS LED Outdoor Remote, Single, Mounting Base, 3 VDC, 1 Watt

SCC

CORD LED Outdoor Remote, Double, Mounting Base, 3 VDC, 1 Watt

SCC

Note: Powered by Compass Exit, Combo or Emergency Light with Remote Capacity

ORDERING INFORMATION

STOCK

Visit http://www.compasslightingproducts.com/ for up-to-date availability information

EMERGENCY

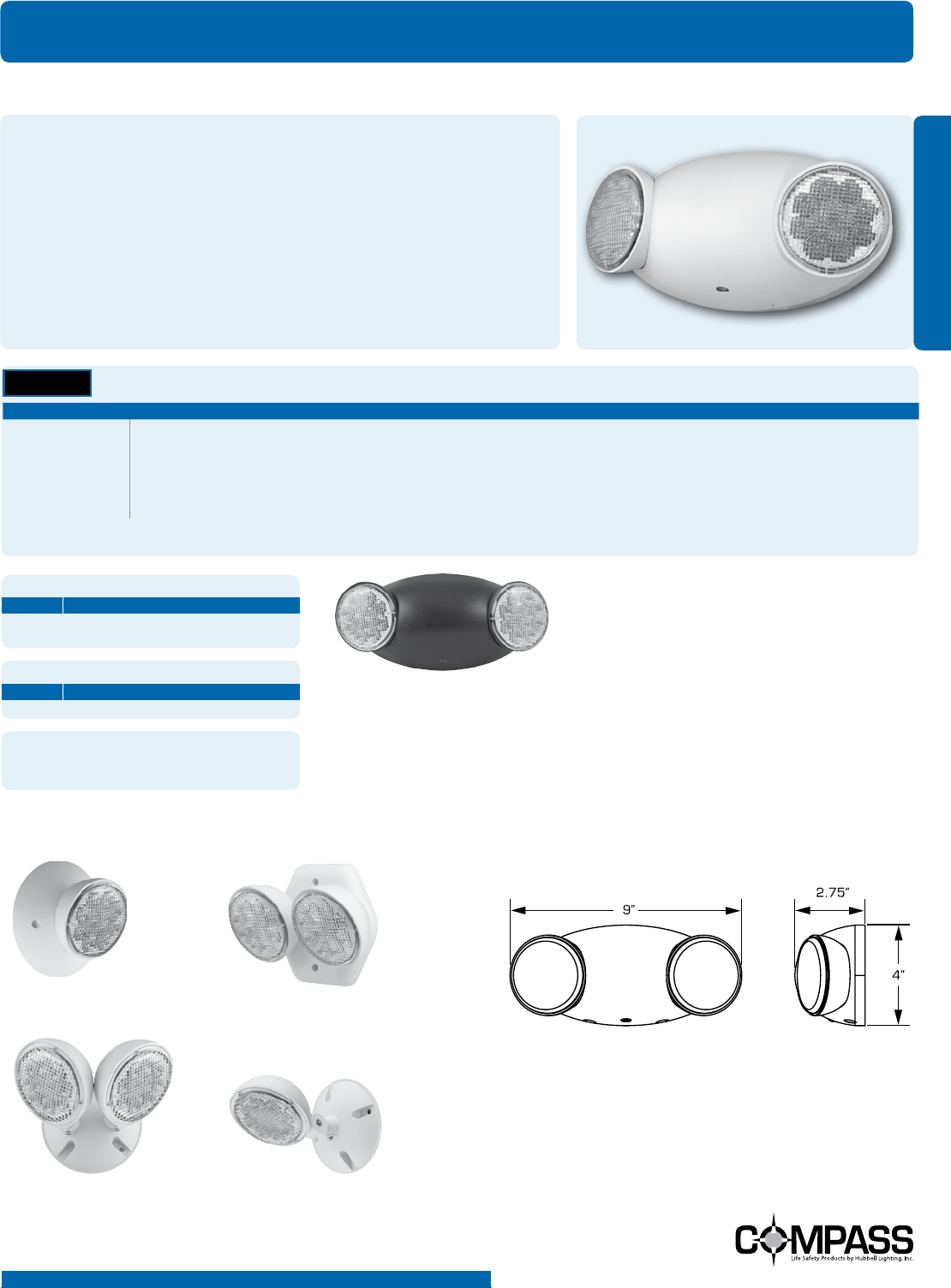

LED Emergency Light

CU2

FEATURES

• Emergency unit for commercial applications

• UV stable thermoplastic white or black housing available

• Quick installation with fully adjustable lamp-heads

• LED Lamps with a life-cycle of more than 10 years

• Dual-voltage 120 or 277V AC input

• Remote capacity or extended runtime option

• Long-life Nickel Cadmium battery with fully automatic charger

• UL 924 Damp Location Listed

ELECTRONICS

• 90 minute emergency operation

• Test switch and LED AC-on indicator light

ACCESSORIES

MODEL DESCRIPTION

MATCHING REMOTE FIXTURES

MODEL DESCRIPTION

CIR LED Indoor Remote Heads

COR LED Outdoor Remote Heads

WGLZ

Wireguard- 6.25” H X 14” W X 4” D

Single Carton Weight: 1 lbs.

Master Carton Quantity: 12 each

CIRS

CIRD

C0RD

C0RS

CATALOG NUMBER DESCRIPTION PKG. CODE

CU2 White Thermoplastic, Dual-Head LED Emergency Light , 120/277 Input, Damp Location Listed, 3 VDC, 1 Watt

SCC

CU2B Black Thermoplastic, Dual-Head LED Emergency Light, 120/277 Input, Damp Location Listed, 3 VDC, 1 Watt

SCC

CU2RC White Thermoplastic, Dual-Head LED Emergency Light, 120/277 Input, Damp Location Listed, Remote Capacity, 3 VDC, 1

Watt

SCC

CU2RCB Black Thermoplastic, Dual-Head LED Emergency Light, 120/277 Input, Damp Location Listed, Remote Capacity, 3 VDC, 1

Watt

SCC

Note: Remote Capacity Unit will only power the Compass Indoor and Outdoor Remote(CIR and COR Series)

CU2B

ORDERING INFORMATION

STOCK

Visit http://www.compasslightingproducts.com/ for up-to-date availability information

FLOODLIGHTS

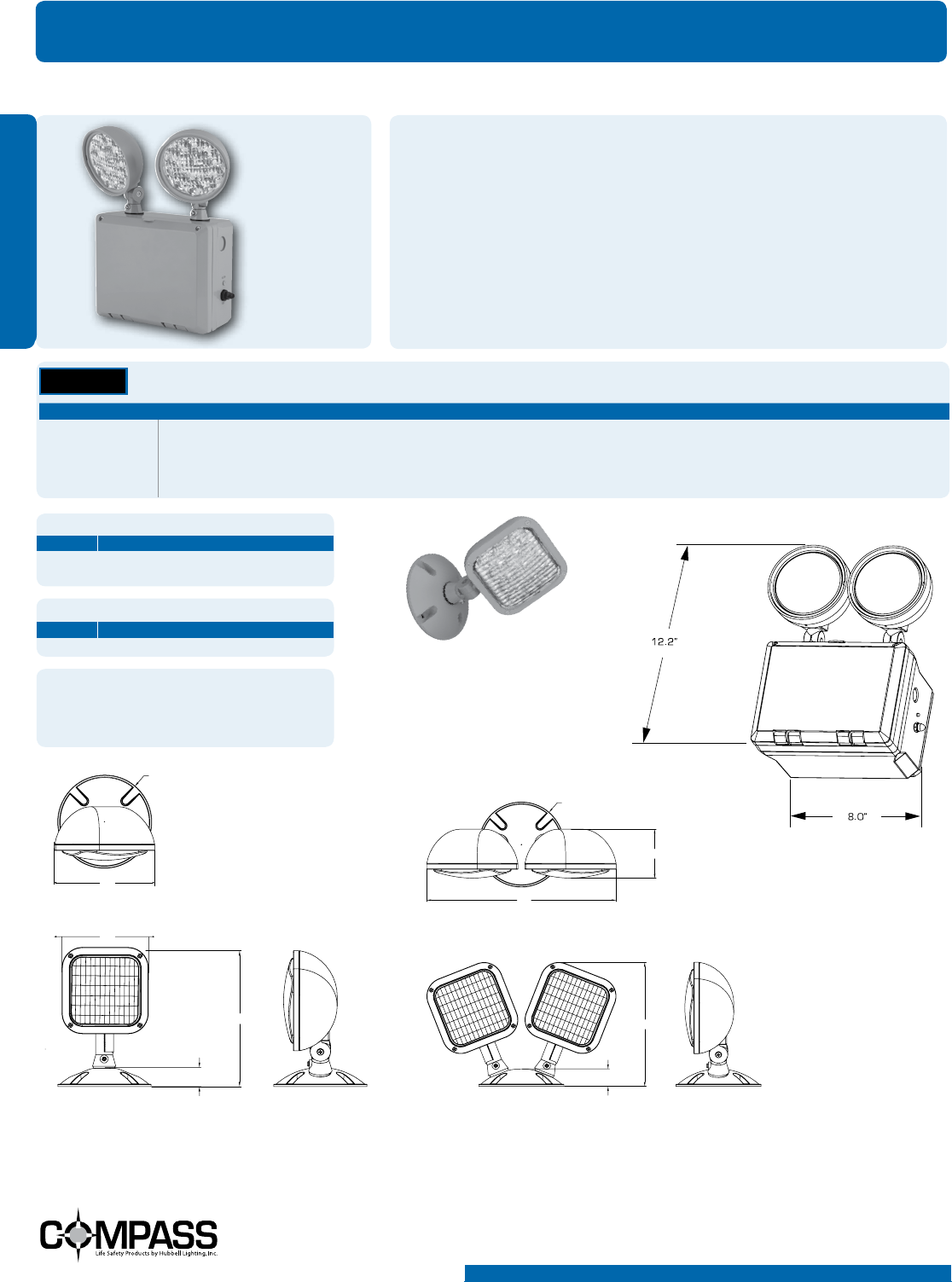

Wet Location LED Emergency Light

CU2W

EMERGENCY

FLOODLIGHTS

FEATURES

ORDERING INFORMATION

ACCESSORIES

MODEL DESCRIPTION

MATCHING REMOTE FIXTURES

MODEL DESCRIPTION

CWRS LED Outdoor Remote, Single

CWRD LED Outdoor Remote, Double

WGEL

Wireguard- 8” H X 20” W X 8” D

Single Carton Weight: 7.5 lbs.

Master Carton Quantity: 4 each

CATALOG NUMBER DESCRIPTION PKG. CODE

CU2WG Wet Location LED emergency light, Dual-Head Fully Adjustable, Grey Finish, Remote Capacity, 120/277 Input, 1.9 watts

SCC

CU2WB Wet Location LED emergency light, Dual-Head Fully Adjustable, Black Finish, Remote Capacity, 120/277 Input, 1.9 watts

SCC

ELECTRONICS

• 90 minute emergency operation with 1 double or 2

single remotes

• Test switch and LED AC-on indicator light

Note: Unit will only power 1 each Compass CWRD or 2 each CWRS remotes

CWRS

4.5”

2.6”

10”

7”

0.9”

4.5”

4.25”

7”

0.9”

4.25”

• Emergency unit for wet location or light industrial applications

• UV stable thermoplastic grey housing available

• Quick installation with fully adjustable lamp-heads

• LED Lamps with a life-cycle of more than 10 years

• Dual-voltage 120 or 277V AC input

• Provided with water-proof test switch and AC-On indicator

• Remote capacity or extended runtime standard

• Long-life Nickel Cadmium battery with fully automatic charger

• UL 924 Wet Location Listed

STOCK

Visit http://www.compasslightingproducts.com/ for up-to-date availability information

EXIT

CATALOG NUMBER DESCRIPTION PKG. CODE

CU2WG Wet Location LED emergency light, Dual-Head Fully Adjustable, Grey Finish, Remote Capacity, 120/277 Input, 1.9 watts

SCC

CU2WB Wet Location LED emergency light, Dual-Head Fully Adjustable, Black Finish, Remote Capacity, 120/277 Input, 1.9 watts

SCC

ENERGY CONSUMPTION

CATALOG

NUMBER

INPUT WATT

W

INPUT AMPS

A

CSR Models 120 VAC 230VAC 120VAC 230VAC

3.8 3.8 0.034 0.02

CATALOG NUMBER DESCRIPTION PKG. CODE

CSRIV 120/220-240VAC, 50/60Hz., Universal SALIDA Face, Red LED, AC only

SCC

CSREIV 120/220-240VAC, 50/60Hz., Univ. SALIDA Face, Red LED Emergency, NiCad battery

SCC

Single Carton Weight: 2 lbs.

Master Carton Quantity: 6 each

International Voltage SALIDA LED Exit

CSR

FEATURES

• LED life-cycle of more than 10 years

• Molded-in template for Quick installation

• Meets International input voltage requirements

• Optinal long-life 4.8V Nickel Cadmium battery for 90 minute emergency lighting

• Provided with test switch and AC-On indicator

• Canopy Included

ORDERING INFORMATION

STOCK

Visit http://www.compasslightingproducts.com/ for up-to-date availability information

INDEX

Product Index

103 ...................................... 60 ......... HUBBELL OUTDOOR

306 ...................................... 60 ......... HUBBELL OUTDOOR

1308 .................................... 60 ......... HUBBELL OUTDOOR

1324 ................................60,61 ......... HUBBELL OUTDOOR

1324 .................................... 63 ......... HUBBELL OUTDOOR

4040 .................................... 16 ......... HUBBELL OUTDOOR

4040 .................................... 21 ......... HUBBELL OUTDOOR

4041 .................................... 16 ......... HUBBELL OUTDOOR

4041 .................................... 21 ......... HUBBELL OUTDOOR

4090 .................................... 21 ......... HUBBELL OUTDOOR

705327 ................................. 17 ......... HUBBELL OUTDOOR

93023491 ............................. 52 ......... HUBBELL OUTDOOR

93048453 ............................. 40 ......... HUBBELL OUTDOOR

95005520 ............................. 40 ......... HUBBELL OUTDOOR

20750110214 ........................ 17 ......... HUBBELL OUTDOOR

26100119905 ........................ 17 ......... HUBBELL OUTDOOR

26100149902 ........................ 17 ......... HUBBELL OUTDOOR

26401839805 ........................ 17 ......... HUBBELL OUTDOOR

26401849803 ........................ 17 ......... HUBBELL OUTDOOR

80021660108 ........................ 17 ......... HUBBELL OUTDOOR

80033990104 ........................ 34 ......... HUBBELL OUTDOOR

80033990104 ........................ 35 ......... HUBBELL OUTDOOR

103-7 ................................... 60 ......... HUBBELL OUTDOOR

103-71 ................................. 60 ......... HUBBELL OUTDOOR

103-72 ................................. 60 ......... HUBBELL OUTDOOR

103-73 ................................. 60 ......... HUBBELL OUTDOOR

103-74 ................................. 60 ......... HUBBELL OUTDOOR

1031-3 ................................. 60 ......... HUBBELL OUTDOOR

1031-3 ................................. 61 ......... HUBBELL OUTDOOR

1031-3 ................................. 62 ......... HUBBELL OUTDOOR

1052-C .................................. 60 ......... HUBBELL OUTDOOR

1306C ................................... 60 ......... HUBBELL OUTDOOR

1414-BOX .............................. 62 ......... HUBBELL OUTDOOR

200-0180-9904...................... 34 ......... HUBBELL OUTDOOR

206-BC3 ................................ 62 ......... HUBBELL OUTDOOR

206-BC3-B ............................ 62 ......... HUBBELL OUTDOOR

207-5011-0222...................... 63 ......... HUBBELL OUTDOOR

207-5011-0264...................... 60 ......... HUBBELL OUTDOOR

241-C-XX ............................... 21 ......... HUBBELL OUTDOOR

264 0097 9702 ...................... 61 ......... HUBBELL OUTDOOR

264 0097 9702 ...................... 63 ......... HUBBELL OUTDOOR

264-0225-9904...................... 42 ......... HUBBELL OUTDOOR

308-13-M .............................. 61 ......... HUBBELL OUTDOOR

309-13-ML ............................ 61 ......... HUBBELL OUTDOOR

309-14-ML ............................ 61 ......... HUBBELL OUTDOOR

309-7P ................................. 63 ......... HUBBELL OUTDOOR

309-8P ................................. 63 ......... HUBBELL OUTDOOR

309-M51-ML .......................... 61 ......... HUBBELL OUTDOOR

309-M54-ML .......................... 61 ......... HUBBELL OUTDOOR

309-ML ................................. 61 ......... HUBBELL OUTDOOR

309-S ................................... 61 ......... HUBBELL OUTDOOR

309-S ................................... 63 ......... HUBBELL OUTDOOR

309-VG-ML ............................ 61 ......... HUBBELL OUTDOOR

30910LEDML ......................... 61 ......... HUBBELL OUTDOOR

4024C ................................... 16 ......... HUBBELL OUTDOOR

4024C ................................... 21 ......... HUBBELL OUTDOOR

583-G ................................... 59 ......... HUBBELL OUTDOOR

583M-VG ............................... 59 ......... HUBBELL OUTDOOR

800-3289-0100...................... 43 ......... HUBBELL OUTDOOR

ALF-12LU-5K-BZ .................... 10 ......... HUBBELL OUTDOOR

ALF-6LU-5K-BZ ...................... 10 ......... HUBBELL OUTDOOR

ALFW-6LU-5K-BZ .................... 10 ......... HUBBELL OUTDOOR

ALFW-6LU-5K-BZ-PC ............... 10 ......... HUBBELL OUTDOOR

ARM-16-1.............................. 51 ......... HUBBELL OUTDOOR

ARM-16-3.............................. 51 ......... HUBBELL OUTDOOR

ARM-DD24............................. 50 ......... HUBBELL OUTDOOR

ARM-DD24............................. 51 ......... HUBBELL OUTDOOR

ARM-DD30............................. 50 ......... HUBBELL OUTDOOR

ARM-DD30............................. 51 ......... HUBBELL OUTDOOR

BL-400P-HB .......................... 66 ..... HUBBELL INDUSTRIAL

BL-400P-HB-Q ....................... 66 ..... HUBBELL INDUSTRIAL

BL-400P-LB-EX ...................... 66 ..... HUBBELL INDUSTRIAL

BL-400P-LB-EX-Q ................... 66 ..... HUBBELL INDUSTRIAL

BO-GX ................................... 30 ......... HUBBELL OUTDOOR

BO-SX ................................... 30 ......... HUBBELL OUTDOOR

BOF-01 ................................. 30 .........HUBBELL OUTDOOR

BOF-02 ................................. 30 .........HUBBELL OUTDOOR

BOF-04 ................................. 30 .........HUBBELL OUTDOOR

BOI-01.................................. 30 ......... HUBBELL OUTDOOR

BOI-02.................................. 30 ......... HUBBELL OUTDOOR

BOI-04.................................. 30 ......... HUBBELL OUTDOOR

BOS-01 ................................. 30 ......... HUBBELL OUTDOOR

BOS-02 ................................. 30 ......... HUBBELL OUTDOOR

BOS-04 ................................. 30 ......... HUBBELL OUTDOOR

BR-GX ................................... 30 ......... HUBBELL OUTDOOR

BR-SX ................................... 30 ......... HUBBELL OUTDOOR

BRF-01 ................................. 30 ......... HUBBELL OUTDOOR

BRF-02 ................................. 30 ......... HUBBELL OUTDOOR

BRF-04 ................................. 30 ......... HUBBELL OUTDOOR

BRI-01 .................................. 30 ......... HUBBELL OUTDOOR

BRI-02 .................................. 30 ......... HUBBELL OUTDOOR

BRI-04 .................................. 30 ......... HUBBELL OUTDOOR

BRLU-01 ............................... 30 ......... HUBBELL OUTDOOR

BRLU-04 ............................... 30 ......... HUBBELL OUTDOOR

BRS-01 ................................. 30 .........HUBBELL OUTDOOR

BRS-02 ................................. 30 .........HUBBELL OUTDOOR

BRS-04 ................................. 30 .........HUBBELL OUTDOOR

BUL ...................................... 11 ......... HUBBELL OUTDOOR

C-5 ....................................... 60 ......... HUBBELL OUTDOOR

C-5 ....................................... 61 ......... HUBBELL OUTDOOR

CB-150 ............................ 57-58 ......... HUBBELL OUTDOOR

CB-75 .............................. 57-58 ......... HUBBELL OUTDOOR

CCEDG ................................... 73 ........................COMPASS

CCEDGE ................................. 73 ........................ COMPASS

CCEDR ................................... 73 ........................COMPASS

CCEDRE ................................. 73 ........................COMPASS

CCESG ................................... 73 ........................ COMPASS

CCESGE ................................. 73 ........................COMPASS

CCESR ................................... 73 ........................ COMPASS

CCESRE.................................. 73 ........................COMPASS

CCG ...................................... 72 ........................COMPASS

CCGB .................................... 72 ........................COMPASS

CCGRC ................................... 72 ........................COMPASS

CCR ...................................... 72 ........................COMPASS

CCRB .................................... 72 ........................COMPASS

CCRRC ................................... 72 ........................COMPASS

CCRRCB ................................. 72 ........................COMPASS

CEG ...................................... 74 ........................COMPASS

CEGB .................................... 74 ........................COMPASS

CEGRC ................................... 74 ........................COMPASS

CELR1GNE ............................. 75 ........................COMPASS

CELR1RNE.............................. 75 ........................COMPASS

CELR2GNE ............................. 75 ........................COMPASS

CELR2RNE.............................. 75 ........................COMPASS

CELS1GNE .............................. 75 ........................COMPASS

CELS1RNE .............................. 75 ........................COMPASS

CELS2GNE .............................. 75 ........................COMPASS

CELS2RNE .............................. 75 ........................COMPASS

CER ...................................... 74 ........................COMPASS

CERB .................................... 74 ........................COMPASS

CERRC ................................... 74 ........................COMPASS

CERRCB ................................. 74 ........................COMPASS

CEWDGE ................................ 76 ........................COMPASS

CEWDRE ................................ 76 ........................COMPASS

CEWSGE................................. 76 ........................COMPASS

CEWSRE ................................. 76 ........................COMPASS

CIRD ..................................... 77 ........................COMPASS

CIRS ..................................... 77 ........................ COMPASS

CO-AB .............................. 57-58 ......... HUBBELL OUTDOOR

CO-AG .............................. 57-58 ......... HUBBELL OUTDOOR

CORD .................................... 78 ........................ COMPASS

CORS .................................... 78 ........................COMPASS

CSREIV .................................. 81 ........................COMPASS

CSRIV ................................... 81 ........................COMPASS

CU2 ...................................... 79 ........................COMPASS

CU2B .................................... 79 ........................COMPASS

CU2RC................................... 79 ........................COMPASS

CU2RCB................................. 79 ........................COMPASS

CU2WB ................................. 80 ........................COMPASS

CU2WG.................................. 80 ........................COMPASS

DBXQL .................................. 70 .................... PRESCOLITE

DDL-140L-1 ........................... 52 ......... HUBBELL OUTDOOR

DDL-56L-4K-1-NA ................... 52 ......... HUBBELL OUTDOOR

DDL-9L1 ................................ 52 ......... HUBBELL OUTDOOR

DDL-DRIVER-12OV ..............52,53 ......... HUBBELL OUTDOOR

DDL-DRIVER-140 .................... 52 ......... HUBBELL OUTDOOR

DDL-DRIVER-56 ...................... 52 ......... HUBBELL OUTDOOR

DDL-LENS .............................. 53 ......... HUBBELL OUTDOOR

DDL-LENS-140 ....................... 52 ......... HUBBELL OUTDOOR

DDL-LENS2 ............................ 52 ......... HUBBELL OUTDOOR

DDL-LENS2 ............................ 53 ......... HUBBELL OUTDOOR

DDL-LENS5 ............................ 52 ......... HUBBELL OUTDOOR

DDL-LENS5 ............................ 53 ......... HUBBELL OUTDOOR

DDL-REFR .............................. 52 ......... HUBBELL OUTDOOR

DDL-REFR .............................. 53 ......... HUBBELL OUTDOOR

DDL9L1NANPC8C .................... 53 ......... HUBBELL OUTDOOR

DDR-5AP ............................... 54 ......... HUBBELL OUTDOOR

DDR100S ............................... 54 ......... HUBBELL OUTDOOR

DDR150S ............................... 54 ......... HUBBELL OUTDOOR

DDS-100P .............................. 54 ......... HUBBELL OUTDOOR

DDS-100PL ............................ 54 ......... HUBBELL OUTDOOR

DDS-100S .............................. 54 ......... HUBBELL OUTDOOR

DDS-150S .............................. 54 ......... HUBBELL OUTDOOR

DDS-65F ................................ 54 ......... HUBBELL OUTDOOR

DDS-70S................................ 54 ......... HUBBELL OUTDOOR

EL-AB .............................. 57-58 ......... HUBBELL OUTDOOR

EL-PT ............................... 57-58 ......... HUBBELL OUTDOOR

F-042F8 ................................ 12 ......... HUBBELL OUTDOOR

F-050H1................................ 12 ......... HUBBELL OUTDOOR

F-070H1................................ 12 ......... HUBBELL OUTDOOR

F-070S1 ................................ 12 ......... HUBBELL OUTDOOR

F-100H1................................ 12 ......... HUBBELL OUTDOOR

F-150S1 ................................ 12 ......... HUBBELL OUTDOOR

FL-AB .............................. 57-58 ......... HUBBELL OUTDOOR

FLL-28L ...................................6 ......... HUBBELL OUTDOOR

FML-14 ...................................5 ......... HUBBELL OUTDOOR

FML-14-PC1 ............................. 5 ......... HUBBELL OUTDOOR

FSL-7 ...................................... 4 ......... HUBBELL OUTDOOR

FSL-7-PC1 ...............................4 ......... HUBBELL OUTDOOR

FXL-56L ..................................7 ......... HUBBELL OUTDOOR

GN-AB ............................. 57-58 ......... HUBBELL OUTDOOR

GN-PT .............................. 57-58 ......... HUBBELL OUTDOOR

GSL-15L ................................ 40 ......... HUBBELL OUTDOOR

GSL-21L ................................ 40 ......... HUBBELL OUTDOOR

GSL-CS .................................. 40 ......... HUBBELL OUTDOOR

GSL-LENS-M ........................... 40 ......... HUBBELL OUTDOOR

GSL-LENS-R ........................... 40 ......... HUBBELL OUTDOOR

GSL-MTG-PL ........................... 40 ......... HUBBELL OUTDOOR

GSL-Protector ........................ 40 .........HUBBELL OUTDOOR

GSL-SPC ................................ 40 ......... HUBBELL OUTDOOR

HBL-48LU-5K-A-070-WH ......... 64 ..... HUBBELL INDUSTRIAL

HBL-48LU-5K-N-070-WH ......... 64 ..... HUBBELL INDUSTRIAL

HBL-48LU-5K-W-070-WH ........ 64 ..... HUBBELL INDUSTRIAL

HBL-60LU-5K-A-070-WH ......... 64 ..... HUBBELL INDUSTRIAL

HBL-60LU-5K-N-070-WH ......... 64 ..... HUBBELL INDUSTRIAL

HBL-60LU-5K-W-070-WH ........ 64 ..... HUBBELL INDUSTRIAL

HBL-72LU-5K-A-070-WH ......... 64 ..... HUBBELL INDUSTRIAL

HBL-72LU-5K-N-070-WH ......... 64 ..... HUBBELL INDUSTRIAL

HBL-72LU-5K-W-070-WH ........ 64 ..... HUBBELL INDUSTRIAL

LB6LEDA10L .......................... 71 .................... PRESCOLITE

LB6LEDA8L ............................ 71 .................... PRESCOLITE

LBSLEDA10L .......................... 69 .................... PRESCOLITE

LBSQLEDA10L ........................ 69 .................... PRESCOLITE

LNC-5LU-5K ........................... 24 ......... HUBBELL OUTDOOR

LNC-5LU-5K-PC ...................... 24 ......... HUBBELL OUTDOOR

LNC-7LU ................................ 24 ......... HUBBELL OUTDOOR

LNC-9LU ................................ 24 ......... HUBBELL OUTDOOR

LNC2-12LU-5K-3-1 ................. 25 ......... HUBBELL OUTDOOR

INDEX

Product Index

INDEX

LNC2-18LU-5K-3-1 ................. 25 ......... HUBBELL OUTDOOR

LNC2-7LU-5K ......................... 25 ......... HUBBELL OUTDOOR

LNC2-9LU-5K ......................... 25 ......... HUBBELL OUTDOOR

LR-30 ................................... 21 ......... HUBBELL OUTDOOR

LVT56 .............................. 57-58 ......... HUBBELL OUTDOOR

M2LH .................................... 20 ......... HUBBELL OUTDOOR

MHK-0400P-338 .................... 15 ......... HUBBELL OUTDOOR

MHK-0400P-368 .................... 15 ......... HUBBELL OUTDOOR

MHK-0400S-238 ..................... 15 ......... HUBBELL OUTDOOR

MHK-0400S-268 ..................... 15 ......... HUBBELL OUTDOOR

MHP-0400P-338 .................... 15 ......... HUBBELL OUTDOOR

MHP-0400P-368 .................... 15 ......... HUBBELL OUTDOOR

MHP-0400S-238 ..................... 15 ......... HUBBELL OUTDOOR

MHP-0400S-268 ..................... 15 ......... HUBBELL OUTDOOR

MHS-30L SERIES ......................8 .........HUBBELL OUTDOOR

MHS-K250P8 ......................... 14 ......... HUBBELL OUTDOOR

MHS-K400P8 ......................... 14 ......... HUBBELL OUTDOOR

MHS-Y150P8.......................... 14 ......... HUBBELL OUTDOOR

MHS-Y150S8 .......................... 14 ......... HUBBELL OUTDOOR

MHS-Y250P8.......................... 14 ......... HUBBELL OUTDOOR

MHS-Y250S8 .......................... 14 ......... HUBBELL OUTDOOR

MHS-Y400P5.......................... 14 ......... HUBBELL OUTDOOR

MHS-Y400P8.......................... 14 ......... HUBBELL OUTDOOR

MHS-Y400S5 .......................... 14 ......... HUBBELL OUTDOOR

MHS-Y400S8 .......................... 14 ......... HUBBELL OUTDOOR

MIC-0070H-358 ..................... 13 ......... HUBBELL OUTDOOR

MIC-0070S-651 ...................... 13 ......... HUBBELL OUTDOOR

MIC-0100H-358 ..................... 13 ......... HUBBELL OUTDOOR

MIC-0150P-338 ...................... 13 ......... HUBBELL OUTDOOR

MIC-0150P-358 ...................... 13 ......... HUBBELL OUTDOOR

MIC-0150S-258 ...................... 13 ......... HUBBELL OUTDOOR

MIC-0150S-651 ...................... 13 ......... HUBBELL OUTDOOR

MLED-40L SERIES .....................9 ......... HUBBELL OUTDOOR

MLED-80L SERIES .....................9 ......... HUBBELL OUTDOOR

MO ....................................... 20 ......... HUBBELL OUTDOOR

MO-W ................................... 20 ......... HUBBELL OUTDOOR

MVK-0250P-268 ..................... 15 ......... HUBBELL OUTDOOR

MVK-0250S-268 ..................... 15 ......... HUBBELL OUTDOOR

MVK-0400P-268 ..................... 15 ......... HUBBELL OUTDOOR

MVK-0400S-268 ..................... 15 ......... HUBBELL OUTDOOR

MVK-1000H-268 .................... 15 ......... HUBBELL OUTDOOR

MVM-0250P-268 .................... 15 ......... HUBBELL OUTDOOR

MVM-0250S-268 .................... 15 ......... HUBBELL OUTDOOR

MVM-0400P-268 .................... 15 ......... HUBBELL OUTDOOR

MVM-0400S-268 .................... 15 ......... HUBBELL OUTDOOR

MVM-1000H-268 .................... 15 ......... HUBBELL OUTDOOR

MVM-HPS-SEA2 ...................... 15 ......... HUBBELL OUTDOOR

MVM-PCR .............................. 16 ......... HUBBELL OUTDOOR

MVM-S2 ................................ 16 ......... HUBBELL OUTDOOR

MVM-V2 ................................ 16 ......... HUBBELL OUTDOOR

NM-BC .................................. 62 ......... HUBBELL OUTDOOR

NM-BC .................................. 61 ......... HUBBELL OUTDOOR

NRG-1111-B .......................... 27 ......... HUBBELL OUTDOOR

NRG-1111-W .......................... 27 ......... HUBBELL OUTDOOR

NRG-1112-B .......................... 27 ......... HUBBELL OUTDOOR

NRG-1112-W .......................... 27 ......... HUBBELL OUTDOOR

NRG-1143-W .......................... 27 ......... HUBBELL OUTDOOR

NRG-1171-B .......................... 27 ......... HUBBELL OUTDOOR

NRG-1171-W .......................... 27 ......... HUBBELL OUTDOOR

NRG-1172-W .......................... 27 ......... HUBBELL OUTDOOR

NRG-204B ............................. 38 ......... HUBBELL OUTDOOR

NRG-204B-MS ........................ 38 ......... HUBBELL OUTDOOR

NRG-204B-PC......................... 38 ......... HUBBELL OUTDOOR

NRG-206B-PC......................... 38 ......... HUBBELL OUTDOOR

NRG-250 ............................... 38 ......... HUBBELL OUTDOOR

NRG-250B-PC......................... 38 ......... HUBBELL OUTDOOR

NRG-301B ............................. 39 ......... HUBBELL OUTDOOR

NRG-301B-PC......................... 39 ......... HUBBELL OUTDOOR

NRG-304B ............................. 39 ......... HUBBELL OUTDOOR

NRG-304B-MS ........................ 39 ......... HUBBELL OUTDOOR

NRG-304B-PC......................... 39 ......... HUBBELL OUTDOOR

NRG-304B-PCW ...................... 39 ......... HUBBELL OUTDOOR

NRG-306B ............................. 39 ......... HUBBELL OUTDOOR

NRG-306B-PC......................... 39 ......... HUBBELL OUTDOOR

NRG-306B-PCW ...................... 39 ......... HUBBELL OUTDOOR

NRG-307B ............................. 39 ......... HUBBELL OUTDOOR

NRG-307B-PC......................... 39 ......... HUBBELL OUTDOOR

NRG-311 ............................... 33 ......... HUBBELL OUTDOOR

NRG-312LU-5K-BZ .................. 26 ......... HUBBELL OUTDOOR

NRG-312LU-5K-BZ-PC ............. 26 ......... HUBBELL OUTDOOR

NRG-315 ............................... 33 ......... HUBBELL OUTDOOR

NRG-317 ............................... 33 ......... HUBBELL OUTDOOR

NRG-350B ............................. 39 ......... HUBBELL OUTDOOR

NRG-350B-PC......................... 39 ......... HUBBELL OUTDOOR

NRG-401 ............................... 42 ......... HUBBELL OUTDOOR

NRG-406-2 ............................ 42 ......... HUBBELL OUTDOOR

NRG-413P8 ............................ 43 ......... HUBBELL OUTDOOR

NRG-413P8-WH ...................... 43 ......... HUBBELL OUTDOOR

NRG-413S8 ............................ 43 ......... HUBBELL OUTDOOR

NRG-414S8 ............................ 43 ......... HUBBELL OUTDOOR

NRG-415P8 ............................ 43 ......... HUBBELL OUTDOOR

NRG-415P8-WH ...................... 43 ......... HUBBELL OUTDOOR

NRG-456 ............................... 42 ......... HUBBELL OUTDOOR

NRG1100FHB ......................... 27 ......... HUBBELL OUTDOOR

NRG1100FHW ........................ 27 ......... HUBBELL OUTDOOR

NRG1111FHB ......................... 27 ......... HUBBELL OUTDOOR

NRG1111FHW ........................ 27 ......... HUBBELL OUTDOOR

NRG200BLENS ....................... 38 ......... HUBBELL OUTDOOR

NRG4-30LU-4K-035-BZ ........... 41 ......... HUBBELL OUTDOOR

NRG4-30LU-4K-BZ .................. 41 ......... HUBBELL OUTDOOR

NRG4-30LU-5K-035-BZ ........... 41 ......... HUBBELL OUTDOOR

NRG4-30LU-5K-BZ .................. 41 ......... HUBBELL OUTDOOR

NV2AG .................................. 67 ..... HUBBELL INDUSTRIAL

NV2BG .................................. 67 ..... HUBBELL INDUSTRIAL

NV2CC ................................... 67 ..... HUBBELL INDUSTRIAL

NV2CG .................................. 67 ..... HUBBELL INDUSTRIAL

NV2FG13 ............................... 67 ..... HUBBELL INDUSTRIAL

NV2FG13AHG ......................... 67 ..... HUBBELL INDUSTRIAL

NV2FG13ASG ......................... 67 ..... HUBBELL INDUSTRIAL

NV2FG13BHG ......................... 67 ..... HUBBELL INDUSTRIAL

NV2FG13BSG ......................... 67 ..... HUBBELL INDUSTRIAL

NV2FG13XHG ......................... 67 ..... HUBBELL INDUSTRIAL

NV2FG13XSG .......................... 67 ..... HUBBELL INDUSTRIAL

NV2FG18 ............................... 67 ..... HUBBELL INDUSTRIAL

NV2FG18AHG ......................... 67 ..... HUBBELL INDUSTRIAL

NV2FG18ASG ......................... 67 ..... HUBBELL INDUSTRIAL

NV2FG18BHG ......................... 67 ..... HUBBELL INDUSTRIAL

NV2FG18BSG ......................... 67 ..... HUBBELL INDUSTRIAL

NV2FG18XHG ......................... 67 ..... HUBBELL INDUSTRIAL

NV2FG18XSG .......................... 67 ..... HUBBELL INDUSTRIAL

NV2FG26 ............................... 67 ..... HUBBELL INDUSTRIAL

NV2FG26AHG ......................... 67 ..... HUBBELL INDUSTRIAL

NV2FG26ASG ......................... 67 ..... HUBBELL INDUSTRIAL

NV2FG26BHG ......................... 67 ..... HUBBELL INDUSTRIAL

NV2FG26BSG ......................... 67 ..... HUBBELL INDUSTRIAL

NV2FG26XHG ......................... 67 ..... HUBBELL INDUSTRIAL

NV2FG26XSG .......................... 67 ..... HUBBELL INDUSTRIAL

NV2FG32 ............................... 67 ..... HUBBELL INDUSTRIAL

NV2FG32AHG ......................... 67 ..... HUBBELL INDUSTRIAL

NV2FG32ASG ......................... 67 ..... HUBBELL INDUSTRIAL

NV2FG32BHG ......................... 67 ..... HUBBELL INDUSTRIAL

NV2FG32BSG ......................... 67 ..... HUBBELL INDUSTRIAL

NV2FG32XHG ......................... 67 ..... HUBBELL INDUSTRIAL

NV2FG32XSG .......................... 67 ..... HUBBELL INDUSTRIAL

NV2FG42 ............................... 67 ..... HUBBELL INDUSTRIAL

NV2FG42AHG ......................... 67 ..... HUBBELL INDUSTRIAL

NV2FG42ASG ......................... 67 ..... HUBBELL INDUSTRIAL

NV2FG42BHG ......................... 67 ..... HUBBELL INDUSTRIAL

NV2FG42BSG ......................... 67 ..... HUBBELL INDUSTRIAL

NV2FG42XHG ......................... 67 ..... HUBBELL INDUSTRIAL

NV2FG42XSG .......................... 67 ..... HUBBELL INDUSTRIAL

NV2GG .................................. 67 ..... HUBBELL INDUSTRIAL

NV2IG15 ............................... 67 ..... HUBBELL INDUSTRIAL

NV2IG15AHG ......................... 67 ..... HUBBELL INDUSTRIAL

NV2IG15ASG .......................... 67 ..... HUBBELL INDUSTRIAL

NV2IG15BHG ......................... 67 ..... HUBBELL INDUSTRIAL

NV2IG15BSG .......................... 67 ..... HUBBELL INDUSTRIAL

NV2IG15XHG ......................... 67 ..... HUBBELL INDUSTRIAL

NV2IG15XSG .......................... 67 ..... HUBBELL INDUSTRIAL

NV2XG .................................. 67 ..... HUBBELL INDUSTRIAL

NVEXTG ................................. 67 ..... HUBBELL INDUSTRIAL

NVPSD12 ............................... 67 ..... HUBBELL INDUSTRIAL

PBT-1 ................................... 16 ......... HUBBELL OUTDOOR

PBT-1 ................................... 23 ......... HUBBELL OUTDOOR

PBT-234 ................................ 16 ......... HUBBELL OUTDOOR

PBT-234 ................................ 23 ......... HUBBELL OUTDOOR

PG-PS ................................... 36 ......... HUBBELL OUTDOOR

PG-WG .................................. 36 ......... HUBBELL OUTDOOR

PGL-250P-128-1-LP ................ 36 ......... HUBBELL OUTDOOR

PGL-250S-128-1..................... 36 ......... HUBBELL OUTDOOR

PGL-320P-128-1 .................... 36 ......... HUBBELL OUTDOOR

PGL-350P-128-1 .................... 36 ......... HUBBELL OUTDOOR

PGL-350P-128-1-LP ................ 36 ......... HUBBELL OUTDOOR

PGL-400S-128-1..................... 36 ......... HUBBELL OUTDOOR

PGL-400S-128-1-LP ................ 36 ......... HUBBELL OUTDOOR

PGM3-070S-18-BZ .................. 35 ......... HUBBELL OUTDOOR

PGM3-100P-18-BZ-L ............... 35 ......... HUBBELL OUTDOOR

PGM3-100S-18-BZ .................. 35 ......... HUBBELL OUTDOOR

PGM3-150P-18-BZ .................. 35 ......... HUBBELL OUTDOOR

PGM3-150P-18-BZ-L ............... 35 ......... HUBBELL OUTDOOR

PGM3-150S-18-BZ .................. 35 ......... HUBBELL OUTDOOR

PGM3-150S-18-BZ-L ............... 35 ......... HUBBELL OUTDOOR

PGM3-250P-18-BZ .................. 35 ......... HUBBELL OUTDOOR

PGM3-250P-18-BZ-L ............... 35 ......... HUBBELL OUTDOOR

PGM3-250S-18-BZ .................. 35 ......... HUBBELL OUTDOOR

PGM3-250S-18-BZ-L ............... 35 ......... HUBBELL OUTDOOR

PGM3-30LU ........................... 32 ......... HUBBELL OUTDOOR

PGM3-LB ............................... 35 ......... HUBBELL OUTDOOR

PRR ...................................... 23 ......... HUBBELL OUTDOOR

PSC ...................................... 23 ......... HUBBELL OUTDOOR

PTA-1 .................................... 23 ......... HUBBELL OUTDOOR

PTA-1 .................................... 40 ......... HUBBELL OUTDOOR

PTA-5 .................................... 23 ......... HUBBELL OUTDOOR

PTA-8 .................................... 23 ......... HUBBELL OUTDOOR

PTA-8 .................................... 40 ......... HUBBELL OUTDOOR

PTL-1 .................................... 23 ......... HUBBELL OUTDOOR

PTL-5 .................................... 23 ......... HUBBELL OUTDOOR

PTL-6 .................................... 23 ......... HUBBELL OUTDOOR

PTL-8 .................................... 23 ......... HUBBELL OUTDOOR

PVL3-070P-18-BZ-L ................ 34 ......... HUBBELL OUTDOOR

PVL3-070S-18-BZ ................... 34 ......... HUBBELL OUTDOOR

PVL3-100P-18-BZ-L ................ 34 ......... HUBBELL OUTDOOR

PVL3-100S-18-BZ ................... 34 ......... HUBBELL OUTDOOR

PVL3-100S-18-BZ-L ................ 34 ......... HUBBELL OUTDOOR

PVL3-150P-18-BZ ................... 34 ......... HUBBELL OUTDOOR

PVL3-150P-18-BZ-L ................ 34 ......... HUBBELL OUTDOOR

PVL3-150S-18-BZ ................... 34 ......... HUBBELL OUTDOOR

PVL3-150S-18-BZ-L ................ 34 ......... HUBBELL OUTDOOR

PVL3-150S-51-BZ-L ................ 34 ......... HUBBELL OUTDOOR

PVL3-242F-18-BZ-L ................ 34 ......... HUBBELL OUTDOOR

PVL3-242F-18-BZ-L-2BOC ........ 34 ......... HUBBELL OUTDOOR

PVL3-30LU ............................ 32 ......... HUBBELL OUTDOOR

PVL3V ................................... 36 ......... HUBBELL OUTDOOR

Q-150-B ................................ 18 ......... HUBBELL OUTDOOR

Q-150-W ............................... 18 ......... HUBBELL OUTDOOR

Q-300-B ................................ 18 ......... HUBBELL OUTDOOR

Q-300-W ............................... 18 ......... HUBBELL OUTDOOR

Q-500-B ................................ 18 ......... HUBBELL OUTDOOR

Q-500-W ............................... 18 ......... HUBBELL OUTDOOR

QL-1505 ................................ 17 ......... HUBBELL OUTDOOR

QL-15G ................................. 17 .........HUBBELL OUTDOOR

QL-15V ................................. 17 ......... HUBBELL OUTDOOR

QL-505 ................................. 17 ......... HUBBELL OUTDOOR

QL-505-BZ ............................. 17 ......... HUBBELL OUTDOOR

QL-5G ................................... 17 ......... HUBBELL OUTDOOR

QL-TB ................................... 17 ......... HUBBELL OUTDOOR

QL-VS ................................... 17 ......... HUBBELL OUTDOOR

QWL-1000T............................ 19 ......... HUBBELL OUTDOOR

INDEX

QWL-150C ............................. 19 ......... HUBBELL OUTDOOR

QWL-500S ............................. 19 ......... HUBBELL OUTDOOR

R12-100H ............................. 44 ......... HUBBELL OUTDOOR

R2LHQ .................................. 20 ......... HUBBELL OUTDOOR

R2LHQW ................................ 20 ......... HUBBELL OUTDOOR

R9-42F .................................. 44 ......... HUBBELL OUTDOOR

R9-70H ................................. 44 ......... HUBBELL OUTDOOR

R9-70S.................................. 44 ......... HUBBELL OUTDOOR

RA-4P-M51-W ........................ 51 ......... HUBBELL OUTDOOR

RA-4P-M53-W ........................ 51 ......... HUBBELL OUTDOOR

RA-6P-M51-W ........................ 51 ......... HUBBELL OUTDOOR

RA-6P-M53-W ........................ 51 ......... HUBBELL OUTDOOR

RD-AB ............................. 57-58 ......... HUBBELL OUTDOOR

RE-PT .............................. 57-58 ......... HUBBELL OUTDOOR

RL-60LU-3K ........................... 48 ......... HUBBELL OUTDOOR

RL-60LU-4K ........................... 48 ......... HUBBELL OUTDOOR

RL-60LU-5K ........................... 48 ......... HUBBELL OUTDOOR

RLC-3-1................................. 49 ......... HUBBELL OUTDOOR

RLC-3-3................................. 49 ......... HUBBELL OUTDOOR

RLD-25S35-1 ......................... 49 ......... HUBBELL OUTDOOR

RLD-25S35-3 ......................... 49 ......... HUBBELL OUTDOOR

RLD-25S38-1 ......................... 49 ......... HUBBELL OUTDOOR

RLD-25S38-3 ......................... 49 ......... HUBBELL OUTDOOR

RLD-40P35-1 ......................... 49 ......... HUBBELL OUTDOOR

RLD-40P35-3 ......................... 49 ......... HUBBELL OUTDOOR

RLD-40P38-1 ......................... 49 ......... HUBBELL OUTDOOR

RLD-40P38-3 ......................... 49 ......... HUBBELL OUTDOOR

RLD-40S35-1 ......................... 49 ......... HUBBELL OUTDOOR

RLD-40S35-3 ......................... 49 ......... HUBBELL OUTDOOR

RLD-40S38-1 ......................... 49 ......... HUBBELL OUTDOOR

RLD-40S38-3 ......................... 49 ......... HUBBELL OUTDOOR

RM-30LU-3K .......................... 47 ......... HUBBELL OUTDOOR

RM-30LU-4K .......................... 47 ......... HUBBELL OUTDOOR

RM-30LU-5K .......................... 47 ......... HUBBELL OUTDOOR

RMA-3-1 ............................... 50 ......... HUBBELL OUTDOOR

RMA-3-3 ............................... 50 ......... HUBBELL OUTDOOR

RMC-3-1 ................................ 50 ......... HUBBELL OUTDOOR

RMC-3-3 ................................ 50 ......... HUBBELL OUTDOOR

RMD-07S25-1 ........................ 50 ......... HUBBELL OUTDOOR

RMD-07S25-3 ........................ 50 ......... HUBBELL OUTDOOR

RMD-07S28-1 ........................ 50 ......... HUBBELL OUTDOOR

RMD-07S28-3 ........................ 50 ......... HUBBELL OUTDOOR

RMD-10S25-1 ........................ 50 ......... HUBBELL OUTDOOR

RMD-10S25-3 ........................ 50 ......... HUBBELL OUTDOOR

RMD-10S28-1 ........................ 50 ......... HUBBELL OUTDOOR

RMD-10S28-3 ........................ 50 ......... HUBBELL OUTDOOR

RMD-15P35-1 ........................ 50 ......... HUBBELL OUTDOOR

RMD-15P35-3 ........................ 50 ......... HUBBELL OUTDOOR

RMD-15P38-1 ........................ 50 ......... HUBBELL OUTDOOR

RMD-15P38-3 ........................ 50 ......... HUBBELL OUTDOOR

RMD-15S25-1 ........................ 50 ......... HUBBELL OUTDOOR

RMD-15S25-3 ........................ 50 ......... HUBBELL OUTDOOR

RMD-15S28-1 ........................ 50 ......... HUBBELL OUTDOOR

RMD-15S28-3 ........................ 50 ......... HUBBELL OUTDOOR

RMD-25P35-1 ........................ 50 ......... HUBBELL OUTDOOR

RMD-25P35-3 ........................ 50 ......... HUBBELL OUTDOOR

RMD-25P38-1 ........................ 50 ......... HUBBELL OUTDOOR

RMD-25P38-3 ........................ 50 ......... HUBBELL OUTDOOR

RMD-25S35-1 ........................ 50 ......... HUBBELL OUTDOOR

RMD-25S35-3 ........................ 50 ......... HUBBELL OUTDOOR

RMD-25S38-1 ........................ 50 ......... HUBBELL OUTDOOR

RMD-25S38-3 ........................ 50 ......... HUBBELL OUTDOOR

RMG-3-1 ............................... 50 ......... HUBBELL OUTDOOR

RMG-3-3 ............................... 50 ......... HUBBELL OUTDOOR

S-302 ................................... 17 ......... HUBBELL OUTDOOR

S-302 ................................... 62 ......... HUBBELL OUTDOOR

S-302-M51 ............................ 17 ......... HUBBELL OUTDOOR

S-302-M51 ............................ 62 ......... HUBBELL OUTDOOR

S-302-M52 ............................ 62 ......... HUBBELL OUTDOOR

S-307 ................................... 60 ......... HUBBELL OUTDOOR

S-314-B ................................ 62 ......... HUBBELL OUTDOOR

S-319-B ................................ 42 ......... HUBBELL OUTDOOR

S-319-B ................................ 61 ......... HUBBELL OUTDOOR

S-329-B ................................ 60 ......... HUBBELL OUTDOOR

S-329-B ................................ 61 ......... HUBBELL OUTDOOR

S12-100H .............................. 45 ......... HUBBELL OUTDOOR

S12-150P .............................. 45 ......... HUBBELL OUTDOOR

S2LH .................................... 20 ......... HUBBELL OUTDOOR

S2LH-W ................................. 20 ......... HUBBELL OUTDOOR

S329B ................................... 59 ......... HUBBELL OUTDOOR

S9-42F .................................. 45 ......... HUBBELL OUTDOOR

S9-70H ................................. 45 ......... HUBBELL OUTDOOR

SCP-REMOTE .......................... 40 ......... HUBBELL OUTDOOR

SM009-LENS .......................... 45 ......... HUBBELL OUTDOOR

SM012-LENS .......................... 45 ......... HUBBELL OUTDOOR

SM020-LENS .......................... 44 ......... HUBBELL OUTDOOR

SM021-LENS .......................... 44 ......... HUBBELL OUTDOOR

SM106-FRAME/GLASS ............. 37 ......... HUBBELL OUTDOOR

SM106-GUARD ....................... 37 ......... HUBBELL OUTDOOR

SM106-SHIELD ....................... 37 ......... HUBBELL OUTDOOR

SM106-visor .......................... 37 ......... HUBBELL OUTDOOR

SM352-COVER ........................ 30 ......... HUBBELL OUTDOOR

SM352-COVER ........................ 39 ......... HUBBELL OUTDOOR

SM704-FRAME/GLASS ............. 37 ......... HUBBELL OUTDOOR

SM704-GUARD ....................... 37 ......... HUBBELL OUTDOOR

SM704-REPLGL ....................... 37 ......... HUBBELL OUTDOOR

SM704-shield ......................... 37 ......... HUBBELL OUTDOOR

SM705-LENS .......................... 37 ......... HUBBELL OUTDOOR

SM708-FRAME/GLASS ............. 37 ......... HUBBELL OUTDOOR

SM708-GUARD ....................... 37 ......... HUBBELL OUTDOOR

SM708-REPLGL ....................... 37 ......... HUBBELL OUTDOOR

SM708-visor .......................... 37 ......... HUBBELL OUTDOOR

SM765-frame/GLASS ............... 28 ......... HUBBELL OUTDOOR

SM765-GLASS ........................ 28 ......... HUBBELL OUTDOOR

SO ........................................ 20 ......... HUBBELL OUTDOOR

SO-W .................................... 20 ......... HUBBELL OUTDOOR

SS-AB .............................. 57-58 ......... HUBBELL OUTDOOR

SS-AG .............................. 57-58 ......... HUBBELL OUTDOOR

SSB-21-M51 .......................... 22 ......... HUBBELL OUTDOOR

SSB-31-M51 .......................... 22 ......... HUBBELL OUTDOOR

SSB-41-M51 .......................... 22 ......... HUBBELL OUTDOOR

SSB-43-M51 .......................... 22 ......... HUBBELL OUTDOOR

TCB-1 ................................... 21 ......... HUBBELL OUTDOOR

TCB-2 ................................... 21 ......... HUBBELL OUTDOOR

TCB-3 ................................... 21 ......... HUBBELL OUTDOOR

THB-21 ................................. 22 ......... HUBBELL OUTDOOR

THB-21-M53 .......................... 22 ......... HUBBELL OUTDOOR

THB-31 ................................. 22 ......... HUBBELL OUTDOOR

THB-32 ................................. 22 ......... HUBBELL OUTDOOR

THB-41 ................................. 22 ......... HUBBELL OUTDOOR

THB-43 ................................. 22 ......... HUBBELL OUTDOOR

TPR-2 ................................... 21 ......... HUBBELL OUTDOOR

TPR-3 ................................... 21 ......... HUBBELL OUTDOOR

TPR-4 ................................... 21 ......... HUBBELL OUTDOOR

TWK-11 ................................. 16 ......... HUBBELL OUTDOOR

TWK-11 ................................. 21 ......... HUBBELL OUTDOOR

UCT-1 ................................... 46 ......... HUBBELL OUTDOOR

UCT-2 ................................... 46 ......... HUBBELL OUTDOOR

UCT-3 ................................... 46 ......... HUBBELL OUTDOOR

UCT-4 ................................... 46 ......... HUBBELL OUTDOOR

UCT-5 ................................... 46 ......... HUBBELL OUTDOOR

UCT-6 ................................... 46 ......... HUBBELL OUTDOOR

UCT-7 ................................... 46 ......... HUBBELL OUTDOOR

UCT-8 ................................... 46 ......... HUBBELL OUTDOOR

UCT-9 ................................... 46 ......... HUBBELL OUTDOOR

VAMG-100 ............................. 56 ......... HUBBELL OUTDOOR

VAMG-100 ............................. 67 ..... HUBBELL INDUSTRIAL

VAMG-200 ............................. 56 ......... HUBBELL OUTDOOR

VBG-100 ............................... 56 ......... HUBBELL OUTDOOR

VBG-1001.............................. 67 ..... HUBBELL INDUSTRIAL

VBG-200 ............................... 56 ......... HUBBELL OUTDOOR

VBGG-150 ............................. 56 ......... HUBBELL OUTDOOR

VBGG-300 ............................. 56 ......... HUBBELL OUTDOOR

VBGL-1 ................................. 55 .........HUBBELL OUTDOOR

VBGP-100.............................. 56 ......... HUBBELL OUTDOOR

VBGP-100.............................. 67 ..... HUBBELL INDUSTRIAL

VCGP-100 .............................. 56 ......... HUBBELL OUTDOOR

VCGP-100 .............................. 67 ..... HUBBELL INDUSTRIAL

VCGP-200 .............................. 56 ......... HUBBELL OUTDOOR

VCGPT-100 ............................ 56 ......... HUBBELL OUTDOOR

VCGPT-100 ............................ 67 ..... HUBBELL INDUSTRIAL

VG-15 ................................... 56 ......... HUBBELL OUTDOOR

VG-15 ................................... 67 ..... HUBBELL INDUSTRIAL

VG-30 ................................... 56 ......... HUBBELL OUTDOOR

VGG-100 ............................... 56 ......... HUBBELL OUTDOOR

VGG-100 ............................... 67 ..... HUBBELL INDUSTRIAL

VGG-200 ............................... 56 ......... HUBBELL OUTDOOR

VGGP-100 .............................. 56 ......... HUBBELL OUTDOOR

VGGP-100 .............................. 67 ..... HUBBELL INDUSTRIAL

VGGP-200 .............................. 56 ......... HUBBELL OUTDOOR

VGL-BU ................................. 55 ......... HUBBELL OUTDOOR

VGL-FG .................................. 55 ......... HUBBELL OUTDOOR

VGL-GN ................................. 55 ......... HUBBELL OUTDOOR

VGL-GUARD ........................... 55 ......... HUBBELL OUTDOOR

VGL-RD ................................. 56 ......... HUBBELL OUTDOOR

VGL-YW ................................. 55 ......... HUBBELL OUTDOOR

VPG-100................................ 56 ......... HUBBELL OUTDOOR

VPG-100................................ 67 ..... HUBBELL INDUSTRIAL

VPLGC-100 ............................ 67 ..... HUBBELL INDUSTRIAL

VRG-100 ............................... 56 ......... HUBBELL OUTDOOR

VRG-100 ............................... 67 ..... HUBBELL INDUSTRIAL

VRG-200 ............................... 56 ......... HUBBELL OUTDOOR

VRGP-100 .............................. 56 ......... HUBBELL OUTDOOR

VRGP-100 .............................. 67 ..... HUBBELL INDUSTRIAL

VRSG-100 .............................. 55 ......... HUBBELL OUTDOOR

VRSG-100 .............................. 67 ..... HUBBELL INDUSTRIAL

VWGG-150 ............................. 56 ......... HUBBELL OUTDOOR

VWGL-1 ................................. 55 ......... HUBBELL OUTDOOR

WB-01A ................................ 51 ......... HUBBELL OUTDOOR

WB-02S ................................. 51 ......... HUBBELL OUTDOOR

WB-03S ................................. 51 ......... HUBBELL OUTDOOR

WB-04A ................................ 51 ......... HUBBELL OUTDOOR

WB-04S ................................. 51 ......... HUBBELL OUTDOOR

WB-05A ................................ 51 ......... HUBBELL OUTDOOR

WB-06S ................................. 51 ......... HUBBELL OUTDOOR

WB-07A ................................ 51 ......... HUBBELL OUTDOOR

WB-07S ................................. 51 ......... HUBBELL OUTDOOR

WB-08S ................................. 51 ......... HUBBELL OUTDOOR

WGC-100H ............................. 28 ......... HUBBELL OUTDOOR

WGC-100S ............................. 28 ......... HUBBELL OUTDOOR

WGC-42F ............................... 28 ......... HUBBELL OUTDOOR

WGC-50H .............................. 28 ......... HUBBELL OUTDOOR

WGC-70H .............................. 28 ......... HUBBELL OUTDOOR

WGH-100H ............................ 37 ......... HUBBELL OUTDOOR

WGH-110-4K-U-M................... 31 ......... HUBBELL OUTDOOR

WGH-150P............................. 37 ......... HUBBELL OUTDOOR

WGH-150S ............................. 37 ......... HUBBELL OUTDOOR

WGH-150S120 ....................... 37 ......... HUBBELL OUTDOOR

WGH-1LU-M........................... 27 ......... HUBBELL OUTDOOR

WGH-225L-4K-U-L .................. 27 ......... HUBBELL OUTDOOR

WGH-250P............................. 37 ......... HUBBELL OUTDOOR

WGH-250S ............................. 37 ......... HUBBELL OUTDOOR

WGH-400P............................. 37 ......... HUBBELL OUTDOOR

WGH-400S ............................. 37 ......... HUBBELL OUTDOOR

WGH-70H .............................. 37 ......... HUBBELL OUTDOOR

WGH-84F-MS423 .................... 37 ......... HUBBELL OUTDOOR

WGH-84F2 ............................ 37 ......... HUBBELL OUTDOOR

WIH-OM-480 ......................... 16 ......... HUBBELL OUTDOOR

WIH-OM-UNV ......................... 16 ......... HUBBELL OUTDOOR

WMR-42F1-PC ........................ 31 ......... HUBBELL OUTDOOR

WMR-70P6 ............................ 31 ......... HUBBELL OUTDOOR

WPH-100S ............................. 37 ......... HUBBELL OUTDOOR

WPH-70S ............................... 37 ......... HUBBELL OUTDOOR

INDEX

Product Index

Selling & Merchandising Tools

To drive incremental sales, ExpressLine members have use

of our displays, gondola headers, and promotional materials.

ExpressLine – ready to help you maximize sales

Hubbell Lighting’s ExpressLine program offers high impact point-of-purchase product merchandise gondolas, literature, counter

mats and counter displays to maximize your sales!

Contractor

Reward Incentives

Counter Displays & Application Guides

*EXPRESSLINE RECTANGULAR MEDIUM ALSO AVAILABLE IN ARF SERIES

See reverse side for  x ture data

Floodlight Selection Guide

WIDE BEAM MEDIUM BEAM NARROW BEAM

ALF-6LU*ALF-12LU*

MLED-SERIES MHS-30LU-M MHS-30LU-N

MHS-30LU-W

FSL-7*

ARF1

FLL

FML-14*

ARF2 FXL MLED-80 SERIES MLED-80 SERIES

ARF1 ARF3 ARF3

ARF2 ARF4 ARF4

ARF1 ARF2

ARF3

ARF4

*EXPRESSLINE

Building Mount Selection Guide

NRG-312LU*VWGL-1*

LNC2-12L*

LNC2-18L*

QSP-30L

WGH-1LU-M WGH-110L*

TRPC

LMC-30L DDL-140L-1*

DDL-9L1*

EUROLUXE

ALFW-6LU*

LNC-5L*

LNC2-7L

LNC2-9L

LAREDO LMC-30L-035

UP TO 10 ft

26-42w CFL

10 - 12 ft 12 - 15 ft

70-150w HID

15 - 20 ft

175-250w HID

See reverse side for ﬁ xture data

PGM3 PVL3 WGH-225L*

PGM3

PVL3

EQUILVALENT HID/CFL WATTAGES

Building Mount Selection Guide

TRP-30L RDI-30L

LNC-7L*

LNC-9L*

DDL-56L*

Posters, Counter Mats & Web based Design

Application Tools

• Versatile light distribution, uplight and mounting options

• 40w delivering 3437 lumens, 86 LPW, 5100K

• Zero uplight design (without refractor installed)

• 120 volt input

• Includes Photocell and arm

DUSK-TO-DAWN

hubbell outdoor lighting

LED security lighting

LED multipurpose luminaire

FLOODLIGHTS

decorative LED ﬂoodlighting

• Two compact sizes, wide ﬂood NEMA 6 x 6 distribution for

general purpose ﬂood and facade lighting

• FSL-7 - 26.5w delivering 2040 lumens, 77 LPW, 5100K, IP66

• FML-14 - 53w delivering 4285 lumens, 81 LPW, 5100K, IP65

hubbell outdoor lighting

FSL - 7

FML - 14

ALERA LIGHTING

ARCHITECTURAL AREA LIGHTING

BEACON PRODUCTS

COLUMBIA LIGHTING

COMPASS PRODUCTS

DEVINE LIGHTING

DUALLITE

HOMESTYLE LIGHTING

HUBBELL BUILDING AUTOMATION

HUBBELL INDUSTRIAL LIGHTING

HUBBELL OUTDOOR LIGHTING

KIM LIGHTING

KURT VERSEN

LITECONTROL

PRESCOLITE

PROGRESS LIGHTING

SECURITY LIGHTING

SPAULDING LIGHTING

SPORTSLITER SOLUTIONS

STERNER LIGHTING SYSTEMS

WHITEWAY

Mexico

Hubbell De Mexico, S.A. DE.CV

Av. Insurgentes Sur # 1228, 8th Floor

Col. Tlacoquemecatl del Valle • 03200 Mexico, D.F.

www.hubbell.com.mx

United States

Hubbell Lighting, Inc.

701 Millennium Boulevard

Greenville, SC 29607

www.hubbelllighting.com

Canada

Hubbell Canada

870 Brock Road

Pickering, Ontario L1W 1Z8

www.hubbell-canada.com

For more information visit our web site: www.hubbelloutdoor.com

Due to our continued efforts to improve our products, product specifications are subject to change without notice.

1000476280 Catalog

Navigation menu

Versions of this User Manual:

Views

Navigation
