The information provided in this documentation contains general descriptions and/or technical characteristics of the performance of the products contained herein.
This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications.
It is the duty of any such user or integrator to perform the appropriate and complete risk analysis, evaluation and testing of the products with respect to the relevant specific application or use thereof.
Neither Schneider Electric Industries SAS nor any of its affiliates or subsidiaries shall be responsible or liable for misuse of the information contained herein.
Aug 27, 2016
1

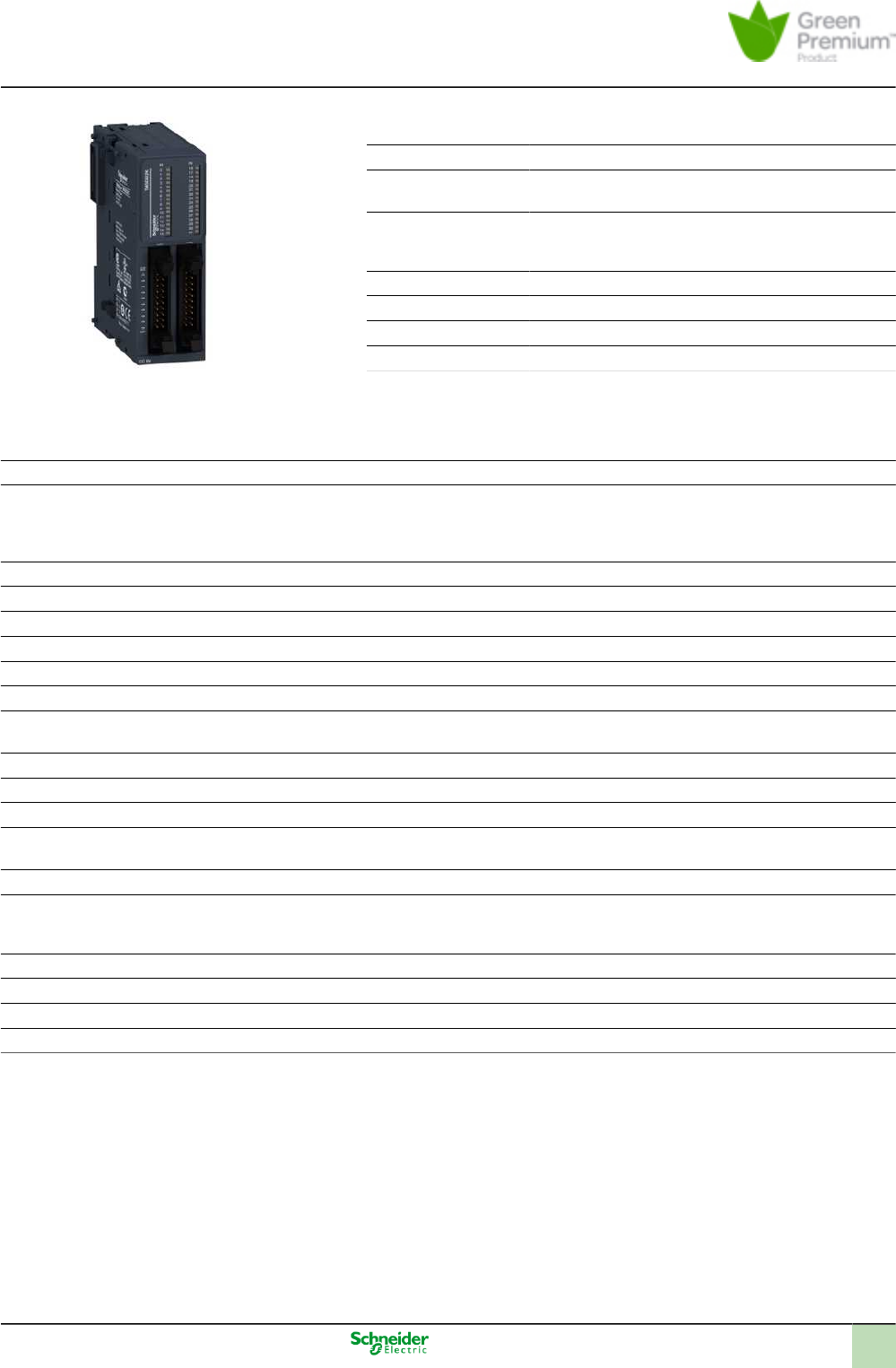

Product data sheet
Characteristics
TM3DI32K
module TM3 - 32 inputs HE10
Main
Range of product Modicon TM3
Product or component
type
Discrete input module
Range compatibility Modicon M221
Modicon M241
Modicon M251
Discrete input number 32 input conforming to IEC 61131-2 Type 1
Discrete input logic Sink or source (positive/negative)
Discrete input voltage 24 V
Discrete input current 5 mA for input
Complementary
Discrete I/O number 32
Current consumption 65 mA at 5 V DC via bus connector at state on
0 mA at 24 V DC via bus connector at state off
0 mA at 24 V DC via bus connector at state on
5 mA at 5 V DC via bus connector at state off
Discrete input voltage type DC
Voltage state1 guaranteed 15...28.8 V for input
Current state 1 guaranteed >= 2.5 mA for input
Voltage state 0 guaranteed 0...5 V for input
Current state 0 guaranteed <= 1 mA for input
Input impedance 4.4 kOhm
Response time 4 ms for turn-off
4 ms for turn-on
Local signalling 1 LED per channel green for input status
Electrical connection HE-10 connector for inputs
Cable length <= 30 m unshielded cable for regular input
Insulation Non-insulated between inputs
500 V AC between input and internal logic
Marking CE
Mounting support Plate or panel with fixing kit
Top hat type TH35-7.5 rail conforming to IEC 60715
Top hat type TH35-15 rail conforming to IEC 60715
Height 90 mm
Depth 81.3 mm
Width 33.5 mm
Product weight 0.1 kg
2
Environment
Standards EN/IEC 61131-2
EN/IEC 61010-2-201
Product certifications C-Tick
CULus
Resistance to electrostatic discharge 4 kV (on contact) conforming to EN/IEC 61000-4-2
8 kV (in air) conforming to EN/IEC 61000-4-2
Resistance to electromagnetic fields 1 V/m at 2 GHz...3 GHz conforming to EN/IEC 61000-4-3
3 V/m at 1.4 GHz...2 GHz conforming to EN/IEC 61000-4-3
10 V/m at 80 MHz...1 GHz conforming to EN/IEC 61000-4-3
Resistance to fast transients 1 kV for I/O conforming to EN/IEC 61000-4-4
Surge withstand 1 kV for I/O (DC) in common mode conforming to EN/IEC 61000-4-5
Resistance to conducted disturbances, induced by
radio frequency fields
3 Vrms at spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) con-
forming to Marine specification (LR, ABS, DNV, GL)
10 Vrms at 0.15...80 MHz conforming to EN/IEC 61000-4-6
Electromagnetic emission Radiated emissions, test level: 47 dBμV/m QP with class A, condition of test: 10
m (radio frequency: 230 MHz...1 GHz) conforming to EN/IEC 55011
Radiated emissions, test level: 40 dBμV/m QP with class A, condition of test: 10
m (radio frequency: 30...230 MHz) conforming to EN/IEC 55011
Ambient air temperature for operation -10...55 °C for horizontal installation
-10...35 °C for vertical installation
Ambient air temperature for storage -25...70 °C
Relative humidity 10...95 % without condensation in storage
10...95 % without condensation in operation
IP degree of protection IP20 with protective cover in place
Pollution degree 2
Operating altitude 0...2000 m
Storage altitude 0...3000 m
Vibration resistance 3 gn (vibration frequency: 8.4...150 Hz) on panel
3.5 mm (vibration frequency: 5...8.4 Hz) on panel
3 gn (vibration frequency: 8.4...150 Hz) on DIN rail
3.5 mm (vibration frequency: 5...8.4 Hz) on DIN rail
Shock resistance 15 gn (test wave duration:11 ms)
Offer Sustainability
Sustainable offer status Green Premium product
RoHS (date code: YYWW) Compliant - since 1348 - Schneider Electric declaration of conformity
REACh Reference not containing SVHC above the threshold
Product environmental profile Available Download Product Environmental
Product end of life instructions Available Download End Of Life Manual
3
Product data sheet
Dimensions Drawings
TM3DI32K

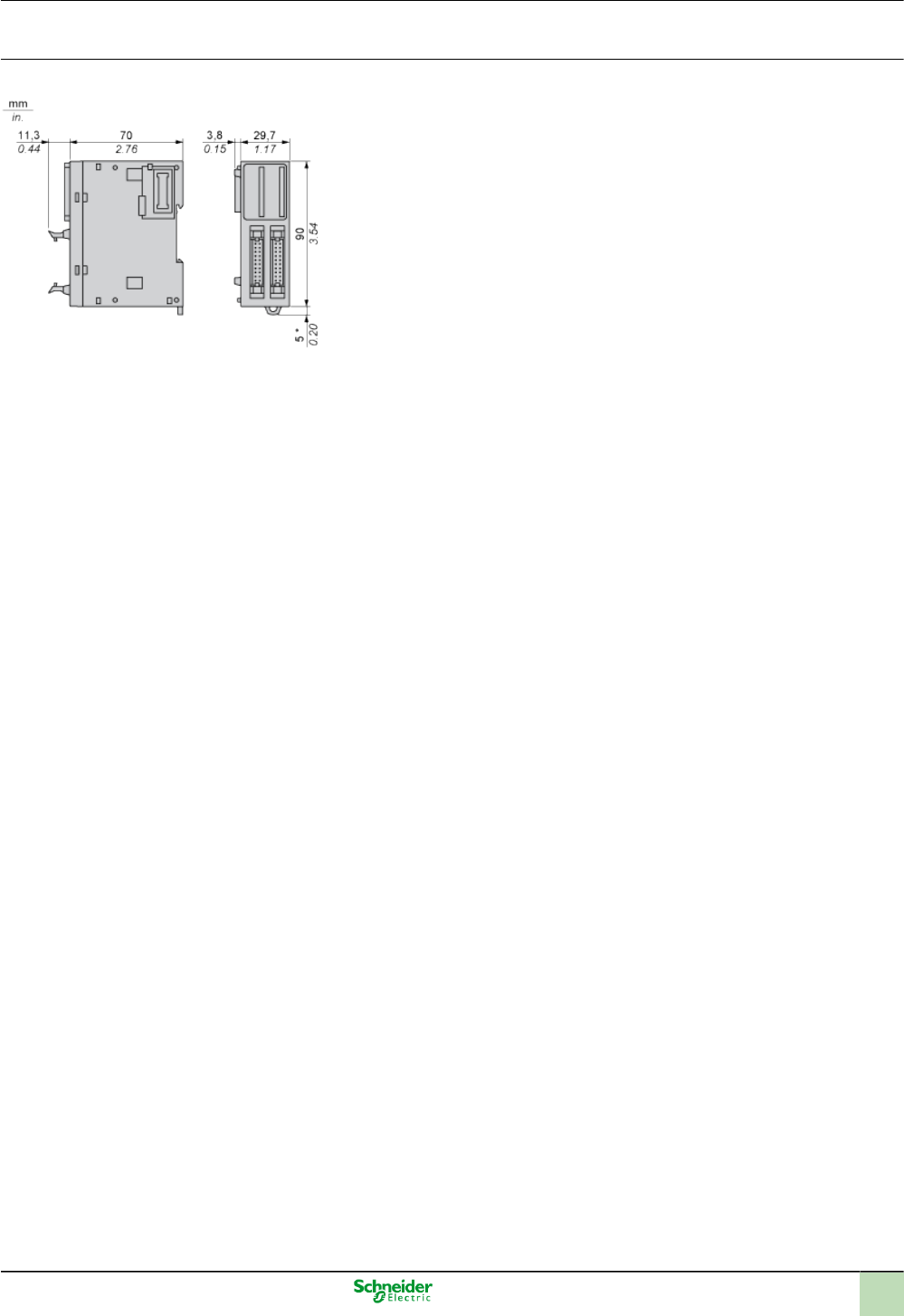

Dimensions
(*) 8.5 mm/0.33 in. when the clamp is pulled out.
4
Product data sheet

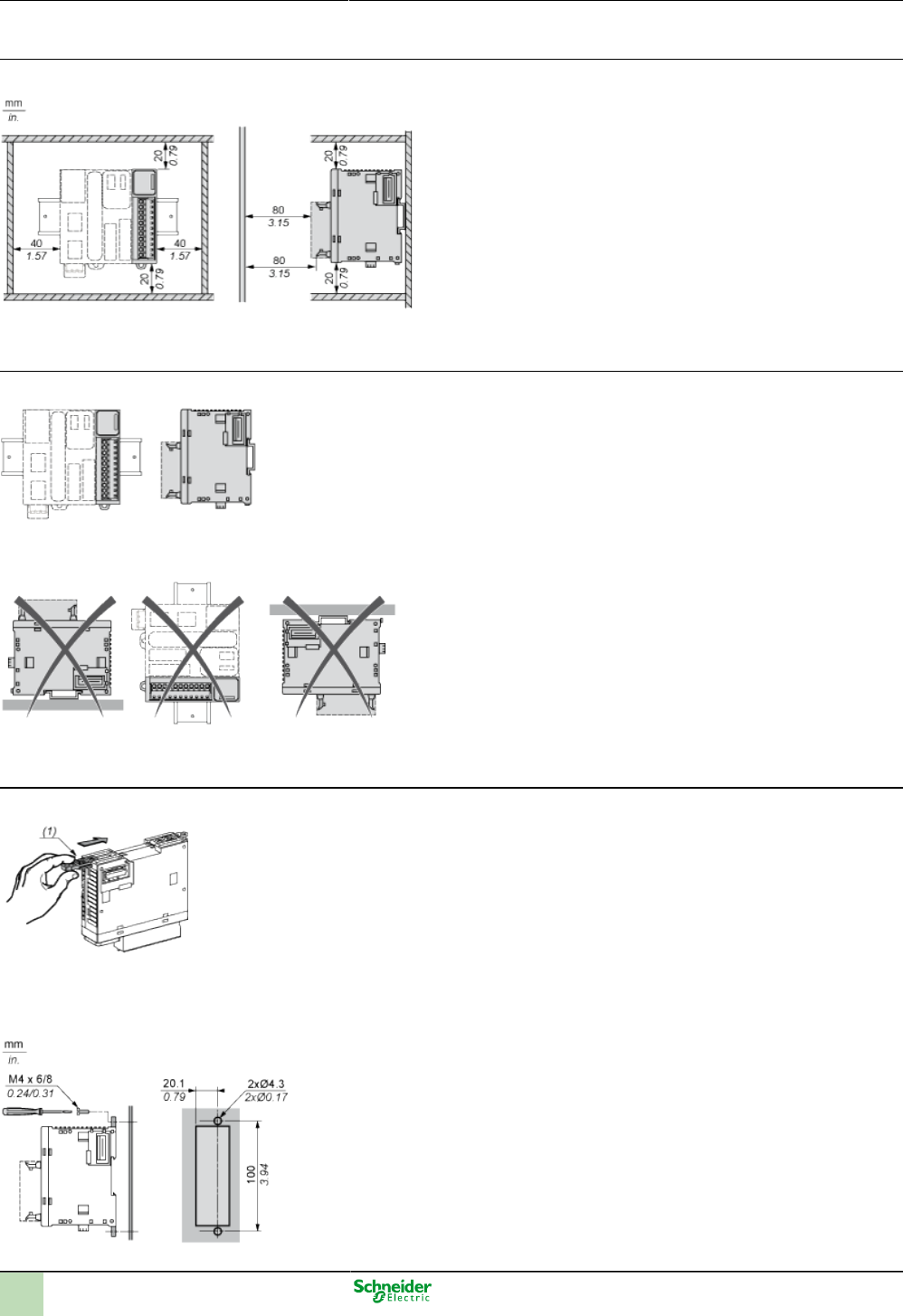

Mounting and Clearance
TM3DI32K
Spacing Requirements
Mounting on a Rail
Incorrect Mounting
Mounting on a Panel Surface
(1) Install a mounting strip
Mounting Hole Layout
5
Product data sheet
Connections and Schema
TM3DI32K
Digital Input Module (32-channel, 24 Vdc)

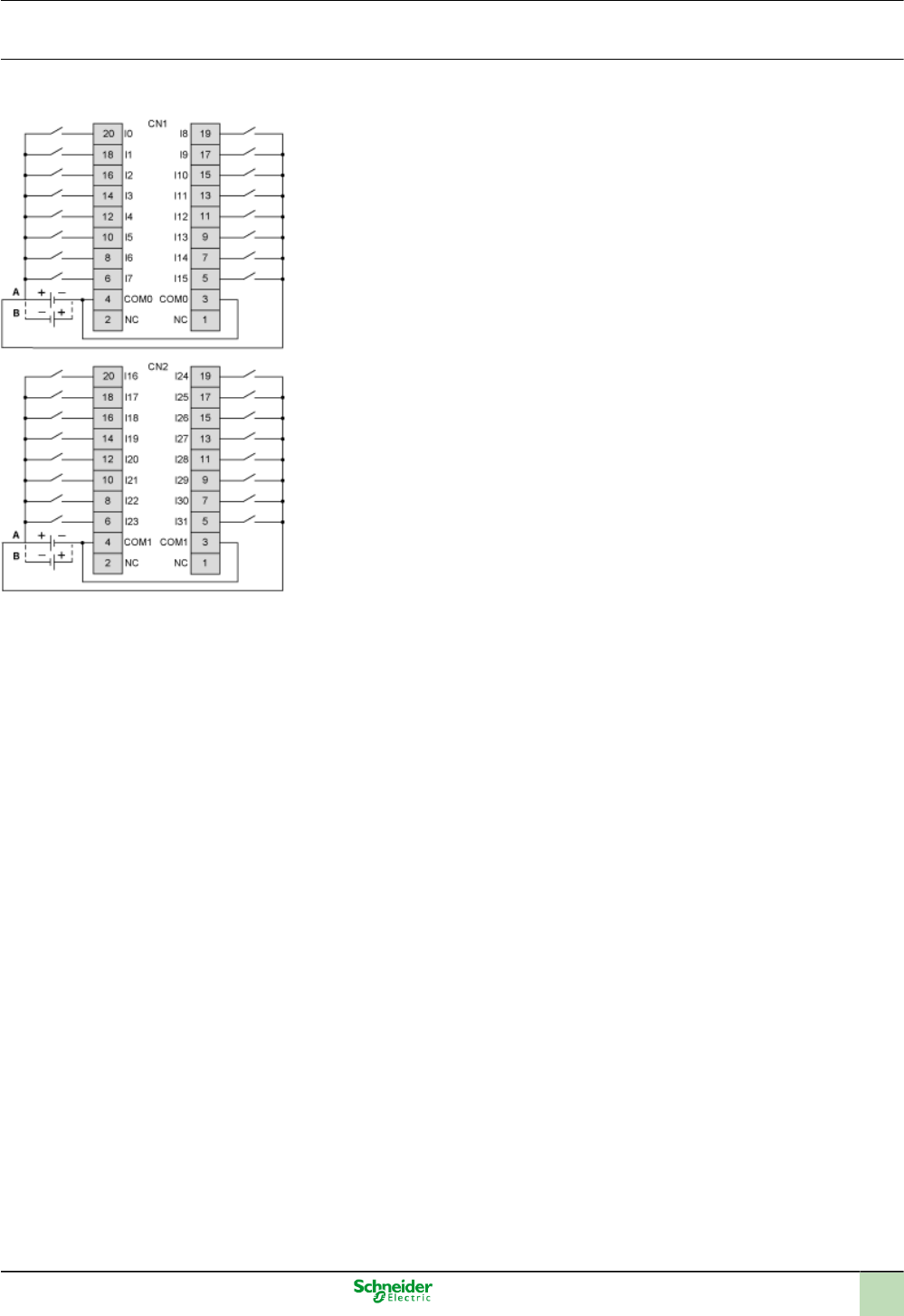

Wiring Diagram
The COM0 and COM1 terminals are not connected internally
(A) Sink wiring (positive logic)
(B) Source wiring (negative logic)
