Quest 215 Dual
Quest Dry
Quest 105, 155, 205 and 225 Dual
Installation, Operation and Maintenance Instructions
This manual is provided to acquaint you with the dehumidi-
fier so that installation, operation and maintenance can
proceed successfully. Ultimate satisfaction depends on the
quality of installation and a thorough understanding of this
equipment. The dehumidifier is built around tested engi-
neering principles and has passed a thorough inspection for
quality of workmanship and function.
Installation, Operation and Maintenance Instructions
4201 Lien Rd
Madison, WI 53704 Toll-Free 1-877-420-1330
www.QuestHydro.com info@QuestHydro.com
– Read and Save These Instructions –
Specifications subject to change without notice. 1
Water Removal Rates (Pints/Day) @ 80°F 60% (AHAM)
Dehumidifier Pints Removed Gallons/Liters
105 Dual 105 13.1/49.7
155 Dual 155 19.4/73.3
205 Dual 205 25.6/97.0
225 Dual 225 28.1/106.5
PATENTS:
D570,988
8,069,681
9,052,132
Features:
Industry-leading efficiency, most efficient on the market
today
Patented, optimized air-to-air heat exchanger
High-efficiency, long-life impeller fan
Quiet operation
Superior air filtration (MERV-11 standard)
Auto-restart after power outages
Environmentally friendly R410A refrigerant
Low voltage control
TS-999
04/17 Rev. A
1-877-420-1330
Quest 105/155/205/ 225 Dual Installation, Operation and Maintenance Instructions
2www.QuestHydro.com
info@QuestHydro.com
Table of Contents
Safety Precautions .................................................................... 3
1. Intended Application .............................................................4
2. Registrations ........................................................................4
3. Specifications .......................................................................4
4. Installation ........................................................................ 5
4.1 Location ........................................................................ 5
4.2 Electrical Requirements ............................................... 5
4.3 Condensate Removal ...................................................6
4.4 Install Diagram .............................................................. 6
4.5 Ducting ........................................................................ 7
4.5A Supply Duct Kit ................................................ 7
4.5B Return Duct Kit ................................................ 7
5. Controls ........................................................................ 7
5.1 On board dehumidistat ................................................. 7
5.2 External Control ...........................................................8
5.2A Deh 3000R ......................................................8
5.2B Honeywell Remote Humidistat ....................... 9
6. Maintenance ........................................................................ 9
6.1 Standard Air Filter ......................................................... 9
6.2 Impeller Fan Oiling ....................................................... 9
7. Service ........................................................................ 9
7.1 Warranty ........................................................................ 9

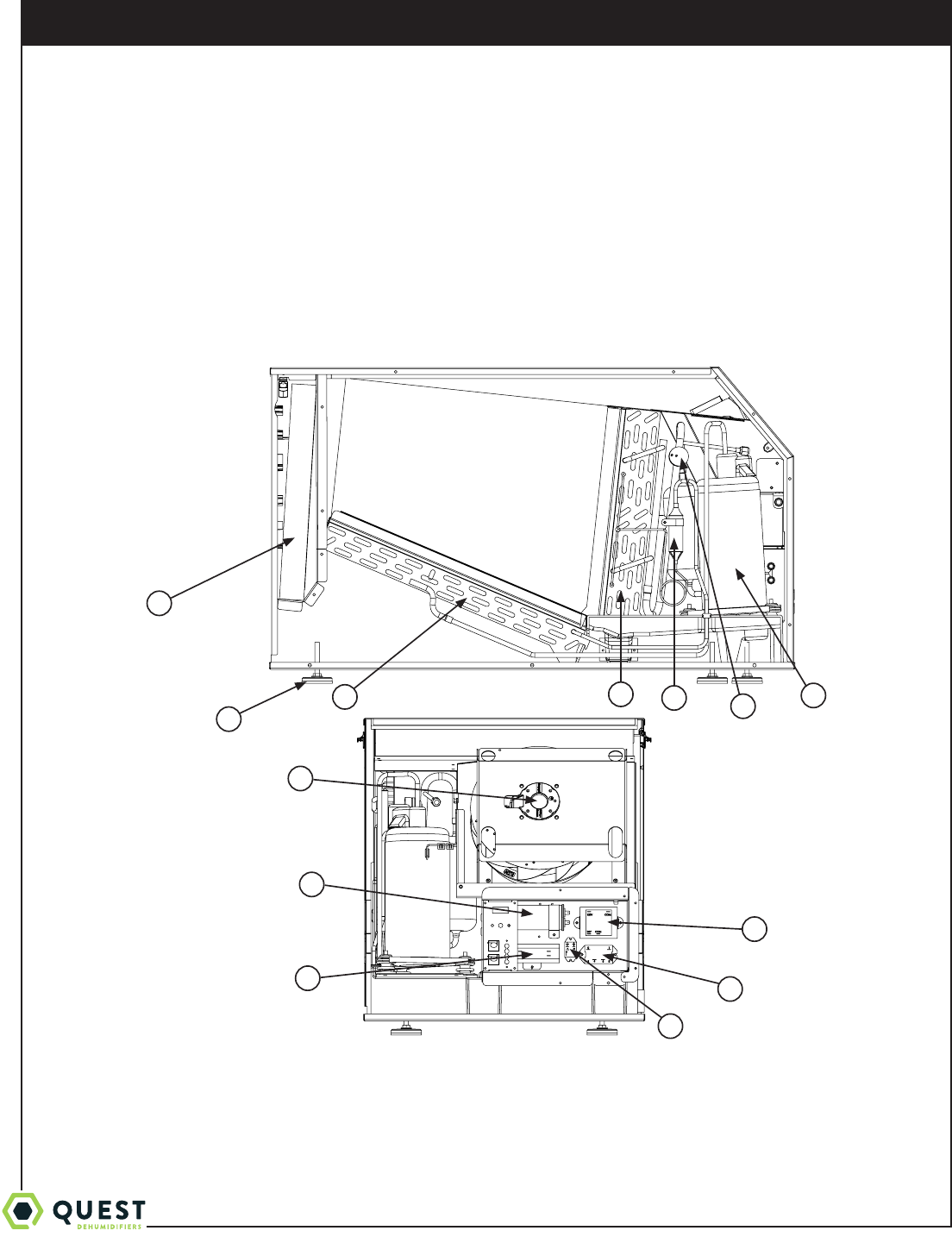

7.2 Technical description ................................................... 10
7.3 Troubleshooting ........................................................... 10
7.4 Refrigerant Charging .................................................. 12
7.5 Impeller Fan Replacement .........................................12
7.6 Compressor/Capacitor Replacement ........................12
7.6A Checking Compressor Motor Circuits .......... 12
7.6B Replacing Burned Out Compressor ..............13
7.6C Replacing Compressor-Nonburn Out ...........13
7.7 Remote Controls ..........................................................13
7.7A Humidity Control ............................................ 14
7.7B Programable Ventilation Timer....................... 14
7.8 Defrost Thermostat .................................................... 14
7.9 Electric Ventilation Damper ...................................... 14
7.10 Condensate Pump Kit ................................................ 15
Wiring Diagram .......................................................................16
Service Parts List ..................................................................... 17
Optional Parts List ..................................................................17
Warranty .......................................................................18
1-877-420-1330
Quest 105/155/205/225 Dual Installation, Operation and Maintenance Instructions
3www.QuestHydro.com
info@QuestHydro.com
Safety Precautions
Read the installation, operation and maintenance instructions carefully before installing and operating this device. Proper
adherence to these instructions is essential to obtain maximum benefit from your Quest Dual Dehumidifier.
READ AND SAVE THESE INSTRUCTIONS
The device is designed to be installed INDOORS IN A SPACE THAT IS
PROTECTED FROM RAIN AND FLOODING.
Install the unit with space to access the back or side panels for
maintenance and service. DO NOT INSTALL UNIT WITH THE
SERVICE PANELS INACCESSIBLE.
Avoid directing the discharge air at people, or over the water in pool areas.
If used near a pool, spa or water; be certain there is NO chance the unit
could fall into the water, be splashed and that it is plugged into an outlet
that is a GROUND FAULT INTERRUPT protected circuit.
DO NOT use the device as a bench or table.
DO NOT place the device directly on structural members. Provide
vibration isolation in order to minimize operational vibration and/or noise.
A drain pan MUST be placed under the unit if installed above a living area
or above an area where water leakage could cause damage
Never operate a unit with a damaged power cord. If the power cord is
damaged it must be replaced by the manufacturer, its service agent, or
similarly qualified person in order to avoid a hazard.
Make all electrical connections in accordance with the current edition of
the NEC ANSI/NFPA 70 and any national and local codes or ordinances
that may apply.
Do not obstruct the air intake and exhaust. Maintain a .3 m (1 ft)
clearance around the air intake and exhaust.
This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience
and knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the
appliance.
1-877-420-1330
Quest 105/155/205/ 225 Dual Installation, Operation and Maintenance Instructions
4www.QuestHydro.com
info@QuestHydro.com
1. Intended Application for Quest Dual Dehumidifier
The Quest Dual Dehumidifier is designed to operate in temperatures between 56° and 95°F.
In order to eciently control humidity levels, the area in which the dehumidifier is to be operated must be free of water
intrusion or excessive fresh (outside) air infiltration. Before installing the Quest Dual Dehumidifier, water intrusion and
air infiltration problems should be addressed or noted in calculations.
2. Registrations
The Quest Dual Dehumidifier units conform to unified standard UL 60335-2-40.

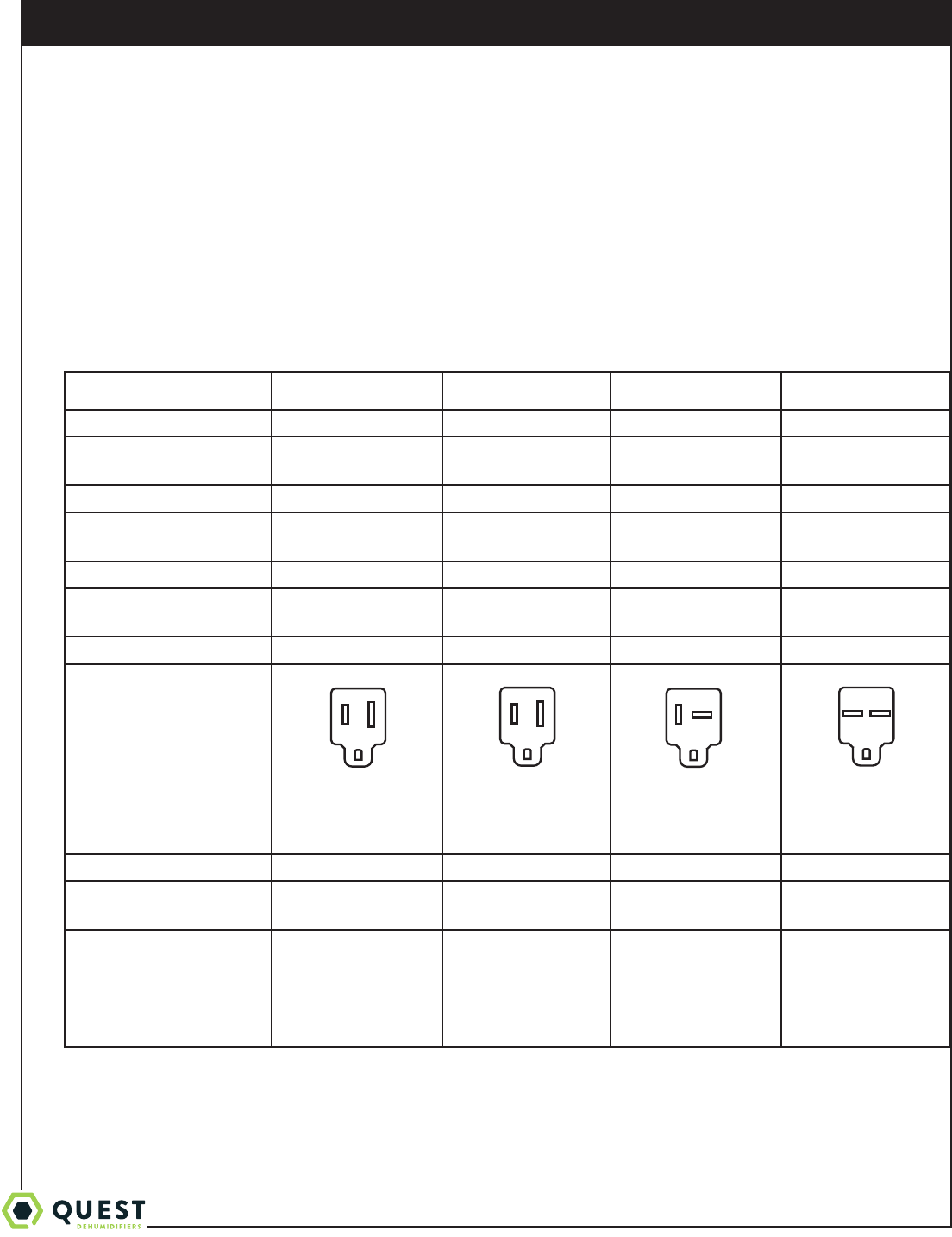

3. Specifications @ 80°F/60% RH
Unit: 4032270 105 Dual 4031490 155 Dual 4033060 205 Dual 4035400 225 Dual
Power (Watts): 530 920 1525 1500
Supply voltage: 110-120 VAC -
1 Phase - 60 Hz.
110-120 VAC -
1 Phase - 60 Hz.
110-120 VAC -
1 Phase - 60 Hz.
208-240 VAC -
1 Phase - 60 Hz.
Current Draw (Amps): 4.9 8.0 13.2 6.9
Energy Factor
(L/kWh): 4.2 3.5 2.7 2.9
Operating Temp: 56°F Min - 95°F Max 56°F Min - 95°F Max 56°F Min - 95°F Max 56°F Min - 95°F Max
Water Removal (Pints/Day):
Eciency (Pints/kWh):
105
8.8
155
7.3
205
5.7
225
6.1
Air Filter (MERV-11): Size: 16" x 20" x 2" Size: 16" x 20" x 2" Size: 16" x 20" x 2" Size: 16" x 20" x 2"
Power Cord:
*This unit requires a
dedicated 20A circuit
Drain Connection: 3/4” Threaded NPT 3/4” Threaded NPT 3/4” Threaded NPT 3/4 Threaded NPT
Refrigerant Type:
Refrigerant Amount:
R410A
1lb. 10oz.
R410A
1lb. 13oz.
R410A
2lb. 0oz.
R410A
2lb. 0oz.
Dimensions:
Width:
Height:
Length:
Weight:
Unit Shipping
20.25" 24"
21.75" 28.25"
38" 42"
140 lbs 160 lbs
Unit Shipping
20.25" 24"
21.75" 28.25"
38" 42"
140 lbs 160 lbs
Unit Shipping
20.25" 24"
21.75" 28.25"
38 " 42"
150 lbs 170 lbs
Unit Shipping
37.8” 24”
21.75” 28.25”
20.25“ 42”
160 lbs 180 lbs
14ga 10’, NEMA 5-15P 14ga 10’, NEMA 5-15P 14ga 10’, NEMA 6-15P14ga 10’, NEMA 5-20P
1-877-420-1330
Quest 105/155/205/225 Dual Installation, Operation and Maintenance Instructions
5www.QuestHydro.com
info@QuestHydro.com
4. Installation
4.1 Location
The Quest Dual Dehumidifier can be installed in a variety of locations to meet the owner’s needs as listed below. In all
cases keep the following cautions in mind:
It is designed to be installed INDOORS IN A SPACE THAT IS PROTECTED FROM RAIN AND FLOODING.
Install the unit with space to access the back and side panels for maintenance and service and also to allow easy
access to the filter cover panel. DO NOT INSTALL UNIT WITH THE FRONT PANEL OR FILTER COVER
PANEL INACCESSIBLE.
Avoid discharging the air directly at people, or over the water in pool areas.
Be certain there is NO chance the unit could fall into water or be splashed and that it is plugged into a GROUND
FAULT INTERRUPTER.
DO NOT use the Quest Dual Dehumidifier as a bench or table.
DO NOT place the Quest Dual Dehumidifier directly on structural members. Provide vibration isolation in order to
minimize operational vibration and/or noise.
A drain pan MUST be placed under the unit if installed above an area where water leakage could
cause damage.
Place the Quest Dual Dehumidifier on supports that raise the base of the unit 2.5” above the top of the flanges on the
drain pan beneath it. Raising the Quest Dual Dehumidifier will help the unit drain with gravity flow. Do not place the
Quest Dual Dehumidifier directly on structural building members without vibration absorbers or unwanted noise may
result.
The Quest Dual Dehumidifier may be suspended with steel hanger straps or a suitable alternative from structural
members, unit must be supported from underneath. Don’t hang from sides or ends. Remember to place a drain pan
under the unit if it is suspended above a finished area or above an area where water leakage could cause damage. See
section 4.4
4.2 Electrical Requirements
The Quest Dual Dehumidifier plugs into NEMA rated Receptacles. The amp draws for each unit under normal operating
conditions are listed on page 4. A ground fault interrupter protected circuit is required.
Install the remote control panel in a central area of the structure where it will sense the relative humidity of the structure
accurately. Do not install the control panel where it may not accurately sense the relative humidity such as near HVAC
supply registers, near exterior doors, or near a pool or spa. The installer must supply the wiring between the Quest Dual
Dehumidifier and the control panel. Be sure to safely route the control wiring to prevent damage during installation. Be
careful not to cross the wires when connecting the Quest Dual Dehumidifier and the remote control panel.
The remote controls of the Quest Dual Dehumidifier are powered by a low voltage circuit (24 VAC) and must NEVER
contact or be connected to a high voltage circuit. The control terminals and remote control are labeled and numbered to
prevent confusion. Be sure to consult the electrical schematic in this manual or inside the access panel of the Quest Dual
Dehumidifier before making the control connections.
1-877-420-1330
Quest 105/155/205/ 225 Dual Installation, Operation and Maintenance Instructions
6www.QuestHydro.com
info@QuestHydro.com

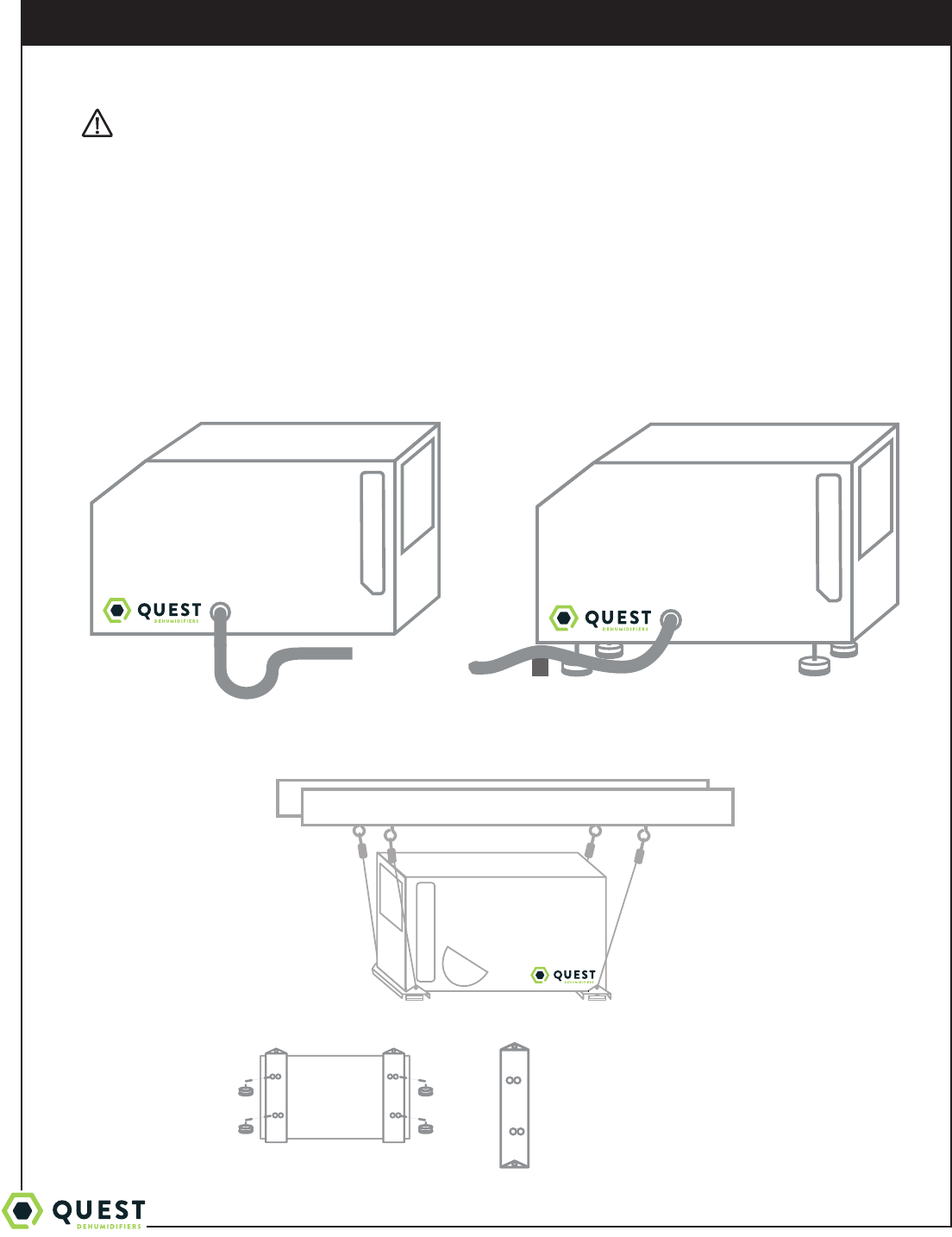

CAUTION! For proper drainage, the unit must be mounted so the drain outlet is at least 4”
above the floor drain, and must be fully supported under the base.
4.3 Condensate Water Removal
Condensate drains by gravity via the drain port. Use 3/4” male NPT PVC pipe. Route drain pipe to drain. Install a trap if
possible. Take care when installing drain pipe to drain port. Use an adjustable wrench to secure the drain port. An optional
condensate pump kit may be installed if a lift is required to dispose of the condensate. The condensate pump kit can be
ordered directly from the factory. See the optional parts list for information on the kit.
When installing the drain hose make sure the feet are extended such that the dehumidifier is 2 1/2” o the ground.
Then coil the drain hose under itself or position a spacer to lift the hose 1” o the ground after the hose has touched the
ground. This procedure will create a trap that ensures your unit drains correctly. See the diagram below for further visual
clarification.
4.4 Hanging Diagram
Bottom view of
unit and bracket
Bracket (4036668)
I
I
I
I
I
I
I
I
I
I
I
I
I
I
H
U
M
I
D
N
O
R
M
A
L
D
R
I
E
R
OFFON
BEFORE TURNING ON UNIT:
1. CUT AND REMOVE ZIP TIE
2. PLUG HOLES USING
INCLUDED PLUGS
COM
FAN
24V
DEHU
*
DMPR
COM
FAN
24V
DEHU
*
DMPR
24VAC
COMP FAN
HONEYWELL REMOTE HUMIDISTAT
WIRING DIAGRAM
QUEST DEH 3000R CONTROL
WIRING DIAGRAM
Opt.1 Opt.2
1-877-420-1330
Quest 105/155/205/225 Dual Installation, Operation and Maintenance Instructions
7www.QuestHydro.com
info@QuestHydro.com
Control Part No. 4027370
Quest
Dehumidifier
RED
4201 Lien Rd. Madison, WI 53704 TOLL-FREE 1-800-533-7533 www.thermastor.com sales@thermastor.com
TS-673, 06/11
WARNING: Allowing yellow wire to contact red or white wire
will destroy the transformer.
Dehumidifier on : Connect yellow and blue wires.
Fan only on : Connect yellow and green (or brown) wires.
Accessory power : 24volt AC power supply available for HVAC accessories between yellow and
white(and/or red) wire. Red and white wires are common with each other.
Quest DEH 3000 dehumidification & ventilation control
YELLOW
BLUE
GREEN or BROWN
WHITE
Internal Connections
OPTIONAL
DAMPER
24 VAC
DMP COMP FAN
4.5 Ducting
4.5A Supply Duct Kit (P/N 4028607)
A factory designed supply duct kit can be purchased to accept 10” ducting to both outlets of the Quest Dual. Contact
your dealer or call 1-877-420-1330 to order or go to www.questhydro.com/product-category/accessories.
4.5B Return Duct Kit (P/N 4028610)
A factory designed return duct kit can be purchased to accept 12” ducting. Contact your dealer or call 1-877-420-1330
to order or go to www.questhydro.com/product-category/accessories.
5. Control Options
The Quest Dual Dehumidifier can be controlled by its on board dehumidistat or with an external control using its low
voltage terminal block.
5.1 On board dehumidistat
The humidity control is an adjustable switch that closes when the relative humidity of the air in which it is located rises to
the dial set point. It opens when the RH drops 4 to 6% below the set point.
Approximate Humidity Levels Per Setting
“Dry” 20% to 30% Relative Humidity
“Normal” 50% Relative Humidity (Recommended)
“Humid” 80% to 90% Relative Humidity
The dehumidifier will run until the relative humidity (RH) is reduced to the humidity control dial setting.
4037356
1-877-420-1330
Quest 105/155/205/ 225 Dual Installation, Operation and Maintenance Instructions
8www.QuestHydro.com
info@QuestHydro.com
5.2 External Control
The Quest Dual Dehumidifier is controlled using five terminals.
COM = 24volt AC power transformer neutral side (common with white)
FAN = Fan control
24V = transformer high side
DEHU = Dehumidification (fan and compressor) control
DMPR = 24volt AC power transformer neutral side (common with red)
* On board dehumidistat must be set to o
Between the COM/DMPR lead and the 24V leads is a 40VA transformer. This low voltage power source powers the
relay coils which control the fan and compressors. This 24VAC transformer can also be used to power HVAC assessories
external to the dehumidifier.
To turn the dehumidifier on make contact between 24V and DEHU terminals, or turn the dehumidistat
clockwise towards drier.
To turn the fan on make contact between 24V and FAN terminals.
To power a 24V HVAC accessory, connect the accessory to the COM terminal and the 24V terminal.
NOTE: 18 ga wire needed between the Quest Dual dehumidifier and the external control
Quest oers two external control options
5.2A DEH 3000R
NOTE: 22 ga wire needed for sensor
Contact your dealer or call 1-877-420-1330 to order or go to www.questhydro.com/product-category/accessories.
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
H
U
M
I
D
N
O
R
M
A
L
D
R
I
E
R
OFFON
BEFORE TURNING ON UNIT:
1. CUT AND REMOVE ZIP TIE
2. PLUG HOLES USING
INCLUDED PLUGS
COM
FAN
24V
DEHU
*
DMPR
COM
FAN
24V
DEHU
*
DMPR
24VAC
COMP FAN
HONEYWELL REMOTE HUMIDISTAT
WIRING DIAGRAM
QUEST DEH 3000R CONTROL
WIRING DIAGRAM
4028531 Unit 1 Unit 2 Unit 3 Unit 4 Unit 5 Unit 6
COM
FAN
24V
DEHU
*
DMPR
White
Blue
Yellow
Green
Red
COM
FAN
24V
DEHU
*
DMPR
COM
FAN
24V
DEHU
*
DMPR
COM
FAN
24V
DEHU
*
DMPR
COM
FAN
24V
DEHU
*
DMPR
COM
FAN
24V
DEHU
*
DMPR
COM
FAN
24V
DEHU
*
DMPR
* NOTE: Best quality if printed in color
1-877-420-1330
Quest 105/155/205/225 Dual Installation, Operation and Maintenance Instructions
9www.QuestHydro.com
info@QuestHydro.com
4020175
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
H
U
M
I
D
N
O
R
M
A
L
D
R
I
E
R
OFFON
BEFORE TURNING ON UNIT:
1. CUT AND REMOVE ZIP TIE
2. PLUG HOLES USING
INCLUDED PLUGS
COM
FAN
24V
DEHU
*
DMPR
COM
FAN
24V
DEHU
*
DMPR
24VAC
COMP FAN
HONEYWELL REMOTE HUMIDISTAT
WIRING DIAGRAM
QUEST DEH 3000R CONTROL
WIRING DIAGRAM
5.2B Honeywell Remote Humidistat
6. Maintenance
WARNING! NOTE: Do not operate the unit without the filter or with a less eective filter.
The heat exchange coils inside the unit could become clogged and require disassembly to clean.
Filter non-compliance invalidates the product warranty.
6.1 Standard Air Filter
The Quest Dual Dehumidifier ships with a standard MERV 11 ecient pleated fabric filter. This filter should be checked
every six months. Operating the unit with a dirty filter will reduce dehumidifier capacity and eciency and may cause the
compressor to cycle o and on unnecessarily on the defrost control.
To access the air filter, remove the filter access panel from the end of the Quest Dual Dehumidifier. The filter should be
readily visible and can be removed by pulling it straight out of the Quest Dual Dehumidifier.
We recommend changing the filter at least with every grow cycle.
6.2 Impeller Fan Oiling
The impeller fan motor is factory lubricated for many years of normal operation, and no further oiling is required.
7. Service
WARNING! Servicing the Quest Dual with its high pressure refrigerant system and high
voltage circuitry presents a health hazard which could result in death, serious bodily injury, and/or
property damage. Only qualified service people should service this unit.
7.1 Warranty
A warranty certificate has been enclosed with this unit; read it before any repair is initiated. If a warranty repair is
required, call the factory first at 1-877-420-1330 for warranty claim authorization and technical assistance.
1-877-420-1330
Quest 105/155/205/ 225 Dual Installation, Operation and Maintenance Instructions
10 www.QuestHydro.com
info@QuestHydro.com
7.2 Technical Description
The Quest Dual Dehumidifier uses a refrigeration system similar to an air conditioner's to remove heat and moisture from
incoming air, and add heat to the air that is discharged.
Hot, high-pressure refrigerant gas is routed from the compressor to the condenser coil. The refrigerant is cooled and condensed
by giving up its heat to the air that is about to be discharged from the unit. The refrigerant liquid then passes through a filter/
drier and capillary tubing which causes the refrigerant pressure and temperature to drop. It next enters the evaporator coil
where it absorbs heat from the incoming air and evaporates. The evaporator operates in a flooded condition, which means that all
the evaporator tubes contain liquid refrigerant during normal operation. A flooded evaporator should maintain nearly constant
pressure and temperature across the entire coil, from inlet to outlet.
The mixture of gas and liquid refrigerant enter the accumulator after leaving the evaporator coil. The accumulator prevents any
liquid refrigerant from reaching the compressor. The compressor evacuates the cool refrigerant gas from the accumulator and
compresses it to a high pressure and temperature to repeat the process.
7.3 Troubleshooting
Neither fan nor compressor running. Dehumidification is being called for. No fan call.
1. Unit unplugged or no power to outlet.
2. Humidity control set too high.
3. Loose connection in internal or control wiring.
4. Defective Compressor relay.
5. Defective control transformer.
Compressor is not running. Dehumidification is being called for. No fan call.
1. Defective compressor run capacitor.
2. Loose connection in compressor circuit.
3. Defective compressor overload.
4. Defective compressor.
5. Defrost thermostat open.
Compressor cycles on and o. Dehumidification is being called for. No fan call.
1. Low ambient temperature and/or humidity causing unit to cycle through defrost mode.
2. Defective compressor overload.
3. Defective compressor.
4. Defrost thermostat defective.
5. Dirty air filter(s) or air flow restricted.
Fan is not running. Dehumidification or fan is being called for.
1. Loose connection in fan circuit.
2. Obstruction prevents fan impeller rotation.
3. Defective fan.
4. Defective fan relay.
1-877-420-1330
Quest 105/155/205/225 Dual Installation, Operation and Maintenance Instructions
11 www.QuestHydro.com
info@QuestHydro.com
Low dehumidification capacity (evaporator is frosted continuously). Dehumidification is being called for
1. Defrost thermostat loose or defective.
2. Low refrigerant charge
3. Dirty air filter(s) or air flow restricted.
4. Excessively restrictive ducting connected to unit.
No ventilation. Ventilation is being called for.
1. Loose connection in ventilation control circuit
2. Loose connection in damper power circuit.
3. Defective fresh air damper.
Unit removes some water, but not as much as expected.
1. Air temperature and/or humidity have dropped.
2. Humidity meter and or thermometer used are out of calibration.
3. Unit has entered defrost cycle.
4. Air filter dirty.
5. Defective defrost thermostat.
6. Low refrigerant charge.
7. Air leak such as loose cover or ducting leaks.
8. Defective compressor.
9. Restrictive ducting.
10. Optional Condensate Pump Safety Switch open.
Unit Test to determine problem:
1. Detach field control wiring connections from main unit.
2. Connect the 24V and FAN pigtails from the main unit together; only the impeller fan should run. Disconnect the
wires.
3. Connect the 24V and DEHU pigtails from the main unit together; the compressor and impeller fan should run.
4. If these tests work, the main unit is working properly. You should check the control panel and field control wiring for
problems next.
5. Remove the control panel from the mounting box and detach it from the field installed control wiring. Connect the
DEHU, 24V, and FAN terminals from the control panel directly to the corresponding colored pigtails on the main
unit. Leave the, DMPR and COM terminals disconnected!
6. Turn on the fan switch; the impeller fan should run. Turn o the fan switch.
7. Turn on the humidity control; the compressor and impeller fan should run.
8. If these tests work, the problem is most likely in the field control wiring.
1-877-420-1330
Quest 105/155/205/ 225 Dual Installation, Operation and Maintenance Instructions
12 www.QuestHydro.com
info@QuestHydro.com
7.4 Refrigerant Charging
If the refrigerant charge is lost due to service or a leak, a new charge must be accurately weighed in. If any of the old charge is left
in the system, it must be recovered before weighing in the new charge. Refer to the unit nameplate for the correct charge weight
and refrigerant type.
7.5 Impeller Fan Replacement
The motorized impeller fan is a unitary assembly consisting of the motor and impeller fan. If defective, the complete assembly
must be replaced.
1. Unplug the power cord.
2. Remove the cabinet access panel.
3. Remove the screw attaching the impeller fan support bracket to the base.
4. Disconnect the impeller fan leads inside the electric box.
5. Remove fan/bracket assembly by removing 3 screws from the bracket and inlet ring assembly.
6. Remove the defective impeller fan from the bracket and replace with it with the new impeller fan.
7. Reassemble the new impeller fan by reversing the above procedure. Note: There are two pins on the backside of the cabinet
that must align with the two holes in the impeller fan support bracket.
7.6 Compressor/Capacitor Replacement
This compressor is equipped with a two terminal external overload and a run capacitor, but no start capacitor or relay
(See Figure 4).
7.6A Checking Compressor Motor Circuits
Perform the following tests if the impeller fan runs but the compressor does not with the fan switch and ventilation timer OFF and
the humidity control ON.
1. Unplug the unit; remove the cabinet side and the electrical connection cover on the compressor top.
2. Plug in the unit and turn the humidity control to ON. Check for volts from compressor terminal R to overload terminal 3 using
an AC voltmeter. If correct voltage is present, go to step 3. If no voltage, there may be a loose connection in the compressor
circuit. Test each component for continuity. See the appropriate section if a defect is suspected.
3. Unplug the unit, and then disconnect the red and yellow wires from compressor terminals R & S. Using an ohmmeter check
continuity between the points listed below.
4. Compressor terminals C and S: No continuity indicates an open start winding. The compressor must be replaced. Normal start
winding resistance is 3 to 7 ohms.
5. Compressor terminals C and R: No continuity indicates an open run winding. The compressor must be replaced. Normal run
winding resistance is .5 to 2 ohms.
6. Compressor terminal C and overload terminal 1: No continuity indicates a defective overload lead.
7. Overload terminals 1 and 3: If there is no continuity, the overload may be tripped. Wait 10 minutes and try again. If there is still
no continuity, it is defective and must be replaced.
8. Compressor terminal C and compressor case: Continuity indicates a grounded motor. The compressor must be replaced.
9. Disconnect the wires from the run capacitor. Set the ohmmeter to the Rx1 scale. The capacitor is shorted and must be
replaced if continuity exists across its terminals. If there is no needle movement with the meter set on the Rx100000 scale,
the capacitor is open and must be replaced.
10. Reconnect the wires to the compressor and capacitor. Plug in and turn on the unit. If the compressor fails to start, replace the
run capacitor.
11. If the unit still does not start, adding a hard-start kit (relay & capacitor) will provide greater starting torque. If this doesn't work,
the compressor has an internal mechanical defect and must be replaced.
Figure 15: Refrigeration System of Quest Dual Dehumidifier
1-877-420-1330
Quest 105/155/205/225 Dual Installation, Operation and Maintenance Instructions
13 www.QuestHydro.com
info@QuestHydro.com
7.6B Replacing a Burned Out Compressor
The refrigerant and oil mixture in a compressor is chemically very stable under normal operating conditions. However, when
an electrical short occurs in the compressor motor, the resulting high temperature arc causes a portion of the refrigerant oil
mixture to break down into carbonaceous sludge, a very corrosive acid, and water. These contaminants must be carefully removed
otherwise even small residues will attack replacement compressor motors and cause failures.
The following procedure is eective only if the system is monitored after replacing the compressor to insure that the clean up was
complete.
1. This procedure assumes that the previously listed compressor motor circuit tests revealed a shorted or open winding.
2. Remove and properly dispose of the system charge. DO NOT vent the refrigerant or allow it to contact your eyes or skin.
3. Remove the burned out compressor. Use rubber gloves if there is any possibility of contacting the oil or sludge.
4. To facilitate subsequent steps, determine the type of burn out that occurred. If the discharge line shows no evidence of sludge
and the suction line is also clean or perhaps has some light carbon deposits, the burn out occurred while the compressor
was not rotating. Contaminants are therefore largely confined to the compressor housing. A single installation of liquid and
suction line filter/driers will probably clean up the system.
If sludge is evident in the discharge line, it will likely be found in the suction line. This indicates the compressor burned out will
running. Sludge and acid have been pumped throughout the system. Several changes of the liquid and suction filter/driers will
probably be necessary to cleanse the system.
5. Correct the system fault that caused the burn out. Consult the factory for advice.
6. Install the replacement compressor with a new capacitor and an oversized liquid line filter.
In a running burn out, install an oversized suction line filter/drier between the accumulator and compressor. Thoroughly flush
the accumulator with refrigerant to remove all trapped sludge and to prevent the oil hole from becoming plugged. A standing
burn out does not require a suction line filter/drier.
7. Evacuate the system with a good vacuum pump and accurate vacuum gauge. Leave the pump on the system for at least an
hour.
8. Operate the system for a short period of time, monitoring the suction pressure to determine that the suction filter is not
becoming plugged. Replace the suction filter/drier if pressure drop occurs. If a severe running burn out has occurred, several
filter/driers may have to be replaced to remove all of the acid and moisture.
NOTE: NEVER use the compressor to evacuate the system or any part of it.
7.6C Replacing a Compressor, Nonburn Out
Remove the refrigerant from the system. Replace the compressor and liquid line filter/drier. Charge the system to 50 PSIG and
check for leaks. Remove the charge and weigh in the refrigerant quantity listed on the nameplate. Operate the system to verify
performance.
7.7 Remote Controls
The Quest Dual Dehumidifier is controlled by devices mounted on a panel that is remote from the unit. You may or may not have
the devices listed below depending on the model of the remote control panel you purchased. If the Quest Dual Dehumidifier
fails to operate as desired, always check the settings of the controls to insure that they are correct. Check that the controls are
receiving 24Vac from the Quest Dual Dehumidifier. Check the connections between the Quest Dual Dehumidifier, the control
panel, and the field control wiring.
1-877-420-1330
Quest 105/155/205/ 225 Dual Installation, Operation and Maintenance Instructions
14 www.QuestHydro.com
info@QuestHydro.com
7.7A Humidity Control
The humidity control is an adjustable switch that closes when the relative humidity of the air in which it is located rises to the dial
set point. It opens when the RH drops 4 to 6% below the set point. If the Quest Dual Dehumidifier does not run, try turning the
humidity control clockwise until it reaches the stop and the knob pointer points at “Max Dry” (see back of control panel cover). If
it still does not run, remove the stop screw from the panel and turn the knob farther. If it then runs, the humidity control is out of
calibration or the RH is below 40%.
The Quest Dual Dehumidifier is equipped with an automatic defrost mechanism. If the Quest Dual Dehumidifier operates in
conditions that develop frost on the evaporator, it will sense the frost build-up and automatically defrost the evaporator. The
Quest Dual Dehumidifier may not appear to be operating correctly during the defrost sequence, but once the defrost sequence is
completed, the Quest Dual Dehumidifier will resume dehumidifying.
7.7B Programmable Ventilation Timer
The ventilation timer controls the impeller fan and the motorized fresh air damper. When the ventilation timer is activated, the
Quest Dual Dehumidifier will circulate the indoor air, and bring in fresh air from outside. The ventilation timer should be set for
the required ventilation of the residence. The structure should be ventilated with fresh air as suggested by applicable codes and
standards.
If the Quest Dual Dehumidifier fails to ventilate as expected, check that the time on the timer is correct. For the timer to carry
out the program schedule, the slide switch in the upper left corner on the timer must be set to “AUTO”. The slide switch in the
upper right corner of the Quest Dual Dehumidifier must be set to “RUN”. Also check the programs on the timer to be sure that
the timer is calling for ventilation at the correct times. If the timer fails to operate or operates erratically, reset the timer; see
section 4.5 of this manual.
7.8 Defrost Thermostat
The defrost thermostat is attached to the refrigerant suction tube between the accumulator and the compressor. It will
automatically shut the compressor o if the low side refrigerant temperature drops due to excessive frost formation on the
evaporator coil. The impeller fan will continue to run, causing air to flow through the evaporator coil and melt the ice. When the ice
has melted, the evaporator temperature will rise and the thermostat will restart the compressor.
7.9 Electric Ventilation Damper
The electric ventilation damper is controlled by the ventilation timer. The damper will open when the ventilation timer is activated
to allow fresh air into the structure through the 6” diameter fresh air inlet duct. The electric ventilation damper will remain closed
when the ventilation timer is not activated to prevent over-ventilating the structure when the unit is dehumidifying or recirculating
the indoor air.
The electric ventilation timer operates on 24 VAC from the control circuit. DO NOT connect high voltage to the damper motor
or damage to the motor may result. DO NOT force the blade of the damper by hand or damage to the damper motor may result.
The damper opens in one direction only. The damper rotates very slowly, allow sucient time for the damper to cycle. The damper
will take approximately 1 minute to cycle from closed to open or from open to closed.
If the electric ventilation damper fails to operate:
1. Check that the wiring is correct and that voltage is present at the damper motor.
2. Check for any obstruction inside the damper. If the electric ventilation damper fails to operate after performing these checks, it
must be replaced.
1-877-420-1330
Quest 105/155/205/225 Dual Installation, Operation and Maintenance Instructions
15 www.QuestHydro.com
info@QuestHydro.com
7.10 Condensate Pump Kit
An optional condensate pump kit is available from the factory for use with the Quest Dual Dehumidifier. Condensate is
automatically pumped to a remote location when the water level in the pump's reservoir rises to close the float switch.
The pump also contains a safety float switch. The white leads from this switch extend from beneath the pump cover. This switch
should be installed in series with the field wire that connects the blue (#5) lead from the Quest Dual Dehumidifier to the blue (#5)
lead on the control panel.
If the pump fails, this switch opens the compressor control circuit and stops water production before the reservoir overflows. The
Quest Dual Dehumidifier will continue to ventilate or circulate air as normal, but will not dehumidify until this switch closes.
1-877-420-1330
Quest 105/155/205/ 225 Dual Installation, Operation and Maintenance Instructions
16 www.QuestHydro.com
info@QuestHydro.com
Wiring Diagram of the Quest Dual Dehumidifier
BLK (CORD)
BLK (CORD)
LINE NEUTRAL
WHT (CORD)
WHT-22, WHT (CORD)
BLK-21
BLK-20
BLK-8,20
BLK-8
YEL-11
YEL-11, 24 BLU-25
24V
YEL-9 RED-14, 15
RED-15, 16
COM
DEHU FAN DAMPER
COMMON
DEHUMIDISTAT
WHT-22
24V
BLU-2
BLU-19
BLU-18
BLU-23
GRN-17
GRN-12
BLU
YEL-6
COMP.
RELAY
BLOWER
RELAY
3A
BREAKER
COMP.
RELAY RELAY
RELAY
COIL
BLOWER
RELAY
COIL
COIL
COMP.
BLOWER
DEFROST
SWITCH
XFMR
LINE
RED-5
RED-5, BLU-2
RED-14
RED-16
RED-13
GRN
GRN-10
GRN-4
4037525
BLK-1
BRN-3 BRN
BLK-7
BLK
BLOWER
CAPACITOR
COMP.
CAPACITOR
YEL-24
1-877-420-1330
Quest 105/155/205/225 Dual Installation, Operation and Maintenance Instructions
17 www.QuestHydro.com
info@QuestHydro.com
Service Parts List
Item Part No Qty Description
1 4021475 1 Air Filter 16x20x2" MERV-11
2 4026221 4 Foot, Leveling, 5/16-18 x 2.25
3 4031085-02 1 Condenser Coil
4 4031086-05 1 E-Coat Evaporator Coil
5 4029510 1 Filter/Drier
6 4032229 1 (225 Dual) Thermostat, Defrost Control
7 4036493 1 (225 Dual) Compressor
4036516 1 (225 Dual) Compressor Overload
NOT SHOWN
Item Part No Qty Description
8 4036492 1 (225 Dual) Impeller
9 4033032-05 1 (225 Dual) Capacitor,
Run, 45 MFD, 370V
10 4035235-02 1 (225 Dual) Capacitor,
Fan, 5 MFD, 370V, Dry
11 4020924 1 Relay, SPDT, 24V, 15A
12 4022484 1 Relay, SPST, 24V, 30A
13 4036398 1 XFMR, 240V, 50/60Hz, 24V, 40VA
14 4036559 1 Circuit Breaker NOT SHOWN
2
34567
8
9
10
11
12
13
1
PART NO. QTY. DESCRIPTION
4020175 1 Controller, Humidity
4028614 1 Pump Kit (110-120V)
4028607 1 Supply Duct Kit
4028610 1 Return Duct Kit
PART NO. QTY. DESCRIPTION
4028531 1 DEH 3000R Control, Remote
4036668 2 Bracket, Hanging (2 Required)
4036686 1 Ratchet, 1/4” (Set of 4)
Optional Parts List
1-877-420-1330
Quest 105/155/205/ 225 Dual Installation, Operation and Maintenance Instructions
18 www.QuestHydro.com
info@QuestHydro.com
Quest Dual Dehumidifier Limited Warranty
WARRANTOR:
Therma-Stor LLC
4201 Lien Rd
Madison, WI 53704
Telephone: 1-800-533-7533
WHO IS COVERED: This warranty extends only to the original end-user of the Quest Dual Dehumidifier dehumidifier,
and may not be assigned or transferred.
FIRST YEAR WARRANTY: Therma-Stor LLC warrants that, for one (1) year the Quest Dual Dehumidifier
dehumidifier will operate free from any defects in materials and workmanship, or Therma-Stor LLC will, at its option,
repair or replace the defective part(s), free of any charge.
SECOND THROUGH FIFTH YEAR WARRANTY: Therma-Stor LLC further warrants that for a period of five (5)
years, the condenser, evaporator, and compressor of the Quest Dual Dehumidifier dehumidifier will operate free of
any defects in material or workmanship, or Therma-Stor LLC, at its option, will repair or replace the defective part(s),
provided that all labor and transportation charges for the part(s) shall be borne by the end-user.
END-USER RESPONSIBILITIES: Warranty service must be performed by a Servicer authorized by Therma-Stor LLC.
If the end-user is unable to locate or obtain warranty service from an authorized Servicer, he should call Therma-Stor
LLC at the above number and ask for the Therma-Stor LLC Service Department, which will then arrange for covered
warranty service. Warranty service will be performed during normal working hours.
The End-user must present proof of purchase (lease) upon request, by use of the warranty card or other reasonable and
reliable means. The end-user is responsible for normal care. This warranty does not cover any defect, malfunction, etc.
resulting from misuse, abuse, lack of normal care, corrosion, freezing, tampering, modification, unauthorized or improper
repair or installation, accident, acts of nature or any other cause beyond Therma-Stor LLC's reasonable control.
LIMITATIONS AND EXCLUSIONS: If any Quest Dual Dehumidifier Dehumidifier part is repaired or replaced, the
new part shall be warranted for only the remainder of the original warranty period applicable thereto (but all warranty
periods will be extended by the period of time, if any, that the Quest Dual Dehumidifier Dehumidifier is out of service
while awaiting covered warranty service).
UPON THE EXPIRATION OF THE WRITTEN WARRANTY APPLICABLE TO THE Quest Dual Dehumidifier
DEHUMIDIFIER OR ANY PART THEREOF, ALL OTHER WARRANTIES IMPLIED BY LAW, INCLUDING
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, SHALL ALSO EXPIRE. ALL
WARRANTIES MADE BY THERMA-STOR LLC ARE SET FORTH HEREIN, AND NO CLAIM MAY BE MADE
AGAINST THERMA-STOR LLC BASED ON ANY ORAL WARRANTY. IN NO EVENT SHALL THERMA-STOR
LLC, IN CONNECTION WITH THE SALE, INSTALLATION, USE, REPAIR OR REPLACEMENT OF ANY Quest
Dual Dehumidifier DEHUMIDIFIER OR PART THEREOF BE LIABLE UNDER ANY LEGAL THEORY FOR
ANY SPECIAL, INDIRECT OR CONSEQUENTIAL DAMAGES INCLUDING WITHOUT LIMITATION WATER
DAMAGE (THE END-USER SHOULD TAKE PRECAUTIONS AGAINST SAME), LOST PROFITS, DELAY, OR
LOSS OF USE OR DAMAGE TO ANY REAL OR PERSONAL PROPERTY.
Some states do not allow limitations on how long an implied warranty lasts, and some do not allow the exclusion or
limitation of incidental or consequential damages, so one or both of these limitation may not apply to you.
LEGAL RIGHTS: This warranty gives you specific legal rights, and you may also have other rights which vary from state
to state.

Navigation menu
