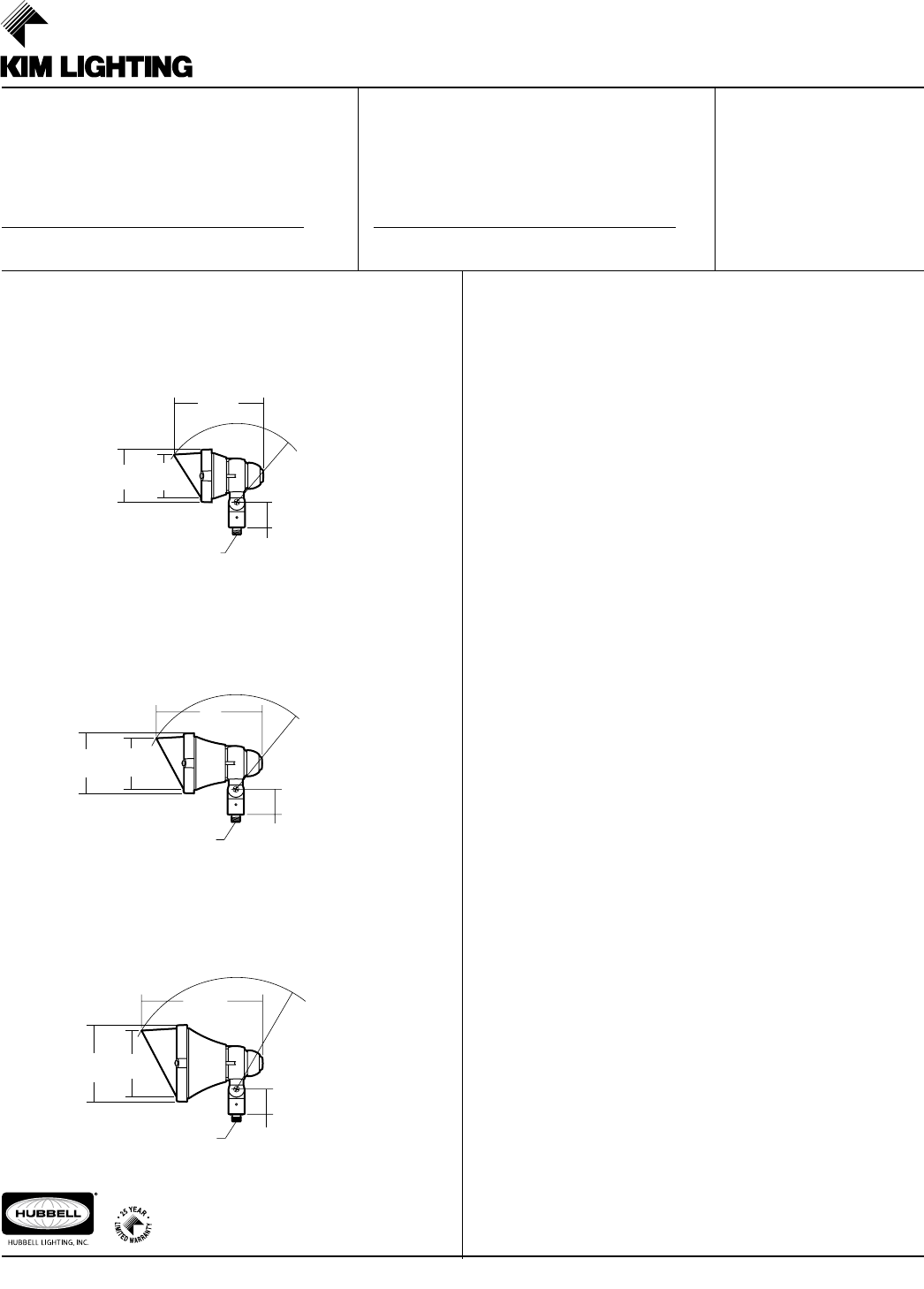

Specifications
ScarabTM C700
120 to 277 Volt Die-Cast Brass LED
revision 9/5/13 • kl_c700led_spec.pdf
Housing: Die-cast brass body and lens frame.
Swivel: Die-cast brass with locking teeth and K" solid brass
NPT mount. Provides horizontal rotation independent of the
threaded mount. Swivel locked by J-20 stainless set screw.
Gasketing: Silicone gaskets throughout.
Fasteners: Stainless steel.
Wiring: No. 18AWM rated 105°C.
Optical System: High performance acrylic optic securely
attached to internal heat sink for maximum thermal dissipation.
Driver: Universal Voltage from 120 to 277V with a ±10%
tolerance. -40ºF. starting temperature. All drivers are
Underwriters Laboratories recognized.
Finish: Natural Brass (NB) and Verde Green Patina (VG).
Listed to: UL 1598 Standard for Luminaires - UL 8750
Standard for Safety for Light Emitting Diode (LED) Equipment
for use in Lighting Products and CAN/CSA C22.2 No. 250.0
-08 Luminaires. LEDs and drivers are RoHS compliant.
CAUTION: Fixtures must be grounded in accordance with
national, state and/or local electrical codes, Failure to do so
may result in serious personal injury.
© 2013 KIM LIGHTING INC. • P.O. BOx 60080, City Of industry, CA 91716-0080 • tEL: 626/968-5666 • fAx: 626/369-2695
Type:
Job:
Fixture Catalog number:
Fixture and Finish
Date:
Page: 1 of 4
Approvals:
u.s. PAtEnt d424,731 KiM LiGHtinG rEsErVEs tHE riGHt tO CHAnGE sPECifiCAtiOns WitHOut nOtiCE.
Fixture Options:
Ordered separately from fixture, see page 3.
See 120 Volt Mounting Options Spec Sheet for mounting options
3D"
(92 mm)
4K"
(114 mm)
7
K"
(191 mm)
6D"r.
K" NPT 2B"
(54 mm)
10M"
(262 mm) 9K"r.
5D"
(143 mm)
6K"
(165 mm)
2B"
(54 mm)
K" NPT
9"
(229 mm)
4M"
(110 mm)
5B"
(130 mm)
2B"
(54 mm)
K" NPT
8"r.
C700/7L
7 Light Emitting Diodes
C700/9L
9 Light Emitting Diodes
C700/12L
12 Light Emitting Diodes
ScarabTM C700
120 to 277 Volt Die-Cast Brass LED
revision 9/5/13 • kl_c700led_spec.pdf
Page: 2 of 4
Type:
Job:
© 2013 KIM LIGHTING INC. • P.O. BOx 60080, City Of industry, CA 91716-0080 • tEL: 626/968-5666 • fAx: 626/369-2695
Fixture Source
l C700S3/7L3KUV1 350mA, 9W, 7 LEDs, 3000K
l C700S3/7L4KUV1 350mA, 9W, 7 LEDs, 4200K
l C700S3/7L5KUV1 350mA, 9W, 7 LEDs, 5100K
l C700F3/7L3KUV1 350mA, 9W, 7 LEDs, 3000K
l C700F3/7L4KUV1 350mA, 9W, 7 LEDs, 4200K
l C700F3/7L5KUV1 350mA, 9W, 7 LEDs, 5100K
l C700S3/9L3KUV1 350mA, 11W, 9 LEDs, 3000K
l C700S3/9L4KUV1 350mA, 11W, 9 LEDs, 4200K
l C700S3/9L5KUV1 350mA, 11W, 9LEDs, 5100K
l C700F3/9L3KUV1 350mA, 11W, 9 LEDs, 3000K
l C700F3/9L4KUV1 350mA, 11W, 9 LEDs, 4200K
l C700F3/9L5KUV1 350mA, 11W, 9LEDs, 5100K
l C700S3/12L3KUV1 350mA, 14W, 12 LEDs, 3000K
l C700S3/12L4KUV1 350mA, 14W, 12 LEDs, 4200K
l C700S3/12L5KUV1 350mA, 14W, 12 LEDs, 5100K
l C700F3/12L3KUV1 350mA, 14W, 12 LEDs, 3000K
l C700F3/12L4KUV1 350mA, 14W, 12 LEDs, 4200K
l C700F3/12L5KUV1 350mA, 14W, 12 LEDs, 5100K
1S = Spot, F = Narrow Flood, UV = Universal Voltage from 120 to 277V
with a ±10% tolerance.
Standard Features
Ordering Information
Finish Color: Natural Brass Verde Green Patina
Cat. No.: l NB l VG
ScarabTM C700
120 to 277 Volt Die-Cast Brass LED
revision 9/5/13 • kl_c700led_spec.pdf
Page: 3 of 4
Type:
Job:

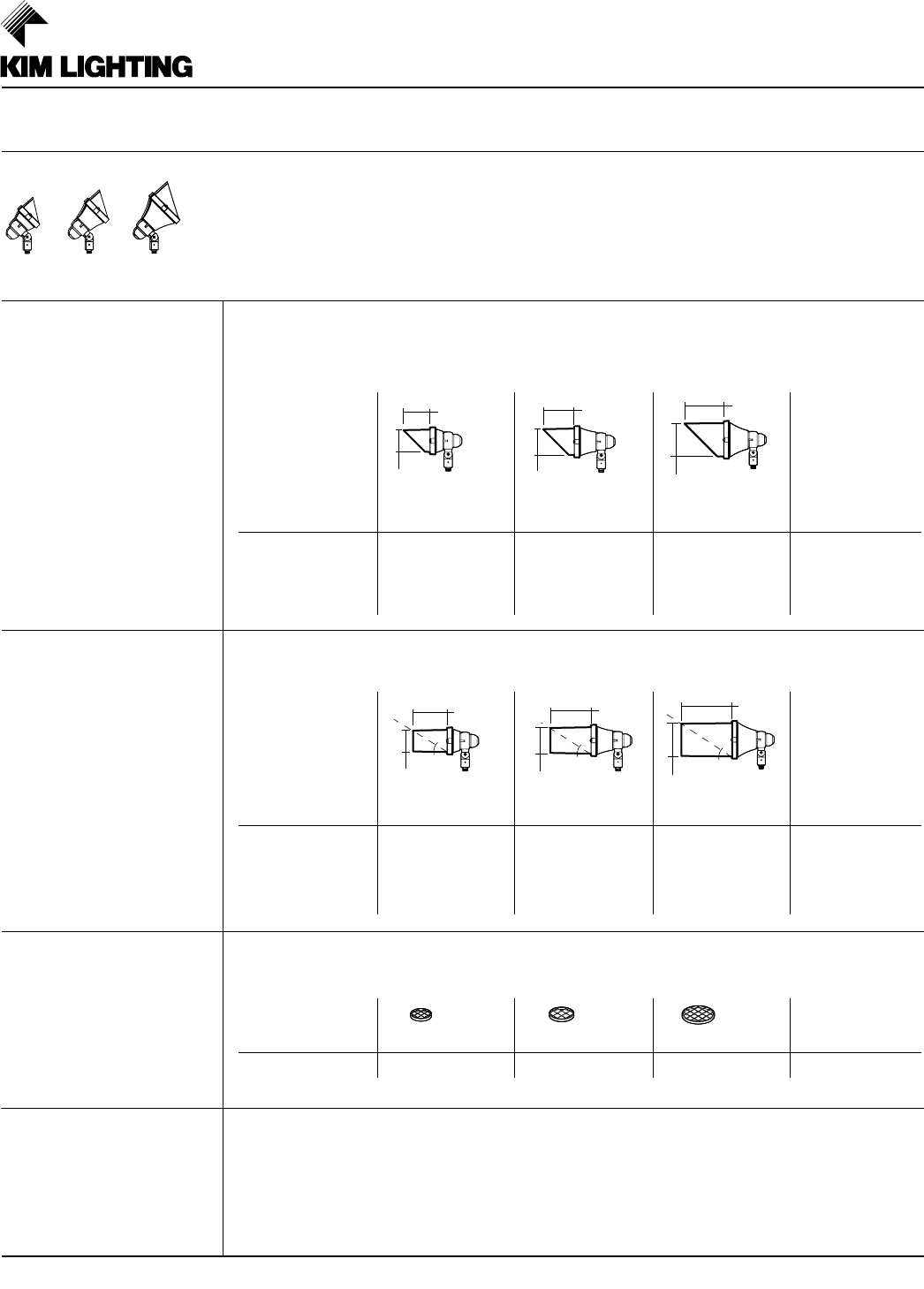

Fixture Options
Ordered Separately from Fixture
© 2013 KIM LIGHTING INC. • P.O. BOx 60080, City Of industry, CA 91716-0080 • tEL: 626/968-5666 • fAx: 626/369-2695
Spun aluminum shield with 45° cut and drain hole. Includes die-cast low copper alloy
(< 0.6%) aluminum lens ring. The shield is rotatable 360°. Replaces standard lens
ring/hood on fixture.
Spun aluminum shield with drain hole. Includes die-cast low copper aluminum lens ring.
Replaces standard lens ring/hood on fixture.
Stainless steel wire screen welded to flange, and held in place with spring clips. Screen inserts
inside full glare shield only. All debris screens are black iridite colored.
Refer to 120 Volt Mounting Options Spec Sheet
http://www.kimlighting.com/content/products/specs/specs_files/kl_120vmounting_spec.pdf
for individual mounting options.
Aluminum
Adjustable Glare Shield
Aluminum
Full Glare Shield
Debris Screen
Mounting
3N" DIA.
(91 mm)
4M"
(110 mm)
3G" DIA.
(87 mm)
5D"
(143 mm)
31° cutoff
3N" DIA.
(91 mm)
4M"
(110 mm)
3G" DIA.
(87 mm)
5D"
(143 mm)
31° cutoff
3N" DIA.
(91 mm)
4M"
(110 mm)
3G" DIA.
(87 mm)
5D"
(143 mm)
31° cutoff
5H" DIA.
(145 mm)
6L"
(172 mm)
5N" DIA.
(141 mm)
8L"
(222 mm)
32° cutoff
5H" DIA.
(145 mm)
6L"
(172 mm)
5
N"
DIA.
(141 mm)
8L"
(222 mm)
32° cutoff
5H" DIA.
(145 mm)
6L"
(172 mm)
5N" DIA.
(141 mm)
8L"
(222 mm)
32° cutoff
Finish C700/7L C700/9L C700/12L
Natural Copper l AGS72NB l AGS73NB l AGS74NB l No Option
and Brass
Verde Green l AGS72VG l AGS73VG l AGS74VG l No Option
Patina
Finish C700/7L C700/9L C700/12L
Black l DS72 l DS73 l DS74 l No Option
4F" DIA.
(106 mm)
5A"
(129 mm)
4A" DIA.
(103 mm)
6D"
(168 mm)
31.5° cutoff
4F" DIA.
(106 mm)
5A"
(129 mm)
4A" DIA.
(103 mm)
6D"
(168 mm)
31.5° cutoff
4F" DIA.
(106 mm)
5A"
(129 mm)
4A" DIA.
(103 mm)
6D"
(168 mm)
31.5° cutoff
Finish C700/7L C700/9L C700/12L
Natural Copper l FGS72NB l FGS73NB l FGS74NB l No Option
and Brass
Verde Green l FGS72VG l FGS73VG l FGS74VG l No Option
Patina
ScarabTM C700
120 to 277 Volt Die-Cast Brass LED
revision 9/5/13 • kl_c700led_spec.pdf
Page: 4 of 4
Type:
Job:
Lumen Data
© 2013 KIM LIGHTING INC. • P.O. BOx 60080, City Of industry, CA 91716-0080 • tEL: 626/968-5666 • fAx: 626/369-2695
Electrical Drive Current
Current C700-7L C700-9L C700-12L
Volts -AC Amps - AC System Watts Volts -AC Amps - AC System Watts Volts -AC Amps - AC System Watts
350mA
120 0.08 9 120 0.09 11 120 0.13 14
208 0.05 9 208 0.06 11 208 0.08 14
240 0.04 9 240 0.05 11 240 0.07 14
277 0.04 9 277 0.04 11 277 0.06 14
Absolute Lumens
Current C700-7L C700-9L C700-12L
Temp. Spot Narrow Flood Temp. Spot Narrow Flood Temp. Spot Narrow Flood
350mA
3000K 806 502 3000K 1031 714 3000K 1334 918
4200K 1047 661 4200K 1339 939 4200K 1778 1208
5100K 1173 741 5100K 1500 1024 5100K 1938 1317
LED performance and lumen output continues to improve at a rapid pace. Log onto www.kimlighting.com to download the most current photometric les from Kim Lighting’s IES File Library.
For custom optics and color temperature congurations, contact factory.
Spectroradiometric
3000K 4200K 5100K
Correlated Color Temp. CCT (K) 2800 to 3175K 3800 to 4600K 4600 to 5600K
Color Rendering Index (CRI) ≤80 ≤80 ≤70
Power Factor >.90 @ 120V >.90 @ 120V >.90 @ 120V
Main Beam Candela and Beam Angle
Current
C700-7L C700-9L C00-12L
Temp. Spot Beam° Narrow
Flood Beam° Temp. Spot Beam° Narrow
Flood Beam° Temp. Spot Beam° Narrow
Flood Beam°
350mA
3000K 5553 15° 1170 35° 3000K 6499 15° 3134 35° 3000K 9528 15° 3782 35°
4200K 7214 15° 1544 35° 4200K 8441 15° 4121 35° 4200K 12699 15° 4977 35°
5100K 8082 15° 1730 35° 5100K 9456 15° 4494 35° 5100K 13842 15° 5426 35°
Projected Lumen Maintenance
TM21-11* 100,000 hrs Calulated (L70)
.97 .96 1,003,000 hrs
* 60,000 hrs, 350mA, Ts 46-51°C / 25°C ambient.
