PM Parts Manual PD 01013 MS920CEMFG G400

: Pdf Pd-01013 Ms920Cemfg G400 PD-01013_MS920CEMFG_G400 toto

Open the PDF directly: View PDF .
Page Count: 1

MS920CEMFG

CeFiONtect™

3D Tornado™, 12" Modular Rough-In,

1.28Gpf / 0.9Gpf Toilet, Elongated,

MS920CEMFG

SN920M

CT920CEMFG

G400

Two-Piece Toilet

(MS) Toilet & Seat Combination

(920) Model

(CEM) 3D Tornado™

(F) Universal Height

(G) CeFiONtect™

(SN) Washlet

(920) Model

(M) Dual Flush

Bowl Unit

(CT) Bowl

(920) Model

(C) Tornado Flush™

(E) HET

(F) Universal Height

(G) CeFiONtect™

Washlet Unit

Product Number Explanations

Note:

Item Part Descri

p

tion

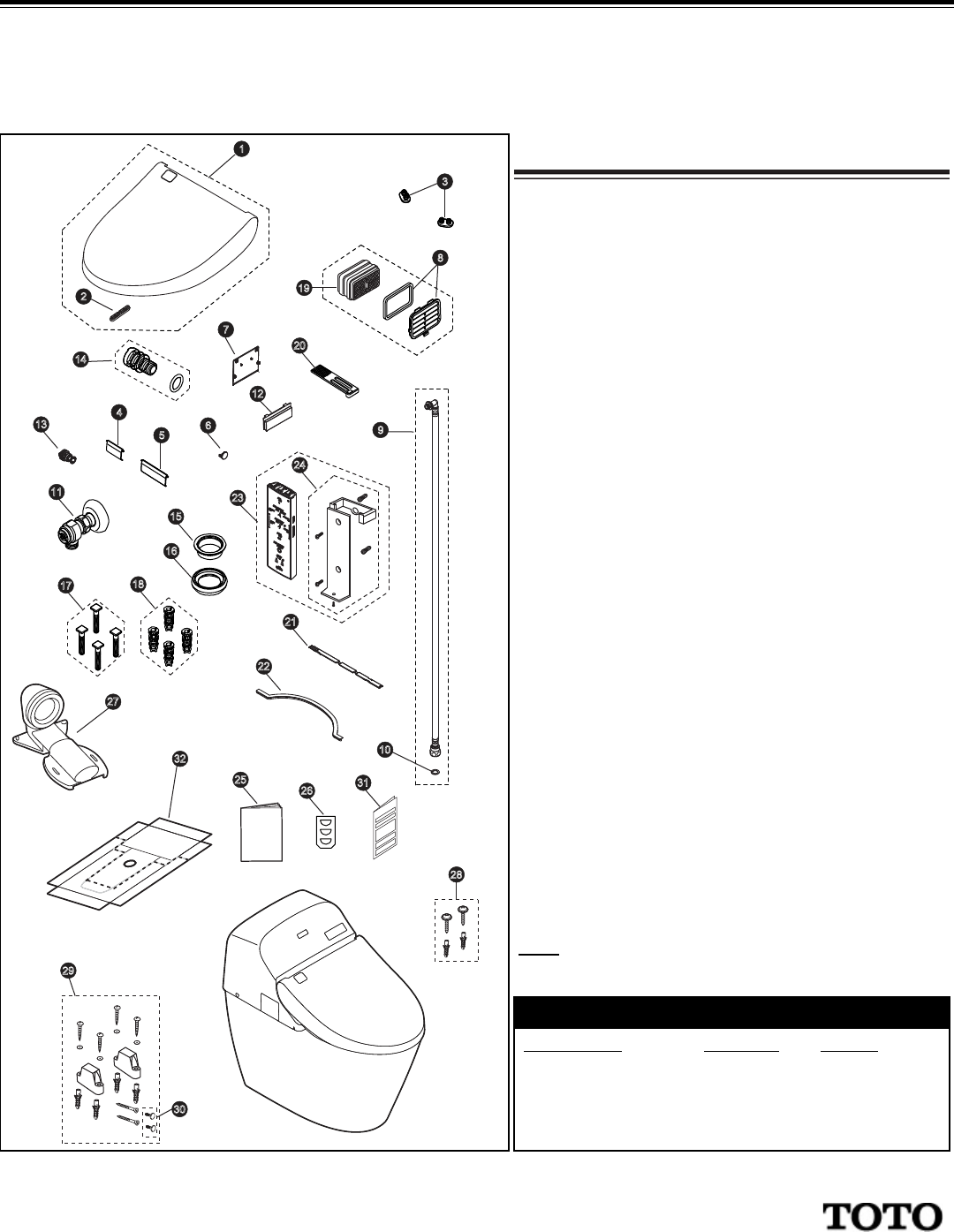

Actual Product may vary slightly from illustration.

1 THU9870#01Lid Assembly (cotton)

THU9870#12Lid Assembly (sedona beige)

2 THU9871Lid Bumper

3 THU9337Seat Bumpers

4 THU9810 Wand Door

5 THU9811 Dryer Door

6 THU9874#01Screw Cap (cotton)

THU9874#12Screw Cap (sedona beige)

7 THU9875#01Drain Plug Cover (cotton)

THU9875#12Drain Plug Cover (sedona beige)

8 THU9814Deodorizer Louver

9 THU9891 Water Connection Hose

10 THU9500 Water Connection Hose Gasket

11 THU9508 Water Supply Valve

12 THU9895#01Side Cover Plate (cotton)

THU9895#12Side Cover Plate (sedona beige)

13 THU9833 Water Strainer

14 THU9501Drain Plug Assembly

15 THU9506 Flush Connection Nut

16 THU9507 Flush Connection Gasket

17 THU9504 Mounting Bolt (x4)

18 THU9505 Mounting Nut (x4)

19 THU9476Deodorizer Catalyst

20 THU9619Deodorizer Air Filter

21 THU9847Lever Cover

22 THU9807Gasket

23 THU9958Remote Control Assembly

24 THU9853Remote Control Hanger Assembly

25 THU9908 Instruction Manual (top unit)

26 THU9909Sensor Adjusting Stickers

27 THU9910Rough-in Socket

28 THU394 Socket Mounting Hardware Kit

29 THU395 Mounting Block Hardware Kit

30 9AU284#01Bowl Screw Cover (x2) (cotton)

9AU284#12 Bowl Screw Cover (x2) (sedona beige)

31 THU9911Installation Manual (bowl unit)

PD-01013Parts Manual - February 2016
