Philips Consumer Lifestyle Home Theater users manual1

Contents

users manual1

www.philips.com/welcome
User manual
Always there to help you
Register your product and get support at
Question?
Contact
Philips
1EN
Contents
1 Important 2
Help and support 2
Important safety instructions 2
Care for your product 4
Care of the environment 4
2 Your SoundBar 5
Main unit 5
Remote control 5
Connectors 6
3 Connect 7
Placement 7
Connect audio from TV and other devices 7
4 Use your SoundBar 9
Adjust the volume 9
Choose your sound 9
MP3 player 9
USB storage devices 9
Auto standby 10
Play audio through Bluetooth 10
Apply factory settings 10
5 Wall mount 11
6 Productspecications 12
7 Troubleshooting 13
8 Notice 14
Notice of compliance 14
Trademarks 14
2 3ENEN
• Install all batteries correctly, + and - as
marked on the unit.
• Do not mix batteries (old and new or
carbon and alkaline, etc.).
• Remove batteries when the unit is not
used for a long time.
• The batteries shall not be exposed to
excessiveheatsuchassunshine,reor
the like.
• Perchlorate Material - special handling
may apply. See www.dtsc.ca.gov/
hazardouswaste/perchlorate.
• The product/remote control may contain
a coin/button type battery, which can be
swallowed. Keep the battery out of reach
of children at all times! If swallowed, the
battery can cause serious injury or death.
Severe internal burns can occur within two
hours of ingestion.
• If you suspect that a battery has been
swallowed or placed inside any part of the
body, seek immediate medical attention.
• When you change the batteries, always
keep all new and used batteries out of
reach of children. Ensure that the battery
compartment is completely secure after
you replace the battery.
• If the battery compartment cannot be
completely secured, discontinue use of the
product. Keep out of reach of children and
contact the manufacturer.
•Apparatus shall not be exposed to
dripping or splashing.
•Do not place any sources of danger on
the apparatus (forexample.liquidlled
objects, lighted candles).
•This apparatus may contain lead and
mercury. Dispose according to local, State
or Federal laws. For disposal or recycling
information, please contact your local
authorities. For additional assistance on
recycling options, please contact www.
mygreenelectronics.com or www.eiae.org
or www.recycle.philips.com.
•Where the MAINS plug or an appliance
coupler is used as the disconnect device,
the disconnect device shall remain readily
operable.
•Do not place this apparatus on the
furniture that is capable of being tilted by a
child and an adult leaning, pulling, standing
or climbing on it. A falling apparatus can
cause serious injury or even death.
• This apparatus should not be placed in a
built-in installation such as a bookcase or
rack unless proper ventilation is provided.
Make sure to leave a space of 7.8 inches
(20cm) or more around this apparatus.
Class II equipment symbol
This symbol indicates that the unit has a double
insulation system.
This 'bolt of lightning' indicates uninsulated
material within your unit may cause an electrical
shock. For the safety of everyone in your
household, please do not remove product
covering.
The 'exclamation point' calls attention to
features for which you should read the enclosed
literature closely to prevent operating and
maintenance problems.
WARNING:Toreducetheriskofreor
electric shock, this apparatus should not be
exposedtorainormoistureandobjectslled
with liquids, such as vases, should not be placed
on this apparatus.
CAUTION: To prevent electric shock, match
wide blade of plug to wide slot, fully insert.
1 Important
Read and understand all instructions before you
use your product. If damage is caused by failure
to follow instructions, the warranty does not
apply.
Help and support
Philips provides extensive online support. Visit
our website at www.philips.com/support to:
• download the user manual and the quick
start guide
• watch video tutorials (available only for
selected models)
• ndanswerstofrequentlyanswered
questions (FAQs)
• email us a question
• chat with our support representative.
Follow the instructions on the website to select
your language, and then enter your product
model number.
Alternatively, you can contact Philips Consumer
Care in your country. Before you contact
Philips, note down the model number and
serialnumberofyourproduct.Youcanndthis
information on the back or bottom of your
product.
Important safety instructions
•Read these instructions.
•Keep these instructions.
•Heed all warnings.
•Follow all instructions.
•Do not use this apparatus near water.
•Clean only with dry cloth.
•Do not block any ventilation openings.
Install in accordance with the
manufacturer's instructions.
•Do not install near any heat sources
such as radiators, heat registers, stoves, or
otherapparatus(includingampliers)that
produce heat.
•Do not defeat the safety purpose of
the polarized or grounding-type plug. A
polarized plug has two blades with one
wider than the other. A grounding type
plug has two blades and a third grounding
prong. The wide blade or the third prong
are provided for your safety. If the provided
plugdoesnottintoyouroutlet,consult
an electrician for replacement of the
obsolete outlet.
•Protect the power cord from being
walked on or pinched, particularly at plugs,
convenience receptacles, and the point
where they exit from the apparatus.
•Only use attachments/accessories
speciedbythemanufacturer.
•Use only with the cart, stand, tripod,
bracketortablespeciedbythe
manufacturer or sold with the apparatus.
When a cart is used, use caution when
moving the cart/apparatus combination to
avoid injury from tip-over.
•Unplug this apparatus during lightning
storm or when unused for long periods of
time.
•Refer all servicing toqualiedservice
personnel. Servicing is required when
the apparatus has been damaged in any
way, such as power-supply cord or plug
is damaged, liquid has been spilled or
objects have fallen into the apparatus, the
apparatus has been exposed to rain or
moisture, does not operate normally, or
has been dropped.
•Battery usage CAUTION - To prevent
battery leakage which may result in bodily
injury, property damage, or damage to the
unit:
4 5ENEN
2 Your SoundBar
Congratulations on your purchase, and
welcometoPhilips!Tofullybenetfrom
the support that Philips offers, register your
SoundBar at www.philips.com/welcome.

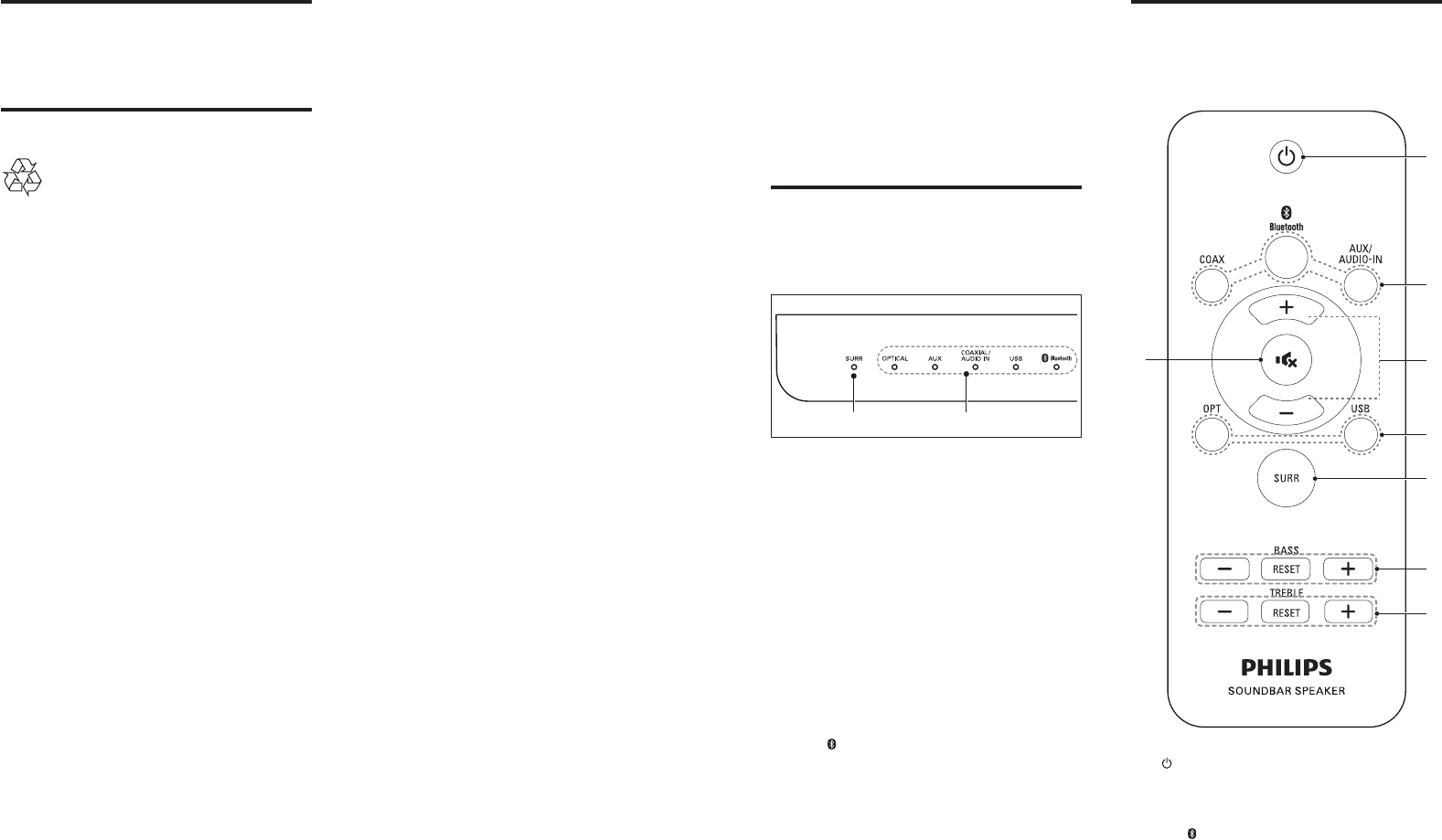

Main unit
This section includes an overview of the main
unit.
a SURR indicator
Lights up when you select Virtual Surround
sound.
b Source indicators
• OPTICAL: Lights up when you switch
to optical input source.
• AUX: Lights up when you switch to
analog input source.
• COAXIAL / AUDIO IN
Lights up when you switch to coaxial
input source.
Lights up when you switch to audio
input source (3.5mm jack).
• Bluetooth
Lights up when you switch to
Bluetooth mode and Bluetooth devices
are paired.
Blinks when you switch to Bluetooth
mode and Bluetooth devices are not
paired.
ab
Remote control
This section includes an overview of the
remote control.
a (Standby-On)
Switch the SoundBar on or to standby.
b Source buttons
• Bluetooth: Switch to Bluetooth
mode.
• COAX: Switch your audio source to
the coaxial connection.
• AUX / AUDIO-IN:
a
c
d
g
e
f
b
b
Care for your product
Useonlymicroberclothtocleantheproduct.
Care of the environment
Your product is designed and manufactured
with high quality materials and components,
which can be recycled and reused. Please
visit www.recycle.philips.com for additional
information on a recycling center in your area.
Never dispose of your product with other
household waste. Please inform yourself about
the local rules on the separate collection of
electrical and electronic products and batteries.
The correct disposal of these products helps
prevent potentially negative consequences on
the environment and human health.
The batteries supplied do not contain the heavy
metals mercury and cadmium. Nevertheless,
in many areas batteries may not be disposed
of with your household waste. Please ensure
you dispose of batteries according to local
regulations.
For perchlorate material, special handling may
apply. Visit www.dtsc.ca.gov/hazardouswaste/
perchlorate.
6 7ENEN
3 Connect
This section helps you connect your SoundBar
to a TV and other devices.
For information about the basic connections of
your SoundBar and accessories, see the quick
start guide.
Note
•Foridenticationandsupplyratings,refertothetype
plate at the back or bottom of the product.
•Before you make or change any connections, make sure
that all devices are disconnected from the power outlet.

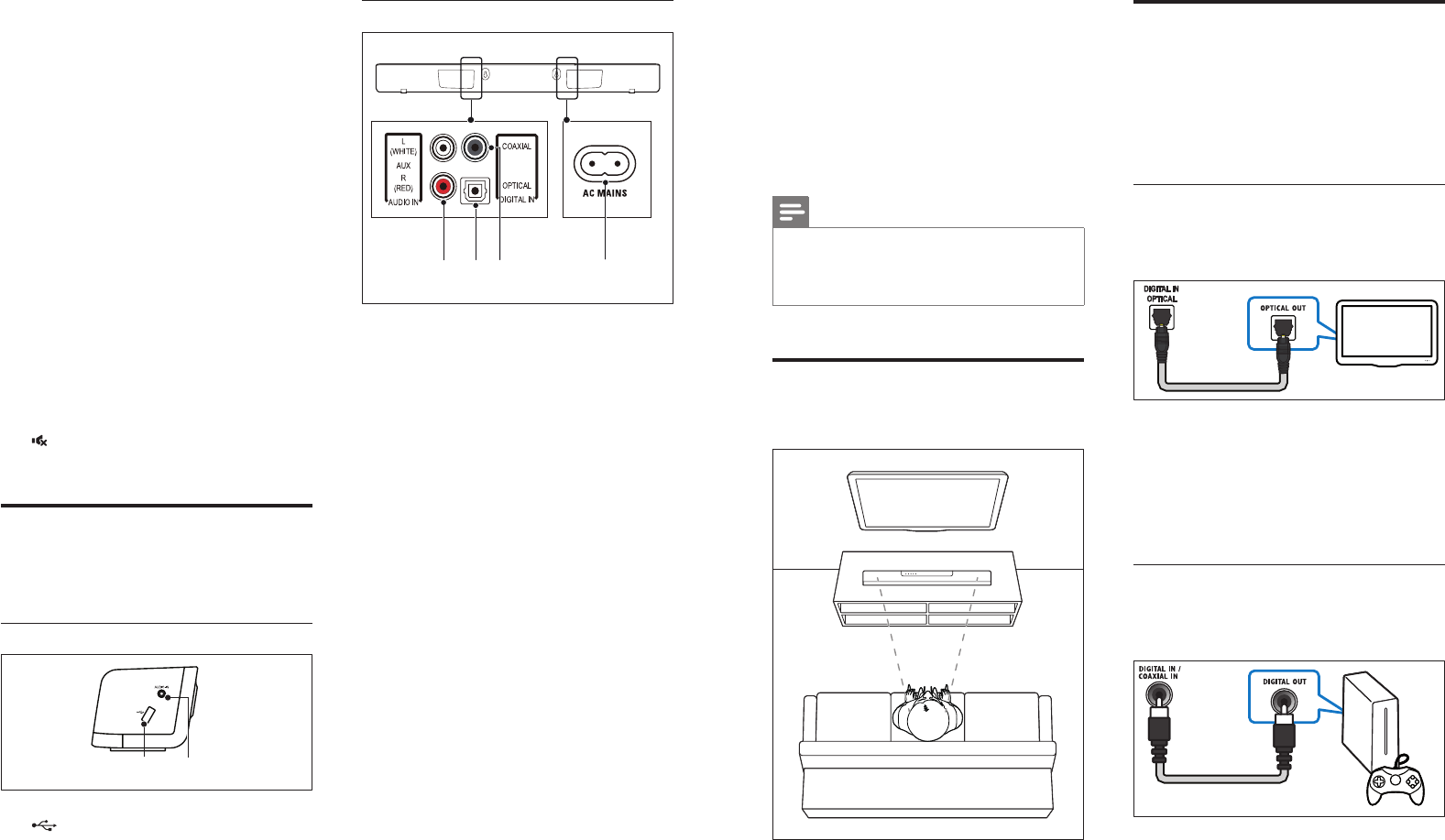

Placement
Place your Soundbar as shown below.
Connect audio from TV and
other devices
Play audio from TV or other devices through
your Soundbar.
Use the best quality connection available on
your TV and other devices.
Option 1: Connect audio through a
digital optical cable
Best quality audio
1 Using an optical cable, connect the
OPTICAL connector on your SoundBar to
the OPTICAL OUT connector on the TV
or other device.
• The digital optical connector might be
labeled SPDIF or SPDIF OUT.
Option 2: Connect audio through a
digital coaxial cable
Good quality audio
1 Using a coaxial cable, connect the
COAXIAL connector on your SoundBar
to the COAXIAL/DIGITAL OUT
connector on the TV or other device.
TV
Switch your audio source to the AUX
connection.
Switch your audio source to audio in
connection.
• OPT: Switch your audio source to the
optical connection.
• USB: Switch your audio source to the
USB connection.
c +/- (Volume)
• Increase or decrease volume.
d SURR
• Toggle between stereo and virtual
surround sound.
e BASS +/- / RESET
• Increase or decrease bass.
• Set the bass to the default settings.
f TREBLE +/- / RESET
• Increase or decrease treble.
• Set the treble to the default settings.
g
Mute or restore volume.
Connectors
This section includes an overview of the
connectors available on your SoundBar.
Side right
a (USB)
Audio input from a USB storage device.
b AUDIO IN
Audio input from an MP3 player (3.5mm
jack).
a b
Rear connectors
a AUDIO IN-AUX
Connect to an analog audio output on the
TV or an analog device.
b DIGITAL IN-OPTICAL
Connect to an optical audio output on the
TV or a digital device.
c DIGITAL IN-COAXIAL
Connect to a coaxial audio output on the
TV or a digital device.
d AC MAINS~
Connect to the power supply.
bac d
8 9ENEN
4 Use your
SoundBar
This section helps you use the SoundBar to play
audio from connected devices.
Before you start
• Make the necessary connections described
in the Quick Start Guide or download
the User Manual from www.philips.com/
support.
• Switch the SoundBar to the correct source
for other devices.
Adjust the volume
1 Press +/- (Volume) to increase or decrease
a volume level.
• To mute sound, press (MUTE).
• To restore the sound, press (MUTE)
again or press +/- (Volume).
» All Source indicators on the main unit
blink twice when a volume is set to the
maximum or minimum value.
Choose your sound
This section helps you choose the ideal sound
for your video or music.
Surround sound mode
Experience an immersive audio experience with
surround sound modes.
1 Press SURR to turn surround mode on
or off.
• On: Create a surround listening
experience.
• Off: Two-channel stereo sound. Ideal
for listening to music.
Equalizer
Change the high frequency (treble) and low
frequency (bass) settings of the SoundBar.
1 Press TREBLE +/- or BASS +/- to change
the frequency.
» All Source indicators on the main unit
blink twice when treble or bass is set
to the maximum or minimum value.
2 To reset the bass and treble to the default
setting, press RESET.
MP3 player
Connect your MP3 player to play your audio
lesormusic.
What you need
• An MP3 player.
• A 3.5mm stereo audio cable.
1 Using the 3.5mm stereo audio cable,
connect the MP3 player to the AUDIO IN
connector on your SoundBar.
2 Press AUDIO-IN.
3 Press the buttons on the MP3 player to
selectandplayaudiolesormusic.
USB storage devices
Enjoy audio on a USB storage device, such as an
MP3playerandUSBashmemory,etc.
What you need
• A USB storage device that is formatted
forFATlesystems,andcomplieswiththe
Mass Storage Class.
• AnMP3orWMAleonaUSBstorage
device
1 Connect a USB storage device to the
SoundBar.
2 Press USB on the remote control.
» The play starts after a few seconds.
• The digital coaxial connector might be
labeled DIGITAL AUDIO OUT.
Option 3: Connect audio through
analog audio cables
Basic quality audio
1 Using an analog cable, connect the AUX
connectors on your SoundBar to the
AUDIO OUT connectors on the TV or
other device.
DVD
10 11ENEN
5 Wall mount
Note
•Koninklijke Philips Electronics N.V. bears no
responsibility for improper wall mounting that results
in accident, injury or damage. If you have any query,
contact Philips Consumer Care in your country.
•Before wall mounting, make sure the wall can support
the weight of your SoundBar.
Screw length/diameter
Depending on the type of wall mounting your
SoundBar, make sure that you use screws of a
suitable length and diameter.
For information about how to wall mount your
SoundBar, see the quick start guide.
> 25mm
3 - 3.5mm
Note
•This product may not be compatible with certain types
of USB storage device.
•If you use a USB extension cable, USB HUB, or USB
multi-reader, the USB storage device may not be
recognized.
•Digital camera PTP protocols are not supported.
•Do not remove the USB storage device while it is
being read.
•DRM-protectedmusicles(MP3,WMA)arenot
supported.
•Support a USB port: 5V , 500mA.
Auto standby
When playing media from a connected device,
the SoundBar automatically switches to standby
if:
• no button is pressed for 30 minutes, and
• no audio play from a connected device.
Play audio through Bluetooth
Through Bluetooth, connect the SoundBar with
your Bluetooth device (such as an iPad, iPhone,
iPod touch, Android phone, or laptop), and then
youcanlistentotheaudiolesstoredonthe
device through your SoundBar speakers.
What you need
• A Bluetooth device which supports
BluetoothproleA2DP,andwithBluetooth
version as 2.1 + EDR.
• The operational range between the
SoundBar and a Bluetooth device is
approximately 10 meters (30 feet).
1 Press Bluetooth on the remote control
to switch the SoundBar to Bluetooth
mode.
» The Bluetooth indicator blinks at a fast
rate.
2 On the Bluetooth device, switch on
Bluetooth, search for and select Philips
HTL2111A to start connection (see the
user manual of the Bluetooth device on
how to enable Bluetooth).
• When prompted for a password, enter
"0000".
» During connection, the Bluetooth
indicator blinks at a lower rate.
3 Wait until the Bluetooth lights up.
» If the connection fails, the Bluetooth
indicator blinks continually at a lower
rate.
4 Selectandplayaudiolesormusicon
your Bluetooth device.
• During play, if a call is coming, music
play is paused. Play resumes when the
call ends.
5 To exit Bluetooth, select other source.
• When your switch back to Bluetooth
mode, Bluetooth connection remains
active.
Note
•The music streaming may be interrupted by obstacles
between the device and SoundBar, such as wall, metallic
casing that covers the device, or other devices nearby
that operate in the same frequency.
•If you want to connect your SoundBar with another
Bluetooth device, disable the currently connected
Bluetooth device.
•Philips does not guarantee 100% compatibility with all
Bluetooth devices.
Apply factory settings
You can reset your SoundBar to the default
setting mode.
1 In mute mode, quickly press AUX twice.
» The factory settings is restored.
12 13ENEN
7 Troubleshooting
Warning
•Risk of electric shock. Never remove the casing of the
product.
To keep the warranty valid, never try to repair
the product yourself.
If you have problems using this product, check
the following points before you request service.
If you still have a problem, get support at www.
philips.com/support.
Sound
No sound from SoundBar speakers.
• Connect the audio cable from your
SoundBar to your TV or other devices.
• Reset your SoundBar to its factory settings.
• On the remote control, select the correct
audio input.
• Make sure that the SoundBar is not muted.
Distorted sound or echo.
• If you play audio from the TV through the
SoundBar, make sure that the TV is muted.
Bluetooth
A device cannot connect with the SoundBar.
• The device does not support the
compatibleprolesrequiredforthe
SoundBar.
• You have not enabled the Bluetooth
function of the device. See the user manual
of the device on how to enable the
function.
• The device is not correctly connected.
Connect the device correctly. (see 'Play
audio through Bluetooth' on page 10)
• The SoundBar is already connected with
another Bluetooth device. Disconnect the
connected device, then try again.
Quality of audio play from a connected
Bluetooth device is poor.
• The Bluetooth reception is poor. Move the
device closer to the SoundBar, or remove
any obstacle between the device and the
SoundBar.
The connected Bluetooth device connects and
disconnects constantly.
• The Bluetooth reception is poor. Move the
device closer to the SoundBar, or remove
any obstacle between the device and the
SoundBar.
• Turn off Wi-Fi function on the Bluetooth
device to avoid interference.
• For some Bluetooth, the Bluetooth
connection can be deactivated
automatically to save power. This does not
indicate any malfunction of the SoundBar.
6 Product
specifications
Note
•Specicationsanddesignaresubjecttochangewithout
notice.
Amplier
• FTC total output power 34W
• Left + Right : 34W (1%THD, 8ohm,
90Hz-20kHz)
• RMS total output power:
• 40W RMS (+/- 0.5 dB, 10% THD)
• ??W RMS (+/- 0.5 dB, 30% THD)
• Frequency response: 20 Hz-20 kHz / ±3
dB
• Signal-to-noise ratio: > 65 dB (CCIR) /
(A-weighted)
• Input sensitivity:
• AUX: 650 mV
• AUDIO IN: 400 mV
Audio
• S/PDIF Digital audio input:
• Coaxial: IEC 60958-3
• Optical: TOSLINK
• Sampling frequency:
• MP3: 8 kHz, 11 kHz, 12 kHz, 16 kHz, 22
kHz, 24 kHz, 32 kHz, 44.1 kHz, 48 kHz
• WMA: 44.1 kHz, 48 kHz
• Constant bit rate:
• MP3: 8 kbps-320 kbps
• WMA: 64 kbps-192 kbps
• Version:
• WMA: V7, V8, V9
USB
• Compatibility: Hi-Speed USB (2.0)
• Class support: USB Mass Storage Class
(MSC)
• File system: FAT16 and FAT32
• SupportsMP3andWMAleformats
Bluetooth
•Bluetoothproles:A2DP
•Bluetooth version: 2.1 + EDR
Main unit
•Power supply: 120 V~, 60 Hz
•Power consumption: 40 W
•Standbypowerconsumption:≤0.5W
• Speaker impedance: 8 ohm (full range)
• Speaker drivers: 4 x 54.5 mm (2")
•Dimensions (WxHxD): 845 x 74.5 x 94
mm
•Weight: 2.0 kg
Remote control batteries
• 1 x AAA-R03-1.5 V
14 15ENEN
The Bluetooth word mark and logos are
registered trademarks owned by Bluetooth
SIG, Inc. and any use of such marks by Philips
is under license. Other trademarks and trade
names are those of their respective owners.
8 Notice
This section contains the legal and trademark
notices.
Notice of compliance
The device complies with the FCC rules, Part
15 and with 21 CFR 1040.10.Operation is
subject to the following two conditions:
a This device may not cause harmful
interference, and
b This device must accept any interference
received, including interference that may
cause undesired operation.
FCC rules
This equipment has been tested and found
to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable
protection against harmful interference in a
residential installation. This equipment generates,
uses and can radiate radio frequency energy
and, if not installed and used in accordance
with the instruction manual, may cause harmful
interference to radio communications.
However, there is no guarantee that
interference will not occur in a particular
installation. If this equipment does cause harmful
interference to radio or television reception,
which can be determined by turning the
equipment off and on, the user is encouraged
to try to correct the interference by one or
more of the following measures:
• Relocate the receiving antenna.
• Increase the separation between
equipment and receiver.
• Connect the equipment into an outlet on
a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced
radio/TV technician for help.
FCC Radiation Exposure Statement:This
equipment complies with FCC radiation
exposure limits set forth for an uncontrolled
environment. This equipment should be installed
and operated with a minimum distance of
20cm between the radiator and your body.
This transmitter must not be co-located or
operated in conjunction with any other antenna
or transmitter.
Warning:Changesormodicationsmadeto
this equipment not expressly approved by
Philips may void the FCC authorization to
operate this equipment.
Model number: PHILIPS HTL2111A/F7
Trade Name: Philips
Responsible Party:P&F USA, Inc. PO Box 2248
Alpharetta, GA 30023-2248; 1-866-310-0744
Canada:
This device complies with Industry Canada
licence-exempt RSS standard(s). Operation is
subject to the following Two conditions: (1) this
device may not cause harmful interference, and
(2) this device must accept any interference
received, including interference that may cause
undesired operation.
This Class B digital apparatus complies with
Canadian ICES-003.
México:
La operación de este equipo está sujeta a las
siguientes dos condiciones: (1) es posible que
este equipo o dispositivo no cause interferencia
perjudicial y (2) este equipo o dispositivo debe
aceptar cualquier interferencia, incluyendo la
que pueda causar su operación no deseada.
Trademarks
Manufactured under license from Dolby
Laboratories. Dolby and the double-D symbol
are trademarks of Dolby Laboratories.
Specifications are subject to change without notice
© 2013 Koninklijke Philips Electronics N.V.
All rights reserved.
Document order number: 000000000000

Navigation menu
